USER'S MANUAL
¨
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

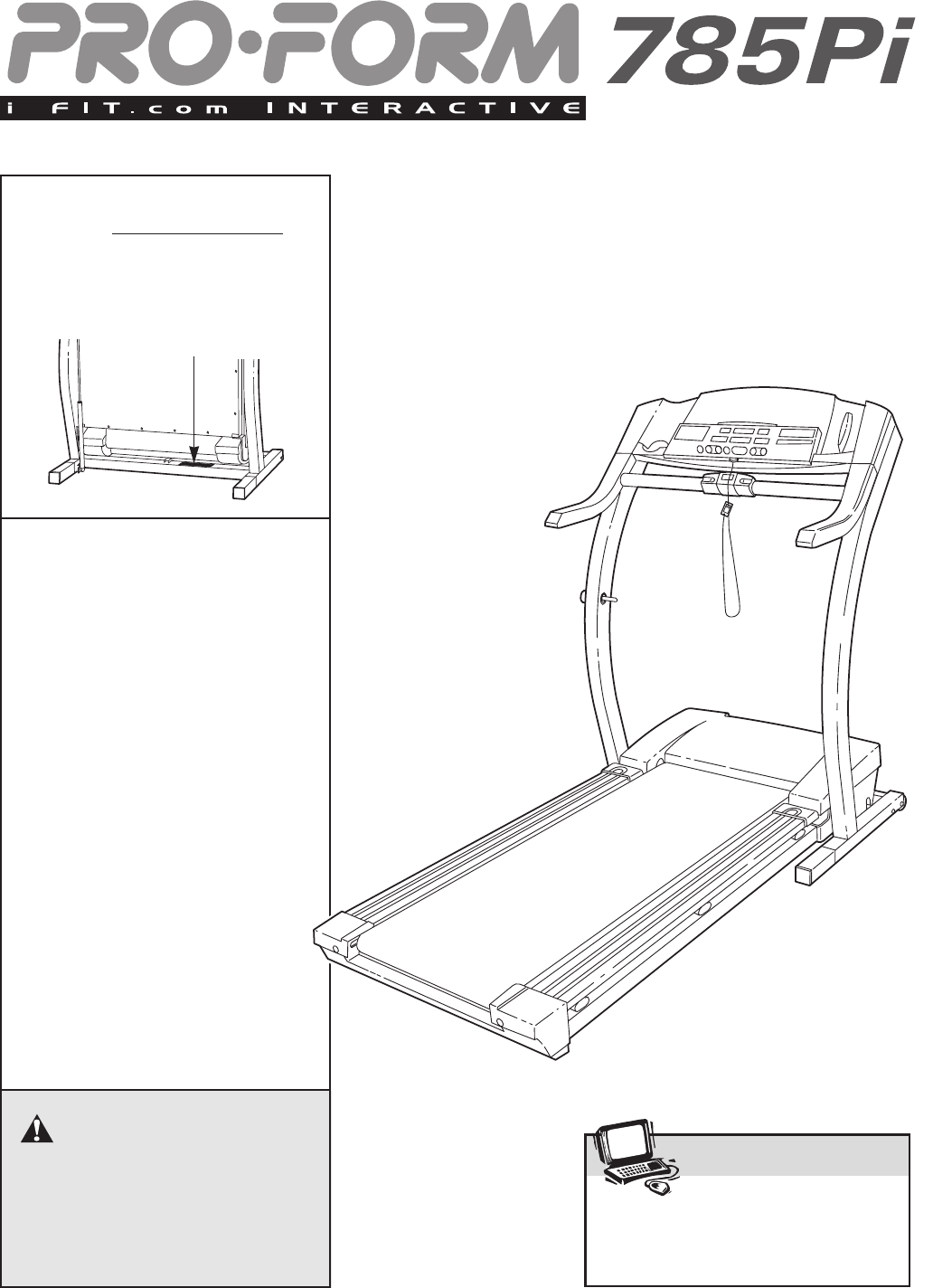

Serial Number Decal
Model No. PFTL79191
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through di-
rect assistance from our factory.
TO AVOID UNNECESSARY DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Patent Pending
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

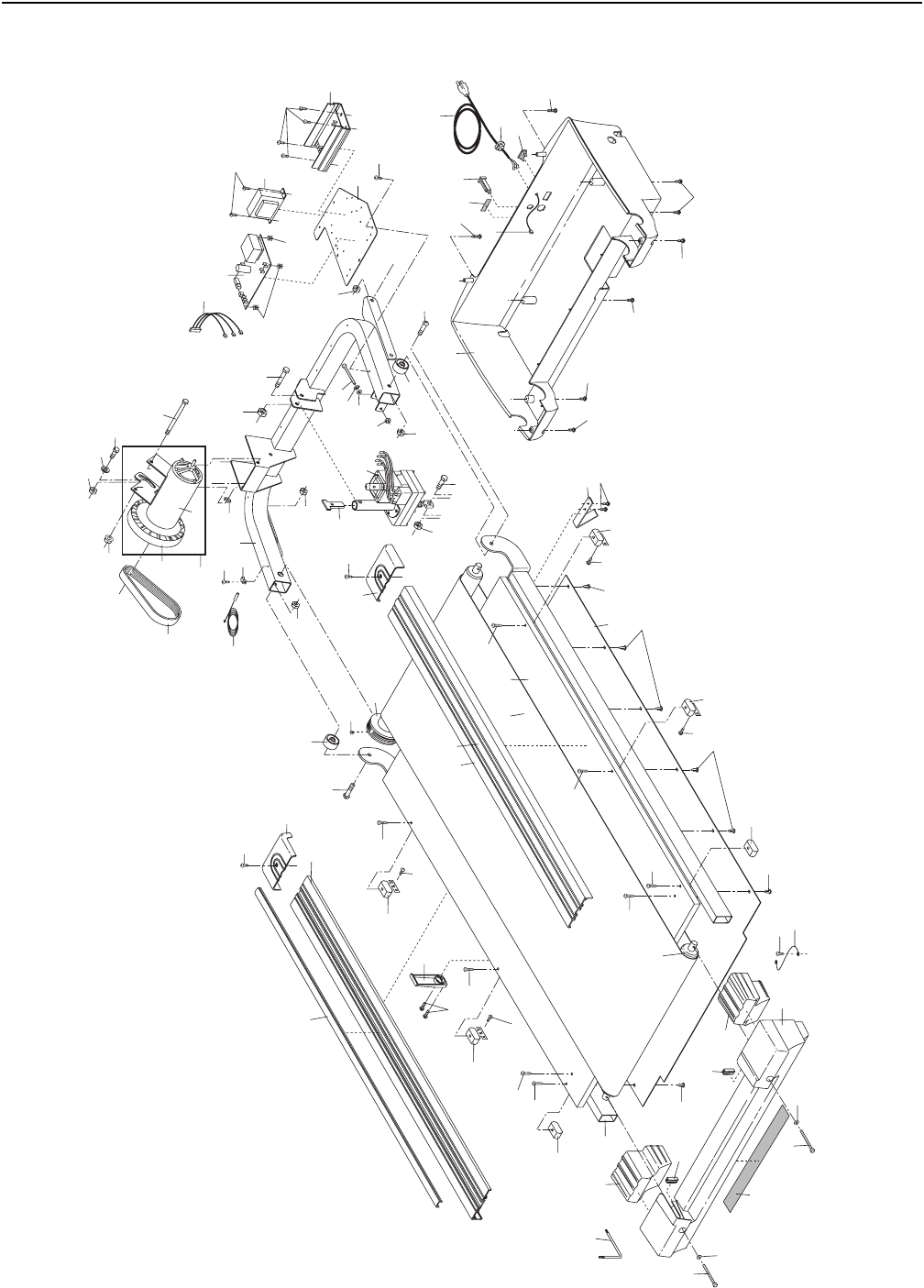

Note: An EXPLODED DRAWING is attached in the center of this manual.
¨
3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it. Do not
place the treadmill on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

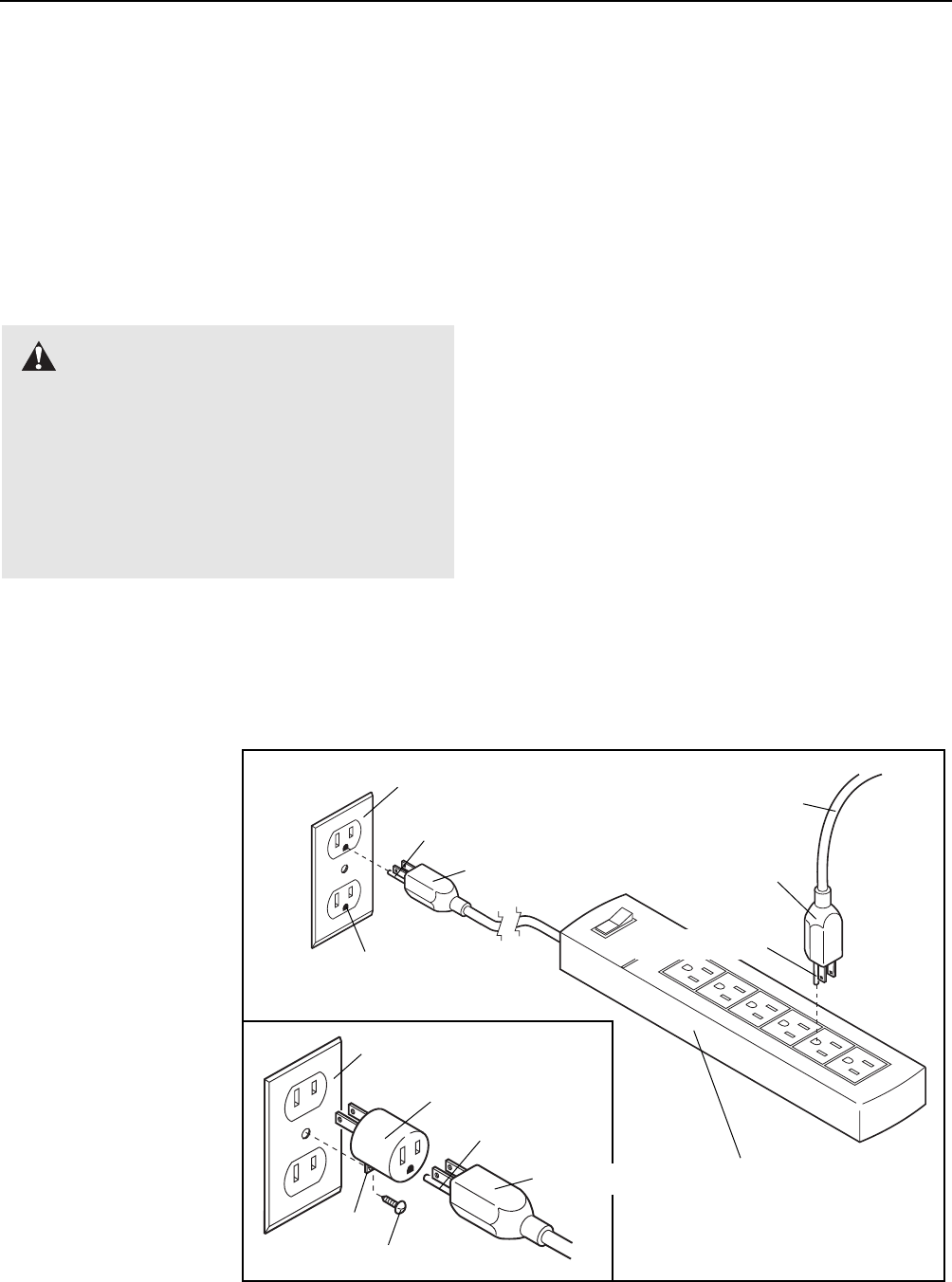

10. When connecting the power cord (see page 8),
plug the power cord into a surge protector (not
included) and plug the surge protector into a
grounded circuit capable of carrying 15 or
more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or
less in length. Do not use an extension cord.
12. Keep the power cord and the surge protector
away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the tread-
mill is not working properly.)
14. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
16. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the on/off switch to
the off position when the treadmill is not in
use. (See the drawing on page 5 for the loca-
tion of the on/off switch.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 19.) You
must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.
19. Do not change the incline of the treadmill by
placing objects under the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
4
21. When using iFit.com CDÕs and videos, an
electronic ÒchirpingÓ sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
ÒchirpÓ and be prepared for speed and/or in-
cline changes. In some instances, the speed
and/or incline may change before the per-
sonal trainer describes the change.
22. When using iFit.com CDÕs and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
ÒchirpÓ is heard, the speed and/or incline will
change to the next settings of the CD or video
program.
23. Always remove iFit.com CDÕs and videos from
your CD player or VCR when you are not
using them.
24. Inspect and tighten all parts of the treadmill
regularly.
25. Never insert or drop any object into any
opening.
26. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
27. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer-
cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

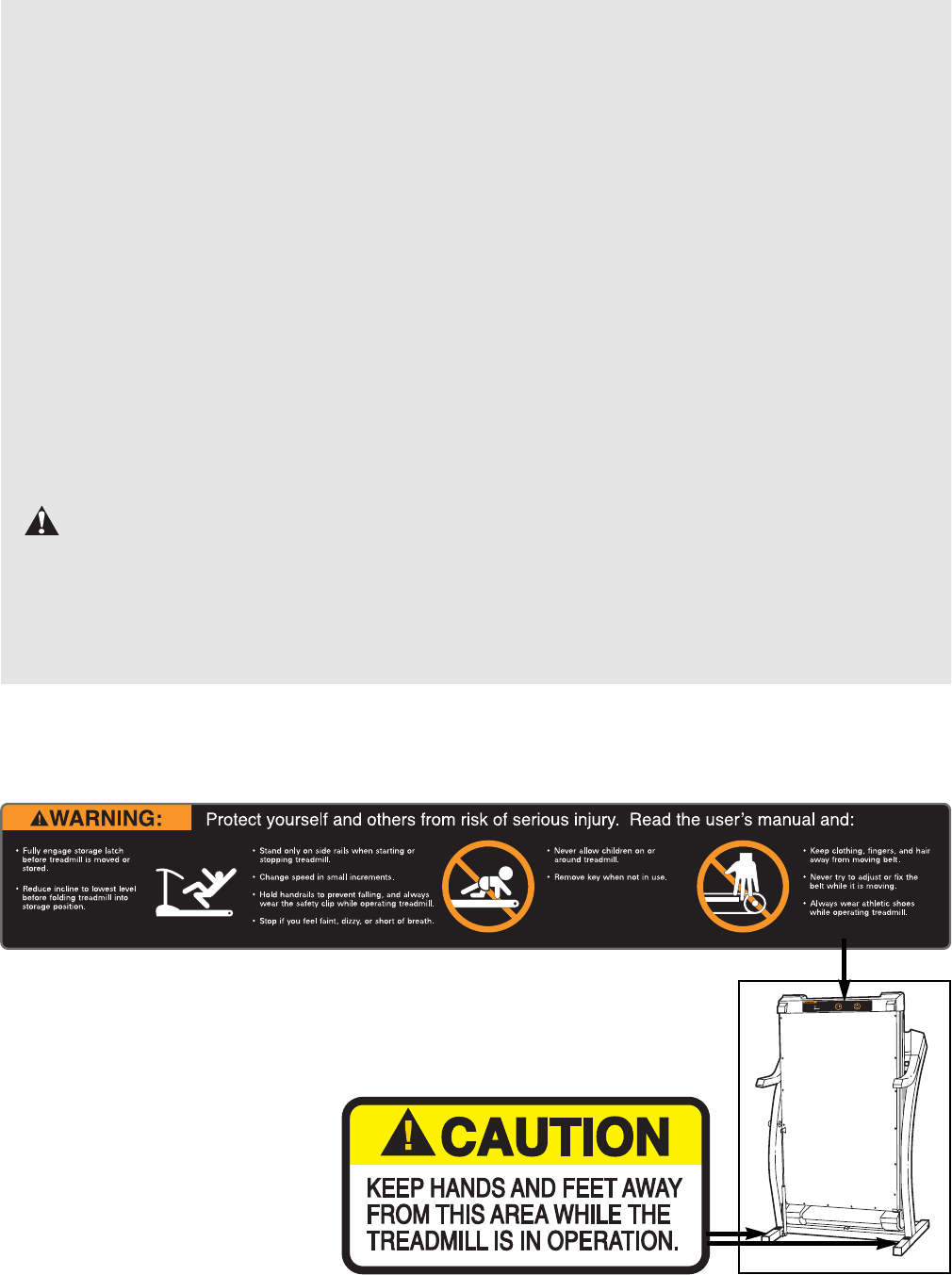

The decals shown below have been placed on your treadmill. If the decal is missing, or if it is not legible,
please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING
REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown.
Note: This decal is shown at 38% of actual size.
5
Thank you for selecting the revolutionary PROFORM¨
785Pi treadmill. The 785Pi treadmill combines ad-
vanced technology with innovative design to help you
get the most from your exercise program in the conve-
nience of your home. And when youÕre not exercising,
the unique 785Pi can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL79191. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please familiarize yourself with

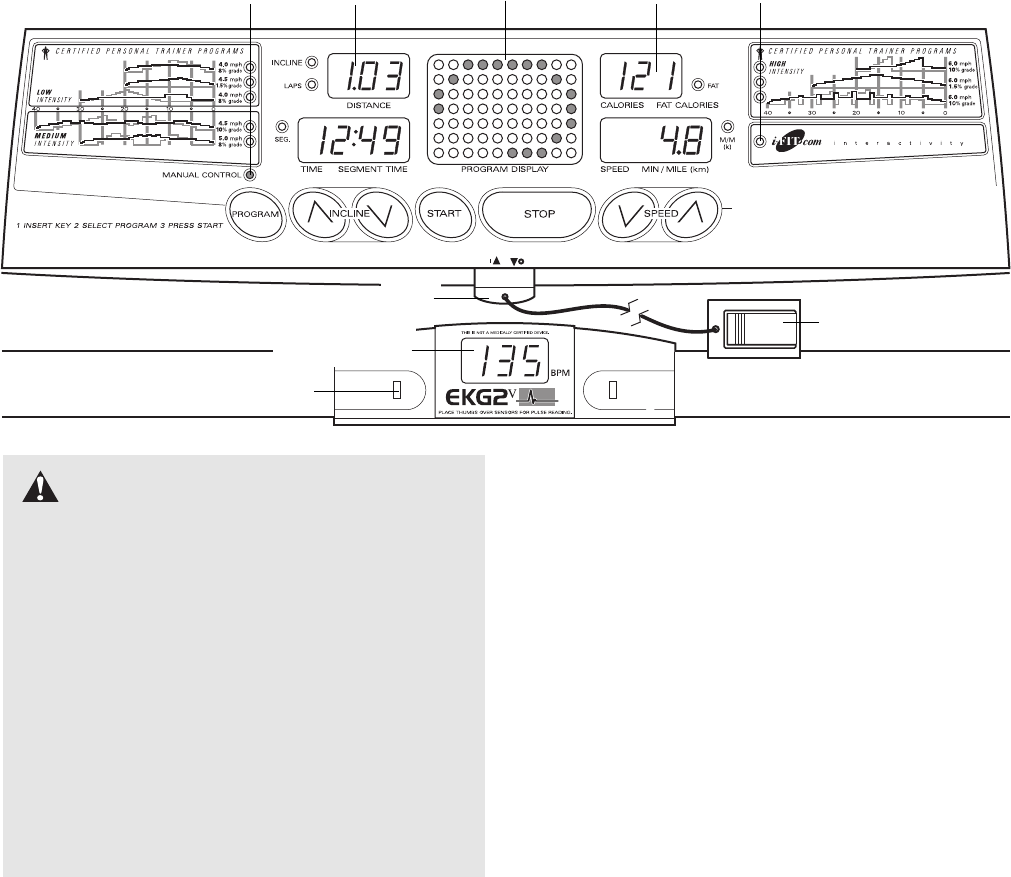

the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Hand Weight Holder*
Lock Knob
Book Holder
Key/Clip
Circuit
Breaker
On/Off Switch
Walking Belt
Cushioned Walking Platform
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Water Bottle
Holder (Bottle
not included)
Pulse Sensor
RIGHT SIDELEFT SIDE
*For information about optional
hand weights, see page 18.
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver and rubber mallet .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

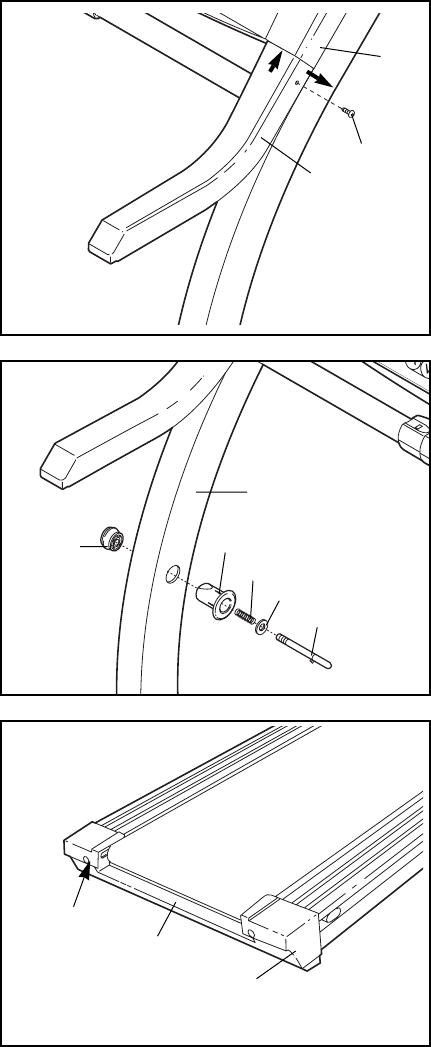

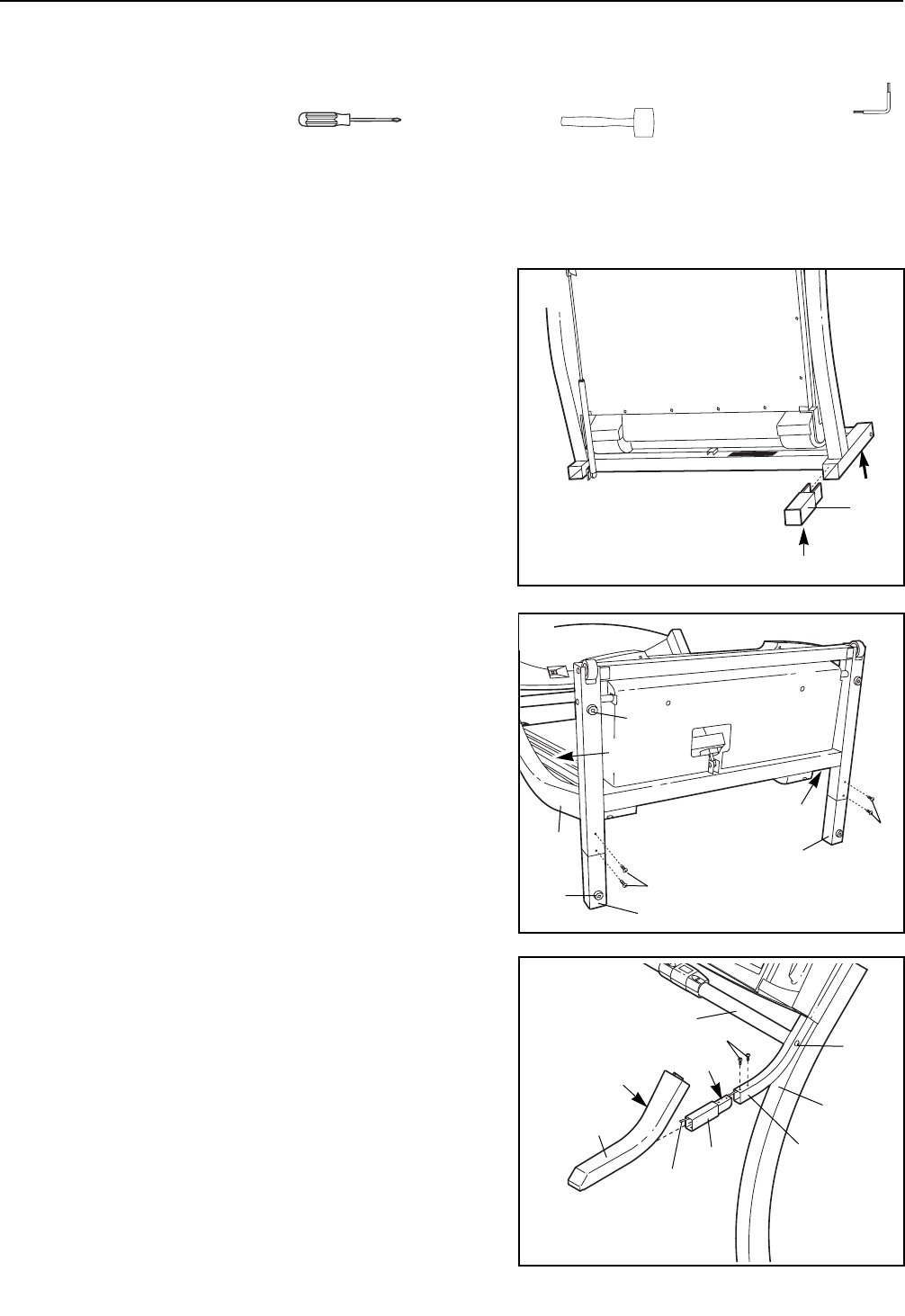

2. With the help of a second person, carefully lower the
treadmill frame and then tip the Uprights (69) down as
shown. Make sure that the Extension Legs (102) remain
in the Uprights.
Tighten two 3/4Ó Screws (100) into each Upright (69) and
Extension Leg (102).
With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.
100
102
69
99
99
Frame
69
100
102
1. With the help of a second person, carefully raise the
treadmill to the upright position.
While a second person tips the treadmill to one side
and holds it, insert one of the Extension Legs (102) into
the treadmill as shown. Make sure that the Extension
Leg is turned so the Base Pad (99) is on the bottom.
Next, tip the treadmill to the other side and insert the
other Extension Leg (not shown) in the same way. Lower
the side of the treadmill so that both Extension Legs
(102) are resting flat on the floor. 102
99
1
2
3. Using the included allen wrench, tighten the Pulse Bar
Bolt (78) on each side of the treadmill.
Find the plastic tie inside the post on the right Upright (69).
Insert the plastic tie through a Handrail Extension (66) and
insert the Handrail Extension into the post as shown. Make
sure that the indicated holes are on top. Tap the Handrail
Extension with a rubber mallet to fully insert it. Attach the
Handrail Extension with two 1/2Ó Screws (67) as shown.
Identify the Right Foam Grip (75), which has a cutout in the
left side for the Pulse Bar (76). Slide the Right Foam Grip as
far as possible onto the post on the right Upright (69).
75
76
Cutout
Tie
66 Post
67
Holes
69
78
3
6
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet
from damage, place a mat under the treadmill.
4. Make sure that the Right Foam Grip (75) is flush with the
Console Base (82) as shown. Tighten one of the two
1 1/4Ó Screws (119) into the side of the Right Foam Grip
as shown. Note: It may be necessary to pull the Foam
Grip out (see arrow A) to align the Screw with the hole in
the post.
Attach the Left Foam Grip (not shown) as described in
step 3 and this step. Note: There is no plastic tie in the left
side.
5. Press the Lock Knob Sleeve (70) into the left Upright (69).
Make sure that the Lock Pin Collar (72) and the Spring (71)
are on the Lock Pin. Insert the Lock Pin into the left Upright
(69) and tighten the Lock Knob (68) onto the Lock Pin.
69
70
68
71
72
74
5
75
119
A82
6. Look at the Endcap (58). If the left or right foot on the End-
cap does not touch the floor, the included thick base pads
should be attached to the treadmill as described below.
Refer to assembly step 2. Lower the treadmill frame and
the Uprights (69) as shown. If the left foot of the Endcap
(58) was off the ground, remove the two Base Pads (99)
from the right Upright (69). Attach the included thick
base pads to the Upright. If the right side of the Endcap
was off the ground, attach the thick base pads to the left
Upright.
If either side of the Endcap (58) lifts off the floor when the
treadmill is used, attach the thick base pads as described.
58
6
Foot
Foot
4
7
8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. They will deteriorate the walking belt and
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeÕs power.
Voltage surges, spikes, and noise interference can re-
sult from weather conditions or from other appliances
being turned on or off.
To decrease the pos-
sibility of your tread-
mill being damaged,
always use a surge
protector (not in-
cluded) with your
treadmill.
Surge protectors are
sold at most hardware
stores and department
stores. Use only a UL-
listed surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.
This product must be
grounded. If it should
malfunction or break
down, grounding pro-
vides a path of least re-
sistance for electric cur-
rent to reduce the risk of
electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an ap-
propriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole recep-
tacle as shown in drawing 2 if a properly grounded out-
let is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the productÑif it will
not fit the outlet, have a proper outlet in-
stalled by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
9
FEATURES OF THE CONSOLE
The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the built-in thumb pulse sensor.
Note: See page 18 for information about an optional
chest pulse sensor.
Eight certified personal trainer programs are also
offered. Each program automatically controls the
speed and incline of the treadmill to give you an effec-
tive low-, medium-, or high-intensity workout.

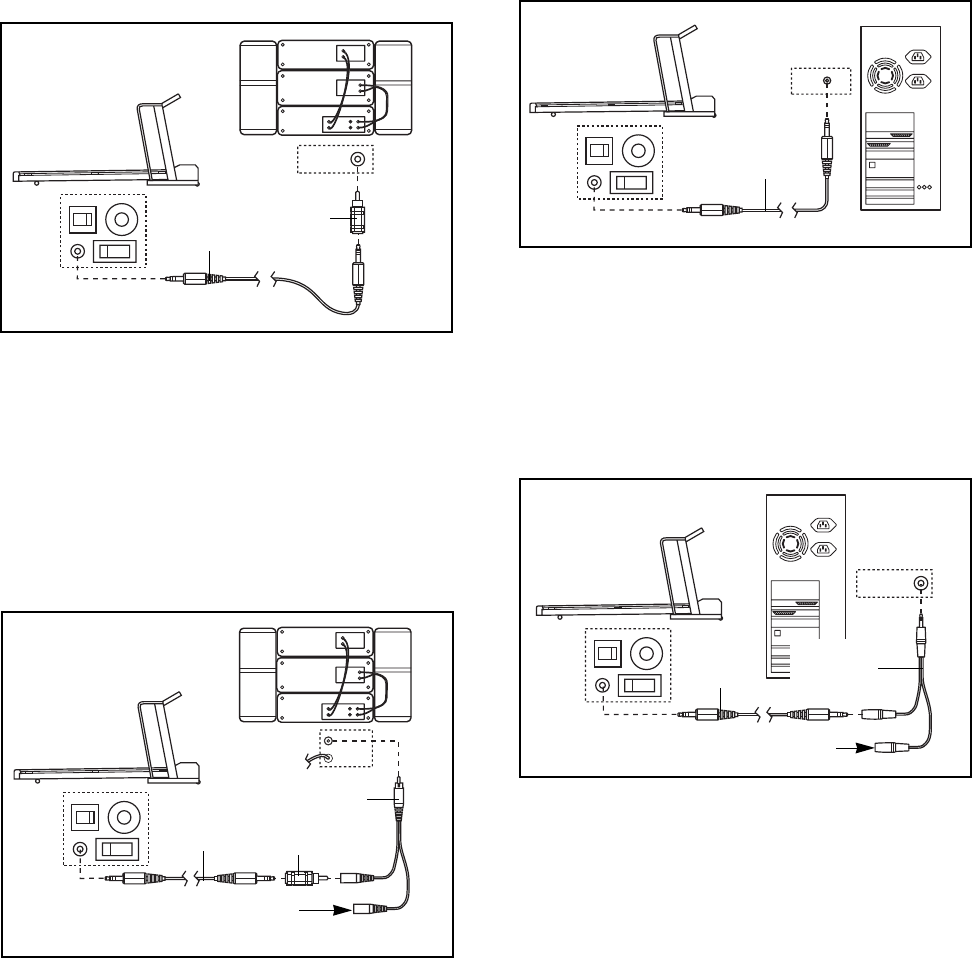

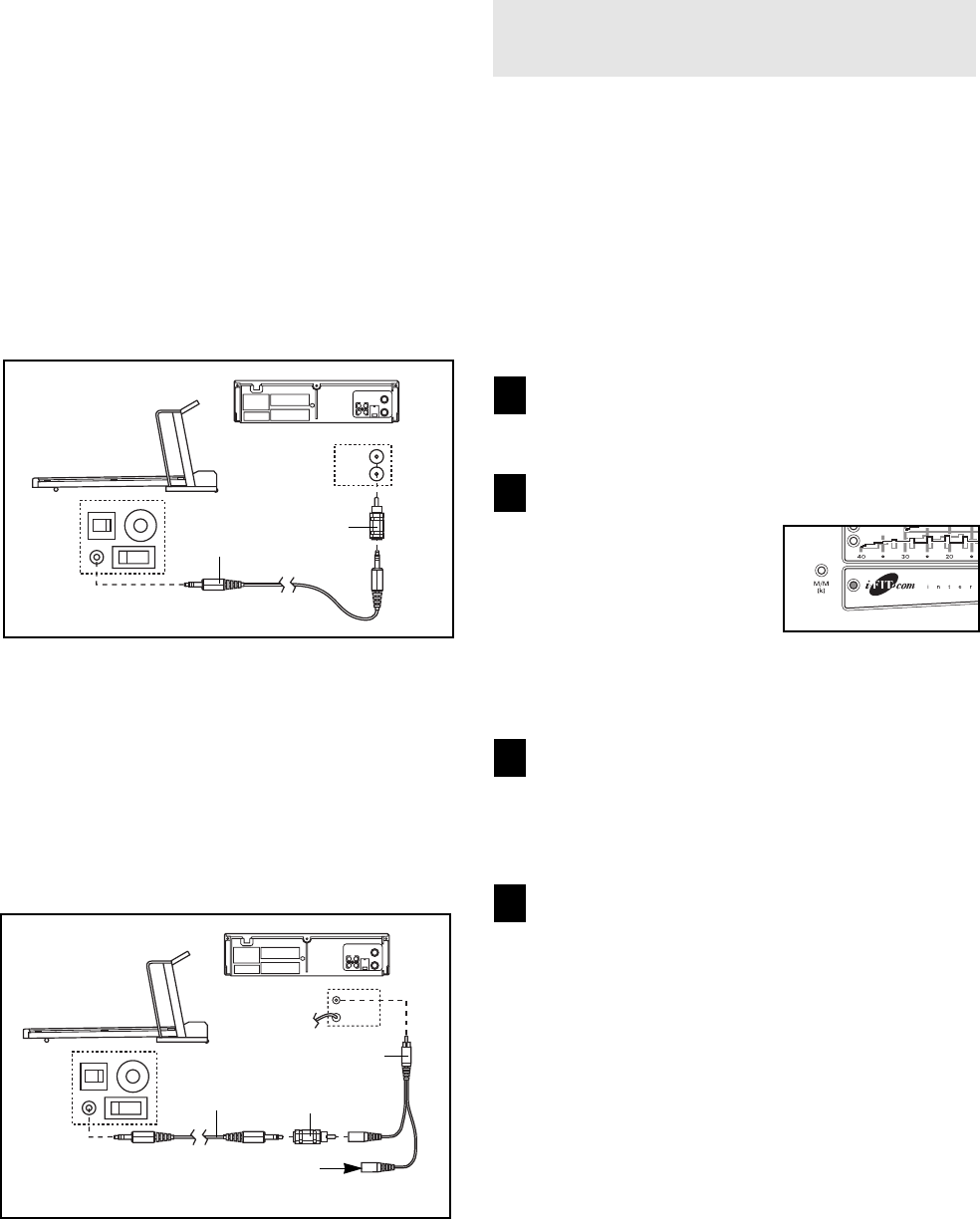

The console also features new iFit.com interactive tech-
nology. IFit.com technology is like having a personal
trainer right in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, or computer and play special
iFit.com CD programs (CDÕs are available separately).
IFit.com CD programs automatically control the speed
and incline of the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. Each CD features
two programs designed by certified personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFit.com video programs (videocas-
settes are available separately). Video programs offer
the same benefits as iFit.com CD programs, but add
the excitement of working out with a class and an
instructorÑthe hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our new internet site at www.iFit.com
and access basic programs, audio programs, and
video programs directly from the internet. And by
adding an optional upgrade module to the treadmill,
you can use virtually endless features from our internet
site. See www.iFit.com for complete details.
To purchase iFit.com CDÕs or videocassettes or an
optional upgrade module, call toll-free 1-800-735-0768.
To use the manual mode of the console, follow the
steps beginning on page 10. To use a personal trainer
program, see page 11. To use an iFit.com CD or
video program, refer to page 15. To use an iFit.com
program directly from our internet site, see page 17.
CAUTION: Before operating the
console, read the following precautions.
¥ Do not stand on the walking belt when turn-
ing on the power.
¥ Always wear the clip (see the drawing
above) while operating the treadmill.
¥ Adjust the speed in small increments to
avoid sudden jumps in speed.
¥ To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed water
bottle in the water bottle holder.
CONSOLE DIAGRAM
Clip
Thumb Pulse Sensor
Display Display Program Indicators
Manual/Program Indicators Program Display
Key
Pulse Display
Note: If there is a thin sheet
of clear plastic on the face
of the console, remove it.
10

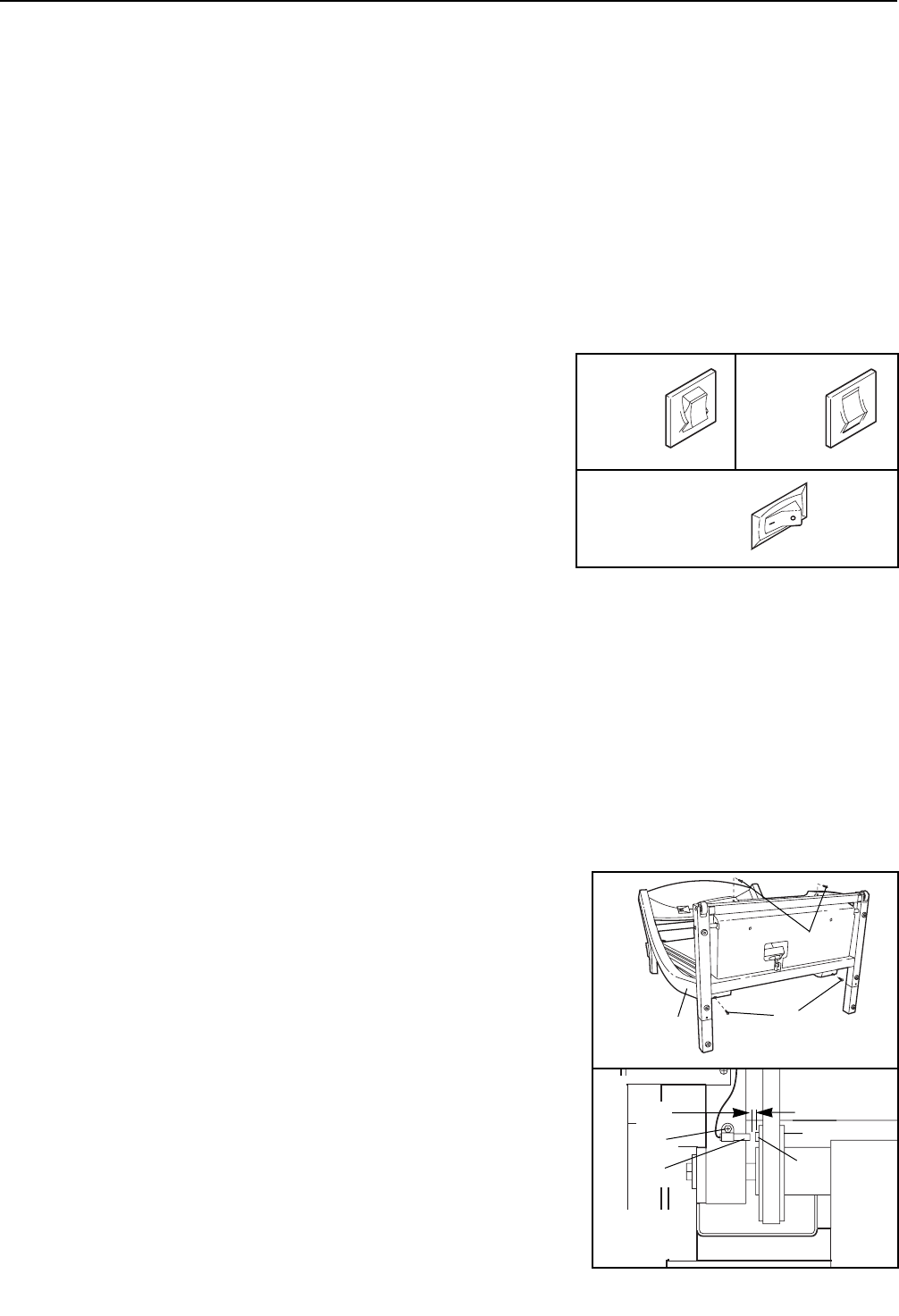

HOW TO TURN ON THE POWER
Plug in the power cord (see HOW TO PLUG IN
THE POWER CORD on page 8).
Locate the on/off
switch on the treadmill
near the power cord.
Move the on/off switch
to the on position.
Stand on the foot rails
of the treadmill. Find
the clip attached to the
key and slide the clip
onto the waistband of
your clothing. Next, in-
sert the key into the console. After a moment, the
displays and various indicators will light. Test the
clip by carefully taking a few steps backward
until the key is pulled from the console. If the
key is not pulled from the console, adjust the
position of the clip as needed.

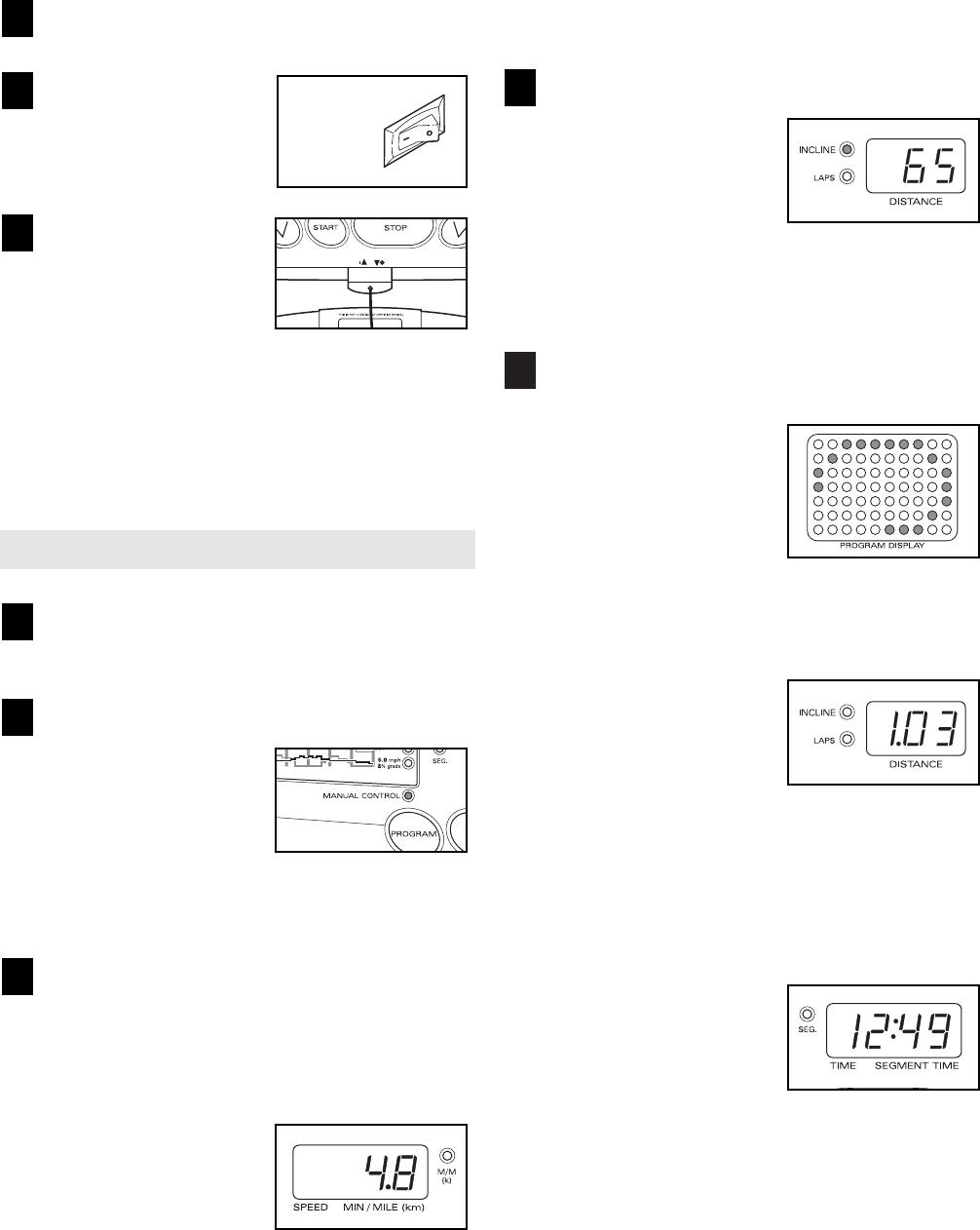

HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in-
serted, the manual
mode will be selected
and the Manual Control
indicator will light. If a
program has been se-
lected, press the Program button repeatedly to se-
lect the manual mode.
Press the Start button or the Speed
▲▲
button to
start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move at 1 mph. Hold the handrails
and begin walking. As you exercise, change the
speed of the walking
belt as desired by
pressing the Speed
buttons. Each time a
button is pressed, the
speed setting will
change by 0.1 mph; if a
button is held down, the speed setting will change
in increments of 0.5 mph. The speed range is 0.5
mph to 10 mph.
To stop the walking belt, press the Stop button.
The Time/Segment Time display will begin to
flash. To restart the walking belt, press the Start
button or the Speed
▲▲
button.
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline buttons. Each time
one of the buttons is
pressed, the incline will
change by 0.5%. The
incline range is 1.5% to 10%. Note: After the
buttons are pressed, it may take a moment for the
treadmill to reach the selected incline setting.
Follow your progress with the LED track and
the displays.
The LED TrackÑWhen
the manual mode or an
iFit.com program is se-
lected, the program dis-
play will show an LED
track representing 1/4
mile. As you exercise,
the indicators around the track will light in sequence
until you have completed 1/4 mile. A new lap will
then begin.
Distance/Laps/
Incline displayÑThis
display shows the dis-
tance that you have
walked and the number of
1/4-mile laps you have
completed. The display will alternate between one
number and the other every seven seconds. The
LAPS indicator will light when the number of laps
is shown. In addition, each time the Incline buttons
are pressed, the display will show the current in-
cline setting for several seconds.
Time/Segment Time dis-
playÑWhen the manual
mode or an iFit.com pro-
gram is selected, this dis-
play will show the elapsed
time. When a personal
trainer program is selected, the display will show
both the time remaining in the program and the
time remaining in the current segment of the pro-
gram. The display will alternate between one num-
ber and the other every seven seconds. The SEG
indicator will light when the segment time is shown.
5
4
3
2
1
3
2
1
On
Position
11
Calories/Fat Calories
displayÑThis
display shows the
approximate numbers of
calories and fat calories
you have burned (see
FAT BURNING on page 22). Every seven sec-
onds, the display will change from one number to
the other. The FAT indicator will light when the
number of fat calories is shown.
Speed/Min-Mile
displayÑThis display
shows the speed of the
walking belt and your
current pace (pace is
measured in minutes per
mile). Every seven seconds, the display will
change from one number to the other. The M/M
indicator will light when your pace is shown.
Note: The console can
display speed and dis-
tance in either miles or
kilometers. To find which
unit of measurement is
selected, hold down the
Stop button while inserting the key into the con-
sole. An ÒE,Ó for English miles, or an ÒM,Ó for metric
kilometers, will appear in the display. Press the
Speed
▲▲
button to change the unit of measure-
ment. When the desired unit of measurement is
selected, remove the key and then reinsert it.
Note: For simplicity, all instructions in this manual
refer to miles.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate, if desired.
Note: Before using the pulse sensor, make sure
that your hands are clean.

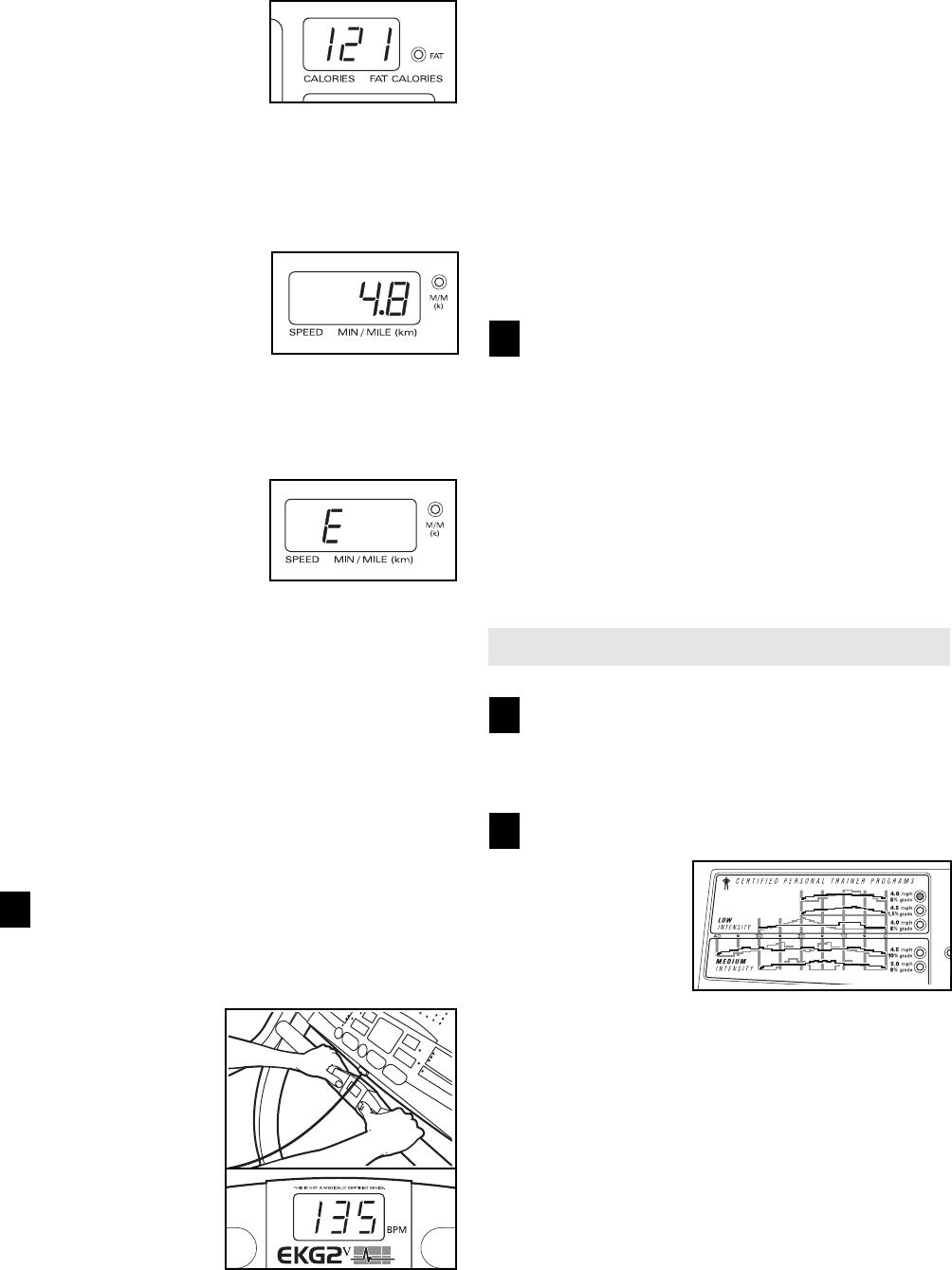

To measure your
heart rate, stand
on the foot rails
and place both
thumbs on the
pulse sensors as
shown. Do not
press too hard,
or the circulation
in your thumbs
will be restricted
and your heart
rate will not be
detected. After a few seconds, one or two dashes
will appear in the Pulse display and then your heart
rate will be shown. Hold your thumbs on the sen-
sor for another 15 seconds for the most accurate
reading. If the displayed heart rate appears to be
too high or too low, or if your heart rate is not dis-
played, lift your thumbs off the sensors and allow
the display to reset. Then, place your thumbs on
the sensors as described above.
Try the pulse sensor several times until you be-
come familiar with it. Remember to stand still
while measuring your heart rate. Note: If the op-
tional chest pulse sensor is worn, your heart rate
will be displayed in the Pulse display.
When you are finished, remove the key.
Step onto the foot rails, press the Stop button, and
remove the key from the console. Keep the key in
a secure place. Note: If the displays and various
indicators on the console remain lit after the
key is removed, the console is in the ÒdemoÓ
mode. See page 18 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
HOW TO USE PERSONAL TRAINER PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
Select one of the personal trainer programs.
When the key is
inserted, the
manual mode
will be selected
and the Manual
Control indicator
will light. To se-
lect one of the personal trainer programs, press
the Program button repeatedly until one of the
eight personal trainer program indicators lights.
The console features three low-intensity programs,
two medium-intensity programs, and three high-
intensity programs. The profiles on the console
show how the speed and incline of the treadmill
will change during the programs. The numbers
beside the profiles show the maximum speed and
incline settings for the programs. For example, the
upper left profile shows that the treadmill will reach
a maximum speed of 4.5 mph and a maximum
incline of 5% during the first program.
2
1
7
6
12

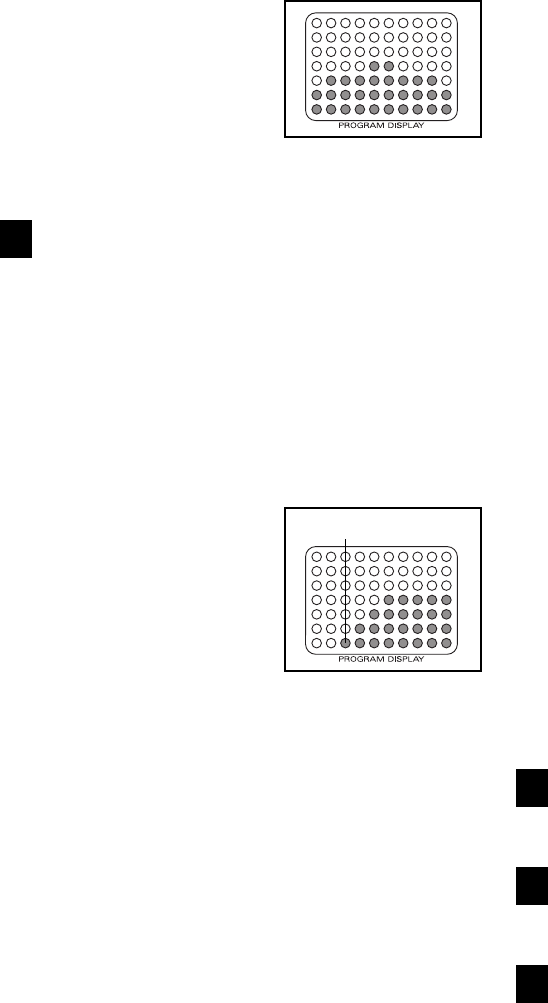

The program display
will show a simplified
profile of the program
you have selected. The
Time/Segment Time
display will show how
long the program will
last.
Press the Start button or the Speed
▲▲
button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into several time seg-
ments of different lengths. The Time/Segment
Time display shows both the time remaining in the
program and the time
remaining in the current
segment. One speed
setting and one incline
setting are programmed
for each segment. The
speed setting for the
first segment will be
shown in the flashing
Current Segment column of the program display.
(The incline settings are not shown in the program
display.) The speed settings for the next seven
segments will be shown in the seven columns to
the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a se-
ries of tones will sound, and all speed settings will
move one column to the left. The speed setting for
the second segment will then be shown in the
flashing Current Segment column and the tread-
mill will automatically adjust to the speed and in-
cline settings for the second segment.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and no time remains in
the Time/Segment Time display. The walking belt
will then slow to a stop.
Note: Each time a segment ends and the speed
settings move one column to the left, if all of the
indicators in the Current Segment column are lit,
the speed settings will move downward so that only
the highest indicators in the columns will appear in
the program display. When the speed settings
move to the left again and not all of the indicators
in the Current Segment column are lit, the speed
settings will move back up.
If the speed or incline setting for the current
segment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons on the console. Every few times
one of the Speed buttons is pressed, an additional
indicator will light or darken in the Current Segment
column. If any of the columns to the right of the
Current Segment column have the same number
of lit indicators as the Current Segment column,
an additional indicator may light or darken in those
columns as well. Note: If you manually adjust the
speed setting so that all of the indicators in the
Current Segment column are lit, the speed settings
in the program display will not move downward as
described above. When the current segment of
the program ends, the treadmill will automati-
cally adjust to the speed and incline settings
for the next segment.
To stop the program temporarily, press the Stop
button. The Time/Segment Time display will begin
to flash. To restart the program, press the Start but-
ton or the Speed
▲▲
button. To end the program,
press the Stop button, remove the key, and then
reinsert the key.
Follow your progress with the displays.
Refer to step 5 on page 10.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program is completed, remove the
key from the console.
When the program is completed, remove the key
from the console. Keep the key in a secure place.
Note: If the displays and various indicators on
the console remain lit after the key is removed,
the console is in the ÒdemoÓ mode. Refer to
page 18 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
6
5
4
3
Current Segment
13
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFit.com CDÕs, the treadmill must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
13 and 14 for connecting instructions. To use iFit.com
videocassettes, the treadmill must be connected to
your VCR. See page 15 for connecting instructions. To
use iFit.com programs directly from our internet
site, the treadmill must be connected to your home
computer. See page 14 for connecting instructions.

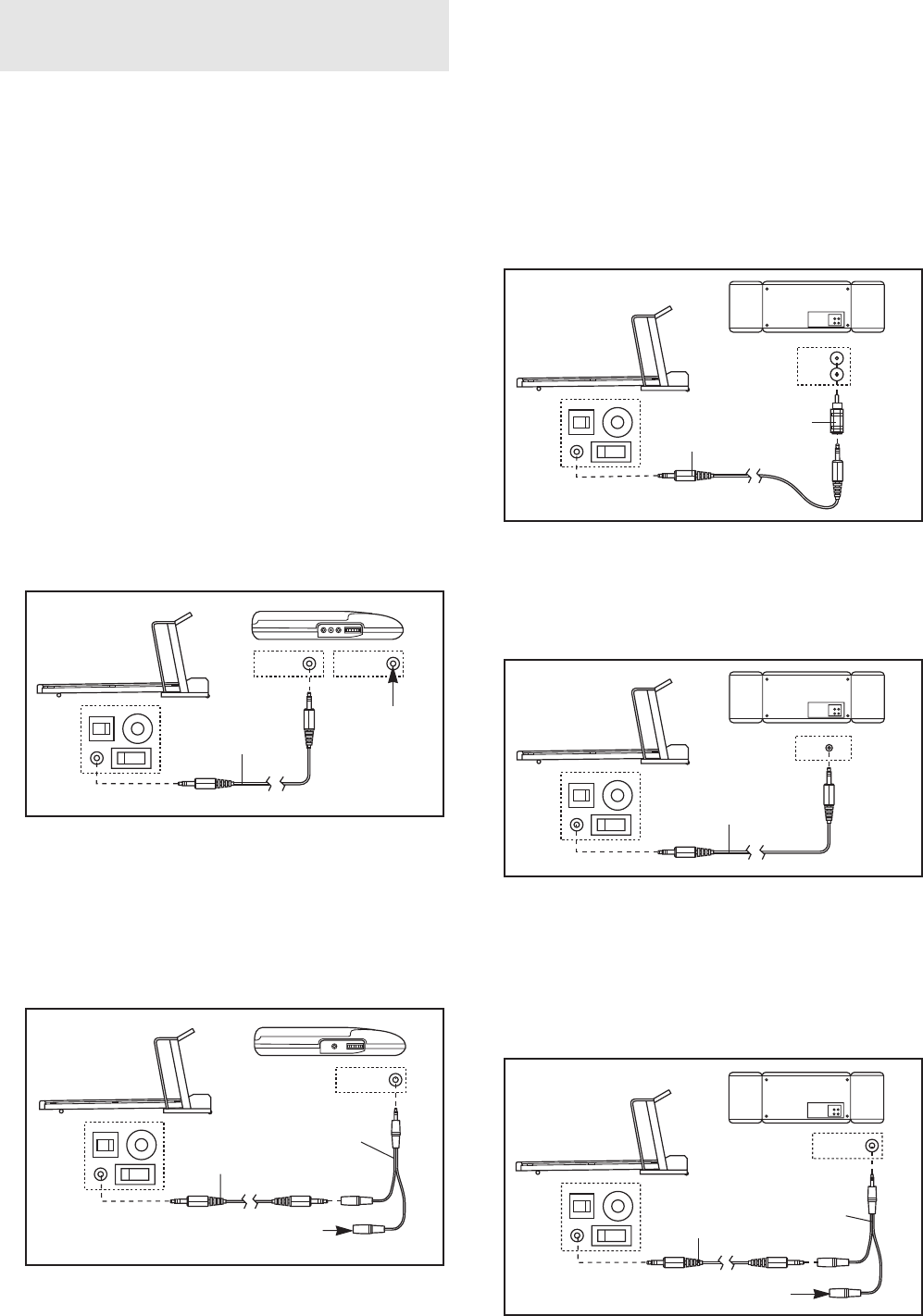

HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter. Plug
the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
AUDIO OUT
RIGHT
LEFT
Audio
Cable
Adapter
A
LINE OUT
Audio
Cable
B
PHONES
Audio
Cable
C
PHONES
PHONES
Audio
Cable
3.5mm
Y-adapter
Headphones
B
3.5mm
Y-adapter
Headphones
14
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA adapter (available at
electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
RCA adapter. Plug the RCA adapter into the LINE
OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable
Adapter
A
LINE OUT
Audio
Cable
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Adapter
Wire removed from
LINE OUT jack
B
Adapter
PHONES
Audio
Cable
B
3.5mm
Y-adapter
Headphones/Speakers
15
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 14.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
B.Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA adapter (available at
electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA adapter. Plug the RCA adapter into the AUDIO
OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFit.com CDÕs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
13. Note: To purchase iFit.com CDÕs or videocas-
settes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFit.com CD or video
program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
Select the iFit.com mode.
When the key is in-
serted, the manual
mode will be selected
and the Manual Control
indicator will light. To
use iFit.com CDÕs or
videocassettes, press the Program button repeat-
edly until the iFit.com indicator lights.
Insert the iFit.com CD or videocassette.
If you are using an iFit.com CD, insert the CD into
your CD player. If you are using an iFit.com video-
cassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer will begin guiding you through your
workout. Simply follow your personal trainerÕs
instructions. Note: If the Time/Segment Time dis-
play is flashing, press the Start button or the
Speed
▲▲
button on the console. The treadmill will
not respond to a CD or video program when the
Time/Segment Time display is flashing.
During the CD or video program, an electronic
ÒchirpingÓ sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the ÒchirpÓ and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
4
3
2
1
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Audio
Cable
Adapter
A
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Audio
Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Adapter
16
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next ÒchirpÓ is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Segment
Time display will begin to flash. To restart the pro-
gram, press the Start button or the Speed
▲▲
but-
ton. After a moment, the walking belt will begin to
move at 1.0 mph. When the next ÒchirpÓ is
heard, the speed and incline will change to the
next settings of the CD or video program. The
program can also be stopped by pressing the
Stop button on your CD player or VCR.
When the CD or video program is completed, the
walking belt will stop and the Time/Segment Time
display will begin to flash. Note: To use another
CD or video program, press the Stop button or re-
move the key and go to step 1 on page 15.
Note: If the speed or incline of the treadmill
does not change when a ÒchirpÓ is heard:
¥ make sure that the iFit.com indicator is lit and
that the Time/Segment Time display is not
flashing. If the Time/Segment Time display is
flashing, press the Start button or the Speed
▲▲
button on the console
¥ adjust the volume of your CD player or VCR. If
the volume is too high or too low, the console
may not detect the program signals
¥ make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord
¥ if you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
Follow your progress with the LED track and
the displays.
See step 5 on page 10.
Measure your heart rate, if desired.
Refer to step 6 on page 11.
When the program is completed, remove the
key.
When the program is completed, remove the key
from the console. Keep the key in a secure place.
Note: If the displays and various indicators on
the console remain lit after the key is removed,
the console is in the ÒdemoÓ mode. Refer to
page 18 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
7
6
5
17
HOW TO USE PROGRAMS DIRECTLY FROM
OUR INTERNET SITE
Our new internet site at www.iFit.com allows you to
access a selection of programs that interactively con-
trol your treadmill to help you achieve your specific ex-
ercise goals. In addition, you can play iFit.com audio
and video programs directly from the internet. By
adding an optional upgrade module to the console, you
can use virtually endless features on our internet site.
Explore www.iFit.com for details. To purchase an up-
grade module, call toll-free 1-800-735-0768.
To use programs from our internet site, the treadmill
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 14. In
addition, you must have an internet connection and
an internet service provider. A list of specific system
requirements will be found on our internet site.
Follow the steps below to use a program from our
internet site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
Select the iFit.com mode.
When the key is in-
serted, the manual
mode will be selected
and the Manual Control
indicator will light. To
use a program from our
internet site, press the Program button repeatedly
until the iFit.com indicator lights.
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our internet site at www.iFit.com.
Follow the desired links on our internet site to
select a program.
Read and follow the on-line instructions for using a
program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the key onto the waistband of your clothing.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
ÒchirpingÓ sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the ÒchirpÓ and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next ÒchirpÓ is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Segment
Time display will begin to flash. To restart the pro-
gram, press the Start button or the Speed
▲▲
but-
ton. After a moment, the walking belt will begin to
move at 1.0 mph. When the next ÒchirpÓ is
heard, the speed and incline will change to the
next settings of the program.
When the program is completed, the walking belt
will stop and the Time/Segment Time display will
begin to flash. Note: To use another program,
press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a ÒchirpÓ is heard, make
sure that the iFit.com indicator is lit and that
the Time/Segment Time display is not flashing.
In addition, make sure that the audio cable is
properly connected, that it is fully plugged in,
and that it is not wrapped around a power cord.
Follow your progress with the LED track and
the displays.
See step 5 on page 10.
When the program has ended, remove the key.
When the program has ended, remove the key
from the console. Keep the key in a secure place.
Note: If the displays and indicators on the con-
sole remain lit after the key is removed, the
console is in the ÒdemoÓ mode. Refer to page
18 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
9
8
7
6
5
4
3
2
1
18
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also
allows you to switch the console from miles per hour to
kilometers per hour. In addition, the information mode
allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following informa-
tion will be shown:

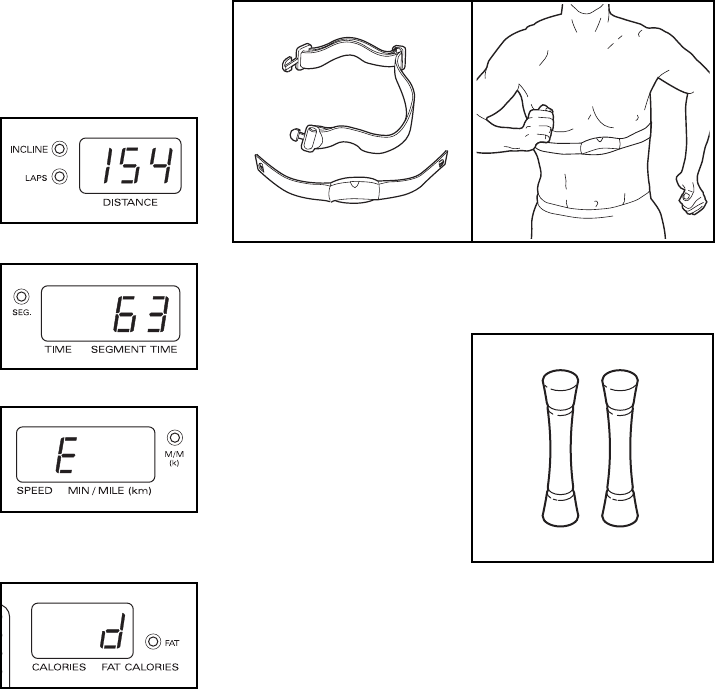

The Distance/Laps/Incline
display will show the total
number of miles that the walk-
ing belt has moved.
The Time/Segment Time dis-
play will show the total num-
ber of hours the treadmill has
been used.
An ÒE,Ó for english miles, or
an ÒM,Ó for metric kilometers,
will appear in the Speed/ Min-
Mile display. Press the Speed
▲▲
button to change the unit of
measurement.
IMPORTANT: The
Calories/Fat Calories dis-
play should be blank. If a ÒdÓ
appears in the display, the
console is in the ÒdemoÓ
mode. This mode is intended
to be used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the displays and indicators on the console
will automatically light in a preset sequence, although
the buttons on the console will not operate. If a ÒdÓ ap-
pears in the Calories/Fat Calories display when the
information mode is selected, press the Speed
▼▼
button so the Calories/ Fat Calories display is
blank.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor offers
hands-free operation and continuously monitors your
heart rate during your workouts. To purchase the
optional chest pulse sensor, call the toll-free tele-
phone number listed on the back cover of this
manual.
OPTIONAL HAND WEIGHTS
Optional hand weights
let you exercise your
upper-body while you
walk on the treadmill.
The hand weights fit
into convenient holders
in the console. Hand
weights are available in
2-pound and 3-pound
sizes. To purchase
hand weights, call the
toll-free telephone number listed on the back cover
of this manual.
HOW TO FOLD AND MOVE THE TREADMILL

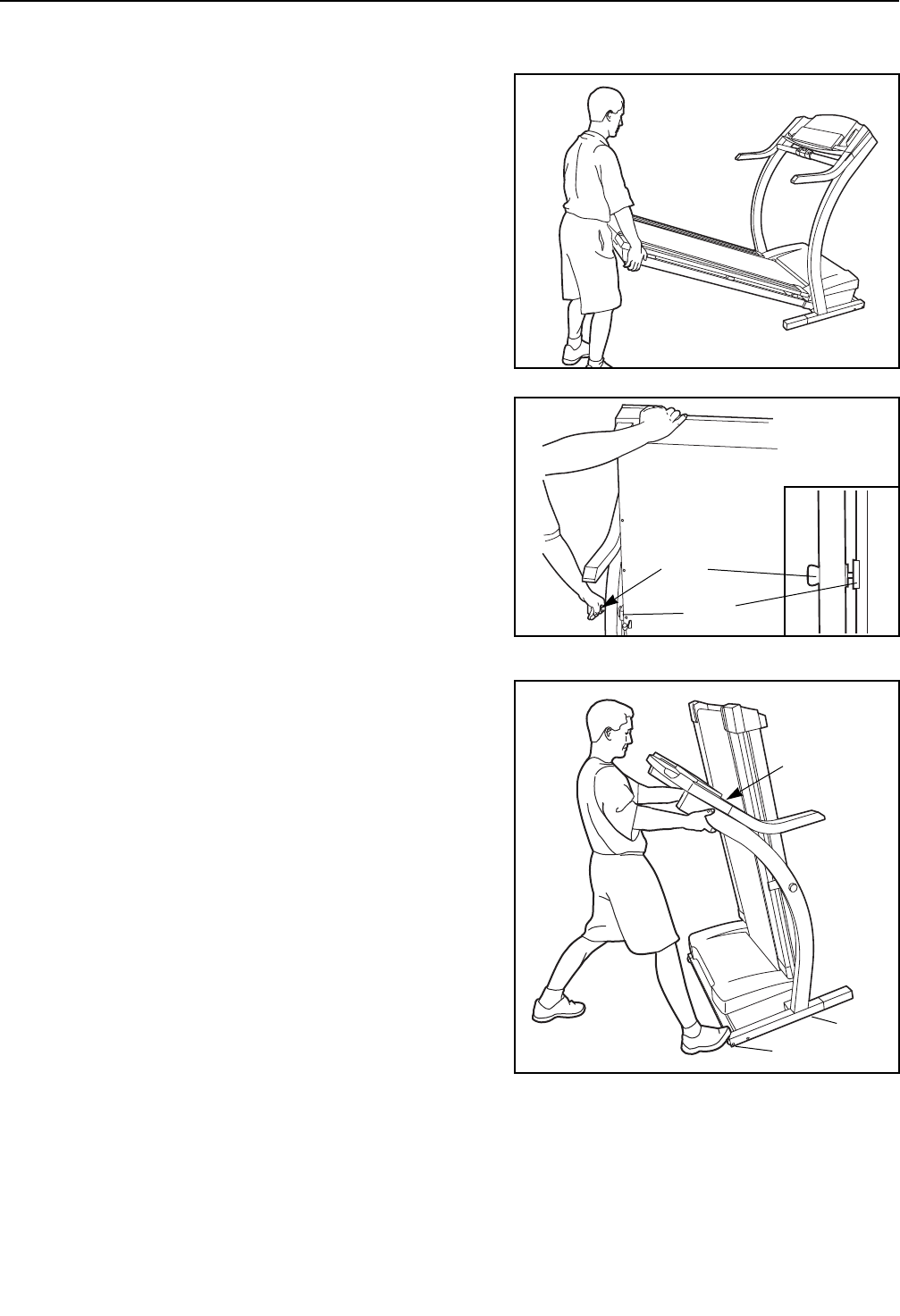

HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of in-
jury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the treadmill until the latch pin is
aligned with the hole in the catch. Insert the latch pin into
the catch. Make sure that the latch pin is fully inserted
into the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85¡ Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the pin
on the lock knob is inserted into the slot in the catch.
1. Hold the handrails as shown and place one foot against a
wheel. It may be helpful to grab the pulse bar as you tip
the treadmill.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. Refer to drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Using your left
hand, pull the lock knob to the left and hold it. Pivot the treadmill down until the frame is past the pin on the lock
knob. Note: You may need to push the handrail to the side slightly.
2. Refer to drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
Base
Pulse Bar
Front Wheels
1
Knob
Catch
2
19
TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-
free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is
plugged into a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page
8.) Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or
less in length.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
d. Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on
position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and unplug the
power cord. Carefully tip the treadmill down as shown
in drawing a. Remove the Screws (39, 83) from the
hood. Raise the Uprights (69) and carefully remove
the hood.
b. Locate the Reed Switch (10) and the Magnet (7) on
the left side of the Pulley (8). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8Ó. If necessary, loosen the Reed
Switch Screw (11) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
Tripped
Reset
Tripped
c
Reset
On
Position
d
7
83
39
69
a
b
8
Top
View
11
1/8Ó
10
20
PROBLEM: The thumb pulse sensor does not function properly
SOLUTION: a. Wash your hands before to using the pulse sensor. In addition, keep the pulse sensor clean using
a damp cloth and a small amount of mild detergent.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in
length.

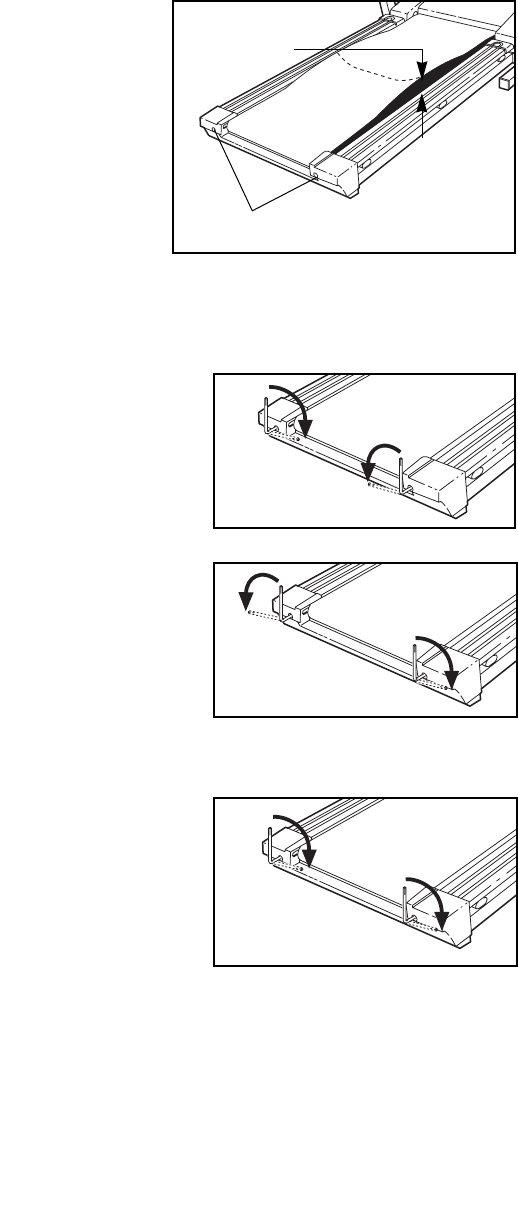

b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 3 to
4 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows, please call our Customer Service Department, toll-free.
PROBLEM: The walking belt is off-center
SOLUTION: a. If the walking belt has shifted to the left, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt clock-
wise, and the right bolt counterclockwise, 1/4 of a turn each.
Be careful not to overtighten the walking belt. Plug in the
power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt has shifted to the right, first remove
the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn the left rear roller adjustment bolt coun-
terclockwise, and the right bolt clockwise, 1/4 of a turn
each. Be careful not to overtighten the walking belt. Plug
in the power cord, insert the key and run the treadmill for
a few minutes. Repeat until the walking belt is centered.
PROBLEM: The walking belt slips when walked on
SOLUTION: a. If the walking belt slips when walked on, first remove the
key and UNPLUG THE POWER CORD. Using the allen
wrench, turn both rear roller adjustment bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened,
you should be able to lift each side of the walking belt 3 to
4 inches off the walking platform. Be careful to keep the
walking belt centered. Plug in the power cord, insert the
key and carefully walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFit.com
CDÕs and videos are played
SOLUTION: a. With the key in the console, press one of the INCLINE buttons. While the incline is changing,
remove the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline.
Rear Roller Adjustment Bolts
3ÓÐ4Ó
b
a
b
a
21
22
CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex-
ercise program. RememberÑthese are general guide-
lines only. For more detailed exercise information, ob-
tain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

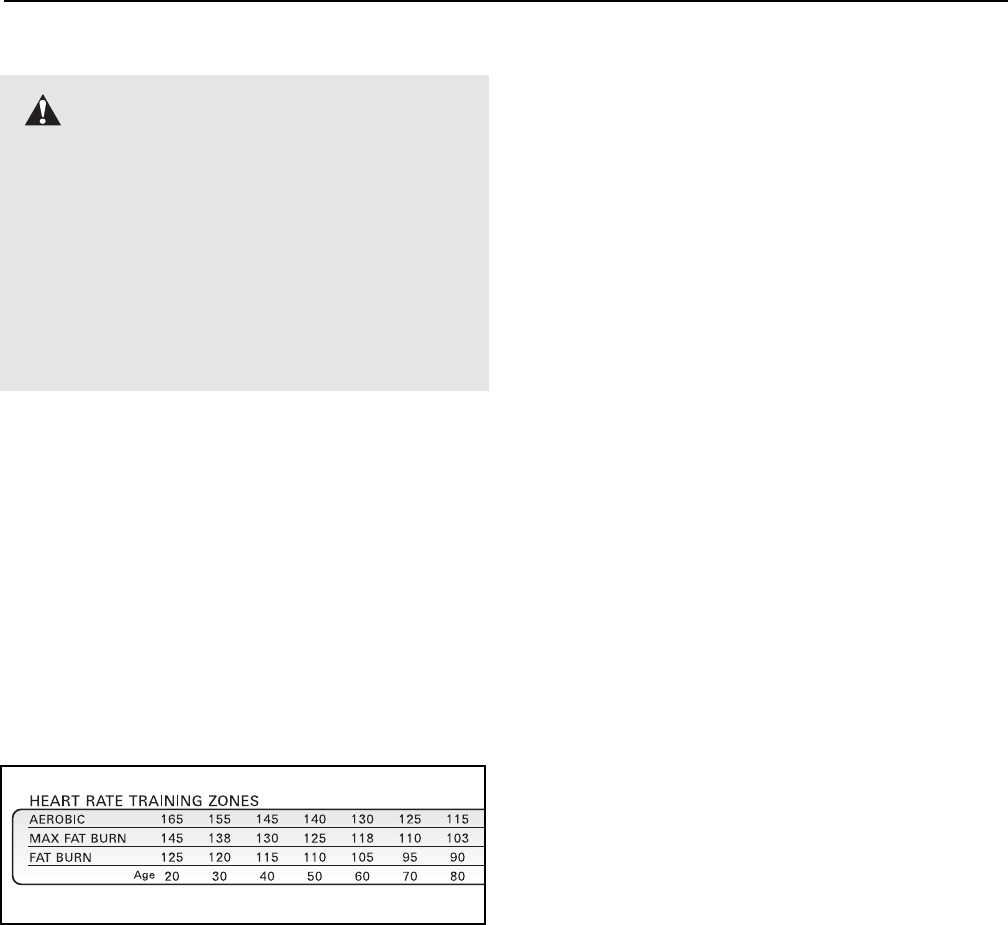

heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your Òtrain-
ing zone.Ó The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor on the console. If your heart rate is too
high or too low, adjust the speed and incline of the
treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-upÑStart each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone ExerciseÑAfter warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exerciseÑnever
hold your breath.
A Cool-downÑFinish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems.
Exercise Frequency
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for individu-
als over the age of 35 or individuals with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
PART LISTÑModel No. PFTL79191 R1299A
1 2 Foot Rail Insert
2 2 Foot Rail
3 2 Foot Rail Cap Screw
4 1 Left Fait Rail Cap
5 2 Frame Pivot Bolt
6 2 Frame Pivot Spacer
7 1 Magnet
8 1 Front Roller/Pulley
9 8 Frame Pivot Nut
10 1 Reed Switch/Sensor
Wire
11 1 Reed Switch Screw
12 1 Reed Switch Clip
13 1 Lift Frame
14 3 Star Washer
15* 1 Motor Assembly
16 1 Motor
17 1 Pulley/Flywheel/Fan
18 1 Motor Belt
19 1 Motor Pivot Nut
20 1 Motor Tension Nut
21 1 Motor Tension Bolt
22 1 Motor Pivot Bolt
23 1 Hood
24 2 Incline Motor Bolt
25 4 Plastic Stand-Off
26 1 Power Board
27 9 Screw
28 1 Choke
29 1 Controller
30 1 Electronics Plate
31 1 8Ó Wire Harness
32 1 Front Roller Adj. Bolt
33 1 Roller Star Washer
34 3 Roller Washer
35 1 Front Roller Nut
36 1 Incline Motor
37 1 Incline Motor Stop
38 1 Belly Pan
39 2 Belly Pan Screw
(Long)
40 2 Static Decal
41 1 Circuit Breaker
42 1 Power Cord
43 1 On/Off Switch
44 1 Left Endcap Insert
45 4 Belt Guide Screw
46 1 Belt Guide
47 4 Isolator
48 8 Isolator Screw
49 16 Fastener
50 1 Belly Pan
51 1 Right Foot Rail Cap
52 1 Walking Platform
53 4 Platform Screw
54 4 Rear Platform Screw
55 2 Rear Isolator
56 5 Ground Screw/
Controller Screw
57 1 Ground Wire
58 1 Rear Endcap
59 2 Rear Roller Adj. Bolt
60 1 Warning Decal
61 1 Allen Wrench
62 1 Rear Roller
63** 1 Optional Chest Pulse
Strap
64** 1 Optional Chest Pulse
65 1 Left Foam Grip
66 2 Handrail Extension
67 8 1/2Ó Screw
68 1 Lock Knob
69 1 Upright
70 1 Lock Knob Sleeve
71 1 Spring
72 1 Lock Pin Collar
73 1 Pin Clip
74 1 Lock Pin
75 1 Right Foam Grip
76 1 Pulse Bar
77 2 Pulse Bar Washer
78 2 Pulse Bar Bolt
79 2 Upright Endcap
80 4 Belly Pan Screw
81 1 Console Base
82 2 Console
83 16 Console Screw
84 1 Key/Clip
85 1 10Õ iFit.com Wire
86 1 Jack
87 8 Console Back Screw
88 1 Console Back
89 1 Releaseable Tie
90 1 Cable Tie Screw
91 1 Cable Tie Clamp
92 1 8Ó Cable Tie
93 2 Lift Pivot Bolt
94 2 Wheel Bolt
95 2 Wheel
96 1 Right Endcap Insert
97 1 Grommet
98 1 Upright Wire Harness
99 2 Thick Base Pad
100 6 3/4Ó Screw
101 1 Motor Washer
102 2 Extension Leg
103 2 Extension Cap
104 2 Incline Warning Decal
105 1 Shock
106* 2 Extension Leg
Assembly
107 1 Chest Pulse Wire
108 1 Book Holder
109 1 Power Cord Grommet
110 1 Frame
111 2 Catch Screw
112 1 Catch
113 1 Audio Wire
114 1 Walking Belt
115 1 15Ó Wire Harness
116 1 20Ó Wire Harness
117** 2 Hand Weight
118 2 Endcap Spacer
119 6 1 1/4Ó Screw
# 1 12Ó White Wire, M/F
# 1 8Ó White Wire, 2F
# 1 14Ó Blue Wire, 2F
# 1 4Ó Blue Wire, 2F
# 1 4Ó Black Wire, 2F
# 1 8Ó Green Wire, F/Ring
# 1 User's Manual
* Includes all parts shown in box
**For information about the optional
chest pulse sensor and hand
weights, see page 18
# These parts are not illustrated
Key
No. Qty. Description
Key
No. Qty. Description
Key
No. Qty. Description
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
23
12
3
4
5
6
7
8
9
10 11
12 13 14
15*
18
16
17
19
20
24
22
9
21 25
26
25
27
56
28
29
30
27
9
32
34
33
35
96
5
9
37
3
36
9
24 38 39 40 41
42
43
39
80
80
83
45
46
47
48
50 49
2
51
1
53
53
52
114
49
47
48
49
49
55
56
57
58
34
59
60
59
34
61
49
55
53
54
110
54
53
62
109
48
48
47
47
111
112
53
53
113
44
96
80
83
101
31
118
118
EXPLODED DRAWINGÑModel No. PFTL79191 R1299A
63*
64*
65
78
77
66
68 70
75
71
74
73
72 66
107
76
119
119
79
79
78
77
81
82
83
83
83
84
85
86
83
88
83
83
83
83
83
40
89
90
91
92
995
94
93
99
100
100
99
100
103
104
102
106*
105
99
100
97
98
99
100
103
104
102
106*
14
9
95
94
93
14
108
69
23
100
116
115
87
83
117*
67
67
119
119
EXPLODED DRAWINGÑModel No. PFTL79191 R1299A
Part No. 161880 R1299A Printed in USA © 1999 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
¥ The MODEL NUMBER OF THE PRODUCT (PFTL79191)
¥ The NAME OF THE PRODUCT (PROFORM¨785Pi treadmill)
¥ The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
¥ The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on page 23 and the EXPLODED
DRAWING attached in the center of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-
chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, to products used for commercial or
rental purposes, or to products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
