Model No. PFTL61930
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this man-
ual for future reference.
Write the serial number in the
space above for future reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
USER'S MANUAL
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY AND PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

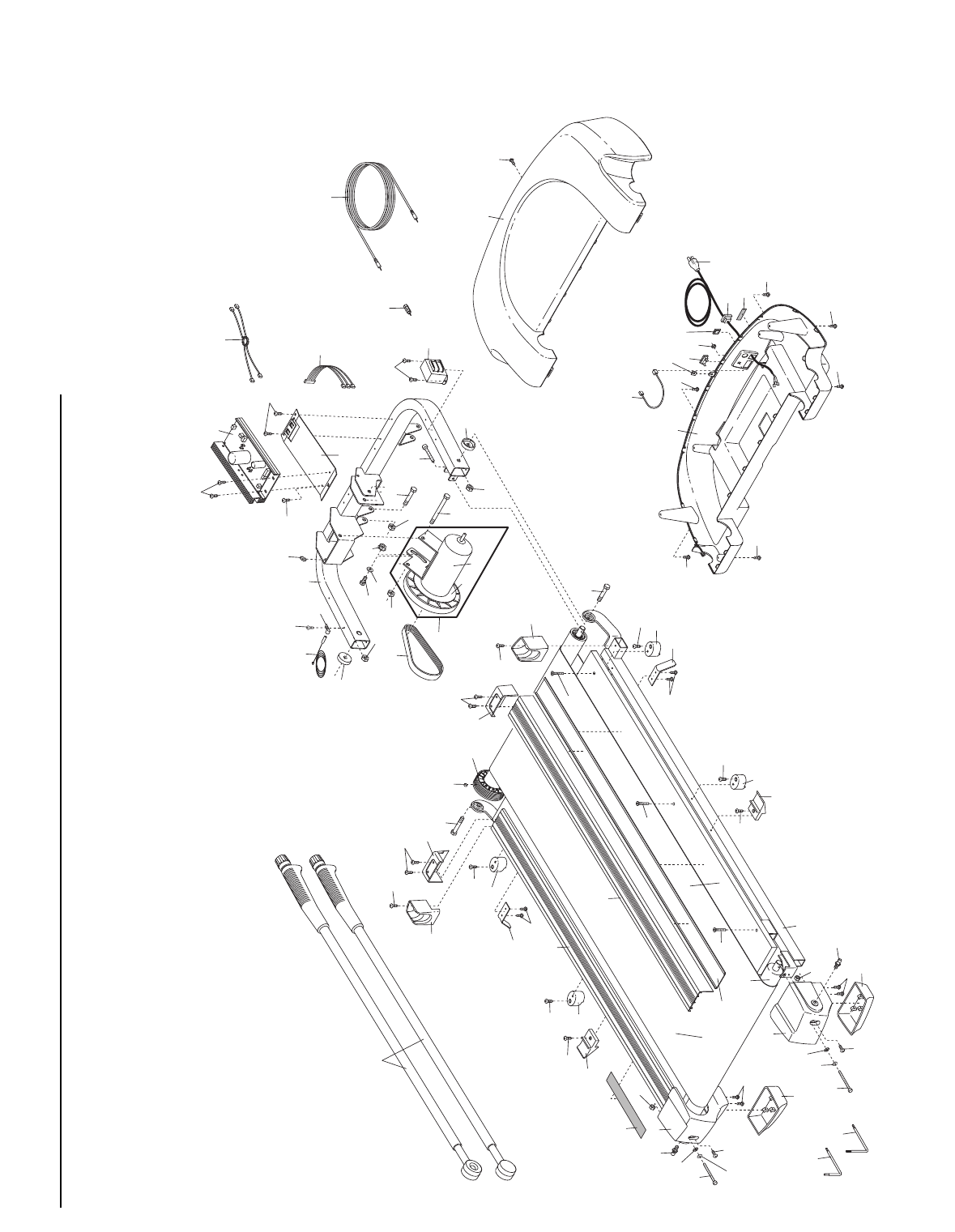

Note: An EXPLODED DRAWING is attached in the center of this manual.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
3
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or oxygen is administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds. Never allow
more than one person on the treadmill at a time.
8. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.

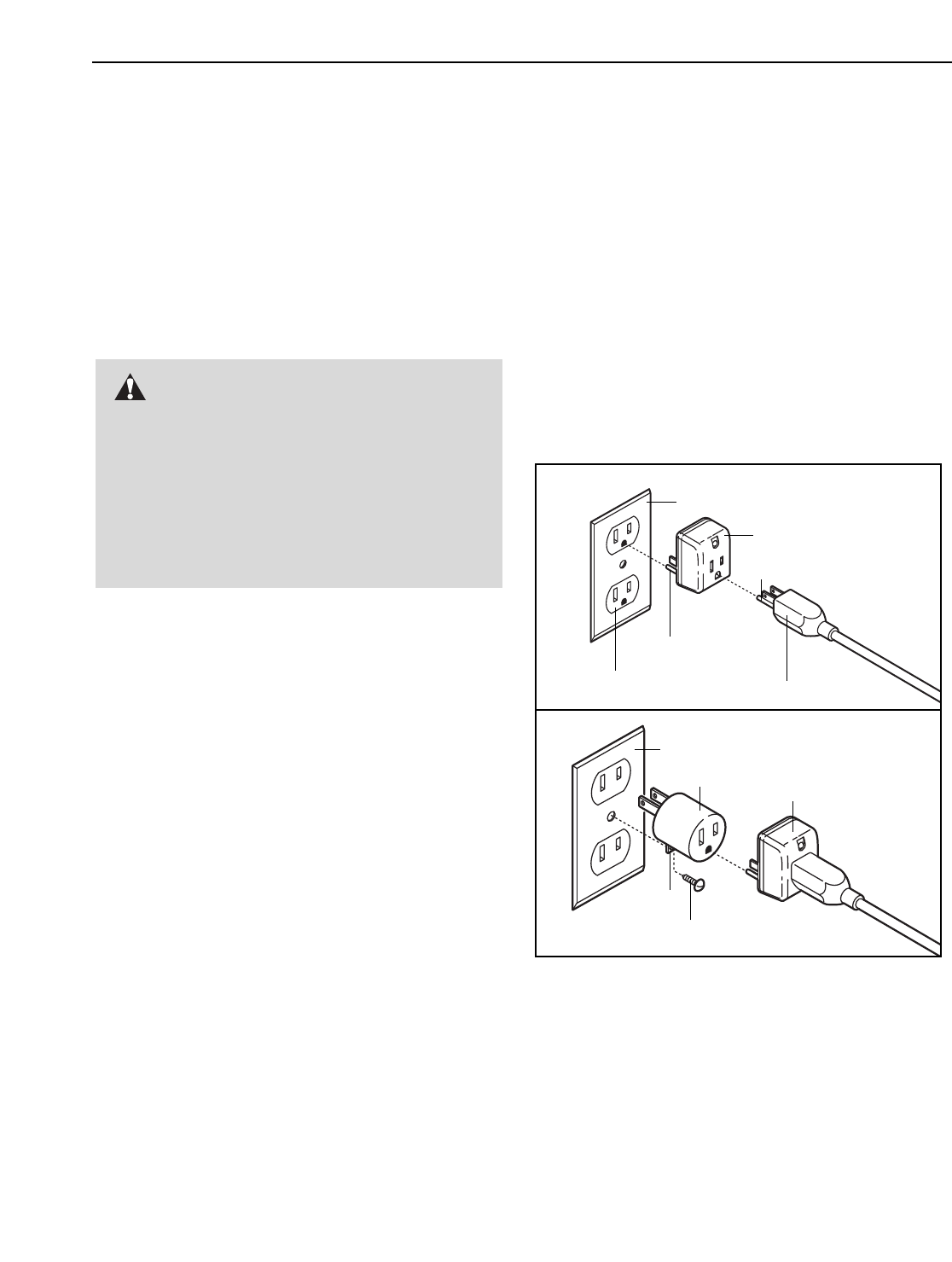

9. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
10. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-806-
3651 and order part number 146148.
11. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
12. Keep the power cord and the surge suppres-
sor away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the tread-
mill is not working properly.)
14. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails or the upper body arms while using
the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
16. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and move the reset/off circuit
breaker to the off position when the treadmill
is not in use. (See the drawing on page 5 for
the location of the circuit breaker.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 25.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
IMPORTANT PRECAUTIONS
20. When using iFIT.com CDs and videos, an
electronic “chirping” sound will alert you
when the speed of the treadmill is about to
change. Always listen for the “chirp” and be
prepared for speed changes. In some in-
stances, the speed may change before the
personal trainer describes the change.
21. When using iFIT.com CDs and videos, you
can manually override the speed setting at
any time by pressing the speed buttons.
However, when the next “chirp” is heard, the
speed will change to the next settings for the
CD or video program.
22. Always remove iFIT.com CDs and videos from
your CD player or VCR when you are not
using them.
23. Inspect and properly tighten all parts of the
treadmill every three months.
24. Never drop or insert any object into any open-
ing.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. The treadmill is intended for in-home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

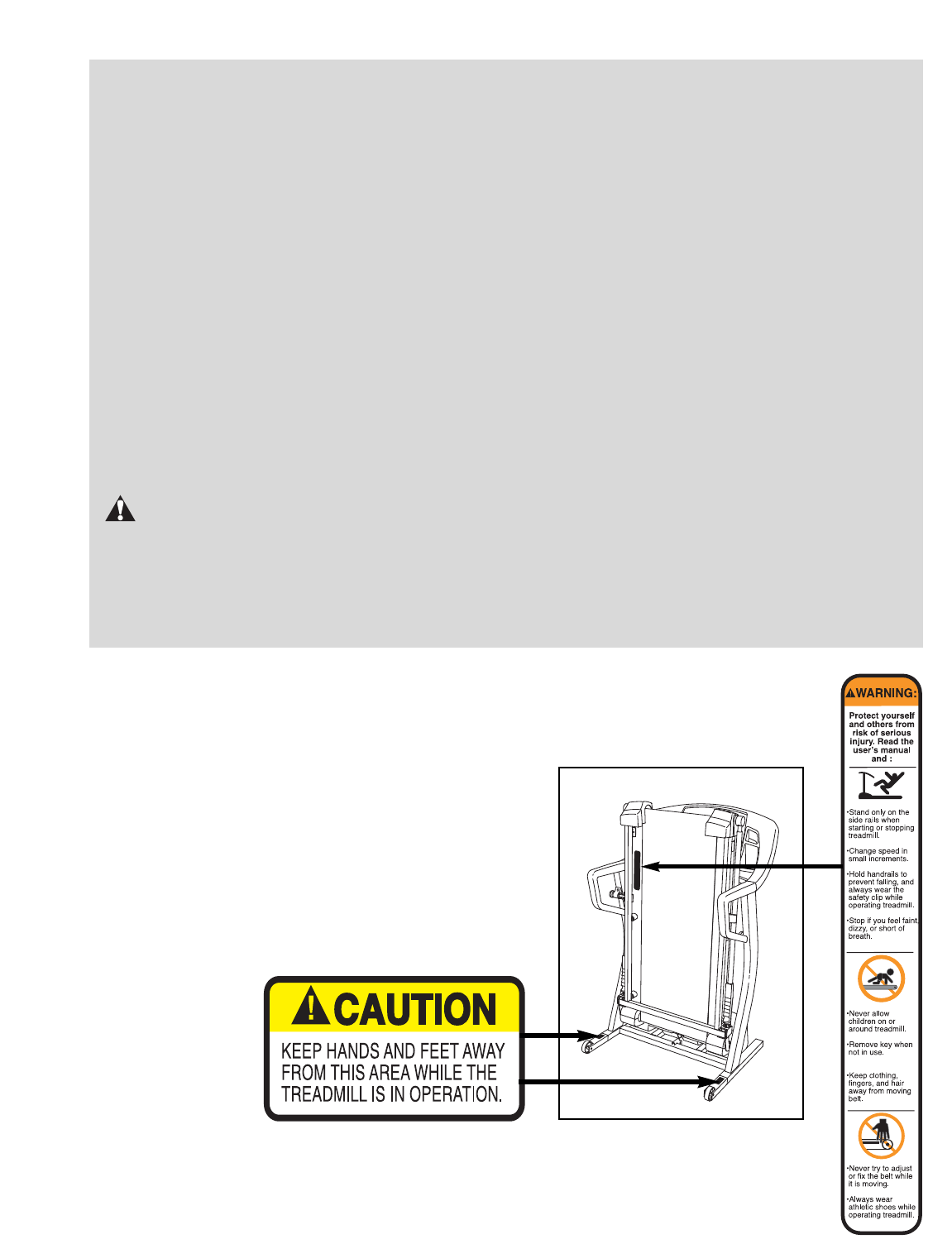

The decals shown below have been placed on your treadmill. If a decal is missing or illegi-
ble, please call our Customer Service Department toll-free at 1-800-999-3756 to order a free
replacement decal. Apply the decal in the location shown. Note: The decals are not shown
actual size.
4
5
Congratulations for purchasing the PROFORM®
CROSSWALK ADVANCED CR treadmill. The CROSS-
WALK ADVANCED CR treadmill offers an impressive
array of features to help you achieve your fitness goals
in the convenience of your home. From the advanced
console to the cushioned walking platform, the
CROSSWALK ADVANCED CR treadmill is designed
to make each workout more effective and enjoyable.
And when you’re not exercising, the treadmill can be
folded away, taking less than half the floor space of
conventional treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is PFTL61930. The serial number can be
found on a decal attached to the treadmill (see the
front cover of this manual for the location).

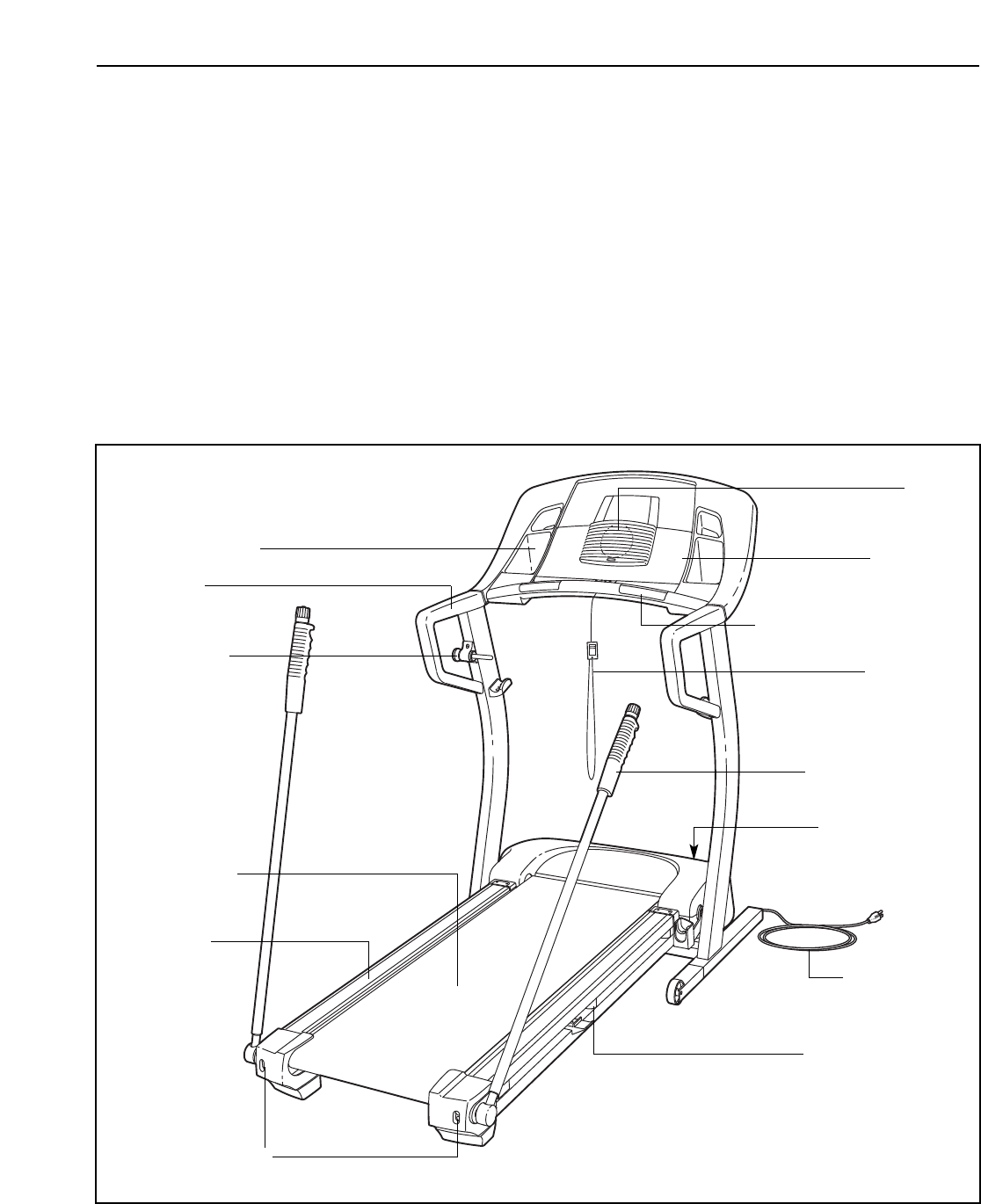

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handrail
Latch Knob
Console
Accessory Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Upper Body Arm
Foot Rail
Cushioned
Walking Platform
Power Cord
BACK
RIGHT SIDE
Rear Roller
Adjustment Bolts
Fan
Handgrip Pulse Sensor
BEFORE YOU BEGIN
3/4” Screw (6)–12 1” Bolt (71)–2 Internal Star
Washer (72)–2
1” Tek Screw (121)–4
1” Screw

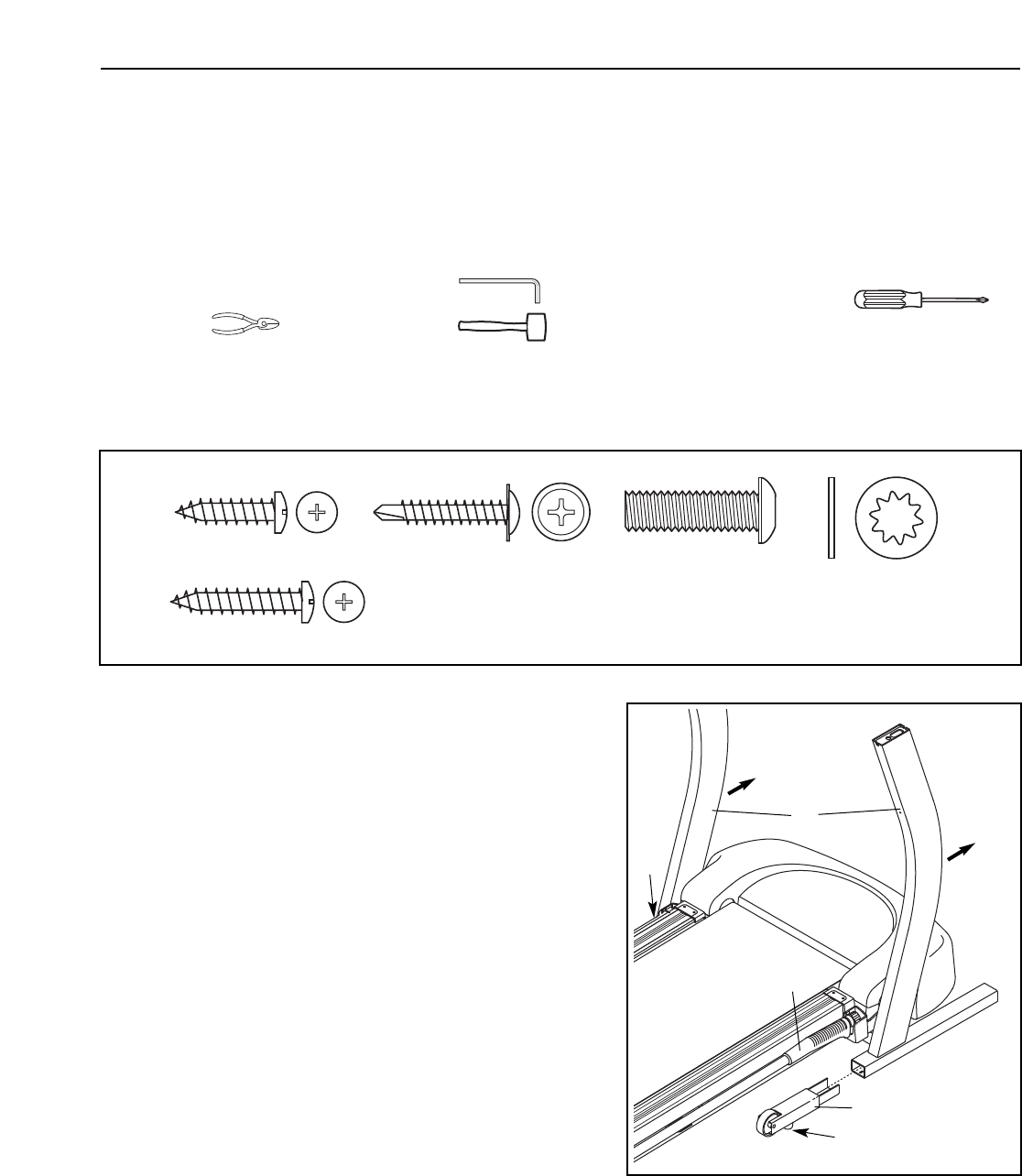

For help identifying the assembly hardware, see the drawings below. Note: The assembly hardware and other
small parts are packaged in separate part bags. If a part is not found in the part bags, check to see if the part
has been preassembled.
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrenches and your own Phillips screwdriver ,
wire cutters , and rubber mallet .
6

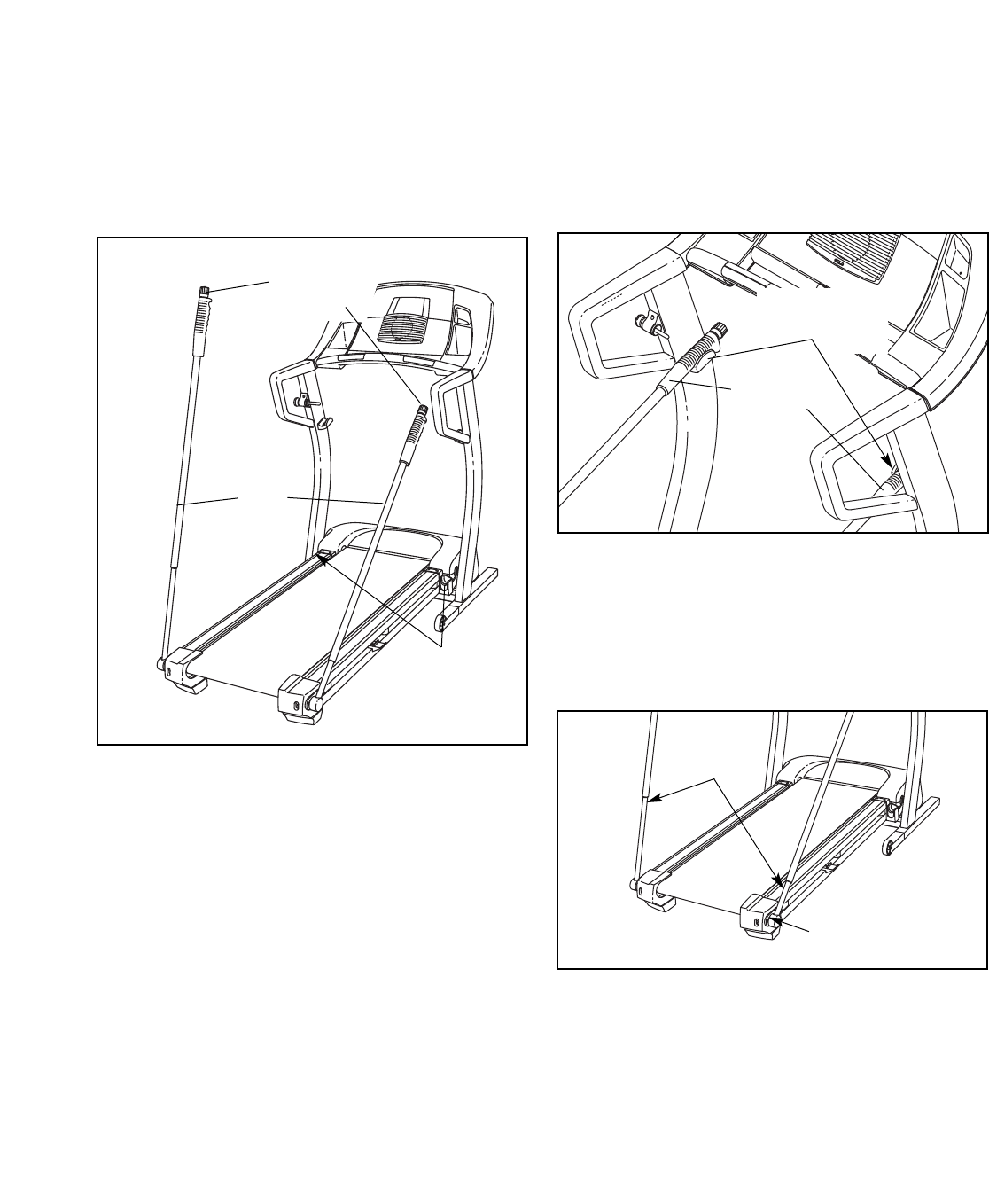

1. With the help of a second person, carefully raise the
treadmill to the upright position as shown.
Insert one of the Extension Legs (106) into the treadmill
as shown. Make sure that the Extension Leg is turned so
the Base Pad (100) is on the bottom. If necessary, tip the
Uprights (82) forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
Note: To prevent damage to the Upper Body Arms (35) if
they are moved too far sideways, the lower end of each
Upper Body Arm features a breakaway connector. If one
of the Upper Body Arms breaks away, simply press the
lower end back onto the Ball Joint (7 [not shown]).
82
106
35
35
100
1
82
82
113
73
83
71
71
72
72
3
85
83

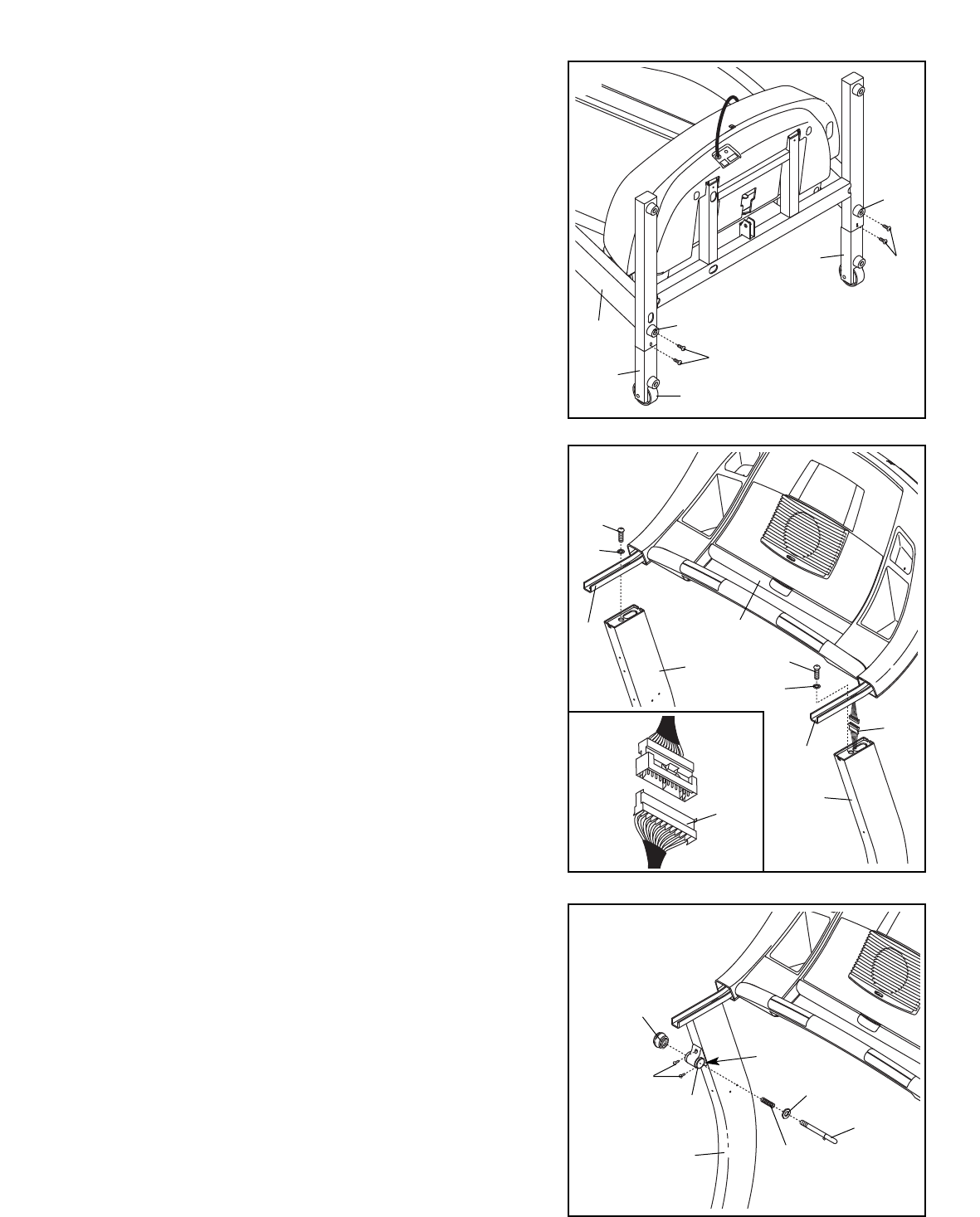

3. With the help of a second person, hold the Console
Base (85) near the Uprights (82) as shown.
Connect the Wire Harness (83) to the wire harness in
the Right Handrail Bracket (113). Make sure to connect
the connectors properly (see the inset drawing). The
connectors should slide together easily and snap
into place. If the connectors do not slide together easily
and snap into place, turn one connector and then try
again. IF THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED
WHEN THE POWER IS TURNED ON. Insert the wire
harnesses into the right Upright (82).
Hold the Handrail Brackets (73, 113) on top of the
Uprights (82). Finger tighten two 1” Bolts (71) with
Internal Star Washers (72) into the Handrail Brackets
and the Uprights. Press the Handrail Brackets to-
wards the center of the treadmill. Then, tighten both
Bolts.
7

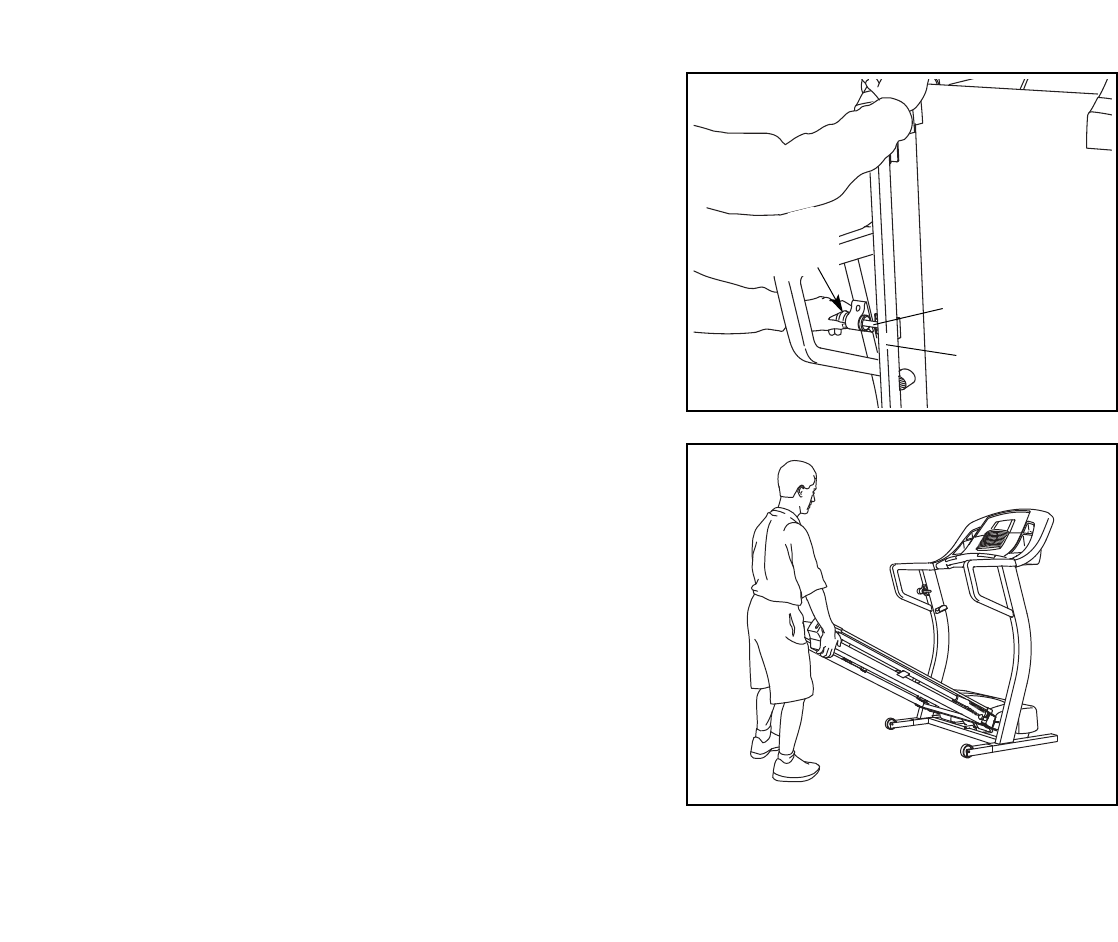

2. With the help of a second person, carefully lower the
Uprights (82) as shown. Note: It may be helpful to place
your foot on one of the Wheels (108) as you tip the
Uprights. Make sure that the Extension Legs (106) re-
main in the Uprights.
Attach each Extension Leg (106) with two 1” Tek Screws
(121) and a Base Pad (100) as shown. Note: Attach the
lower Tek Screw (without the Base Pad) first.
Note: One replacement Base Pad (100) may be in-
cluded. If a Base Pad becomes worn and needs to be re-
placed, use the replacement Base Pad.
With the help of a second person, carefully tip the
Uprights (82) back to the vertical position.
4. Attach the Storage Latch (76) to the left Upright (82) with
two 3/4” Screws (6). Make sure that the large hole in the
Storage Latch is on the side shown.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. Insert the pin into the
Storage Latch (76), and then tighten the knob back onto
the pin.
76
6
82
Large
Hole
4
Knob
Spring
Collar
100
100
121
121
106
106
82
108
2
8

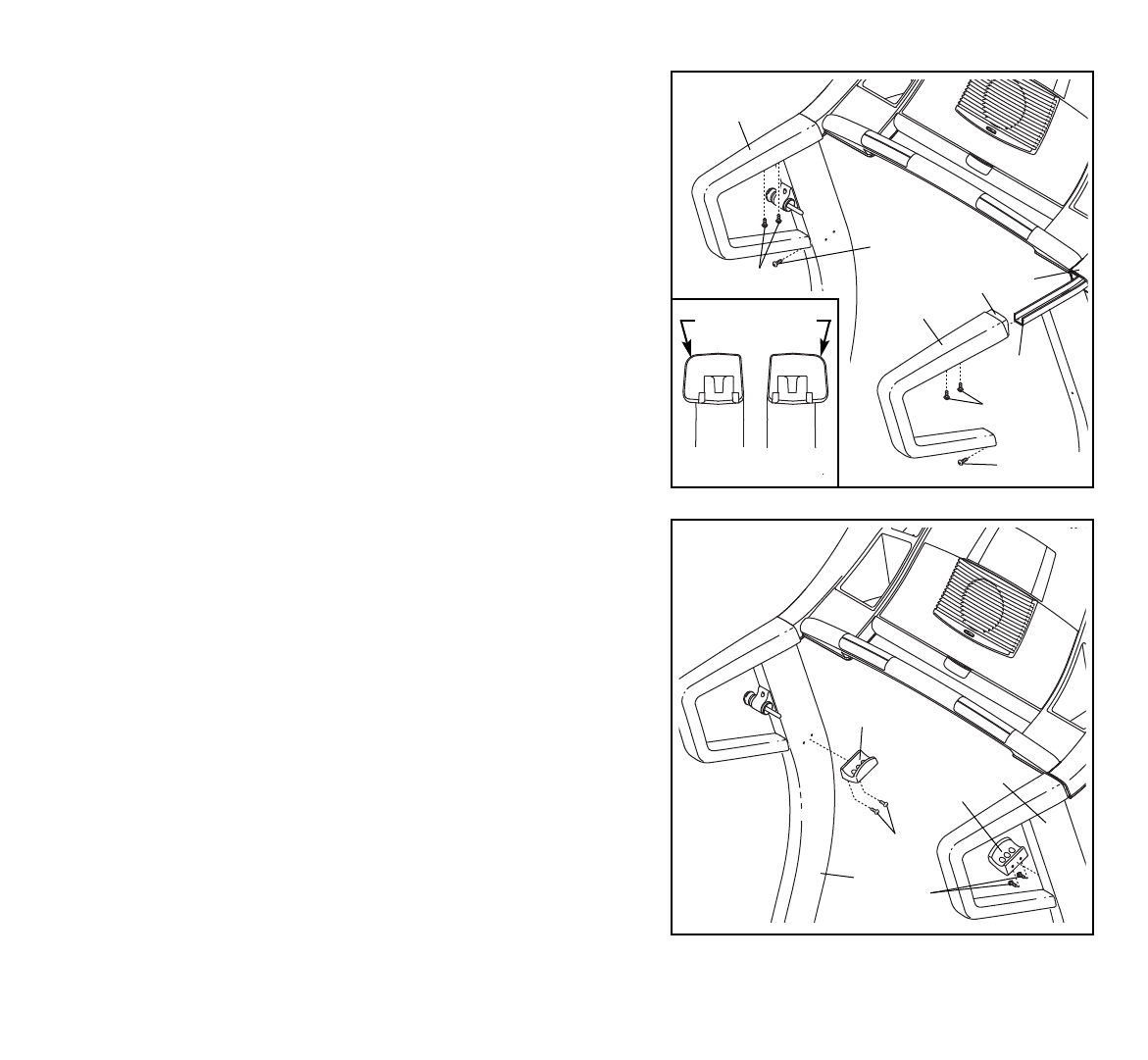

5. Identify the Left and Right Handrails (68, 81); the curved
edges of the Handrails should be on the outside (see the
end views of the Handrails in the inset drawing).
Slide the Right Handrail (81) onto the Right Handrail
Bracket (113), and press the lip on the front of the Right
Handrail under the Console Base (85). (Note: It may be
helpful to tip the Right Handrail and to tap it with a rub-
ber mallet to correctly position it.) Tighten two 3/4”
Screws (6) and a 1” Screw into the Right Handrail in the
locations shown. Note: It may be necessary to move the
lower end of the Right Handrail slightly to align the lower
screw hole.
Attach the Left Handrail (68) in the same way.
113
1” Screw
1” Screw
81
Lip 85
68
6
5
(81)
Curved Edge
(68)
6. Attach each Upper Body Arm Holder (77) to an Upright
(82) with two 3/4” Screws (6).
77
77
82
82
6
6
6
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 28). To protect the floor or carpet, place a mat under the treadmill.
9

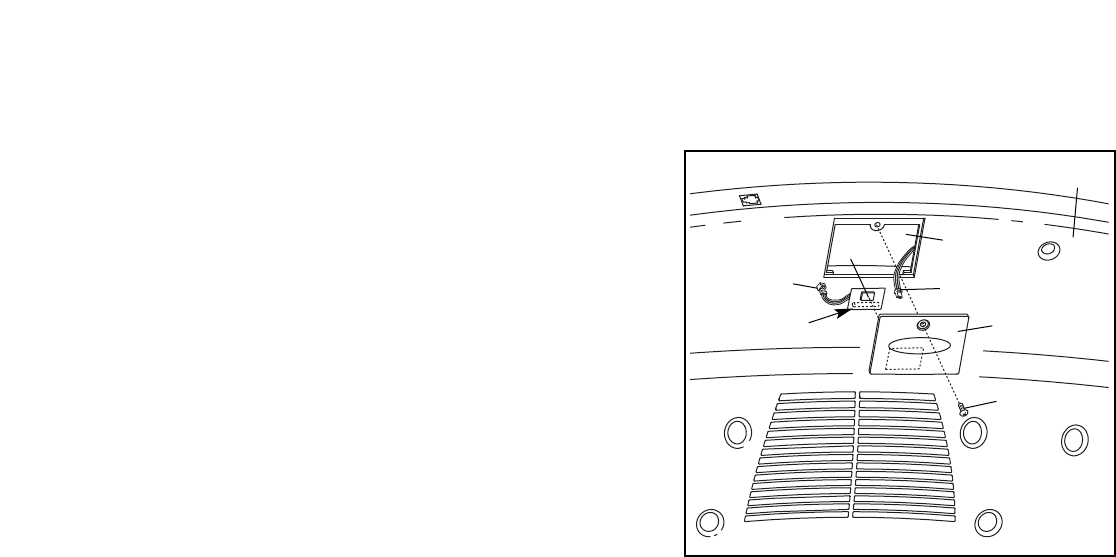

1. Make sure that the power cord is unplugged. Remove
the indicated 3/4” Screw (6) and the Access Door (94)
from the back of the Console Back (95).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Hold the receiver so the small cylin-
der is near the lower edge of the receiver and is fac-
ing the Console (88) as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door (94).
Connect the wire on the receiver to the indicated wire ex-
tending from the Console.
3. Make sure that no wires are pinched. Reattach the
Access Door (94) with the 3/4” Screw (6). The other wires
included with the receiver may be discarded.
If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the re-
ceiver and the short jumper wire included with the chest pulse sensor.
A
6
94
Cylinder
95
88
Wire
Wire
10
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call toll-free 1-800-
806-3651 and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
TREADMILL OPERATION
11
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to help you get the most from your
workouts.
While the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will
display instant exercise feedback. You can even mea-
sure your heart rate using the handgrip pulse sensor or
the optional chest pulse sensor (see page 23).
In addition, the console offers four preset programs.
Each program automatically controls the speed and in-
cline of the treadmill as it guides you through an effec-
tive workout. Two heart rate programs are also offered.
Each program adjusts the speed and incline of the
treadmill to keep your heart rate near a target heart rate
while you exercise. Note: The heart rate programs re-
quire the use of the optional chest pulse sensor.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, computer, or VCR and play
special iFIT.com CD and video programs (one iFIT.com
CD and one iFIT.com videocassette are included).
iFIT.com CD and video programs automatically control
the speed and incline of the treadmill as a personal
trainer guides you through every step of your workout.
High-energy music provides added motivation. To pur-
chase other iFIT.com CDs or videocassettes, visit
our Web site at www.iFIT.com.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and ac-
cess programs directly from the internet. Additional op-
tions are soon to be available. See www.iFIT.com for
more information.
To use the manual mode of the console, follow the
steps beginning on page 12. To use a preset program,
see page 14. To use a heart rate program, see page
16. To use an iFIT.com CD or video program, see
page 20. To use iFIT.com programs directly from
our Web site, see page 22.
Note: If there are sheets of clear plastic on the console, remove them.
Clip
Key
Fan Button
12

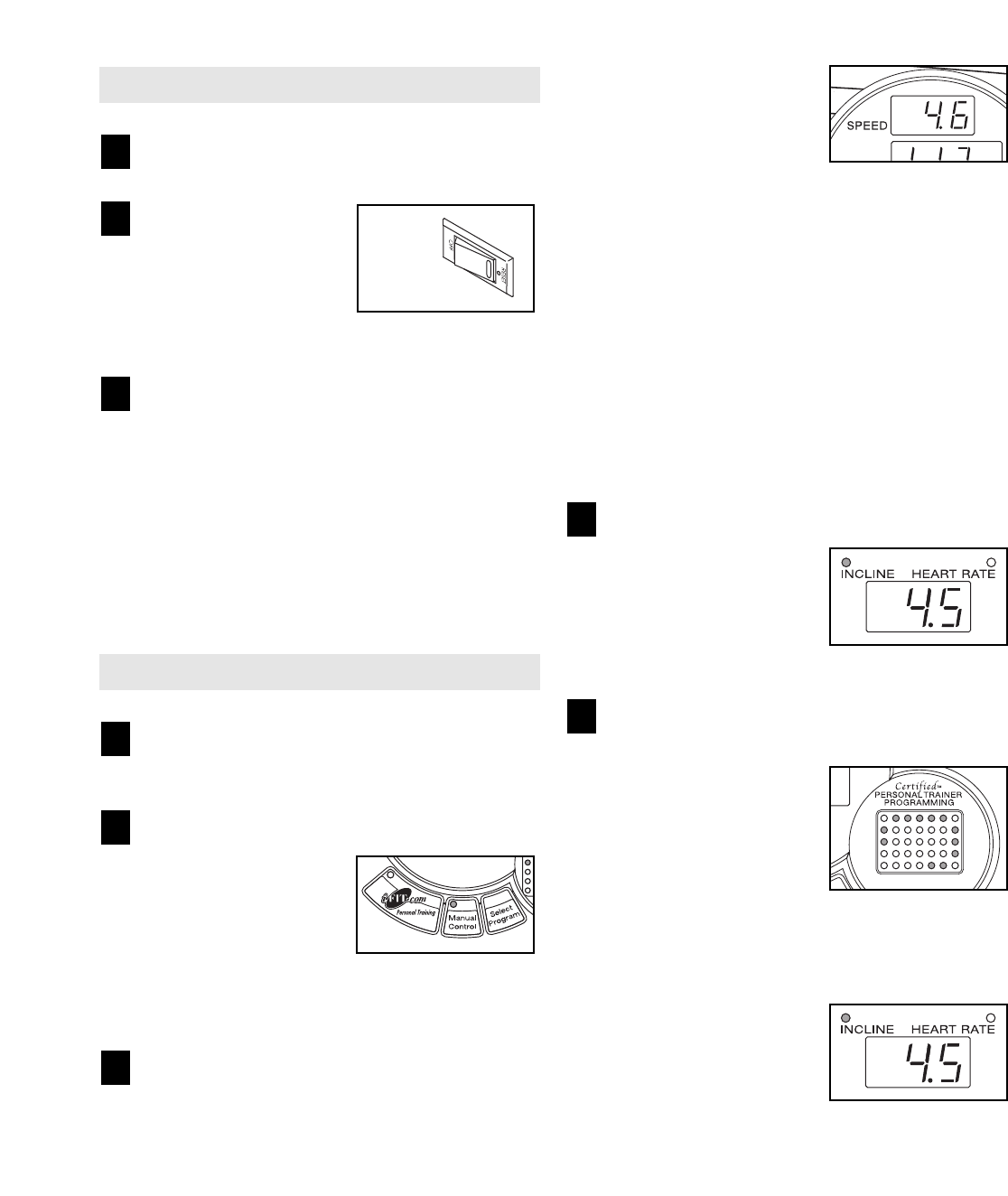

HOW TO TURN ON THE POWER
Plug in the power cord (see page 10).
Locate the reset/off
circuit breaker on the
treadmill near the
power cord. Make
sure that the circuit
breaker is in the reset
position.
Stand on the foot rails of the treadmill. Find the clip
attached to the key (see the drawing on page 11)
and slide the clip onto the waistband of your
clothes. Next, route the cord attached to the clip
under the handgrip pulse sensor, and insert the
key into the console. After a moment, the displays
and various indicators will light. Test the clip by
carefully taking a few steps backward until the
key is pulled from the console. If the key is not
pulled from the console, adjust the position of
the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in-
serted, the manual
mode will be selected
and the indicator on the
Manual Control button
will light. If you have se-
lected a program, press the Manual Control button
to reselect the manual mode.
Press the Start button or the Speed + button to
start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move at 1 mph. Hold the handrails
and begin walking. As you exercise, change the
speed of the walking belt
as desired by pressing
the Speed + and – but-
tons. Each time a button
is pressed, the speed
setting will change by
0.1 mph; if a button is held down, the speed set-
ting will change in increments of 0.5 mph. To
change the speed setting quickly, press the Quick
Speed buttons.
To stop the walking belt, press the Stop button.
The Pace/Time display will begin to flash. To
restart the walking belt, press the Start button or
the Speed + button.
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the
walking belt if necessary (see page 28).
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline buttons. Each time
a button is pressed, the
incline will change by
0.5%.
Follow your progress with the matrix and the
displays.
The matrix—When the
manual mode or the
iFIT.com mode is se-
lected, the matrix will
display a 1/4-mile track.
As you exercise, the in-
dicators around the track
will light in succession until the entire track is lit.
The track will then darken and the indicators will
again begin to light in succession.
Incline/Heart Rate
display—This display
shows the incline level of
the treadmill. This display
will also show your heart
rate when you use the
handgrip pulse sensor or the optional chest pulse
sensor.
5
4
3
2
1
3
2
1
Reset
Position
13

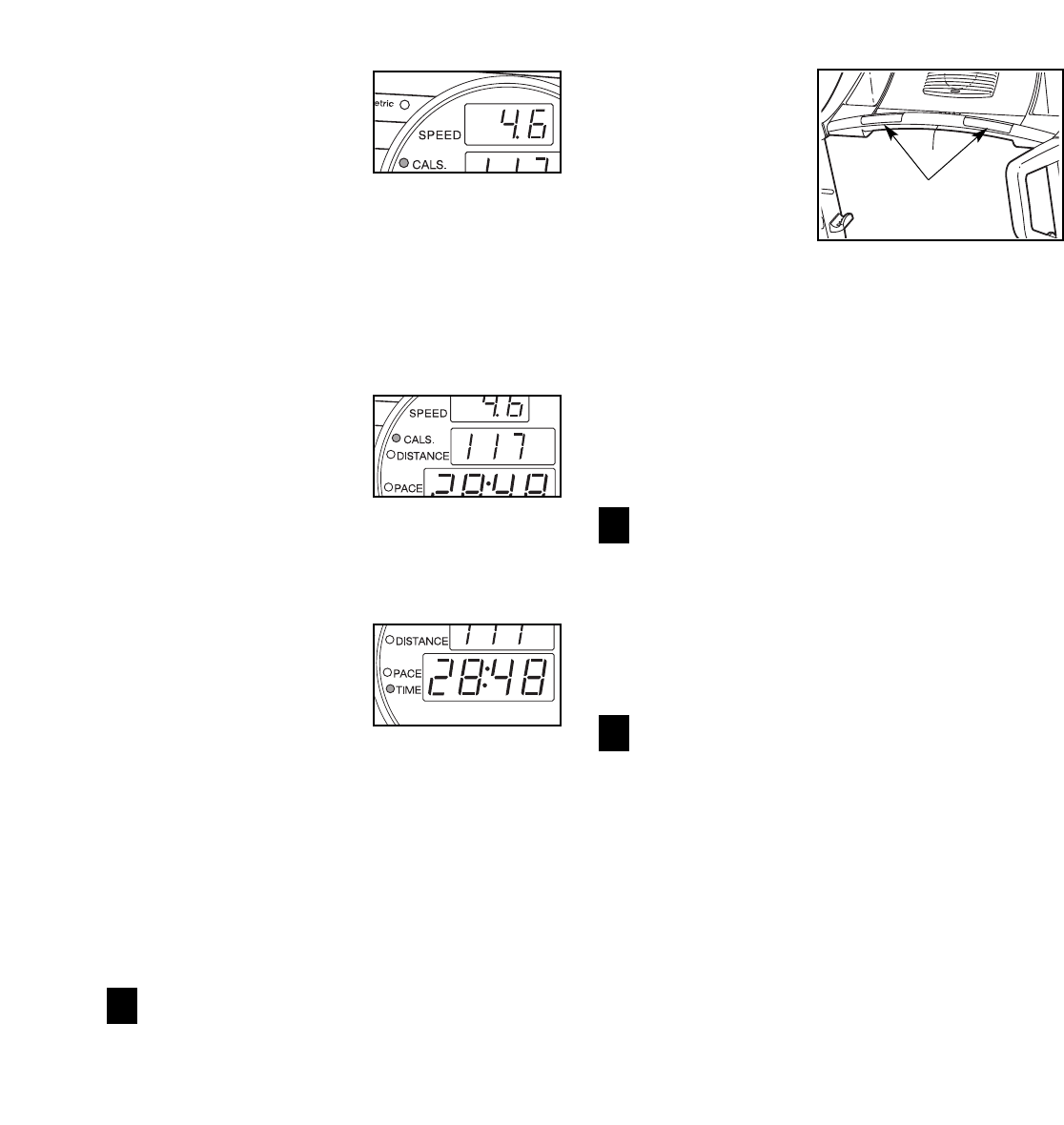

Speed display—This
display shows the
speed of the walking
belt. Note: When the
Metric indicator beside
the display is lit, the
console will display speed and distance in kilome-
tres; when the Metric indicator is not lit, the con-
sole will display speed and distance in miles. To
change the unit of measurement, see THE IN-
FORMATION MODE/DEMO MODE on page 23.
For simplicity, all instructions in this section
refer to miles.
Calories/Distance dis-
play—This display
shows the approximate
number of calories you
have burned and the
distance that you have
walked or run. The display will change from one
number to the other every few seconds, as shown
by the indicators beside the display.
Pace/Time display—
While the manual mode
or the iFIT.com mode is
selected, this display
will show your pace (in
minutes per mile) and
the elapsed time. While a program is selected (ex-
cept for the heart rate Self Select program), the
display will show your pace and the time remaining
in the program. The display will change from one
number to the other every few seconds, as shown
by the indicators beside the display.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate if desired.
To use the handgrip pulse sensor, first make sure
that your hands are clean. Next, stand on the
foot rails and hold the handgrip pulse sensor with
your palms on the metal contacts. Avoid moving
your hands.
When your pulse
is detected, two
dashes (– –) will
appear in the
Incline/Heart
Rate display,
and then your
heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15
seconds.
Note: The pulse bar is intended to be used only
for heart rate measurement. Do not use the
pulse bar as a handlebar. Always hold the
handrails for support when you are not mea-
suring your heart rate.
Turn on the fan if desired.
To turn on the fan, press the button below the fan.
To turn on the fan at high speed, press the button
a second time. To turn off the fan, press the but-
ton a third time. Note: A few minutes after the
walking belt is stopped, the fan will automatically
turn off.
When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se-
cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is
removed, the console is in the “demo” mode.
See page 23 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
8
7
6
Contacts
14

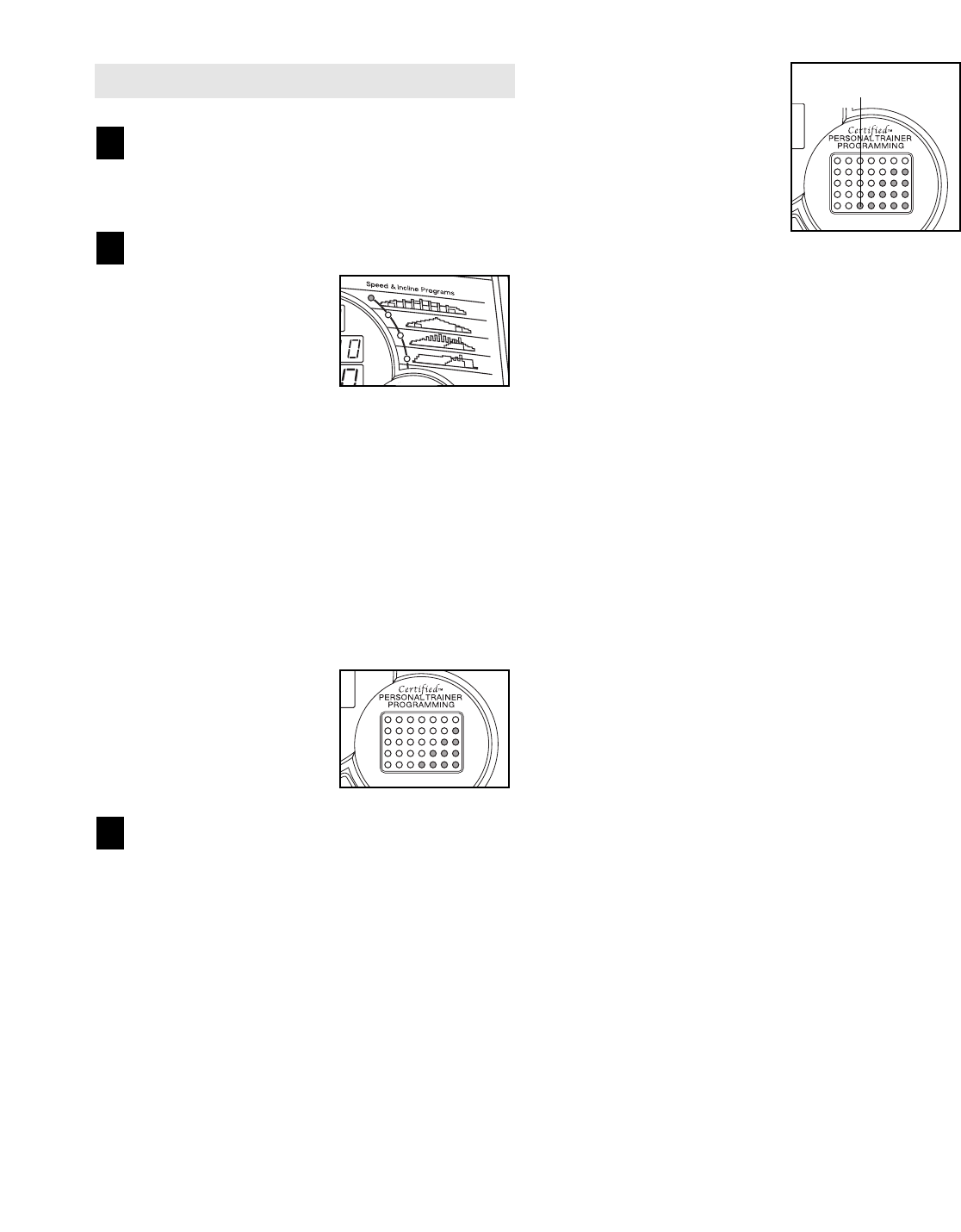

HOW TO USE PRESET PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on
page 12.
Select one of the preset programs.
When the key is in-
serted, the manual
mode will be selected.
To select a preset pro-
gram, press the right
Select Program button
repeatedly until one of
the four preset program indicators lights.
The diagrams beside the preset program indica-
tors show how the speed and incline of the tread-
mill will change during the preset programs. When
a preset program is selected, the Speed display
will flash the maximum speed setting of the pro-
gram for a few seconds, and the Incline/Heart Rate
display will flash the maximum Incline setting. The
Pace/Time display will show how long the program
will last.
The matrix will show
the first four speed set-
tings of the program.
Press the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into several time seg-
ments of different lengths. One speed setting and
one incline setting are programmed for each seg-
ment. Note: The same speed setting and/or in-
cline setting may be programmed for two or more
consecutive segments.
The speed setting for the
first segment is shown in
the flashing Current
Segment column of the
matrix. (The incline set-
tings are not shown in
the matrix.) The speed
settings for the next four
segments are shown in
the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or in-
cline of the treadmill is about to change, the Speed
display and/or the Incline display will flash to alert
you. When the first segment ends, all speed set-
tings will move one column to the left. The speed
setting for the second segment will then be shown
in the flashing Current Segment column and the
treadmill will automatically adjust to the speed and
incline settings for the second segment. Note: If all
of the indicators in the Current Segment column
are lit after the speed settings have moved to the
left, the speed settings may move downward so
that only the highest indicators appear in the ma-
trix. If some of the indicators in the Current
Segment column are not lit when the speed set-
tings move to the left again, the speed settings will
move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column of the matrix and the
last segment ends. The walking belt will then slow
to a stop.
If the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will light or darken
in the Current Segment column. (If any of the
columns to the right of the Current Segment col-
umn have the same number of lit indicators as the
Current Segment column, an additional indicator
may light or darken in those columns as well.)
Note: When the next segment of the program
begins, the treadmill will automatically adjust
to the speed and incline settings for the next
segment.
3
2
1
Current Segment
15
To stop the program at any time, press the Stop
button. The Pace/Time display will begin to flash.
To restart the program, press the Start button or
the Speed + button. The walking belt will begin to
move at 1 mph. When the next segment of the pro-
gram begins, the treadmill will automatically adjust
to the speed and incline settings for the next seg-
ment.
Follow your progress with the displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the console.
When the program ends, make sure that the in-
cline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in
a secure place. Note: If the displays and various
indicators on the console remain lit after the
key is removed, the console is in the “demo”
mode. See page 23 and turn off the demo mode.
When you are finished using the treadmill, move
the on/off switch near the power cord to the off
position and unplug the power cord.
7
6
5
4
16
HOW TO USE HEART RATE PROGRAMS
Put on the optional chest pulse sensor (see
page 23).
You must wear the optional chest pulse sensor
to use a heart rate program.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on
page 12.
Select a heart rate program.
When the key is in-
serted, the manual
mode will be selected.
To select a heart rate
program, press the left
Select Program button
repeatedly until one of the two heart rate program
indicators lights.
The diagrams beside the heart rate program indi-
cators show how the target heart rate will change
during the programs. During the 85% Max. pro-
gram, your heart rate will reach approximately
85% of your estimated maximum heart rate; dur-
ing the Self Select program, your heart rate will re-
main near a level that you select.
Note: Your estimated maximum heart rate is de-
termined by subtracting your age from 220. For
example, if you are 30 years old, your estimated
maximum heart rate is 190 beats per minute
(220 – 30 = 190).
During heart rate pro-
grams, the matrix will
show a moving graphic
that represents your
heart rate. Each time a
heartbeat is detected,
an additional peak will
appear.
Enter your age.
When a heart rate pro-
gram is selected, the
word “AGE” and the cur-
rent age setting will flash
in the Incline/Heart Rate
display. If you have al-
ready entered your age, simply press the Enter
button. If you have not entered your age, press
the + and – buttons beside the Enter button to
enter your age. Then, press the Enter button.
Enter a maximum speed.
After you have entered
your age, the letters
“SPd” and the maximum
speed setting of the pro-
gram will flash in the
Incline/Heart Rate dis-
play. If desired, press the + and – buttons beside
the Enter button to change the maximum speed
setting. When the desired setting is shown, press
the Enter button.
If the 85% Max. program is selected, go to step
7. If the Self Select program is selected, go to
step 6.
Enter a target heart rate.
After you have entered a
maximum speed setting,
the letters “PLS” and the
target heart rate setting
for the program will flash
in the Incline/Heart Rate
display. If desired, press the + and – buttons be-
side the Enter button to change the target heart
rate setting. When the desired setting is shown,
press the Enter button.
6
5
4
3
2
1
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and
have been inactive, do not use the heart rate
programs. If you are taking medication regu-
larly, consult your physician to find whether
the medication will affect your exercise heart
rate.
17
Press the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each heart rate program is divided into several time
segments of different lengths. One target heart rate
is programmed for each segment. Note: If the Self
Select program is selected, the same target heart
rate is programmed for all segments.
During each segment, the console will regularly
compare your heart rate to the current target heart
rate. If your heart rate is too far below or above
the target heart rate, the speed of the treadmill will
automatically increase or decrease to bring your
heart rate closer to the target heart rate. If the
speed reaches the maximum speed setting of the
program (see step 5 on page 16) and your heart
rate is still too far below the current target heart
rate, the incline of the treadmill will also increase
to bring your heart rate closer to the target heart
rate.
During the last three seconds of each segment, a
series of tones will sound and the Speed display
and the Incline display will flash.
The program will continue until the last segment
ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the Speed or Incline buttons. However,
each time the console compares your heart rate to
the current target heart rate, the speed and/or in-
cline of the treadmill may automatically change to
bring your heart rate closer to the target heart rate.

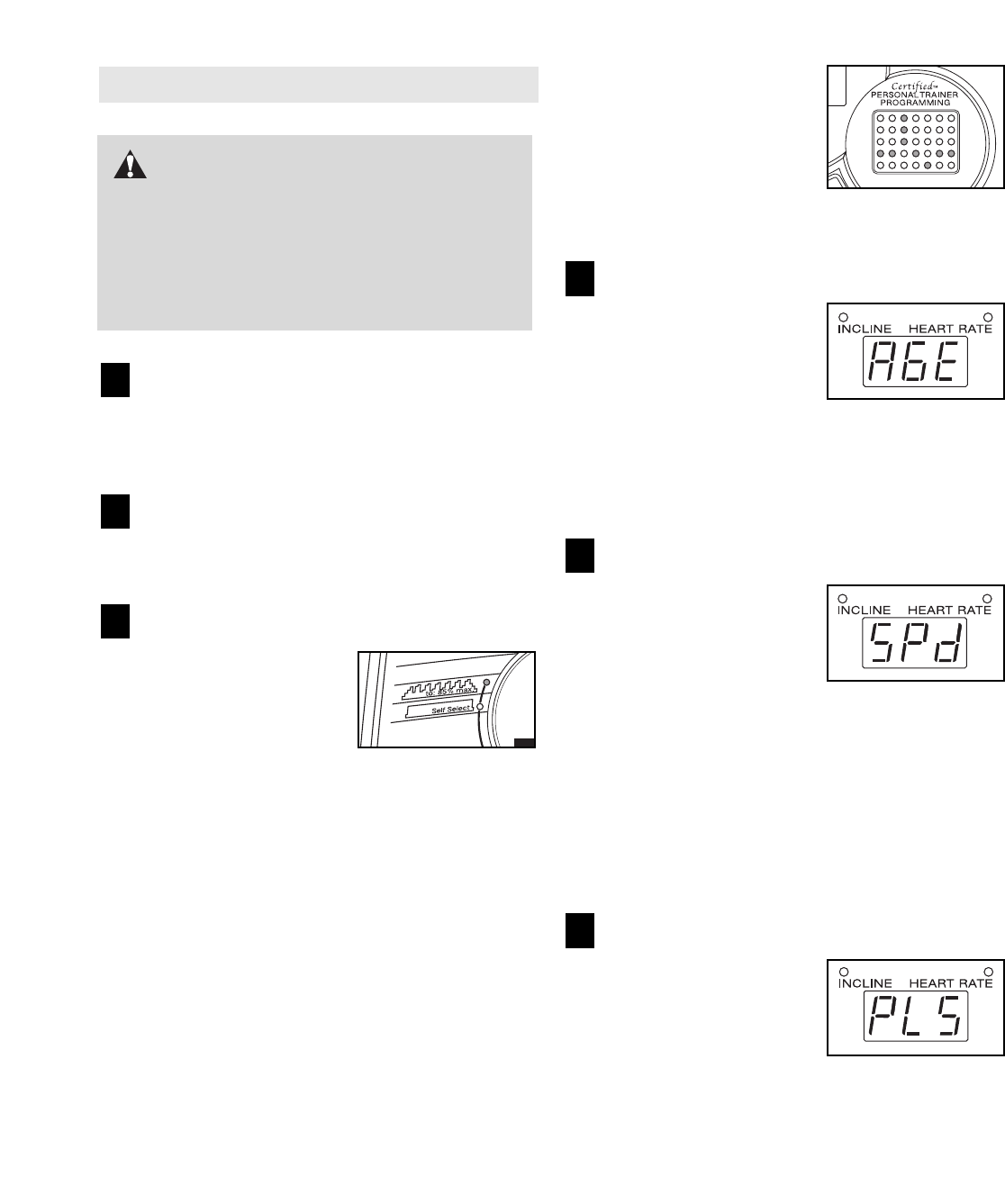

If your pulse is not detected during the program,
the letters “PLS” will flash in the Incline/Heart Rate
display and the speed and incline of the treadmill
may automatically decrease until your pulse is de-
tected. If this occurs, see the instructions included
with the optional chest pulse sensor.
To stop the program, press the Stop button. Heart
rate programs cannot be stopped temporarily and
then restarted. To use a heart rate program again,
reselect the program and start it at the beginning.

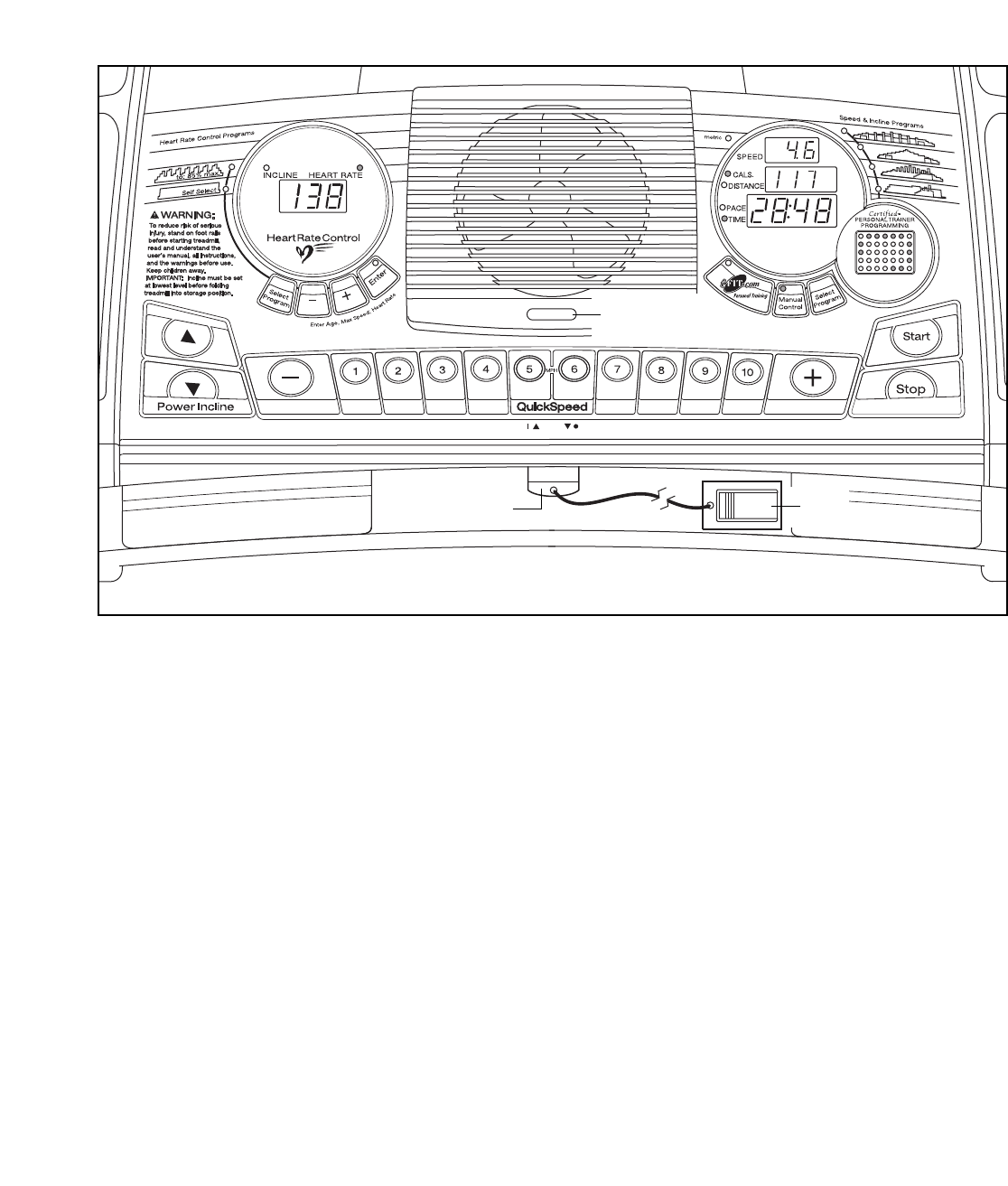

Follow your progress with the displays.
See step 5 on page 12.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
10
9
8
7
18
To use iFIT.com CDs, the treadmill must be connected
to your portable CD player, portable stereo, home
stereo, or computer with CD player. See pages 18 and
19 for connecting instructions. To use iFIT.com video-
cassettes, the treadmill must be connected to your
VCR. See page 20 for connecting instructions. To use
iFIT.com programs directly from our Web site, the
treadmill must be connected to your home computer.
See page 19 for connecting instructions.

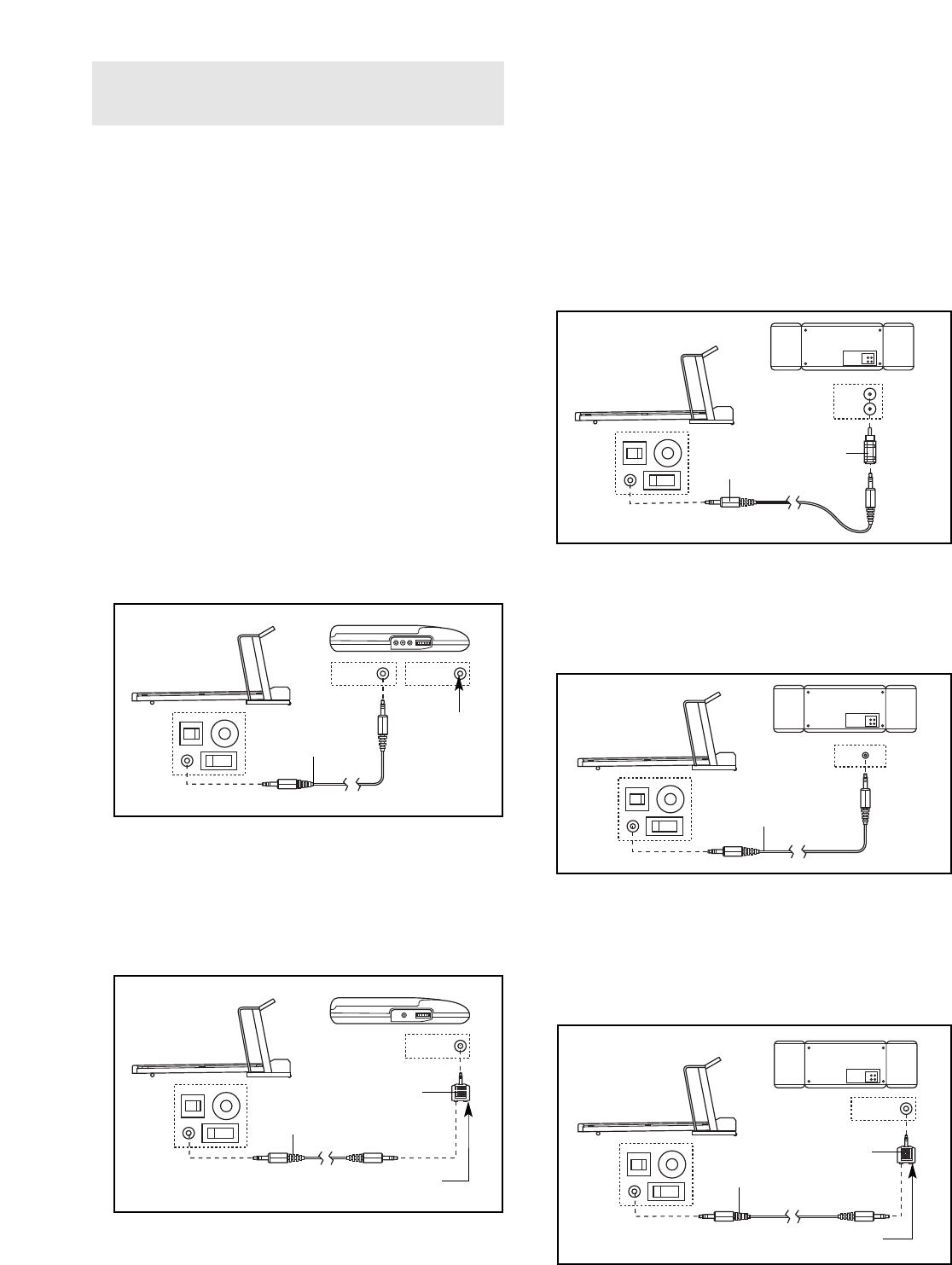

HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the splitter. Plug the split-
ter into the PHONES jack on your CD player. Plug
your headphones into the other side of the splitter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5 mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the adaptor. Plug the
adaptor into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the splitter. Plug the split-
ter into the PHONES jack on your stereo. Plug your
headphones into the other side of the splitter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
Audio
Cable Adaptor
A
Audio
Cable
B
PHONES
Audio
Cable
C
PHONES
PHONES
Audio
Cable
Splitter
Headphones
B
Splitter
Headphones
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
19

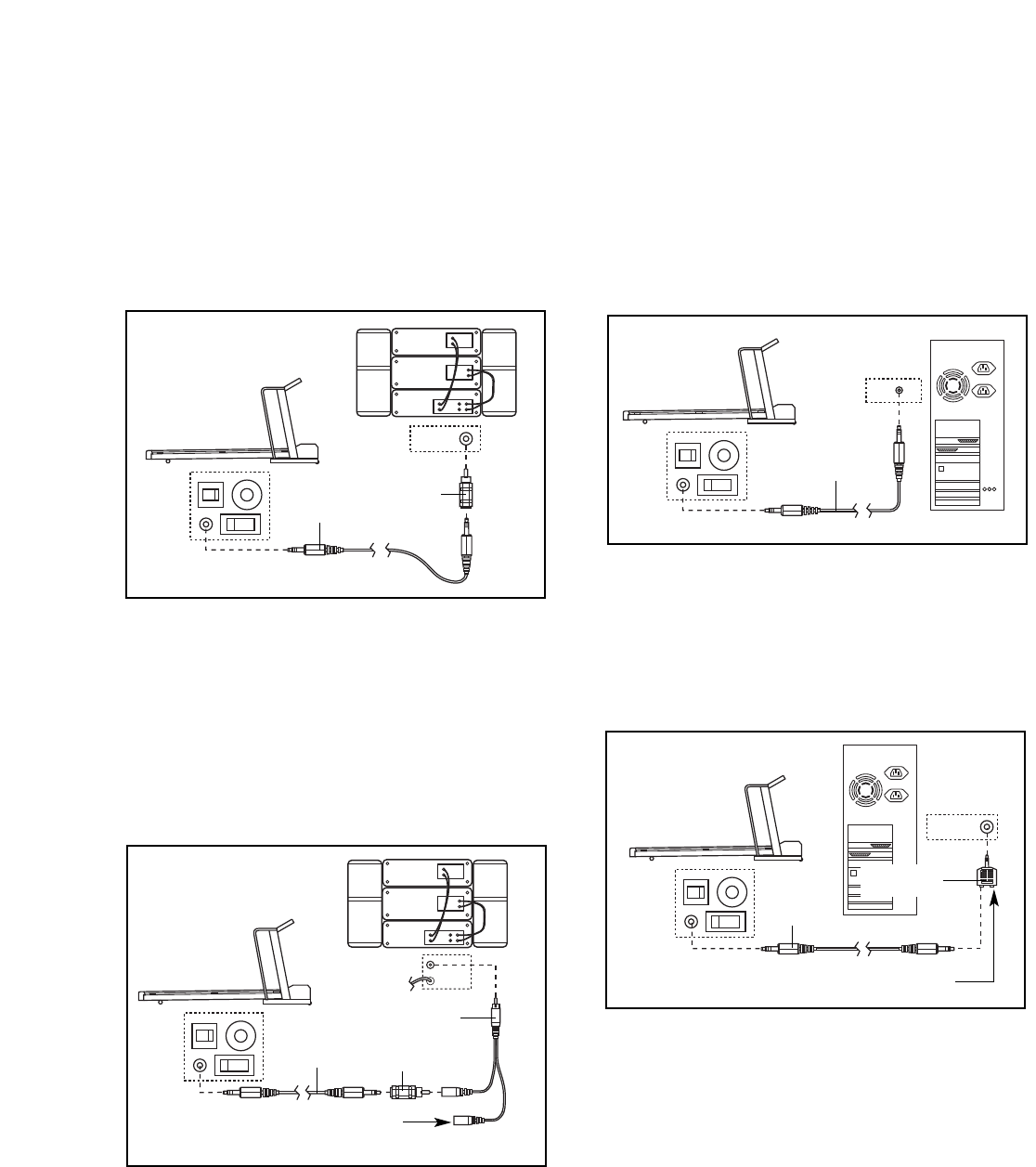

HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the adaptor. Plug the
adaptor into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the adaptor. Plug the
adaptor into an RCA Y-adaptor (available at elec-
tronics stores). Next, remove the wire that is cur-
rently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adaptor. Plug the Y-adaptor into the LINE OUT
jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5 mm LINE OUT
jack, see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the splitter. Plug the split-
ter into the PHONES jack on your computer. Plug
your headphones or speakers into the other side of
the splitter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable Adaptor
A
LINE OUT
Audio
Cable
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adaptor
Wire removed from
LINE OUT jack
B
Adaptor
PHONES
Audio
Cable
B
Splitter
Headphones/Speakers
20

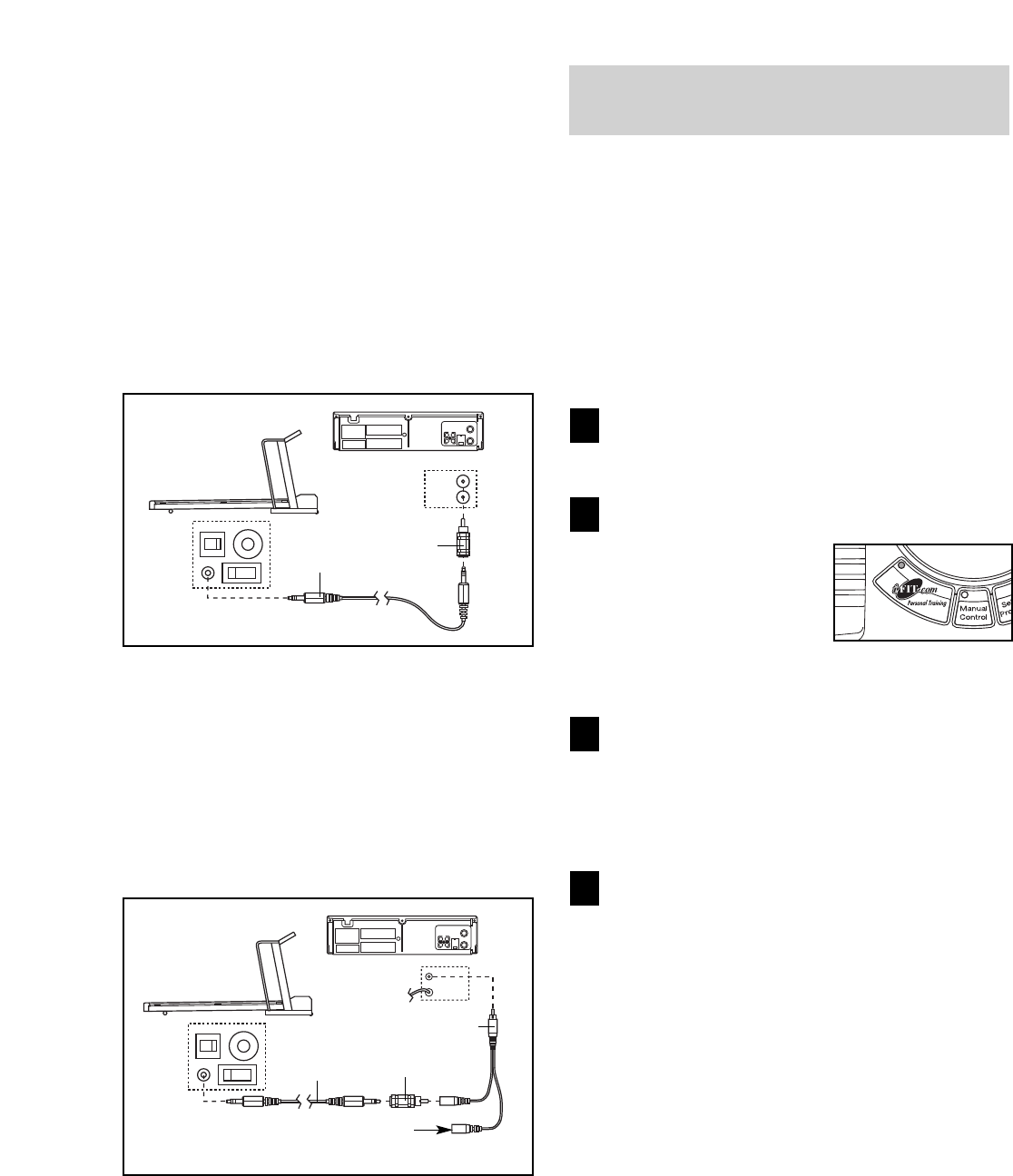

HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 19.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
RCA Y-adapter. Plug the RCA Y-adapter into the
AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on pages
18 to 20. Note: To purchase iFIT.com CDs or video-
cassettes, visit our Web site at www.iFIT.com.
Follow the steps below to use an iFIT.com CD or video
program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
Select the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use iFIT.com CDs or
videocassettes, press
the iFIT.com button. The
indicator on the button will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the Pace/Time display is
flashing, press the Start button or the Speed +
button on the console. The treadmill will not re-
spond to a CD or video program while the
Pace/Time display is flashing.
During the CD or video program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
4
3
2
1
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
C
Audio
Cable Adapter
A
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
A
Audio
Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
21
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console. The Pace/Time dis-
play will begin to flash. To restart the program,
press the Start button or the Speed + button. After
a moment, the walking belt will begin to move at 1
mph. When the next “chirp” is heard, the
speed and incline will change to the next set-
tings of the CD or video program.
When the CD or video program is completed, the
walking belt will stop and the Pace/Time display
will begin to flash. Note: To use another CD or
video program, press the Stop button or remove
the key and go to step 1 on page 20.
Note: If the speed or incline of the treadmill
does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and
that the Pace/Time display is not flashing. If
the Pace/Time display is flashing, press the
Start button or the Speed + button on the
console.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
Follow your progress with the matrix and the
displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player and VCR
when you are finished using them.
8
7
6
5
22
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 19. In addi-
tion, you must have an internet connection and an in-
ternet service provider. A list of specific system re-
quirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
Select the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use a program from
our Web site, press the
iFIT.com button. The in-
dicator on the button will light.
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructions for using a
program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the treadmill and stand on the foot
pads. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console. The Pace/Time dis-
play will begin to flash. To restart the program,
press the Start button or the Speed + button. After
a moment, the walking belt will begin to move at 1
mph. When the next “chirp” is heard, the speed
and incline will change to the next settings of
the program.
When the program is completed, the walking belt
will stop and the Pace/Time display will begin to
flash. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a “chirp” is heard, make
sure that the iFIT.com indicator is lit and that
the Pace/Time display is not flashing. In addi-
tion, make sure that the audio cable is properly
connected, that it is fully plugged in, and that it
is not wrapped around a power cord.
Follow your progress with the matrix and the
displays.
See step 5 on page 12.
When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
9
8
7
6
5
4
3
2
1
23
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been used and the total number of miles that the walk-
ing belt has moved. The information mode also allows
you to switch the console from miles per hour to kilo-
metres per hour. In addition, the information mode al-
lows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following informa-
tion will be shown:
The Calories/Distance dis-
play will show the total num-
ber of miles (or kilometres)
that the walking belt has
moved.
The Pace/Time display will
show the total number of
hours the treadmill has been
used.
An “E” for English or an “M”
for metric will appear in the
Speed display. Press the
Speed + button to change
the unit of measurement.
IMPORTANT: The Incline/Heart Rate display should
be blank. If a “d” appears in the display, the console is
in the “demo” mode. This mode is intended to be used
only when a treadmill is displayed in a store. While the
console is in the demo mode, the power cord can be
plugged in, the key can be removed from the console,
and the displays and indicators on the console will au-
tomatically light in a preset sequence, although the
buttons on the console will not operate. If a “d” appears
in the Incline/Heart Rate display while the informa-
tion mode is selected, press the Speed – button so
the display is blank.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor provides hands-free op-
eration and allows you to use the console’s heart rate
programs. To purchase a chest pulse sensor, call
toll-free 1-800-734-2377.
24
HOW TO USE THE UPPER BODY ARMS
As you walk on the treadmill, you can either hold the
handrails or use the upper body arms. When you are
not using the arms, always set them in the arm
housings at the base of the uprights (see the draw-
ing below). Be careful not to step on the arms.
To add upper-body exercise to your workouts, hold the
upper body arms and move them forward and back as
you walk. Do not move the arms too far to the side. To
vary the intensity of your upper-body exercise, adjust
the resistance of the arms by turning the resistance
knobs.
If you are using the upper body arms and you need
to set them aside for a moment, step onto the foot
rails and set the ends of the arms on the upper
body arm holders as shown below. Never leave the
arms on the console when the arms are not in use;
allowing the arms to come in contact with the con-
sole may affect the operation of the treadmill.
UPPER BODY ARM TROUBLESHOOTING
If the upper body arms do not slide easily, or if they
make a squeaking noise, apply the included lubricant
to the arms in the locations shown below. Slide the
arms up and down several times to spread the lubricant.
To prevent damage to the upper body arms if they are
moved too far sideways, the lower end of each arm
features a breakaway connector. If one of the arms
breaks away, simply press the lower end back onto the
ball joint (not shown).
Arm
Housings
Resistance
Knobs
Upper
Body
Arms
Upper Body
Arms
Upper Body
Arm Holders
Lubricate
Ball Joint
25

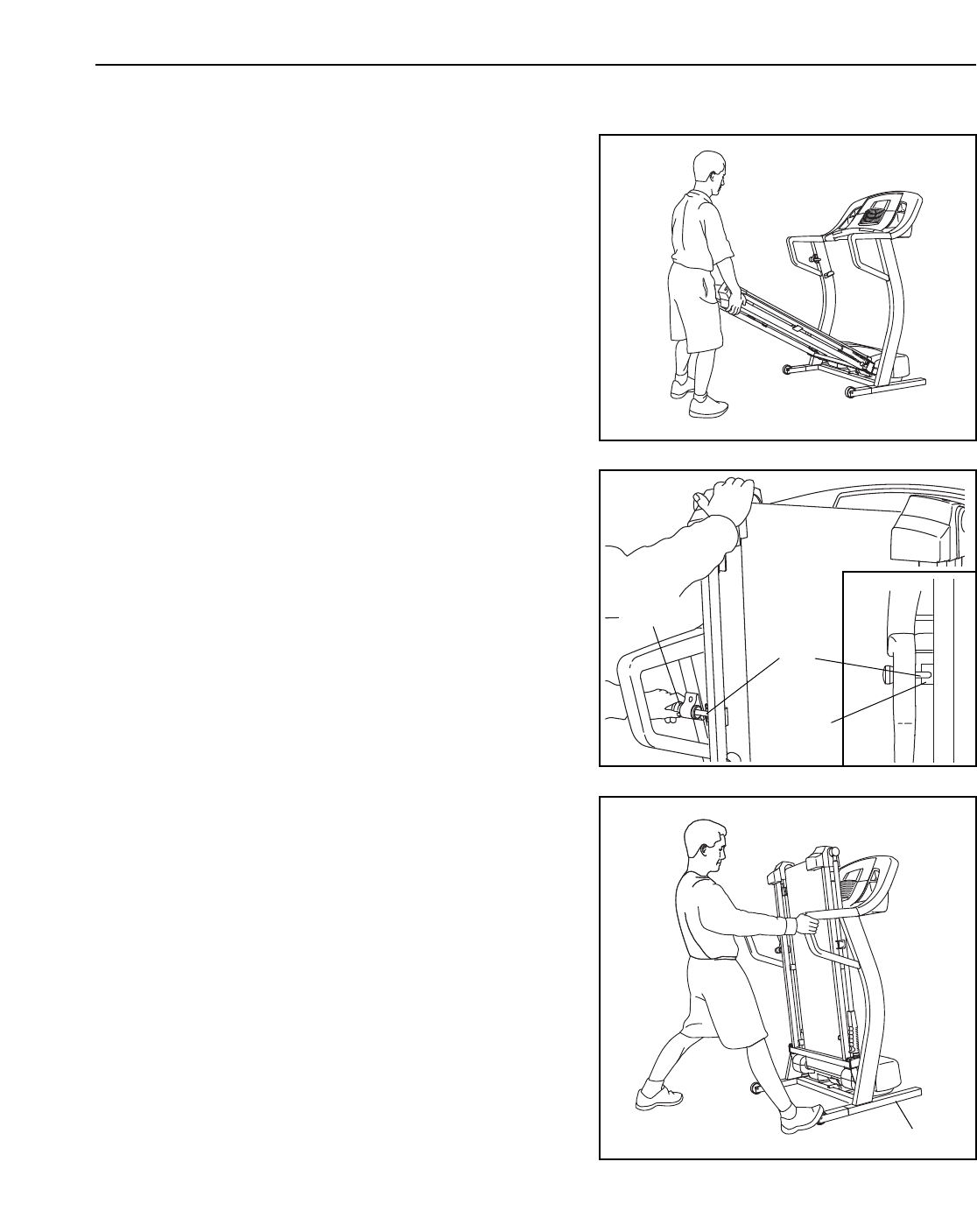

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position and set the upper body arms in the arm
housings. If this is not done, the treadmill may be perma-
nently damaged. Next, unplug the power cord. CAUTION:
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the treadmill in the locations shown at the right. To
decrease the possibility of injury, bend your legs and
keep your back straight. As you raise the treadmill,
make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob
to the left and hold it. Raise the treadmill until the catch is
past the latch pin. Slowly release the latch knob. Make
sure that the catch is securely held by the latch pin.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the frame
is securely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired loca-
tion. To reduce the risk of injury, use extreme caution
while moving the treadmill. Do not move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position. Base
Catch
Latch
Knob
Latch
Pin
26
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill firmly with your left hand. Pull the latch
knob to the left and hold it. Pivot the treadmill down until
the frame is past the latch pin.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
Latch
Pin
Frame
Latch
Knob
27

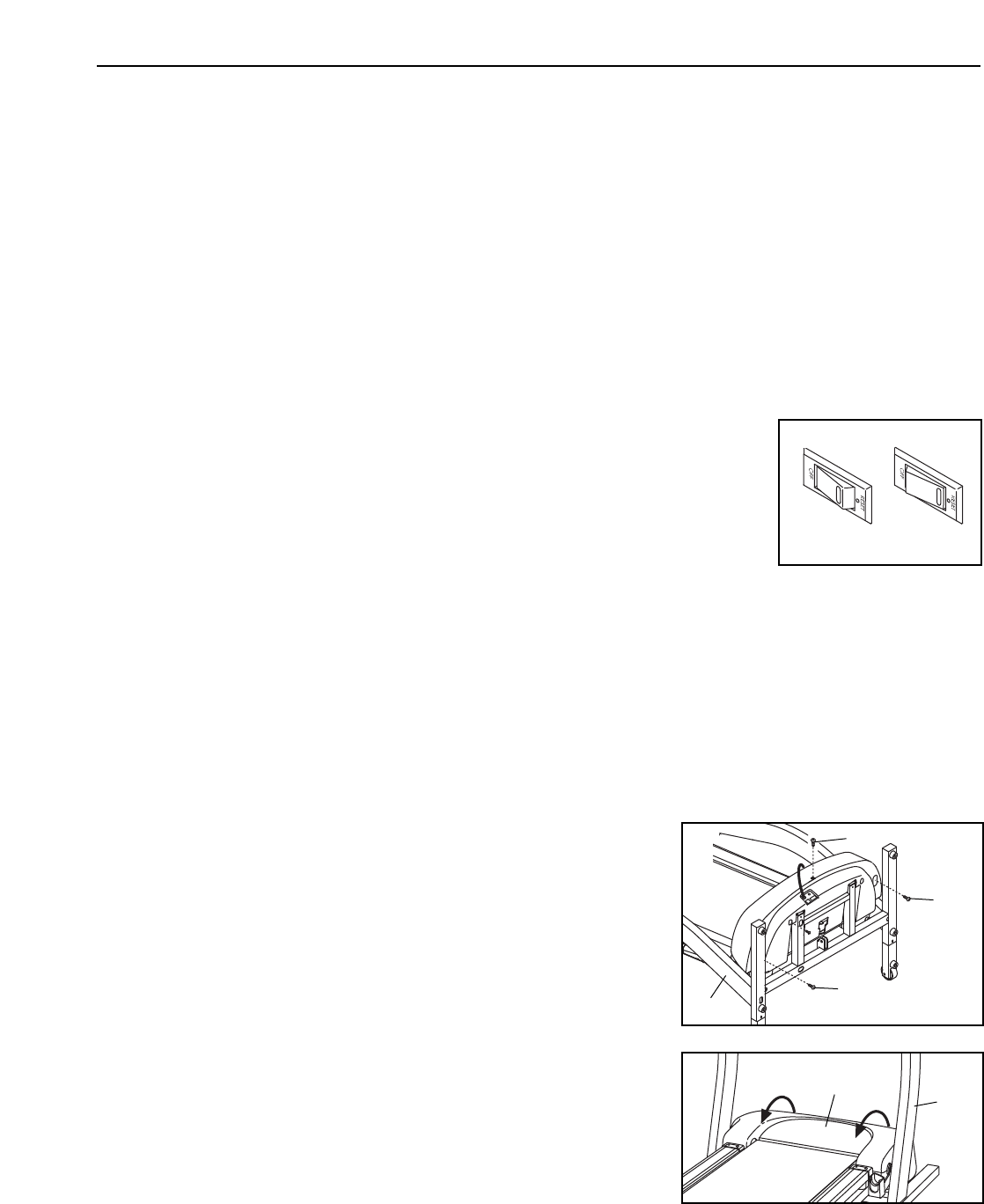

PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 10. Important: The treadmill is not com-
patible with GFCI-equipped outlets.
b. Make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the frame near the
power cord. If the breaker protrudes as shown, the circuit breaker
has tripped. To reset the circuit breaker, wait for five minutes and
then press the breaker back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see 1. c.
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console and then reinsert it.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person,
carefully tip the Uprights (82) down as shown. Remove
the three 3/4” Screws (6). Note: A Phillips screwdriver
with at least a 5” shaft is required.
With the help of a second person, carefully raise the
Uprights (82) as shown. Carefully pivot the Hood (39)
off.
TROUBLESHOOTING
Most treadmill problems can be solved by following the instructions below. If further assistance is
needed, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
Reset
Off
c
6
6
6
82
a
39 82
28

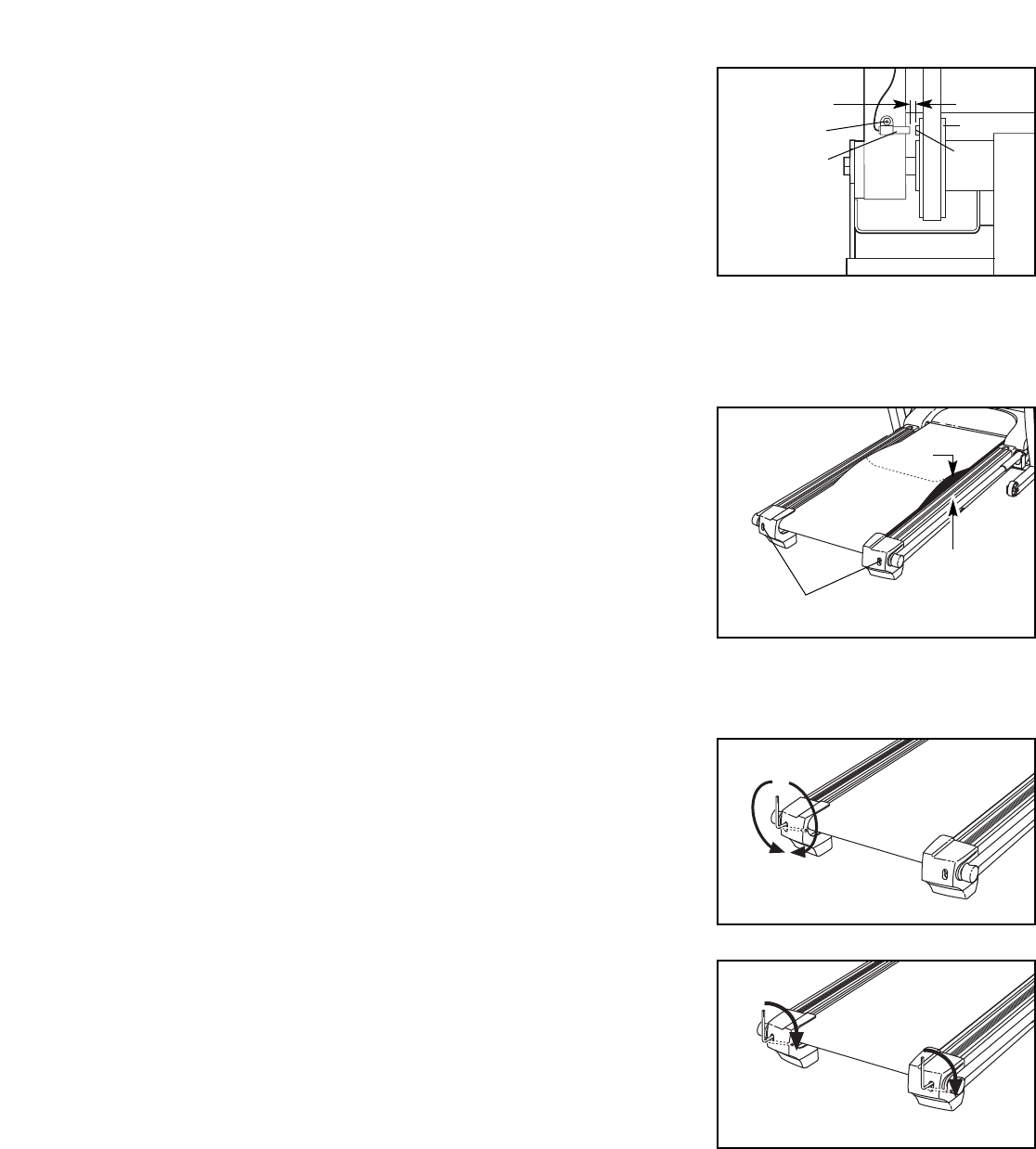

Locate the Reed Switch (24) and the Magnet (18) on
the left side of the Pulley (114). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8”. If necessary, loosen the
Screw (25) and move the Reed Switch slightly.
Retighten the Screw. Reattach the Hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be
permanently damaged. Remove the key and UN-
PLUG THE POWER CORD. Using the included
allen wrench, turn both rear roller adjustment bolts
counterclockwise 1/4 of a turn. When the walking
belt is properly tightened, you should be able to lift
the edges of the walking belt 3 to 4 inches off the
walking platform. Be careful to keep the walking belt
centered. Plug in the power cord, insert the key, and
run the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise
1/4 of a turn. When the walking belt is correctly tight-
ened, you should be able to lift each side of the walk-
ing belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and walk on the treadmill
for a few minutes. Repeat until the walking belt is
properly tightened.
PROBLEM: The upper body arms come off, do not slide easily, or make a squeaking noise
SOLUTION: a. See UPPER BODY ARM TROUBLESHOOTING on page 24.
a
b
18
24
25
Top
View
1/8”
114
Rear Roller Adjustment Bolts
b
3–4”
29

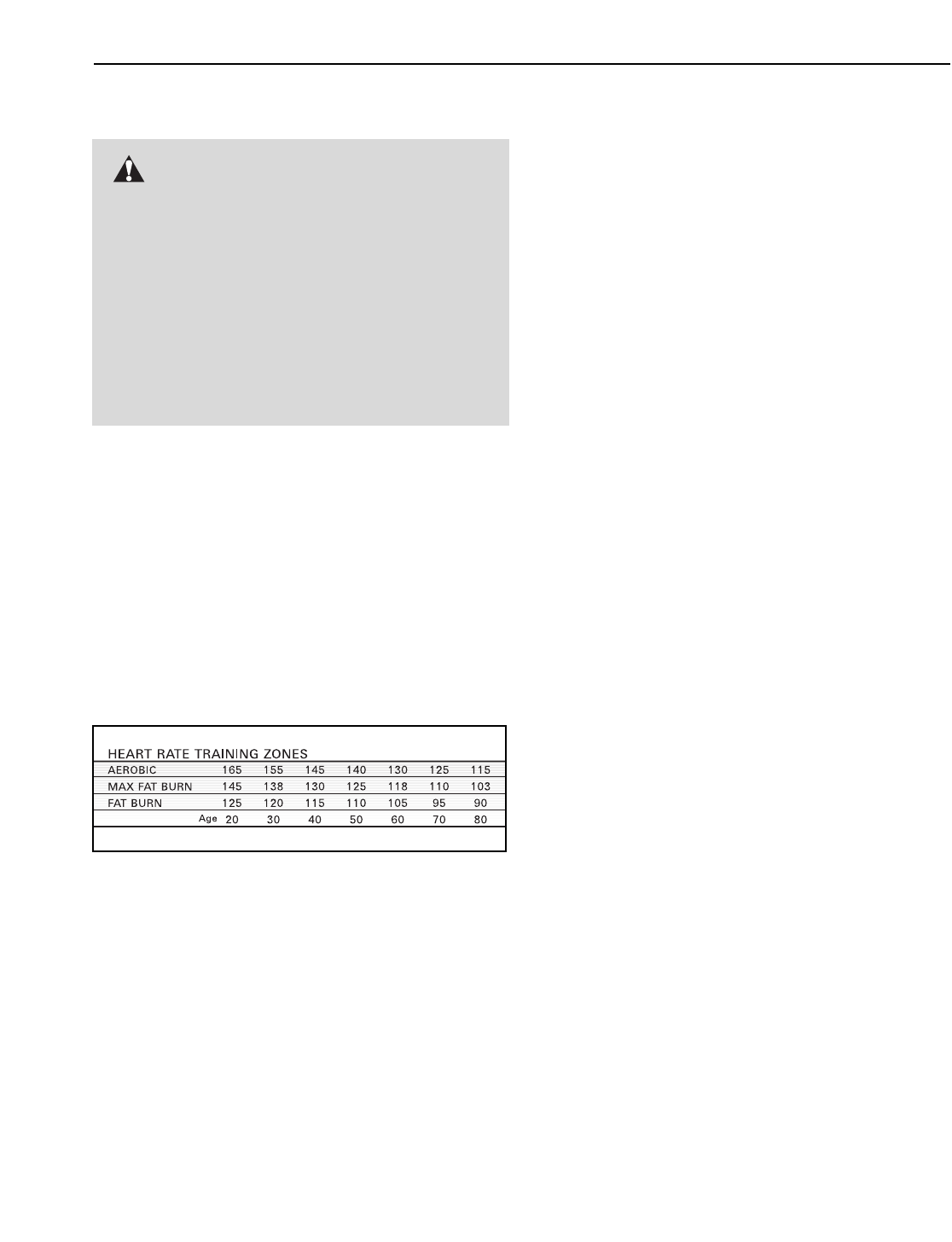

The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “train-
ing zone.” The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
handgrip pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed or incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed or incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed or incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for individu-
als over the age of 35 or individuals with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
30
PART LIST—Model No. PFTL61930 R0104B
1 2 Foot Rail Base
2 1 Left Foot Rail
3 1 Left Front Endcap
4 2 Belt Guide
5 4 Belt Guide Screw
6 45 3/4” Screw
7 2 Ball Joint
8 2 Ball Joint Nut
9 2 Catch Screw
10 1 Warning Deal
11 2 Rear Platform Bolt
12 2 Latch Catch
13 1 Left Pole Housing
14 1 Right Pole Housing
15 2 Red Isolator
16 4 Platform Screw
17 2 Platform Pivot Bolt
18 1 Magnet
19 2 Housing Screw
20 1 Motor Pivot Bolt
21 7 Nut
22 2 Frame Spacer
23 1 Reed Switch Clip
24 1 Reed Switch
25 1 Reed Switch Screw
26 1 Lift Frame
27 1 Motor Tension Nut
28 1 Motor
29 1 Pulley/Flywheel/Fan
30 1 Motor Belt
31* 1 Motor Assembly
32 1 Motor Tension Bolt
33 1 Motor Tension Washer
34 1 Motor Star Washer
35 2 Upper Body Arm
36 7 Small Screw
37 1 Ground Wire
38 1 Transformer
39 1 Hood
40 1 Controller
41 1 Power Cord
42 1 IFIT.com Wire Nut
43 1 IFIT.com Wire
44 1 Power Cord Grommet
45 2 Static Decal
46 1 Reset/Off Switch
47 3 Belly Pan Screw
48 1 Belly Pan
49 1 Hole Plug
50 1 Filter Wire
51 1 Right Front Endcap
52 1 Walking Belt
53 1 Walking Platform
54 1 Frame
55 1 Belly Pan Clip
56 2 Caution Decal
57 1 Rear Roller
58 1 Right Rear Foot
59 1 Allen Wrench
60 2 Rear Roller Adj. Bolt
61 2 Rear Roller Washer
62 1 Right Rear Endcap
63 1 Left Rear Foot
64 1 Left Rear Endcap
65 1 iFIT.com Jack
66* 2 Extension Leg Assembly
67 4 Front Endcap Screw
68 1 Left Handrail
69 14 3/4” Tek Screw
70 1 Latch Knob
71 2 1” Bolt
72 4 Internal Washer
73 1 Left Handrail Bracket
74* 1 Latch Assembly
75 2 Lift Frame Pivot Bolt
76 1 Latch Housing
77 2 Upper Body Arm Holder
78 1 Controller Bracket
79 1 Incline Motor Bolt (Lower)
80 11 Isolator Screw/Endcap Screw
81 1 Right Handrail
82 1 Upright
83 1 Wire Harness
84 1 Left Accessory Tray
85 1 Console Base
86 4 Fan Screw
87 1 Fan
88 1 Console
89 1 Fan Housing
90 1 Right Accessory Tray
91 1 Key/Clip
92 2 1 1/4” Screw
93 2 2” Silver Screw
94 1 Access Door
95 1 Console Back
96 3 Tie Holder
97 1 Releasable Tie
98 1 Plastic Tie
99 2 Upright Endcap
100 8 Base Pad
Key No. Qty. Description Key No. Qty. Description
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
31
101 1 Motor Lock Nut
102 1 Incline Plate
103 2 Black Isolator
104 1 Pulse Bar
105 1 Pulse Wire
106 2 Extension Leg
107 2 Wheel Bolt
108 2 Wheel
109 2 Roller Star Washer
110 1 Controller Wire
111 2 Incline Motor Bolt
112 1 Incline Motor
113 1 Right Handrail Bracket
114 1 Front Roller/Pulley
115 1 Front Roller Adj. Bolt
116 1 iFIT.com Cable
117 1 Motor Bracket
118 2 J-Nut
119 1 iFIT.com CD
120 1 iFIT.com Video
121 10 1” Tek Screw
# 1 4” Blue Wire, 2 F
# 1 4” Black Wire, M/F
# 1 4” Red Wire, M/F
# 1 10” White Wire, 2 F
# 1 User’s Manual
* Includes all parts shown in the box
# These parts are not illustrated
Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
60
61
80
109
60
80
109
61
59
50
110 116
65
115
35
43
69
42
46
44
69
41
48
6
69
69
45
55
49
6
39 69
58
2
12
10
64
57
62
53
11
17
114
52
17
16
16
4
5
54
18
67
3
8
2
1
4
5
12
9
13
19
8
7
7
19
14
63
69
69
67
51
80
103
80
15
103
80
15
80
9
25
24
34
26
23
30
21
22
21
32 33
31*
29 28
27
101
111
20
21
22
115
69
36
40
78
36
38
6
EXPLODED DRAWING—Model No. PFTL61930 R0104B
Kirk Niebergall
PRODUCT LIT. GROUP
68
71
72
73
6
6
6
84
105
104
90
86
87
86
85
89
88
91
6
6
6
6
6
94
6
6
95
6
6
6
6
6
6
6
6
6
118
118
92
93
93
92
97
96
36
98
83
121
100
100
99
36
83
79
21
59
121
100
121
100
121
100
121
100
21 107
106
108
100
121
66*
66*
107
21 106
108
100
121
6
6
36
37
113
71
72
6
81
74*
76
66
99
21
75
77
6
77
82
56
126
121
120
119
102
56
EXPLODED DRAWING—Model No. PFTL61930 R0104B
Part No. 206226 R0104B Printed in USA © 2004 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• The MODEL NUMBER of the product (PFTL61930)
• The NAME of the product (PROFORM®CROSSWALK ADVANCED CR treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST on pages 30 and 31 and the
EXPLODED DRAWING in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-
use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod-
ucts used for commercial or rental purposes; or products used as store display models. No other war-
ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Navigation menu
