Model No. PFTL71505.2
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction.If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
Write the serial number in the
space above for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

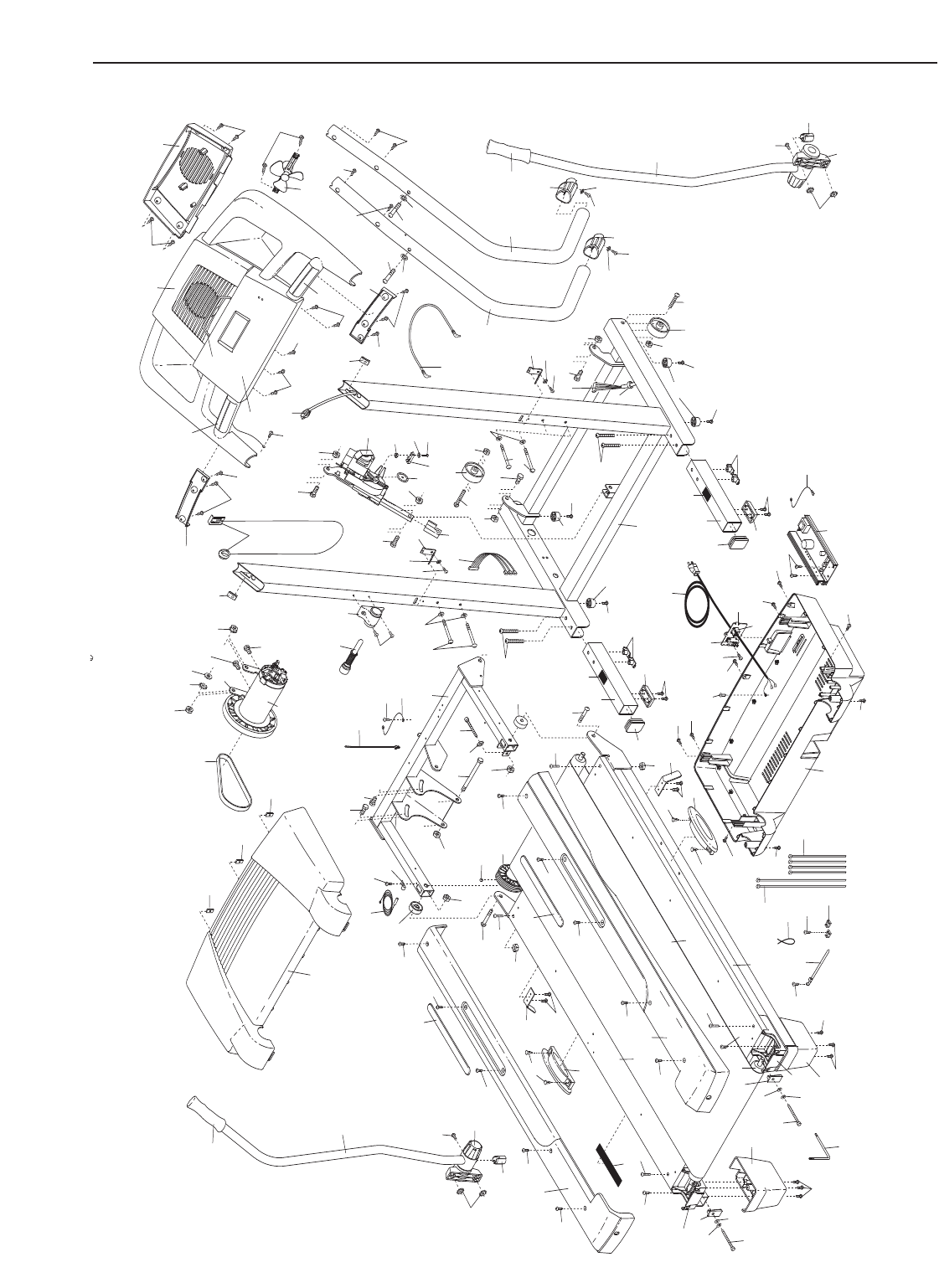

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
2
PROFORM is a registered trademark of ICON IP, Inc.
The decals shown here have been applied in the
locations shown. If a decal is missing or illegible,
call the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
259345
3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or persons
with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

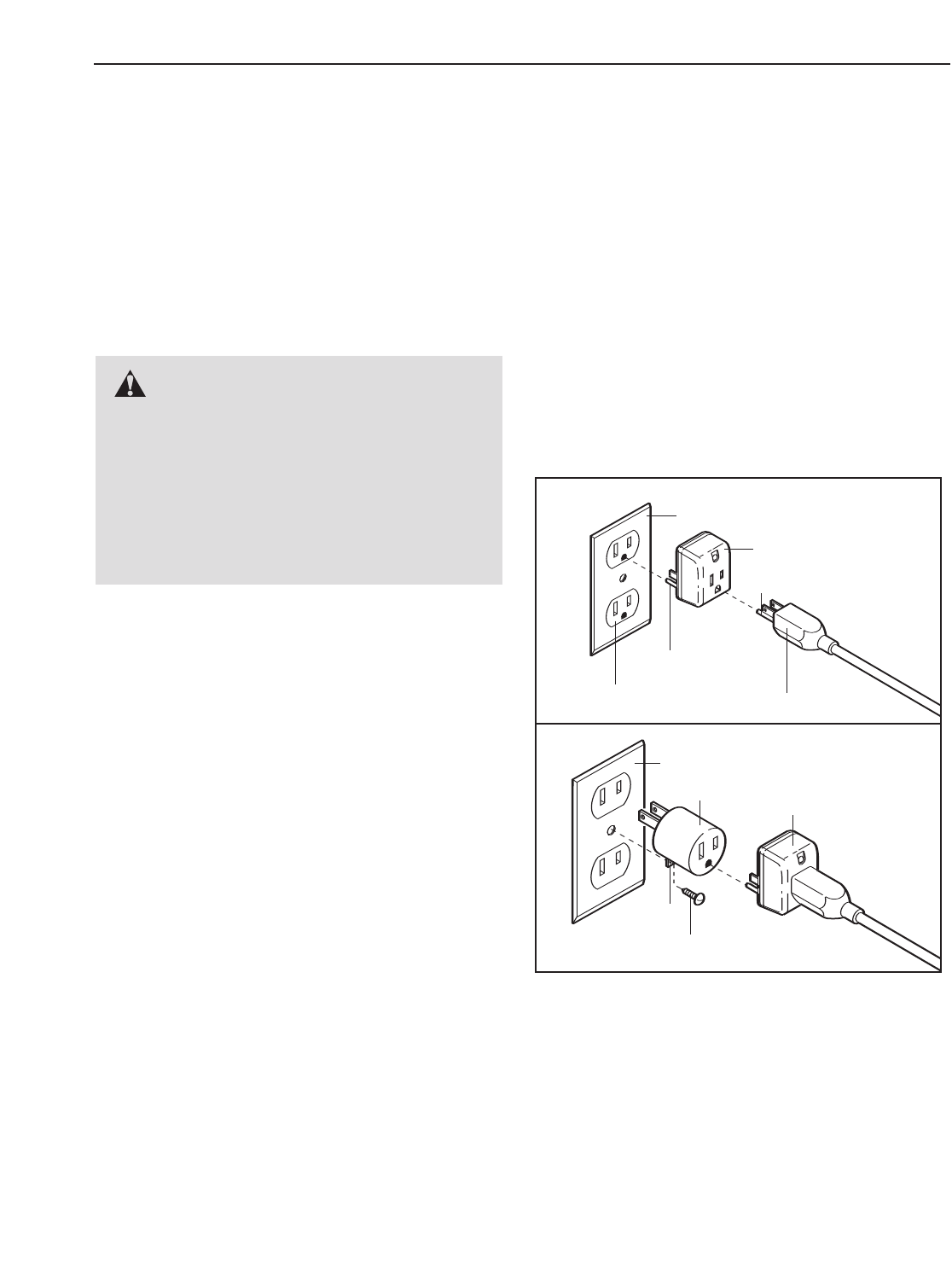

11. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
12. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 10. To purchase a surge suppressor,
see your local PROFORM dealer or call the
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 24 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 12).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails or the upper body arms while using
the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user’s move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only as
an exercise aid in determining heart rate
trends in general.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 23.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the frame is held securely in the
storage position.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. Never insert any object into any opening on
the treadmill.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the new PROFORM®CROSS-
WALK CALIBER ELITE treadmill. The CROSSWALK
CALIBER ELITE treadmill offers an impressive array of
features designed to make your workouts at home
more enjoyable and effective. And when you’re not ex-
ercising, the unique CROSSWALK CALIBER ELITE
treadmill can be folded up, requiring less than half the
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill.If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Storage Latch
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Console
Bookrack
Accessory Tray
Upper Body Arm
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly requires
two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing
materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-perfor-
mance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or
the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on
top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver ,
rubber mallet , adjustable wrench , and needlenose pliers .
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first
check to see if it has been preassembled.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (86) so the treadmill is more stable; do not fully
fold the treadmill yet.
Insert an Extension Leg (63) into the base of the
Uprights (69) with the Extension Leg Pad (61) oriented
as shown. If necessary, use a rubber mallet to fully in-
sert the Extension Leg. Next, hold two Extension Leg
Nuts (46) in the bottom of the Extension Leg, and insert
two Extension Leg Bolts (93) into the top of the
Extension Leg. Firmly tighten the Extension Leg Bolts
into the Extension Leg Nuts.
Attach two Round Base Pads (57) to the base of the
Uprights (69) with two 1" Tek Screws (39).
1/2” Screw (119)–1
3/4" Screw (2)–11
Nut (13)–2
3/4” Tek Screw (58)–8
1
Wheel Bolt (64)–2
Silver Ground
Screw (75)–1
1" Tek Screw (39)–4
Handrail Bolt (37)–2
Washer (38)–4
1/2" Screw (48)–2
3 1/2" Bolt (45)–4
Star Washer
(106)–4
Extension Leg
Nut (46)–4
Extension Leg Bolt (93)–4
5/16” Star
Washer (48)–4
Handrail Star
Washer (95)–2
Small Star
Washer (118)–4
63
86
61
57
69
39
39
93
46
1
6
7
2. Attach a Wheel (66) to the base of the Uprights (69)
with a Wheel Bolt (64) and a Nut (13) as shown. Do not
overtighten the Wheel Bolt; the Wheel should turn
freely.
With the help of a second person, carefully tip the tread-
mill onto its other side. See assembly step 1, and at-
tach the other Extension Leg (63) and the remaining two
Round Base Pads (57). Then, attach the other Wheel
(66) as described above.
With the help of a second person, carefully lower the
base of the Uprights (69) to the floor so the Uprights are
in a vertical position.
66
13
69
64
2

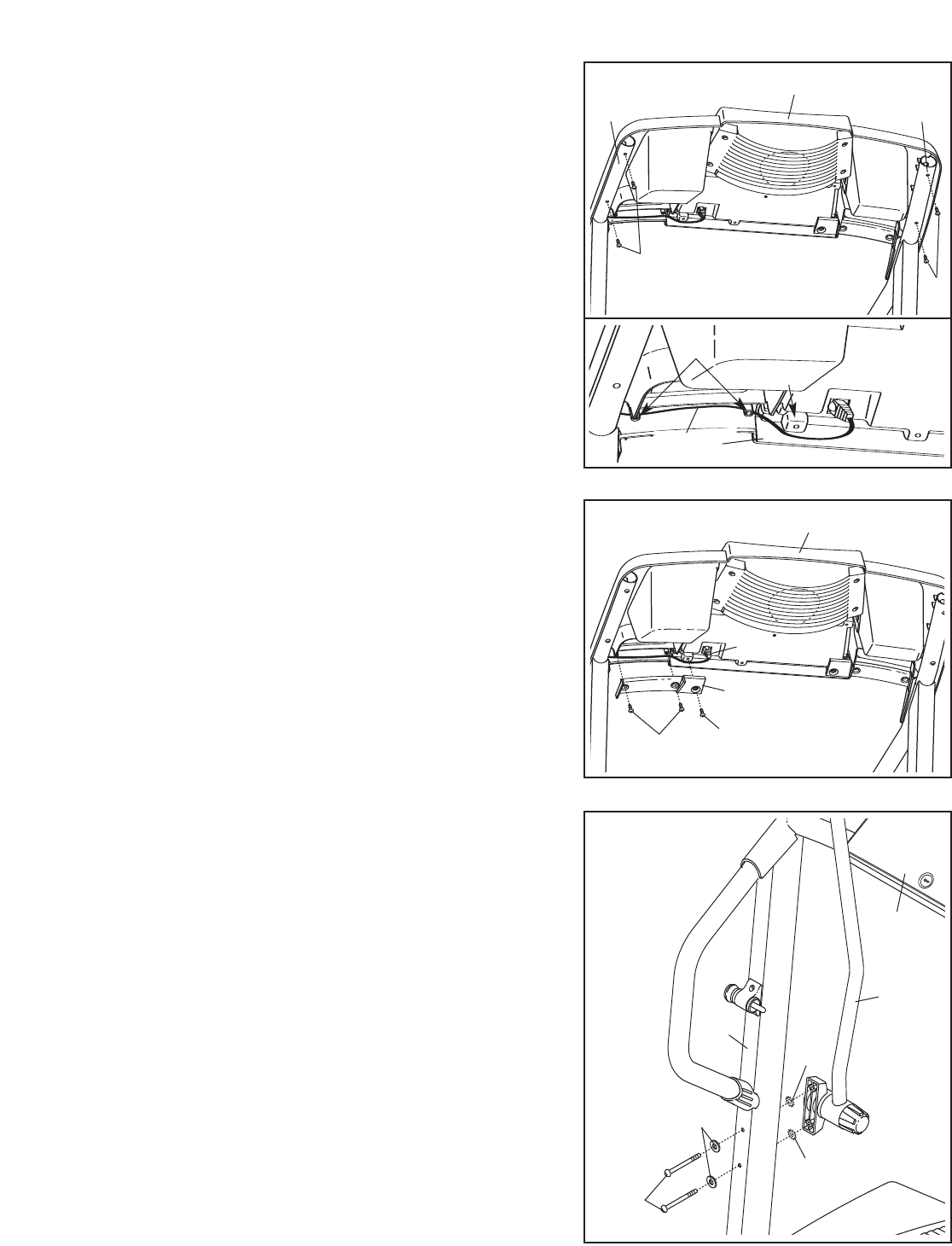

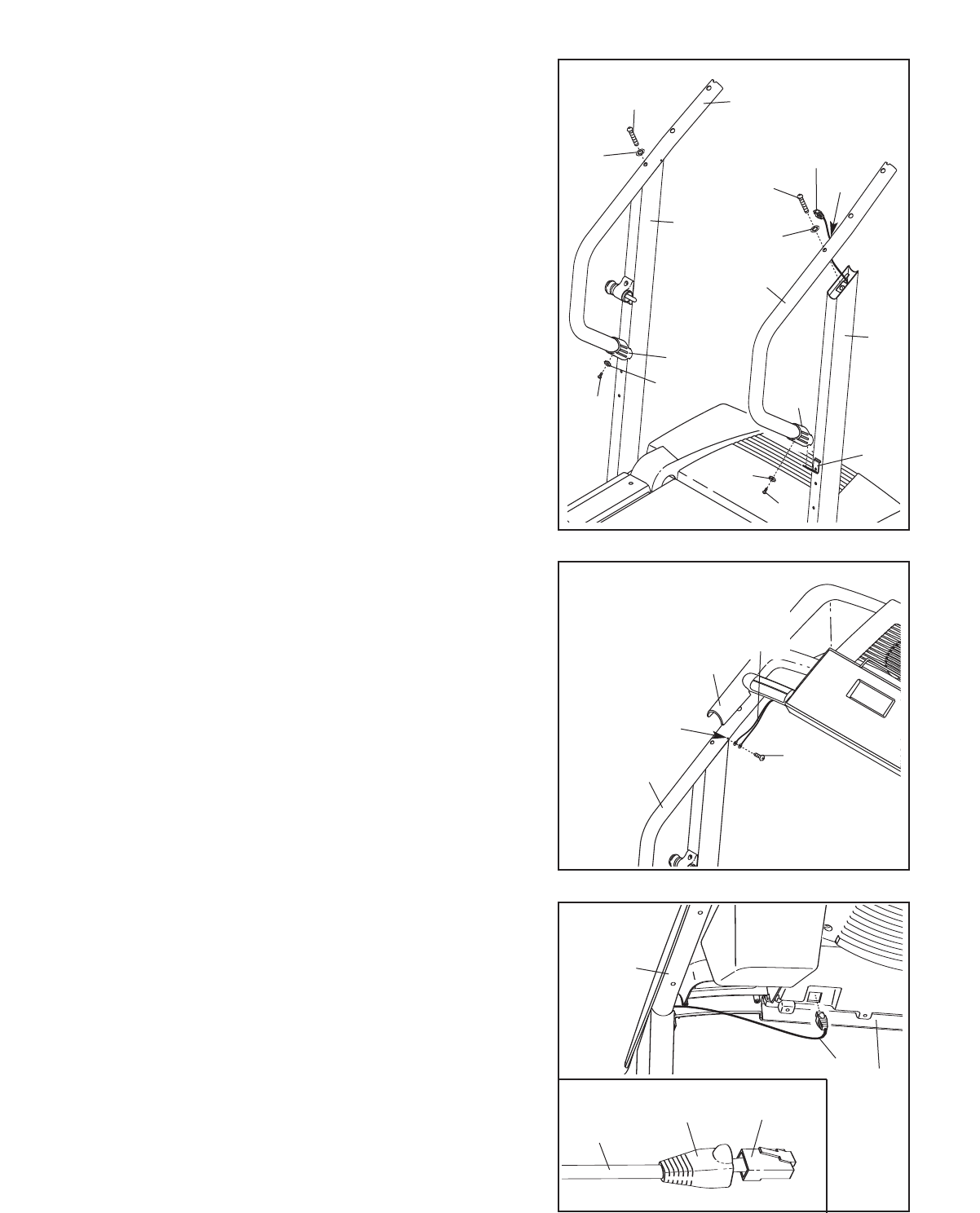

4. Insert the tab on one of the Handrail Brackets (119) into
the slot in the right Upright (69). Attach the Handrail
Bracket with a 3/4" Screw (2) and a Small Star Washer
(118). Attach the other Handrail Bracket to the left
Upright (not shown) in the same way.
2118
69
119
Slot
4

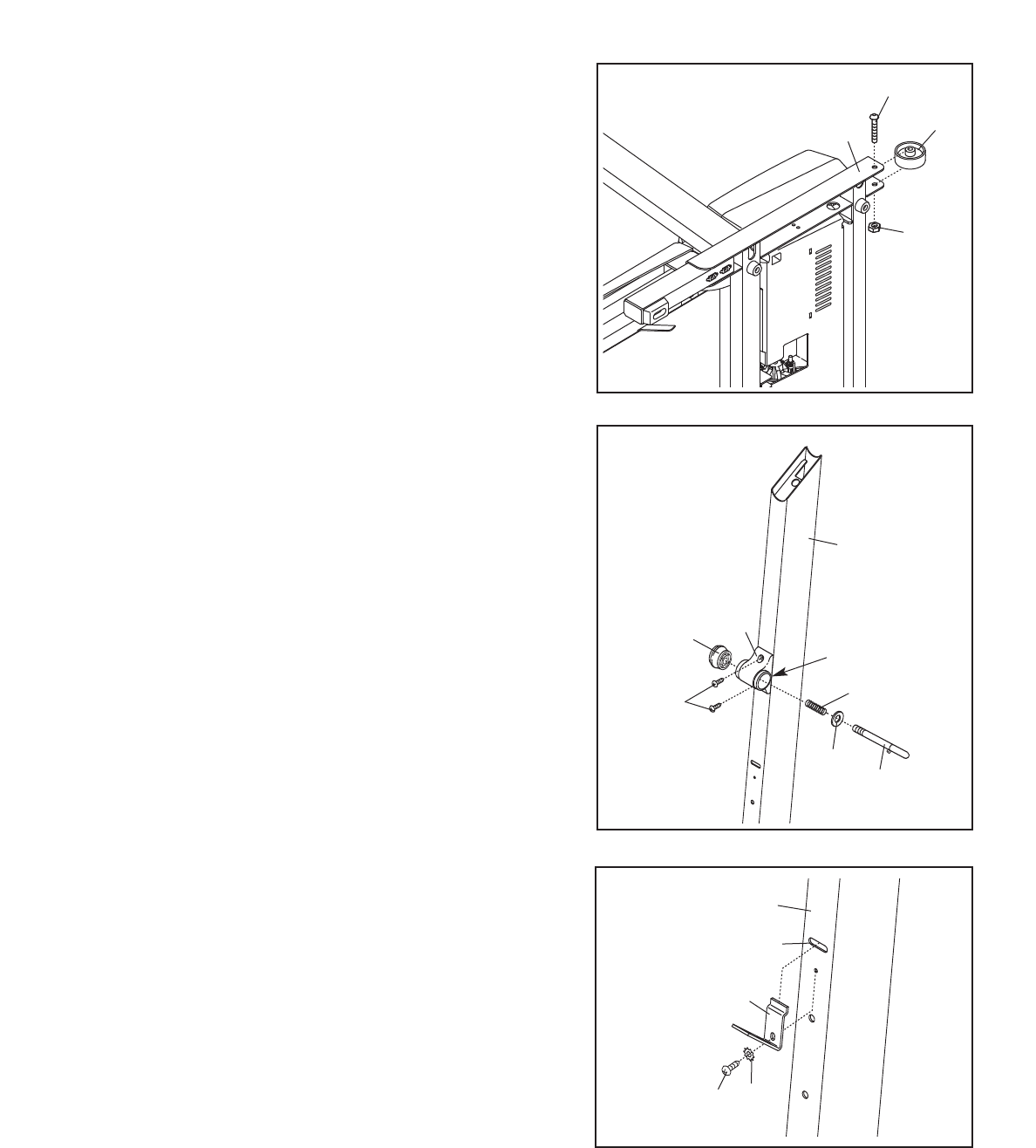

3. Attach the Latch Housing (29) to the left Upright (69) with
two 3/4" Screws (2). Make sure that the large hole in
the Latch Housing is on the side shown.
Remove the knob from the pin. Make sure that the col-
lar and the spring are on the pin as shown. Then, in-
sert the pin into the Latch Housing (29), and tighten the
knob back onto the pin.
Pin
Collar
Spring
Knob
69
29
2
3
Large
Hole
8
Small
Hole
71
6. Hold the Console Base (47) near the Left Handrail (71).
Attach the ends of the ground wires on the Console
Base to the indicated small hole in the Left Handrail with
the Silver Ground Screw (75).
47
75
Ground
Wires
6
42
7. Touch the Right Handrail (72) to discharge any static.
See the inset drawing. Slide the sleeve off the connec-
tor on the Upright Wire (42). Next, press the end of the
Upright Wire into the socket in the bottom of the Console
Base (47). The connector should slide easily into the
socket and snap into place. If it does not, turn the con-
nector and then insert it. IF THE CONNECTOR IS NOT
CONNECTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN YOU TURN ON THE POWER.
Then, slide the sleeve back over the connector.
72
47
7
42
Sleeve Connector
5. If there is a board between the Uprights (69), remove
the two bolts attaching the board. Discard the board and
the bolts.
Identify the Right Handrail (72), which has a large hole
in the left side. Remove the wire tie securing the Upright
Wire (42) inside of the right Upright (69). Feed the
Upright Wire into the hole in the bottom of the Right
Handrail and out of the large hole in the side. Note: It
may be helpful to use needlenose pliers to pull the Wire
Harness out of the hole.
Press a Handrail Cap (16) onto the lower end of the
Right Handrail (72) as shown. Set the Right Handrail on
the right Upright (69), while sliding the lower end of the
Right Handrail onto the Handrail Bracket (119). Attach
the Right Handrail with a Handrail Bolt (37) and a
Handrail Star Washer (95) in the upper end and a 3/4"
Screw (2) and a Small Star Washer (118) in the lower
end. Be careful not to pinch the Upright Wire (42).
Attach the Left Handrail (71) as described above.
Note: There is no wire on the left side.
95
Hole
72
42
37
37
95
71
69
69
2
2
16
118
119
118
16
5
9
42
36
2
47
9. Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
two 1/2" Screws (48) and a 3/4" Screw (2) into the Right
Grip Plate and the Console Base (47).
48
9
10. Attach the Left Upper Body Arm (24) to the left Upright
(69) with two 3 1/2" Bolts (45), two Washers (38), and
two Star Washers (106) as shown. Make sure that the
Left Upper Body Arm is on the indicated side of the
Console Base (47).
Attach the Right Upper Body Arm (not shown) to the
right Upright (not shown) in the same way.
11. Make sure that all parts are properly tightened be-
fore you use the treadmill. Note: Extra hardware may
be included. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see
page 26). To protect the floor or carpet, place a mat
under the treadmill.
24
47
106
106
38
69
45
10
47
8. Set the Console Base (47) on the Handrails (71, 72).
Attach the Console Base with four 3/4" Screws (2). Start
all four Screws before tightening them; do not over-
tighten the Screws.
See the lower drawing. Make sure that the Upright
Wire (42) is routed below the two indicated round
posts (A). Next, press the Upright Wire into the slot be-
tween the square post (B) and the Console Base (47).
2
2
72 71
8
A
B
47
42
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
10
11
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make each workout more effective
and enjoyable.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the built-in handgrip
pulse sensor.
In addition, the console features two speed & incline
programs. Each program automatically controls the
speed and incline of the treadmill as it guides you
through an effective workout. The console also offers
two distance programs—the 5K program counts down
from 5,000 meters as you complete a 5-kilometer run,
and the 10K program counts down from 10,000 me-

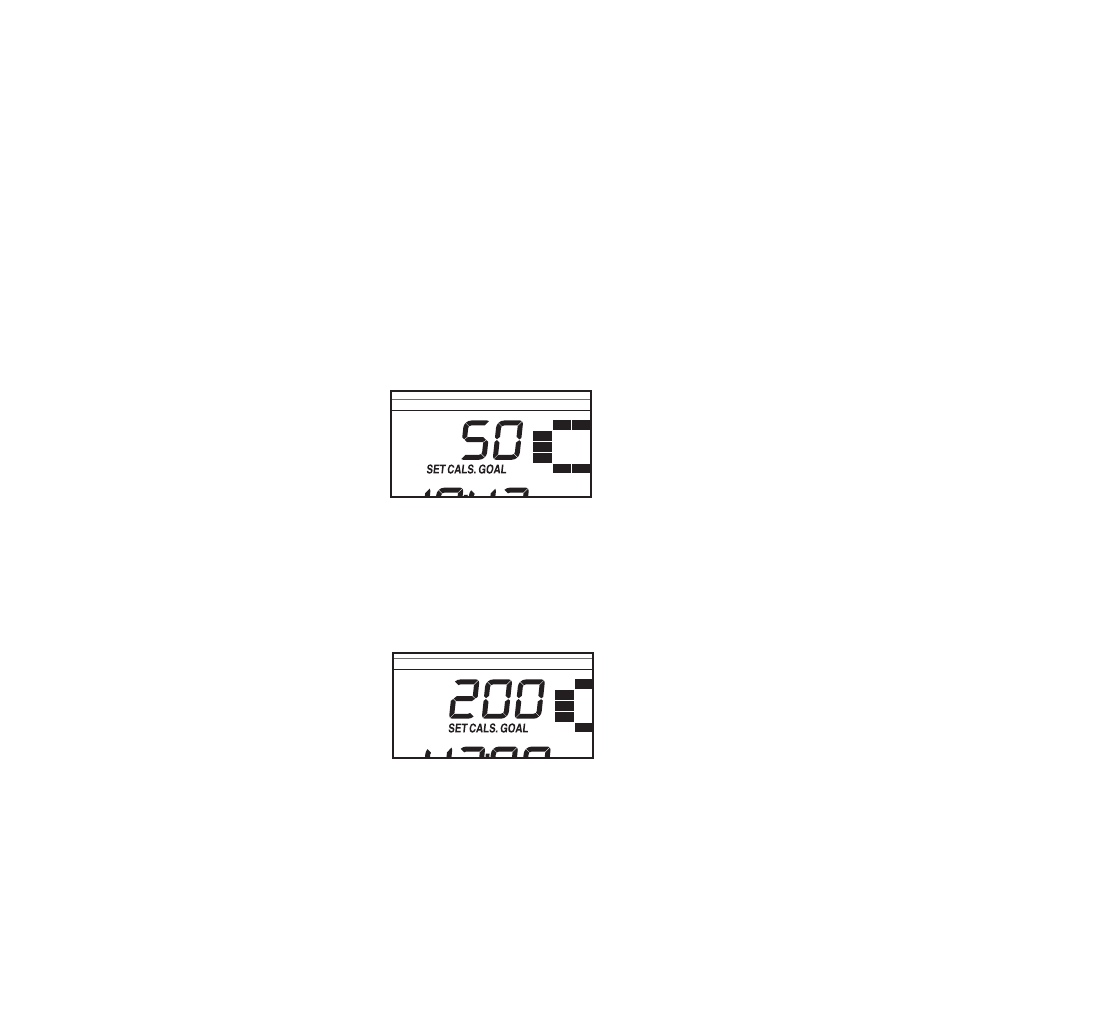

ters. You can even set a calorie-burning goal with the
innovative calorie goal program.

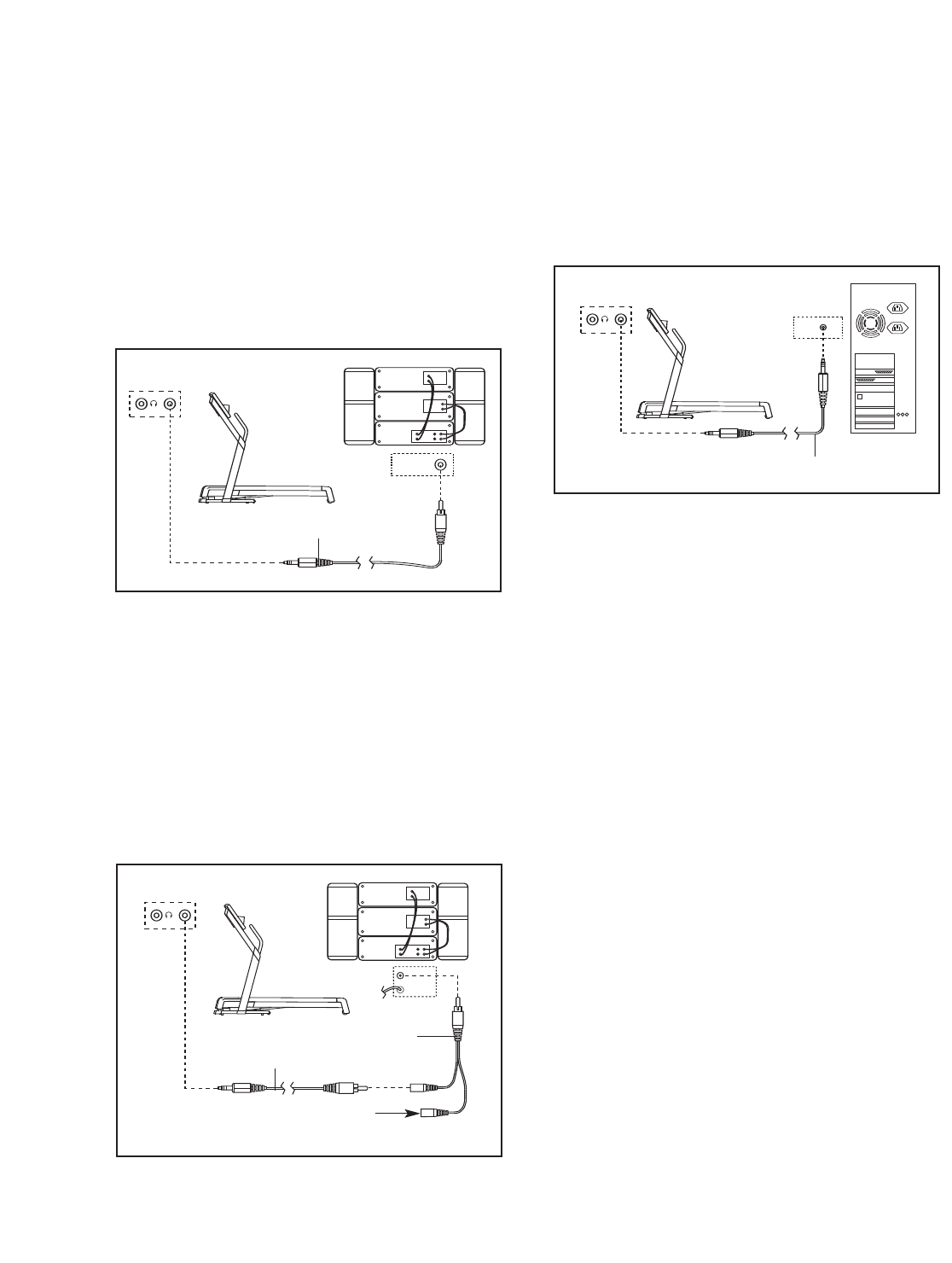

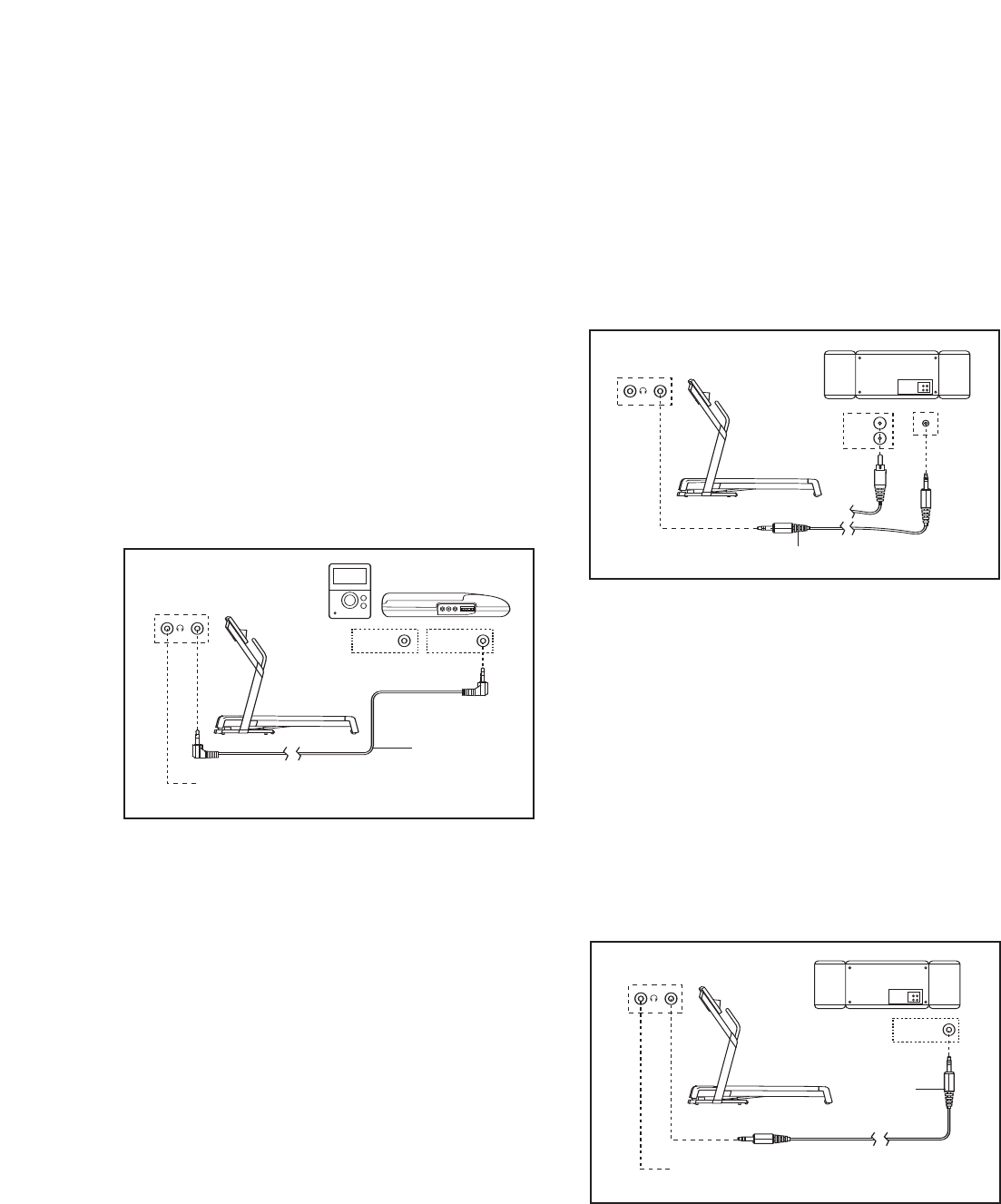

The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-

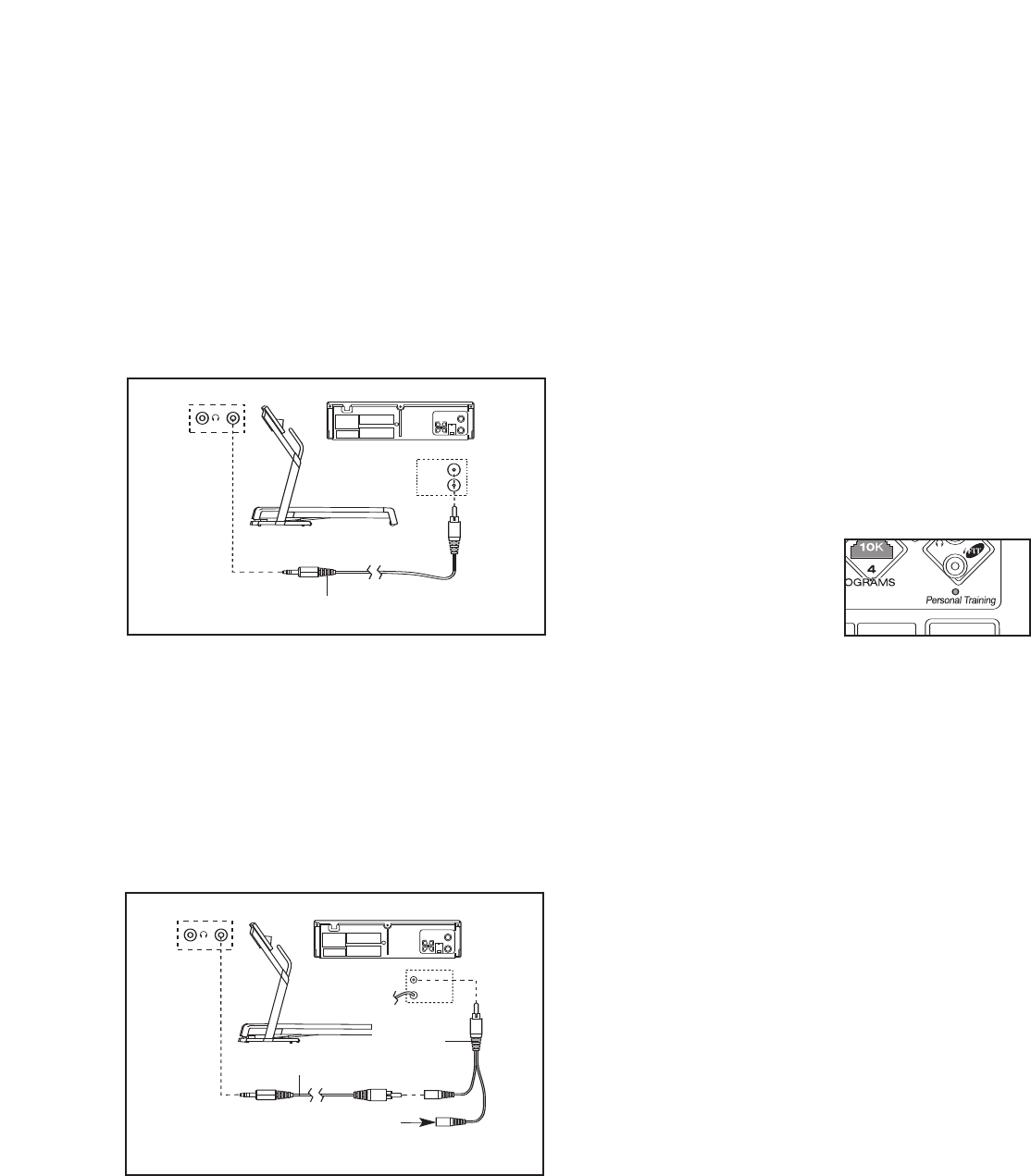

sonal trainer in your home. Using a stereo audio cable,
you can connect the treadmill to your portable stereo,
home stereo, computer, or VCR and play special
iFIT.com MP3, CD, and video programs (iFIT.com MP3
programs, CDs, and videocassettes are available sepa-
rately). iFIT.com programs automatically control the
speed and incline of the treadmill as a personal trainer
guides you through every step of your workout; high-
energy music provides added motivation. To down-
load iFIT.com MP3 programs, go to www.iFIT.com.
To purchase iFIT.com CDs or videocassettes, call
the telephone number on the front cover of this
manual.
With the treadmill connected to your computer, you
can also go to www.iFIT.com and access iFIT.com
programs directly from our Web site. See
www.iFIT.com for more information.
To turn on the power, follow the steps beginning on
page 12. To use the manual mode of the console,
see page 12. To use a speed & incline program,see
page 14. To use a distance program,see page 15.
To use the calorie goal program, see page 16. To
use an iFIT.com MP3, CD, or video program,see
page 19. To use an iFIT.com program directly from
our Web site,see page 21. To use the information
mode,see page 22.
IMPORTANT: If there are sheets of clear plastic on
the console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 26).
Clip

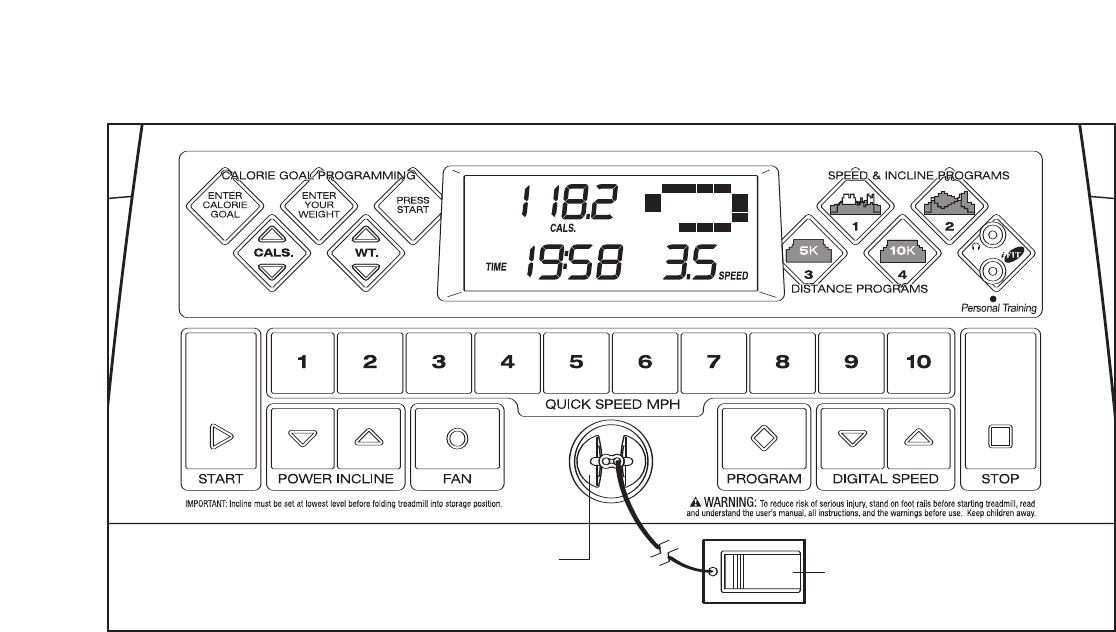

CONSOLE DIAGRAM
Key
12
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, the console displays or other electrical
components may become damaged.

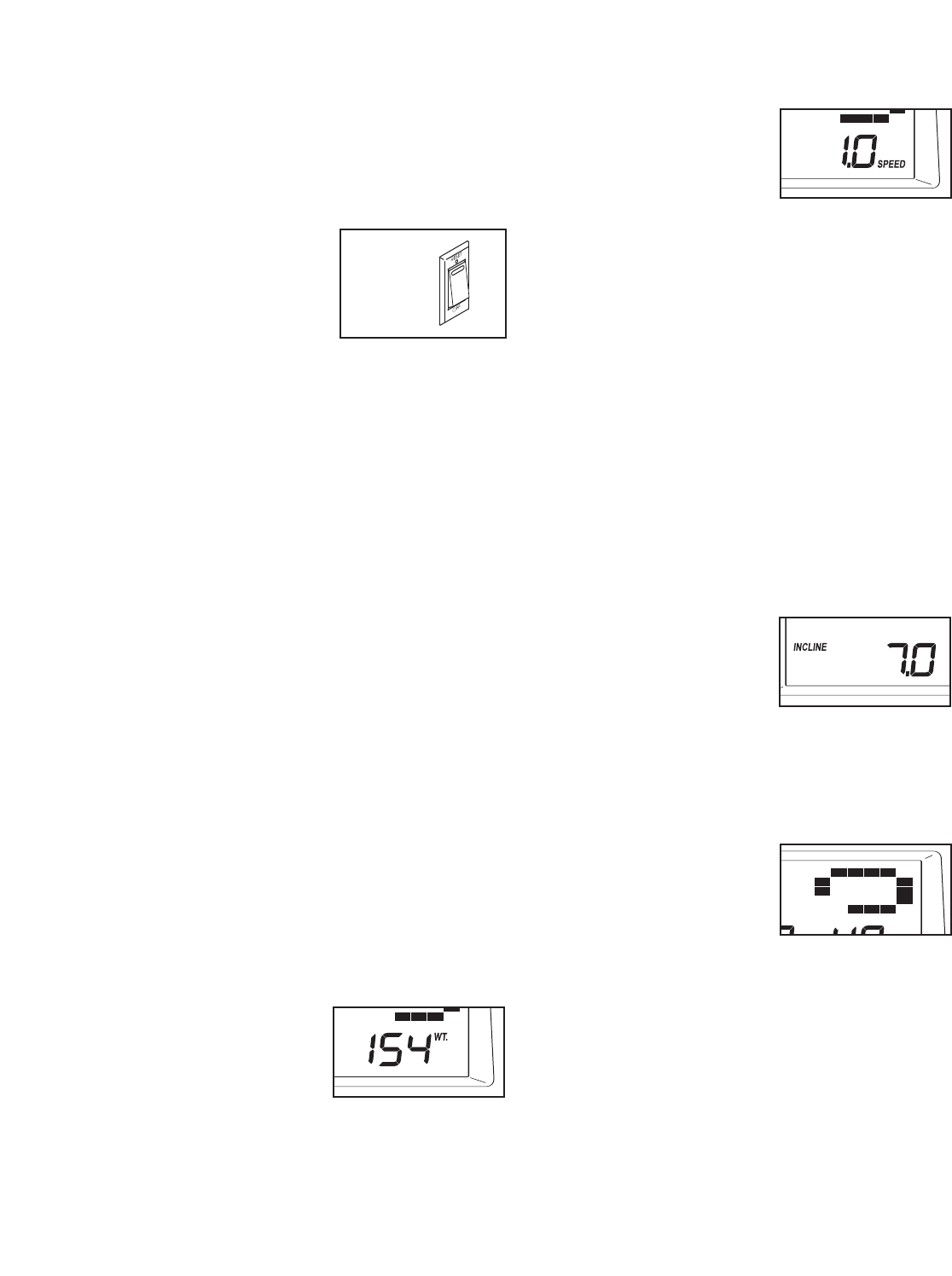

Plug in the power cord
(see page 10). Next, locate
the reset/off circuit breaker
on the treadmill frame near
the power cord. Switch the
circuit breaker to the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the display lights as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
display remains lit, see THE INFORMATION MODE
on page 22 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 11)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the display will light. IMPORTANT: In an emergency
situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER above.
2. Enter your weight if desired.
While you exercise, the
console will count the
approximate number of
calories you burn. For
the most accurate calo-
rie count, enter your
weight into the console by repeatedly pressing the
Weight (WT.) increase or decrease button. To enter
your weight quickly, hold down one of the buttons.
Note: Once you enter your weight, it will be saved
in memory.
3. Select the manual mode.
Each time the key is in-
serted, the manual mode
will be selected. If a pro-
gram has been selected,
reselect the manual
mode by removing the
key and then reinserting it.
4. Press the Start button to start the walking belt.
When the you press Start button, the walking belt
will begin to move at 1 mph. While you exercise,
change the speed of the walking belt as desired by
pressing the Speed increase or decrease button or
one of the ten numbered Speed buttons. Each time
you press the Speed increase or decrease button,
the speed setting will change by 0.1 mph; if you
hold down one of the buttons, the speed setting will
change in increments of 0.5 mph. If you press one
of the numbered Speed buttons, the walking belt
will gradually increase in speed until it reaches the
selected speed setting. Note: After you press a but-
ton, it may take a moment for the walking belt to
reach the selected speed setting.
To stop the walking belt,
press the Stop button.
The time will begin to
flash in the display. To
restart the walking belt,
press the Start button
and then adjust the speed setting as described
above.
5. Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline increase or de-
crease button. Each
time you press a button,
the incline will change
by 0.5%. Note: After you press a button, it may
take a moment for the treadmill to reach the se-
lected incline setting.
6. Follow your progress with the display.
When the manual mode, a distance program, the
calorie goal program, or the iFIT.com mode is se-
lected, a track representing 1/4 mile (400 meters)
will appear in the upper right corner of the display.
As you walk or run on the treadmill, the indicators
around the track will appear in succession until the
entire track appears. The track will then disappear
and the indicators will again begin to appear in
succession.
Reset
Position
13
The upper left corner of
the display will show
the approximate num-
ber of calories you
have burned during
your workout. Note:
When the calorie goal program is selected, the dis-
play will show the number of calories still to be
burned.
The lower left corner of
the display will show
the elapsed time and
the distance that you
have walked or run
during your workout.
The lower left corner of the display will also show
the incline level of the treadmill for a few seconds
each time the incline setting changes. Note: When
aspeed & incline program or the calorie goal pro-
gram is selected, the lower left corner of the dis-
play will show the time remaining in the program
instead of the elapsed time.
The lower right corner
of the display will show
the speed of the walk-
ing belt. When you use
the handgrip pulse
sensor, the lower right
corner of the display will also show your heart rate.
Note: When a distance program is selected, the
lower right corner of the display will also show the
approximate number of calories you have burned.
To reset the display, press the Stop button, remove
the key, and then reinsert the key.
Note: The console can display speed, distance,
and weight using either English miles and pounds
or metric kilometers and kilograms. To find which
system of measurement is selected, or to select a
different system, see THE INFORMATION MODE
on page 22. Note: For simplicity, all instructions
in this section refer to miles and pounds.
7. Measure your heart rate if desired.
Note: Before
using the
handgrip pulse
sensor, re-
move the
sheets of clear
plastic from
the metal con-
tacts on the handgrip pulse sensor. In addition,
make sure that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail—
avoid moving your hands.When your pulse is de-
tected, the heart symbol in the display will flash
each time your heart beats, one or two dashes will
appear, and then your heart rate will be shown.
For the most accurate heart rate reading, con-
tinue to hold the contacts for about 15 seconds.
8. Turn on the fan if desired.
The fan features high and low speed settings.
Press the Fan button repeatedly to select a fan
speed or to turn off the fan. Note: If the fan is on
when the walking belt is stopped, the fan will turn
off automatically after a few minutes.
9. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
or you may damage the treadmill when you fold
it to the storage position. Next, remove the key
from the console and put it in a secure place.
When you are finished using the treadmill,switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmill’s electrical compo-
nents may wear prematurely.
Contacts
14
HOW TO USE A SPEED & INCLINE PROGRAM
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.

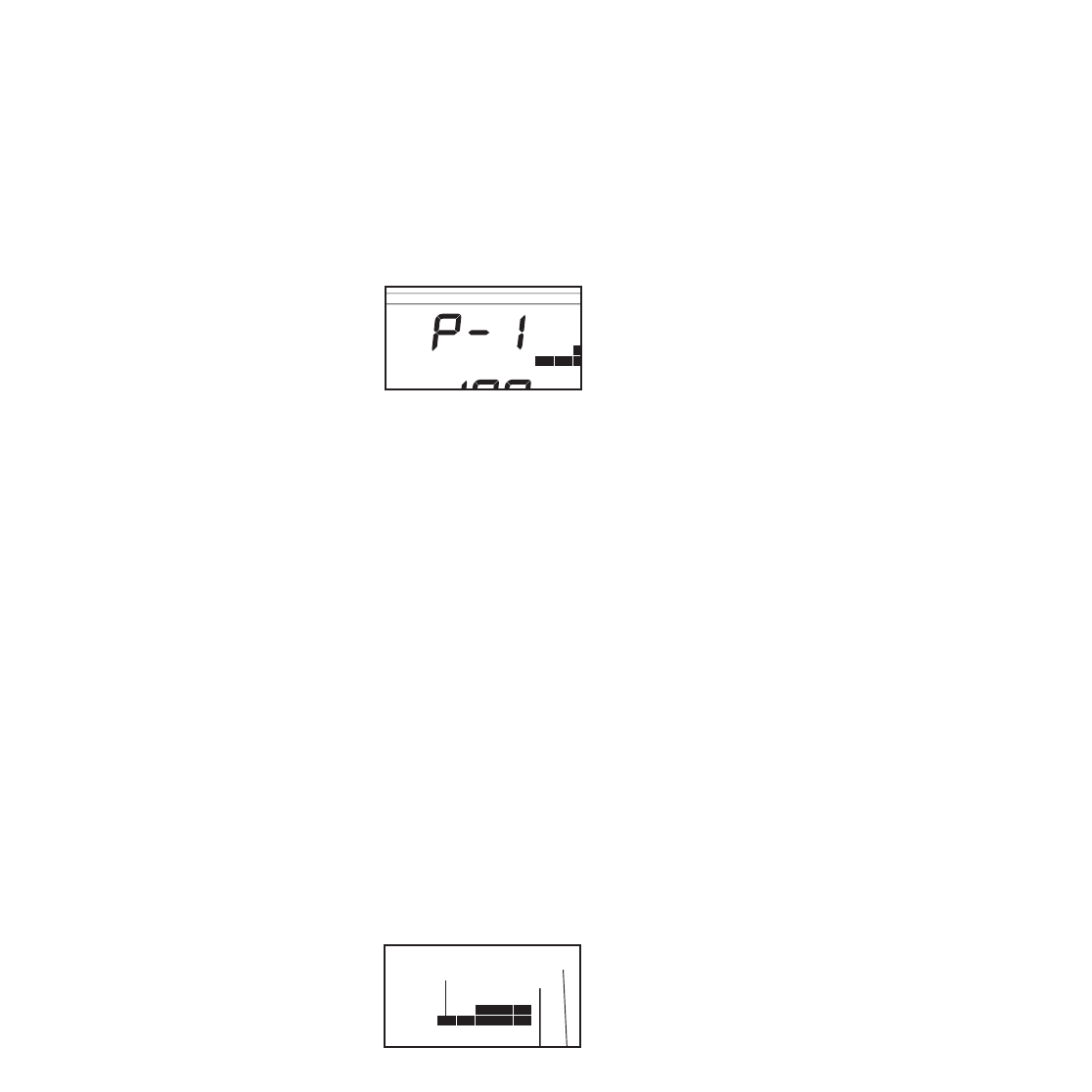

2. Select a speed & incline program.
To select a speed & in-
cline program, press the
Program button repeat-
edly until “P–1” or “P–2”
appears in the display.
When a speed & incline
program is selected, the maximum incline setting
and the maximum speed setting of the program will
flash in the display for a few seconds. The display
will then show how long the program will last and
the approximate number of calories you will burn
during the program. A profile of the speed settings
of the program will scroll across the upper right cor-
ner of the display.
3. Press the Start button to start the program.
Amoment after you press the Start button, the
treadmill will automatically adjust to the first speed
and incline settings of the program. Hold the
handrails and begin walking.
Each program is divided into 30 one-minute seg-
ments. One speed setting and one incline setting
are programmed for each segment. Note: The
same speed setting and/or incline setting may be
programmed for consecutive segments.
During theworkout, the
profile will show your
progress. The flashing
segment of the profile
represents the current
segment of the workout.
The height of the flashing segment indicates the
speed setting for the current segment. At the end of
each segment, a series of tones will sound and the
new speed setting, new incline setting, and the next
segment of the profile will flash in the display.
The workout will continue in this way until the last
segment of the profile flashes in the display and
the last segment ends. The walking belt will then
slow to a stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or incline
buttons; however, when the next segment of the
workout begins, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg-
ment of the workout begins, the treadmill will auto-
matically adjust to the speed and incline settings for
the next segment.
4. Follow your progress with the display.
See step 6 on page 12.
5. Measure your heart rate if desired.
See step 7 on page 13.
6. Turn on the fan if desired.
See step 8 on page 13.
7. When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
Current Segment
15
HOW TO USE A DISTANCE PROGRAM
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.

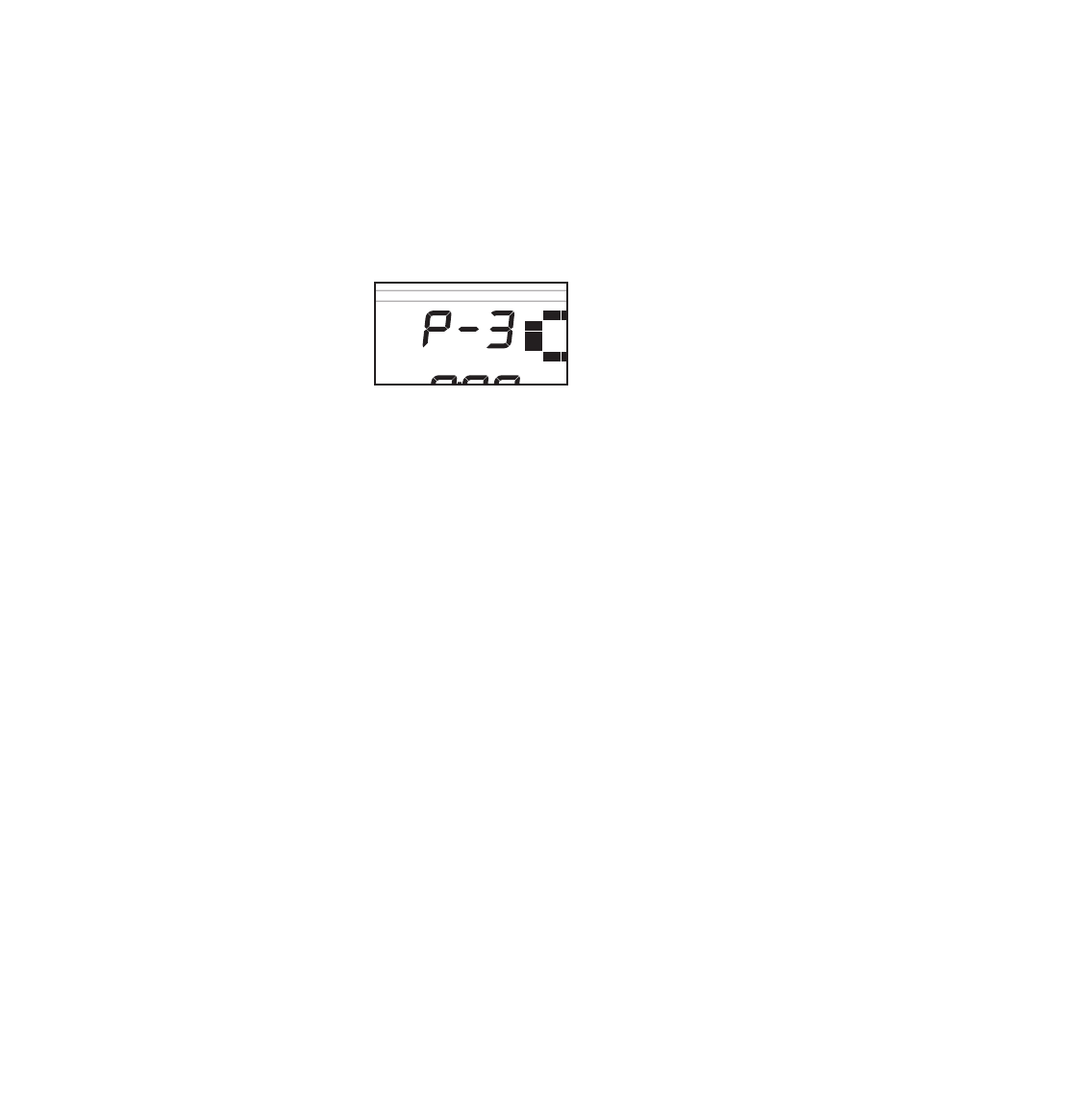

2. Select a distance program.
To select a distance
program, press the
Program button repeat-
edly until “P–3” or “P–4”
appears in the display.
When a distance pro-
gram is selected, the maximum speed setting of
the program will flash in the display for a few sec-
onds. A distance goal of 5,000 meters or 10,000
meters will then appear in the display.
3. Press the Start button to start the program.
Amoment after you press the button, the walking
belt will begin to move at 3 mph. Hold the handrails
and begin walking.
After several minutes, the speed setting will flash in
the display and a series of tones will sound. The
speed of the walking belt will then increase to 4
mph.
After several more minutes, the speed setting will
flash in the display and a series of tones will
sound. The speed of the walking belt will then in-
crease to 5 mph.
After another minute, the speed setting will flash in
the display and a series of tones will sound. The
speed of the walking belt will then increase to 6.5
mph.
Note: To change the speed of the walking belt or
the incline of the treadmill at any time during the
program, press the Speed or Incline buttons.
The upper left corner of the display will show the
number of meters still to be run. When only 20 me-
ters remain, the display will flash and a series of
tones will sound.
To stop the program at any time, press the Stop
button. The time will begin to flash in the display.
To restart the program, press the Start button. The
walking belt will begin to move at 1 mph. Adjust the
speed of the walking belt as desired by pressing the
Speed increase or decrease button or one of the
ten numbered Speed buttons.
When you have completed a 5-kilometer run or a
10-kilometer run, your total time will flash in the
lower left corner of the display and the words
COOL and DOWN (cool down) will flash in the
upper left corner of the display. If the speed of the
walking belt is greater than 5 mph, the walking belt
will then slow to 5 mph for one minute. After one
minute, the walking belt will slow to 4 mph for 2
minutes. The walking belt will then slow to 3 mph
for 2 minutes. The walking belt will then slow to a
stop.
4. Follow your progress with the display.
See step 6 on page 12.
5. Measure your heart rate if desired.
See step 7 on page 13.
6. Turn on the fan if desired.
See step 8 on page 13.
7. When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
16
HOW TO USE THE CALORIE GOAL PROGRAM
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.
2. Enter your weight if desired.
See step 2 on page 12.
3. Select the calorie goal program.
To select the calorie
goal program, press the
Program button repeat-
edly until a goal of 50
calories and the words
“SET CALS. GOAL” ap-
pear in the upper left corner of the display. When
the calorie goal program is selected, a speed set-
ting of 2.5 mph will flash in the display. The display
will also show how long the program will last.
If desired, change the
calorie goal by pressing
the Cals. increase or de-
crease button. Each
time you press a button,
the calorie goal will
change by 50 calories; the calorie goal can be from
50 to 450 calories. In addition, press the Speed in-
crease or decrease button or one of the ten num-
bered Speed buttons to change the speed setting if
desired.
Note: As you change the calorie goal or the speed
setting, the program time will automatically be re-
calculated—the higher the calorie goal is, or the
lower the speed setting is, the longer the program
will last.
4. Press the Start button to start the program.
Amoment after the button is pressed, the walking
belt will begin to move at 2.5 mph (or the speed
setting that you selected). Hold the handrails and
begin walking.
To change the speed of the walking belt or the in-
cline of the treadmill at any time during the pro-
gram, press the Speed or Incline buttons. Note:
Each time you change the speed of the walking
belt, the time remaining in the program will auto-
matically be recalculated.
While you exercise, the console will show the num-
ber of calories still to be burned. When you reach
your calorie goal, the walking belt will slow to a
stop.
5. Follow your progress with the display.
See step 6 on page 12.
6. Measure your heart rate if desired.
See step 7 on page 13.
7. Turn on the fan if desired.
See step 8 on page 13.
8. When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
17
HOW TO CONNECT THE TREADMILL TO USE
IFIT.COM PROGRAMS
Touse iFIT.com MP3 or CD programs,the treadmill
must be connected to your MP3 player, CD player,
portable stereo, home stereo, or computer. See pages
17 and 18 for connecting instructions. To use iFIT.com
programs directly from our Web site,the treadmill
must be connected to your computer. See page 18 for
connecting instructions. To use iFIT.com video pro-
grams,the treadmill must be connected to your VCR.
See page 19 for connecting instructions.
HOW TO CONNECT YOUR MP3 PLAYER OR CD
PLAYER
A. Plug one end of the included 1/8" to 1/8" stereo
audio cable into the input jack on the console. Plug
the other end of the cable into a jack on your MP3
player or CD player. Plug your headphones into the
headphone jack on the console.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of a long
1/8" to 1/8" stereo audio cable (available at elec-
tronics stores) into the input jack on the console.
Plug the other end of the cable into the LINE OUT
jack on your stereo. Note: While the cable is
plugged into the LINE OUT jack, do not plug your
headphones into the headphone jack on the con-
sole.
C. Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the PHONES jack on your stereo. Plug your
headphones into the headphone jack on the console.
Audio
Cable
Headphones
A
Audio Cable
A/B
Audio
Cable
C
Headphones
18
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the LINE OUT jack on your stereo. Note: While
the cable is plugged into the LINE OUT jack, do not
plug your headphones into the headphone jack on
the console.
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the LINE OUT jack on your stereo and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the LINE OUT jack on your
stereo. Note: While the Y-adapter is plugged into the
LINE OUT jack, do not plug your headphones into
the headphone jack on the console.
HOW TO CONNECT YOUR COMPUTER
A. Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the LINE OUT jack on your computer. Note:
While the cable is plugged into the LINE OUT jack,
do not plug your headphones into the headphone
jack on the console.
Audio Cable
A
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Audio Cable
A
19
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 18.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your VCR.
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the AUDIO OUT jack on
your VCR.
HOW TO USE AN IFIT.COM MP3, CD, OR VIDEO
PROGRAM
To use an iFIT.com MP3, CD, or video program, the
treadmill must be connected to your MP3 player, CD
player, or VCR. See HOW TO CONNECT THE
TREADMILL TO USE IFIT.COM PROGRAMS on
pages 17 to 19. To download iFIT.com MP3 pro-
grams, go to www.iFIT.com. To purchase iFIT.com
CDs or videocassettes, call the toll-free telephone
number on the front cover of this manual.
Follow the steps below to use an iFIT.com MP3, CD,
or video program.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
2. Select the iFIT.com mode.
To select the iFIT.com
mode, press the
Program button repeat-
edly until the Personal
Training indicator lights.
3. Press the Play button on your MP3 player, CD
player, or VCR.
Note: If you are using an iFIT.com CD, insert the
CD into your CD player; if you are using an
iFIT.com videocassette, insert the videocassette
into your VCR.
Amoment after the Play button is pressed, your
personal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s in-
structions. Note: If the time is flashing in the dis-
play, press the Start button on the console. The
treadmill will not respond to an MP3, CD, or video
program while the time is flashing in the display.
During the program, an electronic “chirping” sound
will alert you when the speed and/or incline of the
treadmill is about to change. CAUTION: Always lis-
ten for the “chirp” and be prepared for speed
and/or incline changes. In some instances, the
speed and/or incline may change before your
personal trainer describes the change.
Audio Cable
A
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
Audio Cable
20
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console; however, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the Stop
button on the console. To restart the program,
press the Start button. After a moment, the walking
belt will begin to move at 1 mph. When the next
“chirp” is heard, the speed and/or incline will
change to the next settings of the program.
When the program is completed, the walking belt will
stop. Note: To use another MP3, CD, or video pro-
gram, press the Stop button or remove the key and
go to step 1 on page 19.
Note: If the speed and/or incline of the treadmill
does not change when a “chirp” is heard:
•Make sure that the Personal Training indicator
is lit and that the time is not flashing in the dis-
play. If the time is flashing, press the Start but-
ton on the console.
•Adjust the volume of your MP3 player, CD
player, or VCR. If the volume is too high or too
low, the console may not detect the program
signals.
•Make sure that the audio cable is properly con-
nected.
•If you are using a portable CD player and the
CD skips, set the CD player on the floor or an-
other flat surface instead of on the console.
4. Follow your progress with the display.
See step 6 on page 12.
5. Measure your heart rate if desired.
See step 7 on page 13.
6. Turn on the fan if desired.
See step 8 on page 13.
7. When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player and VCR
and disconnect your MP3 player when you are
not using them.
21
HOW TO USE AN IFIT.COM PROGRAM DIRECTLY
FROM OUR WEB SITE
Our Web site at www.iFIT.com allows you to access
basic programs, audio programs, and video programs
directly from the internet. Additional options are soon to
be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 18. In
addition, you must have an internet connection and
an internet service provider. A list of specific system re-
quirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
2. Select the iFIT.com mode.
See step 2 on page 19.
3. Go to your computer and start an internet con-
nection.
4. Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
5. Follow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructions for using a
program.
6. Follow the on-line instructions to start the pro-
gram.
When you start the program, an on-screen count-
down will begin.
7. Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
“chirping” sound will alert you when the speed and/or
incline of the treadmill is about to change. CAU-
TION: Always listen for the “chirp” and be pre-
pared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console; however, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings for the program.
To stop the walking belt at any time, press the Stop
button on the console. To restart the program,
press the Start button. After a moment, the walking
belt will begin to move at 1 mph. When the next
“chirp” is heard, the speed and incline will
change to the next settings of the program.
When the program is completed, the walking belt will
stop.Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill
does not change when a “chirp” is heard, make
sure that the Personal Training indicator is lit
and that the time is not flashing in the display.
In addition, make sure that the audio cable is
properly connected.
8. Follow your progress with the display.
See step 6 on page 12.
9. When you are finished exercising, remove the
key from the console.
See step 9 on page 13.
22

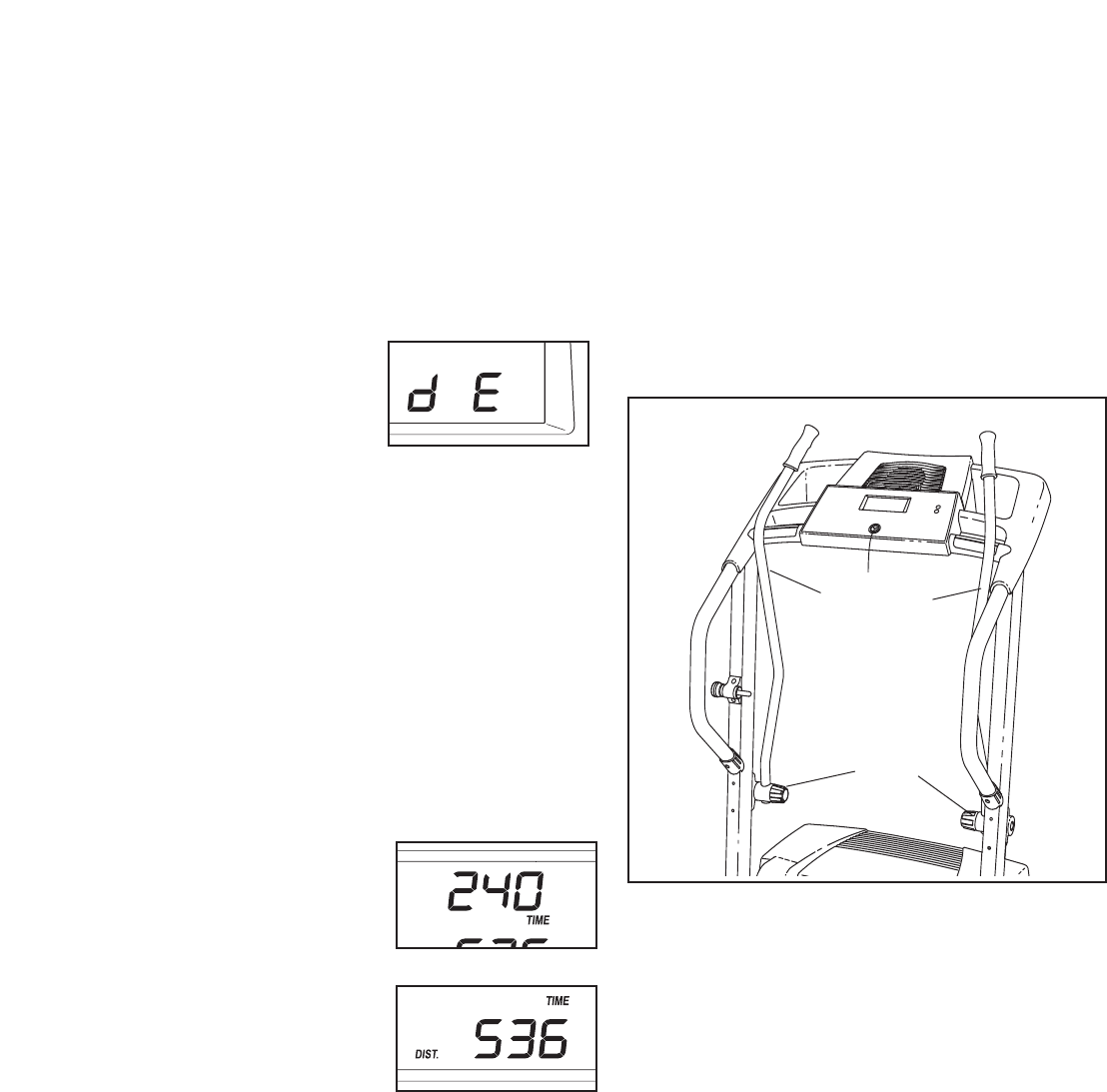

THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill usage information and allows you to
select a system of measurement.
To select the information mode, insert the key into the
console while holding down the Stop button, and then
release the Stop button. When the information mode is
selected, the following information will be shown:
An “E” (for English miles
and pounds) or an “M” (for
metric kilometers and kilo-
grams) will appear in the
lower right corner of the dis-
play. Press the Speed in-
crease button to change the unit of measurement, if
desired.
The console features a display demo mode, designed
to be used if the treadmill is displayed in a store.
While the demo mode is turned on, the console will
function normally when you plug in the power cord,
switch the reset/off circuit breaker to the reset posi-
tion, and insert the key into the console. However,
when you remove the key, the displays will remain lit,
although the buttons will not function. If the demo
mode is turned on, a “d” will appear in the display
while the information mode is selected. To turn on or
turn off the demo mode, press the Speed decrease but-
ton.
The upper left corner of the
display will show the total
number of hours that the
treadmill has been used.
The lower left corner of the
display will show the total
number of miles or kilome-
ters that the walking belt has
moved.
To exit the information mode, remove the key from the
console.
HOW TO USE THE UPPER BODY ARMS
As you walk on the treadmill, you can hold the
handrails or use the upper body arms. To exercise
your arms, shoulders, and back for a total body work-
out, move the upper body arms forward and back as
you walk on the treadmill.
To vary the intensity of your upper body exercise, the
resistance of the upper body arms can be adjusted. To
increase the resistance, turn the resistance knobs
clockwise; to decrease the resistance, turn the knobs
counterclockwise.
Upper Body
Arms
Resistance
Knobs

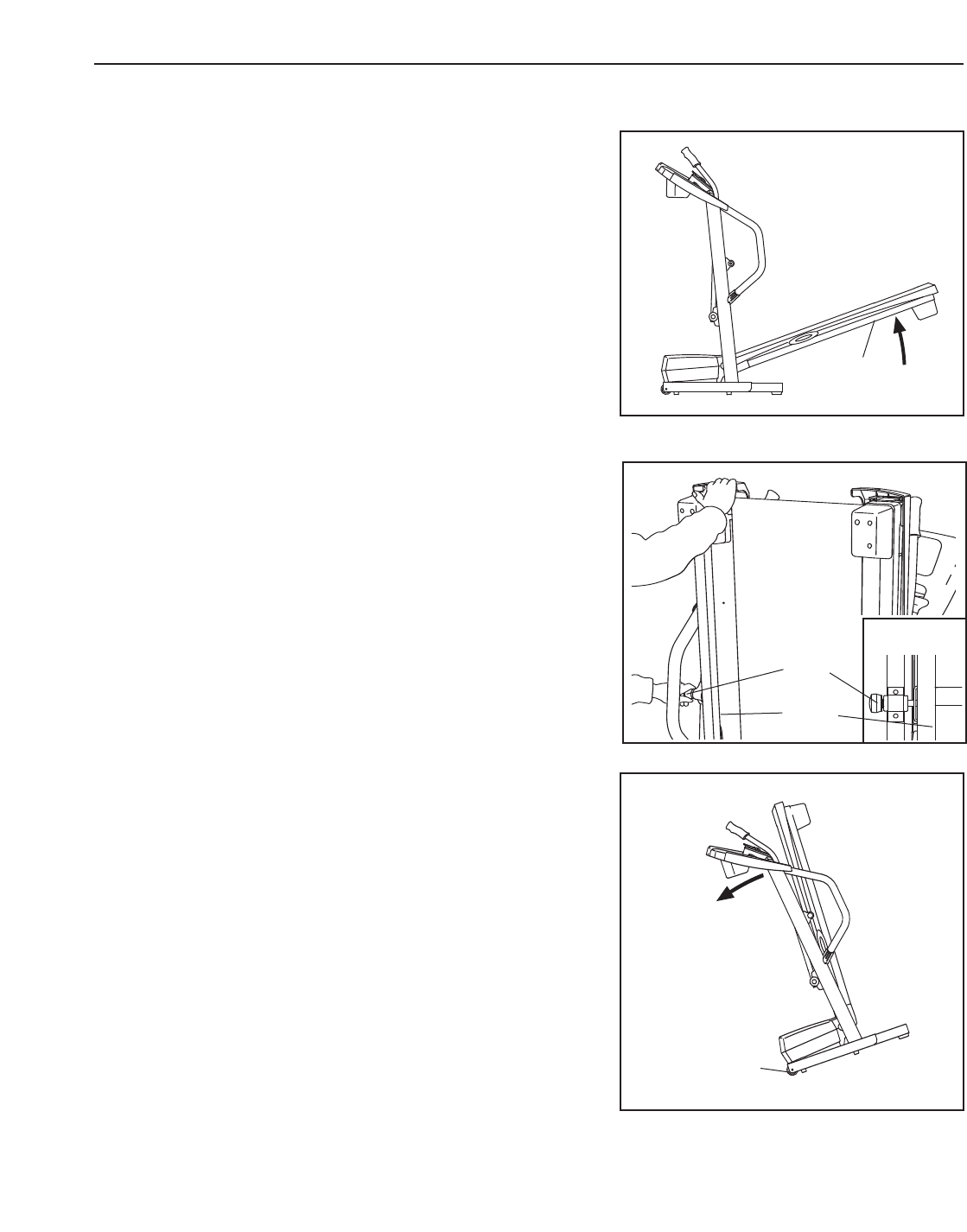

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may damage the
treadmill when you fold it. Next, unplug the power cord.
CAUTION: You must be able to safely lift 45 lbs. (20 kg) to
raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by the
arrow at the right. CAUTION: To decrease the possibility
of injury, do not lift the frame by the plastic foot rails.
Bend your legs and keep your back straight; as you raise
the frame, make sure to lift with your legs rather than
your back. Raise the frame about halfway to the vertical po-
sition.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to the
left and hold it. Raise the frame until the hole in the frame is
aligned with the latch pin. Slowly release the latch knob;
make sure that the latch pin is fully inserted into the
frame.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun-
light. Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the latch pin is
fully inserted into the frame.
1. Hold the upper ends of the handrails, and place one foot
against one of the wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov-
ing the treadmill. Do not move the treadmill over an un-
even surface.
3. Place one foot against one of the wheels, and carefully lower
the treadmill until it is resting in the storage position.
Wheel
Engaged
Frame
Latch
Knob
Frame
23

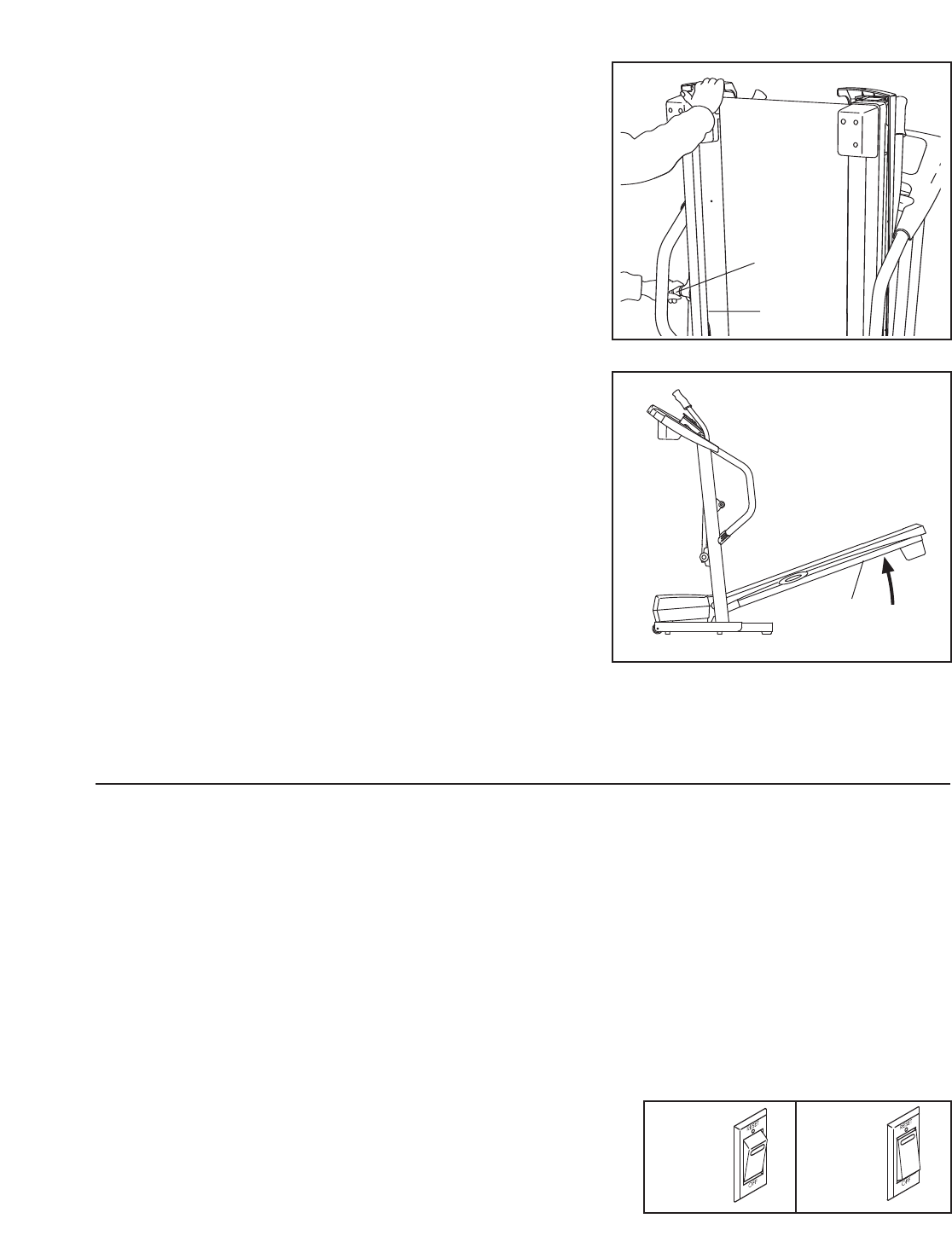

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill with your right hand as shown. Pull the
latch knob to the left and hold it. Then, pivot the frame down
until it is past the latch pin. Slowly release the latch knob.
2. Hold the metal frame firmly with both hands,and lower the
frame to the floor. CAUTION: To decrease the possibility of
injury, do not lower the frame by gripping only the plastic
foot rails. Do not drop the frame to the floor. Make sure to
bend your legs and keep your back straight.
Frame
Latch
Knob
Frame
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 10. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
24
Tripped Reset
c
25
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, see THE INFORMATION MODE on page 22.

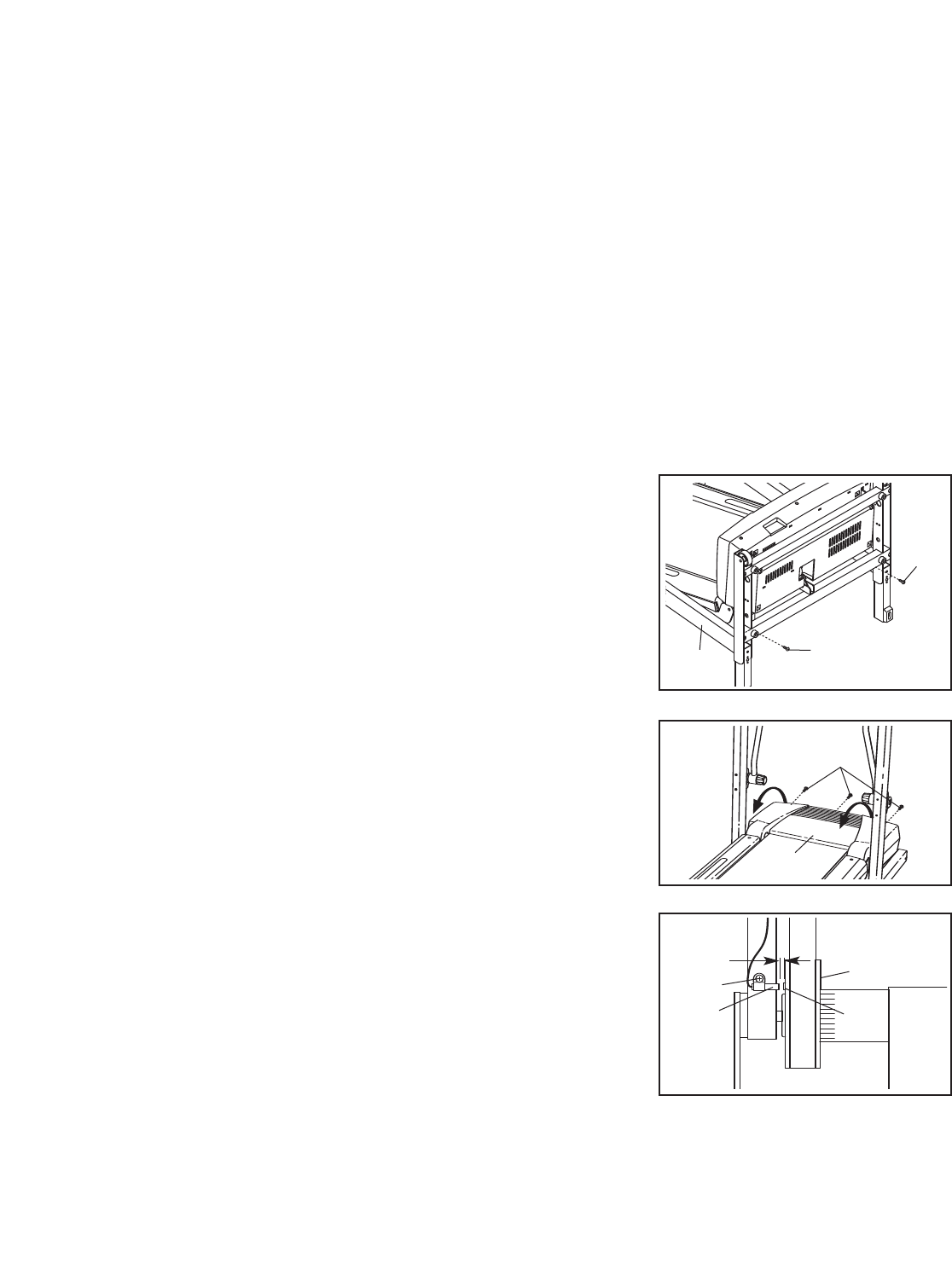

PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person,
carefully tip the Upright (69) down. There may be two
Belly Pan Screws (115) in the bottom of the Belly Pan
(81). If there are, remove them. Note: A Phillips screw-
driver with a shaft at least 5 in. (13 cm) long is re-
quired. Then, raise the Uprights.
Remove the Belly Pan Screws (115) from the Hood
(1), and carefully pivot the Hood off.
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8 in. (3 mm). If necessary,
loosen the 3/4" Tek Screw (58), move the Reed
Switch slightly, and then retighten the Screw.
Reattach the Hood (not shown), and run the treadmill
for a few minutes to check for a correct speed read-
ing.
115
1
18
10
58
Top
View
1/8 in. 17
115
69
115
a
26

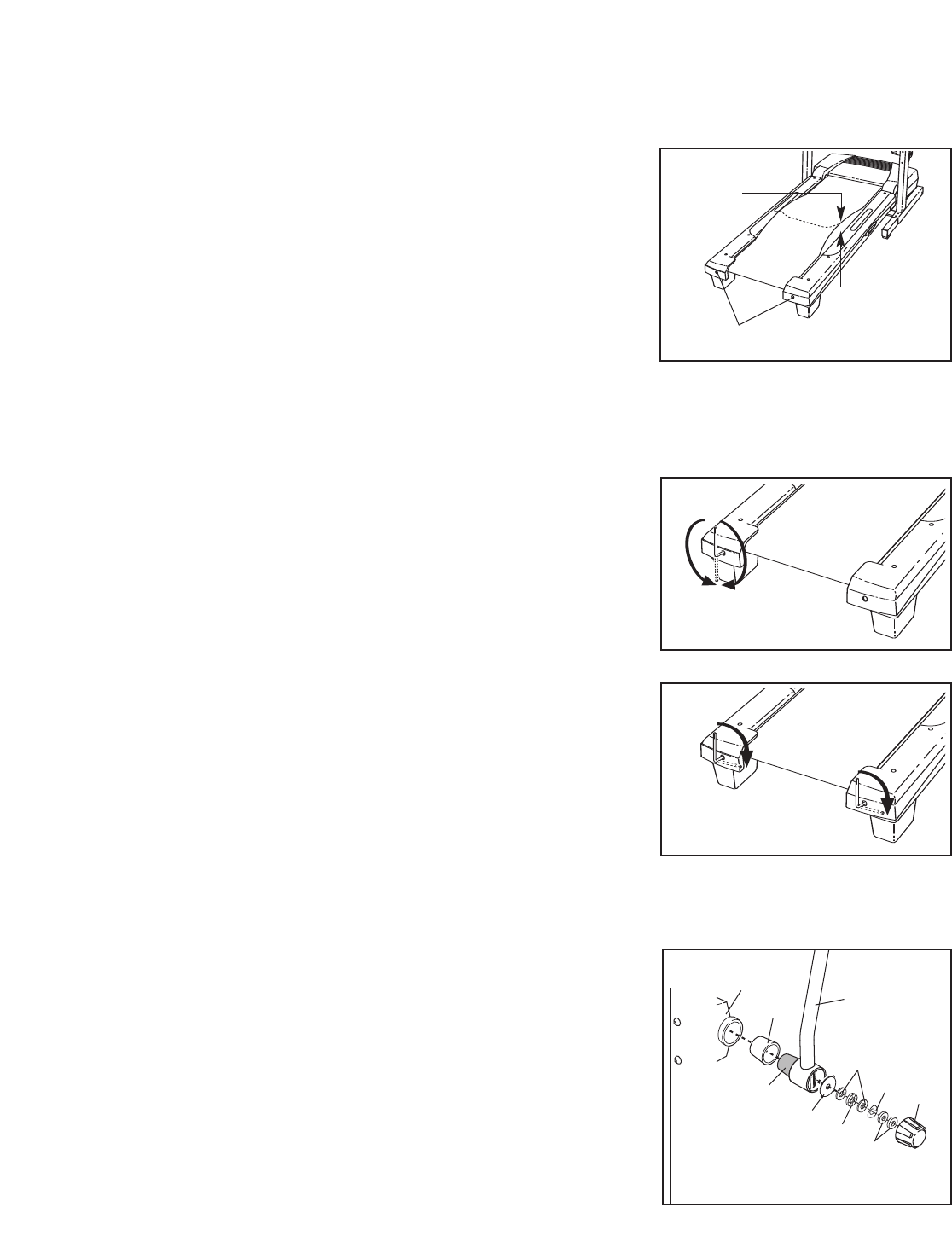

PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both rear
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to 7
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the hex key to turn the
left rear roller bolt clockwise 1/2 of aturn; if the walk-
ing belt has shifted to the right, turn the bolt coun-
terclockwise 1/2 of a turn. Be careful not to over-
tighten the walking belt. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, remove the
key and UNPLUG THE POWER CORD. Using the
hex key, turn both rear roller bolts clockwise, 1/4 of a
turn. When the walking belt is correctly tightened, you
should be able to lift each edge of the walking belt 2
to 3 in. (5 to 7 cm) off the walking platform. Be careful
to keep the walking belt centered. Then, plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
PROBLEM: The upper body arms squeak during use
SOLUTION: a. (Note: Correcting this problem requires a small amount
of white marine grease, available at hardware stores.)
Turn the Resistance Knob (A) counterclockwise and
remove it. Next, remove the Resistance Cone (B) and
the Upper Body Arm (24), along with the Resistance
Plate (C), Washers (D), Spring Washer (E), Thrust
Washers (F), and Thrust Bearing (G). (Note: If the
Resistance Sleeve [H] or the Resistance Plate [C]
comes out of the Resistance Bracket [I] or the
Resistance Cone [B], press it back in.) Apply a thin
layer of white marine grease to the outer surface of
the Resistance Cone (B). Then, reattach all parts in
the order shown at the right.
Rear Roller Bolts
2–3 in.
b
a
b
H
I24
A
F
E
CG
a
D
B
27
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses
carbohydrate calories
for energy. Only after
the first few minutes of exercise does your body begin
to use stored
fat calories
for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exer-
cise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic ex-
ercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise aregular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning any
exercise program, consult your physician.
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is in-
tended only as an exercise aid in determining
heart rate trends in general.
PART LIST—Model No. PFTL71505.2 R0108A
Key
No. Qty. Description
Key
No. Qty. Description
Key
No. Qty. Description
1 1 Hood
2 32 3/4" Screw
3 1 Motor Belt
4 2 Motor Tension Bolt
5 1 Right Grip Plate
6 1 Motor Star Washer
7 1 Left Grip Plate
8 1 Drive Motor
9 2 Foot Rail Decal
10 1 Reed Switch
11 1 Latch Warning Decal
12 2 Frame Spacer
13 9 Nut
14 2 Frame Pivot Bolt
15 2 Platform Screw, Front
16 2 Handrail Cap
17 1 Front Roller/Pulley
18 1 Magnet
19 1 Motor Pivot Bolt
20 2 Motor Bracket Bolt
21 2 Upper Body Arm
Endcap
22 3 Hood Clip
23 3 Roller Adj. Bolt
24 1 Left Upper Body Arm
w/Grip
25 1 Right Upper Body
Arm w/Grip
26 2 Power Bracket Screw
27 1 Console Fan Housing
28 2 Motor Tension Nut
29 1 Latch Housing
30 1 Power Cord Bracket
31 1 Left Rear Endcap
32 2 Platform Screw, Rear
33 1 Power Cord Grommet
34 1 Left Grip Plate
35 1 Lift Ground Wire
36 1 Right Grip Plate
37 2 Handrail Bolt
38 4 Washer
39 4 1" Tek Screw
40 1Reset/Off
Circuit Breaker
41 2 Rear Roller
Lock Washer
42 1 Upright Wire
43 1 Console
44 2 Rear Roller Plate
45 4 3 1/2" Bolt
46 4 Extension Leg Nut
47 1 Console Base
48 14 1/2" Screw
49 1 Wire Clamp
50 1 Key/Clip
51 1 Incline Motor
52 2 Rear Roller Washer
53 1 Incline Motor
Bolt, Lower
54 2 Incline Pivot Bolt
55 2 Platform Nut, Front
56 1 Incline Motor Wire
57 4 Round Base Pad
58 9 3/4" Tek Screw
59 1 Controller
60 1 Lift Frame
61 2 Extension Leg Pad
62 2 Caution Decal
63 2 Extension Leg
64 2 Wheel Bolt
65 2 Base Endcap
66 2 Wheel
67 2 15 1/2" Wire Tie
68 8 8" Cable Tie
69 1 Upright
70 1 Grommet
71 1 Left Handrail
72 1 Right Handrail
73 2 Endcap Screw
74 1 Left Foot Rail
75 1 Silver Ground Screw
76 2 Hand Grip
77 1 Wire Clamp
78 1 Right Rear Endcap
79 1 Power Cord
80 2 Rear Roller Bracket
81 1 Belly Pan
82 2 Belt Guide
83 4Belt Guide Screw
84 4Cushion Fastener
85 2 Platform Cushion
86 1 Frame
87 1 Releasable Tie
88 1 Controller Ground
Wire
89 4 Cable Tie Clamp
90 1 Front Roller
Star Washer
91 1 Reed Clip
92 3 Ground Screw
93 4 Extension Leg Bolt
94 1 Hex Key
95 2 Handrail Star Washer
96 1 Walking Belt
97 1 Walking Platform
98 1 Right Foot Rail
99 2 “U”-nut
100 1 Rear Roller
101 1 Motor Flat Washer
102 1 Book Holder
103 1 Motor Mount Bracket
104 1 Incline Motor
Bolt, Top
105 1 Small Bolt
106 4 Star Washer
107 1 Small Nut
108 2 Resistance Assembly
109 1 Optic Disk Sensor
110 1 Latch Pin Assembly
111 1 Optic Disk
112 1 iFIT Wire
113 1 Optic Sensor
Star Washer
114 1 Incline Stop Bracket
115 5 Belly Pan Screw
116 1 Console Fan
117 10 Foot Rail Screw
118 4 Small Star Washer
119 2 Handrail Bracket
*– 4" Black Wire, M/F
* – 4" Blue Wire, 2F
* – 4" Red Wire, M/F
* – User’s Manual
*These parts are not illustrated.
Specifications are subject to
change without notice.
EXPLODED DRAWING—Model No. PFTL71505.2
R0108A
120
121
2
2
2
48
48
29633.1
42
70
62
48
72
2
29
80
48
2
2
10 58
12
19
13
13
60
23
13
12
14
98
18
17
14
15
82
83
97
32
96
86
32
23
52
23
81
58
83
82
58
79
39
69
39
57
39
39
57
62
63
64
13
66
58
89
87
68
100
65
92
15
94
2
11
115
56
45 38
3
6
8
103
20
85
84
84
45
38
42
75
58
61
58
61
2
59
57
36
34
116
99
99
40
117
50
1
22
22
13
54
13
54
22
2
31
26
58
58
26
XX
91
115
115
26 49
28
4
90
117
117
9
9
44
74
44
84
85
93
46
55
93
63
46
71
2
2
37
2
37
47
43
27
2
4
28
20
110
95
95
64
66
13
41
41
52
80
58
58
90
2
117
117
117
117
117
117
117
117
16
16
2
118
119
119
118
2
2
2
116
112
13
53 51
104
13
111 105
113
109
107
114
78
102
92
35
65
55
106
21
108
73
24
76
106
25
76
21
73
108
118 118
115
115
30
33
40
7
5
101
88
77
67
EXPLODED DRAWING—Model No. PFTL71505.2 R0108A
Part No. 240667 R0108A Printed in USA © 2008 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material under normal use and service conditions. The drive motor is warranted for ten (10) years after
the date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All re-
pairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customer’s responsibility. For in-
home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, im-
proper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)

Navigation menu
