USER'S MANUAL

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Serial

Number

Decal

Model No. DRTL39420

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

QUESTIONS?

If you have questions, or if there

are missing or damaged parts,

we will guarantee complete sat-

isfaction through direct assis-

tance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

Customer Hot Line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

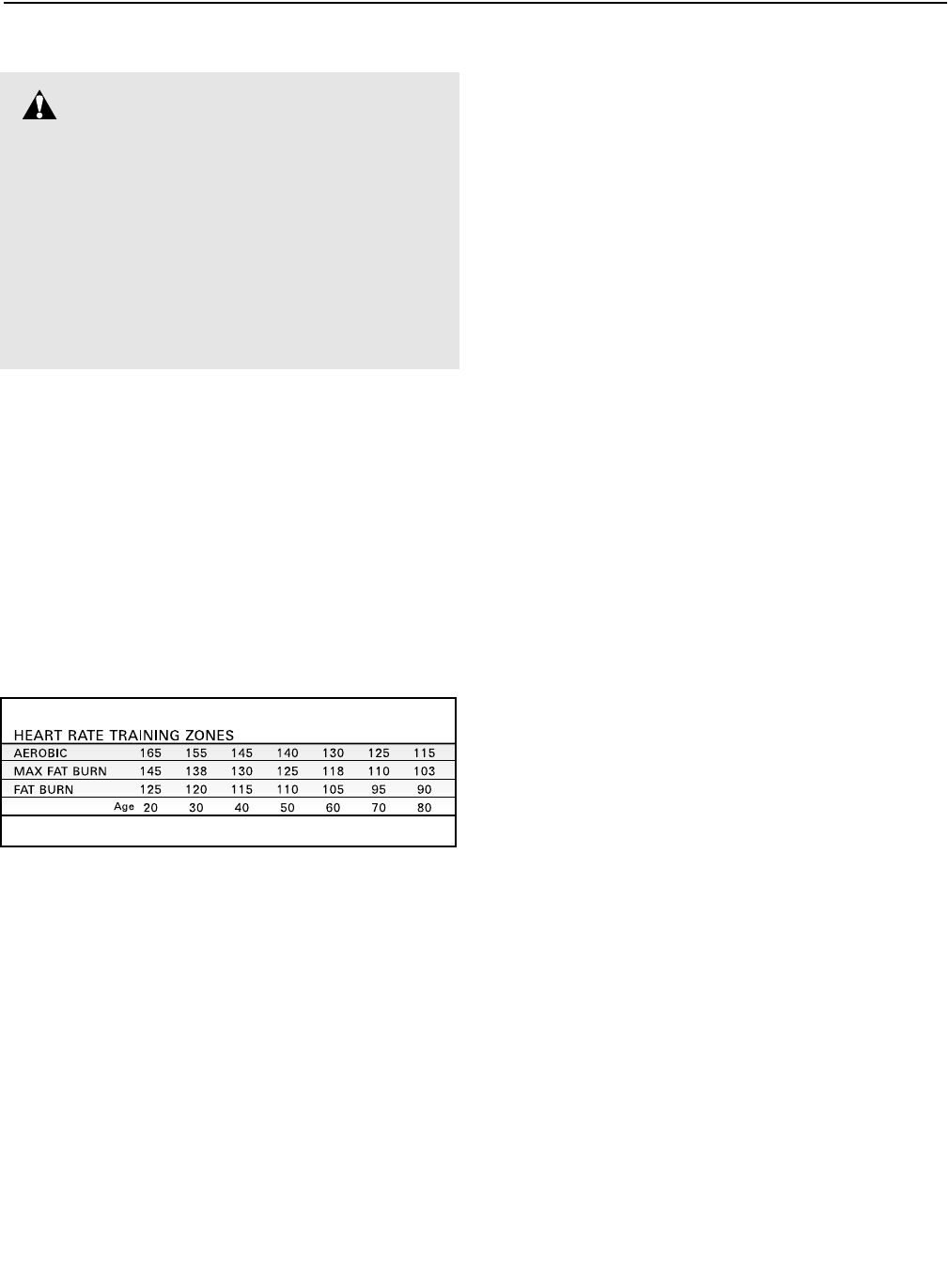

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

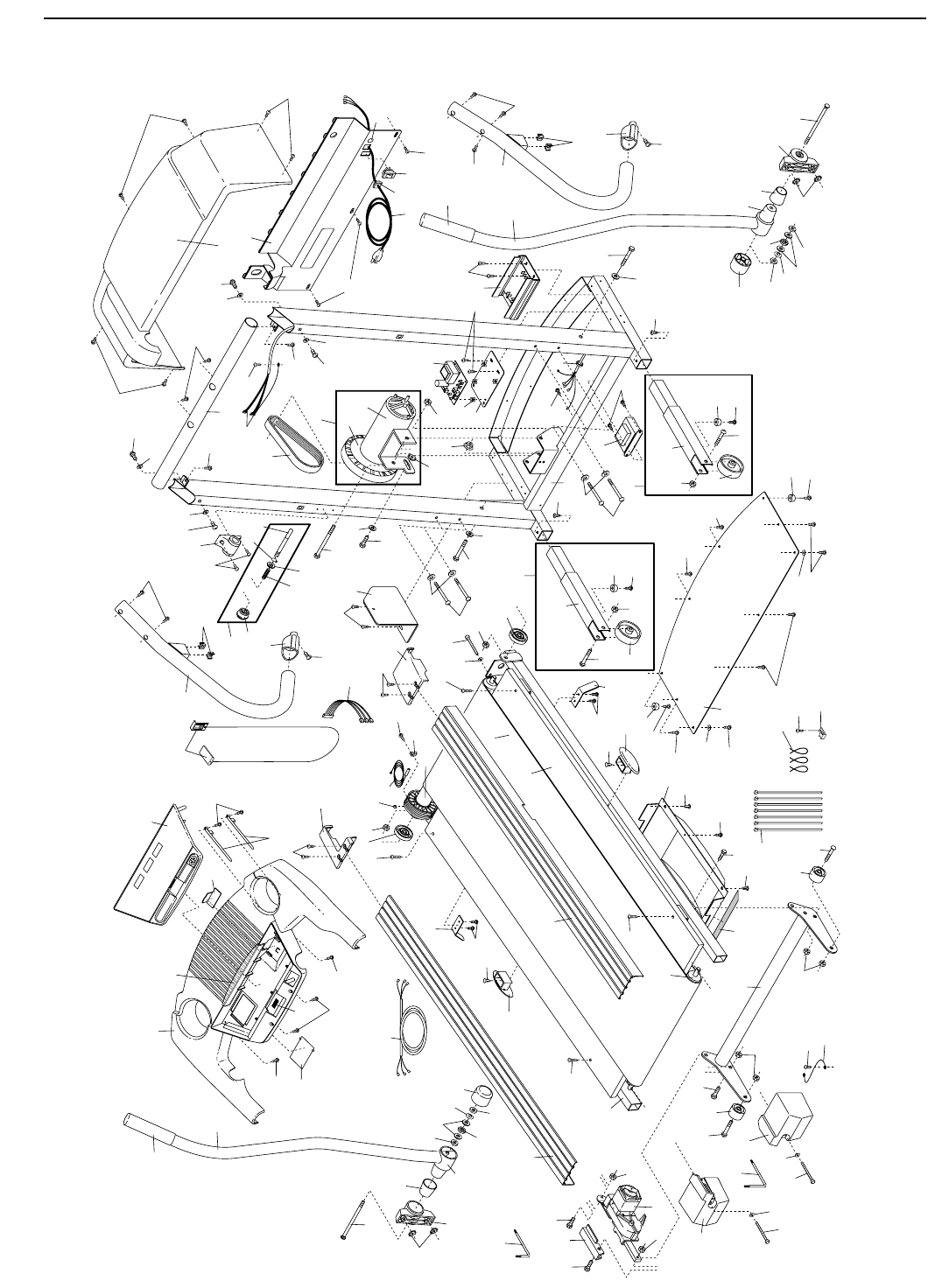

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it and two

feet on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should be used only by persons

weighing 250 pounds or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

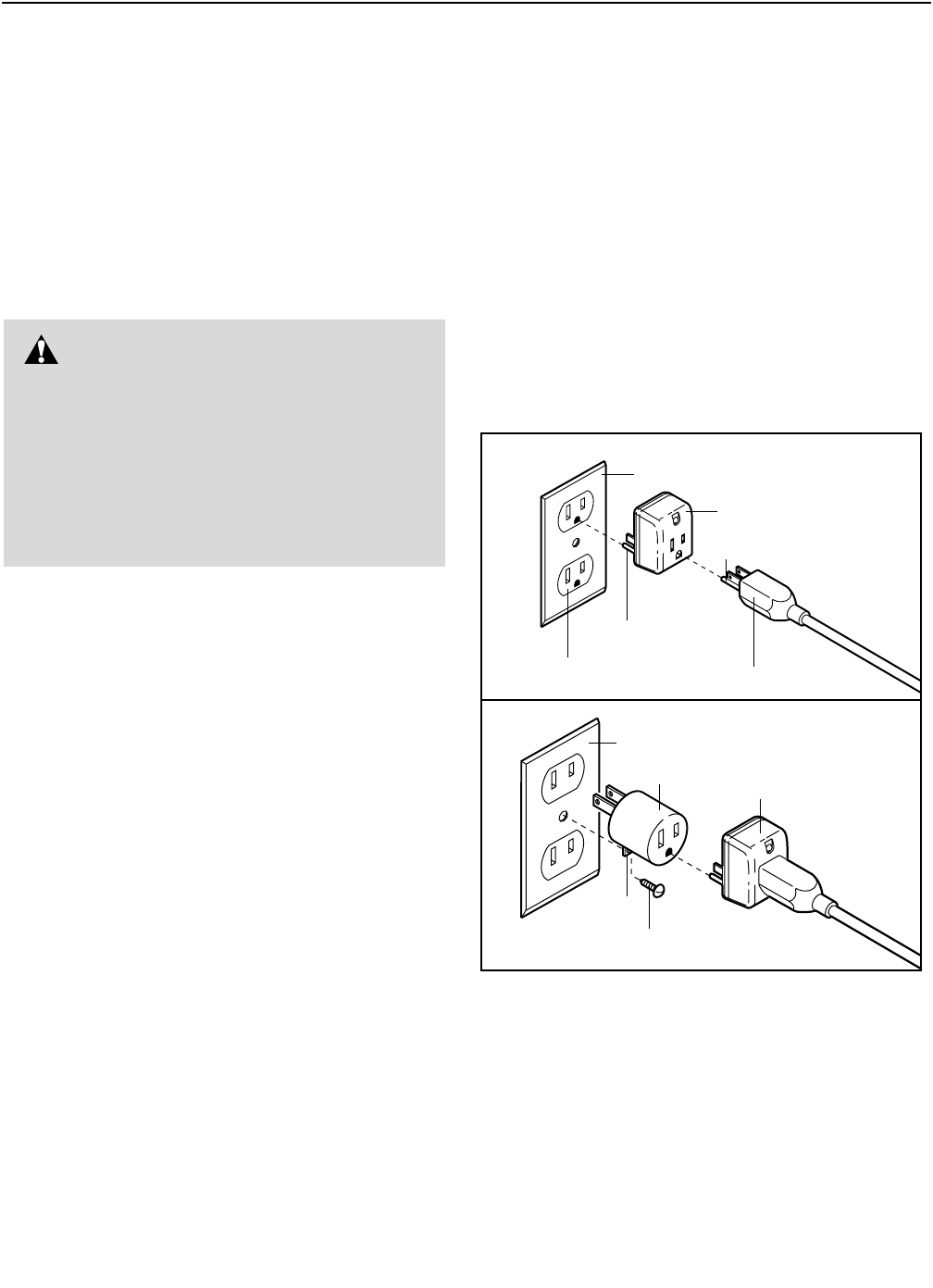

10. When connecting the power cord (see page 8),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 8. To purchase a surge suppressor, see

your local PROFORM dealer or call 1-800-806-

3651 and order part number 146148.

12. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed or stop unexpectedly, which may result

in a fall and serious injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

2

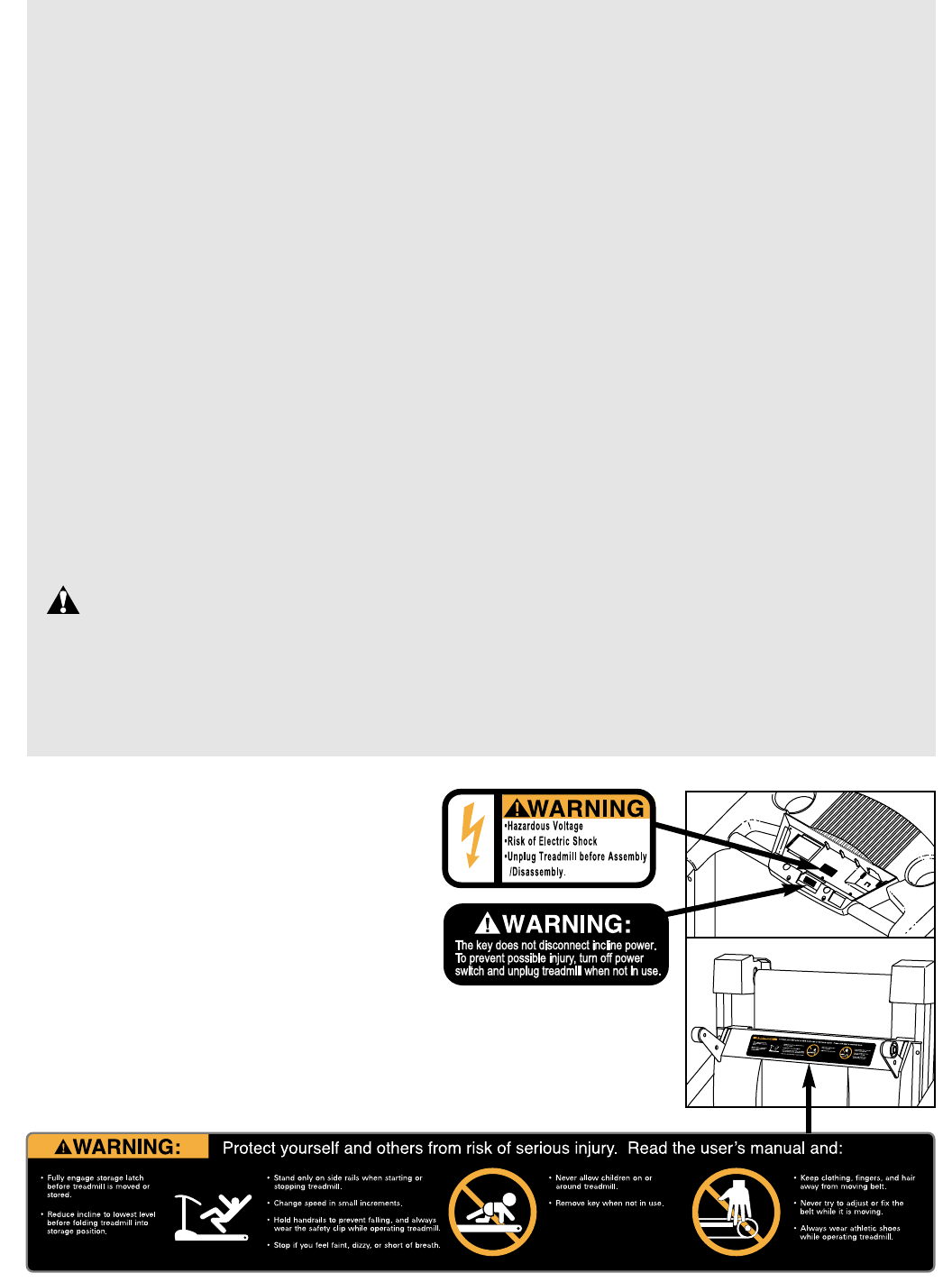

The decals shown have been placed on your

treadmill. If a decal is missing, or if it is not

legible, please call our Customer Service

Department, toll-free, to order a free replace-

ment decal (see the front cover of this man-

ual). Apply the decal in the location shown.

Note: The decals are not shown at actual

size.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See BE-

FORE YOU BEGIN on page 4 if the treadmill

is not working properly.)

15. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails or upper body arms while using

the treadmill.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

17. Never leave the treadmill unattended while it

is running. Always remove the key and un-

plug the power cord when the treadmill is not

in use.

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO FOLD

AND MOVE THE TREADMILL on page 11.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

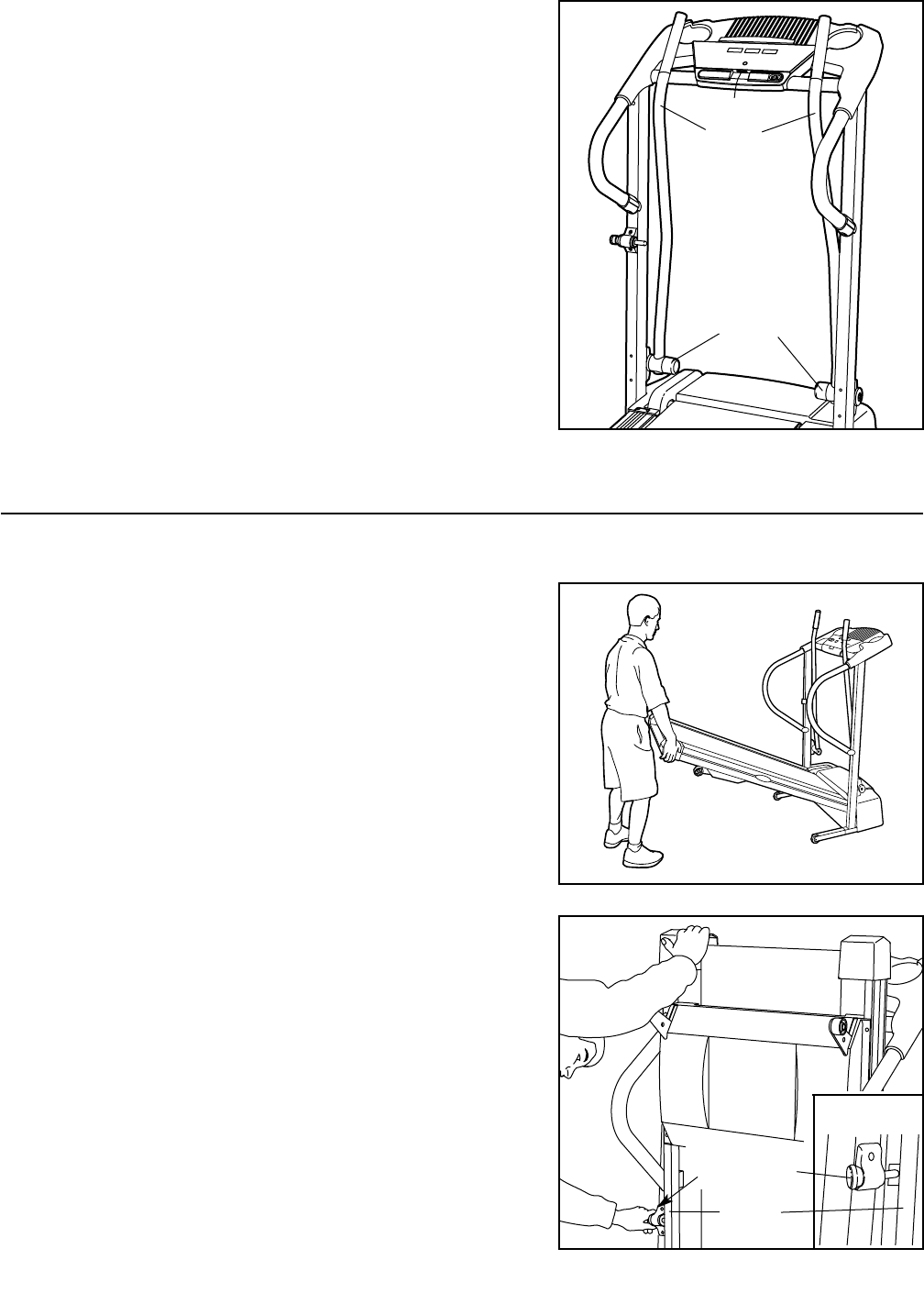

19. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

20. Inspect and properly tighten all parts of the

treadmill regularly.

21. Never insert any object into any opening.

22. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the

maintenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

23. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

3

Thank you for selecting the revolutionary PROFORM®

CROSSWALK 325x treadmill. The CROSSWALK 325x

treadmill combines advanced technology with innova-

tive design to help you get the most from your exercise

program in the convenience and privacy of your home.

And when you’re not exercising, the unique CROSS-

WALK 325x can be folded up, requiring less than half

the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (ex-

cluding holidays). To help us assist you, please note

the product model number and serial number before

calling. The model number of the treadmill is

DRTL39420. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

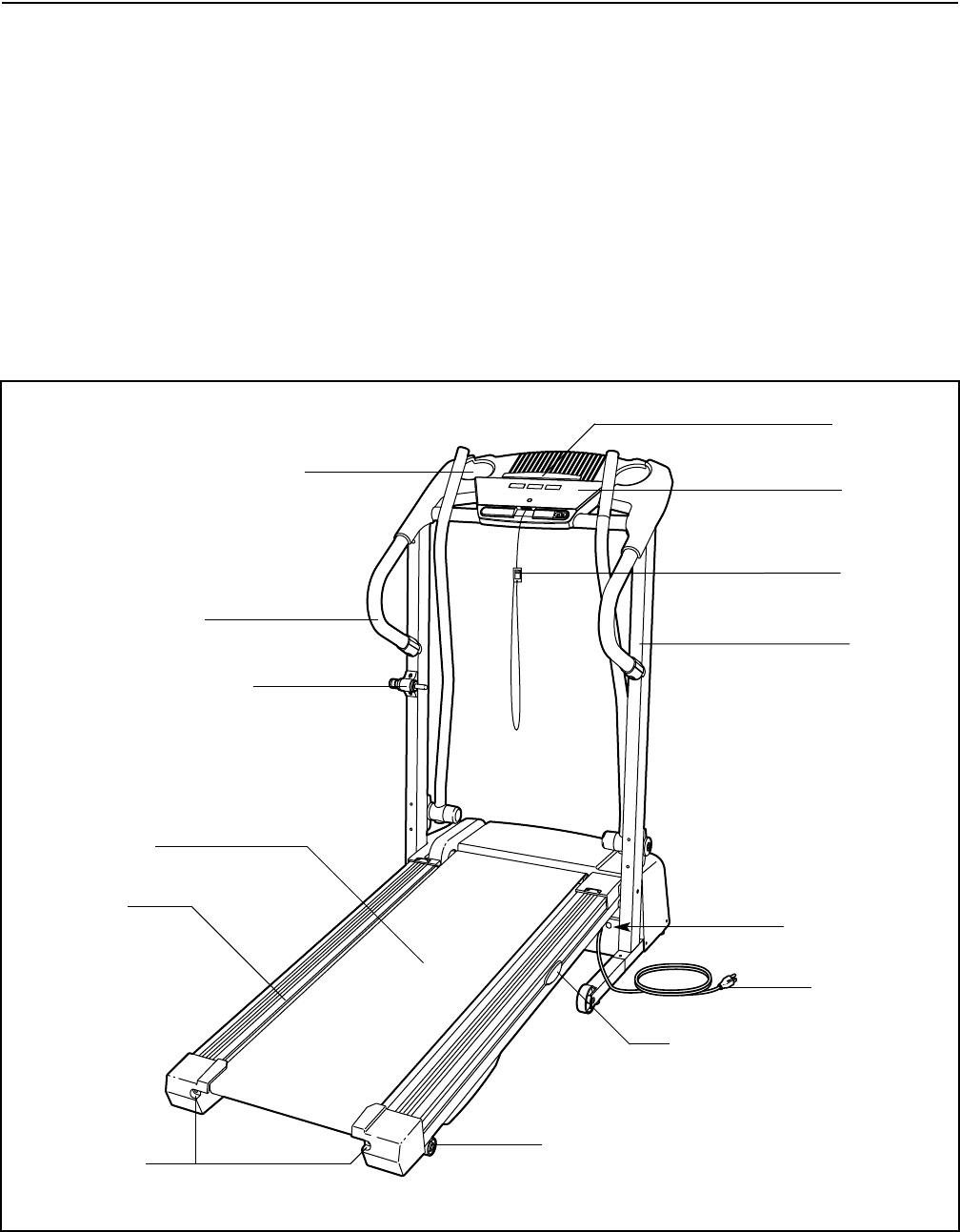

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

4

Handrail

Upright

Storage Latch

Key/Clip

Circuit Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

Power Cord

RIGHT SIDE

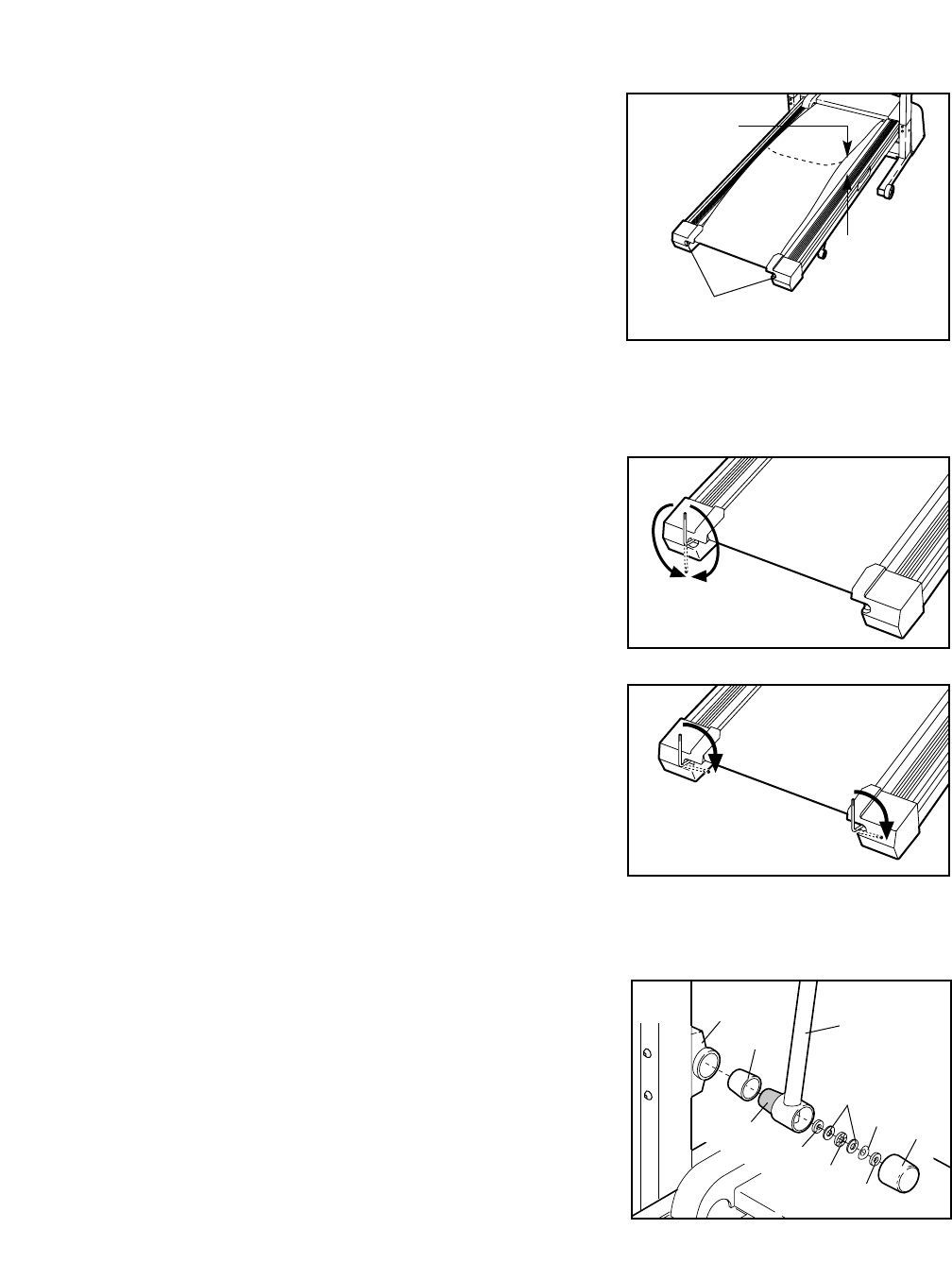

Rear Roller

Adjustment Bolts

Console

Bookrack

Water Bottle Holder

(Bottle not included)

Incline Wheel

BACK

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with a soft cloth and a mild, non-abrasive cleaner.

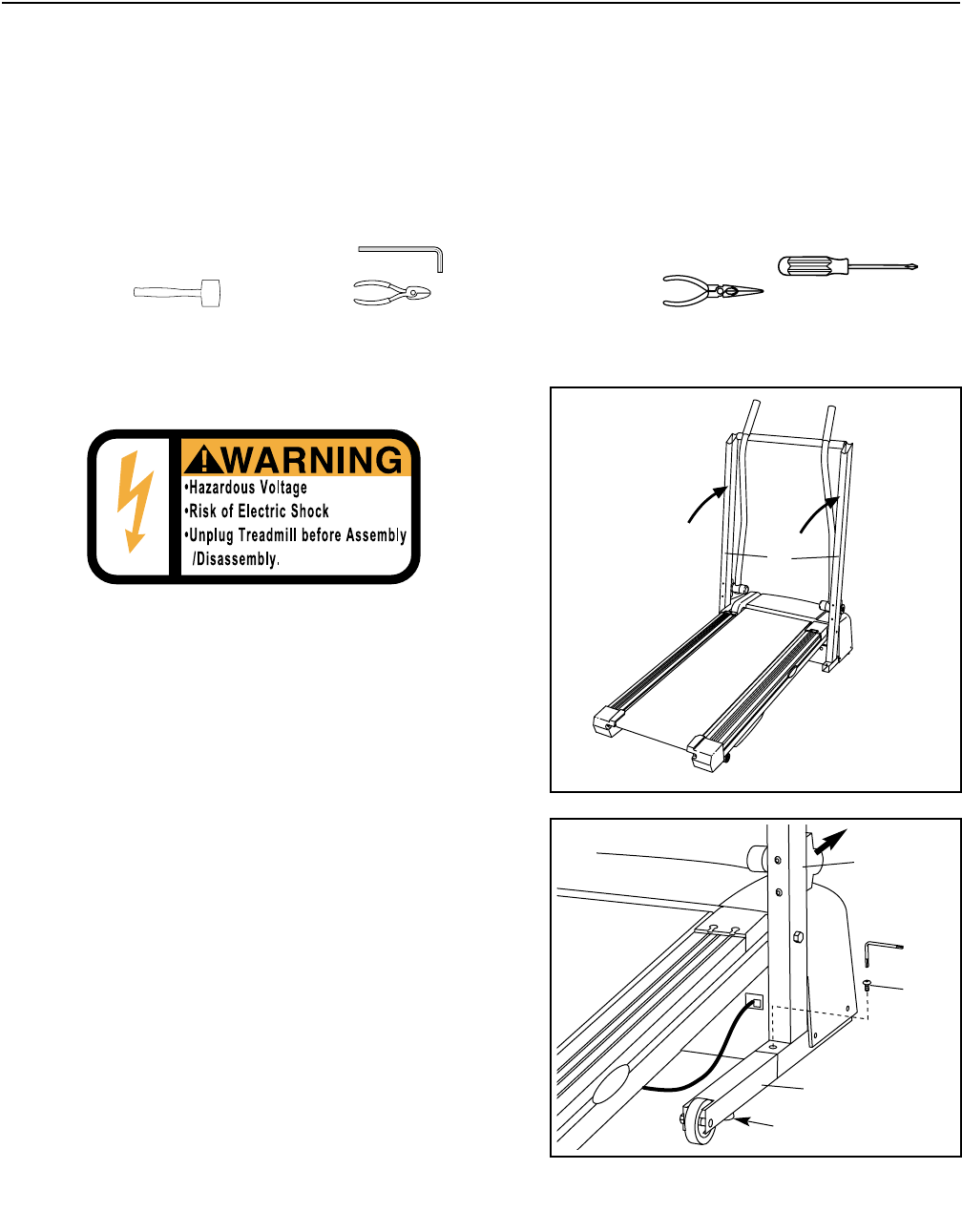

Assembly requires the included allen wrenches and your own phillips screwdriver ,

rubber mallet , wire cutters , and needlenose pliers .

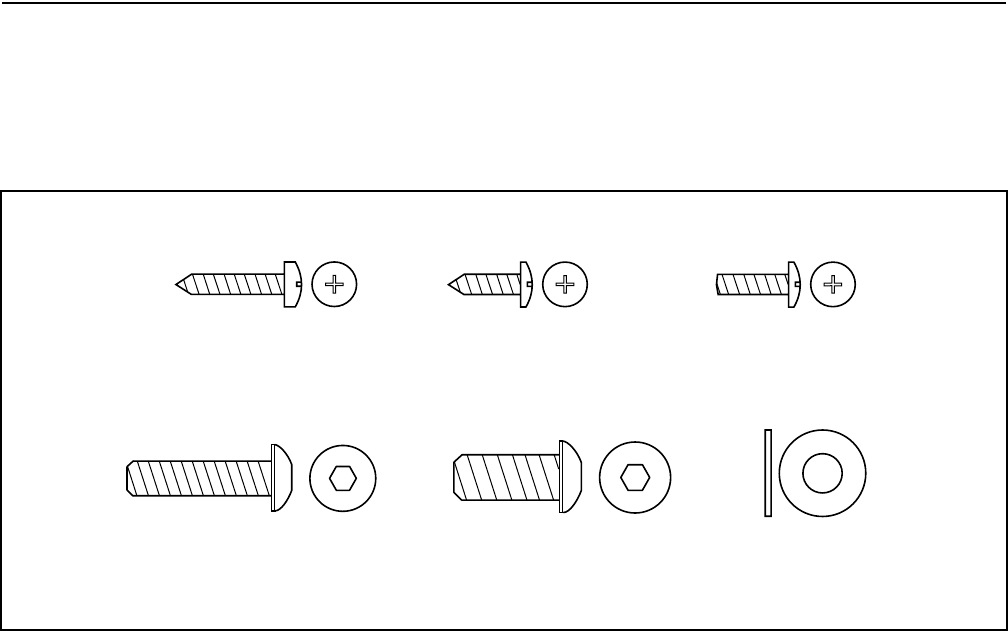

To identify small parts during assembly, use the PART IDENTIFICATION CHART in the center of this manual.

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully raise the

Uprights (11) until the treadmill is in the position shown.

5

2. Insert one of the Extension Legs (62) into the treadmill

as shown. (Note: It may be helpful to tip the Uprights

[11] in the direction shown by the arrow as you insert

the Extension Leg.) Make sure that the Base Pad (40) is

in the indicated position. Attach the Extension Leg with

an Extension Leg Screw (9). Make sure to push on the

head of the Extension Leg Screw while tightening it.

Attach the other Extension Leg (62) in the same way.

11

1

62

9

11

40

2

6

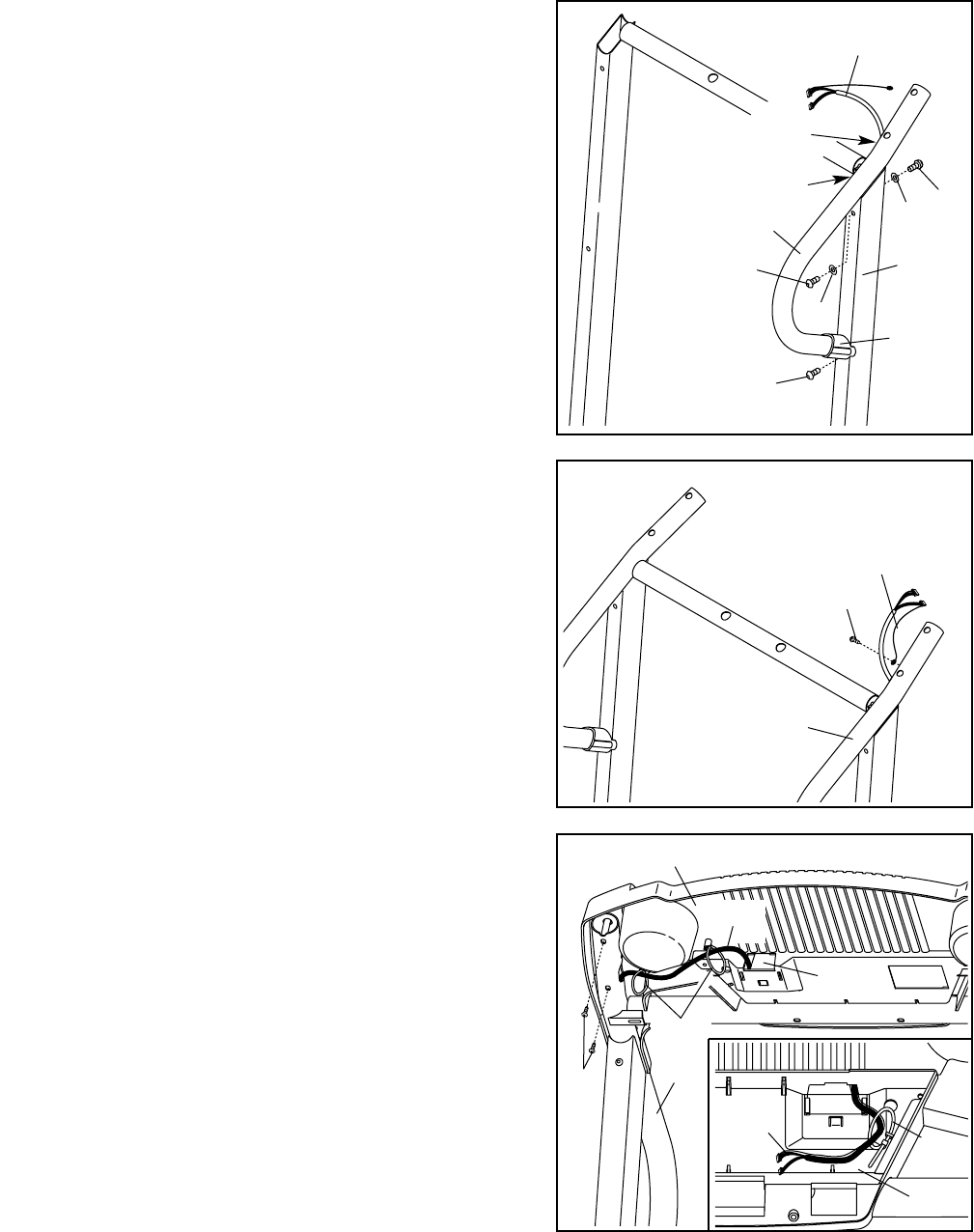

3. Identify the Right Handrail (47), which has a large hole in

the left side. Feed the Wire Harness (21) through the bot-

tom of the bracket and out of the large hole in the left

side. (Note: It may be helpful to use needlenose pliers to

pull the Wire Harness out of the large hole.) Press a

Handrail Cap (41) onto the lower end of the Right

Handrail as shown.

Insert the rectangular bracket on the Right Handrail (47)

into the top of the right Upright (11) so the Handrail Cap

(41) is resting against the right Upright. Attach the Right

Handrail and the Handrail Cap with three 1” Bolts (8) and

two Washers (39) as shown. Do not tighten the Bolts

yet.

Attach the Left Handrail (not shown) as described above.

Note: There is not a wire harness on the left side.

4. Attach the end of the ground wire to the small hole in the

side of the Right Handrail (47) with a Silver Ground

Screw (104).

Bracket

41

47

11

21

Ground

Wire

47

104

3

4

39

39

8

8

8

46

96

Ties

47

5

5. Place the Console Base (46) on the Right Handrail (47)

and the Left Handrail (not shown). Attach the Console

Base with four 3/4” Screws (13) (only two Screws are

shown). Do not tighten the Screws yet.

Insert the Wire Harness (21) through the two indicated

plastic ties on the Console Base (46). Next, insert the

Wire Harness up through the opening beside the Console

Cover (96). Make sure that the Console Cover is securely

attached to the Console Base.

Refer to the inset drawing. Look at the top of the Console

Base (46). Insert the Wire Harness (21) through the plas-

tic tie on top of the Console Base. 21

21

Tie

46

13

Large

Hole

7

8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may

be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the

walking belt (see page 14). To protect the floor or carpet, place a mat under the treadmill.

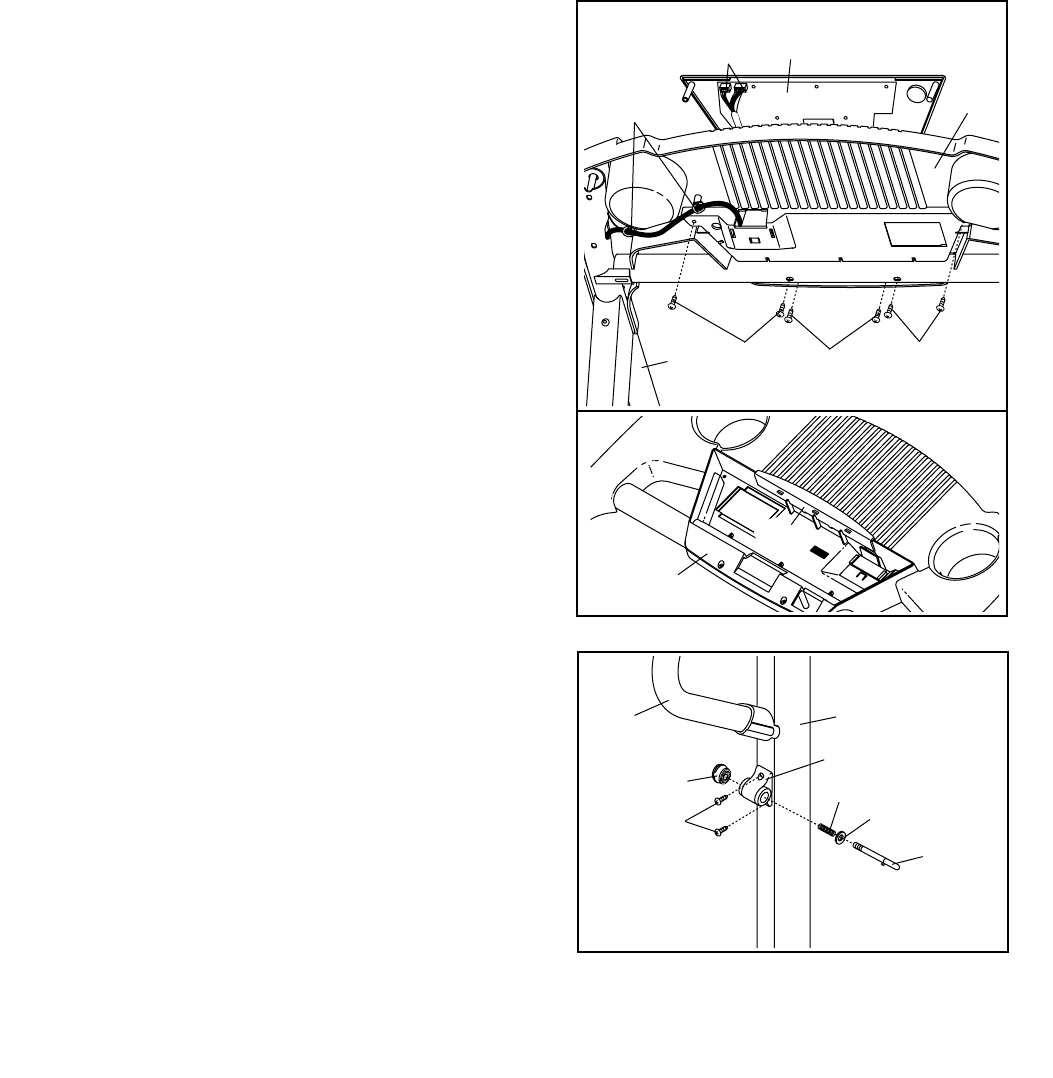

7. Attach the Storage Latch (14) to the Left Upright (11)

with two 3/4” Screws (13). Remove the Lock Knob (106)

from the Lock Pin (110). Make sure that the Lock Pin

Collar (108) and the Spring (107) are on the Lock Pin as

shown. Insert the Lock Pin into the Storage Latch (14)

and tighten the Lock Knob onto the Lock Pin.

Lift the treadmill frame (see HOW TO FOLD THE

TREADMILL FOR STORAGE on page 11), but do not

latch it. Make sure that the frame is centered between

the Handrails (1, 47 [not shown]). Firmly tighten all of

the bolts and screws used in assembly steps 3, 5,

and 6. Then, lower the frame to the floor.

110

108

107

14

106

11

13

1

46

10

21

6. Hold the Console (10) near the Console Base (46). Touch

the Right Handrail (47) to discharge any static. Plug

the widest connector on the Wire Harness (21) into the

widest connector on the Console. If the connector does

not fit easily, rotate it and then connect it. Plug the other

connector on the Wire Harness into the other connector on

the Console. Insert the excess Wire Harness down through

the opening in the Console Base (see the inset drawing

in step 5). Securely tighten the plastic tie on top of

the Console Base to prevent the Wire Harness from

slipping. Then, cut off the end of the plastic tie.

Refer to drawing 6a. Press the Book Rack (90) onto the

Console Base (46) in the location shown.

Set the Console (10) on the Console Base (46). Insert

the excess Wire Harness (21) into the large hole in the

side of the Right Handrail (97). Securely tighten the

plastic ties on the bottom of the Console Base to

prevent the Wire Harness from slipping. Then, cut off

the ends of the plastic ties.

Attach the Console (10) to the Console Base (46) with two

1/2” Silver Screws (97) and four 3/4” Screws (13). Start all

six Screws before tightening them; do not over-

tighten the Screws.

6

7

13 13

97

47

Ties

46

90

6a

8

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local PROFORM dealer or call 1-800-806-3651

and order part number 146148.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated

for 120 volts AC and 15 amps. There must be a

monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to

use a properly functioning surge suppressor could

result in damage to the control system of the

treadmill. If the control system is damaged, the

walking belt may change speed or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

1

2

Grounded Outlet Box

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

9

STEP-BY-STEP CONSOLE OPERATION

Before operating the console, make sure that the

power cord is properly plugged in (see page 8).

Next, stand on the foot rails of the treadmill. Find the

clip attached to the key (see the drawing above), and

slide the clip onto the waistband of your clothes.

Insert the key fully into the console. After a moment,

the displays will light. Test the clip by carefully tak-

ing a few steps backward until the key is pulled

from the console. If the key is not pulled from the

console, adjust the position of the clip.

Follow the steps below to operate the console.

Insert the key fully into the console.

A few seconds after the key is inserted, the dis-

plays will light.

Press the Start button or the Speed

▲▲

button to

start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

As you exercise, change the speed of the walking

belt as desired by pressing the Speed buttons.

Each time a button is pressed, the speed setting

will change by 0.1 mph; if a button is held down,

the speed setting will change in increments of 0.5

mph. Note: The console can display speed and

distance in either miles or kilometers (see

SPEED DISPLAY on page 10). For simplicity, all

instructions in this section refer to miles.

2

1

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

• Always wear the clip (see the drawing

above) while operating the treadmill.

• Adjust the speed in small increments to

avoid sudden jumps in speed.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and place only a sealed

water bottle in the water bottle holder.

Pulse Sensor

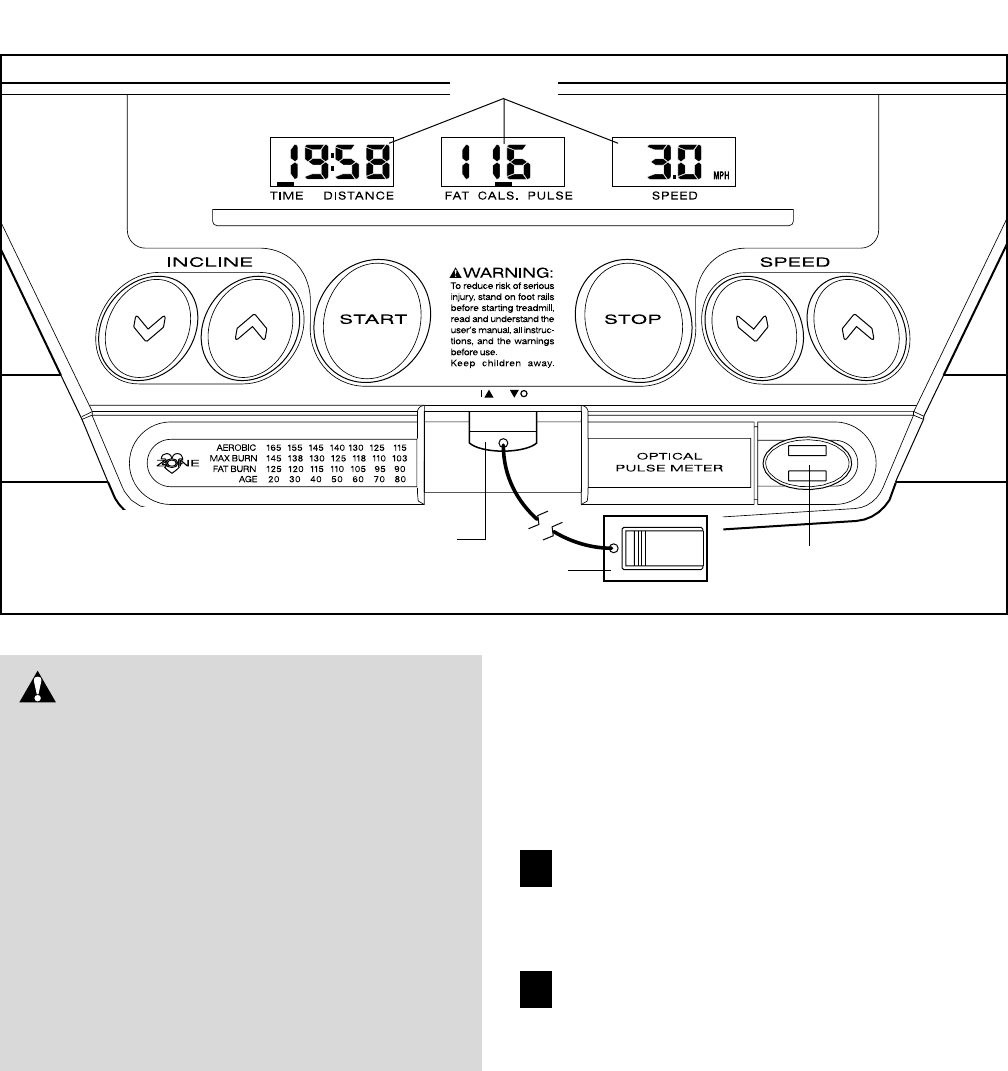

CONSOLE DIAGRAM

Note: If there is a thin sheet of

plastic on the console, remove it.

Displays

Key

Clip

10

To stop the walking belt, press the Stop button.

The elapsed time will begin to flash in the

Time/Distance display.

Note: During the first few minutes that the treadmill

is used, inspect the alignment of the walking belt,

and align it if necessary (see page 14).

Change the incline of the treadmill as desired.

To change the incline of the treadmill, press either

of the Incline buttons until the desired incline level

is reached.

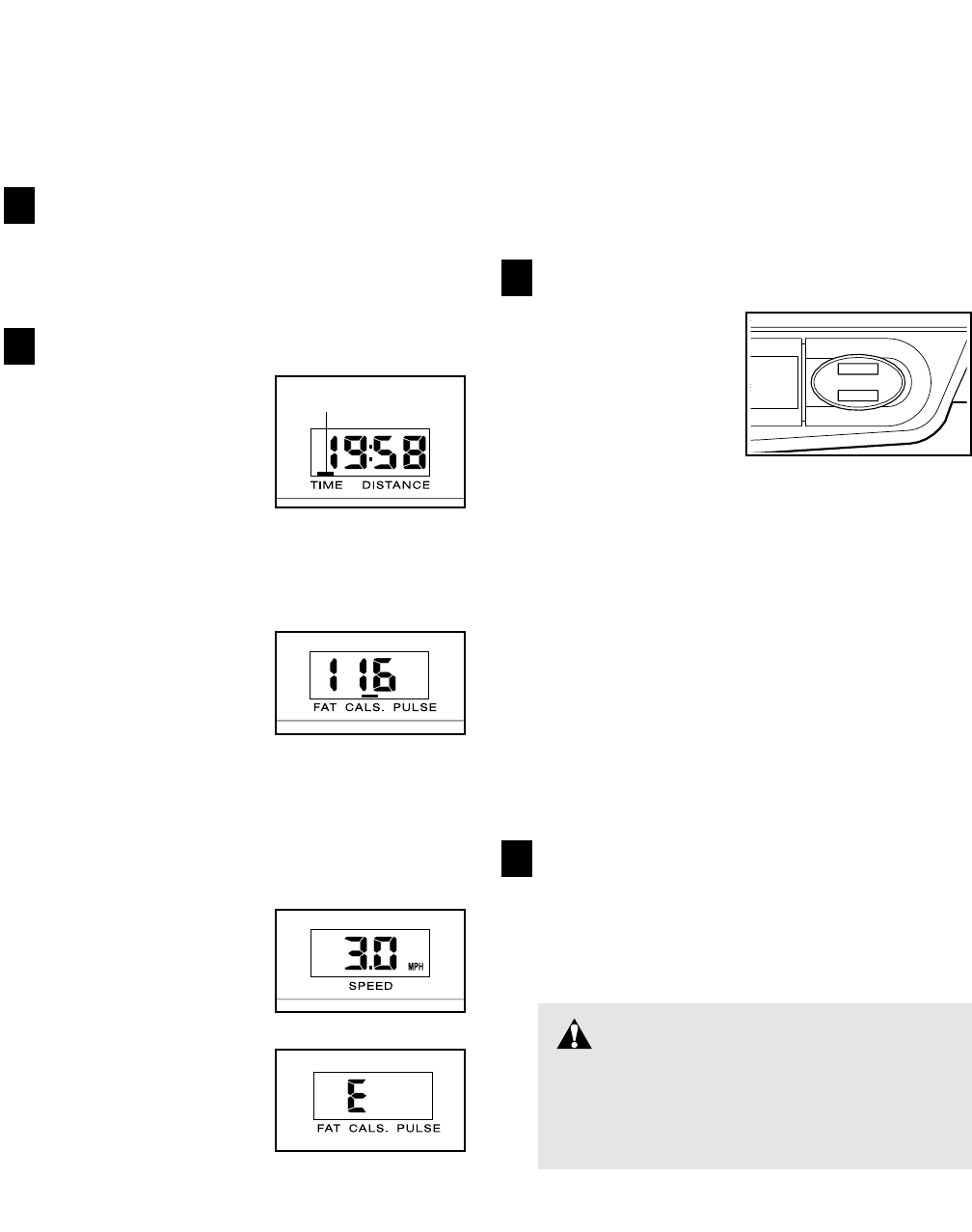

Follow your progress with the three displays.

Time/Distance

display—This display

shows the elapsed time

and the distance that

you have walked or run.

The display will change

from one number to the

other every few seconds, as shown by the mode

indicators. When the Stop button is pressed, the

elapsed time will flash.

Fat Calories/Calories/

Pulse display—This

display shows the ap-

proximate numbers of

fat calories and calories

you have burned (see

FAT BURNING on page 15). The display will

change from one number to the other every few

seconds, as shown by the mode indicators. The

display will also show your heart rate when you

use the pulse sensor (see step 5).

Speed display—This

display shows the speed

of the walking belt

Note: The console can

display speed and dis-

tance in either miles or

kilometers. To change

the unit of measure-

ment, hold down the

Stop button, insert the key into the console, and

continue to hold the Stop button for a moment. An

“E” for English miles or an “M” for metric kilometers

will appear in the Fat Calories/Calories/Pulse dis-

play. Press the Speed

▲▲

button to change the unit

of measurement. When the desired unit of mea-

surement is selected, remove the key and then

reinsert it.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

Measure your heart rate if desired.

To measure your

heart rate, stand on

the foot rails and

place your thumb

on the pulse sensor.

Do not press too

hard, or the circu-

lation in your

thumb will be restricted and your pulse will not

be detected. After a few seconds, the heart-

shaped indicator in the Fat Calories/Calories/

Pulse display will begin to flash, one or two dashes

(– –) will appear, and then your heart rate will be

shown. Hold your thumb on the pulse sensor for

about 15 seconds for the most accurate reading.

If the displayed heart rate appears to be too high

or too low, or if your heart rate is not displayed, lift

your thumb off the pulse sensor for a few seconds.

Then, place your thumb on the pulse sensor as de-

scribed above. Remember to stand still while mea-

suring your heart rate.

When you are finished exercising, remove the

key.

Step onto the foot rails, press the Stop button, and

remove the key from the console. Keep the key in a

secure place.

6

5

4

3

WARNING:Removing the key

does not cut off power to the incline sys-

tem. To prevent movement of the treadmill

and possible injury, unplug the power cord

when the treadmill is not in use.

Mode Indicator

1111

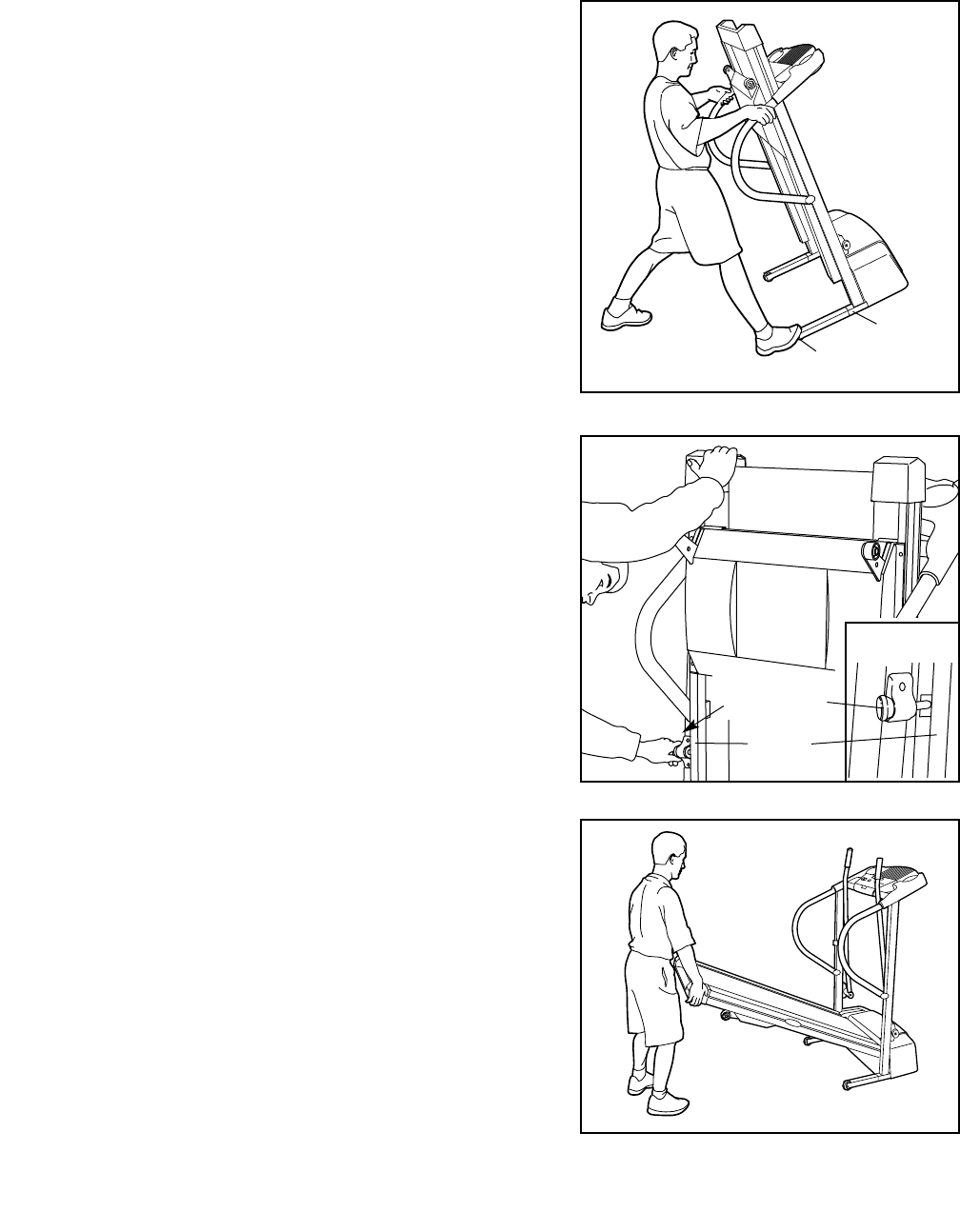

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. CAUTION:

You must be able to safely lift 45 pounds (20 kg) in order to

raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown at

the right. To decrease the possibility of injury, bend your

legs and keep your back straight. As you raise the tread-

mill, make sure to lift with your legs rather than your

back. Raise the treadmill about halfway to the vertical posi-

tion.

2. Move your right hand to the position shown and hold the

treadmill firmly. Using your left hand, pull the latch knob to

the left and hold it. Raise the treadmill until the latch pin is

aligned with the square hole between the frame and the foot

rail. Slowly release the latch knob so the latch pin is inserted

into the hole. Make sure that the frame is securely held by

the latch pin.

To protect the floor or carpet from damage, place a mat

under the treadmill. Keep the treadmill out of direct sun-

light. Do not leave the treadmill in the storage position in

temperatures above 85° Fahrenheit.

Engaged

Frame

Latch Knob

HOW TO USE THE UPPER BODY ARMS

As you walk on the treadmill, you can either hold the handrails

or use the upper body arms. To exercise your arms, shoulders,

and back for a total body workout, move the upper body arms

forward and back as you walk on the treadmill.

To vary the intensity of your upper body exercise, the resistance

of the upper body arms can be adjusted. To increase the resis-

tance, turn the resistance knobs clockwise; to decrease the re-

sistance, turn the knobs counterclockwise.

Resistance

Knobs

Upper

Body

Arms

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage

position as described above. Make sure that the frame is se-

curely held by the latch pin.

1. Hold the upper ends of the handrails. Place one foot on the

base as shown.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. To re-

duce the risk of injury, use extreme caution while mov-

ing the treadmill. Do not move the treadmill over an un-

even surface.

3. Place one foot on the base, and carefully lower the treadmill

until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as

shown. Using your left hand, pull the latch knob to the left

and hold it. Pivot the treadmill down until the frame is past

the latch pin. Slowly release the latch knob.

2. Hold the treadmill firmly with both hands, and lower the tread-

mill to the floor. Do not drop the treadmill frame to the

floor. To decrease the possibility of injury, bend your

legs and keep your back straight.

12

Engaged

Frame

Latch Knob

Base

Front Wheels

13

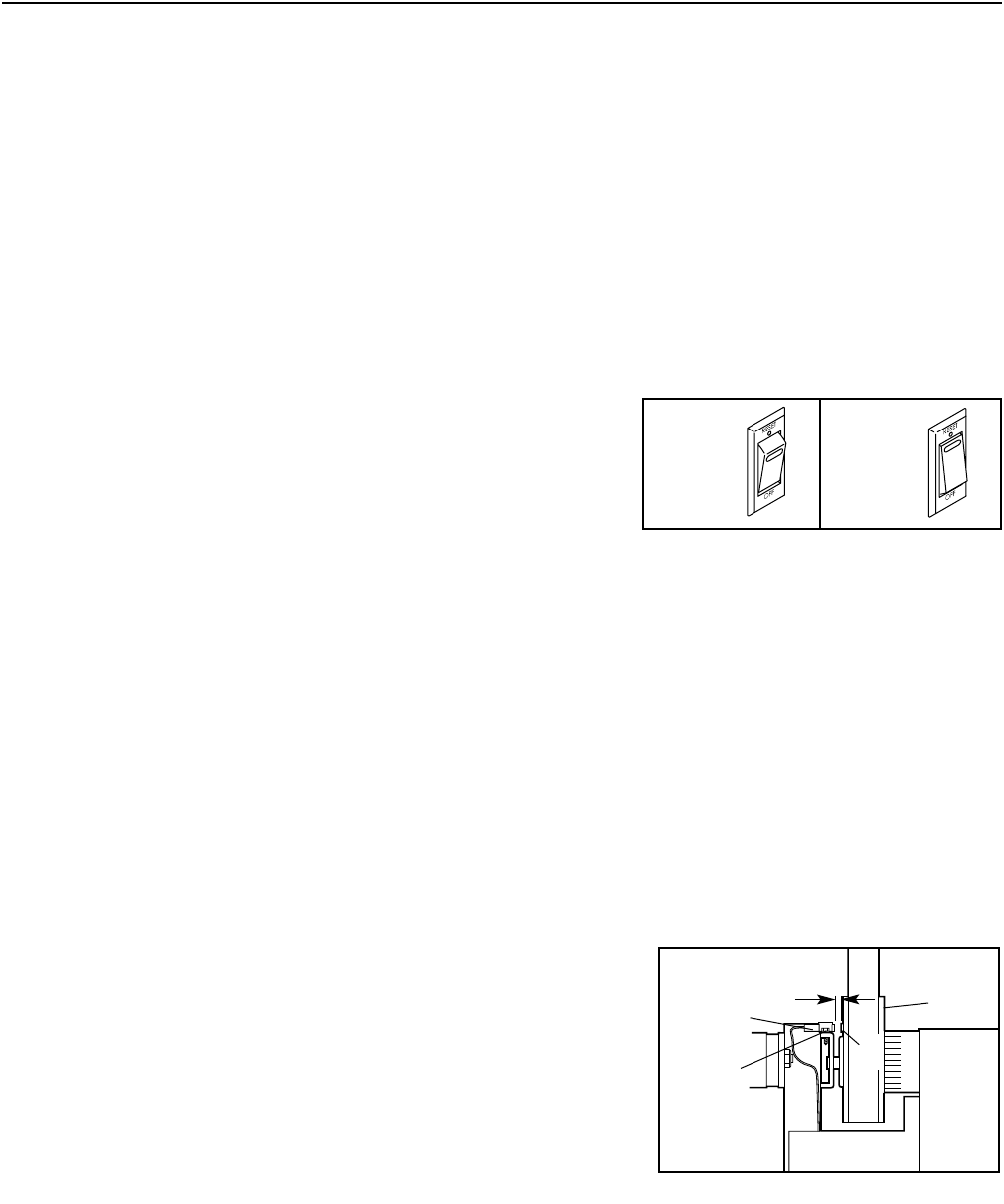

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-

free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor

that meets all of the specifications described on page 8. Important: The treadmill is not compatible

with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the circuit breaker has tripped. To reset

the circuit breaker, wait for five minutes and then

press the switch back in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing

above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill still will not run, please call our toll-free Customer Service Department.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE POWER CORD. Remove the screws from

the hood, and carefully remove the hood.

Locate the Reed Switch (44) and the Magnet (45) on

the left side of the Pulley (50). Turn the Pulley until

the Magnet is aligned with the Reed Switch. Make

sure that the gap between the Magnet and the

Reed Switch is about 1/8”. If necessary, loosen the

Screw (33) and move the Reed Switch slightly.

Retighten the Screw. Re-attach the hood, and run the

treadmill for a few minutes to check for a correct

speed reading. Reattach the Resistance Knob.

Tripped Reset

c

45

44

33

Top

View

1/8” 50

a

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is properly tightened, you

should be able to lift each side of the walking belt 2 to

3 inches off the walking platform. Be careful to keep

the walking belt centered. Plug in the power cord, in-

sert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, call our toll-free Customer Service Department.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the allen wrench to

turn the left rear roller bolt clockwise 1/2 of a turn; if

the walking belt has shifted to the right, turn the

bolt counterclockwise 1/2 of a turn. Be careful not to

overtighten the walking belt. Plug in the power cord,

insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using

the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tight-

ened, you should be able to lift each side of the walk-

ing belt 2 to 3 inches off the walking platform. Be

careful to keep the walking belt centered. Plug in the

power cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

PROBLEM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE

SOLUTION: a. Correcting this problem requires a small amount of

white marine grease, available at most hardware

stores. Turn the Resistance Knob (115) counterclock-

wise until it can be removed. Remove the Resistance

Cone (118) and the Upper Body Arm (113), along with

the 3/8” Washers (57), Spring Washer (116), Thrust

Washers (76), and Thrust Bearing (117). (Note: If the

Resistance Sleeve [119] comes out of the Resistance

Bracket [120], press it back in.) Apply a thin layer of

white marine grease to the outer surface of the

Resistance Cone (118). Reattach all parts in the order

shown at the right.

b

a

Rear Roller Adjustment Bolts

2”–3”

b

14

119

120 113

115

76 116

57 117

a

57

118

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

pulse sensor. If your heart rate is too high or too low,

adjust the speed and incline of the treadmill.

Fat Burning

To burn fat effectively, you must exercise at a rela-

tively low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes does your body

begin to use stored fat calories for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

A Cool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-

exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

15

Part No. 191633 R1002A Printed in USA © 2002 ICON Health & Fitness, Inc.

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

• The MODEL NUMBER OF THE PRODUCT (DRTL39420)

• The NAME OF THE PRODUCT (PROFORM®CROSSWALK 325x treadmill)

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST

attached in the center of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not

extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-

use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod-

ucts used for commercial or rental purposes; or products used as store display models. No other war-

ranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

3/4” Screw (13)–10 1/2” Silver Screw (97)–2

Washer (39)–4

Silver Ground

Screw (104)–1

1” Bolt (8)–6 Extension Leg Screw (9)–2

Remove this chart and use it to identify small parts during assembly. Save

this chart and the EXPLODED DRAWING/PART LIST for future reference.

PART IDENTIFICATION CHART

PART LIST—Model No. DRTL39420 R1002A

Key

No. Qty. Description Key

No. Qty. Description

1 1 Left Handrail

2 1 Key/Clip

3 2 Incline Leg Pivot Bolt

4 1 Cover

5 1 Left Foot Rail

6 1 Lift Motor

7 1 Rear Roller

8 6 1” Bolt

9 2 Extension Leg Screw

10 1 Console

11 1 Base

12 1 Motor Belt

13 13 3/4” Screw

14 1 Storage Latch

15 2 Frame Spacer

16 7 8” Cable Tie

17 1 Motor Nut

18 1 Pulley/Flywheel/Fan

19 1 Motor

20* 1 Motor/Pulley/Flywheel/Fan

21 1 Wire Harness

22 4 Belt Guide Screw

23 1 Motor Hood

24 1 Hood Shield

25 11 Screw

26 1 Controller

27 1 Motor Swivel Bolt

28 1 Motor Tension Nut

29 1 Motor Star Washer

30 1 Motor Tension Washer

31 2 Motor Tension Bolt

32 1 Incline Stop Bracket

33 7 Belly Pan Screw

34 1 Crossbar

35 2 Cage Nut

36 2 Wheel Bolt

37 2 Wheel

38 6 Wheel Nut/Lift Nut

39 9 Washer

40 4 Base Pad

41 2 Handrail Cap

42 4 3/8” Star Washer

43 1 Reed Switch Clip

44 1 Reed Switch

45 1 Magnet

46 1 Console Base

47 1 Right Handrail

48 4 Platform Screw

49 2 Isolator

50 1 Front Roller/Pulley

51 1 Front Roller Adj. Bolt

52 2 Incline Wheel

53 2 Crossbar Screw

54 1 Power Cord

55 1 Power Cord Grommet

56 1 Circuit Breaker

57 4 Washer

58 2 Frame Pivot Bolt

59 1 Latch Decal

60 1 Motor Belly Pan

61 2 Cable Tie Clamp

62 2 Extension Leg

63 3 Releasable Tie

64 1 Choke

65 2 Belt Guide

66 6 Plastic Fastener

67 1 Walking Belt

68 1 Walking Platform

69 1 Belly Pan

70 9 Electronics Screw

71 1 Incline Wire Harness

72 1 Upright Grommet

73 2 Small Screw

74 1 5/32” Allen Wrench

75 1 Frame

76 4 Thrust Washer

77 2 Incline Wheel Bolt

78 1 Power Supply Plate

79 4 Incline Wheel Nut

80 1 Ground Wire

81 2 Hood Screw (Front)

82 1 Incline Leg

83 2 Rear Roller Adj. Bolt

84 1 Left Rear Endcap

85 1 Right Rear Endcap

86 1 Incline Motor Bolt

87 2 Belly Pan Screw

88 1 Power Supply

89 1 Motor Belt Shield

90 1 Bookrack

91 4 Plastic Stand-Off

92 1 Warning Decal

93 1 Right Foot Rail

94 1 Front Left Endcap

95 2 Plastic Tie

96 1 Console Cover

97 2 1/2” Silver Screw

98 4 Endcap Screw

99 1 Hole Plug

100 1 Motor Controller Wire

101 1 Allen Wrench

102 2 3” Bolt

103* 1 Latch Assembly

104 1 Silver Ground Screw

105 1 Front Right Endcap

106 1 Latch Knob

107 1 Latch Spring

108 1 Lock Pin Collar

109 1 Pin Clip

110 1 Lock Pin

111* 2 Extension Leg Assembly

112 2 Foam Grip

113 1 Left Upper Body Arm

114 1 Right Upper Body Arm

115 2 Resistance Knob

116 2 Spring Washer

117 2 Thrust Bearing

118 2 Resistance Cone

119 2 Resistance Sleeve

120 2 Resistance Bracket

121 2 Resistance Bolt

# 1 4” Red Wire, M/F

# 1 4” Blue Wire, 2F

# 1 10” Blue Wire, 2F

# 1 4” White Wire, M/F

# 1 8” White Wire, 2F

# 1 User’s Manual

* Includes all parts shown in the box

# These parts are not illustrated

77

59

40

33

33

33

60 33

33

40

25

25

33

39

39

13

58

57

102

39

47

41

13

35

104

8

1

41

35

13

8

25

24

56

25

99

55

54

114

42

112

9

9

70

89

62

62

111*

111*

103*

49

49

102

39

2

46

25

33

43

44

45

50

48

48

39

51

23

81

25

73

61

63

15

69

68

67

93

5

74

84

83 39

83 39

66

7

48

16

38

38

75

13

4

73

80

71

66

3

52

82

79

77

52

3

38

38

6

31 32

79

48

86

87

90

13

36

37

38

40

102

37 38

36 40

102

70

26

13 72

12

17

20*

27

19

18

31

30

29 28

57

58

34

70

64

92

10

85

11

13

95

96

101

100

97

21 104

70

88

91

78

121

120

119

115

116

57

117

76

118

57

42

113

112

14

13

106 110

109

107

108

53

53

115

119

118

57

76

117

116 121

120

57

8

39

8

39

65

22

22 65

66

66

98

94

105

98

39

8

15

39

8

EXPLODED DRAWING—Model No. DRTL39420 R1002A
