USER'S MANUAL

Model No. PATL30706.0

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

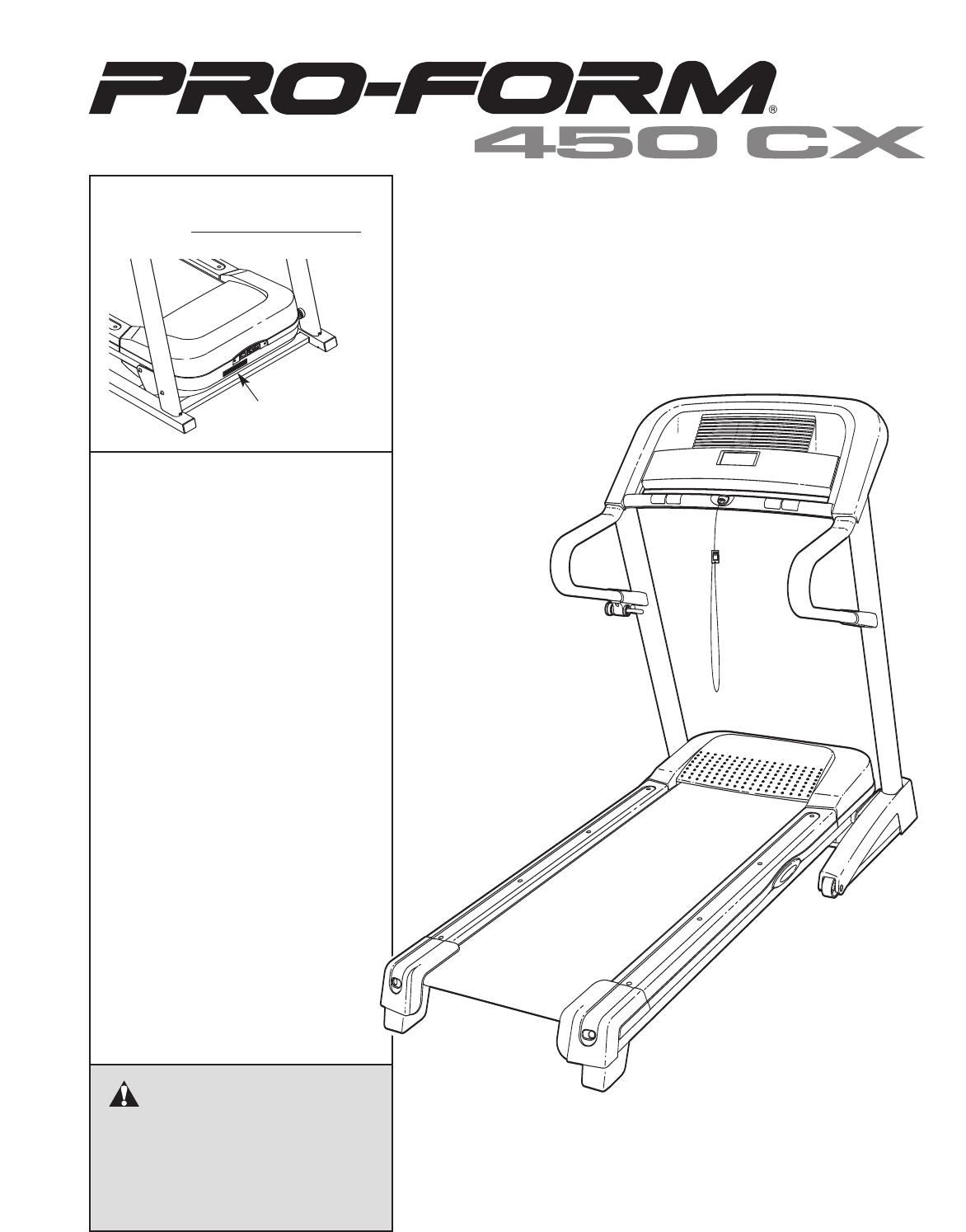

Serial Number

Decal

QUESTIONS?

If you have questions, or if any

parts are missing or damaged,

PLEASE CONTACT OUR CUS-

TOMER SERVICE DEPARTMENT

DIRECTLY.

Call toll-free:

800-830-7240

E-mail:

service@goodfamily.cc

Goodfamily’s Web site:

www.goodfamily.cc

ICON’s Web site:

www.iconfitness.com

Goodfamily is an authorized dealer of this treadmill in the

territory of mainland China. This treadmill is designed and

manufactured by ICON Health & Fitness, Inc.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

PROFORM is a registered trademark of ICON IP, Inc.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least 2.5 m (8 ft.) of clearance behind it and

0.5 m (2 ft.) on each side. Do not place the

treadmill on a surface that blocks any air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should be used only by persons

weighing 115 kg (275 lbs.) or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women.

Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

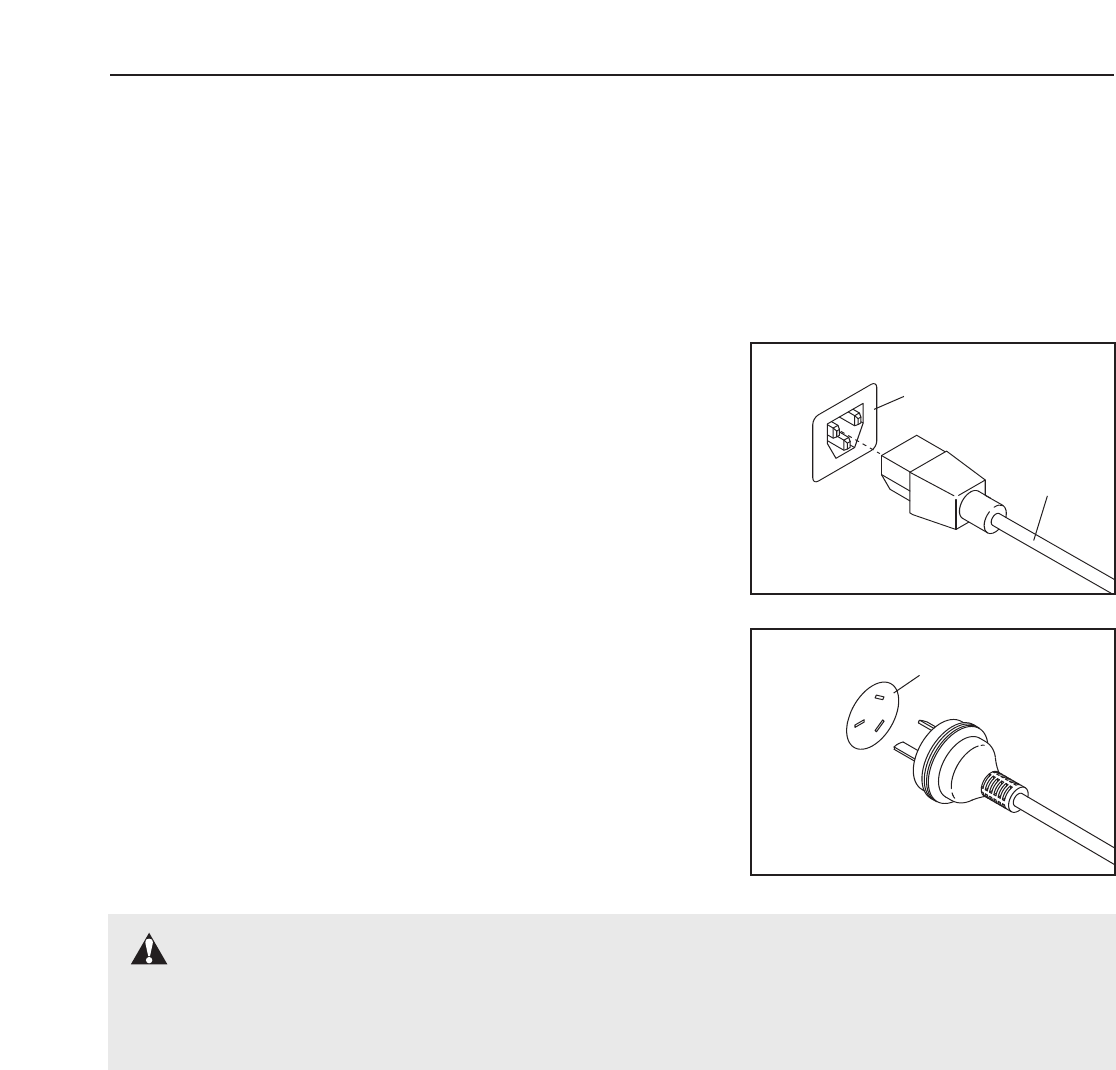

10. When connecting the power cord (see page

14), plug the power cord into an earthed cir-

cuit. No other appliance should be on the

same circuit. When replacing the fuse, an

ASTA approved BS1362 type should be fitted

to the fuse carrier. A 13 amp fuse should be

used.

11. Keep the power cord away from heated sur-

faces.

12. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 25 if the treadmill is

not working properly.)

13. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 16).

14. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

15. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

16. The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

17. Never leave the treadmill unattended while it

is running. Always remove the key and unplug

the power cord when the treadmill is not in

use.

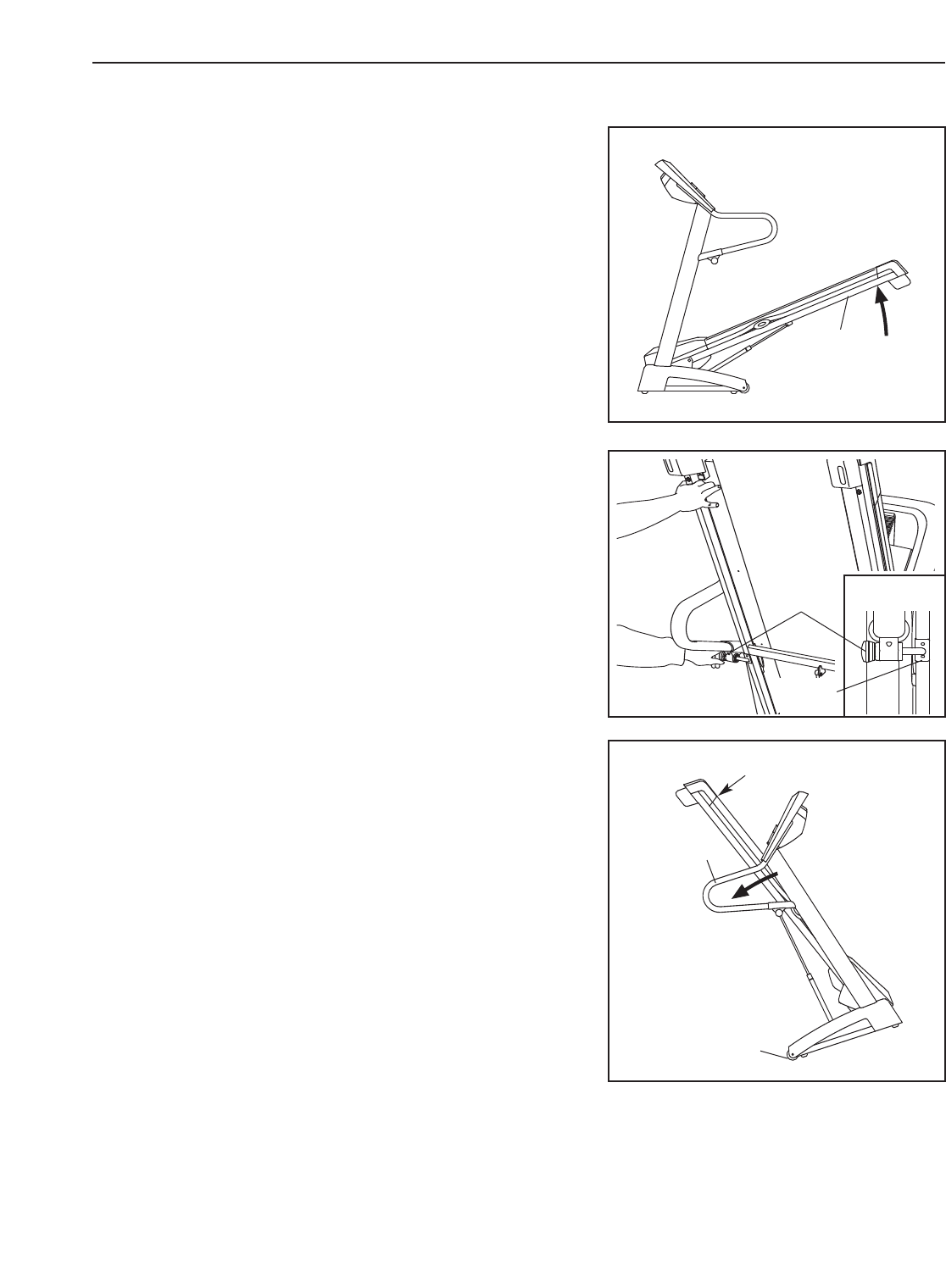

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 24.)

You must be able to safely lift 20 kg (45 lbs.) to

raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

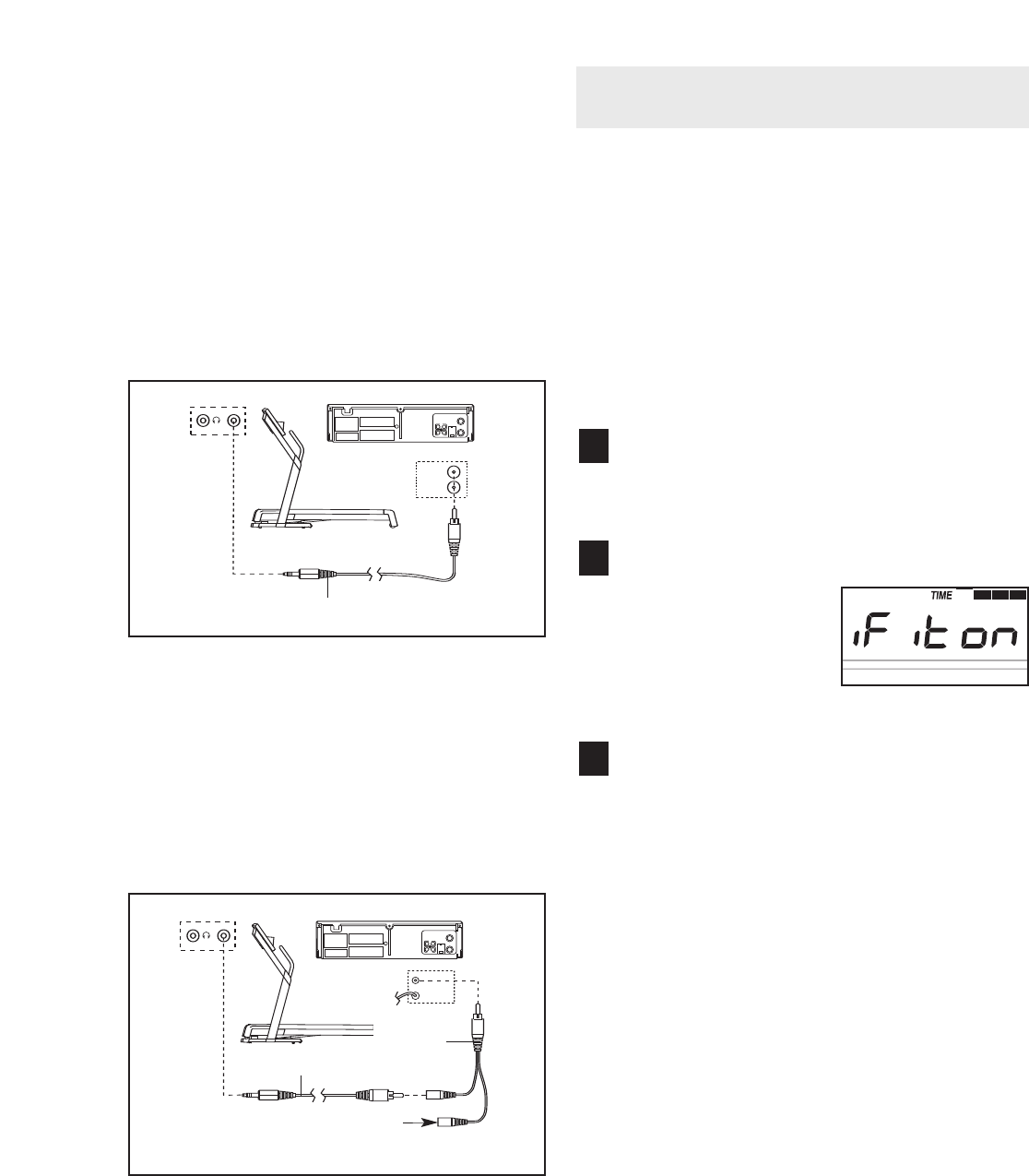

20. When using iFIT.com CDs and videos, an

electronic “chirping” sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

“chirp” and be prepared for speed and/or in-

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

WARNING: Toreduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

21. When using iFIT.com CDs and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

and incline buttons. However, when the next

“chirp” is heard, the speed and/or incline will

change to the next settings of the CD or video

program.

22. Always remove iFIT.com CDs and videos

from your CD player or VCR when you are not

using them.

23. Inspect and properly tighten all parts of the

treadmill regularly.

24. Never insert any object into any opening.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the

maintenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

26. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

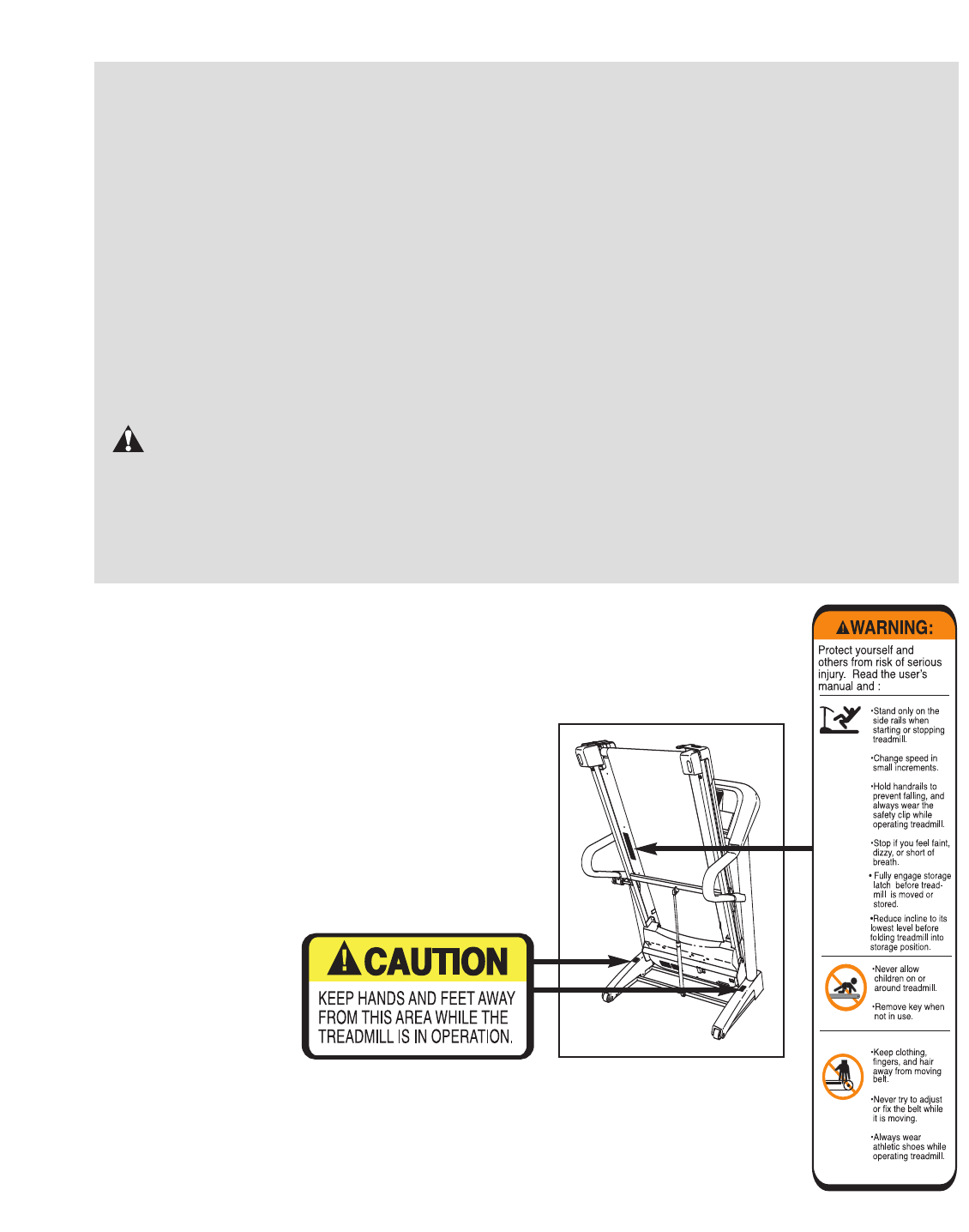

The decals shown at the right have been placed on the treadmill. If a decal is miss-

ing, or if it is not legible, call the toll-free telephone number on the front cover of

this manual and order a free replacement decal. Apply the decal in the location

shown. Note: The decals are not shown at actual size.

Thank you for selecting the new PROFORM®450 CX

treadmill. The 450 CX treadmill combines advanced

technology with innovative design to help you get the

most from your exercise in the convenience of your

home. And when you’re not exercising, the 450 CX

treadmill can be folded up, requiring less than half the

floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill.If you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number of the treadmill is PATL30706.0

The serial number can be found on a decal attached to

the treadmill (see the front cover of this manual for the

location).

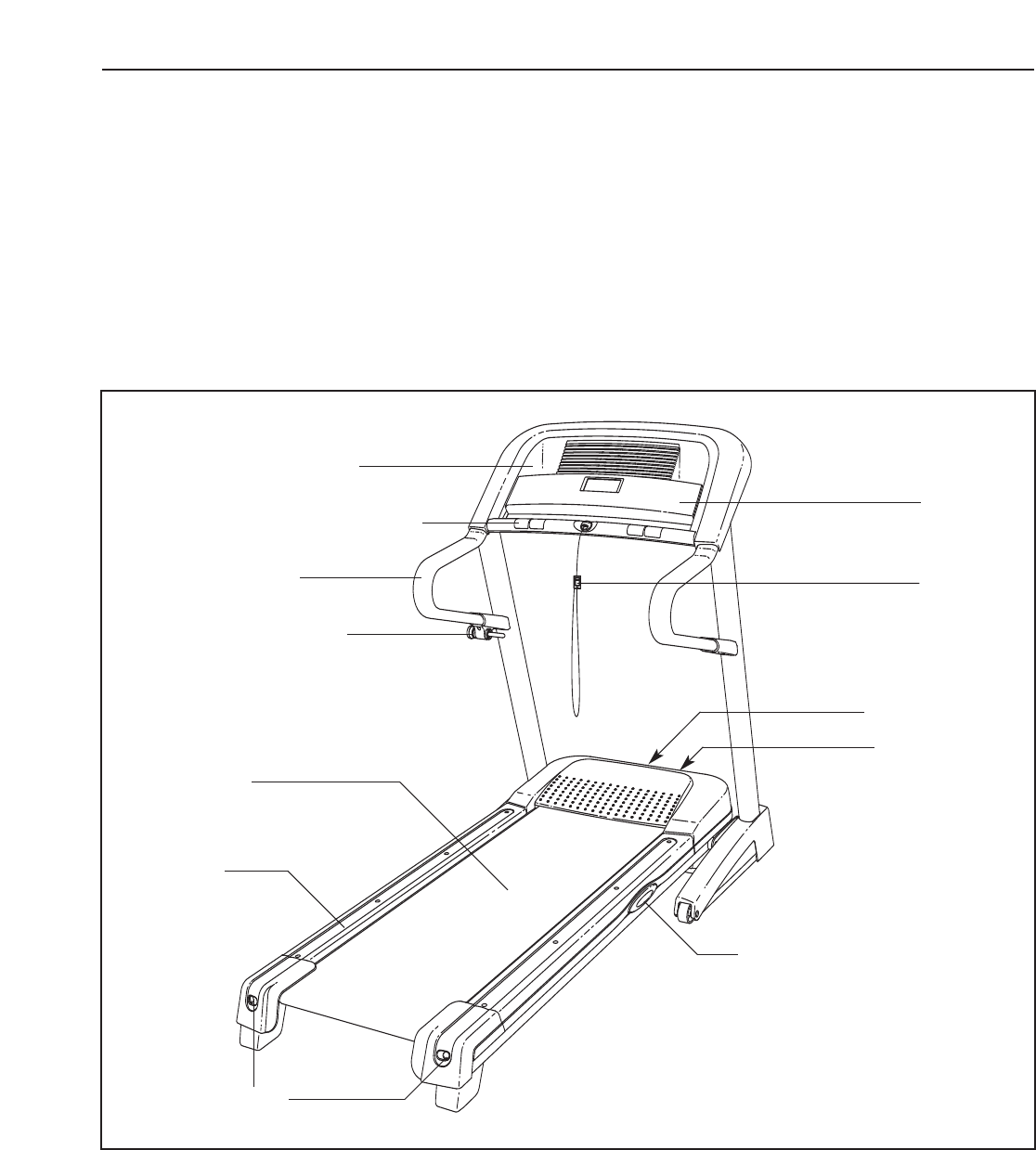

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Handrail

Storage Latch

Key/Clip

Circuit Breaker

On/Off Switch

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

RIGHT SIDE

Rear Roller

Adjustment Bolts

Console

Accessory Tray

Handgrip Pulse Sensor

BACK

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not

dispose of the packing materials until assembly is completed. Note: The underside of the walking belt is coated

with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the

walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there

is lubricant on top of the walking belt, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex keys and your own phillips screwdriver , rubber

mallet , adjustable spanner , and wire cutters .

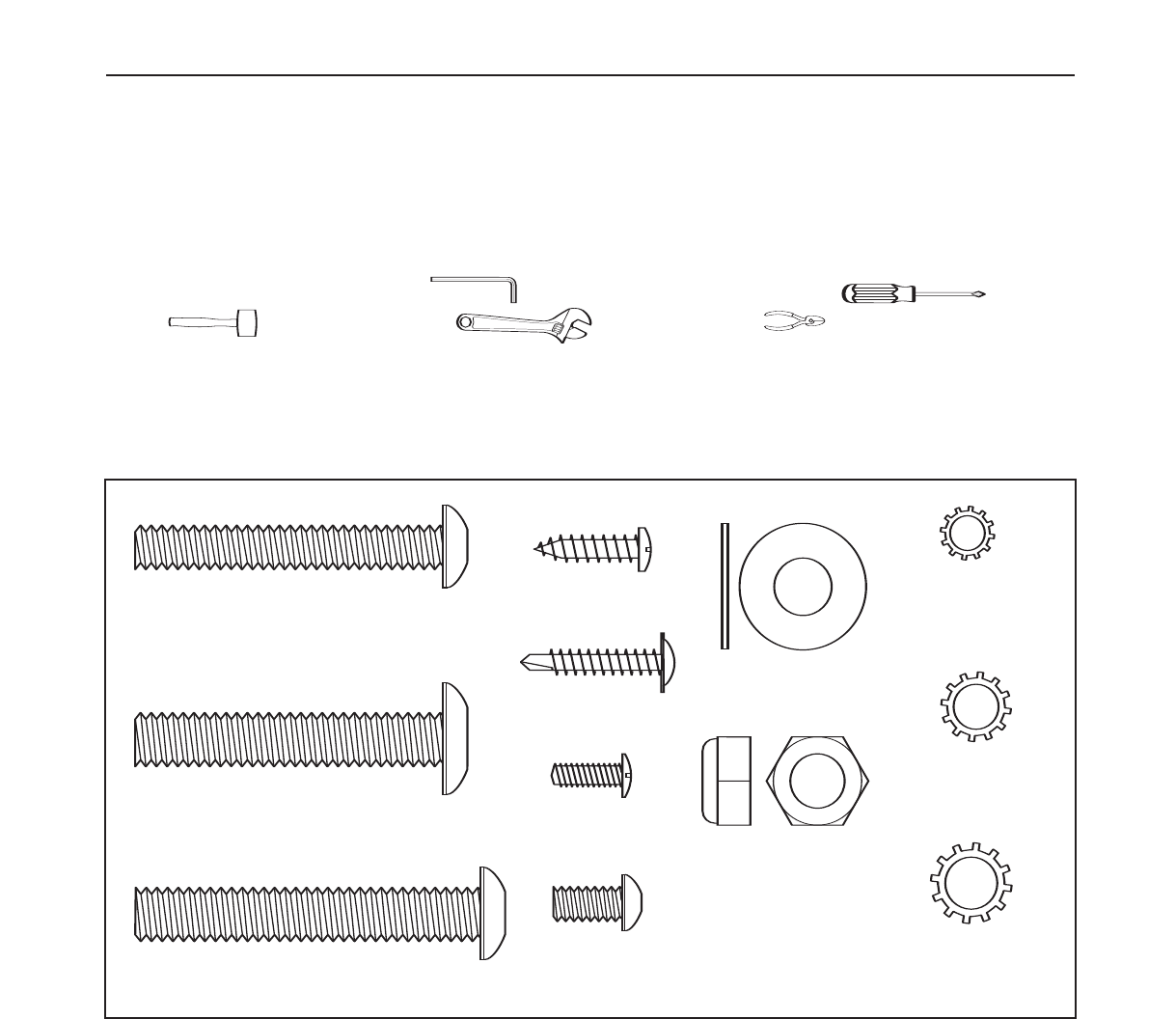

For help identifying the assembly hardware, see the drawings below. The number in parentheses below each

drawing is the key number of the part, from the PART LIST in the center of this manual. The number following the

parentheses is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it has

been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly.

1/2” Screw (119)–1

3/4” Tek Screw (58)–8

Nut (47)–2

Frame Bolt (32)–2

3/4” Screw (2)–12

Upright Bolt (40)–4

Upright Washer

(33)–2

Handrail Bolt (20)–4

Silver Ground

Screw (27)–2

Console Bolt

(22)–2

1/4” Star Washer

(21)–2

Handrail Star

Washer (19)–4

Upright Star

Washer (39)–4

Latch Screw

(XXX)–2

Endcap Screw

(95)–2

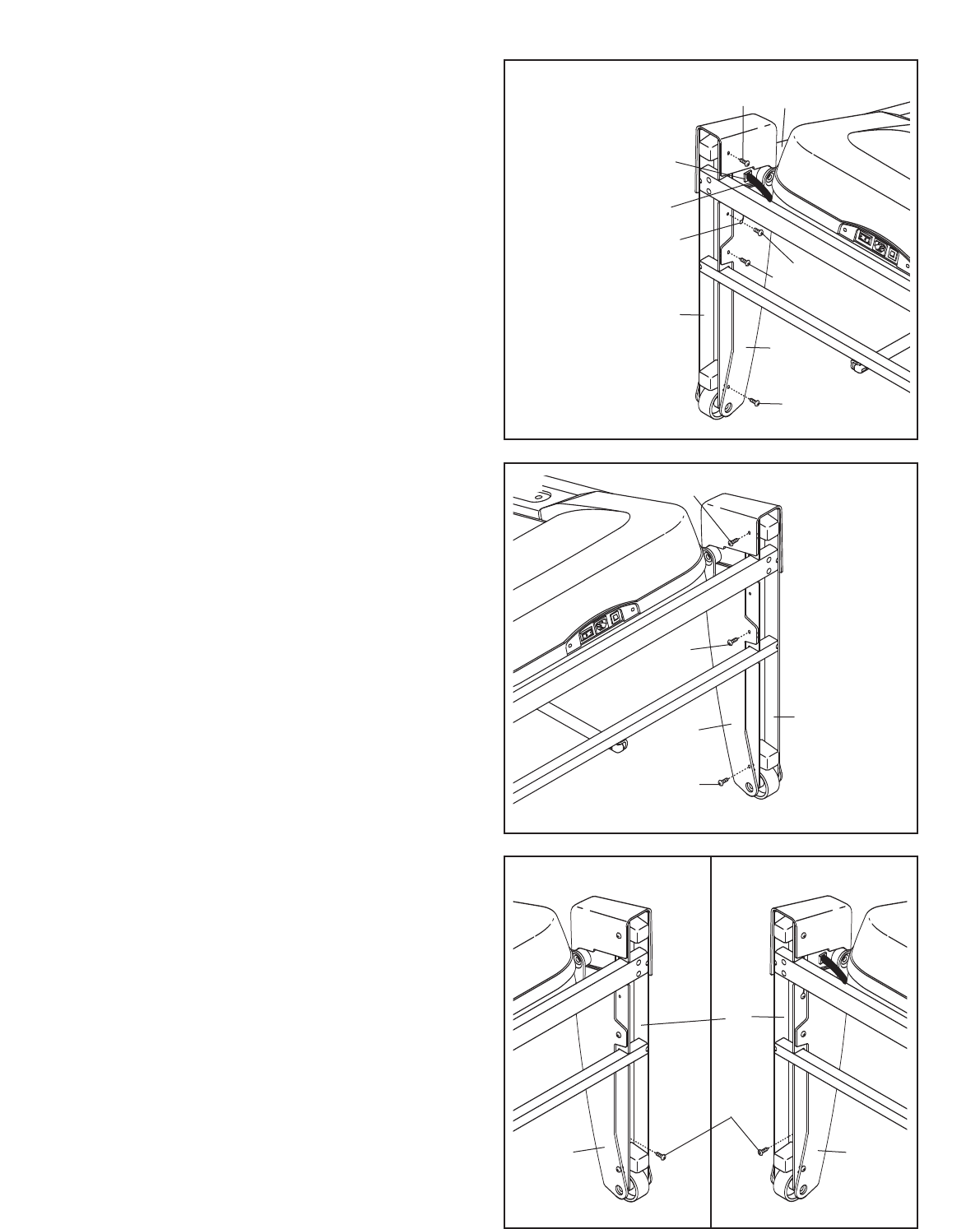

1. Make sure that the power cord is unplugged.

Identify the Right Upright (36), which has a

square hole in the location shown. Slide the

Right Base Leg Cover (102) onto the Right

Upright.

Orient the Right Upright (36) and the Base (48)

as shown. Attach the Right Upright to the Base

with two Upright Bolts (40) and two Upright Star

Washers (39); do not tighten the Upright Bolts

yet.

102

2. Orient the Left Upright (31) as shown, and slide

the Left Base Leg Cover (101) onto the Left

Upright.

Attach the Left Upright (31) to the Base (48) with

two Upright Bolts (40) and two Upright Star

Washers (39); do not tighten the Upright Bolts

yet.

Raise the Uprights (31, 36).

101

Square

Hole

3. Place an elastic band around the Right Base Leg

Cover (102) and the bracket on the Right Upright

(36) as shown. Place another elastic band

around the Left Base Leg Cover (not shown) and

the bracket on the Left Upright (not shown).

Position the Base (48) near the front of the tread-

mill as shown.

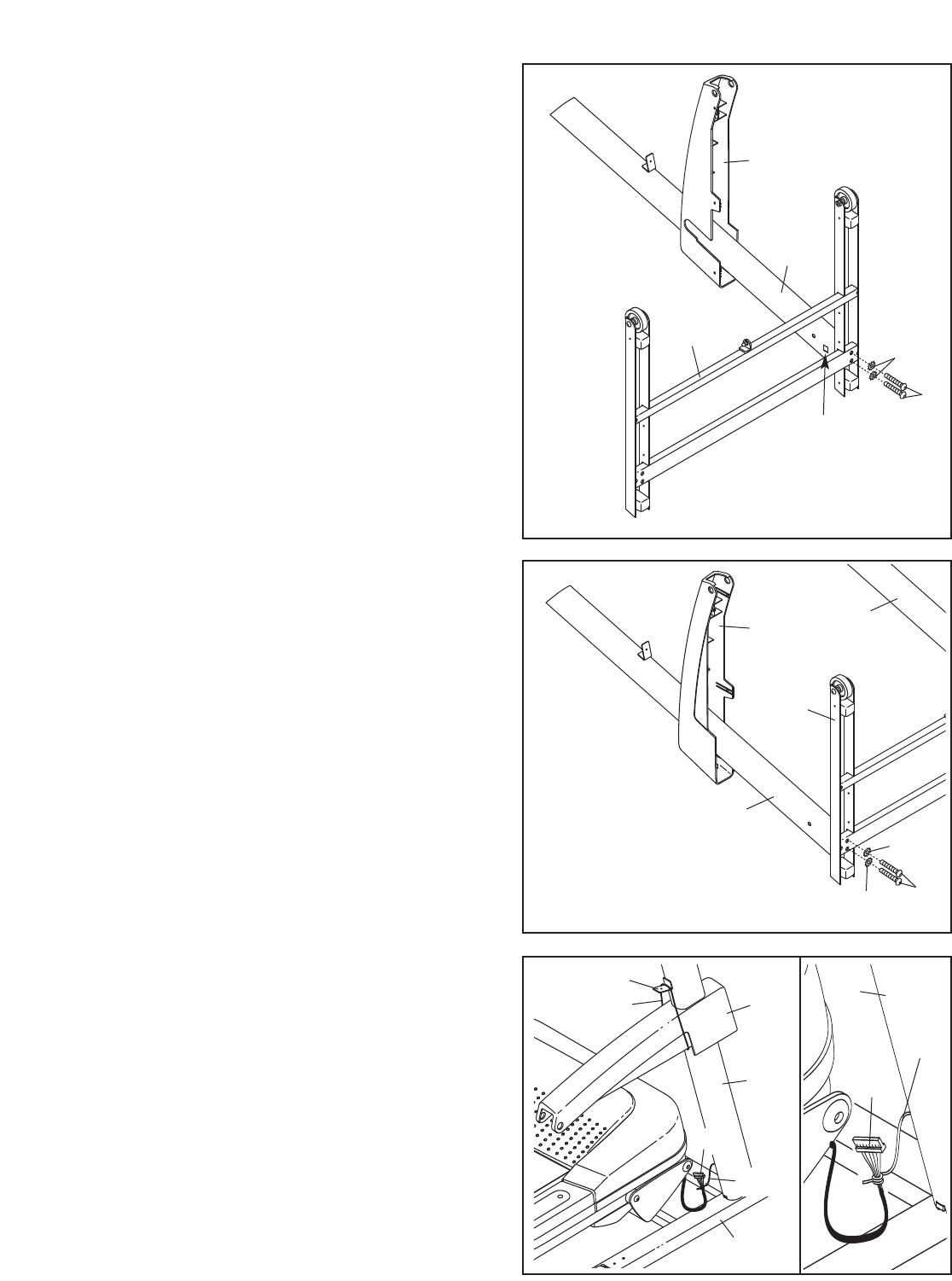

Locate the wire in the Right Upright (36). See the

inset drawing. Tie the wire securely to the con-

nector on the Upright Wire (28). Then, insert the

connector into the square hole in the Right

Upright. 48

Bracket

Band 102

Wire

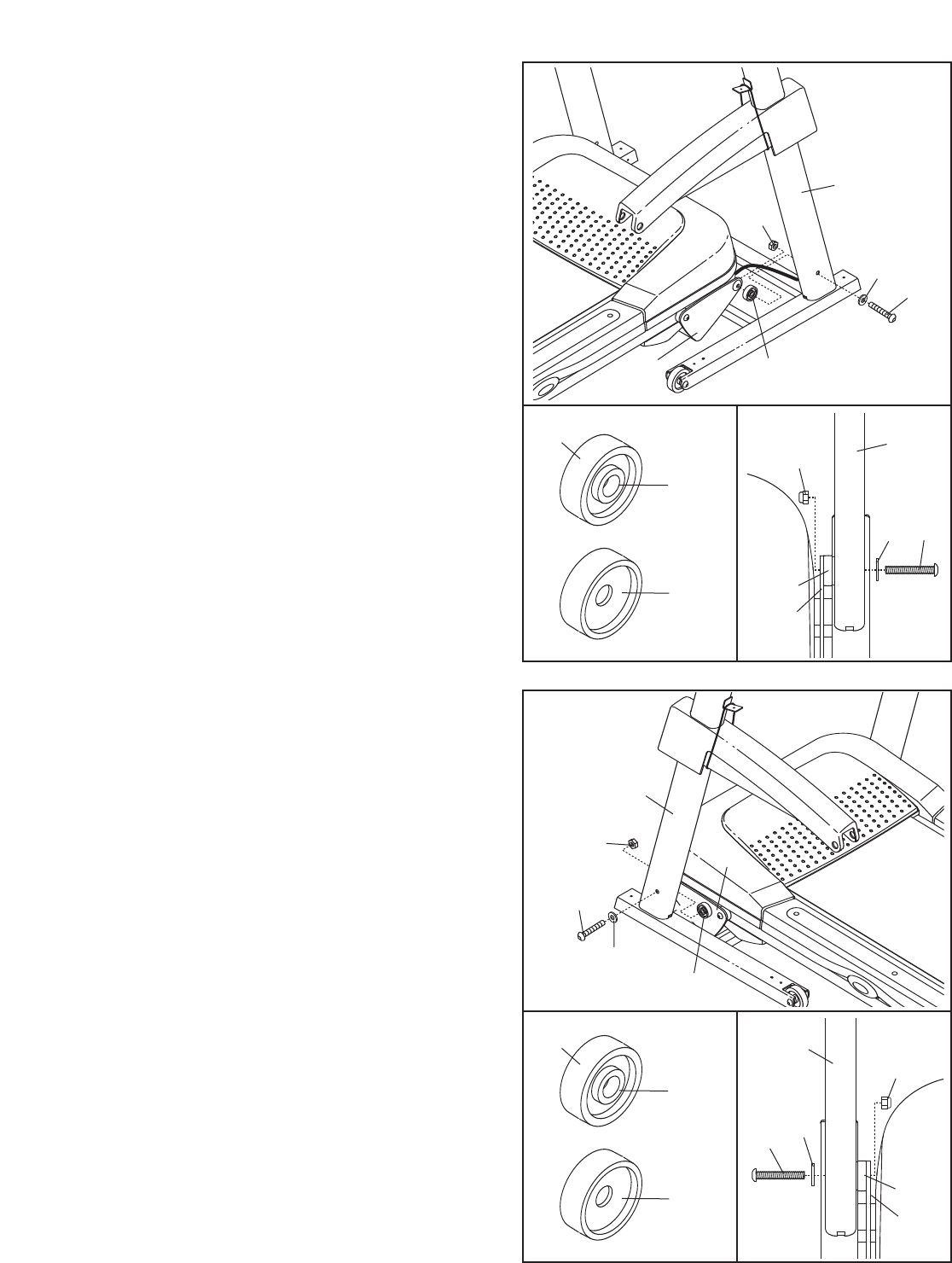

4. See the left inset drawing. Identify the two Frame

Spacers (34). Open the included packet of

grease, and apply grease to both sides of both

Frame Spacers. Then, identify the outer side of

each Frame Spacer.

Hold a Frame Spacer (34) between the Right

Upright (36) and the Lift Frame (59), with the

outer side of the Frame Spacer facing the

Right Upright. Attach the Right Upright to the

Lift Frame with a Frame Bolt (32), an Upright

Washer (33), and a Nut (47); do not tighten the

Nut yet.

Outer

Side

Inner

Side

34 36

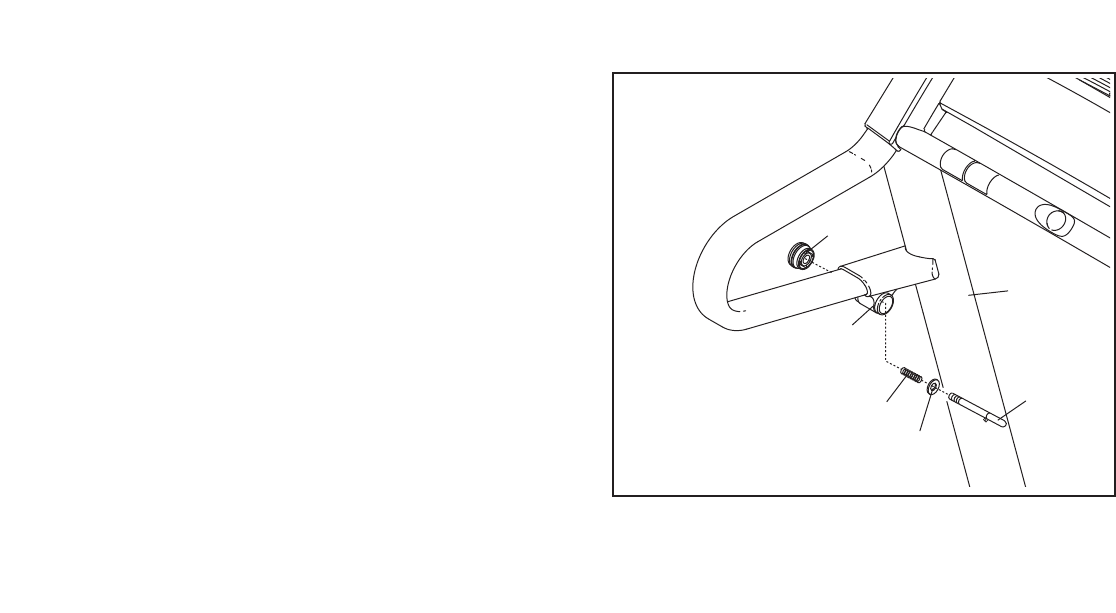

5. See the left inset drawing. Identify the outer side

of the remaining Frame Spacer (34).

Hold the Frame Spacer (34) between the Left

Upright (31) and the Lift Frame (59), with the

outer side of the Frame Spacer facing the

Left Upright. Attach the Left Upright to the Lift

Frame with a Frame Bolt (32), an Upright

Washer (33), and a Nut (47); do not tighten the

Nut yet.

Outer

Side

Inner

Side

34 31

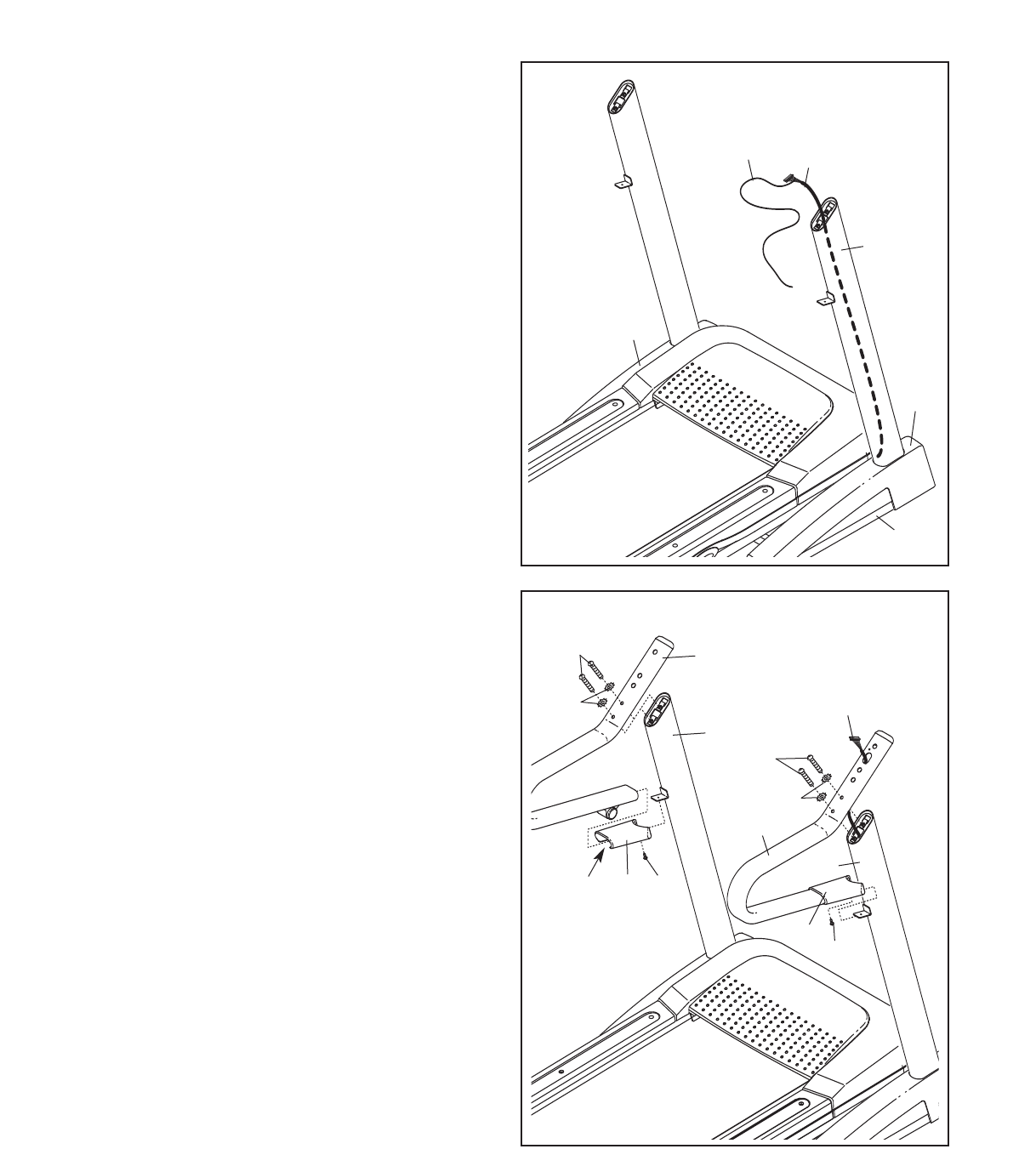

7. Identify the Right Handrail Endcap (91), which

does not have a cutout in the bottom, and slide it

onto the lower end of the Right Handrail (11).

Make sure that the screw hole in the Right

Handrail Endcap is at the bottom. Next, hold the

Right Handrail near the Right Upright (36), and

insert the Upright Wire (28) into the hole in the

bottom of the Right Handrail and out of the indi-

cated hole in the top. Then, remove the tie from

the Upright Wire.

Set the Right Handrail (11) on the Right Upright

(36) while sliding the lower end of the Right

Handrail onto the bracket on the Right Upright.

Hand tighten two Handrail Bolts (20) with two

Handrail Star Washers (19) into the Right

Handrail and the Right Upright. Next, slide the

Right Handrail Endcap (91) against the Right

Upright, and tighten an Endcap Screw (95) into

the Right Handrail Endcap. Then, tighten the two

Handrail Bolts. Make sure that the Upright

Wire (28) is not pinched.

Attach the Left Handrail (18) and the Left

Handrail Endcap (90) to the Left Upright (31) as

described above.

Cutout

6. Pull the indicated wire until the Upright Wire (28)

is extending from the upper end of the Right

Upright (36). Then, disconnect and discard the

wire.

Remove the elastic bands from the Left and

Right Base Leg Covers (101, 102) and press

them onto the Base (48) as shown.

102

101

Wire

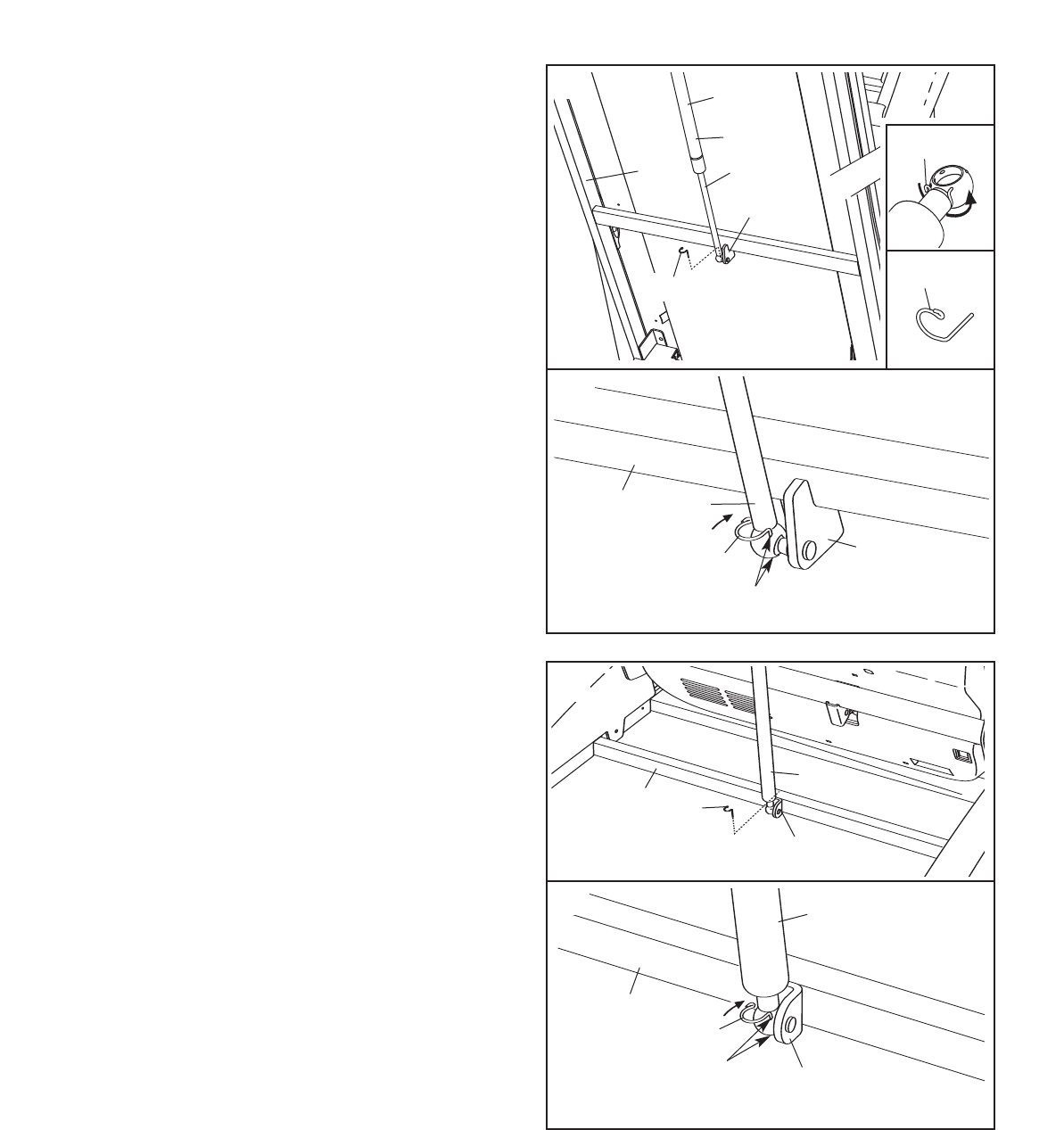

9. Pivot the cylinder end of the Gas Spring (112)

down to the position shown. Remove the Spring

Clip (105) from the end of the Gas Spring.

Next, align the cylinder end of the Gas Spring

(112) with the bracket in the center of the Base

(48). Press the end of the Gas Spring onto the

ball on the bracket. Note: It may be necessary to

pivot the Frame (not shown) forward or backward

slightly to align the end of the Gas Spring with

the ball.

See drawing 9a. Insert the Spring Clip (105) into

the two indicated small holes in the Gas Spring

(112). Then, rotate the Spring Clip until it clips

onto the Gas Spring.

With the help of a second person, lower the

Frame (not shown) to the floor.

105

112

Holes

105

Bracket

8. Have a second person raise and hold the tread-

mill Frame (74).

Identify the Gas Spring (112). Note that the Gas

Spring has a cylinder end and a rod end. See the

two small inset drawings. Locate the Spring Clip

(105) in the rod end of the Gas Spring. Using

your fingernail or the end of a screwdriver, press

on the end of the Spring Clip to loosen it, rotate

the Spring Clip, and then pull the Spring Clip out

of the Gas Spring. Be careful to avoid losing the

Spring Clip. Note: Extra Spring Clips are in-

cluded.

Next, hold the rod end of the Gas Spring (112)

near the bracket in the center of the Frame (74).

Press the end of the Gas Spring as far as possi-

ble onto the ball on the bracket.

See drawing 8a. Insert the Spring Clip (105) into

the two indicated small holes in the rod end of

the Gas Spring (112). Then, rotate the Spring

Clip until it clips onto the Gas Spring.

112

105

112

Bracket

Cylinder

Rod

Bracket

105

Holes

105

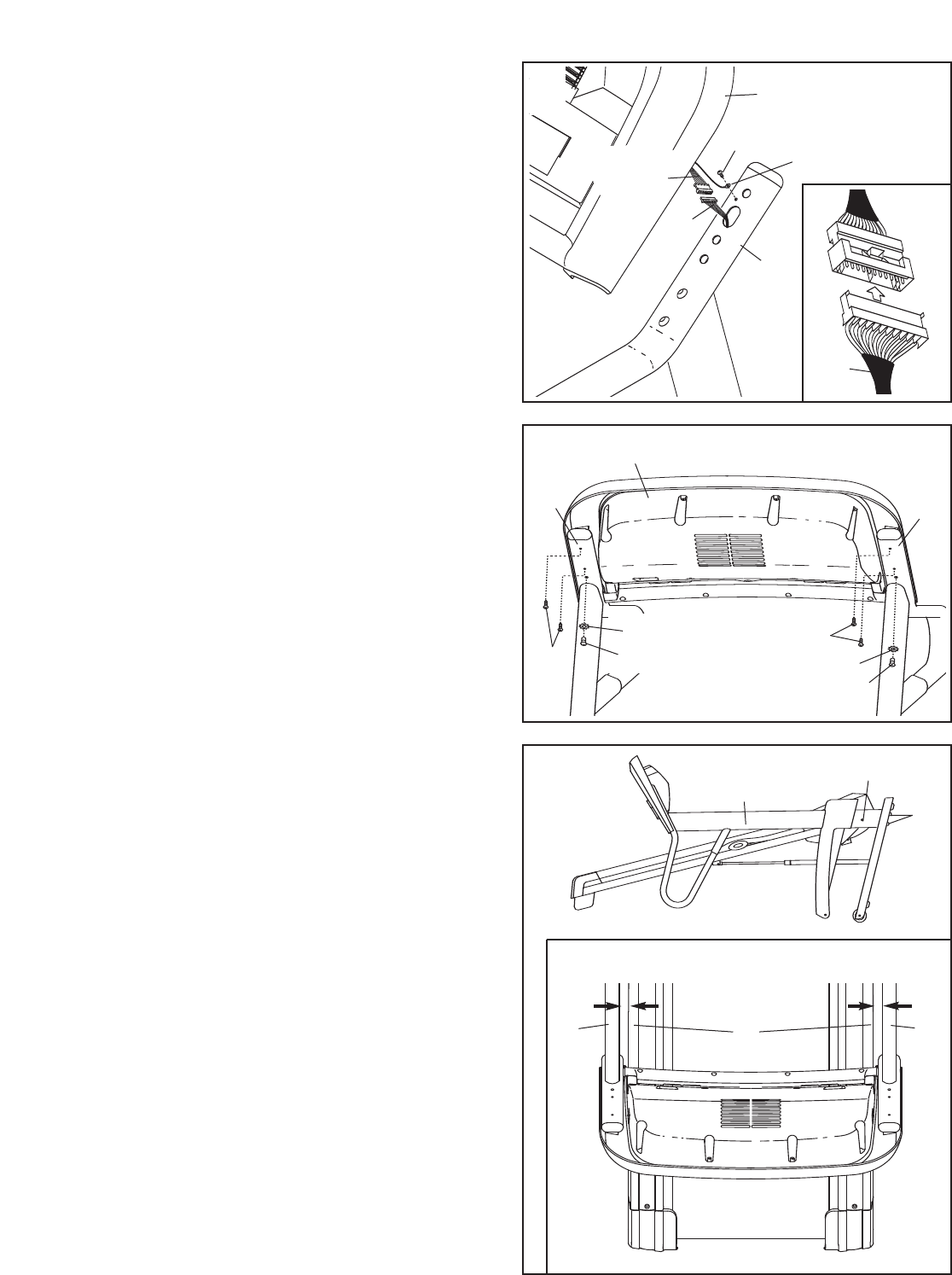

12. Lower the Uprights (31, 36) as shown.

See the inset drawing. Push the Uprights (31,

36) sideways so that the treadmill Frame (74) is

centered between the Uprights.

Firmly tighten the Upright Bolts (40) and the

Frame Bolts (32) on each side of the treadmill.

Do not overtighten the Frame Bolts.

31, 36

View From Above

Side View

10. Attach the ground wire on the Console Base (26)

to the Right Handrail (11) with a Silver Ground

Screw (27).

Connect the wire harness on the Console Base

(26) to the Upright Wire (28) as shown in the

inset drawing. Important: If the connectors are

oriented correctly, they will slide together

easily and snap into place. If the connectors

are not oriented correctly, the console may

be damaged when the power is turned on.

Insert the connectors and excess wire into the

Console Base (26).

Ground

Wire

Harness

11. Attach the Console Base (26) to the Handrails

(11, 18) with four 3/4" Screws (2); do not

tighten the Screws yet. Next, tighten two

Console Bolts (22) with 1/4" Star Washers (21)

into the Handrails and the Console Base. Then,

tighten the four Screws.

221

11 18

11 26 Front View

14. Slide the Left Base Leg Cover (101) onto the

Base (48) as shown. Attach the Left Base Leg

Cover with three 3/4" Screws (2). Be careful not

to overtighten the Screws.

15. Tighten a 3/4" Screw (2) into each side of the

Base (48) and each Base Leg Cover (101, 102).

Be careful not to overtighten the Screws.

102

101

13. Attach the ground wire on the Upright Wire (28)

to the indicated hole in the Base (48) with a

Silver Ground Screw (27).

Press the indicated grommet into the Right

Upright (36).

Slide the Right Base Leg Cover (102) onto the

Base (48) as shown. Attach the Right Base Leg

Cover with three 3/4" Screws (2). Be careful not

to pinch the Upright Wire (28). Do not over-

tighten the Screws.

102

Grommet

Ground Wire

17. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may

be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt

(see page 26). To protect the floor or carpet, place a mat under the treadmill.

16. Carefully raise the Left Upright (31) and the

Right Upright (not shown).

Remove the knob from the pin. Make sure that

the collar and the spring are on the pin as

shown. Insert the pin into the Latch Housing

(30), and tighten the knob back onto the pin.

Knob

Collar

Spring

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply sili-

cone spray or other substances to the walking belt or the walking platform. Such substances will deterio-

rate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunction or break

down, earthing provides a path of least resistance for electric cur-

rent to reduce the risk of electric shock. This product is equipped

with a power cord having an equipment-earthing conductor and an

earthing plug. Important: If the power cord is damaged, it must

be replaced with a manufacturer-recommended power cord.

See drawing 1. Plug the indicated end of the power cord into the

socket on the treadmill.

See drawing 2. Plug the power cord into an appropriate outlet that is

properly installed and earthed in accordance with all local codes and

ordinances. Important: The treadmill is not compatible with

GFCI-equipped outlets.

Socket on Treadmill

Outlet

DANGER: Improper connection of the equipment-earthing conductor can result in an in-

creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as

to whether the product is properly earthed. Do not modify the plug provided with the product—if it will

not fit the outlet, have a proper outlet installed by a qualified electrician.

Power

Cord

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features

designed to make your workouts more effective. When

the manual mode of the console is selected, the speed

and incline of the treadmill can be changed with the

touch of a button. As you exercise, the console will

display continuous exercise feedback. You can even

measure your heart rate using the built-in pulse sensor.

The console also features ten preset programs. Each

program controls the speed and incline of the treadmill

as it guides you through an effective workout.

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using a stereo audio cable,

you can connect the treadmill to your portable stereo,

home stereo, computer, or VCR and play special

iFIT.com MP3, CD, and video programs (iFIT.com MP3

programs, CDs, and videocassettes are available sepa-

rately). iFIT.com programs automatically control the

speed and incline of the treadmill as a personal trainer

guides you through every step of your workout; high-

energy music provides added motivation. To down-

load iFIT.com MP3 programs, go to www.iFIT.com.

To purchase iFIT.com CDs and videocassettes, call

the telephone number on the front cover of the

manual.

With the treadmill connected to your computer, you

can also go to www.iFIT.com and access iFIT.com

programs directly from our Web site. See

www.iFIT.com for more information.

To use the manual mode of the console, follow the

steps beginning on page 16. To use a preset

program,see page 18. To use an iFIT.com MP3, CD,

or video program,see page 21. To use an iFIT.com

program directly from our Web site,see page 22.

Note: If there are thin sheets of plastic

on the console, remove the plastic. Key

Clip

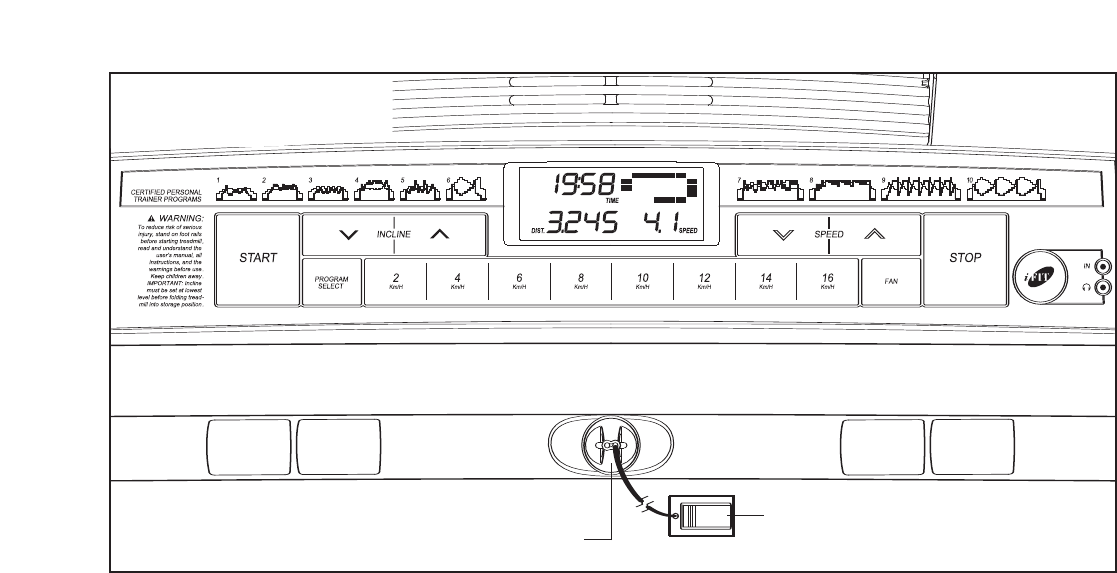

CONSOLE DIAGRAM

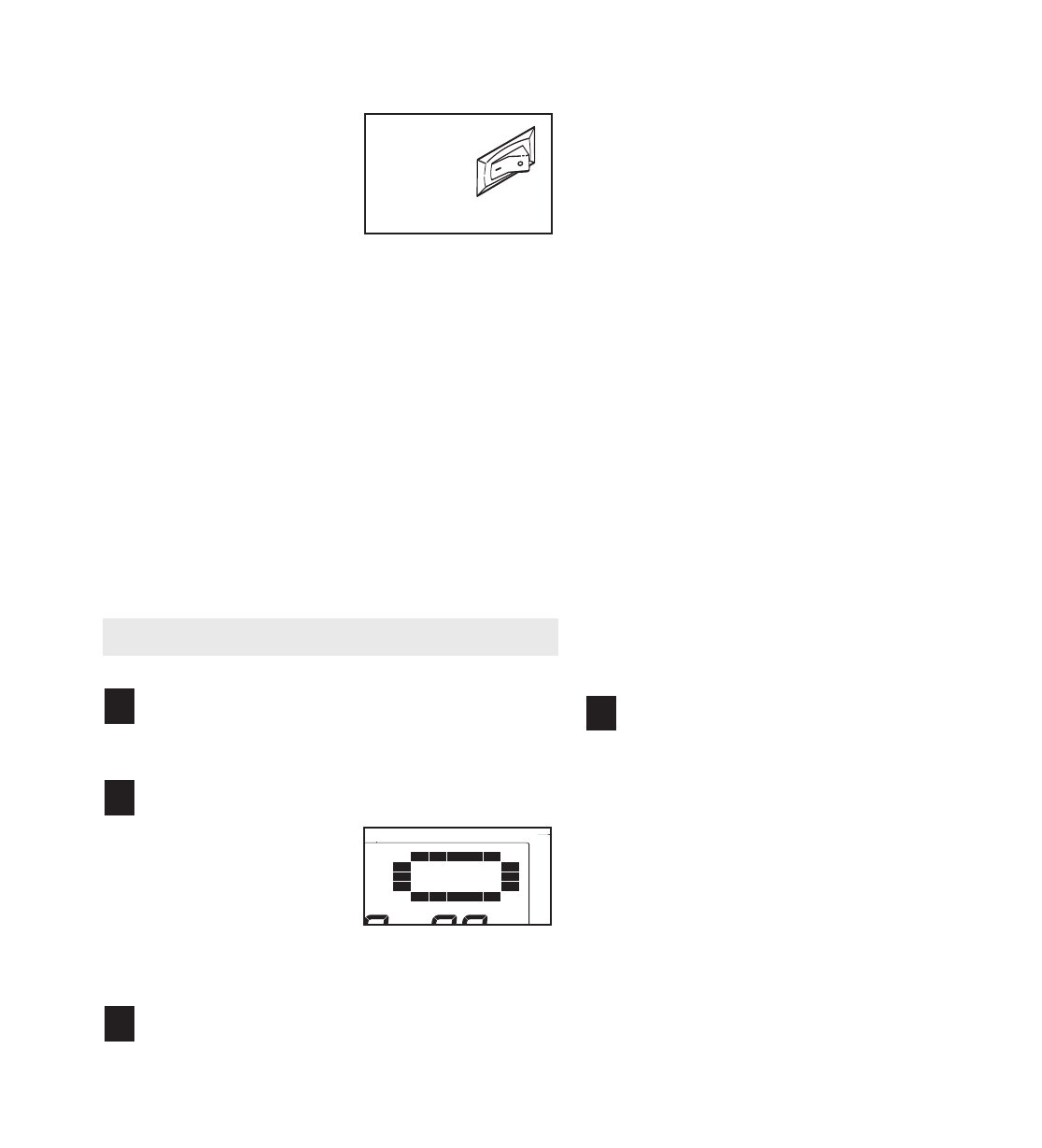

HOW TO TURN ON THE POWER

Plug in the power cord (see

page 14). Next, locate the

on/off switch on the tread-

mill frame near the power

cord. Make sure that the

on/off switch is in the “on”

position.

Next, stand on the foot rails of the treadmill. Locate the

clip attached to the key (see the drawing on page 15),

and slide the clip securely onto the waistband of your

clothes. Then, insert the key into the console; after a

moment, the display will light. Important: In an

emergency situation, the key can be pulled from

the console, causing the walking belt to slow to a

stop. Test the clip by carefully taking a few steps

backward; if the key is not pulled from the console,

adjust the position of the clip.

Note: To prevent damage to the walking platform,

always wear clean shoes while using the treadmill.

HOW TO USE THE MANUAL MODE

Insert the key into the console.

See HOW TO TURN ON THE POWER above.

Select the manual mode.

When the key is in-

serted, the manual

mode will be selected.

If a program has been

selected, press the

Program Select button

repeatedly until a track appears in the display.

Start the walking belt.

To start the walking belt, press the Start button,

the Speed increase button, or one of the buttons

numbered 2 through 16.

If the Start button or the Speed increase button is

pressed, the walking belt will begin to move at 2

Km/H. As you exercise, change the speed of the

walking belt as desired by pressing the Speed in-

crease and decrease buttons. Each time a button

is pressed, the speed setting will change by 0.1

Km/H; if a button is held down, the speed setting

will change in increments of 0.5 Km/H.

If one of the eight numbered buttons is pressed,

the walking belt will gradually increase in speed

until it reaches the selected speed setting. Note:

The console can display speed and distance in

either miles or kilometers (see THE INFORMA-

TION MODE/DEMO MODE on page 23). For

simplicity, all instructions in this section refer

to kilometers.

To stop the walking belt, press the Stop button.

The time will begin to flash in the display. To

restart the walking belt, press the Start button, the

Speed increase button, or one of the eight num-

bered buttons.

Note: The first time you use the treadmill, periodi-

cally inspect the alignment of the walking belt, and

center it if necessary (see page 26).

Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase and decrease buttons. Each time

abutton is pressed, the incline setting will change

by 0.5%; if a button is held down, the incline set-

ting will change quickly.

Position

Follow your progress with the display.

When the manual

mode is selected, a

track representing 400

meters will appear in

the upper right corner

of the display. As you

walk or run on the treadmill, the indicators around

the track will appear in succession until the entire

track appears. The track will then disappear and

the indicators will again begin to appear in suc-

cession.

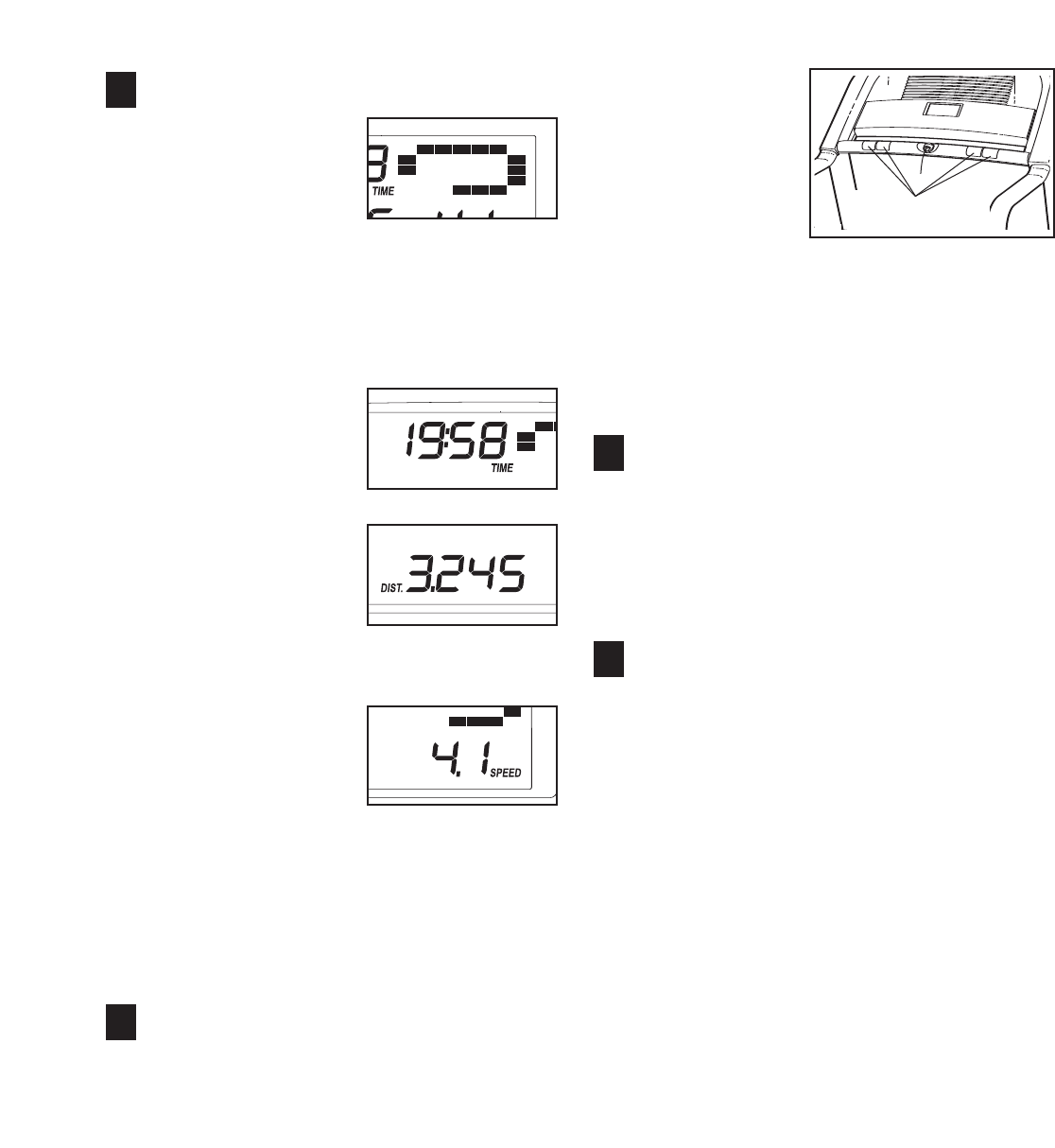

The upper left corner

of the display will

show the elapsed time

since you started your

workout.

The lower left corner

of the display will

show the distance that

you have walked or

run during your work-

out and the incline

level of the treadmill.

The lower right corner

of the display will show

the speed of the walk-

ing belt and the ap-

proximate number of

calories that you have

burned during your workout. The lower right cor-

ner of the display will also show your heart rate

when you use the handgrip pulse sensor.

To reset the display, press the Stop button, re-

move the key, and then reinsert the key.

Measure your heart rate if desired.

Before using the handgrip pulse sensor, remove

the sheets of clear plastic from the metal contacts.

In addition, make sure that your hands are clean.

To measure your

heart rate, stand

onthe foot rails

and place your

hands on the

metal contacts—

avoid moving

your hands.

When your pulse

is detected, the heart symbol in the display will

begin to flash each time your heart beats, one or

two dashes will appear, and then your heart rate

will be shown. For the most accurate heart rate

reading, continue to hold the contacts for

about 15 seconds.

Turn on the fan if desired.

To turn on the fan, press the Fan button. To turn

on the fan at high speed, press the button a sec-

ond time. To turn off the fan, press the button a

third time. Note: If the fan is left on when the walk-

ing belt is stopped, the fan will automatically turn

off after a few minutes.

When you are finished exercising, remove the

key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

when the treadmill is folded to the storage posi-

tion, or the treadmill will be damaged. Next, re-

move the key from the console and put it in a se-

cure place. Note: If the display remains lit after

the key is removed, the console is in the

“demo” mode. See page 23 and turn off the

demo mode.

When you are finished using the treadmill,

switch the on/off switch to the “off” position

and unplug the power cord.

Metal Contacts

HOW TO USE A PRESET PROGRAM

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

16.

Select a preset program.

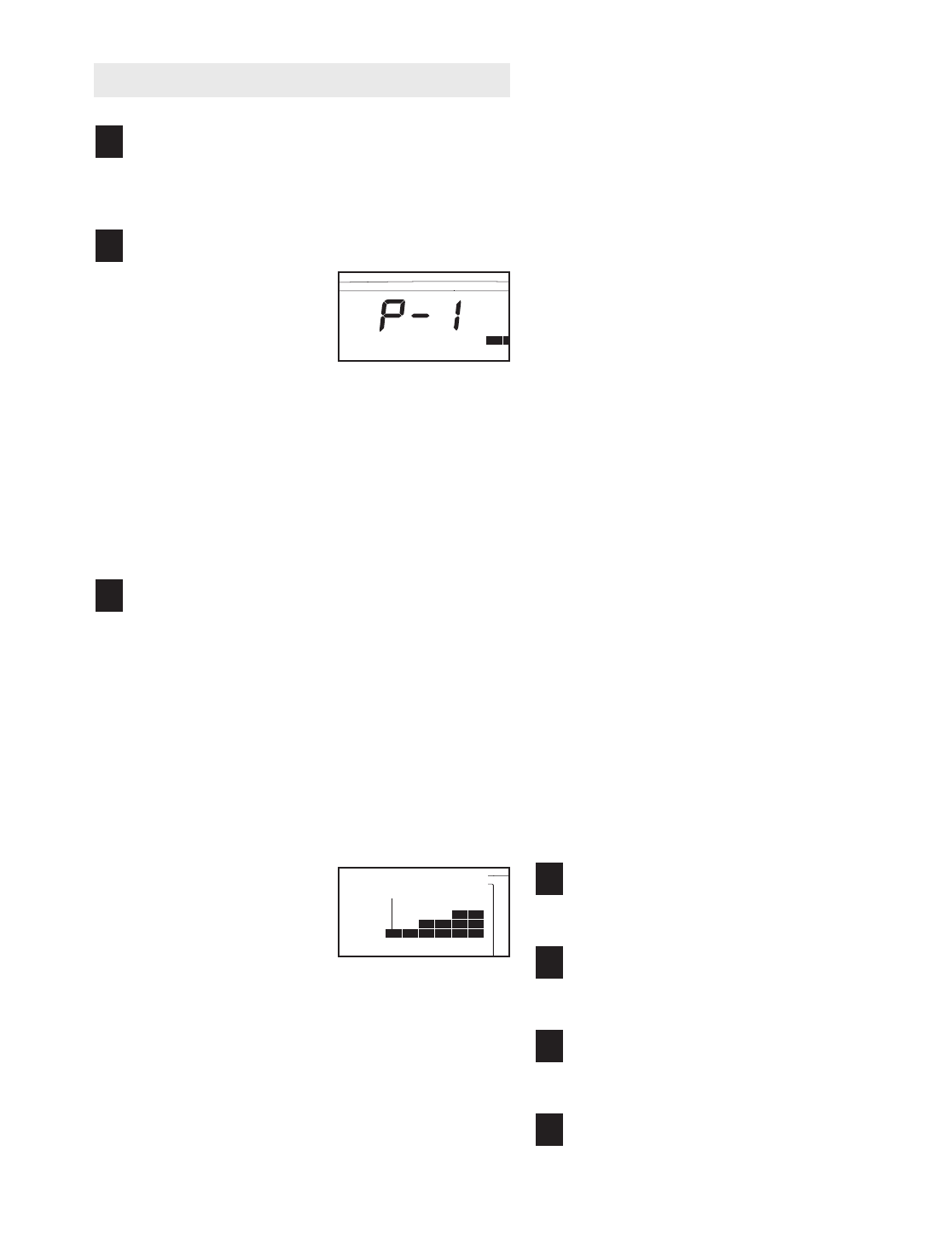

To select one of the ten

preset programs, press

the Program Select but-

ton repeatedly until one

of the programs num-

bered “P–1” through

“P–10” appears in the display. When a preset pro-

gram is selected, the maximum incline setting of

the program and the maximum speed setting of

the program will flash in the display for a few sec-

onds. The display will also show how long the pro-

gram will last. A profile of the speed settings of the

program will scroll across the matrix in the upper

right corner of the display.

Press the Start button or the Speed increase

button to start the program.

Amoment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each program is divided into several one-minute

periods. One speed setting and one incline setting

are programmed for each period. Note: The same

speed setting and/or incline setting may be pro-

grammed for two or more consecutive periods.

The speed setting for

the first period will be

shown in the flashing

Current Period column

of the matrix in the dis-

play. (The incline set-

tings are not shown in the matrix.) The speed set-

tings for the next four periods will be shown in the

columns to the right.

When only three seconds remain in the first period

of the program, both the Current Period column

and the column to the right will flash and a series

of tones will sound. If the speed and/or incline of

the treadmill is about to change, the speed setting

and/or the incline setting will flash in the display to

alert you.

When the first period is completed,

all speed set-

tings will move one column to the left

.The speed

setting for the second period will then be shown in

the flashing Current Period column and the tread-

mill will automatically adjust to the speed and in-

cline settings for the second period. Note: If all five

of the indicators in the Current Period column are

lit,

the speed settings may move downward

so that

only the highest indicators appear in the matrix.

The program will continue in this way until the

speed setting for the last period is shown in the

Current Period column and the last period ends.

The walking belt will then slow to a stop.

If the speed or incline setting for the current period

is too high or too low, you can manually override

the setting by pressing the Speed or Incline but-

tons. Every few times a Speed button is pressed,

an additional indicator will appear or disappear in

the Current Period column; if any of the columns

to the right of the Current Period column have the

same number of lit indicators as the Current

Period column, an additional indicator may appear

or disappear in those columns as well. Important:

When the current period of the program ends,

the treadmill will automatically adjust to the

speed and incline settings for the next period.

To stop the program temporarily, press the Stop

button. The time will begin to flash in the display.

To restart the program, press the Start button or

the Speed increase button. The walking belt will

begin to move at 2 Km/H. When the next period of

the program begins, the treadmill will automatically

adjust to the speed and incline settings for the

next period. To end the program, press the Stop

button, remove the key, and then reinsert the key.

Follow your progress with the display.

See step 5 on page 17.

Measure your heart rate if desired.

See step 6 on page 17.

Turn on the fan if desired.

See step 7 on page 17.

When the program is completed, remove the

key from the console.

See step 8 on page 17.

Current Period

Touse iFIT.com MP3 or CD programs,the treadmill

must be connected to your MP3 player, CD player,

portable stereo, home stereo, or computer. See pages

19 and 20 for connecting instructions. To use

iFIT.com programs directly from our Web site,the

treadmill must be connected to your computer. See

page 20 for connecting instructions. To use iFIT.com

video programs,the treadmill must be connected to

your VCR. See page 21 for connecting instructions.

HOW TO CONNECT YOUR MP3 PLAYER OR CD

PLAYER

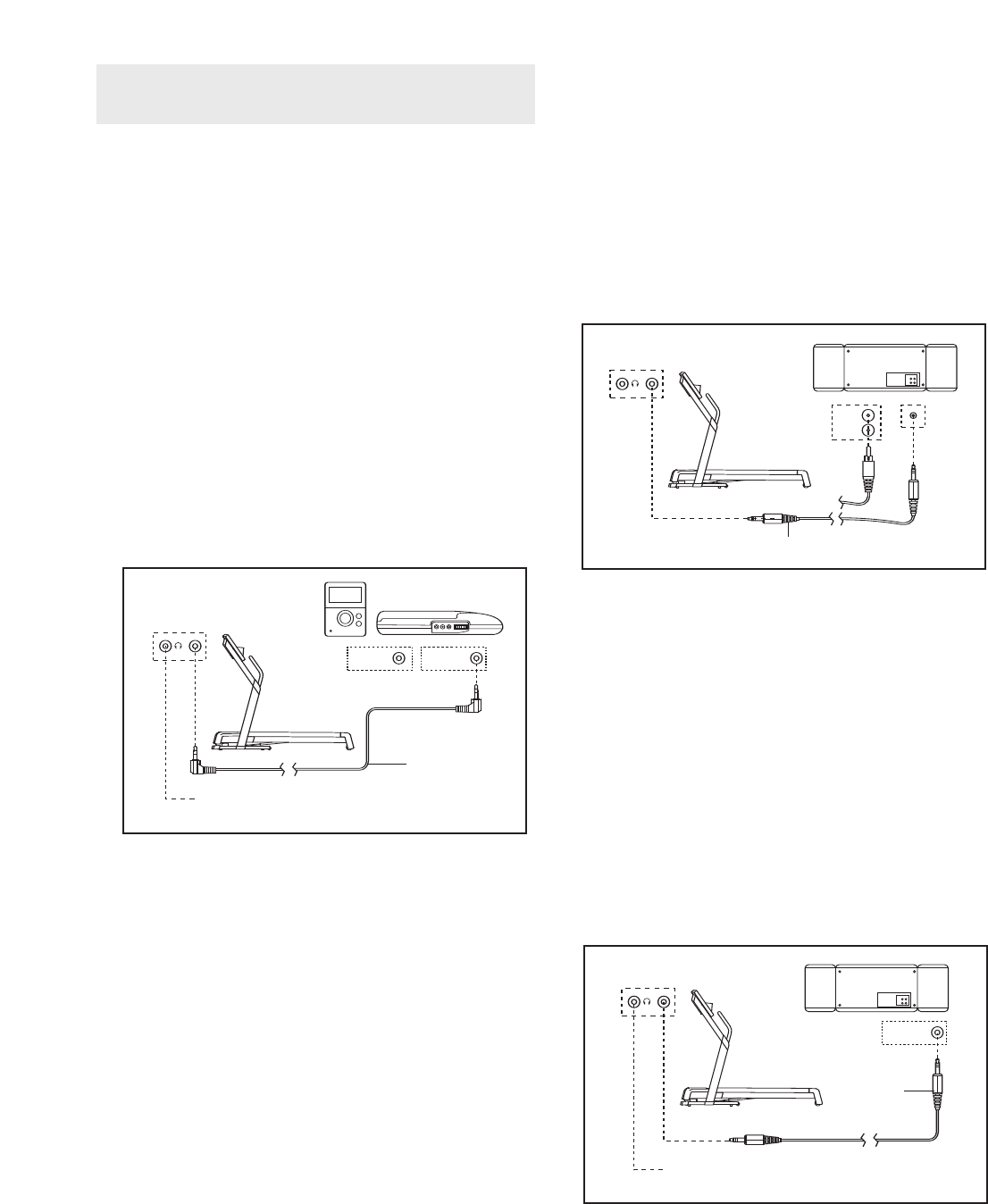

A. Plug one end of the included 3.5mm to 3.5mm

stereo audio cable into the input jack on the con-

sole. Plug the other end of the cable into a jack on

your MP3 player or CD player. Plug your head-

phones into the headphone jack on the console.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of a long 3.5mm to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the AUDIO OUT jack on your stereo.

B. See the drawing above. Plug one end of a long

3.5mm to 3.5mm stereo audio cable (available at

electronics stores) into the input jack on the con-

sole. Plug the other end of the cable into the LINE

OUT jack on your stereo. Note: While the cable is

plugged into the LINE OUT jack, do not plug your

headphones into the headphone jack on the con-

sole.

C. Plug one end of a long 3.5mm to 3.5mm stereo

audio cable (available at electronics stores) into the

input jack on the console. Plug the other end of the

cable into the PHONES jack on your stereo. Plug

your headphones into the headphone jack on the

console.

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Headphones

PHONES

AUDIO OUT

RIGHT

LEFT

LINE OUT

Audio Cable

A/B

PHONES

AUDIO OUT

RIGHT

LEFT

LINE OUT

Audio

Cable

Headphones

HOW TO CONNECT THE TREADMILL TO USE

IFIT.COM PROGRAMS

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

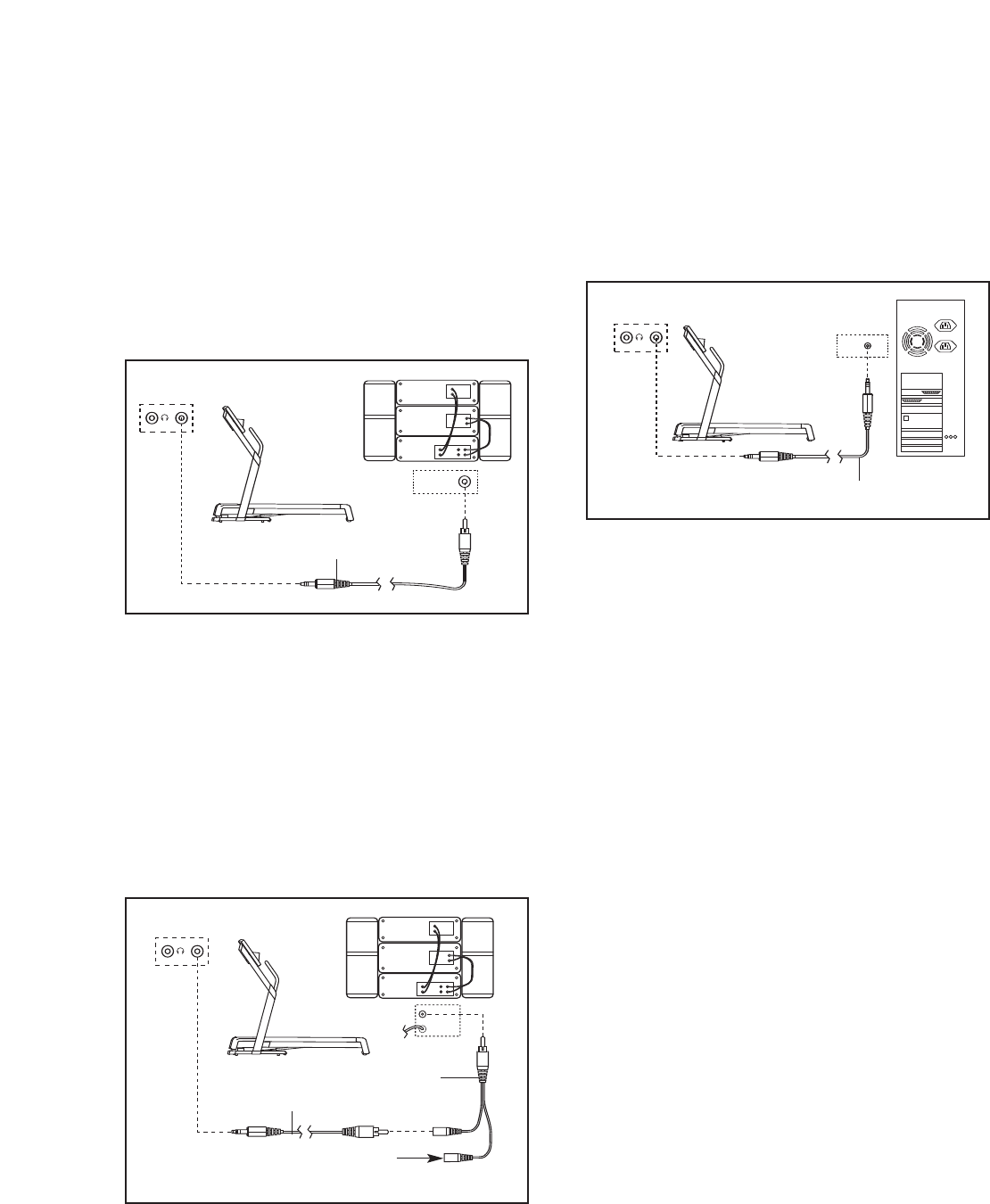

A. Plug one end of a long 3.5mm to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the LINE OUT jack on your stereo. Note: While

the cable is plugged into the LINE OUT jack, do not

plug your headphones into the headphone jack on

the console.

B. Plug one end of a long 3.5mm to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into an RCA Y-adaptor (available at electronics

stores). Next, remove the wire that is currently

plugged into the LINE OUT jack on your stereo and

plug the wire into the unused side of the Y-adaptor.

Plug the Y-adaptor into the LINE OUT jack on your

stereo. Note: While the Y-adaptor is plugged into the

LINE OUT jack, do not plug your headphones into

the headphone jack on the console.

HOW TO CONNECT YOUR COMPUTER

A. Plug one end of a long 3.5mm to 3.5mm stereo

audio cable (available at electronics stores) into the

input jack on the console. Plug the other end of the

cable into the LINE OUT jack on your computer.

Note: While the cable is plugged into the LINE OUT

jack, do not plug your headphones into the head-

phone jack on the console.

LINE OUT

Audio Cable

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

Audio Cable

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

Audio

Cable

RCA

Y-adaptor

Wire removed from

LINE OUT jack

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 20.

A. Plug one end of a long 3.5mm to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into the AUDIO OUT jack on your VCR.

B. Plug one end of a long 3.5mm to RCA stereo audio

cable (available at electronics stores) into the input

jack on the console. Plug the other end of the cable

into an RCA Y-adaptor (available at electronics

stores). Next, remove the wire that is currently

plugged into the AUDIO OUT jack on your VCR and

plug the wire into the unused side of the Y-adaptor.

Plug the Y-adaptor into the AUDIO OUT jack on

your VCR.

Touse an iFIT.com MP3, CD, or video program, the

treadmill must be connected to your MP3 player, CD

player, or VCR. See HOW TO CONNECT THE

TREADMILL TO USE IFIT.COM PROGRAMS on

pages 19 to 21. To download iFIT.com MP3 pro-

grams, go to www.iFIT.com. To purchase iFIT.com

CDs and videocassettes, please call the telephone

number on the front cover of this manual.

Follow the steps below to use an iFIT.com MP3, CD,

or video program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

16.

Select the iFIT.com mode.

To select the iFIT.com

mode, press the iFIT

button. Make sure that

the words “iFit on” ap-

pear in the display for a

moment.

Press the Play button on your MP3 player, CD

player, or VCR.

Note: If you are using an iFIT.com CD, insert the

CD into your CD player; if you are using an

iFIT.com videocassette, insert the videocassette

into your VCR.

Amoment after the Play button is pressed, your

personal trainer will begin guiding you through

your workout. Simply follow your personal trainer’s

instructions. Note: If the time is flashing in the dis-

play, press the Start button or the Speed increase

button on the console. The treadmill will not re-

spond to an MP3, CD, or video program while the

time is flashing in the display.

During the program, an electronic “chirping” sound

will alert you when the speed and/or incline of the

treadmill is about to change. CAUTION: Always

listen for the “chirp” and be prepared for

speed and/or incline changes. In some in-

stances, the speed and/or incline may change

before your personal trainer describes the

change.

HOW TO USE AN IFIT.COM MP3, CD, OR VIDEO

PROGRAM

VIDEO AUDIO

ANT. IN

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Audio Cable

VIDEO AUDIO

ANT. IN

RF OUT

OUT

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Wire removed from

AUDIO OUT jack

RCA

Y-adaptor

Audio Cable

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and incline will change to the

next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the display. To restart the program, press

the Start button or the Speed increase button.

After a moment, the walking belt will begin to

move at 2 Km/H. When the next “chirp” is

heard, the speed and incline will change to the

next settings of the program.

When the program is completed, the walking belt

will stop. Note: To use another MP3, CD, or video

program, press the Stop button or remove the key

and go to step 1 on page 21.

Note: If the speed and incline of the treadmill

does not change when a “chirp” is heard:

•Make sure that the indicator above the iFIT

button is lit and that the time is not flashing

in the display. If the time is flashing, press

the Start button or the Speed increase button

on the console.

•Adjust the volume of your MP3 player, CD

player, or VCR. If the volume is too high or

too low, the console may not detect the pro-

gram signals.

•Make sure that the audio cable is properly

connected.

•If you are using a portable CD player and the

CD skips, set the CD player on the floor or

another flat surface instead of on the con-

sole.

Follow your progress with the display.

See step 5 on page 17.

Measure your heart rate if desired.

See step 6 on page 17.

Turn on the fan if desired.

See step 7 on page 17.

When you are finished exercising, remove the

key from the console.

See step 8 on page 17.

CAUTION: Always remove iFIT.com CDs and

videocassettes from your CD player and VCR

and disconnect your MP3 player when you are

not using them.

Our Web site at www.iFIT.com allows you to access

basic programs, audio programs, and video programs

directly from the internet. Additional options are soon to

be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must

be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 20. In

addition, you must have an internet connection and

an internet service provider. A list of specific system re-

quirements is found on our Web site.

Follow the steps below to use a program from our

Web site.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

16.

Select the iFIT.com mode.

See step 2 on page 21.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our Web site to

select a program.

Read and follow the on-line instructions for using

aprogram.

HOW TO USE AN IFIT.COM PROGRAM

DIRECTLY FROM OUR WEB SITE

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide

the clip onto the waistband of your clothes.

When the on-screen countdown ends, the pro-

gram will begin and the walking belt will begin to

move. Hold the handrails, step onto the walking

belt, and begin walking. During the program, an

electronic “chirping” sound will alert you when the

speed and/or incline of the treadmill is about to

change. CAUTION: Always listen for the

“chirp” and be prepared for speed and/or in-

cline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the display. To restart the program, press

the Start button or the Speed increase button.

After a moment, the walking belt will begin to

move at 2 Km/H. When the next “chirp” is

heard, the speed and incline will change to the

next settings of the program.

When the program ends, the walking belt will stop.

Note: To use another program, press the Stop

button and go back to step 5.

Note: If the speed and/or incline of the tread-

mill does not change when a “chirp” is heard,

make sure that the indicator above the iFIT

button is lit and that the time is not flashing in

the display. In addition, make sure that the

audio cable is properly connected.

Follow your progress with the display.

See step 5 on page 17.

When you are finished exercising, remove the

key from the console.

See step 8 on page 17.

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of treadmill usage information and allows you to

select a unit of measurement for the console.

To select the information mode, insert the key into the

console while holding down the Stop button, and then

release the Stop button. When the information mode is

selected, the following information will be shown:

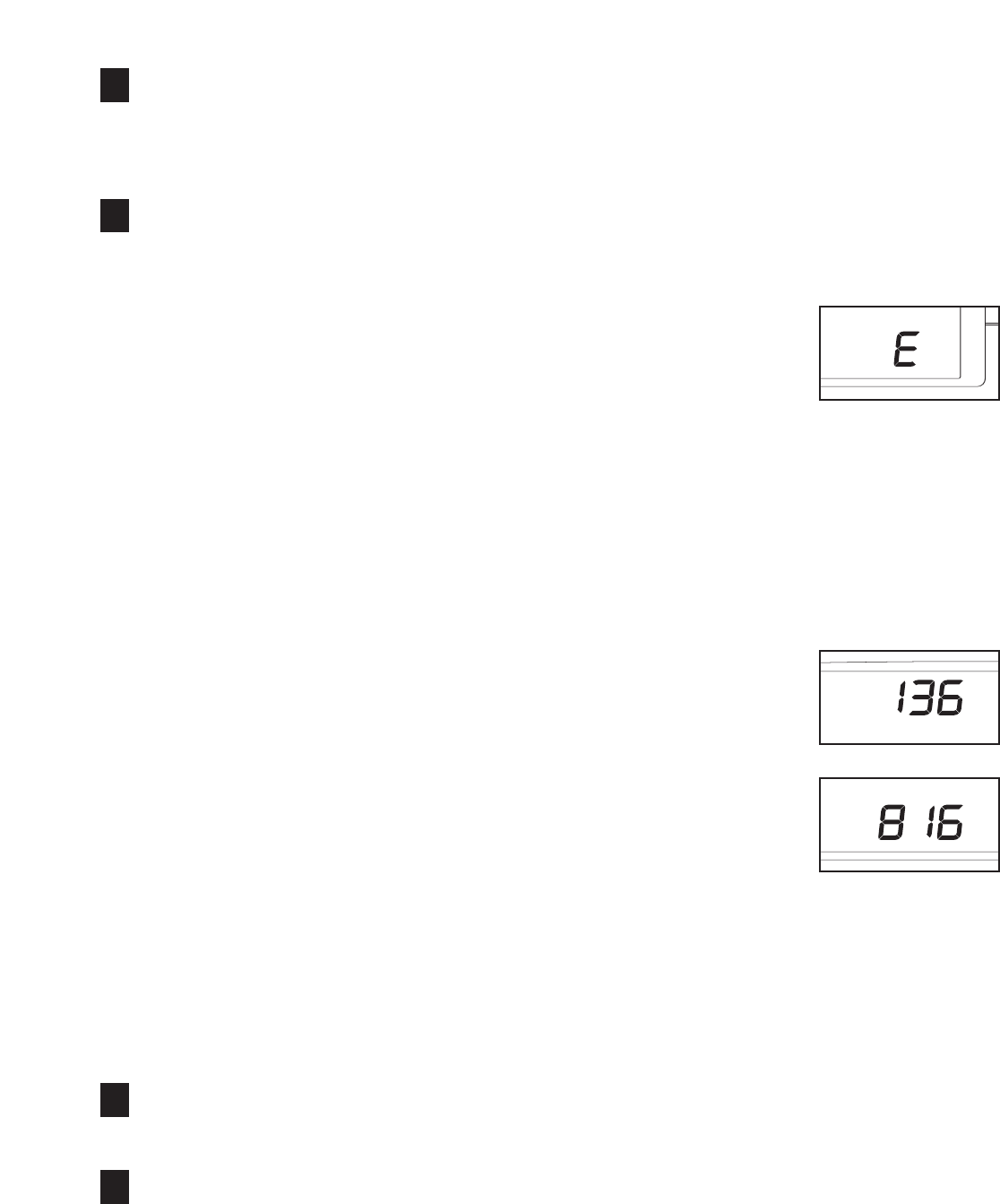

An “E” (for English) or an “M”

(for metric) will appear in the

lower right corner of the dis-

play. Press the Speed in-

crease button to change the

unit of measurement, if de-

sired. IMPORTANT: If a “d” appears in the display, the

console is in the “demo” mode. This mode is intended

to be used only when a treadmill is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the display will remain lit, although the

buttons will not operate. If a “d” appears when the in-

formation mode is selected, press the Speed de-

crease button so the “d” disappears.

The upper left corner of the

display will show the total

number of hours that the

treadmill has been used.

The lower left corner of the

display will show the total

number of kilometers (or

miles) that the walking belt

has moved.

To exit the information mode, remove the key from the

console.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be per-

manently damaged. Next, unplug the power cord. CAUTION:

You must be able to safely lift 20 kg (45 lbs.) to raise, lower,

or move the treadmill.

1. Hold the metal frame firmly in the location shown by the

arrow at the right. CAUTION: To decrease the possibility

of injury, do not lift the frame by the plastic foot rails.

Make sure you bend your legs and keep your back

straight. As you raise the frame, lift with your legs rather

than your back. Raise the frame about halfway to the vertical

position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Using your left hand, pull the latch knob to

the left and hold it. Raise the frame until the catch passes the

latch pin, and then slowly release the latch knob. Make sure

that the catch is held securely by the latch pin, as

shown.

To protect the floor or carpet from damage, place a mat

under the treadmill. Keep the treadmill out of direct sun-

light. Do not leave the treadmill in the storage position in

temperatures above 85° Fahrenheit (30° Celsius).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage

position as described above. Make sure that the catch is held

securely by the latch pin.

1. Hold one handrail with one hand, and place your other hand

on the deck. Place one foot against one of the wheels.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location. To re-

duce the risk of injury, use extreme caution while mov-

ing the treadmill. Do not move the treadmill over an un-

even surface.

3. Place one foot against one of the wheels, and carefully lower

the treadmill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2 above. Hold the frame with your right hand as shown. Pull the latch knob to the left and hold it.

Pivot the frame down until it is past the latch pin.

2. See drawing 1 above. Hold the metal frame firmly with both hands,and lower it to the floor. CAUTION: To

decrease the possibility of injury, do not lower the frame by gripping only the plastic foot rails. Do not

drop the frame to the floor. Make sure to bend your legs and keep your back straight.

Handrails

Deck

Wheel

Engaged

Catch

Storage

Latch

Frame

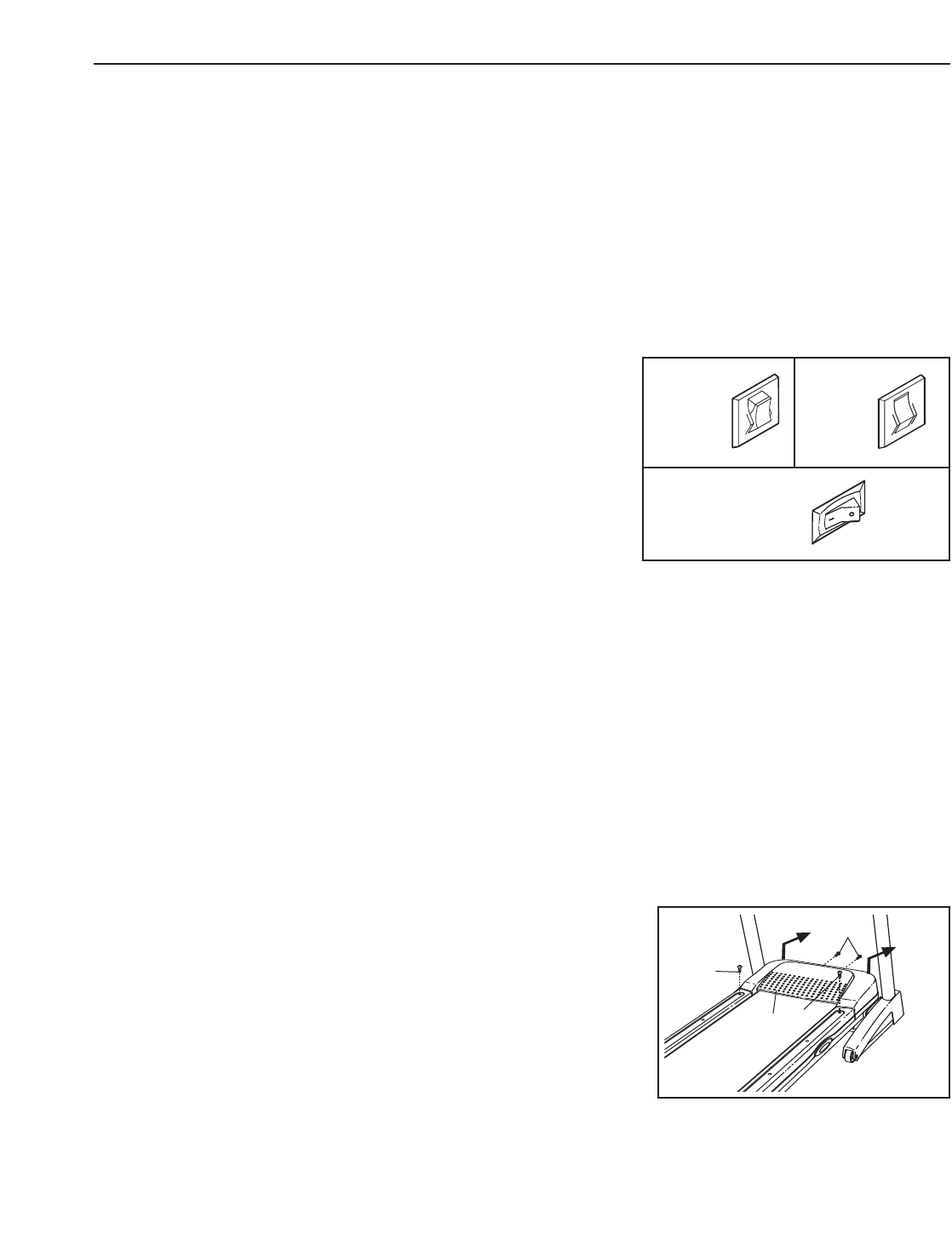

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please see the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet (see page 14). If an exten-

sion cord is needed, use only a 3-conductor, 1 mm2(14-gauge) cord that is no longer than 1.5 m

(5 ft.). Important: The treadmill is not compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as

shown, the circuit breaker has tripped. To reset the

circuit breaker, wait for five minutes and then press

the switch back in.

d. Check the on/off switch located on the treadmill

near the power cord. The switch must be in the

“on” position.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing c.

above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. Make sure that the on/off switch is in the “on” position (see drawing d. above).

e. If the treadmill still will not run, see the front cover of this manual.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE

POWER CORD. Remove the two Foot Rail Screws

(4) and the two Hood Screws (76) and carefully re-

move the Hood (1). 4

Tripped

Reset

Position

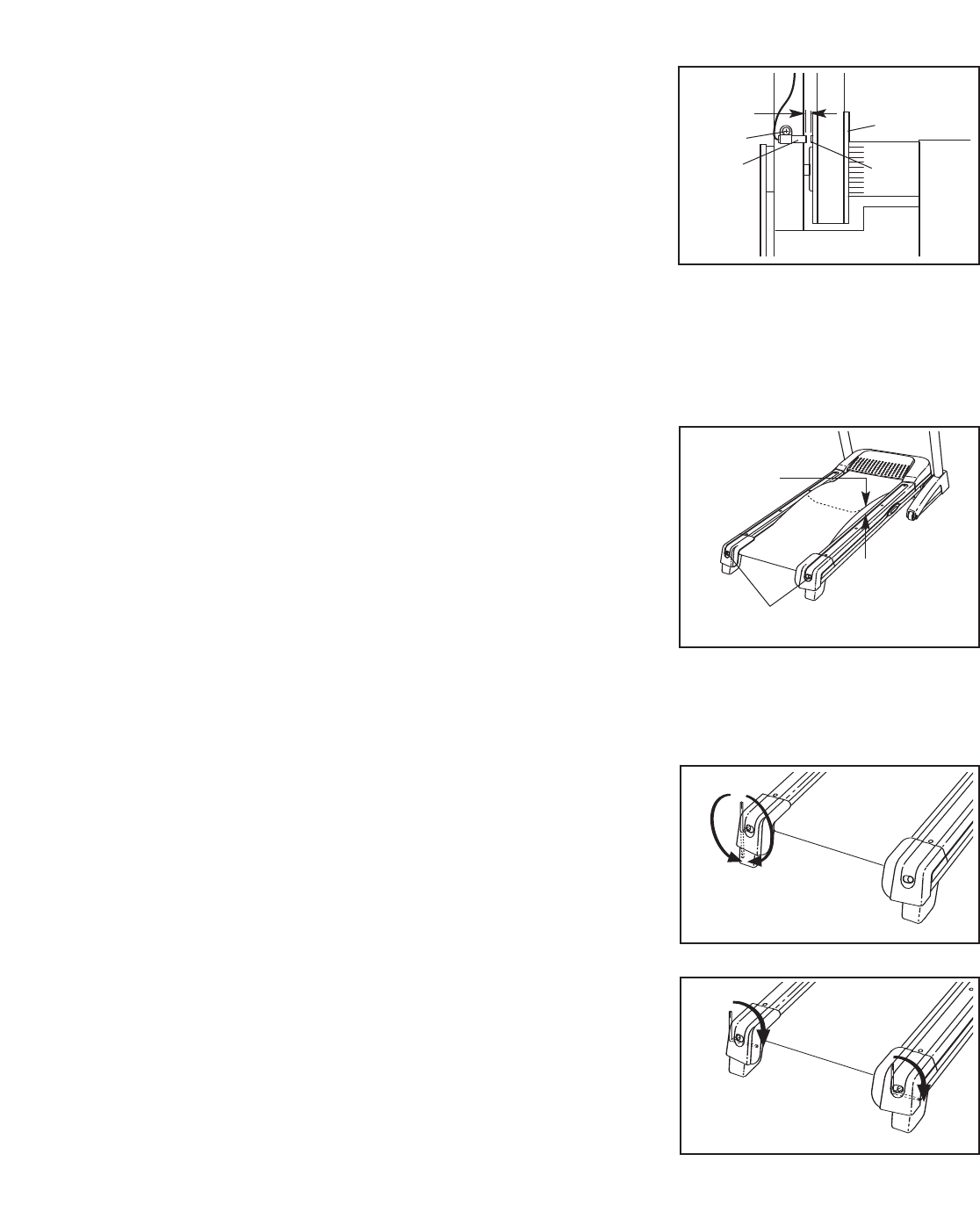

Locate the Reed Switch (62) and the Magnet (67) on

the left side of the Pulley (64). Turn the Pulley until

the Magnet is aligned with the Reed Switch. Make

sure that the gap between the Magnet and the

Reed Switch is about 3 mm (1/8 in.). Ifnecessary,

loosen the Silver Ground Screw (27), move the Reed

Switch slightly, and then retighten the Screw.

Reattach the Hood (not shown), and run the treadmill

for a few minutes to check for a correct speed read-

ing. If the reading appears normal, reattach the Foot

Rails (not shown).

PROBLEM: The walking belt slows when walked on

SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 1mm2(14-gauge) cord that is no longer

than 1.5 m (5 ft.).

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD.Using the hex key, turn both rear

roller bolts counterclockwise, 1/4 of a turn. When the

walking belt is properly tightened, you should be able

to lift each edge of the walking belt 5 to 7 cm (2 to 3

in.) off the walking platform. Be careful to keep the

walking belt centered. Then, plug in the power cord,

insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please see the front cover of this manual.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD.If the walking

belt has shifted to the left, use the hex key to turn

the left rear roller bolt clockwise 1/2 of aturn; if the

walking belt has shifted to the right, turn the left

bolt counterclockwise 1/2 of a turn. Be careful not to

overtighten the walking belt. Plug in the power cord,

insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD.Using

the hex key, turn both rear roller bolts clockwise, 1/4

of a turn. When the walking belt is correctly tightened,

you should be able to lift each edge of the walking

belt 5 to 7 cm (2 to 3 in.) off the walking platform. Be

careful to keep the walking belt centered. Then, plug

in the power cord, insert the key, and carefully walk

on the treadmill for a few minutes. Repeat until the

walking belt is properly tightened.

Rear Roller Bolts

5–7 cm

Top

View

3mm 64

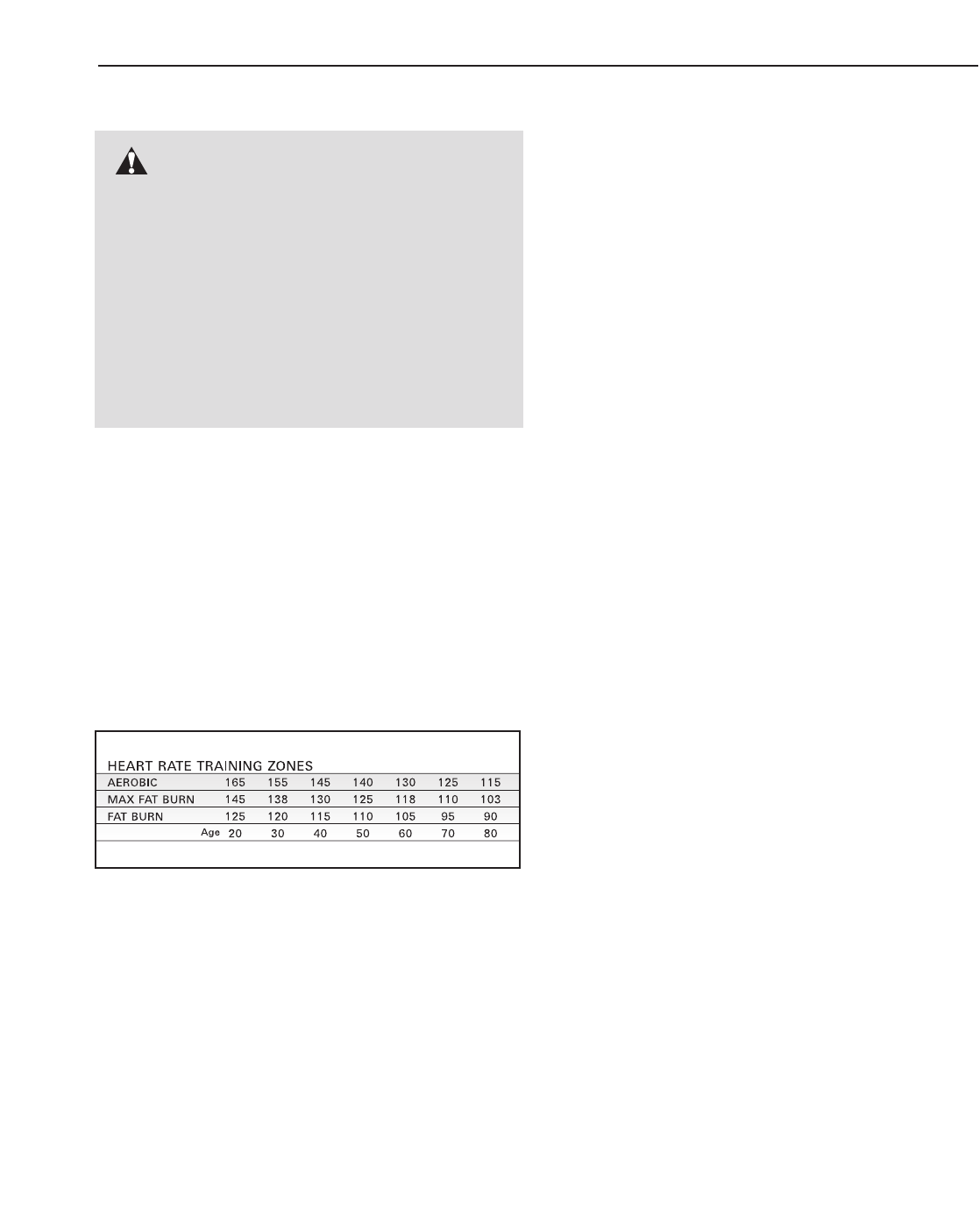

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate calories

for en-

ergy. Only after the first few minutes does your body

begin to use stored

fat calories

for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

AWarm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

ACool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-

exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The pulse sensor is intended only as an exer-

cise aid in determining heart rate trends in

general.

PART LIST—Model No. PATL30706.0 R1106A

Key No. Qty. Description Key No. Qty. Description

1 1 Hood

2 28 3/4" Screw

3 1 Left Foot Rail

4 8 Foot Rail Screw

5 2 Motor Tension Bolt

6 2 Motor Tension Washer

7 1 Motor Star Washer

8 2 Motor Bolt

9 1 Drive Motor

10 1 Motor Bracket

11 1 Right Handrail

12 4 Power Bracket Star Washer

13 1 Power Cord Assembly

14 4 U-nut

15 2 Fan Screw

16 1 Console Fan

17 2 Handrail Endcap

18 1 Left Handrail

19 4 Handrail Star Washer

20 4 Handrail Bolt

21 2 1/4" Star Washer

22 2 Console Bolt

23 1 Key/Clip

24 2 Frame Pivot Spacer

25 1 Console

26 1 Console Base

27 8 Sliver Ground Screw

28 1 Upright Wire

29 1 Latch Pin Assembly

30 1 Latch Housing

31 1 Left Upright

32 2 Frame Bolt

33 2 Upright Washer

34 2 Frame Spacer

35 2 Base Endcap

36 1 Right Upright

37 4Base Pad

38 15 3/4" Tek Screw

39 4 Upright Star Washer

40 4 Upright Bolt

41 2 Caution Decal

42 1 Pulse Bar Bracket

43 1Latch Warning Decal

44 4 Wheel Spacer

45 2 Wheel

46 1 Pulley/Flywheel

47 4Nut

48 1 Base

49 2 Clamp

50 1 Belly Pan

51 1 Controller

52 2 Lift Frame Washer

53 2 Lift Frame Bolt

54 5 3/8" Nut

55 1 Lift Motor

56 1Stop Bracket

57 1 Incline Motor Bolt, Top

58 1 Incline Motor Bolt, Bottom

59 1 Lift Frame

60 2 Motor Tension Nut

61 1 Motor Belt

62 1 Reed Switch

63 1 Clip

64 1 Front Roller/ Pulley

65 1 Motor Pivot Bolt

66 2 Platform Bolt, Front

67 1 Magnet

68 2 Belt Guide

69 4 Isolator Fastener

70 2 Isolator

71 4 Belt Guide Screw

72 1 Walking Belt

73 1 Walking Platform

74 1 Frame

75 1 Right Foot Rail

76 2 Hood Screw

77 4 Platform Nut

78 2 Platform Bolt, Rear

79 1 Rear Roller

80 1 Right Rear Foot

81 2 Rear Roller Star Washer

82 2 Rear Roller Bolt

83 1 Left Rear Foot

84 1 Ground Wire

85 1 Hex Key

86 4 Rear Roller Washer

87 1 5/32" Hex Key

88 2 Rear Roller Bracket

89 2 Wheel Bolt

90 1 Left Handrail Endcap

91 1 Right Handrail Endcap

92 1 Latch Catch

93 3 Ground Screw

94 1 Transformer

95 2 Endcap Screw

96 1Incline Motor Nut, Upper

97 2Front Roller Bushing

98 1 Releasable Tie

99 10 8" Tie

100 2 Plastic Tie

101 1 Left Base Leg Cover

102 1Right Base Leg Cover

103 4 Hood Cover Screw

104 1 Hood Cover

105 1 Gas Spring Clip Kit

106 2Latch Screw

107 1 Ground Bolt

108 1 Ground Nut

109 1 Outlet Assembly

110 1 Transformer

111 1 Electronics Bracket

112 1 Gas Spring

# 1 4" Red Wire, M/F

# 1 8" Green Wire, F/R

#14" Blue Wire, 2F

# 1 User’s Manual

#These parts are not illustrated.

Specifications are subject to change without notice.

52 47

65 66

84 93

106

45 37

100

12 109

110

111

107

108

105

112

102

101

104

103

EXPLODED DRAWING—Model No. PATL30706.0 R1106A

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 800-830-7240, or call:

When ordering parts, please be prepared to provide the following information:

• the MODEL NUMBER of the product (PATL30706.0)

• the NAME of the product (PROFORM 450 CX treadmill)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING

attached in the center of this manual)

LIMITED WARRANTY

Goodfamily, Inc. (Goodfamily), warrants this product to be free from defects in workmanship and mater-

ial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser. Goodfamily's obligation under this warranty is lim-

ited to replacing or repairing, at Goodfamily's option, the product through one of its authorized service

centers. All repairs for which warranty claims are made must be pre-authorized by Goodfamily. This war-

ranty does not extend to any product or damage to a product caused by or attributable to freight dam-

age, abuse, misuse, improper or abnormal usage or repairs not provided by a Goodfamily authorized

service center; products used for commercial or rental purposes; or products used as store display mod-

els. No other warranty beyond that specifically set forth above is authorized by Goodfamily.

Goodfamily is not responsible or liable for indirect, special or consequential damages arising out of or in

connection with the use or performance of the product or damages with respect to any economic loss,

loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or

other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation

of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Goodfamily, Inc.

Beijing: 010-60291675 Guizhou: 0851-5617855 Shanghai: 021-28323250

Changchun: 0431-6824991 Ha’erbin: 0451-82712011 Shenyang: 024-31307941

Changsha: 0731-4825618 Hangzhou: 0571-85042441 Shenzhen: 0755-83248325

Changzhou: 0519-8814375 Hefei: 0551-2885888 Shijiazhuang: 0311-86215146

Chengdu: 028-86927825 Jinan: 0531-86292209 Suzhou: 0512-67778033

Chongqing: 023-65457730 Kunming: 0871-3130512 Wuhan: 027-87275455

Dalian: 0411-86668012 Lanzhou: 0931-8832466 Xi’an: 029-87891305

Dongguan: 0755-83248325 Nanjing: 025-85640306 Xinjiang: 0991-8825951

Fuzhou: 0591-87734032 Nanning: 0711-5328287 Yantai: 0635-6247101

Guangzhou: 020-37652999 Nantong: 0513-85292002 Yinchuan: 0951-6719831

Proform Patl307060 450 Cx Treadmill Users Manual 294241 205863

Proform-Patl30706-0-Users-Manual-658126 proform-patl30706-0-users-manual-658126

PATL30706.0 to the manual ee4af3f5-5514-4d72-bd2c-03bb1c16d3d4

Navigation menu

Versions of this User Manual:

Views

Navigation
