Model No. PCTL79612.0

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER’S MANUAL

www.proform.com

QUESTIONS?

If you have questions, or if parts

are damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 7:30 until 16:30 ET

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

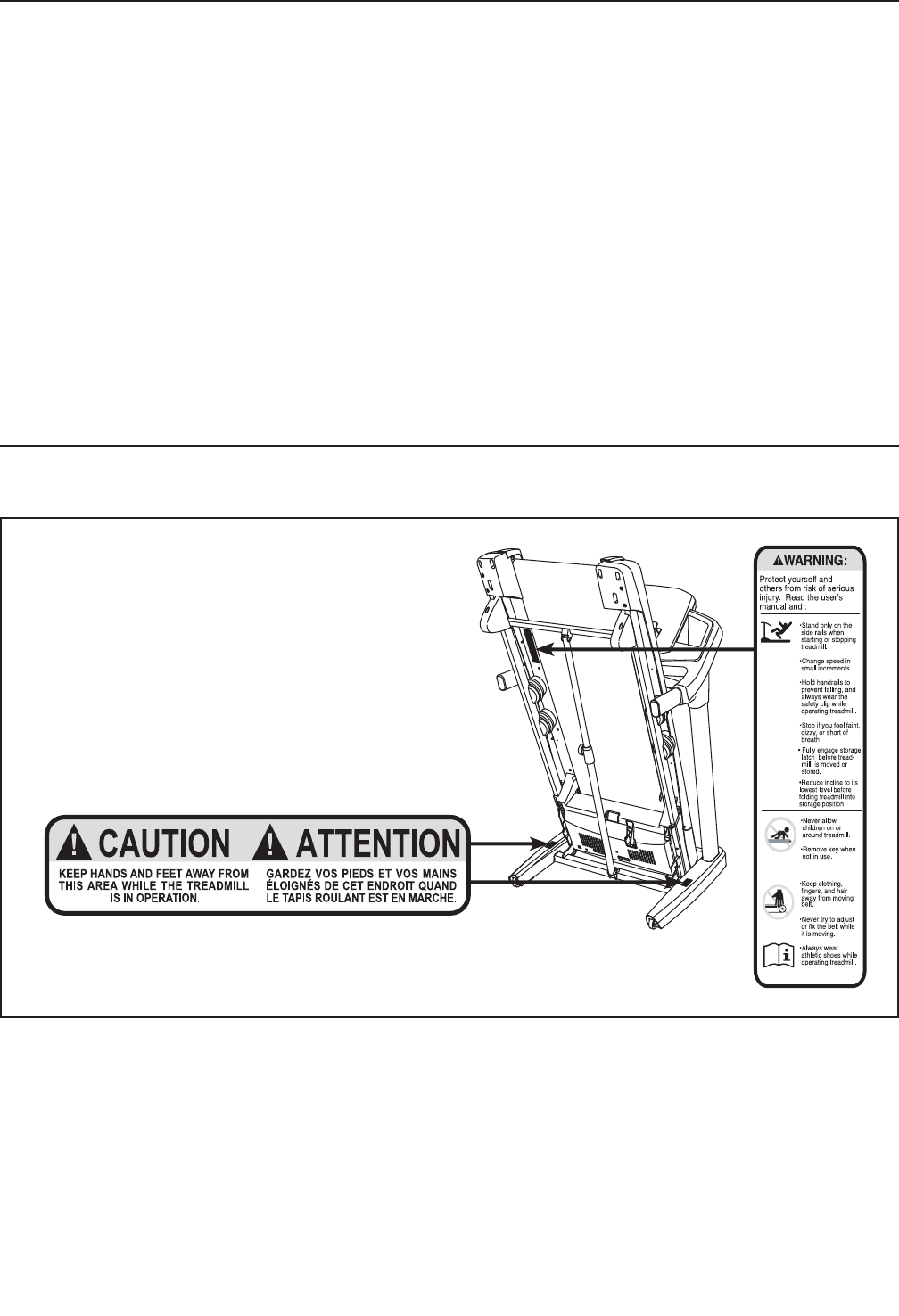

This drawing shows the locations of the

warning decals. If a decal is missing or

illegible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal in

the location shown. Note: The decals may

not be shown at actual size.

WARNING DECAL PLACEMENT

256836

PROFORM is a registered trademark of ICON IP, Inc. iPod, iPod nano, iPod touch, and iTunes are registered

trademarks of Apple Inc., registered in the U.S. and other countries. iPod® is not included. Nike is a registered

trademark of NIKE, Inc. and its afliated companies.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION AND ADJUSTMENT .............................................................15

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

TROUBLESHOOTING ......................................................................26

EXERCISE GUIDELINES ....................................................................29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

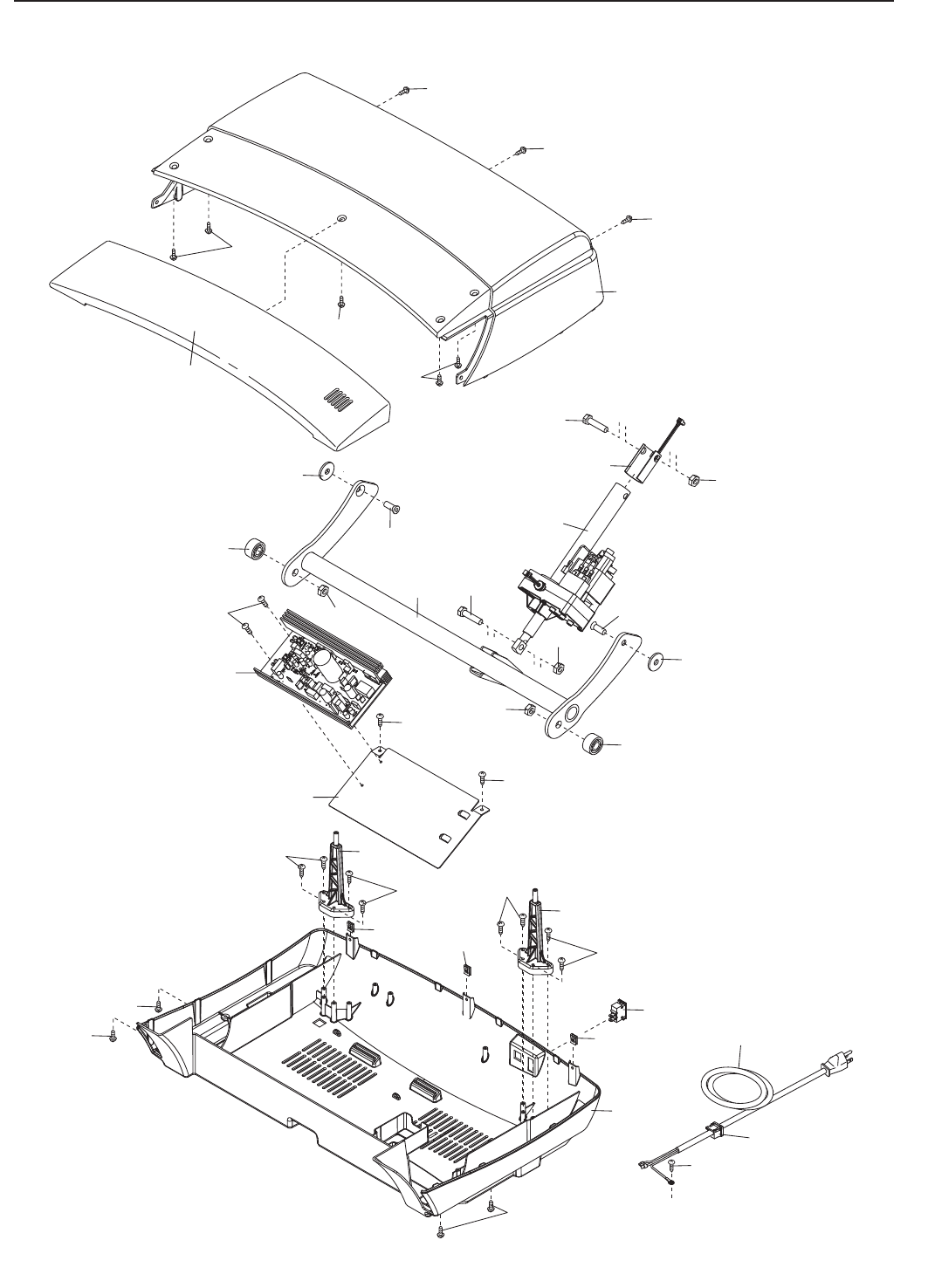

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. Use the treadmill only as described in this

manual.

4. The treadmill is intended for home use only.

Do not use the treadmill in any commercial,

rental, or institutional setting.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

8. Keep children under age 12 and pets away

from the treadmill at all times.

9. The treadmill should be used only by per-

sons weighing 325 lbs. (147 kg) or less.

10. Never allow more than one person on the

treadmill at a time.

11. Wear appropriate exercise clothes while

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

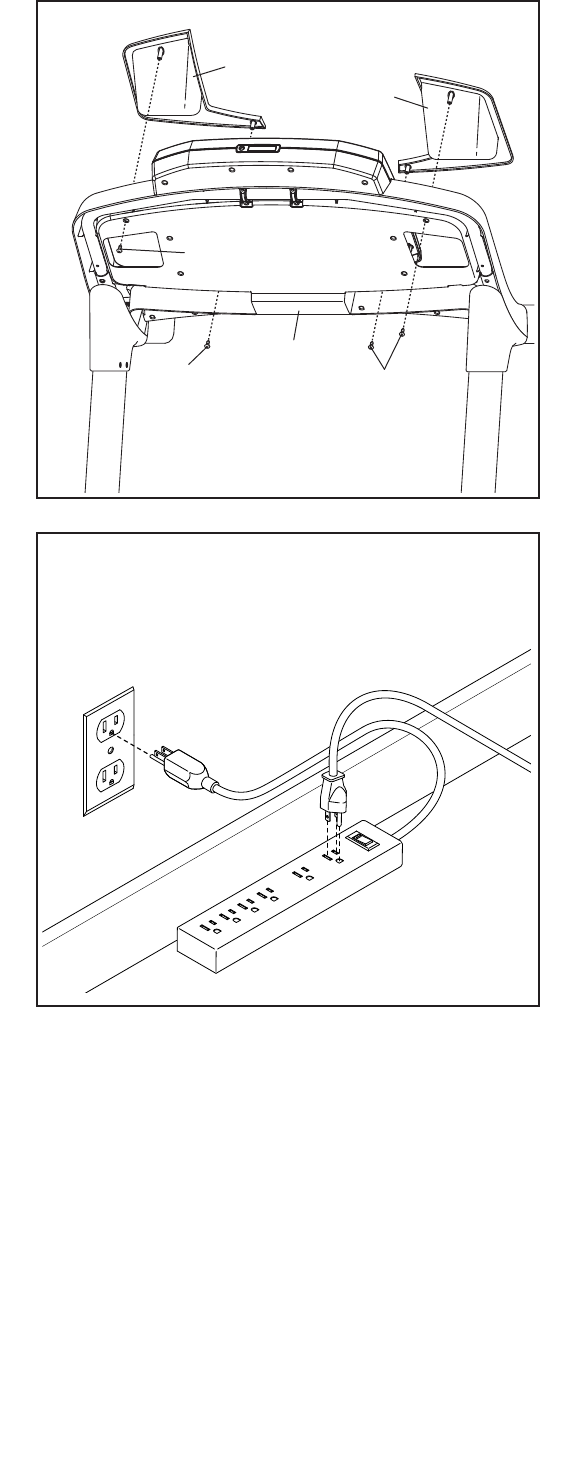

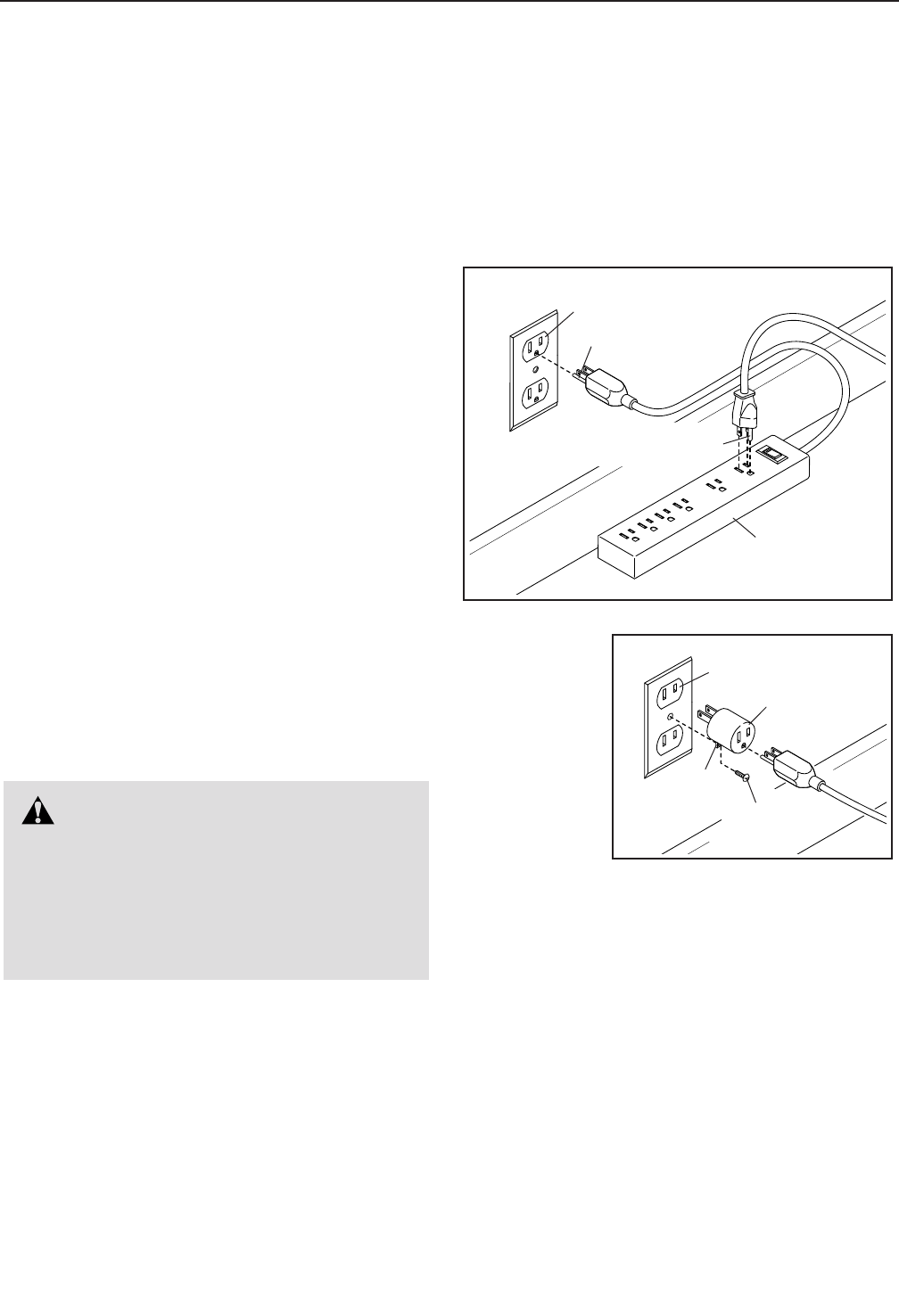

12. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 15).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

13. Use only a surge suppressor that meets all

of the specifications described on page 15.

To purchase a surge suppressor, call the

telephone number on the front cover of this

manual.

14. Failure to use a properly functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

15. Keep the power cord and the surge suppres-

sor away from heated surfaces.

16. Never move the walking belt while the power

is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if

the treadmill is not working properly. (See

TROUBLESHOOTING on page 26 if the tread-

mill is not working properly.)

17. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on

page 17).

18. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

19. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before

using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

IMPORTANT PRECAUTIONS

20. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

21. Never leave the treadmill unattended while

it is running. Always remove the key, press

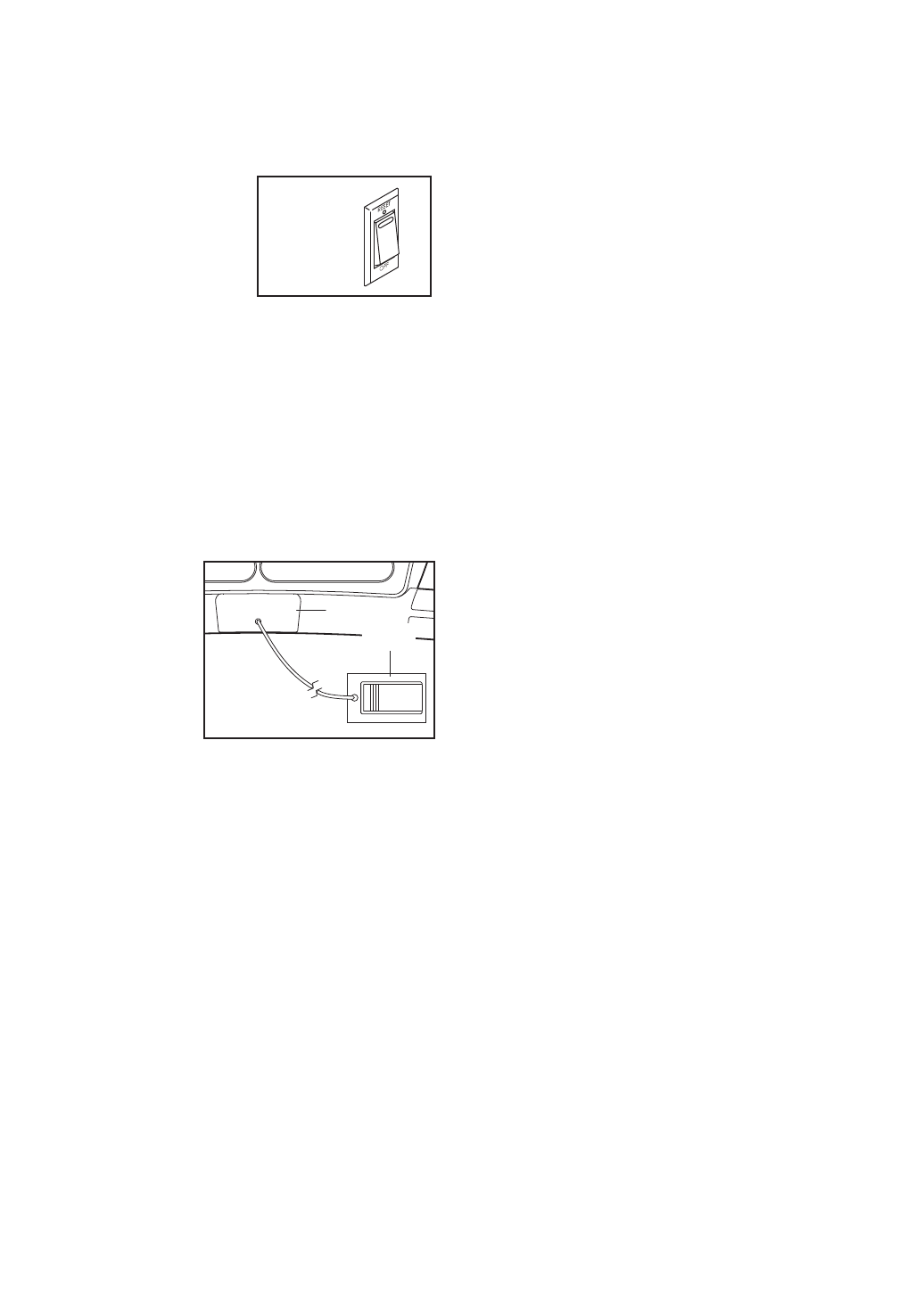

the power switch into the off position (see

the drawing on page 5 for the location of the

power switch), and unplug the power cord

when the treadmill is not in use.

22. Do not attempt to move the treadmill until it

is properly assembled. (See ASSEMBLY on

page 7, and HOW TO FOLD AND MOVE THE

TREADMILL on page 25.) You must be able

to safely lift 45 lbs. (20 kg) to raise, lower, or

move the treadmill.

23. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

24. Never insert any object into any opening on

the treadmill.

25. Inspect and properly tighten all parts of the

treadmill regularly.

26. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

27. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

Thank you for selecting the revolutionary PROFORM®

POWER 795 treadmill. The POWER 795 treadmill

offers an impressive selection of features designed

to make your workouts at home more enjoyable and

effective. And when you’re not exercising, the unique

treadmill can be folded up, requiring less than half the

oor space of other treadmills.

For your benet, read this manual carefully before

using the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

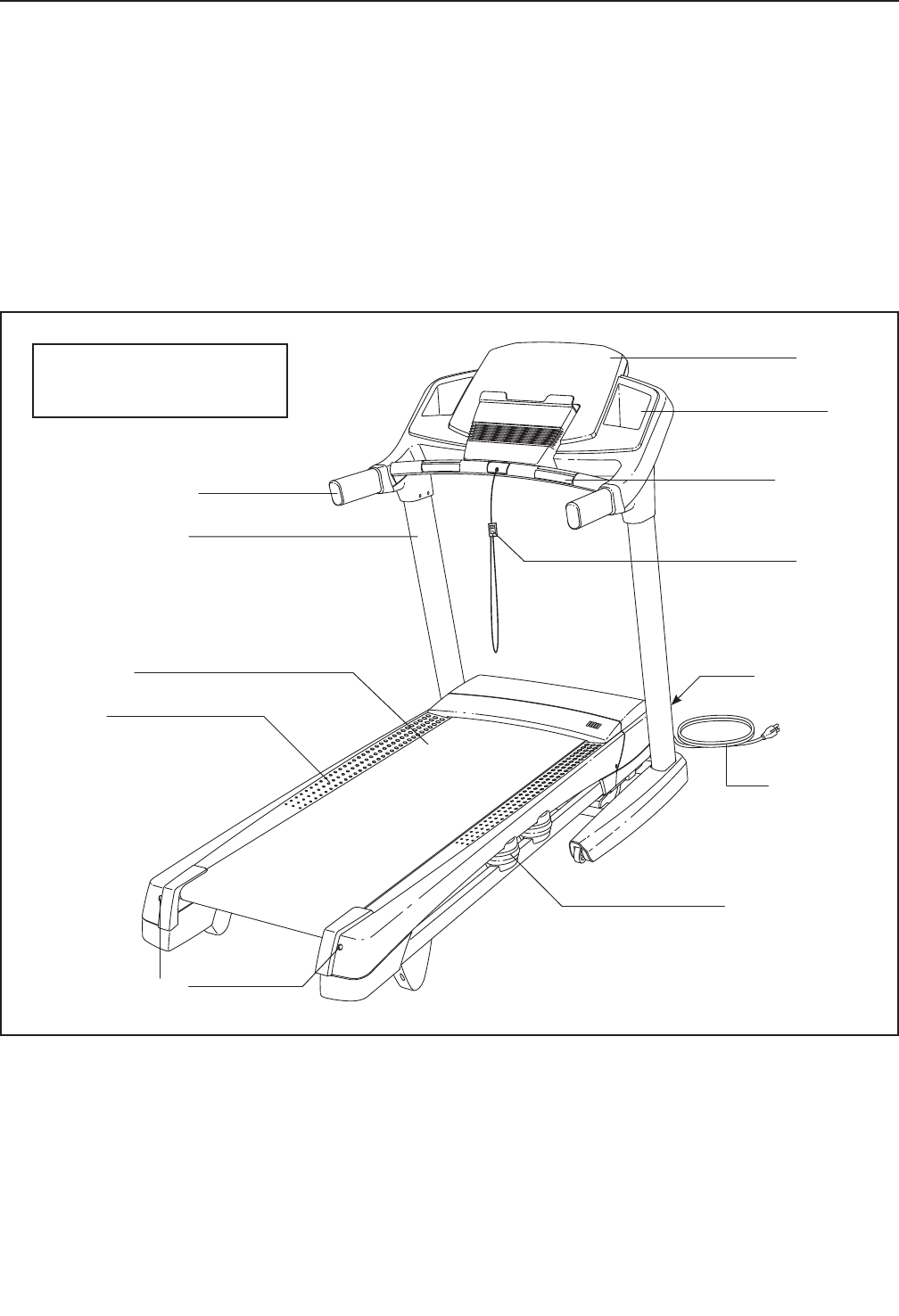

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Idler Roller

Adjustment Screws

Console

Heart Rate

Monitor

Length: 6 ft. 4 in. (193 cm)

Width: 3 ft. 1 in. (94 cm)

PART IDENTIFICATION CHART

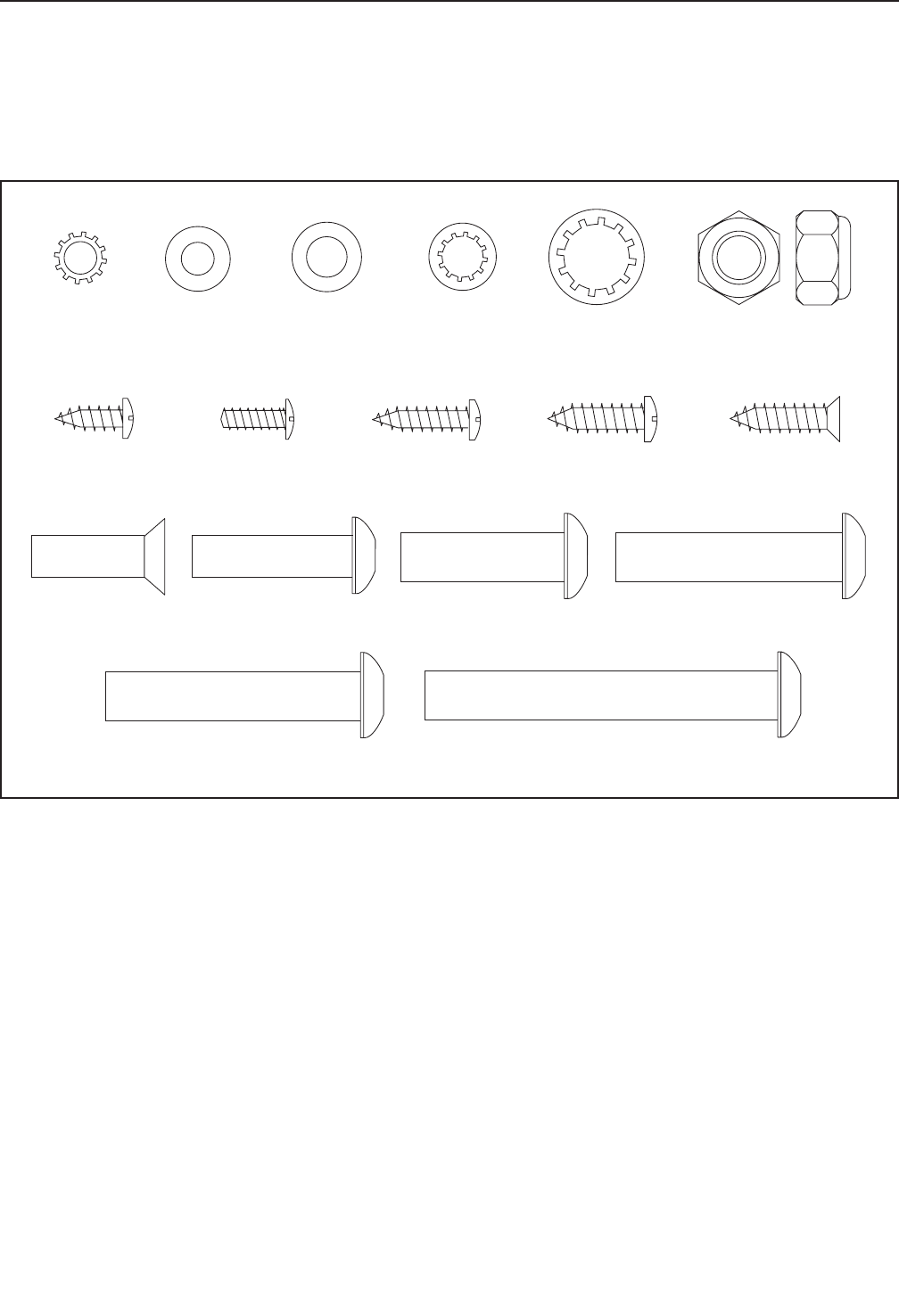

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. Extra parts may be included.

#8 x 3/4" Screw

(2)–10

1/4" Sta

Washer (14)–2

#8 x 1/2" Screw

3/8" Nut (12)–2

#10 x 3/4" Screw

(9)–2

#10 Star

Washer (12)–4

3/8" x 2 3/4" Screw (7)–4

5/16" x 1"

Bolt (4)–2

1/4" x 1" Patch

Bolt (9)–4

3/8" x 1 3/4" Bolt (6)–1

3/8" x 2" Bolt (3)–1

5/16" x 1"

Screw (5)–4

#8 x 1/2" Ground

Screw (10)–1

#8 x 1/2" Screw

(1)–16

5/16" x 1 1/4"

Bolt (4)–6

3/8" x 1 1/4"

Screw (8)–4

1/4" x 1/2"

Bolt (36)–4

1/4" Star

Washer (35)–4

#10 x 3/4" Flat

Head Screw (112)–2

1/4" Flat

Washer

(36)–2

1/4" Star

Washer

(35)–2

5/16" Flat

Washer

(113)–4

5/16" Star

Washer

(11)–8

3/8" Star

Washer

(13)–4

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish assembly.

• After shipping, there may be an oily substance

on the exterior of the treadmill. This is normal. If

there is an oily substance on the treadmill, wipe

it off with a soft cloth and a mild, non-abrasive

cleaner.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 6.

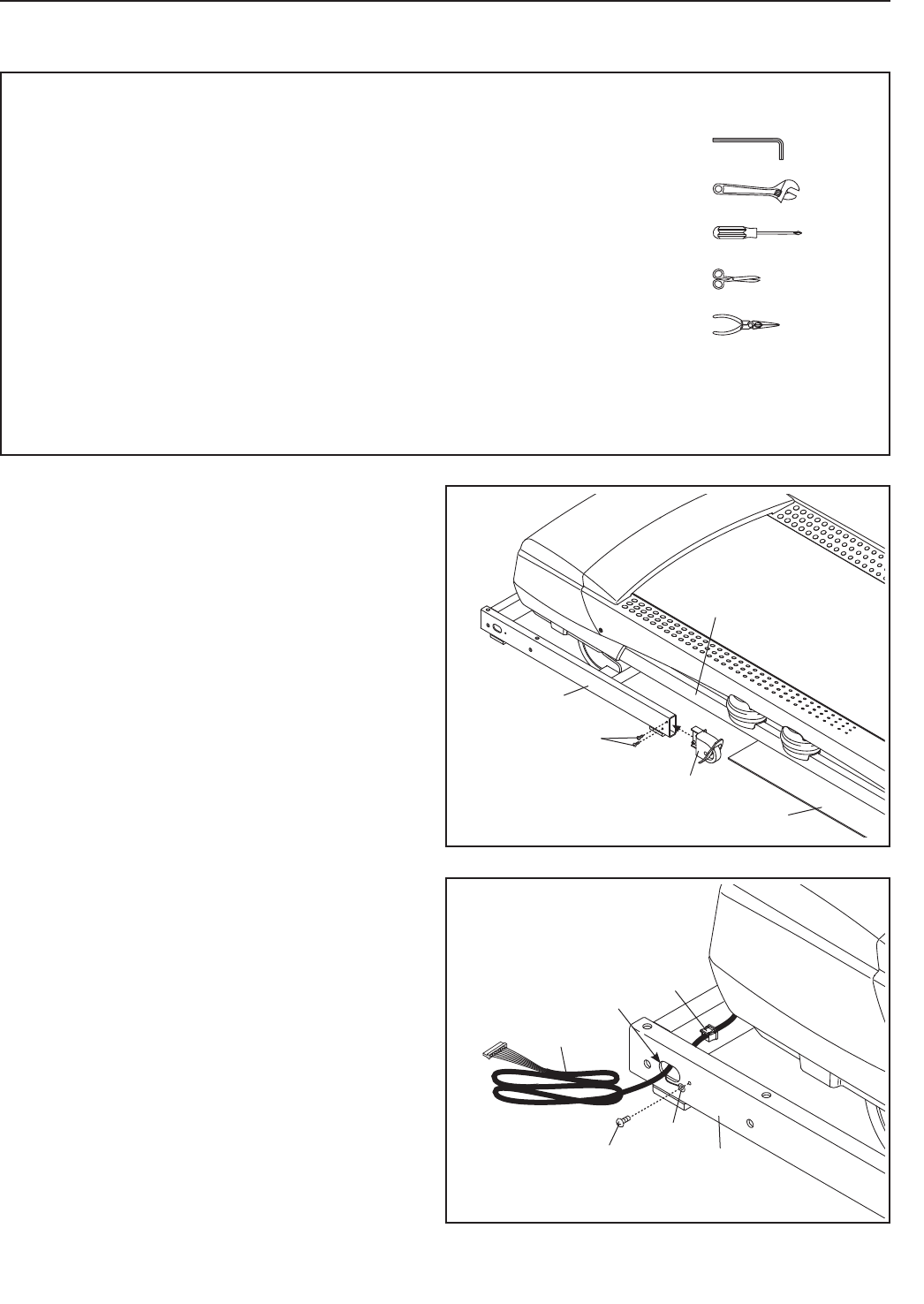

• Assembly requires the following tools:

the included hex keys

one adjustable wrench

one Phillips screwdriver

scissors

needlenose pliers

To avoid damaging parts, do not use power tools.

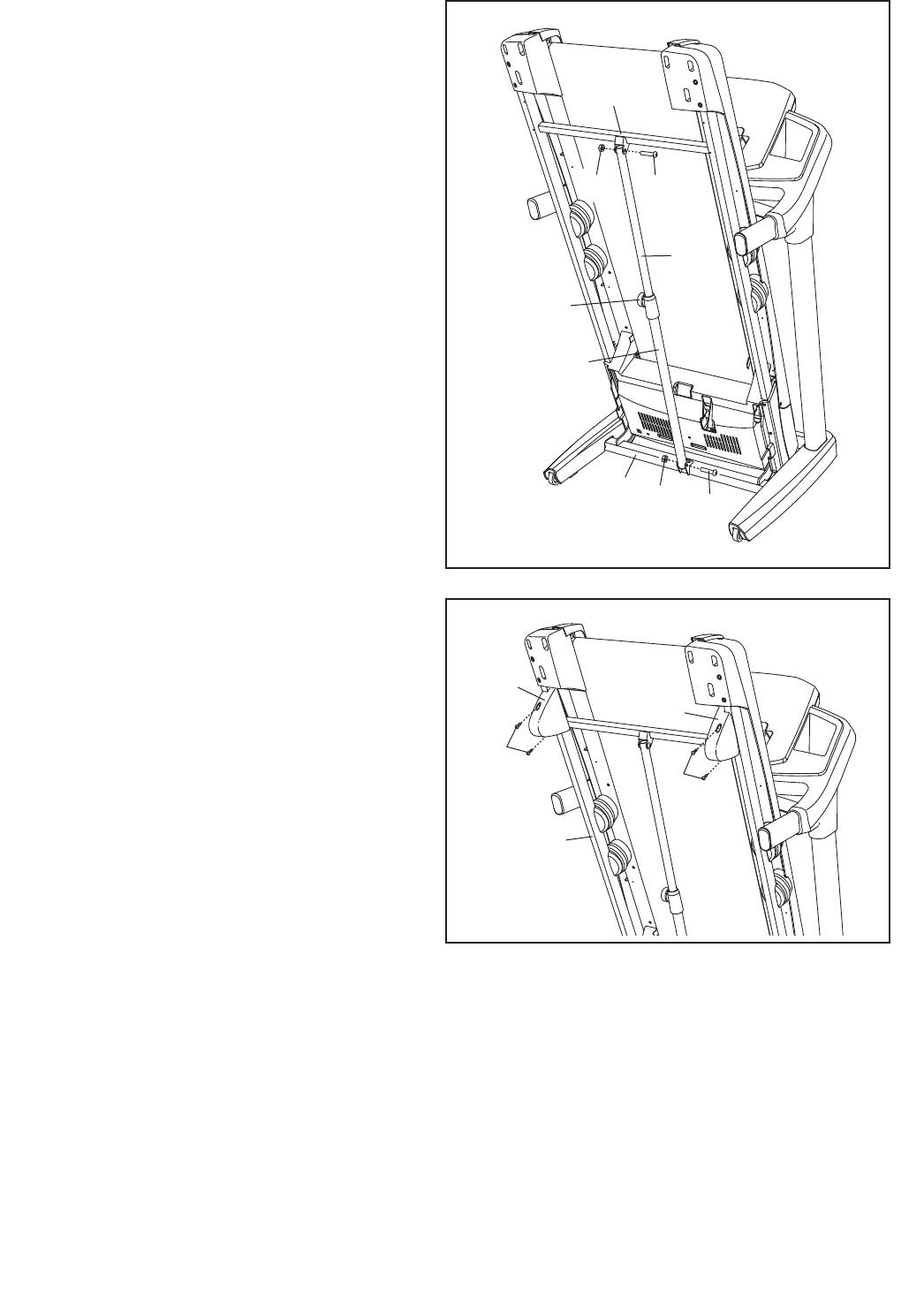

1. Make sure that the power cord is unplugged.

Place a piece of cardboard below the rear of the

Frame (56) to protect the floor or carpet.

Attach the Left Wheel Cap (96) to the Base (94)

with two #8 x 3/4" Screws (2).

Attach the Right Wheel Cap (not shown) to

the right side of the Base (94) in the same

way.

Cardboard

2. Pull the Upright Wire (81) and the base ground

wire (A) through the indicated hole in the Base

(94).

Attach the base ground wire (A) to the Base (94)

with a #8 x 1/2" Ground Screw (10).

Press the Grommet (77) into the square hole in

the Base (94). 81

Hole

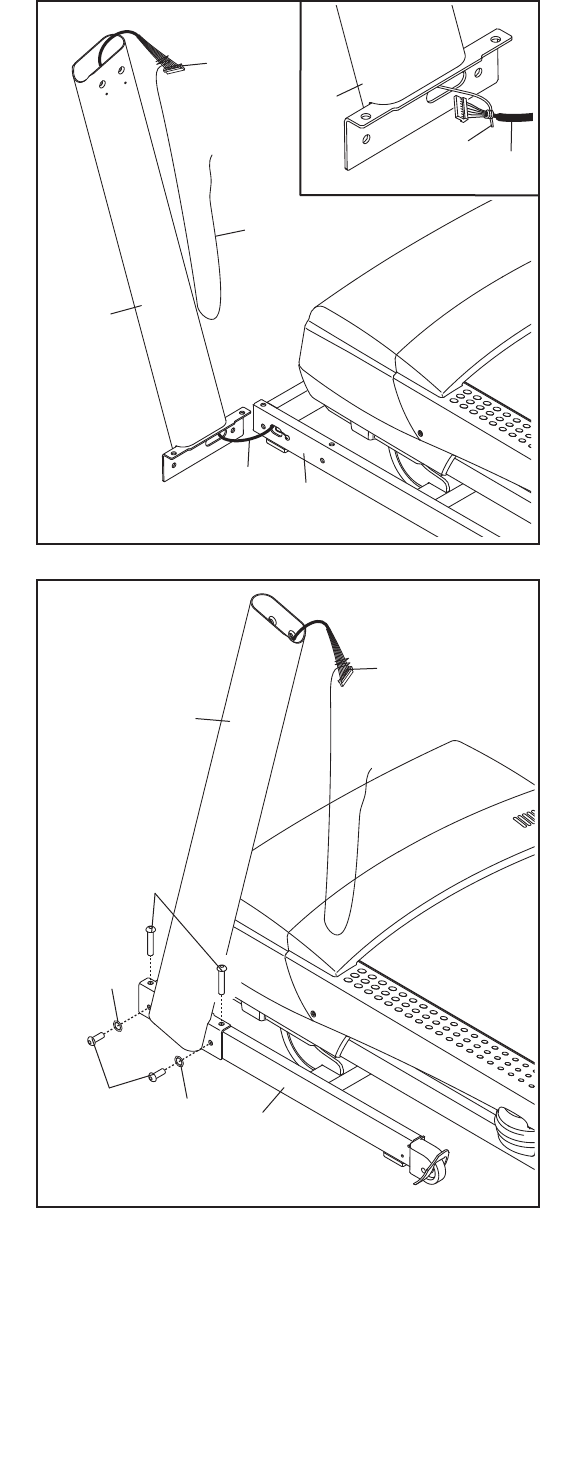

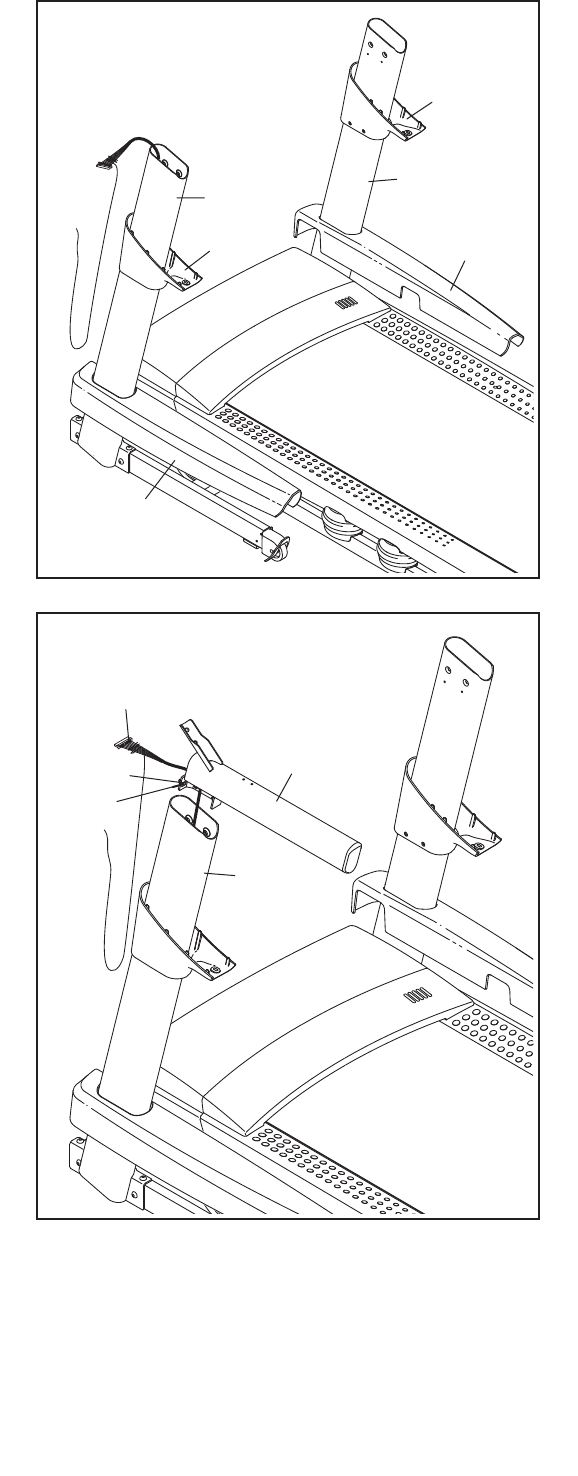

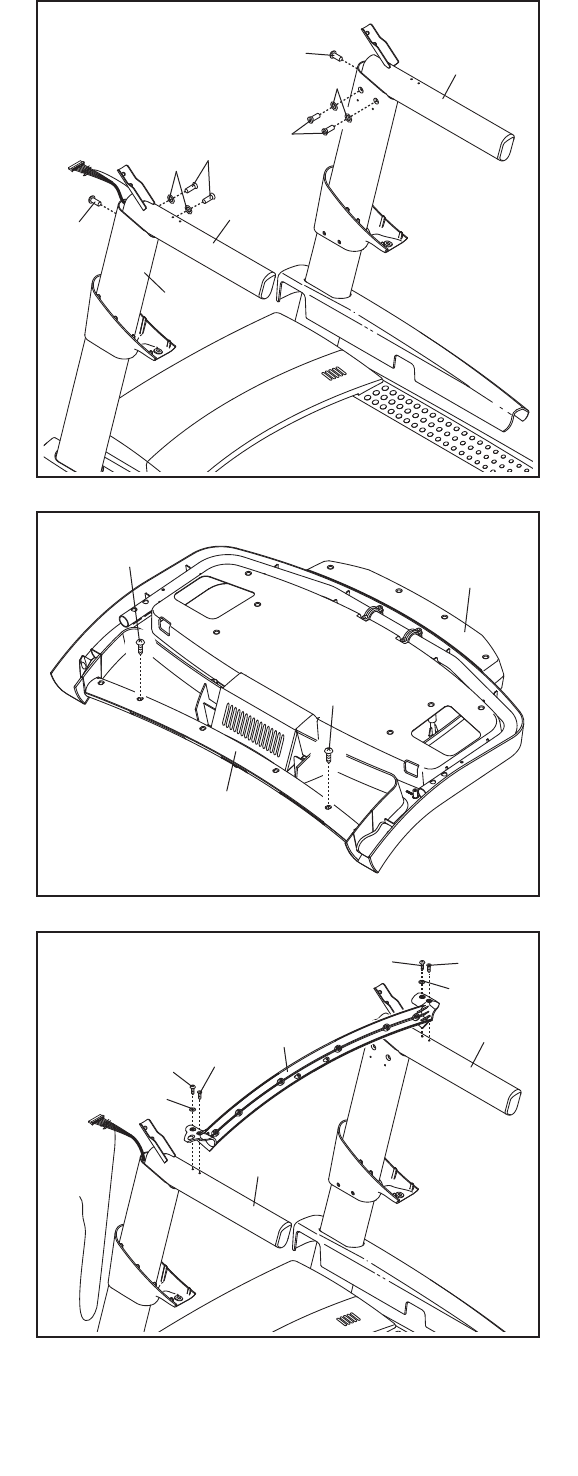

3. Identify the Left Upright (89). Have a second

person hold the Left Upright near the Base (94).

See the inset drawing. Tie the wire tie in the

Left Upright (89) securely around the end of the

Upright Wire (81). Then, pull the other end of the

wire tie until the Upright Wire is routed through

the Left Upright.

Wire

Tie

Wire

Tie

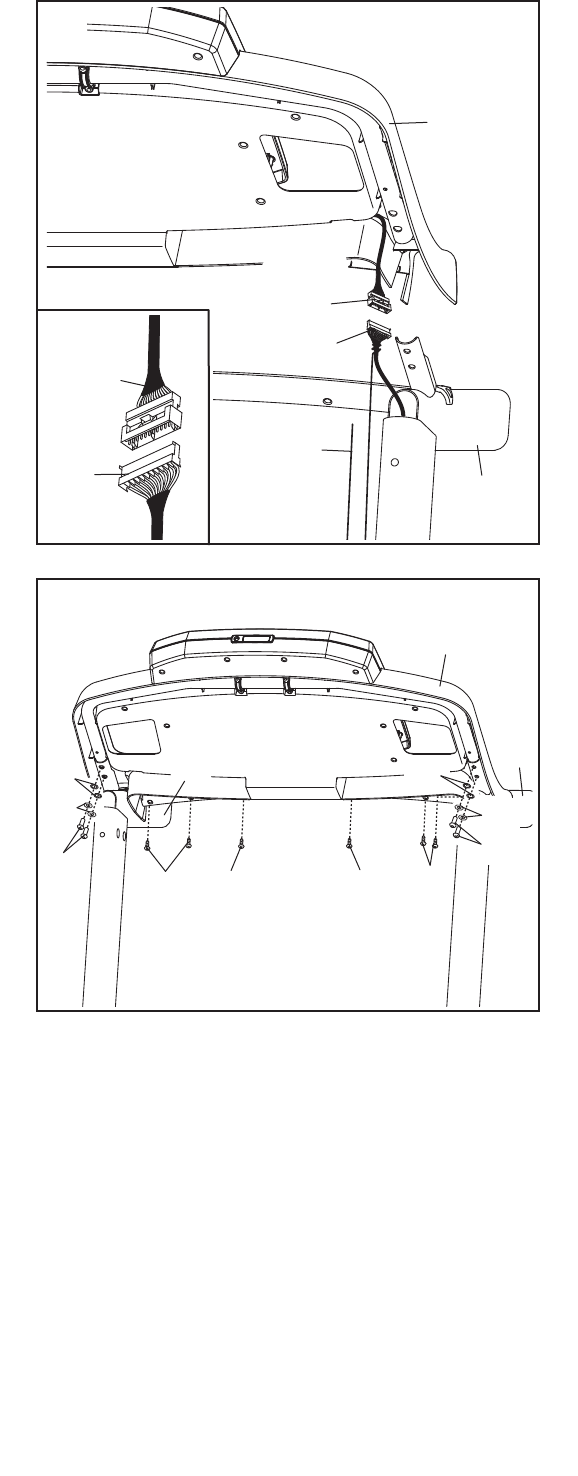

4. Hold the Left Upright (89) against the Base (94).

Be careful not to pinch the Upright Wire (81).

Insert two 3/8" x 1 1/4" Screws (8) with two 3/8"

Star Washers (13) and two 3/8" x 2 3/4" Screws

(7) into the Left Upright.

Partially tighten the 3/8" x 2 3/4" Screws (7) and

the 3/8" x 1 1/4" Screws (8) until the heads of the

Screws touch the Left Upright (89); do not fully

tighten the Screws yet.

Attach the Right Upright (not shown) in the

same way. Note: There are no wires on the right

side.

5. Identify the Left Base Cover (82) and the Right

Base Cover (83). Slide the Left Base Cover onto

the Left Upright (89). Slide the Right Base Cover

onto the Right Upright (90). Do not press the

Base Covers into place yet.

Identify the Left Upright Cover (79) and the Right

Upright Cover (80). Slide the Left Upright Cover

onto the Left Upright (89). Slide the Right Upright

Cover onto the Right Upright (90).

79 83

6. Cut the plastic tie in the Left Handrail (88) and

the Right Handrail (not shown). If necessary,

press the 5/16" Cage Nuts (31) back into place

(only one is shown).

Identify the Left Handrail (88) and hold it near

the Left Upright (89). Insert the Upright Wire (81)

through the bracket on the bottom of the Left

Handrail. Pull the Upright Wire out of the end of

the Left Handrail.

Tie

7. Attach the Left Handrail (88) to the Left Upright

(89) with two 5/16" x 1" Screws (5), two 5/16"

Star Washers (11), and a 5/16" x 1 1/4" Bolt (4).

Do not fully tighten the Screws and Bolt yet.

Attach the Right Handrail (87) in the same

way.

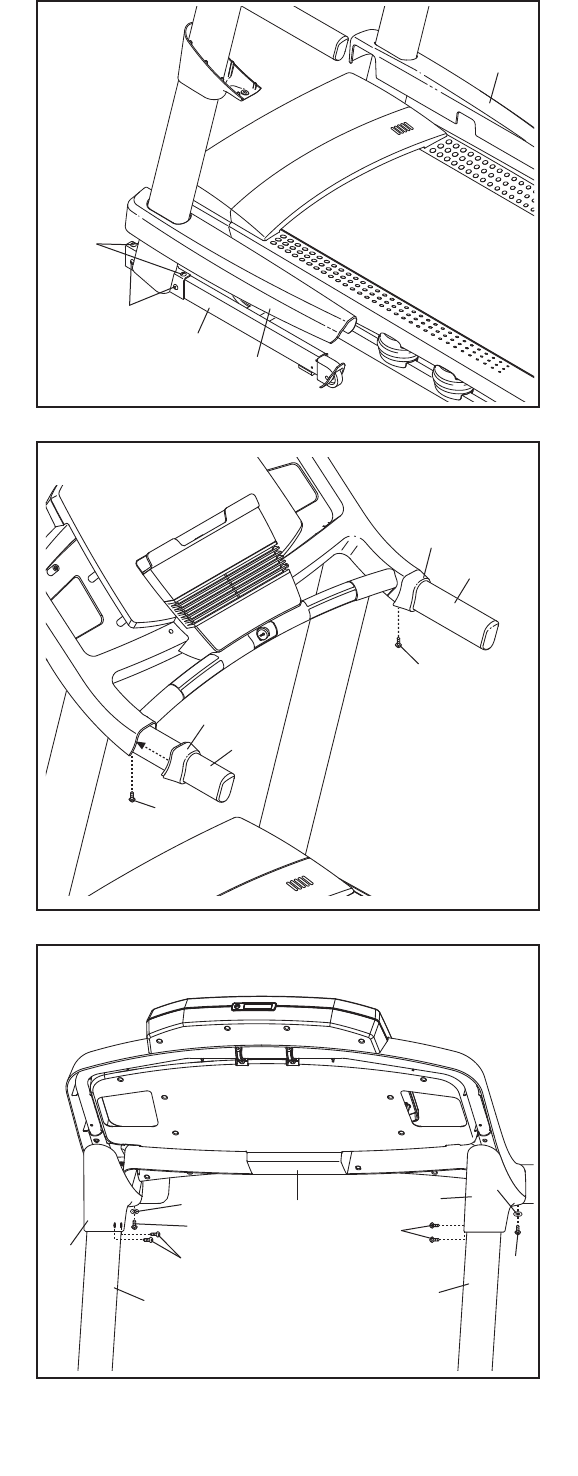

8. Set the console assembly face down on a soft

surface to avoid scratching the console assem-

bly. Remove the two Screws (A). Next, lift off the

Crossbar (93). Discard the two Screws.

Console

Assembly

9. IMPORTANT: To avoid damaging the

Crossbar (93), do not use power tools and do

not overtighten the #10 x 3/4" Screws (9) or

the #10 x 3/4" Flat Head Screws (112).

Orient the Crossbar (93) as shown. Attach the

Crossbar to the Handrails (87, 88) with two #10

x 3/4" Flat Head Screws (112), two #10 x 3/4"

Screws (9), and two 1/4" Star Washers (35) as

shown. Start all four Screws, and then tighten

them.

112

10. With the help of a second person, hold the con-

sole assembly near the Left Handrail (88).

Connect the Upright Wire (81) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Remove the wire tie from the

Upright Wire.

Console

Assembly

Wire

Tie

Console

Wire

11. Set the console assembly on the Left Handrail

(88) and the Right Handrail (87). Be careful not

to pinch any wires. Insert the excess Upright

Wire (not shown) into the Left Handrail.

Attach the console assembly with six #8 x 1/2"

Screws (1), four 5/16" x 1 1/4" Screws (4), four

5/16" Flat Washers (113), and four 5/16" Star

Washers (11). Start all ten Screws, and then

tighten them.

See step 7. Fully tighten the four 5/16" x 1"

Screws (5) and the two 5/16" x 1 1/4" Bolts (4).

11 88

Console

Assembly

113

Console

Wire

12. Firmly tighten the four 3/8" x 2 3/4" Screws (7)

and the four 3/8" x 1 1/4" Screws (8) (only one

side is shown).

Press the Left Base Cover (82) and the Right

Base Cover (83) onto the Base (94) until they

snap into place.

13. Slide the Left Handrail Cover (85) onto the Left

Handrail (88). Slide the Right Handrail Cover

(86) onto the Right Handrail (87). Attach the

Handrail Covers with two #8 x 1/2" Screws (1).

14. Hold the Left Upright Cover (79) against the con-

sole assembly. Align the holes in the Left Upright

Cover with the holes in the Left Upright (89).

Attach the Left Upright Cover with two #8 x 1/2"

Screws (1), a #8 x 3/4" Screw (2), and a 1/4" Flat

Washer (36) as shown.

Attach the Right Upright Cover (80) to the

Right Upright (90) in the same way.

Console

Assembly

80 1

15. Attach the Left Tray (107) and the Right Tray

(108) to the console assembly with four #8 x 1/2"

Screws (1).

107

108

Console

Assembly 1

16. IMPORTANT: See page 15 and plug in the

power cord. Next, see page 17 and turn on

the power.

Then, press the Incline increase button once.

When the frame stops moving, remove the

key from the console and unplug the power

cord.

IMPORTANT:

Make sure to follow

all instructions in

this step

17. IMPORTANT: Before you begin this step,

make sure that you have read and followed

all instructions in step 16.

Raise the Frame (56) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (53) so that the large

barrel and the latch knob are oriented as shown.

Attach the lower end of the Storage Latch (53) to

the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8"

Nut (12).

Attach the upper end of the Storage Latch (53)

to the bracket on the Frame (56) with a 3/8" x

1 3/4" Bolt (6) and a 3/8" Nut (12).

Large

Barrel

Latch

Knob

12 3

19. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.

Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used

to adjust the walking belt (see pages 27 and 28).

18. Attach the Rear Feet (57) to the Frame (56) as

shown with four #8 x 3/4" Screws (2).

Lower the Frame (56) (see HOW TO LOWER

THE TREADMILL FOR USE on page 25).

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 13 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

Surge

Suppressor

Grounding Pin

Grounded Outlet

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

ETPF79510

(PFTL79510)

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable. When you use the manual mode,

you can change the speed and incline of the treadmill

with the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip heart rate

monitor.

In addition, the console features sixteen onboard work-

outs—four calorie workouts, four interval workouts, four

speed workouts, and four endurance workouts. Each

workout automatically controls the speed and incline of

the treadmill as it guides you through an effective exer-

cise session.

The console also features an iFit Live mode that

enables the treadmill to communicate with your wire-

less network through an optional iFit Live module.

With the iFit Live mode, you can download personal-

ized workouts, create your own workouts, track your

workout results, race against other iFit live users, and

access many other features. To purchase an iFit

Live module at any time, go to www.iFit.com or call

the telephone number on the front cover of this

manual.

You can also connect to Nikeplus.com through the

optional PROFORM SYNC. With the SYNC, you

can use an array of tools to analyze your results and

monitor your progress toward your tness goals. To

purchase a SYNC at any time, call the telephone

number on the front cover of this manual.

You can even listen to your favorite workout music or

audio books with the console’s stereo sound system

while you exercise. This treadmill has been designed

specically to work with iPod and has been certied by

the developer to meet Apple performance standards.

To turn on the power, see page 17. To use the man-

ual mode, see page 17. To use an onboard workout,

see page 20. To use an iFit Live workout, see page

21. To use a PROFORM SYNC, see page 22. To use

the information mode, see page 23. To use the ste-

reo sound system, see page 24.

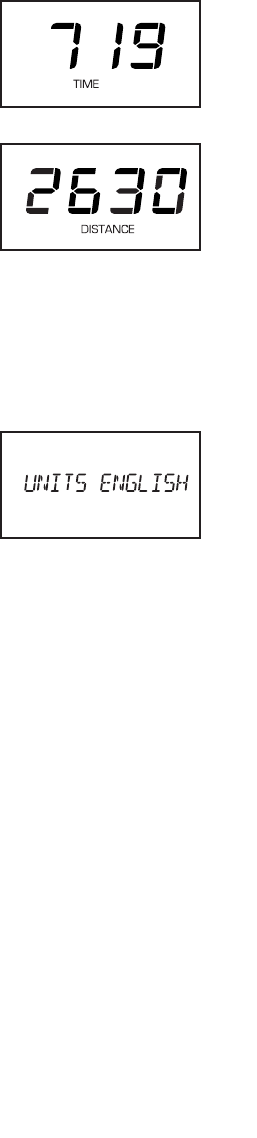

Note: The console can display speed and distance

in either miles or kilometers. To nd which unit of

measurement is selected, see THE INFORMATION

MODE on page 23. For simplicity, all instructions in this

manual refer to miles.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 28).

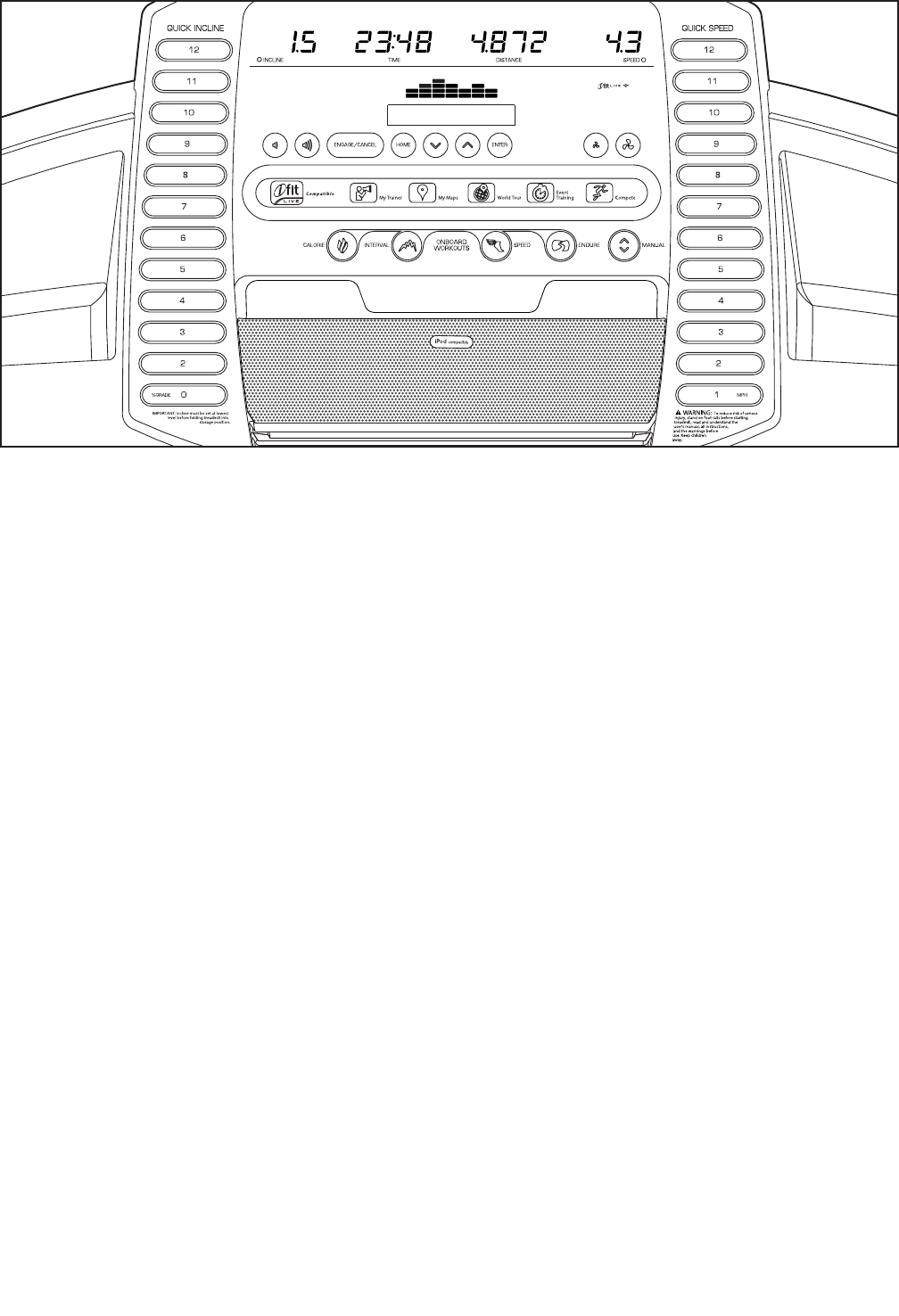

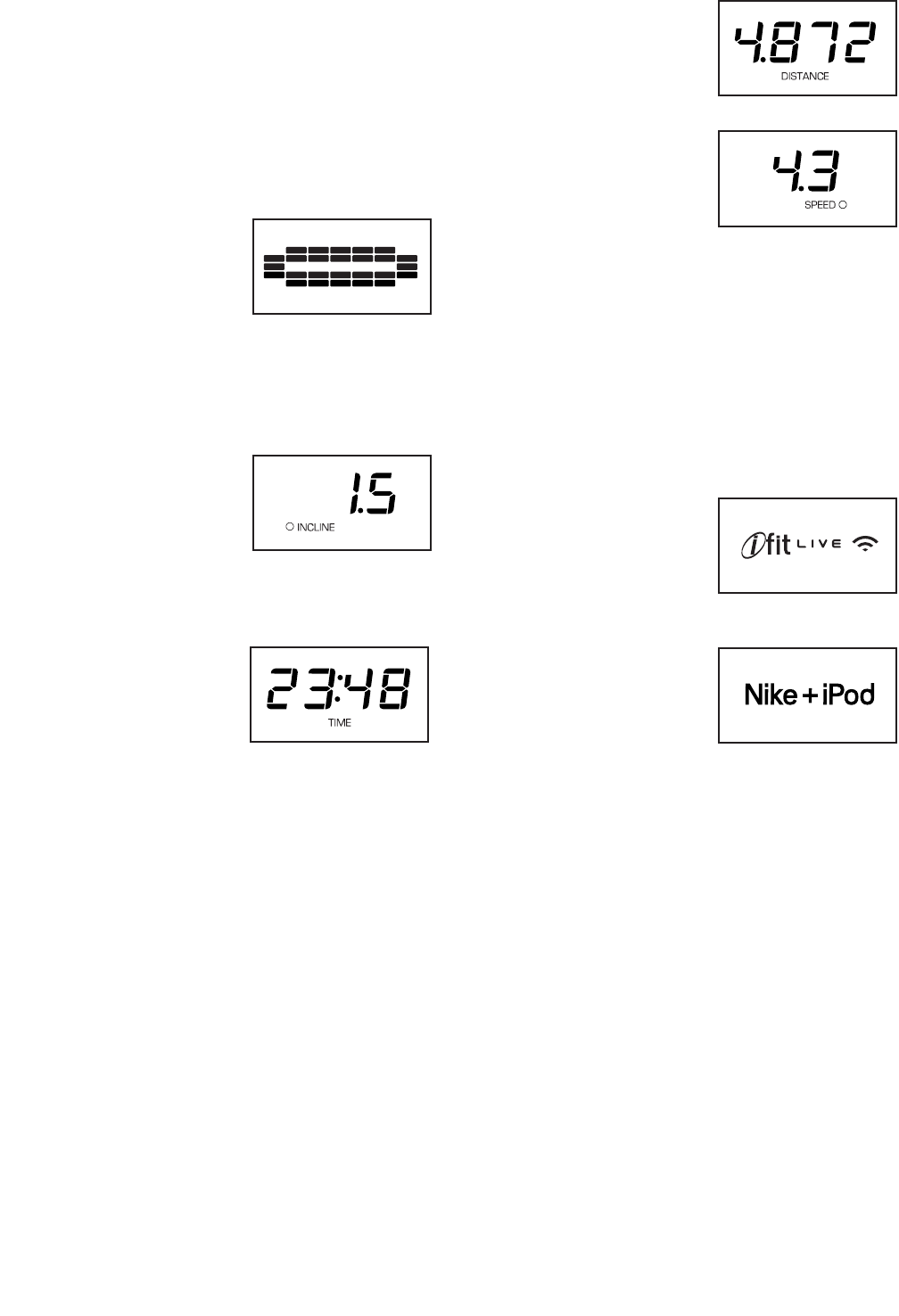

CONSOLE

DIAGRAM

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

Plug in the power cord (see

page 15). Next, locate the

power switch on the tread-

mill frame near the power

cord. Press the power

switch into the reset

position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

23 to turn off the demo mode.

Next, stand on the

foot rails of the

treadmill. Find the

clip attached to the

key and slide the clip

onto the waistband of

your clothes. Then,

insert the key into

the console. After a

moment, the displays

will light. IMPORTANT: In an emergency, the key can

be pulled from the console, causing the walking

belt to slow to a stop. Test the clip by carefully tak-

ing a few steps backward; if the key is not pulled

from the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Press the Manual button on the console. If you are

not connected to iFit Live, the manual mode will be

selected automatically.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the numbered

Quick Speed buttons.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1 mph.

As you exercise, change the speed of the walking

belt as desired by pressing the Speed increase and

decrease buttons. Each time you press one of the

buttons, the speed setting will change by 0.1 mph;

if you hold down the button, the speed setting will

change more quickly. Note: After you press the

button, it may take a moment for the walking belt to

reach the selected speed setting.

If you press one of the numbered Quick Speed

buttons, the walking belt will gradually change

speed until it reaches the selected speed setting.

To select a speed setting that includes a decimal—

such as 3.5 mph—press two numbered buttons in

succession. For example, to select a speed setting

of 3.5 mph, press the 3 button and then immedi-

ately press the 5 button. Note: This will not function

if the console is set to metric units.

To stop the walking belt, press the Stop button. The

time will begin to ash in the display. To restart the

walking belt, press the Start button or the Speed

increase button.

Reset

ETPF79510

(PFTL79510)

Key

Clip

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

numbered Quick Incline buttons. Each time you

press one of the buttons, the treadmill will gradually

adjust to the selected incline setting.

5. Follow your progress with the displays.

The matrix—When

you select the manual

mode, the matrix will

display a track that rep-

resents 1/4 mile (400

m). As you exercise,

the indicators around the track will appear in suc-

cession until the entire track appears. The track will

then disappear and the indicators will again begin

to appear in succession.

The Calories/Incline

display—This dis-

play will show the

approximate number

of calories you have

burned. The display will

also show the incline of the treadmill for a few sec-

onds each time the incline of the treadmill changes.

The Time display—

This display will show

the elapsed time.

Note: When an on-

board workout is se-

lected, the display will

show the time remaining in the workout instead of

the elapsed time.

The Distance dis-

play—This display will

show the distance that

you have walked or run.

The Speed/Pulse

display—This display

will show the speed of

the walking belt. The

display will also show

your heart rate when

you use the handgrip heart rate monitor (see step 6

on page 19).

The Center display—This display will show work-

out instructions.

Press the Home button to return to the start mode

(see THE INFORMATION MODE on page 23 to set

the start mode). If necessary, press the Home but-

ton again.

When an iFit Live

module is connected to

www.iFit.com, the iFit

Live symbol near the

top of the display will

light.

When a PROFORM

SYNC is connected

to the console, the

Nike+iPod symbol near

the top of the display

will light.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using

the hand-

grip heart

rate monitor,

remove the

sheets of plas-

tic from the

metal contacts

on the pulse

bar. In addi-

tion, make

sure that your hands are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the

metal contacts; avoid moving your hands. When

your pulse is detected, several dashes will appear

and then your heart rate will be shown. For the

most accurate heart rate reading, continue to

hold the contacts for about 15 seconds.

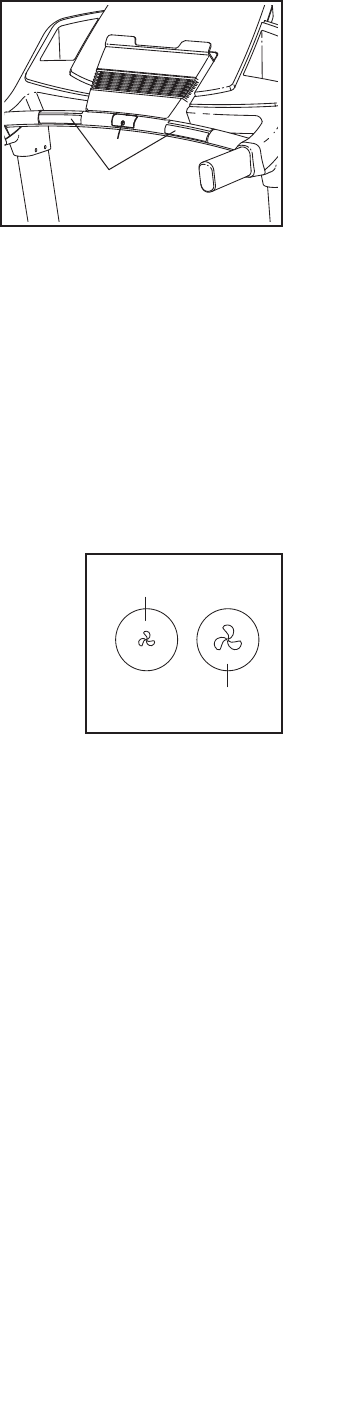

7. Turn on the fan if desired.

The fan features mul-

tiple speed settings.

Press the fan increase

or decrease button to

select a fan speed or to

turn off the fan. Note: If

the fan is on when the

walking belt is stopped,

the fan will turn off auto-

matically after a few minutes.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

Decrease

Increase

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Interval button, the Speed button, or the

Endure button repeatedly until the desired workout

appears in the display.

When you select an onboard workout, the displays

will show the maximum incline, the duration, the

distance, the maximum speed, and the name of

the workout. In addition, a prole of the speed set-

tings of the workout will appear in the matrix. If you

select a calorie workout, the approximate number of

calories you will burn will appear in the name of the

workout.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into segments. One speed

setting and one incline setting are programmed for

each segment. Note: The same speed setting and/

or incline setting may be programmed for consecu-

tive segments.

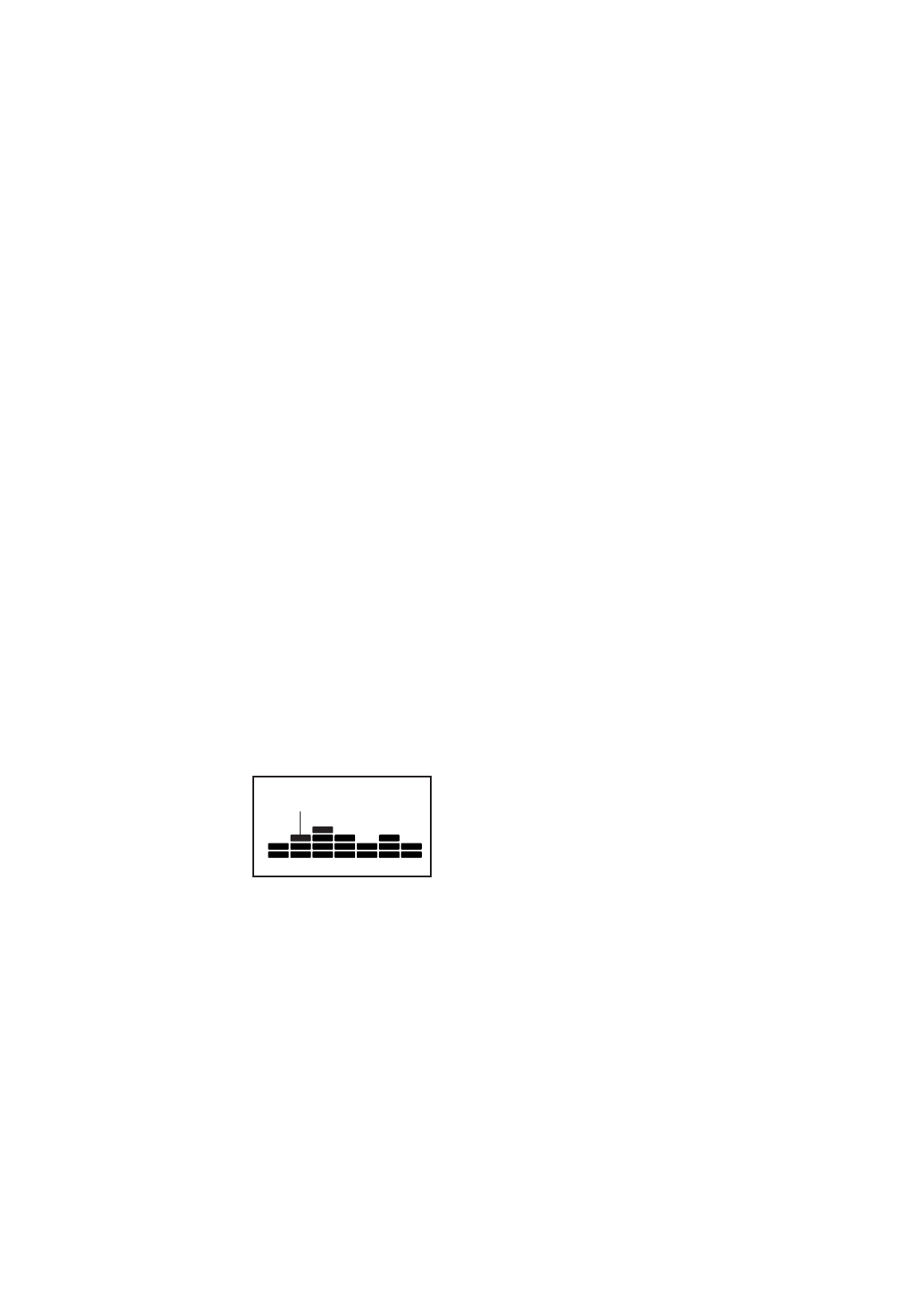

During the workout, the

prole will show your

progress. The ashing

segment of the prole

represents the current

segment of the work-

out. The height of the

ashing segment indicates the speed setting for

the current segment. At the end of each segment, a

series of tones will sound and the next segment of

the prole will begin to ash. If a new speed and/or

incline setting is programmed for the next segment,

the new speed and/or incline setting will appear in

the displays for a few seconds and the treadmill will

automatically adjust to the new speed and/or incline

setting.

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow

to a stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during the

workout. The actual number of calories that you

burn will depend on various factors such as

your weight. In addition, if you manually change

the speed or incline of the treadmill during the

workout, the number of calories you burn will

be affected.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Follow your progress with the displays.

See step 5 on page 18.

5. Measure your heart rate if desired.

See step 6 on page 19.

6. Turn on the fan if desired.

See step 7 on page 19.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

Current Segment

HOW TO USE AN IFIT LIVE WORKOUT

Note: To use an iFit Live workout, you must have an

optional iFit Live module. To purchase an iFit Live

module at any time, go to www.iFit.com or call the

telephone number on the front cover of this man-

ual. You must also have access to a computer with a

USB port and an internet connection. In addition, you

must have access to a wireless network including an

802.11b router with SSID broadcast enabled (hidden

networks are not supported). An iFit.com membership

is also required.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Insert the iFit Live module into the console.

To insert the iFit Live module, see the instructions

included with the iFit Live module.

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in

the iFit Live module must be at least 8 in. (20

cm) from all persons and must not be near or

connected to any other antenna or transmitter.

3. Select a user.

If more than one user is registered, you can switch

users in the iFit Live main screen. Press the in-

crease and decrease buttons next to the Enter but-

ton to select a user.

4. Select an iFit Live workout.

To select an iFit Live workout, press one of the iFit

Live buttons. Before some workouts will download,

you must add them to your schedule on

www.iFit.com.

Press the iFit Live button to download the next

workout in your schedule. Press the My Trainer

button, the My Maps button, the World Tour button,

or the Event Training button to download the next

workout of that type in your schedule. Press the

Compete button to compete in a race that you have

previously scheduled. For more information on

the iFit Live workouts, please see

www.iFit.com. Note: If there are no workouts of

the selected type in your schedule, the next work-

out in your schedule will be downloaded.

When you select an iFit Live workout, the display

will show the duration of the workout, the distance

you will walk or run, the approximate number of

calories you will burn, and the name of the workout.

If you select a competition workout, the display will

count down to the beginning of the race.

5. Start the workout.

See step 3 on page 20.

During some workouts, the voice of an audio

coach will guide you through your workout. You

can select a setting for your audio coach (see THE

INFORMATION MODE on page 23).

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at the speed setting for the rst seg-

ment of the workout. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

6. Follow your progress with the displays.

See step 5 on page 18.

7. Measure your heart rate if desired.

See step 6 on page 19.

8. Turn on the fan if desired.

See step 7 on page 19.

9. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

For more information on the iFit Live mode, go to

www.iFit.com.

HOW TO USE A PROFORM SYNC

The optional PROFORM SYNC enables you to

record your treadmill workout results on your iPod®

(not included). You can then upload your results to

Nikeplus.com, where you can use an array of tools to

analyze your results and monitor your progress toward

your tness goals. To purchase a SYNC at any time,

call the telephone number on the front cover of this

manual.

To use the SYNC, you must have an iPod nano® (4th

or 5th generation) or an iPod touch® (2nd, 3rd, or 4th

generation). You must also have access to a computer

with an internet connection.

For more information about the SYNC, see the instruc-

tions included with the SYNC.

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill information and allows you to person-

alize console settings.

1. Select the information mode.

To select the information mode, hold down the Stop

button while inserting the key into the console, and

then release the Stop button. When the information

mode is selected, the following information will be

shown:

The Time display will

show the total number

of hours that the tread-

mill has been used.

The Distance display

will show the total num-

ber of miles or kilome-

ters that the walking

belt has moved.

2. Select the optional screens.

While the information mode is selected, press the

decrease button next to the Enter button to select

each of the following screens in the center display:

UNITS—To change the

unit of measurement,

press the Enter button.

To view distance in

miles, select ENGLISH.

To view distance in kilo-

meters, select METRIC.

DEMO MODE—The console features a display

demo mode, designed to be used if the treadmill

is displayed in a store. While the demo mode is

turned on, the console will function normally when

you plug in the power cord, press the power switch

into the reset position, and insert the key into the

console. However, when you remove the key, the

displays will remain lit, although the buttons will not

function. If the demo mode is turned on, the word

ON will appear in the center display. To turn on or

turn off the demo mode, press the Enter button or

the Speed decrease button.

CONTRAST LVL—Press the Incline increase and

decrease buttons to adjust the contrast level of the

displays. Then, press the Enter button.

If a module is connected, you may also select

the following screens:

MODULE—If an iFit Live module is connected, the

display will show the word WIFI. If a USB module is

connected, the display will show the word USB/SD.

If a SYNC is connected, the display will show the

word NIKE+.

AUDIO COACH—To turn on or turn off the audio

coach, press the Enter button.

If an iFit Live module is connected, you may

also select the following screens:

START MODE—The start mode will appear when

you insert the key into the console or when you

press the Home button. Press the Enter button re-

peatedly to select the manual mode or the iFit Live

mode as the start mode.

CHECK WIFI—Press the Enter button. The center

display will show the software version number,

the network SSID, the network encryption type,

the wireless signal strength, the IP address of the

module, the number of registered users and their

names, and the results of the DNS lookup.

SEND/OBTAIN DATA—To send and receive work-

outs, workout logs, and updates, press the Enter

button. When the process is nished, the words

TRANSFERS DONE will appear in the display.

3. Exit the information mode.

To exit the information mode, remove the key from

the console.

HOW TO USE THE STEREO SOUND SYSTEM

This treadmill has been designed specically to work

with iPod and has been certied by the developer to

meet Apple performance standards. To play music or

audio books through the console’s stereo speakers,

you must connect your iPod, MP3 player, CD player, or

other personal audio player to the console through the

audio jack or through the optional PROFORM SYNC.

The SYNC will charge your iPod while you use it.

To use the MP3 jack, plug your audio wire into the

MP3 jack on the top of the console. Then plug your

audio wire into a jack on your MP3 player, CD player,

or other personal audio player. Make sure that your

audio wire is fully plugged in.

To use the SYNC, plug a compatible iPod (not

included) into the cable extending from the SYNC.

Make sure that the iPod is fully plugged in.

Next, press the play button

on your iPod, MP3 player,

CD player, or other personal

audio player. Adjust the vol-

ume on your personal audio

player or press the volume

increase and decrease but-

tons on the console.

If you are using a personal CD player and the CD

skips, set the CD player on the oor or another at sur-

face and not on the console.

Decrease

Increase

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

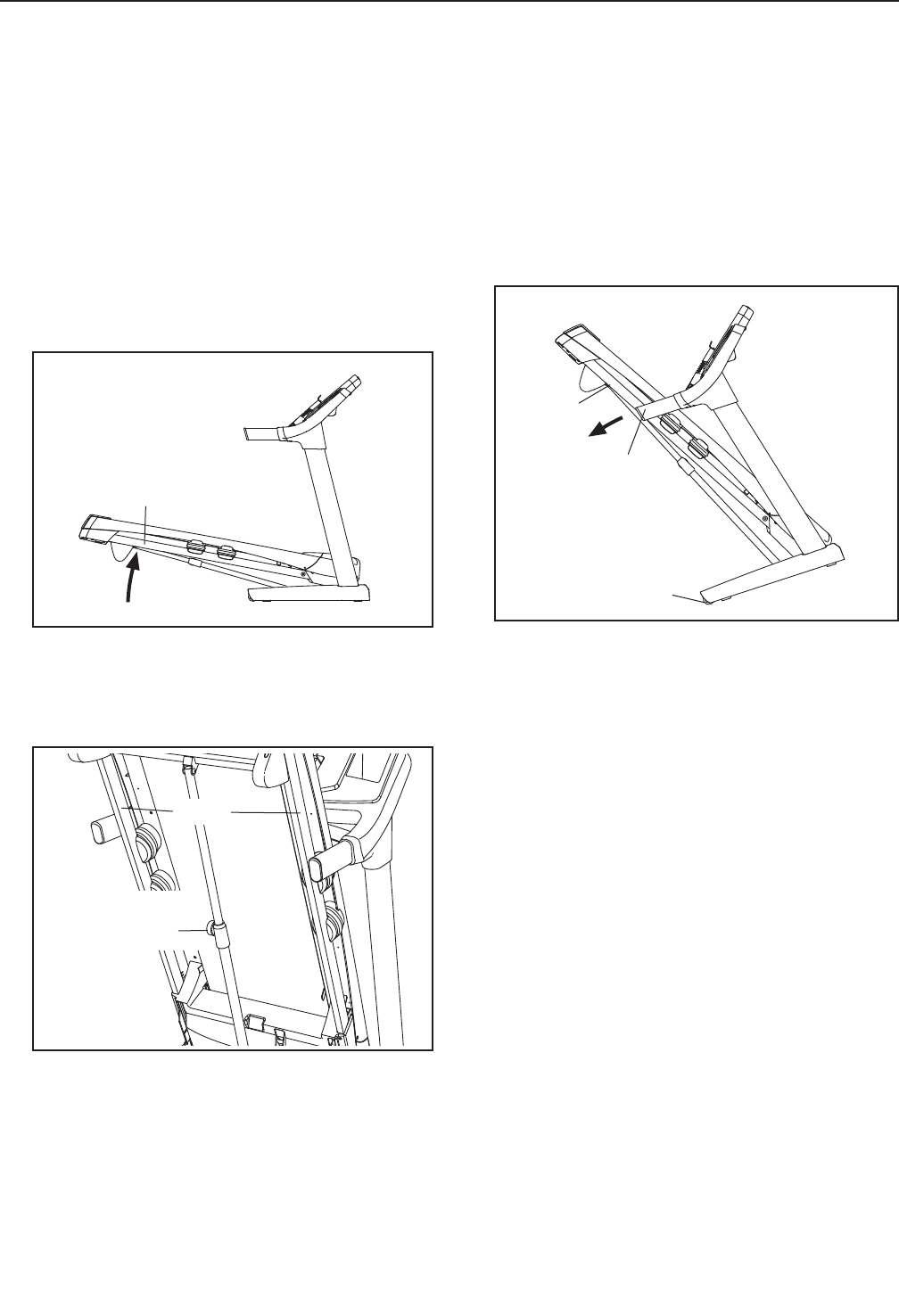

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill

frame with your right hand. Pull the latch knob to

the left. IMPORTANT: Do not turn the latch knob.

If necessary, push the frame forward slightly. Pivot

the frame downward a few inches, and release the

latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Handrail

Frame

Wheel

Frame

Latch

Knob

Frame

Most treadmill problems can be solved by follow-

ing the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor, and that the surge suppressor is

plugged into a properly grounded outlet (see page

15). N’utilisez qu’un limiteur de surtension conforme

à toutes les spécications indiquées à la page 15.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

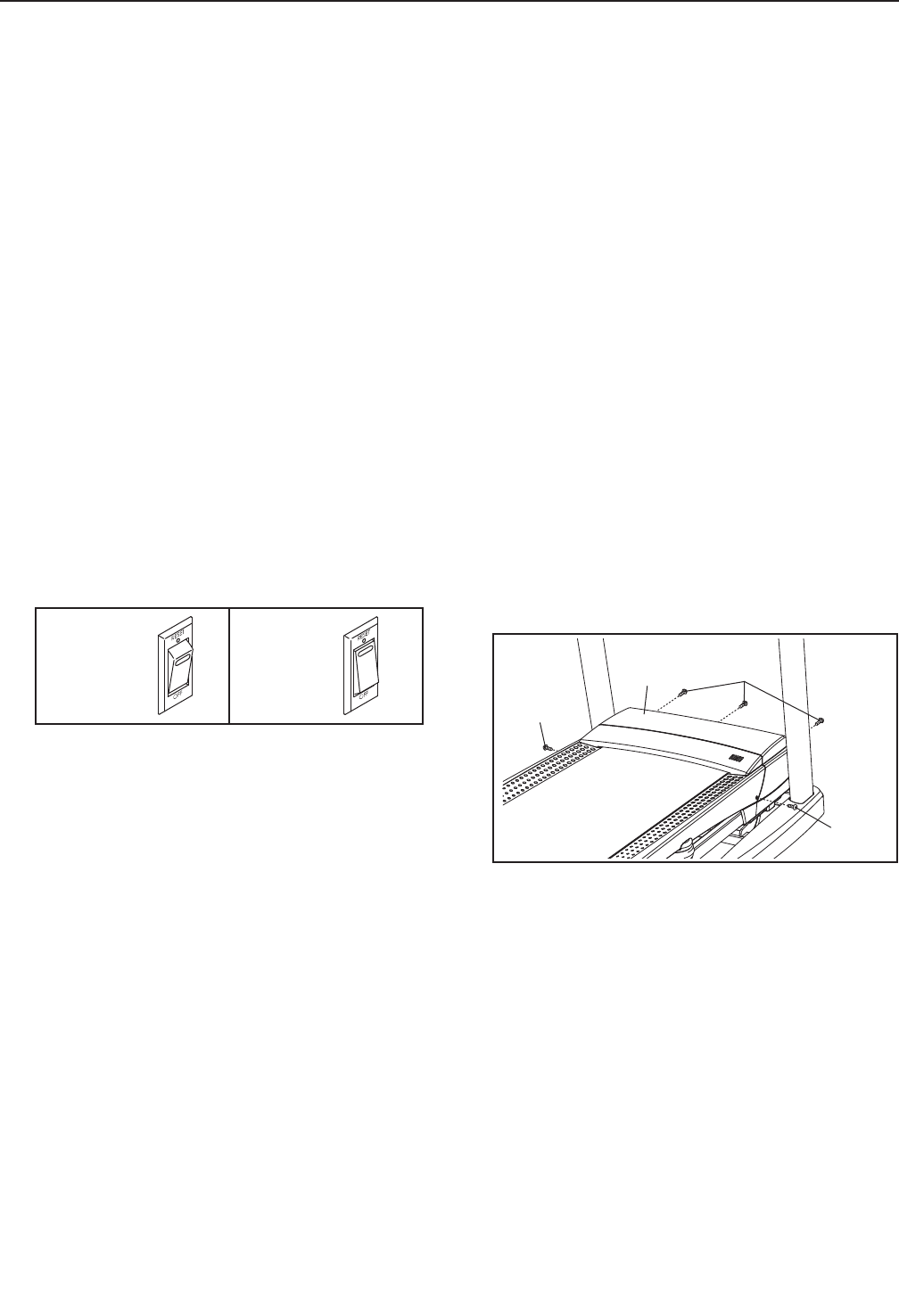

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

power switch, wait for ve minutes and then press

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch

(see the drawing above). If the switch has tripped,

wait for ve minutes and then press the switch

back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for ve

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when

you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in

a store. If the displays remain lit when you remove

the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a

few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 23 to turn off the

demo mode.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Remove the three #8 x 1/2"

Screws (1) and the two #8 x 3/4" Screws (2). Then,

carefully pivot the Motor Hood (65) off.

TROUBLESHOOTING

Reset

Tripped

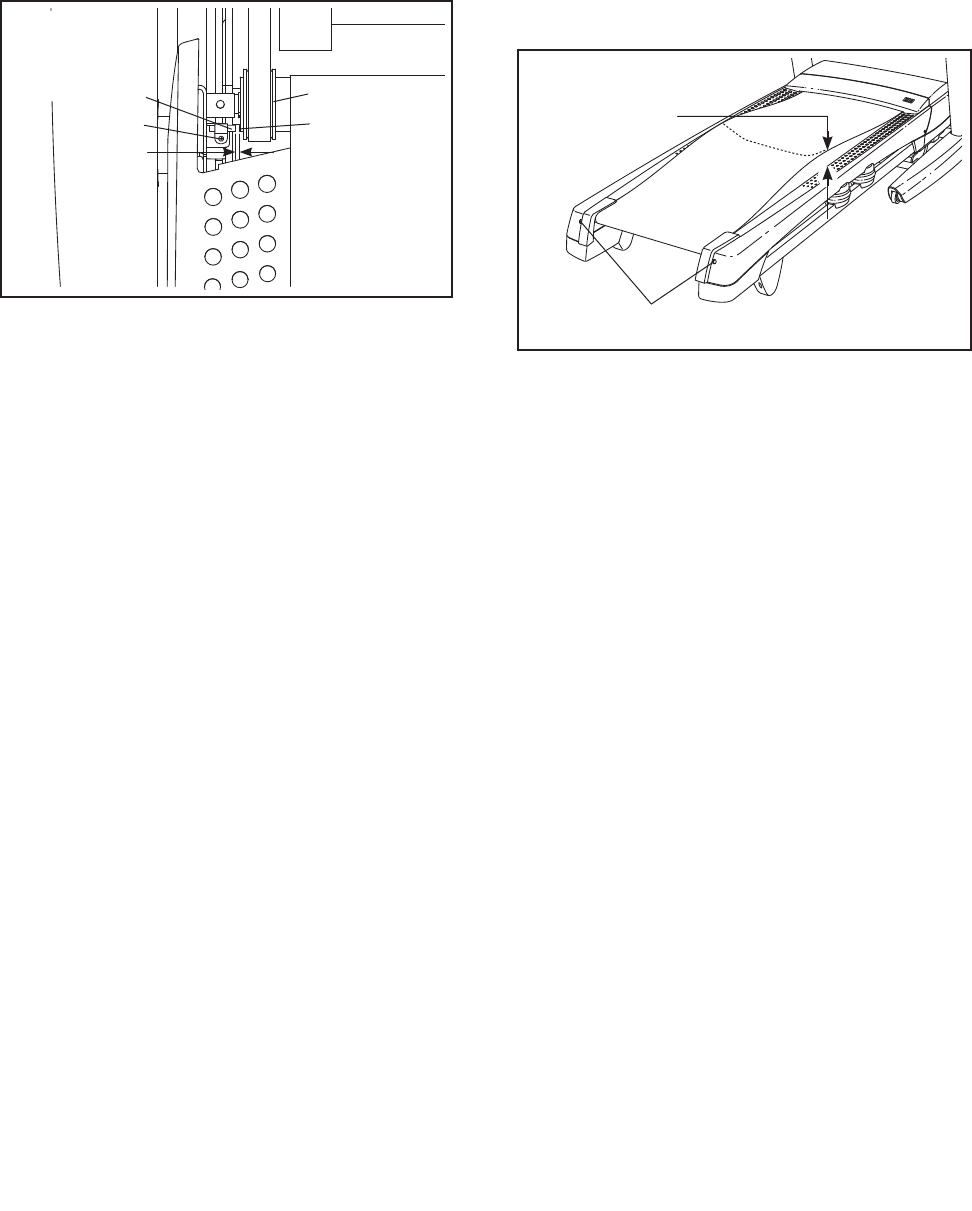

Locate the Reed Switch (52) and the Magnet (50)

on the left side of the Pulley (49). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm). If

necessary, loosen the #8 x 3/4" Tek Screw (14),

move the Reed Switch slightly, and then retighten

the Screw. Reattach the Motor Hood (not shown)

and run the treadmill for a few minutes to check for

a correct speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then

release the Stop button and the Speed increase

button. Press the Stop button and then press the

Incline increase or decrease button. The treadmill

will automatically rise to the maximum incline level

and then return to the minimum level. This will

recalibrate the incline system. If the incline does

not begin calibrating, press the Stop button again,

and then press the Incline increase or decrease

button again. When the incline is calibrated,

remove the key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specications described on page 15.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to

the walking belt or the walking platform unless

instructed to do so by an authorized service

representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect the walking belt needs more lubri-

cant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

1/8 in.

Idler Roller Screws

2–3 in.

Top

View

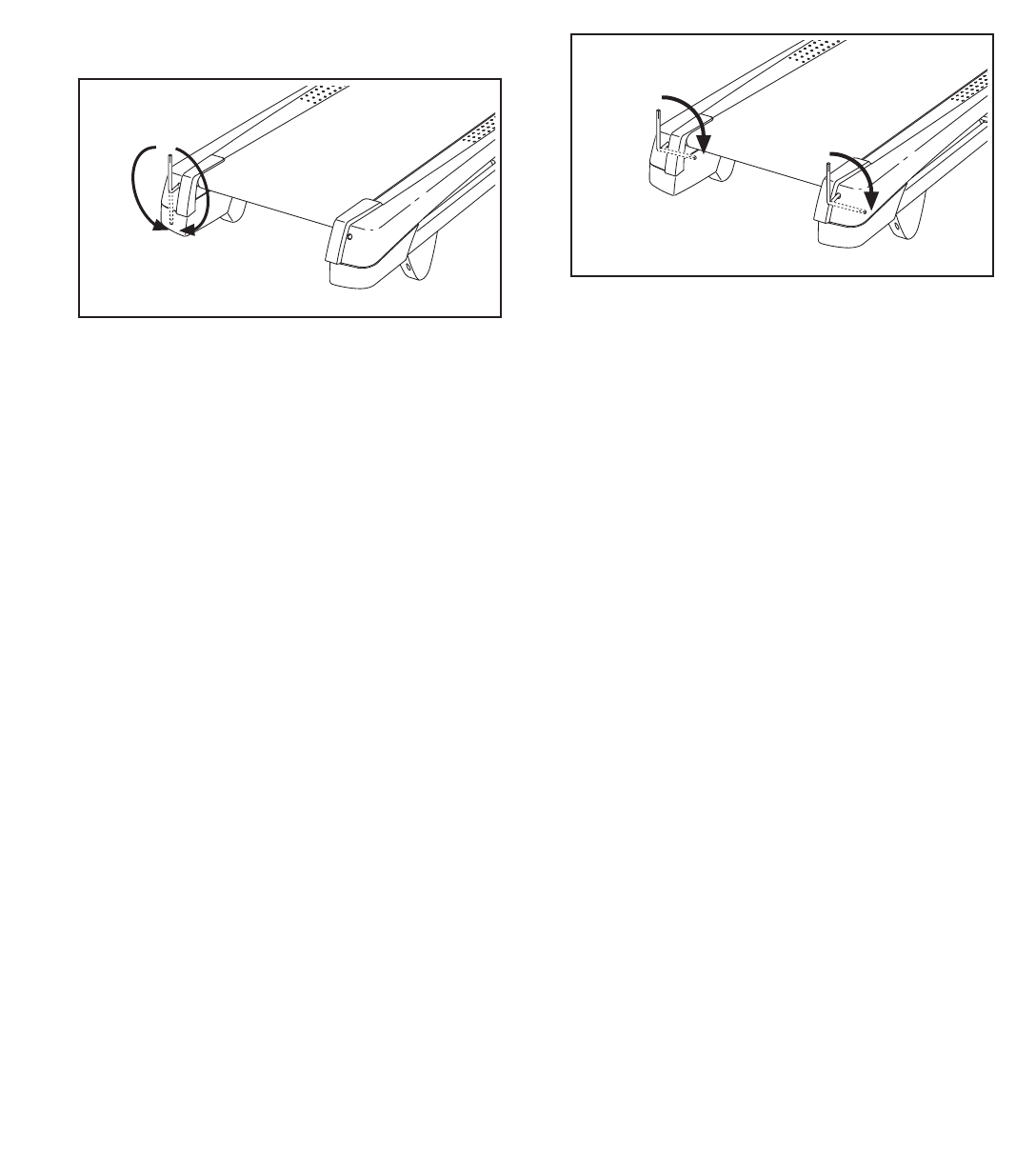

SYMPTOM: The walking belt is off-center or slips

when walked on

a. If the walking belt is off-center, rst remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, rst

remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walk-

ing belt is correctly tightened, you should be able

to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep

the walking belt centered. Then, plug in the power

cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

Key No. Qty. Description Key No. Qty. Description

1 23 #8 x 1/2" Screw

2 57 #8 x 3/4" Screw

3 1 3/8" x 2" Bolt

4 6 5/16" x 1 1/4" Bolt

5 4 5/16" x 1" Screw

6 1 3/8" x 1 3/4" Bolt

7 4 3/8" x 2 3/4" Screw

8 4 3/8" x 1 1/4" Screw

9 2 #10 x 3/4" Screw

10 7 #8 x 1/2" Ground Screw

11 8 5/16" Star Washer

12 2 3/8" Nut

13 4 3/8" Star Washer

14 17 #8 x 3/4" Tek Screw

15 2 Idler Roller Screw

16 1 3/8" x 1 1/2" Bolt

17 2 3/8" x 1 3/4" Wheel Bolt

18 2 #8 x 1 3/4" Screw

19 9 #8 x 7/16" Screw

20 2 5/16" Motor Screw

21 2 1/2" x 2 1/4" Bolt

22 2 3/8" x 1" Bolt

23 4 5/16" x 1 3/4" Shoulder Bolt

24 1 1/4" x 1" Screw

25 4 #8 x 1" Screw

26 2 1/4" Washer

27 2 1/4" Lock Washer

28 4 #8 x 3/4" Belly Pan Screw

29 1 3/8" x 2" Hex Head Bolt

30 4 5/16" Flat Washer

31 2 5/16" Cage Nut

32 2 1/2" Nut

33 6 3/8" Jam Nut

34 4 5/16" Nut

35 3 1/4" Star Washer

36 2 1/4" Flat Washer

37 1 Left Front Isolator Top

38 2 Rear Isolator Top

39 4 Isolator

40 4 Isolator Bottom

41 1 Right Front Isolator Top

42 1 Left Foot Rail

43 1 Caution Decal

44 1 Walking Platform

45 1 Walking Belt

46 2 Belt Guide

47 2 Foot Rail Track

48 4 Cable Tie

49 1 Drive Roller/Pulley

50 1 Magnet

51 1 Reed Switch Clip

52 1 Reed Switch

53 1 Storage Latch

54 1 Drive Motor

55 1 Motor Belt

56 1 Frame

57 2 Rear Foot

58 1 Right Rear Cover

59 4 Rubber Cushion

60 1 Right Foot Rail

61 1 Idler Roller

62 1 Left Rear Cover

63 1 Hex Key

64 1 5/32" Hex Key

65 1 Motor Hood

66 1 Hood Accent

67 2 Incline Frame Spacer

68 1 Incline Motor Sensor

69 1 Incline Motor

70 1 Incline Frame

71 2 Frame Spacer

72 1 Controller

73 1 Controller Plate

74 2 Hood Post

75 1 Power Switch

76 1 Power Cord

77 2 Grommet

78 1 Belly Pan

79 1 Left Upright Cover

80 1 Right Upright Cover

81 1 Upright Wire

82 1 Left Base Cover

83 1 Right Base Cover

84 2 Handrail Cap

85 1 Left Handrail Cover

86 1 Right Handrail Cover

87 1 Right Handrail

88 1 Left Handrail

89 1 Left Upright

90 1 Right Upright

91 2 Warning Decal

92 4 Base Pad

93 1 Crossbar

94 1 Base

95 1 Right Wheel Cap

96 1 Left Wheel Cap

97 2 Wheel

98 1 Key/Clip

99 1 Cable Tie

100 1 French Latch Decal

PART LIST Model No. PCTL79612.0 R0712A

Key No. Qty. Description Key No. Qty. Description

101 1 Module Housing

102 1 Console Back

103 1 Console

104 1 Console Frame

105 2 Ground Wire

106 2 Console Clamp

107 1 Left Tray

108 1 Right Tray

109 1 Console Base

110 0 Not used

111 3 Hood Clip

112 2 #10 x 3/4" Flat Head Screw

113 4 5/16" Flat Washer

* – User’s Manual

Note: Specications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

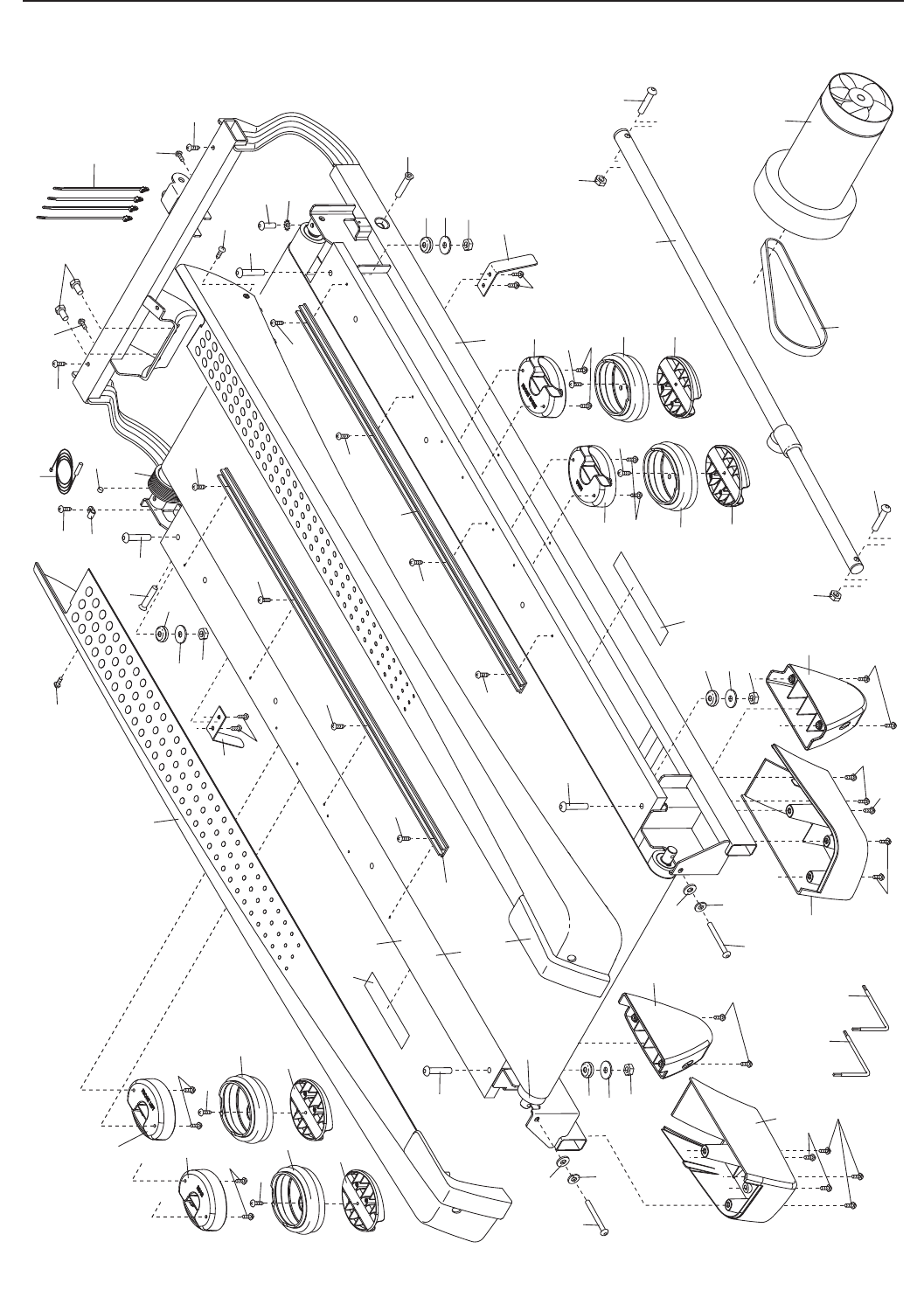

239

264

100

EXPLODED DRAWING A Model No. PCTL79612.0 R0712A

111

111 111

EXPLODED DRAWING B Model No. PCTL79612.0 R0712A

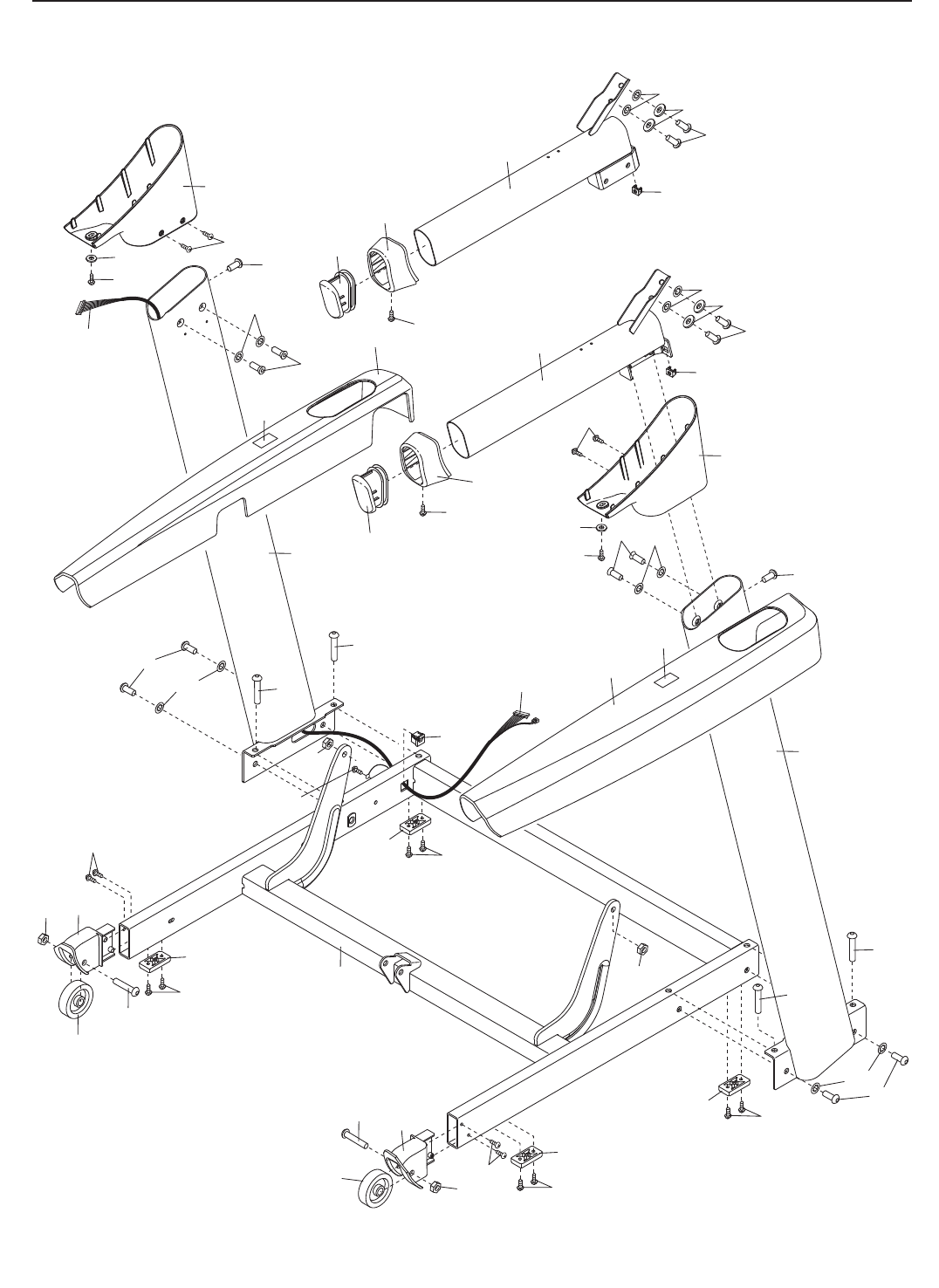

92 8

97 14

113

11 113

EXPLODED DRAWING C Model No. PCTL79612.0 R0712A

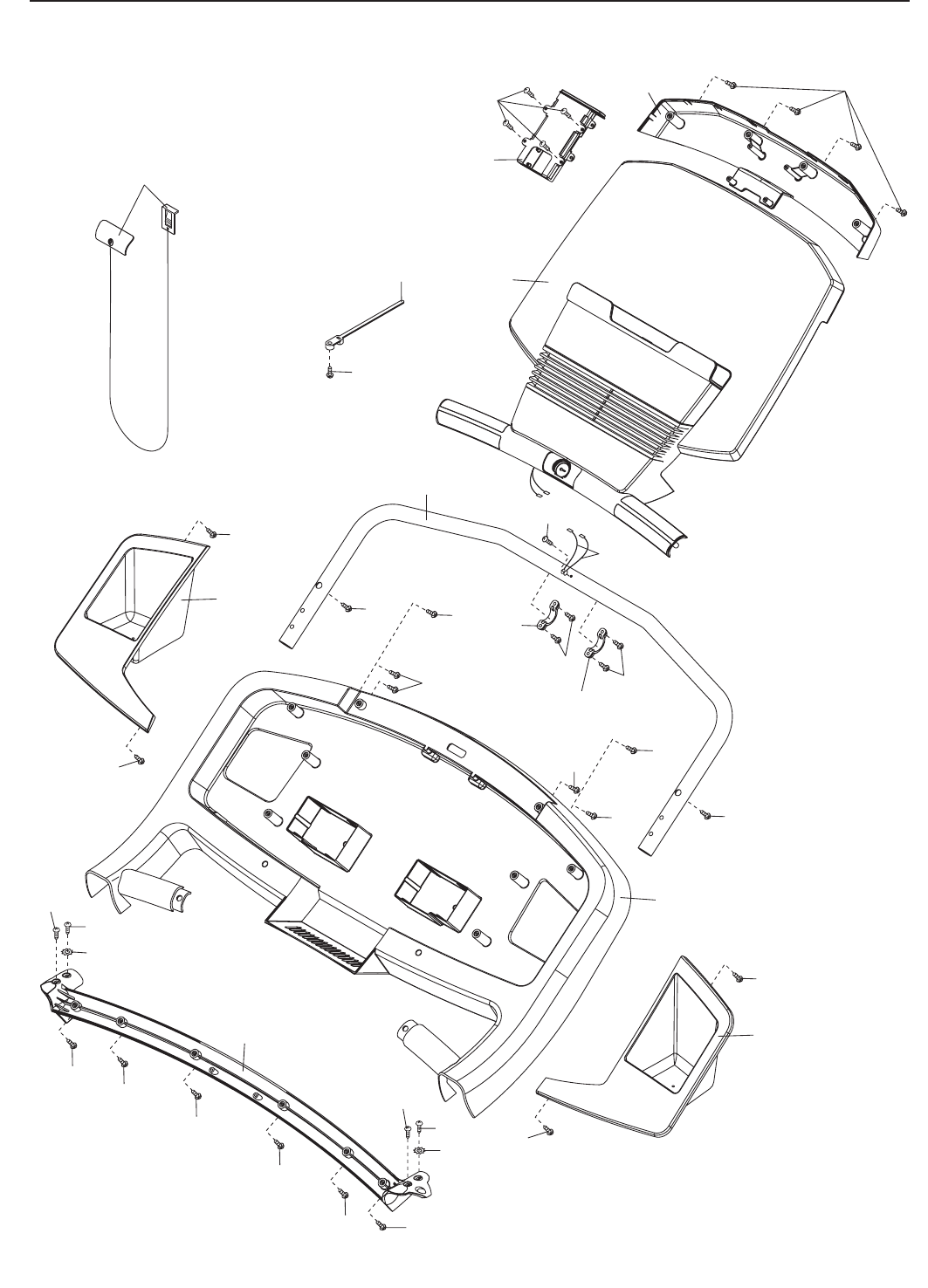

107

108

109

106

104

105

101

102

103

112

EXPLODED DRAWING D Model No. PCTL79612.0 R0712A

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-

vide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

ORDERING REPLACEMENT PARTS

ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,

under normal use and service conditions. The frame and drive motor are warranted for a lifetime. Parts

are warranted for two (2) years from the date of purchase. Labor is warranted for one (1) year from the

date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if all instructions in this manual are not followed, if the prod-

uct is abused or improperly or abnormally used, or if the product is used for commercial or rental purposes.

No other warranty beyond that specically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some provinces do not allow the exclusion or limitation of incidental

or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from province to

province.

ICON of Canada, Inc., 900 de l’Industrie, St. Jérôme, QC J7Y 4B8

LIMITED WARRANTY

Proform Pctl796120 Power 795 Cwl Treadmill Users Manual

Proform-Power-795-Pctl79612-0-Users-Manual-658269 proform-power-795-pctl79612-0-users-manual-658269

PROFORM-Treadmill-Power_795(CWL)

Navigation menu

Versions of this User Manual:

Views

Navigation
