USER’S MANUAL

www.iconeurope.com

Model No. PETL69910.0

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this man-

ual for future reference.

CUSTOMER CARE

UNITED KINGDOM

Call: 08457 089 009

From Ireland: 053 92 36102

Website: www.iconsupport.eu

E-mail: csuk@iconeurope.com

Write:

ICON Health & Fitness, Ltd.

c/o HI Group PLC

Express Way

CASTLEFORD

WF10 5QJ

UNITED KINGDOM

AUSTRALIA

Call: 1800 993 770

E-mail: australiacc@iconfitness.com

Write:

ICON Health & Fitness

PO Box 635

WINSTON HILLS NSW 2153

AUSTRALIA

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT .............................................................15

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

TROUBLESHOOTING ......................................................................25

EXERCISE GUIDELINES ....................................................................28

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

EXPLODED DRAWING .....................................................................32

ORDERING REPLACEMENT PARTS .................................................. Back Cover

RECYCLING INFORMATION ......................................................... Back Cover

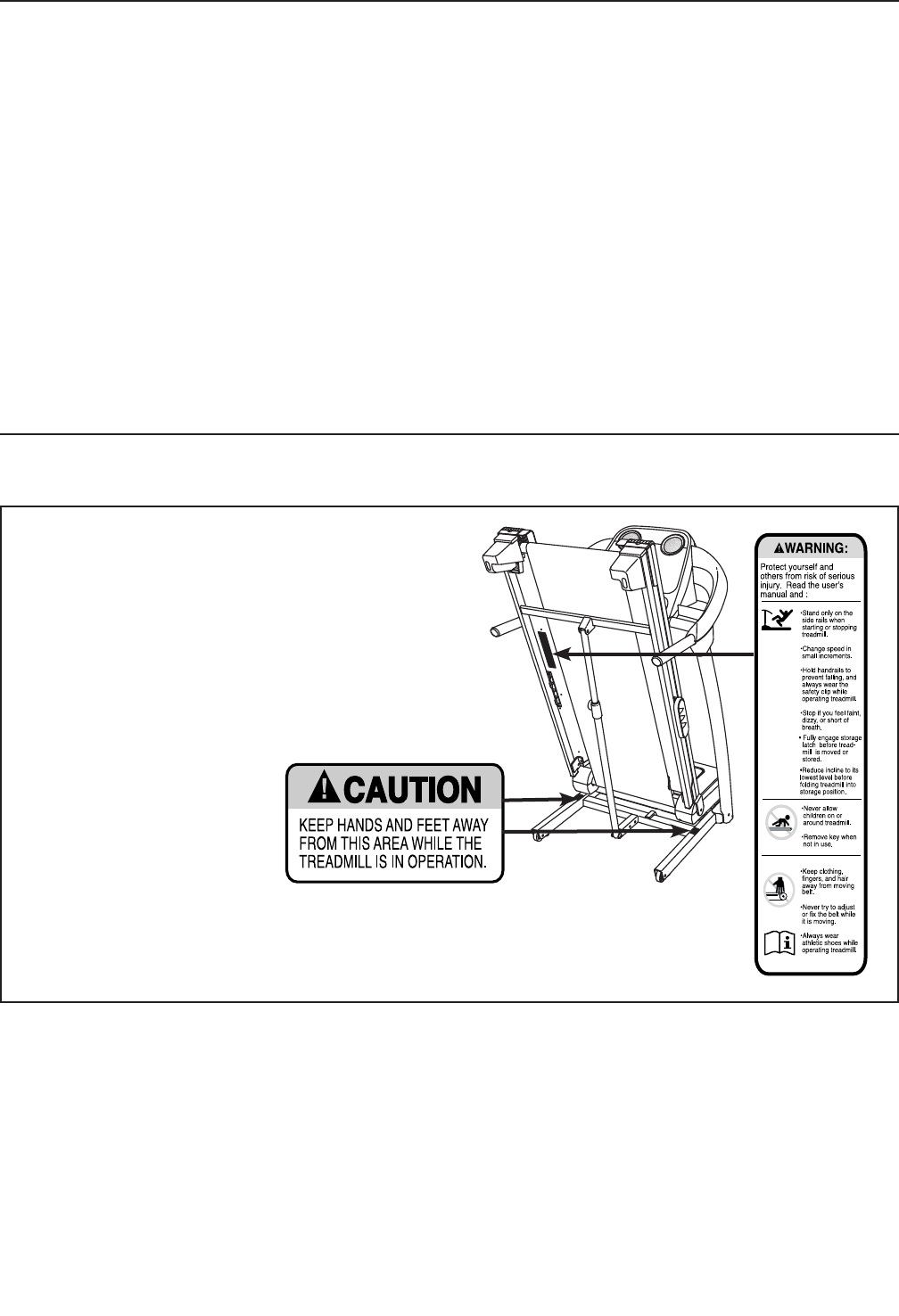

WARNING DECAL PLACEMENT

256836

This drawing shows the locations of the warning

decals. If a decal is missing or illegible, call the

telephone number on the front cover of this

manual and request a free replacement decal.

Apply the decal in the location shown. Note:

The decals may not be shown at actual size.

252433

PROFORM is a registered trademark of ICON IP, Inc.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

Use the treadmill only as described.

3. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under age 12 and pets away

from the treadmill at all times.

7. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes while

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes; never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

10. When connecting the power cord (see page

15), plug the power cord into an earthed

circuit. No other appliance should be on the

same circuit. When replacing the fuse in the

power cord adapter, insert an ASTA-approved

BS1362, 13-amp fuse into the fuse carrier.

11. If an extension cord is needed, use only a

3-conductor, 14-gauge (1 mm2) cord that is

no longer than 5 ft. (1.5 m).

12. Keep the power cord away from heated

surfaces.

13. Never move the walking belt while the power

is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if

the treadmill is not working properly. (See

TROUBLESHOOTING on page 25 if the tread-

mill is not working properly.)

14. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on page

17).

15. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

17. The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your treadmill before using your treadmill. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

18. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the

location of the power switch.)

19. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 24.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

20. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

21. Never insert any object into any opening on

the treadmill.

22. Inspect and properly tighten all parts of the

treadmill regularly.

23. DANGER: Always unplug the power

cord immediately after use, before cleaning the

treadmill, and before performing the mainte-

nance and adjustment procedures described

in this manual. Never remove the motor hood

unless instructed to do so by an authorized

service representative. Servicing other than the

procedures in this manual should be performed

by an authorized service representative only.

24. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

25. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

Thank you for selecting the new PROFORM® 600 ZLT

treadmill. The 600 ZLT treadmill offers a selection of

features designed to make your workouts at home more

effective and enjoyable. And when you’re not exercising,

the treadmill can be folded up, requiring less than half

the oor space of other treadmills.

For your benet, read this manual carefully before

using the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Accessory Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Idler Roller

Adjustment Bolts

Console

Pulse Sensor

ASSEMBLED DIMENSIONS:

Height: 57 in. (145 cm)

Width: 33 in. (84 cm)

Depth: 69 in. (175 cm)

Weight: 163 lbs. (74 kg)

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex keys and your own Phillips screwdriver , adjustable

wrench , and scissors .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached

to one of the parts to be assembled. To avoid damaging parts, do not use power tools for assembly. Extra

hardware may be included.

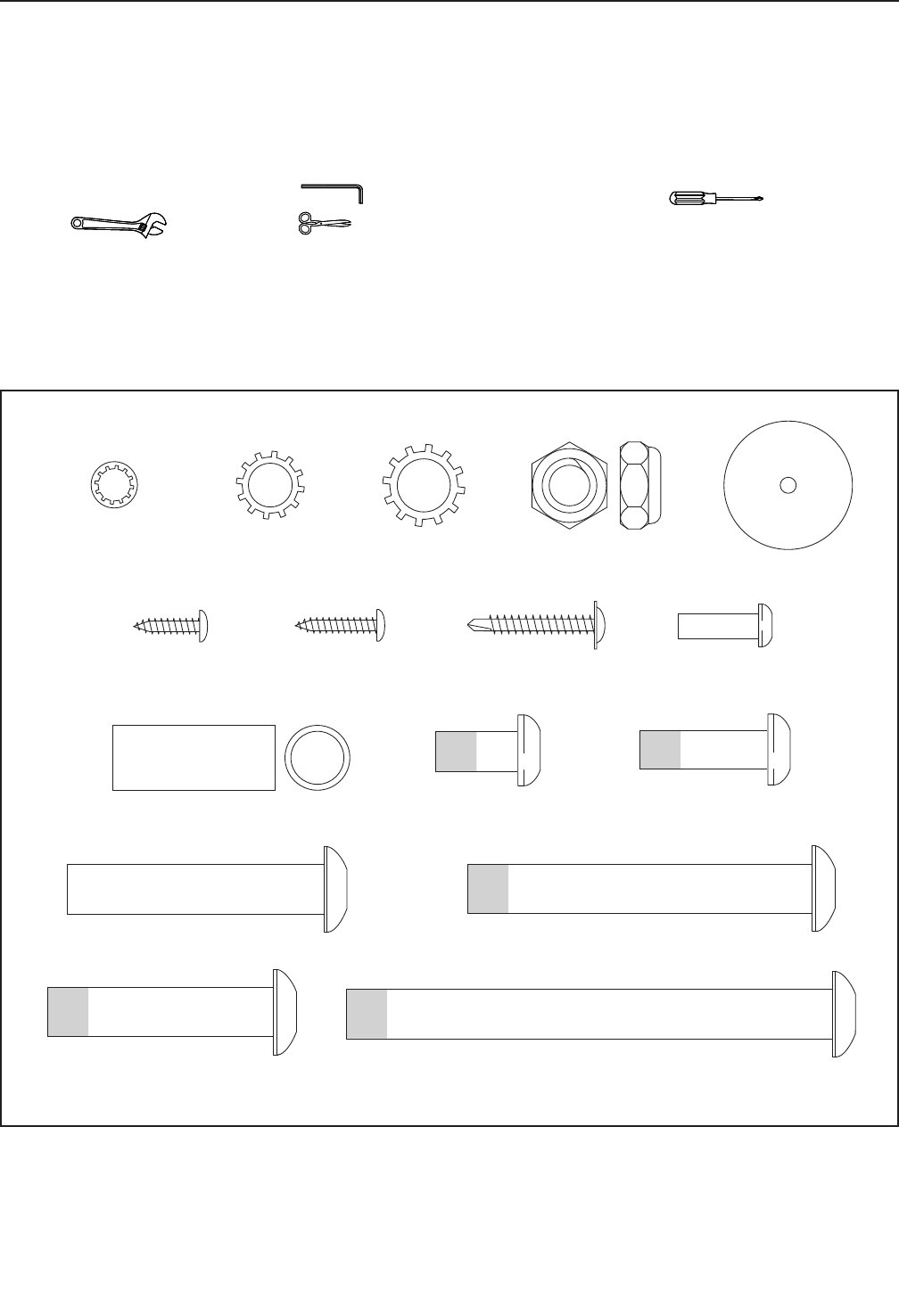

Base Foot Spacer

(94)–2

M8 Star

Washer (10)–8

M10 Star

Washer (9)–4

#8 x 1/2" Ground

Screw (4)–1

M4 x 19mm

Screw (35)–12

3/8" Locknut

(6)–3

#8 x 3/4" Screw

(2)–4

1/4" Star

Washer (73)–2

M4 x 19mm

Screw (35)–12

M4 x 13mm

Screw (116)–8

M4 x 16mm

Screw (124)–4

M10 x 95mm Patch Bolt (8)–2

Bolt Spacer (90)–4

M4.2 x 25mm

Tek Screw (3)–4

M8 x 25mm

Patch Bolt (5)–6

M5 x 16mm

Machine Screw

M5 x 16mm Bolt

(108)–2

5/16" x 5/8"

Patch Bolt (113)–4

M10 x 68mm Patch Bolt (114)–2

3/8" x 2"

Bolt (37)–2

3/8" x 1 3/4"

Patch Bolt (7)–1

ASSEMBLY

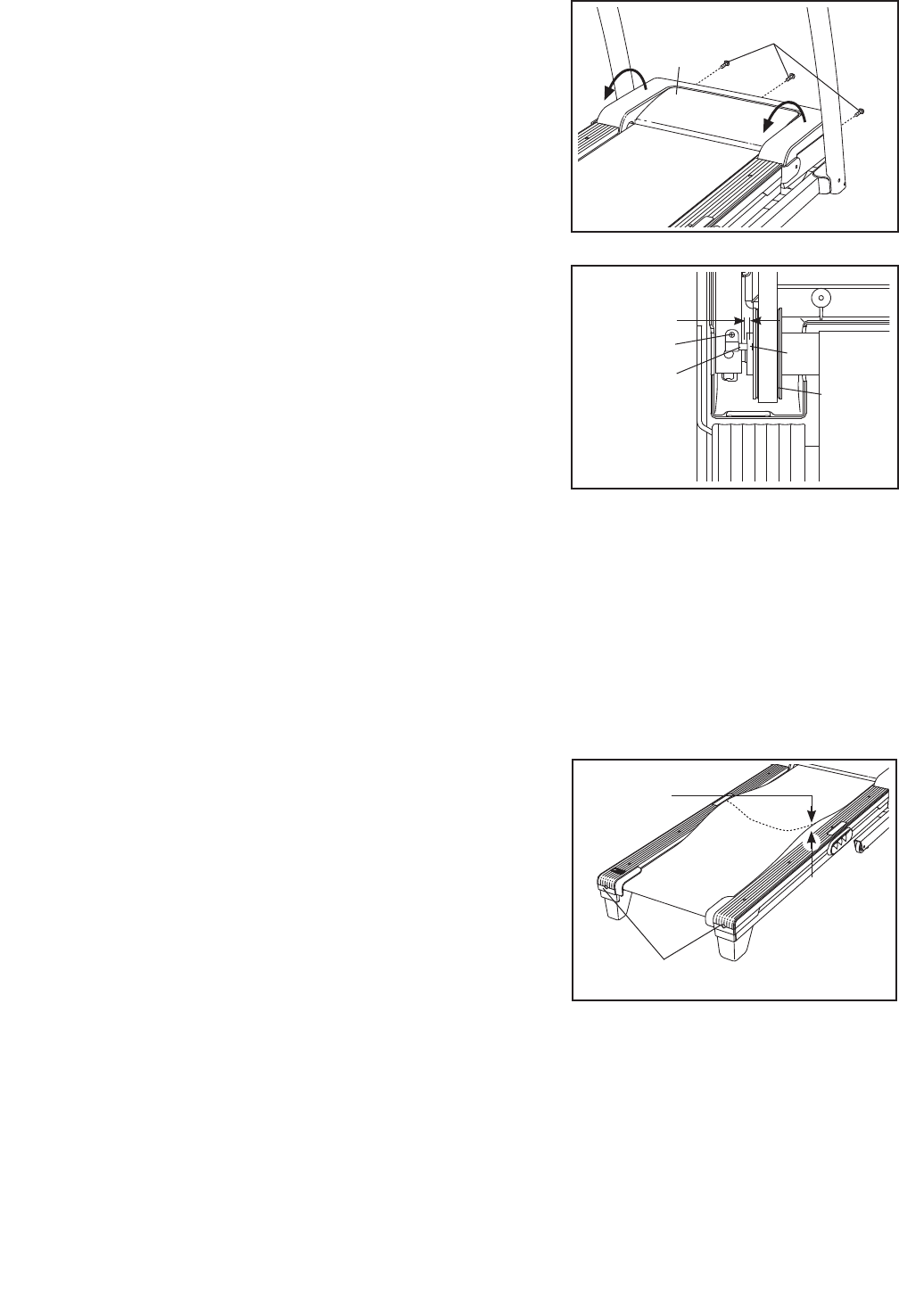

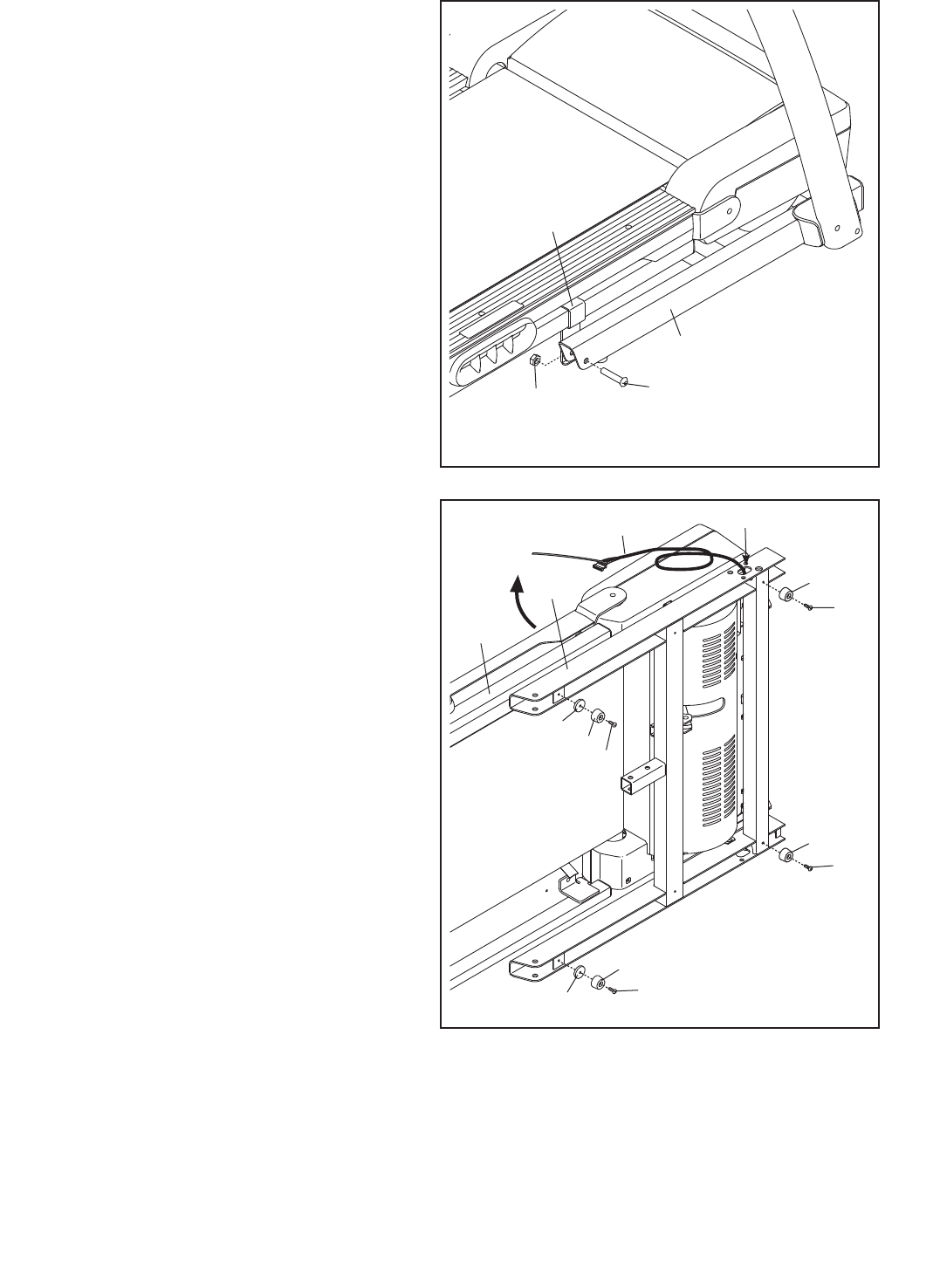

2. With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (56) so that the treadmill is more stable;

do not fully fold the Frame yet.

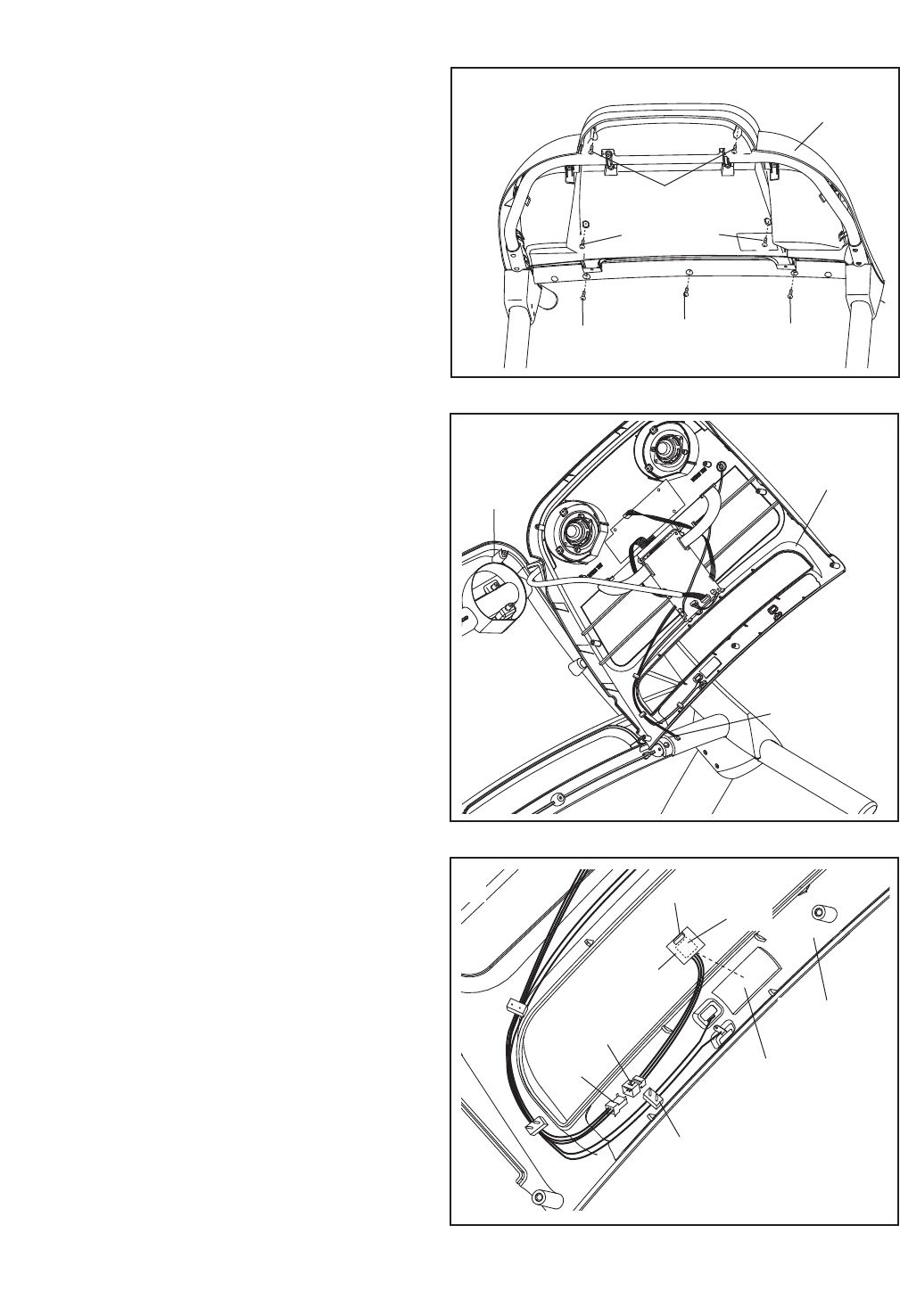

Cut the shipping tie securing the Upright Wire

(88) to the Base (95). Next, locate a plastic tie in

the indicated hole in the Base, and use the tie to

pull the Upright Wire out of the hole.

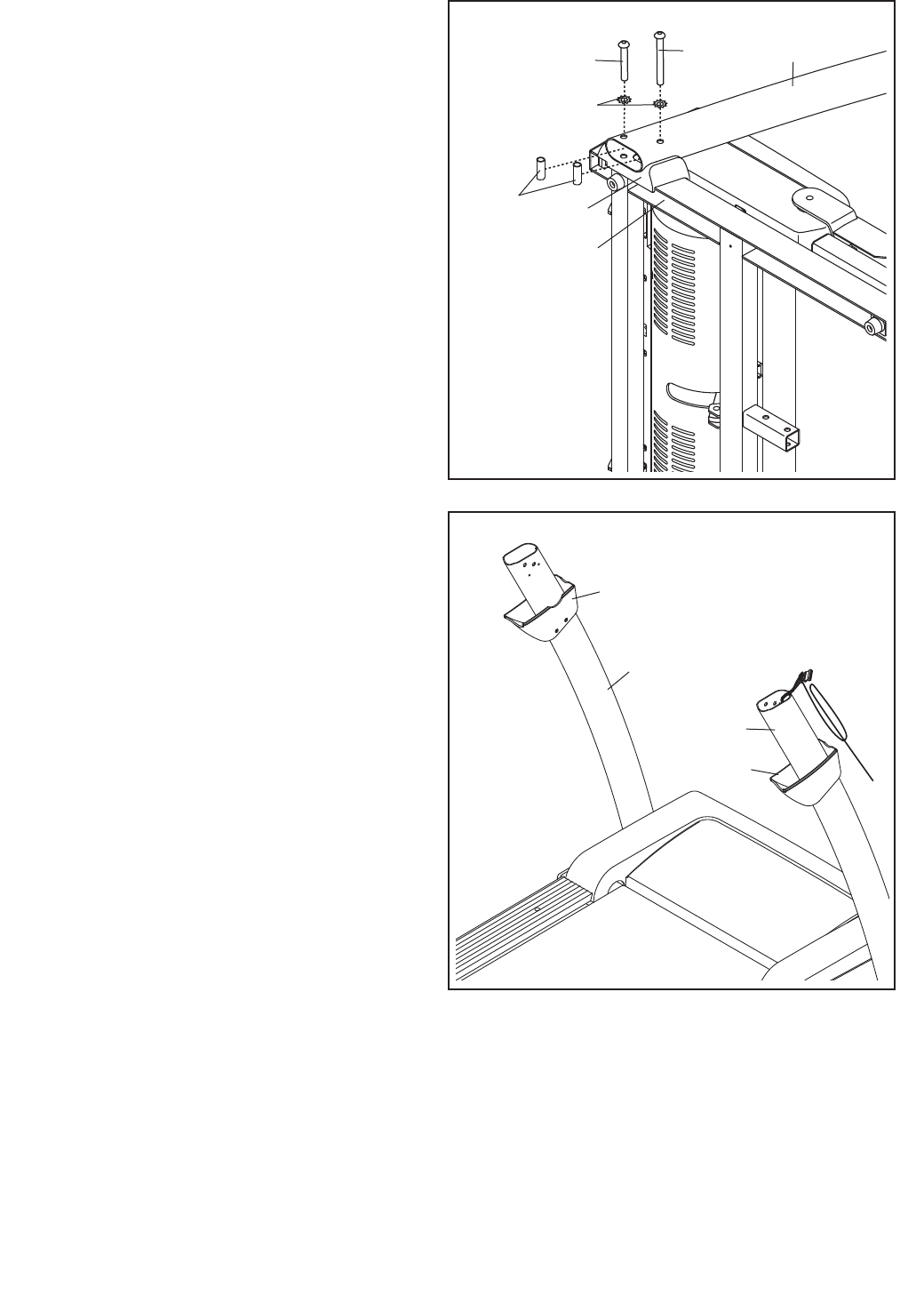

Attach two Base Feet (92) to the Base (95) in

the locations shown with two M4.2 x 25mm Tek

Screws (3) and two Base Foot Spacers (94).

Attach the other two Base Feet (92) with only

two M4.2 x 25mm Tek Screws (3).

95 3

92 3

1. Make sure that the power cord is unplugged.

Remove the M10 Nut (19), the M10 x 50mm

Bolt (31), and the shipping bracket (A) from the

Base (95). Remove the shipping bracket from

the other side of the treadmill. Discard the ship-

ping brackets. Save the Nuts and the Bolts for

steps 3 and 6.

Hole

3. Attach a Wheel (97) with the M10 Nut (19), and

the M10 x 50mm Bolt (31) that you removed in

step 1. Do not overtighten the Nut; the Wheel

must turn freely.

Press a Base Cap (87) into the Base (95).

4. Identify the Right Upright (89) and the Right

Upright Spacer (91), which are marked with

“Right” stickers.

Insert the Upright Wire (88) through the Right

Upright Spacer (91) as shown. Then, set the

Right Upright Spacer on the Base (95).

With the help of a second person, hold the Right

Upright (89) near the Base (95). See the inset

drawing. Tie the long tie in the Right Upright

securely around the end of the Upright Wire

(88). Then, pull the other end of the long tie until

the Upright Wire is routed through the Right

Upright.

Long

Tie

Long

Tie

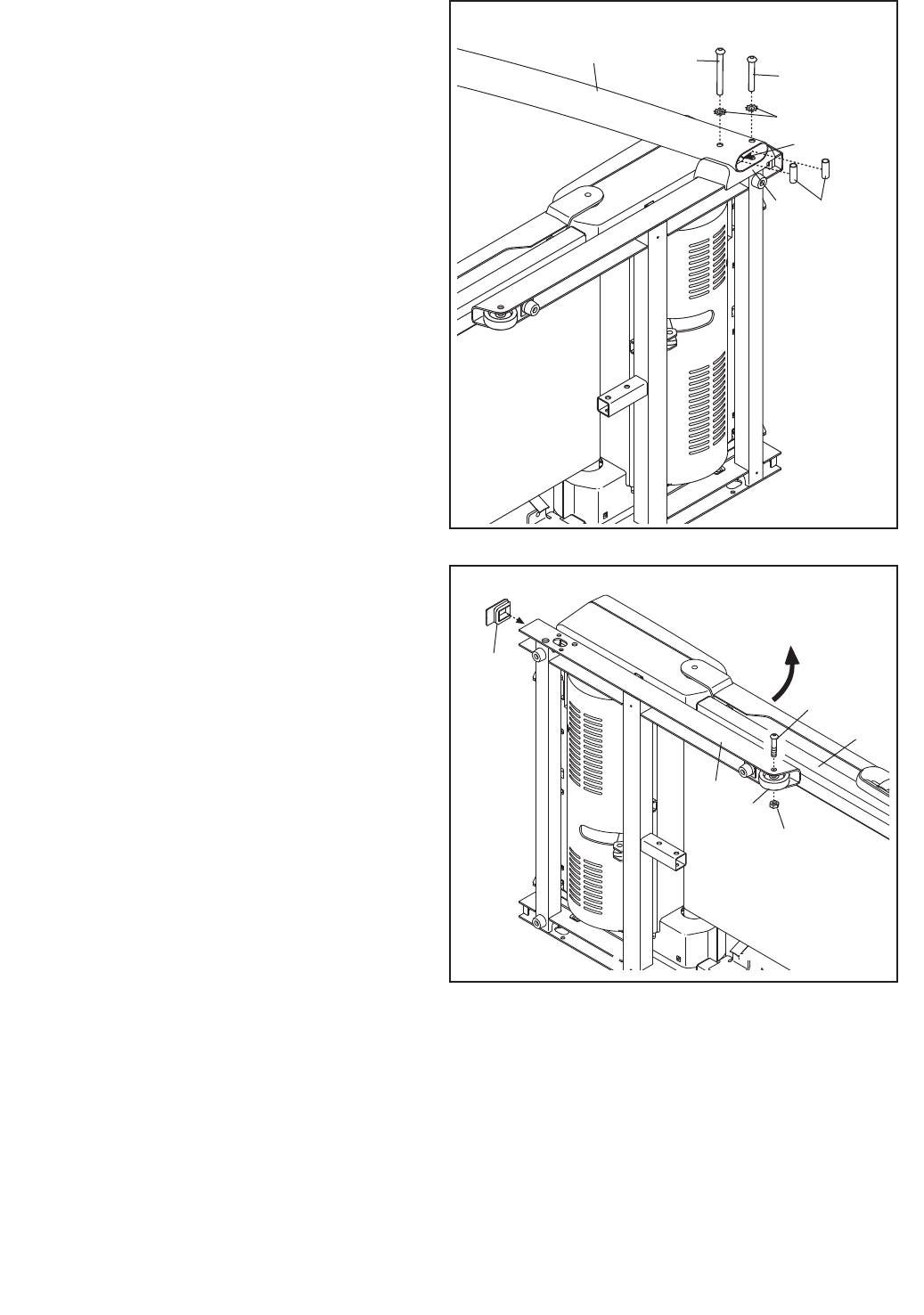

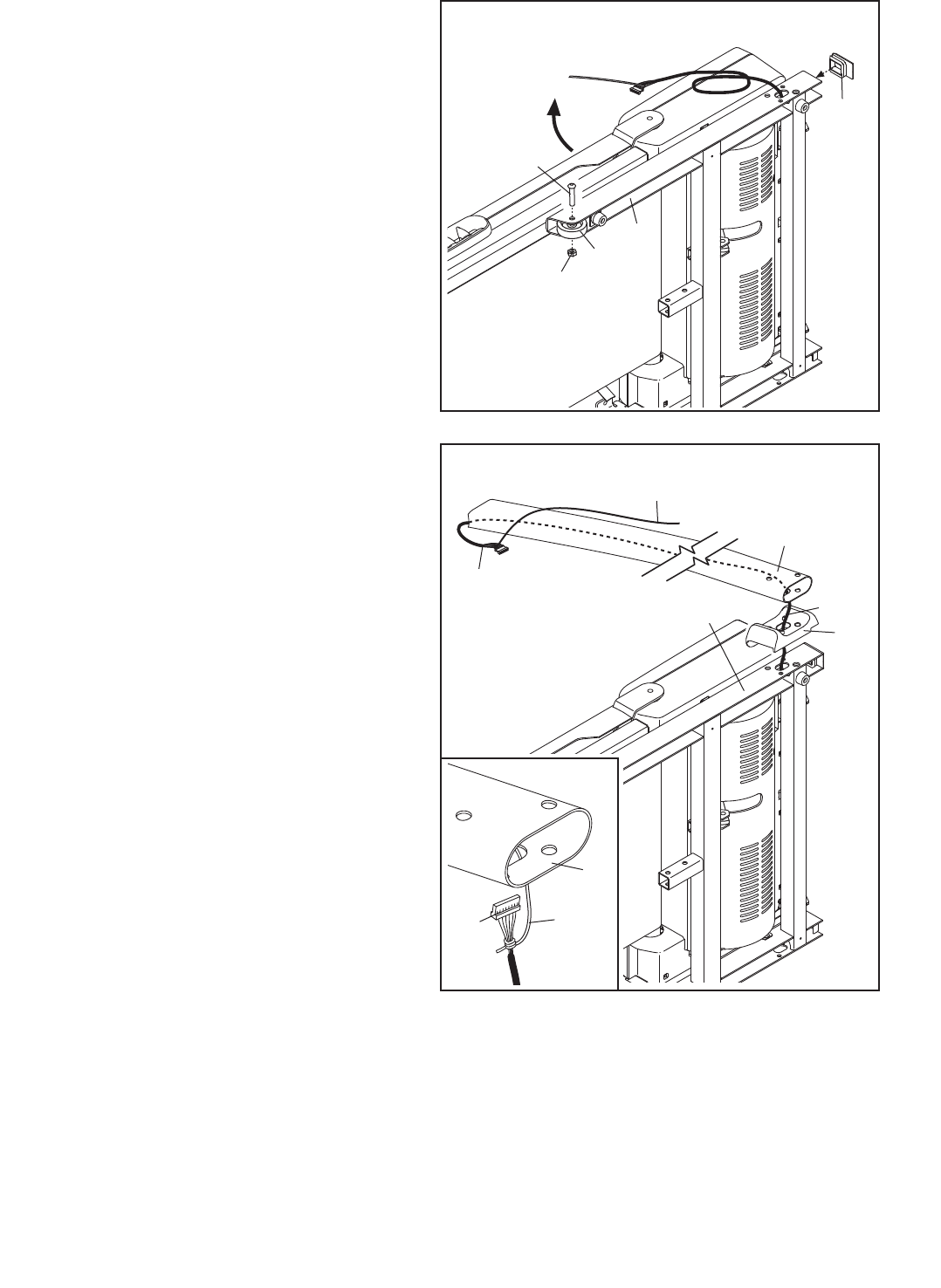

6. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (56) so that the treadmill is more stable;

do not fully fold the Frame yet.

Attach a Wheel (97) with the M10 Nut (19), and

the M10 x 50mm Bolt (31) that you removed in

step 1. Do not overtighten the Nut; the Wheel

must turn freely.

Press a Base Cap (87) into the Base (95).

5. Hold a Bolt Spacer (90) inside the lower end of

the Right Upright (89). Insert an M10 x 95mm

Patch Bolt (8) with an M10 Star Washer (9) into

the Right Upright and the Bolt Spacer. Repeat

this step with a second Bolt Spacer (90), an

M10 x 68mm Patch Bolt (114), and an M10

Star Washer (9).

Hold the Right Upright (89) against the Right

Upright Spacer (91). Be careful not to pinch

the Upright Wire (88). Tighten the M10 x 95mm

Patch Bolt (8) and the M10 x 68mm Patch Bolt

(114) until the heads of the Patch Bolts touch the

Right Upright; do not fully tighten the Patch

Bolts yet.

114

7. With the help of a second person, hold a Bolt

Spacer (90) inside the lower end of the Left

Upright (85). Insert an M10 x 95mm Patch Bolt (8)

with an M10 Star Washer (9) into the Left Upright

and the Bolt Spacer. Repeat this step with a

second Bolt Spacer (90), an M10 x 68mm Patch

Bolt (114), and an M10 Star Washer (9).

Hold the Left Upright Spacer (86) and the Left

Upright (85) against the Base (95). Tighten the

M10 x 95mm Patch Bolt (8) and the M10 x 68mm

Patch Bolt (114) until the heads of the Patch Bolts

touch the Left Upright; do not fully tighten the

Patch Bolts yet.

With the help of a second person, tip the treadmill

so that the Base (95) is flat on the floor.

114 8

8. Identify the Left and Right Upright Covers (109,

110) which are marked with “Left” and “Right”

stickers. Slide the Left Upright Cover onto the

Left Upright (85) as shown. Slide the Right

Upright Cover onto the Right Upright (89) as

shown.

109

110

104

111 Console Assembly

116

106

10. Identify the Right Handrail (101) which is marked

with a “Right” sticker. Remove the tie from the

Right Handrail. If necessary, press the M8 Cage

Nut (34) back into place.

Hold the Right Handrail (101) near the console

assembly. Route the console wire around the

side of the Right Handrail as shown, and through

the slot in the Right Handrail.

If necessary, adjust the Console Frame (111) to

align the holes in the Right Handrail (101) with

the holes in the Console Frame.

Attach the Right Handrail (101) to the Console

Frame (111) and the console assembly with

two M8 x 25mm Patch Bolts (5), two M8 Star

Washers (10), an M5 x 16mm Bolt (108), and a

1/4" Star Washer (73). Make sure the console

wire is not pinched. Start all three Bolts, and

then tighten all of them.

Attach the Left Handrail (not shown) as

described above. Note: There is not a wire on

the left side.

Tighten the #8 x 1" Screws (107). Be careful not

to overtighten the Screws.

101

108 5

111

Slot

Tie

Console

Wire

Console

Assembly

9. Set the console assembly face down on a soft

surface to avoid scratching the console.

Loosen the four #8 x 1" Screws (107). Carefully

pivot the Console Frame (111) to the position

shown. Do not pivot the Console Frame too

far or you will break the ground wire.

Identify the Left and Right Accessory Trays (104,

106). Attach the Accessory Trays to the console

assembly with eight M4 x 13mm Screws (116).

Carefully pivot the Console Frame (111) back

down to the console assembly.

107

12. Start an M8 x 25mm Patch Bolt (5) and two

5/16" x 5/8" Patch Bolts (113) with two M8 Star

Washers (10) into the Right Upright (89) and

Right Handrail (101) as shown. Do not tighten

the Patch Bolts yet.

Attach the Left Handrail (not shown) as

described above. Then, firmly tighten all six

Patch Bolts.

113

101

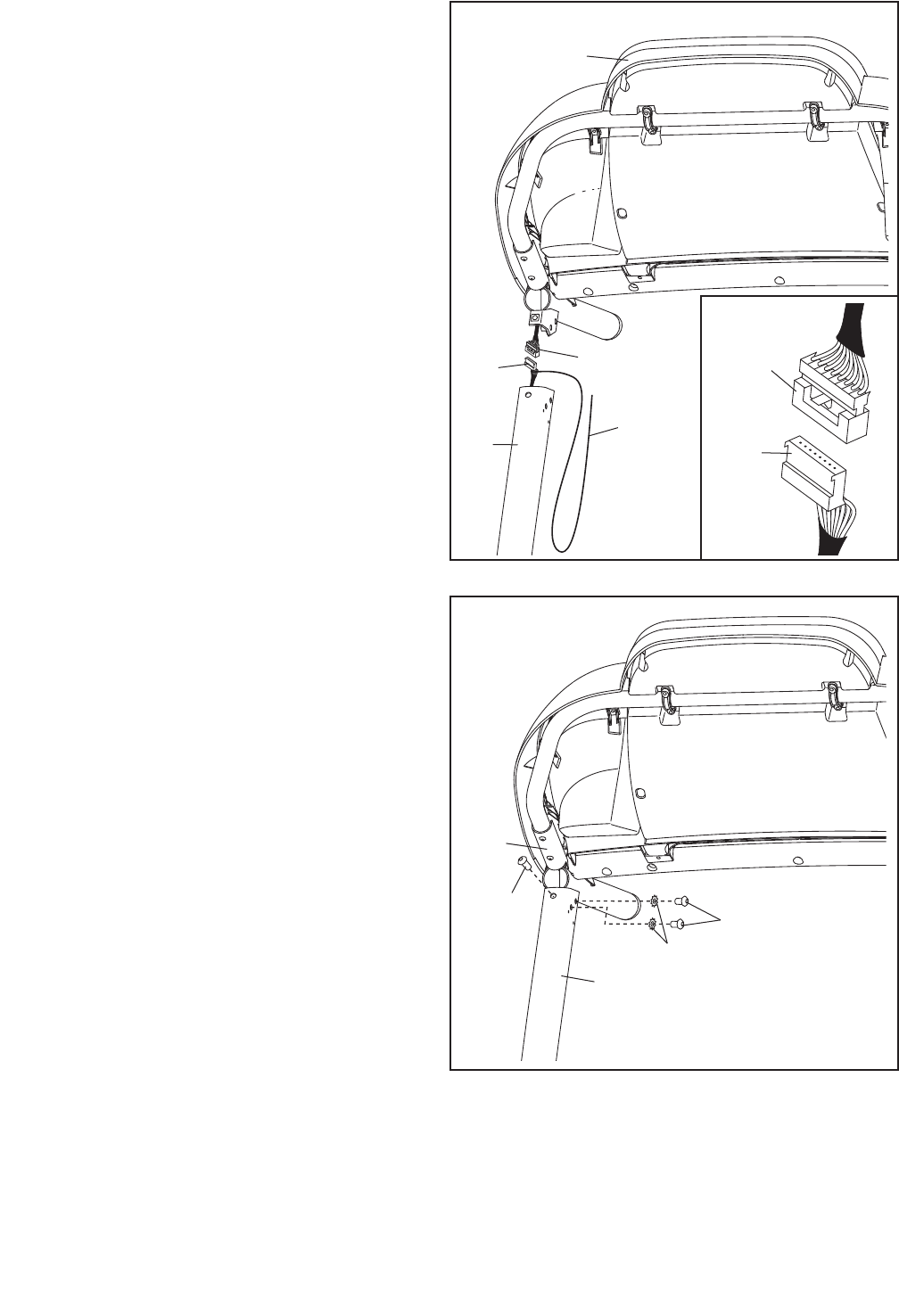

11. Have a second person hold the console assembly

near the Right Upright (89).

Connect the Upright Wire (88) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Remove the long tie from the

Upright Wire. Then, insert the connectors into the

Right Upright (89).

Set the console assembly on the Right Upright

(89) and the Left Upright (not shown). Make sure

that no wires are pinched.

Console

Assembly

Console Wire

Long

Tie

Console

Wire

15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.

Keep the included hex keys in a secure place; one of the hex keys is used to adjust the walking belt (see

pages 26 and 27).

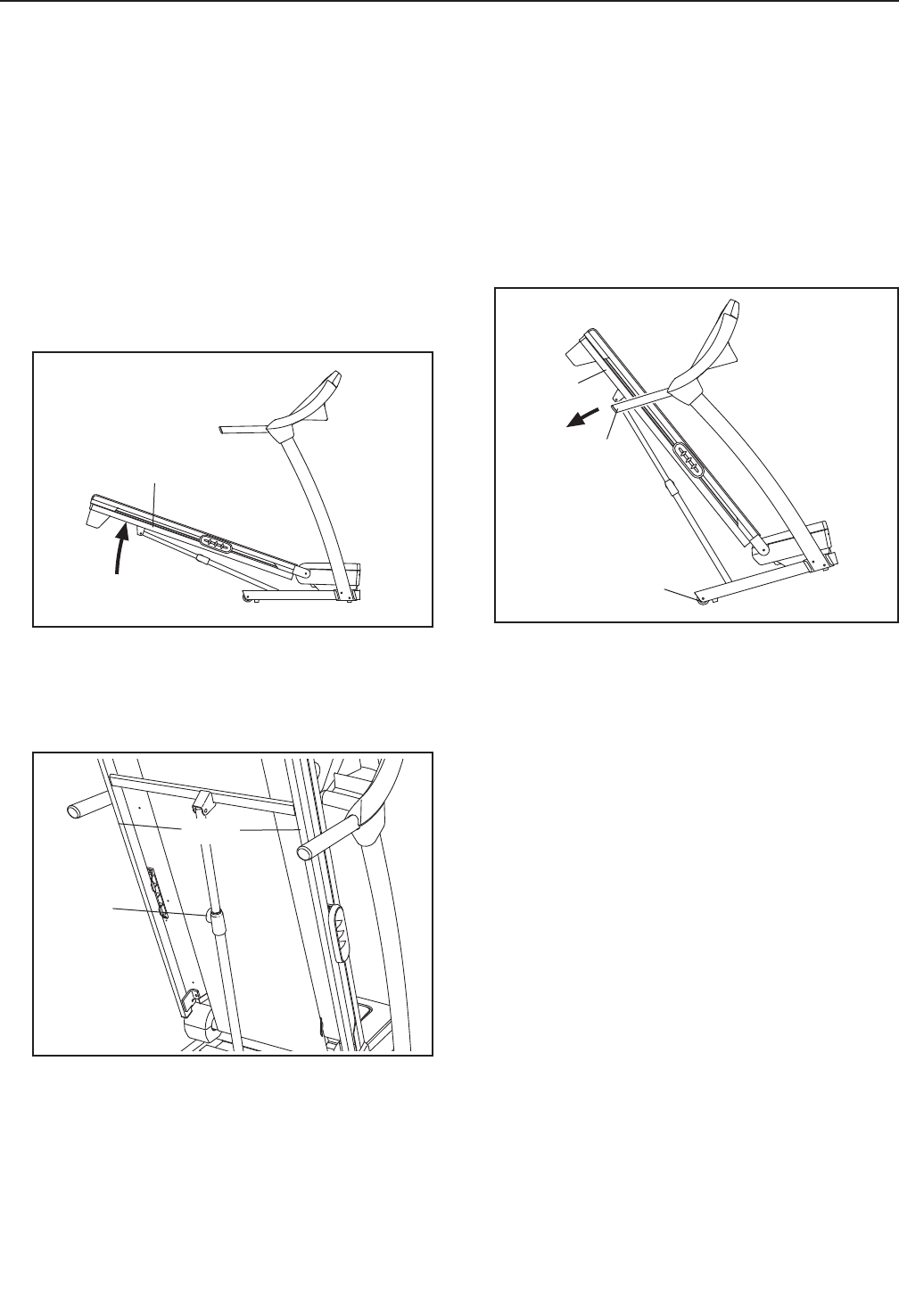

14. Raise the Frame (56) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (60) so that the large

barrel and the latch knob are in the positions

shown.

Attach the upper end of the Storage Latch (60)

to the Frame (56) with a 3/8" x 1 3/4" Patch Bolt

(7) and a 3/8" Locknut (6).

Attach the lower end of the Storage Latch (60)

to the Base (95) with two 3/8" x 2" Bolts (37) and

two 3/8" Locknuts (6). Note: It may be necessary

to move the Frame (56) back and forth to align

the Storage Latch with the Base.

Lower the Frame (56) (see HOW TO LOWER

THE TREADMILL FOR USE on page 24).

13. Slide the Right Upright Cover (110) up against

the Right Handrail (101). Attach the Right Upright

Cover with two M4 x 16mm Screws (124). Be

careful not to overtighten the Screws.

Attach the Left Upright Cover (not shown) as

described above.

See steps 5 and 7. Tighten the two M10 x

95mm Patch Bolts (8) and the two M10 x 68mm

Patch Bolts (114).

124

110

101

Large

Barrel

Latch

Knob

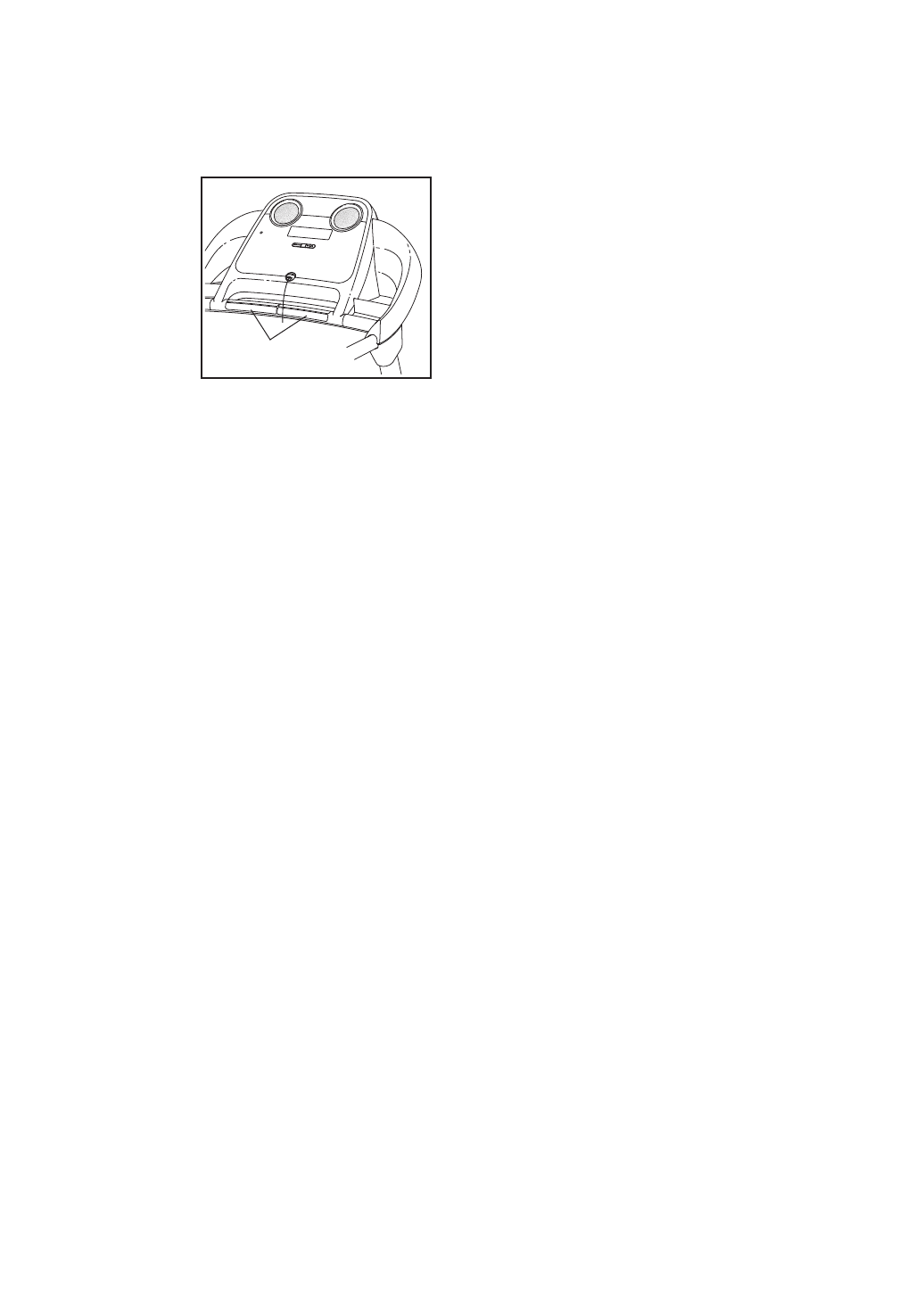

1. Make sure that the power cord is unplugged.

Remove the five M4 x 19mm Screws (35) and

the two M4 x 45mm Screws (2) from the back of

the console assembly.

2. Carefully lift the console assembly off of the

Console Base (103). Locate the Pulse Wire (A)

on the console assembly.

3. Connect the wire on the Receiver (B) to the

Pulse Wire (A).

Peel the paper backing off the pad on the bot-

tom of the Receiver (B) and off the console pad.

Next, hold the Receiver so that the antenna

is oriented as shown. Press the Receiver onto

the console pad.

Remove the Wire Holder (C). Place the wire on

the Receiver (B) between the two plastic pins

and press the Wire Holder back on.

4. See step 1. Reattach the console assembly.

Make sure that no wires are pinched. Discard

the other wires included with the receiver.

If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the

receiver included with the chest pulse sensor.

Wire

Antenna

103

Pad

Console

Assembly

Console

Pad

35 35 35

Console

Assembly

Console

Assembly

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant. IMPORTANT: Never apply

silicone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

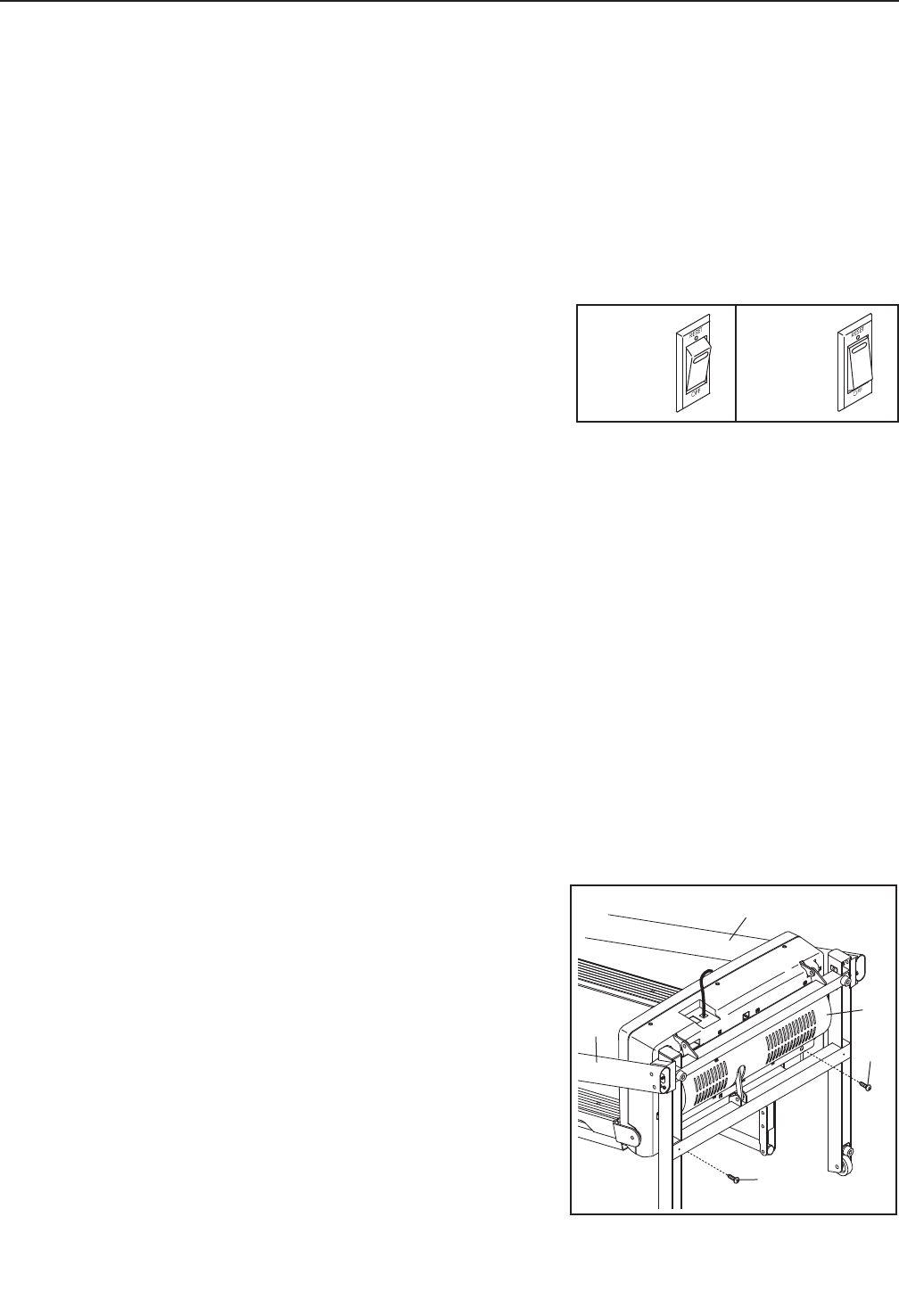

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunc-

tion or break down, earthing provides a path of least

resistance for electric current to reduce the risk of

electric shock. This product is equipped with a power

cord having an equipment-earthing conductor and

an earthing plug. IMPORTANT: If the power cord is

damaged, it must be replaced with a manufacturer-

recommended power cord.

Follow the steps below to plug in the power cord.

1. Plug the indicated end of the power cord into the

socket on the treadmill.

2. Plug the power cord into an appropriate outlet that

is properly installed and earthed in accordance with

all local codes and ordinances.

DANGER: Improper connection of

the equipment-earthing conductor can result

in an increased risk of electric shock. Check

with a qualied electrician or serviceman if

you are in doubt as to whether the product

is properly earthed. Do not modify the plug

provided with the product—if it will not t

the outlet, have a proper outlet installed by a

qualied electrician.

OPERATION AND ADJUSTMENT

FR/SP

Socket on Treadmill

FR/SP

UKR

FR/

SP/

PL/

AUS

TYPE E

TYPE F

Outlet

UK Australia

Outlet

Power Cord

ETPE69910

(PETL69910

FEATURES OF THE CONSOLE

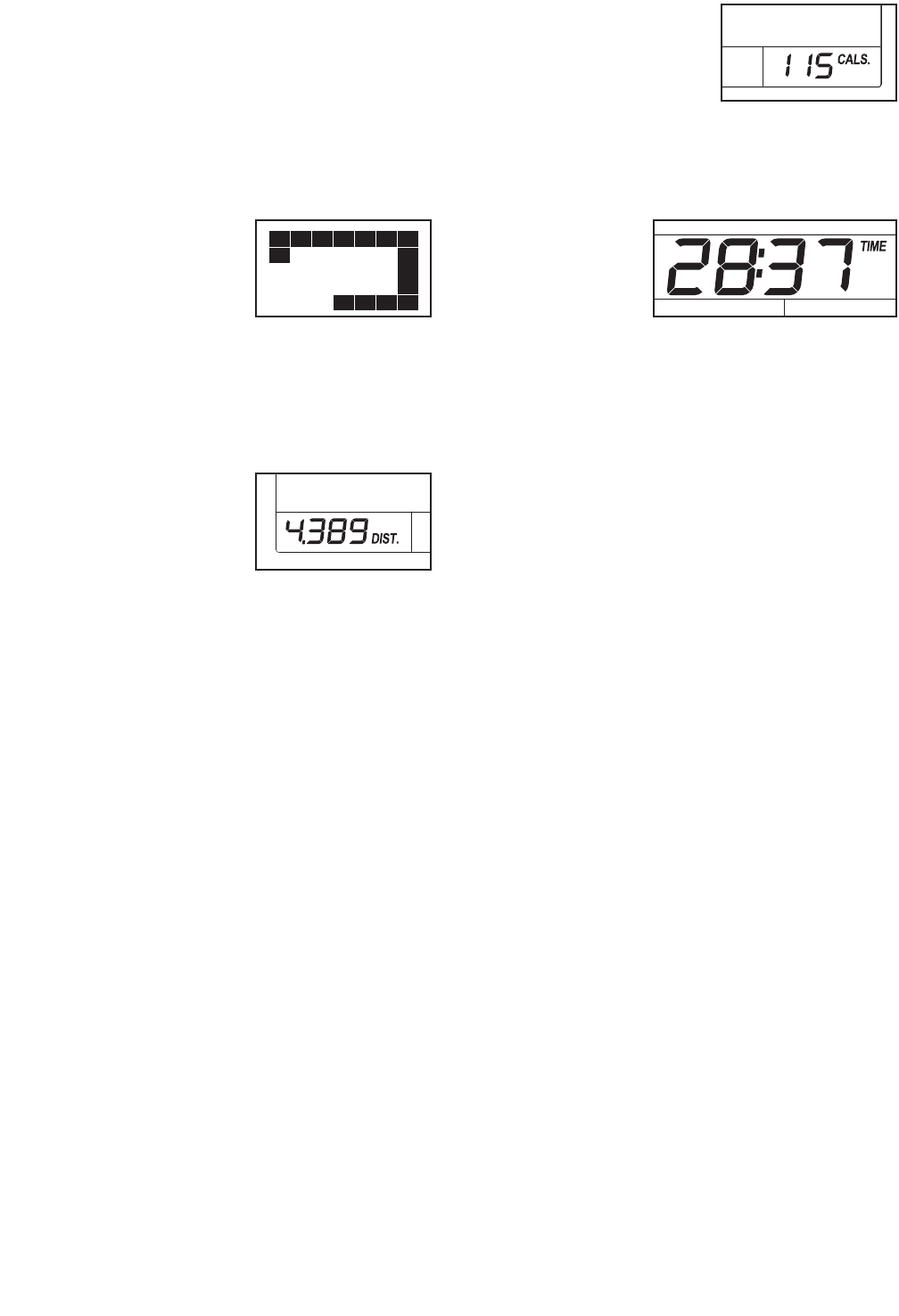

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable. When you use the manual mode,

you can change the speed and incline of the treadmill

with the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip pulse sen-

sor or the optional chest pulse sensor (see page 23).

In addition, the console features six calorie workouts

and six performance workouts. Each workout automati-

cally controls the speed and incline of the treadmill as it

guides you through an effective exercise session.

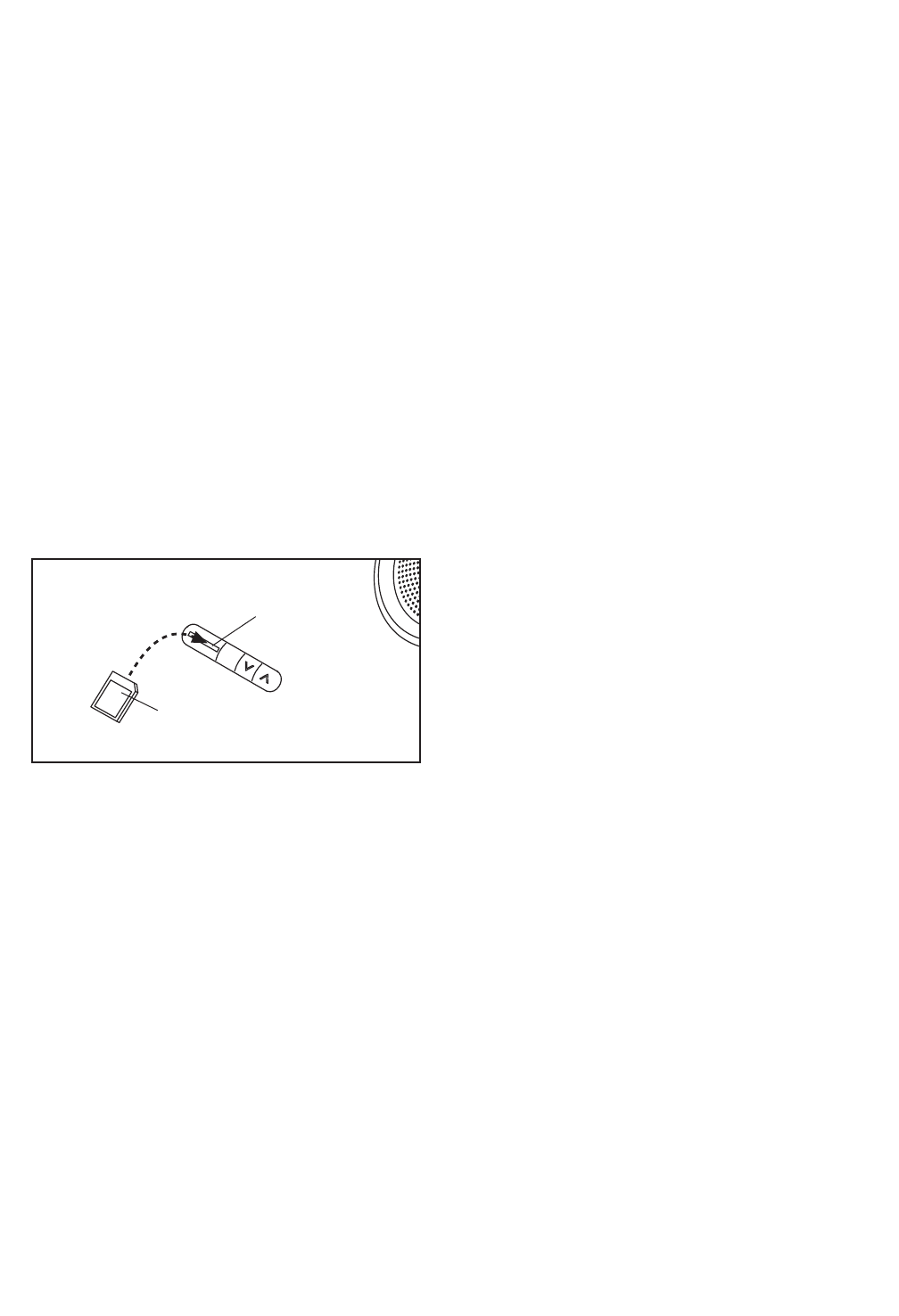

The console also features the iFit interactive work-

out system. The iFit system accepts iFit cards with

workouts that help you achieve specific fitness goals.

For example, lose unwanted pounds with the 8-week

Weight Loss workout. iFit workouts automatically con-

trol the treadmill. iFit cards are available separately. To

purchase iFit cards at any time, go to www.iFit.com

or call the telephone number on the front cover of

this manual.

You can even listen to your favorite workout music or

audio books with the console’s stereo sound system

while you exercise.

To turn on the power, see page 17. To use the

manual mode, see page 17. To use a calorie work-

out, see page 20. To use a performance workout,

see page 21. To use an iFit workout, see page 22. To

use the information mode, see page 23. To use the

stereo sound system, see page 23.

Note: The console can display either English or metric

measurements. To find out which unit of measurement

is selected or to change the unit of measurement, see

THE INFORMATION MODE on page 23. Note: For

simplicity, all instructions in this section refer to metric

measurements.

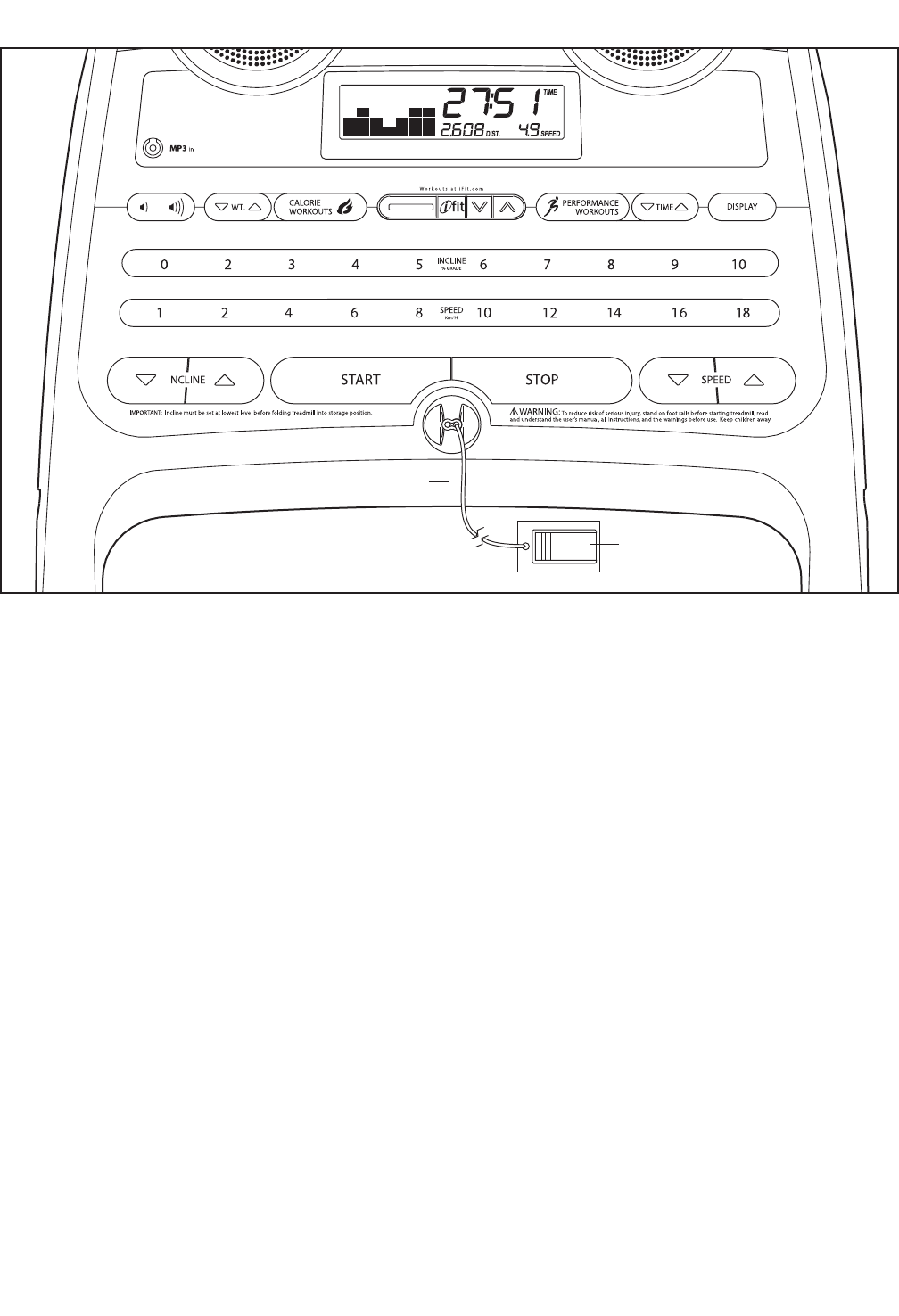

Key

Clip

CONSOLE DIAGRAM

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

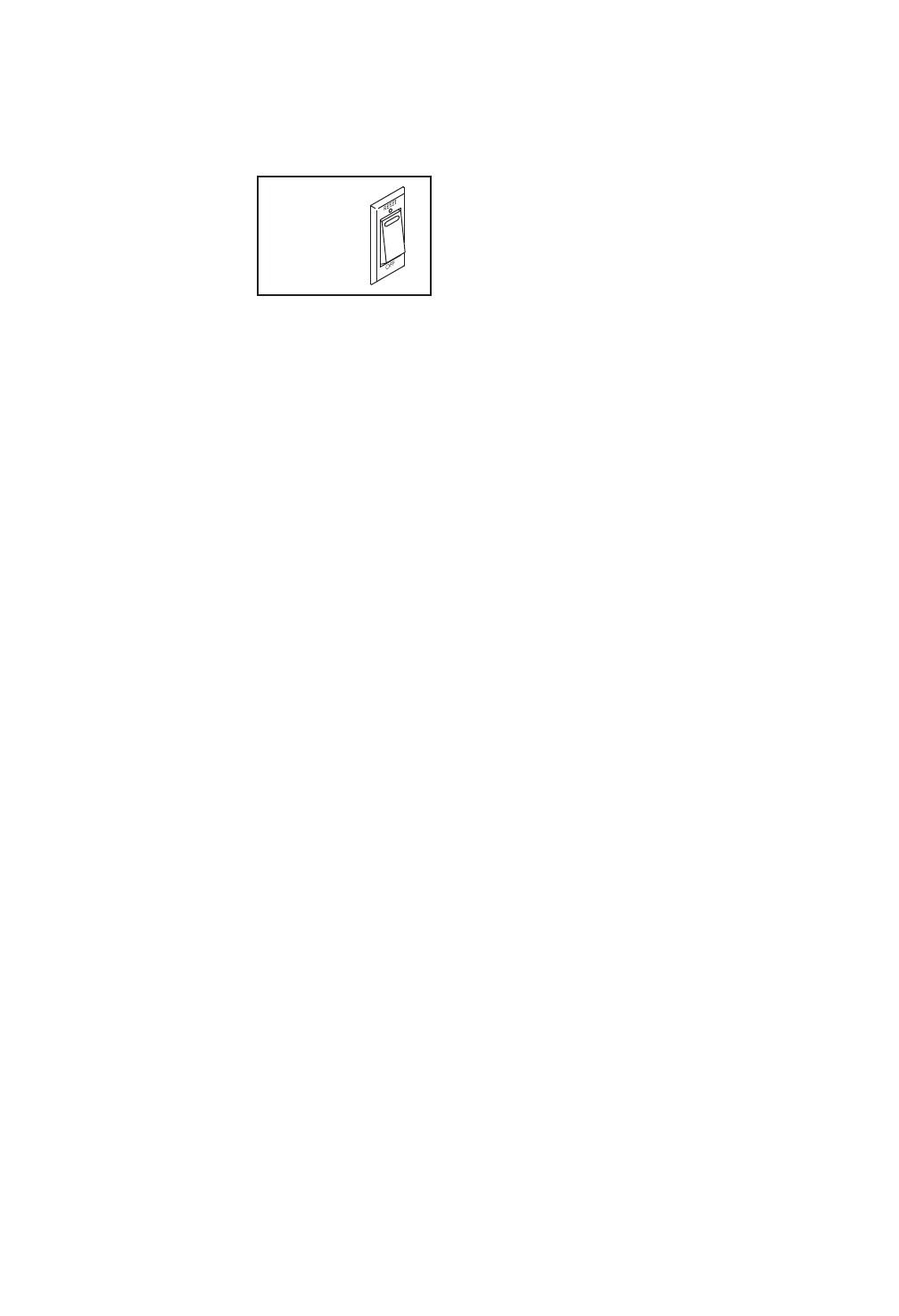

Plug in the power cord (see

page 15). Next, locate the

power switch on the tread-

mill frame near the power

cord. Press the power

switch into the reset

position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

23 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the

clip attached to the key (see the drawing on page 16)

and slide the clip onto the waistband of your clothes.

Then, insert the key into the console. After a moment,

the displays will light. IMPORTANT: In an emergency,

the key can be pulled from the console, causing

the walking belt to slow to a stop. Test the clip by

carefully taking a few steps backward; if the key is

not pulled from the console, adjust the position of

the clip.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 27).

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the key is inserted, the manual mode will be

selected. If a preset workout has been selected,

remove the key and then reinsert it.

3. Enter your weight if desired.

For the most accurate calorie count, enter your

weight into the console by pressing the Wt.

increase and decrease buttons repeatedly. Note:

Once you have entered your weight, your weight

will be saved in memory.

4. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the Speed buttons

numbered 1 through 18.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 2

Km/H. As you exercise, change the speed of the

walking belt as desired by pressing the Speed

increase and decrease buttons. Each time you

press one of the buttons, the speed setting will

change by 0.1 Km/H; if you hold down the button,

the speed setting will change in increments of 0.5

Km/H. Note: After you press the button, it may take

a moment for the walking belt to reach the selected

speed setting.

If you press one of the numbered Speed buttons,

the walking belt will gradually change speed until it

reaches the selected speed setting.

To stop the walking belt, press the Stop button. The

time will begin to ash in the display. To restart the

walking belt, press the Start button or the Speed

increase button.

Reset

5. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

numbered Incline buttons. Each time you press one

of the buttons, the treadmill will gradually adjust to

the selected incline setting.

6. Follow your progress with the displays.

The track—When

the manual mode is

selected, a track repre-

senting 400 meters will

appear in the display. As

you walk or run on the

treadmill, the indicators

around the track will appear in succession until the

entire track appears. The track will then disappear

and the indicators will again begin to appear in

succession.

The lower left dis-

play—As you exercise,

the lower left display

can show the elapsed

time and the distance

that you have walked

or run. The lower left display will also show the

incline of the treadmill each time the incline level

changes. Note: When a performance workout or an

iFit workout is selected, the lower left display will

show the time remaining in the workout instead of

the elapsed time.

The lower right dis-

play—The lower right

display can show the

approximate number of

calories that you have

burned and the speed of

the walking belt. The display also shows your heart

rate when you use the handgrip pulse sensor (see

step 7).

The upper

display—The

upper display

can show the

elapsed time,

the distance

that you have

walked or run, the approximate number of calories

that you have burned, or the speed of the walking

belt. Press the Display button repeatedly until the

upper display shows the information that you are

most interested in viewing. Note: While information

is shown in the upper display, the same information

will not be shown in the lower displays.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

7. Measure your heart rate if desired.

Note: If you use the handgrip pulse sensor and

the optional chest pulse sensor at the same

time, the console will not display your heart

rate accurately. For information on the optional

chest pulse sensor, see page 23.

Before using the

handgrip pulse

sensor, remove

the sheets of

plastic from the

metal contacts

on the pulse bar.

In addition, make

sure that your

hands are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on

the metal contacts for approximately ten seconds;

avoid moving your hands. When your pulse is

detected, a heart symbol in the lower right display

will ash each time your heart beats, one or two

dashes will appear, and then your heart rate will be

shown. For the most accurate heart rate read-

ing, continue to hold the contacts for about 15

seconds.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

HOW TO USE A CALORIE WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Select a calorie workout.

To select a calorie workout, press the Calorie

Workouts button repeatedly until the desired work-

out appears in the display.

When you select a calorie workout, the maximum

incline level of the workout will ash in the lower left

display, the maximum speed setting will ash in the

lower right display, and the approximate number of

calories you will burn will ash in the upper display.

In addition, a prole of the speed settings of the

workout will scroll across the display.

3. Enter your weight if desired.

For the most accurate calorie count, enter your

weight into the console by pressing the Wt.

increase and decrease buttons repeatedly. Note:

Once you have entered your weight, your weight

will be saved in memory.

4. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are pro-

grammed for each segment. Note: The same speed

setting and/or incline setting may be programmed

for consecutive segments.

During the workout, the prole will show your prog-

ress. The ashing segment of the prole represents

the current segment of the workout. The height of

the ashing segment in-

dicates the speed setting

for the current segment.

At the end of each seg-

ment, a series of tones

will sound. If a different

speed and/or incline set-

ting is programmed for

the next segment, the speed and/or incline setting

will ash in the display to alert you and the treadmill

will automatically adjust to the new speed and/or

incline setting.

When the workout ends, the walking belt will slow

to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but-

ton or the Speed increase button. The walking belt

will begin to move at 2 Km/H. When the next seg-

ment of the workout begins, the treadmill will auto-

matically adjust to the speed and incline settings for

the next segment.

5. Follow your progress with the displays.

See step 6 on page 18.

6. Measure your heart rate if desired.

See step 7 on page 19.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

Current Segment

HOW TO USE A PERFORMANCE WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Select a performance workout.

To select a performance workout, press the

Performance Workouts button repeatedly until the

desired workout appears in the display.

When you select a performance workout, the work-

out number will appear in the upper display, the

maximum incline level of the workout will ash in

the lower left display, the maximum speed setting

will ash in the lower right display, and then the

workout duration will appear in the upper display. In

addition, a prole of the speed settings of the work-

out will scroll across the display.

3. Enter your weight if desired.

For the most accurate calorie count, enter your

weight into the console by pressing the Wt.

increase and decrease buttons repeatedly. Note:

Once you have entered your weight, your weight

will be saved in memory.

4. Select the duration of the workout if desired.

If you have selected a performance workout, you

can set the duration of the workout to a time be-

tween 15 and 45 minutes, in increments of 5 min-

utes. To set the duration of the workout press the

Time increase or decrease button until the desired

time is selected.

5. Start the workout.

See step 4 on page 20.

6. Follow your progress with the displays.

See step 6 on page 18.

7. Measure your heart rate if desired.

See step 7 on page 19.

8. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

HOW TO USE AN IFIT WORKOUT

To purchase iFit cards, go to www.iFit.com or call the

telephone number on the front cover of this manual.

iFit cards are also available at select stores.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Insert an iFit card and select a workout.

To use an iFit workout, insert an iFit card into the

iFit slot; make sure that the iFit card is oriented so

the metal contacts are face-down and are inserted

into the iFit slot.

Next, select an iFit workout by pressing the iFit in-

crease or decrease button. When an iFit workout is

selected, the maximum incline level of the workout

will ash in the lower left display, the maximum

speed setting will appear in the lower right display,

and then the workout duration will appear in the

lower left display. In addition, a prole of the speed

settings of the workout will scroll across the display.

Each iFit workout is divided into several one-minute

segments. One speed setting and one incline set-

ting are programmed for each segment. Note: The

same speed setting and/or incline setting may be

programmed for consecutive segments.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

During the workout, the voice of a personal trainer

will guide you through the workout. The iFit workout

will function in the same way as a calorie workout

(see step 4 on page 20).

If the speed or incline setting for the current seg-

ment is too high or too low, you can override the

setting by pressing the Speed or Incline buttons;

however, when the next segment begins, the

treadmill will automatically adjust to the speed

and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start but-

ton. The walking belt will begin to move at 2 Km/H.

When the next segment of the workout begins, the

treadmill will automatically adjust to the speed and

incline settings for the next segment.

4. Follow your progress with the displays.

See step 6 on page 18.

5. Measure your heart rate if desired.

See step 7 on page 19.

6. When you are nished exercising, remove the

key from the console.

See step 8 on page 19.

CAUTION: Always remove iFit cards from the

iFit slot when you are not using them.

iFit Slot

iFit Card

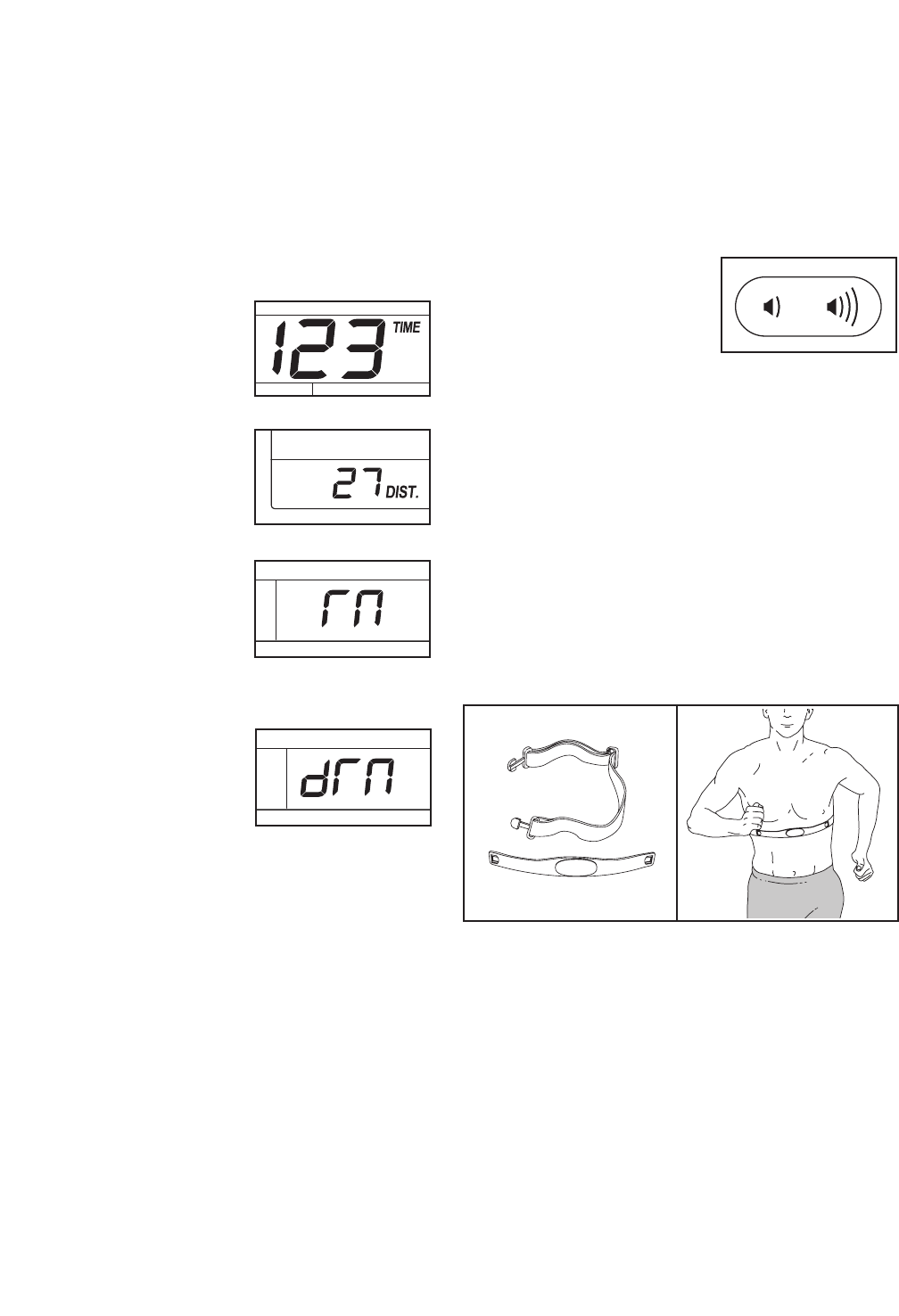

THE INFORMATION MODE

The console features an information mode that keeps

track of the total distance that the walking belt has

moved and the total number of hours that the treadmill

has been used. The information mode also allows you

to select metric or English units of measurement, and

to turn on and turn off the display demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console and then

release the Stop button. When the information mode is

selected, the following information will be shown:

The upper display will show

the total number of hours

the treadmill has been

used.

The lower left display will

show the total number of

kilometers (or miles) that

the walking belt has

moved.

An M for metric kilometers

and kilograms or an E for

English miles and pounds

will appear in the lower right

display. Press the Speed

increase button to change

the unit of measurement if desired.

The console features a dis-

play demo mode, designed

to be used if the treadmill is

displayed in a store. While

the demo mode is turned

on, the console will func-

tion normally when you plug in the power cord, press

the power switch into the reset position, and insert the

key into the console. However, when you remove the

key, the displays will remain lit, although the buttons

will not function. If the demo mode is turned on, a “d”

will appear in the lower right display while the informa-

tion mode is selected. To turn on or turn off the demo

mode, press the Speed decrease button.

To exit the information mode, remove the key from the

console.

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio books through the console’s

stereo speakers, you must connect your MP3 player,

CD player, or other personal audio player to the con-

sole through the MP3 jack.

Plug one end of your audio wire into the audio jack

on the console. Plug the other end into a jack on your

MP3 player, CD player, or other personal audio player.

Make sure that your audio wire is fully plugged in.

Next, press the Play button

on your MP3 player, CD

player, or other personal

audio player. Adjust the vol-

ume on your personal audio

player or press the volume

increase and decrease buttons on the console.

If you are using a personal CD player and the CD

skips, set the CD player on the oor or another at sur-

face instead of on the console.

THE OPTIONAL CHEST PULSE SENSOR

An optional chest pulse sensor offers hands-free

operation as it tracks your heart rate during your work-

outs. To purchase the optional chest pulse sensor,

call the telephone number on the front cover of this

manual.

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill

with your right hand. Pull the latch knob to the left;

if necessary, push the frame forward slightly. Pivot

the frame downward a few inches, and release the

latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Handrail

Frame

Wheel

Frame

Latch

Knob

Frame

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please see the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet (see page 15). If an

extension cord is needed, use only a 3-conductor, 14-gauge (1 mm2) cord that is no longer than 5

ft. (1.5 m).

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes as

shown, the switch has tripped. To reset the switch,

wait for ve minutes and then press the switch back

in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for ve minutes

and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for ve

minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, please see the front cover of this manual.

PROBLEM: The console displays remain lit when you remove the key from the console

SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a

store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 23 to turn off the demo mode.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Press the Incline buttons and adjust the incline level

of the treadmill to 5 percent.

Remove the key from the console and UNPLUG

THE POWER CORD. With the help of a second

person, carefully tip down the Uprights (85, 89).

There may be two Belly Pan Screws (A) in the bot-

tom of the Belly Pan (84). If there are, remove them.

Note: A Phillips screwdriver with a shaft at least 5

in. (13 cm) long is required.

Then, raise the Uprights (85, 89).

ResetTripped

TROUBLESHOOTING

Remove the three M4.2 x 19mm Hood Screws (12)

and carefully pivot the Motor Hood (67) off.

Locate the Reed Switch (70) and the Magnet (51)

on the left side of the Pulley (53). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and

the Reed Switch is about 1/8 in. (3 mm). If neces-

sary, loosen the M4.2 x 19mm Screw (1), move the

Reed Switch slightly, and then retighten the Screw.

Reattach the Motor Hood (not shown). Reattach the

two Belly Pan Screws (not shown), if necessary.

Run the treadmill for a few minutes to check for a

correct speed reading.

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing,

remove the key. After a few seconds, reinsert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm2) cord that is no longer

than 5 ft. (1.5 m).

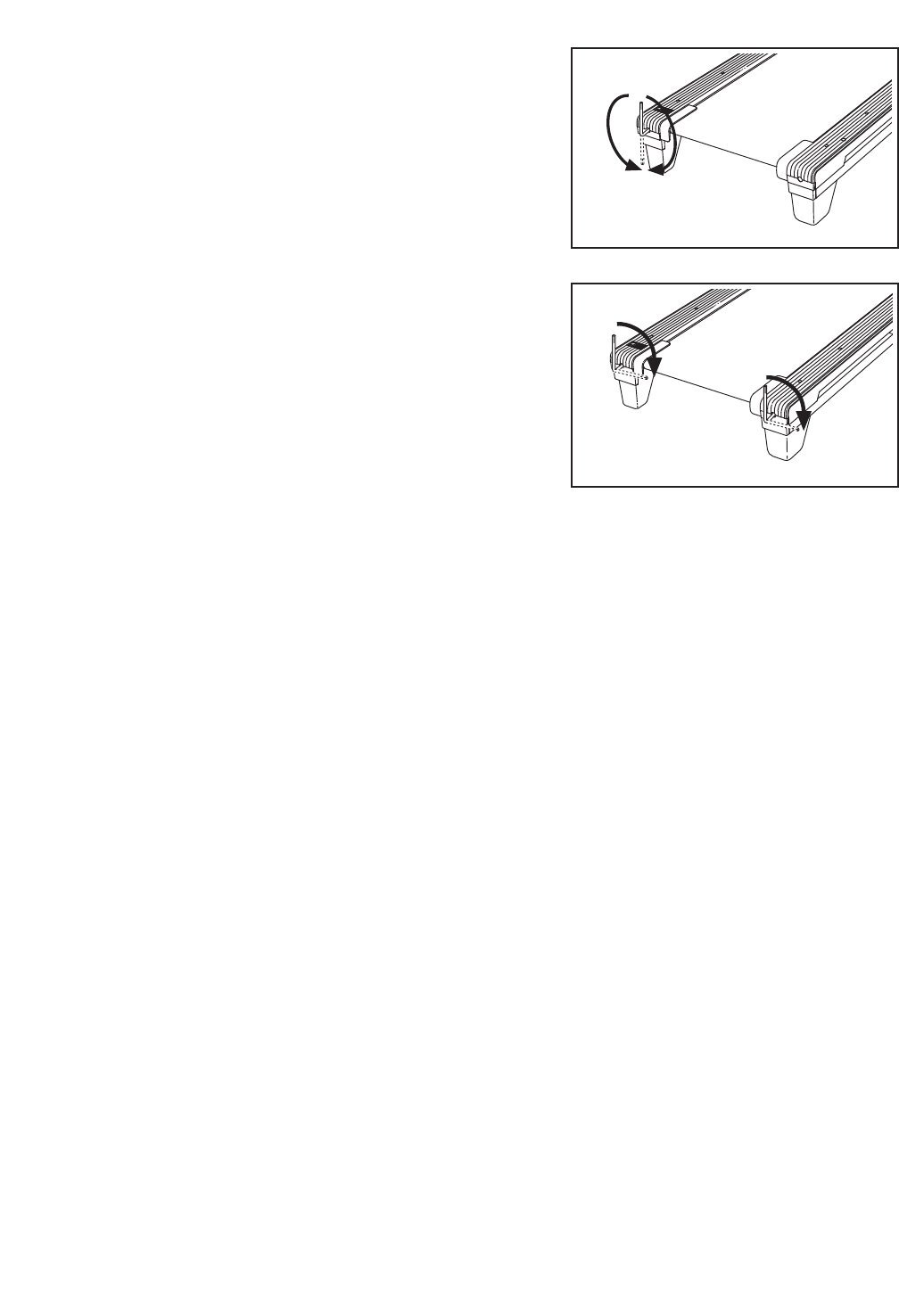

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller bolts counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

c. If the walking belt still slows when walked on, see the front cover of this manual.

Idler Roller Bolts

2–3 in.

Top

View

1/8 in.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, rst remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller bolt clockwise 1/2 of a

turn; if the walking belt has shifted to the right,

turn the bolt counterclockwise 1/2 of a turn. Be

careful not to overtighten the walking belt. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walking

belt is centered.

b. If the walking belt slips when walked on, rst

remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

bolts clockwise, 1/4 of a turn. When the walking

belt is correctly tightened, you should be able to

lift each side of the walking belt 2 to 3 in. (5 to 7

cm) off the walking platform. Be careful to keep

the walking belt centered. Then, plug in the power

cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

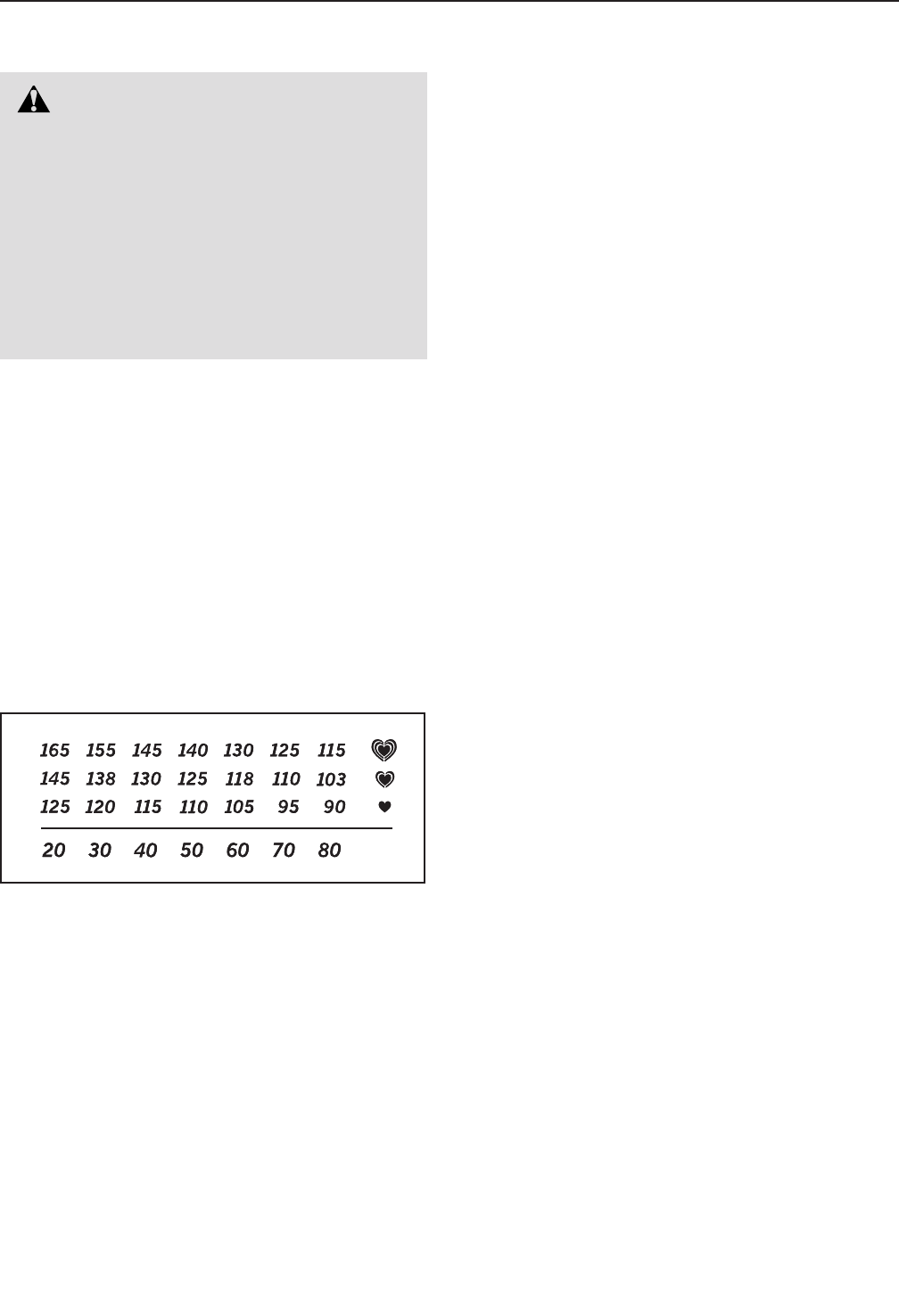

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise–never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

EXERCISE GUIDELINES

WARNING: Before beginning

this or any exercise program, consult your

physician. This is especially important for

persons over age 35 or persons with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is in-

tended only as an exercise aid in determin-

ing heart rate trends in general.

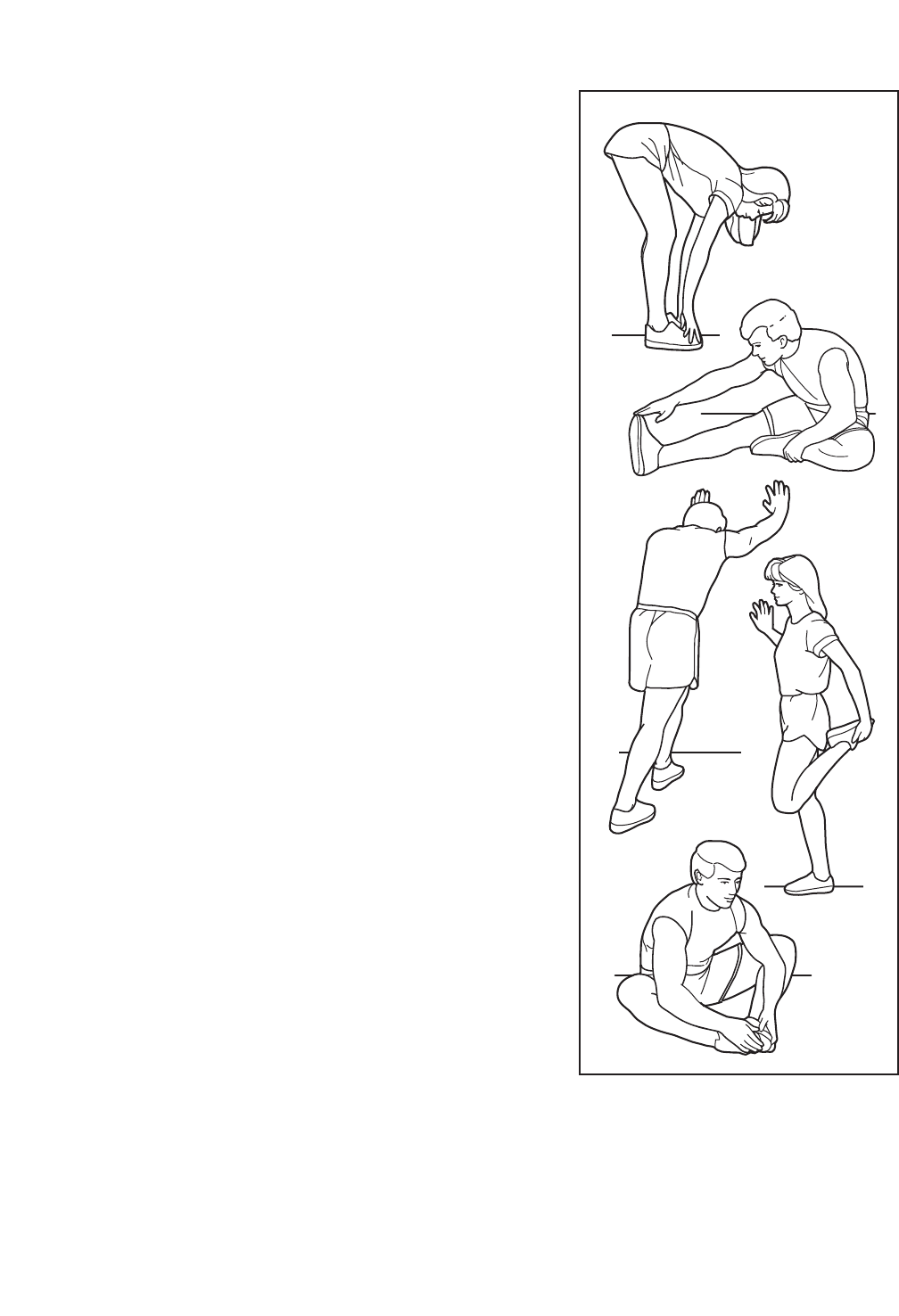

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach down

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back foot

at on the oor. Bend your front leg, lean forward and move your

hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times

for each leg. To cause further stretching of the achilles tendons,

bend your back leg as well. Stretches: Calves, achilles tendons and

ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.

Key No. Qty. Description Key No. Qty. Description

1 9 M4.2 x 19mm Screw

2 2 M4 x 45mm Screw

3 4 M4.2 x 25mm Tek Screw

4 11 #8 x 1/2" Ground Screw

5 6 M8 x 25mm Patch Bolt

6 6 3/8" Locknut

7 1 3/8" x 1 3/4" Patch Bolt

8 2 M10 x 95mm Patch Bolt

9 4 M10 Star Washer

10 8 M8 Star Washer

11 5 M4.2 x 13mm Screw

12 3 M4.2 x 19mm Hood Screw

13 3 Hood Clip

14 – Not Used

15 2 M8 x 35mm Bolt

16 2 M8 x 90mm Bolt

17 2 Foot Rail Decal

18 2 M10 x 30mm Bolt

19 4 M10 Nut

20 1 3/8" x 1 3/4" Bolt

21 1 3/8" x 1 1/2" Bolt

22 1 Controller Ground Wire

23 2 3/8" x 1" Bolt

24 2 3/8" Nut

25 1 M6 x 45mm Bolt

26 2 M6 x 70mm Bolt

27 2 M6 Lock Washer

28 2 M6 Flat Washer

29 8 M5 x 25mm Screw

30 2 1/4" Motor Bolt

31 2 M10 x 50mm Bolt

32 4 M4.2 x 13mm Washer Head Screw

33 5 M4.2 x 10mm Screw

34 2 M8 Cage Nut

35 10 M4 x 19mm Screw

36 2 M8 Nut

37 3 3/8" x 2" Bolt

38 2 Cable Tie

39 9 8" Cable Tie

40 2 Releasable Tie

41 1 Key/Clip

42 1 6 mm Hex Key

43 1 4 mm Hex Key

44 1 5 mm Hex Key

45 1 Hex Key

46 1 Left Foot Rail

47 1 Warning Decal

48 2 Platform Cushion

49 2 Belt Guide

50 2 Frame Cap

51 1 Magnet

52 1 Motor Belt

53 1 Drive Roller/Pulley

54 1 Walking Belt

55 1 Walking Platform

56 1 Frame

57 2 Roller Bracket

58 1 Right Foot Rail

59 1 Access Door

60 1 Storage Latch

61 1 Latch Bracket

62 1 Right Foot

63 1 Idler Roller

64 2 Roller Bracket Plate

65 1 Left Foot

66 2 Console Clamp

67 1 Motor Hood

68 1 Drive Motor

69 3 Lift Frame Cable Tie

70 1 Reed Switch

71 1 Reed Switch Clamp

72 2 Frame Spacer

73 2 1/4" Star Washer

74 1 Lift Frame

75 1 Incline Stop Bracket

76 1 Lift Frame/Roller Ground Wire

77 1 Lift Motor

78 1 Lift Motor Spacer

79 1 Lift Motor Wire

80 1 Controller

81 1 Power Cord

82 1 UK Power Cord

83 1 Power Switch

84 1 Belly Pan

85 1 Left Upright

86 1 Left Upright Spacer

87 2 Base Cap

88 1 Upright Wire

89 1 Right Upright

90 4 Bolt Spacer

91 1 Right Upright Spacer

92 4 Base Foot

93 2 Caution Decal

94 2 Base Foot Spacer

95 1 Base

96 1 Lift Frame/Base Ground Wire

97 2 Wheel

98 2 Handrail Cap

99 1 Left Handrail

100 1 Pulse Bar

PART LIST Model No. PETL69910.0 R0413A

Key No. Qty. Description Key No. Qty. Description

101 1 Right Handrail

102 1 Console Ground Wire

103 1 Console Base

104 1 Left Accessory Tray

105 1 Console

106 1 Right Accessory Tray

107 4 #8 x 1" Screw

108 2 M5 x 16mm Bolt

109 1 Left Upright Cover

110 1 Right Upright Cover

111 1 Console Frame

112 1 Not Used

113 4 5/16" x 5/8" Patch Bolt

114 2 M10 x 68mm Patch Bolt

115 2 M8 Flange Nut

116 8 M4 x 13mm Screw

117 2 Motor Bushing

118 1 Motor Isolator

119 1 Transformer

120 1 Filter

121 1 Receptacle

122 1 Electronics Bracket

123 2 #8 Star Washer

124 6 M4 x 16mm Screw

* – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

42 43 44 45

416

115

EXPLODED DRAWING A Model No. PETL69910.0 R0413A

121

122

120

119

117

118

123

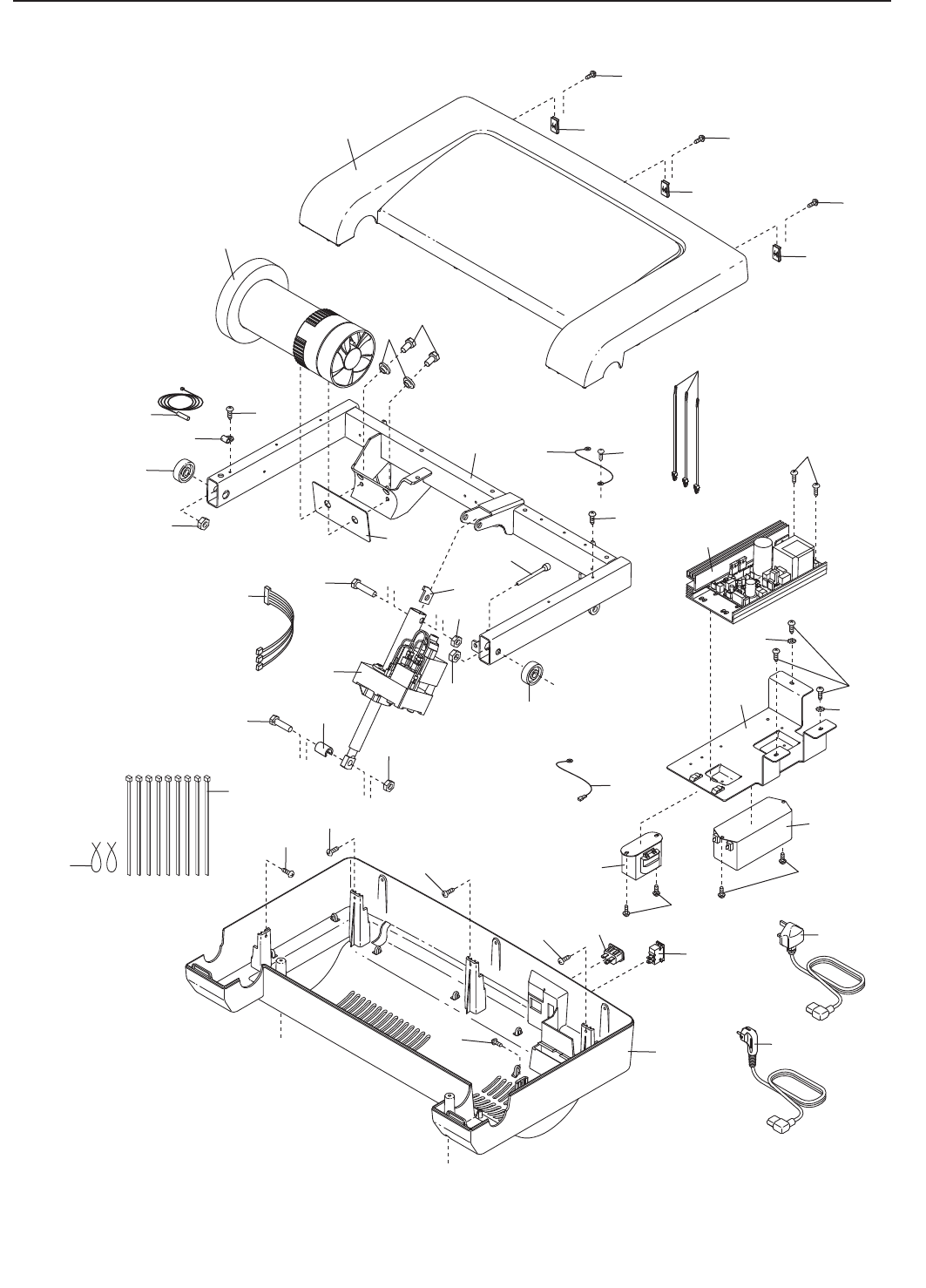

EXPLODED DRAWING B Model No. PETL69910.0 R0413A

23 24

886

113

109

110

113

114

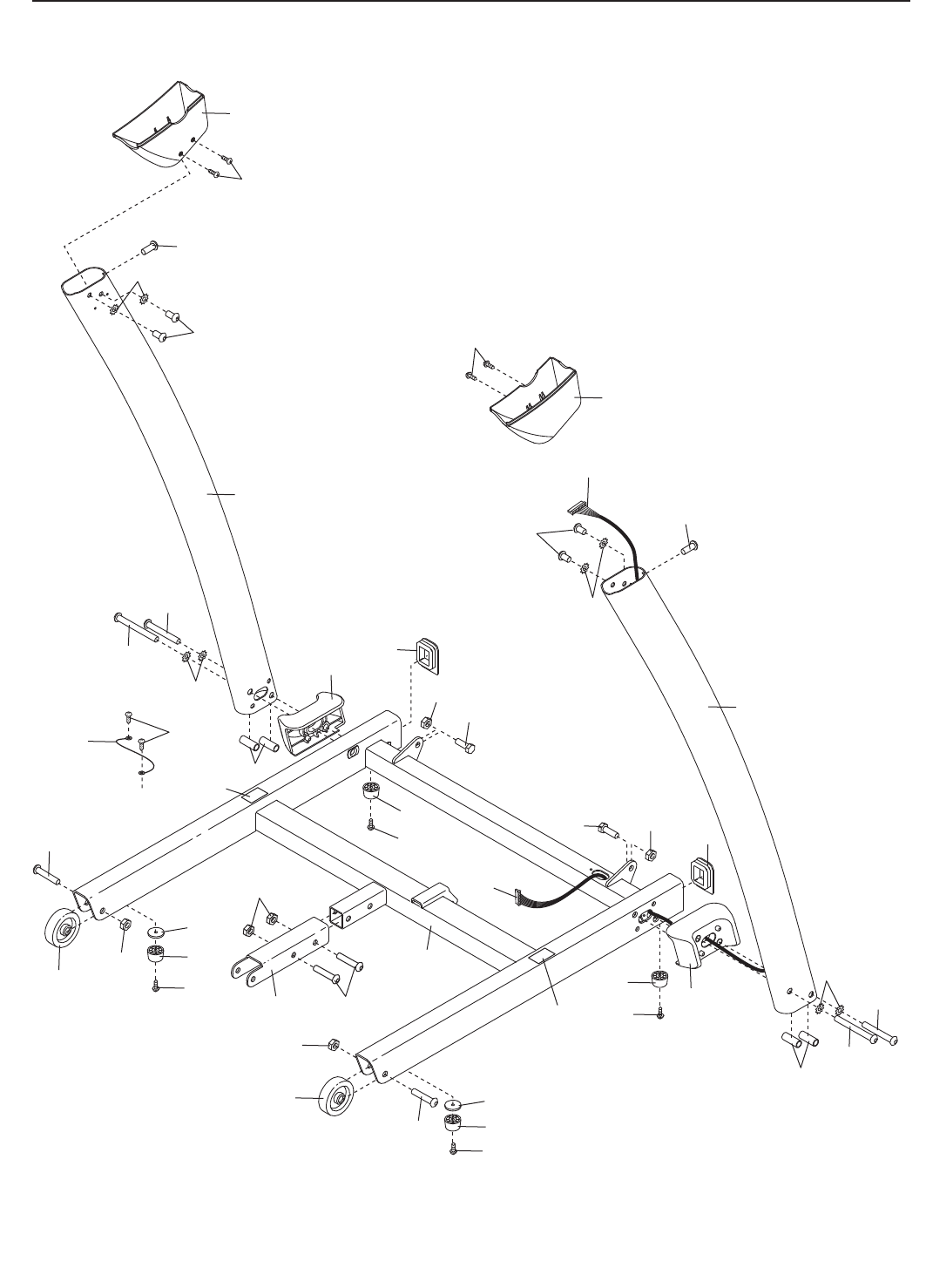

EXPLODED DRAWING C Model No. PETL69910.0 R0413A

103

104

106

100

101

107

105

108

116

107

111

102

116

116 116

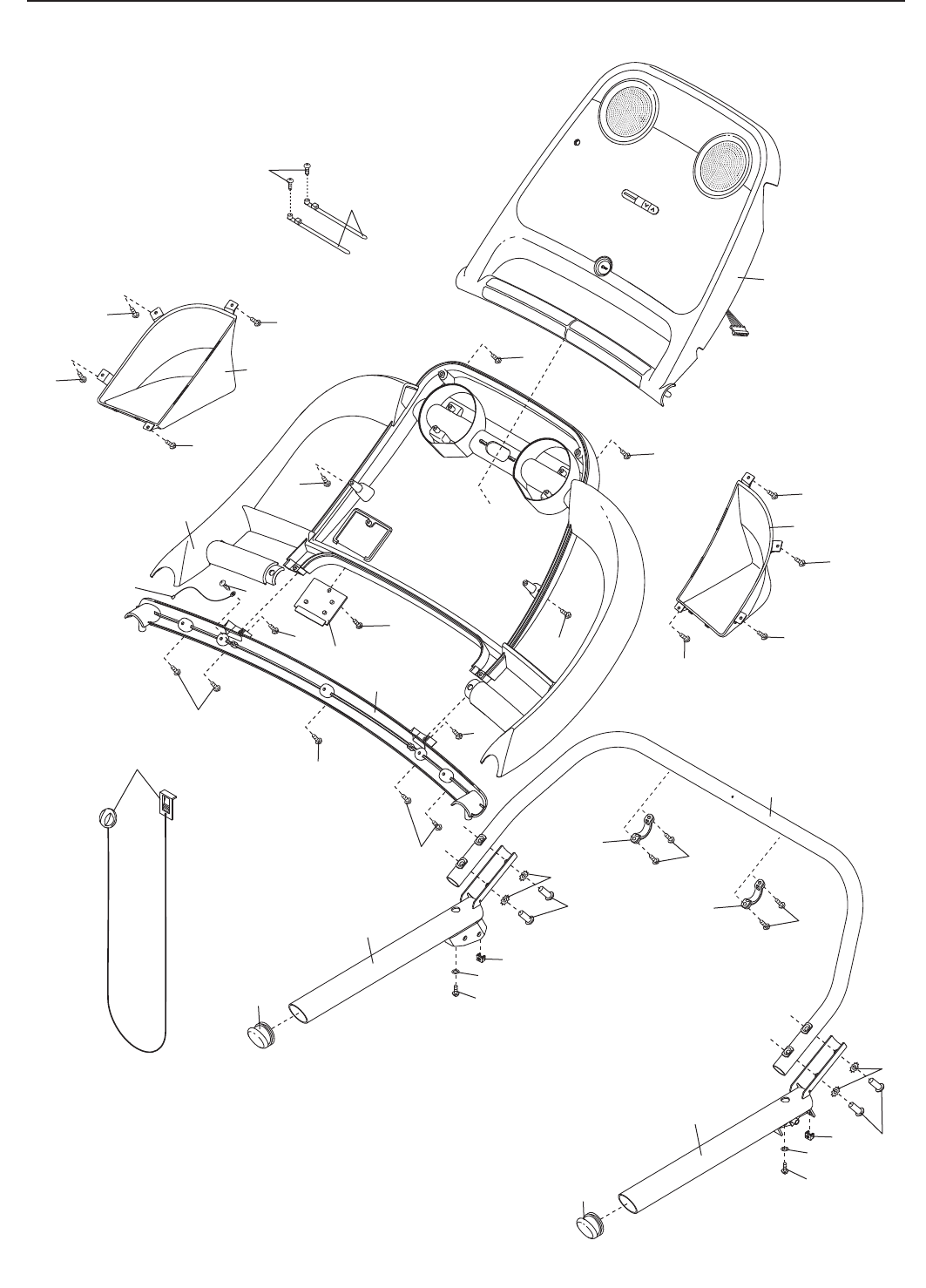

EXPLODED DRAWING D Model No. PETL69910.0 R0413A

This electronic product must not be disposed of in municipal waste. To pre-

serve the environment, this product must be recycled after its useful life as

required by law.

Please use recycling facilities that are authorized to collect this type of waste in

your area. In doing so, you will help to conserve natural resources and improve

European standards of environmental protection. If you require more information

about safe and correct disposal methods, please contact your local city ofce or

the establishment where you purchased this product.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS

RECYCLING INFORMATION

Proform Petl699100 600 Zlt Treadmill Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
