USER’S MANUAL

Serial Number

Decal

www.proform.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFBE19411.0

Serial No.

Write the serial number in the space

above for reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

2

WARNING DECAL PLACEMENT

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ABDOMINAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

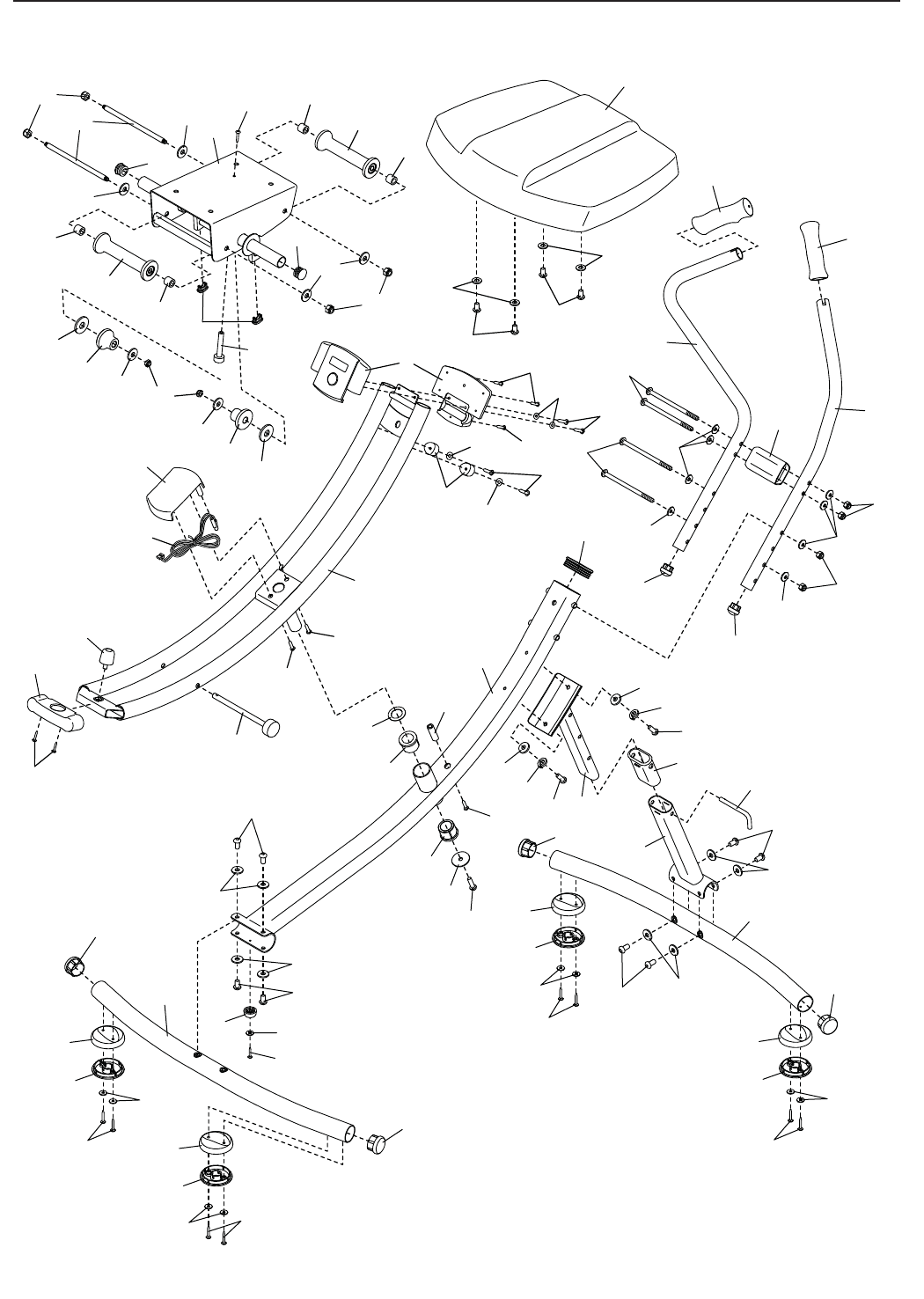

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

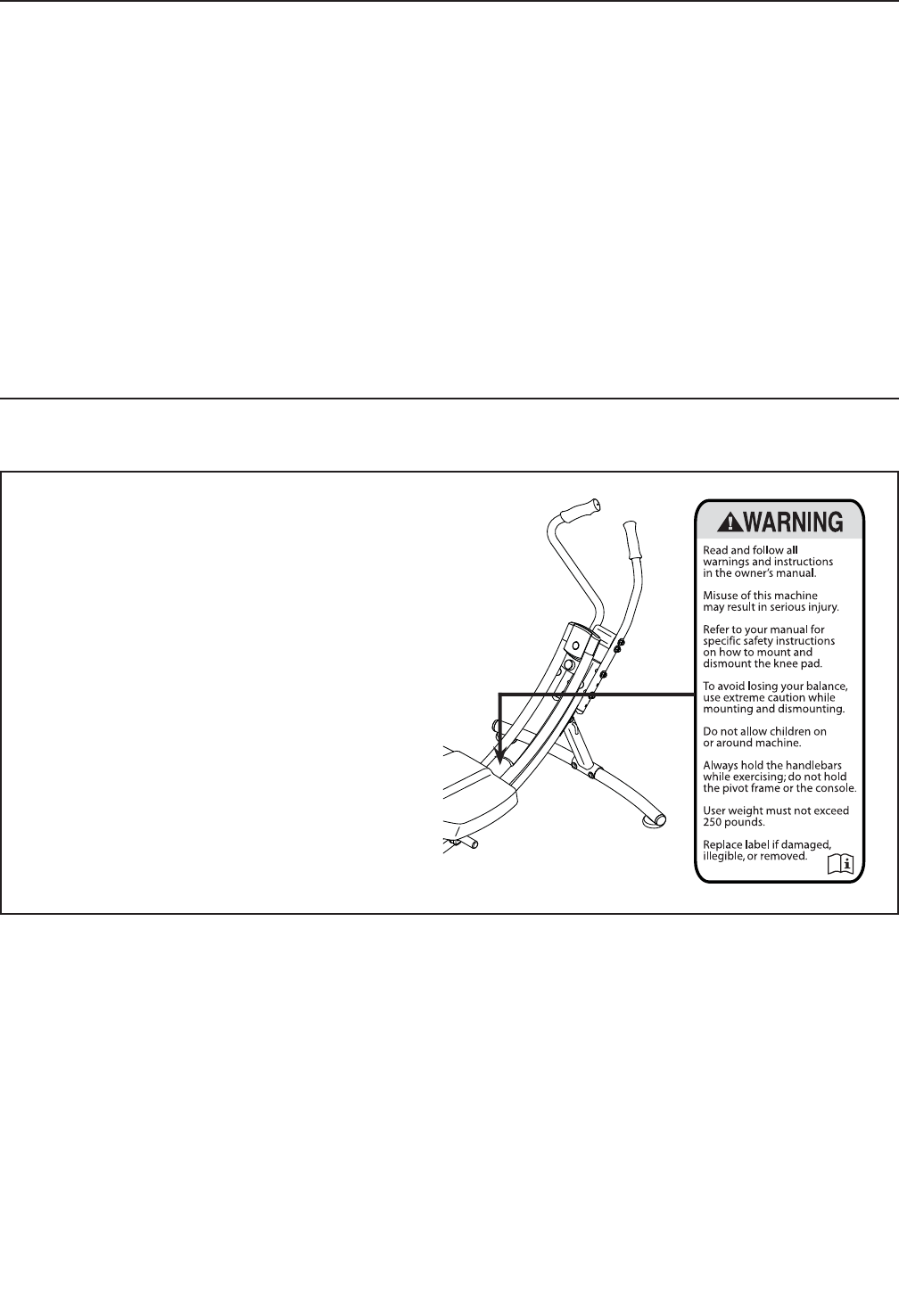

This drawing shows the location(s) of the

warning decal(s). If a decal is missing or

illegible, see the front cover of this manual

and request a free replacement decal. Apply

the decal in the location shown. Note: The

decal(s) may not be shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

3

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your abdominal exerciser before using your abdomi-

nal exerciser. ICON assumes no responsibility for personal injury or property damage sustained by

or through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the abdominal exerciser only as

described in this manual.

3. It is the responsibility of the owner to ensure

that all users of the abdominal exerciser are

adequately informed of all precautions.

4. The abdominal exerciser is intended for

home use only. Do not use the abdominal

exerciser in any commercial, rental, or insti-

tutional setting.

5. Keep the abdominal exerciser indoors, away

from moisture and dust. Place the abdominal

exerciser on a level surface, with carpet or a

non-slip mat beneath it.

6. Make sure that there is enough clearance

around the abdominal exerciser to mount,

dismount, and use the abdominal exerciser.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the abdominal exerciser at all times.

9. The abdominal exerciser should not be used

by persons weighing more than 250 lbs.

(113 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the abdominal exerciser. Always

wear athletic shoes for foot protection while

exercising.

11. Use extreme caution while mounting and dis-

mounting the abdominal exerciser (see HOW

TO MOUNT AND DISMOUNT on page 11).

Always hold the handlebars while exercising;

do not hold the pivot frame or the console.

12. Keep hands and feet away from moving

parts.

13. When using the optional weights on the

weight tubes (see page 4), always secure the

weights with the weight retainers.

14. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

4

Thank you for selecting the PROFORM® AB GLIDER

PLATINUM abdominal exerciser. The versatile AB

GLIDER PLATINUM abdominal exerciser is designed

to help you develop your core muscles, improve your

muscle tone, achieve a shapelier figure, and increase

your overall fitness.

For your benefit, read this manual carefully before

using the abdominal exerciser. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

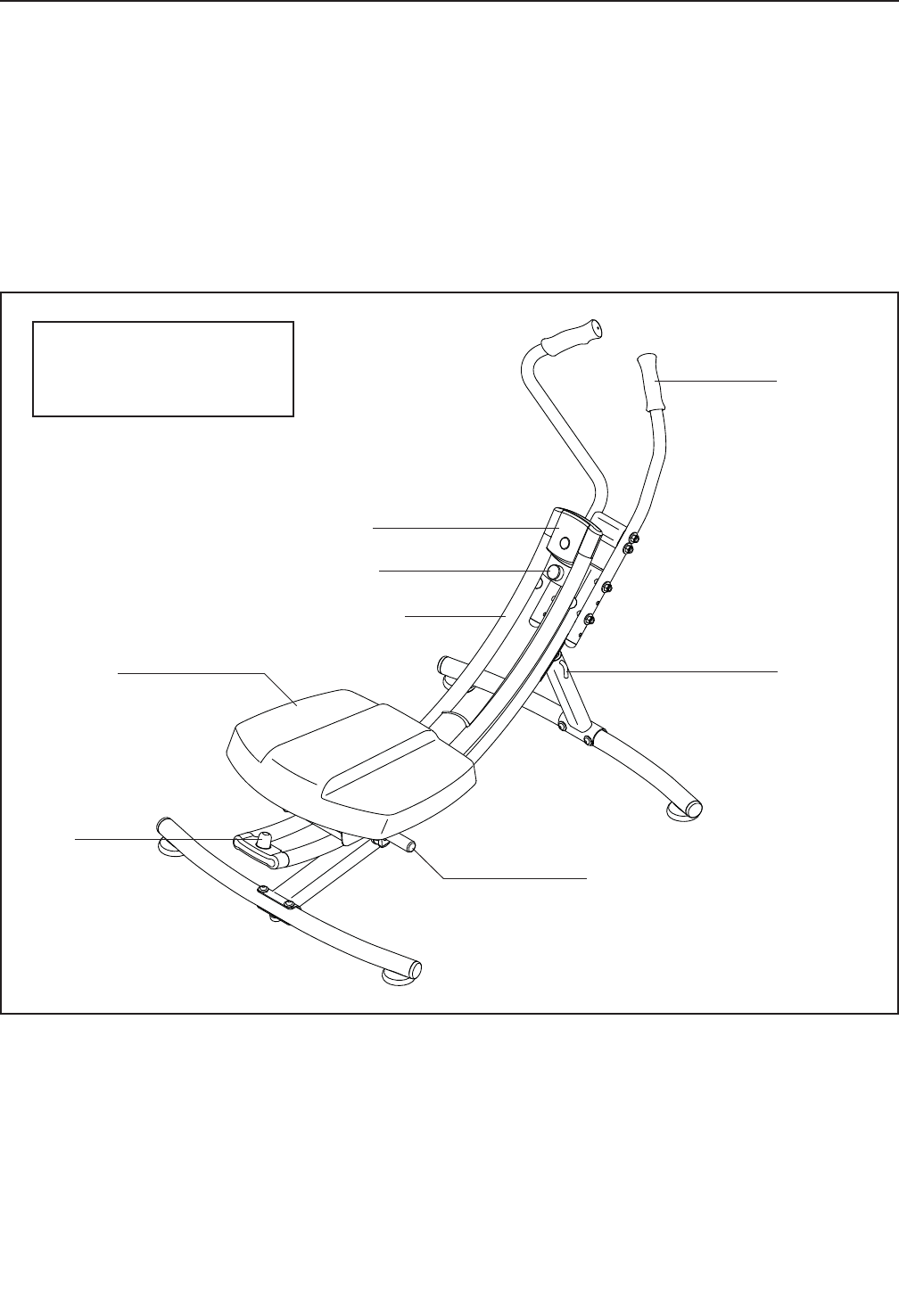

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handlebar

Incline Pin

Weight Tube*

* To order the optional weight kit, see

the front cover of this manual.

Lock Pin

Console

Knee Pad

Stop

Pivot Frame

Length: 3 ft. 11 in. (119 cm)

Width: 2 ft. 7 in. (79 cm)

Weight: 41 lbs. (19 kg)

5

M8 x 145mm Bolt

(30)–4

M8 Curved

Washer (39)–8

M6 Washer

(35)–4

M8 Washer

(34)–10

M8 Locknut

(38)–4

M8 x 15mm Screw

(29)–11

M4 x 16mm

Screw (31)–1

M6 x 15mm

Screw (28)–4

M4 Washer

(48)–3

Large Washer

(41)–1

Pivot Washer

(43)–1

M8 Split

Washer (56)–2

M4 x 20mm

Screw (53)–2

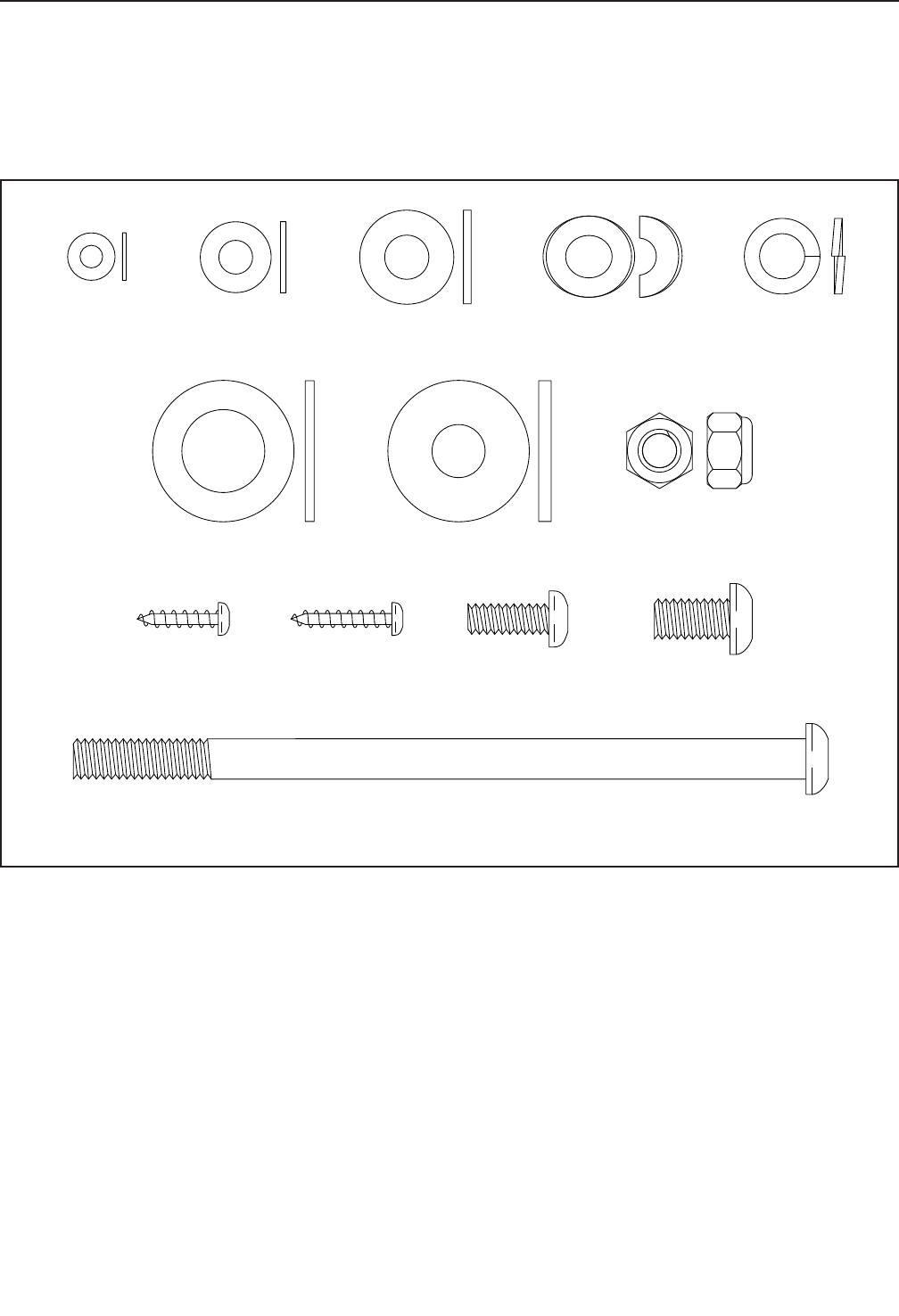

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

6

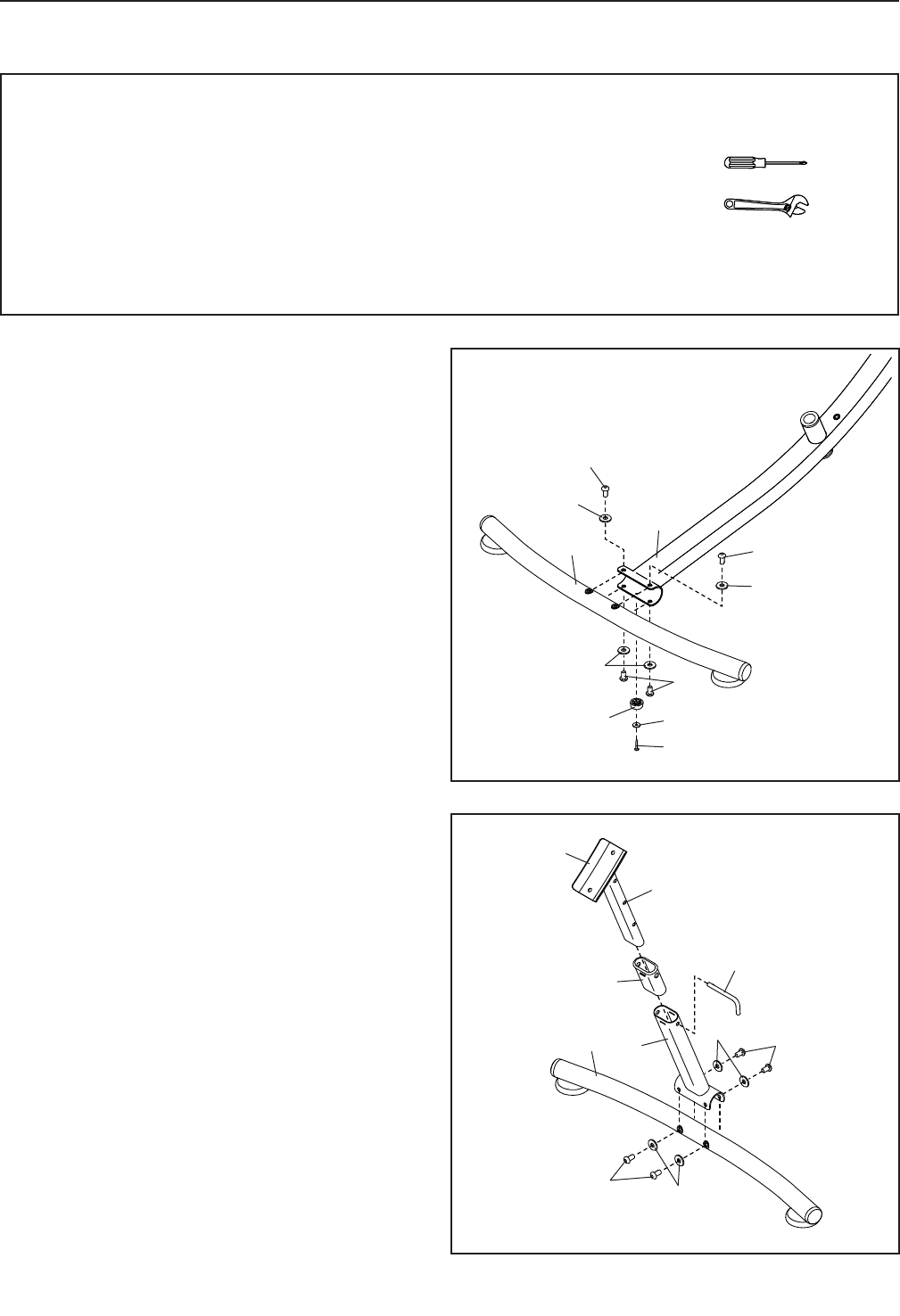

1. Identify the Rear Stabilizer (2), which has holes

in the top and bottom, and orient it as shown.

Attach the Rear Stabilizer (2) to the Main Frame

(1) with four M8 x 15mm Screws (29) and four

M8 Washers (34). Start all four Screws, and

then tighten them.

Then, attach the Frame Foot (11) to the under-

side of the Main Frame (1) with an M4 x 16mm

Screw (31) and an M4 Washer (48).

2. Insert the Leg Sleeve (14) into the Front Leg

(26).

Next, orient the Incline Leg (50) and the Front

Leg (26) as shown, and insert the Incline Leg

into the Front Leg. Then, insert the Incline Pin

(51) into the Front Leg and into one of the three

adjustment holes in the Incline Leg.

Next, orient the Front Stabilizer (4) as shown.

Attach the Front Stabilizer (4) to the Front Leg

(26) with four M8 x 15mm Screws (29) and four

M8 Washers (34). Start all four Screws, and

then tighten them.

1

• To hire an authorized service technician to assem-

ble the abdominal exerciser, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you fi nish all assembly steps.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

2

2

4

1

34

34

11

31

29

29

29

29

14

51

Adjustment Holes

50

26

29

34

34

34

48

7

3

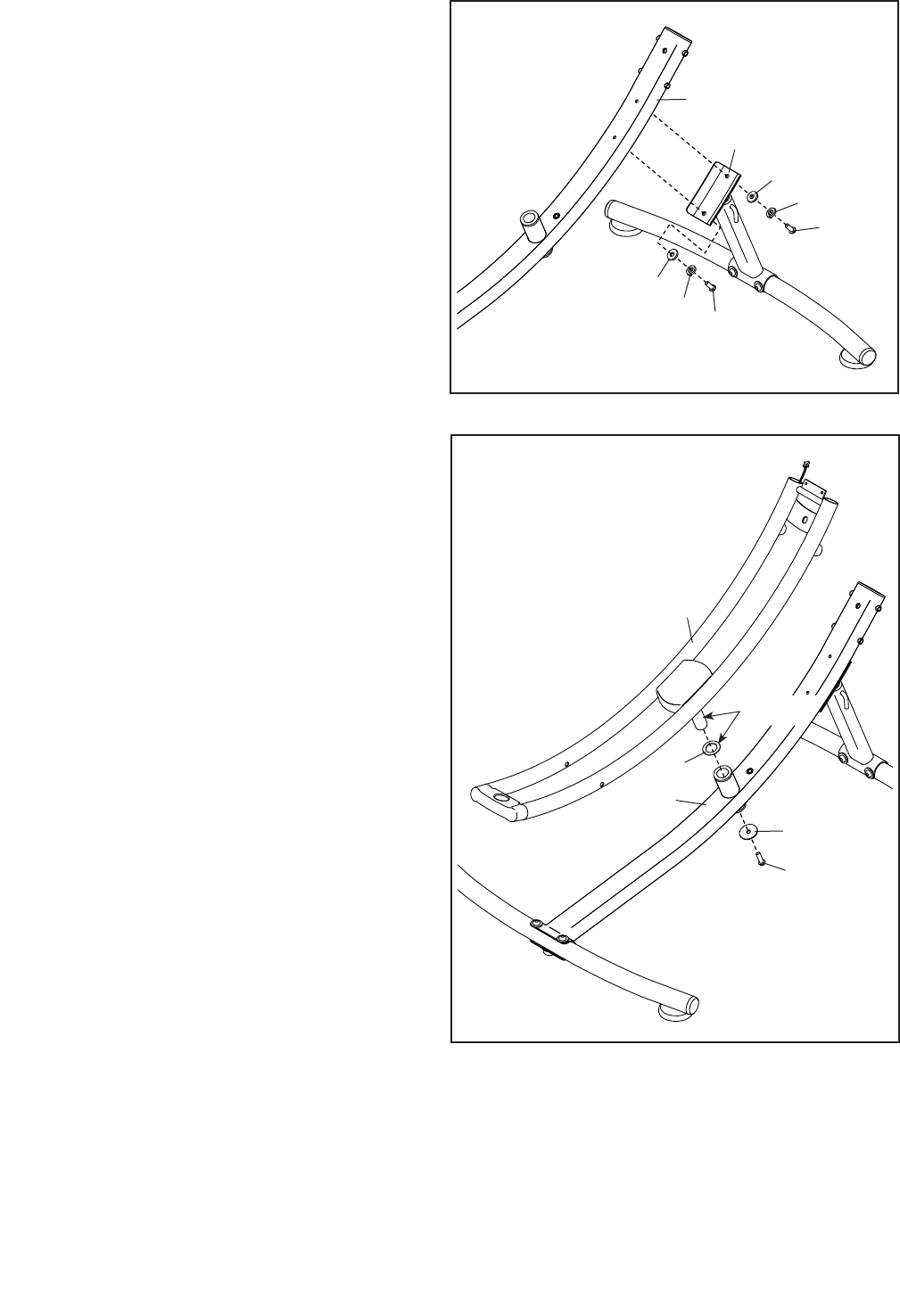

3. Attach the Incline Leg (50) to the Main Frame (1)

with two M8 x 15mm Screws (29), two M8 Split

Washers (56), and two M8 Washers (34). Start

both Screws, and then tighten them.

1

29

29

56

56

34

34

50

4

4. Using a small plastic bag to keep your hand

clean, apply a small amount of the included

grease to both sides of a Pivot Washer (43) and

to the axle on the Pivot Frame (3).

Slide the Pivot Washer (43) onto the axle on the

Pivot Frame (3). Then, insert the Pivot Frame

into the Main Frame (1).

Attach the Pivot Frame (3) with an M8 x 15mm

Screw (29) and a Large Washer (41). Do not

overtighten the Screw; the Pivot Frame must

pivot freely.

29

41

43

1

3

Grease

8

6

6. Orient the Carriage (6) as shown. Slide the

Carriage onto the Pivot Frame (3).

7

7. Move the Carriage (6) to the position shown,

and align the indicated hole in the Carriage with

the corresponding hole (not shown) in the Pivot

Frame (3).

Insert the Lock Pin (27) into the Carriage (6) and

the Pivot Frame (3).

Then, tighten the Stop (16) into the Pivot Frame

(3).

627

Hole

16

3

5

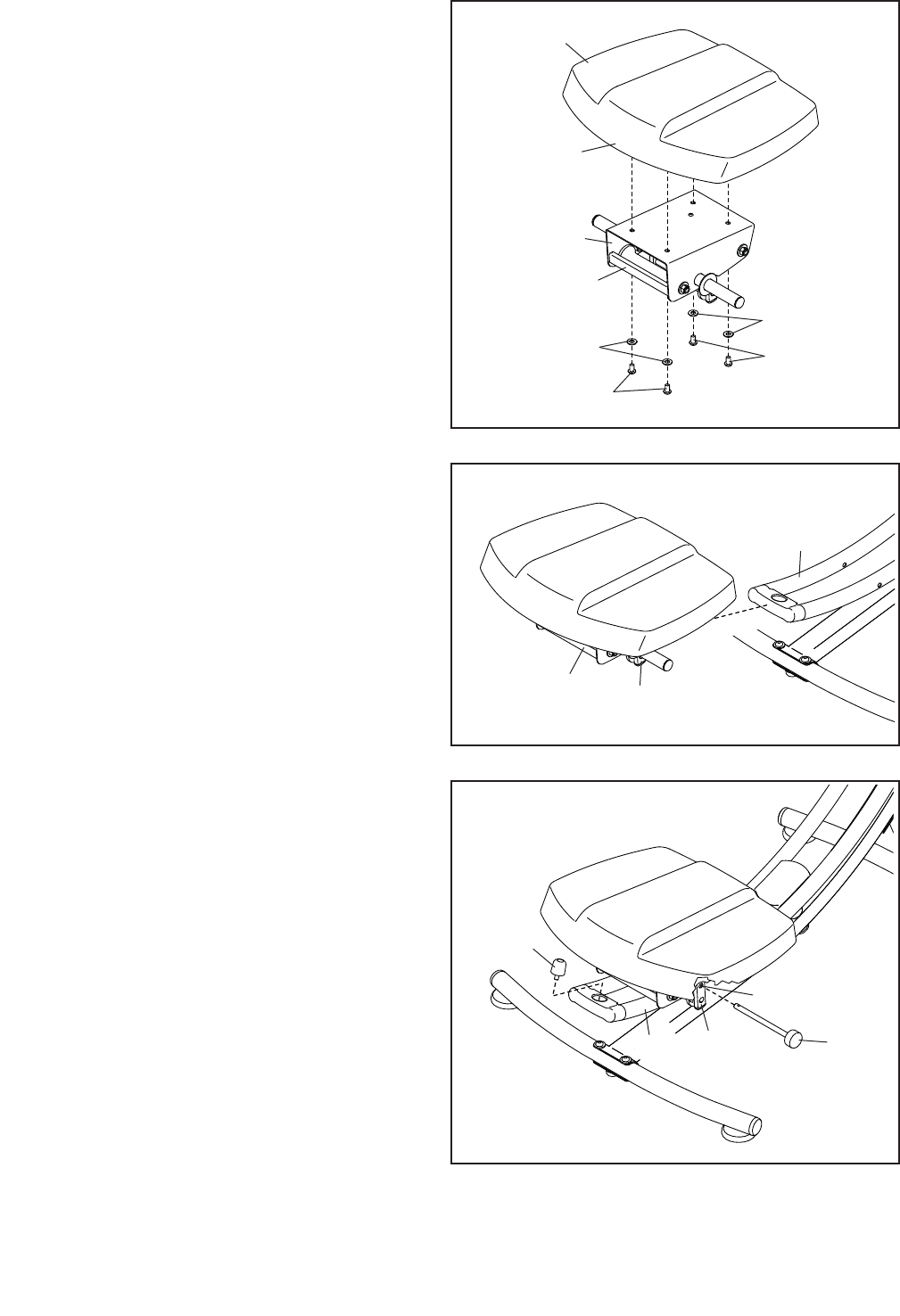

5. Orient the Knee Pad (7) and the Carriage (6) as

shown.

Attach the Knee Pad (7) to the Carriage (6)

with four M6 x 15mm Screws (28) and four M6

Washers (35).

7

6

Wide

End

Welded

Bar

35

35

28

28

6

3

Welded

Bar

9

8

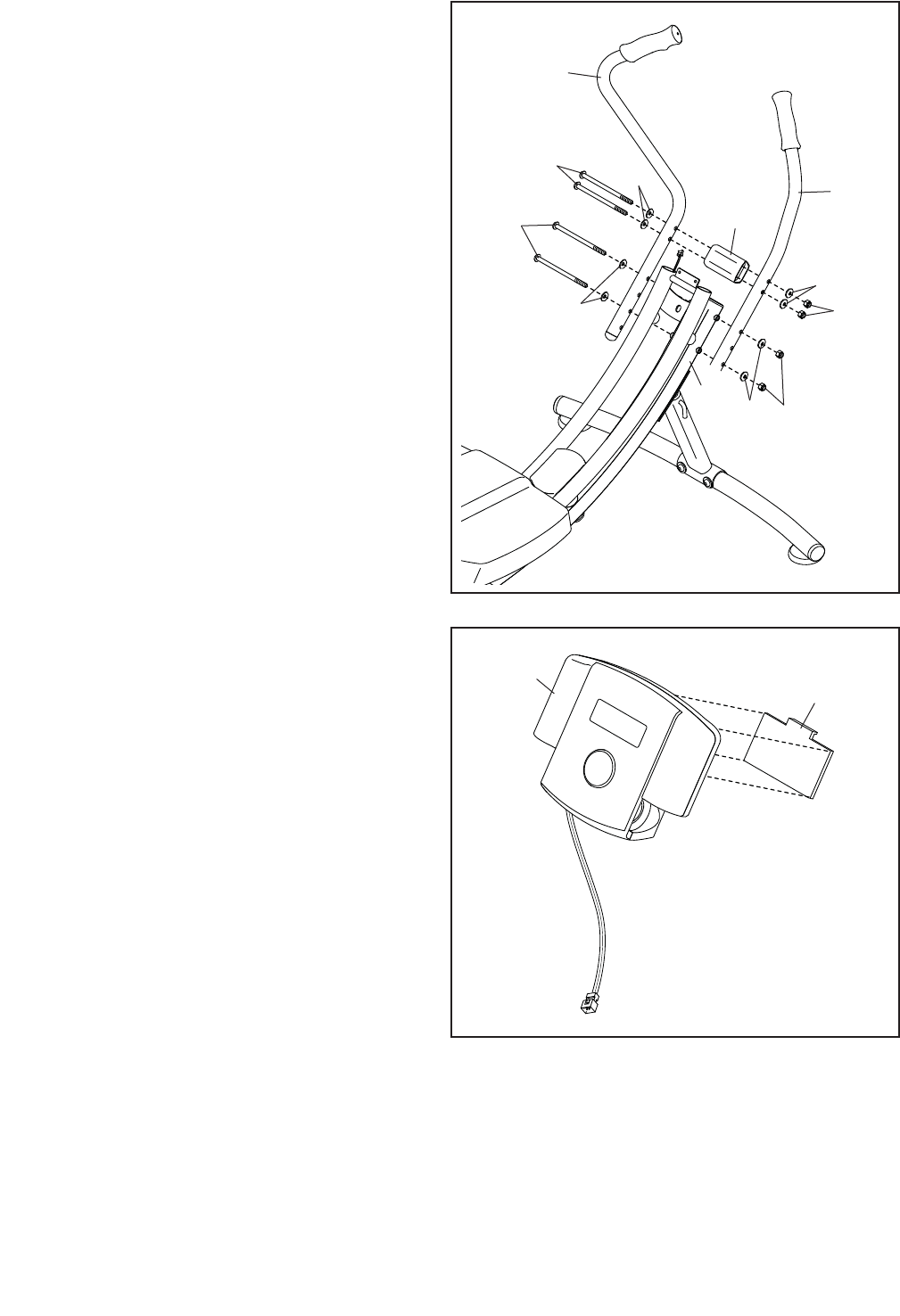

8. Note: There are two sets of holes near the lower

ends of the Handlebars (5, 9); the Handlebars

can be attached at either of two heights.

Attach the Handlebars (5, 9) to the Handlebar

Brace (47) with two M8 x 145mm Bolts (30), four

M8 Curved Washers (39), and two M8 Locknuts

(38). Do not tighten the Locknuts yet.

Next, attach the Handlebars (5, 9) to the Main

Frame (1) with two M8 x 145mm Bolts (30), four

M8 Curved Washers (39), and two M8 Locknuts

(38).

Tip: It may be helpful to use a hex key to turn

each M8 x 145mm Bolt (30) while you insert

it through the Handlebars (5, 9) and the Main

Frame (1).

Then, tighten the first two M8 Locknuts (38) that

you used in this step.

5

9

39

38

38

30

30

39

39

39

47

1

9

9. The Console (8) requires one AA battery (not

included); an alkaline battery is recommended.

IMPORTANT: If the console has been

exposed to cold temperatures, allow it to

warm to room temperature before you insert

a battery. Otherwise, you may damage the

display or other electronic components.

Remove the battery cover from the back of

the Console (8). Next, insert a battery into the

Console; make sure that the battery is ori-

ented as shown by the markings inside the

Console. Then, reattach the battery cover.

8Battery

Cover

10

11. Make sure that all parts are properly tightened before you use the abdominal exerciser. Note: After

assembly is completed, extra parts may be left over. Place a mat beneath the abdominal exerciser to protect

the floor.

10

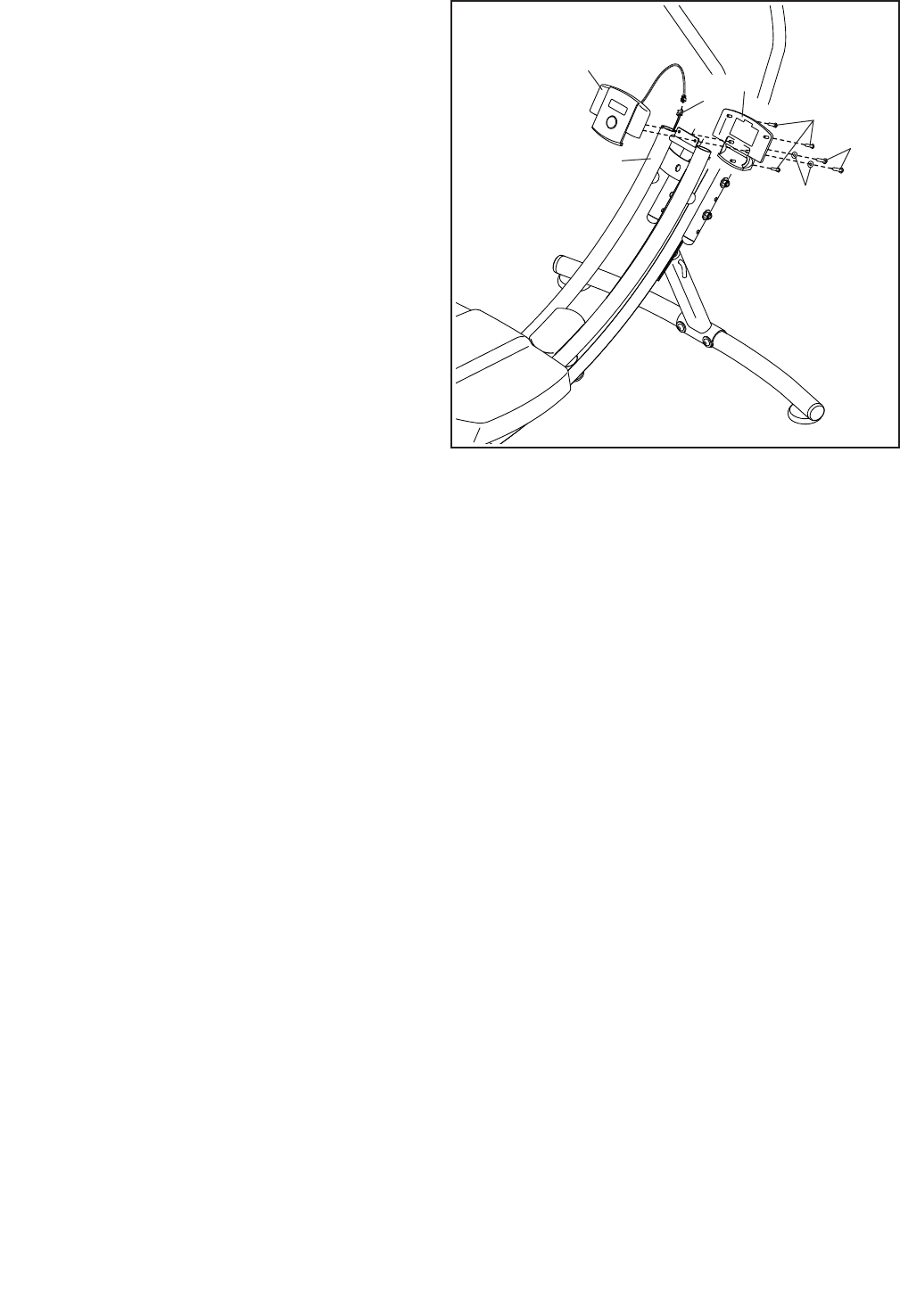

10. Remove the three M3 x 15mm Screws (24) from

the Console (8), and remove the back of the

Console.

Connect the wire on the front of the Console (8)

to the Reed Switch Wire (18) inside of the Pivot

Frame (3). Then, insert the wires downward into

the Pivot Frame.

Tip: Avoid pinching the wires. Attach the front

and back of the Console (8) to the upper end

of the Pivot Frame (3) as shown with two M4 x

20mm Screws (53) and two M4 Washers (48).

Then, tighten the three M3 x 15mm Screws (24)

into the Console (8).

8

24

53

48

3

Avoid pinching

the wires

18 8

11

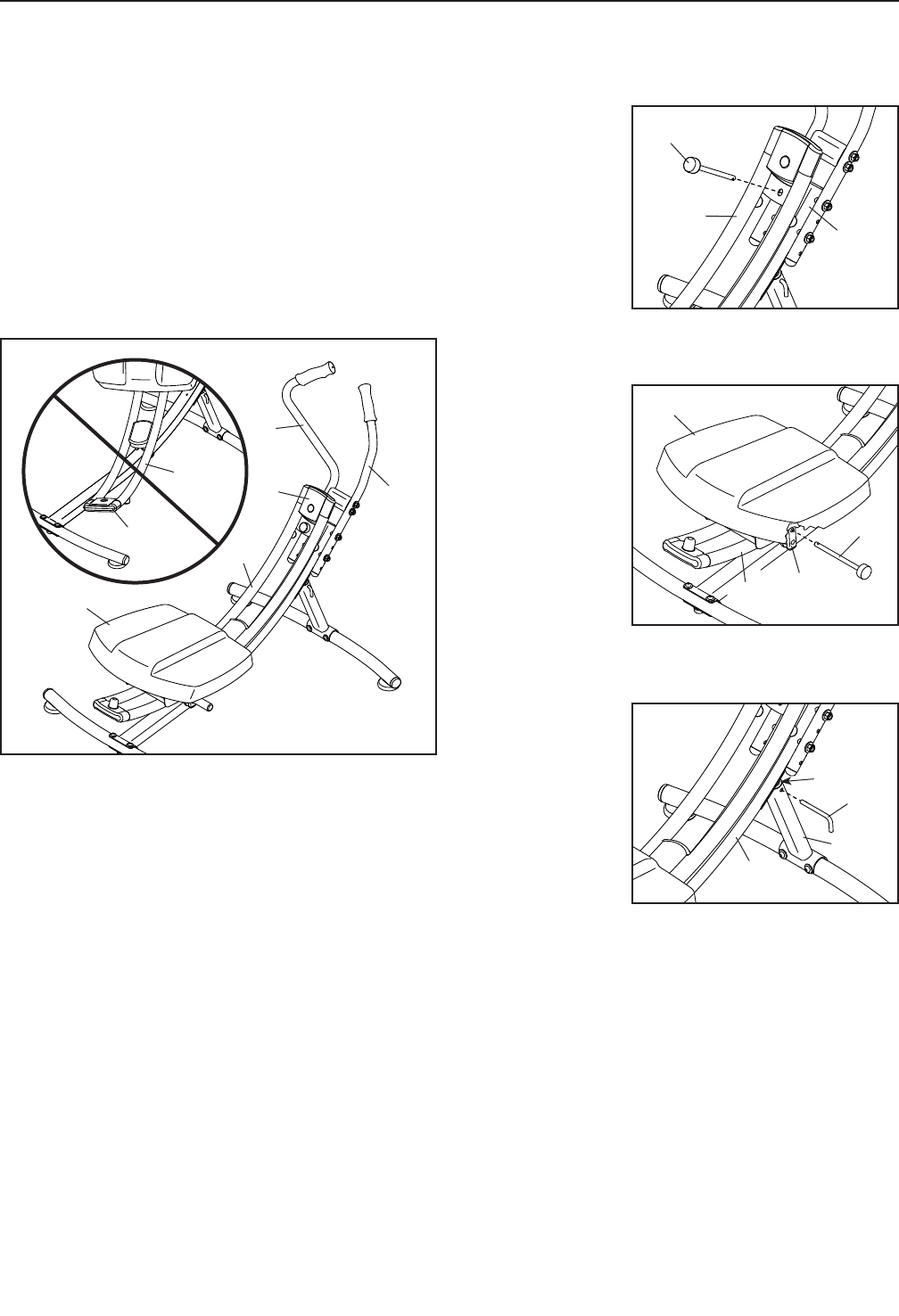

HOW TO MOUNT AND DISMOUNT

The pivot frame can swivel from side to side, and

the knee pad can move forward and backward; to

avoid losing your balance, use extreme caution

while mounting and dismounting the abdominal

exerciser.

First, make sure that the Pivot Frame (3) is in the

position shown in the drawing below. Do not rotate

the Pivot Frame so that the Console (8) is near the

floor as shown in the inset drawing.

Next, stand beside the abdominal exerciser and hold

the Handlebars (5, 9) firmly with both hands. Place one

knee on the Knee Pad (7), halfway between the front

of the Knee Pad and the back of the Knee Pad. Then,

place your other knee on the Knee Pad. Always hold

the Handlebars while exercising; do not hold the

Pivot Frame (3) or the Console (8).

To dismount, hold the Handlebars (5, 9) and place one

foot at a time on the floor beside the Knee Pad (7).

HOW TO ADD WEIGHT

To increase the intensity of your exercise, you can add

optional weights to the weight tubes on the carriage

(see page 4). To order the optional weight kit, see

the front cover of this manual.

HOW TO LOCK THE PIVOT FRAME

To prevent the

Pivot Frame (3)

from swiveling

from side to side,

insert the Lock

Pin (27) into the

Pivot Frame and

the Main Frame

(1).

HOW TO LOCK THE KNEE PAD

To prevent the

Knee Pad (7)

from moving

forward and

backward, insert

the Lock Pin (27)

into the Carriage

(6) and the Pivot

Frame (3).

HOW TO CHANGE THE INCLINE

To change

the incline of

the abdominal

exerciser, first

remove the

Incline Pin (51).

Then, raise or

lower the Main

Frame (1) to the

desired height,

and fully insert

the Incline Pin into the Front Leg (26) and into one of

the three adjustment holes in the Incline Leg (50).

HOW TO USE THE ABDOMINAL EXERCISER

7

85

9

6

26

1

7

50

27

51

8

3

3

3

1

27

3

12

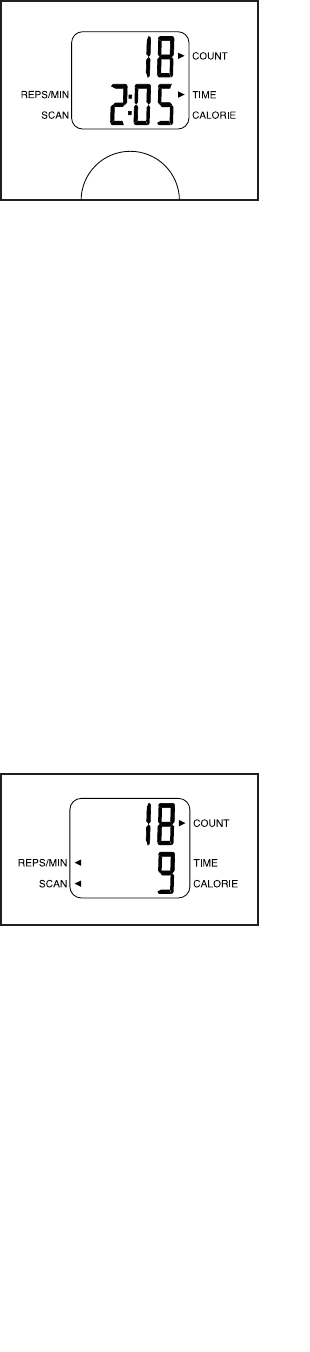

FEATURES OF THE CONSOLE

The console features five modes that provide instant

exercise feedback during your workouts:

Scan—This mode

displays the Time,

Calorie, and Reps/

Min modes in a

repeating cycle.

Time—This mode

displays the elapsed

time.

Count—This mode displays the number of repetitions

completed during the current workout.

Calorie—This mode displays the approximate number

of calories burned.

Reps/Min—This mode displays the number of repeti-

tions being completed per minute.

HOW TO USE THE CONSOLE

Note: Make sure that a battery is installed (see assem-

bly step 9 on page 9). If there is a sheet of clear

plastic on the display, remove the plastic.

1. Turn on the console.

Press the console button or begin exercising to

turn on the console.

2. Select a mode for display.

Scan mode—To

select the scan

mode, press the

console button

repeatedly until

an arrow appears

next to the word

SCAN.

Time, Calorie, or Reps/Min mode—To select one

of these modes for continuous display, press the

console button repeatedly until an arrow appears

next to the desired selection. Make sure that

there is not an arrow next to the word SCAN.

3. Begin exercising and follow your progress with

the display.

As you exercise, the console will provide instant

exercise feedback.

4. Reset the console, if desired.

To reset the console display, press and hold the

console button for several seconds until zeros

appear in the display.

5. When you are fi nished exercising, the console

will turn off automatically.

If you do not move the knee pad and do not press

the console button for a few minutes, the console

will turn off automatically.

HOW TO USE THE ABDOMINAL EXERCISER

The abdominal exerciser can be used with the pivot

frame locked or unlocked (see HOW TO LOCK THE

PIVOT FRAME on page 11). In addition, the abdomi-

nal exerciser can be used with the knee pad locked

or unlocked (see HOW TO LOCK THE KNEE PAD on

page 11).

With the pivot frame and the knee pad unlocked,

the pivot frame can swivel from side to side and the

knee pad can move forward and backward. To exer-

cise, use your core muscles to swivel the pivot frame

from side to side and/or to move the knee pad forward

and backward.

With the pivot frame locked and the knee pad

unlocked, the pivot frame will not swivel from side to

side, but the knee pad will move forward and back-

ward. To exercise, use your core muscles to move the

knee pad forward and backward.

With the pivot frame unlocked and the knee pad

locked, the pivot frame can swivel from side to side,

but the knee pad will not move forward and backward.

To exercise, use your core muscles to swivel the pivot

frame from side to side.

For more information, see the included workout DVD.

13

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

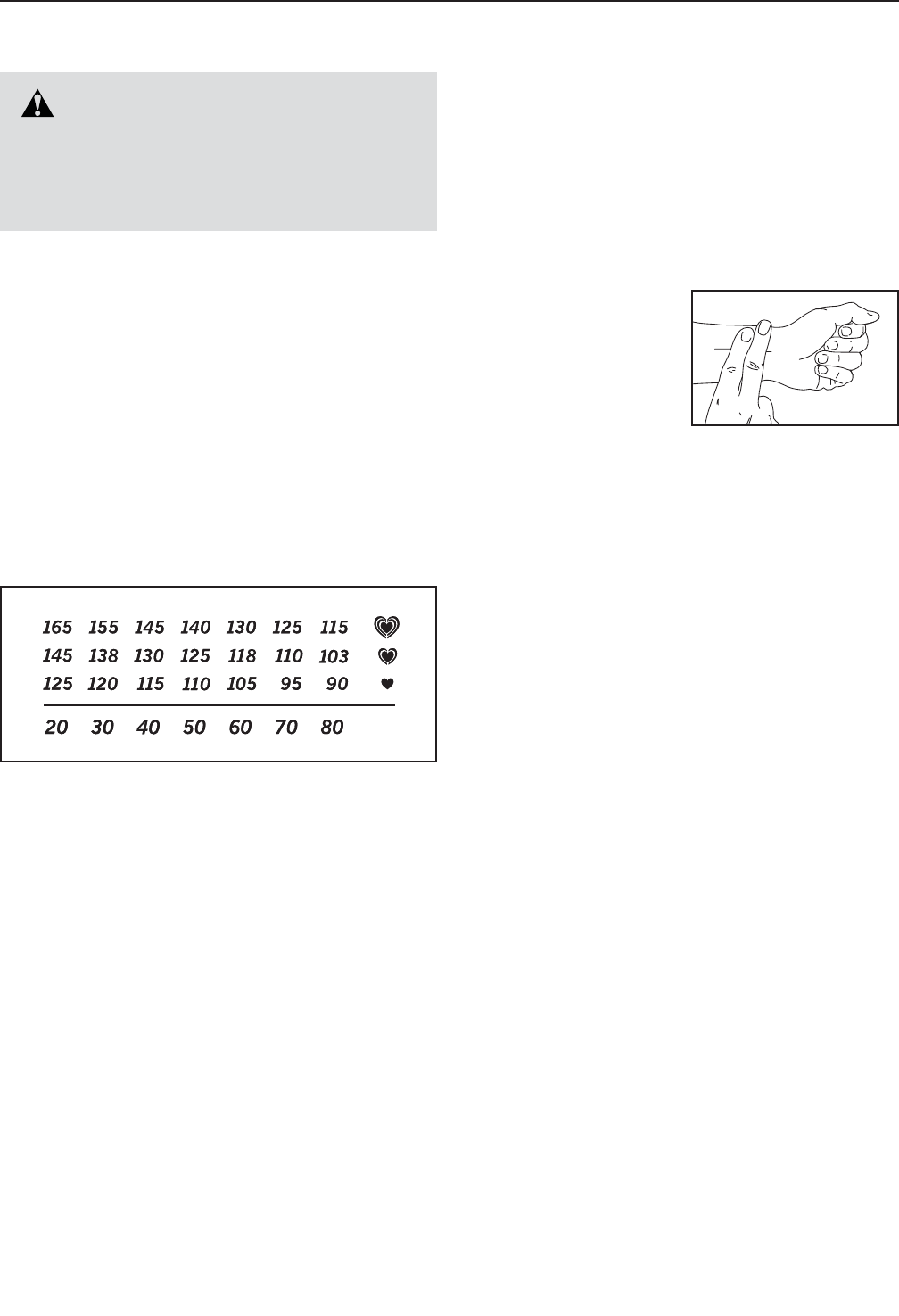

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

HOW TO MEASURE YOUR HEART RATE

To measure your heart

rate, exercise for at least

four minutes. Then, stop

exercising and place

two fingers on your

wrist as shown. Take a

six-second heartbeat

count, and multiply the

result by 10 to find your heart rate. For example, if your

six-second heartbeat count is 14, your heart rate is 140

beats per minute.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise—never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

14

1 1 Main Frame

2 1 Rear Stabilizer

3 1 Pivot Frame

4 1 Front Stabilizer

5 1 Right Handlebar

6 1 Carriage

7 1 Knee Pad

8 1 Console

9 1 Left Handlebar

10 4 Stabilizer Foot

11 1 Frame Foot

12 2 Bumper

13 1 Pivot Frame Cap

14 1 Leg Sleeve

15 1 Main Frame Cap

16 1 Stop

17 2 Handgrip

18 1 Reed Switch/Wire

19 2 Upper Roller

20 2 Lower Roller

21 2 Carriage Cap

22 1 Large Magnet Mount

23 1 Small Magnet Mount

24 3 M3 x 15mm Screw

25 4 Roller Spacer

26 1 Front Leg

27 1 Lock Pin

28 4 M6 x 15mm Screw

29 11 M8 x 15mm Screw

30 4 M8 x 145mm Bolt

31 11 M4 x 16mm Screw

32 2 Roller Axle

33 1 Pivot Frame Cover

34 16 M8 Washer

35 4 M6 Washer

36 1 M4 x 12mm Screw

37 1 M4 x 40mm Screw

38 10 M8 Locknut

39 8 M8 Curved Washer

40 1 Upper Bushing

41 1 Large Washer

42 2 Lower Handlebar Cap

43 1 Pivot Washer

44 4 Stabilizer Cap

45 2 M13 Washer

46 1 Lower Bushing

47 1 Handlebar Brace

48 11 M4 Washer

49 2 M5 Washer

50 1 Incline Leg

51 1 Incline Pin

52 2 Weight Tube Cap

53 4 M4 x 20mm Screw

54 4 Foot Insert

55 2 M5 x 20mm Screw

56 2 M8 Split Washer

* – Assembly Tool

* – Grease Packet

* – DVD

* – User’s Manual

Key No. Qty. Description Key No. Qty. Description

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

PART LIST Model No. PFBE19411.0 R1111A

15

5

9

42

42

15

17

17

2

11

29

29 29

29

31

44

44

44

44

34

34

34

34

4

48

10

48

31

10

54

31

48

46

41

29

1

40

37

43

38

47

38

29

14

51

29

30

30

39

34

26

50

34

56

56

39 39

39

6

21

22

36

7

23

19

25

25

28

35

35

20

38

19

25

25 28

45

34

34

20

45

16

13

3

33

12

18

27

53

53

53

48

8

31

24

24

55

49

49

38

32

52

52

34

34

34

38

54

10

48 31

54

10

54

31

48

EXPLODED DRAWING Model No. PFBE19411.0 R1111A

Part No. 324927 R1111A Printed in China © 2011 ICON IP, Inc.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. Parts and labor are warranted for one (1) year from

the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides specific legal rights; the customer may have other rights that vary from state to

state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.proformservice.com/registration.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS
