WARNING DECAL PLACEMENT

The warning decal shown here has been applied

in the location shown. If a decal is missing or

illegible, call the telephone number on the

front cover of this manual and request a free

replacement decal. Apply the decal in the

location shown. Note: The decal may not be

shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. Keep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 250 lbs.

(113 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the handle-

bars when mounting, dismounting, or using

your elliptical exerciser.

10. Keep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM®

STRIDE SELECT 825 elliptical exerciser. The STRIDE

SELECT 825 is an incredibly smooth exerciser that

moves your feet in a natural elliptical path, minimizing

the impact on your knees and ankles. And the unique

STRIDE SELECT 825 offers an impressive array of

features to help you achieve your fitness goals in the

convenience of your home.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

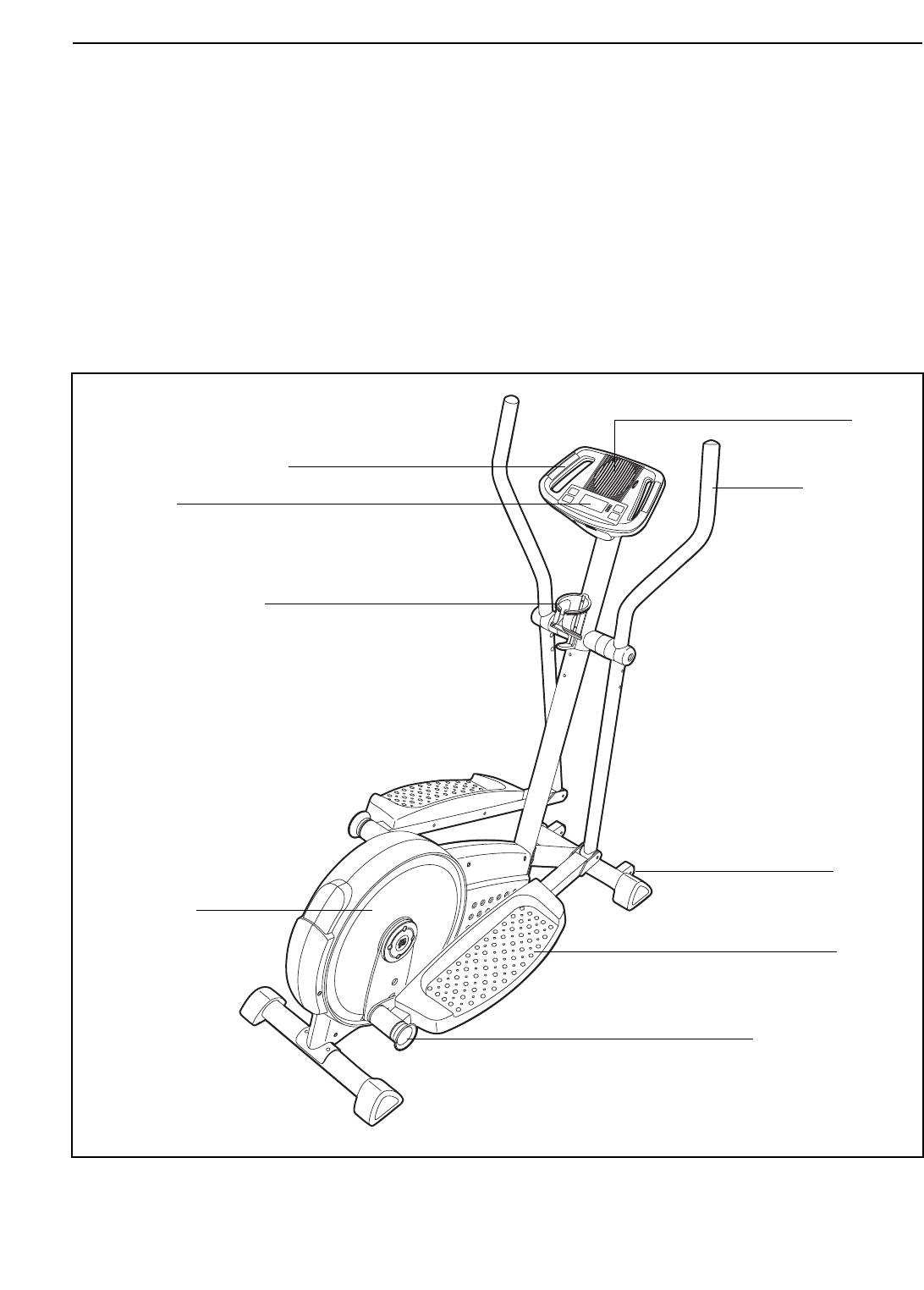

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Handlebar

Pedal Disk

Wheel

Pedal

Console

Water Bottle Holder*

Fan

Adjustment Knob

*No water bottle is included

M10 x 75mm Carriage Bolt (34)–2

M10 x 83mm Button Screw (63)–2

M4 x 16mm

Screw (66)–8

M4 x 22mm

Screw (76)–2

M8 x 25mm Patch

Screw (22)–2

M8 x 16mm Button

Screw (84)–4

M8 x 70mm Button Bolt (67)–2

M10 Nylon

Locknut (29)–2

M8 Nylon

Locknut (46)–6

M10 Split

Washer (94)–2

M8 Washer

(53)–6

Wave Washer

(91)–2

M8 Split

Washer (83)–2

M8 x 45mm Button

Bolt (50)–4

M10 x 59mm Bolt Set (27)–2

M8 Jamnut

(80)–4

Cover Screw

(82)–4

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

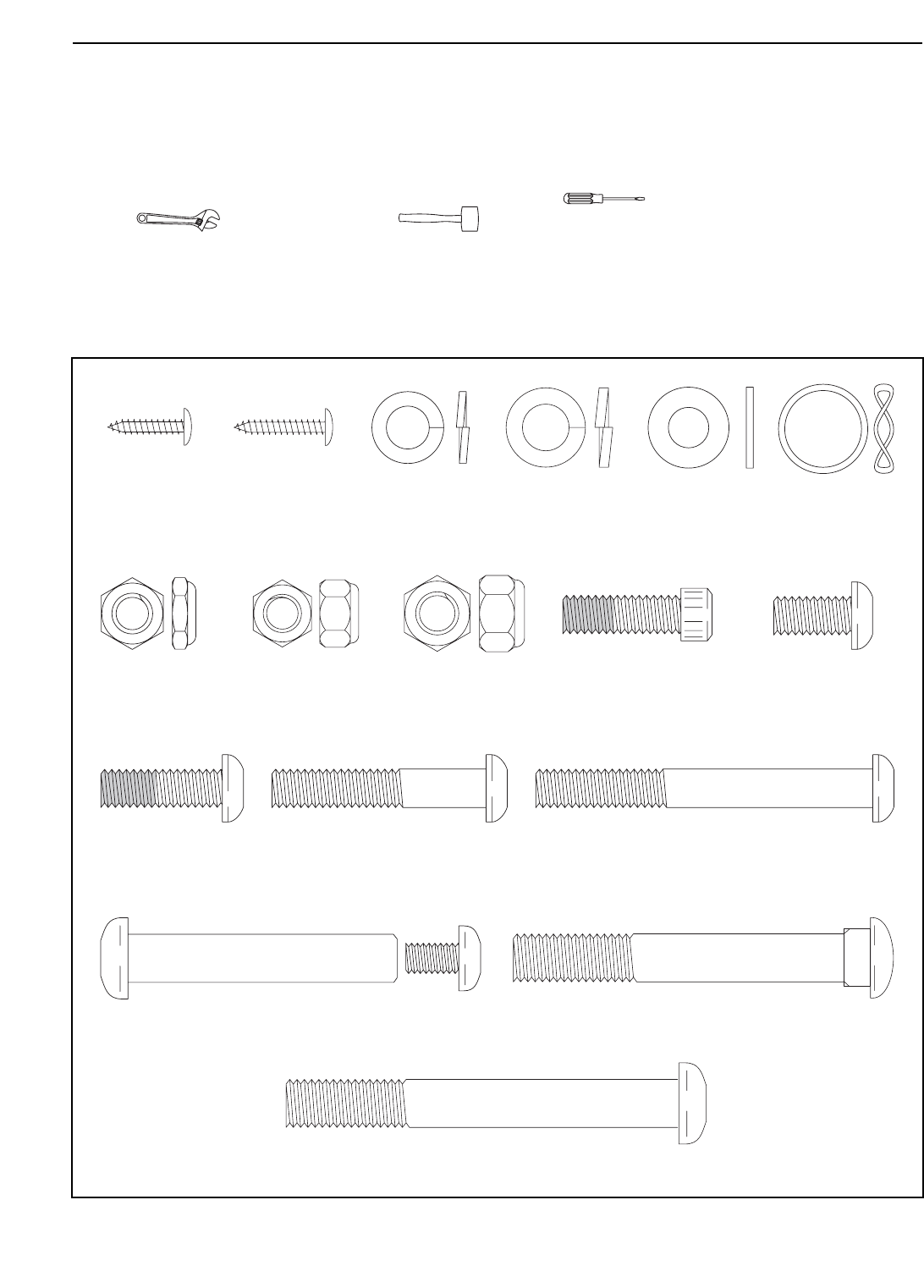

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the hardware kit, check to see if it has been preassembled.

Identify the Rear Stabilizer (4). While another per-

son lifts the rear of the Frame (1), attach the Rear

Stabilizer to the Frame with two M10 x 75mm

Carriage Bolts (34) and two M10 Nylon Locknuts

(29). 4

2. See the inset drawing. Remove the two M10 x

45mm Button Bolts (33) and the packing tubes from

the front of the Frame (1). Next, remove the rubber

band from the Lower Wire Harness (87). Discard

the Button Bolts, the packing tubes, and the rubber

band.

Press the two Stabilizer Endcaps (35) onto the

Front Stabilizer (3). Orient the Stabilizer Endcaps as

shown.

35 3

Packing Tube

Packing

Tube

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

3. Slide an M10 Split Washer (94) onto each of the

two M10 x 83mm Button Screws (63). Insert the

Button Screws into the Front Stabilizer (3). Next,

slide the Mast (15) onto the Button Screws and

against the Front Stabilizer. Make sure that the

Mast is oriented as shown.

While another person holds the Mast (15) and the

Front Stabilizer (3) near the Frame (1), connect the

Extension Wire Harness (95) to the Lower Wire

Harness (87). Insert the connectors on the Wire

Harnesses into the Mast.

While the other person lifts the front of the Frame

(1), carefully pull the upper end of the Extension

Wire Harness (95) to remove any slack. While

holding the upper end of the Extension Wire

Harness, attach the Mast (15) and the Front

Stabilizer (3) to the Frame with the two M10 x

83mm Button Screws (63). Do not tighten the

Button Screws yet.

Avoid pinching the Wire Harnesses (87, 95) dur-

ing this step.

Pull

Avoid pinching the

wire harnesses

during this step

Hexagonal

Holes

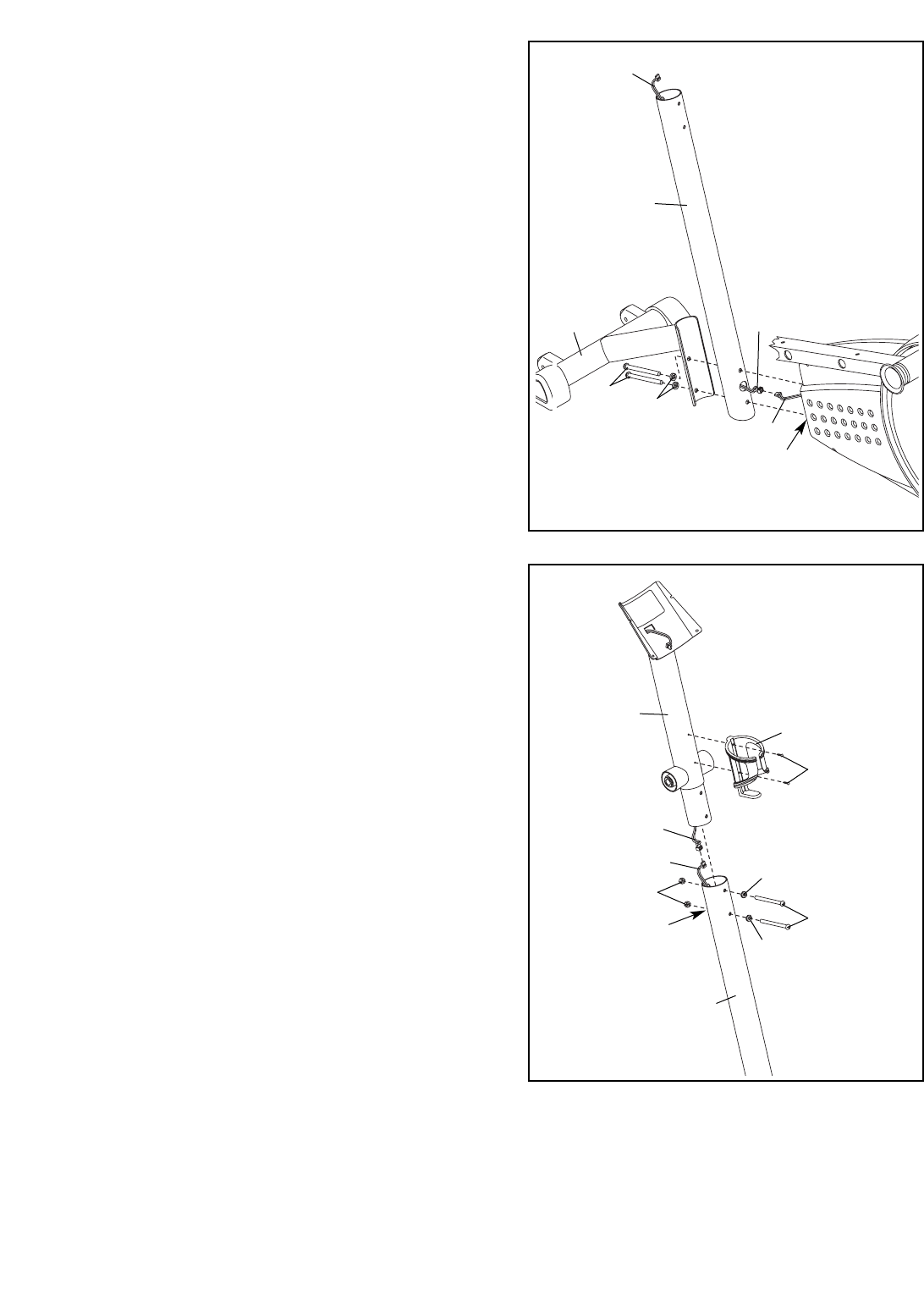

4. While another person holds the Upright (2) in the

position shown, connect the Upper Wire Harness

(86) to the Extension Wire Harness (95).

Next, insert the Upright (2) into the Mast (15); make

sure that the Upright is oriented as shown.

Attach the Upright with two M8 x 70mm Button Bolts

(67), two M8 Split Washers (83), and two M8 Nylon

Locknuts (46). Make sure that the Wire

Harnesses (86, 95) do not get pinched and dam-

aged during this step. Do not tighten the Button

Bolts yet.

Attach the Water Bottle Holder (72) to the Upright

(2) with two M4 x 22mm Screws (76).

Avoid pinching the

wire harnesses

during this step

6. While another person holds the Console (5) near

the Upright (2), connect the wire harness on the

Console to the Upper Wire Harness (86). Insert the

excess wire harness down into the Upright. Next,

attach the Console to the Upright with four M4 x

16mm Screws (66). Be careful to avoid pinching

the wire harnesses.

Wire

Harness

Avoid pinching the

wire harnesses

during this step

5. The Console (5) requires four D batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the elliptical exerciser has been

exposed to cold temperatures, allow it to warm

to room temperature before inserting batteries

into the Console. If you do not do this, the con-

sole displays or other electronic components

may become damaged. Press the tab on the bat-

tery door and remove the battery door. Insert four

batteries into the Console as shown. Make sure

that the batteries are oriented as shown by the

markings on the battery door. Reattach the bat-

tery door.

Batteries

Battery

Cover

7. Slide the Right Crank Arm (38) onto the four indicat-

ed welded bolts; make sure that the Right Crank

Arm is in the indicated cutout in the Pedal Disk

(8). Next, finger tighten four M8 Jamnuts (80) onto

the welded bolts. Then, fully tighten one of the

Jamnuts, and then tighten the Jamnut farthest from

the first Jamnut. Then, tighten the remaining two

Jamnuts.

Attach a Hub Cover (48) to the Right Crank Arm

(38) with four Cover Screws (82). Then, tighten an

Adjustment Knob (45) onto the right Adjustment Pin

(17).

Cutout

Welded

Bolts

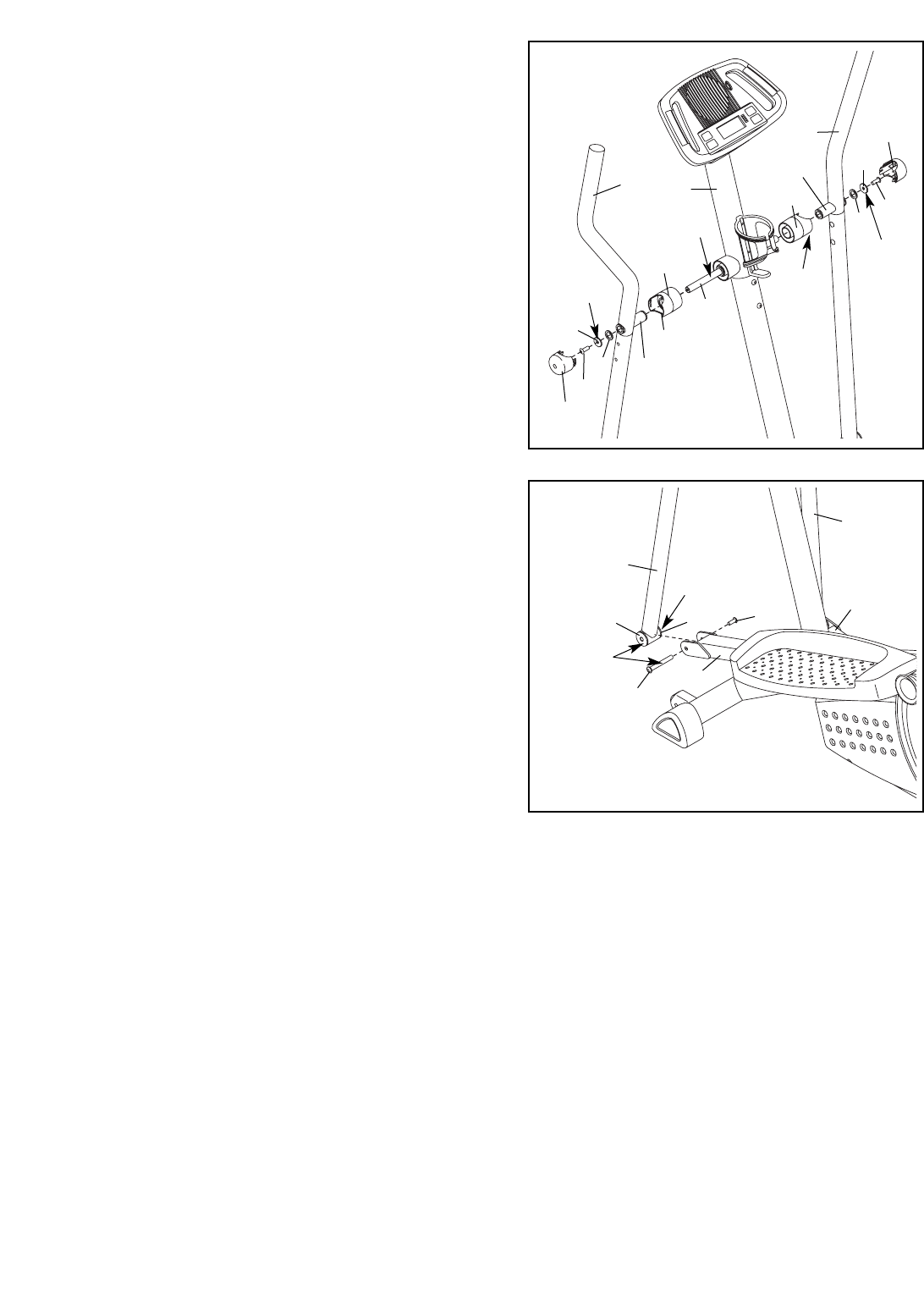

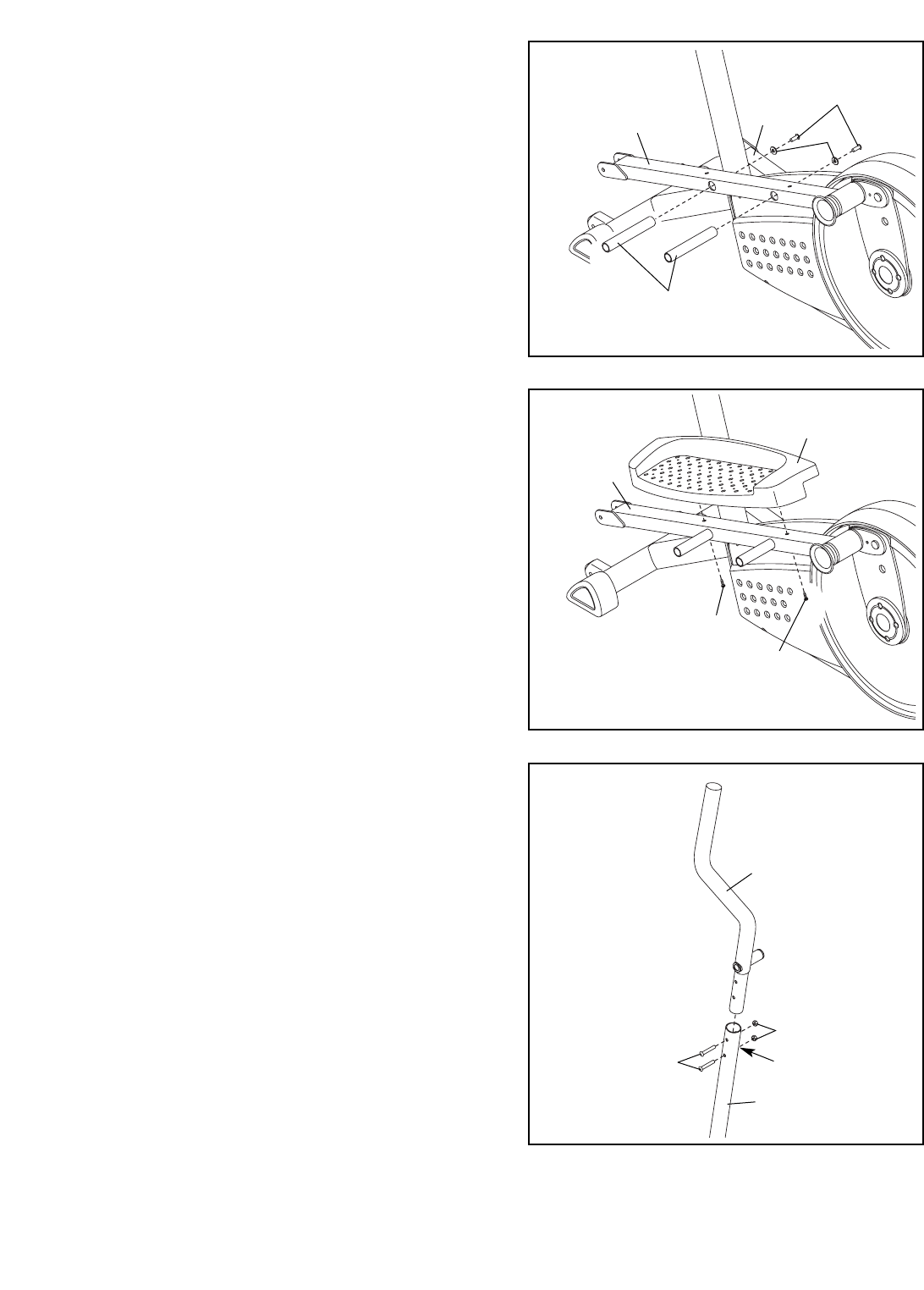

9. Attach one of the Pedals (12) to the Left Pedal Arm

(14) with two M4 x 16mm Screws (66).

Attach the other Pedal (not shown) to the Right

Pedal Arm (not shown) in the same way. 14

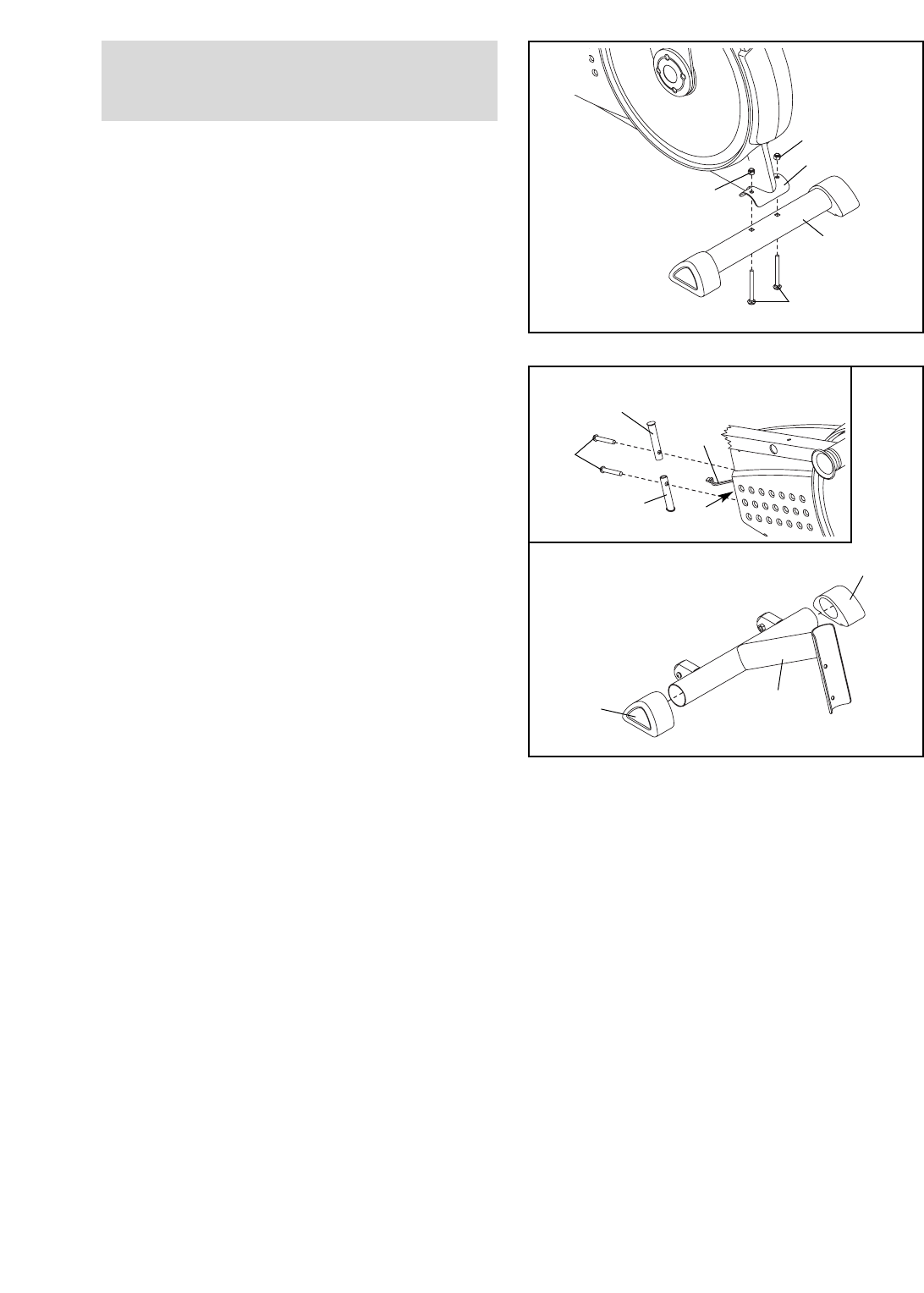

8. Attach two Pedal Posts (16) to the Left Pedal Arm

(14) with two M8 x 16mm Button Screws (84) and

two M8 Washers (53).

Attach the other Pedal Posts (not shown) to the

Right Pedal Arm (75) in the same way.

10. Identify the Left Handlebar (9), which is marked with

a sticker. Insert the Left Handlebar into one of the

Handlebar Legs (79); make sure that the

Handlebar Leg is turned so the hexagonal holes

are on the indicated side. Attach the Left

Handlebar with two M8 x 45mm Button Bolts (50)

and two M8 Nylon Locknuts (46). Make sure that

the Nylon Locknuts are inside of the hexagonal

holes. Do not tighten the Button Bolts yet.

Assemble the Right Handlebar (not shown) and the

other Handlebar Leg (not shown) in the same way.

50 Hexagonal

Holes

13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical exerciser.

12. Apply a small amount of grease to an M10 x 59mm

Bolt Set (27) and to the surfaces of the Leg

Bushings (28) in the left Handlebar Leg (79). Attach

the left Handlebar Leg to the Left Pedal Arm (14)

with the Bolt Set. Do not overtighten the Bolt Set;

the left Handlebar Leg must be able to pivot

freely.

Attach the right Handlebar Leg (79) to the Right

Pedal Arm (75) in the same way.

See step 3. Tighten the two M10 x 83mm Button

Screws (63). See step 4. Tighten the two M8 x

70mm Button Bolts (67). See step 10. Tighten the

M8 x 45mm Button Bolts (50) in the Handlebar

Legs (79).

28 28 27

Grease

11. Apply a generous amount of the included grease to

the Pivot Axle (81) and to the two M8 Washers (53).

Next, insert the Pivot Axle into the Upright (2) and

center it. Reapply grease to both ends of the Pivot

Axle.

Slide a Handlebar Spacer (25) onto the short tube on

the Left Handlebar (9), and rotate the Handlebar

Spacer so the small arrow is pointing toward the

floor. Next, slide the Left Handlebar onto the left end

of the Pivot Axle (81). Finger tighten an M8 x 25mm

Patch Screw (22) with an M8 Washer (53) and a

Wave Washer (91) into the end of the Pivot Axle.

Then, press the small tabs on a Handlebar Cap (23)

into the Handlebar Spacer.

Assemble the Right Handlebar (10) in the same way.

Make sure that both Wave Washers (91) are on the

Pivot Axle (81), and then tighten both M8 x 25mm

Patch Screws (22) at the same time.

Grease

Tube

Arrow

Tube

Arrow

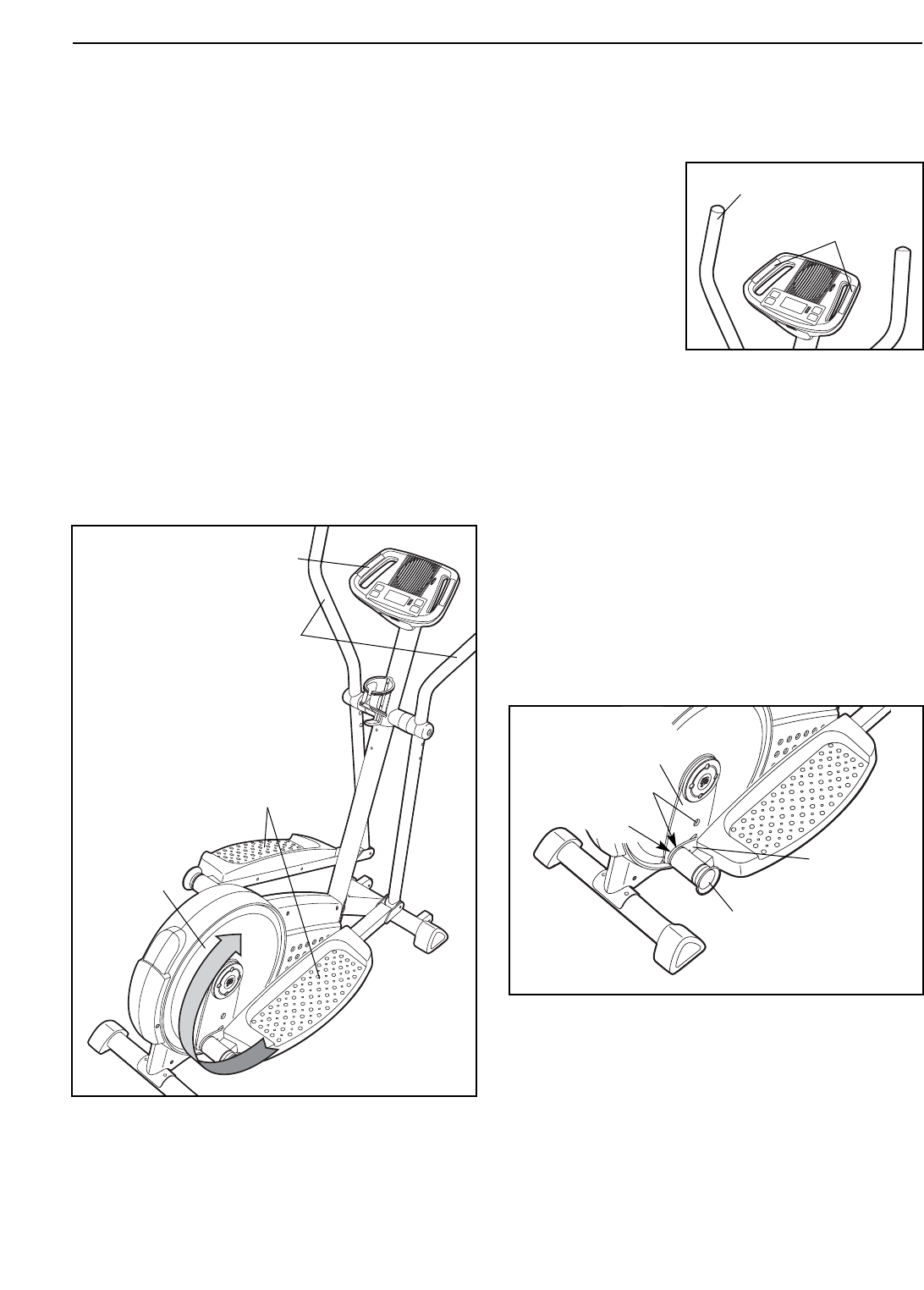

HOW TO USE THE ELLIPTICAL EXERCISER

HOW TO EXERCISE ON THE ELLIPTICAL

EXERCISER

To mount the elliptical exerciser, hold the handgrip

pulse sensor and step onto the pedal that is in the

lowest position. Next, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The pedal discs can turn in either

direction. It is recommended that you move the

pedal discs in the direction shown by the arrow

below; however, for variety, you can turn the pedal

discs in the opposite direction.

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals

will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

HOW TO USE THE HANDLEBARS

The handlebars are

designed to add

upper-body exer-

cise to your work-

outs. Push and pull

the handlebars as

you exercise to

work your arms,

shoulders, and

back.

To exercise only your lower body, hold the handgrip

pulse sensor as you exercise.

HOW TO ADJUST THE STRIDE OF THE ELLIPTI-

CAL EXERCISER

To adjust the stride of the elliptical exerciser, first pull

one of the adjustment knobs until the adjustment

bracket can be pivoted freely. Then, pivot the adjust-

ment bracket until the adjustment knob is aligned with

either of the two holes in the crank arm, and gently

release the knob. Pivot the adjustment bracket back

and forth slightly to make sure that the adjustment pin

is engaged in one of the holes. Adjust the other side of

the elliptical exerciser in the same way.

Pedals

Pedal

Disc

Handlebars

Pulse Sensor

Handlebars Handgrip

Pulse

Sensor

Adjustment

Bracket

Adjustment

Knob

Crank

Arm

Holes

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more effective. When

the manual mode of the console is selected, the resis-

tance of the pedals can be changed with the touch of

a button. As you pedal, the console will provide contin-

uous exercise feedback. You can even measure your

heart rate using the built-in handgrip pulse sensor.

In addition, the console features two pulse programs

that change the resistance of the pedals and help you

to maintain a steady pedaling pace to keep your heart

rate near a target heart rate setting while you exer-

cise.

The console also offers four preset programs. Each

program automatically changes the resistance of the

pedals and prompts you to increase or decrease your

pedaling pace as it guides you through an effective

workout.

To use the manual mode of the console, see the

instructions at the right. To use a pulse program, see

page 14. To use a preset program, see page 15.

Before using the console, make sure that batteries are

installed (see assembly step 5 on page 8). If there is a

sheet of clear plastic on the display, remove the plas-

tic.

HOW TO USE THE MANUAL MODE

1. Turn on the console.

To turn on the console, press the Increase button

or begin pedaling. The pace guide will light for a

moment; the console will then be ready for use.

2. Select the manual mode.

When the power is turned on, the manual mode

will be selected. If you have selected a program,

reselect the manual mode by pressing the

Program button repeatedly until no program indi-

cators (see the drawing above) appear along the

left side of the display.

3. Change the resistance of the pedals as

desired.

As you pedal,

change the resis-

tance of the pedals

by pressing the

Increase and

Decrease buttons.

There are ten resis-

tance levels. Note: After the buttons are pressed, it

will take a moment for the pedals to reach the

selected resistance level.

Fan

Button

Increase

Button

Program Button Program

Indicator

Display Pace

Guide

Decrease

Button

Program

Profiles

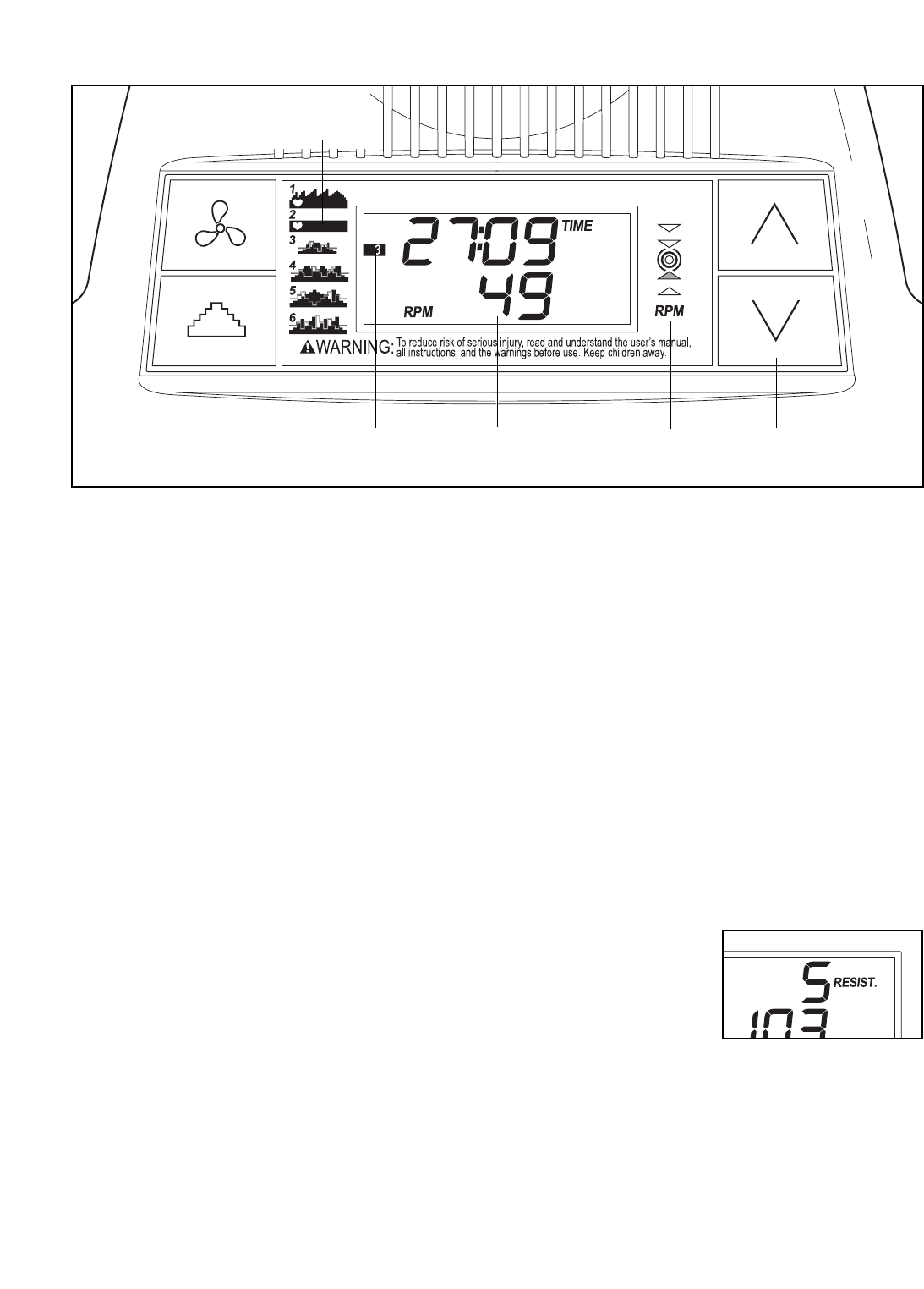

DIAGRAM OF THE CONSOLE

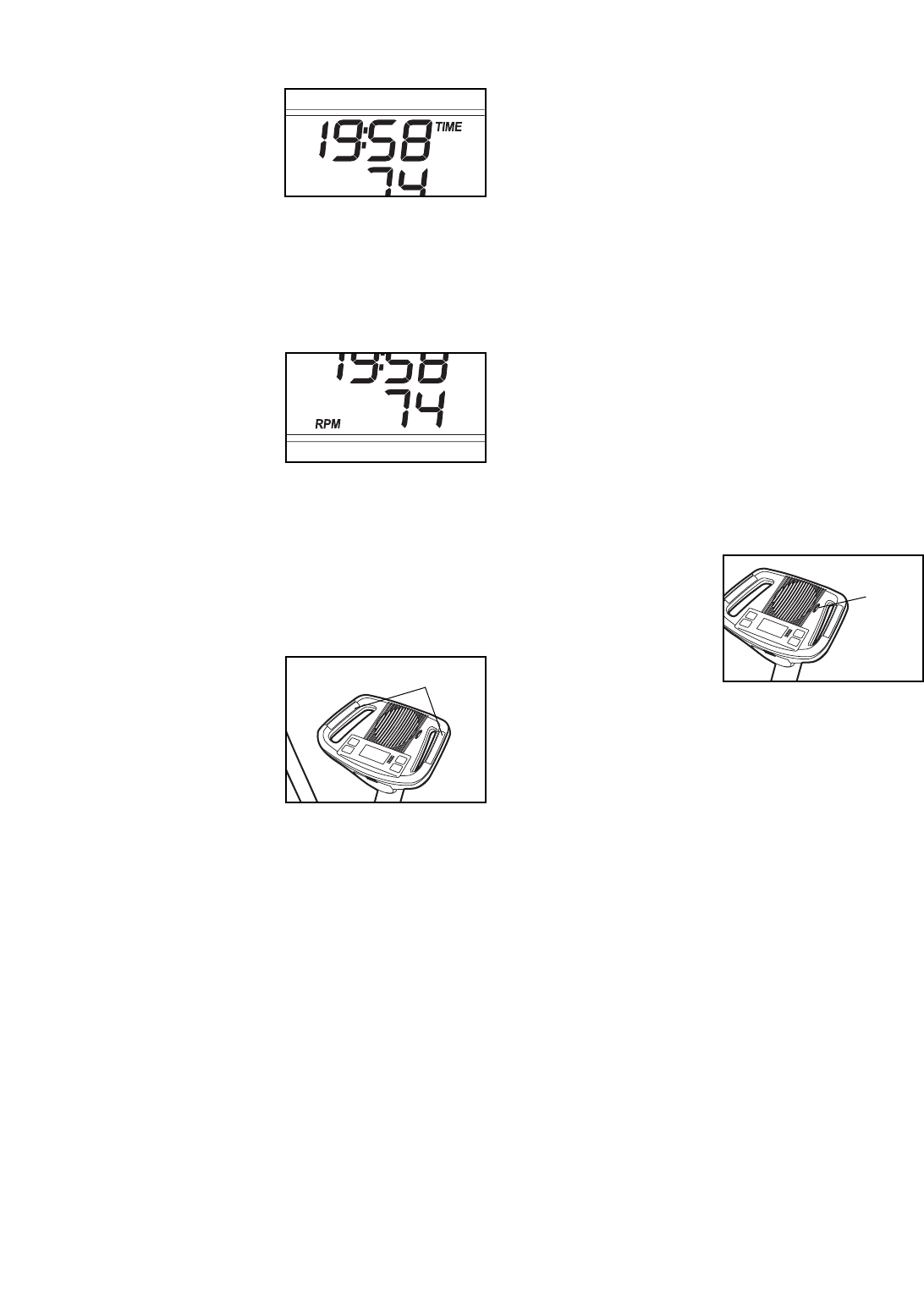

4. Monitor your progress with the display.

The upper half of

the display will show

the elapsed time,

the distance (total

revolutions) you

have pedaled, and

the resistance level

of the pedals. The display will change from one

mode to the next every few seconds. Note: When

a program is selected (except for pulse program

2), the display will show the time remaining in the

program instead of the elapsed time.

The lower half of the

display will show

your pedaling speed

(revolutions per

minute [RPM]) and

the approximate

number of calories

you have burned. The display will change from

one mode to the other every few seconds. The

lower half of the display will also show your heart

rate when you use the handgrip pulse sensor (see

step 5).

5. Measure your heart rate if desired.

If there are sheets

of clear plastic on

the metal contacts

on the handgrip

pulse sensor,

remove the plastic.

Next, hold the hand-

grip pulse sensor

with your palms

resting on the contacts. When your pulse is detect-

ed, the heart-shaped indicator in the lower half of

the display will flash each time your heart beats,

and your heart rate will be shown.

For the most accurate heart rate reading, continue

to hold the handgrip pulse sensor for about 30

seconds. Note: If you continue to hold the hand-

grip pulse sensor, the display will show your heart

rate for about 30 seconds. The display will then

show your heart rate along with the other modes.

If your heart rate is not shown, make sure that

your hands are positioned as described. Avoid

moving your hands excessively or squeezing the

metal contacts too tightly. For optimal perfor-

mance, periodically clean the metal contacts using

a soft cloth; never use alcohol, abrasives, or

chemicals.

6. Turn on the fan if desired.

To turn on the fan at low speed, press the fan but-

ton. To turn on the fan at high speed, press the fan

button a second time. To turn off the fan, press the

fan button a third time. Note: If the fan is turned on

but the pedals are not moved for thirty seconds,

the fan will automatically turn off to conserve the

batteries.

Rotate the thumb

tab on the right side

of the fan to adjust

the angle of the fan.

7. When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for a few seconds, the

time will begin to flash and the console will pause.

If the pedals are not moved for a few minutes, the

console will turn off and the display will be reset.

Contacts

Thumb

Tab

HOW TO USE A PULSE PROGRAM

Pulse program 1 is designed to keep your heart rate

within a set range during your workout. Pulse program

2 is designed to keep your heart rate near a target

heart rate setting that you select.

Follow the steps below to use a pulse program.

1. Turn on the console.

See step 1 on page 12.

2. Select a pulse program.

To select pulse pro-

gram 1 or 2, press

the Program button

repeatedly until the

number 1 or 2

appears along the

left side of the dis-

play.

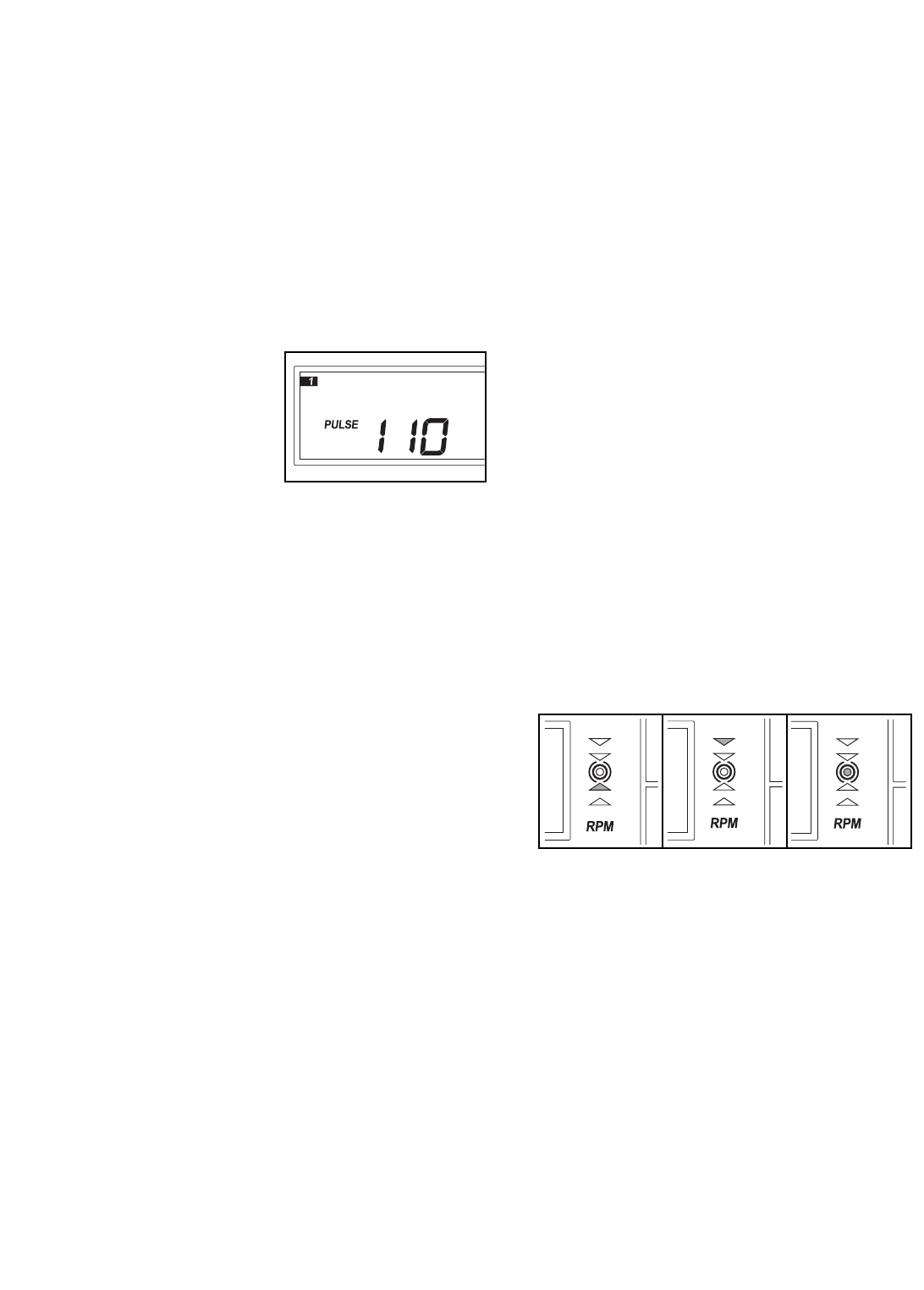

3. Enter a target heart rate.

If pulse program 1 is selected, the maximum tar-

get heart rate setting for the program will flash in

the display (see the drawing above). Press the

Increase and Decrease buttons to change the set-

ting, if desired (see EXERCISE INTENSITY on

page 17). If the maximum target heart rate setting

is increased or decreased, the intensity level of the

entire program will increase or decrease.

If pulse program 2 is selected, the target heart

rate setting for the entire program will flash in the

display. Press the Increase and Decrease buttons

to change the setting, if desired (see EXERCISE

INTENSITY on page 17).

4. Hold the handgrip pulse sensor.

It is not necessary to hold the handgrip pulse sen-

sor continuously during a pulse program; however,

you must hold the handgrip pulse sensor frequent-

ly. Each time you hold the handgrip pulse sen-

sor, keep your hands on the metal contacts for

at least 30 seconds. Note: When you are not

holding the handgrip pulse sensor, the letters PLS

will appear in the display instead of your heart

rate.

5. Begin pedaling to start the program.

Pulse program 1 is 30 minutes long, and is divid-

ed into several time periods of different lengths.

One target heart rate is programmed for each peri-

od. Pulse program 2 is sixty minutes long (you

may choose to use only part of the program). The

same target heart rate is programmed for the

entire program.

During the program, the console will regularly

compare your heart rate to the target heart rate

setting. If your heart rate is too far below or above

the target heart rate setting, the resistance of the

pedals will automatically increase or decrease to

being your heart rate closer to the target heart rate

setting. Note: If the resistance level is too high or

too low, you can override it by pressing the

Increase and Decrease buttons. However, when

the console compares your heart rate to the target

heart rate setting, the resistance may automatical-

ly change.

After the first minute of the program, the pace

guide will help you to maintain a steady pedaling

pace. When one of the two lower indicators lights,

increase your pace; when one of the two upper

indicators lights, decrease your pace. When the

center indicator lights, maintain your current pace.

IMPORTANT: The pace guide is intended only

to provide a goal. Make sure to pedal at a pace

that is comfortable for you.

The display will show the time remaining in pulse

program 1, or the elapsed time in pulse program

2. If you stop pedaling for a few seconds, the pro-

gram will pause and the time will flash in the dis-

play. To restart the program, simply resume pedal-

ing.

6. Monitor your progress with the display.

See step 4 on page 13.

7. Turn on the fan if desired.

See step 6 on page 13.

8. When you are finished exercising, the console

will automatically turn off.

See step 7 on page 13.

HOW TO USE A PRESET PROGRAM

Preset programs 3, 4, 5, and 6 automatically change

the resistance of the pedals and prompt you to

increase or decrease your pedaling pace as they

guide you through effective workouts. The profiles

printed on the left side of the display show how the

resistance level and the target pace will change during

the preset programs.

Follow the steps below to use a preset program.

1. Turn on the console.

See step 1 on page 12.

2. Select a preset program.

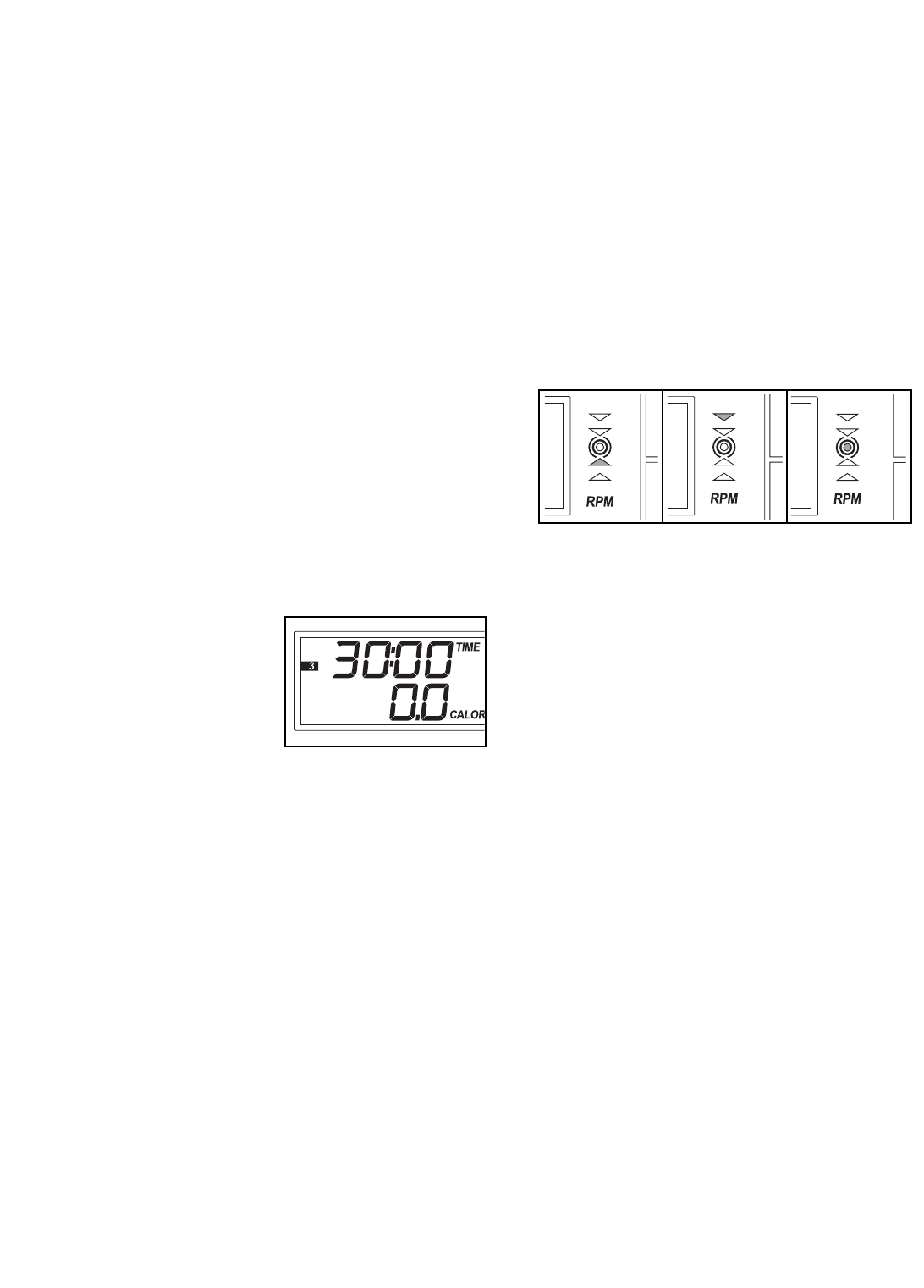

To select preset pro-

gram 3, 4, 5, or 6,

press the Program

button repeatedly

until the number 3,

4, 5, or 6 appears

along the left side of

the display. When a

preset program is selected, the display will show

how long the program will last.

3. Begin pedaling to start the program.

Each preset program consists of several time peri-

ods of different lengths. One resistance level and

one target pace are programmed for each period.

At the end of each period of the program, the

resistance level will flash in the display for a few

seconds. The resistance of the pedals will then

automatically change to the resistance level that is

programmed for the next period. Note: If the resis-

tance level is too high or too low, you can override

it by pressing the Increase and Decrease buttons.

However, when the current period ends, the resis-

tance level will automatically change if a different

resistance level is programmed for the next period.

During the program, the pace guide will prompt

you to increase or decrease your pedaling pace.

When one of the two lower indicators lights,

increase your pace; when one of the two upper

indicators lights, decrease your pace. When the

center indicator lights, maintain your current pace.

IMPORTANT: The pace guide is intended only

to provide a goal. Make sure to pedal at a pace

that is comfortable for you.

The display will show the time remaining in the

program. If you stop pedaling for a few seconds,

the program will pause and the time will flash in

the display. To restart the program, simply resume

pedaling.

4. Monitor your progress with the display.

See step 4 on page 13.

5. Measure your heart rate if desired.

See step 5 on page 13.

6. Turn on the fan if desired.

See step 6 on page 13.

7. When you are finished exercising, the console

will automatically turn off.

See step 7 on page 13.

Inspect and tighten all parts of the elliptical exerciser

regularly. Replace any worn parts immediately.

To clean the elliptical exerciser, use a damp cloth and

a small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

BATTERY REPLACEMENT

If the console displays become dim, the batteries

should be replaced; most console problems are the

result of low batteries. See assembly step 5 on page 8

for replacement instructions.

HANDGRIP PULSE SENSOR TROUBLESHOOTING

• Avoid moving your hands while using the handgrip

pulse sensor. Excessive movement may interfere

with heart rate readings.

• Do not hold the metal contacts too tightly; doing so

may interfere with heart rate readings.

• For the most accurate heart rate reading, hold the

metal contacts for about 30 seconds.

• For optimal performance of the handgrip pulse sen-

sor, keep the metal contacts clean. The contacts can

be cleaned with a soft cloth—never use alcohol,

abrasives, or chemicals.

MAINTENANCE AND TROUBLESHOOTING

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

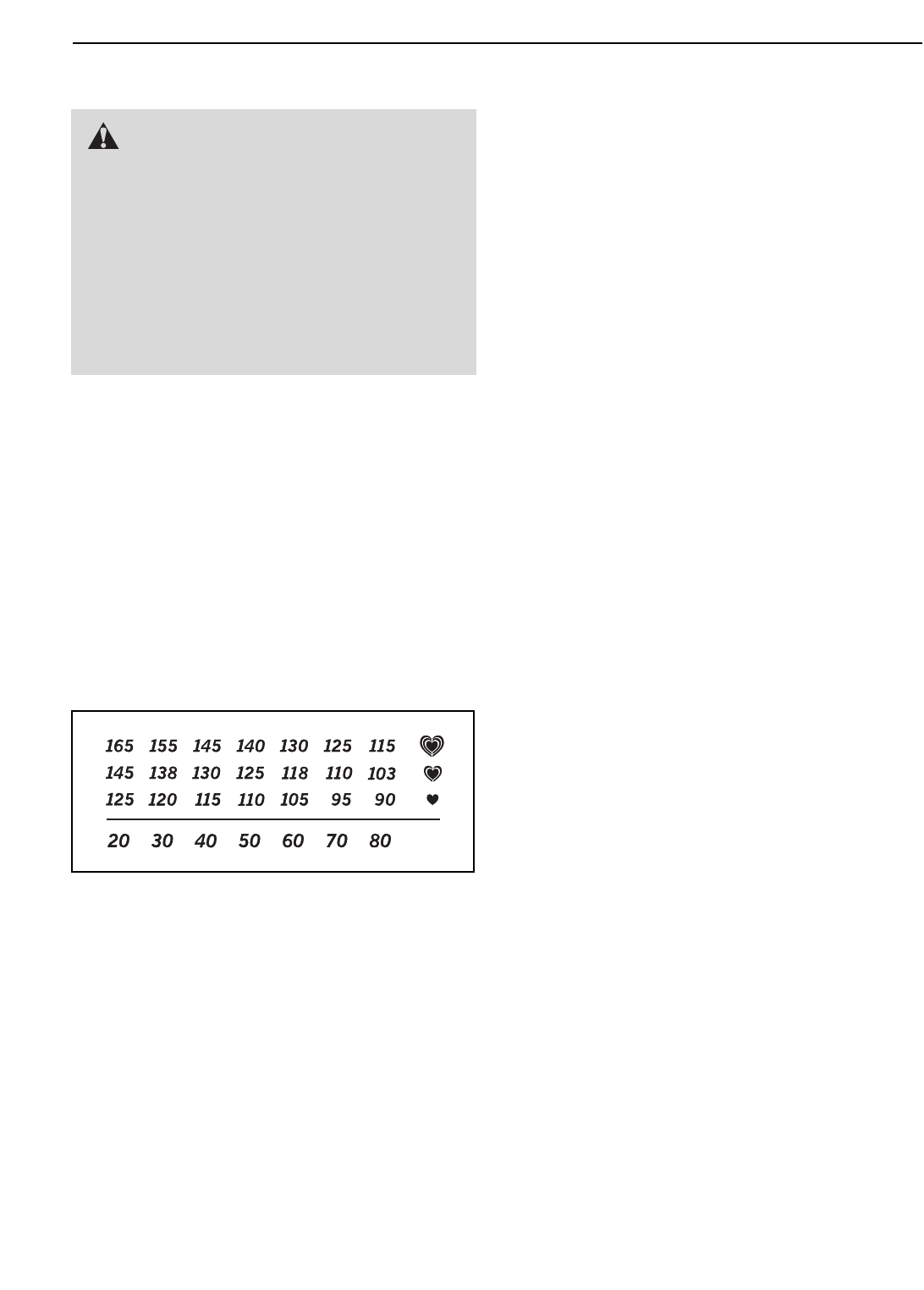

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses

carbohydrate calories

for energy. Only after

the first few minutes of exercise does your body begin

to use stored

fat calories

for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Warming up—Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise–never hold your breath.

Cooling down—Finish with 5 to 10 minutes of

stretching. Stretching increases the flexibility of your

muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired. Remember, the key to success is to

make exercise a regular and enjoyable part of your

everyday life.

EXERCISE GUIDELINES

WARNING: Before beginning

this or any exercise program, consult your

physician. This is especially important for

persons over the age of 35 or persons with

pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

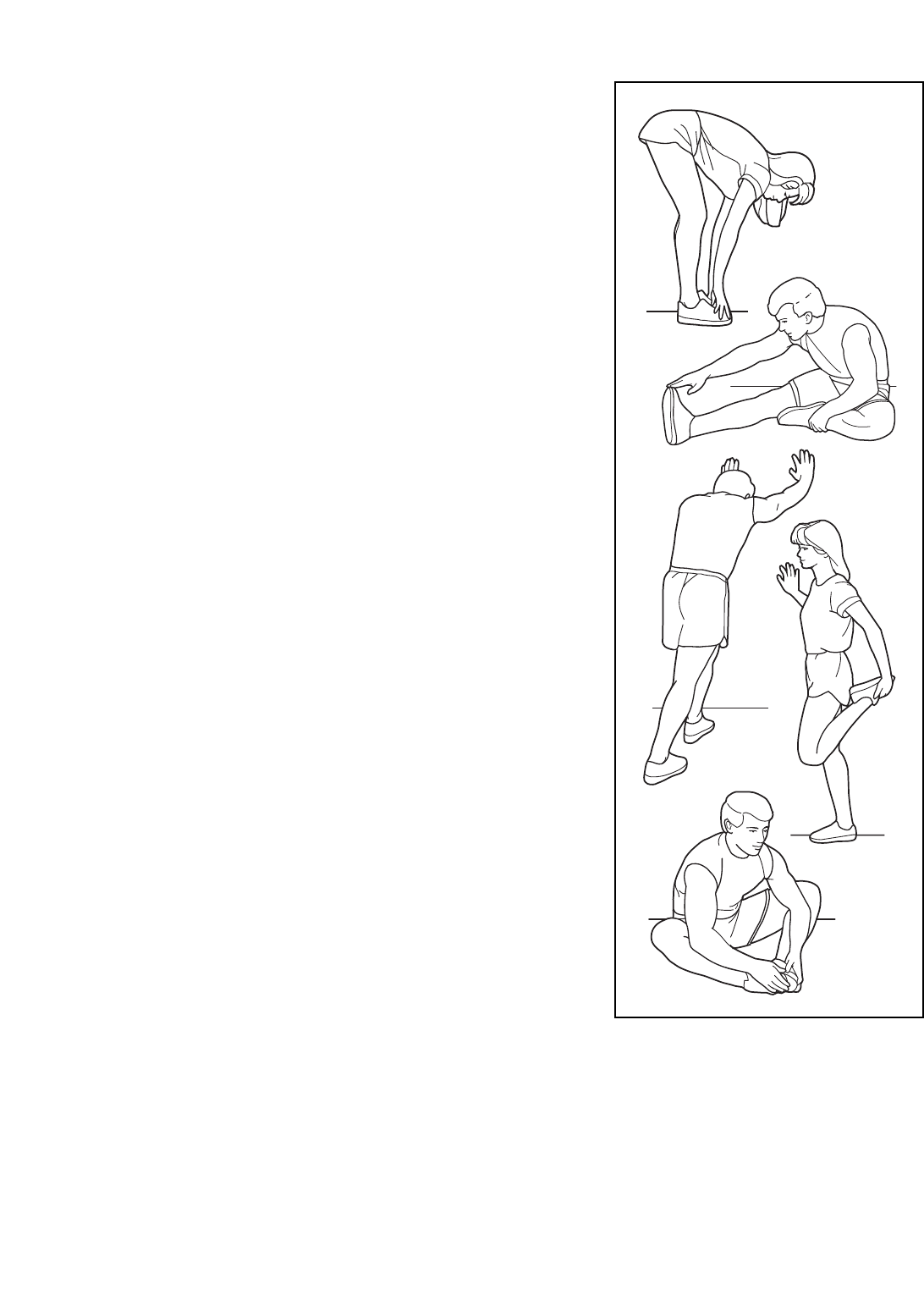

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended leg.

Reach toward your toes as far as possible. Hold for 15 counts,

then relax. Repeat 3 times for each leg. Stretches: Hamstrings,

lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat 3

times for each leg. To cause further stretching of the achilles ten-

dons, bend your back leg as well. Stretches: Calves, achilles ten-

dons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your but-

tocks as possible. Hold for 15 counts, then relax. Repeat 3 times

for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

NOTES

Note: Specifications are subject to change without notice. See the back cover of this manual for information

about ordering replacement parts. *These parts are not illustrated.

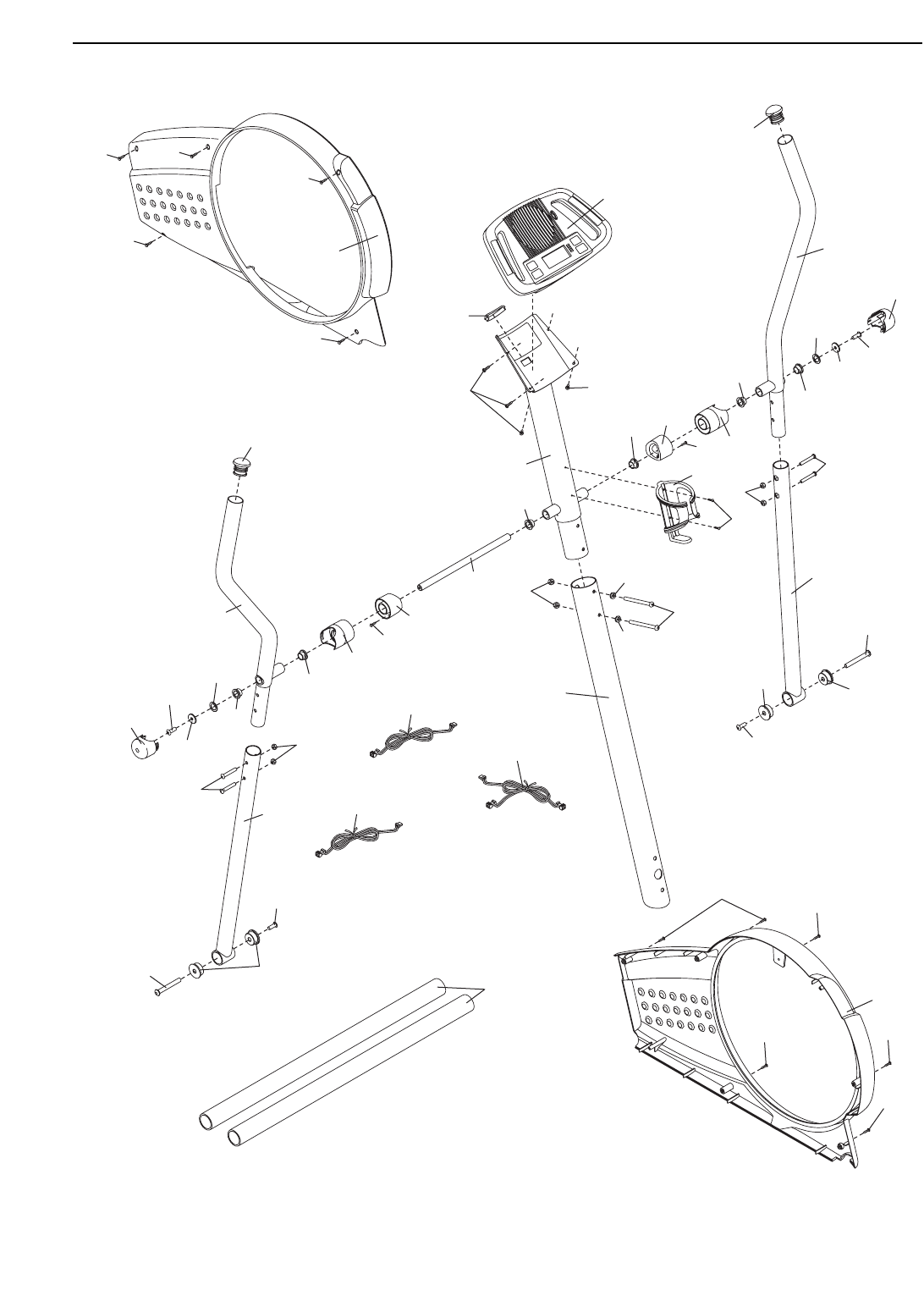

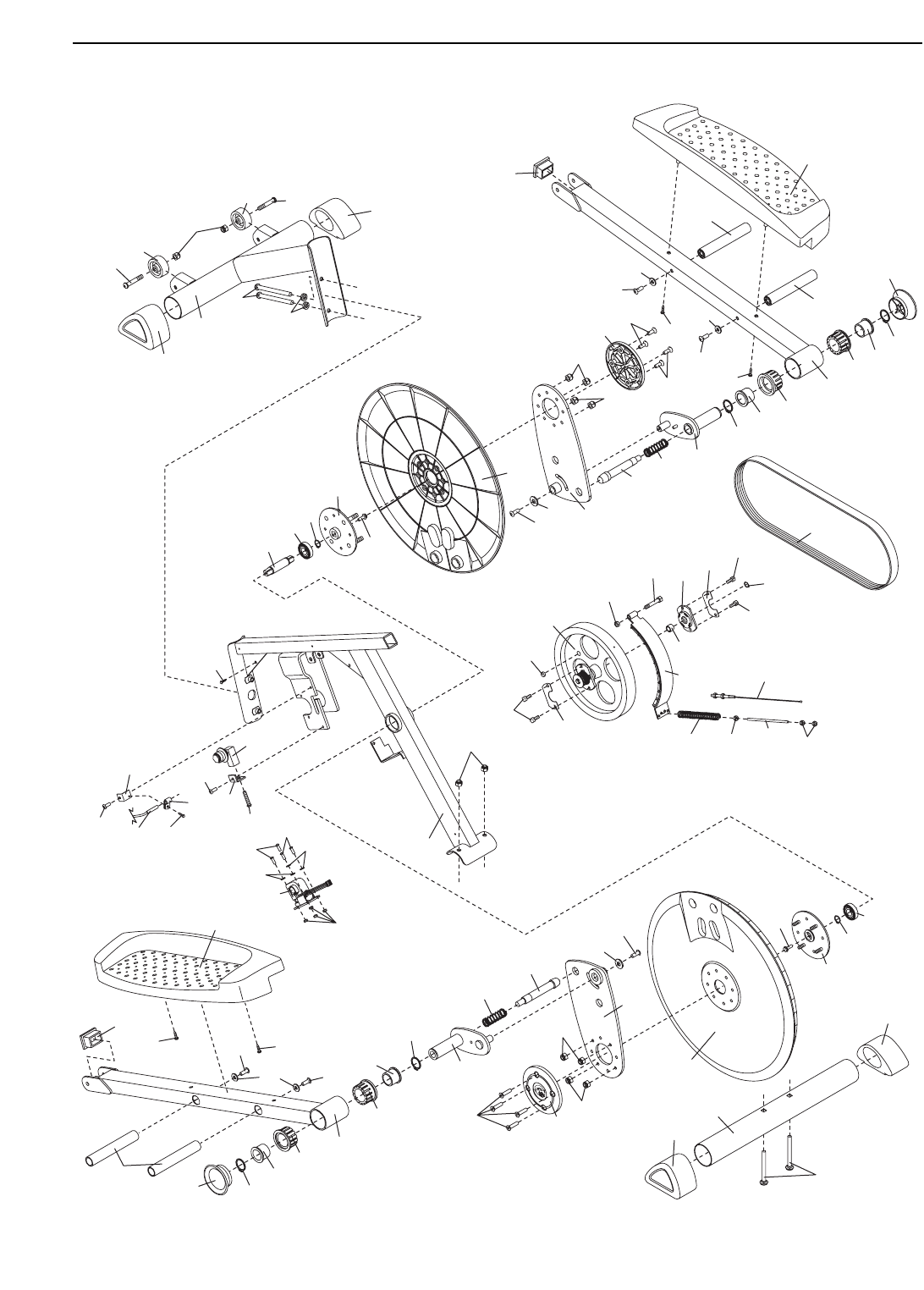

1 1 Frame

2 1 Upright

3 1 Front Stabilizer

4 1 Rear Stabilizer

5 1 Console

6 1 Left Side Shield

7 1 Right Side Shield

8 2 Pedal Disc

9 1 Left Handlebar

10 1 Right Handlebar

11 2 Foam Grip

12 2 Pedal

13 1 Upright Endcap

14 1 Left Pedal Arm

15 1 Mast

16 4 Pedal Post

17 2 Adjustment Pin

18 4 Pedal Arm Bushing

19 2 Adjustment Spring

20 2 Adjustment Bracket

21 2 Snap Ring

22 2 M8 x 25mm Patch Screw

23 2 Handlebar Cap

24 6 Handlebar Bushing

25 2 Handlebar Spacer

26 2 Upright Spacer

27 2 M10 x 59mm Bolt Set

28 4 Leg Bushing

29 4 M10 Nylon Locknut

30 1 Pillow Block

31 1 Idler

32 2 Wheel

33 2 M10 x 45mm Button Bolt

34 2 M10 x 75mm Carriage Bolt

35 4 Stabilizer Endcap

36 1 Left Crank Arm

37 1 Idler Bracket

38 1 Right Crank Arm

39 1 Crank

40 2 Crank Bearing

41 1 Flywheel

42 4 Large Snap Ring

43 1 Magnet

44 1 Flywheel Spacer

45 2 Adjustment Knob

46 7 M8 Nylon Locknut

47 2 Crank Screw

48 2 Hub Cover

49 1 M6 x 8mm Screw

50 4 M8 x 45mm Button Bolt

51 1 Return Spring

52 1 Magnet Guide

53 6 M8 Washer

54 1 “C” Magnet

55 1 Motor

56 1 Belt

57 2 Hub

58 1 Small Snap Ring

59 1 M5 x 40mm Screw

60 3 M6 Nut

61 4 M5 Nylon Locknut

62 4 M5 x 12mm Bolt

63 2 M10 x 83mm Button Screw

64 1 M8 x 41mm Bolt

65 2 Adjustment Bracket Screw

66 16 M4 x 16mm Screw

67 2 M8 x 70mm Button Bolt

68 4 Flywheel Screw

69 1 Reed Switch Clamp

70 1 Idler Screw

71 2 Handlebar Endcap

72 1 Water Bottle Holder

73 1 M6 x 16mm Screw

74 4 M4 x 38mm Screw

75 1 Right Pedal Arm

76 2 M4 x 22mm Screw

77 1 Reed Switch

78 1 Reed Switch Bracket

79 2 Handlebar Leg

80 8 M8 Jamnut

81 1 Pivot Axle

82 8 Cover Screw

83 2 M8 Split Washer

84 4 M8 x 16mm Button Screw

85 1 Resistance Cable

86 1 Upper Wire Harness

87 1 Lower Wire Harness

88 2 Pedal Arm Sleeve

89 2 M3 x 12mm Screw

90 4 Motor Washer

91 2 Wave Washer

92 2 Inner Pedal Arm Sleeve

93 2 M6 Washer

94 2 M10 Split Washer

95 1 Extension Wire Harness

96 2 Pedal Arm Endcap

97 2 Pillow Block Retainer

* – Hex Key

* – Grease

* – User’s Manual

Key No. Qty. Description Key No. Qty. Description

PART LIST—Model No. PFEL3905.2 R0208A

EXPLODED DRAWING A—Model No. PFEL3905.2 R0208A

27 28

66 66

66 59

48 82

18 88

65 47

62 90

97 60

EXPLODED DRAWING B—Model No. PFEL3905.2 R0208A

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. For

in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,

improper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond

that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

Proform Pfccel39062 Strideselect 825 Elliptical Users Manual PFEL3905.2 235490

Navigation menu

Versions of this User Manual:

Views

Navigation
