USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEL08011.6

Serial No.

Write the serial number in the space

above for reference.

www.proform.com

Serial Number Decal

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

2

TABLE OF CONTENTS

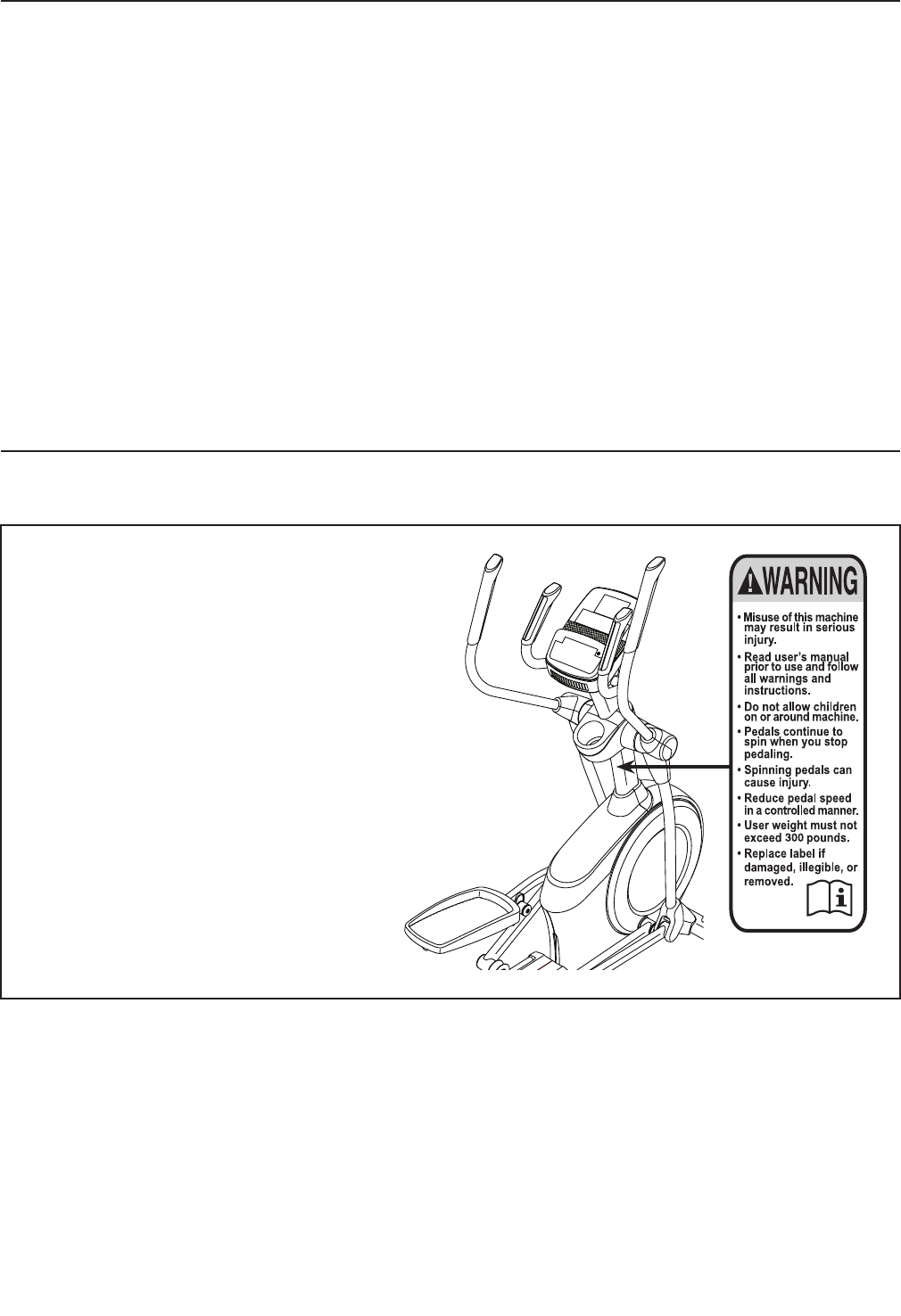

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

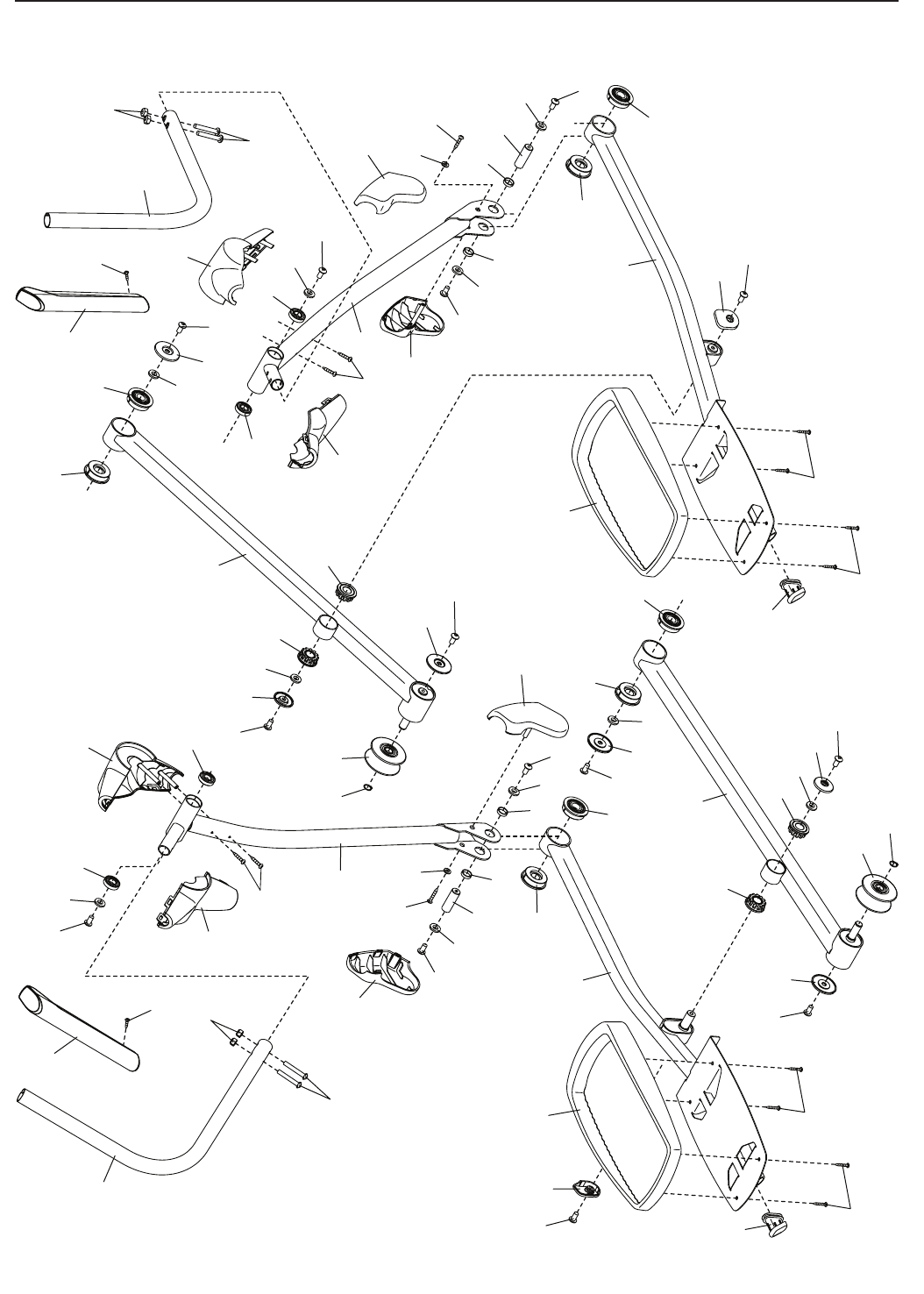

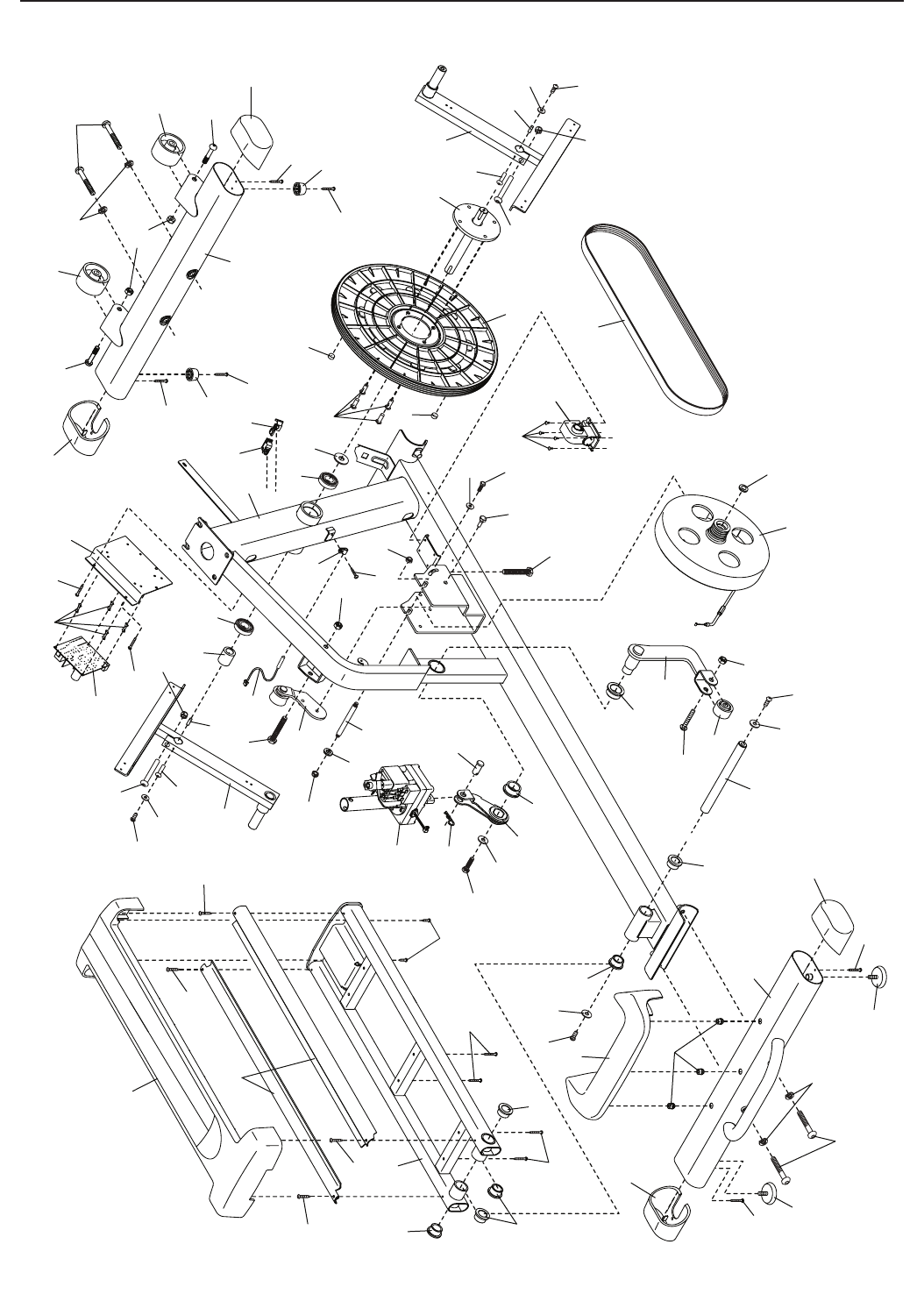

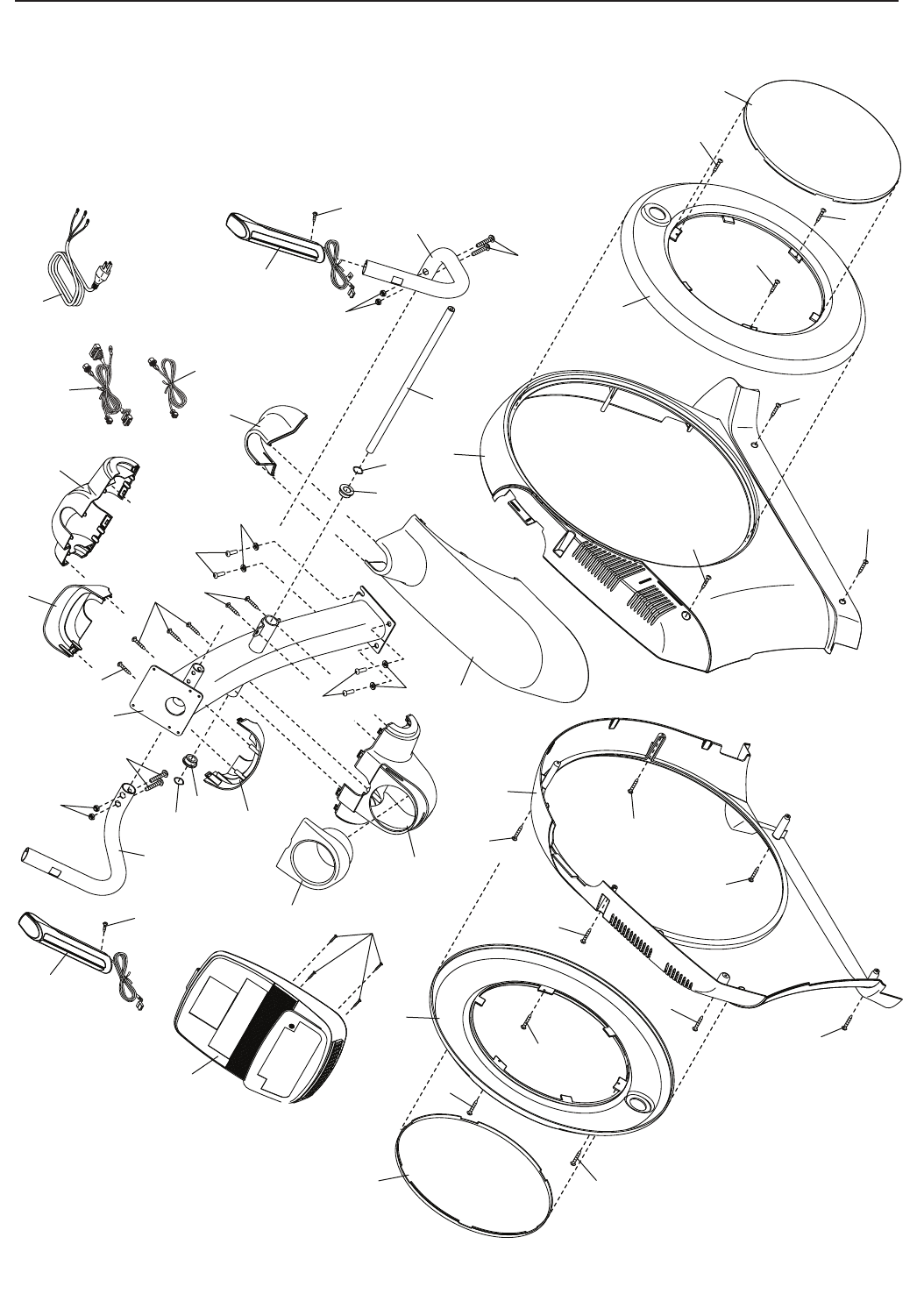

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

3

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. Use the elliptical only as described in this

manual.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the elliptical at all times.

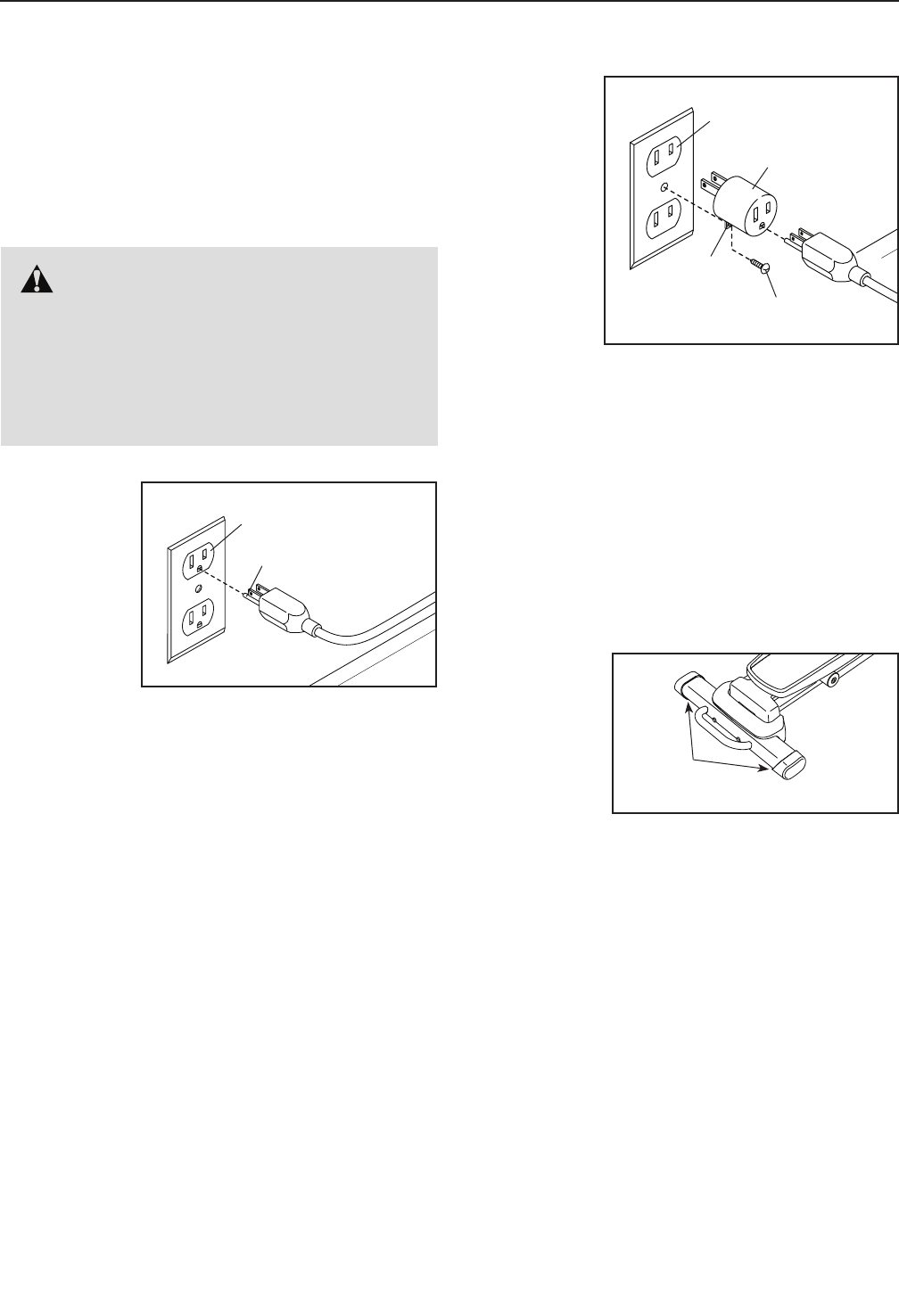

9. When connecting the power cord (see page

17), plug the power cord into a grounded

circuit.

10. Do not modify the power cord or use an

adapter to connect the power cord to an

improper receptacle. Keep the power cord

away from heated surfaces. Do not use an

extension cord.

11. Do not operate the elliptical if the power cord

or plug is damaged, or if the elliptical is not

working properly.

12. DANGER: Always unplug the power

cord and switch the power switch to the off

position when the elliptical is not in use and

before cleaning the elliptical. Servicing other

than the procedures in this manual should be

performed by an authorized service repre-

sentative only.

13. The elliptical should not be used by persons

weighing more than 300 lbs. (136 kg).

14. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

15. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

16. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid in

determining heart rate trends in general.

17. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

18. Keep your back straight while using the ellip-

tical; do not arch your back.

19. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

IMPORTANT PRECAUTIONS

4

5

all

STANDARD SERVICE PLANS

6

Thank you for selecting the revolutionary PROFORM®

710 E elliptical. The 710 E elliptical provides an

impressive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

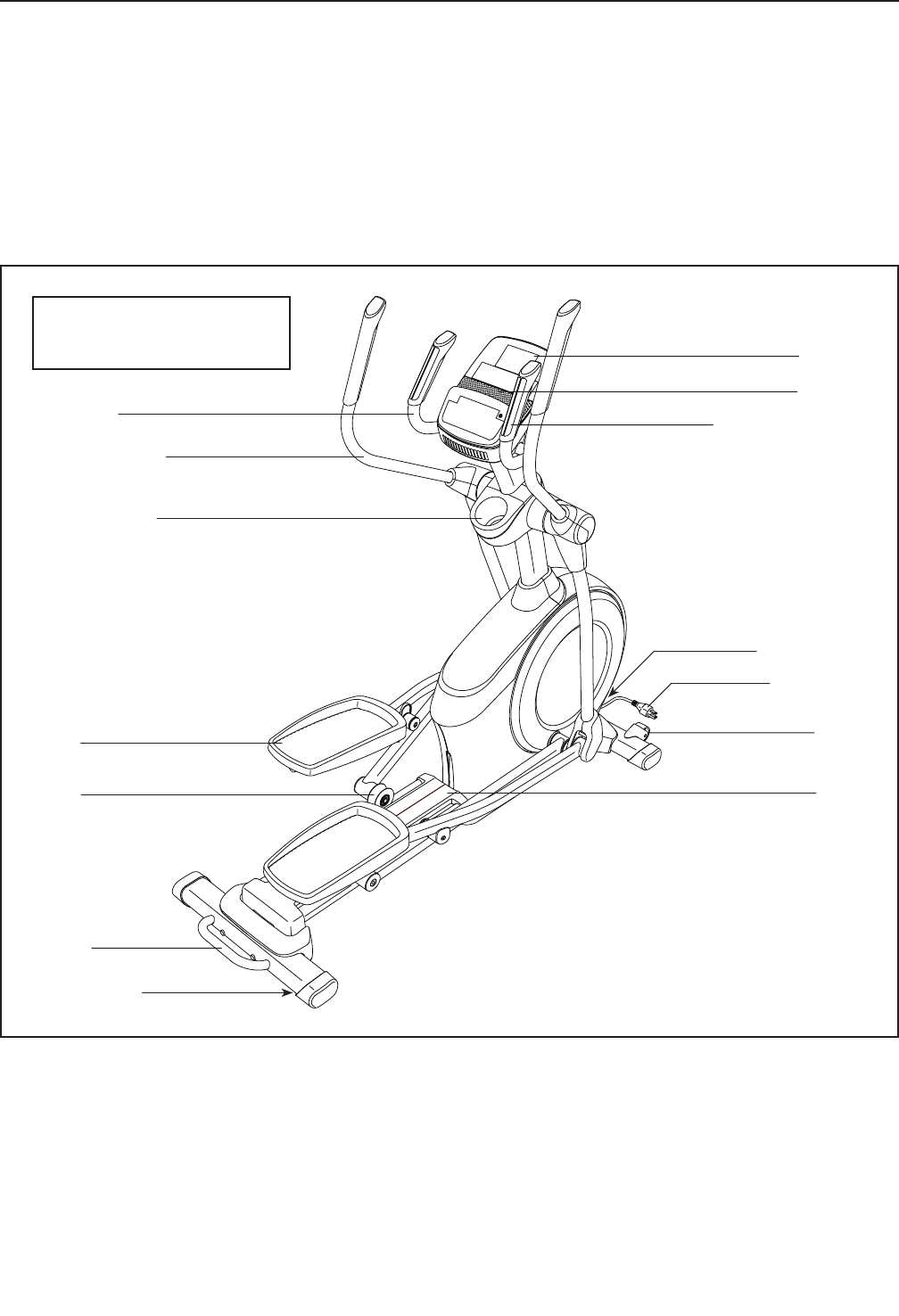

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Accessory Tray

Speaker

Handlebar

Upper Body Arm

Pedal

Roller

Handle

Ramp

Console

BEFORE YOU BEGIN

Wheel

Power Cord

Power Switch

Leveling Foot

Length: 5 ft. 8 in. (173 cm)

Width: 2 ft. 2 in. (66 cm)

7

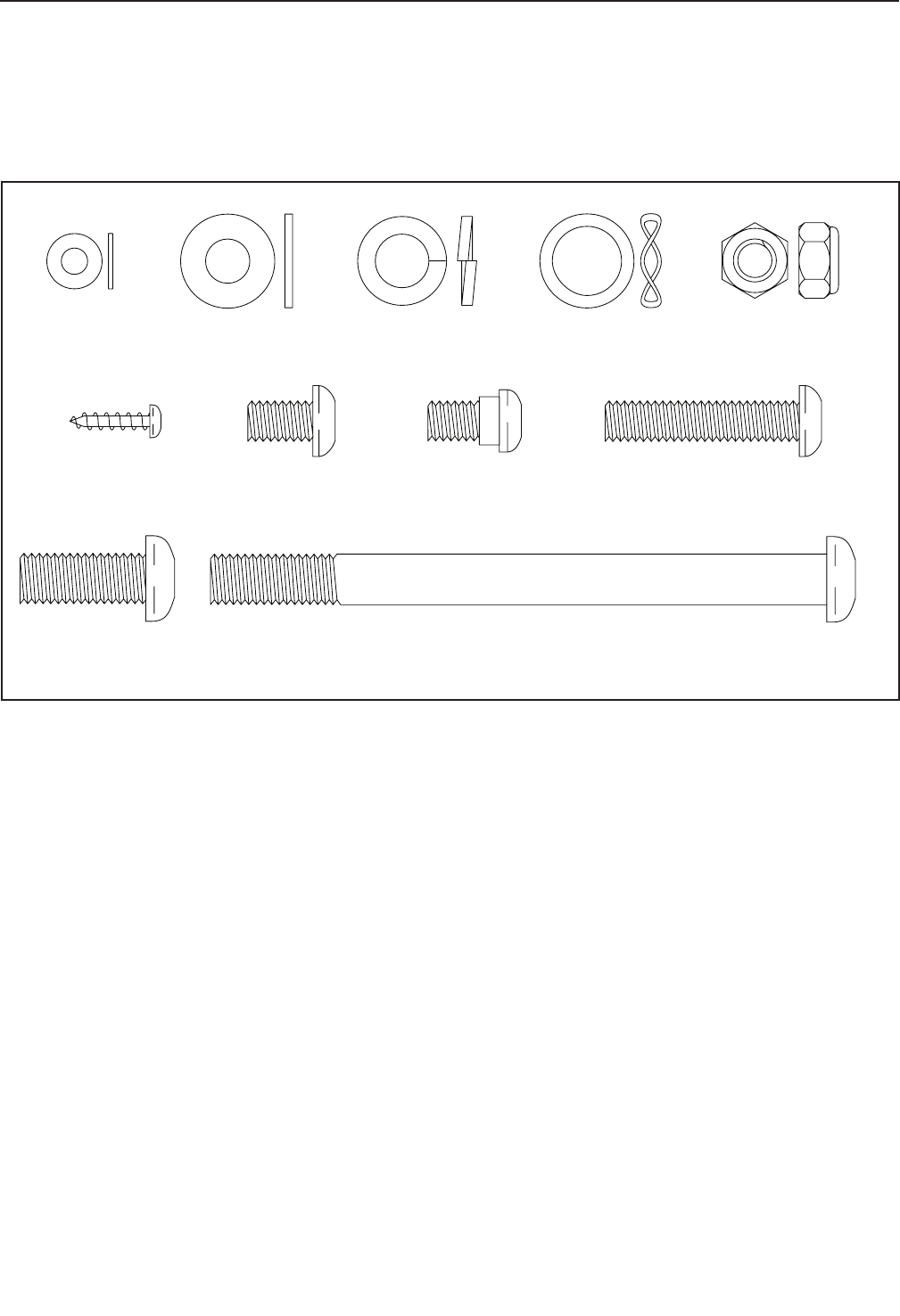

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 x 13mm

Screw (82)–6

M10 x 25mm

Screw (99)–4

M10 x 122mm

Screw (104)–4

M8 Locknut

(102)–4

16mm Wave

Washer (54)–2

M10 Split

Washer (105)–8

M4 x 16mm

Screw (101)–16

M8 Washer

(97)–8

M5 Washer

(94)–2

M8 x 38mm

Bolt (96)–4

M8 x 14mm

Shoulder Screw

(126)–2

8

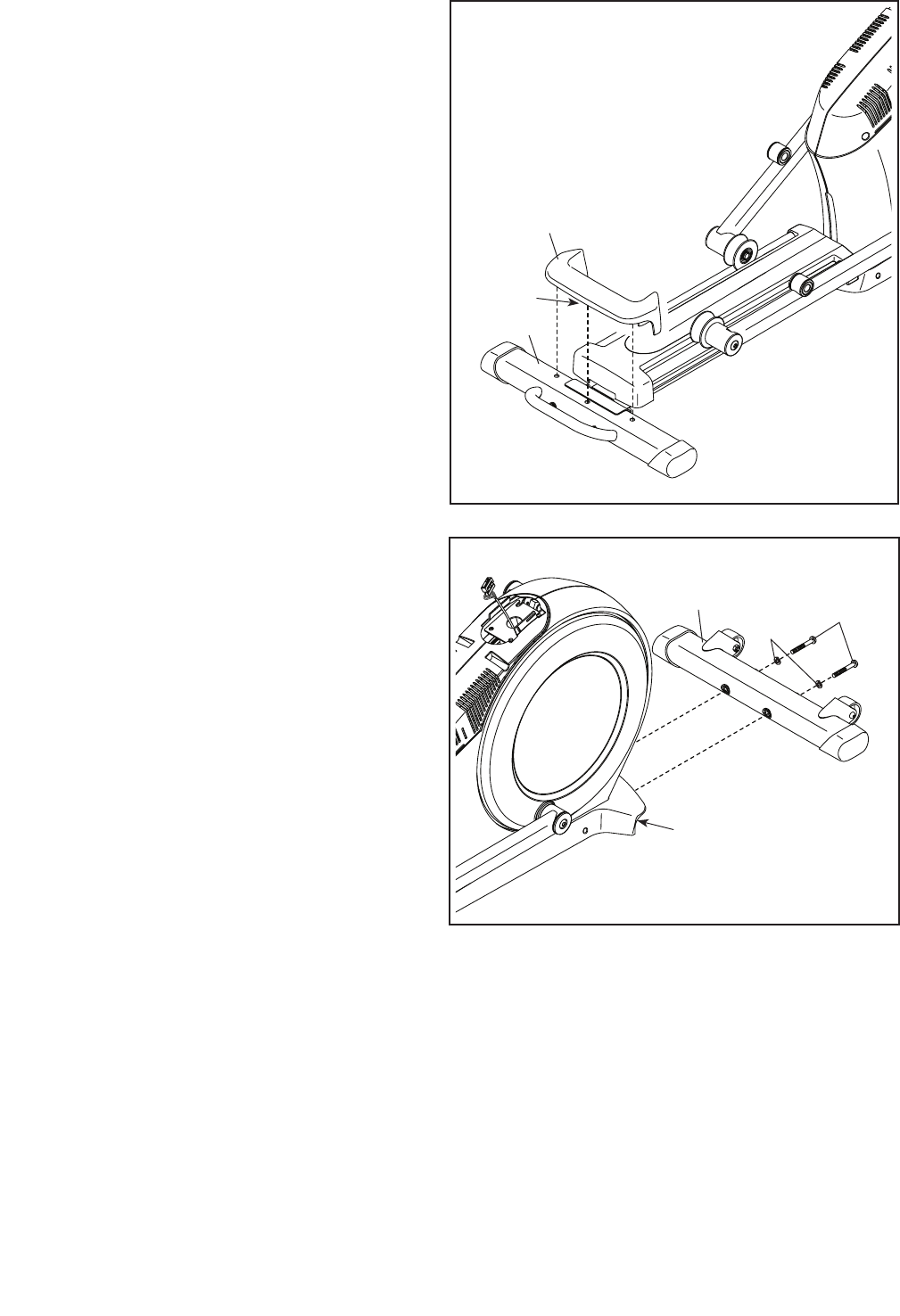

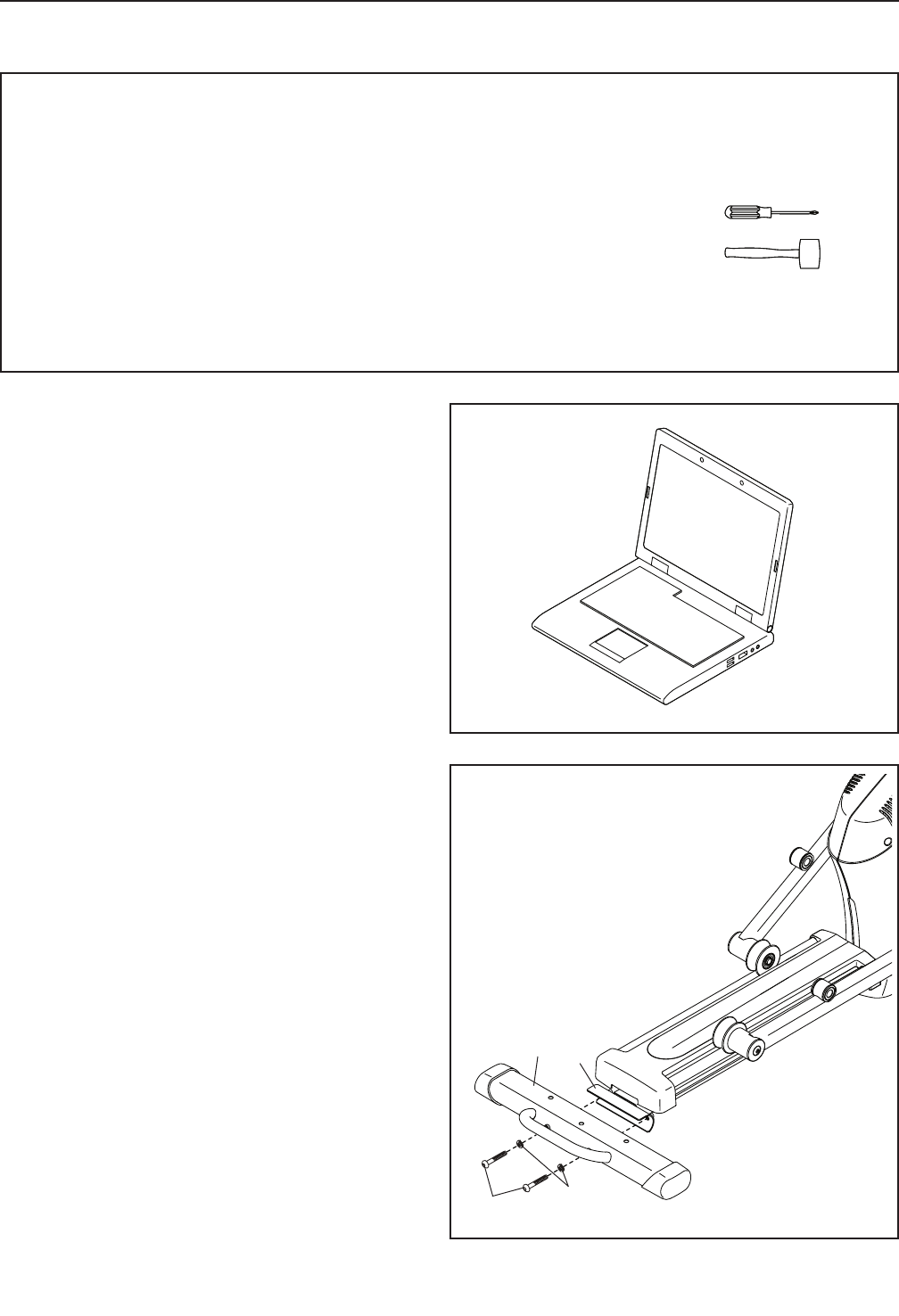

2. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

Attach the Rear Stabilizer (2) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Remove the packing materials from under the

rear of the Frame (1).

2

1

2

104 105

• To hire an authorized service technician to

assemble the elliptical, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you fi nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 7.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have your own set

of wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1

1. Go to www.nordictrackserviec.com/

registration on your computer and register

your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this

manual) and register your product.

9

3

2

106

15

3. Press the Cover Mounts (106) on the underside

of the Rear Stabilizer Cover (15) into the Rear

Stabilizer (2).

4

4. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (6) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Remove the packing materials from under the

front of the Frame (1).

1

6104

105

10

5

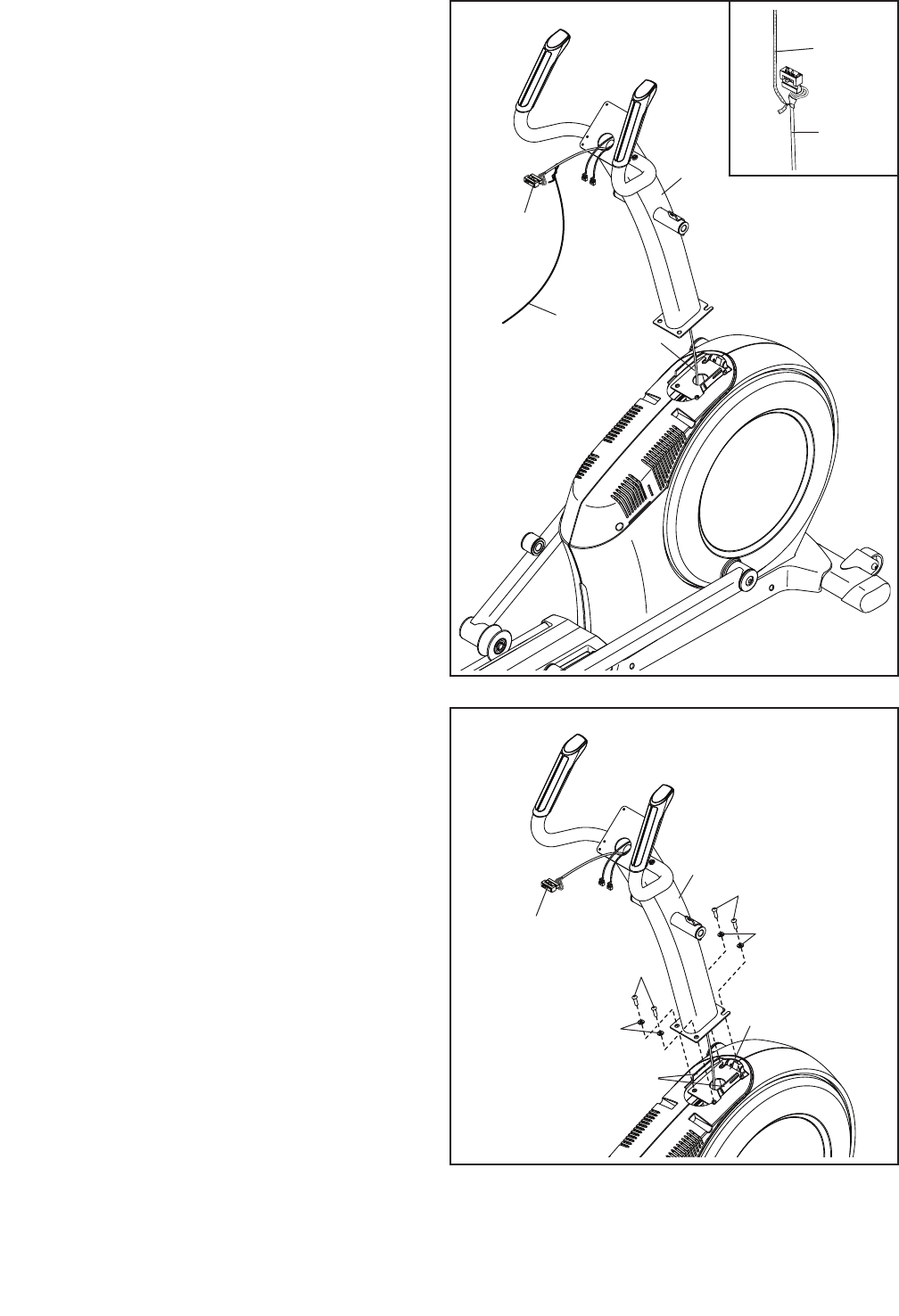

5. Orient the Upright (4) as shown. Have a second

person hold the Upright near the Frame (1).

See the inset drawing. Locate the wire tie in

the lower end of the Upright (4). Tie the wire tie

to the Upper Wire (110). Then, pull the upper

end of the wire tie until the Upper Wire is routed

through the Upright.

Tip: To prevent the Upper Wire (110) from

falling into the Upright (4), secure the Upper

Wire with the wire tie.

1

4

110

Wire

Tie

Wire

Tie

110

6

6. Tip: Avoid pinching the Upper Wire (110).

Avoid damaging the indicated plastic tabs.

Set the Upright (4) on the Frame (1).

Attach the Upright (4) with four M10 x 25mm

Screws (99) and four M10 Split Washers (105).

Avoid pinching the

Upper Wire (110)

and avoid damaging

the tabs

Tabs

4

1

105

105

99

99

110

11

7

7. Using a plastic bag to keep your fingers clean,

apply some of the included grease to the Pivot

Axle (35) and to two 16mm Wave Washers (54).

Insert the Pivot Axle (35) through the Upright (4)

and center it. Tip: It may be helpful to use a

rubber mallet.

Identify the Right Upper Body Leg (60) and ori-

ent it as shown.

Slide a 16mm Wave Washer (54) and the Right

Upper Body Leg (60) onto the right side of the

Pivot Axle (35).

Repeat these actions for the Left Upper Body

Leg (46).

Tighten an M8 x 13mm Screw (82) and an M8

Washer (97) into each end of the Pivot Axle (35)

at the same time.

60

54

46

82

97

35

4

Grease

8

8. Identify the Right Upper Body Arm (61) and ori-

ent it as shown.

Slide the Right Upper Body Arm (61) onto the

Right Upper Body Leg (60).

Attach the Right Upper Body Arm (61) with two

M8 x 38mm Bolts (96) and two M8 Locknuts

(102). Make sure that the Locknuts are in the

hexagonal holes.

Repeat this step for the Left Upper Body

Arm (47). Hexagonal

Holes

60

61

47

96

102

12

9

7

4

63

110

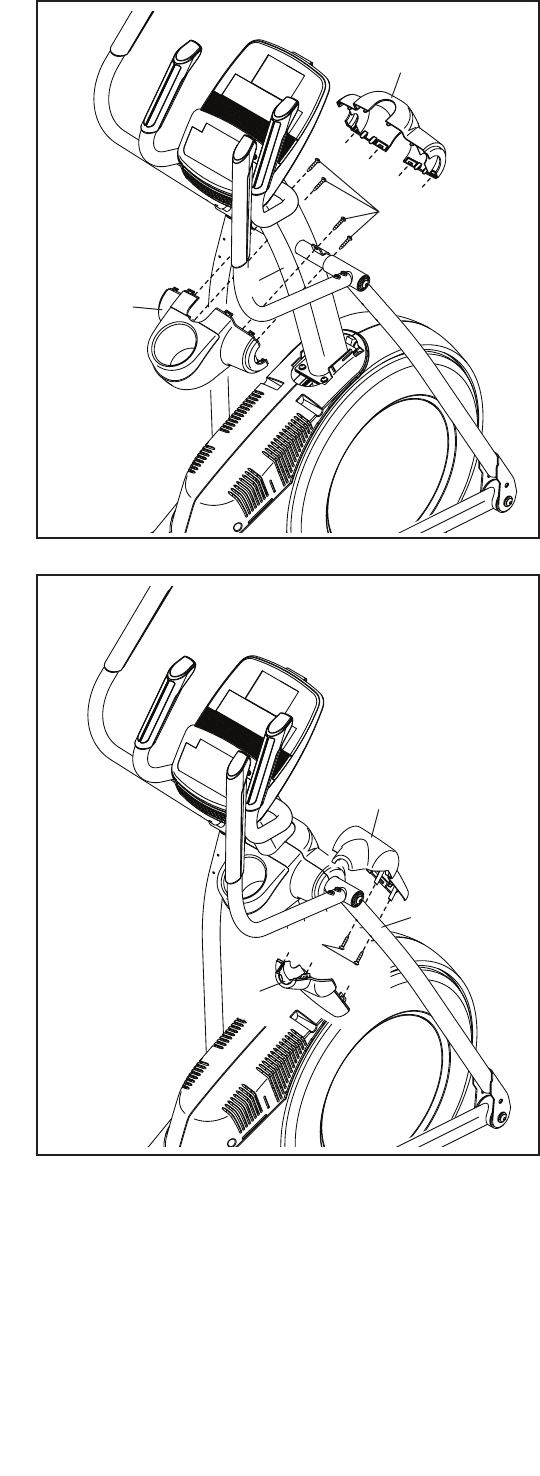

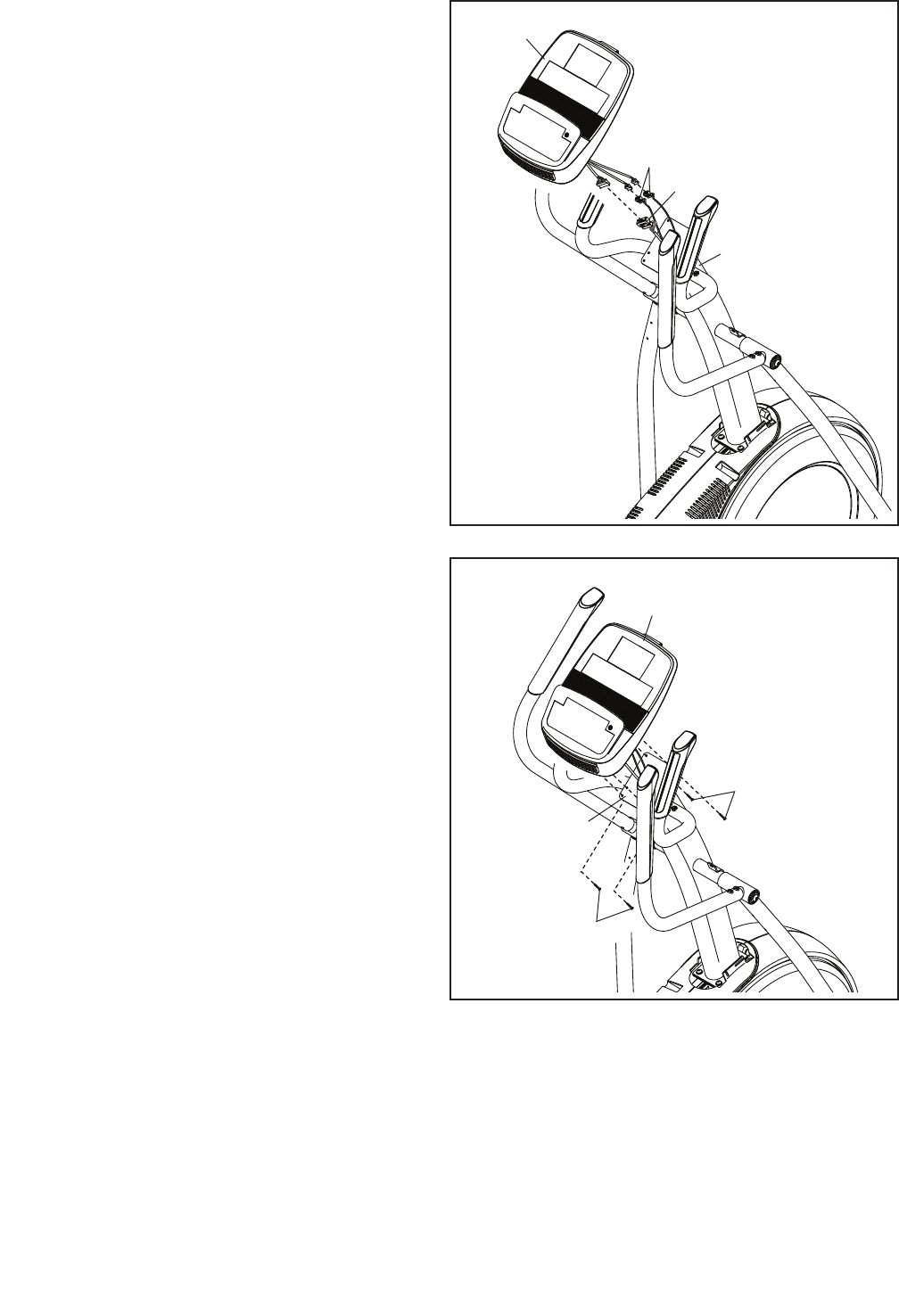

9. Untie and discard the wire tie on the Upper

Wire (110).

While a second person holds the Console (7)

near the Upright (4), connect the wires on the

Console to the Upper Wire (110) and to the

Sensor Wires (63).

Insert the excess wire into the Upright (4).

10

Avoid pinching

the wires

7

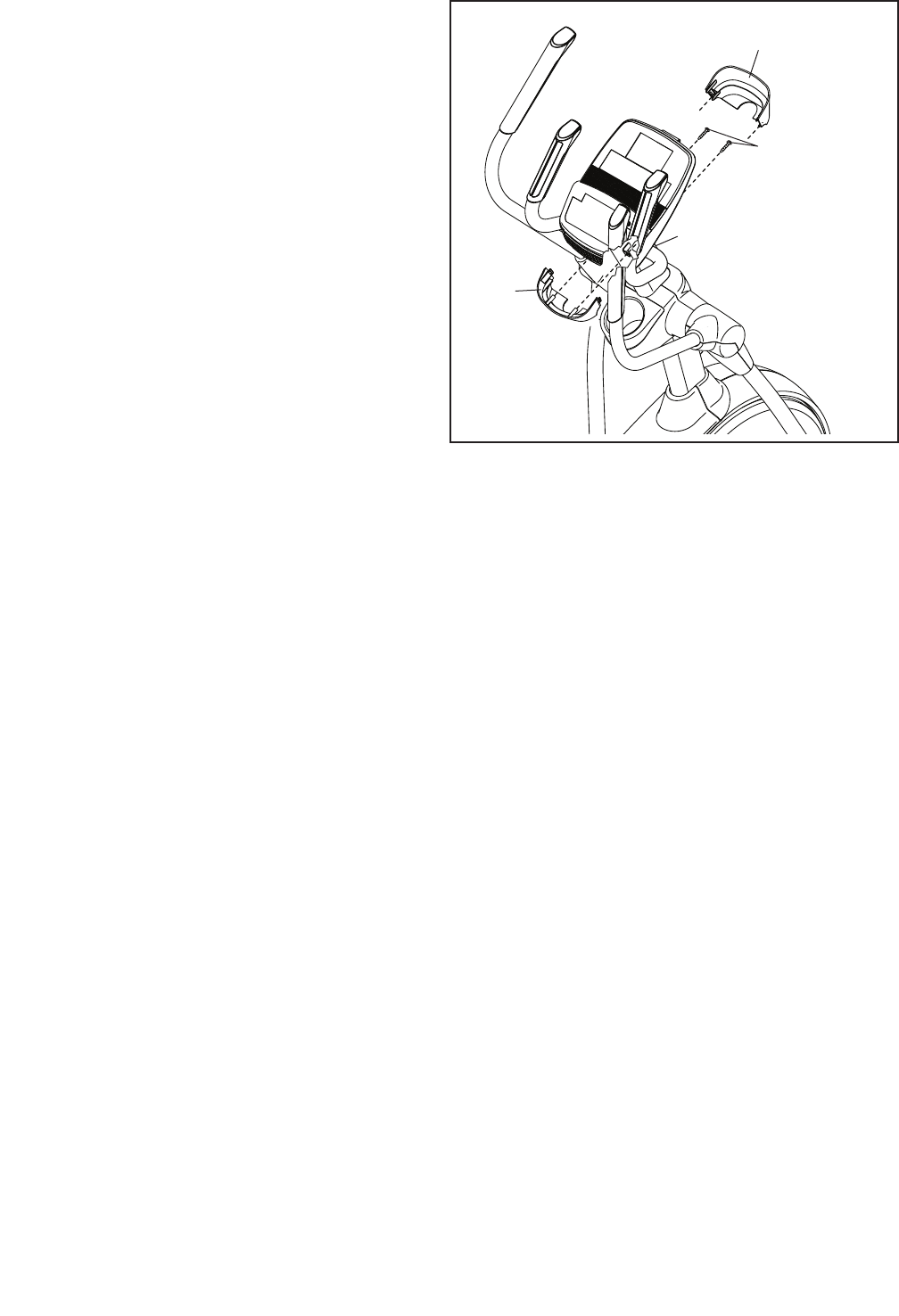

10. Tip: Avoid pinching the wires. Attach the

Console (7) to the Upright (4) with four M4 x

16mm Screws (101).

101

101

4

13

11

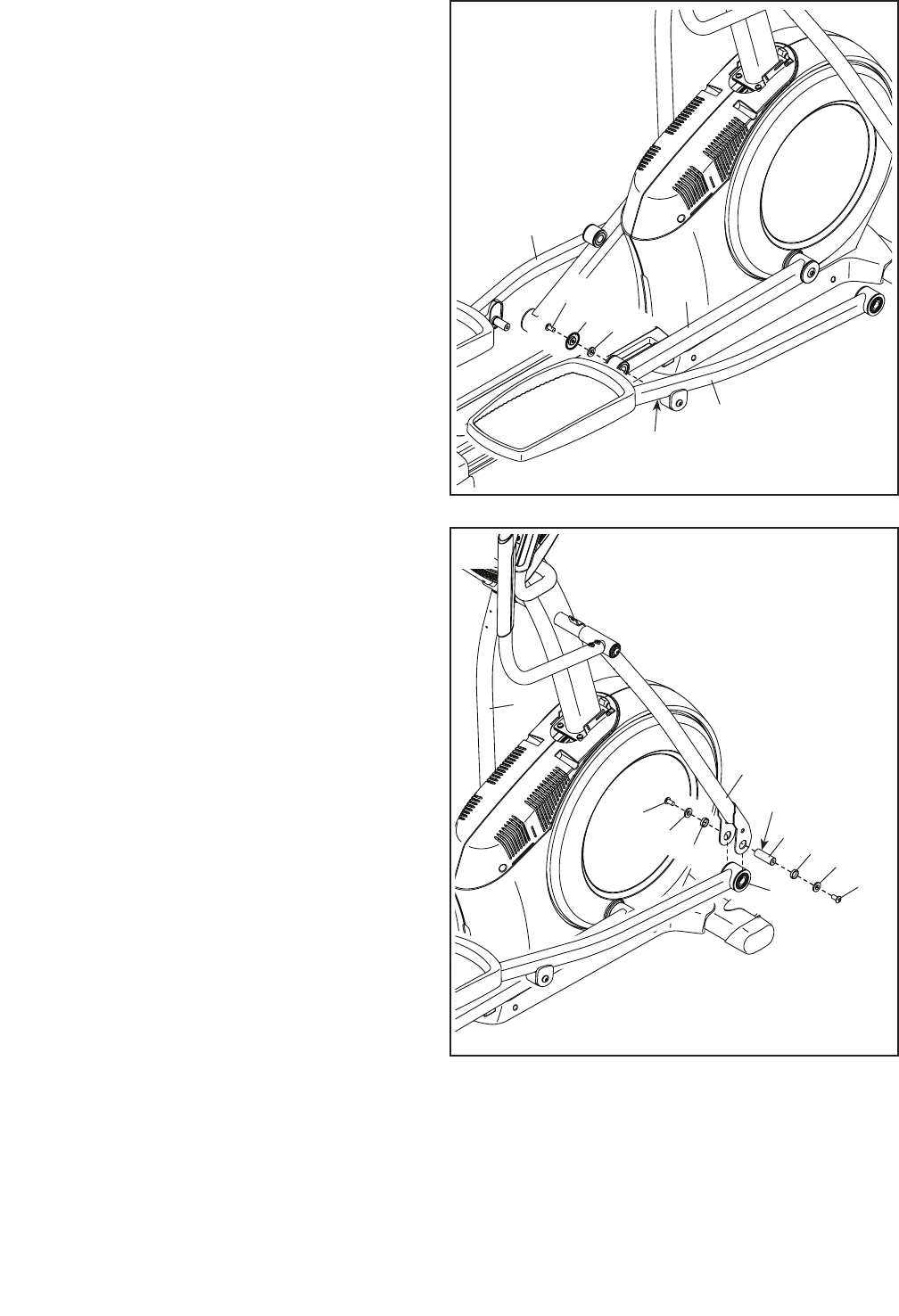

11. Orient the Right Pedal Arm (58) as shown.

Apply grease to the axle on the Right Pedal

Arm (58).

Attach the Right Pedal Arm (58) to the Right

Roller Arm (59) with an M8 x 14mm Shoulder

Screw (126), a Small Axle Cover (55), and an

M8 Washer (97).

Repeat this step for the Left Pedal Arm (44).

Grease

126

55

58

59

44

97

82

82

97

97

77

58

77

60

46

64

12. Apply a small amount of grease to one of the

Pedal Arm Axles (64).

Next, slide an M8 Washer (97) and an Axle

Spacer (77) onto an M8 x 13mm Screw (82), and

tighten the Screw a few turns into the Pedal Arm

Axle (64).

While a second person holds the front end of the

Right Pedal Arm (58) inside the bracket on the

Right Upper Body Leg (60), insert the Pedal Arm

Axle (64) into both parts.

Slide an M8 Washer (97) and an Axle Spacer

(77) onto another M8 x 13mm Screw (82), and

tighten the Screw a few turns into the Pedal Arm

Axle (64). Then, tighten both Screws at the

same time.

Repeat this step on the other side of the

elliptical.

Grease

12

14

13

13. Orient the Rear Upright Cover (81) as shown.

Attach the Rear Upright Cover (81) to the Upright

(4) with four M4 x 16mm Screws (101).

Orient the Front Upright Cover (117) as shown.

Attach the Front Upright Cover (117) around

the Upright (4) by pressing the hooks on the

Rear Upright Cover (81) onto the tabs on the

Front Upright Cover.

101

81

117

4

14

14. Identify the Right Upper Body Arm Front Cover

(65) and orient it as shown.

Attach the Right Upper Body Arm Front Cover

(65) to the Right Upper Body Leg (60) with two

M4 x 16mm Screws (101).

Identify the Right Upper Body Arm Rear Cover

(66) and orient it as shown.

Attach the Right Upper Body Arm Rear Cover

(66) around the Right Upper Body Leg (60) by

pressing the hooks on the Right Upper Body Arm

Rear Cover onto the tabs on the Right Upper

Body Arm Front Cover (65).

Repeat this step on the other side of the

elliptical.

65

60

101

66

15

15. Identify the Right Upper Body Leg Inner Cover

(83) and orient it as shown.

Attach the Right Upper Body Leg Inner

Cover (83) to the Right Upper Body Leg (60)

with an M4 x 16mm Screw (101) and an M5

Washer (94).

Identify the Right Upper Leg Outer Cover (69)

and orient it as shown.

Attach the Right Upper Leg Outer Cover (69)

around the Right Upper Body Leg (60) by press-

ing the hooks on the Right Upper Body Leg Inner

Cover (83) onto the tabs on the Right Upper Leg

Outer Cover.

Repeat this step on the other side of the

elliptical.

60

94

83

101

69

15

16

75

118

73, 74

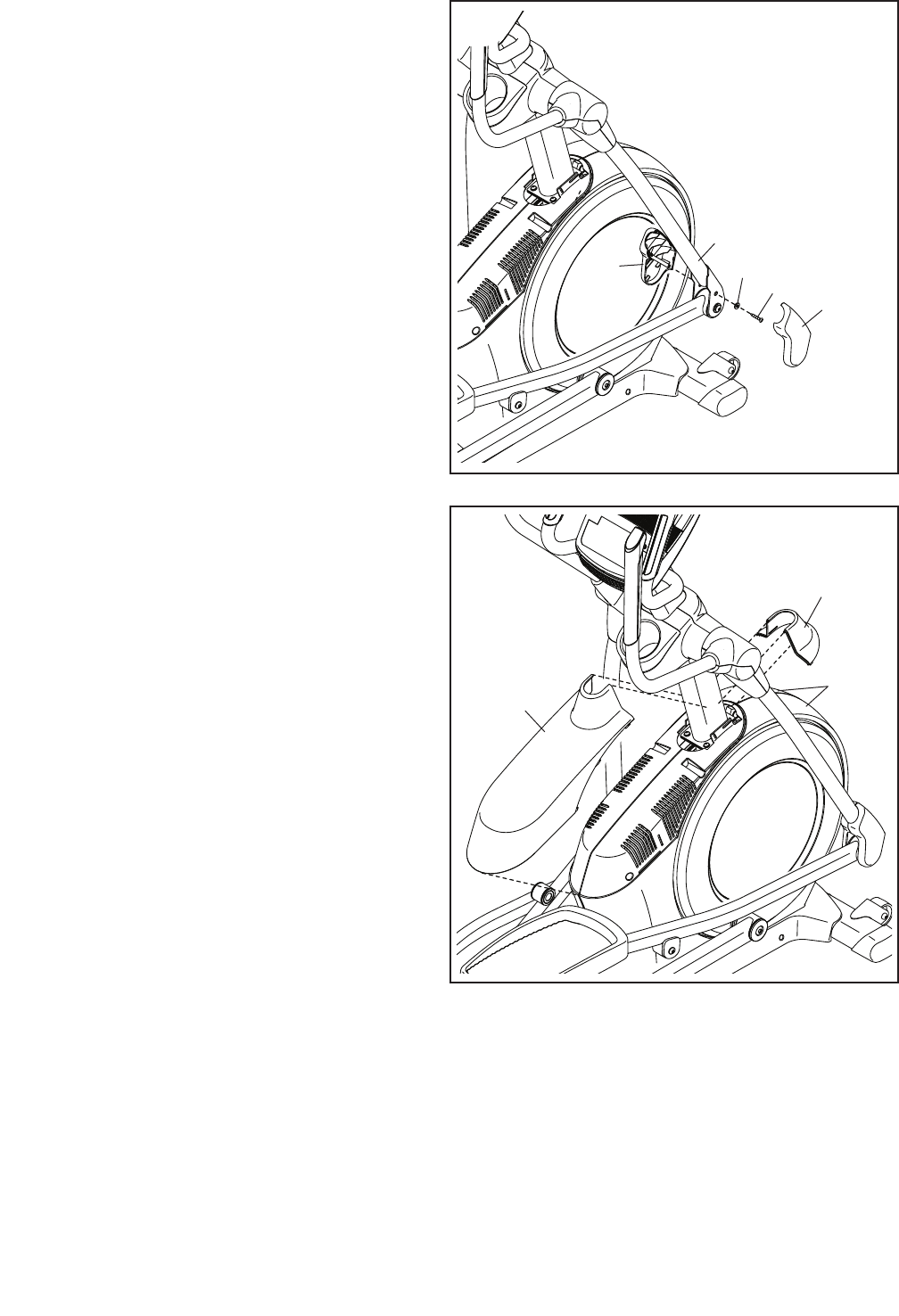

16. Orient the Shield Cover Cap (118) and the Shield

Cover (75) as shown.

First, press the tabs on the Shield Cover Cap

(118) into the Left and Right Shields (73, 74).

Then, press the tabs on the Shield Cover (75)

into the Left and Right Shields (73, 74).

16

17

17. Orient the Rear Console Cover (80) as shown.

Attach the Rear Console Cover (80) to the

Upright (4) with two M4 x 16mm Screws (101).

Orient the Front Console Cover (79) as shown.

Attach the Front Console Cover (79) around

the Upright (4) by pressing the hooks on the

Rear Console Cover (80) onto the tabs on the

Front Console Cover.

79

4

80

101

18. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be

included. Place a mat beneath the elliptical to protect the floor.

17

HOW TO USE THE ELLIPTICAL

HOW TO PLUG IN THE POWER CORD

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The power cord has a plug with a grounding

pin.

Plug the

power cord

into an

appropriate

outlet that

is properly

installed and

grounded in

accordance

with all local

codes and

ordinances.

The outlet must be on a nominal 120-volt circuit.

A temporary

adapter may

be used to

connect the

power cord

to a 2-pole

receptacle

as shown

at the right

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a

qualifi ed electrician to determine whether the out-

let box cover is grounded before using an adapter.

The temporary adapter should be used only until

a properly grounded outlet can be installed by a

qualifi ed electrician.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical

rocks slightly

on your floor

during use,

turn one or

both of the

leveling feet

beneath the

rear of the

frame until the rocking motion is eliminated.

DANGER: Improper connection of

the power cord increases the risk of electric

shock. Do not modify the plug—if it will not fit

an outlet, have a proper outlet installed by a

qualified electrician. If you are unsure whether

the product is properly grounded, contact a

qualified electrician.

Grounded Outlet

2-pole Receptacle

Grounding Pin

Adapter

Lug

Metal Screw

Leveling

Feet

18

HOW TO MOVE THE ELLIPTICAL

Due to the size and weight of the elliptical, moving

it requires two persons. Stand in front of the elliptical,

hold the upright, and place one foot against one of the

wheels. Pull on the upright and have a second person

lift the handle until the elliptical will roll on the wheels.

Carefully move the elliptical to the desired location, and

then lower it to the floor.

HOW TO EXERCISE ON THE ELLIPTICAL

To mount the elliptical, hold the handlebars or the

upper body arms and step onto the pedal that is in the

lower position. Then, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The pedals can turn in either direc-

tion. It is recommended that you turn the pedals

in the direction shown by the arrow; however, for

variety, you can turn the pedals in the opposite

direction.

To dismount the elliptical, wait until the pedals come to

a complete stop. Note: The elliptical does not have

a free wheel; the pedals will continue to move until

the flywheel stops. When the pedals are stationary,

step off the higher pedal first. Then, step off the lower

pedal.

Handlebars

Upper

Body Arms

Pedals

Pull on the

upright

Lift

here

Place

your foot

here

19

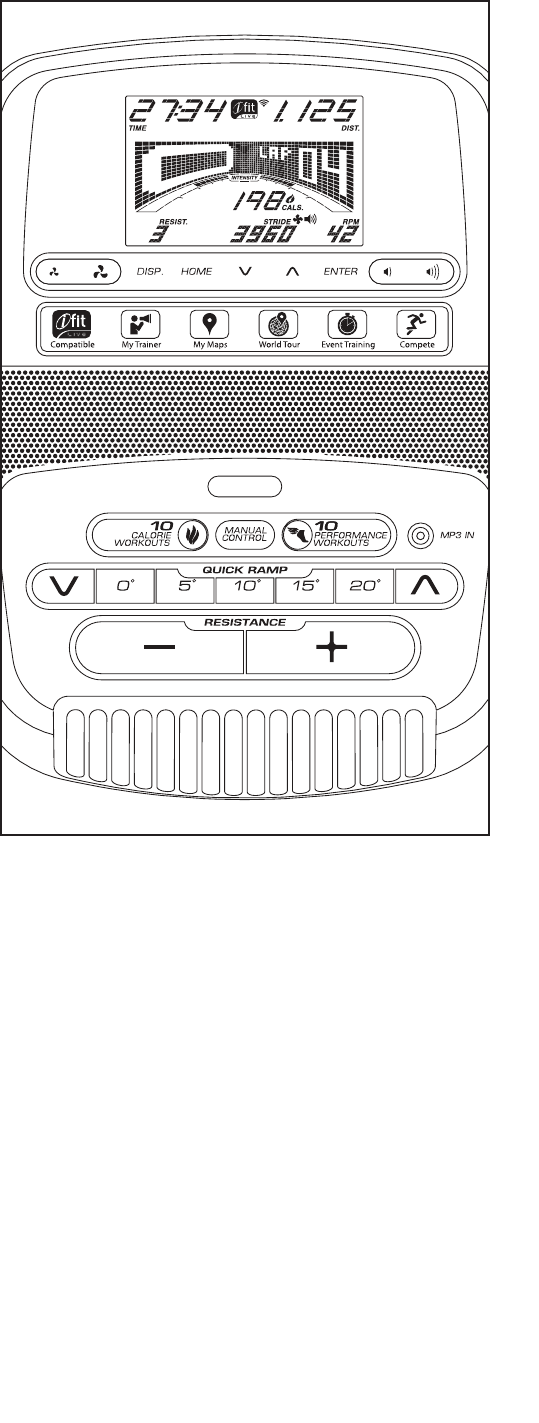

CONSOLE DIAGRAM FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals and the incline

of the ramp with the touch of a button. While you

exercise, the console will display continuous exercise

feedback. You can also measure your heart rate using

the handgrip heart rate monitor.

The console offers twenty onboard workouts—ten

calorie workouts and ten performance workouts. Each

workout automatically changes the resistance of the

pedals as it guides you through an effective workout.

The console also features an iFit mode that enables

the console to communicate with your wireless network

through an optional iFit module. With the iFit mode,

you can download personalized workouts, create your

own workouts, track your workout results, race against

other iFit users, and access many other features. To

purchase an iFit module at any time, go to www.

iFit.com or call the telephone number on the front

cover of this manual.

You can even connect your MP3 player or CD player

to the console sound system and listen to your favorite

music or audio books while you exercise.

To turn on the power, see page 20. To use the

manual mode, see page 20. To use an onboard

workout, see page 22. To use an iFit workout,

see page 23. To use the sound system, see page

24. To change console settings, see page 25.

Note: If there is a sheet of plastic on the display,

remove the plastic.

20

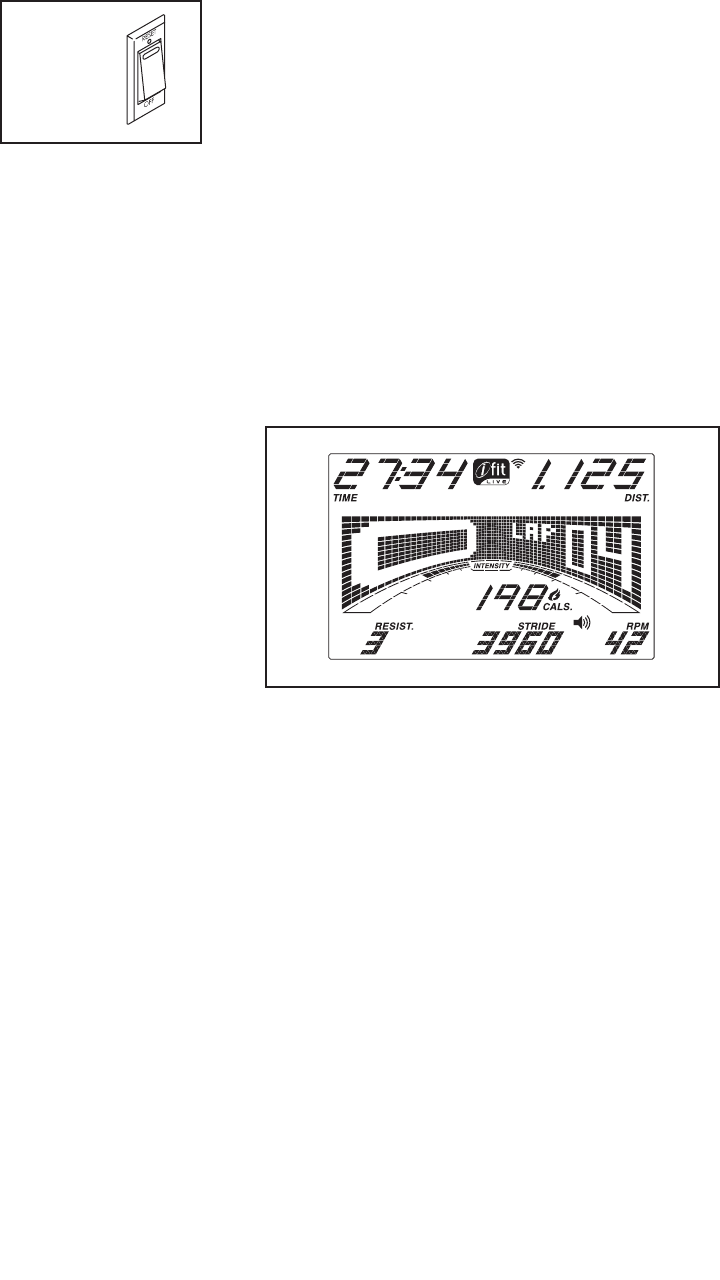

HOW TO TURN ON THE POWER

IMPORTANT: If the elliptical has been exposed to

cold temperatures, allow it to warm to room tem-

perature before you turn on the power. If you do

not do this, you may damage the console displays

or other electrical components.

Plug in the power cord (see

HOW TO PLUG IN THE

POWER CORD on page

17). Next, locate the

power switch on the frame

near the power cord. Press

the power switch to the

reset position.

The display will then turn on and the console will be

ready for use.

Note: When you turn on the power for the fi rst

time, the incline of the ramp may calibrate auto-

matically. The ramp will move upward and downward

as it calibrates. When the ramp stops moving, the ramp

is calibrated.

IMPORTANT: If the incline of the ramp does not

calibrate automatically, see HOW TO CALIBRATE

THE RAMP on page 26 and manually calibrate

the ramp.

HOW TO USE THE MANUAL MODE

1. Begin pedaling or press any button on the

console to turn on the console.

See HOW TO TURN ON THE POWER above.

2. Select the manual mode.

Press the Manual Control button on the console to

select the manual mode.

Note: If a wireless iFit module is not inserted into

the console and connected to iFit, the manual

mode will be selected automatically.

3. Change the resistance of the pedals and the

incline of the ramp as desired.

As you pedal, change the resistance of the pedals

by pressing the Resistance increase and decrease

buttons.

Note: After you press a button, it will take a

moment for the pedals to reach the selected resis-

tance level.

To vary the motion of the pedals, you can change

the incline of the ramp. To change the incline,

press one of the numbered Quick Ramp buttons

or press the Quick Ramp increase and decrease

buttons.

Note: After you press a button, it will take a

moment for the ramp to reach the selected incline

level.

4. Follow your progress with the display.

The display can show the following workout

information:

Calories (Cals.)—This display mode will show the

approximate number of calories you have burned.

Calories per Hour (Cals./Hr)—This display mode

will show the approximate number of calories you

are burning per hour.

Distance (Dist.)—This display mode will show

the distance that you have pedaled in miles or

kilometers.

Reset

Position

21

Incline—This display mode will show the incline

level of the ramp for a few seconds each time the

incline level changes.

Pulse—This display mode will show your heart rate

when you use the handgrip heart rate monitor (see

step 5 on page 21).

Resistance (Resist.)—This display mode will

show the resistance level of the pedals for a few

seconds each time the resistance level changes.

RPM—This display mode will show your pedaling

speed in revolutions per minute (rpm).

Stride—This display mode will show the total num-

ber of strides you have pedaled.

Time—When the manual mode is selected, this

display mode will show the elapsed time. When an

onboard workout is selected, this display mode will

show the time remaining in the workout.

The matrix offers several display tabs. Press the

Disp button until the desired tab is shown. You can

also press the increase and decrease buttons next

to the Enter button.

Speed—This tab will show a profile of the speed

settings of the workout. A new segment will appear

at the end of each minute.

My Trail—This tab will show a track that represents

1/4 mile (400 m). As you exercise, the flashing

rectangle will show your progress. The My Trail tab

will also show the number of laps you complete.

Calorie—This tab will show the approximate

amount of calories you have burned. The height of

each segment represents the amount of calories

burned during that segment.

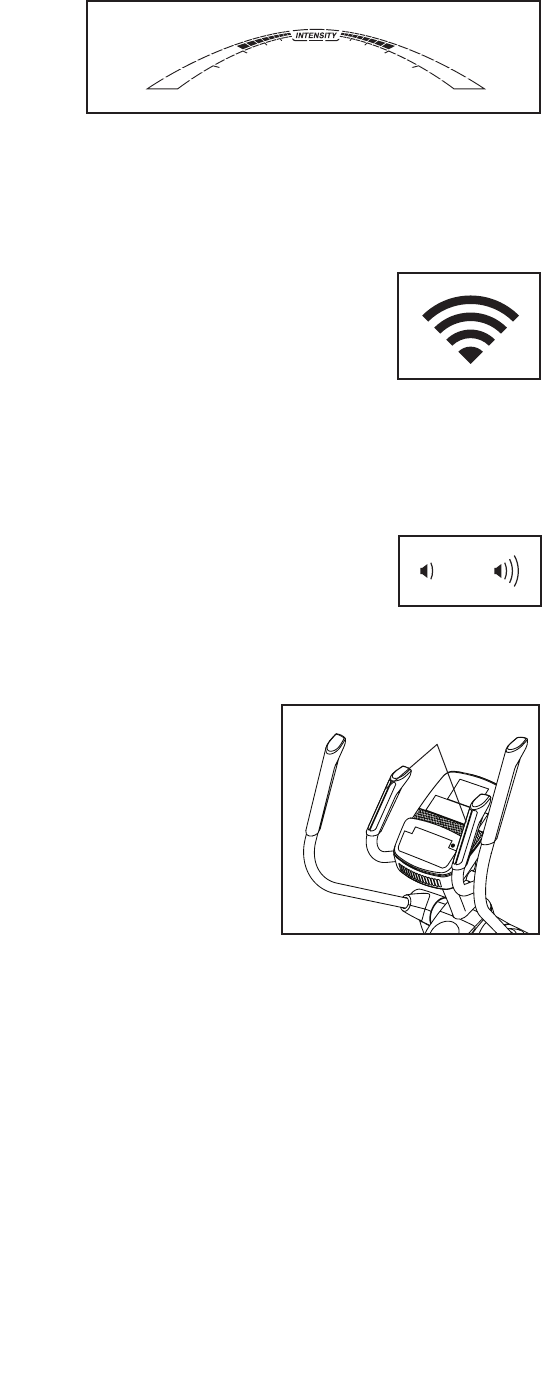

As you exercise, the workout intensity level bar

will indicate the approximate intensity level of your

exercise.

Press the Home button to return to the default

menu (see HOW TO CHANGE CONSOLE

SETTINGS on page 25 to set the default menu).

If necessary, press the Home button again.

When a wireless iFit module

is connected, the wireless

symbol at the top of the dis-

play will show the strength of

your wireless signal. Four arcs

indicate full signal strength.

To exit the manual mode or a workout, press the

Home button. If necessary, press the Home button

again.

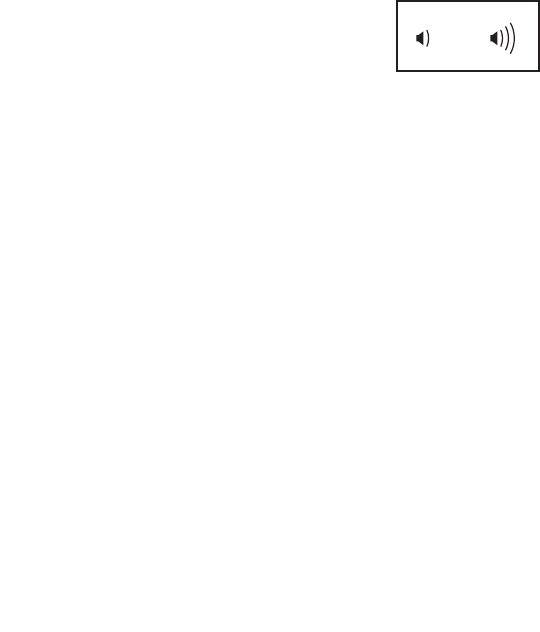

Change the volume level of

the console by pressing the

volume increase and decrease

buttons.

5. Measure your heart rate if desired.

If there are

sheets of plastic

on the metal

contacts on the

handgrip heart

rate monitor,

remove the

plastic. To mea-

sure your heart

rate, hold the

handgrip heart

rate monitor with your palms resting against the

contacts. Avoid moving your hands or gripping

the contacts tightly.

Contacts

22

When your pulse is detected, a heart symbol in the

calorie display will flash each time your heart beats,

one or two dashes will appear, and then your heart

rate will be shown. For the most accurate heart

rate reading, hold the contacts for at least 15

seconds.

If the display does not show your heart rate, make

sure that your hands are positioned as described.

Be careful not to move your hands excessively or

to squeeze the contacts tightly. For optimal perfor-

mance, clean the contacts using a soft cloth; never

use alcohol, abrasives, or chemicals to clean

the contacts.

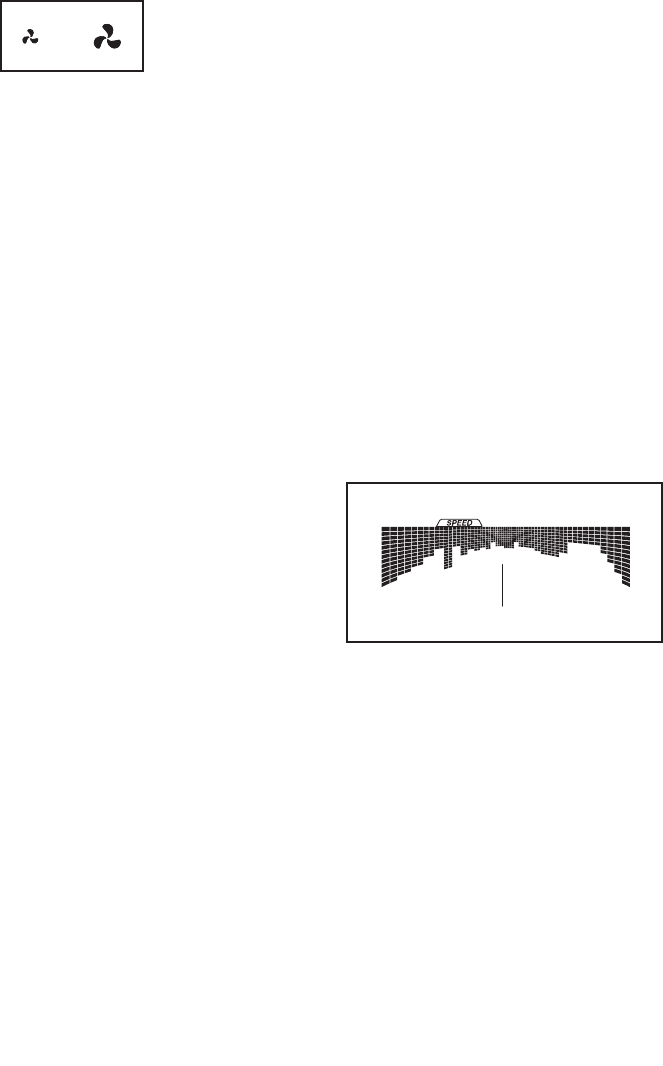

6. Turn on the fan if desired.

The fan has low and high

speed settings. Press the fan

increase and decrease but-

tons repeatedly to select a fan

speed or to turn off the fan.

Note: If the pedals do not move for about thirty

seconds, the fan will turn off automatically.

7. When you are finished exercising, unplug the

power cord.

If the pedals do not move for several seconds, a

tone will sound and the console will pause.

If the pedals do not move for several minutes and

the buttons are not pressed, the console will turn

off and the display will be reset.

When you are finished exercising, press the power

switch to the off position and unplug the power

cord. IMPORTANT: If you do not do this, the

electrical components on the elliptical may

wear prematurely.

HOW TO USE AN ONBOARD WORKOUT

1. Begin pedaling or press any button on the

console to turn on the console.

See HOW TO TURN ON THE POWER on

page 20.

2. Select an onboard workout.

To select an onboard workout, press the 10 Calorie

Workouts button or the 10 Performance Workouts

button repeatedly until the desired workout appears

in the display.

When you select an onboard workout, the display

will show the duration of the workout and the name

of the workout. A profile of the speed settings of the

workout will appear in the matrix.

The display will also show the maximum speed

(rpm), the maximum resistance level, and the maxi-

mum ramp level.

3. Begin pedaling to start the workout.

Each workout is divided into one-minute segments.

One resistance level, one ramp incline level, and

one target rpm (speed) are programmed for each

segment. Note: The same resistance level, ramp

incline level, and/or target rpm may be pro-

grammed for consecutive segments.

The resistance level, the ramp incline level, and the

target rpm for the first segment will appear in the

matrix.

During the

workout,

the profiles

on the

speed and

incline

tabs will

show

your progress. The flashing segment of the profile

represents the current segment of the workout. The

height of the flashing segment indicates the target

speed or the incline level for the current segment.

Profile

23

At the end of each segment of the workout, a

series of tones will sound and the next segment of

the profile will begin to flash. If a different resis-

tance level, ramp incline level, and/or target rpm is

programmed for the next segment, the resistance

level, ramp incline level, and/or target rpm will

appear in the display for a few seconds to alert

you. The resistance of the pedals and the incline

level of the ramp will then change.

As you exercise, you will be prompted to keep your

pedaling speed near the target rpm for the current

segment. When an upward-pointing arrow appears

in the display, increase your pace. When a down-

ward-pointing arrow appears, decrease your pace.

When no arrow appears, maintain your current

pace.

IMPORTANT: The target rpm is intended only to

provide motivation. Your actual pedaling speed

may be slower than the target rpm. Make sure

to pedal at a speed that is comfortable for you.

If the resistance level or incline level for the current

segment is too high or too low, you can manually

override the setting by pressing the Resistance

buttons or the Quick Ramp buttons. IMPORTANT:

When the current segment of the workout ends,

the pedals will automatically adjust to the resis-

tance level programmed for the next segment

and the ramp will automatically adjust to the

incline level programmed for the next segment.

The workout will continue in this way until the last

segment ends. To stop the workout at any time,

stop pedaling. The time will flash in the display. To

resume the workout, simply resume pedaling.

4. Follow your progress with the display.

See step 4 on page 20.

5. Measure your heart rate if desired.

See step 5 on page 21.

6. Turn on the fan if desired.

See step 6 on page 22.

7. When you are fi nished exercising, unplug the

power cord.

See step 7 on page 22.

HOW TO USE AN IFIT WORKOUT

You must have an iFit module to use an iFit workout.

To purchase an iFit module at any time, go to

www.iFit.com or call the telephone number on the

front cover of this manual.

Note: To use an iFit module, you must have access

to a computer with an internet connection and a USB

port. You will also need an iFit.com membership. To

use a wireless iFit module, you must also have your

own wireless network including an 802.11b/g/n router

with SSID broadcast enabled (hidden networks are not

supported).

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in the

iFit module must be at least 8 in. (20 cm) from all

persons and must not be near or connected to any

other antenna or transmitter.

1. Begin pedaling or press any button on the

console to turn on the console.

See HOW TO TURN ON THE POWER on

page 20.

2. Make sure that the iFit module is inserted in the

console.

To use an iFit workout, make sure that the iFit mod-

ule is inserted in the console.

3. Select the iFit mode.

To select the iFit mode, press the iFit button.

4. Select a user.

If more than one user is registered with your

iFit.com membership, you can switch users in the

iFit main screen. Press the increase and decrease

buttons next to the Enter button to select a user.

24

5. Select an iFit workout.

To select an iFit workout, press one of the iFit but-

tons. Note: Before some workouts will download,

you must go to www.iFit.com and add them to your

schedule.

Press the iFit button to download the next workout

in your schedule. Press the My Trainer button,

the My Maps button, the World Tour button, or the

Event Training button to download the next workout

of that type in your schedule. Press the Compete

button to compete in a race that you have previ-

ously scheduled. For more information about the

iFit workouts, please see www.iFit.com.

When you select an iFit workout, the display will

show the duration of the workout and the approxi-

mate number of calories you will burn. The display

may also show the name of the workout. If you

select a competition workout, the display may count

down to the beginning of the race.

6. Start the workout.

See step 3 on page 22.

During some workouts, the voice of a personal

trainer will guide you through your workout. You

can select an audio setting for your personal trainer

(see HOW TO CHANGE CONSOLE SETTINGS on

page 25).

To stop the workout at any time, stop pedaling. The

time will flash in the display. To resume the work-

out, simply resume pedaling.

7. Follow your progress with the display.

See step 4 on page 20.

The My Trail tab will show a map of the trail you are

walking or running or it will show a track and the

number of laps you complete.

During a competition workout, the Competition tab

will show your progress in the race. As you race,

the top line in the matrix will show how much of the

race you have completed. The other lines will show

other competitors. The end of the matrix represents

the end of the race.

8. Measure your heart rate if desired.

See step 5 on page 21.

9. Turn on the fan if desired.

See step 6 on page 22.

10. When you are fi nished exercising, unplug the

power cord.

See step 7 on page 22.

For more information about the iFit mode, go to

www.iFit.com.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console

sound system while you exercise, plug a 3.5 mm male

to 3.5 mm male audio cable (not included) into the jack

on the console and into a jack on your MP3 player,

CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To

purchase an audio cable, see your local electronics

store.

Next, press the play button on

your personal audio player. Adjust

the volume level using the volume

increase and decrease buttons

on the console or the volume control on your personal

audio player.

25

HOW TO CHANGE CONSOLE SETTINGS

The console features a user mode that allows you to

view usage information, select a unit of measurement,

and adjust the contrast level of the display.

When an iFit module is connected to the console,

you can also use the information mode to choose an

audio setting for the voice of the personal trainer, set a

default menu, check the status of the iFit module, and

check for downloads.

1. Select the information mode.

To select the information mode, press and hold

down the Disp button for a few seconds until the

information mode appears in the display.

2. View usage information.

The display will show the total number of hours that

the elliptical has been used. The display will also

show the total distance (in miles or kilometers) that

has been pedaled on the elliptical.

3. Select a unit of measurement if desired.

The word ENGLISH for English miles or the word

METRIC for metric kilometers will appear in the

display to indicate the currently selected unit of

measurement.

To change the unit of measurement, press the

Enter button repeatedly to select the desired unit of

measurement.

4. Adjust the contrast level of the display if

desired.

Press the decrease button to view the contrast

level. The currently selected contrast level will

appear in the display. Press the Quick Ramp

increase and decrease buttons to adjust the con-

trast level.

5. Determine if an iFit module is connected to the

console.

If an iFit module is connected to the console, the

display will show the words WIFI MODULE or USB

MODULE.

If no module is connected, the display will show

the words NO IFIT MODULE. If no module is con-

nected, go to step 10.

6. Select an audio setting for the voice of the

personal trainer if desired.

Press the decrease button to view the audio setting

for the voice of the personal trainer. The currently

selected audio setting for the voice of the personal

trainer will appear in the display.

To change the audio setting, press the Enter button

repeatedly to turn the voice of the personal trainer

ON or OFF.

7. Set the default menu if desired.

Press the decrease button to view the default menu

setting. The default menu is the menu that will

appear when you turn on the console. Press the

Enter button repeatedly to select the manual mode

menu or the iFit menu as the default menu.

8. Check the status of the iFit module if desired.

Press the decrease button to view the iFit sta-

tus display. The words CHECK WIFI STATUS or

CHECK USB STATUS will appear in the display.

Then, press the Enter button. After a few seconds,

the status of the iFit module will appear in the dis-

play. To exit this display, press and hold down the

Disp button for a few seconds.

9. Check for downloads if desired.

Press the decrease button to view the downloads

display. The words SEND/RECEIVE DATA will

appear in the display.

Then, press the Enter button. The console will then

check for iFit workouts and firmware downloads.

10. Exit the information mode.

Press the Disp button to exit the information mode.

26

I nspect and tighten all parts of the elliptical regularly.

Replace any worn parts immediately.

To clean the elliptical, use a damp cloth and a small

amount of mild soap. IMPORTANT: To avoid damage

to the console, keep liquids away from the console

and keep the console out of direct sunlight.

CONSOLE TROUBLESHOOTING

If the console does not turn on, make sure that the

power cord is fully plugged in. If lines appear in the

console display, see HOW TO CHANGE CONSOLE

SETTINGS on page 25 and adjust the contrast level

of the display.

If the console does not display your heart rate when

you hold the handgrip heart rate monitor, or if the dis-

played heart rate appears to be too high or too low, see

step 5 on page 21.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical rocks slightly on your floor during use,

see HOW TO LEVEL THE ELLIPTICAL on page 17.

HOW TO CALIBRATE THE RAMP

If the ramp is not functioning properly, the ramp may

need to be calibrated. To calibrate the ramp, press and

hold the 10 Calorie Workouts button for several sec-

onds until the test mode appears in the display.

Press the 10 Calorie Workouts button again. Then,

press the Quick Ramp increase or decrease button to

calibrate the ramp. The ramp will move upward and

downward as it calibrates.

When the ramp stops moving, the ramp is calibrated.

Then, press the 10 Calorie Workouts button repeatedly

to exit the calibration mode.

HOW TO GREASE THE ROLLERS

See the EXPLODED DRAWING near the end of this

manual. If the Rollers (51) squeak when moving on

the Tracks (16), apply a small amount of the included

PTFE grease to a paper towel. Spread a thin layer of

grease evenly along the Tracks. Then, wipe off any

excess grease.

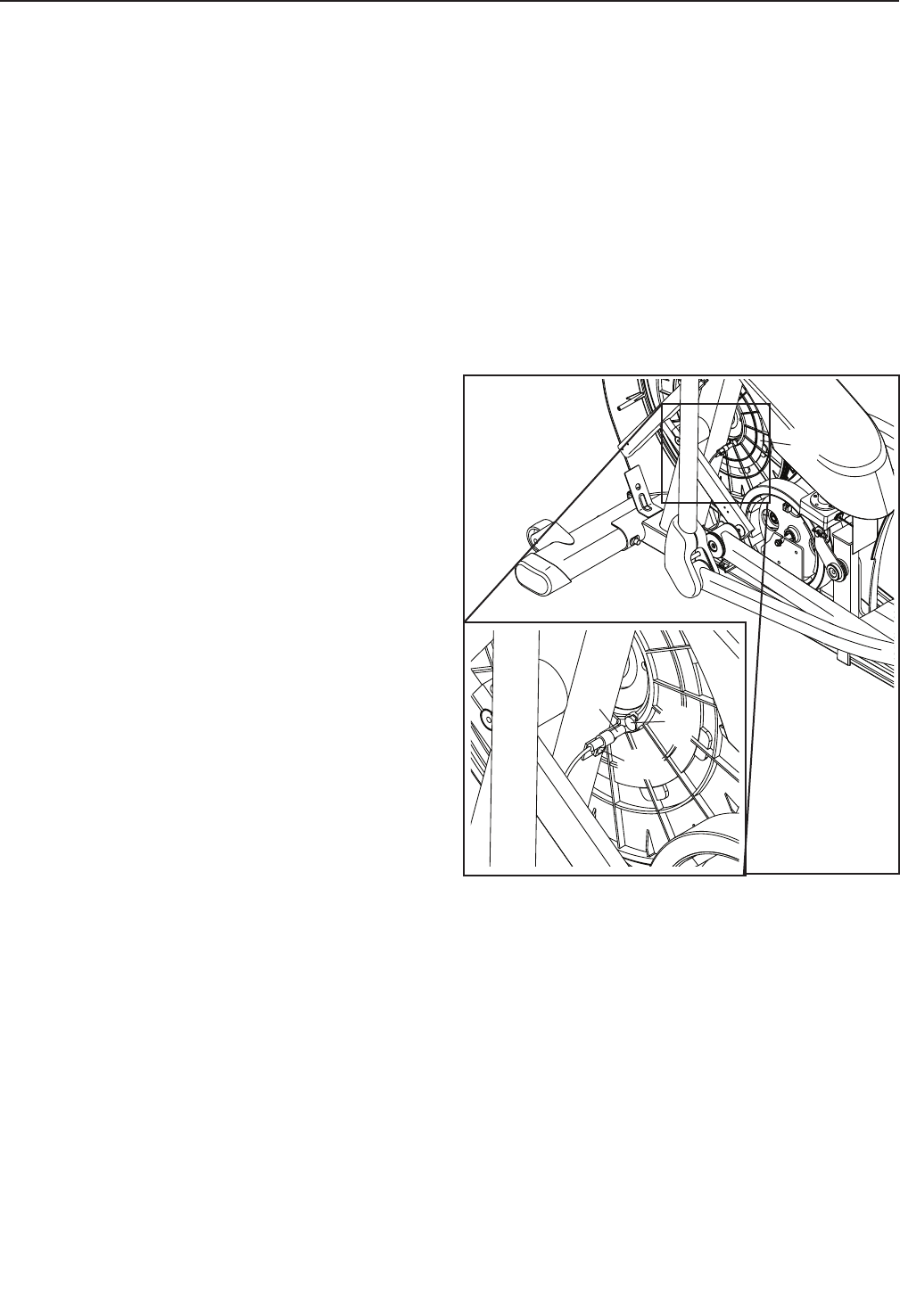

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted.

See EXPLODED DRAWING C on page 35. Using a

flat screwdriver, remove the left Disc (71).

Note: For clarity, the left shield and the left disc ring are

shown removed in the drawing below.

Next, locate the Reed Switch (38). Turn the Pulley (19)

until a Magnet (43) is aligned with the Reed Switch.

Loosen, but do not remove, the indicated M4 x 16mm

Screw (101). Slide the Reed Switch (38) slightly closer

to or away from the Magnet (43), and then retighten

the Screw. Then, rock the Pulley (19) forward and

backward just enough that the Magnet passes the

Reed Switch repeatedly.

Repeat these actions until the console displays correct

feedback. When the reed switch is correctly adjusted,

reattach the left disc.

MAINTENANCE AND TROUBLESHOOTING

38

101

19

43

27

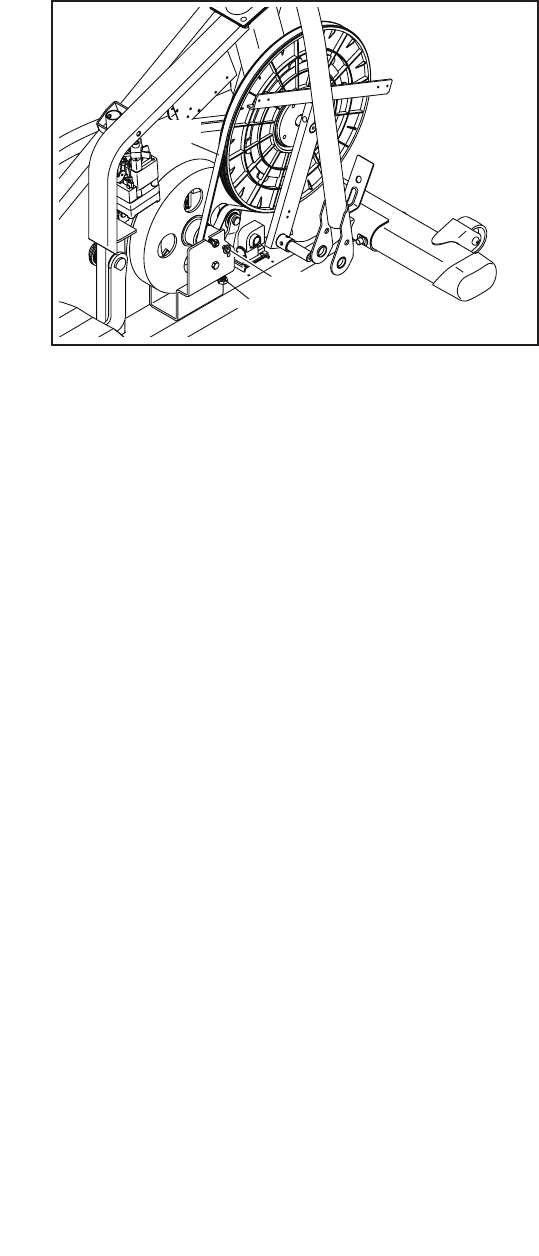

HOW TO ADJUST THE DRIVE BELT

If the pedals slip while you are pedaling, even while

the resistance is adjusted to the highest level, the drive

belt may need to be adjusted.

To adjust the drive belt, first see assembly step 16 on

page 15. Use a flat screwdriver to remove the Shield

Cover (75) and the Shield Cover Cap (118).

Next, see assembly step 15 on page 15 and remove

the Right Upper Body Leg Outer and Inner Covers

(69, 83).

Then, see assembly step 12 on page 13 and remove

the Right Pedal Arm (58) from the Right Upper Body

Leg (60).

See EXPLODED DRAWING B on page 34 and

EXPLODED DRAWING A on page 33. Remove the

Right Roller Arm (59) from the right Crank Arm (20).

Then, carefully remove the Right Roller Arm assembly

from the elliptical.

See EXPLODED DRAWING C on page 35. Remove

the M4 x 19mm Screws (5) and the M4 x 48mm Screw

(107) from the Left and Right Shields (73, 74). Then,

remove the Right Shield.

Next, locate and loosen the Idler Screw (89). Tighten

the Belt Adjustment Screw (91) until the Drive Belt

(113) is tight. Then, retighten the Idler Screw.

Reattach the right shield, the right roller arm, the right

pedal arm, the shield cover cap, and the shield cover.

113

91

89

28

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to

computer or peripheral devices. Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate this equipment.

29

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

30

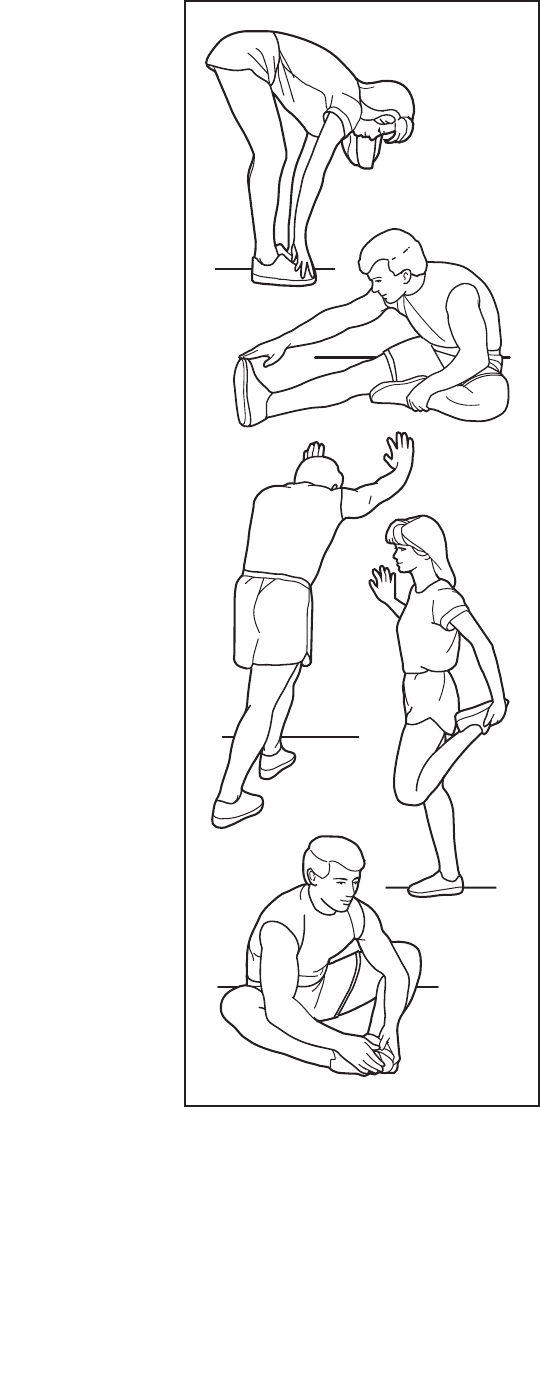

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach down

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands

against a wall. Keep your back leg straight and your back foot flat

on the floor. Bend your front leg, lean forward and move your hips

toward the wall. Hold for 15 counts, then relax. Repeat 3 times for

each leg. To cause further stretching of the achilles tendons, bend

your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

1

2

3

4

5

31

1 1 Frame

2 1 Rear Stabilizer

3 1 Ramp

4 1 Upright

5 8 M4 x 19mm Screw

6 1 Front Stabilizer

7 1 Console

8 1 Left Handlebar

9 1 Right Handlebar

10 1 Ramp Cover

11 1 Incline Motor

12 1 Incline Motor Arm

13 1 Ramp Arm

14 1 Ramp Roller

15 1 Rear Stabilizer Cover

16 2 Track

17 2 Large Frame Bushing

18 1 Crank

19 1 Pulley

20 2 Crank Arm

21 4 M4 x 10mm Screw

22 1 Idler

23 1 M10 x 15mm Screw

24 1 M10 x 95mm Bolt

25 1 Resistance Motor

26 1 M10 x 42mm Bolt

27 4 Standoff

28 1 Eddy Mechanism

29 1 Flywheel Axle

30 4 Stabilizer Cap

31 1 Controller

32 1 Power Switch

33 2 Leveling Foot

34 2 Wheel

35 1 Pivot Axle

36 2 Upright Bushing

37 1 Accessory Tray

38 1 Reed Switch/Wire

39 1 Reed Switch Clamp

40 2 Bearing

41 2 Mechanism Spacer

42 1 Sleeve

43 2 Magnet

44 1 Left Pedal Arm

45 1 Left Roller Arm

46 1 Left Upper Body Leg

47 1 Left Upper Body Arm

48 1 Hairpin Cotter Pin

49 2 Pedal

50 6 M10 Locknut

51 2 Roller

52 2 Pedal Arm Rear Cap

53 4 Large Axle Cover

54 2 16mm Wave Washer

55 2 Small Axle Cover

56 4 Roller Arm Bushing

57 8 Arm Bearing

58 1 Right Pedal Arm

59 1 Right Roller Arm

60 1 Right Upper Body Leg

61 1 Right Upper Body Arm

62 2 Grip

63 2 Sensor Assembly/Wire

64 2 Pedal Arm Axle

65 1 Right Upper Body Arm Front Cover

66 1 Right Upper Body Arm Rear Cover

67 1 Left Upper Body Arm Front Cover

68 1 Left Upper Body Arm Rear Cover

69 1 Right Upper Body Leg Outer Cover

70 1 Left Upper Body Leg Outer Cover

71 2 Disc

72 1 Left Upper Body Leg Inner Cover

73 1 Left Shield

74 1 Right Shield

75 1 Shield Cover

76 1 Left Pedal Arm Side Cap

77 4 Axle Spacer

78 2 Key

79 1 Front Console Cover

80 1 Rear Console Cover

81 1 Rear Upright Cover

82 10 M8 x 13mm Screw

83 1 Right Upper Body Leg Inner Cover

84 2 M10 x 25mm Washer

85 2 M4 x 14mm Screw

86 2 M10 x 58mm Bolt

87 1 Right Pedal Arm Side Cap

88 1 Pivot Screw

89 1 Idler Screw

90 3 M6 Washer

91 1 Belt Adjustment Screw

92 2 M10 x 19mm Screw

93 4 M4 x 12mm Screw

94 2 M5 Washer

95 6 M8 x 16mm Screw

96 8 M8 x 38mm Bolt

97 10 M8 Washer

98 2 Medium Snap Ring

99 4 M10 x 25mm Screw

100 4 Leg Bearing

K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n

PART LIST Model No. PFEL08011.6 R0414A

32

101 39 M4 x 16mm Screw

102 10 M8 Locknut

103 8 M6 x 12mm Screw

104 4 M10 x 122mm Screw

105 8 M10 Split Washer

106 3 Cover Mount

107 1 M4 x 48mm Screw

108 2 M6 x 13mm Screw

109 2 M10 x 60mm Bolt

110 1 Upper Wire

111 1 Lower Wire Harness

112 1 Control Board

113 1 Drive Belt

114 4 M4 x 42mm Screw

115 1 Controller Bracket

116 2 Disc Ring

117 1 Front Upright Cover

118 1 Shield Cover Cap

119 1 Power Cord

120 1 Ramp Axle

121 6 Small Frame Bushing

122 1 Clevis Pin

123 1 Plastic Spacer

124 2 M4 x 19mm Self-tapping Screw

125 2 Bumper

126 2 M8 x 14mm Shoulder Screw

127 1 M10 x 32mm Washer

* – Assembly Tool

* – Grease Packet

* – PTFE Grease Packet

* – User’s Manual

K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

33

1

3

10

12

11

14

26

16

18

19

13

15

84

84

92

92

106

17

20

20

21

21

114

21

21

22

29

50

38

24

39

40

40

101

101

50

43

43

48

23

127

42

50

31

27

82

101

78

78

86

86

88

85

85

89

90

90

50

90

91

102

108

108

113

120

121

121

121

121

121

122

102

115

32

114

101

17

123

112

2

28

30

30

33

33

41

105

104

101

101

6

34

34

124

125

125

124

105

50

104

101

101

109

109

30

30

93

25

41

EXPLODED DRAWING A Model No. PFEL08011.6 R0414A

34

EXPLODED DRAWING B

46

52

52

45

44

47

49

49

51

51

56

56

56

56

58

59

53

53

53

53

55

55

57

57

57

57

57 57

57

57

60

101

61

66

68

101

62

62

64 64

65

67

70

72

69

83

87

76

77

77

77

101

101

77

95

95

95

95

95

95

82

126

82

126

82

82

82

82

96

96

98

98

94 94

97

97

97

97

97

97

97

97

97

97

100 100

100

100

101

101

103

102

102

103

103

103

Model No. PFEL08011.6 R0414A

35

EXPLODED DRAWING C

8

4

736

36

99

99

35

37

81

54

54

63

63

71

71

74

79

73

75

80

101

105

105

96

9

102

96

101

101

101

5

5

5

107

101

101

101

5

5

5

5

5

101

101

101

101

101

102 110

119

118

116

116

117

111

Model No. PFEL08011.6 R0414A

Part No. 348034 R0414A Printed in China © 2013 ICON IP, Inc.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor

are warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.
