USER’S MANUAL

Serial Number Decal

(under frame)

www.proform.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEL55911.8

Serial No.

Write the serial number in the space

above for reference.

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

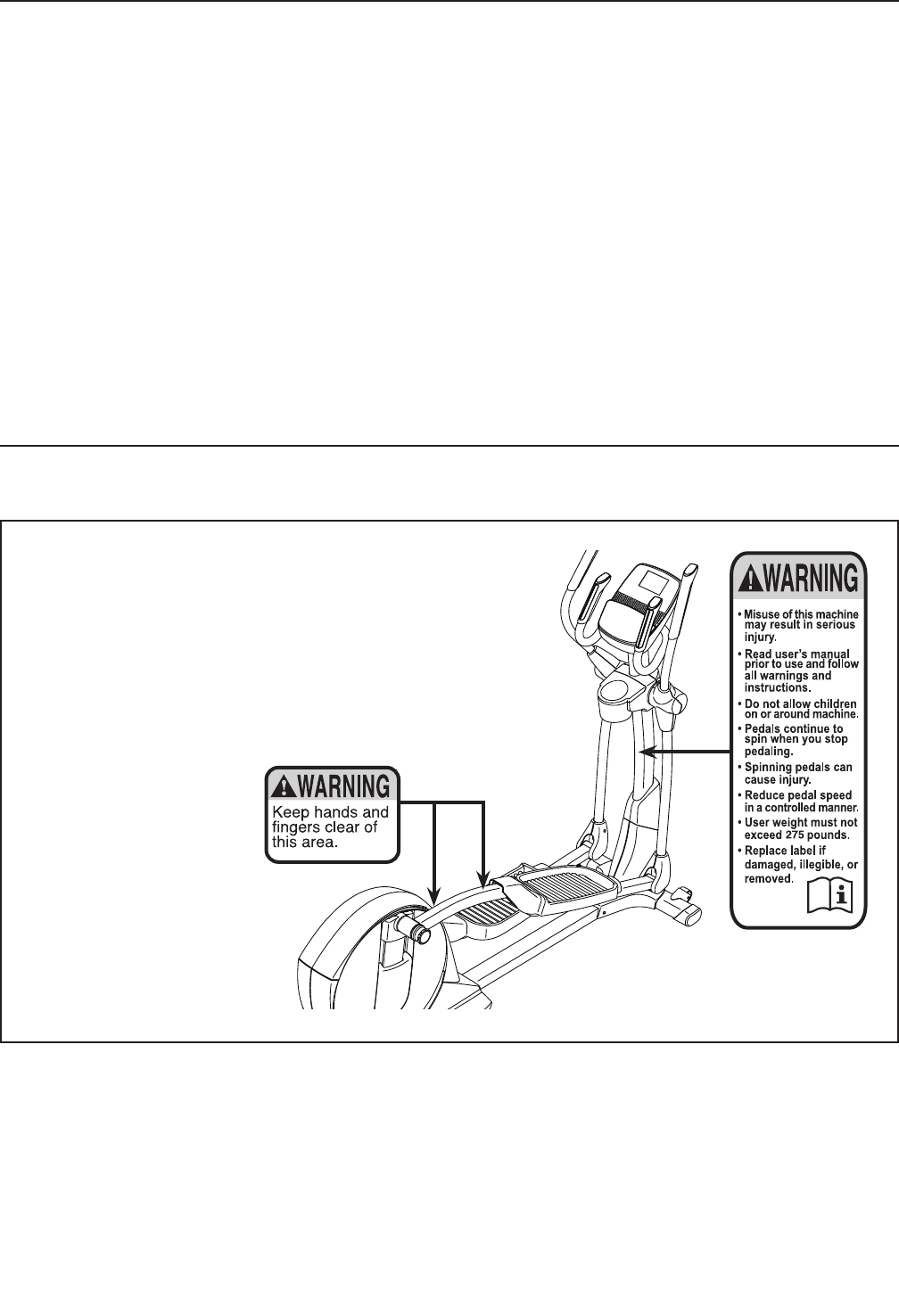

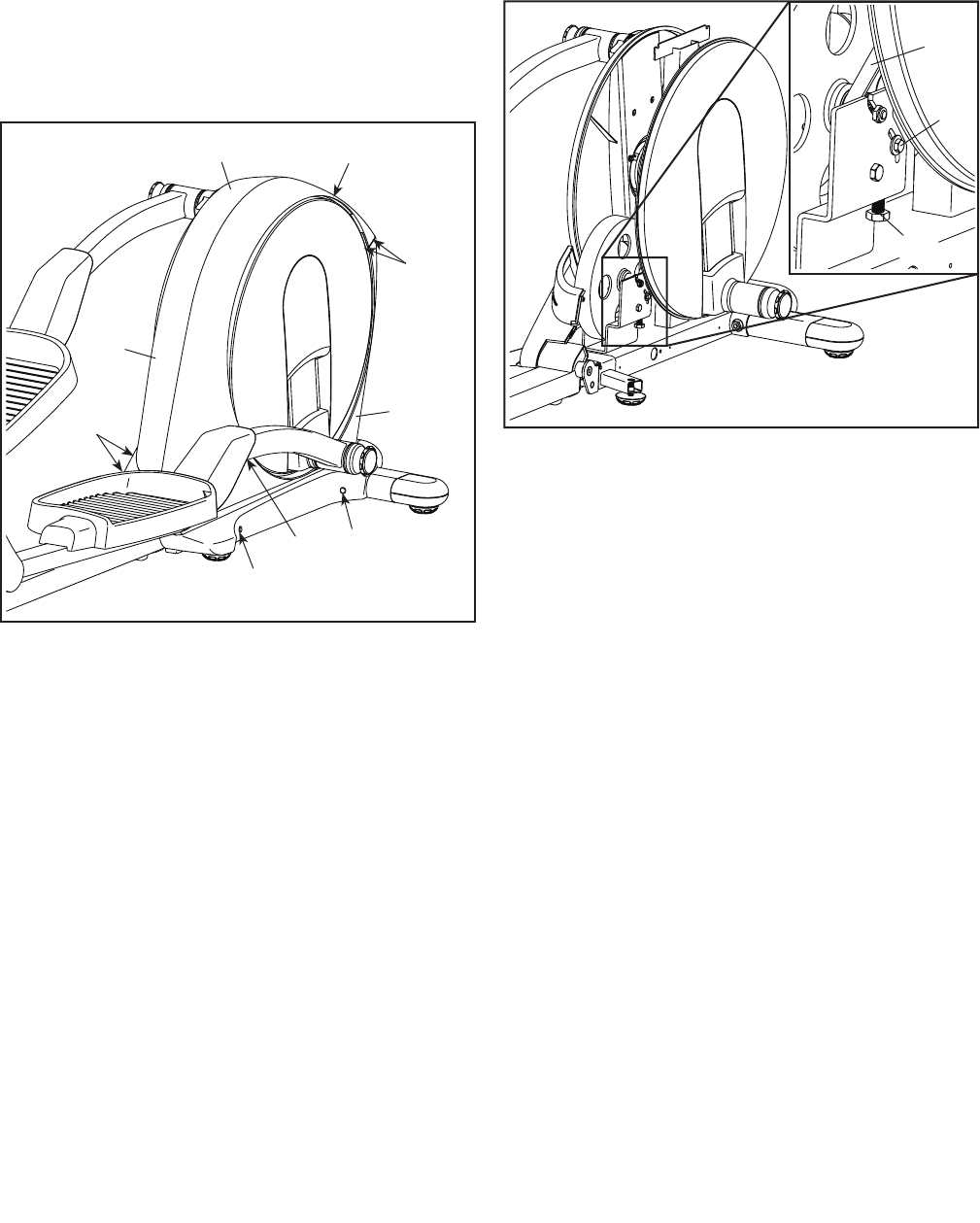

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If

a decal is missing or illegible, see the front cover of this

manual and request a free replacement decal. Apply the

decal in the location shown. Note: The decal(s) may not be

shown at actual size.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

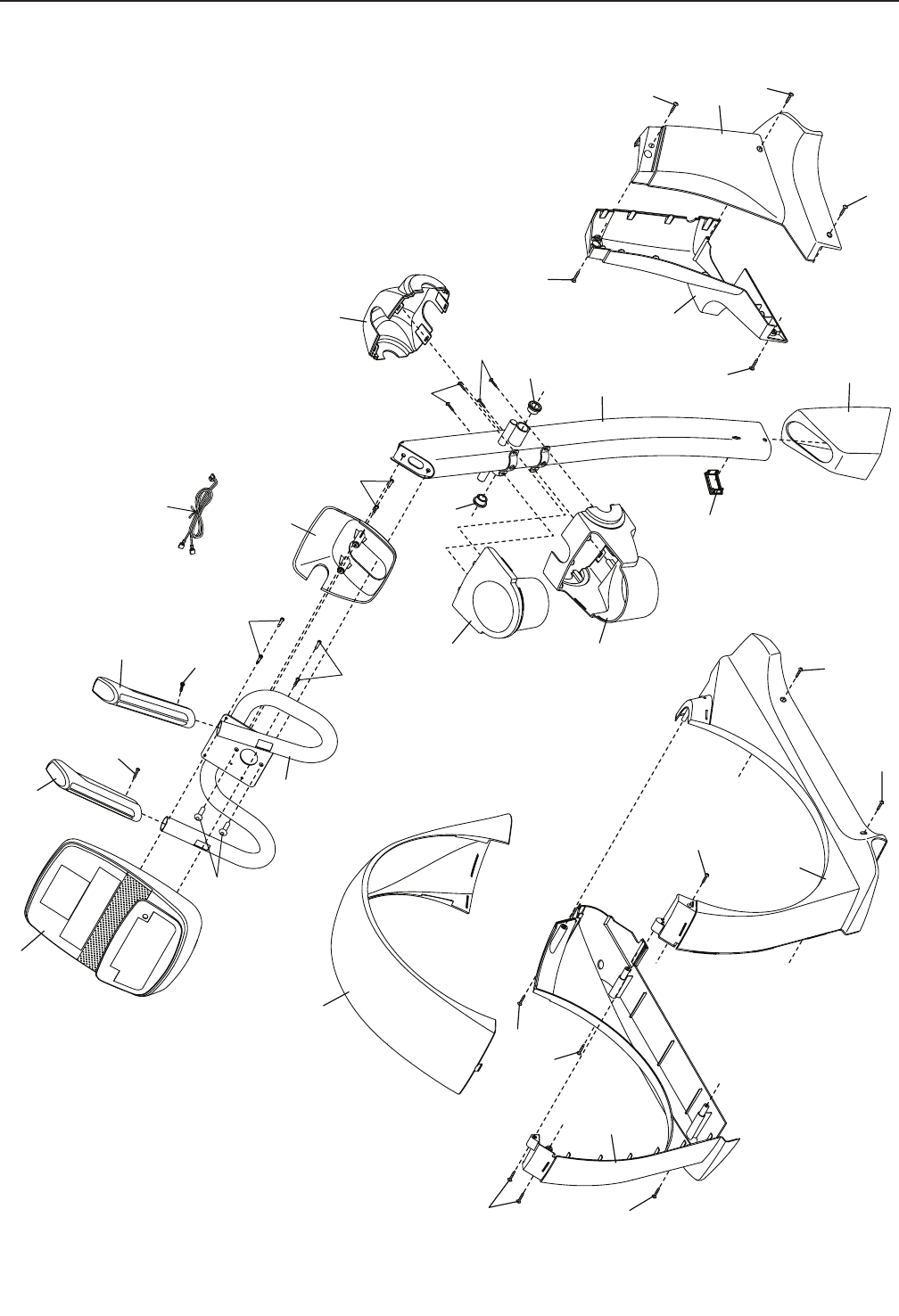

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the elliptical only as described in this

manual.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 275 lbs. (125 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

14. Keep your back straight while using the ellip-

tical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

IMPORTANT PRECAUTIONS

STANDARD SERVICE PLANS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

10.0 CE elliptical. The 10.0 CE elliptical provides an

impressive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

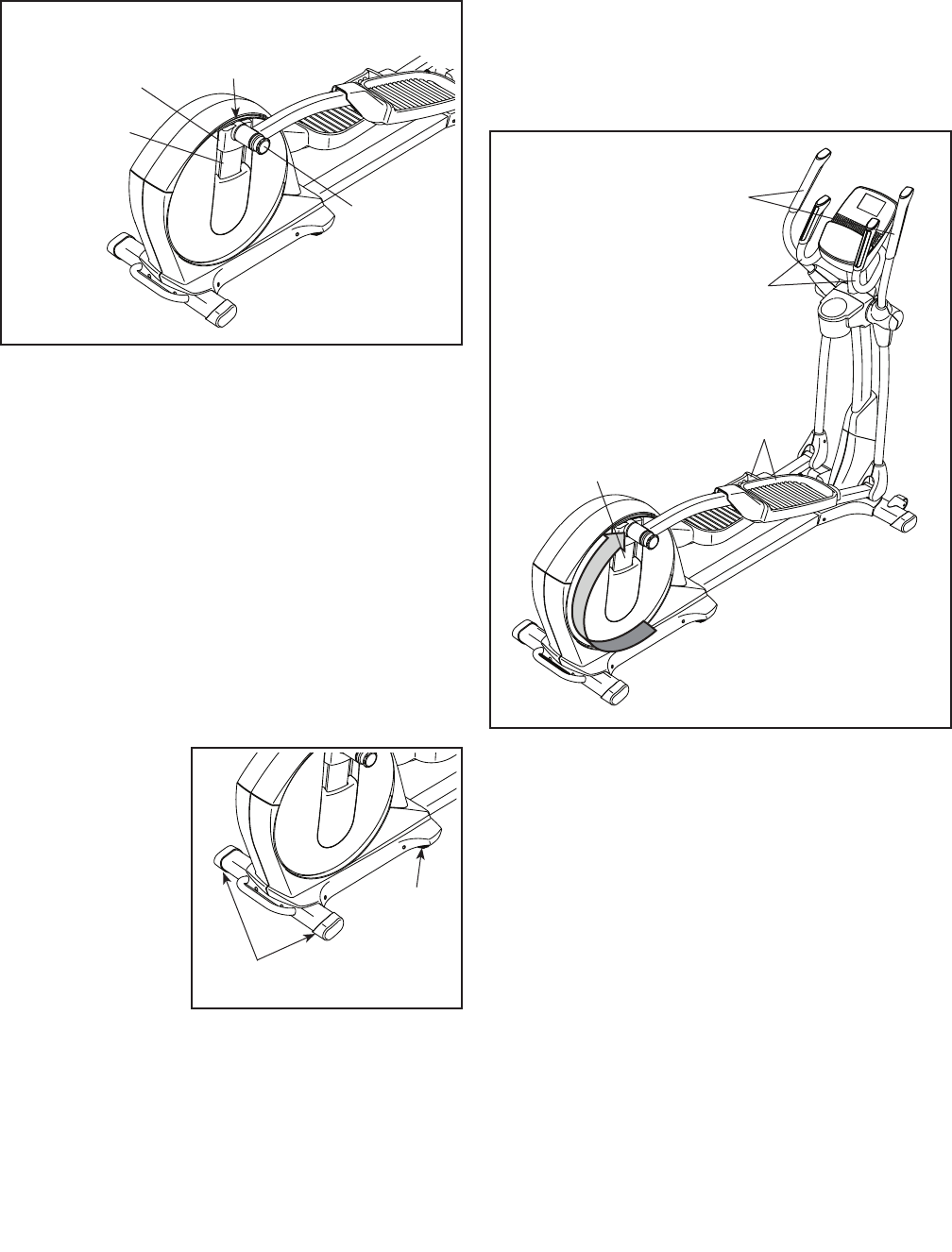

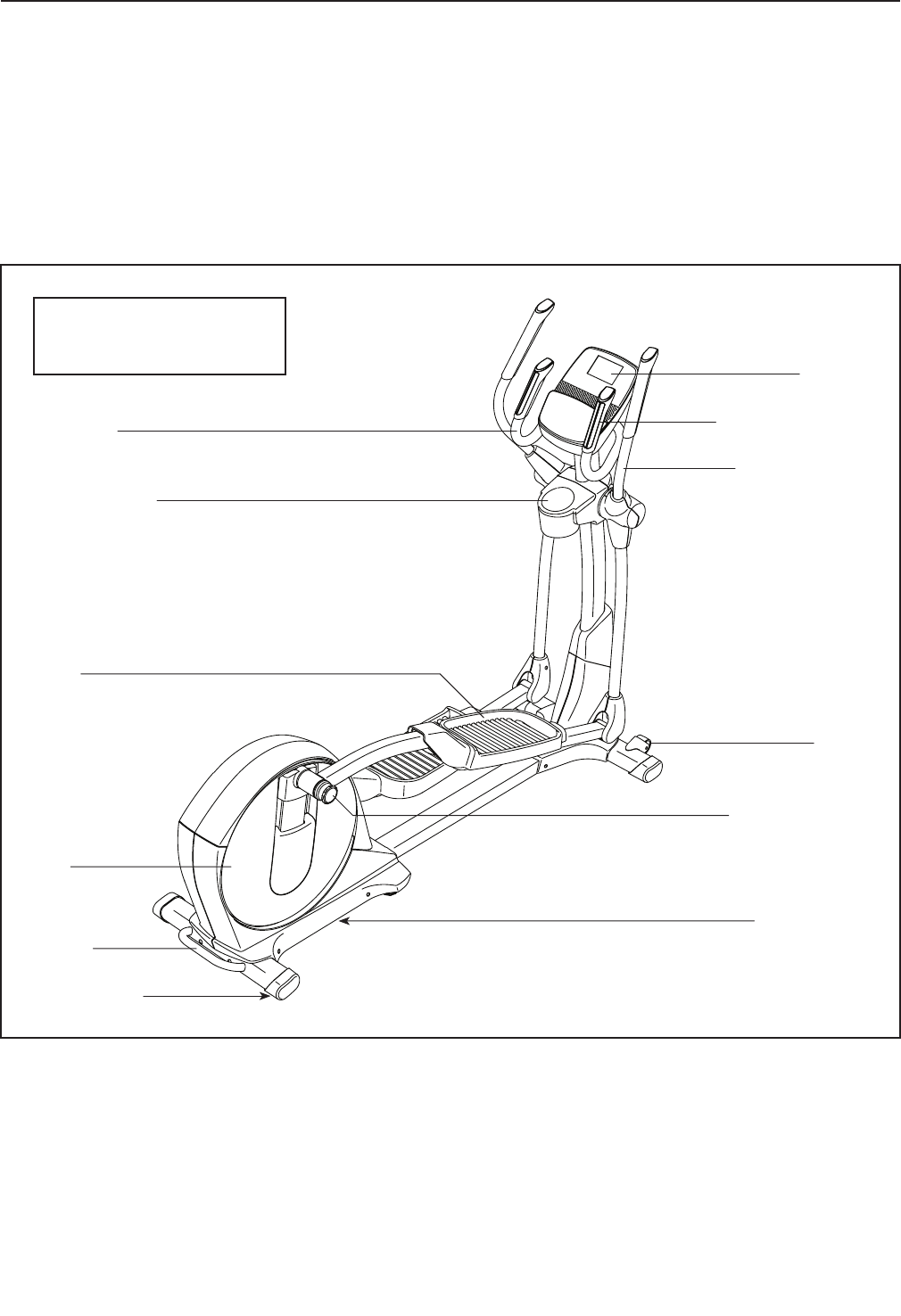

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handlebar

Upper Body Arm

Console

Wheel

Adjustment Knob

Pedal

Storage Latch

Accessory Tray

Heart Rate Monitor

Handle

Leveling Foot

Disc

Length: 6 ft. 4 in. (193 cm)

Width: 2 ft. 2 in. (66 cm)

M8 Locknut

(105)–6

Wave Washer

(118)–2

M10 Split

Washer (88)–4

M8 x 23mm

x 1.5mm Washer

(91)–10

M6 x 12mm

Screw (111)–2

M8 x 45mm Bolt (104)–6

M4 x 16mm

Screw (93)–16

M8 Split Washer

(83)–6

M4 x 25mm

Screw (82)–2 M8 x 16mm

Screw (102)–18

M8 x 50mm

Screw (112)–6

M10 x 120mm Screw (100)–4

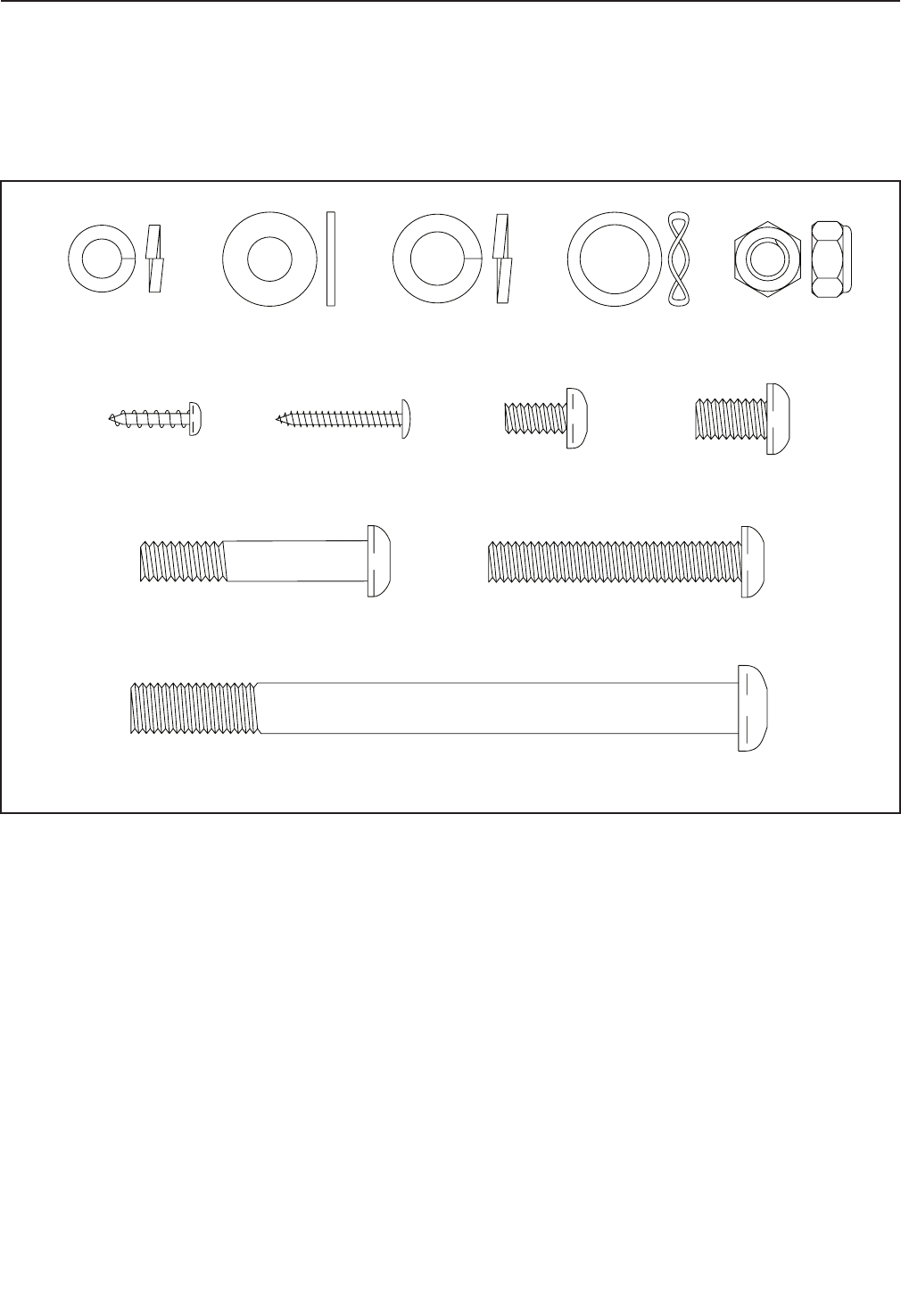

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you complete all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 7.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have your own set

of wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

2. Pull the Folding Frame (2) back until it locks

into position. Then, see HOW TO FOLD AND

UNFOLD THE ELLIPTICAL on page 18 and

unfold the elliptical.

Tip: It may be easier to perform this step with

the elliptical in the folded position.

Orient the Rear Stabilizer (4) as shown.

While a second person lifts the Folding Frame

(2), attach the Rear Stabilizer (4) to the Folding

Frame with two M10 x 120mm Screws (100) and

two M10 Split Washers (88).

100

1. Go to www.proform.com/registration on your

computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this

manual) and register your product.

3. Orient the Front Stabilizer (3) as shown.

While a second person lifts the Frame (1), attach

the Front Stabilizer (3) to the Frame with two

M10 x 120mm Screws (100) and two M10 Split

Washers (88).

100

4. Orient the Small Bumper (13) so that the

recessed holes are in the indicated location.

While a second person lifts the Frame (1), attach

the Small Bumper (13) to the underside of the

Frame with two M4 x 25mm Screws (82).

Recessed

Holes

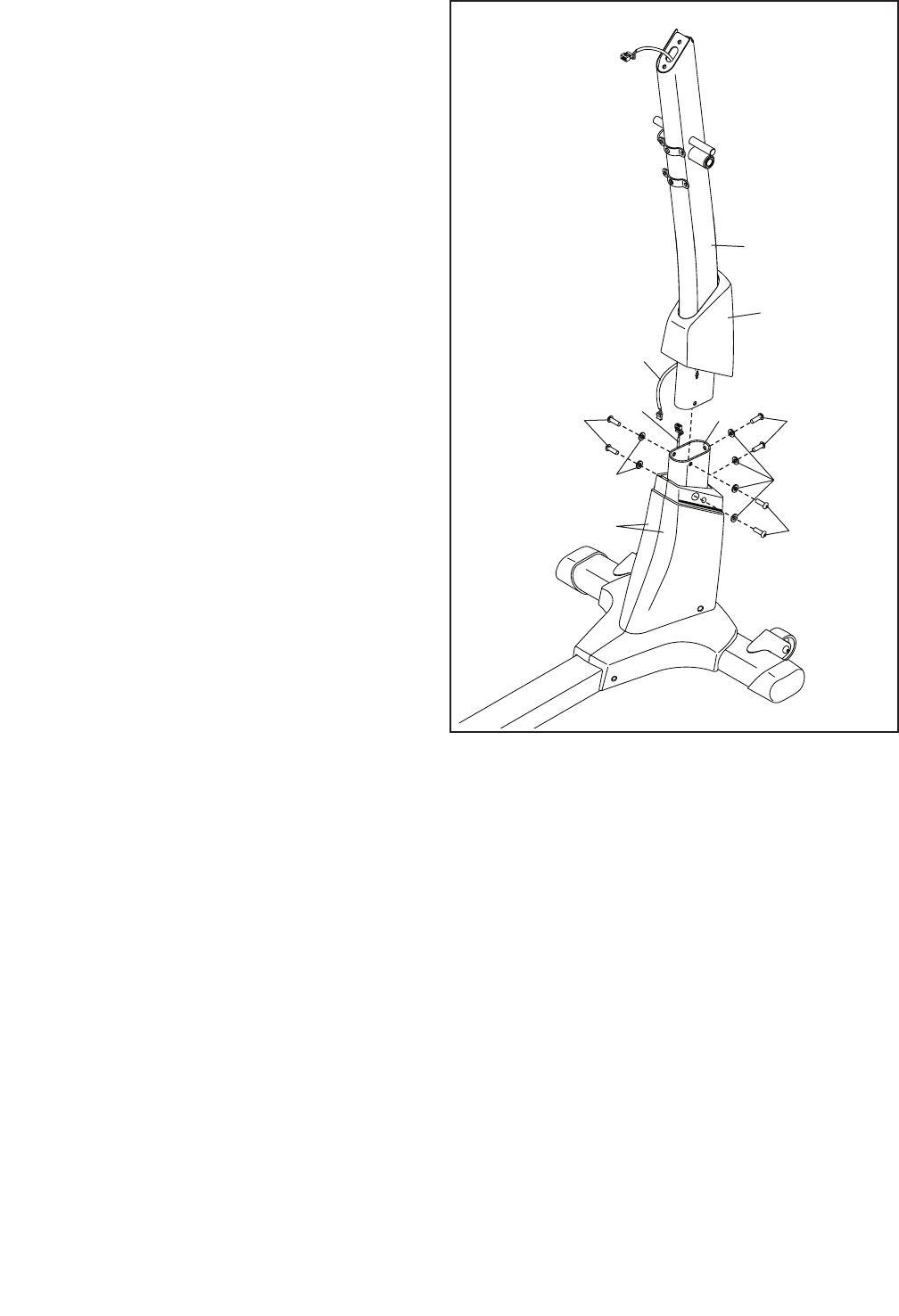

5. Identify and orient the Upright (5) and the Top

Cover (23) as shown. Slide the Top Cover

upward onto the Upright.

Have a second person hold the Upright (5) and

the Top Cover (23) near the Frame (1).

Tip: Avoid pinching the wires. Insert the

Upright (5) into the Frame (1).

Attach the Upright (5) with six M8 x 16mm

Screws (102) and six M8 Split Washers (83). Do

not tighten the Screws yet.

Next, connect the Upright Wire (60) to the

Frame Wire (109). Insert the excess wire into the

Upright (5).

Then, slide the Top Cover (23) downward. Do

not press the Top Cover into the Right and

Left Frame Covers (21, 22) yet.

109

Avoid pinching

the wires 5

21, 22

102

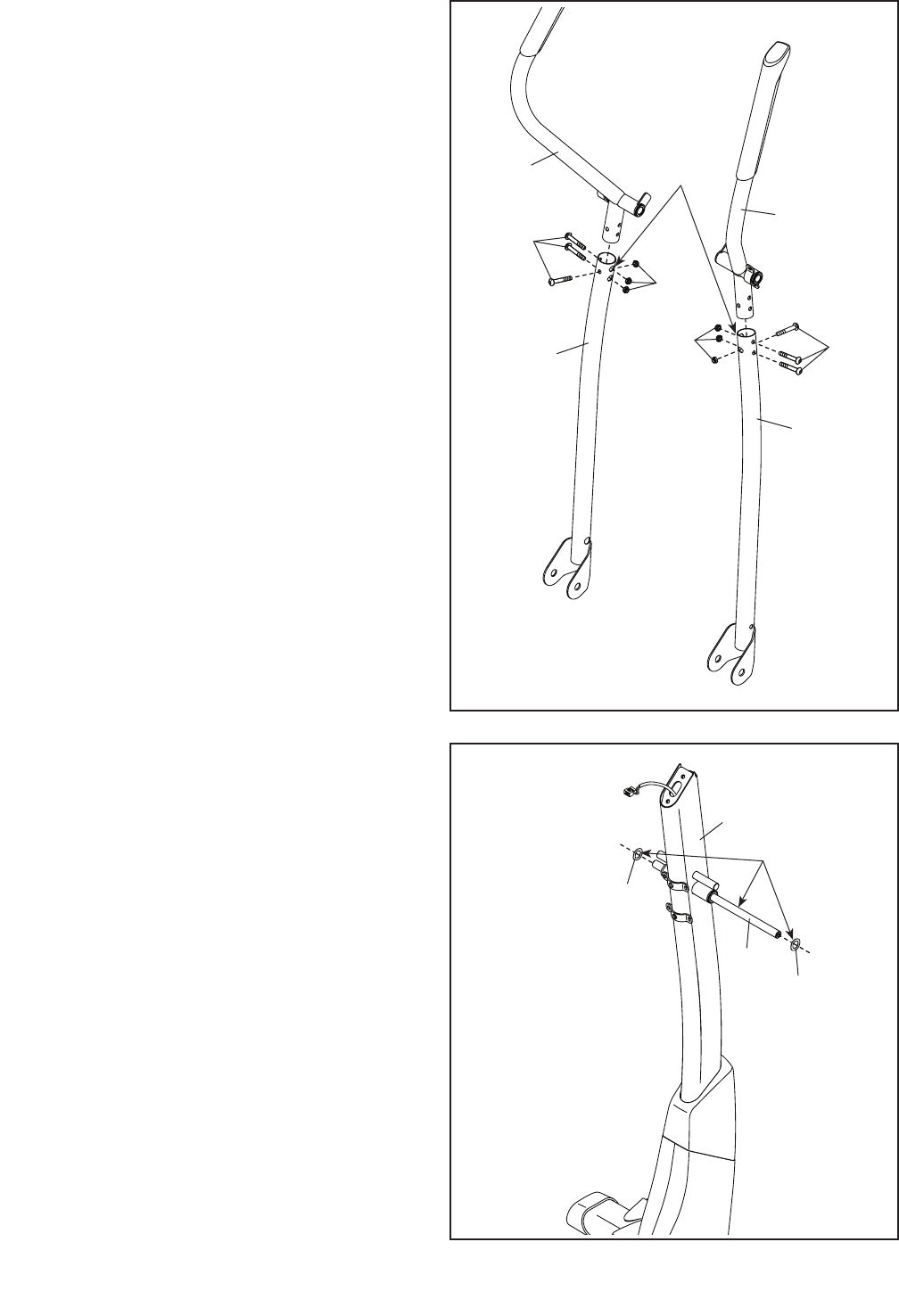

6. Identify the Right Upper Body Arm (8) and the

Right Upper Body Leg (6) and orient them as

shown.

Insert the Right Upper Body Arm (8) into the

Right Upper Body Leg (6).

Attach the Right Upper Body Arm (8) with three

M8 x 45mm Bolts (104) and three M8 Locknuts

(105). Make sure that the Locknuts are inside

the hexagonal holes. Do not fully tighten the

Bolts yet.

Assemble the Left Upper Body Arm (9) and

the Left Upper Body Leg (7) in the same way.

Hexagonal

Holes

104

105

7. Using a small plastic bag to keep your fingers

clean, apply a generous amount of the included

grease to the Upright Axle (48) and to two Wave

Washers (118).

Insert the Upright Axle (48) into the Upright (5)

and center it. Then, slide a Wave Washer (118)

onto each end of the Upright Axle.

118

Grease

8. Slide the Right and Left Upper Body Arms (8, 9)

onto the Upright Axle (48).

At the same time, tighten an M8 x 16mm Screw

(102) and an M8 x 23mm x 1.5mm Washer (91)

into each end of the Upright Axle (48). Firmly

tighten the Screws.

102

9. Attach the Rear Upright Cover (24) to the Upright

(5) with four M4 x 16mm Screws (93).

102 91

115

10. Attach the Front Upright Cover (25) around the

Upright (5) by pressing it into the Rear Upright

Cover (24).

11. Identify the Short Pedal Arm Axles (115) and the

Long Pedal Axles (not shown).

Apply a small amount of grease to a Short Pedal

Arm Axle (115) and to an M8 x 23mm x 1.5mm

Washer (91).

Next, tighten an M8 x 16mm Screw (102) and an

M8 x 23mm x 1.5mm Washer (91) a few turns

into one end of the Short Pedal Arm Axle (115).

Orient a Pedal Arm (12) as shown. While a sec-

ond person holds the front end of the Right Pivot

Arm (51) inside the bracket on the Pedal Arm,

insert the Short Pedal Arm Axle (115) through

both parts.

Tighten another M8 x 16mm Screw (102) and

an M8 x 23mm x 1.5mm Washer (91) a few

turns into the Short Pedal Arm Axle (115). Then,

tighten both Screws at the same time.

Repeat this step on the other side of the

elliptical.

Grease

102

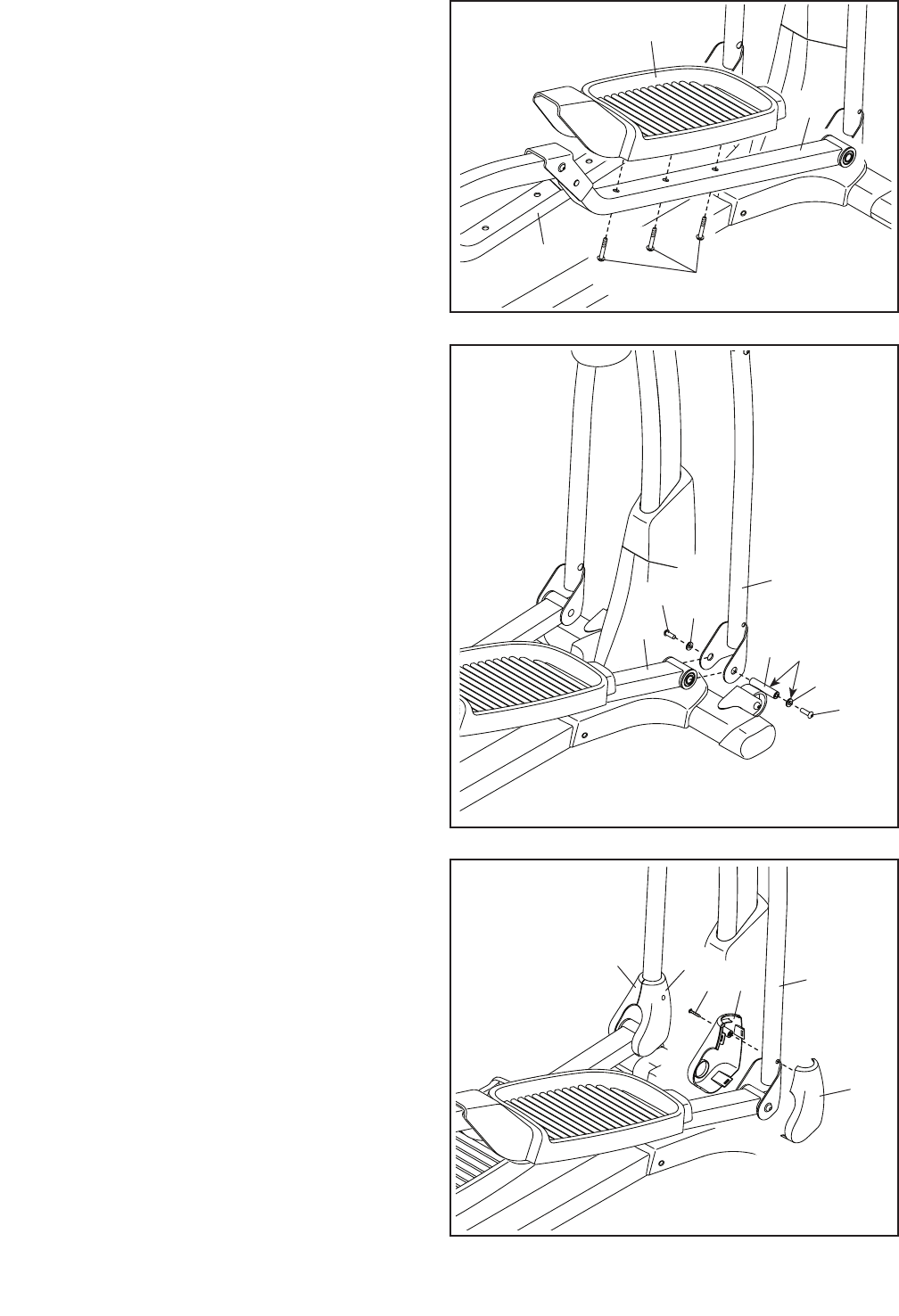

12. Identify the Right Pedal (14) and orient it as

shown.

Attach the Right Pedal (14) to the right Pedal

Arm (12) with three M8 x 50mm Screws (112).

Attach the Left Pedal (not shown) to the left

Pedal Arm (12) in the same way.

106

102

112

13. Apply a small amount of grease to a Long Pedal

Arm Axle (106) and to an M8 x 23mm x 1.5mm

Washer (91).

Next, tighten an M8 x 16mm Screw (102) and an

M8 x 23mm x 1.5mm Washer (91) a few turns

into one end of the Long Pedal Arm Axle (106).

While a second person holds the front end of the

right Pedal Arm (12) inside the bracket on the

Right Upper Body Leg (6), insert the Long Pedal

Arm Axle (106) through both parts.

Tighten another M8 x 16mm Screw (102) and

an M8 x 23mm x 1.5mm Washer (91) a few

turns into the Long Pedal Arm Axle (106). Then,

tighten both Screws at the same time.

Repeat this step on the other side of the

elliptical.

Grease

102

14. Identify the Right Inner and Outer Leg Covers

(27, 28) orient them as shown.

Press the Right Inner and Outer Leg Covers

(27, 28) together around the Right Upper Body

Leg (6).

Attach the Right Inner and Outer Leg Covers

(27, 28) to the Right Upper Body Leg (6) with an

M4 x 16mm Screw (93). To avoid damaging the

plastic, do not overtighten the Screw.

Attach the Left Inner and Outer Leg Covers

(49, 50) in the same way.

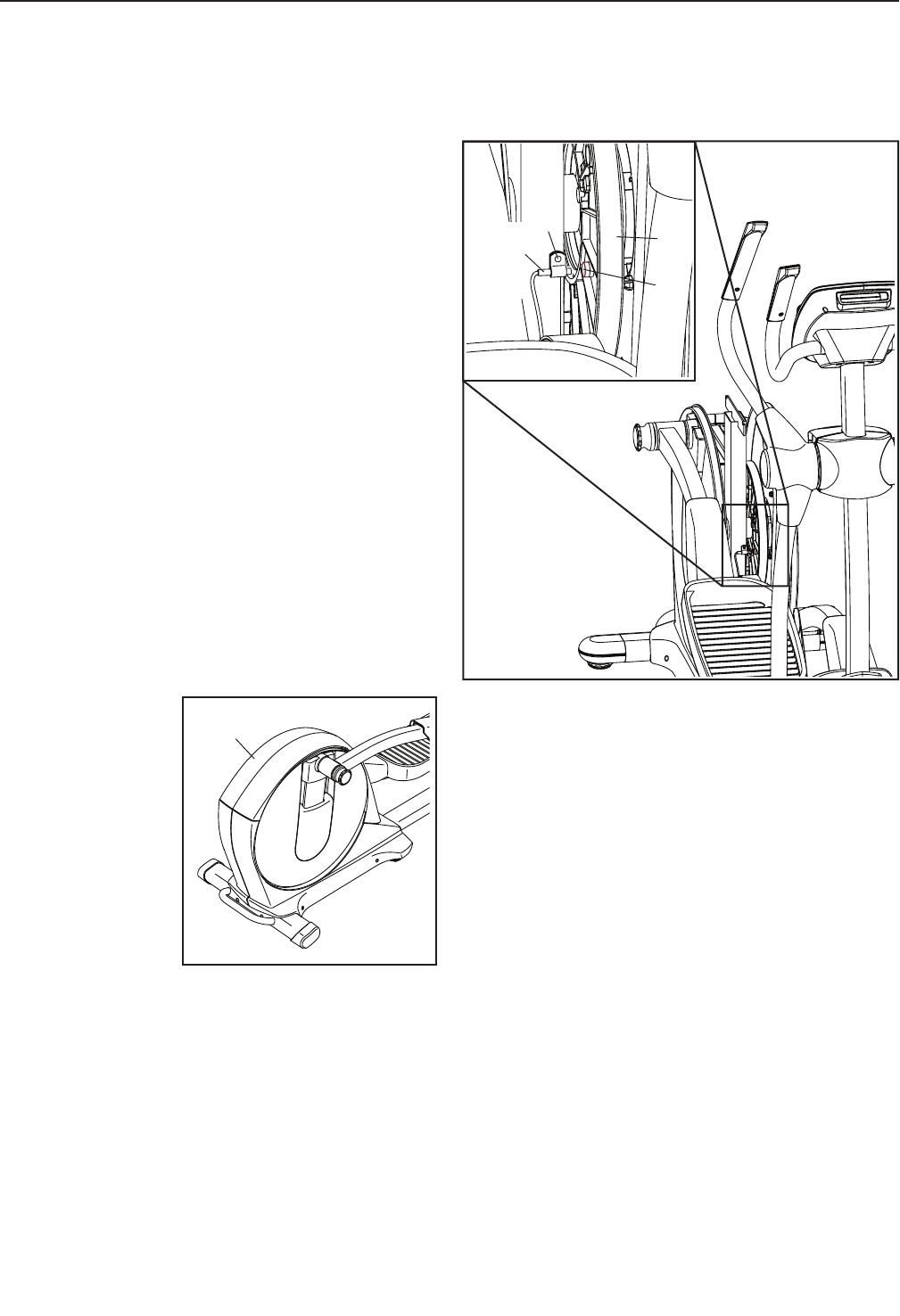

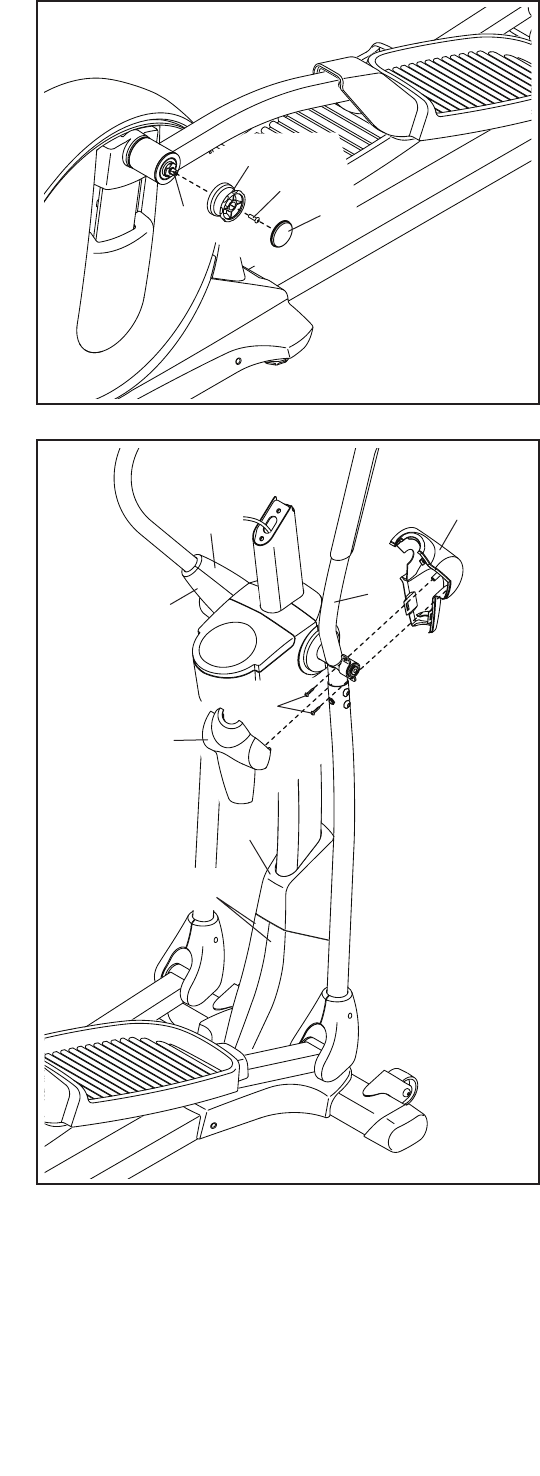

15. Remove and discard the cap (not shown) on the

right Adjustment Pin (44).

Attach an Adjustment Knob (45) to the right

Adjustment Pin (44) with an M6 x 12mm

Screw (111).

Then, press the tabs on a Knob Cap (46) into the

Adjustment Knob (45).

Repeat this step on the other side of the

elliptical.

111

16. See step 6. Tighten the six M8 x 45mm

Bolts (104).

See step 5. Tighten the six M8 x 16mm Screws

(102). Tip: Tighten the two Screws on the

front of the elliptical, and then tighten the

other four Screws.

Identify the Right Rear and Front Leg Covers

(29, 30).

Attach the Right Front Leg Cover (30) to the

Right Upper Body Arm (8) with two M4 x 16mm

Screws (93).

Attach the Right Rear Leg Cover (29) around the

Right Upper Body Arm (8) by pressing it into the

Right Front Leg Cover (30).

Attach the Left Rear and Front Leg Covers

(31, 32) in the same way.

Then, slide the Top Cover (23) downward and

press it into the Right and Left Frame Covers

(21, 22).

21, 22

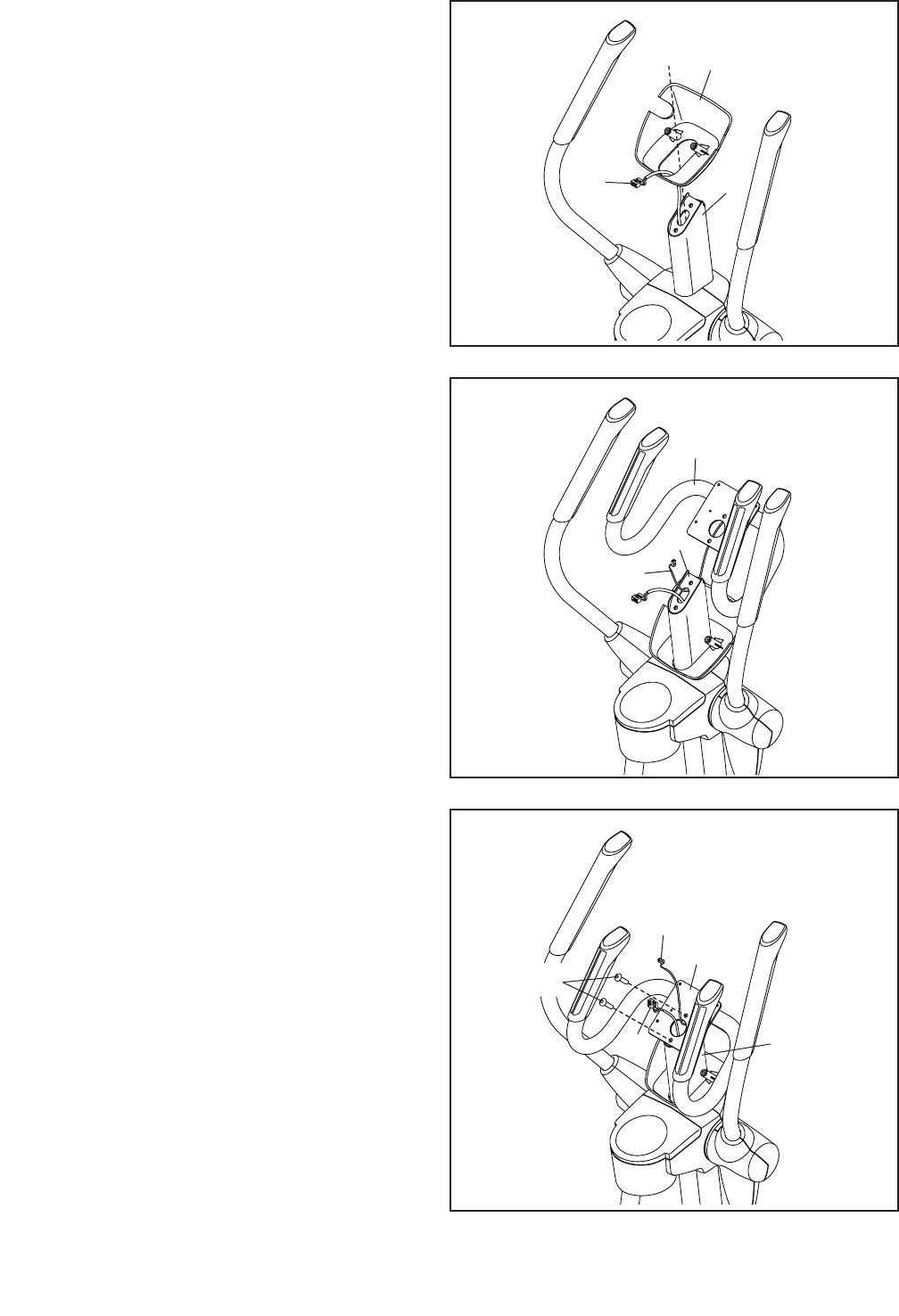

17. Orient the Console Cover (11) as shown. While a

second person holds the Console Cover near the

Upright (5), insert the Upright Wire (60) upward

through the Console Cover.

Then, slide the Console Cover (11) onto the

Upright (5).

18. Orient the Handlebar (10) as shown. Have a

second person hold the Handlebar near the

Upright (5).

Locate the Pulse Wire (79) in the Handlebar

(10). Insert the Pulse Wire into the hole in the

front of the Upright (5). Then, pull the Pulse Wire

upward out of the top of the Upright.

19. Insert the Upright Wire (60) and the Pulse Wire

(79) upward through the Handlebar (10).

Tip: Avoid pinching the wires. Attach the

Handlebar (10) to the Upright (5) with two M8 x

16mm Screws (102).

102

Avoid pinching

the wires

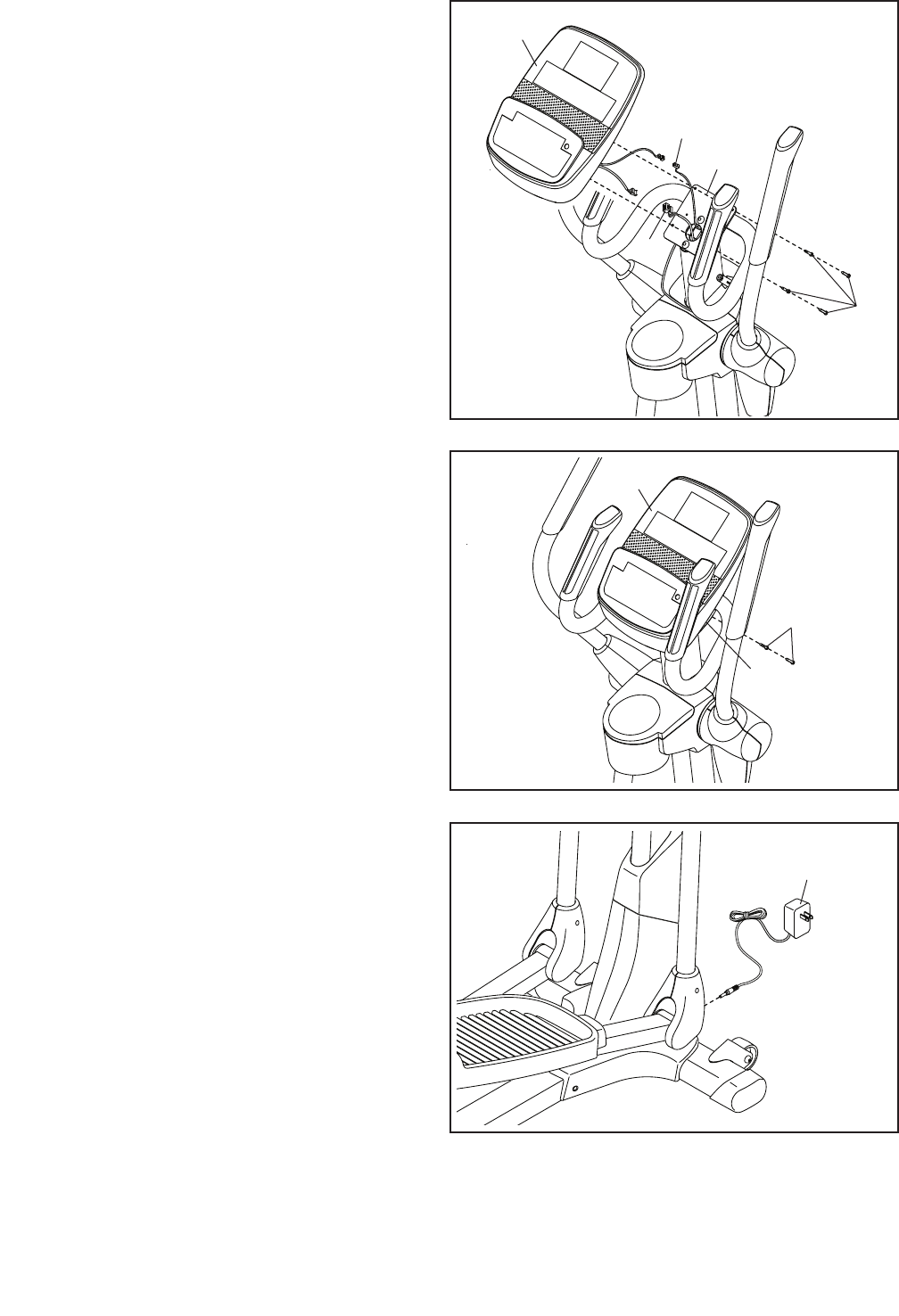

20. While a second person holds the Console (33)

near the Handlebar (10), connect the console

wires to the Upright Wire (60) and to the Pulse

Wire (79).

Insert the excess wire into the Handlebar (10).

Tip: Avoid pinching the wires. Attach the

Console (33) to the Handlebar (10) with four M4

x 16mm Screws (93).

21. Attach the Console Cover (11) to the Console

(33) with two M4 x 16mm Screws (93).

22. Plug the Power Adapter (59) into the receptacle

on the frame of the elliptical.

Note: To plug the Power Adapter (59) into an

outlet, see HOW TO PLUG IN THE POWER

ADAPTER on page 18.

23. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. To

protect the floor or carpet from damage, place a mat under the elliptical.

Avoid pinching

the wires

HOW TO PLUG IN THE POWER ADAPTER

IMPORTANT: If the elliptical has been exposed to

cold temperatures, allow it to warm to room tem-

perature before you plug in the power adapter. If

you do not do this, you may damage the console

displays or other electronic components.

Plug the power adapter

into the receptacle on

the frame of the ellipti-

cal. Then, plug the

power adapter into an

appropriate outlet that

is properly installed

in accordance with

all local codes and

ordinances.

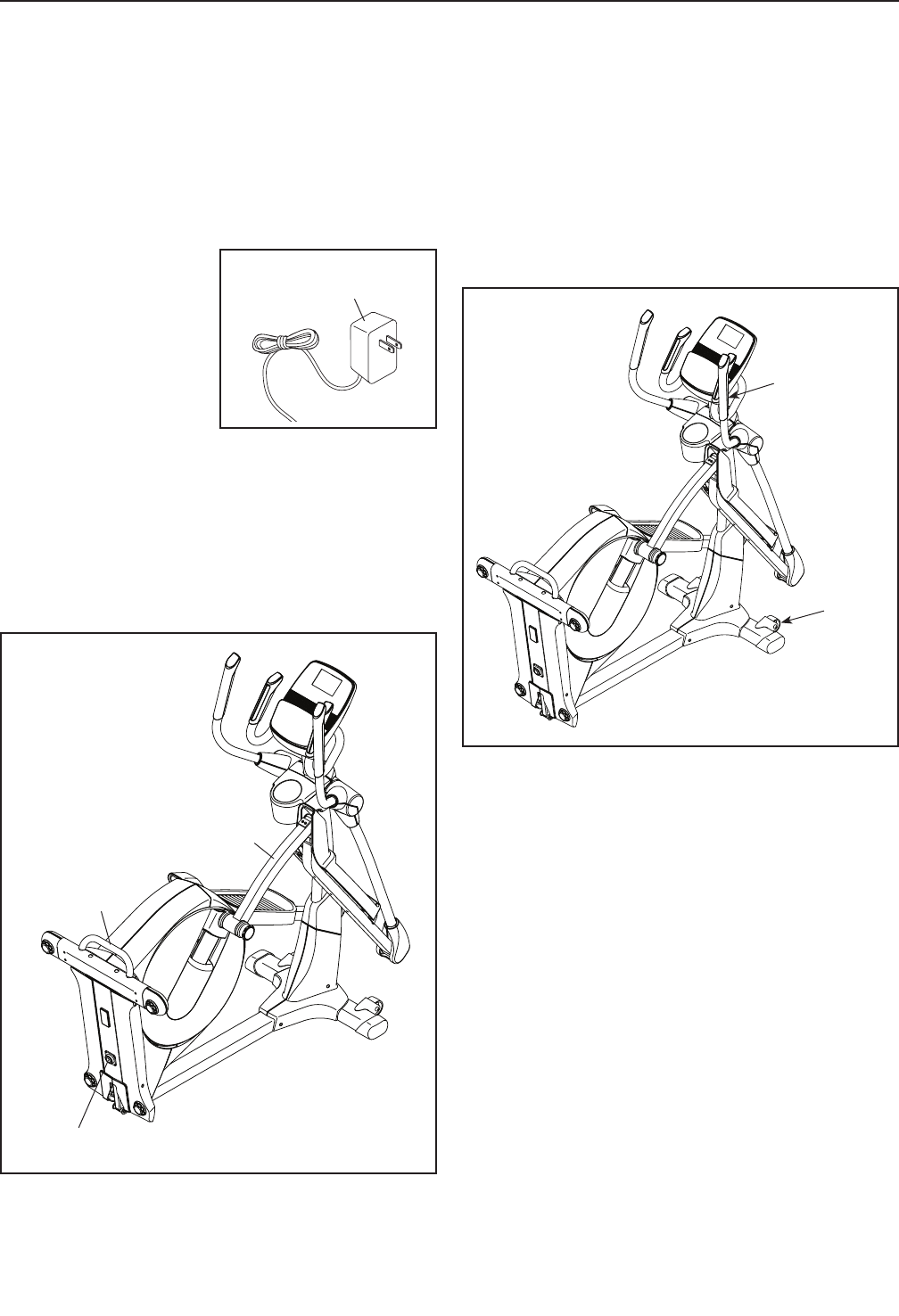

HOW TO FOLD AND UNFOLD THE ELLIPTICAL

When the elliptical is not in use, the frame can be

folded out of the way. Hold the handle and gently lift

the frame until the pivot arms fold and the frame locks

in a folded position.

To us e th e el li pt ic al , fi rs t ho ld t he h an dl e, p ul l ba ck o n

the frame, press the latch button, and lower the frame.

HOW TO MOVE THE ELLIPTICAL

To mo ve t he e ll ip ti ca l, f ir st f ol d it a s de sc ri be d at

the left. Next, stand in front of the elliptical, hold the

upright, and place one foot against one of the wheels.

Pull the upright until the elliptical rolls on the wheels.

With the help of a second person, carefully move the

elliptical to the desired position, and then lower it to the

floor.

HOW TO USE THE ELLIPTICAL

Place

your

foot

here

Pull on the

upright

Power Adapter

Handle

Latch Button

Pivot Arm

HOW TO ADJUST THE STRIDE LENGTH

To ad ju st t he s tr id e le ng th o f th e el li pt ic al , fi rs t lo os en

an adjustment knob. Next, pull the adjustment knob

outward until the adjustment bracket will move freely.

Slide the adjustment bracket upward or downward until

the adjustment knob is aligned with one of the holes in

the crank arm, and gently release the knob to engage

the adjustment pin in the hole.

Rock the adjustment arm upward and downward

slightly to make sure that the adjustment pin is

engaged in one of the holes in the crank arm. Then,

tighten the adjustment knob.

Adjust the stride length on the other side of the ellipti-

cal in the same way. Make sure that both sides of

the elliptical are adjusted to the same stride length.

HOW TO LEVEL THE ELLIPTICAL

If the elliptical

rocks slightly on

your floor dur-

ing use, turn

one or both of

the leveling feet

beneath the rear

stabilizer until the

rocking motion is

eliminated.

If the frame of the elliptical flexes during use, turn one

or both of the leveling feet under the center of the

frame until the flexing is eliminated.

HOW TO EXERCISE ON THE ELLIPTICAL

To mo un t th e el li pt ic al , ho ld t he u pp er b od y ar ms o r th e

handlebars and step onto the pedal that is in the lowest

position. Next, step onto the other pedal. Push the ped-

als until they begin to move with a continuous motion.

Note: The crank arms can turn in either direction.

It is recommended that you turn the crank arms

in the direction shown by the arrow; however, for

variety, you can turn the crank arms in the opposite

direction.

To di sm ou nt t he e ll ip ti ca l, w ai t un ti l th e pe da ls c om e to

a complete stop. Note: The elliptical does not have

a free wheel; the pedals will continue to move until

the flywheel stops. When the pedals are stationary,

step off the highest pedal first. Then, step off the lowest

pedal.

Pedals

Crank Arm

Handlebars

Upper Body Arms

Leveling Feet

Leveling

Foot

Adjustment

Knob

Adjustment

Bracket

Crank Arm

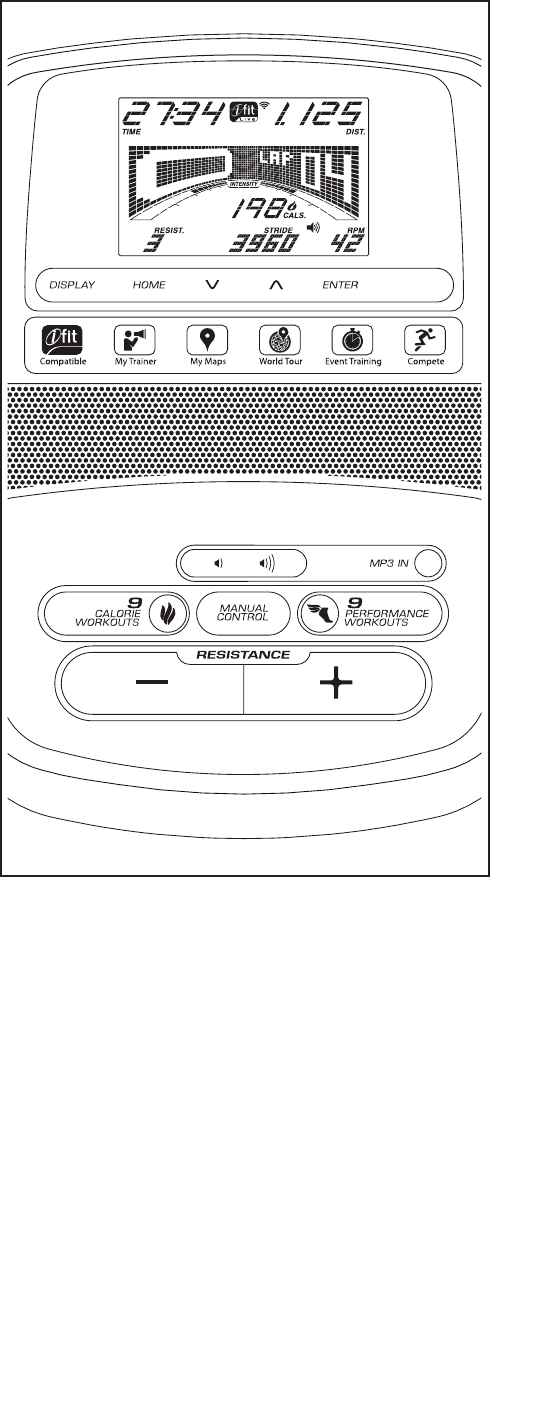

CONSOLE DIAGRAM FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals with the touch

of a button. While you exercise, the console will display

continuous exercise feedback. You can also measure

your heart rate using the handgrip heart rate monitor.

The console offers a selection of onboard workouts.

Each workout automatically changes the resistance

of the pedals as it guides you through an effective

workout.

The console also features an iFit mode that enables

the console to communicate with your wireless network

through an optional iFit module. With the iFit mode,

you can download personalized workouts, create your

own workouts, track your workout results, race against

other iFit users, and access many other features.

To purchase an iFit module at any time, go to

www.iFit.com or call the telephone number on the

front cover of this manual.

You can even connect your MP3 player or CD player

to the console sound system and listen to your favorite

music or audio books while you exercise.

To use the manual mode, see page 21. To use

an onboard workout, see page 23. To use an iFit

workout, see page 24. To use the sound system,

see page 25. To change console settings, see

page 25.

Note: If there is a sheet of plastic on the display,

remove the plastic.

HOW TO USE THE MANUAL MODE

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will light.

The console will then be ready for use.

2. Select the manual mode.

Press the Manual Control button on the console to

select the manual mode.

If a wireless iFit module is not inserted into the con-

sole and connected to iFit, the manual mode will be

selected automatically.

3. Change the resistance of the pedals as desired.

As you pedal, change the resistance of the pedals

by pressing the Resistance increase and decrease

buttons.

Note: After you press a button, it will take a

moment for the pedals to reach the selected resis-

tance level.

4. Follow your progress with the display.

The display can show the following workout

information:

Calories (Cals.)—This display mode will show the

approximate number of calories you have burned.

Calories per Hour (Cals./Hr)—This display mode

will show the approximate number of calories you

are burning per hour.

Distance (Dist.)—This display mode will show

the distance that you have pedaled in miles or

kilometers.

Pulse—This display mode will show your heart rate

when you use the handgrip heart rate monitor (see

step 5 on page 22).

Resistance (Resist.)—This display mode will

show the resistance level of the pedals for a few

seconds each time the resistance level changes.

RPM—This display mode will show your pedaling

speed in revolutions per minute (rpm).

Stride—This display mode will show the total num-

ber of strides you have pedaled.

Time—When the manual mode is selected, this

display mode will show the elapsed time. When an

onboard workout is selected, this display mode will

show the time remaining in the workout.

The matrix offers several display tabs. Press the

Display button until the desired tab is shown. You

can also press the increase and decrease buttons

next to the Enter button.

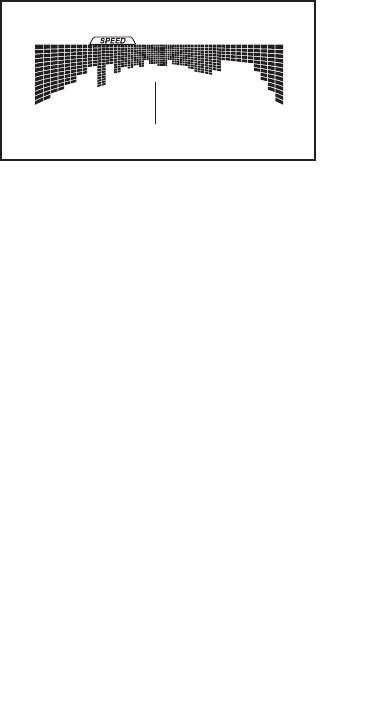

Speed—This tab will show a profile of the speed

settings of the workout. A new segment will appear

at the end of each minute.

My Trail—This tab will show a track that represents

1/4 mile (400 m). As you exercise, the flashing

rectangle will show your progress. The My Trail tab

will also show the number of laps you complete.

Calorie—This tab will show the approximate

amount of calories you have burned. The height of

each segment represents the amount of calories

burned during that segment.

As you exercise, the workout intensity level bar

will indicate the approximate intensity level of your

exercise.

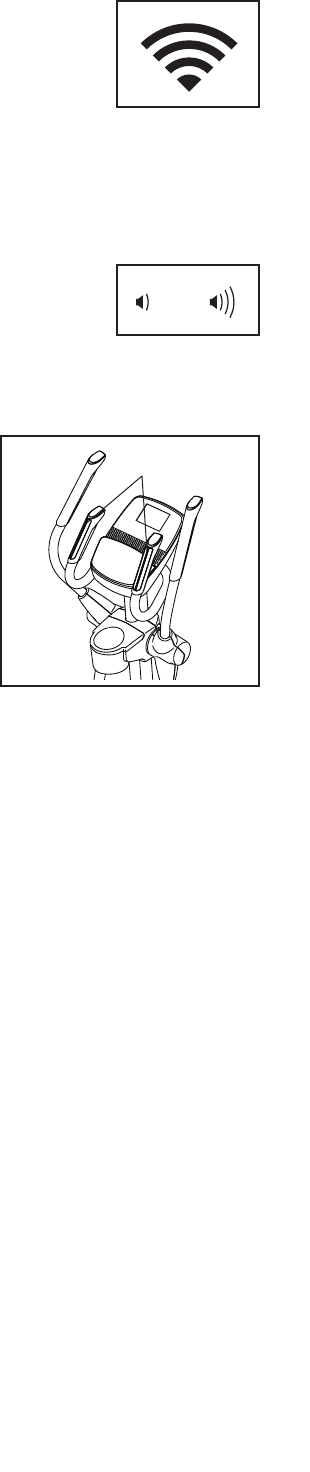

When a wireless iFit module

is connected, the wireless

symbol at the top of the dis-

play will show the strength of

your wireless signal. Four arcs

indicate full signal strength.

To ex it t he m an ua l mo de o r a wo rk ou t, p re ss t he

Home button. If necessary, press the Home button

again.

Change the volume level

of the console by pressing

the Volume increase and

decrease buttons.

5. Measure your heart rate if desired.

If there are

sheets of plastic

on the metal

contacts on the

handgrip heart

rate monitor,

remove the

plastic. To me a-

sure your heart

rate, hold the

handgrip heart

rate monitor with

your palms resting against the contacts. Avoid

moving your hands or gripping the contacts

tightly.

When your pulse is detected, a heart symbol in the

calorie display will flash each time your heart beats,

one or two dashes will appear, and then your heart

rate will be shown. For the most accurate heart rate

reading, hold the contacts for at least 15 seconds.

If the display does not show your heart rate, make

sure that your hands are positioned as described.

Be careful not to move your hands excessively or

to squeeze the contacts tightly. For optimal perfor-

mance, clean the contacts using a soft cloth; never

use alcohol, abrasives, or chemicals to clean

the contacts.

6. When you are finished exercising, the console

will turn off automatically.

If the pedals do not move for several seconds, a

tone will sound, the console will pause, and the

time will flash in the display. To resume your work-

out, simply resume pedaling.

If the pedals do not move for several minutes and

the buttons are not pressed, the console will turn

off and the display will be reset.

Note: The console features a display demo mode,

designed to be used if the elliptical is displayed in a

store. When the demo mode is turned on, the con-

sole will show a preset presentation. To turn off the

demo mode, see HOW TO CHANGE CONSOLE

SETTINGS on page 25.

Contacts

HOW TO USE AN ONBOARD WORKOUT

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will light.

The console will then be ready for use.

2. Select an onboard workout.

To se le ct a n on bo ar d wo rk ou t, p re ss t he C al or ie

Workouts button or the Performance Workouts but-

ton repeatedly until the desired workout appears in

the display.

When you select an onboard workout, the display

will show the duration of the workout and the name

of the workout. A profile of the speed settings of the

workout will appear in the matrix.

The maximum resistance level and the maximum

speed for the workout will also appear in the

display.

3. Begin pedaling to start the workout.

Each workout is divided into one-minute seg-

ments. One resistance level and one target speed

is programmed for each segment. Note: The same

resistance level and/or target speed may be pro-

grammed for consecutive segments.

During the

workout,

the profile

on the

speed

tab will

show your

progress.

The flashing segment of the profile represents the

current segment of the workout. The height of the

flashing segment indicates the target speed for the

current segment.

At the end of each segment of the workout, a

series of tones will sound and the next segment of

the profile will begin to flash. If a different resis-

tance level and/or target speed is programmed for

the next segment, the resistance level and/or target

speed will appear in the display for a few seconds

to alert you. The resistance of the pedals will then

change.

As you exercise, you will be prompted to keep your

pedaling speed near the target speed for the cur-

rent segment. When an upward-pointing arrow

appears in the display, increase your pace. When

a downward-pointing arrow appears, decrease

your pace. When no arrow appears, maintain

your current pace.

IMPORTANT: The target speed is intended only

to provide motivation. Your actual pedaling

speed may be slower than the target speed.

Make sure to pedal at a speed that is comfort-

able for you.

If the resistance level for the current segment is

too high or too low, you can manually override

the setting by pressing the Resistance buttons.

IMPORTANT: When the current segment of the

workout ends, the pedals will automatically

adjust to the resistance level programmed for

the next segment.

The workout will continue in this way until the last

segment ends. To stop the workout at any time,

stop pedaling. The time will flash in the display. To

resume the workout, simply resume pedaling.

4. Follow your progress with the display.

See step 4 on page 21.

5. Measure your heart rate if desired.

See step 5 on page 22.

6. When you are finished exercising, the console

will turn off automatically.

See step 6 on page 22.

Profile

HOW TO USE AN IFIT WORKOUT

You must have an iFit module to use an iFit workout.

To purchase an iFit module at any time, go to

www.iFit.com or call the telephone number on the

front cover of this manual.

Note: To use an iFit module, you must have access

to a computer with an internet connection and a USB

port. You will also need an iFit.com membership. To

use a wireless iFit module, you must also have your

own wireless network including an 802.11b/g/n router

with SSID broadcast enabled (hidden networks are not

supported).

1. Begin pedaling or press any button on the

console to turn on the console.

When you turn on the console, the display will turn

on. The console will then be ready for use.

2. Insert the iFit module into the console.

To use an iFit workout, make sure that the iFit mod-

ule is inserted in the console.

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in

the iFit module must be at least 8 in. (20 cm)

from all persons and must not be near or con-

nected to any other antenna or transmitter.

3. Select a user.

If more than one user is registered on your iFit

account, you can switch users in the iFit main

screen. Press the increase and decrease buttons

next to the Enter button to select a user.

4. Select an iFit workout.

To select an iFit workout, press one of the iFit but-

tons. Before some workouts will download, you

must add them to your schedule on www.iFit.com.

Press the Map button, the Train button, or the Lose

Wt. button to download the next workout of that

type in your schedule.

Press the Compete button to compete in a race

that you have previously scheduled.

Press the Track button to re-run a recent iFit work-

out from your schedule. Next, press the increase

and decrease buttons to select the desired work-

out. Then, press the Enter button to start the

workout.

For more information about the iFit workouts,

please see www.iFit.com.

When you select an iFit workout, the display will

show the duration of the workout and the approxi-

mate number of calories you will burn. The display

may also show the name of the workout. If you

select a competition workout, the display may

count down to the beginning of the race.

Note: The iFit buttons may also run demo work-

outs. To use the demo workouts, remove the iFit

module from the console and press one of the iFit

buttons.

5. Start the workout.

See step 3 on page 23.

During some workouts, an audio coach will guide

you through your workout. You can select a set-

ting for the audio coach (see HOW TO CHANGE

CONSOLE SETTINGS on page 25).

To st op t he w or ko ut a t an y ti me , st op p ed al in g. Th e

time will flash in the display. To resume the work-

out, simply resume pedaling.

6. Follow your progress with the display.

See step 4 on page 21.

The My Trail tab will show a map of the trail and the

number of laps you complete.

During a competition workout, the Compete tab

will show your progress in the race. As you race,

the top line in the matrix will show how much of the

race you have completed. The other lines will show

other competitors. The end of the matrix represents

the end of the race.

7. Measure your heart rate if desired.

See step 5 on page 22.

8. When you are finished exercising, the console

will turn off automatically.

See step 6 on page 22.

For more information about the iFit mode, go to

www.iFit.com.

HOW TO USE THE SOUND SYSTEM

To pl ay m us ic o r au di o bo ok s th ro ug h th e co ns ol e

sound system while you exercise, plug a 3.5 mm male

to 3.5 mm male audio cable (not included) into the jack

on the console and into a jack on your MP3 player, CD

player, or other personal audio player; make sure that

the audio cable is fully plugged in. Note: To purchase

an audio cable, see your local electronics store.

Next, press the play button on your personal audio

player. Adjust the volume level using the volume

increase and decrease buttons on the console or the

volume control on your personal audio player.

HOW TO CHANGE CONSOLE SETTINGS

1. Select the settings mode.

To se le ct t he s et ti ng s mo de , pr es s th e Di sp la y

button.

The display will show the total number of hours that

the elliptical has been used and the total distance

(in miles or kilometers) that has been pedaled on

the elliptical.

If an iFit module is connected to the console, the

display will show the words WIFI MODULE or USB

MODULE.

If no module is connected, the display will show

the words NO IFIT MODULE. If no module is con-

nected, some of the settings options will not be

available.

2. Navigate the settings mode.

While the settings mode is selected, the matrix of

the display will display several optional screens.

Press the decrease button next to the Enter button

repeatedly to select the desired optional screen.

The lower section of the display will show instruc-

tions for the selected optional screen. Make sure

to follow the instructions shown in the lower

part of the display.

3. Change settings as desired.

Demo—The console features a display demo

mode, designed to be used if the elliptical is dis-

played in a store. Press the Enter button repeatedly

to turn the demo mode ON or OFF.

Units—The currently selected unit of measurement

will appear in the display. To change the unit of

measurement, press the Enter button repeatedly.

To vi ew d is ta nc e in m il es , se le ct E NG LI SH . To v ie w

distance in kilometers, select METRIC.

Contrast Level—The currently selected contrast

level will appear in the display. Press the Quick

Resistance increase and decrease buttons to

adjust the contrast level.

Trainer Voice—The currently selected setting for

the audio coach will appear in the display. Press

the Enter button repeatedly to turn the audio coach

ON or OFF.

Default Menu—The default menu will appear when

you press the Home button. Press the Enter button

repeatedly to select the manual mode or the iFit

menu as the default menu.

Check Status—The words CHECK WIFI STATUS

or CHECK USB STATUS will appear in the display.

Press the Enter button. After a few seconds, the

status of the iFit module will appear in the display.

To ex it t hi s di sp la y, press the Display button .

Send/Receive—The words SEND/RECEIVE DATA

will appear in the display. Press the Enter button.

The console will then check for iFit workouts and

firmware downloads.

4. Exit the settings mode.

Press the Display button to exit the settings mode.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to

computer or peripheral devices. Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate this equipment.

MAINTENANCE

Inspect and tighten all parts of the elliptical regularly.

Replace any worn parts immediately.

To cl ea n th e el li pt ic al , us e a da mp c lo th a nd a s ma ll

amount of mild soap. IMPORTANT: To avoid damage

to the console, keep liquids away from the console

and keep the console out of direct sunlight.

CONSOLE TROUBLESHOOTING

If the console does not display your heart rate when

you hold the handgrip heart rate monitor, or if the dis-

played heart rate appears to be too high or too low, see

step 5 on page 22.

If a replacement power adapter is needed, call the

telephone number on the cover of this manual.

IMPORTANT: To avoid damaging the console, use

only a manufacturer-supplied regulated power

adapter.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. To adjust the reed

switch, first unplug the power adapter.

Next, using a

standard (flat)

screwdriver,

release the tabs

on the front and

rear of the Top

Shield (20) and

then remove the

Top S hi el d.

Next, locate the Reed Switch (69). Loosen, but do not

remove, the M4 x 16mm Screw (93).

Next, rotate the Large Pulley (74) until a Magnet (75)

is aligned with the Reed Switch (69). Slide the Reed

Switch slightly toward or away from the Magnet. Then,

retighten the M4 x 16mm Screw (93).

Plug in the power adapter and rotate the Large Pulley

(74) for a moment. Repeat these actions until the con-

sole displays correct feedback.

When the reed switch is correctly adjusted, reattach

the top shield and plug in the power adapter.

MAINTENANCE AND TROUBLESHOOTING

HOW TO ADJUST THE DRIVE BELT

If you can feel the pedals slip while you are pedaling,

even when the resistance is adjusted to the highest

level, the drive belt may need to be adjusted.

To ad ju st t he d ri ve b el t, y ou m us t re mo ve t he t op s hi el d

and the left shield (see the instructions below).

First, unplug the power adapter. Next, using a stan-

dard (flat) screwdriver, release the tabs on the front

and rear of the Top Shield (20), and then remove the

Top S hi el d.

Next, remove the M4 x 16mm Round Head Screws

(90) and the M4 x 42mm Screws (98) from the Right

and Left Shields (18, 19). Make sure to note which

size of Screw you remove from each hole. Then,

gently remove the Left Shield.

Loosen the Pivot Screw (97). Then, tighten the Belt

Adjustment Screw (85) until the Drive Belt (38) is tight.

When the Drive Belt (38) is tight, tighten the Pivot

Screw (97).

Then, reattach the left shield and the top shield and

plug in the power adapter.

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To fi nd t he p ro pe r in te ns it y le ve l, f in d yo ur a ge a t th e

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise ; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To ma in ta in o r im pr ov e yo ur c on di ti on , co mp le te t hr ee

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach down

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back foot

flat on the floor. Bend your front leg, lean forward and move your

hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times

for each leg. To cause further stretching of the achilles tendons,

bend your back leg as well. Stretches: Calves, achilles tendons and

ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

PART LIST

K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n

1 1 Frame

2 1 Folding Frame

3 1 Front Stabilizer

4 1 Rear Stabilizer

5 1 Upright

6 1 Right Upper Body Leg

7 1 Left Upper Body Leg

8 1 Right Upper Body Arm

9 1 Left Upper Body Arm

10 1 Handlebar

11 1 Console Cover

12 2 Pedal Arm

13 1 Small Bumper

14 1 Right Pedal

15 1 Left Pedal

16 2 Disc

17 2 Disc Cover

18 1 Right Shield

19 1 Left Shield

20 1 Top Shield

21 1 Right Frame Cover

22 1 Left Frame Cover

23 1 Top Cover

24 1 Rear Upright Cover

25 1 Front Upright Cover

26 1 Accessory Tray

27 1 Right Inner Leg Cover

28 1 Right Outer Leg Cover

29 1 Right Rear Leg Cover

30 1 Right Front Leg Cover

31 1 Left Rear Leg Cover

32 1 Left Front Leg Cover

33 1 Console

34 2 Pulse Sensor

35 2 Handgrip

36 2 Wheel

37 4 Stabilizer Cap

38 1 Drive Belt

39 2 Crank Arm

40 8 M8 Shoulder Screw

41 4 Leveling Foot

42 1 Latch Bracket

43 2 Adjustment Bracket

44 2 Adjustment Pin

45 2 Adjustment Knob

46 2 Knob Cap

47 4 Pivot Arm Bushing

48 1 Upright Axle

49 1 Left Inner Leg Cover

50 1 Left Outer Leg Cover

51 1 Right Pivot Arm

52 1 Left Pivot Arm

53 2 Adjustment Arm Spring

54 4 Adjustment Pad

55 2 Bumper

56 2 M4 x 19mm Self-tapping Screw

57 6 Upright Bushing

58 2 M10 x 60mm Bolt

59 1 Power Adapter

60 1 Upright Wire

61 1 Eddy Mechanism

62 4 M4 x 16mm Flat Head Screw

63 1 Frame Axle

64 2 Frame Bushing

65 1 Latch Bracket Axle

66 1 Latch Bracket Spring

67 1 Latch Button

68 1 Button Housing

69 1 Reed Switch/Wire

70 1 Clamp

71 1 Crank Hub

72 1 Crank

73 1 Crank Spacer

74 1 Large Pulley

75 2 Magnet

76 2 Folding Frame Bearing

77 1 Idler

78 1 Resistance Motor

79 1 Pulse Wire

80 2 Large Snap Ring

81 1 Frame Cap

82 3 M4 x 25mm Screw

83 6 M8 Split Washer

84 1 3/8" x 1/2" Flange Screw

85 1 Belt Adjustment Screw

86 4 M8 x 28mm Screw

87 2 Medium Snap Ring

88 4 M10 Split Washer

89 4 Resistance Motor Screw

90 4 M4 x 16mm Round Head Screw

91 10 M8 x 23mm x 1.5mm Washer

92 1 Receptacle/Wire

93 34 M4 x 16mm Screw

94 2 M8 Jam Nut

95 1 Ground Screw

96 1 M6 Washer

97 1 Pivot Screw

98 4 M4 x 42mm Screw

99 1 Idler Bolt

100 4 M10 x 120mm Screw

Model No. PFEL55911.8 R0514A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n

101 1 Anchored Zip Tie

102 20 M8 x 16mm Screw

103 2 M10 Locknut

104 6 M8 x 45mm Bolt

105 6 M8 Locknut

106 2 Long Pedal Arm Axle

107 2 M10 x 25mm Screw

108 2 M10 x 32mm Washer

109 1 Frame Wire

110 2 M8 x 23.5mm x 1mm Washer

111 10 M6 x 12mm Screw

112 6 M8 x 50mm Screw

113 2 Adjustment Bracket Cover

114 2 Pedal Plate

115 2 Short Pedal Arm Axle

116 2 Large Bumper

117 4 Pivot Arm Bushing

118 2 Wave Washer

119 4 Pedal Arm Bushing

120 8 Mushroom Fastener/Screw

121 2 Grommet

* – Userʼs Manual

* – Assembly Tool

EXPLODED DRAWING A

102

121

Model No. PFEL55911.8 R0514A

101

110

102

65 102

108

107

6463 108 107

73 74

102

120

109

100

103

121

EXPLODED DRAWING B Model No. PFEL55911.8 R0514A

EXPLODED DRAWING C Model No. PFEL55911.8 R0514A

105

119

102

119

106 91

102

112

102

116

117

115

102

111

117

117 116

115

102 91

112

91 102

112

119

102

106

102

111

47 51

111

47 46

830

118

57 118

114

104

113

114

113

93 93

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor

are warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that speciﬁ cally set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or proﬁ ts, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or ﬁ tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides speciﬁ c legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

ORDERING REPLACEMENT PARTS

Proform Pfel559118 10 0 Ce Elliptical Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
