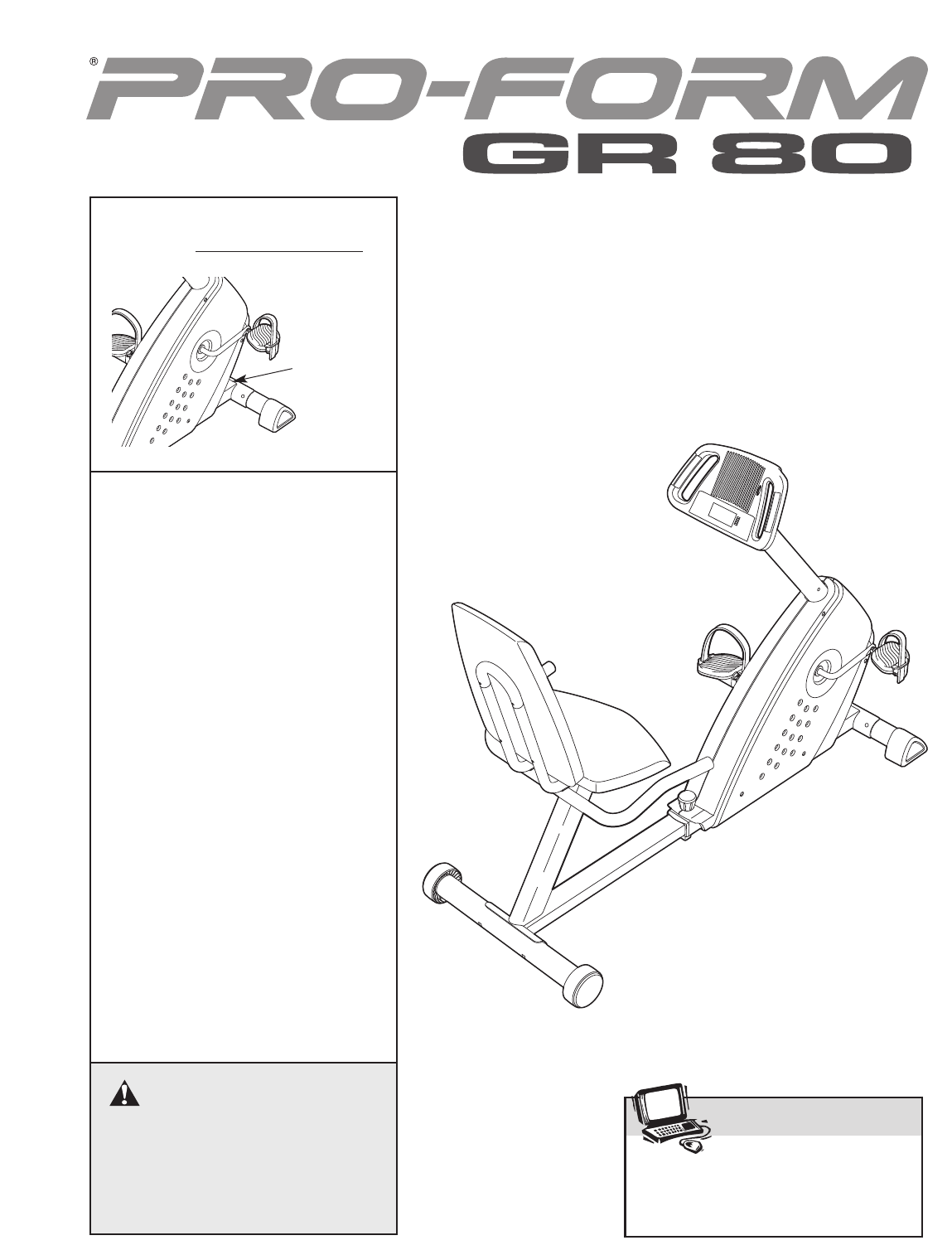

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. PFEX1995.0

Serial No. USER’S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.proformservice.com

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

V

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

1. Read all instructions in this manual and all

warnings on the exercise cycle before using

the exercise cycle. Use the exercise cycle

only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

3. The exercise cycle is intended for home use

only.Do not use the exercise cycle in

acommercial, rental, or institutional setting.

4. Keep the exercise cycle indoors, away from

moisture and dust. Place the exercise cycle

on a level surface, with a mat beneath it to

protect the floor. Make sure that there is

enough clearance around the exercise cycle

to mount, dismount, and use it.

5. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

7. The exercise cycle should not be used by

persons weighing more than 250 pounds.

8. Wear appropriate clothes when exercising;

do not wear loose clothes that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

10. Always keep your back straight when using

the exercise cycle; do not arch your back.

11. If you feel pain or dizziness while exercising,

stop immediately and cool down.

12. The exercise cycle does not have a free-

wheel; the pedals will continue to move until

the flywheel stops.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING:Toreduce the risk of serious injury,read the following important precau-

tions before using the exercise cycle.

3

Congratulations for selecting the new PROFORM®GR

80 exercise cycle. Cycling is one of the most effective

exercises for increasing cardiovascular fitness, building

endurance, and toning the body. The GR 80 exercise

cycle offers a selection of features designed to let you

enjoy this healthful exercise in the convenience and

privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, see the front cover of this

manual. To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is PFEX1995.0. The serial number

can be found on a decal attached to the exercise

cycle (see the front cover of this manual for the loca-

tion of the decal).

To avoid a registration fee for any service needed

under warranty, you must register the exercise

cycle at www.proformservice.com/registration.

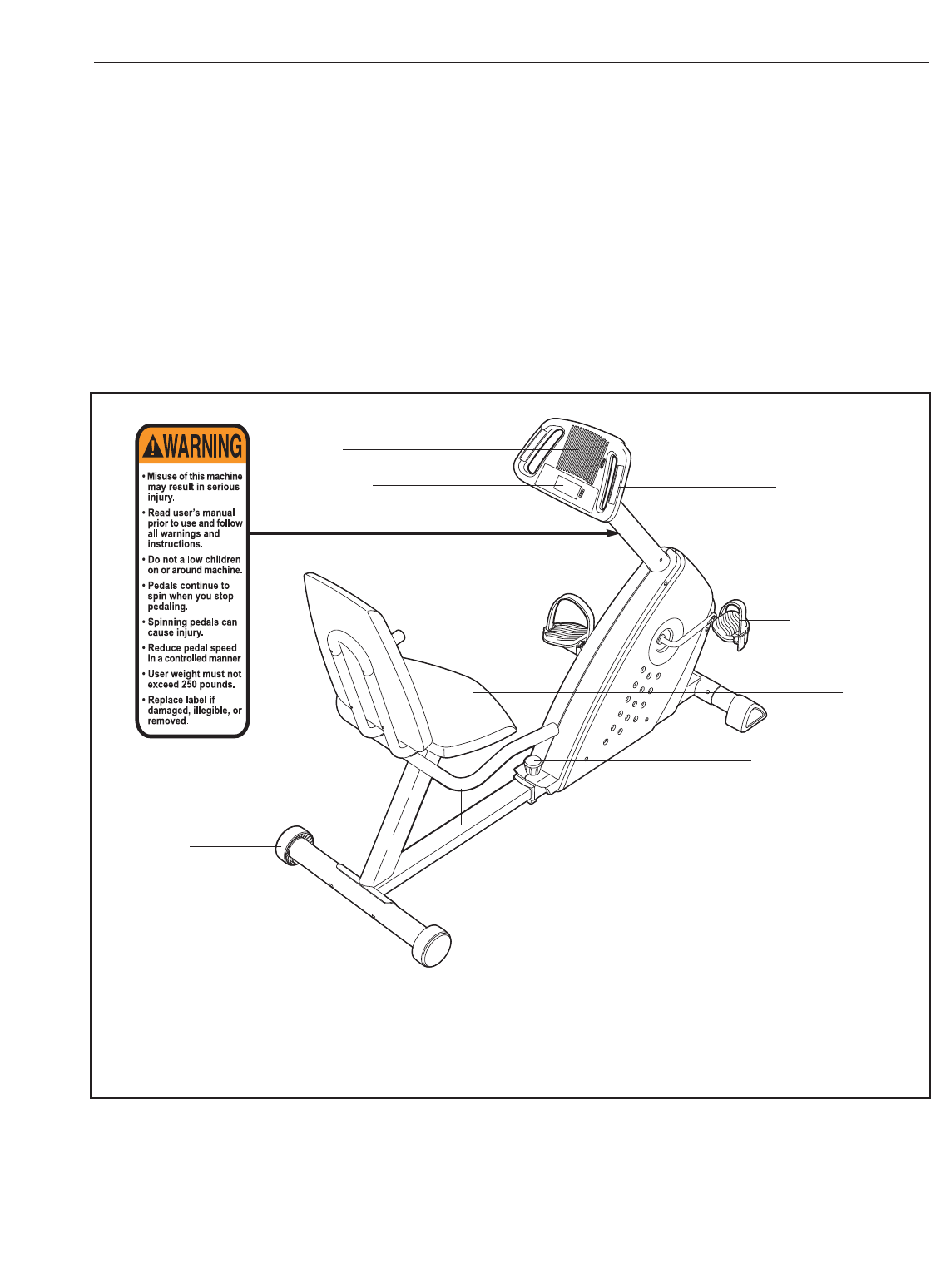

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

REAR

FRONT

Seat

Adjustment Knob

Pedal/Strap

Console Pulse Sensor

Wheel

Fan

Handlebar

RIGHT SIDE

BEFORE YOU BEGIN

CAUTION: The warning decal shown above has been placed on the exercise cycle in the

location shown. If the decal is missing, or if it is not legible, call the toll-free telephone num-

ber on the front cover of this manual and order a free replacement decal. Apply the decal in

the location shown.

4

ASSEMBLY

To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-

ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included

allen wrenches, assembly requires a phillips screwdriver and an adjustable

wrench .

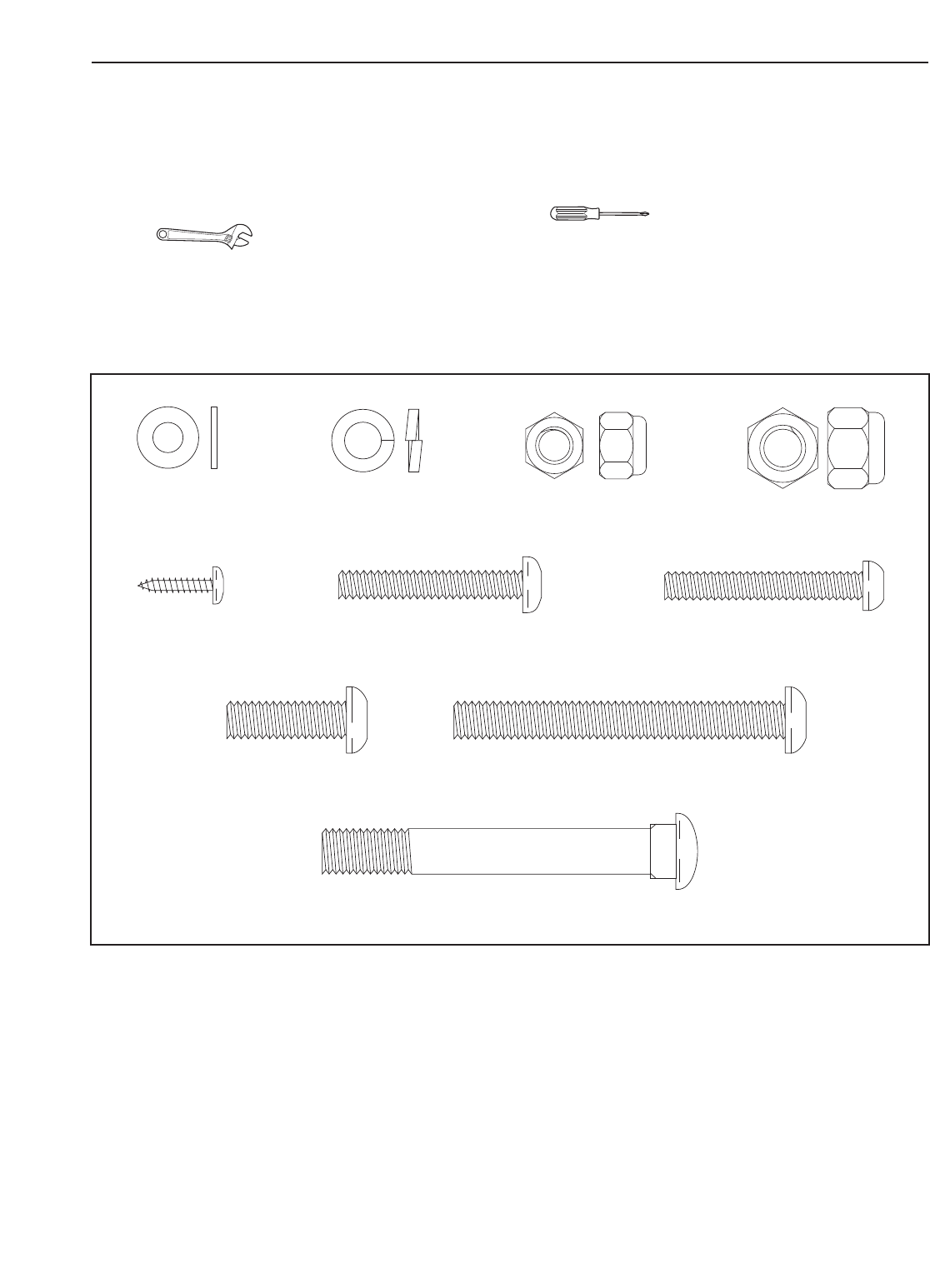

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST on page 14. The second number is the

quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in the

parts bag, check to see if it has been pre-assembled.

M10 x 75mm Carriage Bolt (51)–4

M10 Nylon

Locknut (63)–4

M8 Nylon

Locknut (60)–4

M8 Split

Washer (59)–5

M

M6 Washer

(55)–8

M6 x 38mm Button

Bolt (48)–4 M6 x 42mm Button

Screw (49)–4

M8 x 25mm Button

Screw (33)–3 M8 x 70mm Button

Bolt (54)–2

M4 x 16mm

Round Head

Screw (52)–4

5

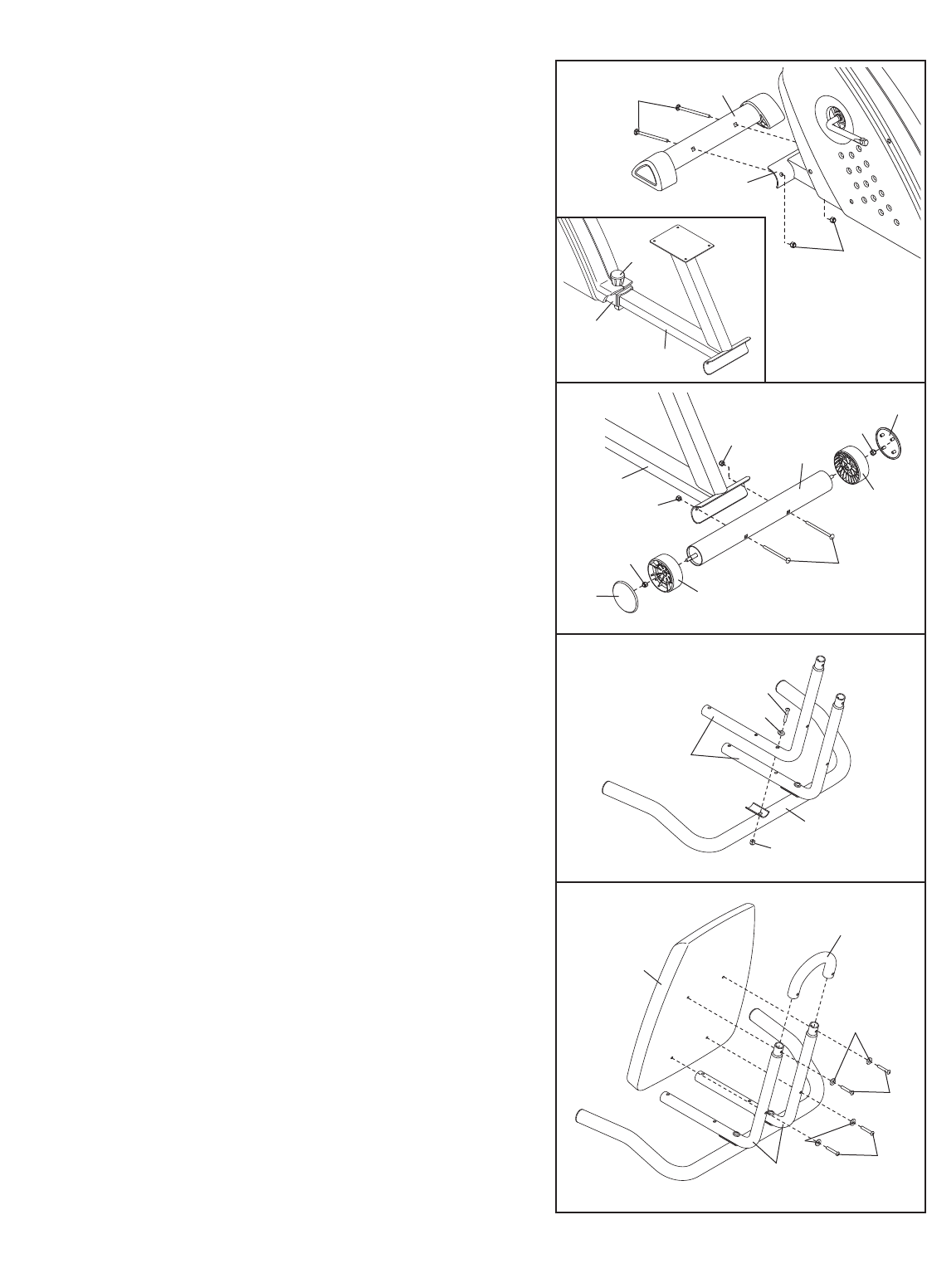

3. Attach one of the Seat Frames (7) to the Handlebar

(6) with an M8 x 70mm Button Bolt (54), an M8 Split

Washer (59), and an M8 Nylon Locknut (60). Do not

tighten the Button Bolt yet.

Attach the other Seat Frame (7) in the same way. 7

6

60

54

59

4. Slide the Seat Frame Top (8) onto the Seat Frames

(7). Attach the Backrest (5) to the Seat Frames and

the Seat Frame Top with four M6 x 38mm Button

Screws (48) and four M6 Washers (55). Do not tight-

en the Button Screws yet.

4

5

7

55

55

48

48

8

1. While another person lifts the front of the Frame (1)

slightly, attach the Front Stabilizer (3) to the Frame

with two M10 x 75mm Carriage Bolts (51) and two

M10 Nylon Locknuts (63).

See the inset drawing. Loosen the Adjustment Knob

(17), slide the Rear Frame (2) out of the Frame (1),

and then retighten the Adjustment Knob.

Note: After the exercise cycle is assembled, adjust the

Seat (not shown) to the proper position. As you pedal,

there should be a slight bend in your knees when the

pedals are in the farthest forward position. Loosen the

Adjustment Knob (17), slide the Rear Frame (2) for-

ward or backward, and retighten the Adjustment Knob.

3

63

51

1

1

2. Attach the Wheels (18) to the Rear Stabilizer (4) with

two M8 Nylon Locknuts (60). Press a Wheel Cap (19)

onto each Wheel.

Attach the Rear Stabilizer (4) to the Rear Frame (2)

with two M10 x 75mm Carriage Bolts (51) and two

M10 Nylon Locknuts (63).

51

18

4

19

60

18

19

2

63

63

60

2

3

17

2

1

6

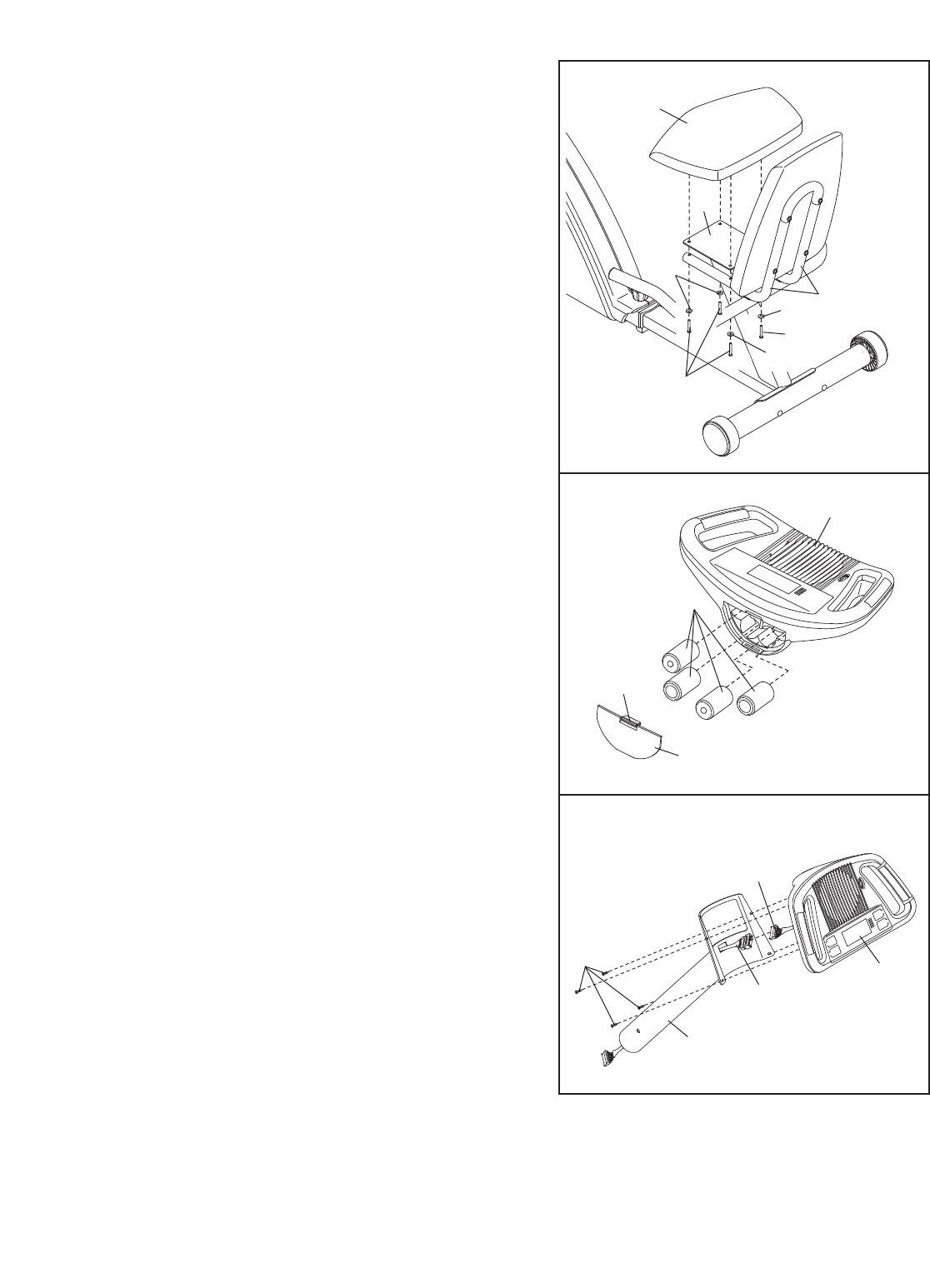

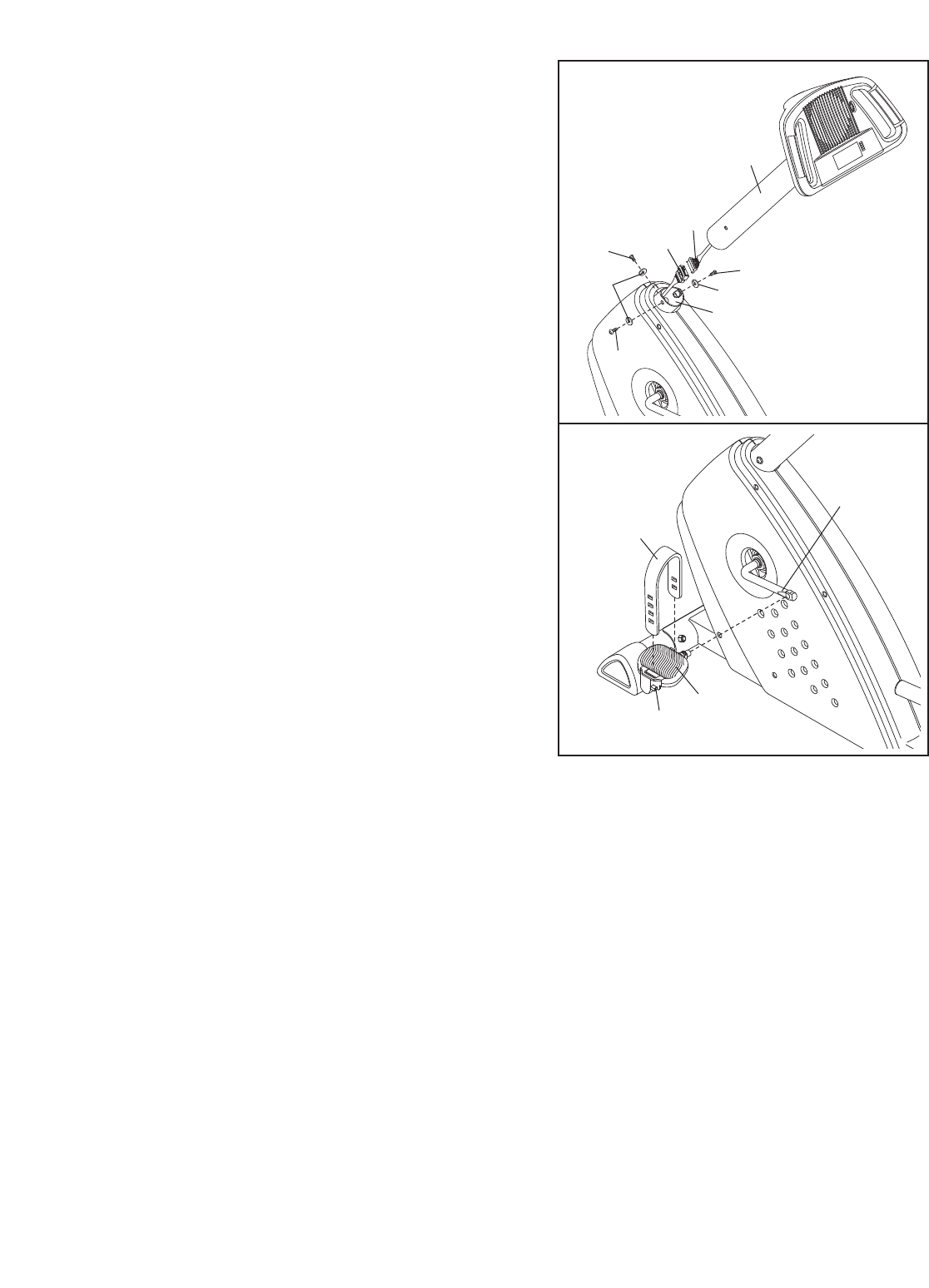

7. Connect the console wire harness to the Upper Wire

Harness (36). Insert the console wire harness into the

Upright (13). Attach the Console (16) to the Upright

with four M4 x 16mm Round Head Screws (52).

7

16

13

36

Console

Wire

Harness

52

6

Tab

Battery Door

Batteries

16

6. The Console (16) requires four D batteries (not includ-

ed); alkaline batteries are recommended. Press the

tab on the battery door and remove it. Insert four bat-

teries into the Console as shown. Make sure that the

batteries are oriented as shown by the markings

on the battery door. Reattach the battery door.

12

55

55

55

7

5

49

2

49

5. Have another person hold the Seat Frames (7) under

the Rear Frame (2) as shown. Attach the Seat Frames

and the Seat (12) to the Rear Frame with four M6 x

42mm Button Screws (49) and four M6 Washers (55).

See step 3. Tighten the two M8 x 70mm Button

Bolts (54).

See step 4. Tighten the four M6 x 38mm Button

Screws (48).

7

9

25

24

Tab

31

13

36

8

8. Connect the Upper Wire Harness (36) to the Lower

Wire Harness (65). Attach the Upright (13) to the

Frame (1) with three M8 x 25mm Button Screws (33)

and three M8 Split Washers (59). Be careful to avoid

pinching the Wire Harnesses.

65

33

33

33

59 59

1

9. Identify the Left Pedal (24), which is marked with an

“L.” Using an adjustable wrench, firmly tighten the

Left Pedal

counterclockwise

into the left arm of the

Crank (31). Tighten the Right Pedal (not shown)

clock-

wise

into the right arm of the Crank. Important:

Tighten both Pedals as firmly as possible. After

using the exercise cycle for one week, retighten

the Pedals. For best performance, the Pedals must

be kept tightened.

Adjust the left Pedal Strap (25) to the desired position,

and press the end of the Pedal Strap onto the tab on

the Left Pedal (24). Adjust the right Pedal Strap (not

shown) in the same way.

10.Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is

completed, some extra parts may be left over.Place a mat beneath the exercise cycle to protect the floor.

8

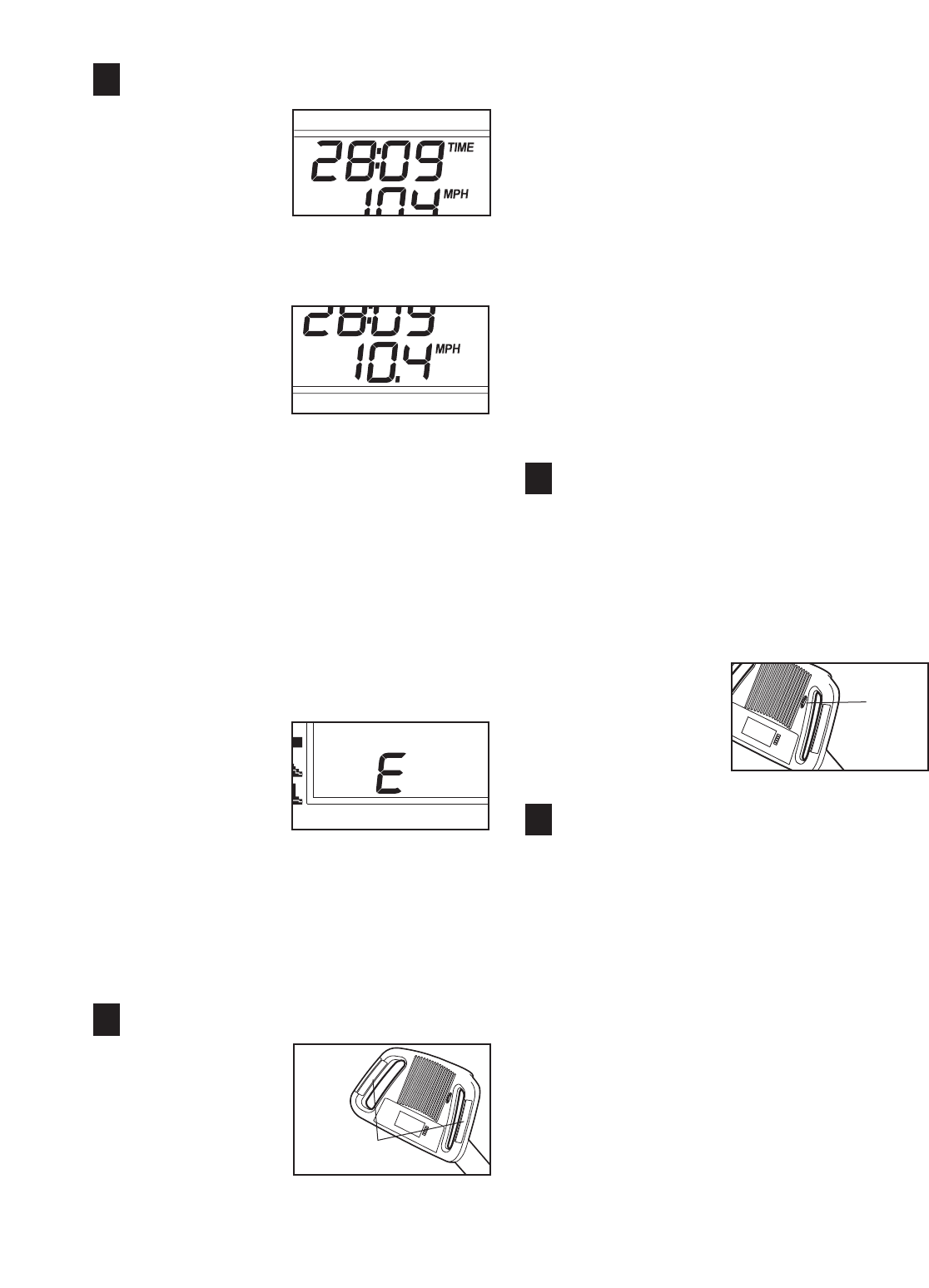

HOW TO OPERATE THE EXERCISE CYCLE

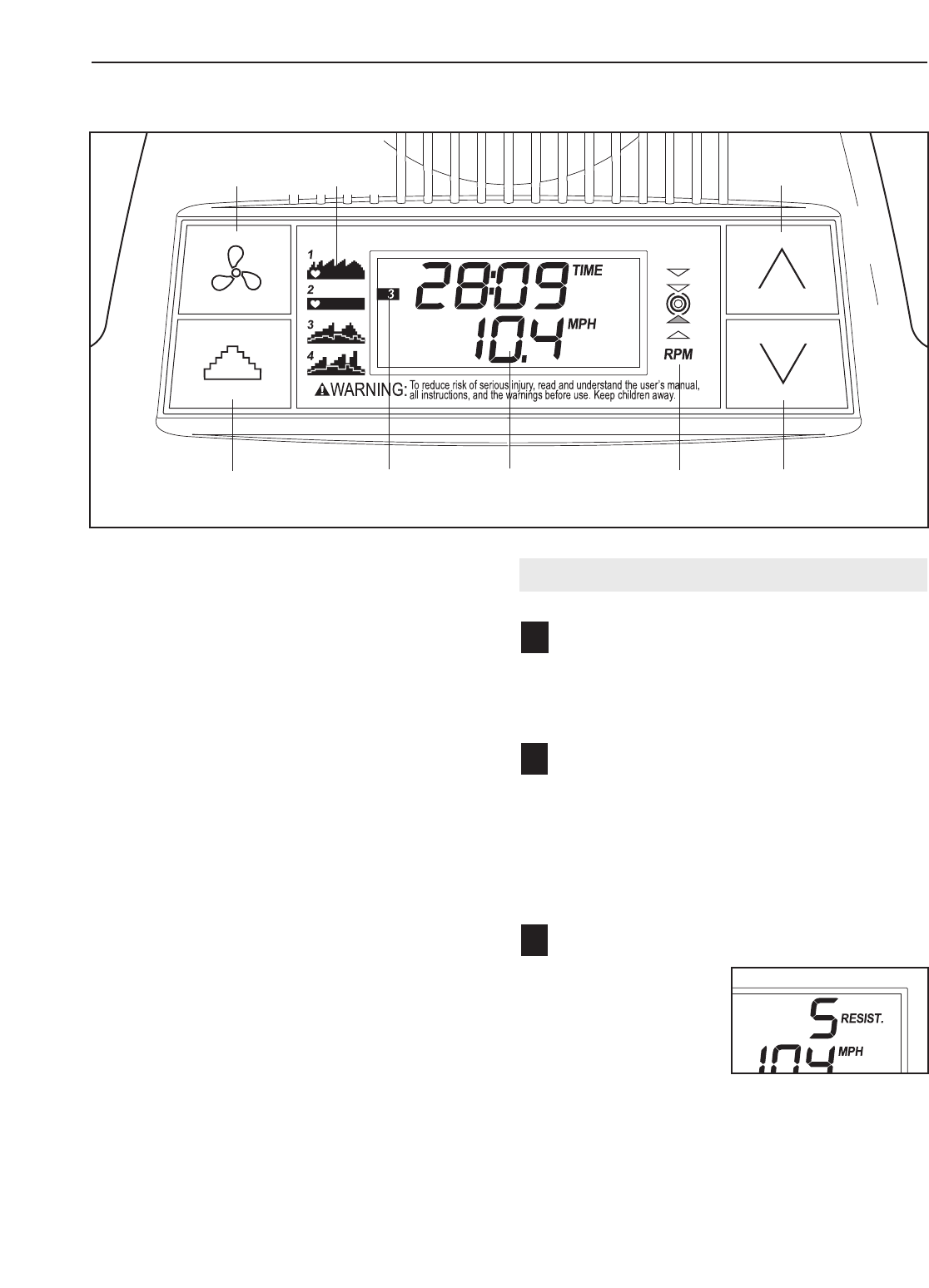

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the pedals can be changed

with the touch of a button. As you pedal, the console

will provide continuous exercise feedback. You can

even measure your heart rate using the built-in hand-

grip pulse sensor.

In addition, the console features two pulse programs

that change the resistance of the pedals and help you

to maintain a steady pedaling pace to keep your heart

rate near a target heart rate setting while you exercise.

The console also offers two preset programs. Each

program automatically changes the resistance of the

pedals and prompts you to increase or decrease your

pedaling pace as it guides you through an effective

workout.

To use the manual mode of the console, see the

instructions at the right. Touse a pulse program, see

page 10. To use a preset program, see page 11.

Before using the console, make sure that batteries are

installed (see assembly step 6 on page 6). If there is a

sheet of clear plastic on the display, remove the plastic.

HOW TOUSE THE MANUAL MODE

Turn on the console.

To turn on the console, press the Increase button

or begin pedaling. The pace guide will light for a

moment; the console will then be ready for use.

Select the manual mode.

When the power is turned on, the manual mode

will be selected. If you have selected a program,

reselect the manual mode by pressing the

Program/Manual button until no program indica-

tors (see the drawing above) appear along the left

side of the display.

Change the resistance of the pedals as desired.

As you pedal,

change the resis-

tance of the pedals

by pressing the

Increase and

Decrease buttons.

There are ten resis-

tance levels. Note: After the buttons are pressed,

it will take a moment for the pedals to reach the

selected resistance level.

3

2

1

Fan

Button Increase

Button

Program/Manual

Button Program

Indicator Display Pace

Guide Decrease

Button

Program

Profiles

9

Monitor your progress with the display.

The upper half of

the display will

show the elapsed

time, the distance

you have pedaled,

and the resistance

level of the pedals.

The display will change from one mode to the

next every few seconds.

The lower half of

the display will

show your pedal-

ing speed and the

approximate num-

ber of calories you

have burned. The

display will change from one mode to the other

every few seconds. The lower half of the display

will also show your heart rate when you use the

handgrip pulse sensor (see step 5). Note: When a

program is selected (except for pulse program 1),

the display will show the time remaining in the

program instead of the elapsed time.

Note: The console can display speed and dis-

tance in either miles or kilometers. The letters

MPH or KM/H will appear in the lower half of the

display to show which unit of measurement is

selected. To change the unit of measurement, first

hold down the

Program/Manual

button for several

seconds. An E (for

English) or an M

(for metric) will

appear in the dis-

play.Press the

Increase button to change the unit of measure-

ment. When the desired unit of measurement is

selected, press the Program/Manual button again.

Note: When the batteries are replaced, it may be

necessary to reselect the desired unit of measure-

ment.

Measure your heart rate if desired.

If there are

sheets of clear

plastic on the

metal contacts

on the handgrip

pulse sensor,

remove them.

Next, hold the handgrip pulse sensor with your

palms resting on the contacts. When your pulse

isdetected, the heart-shaped indicator in the

lower half of the display will flash each time your

heart beats, and your heart rate will be shown.

For the most accurate heart rate reading, continue

to hold the handgrip pulse sensor for about 30

seconds. Note: If you continue to hold the hand-

grip pulse sensor, the display will show your heart

rate for about 30 seconds. The display will then

show your heart rate along with the other modes.

If your heart rate is not shown, make sure that

your hands are positioned as described. Avoid

moving your hands excessively or squeezing the

metal contacts too tightly. For optimal perfor-

mance, periodically clean the metal contacts

using a soft cloth; never use alcohol, abrasives,

or chemicals.

Turn on the fan if desired.

Toturn on the fan at low speed, press the fan

button. To turn on the fan at high speed, press

the fan button a second time. To turn off the fan,

press the fan button a third time. Note: If the fan

is turned on but the pedals are not moved for thir-

ty seconds, the fan will automatically turn off to

conserve the batteries.

Slide the thumb tab

on the right side of

the fan to adjust

the angle of the

fan.

When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for a few seconds, the

time will begin to flash and the console will pause.

If the pedals are not moved for a few minutes,

the console will turn off and the display will be

reset.

7

6

5

4

Contacts

Thumb

Tab

10

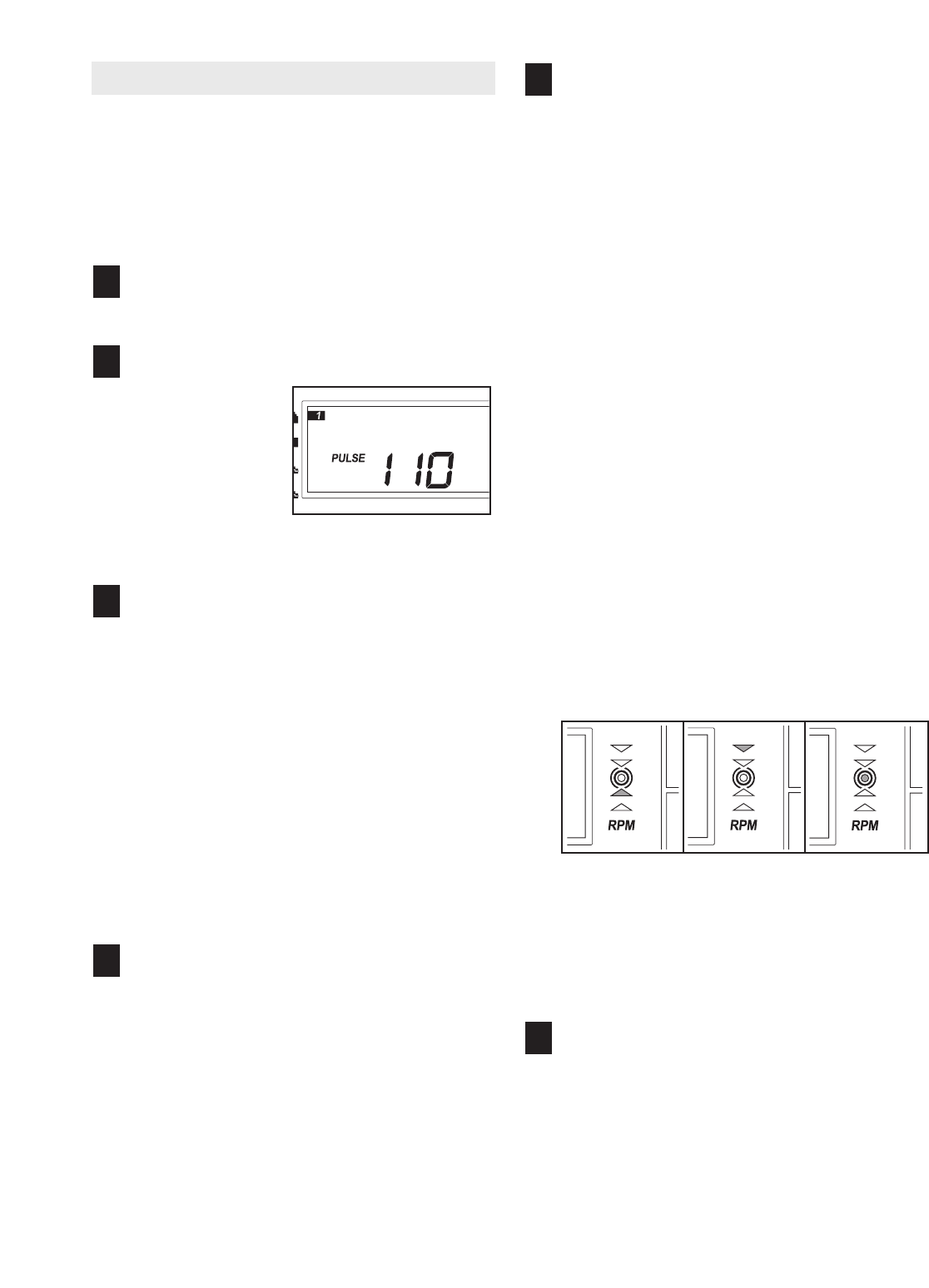

HOW TO USE A PULSE PROGRAM

Pulse program 1 is designed to keep your heart rate

within a set range during your workout. Pulse program

2is designed to keep your heart rate near a target

heart rate setting that you select.

Follow the steps below to use a pulse program.

Turn on the console.

See step 1 on page 8.

Select a pulse program.

To select pulse

program 1 or 2,

press the

Program/Manual

button repeatedly

until the number 1

or 2 appears

along the left side

of the display.

Enter a target heart rate.

If pulse program 1 is selected, the maximum

target heart rate setting for the program will flash

in the display (see the drawing above). Press the

Increase and Decrease buttons to change the

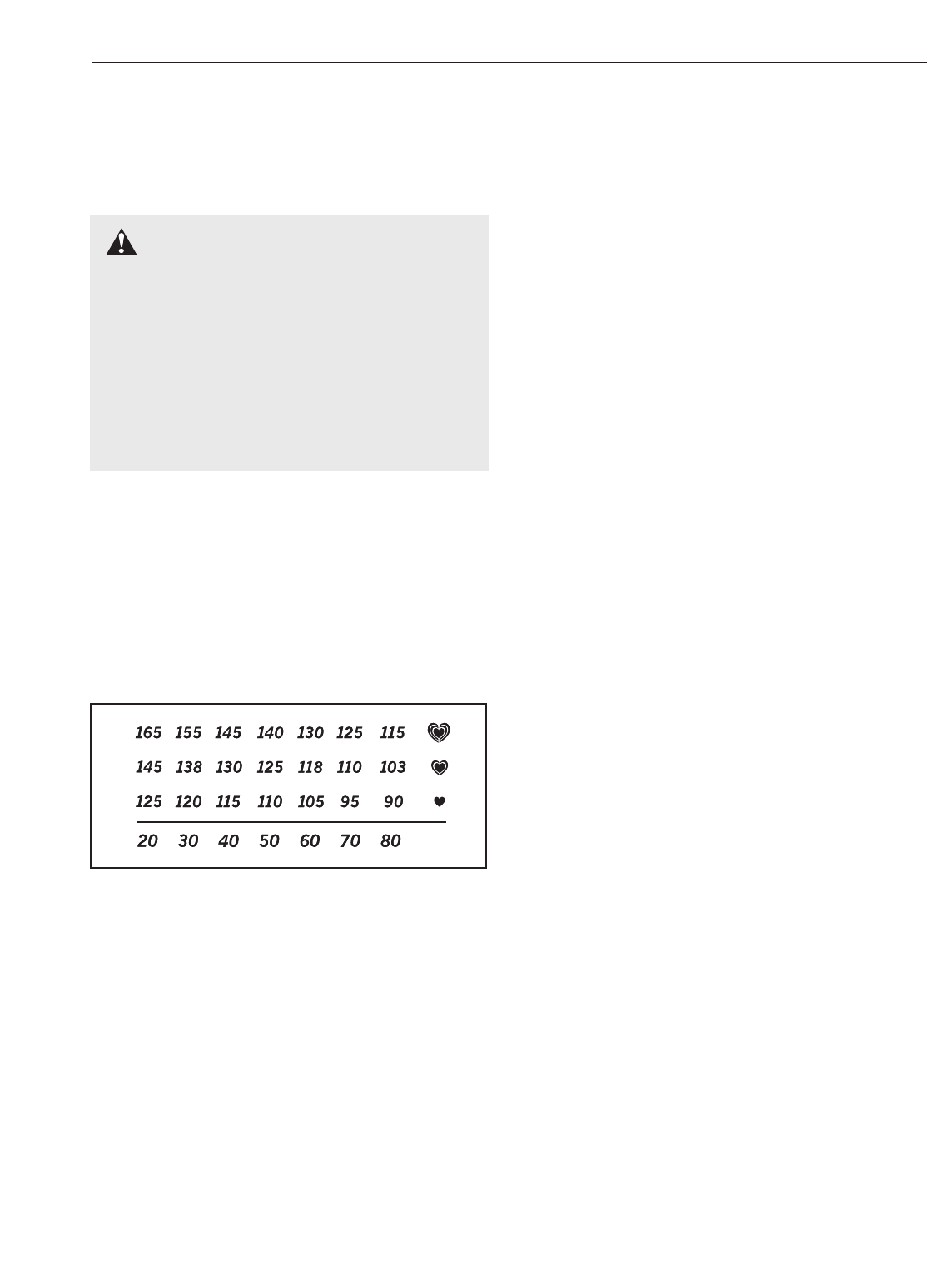

setting, if desired (see EXERCISE INTENSITY

on page 13). If the maximum target heart rate

setting is increased or decreased, the intensity

level of the entire program will increase or

decrease.

If pulse program 2 is selected, the target heart

rate setting for the entire program will flash in the

display. Press the Increase and Decrease buttons

to change the setting, if desired (see EXERCISE

INTENSITY on page 13).

Hold the handgrip pulse sensor.

It is not necessary to hold the handgrip pulse

sensor continuously during a pulse program;

however, you must hold the handgrip pulse sen-

sor frequently. Each time you hold the hand-

grip pulse sensor,keep your hands on the

metal contacts for at least 30 seconds. Note:

When you are not holding the handgrip pulse

sensor,the letters PLS will appear in the display

instead of your heart rate.

Begin pedaling to start the program.

Pulse program 1 is30 minutes long, and is

divided into several time periods of different

lengths. One target heart rate is programmed for

each period. Pulse program 2 is sixty minutes

long (you may choose to use only part of the pro-

gram). The same target heart rate is programmed

for the entire program.

During the program, the console will regularly

compare your heart rate to the target heart rate

setting. If your heart rate is too far below or above

the target heart rate setting, the resistance of the

pedals will automatically increase or decrease to

being your heart rate closer to the target heart rate

setting. Note: If the resistance level is too high or

too low, you can override it by pressing the

Increase and Decrease buttons. However, when

the console compares your heart rate to the tar-

get heart rate setting, the resistance may auto-

matically change.

After the first minute of the program, the pace

guide will help you to maintain a steady pedaling

pace. When one of the two lower indicators

lights, increase your pace; when one of the two

upper indicators lights, decrease your pace.

When the center indicator lights, maintain your

current pace. Important: The pace guide is

intended only to provide a goal. Make sure to

pedal at a pace that is comfortable for you.

The display will show the time remaining in pulse

program 1, or the elapsed time in pulse program

2. If you stop pedaling for a few seconds, the

program will pause and the time will flash in the

display. To restart the program, simply resume

pedaling.

Monitor your progress with the display.

See step 4 on page 9.

6

5

4

3

2

1

11

Turn on the fan if desired.

See step 6 on page 9.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 9.

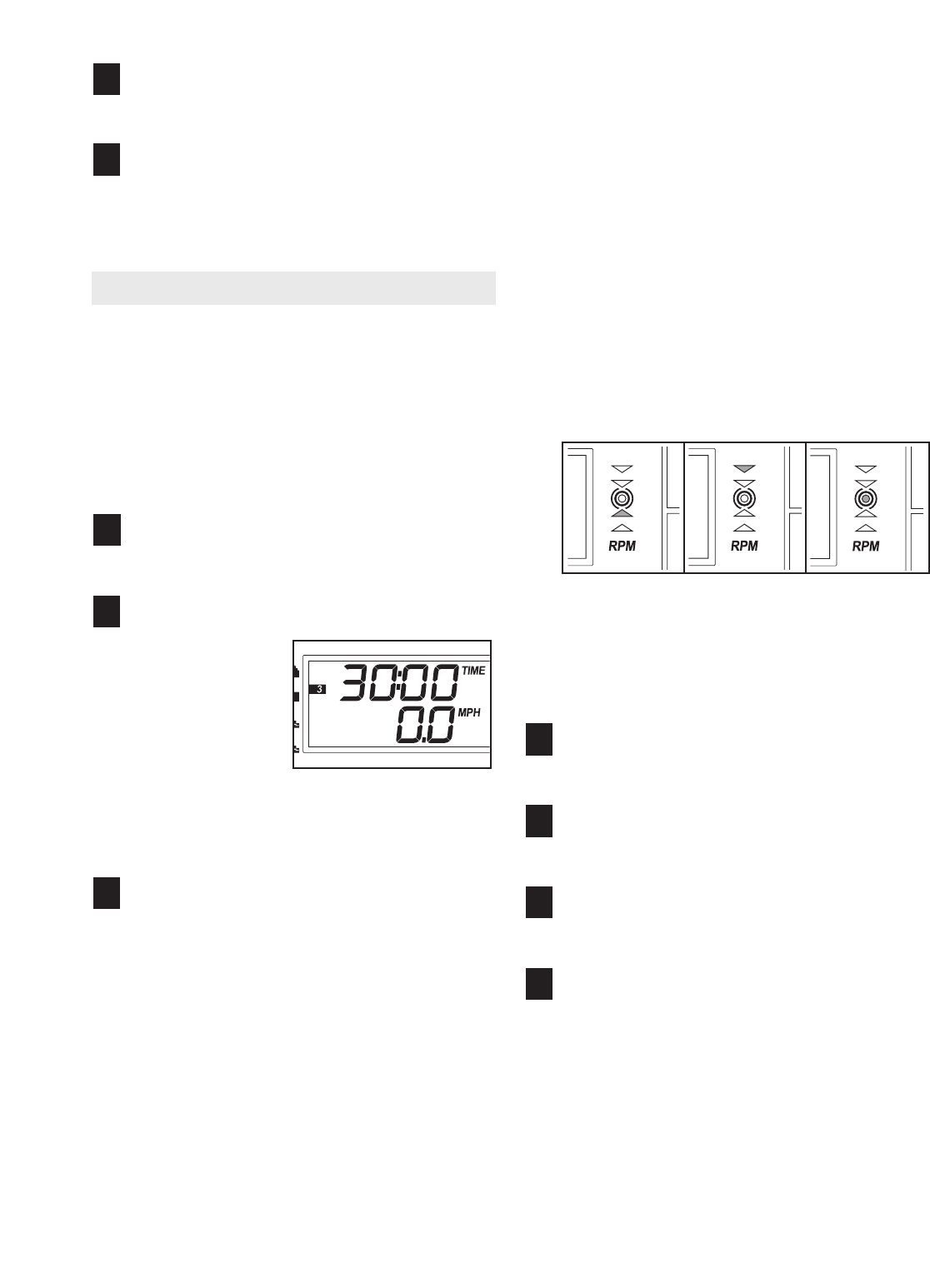

HOW TO USE A PRESET PROGRAM

Preset programs 3 and 4 automatically change the

resistance of the pedals and prompt you to increase or

decrease your pedaling pace as they guide you through

effective workouts. The profiles printed on the left side

of the display show how the resistance level and the

target pace will change during the preset programs.

Follow the steps below to use a preset program.

Turn on the console.

See step 1 on page 8.

Select a preset program.

Toselect preset

program 3 or 4,

press the

Program/Manual

button repeatedly

until the number 3

or 4 appears

along the left side

of the display. When a preset program is select-

ed, the display will show how long the program

will last.

Begin pedaling to start the program.

Each preset program consists of several time

periods of different lengths. One resistance level

and one target pace are programmed for each

period.

At the end of each period of the program, the

resistance level will flash in the display for a few

seconds. The resistance of the pedals will then

automatically change to the resistance level that

is programmed for the next period. Note: If the

resistance level is too high or too low, you can

override it by pressing the Increase and

Decrease buttons. However, when the current

period ends, the resistance level will automatical-

ly change if a different resistance level is pro-

grammed for the next period.

During the program, the pace guide will prompt

you to increase or decrease your pedaling pace.

When one of the two lower indicators lights,

increase your pace; when one of the two upper

indicators lights, decrease your pace. When the

center indicator lights, maintain your current

pace. Important: The pace guide is intended

only to provide a goal. Make sure to pedal at a

pace that is comfortable for you.

The display will show the time remaining in the

program. If you stop pedaling for a few seconds,

the program will pause and the time will flash in

the display. To restart the program, simply resume

pedaling.

Monitor your progress with the display.

See step 4 on page 9.

Measure your heart rate if desired.

See step 5 on page 9.

Turn on the fan if desired.

See step 6 on page 9.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 9.

7

6

5

4

3

2

1

8

7

12

Inspect and properly tighten all parts of the exercise

cycle regularly. Replace any worn parts immediately.

To clean the exercise cycle, use a damp cloth and a

small amount of liquid dish soap. Important: To

avoid damage to the console, keep liquids away

from the console and keep the console out of

direct sunlight.

BATTERY REPLACEMENT

If the console display becomes dim, the batteries

should be replaced; most console problems are the

result of low batteries. To replace the batteries, see

assembly step 6 on page 6.

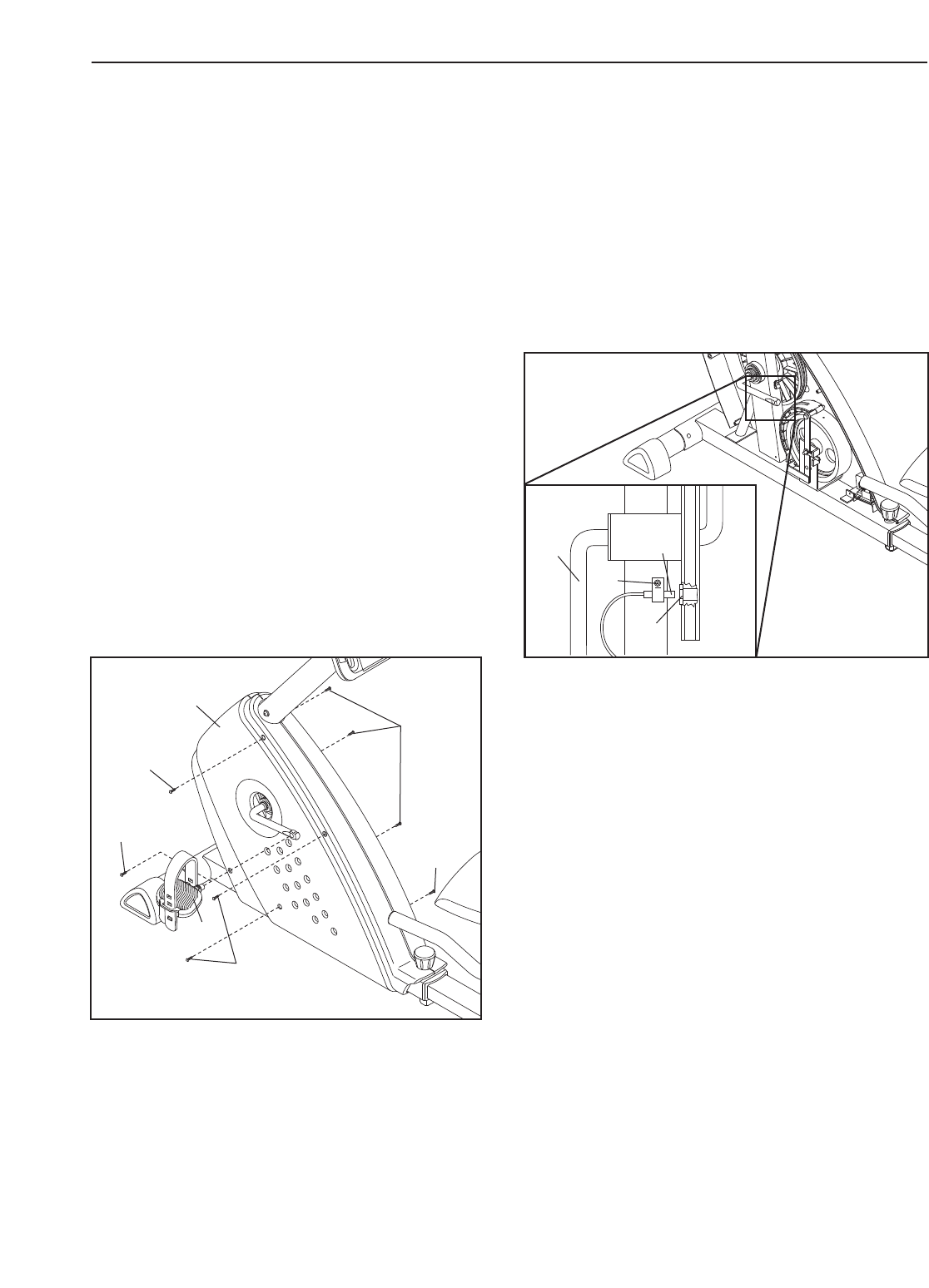

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. Toadjust the reed

switch, you must first remove the Left Side Shield (9).

Using an adjustable wrench, turn the Left Pedal (24)

clockwise and remove it. Next, remove the seven

M4 x 16mm Screws (57) and the M4 x 25mm Screw

(45). Then, carefully remove the Left Side Shield.

With the left side shield removed, locate the Reed

Switch (43). Turn the Crank (31) until the Magnet (38)

is aligned with the Reed Switch. Next, loosen, but do

not remove, the indicated M4 x 16mm Screw (57).

Slide the Reed Switch slightly closer to or away from

the Magnet, and then retighten the Screw. Turn the

Crank for a moment. Repeat until the console dis-

plays correct feedback. When the Reed Switch is cor-

rectly adjusted, reattach the left side shield and the

left pedal.

HANDGRIP PULSE SENSOR TROUBLESHOOTING

If the handgrip pulse sensor does not function properly,

see step 5 on page 9.

MAINTENANCE AND TROUBLESHOOTING

57

57

57

9

57

45

24

38

43

57

31

13

CONDITIONING GUIDELINES

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition

and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

To find the proper heart rate for you, first find your age

at the bottom of the chart (ages are rounded off to the

nearest ten years). Next, find the three numbers above

your age. The three numbers are your “training zone.”

The lowest number is the recommended heart rate for

fat burning, the middle number is the recommended

heart rate for maximum fat burning, and the highest

number is the recommended heart rate for aerobic

exercise.

Fat Burning

To burn fat effectively, you must exercise at a relative-

ly low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate

calories for ener-

gy. Only after the first few minutes of exercise does

your body begin to use stored

fat

calories for energy.

Ifyour goal is to burn fat, adjust the intensity of your

exercise until your heart rate is near the lowest num-

ber in your training zone as you exercise.

For maximum fat burning, adjust the intensity of your

exercise until your heart rate is near the middle of

your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exer-

cise is activity that requires large amounts of oxygen

for prolonged periods of time. This increases the

demand on the heart to pump blood to the muscles,

and on the lungs to oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up,consisting of 5 to 10 minutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for exercise.

Training zone exercise,consisting of 20 to 30 min-

utes of exercising with your heart rate in your training

zone. Note: During the first few weeks of your exer-

cise program, do not keep your heart rate in your

training zone for longer than 20 minutes.

A cool-down,with 5 to 10 minutes of stretching. This

will increase the flexibility of your muscles and will

help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, plan three work-

outs each week, with at least one day of rest between

workouts. After a few months of regular exercise, you

may complete up to five workouts each week, if

desired. Remember, the key to success is make exer-

cise a regular and enjoyable part of your everyday life.

WARNING:Before beginning

this or any exercise program, consult your

physician. This is especially important for

persons over the age of 35 or persons with

pre-existing health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

14

1 1 Frame

2 1 Rear Frame

3 1 Front Stabilizer

4 1 Rear Stabilizer

5 1 Backrest

6 1 Handlebar

7 2 Seat Frame

8 1 Seat Frame Top

9 1 Left Side Shield

10 1 Right Side Shield

11 2 Stabilizer Endcap

12 1 Seat

13 1 Upright

14 1 Front Bushing

15 1 Rear Bushing

16 1 Console

17 1 Adjustment Knob

18 2 Wheel

19 2 Wheel Cap

20 1 Frame Pad

21 1 Frame Stop

22 1 Reed Switch Clamp

23 1 C-magnet Bracket

24 1Left Pedal

25 1Left Pedal Strap

26 1 Right Pedal

27 1Right Pedal Strap

28 1 Resistance Motor

29 1 Flywheel Axle

30 1 Belt

31 1 Pulley/Crank

32 1 C-magnet

33 3M8 x 25mm Button Screw

34 1 Flywheel

35 1 Crank Bearing Assembly

36 1 Upper Wire Harness

37 2 Bearing

38 1 Magnet

39 2 Tension Bolt

40 1 Tension Bracket

41 1 M8 Washer

42 1 Flywheel Washer

43 1 Reed Switch/Wire

44 2 Handlebar Endcap

45 3 M4 x 25mm Screw

46 1 Resistance Cable

47 1 Return Spring

48 4 M6 x 38mm Button Screw

49 4 M6 x 42mm Button Screw

50 3 M4 x 16mm Flat Head Screw

51 4 M10 x 75mm Carriage Bolt

52 4 M4 x 16mm Round Head Screw

53 1 5mm Spacer

54 2 M8 x 70mm Button Bolt

55 8 M6 Washer

56 1 M8 x 20mm Button Bolt

57 12 M4 x 16mm Screw

58 4M5 Washer

59 5M8 Split Washer

60 5 M8 Nylon Locknut

61 6M6 Nut

62 2 M8 Jam Nut

63 4M10 Nylon Locknut

64 1 M6 x 38mm Bolt

65 1 Lower Wire Harness

# 1 User’s Manual

#2Allen Wrench

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

PART LIST—Model No. PFEX1995.0 R0805A

Key No. Qty. Description Key No. Qty. Description

15

16

24

25

34

32

35

46

47

63

61

51

36

12

35

33

26

27 30

33

52

52

13

37

37

2257

62

43 58

58

57

57

17

63

63

51

45

38

31

62

3

1

24

18

19

18

19 11

11

6

7

8

5

9

10

14

15

20

23

28

29

39

3940

41

44

44

57

57

57

45

48

48

49

49 49

49

50

55

55

55

55

55

55

54 59

54

59

60

60

60

60

61

64

21

59

59

57

57

57

61

42

61

53

56

50

65

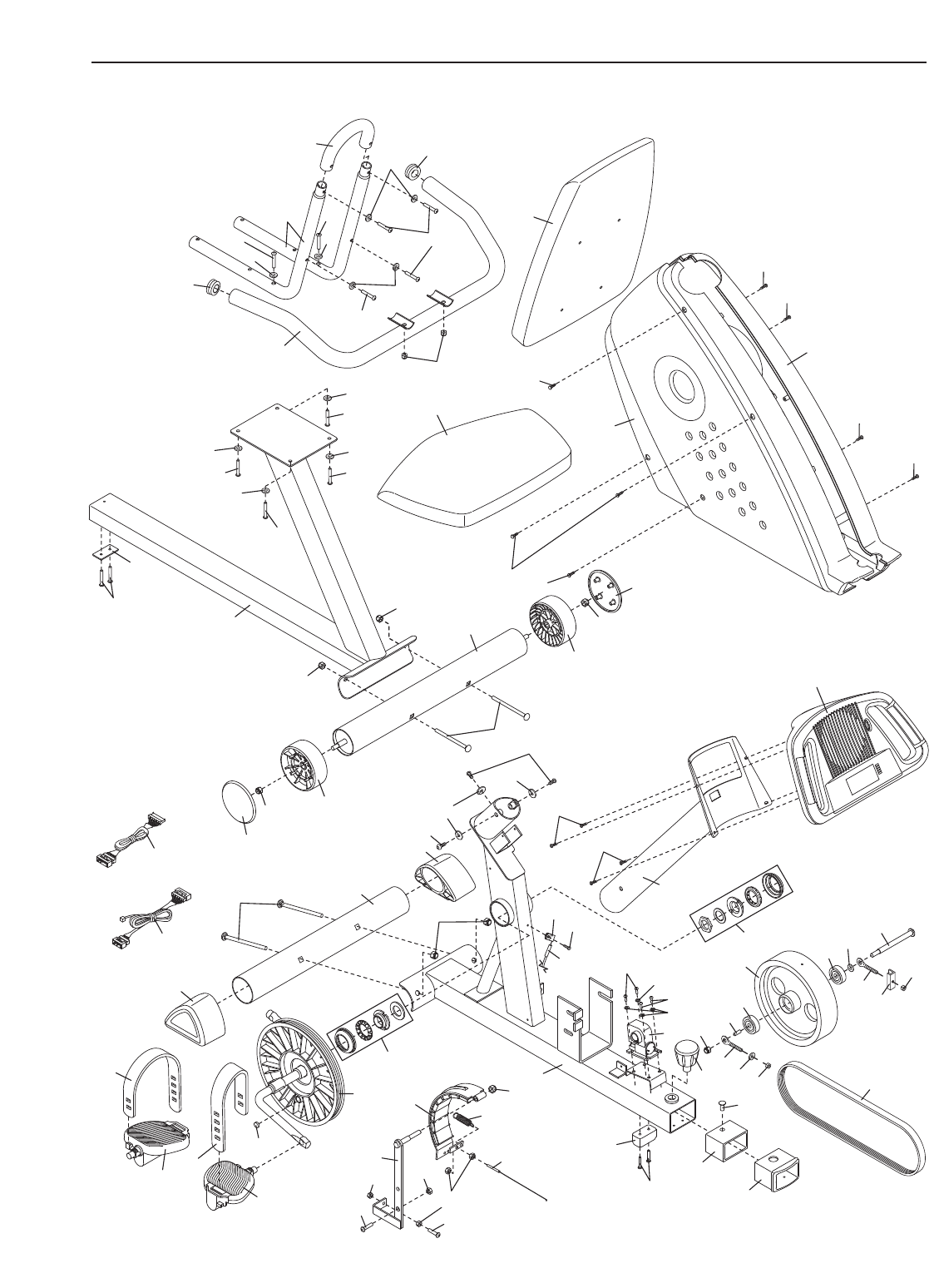

EXPLODED DRAWING—Model No. PFEX1995.0 R0805A

Part No. 233113 R0805A Printed in USA © 2005 ICON IP, Inc.

HOW TO ORDER REPLACEMENT PARTS

To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give

the following information:

•the MODEL NUMBER of the product (PFEX1995.0)

•the NAME of the product (PROFORM GR 80 exercise cycle)

•the SERIAL NUMBER of the product (see the front cover of this manual)

•the KEY NUMBER and DESCRIPTION of the part(s) (see pages 14 to 15)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. For

in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,

improper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond

that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
