USER’S MANUAL

www.proform.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEX78914.1

Serial No.

Write the serial number in the space

above for reference.

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

Serial

Number

Decal

2

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

3

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the exercise bike only as described in

this manual.

4. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

6. Place the exercise bike on a level surface,

with a mat beneath it to protect the floor or

carpet. Make sure that there is at least 2 ft.

(0.6 m) of clearance around the exercise bike.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the exercise bike at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

10. The exercise bike should not be used

by persons weighing more than 250 lbs.

(113 kg).

11. Be careful when mounting and dismounting

the exercise bike.

12. Always keep your back straight while using

the exercise bike; do not arch your back.

13. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

14. The exercise bike does not have a freewheel;

the pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

4

STANDARD SERVICE PLANS

5

Thank you for selecting the new PROFORM® exercise

bike. Cycling is an effective exercise for increasing

cardiovascular fitness, building endurance, and toning

the body. The PROFORM exercise bike provides a

selection of features designed to make your workouts

at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

Resistance Knob

Dumbbell

Seat

Seat Knob

Pedal/Strap

Console

Heart Rate Monitor

Handlebar

BEFORE YOU BEGIN

Length: 2 ft. 7 in. (78 cm)

Width: 1 ft. 4 in. (41 cm)

6

M8 x 50mm

Carriage Bolt (13)–4

M8 Split

Washer (20)–2

M8 Curved

Washer (14)–6

M8 Acorn

Nut (15)–4

M4 x 25mm

Screw (22)–1

M8 x 35mm Screw

(21)–2

M6 x 15mm

Screw (18)–4

M6 Washer

(19)–4

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part. The number following the key number is the quantity needed for assem-

bly. Note: If a part is not in the hardware kit, check to see if it has been preassembled. Extra parts may be

included.

7

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you fi nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• In addition to the included tool(s), assembly

requires the following tool(s):

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

2. Attach one of the Stabilizers (3) to the Handlebar

Frame (1) with two M8 x 50mm Carriage Bolts

(13), two M8 Curved Washers (14), and two M8

Acorn Nuts (15).

14

14

15

15

13

2

3

1

1. Go to www.proformservice.com/registration

on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this

manual) and register your product.

1

8

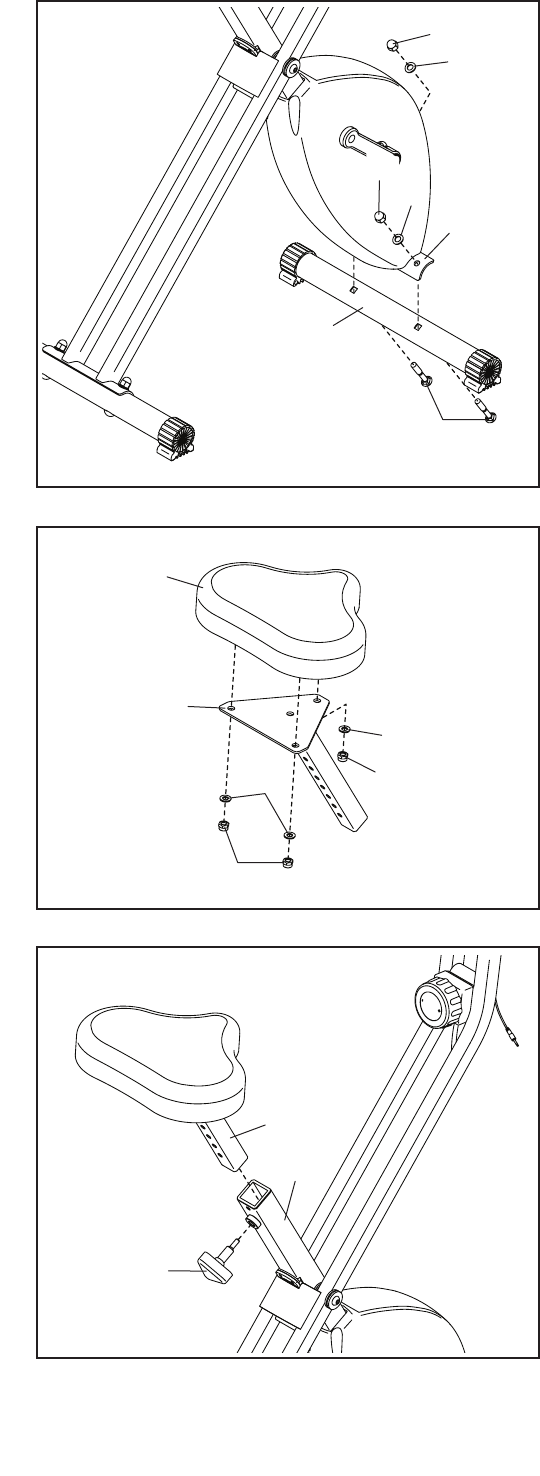

3. Attach the other Stabilizer (3) to the Seat Frame

(2) with two M8 x 50mm Carriage Bolts (13), two

M8 Curved Washers (14), and two M8 Acorn

Nuts (15).

4. Attach the Seat (5) to the Seat Post (4)

with three M8 Locknuts (16) and three M8

Washers (17).

5. Insert the Seat Post (4) into the Seat Frame (2).

Next, insert the Seat Knob (12) into the Seat

Frame (2) and into one of the adjustment holes

in the Seat Post (4); make sure that the Seat

Knob is in one of the adjustment holes in the

Seat Post. Then, tighten the Seat Knob.

3

4

5

14

13

3

4

5

2

14

15

16

16

17

17

2

4

12

15

9

8. The Console (8) requires two AA batteries (not

included); alkaline batteries are recommended.

Do not use old and new batteries together or

alkaline, standard, and rechargeable batter-

ies together. IMPORTANT: If the Console has

been exposed to cold temperatures, allow

it to warm to room temperature before you

insert batteries. Otherwise, you may dam-

age the console displays or other electronic

components.

Press the tab on the battery cover, and remove

the battery cover. Next, insert two batteries into

the battery compartment; make sure to orient

the batteries as shown by the diagram inside

the battery compartment. Then, reattach the

battery cover.

6

7. Pull the Console Mount (7) open slightly and

slide it onto the Handlebar (6) and onto the

upper end of the Handlebar Frame (1). Then,

tighten an M4 x 25mm Screw (22) into the

Console Mount; do not fully tighten the

Screw yet.

6. Attach the Handlebar (6) to the Handlebar

Frame (1) with two M8 x 35mm Screws (21),

two M8 Split Washers (20), and two M8 Curved

Washers (14).

7

8

Battery

Cover

1

6

20

21

14

14

22

6

8

1

7

10

10

10. Attach the Dumbbell Rack (9) to the Handlebar

Frame (1) with four M6 x 15mm Screws (18) and

four M6 Washers (19); start all the Screws, and

then tighten them.

See the inset drawing. Set the two Dumbbells

(10) on the Dumbbell Rack (9).

9

9. Have a second person hold the Console (8) near

the Console Mount (7). Connect the wire on the

Console to the Reed Switch Wire (23). Then,

plug the Monitor Wire (24) into the back of the

Console.

Tip: Avoid pinching the wires. Slide the

Console (8) onto the Console Mount (7). Then,

pivot the Console and the Console Mount to the

desired angle.

See step 7. Tighten the M4 x 25mm Screw (22).

Avoid pinching

the wires

23

24

8

7

18

19

1

9

12. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it

functions properly. Make sure that all parts are properly tightened before you use the exercise bike.

Extra parts may be included. Place a mat under the exercise bike to protect the floor.

11

11. Identify the Right Pedal (11).

Using an adjustable wrench, firmly tighten the

Right Pedal (11) clockwise into the Right Crank

Arm (25).

Firmly tighten the Left Pedal (not shown)

counterclockwise into the Left Crank Arm

(not shown). IMPORTANT: You must turn the

Left Pedal counterclockwise to attach it.

25

11

910

10

11

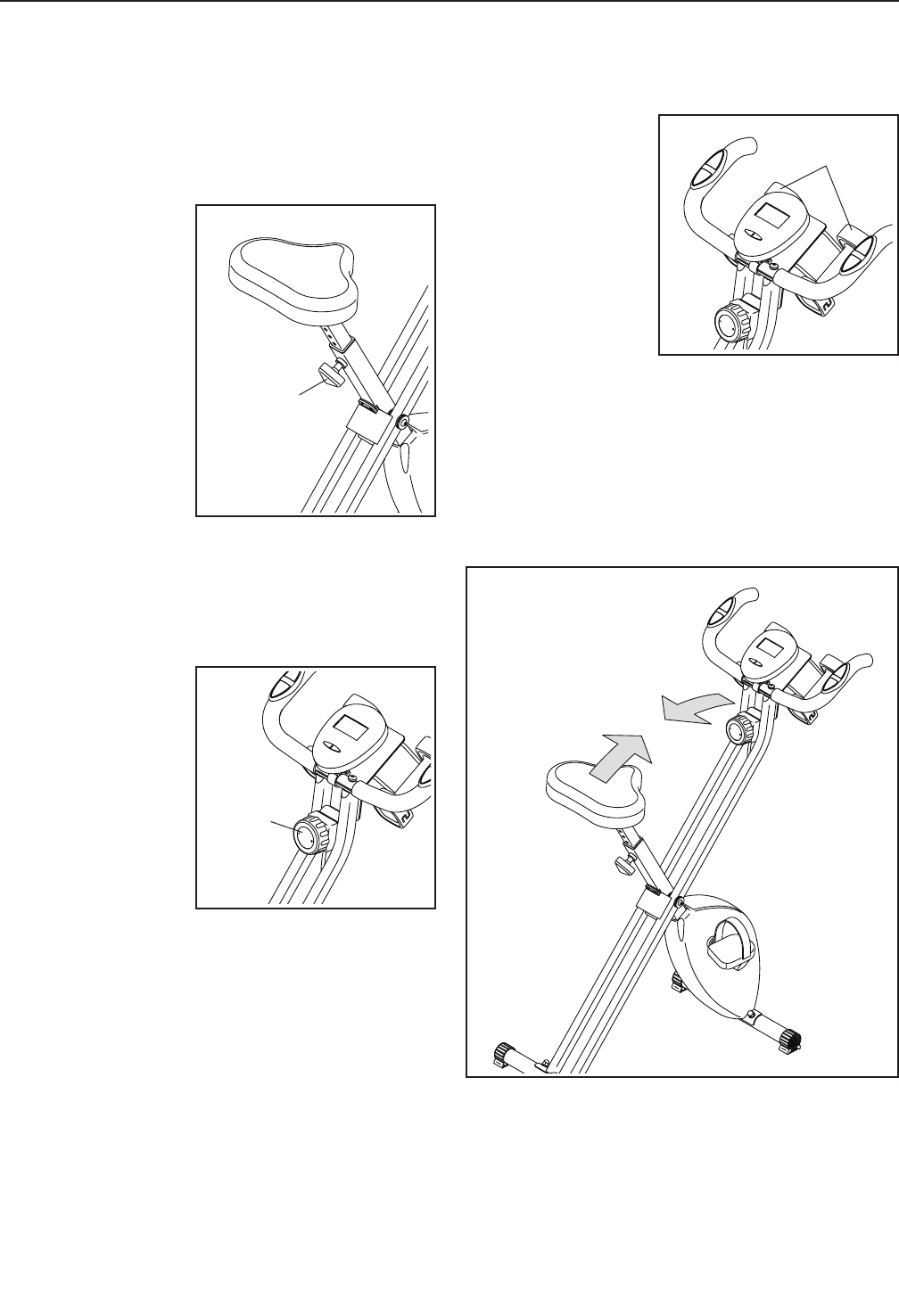

HOW TO ADJUST THE SEAT POST

For effective exercise, the seat should be at the proper

height. As you pedal, there should be a slight bend in

your knees when the pedals are in the lowest position.

To adjust the height

of the seat, first

loosen and remove

the seat knob. Next,

slide the seat post

upward or down-

ward and align one

of the adjustment

holes in the seat

post with the hole

in the frame. Insert

the seat knob into

the frame and the

seat post, and

then tighten the

seat knob. Make

sure that the seat knob is inserted into one of the

adjustment holes in the seat post.

HOW TO ADJUST THE PEDALING RESISTANCE

To increase the

resistance of

the pedals, turn

the resistance

knob clockwise;

to decrease the

resistance, turn the

knob counterclock-

wise. IMPORTANT:

Stop turning the

knob when turning

becomes difficult,

or you may dam-

age the exercise bike.

HOW TO USE THE DUMBBELLS

To add upper body

exercise to your

workouts, use the

dumbbells while you

pedal. When you

are not using the

dumbbells, store

them on the dumb-

bell rack.

HOW TO FOLD THE EXERCISE BIKE

When the exercise bike is not in use, it can be folded to

a compact position. First, remove the dumbbells from

the dumbbell rack. Then, hold the handlebar with one

hand, hold the seat with the other hand, and push the

handlebar and the seat towards each other.

Knob

Knob

Dumbbells

HOW TO USE THE EXERCISE BIKE

12

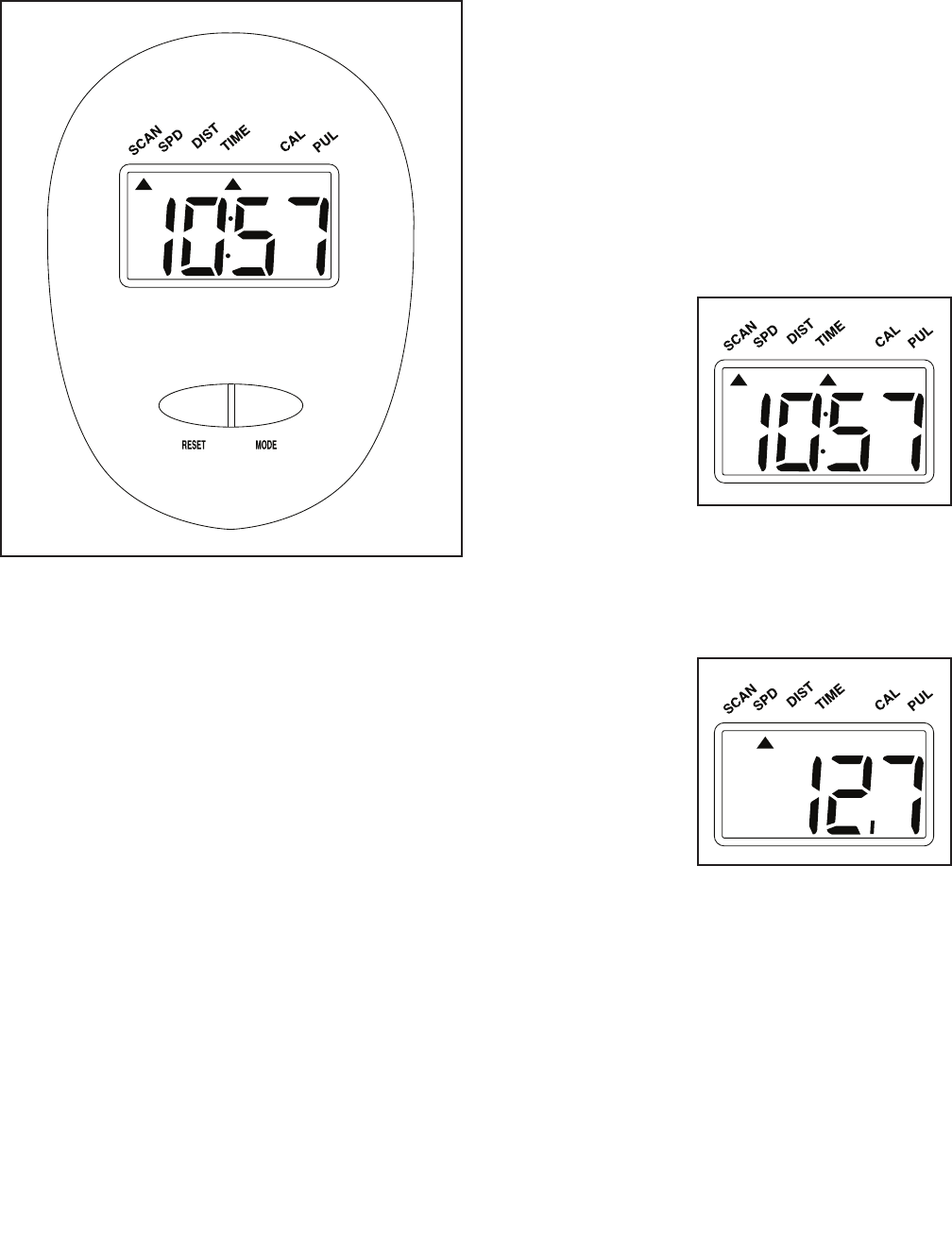

FEATURES OF THE CONSOLE

The easy-to-use console features six modes that pro-

vide instant exercise feedback during your workouts.

The modes are described below.

Scan—This mode displays the time, speed, distance,

calories, and pulse modes, for a few seconds each, in

a repeating cycle.

Time—This mode displays the elapsed time that you

have pedaled during your workout.

Speed (SPD)—This mode displays your pedaling

speed, in kilometers per hour.

Distance (DIST)—This mode displays the dis-

tance that you have pedaled during your workout, in

kilometers.

Calories (CAL)—This mode displays the approximate

number of calories that you have burned during your

workout.

Pulse (PUL)—This mode displays your heart rate in

beats per minute when you are using the heart rate

monitor (see step 3 on page 13). When your pulse is

not detected, a P will appear in the display.

HOW TO USE THE CONSOLE

Make sure that there are batteries (not included) in the

console (see assembly step 8 on page 9). If there

is a sheet of clear plastic on the display, remove the

plastic.

1. Turn on the console.

To turn on the console, press either button on the

console or simply begin pedaling.

2. Select one of the six modes:

Scan mode—

When the

console is

turned on, the

scan mode will

automatically be

selected. One

mode arrow will

point to the word

SCAN, and a

second mode

arrow will show which mode is currently displayed.

Note: If a different mode is selected, select the

scan mode again by repeatedly pressing the Mode

button.

Time, speed,

distance, calo-

ries, or pulse

mode—To

select one of

these modes

for continuous

display, press

the Mode button

repeatedly. The

mode arrows

will show which mode is selected. Make sure that

there is not a mode arrow pointing to the word

SCAN.

13

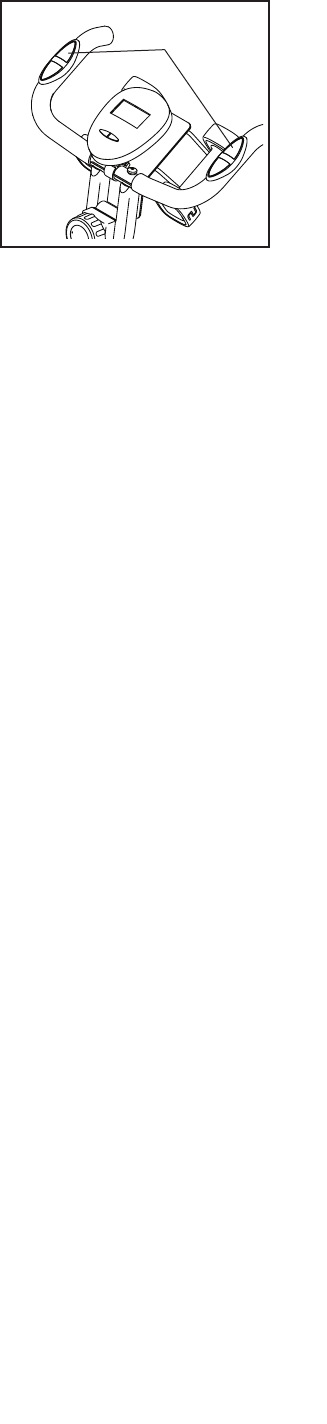

3. Measure your heart rate, if desired.

If there are

sheets of plastic

on the metal

contacts of the

handgrip heart

rate monitor,

remove the

plastic. Place

your hands on

the handgrip

heart rate moni-

tor, with your

palms on the contacts. Avoid moving your hands.

When your pulse is detected, your heart rate will be

shown when the pulse mode is displayed. For the

most accurate heart rate reading, continue to

hold the handgrips for about 15 seconds.

If your heart rate is not shown, make sure that the

pulse mode is displayed. In addition, make sure

that your hands are positioned as described and

that you are not moving your hands excessively or

squeezing the contacts tightly. For optimal perfor-

mance, periodically clean the contacts using a soft

cloth; never use alcohol, abrasives, or chemi-

cals to clean the contacts.

4. Reset the console, if desired.

To reset the console, hold down the Reset button

for a few seconds. After the console is reset, the

scan mode will be selected.

5. When you are finished exercising, the console

will turn off automatically.

If the pedals are not moved for a few seconds, the

console will pause.

The console has an auto-off feature. If the ped-

als are not moved and the console buttons are

not pressed for a few minutes, the console will

turn off automatically to save the batteries.

Contacts

14

MAINTENANCE

Inspect and tighten all parts of the exercise bike

regularly. Replace any worn parts immediately.

To clean the exercise bike, use a damp cloth and a

small amount of mild detergent. IMPORTANT: To

avoid damage to the console, keep liquids away

from the console and keep the console out of

direct sunlight.

CONSOLE TROUBLESHOOTING

If the console display becomes dim, replace the

batteries (see assembly step 8 on page 9); most

console problems are the result of low batteries.

If the heart rate monitor does not function properly, see

step 3 on page 13.

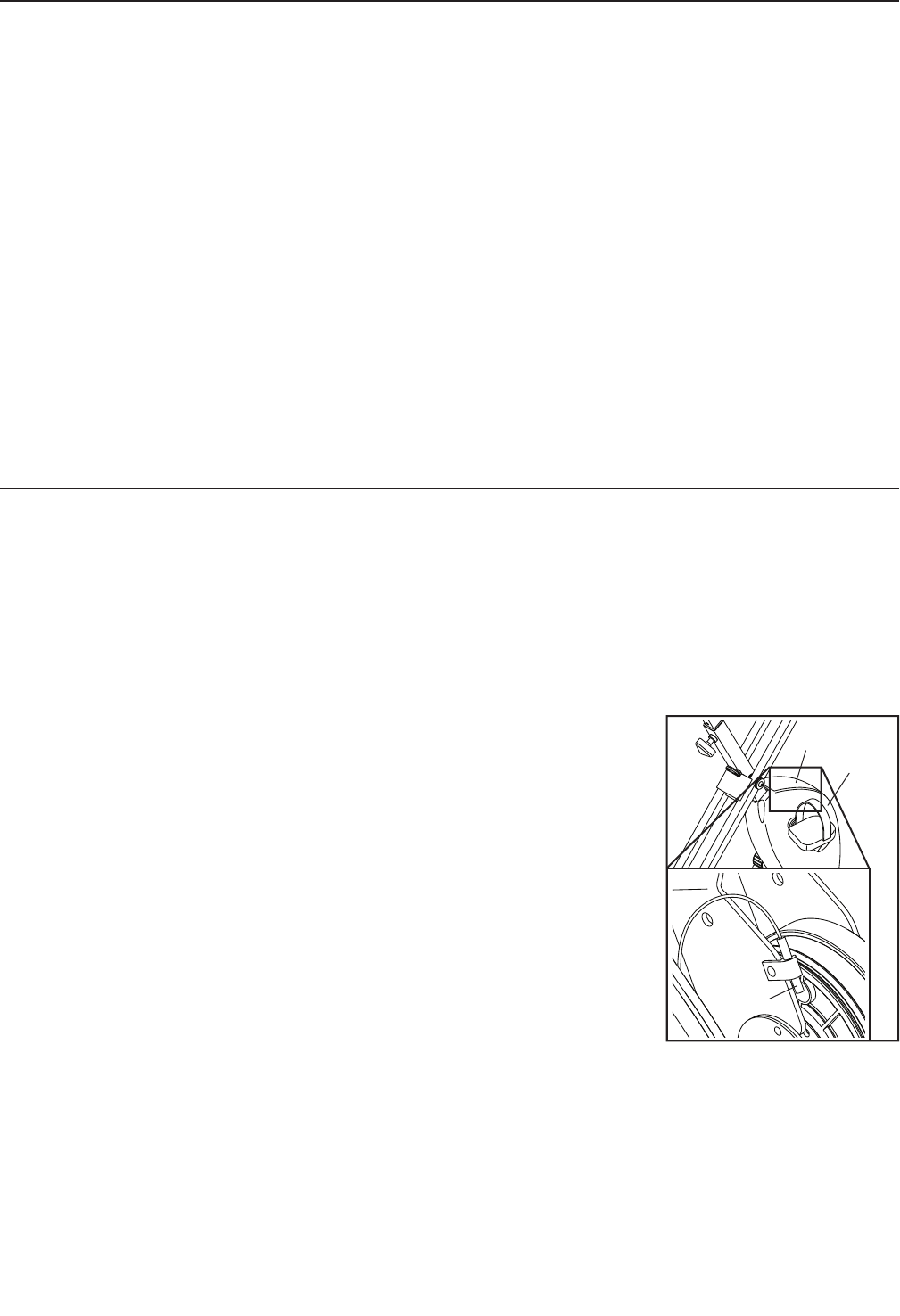

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. Before adjusting the

reed switch, turn the resistance knob to the lowest

setting.

Next, loosen the

screws (not shown)

in the Shields (26,

27), and carefully

remove the Shield

Cover (28).

Locate the Reed

Switch (29), and slide

it upward or down-

ward slightly. Then,

turn the pedals for

a moment and see

whether the console

displays correct feed-

back. Repeat this

step until the console

displays correct feedback.

When the console displays correct feedback, reattach

the Shield Cover (28).

29

28

26, 27

MAINTENANCE AND TROUBLESHOOTING

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to

computer or peripheral devices. Changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate this equipment.

15

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

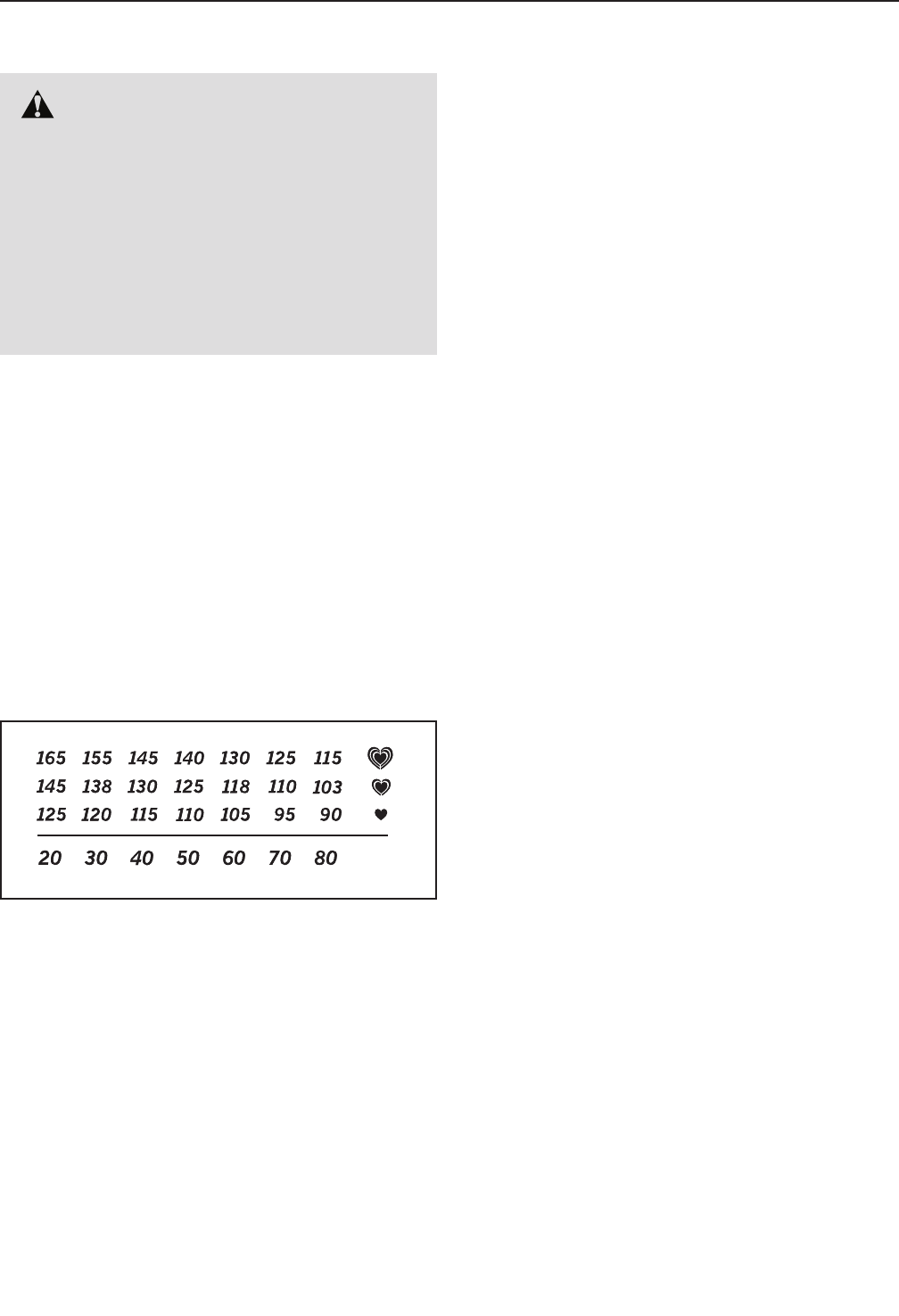

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

Part No. 369507 R1214A Printed in China © 2014 ICON Health & Fitness, Inc.

ORDERING REPLACEMENT PARTS

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for fi ve (5) years from the date

of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.

For information about available replacement parts, see the front cover of this manual. To help us assist you, be

prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see ASSEMBLY on pages 7 through 10)
