USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal

Model No. PFHK15305.0

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.proformservice.com

TABLE OF CONTENTS

IMPORTANTPRECAUTIONS .................................................................3

BEFOREYOUBEGIN .......................................................................5

ASSEMBLY ...............................................................................6

OPERATIONANDADJUSTMENT ............................................................11

HOWTOFOLDANDMOVETHEINCLINETRAINER .............................................28

TROUBLESHOOTING ......................................................................30

CONDITIONINGGUIDELINES ...............................................................33

PARTLIST ...............................................................................34

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY...............................................................BackCover

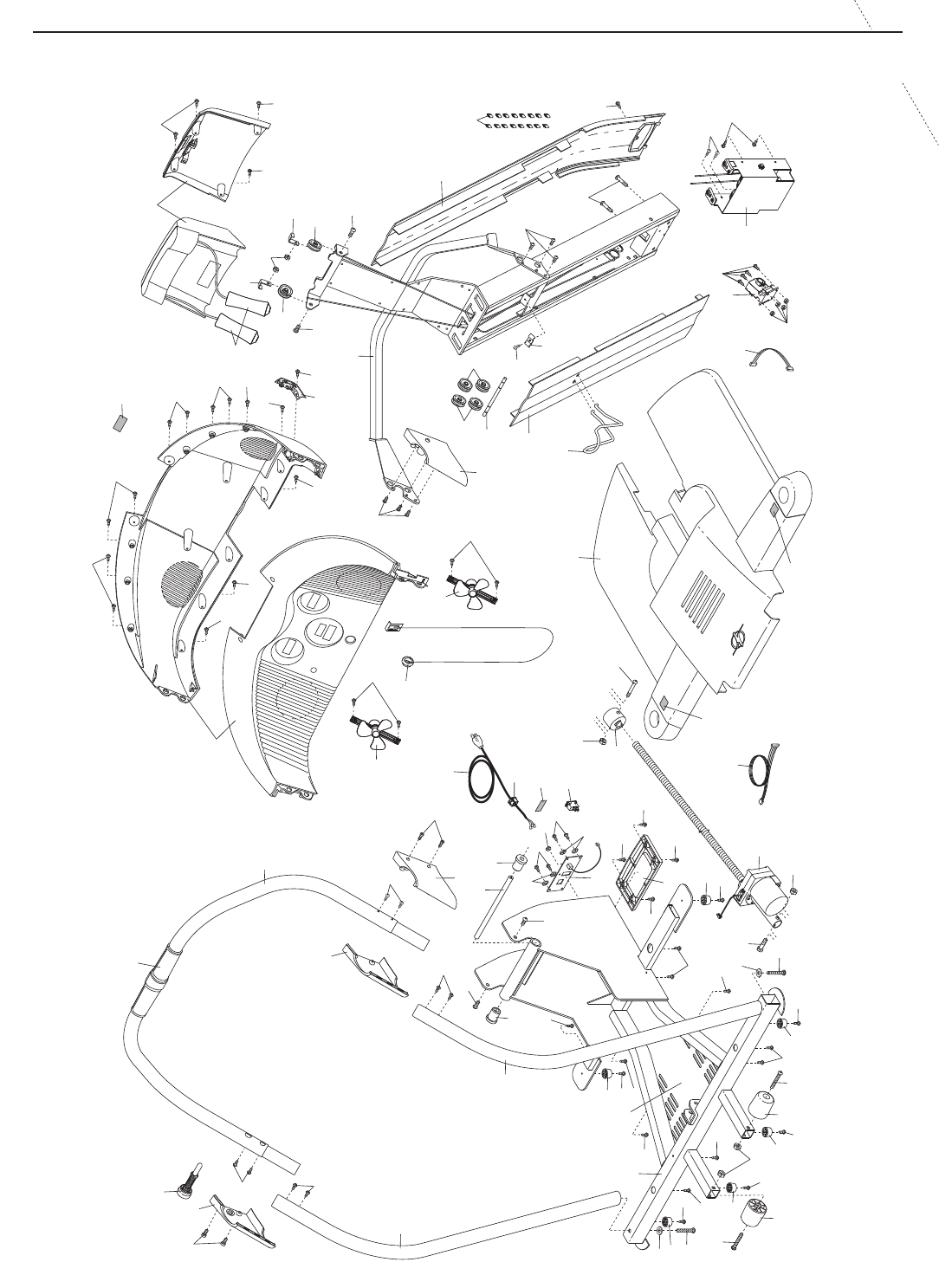

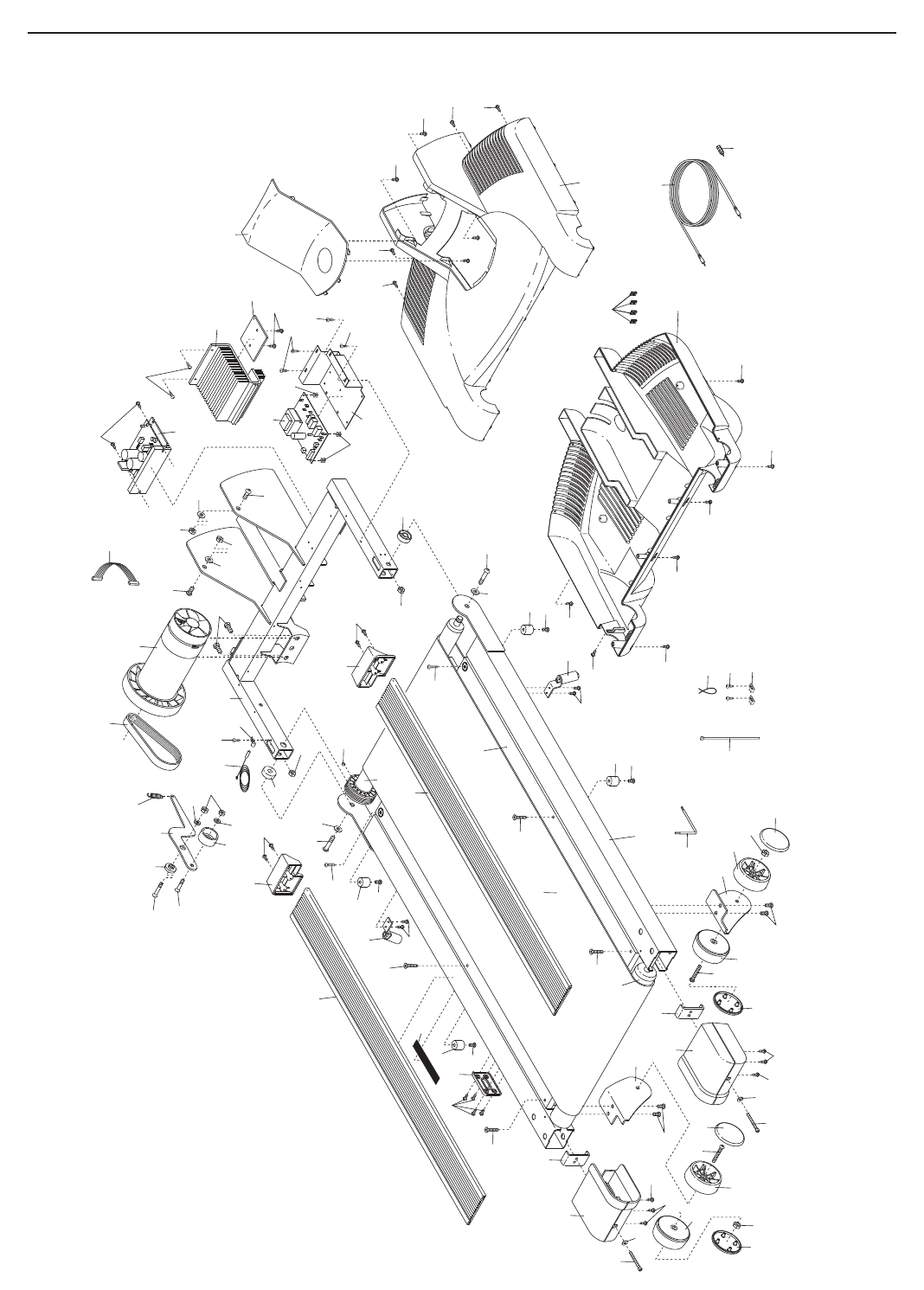

Note: An EXPLODED DRAWING is attached at the end of this manual.

PROFORM is a registered trademark of ICON IP, Inc.

1. It is the responsibility of the owner to ensure

that all users of this incline trainer are ade-

quately informed of all warnings and precau-

tions.

2. Use the Incline Trainer only as described.

3. Place the Incline Trainer on a level surface,

with at least eight feet of clearance behind it

and two feet on each side. Do not place the

Incline Trainer on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the Incline Trainer.

4. Keep the Incline Trainer indoors, away from

moisture and dust. Do not put the Incline

Trainer in a garage or covered patio, or near

water.

5. Do not operate the Incline Trainer where

aerosol products are used or where oxygen is

being administered.

6. Keep children under the age of 12 and pets

away from the Incline Trainer at all times.

7. The Incline Trainer should not be used by per-

sons weighing more than 300 pounds.

8. Never allow more than one person on the

Incline Trainer at a time.

9. Wear appropriate exercise clothes when

using the Incline Trainer. Do not wear loose

clothes that could become caught in the

Incline Trainer. Athletic support clothes are

recommended for both men and women.

Always wear athletic shoes. Never use the

Incline Trainer with bare feet, wearing only

stockings, or in sandals.

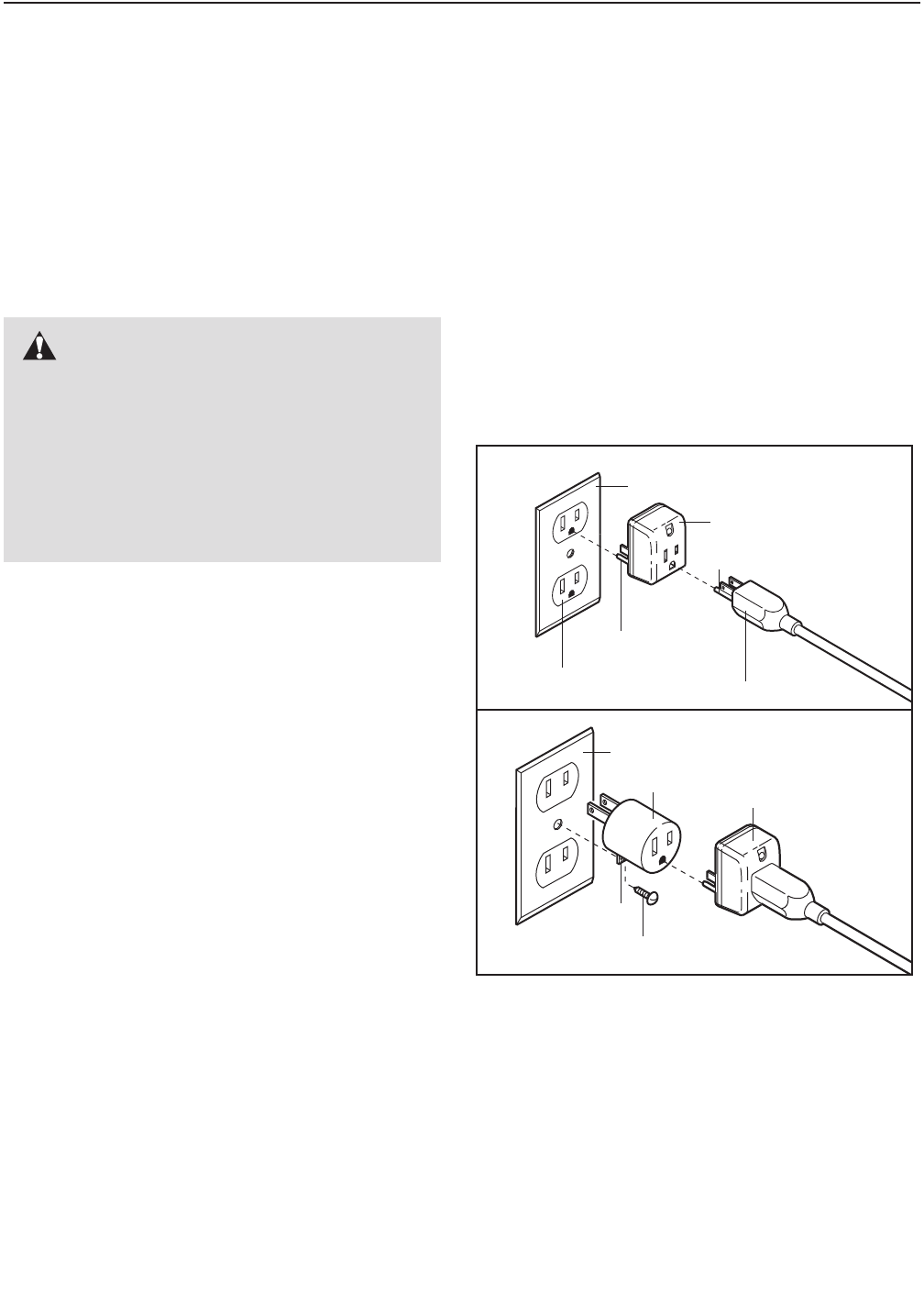

10. When connecting the power cord (see page 11),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor

that meets all of the specifications described

on page 11. To purchase a surge suppressor,

see your local PROFORM dealer or call the

toll-free telephone number on the front cover

of this manual and order part number 146148,

or see your local electronics store.

12. Failure to use a properly functioning surge sup-

pressor could result in damage to the control

system of the incline trainer. If the control sys-

tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

14. Never move the walking belt while the power

is turned off. Do not operate the Incline

Trainer if the power cord or plug is damaged,

or if the Incline Trainer is not working prop-

erly. (See BEFORE YOU BEGIN on page 5 if

the Incline Trainer is not working properly.)

15. Never start the Incline Trainer while you are

standing on the walking belt. Always hold the

handrails while using the Incline Trainer.

16. The Incline Trainer is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

17. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

18. Never leave the Incline Trainer unattended

while it is running. Always remove the key, un-

plug the power cord, and switch the reset/off

circuit breaker to the off position when the

Incline Trainer is not in use. (See the drawing

on page 5 for the location of the reset/off cir-

cuit breaker.)

19. Do not attempt to raise, lower, or move the

Incline Trainer until it is properly assembled.

(See ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE Incline Trainer on page 28.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the Incline Trainer.

20. Do not change the incline of the Incline

Trainer by placing objects under the Incline

Trainer.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the Incline Trainer.

IMPORTANT PRECAUTIONS

21. Use the upper body handles only at walking

speeds. Using the handles and not holding

the handrails may compromise your ability to

maintain your balance. Exercises using the

handles should be attempted only by experi-

enced users.

22. When folding or moving the Incline Trainer,

make sure that the storage latch is fully

closed.

23. When using iFIT.com CDs and videos, an

electronic “chirping” sound will alert you

when the speed and/or incline of the Incline

Trainer is about to change. Always listen for

the “chirp” and be prepared for speed and/or

incline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

24. When using iFIT.com CDs and videos, you

can manually override the speed and incline

settings by pressing the speed and incline

buttons. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

25. Always remove iFIT.com CDs and videos from

your CD player or VCR when you are not

using them.

26. Inspect and properly tighten all parts of the

Incline Trainer regularly.

27. Never insert or drop any object into any

opening.

28. DANGER: Always unplug the power

cord immediately after use, before cleaning

the Incline Trainer, and before performing the

maintenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

29. The Incline Trainer is intended for in-home

use only. Do not use the Incline Trainer in a

commercial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

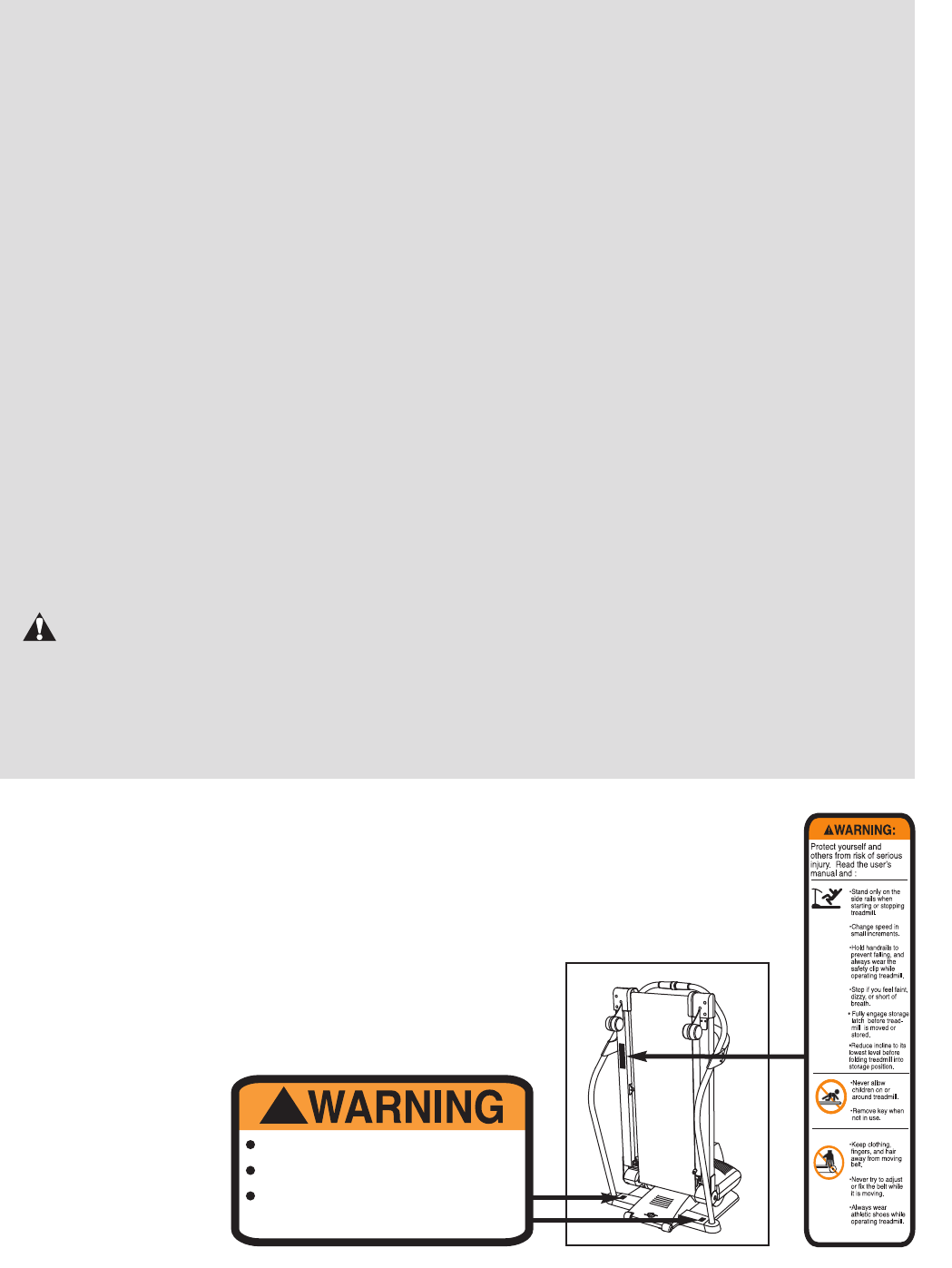

The decals shown here have been placed on your incline trainer. If a decal is missing, or

if it is not legible, please call the toll-free telephone number on the front cover of this

manual and order a free replacement decal. Apply the decal in the location shown. Note:

The decals may not be shown at actual size.

Crush Zone

Keep Children Away

Treadmill moves down

with force.

Thank you for selecting the revolutionary PROFORM®

X5 Incline Trainer. The X5 Incline Trainer offers a se-

lection of features designed to make your workouts at

home more enjoyable and effective. And when youʼre

not exercising, the unique X5 Incline Trainer can be

folded up, requiring less floor space.

For your benefit, read this manual carefully before

you use the incline trainer. If you have questions

after reading this manual, please see the front cover of

this manual. To help us assist you, note the product

model number and serial number before calling. The

model number of the incline trainer is PFHK15305.0.

The serial number can be found on a decal attached to

the incline trainer (see the front cover of this manual

for the location).

To avoid a registration fee for any service needed

under warranty, you must register the incline

trainer at www.proformservice.com/registration.

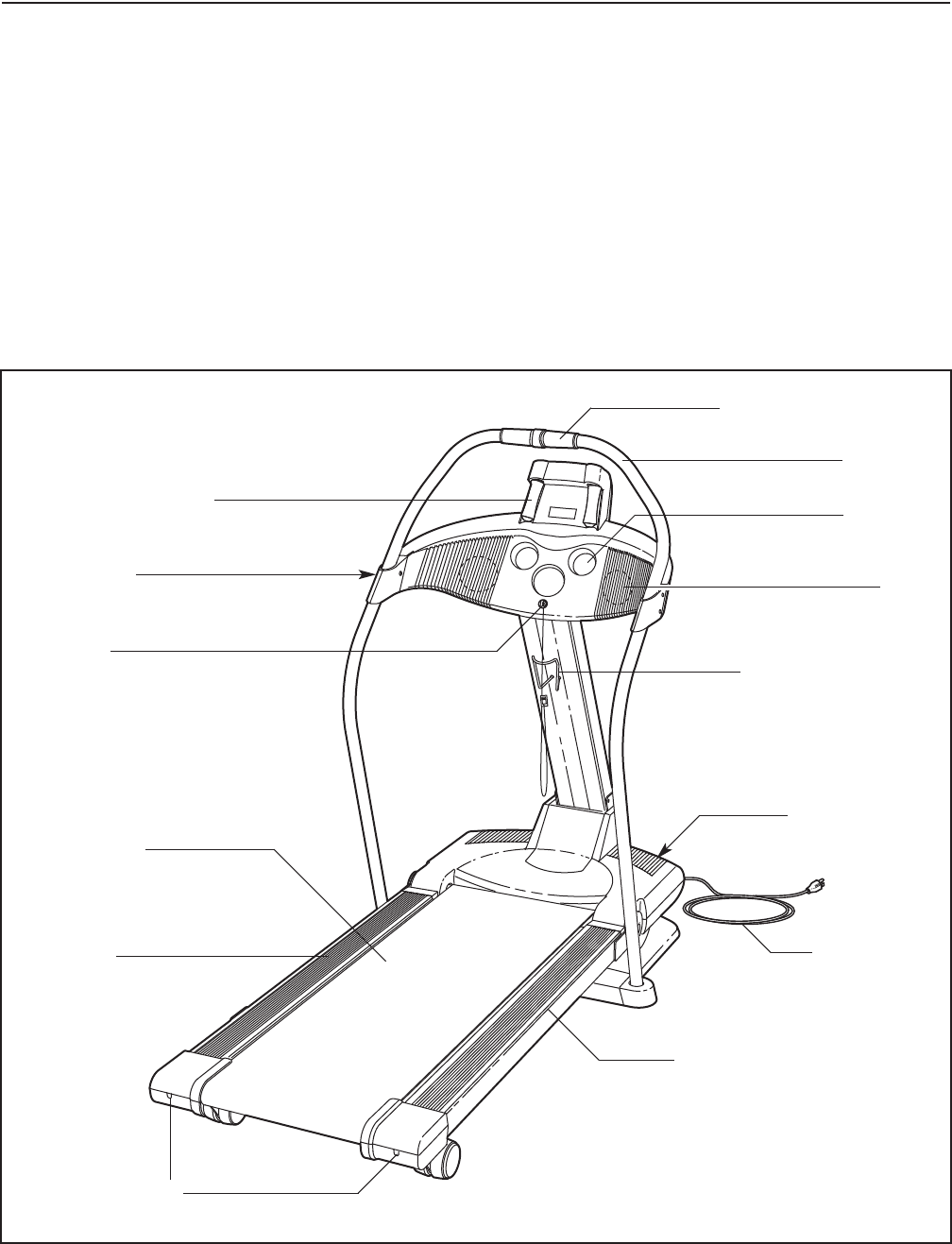

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Console

Fan

Latch Knob

Upper Body Handles

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Foot Rail Power Cord

Cushioned Walking Platform

Rear Roller

Adjustment Bolts

Handgrip Pulse Sensor

Water Bottle Holder*

*No water bottle is included

ASSEMBLY

To hire an authorized service technician to assemble the incline trainer, call toll-free 1-800-445-2480.

Assembly requires two persons. Set the Incline Trainer in a cleared area and remove all packing materials. Do

not dispose of the packing materials until assembly is completed.

Note: The underside of the Incline Trainer walking belt is coated with high-performance lubricant. During ship-

ping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a

normal condition and does not affect Incline Trainer performance. If there is lubricant on top of the walking belt,

simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

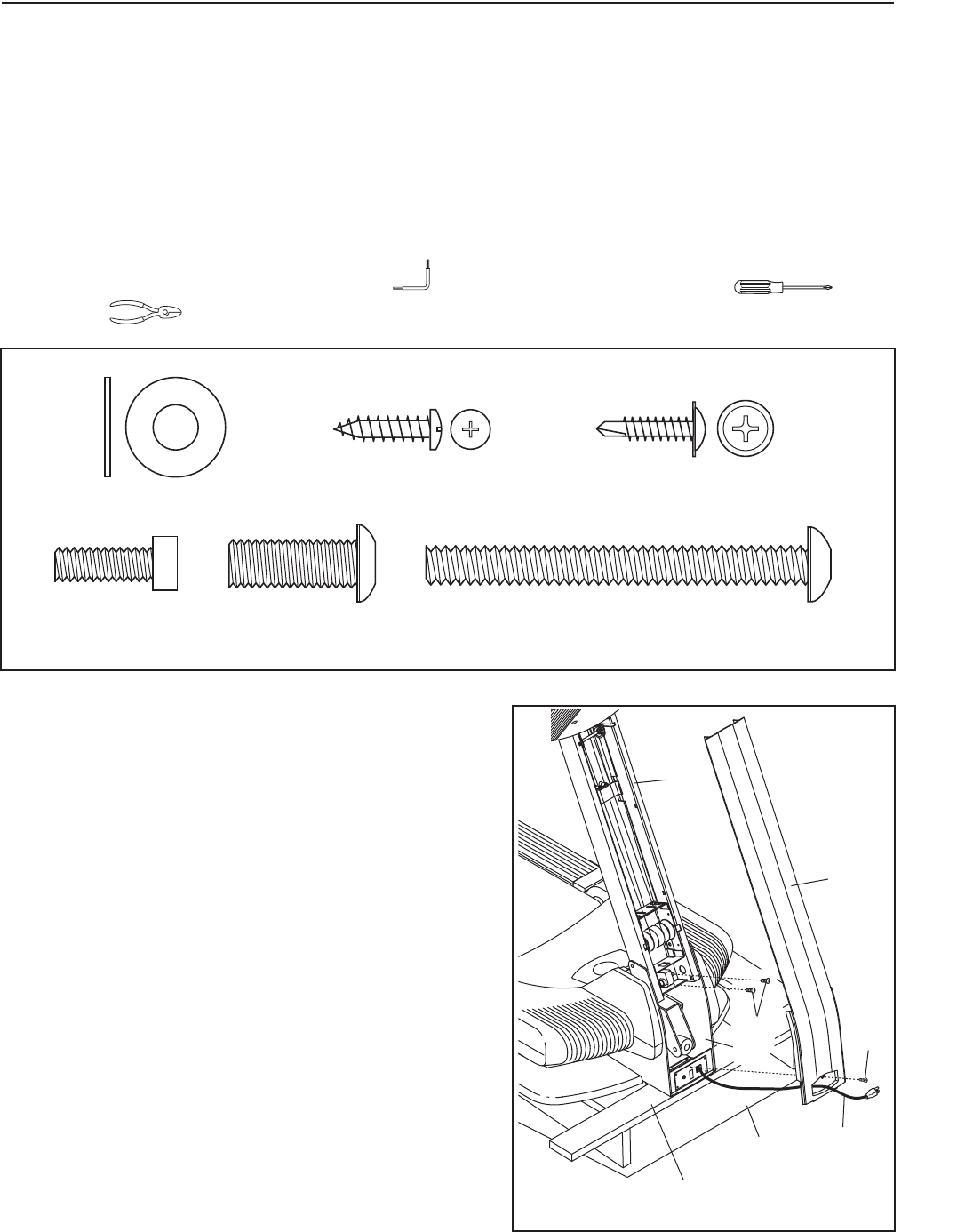

Assembly requires the included allen wrench and your own phillips screwdriver and

wire cutters . For help identifying the assembly hardware, see the hardware drawings below.

3/4” Screw (66)–5 3/4” Tek Screw (94)–10

1” Bolt (55)–6

3/4” Bolt (60)–4

Washer (97)–2

3” Bolt (98)–2

1. To protect the floor during assembly, place a sheet

of cardboard under the pallet as shown.

With the help of a second person, carefully raise the

Upright (110) to the position shown.

While the other person holds the Upright (110), firmly

tighten two 1” Bolts (55) into the lower end of the

Upright and the Upright Base (96).

Insert the Power Cord (85) through the hole in the

Upright Cover (115). Press the Upright Cover onto the

Upright (110). Make sure that the Upright Cover is

securely held by the clips along the opening in the

Upright. Tighten a 3/4” Screw (66) into the lower end of

the Upright Cover. Be careful not to over tighten the

3/4” Screw.

115

Cardboard

Pallet

110

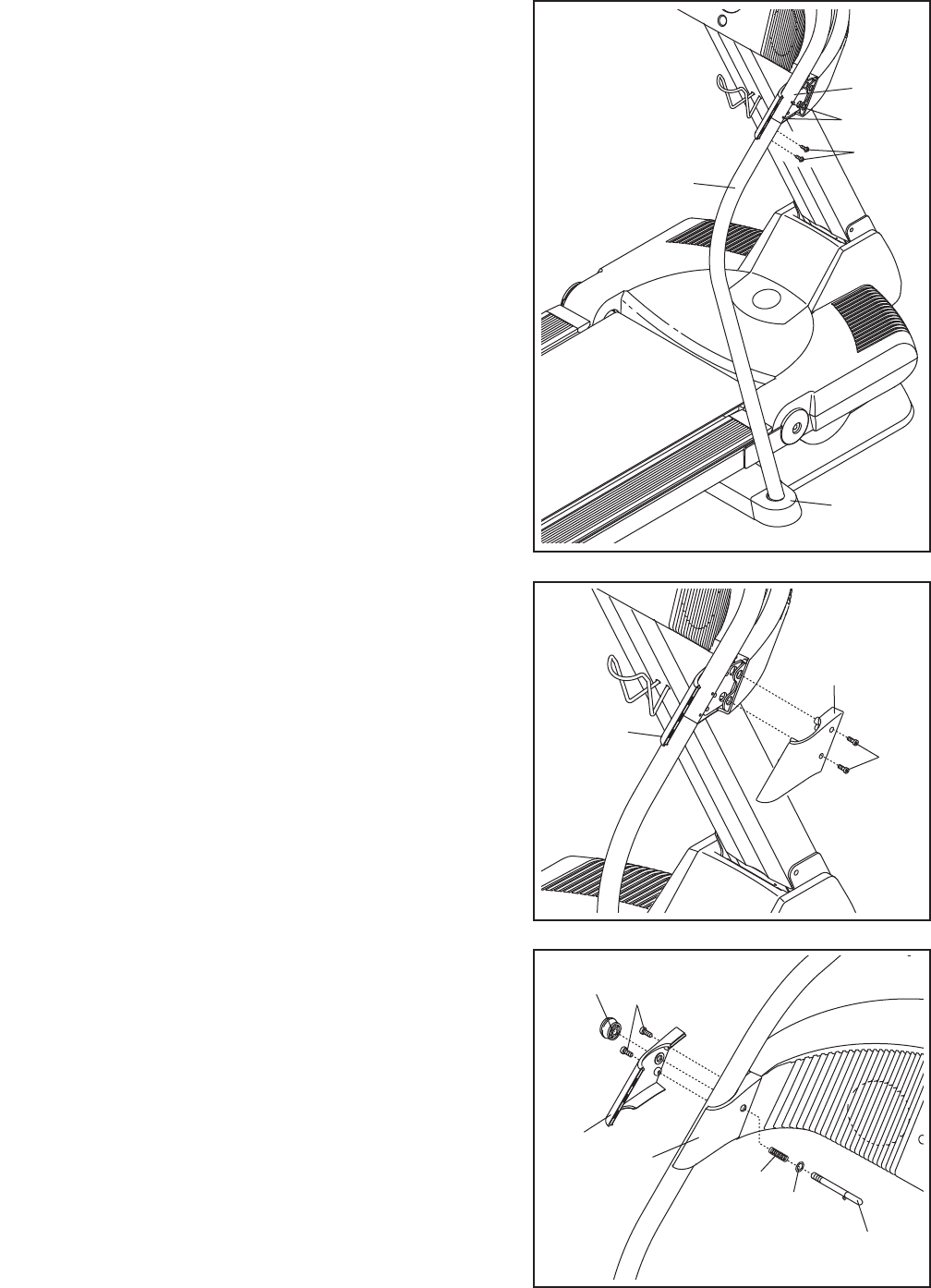

2. Insert a Handrail (67) into the Upper Handrail (68) as

shown. The lower end of the Handrail should sit on the

Base Hood (105) as shown. (Note: It may be necessary to

twist the Handrail as you insert it. It may also be neces-

sary to loosen the two Screws [3] several turns.) Next,

tighten two 3/4” Screws (66) into the Handrail. If you

loosened the Screws, retighten them.

Attach the other Handrail (not shown) to the left side of

the Incline Trainer in the same way.

105

3. Interlock the tabs on the Right Outer Cover (88) with the

tabs on the Right Inner Cover (65). Attach the Right Outer

Cover with two 3/4” Bolts (60) as shown

4. Interlock the tabs on the Left Outer Cover (61) with the

tabs on the Left Inner Cover (106). Attach the Left Outer

Cover with two 3/4” Bolts (60).

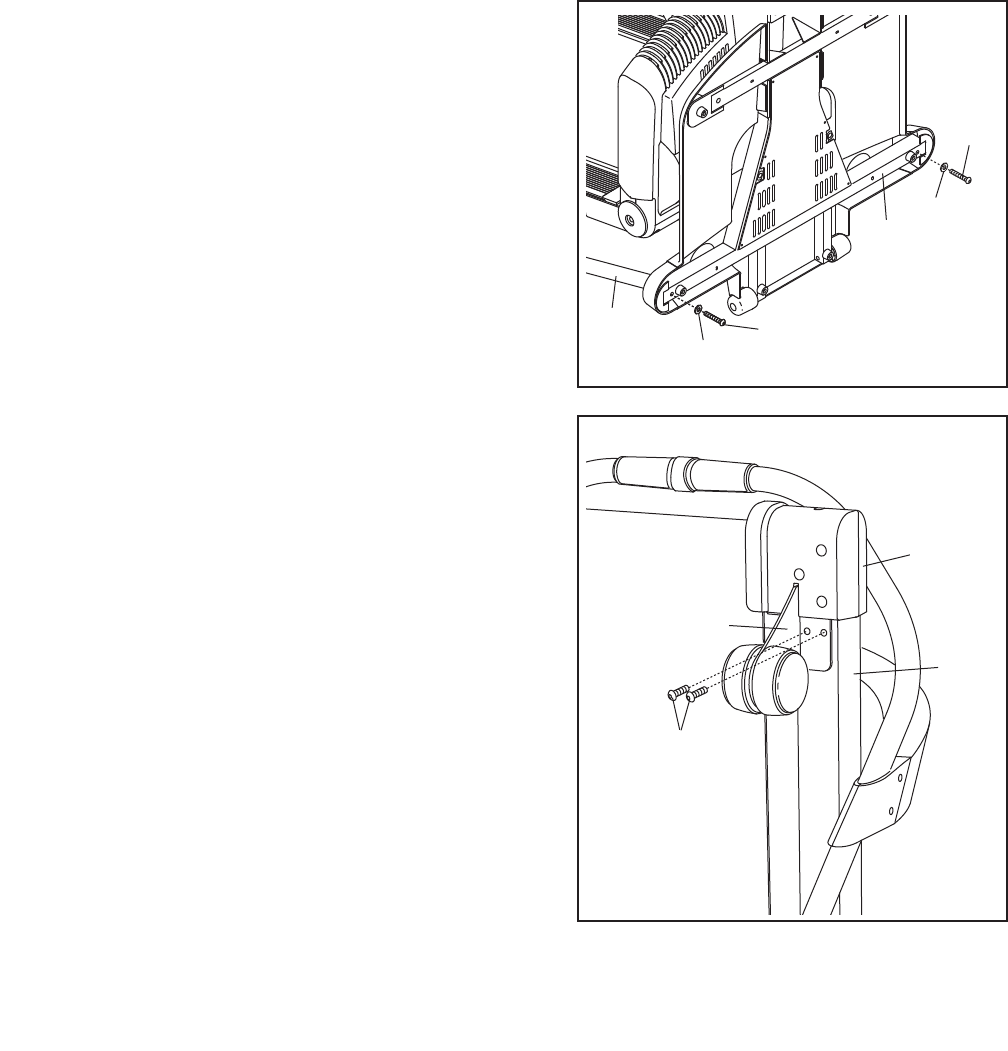

Remove the knob from the pin. Make sure that the col-

lar and the spring are on the pin. Insert the threaded

end of the pin through the hole in the Left Inner Cover

(106) and the hole in the Left Outer Cover (61). Tighten

the knob back onto the pin.

Knob

Collar

Spring

106

6. Attach the Upright Base Pad (103) and the six Base Pads

(93) to the bottom of the Upright Base (96) with ten 3/4”

Tek Screws (94) as shown. 94

103

93 93

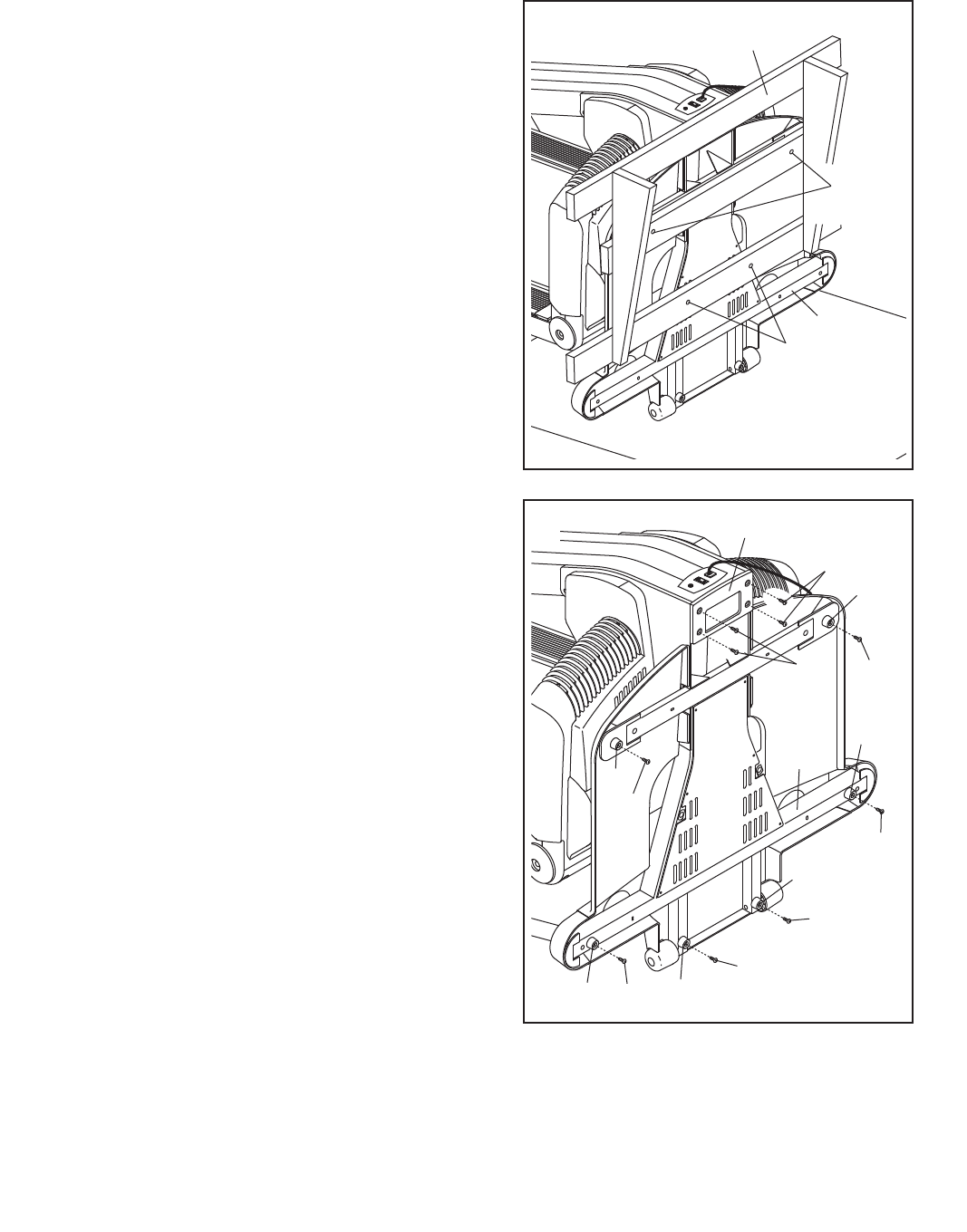

5. With the help of a second person, carefully tip the Upright

Base (96) to the position shown.

Remove the four indicated bolts and washers attaching

the pallet to the Upright Base (96). Discard the pallet,

bolts, and washers.

Bolts,

Washers

Pallet

Bolts,

Washers

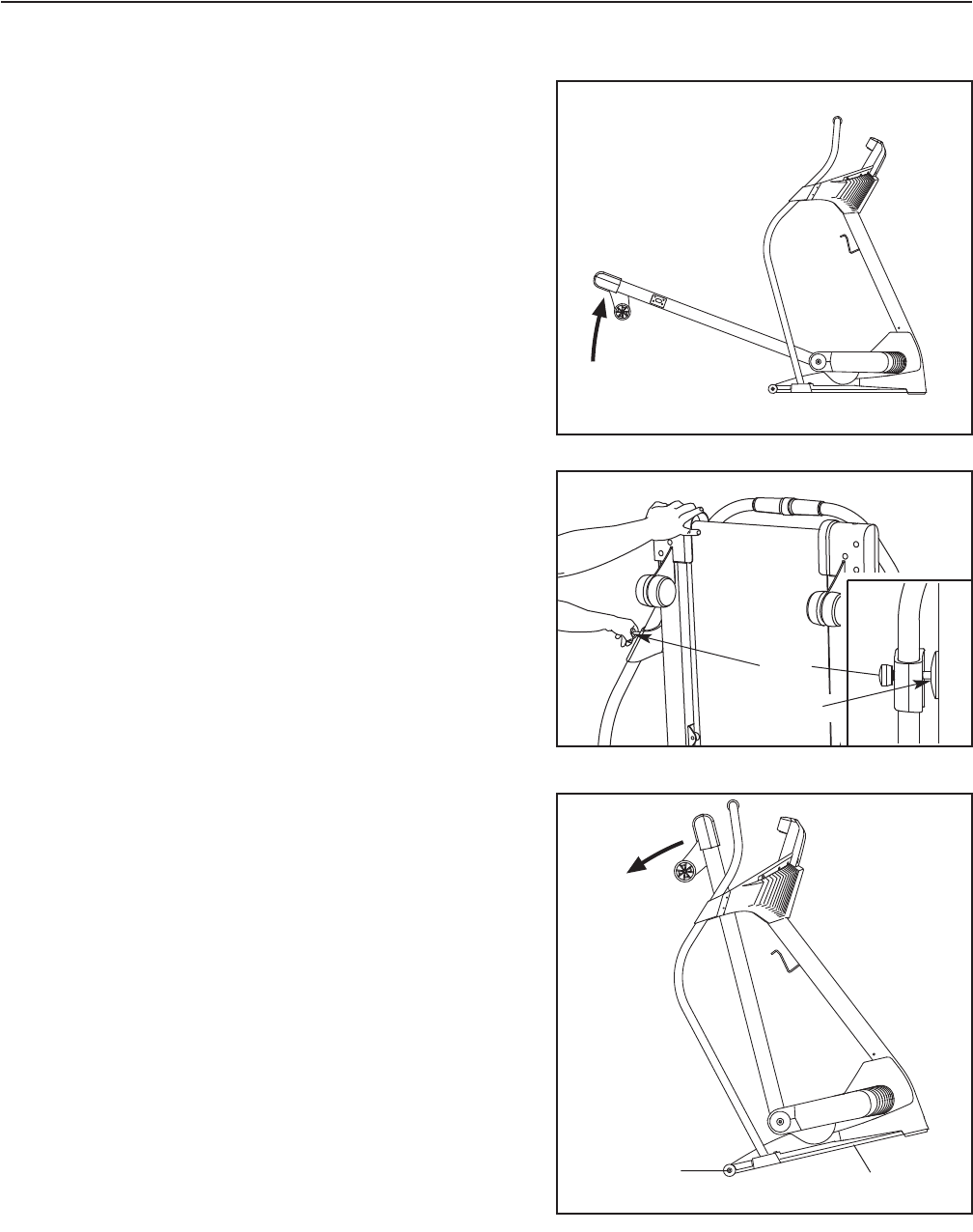

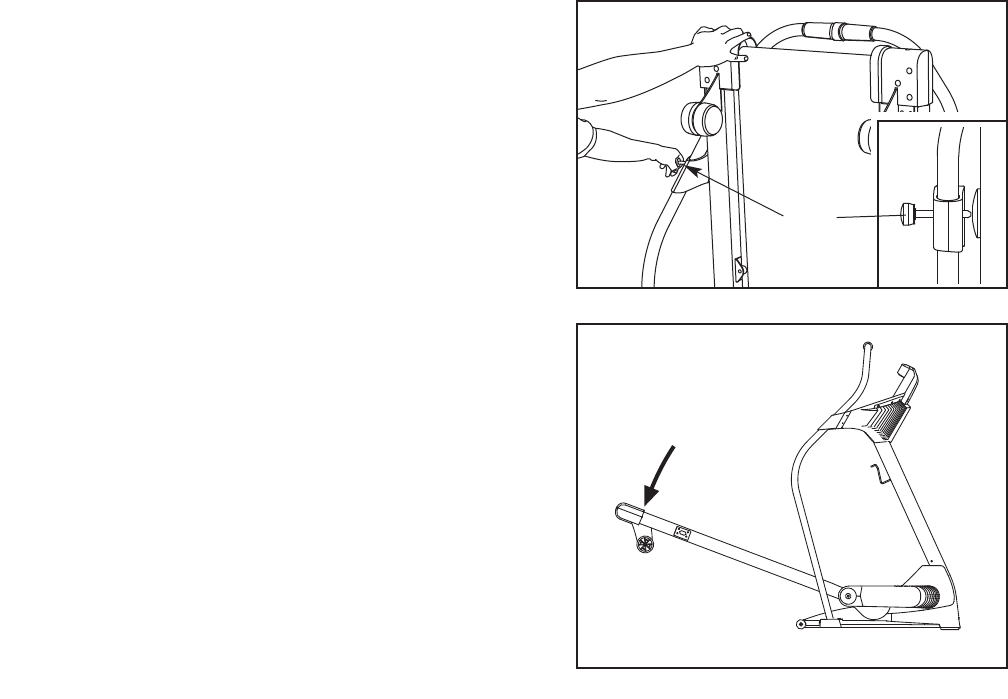

8. Fold the Incline Trainer to the storage position (see HOW

TO FOLD THE INCLINE TRAINER FOR STORAGE on

page 28).

Slide the Right Wheel Bracket (59) into the slot in the

Right Rear Endcap (57). Align the holes in the Bracket

with the holes in the Frame (43). Attach the Bracket to the

Frame with two 1” Bolts (55).

Attach the Left Wheel Bracket (not shown) in the same

way.

9. Make sure that all parts are properly tightened before you use the Incline Trainer. Keep the included

allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 31). To protect

the floor or carpet from damage, place a mat under the Incline Trainer.

7. Tighten two 3” Bolts (98) with two Washers (97) into the

bottom of the Upright Base (96) and the Handrails (67)

(only one Handrail is shown). Firmly tighten the Bolts.

With the help of a second person, carefully tip the Upright

Base (96) so it is flat on the floor. Remove the cardboard

from underneath the Upright Base. 98

2. Connect the wire on the receiver (A) to the indicated wire

extending from the console. Hold the receiver so the

small cylinder is oriented as shown and is facing the

console. Attach the receiver to the plastic posts on the

Access Door (112) with the two included small screws.

3. See step 1 on page 9. Make sure that no wires are

pinched, and reattach the Access Door (112) to the

Console Back (69) with the Access Door Screw (72).

Discard the other wires included with the receiver.

A69

Small

Cylinder

112

Wire

Small

Screws

2, 3

If you purchase the optional chest pulse sensor (see page 27), follow the steps below to install the re-

ceiver included with the chest pulse sensor.

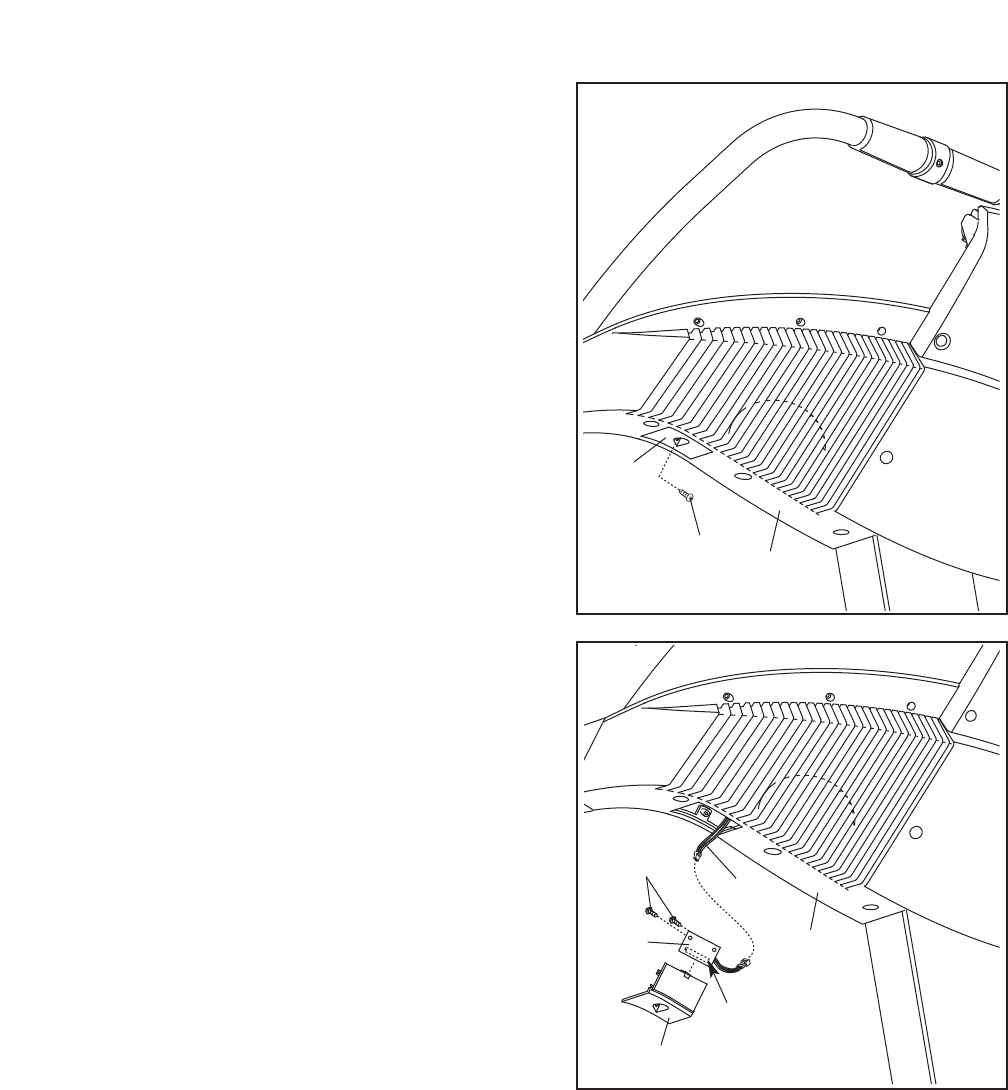

1.Make sure that the power cord is unplugged.

Look under the Console Back (69) and locate the Access

Door (112) on the indicated side of the Incline Trainer.

Remove the Access Door Screw (72) and the Access

Door.

112

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your incline trainer features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the

walking belt or the walking platform. Such sub-

stances will deteriorate the walking belt and cause

excessive wear.

HOW TO PLUG IN THE POWER CORD

Your incline trainer, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your homeʼs power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your incline trainer being damaged, always use a

surge suppressor with your incline trainer (see

drawing 1 at the right). To purchase a surge sup-

pressor, see your local PROFORM dealer or call the

toll-free telephone number on the front cover of

this manual and order part number 146148, or see

your local electronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules. The

surge suppressor must be electrically rated for 120

volts AC and 15 amps. There must be a monitoring

light on the surge suppressor to indicate whether it

is functioning properly. Failure to use a properly

functioning surge suppressor could result in dam-

age to the control system of the incline trainer. If

the control system is damaged, the walking belt

may change speed, accelerate or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The incline trainer is not compatible

with GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

FEATURES OF THE CONSOLE

The advanced console offers an impressive array of

features designed to help you get the most from your

exercise. When the manual mode of the console is se-

lected, the speed and incline of the Incline Trainer can

be changed with the touch of a button. As you exer-

cise, the console will provide continuous exercise feed-

back. You can even measure your heart rate using the

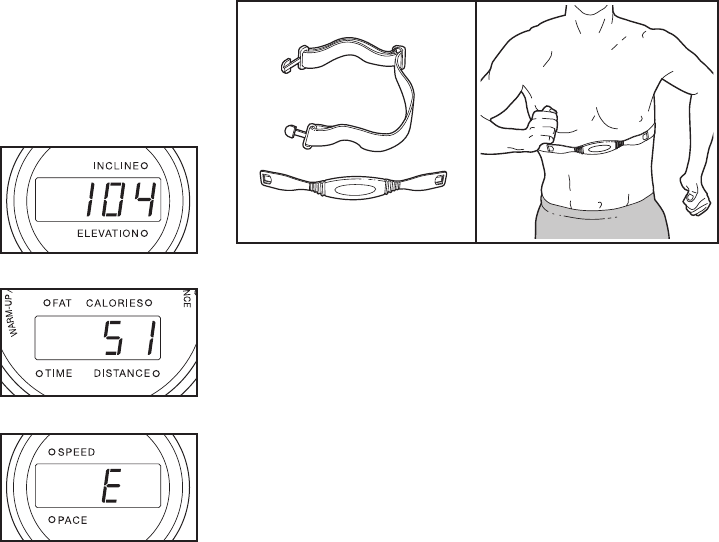

handgrip pulse sensor or the optional chest pulse sen-

sor (see page 27).

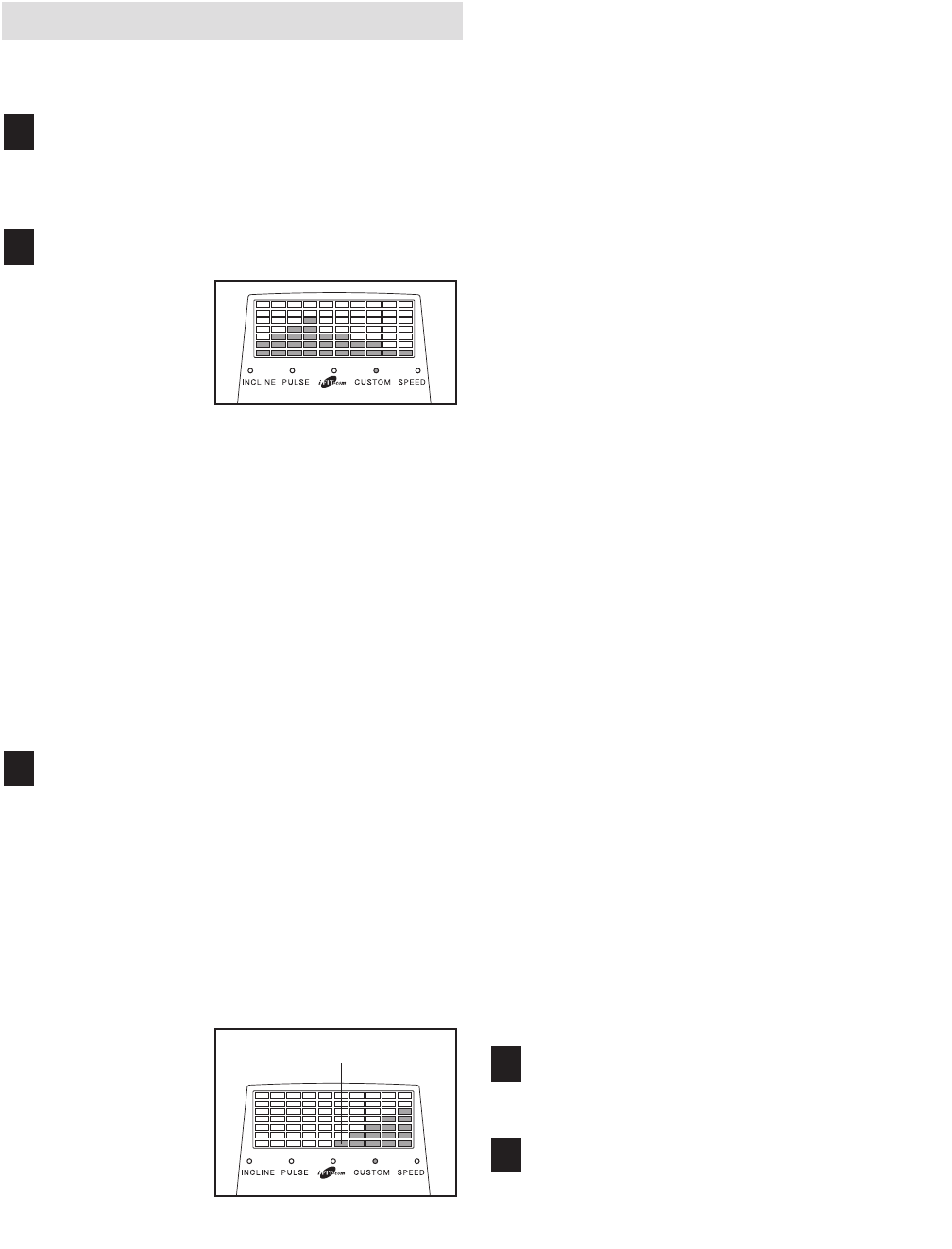

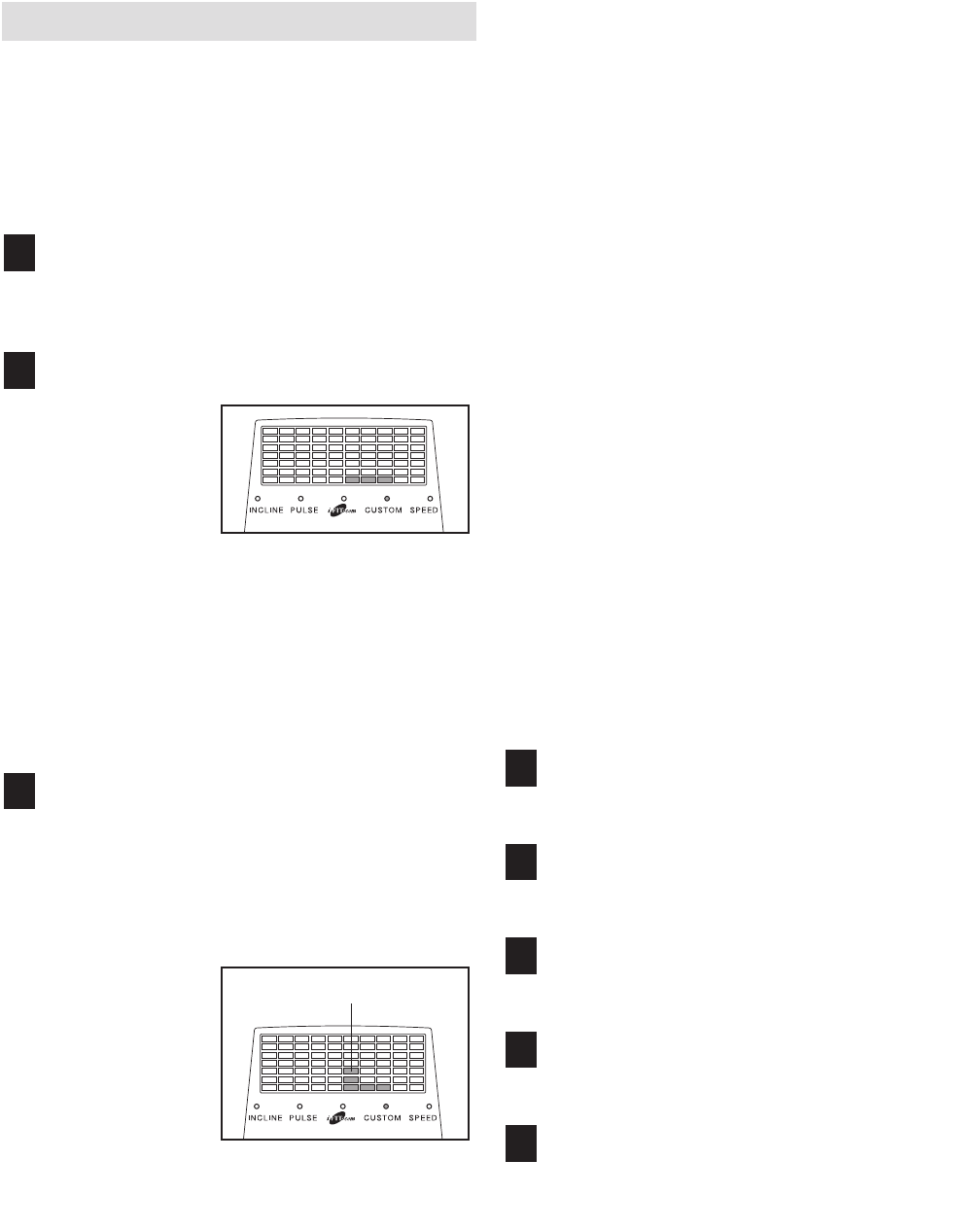

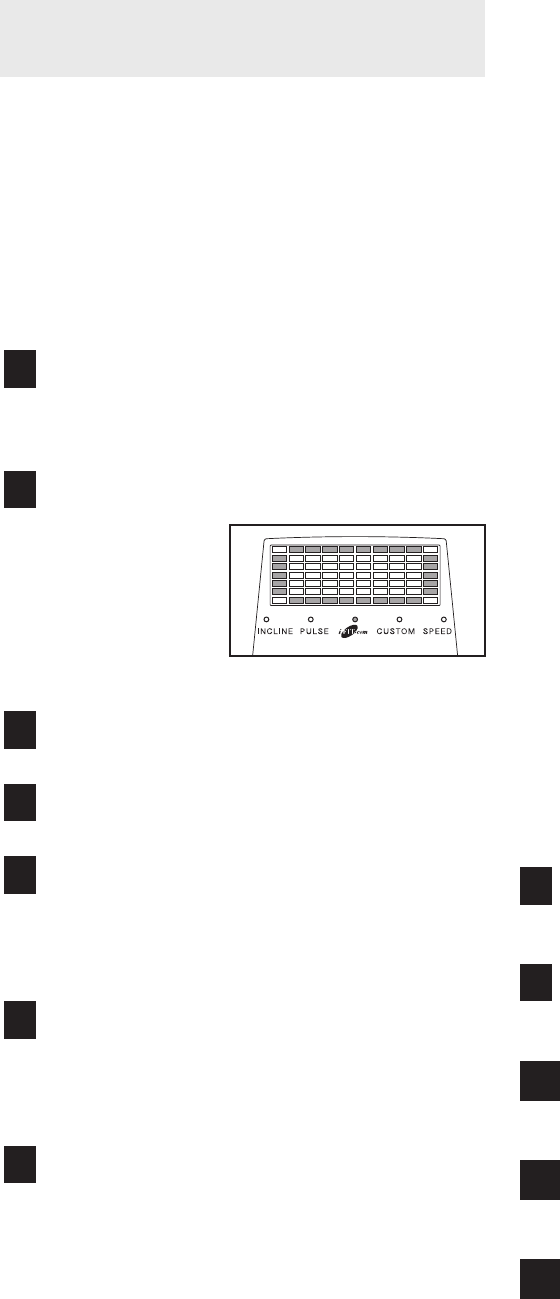

The console also offers 5 speed programs and 10 in-

cline programs. Each program automatically controls

the speed and incline of the Incline Trainer as it guides

you though an effective workout. You can even create

your own custom workout programs and store them in

memory for future use.

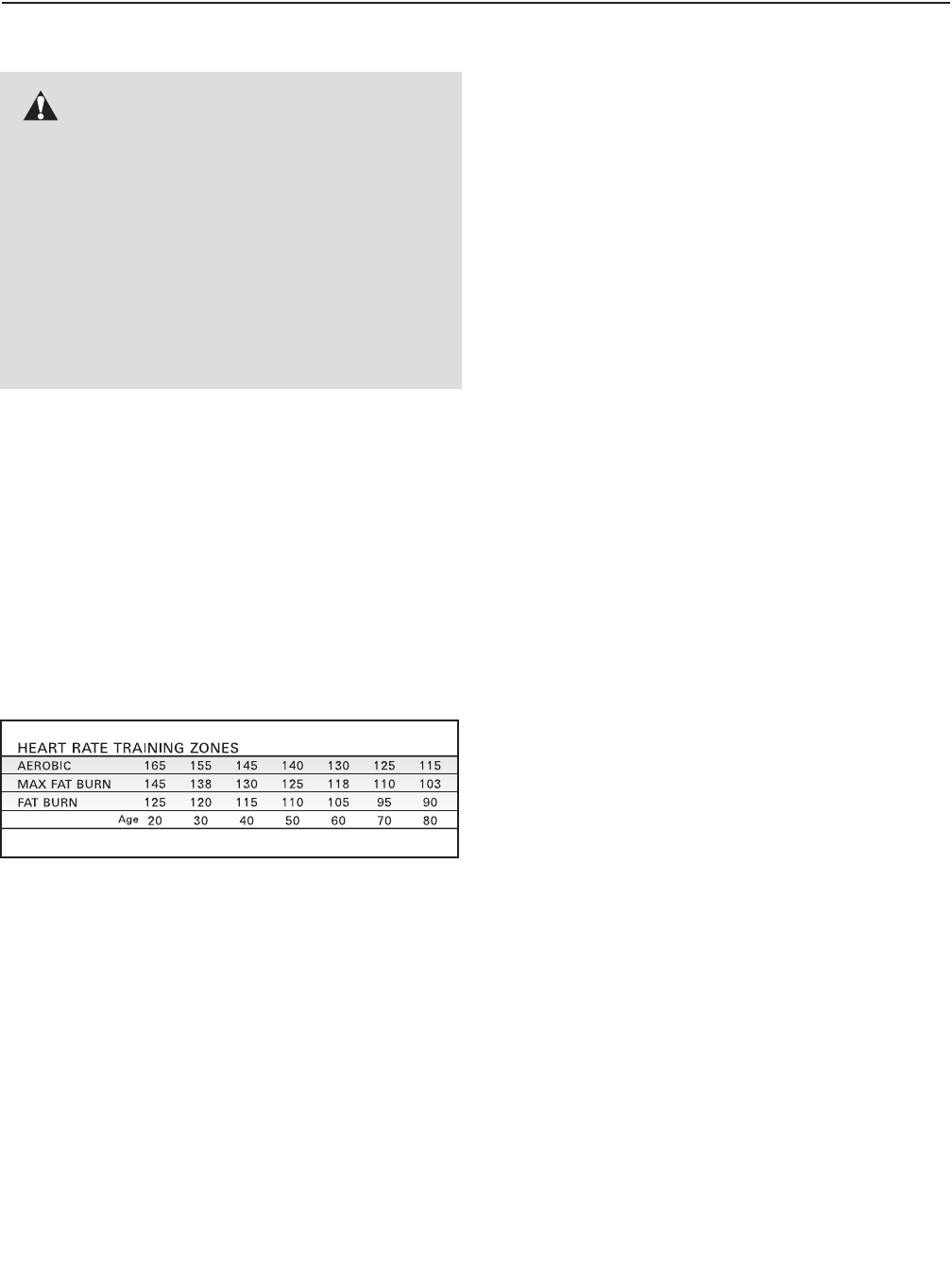

In addition, the console offers four pulse programs that

automatically adjust the speed and incline of the

Incline Trainer to keep your heart rate near a target

level while you exercise. Note: The pulse programs re-

quire the use of the optional chest pulse sensor.

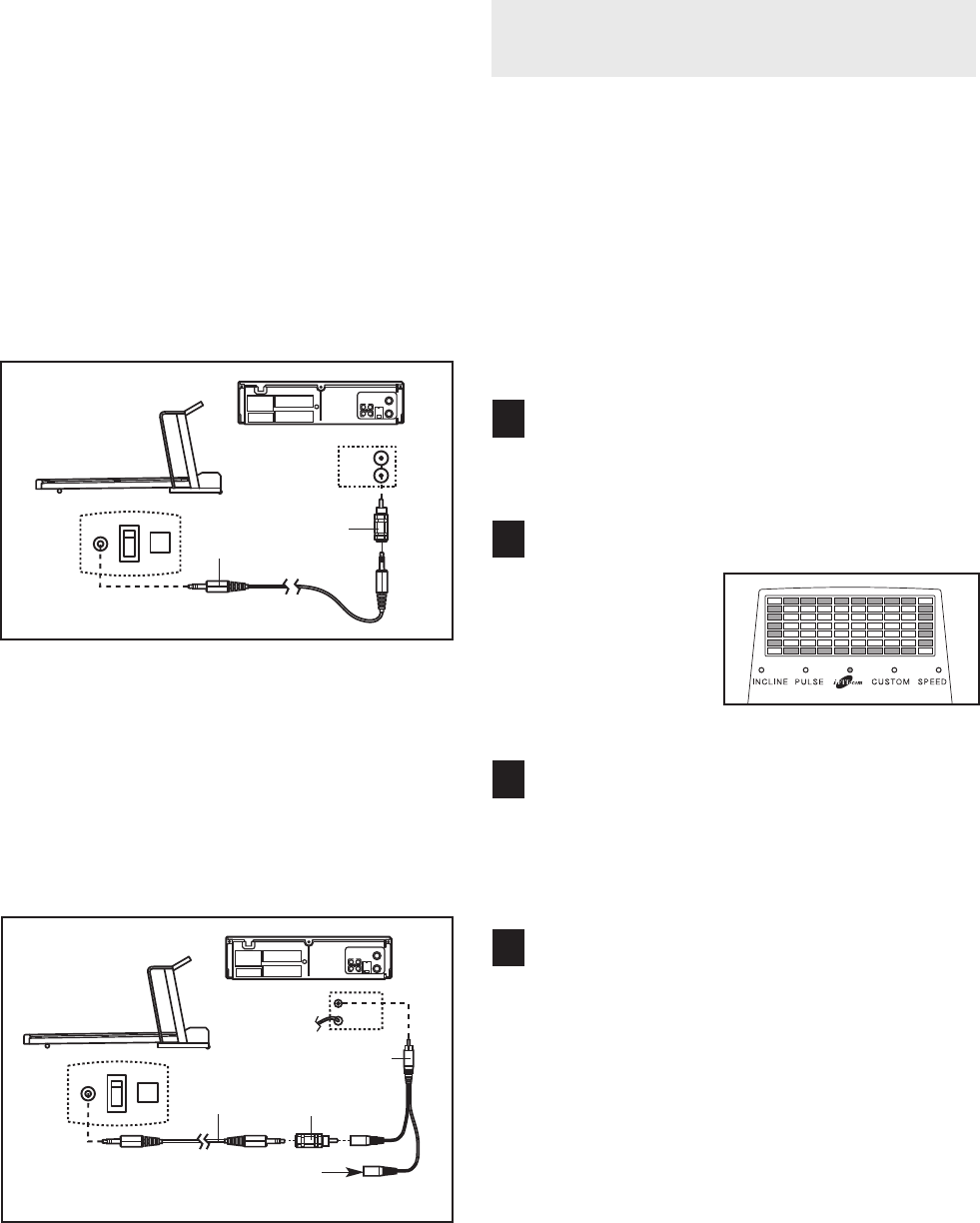

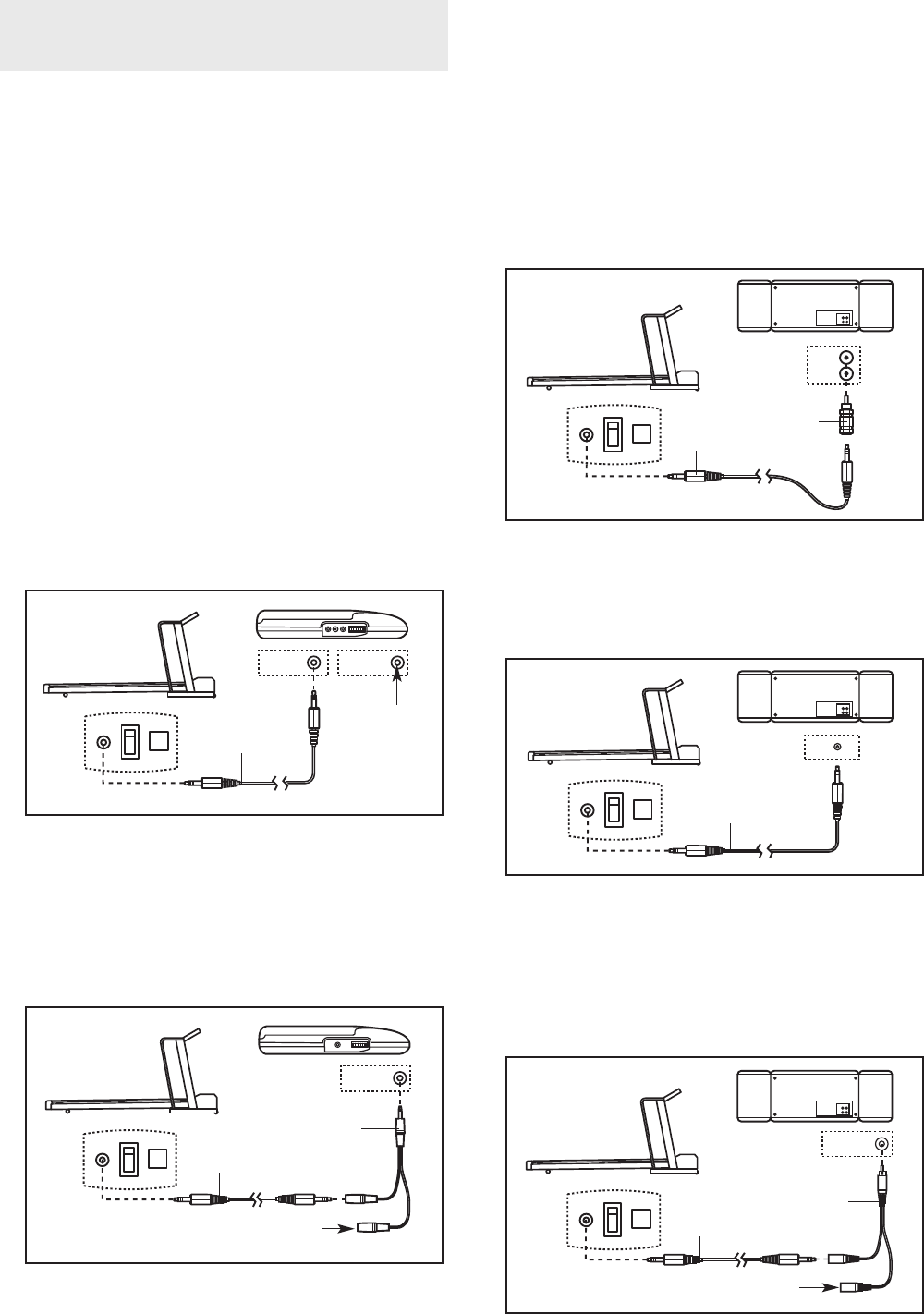

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using the included audio

cable, you can connect the Incline Trainer to your home

stereo, portable stereo, computer, or VCR and play

special iFIT.com CD and video programs (iFIT.com

CDs and videocassettes are available separately).

IFIT.com CD and video programs automatically control

the speed and incline of the Incline Trainer as a per-

sonal trainer coaches you through every step of your

workout. High-energy music provides added motivation.

To purchase iFIT.com CDs or videocassettes, call

the toll-free telephone number on the front cover

of this manual.

With the Incline Trainer connected to your computer,

you can also go to our Web site at www.iFIT.com and

access iFIT.com programs directly from the internet.

See www.iFIT.com for more information.

To use the manual mode of the console, follow the

steps beginning on page 13. To use a speed program

or an incline program, see page 16. To create and

use a custom program, see pages 18 and 19. To use

a pulse program, see page 20. To use an iFIT.com

CD or video program, see page 24. To use an

iFIT.com program directly from our Web site, see

page 26.

Note: During the first few minutes that the Incline

Trainer is used, observe the alignment of the walking

belt, and align it if necessary (see page 31).

Note: If there are sheets of

clear plastic on the console,

remove the plastic.

Clip

Key

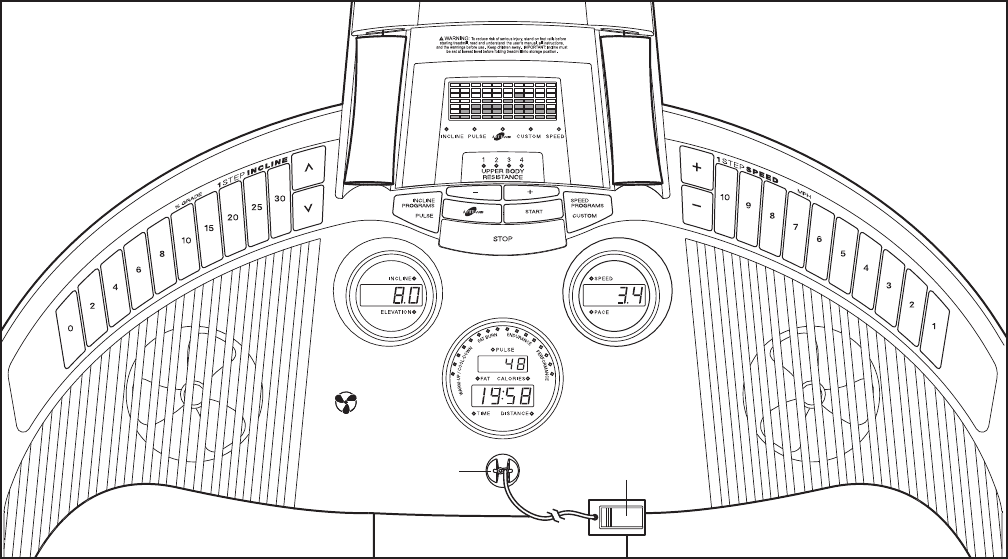

CONSOLE DIAGRAM

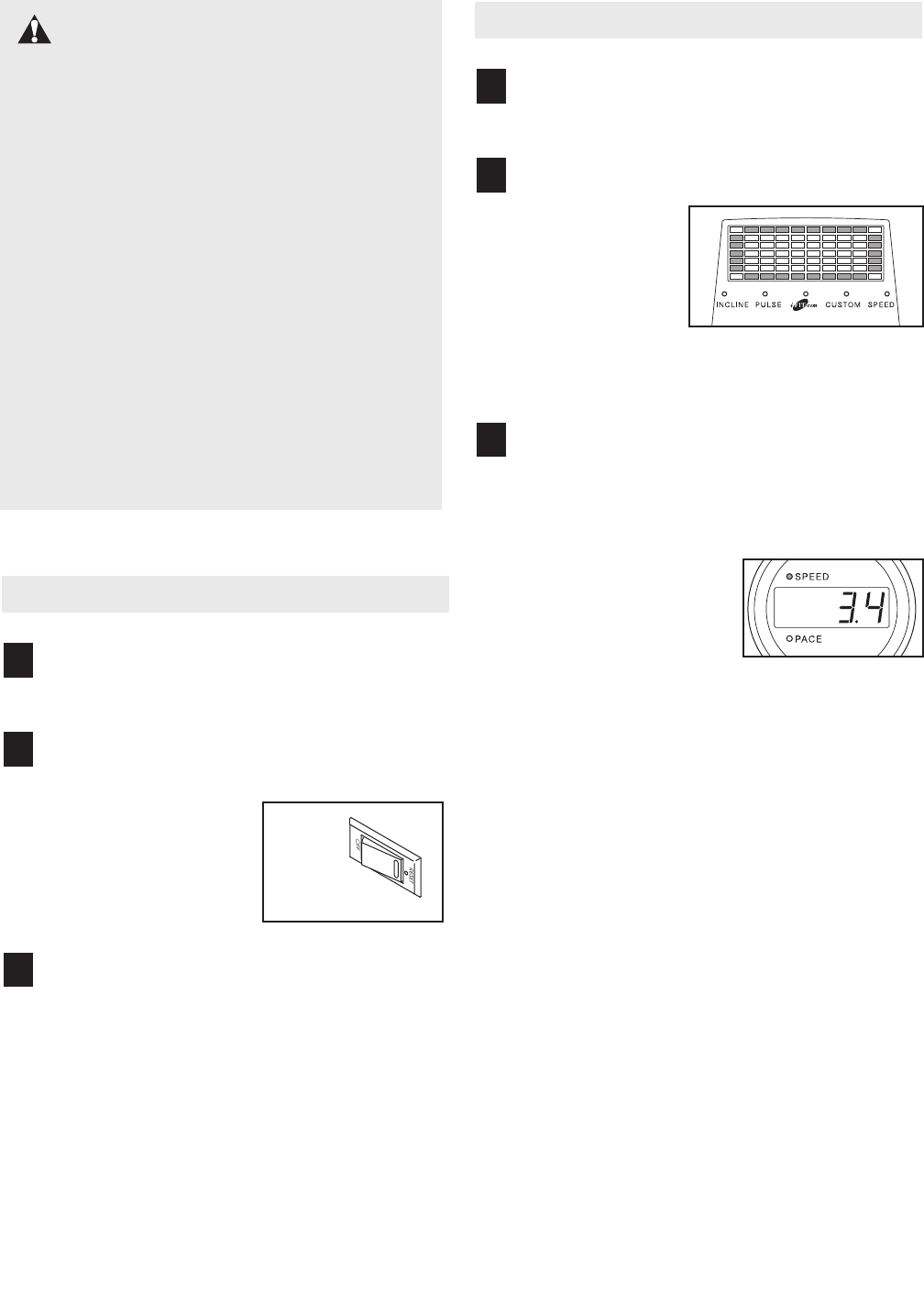

HOW TO TURN ON THE POWER

Plug in the power cord.

See page 11.

Move the reset/off circuit breaker to the reset

position.

Locate the reset/off cir-

cuit breaker on the

Incline Trainer near the

power cord. Make sure

that the circuit breaker

is in the reset position.

Attach the clip to the waistband of your clothes.

Stand on the foot rails of the Incline Trainer. Find

the clip attached to the key (see the drawing on

page 12), and slide the clip securely onto the

waistband of your clothes. Next, insert the key into

the console. Test the clip by carefully taking a

few steps backward until the key is pulled

from the console. If the key is not pulled from

the console, adjust the position of the clip as

needed. Then, remove the key from the console.

HOW TO USE THE MANUAL MODE

Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

Select the manual mode.

When the key is

inserted, the man-

ual mode will be

selected. If a pro-

gram has been se-

lected, press the

iFIT.com button

once or twice until a track appears in the matrix but

the iFIT.com indicator is not lit.

Start the walking belt.

To start the walking belt, press the Start button,

the Speed + button, or one of the 1-Step Speed

buttons.

If the Start button or the

Speed + button is

pressed, the walking belt

will begin to move at 1

mph. As you exercise,

change the speed of the

walking belt as desired by pressing the Speed +

and – buttons. Each time a button is pressed, the

speed setting will change by 0.1 mph; if a button

is held down, the speed setting will change in in-

crements of 0.5 mph.

If one of the 1-Step Speed buttons is pressed, the

walking belt will gradually increase in speed until it

reaches the selected speed setting. Note: It may

take a few seconds for the walking belt to reach

the selected speed setting. The Incline Trainer is

designed so that the walking belt cannot move

at high speed while the Incline Trainer is at a

high incline level. Therefore, when you in-

crease the speed, the incline may automatically

decrease.

To stop the walking belt, press the Stop button.

The time will begin to flash in the Time/Distance

display. To restart the walking belt, press the Start

button, the Speed + button, or one of the 1-Step

Speed buttons.

Note: Before the Incline Trainer is used, a

short break-in period is required. Adjust the

speed to 10 mph, let the Incline Trainer run for ten

minutes, and then press the stop button.

CAUTION: Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

•Always wear the clip (see the drawing on

page 12) while operating the Incline Trainer.

• Adjust the speed in small increments to

avoid sudden jumps in speed.

• The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console.

Reset

Position

Change the incline of the Incline Trainer as

desired.

To change the incline of

the Incline Trainer,

press the Incline in-

crease and decrease

buttons. Each time a

button is pressed, the

incline will change by 0.5%. To change the incline

setting quickly, press the 1-step Incline buttons.

Note: It may take a few seconds for the Incline

Trainer to reach the selected incline setting. The

Incline Trainer is designed so that it cannot be

adjusted to a high incline level while the walk-

ing belt is moving at high speed. Therefore,

when you increase the incline, the speed may

automatically decrease.

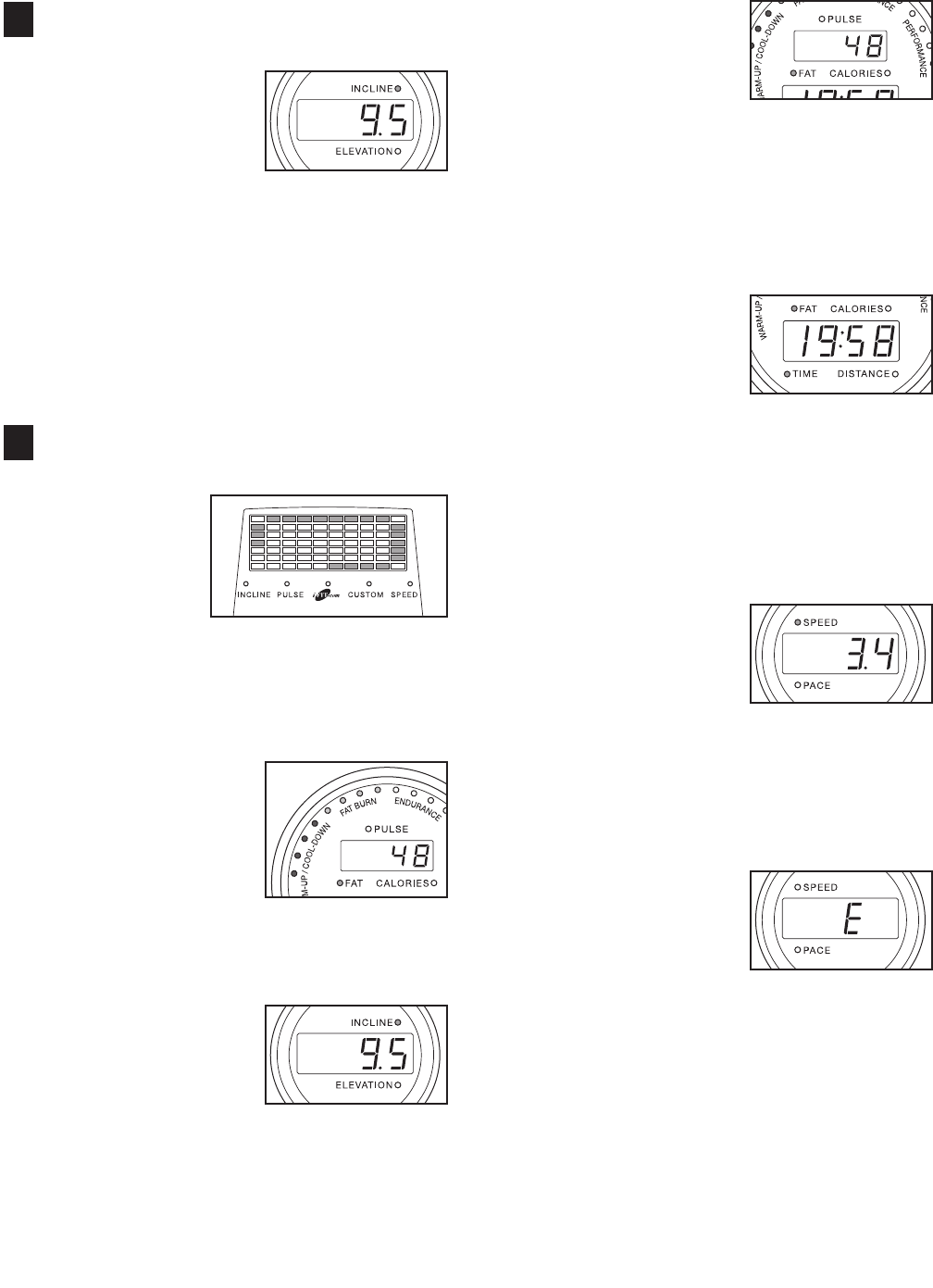

Follow your progress with the matrix and the

displays.

The matrix—

When the manual

mode or the

iFIT.com mode is

selected, the ma-

trix will display a

track representing

1/4 mile. As you exercise, the indicators around the

track will light in succession until the entire track is

lit. The track will then darken and the indicators

will again begin to light in succession.

The Training Zone

display—As you exer-

cise, the Training Zone

display will show the

approximate intensity

level of your exercise.

For example, if five to

eight indicators are lit,

the Training zone display shows that your intensity

level is ideal for fat burning.

Incline/Elevation

display—This display

shows the incline level

of the Incline Trainer

and the number of verti-

cal feet you have

climbed. The display will alternate between one

value and the other every few seconds, as shown

by the indicators above and below the display.

Note: Each time the incline level changes, the dis-

play will show the incline level.

Fat Calories/Calories/

Pulse display—This

display shows the ap-

proximate numbers of

fat calories and calories

you have burned (see

FAT BURNING on page 33). The display will alter-

nate between one value and the other every few

seconds, as shown by the indicators below the dis-

play. The display will also show your heart rate

when you use the handgrip pulse sensor or the

optional chest pulse sensor.

Time/Distance

display—When the

manual mode or the

iFIT.com mode is se-

lected, this display will

show the elapsed time

and the distance that you have walked or run.

When a program is selected, the display will show

the time remaining in the program and the dis-

tance that you have walked or run. The display will

alternate between one value and the other every

few seconds, as shown by the indicators below the

display.

Speed/Pace display—

This display shows the

speed of the walking belt

and your walking or run-

ning pace, in minutes

per mile. The display will

alternate between one value and the other every

few seconds, as shown by the indicators above

and below the display. Note: Each time the incline

level changes, the display will show the incline

level.

Note: The console can

display speed and dis-

tance in either miles or

kilometers. The word

“METRIC” will light below

the Time/Distance dis-

play when speed and distance are displayed in kilo-

meters. To change the unit of measurement, first

hold down the Stop button while inserting the key

into the console. An “E” for English miles or an “M”

for metric kilometers will appear in the Speed/Pace

display. Press the Speed + button to change the

unit of measurement. When the desired unit of

measurement is selected, remove the key and

then reinsert it. Note: For simplicity, all instruc-

tions in this manual refer to miles.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

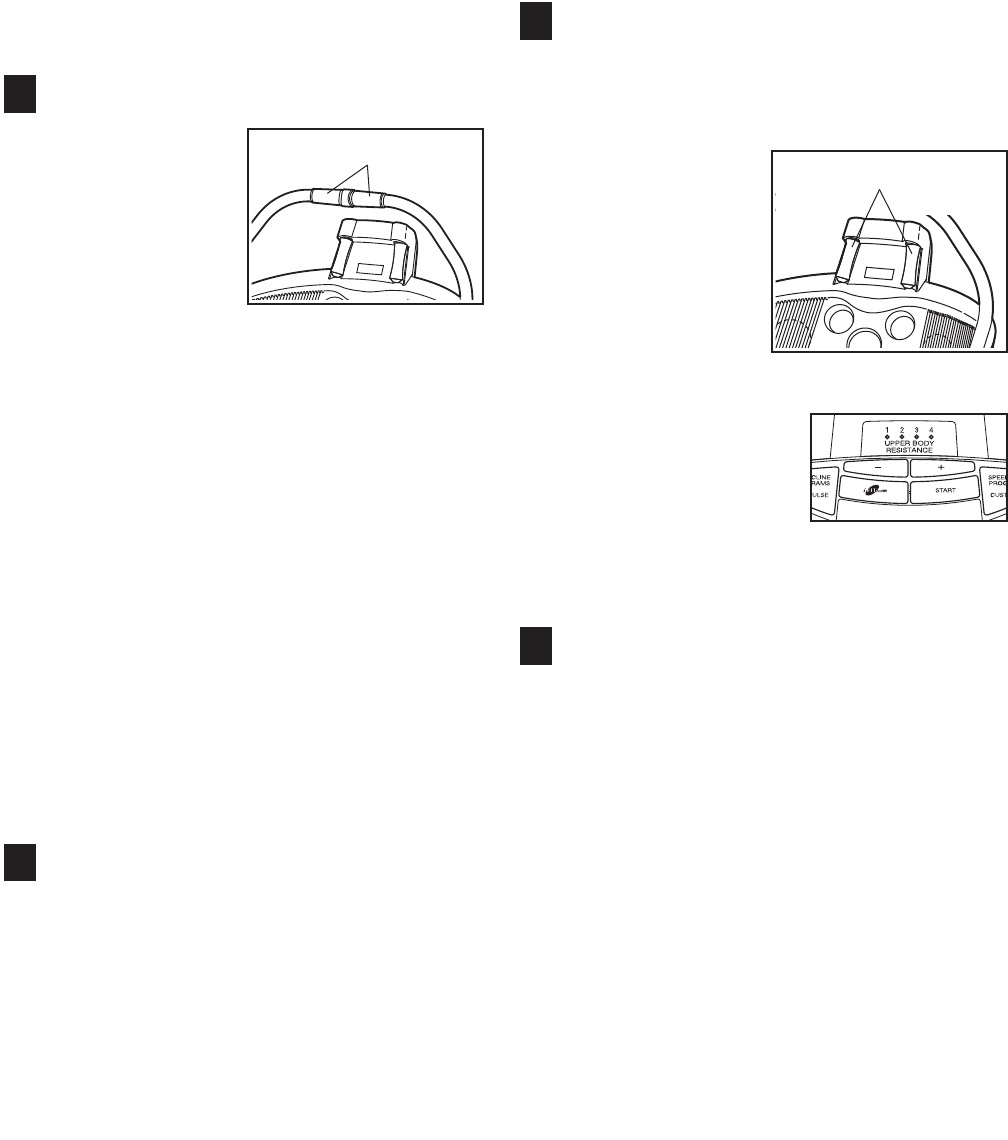

Measure your heart rate if desired.

To use the op-

tional chest pulse

sensor, see the in-

structions included

with the chest

pulse sensor. To

use the handgrip

pulse sensor, see

the instructions

below. Note: If there are sheets of clear plastic on

the metal contacts on the handgrip pulse sensor,

remove the plastic. If you use the optional chest

pulse sensor and the handgrip pulse sensor at the

same time, the console will not display your heart

rate accurately.

To measure your heart rate, stand on the foot

rails and place your hands on the metal contacts

on the handgrip pulse sensor. Your palms must be

resting on the contacts closest to you, and your

fingers must be touching the contacts on the op-

posite side of the handgrip pulse sensor—avoid

moving your hands. When your pulse is detected,

the Pulse indicator above the Fat Calories/

Calories/Pulse display will light, one or two dashes

(– –) will appear in the display, and then your

heart rate will be shown. For the most accurate

heart rate reading, continue to hold the con-

tacts for about 15 seconds.

Turn on the fans if desired.

To turn on the fans at low speed, press the button

near the left fan. To turn on the fans at high

speed, press the button a second time. To turn off

the fans, press the button a third time. Note: Any

time that the walking belt is stopped for a few min-

utes, the fans will automatically turn off.

Use the upper body handles if desired.

CAUTION: Do not use the upper body handles

until you are comfortable using the Incline

Trainer without the upper body handles.

To use the upper

body handles, hold

one handle in each

hand, and pull the

handles as you

swing your arms

naturally at your

sides. Practice this

motion until it feels

comfortable.

To increase or decrease

the resistance of the

upper body handles,

press the + and – but-

tons below the matrix.

Indicators above the but-

tons will light to show which of the four resistance

levels is selected.

When you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the Incline Trainer to the lowest

level. The incline must be at the lowest level

when the Incline Trainer is raised to the stor-

age position or the Incline Trainer will be dam-

aged. Next, remove the key from the console and

put it in a secure place. Note: If the displays and

indicators on the console remain lit after the

key is removed, the console is in the “demo”

mode. See page 27 and turn off the demo

mode.

When you are finished using the Incline

Trainer, switch the reset/off circuit breaker to

the off position and unplug the power cord.

Metal Contacts

Upper Body Handles

HOW TO USE A SPEED PROGRAM OR AN

INCLINE PROGRAM

The console offers 5 speed programs and 10 incline

programs. All 15 programs automatically control the

speed and the incline of the Incline Trainer as they

guide you through effective workouts. Speed programs

regulate the intensity of your exercise primarily by

varying the speed of the walking belt, although they

also vary the incline; incline programs primarily vary

the incline, although they also vary the speed.

Follow the steps below to use a speed program or an

incline program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

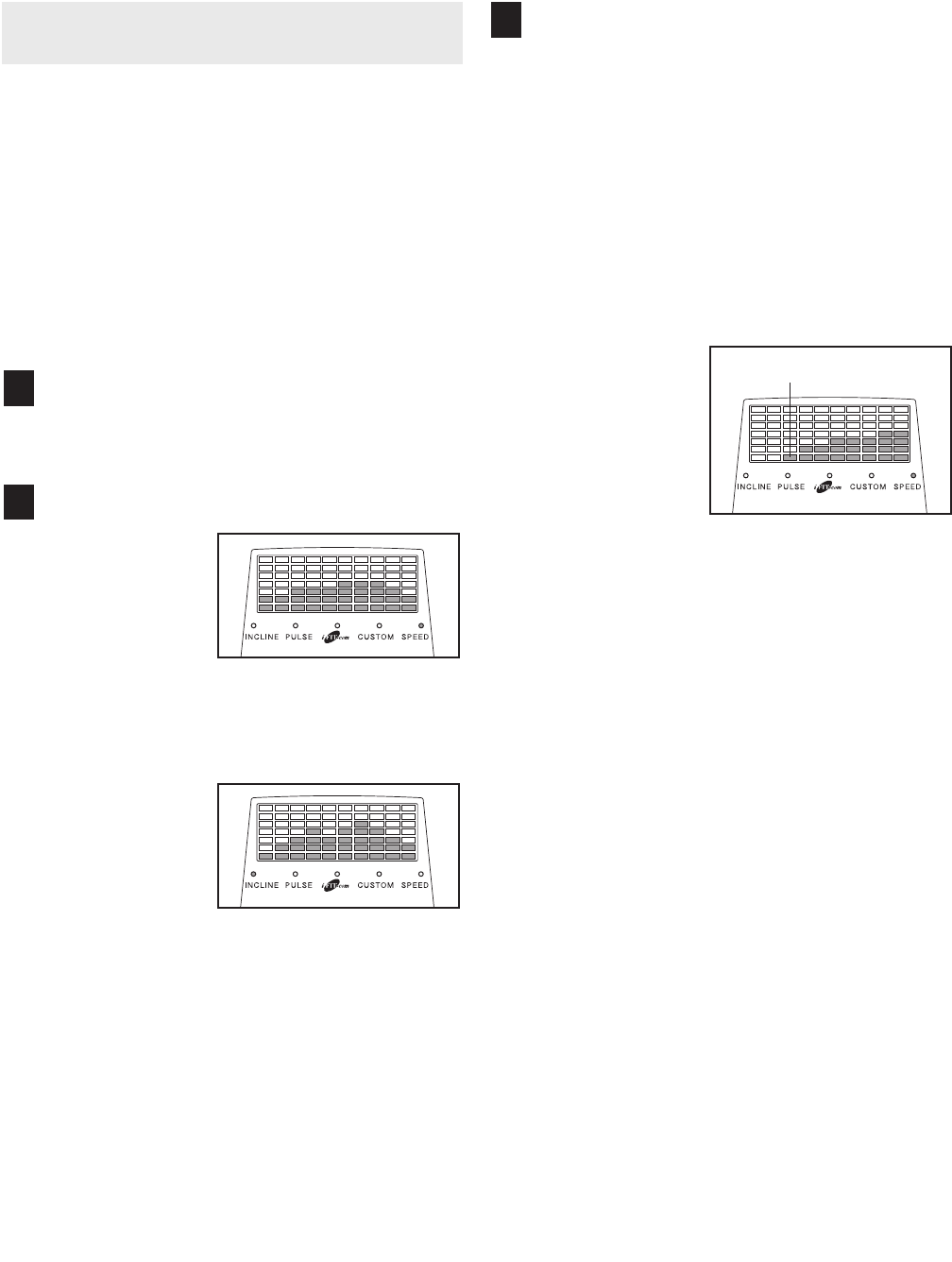

Select a speed program or an incline program.

To select a

speed program,

press the Speed

Programs/

Custom button re-

peatedly. As each

speed program is

selected, the Speed indicator will light and a profile

of the speed settings of the selected program will

scroll across the matrix.

To select an in-

cline program,

press the Incline

Programs/Pulse

button repeatedly.

As each incline

program is se-

lected, the Incline indicator will light and a profile of

the incline settings of the selected program will

scroll across the matrix.

For a few seconds after a speed program or an in-

cline program is selected, the maximum speed

setting for the program will flash in the Speed/

Pace display, and the maximum incline setting for

the program will flash in the Incline/Elevation dis-

play. The Time/Distance display will show how

long the program will last.

Press the Start button or the Speed + button to

start the program.

Amoment after the button is pressed, the Incline

Trainer will automatically adjust to the first speed

and incline settings for the program. Hold the

handrails and begin walking.

Each program is divided into one-minute seg-

ments. One speed setting and one incline setting

are programmed for each segment. Note: The

same speed setting and/or incline setting may be

programmed for two or more consecutive seg-

ments.

If a speed pro-

gram is selected,

the speed setting

for the first seg-

ment will be

shown in the flash-

ing Current

Segment column

of the matrix. (The

incline settings will not be shown in the matrix.)

The speed settings for the next seven segments

will be shown in the columns to the right. If an in-

cline program is selected, the incline setting for

the first segment will be shown in the flashing

Current Segment column of the matrix. (The

speed settings will not be shown in the matrix.)

The incline settings for the next seven segments

will be shown in the columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. If the speed and/or in-

cline of the Incline Trainer is about to change, the

Speed/Pace display and/or the Incline/Elevation

display will flash to alert you. When the first seg-

ment ends, all speed settings or incline settings

will move one column to the left. The setting for the

second segment will then be shown in the flashing

Current Segment column and the Incline Trainer

will automatically adjust to the speed and incline

settings for the second segment. Note: If all of the

indicators in the Current Segment column are lit

after the settings have moved to the left, all set-

tings will move downward so that only the highest

lit indicators appear in the matrix. If some of the in-

dicators in the Current Segment column are not lit

when the settings move to the left again, all set-

tings will move back up.

1Current Segment

The program will continue until the setting for the

last segment is shown in the Current Segment

column and the last segment ends. The walking

belt will then slow to a stop.

If the speed or incline setting is too high or too low

at any time during the program, you can manually

override the setting by pressing the Speed or

Incline buttons. However, when the next seg-

ment begins, the speed and/or incline will auto-

matically change if a different setting is pro-

grammed for the next segment.

To stop the program temporarily, press the Stop

button. The time will begin to flash in the

Time/Distance display. To restart the program,

press the Start button or the Speed + button. The

walking belt will begin to move at 1 mph. When the

next segment of the program begins, the Incline

Trainer will automatically adjust to the speed and

incline settings for the next segment. To end the

program, press the Stop button, remove the key,

and then reinsert the key.

Follow your progress with the displays.

See step 5 on page 14.

Measure your heart rate if desired.

See step 6 on page 15.

Turn on the fans if desired.

See step 7 on page 15.

Use the upper body handles if desired.

See step 8 on page 15.

When you are finished exercising, remove the

key.

Step onto the foot rails and make sure that the in-

cline of the Incline Trainer is at the lowest level.

The incline must be at the lowest level when

the Incline Trainer is raised to the storage posi-

tion. Next, remove the key from the console and

put it in a secure place. Note: If the displays and

indicators on the console remain lit after the

key is removed, the console is in the “demo”

mode. See page 27 and turn off the demo

mode.

When you are finished using the Incline

Trainer, switch the reset/off circuit breaker to

the off position and unplug the power cord.

HOW TO CREATE A CUSTOM PROGRAM

If desired, you can create your own custom workout

programs and store them in memory for future use. Up

to four different programs can be stored at the same

time.

Follow the steps below to create a custom program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

Select one of the custom programs.

To select a cus-

tom program,

press the Speed

Programs/

Custom button re-

peatedly. As each

custom program is

selected, the Custom indicator will light and a profile

of the speed settings of the selected program will

scroll across the matrix. Note: If the custom pro-

gram has not yet been defined, only three

columns of indicators will be lit in the matrix. If

more than three columns of indicators are lit,

see HOW TO USE A CUSTOM PROGRAM on

page 19.

Press the Start button or the Speed + button

and program the desired speed and incline

settings.

A moment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

See the matrix.

Each custom pro-

gram is divided

into one-minute

segments. One

speed setting and

one incline set-

ting can be pro-

grammed for

each segment. The speed setting for the first seg-

ment will be shown in the flashing Current

Segment column of the matrix. (The incline set-

tings will not be shown in the matrix.) To program

a speed setting and an incline setting for the first

segment, simply adjust the speed and incline of

the Incline Trainer as desired by pressing the

Speed and Incline buttons. Every few times a

Speed button is pressed, an additional indicator

will light or darken in the Current Segment column.

During the last three seconds of the first segment,

both the Current Segment column and the column

to the right will flash, a series of tones will sound,

and the Speed/Pace display and the Incline/

Elevation display will flash. When the first segment

ends, the current speed setting and the current in-

cline setting will be saved in memory, and all

speed settings in the matrix will move one column

to the left. The speed setting for the second seg-

ment will then be shown in the flashing Current

Segment column. Program a speed setting and an

incline setting for the second segment as de-

scribed above.

Continue programming speed and incline settings

for as many segments as desired; custom pro-

grams can have up to forty segments. When you

are finished with your workout, press the Stop but-

ton twice. The speed and incline settings that you

have programmed and the number of segments

that you have programmed will then be saved in

memory.

Follow your progress with the displays.

See step 5 on page 14.

Measure your heart rate if desired.

See step 6 on page 15.

Turn on the fans if desired.

See step 7 on page 15.

Use the upper body handles if desired.

See step 8 on page 15.

When you are finished exercising, remove the

key.

See step 8 on page 17.

Current Segment

HOW TO USE A CUSTOM PROGRAM

Follow the steps below to use a custom program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

Select one of the custom programs.

To select a cus-

tom program,

press the Speed

Programs/

Custom button re-

peatedly. As each

custom program is

selected, the Custom indicator will light and a profile

of the speed settings of the selected program will

scroll across the matrix. Note: If only three

columns of indicators are lit in the matrix, see

HOW TO CREATE A CUSTOM PROGRAM on

page 18.

For a few seconds after a custom program is se-

lected, the maximum speed setting for the pro-

gram will flash in the Speed/Pace display, and the

maximum incline setting for the program will flash

in the Incline/Elevation display. The Time/Distance

display will show how long the program will last.

Press the Start button or the Speed + button to

start the program.

A moment after the button is pressed, the Incline

Trainer will automatically adjust to the first speed

and incline settings that you programmed previ-

ously. Hold the handrails and begin walking.

Each program is divided into several one-minute

segments. One speed setting and one incline set-

ting are programmed for each segment.

The speed setting

for the first seg-

ment will be

shown in the

flashing Current

Segment column

of the matrix.

(The incline set-

tings are not

shown in the matrix.) The speed settings for the

next several segments will be shown in the

columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

tone will sound. If the speed and/or incline of the

Incline Trainer is about to change, the

Speed/Pace display and/or the Incline/Elevation

display will flash to alert you, and three tones will

sound. When the first segment ends, all speed

settings will move one column to the left. The

speed setting for the second segment will then be

shown in the flashing Current Segment column

and the Incline Trainer will automatically adjust to

the speed and incline settings for the second seg-

ment.

The program will continue until the speed setting

for the last segment is shown in the Current

Segment column and the last segment ends. The

walking belt will then slow to a stop.

If desired, you can redefine the program while

using it. To change the speed or incline setting

for the current segment, simply press the Speed

or Incline buttons. When the current segment ends,

the new setting will be saved in memory. To in-

crease the length of the program, first wait until

the program ends. Then, press the Start button and

program speed and incline settings for as many ad-

ditional segments as desired. When you have

added as many segments as desired, press the

Stop button twice. To decrease the length of the

program, press the Stop button twice at any time

before the program ends.

To stop the program at any time, press the Stop

button. The time will begin to flash in the

Time/Distance display. To restart the program,

press the Start button or the Speed + button. The

walking belt will begin to move at 1 mph. When the

next segment of the program begins, the Incline

Trainer will automatically adjust to the speed and

incline settings for the next segment.

Follow your progress with the displays.

See step 5 on page 14.

Measure your heart rate if desired.

See step 6 on page 15.

Current Segment

Turn on the fans if desired.

See step 7 on page 15.

Use the upper body handles if desired.

See step 8 on page 15.

When you are finished exercising, remove the

key.

See step 8 on page 17.

HOW TO USE A PULSE PROGRAM

The four pulse programs automatically adjust the

speed and incline of the Incline Trainer to keep your

heart rate near a target level while you exercise.

Follow the steps below to use a pulse program.

Put on the optional chest pulse sensor.

See the instructions included with the chest pulse

sensor.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

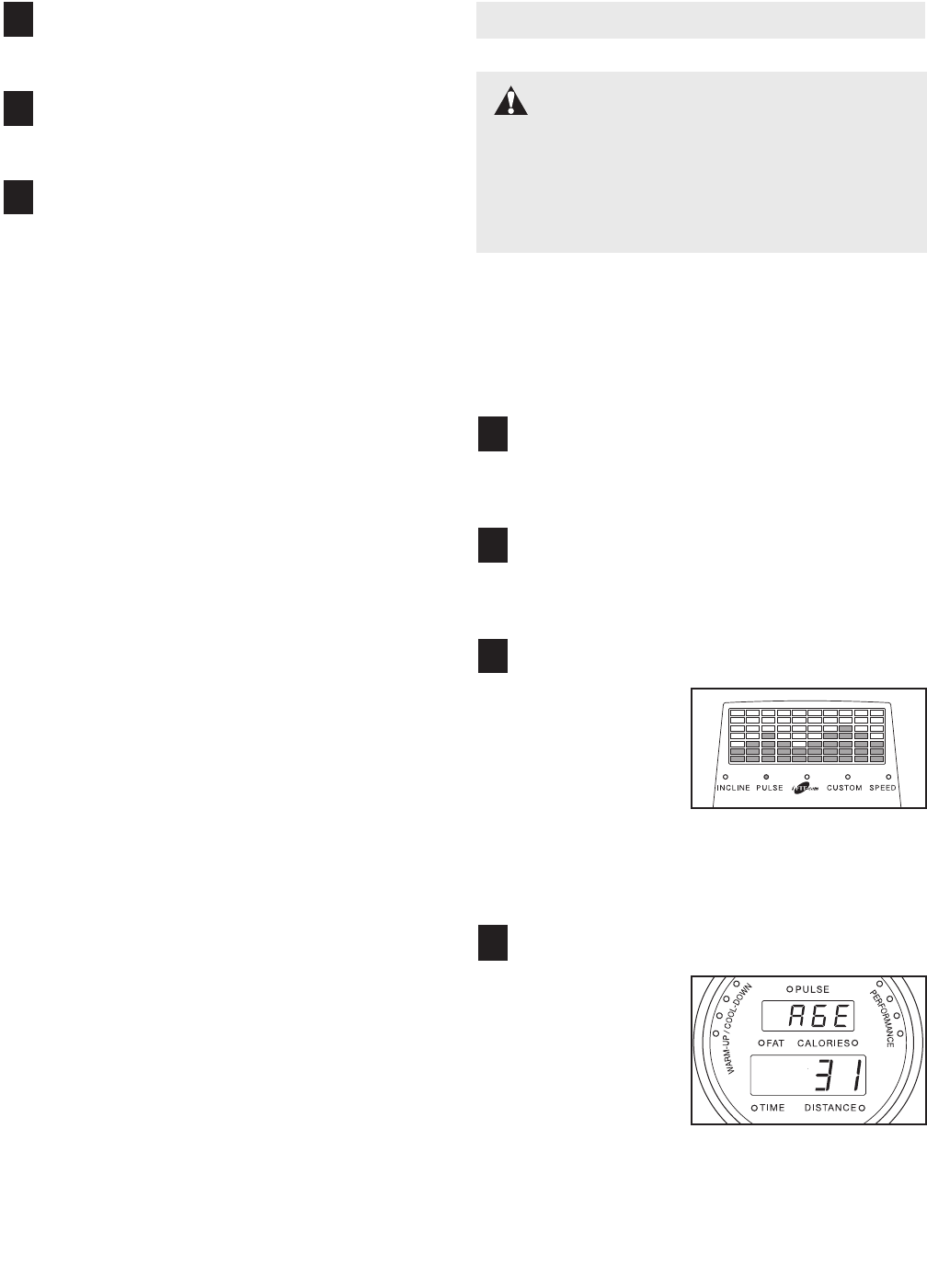

Select a pulse program.

To select a pulse

program, press

the Incline

Programs/Pulse

button repeatedly.

As each pulse pro-

gram is selected,

the Pulse indicator will light and a profile of the heart

rate settings of the selected program will scroll

across the matrix.

Enter your age.

When a pulse pro-

gram is selected,

the word “AGE”

will appear in the

Fat Calories/

Calories/Pulse dis-

play and the cur-

rent age setting

will begin to flash in the Time/Distance display. If

you have already entered your age, simply press

the Start button (the program will not start at this

time). If you have not entered your age, press the

+ and – buttons below the matrix to enter your

age, and then press the Start button.

CAUTION: If you have heart prob-

lems, or if you are over 60 years of age and

have been inactive, do not use the pulse pro-

grams. If you are taking medication regularly,

consult your physician to find whether the

medication will affect your exercise heart rate.

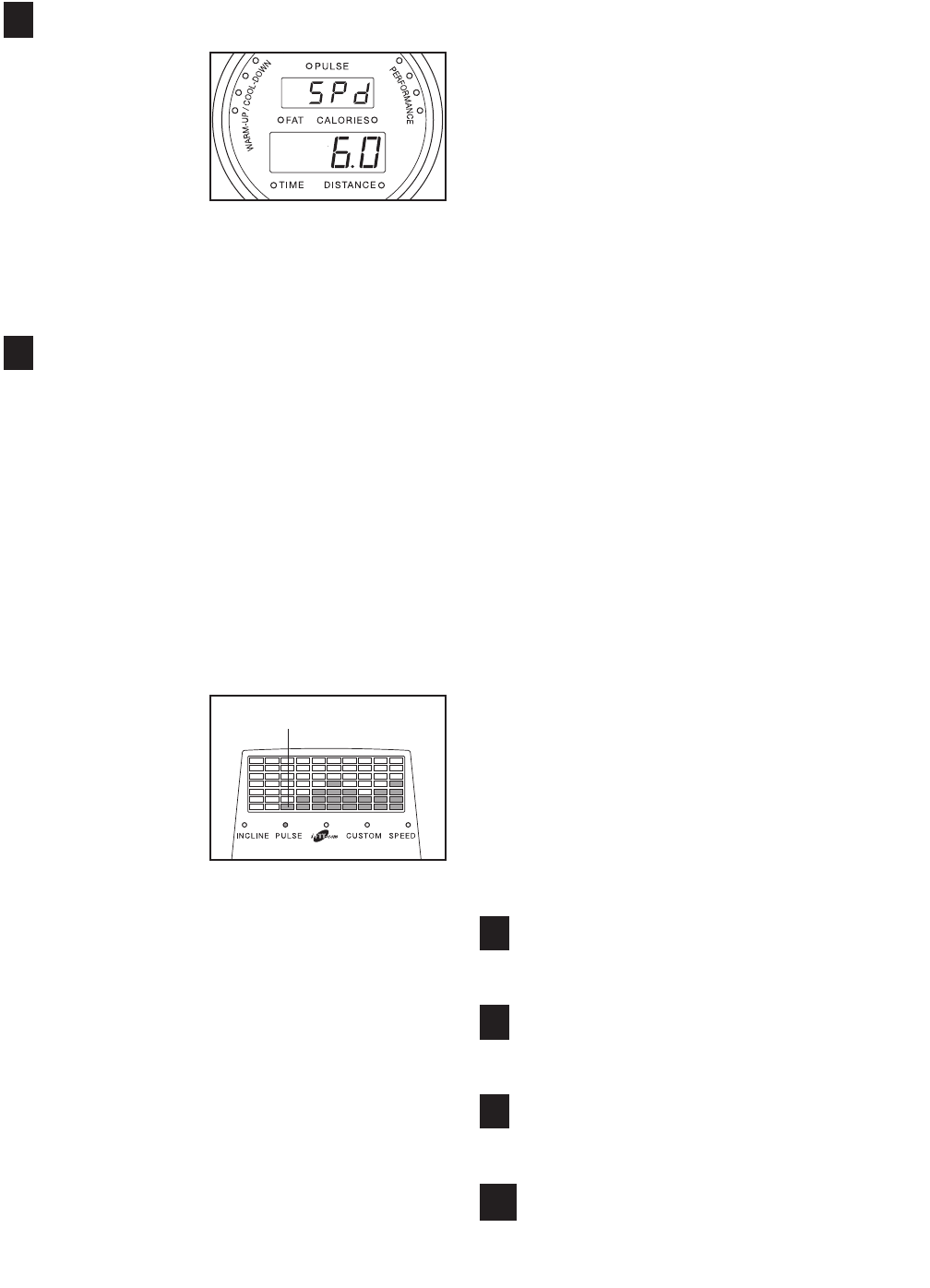

Enter a maximum speed setting.

After you have

entered your age,

the letters “SPd”

will appear in the

Fat Calories/

Calories/Pulse

display and the

maximum speed

setting of the program will begin to flash in the

Time/Distance display. If desired, press the + and

– buttons below the matrix to change the maxi-

mum speed setting.

Press the Start button or the Speed + button to

start the program.

A moment after the button is pressed, the Incline

Trainer will automatically adjust to the first speed

and incline settings for the program. Hold the

handrails and begin walking.

Each pulse program is divided into several one-

minute segments. (The Time/Distance display will

show how long the program will last.) One target

heart rate setting is programmed for each seg-

ment. Note: The same target heart rate setting may

be programmed for two or more consecutive seg-

ments.

The target heart

rate setting for

the first segment

will be shown in

the flashing

Current Segment

column of the ma-

trix. The target

heart rate settings

for the next seven segments will be shown in the

columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. In addition, the

Speed/Pace display and the Incline/Elevation dis-

play will flash. When the first segment ends, all

target heart rate settings will move one column to

the left. The target heart rate setting for the sec-

ond segment will then be shown in the flashing

Current Segment column.

During each segment, the console will compare

your heart rate to the target heart rate. If your

heart rate is too far below or above the target

heart rate, the speed of the walking belt will auto-

matically increase or decrease to bring your heart

rate closer to the target heart rate. If the speed

reaches the maximum speed setting of the pro-

gram (see step 5 on this page) and your heart rate

is still too far below the current target heart rate,

the incline of the Incline Trainer will also increase

to bring your heart rate closer to the target heart

rate.

The program will continue in this way until the tar-

get heart rate setting for the last segment is

shown in the Current Segment column and the

last segment ends. The walking belt will then slow

to a stop.

If the speed or incline setting is too high or too low

at any time during the program, you can adjust the

setting with the Speed or Incline buttons. However,

each time the console compares your heart rate to

the target heart rate, the speed and/or incline of

the Incline Trainer may automatically change to

bring your heart rate closer to the target heart rate.

If your pulse is not detected during the program,

the letters “PLS” will flash in the Fat Calories/

Calories/Pulse display and the speed and incline

of the Incline Trainer may automatically decrease

until your pulse is detected. If this occurs, see the

instructions included with the optional chest pulse

sensor.

To stop the program at any time, press the Stop

button. The time will begin to flash in the

Time/Distance display. To restart the program,

press the Start button or the Speed + button. The

walking belt will begin to move at 1 mph. When the

console compares your heart rate to the target

heart rate, the speed and/or incline of the Incline

Trainer will automatically change to bring your

heart rate closer to the target heart rate.

Follow your progress with the displays.

See step 5 on page 14.

Turn on the fans if desired.

See step 7 on page 15.

Use the upper body handles if desired.

See step 8 on page 15.

When you are finished exercising, remove the

key.

See step 8 on page 17.

Current Segment

HOW TO CONNECT THE INCLINE TRAINER TO

YOUR CD PLAYER, VCR, OR COMPUTER

To use iFIT.com CDs, the Incline Trainer must be

connected to your portable CD player, portable stereo,

home stereo, or computer with CD player. See pages

22 and 23 for connecting instructions. To use iFIT.com

videocassettes, the Incline Trainer must be con-

nected to your VCR. See page 24 for connecting in-

structions. To use iFIT.com programs directly from

our Web site, the Incline Trainer must be connected

to your computer. See page 23.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the LINE OUT

jack on your CD player. Plug your headphones into

the PHONES jack.

B. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord. Plug

the other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your CD player. Plug your

headphones into the other side of the Y-adapter.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord. Plug

the other end into the included adapter. Plug the

adapter into an AUDIO OUT jack on your stereo.

B. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the LINE OUT

jack on your stereo.

C. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord. Plug

the other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your stereo. Plug your

headphones into the other side of the Y-adapter.

LINE OUT

Audio

Cable

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Head-

phones

AUDIO OUT

RIGHT

LEFT

Audio

Cable

Adapter

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones

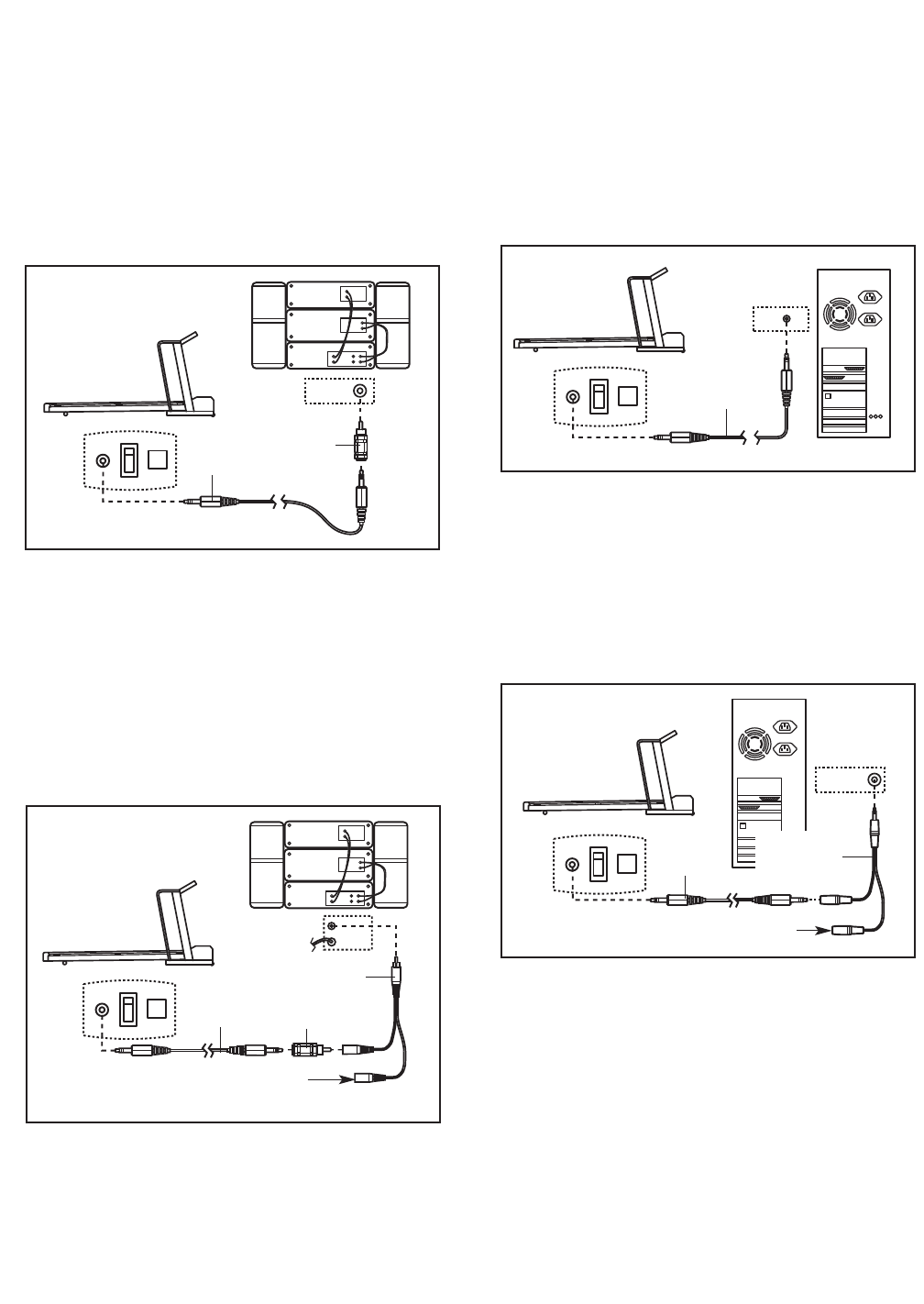

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the included

adapter. Plug the adapter into the LINE OUT jack

on your stereo.

B. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the included

adapter. Plug the adapter into an RCA Y-adapter

(available at electronics stores). Next, remove the

wire that is currently plugged into the LINE OUT

jack on your stereo and plug the wire into the un-

used side of the RCA Y-adapter. Plug the RCA Y-

adapter into the LINE OUT jack on your stereo.

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 3.5mm LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the LINE OUT

jack on your computer.

B. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into a 3.5mm Y-

adapter (available at electronics stores). Plug the Y-

adapter into the PHONES jack on your computer.

Plug your headphones or speakers into the other

side of the Y-adapter.

LINE OUT

VCR

Amp

LINE OUT

Audio

Cable

Adapter

LINE OUT

Audio

Cable

VCR

Amp

LINE OUT

Audio

Cable

RCA

Y-adapter

Wire removed from

LINE OUT jack

Adapter

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones/Speakers

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 23.

A. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the included

adapter. Plug the adapter into the AUDIO OUT jack

on your VCR.

B. Plug one end of the audio cable into the jack on the

front of the Incline Trainer near the power cord.

Plug the other end of the cable into the included

adapter. Plug the adapter into an RCA Y-adapter

(available at electronics stores). Next, remove the

wire that is currently plugged into the AUDIO OUT

jack on your VCR and plug the wire into the unused

side of the RCA Y-adapter. Plug the RCA Y-adapter

into the AUDIO OUT jack on your VCR.

HOW TO USE AN IFIT.COM CD OR VIDEO

PROGRAM

To use iFIT.com CDs or videocassettes, the Incline

Trainer must be connected to your portable CD player,

portable stereo, home stereo, computer with CD

player, or VCR. See HOW TO CONNECT THE IN-

CLINE TRAINER TO YOUR CD PLAYER, VCR, OR

COMPUTER on pages 22 to 24. Note: To purchase

iFIT.com CDs or videocassettes, call the toll-free

telephone number on the front cover of this manual.

Follow the steps below to use an iFIT.com CD or video

program.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

Select the iFIT.com mode.

To use an

iFIT.com CD or

video program,

first press the

iFIT.com button.

The iFIT.com indi-

cator will light.

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD

into your CD player. If you are using an iFIT.com

videocassette, insert the videocassette into your

VCR.

Press the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your per-

sonal trainer will begin guiding you through your

workout. Simply follow your personal trainerʼs

instructions. Note: If the time is flashing in the

Time/Distance display, press the Start button or

the Speed + button on the console. The Incline

Trainer will not respond to a CD or video program

while the time is flashing in the Time/Distance dis-

play.

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Audio

Cable

Adapter

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Audio

Cable Adapter

Wire removed from

AUDIO OUT jack

RCA Y-adapter

During the CD or video program, an electronic

“chirping” sound will alert you when the speed

and/or incline of the Incline Trainer is about to

change. CAUTION: Always listen for the “chirp”

and be prepared for speed and/or incline

changes. In some instances, the speed and/or

incline may change before the personal trainer

describes the change.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the Time/Distance display. To restart the

walking belt, press the Start button or the Speed +

button. After a moment, the walking belt will begin

to move at 1 mph. When the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

When the CD or video program ends, the walking

belt will stop and the time will begin to flash in the

Time/Distance. Note: To use another CD or video

program, press the Stop button or remove the key

and go to step 1 on page 24.

Note: If the speed and/or incline of the Incline

Trainer does not change when a “chirp” is

heard:

• Make sure that the iFIT.com indicator is lit and

that the time is not flashing in the Time/

Distance display. If the time is flashing, press

the Start button or the Speed +button on the

console.

• Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the con-

sole may not detect the program signals.

• Make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord.

• If you are using your portable CD player and

the CD skips, set the CD player on the floor or

another flat surface instead of on the console.

• See the instructions on page 32.

Follow your progress with the displays.

See step 5 on page 14.

Measure your heart rate if desired.

See step 6 on page 15.

Turn on the fans if desired.

See step 7 on page 15.

Use the upper body handles if desired.

See step 8 on page 15.

When you are finished exercising, remove the

key.

See step 8 on page 17.

CAUTION: Always remove iFIT.com CDs and

videocassettes from your CD player or VCR

when you are finished using them.

HOW TO USE A PROGRAM DIRECTLY FROM

OUR WEB SITE

To use programs from our Web site, the Incline Trainer

must be connected to your home computer. See HOW

TO CONNECT YOUR COMPUTER on page 23. In

addition, you must have an internet connection and

an internet service provider. A list of specific system

requirements is found on our Web site.

Follow the steps below to use a program from our

Web site.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

13.

Select the iFIT.com mode.

To use an

iFIT.com program

from our Web

site, first press

the iFIT.com but-

ton. The iFIT.com

indicator will light.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go to

our Web site at www.iFIT.com.

Follow the desired links on our Web site to se-

lect a program.

Read and follow the on-line instructions for using a

program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the Incline Trainer and stand on the

foot rails. Find the clip attached to the key and

slide the clip securely onto the waistband of

your clothes.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic

“chirping” sound will alert you when the speed

and/or incline of the Incline Trainer is about to

change. CAUTION: Always listen for the “chirp”

and be prepared for speed and/or incline

changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the Time/Distance display. To restart the

walking belt, press the Start button or the Speed +

button. After a moment, the walking belt will begin

to move at 1 mph. When the next “chirp” is

heard, the speed and/or incline will change to

the next settings of the program.

When the program ends, the walking belt will stop

and the time will begin to flash in the Time/Distance

display. Note: To use another program, press the

Stop button and go to step 5.

Note: If the speed or incline of the Incline

Trainer does not change when a “chirp” is

heard, make sure that the iFIT.com indicator is

lit and that the time is not flashing in the

Time/Distance display. In addition, make sure

that the audio cable is properly connected, that

it is fully plugged in, and that it is not wrapped

around a power cord.

Follow your progress with the displays.

See step 5 on page 14.

Measure your heart rate if desired.

See step 6 on page 15.

Turn on the fans if desired.

See step 7 on page 15.

Use the upper body handles if desired.

See step 8 on page 15.

When you are finished exercising, remove the

key.

See step 8 on page 17.

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of the total number of miles that the walking belt

has moved and the total number of hours that the

Incline Trainer has been operated. The information

mode also allows you to switch the console from miles

to kilometers. In addition, the information mode allows

you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the following informa-

tion will be shown:

The Incline/Elevation display

will show the total number of

miles or kilometers that the

walking belt has moved.

The Time/Distance display

will show the total number of

hours that the Incline Trainer

has been used.

An “E” for English miles or

an “M” for metric kilometers

will appear in the Speed/

Pace display. Press the

Speed + button to change

the unit of measurement.

IMPORTANT: The Fat Calories/Calories/Pulse dis-

play should be blank. If a “d” appears in the display,

the console is in the “demo” mode. This mode is in-

tended to be used only when an Incline Trainer is dis-

played in a store. When the console is in the demo

mode, the power cord can be plugged in, the key can

be removed from the console, and the displays and in-

dicators on the console will automatically light in a pre-

set sequence; the buttons on the console cannot be op-

erated. If a “d” appears in the display when the infor-

mation mode is selected, press the Speed – button

so the display is blank.

To exit the information mode, remove the key.

THE OPTIONAL CHEST PULSE SENSOR

An optional chest pulse sensor adds even more

features to the console. The chest pulse sensor provides

hands-free operation and enables you to use the con-

soleʼs heart rate programs. To purchase the

chest pulse sensor, call the toll-free telephone

number on the front cover of this manual.

HOW TO FOLD AND MOVE THE INCLINE TRAINER

HOW TO FOLD THE INCLINE TRAINER FOR STORAGE

Before folding the Incline Trainer, adjust the incline to

the lowest position. If this is not done, the Incline Trainer

may be permanently damaged. Remove the key and unplug

the power cord. CAUTION: You must be able to safely lift

45 pounds (20 kg) to raise, lower, or move the Incline

Trainer.

1. Hold the Incline Trainer with your hands in the location

shown by the arrow at the right. CAUTION: To decrease

the possibility of injury, bend your legs and keep your

back straight. As you raise the Incline Trainer, make

sure to lift with your legs rather than your back. Raise

the Incline Trainer about halfway to the vertical position.

2. Move your right hand to the position shown and hold the

Incline Trainer firmly. Using your left hand, pull the latch

knob to the left and hold it. Raise the Incline Trainer until

the latch pin is aligned with the indicated hole in the catch.

Insert the latch pin into the hole. Make sure that the

latch pin is fully inserted into the hole.

To protect the floor or carpet from damage, place a

mat under the Incline Trainer. Keep the Incline Trainer

out of direct sunlight. Do not leave the Incline Trainer

in the storage position in temperatures above 85°

Fahrenheit.

HOW TO MOVE THE INCLINE TRAINER

Before moving the Incline Trainer, convert the Incline Trainer

to the storage position as described above. Make sure that

the latch pin is fully inserted into the hole in the side of

the Incline Trainer.

1. Hold the handrails as shown and place one foot against a

wheel.

2. Tilt the Incline Trainer back until it rolls freely on the wheels.

Carefully move the Incline Trainer to the desired location.

Never move the Incline Trainer without tipping it back.

To reduce the risk of injury, use extreme caution

while moving the Incline Trainer. Do not attempt to

move the Incline Trainer over an uneven surface.

3. Place one foot against a wheel, and carefully lower the

Incline Trainer until it is resting in the storage position.

Knob

Hole

Base

Wheels

HOW TO LOWER THE INCLINE TRAINER FOR USE

1. Hold the upper end of the Incline Trainer with your right

hand as shown. Using your left hand, pull the latch knob to

the left and hold it. Pivot the Incline Trainer down until the

frame is past the pin on the latch knob.

2. Hold the Incline Trainer firmly with both hands, and lower

the Incline Trainer to the floor. To decrease the possibil-

ity of injury, bend your legs and keep your back

straight.

Knob

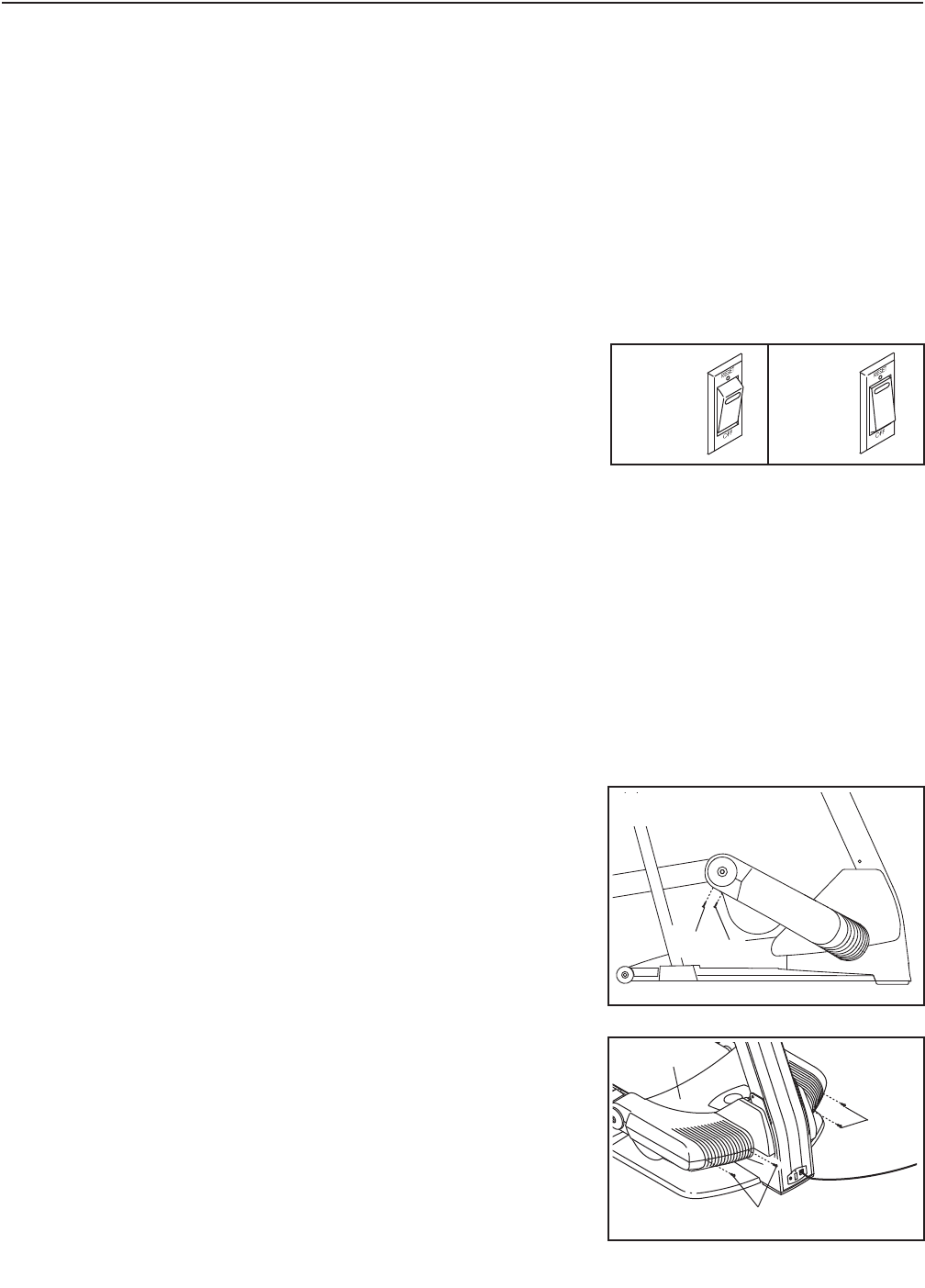

TROUBLESHOOTING

Most Incline Trainer problems can be solved by following the steps below. Find the symptom that ap-

plies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppres-

sor that meets all of the specifications described on page 11. Important: The Incline Trainer is not

compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the reset/off circuit breaker located on the

Incline Trainer frame near the power cord. If the

switch protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five min-

utes and then press the switch to the reset position.

PROBLEM: The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait

for five minutes and then press the switch to the reset position.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the Incline Trainer still will not run, see the front cover of this manual.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Adjust the incline high enough to remove the two

Screws (3) and the two Belly Pan Screws (70) from

the locations shown. Do not remove the Screws

until you have removed the key from the console

and UNPLUGGED THE POWER CORD. Remove the

two Screws (3) and the two Belly Pan Screws (128).

Remove the four Screws (3) from the Hood (37), and

carefully remove the Hood.

Tripped Reset

70 3

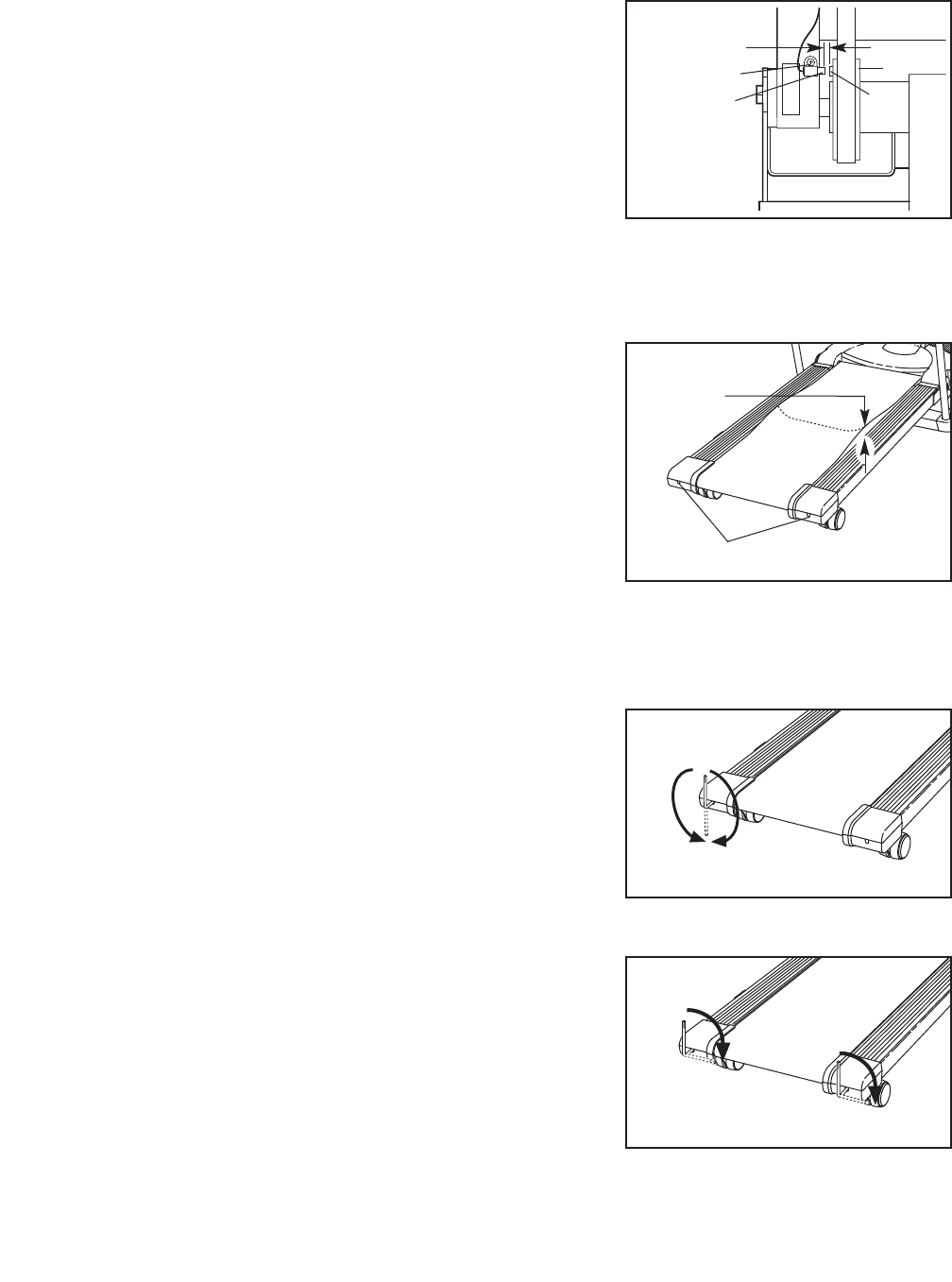

Locate the Reed Switch (20) and the Magnet (8) on

the left side of the Pulley (7). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8”. If necessary, loosen the Screw

(21), move the Reed Switch slightly, and then retighten

the Screw. Reattach the Hood (37), making sure that

the Screws (3, 70) are inserted into the same holes

from which they were removed. Run the Incline Trainer

for a few minutes to check for a correct speed reading.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.

b. If the walking belt is overtightened, Incline Trainer per-

formance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both rear

roller adjustment bolts counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you should

be able to lift each side of the walking belt 3 to 4 inches

off the walking platform. Be careful to keep the walking

belt centered. Plug in the power cord, insert the key,

and run the Incline Trainer for a few minutes. Repeat

until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, see the front cover of this manual.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, remove the key and

UNPLUG THE POWER CORD.If the walking belt

has shifted to the left, use the allen wrench to turn

the left rear roller bolt clockwise 1/2 of a turn; if the

walking belt has shifted to the right, turn the left

rear roller bolt counterclockwise 1/2 of a turn. Be

careful not to overtighten the walking belt. Plug in the

power cord, insert the key, and run the Incline Trainer

for a few minutes. Repeat until the walking belt is cen-

tered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using

the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tight-

ened, you should be able to lift each side of the walk-

ing belt 3 to 4 inches off the walking platform. Be

careful to keep the walking belt centered. Plug in the

power cord, insert the key, and carefully walk on the

Incline Trainer for a few minutes. Repeat until the

walking belt is properly tightened.

Rear Roller Adjustment Bolts

3”–4”

Top

View

1/8”

PROBLEM: The incline of the Incline Trainer does not change correctly or does not change when

iFIT.com CDs and videocassettes are used

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, reinsert the key. The Incline Trainer will automatically rise to

the maximum incline level and then return to the minimum level. This will recalibrate the incline

system.

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

handgrip pulse sensor.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes does your body

begin to use stored fat calories for energy. If your goal

is to burn fat, adjust the speed and incline of the

Incline Trainer until your heart rate is near the lowest

number in your training zone.

For maximum fat burning, adjust the speed and incline

of the Incline Trainer until your heart rate is near the

middle number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the Incline Trainer until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

A Cool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-ex-

ercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

PART LIST—Model No. PFHK15305.0 R0505A

To locate the parts listed below, see the EXPLODED DRAWING attached at the end of this manual.

Key No. Qty. Description Key No. Qty. Description

12Foot Rail

21Left Front Endcap

3 28 Screw

42Frame Pivot Bolt

52Rear Roller Washer

61Motor Belt

71Front Roller/Pulley

81Magnet

92Frame Pivot Nut

10 2 Frame Spacer

11 2 Idler Arm Washer

12 2 Frame Pivot Washer

13 9 Nut

14 1 Idler Arm Pulley

15 1 Pulley Bolt

16 1 Idler Arm Bolt

17 1 Idler Arm Bushing

18 1 Idler Arm

19 1 Idler Arm Spring

20 1 Reed Switch

21 5 Small Screw

22 1 Sensor Clip

23 1 Lift Frame

24 1 Drive Motor

25 2 Motor Bolt

26 2 Lift Frame Pivot Bolt

27 2 Upright Pivot Washer

28 1 Controller

29 2 Controller Screw

30 2 Warning Decal

31 1 Heat Sink

32 14 1/2” Screw

33 1 Power Board

34 4 Plastic Stand-off

35 1 Electronics Bracket

36 1 Hood Cover

37 1 Hood

38 1 Belly Pan

39 2 Belt Guide

40 1 Right Front Endcap

41 2 Front Walking Platform Screw

42 4 Walking Platform Screw

43 1 Frame

44 4 Belt Guide Screw

45 4 Isolator

46 4 Isolator Bolt

47 1 Latch Catch

48 18 Latch Catch Screw

49 2 Endcap Plate

50 1 Left Rear Endcap

51 2 Rear Roller Adj. Bolt

52 2 Rear Wheel

53 4 Rear Wheel Cover

54 4 Wheel Bolt

55 6 1” Bolt

56 1 Left Wheel Bracket

57 1 Right Rear Endcap

58 1 Rear Roller

59 1 Right Wheel Bracket

60 4 3/4” Bolt

61 1 Left Outer Cover

62 1 Latch Assembly

63 1 Static Warning Decal

64 1 Pulse Assembly

65 1 Right Inner Cover

66 5 3/4” Screw

67 2 Lower Handrail

68 1 Upper Handrail

69 1 Console

70 6 Belly Pan Screw

71 22 Screw

72 1 Access Door Screw

73 2 Upper Body Handle

74 2 Rope Guide

75 1 Top Housing

76 1 Walking Platform

77 1 Controller Wire

78 6 Pulley

79 4 Pulley Nut

80 2 Pulley Bolt

81 6 Inside Cover Bolt

82 2 Fan

83 4 Fan Screw

84 1 Key Clip

85 1 Power Cord Bracket Assembly

86 1 Resistor

87 2 Upright Pivot Bushing

88 1 Right Outer Cover

89 1 Upright Pivot Shaft

90 2 Upright Pivot Bolt

91 1 Reset/Off Circuit Breaker

92 1 Tension Motor Wire

93 4 Base Pad

94 10 3/4” Tek Screw

95 1 Upright Base Belly Pan

96 1 Upright Base

97 2 Washer

98 2 3” Bolt

99 2 Front Wheel

100 2 Incline Motor Bolt, Top

101 1 Incline Motor

102 1 Incline Wire Harness

Key No. Qty. Description Key No. Qty. Description

103 1 Upright Base Pad

104 2 Incline Motor Bolt, Bottom

105 1 Base Hood

106 1 Left Inner Cover

107 1 Bottle Holder

108 1 Upright Cover, Back

109 1 Pulley Shaft

110 1 Upright

111 1 Bottle Holder Clamp

112 1 Access Door

113 1 Upper Body Mechanism

114 1 Resistance Motor

115 1 Upright Cover, Front

116 4 Small Star Washer

117 1 Small Nut

118 2 Upright Bolt

119 4 Small Nut

120 4 Front Endcap Screw

121 1 Walking Belt

122 1 Allen Wrench

123 9 Cable Tie

124 1 Releasable Tie

125 9 Tie Block

126 1 iFIT Cable

127 1 iFIT Jack

128 1 Latch Warning Decal

129 4 Belly Pan Clip

130 16 Upright Cover Clip

131 2 Long Endcap Screw

132 1 Console Warning Decal

133 4 Resistance Motor Bolt

#146” Wire Harness

#145” Console Wire Harness

#114” Red Wire, 2F

#112” Red Wire, 2F

#114” White Wire, 2F

#18” Green Wire, F/Ring

#14” Green Wire, F/Ring

#24” Blue Wire, M/F

#1User's Manual

#These parts are not illustrated

Specifications are subject to change without notice.

390

99 54 394

103

100

101

104

101

105 107

108

106

75 71

80 78

115

109

111

114

113

116

117

118

119

102

110

112

132

130

EXPLODED DRAWING—Model No. PFHK15305.0 R0505A

120

53 13

910

124

125

123

122

126

127

128

121 46

120

129

131

EXPLODED DRAWING—Model No. PFHK15305.0 R0505A

ORDERING REPLACEMENT PARTS

To order replacement parts, see the front cover of this manual. When ordering parts, please be prepared to give

the following information:

• the MODEL NUMBER OF THE PRODUCT (PFHK15305.0)

•the NAME OF THE PRODUCT (PROFORM X5 Incline Trainer)

• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 34 and 35 and the

EXPLODED DRAWING attached in the center of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material under normal use and service conditions. The drive motor is warranted for the lifetime. Parts

and labor are warranted for one (1) year after the date of purchase.

This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to

replacing or repairing, at ICON's option, the product through one of its authorized service centers. All re-

pairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a

service center, freight charges to and from the service center will be the customerʼs responsibility. For in-

home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, im-

proper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond

that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Proform Pfhk153050 Incline Trainer V5 Diagram Users Manual 285430

Proform-Pfhk153050-Owner-S-Manual proform-pfhk153050-owner-s-manual

Navigation menu

Versions of this User Manual:

Views

Navigation
