USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this man-

ual for future reference.

Serial Number Decal

Model No. PFHK99900

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through di-

rect assistance from our factory.

TO AVOID UNNECESSARY DE-

LAYS, PLEASE CALL DIRECT TO

OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our Customer Hot Line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Patent Pending

Table of Contents

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO MOVE THE HIKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

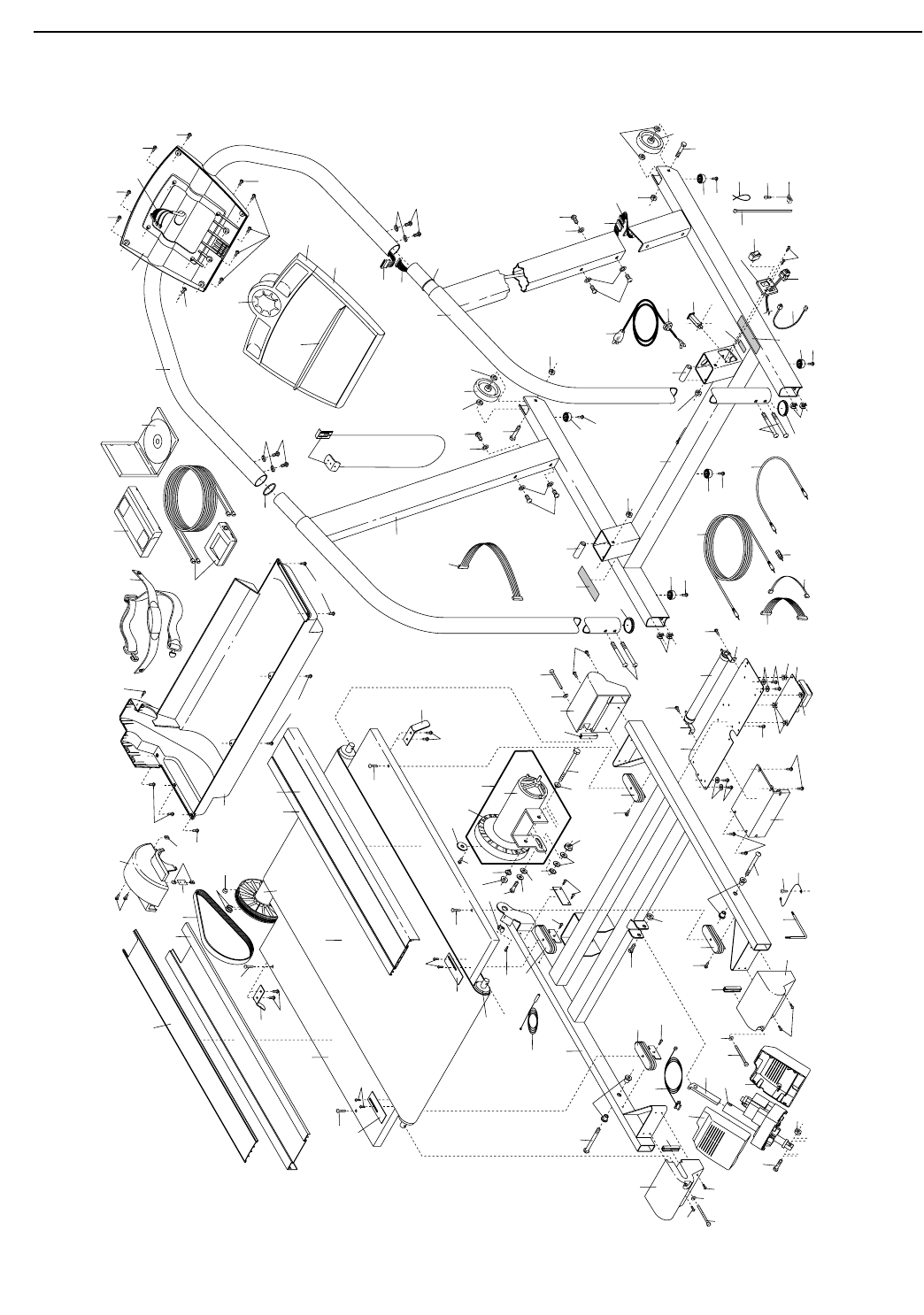

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Save the EXPLODED

DRAWING and the PART LIST for reference.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

1. It is the responsibility of the owner to ensure

that all users of the hiker are adequately in-

formed of all warnings and precautions.

2. Use the hiker only as described in this manual.

3. The hiker is intended for in-home use only.

Do not use the hiker in any commercial, rental,

or institutional setting.

4. Place the hiker on a level surface, with at

least eight feet of clearance behind it. Do not

place the hiker on any surface that blocks air

openings. To protect the floor or carpet from

damage, cover the floor under the hiker.

5. Keep the hiker indoors, away from moisture

and dust. Do not put the hiker in a garage or

covered patio, or near water.

6. Do not operate the hiker where aerosol prod-

ucts are used or where oxygen is being ad-

ministered.

7. Do not operate the hiker until it is properly as-

sembled. (See ASSEMBLY on page 6.) You

must be able to safely lift 45 pounds (20 kg) in

order to move the hiker.

8. Keep children under the age of 12 and pets

away from the hiker at all times.

9. The hiker should not be used by persons

weighing more than 300 pounds.

10. Never allow more than one person on the

hiker at a time.

11. Wear appropriate exercise clothing when

using the hiker. Do not wear loose clothing

that could become caught in the hiker.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the hiker with bare feet,

wearing only stockings, or in sandals.

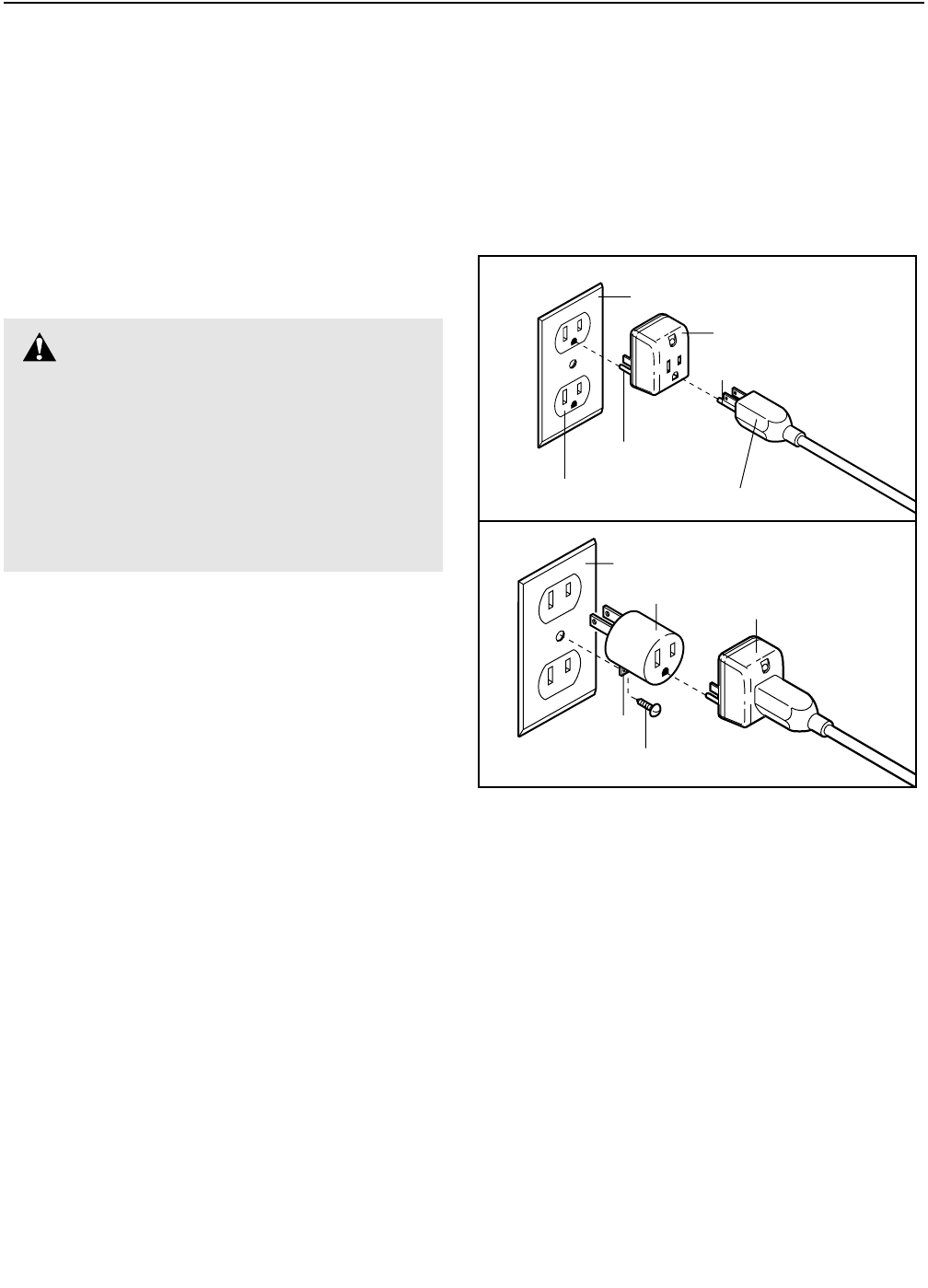

12. When connecting the power cord (see page 8),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

13. Use only a single-outlet surge suppressor that

is UL 1449 listed as a transient voltage surge

suppressor (TVSS). The surge suppressor

must have a UL suppressed voltage rating of

400 volts or less and a minimum surge dissi-

pation of 450 joules. The surge suppressor

must be electrically rated for 120 volts AC and

15 amps. To purchase a surge suppressor, see

your local PROFORM dealer or call 1-800-999-

3756 and order part number 146148.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

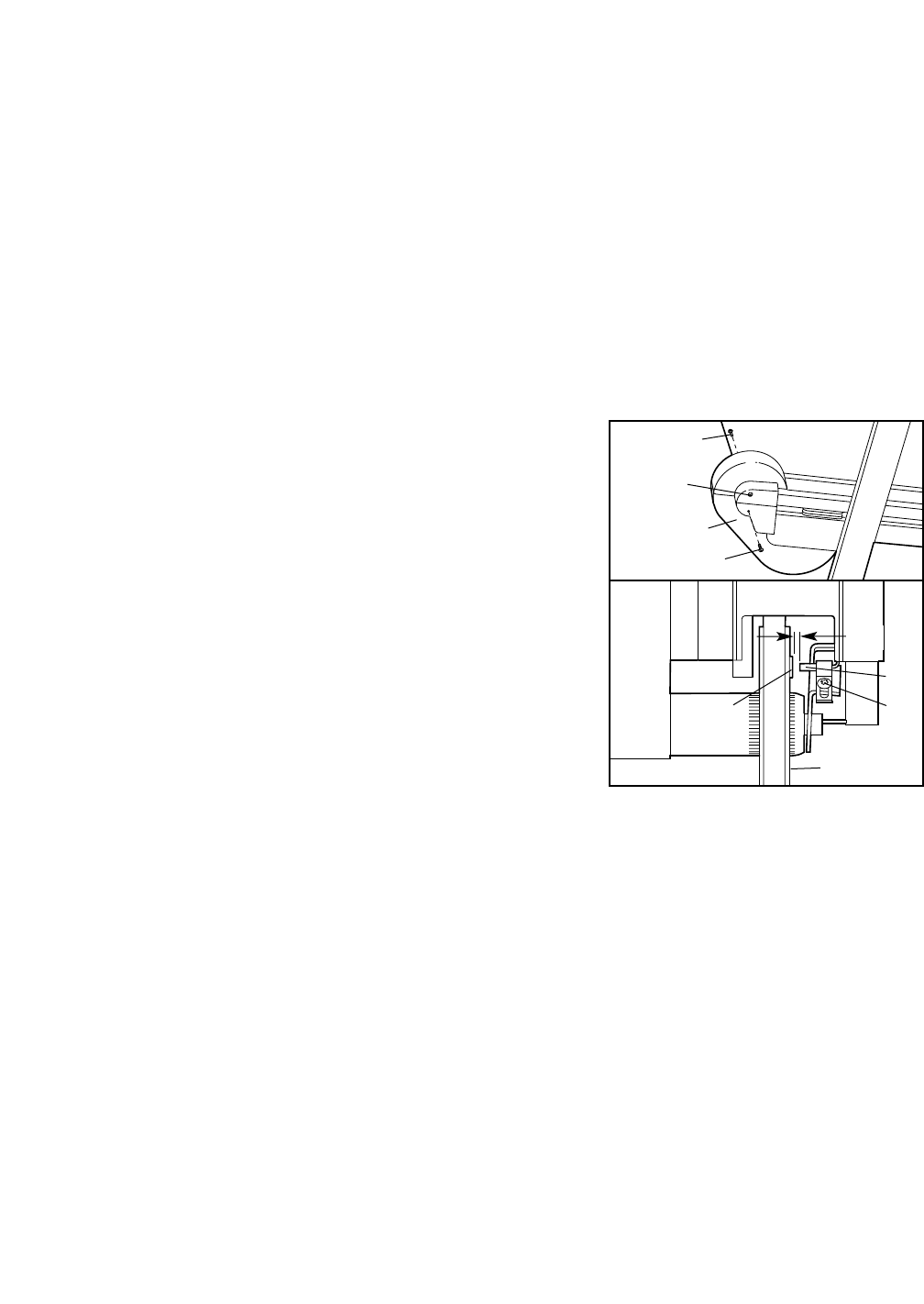

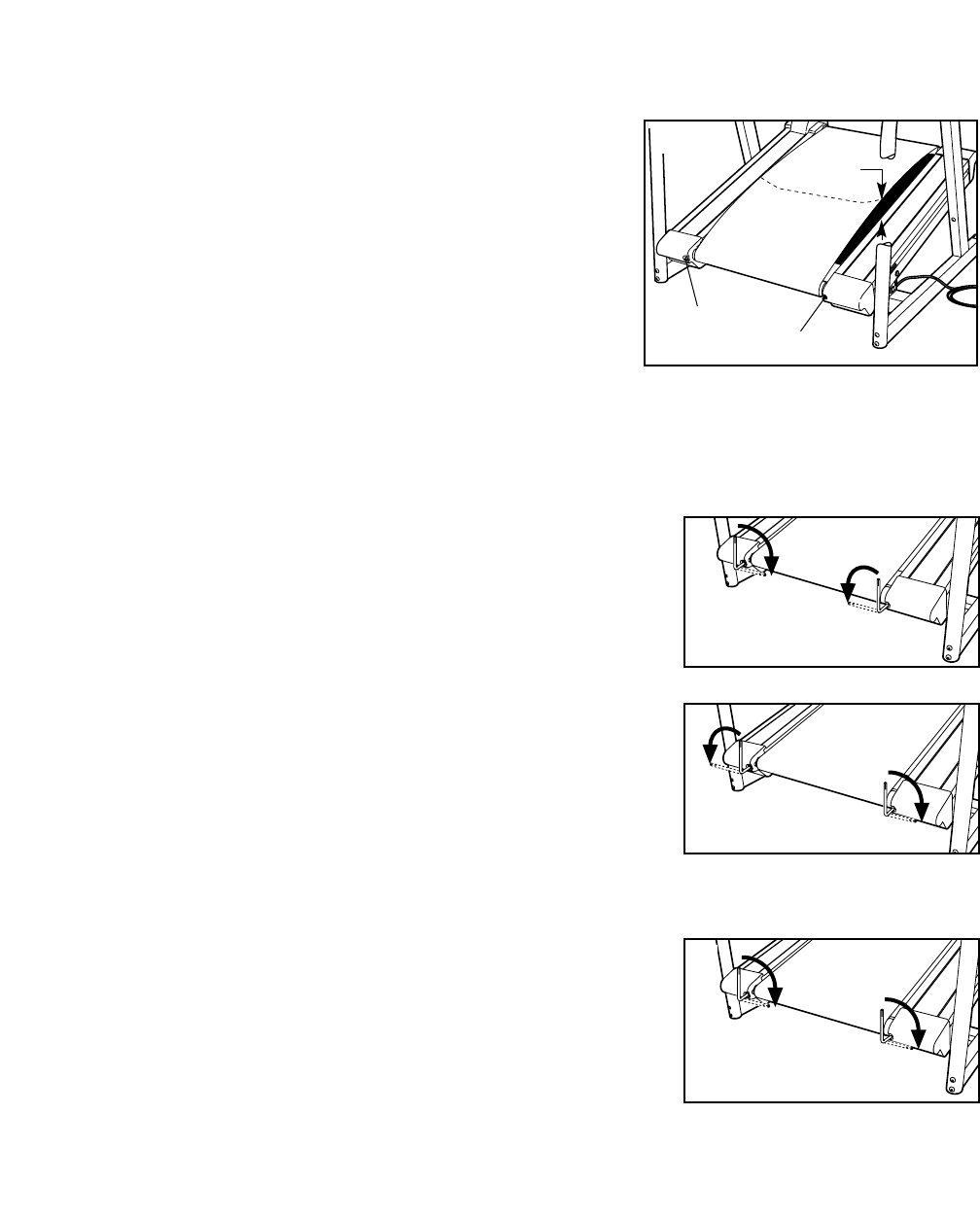

15. The roller guards must be 1/8 inch from the

rear roller (the location of the roller guards is

shown on page 5). Unplug the power cord

and adjust the roller guards, if necessary.

16. Never move the walking belt while the power

is turned off. Do not operate the hiker if the

power cord or plug is damaged, or if the hiker

is not working properly. (See BEFORE YOU

BEGIN on page 5 if the hiker is not working

properly.)

17. Never start the hiker while you are standing

on the walking belt. Always hold the handrails

while using the hiker.

18. The hiker is capable of high speeds. Adjust

the speed in small increments to avoid sud-

den jumps in speed.

19. The heart rate monitor is not a medical de-

vice. Various factors, including the user's

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is in-

tended only as an exercise aid in determining

heart rate trends in general.

20. Never leave the hiker unattended while it is

running. Remove the key, unplug the power

cord, and move the on/off switch to the off po-

sition when the hiker is not in use. (The loca-

tion of the on/off switch is shown on page 5.)

21. Do not change the grade of the hiker by plac-

ing objects under the hiker.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the hiker.

Important Precautions

22. Never insert or drop any object into any

opening.

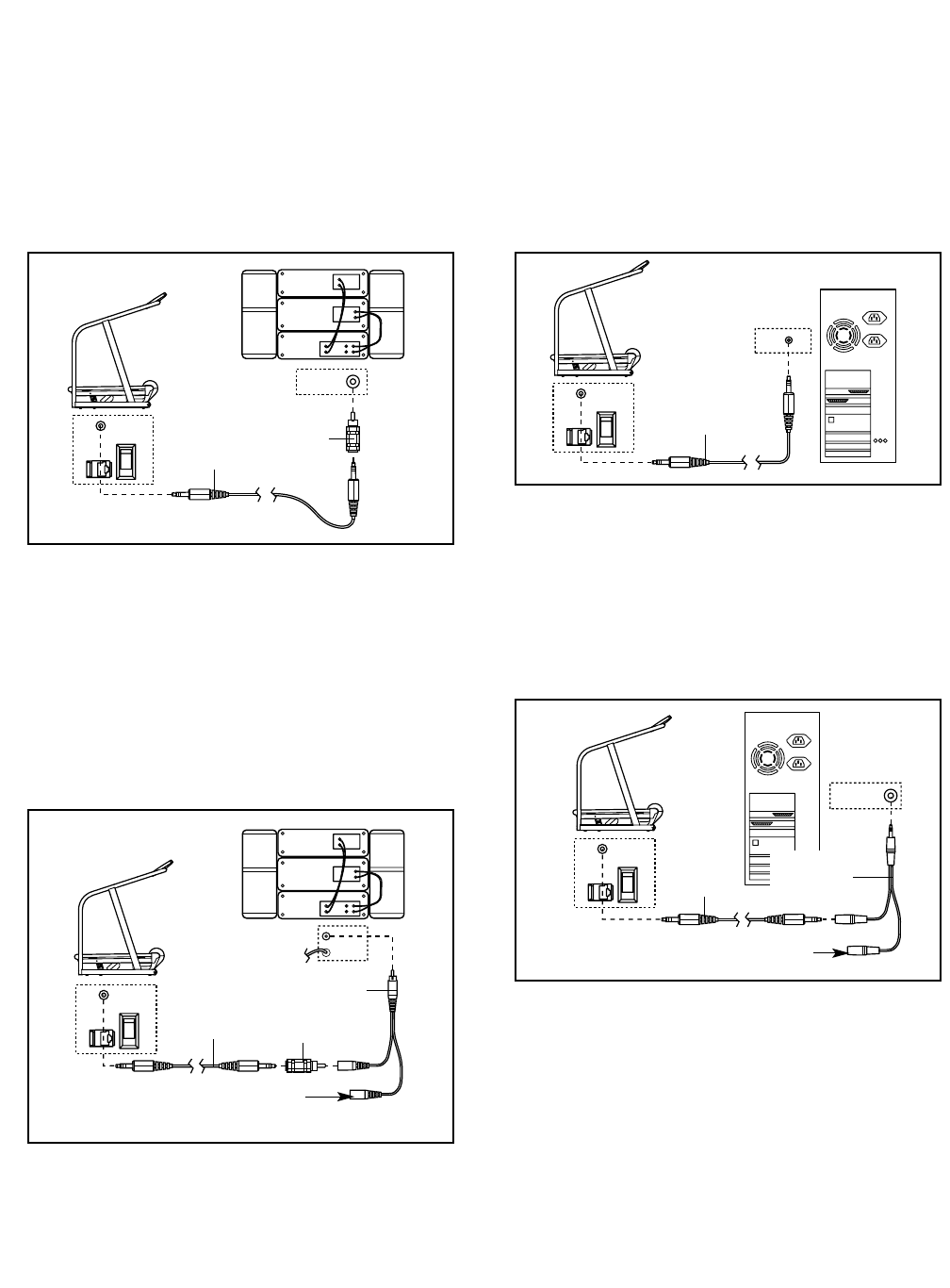

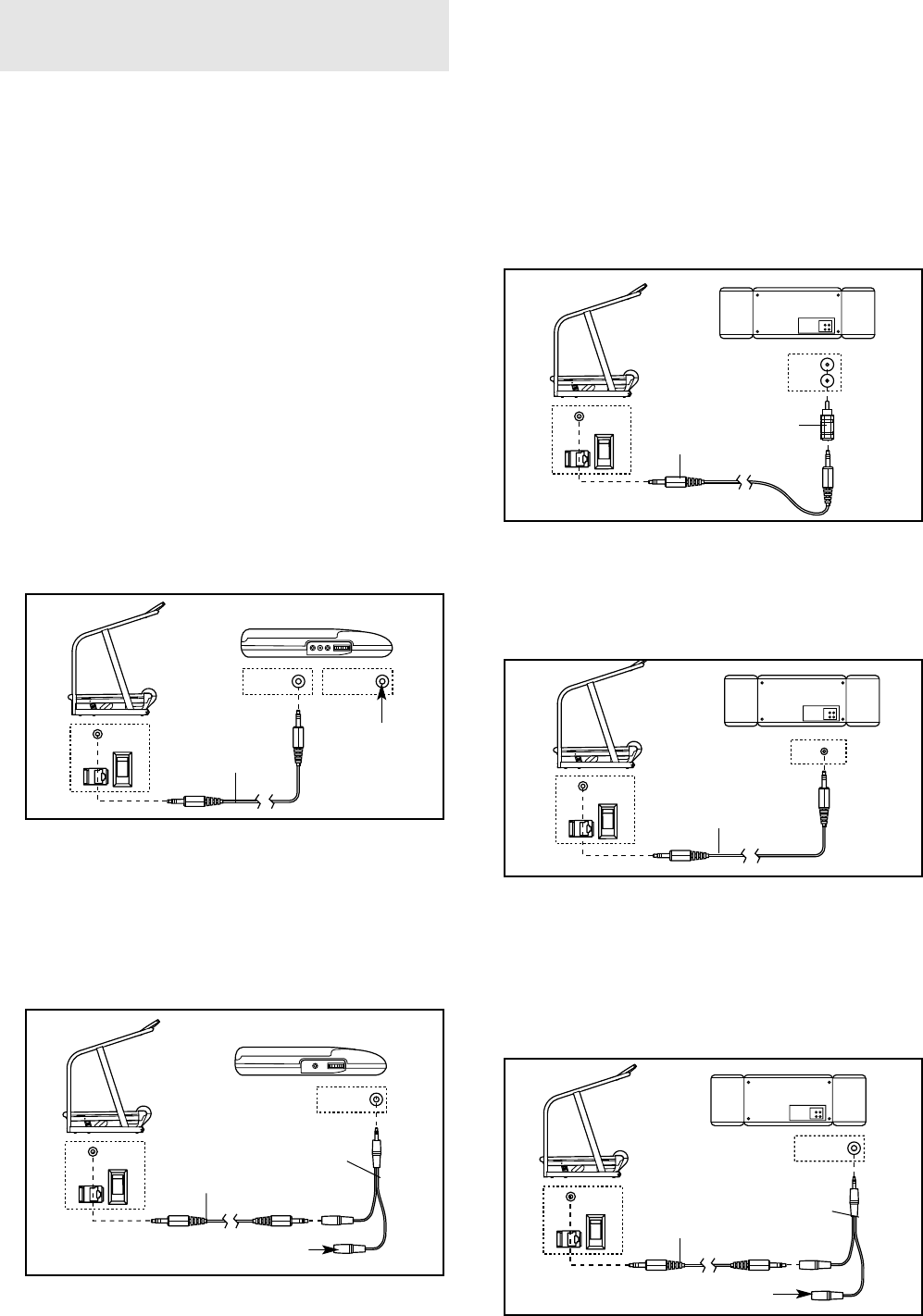

23. When using iFit.com CD’s and videocassettes,

an electronic “chirping” sound will alert you

when the grade and/or speed of the hiker is

about to change. Always listen for the “chirp”

and be prepared for grade and/or speed

changes. In some instances, the grade and/or

speed may change before the personal trainer

describes the change.

24. When using iFit.com CD’s and videocassettes,

you can manually override the grade and

speed settings by pressing the grade and

speed buttons. However, when the next “chirp”

is heard, the grade and/or speed will change to

the next settings of the CD or video program.

25. Always remove iFit.com CD’s and videocas-

settes from your CD player or VCR when they

are not in use.

26. Inspect and tighten all parts of the hiker regu-

larly.

27. DANGER: Always unplug the power

cord immediately after use, before cleaning

the hiker, and before performing the mainte-

nance and adjustment procedures described

in this manual. Never remove the motor cover

unless instructed to do so by an authorized

service representative. Servicing other than

the procedures in this manual should be per-

formed by an authorized service representa-

tive only.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

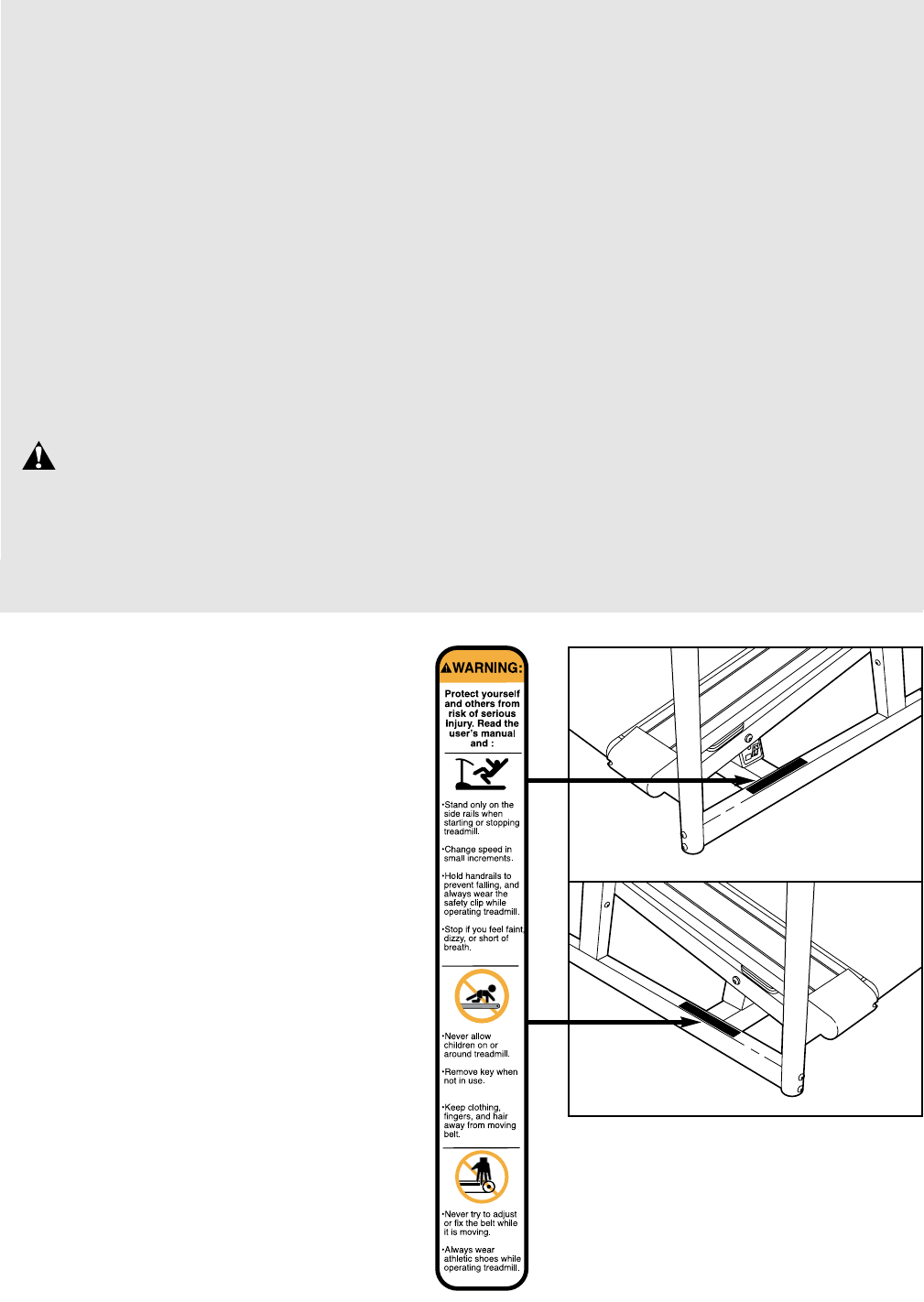

The decal shown at the right has been

attached to each side of the hiker. If either

decal is missing or illegible, call our

Customer Service Department, toll-free, to

order a free replacement decal (see

ORDERING REPLACEMENT PARTS on the

back cover of this manual). Apply the decal

in the location shown.

Note: The decal is shown

at 55% of actual size.

Thank you for selecting the revolutionary PROFORM®

TRAIL RUNNER hiker. The TRAIL RUNNER hiker

combines state-of-the-art technology with innovate

design to provide you with a motivating and effective

form of exercise in the convenience of your home.

For your benefit, read this manual carefully before

using the TRAIL RUNNER hiker. If you have ques-

tions after reading this manual, please call our

Customer Service Department toll-free at 1-800-999-

3756, Monday through Friday, 6 a.m. until 6 p.m.

Mountain Time (excluding holidays). To help us assist

you, please note the product model number and serial

number before calling. The product model number is

PFHK99900. The serial number can be found on a

decal attached to the hiker (see the front cover of this

manual for the location).

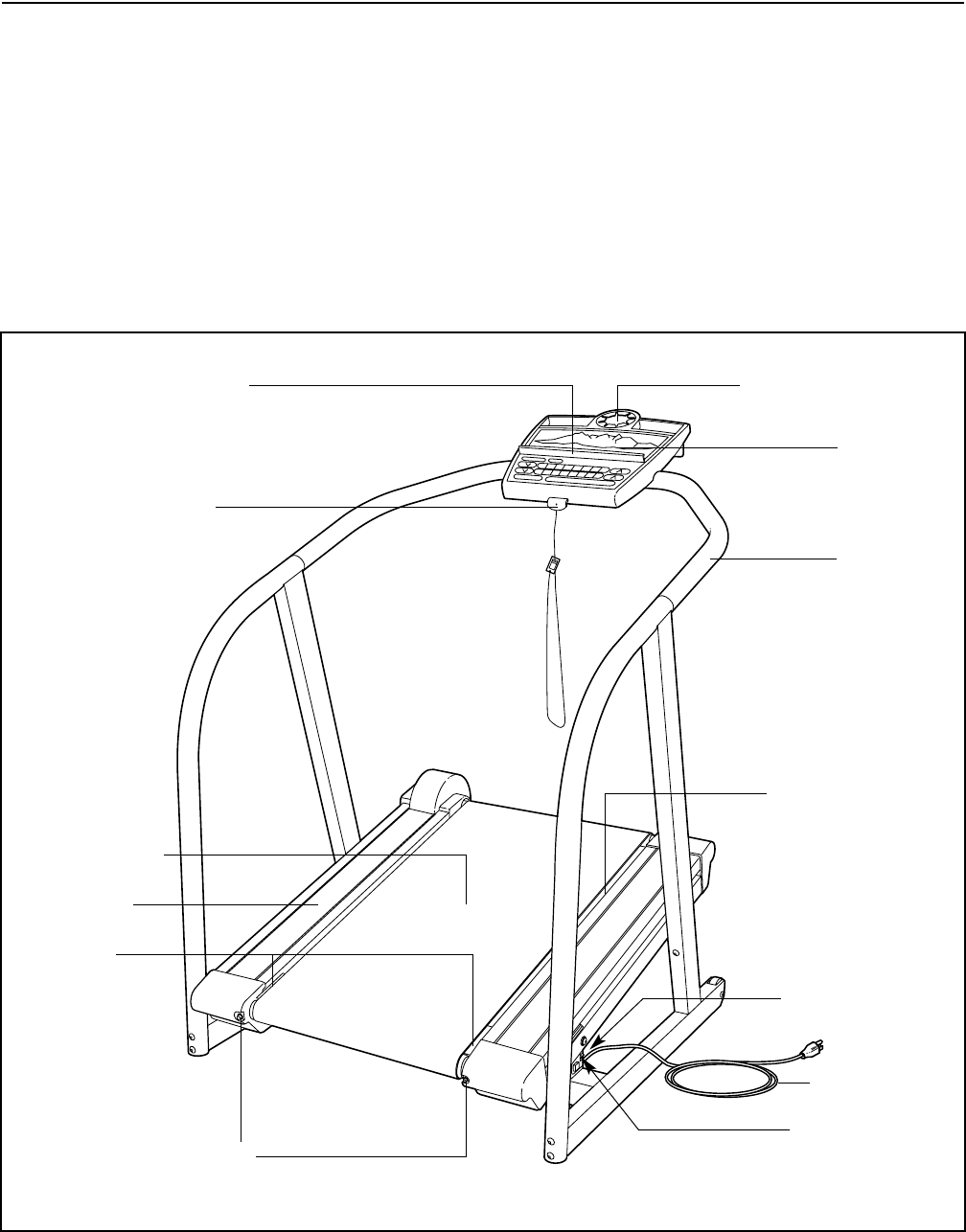

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Before You Begin

Handrail

Console

Book Holder

Key/Clip

Circuit Breaker

On/Off Switch

Walking Belt

Cushioned Walking

Platform

Foot Rail

Roller

Guards

Power Cord

Roller Adjustment Bolts

Water Bottle Holder*

RIGHT SIDELEFT SIDE

BACK

*No water bottle is included.

Assembly

Assembly requires two people. Set the hiker in a cleared area and remove all packing materials. Do not dis-

pose of the packing materials until assembly is completed. Assembly requires the included allen wrench

and your own phillips screwdriver .

Note: The underside of the hiker walking belt is coated with high-performance lubricant. During shipping, a small

amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal con-

dition and does not affect hiker performance. If there is lubricant on top of the walking belt, simply wipe off the lu-

bricant with a soft cloth and a mild, non-abrasive cleaner.

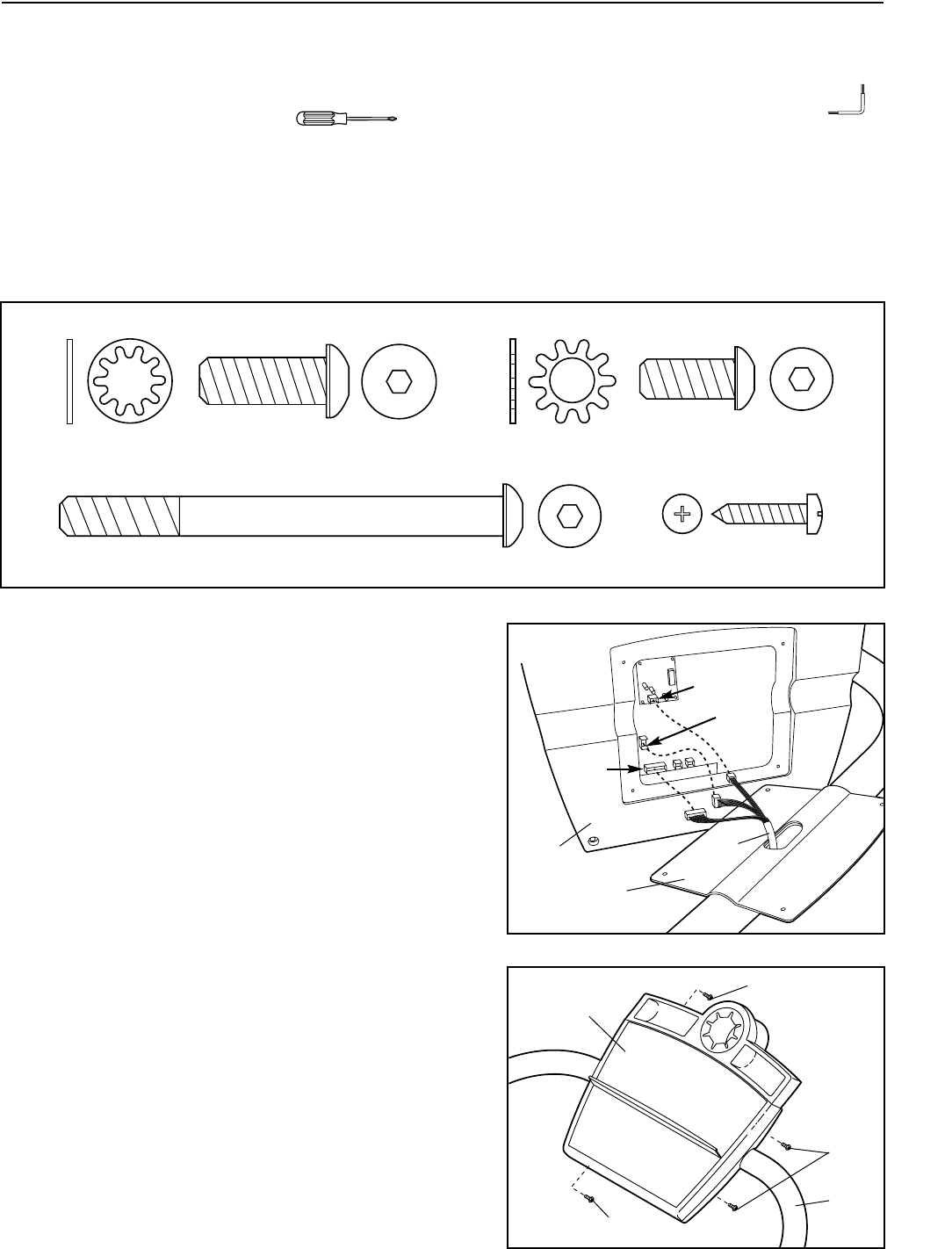

Refer to the drawings below to identify the parts used in assembly.

2. Attach the Console (99) to the Handrail (27) with the four

Small Screws (6). Make sure that the Handrail Wire

Harness (not shown) is not pinched between the

Console and the Handrail.

1. Set the Console (99) and the Handrail (27) on the floor.

Locate the Handrail Wire Harness (30) in the Handrail

(27). While a second person holds the Console (99), con-

nect the 8-pin wire of the Handrail Wire Harness to the

HD2 connector on the back of the Console. Next, connect

the 4-pin wire to the IFIT2 connector, and the 3-pin wire

to the HD1 connector shown.

HD1

HD2

IFIT2

Small Screw (6)–4

Long Upright Bolt (54)–4

Handrail Star

Washer (26)–4

1” Upright Bolt (33)–4

Internal Star

Washer (32)–4

Handrail Bolt (25)–4

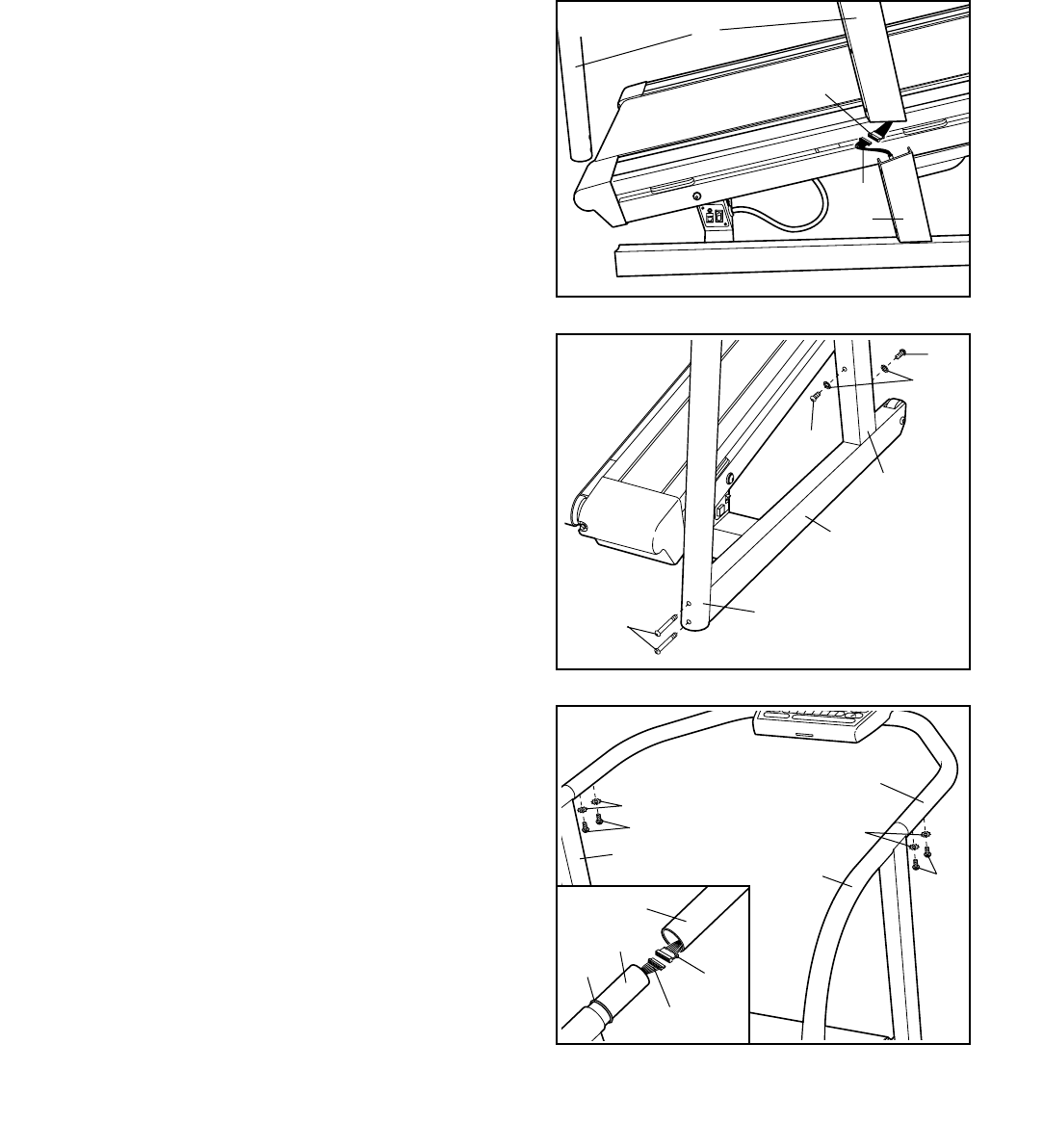

4. Finger tighten two Long Upright Bolts (54) into the right

Upright (23) and the Base (101) as shown. Next, finger

tighten two of the four 1” Upright Bolts (33) with two of the

four Internal Star Washers (32) into the right Upright. Do

not tighten the Bolts yet.

Attach the left Upright (not shown) in the same way.

(Note: There is not a wire harness in the left Upright.) Do

not tighten the Bolts yet.

101

5. Have a second person hold the Handrail (27) near the

Uprights (23). Refer to the inset drawing. Slide an O-ring

(117) onto each Upright (23). Next, connect the Handrail

Wire Harness (30) to the Upright Wire Harness (100).

Make sure that the two connectors snap together. Insert

the Wire Harnesses into the Handrail (27) and the right

Upright (23).

Slide the Handrail (27) onto the Uprights (23). Be care-

ful not to pinch the Wire Harnesses (30 and 100).

Finger tighten two Handrail Bolts (25) with Handrail Star

Washers (26) into each side of the Handrail (27).

Tighten all of the bolts used in steps 4 and 5.

25 26

100

117 30

6. Make sure that all parts are tightened before you use the hiker. Keep the included allen wrench in a secure

place. The allen wrench is used to adjust the walking belt (see page 22). To protect the floor or carpet from

damage, cover the floor beneath the hiker.

3. Identify the right Upright (23), which has the Upright Wire

Harness (100) inside of it.

Have a second person hold the right Upright (23) near the

Base Wire Harness (41) on the right side of the Base

(101). Connect the Upright Wire Harness (100) to the

Base Wire Harness (41). Make sure that the two connec-

tors snap together. Pull the excess Upright Wire Harness

out of the top of the right Upright.

Slide the right Upright (23) onto the Base (101). Be care-

ful not to pinch the Wire Harnesses (41 and 100).

100

101

Operation and Adjustment

THE PERFORMANT LUBETM WALKING BELT

Your hiker features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your hiker, like any other type of sophisticated elec-

tronic equipment, can be seriously damaged by sud-

den voltage changes in your home’s power. Voltage

surges, spikes, and noise interference can result from

weather conditions or from other appliances being

turned on or off. To decrease the possibility of your

hiker being damaged, always use a surge suppres-

sor with your hiker (see drawing 1 at the right).

To purchase a surge suppressor, see your local

PROFORM dealer or call 1-800-999-3756 and order

part number 146148. Use only a single-outlet surge

suppressor that is UL 1449 listed as a transient voltage

surge suppressor (TVSS). The surge suppressor must

have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The hiker is not compatible with GFCI-

equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

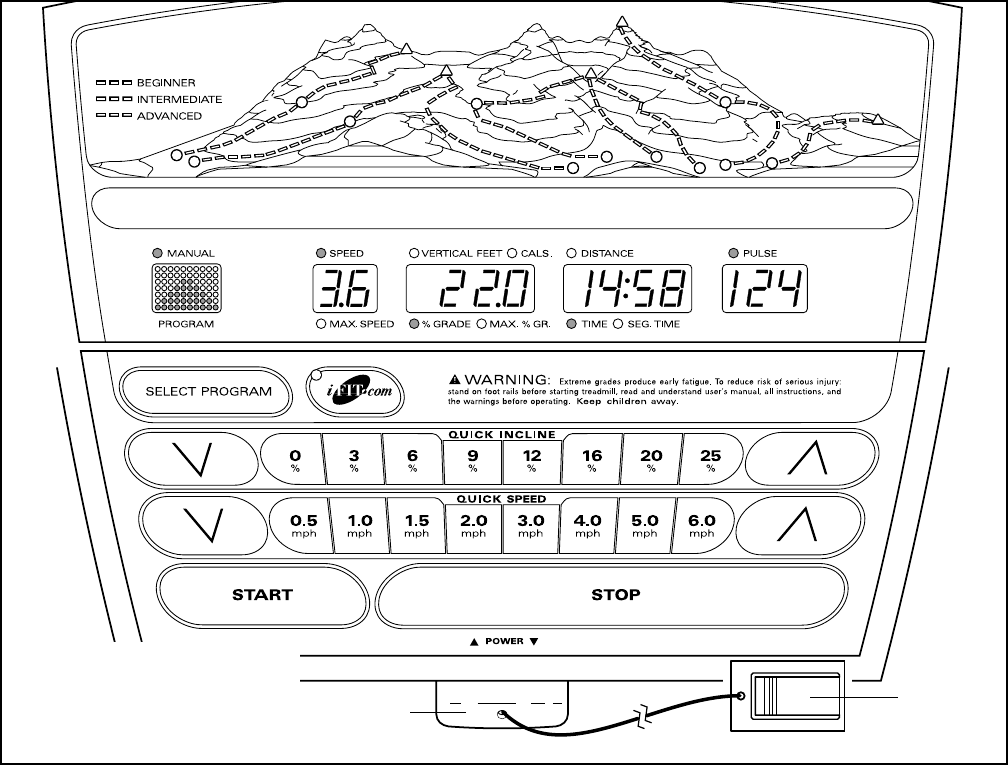

FEATURES OF THE CONSOLE

The revolutionary hiker combines state-of-the-art tech-

nology with innovate design to provide you with a moti-

vating and effective form of exercise in the convenience

of your home.

When the manual mode of the console is selected, the

grade and speed of the hiker can be changed with a

touch of a button. As you exercise, the console will dis-

play continuous exercise feedback. You can even

track your heart rate using the optional heart rate mon-

itor (for information about the optional heart rate

monitor, see page 19).

The console also offers twelve preset programs. Each

preset program automatically controls the grade and

speed of the hiker to simulate a hiking trail as it guides

you through an effective workout. Choose from begin-

ner, intermediate, and advanced programs.

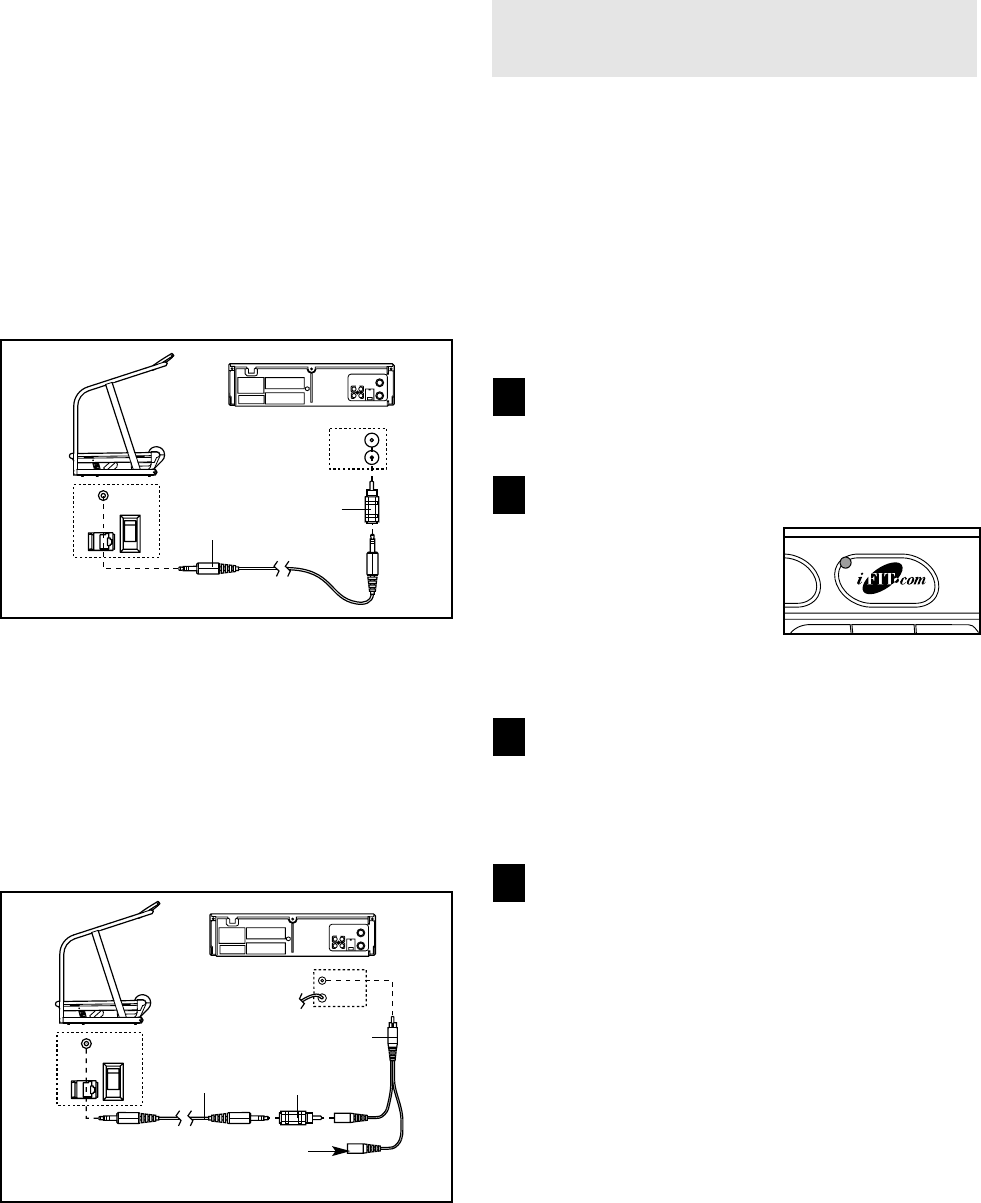

The console also features new iFit.com interactive tech-

nology. IFit.com technology is like having a personal

trainer right in your home. Using the included audio

cable, you can connect the hiker to your home stereo,

portable stereo, or computer and play special iFit.com

CD programs (CD’s are available separately). IFit.com

CD programs automatically control the grade and

speed of the hiker as a personal trainer walks you

through every step of your workout. High-energy music

provides added motivation. Each CD features two pro-

grams designed by certified personal trainers.

In addition, you can connect the hiker to your VCR and

TV and play iFit.com video programs (videocassettes

are available separately). Video programs offer the

same benefits as iFit.com CD programs, but add the

excitement of exercising with a class and an instructor—

the hottest new trend at health clubs.

With the hiker connected to your computer, you can

also go to our new internet site at www.iFit.com and

access audio programs and video programs directly

from the internet. And by adding an optional upgrade

module to the hiker, you can use virtually endless fea-

tures from our internet site. See www.iFit.com for com-

plete details. To purchase iFit.com CD’s or video-

cassettes, call toll-free 1-800-735-0768. To order

the optional upgrade module, see page 19.

Clip

Key

Note: If there is a thin sheet

of clear plastic on the face

of the console, remove it.

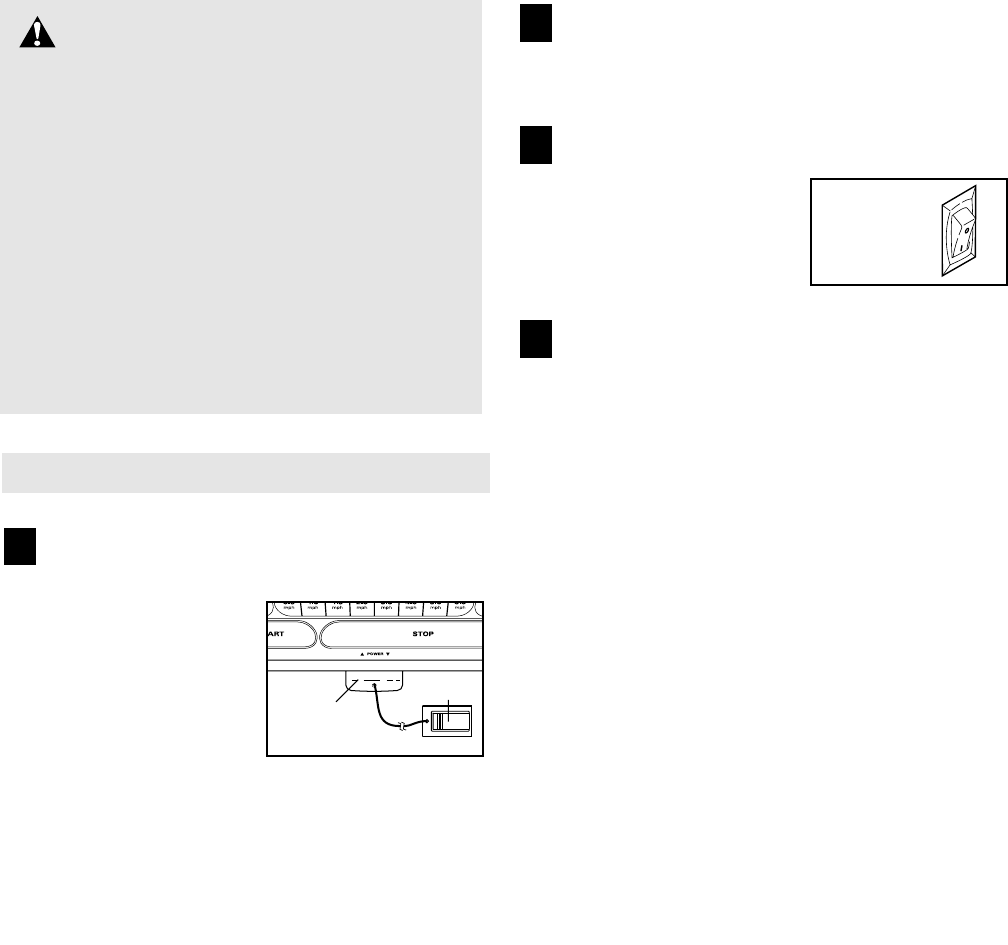

GETTING STARTED

Attach the clip to the waistband of your

clothing.

Stand on the foot rails

of the hiker. Find the

clip attached to the

key and slide the clip

onto the waistband of

your clothing. Next,

insert the key into the

console. Test the

clip by carefully taking a few steps backward

until the key is pulled from the console. If the

key is not pulled from the console, adjust the

position of the clip as needed. Then, remove

the key from the console.

Plug in the power cord.

See HOW TO PLUG IN THE POWER CORD on

page 8.

Move the on/off switch to the on position.

Locate the on/off switch

on the hiker near the

power cord. Move the

on/off switch to the on

position.

Insert the key fully into the console.

Stand on the foot rails of the hiker. Attach the clip

securely to the waistband of your clothing.

Next, insert the key into the console. After a mo-

ment, various displays and indicators on the con-

sole will light. Note: When the key is inserted, the

hiker may automatically calibrate itself by rising to

the highest grade and then returning to the lowest

grade. During this process, the console will show

two dashes (– –) and one flashing indicator.

To use the manual mode of the console, follow the

steps beginning on page 11. To use a preset pro-

gram, see page 12. To use an iFit.com CD or video

program, see page 16. To use an iFit.com program

directly from our internet site, see page 18.

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

• Always wear the clip (see the drawing below)

while operating the hiker.

• Adjust the speed in small increments to

avoid sudden jumps in speed.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and place only a sealed water

bottle in the water bottle holder.

Position

Key Clip

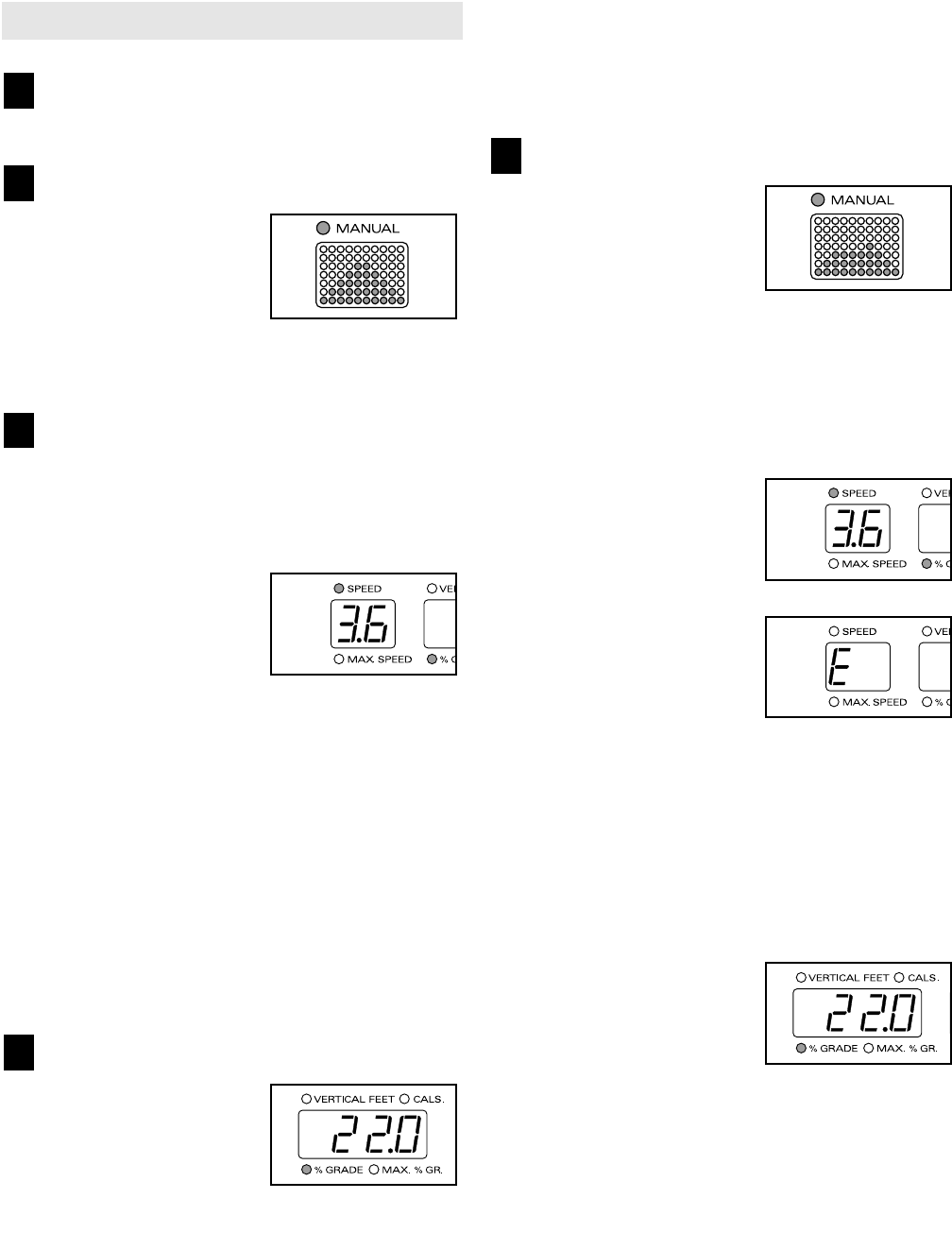

HOW TO USE THE MANUAL MODE

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select the manual mode.

When the key is in-

serted, the manual

mode will automatically

be selected, as shown

by the Manual indicator.

If a preset program has

been selected, press the Select Program button

repeatedly until the Manual indicator lights.

Press the Start button or the Speed

▲▲

button to

start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move at 1 mile per hour. Hold the

handrails and begin walking.

As you exercise,

change the speed of

the walking belt as de-

sired by pressing the

Speed

▲▲

and

▼▼

buttons. Each time a

button is pressed, the speed setting will change

by 0.1 mph; if a button is held down, the speed

setting will change in increments of 0.5 mph. To

change the speed setting quickly, press the Quick

Speed buttons. The speed range is 0.5 mph to 6

mph. Note: After the buttons are pressed, it will take

a moment for the walking belt to reach the selected

speed setting.

To stop the walking belt, press the Stop button.

The displays will pause and the Distance/Time

display will begin to flash. To restart the walking

belt, press the Start button or the Speed

▲▲

button.

Change the grade of the hiker as desired.

To change the grade of

the hiker, press the

Incline

▲▲

and

▼▼

but-

tons. Each time a but-

ton is pressed, the

grade will change by

1%. To change the grade quickly, press the Quick

Incline buttons. The grade range is 0% to 25%.

Note: After the buttons are pressed, it will take a

moment for the hiker to reach the selected grade

setting.

Follow your progress with the console displays.

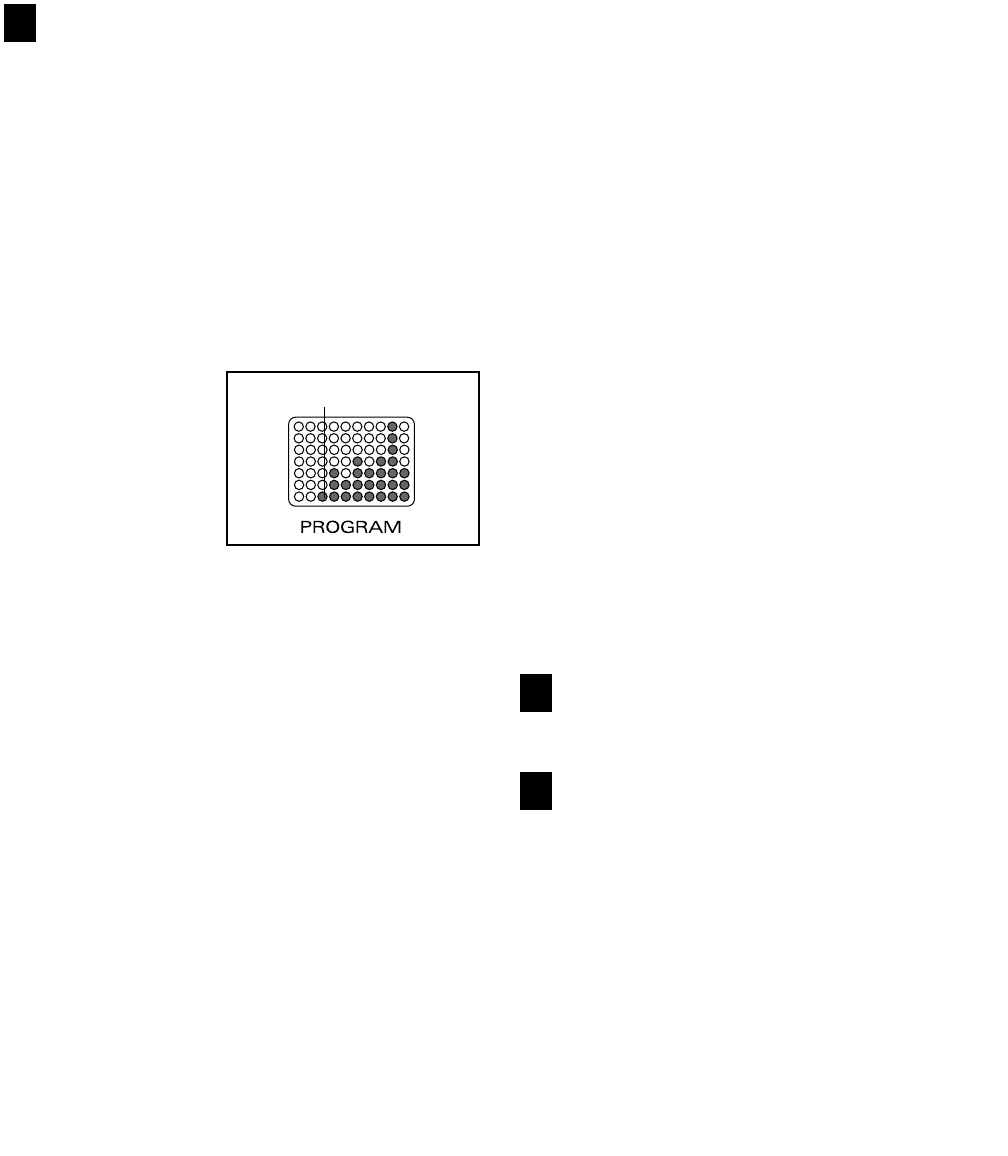

The matrix—When the

manual mode or an

iFit.com program is se-

lected, the matrix will dis-

play a triangle represent-

ing a mountain. When the

walking belt is started, the triangle will disappear

except for one flashing indicator. As you exercise,

the indicators in the triangle will light one at a time

until the entire triangle is again lit. This cycle will

then repeat. Each time the entire triangle lights,

you have walked 1/4 mile.

The Speed display—

This display shows the

speed of the walking

belt.

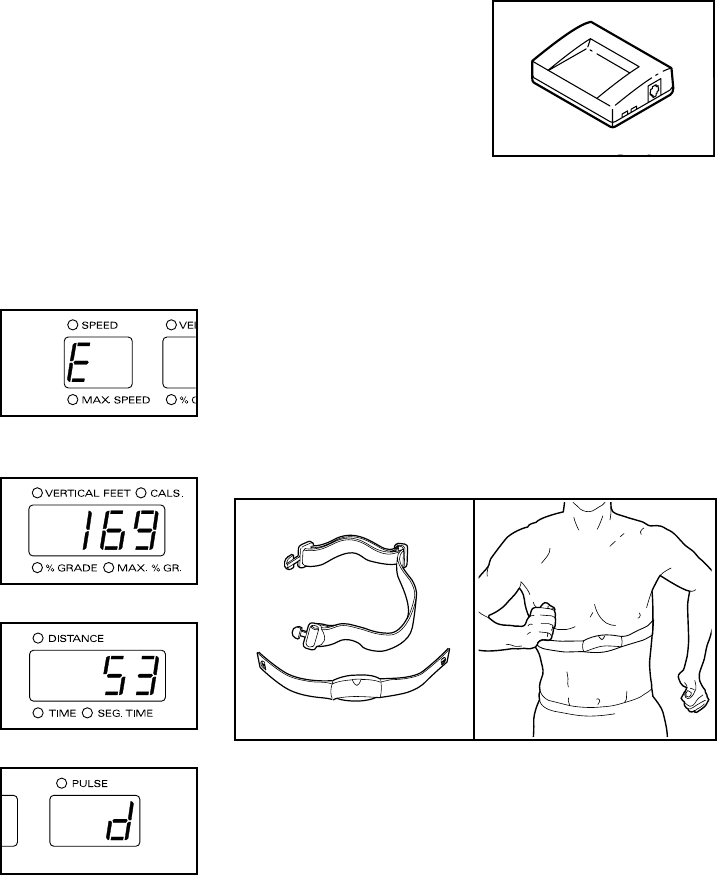

Note: The console can

display speed and dis-

tance in either miles or

kilometers. To see which

unit of measurement is

selected, hold down the

Stop button while inserting the key into the console.

An “E” for English miles or an “M” for metric kilo-

meters will appear in the Speed display. Press the

Speed

▲▲

button to change the unit of measure-

ment. When the desired unit of measurement is

selected, remove the key and then re-insert it.

Note: For simplicity, all instructions in this manual

refer to miles.

The Vertical Feet/

Cals./Grade display—

This display shows the

number of vertical feet

you have climbed, the

grade of the hiker, and

the approximate number of calories you have

burned. The display will change from one number

to the next every seven seconds, as shown by the

indicators around the display.

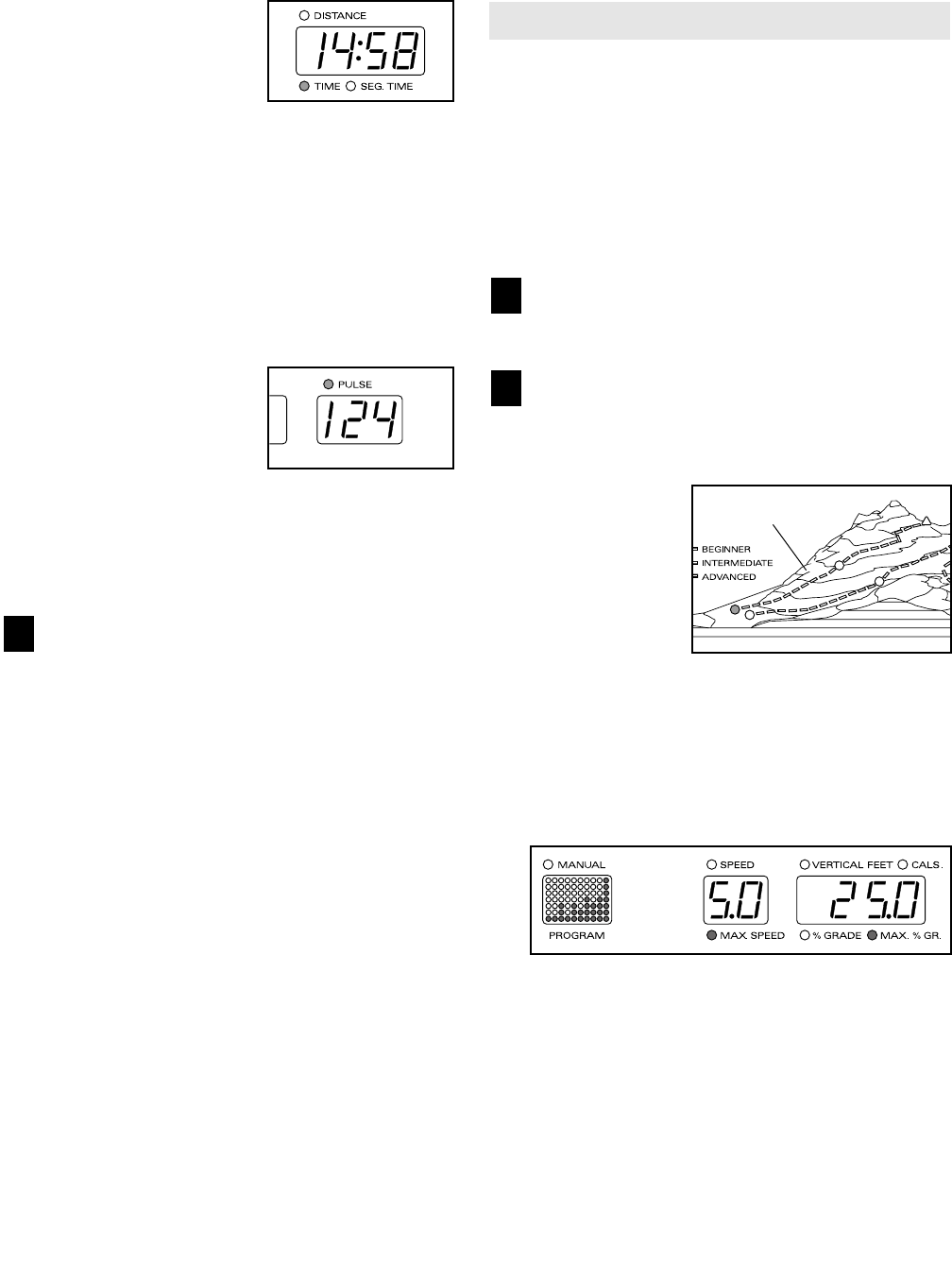

The Distance/Time

display—When the

manual mode or an

iFit.com program is se-

lected, this display will

show the distance you

have hiked and the elapsed time. The distance will

be shown for seven seconds and the time will be

shown for fourteen seconds, as shown by the indi-

cators around the display.

When a preset program is selected, the Distance/

Time display will show the distance you have hiked,

the time remaining in the program, and the time

remaining in the current segment of the program.

Pulse display—This

display will show your

heart rate when the op-

tional heart rate moni-

tor is worn. (For infor-

mation about the op-

tional heart rate monitor, see page 19.)

To reset the displays, press the Stop button, re-

move the key, and then re-insert the key.

When you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails and press the Stop button.

Next, remove the key from the console and put it in

a secure place. Note: If the displays and indica-

tors on the console remain lit after the key is

removed, the console is in the “demo” mode.

Refer to page 19 and turn off the demo mode.

When you are finished using the hiker, move the

on/off switch near the power cord to the off position

and unplug the power cord.

HOW TO USE PRESET PROGRAMS

The console offers twelve preset programs. Each preset

program automatically controls the grade and speed of

the hiker to simulate a hiking trail as it guides you

through an effective workout. You can choose from four

beginner programs, four intermediate programs, and

four advanced programs.

Follow the steps below to use a preset program.

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select the desired preset program.

When the key is inserted, the manual mode will be

selected. To select a preset program, press the

Select Program

button repeat-

edly. The

twelve trails

shown in the

trail display

represent the

twelve preset

programs. As

you press the

Select Program button repeatedly, indicators will

light in the trail display to show which trail you

have selected.

When a preset program is selected, the matrix will

show the grade settings for the program. (For the

longest programs, the matrix will not show all of

the grade settings at once.) In addition, the Speed

display will show the maximum speed setting for

the program and the Vertical Feet/Cals./Grade

display will show the maximum grade setting for

the program.

Trail Display

Press the Start button or the Speed

▲▲

button to

start the program.

A moment after the button is pressed, the hiker

will automatically adjust to the first grade and

speed settings for the program. Hold the handrails

and begin walking.

Each program is divided into several time seg-

ments of different lengths. The Distance/Time dis-

play shows both the time remaining in the program

and the time remaining in the current segment of

the program. One grade setting and one speed

setting are programmed for each segment. The

grade setting for

the first segment

is shown in the

flashing Current

Segment column

of the matrix.

(The speed set-

tings are not

shown in the ma-

trix.) The grade

settings for upcoming segments are shown in the

columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. In addition, the Speed

display will flash three times if the speed is about

to change, and the Vertical Feet/Cals./Grade dis-

play will flash if the grade is about to change.

When the first segment is completed, all grade set-

tings in the matrix will move one column to the left.

The grade setting for the second segment will

then be shown in the flashing Current Segment

column and the hiker will automatically adjust to

the grade and speed settings for the second seg-

ment.

The program will continue until the grade setting

for the last segment is shown in the Current

Segment column of the matrix and no time re-

mains in the program. The walking belt will then

slow to a stop.

If the grade or speed setting for the current

segment is too high or too low, you can manually

override the setting by pressing the Incline or

Speed buttons on the console. Every few times

one of the Incline buttons is pressed, an additional

indicator will light or darken in the Current Segment

column of the matrix. Important: If you manually

override the grade or speed setting for the cur-

rent segment, when the segment ends the hiker

will automatically adjust to the grade and

speed settings for the next segment. Note:

Because each program is based on a preset dis-

tance, if you manually increase the speed, the

time remaining in the current segment and the

time remaining in the program will decrease; if you

manually decrease the speed, the time remaining

in the current segment and the time remaining in

the program will increase.

To stop the program temporarily, press the Stop

button. The displays will pause and the Distance/

Time display will begin to flash. To restart the pro-

gram, press the Start button or the Speed

▲▲

but-

ton. To end the program, press the Stop button, re-

move the key, and then re-insert the key. Pressing

the Program Select button will also end the pro-

gram and will select the next preset program.

Follow your progress with the displays.

See step 5 on page 11.

When the program is completed, remove the

key.

Step onto the foot rails and remove the key from

the console. Make sure to keep the key in a secure

place. Note: If the displays and indicators on

the console remain lit after the key is removed,

the console is in the “demo” mode. Refer to

page 19 and turn off the demo mode.

When you are finished using the hiker, move the

on/off switch near the power cord to the off position

and unplug the power cord.

Current Segment

HOW TO CONNECT THE HIKER TO YOUR CD

PLAYER, VCR, OR COMPUTER

To use iFit.com CD’s, the hiker must be connected to

your portable CD player, portable stereo, home stereo,

or computer with CD player. See this page and page

15 for connecting instructions. To use iFit.com video-

cassettes, the hiker must be connected to your VCR.

See page 16 for connecting instructions. To use

iFit.com programs directly from our internet site,

the hiker must be connected to your home computer.

See page 15 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the LINE OUT jack on your CD

player. Plug your headphones into the PHONES

jack.

B. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into a 3.5mm Y-adapter (available

at electronics stores). Plug the Y-adapter into the

PHONES jack on your CD player. Plug your head-

phones into the other side of the Y-adapter.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the included adapter. Plug the

adapter into an AUDIO OUT jack on your stereo.

B. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the LINE OUT jack on your

stereo.

C. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into a 3.5mm Y-adapter (available

at electronics stores). Plug the Y-adapter into the

PHONES jack on your stereo. Plug your head-

phones into the other side of the Y-adapter.

LINE OUT

PHONES LINE OUT

PHONES

Audio

Cable

Head-

phones

AUDIO OUT

RIGHT

LEFT

Audio

Cable Adapter

LINE OUT

Audio

Cable

PHONES

Audio

Cable

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones

3.5mm

Y-adapter

Headphones

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the included adapter. Plug the

adapter into the LINE OUT jack on your stereo.

B. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the included adapter. Plug the

adapter into an RCA Y-adapter (available at elec-

tronics stores). Next, remove the wire that is cur-

rently plugged into the LINE OUT jack on your

stereo and plug the wire into the unused side of the

RCA Y-adapter. Plug the RCA Y-adapter into the

LINE OUT jack on your stereo.

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 3.5mm LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the LINE OUT jack on your

computer.

B. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into a 3.5mm Y-adapter (available

at electronics stores). Plug the Y-adapter into the

PHONES jack on your computer. Plug your head-

phones or speakers into the other side of the Y-

adapter.

VCR

Amp

LINE OUT

Audio

Cable Adapter

LINE OUT

Audio

Cable

VCR

Amp

LINE OUT

Audio

Cable

RCA

Y-adapter

Wire removed from

LINE OUT jack

Adapter

PHONES

Audio

Cable

3.5mm

Y-adapter

Headphones/Speakers

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with a built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 15.

A. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the included adapter. Plug the

adapter into the AUDIO OUT jack on your VCR.

B. Plug one end of the audio cable into the jack on the

side of the hiker near the power cord. Plug the other

end of the cable into the included adapter. Plug the

adapter into an RCA adapter (available at electron-

ics stores). Next, remove the wire that is currently

plugged into the AUDIO OUT jack on your VCR and

plug the wire into the unused side of the RCA

adapter. Plug the RCA adapter into the AUDIO OUT

jack on your VCR.

HOW TO USE IFIT.COM CD AND VIDEO

PROGRAMS

To use iFit.com CD’s or videocassettes, the hiker must

be connected to your portable CD player, portable

stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE HIKER TO

YOUR CD PLAYER, VCR, OR COMPUTER on page

14. Note: To purchase iFit.com CD’s or videocas-

settes, call toll-free 1-800-735-0768.

Follow the steps below to use an iFit.com CD or video

program.

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select the iFit.com mode.

When the key is in-

serted, the manual

mode will be selected.

To use an iFit.com CD

or video program, press

the IFit.com button. The

indicator on the button will light.

Insert the iFit.com CD or videocassette.

If you are using an iFit.com CD, insert the CD into

your CD player. If you are using an iFit.com video-

cassette, insert the videocassette into your VCR.

Press the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your per-

sonal trainer will begin guiding you through the

program. Simply follow your personal trainer’s

instructions. Note: If the Distance/Time display is

flashing, press the Start button or the Speed

▲▲

button on the console. The hiker will not respond

to a CD or video program when the display is

flashing.

During the CD or video program, an electronic

“chirping” sound will alert you when the grade

and/or speed of the hiker is about to change. CAU-

TION: Always listen for the “chirp” and be pre-

pared for grade and/or speed changes. In

some instances, the grade and/or speed may

change before the personal trainer describes

the change.

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Audio

Cable Adapter

VIDEO AUDIO

ANT. IN

RF OUT

OUT

Audio

Cable Adapter

Wire removed from

AUDIO OUT jack

RCA Adapter

If the grade or speed settings are too high or too

low, you can manually override the settings at any

time by pressing the Incline or Speed buttons on

the console. However, when the next “chirp” is

heard, the speed and/or grade will change to

the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The Distance/Time

display will begin to flash. To restart the program,

press the Start button or the Speed

▲▲

button.

After a moment, the walking belt will begin to

move at 1 mph. When the next “chirp” is heard,

the grade and speed will change to the next

settings of the CD or video program. Pressing

the Stop button on your CD player or VCR will

also stop the program.

When the CD or video program is completed, the

walking belt will stop and the Distance/Time display

will begin to flash. Note: To use another CD or

video program, press the Stop button or remove

the key and go to step 1 on page 19.

Note: If the grade or speed of the hiker does

not change when a “chirp” is heard:

• make sure that the indicator on the IFit.com

button is lit and that the Distance/Time dis-

play is not flashing. If the display is flashing,

press the Start button or the Speed

▲▲

button

on the console.

• adjust the volume of your CD player or VCR. If

the volume is too high or too low, the console

may not detect the program signals.

• make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord.

• if you are using your portable CD player and

the CD skips, set the CD player on the floor or

another flat surface instead of on the console.

Follow your progress with the displays.

See step 5 on page 11.

When the program is completed, remove the

key.

See step 6 on page 12.

HOW TO USE PROGRAMS DIRECTLY FROM

OUR INTERNET SITE

Our new internet site at www.iFit.com allows you to

access a selection of programs that interactively con-

trol your hiker to help you achieve your specific exer-

cise goals. In addition, you can play iFit.com audio and

video programs directly from the internet. By adding an

optional upgrade module to the console, you can use

virtually endless features from our internet site. Explore

www.iFit.com for details. To purchase an upgrade

module, see page 19.

To use programs from our internet site, the hiker must

be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 15. In

addition, you must have an internet connection and

an internet service provider. A list of specific system

requirements will be found on our internet site.

Follow the steps below to use a program from our

internet site.

Insert the key fully into the console.

See GETTING STARTED on page 10.

Select the iFit.com mode.

When the key is inserted, the manual mode will be

selected. To use a program from our internet site,

press the IFit.com button. The indicator on the but-

ton will light.

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go to

our internet site at www.iFit.com.

Follow the links on our internet site to select a

program.

Read and follow the on-line instructions for using a

program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

Return to the hiker and stand on the foot rails.

Find the clip attached to the key and slide the

clip onto the waistband of your clothing.

When the on-screen countdown ends, the program

will begin and the walking belt will begin to move.

Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic

“chirping” sound will alert you when the grade

and/or speed of the hiker is about to change.

CAUTION: Always listen for the “chirp” and be

prepared for grade and/or speed changes.

If the grade or speed settings are too high or too

low, you can manually override the settings at any

time by pressing the Incline or Speed buttons on

the console. However, when the next “chirp” is

heard, the grade and/or speed will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The Distance/Time

display will begin to flash. To restart the program,

press the Start button or the Speed

▲▲

button.

After a moment, the walking belt will begin to

move at 1 mph. When the next “chirp” is heard,

the grade and speed will change to the next

settings of the program.

When the program is completed, the walking belt

will stop and the Distance/Time display will begin

to flash. Note: To use another program, press the

Stop button and go to step 5.

Note: If the grade or speed of the hiker does

not change when a “chirp” is heard, make sure

that the indicator on the iFit.com button is lit

and that the Distance/Time display is not flash-

ing. In addition, make sure that the audio cable

is properly connected, that it is fully plugged in,

and that it is not wrapped around a power cord.

Follow your progress with the displays.

See step 5 on page 11.

When the program is completed, remove the

key.

See step 6 on page 12.

THE INFORMATION MODE/DEMO MODE

The console features an information mode that keeps

track of the total number of hours that the hiker has

been operated and the total number of miles that the

walking belt has moved. The information mode also

allows you to switch the console from miles to kilome-

ters. In addition, the information mode allows you to

turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the console will show

the following information:

An “E” for English miles or

an “M” for metric kilometers

will appear in the Speed dis-

play. Press the Speed

▲▲

button to change the unit of

measurement.

The Vertical Feet/Cals./

Grade display will show the

total number of miles that

the walking belt has moved.

The Distance/Time display

will show the total number of

hours that the hiker has

been used.

IMPORTANT: Make sure

that there is not a letter

“d” in the Pulse display. If

a “d” appears in the display,

the console is in the “demo”

mode. This mode is intended

to be used only when a hiker is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the displays and indicators on the console

will automatically light in a preset sequence, although

the buttons on the console will not operate. If a “d” ap-

pears in the Pulse display when the information

mode is selected, press the Speed

▼▼

button so the

display is blank.

To exit the information mode, remove the key from the

console.

THE OPTIONAL IFIT.COM MODULE

By adding an optional

iFit.com module to the

hiker, you can use virtu-

ally endless features from

our internet site. Imagine

on-line competitions, per-

sonal training sessions

via the internet, and the

ability to use your computer to track your programs.

For information about purchasing the optional

iFit.com module, call toll-free 1-800-735-0768.

THE OPTIONAL HEART RATE MONITOR

An optional heart rate monitor adds even more

features to the console. The heart rate monitor provides

hands-free operation and continuously monitors your

heart rate during your workouts. To purchase the

optional heart rate monitor, call toll-free 1-800-999-

3756.

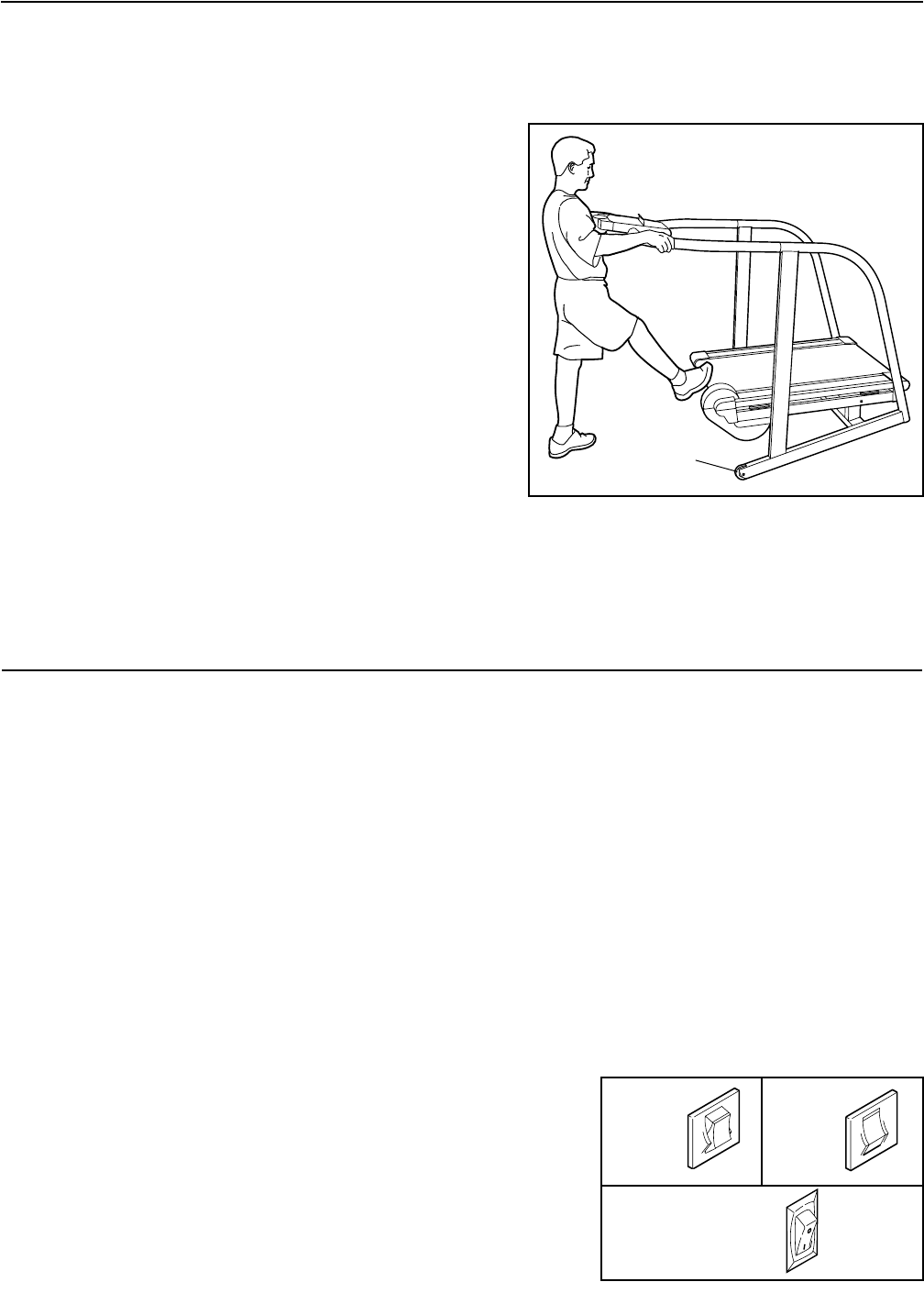

How to Move the Hiker

Before moving the hiker, change the grade of the hiker to the lowest level and unplug the power cord.

1. Hold the handrails as shown and place one foot against

the walking belt.

2. Tilt the hiker back until it rolls freely on the wheels. The

help of a second person may be helpful when tipping the

hiker. Carefully move the hiker to the desired location.

Never move the hiker without tipping it back. To re-

duce the risk of injury, use extreme caution while

moving the hiker. Do not attempt to move the hiker

over an uneven surface.

3. Place one foot on the walking belt, and carefully lower the

hiker until it is resting on the floor.

Wheels

Trouble-shooting

Most problems can be solved by following the steps below. Find the symptom that applies, and follow the

steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1-800-999-

3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppres-

sor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor

must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation

of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

Important: The hiker is not compatible with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the hiker near

the power cord. If the switch protrudes as shown, the

circuit breaker has tripped. To reset the circuit

breaker, wait for five minutes and then press the

switch back in.

d. Check the on/off switch located on the hiker near the

power cord. The switch must be in the on position.

Tri

pped

Reset

Tripped

Reset

Position

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the hiker near the power cord (see c. on page 20). If the cir-

cuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in.

c. Remove the key from the console. Re-insert the key fully into the console.

d. Make sure that the on/off switch is in the “on” position.

e. If the hiker still will not run, please call our Customer Service Department, toll-free.

PROBLEM: The key is inserted and the displays on the console are lit, but the walking belt will not start

SOLUTION: a. Unplug the power cord, wait for five minutes, and then plug the power cord back in.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and UNPLUG THE

POWER CORD. Remove the two indicated Screws

(43) from the Belly Pan (16). Loosen the other indi-

cated Screw three turns. Carefully lift off the Front

Roller Cover.

b. Locate the Reed Switch (87) and the Magnet (13) on

the side of the Pulley (11). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8”. If necessary, loosen the Screw

(43) and move the Reed Switch slightly. Retighten the

Screw. Re-attach the front roller cover, and run the

hiker for a few minutes to check for a correct speed

reading.

PROBLEM: The grade of the hiker does not change correctly or does not change when iFit.com CD’s and

videocassettes are played

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the grade is changing, re-

move the key. After a few seconds, re-insert the key. The hiker will automatically rise to the high-

est grade and then return to the lowest grade. This will recalibrate the hiker.

b. If an “E6” appears in the Distance/Time display, remove the key and unplug the power cord. Wait

for sixty seconds, plug in the power cord, and re-insert the key.

Loosen

three

turns

Top

View

1/8”

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in

length.

b. If the walking belt is overtightened, hiker performance

may decrease and the walking belt may become

damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is correctly tightened, you

should be able to lift each side of the walking belt 2 to

3 inches off the walking platform. Be careful to keep

the walking belt centered. Plug in the power cord, in-

sert the key and carefully walk on the treadmill for a

few minutes. Repeat until the walking belt is properly

tightened.

c. If the walking belt still slows, please call our Customer Service Department, toll-free.

PROBLEM: The walking belt is off-center

SOLUTION: a. If the walking belt has shifted to the left, first remove

the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn the left rear roller adjustment bolt clock-

wise, and the right bolt counterclockwise, 1/4 of a turn

each. Be careful not to overtighten the walking belt. Plug

in the power cord, insert the key and run the treadmill for

a few minutes. Repeat until the walking belt is centered.

b. If the walking belt has shifted to the right, first remove

the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn the left rear roller adjustment bolt coun-

terclockwise, and the right bolt clockwise, 1/4 of a turn

each. Be careful not to overtighten the walking belt. Plug

in the power cord, insert the key and run the treadmill for

a few minutes. Repeat until the walking belt is centered.

PROBLEM: The walking belt slips when walked on

SOLUTION: a. If the walking belt slips when walked on, first remove the

key and UNPLUG THE POWER CORD. Using the allen

wrench, turn both rear roller adjustment bolts clockwise,

1/4 of a turn. When the walking belt is correctly tightened,

you should be able to lift each side of the walking belt 3 to

4 inches off the walking platform. Be careful to keep the

walking belt centered. Plug in the power cord, insert the

key and carefully walk on the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

2”–3”

Rear Roller

Adjustment Bolts

Conditioning Guidelines

The following guidelines will help you to plan your ex-

ercise program. Remember—these are general guide-

lines only. For more detailed exercise information, ob-

tain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes does your body

begin to use stored fat calories for energy. If your goal

is to burn fat, adjust the grade and speed of the hiker

until your heart rate is near the lowest number in your

training zone.

For maximum fat burning, adjust the grade and speed

of the hiker until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the grade and speed of the hiker until your heart

rate is near the highest number in your training zone.

HOW TO MEASURE YOUR HEART RATE

To measure your

heart rate, stop exer-

cising and place two

fingers on your wrist

as shown. Take a six-

second heartbeat

count, and multiply

the result by ten to

find your heart rate. (A

six-second count is used because your heart rate

drops quickly when you stop exercising.)

PROGRAM GUIDELINES

Each program should include the following three parts:

A Warm-up—Start each program with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your heart rate is in

your training zone for 20 to 60 minutes. (During the

first few weeks of your exercise program, do not keep

your heart rate in your training zone for longer than 20

minutes.) Breathe regularly and deeply as you exercise.

A Cool-down—Finish each program with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-ex-

ercise problems.

Exercise Frequency

To maintain or improve your condition, complete three

programs each week, with at least one day of rest be-

tween programs. After a few months, you may com-

plete up to five programs each week if desired. The

key to success is to make exercise a regular and en-

joyable part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

Ordering Replacement Parts

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

• The MODEL NUMBER OF THE PRODUCT (PFHK99900)

• The NAME OF THE PRODUCT (PROFORM®TRAIL RUNNER hiker)

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST and the EXPLODED DRAWING

attached in the center of this manual).

If possible, place the hiker near your telephone for easy reference when calling.

Limited Warranty

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All

products for which warranty claim is made must be received by ICON at one of its authorized service

centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-

chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or

damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal

usage or repairs not provided by an ICON authorized service center, to products used for commercial or

rental purposes, or to products used as store display models. No other warranty beyond that specifically

set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

REMOVE THIS EXPLODED DRAWING AND

PART LIST FROM THE MANUAL

Save this EXPLODED DRAWING and PART LIST for future reference.

Note: Specifications are subject to change without notice. For information about

ordering replacement parts, see the back cover of the User’s Manual.

Part List—Model No. PFHK99900 R0600A

Key

No. Qty. Description Key

No. Qty. Description

1 1 Left Foot Rail Insert

2 1 Left Foot Rail

3 1 Motor Belt

4 4 Platform Screw

5 2 Belt Guide

6 12 Small Screw

7 1 Walking Platform

8 2 Roller Guard

9 5 Resistor Screw

10 1 Walking Belt

11 1 Drive Roller/Pulley

12 2 Front Roller Clip

13 1 Magnet

14 1 Front Roller Cover

15 9 Belly Pan Screw

16 1 Belly Pan

17 1 Right Foot Rail Insert

18 1 Right Foot Rail

19* 1 Heart Rate Monitor

20** 1 IFit.com Module

21** 1 IFit.com Videocassette

22** 1 IFit.com CD

23 2 Upright

24 1 Key/Clip

25 4 Handrail Bolt

26 4 Handrail Star Washer

27 1 Handrail

28 1 Flywheel Screw

29 6 Screw

30 1 Handrail Wire Harness

31 1 Cup Holder Flange

32 6 Internal Star Washer

33 6 1” Upright Bolt

34 2 Front Wheel

35 2 Front Wheel Bolt

36 2 Front Wheel Nut

37 1 Power Cord

38 1 Power Cord Grommet

39 1 Circuit Breaker

40 2 Frame Pivot Spacer

41 1 Base Wire Harness

42 5 Base Pad

43 20 Screw

44 1 Releasable Tie

45 1 Tie Screw

46 1 Tie Holder

47 1 8” Cable Tie

48 1 On/Off Switch

49 1 Outlet Cover

50 1 14” Controller Wire

51 1 IFit.com Connector

52 1 IFit.com Wire

53 4 Cage Nut

54 4 Upright Bolt (Long)

55 1 10’ iFit.com Audio Cable

56 1 IFit.com Jack

57 1 IFit.com Wire

58 10 Electronics Screw

59 1 Resistor

60 1 Electronics Bracket

61 4 Plastic Stand-off

62 1 Power Board

63 1 Controller

64 2 Frame Pivot Bolt

65 1 Allen Wrench

66 4 Frame Bushing

67 2 Warning Decal

68 6 Endcap Screw

69 3 Roller Adj. Bolt

70 3 Roller Adj. Washer

71 2 Frame Endcap

72 4 Isolator

73 1 Flywheel Washer

74 1 Motor Pivot Bolt

75 1 Motor

76 1 Pulley/Flywheel/Fan

77* 1 Motor/Pulley/Flywheel/Fan

78 1 30” Extension Wire

79 1 Motor Tension Bolt

80 1 Motor Tension Washer

81 1 Motor Star Washer

82 2 Motor Tension Nut

83 2 Small Screw

84 1 Plastic Plate

85 1 Reed Switch Clip

86 2 Upright Endcap

87 1 Reed Switch/Wire

88 1 Frame

89 1 Incline Motor Bolt (Short)

90 4 Incline Motor Nut/Frame

Pivot Nut

91 1 Rear Endcap (Right)

92 1 Incline Motor Insert

93 1 Incline Motor Cover

(Bottom)

94 1 Incline Motor Cover

(Top)

95 1 Incline Motor Bolt (Long)

96 1 Console Base (Bottom)

97 1 Book Holder

98 1 Cup Holder/Tray

99 1 Console

100 1 Upright Wire Harness

101 1 Base

102 1 6” Audio Wire

103 1 Rear Roller

104 1 Incline Motor

105 4 Wheel Spacer

106 2 Resistor Bracket

107 1 32” Wire Harness

108 3 Endcap Spacer

109 1 Ground Wire Screw

110 1 Ground Wire

111 2 Motor Bushing

112 4 Motor Spacer

114 1 Roller Cover Plate

115 3 Cover Clip

116 4 Bracket Washer

117 2 O-Ring

118 1 Static Decal

# 1 4” Black Wire, M/F

# 1 8” Green Wire, F/Ring

# 1 6” Green Wire, 2 Ring

# 1 4” Green Wire, F/Ring

# 1 User's Manual

* Includes all parts shown in the box

**These parts are optional. For infor-

mation about the iFit.com module,

iFit.com CD’s, or iFit.com video-

cassettes, call toll-free 1-800-735-

0768.

# These parts are not illustrated

Kirk Niebergall

PRODUCT LIT. GROUP

43 19**

21**

22**

20**

17 18

103

43 72 66

43 72

69 70

63 58

61 61

59 9

70 69

67 40 33 32

33 34

32 33

100

52 51

102

56 53

100

96 30

101

77*

104

105

106

86 67

28 105

105

109

110

108

111

112

107

108

114 115

116

117

118

Exploded Drawing—Model No. PFHK99900 R0600A

Proform Pfhk99900 Trailrunner Hiker Users Manual

Proform-Trail-Runner-No-Pfhk99900-Users-Manual-658148 proform-trail-runner-no-pfhk99900-users-manual-658148

Proform-Pfhk99900-Owner-S-Manual proform-pfhk99900-owner-s-manual

PFHK99900 product_support%5CProForm%5CPFHK99900 - PROFORM TRAILRUNNER%5CPFHK9990.0-163591

Navigation menu

Versions of this User Manual:

Views

Navigation
