USER'S MANUAL

Model No. PFTL39211

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

Customer Hot Line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

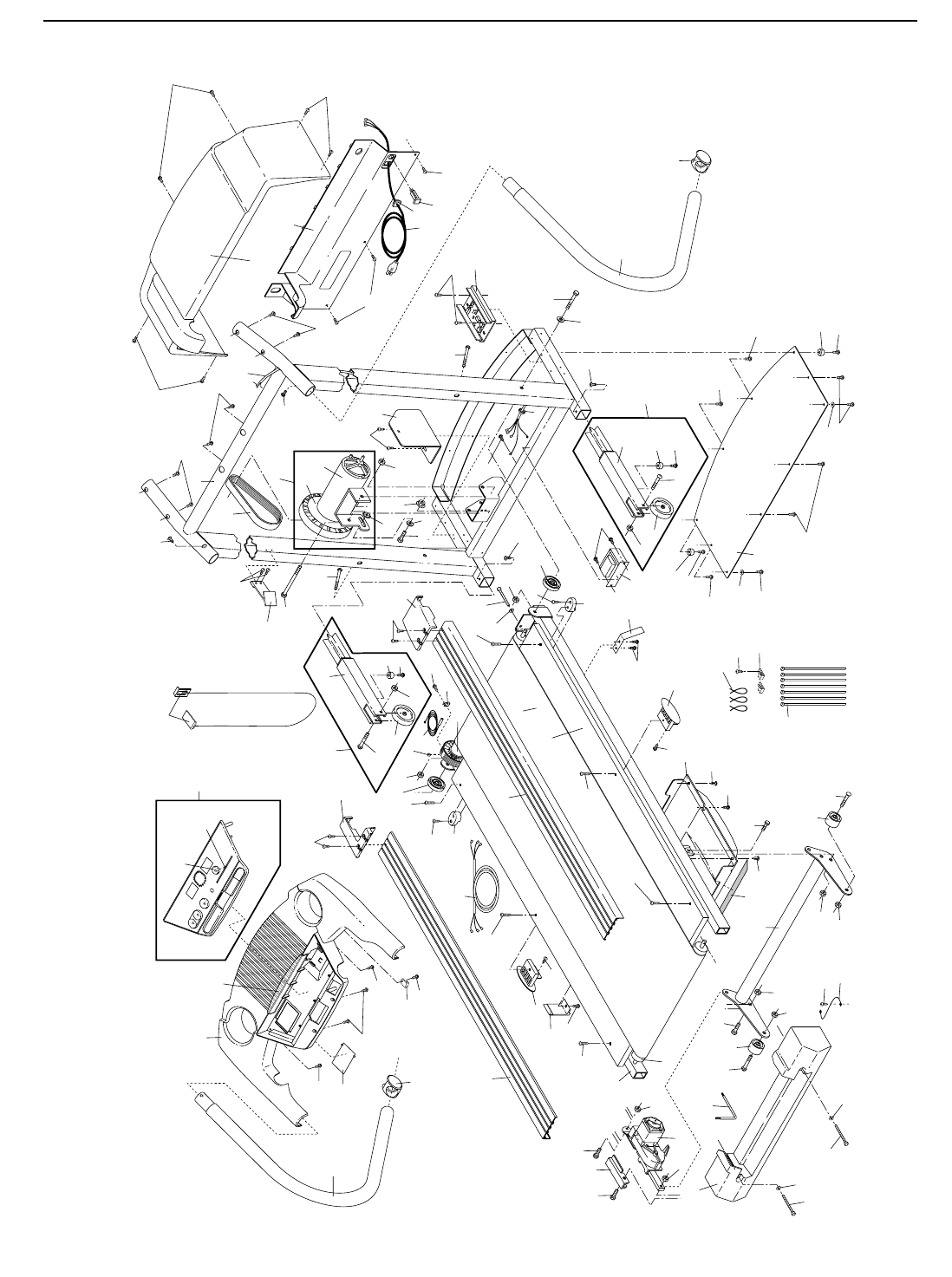

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it and two

feet on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should be used only by persons

weighing 250 pounds or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

10. When connecting the power cord (see page 7),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 7. To purchase a surge suppressor, see

your local PROFORM dealer or call 1-800-806-

3651 and order part number 146148.

12. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed or stop unexpectedly, which may result

in a fall and serious injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

2

The decal shown has been placed on your treadmill. If the decal

is missing, or if it is illegible, please call our Customer Service

Department, toll-free, to order a free replacement decal (see the

front cover of this manual). Apply the decal in the location

shown.

Note: The decal is shown at 38% of actual size.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See BE-

FORE YOU BEGIN on page 4 if the treadmill

is not working properly.)

15. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

17. Never leave the treadmill unattended while it

is running. Always remove the key and un-

plug the power cord when the treadmill is not

in use.

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO FOLD

AND MOVE THE TREADMILL on page 10.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

20. Inspect and properly tighten all parts of the

treadmill regularly.

21. Never insert any object into any opening.

22. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the

maintenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

23. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

3

Congratulations for selecting the new PROFORM®485

Pi treadmill. The 485 Pi treadmill combines advanced

technology with innovative design to help you get the

most from your exercise in the convenience and pri-

vacy of your home. And when you’re not exercising, the

unique 485 Pi treadmill can be folded up, requiring less

than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time (ex-

cluding holidays). To help us assist you, please note

the product model number and serial number before

calling. The model number of the treadmill is

PFTL39211. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

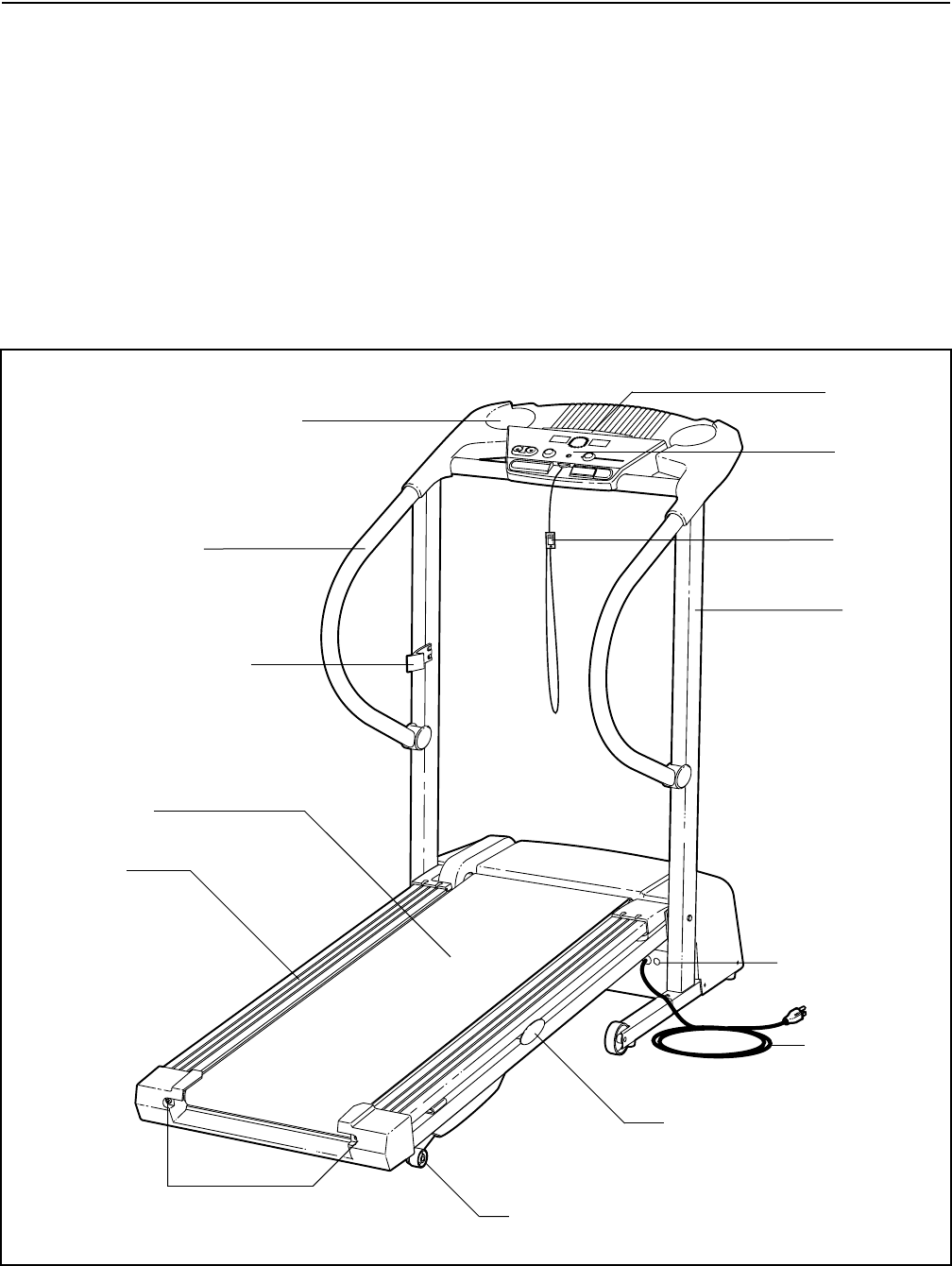

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

4

Handrail

Upright

Storage Latch

Key/Clip

Circuit Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

Power Cord

BACK

RIGHT SIDE

Rear Roller

Adjustment Bolts

Console

Bookrack

Water Bottle Holder

(Bottle not included)

Incline Leg

5

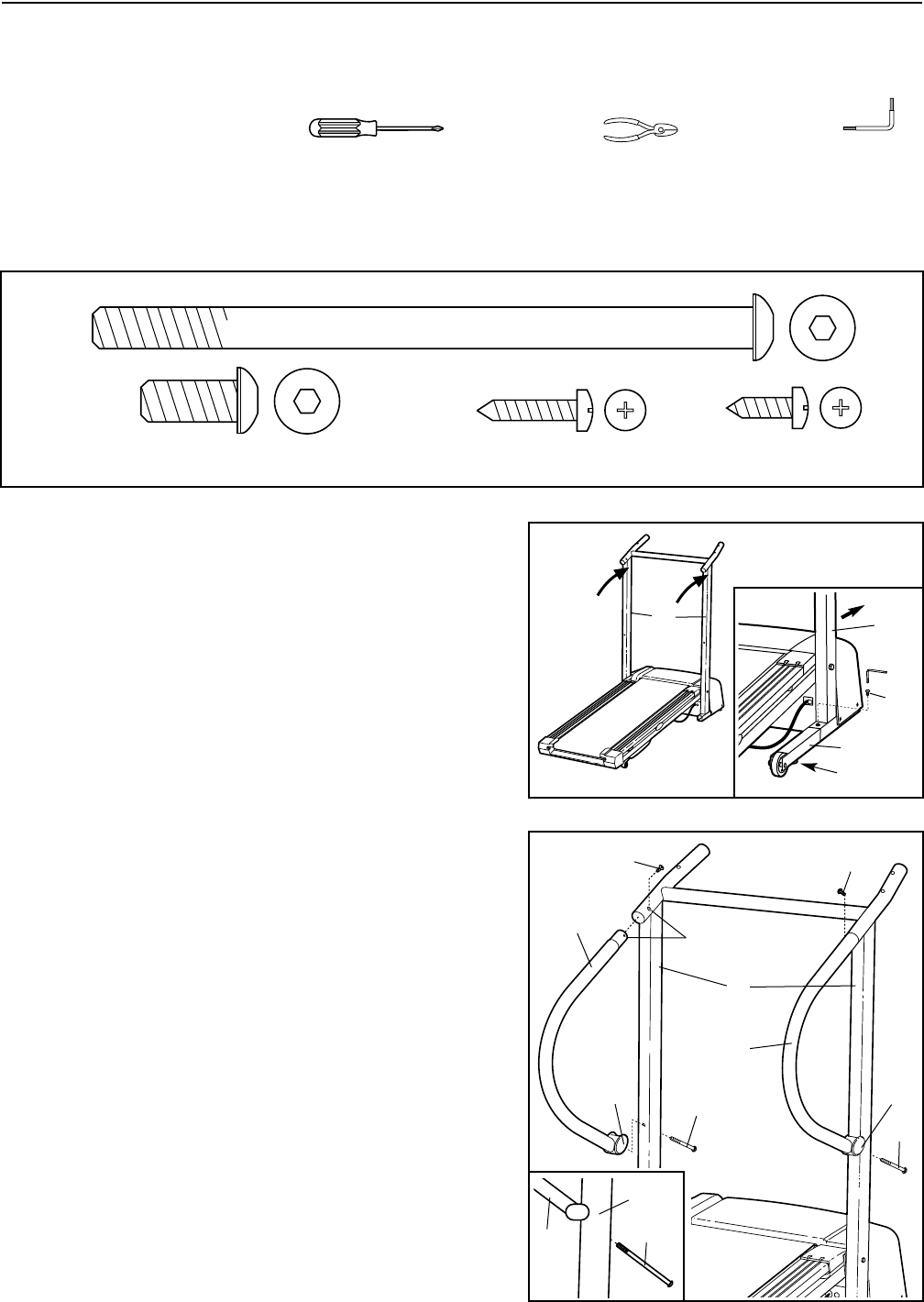

1. Carefully raise the Uprights (11) until the treadmill is in

the position shown.

Insert one of the Extension Legs (34) into the treadmill

as shown. (Note: It may be helpful to tip the Uprights [11]

in the direction shown by the arrow as you insert the

Extension Leg.) Make sure that the Base Pad (40) is on

the indicated side of the Extension Leg. Attach the

Extension Leg with an Extension Leg Screw (53). Be

sure to push on the head of the Extension Leg Screw

while tightening it. Attach the other Extension Leg (not

shown) in the same way.

Extension Leg Screw/Handrail Screw (53)–4 Console Screw (88)–6 Small Screw (13)–2

Handrail Bolt (78)–2

11

1

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench

and your own phillips screwdriver and wire cutters .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with a soft cloth and a mild, non-abrasive cleaner.

11

53

34

40

2. Slide a Handrail Cap (41) onto one of the Handrails (1)

as shown. Insert the Handrail (1) into the tube at the top

of the left Upright (11). Finger tighten a Handrail Bolt (78)

at an angle (see the inset drawing) into the Upright and

the Handrail. Make sure that the Handrail Cap (41) is

around the Upright.

Press the top of the Handrail (1) into the left Upright (11).

Align the hole in the Handrail with the hole in the Upright,

and tighten a Handrail Screw (53) into the Upright and

the Handrail. Then, tighten the Handrail Bolt (78).

Attach the other Handrail (1) as described above.

11

1

53

41 78

78

41

53

1

Holes

2

78

11

1

6

5. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen

wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the

floor or carpet, place a mat under the treadmill.

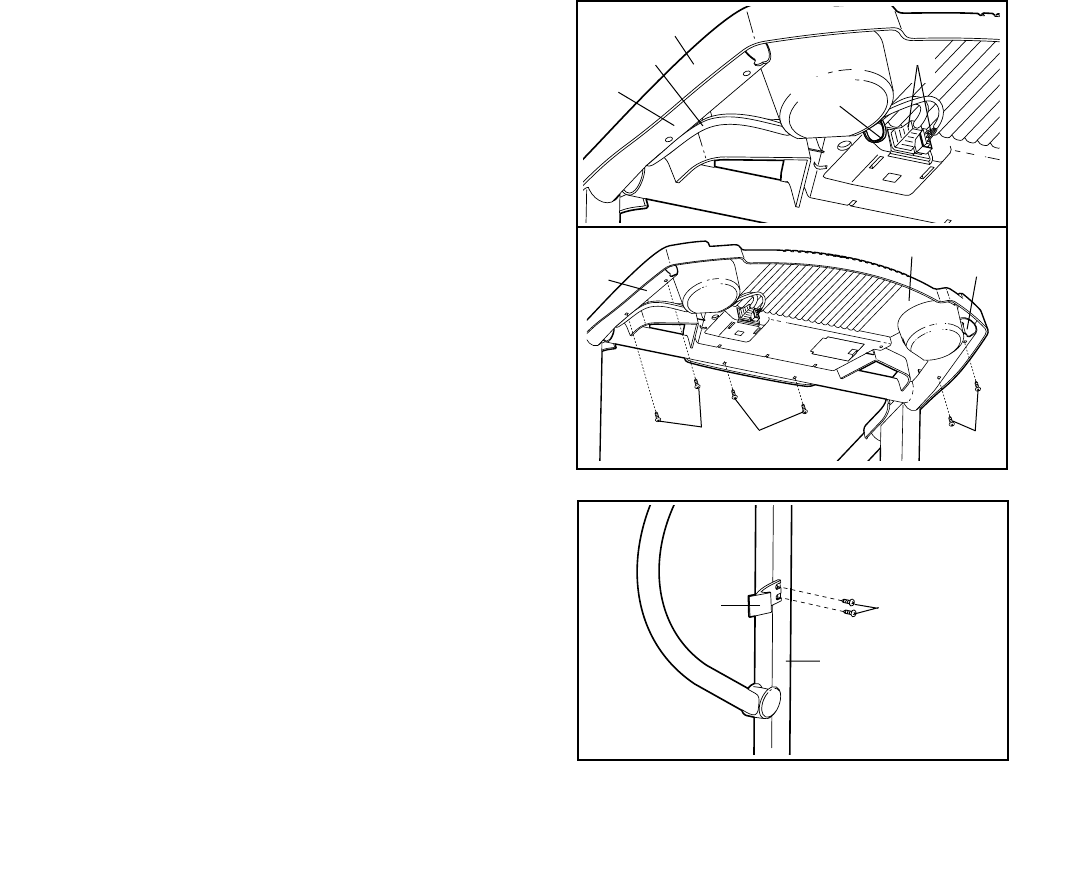

3. Place the Console Base (46) on the tubes on the Uprights

(11). Pull out the two Wires (21) just enough to connect

them to the two connectors in the Console Base. Make a

loop with the indicated plastic tie and insert the end

through the tie holder on the bottom of the Console Base.

Plug the Wire that has a red connector into the corre-

sponding connector in the Console Base. The connectors

should fit together without being forced; if they do not, ro-

tate the red connector on the Wire and try again. Do not

force the connectors together. Next, plug the other

Wire into the other connector on the Console Base.

Important: Make sure that both Wires are fully in-

serted. WARNING: Do not disconnect or connect the

Wires while the treadmill power cord is plugged in. Pull

the plastic tie tight and cut off the end.

Refer to drawing 3b. Thread six Console Screws (88) into

the Uprights (11) and the Console Base (46). After all six

Console Screws have been started, tighten the Screws

until they are snug. Do not overtighten the Screws. 88

46 11

11

88 88

11

21

46

21

3a

3b

4. Attach the Storage Latch (14) to the left Upright (11) with

two Small Screws (13). Be careful not to overtighten

the Screws.

13

11

14

4

Tie

7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local PROFORM dealer or call 1-800-806-3651

and order part number 146148.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated

for 120 volts AC and 15 amps. There must be a

monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to

use a properly functioning surge suppressor could

result in damage to the control system of the

treadmill. If the control system is damaged, the

walking belt may change speed or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

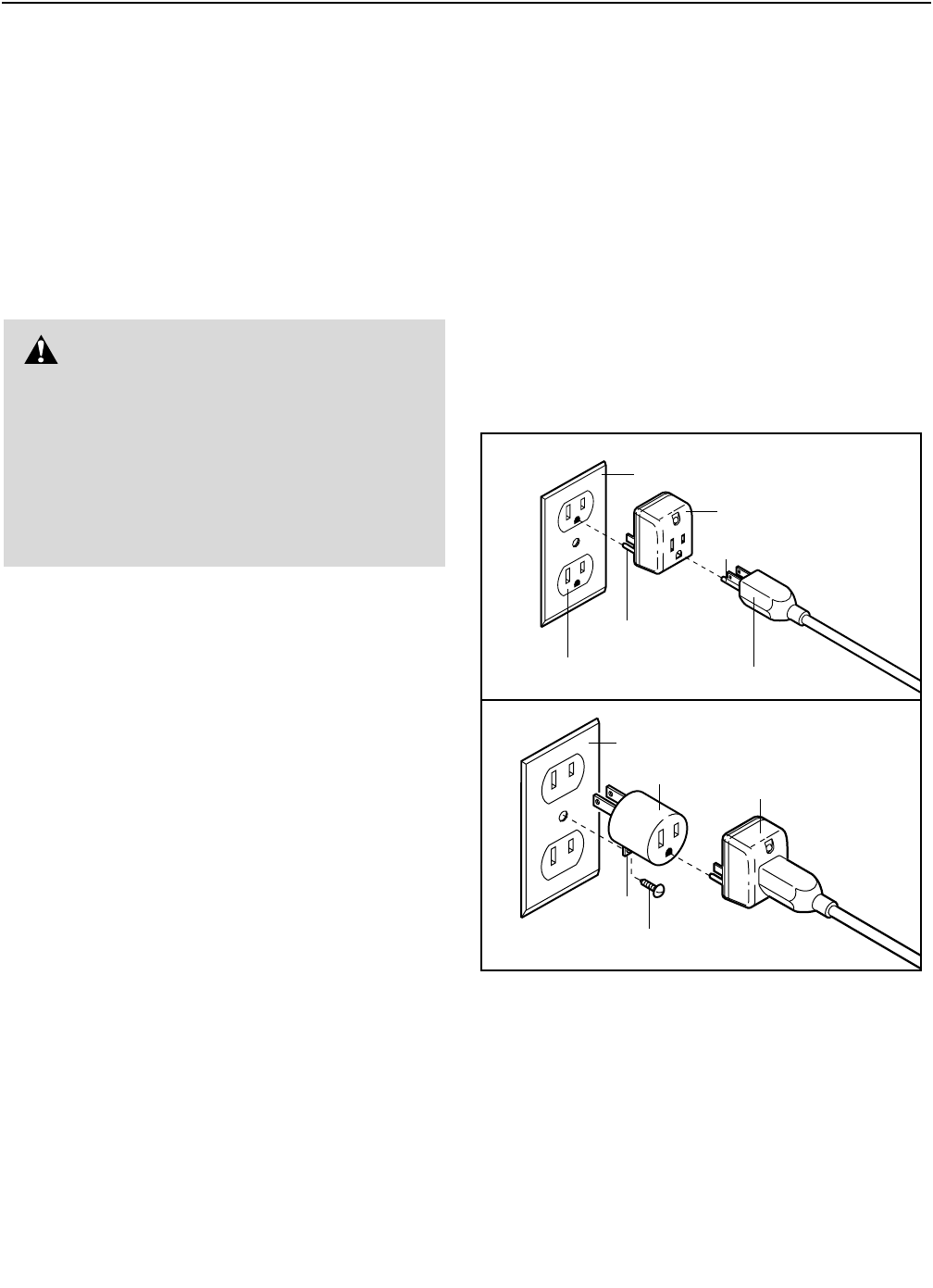

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

1

2

Grounded Outlet Box

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

8

BATTERY INSTALLATION

The console requires three “AA” batteries (not in-

cluded). Alkaline batteries are recommended. Open

the battery cover as shown in the drawing at the upper

right. Insert the batteries into the battery compartment,

making sure that the negative (–) ends of the batteries

are touching the springs in the battery compartment.

Close the battery cover, push up on the battery cover

tab, and then push the tab forward as shown in the

inset drawing. Make sure that the tab locks into place.

STEP-BY-STEP CONSOLE OPERATION

Before operating the console, make sure that the

power cord is properly plugged in (see page 7).

Stand on the foot rails of the treadmill. Find the clip at-

tached to the key (see the drawing at the top of this

page), and slide the clip onto the waistband of your

clothes. Next, insert the key into the console. Test the

clip by carefully taking a few steps backward until

the key is pulled from the console. If the key is not

pulled from the console, adjust the position of the

clip as needed.

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turn-

ing on the power.

• Always wear the clip (see the drawing

above) while using the treadmill. When the

key is removed from the console, the walk-

ing belt will stop.

• Adjust the speed in small increments.

• The training zones marked above the speed

control are general guidelines only. See

page 14 for more information.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids

on the console and use only a sealable

water bottle.

Tab

Clip

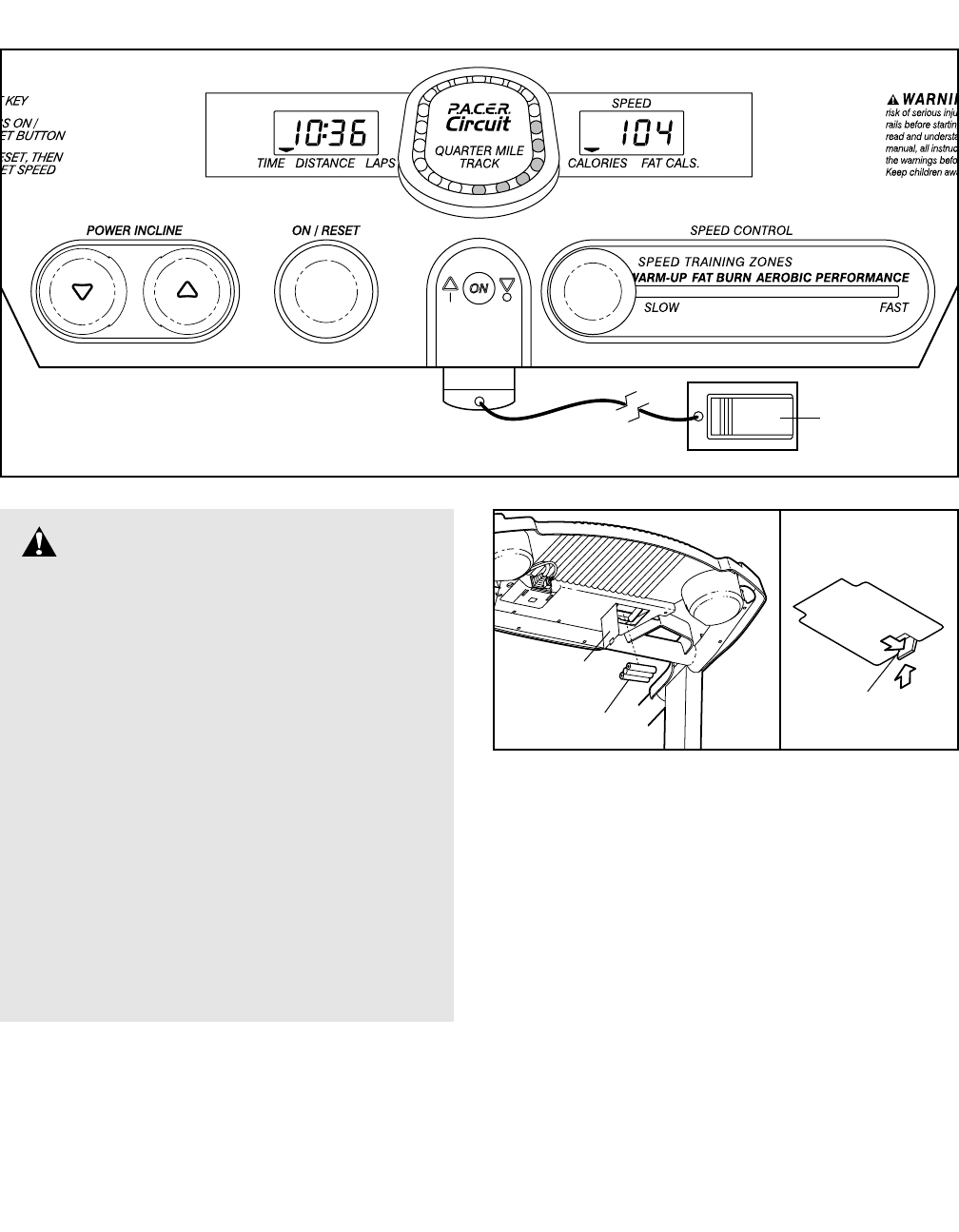

CONSOLE DIAGRAM

Note: If there is a sheet of clear plastic

on the face of the console, remove it.

Battery

Cover

Batteries

9

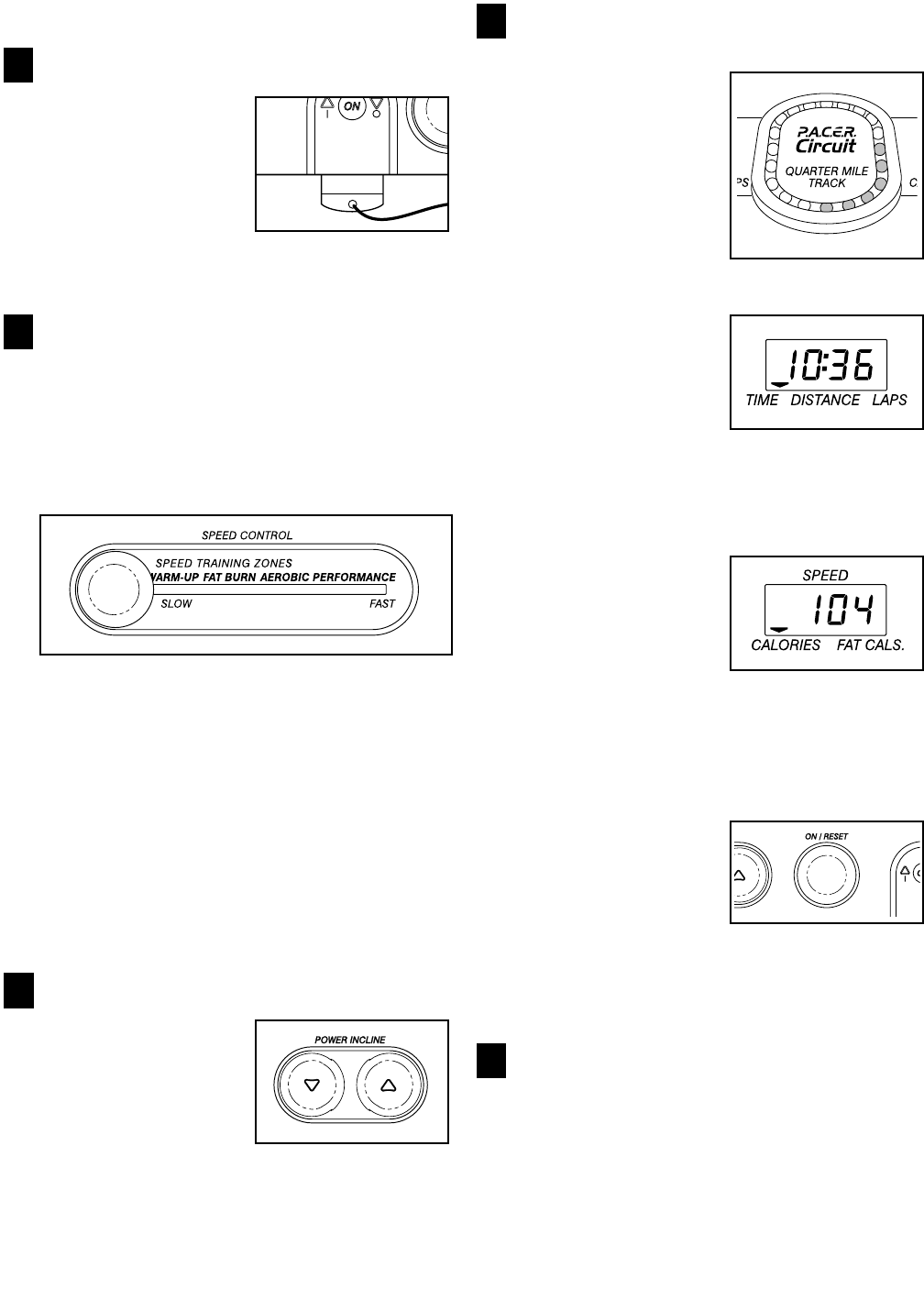

Follow the steps below to operate the console.

Insert the key fully into the power switch.

Inserting the key will

not turn on the dis-

plays. The displays will

turn on when the

ON/RESET button is

pressed or when the

walking belt is started.

Note: If you just

installed batteries, the displays will already be on.

Reset the speed control and start the walking

belt.

Slide the speed control fully to the left to the reset

position. Note: Each time the walking belt is

stopped, the speed control must be moved to

the reset position before the walking belt can

be restarted.

Next, slowly slide the speed control to the right

until the walking belt begins to move at slow

speed. Carefully step onto the walking belt and

begin exercising. Change the speed of the walking

belt as desired by sliding the speed control.

To stop the walking belt, step onto the foot rails

and slide the speed control to the reset position.

Note: During the first few minutes that the treadmill

is used, inspect the alignment of the walking belt

and align it if necessary (see page 13).

Adjust the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

increase or decrease

button until the desired

incline level is reached.

Follow your progress with the LED track and

the displays.

The LED Track—The

track in the center of the

console represent a dis-

tance of 1/4 mile. As

you exercise, the indica-

tors around the track will

light one at a time until

you have completed 1/4

mile. A new lap will then

begin.

TIME/DISTANCE/LAPS

display—This display

shows the elapsed time

and the distance that

you have walked or run,

in miles. The display

also shows the number

of laps you have completed. Every few seconds,

the display will change from one number to the

next, as shown by the arrows in the display.

CALORIES/FAT CALS/

SPEED display—This

display shows the ap-

proximate numbers of

calories and fat calories

you have burned (see

FAT BURNING on page

14). In addition, the display shows the speed of

the walking belt, in miles per hour. Every few sec-

onds, the display will change from one number to

the next, as shown by the arrows in the display.

To reset the displays at

any time, press the

ON/RESET button.

Note: The console can

display speed and dis-

tance in either miles or

kilometers. To change the unit of measure-

ment, hold down the ON/RESET button for five

seconds.

When you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails, slide the speed control to

the reset position, and remove the key from the

console. The displays will turn off a few minutes

after the key is removed. Note: Any time that the

walking belt is stopped and the ON/RESET

button is not pressed for a few minutes, the

displays will automatically turn off to conserve

the batteries.

5

4

3

2

1

10

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord.

CAUTION: You must be able to safely lift 45 pounds (20

kg) in order to raise, lower, or move the treadmill.

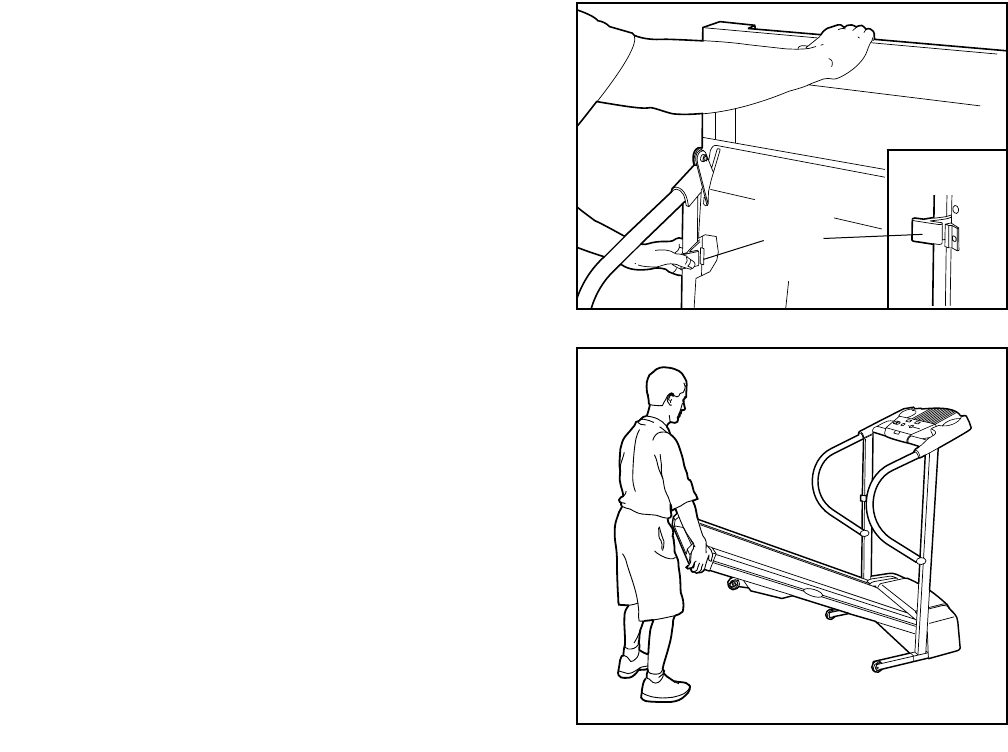

1. Hold the treadmill with your hands in the locations shown

at the right. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise

the treadmill, make sure to lift with your legs rather

than your back. Raise the treadmill about halfway to the

vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Press out on the storage latch. Raise the

treadmill until the storage latch closes over the catch.

Make sure that the storage latch is fully engaged

over the catch.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85° Fahrenheit.

Storage

Latch

Catch

Engaged

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor-

age position as described above. Make sure that the stor-

age latch is closed fully over the catch.

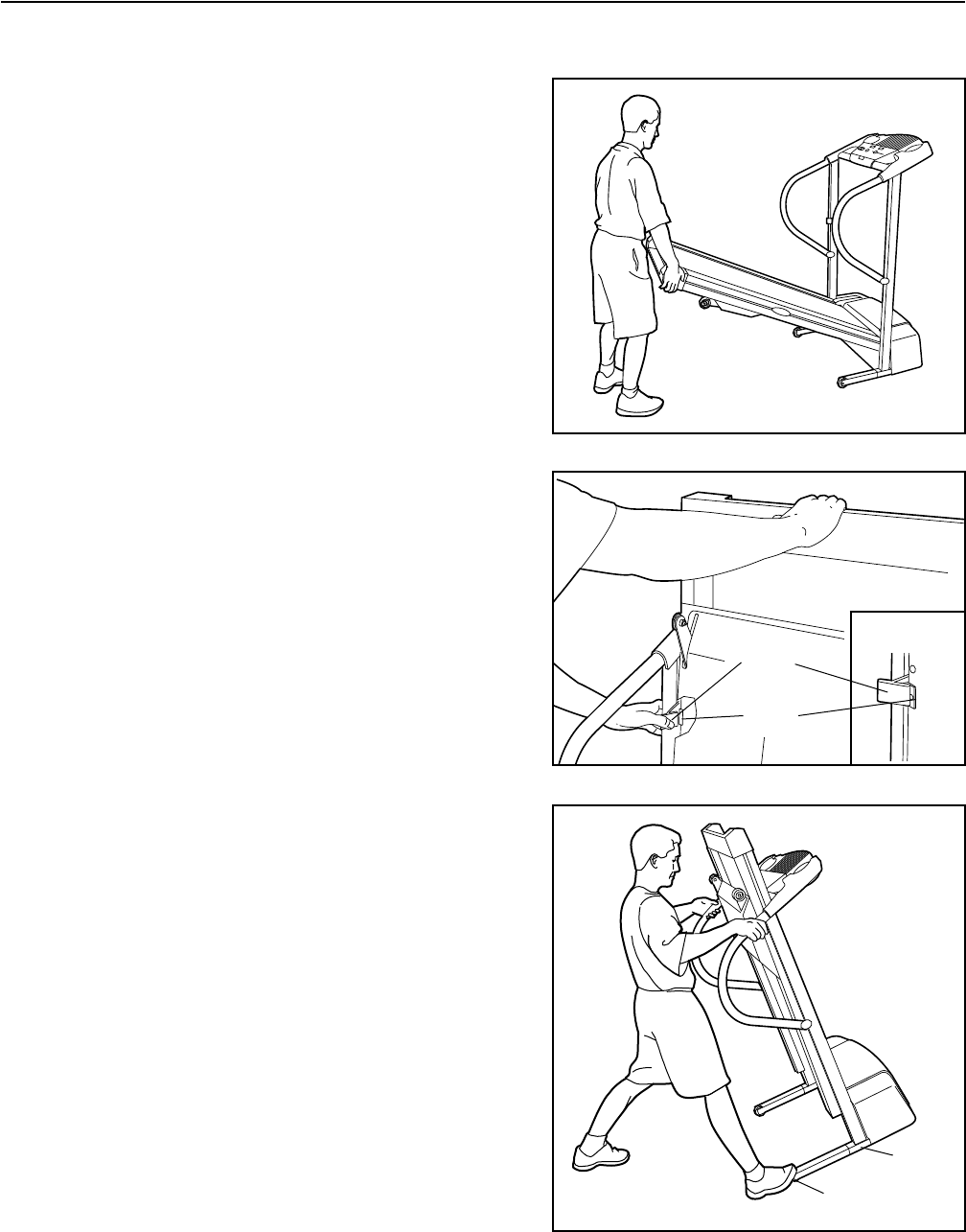

1. Hold the upper ends of the handrails. Place one foot on

the base as shown.

2. Tilt the treadmill back until it rolls freely on the front

wheels. Carefully move the treadmill to the desired loca-

tion. To reduce the risk of injury, use extreme caution

while moving the treadmill. Do not move the treadmill

over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

Base

Front Wheels

1111

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand

as shown. Using your left thumb, press the storage latch

and hold it. Pivot the treadmill until the frame and foot rail

are past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. Do not drop the treadmill frame to

the floor. To decrease the possibility of injury, bend

your legs and keep your back straight.

Storage

Latch

Unlatched

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-

free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor

that meets all of the specifications described on page 7. Important: The treadmill is not compatible

with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the circuit breaker has tripped. To reset

the circuit breaker, wait for five minutes and then

press the switch back in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing

above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill still will not run, call our Customer Service Department, toll-free.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Check the batteries in the console. If the batteries need to be replaced, see BATTERY

INSTALLATION on page 8. Most problems are the result of drained batteries.

b. Remove the key from the console and UNPLUG THE POWER CORD. Remove the screws from

the hood, and carefully remove the hood.

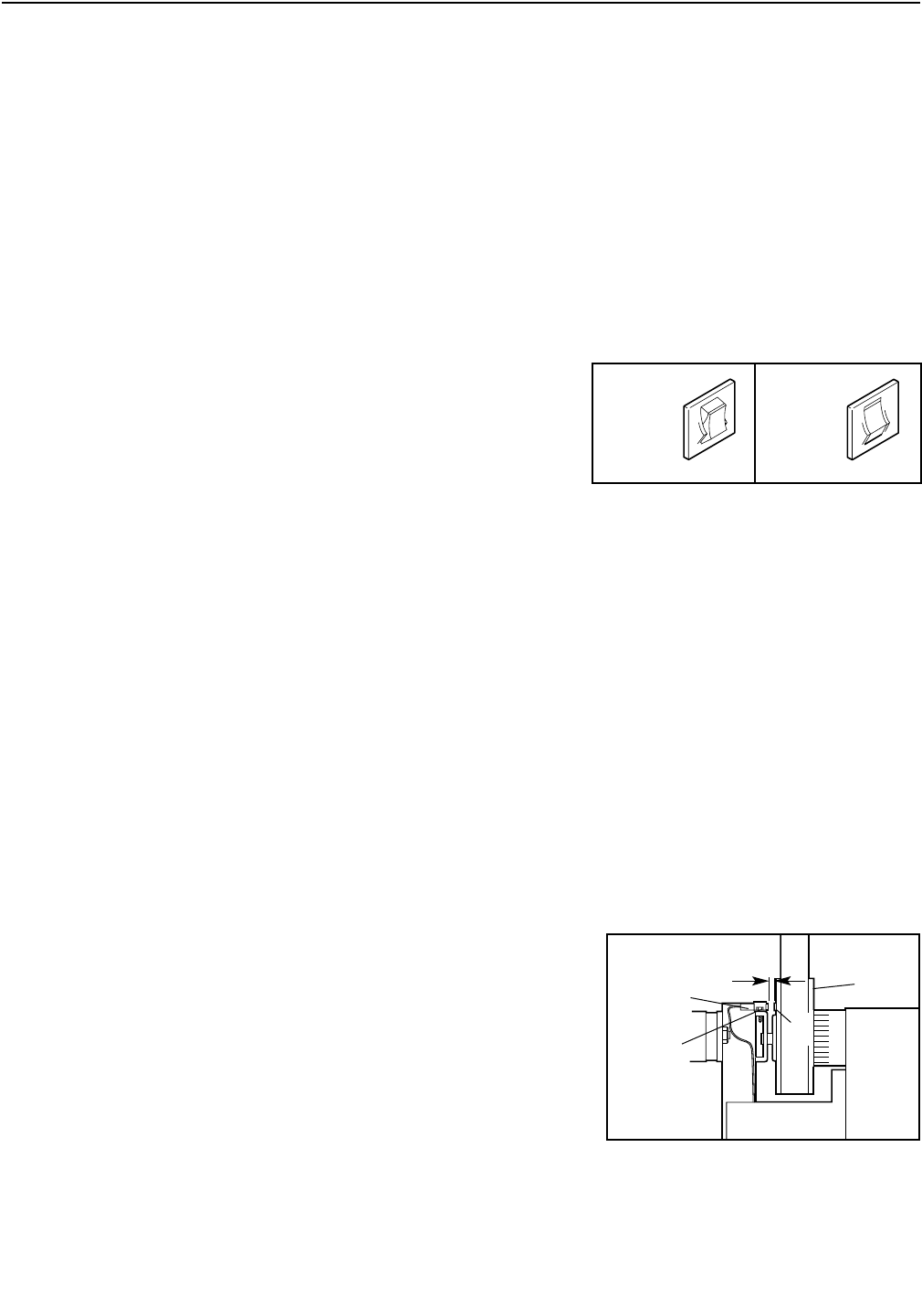

Locate the Reed Switch (44) and the Magnet (45) on

the left side of the Pulley (50). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8”. If necessary, loosen the Screw

(33) and move the Reed Switch slightly. Retighten the

Screw. Re-attach the hood, and run the treadmill for a

few minutes to check for a correct speed reading.

Reattach the Resistance Knob.

Tri

pp

ed Reset

Tripped Reset

c

45

44

33

Top

View

1/8” 50

12

b

PROBLEM: The incline system does not function properly

SOLUTION: a. Make sure that the two wires under the console are fully plugged in (refer to assembly step 4 on

page 6). WARNING: Do not disconnect or connect the wires while the treadmill power cord

is plugged in.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 7.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

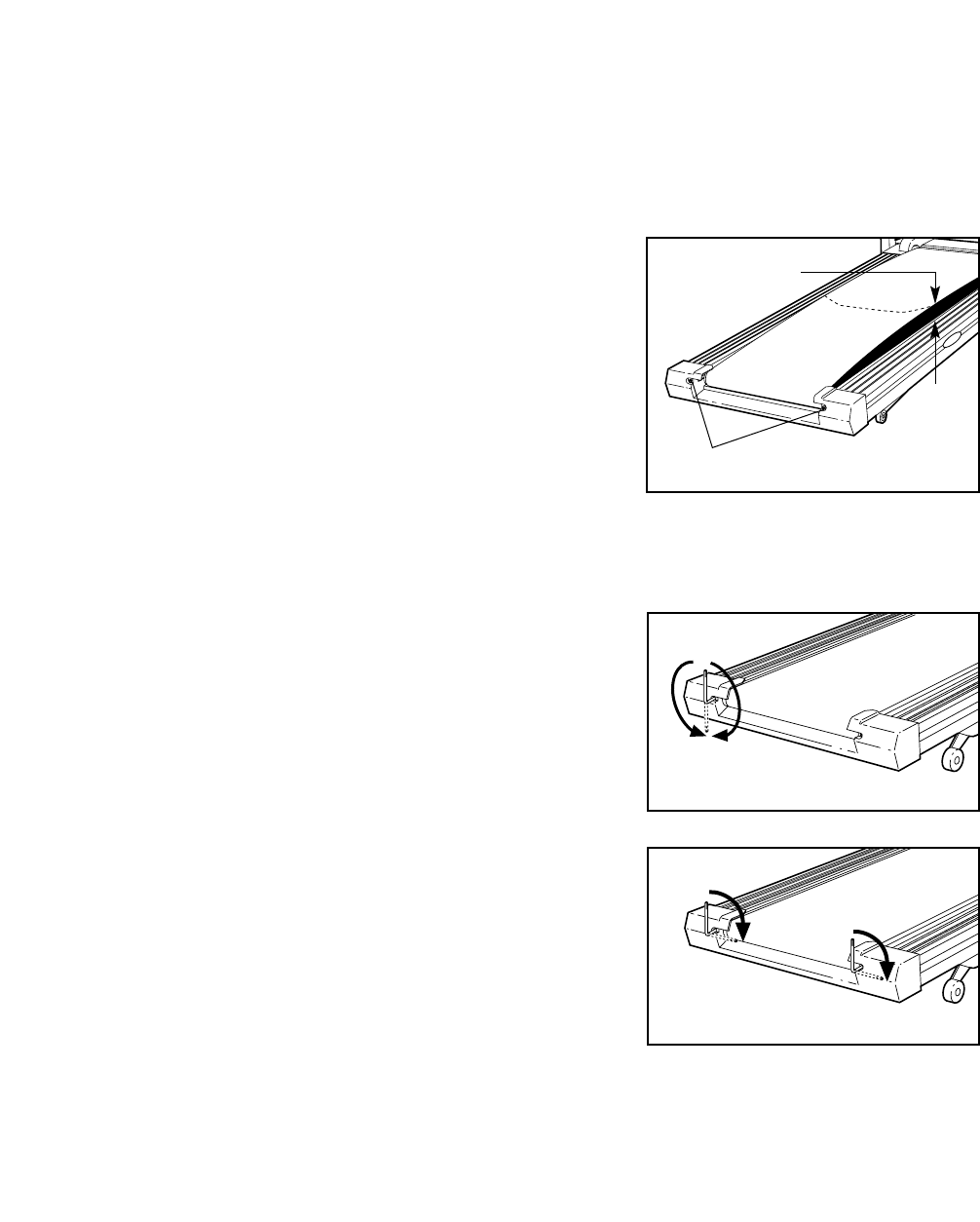

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is properly tightened, you

should be able to lift each side of the walking belt 2 to

3 inches off the walking platform. Be careful to keep

the walking belt centered. Plug in the power cord, in-

sert the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, call our Customer Service Department, toll-free.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD. If the walking

belt has shifted to the left, use the allen wrench to

turn the left rear roller bolt clockwise 1/2 of a turn; if

the walking belt has shifted to the right, turn the

bolt counterclockwise 1/2 of a turn. Be careful not to

overtighten the walking belt. Plug in the power cord,

insert the key and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using

the allen wrench, turn both rear roller bolts clockwise,

1/4 of a turn. When the walking belt is correctly tight-

ened, you should be able to lift each side of the walk-

ing belt 2 to 3 inches off the walking platform. Be

careful to keep the walking belt centered. Plug in the

power cord, insert the key and carefully walk on the

treadmill for a few minutes. Repeat until the walking

belt is properly tightened.

b

a

Rear Roller Adjustment Bolts

2”–3”

b

13

14

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the de-

sired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

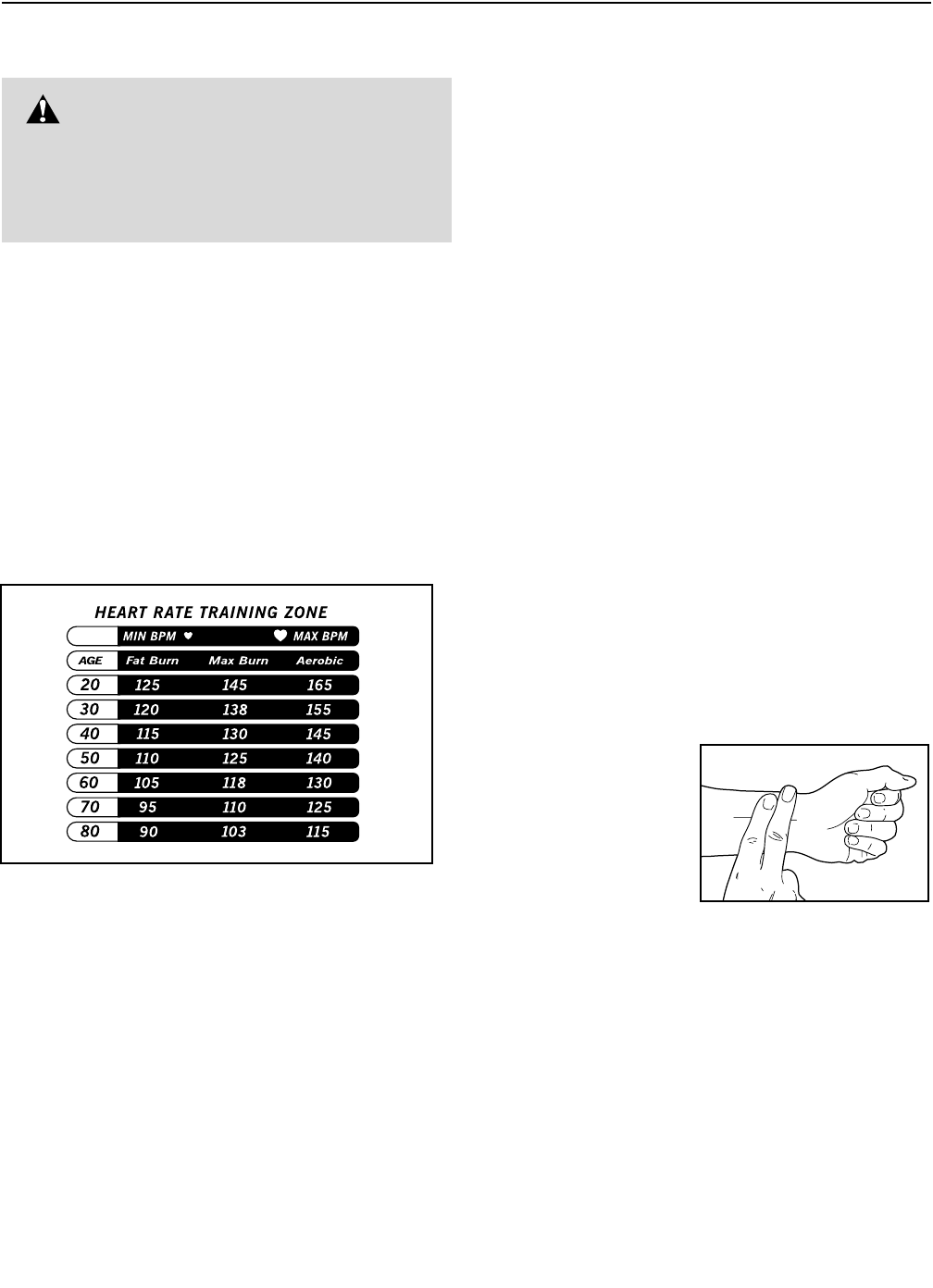

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exer-

cise.

To find the proper heart rate for you, first find your age

on the left side of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers to

the right of your age. The three numbers are your

“training zone.” The lower two numbers are recom-

mended heart rates for fat burning; the highest number

is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time. During

the first few minutes of exercise, your body uses easily

accessible carbohydrate calories for energy. Only after

the first few minutes does your body begin to use

stored fat calories for energy. If your goal is to burn fat,

adjust the speed and incline of the treadmill until your

heart rate is near one of the lower two numbers in your

training zone. It may also be helpful to set the speed

control on the console to FAT BURN to help you main-

tain the proper intensity level (see page 9).

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone. It may also be helpful to set the speed control on

the console to AEROBIC to help you maintain the

proper intensity level (see page 9).

High Performance Athletic Conditioning

If your goal is high performance athletic conditioning,

set the speed control on the console to PERFOR-

MANCE to help you maintain the proper intensity level

(see page 9). Note: During the first few weeks of your

exercise program, keep your heart rate near the low

end of your training zone.

HOW TO MEASURE YOUR HEART RATE

To measure your

heart rate, stop exer-

cising and place two

fingers on your wrist

as shown. Take a six-

second heartbeat

count, and multiply

the result by ten to

find your heart rate. (A

six-second count is used because your heart rate

drops quickly when you stop exercising.) If your heart

rate is too high or too low, adjust the speed or incline

of the treadmill accordingly.

WORKOUT GUIDELINES

A well-rounded workout includes three important parts:

A Warm-up

Start each workout with 5 to 10 minutes of stretching

and light exercise. A proper warm-up increases your

body temperature, heart rate, and circulation in prepa-

ration for exercise.

WARNING: Before beginning

this or any exercise program, consult your

physician. This is especially important for in-

dividuals over the age of 35 or individuals

with pre-existing health problems.

Training Zone Exercise

After warming up, increase the intensity of your exer-

cise until your pulse is in your training zone for 20 to

60 minutes. (During the first few weeks of your exer-

cise program, do not keep your pulse in your training

zone for longer than 20 minutes.) Breathe regularly

and deeply as you exercise—never hold your breath.

A Cool-down

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of your

muscles and will help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired.

The key to success is to make exercise a regular and

enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back,

and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat 3

times for each leg. To cause further stretching of the achilles ten-

dons, bend your back leg as well. Stretches: Calves, achilles ten-

dons, and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your but-

tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for

both legs. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull

your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

1

2

3

4

5

15

Part No. 187272 R0602A Printed in USA © 2002 ICON Health & Fitness, Inc.

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

• The MODEL NUMBER OF THE PRODUCT (PFTL39211)

• The NAME OF THE PRODUCT (PROFORM®485 Pi treadmill)

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST

attached in the center of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All

products for which warranty claim is made must be received by ICON at one of its authorized service

centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-

chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or

damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal

usage or repairs not provided by an ICON authorized service center, to products used for commercial or

rental purposes, or to products used as store display models. No other warranty beyond that specifically

set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

34

REMOVE THIS EXPLODED DRAWING AND PART

LIST FROM THE MANUAL

Save this EXPLODED DRAWING and PART LIST for future reference.

Note: Specifications are subject to change without notice. For information about

ordering replacement parts, see the back cover of the User’s Manual.

PART LIST—Model No. PFTL39211 R0602A

Key

No. Qty. Description Key

No. Qty. Description

1 2 Handrail

2 1 Key/Clip

3 2 Incline Leg Pivot Bolt

4 1 Battery Cover

5 2 Foot Rail

6 1 Lift Motor

7 1 Rear Roller

8 1 Speed Potentiometer

9 1 Speed Control Knob

10* 1 Console Assembly

11 1 Upright

12 1 Motor Belt

13 8 Small Screw

14 1 Storage Latch

15 2 Frame Pivot Spacer

16 7 8” Cable Tie

17 3 Motor Nut

18 1 Pulley/Flywheel/Fan

19 1 Motor

20* 1 Motor/Pulley/Flywheel/Fan

21 1 Wire Harness

22 4 Belt Guide Screw

23 1 Motor Hood

24 1 Hood Shield

25 11 Small Screw

26 1 Controller

27 1 Motor Swivel Bolt

28 1 Motor Tension Nut

29 1 Motor Star Washer

30 1 Motor Tension Washer

31 2 Motor Tension Bolt

32 1 Incline Stop Bracket

33 9 Belly Pan/Clip/Handrail Screw

34 2 Extension Leg

35 4 Endcap Screw

36 2 Wheel Bolt

37 2 Wheel

38 4 Wheel Nut/Lift Nut

39 5 Washer

40 4 Base Pad

41 2 Handrail Cap

42 1 Latch Catch

43 1 Reed Switch Clip

44 1 Reed Switch

45 1 Magnet

46 1 Console Base

47 2 Front Isolator

48 4 Platform Screw

49 2 Isolator

50 1 Front Roller/Pulley

51 1 Front Roller Adj. Bolt

52 2 Incline Wheel

53 4 Extension Leg Screw/Handrail Screw

54 1 Power Cord

55 1 Power Cord Grommet

56 1 Circuit Breaker

57 2 3/8” Washer

58 2 Frame Pivot Bolt

59 1 Latch Decal

60 1 Motor Belly Pan

61 2 Cable Tie Clamp

62 2 Rear Platform Screw

63 3 Releasable Tie

64 1 Choke

65 2 Belt Guide

66 4 Belly Pan Fastener

67 1 Walking Belt

68 1 Walking Platform

69 1 Belly Pan

70 8 Electronics Screw

71 1 Incline Wire Harness

72 1 Upright Grommet

73 5 Isolator Screw

74 1 Allen Wrench

75 1 Frame

76 2 Front Endcap

77 2 Incline Wheel Bolt

78 2 Handrail Bolt

79 4 Incline Wheel Nut

80 1 Ground Wire

81 2 Hood Screw (Front)

82 1 Incline Leg

83 2 Rear Roller Adj. Bolt

84 1 Rear Endcap

85* 2 Extension Leg Assembly

86 1 Incline Motor Bolt

87 2 Belly Pan Screw

88 6 Console Screw/Latch Screw

89 1 Motor Belt Shield

90 1 Bookrack

# 1 4” Red Wire, M/F

# 1 14” White Wire, Pigtail

# 1 4” Blue Wire, M/F

# 1 User’s Manual

* Includes all parts shown in the box

# These parts are not illustrated

22 65

48

25

24

56 25

35

76

76

35

42

25

77

40

25

40

25

59

85*

47

47

73

73

81

72

2

46 10*

34

12

17

20*

21

25

27

19

18

31 30

29

33

43

36

38

44

37

45

50

15

48

48

39 51

11

23

81

25

58

70

53

36

37

38

40

33

33

33

60 33

33

26

73

61

63

64

70

15

53

34

69

68

67

48

5

5

74

84

83 39

83

39

66

7

40

57

28

62

16

38

38

75

13

4

88

88

55

54

73

80

25

25

33

71

13

66

14

13

3

52

82

79 77

52

79

3

17

17

6

31 32

79

39

53

62

85*

86

79

87 39

1

1

41 61

70

89

73 49

49

73

90

9

8

13

88

53

13

41

78

78

EXPLODED DRAWING—Model No. PFTL39211 R0602A
