Serial Number

Decal

Model No. PFTL49612.1

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

USER’S MANUAL

www.proform.com

2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION AND ADJUSTMENT .............................................................15

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TROUBLESHOOTING ......................................................................23

EXERCISE GUIDELINES ....................................................................26

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

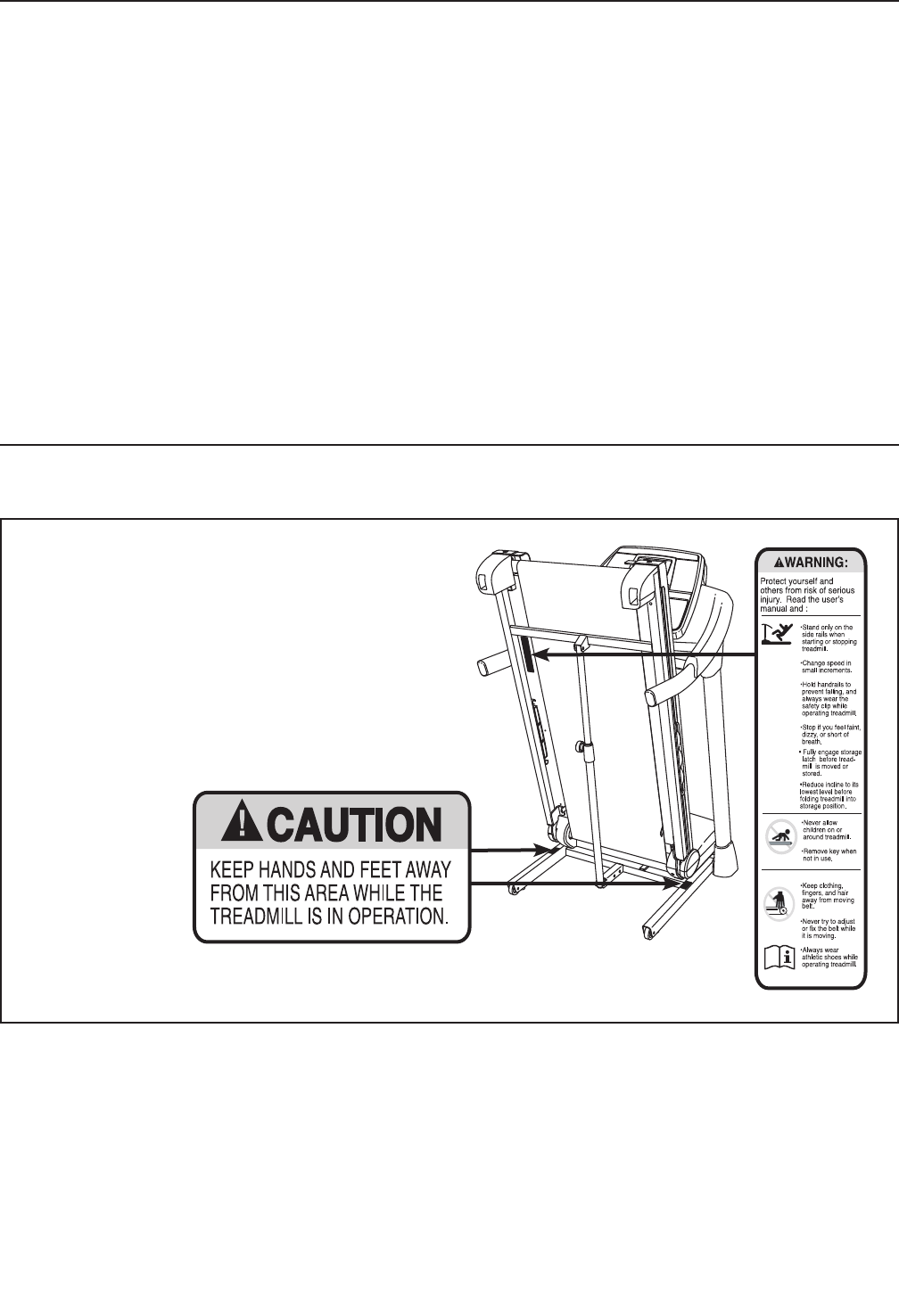

This drawing shows the locations of the

warning decals. If a decal is missing or

illegible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal in

the location shown. Note: The decals may

not be shown at actual size.

WARNING DECAL PLACEMENT

256836

PROFORM is a registered trademark of ICON IP, Inc.

TABLE OF CONTENTS

3

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. Use the treadmill only as described in this

manual.

4. The treadmill is intended for home use only.

Do not use the treadmill in any commercial,

rental, or institutional setting.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

8. Keep children under age 12 and pets away

from the treadmill at all times.

9. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

10. Never allow more than one person on the

treadmill at a time.

11. Wear appropriate exercise clothes while

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

12. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 15).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

13. Use only a surge suppressor that meets all of

the specifications described on page 15. To

purchase a surge suppressor, see your local

PROFORM dealer, call the telephone number

on the front cover of this manual, or see your

local electronics store.

14. Failure to use a properly functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

15. Keep the power cord and the surge suppres-

sor away from heated surfaces.

16. Never move the walking belt while the power

is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if

the treadmill is not working properly. (See

TROUBLESHOOTING on page 23 if the tread-

mill is not working properly.)

17. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on

page 17).

18. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

19. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

20. The heart rate monitor is not a medical

device. Various factors, including the user’s

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before

using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

IMPORTANT PRECAUTIONS

4

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

21. Never leave the treadmill unattended while

it is running. Always remove the key, press

the power switch into the off position (see

the drawing on page 5 for the location of the

power switch), and unplug the power cord

when the treadmill is not in use.

22. Do not attempt to move the treadmill until it

is properly assembled. (See ASSEMBLY on

page 7, and HOW TO FOLD AND MOVE THE

TREADMILL on page 22.) You must be able

to safely lift 45 lbs. (20 kg) to raise, lower, or

move the treadmill.

23. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

24. Never insert any object into any opening on

the treadmill.

25. Inspect and properly tighten all parts of the

treadmill regularly.

26. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

27. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

5

Thank you for selecting the new PROFORM® 425

CT treadmill. The 425 CT treadmill offers an impres-

sive selection of features designed to make your

workouts at home more enjoyable and effective. And

when you’re not exercising, the unique treadmill can

be folded up, requiring less than half the oor space of

other treadmills.

For your benet, read this manual carefully before

using the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

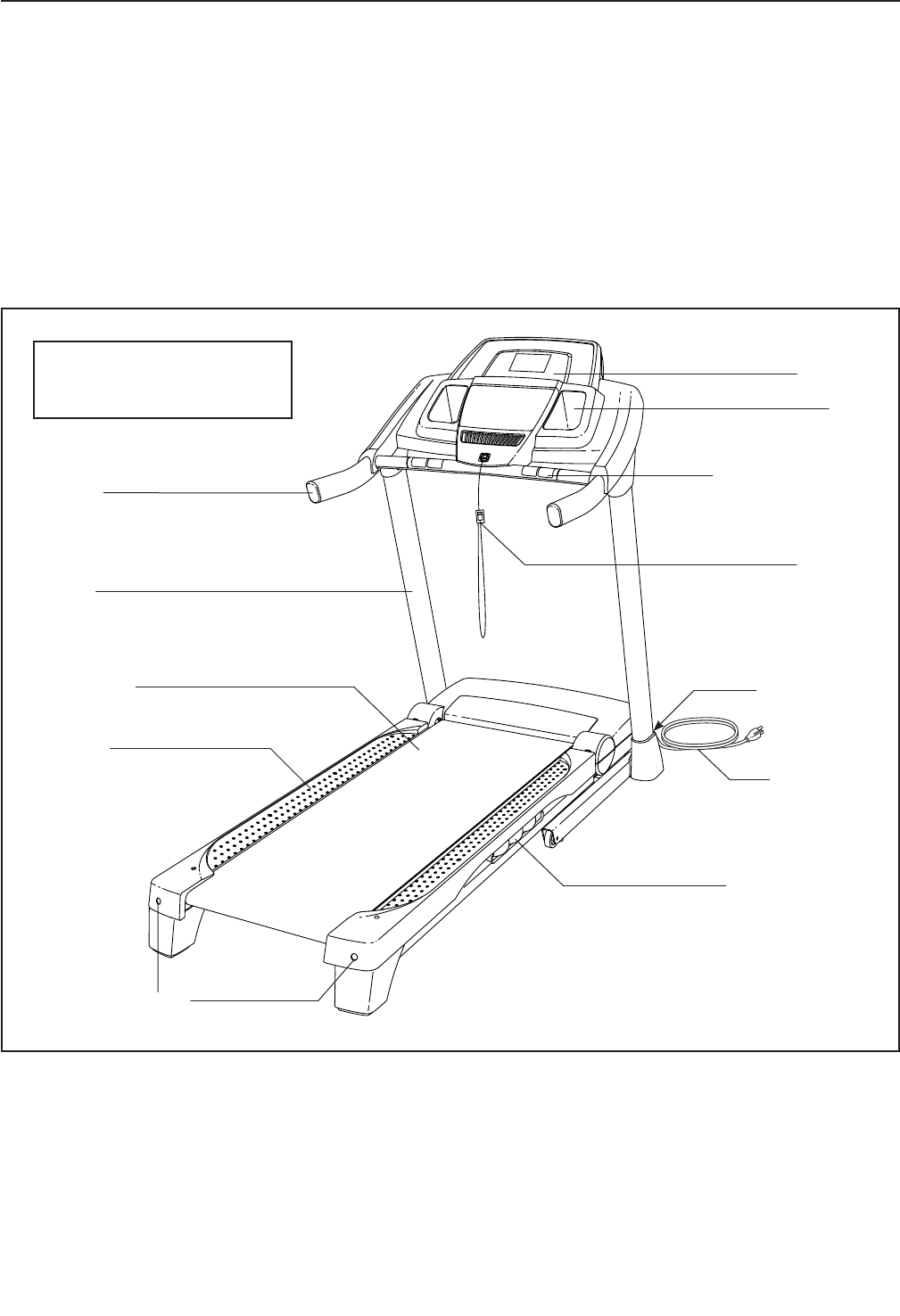

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Idler Roller

Adjustment Screws

Console

Heart Rate Monitor

Length: 5 ft. 10 in. (178 cm)

Width: 2 ft. 10 in. (86 cm)

6

#8 x 1/2" Ground

Screw (3)–1

Base Foot

Spacer (94)–2

#8 x 3/4" Screw

(1)–10

3/8" Star

Washer (11)–6

1/4" Star

Washer (34)–2

#8 x 1/2" Screw

(2)–6

#8 x 1" Tek Screw

(5)–4

3/8" Nut (10)–5

5/16" Star

Washer (13)–2

#10 x 3/4" Screw

(2)–4

3/8" x 4" Screw (7)–4

5/16" x 1"

Bolt (4)–2

1/4" x 1"

Screw (9)–4

3/8" x 1 3/4" Bolt (6)–1

3/8" x 2" Bolt (8)–5

5/16" x 1"

Screw (3)–4

3/8" x 1 1/2"

Screw (14)–2

#10 Star

Washer (12)–4 1/4" x 1/2"

Bolt (9)–4

1/4" Star

Washer (34)–4

#8 x 1" Screw

(53)–4

#10 Star

Washer (12)–4

PART IDENTIFICATION CHART

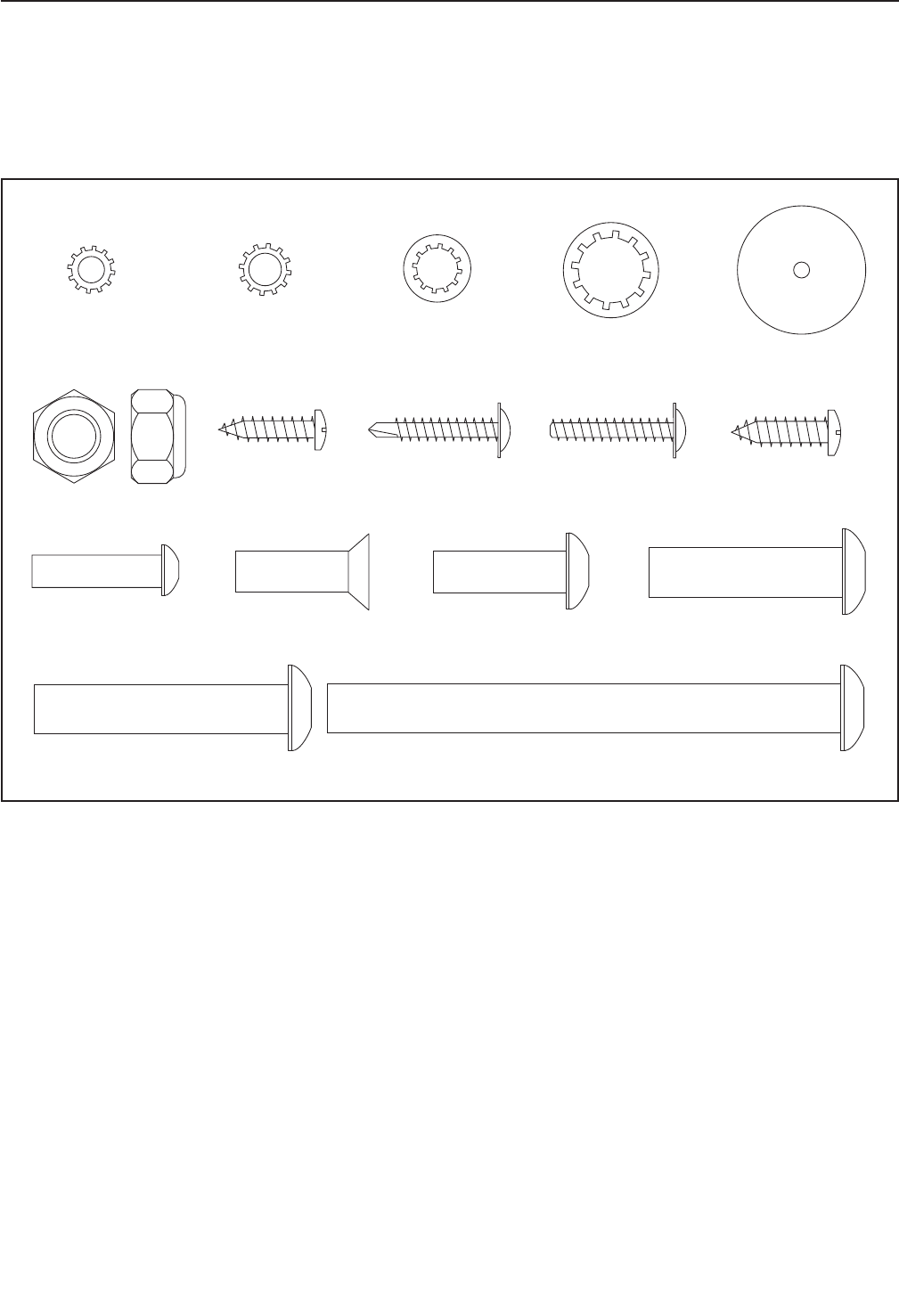

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. Extra parts may be included.

7

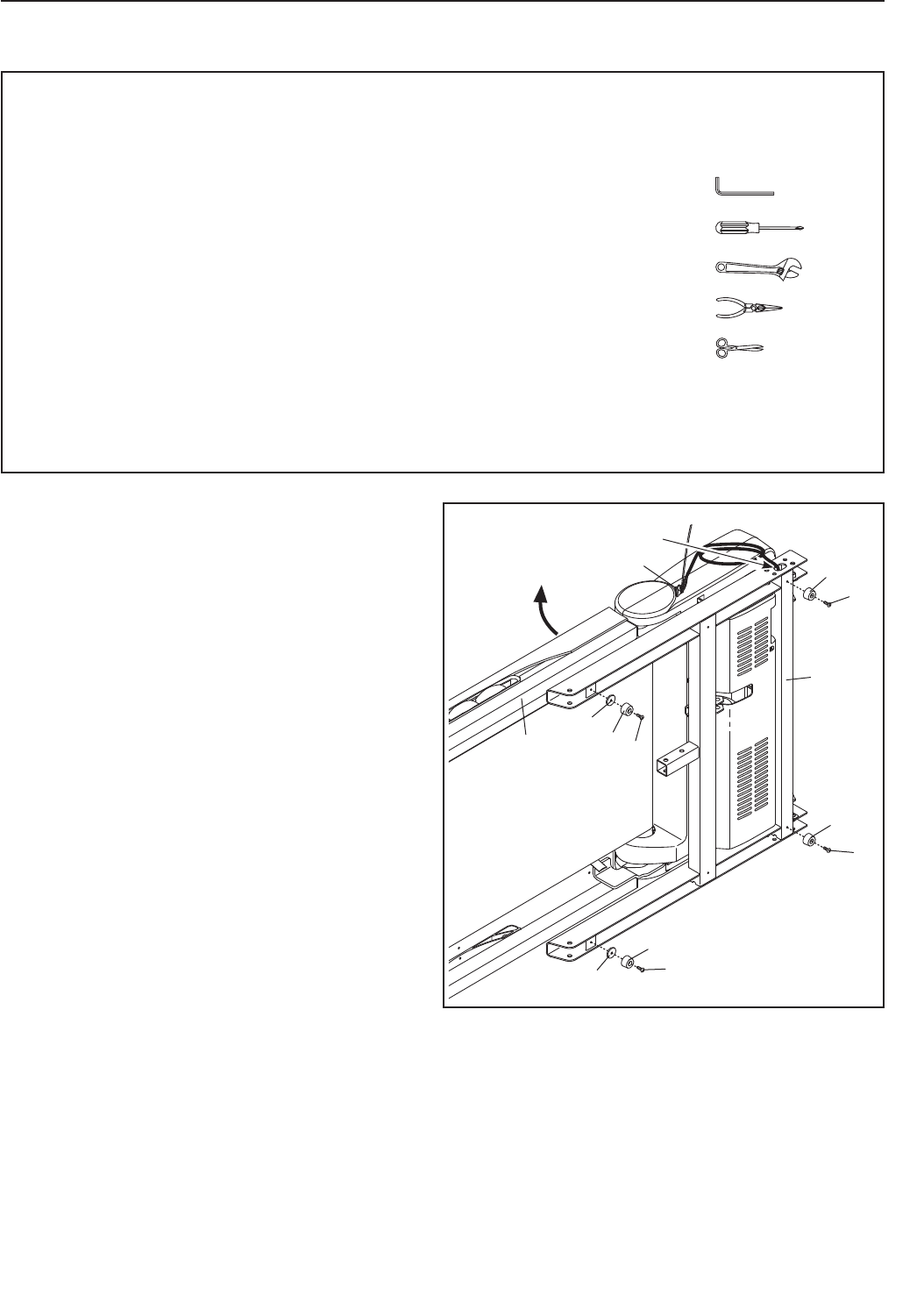

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (55) so that the treadmill is more stable;

do not fully fold the Frame yet.

Cut the shipping tie securing the Upright Wire

(87) to the Base (95). Locate a plastic tie in the

indicated hole in the Base, and use the tie to pull

the Upright Wire out of the hole.

Attach two Base Feet (90) to the Base (95) in the

locations shown with two #8 x 1" Tek Screws (5)

and two Base Foot Spacers (94).

Then, attach the other two Base Feet (90) with

two #8 x 1" Tek Screws (5).

1

95

5

55

90

90

5

5

5

90

94

90

87

Hole

94

• To hire an authorized service technician to

assemble the treadmill, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• After shipping, there may be an oily substance

on the exterior of the treadmill. This is normal. If

there is an oily substance on the treadmill, wipe

it off with a soft cloth and a mild, non-abrasive

cleaner.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex key

one Phillips screwdriver

one adjustable wrench

needlenose pliers

scissors

To avoid damaging parts, do not use power tools.

ASSEMBLY

8

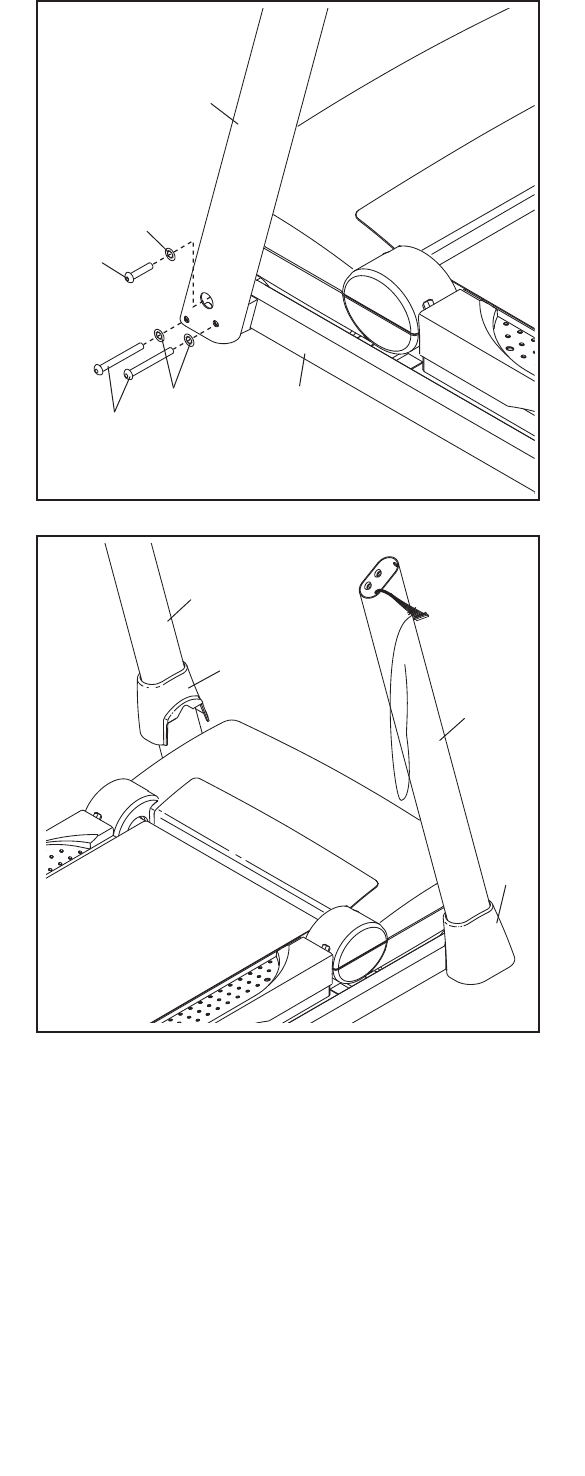

3. Identify the Right Upright (85). Hold the Right

Upright near the Base (95) as shown.

See the inset drawing. Tie the wire tie in the

Right Upright (85) securely around the end of the

Upright Wire (87). Then, pull the other end of the

wire tie until the Upright Wire is routed through

the Right Upright.

Wire Tie

87

85

95

3

Wire

Tie

85

87

2. See the inset drawing. Cut the plastic tie near

the Upright Wire (87).

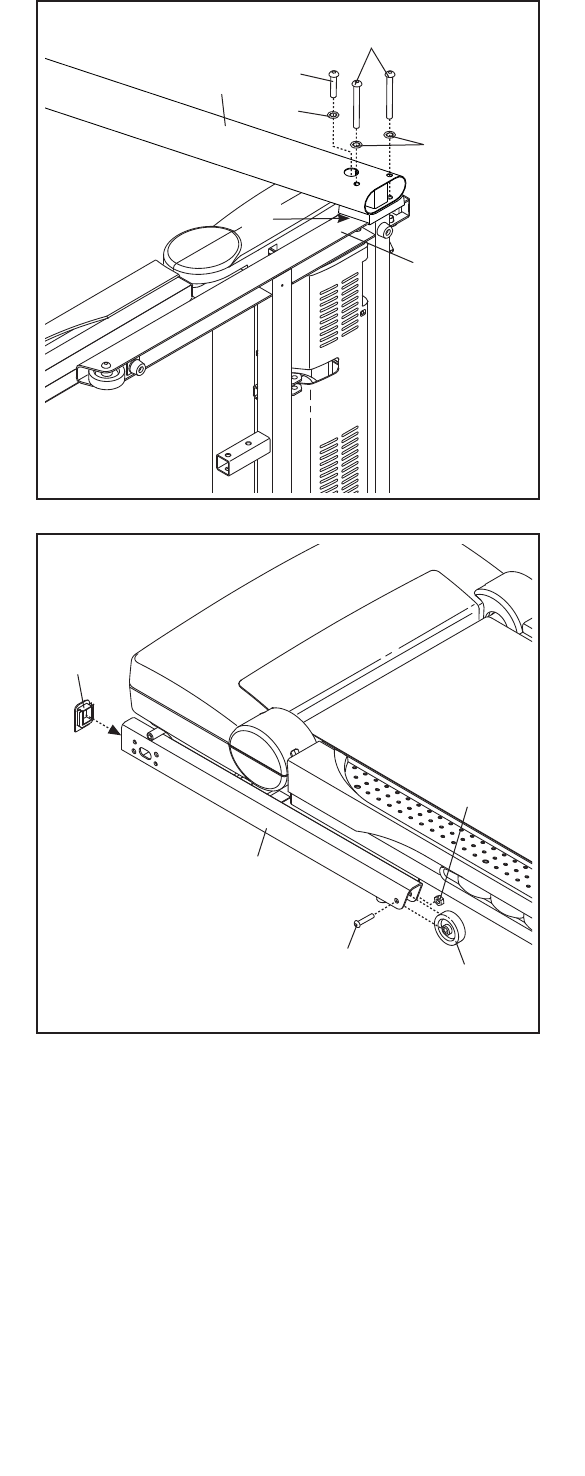

Attach a Wheel (96) to the Base (95) with a 3/8"

x 2" Bolt (8) and a 3/8" Nut (10). Do not over-

tighten the Nut; the Wheel must turn freely.

Press a Base Cap (89) into the Base (95).

95

8

10

2

96

89

Plastic Tie

Cut

87

87

9

4. Hold the Right Upright (85) against the Base

(95). Be careful not to pinch the Upright

Wire (87). Insert two 3/8" x 4" Screws (7) with

two 3/8" Star Washers (11) and a 3/8" x 1 1/2"

Screw (14) with a 3/8" Star Washer (11) into the

Right Upright.

Partially tighten the 3/8" x 4" Screws (7) until

the heads of the Screws touch the Right Upright

(85); do not fully tighten the Screws yet.

Partially tighten the 3/8" x 1 1/2" Screw (14).

95

85

87

11

11

14

7

4

5. With the help of a second person, lift the tread-

mill so that the Base (95) is flat on the floor.

Attach a Wheel (96) to the Base (95) with a 3/8"

x 2" Bolt (8) and a 3/8" Nut (10). Do not over-

tighten the Nut; the Wheel must turn freely.

Press a Base Cap (89) into the Base (95).

5

8

95

10

89

96

10

7. Identify the Right Base Cover (91) and the Left

Base Cover (88). Slide the Right Base Cover

onto the Right Upright (85) as shown. Slide the

Left Base Cover onto the Left Upright (84).

91

85

84

88

7

6. Hold the Left Upright (84) against the Base (95).

Insert two 3/8" x 4" Screws (7) with two 3/8"

Star Washers (11) and a 3/8" x 1 1/2" Screw

(14) with a 3/8" Star Washer (11) into the Left

Upright.

Partially tighten the 3/8" x 4" Screws (7) until the

heads of the Screws touch the Left Upright (84);

do not fully tighten the Screws yet. Partially

tighten the 3/8" x 1 1/2" Screw (14).

6

84

7

95

14

11

11

11

9. Set the console assembly face down on a soft

surface to avoid scratching the console

assembly.

Remove the Screws (A) attaching the Crossbar

(104). Next, lift off the Crossbar. Discard the

Screws.

9

104

Console

Assembly

A

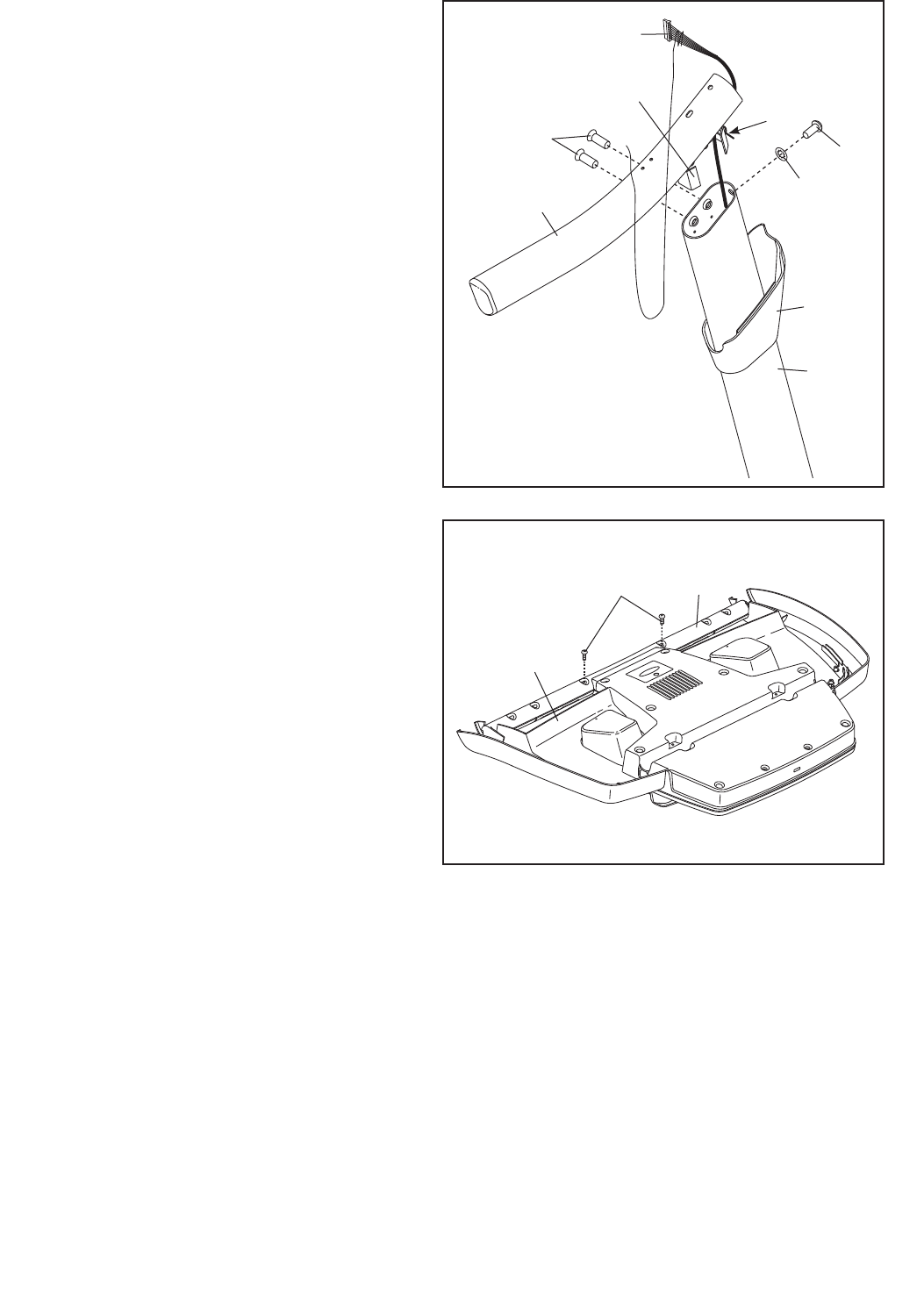

8. Identify the Right Upright Cover (86) and the

Right Handrail (83). Slide the Right Upright

Cover onto the Right Upright (85). Remove the

tie from the bracket on the Right Handrail. If

necessary, press the 5/16" Cage Nut (38) back

into place.

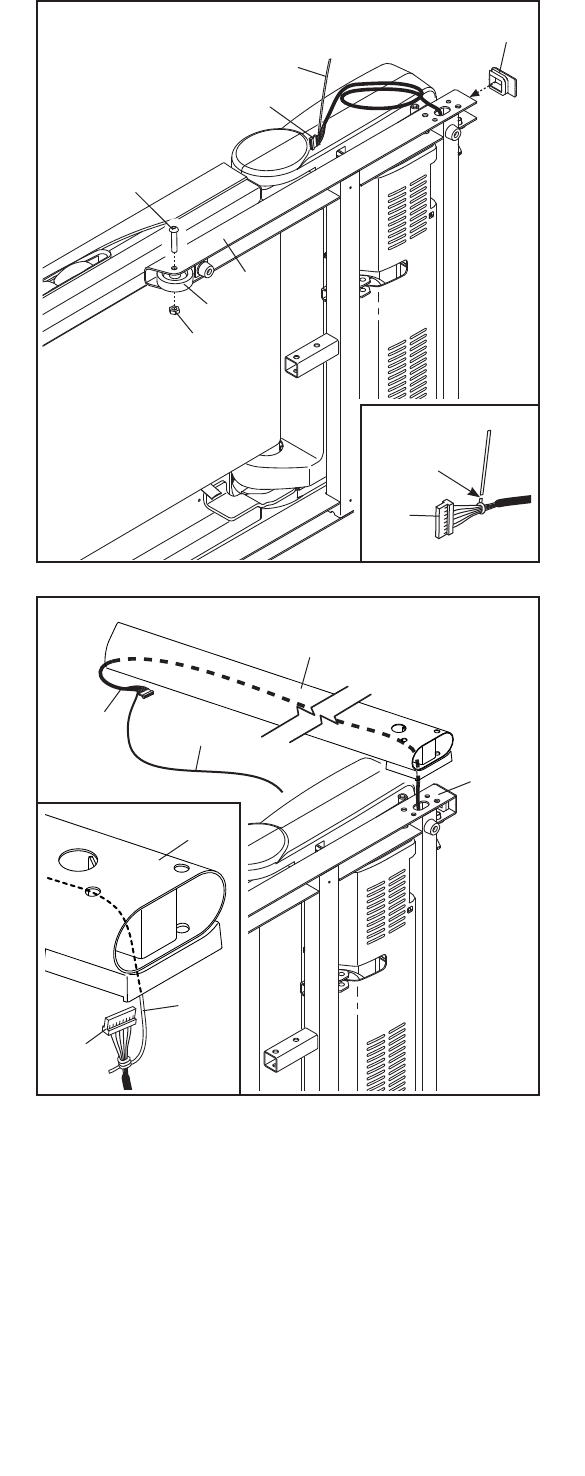

Hold the Right Handrail (83) near the Right

Upright (85). Insert the Upright Wire (87) through

the bracket on the bottom of the Right Handrail.

Pull the Upright Wire out of the end of the Right

Handrail.

Attach the Right Handrail (83) to the Right

Upright (85) with two 5/16" x 1" Screws (3) and a

5/16" x 1" Bolt (4) with a 5/16" Star Washer (13);

do not tighten the Screws and Bolt yet.

Attach the Left Upright Cover (not shown)

and the Left Handrail (not shown) in the

same way. Note: There is no wire on the left

side.

38

83

Bracket

34

13

86

85

87

8

12

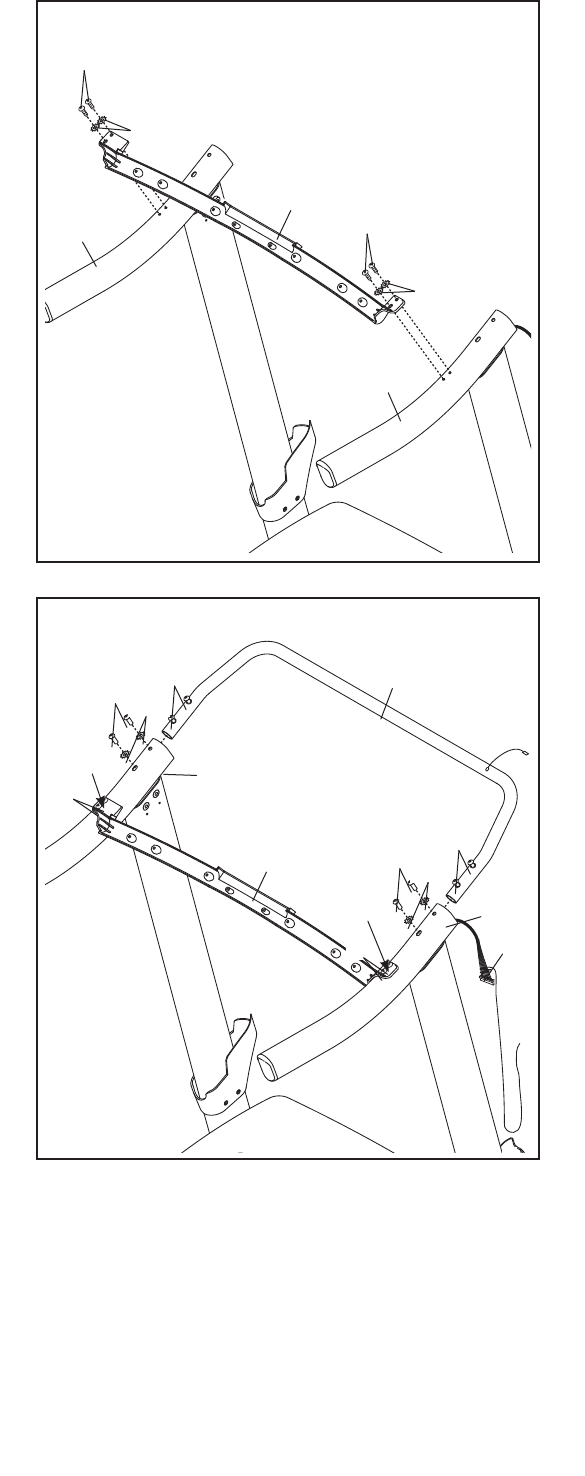

10. IMPORTANT: To avoid damaging the

Crossbar (104), do not use power tools and

do not overtighten the #10 x 3/4" Screws (2).

Orient the Crossbar (104) as shown. Attach the

Crossbar to the Handrails (82, 83) with four #10

x 3/4" Screws (2) and four #10 Star Washers

(12); do not fully tighten the Screws yet.

Note: The #10 Star Washers are slightly

smaller than the 1/4" Star Washers (not

shown).

10

104

12

2

83

82

12

2

11. Remove and discard the four indicated screws

(B) from the Console Frame (102).

Insert the Console Frame (102) into the

Handrails (82, 83). Attach the Console Frame

with four 1/4" x 1" Screws (9) and four 1/4" Star

Washers (34); do not tighten the Screws yet.

Be careful not to pinch the Upright Wire (87).

Tighten the indicated #10 x 3/4" Screws (2)

in each end of the Crossbar (104) first; do

not overtighten the Screws. Then, tighten the

other #10 x 3/4" Screws (2) in each end of the

Crossbar.

Tighten the four 1/4" x 1" Screws (9).

11

104

83

102

82

87

34

934

9

First

First

2

2

B

B

13

13. Set the console assembly on the Left and Right

Handrails (82, 83). Be careful not to pinch any

wires. Insert the excess Upright Wire (87) into

the Right Handrail.

Attach the console assembly to the Crossbar

(104) with six #8 x 3/4" Screws (1). Start all six

Screws, and then tighten them.

Attach the two Console Clamps (105) to the

console assembly with four #8 x 1" Screws (53).

83

105

53

87

111

Console Assembly

82

104

12. Firmly tighten the four 5/16" x 1" Screws (3) and

the two 5/16" x 1" Bolts (4) (only one side is

shown).

With the help of a second person, hold the con-

sole assembly near the Right Handrail (83) and

the Left Handrail (not shown).

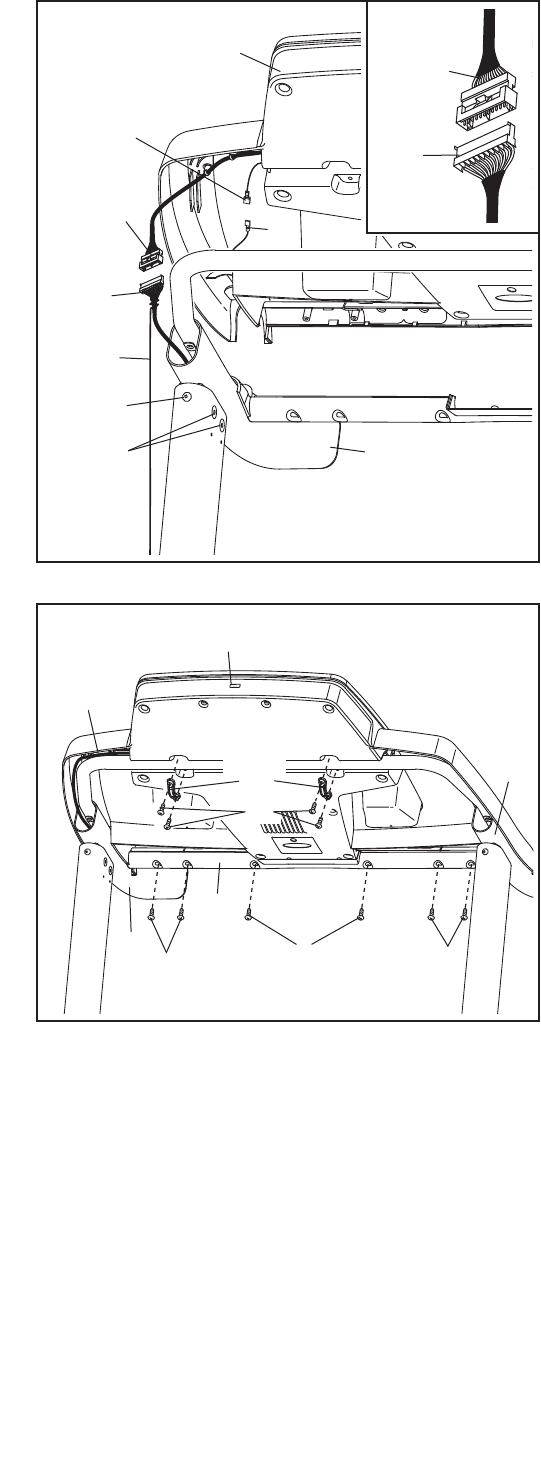

Connect the Upright Wire (87) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Remove the wire tie from the

Upright Wire.

Connect the ground wire from the console

assembly to the Console Ground Wire (52).

Insert the wires into the console assembly.

Console

Assembly

12

Console

Wire

Wire

Tie

83

87

4

3

87

Console

Wire

13

52

Ground

Wire

14

14. Hold the Right Upright Cover (86) against the

console assembly. Align the holes in the Right

Upright Cover with the holes in the Right Upright

(85). Attach the Right Upright Cover with two #8

x 3/4" Screws (1).

Attach the Left Upright Cover (80) to the Left

Upright (84) in the same way.

See steps 4 and 6. Tighten the four 3/8" x 4"

Screws (7) and the two 3/8" x 1 1/2" Screws (14).

14

85 84

11

Console

Assembly

80

86

17. Make sure that all parts are properly tight-

ened before you use the treadmill. If there are

sheets of plastic on the treadmill decals, remove

the plastic. To protect the oor or carpet, place

a mat under the treadmill. Note: Extra parts may

be included. Keep the included hex keys in a

secure place; one of the hex keys is used to

adjust the walking belt (see pages 24 and 25).

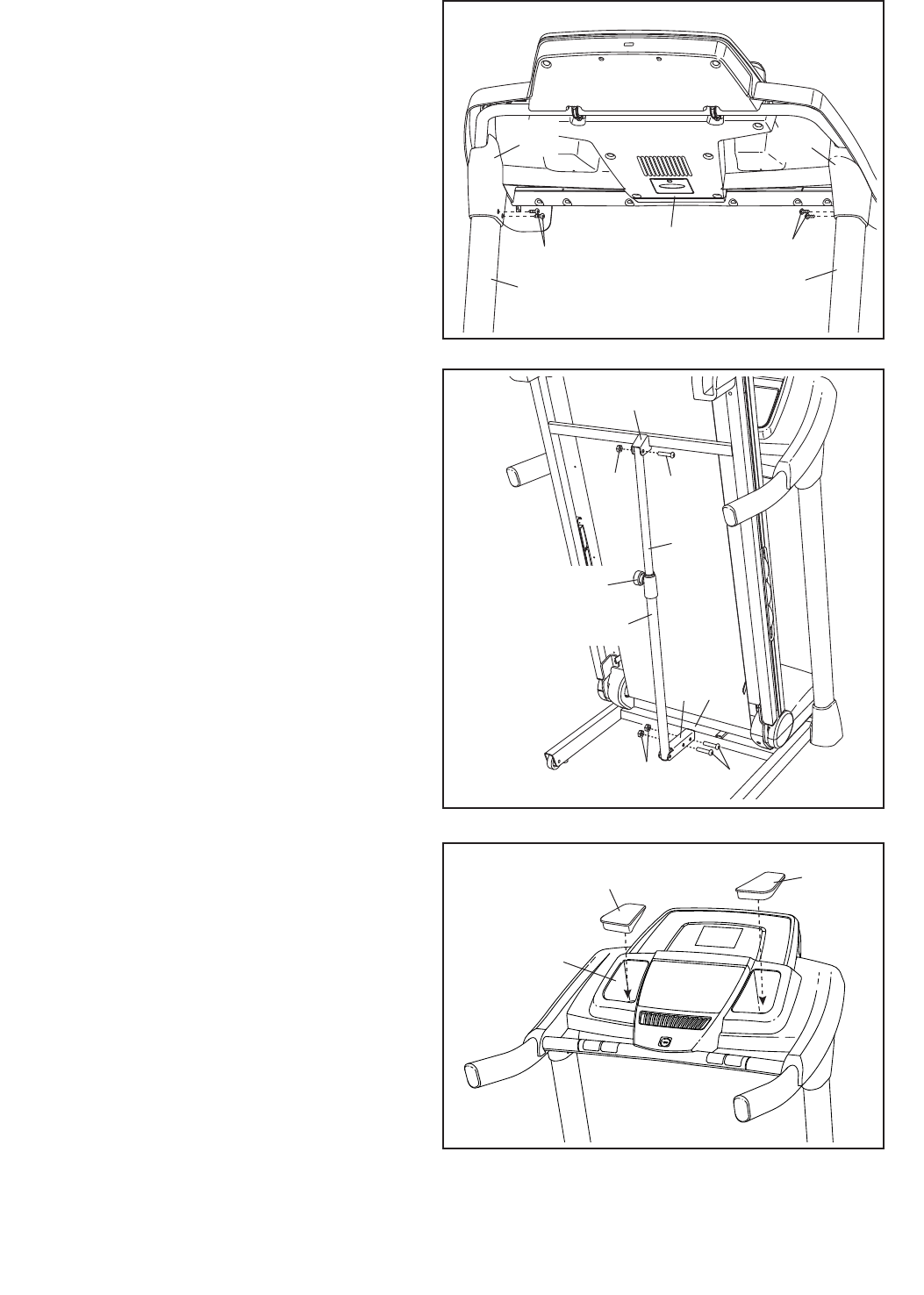

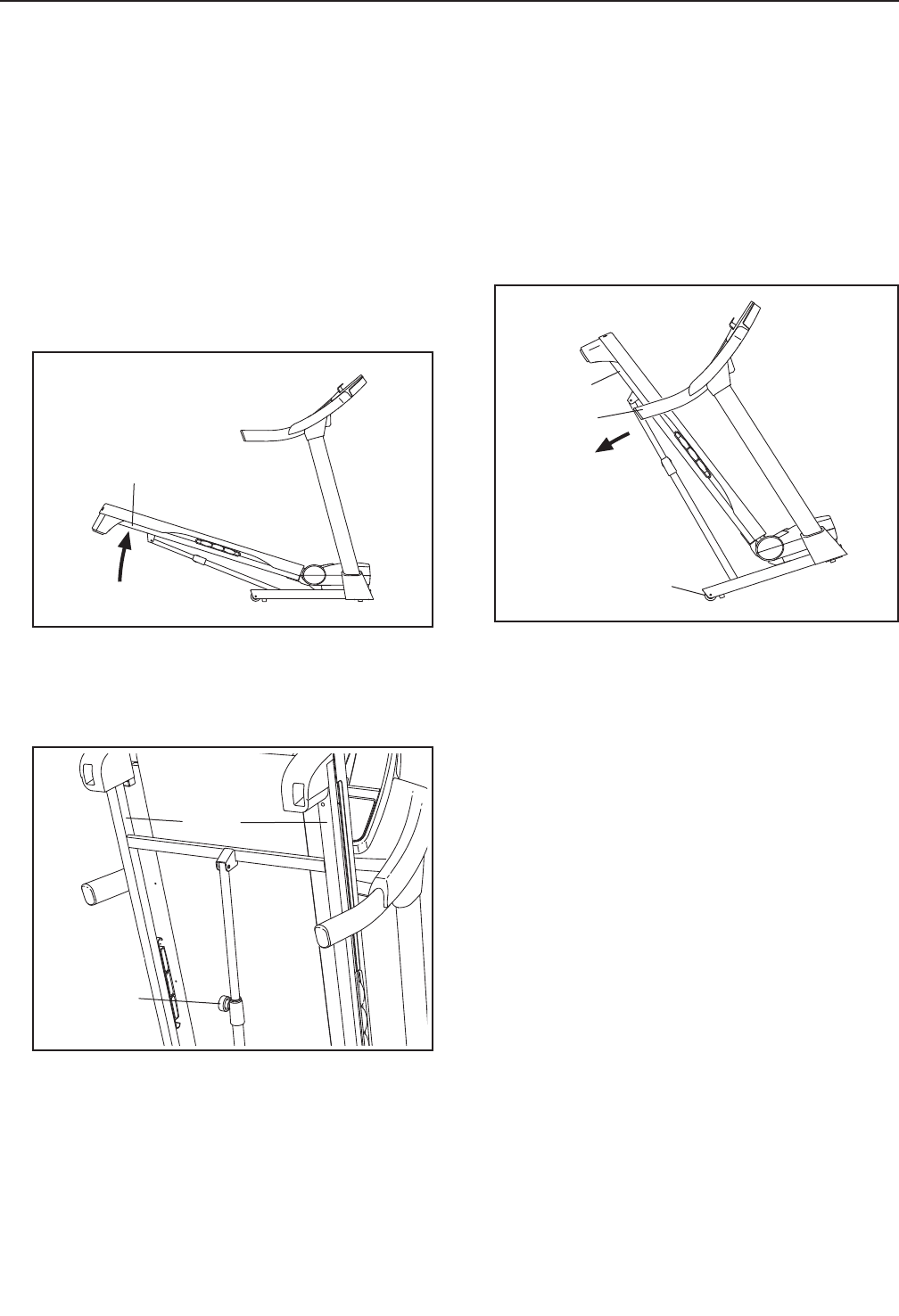

15. Raise the Frame (55) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (51) so that the large

barrel and the latch knob are oriented as shown.

Attach the Latch Bracket (39) to the Base (95)

with two 3/8" x 2" Bolts (8) and two 3/8"

Nuts (10).

Attach the upper end of the Storage Latch (51)

to the bracket on the Frame (55) with a 3/8" x

2" Bolt (8) and a 3/8" Nut (10). Note: It may be

necessary to move the Frame back and forth to

align the Storage Latch with the bracket.

Lower the Frame (55) (see HOW TO LOWER

THE TREADMILL FOR USE on page 22).

15

51

95

10

8

55

10

39

8

16. Insert the Left and Right Tray Inserts (61, 50) into

the console assembly as shown. 16

Console

Assembly

50

61

Large Barrel

Latch Knob

15

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 13 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

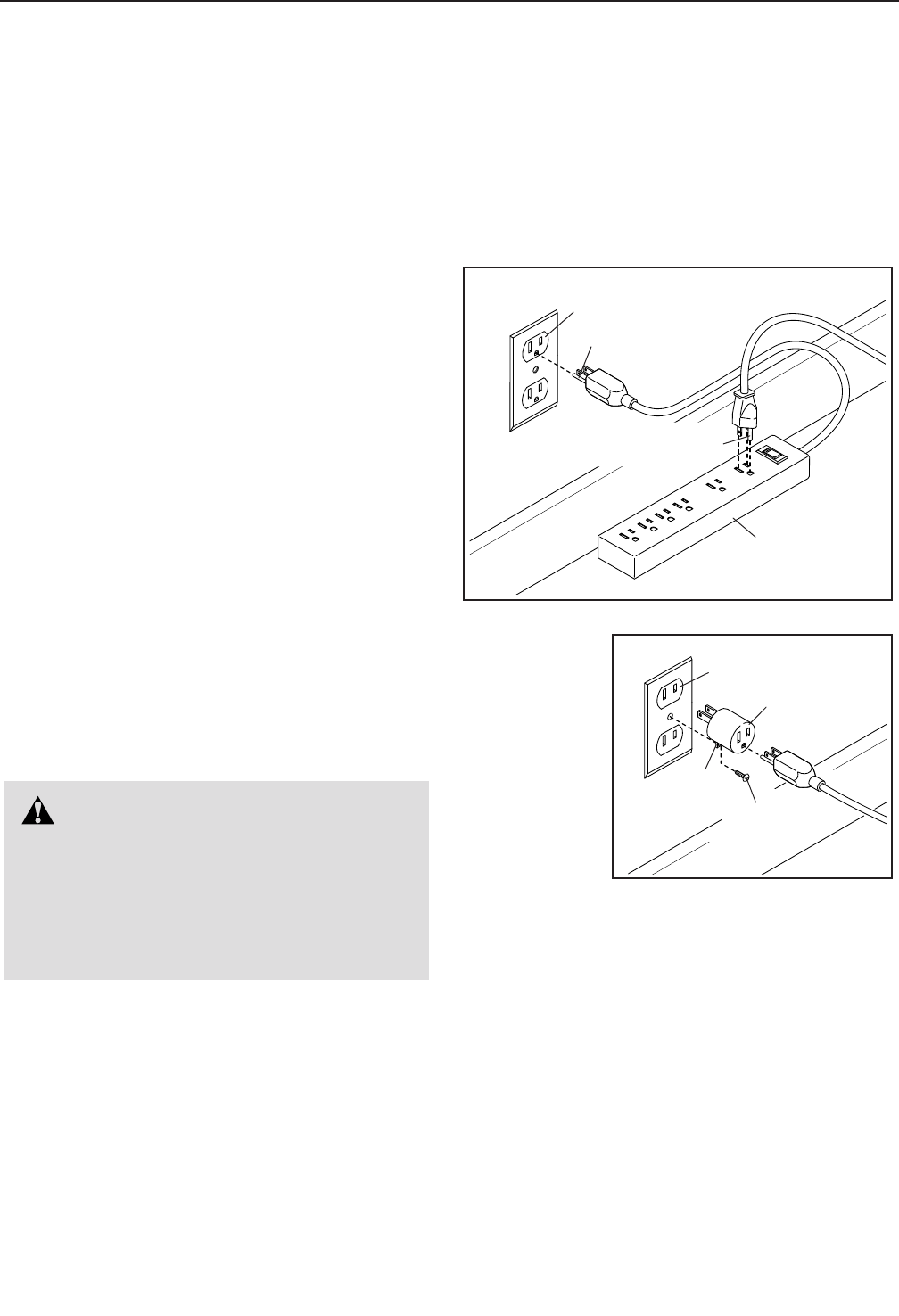

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

1

Surge

Suppressor

Grounding Pin

Grounded Outlet

2

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

16

ETPF49612

(PFTL49612)

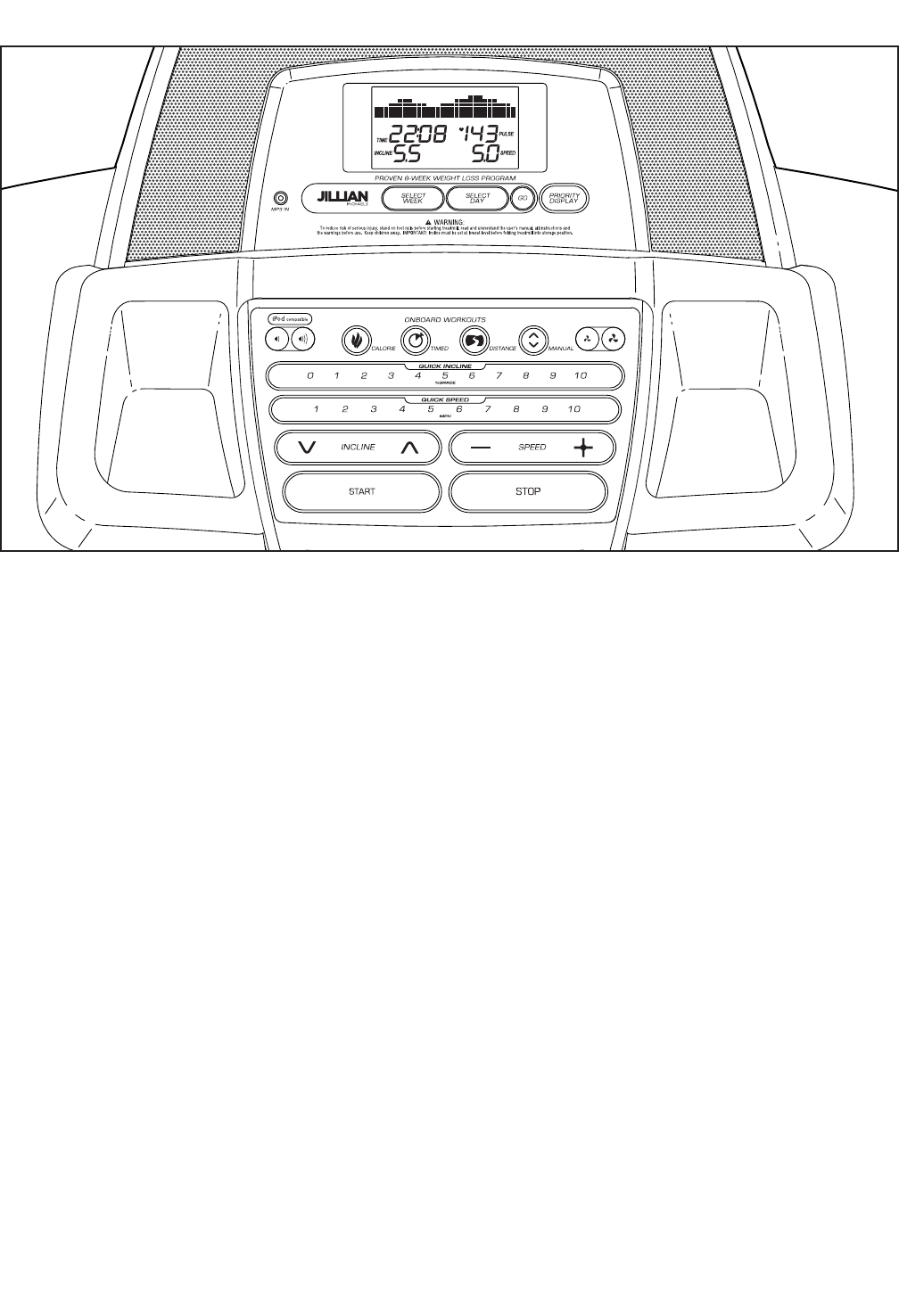

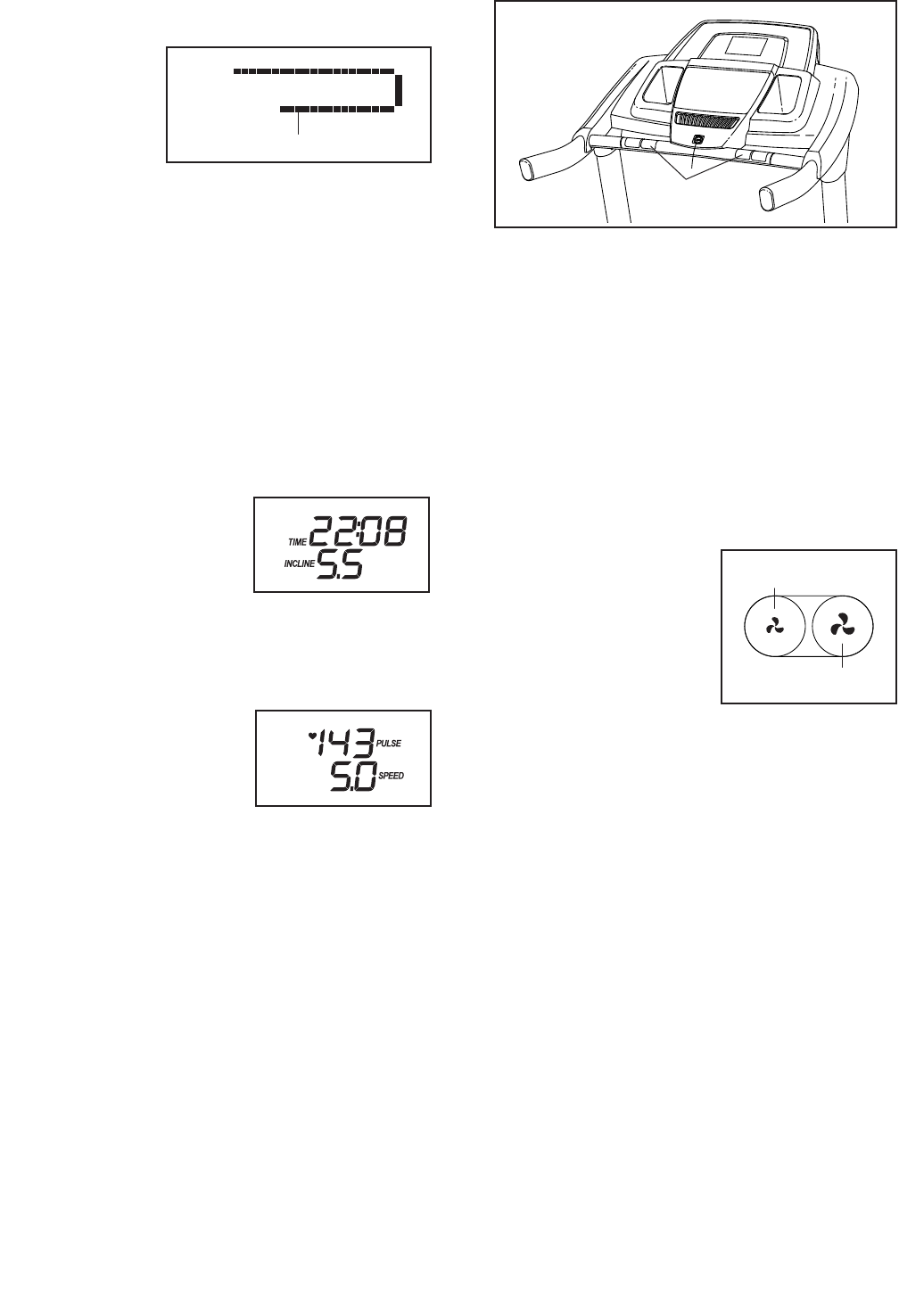

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable. When you use the manual mode,

you can change the speed and incline of the treadmill

with the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip heart rate

monitor.

In addition, the console features sixteen onboard work-

outs—six calorie workouts, ve timed workouts, and

ve distance workouts. Each workout automatically

controls the speed and incline of the treadmill as it

guides you through an effective exercise session.

Lose unwanted pounds with the progressive 8-week

weight-loss program. Each workout in the program

controls the speed and incline of the treadmill as it

guides you through an effective workout designed to

help you achieve the results you want.

You can even listen to your favorite workout music or

audio books with the console’s stereo sound system

while you exercise.

To turn on the power, see page 17. To use the man-

ual mode, see page 17. To use an onboard workout,

see page 19. To use an 8-week weight-loss work-

out, see page 20. To use the stereo sound system,

see page 21. To use the information mode, see

page 21.

Note: The console can display speed and distance in

either miles or kilometers. To nd which unit of mea-

surement is selected, see THE INFORMATION MODE

on page 21. For simplicity, all instructions in this man-

ual refer to miles.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 25).

CONSOLE DIAGRAM

17

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

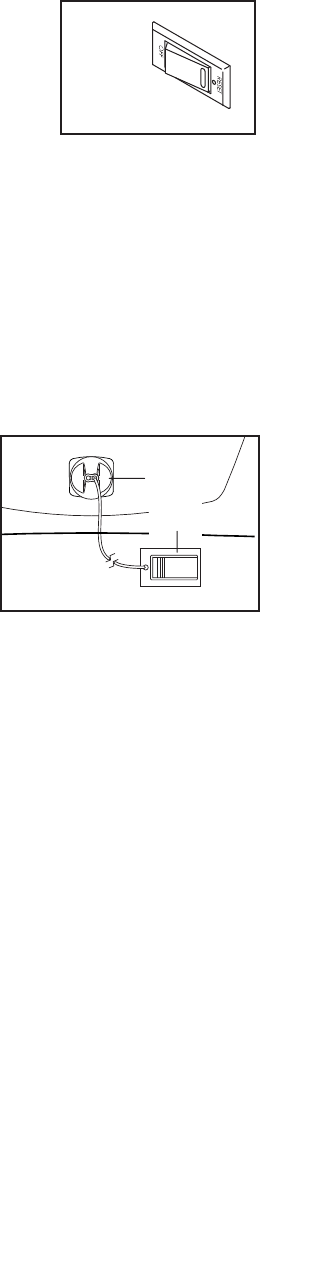

Plug in the power cord

(see page 15). Next, lo-

cate the power switch on

the treadmill frame near

the power cord. Press the

power switch into the reset

position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

21 to turn off the demo mode.

Next, stand on the

foot rails of the

treadmill. Find the

clip attached to

the key and slide

the clip onto the

waistband of your

clothes. Then, in-

sert the key into

the console. After a moment, the displays will light.

IMPORTANT: In an emergency, the key can be

pulled from the console, causing the walking belt

to slow to a stop. Test the clip by carefully taking

a few steps backward; if the key is not pulled from

the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the key is inserted, the manual mode will be

selected. If you have selected a workout, press the

Manual button on the console.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the Quick Speed

buttons numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed in-

crease and decrease buttons. Each time you press

one of the buttons, the speed setting will change

by 0.1 mph; if you hold down the button, the speed

setting will change more quickly. Note: After you

press the button, it may take a moment for the

walking belt to reach the selected speed setting.

If you press one of the numbered Quick Speed but-

tons, the walking belt will gradually change speed

until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to ash in the display. To re-

start the walking belt, press the Start button or the

Speed increase button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

numbered Quick Incline buttons. Each time you

press one of the buttons, the treadmill will gradually

adjust to the selected incline setting.

Reset

ETPF49612

(PFTL49612)

Key

Clip

18

5. Follow your progress with the display.

When the

manual

mode is se-

lected, the

upper half of

the display

will show a

track that represents 1/4 mile (400 m). As you walk

or run, indicators will appear in succession around

the track until the entire track appears. The track

will then disappear and the indicators will again

begin to appear in succession.

The upper half of the display can also show the

elapsed time, the distance you have walked or

run, the speed of the walking belt, the approximate

number of calories you have burned, your pace in

minutes per mile, and the incline of the treadmill.

Press the Priority Display button repeatedly until

the desired workout information appears.

The lower left corner

of the display will show

the elapsed time, the

distance that you have

walked or run, and

the incline level of the

treadmill. Note: When an onboard workout is se-

lected, the display will show the time remaining in

the workout instead of the elapsed time.

The lower right corner

of the display will show

the approximate number

of calories you have

burned, the speed of the

walking belt, and your

pace in minutes per mile. The display will also show

your heart rate when you use the handgrip heart

rate monitor.

To reset the display, press the Stop button, remove

the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using the handgrip heart rate monitor, re-

move the sheets of plastic from the metal contacts

on the pulse bar. In addition, make sure that your

hands are clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on

the metal contacts for approximately ten seconds;

avoid moving your hands. When your pulse is

detected, a heart symbol in the calorie display

will ash each time your heart beats, one or two

dashes will appear, and then your heart rate will be

shown. For the most accurate heart rate read-

ing, continue to hold the contacts for about 15

seconds.

7. Turn on the fan if desired.

The fan features multiple

speed settings. Press

the fan increase or de-

crease button to select a

fan speed or to turn off

the fan. Note: If the fan

is on when the walking

belt is stopped, the fan

will turn off automatically

after a few

minutes.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

Decrease

Increase

Track

19

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Timed button, or the Distance button

repeatedly until the desired workout appears in the

display.

When you select an onboard workout, the maxi-

mum speed setting and the maximum incline set-

ting of the workout will ash in the display for a few

seconds and a prole of the speed settings of the

workout will scroll across the display. If you select

a Calorie workout, the approximate number of calo-

ries you will burn will also appear in the display.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are

programmed for each segment. Note: The same

speed setting and/or incline setting may be pro-

grammed for consecutive segments.

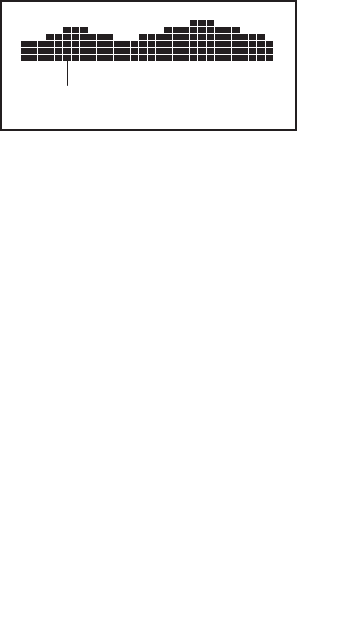

During the

workout, the

prole will

show your

progress.

The ashing

segment of

the prole represents the current segment of the

workout. The height of the ashing segment indi-

cates the speed setting for the current segment.

At the end of each segment, a series of tones will

sound and the next segment of the prole will begin

to ash. If a new speed and/or incline setting is

programmed for the next segment, the new speed

and/or incline setting will appear in the displays for

a few seconds and the treadmill will automatically

adjust to the new speed and/or incline setting.

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow

to a stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories

that you burn will depend on various factors

such as your weight. In addition, if you manu-

ally change the speed or incline of the treadmill

during the workout, the number of calories you

burn will be affected.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Follow your progress with the display.

See step 5 on page 18. The lower left corner of the

display will show the time remaining instead of the

elapsed time.

5. Measure your heart rate if desired.

See step 6 on page 18.

6. Turn on the fan if desired.

See step 7 on page 18.

7. When you are nished exercising, remove the

key from the console.

See step 8 on page 18.

Current Segment

20

HOW TO USE AN 8-WEEK WEIGHT-LOSS

WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 17.

2. Select the desired week of the program.

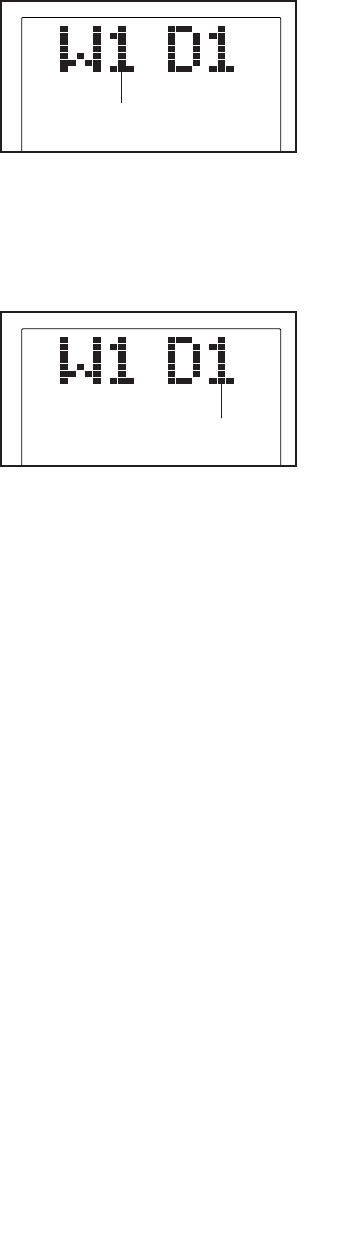

To select the

desired week

of the pro-

gram, press

the Select

Week button

repeatedly

until the

number of the desired week appears in the upper

left display.

3. Select the desired day of the program.

There are

three day

workouts for

each week of

the program.

To select

the desired

day of the

program, press the Select Day button repeatedly

until the number of the desired day appears in the

upper right display.

4. Start the workout.

Press the Go button, and then press the Start but-

ton to start the workout.

The workout will function in the same way as an

onboard workout (see step 3 on page 19).

5. Follow your progress with the display.

See step 5 on page 18. The lower left corner of the

display will show the time remaining instead of the

elapsed time.

6. Measure your heart rate if desired.

See step 6 on page 18.

7. Turn on the fan if desired.

See step 7 on page 18.

8. When you are nished exercising, remove the

key from the console.

See step 8 on page 18.

Week Number

Day Number

21

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio books through the console’s

stereo speakers, you must connect your MP3 player,

CD player, or other personal audio player to the con-

sole through the MP3 jack.

To use the MP3 jack, plug your audio wire into the MP3

jack. Then, plug your audio wire into a jack on your

MP3 player, CD player, or other personal audio player.

Make sure that your audio wire is fully inserted.

Next, press the play button

on your MP3 player, CD

player, or other personal

audio player. Adjust the vol-

ume on your personal audio

player or press the volume

increase and decrease but-

tons on the console.

If you are using a personal CD player and the CD

skips, set the CD player on the oor or another at sur-

face instead of on the console.

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill usage information. The information

mode also allows you to select miles or kilometers as

the unit of measurement and to turn on and turn off the

display demo mode.

To select the information mode, hold down the Stop

button, insert the key into the console, and then re-

lease the Stop button. When the information mode is

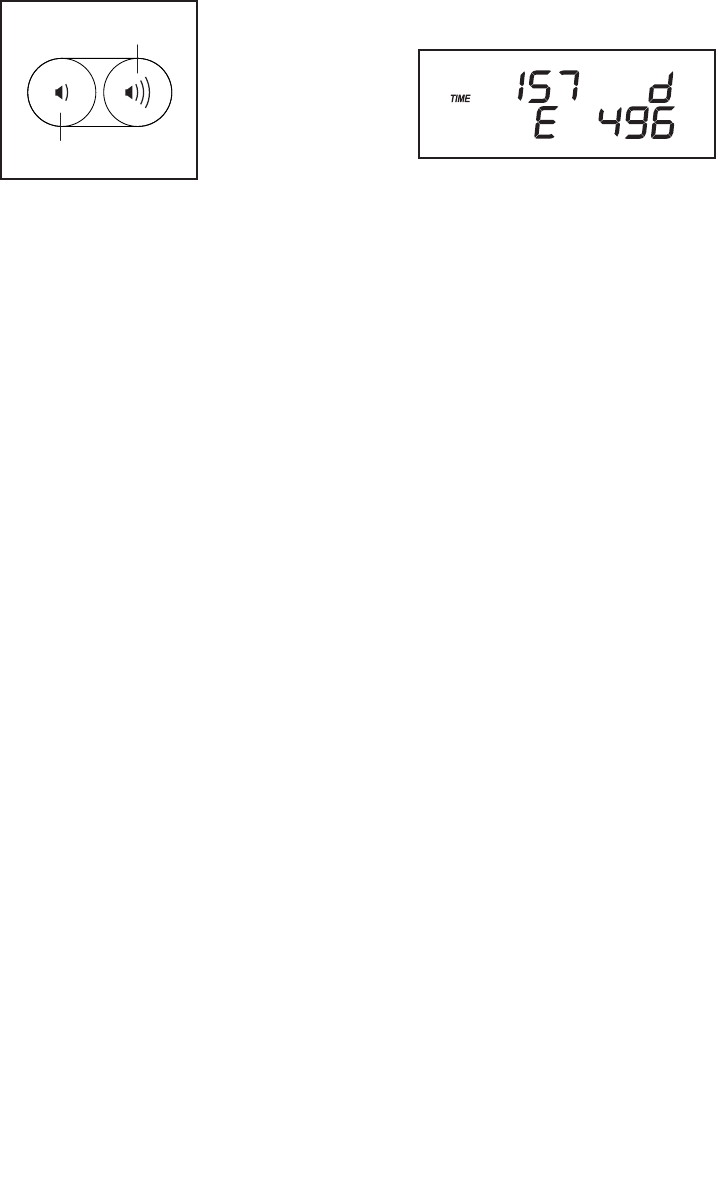

selected, the following information will appear in the

display:

• The number of

hours that the

treadmill has

been

operated.

• The total number of miles or kilometers that the

walking belt has moved.

• An “E” for English miles or an “M” for metric kilome-

ters. To change the unit of measurement, press the

Speed increase button.

• A “d” if the demo mode is turned on. The console

features a display demo mode, designed to be used

if the treadmill is displayed in a store. While the

demo mode is turned on, the console will function

normally when you plug in the power cord, press the

power switch into the reset position, and insert the

key into the console. However, when you remove

the key, the displays will remain lit, although the but-

tons will not function. To turn on or turn off the demo

mode, press the Speed decrease button.

To exit the information mode, remove the key from the

console.

Increase

Decrease

22

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill

frame with your right hand. Pull the latch knob to

the left. IMPORTANT: Do not turn the latch knob.

If necessary, push the frame forward slightly. Pivot

the frame downward a few inches, and release the

latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Handrail

Frame

Wheel

Frame

1

1

Latch

Knob

2

Frame

23

Most treadmill problems can be solved by follow-

ing the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see

page 15). Use only a surge suppressor that meets

all of the specications described on page 15.

IMPORTANT: The treadmill is not compatible

with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

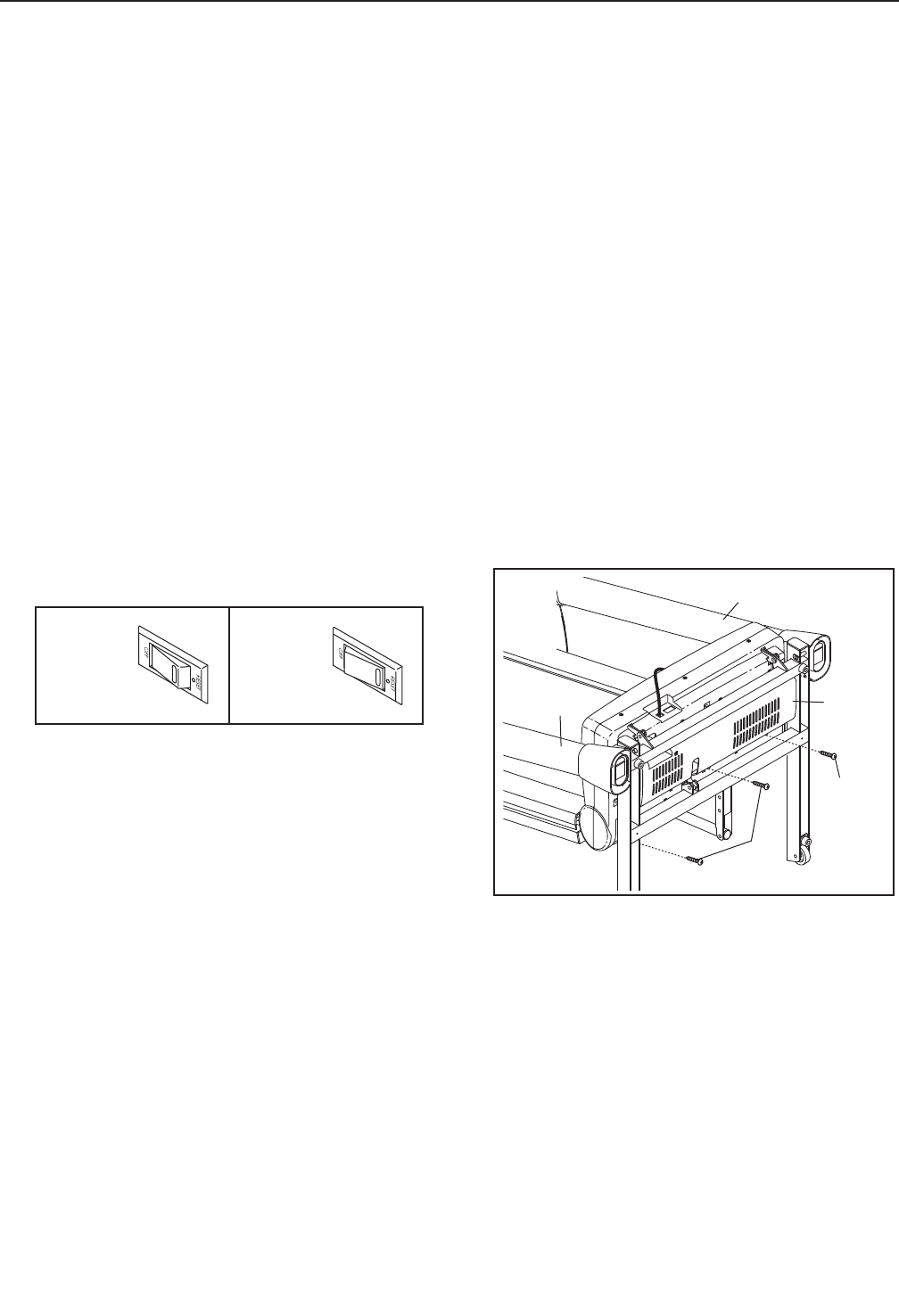

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

power switch, wait for five minutes and then press

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

If the switch has tripped, wait for five minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when

you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in

a store. If the displays remain lit when you remove

the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a

few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 21 to turn off the

demo mode.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. With the help of a second

person, carefully tip down the Uprights (84, 85).

There may be three #8 x 2" Screws (16) in the

bottom of the Belly Pan (75). If there are, remove

them. Note: A Phillips screwdriver with a shaft at

least 5 in. (13 cm) long is required.

Then, raise the Uprights (84, 85).

TROUBLESHOOTING

Reset

Tripped

c

16

16

84

75

85

a

24

Remove the three #8 x 3/4" Screws (1) and care-

fully pivot the Motor Hood (62) off.

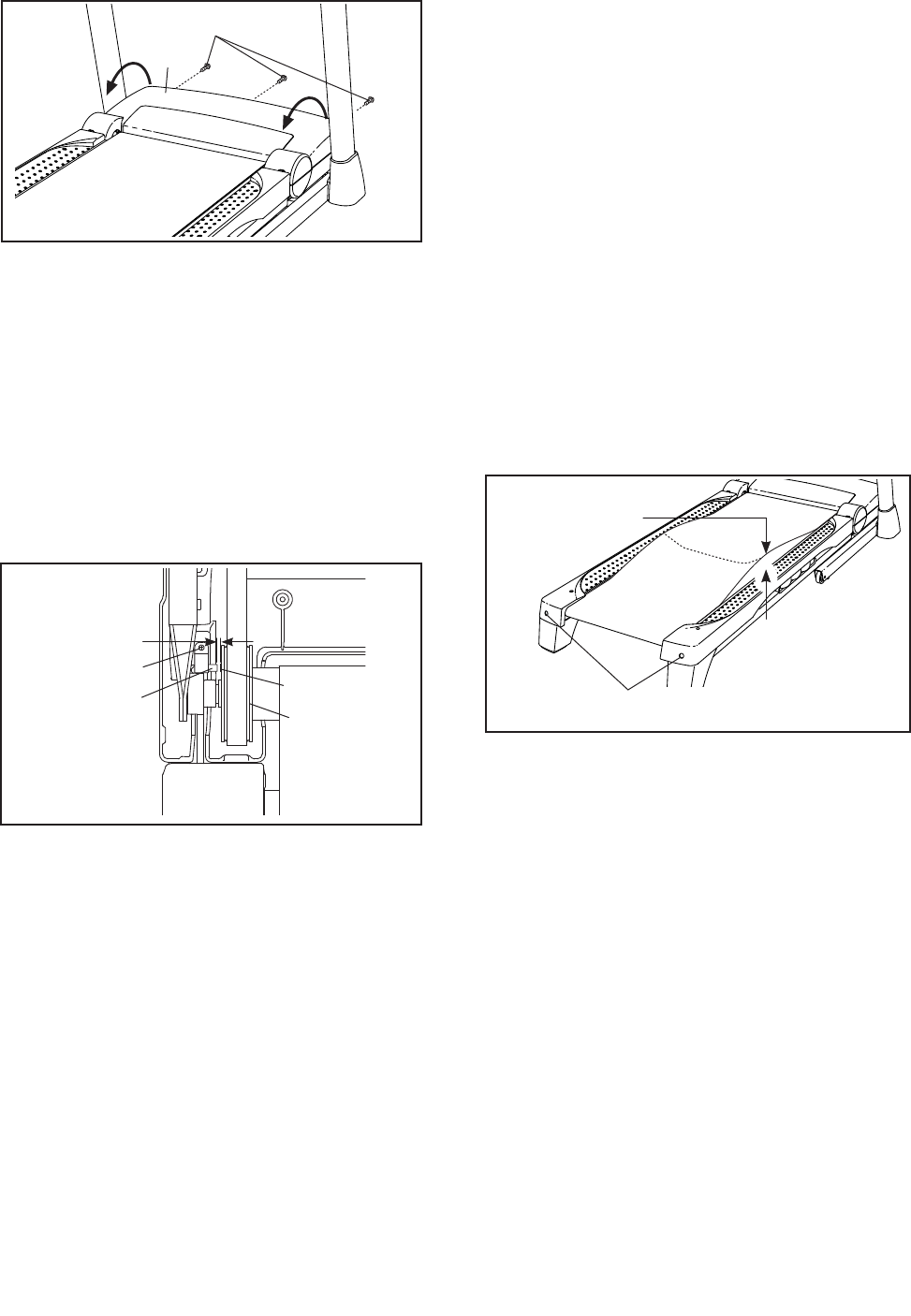

Locate the Reed Switch (73) and the Magnet (47)

on the left side of the Pulley (48). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm).

If necessary, loosen the #8 x 3/4" Truss Head

Screw (18), move the Reed Switch slightly, and

then retighten the Screw. Reattach the Motor Hood

(not shown) with the #8 x 3/4" Screws (not shown).

Reattach the #8 x 2" Screws (not shown) if neces-

sary. Run the treadmill for a few minutes to check

for a correct speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then

release both buttons. Next, press the Stop button,

and then press the Incline increase or decrease

button. The treadmill will automatically rise to

the maximum incline level and then return to the

minimum level. This will calibrate the incline system.

If the incline system does not begin calibrating,

press the Stop button, and then press the Incline

increase or decrease button again. When the

incline system is calibrated, remove the key from

the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specications described on page 15.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to

the walking belt or the walking platform unless

instructed to do so by an authorized service

representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more

lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

Idler Roller Screws

2–3 in.

b

62

1

Top

View

47

18

73

48

1/8 in.

25

SYMPTOM: The walking belt is off-center or slips

when walked on

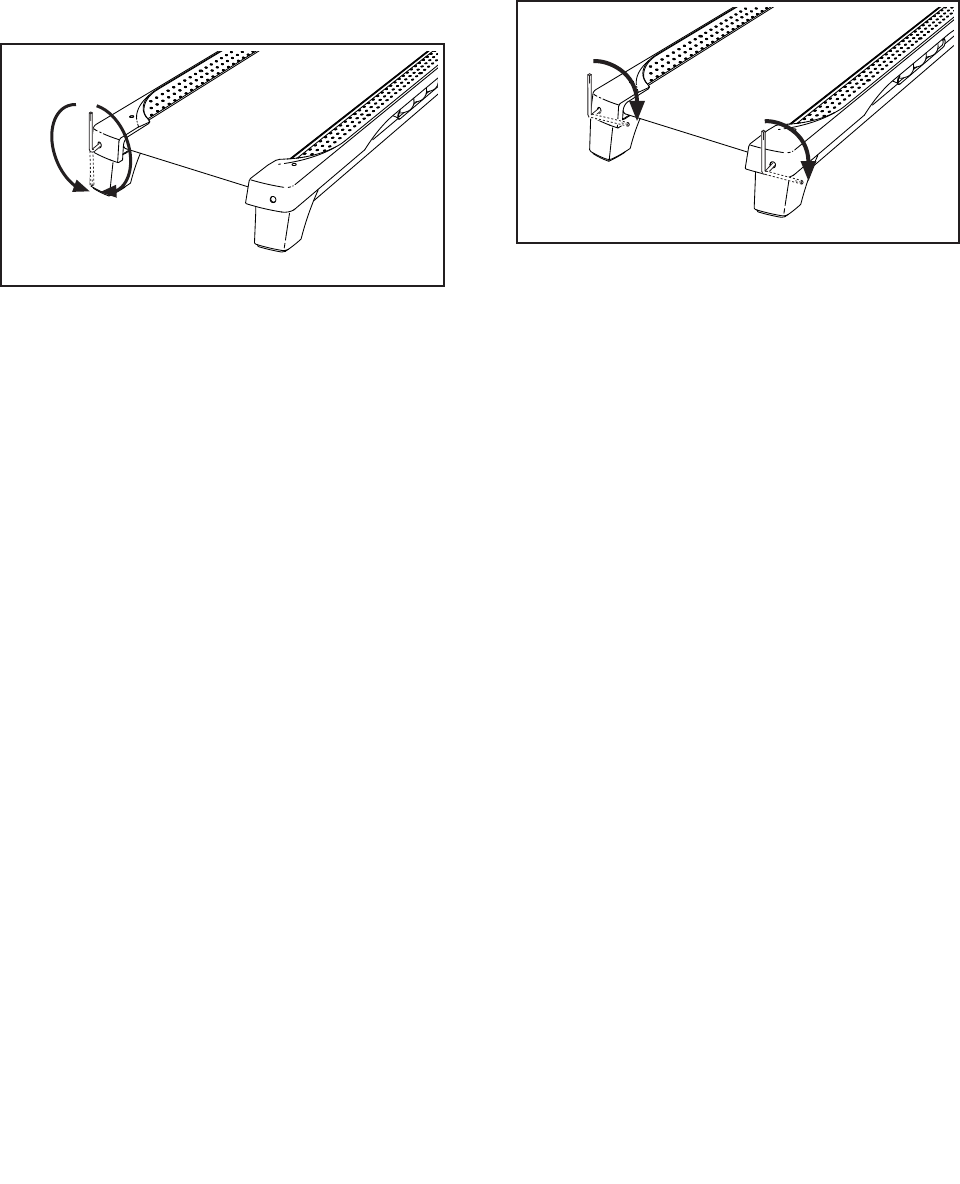

a. If the walking belt is off-center, rst remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, rst

remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walk-

ing belt is correctly tightened, you should be able

to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep

the walking belt centered. Then, plug in the power

cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

a

b

26

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

27

Key No. Qty. Description Key No. Qty. Description

1 31 #8 x 3/4" Screw

2 4 #10 x 3/4" Screw

3 4 5/16" x 1" Screw

4 2 5/16" x 1" Bolt

5 4 #8 x 1" Tek Screw

6 1 Console Base

7 4 3/8" x 4" Screw

8 6 3/8" x 2" Bolt

9 4 1/4" x 1" Screw

10 6 3/8" Nut

11 6 3/8" Star Washer

12 4 #10 Star Washer

13 2 5/16" Star Washer

14 2 3/8" x 1 1/2" Screw

15 5 #8 x 3/4" Tek Screw

16 3 #8 x 2" Screw

17 4 #8 x 1/2" Pan Head Screw

18 11 #8 x 3/4" Truss Head Screw

19 2 #8 x 1 1/2" Screw

20 2 5/16" x 1 1/2" Bolt

21 2 5/16" x 3 5/8" Bolt

22 2 3/8" x 1" Screw

23 1 1/4" x 1" Screw

24 2 Idler Roller Screw

25 1 3/8" x 1 3/4" Bolt

26 1 3/8" x 1 1/2" Bolt

27 2 3/8" x 3/4" Bolt

28 7 #8 x 1/2" Bright Screw

29 1 #8 x 1/2" Ground Screw

30 8 #12 x 1" Screw

31 2 1/4" Motor Screw

32 4 #8 Belt Guide Screw

33 2 1/4" Roller Star Washer

34 5 1/4" Star Washer

35 4 3/8" Jam Nut

36 4 5/16" Flange Nut

37 3 Hood Clip

38 2 5/16" Cage Nut

39 1 Latch Bracket

40 1 Left Foot Rail

41 1 Latch Warning Decal

42 2 Platform Cushion

43 2 Belt Guide

44 1 Walking Platform

45 2 Frame Cap

46 2 Frame Spacer

47 1 Magnet

48 1 Front Roller/Pulley

49 1 Walking Belt

50 1 Right Tray Insert

51 1 Storage Latch

52 1 Console Ground Wire

53 4 #8 x 1" Screw

54 1 Right Foot Rail

55 1 Frame

56 2 Roller Bracket

57 1 Roller Ground Wire

58 1 Right Rear Foot

59 1 Left Rear Foot

60 1 Idler Roller

61 1 Left Tray Insert

62 1 Motor Hood

63 1 Hood Accent

64 1 Lift Frame

65 1 Lift Frame Ground Wire

66 1 Drive Motor Belt

67 1 Drive Motor

68 1 Controller Ground Wire

69 1 Power Cord

70 1 Grommet

71 1 Power Switch

72 1 Controller

73 1 Reed Switch

74 1 Reed Switch Clamp

75 1 Belly Pan

76 3 Wire Tie

77 8 8" Tie

78 2 15" Tie

79 4 Releasable Tie

80 1 Left Upright Cover

81 2 Handrail Cap

82 1 Left Handrail

83 1 Right Handrail

84 1 Left Upright

85 1 Right Upright

86 1 Right Upright Cover

87 1 Upright Wire

88 1 Left Base Cover

89 2 Base Cap

90 4 Base Foot

91 1 Right Base Cover

92 2 Caution Decal

93 1 Access Door

94 2 Base Foot Spacer

95 1 Base

96 2 Wheel

97 1 Incline Motor

98 1 Incline Motor Spacer

99 1 Key/Clip

100 2 Cable Tie

101 1 Console

102 1 Console Frame

103 1 Tray

104 1 Crossbar

105 2 Console Clamp

* – User’s Manual

PART LIST Model No. PFTL49612.1 R0712A

Note: Specications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

28

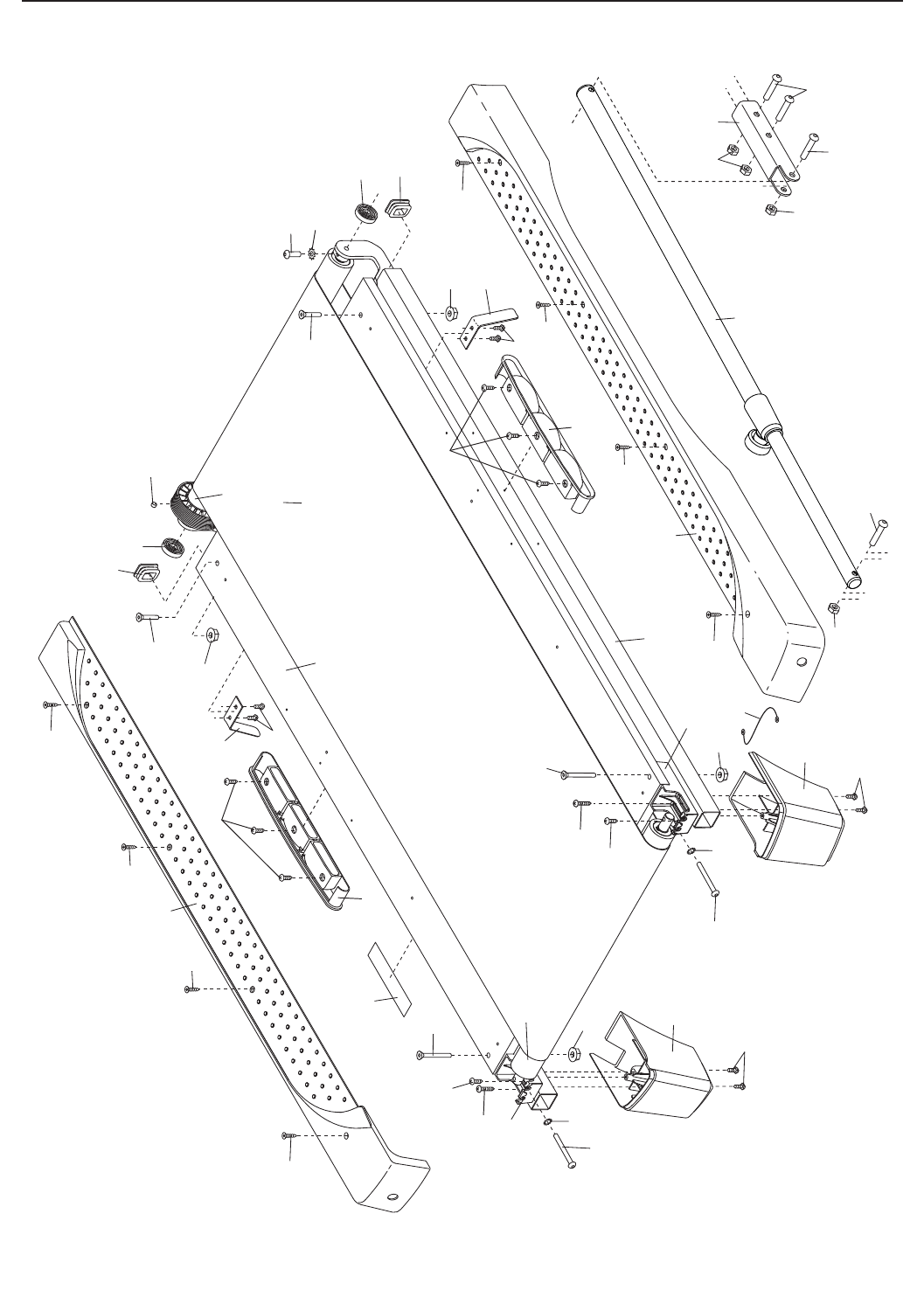

20

21

21

28

32

32

43

43

45

36

36

36

47

45

46

36

44

41

49

48

60

55

56

56

46

57

24

23

34

19

19

20

24 28

42

18

42

18

30

30

40

30

30

58

18 8

51

30

54

10

30

30

30

8

10

10 39

8

59

18

33

33

EXPLODED DRAWING A Model No. PFTL49612.1 R0712A

29

15

15

15

15

74

18

73

37

37

37

1

1

1

17

22

22

28

28

69

70

71

68

62

64

76

75

72

65

16

28

28

31

67

66

77

79

78

16

16

63

EXPLODED DRAWING B Model No. PFTL49612.1 R0712A

30

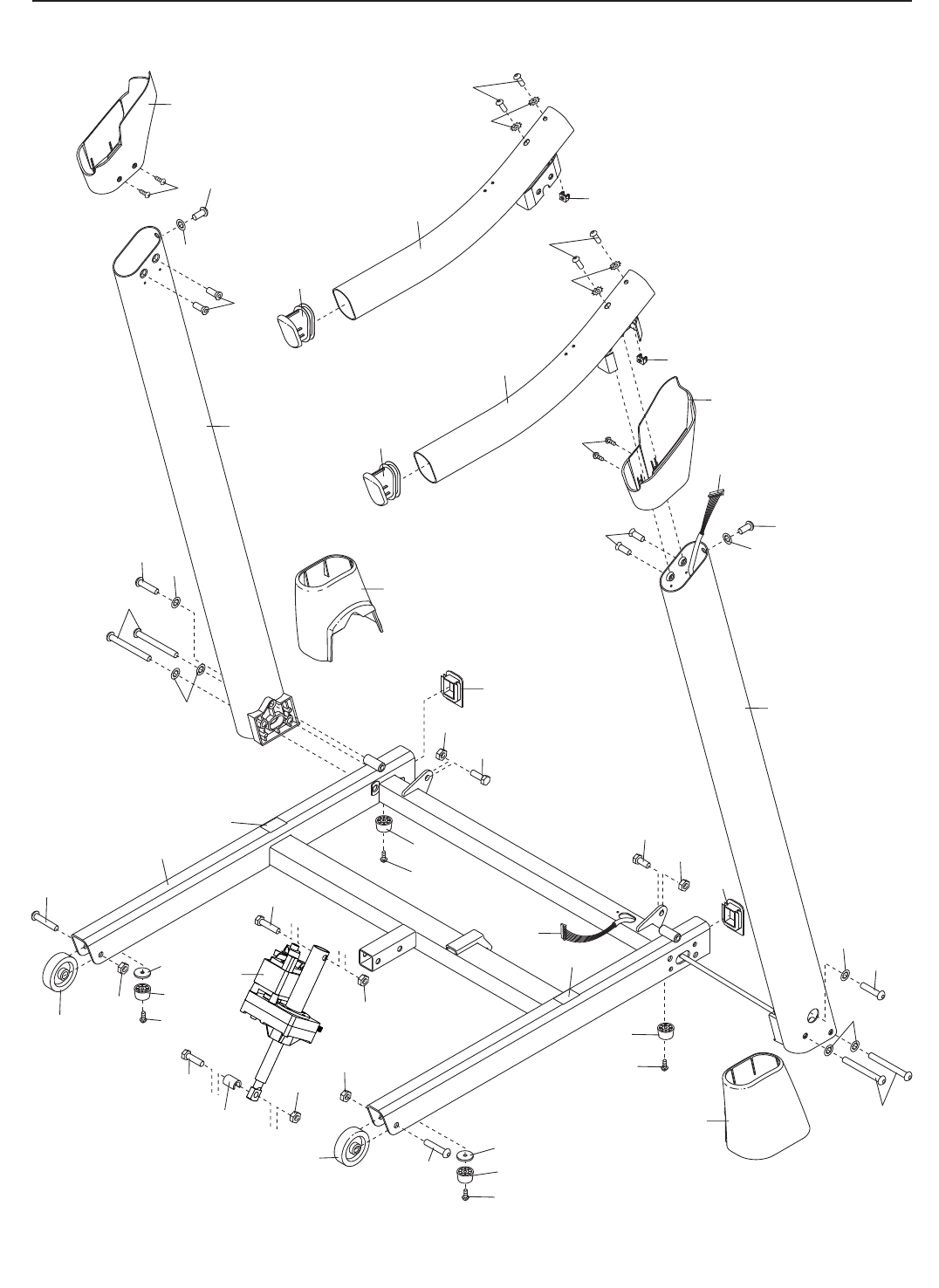

90

5

90

5

90

5

96

96

8

27

35

89

89

85

95

92

92

94

90

5

94

25

26

35

35

97

98

87

10

10

8

87

86

83

82

81

81

80

38

38

1

1

3

3

4

4

13

13

27

35

84

7

11

7

11

14

11

11

88

91

14

9

34

9

34

EXPLODED DRAWING C Model No. PFTL49612.1 R0712A

31

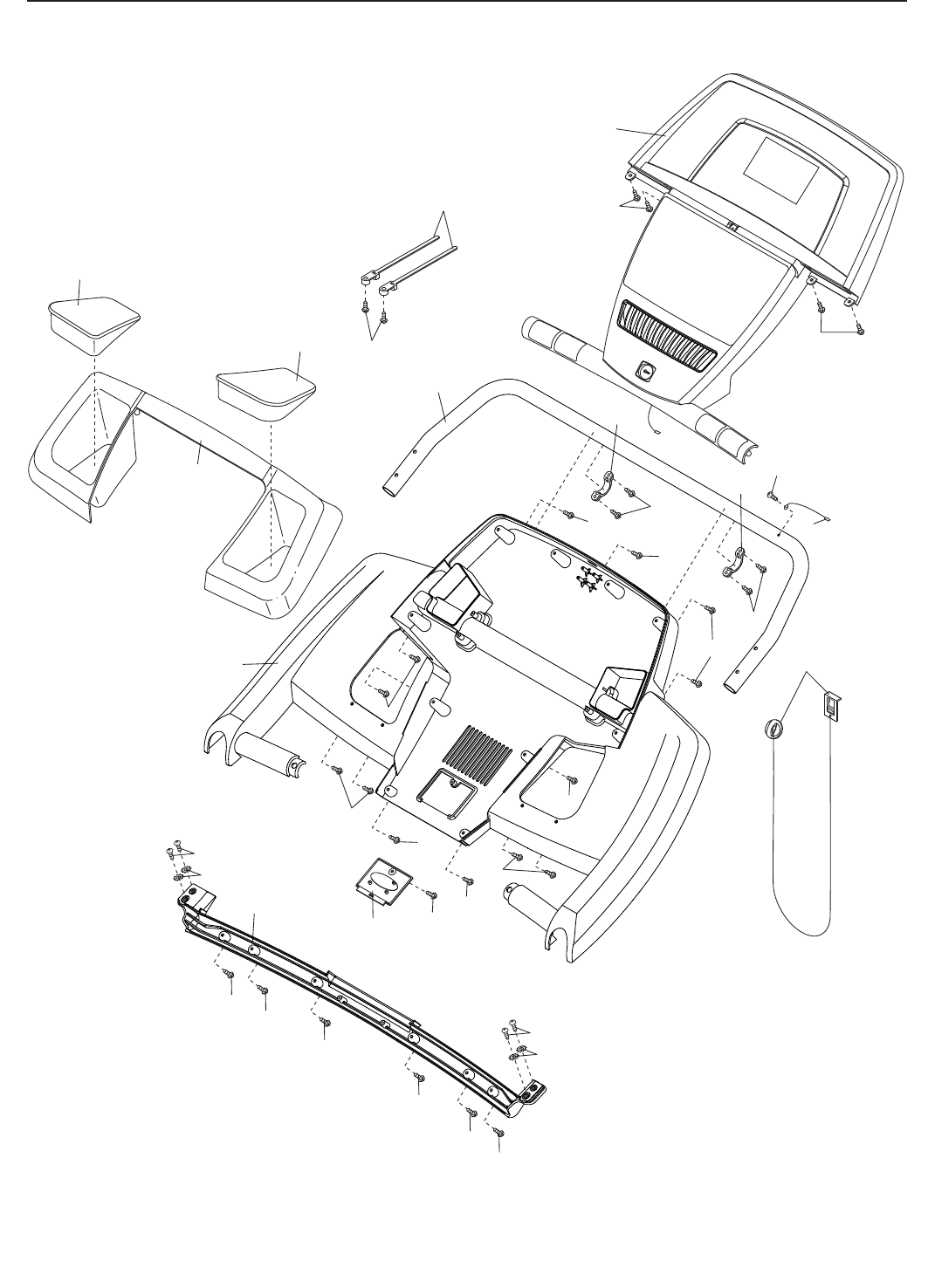

99

53

1

93

103

101

12

104

1

2

102

6

1

1

1

1

1

12

2

1

1

1

1

1

1

1

100

105

105

53

17 1

1

1

1

61

50

52

29

EXPLODED DRAWING D Model No. PFTL49612.1 R0712A

Part No. 330894 R0712A Printed in USA © 2012 ICON IP, Inc.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-

vide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor

is warranted for twenty-ve (25) years from the date of purchase. Parts and labor are warranted for one

(1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.proformservice.com/registration.
