Proform Pftl49613C0 Performance 400 S Treadmill Users Manual

: Proform Proform-Pftl49613C0-Performance-400-S-Treadmill-Users-Manual-701764 proform-pftl49613c0-performance-400-s-treadmill-users-manual-701764 proform pdf

Open the PDF directly: View PDF .
Page Count: 36

Serial Number

Decal

Model No. PFTL49613C.0

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER’S MANUAL

www.proformtness.ca

ACTIVATE YOUR

WARRANTY

To register your product and

activate your warranty today, go to

www.iconservice.ca.

CUSTOMER SERVICE

Call toll-free 1-888-936-4266

Mon.–Fri. 7:30 a.m.–4:30 p.m. ET

(excluding holidays)

or email us at

customerservice@iconcanada.ca

Please do not contact the store.

2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO USE THE TREADMILL ..............................................................17

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

MAINTENANCE AND TROUBLESHOOTING .....................................................26

EXERCISE GUIDELINES ....................................................................29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

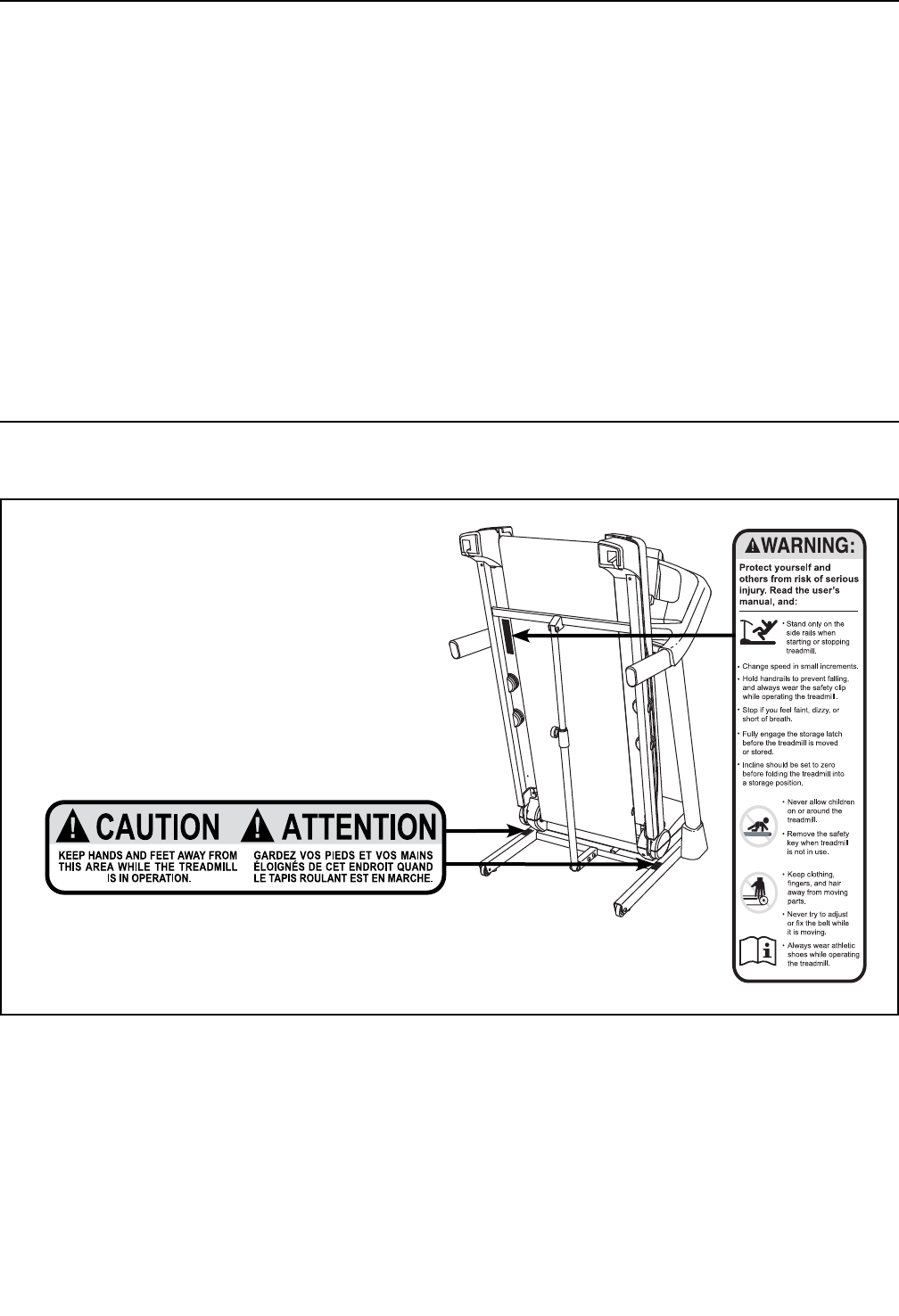

This drawing shows the locations of the warning

decals. If a decal is missing or illegible, call

the telephone number on the front cover of

this manual and request a free replacement

decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual

size.

WARNING DECAL PLACEMENT

305284

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

3

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

4. Use the treadmill only as described.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

8. Keep children under age 12 and pets away

from the treadmill at all times.

9. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

10. Never allow more than one person on the

treadmill at a time.

11. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

12. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 17).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

13. Use only a surge suppressor that meets all

of the specifications described on page 17.

To purchase a surge suppressor call the

telephone number on the front cover of this

manual.

14. Failure to use a properly functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

15. Keep the power cord and the surge suppres-

sor away from heated surfaces.

16. Never move the walking belt while the power

is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if

the treadmill is not working properly. (See

MAINTENANCE AND TROUBLESHOOTING

on page 26 if the treadmill is not working

properly.)

17. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on page

19).

18. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

19. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all

important precautions and instructions in this manual and all warnings on your treadmill before using

your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by

or through the use of this product.

IMPORTANT PRECAUTIONS

4

20. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

21. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 7 for the

location of the power switch.)

22. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 9, and HOW TO FOLD

AND MOVE THE TREADMILL on page 25.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

23. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

24. Never insert any object into any opening on

the treadmill.

25. Inspect and properly tighten all parts of the

treadmill regularly.

26. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

27. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

28. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

5

6

7

Thank you for selecting the revolutionary

PROFORM® PERFORMANCE 400 S treadmill. The

PERFORMANCE 400 S treadmill offers an impres-

sive selection of features designed to make your

workouts at home more enjoyable and effective. And

when you’re not exercising, the unique treadmill can

be folded up, requiring less than half the oor space of

other treadmills.

For your benet, read this manual carefully before

using the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Idler Roller

Adjustment Bolts

Console

Heart Rate

Monitor

Length: 6 ft. (183 cm)

Width: 2 ft. 11 in. (89 cm)

8

#8 x 1/2" Ground

Screw (3)–1

Base Foot

Spacer (94)–2

#8 x 3/4" Screw

(1)–6

3/8" Star

Washer (11)–6

1/4" Star

Washer (14)–2

#8 x 1/2" Screw

(2)–6

#8 x 1" Tek Screw

(5)–4

3/8" Nut (10)–5

5/16" Star

Washer (13)–6

#10 x 3/4" Screw

(2)–4

3/8" x 4 1/4" Screw (7)–4

5/16" x 1"

Screw (4)–6

1/4" x 1"

Bolt (9)–4

3/8" x 1 3/4" Bolt (6)–1

3/8" x 2" Bolt (8)–5

5/16" x 1" Flat Head

Bolt (3)–4

3/8" x 1 1/2" Screw (14)–2

#10 Star

Washer (12)–4

1/4" x 1/2"

Screw (9)–4

1/4" Star

Washer (12)–8

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

9

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• After shipping, there may be an oily substance on

the exterior of the treadmill. This is normal. If there

is an oily substance on the treadmill, wipe it off

with a soft cloth and a mild, non-abrasive cleaner.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 8.

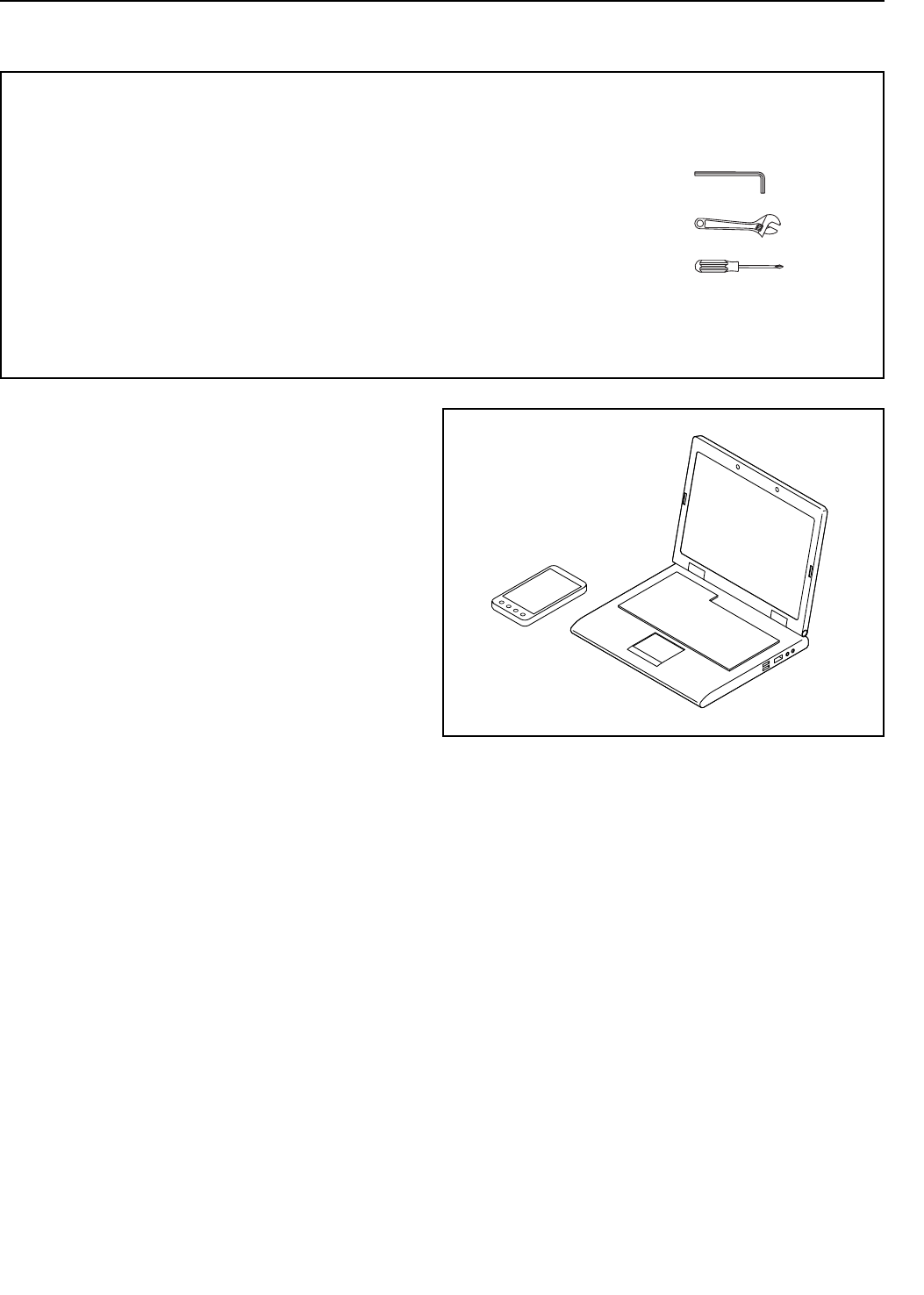

• Assembly requires the following tools:

the included hex key

one adjustable wrench

one Phillips screwdriver

To avoid damaging parts, do not use power tools.

1. Go to www.iconservice.ca on your computer

and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Service

• allows us to notify you of upgrades and offers

1

10

3. See the inset drawing. Cut the plastic tie near

the Upright Wire (87).

Attach a Wheel (96) to the Base (95) with a 3/8"

x 2" Bolt (8) and a 3/8" Nut (10); do not over-

tighten the Nut; the Wheel must turn freely.

Then, press a Base Cap (89) into the Base (95).

95

8

10

3

96

89

2. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip the

treadmill onto its left side. Partially fold the Frame

(55) so that the treadmill is more stable. Do not

fully fold the Frame yet.

If there is a shipping tie securing the Upright Wire

(87) to the Base (95), cut the shipping tie. Then,

locate a plastic tie in the indicated hole in the

Base, and use the tie to pull the Upright Wire out

of the hole.

Next, attach two Base Feet (90) to the Base

(95) in the locations shown with two #8 x 1" Tek

Screws (5) and two Base Foot Spacers (94).

Then, attach the other two Base Feet (90) with

two #8 x 1" Tek Screws (5).

2

95

5

55

90

90

5

5

5

90

94

90

87

Hole

94

Plastic Tie

Cut

87

87

11

5. Hold the Right Upright (85) against the Base

(95). Be careful not to pinch the Upright Wire

(87). Insert two 3/8" x 4 1/4" Screws (7) with

two 3/8" Star Washers (11) and a 3/8" x 1 1/2"

Screw (14) with a 3/8" Star Washer (11) into the

Right Upright.

Partially tighten the 3/8" x 4 1/4" Screws (7) until

the heads of the Screws touch the Right Upright

(85); do not fully tighten the Screws yet.

Partially tighten the 3/8" x 1 1/2" Screw (14).

95

85

87

11

11

14

7

5

4. Identify the Right Upright (85). Hold the Right

Upright near the Base (95) as shown.

See the inset drawing. Tie the wire tie in the

Right Upright (85) securely around the end of

the Upright Wire (87). Then, pull the other end

of the wire tie until the Upright Wire is routed

completely through the Right Upright.

Wire Tie

87

85

95

87

4

Wire

Tie

85

87

12

7. Hold the Left Upright (84) against the Base (95).

Insert two 3/8" x 4 1/4" Screws (7) with two 3/8"

Star Washers (11) and a 3/8" x 1 1/2" Screw

(14) with a 3/8" Star Washer (11) into the Left

Upright.

Partially tighten the 3/8" x 4 1/4" Screws (7) until

the heads of the Screws touch the Left Upright

(84). Do not fully tighten the Screws yet.

Partially tighten the 3/8" x 1 1/2" Screw (14).

With the help of a second person, tip the tread-

mill so that the Base (95) is at on the oor.

7

84

7

95

11

11

14

6. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (55) so that the treadmill is more stable.

Do not fully fold the Frame yet.

Attach a Wheel (96) to the Base (95) with a 3/8"

x 2" Bolt (8) and a 3/8" Nut (10). Do not over-

tighten the Nut; the Wheel must turn freely.

Press a Base Cap (89) into the Base (95).

6

8

55

10

95

89

96

13

8. Identify the Right Base Cover (91) and the Left

Base Cover (88). Slide the Right Base Cover

onto the Right Upright (85). Slide the Left Base

Cover onto the Left Upright (84).

91

85

84

88

8

9. Hold the Right Handrail (83) near the Right

Upright (85). Position the Upright Wire (87) on

the Right Handrail as shown.

Set the Right Handrail (83) on the Right Upright

(85). See the inset drawing. Make sure that

the Upright Wire (87) is positioned as shown

and is not pinched.

Attach the Right Handrail (83) to the Right

Upright (85) with three 5/16" x 1" Screws (4) and

three 5/16" Star Washers (13) as shown. Do not

tighten the Screws yet.

Attach the Left Handrail (not shown) in the

same way. Note: There is no wire on the left

side.

83 4

413

85

87

9

87

85

13

14

11. IMPORTANT: To avoid damaging the

Crossbar (79), do not use power tools and do

not overtighten the #10 x 3/4" Screws (2).

Orient the Crossbar (79) as shown. Attach the

Crossbar to the Left and Right Handrails (82, 83)

with four #10 x 3/4" Screws (2) and four 1/4" Star

Washers (12). Start all four Screws, and then

tighten them.

11

79

2

83

82

12

12

2

10. Set the console assembly face down on a soft

surface to avoid scratching the console assem-

bly. Remove and discard the two #8 x 3/4"

Screws (1). Next, lift off the Crossbar (79).

10

79

Console

Assembly

1

15

13. Set the console assembly on the Left and Right

Handrails (82, 83). Be careful not to pinch any

wires. Insert the excess Upright Wire (87) into

the Right Upright (85).

Attach the console assembly with six #8 x 3/4"

Screws (1) and four 1/4" x 1/2" Screws (9)

with four 1/4" Star Washers (12). Start all ten

Screws, and then tighten them.

See steps 5 and 7. Fully tighten the four 3/8" x 4

1/4" Screws (7) and the two 3/8" x 1 1/2" Screws

(14).

See step 9. Fully tighten the six 5/16" x 1"

Screws (4).

12 82

1

13

Console

Assembly

1

83

85

12

87

91

9

12. With the help of a second person, hold the con-

sole assembly near the Right Handrail (83).

See the inset drawing. Connect the Upright

Wire (87) to the console wire. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Then, remove the wire tie from

the Upright Wire.

Console

Assembly

12

Console

Wire

Wire

Tie

87

83

Console

Wire

87

16

15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill. To

avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure

place; one of the hex keys is used to adjust the walking belt (see pages 27 and 28). Note: Extra hardware

may be included.

14. Raise the Frame (55) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (51) so that the large

barrel and the latch knob are oriented as shown.

Attach the Latch Bracket (6) and Storage Latch

(51) to the Base (95) with two 3/8" x 2" Bolts (8)

and two 3/8" Nuts (10).

Attach the upper end of the Storage Latch (51)

to the bracket on the Frame (55) with a 3/8" x

2" Bolt (8) and a 3/8" Nut (10). Note: It may be

necessary to move the Frame back and forth to

align the Storage Latch with the bracket.

Lower the Frame (55) (see HOW TO LOWER

THE TREADMILL FOR USE on page 25).

14

51

95

10

Large

Barrel

8

55

10

6

8

Latch

Knob

17

HOW TO USE THE TREADMILL

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 13 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill may not be com-

patible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

1

Surge

Suppressor

Grounding Pin

Grounded Outlet

2

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

18

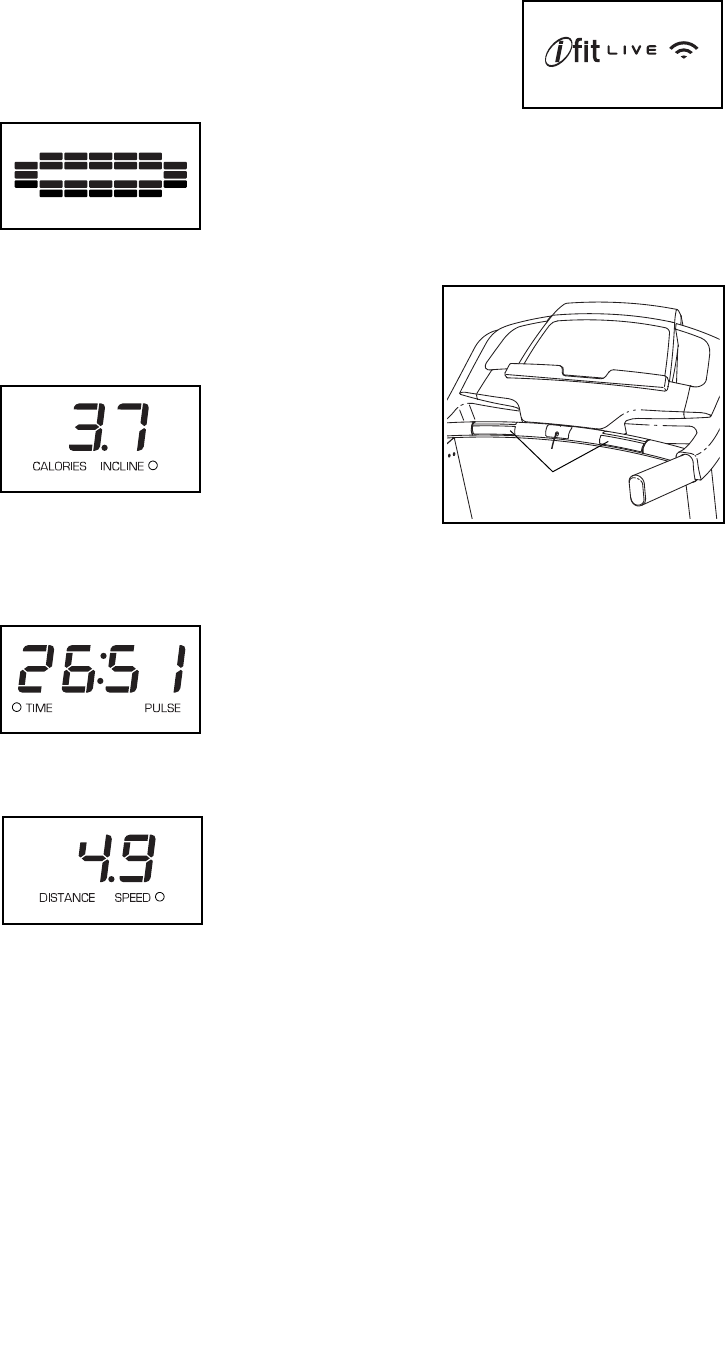

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable. When you use the manual mode,

you can change the speed and incline of the treadmill

with the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip heart rate

monitor.

In addition, the console features a selection of on-

board workouts. Each workout automatically controls

the speed and incline of the treadmill as it guides you

through an effective exercise session.

The console also features an iFit mode that enables

the treadmill to communicate with your wireless

network through an optional iFit module. With the

iFit mode, you can download personalized workouts,

create your own workouts, track your workout results,

race against other iFit users, and access many other

features. To purchase an iFit module at any time, go

to www.iFit.com or call the telephone number on

the front cover of this manual.

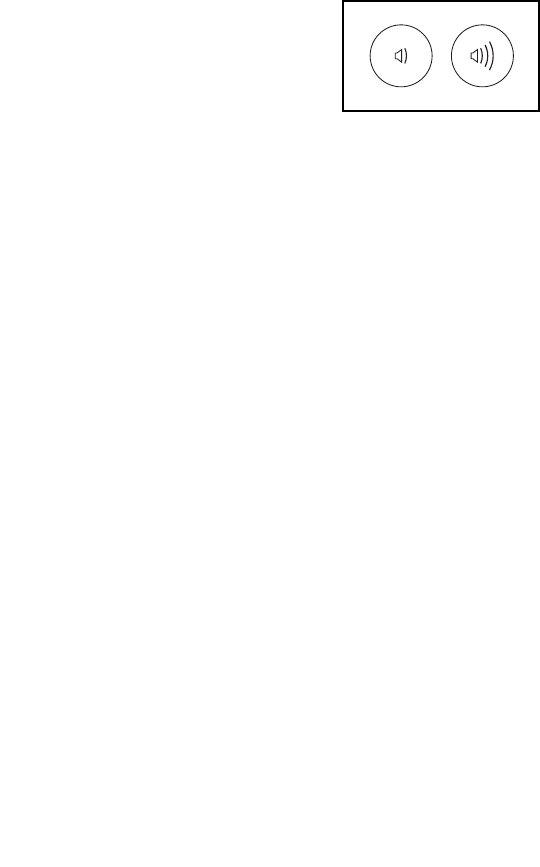

You can even listen to your favorite workout music or

audio books with the console’s sound system while you

exercise.

To turn on the power, see page 19. To use the man-

ual mode, see page 19. To use an onboard workout,

see page 21. To use a set-a-goal workout, see page

22. To use the sound system, see page 22. To use

an iFit workout, see page 23. To use the informa-

tion mode, see page 24.

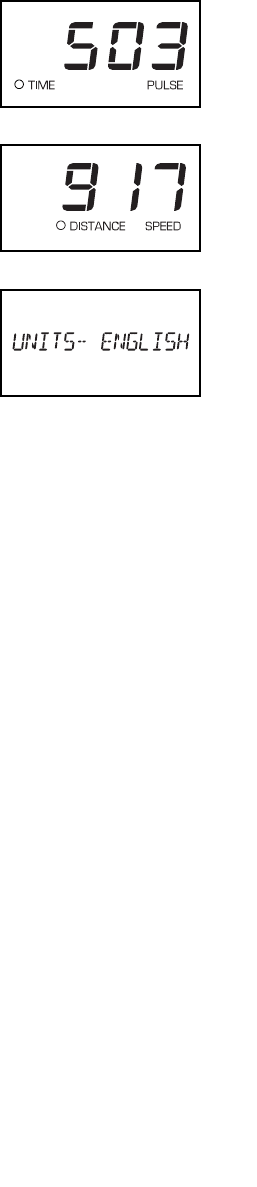

Note: The console can display speed and distance

in either miles or kilometers. To nd which unit of

measurement is selected, see THE INFORMATION

MODE on page 24. For simplicity, all instructions in this

manual refer to miles.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 28).

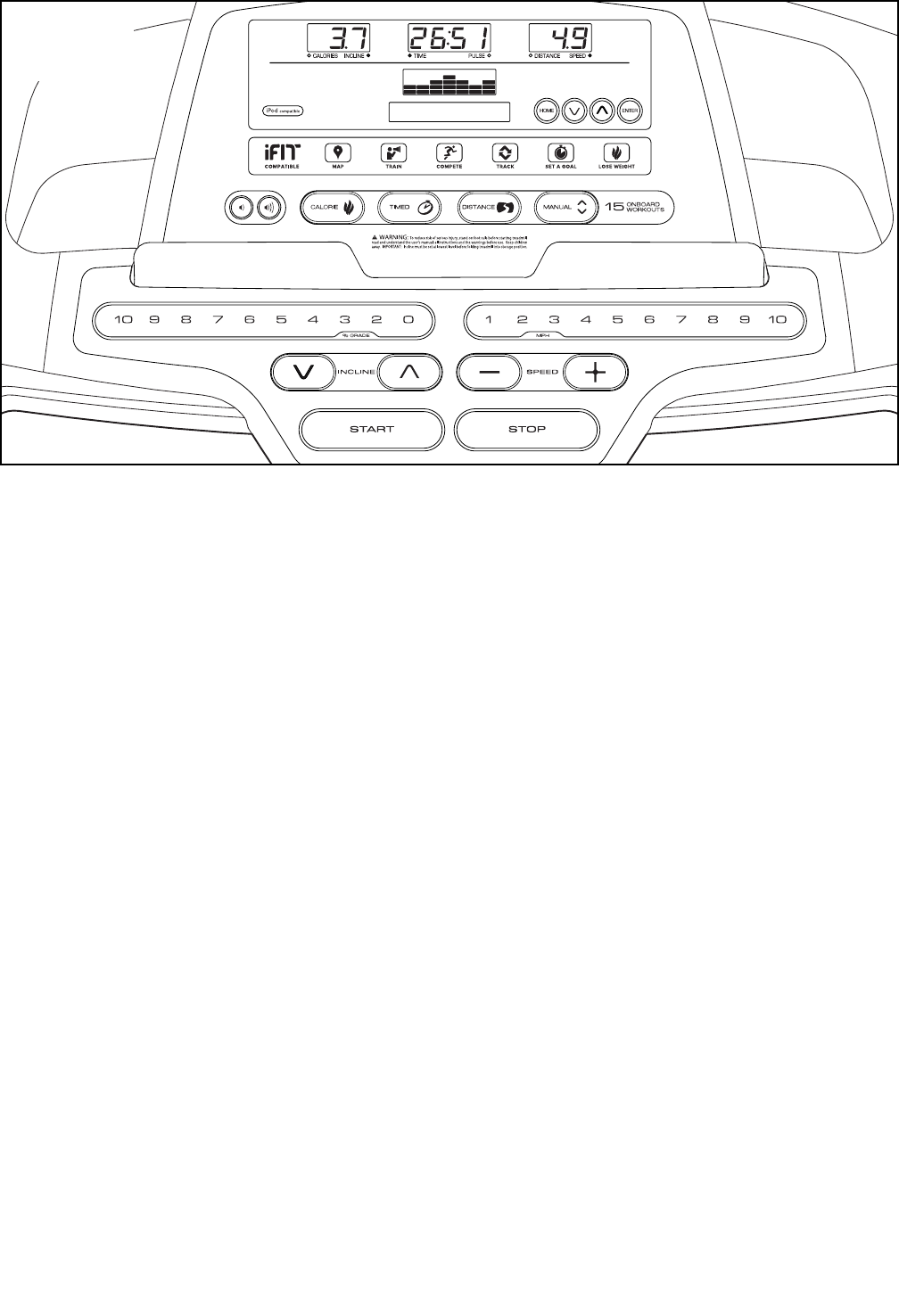

ETPF049613

(PFTL49613)

CONSOLE

DIAGRAM

19

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before you turn on the power. If you do

not do this, you may damage the console displays

or other electrical components.

Plug in the power cord (see

page 17). Next, locate the

power switch on the tread-

mill frame near the power

cord. Press the power switch

into the reset position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

24 to turn off the demo mode.

Next, stand on the

foot rails of the

treadmill. Find the

clip attached to the

key and slide the

clip onto the waist-

band of your clothes.

Then, insert the key

into the console.

After a moment, the

displays will light. IMPORTANT: In an emergency,

the key can be pulled from the console, causing

the walking belt to slow to a stop. Test the clip by

carefully taking a few steps backward; if the key is

not pulled from the console, adjust the position of

the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Press the Manual button on the console. If you

are not connected to iFit, the manual mode will be

selected automatically.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the speed buttons

numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed

increase and decrease buttons. Each time you

press one of the buttons, the speed setting will

change by 0.1 mph; if you hold down the button,

the speed setting will change in increments of 0.5

mph. Note: After you press the button, it may take

a moment for the walking belt to reach the selected

speed setting.

If you press one of the numbered speed buttons,

the walking belt will gradually change speed until

it reaches the selected speed setting. To select a

speed setting that includes a decimal—such as 3.5

mph—press two numbered buttons in succession.

For example, to select a speed setting of 3.5 mph,

press the 3 button and then immediately press the

5 button. Note: This will not function if the console

is set to metric units.

To stop the walking belt, press the Stop button.

The time will begin to ash in the display. To restart

the walking belt, press the Start button or the

Speed increase button.

Reset

ETPF049613

(PFTL49613)

Key

Clip

20

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

incline buttons numbered 0 through 10. Each time

you press one of the buttons, the treadmill will

gradually adjust to the selected incline setting.

5. Follow your progress with the displays.

The matrix—When

you select the manual

mode, the matrix will

display a track that rep-

resents 1/4 mile (400

m). As you exercise,

the indicators around the track will appear in suc-

cession until the entire track appears. The track will

then disappear and the indicators will again begin

to appear in succession.

The Incline/Calories

display—This dis-

play will show the

approximate number

of calories you have

burned. The display

will also show the incline of the treadmill for a

few seconds each time the incline of the treadmill

changes.

The Time/Pulse dis-

play—This display

will show the elapsed

time. The display will

also show your heart

rate when you use the

handgrip heart rate monitor (see step 6).

The Distance/Speed

display—This display

can show the distance

that you have walked

or run. The display will

also show the speed of

the walking belt for a

few seconds each time the speed changes.

The Center display—This display will show work-

out instructions.

Press the Home button to return to the start mode

(see THE INFORMATION MODE on page 24 to set

the start mode). If necessary, press the Home but-

ton again.

When an iFit module is

connected to

www.iFit.com, the iFit

symbol near the top of

the display will light.

To reset the displays,

press the Stop button, remove the key, and then

reinsert the key.

6. Measure your heart rate if desired.

Before using

the handgrip

heart rate mon-

itor, remove

the sheets of

plastic from

the metal con-

tacts on the

pulse bar. In

addition, make

sure that your

hands are

clean.

To measure your heart rate, stand on the foot

rails and hold the pulse bar with your palms on the

metal contacts; avoid moving your hands. When

your pulse is detected, several dashes will appear

and then your heart rate will be shown. For the

most accurate heart rate reading, continue to

hold the contacts for about 15 seconds.

7. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to zero. The

incline must be at zero or you may damage the

treadmill when you fold it to the storage posi-

tion. Next, remove the key from the console and

put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

21

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Timed button, or the Distance button

repeatedly until the desired workout appears in the

display.

When you select an onboard workout, the displays

will show the maximum incline, the duration, the

maximum speed, and the name of the workout. In

addition, a prole of the speed settings of the work-

out will appear in the matrix. If you select a calorie

workout, the approximate number of calories you

will burn will appear in the name of the workout.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking. Note: If you select

a distance workout, the exercise session will begin

with a three-minute warm-up segment before the

distance workout begins.

Each workout is divided into segments. One speed

setting and one incline setting are programmed for

each segment. Note: The same speed setting and/

or incline setting may be programmed for consecu-

tive segments.

During the workout, the

prole will show your

progress. The ashing

segment of the prole

represents the current

segment of the work-

out. The height of the

ashing segment indicates the speed setting for

the current segment. At the end of each segment, a

series of tones will sound and the next segment of

the prole will begin to ash. If a new speed and/or

incline setting is programmed for the next segment,

the new speed and/or incline setting will appear in

the displays for a few seconds and the treadmill

will automatically adjust to the new speed and/or

incline setting.

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow

to a stop. Note: If you select a distance workout,

the workout will end with a three-minute cool-down

segment.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories

that you burn will depend on various factors

such as your weight. In addition, if you manu-

ally change the speed or incline of the treadmill

during the workout, the number of calories you

burn will be affected.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually

override the setting by pressing the speed or in-

cline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Follow your progress with the displays.

See step 5 on page 20. The Time/Pulse display

will show the time remaining instead of the elapsed

time.

5. Measure your heart rate if desired.

See step 6 on page 20.

6. When you are nished exercising, remove the

key from the console.

See step 7 on page 20.

Current Segment

22

HOW TO USE A SET-A-GOAL WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Select a set-a-goal workout.

To select a calorie, time, or distance set-a-goal

workout, press the Set A Goal button on the

console.

Use the increase and decrease buttons next to

the Enter button to set a calorie, time, or distance

goal, and then press the Enter button. Next, press

the increase and decrease buttons next to the

Enter button to select a goal. Press the Speed and

Incline buttons to select the speed and incline for

the workout. The screen will show the duration and

distance of the workout, and the approximate num-

ber of calories you will burn during the workout.

3. Start the workout.

Press the Start button to start the workout. A

moment after you press the button, the walking belt

will begin to move. Hold the handrails and begin

walking.

The workout will function in the same way as the

manual mode (see pages 19 to 20).

The workout will continue until you reach the goal

that you set. The walking belt will then slow to a

stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during the

workout. The actual number of calories that you

burn will depend on various factors such as

your weight.

4. Follow your progress with the displays.

See step 5 on page 20.

5. Measure your heart rate if desired.

See step 6 on page 20.

6. When you are finished exercising, remove the

key from the console.

See step 7 on page 20.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console

sound system while you exercise, plug a 3.5 mm male

to 3.5 mm male audio cable (not included) into the jack

on the console and into a jack on your MP3 player,

CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To

purchase an audio cable, see your local electronics

store.

Next, press the play but-

ton on your personal audio

player. Adjust the volume

level using the volume

increase and decrease

buttons on the console or

the volume control on your

personal audio player.

If you are using a personal CD player and the CD

skips, set the CD player on the oor or another at

surface and instead of on the console.

23

HOW TO USE AN IFIT WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Insert the iFit module into the console.

To use an iFit workout, insert the optional iFit mod-

ule into the module housing on the top of the con-

sole. To purchase an iFit module at any time, go to

www.iFit.com or call the telephone number on the

front cover of this manual. You must have an iFit

module to use an iFit workout.

Note: To use an iFit module, you must have

access to a computer with an internet connec-

tion and a USB port. You will also need an iFit.

com membership. To use an iFit module, you must

also have your own wireless network including an

802.11b/g/n router with SSID broadcast enabled

(hidden networks are not supported).

3. Select a user.

If more than one user is registered, you can switch

users in the iFit main screen. Press the increase

and decrease buttons next to the Enter button to

select a user.

4. Select an iFit workout.

To select an iFit workout, press one of the iFit but-

tons. Before a workout will download, you must add

the workout to your queue on www.iFit.com.

Press the Map button, the Train button, or the Lose

Weight button to download the next workout of

that type in your queue. Press the Compete but-

ton to compete in a race that you have previously

scheduled. Press the Track button to view your

workout history. For more information about the

iFit workouts, please see www.iFit.com. Note:

If there are no workouts of the selected type in

your queue, the next workout in your queue will be

downloaded.

When you select an iFit workout, the displays will

show the duration of the workout, the distance you

will walk or run, the approximate number of calories

you will burn, and the name of the workout. If you

select a competition workout, the display will count

down to the beginning of the race.

5. Start the workout.

See step 3 on page 21.

During some workouts, the voice of an audio

coach will guide you through your workout. You

can select a setting for your audio coach (see THE

INFORMATION MODE on page 24).

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at the speed setting for the rst seg-

ment of the workout. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

6. Follow your progress with the displays.

See step 5 on page 20.

7. Measure your heart rate if desired.

See step 6 on page 20.

8. When you are nished exercising, remove the

key from the console.

See step 7 on page 20.

For more information about the iFit mode, go to

www.iFit.com.

24

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill information and allows you to person-

alize console settings.

To select the information mode, hold down the Stop

button while inserting the key into the console, and

then release the Stop button. When the information

mode is selected, the following information will be

shown:

The Time/Pulse display

will show the total number

of hours the treadmill has

been used.

The Distance/Speed

display will show the total

number of miles or kilome-

ters that the walking belt

has moved.

The center display will

show the selected unit of

measurement. To change

the unit of measurement,

press the Enter button or

the Speed increase button.

To view distance in miles, select ENGLISH. To view

distance in kilometers, select METRIC.

Press the decrease button next to the Enter button to

view the next screen. The console features a display

demo mode, designed to be used if the treadmill is

displayed in a store. While the demo mode is turned

on, the console will function normally when you plug in

the power cord, press the power switch into the reset

position, and insert the key into the console. However,

when you remove the key, the displays will remain

lit, although the buttons will not function. If the demo

mode is turned on, the word ON will appear in the cen-

ter display. To turn on or turn off the demo mode, press

the Enter button or the Speed decrease button.

Press the decrease button next to the Enter button to

view the next screen. The display will show the con-

trast level of the displays. Press the Incline increase

and decrease buttons to adjust the contrast. Then,

press the Enter button.

If an iFit module is connected, the information

mode will also show the following screens:

Press the decrease button to view the status of the

module. The display will show the word WIFI.

Press the decrease button to view the status of the

audio coach. To turn on or turn off the audio coach,

press the Enter button.

Press the decrease button to view the start mode op-

tions. The start mode will appear when you insert the

key into the console or when you press the Home but-

ton. Press the Enter button repeatedly to select the

manual mode or the iFit mode as the start mode.

Press the decrease button to check the wireless sta-

tistics. Press the Enter button. The center display

will show the software version number, the network

SSID, the network encryption type, the wireless signal

strength, the IP address of the module, the number of

registered users and their names, and the results of

the DNS lookup.

Press the decrease button to transfer data. To send

and receive workouts, workout logs, and updates,

press the Enter button. When the process is nished,

the words TRANSFERS DONE will appear in the dis-

play.

To exit the information mode, remove the key from the

console.

25

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to zero before you fold the treadmill. Then, remove

the key and unplug the power cord. CAUTION: You

must be able to safely lift 45 lbs. (20 kg) to raise,

lower, or move the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the tread-

mill frame with your right hand. Pull the latch knob

to the left; if necessary, push the frame forward

slightly. Pivot the frame downward a few inches,

and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Handrail

Frame

Wheel

Frame

1

1

Latch

Knob

2

Frame

26

MAINTENANCE

Regularly clean the treadmill and keep the walking belt

clean and dry. First, press the power switch into the

off position and unplug the power cord. Wipe exte-

rior parts of the treadmill with a damp cloth and a small

amount of mild soap. IMPORTANT: Do not spray

liquids directly onto the treadmill. To avoid damage

to the console, keep liquids away from the console.

Then, thoroughly dry the treadmill with a soft towel.

TROUBLESHOOTING

Most treadmill problems can be solved by follow-

ing the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor

is plugged into a properly grounded outlet (see

page 17). Use only a surge suppressor that meets

all of the specifications described on page 17.

IMPORTANT: The treadmill may not be compat-

ible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

power switch, wait for five minutes and then press

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see drawing c at the left).

If the switch has tripped, wait for five minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console screen remains lit when

you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in

a store. If the displays remain lit when you remove

the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a

few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 24 to turn off the

demo mode.

SYMPTOM: The incline of the treadmill does not

change correctly

a. With the key in the console, press one of the Incline

buttons. While the incline is changing, remove

the key. After a few seconds, re-insert the key.

The treadmill will automatically rise to the maximum

incline level and then return to the minimum level.

This will recalibrate the incline system.

MAINTENANCE AND TROUBLESHOOTING

Reset

Tripped

c

27

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. With the help of a second per-

son, carefully tip down the Uprights (84, 85). There

may be three #8 x 2" Screws (16) in the bottom of

the Belly Pan (75). If there are, remove them. Note:

A Phillips screwdriver with a shaft at least 5 in. (13

cm) long is required.

Then, raise the Uprights (84, 85).

Remove the three #8 x 3/4" Screws (1) and care-

fully pivot the Motor Hood (62) off.

Locate the Reed Switch (73) and the Magnet (47)

on the left side of the Pulley (48). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and

the Reed Switch is about 1/8 in. (3 mm).

If necessary, loosen the #8 x 3/4" Truss Head

Screw (18), move the Reed Switch slightly, and

then retighten the Screw. Reattach the Motor Hood

(not shown) with the #8 x 3/4" Screws (not shown).

Reattach the #8 x 2" Screws (not shown) if neces-

sary. Run the treadmill for a few minutes to check

for a correct speed reading.

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specifications described on page 17.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

16

16

84

75

85

a

62

1

Top

View

47

18

73

48

1/8 in.

Idler Roller Bolts

2–3 in.

b

28

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to

the walking belt or the walking platform unless

instructed to do so by an authorized service

representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more

lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

SYMPTOM: The walking belt is off-center or slips

when walked on

a. If the walking belt is off-center, first remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first

remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walk-

ing belt is correctly tightened, you should be able

to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep

the walking belt centered. Then, plug in the power

cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

a

b

29

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

30

Key No. Qty. Description Key No. Qty. Description

1 21 #8 x 3/4" Screw

2 4 #10 x 3/4" Screw

3 4 Inner Cushion

4 6 5/16" x 1" Screw

5 4 #8 x 1" Tek Screw

6 1 Latch Bracket

7 4 3/8" x 4 1/4" Screw

8 6 3/8" x 2" Bolt

9 4 1/4" x 1/2" Screw

10 6 3/8" Nut

11 6 3/8" Star Washer

12 8 1/4" Star Washer

13 6 5/16" Star Washer

14 2 3/8" x 1 1/2" Screw

15 9 #8 x 3/4" Tek Screw

16 3 #8 x 2" Screw

17 4 #8 x 1/2" Pan Head Screw

18 5 #8 x 3/4" Truss Head Screw

19 2 #8 x 1 1/2" Screw

20 2 5/16" x 1 1/2" Bolt

21 2 5/16" x 3 5/8" Bolt

22 2 3/8" x 1" Bolt

23 1 1/4" x 1" Bolt

24 2 Idler Roller Bolt

25 1 3/8" x 1 3/4" Bolt

26 1 3/8" x 1 1/2" Hex Head Bolt

27 2 3/8" x 3/4" Bolt

28 7 #8 x 1/2" Bright Screw

29 1 #8 x 1/2" Ground Screw

30 8 #12 x 1 1/4" Screw

31 2 1/4" Motor Bolt

32 4 #8 Belt Guide Screw

33 2 1/4" Star Washer

34 1 Console

35 4 3/8" Jam Nut

36 4 5/16" Flange Nut

37 3 Hood Clip

38 2 Cable Tie

39 2 #8 x 3/4" Truss Head Screw

40 1 Left Foot Rail

41 1 Latch Warning Decal

42 4 Platform Cushion

43 2 Belt Guide

44 1 Walking Platform

45 2 Frame Cap

46 2 Frame Spacer

47 1 Magnet

48 1 Front Roller/Pulley

49 1 Walking Belt

50 1 Console Frame

51 1 Storage Latch

52 1 Console Ground Wire

53 4 #8 x 1" Screw

54 1 Right Foot Rail

55 1 Frame

56 2 Roller Bracket

57 1 Roller Ground Wire

58 1 Right Rear Foot

59 1 Left Rear Foot

60 1 Idler Roller

61 1 Left Tray

62 1 Motor Hood

63 1 Hood Accent

64 1 Lift Frame

65 1 Lift Frame Ground Wire

66 1 Drive Motor Belt

67 1 Drive Motor

68 1 Controller Ground Wire

69 1 Power Cord

70 1 Grommet

71 1 Power Switch

72 1 Controller

73 1 Reed Switch

74 1 Reed Switch Clamp

75 1 Belly Pan

76 3 Wire Tie

77 2 Console Clamp

78 1 Console Base

79 1 Crossbar

80 4 Cushion Plate

81 2 Handrail Cap

82 1 Left Handrail

83 1 Right Handrail

84 1 Left Upright

85 1 Right Upright

86 1 Right Tray

87 1 Upright Wire

88 1 Left Base Cover

89 2 Base Cap

90 4 Base Foot

91 1 Right Base Cover

92 2 Caution Decal

93 1 Incline Wire

94 2 Base Foot Spacer

95 1 Base

96 2 Wheel

PART LIST Model No. PFTL49613C.0 R0414A

31

Key No. Qty. Description Key No. Qty. Description

97 1 Incline Motor

98 1 Incline Motor Spacer

99 1 Key/Clip

100 2 French Warning Decal

* – User’s Manual

Note: Specications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

32

8

51

20

21

21

33

33

28

32

32

43

43

30

45

30

30

40

36

36

36

47

45

46

36

44

41

49

48

54

60

55 100

56

56

46

58

59

57

18

10

24

23

18

19

19

20

24

30

30

30

30

28

30

15

42

80

15

80

42

15

3

42

80

15

42

80

8

10

10

8

6

3

3

3

EXPLODED DRAWING A Model No. PFTL49613C.0 R0414A

33

15

15

15

15

74

18

73

37

37

37

1

1

1

17

22

22

28

28

69

70

71

68

62

64

76

75

72

65

16

28

28

31

67

66

16

16

63

39

39

EXPLODED DRAWING B Model No. PFTL49613C.0 R0414A

34

85

83

82

4

4

13

84

4

7

11

14

11

88

81

90

5

90

5

90

5

96

96

8

27

35

89

89

95

92

92

94

90

5

94 25

26

35

35

97

98

87

10

10

8

93

27

35

91

7

11

11

14

4

13

13

87

81

9

12

9

12

2

79

1

2

1

1

1

11

12

12

13

EXPLODED DRAWING C Model No. PFTL49613C.0 R0414A

35

61

34

78

1

1

1

38

17

99

53

53

77

77

50

52

29

1

1

86

1

1

1

1

1

1

EXPLODED DRAWING D Model No. PFTL49613C.0 R0414A

Part No. 356392 R0414A Printed in China © 2014 ICON IP, Inc.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS

ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,

under normal use and service conditions. The frame is warranted for a lifetime. The drive motor is war-

ranted for twenty-ve (25) years from the date of purchase. Parts and labor are warranted for one (1) year

from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if all instructions in this manual are not followed, if the prod-

uct is abused or improperly or abnormally used, or if the product is used for commercial or rental purposes.

No other warranty beyond that specically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some provinces do not allow the exclusion or limitation of incidental

or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from province

to province.

ICON of Canada, Inc., 900 de l’Industrie, St. Jérôme, QC J7Y 4B8

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 6.
