Serial
Number
Decal
Model No. PFTL49908.0
Serial No.
Write the serial number in the space
above for future reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
USER'S MANUAL
www.proform.com
With Universal Dock for iPod®
TABLE OF CONTENTS
WARNINGDECALPLACEMENT..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................5
ASSEMBLY...............................................................................6
OPERATIONANDADJUSTMENT ............................................................13
HOWTOFOLDANDMOVETHETREADMILL ..................................................20
TROUBLESHOOTING .....................................................................22
EXERCISEGUIDELINES ...................................................................25
PARTLIST ..............................................................................26

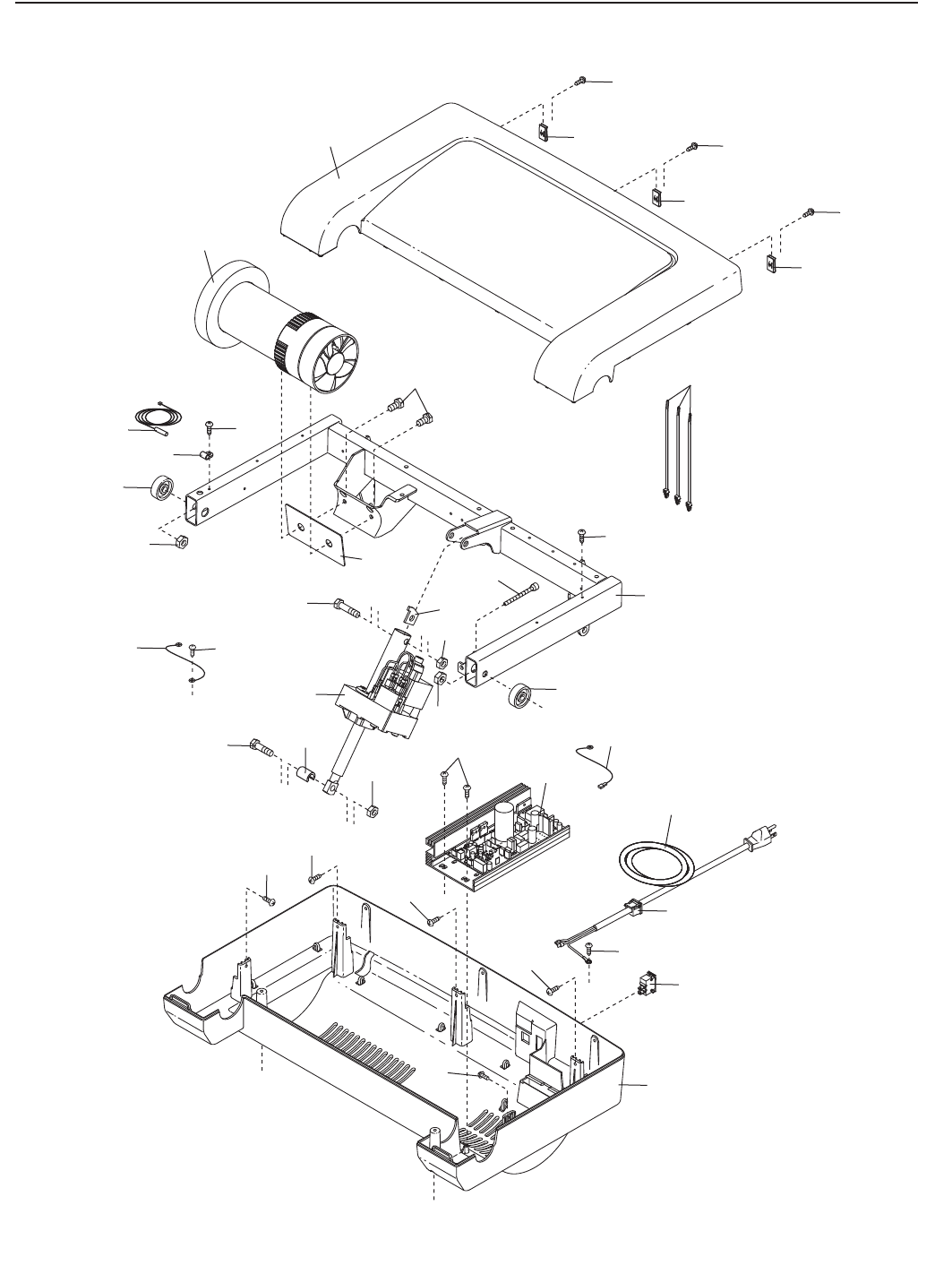

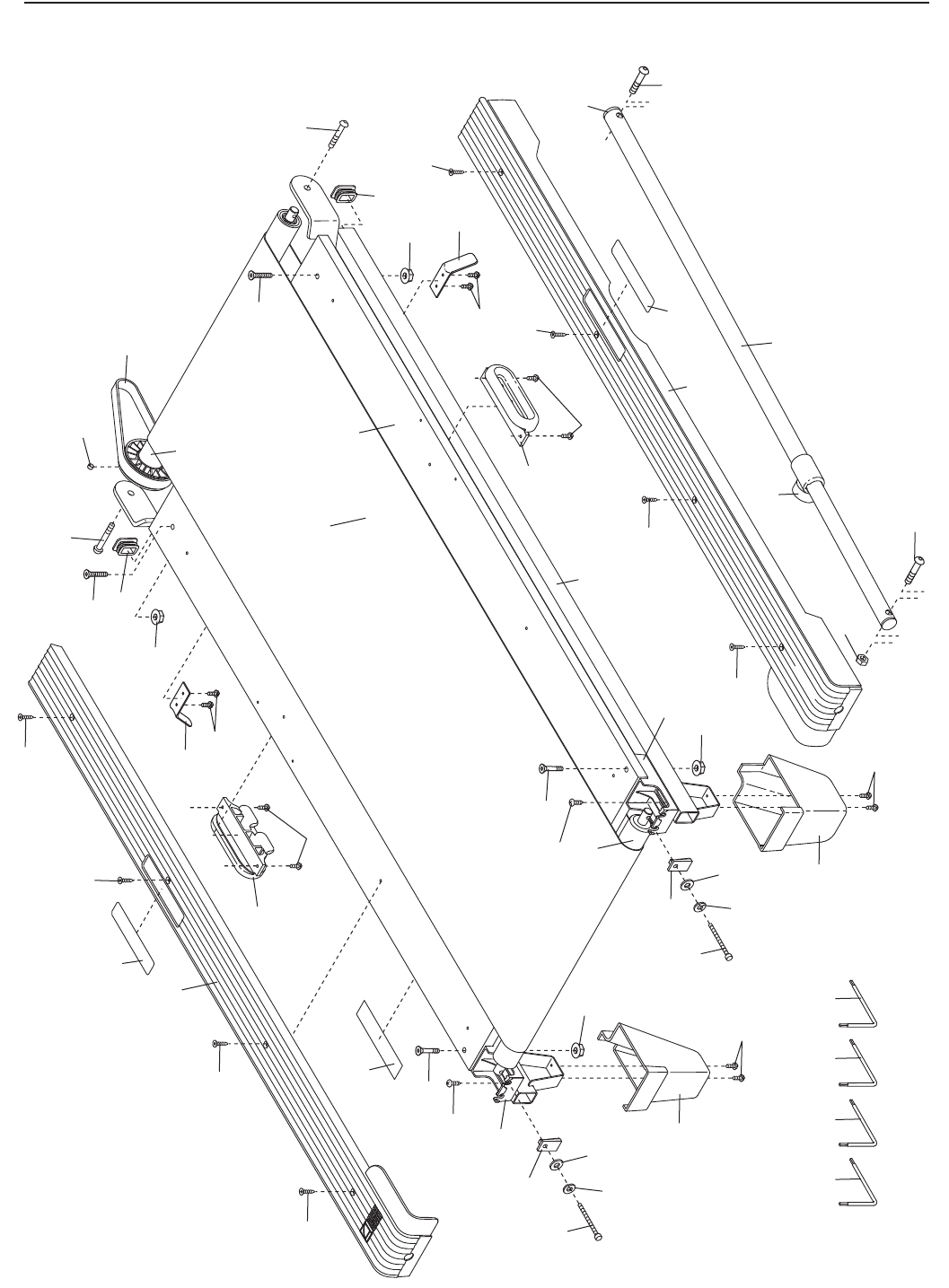

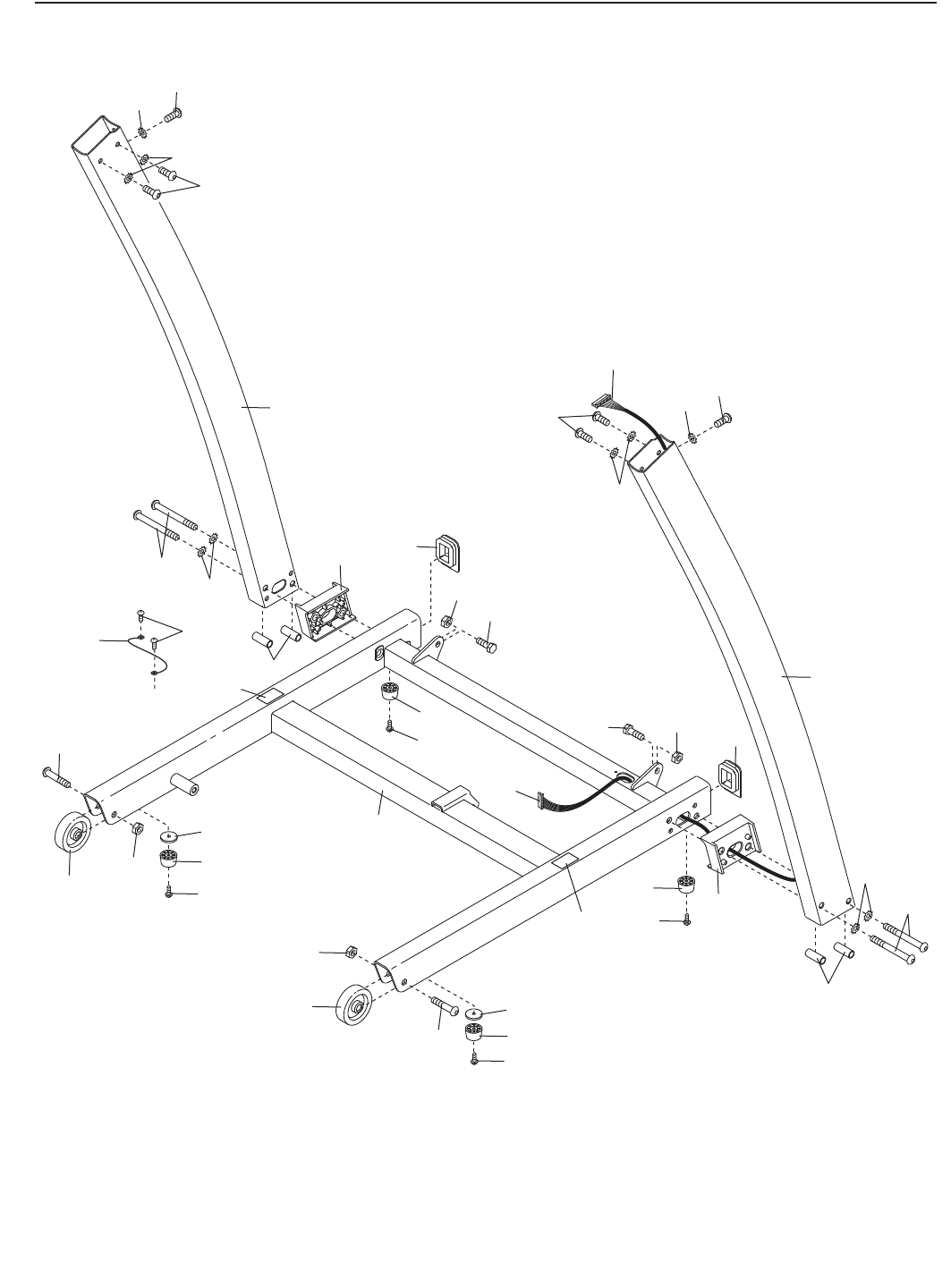

EXPLODEDDRAWING ....................................................................28
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
2
WARNING DECAL PLACEMENT

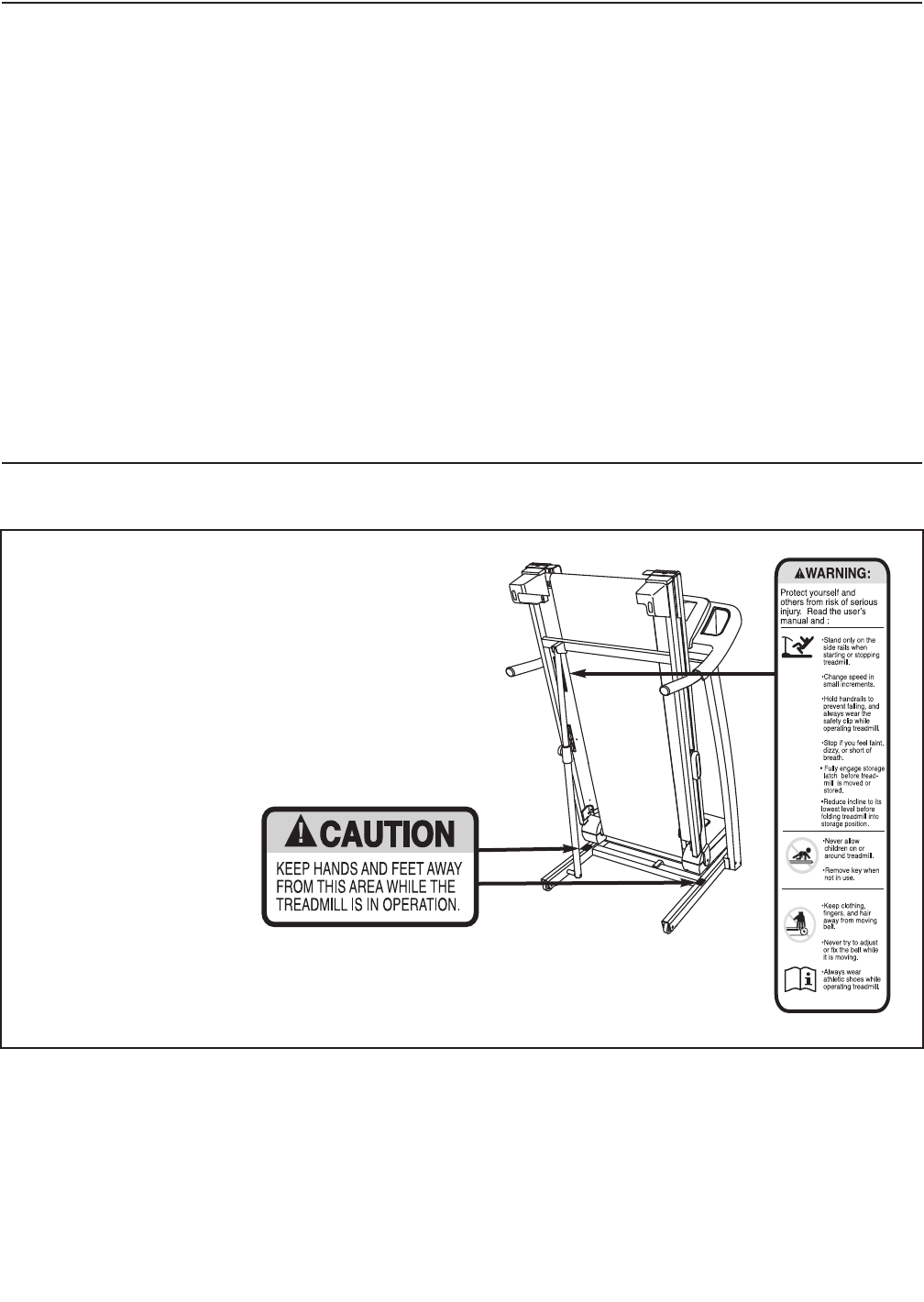

This drawing shows the locations of the warning de-
cals. If a decal is missing or illegible, call the tele-
phone number on the front cover of this manual
and request a free replacement decal. Apply the
decal in the location shown. Note: The decals may
not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
iPod®is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under age 12 and pets away
from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes; never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

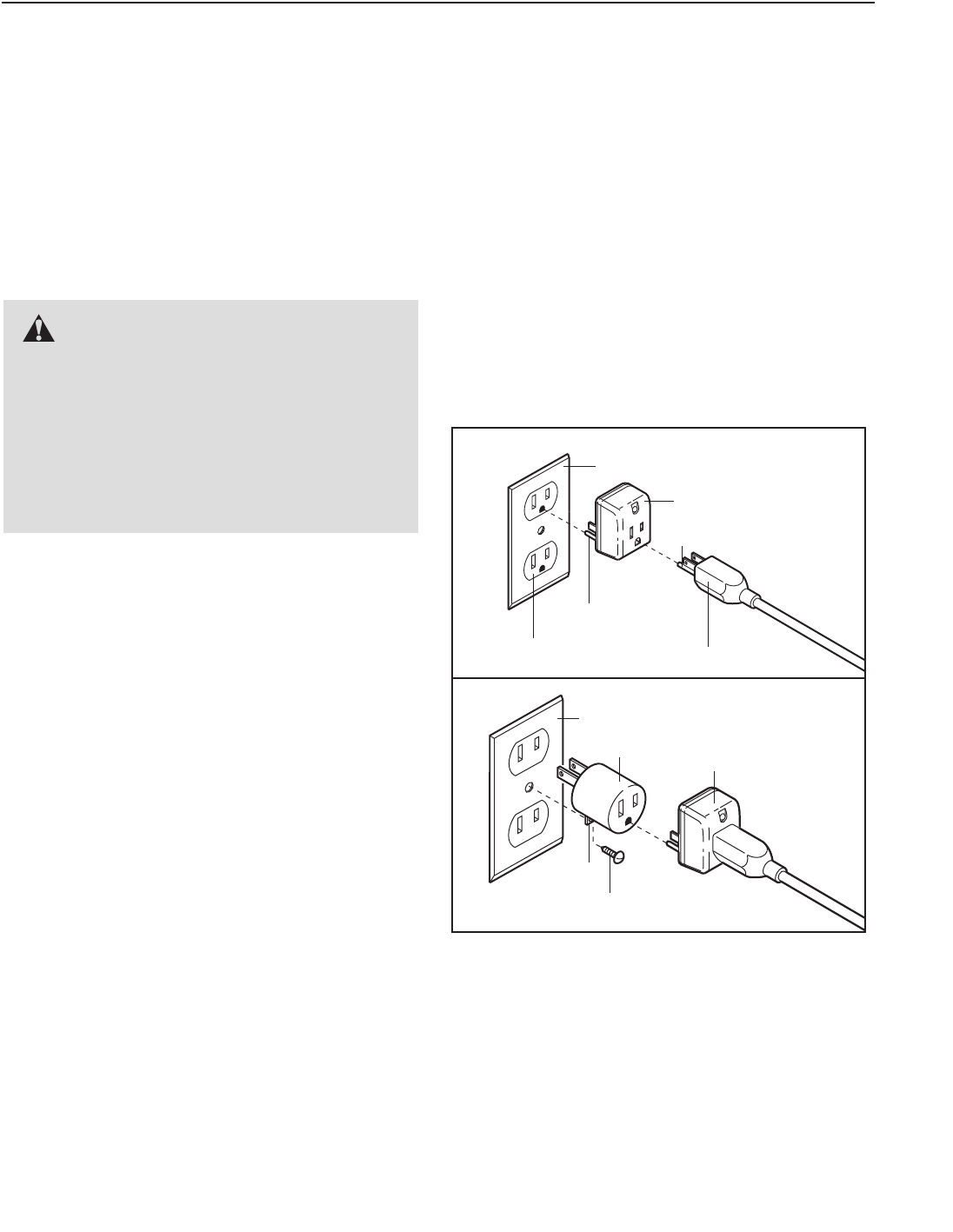

10. When connecting the power cord (see page
13), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local PROFORM dealer or call the tele-
phone number on the front cover of this man-
ual and order part number 146148, or see your
local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 22 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
4
19. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
22. Never insert any object into any opening on
the treadmill.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the new PROFORM®580 LT
treadmill with Universal Dock for iPod®.The 580 LT
treadmill with Universal Dock for iPod offers a selection
of features designed to make your workouts at home
more effective and enjoyable. And when youʼre not ex-
ercising, the treadmill can be folded up, requiring less
than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

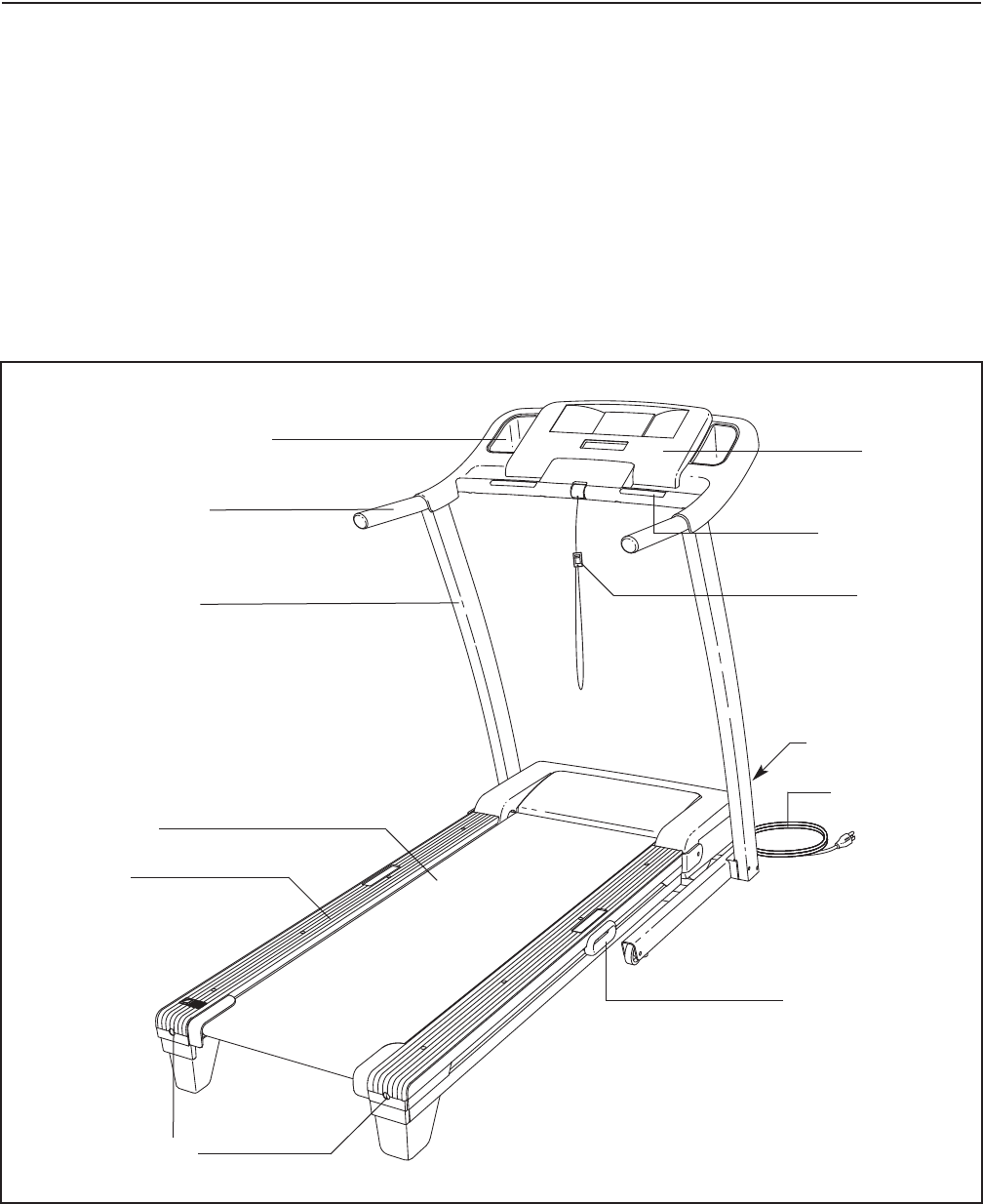

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Accessory Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Idler Roller
Adjustment Bolts

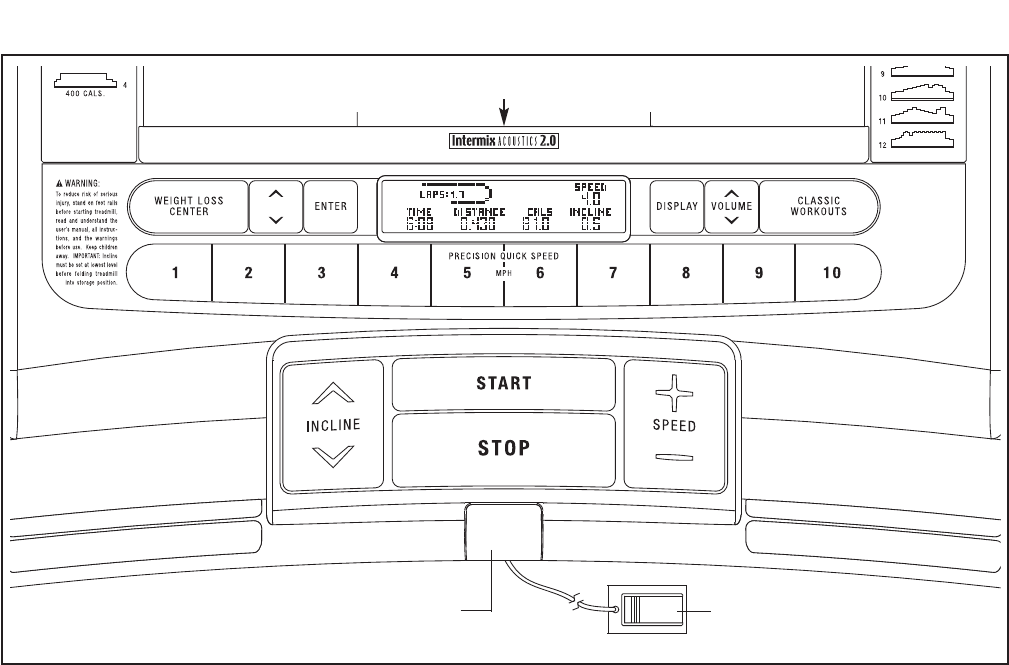

Console
Pulse Sensor
6
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
Base Foot Spacer
(94)–2
M8 Star
Washer (10)–6 M10 Star
Washer (9)–4
M4.2 x 19mm
Screw (1)–4
#8 x 1/2" Ground
Screw (4)–1
3/8" Locknut
(6)–1
#8 x 3/4"
Screw (35)–6
M10 x 95mm Bolt (8)–4
Bolt Spacer (90)–4
M4 x 20mm
Screw (2)–2
M4.2 x 25mm
Tek Screw (3)–4
M8 x 25mm Bolt (5)–6
3/8" x 1 3/4" Bolt (7)–2

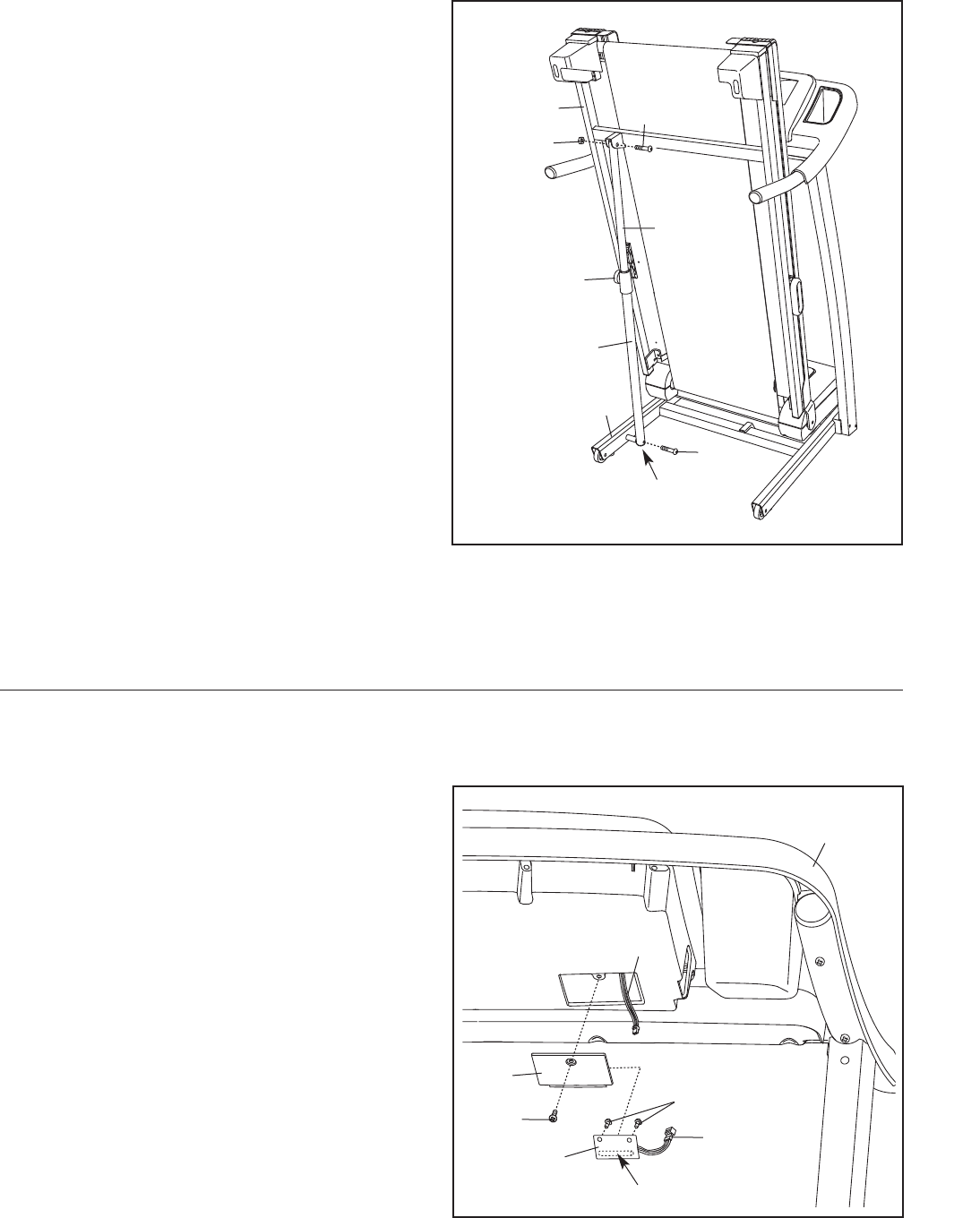

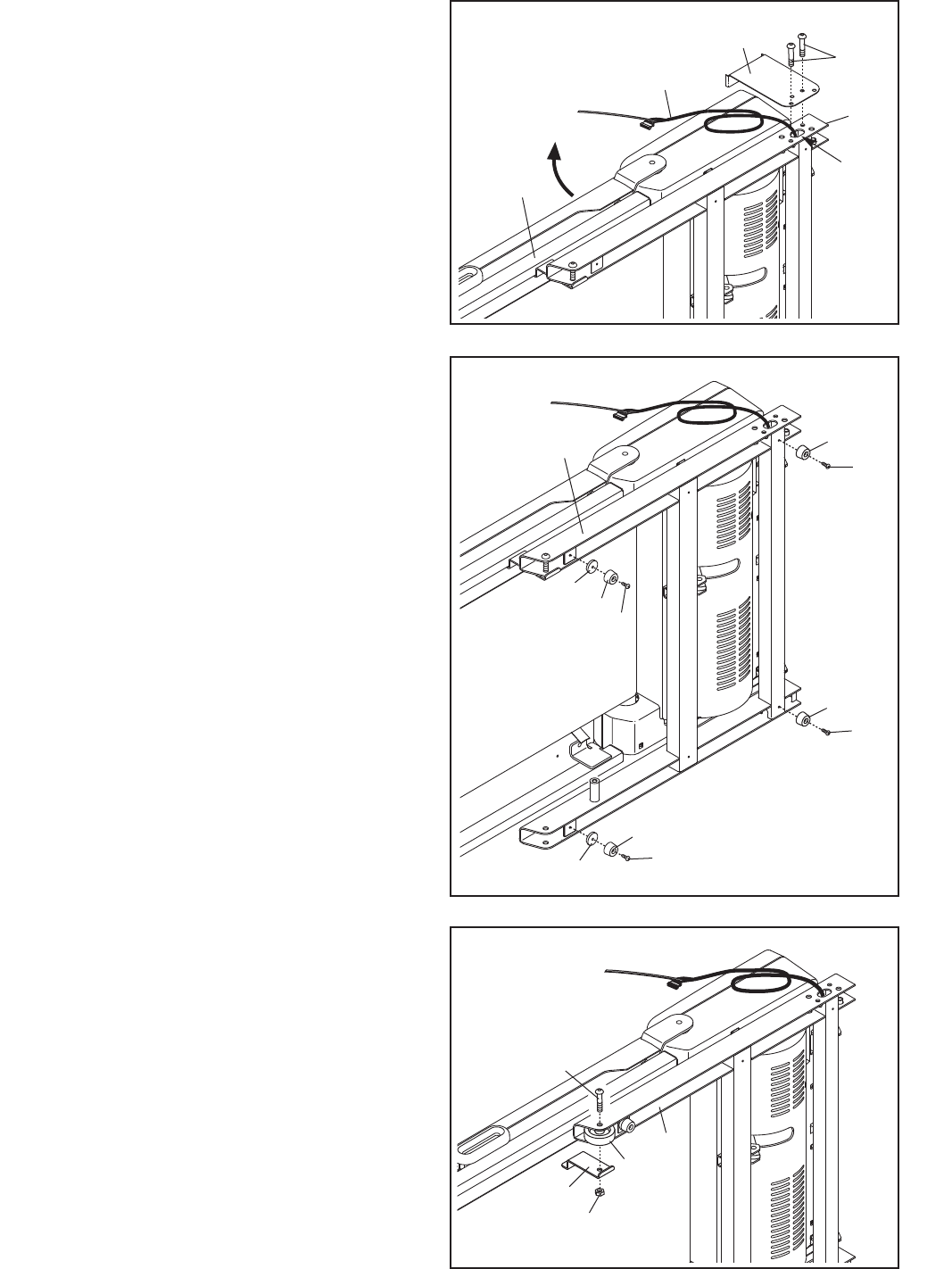

1.Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (B)
and the shipping bracket (C).
Cut the tie securing the Wire Harness (88) to the
Base (95). Next, locate a tie in the indicated hole
in the Base, and use the tie to pull the Wire
Harness out of the hole.
95
B
C
56
1
88
Hole
2. Attach two Base Feet (92) to the Base (95) in
the locations shown with two M4.2 x 25mm Tek
Screws (3) and two Base Foot Spacers (94).
Attach the other two Base Feet (92) with only
two M4.2 x 25mm Tek Screws (3).
95 3
92
2
92 3
3
92
3
92
94
94
3. Remove the M10 Nut (19), the M10 x 50mm Bolt
(31), and the shipping bracket (A) from the Base
(95). Attach a Wheel (97) with the Bolt and the
Nut that you just removed. Do not overtighten
the Nut; the Wheel must turn freely. Discard
the shipping bracket.
31
19
A
3
97
95
7
8

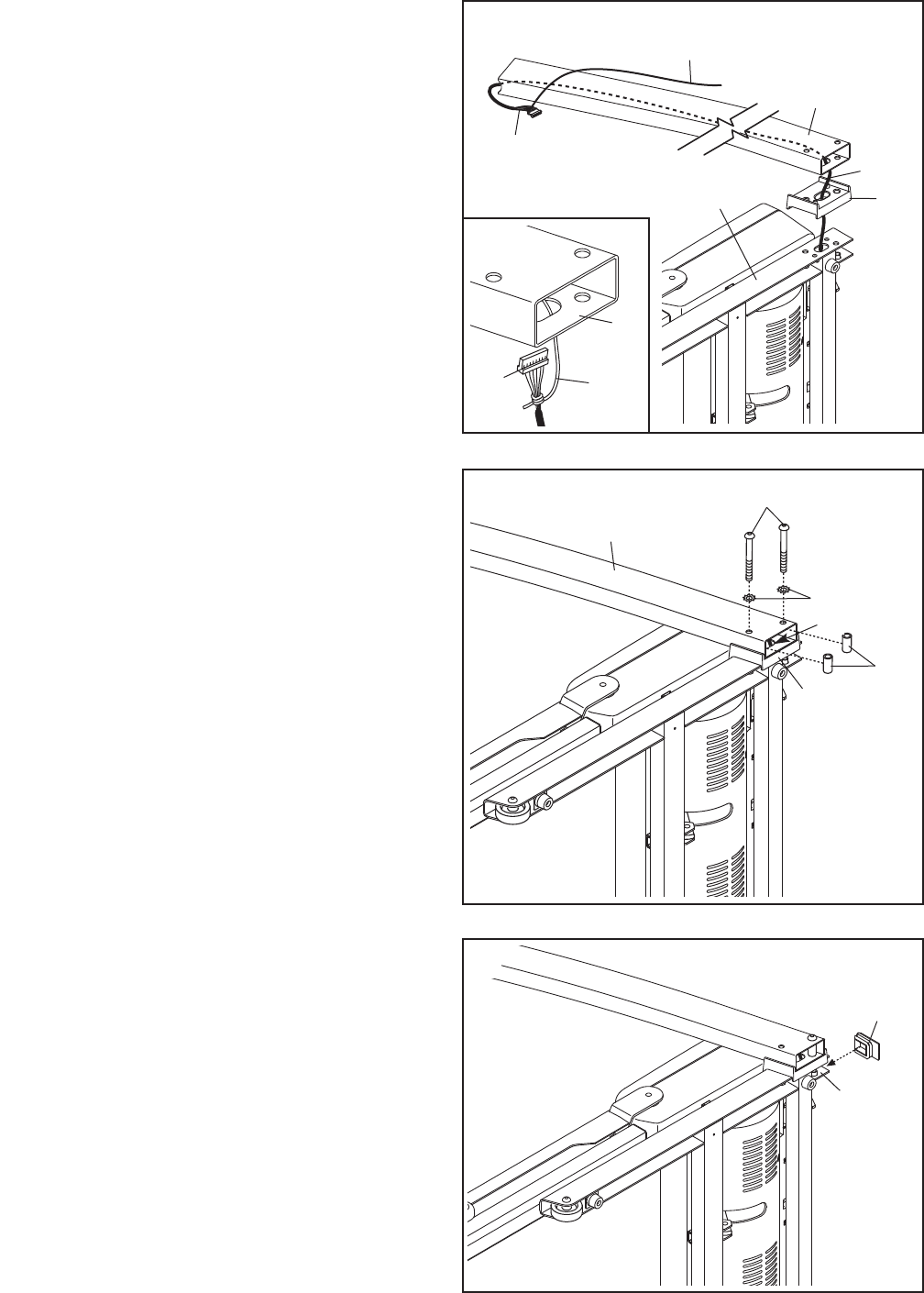

4. Identify the Right Upright (89) and the Right
Upright Spacer (91), which are marked with
stickers.
Insert the Wire Harness (88) through the Right
Upright Spacer (91) as shown. Then, set the
Right Upright Spacer on the Base (95).
With the help of a second person, hold the Right
Upright (89) near the Base (95). See the inset
drawing. Tie the long tie in the Right Upright se-
curely around the end of the Wire Harness (88).
Then, pull the other end of the long tie until the
Wire Harness is routed completely through the
Right Upright.
4
Long
Tie
89
88
95
88
89
91
88
Long
Tie
5. Hold a Bolt Spacer (90) inside the lower end of
the Right Upright (89). Insert an M10 x 95mm
Bolt (8) with an M10 Star Washer (9) into the
Right Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (90), M10 x
95mm Bolt (8), and M10 Star Washer (9).
Hold the Right Upright (89) against the Right
Upright Spacer (91). Be careful not to pinch
the Wire Harness (88). Tighten the M10 x
95mm Bolts (8) until the heads of the Bolts
touch the Right Upright; do not fully tighten
the Bolts yet.
91
89
88
9
90
8
5
6. Press a Base Cap (87) into the Base (95).
87
95
6
9
7. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (B)
and the shipping bracket (C).
Remove the M10 Nut (19), the M10 x 50mm
Bolt (31), and the shipping bracket (A) from the
Base (95). Attach a Wheel (97) with the Bolt and
the Nut that you just removed. Do not over-
tighten the Nut; the Wheel must turn freely.
Discard the shipping bracket.
7
95
97
31
56
19
A
C
B
8. With the help of a second person, hold a Bolt
Spacer (90) inside the lower end of the Left
Upright (85). Insert an M10 x 95mm Bolt (8) with
an M10 Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a second
Bolt Spacer (90), M10 x 95mm Bolt (8), and
M10 Star Washer (9).
Orient the Left Upright (85) and the Left Upright
Spacer (86) as shown. Hold the Left Upright
Spacer and the Left Upright against the Base
(95). Tighten the M10 x 95mm Bolts (8) until the
heads of the Bolts touch the Left Upright; do not
fully tighten the Bolts yet.
86
85
8
95
90
9
8
9. Press a Base Cap (87) into the Base (95).
With the help of a second person, tip the treadmill
so that the Base (95) is flat on the floor.
87
95
9

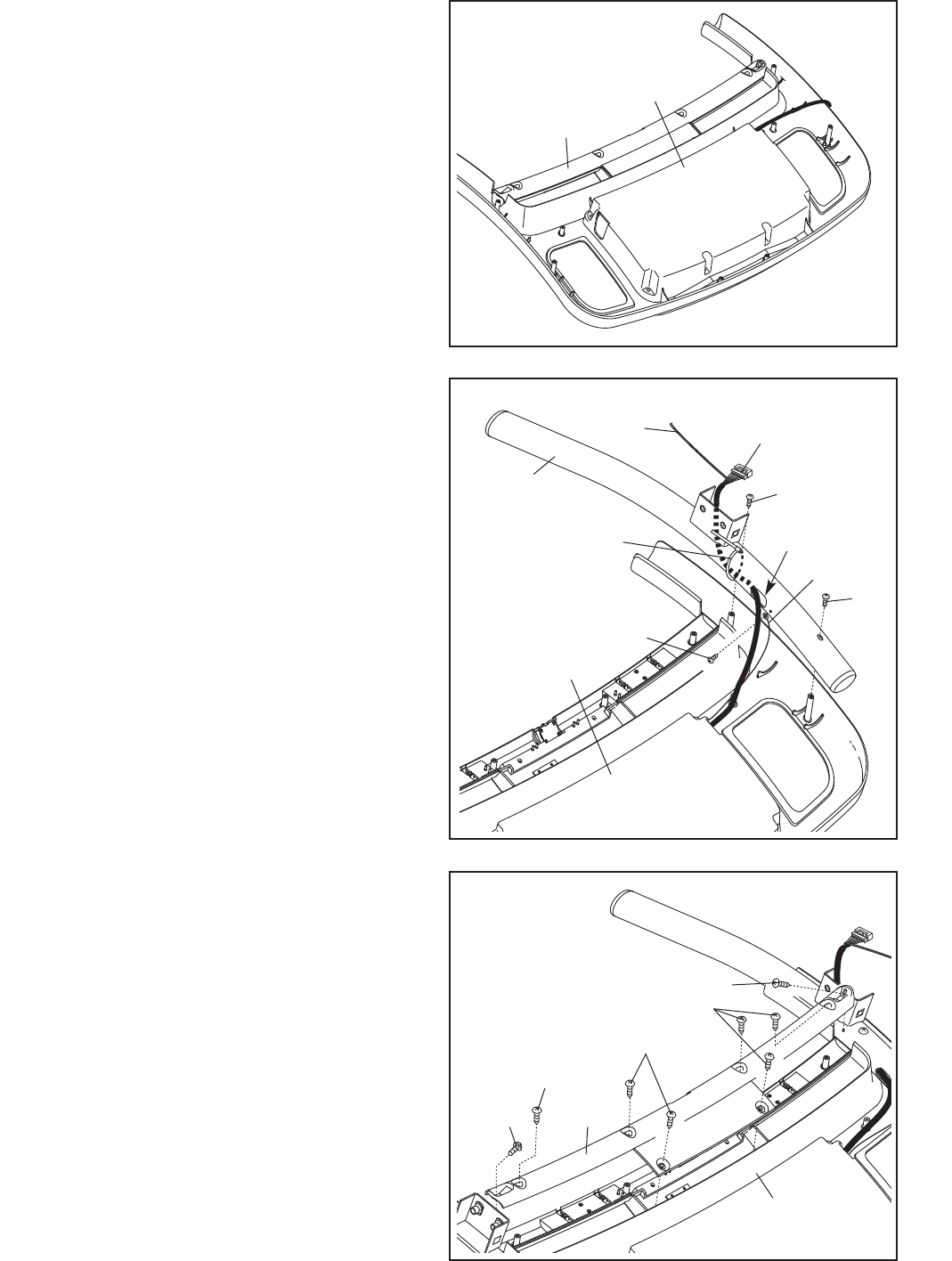

10. Set the Console (105) face down on a soft sur-
face to avoid scratching the Console. Remove
the ties securing the Pulse Support (111) to the
Console.
Lift off the Pulse Support (111).
10
105
111
11. Identify the Right Handrail (101), which has a
large hole in the location shown. Hold the Right
Handrail near the Console (105). Attach the
Console Ground Wire (112) to the Right
Handrail with a #8 x 1/2" Ground Screw (4).
Next, insert the tie on the console wire into the
large hole in the Right Handrail (101) and out of
the top as shown. Insert the included plastic tie
through the holes in the Right Handrail as
shown. Make sure the plastic tie holds the con-
sole wire to the near side. Tighten the plastic tie.
Attach the Right Handrail with two M4.2 x 19mm
Screws (1); do not fully tighten the Screws
yet. Make sure that no wires are pinched.
Remove the plastic tie.
Attach the Left Handrail (not shown) to the
Console (105) in the same way. Note: There
are no wires on the left side of the Console.
101
Tie
11
1
1
Large
Hole
Console
Wire
Plastic Tie
112
105
4
12. Set the Pulse Support (111) on the console as-
sembly. Make sure that no wires are pinched.
Tighten two M4 x 20mm Screws (2) into the
Pulse Support (111).
Tighten six #8 x 3/4" Screws (35) into the Pulse
Support (111) and console assembly. Start all
six Screws before tightening any of them.
See step 11. TIghten the four M4.2 x 19mm
Screws (1). Do not overtighten the Screws. 2
35
35
35
12
111
2
Console
Assembly
10
11

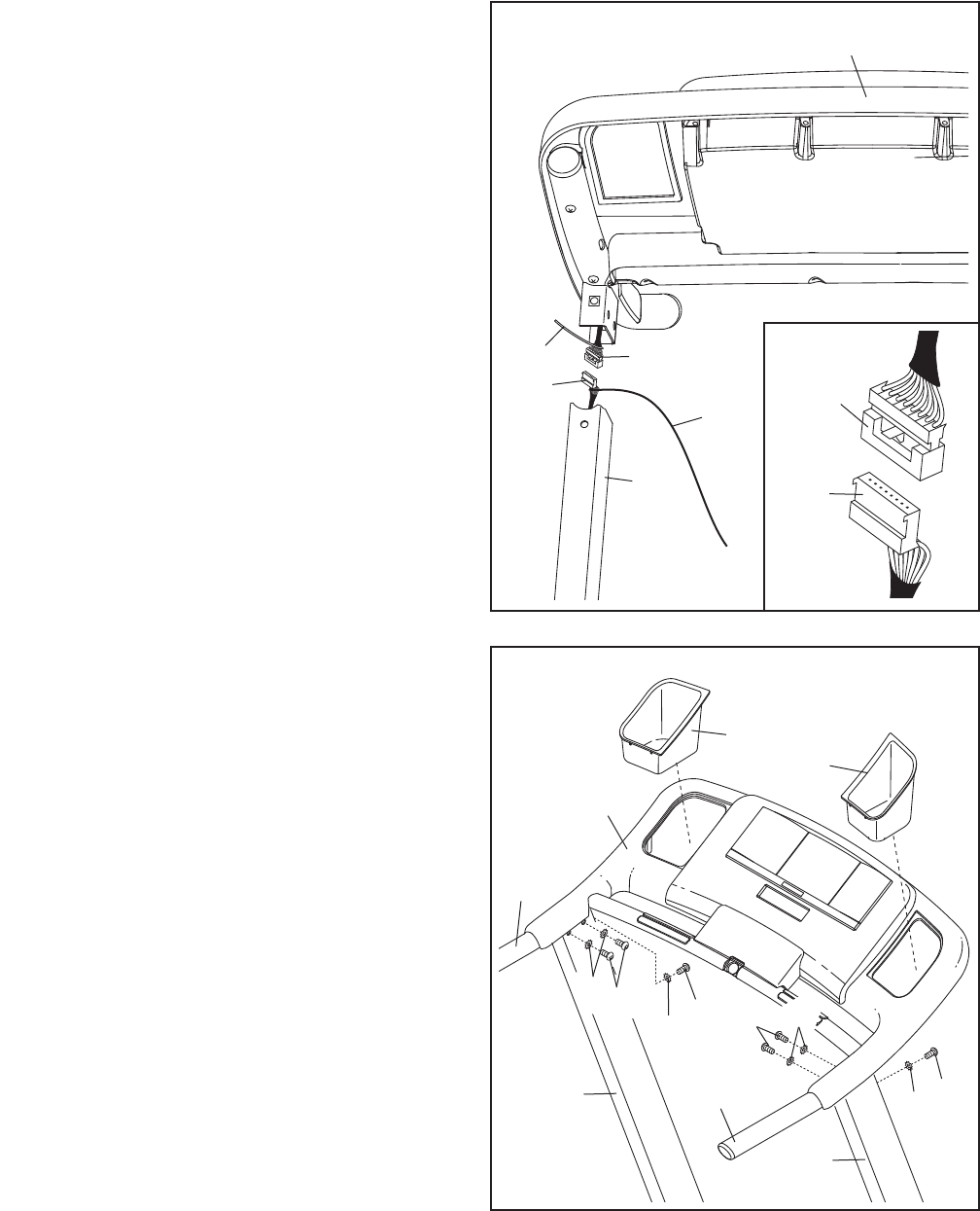

13. Have a second person hold the console assem-
bly near the Right Upright (89).
Connect the Wire Harness (88) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the long tie from the Wire
Harness and the tie from the console wire. Then,
insert the connectors into the Right Upright (89).
Set the console assembly on the Right Upright
(89) and the Left Upright (not shown). Make sure
that no wires are pinched.
89
Console Assembly
Console Wire
Long
Tie
88
13
88
Console
Wire
14. Tighten six M8 x 25mm Bolts (5) with six M8
Star Washers (10) into the Uprights (85, 89) and
the Handrails (99, 101). Start all six Bolts be-
fore tightening any of them.
See steps 5 and 8. Tighten the four M10 x
95mm Bolts (8).
Press the Left Accessory Tray (104) and Right
Accessory Tray (106) into the console assem-
bly.
5
5
5
104
106
85
99
101
89
10
14
10
10 5
Console
Assembly
Tie
10
12
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt (see
pages 23 and 24).

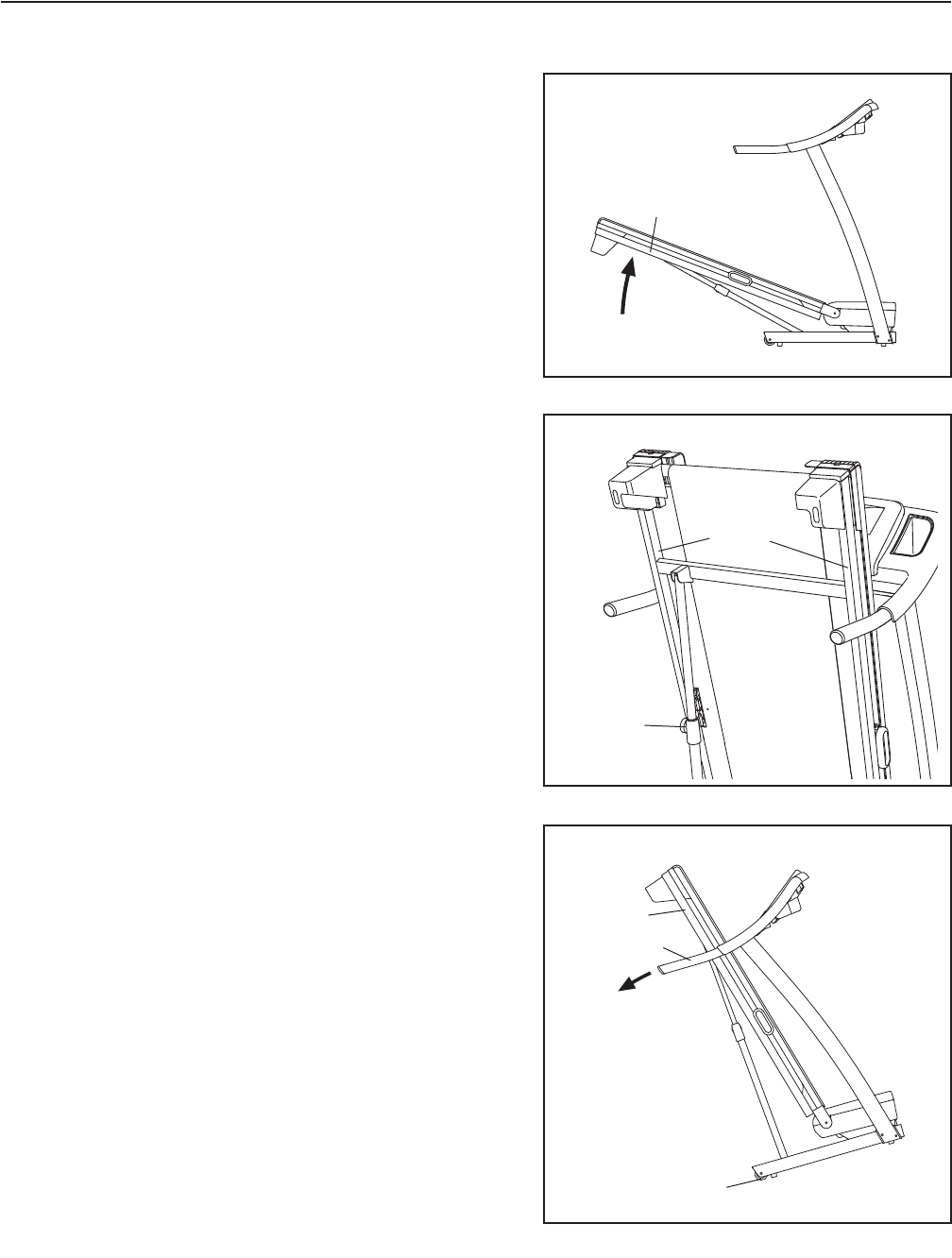

15. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (60) so that the large
barrel and the Latch Knob (61) are in the posi-
tions shown.
Remove the tie from the upper end of the
Storage Latch (60). Attach the upper end of the
Storage Latch to the Frame (56) with a 3/8" x 1
3/4" Bolt (7) and a 3/8" Locknut (6).
Remove the tie from the lower end of the
Storage Latch (60). Keep the holes in the Latch
Cap (59) aligned with the holes in the Storage
Latch. Make sure to keep the Latch Cap in-
side the Storage Latch. Attach the lower end of
the Storage Latch (60) to the Base (95) with a
3/8" x 1 3/4" Bolt (7). Note: It may be necessary
to move the Frame (56) back and forth to align
the Storage Latch with the Base.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
56
Large
Barrel
7
95
6
15
7
61
60
1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screw (35) and
the Access Door (113) from the Console Base
(103).
2. Connect the wire on the receiver to the indicated
wire extending from the Console Base (103).
Hold the receiver so the antenna is oriented
as shown and is facing the Console Base.
Attach the receiver to the plastic posts on the
Access Door (113) with the two included small
screws.
3. Make sure that no wires are pinched.
Reattach the Access Door (113) with the #8 x
3/4" Screw (35). Discard the other wires included
with the receiver.
If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
Receiver
103
Antenna
35
113
Wire
Small
Screws
59
Wire
13
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
14

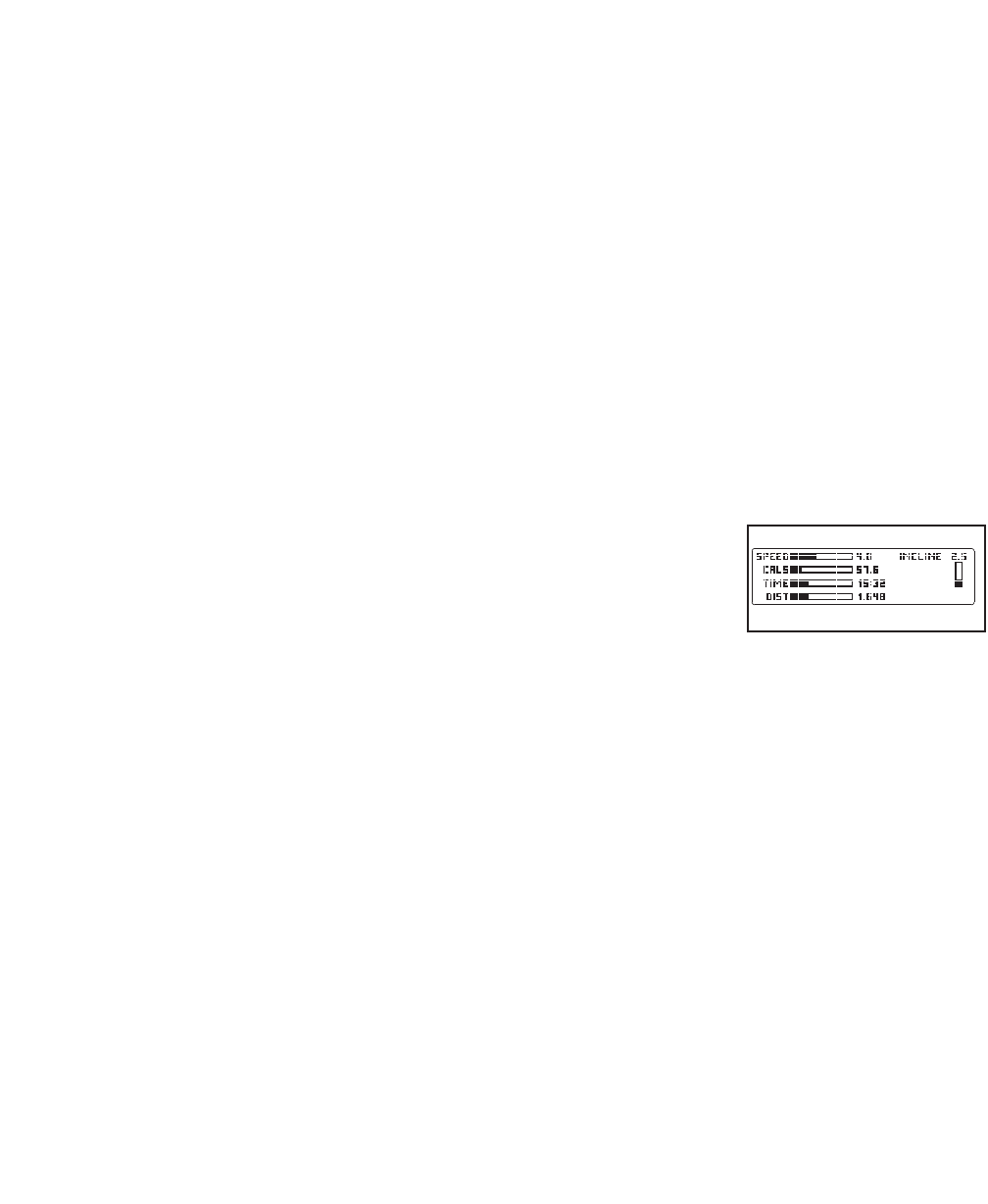

FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button. As you exercise, the console will display instant
exercise feedback. You can even measure your heart
rate using the handgrip pulse sensor or the optional
chest pulse sensor (see page 19).
You can customize your workout using one of the four
calorie goal workouts in the weight loss center. In addi-
tion, the console features eight iFit classic workouts.
Each workout automatically controls the speed and in-
cline of the treadmill as it guides you through an effec-
tive exercise session.
You can even listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape. This product has been
designed specifically to work with iPod and has been
certified by the developer to meet Apple performance
standards.
To turn on the power, see page 15. To use the man-
ual mode, see page 15. To use the weight loss cen-
ter, see page 17. To use a classic workout, see
page 18. To use the stereo sound system, see page
19. To use the information mode, see page 19.
IMPORTANT: If there are sheets of clear plastic on
the console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 24).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of mea-
surement, see THE INFORMATION MODE on page
19. Note: For simplicity, all instructions in this section
refer to miles.
CONSOLE DIAGRAM
Key Clip
Integrated Universal Dock for iPod
15
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.

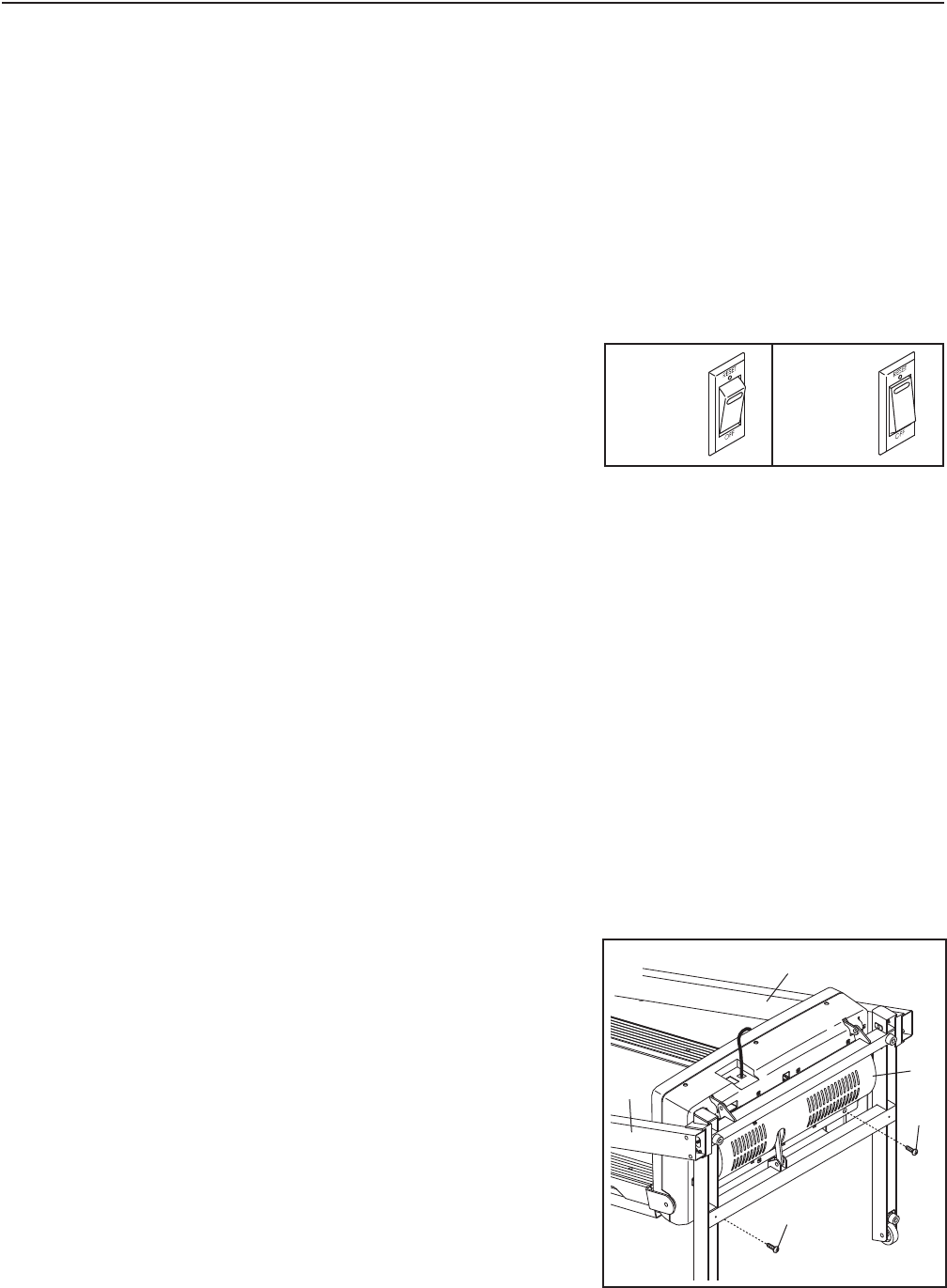

Plug in the power cord (see
page 13). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Switch the cir-
cuit breaker to the reset po-
sition.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 19 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 14)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the displays will light. IMPORTANT: In an emergency
situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
When the key is in-
serted, the manual
mode will be se-
lected. If you have
selected the weight
loss center or a clas-
sic workout, remove the key and then reinsert it.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the Precision
Quick Speed buttons numbered 1 through 10.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1 mph.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed increase and
decrease buttons. Each time you press a button,
the speed setting will change by 0.1 mph; if you
hold down a button, the speed setting will change
in increments of 0.5 mph. Note: After you press a
button, it may take a moment for the walking belt to
reach the selected speed setting.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting. To select a
speed setting that includes a decimal—such as 3.5
mph—press two numbered buttons in succession.
For example, to select a speed setting of 3.5 mph,
press the 3 button and then immediately press the
5 button.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button or the
Speed increase button.

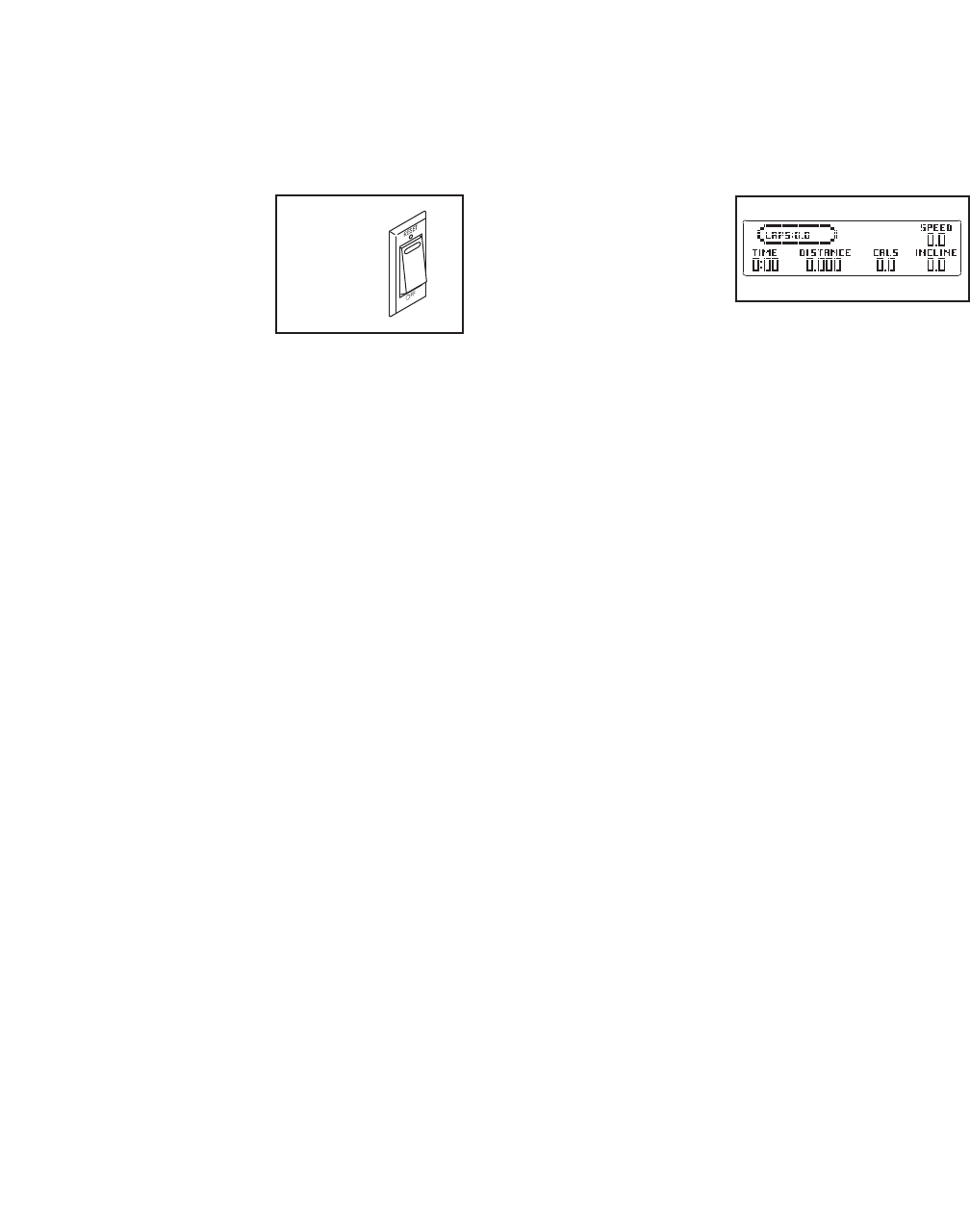

Reset
Position
16
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button. Each time you
press the Incline increase or decrease button, the
incline will change by 0.5%. Note: After you press
an incline button, it may take a moment for the
treadmill to reach the selected incline setting.
5. Select a display mode and monitor your
progress with the display.
When the manual mode is selected, the console of-
fers two display modes. Press the Display button
repeatedly to select the desired display mode.
As you walk or run on the treadmill, the display can
show the following workout information:
• A 1/4-mile (400 meter) track.
• The number of laps you have completed.
• The elapsed time.
• The distance that you have walked or run.
• The approximate number of calories you have
burned.
• The incline level of the treadmill.
• The speed of the walking belt.
Regardless of which display mode you select, the
speed or incline setting will appear in the display for
a few seconds each time you change the setting. In
addition, your heart rate will appear in the display
each time you use the handgrip pulse sensor or the
optional chest pulse sensor.
To reset the console, press the Stop button, re-
move the key, and then reinsert the key.
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same
time, the display will not show your heart rate
accurately. See page 19 for information on the op-
tional chest pulse sensor.

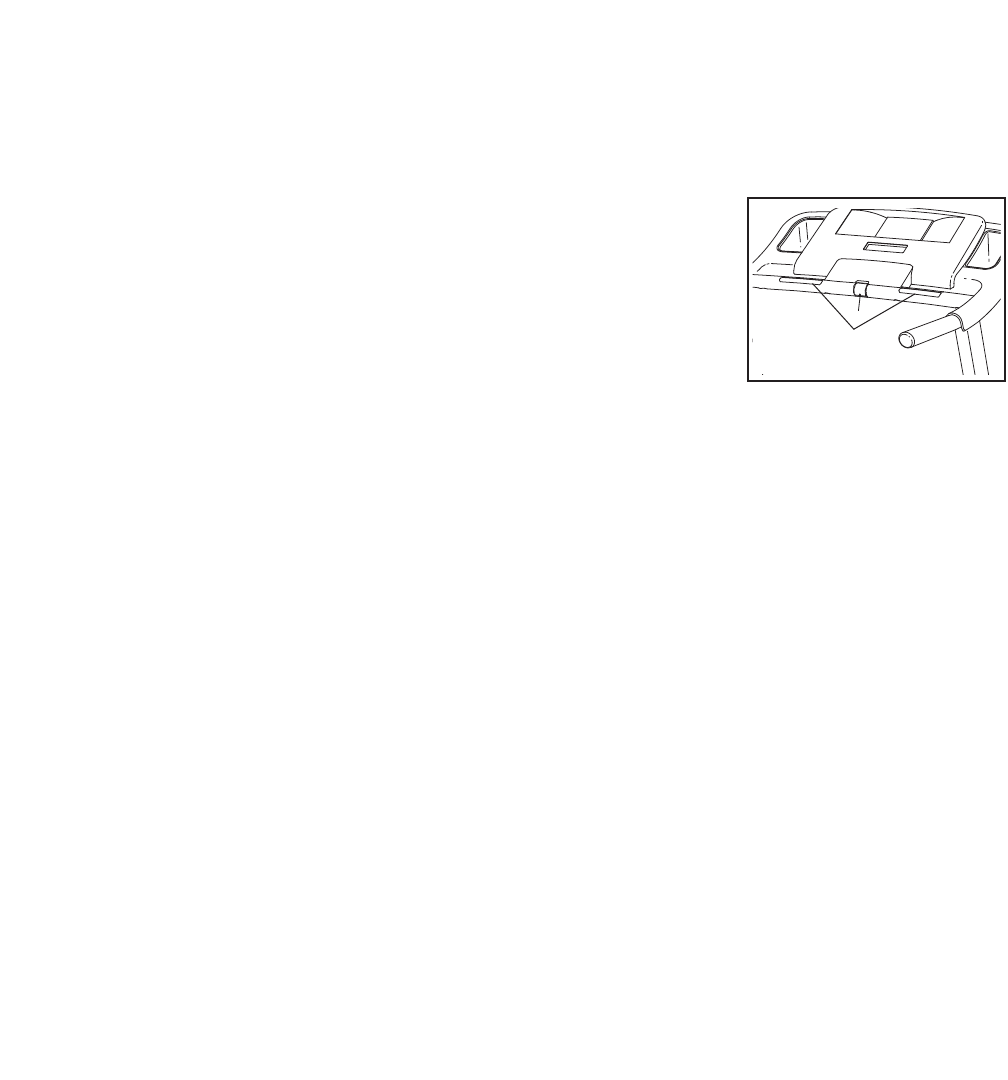

Before using the
handgrip pulse
sensor, remove
the sheets of
clear plastic from
the metal con-
tacts on the pulse
bar. In addition,
make sure that
your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on the
metal contacts. Avoid moving your hands. When
your pulse is detected, a heart symbol will flash in
the display each time your heart beats and then
your heart rate will be shown. For the most accu-
rate heart rate reading, continue to hold the
contacts for about 15 seconds.
7. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
or you may damage the treadmill when you fold
it to the storage position. Next, remove the key
from the console and put it in a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmillʼs electrical compo-
nents may wear prematurely.
Contacts
17
HOW TO USE THE WEIGHT LOSS CENTER
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 15.
2. Select a weight loss workout.
To use a calorie goal workout, press the Weight
Loss Center button.
Input your weight, the number of calories you wish
to burn, and the desired workout duration by re-
peatedly pressing the increase or decrease button
next to the Weight Loss Center button. Hold down
the increase or decrease button to rapidly change
your weight or the workout duration. Press the Enter
button after each selection. Note: Once you have
entered your weight, it will be saved in memory. The
profiles on the console represent the speed set-
tings of the workout.
3. Start the walking belt.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting
and/or incline setting may be programmed for con-
secutive segments.
Tones will sound at the end of each segment. If a
different speed setting and/or incline setting is pro-
grammed for the second segment, the speed set-
ting and/or incline setting will flash in the display for
a moment to alert you. The treadmill will then auto-
matically adjust to the speed and incline settings for
the second segment.
The workout will continue in this way until the last
segment ends. The walking belt will then slow to a
stop.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or incline
buttons; however, when the next segment be-
gins, the treadmill will automatically adjust to
the speed and incline settings for the next seg-
ment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button
or the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
4. Select a display mode and monitor your
progress with the display.
When the weight loss center is selected, the con-
sole offers two display modes. Press the Display
button repeatedly to select the desired display
mode. The display can show the following workout
information:
• Workout informa-
tion bars which
show your
progress during
the workout.
• A profile of the speed settings of the workout. The
arrow below the profile will indicate your
progress.
• The time remaining.
• The distance that you have walked or run.
• The approximate number of calories you have
burned.
• The incline level of the treadmill.
• The speed of the walking belt.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 16.
18
HOW TO USE A CLASSIC WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 15.

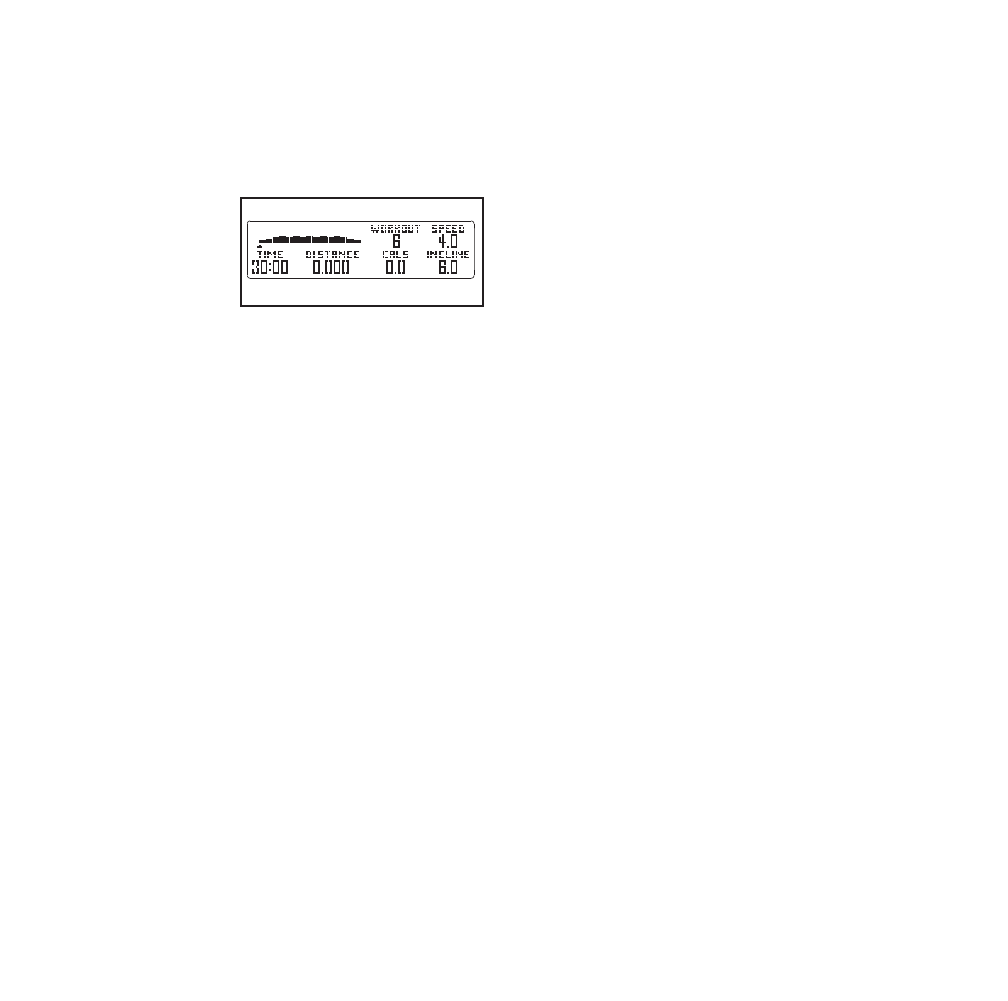

2. Select a classic workout.
To select a classic
workout, press the
Classic Workouts
button repeatedly.
The duration, the
maximum speed
setting, the maximum incline setting, and the num-
ber of the workout will appear in the display. In ad-
dition, a profile of the speed settings of the workout
will appear.
3. Start the walking belt.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are pro-
grammed for each segment. Note: The same
speed setting and/or incline setting may be pro-
grammed for consecutive segments.
A profile of the speed settings of the workout will ap-
pear in the display. A small arrow below the profile
will indicate your progress.
At the end of the first one-minute segment of the
workout, a series of tones will sound. If a different
speed setting and/or incline setting is programmed
for the second segment, the speed setting and/or
incline setting will flash in the display for a moment
to alert you. The treadmill will then automatically
adjust to the speed and incline settings for the sec-
ond segment. The arrow will then move one seg-
ment to the right.
The workout will continue in this way until the arrow
reaches the right end of the profile and the last
segment ends. The walking belt will then slow to a
stop.
If the speed or incline setting for the current seg-
ment is too high or too low, you can override the
setting by pressing the speed or incline buttons;
however, when the next segment begins, the
treadmill will automatically adjust to the speed
and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Select a display mode and monitor your
progress with the display.
See step 5 on page 16. Note: The display will show
a profile of the speed settings of the workout in-
stead of a track and the number of laps you have
completed.
5. Measure your heart rate if desired.
See step 6 on page 16.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 16.
19
HOW TO USE THE STEREO SOUND SYSTEM
This product has been designed specifically to work
with iPod and has been certified by the developer to
meet Apple performance standards. To play music or
audio books through the consoleʼs stereo speakers,
you must connect your iPod, MP3 player, CD player,
or other personal audio player to the console through
the audio jack or through the Integrated Universal
Dock for iPod.
To use the audio jack, locate the audio wire and plug it
into the audio jack near the Start button. Then, plug
the audio wire into a jack on your MP3 player, CD
player, or personal audio player. Make sure that the
audio wire is fully plugged in.
To use the Integrated Universal Dock for iPod, you
need an iFit Universal iPod Connector (not included).
Plug one end into the Integrated Universal Dock for
iPod near the Start button and the other end into your
iPod. Make sure that the iFit Universal iPod
Connector is fully plugged in. To purchase an iFit
Universal iPod Connector, see the front cover of this
manual.
Next, press the Play button on your iPod, MP3 player,
CD player, or other personal audio player. Adjust the
volume on your personal audio player or press the
Volume increase and decrease buttons on the con-
sole.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face instead of on the console.
THE INFORMATION MODE
The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to select a measurement system of miles or kilome-
ters, and to turn on and turn off the display demo
mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:

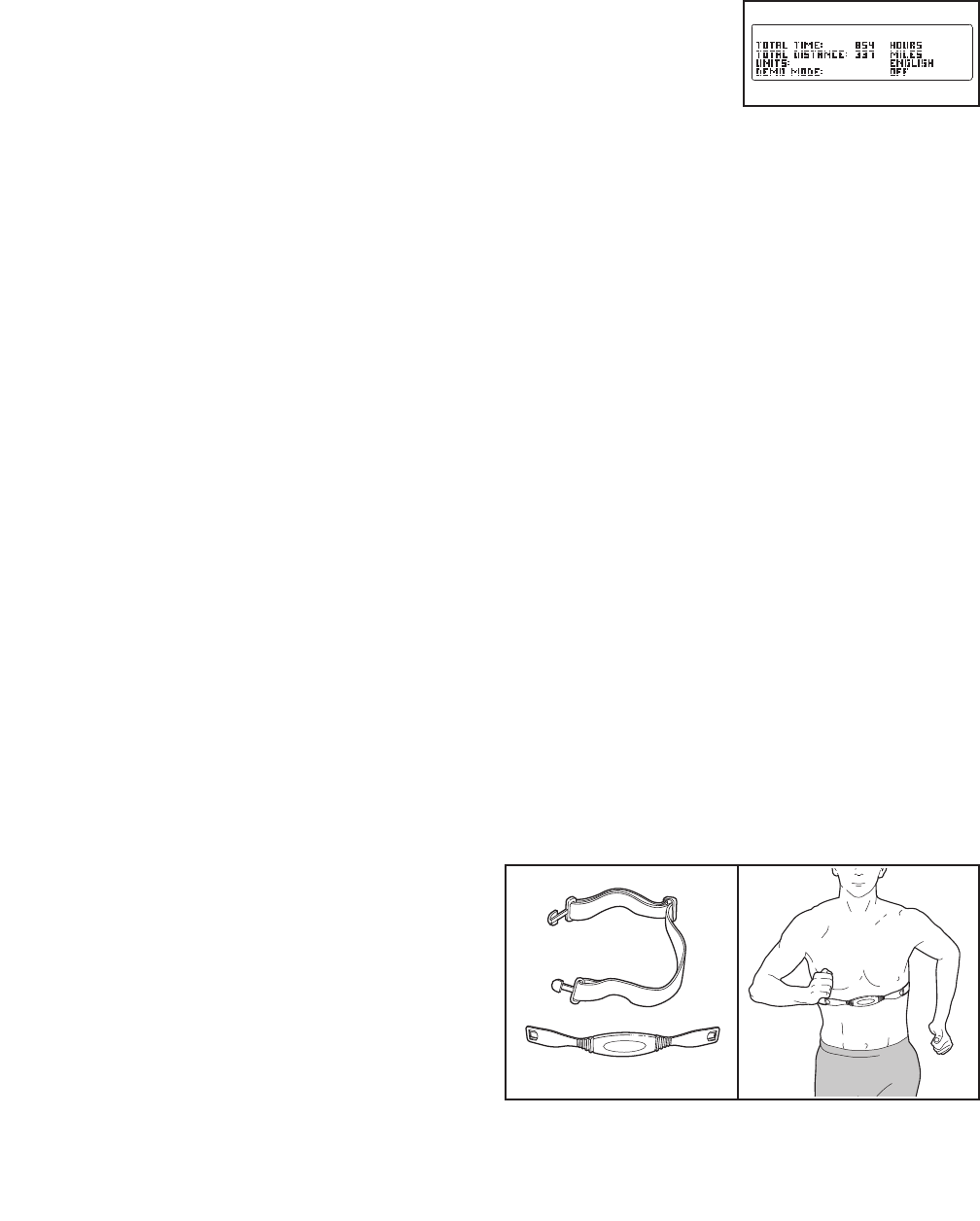

The display will show
the total number of
hours the treadmill has
been used.
The display will also show the total number of miles or
kilometers that the walking belt has moved.
The word ENGLISH for miles or METRIC for kilometers
will appear in the display. Press the Speed increase
button to change the unit of measurement if desired.
The console features a display demo mode, designed
to be used if the treadmill is displayed in a store. While
the demo mode is turned on, the console will function
normally when you plug in the power cord, switch the
reset/off circuit breaker to the reset position, and insert
the key into the console. However, when you remove
the key, the displays will remain lit, although the but-
tons will not function. If the demo mode is turned on,
the word ON will appear in the display while the infor-
mation mode is selected. To turn on or turn off the demo
mode, press the Speed decrease button.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper-
ation as it tracks your heart rate during your workouts.
To purchase the optional chest pulse sensor, call
the telephone number on the front cover of this
manual.
20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may damage the
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
lbs. (20 kg) to raise, lower, or move the treadmill.

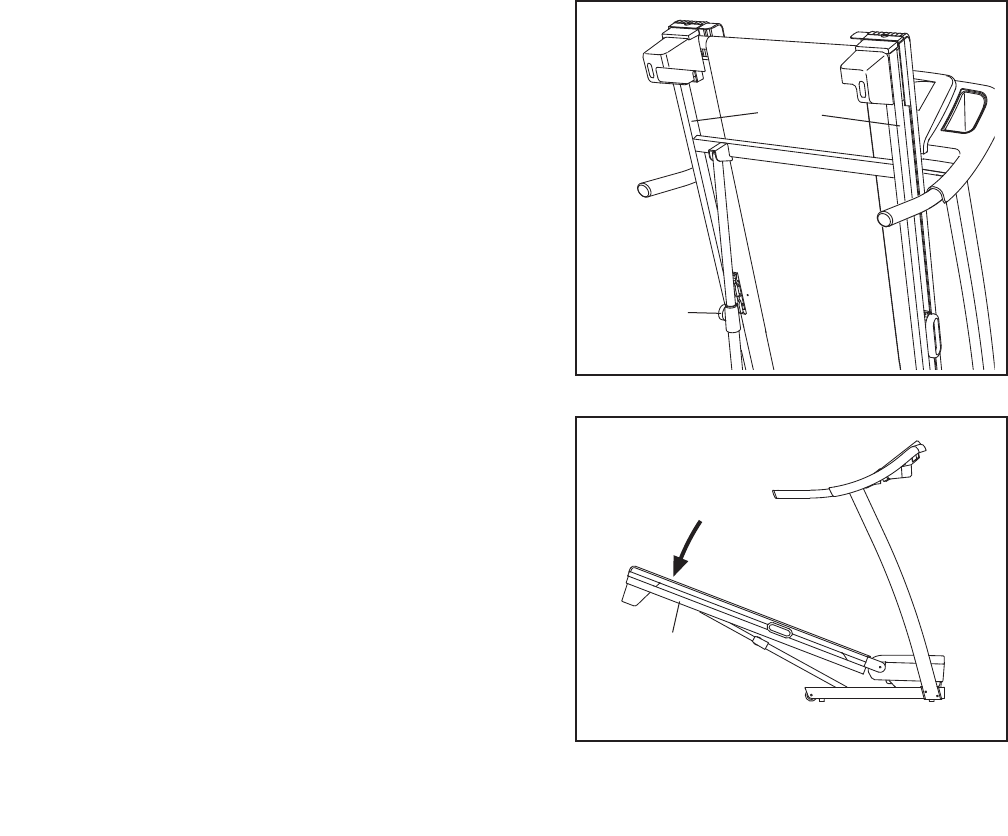

1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the pos-
sibility of injury, do not lift the frame by the plastic
foot rails. Make sure to bend your legs and keep your
back straight as you raise the frame. Raise the frame
about halfway to the vertical position.
2. Raise the frame until the latch knob locks into the storage
position. Make sure that the latch knob is locked in
the storage position.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of di-
rect sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° F (30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert it to the storage position
as described above. Make sure that the latch knob is
locked in the storage position.
1. Hold a handrail and the frame, and place one foot against
one of the wheels.
2. Tilt the treadmill back until it rolls freely on the wheels. Do
not pull back on the frame. Carefully move the treadmill to
the desired location. Never move the treadmill without
tipping it back. To reduce the risk of injury, use ex-
treme caution while moving the treadmill. Do not at-
tempt to move the treadmill over an uneven surface.
3. Place one foot against a wheel, and carefully lower the
treadmill until it is resting in the storage position.
Handrail
Frame
Wheels
Latch
Knob
Frame
Frame
2. Hold the metal frame firmly with both hands and
lower it to the floor. CAUTION: Do not grip only the
plastic foot rails or drop the frame to the floor. Bend
your legs and keep your back straight.
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand.
Pull the latch knob to the left and hold it. It may be nec-
essary to push the frame forward as you pull the knob to
the left. Pivot the frame downward and release the latch
knob.
21
Frame
Frame
Latch
Knob
22
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 13). Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 13. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
PROBLEM:The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 19 to turn off the demo mode.
PROBLEM:The displays of the console do not function properly
SOLUTION: a. Adjust the incline level of the treadmill to 5 percent.
Remove the key from the console and UNPLUG
THE POWER CORD. With the help of a second
person, carefully tip down the Uprights (85, 89).
There may be two Screws (A) in the bottom of the
Belly Pan (84). If there are, remove them. Note: A
Phillips screwdriver with a shaft at least 5 in. (13
cm) long is required. Then, raise the Uprights.
Tripped
Position
Reset
Position
c
A
A
85
89
a
84
23

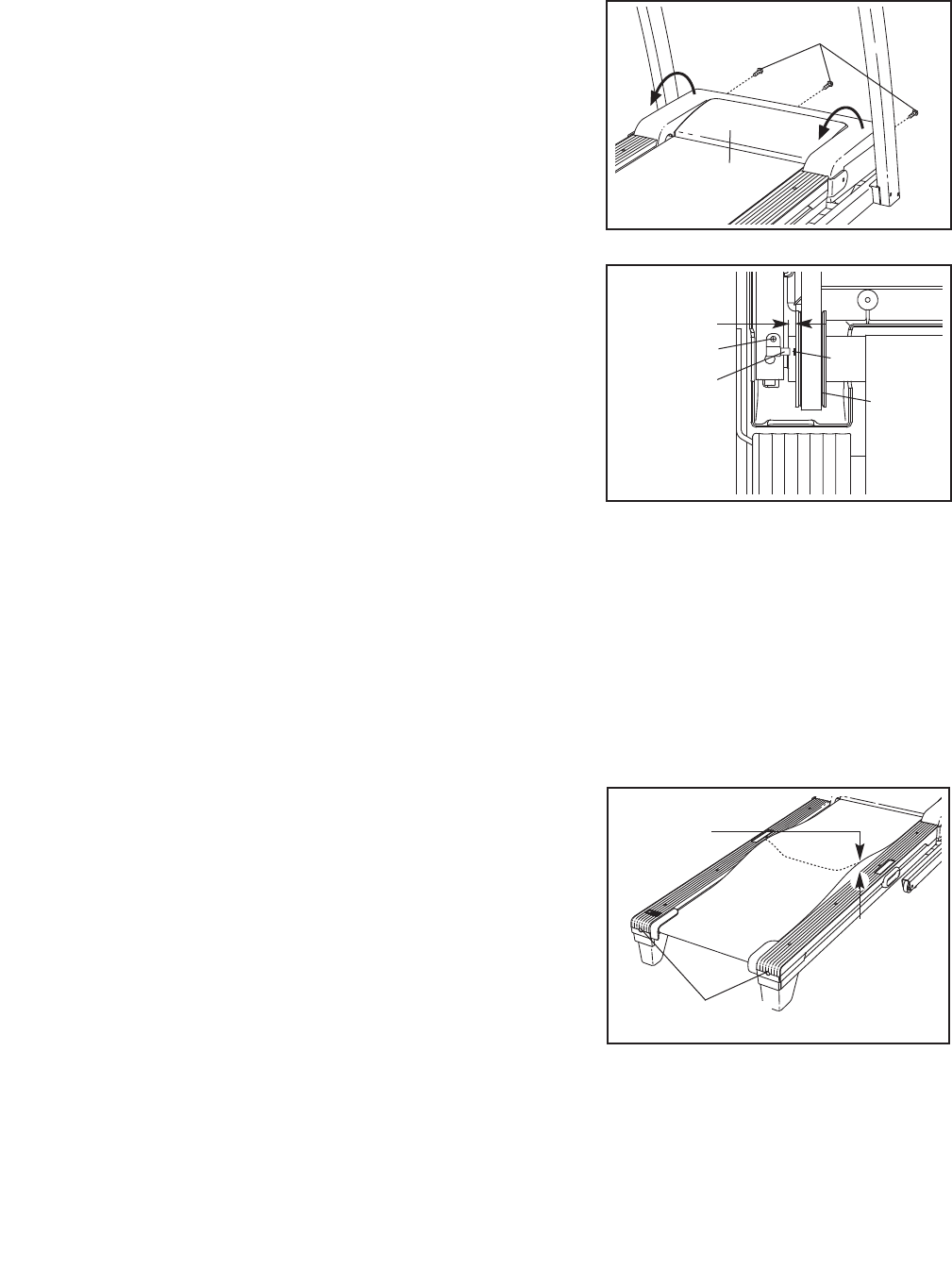

Remove the three M4.2 x 19mm Hood Screws (12)
and carefully pivot the Hood (67) off.
Locate the Reed Switch (70) and the Magnet (51)
on the left side of the Pulley (53). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If neces-
sary, loosen the M4.2 x 19mm Screw (1), move the
Reed Switch slightly, and then retighten the Screw.
Reattach the Motor Hood (not shown) with the three
M4.2 x 19mm Hood Screws (not shown) and with
the two Screws (not shown) if necessary. Run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 13.

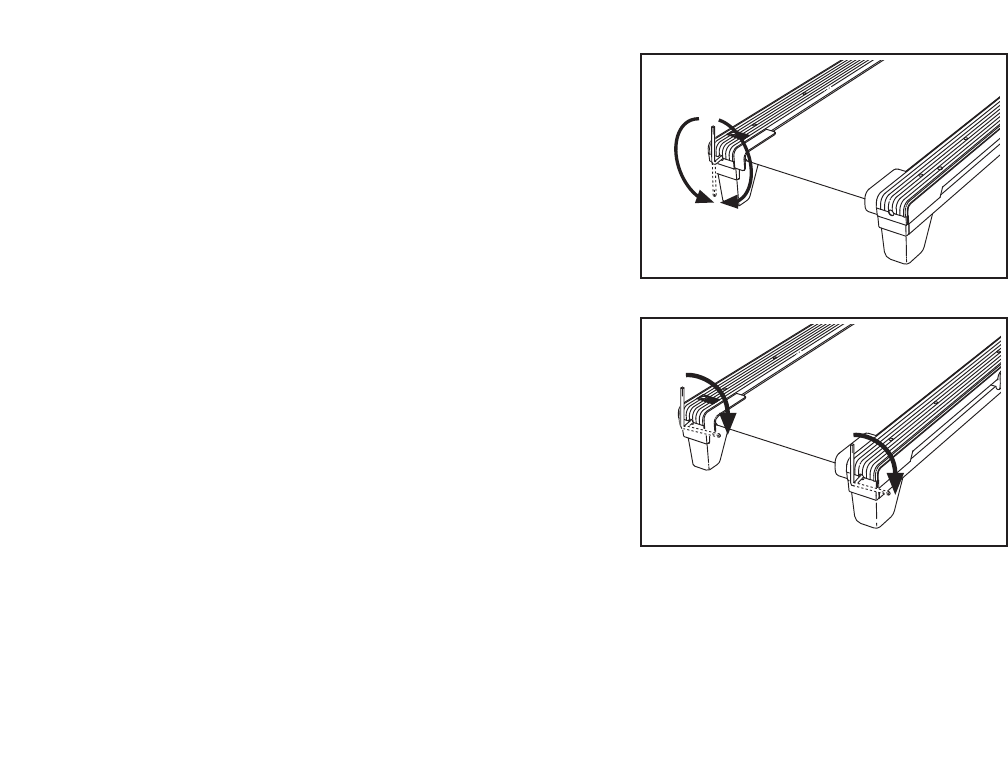

b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
Top
View
51
1
70
1/8 in.
53
67
12
Idler Roller Bolts
2–3 in.
b
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the
key and UNPLUG THE POWER CORD. If the
walking belt has shifted to the left, use the hex
key to turn the left idler roller bolt clockwise 1/2 of a
turn; if the walking belt has shifted to the right,
turn the bolt counterclockwise 1/2 of a turn. Be
careful not to overtighten the walking belt. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk-
ing belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller bolts clock-
wise, 1/4 of a turn. When the walking belt is cor-
rectly tightened, you should be able to lift each side
of the walking belt 2 to 3 in. (5 to 7 cm) off the
walking platform. Be careful to keep the walking
belt centered. Then, plug in the power cord, insert
the key, and carefully walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
24
a
b
25
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exer-
cise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic ex-
ercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for individu-
als over age 35 or individuals with pre-exist-
ing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
26
PART LIST—Model No. PFTL49908.0 R1008A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 13 M4.2 x 19mm Screw
22M4 x 20mm Screw
34 M4.2 x 25mm Tek Screw
44#8 x 1/2" Ground Screw
56M8 x 25mm Bolt
633/8" Locknut
723/8" x 1 3/4" Bolt
84M10 x 96mm Bolt
94M10 Star Washer
10 6 M8 Star Washer
11 5 M4.2 x 13mm Screw
12 3 M4.2 x 19mm Hood Screw
13 3 Hood Clip
14 2 M4.2 x 16mm Screw
15 2 M8 x 35mm Bolt
16 2 M8 x 90mm Bolt
17 4 M8 Flange Nut
18 2 M10 x 30mm Bolt
19 4 M10 Nut
20 1 3/8" x 1 3/4" Bolt
21 1 3/8" x 1 1/2" Bolt
22 2 Foot Rail Decal
23 2 3/8" x 1" Bolt
24 2 3/8" Nut
25 1 M6 x 45mm Bolt
26 2 M6 x 70mm Bolt
27 2 M6 Lock Washer
28 2 M6 Flat Washer
29 8 M5.5 x 25mm Screw
30 2 1/4" Motor Bolt
31 2 M10 x 50mm Bolt
32 4 M4.2 x 13mm Screw
33 5 M4.2 x 10mm Screw
34 2 M8 Cage Nut
35 15 #8 X 3/4" Screw
36 1 #8 X 1/2" Tie Screw
37 6 #3 x 1/4" Screw
38 1 Cable Tie
39 8 8" Cable Tie
40 1 Releasable Tie
41 1 Key/Clip
42 1 6mm Hex Key
43 1 4mm Hex Key
44 1 5mm Hex Key
45 1 Hex Key
46 1 Left Foot Rail
47 1 Warning Decal
48 2 Platform Cushion
49 2 Belt Guide
50 2 Frame Cap
51 1 Magnet
52 1 Motor Belt
53 1 Drive Roller/Pulley
54 1 Walking Belt
55 1 Walking Platform
56 1 Frame
57 2 Roller Bracket
58 1 Right Foot Rail
59 1 Latch Cap
60 1 Storage Latch
61 1 Latch Knob
62 1 Right Foot
63 1 Idler Roller
64 2 Roller Bracket Plate
65 1 Left Foot
66 4 Clamp
67 1 Hood
68 1 Drive Motor
69 3 Lift Frame Cable Tie
70 1 Reed Switch
71 1 Reed Switch Clip
72 2 Frame Spacer
73 1 Motor Isolator
74 1 Lift Frame
75 1 Incline Stop Bracket
76 1 Lift Frame/Roller Ground Wire
77 1 Lift Motor
78 1 Lift Motor Spacer
79 1 Controller Ground Wire
80 1 Controller
81 1 Power Cord
82 1 Power Cord Grommet
83 1 Reset/Off Circuit Breaker
84 1 Belly Pan
85 1 Left Upright
86 1 Left Upright Spacer
87 2 Base Cap
88 1 Wire Harness
89 1 Right Upright
90 4 Bolt Spacer
91 1 Right Upright Spacer
92 4 Base Foot
93 2 Caution Decal
94 2 Base Foot Spacer
95 1 Base
96 1 Lift Frame/Base Ground Wire
97 2 Wheel
98 2 Handrail Cap, Lower
99 1 Left Handrail
100 2 Handrail Cap, Upper
27
Key No. Qty. Description Key No. Qty. Description
101 1 Right Handrail
102 3 15 1/2" Cable Tie
103 1 Console Base
104 1 Left Accessory Tray
105 1 Console
106 1 Right Accessory Tray
107 1 Right Top Pulse Plate
108 1 Right Bottom Pulse Plate
109 1 Left Top Pulse Plate
110 1 Left Bottom Pulse Plate
111 1 Pulse Support
112 1 Console Ground Wire
113 1 Access Door
114 1 Key Plate
115 1 Audio Wire
*–12" Blue Wire, 2F
*– 10" Blue Wire, M/F
*–4" Black Wire, M/F
*–8" Red Wire, M/F
*–Userʼs Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated.
28
EXPLODED DRAWING A—Model No. PFTL49908.0 R1008A
67
13
12
13
12
13
12
1
74
68
33
76
72
19
20
6
19
72
25
21
6
77
71
14
80
81
82
33
83
84
11
11
11
11
69
70
11
78
75
33
79
30
73
EXPLODED DRAWING B—Model No. PFTL49908.0 R1008A
29
10
5
85
87
24
23 24
92
3
8
89
87
92
3
92
3
31
97
19
95
92
3
19
97
31
90
88
88
93
94
94
9
886
90
93
33
96
91
9
23
5
5
5
10
10
10
30
EXPLODED DRAWING C—Model No. PFTL49908.0 R1008A
102 40
39
1
34
98
101
41
36
38
99
98
1
34
1
1
100
100
66
37
37
35
104
106
35
35
35
35
103
108
107
109
110
35
35
2
35
2
35
35
111
x
35
113
105
37
35
112
4
114
115
35
31
EXPLODED DRAWING D—Model No. PFTL49908.0 R1008A
Part No. 270698 R1008A Printed in China © 2008 ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The drive motor is warranted for fifteen (15) years
from the date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All re-
pairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service cen-
ter; products used for commercial or rental purposes; or products used as store display models. No other
warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

Navigation menu
