Serial Number

Decal

Model No. PFTL59011.0

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

USER’S MANUAL

www.proform.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT PRECAUTIONS .................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

OPERATION AND ADJUSTMENT ............................................................14

HOW TO FOLD AND MOVE THE TREADMILL ..................................................20

TROUBLESHOOTING .....................................................................21

EXERCISE GUIDELINES ...................................................................24

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

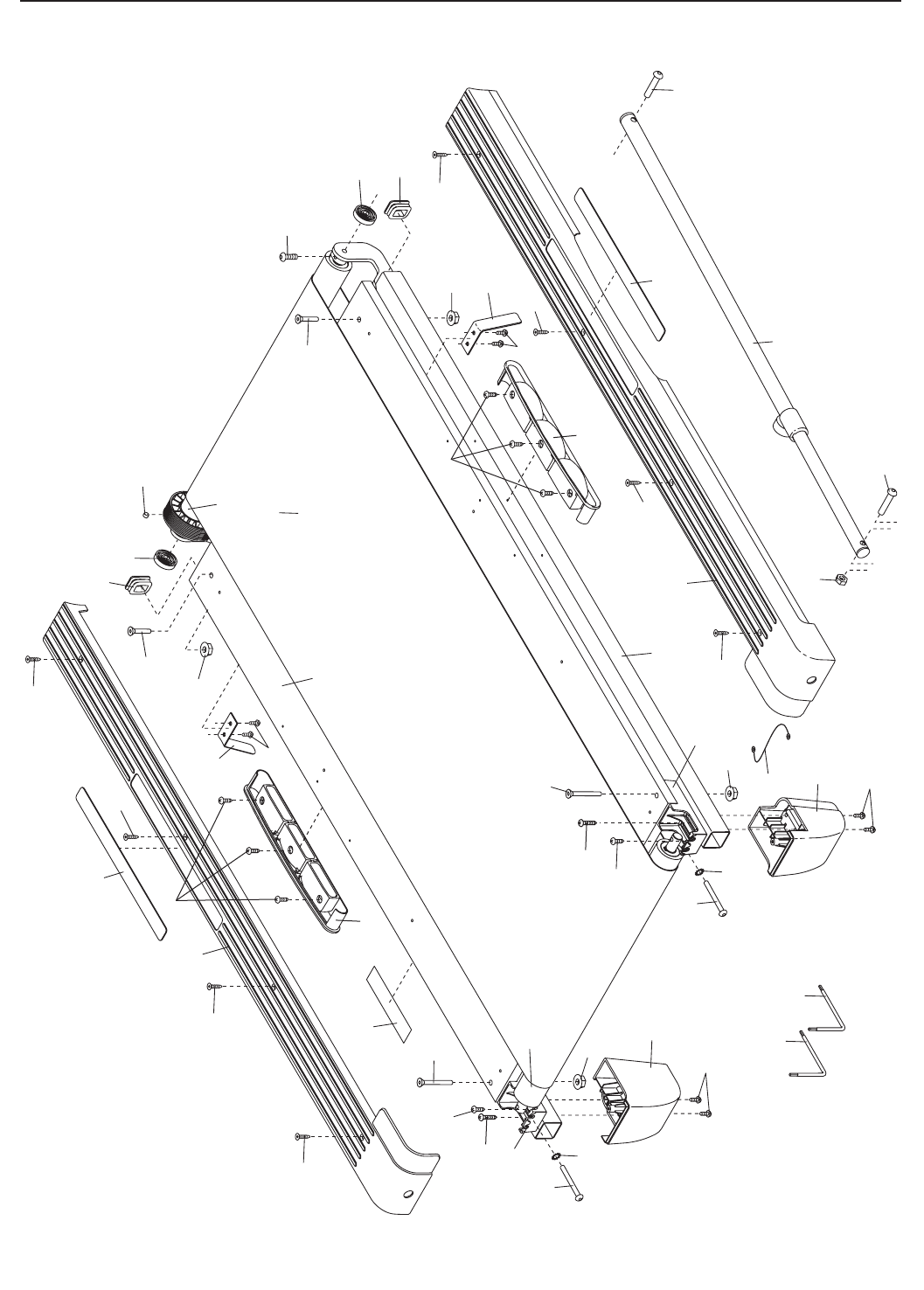

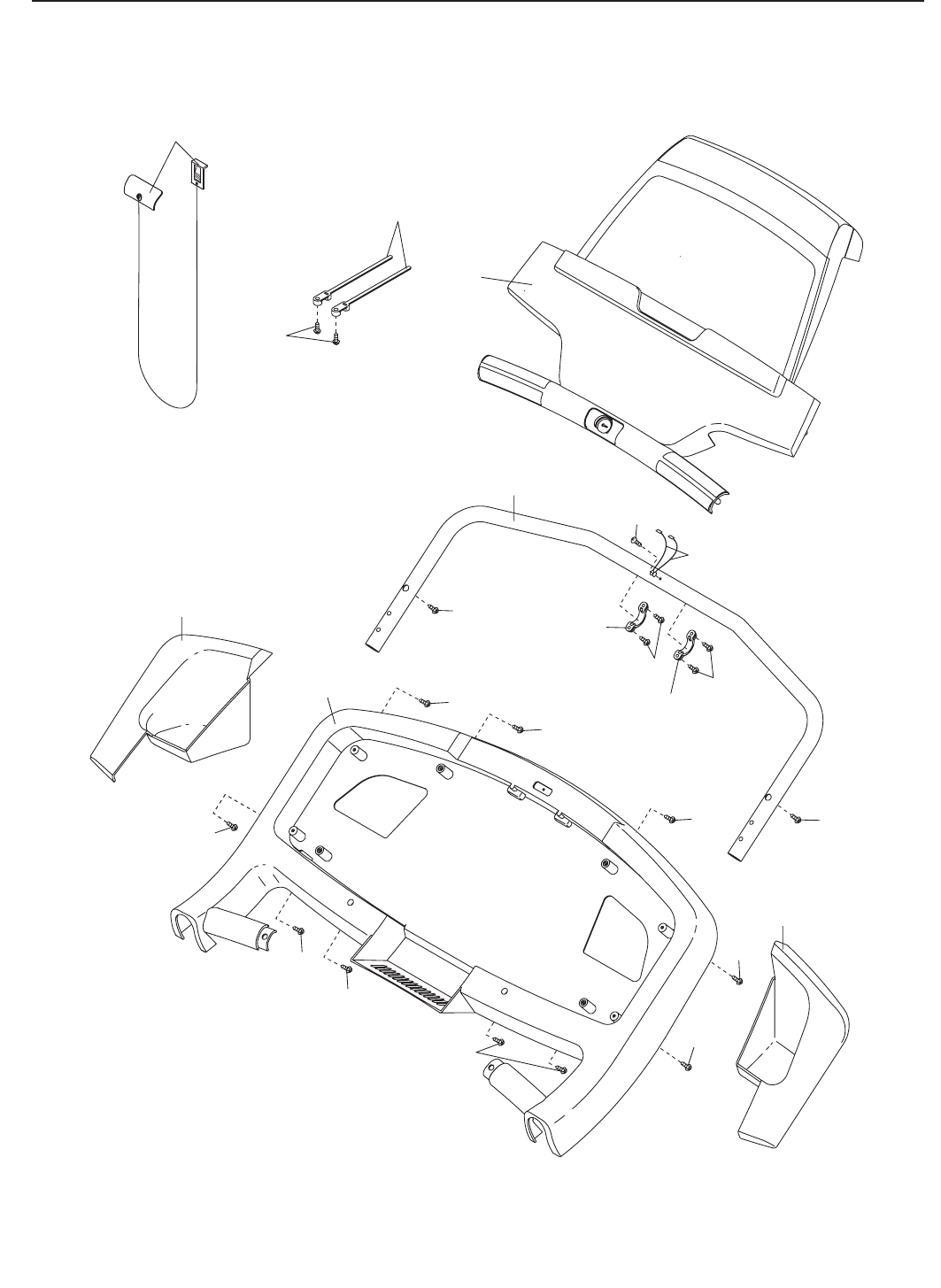

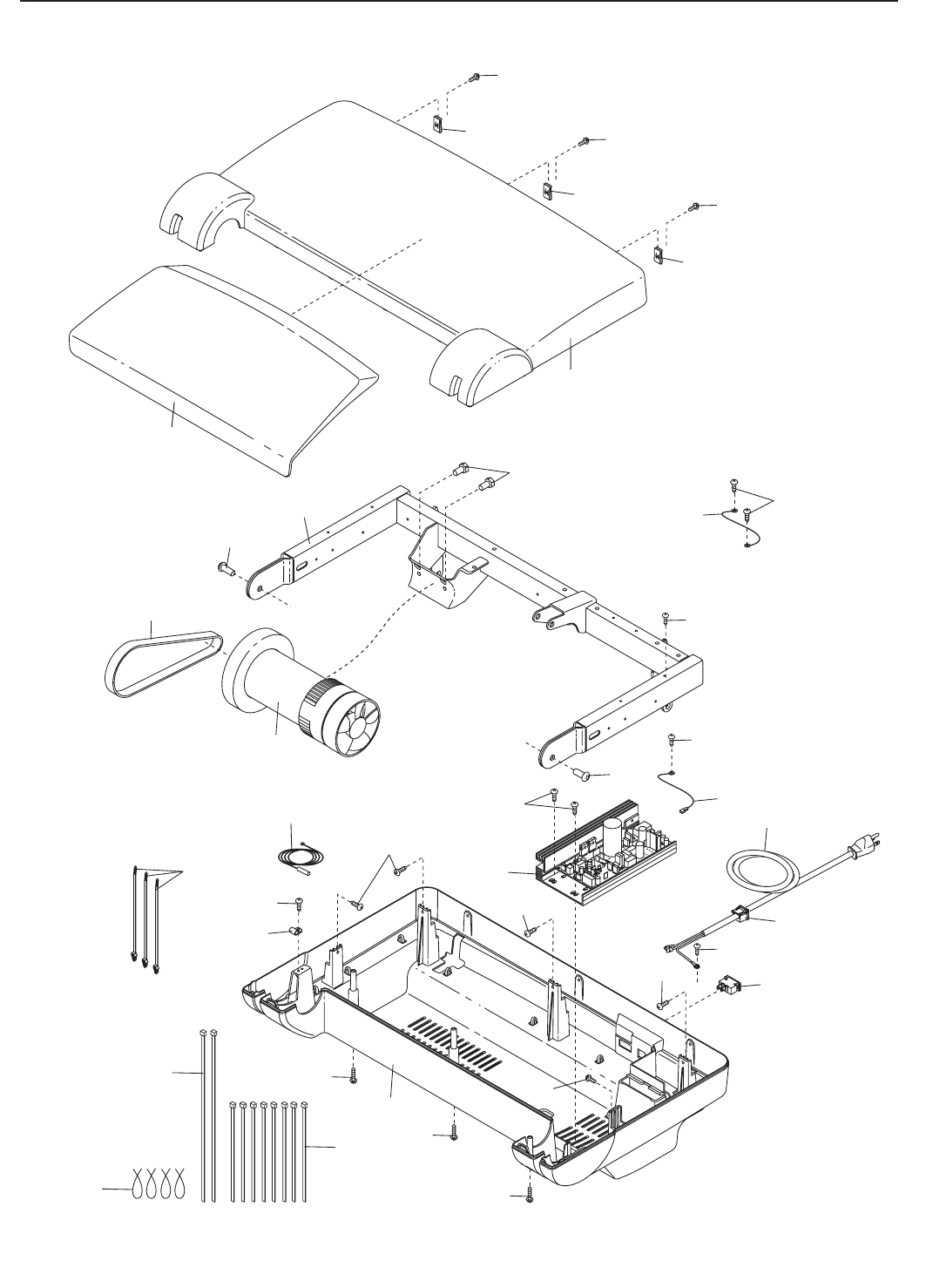

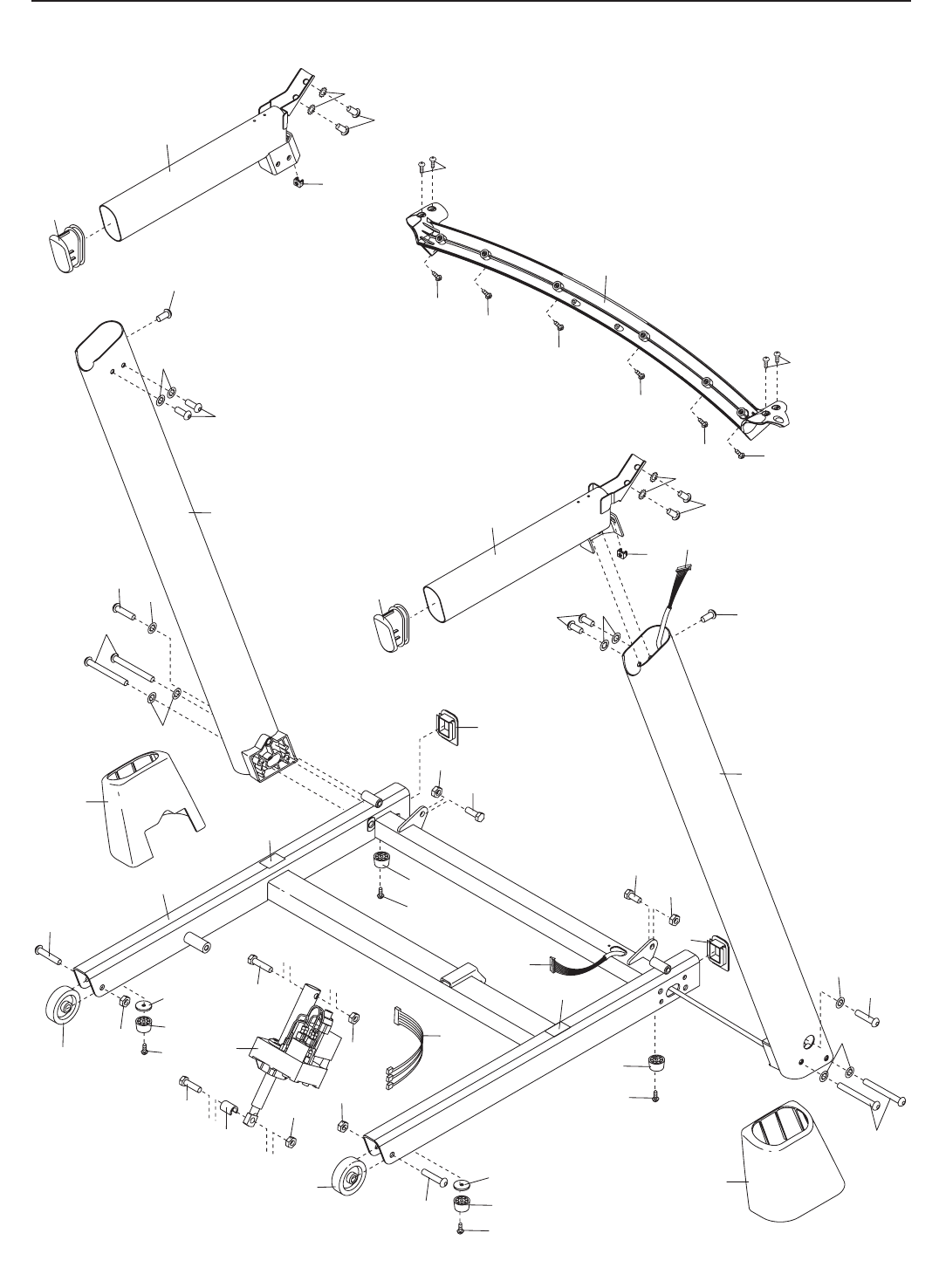

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

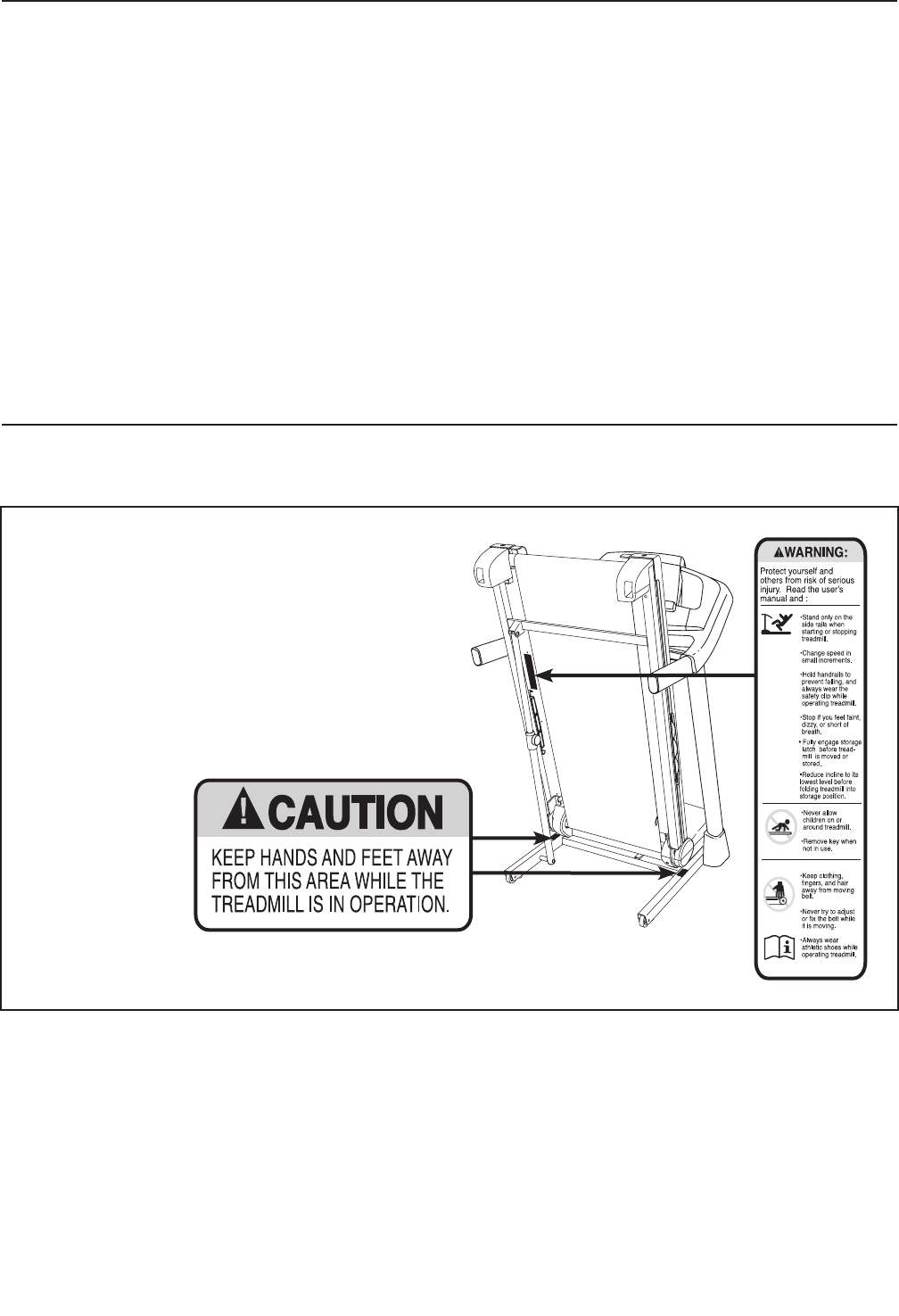

This drawing shows the locations of the

warning decals. If a decal is missing or il-

legible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal

in the location shown. Note: The decals

may not be shown at actual size.

WARNING DECAL PLACEMENT

256836

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over age 35 or persons with

pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the oor or carpet from

damage, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes while us-

ing the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare

feet, wearing only stockings, or in sandals.

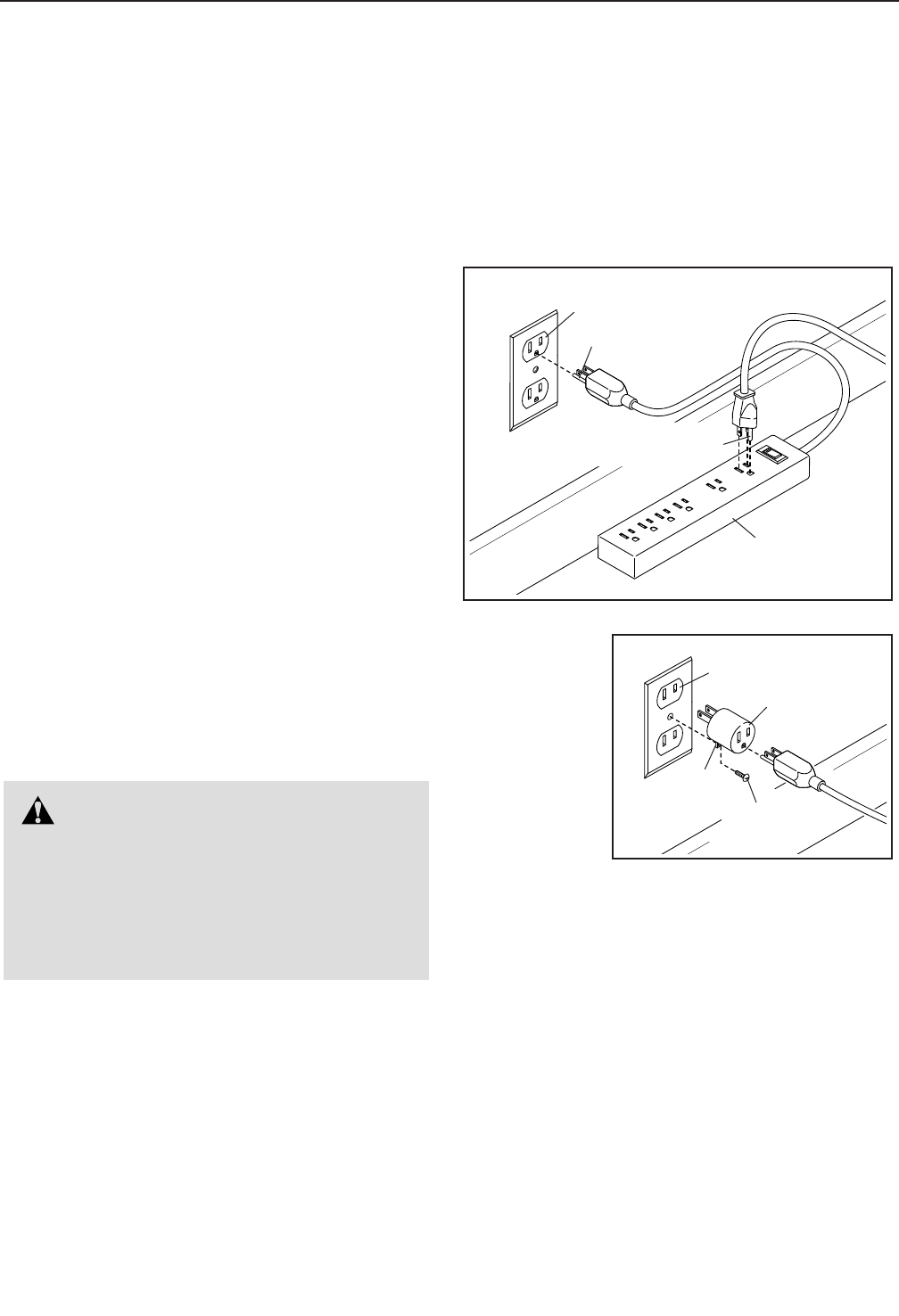

11. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 14).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

12. Use only a surge suppressor that meets all of

the specifications described on page 14. To

purchase a surge suppressor, see your local

PROFORM dealer, call the telephone number

on the front cover of this manual, or see your

local electronics store.

13. Failure to use a properly-functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 21 if the treadmill is

not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 16).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

18. The treadmill is capable of high speeds. Ad-

just the speed in small increments to avoid

sudden jumps in speed.

19. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is in-

tended only as an exercise aid in determining

heart rate trends in general.

WARNING: To reduce the risk of serious injury, read all important precations and in-

structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

20. Never leave the treadmill unattended while

it is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the

location of the power switch.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 20.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servic-

ing other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

26. This treadmill is intended for home use only.

Do not use this treadmill in a commercial,

rental, or institutional setting.

27. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

Thank you for selecting the revolutionary PROFORM®

515 TX treadmill. The 515 TX treadmill offers an im-

pressive selection of features designed to make your

workouts at home more enjoyable and effective. And

when you’re not exercising, the unique treadmill can

be folded up, requiring less than half the oor space of

other treadmills.

For your benet, read this manual carefully be-

fore using the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number and the location of the serial num-

ber decal are shown on the front cover of this manual.

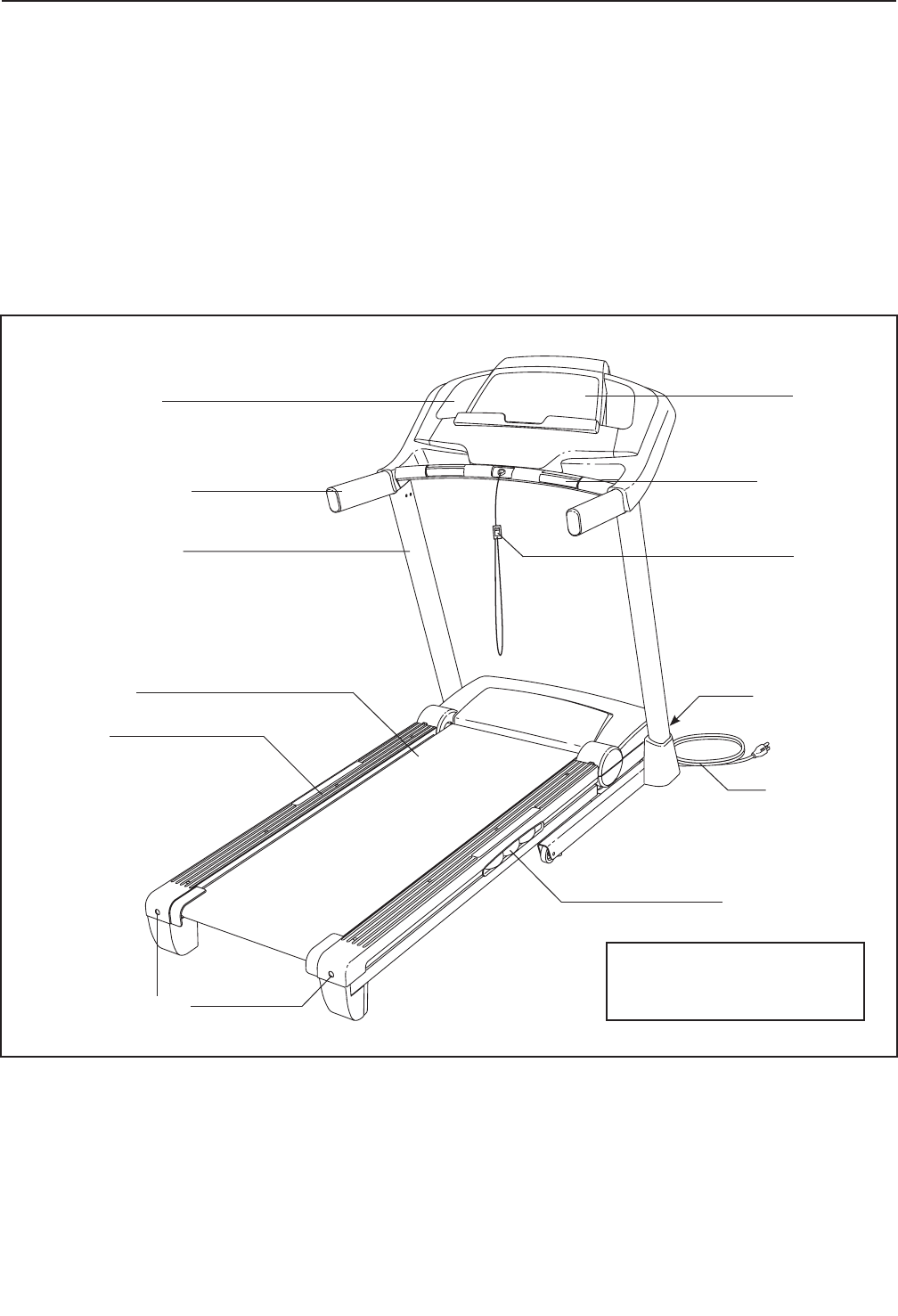

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Idler Roller

Adjustment Screws

Console

Handgrip Heart

Rate Monitor

Length: 6 ft. (183 cm)

Width: 2 ft. 10 in. (86 cm)

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

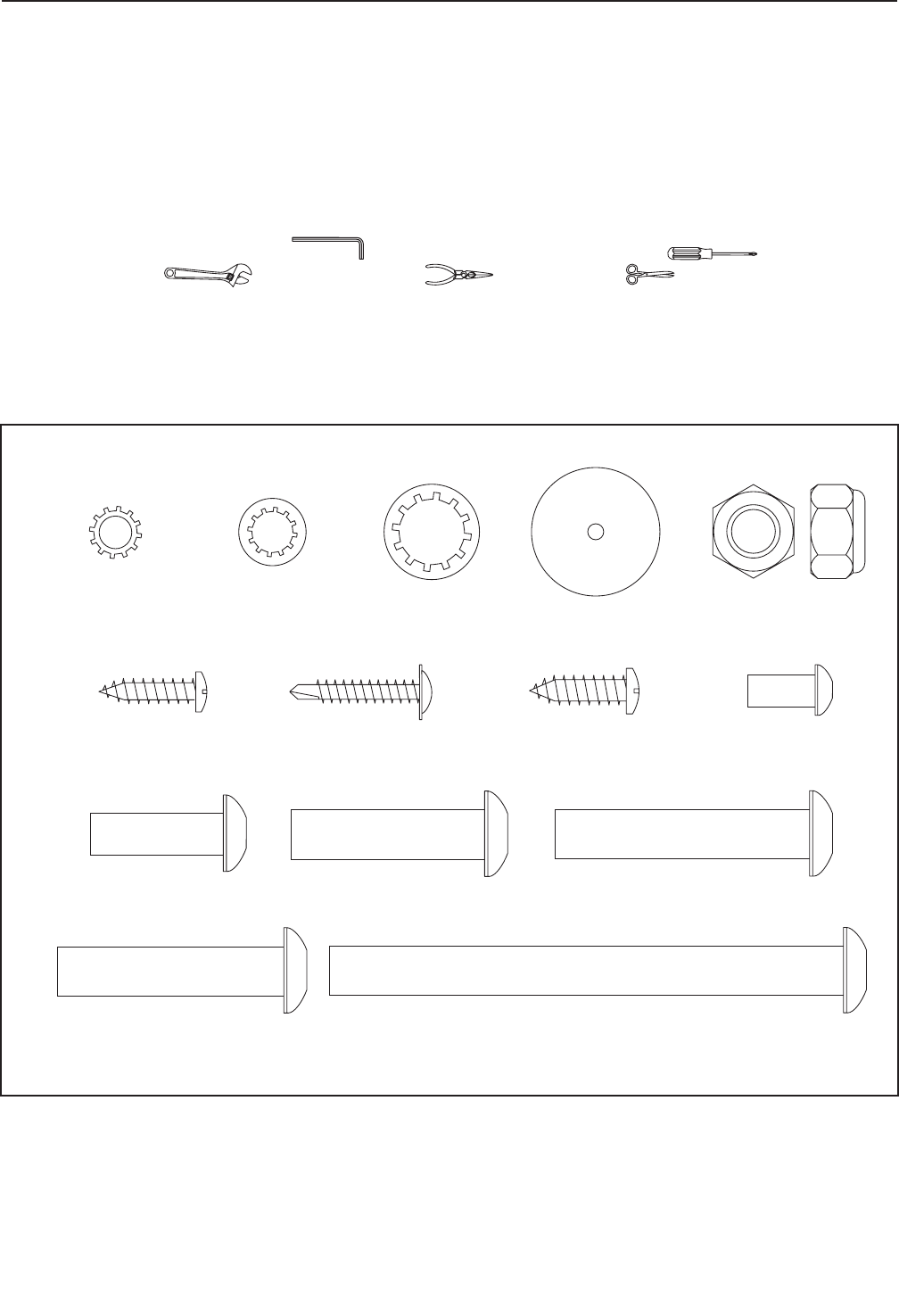

Assembly requires the included hex keys and your own Phillips screwdriver ,

adjustable wrench , needlenose pliers , and scissors .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-

aging parts, do not use power tools. Extra hardware may be included.

Base Foot

Spacer (94)–2

#8 x 3/4" Screw

(1)–6

3/8" Star

Washer (11)–6

#8 x 1" Tek Screw

(5)–4

3/8" Nut (10)–3

5/16" Star

Washer (13)–4

#10 x 3/4" Screw

(2)–4

3/8" x 4" Screw (7)–4

5/16" x 1"

Bolt (4)–6

3/8" x 1 3/4" Screw (6)–1

3/8" x 2" Bolt (8)–3

3/8" x 1 1/2" Screw (14)–2

1/4" x 1/2"

Screw (9)–4

1/4" Star

Washer (12)–4

1/4" Star

Washer (12)–4

2. See the inset drawing. Cut the plastic tie near

the Upright Wire (87).

Attach a Wheel (96) to the Base (95) with a 3/8"

x 2" Bolt (8) and a 3/8" Nut (10). Do not over-

tighten the Nut; the Wheel must turn freely.

Press a Base Cap (89) into the Base (95).

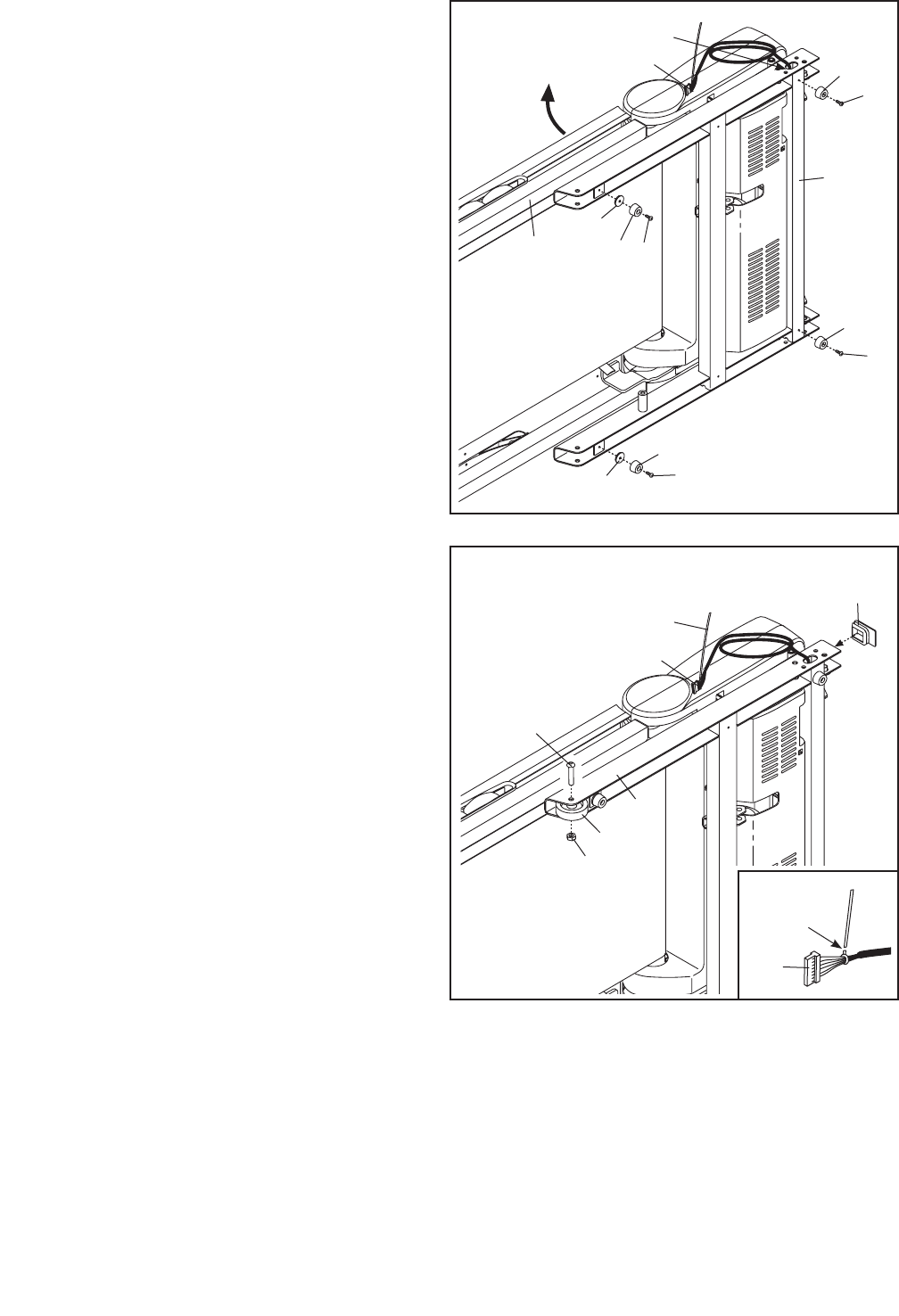

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (55) so that the treadmill is more stable;

do not fully fold the Frame yet.

Cut the shipping tie securing the Upright Wire

(87) to the Base (95). Locate a plastic tie in the

indicated hole in the Base, and use the tie to pull

the Upright Wire out of the hole.

Attach two Base Feet (90) to the Base (95) in the

locations shown with two #8 x 1" Tek Screws (5)

and two Base Foot Spacers (94).

Then, attach the other two Base Feet (90) with

two #8 x 1" Tek Screws (5).

Hole

Plastic Tie

Cut

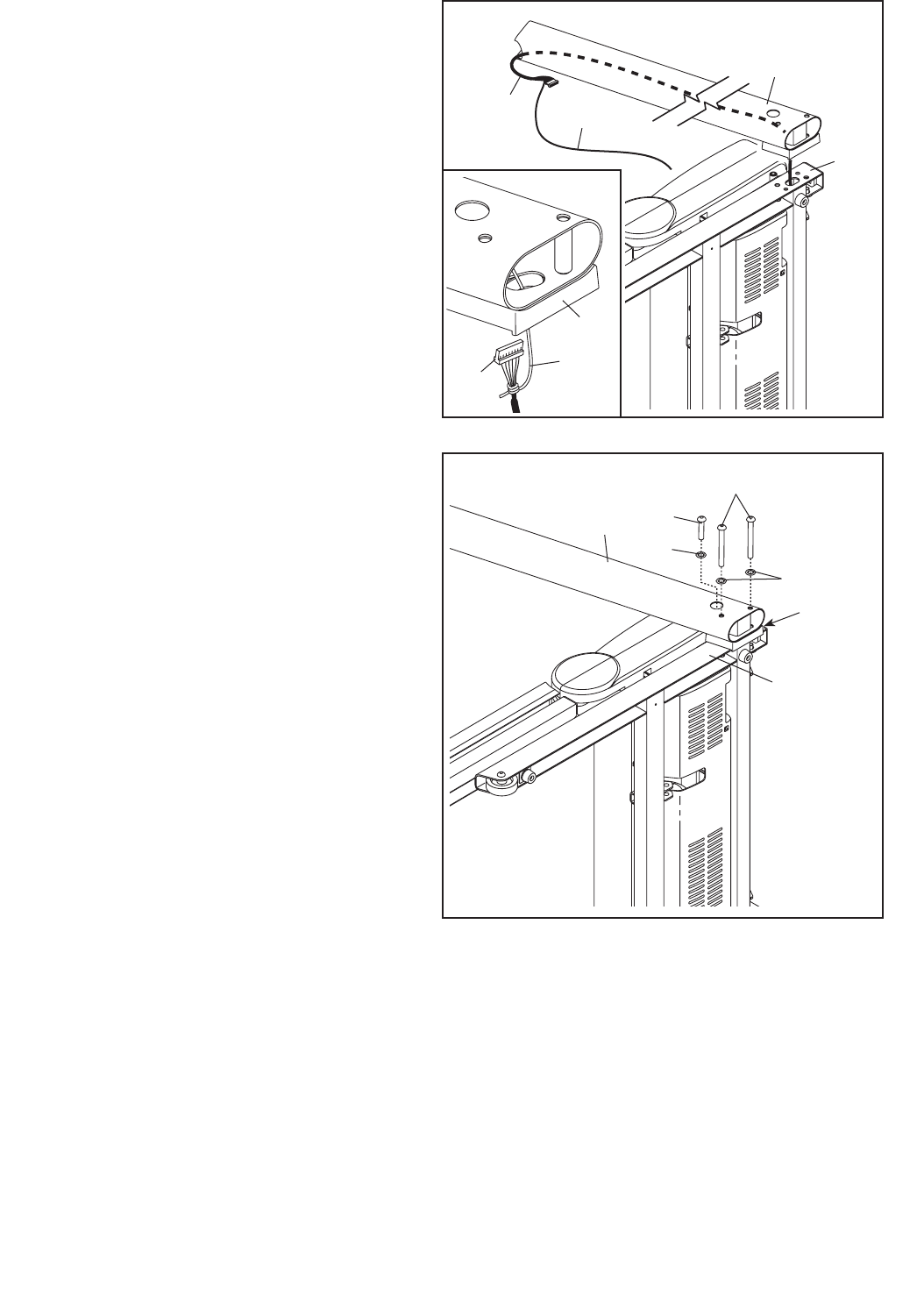

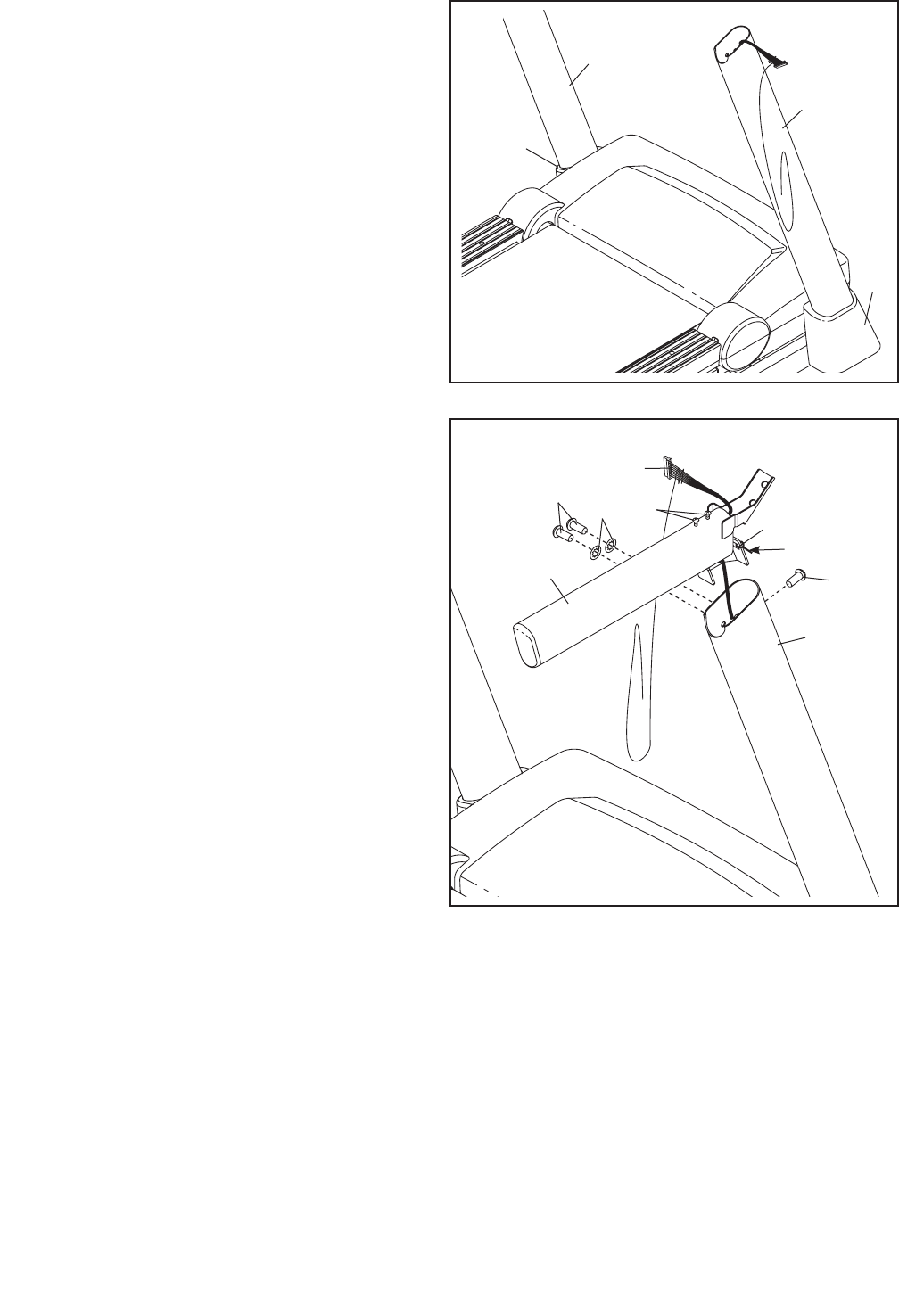

3. Identify the Right Upright (85), which is marked

with a “Right” sticker. Hold the Right Upright

near the Base (95) as shown.

See the inset drawing. Tie the wire tie in the

Right Upright (85) securely around the end of

the Upright Wire (87). Then, pull the other end

of the wire tie until the Upright Wire is routed

through the Right Upright.

Wire Tie

Wire

Tie

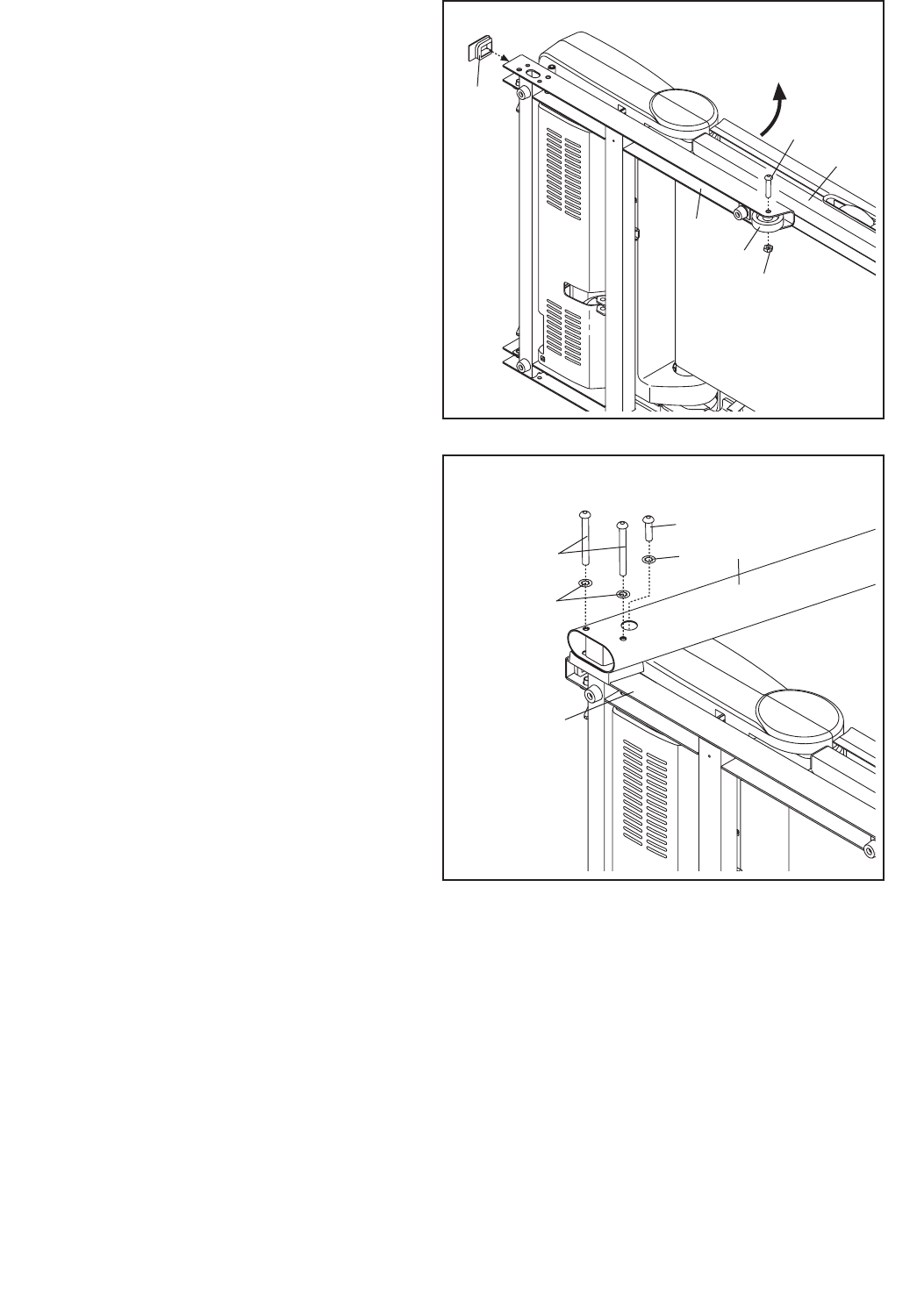

4. Hold the Right Upright (85) against the Base

(95). Be careful not to pinch the Upright

Wire (87). Insert two 3/8" x 4" Screws (7) with

two 3/8" Star Washers (11) and a 3/8" x 1 1/2"

Screw (14) with a 3/8" Star Washer (11) into the

Right Upright.

Partially tighten the 3/8" x 4" Screws (7) until

the heads of the Screws touch the Right Upright

(85); do not fully tighten the Screws yet.

Partially tighten the 3/8" x 1 1/2" Screw (14).

6. Hold the Left Upright (84) against the Base (95).

Insert two 3/8" x 4" Screws (7) with two 3/8"

Star Washers (11) and a 3/8" x 1 1/2" Screw

(14) with a 3/8" Star Washer (11) into the Left

Upright.

Partially tighten the 3/8" x 4" Screws (7) until the

heads of the Screws touch the Left Upright (84);

do not fully tighten the Screws yet. Partially

tighten the 3/8" x 1 1/2" Screws (14).

With the help of a second person, tip the tread-

mill so that the Base (95) is at on the oor.

5. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (55) so that the treadmill is more stable;

do not fully fold the Frame yet.

Attach a Wheel (96) to the Base (95) with a 3/8"

x 2" Bolt (8) and a 3/8" Nut (10). Do not over-

tighten the Nut; the Wheel must turn freely.

Press a Base Cap (89) into the Base (95).

7. Identify the Right Base Cover (91) and the Left

Base Cover (88). Slide the Right Base Cover

onto the Right Upright (85). Slide the Left Base

Cover onto the Left Upright (84).

8. Remove the tie from the bracket on the Right

Handrail (83). If necessary, press the 5/16"

Cage Nuts (38) back into place.

Hold the Right Handrail (83) near the Right

Upright (85). Insert the Upright Wire (87)

through the indicated bracket on the Right

Handrail, and pull the Upright Wire out of the

end of the Right Handrail.

Attach the Right Handrail (83) to the Right

Upright (85) with three 5/16" x 1" Bolts (4) and

two 5/16" Star Washers (13) as shown. Do not

tighten the Bolts yet.

Attach the Left Handrail (not shown) in the

same way. Note: There is no wire on the left

side. Remove and discard the screws (A) from

both Handrails.

Tie

83 4

413 A

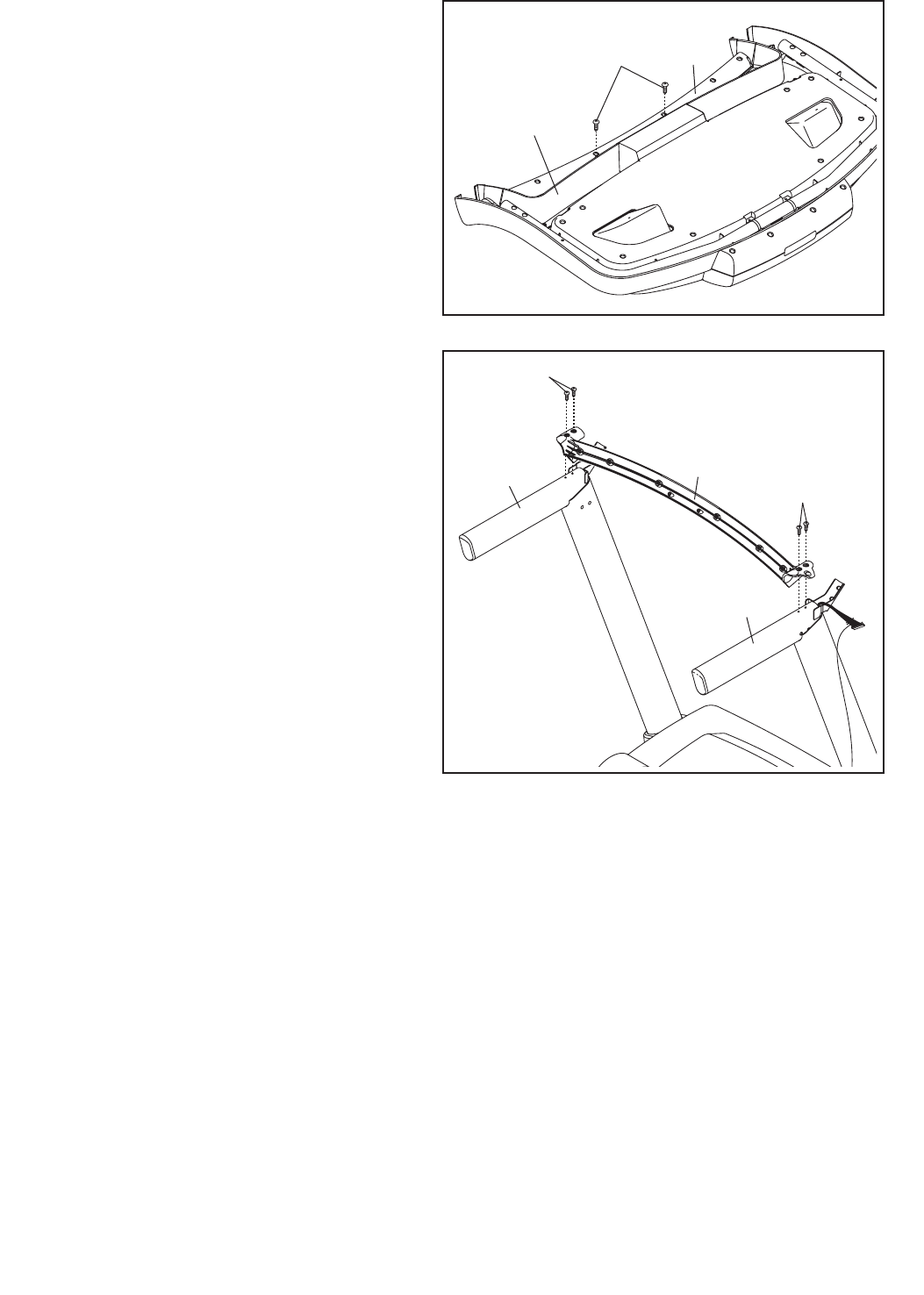

9. Set the console assembly face down on a soft

surface to avoid scratching the console assem-

bly. Remove and discard the two screws (B). Lift

off the Crossbar (33).

Console

Assembly

10. IMPORTANT: To avoid damaging the

Crossbar (33), do not use power tools and

do not overtighten the #10 x 3/4" Screws (2).

Orient the Crossbar (33) as shown. Attach the

Crossbar to the Handrails (82, 83) with four #10

x 3/4" Screws (2). Start all four Screws, and

then tighten them.

82 2

12. Set the console assembly on the Left Handrail

(82) and the Right Handrail (83). Be careful not

to pinch any wires. Insert the excess Upright

Wire (not shown) into the Right Handrail.

Attach the console assembly with six #8 x 3/4"

Screws (1) and four 1/4" x 1/2" Screws (9)

with four 1/4" Star Washers (12). Start all ten

Screws, and then tighten them.

See steps 4 and 6. Fully tighten the four 3/8" x

4" Screws (7) and the two 3/8" x 1 1/2" Screws

(14).

See step 8. Fully tighten the six 5/16" x 1" Bolts

(4).

12 82

Console

Assembly

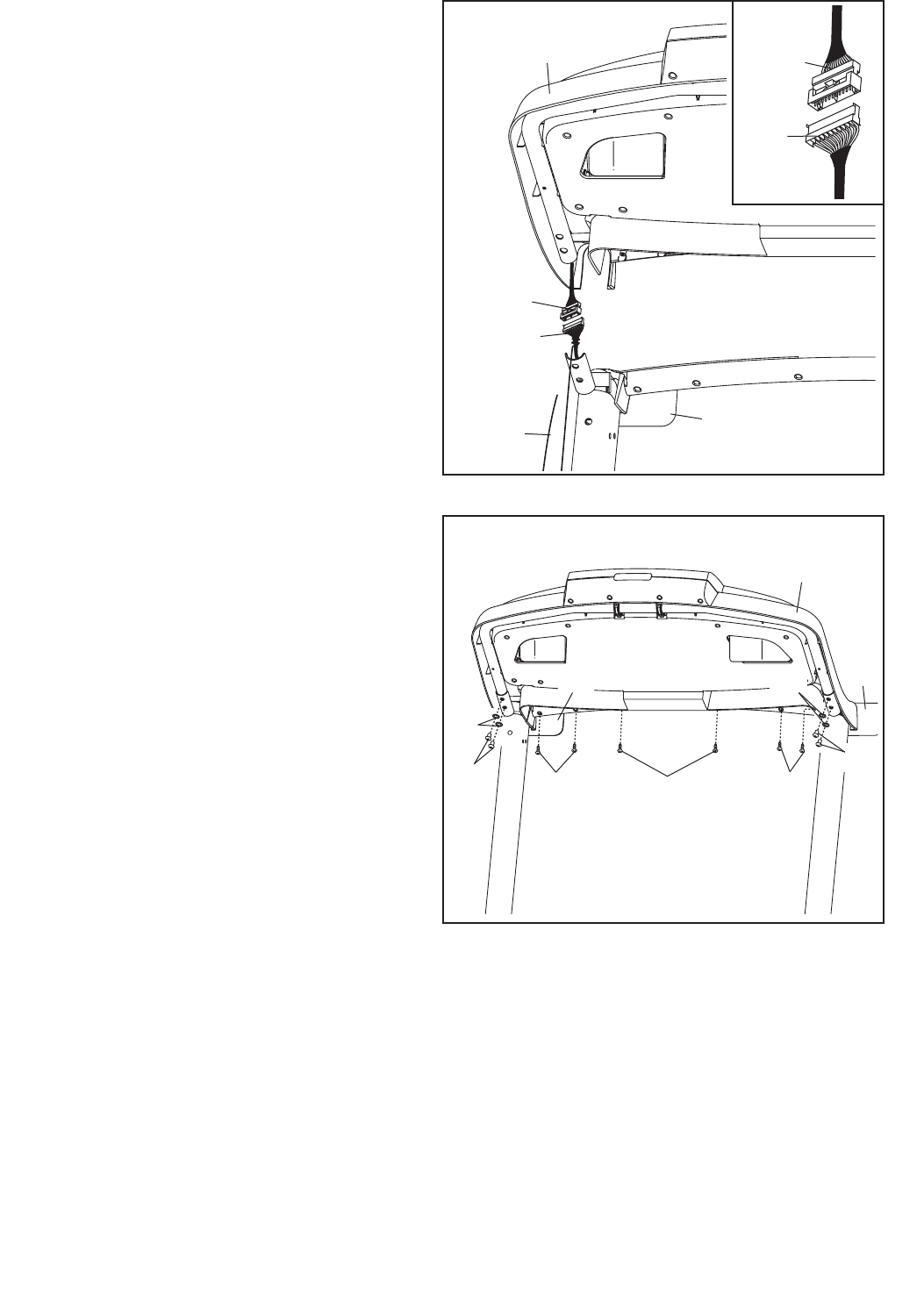

11. With the help of a second person, hold the con-

sole assembly near the Right Handrail (83).

Connect the Upright Wire (87) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Then, remove the wire tie from

the Upright Wire.

Console

Assembly

Console

Wire

Tie

Console

Wire

14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-

tic on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.

Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is

used to adjust the walking belt (see pages 22 and 23).

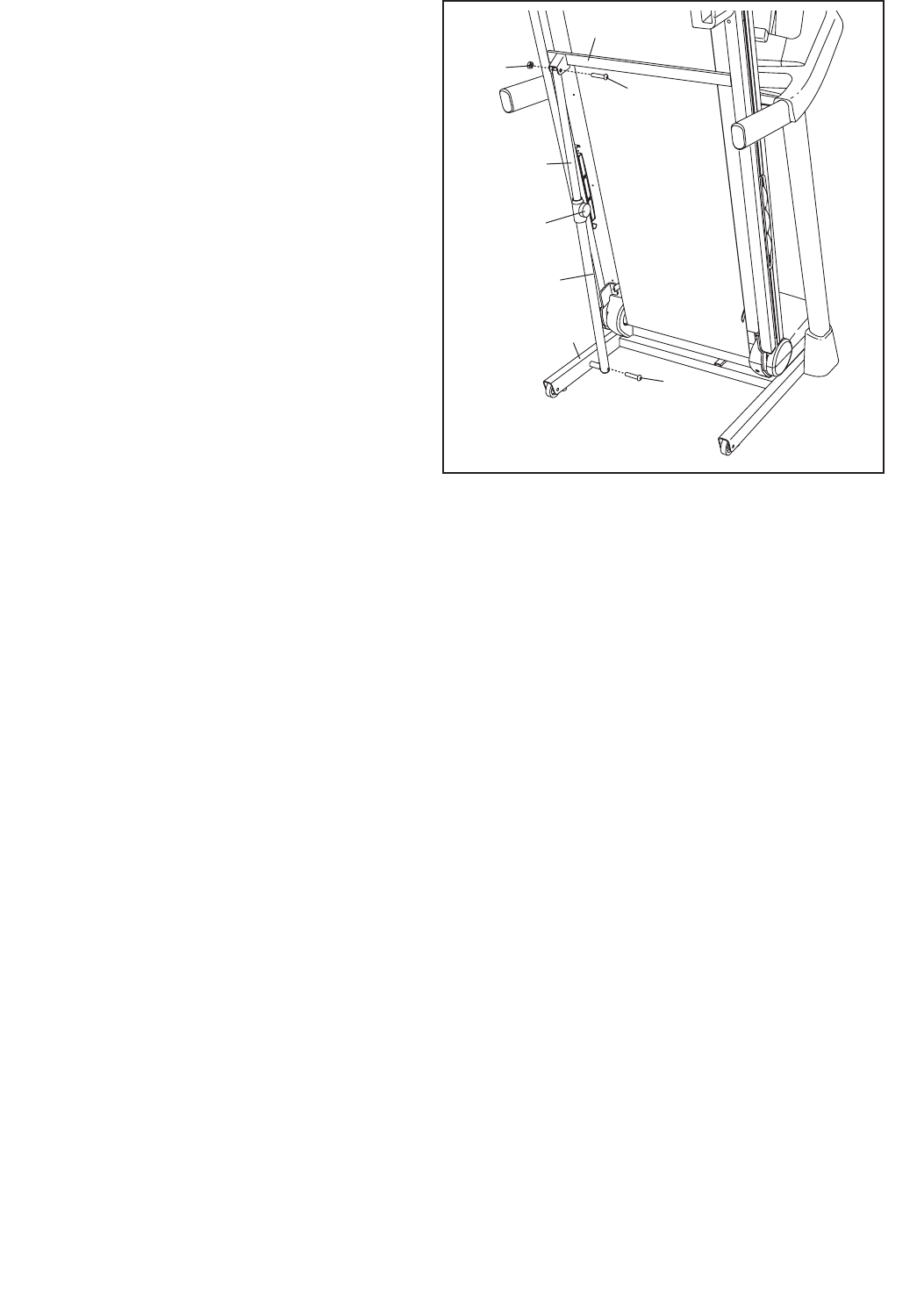

13. Raise the Frame (55) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (51) so that the large

barrel and the latch knob are oriented as shown.

Attach the lower end of the Storage Latch (51) to

the Base (95) with a 3/8" x 1 3/4" Screw (6).

Attach the upper end of the Storage Latch (51)

to the bracket on the Frame (55) with a 3/8" x

2" Bolt (8) and a 3/8" Nut (10). Note: It may be

necessary to move the Frame (55) back and

forth to align the Storage Latch with the Frame.

Lower the Frame (55) (see HOW TO LOWER

THE TREADMILL FOR USE on page 20).

Large

Barrel

Latch

Knob

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 12 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

Surge

Suppressor

Grounding Pin

Grounded Outlet

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features

designed to make your workouts more effective and

enjoyable. When you use the manual mode, you can

change the speed and incline of the treadmill with the

touch of a button. As you exercise, the console will dis-

play instant exercise feedback. You can even measure

your heart rate using the handgrip heart rate monitor.

In addition, the console features sixteen onboard work-

outs—four calorie workouts, four timed workouts, four

distance workouts, and four performance workouts.

Each workout automatically controls the speed and

incline of the treadmill as it guides you through an ef-

fective exercise session.

To turn on the power, see page 16. To use the man-

ual mode, see page 16. To use an onboard work-

out, see page 18. To use the information mode, see

page 19.

Note: The console can display speed and distance in

either miles or kilometers. To nd which unit of mea-

surement is selected, see THE INFORMATION MODE

on page 19. For simplicity, all instructions in this man-

ual refer to miles.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 23).

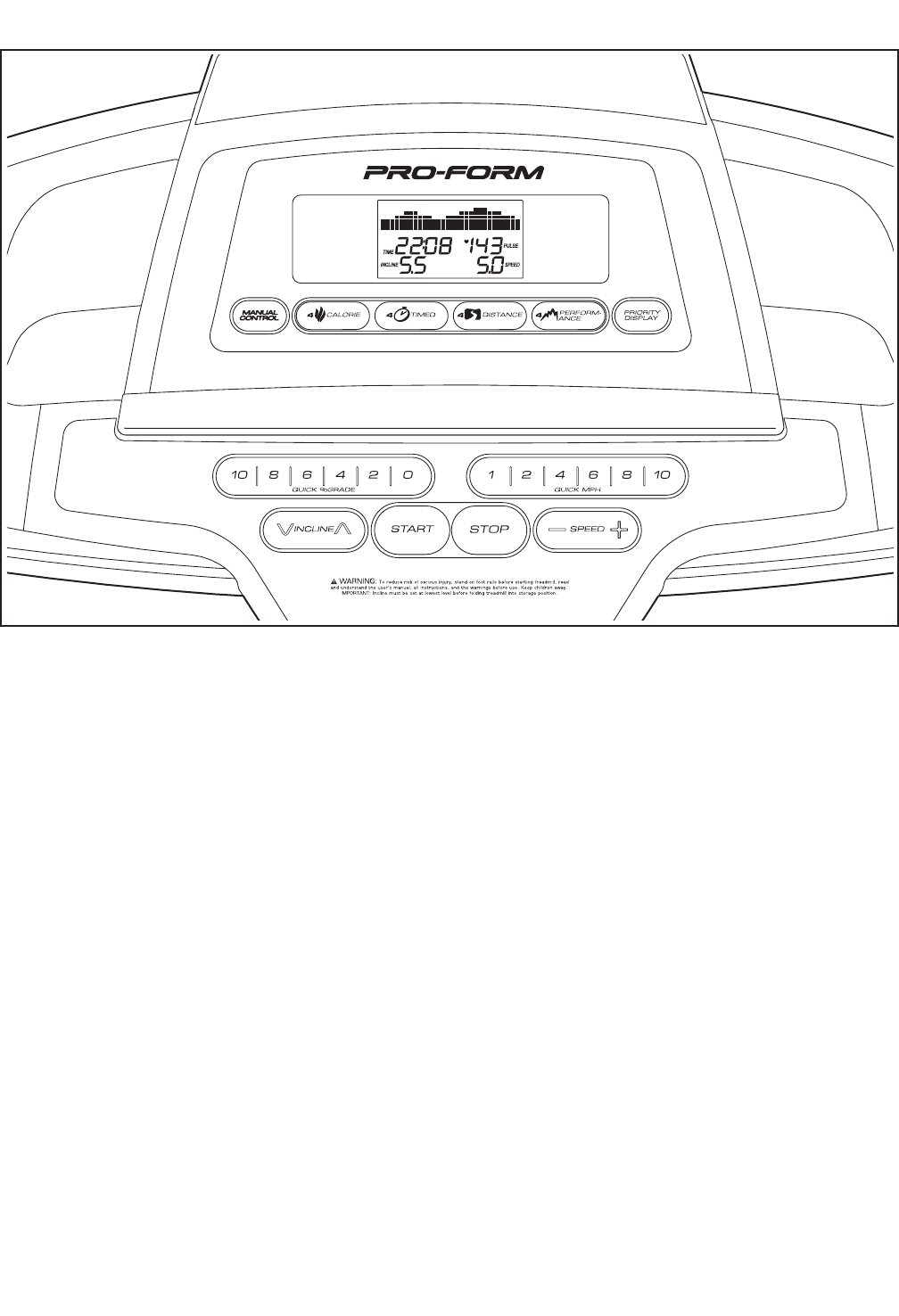

CONSOLE DIAGRAM

ETPF59510

(PFTL59510)

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

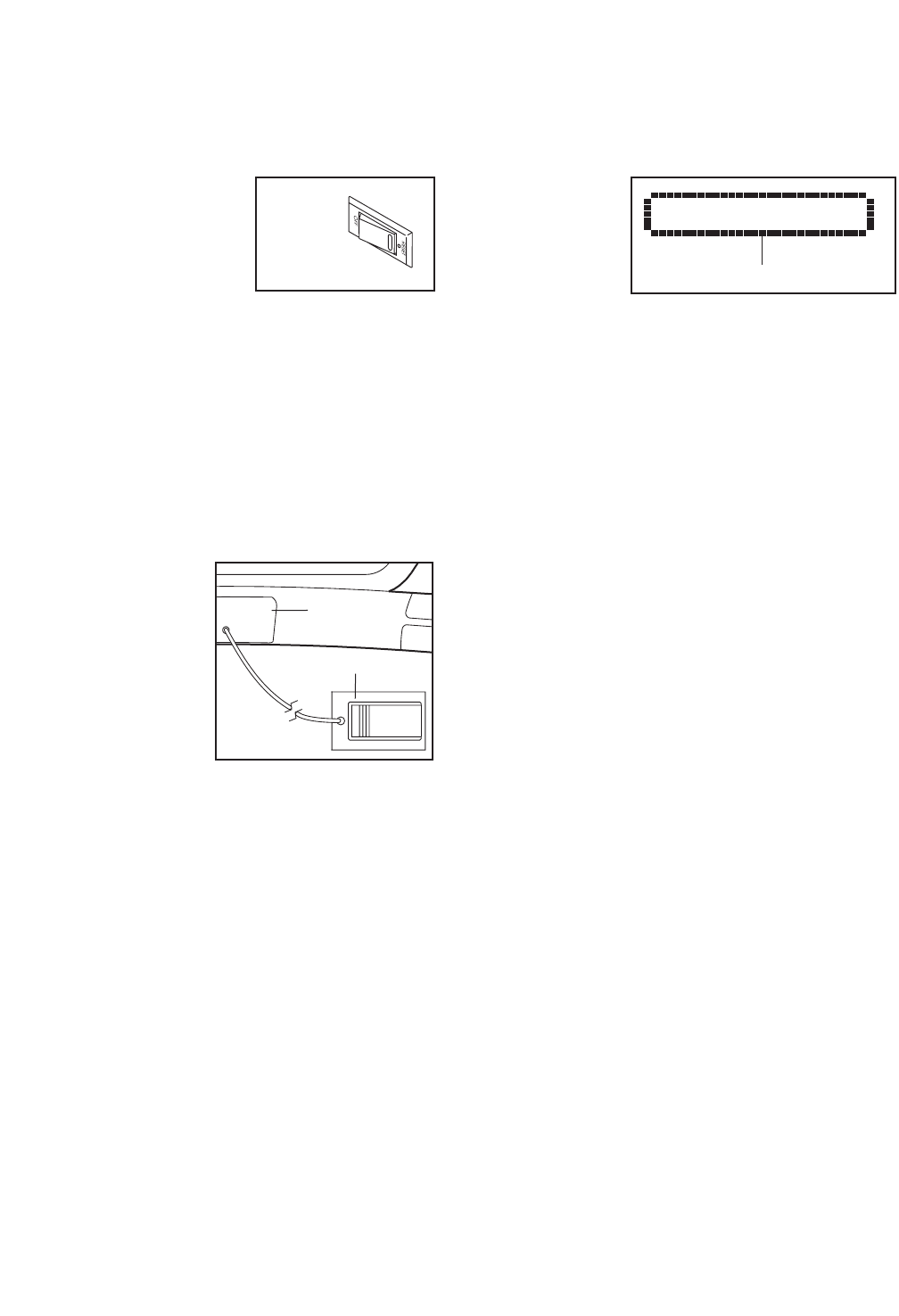

Plug in the power cord (see

page 14). Next, locate the

power switch on the tread-

mill frame near the power

cord. Make sure that the

switch is in the reset

position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

19 to turn off the demo mode.

Next, stand on the

foot rails of the tread-

mill. Find the clip at-

tached to the key and

slide the clip onto the

waistband of your

clothes. Then, insert

the key into the con-

sole. After a moment,

the displays will light.

IMPORTANT: In an

emergency, the key can be pulled from the con-

sole, causing the walking belt to slow to a stop.

Test the clip by carefully taking a few steps back-

ward; if the key is not pulled from the console, ad-

just the position of the clip.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the

key is in-

serted, the

manual

mode will be

selected. If

you have se-

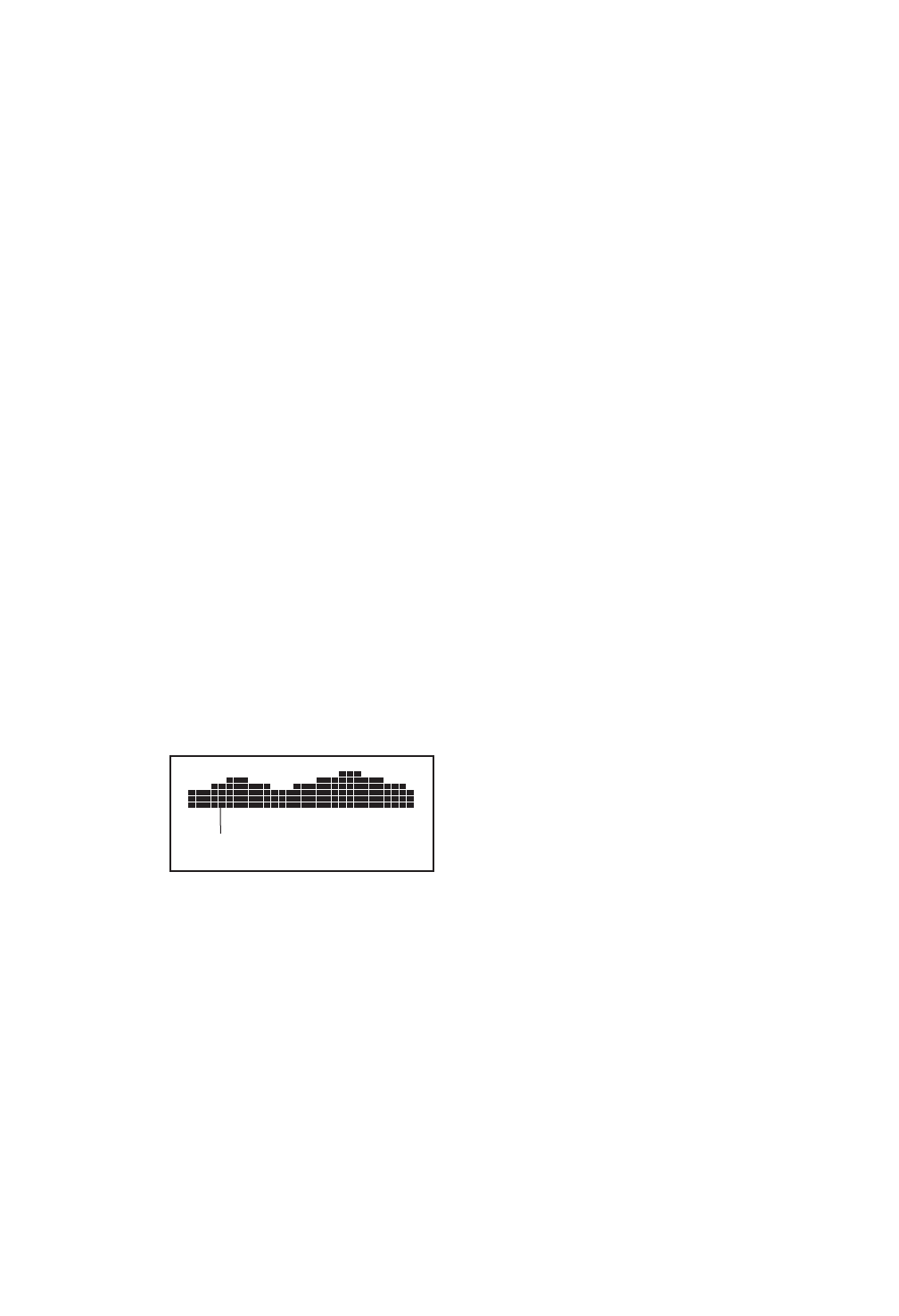

lected a workout, press any of the workout buttons

repeatedly until a track appears in the display.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the Quick MPH

buttons numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed in-

crease and decrease buttons. Each time you press

a button, the speed setting will change by 0.1 mph;

if you hold down a button, the speed setting will

change in increments of 0.5 mph.

If you press one of the numbered Quick MPH but-

tons, the walking belt will gradually change speed

until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to ash in the display. To re-

start the walking belt, press the Start button, the

Speed increase button, or one of the numbered

Quick MPH buttons.

Track

Reset

ETPF59510

(PFTL59510)

Key

Clip

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

Quick % Grade buttons numbered 0 through 10.

Each time you press one of the buttons, the tread-

mill will gradually adjust to the selected incline

setting.

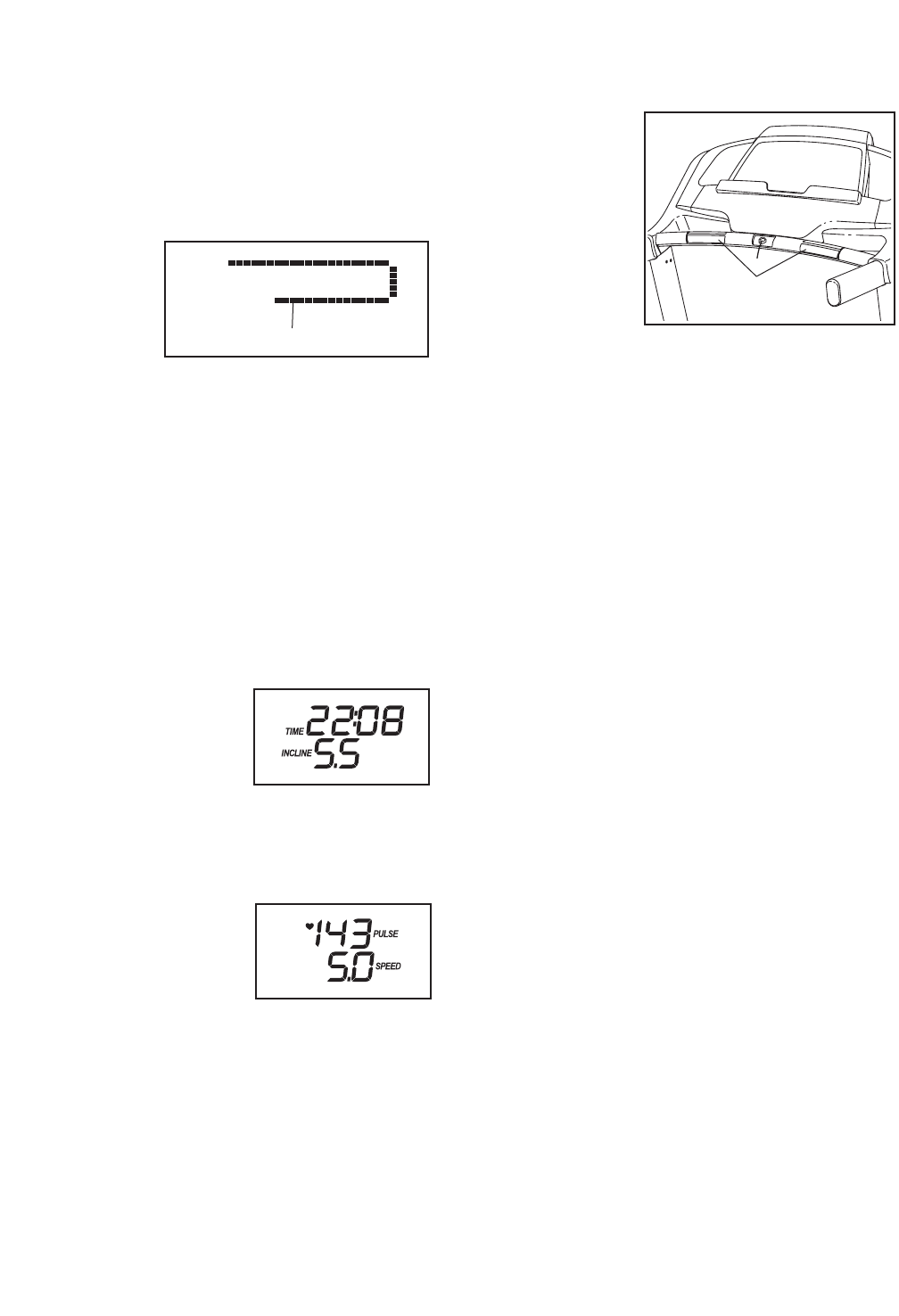

5. Follow your progress with the displays.

When the

manual

mode is se-

lected, the

upper half of

the display

will show a

track that represents 1/4 mile (400 m). As you walk

or run, indicators will appear in succession around

the track until the entire track appears. The track

will then disappear and the indicators will again

begin to appear in succession.

The upper half of the display can also show the

elapsed time, the distance you have walked or

run, the speed of the walking belt, the approximate

number of calories you have burned, your pace in

minutes per mile, and the incline of the treadmill.

Press the Priority Display button repeatedly until

the desired workout information appears.

The lower left corner

of the display will show

the elapsed time, the

distance that you have

walked or run, and

the incline level of the

treadmill. Note: When an onboard workout is se-

lected, the display will show the time remaining in

the workout instead of the elapsed time.

The lower right corner

of the display will show

the approximate num-

ber of calories you have

burned, the speed of

the walking belt, and

your pace in minutes

per mile. The right side of the display will also show

your heart rate when you use the handgrip heart

rate monitor.

To reset the display, press the Stop button, remove

the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using

the hand-

grip heart

rate moni-

tor, remove

the sheets of

plastic from

the metal

contacts. In

addition, make

sure that your

hands are clean.

To measure your heart rate, stand on the foot

rails and place your hands on the metal contacts—

avoid moving your hands. When your pulse is

detected, the heart symbol in the display will begin

to ash each time your heart beats, one or two

dashes will appear, and then your heart rate will be

shown. For the most accurate heart rate read-

ing, continue to hold the contacts for at least

15 seconds.

7. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

When you are nished using the treadmill, press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Track

Contacts

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 16.

2. Select an onboard workout.

To select an onboard workout, press the Calorie

button, the Timed button, the Distance button, or

the Performance button repeatedly until the desired

workout appears in the display.

When you select an onboard workout, the maxi-

mum speed setting and the maximum incline set-

ting of the workout will ash in the display for a few

seconds and a prole of the speed settings of the

workout will scroll across the display. If you select

a Calorie workout, the approximate number of calo-

ries you will burn will also appear in the display.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rst speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are

programmed for each segment. Note: The same

speed setting and/or incline setting may be pro-

grammed for consecutive segments.

During the

workout, the

prole will

show your

progress.

The ashing

segment of

the prole represents the current segment of the

workout. The height of the ashing segment indi-

cates the speed setting for the current segment.

At the end of each segment, a series of tones will

sound and the next segment of the prole will begin

to ash. If a new speed and/or incline setting is

programmed for the next segment, the new speed

and/or incline setting will appear in the displays for

a few seconds and the treadmill will automatically

adjust to the new speed and/or incline setting.

The workout will continue in this way until the last

segment of the prole ashes in the display and the

last segment ends. The walking belt will then slow

to a stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories that

you burn will depend on your metabolic rate. In

addition, if you manually change the speed or

incline of the treadmill during the workout, the

number of calories you burn will be affected.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to ash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Follow your progress with the displays.

See step 5 on page 17. The lower left corner of the

display will show the time remaining instead of the

elapsed time.

5. Measure your heart rate if desired.

See step 6 on page 17.

6. When you are nished exercising, remove the

key from the console.

See step 7 on page 17.

Current Segment

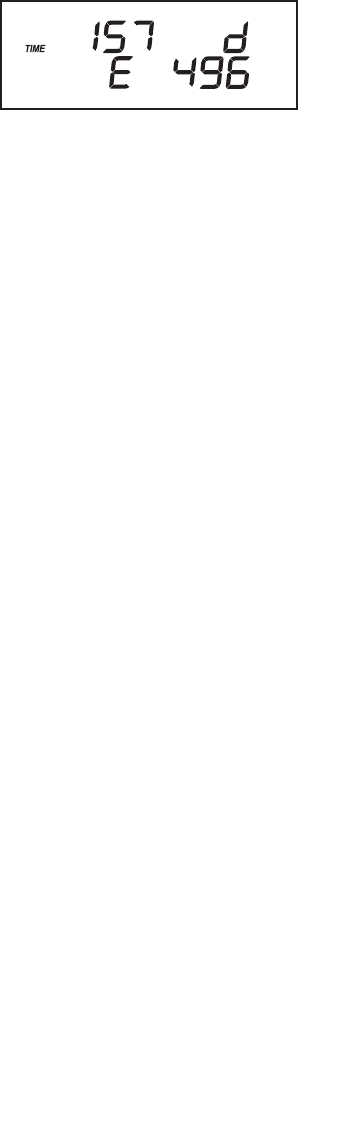

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill usage information. The information

mode also allows you to select miles or kilometers as

the unit of measurement and to turn on and turn off the

display demo mode.

To select the information mode, hold down the Stop

button, insert the key into the console, and then re-

lease the Stop button. When the information mode is

selected, the following information will appear in the

display:

• The number

of hours that

the treadmill

has been

operated.

• The total number of miles or kilometers that the

walking belt has moved.

• An “E” for English miles or an “M” for metric kilome-

ters. To change the unit of measurement, press the

Speed increase button.

• A “d” if the demo mode is turned on. The console

features a display demo mode, designed to be used

if the treadmill is displayed in a store. While the

demo mode is turned on, the console will function

normally when you plug in the power cord, press the

power switch into the reset position, and insert the

key into the console. However, when you remove

the key, the displays will remain lit, although the but-

tons will not function. To turn on or turn off the demo

mode, press the Speed decrease button.

To exit the information mode, remove the key from the

console.

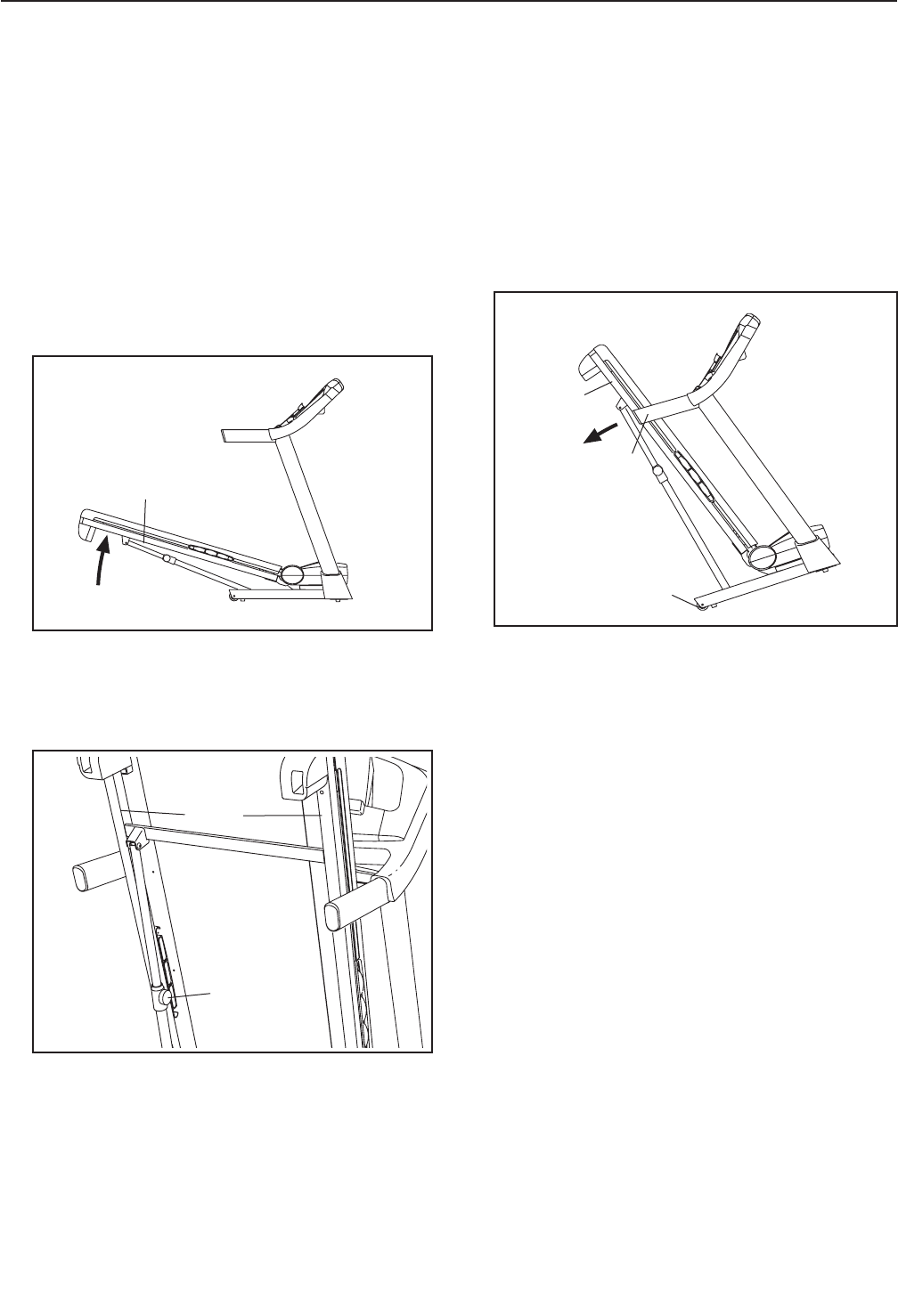

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

1. Hold the metal frame rmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

To protect the oor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the tread-

mill frame with your right hand. Then, pull the latch

knob to the left. IMPORTANT: Do not turn the

latch knob. If necessary, push the frame forward

slightly. Pivot the frame downward a few inches,

and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmly with both hands, and lower it to the oor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Handrail

Frame

Wheel

Frame

Latch

Knob

Frame

Most treadmill problems can be solved by following

the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor is

plugged into a properly grounded outlet (see page

14). Use only a single-outlet surge suppressor that

meets all of the specications described on page

14. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

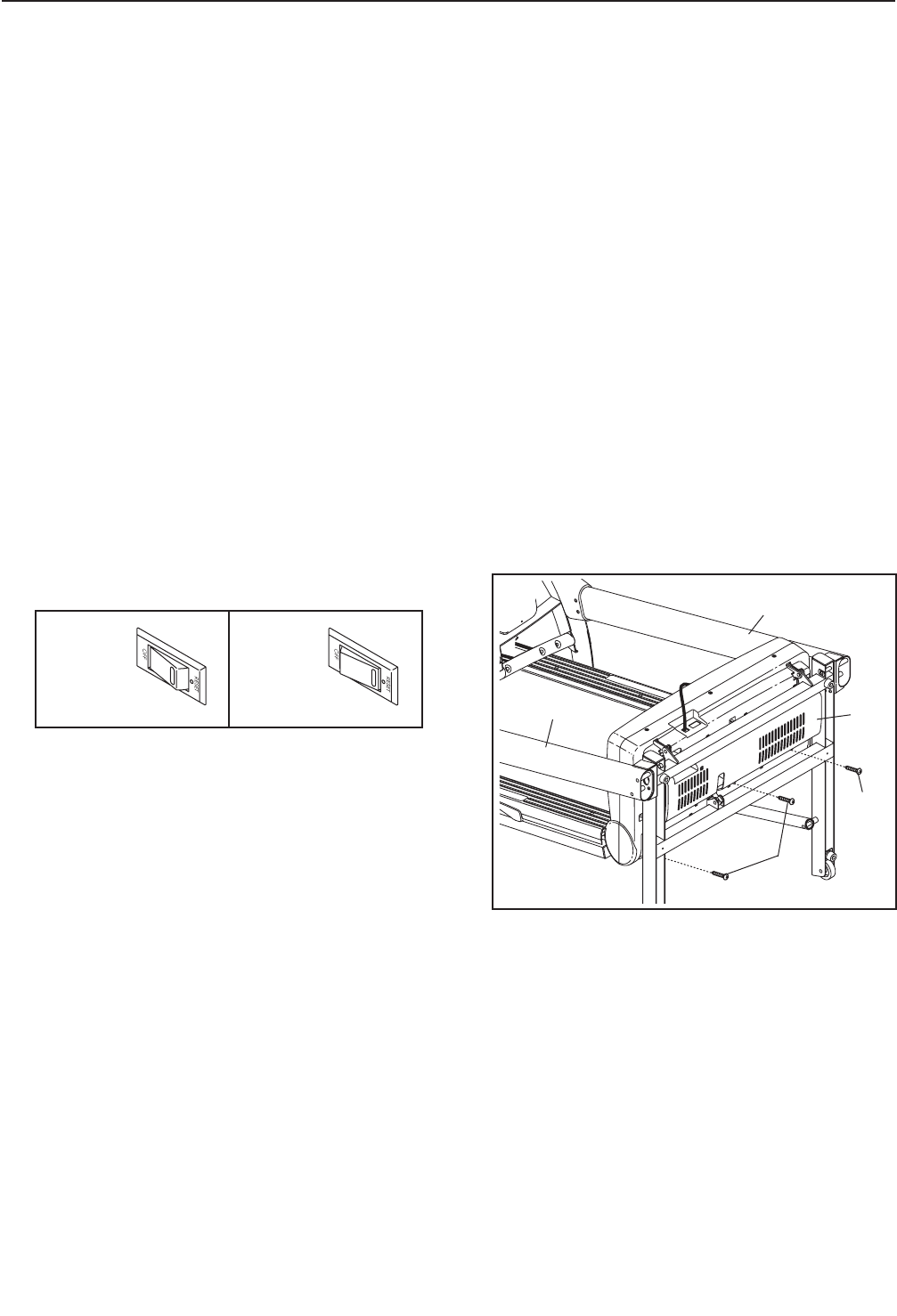

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

power switch, wait for ve minutes and then press

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

If the switch has tripped, wait for ve minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for ve

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when

you remove the key from the console

a. The console features a display demo mode, de-

signed to be used if the treadmill is displayed in a

store. If the displays remain lit when you remove

the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a

few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 19 to turn off the

demo mode.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. With the help of a second

person, carefully tip down the Uprights (84, 85). If

there are three #8 x 2" Screws (16) in the bottom of

the Belly Pan (75), remove them. Note: A Phillips

screwdriver with a shaft at least 5 in. (13 cm) long

is required.

Then, raise the Uprights (84, 85).

TROUBLESHOOTING

Reset

Tripped

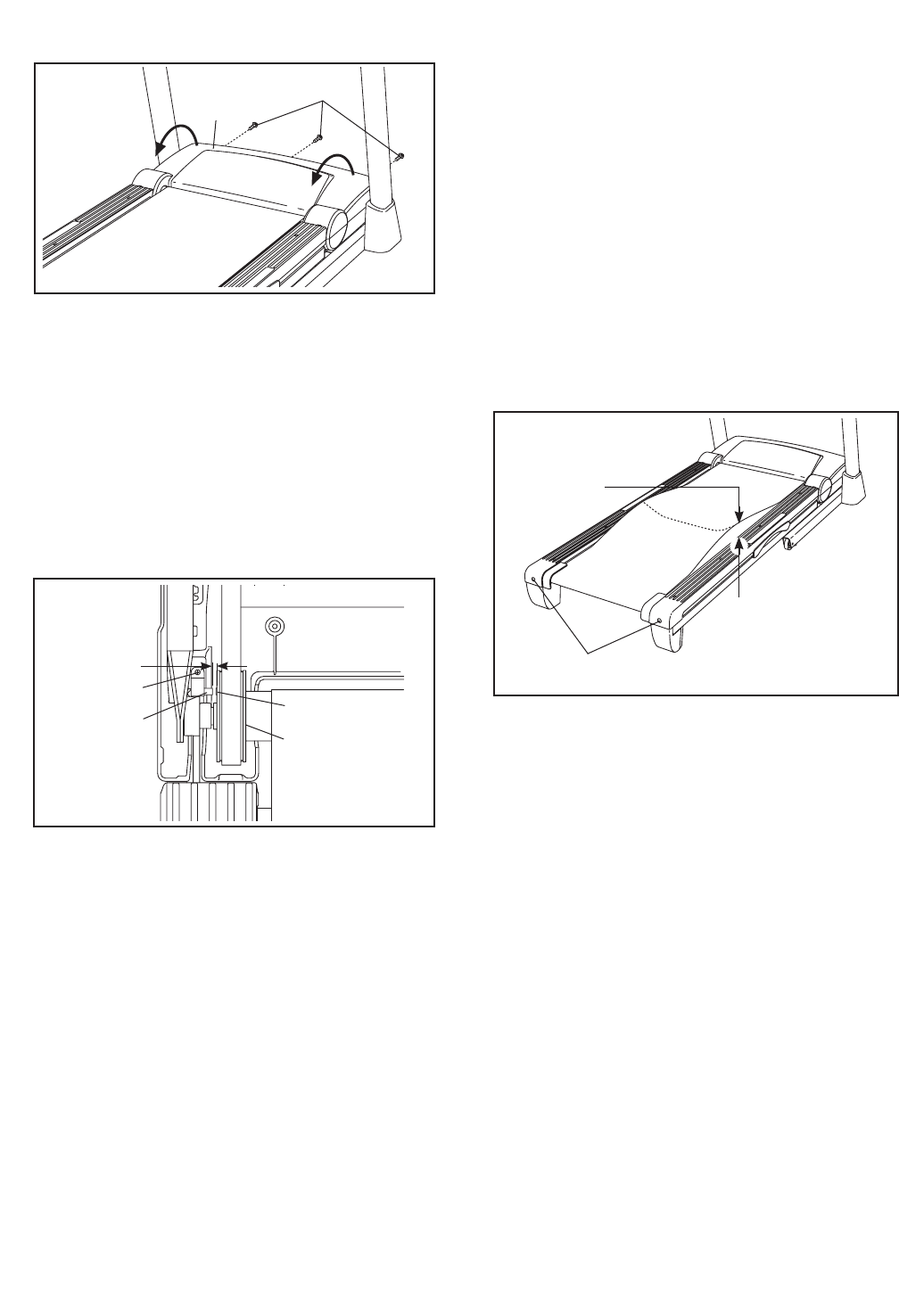

Next, remove the three #8 x 3/4" Screws (1), and

carefully pivot the Motor Hood (62) off.

Locate the Reed Switch (73) and the Magnet (47)

on the left side of the Pulley (48). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm). If

necessary, loosen the #8 x 3/4" Truss Head Screw

(18), move the Reed Switch slightly, and then re-

tighten the Screw. Reattach the Motor Hood (not

shown). Reattach the #8 x 2" Screws (not shown)

if necessary. Run the treadmill for a few minutes to

check for a correct speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then

release the Stop button and the Speed increase

button. Press the Stop button and then press the

Incline increase or decrease button. The treadmill

will automatically rise to the maximum incline level

and then return to the minimum level. This will re-

calibrate the incline system. If the incline does not

begin calibrating, press the Stop button again, and

then press the Incline increase or decrease button

again. When the incline is calibrated, remove the

key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a single-outlet surge suppressor that

meets all of the specications described on page

14.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. If the walking belt still slows when walked on, see

the front cover of this manual.

Top

View

1/8 in. Idler Roller Screws

2–3 in.

SYMPTOM: The walking belt is off-center or slips

when walked on

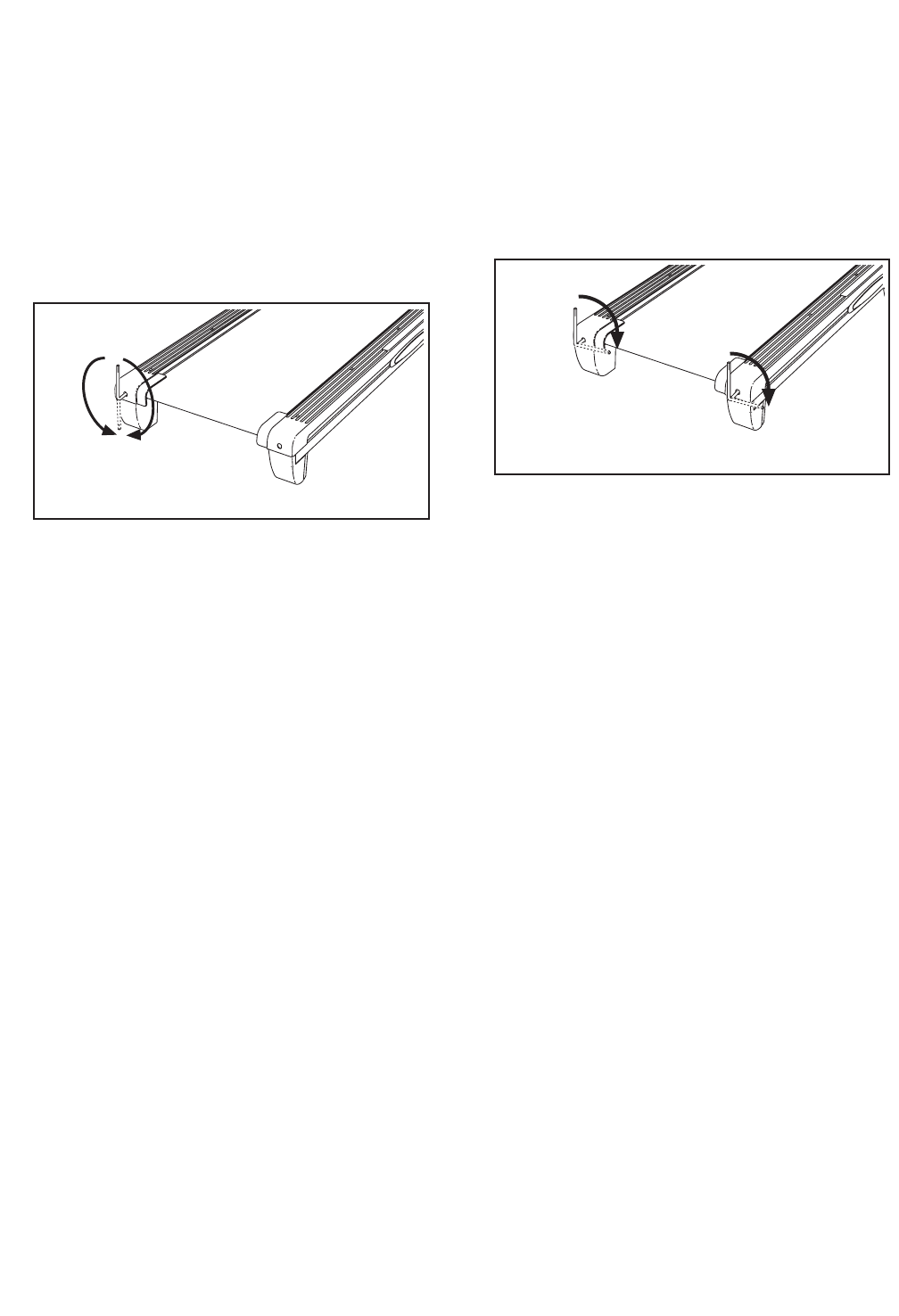

a. If the walking belt is off-center, rst remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, rst re-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both idler roller screws

clockwise, 1/4 of a turn. When the walking belt is

correctly tightened, you should be able to lift each

edge of the walking belt 2 to 3 in. (5 to 7 cm) off

the walking platform. Be careful to keep the walk-

ing belt centered. Then, plug in the power cord,

insert the key, and carefully walk on the treadmill

for a few minutes. Repeat until the walking belt is

properly tightened.

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your "training zone." The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise—never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back foot

at on the oor. Bend your front leg, lean forward and move your

hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times

for each leg. To cause further stretching of the achilles tendons,

bend your back leg as well. Stretches: Calves, achilles tendons and

ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

PART LIST

Key No. Qty. Description Key No. Qty. Description

1 23 #8 x 3/4" Screw

2 4 #10 x 3/4" Screw

3 2 Console Clamp

4 6 5/16" x 1" Bolt

5 4 #8 x 1" Tek Screw

6 1 3/8" x 1 3/4" Screw

7 4 3/8" x 4" Screw

8 3 3/8" x 2" Bolt

9 4 1/4" x 1/2" Screw

10 3 3/8" Nut

11 6 3/8" Star Washer

12 4 1/4" Star Washer

13 4 5/16" Star Washer

14 2 3/8" x 1 1/2" Screw

15 5 #8 x 3/4" Tek Screw

16 3 #8 x 2" Screw

17 2 #8 x 1/2" Pan Head Screw

18 11 #8 x 3/4" Truss Head Screw

19 2 #8 x 1 1/2" Screw

20 2 5/16" x 1 1/2" Bolt

21 2 5/16" x 3 5/8" Bolt

22 2 3/8" x 1" Screw

23 1 1/4" x 1" Screw

24 2 Idler Roller Screw

25 1 3/8" x 1 3/4" Bolt

26 1 3/8" x 1 1/2" Bolt

27 2 3/8" x 3/4" Bolt

28 7 #8 x 1/2" Bright Screw

29 1 #8 x 1/2" Ground Screw

30 8 #12 x 1 1/4" Screw

31 2 1/4" Motor Screw

32 4 #8 Belt Guide Screw

33 1 Crossbar

34 1 Right Tray

35 4 3/8" Jam Nut

36 4 5/16" Flange Nut

37 3 Hood Clip

38 2 5/16" Cage Nut

39 2 Foot Rail Decal

40 1 Left Foot Rail

41 1 Latch Warning Decal

42 2 Platform Cushion

43 2 Belt Guide

44 1 Walking Platform

45 2 Frame Cap

46 2 Frame Spacer

47 1 Magnet

48 1 Front Roller/Pulley

49 1 Walking Belt

50 0 Not Used

51 1 Storage Latch

52 1 Console Ground Wire

53 4 #8 x 1" Screw

54 1 Right Foot Rail

55 1 Frame

56 2 Roller Bracket

57 1 Roller Ground Wire

58 1 Right Rear Foot

59 1 Left Rear Foot

60 1 Idler Roller

61 1 Hex Key

62 1 Motor Hood

63 1 Hood Accent

64 1 Lift Frame

65 1 Lift Frame Ground Wire

66 1 Drive Motor Belt

67 1 Drive Motor

68 1 Controller Ground Wire

69 1 Power Cord

70 1 Grommet

71 1 Power Switch

72 1 Controller

73 1 Reed Switch

74 1 Reed Switch Clamp

75 1 Belly Pan

76 3 Wire Tie

77 8 8" Tie

78 2 15" Tie

79 4 Releasable Tie

80 1 Console Base

81 2 Handrail Cap

82 1 Left Handrail

83 1 Right Handrail

84 1 Left Upright

85 1 Right Upright

86 2 1/4" Roller Star Washer

87 1 Upright Wire

88 1 Left Base Cover

89 2 Base Cap

90 4 Base Foot

91 1 Right Base Cover

92 2 Caution Decal

93 1 Incline Wire

94 2 Base Foot Spacer

95 1 Base

96 2 Wheel

97 1 Incline Motor

98 1 Incline Motor Spacer

99 1 Key/Clip

100 2 Cable Tie

Model No. PFTL59011.0 R0512A

Key No. Qty. Description

101 1 Console

102 1 Console Frame

103 1 Left Tray

104 1 5/32" Hex Key

* – User’s Manual

Note: Specications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

EXPLODED DRAWING A Model No. PFTL59011.0 R0512A

54 39

61 57

104

EXPLODED DRAWING B Model No. PFTL59011.0 R0512A

EXPLODED DRAWING C Model No. PFTL59011.0 R0512A

94 25

EXPLODED DRAWING D Model No. PFTL59011.0 R0512A

103

101

100

102

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor

is warranted for twenty-ve (25) years from the date of purchase. Parts and labor are warranted for one

(1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.proformservice.com/registration.

Proform Pftl590110 515 Tx Treadmill Users Manual

PROFORM-Treadmill-515_TX

Navigation menu

Versions of this User Manual:

Views

Navigation
