USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFTL59112.0

Serial No.

Write the serial number in the space

above for reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer

Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

www.proform.com

Serial Number

Decal

2

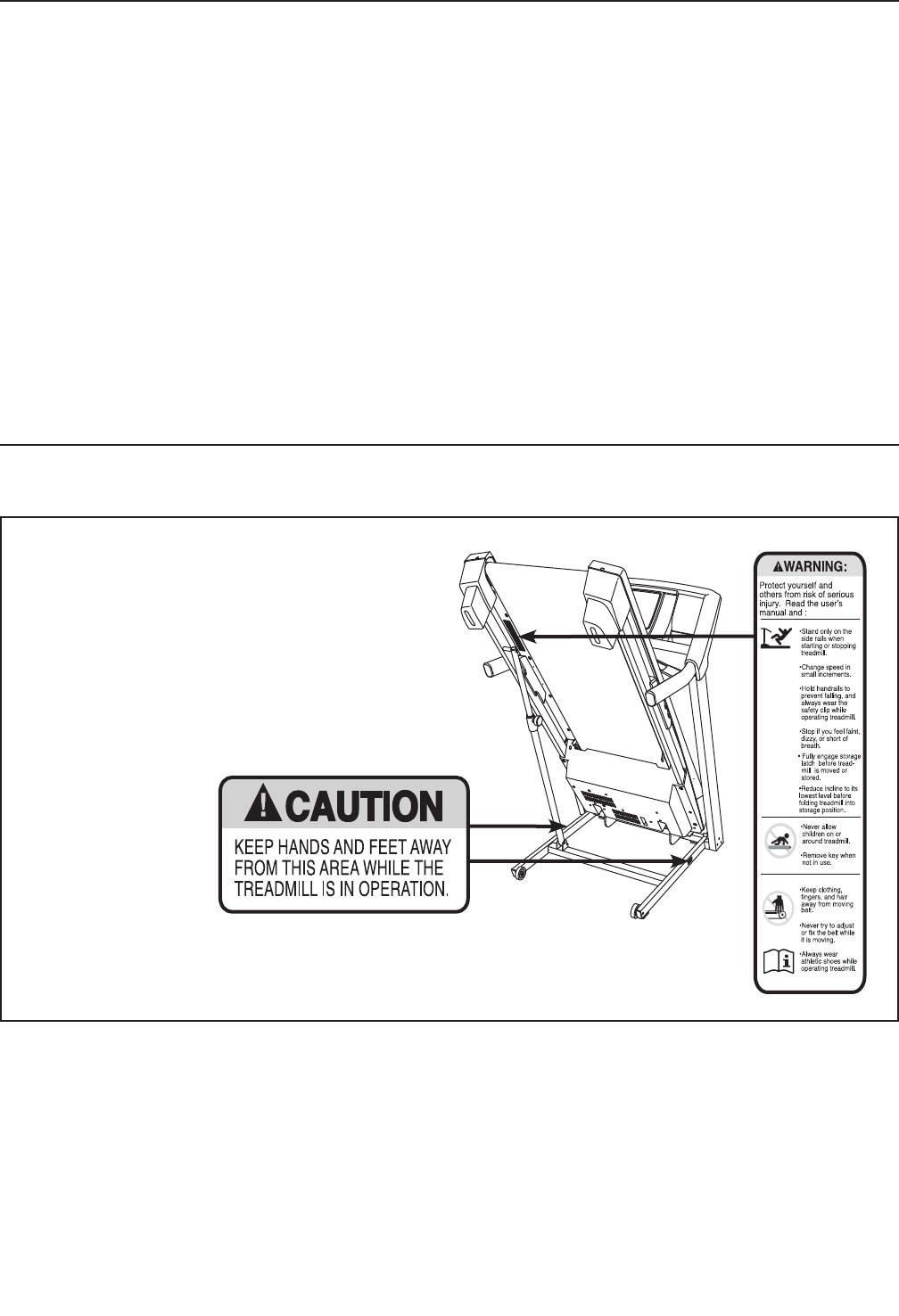

WARNING DECAL PLACEMENT

This drawing shows the locations of the warn-

ing decals. If a decal is missing or illegible,

call the telephone number on the front cover

of this manual and request a free replace-

ment decal. Apply the decal in the location

shown. Note: The decals may not be shown at

actual size.

256836

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION AND ADJUSTMENT .............................................................13

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TROUBLESHOOTING ......................................................................23

EXERCISE GUIDELINES ....................................................................26

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

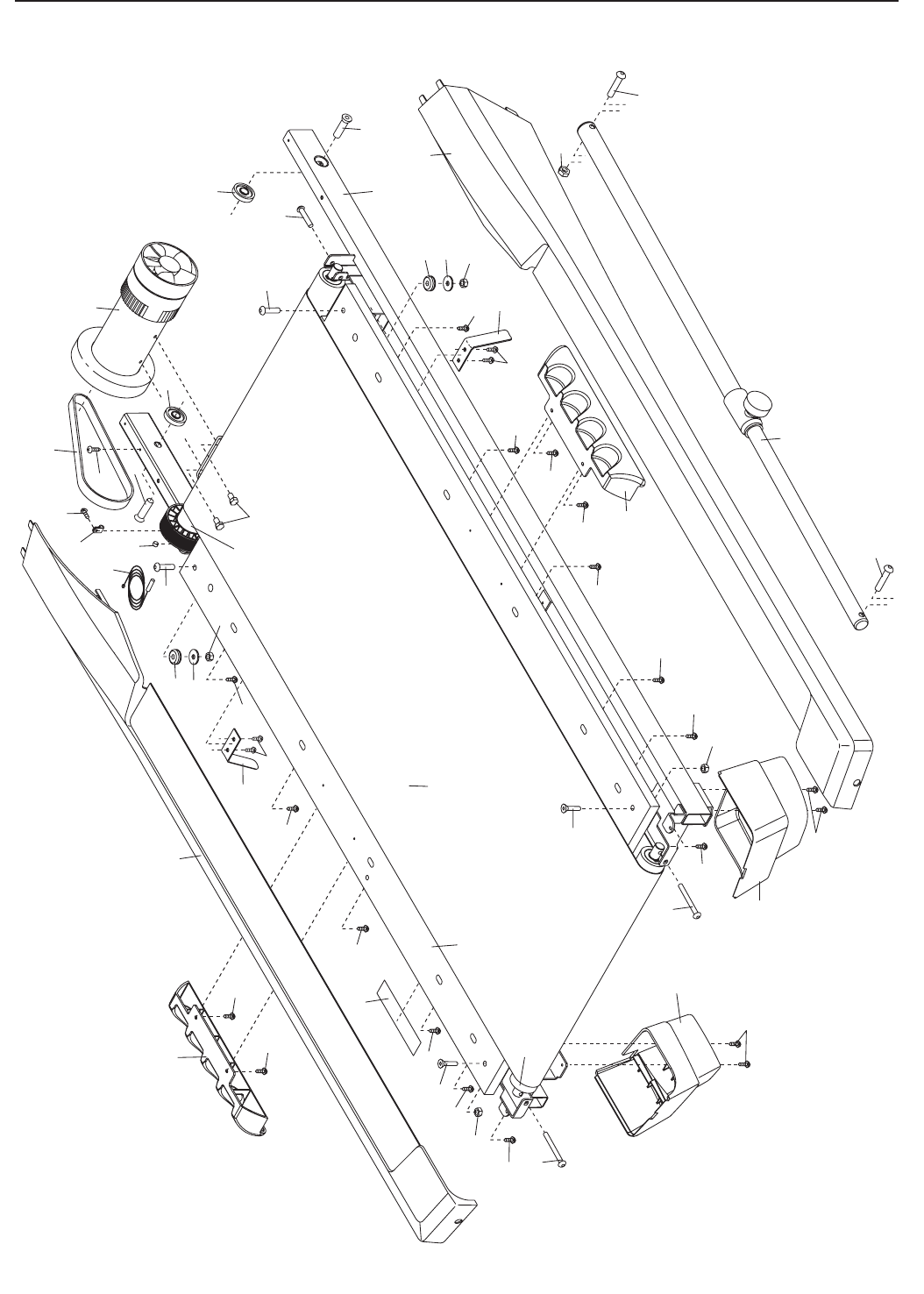

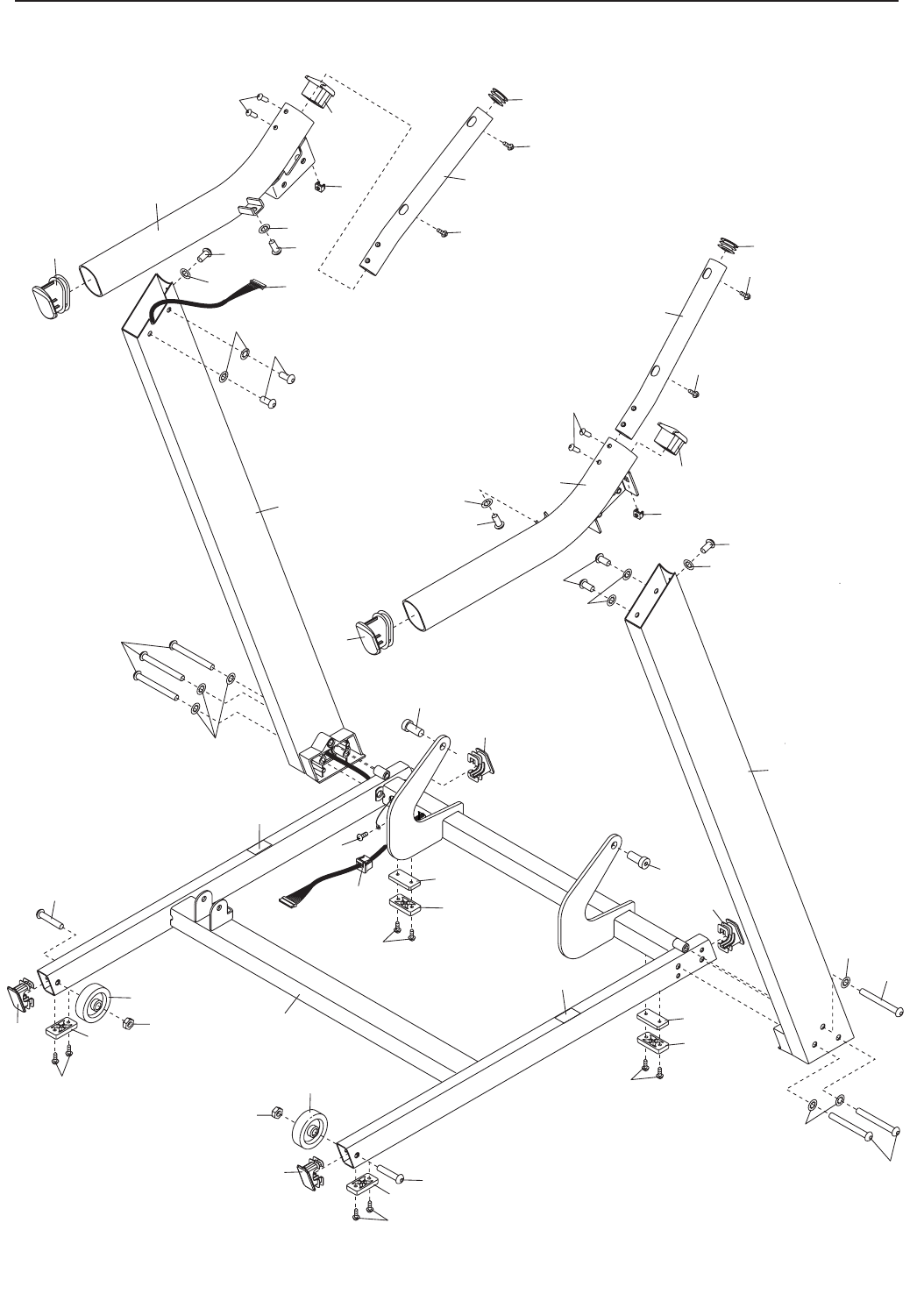

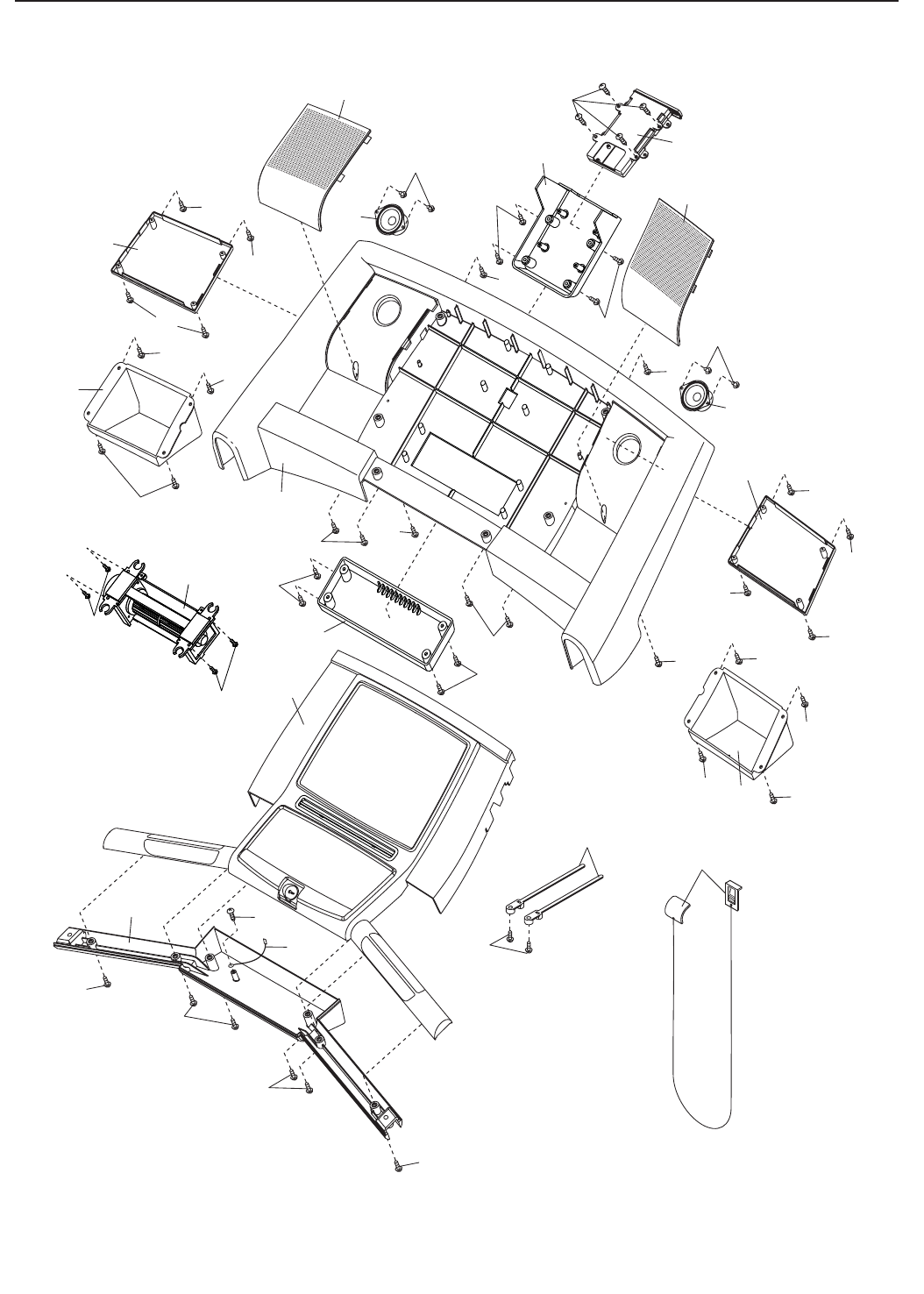

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

PROFORM is a registered trademark of ICON IP, Inc.

3

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. Use the treadmill only as described in this

manual.

4. The treadmill is intended for home use only.

Do not use the treadmill in any commercial,

rental, or institutional setting.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

8. Keep children under age 12 and pets away

from the treadmill at all times.

9. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

10. Never allow more than one person on the

treadmill at a time.

11. Wear appropriate exercise clothes while

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

12. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 13).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

13. Use only a surge suppressor that meets all of

the specifications described on page 13. To

purchase a surge suppressor, see your local

PROFORM dealer, call the telephone number

on the front cover of this manual, or see your

local electronics store.

14. Failure to use a properly functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

15. Keep the power cord and the surge suppres-

sor away from heated surfaces.

16. Never move the walking belt while the power

is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if

the treadmill is not working properly. (See

TROUBLESHOOTING on page 23 if the tread-

mill is not working properly.)

17. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on

page 15).

18. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

19. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before

using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

IMPORTANT PRECAUTIONS

4

20. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

21. Never leave the treadmill unattended while

it is running. Always remove the key, press

the power switch into the off position (see

the drawing on page 5 for the location of the

power switch), and unplug the power cord

when the treadmill is not in use.

22. Do not attempt to move the treadmill until

it is properly assembled. (See ASSEMBLY

on page 7 and HOW TO FOLD AND MOVE

THE TREADMILL on page 22.) You must be

able to safely lift 45 lbs. (20 kg) to move the

treadmill.

23. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

24. Do not change the incline of the treadmill by

placing objects under the treadmill.

25. Never insert any object into any opening on

the treadmill.

26. Inspect and properly tighten all parts of the

treadmill regularly.

27. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

28. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

5

Thank you for selecting the new PROFORM® 520 ZN

treadmill. The 520 ZN treadmill provides an impressive

selection of features designed to make your workouts

at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

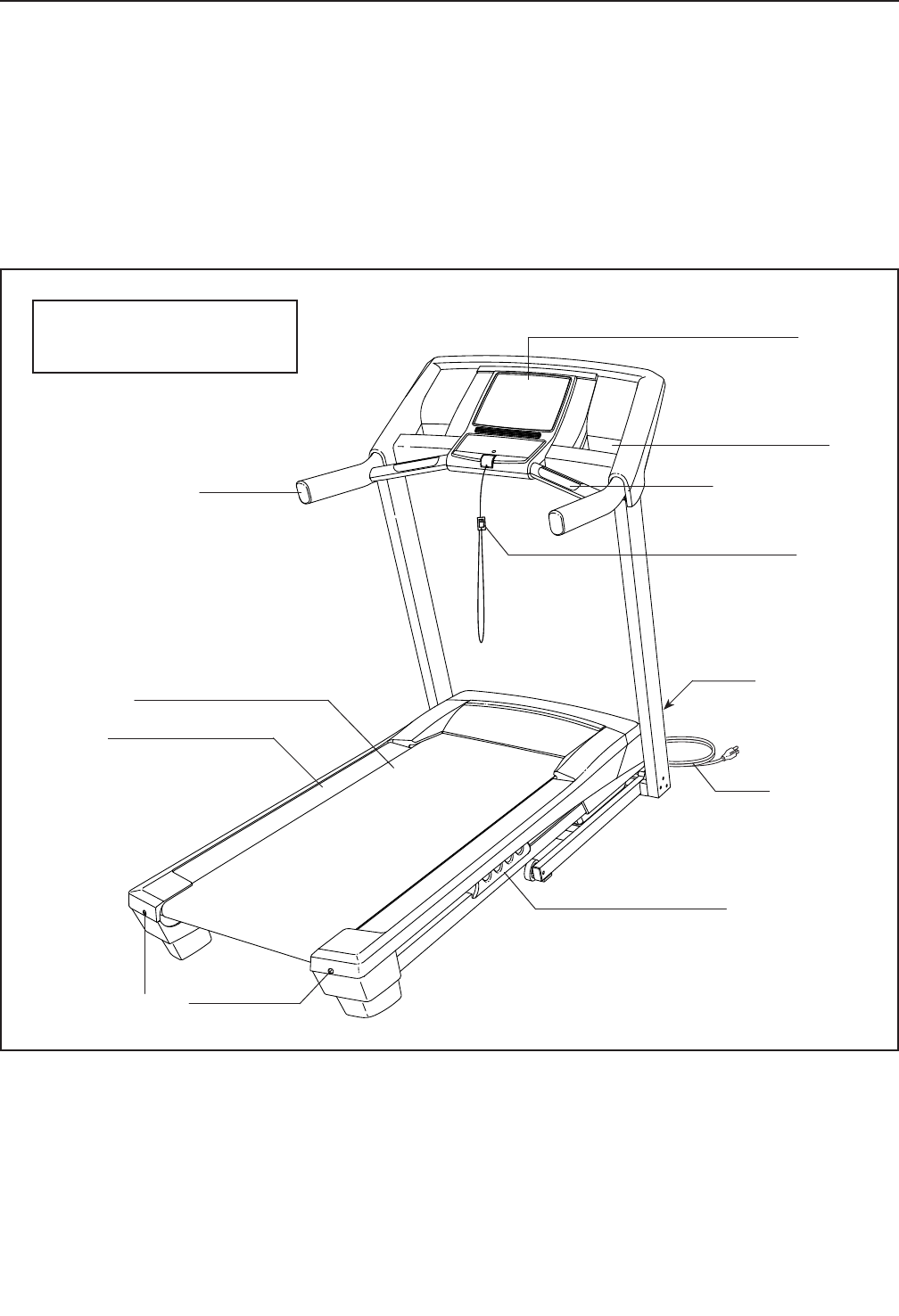

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Handrail

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Idler Roller

Adjustment Screws

Console

Heart Rate Monitor

Length: 6 ft. (183 cm)

Width: 2 ft. 11 in. (89 cm)

6

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. Extra parts may be included.

#8 x 3/4" Screw

(6)—12

1/4" x 1"

Screw (9)—4 5/16" x 1"

Bolt (7)—8

3/8" x 1 3/4" Screw (12)—1 3/8" x 2" Bolt (13)—1

3/8" x 3 1/2" Screw (4)—6

5/16" Star

Washer (8)—8 3/8" Star

Washer (5)—6

3/8" Nut (3)—1

7

ASSEMBLY

• To hire a service technician to assemble this prod-

uct in your home, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materialsuntilyounishallassemblysteps.

• After shipping, there may be an oily substance on

the exterior of the treadmill. This is normal. If there

is an oily substance on the treadmill, wipe it off

with a soft cloth and a mild, non-abrasive cleaner.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 6.

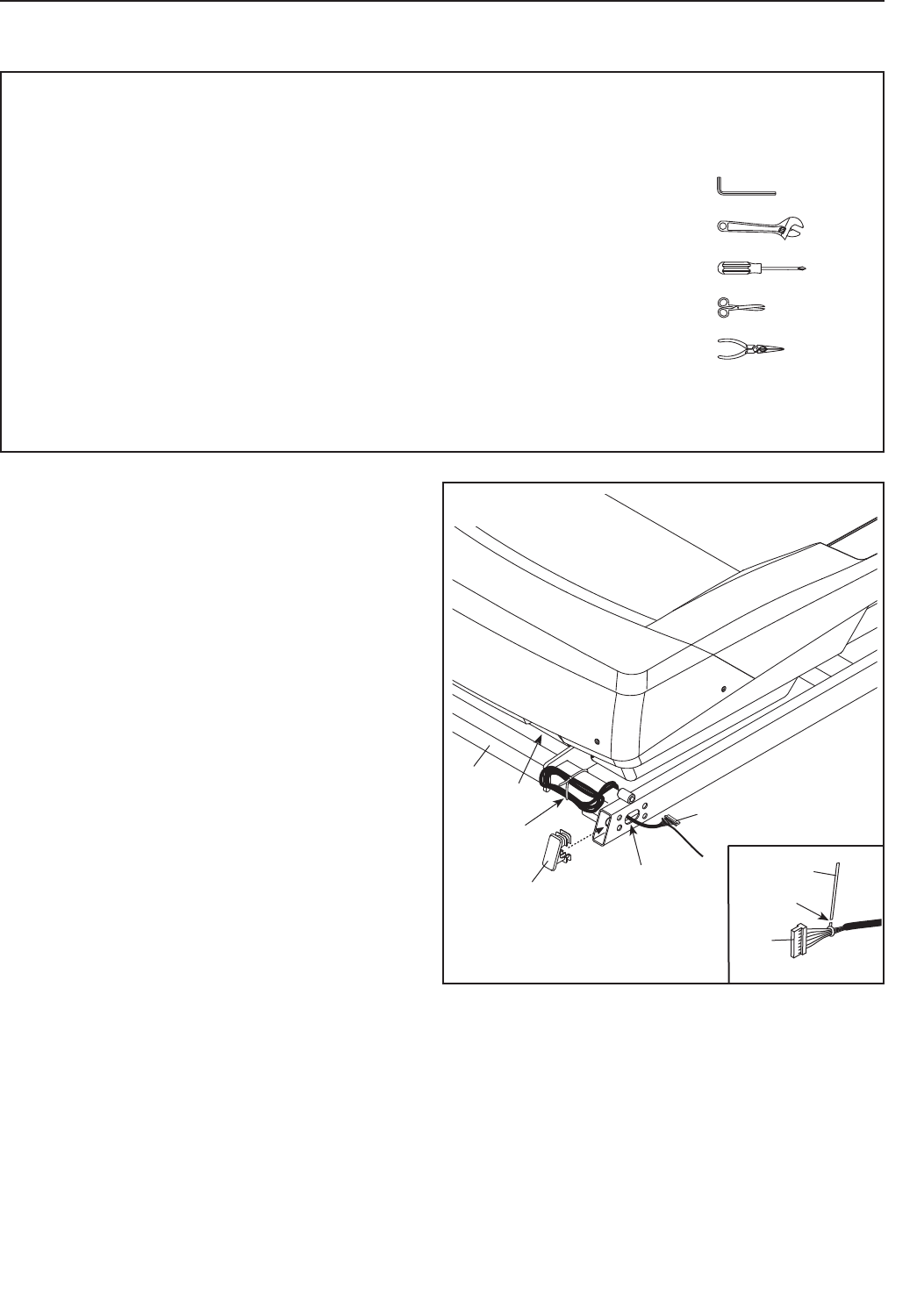

• Assembly requires the following tools:

the included hex keys

one adjustable wrench

one Phillips screwdriver

scissors

needlenose pliers

To avoid damaging parts, do not use power tools.

1. Make sure that the power cord is unplugged.

Locate the Upright Wire (70) bundled around

the front of the Base (80) beneath the Belly Pan

(68). Cut the plastic tie securing the Upright

Wire. Route the Upright Wire into the Base and

out of the indicated hole.

Press a Base Cap (77) into each side of the

Base (80).

See the inset drawing. Cut the plastic tie near

the Upright Wire (70). Be careful not to dam-

age the Upright Wire.

1

Cut

70

Tie

70

68

80

Hole

Cut

77

8

2. Identify the Left Upright (75). Have a second

person hold the Left Upright near the Base (80).

See the inset drawing. Tie the wire tie in the

Left Upright (75) securely around the end of the

Upright Wire (70). Then, insert the Upright Wire

into the lower end of the Left Upright as you pull

the other end of the wire tie upward through the

Left Upright.

2

70

75

75

Wire

Tie

70

Wire Tie

80

3. Hold the Left Upright (75) against the Base (80).

Be careful not to pinch the Upright Wire (70).

Partially tighten three 3/8" x 3 1/2" Screws (4)

with three 3/8" Star Washers (5) into the Left

Upright and the Base; do not fully tighten the

Screws yet.

Attach the Right Upright (not shown) in the

same way. Note: There are no wires on the right

side. 5

75

3

5

4

80

70

9

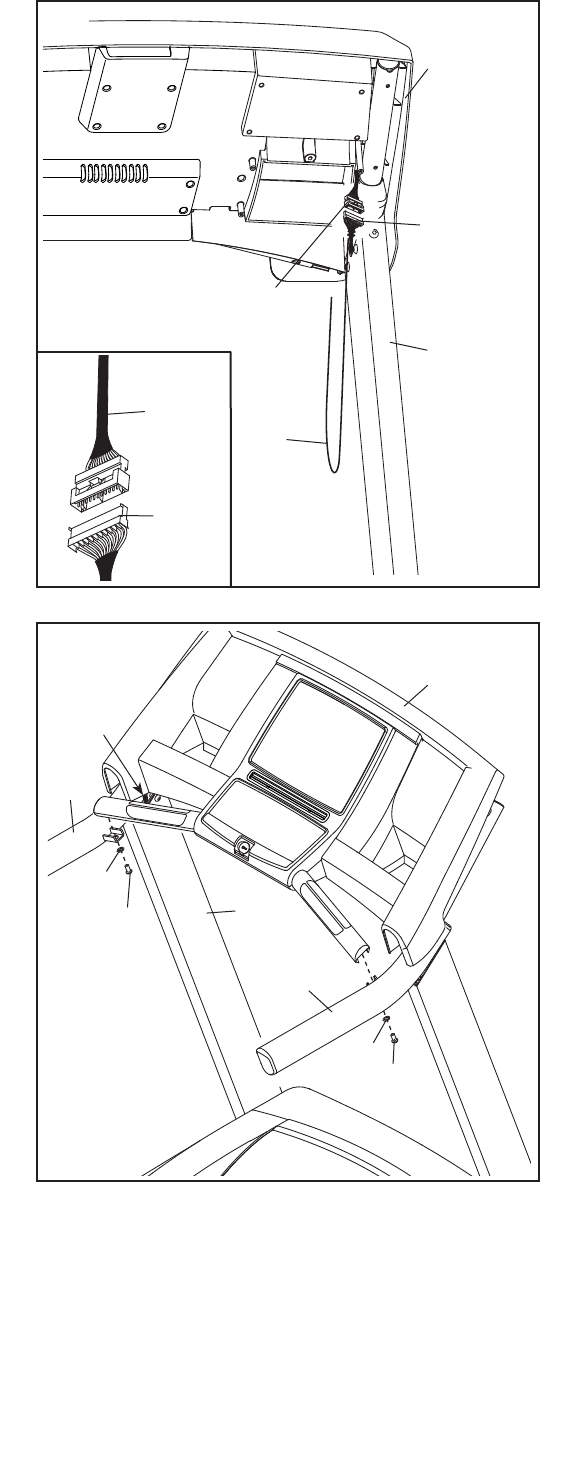

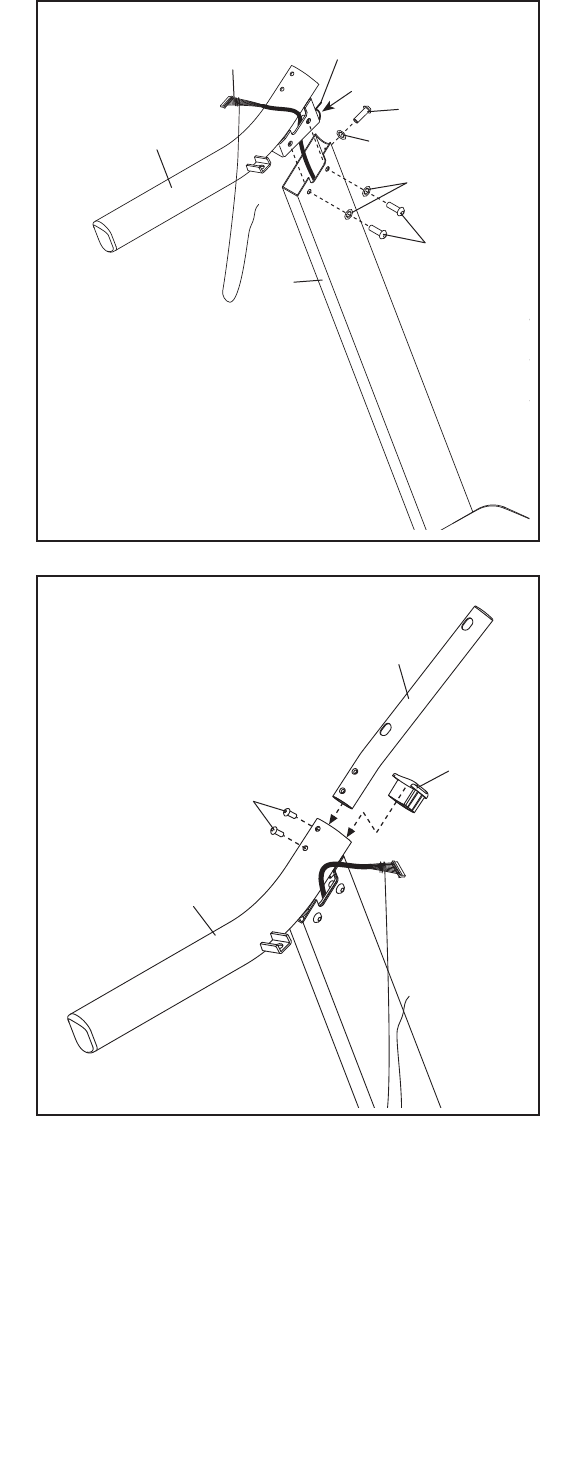

4. Identify the Left Handrail (71). Remove the tie

from the 5/16" Cage Nut (33). If necessary,

press the Cage Nut back into place.

Hold the Left Handrail (71) near the Left Upright

(75). Insert the Upright Wire (70) through the

bracket on the bottom of the Left Handrail.

Then, pull the Upright Wire out of the end of the

Handrail.

Attach the Left Handrail (71) to the Left Upright

(75) with three 5/16" x 1" Bolts (7) and three

5/16" Star Washers (8) as shown. Be careful

not to pinch the Upright Wire (70). Start all

three Bolts, and then tighten them.

Attach the Right Handrail (not shown) in the

same way. Note: There are no wires on the right

side.

71

70

33

7

4

7

8

75

8

5. Identify the Left Handrail Tube (34).

Insert the Left Handrail Tube (34) into the top of

the Left Handrail (71). Attach the Left Handrail

Tube with two 1/4" x 1" Screws (9); start both

Screws, and then tighten them. Then, insert

a Handrail Insert (69) into the top of the Left

Handrail.

Attach the Right Handrail Tube (not shown)

in the same way.

9

34

5

71

69

Tie

10

7. Insert the Upright Wire (70) into the Left Upright

(75) as you set the console assembly on the Left

Handrail (71) and the Right Handrail (72). Make

sure that no wires are pinched.

Attach the console assembly to the Left and

Right Handrails (71, 72) with two 5/16" x 1" Bolts

(7) and two 5/16" Star Washers (8); start both

Bolts, and then tighten them.

72

7

7

71

8

8

7

Console

Assembly

Console

Assembly

Wire

Tie

70

6

70

75

Console

Wire

6. With the help of a second person, hold the con-

sole assembly near the Left Upright (75).

Connect the Upright Wire (70) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER.

Remove the wire tie from the Upright Wire (70). Console

Wire

70

75

11

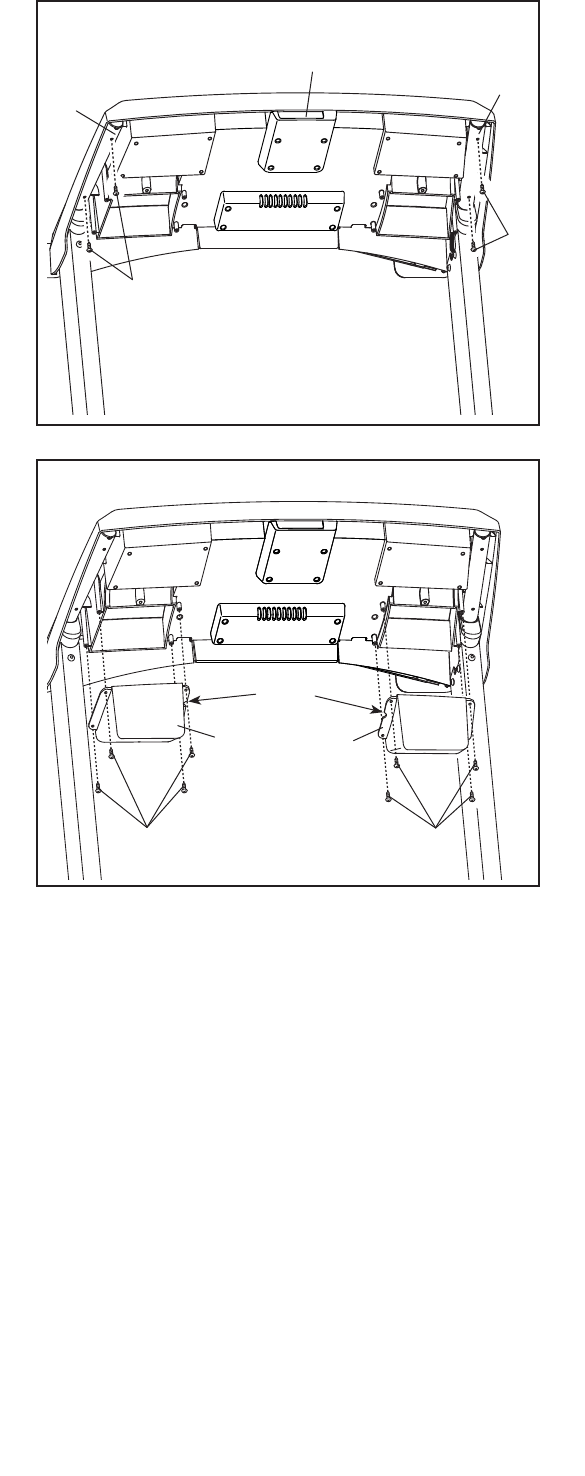

8. Attach the console assembly to the Left Handrail

Tube (34) and the Right Handrail Tube (35) with

four #8 x 3/4" Screws (6); start all four Screws,

and then tighten them. Do not overtighten the

Screws.

34

35

6

8Console

Assembly

6

9. Identify the Left Tray (87) and the Right Tray

(88). Make sure that the indicated notch is

positioned as shown. Attach the Trays with eight

#8 x 3/4" Screws (6); start all eight Screws,

and then tighten them. Do not overtighten the

Screws.

6

88 87

9

Notch

6

12

11. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

onthetreadmilldecals,removetheplastic.Toprotecttheoororcarpet,placeamatunderthetreadmill.

Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust

the walking belt (see pages 24 and 25).

51

49

12

3

13

80

Large

Barrel

Latch

Knob

10

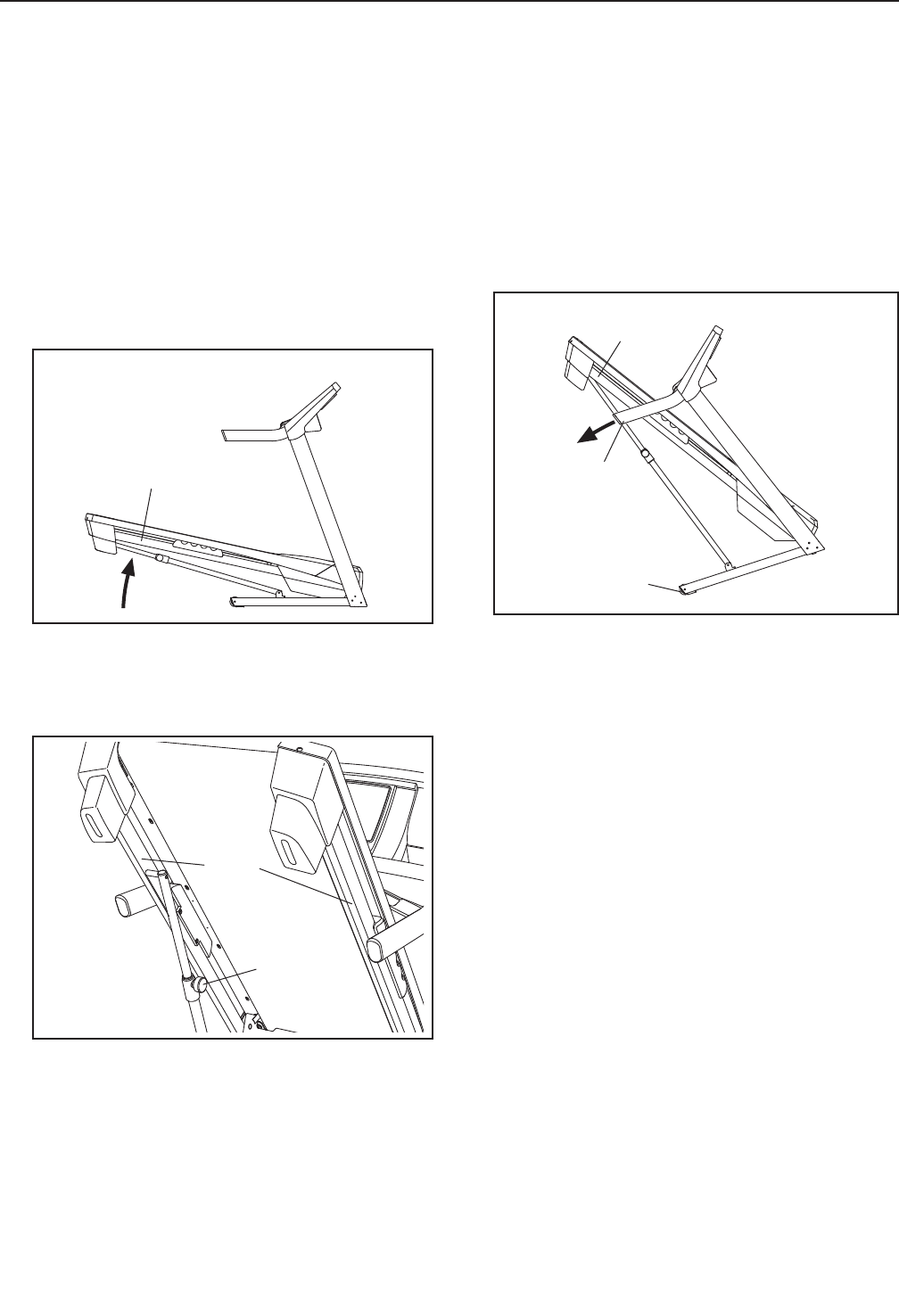

10. Raise the Frame (49) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (51) so that the large

barrel and the latch knob are oriented as shown.

Attach the lower end of the Storage Latch (51) to

the Base (80) with a 3/8" x 2" Bolt (13) and a 3/8"

Nut (3).

Attach the upper end of the Storage Latch (51)

to the Frame (49) with a 3/8" x 1 3/4" Screw (12).

Lower the Frame (not shown) (see HOW TO

LOWER THE TREADMILL FOR USE on

page 22).

13

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 13 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

1

Surge

Suppressor

Grounding Pin

Grounded Outlet

2

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

14

CONSOLE DIAGRAM

ETPF59112

(PFTL59112)

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable.

When the manual mode of the console is selected, you

can change the speed and incline of the treadmill with

the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip heart rate

monitor.

In addition, the console offers a weight-loss workout

center,designedtocreatecustom-tworkoutstohelp

youmeetyourtnessgoals.Eachworkoutautomati-

cally controls the speed and incline of the treadmill as it

guides you through an effective exercise session. You

can also set a calorie, time, or distance goal.

The console also features an iFit mode that enables

the treadmill to communicate with your wireless

network through an optional iFit module. With the

iFit mode, you can download personalized workouts,

create your own workouts, track your workout results,

race against other iFit users, and access many other

features. To purchase an iFit module at any time, go

to www.iFit.com or call the telephone number on

the front cover of this manual.

You can even listen to your favorite workout music or

audio books with the console’s premium stereo sound

system while you get in shape.

To turn on the power, see page 15. To use the

manual mode, see page 15. To use a weight-loss

workout, see page 17. To use a set-a-goal workout,

see page 18. To use an iFit workout, see page 19. To

use the cool-down mode, see page 20. To use the

stereo sound system, see page 20. To use the infor-

mation mode, see page 21.

IMPORTANT: If there is a sheet of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time the tread-

mill is used, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 25).

Note: The console can display speed and distance

ineithermilesorkilometers.Tondoutwhichunitof

measurement is selected or to change the unit of mea-

surement, see THE INFORMATION MODE on page

21. For simplicity, all instructions in this section refer to

miles.

15

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

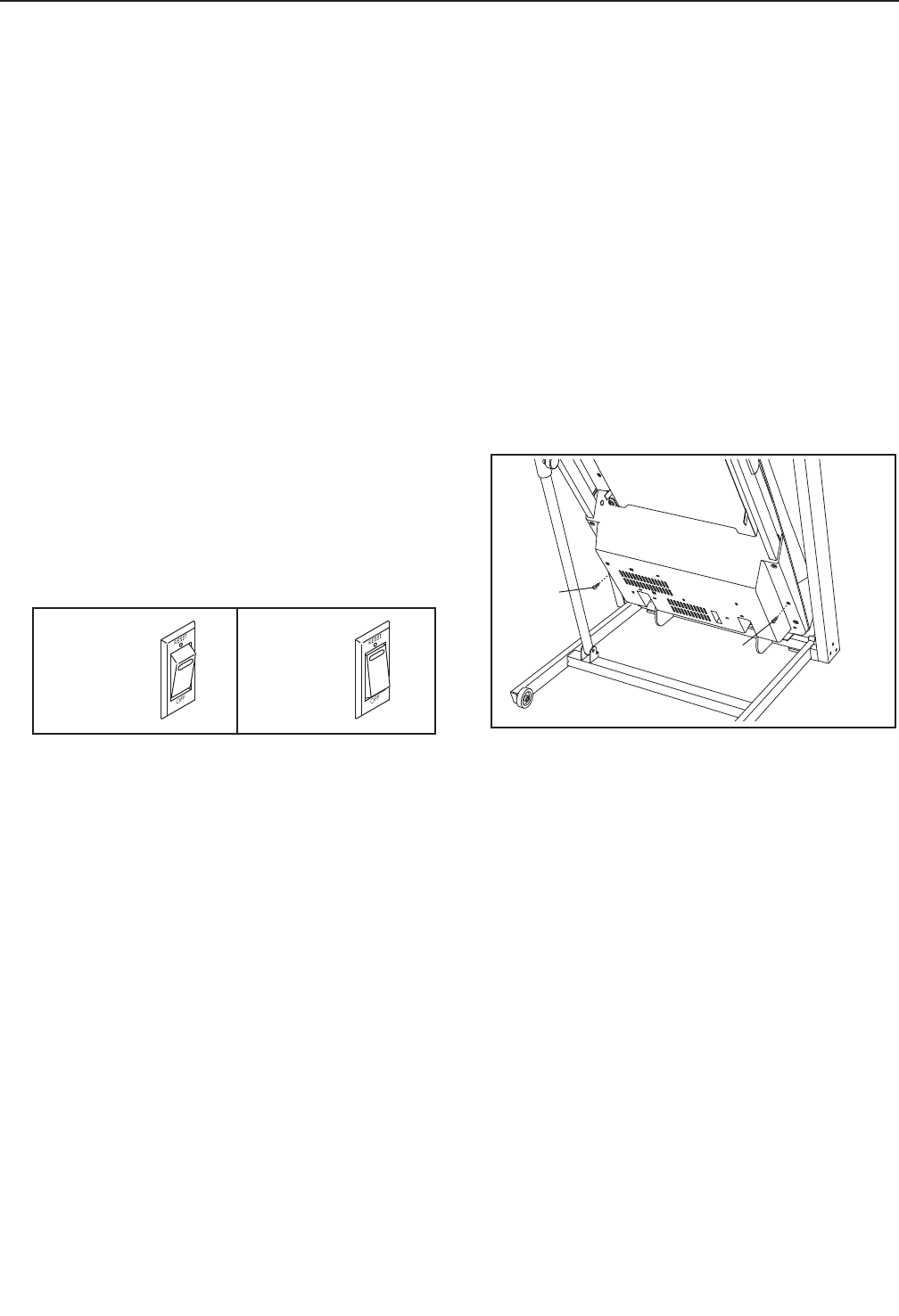

Plug in the power cord

(see page 13). Next, locate

the power switch on the

treadmill frame near the

power cord. Make sure that

the switch is in the reset

position.

Next, stand on the foot

rails of the treadmill.

Find the clip attached

to the key and slide

the clip onto the waist-

band of your clothes.

Then, insert the key

into the console.

After a moment, the

displays will light. IMPORTANT: In an emergency,

the key can be pulled from the console, causing

the walking belt to slow to a stop. Test the clip by

carefully taking a few steps backward; if the key

is not pulled from the console, adjust the position

of the clip. Note:Thersttimeyouinsertthekeyinto

the console, the incline may automatically rise to the

maximum incline level and then return to the minimum

incline level.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER above.

2. Select the manual mode.

If you are not connected to iFit, the manual mode

will be selected automatically. If the iFit menu

appears, press the Speed decrease button once to

select the manual mode.

3. Start the walking belt.

To start the walking belt, press the Go button, the

Speed increase button, or one of the Quick Speed

buttons numbered 1 through 10.

If you press the Go button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed

increase and decrease buttons. Each time you

press one of the buttons, the speed setting will

change by 0.1 mph; if you hold down the button,

the speed setting will change in increments of 0.5

mph. Note: After you press the buttons, it may take

a moment for the walking belt to reach the selected

speed setting.

If you press one of the numbered Quick Speed but-

tons, the walking belt will gradually change speed

until it reaches the selected speed setting.

To select a speed setting that includes a decimal—

such as 3.5 mph—press two numbered buttons in

succession. For example, to select a speed setting

of 3.5 mph, press the 3 button and then immedi-

ately press the 5 button. Note: This will not function

if the console is set to metric units.

To stop the walking belt, press the Stop button. To

restart the walking belt, press the Go button, the

Speed increase button, or one of the Quick Speed

buttons numbered 1 through 10.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

Quick Incline buttons numbered 0 through 10. Each

time you press one of the buttons, the treadmill will

gradually adjust to the selected incline setting.

5. Follow your progress with the displays.

As you walk or run on the treadmill, the display can

show the following workout information:

 •Theelapsedtime

 •Thedistancethatyouhavewalkedorrun

 • Theworkoutintensitybar

 •Theapproximatenumberofcaloriesyouhave

burned

 •Theinclinelevelofthetreadmill

Reset

ETPF59112

(PFTL59112)

Clip

Key

16

 • Thenumberofverticalfeetyouhaveclimbed

 •Thespeedofthewalkingbelt

 •Yourheartrate(seestep6)

 • Thematrix

The matrix offers several display tabs. Press the

increase and decrease buttons above the Enter

button until the desired tab is shown.

 TheInclinetabwillshowaproleoftheinclineset-

tings of the workout. A new segment will appear at

the end of each minute.

 TheSpeedtabwillshowaproleofthespeedset-

tings of the workout.

The My Trail tab will show a track that represents

1/4 mile (400 m). Asyouexercise,theashing

rectangle will show your progress. The My Trail tab

will also show the number of laps you complete.

The Calorie tab will show the approximate amount

of calories you have burned. The height of each

segment represents the amount of calories burned

during that segment. Note: When you select

the Calorie tab, the calorie display will show the

approximate number of calories burned per hour.

As you exercise, the workout intensity level bar will

indicate the approximate intensity level of your

exercise.

Press the Home button to return to the default

menu (see THE INFORMATION MODE on page

21 to set the default menu). If necessary, press the

Home button again.

When a wireless iFit

module is connected,

the wireless symbol at

the top of the display

will show the strength

of your wireless signal.

Four arcs indicate full

signal strength.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using the

heart rate moni-

tor, remove the

sheets of plastic

from the metal

contacts, if nec-

essary. In addi-

tion, make sure

that your hands

are clean.

To measure your heart rate, stand on the foot

rails and hold the metal contacts on the handrails

for approximately ten seconds—avoid moving

your hands. When your pulse is detected, a heart

symbolinthecaloriedisplaywillasheachtime

your heart beats, one or two dashes will appear,

and then your heart rate will be shown. For the

most accurate heart rate reading, continue to

hold the contacts for about 15 seconds.

7. Turn on the fan if desired.

The fan features multiple

speed settings. Press

the fan increase or de-

crease button to select a

fan speed or to turn off

the fan. Note: If the fan

is on when the walking

belt is stopped, the fan

will turn off automatically after a few minutes.

8. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

 Whenyouarenishedusingthetreadmill,press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

Decrease

Increase

17

HOW TO USE A WEIGHT-LOSS WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 15.

2. Select a time for the workout.

 Toselectaweight-lossworkout,rstpressoneof

the Set Time buttons. The duration of the workout

will appear in the display.

3. Select the amount of calories you want to burn.

Next, press one of the Set Cals. buttons. Note: The

console will create a custom workout based on the

duration of the workout and the amount of calories

you want to burn. You might not be able to select a

high amount of calories with a short duration for the

workout.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories

that you burn will depend on various factors

such as your weight. In addition, if you manu-

ally change the speed or incline of the treadmill

during the workout, the number of calories you

burn will be affected.

4. Select a user weight.

Press the Set Wt. increase and decrease buttons

to enter your weight. This will allow the console to

calculate the amount of calories you will burn more

accurately. The console will adjust the workout’s

intensity level according to the weight entered.

5. Start the walking belt.

Press the Go button to create the workout. Then,

press the Go button next to the Stop button or

the Speed increase button to start the workout. A

moment after you press the button, the treadmill

willautomaticallyadjusttotherstspeedand

incline settings of the workout. Hold the handrails

and begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are

programmed for each segment. Note: The same

speed setting and/or incline setting may be pro-

grammed for consecutive segments.

At the end of each segment, a series of tones

will sound. If a different speed or incline setting is

programmed for the next segment, the speed or

inclinesettingwillashinthedisplaytoalertyou.

The treadmill will then automatically adjust to the

speed and incline settings for the next segment.

The workout will continue in this way until the last

segmentoftheproleashesinthedisplayandthe

last segment ends. The walking belt will then slow

to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Go but-

ton. The walking belt will begin to move at 1 mph.

When the next segment of the workout begins, the

treadmill will automatically adjust to the speed and

incline settings for the next segment.

6. Follow your progress with the displays.

See step 5 on page 15.

7. Measure your heart rate if desired.

See step 6 on page 16.

8. Turn on the fan if desired.

See step 7 on page 16.

9. When you are nished exercising, remove the

key from the console.

See step 8 on page 16.

18

HOW TO USE A SET-A-GOAL WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 15.

2. Select a set-a-goal workout.

To select a set-a-goal workout, press the Set A

Goal button on the console.

Use the increase and decrease buttons above

the Enter button to set a calorie, time, or distance

goal, and then press the Enter button. Next, press

the increase and decrease buttons above the

Enter button to select a goal. Press the Speed and

Incline buttons to select the speed and incline for

the workout. The screen will show the duration and

distance of the workout, and the approximate num-

ber of calories you will burn during the workout.

3. Start the workout.

Press the Go button to start the workout. A moment

after you press the button, the walking belt will

begin to move. Hold the handrails and begin

walking.

The workout will function in the same way as the

manual mode (see pages 15 and 16).

The workout will continue until you reach the goal

that you set. The walking belt will then slow to a

stop.

Note: The calorie goal is an estimate of the

number of calories that you will burn during the

workout. The actual number of calories that you

burn will depend on various factors such as

your weight.

4. Follow your progress with the displays.

See step 5 on page 15.

5. Measure your heart rate if desired.

See step 6 on page 16.

6. Turn on the fan if desired.

See step 7 on page 16.

7. When you are finished exercising, remove the

key from the console.

See step 8 on page 16.

19

HOW TO USE AN IFIT WORKOUT

Note: To use an iFit workout, you must have an

optional iFit module. To purchase an iFit module at

any time, go to www.iFit.com or call the telephone

number on the front cover of this manual. You must

also have access to a computer with a USB port and

an internet connection. In addition, you must have

access to a wireless network including an 802.11b

router with SSID broadcast enabled (hidden networks

are not supported). An iFit.com membership is also

required.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 15.

2. Insert the iFit module into the console.

To insert the iFit module, see the instructions in-

cluded with the iFit module.

IMPORTANT: To satisfy exposure compliance

requirements, the antenna and transmitter in

the iFit module must be at least 8 in. (20 cm)

from all persons and must not be near or con-

nected to any other antenna or transmitter.

3. Select a user.

If more than one user is registered, you can switch

users in the iFit main screen. Press the increase

and decrease buttons above the Enter button to

select a user.

4. Select an iFit workout.

To select an iFit workout, press one of the iFit work-

out buttons. Before some workouts will download,

you must add them to your schedule on

www.iFit.com.

Press the iFit button to download the next workout

in your schedule. Press the Maps button, the Train

button, or the Lose Wt. button to download the next

workout of that type in your schedule. Press the

Compete button to compete in a race that you have

previously scheduled. Press the Track button to

view your workout history. For more information

about the iFit workouts, please see

www.iFit.com.

When you select an iFit workout, the display will

show the duration of the workout, the distance you

will walk or run, and the approximate number of

calories you will burn. The display may also show

the name of the workout. If you select a competition

workout, the display will count down to the begin-

ning of the race.

Note: Some of the iFit buttons can also run demo

workouts. To use the demo workouts, remove the

iFit module from the console and press one of the

iFit buttons.

5. Start the workout.

Press the Go button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rstspeedandinclinesettingsoftheworkout.Hold

the handrails and begin walking.

During some workouts, the voice of a personal

trainer will guide you through your workout. You

can select an audio setting for your personal trainer

(see THE INFORMATION MODE on page 21).

If the speed or incline setting for the current seg-

ment is too high or too low, you can manually over-

ride the setting by pressing the Speed or Incline

buttons; however, when the next segment be-

gins, the treadmill will automatically adjust to

the speed and incline settings for the next

segment.

To stop the workout at any time, press the Stop

button.Thetimewillbegintoashinthedisplay.

To resume the workout, press the Go button or the

Speed increase button. The walking belt will begin

to move at thespeedsettingfortherstsegmentof

the workout. When the next segment of the work-

out begins, the treadmill will automatically adjust to

the speed and incline settings for the next

segment.

20

6. Follow your progress with the displays.

See step 5 on page 15.

The My Trail tab will show a map of the trail you are

walking or running or it will show a track and the

number of laps you complete.

During a competition workout, the Compete tab

will show your progress in the race. As you race,

the top line in the matrix will show how much of the

race you have completed. The other lines will show

your top four competitors. The end of the matrix

represents the end of the race.

7. Measure your heart rate if desired.

See step 6 on page 16.

8. Turn on the fan if desired.

See step 7 on page 16.

9. When you are nished exercising, remove the

key from the console.

See step 8 on page 16.

For more information about the iFit mode, go to

www.iFit.com.

THE COOL-DOWN MODE

To select the cool-down mode, press the Cool Down

button. The treadmill will adjust to the lowest incline,

and the walking belt will begin to slow down incre-

mentally,onceperminuteforveminutes,unlessthe

walkingbeltspeedisalreadyaround2mph.Afterve

minutes, the walking belt will slow to a stop.

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio books through the console’s

stereo speakers, you must connect your MP3 player,

CD player, or other personal audio player to the con-

sole through the audio jack.

To use the audio jack, plug your audio wire into the

audio jack below the Cool Down button. Then, plug

your audio wire into a jack on your MP3 player, CD

player, or other personal audio player. Make sure that

your audio wire is fully plugged in.

Next, press the play button

on your MP3 player, CD

player, or other personal

audio player. Adjust the vol-

ume on your personal audio

player or press the volume

increase and decrease but-

tons on the console.

If you are using a personal CD player and the CD

skips,settheCDplayerontheoororanotheratsur-

face instead of on the console.

Decrease

Increase

21

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill information and allows you to person-

alize console settings.

1. Select the information mode.

To select the information mode, hold down the Stop

button while inserting the key into the console and

then release the Stop button. When the information

mode is selected, the following information will be

shown:

The time display will show the total number of

hours that the treadmill has been used.

The distance display will show the total number

of miles (or kilometers) that the walking belt has

moved.

The lower section of the display will show the

status of an iFit module. If an iFit module is con-

nected, the display will show the words WIFI

MODULE. If a USB module is connected, the

display will show the words USB/SD MODULE. If

no module is connected, the display will show the

words NO IFIT MODULE.

2. Select the optional screens.

While the information mode is selected, the matrix

will display several optional screens. Press the

decrease button above the Enter button to select

each of the following screens:

UNITS—To change the unit of measurement, press

the Enter button. To view distance in miles, select

ENGLISH. To view distance in kilometers, select

METRIC.

DEMO—The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. While the demo mode is turned

on, the console will function normally when you

plug in the power cord, press the power switch

into the reset position, and insert the key into the

console. However, when you remove the key, the

displays will remain lit, although the buttons will not

function. If the demo mode is turned on, the word

ON will appear in the matrix. To turn on or turn off

the demo mode, press the Enter button.

CONTRAST LVL—Press the Incline increase and

decrease buttons to adjust the contrast level of the

display.

If a module is connected, you may also select

the following screen:

TRAINER VOICE—To turn on or turn off the voice

of the personal trainer, press the Enter button.

If an iFit module is connected, you may also

select the following screens:

DEFAULT MENU—The default menu will appear

when you insert the key into the console or when

you press the Home button. Press the Enter button

repeatedly to select the manual main screen or the

iFit screen as the default menu.

CHECK WIFI STATUS—Press the Enter button

to check the status of your iFit module. The lower

display will show the software version number, the

network SSID, the network encryption type, the

connection status, the wireless signal strength, the

IP address of the module, the number of registered

users and their names, the results of the DNS

lookup, and the status of the iFit server.

SEND/RECEIVE DATA—To send and receive

workouts, workout logs, and updates, press the

Enterbutton.Whentheprocessisnished,the

words TRANSFERS DONE will appear in the

display.

3. Exit the information mode.

To exit the information mode, remove the key from

the console.

22

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

1. Holdthemetalframermlyinthelocationshown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

Toprotecttheoororcarpet,placeamatunderthe

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the tread-

mill frame with your left hand. Then, pull the latch

knob to the right. IMPORTANT: Do not turn the

latch knob. If necessary, push the frame forward

slightly. Pivot the frame downward a few inches,

and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmlywithbothhands,andlowerittotheoor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Latch

Knob

2

Frame

Frame

1

Handrail

Frame

Wheel

1

23

Most treadmill problems can be solved by follow-

ing the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor

is plugged into a properly grounded outlet (see

page 13). Use only a surge suppressor that meets

allofthespecicationsdescribedonpage13.

IMPORTANT: The treadmill is not compatible

with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

powerswitch,waitforveminutesandthenpress

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

Iftheswitchhastripped,waitforveminutesand

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Place the treadmill in

the storage position (see HOW TO FOLD THE

TREADMILL on page 22).

Next, remove the two indicated #8 x 3/4"

Screws (6).

TROUBLESHOOTING

Reset

Tripped

c

6

6

a

24

Lower the treadmill (see HOW TO LOWER THE

TREADMILL FOR USE on page 22). Remove

the three #8 x 3/4" Screws (6). Carefully slide the

Motor Hood (57) off.

Locate the Reed Switch (95) and the Magnet (44)

on the left side of the Pulley (43). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm). If

necessary, loosen the #8 x 3/4" Truss Head Screw

(19), move the Reed Switch slightly, and then

retighten the Screw. Reattach the Motor Hood (not

shown)withtheve#8x3/4"Screws(notshown)

and run the treadmill for a few minutes to check for

a correct speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then

release the Stop button and the Speed increase

button. Press the Stop button and then press the

Incline increase or decrease button. The tread-

mill will automatically rise to the maximum incline

level and then return to the minimum level. This will

recalibrate the incline system. If the incline does not

begin calibrating, press the Stop button again, and

then press the Incline increase or decrease button

again. When the incline is calibrated, remove the

key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specicationsdescribedonpage13.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to

the walking belt or the walking platform unless

instructed to do so by an authorized service

representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more

lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

Idler Roller Screws

2–3 in.

b

57 6

6

Front

View

95

1/8 in.

19

44

43

25

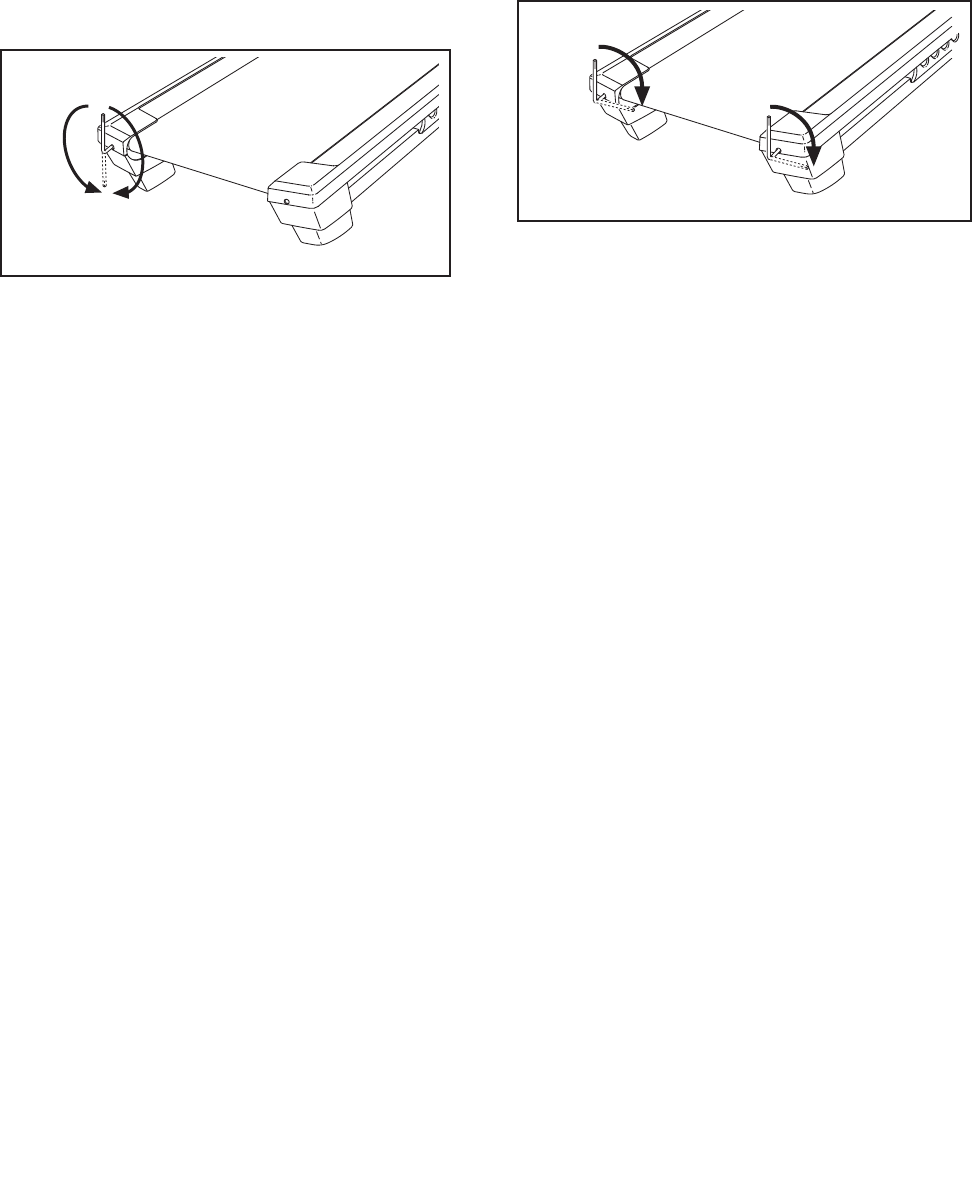

SYMPTOM: The walking belt is off-center or slips

when walked on

a. If the walking belt is off-center,rstremovethe

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on,rst

remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walk-

ing belt is correctly tightened, you should be able

to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep

the walking belt centered. Then, plug in the power

cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

a

b

26

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

27

Key No. Qty. Description Key No. Qty. Description

1 5 #8 x 1/2" Ground Screw

2 2 3/8" x 2 1/2" Bolt

3 5 3/8" Nut

4 6 3/8" x 3 1/2" Screw

5 6 3/8" Star Washer

6 47 #8 x 3/4" Screw

7 8 5/16" x 1" Bolt

8 8 5/16" Star Washer

9 4 1/4" x 1" Screw

10 1 iFit Module

11 1 Module Cover

12 1 3/8" x 1 3/4" Screw

13 1 3/8" x 2" Bolt

14 2 1/4" x 2 1/2" Screw

15 2 3/8" x 1 3/8" Bolt

16 2 1/2" x 2 1/4" Bolt

17 2 1/2" Nut

18 3 Hood Clip

19 17 #8 x 3/4" Truss Head Screw

20 2 3/8" x 1 1/2" Bolt

21 2 3/8" Jam Nut

22 2 Incline Motor Spacer

23 2 1/4" x 3/8" Screw

24 8 #8 x 7/16" Screw

25 2 5/16" x 1 1/4" Bolt

26 1 Fan

27 2 5/16" x 1 3/4" Bolt

28 2 5/16" Washer

29 4 5/16" Nut

30 1 Hood Accent

31 1 Fan Cover

32 1 1/4" x 1 3/4" Screw

33 2 5/16" Cage Nut

34 1 Left Handrail Tube

35 1 Right Handrail Tube

36 2 Platform Cushion

37 1 Left Foot Rail

38 1 Latch Warning Decal

39 1 Walking Platform

40 1 Walking Belt

41 2 Belt Guide

42 2 Rubber Spacer

43 1 Drive Roller/Pulley

44 1 Magnet

45 1 Reed Switch Clamp

46 1 Drive Motor Belt

47 1 Drive Motor

48 2 Frame Spacer

49 1 Frame

50 1 Right Foot Rail

51 1 Storage Latch

52 1 Right Rear Foot

53 1 Left Rear Foot

54 1 Right Speaker Back

55 1 Left Speaker Back

56 1 Idler Roller

57 1 Motor Hood

58 2 Incline Frame Spacer

59 1 Incline Frame

60 1 Incline Motor

61 1 Controller Ground Wire

62 1 Controller

63 3 Wire Tie

64 1 Belly Pan Plate

65 1 Power Switch

66 1 Power Cord

67 2 Grommet

68 1 Belly Pan

69 2 Handrail Insert

70 1 Upright Wire

71 1 Left Handrail

72 1 Right Handrail

73 2 Handrail Cap

74 2 Handrail Tube Cap

75 1 Left Upright

76 1 Right Upright

77 4 Base Cap

78 2 Caution Decal

79 4 Base Pad

80 1 Base

81 2 Wheel

82 1 Key/Clip

83 1 Console Base

84 2 Speaker

85 2 Base Pad Spacer

86 1 Console

87 1 Left Tray

88 1 Right Tray

89 1 Console Ground Wire

90 1 Pulse Bar Bottom

91 2 Console Wire Tie

92 1 Left Speaker Cover

93 1 Right Speaker Cover

94 12 #8 x 1/2" Pan Head Screw

95 1 Reed Switch

96 8 #8 x 1" Tek Screw

97 12 #3 x 1/4" Screw

* – User’s Manual

PART LIST Model No. PFTL59112.0 R0812A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

28

51

27

25

24

24

41

41

42

38

39

50

49

14

37

32

27

23

47

29

42

28

29

28

19

19

19

14

53

3

52

25

40

43

44

12

46

48

48

19

45

19

19

19

19

19

13

1

16

16

56

95

19

36

24

36

24

29

19

19

29

19

24

24

19

19

EXPLODED DRAWING A Model No. PFTL59112.0 R0812A

29

94

1

66

67

65

61

63

62

1

58

59

58

18

20

21

60

22

6

57

6

64

3

3

17

17

20

21

6

18

18

6

6

6

6

6

68

6

6

30

6

6

EXPLODED DRAWING B Model No. PFTL59112.0 R0812A

30

80

78

15

77

15

78

2

81

3

96

3

2

81

96

79

67

1

96

96

79

79

79

77

77 85

85

4

5

5

4

4

5

34

974

7

69

33

7

8

8

9

75

70

733

7

8

7

8

69

74

35

77

71

73

76

7

72

73

8

8

6

6

6

6

EXPLODED DRAWING C Model No. PFTL59112.0 R0812A

31

91

6

83

94

94

31

84

86

87

90

6

82

6

6

6

89

1

54

6

97

97

97

97

6

92

55

97

97

6

6

97

6

6

94

94

26

6

94

6

6

6

6

97

97

6

6

11 10

6

84

88

94

93

EXPLODED DRAWING D Model No. PFTL59112.0 R0812A

Part No. 335767 R0812A Printed in USA © 2012 ICON IP, Inc.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor

iswarrantedfortwenty-ve(25)yearsfromthedateofpurchase.Partsandlaborarewarrantedforone

(1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

oriftheproductisusedforcommercialorrentalpurposes.Nootherwarrantybeyondthatspecicallyset

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromstatetostate.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-

vide the following information when contacting us:

• themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)

• thenameoftheproduct(seethefrontcoverofthismanual)

• thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.proformservice.com/registration.
