USER'S MANUAL
![](asset-2.png)
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

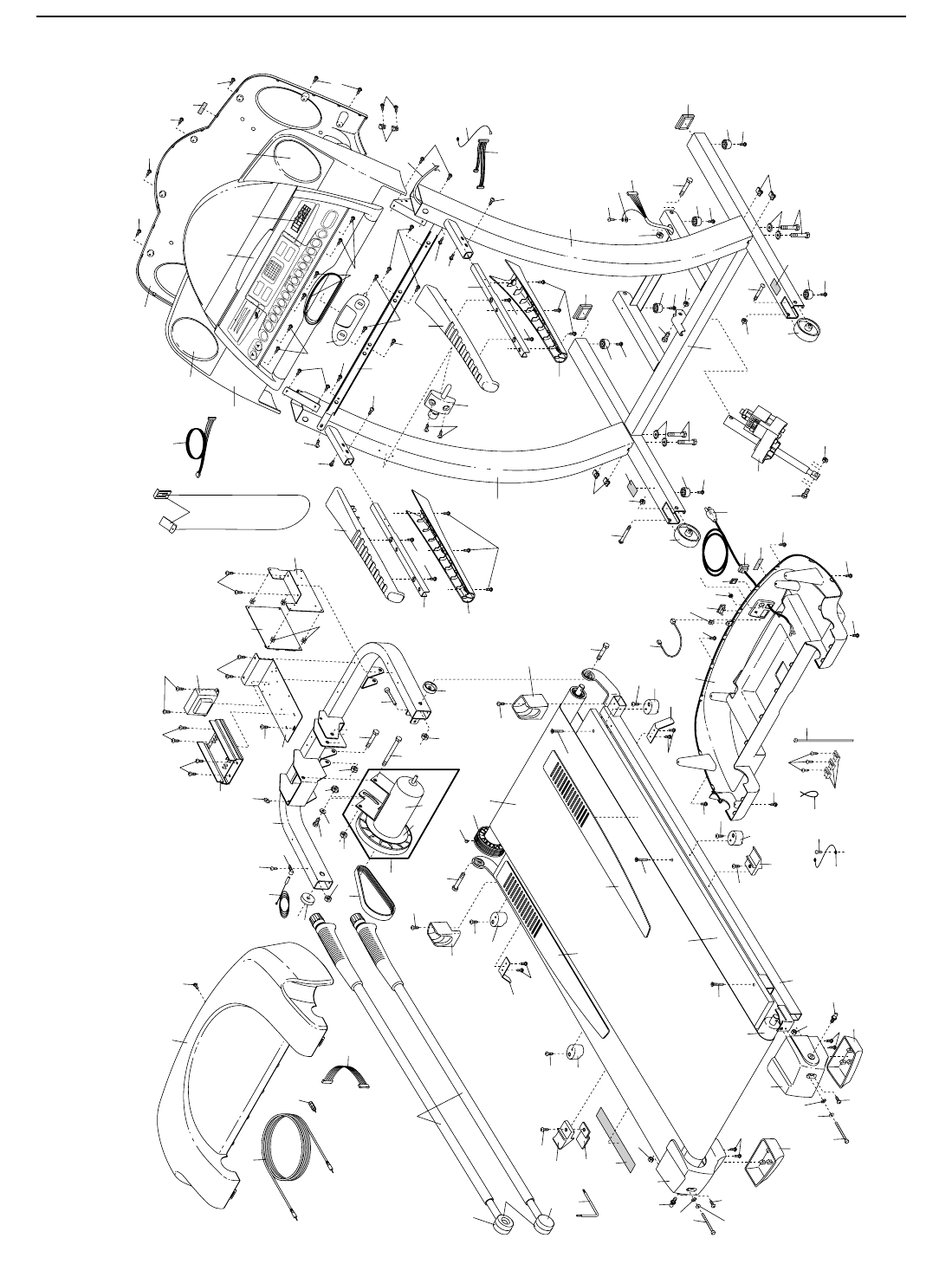

Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the
center of this manual.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
![](asset-3.png)
3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

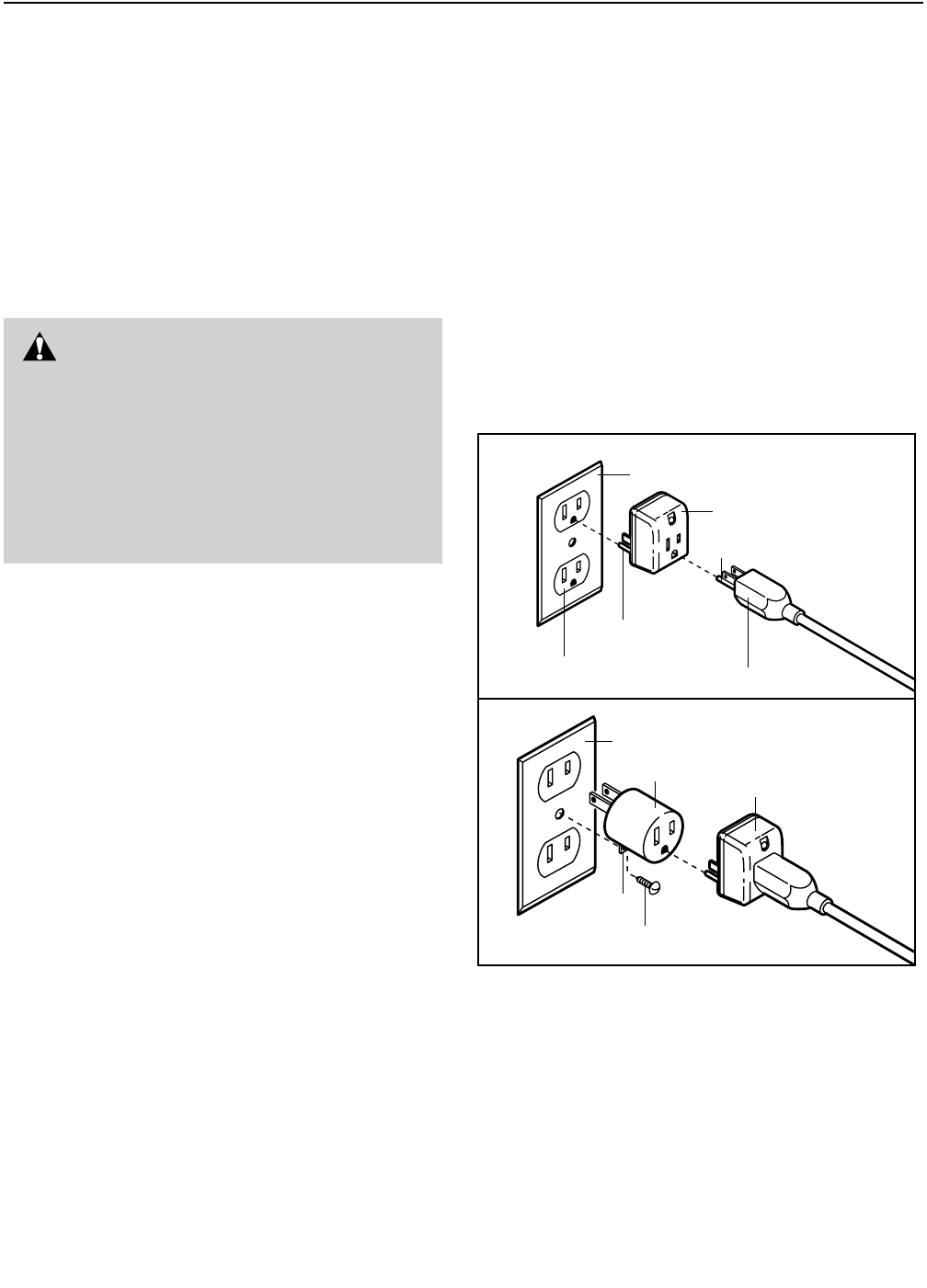

10. When connecting the power cord (see page 9),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 9. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-806-
3651 and order part number 146148.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the tread-
mill is not working properly.)
15. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails or the upper body arms while using
the treadmill.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended while it
is running. Always remove the key and un-
plug the power cord when the treadmill is not
in use.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 23.) You
must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.
20. Do not change the incline of the treadmill by
placing objects under the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
![](asset-4.png)
22. When using iFIT.com CD’s and videos, an
electronic “chirping” sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
“chirp” and be prepared for speed and/or in-
cline changes. In some instances, the speed
and/or incline may change before the per-
sonal trainer describes the change.
23. When using iFIT.com CD’s and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
“chirp” is heard, the speed and/or incline will
change to the next settings of the CD or video
program.
24. Always remove iFIT.com CD’s and videos
from your CD player or VCR when you are not
using them.
25. Inspect and properly tighten all parts of the
treadmill regularly.
26. Never insert or drop any object into any
opening.
27. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
28. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer-
cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing, or if
it is not legible, please call our Customer Service Department, toll-free, to order
a free replacement decal (see the front cover of this manual). Apply the decal in
the location shown.
Note: The decal shown at the
right is 50% of actual size.
4
![](asset-5.png)
5
Thank you for selecting the new PROFORM®CROSS-
WALK ADVANCED 525 treadmill. The CROSSWALK
ADVANCED 525 treadmill combines advanced tech-
nology with innovative design to help you get the most
from your exercise program in the convenience of your
home. And when you’re not exercising, the unique
CROSSWALK ADVANCED 525 can be folded up, re-
quiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (ex-
cluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
PFTL59120. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).

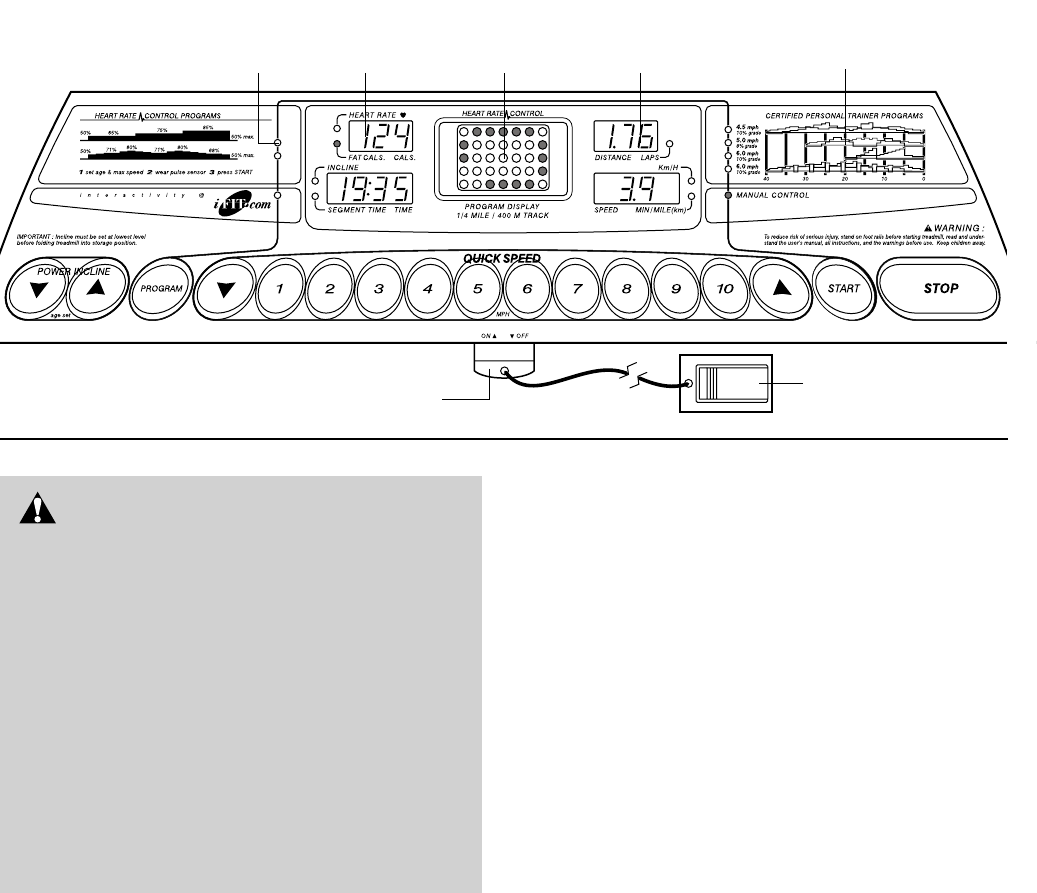

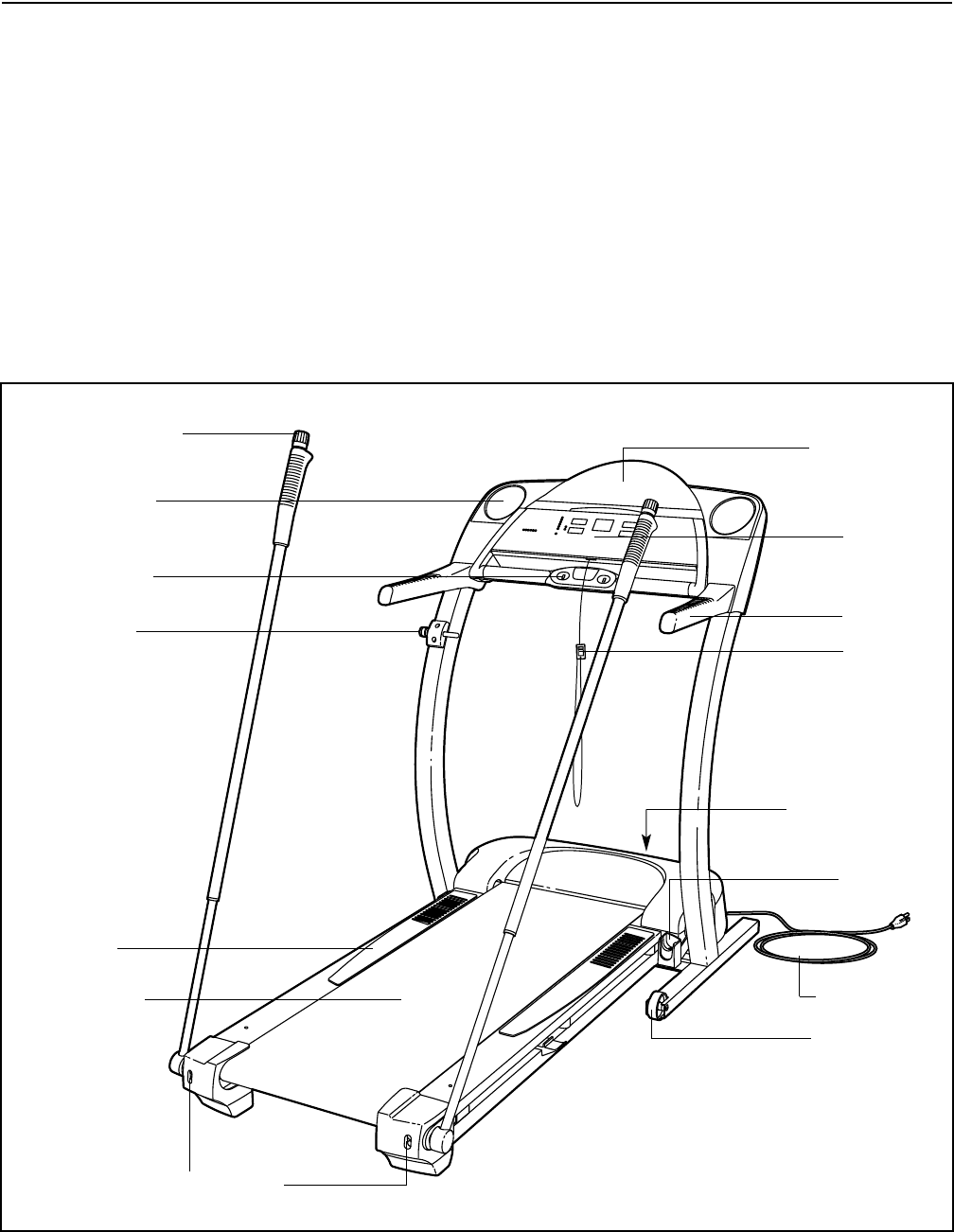

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Console
Latch Knob
Upper Body Arm
Pulse Sensor
Book Holder
Key/Clip
Circuit Breaker
Upper Body Arm
Housing
Walking Belt
Front Wheel
Foot Grip
Power Cord
Rear Roller Adjustment Bolts
Water Bottle
Holder (Bottle
not included)
RIGHT SIDE
LEFT SIDE
![](asset-6.png)
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area, and remove all packing materials except
for the plastic ties around the upper body arms. Do not dispose of the packing materials until assembly is
completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During
shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This
does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant
with a soft cloth and a mild, non-abrasive cleaner.

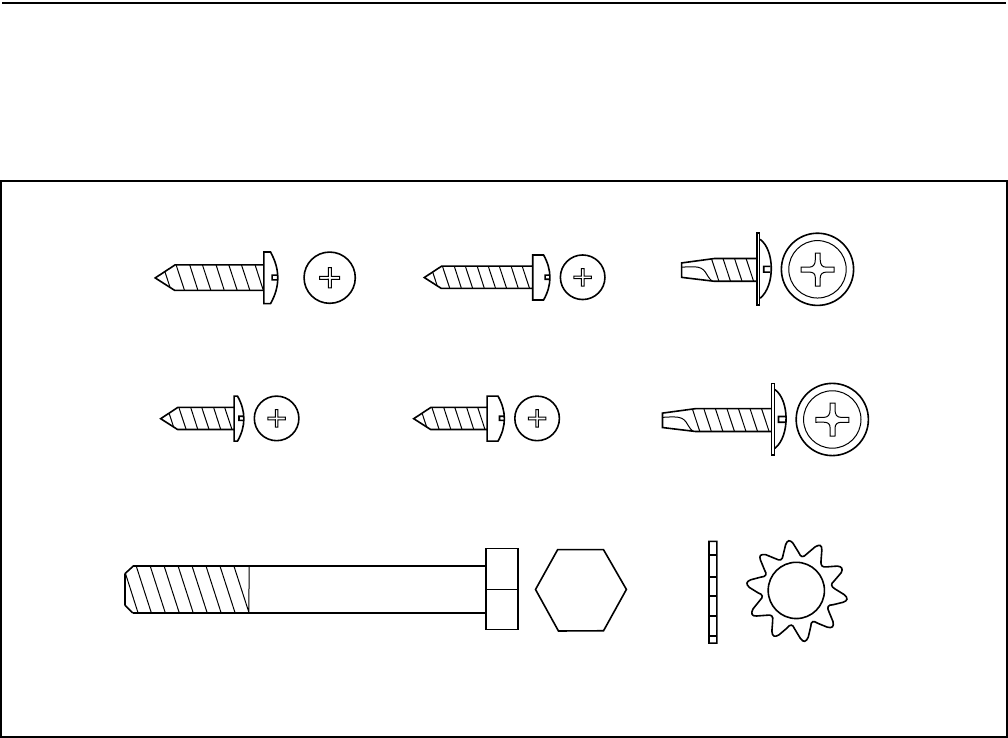

Assembly requires the included allen wrench and your own phillips screwdriver ,
adjustable wrench , wire cutters , and a rubber mallet .
1

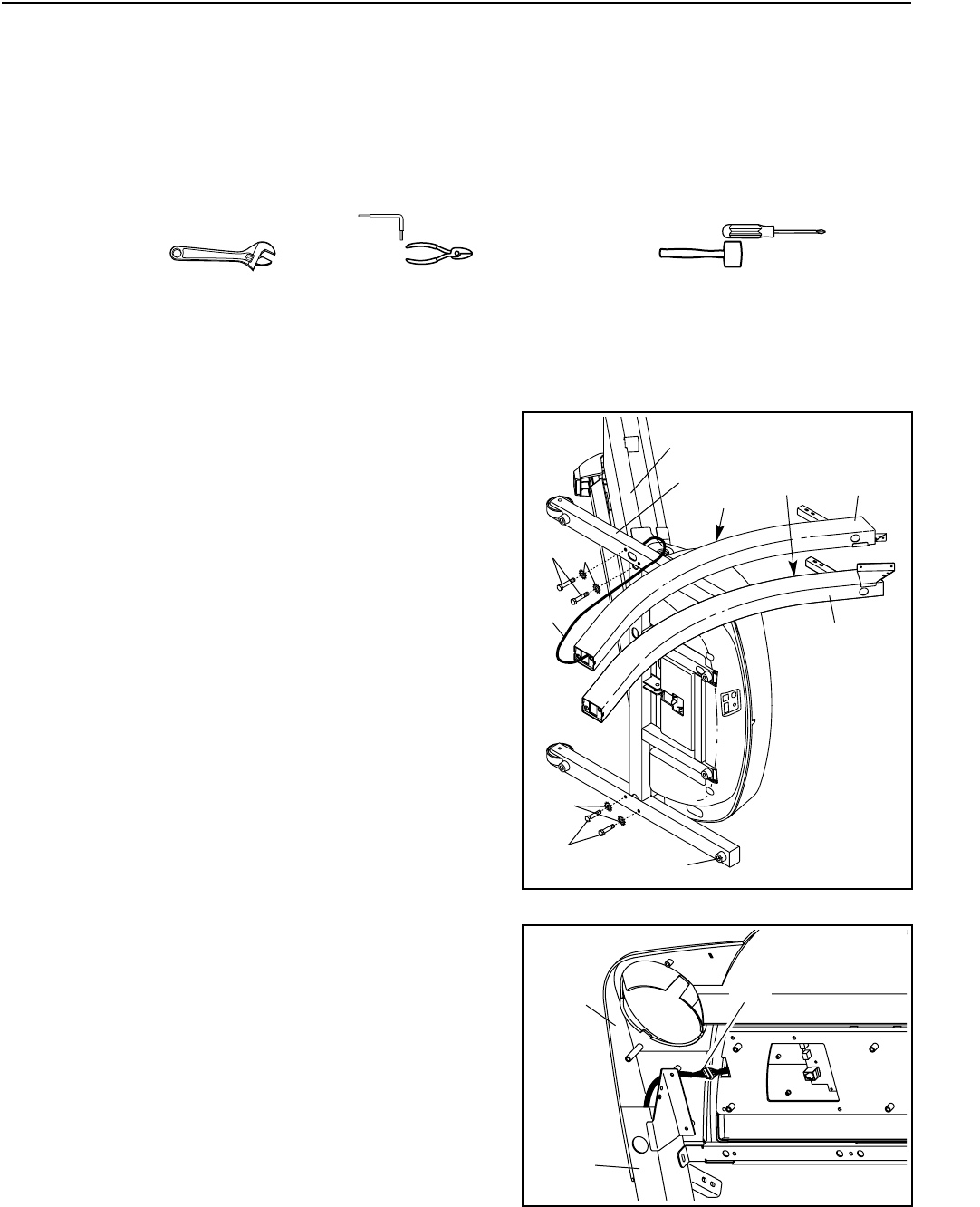

1. With the help of a second person, carefully tip the tread-
mill onto its left side as shown. Partially fold the Frame
(51) so that the treadmill will be more stable. Do not fully
fold the treadmill until it is completely assembled.
Identify the Right and Left Uprights (55, 64); the Left
Upright has two small holes near the square post.
Hold the Right Upright (55) near the Base (116) and ori-
ent it as shown; make sure that the Right Upright
bends in the direction shown. Straighten the Wire
Harness (49), and feed it into the lower end of the Right
Upright and out of the upper end. Hand tighten two
Upright Bolts (112) with Star Washers (111) into the bot-
tom of the Base (116) and the lower end of the Right
Upright.
Attach the Left Upright (64) as described above. Note:
There is not a wire harness on the left side.
Note: One extra Base Pad (44) may be included.
Note: Use the PART IDENTIFICATION CHART in the center of this manual to identify small parts used
during assembly.
Do not plug in the power cord until all assembly steps are completed.
111
64
51
Bend 55
Holes
116
112
112 44
111
49
2

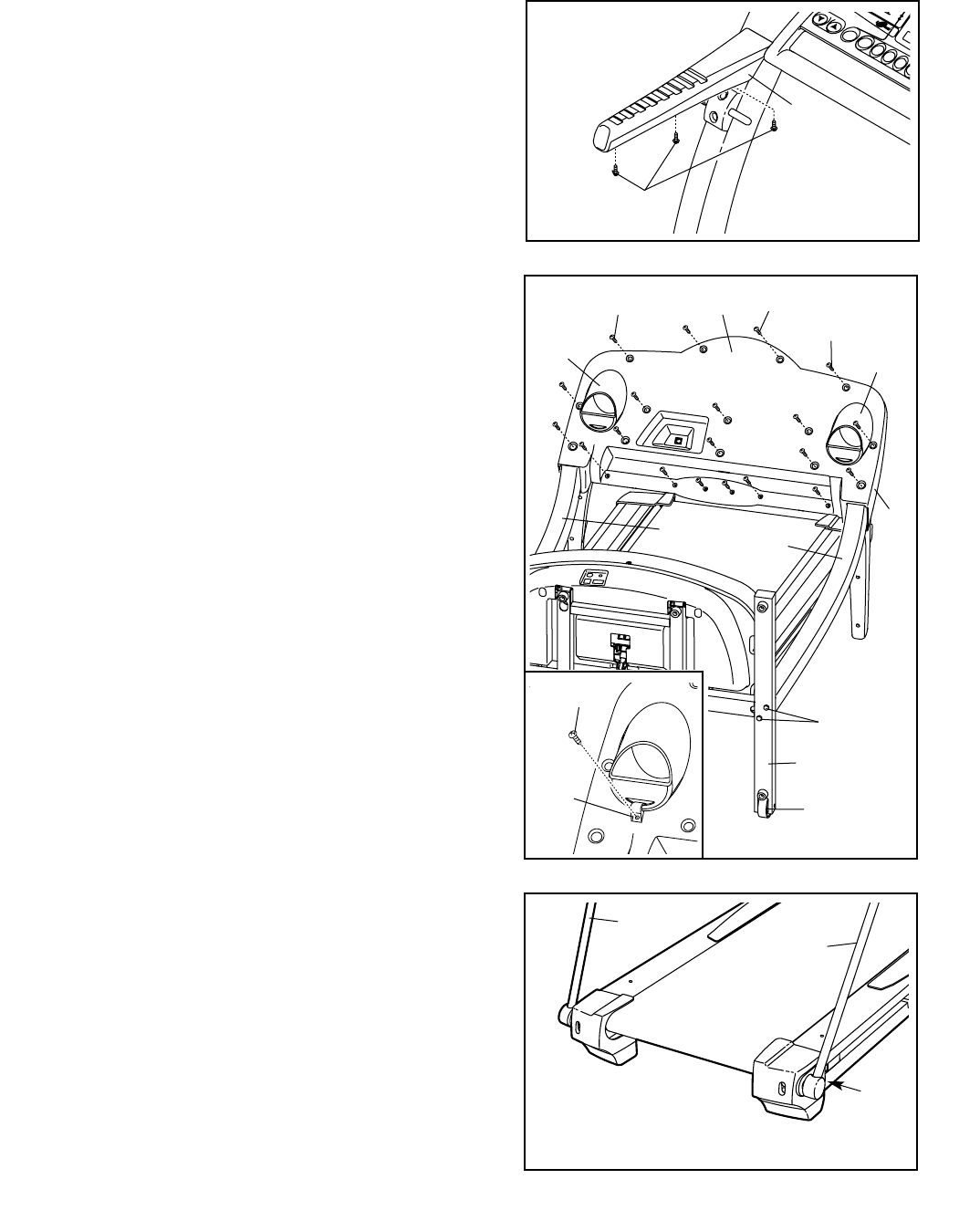

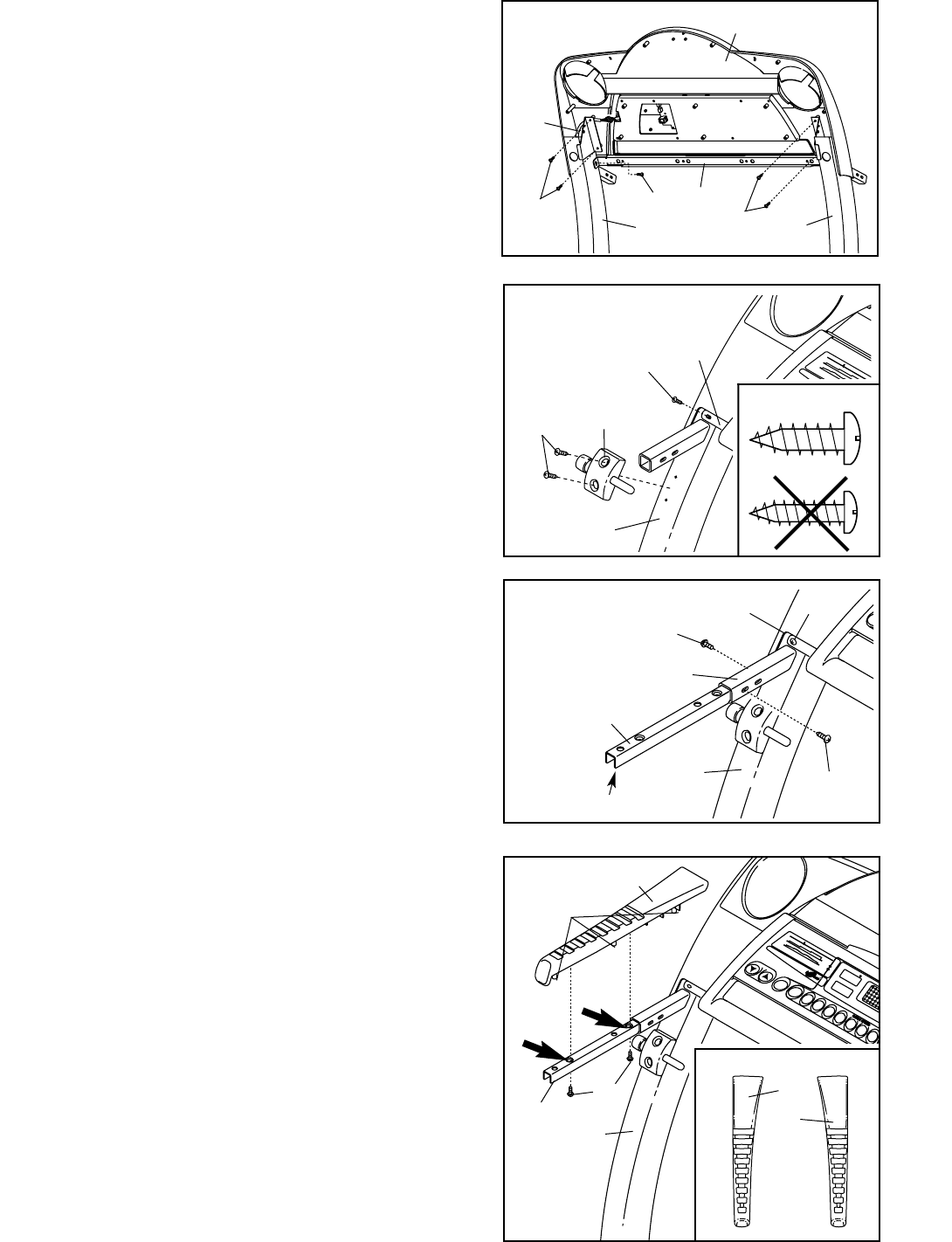

2. With the help of a second person, carefully tip the tread-
mill back down so that the Uprights (55, 64 [not shown])
are vertical. Make sure that the end of the Wire
Harness (49) does not fall into the Right Upright.
Set the Console Base (38) on the Right Upright (55) as
shown. Check the pins in the connector on the Wire
Harness (49) to make sure they are straight. Next, con-
nect the Wire Harness to the indicated connector on the
back of the Console Base. If the connectors do not fit
together easily, rotate them and then connect them.
38 49
55
6
![](asset-7.png)
3
3. Tighten a 1/2” Tek Screw (113) into the right side of the
Crossbar (46) and the Right Upright (55).
Attach the Console Base (38) to the Uprights (55, 64) with
four 1/2” Screws (33). Make sure that the Wire Harness
(49) is not pinched.
38
5. Tighten the 1/2” Tek Screw (113) in the left side of the
Crossbar (46).
Orient one of the Handgrip Extensions (34) so the bottom is
open as shown, and insert it as far as possible into the post
on the Left Upright (64). If necessary, tap the Handgrip
Extension with a rubber mallet to fully insert it. Attach the
Handgrip Extension with two 3/4” Tek Screws (35), one to-
wards the front of the post and the other towards the back.
Attach the other Handgrip Extension to the post on the
Right Upright (not shown) in the same way.
34
35
113 46
35
64
Open side
Post
5
49
33 64
55
46
113
33
7
6. See the inset drawing. Identify the Left Top Handgrip
(31); there are identifying marks inside of the Handgrips.
Set the Left Top Handgrip on the left Handgrip Extension
(34). Insert two 1/2” Screws (33) into the two holes in
the Handgrip Extension indicated by the arrows.
Tighten the Screws into the Left Top Handgrip.
Important: Do not tighten the Screws into the plastic
bosses on the bottom of the Left Top Handgrip.
31
Bosses
64
33
34
6
31
43
4
4. Loosely thread a 1/2” Tek Screw (113) into the left side of
the Crossbar (46) and the Left Upright (64).
Attach the Latch Assembly (32) to the Left Upright (64)
with two Latch Screws (117). Note: The two Latch Screws
may be in the Left Upright (64). The Latch Screws have
larger diameter than the 3/4” Screws (37) used in step 8.
113
(Leave loose) 46
64
32
117
117
37
![](asset-8.png)
7
7. Attach the matching Left Bottom Handgrip (82) with three
1/2” Screws (33).
Attach the Right Top Handgrip and the Right Bottom
Handgrip (not shown) as described above.
9
9. Remove the plastic ties from the Upper Body Arms (2). To
prevent damage to the Upper Body Arms if they are
moved too far sideways, the lower end of each Upper
Body Arm features a breakaway connector. If one of the
Upper Body Arms breaks away, simply press the
lower end back onto the Ball Joint (109, not shown).
Make sure that all parts are properly tightened before
you use the treadmill. Note: There may be hardware left
over after assembly is completed. Keep the included allen
wrench in a secure place; the allen wrench is used to ad-
just the walking belt (see page 26). To protect the floor or
carpet from damage, place a mat under the treadmill.
33
82
8
8. Carefully lower the Uprights (55, 64) as shown. Note: It
may be helpful to place your foot on one of the wheels
(58) as you lower the Uprights.
Press the Console Back (40) onto the back of the
Console Base (38). Make sure that Console Back and
Console Base are mated correctly and that no wires
are pinched. Tighten two 1/2” Silver Screws (114) into
the indicated holes. Tighten 3/4” Screws (37) into the
other holes in the Console Back.
Make sure that the left side of the Left Upright (64) is flush
with the left side of the Base (116). Firmly tighten, but do
not overtighten, the two Upright Bolts (112) in the left side
of the Base. Then, make sure that the Right Upright (55)
is flush with the right side of the Base. Tighten the two
Upright Bolts (not shown) in the right side of the Base.
Insert the Left and Right Cup Holders (39, 50) into the
large holes in the Console Base (38). If there is a small
hole under each Cup Holder, the two Small Clamps (110)
should be attached. Refer to the inset drawing. Loop a
Small Clamp through the hole in the bottom of a Cup
Holder and attach it with a 3/4” Screw (37). Attach a Small
Clamp to the other Cup Holder in the same way.
Raise the Uprights (55, 64) back to the vertical position.
40
39 50
38
37
114
114
112
64
55
116
58
2
2
109
37
110
8
![](asset-9.png)
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appli-
ances being turned on or off. To decrease the pos-
sibility of your treadmill being damaged, always
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge sup-
pressor, see your local PROFORM dealer or call
1-800-806-3651 and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
9
![](asset-a.png)
10
FEATURES OF THE CONSOLE
The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
a touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the built-in thumb pulse
sensor or the optional chest pulse sensor (see page
21).
Four certified personal trainer programs are also
offered. Each program automatically controls the
speed and incline of the treadmill to give you an effec-
tive workout. Two heart rate programs are also fea-
tured. Each program controls the speed and incline of
the treadmill to keep your heart rate near a target level
during your workouts.
The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using the included
audio cable, you can connect the treadmill to your
home stereo, portable stereo, or computer and play
special iFIT.com CD programs (iFIT.com CDs are avail-
able separately). IFIT.com CD programs automatically
control the speed and incline of the treadmill as a per-
sonal trainer guides you through every step of your
workout. High-energy music provides added motivation.
Each CD features two programs designed by certified
personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFIT.com video programs (videocas-
settes are available separately). Video programs offer
the same benefits as iFIT.com CD programs, but add
the excitement of working out with a class and an
instructor—the hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and ac-
cess programs directly from the internet. Additional op-
tions are soon to be available. See www.iFIT.com for
details.
To purchase iFIT.com CD’s or videocassettes, call
toll-free 1-800-735-0768.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a personal trainer
program, see page 13. To use a heart rate program,
see page 14. To use an iFIT.com CD or video pro-
gram, see page 18. To use an iFIT.com program di-
rectly from our Web site, see page 20.
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn-
ing on the power.
• Always wear the clip (see the drawing
above) while operating the treadmill.
•Adjust the speed in small increments to
avoid sudden jumps in speed.
•To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed water
bottle in the water bottle holder.
Clip
Display Display
Manual/Program Indicators
CONSOLE DIAGRAM
Program Profiles
Program Display
Key
Note: If there is a thin sheet of plastic
on the face of the console, remove it.
![](asset-b.png)
11
HOW TO TURN ON THE POWER
Plug in the power cord (see page 9). Make sure
the circuit breaker is in the reset position (see
page 25).
Stand on the foot grips of the treadmill. Find the
clip attached to the key (see the drawing on page
10) and slide the clip onto the waistband of your
clothes. Next, insert the key into the console. After
a moment, the displays and various indicators will
light. Test the clip by carefully taking a few
steps backward until the key is pulled from the
console. If the key is not pulled from the con-
sole, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in-
serted, the manual
mode will be selected
and the Manual Control
indicator will light. If a
program has been
selected, press the Program button repeatedly to
reselect the manual mode.
Press the Start button or the Speed
▲▲
button to
start the walking belt.
A moment after the but-
ton is pressed, the
walking belt will begin to
move at 1 mph. Hold the
handrails and begin
walking. As you exer-
cise, change the speed of the walking belt as de-
sired by pressing the Speed
▼▼
and
▲▲
buttons.
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments of 0.5
mph. To change the speed setting quickly, press
the Quick Speed buttons. Note: The console can
display speed and distance in either miles or
kilometers. For simplicity, all instructions in
this section refer to miles.
To stop the walking belt, press the Stop button.
The Time/Incline/Segment Time display will begin
to flash. To restart the walking belt, press the Start
button or the Speed
▲▲
button.
Note: During the first few minutes that the treadmill
is used, inspect the alignment of the walking belt,
and align it if necessary (see page 26).
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline buttons. Each time
a button is pressed, the
incline will change by
0.5%. Note: After the but-
tons are pressed, it may take a moment for the
treadmill to reach the selected incline setting.
Follow your progress with the displays.
The program display—
When the manual mode
or the iFIT.com mode is
selected, the program
display will show a track
representing 1/4 mile. As
you exercise, the indica-
tors around the track will light in sequence until you
have completed 1/4 mile. A new lap will then
begin.
Calories/Fat Calories/
Heart Rate display—
This display shows the
approximate numbers of
calories and fat calories
you have burned (see
FAT BURNING on page 27). The display will
change from one number to the other every few
seconds, as shown by the indicators beside the
display. The display will also show your heart rate
when you use the thumb pulse sensor (see step 6
on page 12) or the optional chest pulse sensor
(see page 21).
5
4
3
2
1
2
1
![](asset-c.png)
12

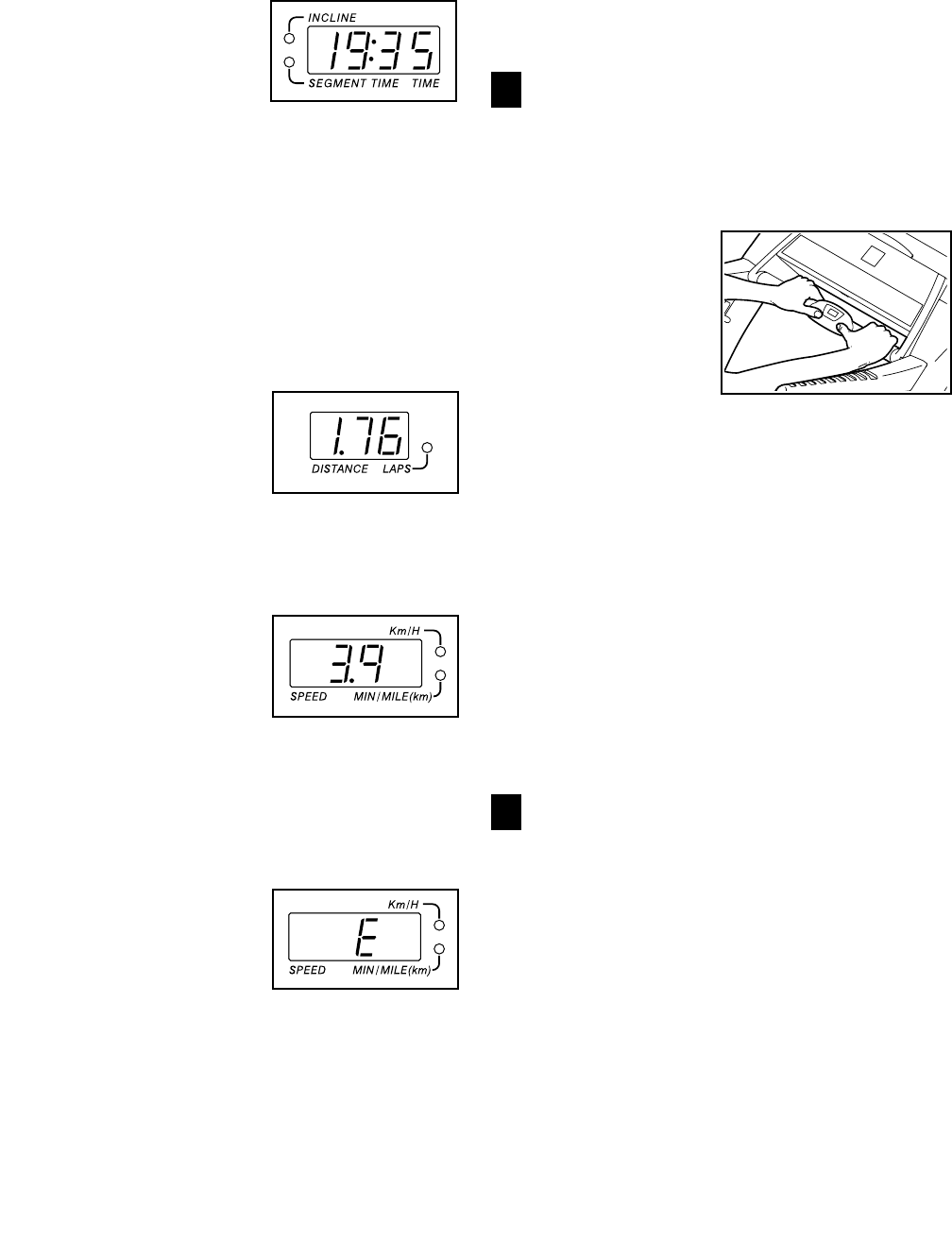

Time/Incline/Segment
Time display—When
the manual mode or the
iFIT.com mode is se-
lected, this display will
show the elapsed time
and the incline level of the treadmill. The display
will change from one number to the other every
few seconds, as shown by the indicators beside
the display. When a personal trainer program or a
heart rate program is selected, the display will
show the time remaining in the program, the time
remaining in the current segment of the program,
and the incline level. Note: Each time the incline
changes, the display will show the current incline
setting for several seconds.
Distance/Laps
display—This display
shows the distance that
you have walked or run
and the number of 1/4-
mile laps you have com-
pleted. The display will change from one number
to the other every few seconds, as shown by the
indicator beside the display.
Speed/Min-Mile
display—This display
shows the speed of the
walking belt and your
current pace (pace is
measured in minutes per
mile). The display will change from one number to
the other every few seconds, as shown by the in-
dicators beside the display. Note: Each time the
speed changes, the display will show the current
speed setting for several seconds.
Note: When the Km/H in-
dicator is lit, the console
will display speed and
distance in kilometers;
when the Km/H indicator
is not lit, the console will
display speed and distance in miles. To change
the unit of measurement, first hold down the Stop
button while inserting the key into the console. An
“E” for English miles or an “M” for metric kilometers
will appear in the display. Press the Speed
▲▲
but-
ton to change the unit of measurement. When the
desired unit of measurement is selected, remove
the key and then reinsert it.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate, if desired.
Note: When using the pulse sensor, make sure
that your hands are clean. The pulse sensor
should also be kept clean with a damp cloth and
mild detergent.
To measure your
heart rate, stand
on the foot grips
and place both
thumbs on the
pulse sensors as
shown. Do not
press too hard,
or the circulation
in your thumbs will be restricted and your
pulse will not be detected. Next, wait until the
heart-shaped indicator in the Calories/Fat
Calories/Heart Rate display flashes steadily. After
a few seconds, your heart rate will be shown. Hold
your thumbs on the sensor for another 15 seconds
for the most accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumbs off the sensors and allow the display
to reset. Then, place your thumbs on the sensors
as described above. Try the pulse sensor several
times until you become familiar with it. Remember
to stand still while measuring your heart rate.
When you are finished exercising, remove the
key.
Step onto the foot grips, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se-
cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is
removed, the console is in the “demo” mode.
See page 21 and turn off the demo mode.
When you are finished using the treadmill, unplug
the power cord.
7
6
![](asset-d.png)
13

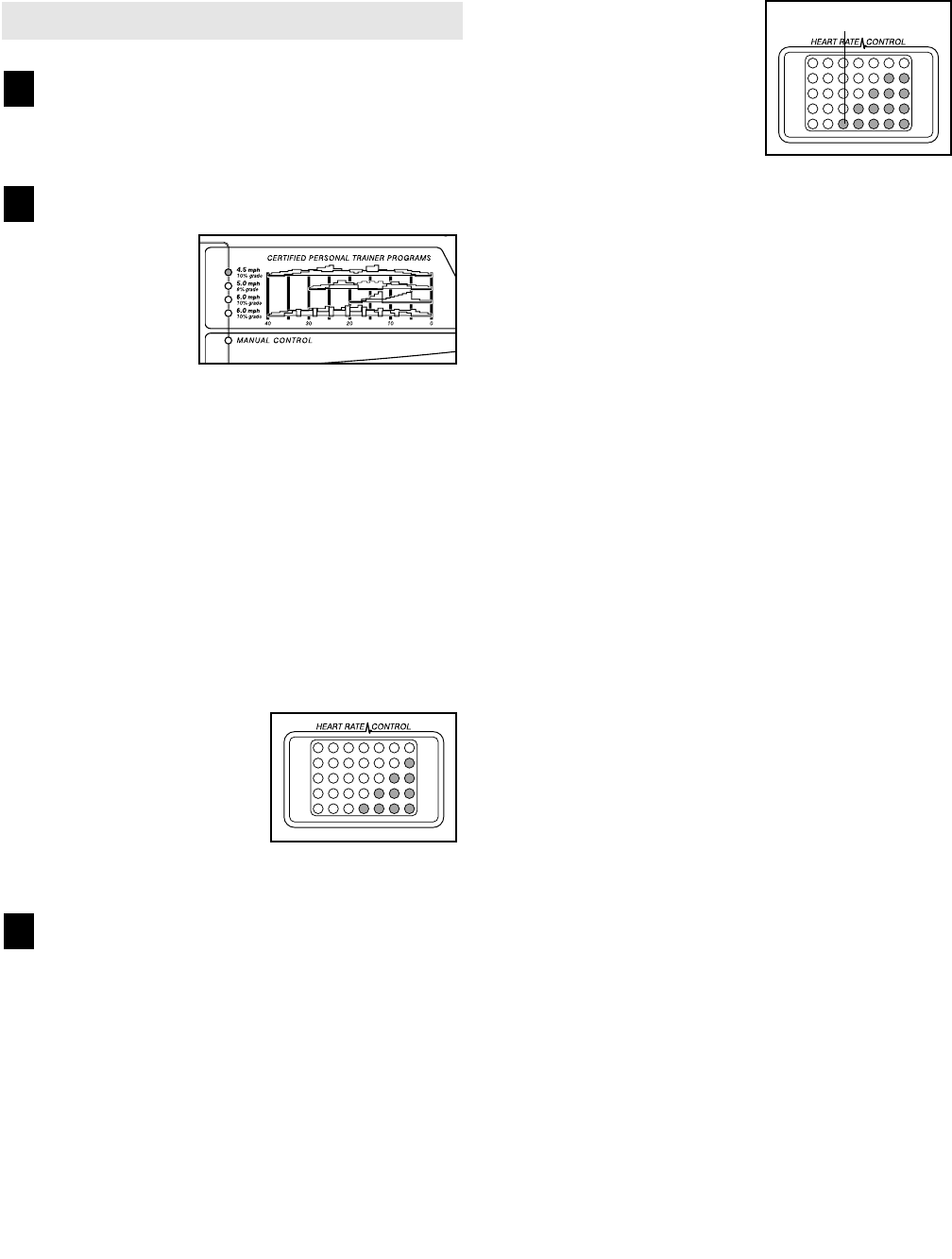

HOW TO USE PERSONAL TRAINER PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
11.
Select one of the personal trainer programs.
When the key
is inserted, the
manual mode
will be se-
lected. To se-
lect a personal
trainer pro-
gram, press the Program button repeatedly until
one of the four personal trainer program indicators
lights. When a personal trainer program is se-
lected, the Time/Incline/Segment Time display will
flash the maximum incline setting for the program
for six seconds, and the Speed/Min-mile display
will flash the maximum speed setting.
The four profiles on the right side of the console
show how the speed and incline of the treadmill
will change during the programs. The numbers
beside the profiles show the maximum speed and
incline settings for the programs.
The program display
will show the first four
speed settings for the
program. The Time/
Incline/Segment Time
display will show how
long the program will
last.
Press the Start button or the Speed
▲▲
button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into several time seg-
ments of different lengths. (The Time/Incline/
Segment Time display will show both the time re-
maining in the program and the time remaining in
the current segment.) One speed setting and one
incline setting are programmed for each segment.
(The same speed setting and/or incline setting may
be programmed for con-
secutive segments.) The
speed setting for the
first segment will be
shown in the flashing
Current Segment col-
umn of the program dis-
play. (The incline set-
tings are not shown in the program display.) The
speed settings for the next four segments will be
shown in the four columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
tone will sound. In addition, if the speed and/or
incline of the treadmill is about to change, the
Speed/Min-mile display and/or the Time/Incline/
Segment Time display will flash to alert you, and
three tones will sound. When the first segment is
completed, all speed settings will move one col-
umn to the left. The speed setting for the second
segment will then be shown in the flashing
Current Segment column and the treadmill will au-
tomatically adjust to the speed and incline settings
for the second segment. Note: If all of the indica-
tors in the Current Segment column are lit after the
speed settings have moved to the left, the speed
settings will move downward so that only the high-
est indicators appear in the LED matrix. If some of
the indicators in the Current Segment column are
not lit when the speed settings move to the left
again, the speed settings will move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and no time remains in
the Time/Incline/Segment Time display. The walk-
ing belt will then slow to a stop.
If the speed or incline setting for the current
segment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times one of the Speed
buttons is pressed, an additional indicator will light
or darken in the Current Segment column. If any of
the columns to the right of the Current Segment
column have the same number of lit indicators as
the Current Segment column, an additional indica-
tor may light or darken in those columns as well.
Important: When the current segment of the
program ends, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
3
2
1
Current Segment
![](asset-e.png)
14
To stop the program temporarily, press the Stop
button. The Time/Incline/Segment Time display
will begin to flash. To restart the program, press
the Start button or the Speed
▲▲
button. To end the
program, press the Stop button, remove the key,
and then reinsert the key.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate if desired.
See step 6 on page 12.
When the program is completed, remove the
key from the console.
When the program has ended, make sure that
the incline of the treadmill is at the lowest set-
ting. Next, remove the key from the console and
put it in a safe place. Note: If the displays and
various indicators on the console remain lit
after the key is removed, the console is in the
“demo” mode. See page 21 and turn off the
demo mode.
When you are finished using the treadmill, unplug
the power cord.
HOW TO USE HEART RATE PROGRAMS
Follow the steps below to use a heart rate program.
Note: You must wear the optional chest pulse sen-
sor (see page 21) to use a heart rate program.
Put on the chest pulse sensor.
See the instructions included with the optional
chest pulse sensor.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
11.
Select a heart rate program.
When the key is
inserted, the
manual mode
will be selected.
To select a
heart rate pro-
gram, press the
Program button repeatedly until one of the two
heart rate program indicators lights.
The two profiles on the left side of the console
show how the target heart rate will change during
the programs. The numbers above the profiles
represent percentages of your estimated maxi-
mum heart rate. Note: Your estimated maximum
heart rate is determined by subtracting your age
from 220. For example, if you are 30 years old,
your estimated maximum heart rate is 190 beats
per minute (220 – 30 = 190). If you are 30 years
old, a target heart rate setting of 50% is equal to
95 beats per minute (50% of 190 is 95).
3
2
1
6
5
4
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and
have been inactive, do not use the heart rate
programs. If you are taking medication regu-
larly, consult your physician to find whether the
medication will affect your exercise heart rate.
![](asset-f.png)
15
During heart rate pro-
grams, the program
display will show a
graphic that represents
your heart rate. Each
time a heartbeat is de-
tected, an additional
peak will appear.
Enter your age.
When a heart rate pro-
gram is selected, the let-
ters AGE and the current
age setting will begin to
flash in the Calories/
Fat Calories/Heart Rate
display. You must enter your age to use a heart
rate program. If you have already entered your
age, go to step 5. If you have not entered your
age, press the Incline (Age Set) buttons until your
age is shown. Your age will then be saved in mem-
ory.
Adjust the maximum speed limit for the
program.
When a heart rate pro-
gram is selected, the let-
ters SPd (speed) and the
maximum speed limit for
the program will flash in
the Speed/Min-Mile dis-
play. If desired, change the maximum speed limit
by pressing the Quick Speed buttons.
Press the Start button or the Speed
▲▲
button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each heart rate program is divided into one-minute
segments. (The Time/Incline/Segment Time dis-
play will show both the time remaining in the pro-
gram and the time remaining in the current seg-
ment of the program.) One target heart rate set-
ting is programmed for each segment. (The same
target heart rate setting may be programmed for
consecutive segments.)
During the program, the console will regularly
compare your heart rate to the current target heart
rate setting. If your heart rate is too far below or
above the target heart rate setting, the speed of
the treadmill will automatically increase or de-
crease to bring your heart rate closer to the target
heart rate setting. If the speed reaches the maxi-
mum speed limit for the program (see step 5 at
the left) and your heart rate is still too far below
the current target heart rate setting, the incline of
the treadmill will also increase to bring your heart
rate closer to the target heart rate setting.
The program will continue until no time remains in
the program. The walking belt will then slow to a
stop.
If the speed or incline setting is too high or too
low, you can adjust the setting with the speed or
incline buttons. However, each time the console
compares your heart rate to the current target
heart rate setting, the speed and/or incline of the
treadmill may automatically change to bring your
heart rate closer to the target heart rate setting.
If your pulse is not detected during the program,
the letters PLS will flash in the Calories/Fat
Calories/Heart Rate display and the speed and in-
cline of the treadmill may automatically decrease
until your pulse is detected. If this occurs, see the
instructions included with the chest pulse sensor.
To stop the program at any time, press the Stop
button. Heart rate programs should not be stopped
temporarily and then restarted. To use a heart rate
program again, reselect the program and start it at
the beginning.
Follow your progress with the displays.
See step 5 on page 11.
When the program is completed, remove the
key from the console.
See step 6 on page 14.
8
7
6
5
4
![](asset-10.png)
16
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the treadmill must be connected
to your portable CD player, portable stereo, home
stereo, or computer with CD player. See pages 16 and
17 for connecting instructions. To use iFIT.com video-
cassettes, the treadmill must be connected to your
VCR. See page 18 for connecting instructions. To use
iFIT.com programs directly from our internet site,
the treadmill must be connected to your home com-
puter. See page 17 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.

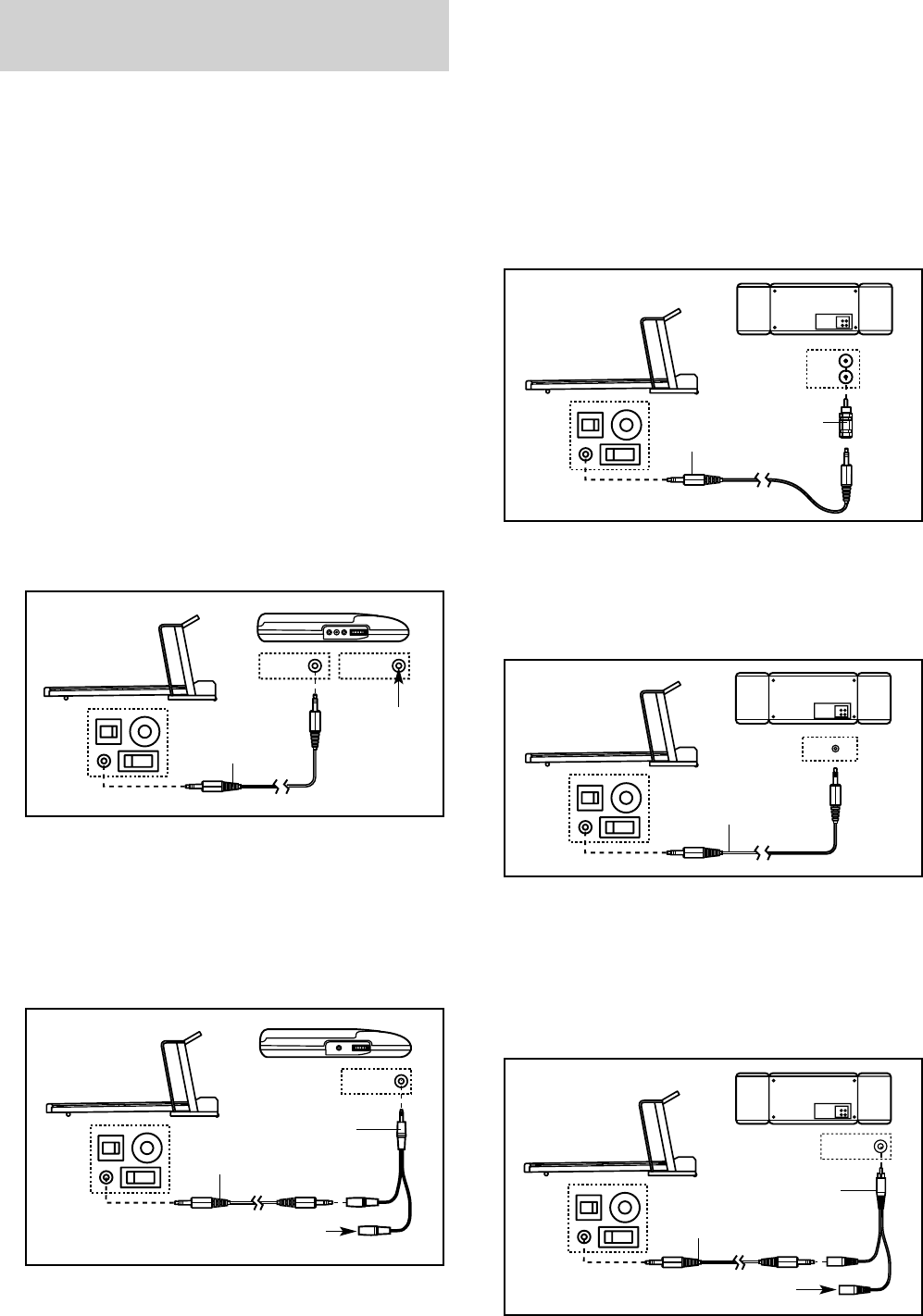

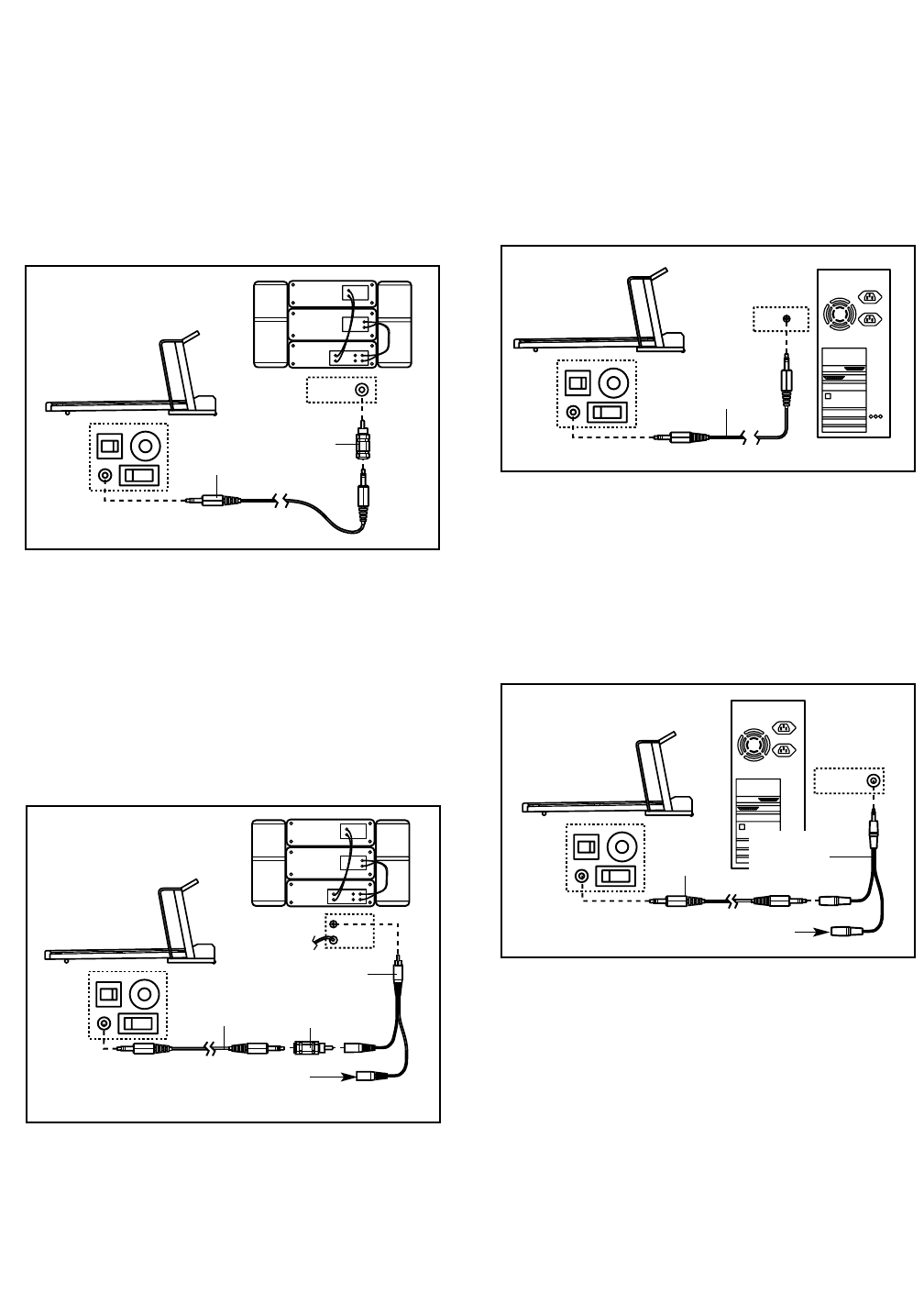

A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter (avail-
able at electronics stores). Plug the Y-adapter into
the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter. Plug
the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
AUDIO OUT
RIGHT
LEFT
Audio
Cable
Adapter
A
LINE OUT
Audio
Cable
B
PHONES
Audio
Cable
C
PHONES
PHONES
Audio
Cable
3.5mm
Y-adapter
Headphones
B
3.5mm
Y-adapter
Headphones
![](asset-11.png)
17
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the LINE OUT
jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
LINE OUT
CD
VCR
Amp
LINE OUT
Audio
Cable
Adapter
A
LINE OUT
Audio
Cable
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
PHONES
Audio
Cable
B
3.5mm
Y-adapter
Headphones/Speakers
![](asset-12.png)
18
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 17.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on page
16 and 17. Note: To purchase iFIT.com CDs or
videocassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video
program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use iFIT.com CDs or
videocassettes, press
the Program button re-
peatedly until the iFIT.com indicator lights.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the Time/Incline/Segment
Time display is flashing, press the Start button or
the Speed
▲▲
button on the console. The treadmill
will not respond to a CD or video program when
the Time/Incline/Segment Time display is flashing.
During the CD or video program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
4
3
2
1
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Audio
Cable
Adapter
A
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Audio
Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
![](asset-13.png)
19
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Incline/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed
▲▲
button. After a moment, the walking belt
will begin to move. When the next “chirp” is
heard, the speed and incline will change to the
next settings of the CD or video program.
When the CD or video program is completed, the
walking belt will stop and the Time/Incline/Segment
Time display will begin to flash. Note: To use an-
other CD or video program, press the Stop button
or remove the key and go to step 1 on page 18.
Note: If the speed or incline of the treadmill
does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and
that the Time/Incline/Segment Time display is
not flashing. If the Time/Incline/Segment Time
display is flashing, press the Start button or
the Speed
▲▲
button on the console.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
• See the instructions near the bottom of page
26.
Follow your progress with the displays.
See step 5 on page 11.
Measure your heart rate if desired.
See step 6 on page 12.
When the program is completed, remove the
key.
See step 6 on page 14.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player or VCR
when you are finished using them.
7
6
5
![](asset-14.png)
20
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to access
basic programs, audio programs, and video programs
directly from the internet. Additional options are soon to
be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 17. In
addition, you must have an internet connection and
an internet service provider. A list of specific system re-
quirements will be found on our Web site.
Follow the steps below to use a program from our
Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
When the key is in-
serted, the manual
mode will be selected.
To use a program from
our Web site, press the
Program button repeat-
edly until the iFIT.com indicator lights.
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructions for using a
program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the treadmill and stand on the foot
grips. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings for the program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Incline/
Segment Time display will begin to flash. To
restart the program, press the Start button or the
Speed
▲▲
button. After a moment, the walking belt
will begin to move. When the next “chirp” is
heard, the speed and incline will change to the
next settings of the program.
When the program is completed, the walking belt
will stop and the Time/Incline/Segment Time dis-
play will begin to flash. Note: To use another pro-
gram, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a “chirp” is heard, make
sure that the iFIT.com indicator is lit and that
the Time/Incline/Segment Time display is not
flashing. In addition, make sure that the audio
cable is properly connected, that it is fully
plugged in, and that it is not wrapped around a
power cord.
Follow your progress with the displays.
See step 5 on page 11.
When the program has ended, remove the key.
See step 6 on page 14.
9
8
7
6
5
4
3
2
1
![](asset-15.png)
21

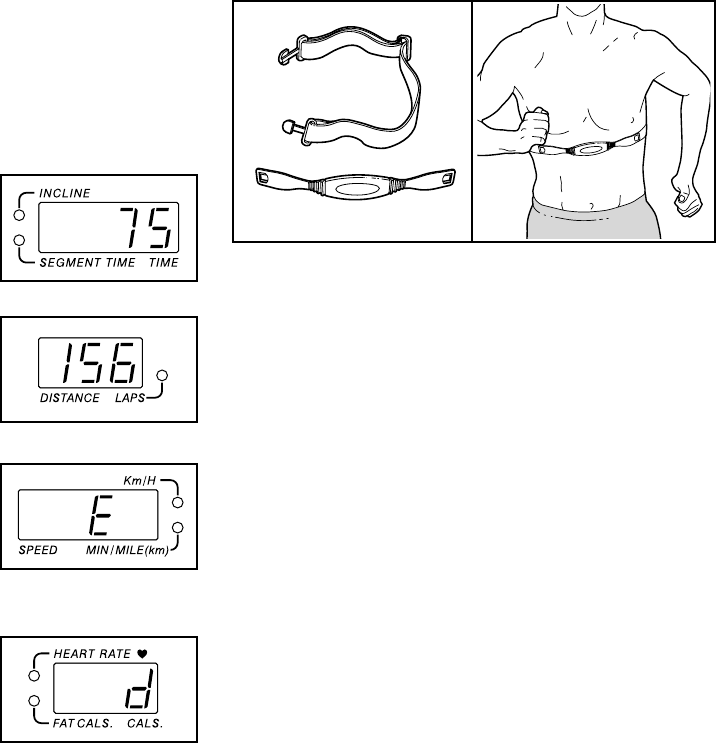

THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also al-
lows you to switch the console from miles per hour to
kilometers per hour. In addition, the information mode
allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following informa-
tion will be shown:
The Time/Incline/Segment
Time display will show the
total number of hours the
treadmill has been used.
The Distance/Laps display
will show the total number of
miles (or kilometers) that the
walking belt has moved.
An “E” for english miles or an
“M” for metric kilometers will
appear in the Speed/Min-Mile
display. Press the Speed
▲▲
button to change the unit of
measurement.
IMPORTANT: The Calories/
Fat Calories/Heart Rate dis-
play should be blank. If a “d”
appears in the display, the
console is in the “demo”
mode. This mode is intended
to be used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the displays and indicators on the console
will automatically light in a preset sequence, although
the buttons on the console will not operate. If a “d” ap-
pears in the Calories/Fat Calories/Heart Rate display
when the information mode is selected, press the
Speed
▼▼
button so the display is blank.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more fea-
tures to the console. The chest pulse sensor offers
hands-free operation, and enables you to use the con-
sole’s two heart rate programs. To purchase the
chest pulse sensor, call toll-free 1-800-734-2377.
![](asset-16.png)
22
HOW TO USE THE UPPER BODY ARMS
As you walk on the treadmill, you can either hold the
handrails or use the upper body arms. When you are
not using the arms, always set them in the arm
housings at the base of the uprights (see the draw-
ing below). Be careful not to step on the arms.
To add upper-body exercise to your workouts, hold the
upper body arms and move them forward and back as
you walk. Do not move the arms too far to the side. To
vary the intensity of your upper-body exercise, adjust
the resistance of the arms by turning the resistance
knobs.
If you are using the upper body arms and you need
to set them aside for a moment, step onto the foot
grips and set the ends of the arms on the ends of
the crossbar as shown below. Allowing the arms to
come in contact with the console may affect the
operation of the treadmill. Never leave the arms on
the crossbar or the console when the arms are not
in use.
UPPER BODY ARM TROUBLESHOOTING
If the upper body arms do not slide easily, or if they
make a squeaking noise, apply the included lubricant
to the arms in the locations shown below. Slide the
arms up and down several times to spread the lubricant.
To prevent damage to the upper body arms if they are
moved too far sideways, the lower end of each arm
features a breakaway connector. If one of the arms
breaks away, simply press the lower end back onto
the ball joint (not shown).
Arm
Housings
Upper Body Arms
Crossbar
Resistance
Knobs
Upper
Body
Arms
Lubricate
Ball Joint
![](asset-17.png)
23

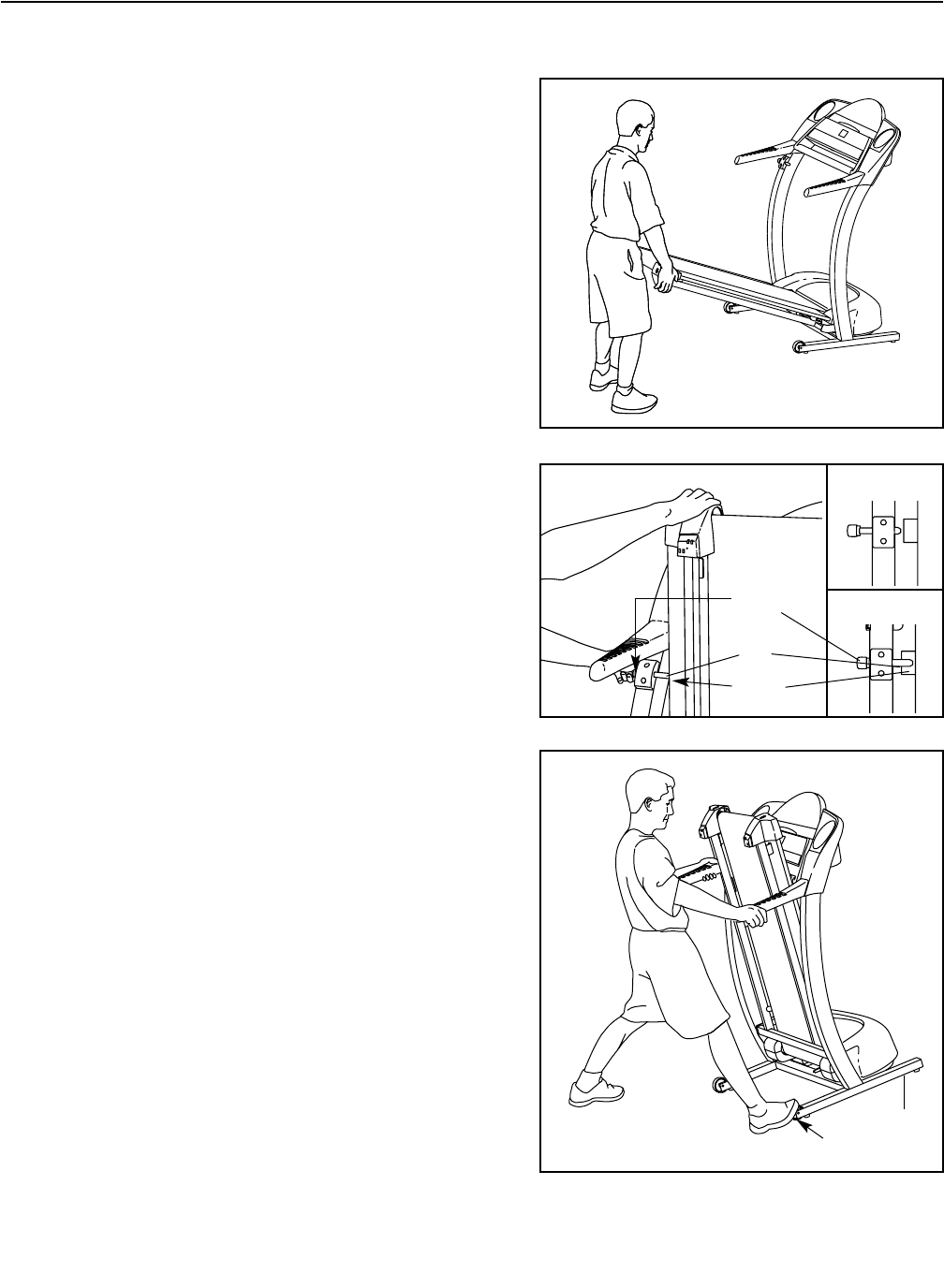

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position and set the upper body arms in the arm
housings. If this is not done, the treadmill may be per-
manently damaged. Next, unplug the power cord. CAU-
TION: You must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob
to the left and hold it. Raise the treadmill until the catch is
past the latch pin. Slowly release the latch knob. Make
sure that the catch is securely held by the latch pin.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the arms
are in the arm housings and the catch is securely held
by the latch pin.
1. Hold the handrails as shown and place one foot against a
wheel.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location.
Never move the treadmill without tipping it back. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not attempt to move the
treadmill over an uneven surface.
3. Place one foot on a wheel, and carefully lower the tread-
mill until it is resting in the storage position.
Base
Wheels
Latch
Knob
Pin
Catch
Closed
Open
![](asset-18.png)
24

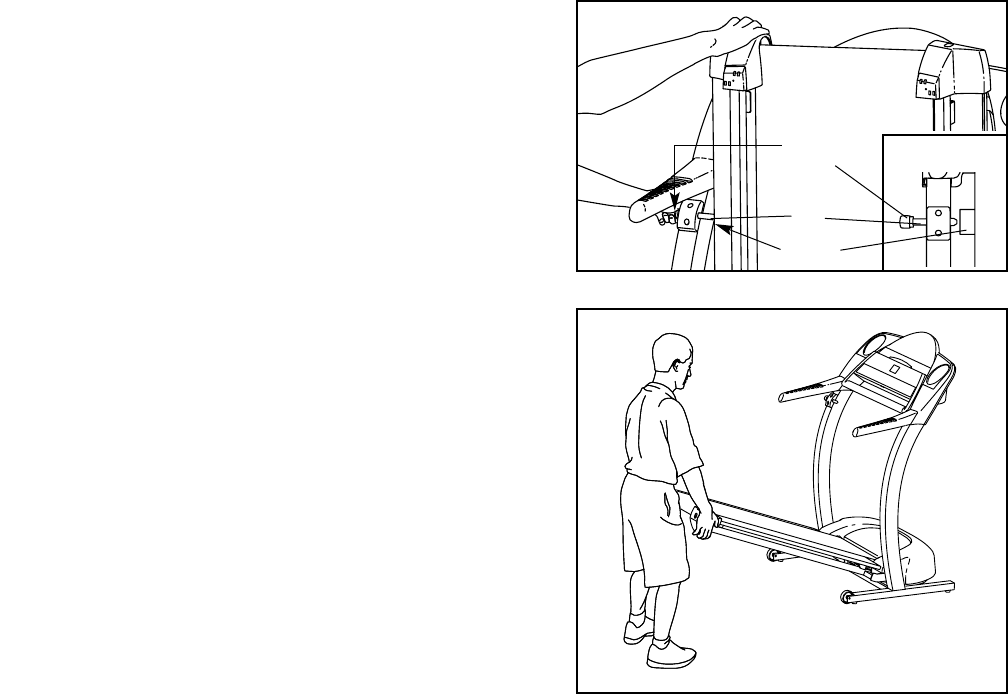

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left hand, pull the latch knob to the
left and hold it. Pivot the treadmill down until the frame is
past the pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame
to the floor. CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight.
Latch
Knob
Pin
Catch
Open
![](asset-19.png)
25

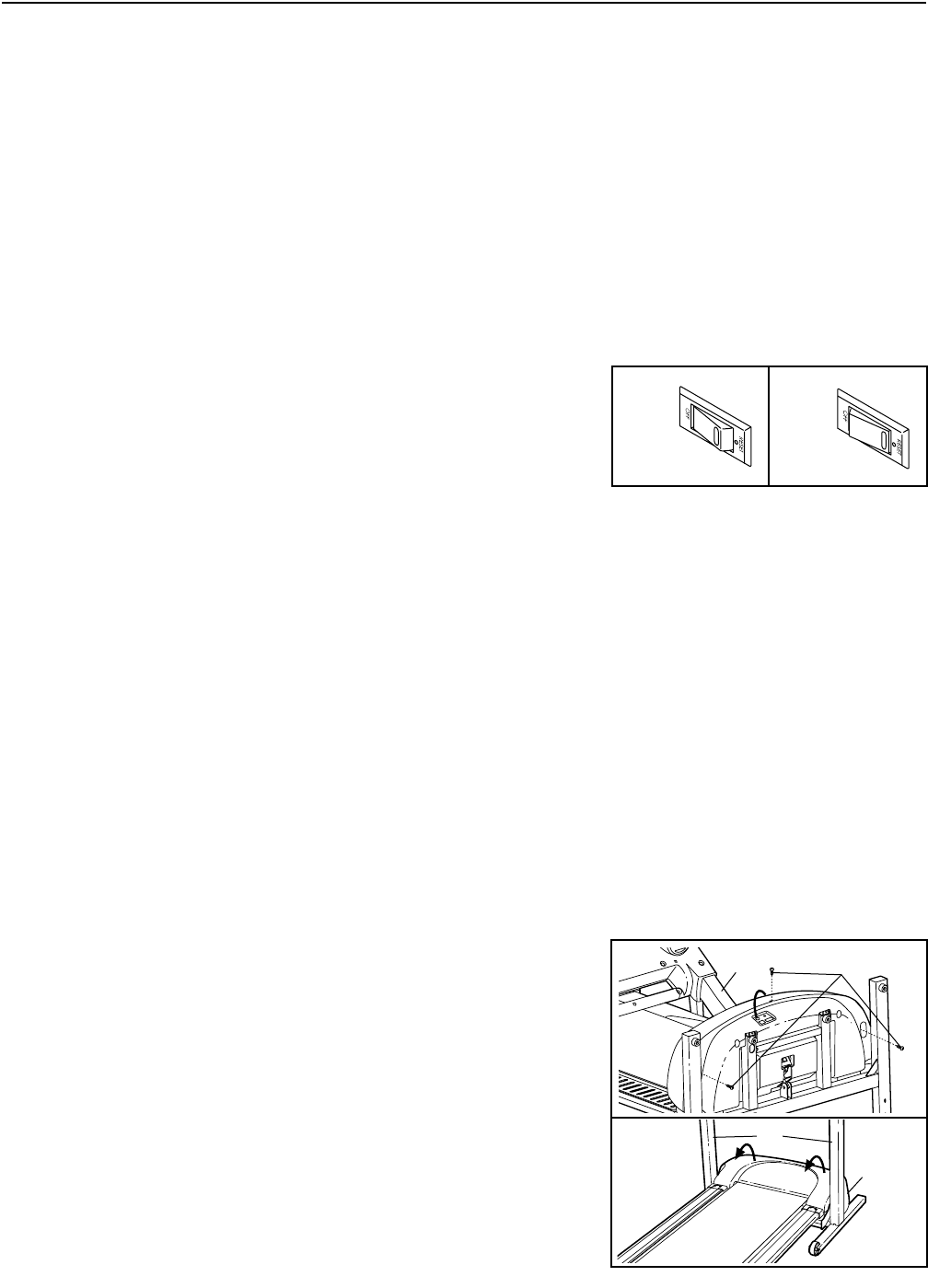

TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-
free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 9. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our toll-free Customer Service Department.
PROBLEM: The thumb pulse sensor does not function properly
SOLUTION: a. Wash your hands before using the pulse sensor. In addition, keep the pulse sensor clean using a
damp cloth and a small amount of mild detergent.
PROBLEM: The speed display on the console does not function properly
SOLUTION: a. Remove the key and UNPLUG THE POWER CORD.
Carefully lower the Uprights (64) to the floor. Remove
the three indicated 3/4” Screws (37).
Raise the Uprights (64) to the vertical position. Pivot
the Hood (1) off.
64 37
a
1
64
Tripped
c
Reset
![](asset-1a.png)
26

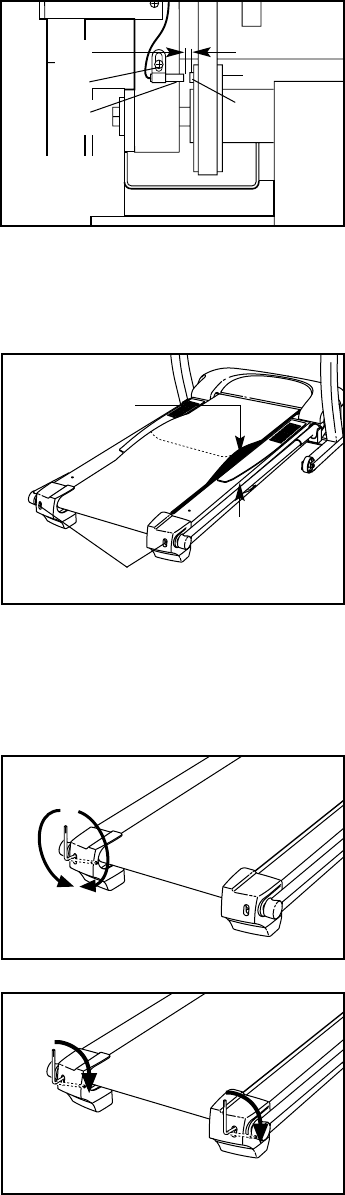

Locate the Reed Switch (18) and the Magnet (101) on
the left side of the Pulley (78). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the Screw
(24) and move the Reed Switch slightly. Retighten the
Screw. Re-attach the hood, and run the treadmill for a
few minutes to check for a correct speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 3 to
4 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please call our toll-free Customer Service
Department.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tight-
ened, you should be able to lift each side of the walk-
ing belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com
CD’s and videos are played
SOLUTION: a. With the key inserted in the console, press one of the Incline buttons. While the incline is
changing, remove the key. After a few seconds, re-insert the key. The treadmill will automati-
cally rise to the maximum incline level and then return to the minimum level. This will recalibrate
the incline.
Rear Roller Adjustment Bolts
3”–4”
b
b
a
101
18
24
1/8”
78
Top
View
![](asset-1b.png)
27
CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “train-
ing zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for individu-
als over the age of 35 or individuals with pre-
existing health problems.
The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
![](asset-1c.png)
Part No. 189581 R1002A Printed in USA © 2002 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• The MODEL NUMBER OF THE PRODUCT (PFTL59120)
• The NAME OF THE PRODUCT (PROFORM®CROSSWALK ADVANCED 525 treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
attached in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis-
use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod-
ucts used for commercial or rental purposes; or products used as store display models. No other war-
ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
![](asset-1d.png)
Star Washer (111)–4
Upright Bolt (112)–4
1/2” Tek Screw
(113)–2
1/2” Screw (33)–14 3/4” Tek Screw
(35)–4
3/4” Screw (37)–20
1/2” Silver
Screw (114)–2
Latch Screw (117)–2
Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
PART IDENTIFICATION CHART
![](asset-1e.png)
PART LIST—Model No. PFTL59120 R1002A
1 1 Motor Hood
2 2 Upper Body Arm
3 8 Nut
4 1 Motor Belt
5* 1 Motor Assembly
6 1 Flywheel
7 1 Motor
8 2 Frame Spacer
9 1 Hole Plug
10 1 Front Roller Adj. Bolt
11 1 Motor Pivot Bolt
12 2 Lift Frame Pivot Bolt
13 6 Base Pad Screw
14 1 Motor Tension Nut
15 1 Motor Washer
16 1 Motor Pivot Nut
17 1 Motor Tension Bolt
18 1 Reed Switch
19 1 2” Incline Motor Bolt
20 1 Reed Switch Clip
21 1 Lift Frame
22 1 Motor Star Washer
23 1 Controller Bracket
24 4 Small Screw
25 1 Controller
26 1 Choke
27 1 Power Board
28 4 Plastic Stand-Off
29 1 Power Board Bracket
30 1 Key/Clip
31 1 Left Foam Grip
32 1 Latch Assembly
33 25 1/2” Screw
34 2 Handrail Extension
35 21 3/4” Tek Screw
36 1 iFIT.com Wire
37 29 3/4” Screw
38 1 Console Base
39 1 Left Cup Holder
40 1 Console Back
41 1 Book Holder
42 1 Console
43 1 Right Foam Grip
44 6 Base Pad
45 2 Platform Screw (Rear)
46 1 Crossbar
47 1 Ground Screw
48 1 Ground Washer
49 1 Upright Wire
50 1 Right Cup Holder
51 1 Frame
52 1 Incline Motor Bolt
53 2 Caution Decal
54 1 Pulse Sensor
55 1 Right Upright
56 2 Wheel Bolt
57 2 Roller Star Washer
58 2 Wheel
59 1 Incline Motor
60 1 Console Wire Harness
61 1 Power Cord
62 1 Grommet
63 2 Static Decal
64 1 Left Upright
65 1 Circuit Breaker
66 1 Audio Wire Nut
67 4 Housing Screw
68 1 Belly Pan
69 1 Audio Wire
70 2 Frame Pivot Bolt
71 2 Base Endcap
72 4 Isolator
73 2 Belt Guide
74 1 Left Upper Body
Arm Housing
75 4 Platform Screw
76 1 Left Foot Grip
77 1 Walking Belt
78 1 Front Roller/Pulley
79 1 Console Ground Wire
80 1 Walking Platform
81 9 8” Cable Tie
82 1 Left Bottom Handgrip
83 3 Tie Holder Clamp
84 2 Releasable Tie
85 1 Pulse Wire
86 1 Right Foot Grip
87 1 Rear Roller
88 1 Rear Foot (Right)
89 1 Motor Controller Wire
90 1 iFIT.com Jack
91 2 Rear Roller Adj. Bolt
92 2 Roller Adj. Washer
93 1 Rear Endcap (Right)
94 1 Allen Wrench
95 1 Rear Foot (Left)
96 1 Rear Endcap (Left)
97 1 Warning Decal
98 2 Latch Plate Screw
99 1 Latch Catch
100 4 U-nut
101 1 Magnet
102 1 Belly Pan Clip
103 2 Outside Arm Cap
104 1 Right Bottom Handgrip
105 1 Right Upper Body
Arm Housing
106 1 Ground Wire
107 1 Latch Bracket
108 2 Inside Arm Cap
109 2 Ball Joint
110 2 Small Clamp
111 4 Star Washer
112 4 Upright Bolt
113 2 1/2” Tek Screw
114 2 1/2” Silver Screw
115 2 Ball Joint Nut
116 1 Base
117 2 Latch Screw
# 1 8” White Wire, 2F
# 1 8” White Wire, M/F
# 1 14” Blue Wire, 2F
# 2 4” Blue Wire, 2F
# 1 4” Blue Wire, M/F
# 1 14” Green Wire, F/R
# 1 8” Red Wire, M/F
# 1 User's Manual
# These parts are not illustrated
* Includes all parts shown in the
box
Key
No. Qty. Description
Key
No. Qty. Description
Key
No. Qty. Description
![](asset-1f.png)
33
58
356
53
53
44
44
13
13
56
3
58 12
3
116
33
60
113
91
92
33
57
91
33
57
92
117
32
88
1
37
24
18
22
21
20
43
8
76
99
97
96
94
87
93
80
45
106
11
33
72
70
78
77
70
75
75 69
73
37
35
66
65
62
35
61
68
37
35
35
52
3
59
55
44
13
64
113
33
33
33
33
38
39
40
30
37
37
114
114
41
42
37
33
13
44
19
3
13
44
13
44
63
63
49
37
37
24
98
16
17 15
5*
67
14
3
12
11
38
10
33
24
24
85
37
37
25
26
23
27
29
28
46
50
51
54
71
90
89
36
85
101
102
79
71
84
83
24
81
9
47
49
48
111
112
100
100
111
112
115
110 37
86
73
24
33
72
72
33
72
33
99
74
67
2
115
109
109
67
105
31
34
35
35
43
34
35
35
33
33
104
33
82
95
35
35
98
107
103
108
103
EXPLODED DRAWING—Model No. PFTL59120 R1002A
