Serial Number Decal

Model No. PFTL59906.0

Serial No.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

USER'S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if parts are

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.proformservice.com

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

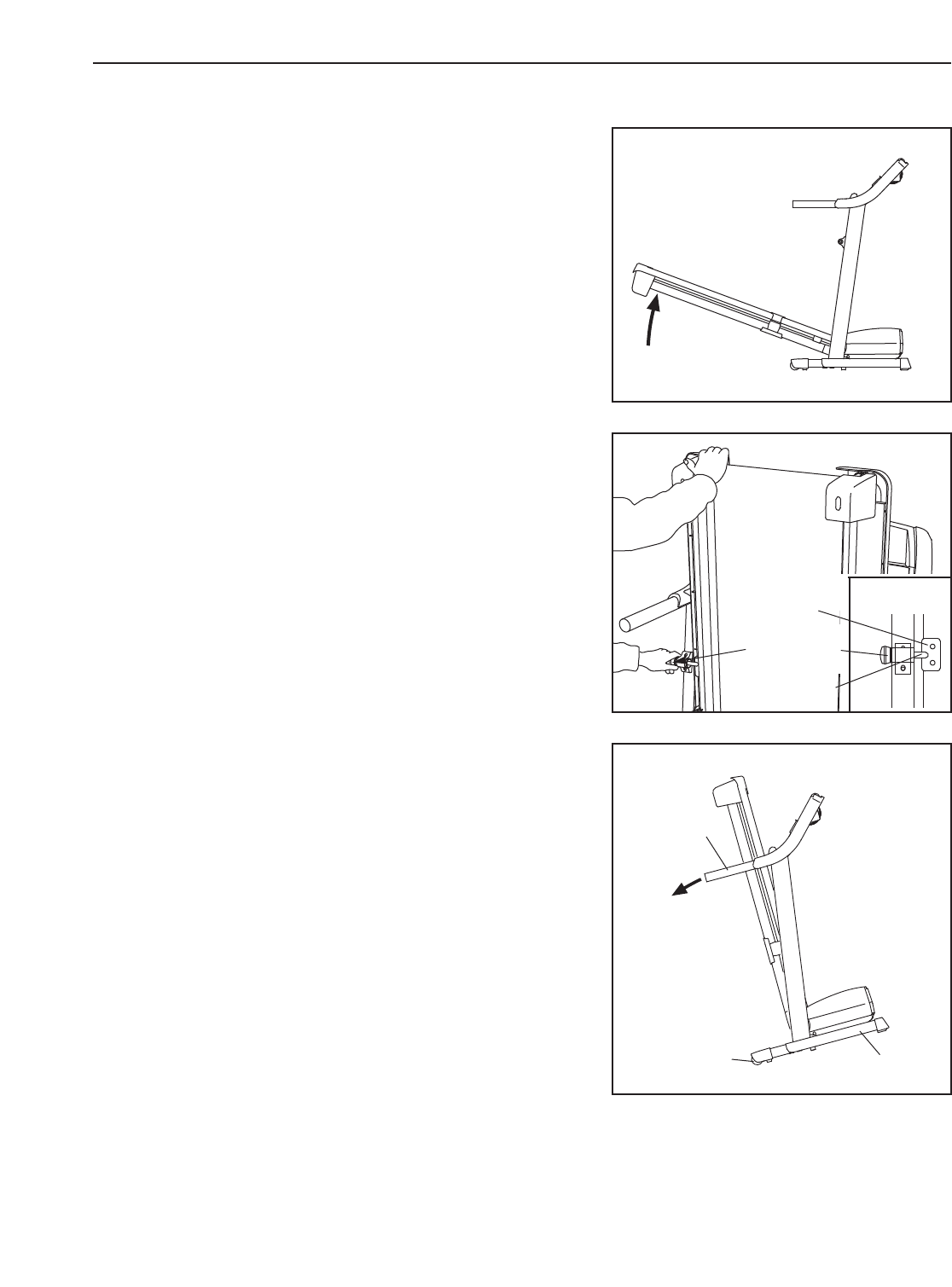

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

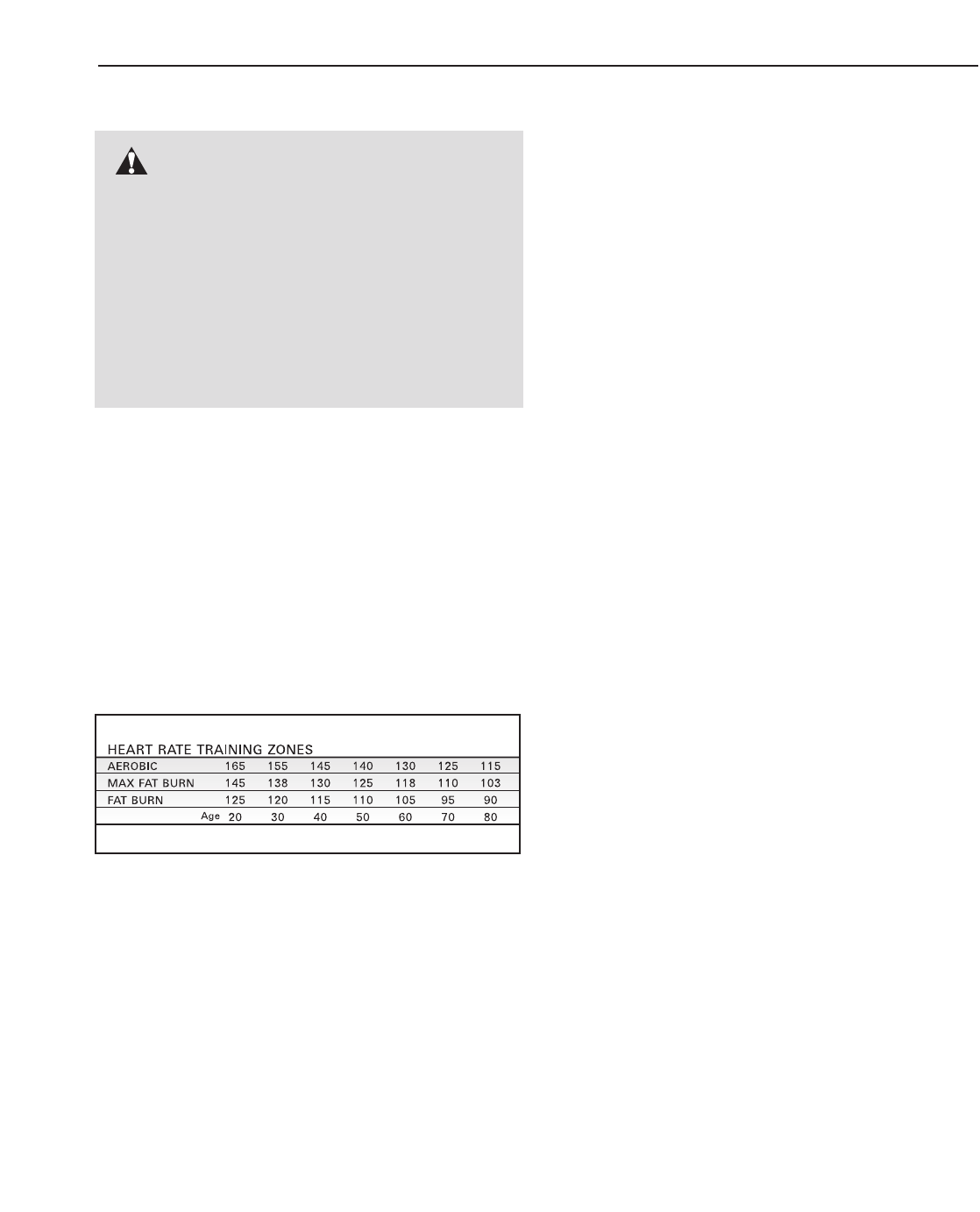

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

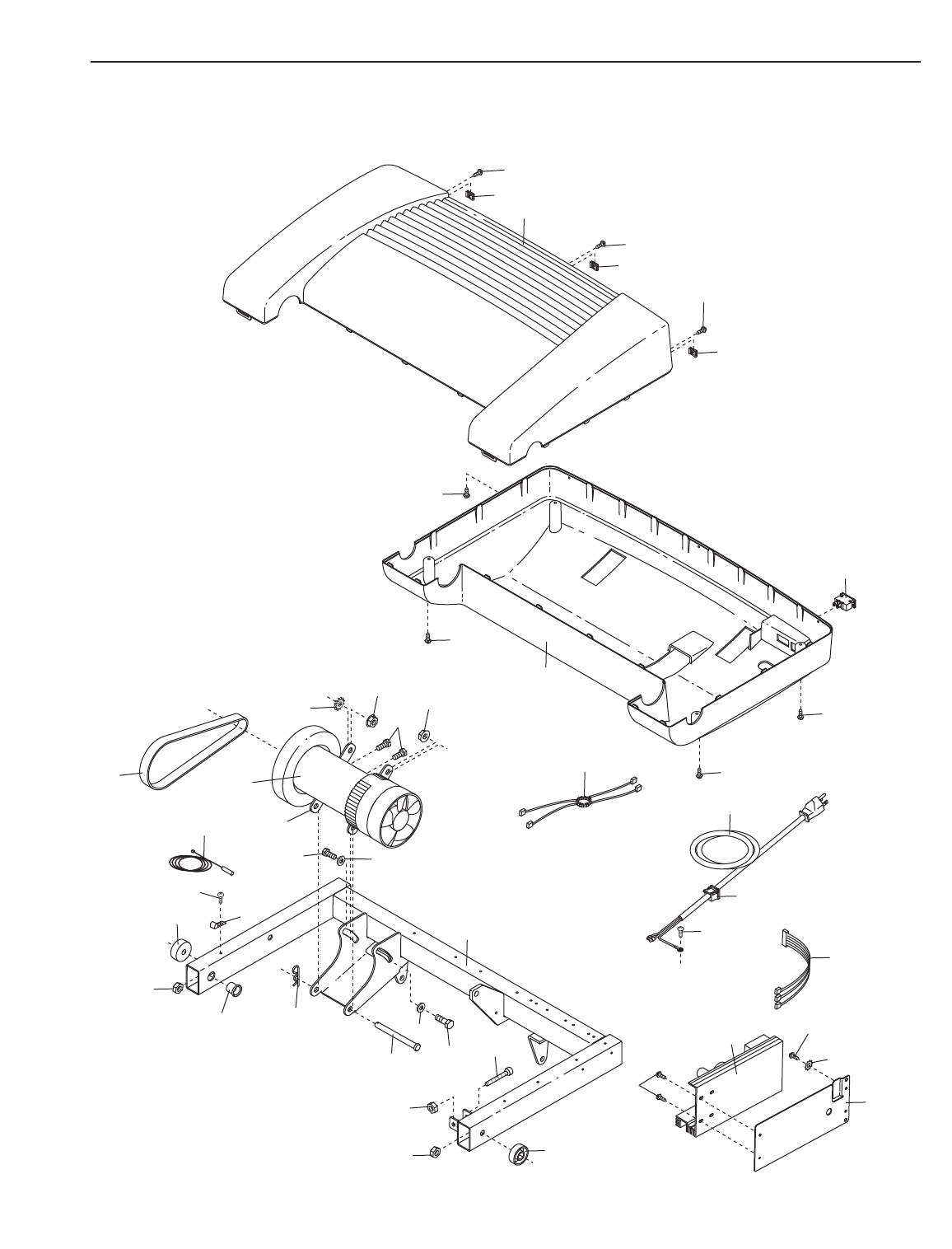

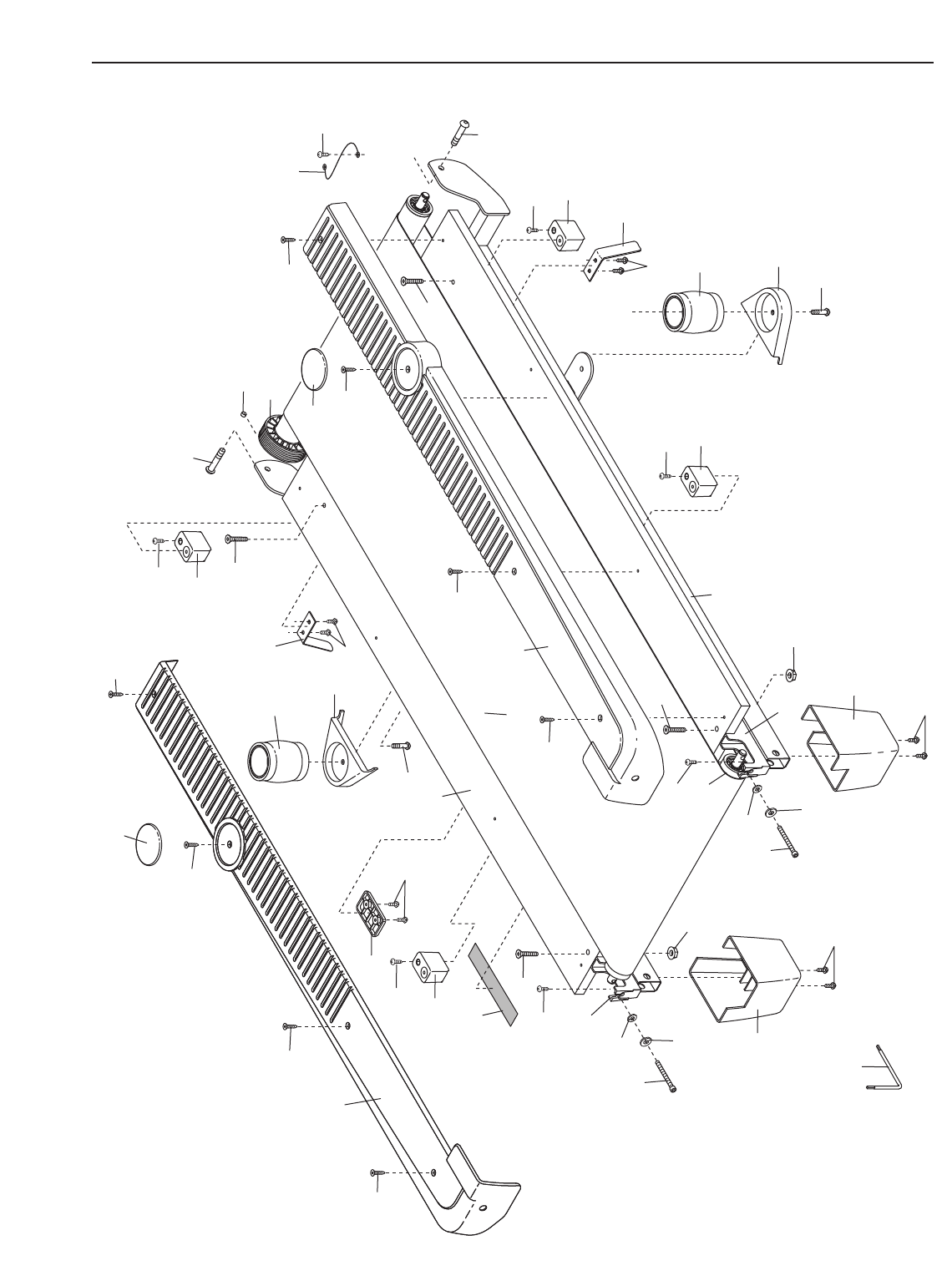

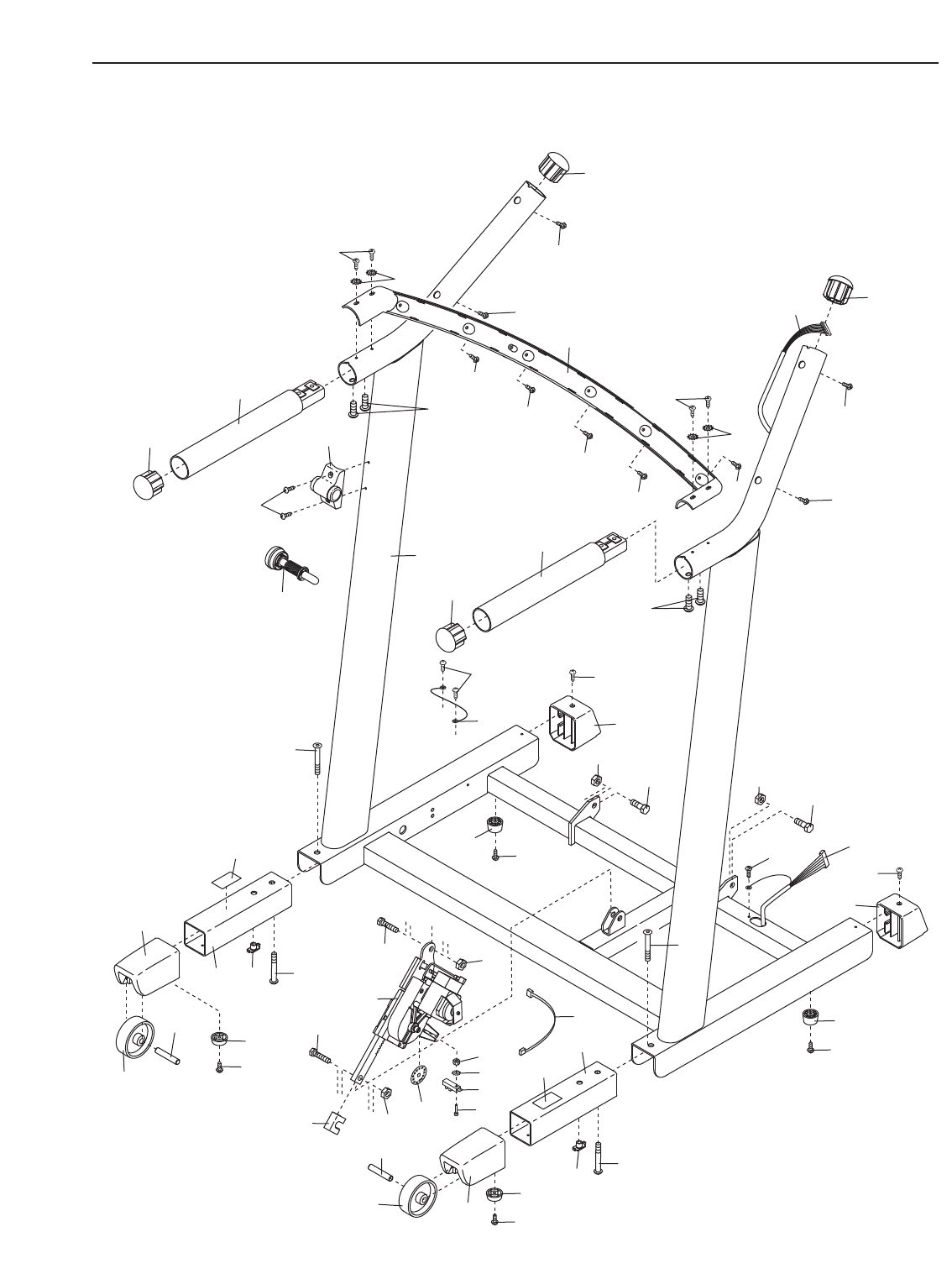

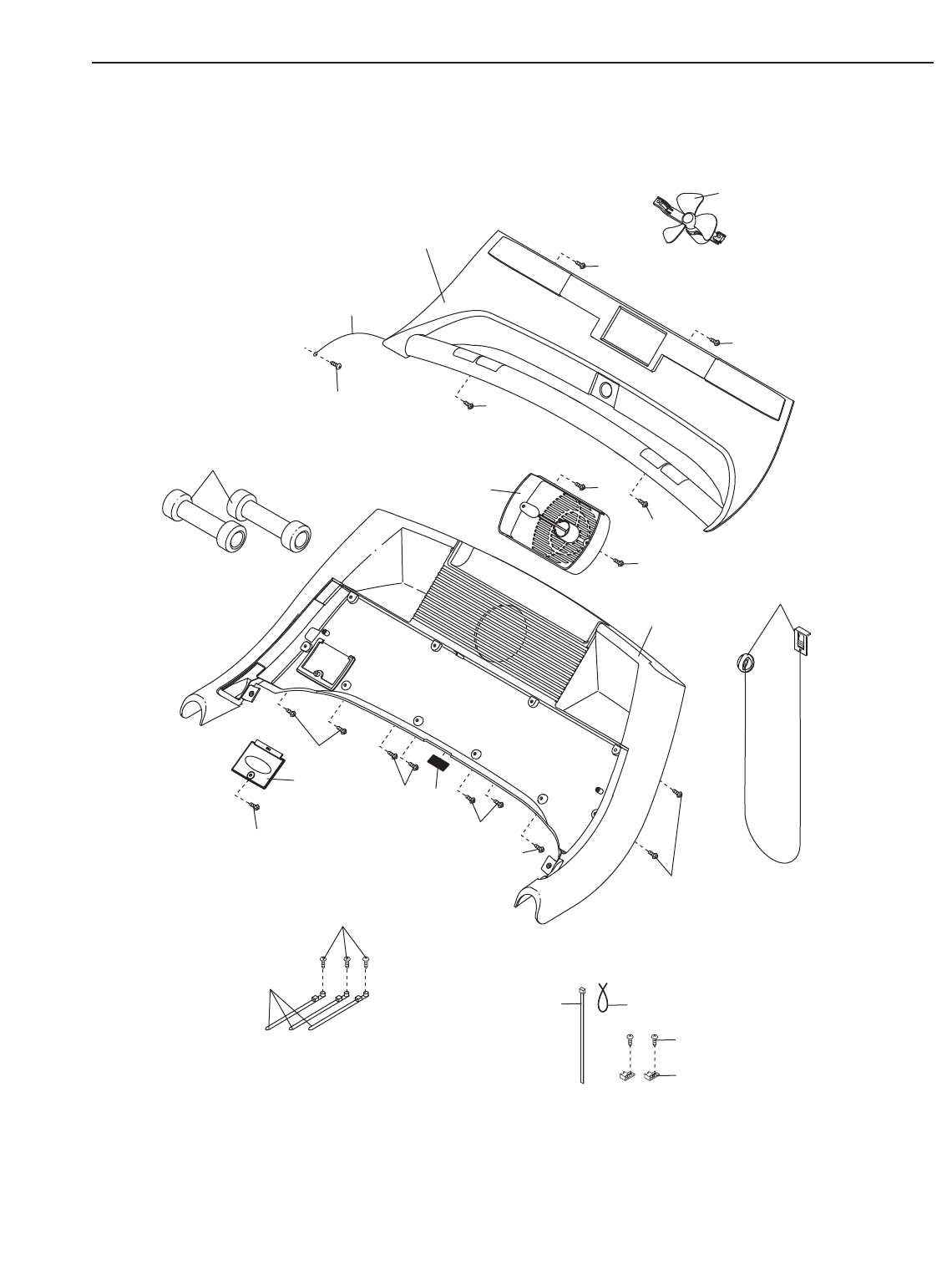

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it and two

feet on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

amat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should be used only by persons

weighing 300 pounds or less.

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women.

Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

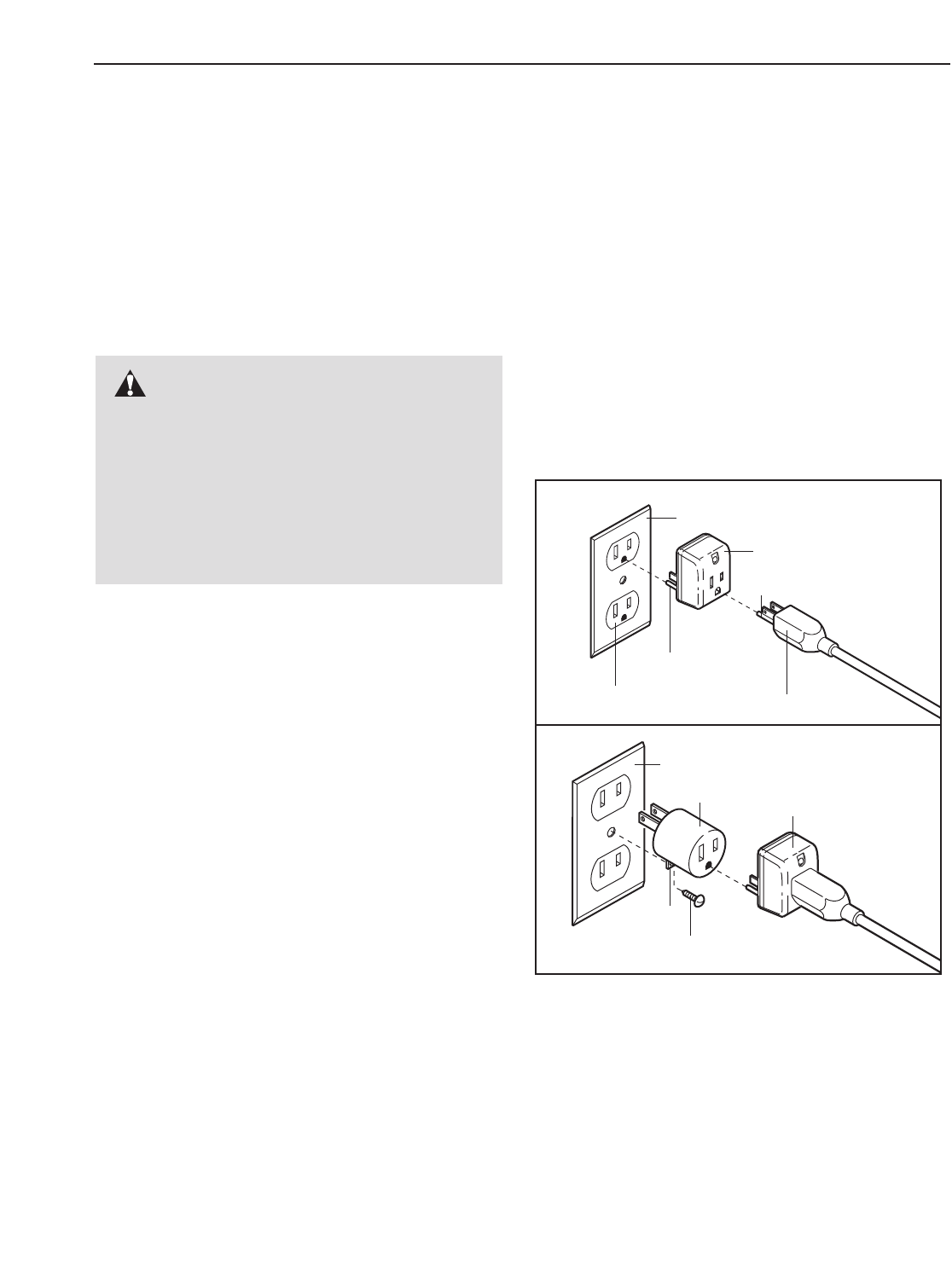

10. When connecting the power cord (see page

9), plug the power cord into a surge suppres-

sor (not included) and plug the surge sup-

pressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 9. To purchase a surge suppressor, see

your local PROFORM dealer or call the toll-

free telephone number on the front cover of

this manual and order part number 146148, or

see your local electronics store.

12. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly,

which may result in a fall and serious injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

14. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 18 if the treadmill is

not working properly.)

15. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 11).

16. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

17. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

18. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

19. Use the included dumbbells only as de-

scribed in this manual. Properly store the

dumbbells in the dumbbell holders on the

console when you are not using them. If the

dumbbells are improperly stored, they may

fall off the console, causing the user to trip.

WARNING: Toreduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

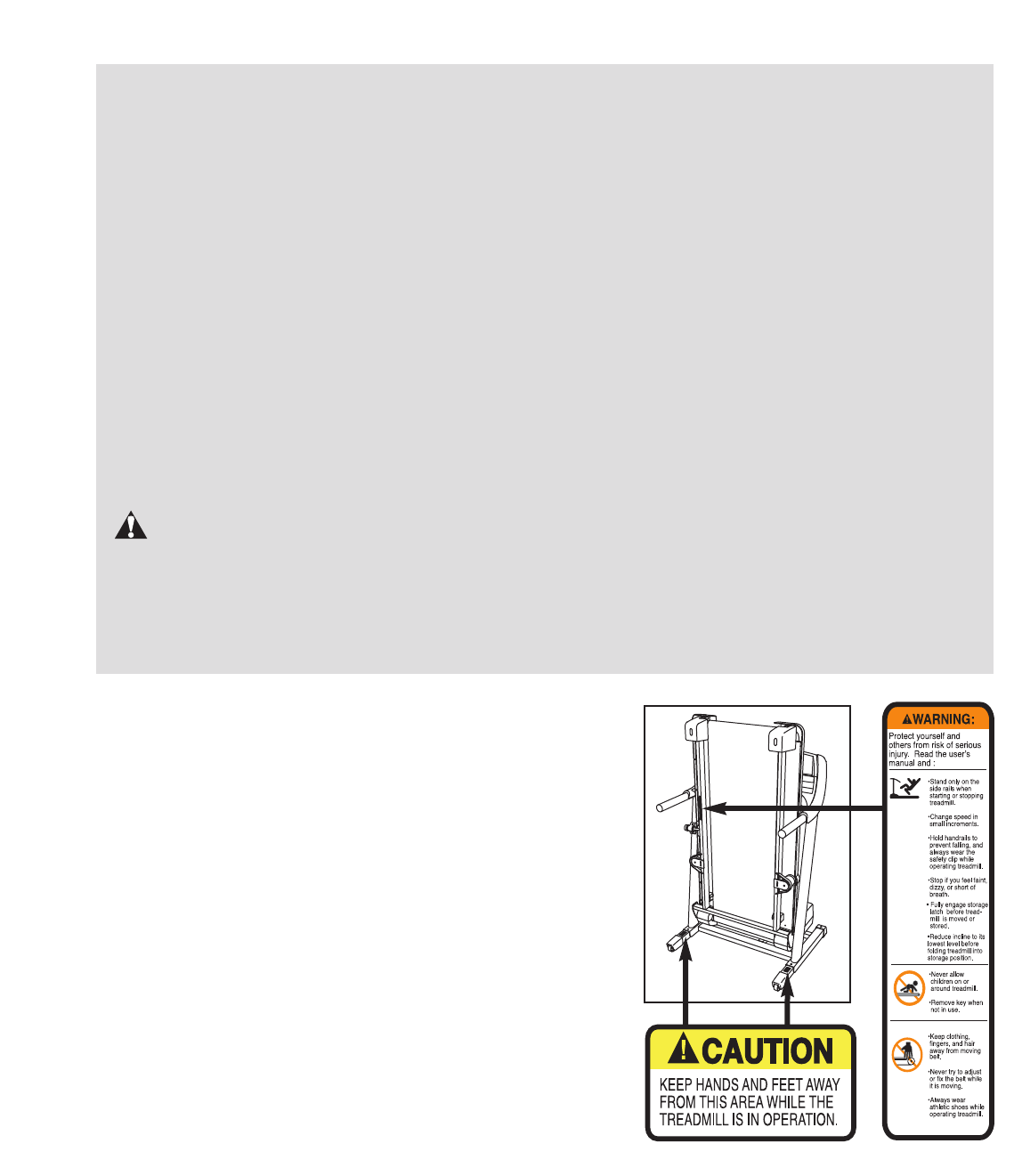

The decals shown here have been placed on the treadmill. If

adecal is missing, or if it is not legible, call the toll-free tele-

phone number on the front cover of this manual and re-

quest a free replacement decal. Apply the decal in the loca-

tion shown. Note: The decals are not shown at actual size.

20. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and switch the reset/off cir-

cuit breaker to the off position when the

treadmill is not in use. (See the drawing on

page 5 for the location of the circuit breaker.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 17.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning the

treadmill, and before performing the mainte-

nance and adjustment procedures described in

this manual. Never remove the motor hood un-

less instructed to do so by an authorized ser-

vice representative. Servicing other than the

procedures in this manual should be performed

by an authorized service representative only.

26. This treadmill is intended for in-home use

only. Do not use this treadmill in a commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

Thank you for selecting the new PROFORM®560

CROSSTRAINER treadmill. The 560 CROSSTRAINER

treadmill combines advanced technology with innova-

tive design to let you enjoy an excellent form of cardio-

vascular exercise in the convenience and privacy of

your home. And when you’re not exercising, the unique

560 CROSSTRAINER treadmill can be folded up, re-

quiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number of the treadmill is PFTL59906.0. The

serial number can be found on a decal attached to the

treadmill (see the front cover of this manual for the lo-

cation).

To avoid a registration fee for any service needed

under warranty, you must register the treadmill at

www.proformservice.com/registration.

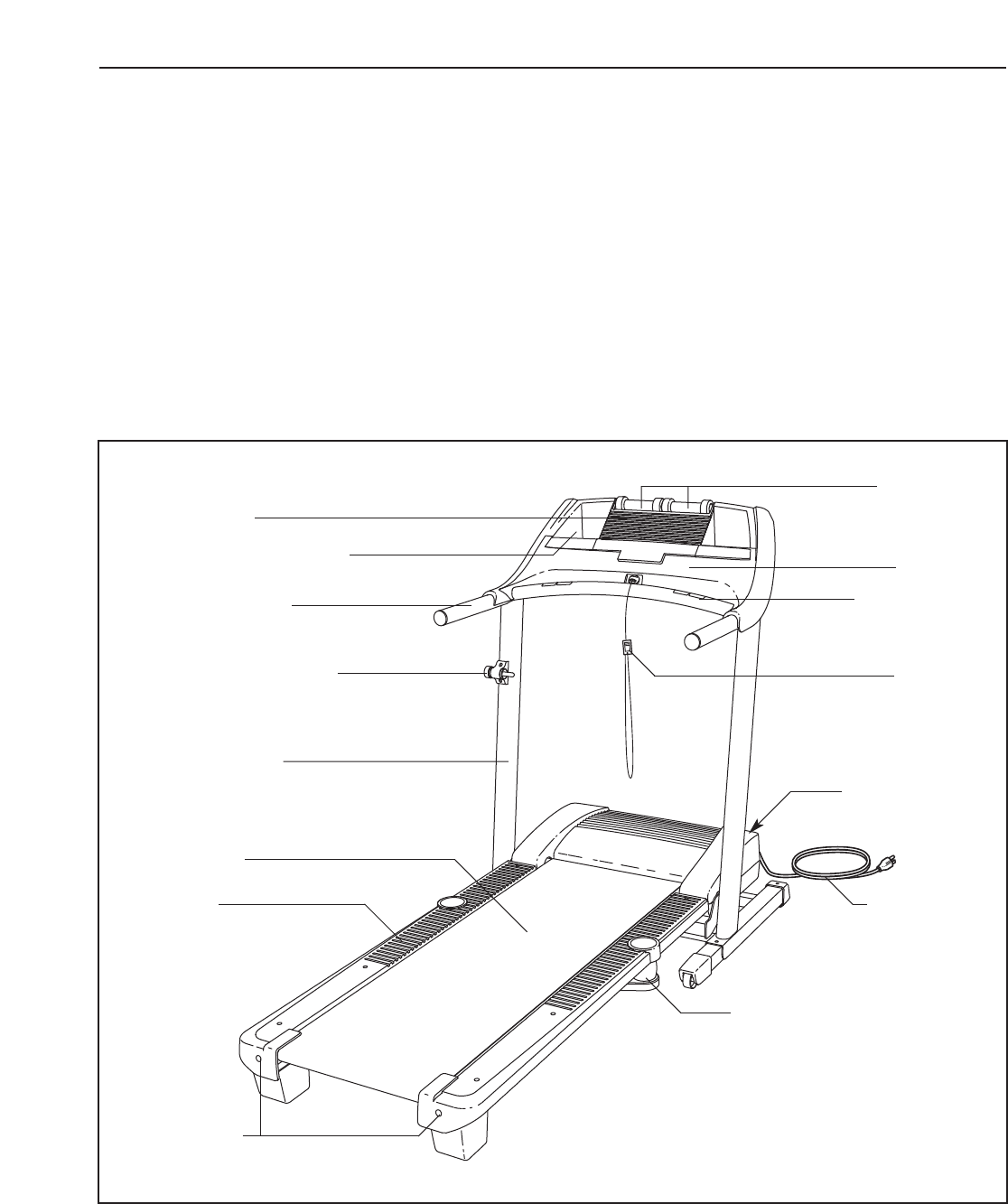

Before reading further, please review the drawing

below and familiarize yourself with the labeled parts.

BEFORE YOU BEGIN

Handrail

Upright

Storage Latch

Accessory Tray

Fan

Key/Clip

Reset/Off

Circuit Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail Power Cord

RIGHT SIDE

Rear Roller

Adjustment Bolts

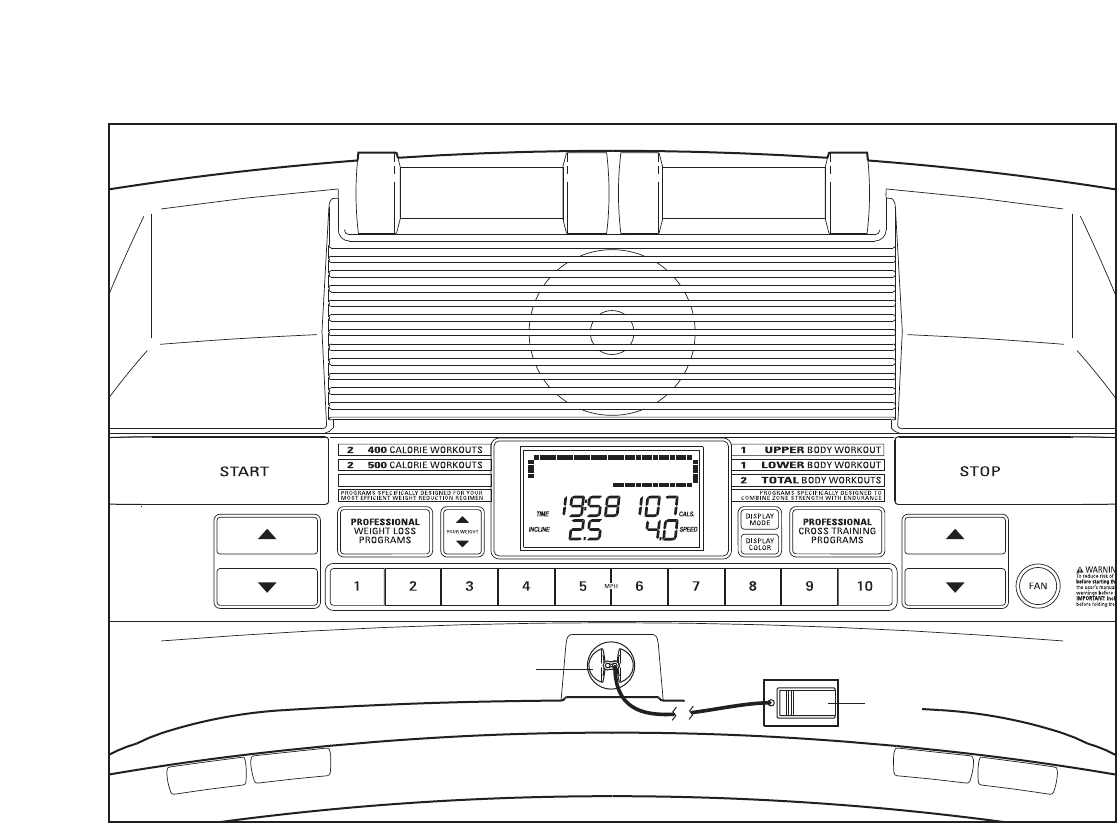

Console

Dumbbells

Pulse Sensor

BACK

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to

the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant

on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

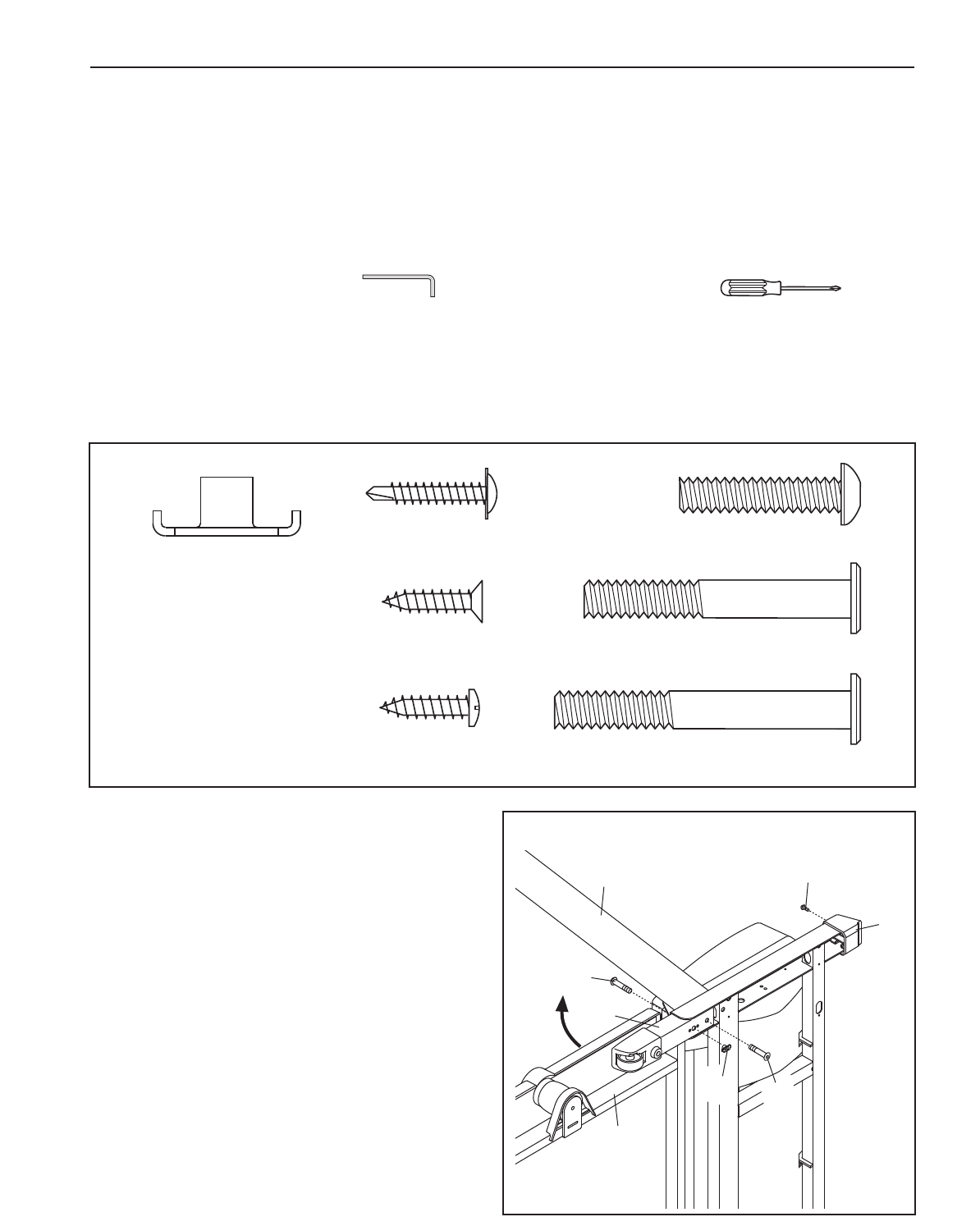

Assembly requires the included hex keys and your own phillips screwdriver .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST on pages 22 and 23. The number after the parentheses shows

the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to one of

the parts to be assembled. If a part is missing, call toll-free 1-888-533-1333. To avoid damaging plastic

parts, do not use power tools for assembly.

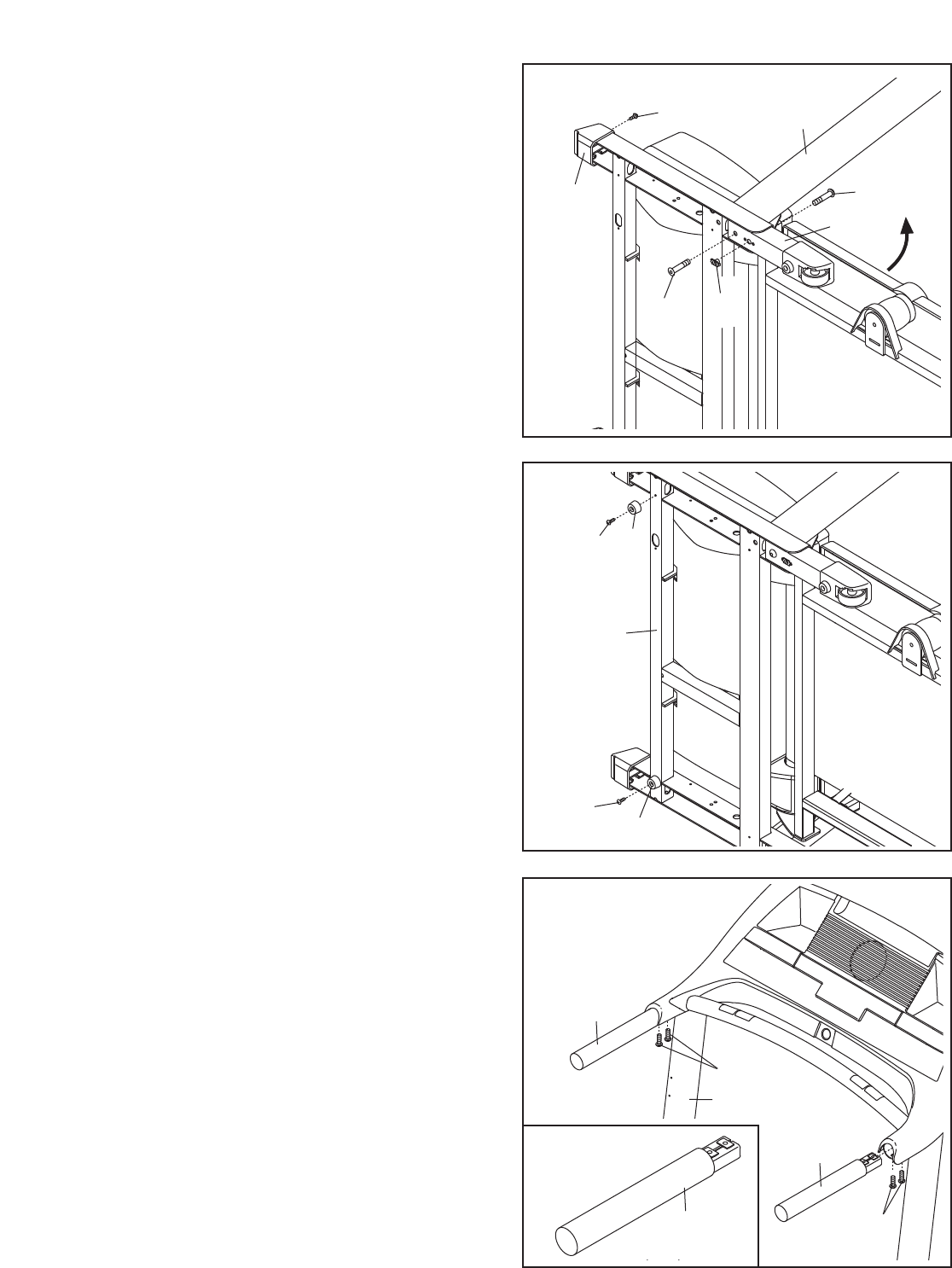

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side as shown. Partially

fold the Frame (58) so the treadmill is more sta-

ble. Do not fully fold the treadmill until it is

completely assembled.

Insert an Extension Leg (89) into the base of the

Uprights (84). Hold an Extension Leg Nut (67) in

the bottom of the Extension Leg, and thread a

2.25" Extension Leg Bolt (92) into the top of the

Extension Leg. Next, thread a 2.5" Extension Leg

Bolt (65) into the bottom of the Extension leg.

Firmly tighten the Extension Leg Bolts.

Slide a Front Endcap (44) onto the base of the

Uprights (84). Partially tighten a Front Endcap

Screw (14) into the Front Endcap and the base.

1" Tek Screw (83)–2

Extension Leg Nut (67)–2

Screw (3)–2 2.5" Extension Leg Bolt (65)–2

2.25" Extension Leg Bolt (92)–2

Handail Bolt (64)–4

Front Endcap

Screw (14)–2

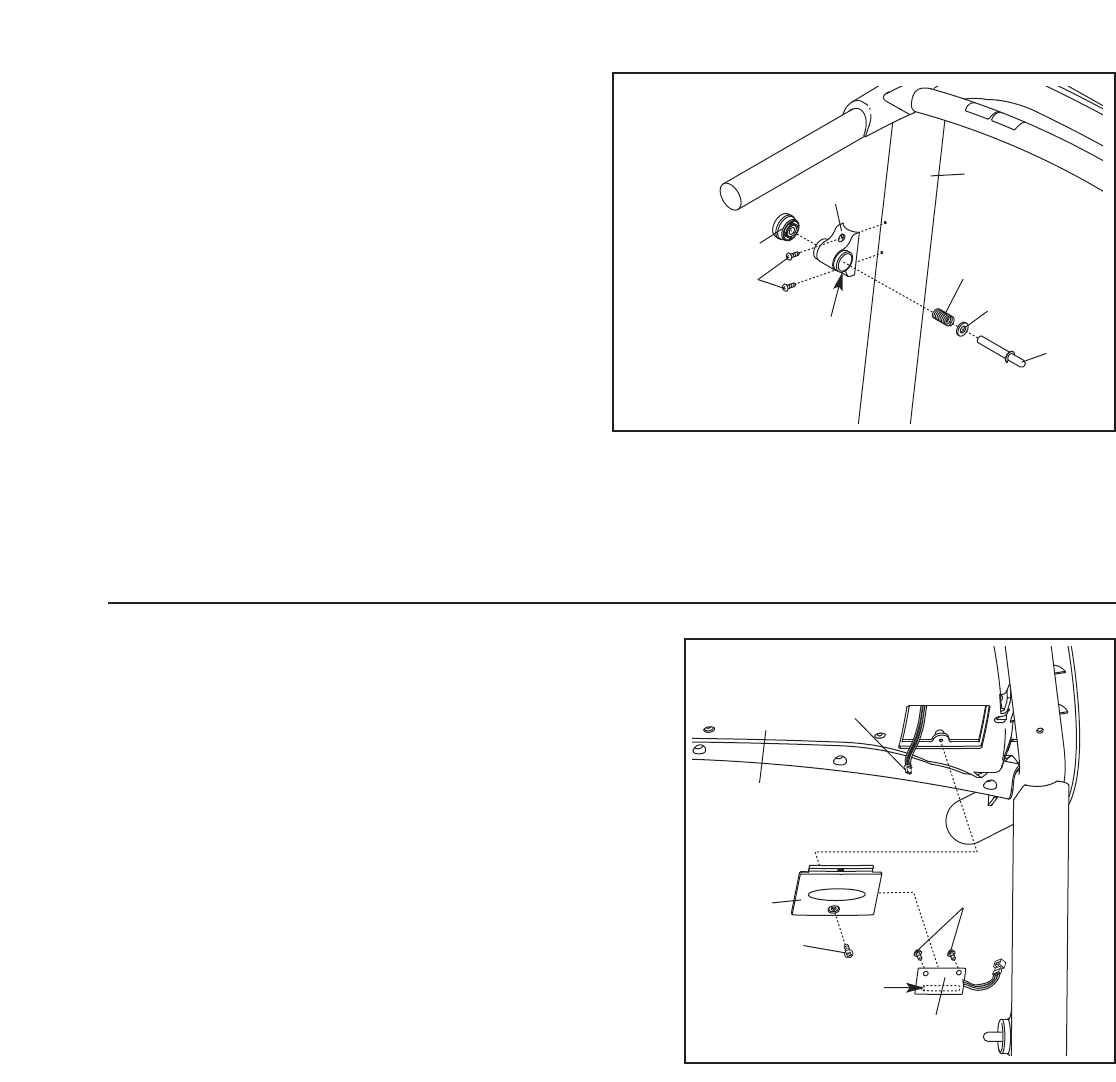

4. With the help of a second person, carefully raise

the Uprights (84) to a vertical position.

Insert the Handrails (20) into the tubes at the top

of the Upright (84). Make sure that the Handrails

are turned so that the Handrail Bolts (64) can be

threaded into the Handrails (see the inset draw-

ing). Start both Handrail Bolts before tightening

them.

See steps 1 and 2. Fully tighten the two Front

Endcap Screws (14). 84

2. With the help of a second person, carefully tip

the treadmill onto its right side. Do not fully fold

the treadmill until it is completely assembled.

Insert the other Extension Leg (89) into the base

of the Uprights (84). Hold an Extension Leg

Nut (67) in the bottom of the Extension Leg, and

thread a 2.25" Extension Leg Bolt (92) into the

top of the Extension Leg. Next, thread a 2.5"

Extension Leg Bolt (65) into the bottom of the

Extension leg. Firmly tighten the Extension

Leg Bolts.

Slide the other Front Endcap (44) onto the base

of the Uprights (84). Partially tighten a Front

Endcap Screw (14) into the Front Endcap and

the base.

3. Attach two Base Pads (82) to the base of the

Uprights (84) with two 1" Tek Screws (83).

83 82

If you purchase the optional chest pulse sensor (see

page 16), follow the steps below to install the receiver

included with the chest pulse sensor.

1. Make sure that the power cord is unplugged. Remove

the indicated Screw (3) and the Access Door (76) from

the back side of the Console Base (85).

2. Connect the wire on the receiver (A) to the indicated wire

extending from the Console Base (85). Hold the re-

ceiver so the small cylinder is oriented as shown and

is facing the Console Back. Attach the receiver to the

plastic posts on the Access Door (76) with the two in-

cluded small screws.

3. Make sure that no wires are pinched. Reattach the

Access Door (76) with the Screw (3). Discard the other

wires included with the receiver.

Small

Cylinder

Wire

Small

Screws

5. Attach the Latch Housing (73) to the left Upright

(84) with two Screws (3); start both Screws

and then tighten them. Note: Make sure that

the large hole in the Latch Housing is on the

indicated side.

Remove the knob from the pin. Make sure that

the collar and the spring are on the pin. (Note: If

there are two collars, place one on each side of

the spring.) Next, insert the pin into the Latch

Housing (73). Then, tighten the knob onto the

pin.

Spring

Collar

Knob

6. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear

plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-

mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the large hex key is

used to adjust the walking belt (see page 19).

Large Hole

OPERATION AND ADJUSTMENT

THE PRE-LUBRICATED WALKING BELT

Your treadmill features a walking belt coated with high-

performance lubricant. IMPORTANT: Never apply sil-

icone spray or other substances to the walking

belt or the walking platform. Such substances will

deteriorate the walking belt and cause excessive

wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home’s power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge

suppressor with your treadmill (see drawing 1 at

the right). To purchase a surge suppressor, see

your local PROFORM dealer or call the toll-free

telephone number on the front cover of this man-

ual and order part number 146148, or see your local

electronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a moni-

toring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill. If

the control system is damaged, the walking belt

may change speed, accelerate, or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. This product is equipped with a cord having

an equipment-grounding conductor and a grounding

plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection

of the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

FEATURES OF THE CONSOLE

The treadmill console offers a selection of features de-

signed to make your workouts more effective.

When you select the manual mode of the console, you

can change the speed and incline of the treadmill with

the touch of a button. As you exercise, the console will

display continuous exercise feedback. You can even

measure your heart rate using the handgrip pulse sen-

sor or the optional chest pulse sensor (see page 16 for

information about the optional chest pulse sensor).

The console also features four calorie programs that

automatically control the speed and incline of the tread-

mill to help you burn unwanted pounds during your

workouts. In addition, the console offers four cross

training programs designed to help you to burn calo-

ries and enhance your cardiovascular system while

toning and strengthening your muscles. The cross

training programs control the speed and incline of the

treadmill and prompt you to perform a variety of

strength exercises during your workouts. One upper

body program, one lower body program, and two total

body programs are offered. Note: The strength exer-

cises require the use of dumbbells and an inflatable

exercise ball (not included). To purchase dumbbells

or an exercise ball, call toll-free 1-888-533-1333.

To use the manual mode of the console, follow the

steps beginning on page 11. To use a calorie

program,see page 13. To use a cross training pro-

gram,see page 14.

Note: If there is a sheet of clear plastic on the face

of the console, remove the plastic. To prevent dam-

age to the walking platform, wear clean athletic

shoes while using the treadmill. The first time the

treadmill is used, observe the alignment of the

walking belt, and center the walking belt if neces-

sary (see page 19).

Clip

CONSOLE DIAGRAM

Key

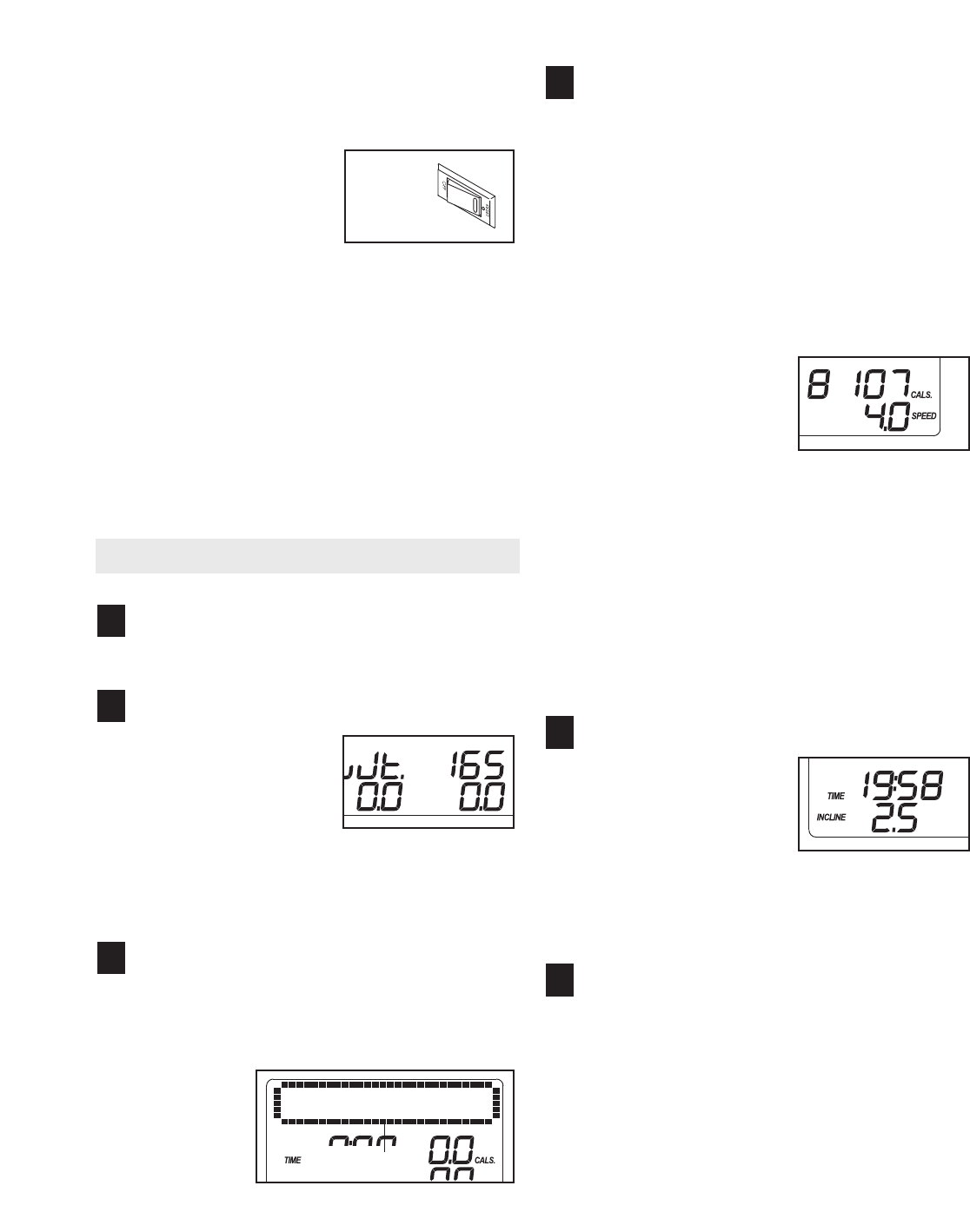

HOW TO TURN ON THE POWER

Plug in the power cord (see page 9).

Locate the reset/off circuit

breaker near the power

cord. Make sure that the

circuit breaker is in the

reset position.

Next, step onto the foot rails of the treadmill. Find the

clip attached to the key (see the drawing on page 10)

and slide the clip securely onto the waistband of your

clothes. Then, insert the key into the console. After a

moment, the display will light. Important: In an emer-

gency situation, the key can be pulled from the

console, causing the walking belt to slow to a stop.

Test the clip by carefully taking a few steps back-

ward; if the key is not pulled from the console, ad-

just the position of the clip.

HOW TO USE THE MANUAL MODE

Insert the key into the console.

See HOW TO TURN ON THE POWER above.

Enter your weight if desired.

If you enter your weight

into the console, the

console will display a

more accurate estimate

of the number of calories

that you burn. To enter

your weight, press the weight increase and de-

crease buttons repeatedly. Note: Once you have

entered your weight, it will be saved in memory.

Select the manual mode.

When the key is inserted, the manual mode will be

selected. If you have selected a program, reselect

the manual mode by pressing either of the Select

buttons re-

peatedly

until a track

appears in

the upper

half of the

display.

Start the walking belt.

To start the walking belt, press the Start button,

the Speed increase button, or one of the buttons

numbered 1 to 10.

If you press the Start button or the Speed in-

crease button, the walking belt will begin to move

at1mph. As you exercise, change the speed of

the walking belt as desired by pressing the Speed

increase and decrease buttons. Each time a but-

ton is pressed, the speed setting will change by

0.1 mph; if a button is held down, the speed set-

ting will change in incre-

ments of 0.5 mph. Note:

After the buttons are

pressed, it may take a

moment for the walking

belt to reach the selected

speed setting.

If one of the numbered buttons is pressed, the

walking belt will gradually change speed until it

reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in the display. To

restart the walking belt, press the Start button, the

Speed increase button, or one of the numbered

buttons.

Change the incline of the treadmill as desired.

To change the incline of

the treadmill, press the

Incline increase and de-

crease buttons. Each

time a button is pressed,

the incline will change by

0.5%. Note: After the buttons are pressed, it may

take a moment for the treadmill to reach the se-

lected incline setting.

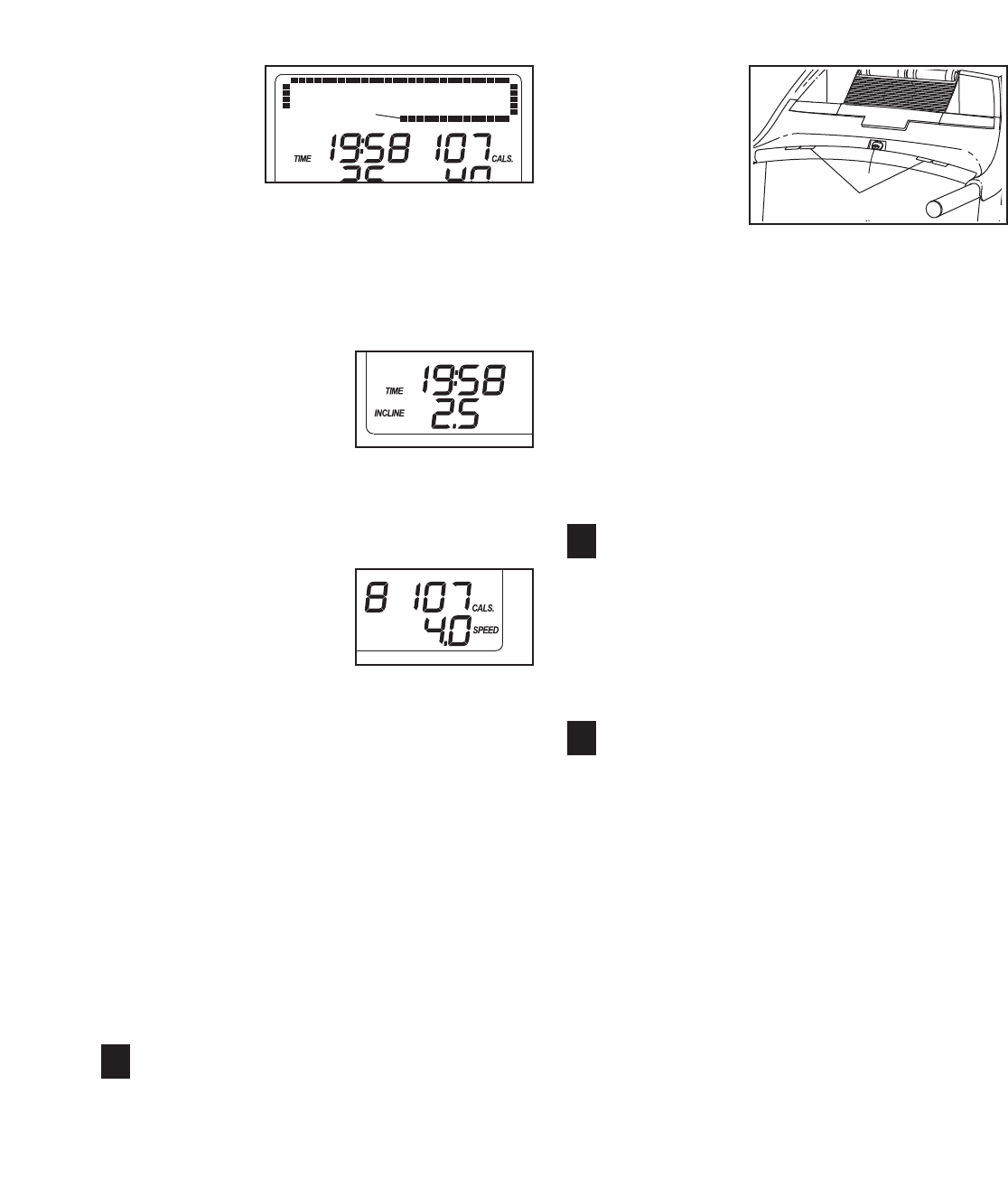

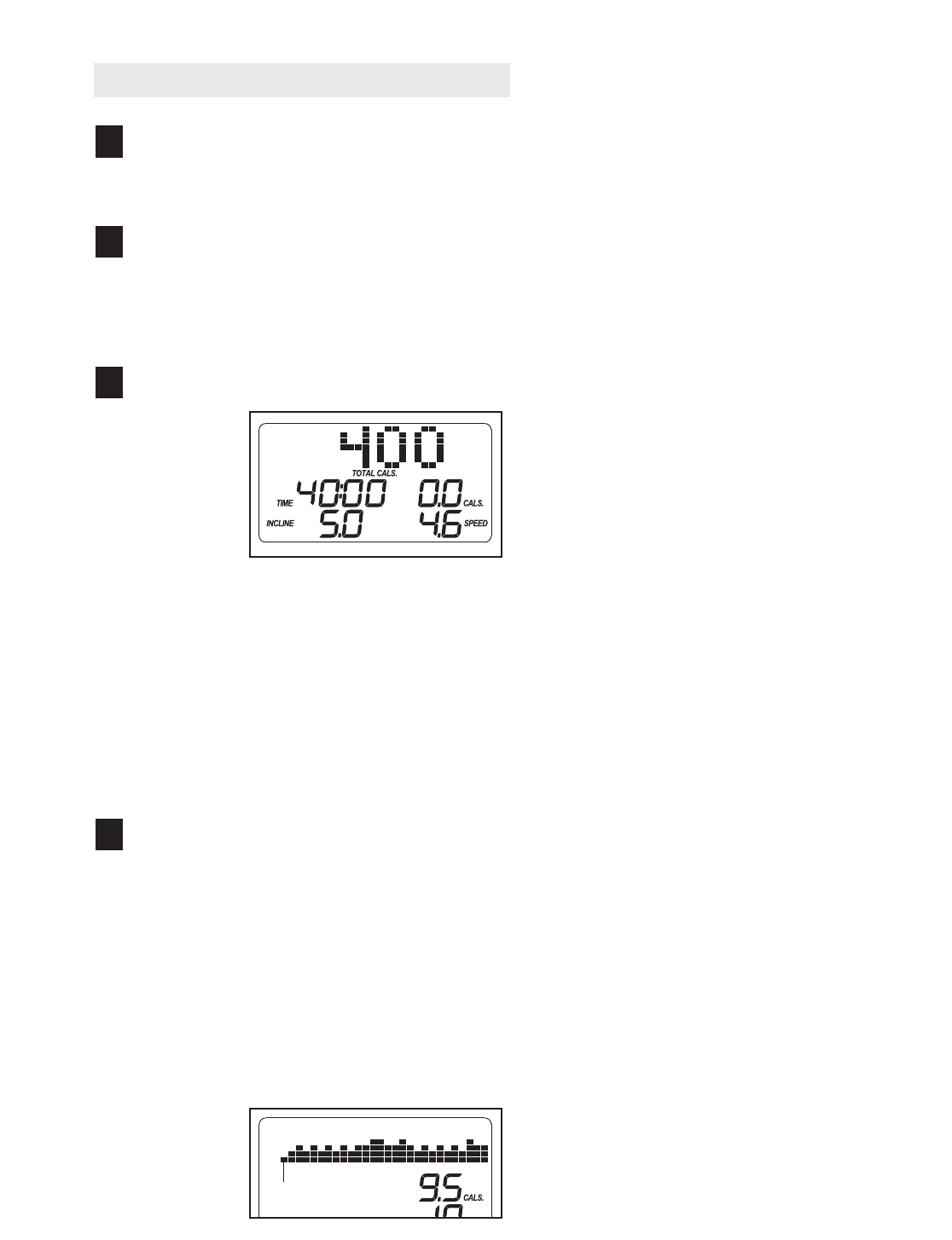

Follow your progress with the display.

Note: The display features six background col-

ors. To select a color, press the Display Color

button repeatedly. To adjust the contrast of the

display, see THE INFORMATION MODE on

page 16.

Reset

Position

Track

When the

manual

mode is se-

lected, the

display will

show a track

that repre-

sents 1/4 mile. As you walk or run, indicators will

appear in succession around the track until the en-

tire track appears. The track will then disappear

and the indicators will again begin to appear in

succession.

The left side of the dis-

play will show the

elapsed time, the dis-

tance that you have

walked or run, and the

incline level of the tread-

mill. Note: When a program is selected, the dis-

play will show the time remaining in the program

instead of the elapsed time.

The right side of the dis-

play will show the ap-

proximate number of

calories you have

burned while walking or

running, the speed of

the walking belt, and your pace in minutes per

mile. The right side of the display will also show

your heart rate when you use the handgrip pulse

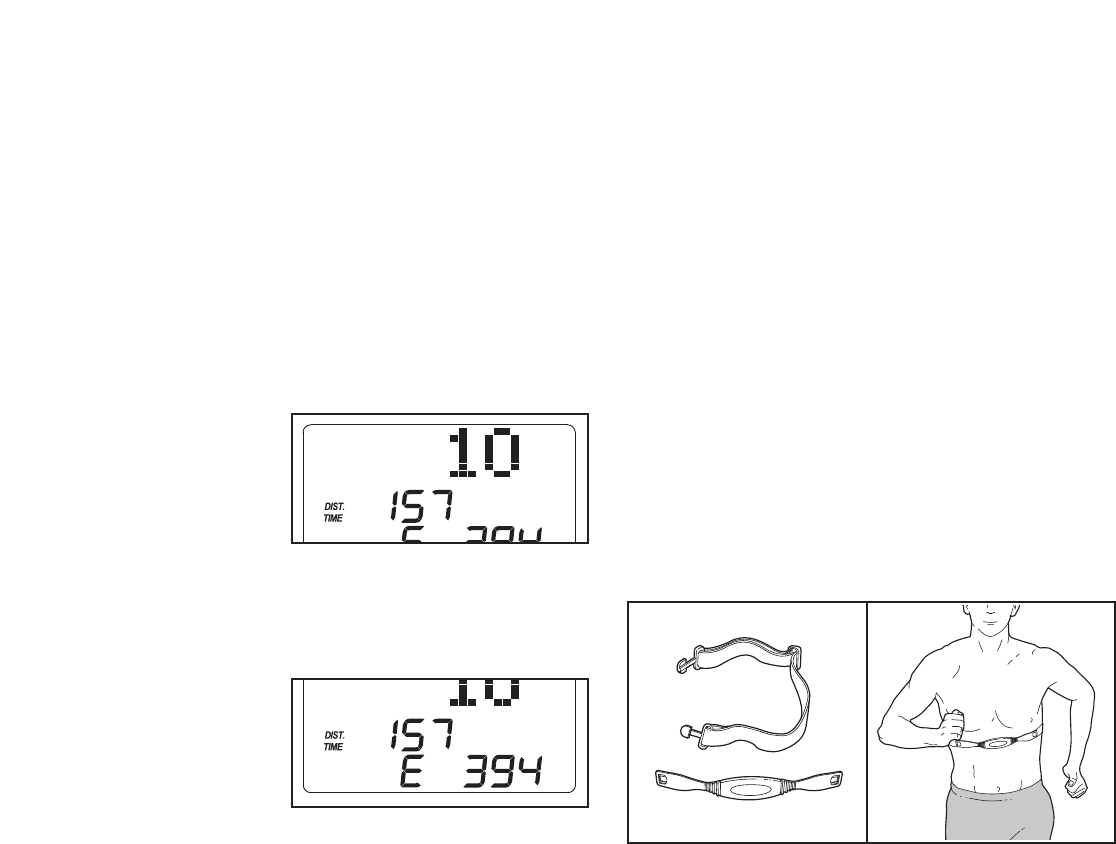

sensor or the optional chest pulse sensor.

Note: The console can display speed and dis-

tance in either miles or kilometers. To find out

which unit of measurement is selected or to

change the unit of measurement, see THE IN-

FORMATION MODE on page 16. Note: For sim-

plicity, all instructions in this section refer to

miles.

To reset the display, press the Stop button, re-

move the key, and then reinsert the key.

Measure your heart rate if desired.

Note: If you use the handgrip pulse sensor and

the optional chest pulse sensor at the same

time, the console will not display your heart

rate accurately.

Before using

the handgrip

pulse sensor,

remove the

sheets of

clear plastic

from the

metal con-

tacts. In addi-

tion, make sure that your hands are clean.

To measure your heart rate, stand on the foot

rails and hold the metal contacts on the

handrail—avoid moving your hands.When your

pulse is detected, a heart-shaped indicator will

flash in the right side of the display each time your

heart beats, one or two dashes will appear, and

then your heart rate will be shown. For the most

accurate heart rate reading, continue to hold

the contacts for about 15 seconds.

Turn on the fan if desired.

To turn on the fan, press the Fan button. To turn

on the fan at high speed, press the button a sec-

ond time. To turn off the fan, press the button a

third time. Note: If the fan is on when the walking

belt stops, the fan will automatically turn off after a

few minutes.

When you are finished exercising, remove the

key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest setting

when you fold the treadmill to the storage posi-

tion or you will damage the treadmill. Next, re-

move the key from the console and put it in a se-

cure place. Note: If the display remains lit after

the key is removed, the console is in the

“demo” mode. See page 16 and turn off the

demo mode.

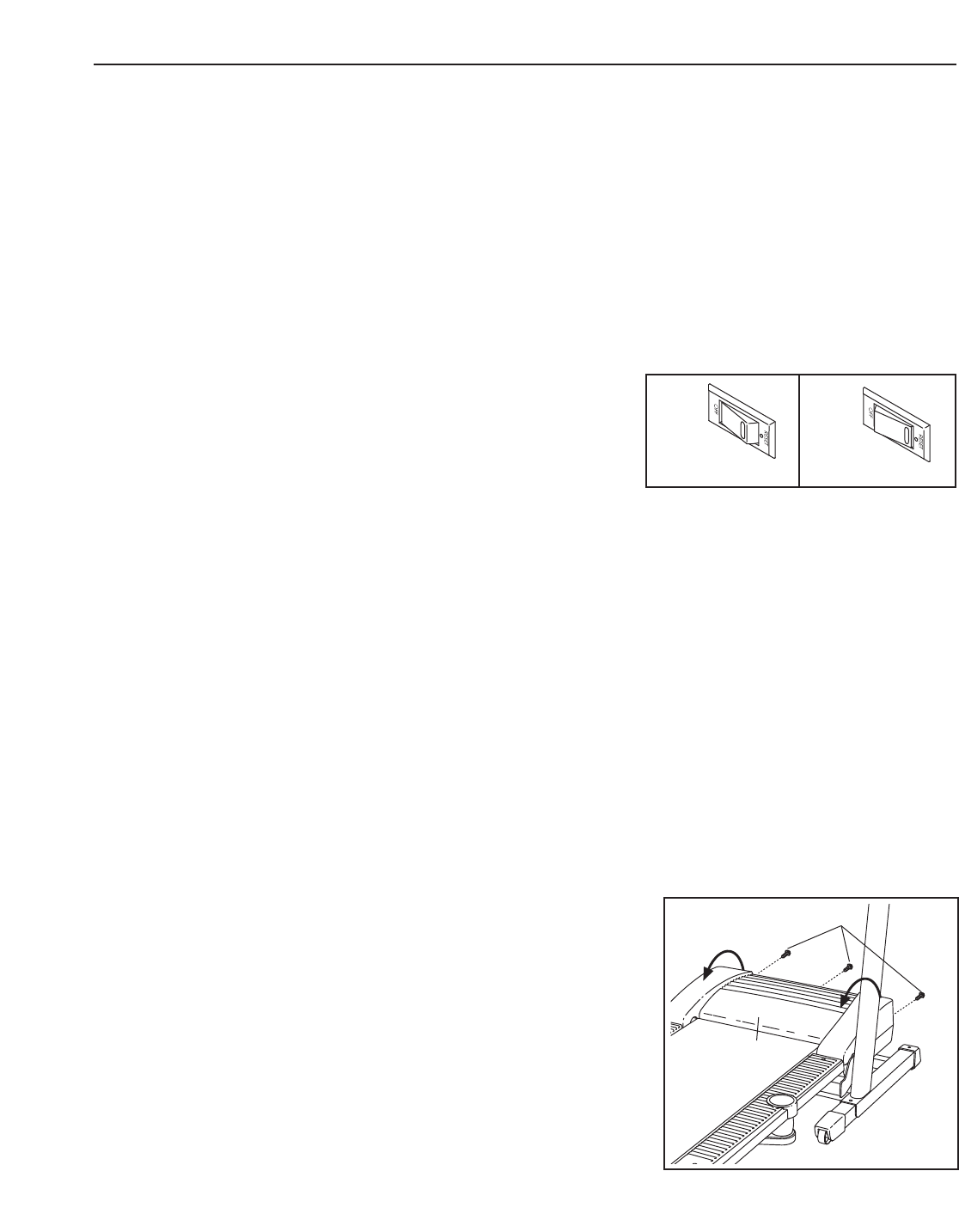

When you are finished using the treadmill,

switch the reset/off circuit breaker to the “off”

position and unplug the power cord.

Contacts

Track

HOW TO USE A CALORIE PROGRAM

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

11.

Enter your weight.

See step 2 on page 11. Note: Always enter your

weight before using a calorie program; the

speed and incline settings of the program will

depend on the weight setting that you enter.

Select a calorie program.

To select

one of the

four calorie

programs,

press the

Professional

Weight Loss

Programs

button re-

peatedly. When a calorie program is selected, the

display will show the calorie goal (the approximate

number of calories to be burned during the pro-

gram) and the number of minutes that the pro-

gram will last. In addition, the maximum incline

setting of the program and the maximum speed

setting of the program will flash in the display. A

few seconds after a calorie program is selected, a

profile of the speed settings of the program will

scroll across the display.

Press the Start button to start the program.

Amoment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each program is divided into 30, 35, 40, or 45

one-minute segments. One speed setting and one

incline setting are programmed for each segment.

Note: The same speed setting and/or incline setting

may be programmed for two or more consecutive

segments.

The speed

setting for

the first seg-

ment will be

shown in

the flashing

Current Segment column in the display. (The in-

cline settings are not shown in the display.) The

speed settings for the next several segments will

be shown in the columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. If the speed and/or in-

cline of the treadmill is about to change, the speed

setting and/or the incline setting will flash in the

display to alert you.

When the first segment is completed,

all speed

settings will move one column to the left

.The

speed setting for the second segment will then be

shown in the flashing Current Segment column

and the treadmill will automatically adjust to the

speed and incline settings for the second seg-

ment. Note: If all the indicators in the Current

Segment column are lit, the speed settings may

move downward so that only the highest indicators

appear in the display.

If the speed or incline setting for the current seg-

ment is too high or too low, you can manually

override the setting by pressing the Speed and

Incline buttons. Every few times a Speed button is

pressed, an additional indicator will appear or dis-

appear in the Current Segment column.

Important: When the current segment of the

program ends, the treadmill will automatically

adjust to the speed and incline settings for the

next segment.

To stop the program at any time, press the Stop

button. To restart the program, press the Start but-

ton or the Speed increase button. The walking belt

will begin to move at 1 mph. When the next seg-

ment of the program begins, the treadmill will auto-

matically adjust to the speed and incline settings

for that segment.

The program will continue in this way until the last

segment of the program ends. The walking belt

will then slow to a stop. Important: The calorie

goal is an estimate of the number of calories

that you will burn during the program. The ac-

tual number of calories that you burn will de-

pend on your weight. In addition, if you manu-

ally change the speed or incline of treadmill

during the program, the number of calories

you burn will be affected.

Current Segment

Follow your progress with the display.

See step 6 on pages 11 and 12.

Measure your heart rate if desired.

See step 7 on page 12.

Turn on the fan if desired.

See step 8 on page 12.

When you are finished exercising, remove the

key from the console.

See step 9 on page 12.

HOW TO USE A CROSS TRAINING PROGRAM

Insert the key into the console.

See HOW TO TURN ON THE POWER on page

11.

Select a cross training program.

To select

one of the

four cross

training pro-

grams,

press the

Professional

Cross

Training

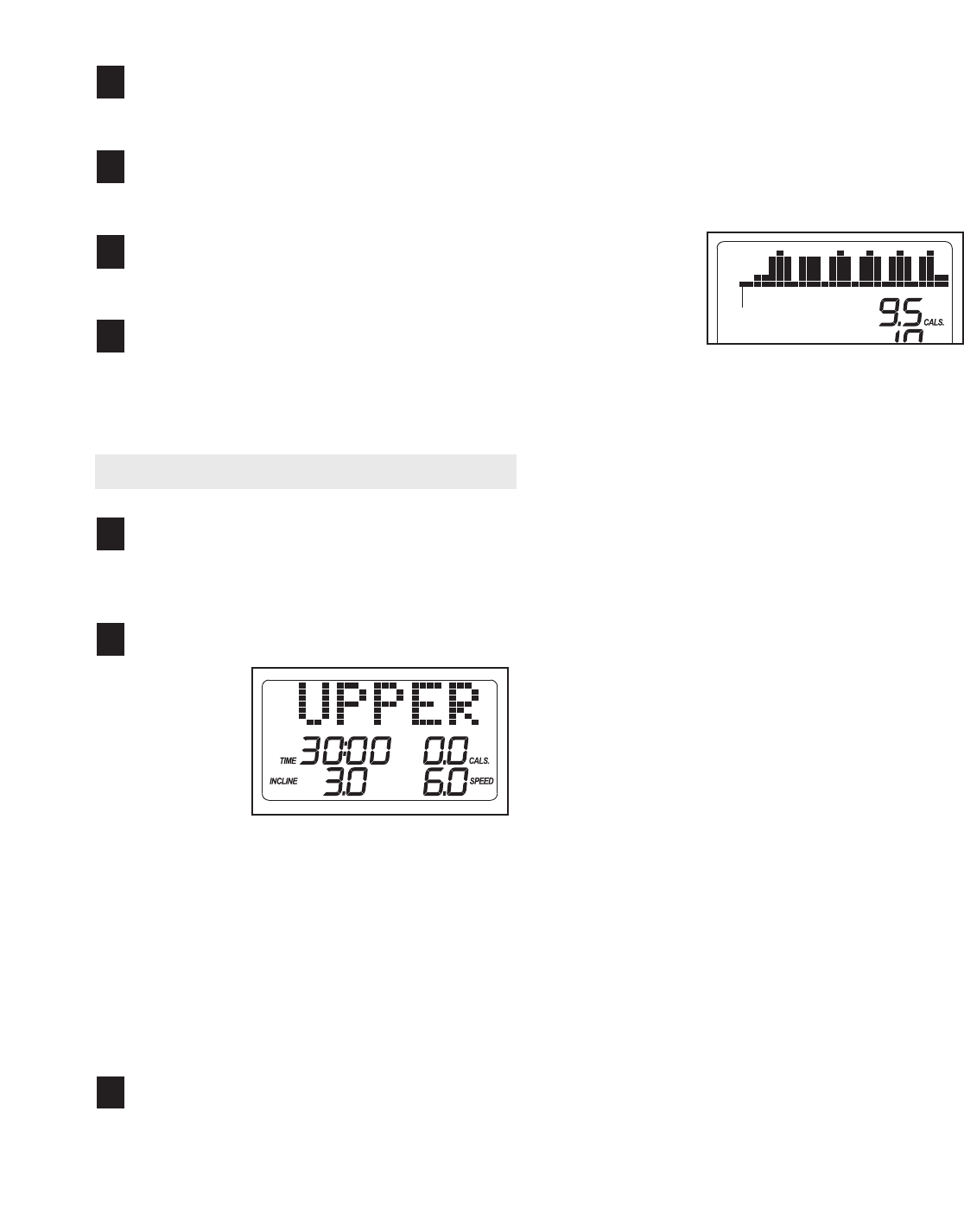

Programs button repeatedly. When a cross train-

ing program is selected, the display will show the

word UPPER, LOWER, or TOTAL and the num-

ber of minutes that the program will last. In addi-

tion, the maximum incline setting of the program

and the maximum speed setting of the program

will flash in the display. A few seconds after a

cross training program is selected, a profile of the

speed settings of the program will scroll across

the display.

Press the Start button to start the program.

Amoment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each program is divided into 25, 30, or 45 one-

minute segments. One speed setting and one in-

cline setting are programmed for most segments.

(Note: The same speed setting and/or incline set-

ting may be programmed for two or more consecu-

tive segments.) During other segments, the console

will prompt you to perform strength exercises.

The speed

setting for

the first seg-

ment will be

shown in the

flashing

Current

Segment column of the display. (The incline set-

tings are not shown in the display.) The speed

settings for the next several segments will be

shown in the columns to the right.

When only three seconds remain in the first seg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. If the speed and/or in-

cline of the treadmill is about to change, the speed

setting and/or the incline setting will flash in the

display to alert you.

When the first segment is completed,

all speed

settings will move one column to the left

.The

speed setting for the second segment will then be

shown in the flashing Current Segment column

and the treadmill will automatically adjust to the

speed and incline settings for the second seg-

ment. Note: If all the indicators in the Current

Segment column are lit,

the speed settings may

move downward

so that only the highest indicators

appear in the display.

If the speed or incline setting for the current seg-

ment is too high or too low, you can manually

override the setting by pressing the Speed and

Incline buttons. Every few times a Speed button is

pressed, an additional indicator will appear or dis-

appear in the Current Segment column; if any of

the columns to the right of the Current Segment

column have the same number of lit indicators as

the Current Segment column, an additional indica-

tor may appear or disappear in those columns as

well. Important: When the current segment of

the program ends, the treadmill will automati-

cally adjust to the speed and incline settings

for the next segment.

Current Segment

To stop the program at any time, press the Stop

button. The time will begin to flash in the display.

Torestart the program, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment

of the program begins, the treadmill will automati-

cally adjust to the speed and incline settings for

that segment.

Perform the first strength exercise when

prompted.

When the

first strength

exercise

segment be-

gins (only

one indica-

tor will flash

in the Current Segment column), the walking belt

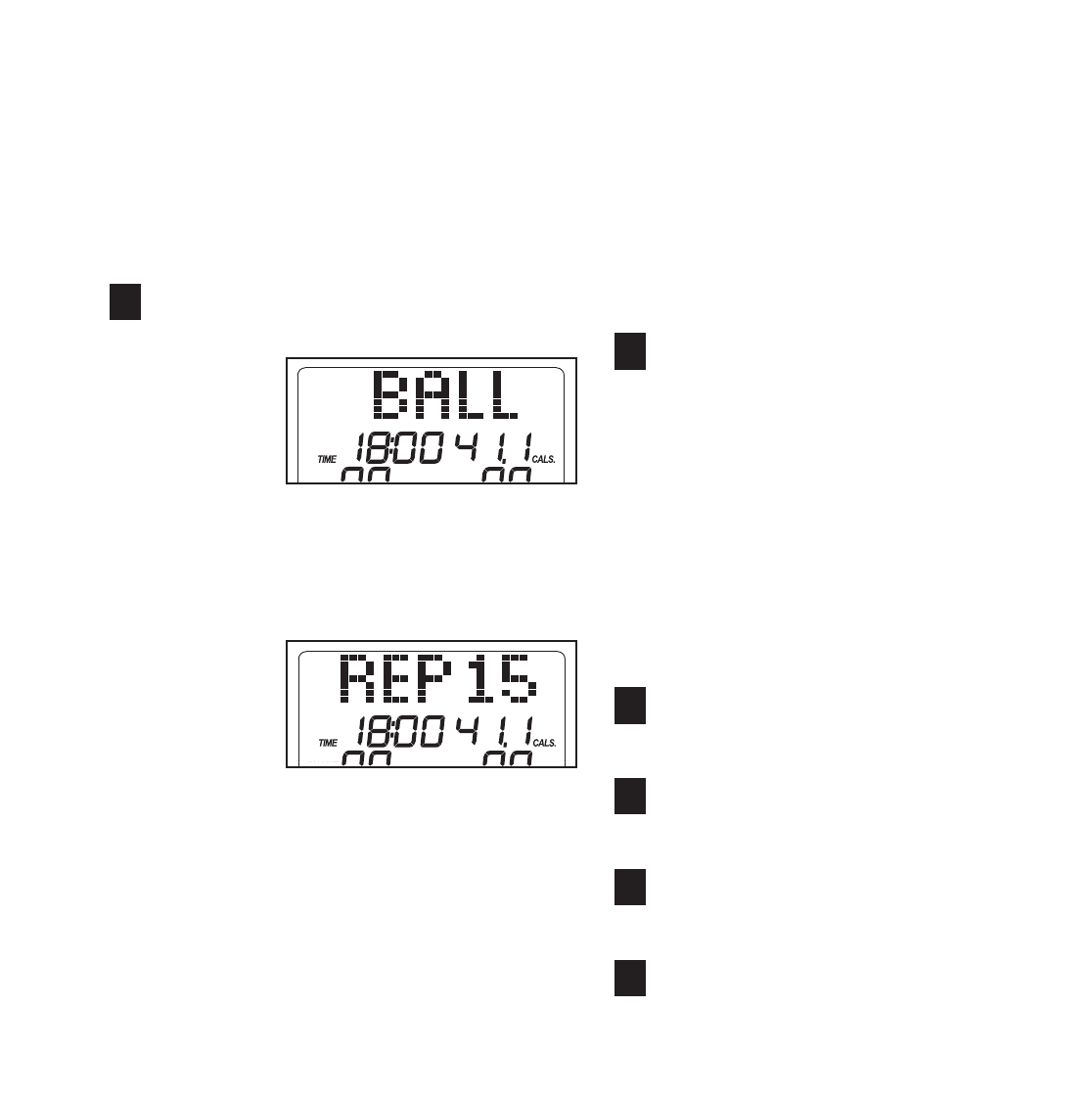

will slow to a stop and the name of the first

strength exercise will appear in the display for a

few seconds.

Next, the

display will

show the

recom-

mended

number of

repetitions

for the first strength exercise.

Remove the clip from the waistband of your

clothes, step off the treadmill, and prepare to

begin the first strength exercise. Every few sec-

onds, the console will sound a tone; when a tone

sounds, perform one repetition of the exercise.

Exercise with a slow, steady motion; do not per-

form more than one repetition each time a tone

sounds. The display will count down the repeti-

tions as you perform them.

Note: Refer to the accompanying exercise chart to

see the correct form for each exercise. When per-

forming lunges, alternate legs with each repetition.

When performing dumbbell rows, perform half the

repetitions with your right arm and half the repeti-

tions with your left arm. The strength exercises re-

quire the use of dumbbells and an inflatable exer-

cise ball (not included). To purchase dumbbells

or an exercise ball, call toll-free 1-888-533-

1333.

Continue the cross training program.

When you have performed the recommended

number of repetitions, the words PRESS START

will appear in the display. To continue the cross

training program, step onto the treadmill, slide the

clip back onto the waistband of your clothes,

and press the Start button. The treadmill will auto-

matically adjust to the speed and incline settings

for the next segment.

The program will continue in this way until the last

segment ends. The walking belt will then slow to a

stop.

Follow your progress with the display.

See step 6 on pages 11 and 12.

Measure your heart rate if desired.

See step 7 on page 12.

Turn on the fan if desired.

See step 8 on page 12.

When you are finished exercising, remove the

key from the console.

See step 9 on page 12.

THE INFORMATION MODE

The console features an information mode that keeps

track of treadmill usage information. The information

mode also allows you to select miles or kilometers as

the unit of measurement, to adjust the contrast of the

display, and to turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button, insert the key into the console, and then release

the Stop button. When the information mode is se-

lected, the following information will appear in the dis-

play:

Anumber from 1

to 20 will appear

in the upper part

of the display.

This number is

the contrast set-

ting of the dis-

play; 1 is the lowest setting and 20 is the highest set-

ting. To change the contrast of the display, press the

weight increase and decrease buttons.

The center of the

display will show

the number of

hours that the

treadmill has

been operated.

The lower right

corner of the display will show the total number of miles

or kilometers that the walking belt has moved.

In addition, an “E” for English miles or an “M” for metric

kilometers will appear in the lower left part of the dis-

play. To change the unit of measurement, press the

Speed increase button.

IMPORTANT: If a “d” appears in the display, the con-

sole is in the “demo” mode. This mode is intended to be

used only when the treadmill is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the indicators in the display will automati-

cally appear in a preset sequence; the buttons on the

console will not operate. If a “d” appears when the in-

formation mode is selected, press the Speed de-

crease button so that the “d” disappears.

To exit the information mode, remove the key from the

console.

THE OPTIONAL CHEST PULSE SENSOR

An optional chest pulse sensor offers hands-free oper-

ation as it continuously tracks your heart rate during

your workouts. To purchase the optional chest

pulse sensor, call toll-free 1-888-533-1333.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be perma-

nently damaged. Remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 pounds (20 kg) to

raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the location shown by the

arrow at the right. CAUTION: To decrease the possibility of

injury, bend your legs and keep your back straight. As

you raise the frame, make sure to lift with your legs rather

than with your back. Raise the frame about halfway to the

vertical position.

2. Move your right hand to the position shown, and hold the

treadmill firmly. Using your left hand, pull the latch knob to

the left and hold it. Raise the frame until the catch is past the

latch pin. Then, slowly release the latch knob. Make sure

that the frame is securely held by the latch pin.

To protect the floor or carpet from damage, place a mat

under the treadmill. Keep the treadmill out of direct sun-

light. Do not leave the treadmill in the storage position in

temperatures above 85° Fahrenheit (30° Celsius) .

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert it to the storage position as

described above. Make sure that the frame is held securely

by the latch pin.

1. Hold the handrails and place one foot against one of the

wheels.

2. Tilt the treadmill back until it rolls freely on the wheels. Carefully

move the treadmill to the desired location. Never move the

treadmill without tipping it back.To reduce the risk of in-

jury, use extreme caution while moving the treadmill. Do

not attempt to move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower the tread-

mill until it is resting in the storage position.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2 above. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left

and hold it. Pivot the frame down until it is past the latch pin.

2. See drawing 1 above. Hold the frame firmly with both hands, and lower it to the floor. CAUTION: To decrease

the possibility of injury, bend your legs and keep your back straight.

Engaged

Catch

Latch Knob

Latch Pin

Base

Handrails

Wheels

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please see the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor

that meets all of the specifications described on page 9. Important: The treadmill is not compatible

with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the reset/off circuit breaker located on the

treadmill frame near the power cord. If the switch

protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five

minutes and then press the switch back in.

PROBLEM: The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait

for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key into the console.

d. If the treadmill still will not run, please see the front cover of this manual.

PROBLEM: The incline of the treadmill does not change correctly

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the

maximum incline level and then return to the minimum level. This will recalibrate the incline system.

PROBLEM: The displays of the console do not function properly

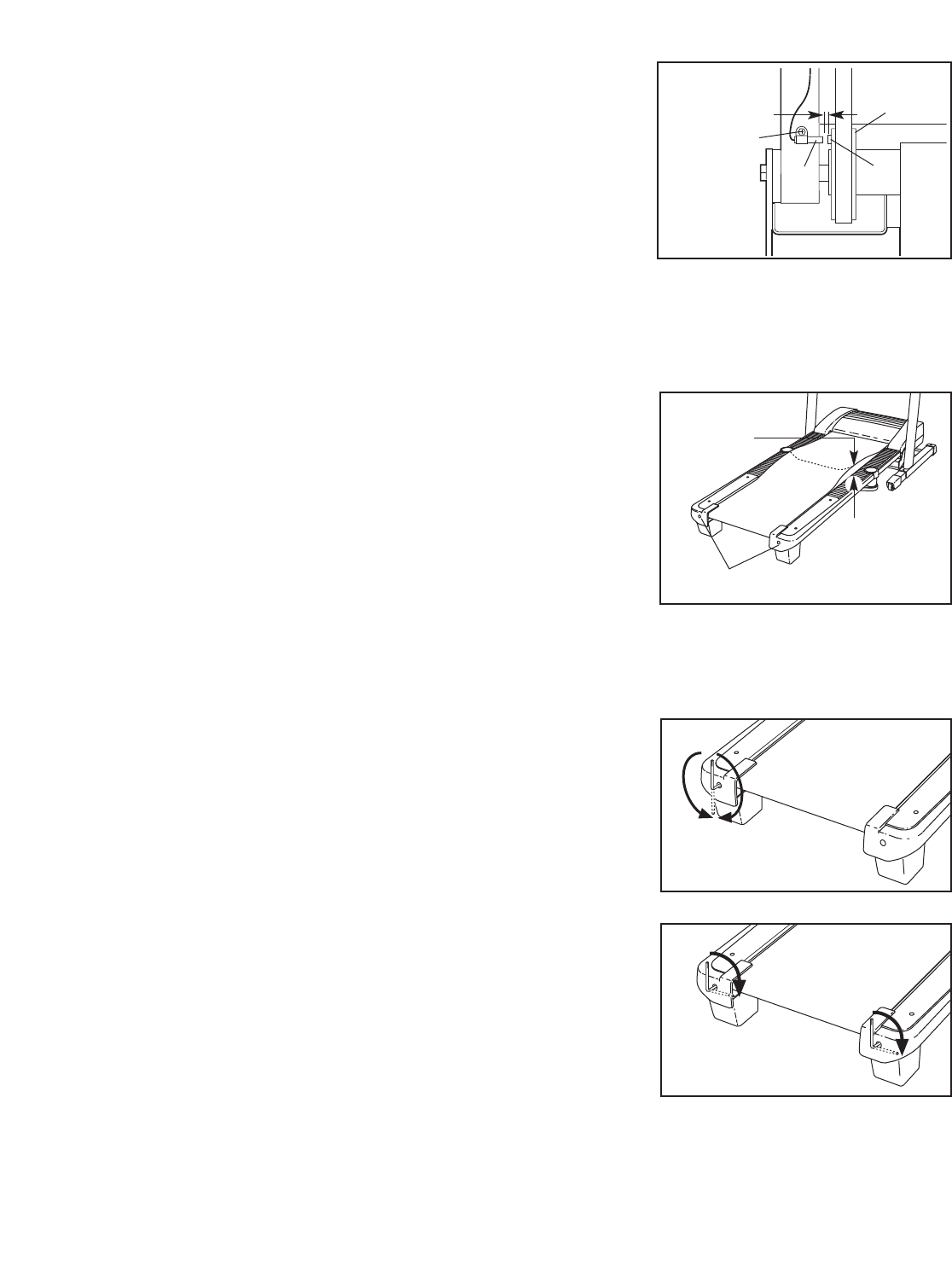

SOLUTION:a. Remove the key from the console and UNPLUG THE

POWER CORD.Remove the three hood Screws (7).

Carefully pivot the Hood (41) off.

Tripped Reset

Locate the Reed Switch (63) and the Magnet (46) on

the left side of the Pulley (47). Turn the Pulley until

the Magnet is aligned with the Reed Switch. Make

sure that the gap between the Magnet and the

Reed Switch is about 1/8”. Ifnecessary, loosen the

Screw (7), move the Reed Switch slightly, and then

retighten the Screw. Reattach the Hood, and run the

treadmill for a few minutes to check for a correct

speed reading.

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.

b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD.Using the hex key, turn both rear

roller bolts counterclockwise, 1/4 of a turn. When the

walking belt is properly tightened, you should be able

to lift each edge of the walking belt 2 to 3 inches off

the walking platform. Be careful to keep the walking

belt centered. Then, plug in the power cord, insert the

key, and run the treadmill for a few minutes. Repeat

until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please see the front cover of this manual.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center, first remove the key

and UNPLUG THE POWER CORD.If the walking

belt has shifted to the left, use the hex key to turn

the left rear roller bolt clockwise 1/2 of aturn; if the

walking belt has shifted to the right, turn the bolt

counterclockwise 1/2 of a turn. Be careful not to over-

tighten the walking belt. Then, plug in the power cord,

insert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first re-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both rear roller bolts clock-

wise, 1/4 of a turn. When the walking belt is correctly

tightened, you should be able to lift each side of the

walking belt 2 to 3 inches off the walking platform. Be

careful to keep the walking belt centered. Then, plug

in the power cord, insert the key, and carefully walk

on the treadmill for a few minutes. Repeat until the

walking belt is properly tightened.

Rear Roller Bolts

2”–3”

Top

View

1/8” 47

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobic exercise.

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your “train-

ing zone.” The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensity level for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible

carbohydrate calories

for en-

ergy. Only after the first few minutes does your body

begin to use stored

fat calories

for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys-

tem, your exercise must be “aerobic.” Aerobic exercise

is activity that requires large amounts of oxygen for

prolonged periods of time. This increases the demand

on the heart to pump blood to the muscles, and on the

lungs to oxygenate the blood. For aerobic exercise,

adjust the speed and incline of the treadmill until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

AWarm-up—Start each workout with 5 to 10 minutes

of stretching and light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparation for exercise.

Training Zone Exercise—After warming up, increase

the intensity of your exercise until your pulse is in your

training zone for 20 to 60 minutes. (During the first few

weeks of your exercise program, do not keep your

pulse in your training zone for longer than 20 minutes.)

Breathe regularly and deeply as you exercise—never

hold your breath.

ACool-down—Finish each workout with 5 to 10 min-

utes of stretching to cool down. This will increase the

flexibility of your muscles and will help prevent post-

exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest be-

tween workouts. After a few months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for individu-

als over the age of 35 or individuals with pre-

existing health problems.

The pulse sensor is not a medical device.

Various factors, including your movement,

may affect the accuracy of heart rate readings.

The sensor is intended only as an exercise aid

in determining heart rate trends in general.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.

1.Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts, then

relax. Repeat 3 times. Stretches: Hamstrings, back of knees and

back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat 3

times for each leg. To cause further stretching of the achilles ten-

dons, bend your back leg as well. Stretches: Calves, achilles ten-

dons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your but-

tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for

each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull

your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

PART LIST—Model No. PFTL59906.0 R1007A

Key No. Qty. Description Key No. Qty. Description

12 Foot Rail Decal

2 6 3/4" Screw

3 35 Screw

4 1 Reset/Off Circuit Breaker

5 8 Foot Rail Screw

6 4 Isolator

7 9 Hood Screw/Tie Screw

8 2 Upright Round Endcap

9 2 Platform Bolt, Back

10 2 Platform Bolt, Front

11 4 Belt Guide Screw

12 2 Belt Guide

13 1 Power Cord Grommet

14 2 Front Endcap Screw

15 2 Frame Pivot Bolt

16 1 Left Foot Rail

17 1 Right Foot Rail

18 1 Motor Pivot Pin

19 1 Motor Bracket

20 2 Handrail

21 1 Latch Pin Assembly

22 2 Motor Washer

23 1 Motor Star Washer

24 2 Motor Bolt

25 2 Motor Tension Bolt

26 1 Motor Belt

27 1 Drive Motor

28 2 Frame Spacer

29 1 Incline Motor Bolt, Upper

30 2 Motor Nut

31 2 Lift Frame Bolt

32 6Lock Nut

33 9 Ground Screw

34 1 Console

35 2Extension Leg Base Pad

36 1 Power Cord

37 1 Console Fan

38 1 Controller

39 1 Electronic Bracket

40 1 Filter Wire

41 1 Hood

42 1Front Roller Bushing

43 1 Lift Frame

44 2 Front Endcap

45 1 Front Roller Bolt

46 1 Magnet

47 1 Front Roller

48 1 Walking Belt

49 1 Walking Platform

50 1 Incline Motor/Controller Wire

51 1 Rear Roller

52 1 Left Rear Endcap

53 2 Rear Roller Bolt

54 1 Right Rear Endcap

55 1 Hex Key

56 1 Incline Stop Bracket

57 1 Base Ground Wire

58 1 Frame

59 1 Belly Pan

60 2 Center Isolator

61 1 Reed Switch Clip

62 2 Handrail Endcap

63 1 Reed Switch

64 4 Handrail Bolt

65 2 2.5" Extension Leg Bolt

66 4 Rear Roller Washer/Console Washer

67 2 Extension Leg Nut

68 2 Caution Decal

69 1 Warning Decal

70 2 Platform Nut

71 10 Cable Tie

72 3 Belly Pan Screw

73 1 Latch Housing

74 2 Tie Clamp

75 1 Releasable Tie

76 1 Access Door

77 1 Wire Harness

78 2 Extension Leg Endcap

79 1 Key/Clip

80 2Front Wheel

81 2 Wheel Pin

82 2 Base Pad

83 41" Tek Screw

84 1 Upright

85 1 Console Base

86 1 Incline Motor Bolt, Lower

87 1 Hair Pin Cotter Pin

88 1 Incline Motor

89 2 Extension Leg

90 2Rear Roller Bracket

91 1 Front Roller Nut

92 2 2.25" Extension Leg Bolt

93 1 Optic Disk

94 1 Photo Switch Nut

95 2 Small Star Washer

96 1 Photo Switch

To locate the parts listed below, see the EXPLODED DRAWING on pages 24 to 27.

Key No. Qty. Description Key No. Qty. Description

97 1 Photo Switch Bolt

98 2 Dumbbell

99 1 Latch Plate

100 3 Wire Tie

101 1 Roller Ground Wire

102 1 Photo Switch Wire

103 2 Isolator Bracket Cover

104 2 Center Isolator Bolt

105 2 Rear Roller Lock Washer

106 4 Crossbar Screw

107 4 Crossbar Star Washer

108 3 Hood Clip

109 1 Crossbar

110 1 Fan with Cover

111 1 Console Ground Wire

112 1 Large Belly Pan Screw

# 1 4" Blue Wire, 2F

# 1 10" Red Wire, M/F

#1 12" Blue Wire, 2F

# 1 8" Black Wire, M/F

# 1 12" Blue Wire, M/F

# 1 User’s Manual

#These parts are not illustrated

Specifications are subject to change without notice.

104

103

104

53 66

105

101

103

EXPLODED DRAWING A—Model No. PFTL59906.0 R1007A

25 22

112

108

113

EXPLODED DRAWING B—Model No. PFTL59906.0 R1007A

82 83

109

102

106

107

EXPLODED DRAWING C—Model No. PFTL59906.0 R1007A

100

110

111

EXPLODED DRAWING D—Model No. PFTL59906.0 R1007A

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material under normal use and service conditions. The frame is warranted for a lifetime. The drive motor

is warranted for twenty-five (25) years after the date of purchase. Parts and labor are warranted for one

(1) year after the date of purchase.

This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to

replacing or repairing, at ICON's option, the product through one of its authorized service centers. All re-

pairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a

service center, freight charges to and from the service center will be the customer’s responsibility. For in-

home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, im-

proper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond

that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-

cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when calling:

• the MODEL NUMBER of the product PFTL59906.0)

• the NAME of the product (PROFORM 560 CROSSTRAINER treadmill)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED

DRAWING on pages 22 to 27)

Proform Pftl599060 560 Cross Trainer Treadmill Users Manual *294060 204705

Proform-Pftl599060-Owner-S-Manual proform-pftl599060-owner-s-manual

PFTL59906.0 product_support%5CProForm%5CPFTL599060 - PROFORM 560 CROSS TRAINER TREADMILL%5CPFTL59906.0-250993

Navigation menu

Versions of this User Manual:

Views

Navigation
