USER’S MANUAL

www.proform.com

Model No. PFTL70011.2

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

ACTIVATE YOUR

WARRANTY

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

CUSTOMER CARE

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

Serial Number

Decal

2

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO USE THE TREADMILL ..............................................................17

HOW TO FOLD AND MOVE THE TREADMILL ...................................................25

MAINTENANCE AND TROUBLESHOOTING .....................................................26

EXERCISE GUIDELINES ....................................................................29

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

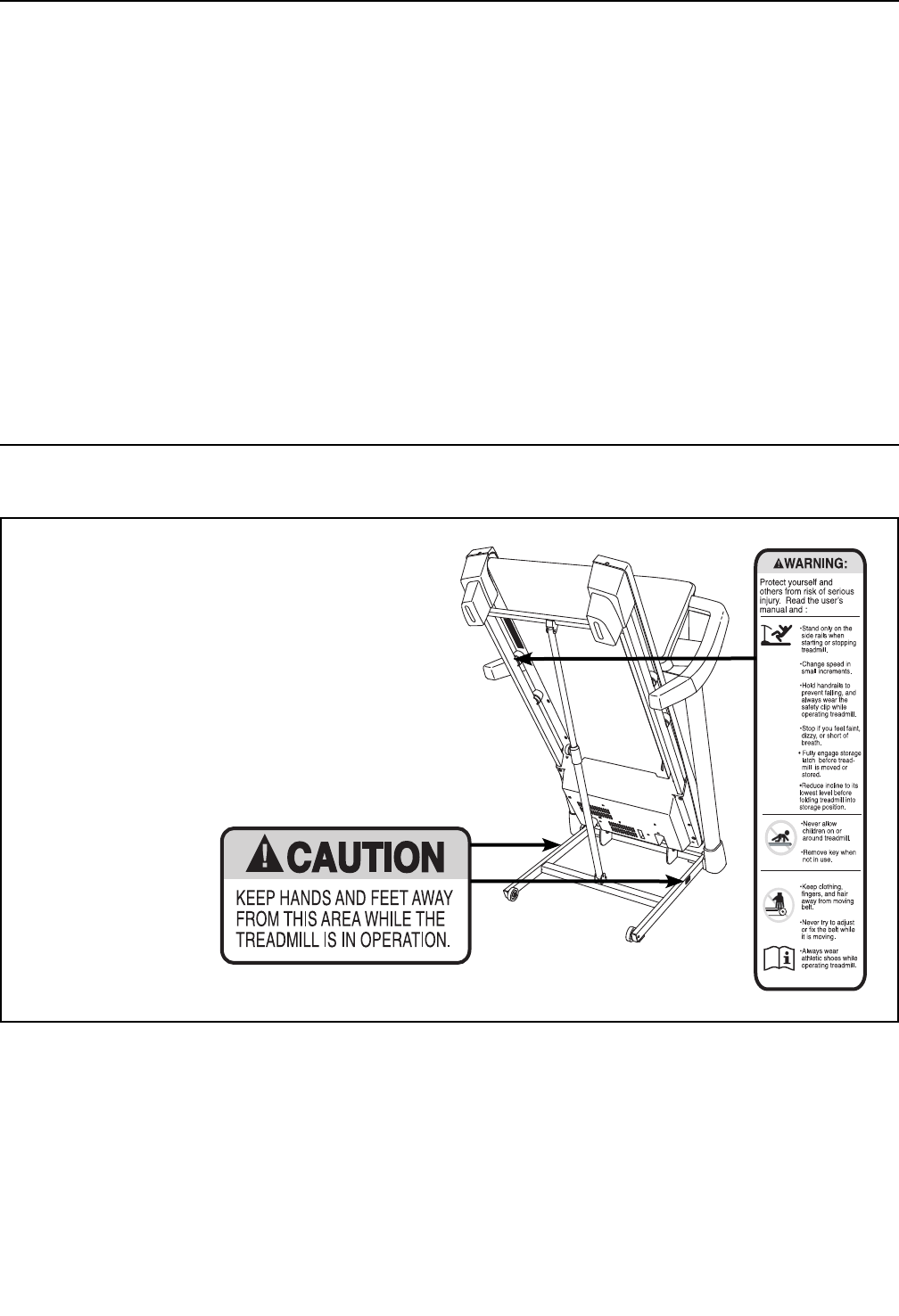

This drawing shows the locations of the warning

decals. If a decal is missing or illegible, call

the telephone number on the front cover of

this manual and request a free replacement

decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual

size.

WARNING DECAL PLACEMENT

256836

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

3

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. Use the treadmill only as described in this

manual.

4. The treadmill is intended for home use only.

Do not use the treadmill in any commercial,

rental, or institutional setting.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

7. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

8. Keep children under age 12 and pets away

from the treadmill at all times.

9. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

10. Never allow more than one person on the

treadmill at a time.

11. Wear appropriate exercise clothes while

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

12. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 17).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

13. Use only a surge suppressor that meets all of

the specifications described on page 17. To

purchase a surge suppressor, see your local

PROFORM dealer, call the telephone number

on the front cover of this manual, or see your

local electronics store.

14. Failure to use a properly functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

15. Keep the power cord and the surge suppres-

sor away from heated surfaces.

16. Never move the walking belt while the power

is turned off. Do not operate the treadmill

if the power cord or plug is damaged, or if

the treadmill is not working properly. (See

MAINTENANCE AND TROUBLESHOOTING

on page 26 if the treadmill is not working

properly.)

17. Read, understand, and test the emergency

stop procedure before using the treadmill

(see HOW TO TURN ON THE POWER on

page 19). Always wear the clip while using the

treadmill.

18. Always stand on the foot rails when starting

or stopping the walking belt. Always hold the

handrails while using the treadmill.

19. Keep fingers, hair, and clothing away from

the moving walking belt.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your treadmill before

using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

IMPORTANT PRECAUTIONS

4

20. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

21. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

22. Never leave the treadmill unattended while

it is running. Always remove the key, press

the power switch into the off position (see

the drawing on page 7 for the location of the

power switch), and unplug the power cord

when the treadmill is not in use.

23. Do not attempt to move the treadmill until

it is properly assembled. (See ASSEMBLY

on page 9 and HOW TO FOLD AND MOVE

THE TREADMILL on page 25.) You must be

able to safely lift 45 lbs. (20 kg) to move the

treadmill.

24. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

25. Do not change the incline of the treadmill by

placing objects under the treadmill.

26. Never insert any object into any opening on

the treadmill.

27. Inspect and properly tighten all parts of the

treadmill regularly.

28. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

29. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

SAVE THESE INSTRUCTIONS

5

6

all

STANDARD SERVICE PLANS

7

Thank you for selecting the new PROFORM® CARDIO

SMART treadmill. The CARDIO SMART treadmill

provides an impressive selection of features designed

to make your workouts at home more effective and

enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Length: 5 ft. 10 in. (178 cm)

Width: 2 ft. 10 in. (86 cm)

Handrail

Console

Key/Clip

Power Switch

Power Cord

Walking Belt

Motor Hood

Wheel

Foot Rail

Idler Roller

Adjustment Screws

Platform Cushion

Heart Rate Monitor

8

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is

preattached. Extra parts may be included.

3/8" x 2" Bolt (12)–2

#10 Star

Washer (11)–4

3/8" x 2 1/2" Bolt (2)–2

3/8" x 4" Screw (4)–6

5/16" x 2 3/4" Screw (10)–4

5/16" Star

Washer (8)–4 3/8" Star

Washer (5)–6

3/8" Nut (3)–4

#8 x 1/2" Screw

(9)–14

#10 x 3/4" Screw

(13)–4

9

• To hire an authorized service technician

to assemble your exercise equipment, call

1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• After shipping, there may be an oily substance

on the exterior of the treadmill. This is normal. If

there is an oily substance on the treadmill, wipe

it off with a soft cloth and a mild, non-abrasive

cleaner.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 8.

• Assembly requires the following tools:

the included hex keys

one adjustable wrench

one Phillips screwdriver

scissors

needlenose pliers

To avoid damaging parts, do not use power tools.

ASSEMBLY

1. Go to www.proformservice.com/registration

on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this

manual) and register your product.

1

10

2. Make sure that the power cord is unplugged.

Locate the Upright Wire (70) bundled around the

front of the Base (80). Cut the plastic tie securing

the Upright Wire. Then, route the Upright Wire

into the Base and out of the indicated hole.

Press a Base Cap (77) into each side of the

Base (80) (only one side is shown).

See the inset drawing. Cut the plastic tie near

the Upright Wire (70). Be careful not to damage

the Upright Wire.

70

80

Hole

Cut

70

Tie

Cut

77

2

3. Identify the Left Upright (75). Have a second

person hold the Left Upright near the Base (80).

See the inset drawing. Tie the wire tie in the

Left Upright (75) securely around the end of the

Upright Wire (70). Then, insert the Upright Wire

into the lower end of the Left Upright as you pull

the other end of the wire tie out of the upper end

of the Left Upright.

3

70

75

75

Wire

Tie 70

Wire

Tie

80

11

4. Hold the Left Upright (75) against the Base (80).

Be careful not to pinch the wires. Partially

tighten three 3/8" x 4" Screws (4) with three 3/8"

Star Washers (5) into the Left Upright and the

Base. Do not fully tighten the Screws yet.

Attach the Right Upright (not shown) in the

same way. Note: There are no wires on the right

side.

75

4

5

4

80

Wires

5. Identify the Left and Right Base Covers (73, 74).

Slide the Left and Right Base Covers onto the

Left and Right Uprights (75, 76) as shown.

Remove the tie from the Upright Wire (70).

74

76

75

70

Wire

Tie

73 80

5

12

6. Identify the left handrail assembly (A). If there is

a wire in the Left Handrail, remove and discard it.

Hold the left handrail assembly (A) near the Left

Upright (75). Insert the wire tie on the Upright

Wire (70) into the bottom of the left handrail

assembly and out of the end as shown. Then,

pull the Upright Wire through the left handrail

assembly.

Attach the left handrail assembly (A) to the Left

Upright (75) with two 5/16" x 2 3/4" Screws (10)

and two 5/16" Star Washers (8). Make sure not

to pinch the Upright Wire (70). Do not tighten

the Screws yet.

Remove and discard the two indicated screws

(B).

Attach the right handrail assembly (not

shown) to the Right Upright (not shown) as

described above. Note: There are no wires in

the Right Upright.

10

8

A

75

Wire

Tie

70

6

B

83

31

7

7

C

7

7. Set the Console Base (83) face down on a soft

surface to avoid scratching the Console Base.

Remove and discard the four indicated screws

(C). Next, remove the Pulse Crossbar (31).

Then, remove and save the four 5/16" x 5/8"

Screws (7) from the Console Frame (87).

87

C

13

83

35

92

87

99

8

8. Identify the Left and Right Trays (92, 35).

Attach the Trays (92, 35) to the Console Base

(83) with eight #8 x 1/2" Screws (9). Note: It may

be easier to start the two inside Screws and then

slide the Trays into place before starting the

other six Screws.

Note: It may be necessary to rotate the Console

Frame (87) upward when attaching the Trays

(92, 35).

9

9

9

9. IMPORTANT: To avoid damaging the Pulse

Crossbar (31), do not use power tools and do

not overtighten the #10 x 3/4" Screws (13).

Orient the Pulse Crossbar (31) as shown. Attach

the Pulse Crossbar to the left and right Handrails

(71) with four #10 x 3/4" Screws (13) and four

#10 Star Washers (11). Start all four Screws,

and then tighten them.

Make sure that the Upright Wire (70) is not

pinched. Firmly tighten the four 5/16" x 2 3/4"

Screws (10).

913

13

11

11

10

10

71

31

71

70

14

10. With the help of a second person, hold the con-

sole assembly near the left Handrail (71) and the

right Handrail (not shown).

Connect the ground wire from the console

assembly to the Console Ground Wire (89) on

the Pulse Crossbar (31).

See the inset drawing. Connect the Upright

Wire (70) to the console wire. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER. Then, remove the wire tie from

the Upright Wire.

10

Console

Assembly

70

70

Wire

Tie

Console

Wire

Console

Wire

71

89

Ground

Wire

31

11. Set the console assembly on the left and right

Handrails (71). Make sure that no wires are

pinched. Insert the excess Upright Wire (70)

behind the Console Frame (87).

Attach the console assembly to the brackets

on the Handrails (71) with the four 5/16" x 5/8"

Screws (7) that you removed in step 7. Do not

tighten the Screws yet.

11

71

Console

Assembly

7

7

70

71

87

15

12. Attach the Pulse Crossbar (31) to the console

assembly with six #8 x 1/2" Screws (9). Start all

six Screws, and then tighten them.

Firmly tighten the four 5/16" x 5/8" Screws (7).

13. Firmly tighten all six 3/8" x 4" Screws (4). Then,

slide the Left and Right Base Covers (73, 74)

down.

12

13

31

Console

Assembly

7

4

4

7

9

73

74

9

9

16

15

81

81

80

2

3

15. Attach a Wheel (81) to the Base (80) with a 3/8"

x 2 1/2" Bolt (2) and a 3/8" Nut (3). Do not over-

tighten the Nut; the Wheel must turn freely.

Attach the other Wheel (81) to the other side

of the Base (80) in the same way.

Lower the Frame (not shown) (see HOW TO

LOWER THE TREADMILL FOR USE on

page 25).

14

49

80

51

312

Latch

Knob

14. Raise the Frame (49) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (51) so that the large

barrel and the latch knob are oriented as shown.

Attach the lower end of the Storage Latch (51) to

the Base (80) with a 3/8" x 2" Bolt (12) and a 3/8"

Nut (3).

Attach the upper end of the Storage Latch (51)

to the Frame (49) with a 3/8" x 2" Bolt (12) and a

3/8" Nut (3).

16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic

on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To

avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure

place; the hex key is used to adjust the walking belt (see pages 27 and 28). Note: Extra hardware may be

included.

312

Large

Barrel

17

HOW TO USE THE TREADMILL

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 13 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill may not be com-

patible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

1

Surge

Suppressor

Grounding Pin

Grounded Outlet

2

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

18

ETPF70011

(PFTL70011)

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable. When you use the manual mode,

you can change the speed and incline of the treadmill

with the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip heart rate

monitor.

In addition, the console features the weight loss center

and sixteen onboard workouts—five timed workouts,

seven calorie workouts, and four distance workouts.

Each workout automatically controls the speed and

incline of the treadmill as it guides you through an

effective exercise session.

The console also features the iFit interactive work-

out system. The iFit system accepts iFit cards with

workouts that help you achieve specific fitness goals.

For example, lose unwanted pounds with the 8-week

Weight Loss workout. iFit cards are available sepa-

rately. To purchase iFit cards at any time, go to

www.iFit.com or call the telephone number on the

front cover of this manual. iFit cards are also avail-

able at select stores.

You can even listen to your favorite workout music or

audio books with the console’s sound system while you

exercise.

To turn on the power, see page 19. To use the man-

ual mode, see page 19. To use an onboard workout,

see page 21. To use the weight loss center, see

page 22. To use an iFit workout, see page 23. To

use the information mode, see page 24. To use the

sound system, see page 24.

Note: The console can display speed and distance

in either miles or kilometers. To find which unit of

measurement is selected, see THE INFORMATION

MODE on page 24. For simplicity, all instructions in this

manual refer to miles.

IMPORTANT: If there are sheets of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The first time you use

the treadmill, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 28).

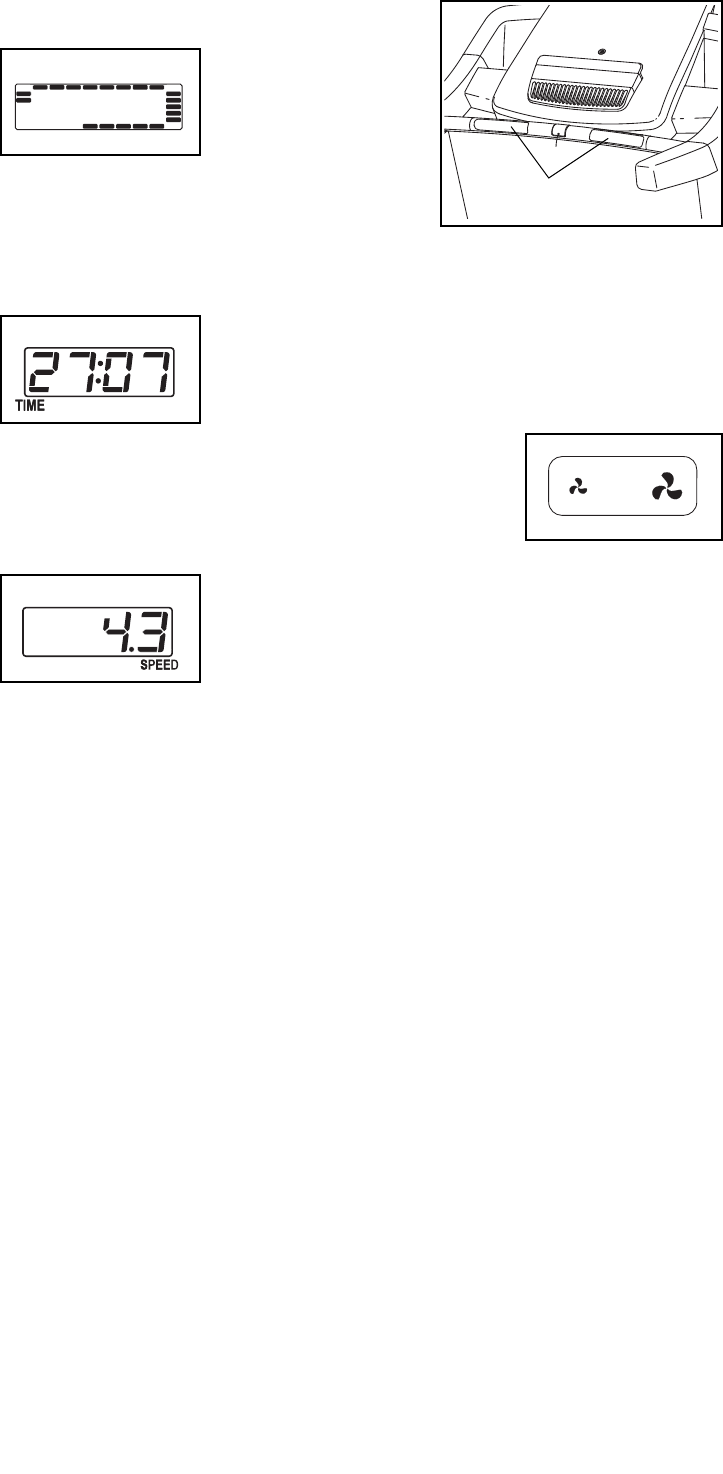

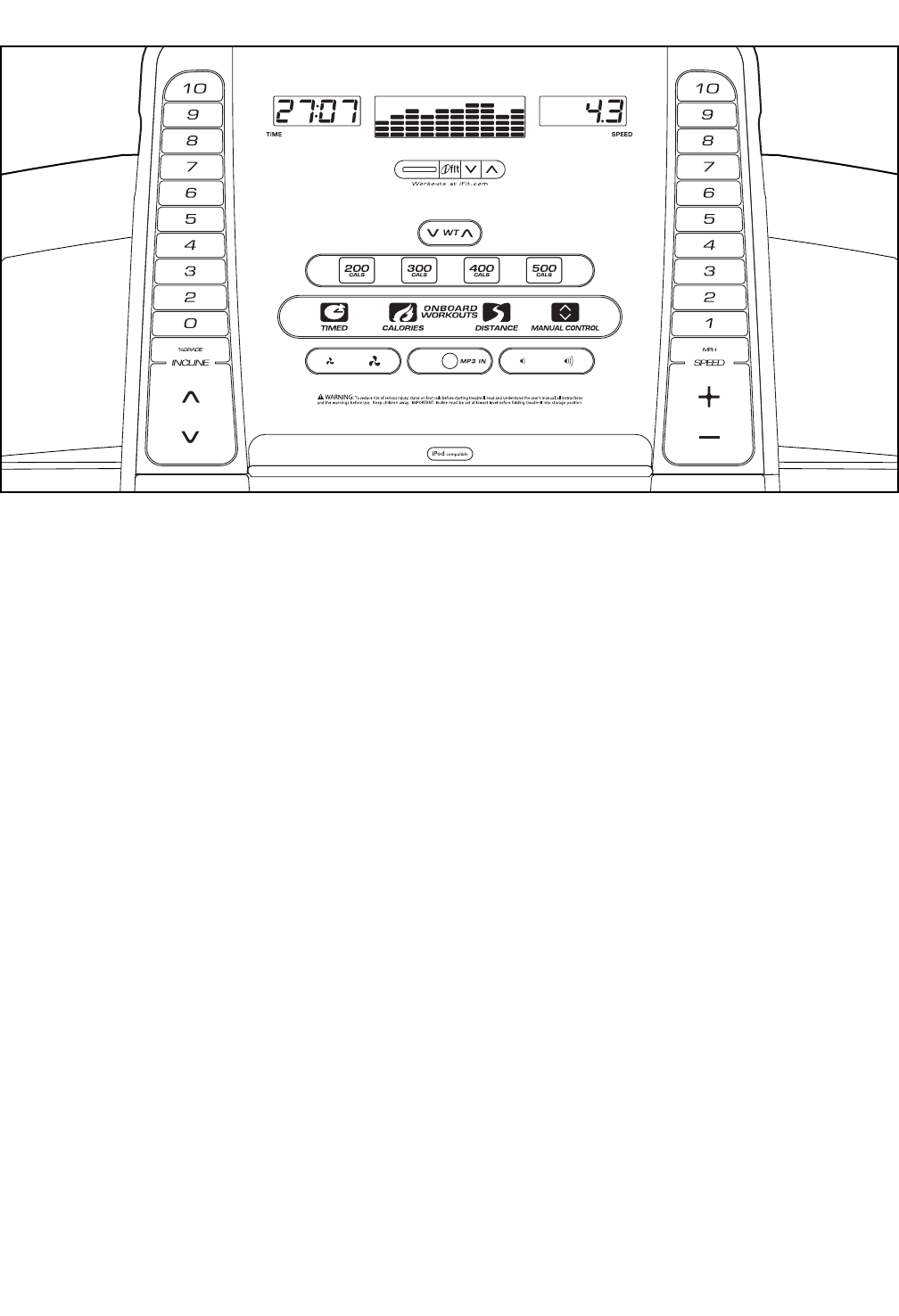

CONSOLE DIAGRAM

19

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before you turn on the power. If you do

not do this, you may damage the console displays

or other electrical components.

Plug in the power cord

(see page 17). Next, locate

the power switch on the

treadmill frame near the

power cord. Press the

power switch into the reset

position.

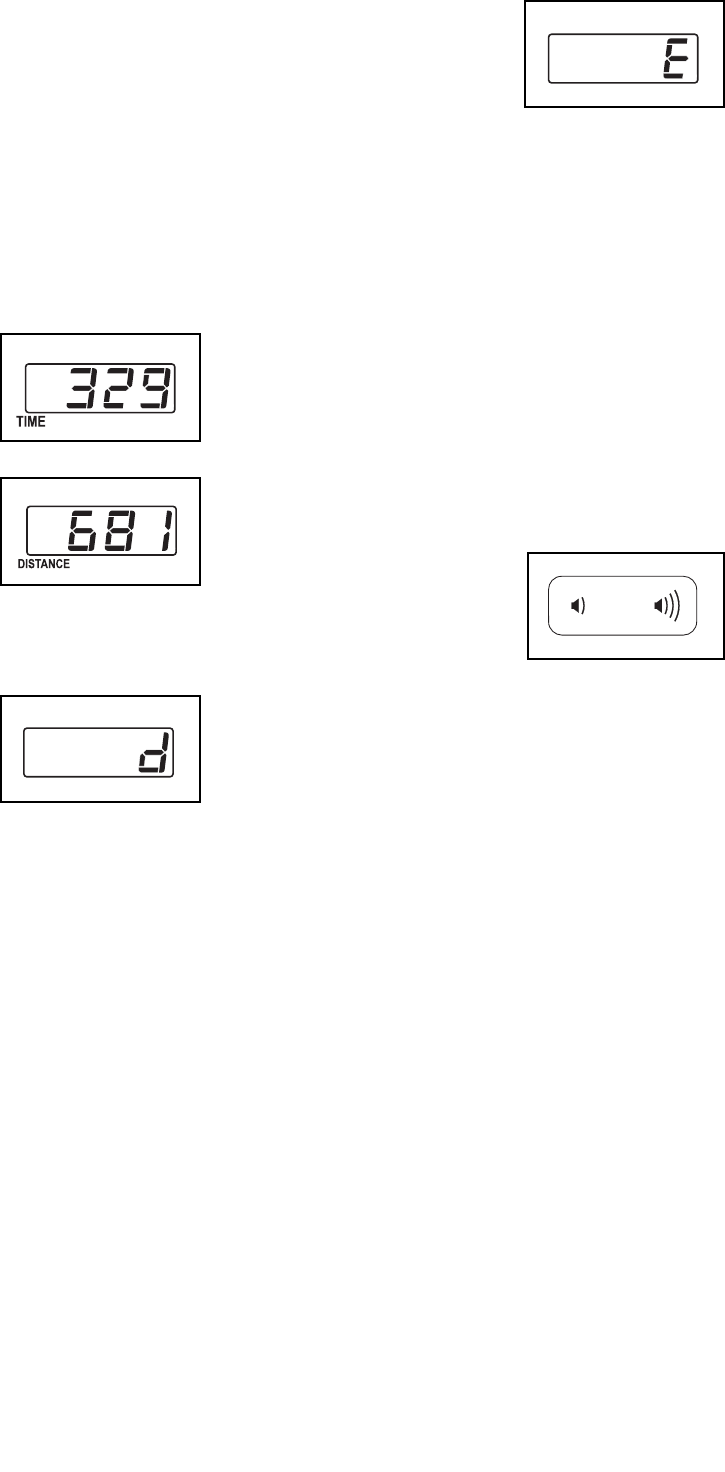

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as

you plug in the power cord and press the power

switch into the reset position, the demo mode is

turned on. To turn off the demo mode, hold down

the Stop button for a few seconds. If the displays

remain lit, see THE INFORMATION MODE on page

24 to turn off the demo mode.

Next, stand on the

foot rails of the

treadmill. Find the

clip attached to the

key, and slide the clip

onto the waistband of

your clothes. Then,

insert the key into

the console. After

a moment, the displays will light. IMPORTANT: In an

emergency, the key can be pulled from the console,

causing the walking belt to slow to a stop. Test the

clip by carefully taking a few steps backward; if the

key is not pulled from the console, adjust the posi-

tion of the clip.

IMPORTANT: Before you use the treadmill, take the

following steps to ensure that the console shows

the correct incline level of the treadmill: First,

press the Incline increase button once. Next, press

either the Incline decrease button or the lowest

numbered Incline button to set the treadmill to its

lowest setting. When the frame stops moving, the

treadmill is ready for use.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Press the Manual Control button on the console to

select the manual mode.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the Speed but-

tons numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed

increase and decrease buttons. Each time you

press one of the buttons, the speed setting will

change by 0.1 mph; if you hold down the button,

the speed setting will change in increments of 0.5

mph. Note: After you press the button, it may take

a moment for the walking belt to reach the selected

speed setting.

If you press one of the Speed buttons numbered 1

through 10, the walking belt will gradually change

speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button. The

time will begin to flash in the display. To restart the

walking belt, press the Start button or the Speed

increase button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase or decrease button or one of the

Incline buttons numbered 0 through 10. Each time

you press one of the buttons, the treadmill will

gradually adjust to the selected incline setting.

Reset

ETPF70011

(PFTL70011)

Key

Clip

20

5. Follow your progress with the displays.

The matrix—When

you select the manual

mode, the matrix will

display a track that rep-

resents 1/4 mile (400

m). As you exercise,

the indicators around the track will appear in suc-

cession until the entire track appears. The track will

then disappear and the indicators will again begin

to appear in succession.

The left display—The

left display will show

the elapsed time, the

incline of treadmill,

and the approximate

number of calories you

have burned for a few seconds each. Note: When

some workouts are selected, the display will show

the time remaining in the workout instead of the

elapsed time.

The right display—

The right display will

show the distance that

you have walked or

run and the speed of

the walking belt for a

few seconds each. The display will also show your

heart rate when you use the handgrip heart rate

monitor (see step 6).

To reset the console, press the Stop button,

remove the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using the handgrip heart rate monitor,

remove the sheets of plastic from the metal con-

tacts on the pulse bar. In addition, make sure that

your hands are clean.

To measure

your heart

rate, stand on

the foot rails

and hold the

pulse bar with

your palms on

the contacts;

avoid moving

your hands.

When your

pulse is detected, several dashes will appear and

then your heart rate will be shown. For the most

accurate heart rate reading, continue to hold

the contacts for about 15 seconds.

7. Turn on the fan if desired.

The fan features mul-

tiple speed settings.

Press the Fan increase

or decrease button to

select a fan speed or to

turn off the fan. Note: If

the fan is on when the walking belt is stopped, the

fan will turn off automatically after a few minutes.

8. When you are finished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to zero. The

incline must be at zero or you may damage the

treadmill when you fold it to the storage posi-

tion. Next, remove the key from the console and

put it in a secure place.

When you are finished using the treadmill, press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

21

HOW TO USE AN ONBOARD WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Select an onboard workout.

To select an onboard workout, press the Timed

button, the Calories button, or the Distance button

repeatedly until the desired workout appears in the

display.

When you select an onboard workout, the displays

will show the maximum incline, the maximum

speed, and the duration of the workout. In addition,

a profile of the speed settings of the workout will

appear in the matrix. If you select a distance work-

out, the distance will appear instead of the profile.

3. Start the workout.

Press the Start button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

first speed and incline settings of the workout. Hold

the handrails and begin walking.

Each workout is divided into segments. One speed

setting and one incline setting are programmed for

each segment. Note: The same speed setting and/

or incline setting may be programmed for consecu-

tive segments.

During a timed workout

or a calorie workout,

the profile will show

your progress. The

flashing segment of

the profile represents

the current segment

of the workout. The height of the flashing segment

indicates the speed setting for the current segment.

At the end of each segment, a series of tones will

sound. If a new speed and/or incline setting is

programmed for the next segment, the new speed

and/or incline setting will flash in the displays for a

few seconds. The treadmill will automatically adjust

to the new speed and/or incline setting.

The workout will continue in this way until the last

segment of the profile flashes in the display and the

last segment ends. The walking belt will then slow

to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next seg-

ment of the workout begins, the treadmill will

automatically adjust to the speed and incline

settings for the next segment.

To stop the workout at any time, press the Stop

button. The time will begin to flash in the display.

To resume the workout, press the Start button or

the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Follow your progress with the displays.

See step 5 on page 20.

5. Measure your heart rate if desired.

See step 6 on page 20.

6. Turn on the fan if desired.

See step 7 on page 20.

7. When you are finished exercising, remove the

key from the console.

See step 8 on page 20.

Current Segment

22

HOW TO USE THE WEIGHT LOSS CENTER

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Select a weight loss workout.

To select a weight loss workout, press the 200 Cals

button, the 300 Cals button, the 400 Cals button,

or the 500 Cals button. When you select a weight

loss workout, the displays will show the maximum

incline and speed of the workout and the approxi-

mate number of calories you will burn during the

workout.

If you have not entered your weight, press the Wt

increase and decrease buttons repeatedly to enter

your weight.

Each weight loss workout is divided into segments.

One speed setting and one incline setting are

programmed for each segment. Note: The same

speed and/or incline setting may be programmed

for consecutive segments.

3. Start the walking belt.

The weight loss workout will function in the same

way as a distance workout (see step 3 on page

21).

4. Follow your progress with the displays.

See step 5 on page 20.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories

that you burn will depend on various factors

such as your weight. In addition, if you manu-

ally change the speed or incline of the treadmill

during the workout, the number of calories you

burn will be affected.

5. Measure your heart rate if desired.

See step 6 on page 20.

6. Turn on the fan if desired.

See step 7 on page 20.

7. When you are finished exercising, remove the

key from the console.

See step 8 on page 20.

23

HOW TO USE AN IFIT WORKOUT

To purchase iFit cards at any time, go to www.iFit.com

or call the telephone number on the front cover of this

manual. iFit cards are also available at select stores.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 19.

2. Insert an iFit card and select a workout.

To use an iFit workout, insert an iFit card into the

iFit slot; make sure that the iFit card is oriented

so that the metal contacts are face-down and are

inserted into the iFit slot. When the iFit card is cor-

rectly inserted, the iFit logo will light up.

Next, select an iFit workout by pressing the iFit

increase and decrease buttons next to the iFit slot.

When you select an iFit workout, the displays will

show the maximum incline and speed settings of

the workout and the approximate number of calo-

ries that you will burn during the workout.

Each iFit workout is divided into several segments.

One speed setting and one incline setting are

programmed for each segment. Note: The same

speed and/or incline setting may be programmed

for consecutive segments.

3. Start the walking belt.

Press the Start button or the Speed increase but-

ton to start the workout. A moment after you press

the button, the treadmill will automatically adjust to

the first speed and incline settings of the workout.

Hold the handrails and begin walking.

During the workout, the voice of a personal trainer

will guide you through the workout.

If the speed or incline setting for the current

segment is too high or too low, you can manu-

ally override the setting by pressing the Speed or

Incline buttons; however, when the next segment

begins, the treadmill will automatically adjust

to the speed and incline settings for the next

segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start

button or the Speed increase button. The walking

belt will begin to move at 1 mph. When the next

segment of the workout begins, the treadmill will

automatically adjust to the speed and incline set-

tings for the next segment.

4. Follow your progress with the displays.

See step 5 on page 20.

5. Measure your heart rate if desired.

See step 6 on page 20.

6. Turn on the fan if desired.

See step 7 on page 20.

7. When you are finished exercising, remove the

key from the console.

See step 8 on page 20.

CAUTION: Always remove iFit cards from the

iFit slot when you are not using them.

iFit Slot

iFit Card

iFit Logo

24

THE INFORMATION MODE

The console features an information mode that keeps

track of the total distance that the walking belt has

moved and the total number of hours that the treadmill

has been used. The information mode also allows you

to select miles or kilometers to measure distance, and

to turn on and turn off the display demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console, and then

release the Stop button. When the information mode is

selected, the following information will be shown:

The left display will show

the total number of hours

the treadmill has been

used.

The right display will show

the total number of miles or

kilometers that the walking

belt has moved.

Press the Stop button again to view the following

information:

The console features a dis-

play demo mode, designed

to be used if the treadmill

is displayed in a store.

While the demo mode is

turned on, the console will

function normally when

you plug in the power cord, press the power switch into

the reset position, and insert the key into the console.

However, when you remove the key, the displays will

remain lit, although the buttons will not function. If the

demo mode is turned on, a “d” will appear in the left

display while the information mode is selected. To

turn on or turn off the demo mode, press the Speed

decrease button.

An “E” for English miles or

an “M” for metric kilome-

ters will appear in the right

display. Press the Speed

increase button to change

the unit of measurement if

desired.

To exit the information mode, remove the key from the

console.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console

sound system while you exercise, plug a 3.5 mm male

to 3.5 mm male audio cable (not included) into the jack

on the console and into a jack on your MP3 player,

CD player, or other personal audio player; make sure

that the audio cable is fully plugged in. Note: To

purchase an audio cable, see your local electronics

store.

Next, press the play but-

ton on your personal audio

player. Adjust the volume

level using the volume

increase and decrease but-

tons on the console or the

volume control on your personal audio player.

If you are using a personal CD player and the CD

skips, set the CD player on the floor or another flat

surface instead of on the console.

25

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to zero before you fold the treadmill. Then, remove

the key and unplug the power cord. CAUTION: You

must be able to safely lift 45 lbs. (20 kg) to raise,

lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

To protect the floor or carpet, place a mat under the

treadmill. Keep the treadmill out of direct sunlight. Do

not leave the treadmill in the storage position in tem-

peratures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the tread-

mill without tipping it back, do not pull on the

frame, and do not move the treadmill over an

uneven surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill

with your right hand. Then, pull the latch knob to

the left and hold it. IMPORTANT: Do not turn the

latch knob. If necessary, push the frame forward

slightly. Pivot the frame downward a few inches,

and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

firmly with both hands, and lower it to the floor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Latch

Knob

2

Frame

Frame

1

Handrail

Frame

Wheel

1

26

MAINTENANCE

Regularly clean the treadmill and keep the walking

belt clean and dry. First, press the power switch into

the off position and unplug the power cord. Wipe

exterior parts of the treadmill with a damp cloth and

a small amount of mild soap. IMPORTANT: Do not

spray liquids directly onto the treadmill. To avoid

damage to the console, keep liquids away from the

console. Then, thoroughly dry the treadmill with a soft

towel.

TROUBLESHOOTING

Most treadmill problems can be solved by follow-

ing the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor

is plugged into a properly grounded outlet (see

page 17). Use only a surge suppressor that meets

all of the specifications described on page 17.

IMPORTANT: The treadmill may not be compat-

ible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

power switch, wait for five minutes and then press

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see drawing c at the left).

If the switch has tripped, wait for five minutes and

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

power cord is plugged in, unplug it, wait for five

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when

you remove the key from the console

a. The console features a display demo mode,

designed to be used if the treadmill is displayed in

a store. If the displays remain lit when you remove

the key, the demo mode is turned on. To turn off

the demo mode, hold down the Stop button for a

few seconds. If the displays are still lit, see THE

INFORMATION MODE on page 24 to turn off the

demo mode.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Next, place the treadmill

in the storage position (see HOW TO FOLD THE

TREADMILL on page 25). Then, remove the two

indicated #8 x 3/4" Screws (6).

MAINTENANCE AND TROUBLESHOOTING

Reset

Tripped

c

66

a

27

Lower the treadmill. Next, remove the indicated #8

x 3/4" Screws (6). Carefully slide the Motor Hood

(57) off.

Locate the Reed Switch (54) and the Magnet (44)

on the left side of the Pulley (43). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm).

If necessary, loosen the #8 x 3/4" Truss Head

Screw (19), move the Reed Switch slightly, and

then retighten the Truss Head Screw. Reattach

the Motor Hood (not shown) with the five #8 x 3/4"

Screws (not shown) and run the treadmill for a few

minutes to check for a correct speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then

release the Stop button and the Speed increase

button. Press the Stop button and then press the

Incline increase or decrease button. The tread-

mill will automatically rise to the maximum incline

level and then return to the minimum level. This will

recalibrate the incline system. If the incline does not

begin calibrating, press the Stop button again, and

then press the Incline increase or decrease button

again. When the incline is calibrated, remove the

key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a surge suppressor that meets all of the

specifications described on page 17.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to

the walking belt or the walking platform unless

instructed to do so by an authorized service

representative. Such substances may deterio-

rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more

lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

Idler Roller Screws

2–3 in.

b

Front

View

54

1/8 in.

19

44

43

57

6

6

6

6

28

SYMPTOM: The walking belt is off-center or slips

when walked on

a. If the walking belt is off-center, first remove the

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first

remove the key and UNPLUG THE POWER

CORD. Using the hex key, turn both idler roller

screws clockwise, 1/4 of a turn. When the walk-

ing belt is correctly tightened, you should be able

to lift each edge of the walking belt 2 to 3 in. (5 to

7 cm) off the walking platform. Be careful to keep

the walking belt centered. Then, plug in the power

cord, insert the key, and carefully walk on the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

a

b

29

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

30

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your

hips. Allow your back and shoulders to relax as you reach down toward

your toes as far as possible. Hold for 15 counts, then relax. Repeat 3

times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands

against a wall. Keep your back leg straight and your back foot flat on

the floor. Bend your front leg, lean forward and move your hips toward

the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To

cause further stretching of the achilles tendons, bend your back leg as

well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks as

possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.

Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull

your feet toward your groin area as far as possible. Hold for 15 counts,

then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

1

2

3

4

5

31

Key No. Qty. Description Key No. Qty. Description

1 4 #8 x 1/2" Ground Screw

2 2 3/8" x 2 1/2" Bolt

3 4 3/8" Nut

4 6 3/8" x 4" Screw

5 6 3/8" Star Washer

6 30 #8 x 3/4" Screw

7 4 5/16" x 5/8" Screw

8 4 5/16" Star Washer

9 16 #8 x 1/2" Screw

10 4 5/16" x 2 3/4" Screw

11 4 #10 Star Washer

12 2 3/8" x 2" Bolt

13 4 #10 x 3/4" Screw

14 2 1/4" x 2 1/2" Screw

15 2 3/8" x 3/4" Bolt

16 2 1/2" x 2 1/4" Bolt

17 2 1/2" Nut

18 5 Hood Clip

19 13 #8 x 3/4" Truss Head Screw

20 2 3/8" x 1 1/2" Bolt

21 4 3/8" Locknut

22 2 Incline Motor Spacer

23 2 1/4" x 3/8" Screw

24 4 Belt Guide Screw

25 2 5/16" x 1 1/4" Bolt

26 4 5/16" Nut

27 2 5/16" x 1 3/4" Bolt

28 2 5/16" Washer

29 1 #8 x 1/2" Ground Wire Screw

30 10 #8 x 5/8" Screw

31 1 Pulse Crossbar

32 4 Cushion Plate

33 8 #8 x 1" Tek Screw

34 4 #8 x 1" Screw

35 1 Right Tray

36 4 Platform Cushion

37 1 Left Foot Rail

38 1 Latch Warning Decal

39 1 Walking Platform

40 1 Walking Belt

41 2 Belt Guide

42 2 Rubber Spacer

43 1 Drive Roller/Pulley

44 1 Magnet

45 1 Reed Switch Clamp

46 1 Drive Motor Belt

47 1 Drive Motor

48 2 Frame Spacer

49 1 Frame

50 1 Right Foot Rail

51 1 Storage Latch

52 1 Right Rear Foot

53 1 Left Rear Foot

54 1 Reed Switch

55 2 Grommet

56 1 Idler Roller

57 1 Motor Hood

58 2 Incline Frame Spacer

59 1 Incline Frame

60 1 Incline Motor

61 1 Controller Ground Wire

62 1 Controller

63 3 Wire Tie

64 1 Belly Pan Plate

65 1 Power Switch

66 1 Power Cord

67 1 Power Cord Grommet

68 1 Belly Pan

69 1 Left Handrail Cover

70 1 Upright Wire

71 2 Handrail

72 2 Base Pad Spacer

73 1 Left Base Cover

74 1 Right Base Cover

75 1 Left Upright

76 1 Right Upright

77 4 Base Cap

78 2 Caution Decal

79 4 Base Pad

80 1 Base

81 2 Wheel

82 1 Key/Clip

83 1 Console Base

84 1 Left Handrail Insert

85 1 Right Handrail Cover

86 1 Console

87 1 Console Frame

88 1 Right Handrail Insert

89 1 Console Ground Wire

90 2 Console Clamp

91 1 Console Wire Tie

92 1 Left Tray

93 4 1/4" x 1 1/4" Screw

94 8 M5 Flat Washer

* – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

PART LIST Model No. PFTL70011.2 R0614A

32

51

27

25

24

24

41

42

38

39

50

49

14

37 27

23

47

26

42

28

26

28

14

26

3

25

40

43

44

12

46

48

48

19

45

30

30

30

30

30

12

1

16

16

56

54

26

19

52

53

19

3

30

30

30

30

30

41

93

93

93

93

32

36

32

36

32

36

19

94 32

36

19

94

19

94

19

94

EXPLODED DRAWING A Model No. PFTL70011.2 R0614A

33

9

1

67

65

61

63

62

1

58

59

58

18

20

21

60

22

6

57

6

64

21

21

17

17

20

21

18

6

6

6

6

6

68

6

6

66

18

6

6

6

18

18

EXPLODED DRAWING B Model No. PFTL70011.2 R0614A

34

80 78

15

77

15

78

77

2

81

3

33

3

2

81

33

55

1

79

79

77

77

33

79

72

33

79

72

70

73

4

5

76

5

4

4

5

85

88

71

69

84

71

13

13

11

11

10

7

8

10

8

74

29 89

31

9

9

9

9

6

6

75

7

EXPLODED DRAWING C Model No. PFTL70011.2 R0614A

35

34

34

90

6

91

90

83

9

9

9

92

9

9

9

6

6

6

6

6

635

87

86

6

6

82

6

6

6

EXPLODED DRAWING D Model No. PFTL70011.2 R0614A

Part No. 359683 R0614A Printed in USA © 2014 ICON Health & Fitness, Inc.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. The drive motor is warranted for twenty-ve (25) years

from the date of purchase. Parts and labor are warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if the product is purchased or transported outside the USA,

if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 6.

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING

near the end of this manual)

ORDERING REPLACEMENT PARTS
