Proform Pftl999120 Power 995 C Treadmill Users Manual
2015-04-14
: Proform Proform-Pftl999120-Power-995-C-Treadmill-Users-Manual-702244 proform-pftl999120-power-995-c-treadmill-users-manual-702244 proform pdf
Open the PDF directly: View PDF
.
Page Count: 36
Serial Number
Decal
Model No. PFTL99912.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
USER’S MANUAL
www.proform.com
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

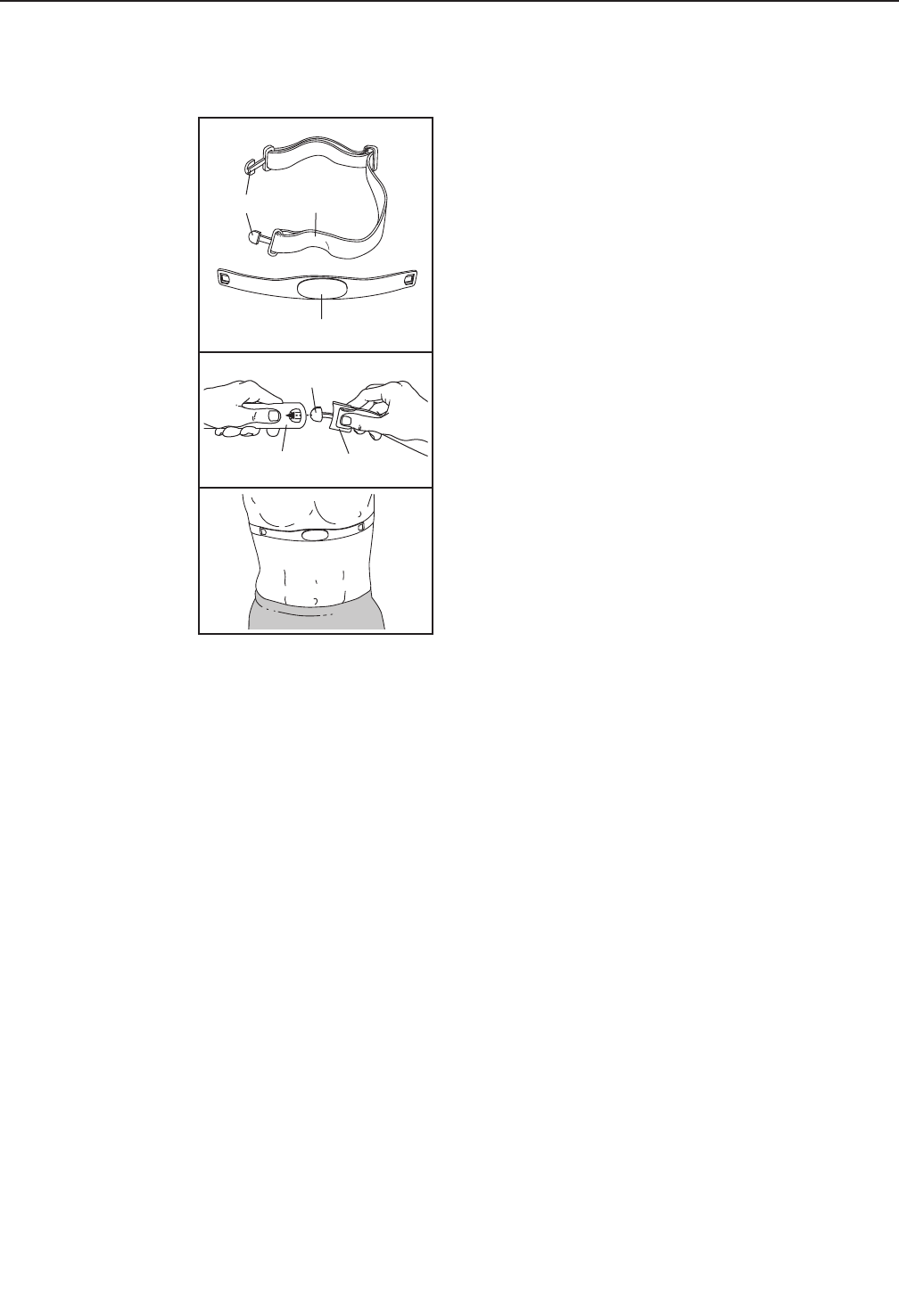

THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
OPERATION AND ADJUSTMENT .............................................................16
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING ......................................................................26
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

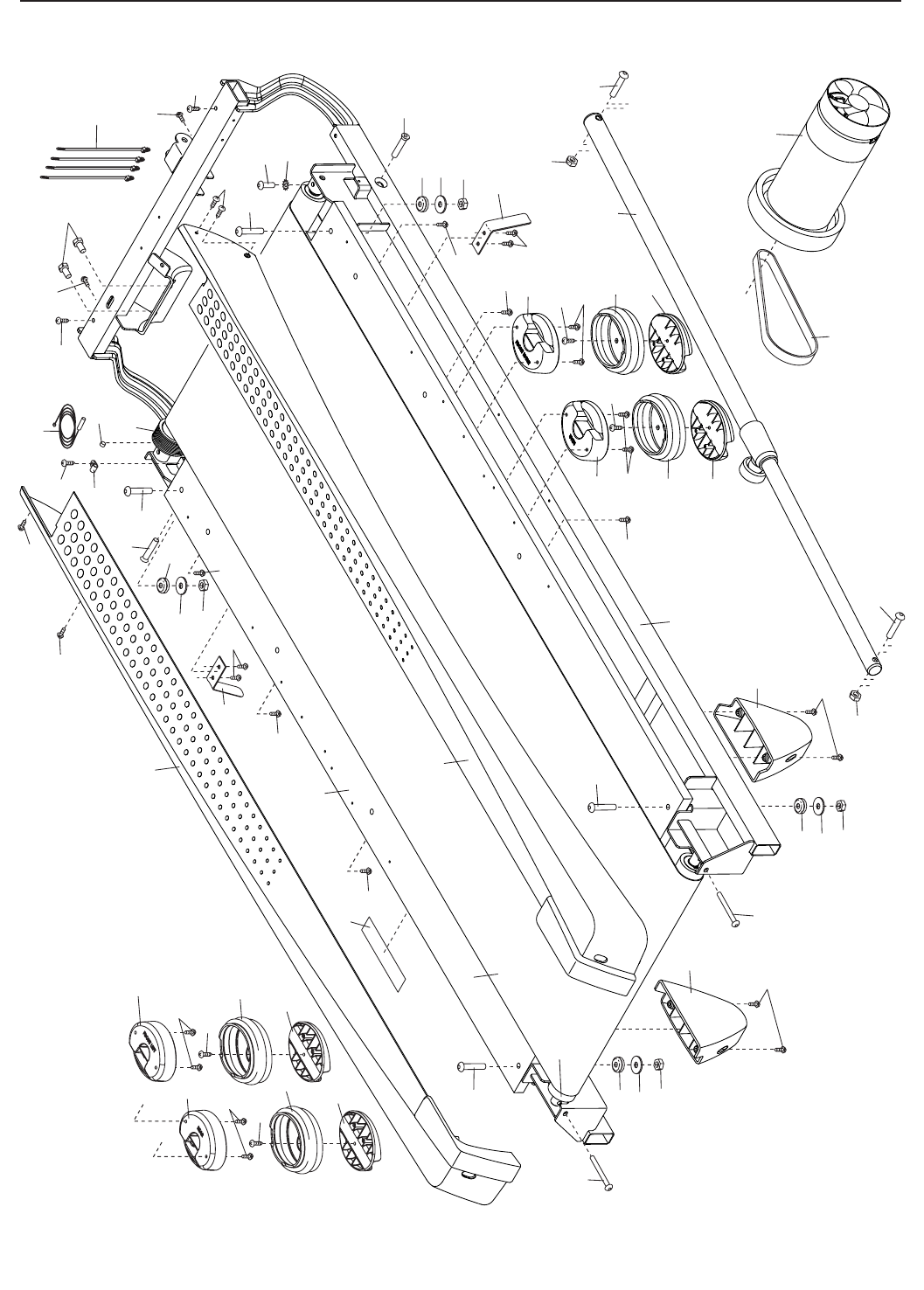

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

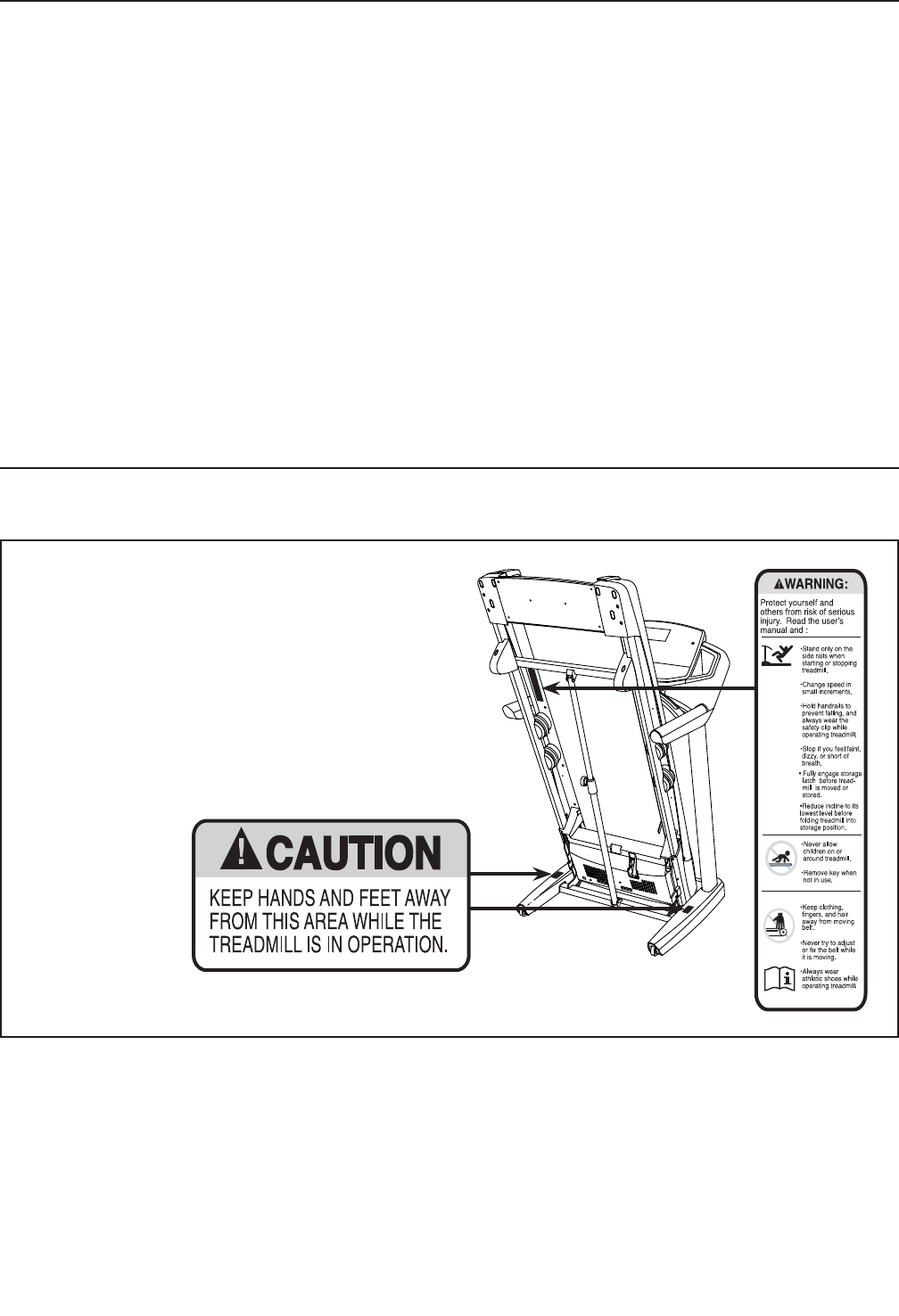

This drawing shows the locations of the
warning decals. If a decal is missing
or illegible, call the telephone number
on the front cover of this manual and
request a free replacement decal. Apply
the decal in the location shown. Note: The
decals may not be shown at actual size.
WARNING DECAL PLACEMENT
256836
PROFORM is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
7. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
8. Keep children under age 12 and pets away
from the treadmill at all times.
9. The treadmill should be used only by per-
sons weighing 350 lbs. (159 kg) or less.
10. Never allow more than one person on the
treadmill at a time.
11. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

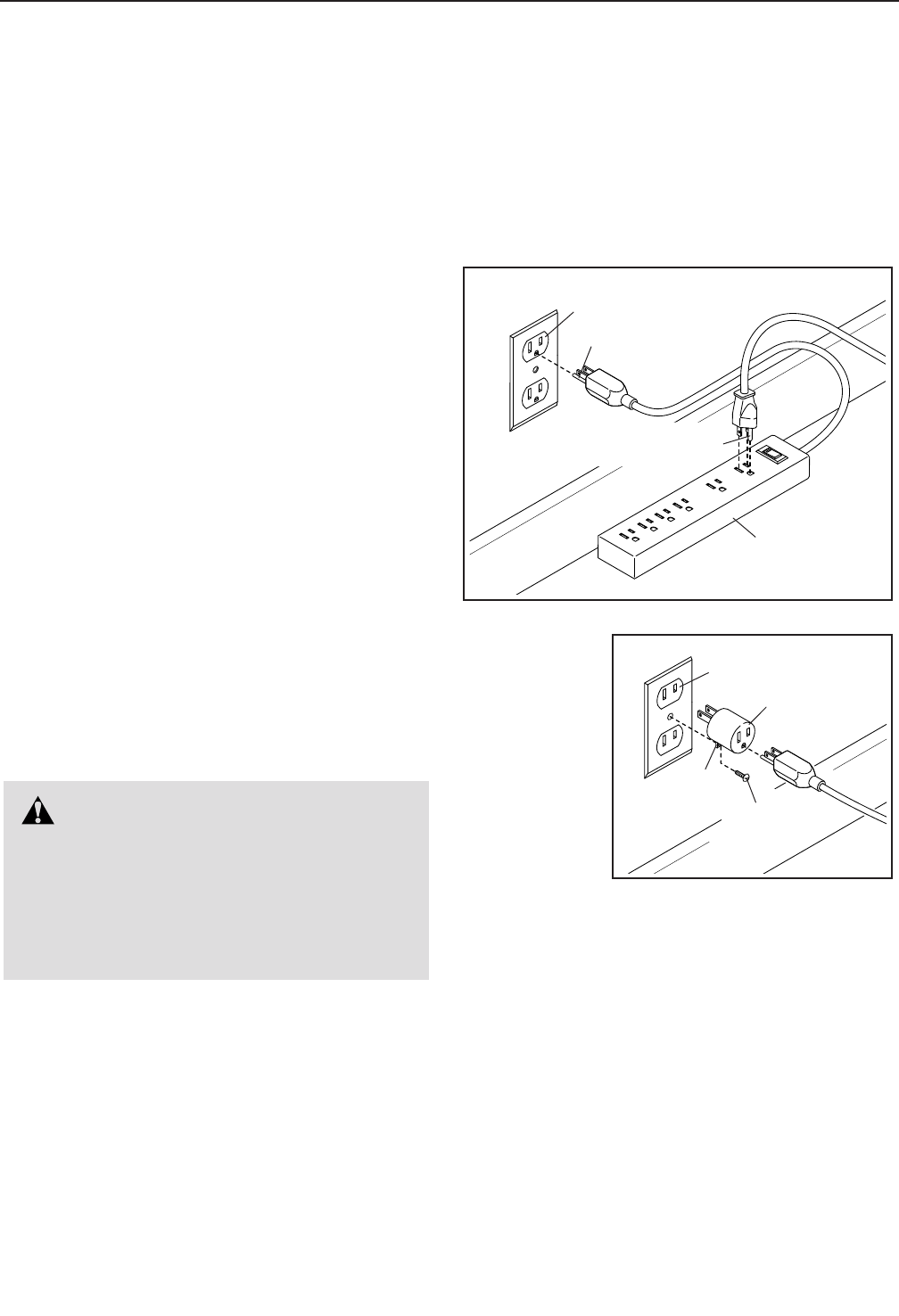

12. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 16).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
13. Use only a surge suppressor that meets all of
the specifications described on page 16. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.
14. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
15. Keep the power cord and the surge suppres-
sor away from heated surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 26 if the tread-
mill is not working properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 18).
18. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
19. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
20. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
21. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
22. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 25.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24. Do not change the incline of the treadmill by
placing objects under the treadmill.
25. Never insert any object into any opening on
the treadmill.
26. Inspect and properly tighten all parts of the
treadmill regularly.
27. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
28. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the revolutionary PROFORM®
POWER 995 C treadmill. The POWER 995 C treadmill
offers an impressive selection of features designed
to make your workouts at home more enjoyable and
effective. And when you’re not exercising, the unique
treadmill can be folded up, requiring less than half the
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.

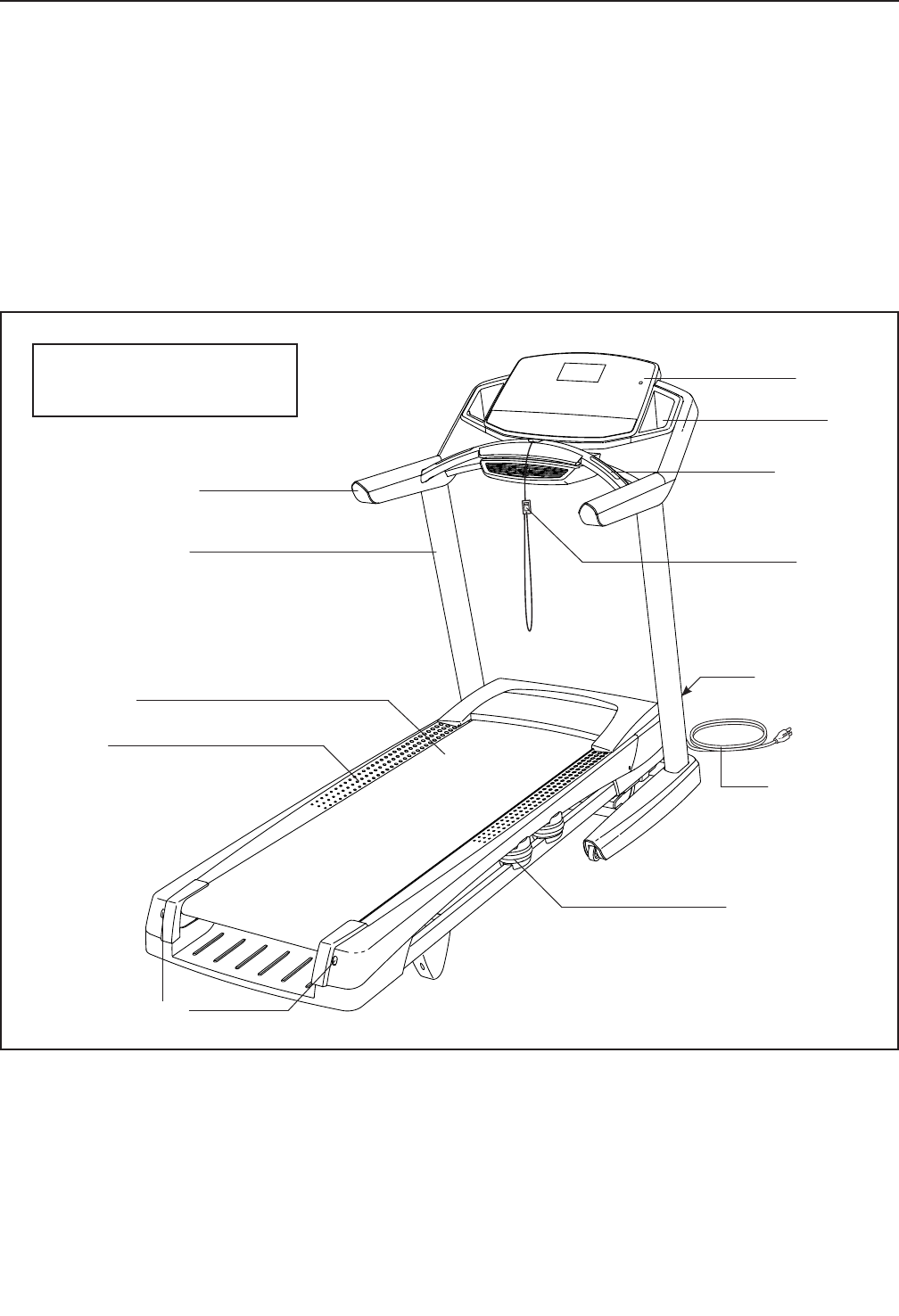

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Idler Roller
Adjustment Screws
Console
Heart Rate
Monitor
Length: 6 ft. 11 in. (211 cm)
Width: 3 ft. 1 in. (94 cm)
6
PART IDENTIFICATION CHART

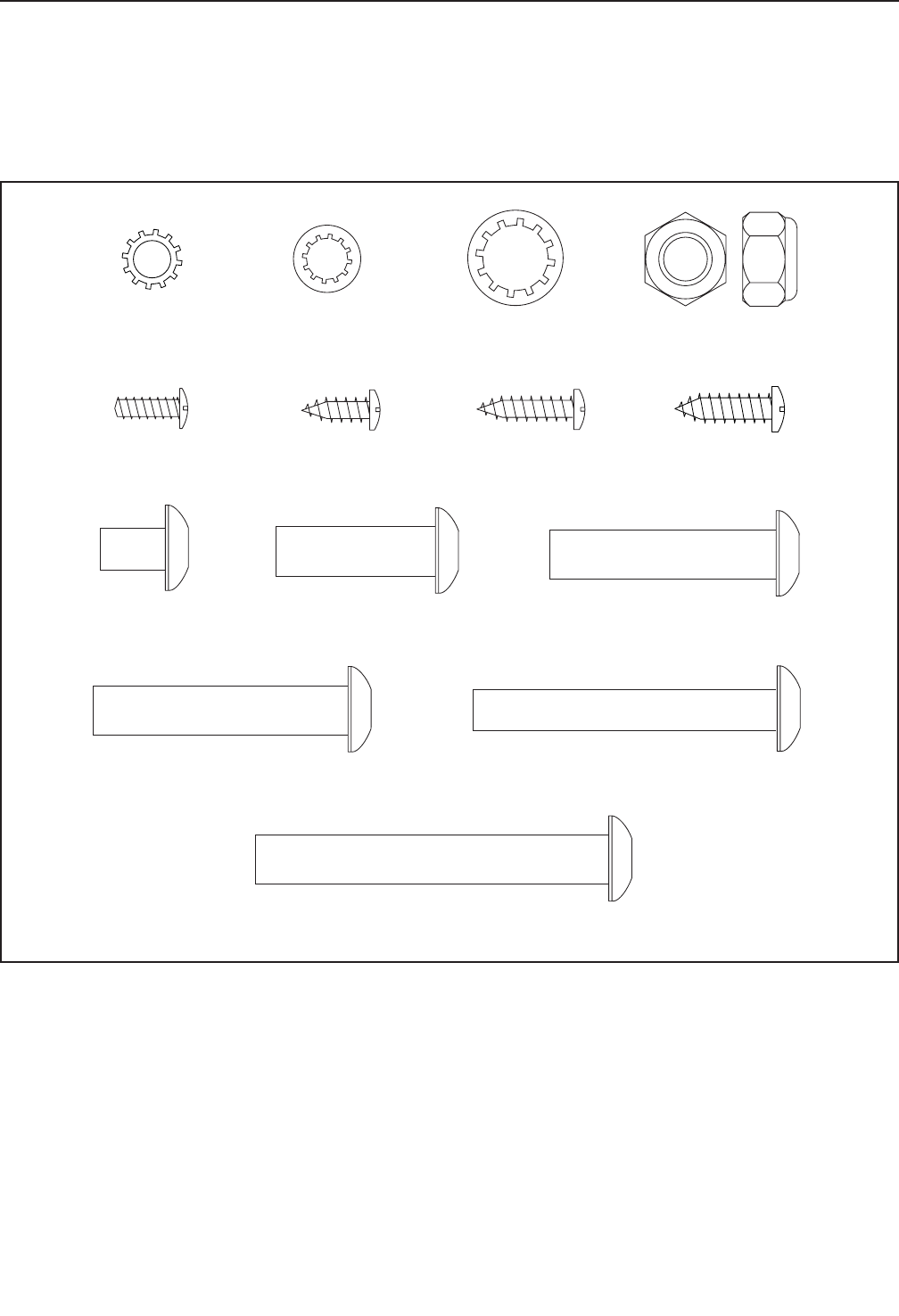

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached. Extra parts may be included.
#8 x 3/4" Screw
(2)—4
5/16" x 1/2"
Screw (8)—4 3/8" x 1 3/4" Bolt (4)—1
3/8" x 2" Bolt (3)—1
3/8" x 2 3/4" Screw (5)—4
5/16" Star
Washer (11)—8 3/8" Star
Washer (13)—4
3/8" Nut (12)—2
#10 Star
Washer (14)—4
#10 x 3/4" Screw
(7)—4
#8 x 1/2" Screw
(1)—18
3/8" x 1 1/4"
Screw (6)—4
#8 x 1/2" Ground
Screw (9)—1
5/16" x 2 1/2"
Screw (10)—4
7

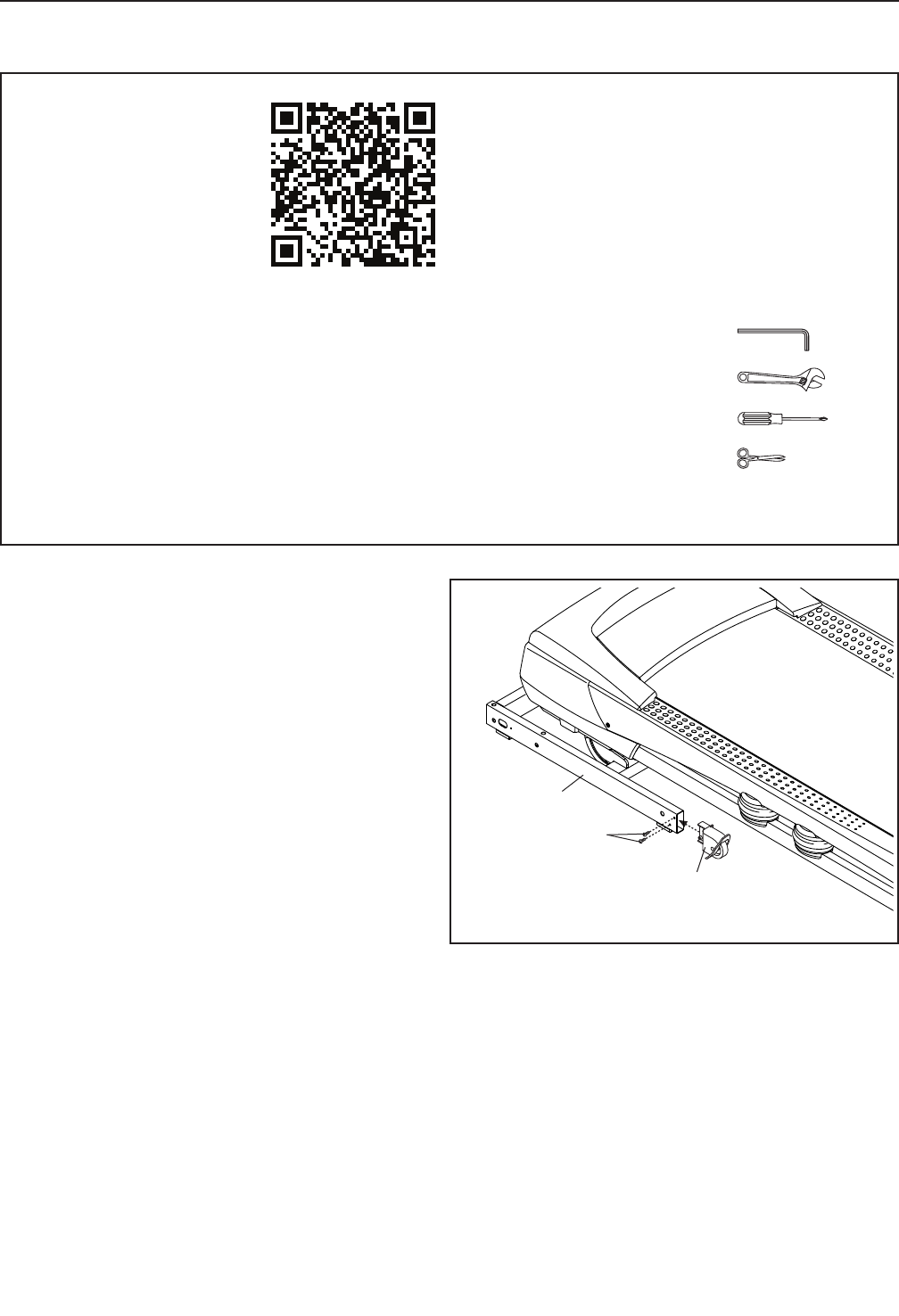

1. Make sure that the power cord is unplugged.
Attach the Left Wheel Cap (94) to the Base (95)
with two #8 x 3/4" Screws (2).
Attach the Right Wheel Cap (not shown) to
the Base (95) in the same way.
1
94
95
2
• To watch an assembly
video, go to
http://productvideo.co/
assembly/proform or
use your mobile phone
or smartphone to read
the QR code at the right.
• To hire a service technician to assemble this
product in your home, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
an adjustable wrench
one Phillips screwdriver
scissors
To avoid damaging parts, do not use power tools.
ASSEMBLY
8

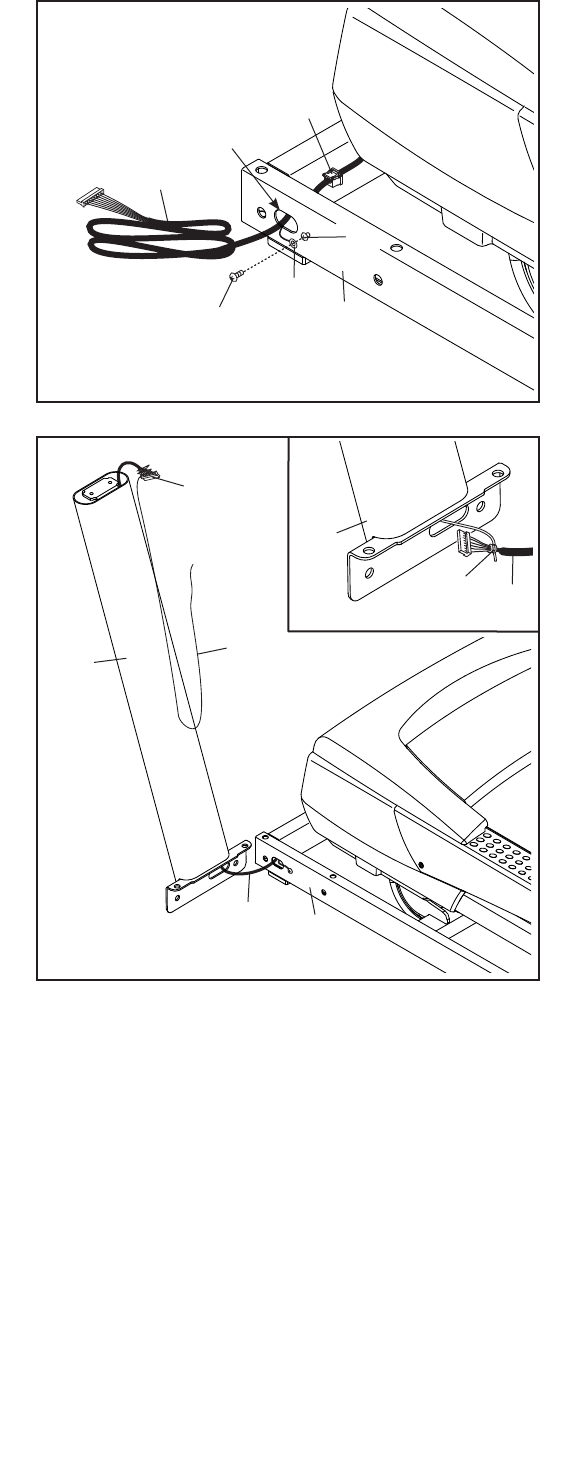

3. Identify the Left Upright (79). Have a second
person hold the Left Upright near the Base (95).
See the inset drawing. Tie the wire tie in the
Left Upright (79) securely around the end of the
Upright Wire (78). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Left Upright.
78
3
78
79
Wire
Tie
Wire
Tie
79
95
78
2. Pull the Upright Wire (78) and the base ground
wire (A) through the indicated hole in the
Base (95).
If there is a screw (B) pre-installed in the side
of the Base (95), remove and discard it. Attach
the ground wire (A) to the Base with a #8 x 1/2"
Ground Screw (9).
Press the Grommet (90) into the square hole in
the Base (95).
78
2
95
90
Hole
9
A
B
9
5. Identify the Left Base Cover (81) and the Right
Base Cover (89). Slide the Left Base Cover onto
the Left Upright (79). Slide the Right Base Cover
onto the Right Upright (88). Do not press the
Base Covers into place yet.
Identify the Left Bottom Handrail Cover (84) and
the Right Bottom Handrail Cover (87). Slide the
Left Bottom Handrail Cover onto the Left Upright
(79). Slide the Right Bottom Handrail Cover onto
the Right Upright (88).
79
81
87
88
84 89
5

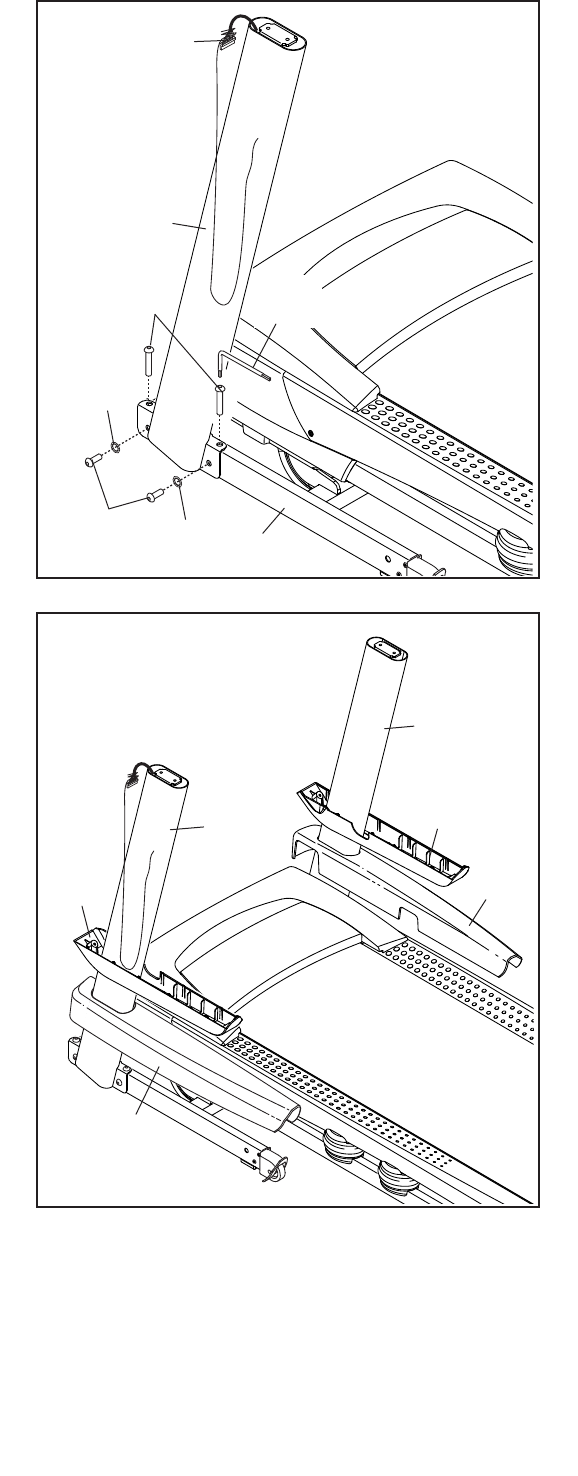

4. Hold the Left Upright (79) against the Base (95).
Be careful not to pinch the Upright Wire (78).
Insert two 3/8" x 1 1/4" Screws (6) with two 3/8"
Star Washers (13) and two 3/8" x 2 3/4" Screws
(5) into the Left Upright.
Partially tighten the 3/8" x 2 3/4" Screws (5) and
the 3/8" x 1 1/4" Screws (6) until the heads of the
Screws touch the Left Upright (79); do not fully
tighten the Screws yet. Note: It may be helpful
to use the short hex key on the Screw shown.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the right
side.
79
95
4
Hex
Key
78
6
5
13
13
10

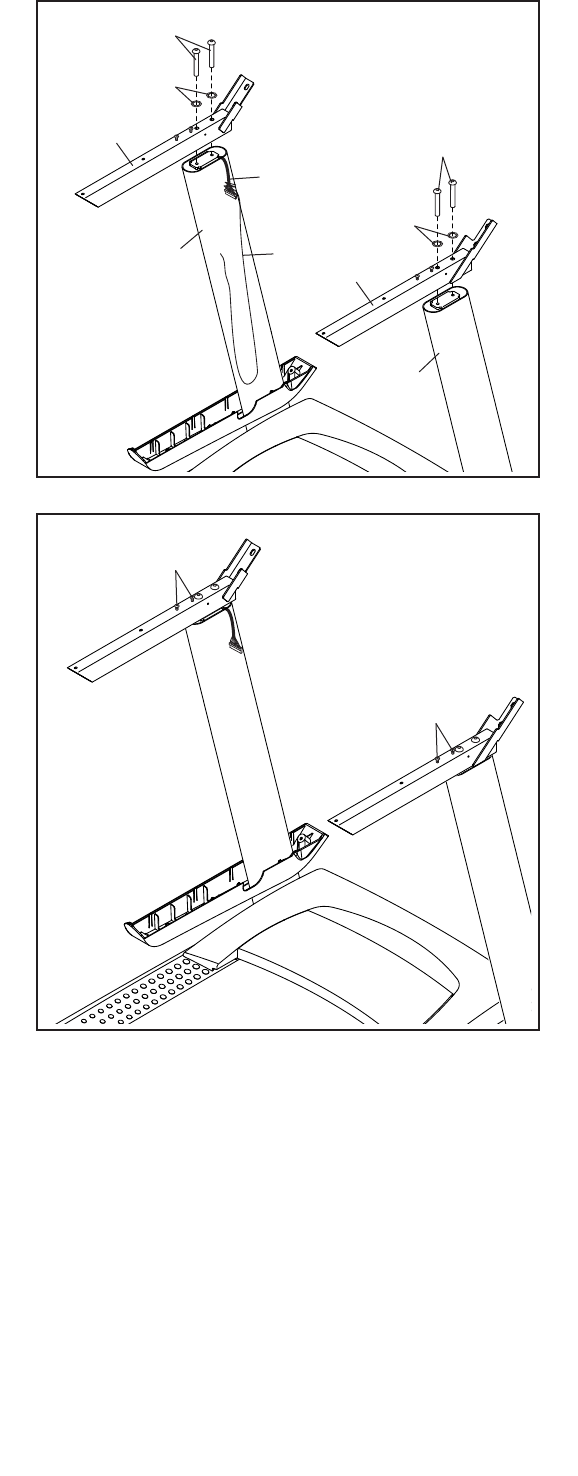

6. Attach the Left Handrail (83) to the Left Upright
(79) with two 5/16" x 2 1/2" Screws (10) and
two 5/16" Star Washers (11). Make sure that
the Upright Wire (78) is resting to the side as
shown and is not pinched. Fully tighten the
Screws.
Attach the Right Handrail (86) with two 5/16" x
2 1/2" Screws (10) and two 5/16" Star Washers
(11). Fully tighten the Screws.
Remove the wire tie from the Upright Wire (78).
88
6
86
83
79
78
11
10
11
10

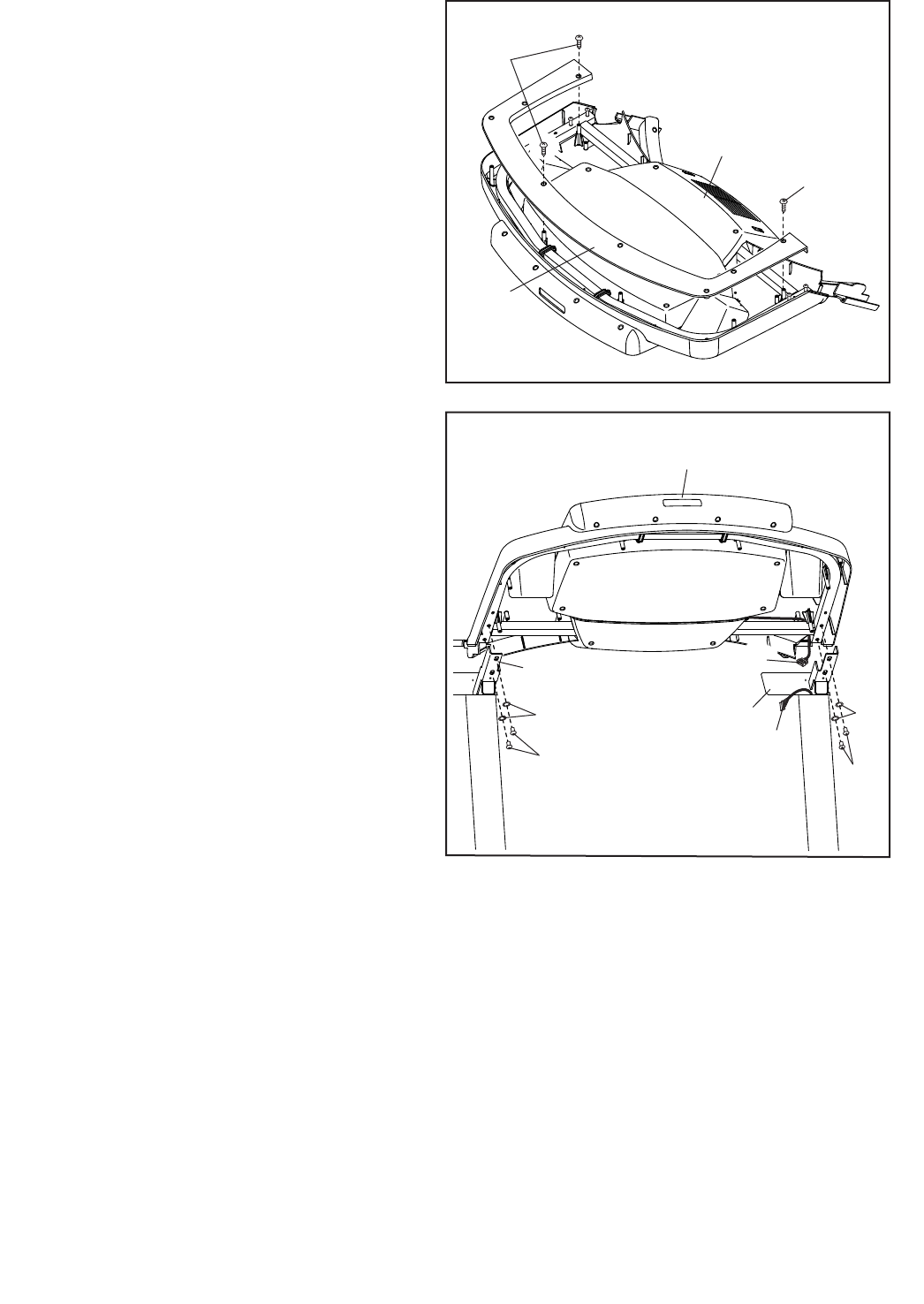

7. If there are four screws (C) in the locations
shown, remove and discard them. 7
C
C
Wire
Tie
11
8. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove and discard the three Screws (D).
Next, lift off the Console Cover (100).
100
Console
Assembly
D
8
9. Set the console assembly on the Left Handrail
(83) and the Right Handrail (86). Make sure not
to pinch any wires (E, 78).
Attach the console assembly with four 5/16" x
1/2" Screws (8) and four 5/16" Star Washers
(11). Do not tighten the Screws yet.
9Console
Assembly
83
86
8
11
D
8
E
11
78
12

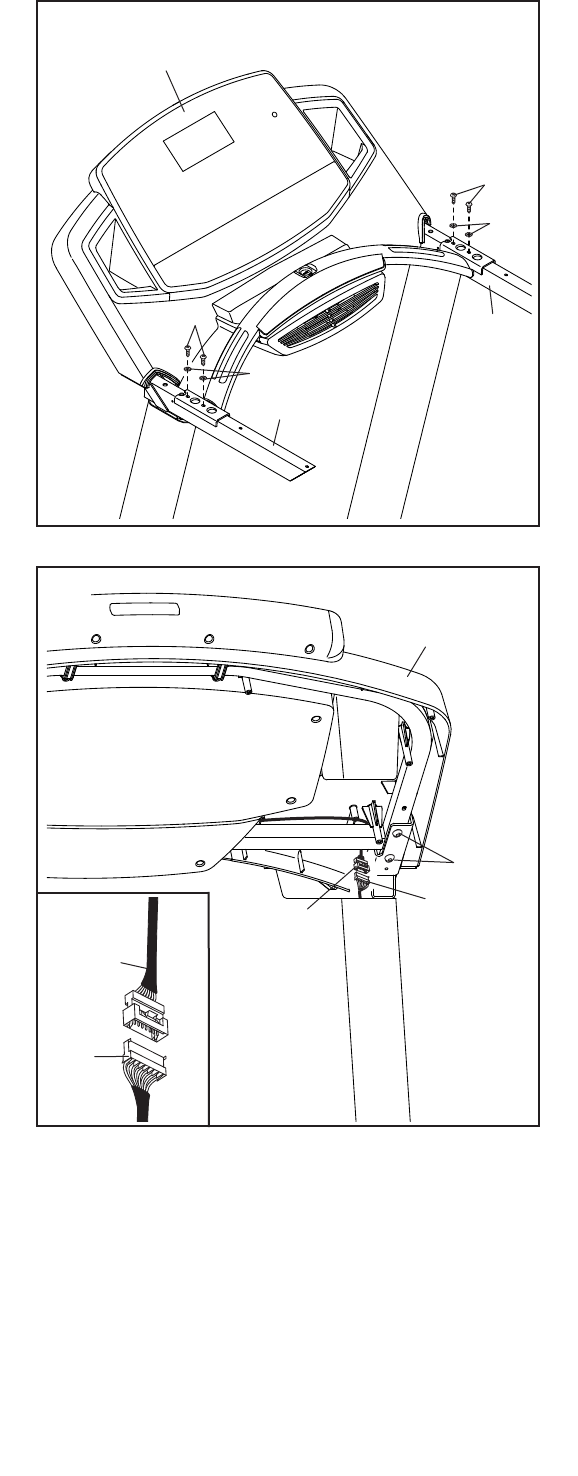

11. Connect the Upright Wire (78) to the console
wire (E). See the inset drawing. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
Insert the excess wires (E, 78) into the console
assembly.
Firmly tighten the four 5/16" x 1/2" Screws (8)
(only two are shown).
Console
Assembly
78
78
Console
Wire
11
10. Attach the console assembly to the Handrails
(83, 86) with four #10 x 3/4" Screws (7) and four
#10 Star Washers (14) as shown. Start all four
Screws, and then tighten them.
14
10
14
7
86
83
7
Console
Assembly
E
8
13

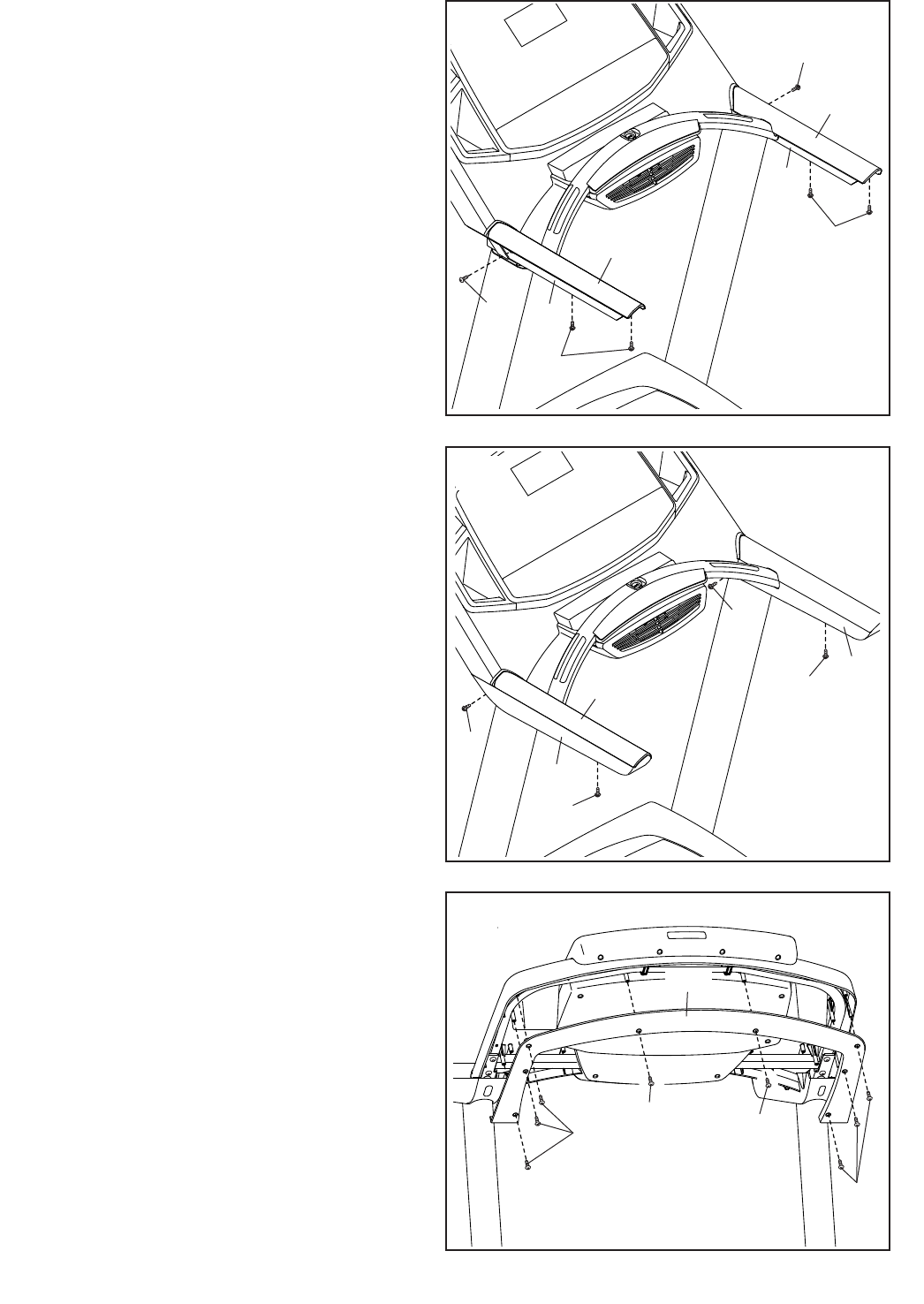

12. Attach the Left Handrail Cover (82) and the Right
Handrail Cover (85) to the Handrails (83, 86) with
three #8 x 1/2" Screws (1) each. Do not over-
tighten the Screws. 1
85
82 1
83
13. Slide the Left Bottom Handrail Cover (84) up
against the Left Handrail Cover (82) and attach
the Left Bottom Handrail Cover with two #8
x 1/2" Screws (1). Do not overtighten the
Screws.
Attach the Right Bottom Handrail Cover (87) as
described above.
13
82 1
1
87
84
14. Attach the Console Cover (100) with eight #8
x 1/2" Screws (1). Start all eight screws, and
then tighten them. Do not overtighten the
Screws. Make sure that no wires are pinched.
14
1
1
1
1
86
1
1
1
1
100
12
14
17. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see pages 27 and 28).

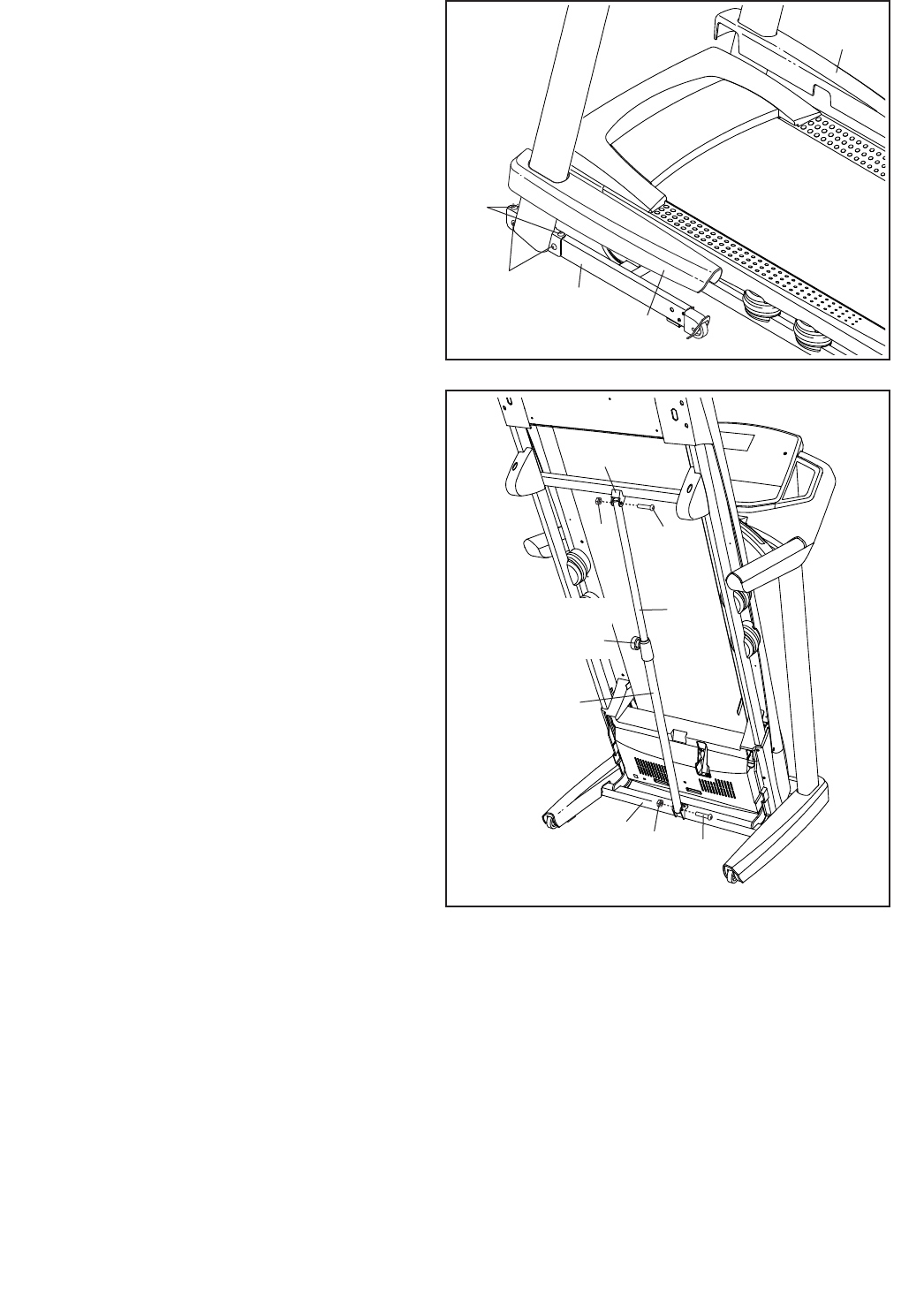

16. Raise the Frame (63) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (57) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (57) to
the Base (95) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
Attach the upper end of the Storage Latch (57)
to the bracket on the Frame (63) with a 3/8" x
1 3/4" Bolt (4) and a 3/8" Nut (12).
Lower the Frame (63) (see HOW TO LOWER
THE TREADMILL FOR USE on page 25).
16
57
12
Large
Barrel
63
4
Latch
Knob
12 3
95
15. Firmly tighten the four 3/8" x 2 3/4" Screws (5)
and then the four 3/8" x 1 1/4" Screws (6) (only
one side is shown).
Press the Left Base Cover (81) and the Right
Base Cover (89) onto the Base (95) until they
snap into place.
15
89
6
81
95
5
15
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sen-
sor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
The heart rate moni-
tor must be worn
under your clothes,
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is right-
side-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place.
Do not store the heart rate monitor in a plastic bag
or other container that may trap moisture.
• Do not expose the heart rate monitor to direct sun-
light for extended periods of time; do not expose it
to temperatures above 122° F (50° C) or below 14°
F (-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
• To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
• Make sure that you are wearing the heart rate mon-
itor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
THE CHEST HEART RATE MONITOR
Sensor Buckle
Tab
Chest
Strap
Tabs
Sensor
16
OPERATION AND ADJUSTMENT
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home’s
power. Voltage surges, spikes, and noise interfer-
ence can result from weather conditions or from other
appliances being turned on or off. To decrease the
risk of damaging the treadmill, always use a surge
suppressor with the treadmill. To purchase a surge
suppressor, see precaution 13 on page 3.
Use only a surge suppressor that is UL 1449 listed as a
transient voltage surge suppressor (TVSS). The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must also be electri-
cally rated for 120 volts AC and 15 amps. There must
be a monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill
and serious injury to users.
Plug in the Power Cord
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord has a plug with a
grounding pin (see drawing 1 on this page).
Plug the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet that is
properly installed and grounded in accordance with all
local codes and ordinances. The outlet must be on a
nominal 120-volt circuit capable of carrying 15 or
more amps. To avoid overloading the circuit, do
not plug other electrical devices, except for low-
power devices such as cell phone chargers, into
the surge suppressor or into an outlet on the same
circuit. IMPORTANT: The treadmill is not compat-
ible with GFCI-equipped outlets and may not be
compatible with AFCI-equipped outlets.
A temporary
adapter may
be used to
connect the
surge sup-
pressor to
a 2-pole
receptacle
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
DANGER: Improper connection
of the power cord increases the risk of elec-
tric shock. Do not modify the plug—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician. If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.
1
Surge
Suppressor
Grounding Pin
Grounded Outlet
2
Adapter
2-pole Receptacle
Lug
Grounding Pin
Metal
Screw
17
ETPF99912
(PFTL99912)
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When you use the manual mode,
you can change the speed and incline of the treadmill
with the touch of a button. As you exercise, the console
will display instant exercise feedback. You can even
measure your heart rate using the handgrip heart rate
monitor or the chest heart rate monitor.
In addition, the console features thirty onboard work-
outs—eight speed workouts, seven incline workouts,
seven intensity workouts, and eight calorie workouts.
Each workout automatically controls the speed and
incline of the treadmill as it guides you through an
effective exercise session.
The console also features an iFit mode that enables
the treadmill to communicate with your wireless
network through an optional iFit module. With the
iFit mode, you can download personalized workouts,
create your own workouts, track your workout results,
race against other iFit users, and access many other
features. To purchase an iFit module at any time, go
to www.iFit.com or call the telephone number on
the front cover of this manual.
You can even listen to your favorite workout music or
audio books with the console’s stereo sound system
while you exercise. This treadmill has been designed
specifically to work with iPod and has been certified by
the developer to meet Apple performance standards.
To turn on the power, see page 18. To use the man-
ual mode, see page 18. To use an onboard workout,
see page 21. To use a set-a-goal workout, see page
22. To use an iFit workout, see page 22. To use the
stereo sound system, see page 23. To use the infor-
mation mode, see page 24.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The rst time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 28).

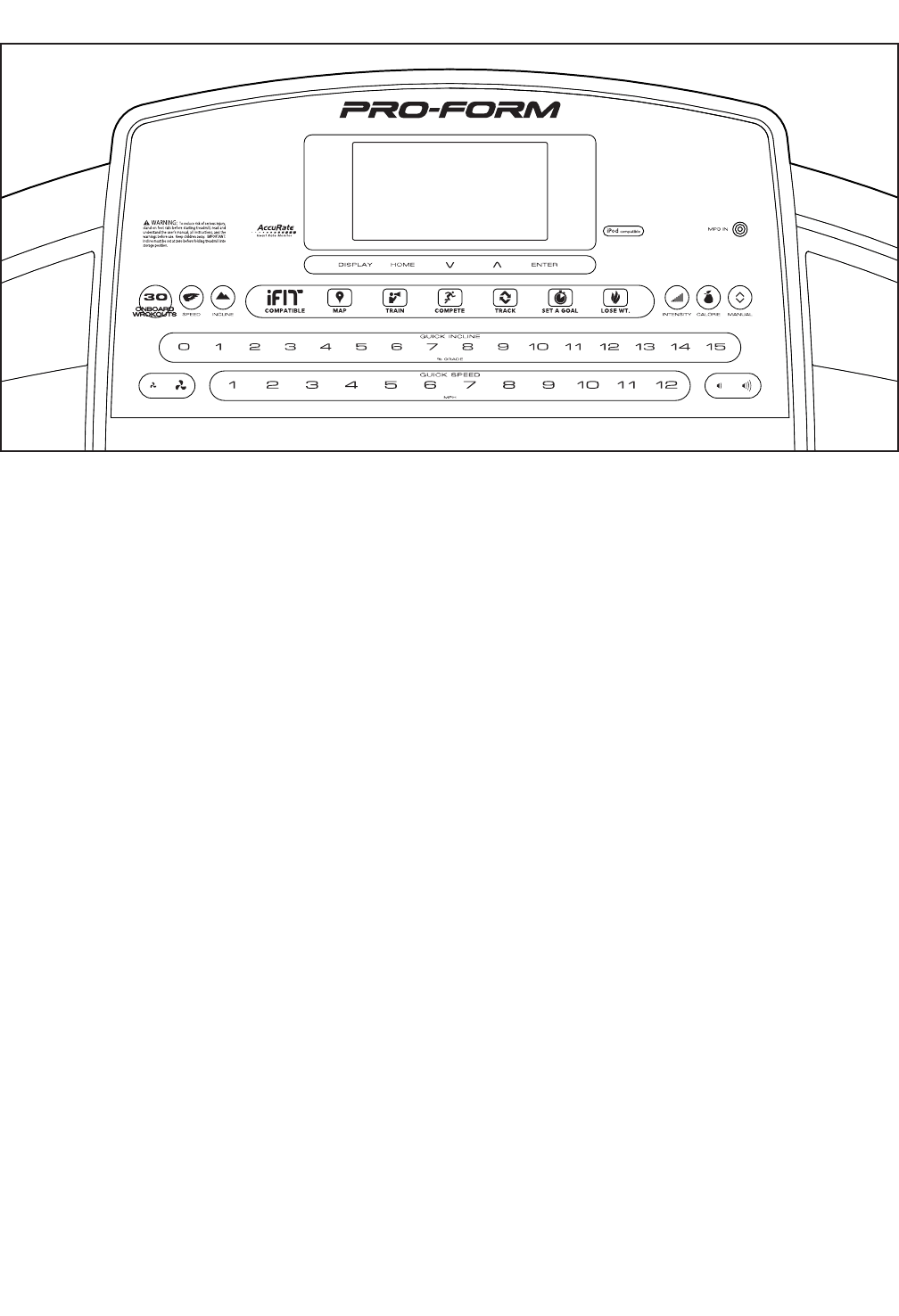

CONSOLE DIAGRAM
18
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.

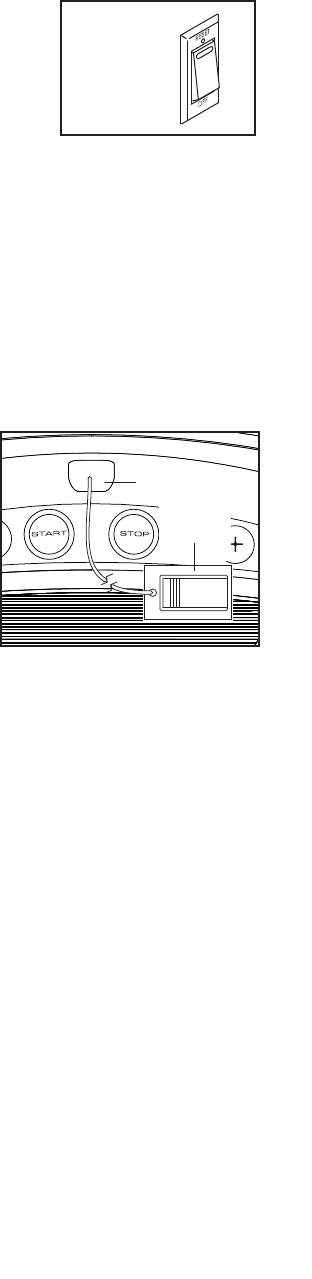

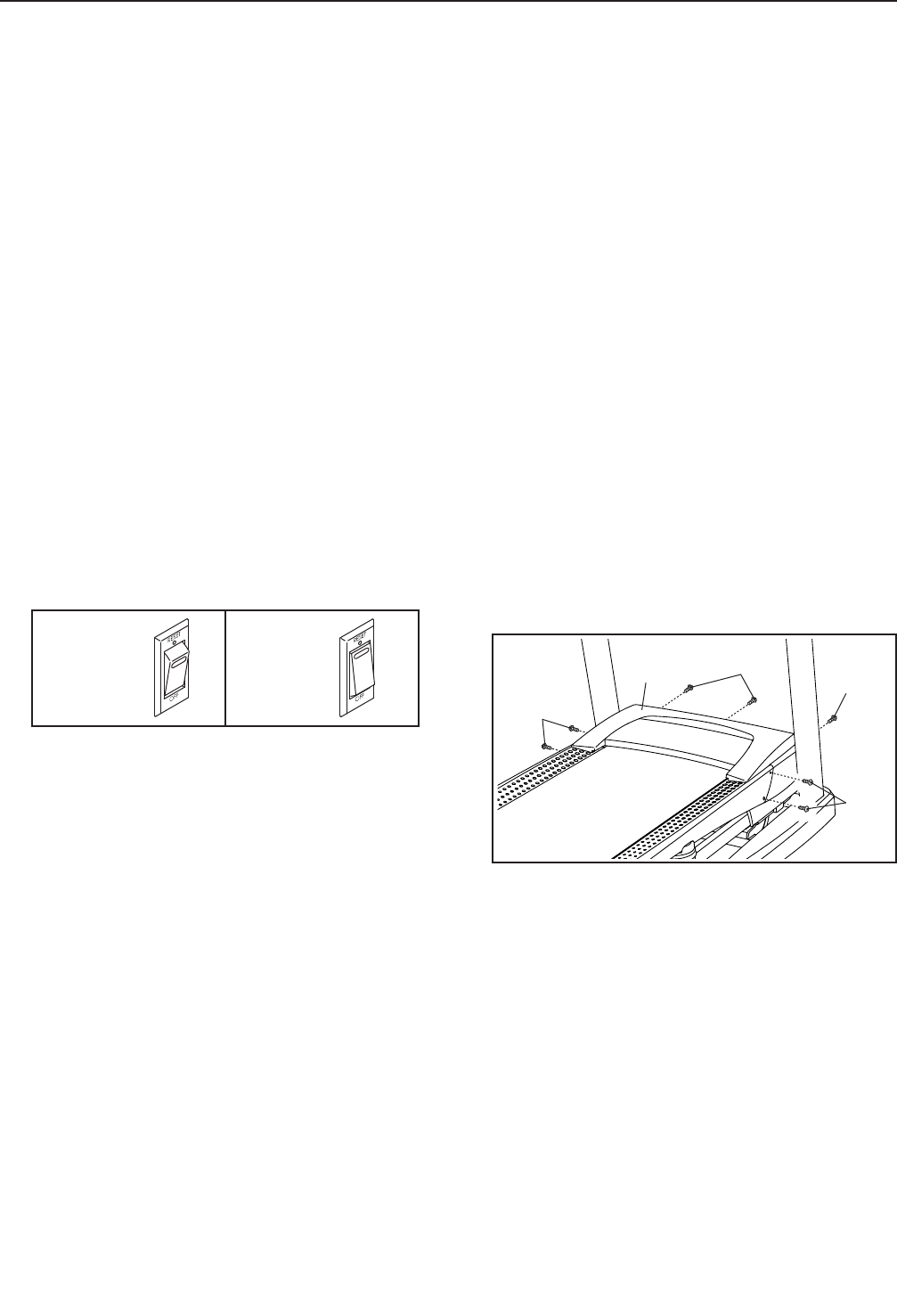

Plug in the power cord
(see page 16). Next, locate
the power switch on the
treadmill frame near the
power cord. Press the
power switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
24 to turn off the demo mode.
Next, stand on the
foot rails of the
treadmill. Find the
clip attached to the
key and slide the
clip onto the waist-
band of your clothes.
Then, insert the key
into the console.
After a moment, the
displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual button on the console. If you
are not connected to iFit, the manual mode will be
selected automatically.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the numbered
Quick Speed buttons.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed
increase and decrease buttons. Each time you
press one of the buttons, the speed setting will
change by 0.1 mph; if you hold down the button,
the speed setting will change in increments of 0.5
mph. Note: After you press the button, it may take
a moment for the walking belt to reach the selected
speed setting.
If you press one of the numbered Quick Speed
buttons, the walking belt will gradually change
speed until it reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immedi-
ately press the 5 button. Note: This will not function
if the console is set to metric units.
To stop the walking belt, press the Stop button. The
time will begin to flash in the display. To restart the
walking belt, press the Start button or the Speed
increase button.
Reset
ETPF99912
(PFTL99912)
Key
Clip
19
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button or one of the
numbered Quick Incline buttons. Each time you
press one of the buttons, the treadmill will gradually
adjust to the selected incline setting.
5. Follow your progress with the displays.

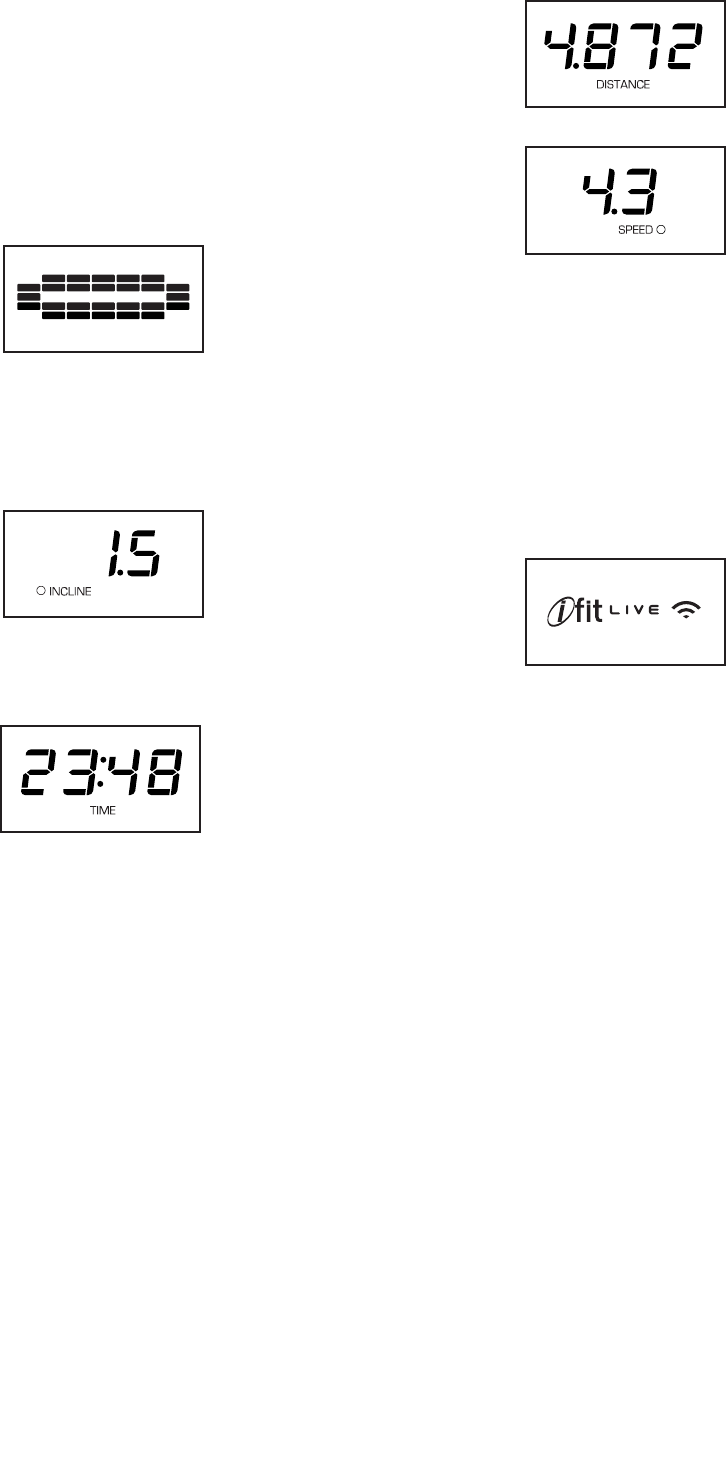

The matrix—When
you select the manual
mode, the matrix will
display a track that rep-
resents 1/4 mile (400
m). As you exercise,
the indicators around the track will appear in suc-
cession until the entire track appears. The track will
then disappear and the indicators will again begin
to appear in succession.
The Calories/Incline
display—This dis-
play will show the
approximate number
of calories you have
burned. The display will
also show the incline of the treadmill for a few sec-
onds each time the incline of the treadmill changes.
The Time display—
This display will show
the elapsed time. Note:
When an onboard
workout is selected,
the display will show
the time remaining in the workout instead of the
elapsed time.
The Distance dis-
play—This display will
show the distance that
you have walked or run.
The Speed/Pulse
display—This display
will show the speed of
the walking belt. The
display will also show
your heart rate when
you use the handgrip heart rate monitor or the
chest heart rate monitor (see step 6 on page 20).
The Center display—This display will show work-
out instructions.
Press the Home button to return to the start mode
(see THE INFORMATION MODE on page 24 to set
the start mode). If necessary, press the Home but-
ton again.
When an iFit module is
connected to
www.iFit.com, the iFit
symbol near the top of
the display will light.
To reset the displays, press the Stop button,
remove the key, and then reinsert the key.
20
6. Measure your heart rate if desired.
Note: If you use the handgrip heart rate moni-
tor and the chest heart rate monitor at the same
time, the console will not display your heart
rate accurately. For information about the chest
heart rate monitor, see page 15.
Before using
the hand-
grip heart
rate monitor,
remove the
sheets of plas-
tic from the
metal contacts
on the pulse
bar. In addi-
tion, make
sure that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on the
metal contacts; avoid moving your hands. When
your pulse is detected, several dashes will appear
and then your heart rate will be shown. For the
most accurate heart rate reading, continue to
hold the contacts for about 15 seconds.

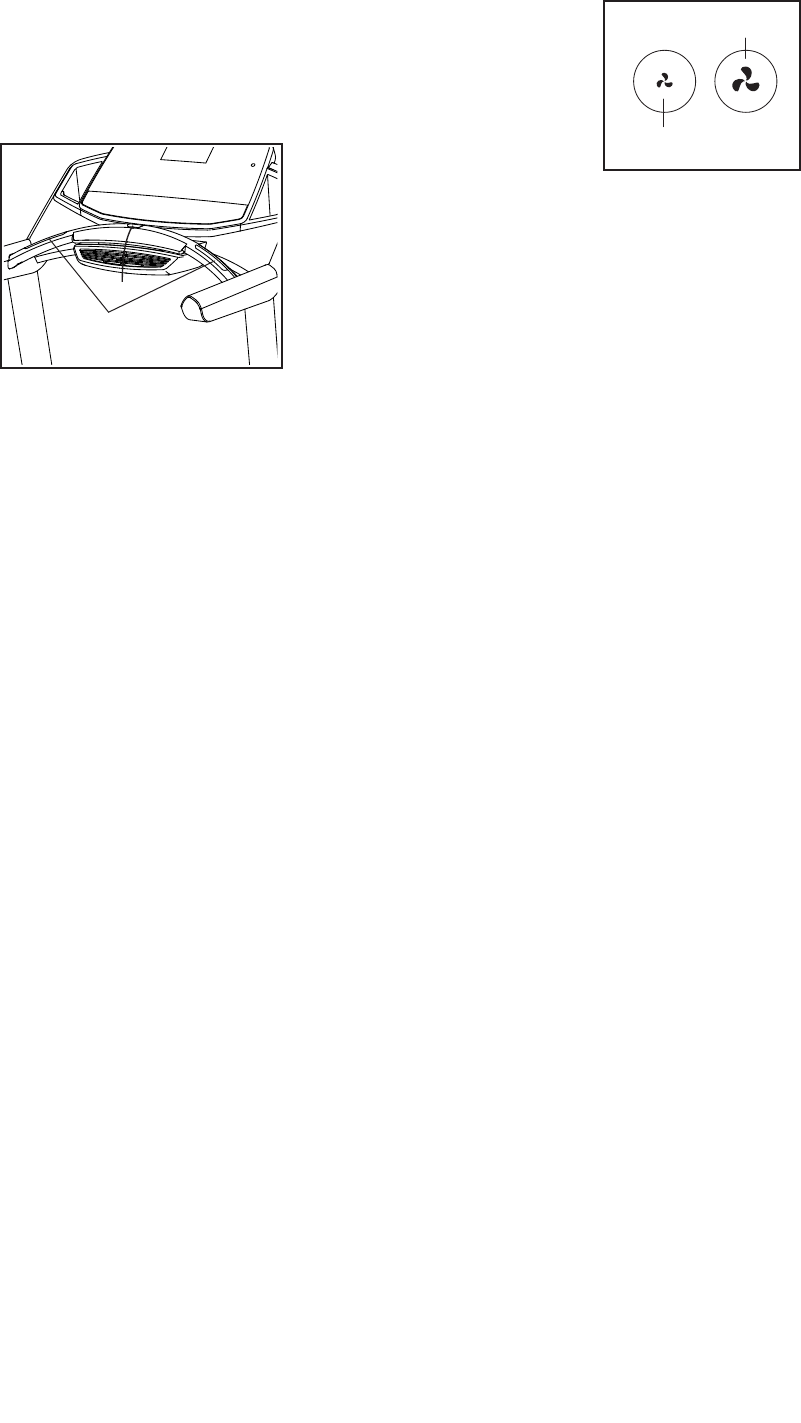

7. Turn on the fan if desired.
The fan features mul-
tiple speed settings.
Press the fan increase
or decrease button to
select a fan speed or to
turn off the fan. Note: If
the fan is on when the
walking belt is stopped,
the fan will turn off auto-
matically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest set-
ting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
Contacts
Decrease
Increase
21
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Select an onboard workout.
To select an onboard workout, press the Speed
button, the Incline button, the Intensity button,
or the Calorie button repeatedly until the desired
workout appears in the display.
When you select an onboard workout, the displays
will show the maximum incline, the duration, the
distance, the maximum speed, and the name of
theworkout.Inaddition,aproleofthespeedset-
tings of the workout will appear in the matrix. If you
select a calorie workout, the approximate number
of calories you will burn will appear in the name of
the workout.
3. Start the workout.
Press the Start button or the Speed increase but-
ton to start the workout. A moment after you press
the button, the treadmill will automatically adjust to
the first speed and incline settings of the workout.
Hold the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting and/
or incline setting may be programmed for consecu-
tive segments.

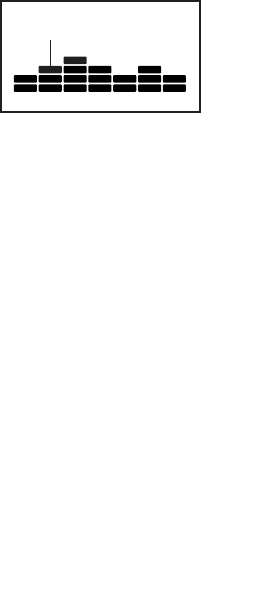

During the workout, the
prolewillshowyour
progress.Theashing
segmentoftheprole
represents the current
segment of the work-
out.Theheightoftheashingsegmentindicates
the speed setting for the current segment. At the
end of each segment, a series of tones will sound
andthenextsegmentoftheprolewillbeginto
ash.Ifanewspeedand/orinclinesettingispro-
grammed for the next segment, the new speed
and/or incline setting will appear in the displays for
a few seconds and the treadmill will automatically
adjust to the new speed and/or incline setting.
The workout will continue in this way until the last
segmentoftheproleashesinthedisplayandthe
last segment ends. The walking belt will then slow
to a stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manu-
ally change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
If the speed or incline setting is too high or too low
at any time during the workout, you can manu-
ally override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
4. Follow your progress with the displays.
See step 5 on page 19.
5. Measure your heart rate if desired.
See step 6 on page 20.
6. Turn on the fan if desired.
See step 7 on page 20.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
Current Segment
22
HOW TO USE A SET-A-GOAL WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Select a set-a-goal workout.
To select a set-a-goal workout, press the Set A
Goal button on the console.
Use the increase and decrease buttons next to
the Enter button to set a calorie, time, or distance
goal, and then press the Enter button. Next, press
the increase and decrease buttons next to the
Enter button to select a goal. Press the Speed and
Incline buttons to select the speed and incline for
the workout. The screen will show the duration and
distance of the workout, and the approximate num-
ber of calories you will burn during the workout.
3. Start the workout.
Press the Start button to start the workout. A
moment after you press the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
The workout will function in the same way as the
manual mode (see pages 18 to 20).
The workout will continue until you reach the goal
that you set. The walking belt will then slow to a
stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that you
burn will depend on various factors such as
your weight.
4. Follow your progress with the displays.
See step 5 on page 19.
5. Measure your heart rate if desired.
See step 6 on page 20.
6. Turn on the fan if desired.
See step 7 on page 20.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
HOW TO USE AN IFIT WORKOUT
Note: To use an iFit workout, you must have an
optional iFit module. To purchase an iFit module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual. You must
also have access to a computer with a USB port and
an internet connection. In addition, you must have
access to a wireless network including an 802.11b
router with SSID broadcast enabled (hidden networks
are not supported). An iFit.com membership is also
required.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
18.
2. Insert the iFit module into the console.
To insert the iFit module, see the instructions in-
cluded with the iFit module.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in
the iFit module must be at least 8 in. (20 cm)
from all persons and must not be near or con-
nected to any other antenna or transmitter.
3. Select a user.
If more than one user is registered, you can switch
users in the iFit main screen. Press the increase
and decrease buttons next to the Enter button to
select a user.
4. Select an iFit workout.
To select an iFit workout, press one of the iFit but-
tons. Before some workouts will download, you
must add them to your schedule on www.iFit.com.
To download an iFit workout in your schedule,
press the Map, Train, or Lose Wt. button to down-
load the next workout of that type in your schedule.
To compete in a race that you have previously
scheduled, press the Compete button.
23
To re-run a recent iFit workout from your schedule,
first press the Track button. Next, press the in-
crease and decrease buttons to select the desired
workout. Then, press the Enter button to start the
workout.
Note: Before some workouts will download, you
must add them to your schedule on iFit.com.
For more information about the iFit workouts,
please see www.iFit.com.
When you select an iFit workout, the display will
show the duration of the workout, the distance you
will walk or run, and the approximate number of
calories you will burn. The display may also show
the name of the workout. If you select a competi-
tion workout, the display will count down to the be-
ginning of the race.
Note: Each iFit button can also run two demo work-
outs. To use the demo workouts, remove the iFit
module from the console and press one of the iFit
buttons.
5. Start the workout.
See step 3 on page 21.
During some workouts, the voice of an audio
coach will guide you through your workout. You
can select a setting for your audio coach (see THE
INFORMATION MODE on page 24).
To stop the workout at any time, press the Stop
button.Thetimewillbegintoashinthedisplay.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at thespeedsettingfortherstseg-
ment of the workout. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
6. Follow your progress with the displays.
See step 5 on page 19.
During a competition workout, the Compete tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
your top four competitors. The end of the matrix
represents the end of the race.
7. Measure your heart rate if desired.
See step 6 on page 20.
8. Turn on the fan if desired.
See step 7 on page 20.
9. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
For more information about the iFit mode, go to
www.iFit.com.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the console’s
stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the con-
sole through the audio jack.
To use the MP3 jack, plug your audio cable into the
MP3 jack on the top of the console. Then plug your
audio cable into a jack on your MP3 player, CD player,
or other personal audio player. Make sure that your
audio cable is fully plugged in.
Next, press the play button
on your MP3 player, CD
player, or other personal
audio player. Adjust the vol-
ume on your personal audio

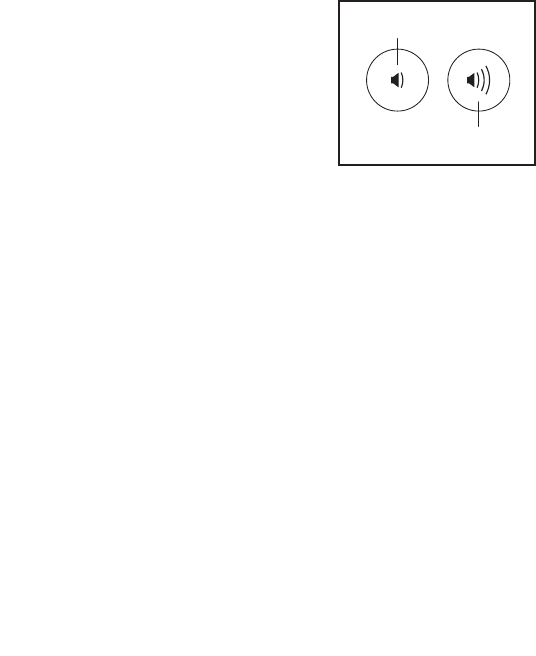

player or press the volume
increase and decrease but-
tons on the console.
If you are using a personal CD player and the CD
skips,settheCDplayerontheoororanotheratsur-
face and not on the console.
Decrease
Increase
24
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill information and allows you to person-
alize console settings.
1. Select the information mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and
then release the Stop button. When the information
mode is selected, the following information will be
shown:

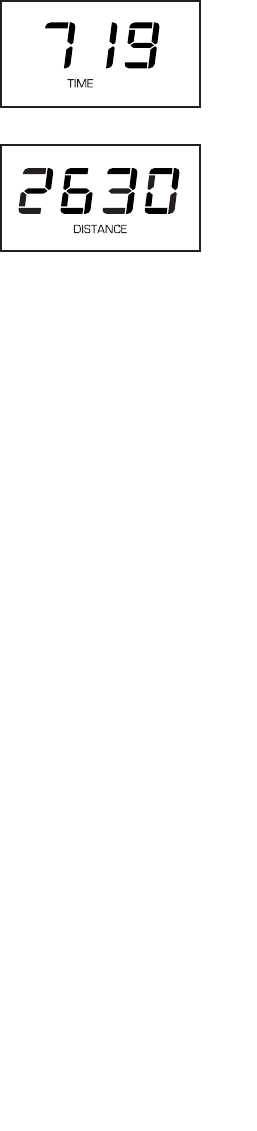

The Time display will
show the total number
of hours the treadmill
has been used.
The Distance display
will show the total
number of miles or kilo-
meters that the walking
belt has moved.
2. Select the optional screens.
While the information mode is selected, the matrix
will display several optional screens. Press the
decrease button next to the Enter button to select
each of the following screens:
UNITS—To change the unit of measurement, press
the Enter button. To view distance in miles, select
ENGLISH. To view distance in kilometers, select
METRIC.
DEMO—The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. While the demo mode is turned
on, the console will function normally when you
plug in the power cord, press the power switch
into the reset position, and insert the key into the
console. However, when you remove the key, the
displays will remain lit, although the buttons will not
function. If the demo mode is turned on, the word
ON will appear in the center display. To turn on or
turn off the demo mode, press the Enter button or
the Speed decrease button.
CONTRAST LVL—Press the Incline increase and
decrease buttons to adjust the contrast level of the
displays. Then, press the Enter button.
If a module is connected, you may also select the
following screens:
MODULE—If an iFit module is connected, the dis-
play will show the word WIFI. If a USB module is
connected, the display will show the word USB/SD.
AUDIO COACH—To turn on or turn off the audio
coach, press the Enter button.
If an iFit module is connected, you may also select
the following screens:
START MODE—The start mode will appear when
you insert the key into the console or when you
press the Home button. Press the Enter button
repeatedly to select the manual mode or the iFit
mode as the start mode.
CHECK WIFI—Press the Enter button. The cen-
ter display will show the software version number,
the network SSID, the network encryption type,
the wireless signal strength, the IP address of the
module, the number of registered users and their
names, and the results of the DNS lookup.
SEND/OBTAIN DATA—To send and receive work-
outs, workout logs, and updates, press the Enter
button.Whentheprocessisnished,thewords
TRANSFERS DONE will appear in the display.
3. Exit the information mode.
To exit the information mode, remove the key from
the console.
25
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to the lowest position before you fold the treadmill.
Then, remove the key and unplug the power cord.
CAUTION: You must be able to safely lift 45 lbs. (20
kg) to raise, lower, or move the treadmill.

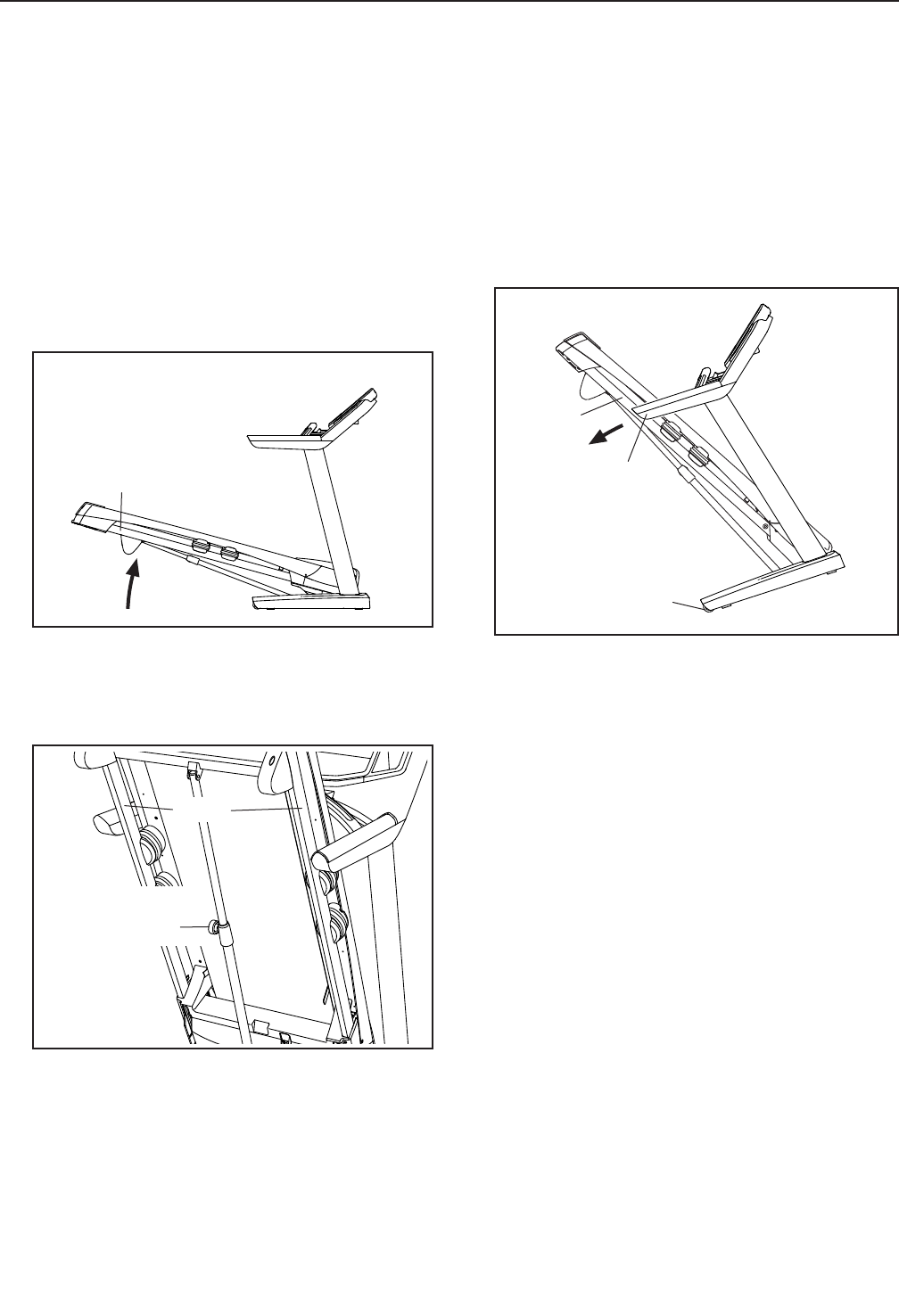

1. Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch knob is
locked in the storage position. Moving the treadmill
may require two people.
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the tread-
mill frame with your right hand. Then, pull the latch
knob to the left. IMPORTANT: Do not turn the
latch knob. If necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
HOW TO FOLD AND MOVE THE TREADMILL
Handrail
Frame
Wheel
Frame
1
Latch
Knob
2
Frame
1
26
Most treadmill problems can be solved by follow-
ing the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see
page 16). Use only a surge suppressor that meets
all of the specifications described on page 16.
IMPORTANT: The treadmill is not compatible
with GFCI-equipped outlets and may not be
comaptible with AFCI-equipped outlets.
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode,
designed to be used if the treadmill is displayed in
a store. If the displays remain lit when you remove
the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a
few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 24 to turn off the
demo mode.
SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Remove the seven #8 x 3/4"
Truss Head Screws (16). Carefully pivot the Motor
Hood (64) off.
TROUBLESHOOTING
Reset
Tripped
c
64
16
16
a16
16
27

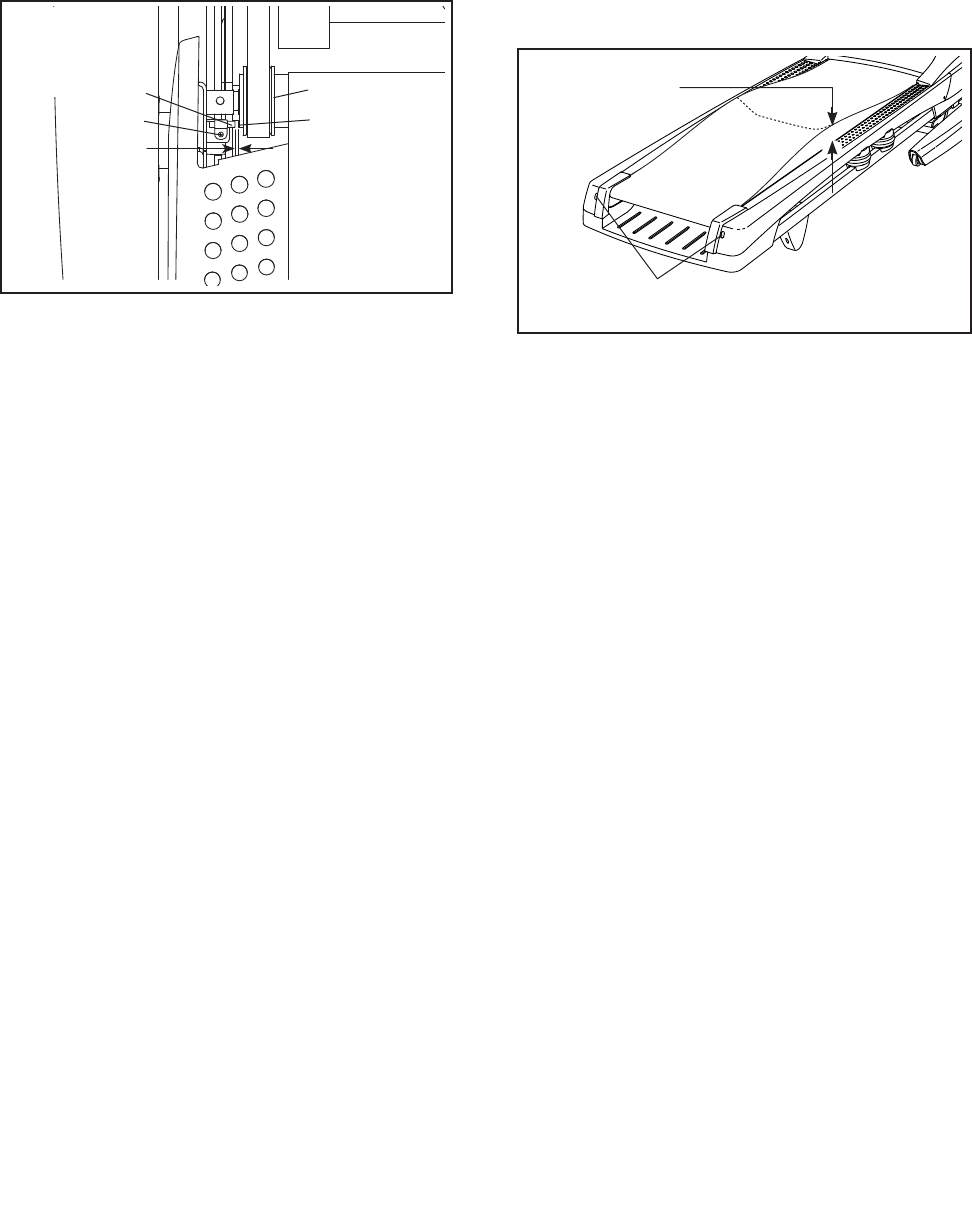

Locate the Reed Switch (52) and the Magnet (53)
on the left side of the Pulley (54). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet
and the Reed Switch is about 1/8 in. (3 mm). If
necessary, loosen the #8 x 3/4" Tek Screw (15),
move the Reed Switch slightly, and then retighten
the Screw. Reattach the Motor Hood (not shown)
and run the treadmill for a few minutes to check for
a correct speed reading.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Hold down the Stop button and the Speed increase
button, insert the key into the console, and then
release the Stop button and the Speed increase
button. Press the Stop button and then press the
Incline increase or decrease button. The tread-
mill will automatically rise to the maximum incline
level and then return to the minimum level. This will
recalibrate the incline system. If the incline does not
begin calibrating, press the Stop button again, and
then press the Incline increase or decrease button
again. When the incline is calibrated, remove the
key from the console.
SYMPTOM: The walking belt slows when walked on
a. Use only a surge suppressor that meets all of the
specifications described on page 16.
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect the walking belt needs more lubri-
cant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
53
15
52
1/8 in.
54
Idler Roller Screws
2–3 in.
b
Top
View
28

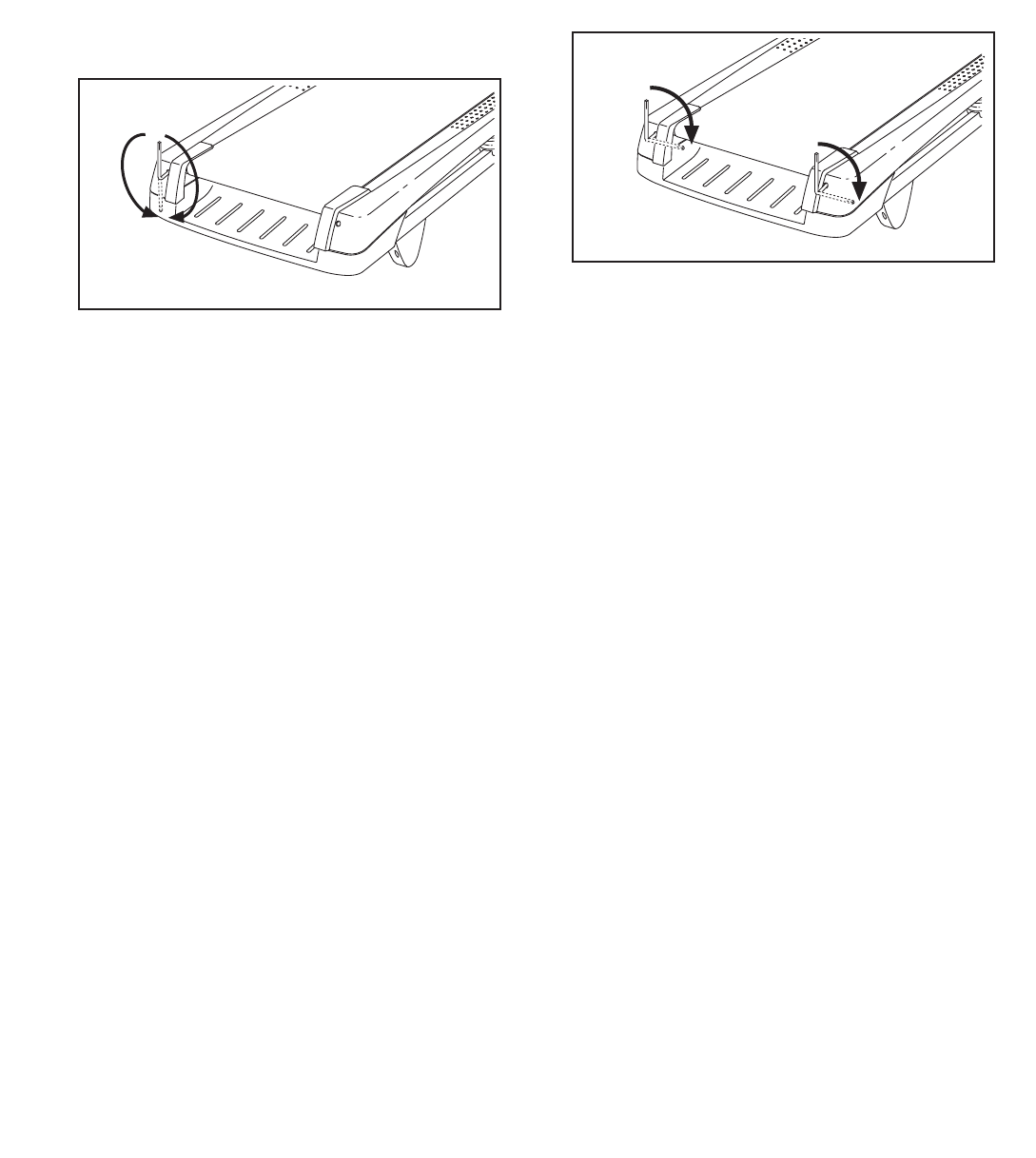

SYMPTOM: The walking belt is off-center or slips
when walked on
a. If the walking belt is off-center, first remove the
key and UNPLUG THE POWER CORD. If the
walking belt has shifted to the left, use the hex
key to turn the left idler roller screw clockwise 1/2
of a turn; if the walking belt has shifted to the
right, turn the left idler roller screw counterclock-
wise 1/2 of a turn. Be careful not to overtighten the
walking belt. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first
remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walk-
ing belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and carefully walk on the tread-
mill for a few minutes. Repeat until the walking belt
is properly tightened.
a
b
29
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
30
Key No. Qty. Description Key No. Qty. Description
1 50 #8 x 1/2" Screw
2 38 #8 x 3/4" Screw
3 1 3/8" x 2" Bolt
4 1 3/8" x 1 3/4" Bolt
5 4 3/8" x 2 3/4" Screw
6 4 3/8" x 1 1/4" Screw
7 4 #10 x 3/4" Screw
8 4 5/16" x 1/2" Screw
9 1 #8 x 1/2" Ground Screw
10 4 5/16" x 2 1/2" Screw
11 10 5/16" Star Washer
12 2 3/8" Nut
13 4 3/8" Star Washer
14 4 #10 Star Washer
15 13 #8 x 3/4" Tek Screw
16 7 #8 x 3/4" Truss Head Screw
17 12 #8 x 3/4" Pan Head Tek Screw
18 6 #10 x 1/2" Screw
19 2 1/4" x 2 1/2" Screw
20 2 3/8" x 1 3/4" Screw
21 5 #8 x 1/2" Machine Screw
22 1 3/8" x 1 1/2" Bolt
23 1 3/8" x 2" Bolt
24 1 Power Cord Grommet
25 2 #8 x 1 3/4" Screw
26 4 #8 Belt Guide Screw
27 2 5/16" Motor Scew
28 2 1/2" x 2 1/4" Bolt
29 2 3/8" x 1" Bolt
30 4 5/16" x 1 3/4" Bolt
31 1 1/4" x 1" Screw
32 1 1/4" Star Washer
33 4 5/16" Flat Washer
34 2 1/2" Nut
35 6 3/8" Jam Nut
36 4 5/16" Nut
37 5 Hood Clip
38 4 Rubber Grommet
39 6 #8 x 5/8" Screw
40 2 5/16" x 1 1/2" Screw
41 4 #4 Fan Screw
42 1 Left Front Isolator Top
43 2 Rear Isolator Top
44 4 Isolator
45 4 Isolator Bottom
46 1 Walking Belt
47 1 Warning Decal
48 1 Walking Platform
49 2 Belt Guide
50 1 Left Foot Rail
51 1 Reed Switch Clip
52 1 Reed Switch
53 1 Magnet
54 1 Idler Roller/Pulley
55 4 Cable Tie
56 1 Right Front Isolator Top
57 1 Storage Latch
58 1 Drive Motor
59 1 Motor Belt
60 2 Rear Foot
61 1 Idler Roller
62 1 Right Foot Rail
63 1 Frame
64 1 Motor Hood
65 1 Hood Accent
66 2 Frame Spacer
67 2 Incline Frame Spacer
68 1 Stop Bracket
69 1 Incline Motor
70 1 Incline Leg
71 1 Controller
72 1 Controller Bracket
73 2 Belly Pan Post
74 1 Power Switch
75 1 Belly Pan
76 1 Rear Endcap Cover
77 1 Rear Endcap
78 1 Upright Wire
79 1 Left Upright
80 2 Caution Decal
81 1 Left Base Cover
82 1 Left Handrail Cover
83 1 Left Handrail
84 1 Left Bottom Handrail Cover
85 1 Right Handrail Cover
86 1 Right Handrail
87 1 Right Bottom Handrail Cover
88 1 Right Upright
89 1 Right Base Cover
90 2 Grommet
91 4 Base pad
92 2 Wheel
93 1 Right Wheel Cap
94 1 Left Wheel Cap
95 1 Base
96 1 Console Frame
97 2 Console Bracket
98 2 Console Ground Wire
99 1 Key/Clip
100 1 Console Cover
PART LIST Model No. PFTL99912.0 R1012B
31
Key No. Qty. Description Key No. Qty. Description
101 1 Console
102 1 Left Tray
103 1 Right Tray
104 2 Tie
105 1 Console Base
106 1 Console Trim
107 1 Pulse Bar
108 1 Pulse Bar Bottom
109 1 Fan Cover
110 1 Fan Grill
111 1 Fan
112 2 Incline Motor Spacer
113 1 Power Cord
* – User’s Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
32
26
3
45
44
2
15
56 12
57
49
36
33
38
28
32
31
30
16
25
21
55
27
21
25
52
53
54
15
51
30
28
38
16
33
36
26
49
46
47
50
45
44 45
44
15
2
43
15
2
42
43
30
61
19
36
33
38
60
17 19
30
62
36
33
38
4
12
17
60 58
59
15
45
44
2
63
39
39
39
39
39
39
48
16
EXPLODED DRAWING A Model No. PFTL99912.0 R1012B
33

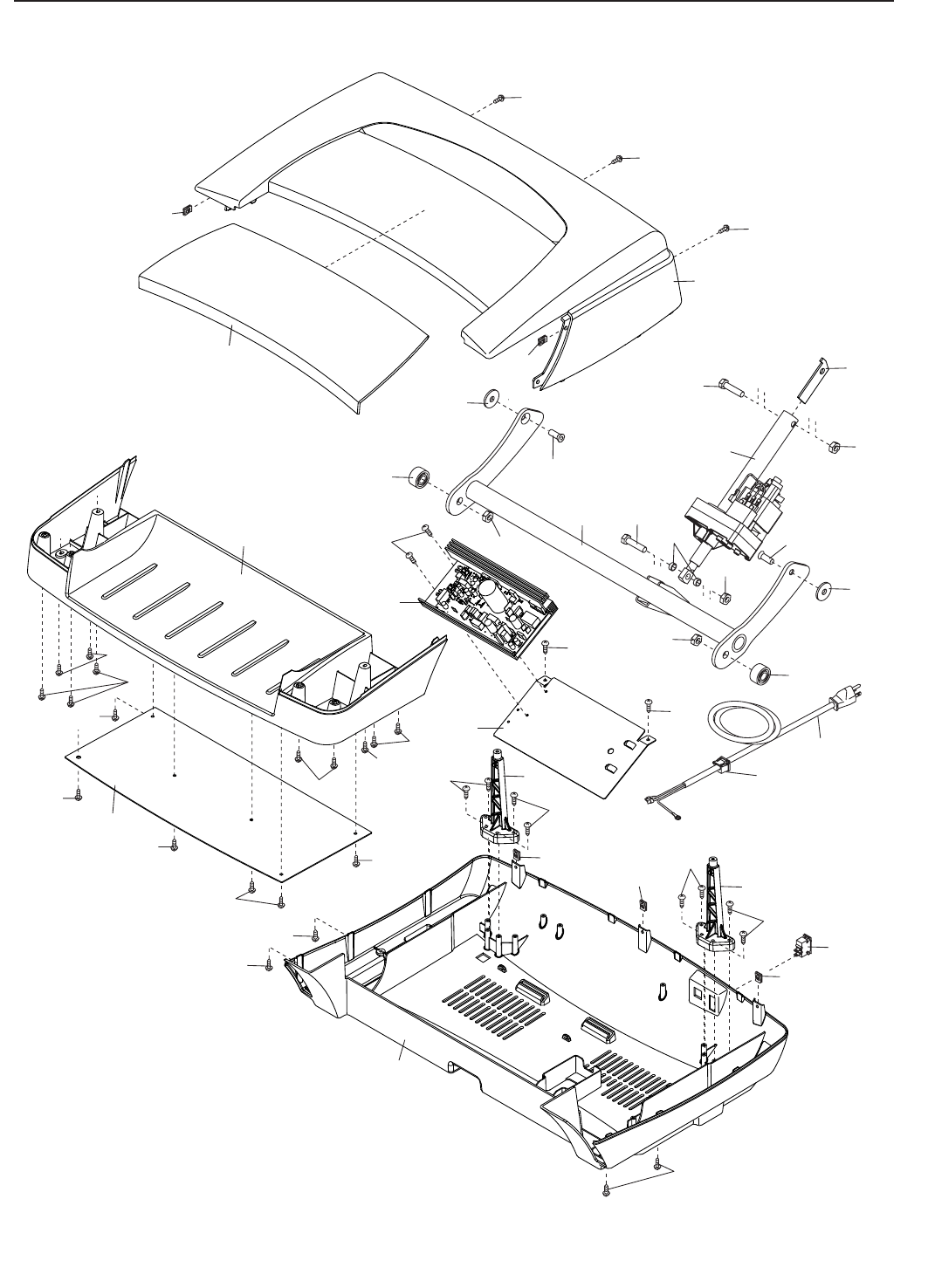

17
17
37
2
17
75
37
74
2
73
73
2
37
2
72
18
17
2
2
77
18
18
76
18
18
2
17
24
113
2
2
71
34
21
66
67
37
29
70
34
66
35
22
29
67
69
23
35
68
65
64
16
16
16
112
37
EXPLODED DRAWING B Model No. PFTL99912.0 R1012B
34

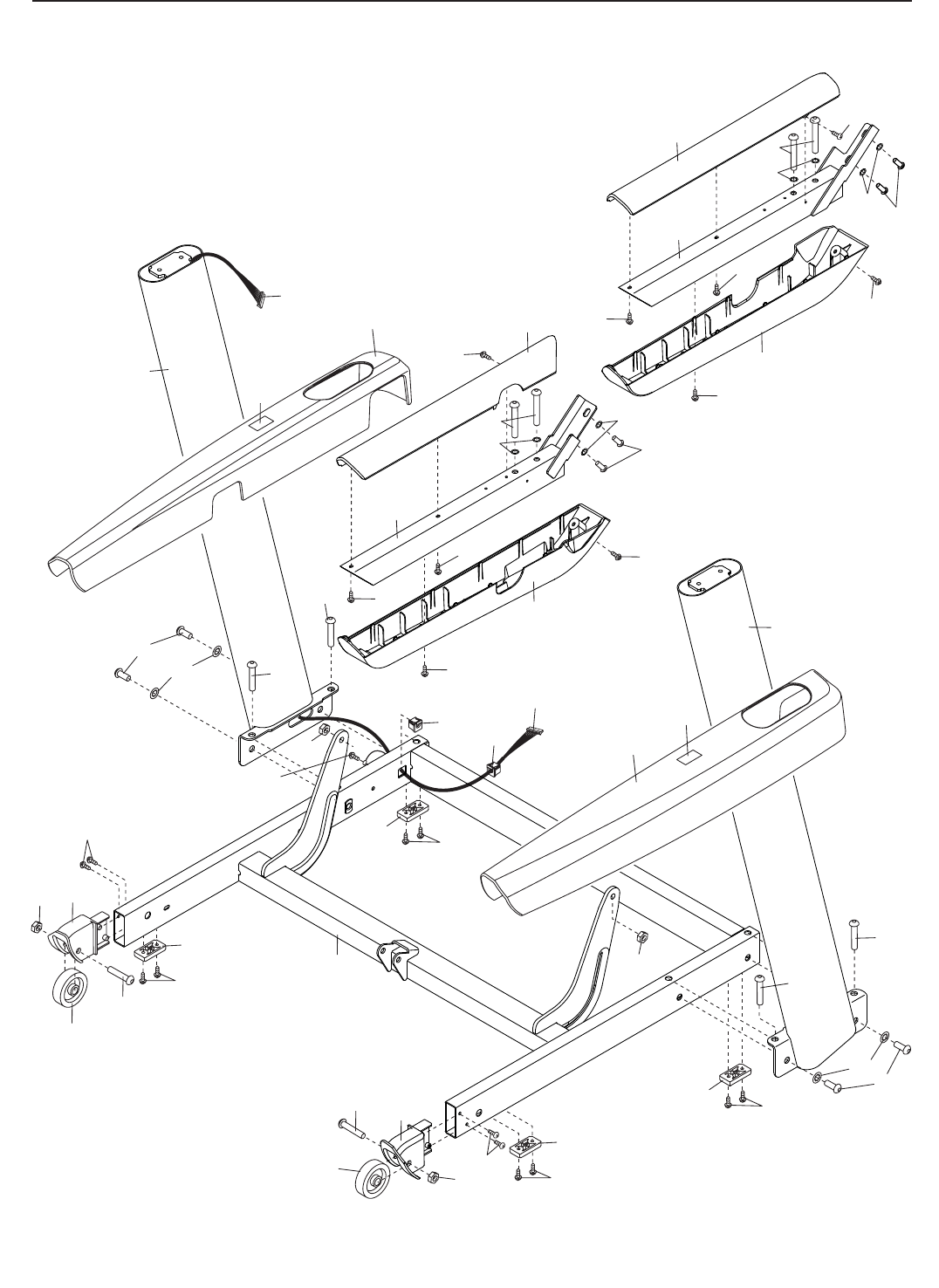

91
93
35
92
20
92
20
94
35
15
91
95
88
80
89
15
91
2
78
90
9
35
13
6
5
81
80
79
78
1
11
85
86
11
8
82
83
1
1
1
1
5
5
13
6
35
91 15
5
15
1
1
1
1
8
11
10
11
10
2
87
84
90
1
EXPLODED DRAWING C Model No. PFTL99912.0 R1012B
35

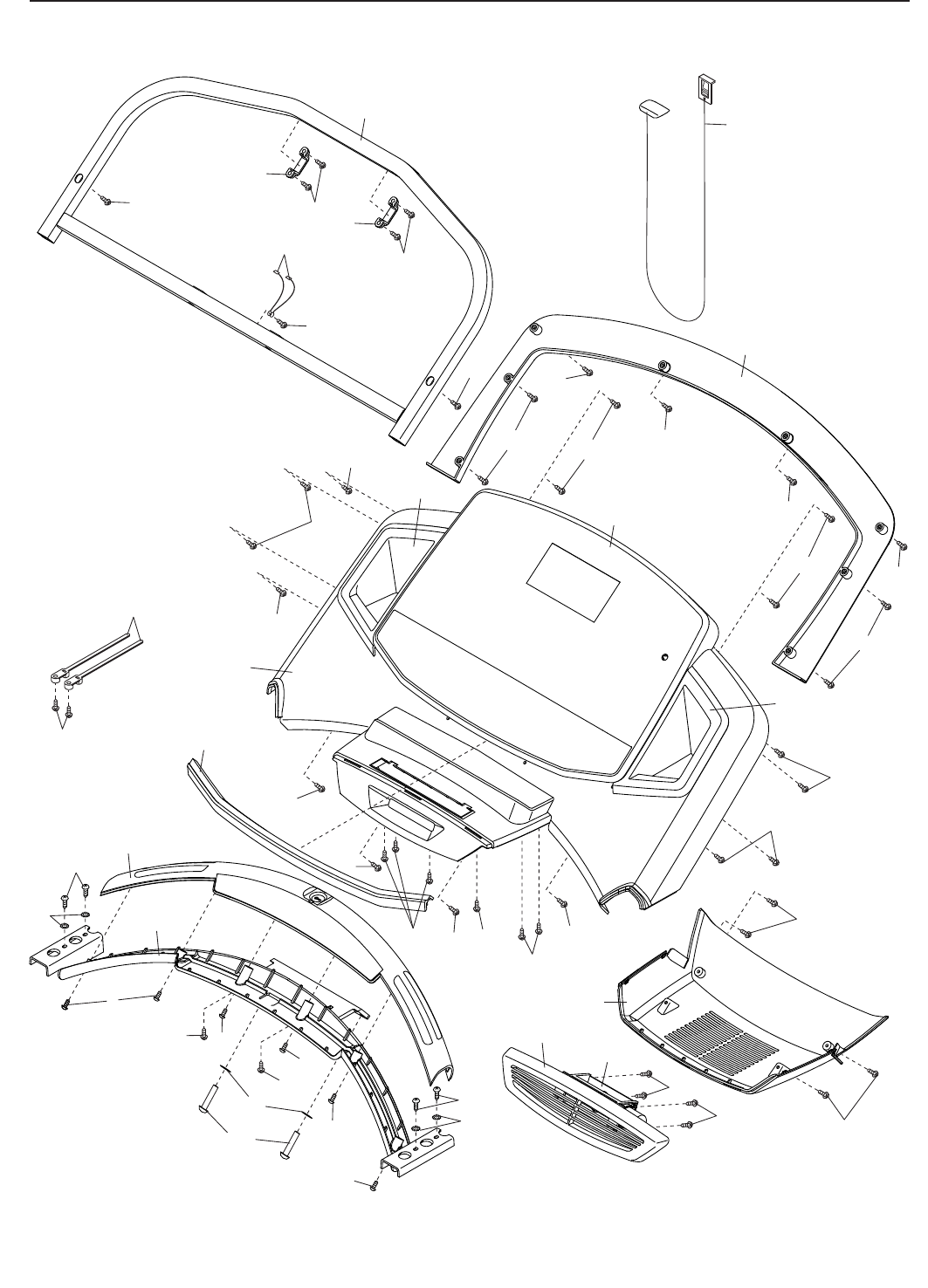

40
1
1
2
2
96
97
97
21
98
1
1
1
2
1
21
41
41
14
7
11
1
14
11
1
1
1
1
1
105
2
104
1
100
1
1
1
1
1
1
1
1
101
102
103
1
1
106
107
108
7
110
109
99
1
2
2
111
EXPLODED DRAWING D Model No. PFTL99912.0 R1012B
Part No. 335296 R1012B Printed in USA © 2012 ICON IP, Inc.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame and drive motor are warranted for a lifetime.
Parts are warranted for three (3) years from the date of purchase. Labor is warranted for one (1) year from
the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
oriftheproductisusedforcommercialorrentalpurposes.Nootherwarrantybeyondthatspecicallyset
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-
nection with the use or performance of the product; damages with respect to any economic loss, loss of
property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromstatetostate.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
