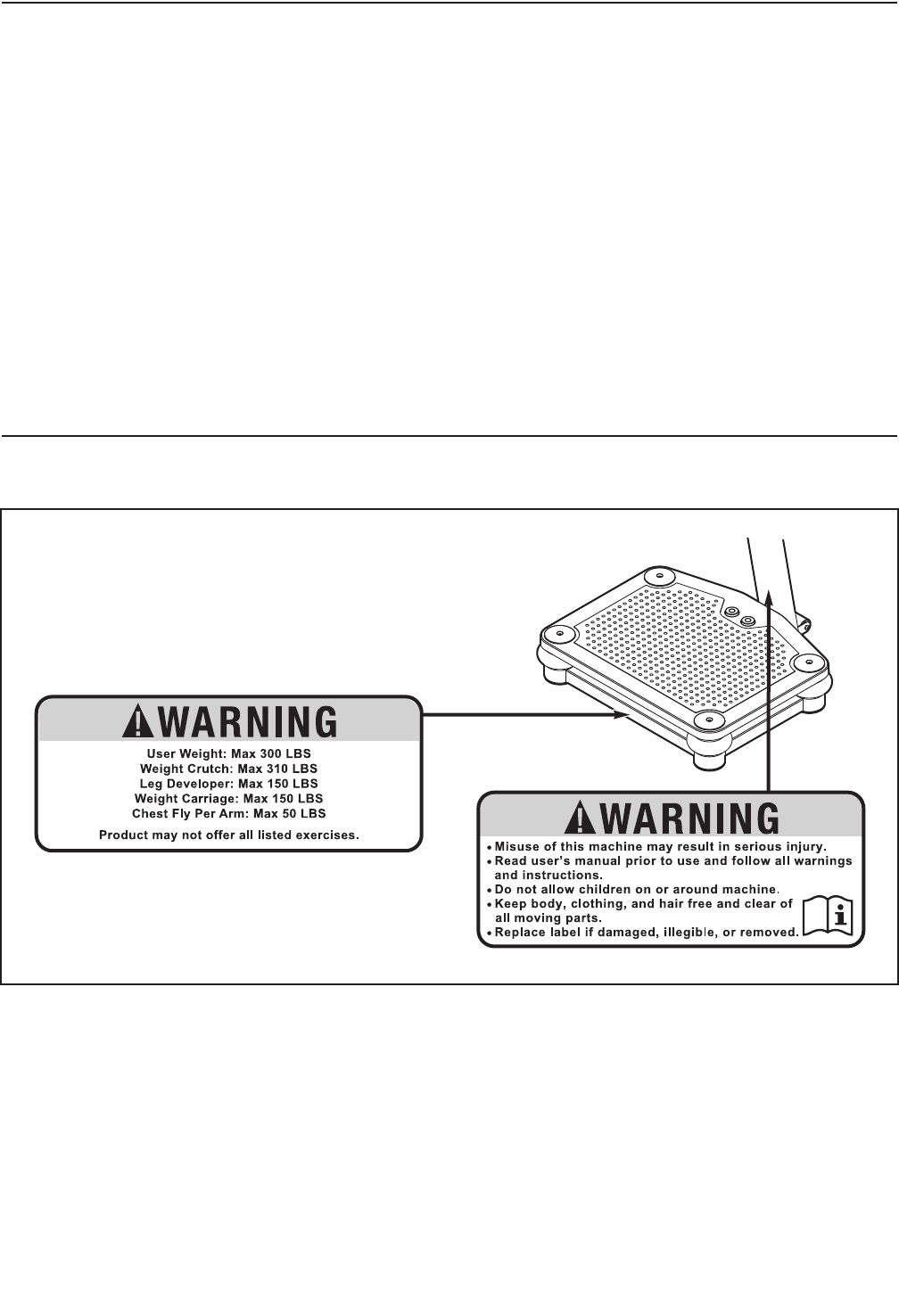

WARNING DECAL PLACEMENT

The warning decals shown here have been applied in

the locations shown. If a decal is missing or illegible,

see the front cover of this manual and request a

free replacement decal. Apply the decal in the loca-

tion shown. Note: The decals may not be shown at

actual size.

PROFORM is a registered trademark of ICON IP, Inc.

3

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on the vibration platform before using the vibration

platform. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the vibration platform are

adequately informed of all precautions.

3. The vibration platform is intended for home

use only. Do not use the vibration platform

in a commercial, rental, or institutional set-

ting.

4. Keep the vibration platform indoors, away

from moisture and dust. Place the vibration

platform on a level surface, with a mat

beneath it to protect the floor or carpet. Do

not place the vibration platform in a garage

or covered patio, or near water.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from the vibration platform at all times.

7. The vibration platform should not be used

by persons weighing more than 300 lbs.

(136 kg).

8. Never allow more than one person on the

vibration platform at a time.

9. Keep your back straight while using the

vibration platform; do not arch your back.

When standing on the vibration platform,

bend your knees slightly and balance your

weight on the balls of your feet.

10. It is recommended that you use the vibration

platform no more than 15 minutes per day

and no more than 3 times per week.

11. Be careful when stepping down from the

vibration platform; your muscles will feel dif-

ferent after you exercise on the vibration

platform.

12. The following is a list of factors and condi-

tions that may make exercising on the

vibration platform inadvisable (this list is not

exhaustive; it is intended only for reference).

If one or more factors or conditions apply to

you, consult your physician before using the

vibration platform.

• Knee or hip implant

• Pacemaker

• Recently placed screws, pins, bolts, or

spirals

• Acute hernia, discopathy, or spondylitis

• Serious heart or vascular disease

• Acute thrombosis

• Tumor

• Serious migraine

• Epilepsy

• Serious diabetes

• Recent wound due to operation

• Fresh inflammation

• Pregnancy

13. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

14. Make sure that the dumbbells are secure in

the weight rests when they are not in use.

15. Always remove the dumbbells from the

vibration platform before moving the vibra-

tion platform.

16. Use the vibration platform and the included

dumbbells only as described in this manual.

4

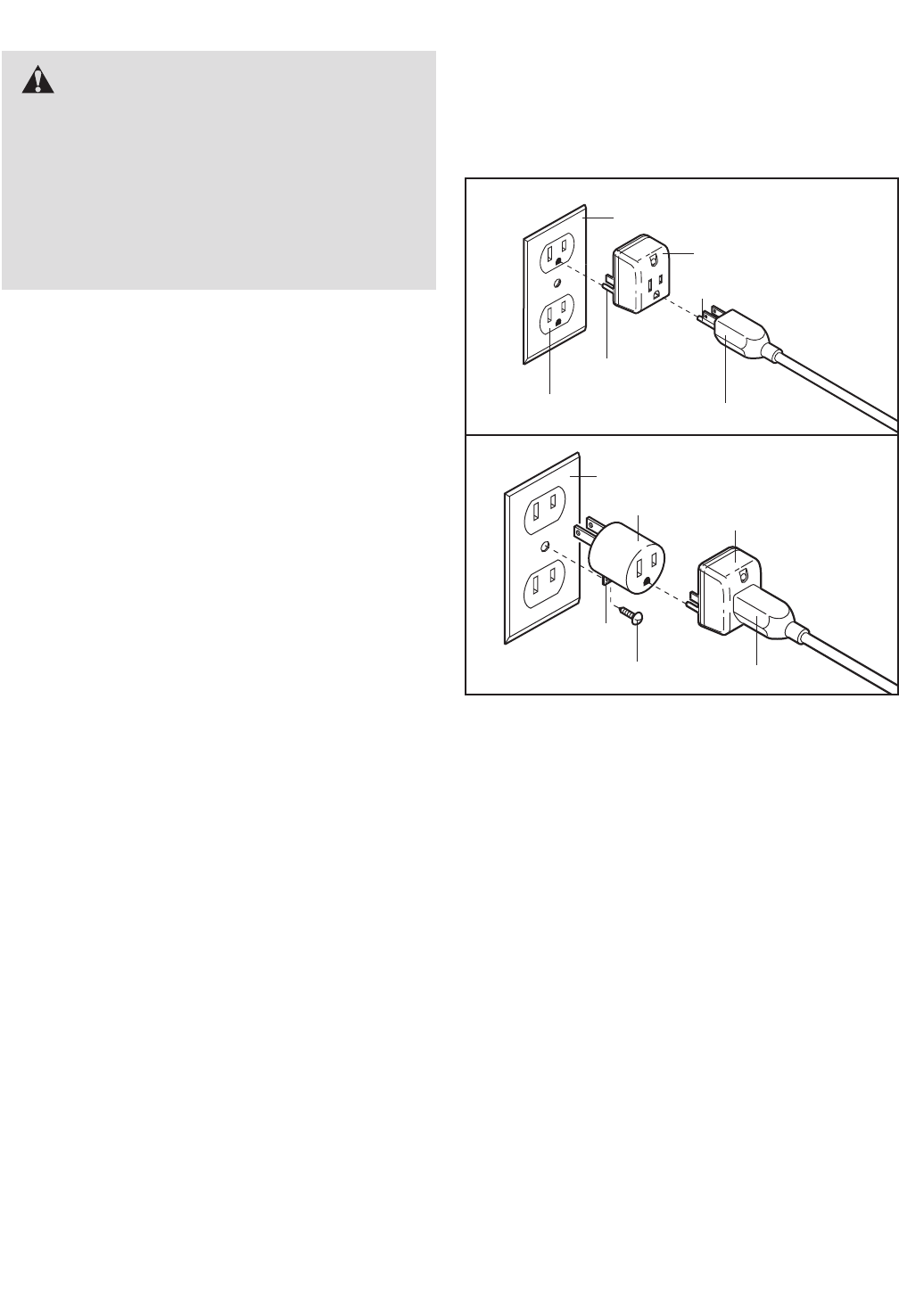

17. When connecting the power cord (see page

14), plug the power cord into a surge sup-

pressor (not included) and plug the surge

suppressor into a grounded outlet capable

of carrying 15 or more amps. No other appli-

ance should be on the same circuit as the

vibration platform. Do not use an extension

cord.

18. Use only a single-outlet surge suppressor

that meets all of the specifications described

on page 14. To purchase a surge suppres-

sor, see your local PROFORM dealer or call

the telephone number on the front cover of

this manual and order part number 146148,

or see your local electronics store.

19. Keep the power cord away from heated sur-

faces.

20. Never leave the vibration platform unat-

tended while it is running. Always unplug

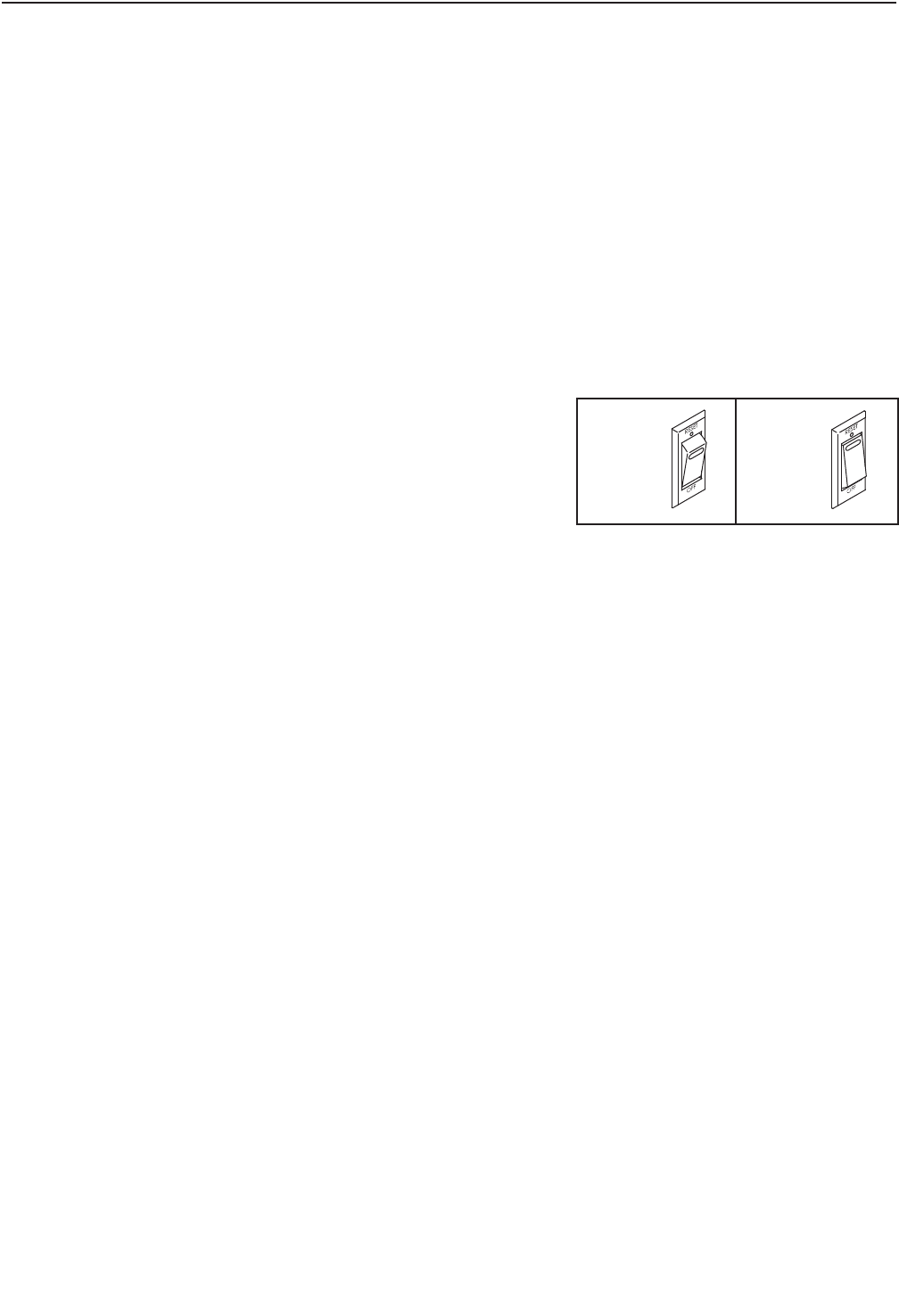

the power cord and switch the reset/off cir-

cuit breaker to the off position when the

vibration platform is not in use. (See the

drawing on page 5 for the location of the cir-

cuit breaker.)

21. DANGER: Always unplug the power

cord when the vibration platform is not in

use and before cleaning the vibration plat-

form. Servicing other than the procedures in

this manual should be performed by an

authorized service representative only.

5

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

ACTIVATOR V7 vibration platform. The ACTIVATOR

V7 vibration platform offers whole body vibration

options designed to make your workouts effective and

enjoyable.

For your benefit, read this manual carefully before

you use the vibration platform. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

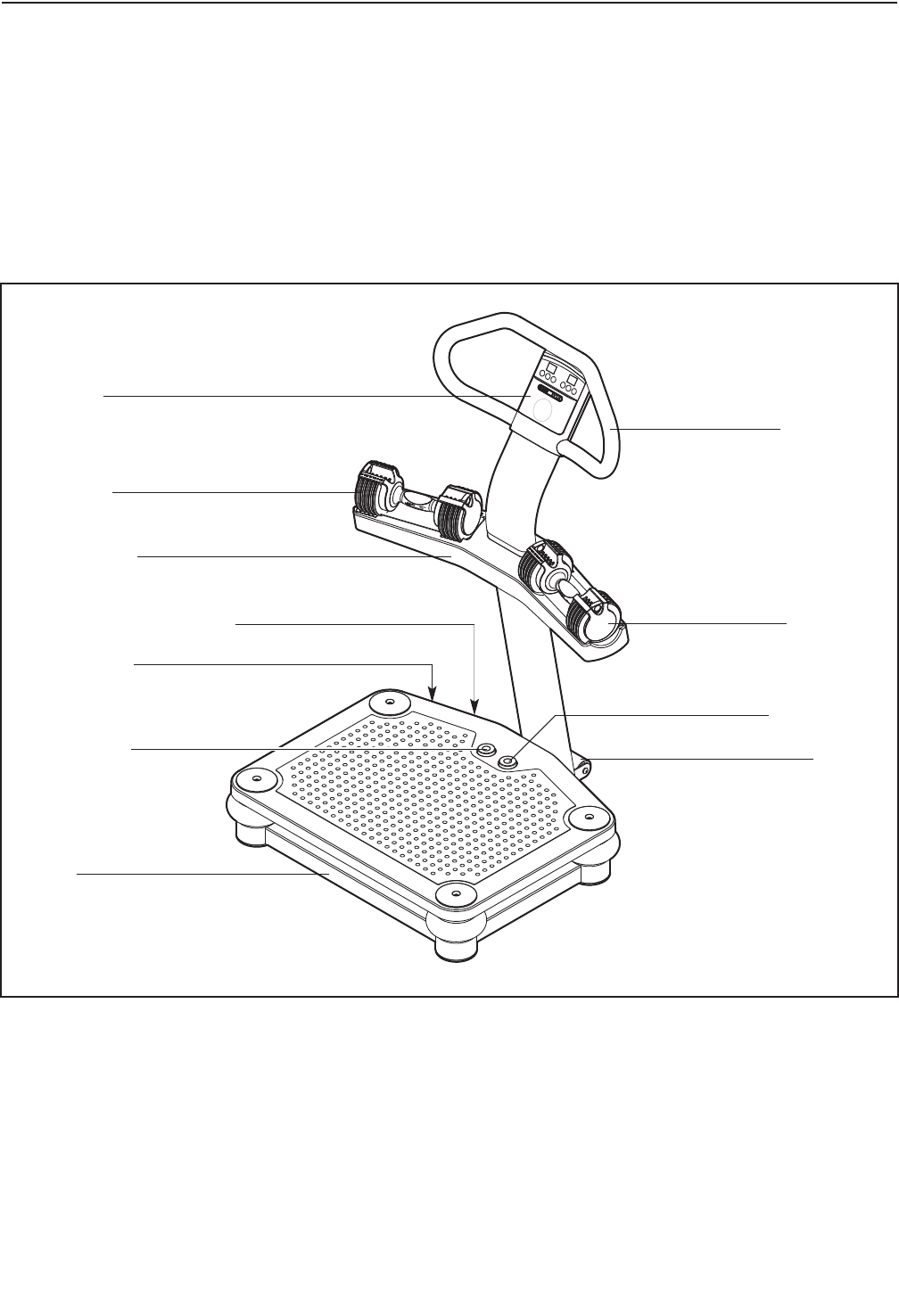

Before reading further, please familiarize yourself with

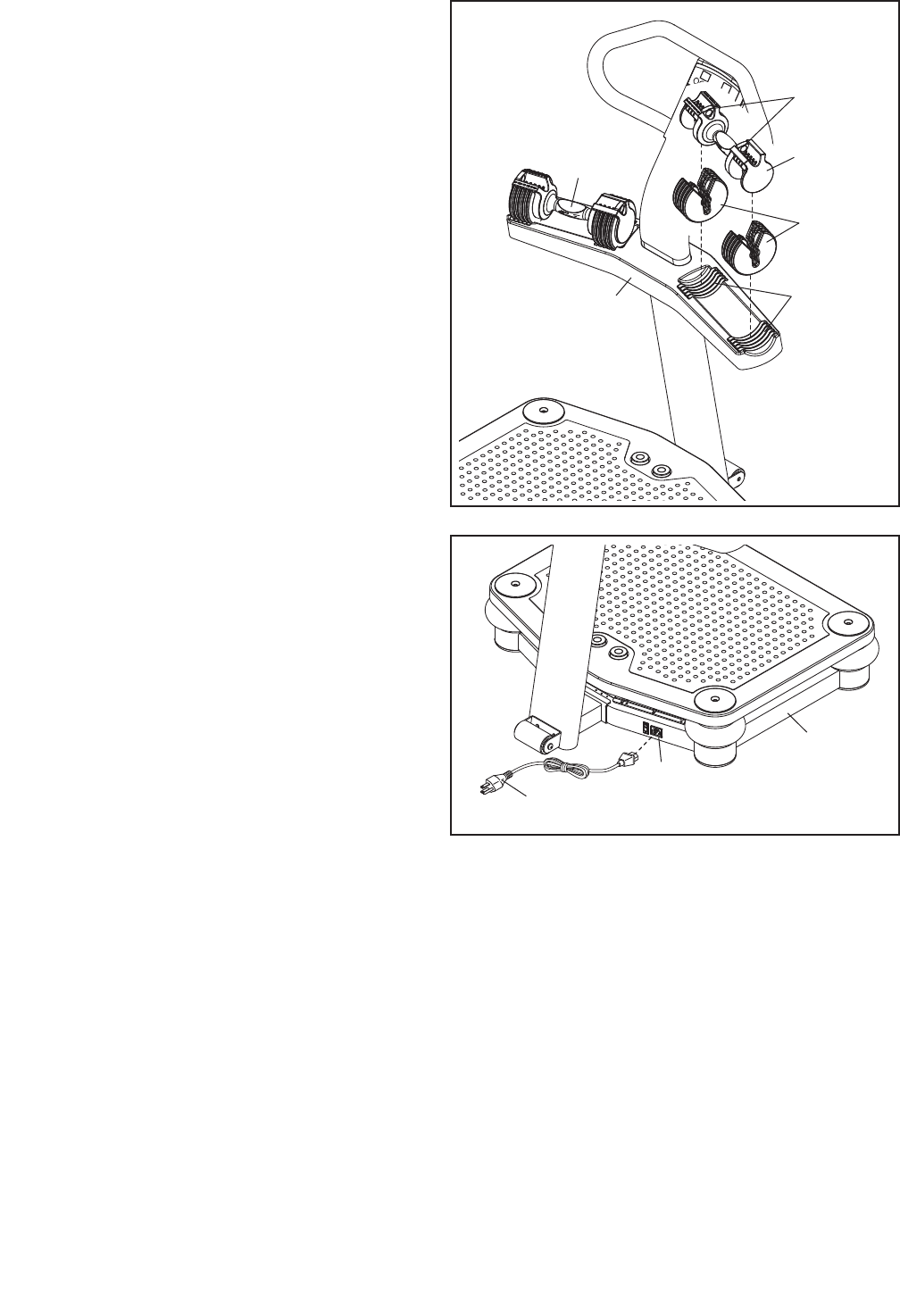

the parts that are labeled in the drawing below.

Dumbbell

Handlebar

Base

Stop Button

Start Button

Wheel

Dumbbell

Weight Rest

Console

Power Cord

Reset/Off Circuit Breaker

PART IDENTIFICATION CHART

M10 Split

Washer (38)

M4 x 19mm

Screw (45)

M10 x 35mm Screw (34)

M10 x 20mm

Patch Screw (28)

M10 x 62mm Patch Screw (37)

M10 x 114mm Bolt (33)

M5 x 38mm Screw (40)

M10 x 55mm Patch Screw (20)

M10 x 50mm Patch Screw (51)

M4 x 16mm

Patch Screw (26)

M10 x 68mm Bolt (55)

M10 Locknut (32)

6

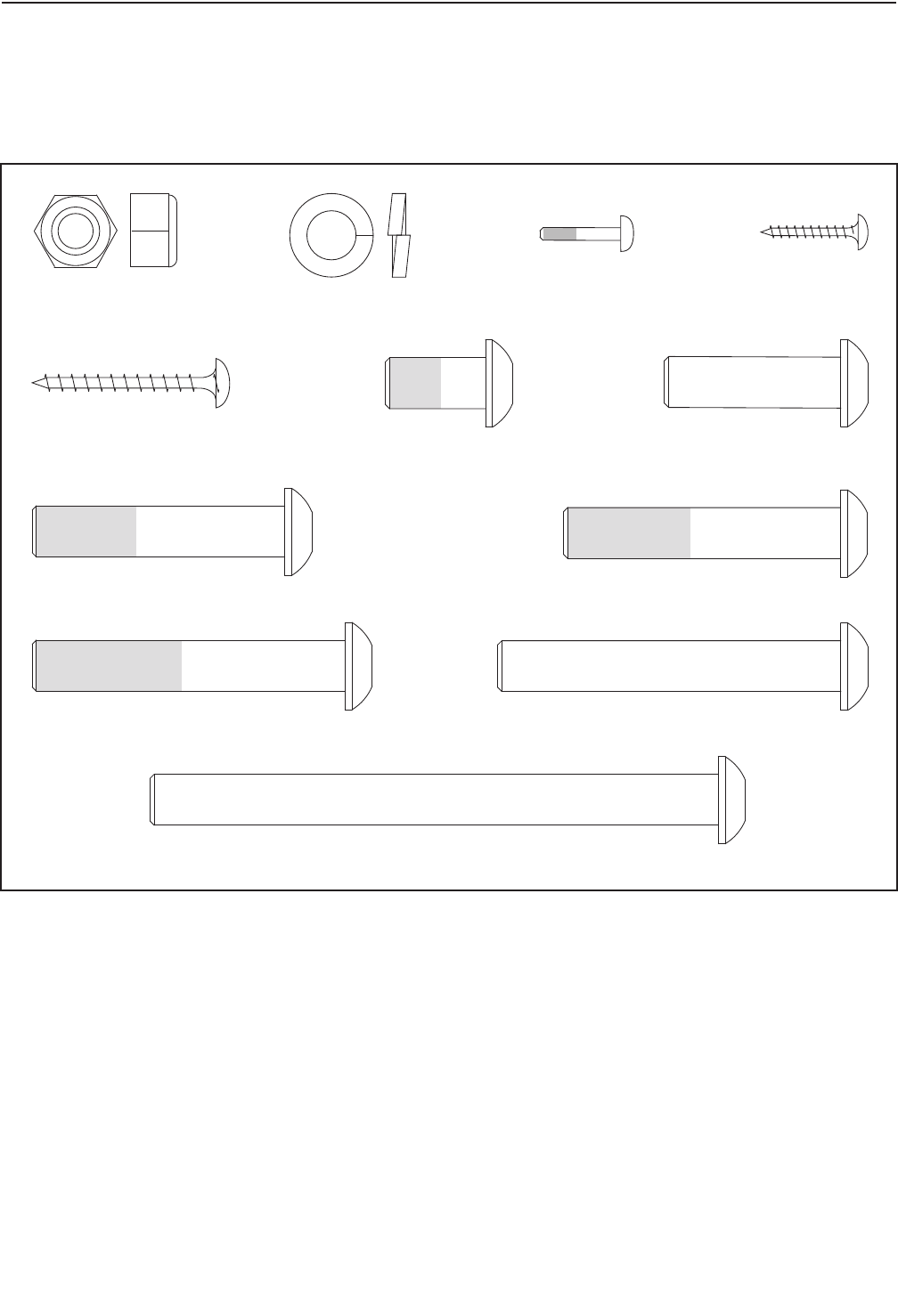

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is

the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the hard-

ware kit, check to see if it has been preattached.

7

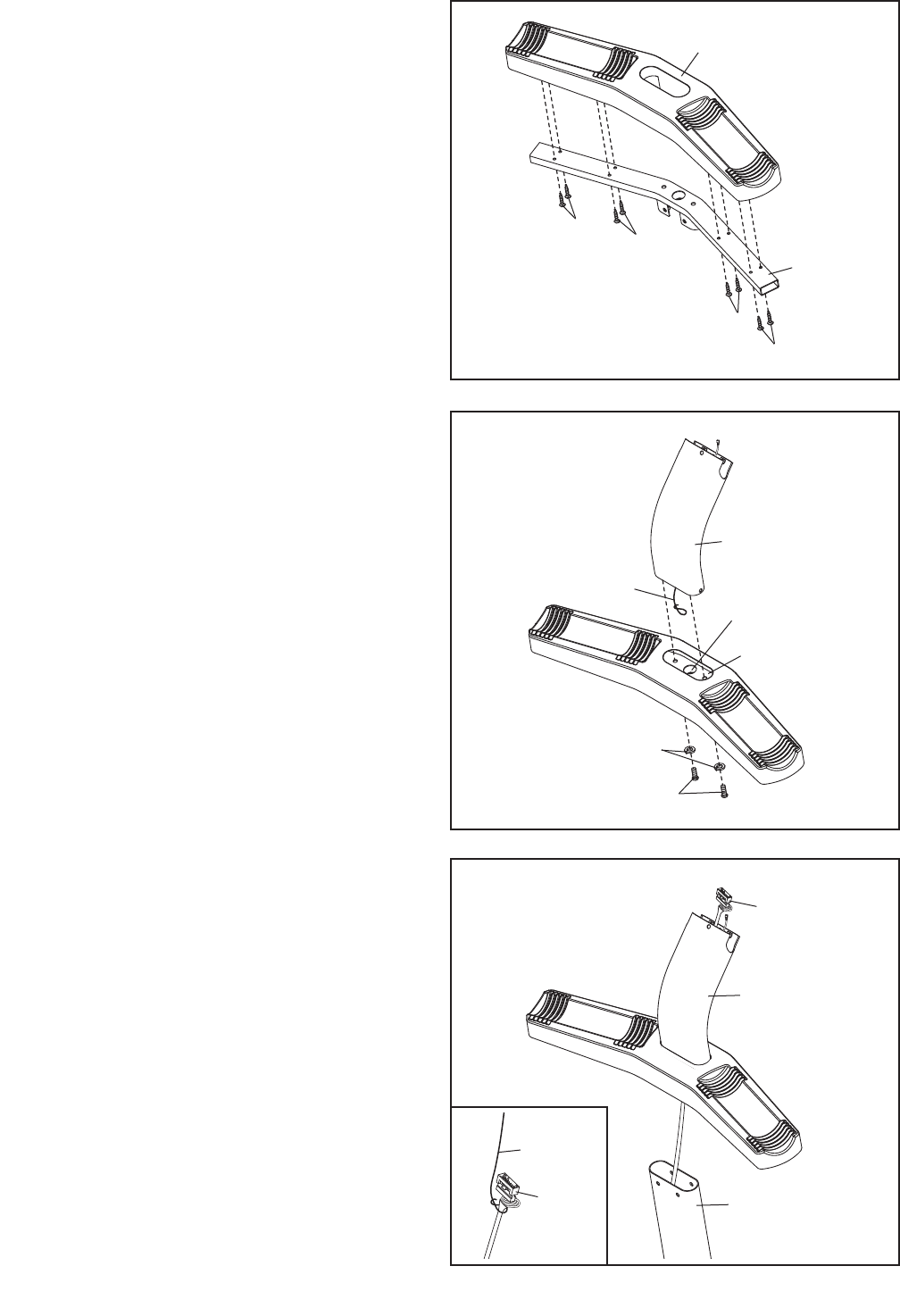

1.

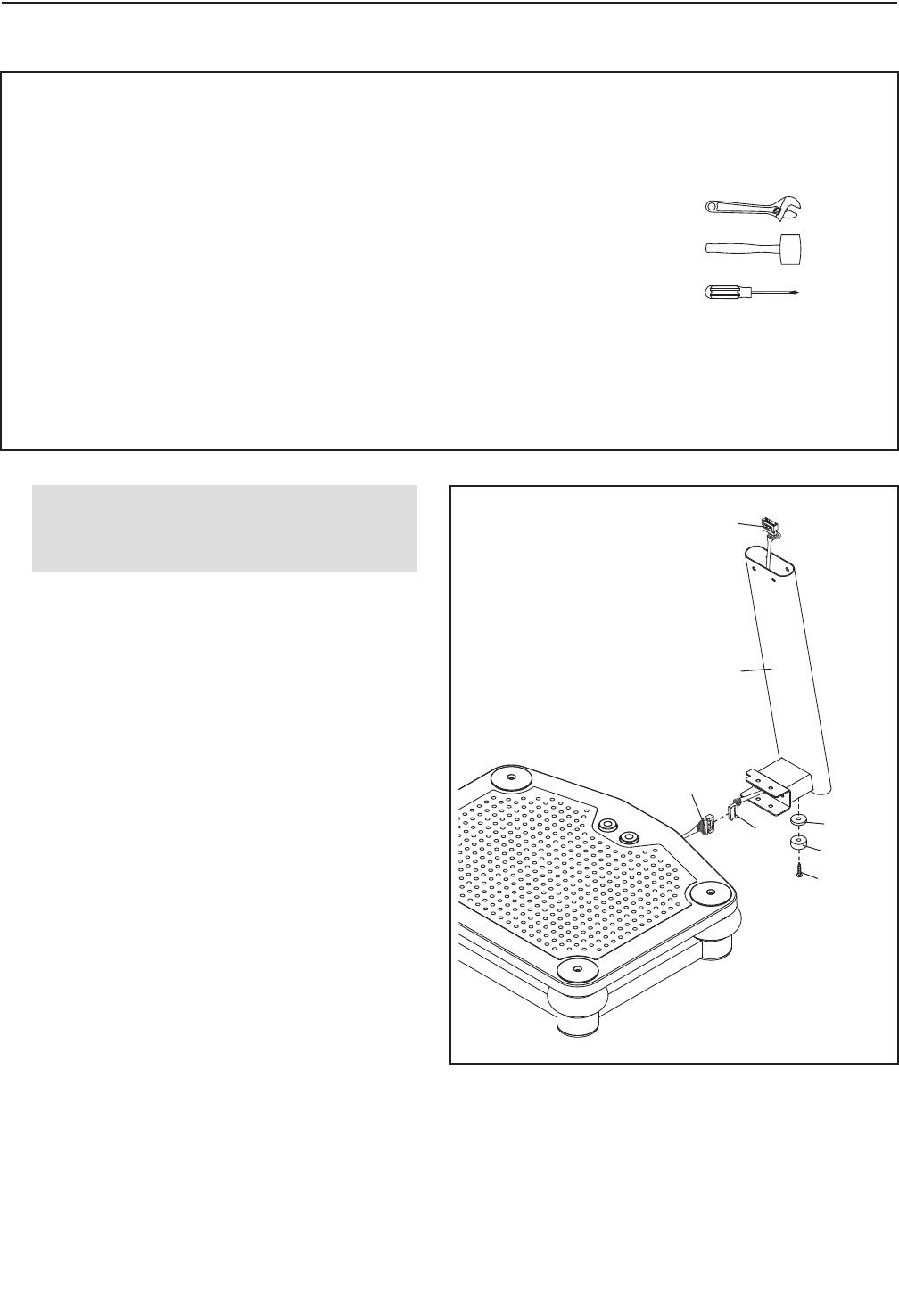

Attach a Rubber Spacer (29) and a Foot (13) to

the Lower Upright (1) with an M10 x 35mm

Screw (34).

Next, locate the Wire Harness (43) inside the

Lower Upright (1). Connect the Wire Harness to

the base wire as shown. Then, pull the Wire

Harness out of the top of the Lower Upright.

43

1

1

34

13

29

Base

Wire

43

ASSEMBLY

• To hire an authorized service technician to

assemble the vibration platform in your home,

call 1-800-445-2480.

• Assembly requires two persons.

• Because of its size and weight, assemble the

vibration platform in the location where it will

be used. Make sure that there is enough clear-

ance to walk around the vibration platform as

you assemble it.

• Place all parts in a cleared area and remove

the packing materials. Do not dispose of the

packing materials until you complete all

assembly steps.

• To identify small parts, see page 6.

• The following tools (not included) may be

required for assembly:

one adjustable wrench

one rubber mallet

one Phillips screwdriver

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Before beginning assembly, make sure

that you have read and understand the

information in the box above.

8

2. Tip: Be careful not to pinch the wires during

this step.

With the help of a second person, carefully tip

the Base (5) onto its side.

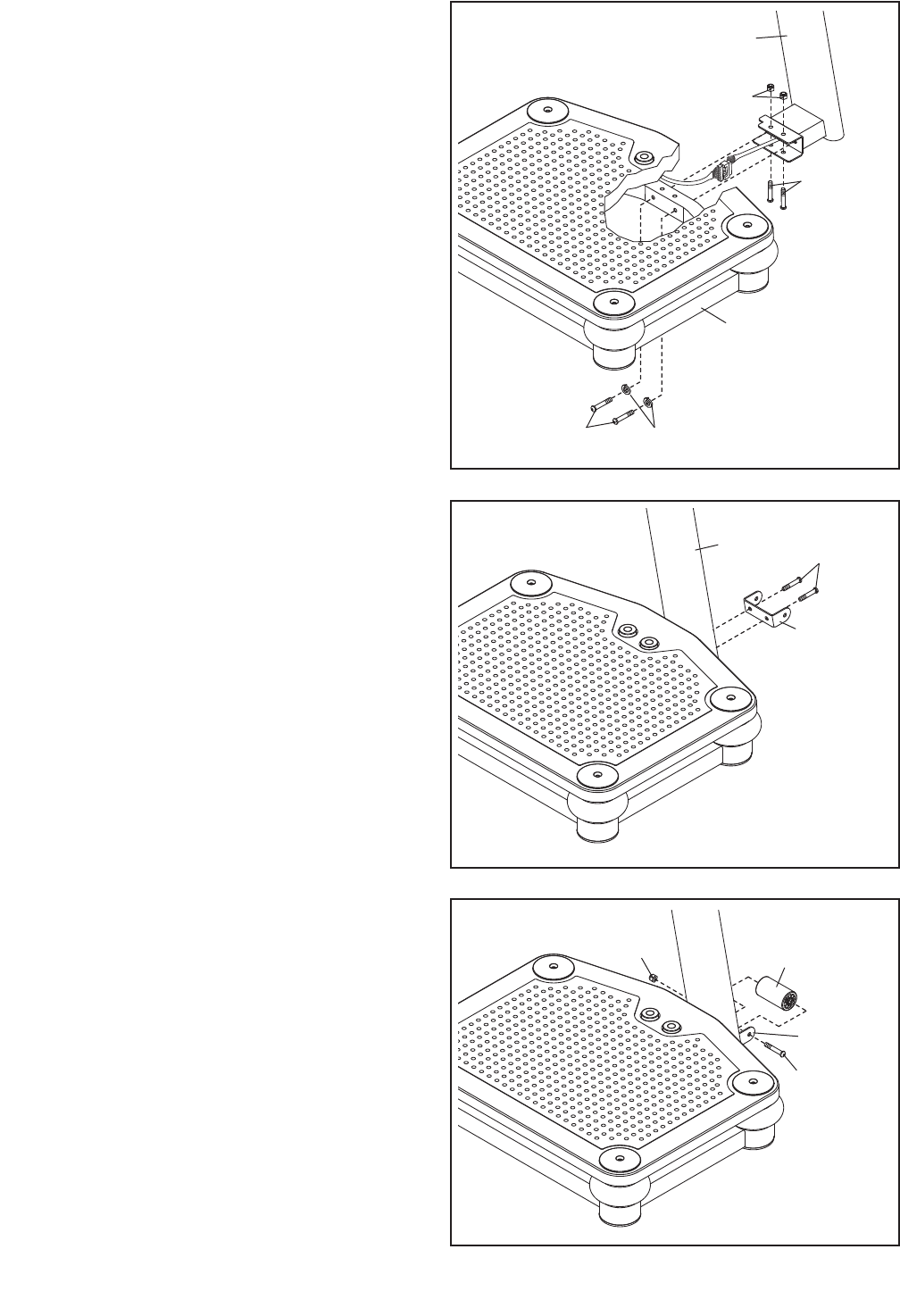

Attach the Lower Upright (1) to the Base (5)

with two M10 x 55mm Patch Screws (20), two

M10 Split Washers (38), two M10 x 68mm Bolts

(55), and two M10 Locknuts (32).

2

3. Tip: Orient the Wheel Bracket (35) so that

the arrow sticker is pointing upward.

Attach the Wheel Bracket (35) to the Lower

Upright (1) with two M10 x 20mm Patch Screws

(28).

3

1

5

128

35

20 38

4. Attach the Wheel (30) to the Wheel Bracket (35)

with an M10 x 114mm Bolt (33) and an M10

Locknut (32). Do not overtighten the Locknut;

the Wheel must rotate freely.

Note: If the Wheel (30) rattles when the

vibration platform is in use, tighten the M10

Locknut (32) until the rattling stops.

4

30

33

35

32

32

55

5. Attach the Weight Rest (42) to the Weight Rest

Frame (41) with eight M5 x 38mm Screws (40).

Do not tighten the Screws yet.

5

40 40

40

40

41

42

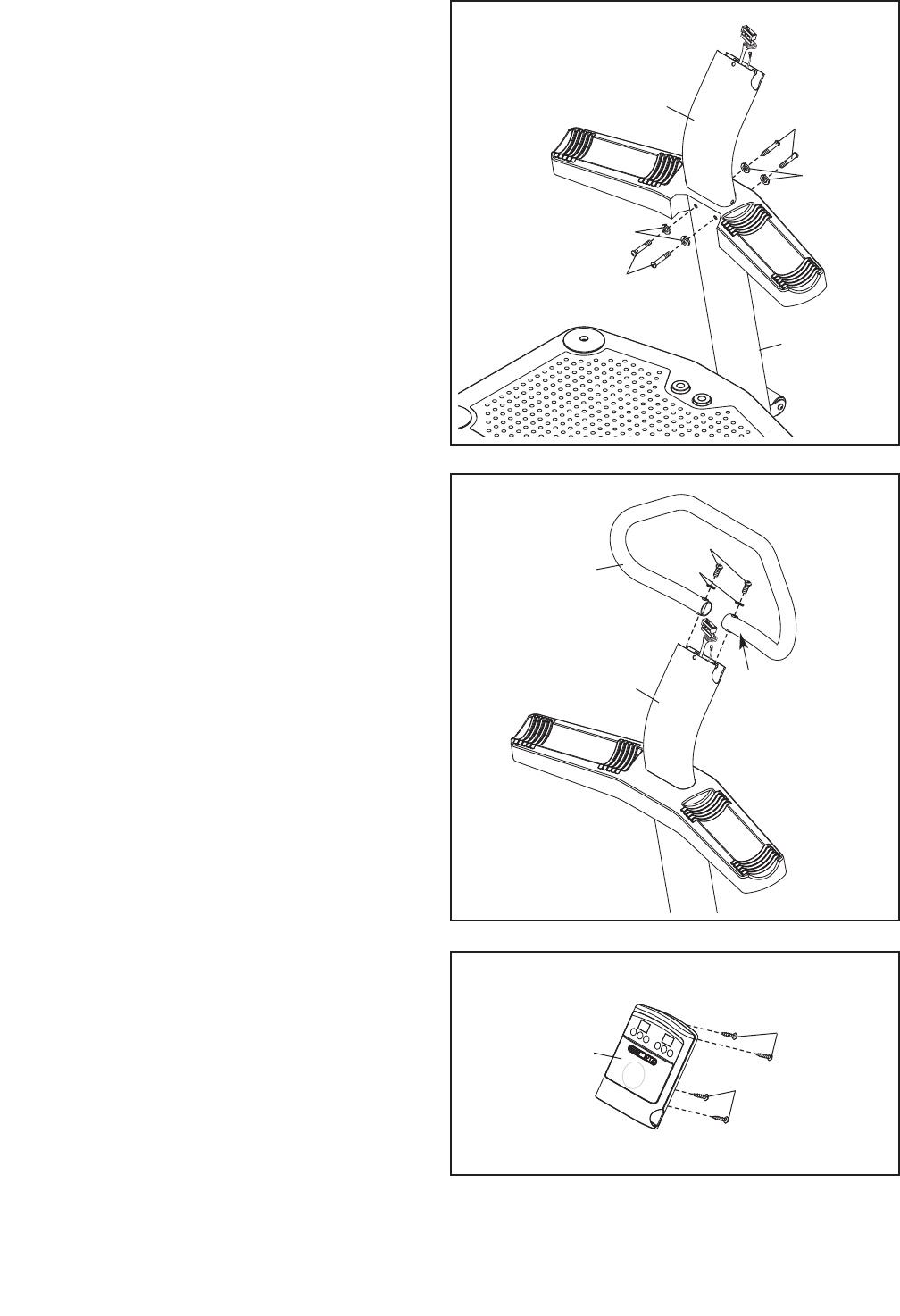

6. Locate the wire tie inside the Upper Upright (36).

Insert the wire tie through the hole in the Weight

Rest Frame (41).

Next, attach the Upper Upright (36) to the

Weight Rest Frame (41) with two M10 x 50mm

Patch Screws (51) and two M10 Split Washers

(38).

6

36

38

51

41

9

7

36

1

43

7. Have a second person hold the Upper Upright

(36) near the Lower Upright (1).

See the inset drawing. Tie the lower end of the

wire tie to the Wire Harness (43) as shown.

Then, pull the upper end of the wire tie until the

Wire Harness is routed through the Upper

Upright (36).

Hole

Wire Tie

43

Wire Tie

8. Tip: Be careful not to pinch the wires during

this step.

Attach the Upper Upright (36) to the Lower

Upright (1) with four M10 x 20mm Patch Screws

(28) and four M10 Split Washers (38).

See step 5. Tighten the eight M5 x 38mm

Screws (40).

8

28

1

28

38

38

36

10

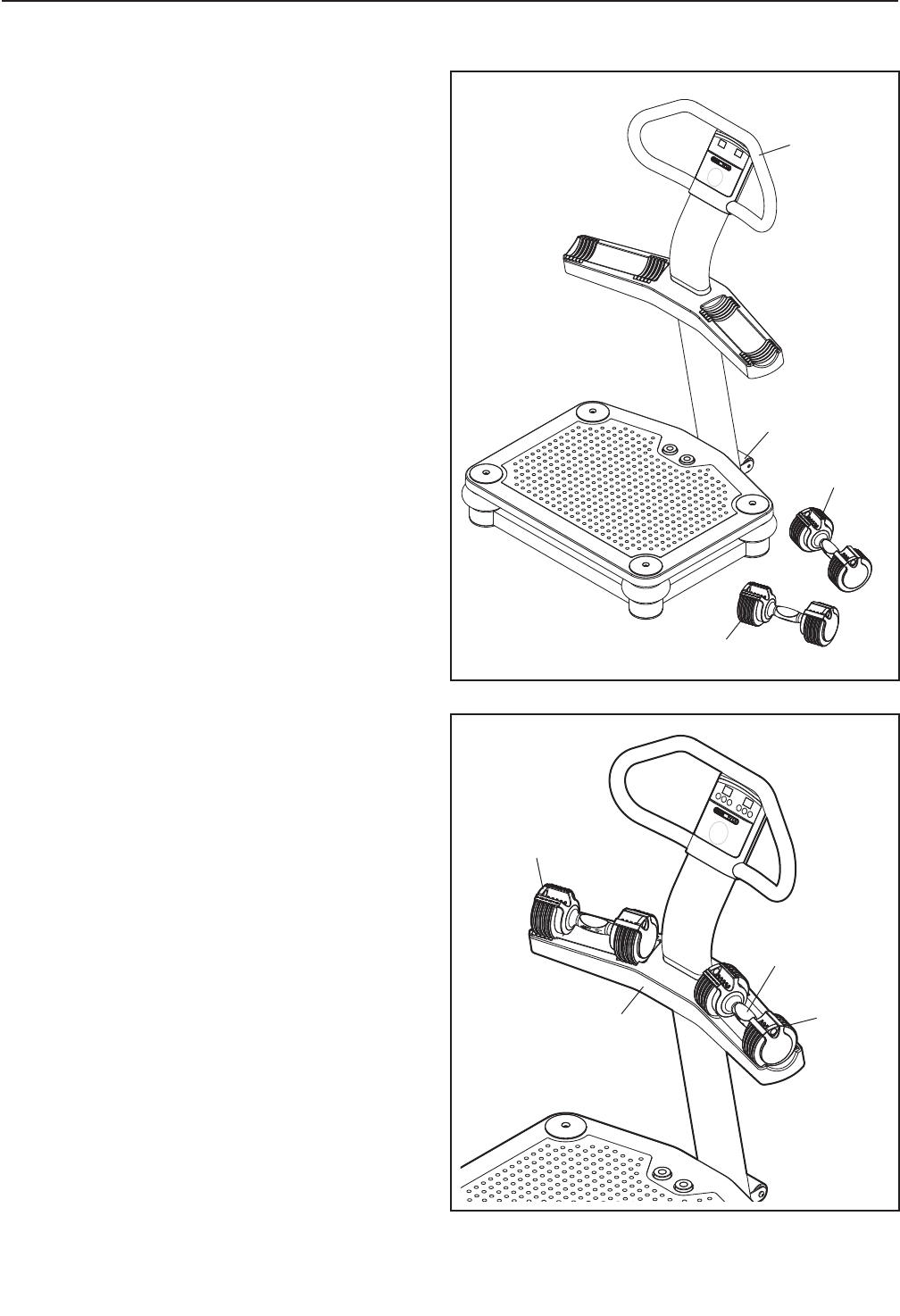

9. Tip: Orient the Handlebar (39) so that the

sticker marked with an “R” is in the location

shown.

Attach the Handlebar (39) to the Upper Upright

(36) with two M10 x 62mm Patch Screws (37)

and two M10 Split Washers (38).

9

37

38

39

“R”

36

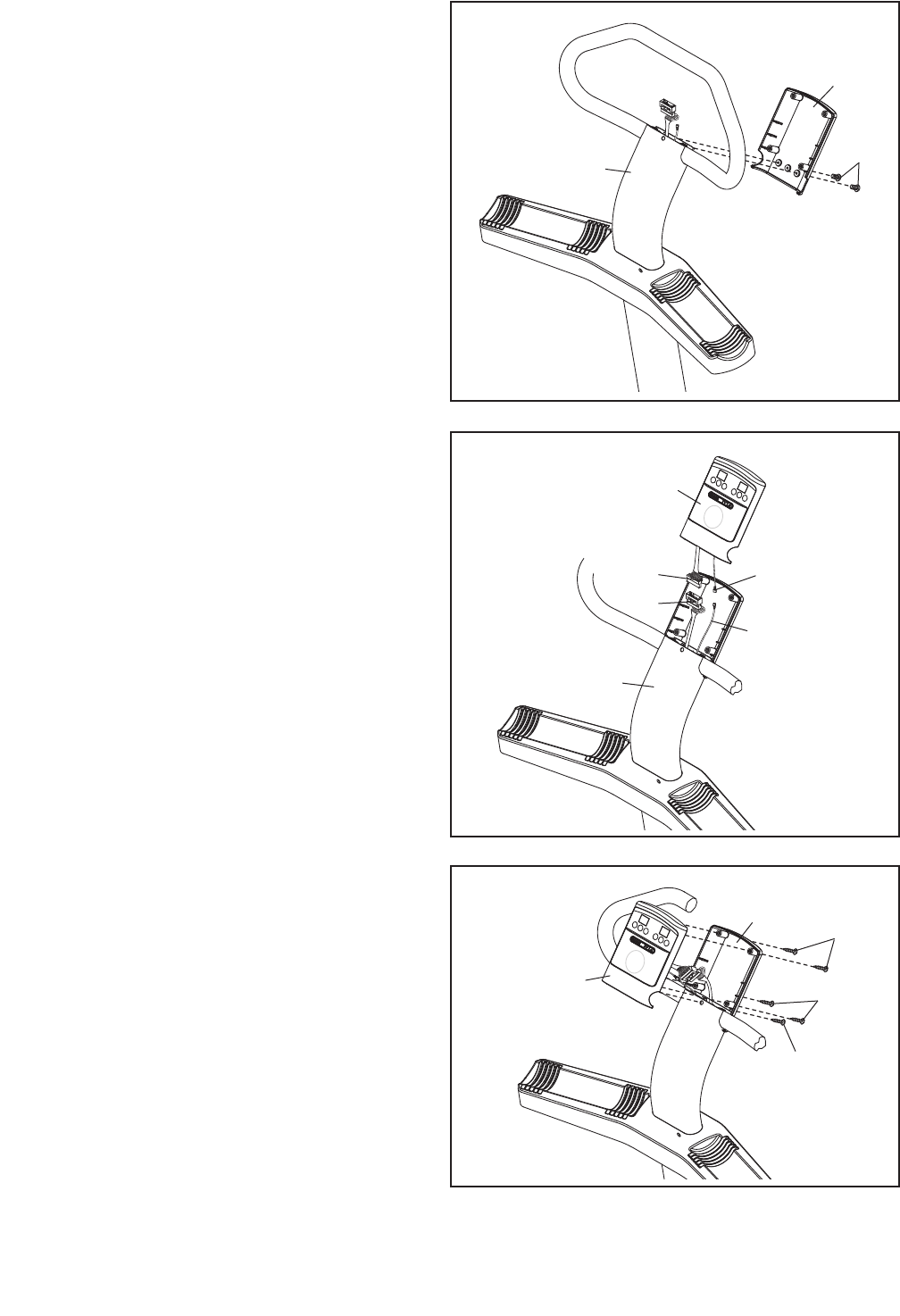

10. Remove the four M4 x 12mm Self-tapping

Screws (27) from the back of the Console (3).

Set the Self-tapping Screws aside until step

13.

10

27

27

3

11. Attach the back of the Console (3) to the Upper

Upright (36) with two M4 x 16mm Patch Screws

(26). Do not tighten the Patch Screws yet.

11

36

3

26

11

12. While a second person holds the front of the

Console (3) near the Upper Upright (36), con-

nect the console ground wire to the Ground

Wire (52).

Next, connect the console wire to the Wire

Harness (43).

Then, insert the wires into the Upper Upright

(36).

12

3

52

Console

Ground Wire

36

13. Tip: Be careful not to pinch the wires during

this step.

Attach the front of the Console (3) to the back

of the Console with the four M4 x 12mm Self-

tapping Screws (27) you removed in step 10

and an M4 x 19mm Screw (45).

See step 11. Tighten the two M4 x 16mm

Patch Screws (26).

13

327

27

45

3

Console

Wire

43

12

15. Plug the Power Cord (17) into the Receptacle

(18) located on the Base (5).

14. Set ten weight plates into the indicated slots in

the right side of the Weight Rest (42).

Next, lift the two selector pins on a Dumbbell

(44), and slide the selector pins to the adjust-

ment holes marked “2.5.” Place the Dumbbell

on the weight plates.

Then, lift the two selector pins and slide them to

the adjustment holes marked “15.”

Repeat this step with the other Dumbbell (44).

17

18

5

16. Make sure that all parts are properly tightened before you use the vibration platform.

14

15

44

Weight

Plates

Selector

Pins

Slots

44

42

13

HOW TO USE THE VIBRATION PLATFORM

HOW TO MOVE THE VIBRATION PLATFORM

Before moving the vibration platform, unplug

the power cord and remove the dumbbells from

the weight rest.

Hold the handlebar and place one foot against the

wheel. Tilt the vibration platform until it rolls freely

on the wheel. Carefully move the vibration platform

to the desired location. To reduce the risk of

injury, use extreme caution while moving the

vibration platform. Do not move the vibration

platform over an uneven surface.

HOW TO USE THE ADJUSTABLE-WEIGHT

DUMBBELLS

Each dumbbell handle can be used with two, four,

six, eight, or ten weight plates; each dumbbell han-

dle can also be used without weight plates.

To select the desired number of weight plates, first

set a dumbbell on the weight rest as shown. Next,

lift one of the selector pins, slide the selector pin to

one of the adjustment holes, and then release the

selector pin. Rock the selector pin from side to side

to make sure that it is fully inserted into one of the

adjustment holes. Adjust the other selector pin on

the dumbbell in the same way. Always attach the

same number of weight plates to both sides of

each dumbbell handle.

To use the dumbbell, lift it straight upward off the

weight rest, making sure that the unattached weight

plates remain on the weight rest.

Handle

Weight

Plates

Selector

Pin

Weight

Rest

Handlebar

Dumbbell

Dumbbell

Wheel

14

HOW TO PLUG IN THE POWER CORD

Your vibration platform, like any other type of sophisti-

cated electronic equipment, can be seriously damaged

by sudden voltage changes in your homeʼs power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appli-

ances being turned on or off. To decrease the

possibility of your vibration platform being dam-

aged, always use a surge suppressor with your

vibration platform (see drawing 1 at the right). To

purchase a surge suppressor, see your local PRO-

FORM store or call the telephone number on the

front cover of this manual and order part number

146148, or see your local electronics store.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have

a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450

joules. The surge suppressor must be electrically

rated for 120 volts AC and 15 amps. There must be

a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly.

This product must be grounded. If it should mal-

function or break down, grounding provides a path of

least resistance for electric current to reduce the risk

of electric shock. This product is equipped with a cord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord into a surge

suppressor, and plug the surge suppressor into an

appropriate outlet that is properly installed and

grounded in accordance with all local codes and

ordinances. IMPORTANT: The vibration platform is

not compatible with GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. A temporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a 2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet

box covers are not grounded. Contact a qualified

electrician to determine if the outlet box cover is

grounded before using an adapter.

DANGER: Improper connection of

the equipment-grounding conductor can

result in an increased risk of electric shock.

Check with a qualified electrician or service-

man if you are in doubt as to whether the

product is properly grounded. Do not modify

the plug provided with the product—if it will

not fit the outlet, have a proper outlet installed

by a qualified electrician.

1

2

Grounded Outlet Box

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw Grounding Plug

Grounded Outlet

Grounding Pin

15

CONSOLE FEATURES

The console offers a selection of features designed to

make your workouts more effective and enjoyable.

You can change the time and frequency of your vibra-

tion sessions with the touch of a button.

The console also features the new iFit interactive

workout system. The iFit interactive workout system is

compatible with iFit cards containing workout pro-

grams designed to help you achieve specific fitness

goals. IFIT programs control the time and frequency of

the vibration platform while the voice of a personal

trainer coaches you and motivates you through your

workouts. IFIT cards are available separately. To pur-

chase iFit cards, go to www.iFit.com or call the

telephone number on the front cover of this man-

ual. iFit cards are also available at select stores.

HOW TO TURN ON THE POWER

IMPORTANT: If the vibration platform has been

exposed to cold temperatures, allow it to warm to

room temperature before turning on the power. If

you do not do this, the console or other electronic

components may become damaged.

Plug the power cord

into the receptacle on

the base of the vibra-

tion platform (see

assembly step 15 on

page 12). Then, plug

the power cord into a

120-volt outlet. Next,

locate the reset/off circuit breaker on the vibration plat-

form near the power cord. Make sure that the circuit

breaker is in the reset position.

EXERCISE FORM

See the accompanying exercise DVD to learn the cor-

rect form for several exercises that can be performed

on the vibration platform. When standing on the vibra-

tion platform, bend your knees slightly and balance

your weight on the balls of your feet.

Reset

Position

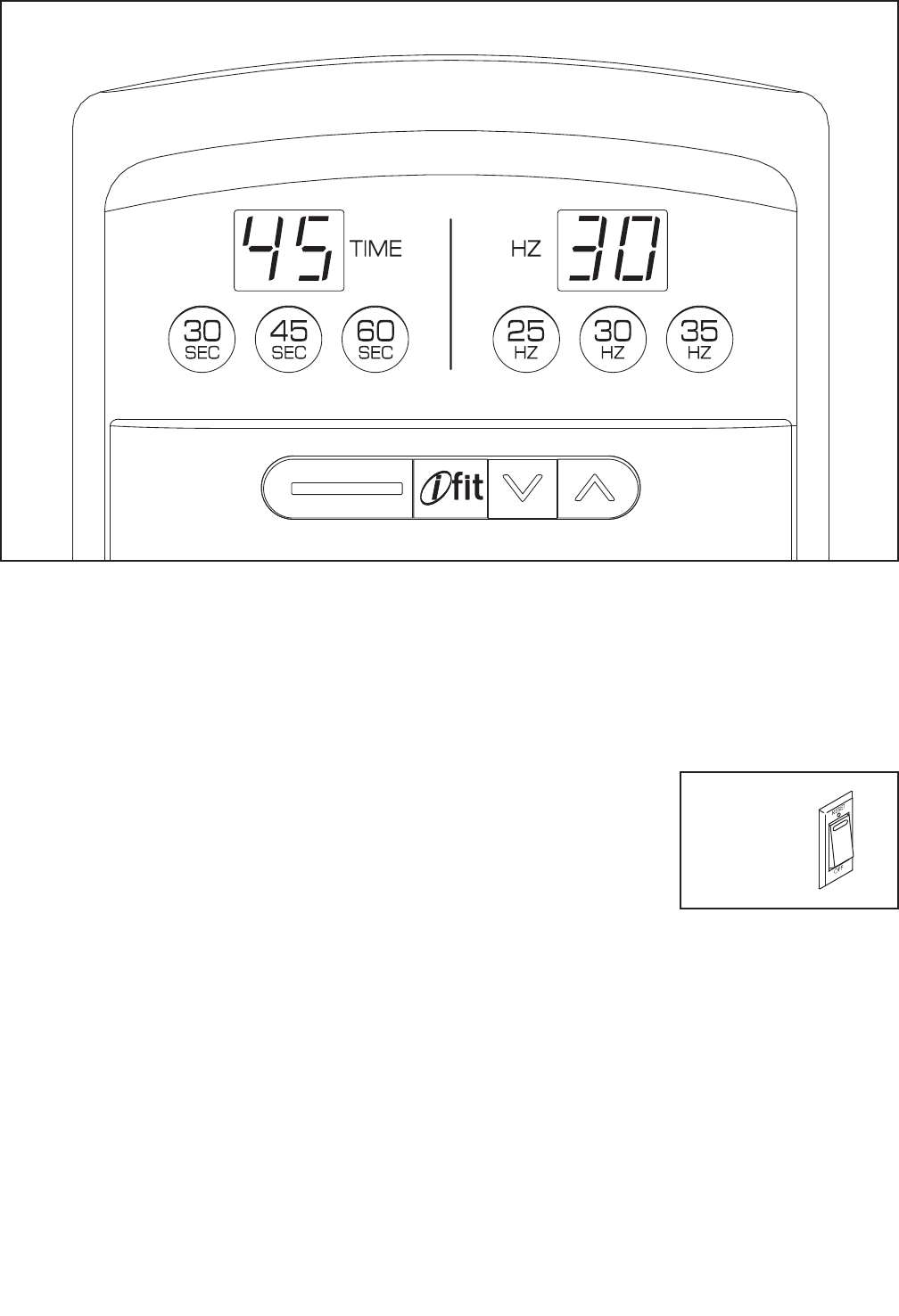

CONSOLE DIAGRAM

HOW TO USE THE MANUAL MODE

1. Turn on the power.

See HOW TO TURN ON THE POWER on page

15.

2. Select the desired vibration time.

Press the desired time button to select a vibration

time of 30, 45, or 60 seconds. The display will

show which length of time you have selected.

3. Select the desired vibration frequency.

Press the desired frequency button to select a

vibration frequency of 25, 30, or 35 hertz. The dis-

play will show which frequency you have selected.

4. Start a vibration session.

Press the start but-

ton on the platform

to start a vibration

session.

5. Stop or pause a vibration session.

Press the stop button (see the drawing above) on

the platform to stop or pause a vibration session.

Press the start button to continue the vibration

session.

Note: When the session ends, a tone will sound to

alert you, and the vibration platform will automati-

cally stop.

6. Start additional vibration sessions as desired.

Repeat steps 2–5 for as many additional vibration

sessions as desired. IMPORTANT: It is recom-

mended that you use the vibration platform for

no more than 15 minutes per day and no more

than 3 times per week.

7. When you are finished, switch the reset/off

switch to the off position and unplug the

power cord.

HOW TO USE AN IFIT PROGRAM

1. Turn on the power.

See HOW TO TURN ON THE POWER on page

15.

2. Insert an iFit card and select a program.

To use an iFit program, insert an iFit card into the

iFit slot; make sure that the iFit card is oriented so

the metal contacts are face down and are facing

the slot. When the iFit card is properly inserted,

the indicator next to the slot will light and the num-

ber of the iFit program will appear in the display.

Next, select the desired program on the iFit card

by pressing the increase and decrease buttons

next to the iFit slot.

A moment after you select a program, the voice of

a personal trainer will begin guiding you through

your workout.

3. When you are finished exercising, remove the

iFit card.

Remove the iFit card when you are finished exer-

cising. Store the iFit card in a secure place.

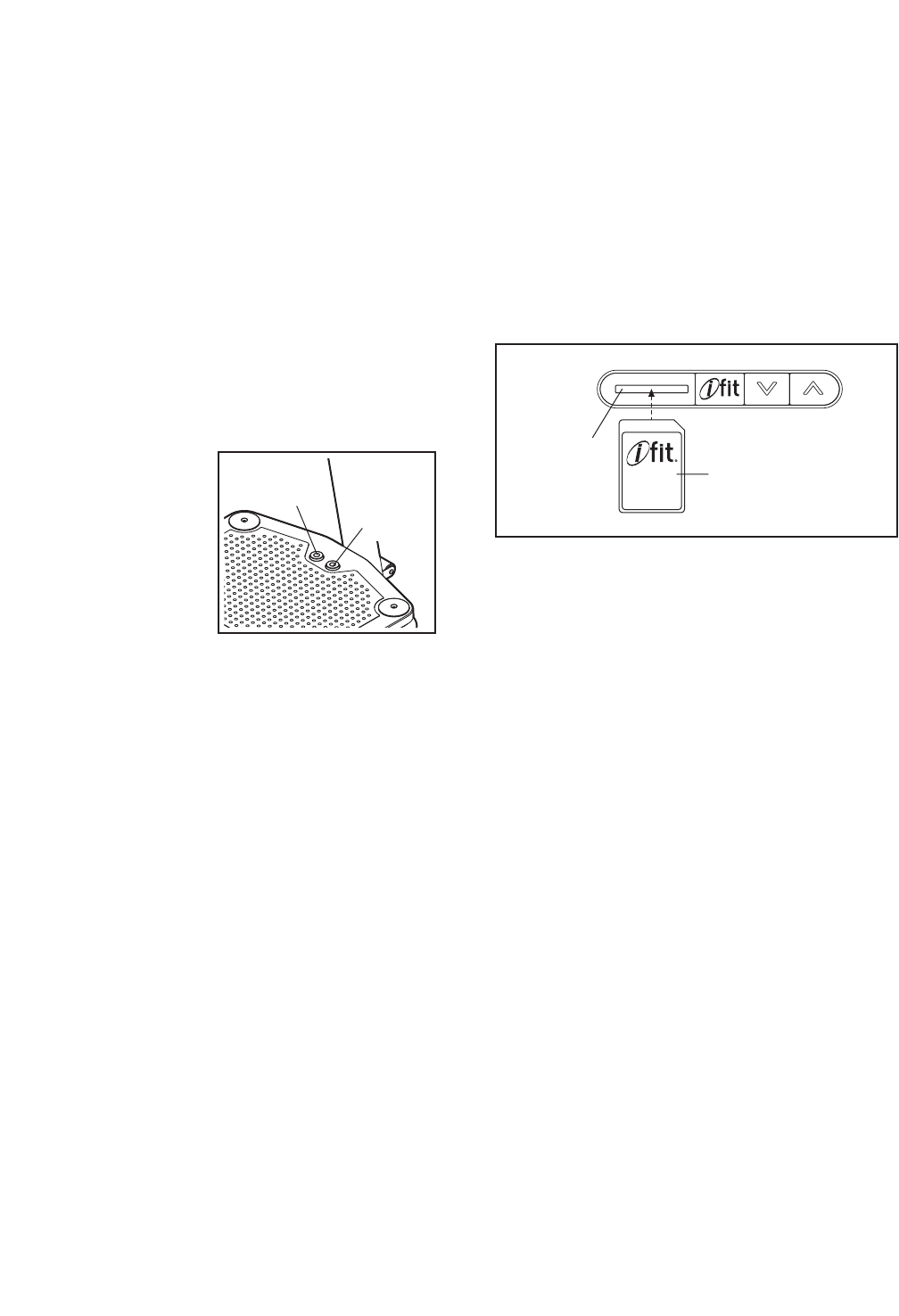

iFit Slot

iFit Card

16

Stop

Button Start

Button

17

TROUBLESHOOTING

Inspect all parts of the vibration platform regularly. Replace any worn parts immediately. Outer surfaces of the

vibration platform can be cleaned with a damp cloth and a mild, non-abrasive detergent; do not use solvents

to clean the vibration platform.

Most vibration platform problems can be solved by following the simple steps below. Find the symptom

that applies, and follow the steps listed. If further assistance is needed, call the telephone number on

the front cover of this manual.

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppres-

sor is plugged into a properly grounded outlet (see page 14). Use only a single-outlet surge

suppressor that meets all of the specifications described on page 14. IMPORTANT: The vibra-

tion platform is not compatible with GFCI-equipped outlets.

b. Check the reset/off circuit breaker located on the

vibration platform base near the power cord. If the

switch protrudes as shown, the circuit breaker has

tripped. To reset the circuit breaker, wait for five

minutes and then press the switch back in.

PROBLEM:The power turns off during use

SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped,

wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

c. If the vibration platform still will not run, please see the front cover of this manual.

Tripped Reset

c

18

11Lower Upright

21Platform Cover

31 Console

41Platform Plate

51Base

61Vibration Platform

71Stop Button

81Start Button

91Controller Box

10 1 Controller

11 1 Controller Cover

12 1 Motor

13 5 Foot

14 4 Shock Absorber Cover

15 4 Shock Absorber

16 4 Platform Cap

17 1 Power Cord

18 1 Receptacle

19 1 Reset/Off Circuit Breaker

20 2 M10 x 55mm Patch Screw

21 2 Copper Plate

22 2 Spring

23 2 M8 x 16mm Screw

24 4 M10 x 46mm Flat Head Screw

25 4 M8 x 30mm Screw

26 2 M4 x 16mm Patch Screw

27 4 M4 x 12mm Self-tapping Screw

28 6 M10 x 20mm Patch Screw

29 1 Rubber Spacer

30 1 Wheel

31 4 M4 x 8mm Screw

32 3 M10 Locknut

33 1 M10 x 114mm Bolt

34 5 M10 x 35mm Screw

35 1 Wheel Bracket

36 1 Upper Upright

37 2 M10 x 62mm Patch Screw

38 10 M10 Split Washer

39 1 Handlebar

40 8 M5 x 38mm Screw

41 1 Weight Rest Frame

42 1 Weight Rest

43 1 Wire Harness

44 1 Dumbbell (Pair)

45 1 M4 x 19mm Screw

46 4 M8 Washer

47 4 M8 Split Washer

48 4 Frame Cover

49 1 Motor Mounting Bracket

50 1 Motor Cover

51 2 M10 x 50mm Patch Screw

52 1 Ground Wire

53 3 M4 x 12mm Screw

54 1 Grommet

55 2 M10 x 68mm Bolt

56 1 Switch Wire Harness

*–Wiring Tie

*–Assembly Tool

*–Userʼs Manual

*–DVD

Key No. Qty. Description Key No. Qty. Description

PART LIST—Model No. PFVB14988.0 R1209A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

19

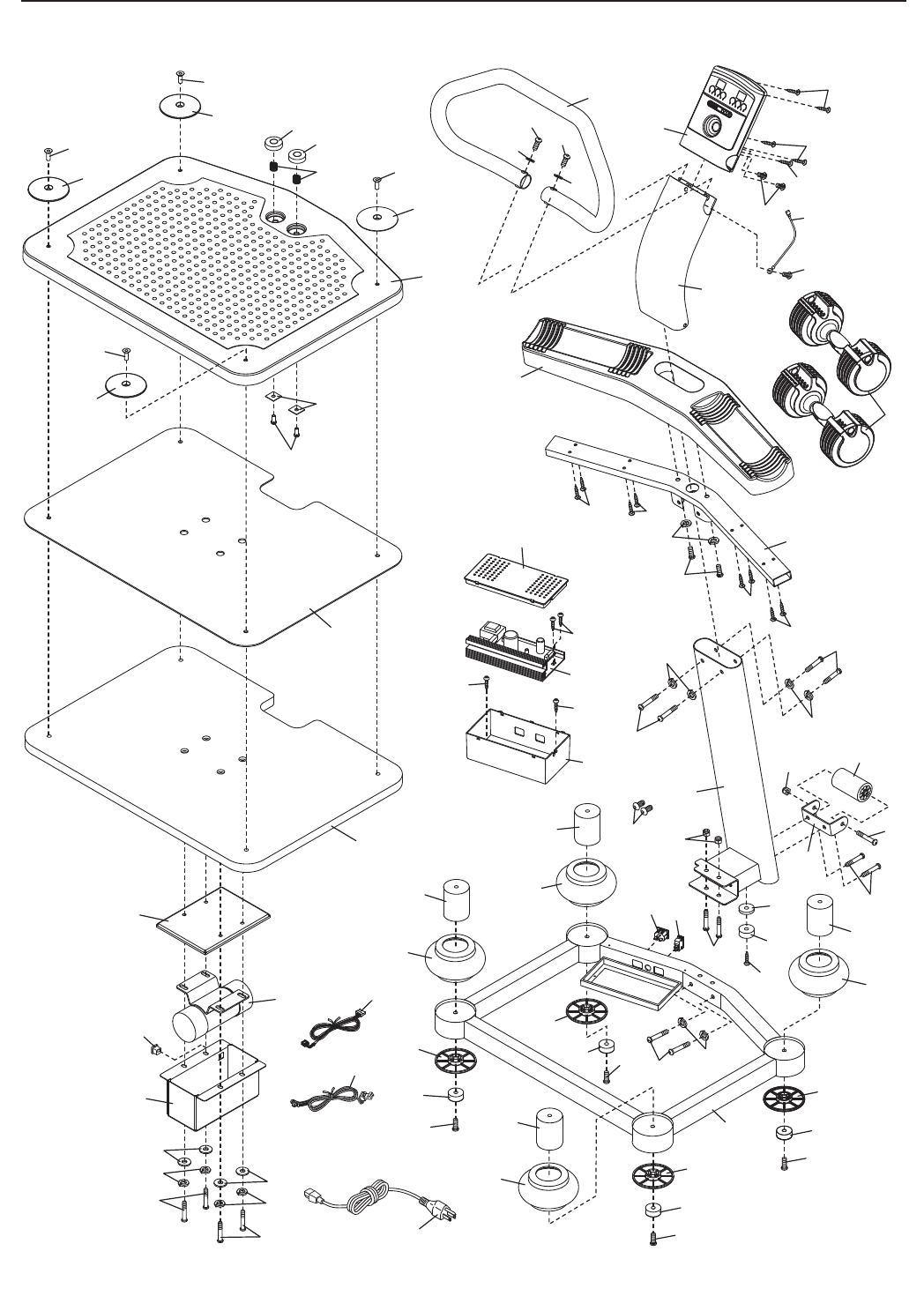

EXPLODED DRAWING—Model No. PFVB14988.0 R1209A

1

30

2

4

6

12

15

14

16

13

9

10

11 41

42

36

3

39

48

48

48

34

15

14

16

13 34 20

15

14 16

13

34

16

13

34

5

15

14

48

7

8

22

23

21

25

25

17

43

24

24

24

24

37

27

26

45

27

40

51

28

40

40

40

32

35

33

28

29

13

34

18 19

31

47

46

47

46

38

28

38

38

38 37

38

38

49

50

52

53

54

44

53

55

32

31

31

56

Part No. 264004 R1209A Printed in China © 2009 ICON IP, Inc.

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

•the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions. Parts and labor are warranted for one (1) year from

the date of purchase.

This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to

repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All

repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to

a service center, freight charges to and from the service center will be the customerʼs responsibility. For

replacement parts shipped while the product is under warranty, the customer will be responsible for a min-

imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This

warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,

misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to

products used for commercial or rental purposes or as store display models; or to products transported

or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by

ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.proformservice.com/registration.
