Promethean 017 ActivBoard Pen User Manual

Promethean Ltd ActivBoard Pen Users Manual

Users Manual

User Guide
TP-1932-V01
Safety Information 3
Box Contents 3
Getting Started 4
Attaching and Storing the Pen 6
Using With ActivInspire 7
Maintenance 7
Compliance 8
Contents
x1
x1
x1
x2
Safety Information
Box Contents
WARNING: Choke hazard - contains small parts
Battery Safety
Do not place in a re.
Do not short circuit
Replace only with same or equivalent type.
Observe local regulations for disposal.
Do not heat
Do not attempt to charge
Do not disassemble
Do not swallow
A A A
Environmental Considerations
Temperature: Humidity:
Operating 0°C to 40°C Non-Condensing 10% to 90%
Storage -20°C to 60°C
For further information and support about the installation and safe use of this product,
please contact your local Promethean reseller or visit www.prometheankb.com
ActivBoard Pen User Guide 3
Getting Started
Before You Start
Install the latest ActivDriver from www.prometheanplanet.com.
Install the latest version of ActivInspire from www.prometheanplanet.com.
Installing the Battery
Binding the Digital Pen
123
45
4 ActivBoard Pen User Guide
Binding the Digital Pen
Getting Started
1
2
3
3
4
5
NOTE:
The digital pen can be recognised when it is held near to the board. Do NOT put the pen
close to the board when using touch.
Pen and Touch can not be used at the same time.
ActivBoard Pen User Guide 5

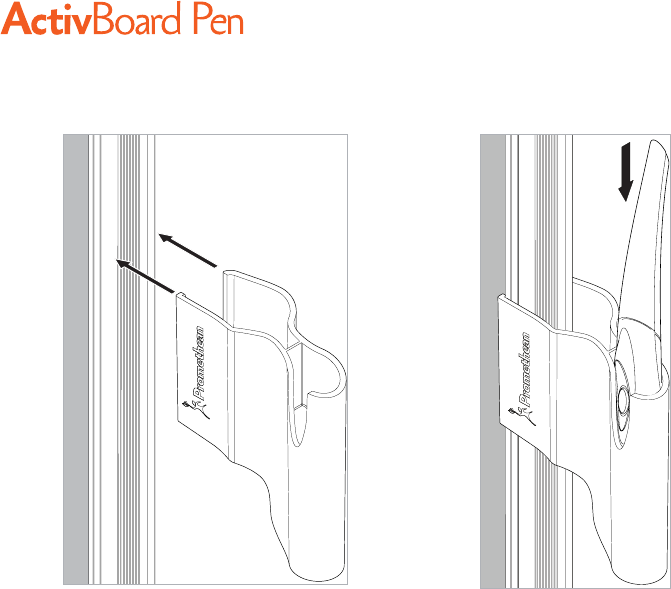

Attaching and Storing the Pen
NOTE:
When tting the holder the Promethean logo is to the back.
The pen MUST be stored in the supplied holder when not in use to preserve battery life.
Locate the pen in the holder as shown.
6 ActivBoard Pen User Guide
Using with ActivInspire
Maintenance
1
4
5
6
Replacing the Nib
1
2
3
2
3
ActivBoard Pen User Guide 7
Compliance
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
Changes or modications to this equipment not expressly approved by Promethean may void the user’s authority to
operate this equipment.
For non-intentional radio parts, this equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause
harmful interference to radio or television. Which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
E242827
I.T.E
This device complies with RSS-210 of Industry Canada and is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
Changes or modications to this equipment not expressly approved by Promethean may void the user’s authority to
operate this equipment. This Class B digital apparatus complies with Canadian ICES-003.
Français
Ces équipements sont conformes à la norme CNR-210 d’Industrie Canada. Leur utilisation est subordonnée aux deux
conditions suivantes:
• Ces appareils ne doivent pas causer d’interférence dommageable.
• Ces appareils doivent pouvoir accepter toute interférence reçue, y compris les interférences susceptibles de
compromettre le fonctionnement des dispositifs.
Toute modication apportée à ce dispositif sans l’autorisation expresse de
Promethean pourrait annuler la licence d’utilisation accordée à l’utilisateur. Ce dispositif numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Declaration of Conformity
Promethean hereby declare that the device is in compliance with the essential requirements of the R&TTE directive 1999/5/
EC. Please contact Promethean for a copy of the Declaration of Conformity if required.
Radio Interference
The Radio interface on this product is intended for use with other Promethean radio devices for operation in the following
countries:
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak
Republic, Spain, Sweden, Switzerland, United Kingdom.
Waste Electrical and Electronic Equipment (WEEE). For more information concerning the correct disposal of this product
and its battery, please contact your Promethean reseller.
United States of America
Canada
United Kingdom
Model Type: PRM-AS1-01
©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country.
Product Specications are subject to change without notice.
TP-1932-V01
8 ActivBoard Pen User Guide
