Important to user
NOTE:
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority.
NOTE:
This equipment has been tested and found to comply with the limits for a class B digital
Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio Communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Important safety precautions
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions inthe literature
accompanying the appliance,
Important safety instructions
CAUTION
TO REDUCE THE RISK OF AN ELECTRIC
SHOCK, DO NOT REMOVE THE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE
PARTS INSIDE. FOR ANY REQUIRED
SERVICING, PLEASE CONTACT QUALIFIED
SERVICE PERSONNEL.
CAUTION:
USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION:
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do
not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
Important safety instructions
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water
6. Clean only with dry cloth
7. Do not block any ventilation openings
8. Do not install near any heat sources
9. Do not defeat the safety purpose of the polarized or grounding-type plug
10. Protect the power cord from being damaged particularly at plugs, convenience receptacles, and at
points in which they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
2
Important safety precautions
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the
power-supply cord or plug is damaged, when liquid has been
spilled or when objects have fallen into the apparatus, or when
the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
POWER SOURCE: This TV should be operated only from the type of S3126A
power source indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your appliance dealer or local power company. For TVs
intended to operate from battery power, or other sources, refer to the operating
instructions.
POWER CORD PROTECTION: Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where
they exit from the appliance.
OUTDOOR ANTENNA GROUNDING : If an outside antenna or cable system is
connected to the TV, be sure the antenna or cable system is
grounded to provide some protection against
voltage surges and built-up static charges.
Section 810 of the National Electrical Code,
ANSI/NFPA NO.70, provides information
with respect to proper grounding of the
mast and supporting structure, grounding
of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location
of antenna discharge unit, connection to
grounding electrodes, and requirements for
the grounding electrode. (Fig.A) S2898A - _ POWERSERVICEGROUNDING
ELECTRODESYSTEM
LIGHTNING: For added protection for this TV receiver during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage to the
TV due to lightning and power line surges.
POWER LINES: An outside antenna system should not be located in the vicinity of
overhead power lines, or other electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with
them might be fatal.
FIGURE A
EXAMPLE OF ANTENNA GROUNDINGAS PEF ANTENNA LEAD
NATIONAL ELECTRICAL CODE IN WIRE
C LAIVIP "-/_, E
3
Important safety precautions
20. OVERLOADING: Do not overload wall outlets and extension cords as this can result
in a risk of fire or electric shock.
21. OUTDOOR USE: Do not install this TV outdoor. If the TV is exposed to rain, it may
result in a fire or an electric shock. If the TV is exposed to direct sunlight, the TV may
heat up and cause damage to the TV.
22. VEHICLE: Do not install the TV in a vehicle. Bumping of the vehicle may cause the
TV to fall down and cause injury.
23. SHIP AND VESSEL: Do not install this TV in a ship or vessel. If the TV is exposed to
seawater, it may cause a fire or damage the TV.
24. OBJECT AND LIQUID ENTRY: Never push objects of any kind into this TV through
openings as they may touch dangerous voltage points or short out parts that could
result in fire or electric shock. Never spill liquid of any kind into the TV.
25. SERVICING: Do not attempt to service this TV yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
26. REPLACEMENT PARTS: When replacement parts are required, be sure that the
service technician uses replacement parts with the same characteristics as the
original parts specified by the manufacturer. Unauthorized substitutions may result in
fire, electric shock, injury to persons or other hazards.
27. SAFETY CHECK: Upon completion of any service or repairs to this TV, ask the
service technician to perform routine safety checks to determine that the TV is in
proper operating condition.
28. The apparatus should not be exposed to any dripping or splashing, and no objects
filled with liquids (such as a vase) should be placed on the apparatus.
29. WARNING: Plug the power cord into a power outlet where access to the power cord
connector is readily accessible, in case if the power needs to be immediately
disconnected.
30. ATTENTION: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
a). Disposal of packaging:The packaging of this product is intended to be recycled. Apply
to the local authorities for correct disposal.
b). Disposal of batteries: The batteries supplied do not contain the heavy metals mercury
and cadmium. Please check on how to dispose exhausted batteries according to local
regulations.
c). Note Specifications and information are subject to change without notice. If you need
further assistance, please call the customer support service in your country.
31 .POWER=CORD INSERT CHECK:When connecting the power cord to the connector of the
TV, make sure the power cord is fully inserted in the place. Bad contact may cause high
temperature of the connector and the risk of fire or other damages.
Important Safety Precautions
To secure TV to stand or Wall, use hardware listed below (Not Supplied)
1. Attach the wall anchor on the stand.
2. Tie the ropes or chains with TV pedestal screws.
Ropes or chains should be secure tightly.
3. Fasten the anchor bolts into top wall-mount holes.
4. Attach the wall anchors on the wall strong enough to support the weight of the TV. (Attach to the
Wall Stud).
5. Make sure to connect anchor bolts to wall anchors.
• Anchor bolt - M6 x 10mm (42"and 47") or M6x 16mm(55")
6. Check that all connections are properly secured. Periodically check for any sign of fatigue or
failure. If you have any doubt about the security of your connections, contact a professional
installer.
5
Table of Contents
1.important to user ...................................................................................... 1
2.Important safety precautions .................................................................... 2
Safeguards ....................................................................................... 2
Safety Strap ...................................................................................... 5
3.Table of Contents ..................................................................................... 6
4.Setting Up ................................................................................................. 7
Installing the Stand ...................................................................... 7
Wall mount specifications ...................................................................... 7

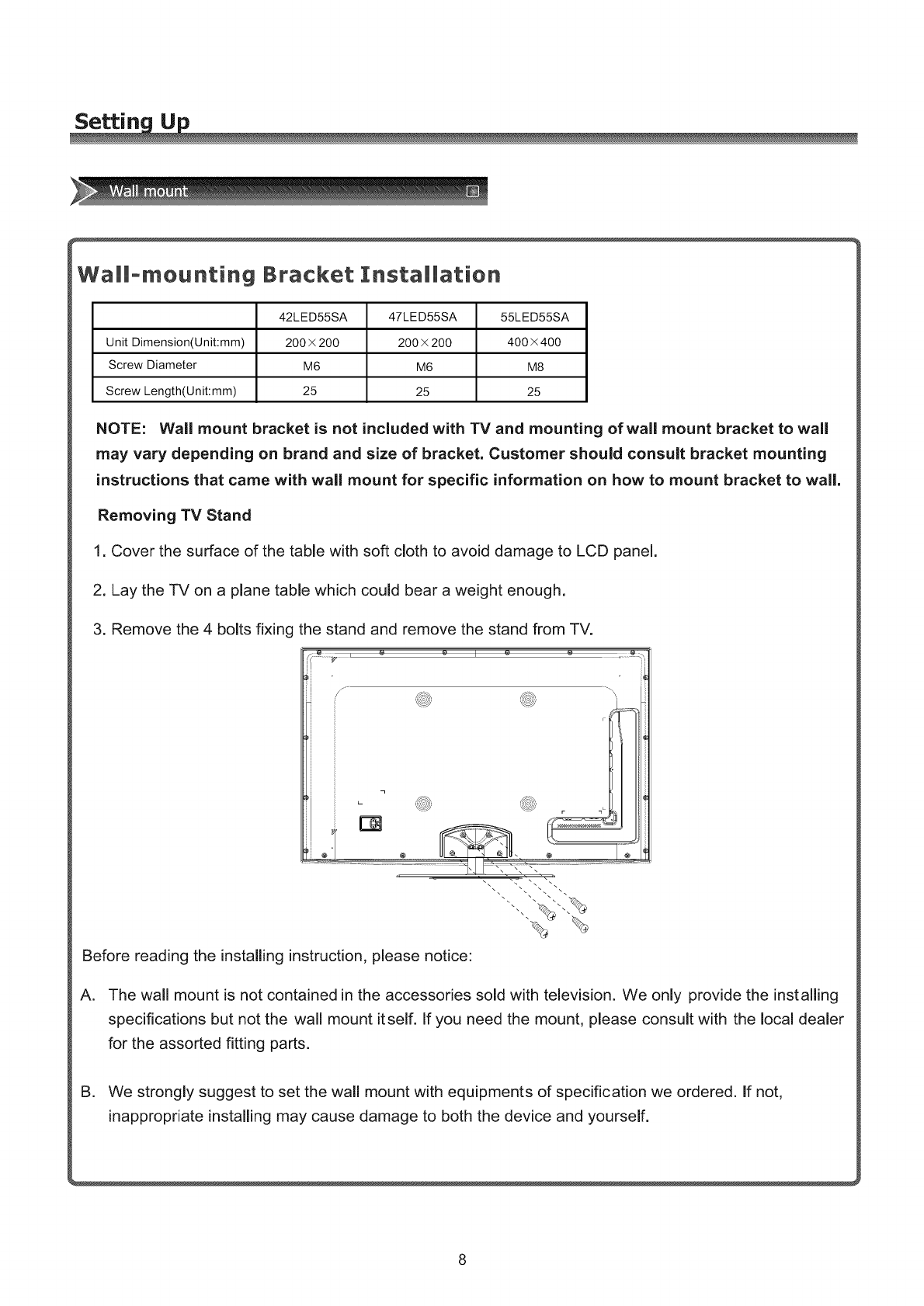

Wall mount ......................................................................................... 8
TV Front ........................................................................................... 10
TV Rear ............................................................................................ 11

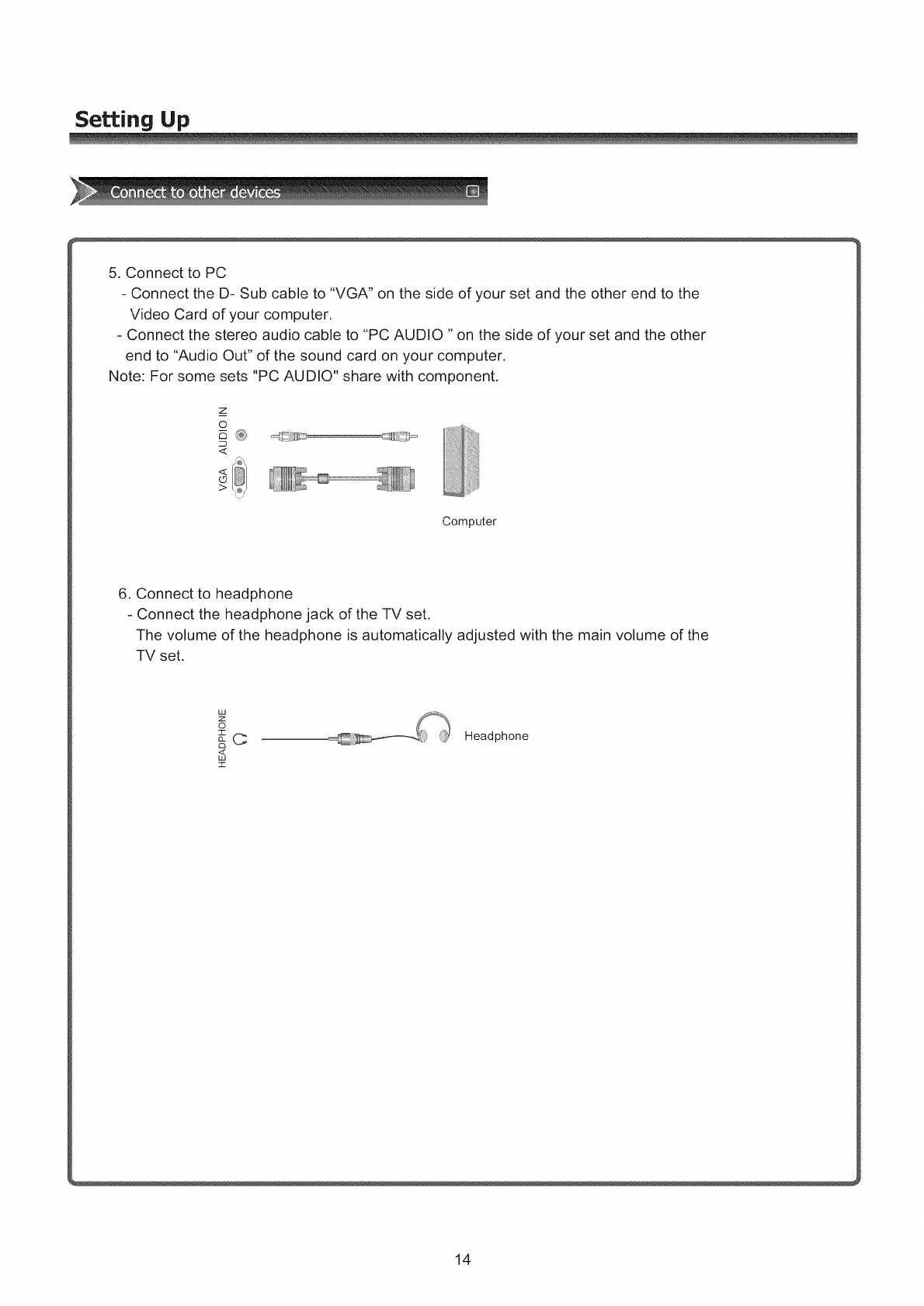

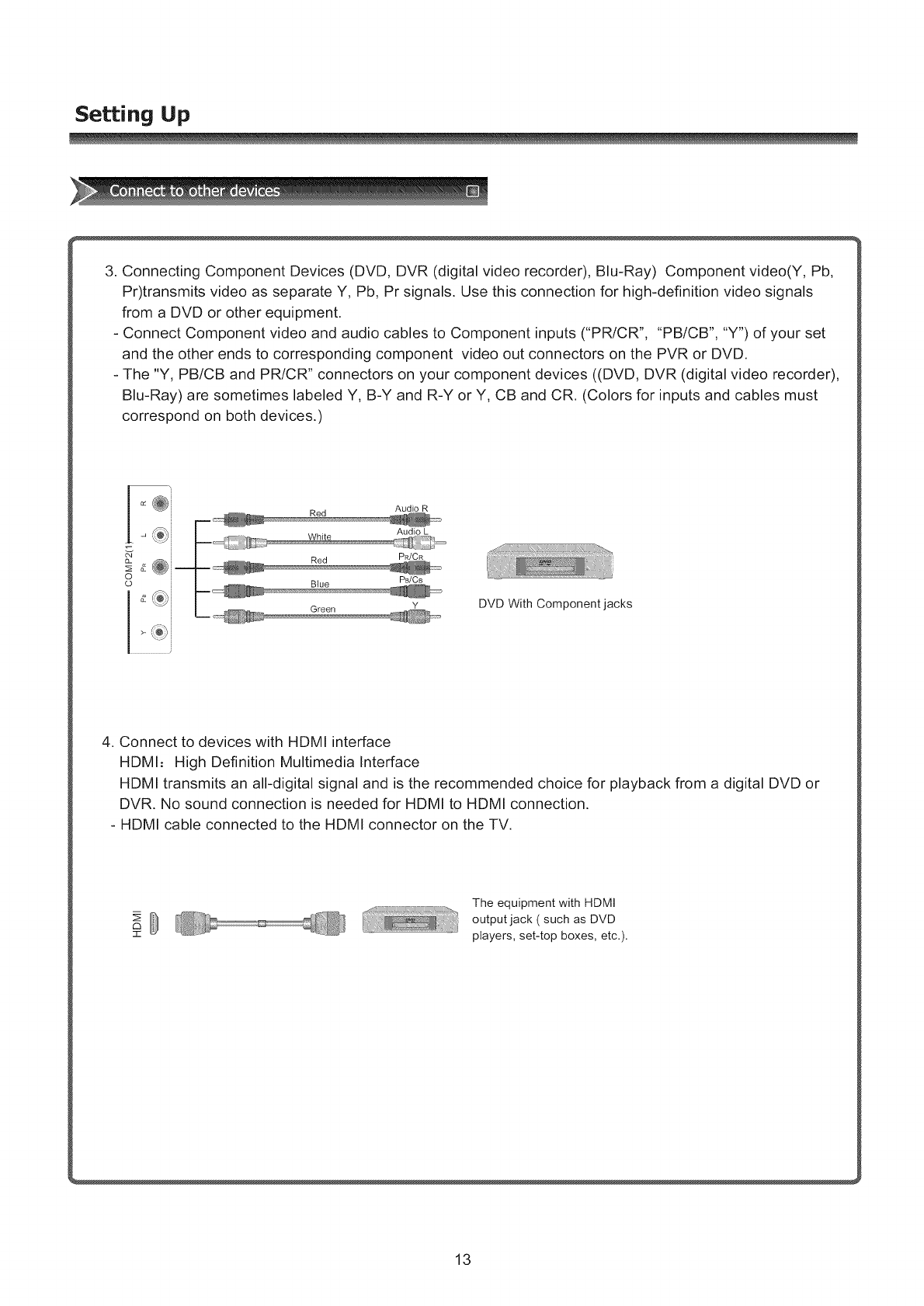

Connect to other devices ................................................................. 12
5.Using the Remote Control ....................................................................... 15
Installing the remote control batteries ............................................... 15
Learning about the Remote Control Panel ....................................... 16

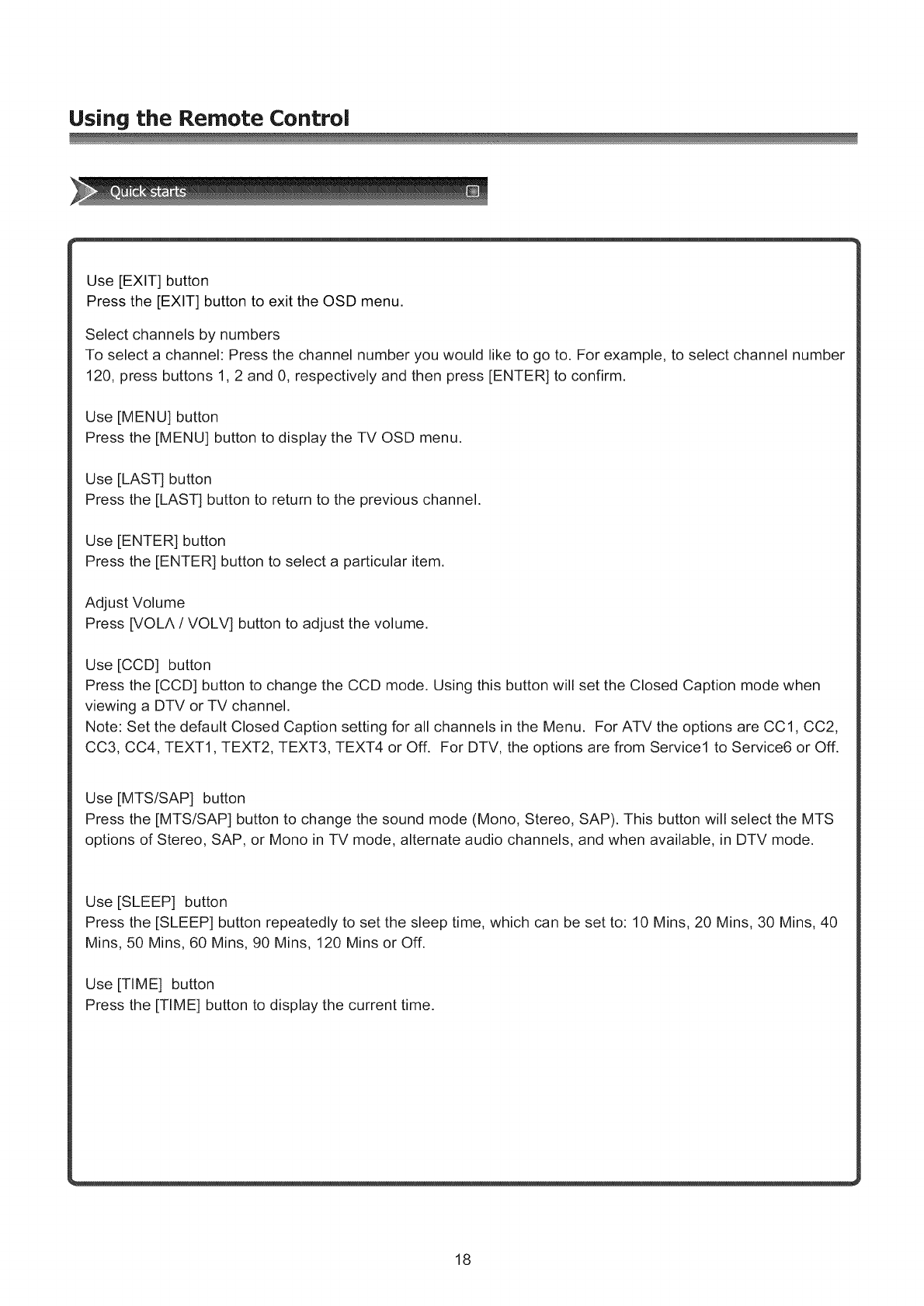

Quick starts ...................................................................................... 17
6.Changing the TV Settings ....................................................................... 19

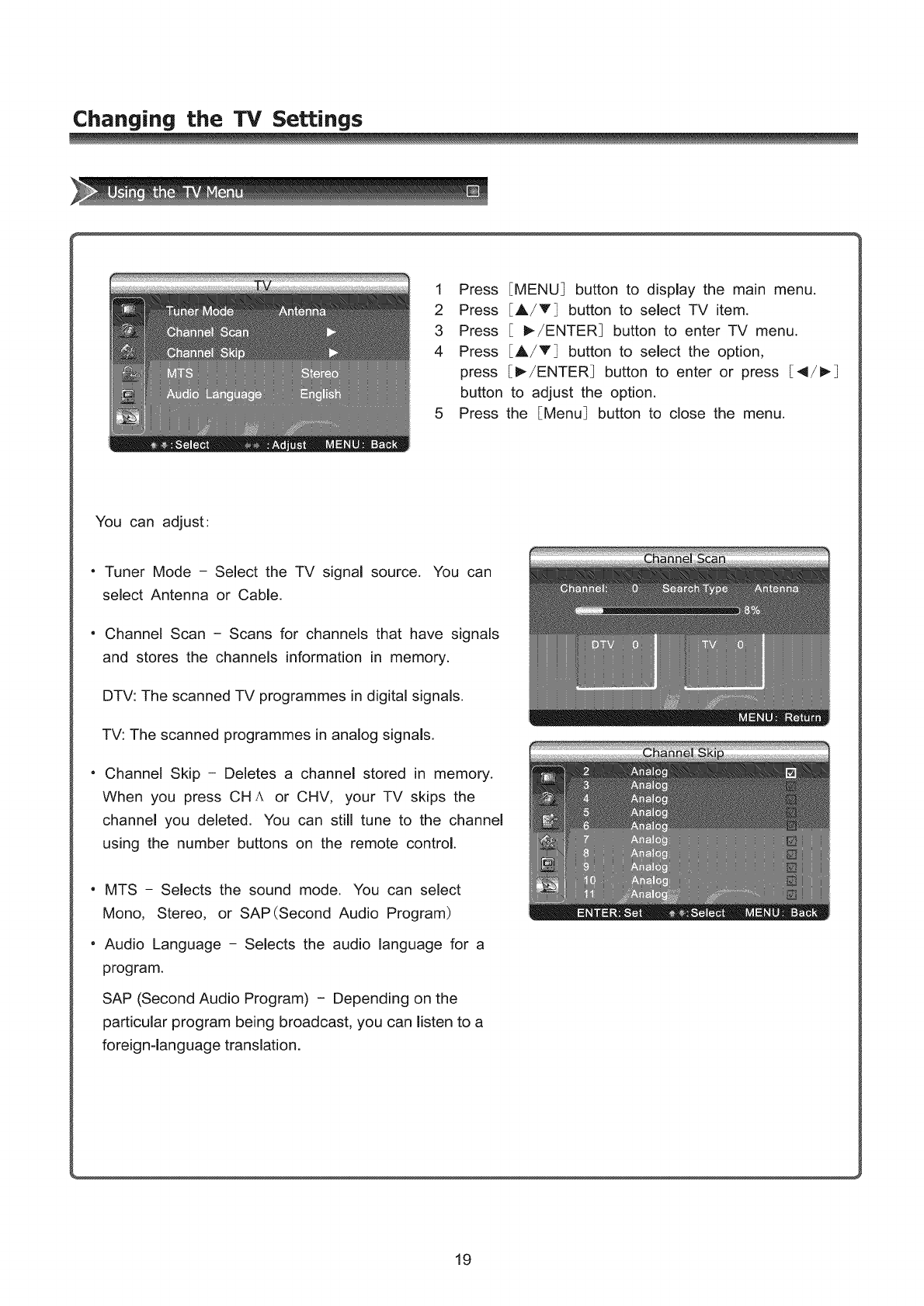

Using the TV Menu .......................................................................... 19
Using the Video Menu ..................................................................... 20
Using the Audio Menu ..................................................................... 22

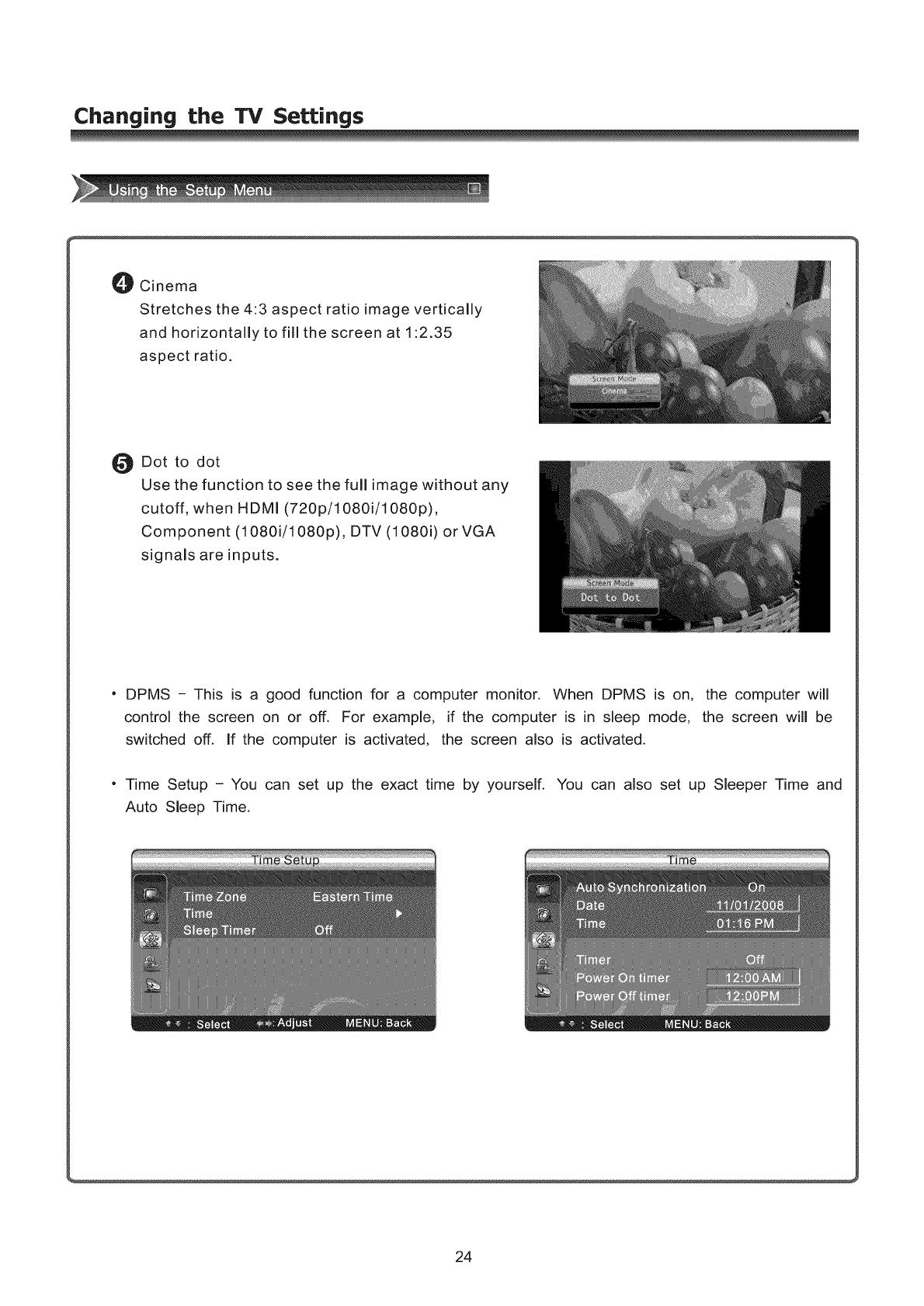

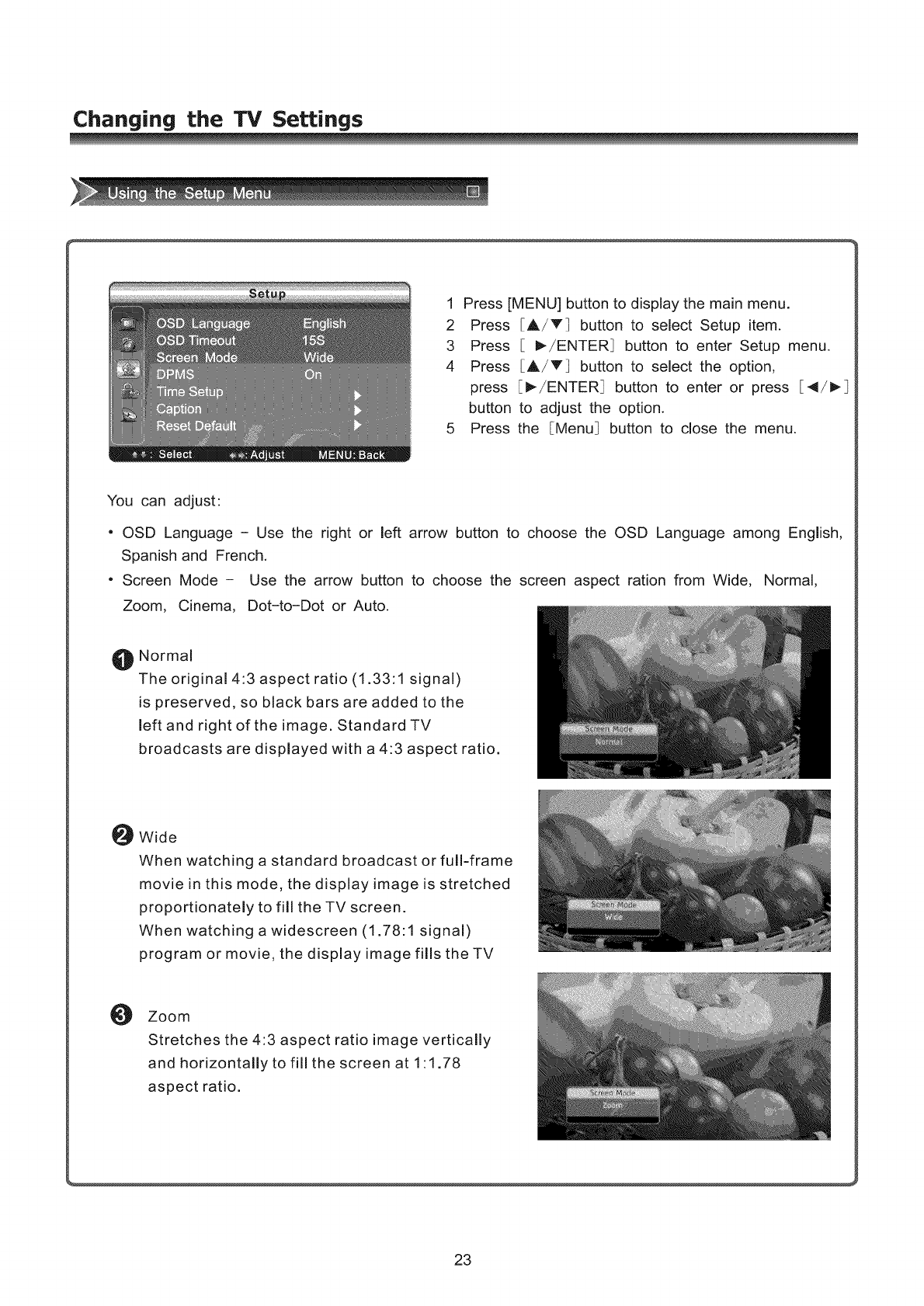

Using the Setup menu ..................................................................... 23
Using the Parental menu ................................................................. 26
7.Appendix ................................................................................................. 29
Trouble shooting .............................................................................. 29
Specifications ................................................................................... 30
6
Setting Up
Installing the Stand
@
1. Lay a cloth or another soft material on a flat surface to avoid damage to the LCD screen.
2. Put the TV back upward and the LCD screen downward and keep it flat on the table-board.
3. Take out the stand and insert the stand into the installing slot in the lower part of the TV, then put the
stand to relevant position of the TV set until all the holes match each other completely.
4. Fasten the stand and the TV set together with the 4 screws provided. Erect the TV set, and put it on
the proper position for watching.
Note:
The above figures are for reference only, please refer to the actual units to determine the appearances.
Every hole of the stand must be fastened with screws!
Wall mount specifications
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building
materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and
result in severe personal injury.
• Dimensions for wall mount kits and wall-mount screws pattern please refer specifications table.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of
the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the
screws may differ depending on their specifications.
• Do not use screws that do not comply with the VESA standard screw specifications.
• Do not fasten the screws too strongly, this may damage the product or cause the product to fall,
leading to personal injury.
• Proscan is not liable for product damage or personal injury when a non-VESA or non-specified wall
mount is used or the consumer fails to follow the product installation instructions.
• Do not exceed 15 degrees tilt when mounting this TV.
7
Wallomounting Bracket Installation
42LED55SA 47LED55SA 55LED55SA
Unit Dimension(Unit:mm) 200 x 200 200 x 200 400 x 400
Screw Diameter M6 M6 M8
Screw Length(Unit:mm) 25 25 25
NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall
may vary depending on brand and size of bracket. Customer should consult bracket mounting
instructions that came with wall mount for specific information on how to mount bracket to wall.
Removing TV Stand
1. Cover the surface of the table with soft cloth to avoid damage to LCD panel.
2. Lay the TV on a plane table which could bear a weight enough.
3. Remove the 4 bolts fixing the stand and remove the stand from TV.
Before reading the installing instruction, please notice:
A, The wall mount is not contained in the accessories sold with television. We only provide the installing
specifications but not the wall mount itself. If you need the mount, please consult with the local dealer
for the assorted fitting parts.
B. We strongly suggest to set the wall mount with equipments of specification we ordered, if not,
inappropriate installing may cause damage to both the device and yourself.
8
Setting Up
When Installing the TV Against aWall or Enclosed Area
Make sure that your TV has adequate air circulation. Allow enough space around
the TV as shown below. Avoid operating the TV at temperatures below Inadequate air 45° F (5°C)
Instand with stand 12 inches
4 inches
2.375 inches
6cm
... __ __ !U-L_d
Leave at least this much space ar the set.
Install on the wall 12inches
4 inches
10cr'n _
4 inches
Leave at least this much
space around the set.
Never install the TV set as follows:
Air circulation is blocked.
wall
Inadequate air circulation can lead to overheating of the TV and may cause damage to your TV or cause a
fire.
9
Setting Up
TV Front
Note:Touch the silk print area according to the need, the TV will response correctly.
No. Component Component Description
Blue light indicates standby mode. Flashing led shows the
1 POWER indicator unit is powering on. The light is off when TV is turned on.
2 Remote sensor Receives signals from the remote control. Do not block.
3 Standby button Press to turn your TV on or off(Standby mode)
4 CH _' Press to go to the previous channel.
5 CH A Press to go to the next channel.
6 VOLT Press to decrease the volume.
7 VOLA Press to increase the volume.
8 input Press to select the signal source for your TV.
9 MENU Press to activate the on-screen display (OSD).
10
Setting Up
TV Rear
f COMPONENT2 -1
@Y-- @ PB-- _t PR-- (_) L-- @R SERVICE
VIDEO
I AV2 [ j COAXIAL 0 _ HDMI 4
L
The cable tie is only used for the power cord.
Note: The appearance of 42LED55SA, 47LED55SA and 55LED55SA are similar, the picture above is
for reference only.
11
Setting Up
Warning: Before connecting the TV to any other electronic device, unplug the TV and electronic
device AC cords from the AC input.
Note: Not all following terminals are included on your TV. The actual one refer to "TV Rear".
1. Connect to broadcast antenna or the cable TV
To have an optimal picture quality, it is strongly recommended to have an external antenna or a cable TV.
Note:
- It is recommended that coaxial cable (750) be used to eliminate the interference caused by the
mismatched impedance.
- The antenna cable should not be bound together with the power cord.
- When using the cable TV, please insert the plug of the coaxial cable (75 O) directly into the antenna
A. E..ASOO.E COA.,A OAO .,7.O
ANT
outlet.
Adaptor (not suppl_
the screw
TWIN-LEAD FEEDER
(3000)
The signal comes from:
An outdoor antenna
An indoor antenna
CATV net
2.Insert the feeder in 3.Tighten the screw
2. Connect to AV devices
- Connect a Video RCA cable to an appropriate external A/V device such as a VCR, DVD or Camcorder.
- Connect RCA audio cables to "R -AUDIO - L" on your set and the other ends to corresponding audio
out connectors on the A/V device.
LU
=1::3
>
Audio R
Audio L
Video
VCD, DVD, set-top boxes, etc.
12
Setting Up
3. Connecting Component Devices (DVD, DVR (digital video recorder), Blu-Ray) Component video(Y, Pb,
Pr)transmits video as separate Y, Pb, Pr signals. Use this connection for high-definition video signals
from a DVD or other equipment.
- Connect Component video and audio cables to Component inputs ("PR/CR", "PB/CB", "Y") of your set
and the other ends to corresponding component video out connectors on the PVR or DVD.
- The "Y, PB/CB and PR/CR" connectors on your component devices ((DVD, DVR (digital video recorder),
Blu-Ray) are sometimes labeled Y, B-Y and R-Y or Y, CB and CR. (Colors for inputs and cables must
correspond on both devices.)
DVD With Component jacks
4. Connect to devices with HDMI interface
HDMI: High Definition Multimedia Interface
HDMI transmits an all-digital signal and is the recommended choice for playback from a digital DVD or
DVR. No sound connection is needed for HDMI to HDMI connection.
- HDMI cable connected to the HDMI connector on the TV.
The equipment with HDMI
output jack ( such as DVD
players, set-top boxes, etc.).
13
Setting Up
5. Connect to PC
- Connect the D- Sub cable to "VGA" on the side of your set and the other end to the
Video Card of your computer.
- Connect the stereo audio cable to "PC AUDIO "on the side of your set and the other
end to "Audio Out" of the sound card on your computer.
Note: For some sets "PC AUDIO" share with component.
z
o
_®
<
Computer
6. Connect to headphone
-Connect the headphone jack of the TV set.
The volume of the headphone is automatically adjusted with the main volume of the
TV set.
o
n
,,<,
z
Headphone
14
Using the remote Control
Installing the remote control batteries
1. Open the battery cover on the back of the remote control.
2. Install two AAA size(1.5V) batteries. Match the "+" and "-" signs on the batteries to
the signs on the battery compartment.
3. Close the battery cover.
!
gent _y /....
push /ii
Note:
1. Dispose of your batteries in a designated disposal area. Do not throw the batteries into fire.
2. Do not mix battery types or combine used batteries with new ones.
3. Remove depleted batteries immediately to prevent battery acid from leaking into the battery compartment.
4. If you do not intend to use the remote control for a long time, remove the batteries.
5. The effective range of remote control is suggested below.
Remote control range
1. The remote control distance: 8 meters(26.2 feet) in front of the TV set.
2. The remote control angle: taking the television infrared light receiver window as an apex, 6 meters
(19.7 feet) away, its controlled angle (left to right) is within 30 degrees, while the vertical angle (up to
down)is within 30 degrees.
Remote contro! sensor
15
Remote Control Panel
@
Buttons instructions
(1) Power On/Off.
(2) Power indicator.
(3) INPUT: Switch among TV, Video, Component, HDMI and
VGA.
(4) 0-9 Numbers: For direct channel access.
(5) Last: Return to previous channel.
(6) -- : Select digital channels.
(7) PICTURE: Picture Mode selecting.
(8) SOUND: Sound Mode selecting.
(9) DISPLAY: Display current status information.
(10) MUTE: Mute the sound.
(11 ) VOLA IV: Volume increase/Volume decrease.
(12) CHA IV: Next channel/Previous channel.
(13) MENU: Display the main menu/Back menu display.
(14) EXIT: On screen display (OSD) menu exit.
(15) ENTER: Enter or confirm the operation/return to the previous menu.
A/_'/4/I_: Up/Down/Left/Right operation.
(16) MTS/SAP: Choose stereo, mono or Separate Audio Program
(SAP broadcast).
(17) ASPECT: Select screen mode.
(18) CCD: Closed caption decoder function.
(19) GUIDE: ATSC tuners feature the Electronic Program Guide
(EPG) function.
(20) Sleep: Set the sleep timer.
(21) TIME: Display the current timer.
(22) Electronic Program Guide(EPG) function: After pressing the
"GUIDE" button in the digital TV channel option, the 4 same color
buttons will appear with explanations in the OSD. Follow the steps
illustrated in the OSD.
(23) NOT supported in this TV. These buttons are for DVD Combo TV.
Note:The design of the remote control is subject to change and may be
different from the actual one. Those buttons without comment have no
relations with this TV.
16
Using the Remote Control
Basic Operation
Connecting power cord to the TV
1. Connect the power cord to the connector on the back of the TV, if the power cord in accessories.
Note:When connecting the power cord to the connector of the TV, make sure the power cord is fully
inserted in the place. Bad contact may cause high temperature of the connector and the risk of fire or
other damages.
2. Connect the power cord to the AC power outlet.
Power ON/OFF
1. Connect the TV to a power outlet. If the power indicator is blue, it means that the TV is STANDBY. Press
the Standby button on the front control or on the remote control to turn the TV on. Once the TV is turn on,
the power indicator will be turned off. Several seconds later, the TV picture will be displayed on
the screen.
2. Press the Standby button on the front control or on the remote control to turn the TV off temporarily.
3. Always remove the AC power plug from the outlet when not using this TV for a long period of time.
Signal source selection
Press the [INPUT] button to select TV, AV, Component, VGA and HDMI inputs. There are two
ways to select the source: One is to press the [INPUT] button continuously, while the other is to use the
ARROW and [ENTER] buttons to confirm the source.
Select channels
Please use [CHA /CHV] button on the remote panel to select channels. [CHA] indicates channel number up;
[CHV] indicates channel number down. Press [CHA /ChV] button on the side panel of the TV to select the
channels. If you want to choose any of the skipped channels, press the number directly.
Use [Mute] button
Press the [Mute] button to mute the sound. Press the [Mute] button again to resume the sound.
Select picture modes
Press the [PICTURE] button to select the picture mode from four options: Standard, Cinema, User or Vivid.
You can adjust the picture mode based upon your personal preference.
Select sound modes
Press the [AUDIO] button to select sound modes from Standard, Speech, User or Music.
Select screen modes
Press the [ASPECT] button to select from six zoom modes: Wide, Normal, Zoom, Cinema, Dot-to-Dot or Auto.
Use [GUIDE] button
Press the [GUIDE] button to display features of the ATSC program and the EPG function.
Use [DISPLAY] button
Press the [DISPLAY] button to view current source information.
17
Using the Remote Control
Use [EXIT] button
Press the [EXIT] button to exit the OSD menu.
Select channels by numbers
To select a channel: Press the channel number you would like to go to. For example, to select channel number
120, press buttons 1,2 and 0, respectively and then press [ENTER] to confirm.
Use [MENU] button
Press the [MENU] button to display the TV OSD menu.
Use [LAST] button
Press the [LAST] button to return to the previous channel.
Use [ENTER] button
Press the [ENTER] button to select a particular item.
Adjust Volume
Press [VOLA /VOLV] button to adjust the volume.
Use [CCD] button
Press the [CCD] button to change the CCD mode. Using this button will set the Closed Caption mode when
viewing a DTV or TV channel.
Note: Set the default Closed Caption setting for all channels in the Menu. For ATV the options are CC1, CC2,
CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4 or Off. For DTV, the options are from Service1 to Service6 or Off.
Use [MTS/SAP] button
Press the [MTS/SAP] button to change the sound mode (Mono, Stereo, SAP). This button will select the MTS
options of Stereo, SAP, or Mono in TV mode, alternate audio channels, and when available, in DTV mode.
Use [SLEEP] button
Press the [SLEEP] button repeatedly to set the sleep time, which can be set to: 10 Mins, 20 Mins, 30 Mins, 40
Mins, 50 Mins, 60 Mins, 90 Mins, 120 Mins or Off.
Use [TIME] button
Press the [TIME] button to display the current time.
18
Changing the TV Settings
1 Press [MENU_ button to display the main menu.
2 Press [A/V] button to select TV item.
3 Press [ _/ENTER] button to enter TV menu.
4 Press [A/T] button to select the option,
press [P-/ENTER_ button to enter or press [_/_
button to adjust the option.
5 Press the [Menu_ button to close the menu.
You can adjust:
o Tuner Mode - Select the TV signal source. You can
select Antenna or Cable.
•Channel Scan - Scans for channels that have signals
and stores the channels information in memory.
DTV: The scanned TV programmes in digital signals.
TV: The scanned programmes in analog signals.
•Channel Skip - Deletes a channel stored in memory.
When you press CHA or CHV, your TV skips the
channel you deleted. You can still tune to the channel
using the number buttons on the remote control.
, MTS - Selects the sound mode. You can select
Mono, Stereo, or SAP(Second Audio Program)
• Audio Language - Selects the audio language for a
program.
SAP (Second Audio Program) - Depending on the
particular program being broadcast, you can listen to a
foreign-language translation.
19
Changing the TV Settings
1
2
3
4
Press
Press
Press
Press
press
button
Press
[MENU] button to display the main menu.
[A/T] button to select Video item.
[ I_-/ENTER] button to enter Video menu.
[A/T] button to select the option,
[_/ENTER] button to enter or press [4/1_]
to adjust the option.
the [Menu] button to close the menu.
You can adjust:
• Picture Mode - Adjusts the Picture Mode. You can select Standard, Cinema, User or Vivid.
" Brightness - You can increase or decrease the brightness of the picture. Increasing the
brightness can add more light to dark areas of the picture, while decreasing the brightness can
add more darkness to light areas of the picture.
• Contrast - You can increase or decrease the contrast of the picture. Increase the contrast to
adjust the white areas of the picture or decrease the contrast to adjust the black areas of the
picture.
• Saturation - Adjusts the intensity of the colors.
" Sharpness - You can increase the sharpness level for clearer images or decrease the sharpness
level for smoother images.
, Color temperature - Changes the color temperature. You can select the color temperature from
three options: Cool, Standard or Warm.
, Advanced Video - Accesses advanced video settings such as DNR, Adaptive Luma Control,
Flesh Tone and MFC.
O DNR: It can optimize the picture signal from time
and space; reduce the outside noise interference and
return the pure initial signal. It has four ratings: Low,
Standard, Strong and Off.
OAdaptive Luma Control: According to the content of
picture, it can adjust brightness automatically.
OFlesh Tone: When this feature is "on" state, the TV
could be the basis of image content, for color
correction.
20
Changing the TV Settings
MFC: To improve the perception of moving images.
The weak setting is suitable for most programs and
is recommended for general viewing, normal and
strong settings can further enhance motion, however
on some cases can create a halo effect on edges of
moving objects. You may need to switch settings
pending the contents your viewing.
PROSCAN using MFC's unique motion compensation technology, which eliminates the tail and jitter
of dynamic images effectively, and makes the image edge clearer.
It reduce the dynamic screen blur which is difficult to be perceived by human eyes. Even playing
rolling subtitles, the font edge is also clear.
Effect - Removes drag from fast scenes with a lot of movement to provide a clearer picture.
If you enable MFC (Motion Flow Compensation), noise may appear on the screen.
If this occurs, set "Effect" to off.
Custom : The TV can be set to automatically sense and process film signals from all sources
and adjust the picture for optimum quality.
- Mode 1 : Adjusts the judder reduction level from video sources when playing 24Hz films.
- Mode 2 : Adjusts the blur reduction level from video sources.
Demo Partition - Press [4/1_ buttons to choose left, right or all in the screen for MFC Demo.
Demo - This is only intended for use in retail environments.
21
Changing the TV Settings
1 Press [MENU] button to display the main menu.
2 Press [A/T] button to select Audio item.
3 Press [ I_/ENTER_ button to enter Audio menu.
4 Press [A/T] button to select the option,
press [_/ENTER_ button to enter or press [4/_
button to adjust the option.
5 Press the [Menu] button to close the menu.
You can adjust:
- Balance - Adjusts the volume of the left and right
speakers.
- Surround Sound - Turns the surround sound effect
on or off.
" Equalizer - Weaken or enlarge the sound of the main
frequency points.
"SPDIF Type - Selects the SPDIF type. You can
select PCM, Dolby Digital or Off.
PCM = PCM is an encoding, mainly used for anolog signal, Dolby mainly used for digital
signal.
Dolby =when the data stream carries Dolby signal, digital SPDIF outputs Dolby data stream.
When the data stream carries no Dolby signal, it transports PCM data stream.
Auto =when the data stream carries Dolby signal, digital SPDIF outputs Dolby data
stream. When the data stream carries no Dolby signal, it transports PCM data stream.
No matter the data stream carries Dolby stream or not, it outputs PCM data stream.
" Auto Volume Control - Adjust volume according to different audio signal.
Note: Via SPDIF Type, you can choose the digital audio out type. If Auto Volume Control is
On, that means audio out control is activated.
22
Changing the TV Settings
1 Press [MENU] button to display the main menu.
2 Press [A/T] button to select Setup item.
3 Press [ I_/ENTER] button to enter Setup menu.
4 Press [A/T] button to select the option,
press [_-/ENTER_ button to enter or press [41/_
button to adjust the option.
5 Press the [Menu_ button to close the menu.
You can adjust:
. OSD Language - Use the right or left arrow button to choose the OSD Language among English,
Spanish and French.
• Screen Mode - Use the arrow button to choose the screen aspect ration from Wide, Normal,
Zoom, Cinema, Dot-to-Dot or Auto.
O Normal
The original 4:3 aspect ratio (1.33:1 signal)
is preserved, so black bars are added to the
left and right of the image. Standard TV
broadcasts are displayed with a 4:3 aspect ratio.
O Wide
When watching a standard broadcast or full-frame
movie in this mode, the display image is stretched
proportionately to fill the TV screen.
When watching a widescreen (1.78:1 signal)
program or movie, the display image fills the TV
OZoom
Stretches the 4:3 aspect ratio image vertically
and horizontally to fill the screen at 1:1.78
aspect ratio.
23
Changing the "IV Settings
_]_ Cinema
Stretches the 4:3 aspect ratio image vertically
and horizontally to fill the screen at 1:2,35
aspect ratio,
Dot to dot
Use the function to see the full image without any
cutoff, when HDMI (720p/1080i/1080p),
Component (1080i/1080p), DTV (1080i) or VGA
signals are inputs.
• DPMS - This is a good function for a computer monitor. When DPMS is on, the computer will
control the screen on or off. For example, if the computer is in sleep mode, the screen will be
switched off. If the computer is activated, the screen also is activated.
" Time Setup - You can set up the exact time by yourself. You can also set up Sleeper Time and
Auto Sleep Time.
24
Changing the TV Settings
• Caption: There are three items in it - Analog
Closed Caption, Digital Closed Caption and Digital
Caption Style.
This is a function about caption, display caption by
anolog signal and display caption by digital signal.
Analog Closed Caption: CCl, CC2, CC3, Cc4,
TEXT1, TEXT2, TEXT3, TEXT4.
Digital Closed Caption: Service1, Service2, Service3,
Service4, Service5, Service6.
Digital Caption Style: There are two Caption Styles.
One is the automatic function set as the broadcaster,
while the other is the custom style where you can
adjust the font size, color, opacity, background color
etc., accordingly.
• Reset Default - Every TV has its original setting
before leaving the factory. So this function helps
you restore these settings.
25
Changing the TV Settings
1 Press [MENU] button to display the main menu.
2 Press CA/T] button to select Parental item.
3 Press C IP,/ENTER] button to enter Parental menu.
4 Press CA/T] button to select the option,
press [I_/ENTER] button to enter or press [4/1_]
button to adjust the option.
5 Press the [Menu] button to close the menu.
When you first use this function, the default
password is E0000].
Once you input this password, you can: Press A,/_'
to highlight an option, then press 4/ I_ to adjust the
option. You can adjust:
. Change Password - The first time you use this
function, use the default password. If you want to
change it, first enter the new password then enter
the same password again.
" Channel Block - This function will let you block any
channel you want.
" Input Block - You can block the input source with
this function. For example, if you want to block AV
input, just highlight EAV_ and press CENTER]. The
AV input will not be seen in the screen.
" Clean All - This function will let you clean all the
channels stored on this TV.
Note: If you choose this function, all the programs
you preset will be lost.
" Program Block-
A. Rating Enable is on.
B. U.S. TV Ratings: You can choose TV
ratings according to the illustration on the screen.
C. The settings for U.S. Movie Ratings,
Canada (English) Ratings and Canada (French)
Ratings follow Step B.
If you want to block the unrated program, please
turn on this function.
26
Changing the TV Settings
Following is the description of these ratings.
Age Defined as
TV-Y All children
TV-Y7 Directed to older children
TV-G General audience
TV-PG Parental Guidance suggested
TV-14 Parents Strongly cautioned
TV-MA Mature Audience only
Contents Defined as
FV Fantasy Violence
D Suggestive dialogue
L Strong language
S Sexual situations
V Violence
Rating Defined as
G General audience
PG Parental Guidance suggested
PG-13 Parents strongly cautioned
R Restricted
NC-17 No one 17 and under admitted
X Adult audience only
27
Changing the TV Settings
About Canada (French)
Rating Description
G General
8 ans+ 8+General; Not recommended for young children
13 ans+ Programming may not be suitable for children under
the age of 13
16 ans+ Programming is not be suitable for children under
the age of 16
18 ans+ Programming restricted to adults
About Canada (English)
Rating Description
C Children
C8+ Children eight years and older
G General Programming, suitable for all audiences
PG Parents Guidance
14+ Viewers 14 years and older
18+ Adult programming
NOTE; As you block rating, all rating higher than the ones you select are blocked as well. For
example, if you choose to block the MPAA rating R, the higher ratings, NC-17 and X, are
automatically blocked too.
28
Appendix
Before calling a service technician, please check the following table for a possible cause of the problem and some
solutions.
Customer important notice: If the TV can not be operated, please unplug the power and restart.
Symptoms
TV will not turn on
No picture, no sound
No sound, picture OK
Poor sound, picture OK
Poor picture, sound OK
Unable to select a certain
channel
The
Poor colour or no colour
remote control does
not operate
Disorder display at power on
Possible Solutions
•Make sure the power cord is plugged in, then press Power (Standby).
•The remote control batteries may be dead. Replace the batteries.
= Unplug the VGA wire and plug the power wire again.
•Check if you have set the timer off.
•Check the antenna/cable connections.
= Press [Display] to see if you have selected the right signal source.
= The sound may be muted. Press [VOL+ ] on the remote control.
= The station may have broadcast difficulties. Try another channel.
•Check the speakers cable connections.
•The station may have broadcast difficulties. Try another channel
•Check the speakers cable connections.
•Check the antenna connections.
=The station may have broadcast difficulties. Try another channel.
•Adjust the picture from the menu.
= The channel may be skipped. Choose this channel by directly selecting
the buttons from the remote control.
•The station may have broadcast difficulties_ Try another channel.
= Adjust Saturation in the Video settings menu.
• There may be an obstruction between the remote control and the
remote control sensor.
= The batteries may be installed with a wrong polarity.
= The remote control batteries may be dead. Replace the batteries.
= This may be caused because of a very short interval between POWER
OFF and ON.
•Unplug the power and restart.
29
Appendix
Model 42LED55SA 47LED55SA 55LED55SA
Screen Diagonal Size 42 inches 47 inches 55 inches
Screen Resolution 1920X1080 Pixels 1920X1080 Pixels 1920X1080 Pixels
Power Consumption 165W 180W 195W
Wall-mount screws pattern M6X25mm (4 pcs) M6X25mm (4 pcs) M8X25mm (4 pcs)
Wall-mount dimension(VESA) 200mm X 200mm 200mm X 200mm 400mm X 400mm
3ize with base(inch)(L X WX HI 40.6x11.5x28.1 45x11.2x30.7 52.8x13.2x35
Weight with base(Ibs) 44.2 Ibs 56.1 Ibs 99 Ibs
Power Supply AC 60Hz 120V
Television System
Audio multiplex
Channel coverage
Sound Output Power (RMS)
Component (Y/Pb/Pr) mode
PC (VGA) mode
HDMI mode
Environmental Conditions
Supplied accessories
American TV standard NTSC /ATSC system
BTSC system
VHF: 2-13 UHF: 14-69 CATV: 1-125
Digital Terrestrial Broadcast (8VSB): 2-69
Digital Cable(64/256 QAM): 1-135
8W + 8W
4801/60Hz, 480P/60Hz, 720P/60Hz, 10801/60Hz
640X480/60Hz, 800X600/60Hz, 1024X768/60Hz
4801/60Hz, 480P/60Hz, 720P/60Hz, 10801/60Hz, 1080P/60Hz
640X480/60Hz, 800X600/60Hz, 1024X768/60Hz
Temperature 5°C~35°C (41F~95F)
Humidity : 20%-80%RH
Atmospheric pressure: 86kPa-106kPa
Remote control, Batteries, User Manual, Quick Start Guide,
Remote Control Guide, Children Safety Guide, Warranty Card,
Registration Card
Note: Design and specifications are subject to change without notice.
CUSTOMER NOTICE: Use carefully when operating to prevent damage to the screen.
3O

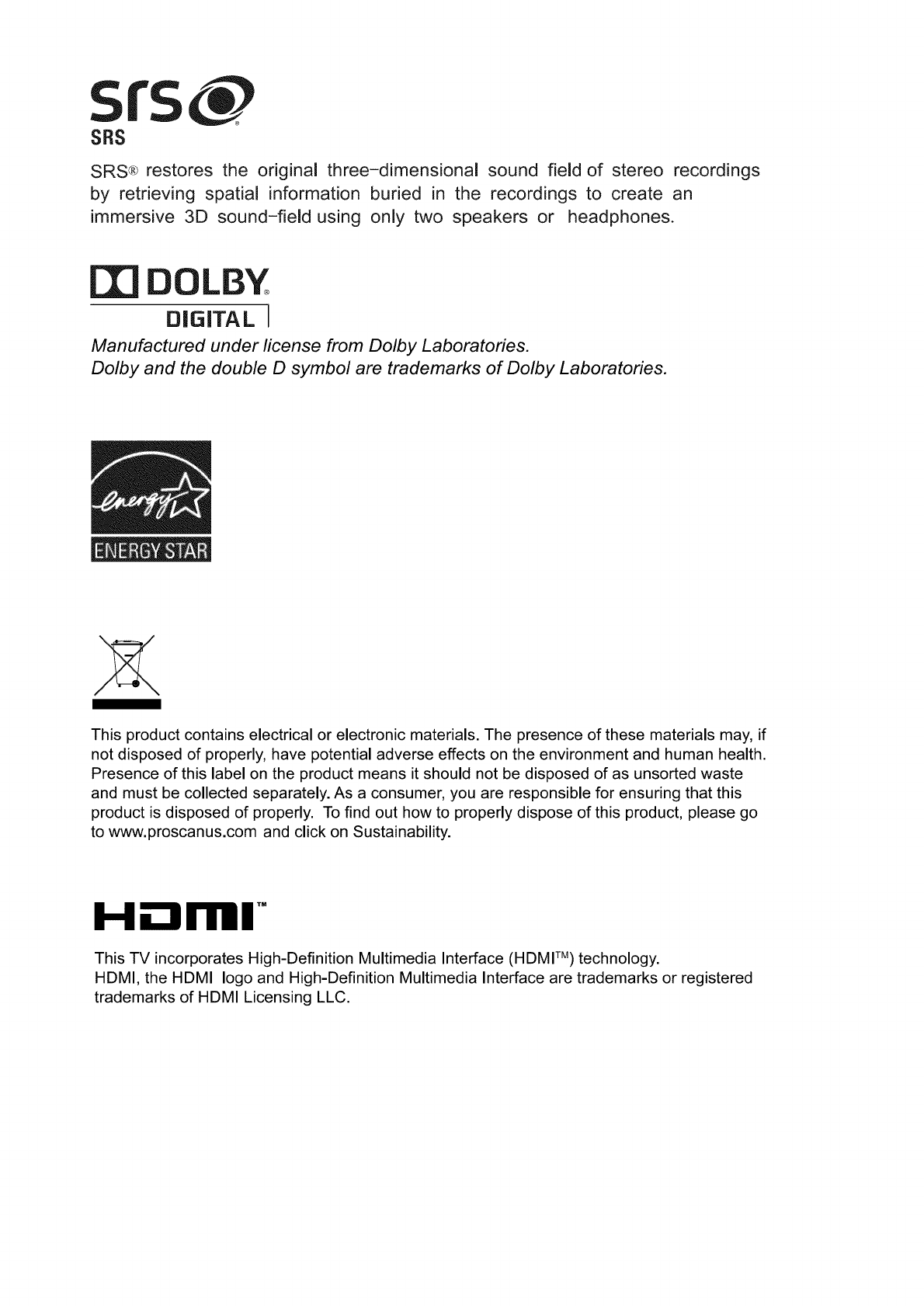

SRS_ restores the original three-dimensional sound field of stereo recordings
by retrieving spatial information buried in the recordings to create an
immersive 3D sound-field using only two speakers or headphones.
LBY
DIGITAL I
Manufactured under license from Dolby Laboratories.
Dolby and the double D symbol are trademarks of Dolby Laboratories.
This product contains electrical or electronic materials. The presence of these materials may, if
not disposed of properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste
and must be collected separately. As a consumer, you are responsible for ensuring that this
product is disposed of properly. To find out how to properly dispose of this product, please go
to www.proscanus.com and click on Sustainability.
H nllll
This TV incorporates High-Definition Multimedia Interface (HDMP) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
