PROSCAN

LC COLO TV

U ' UAL

47L 45

Part No IES071003

Please read all the safety and operating instructions carefully before you begin.

SAFETY CLASS

This is an IEC safety class I product and must be groundedfor safety.

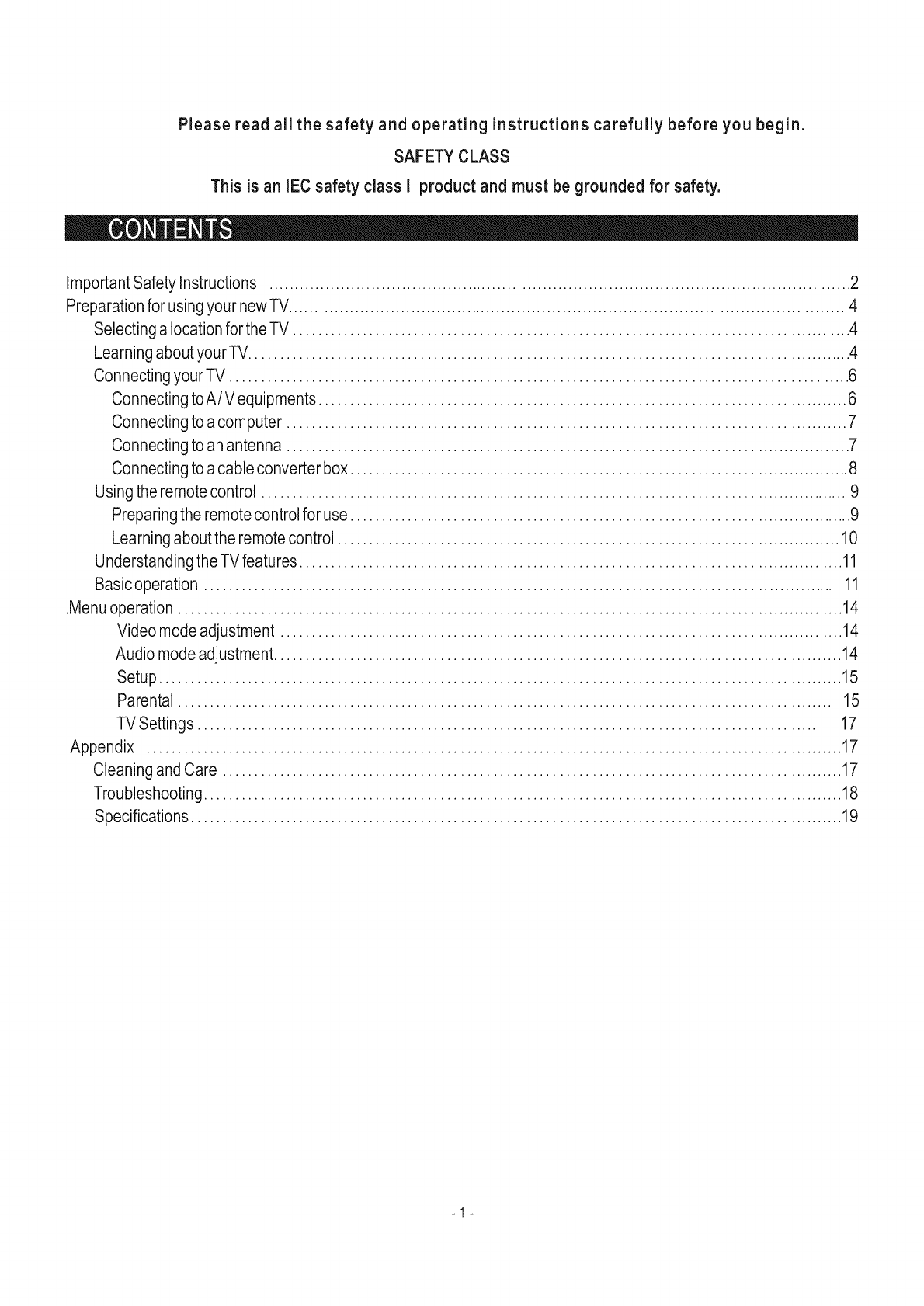

ImportantSafety Instructions .................................................................................................................. 2

Preparationfor usingyour newTV............................................................................................................. 4

Selectinga locationfortheTV ....................................................................................... 4

Learningaboutyour TV............................................................................................... 4

ConnectingyourTV ................................................................................................ 6

ConnectingtoA/V equipments................................................................................... 6

Connectingto a computer ........................................................................................ 7

Connectingto anantenna .......................................................................................... 7

Connectingto a cableconverterbox ................................................................................ 8

Usingthe remotecontrol .............................................................................................. 9

Preparingthe remotecontrolfor use ................................................................................. 9

Learningaboutthe remote control................................................................................ 10

UnderstandingtheTV features...................................................................................... 11

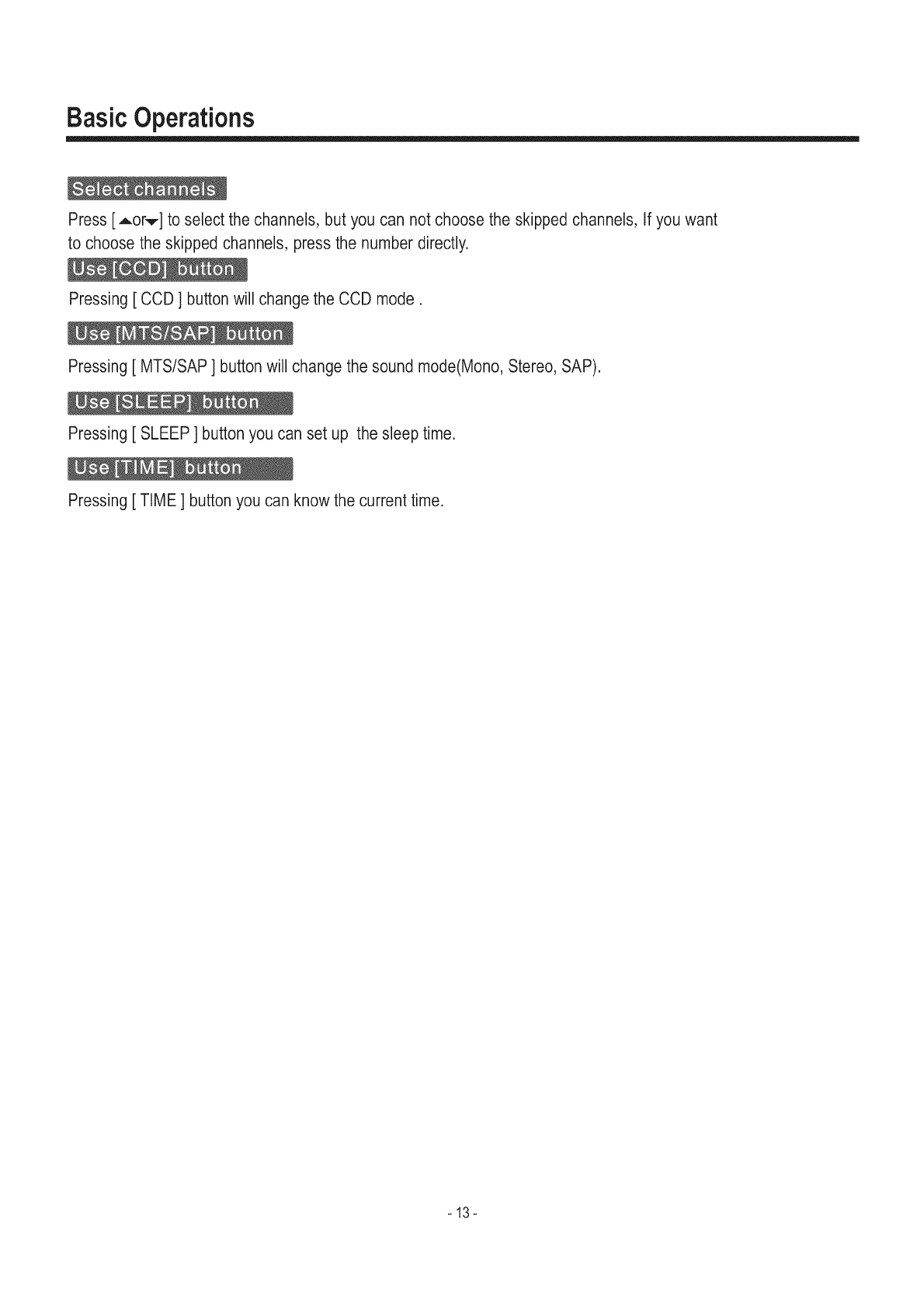

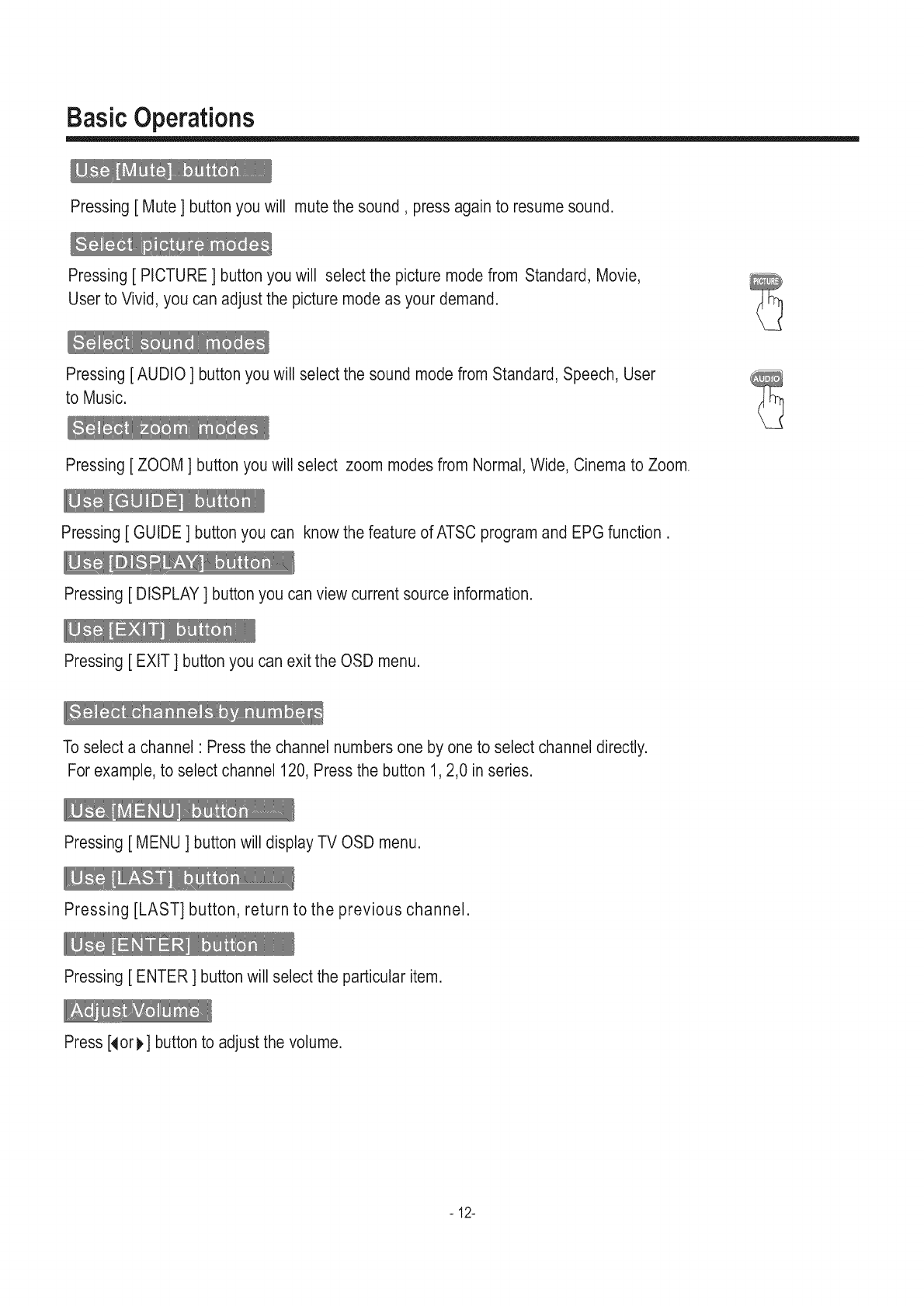

Basicoperation .................................................................................................... 11

.Menuoperation ......................................................................................................... 14

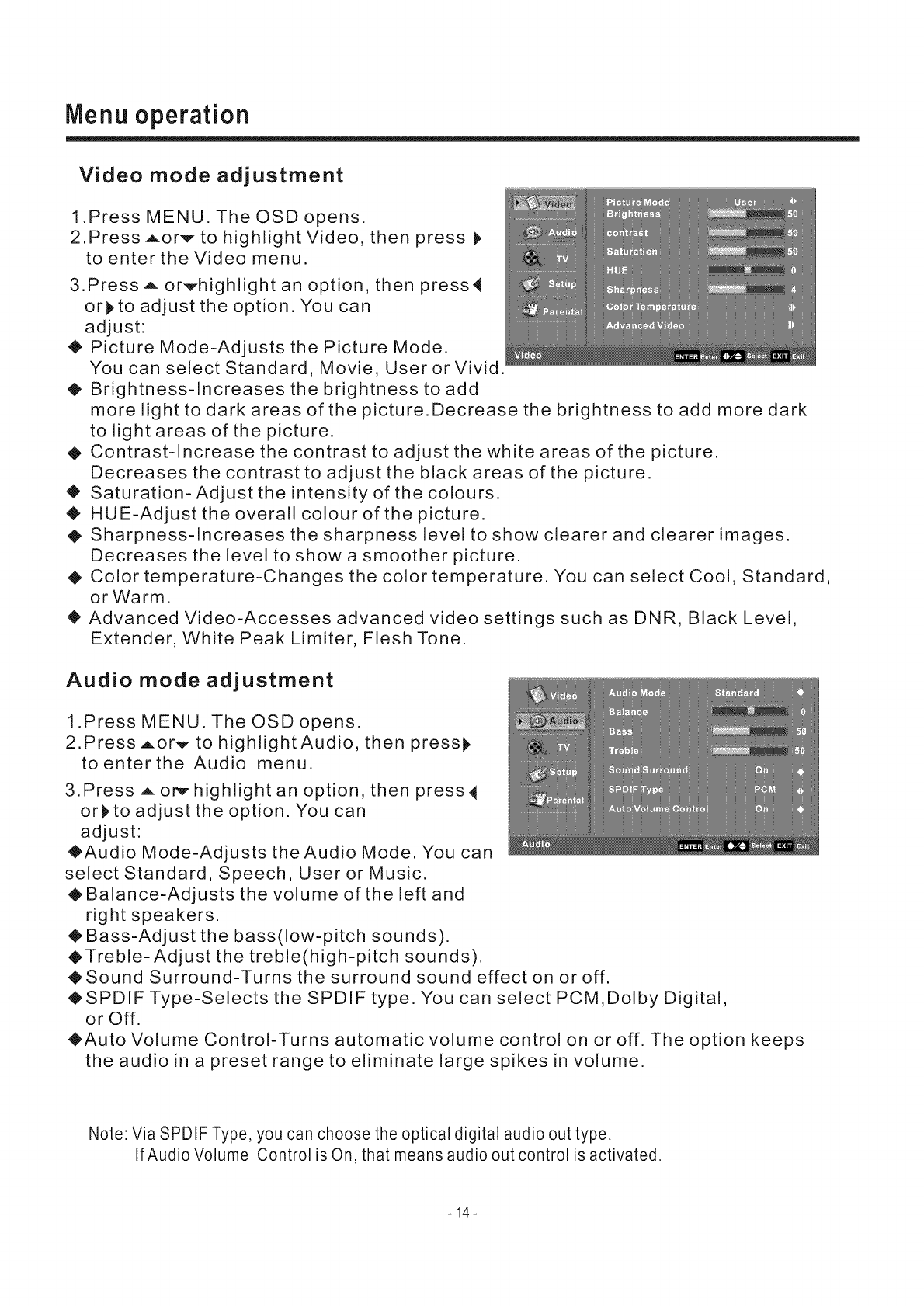

Videomodeadjustment ......................................................................................... 14

Audio modeadjustment......................................................................................... 14

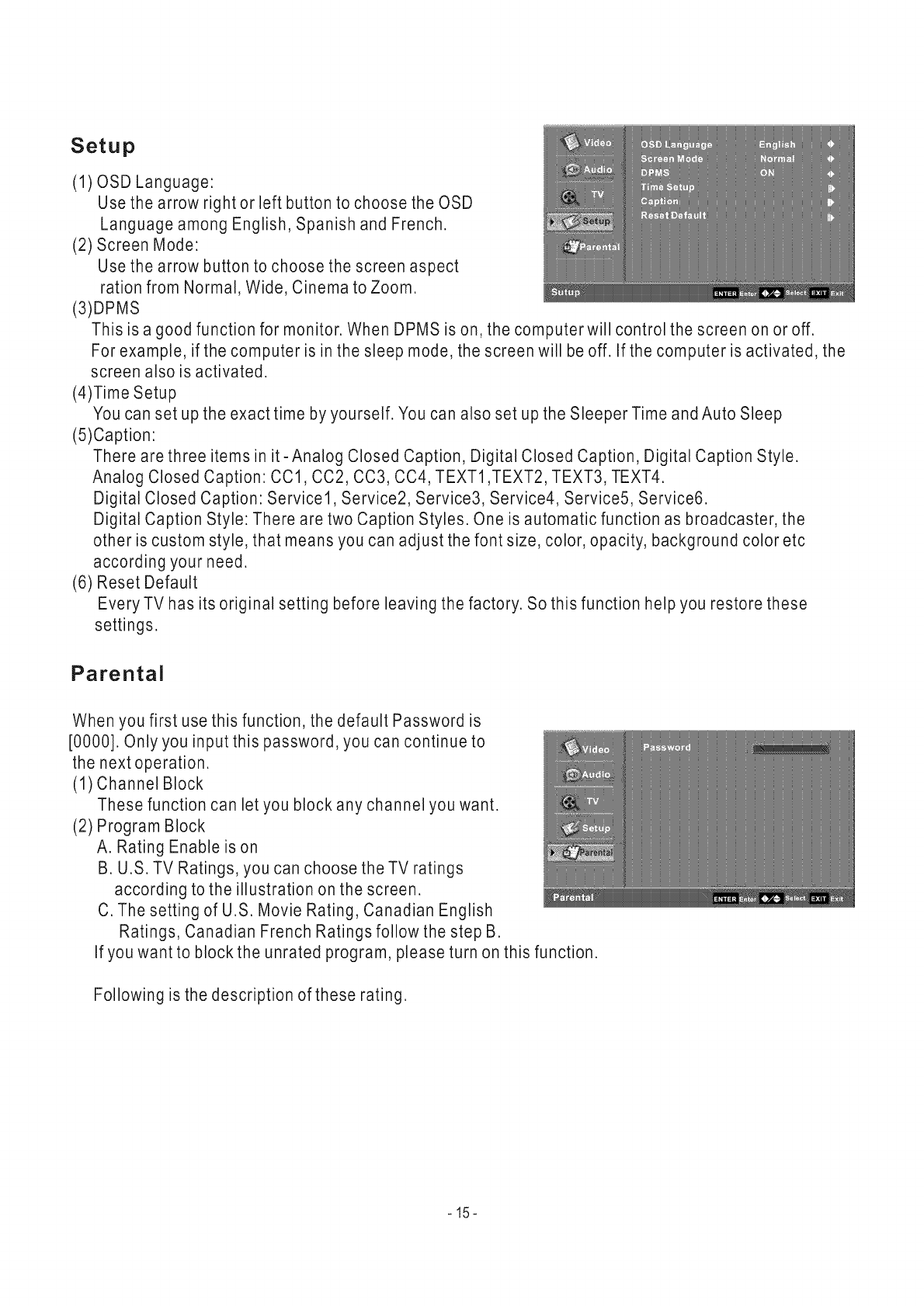

Setup........................................................................................................... 15

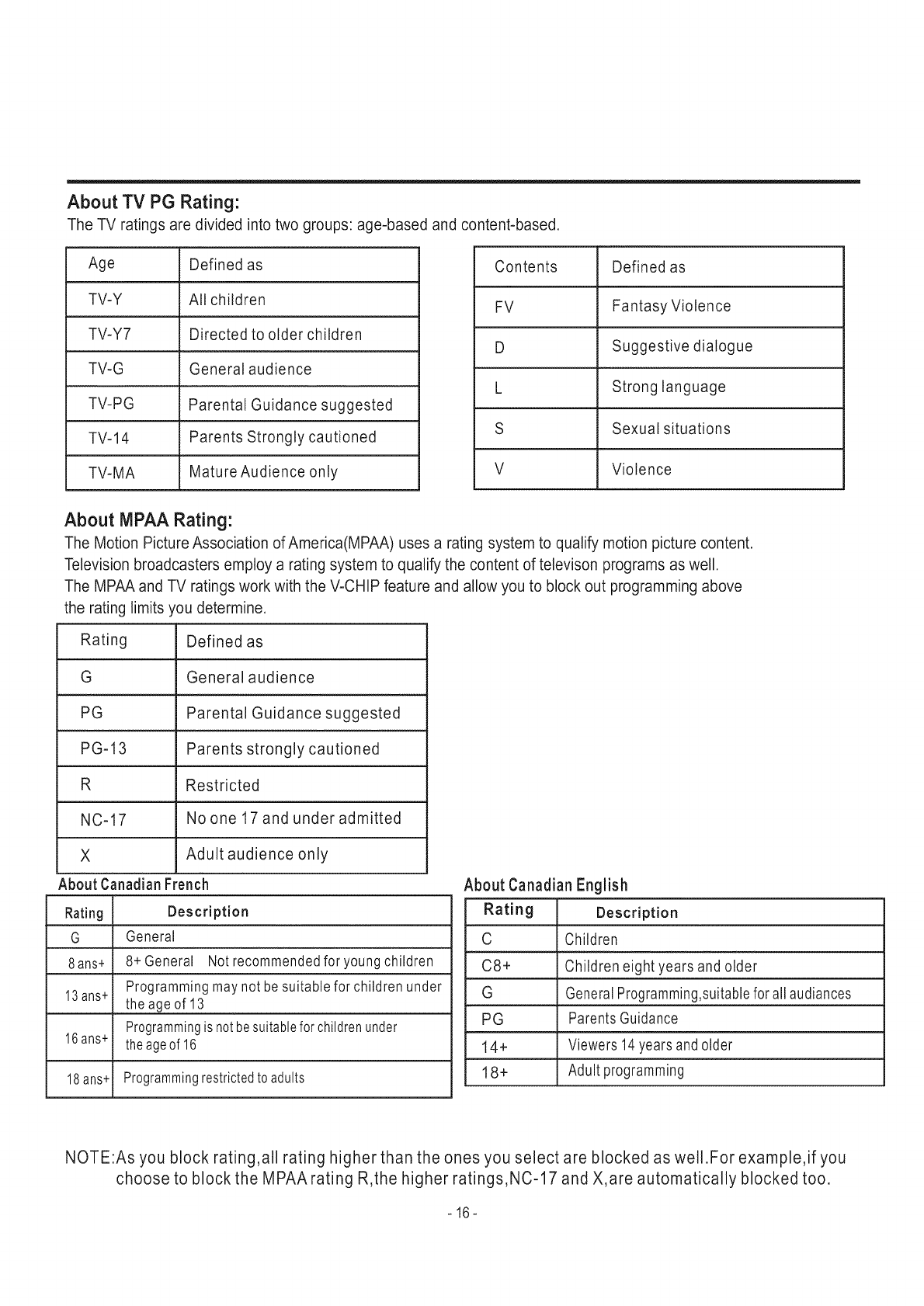

Parental ...................................................................................................... 15

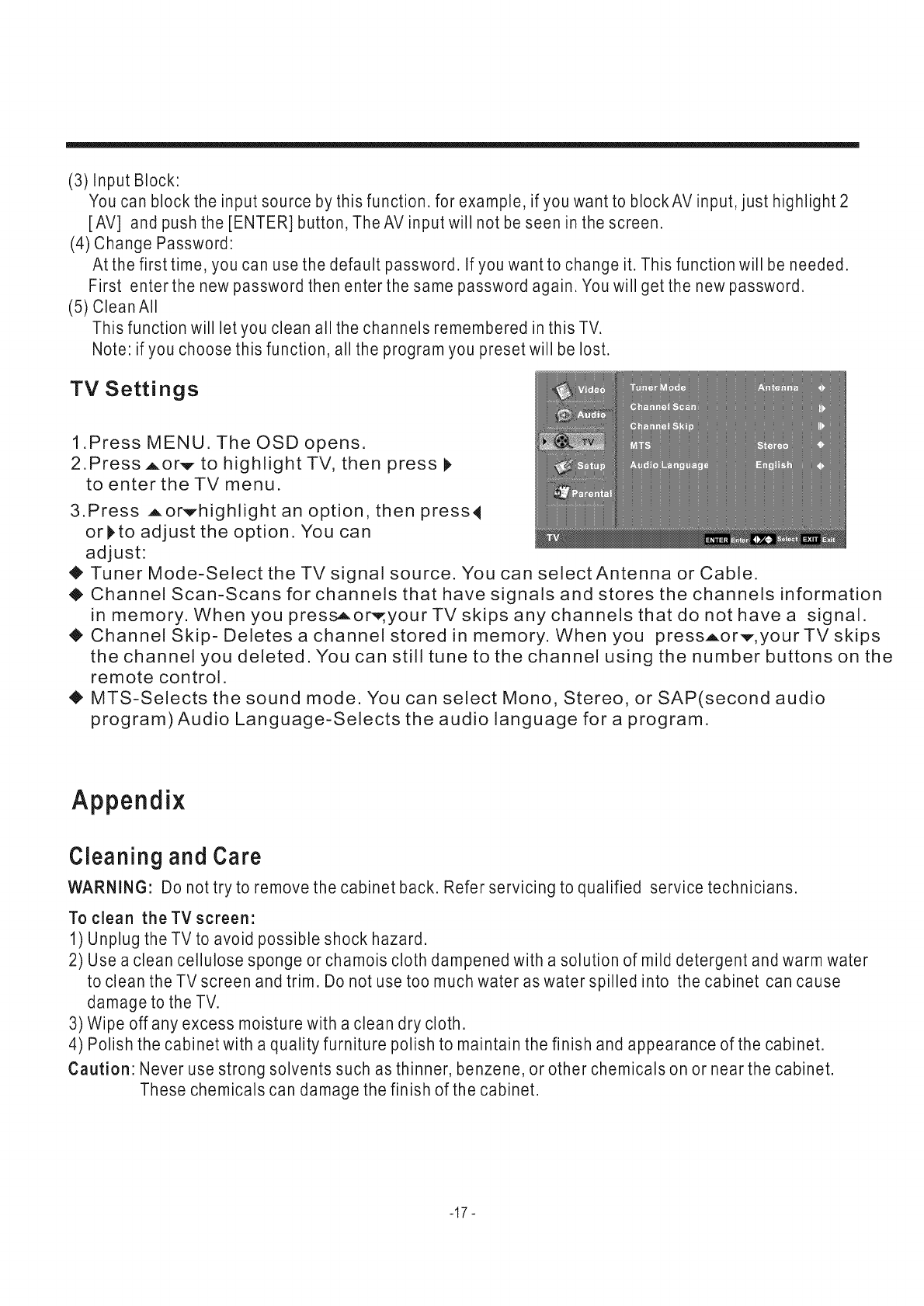

TVSettings ................................................................................................ 17

Appendix ............................................................................................................. 17

Cleaningand Care ................................................................................................. 17

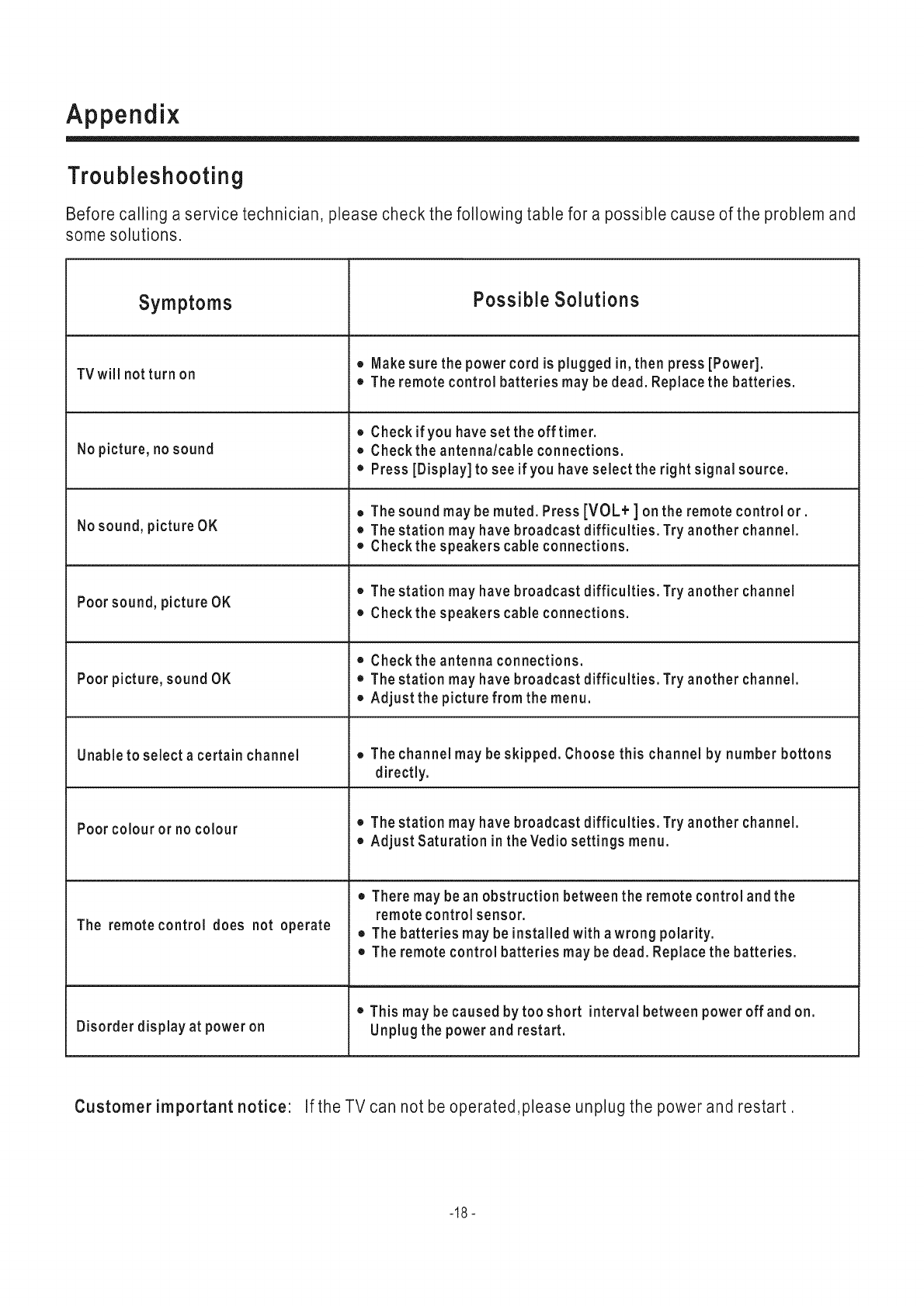

Troubleshooting.................................................................................................... 18

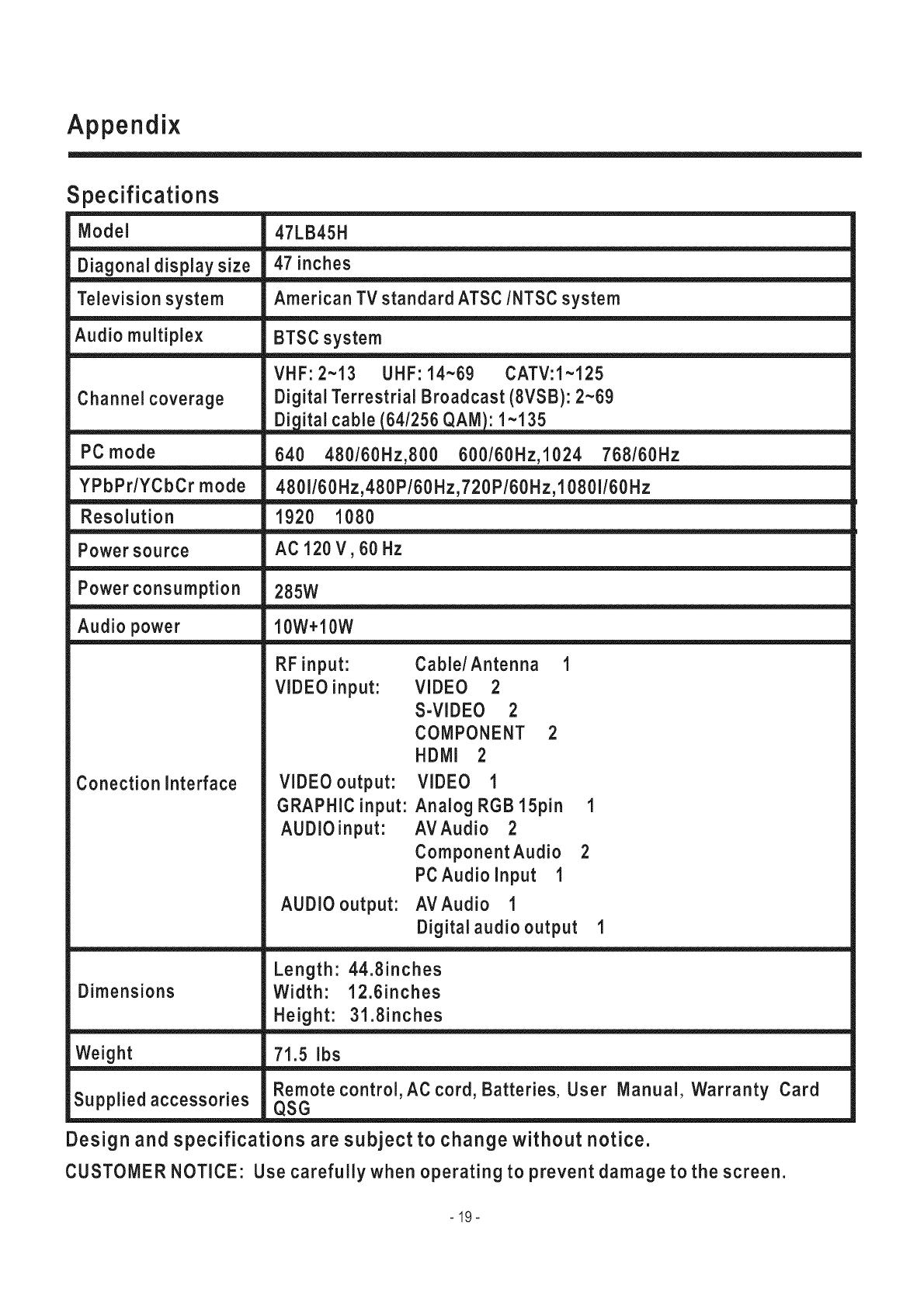

Specifications...................................................................................................... 19

-1-

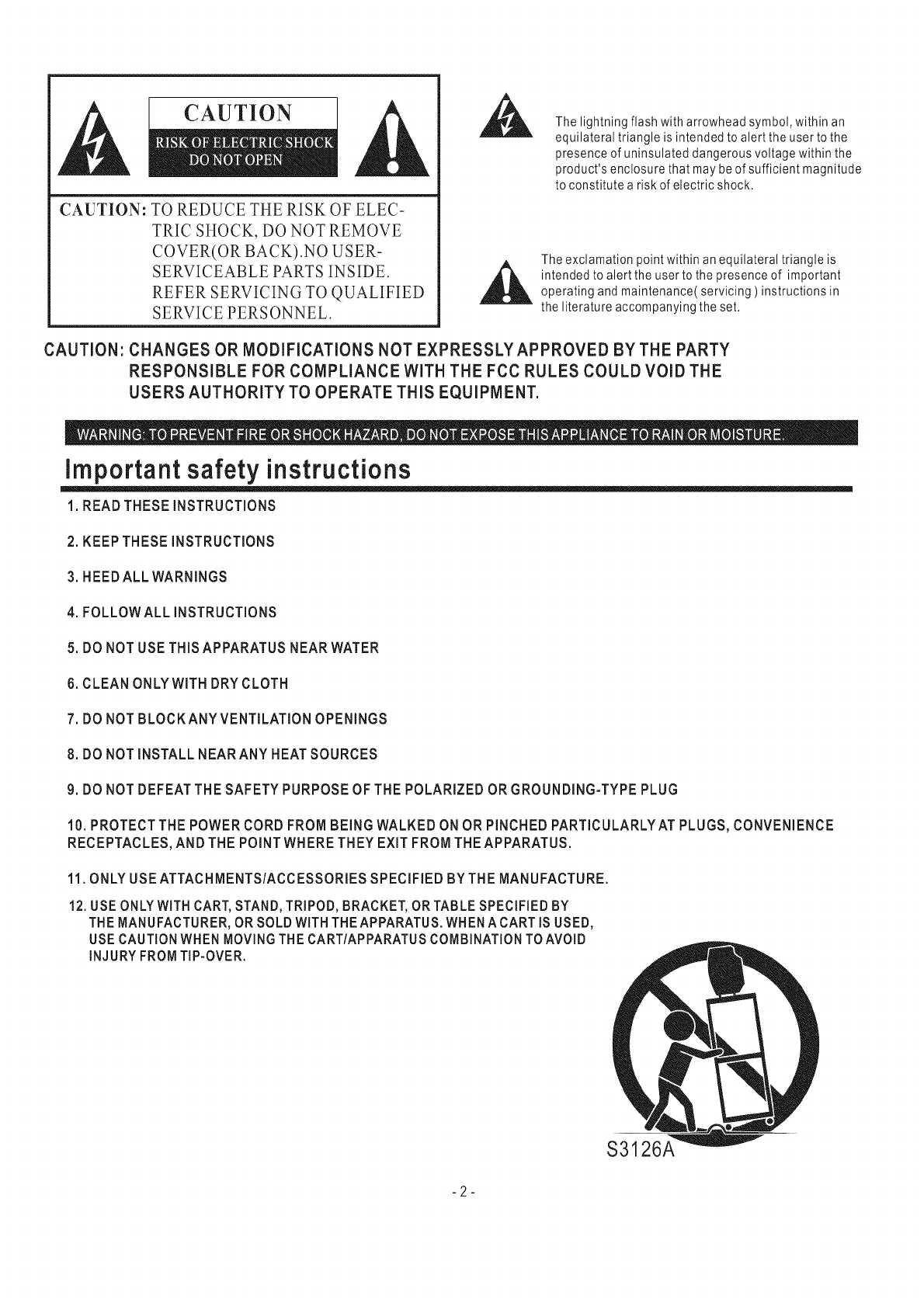

CAUTION

CAUTION: TO REDUCE THE RISK OF ELEC-

TRIC SHOCK, DO NOT REMOVE

COVER(OR BACK).NO USER-

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the

product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance( servicing ) instructions in

the literature accompanying the set.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE WiTH THE FCC RULES COULDVOID THE

USERS AUTHORITY TO OPERATE THIS EQUIPMENT.

Important safety instructions

1. READ THESE INSTRUCTIONS

2. KEEP THESE INSTRUCTIONS

3. HEEDALLWARNINGS

4. FOLLOWALL iNSTRUCTiONS

5. DO NOT USE THiS APPARATUS NEAR WATER

6. CLEAN ONLYWITH DRY CLOTH

7. DO NOT BLOCKANYVENTILATION OPENINGS

8. DO NOT iNSTALL NEARANY HEAT SOURCES

9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING-TYPE PLUG

10. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED PARTICULARLYAT PLUGS, CONVENIENCE

RECEPTACLES, AND THE POINT WHERE THEY EXiT FROM THE APPARATUS.

11. ONLY USE ATTACH MENTS/ACCESSORIES SPECiFiED BY TH E MAN UFACTU RE.

12, USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR TABLE SPECIFIED BY

THE MANUFACTURER, OR SOLD WITH THE APPARATUS. WHEN A CART IS USED,

USE CAUTION WHEN MOVING THE CART/APPARATUS COMBINATION TO AVOID

INJURY FROM TIP-OVER,

-2-

S312(_

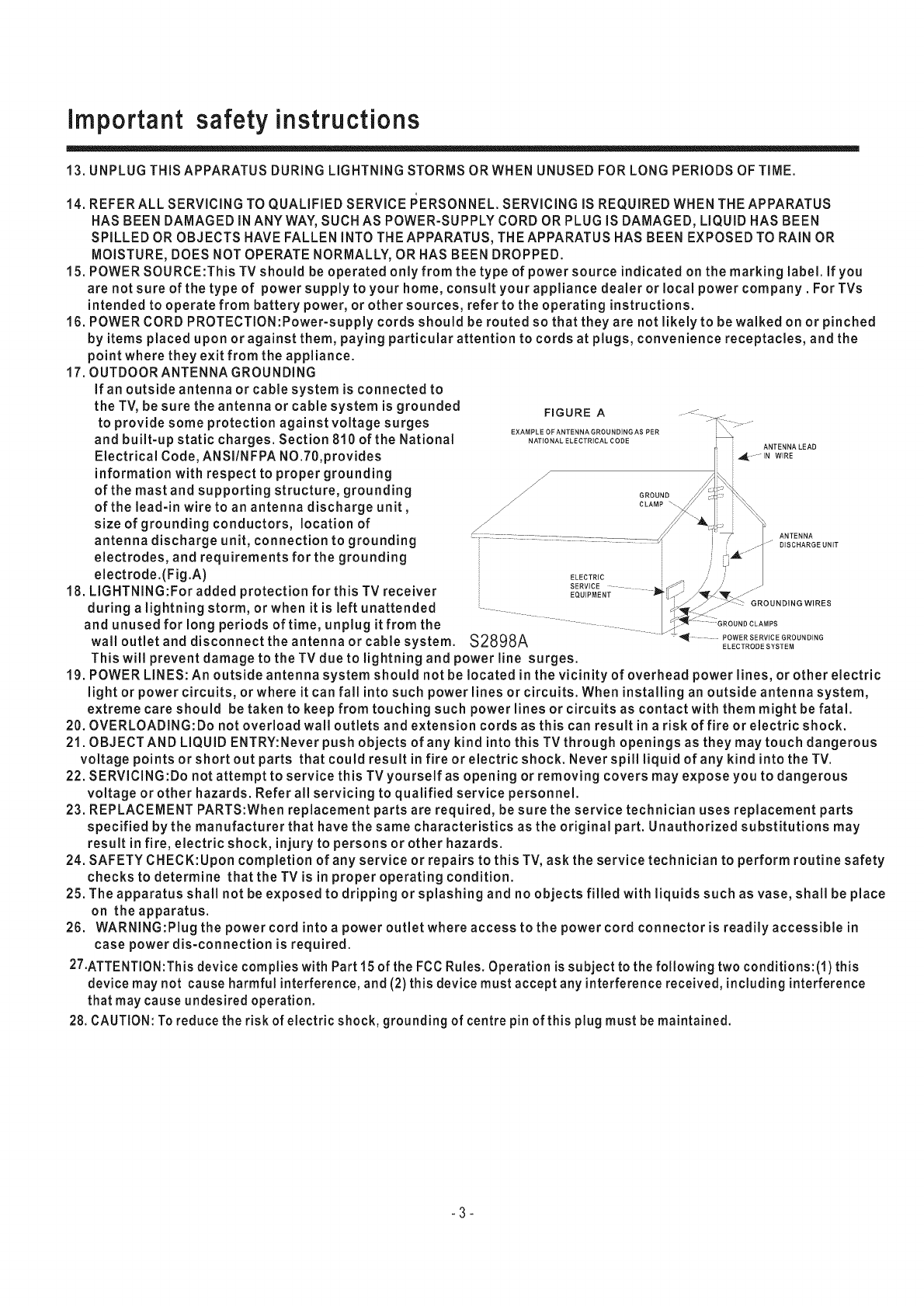

important safety instructions

13. UNPLUGTHiS APPARATUSDURING LiGHTNiNG STORMSOR WHEN UNUSED FORLONGPERIODS OF TIME.

14. REFERALL SERViCiNGTO QUALiFiEDSERVICE F_ERSONNEL. SERViCiNG iS REQUIREDWHEN THEAPPARATUS

HAS BEEN DAMAGEDiNANYWAY,SUCH AS POWER-SUPPLYCORD OR PLUG iS DAMAGED,LiQUiD HAS BEEN

SPILLED OR OBJECTS HAVEFALLENiNTO THEAPPARATUS,THEAPPARATUSHAS BEENEXPOSEDTO RAiNOR

MOISTURE,DOES NOTOPERATE NORMALLY,OR HAS BEENDROPPED.

15. POWERSOURCE:This TV should be operated only from the type of power source indicated on the marking label, if you

are notsure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs

intended to operate from battery power, orother sources, refer to the operating instructions.

16. POWERCORD PROTECTION:Power-supply cords should be routedso that they are not likely to be walked on or pinched

by items placed uponor against them, paying particular attention to cords at plugs, convenience receptacles, and the

point where they exit from the appliance.

17. OUTDOORANTENNA GROUNDING

if an outside antenna or cable system is connectedto

the TV,be sure the antenna or cablesystem is grounded

to provide some protection against voltage surges

and built-up static charges. Section 810 of the National

Electrical Code,ANSI/NFPA NO.70,provides

information with respect to proper grounding

of the mast and supporting structure, grounding

of the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of

antenna discharge unit, connection to grounding

electrodes, and requirements for the grounding

electrode.(Fig.A)

18. LIGHTNING:For added protection for this TV receiver

during a lightning storm, or when it is left unattended

and unusedfor long periods of time, unplug it from the

wall outlet and disconnect the antenna or cable system.

FIGURE A .....;L_. :.....

EXAMPLE OFANTENNAGROUNDINGAS PER

NATIONAL ELECTRICAL CODE

ii_ --INWIRE

CLAMP \\_

S2898A

This will prevent damageto the TV due to lightning and power line surges.

19. POWERLINES: An outside antenna system should not be located in the vicinity of overhead power lines, or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,

extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

20. OVERLOADING:Donot overload wall outlets and extension cords as this can result in arisk of fire or electric shock.

21. OBJECTAND LiQUiD ENTRY:Neverpush objects of any kind into this TV through openings as they may touch dangerous

voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind into the TV.

22. SERVICING:Do not attempt to service this TV yourself as opening or removing covers may exposeyou to dangerous

voltage or other hazards. Refer all servicing to qualified service personnel.

23. REPLACEMENT PARTS:Whenreplacement parts are required, be sure the service technician uses replacement parts

specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may

result in fire, electric shock, injury to persons or other hazards.

24. SAFETY CHECK:Uponcompletion of any service or repairs to this TV,ask the service technician to perform routine safety

checks to determine that the TV is inproper operating condition.

25. The apparatus shall not be exposed to dripping or splashing and noobjects filled with liquids such as vase, shall be place

on the apparatus.

26. WARNING:Plug the power cord into a power outlet whereaccess to the power cord connector is readily accessible in

case power dis-connection is required.

27.ATTENTION:Thisdevice complies with Part 15of the FCCRules. Operation issubject to the following two conditions:(1) this

device maynot cause harmful interference,and (2)this device must accept any interferencereceived, includinginterference

that maycause undesired operation.

28. CAUTION:Toreduce the risk of electric shock, grounding of centre pin of this plug must bemaintained.

-3-

Preparation for using your new TV

Selecting alocation for the TV

1)Place TV on an open bench in a location where light does not directly hit the screen.

2)Place TV far enough from the walls to allow proper ventilation, Inadequate ventilation may cause

overheating, which may damage the TV.

NOTE: Please contact local dealer for wall mounting,

Learning about your TV

You can operate yourTV via the buttons in the front cabinet or the remote control, The terminals in

the back cabinet provide all the connections from other equipments to your TV.

Front Cabinet

®@

Q Power indicator

Q Remote sensor

Q Menu button

Q Input selecting button

Q Volume up

(_ Volume down

(:_ Channel up

Q Channel down

Q Power(standby)

-4-

Preparation for using your new TV

A •

C B

HDM I 2 HDM I 1 VGA VGA

AUDIO IN

©@

--GOMPONENf 1--

©©©

--coMpo_

i_ ......_'"IOPT,OALANTT_

L R

_eeD T

®®©

S_VIDE01 S VIDE02

......@ iP@°'@

......© iF© N_©

...............I..................!.............

HEADPHONE RS232

I I I

C _

AO IN

Q HDMI INPUT

@VGA AUDIO INPUT

@ VGA INPUT

(:_ COMPONENT INPUT

O COMPONENTAUDIO INPUT

Q DIGITALAUDIOOUTPUT

G ANTENNA INPUT

Q S-VIDEO INPUT

6) VIDEO INPUT

@ VIDEOAUDIO INPUT

@ VIDEO OUTPUT

@ HEADPHONE OUTPUT

@) RS232 INPUT

@ AC INPUT

-5-

Preparation for using your new TV

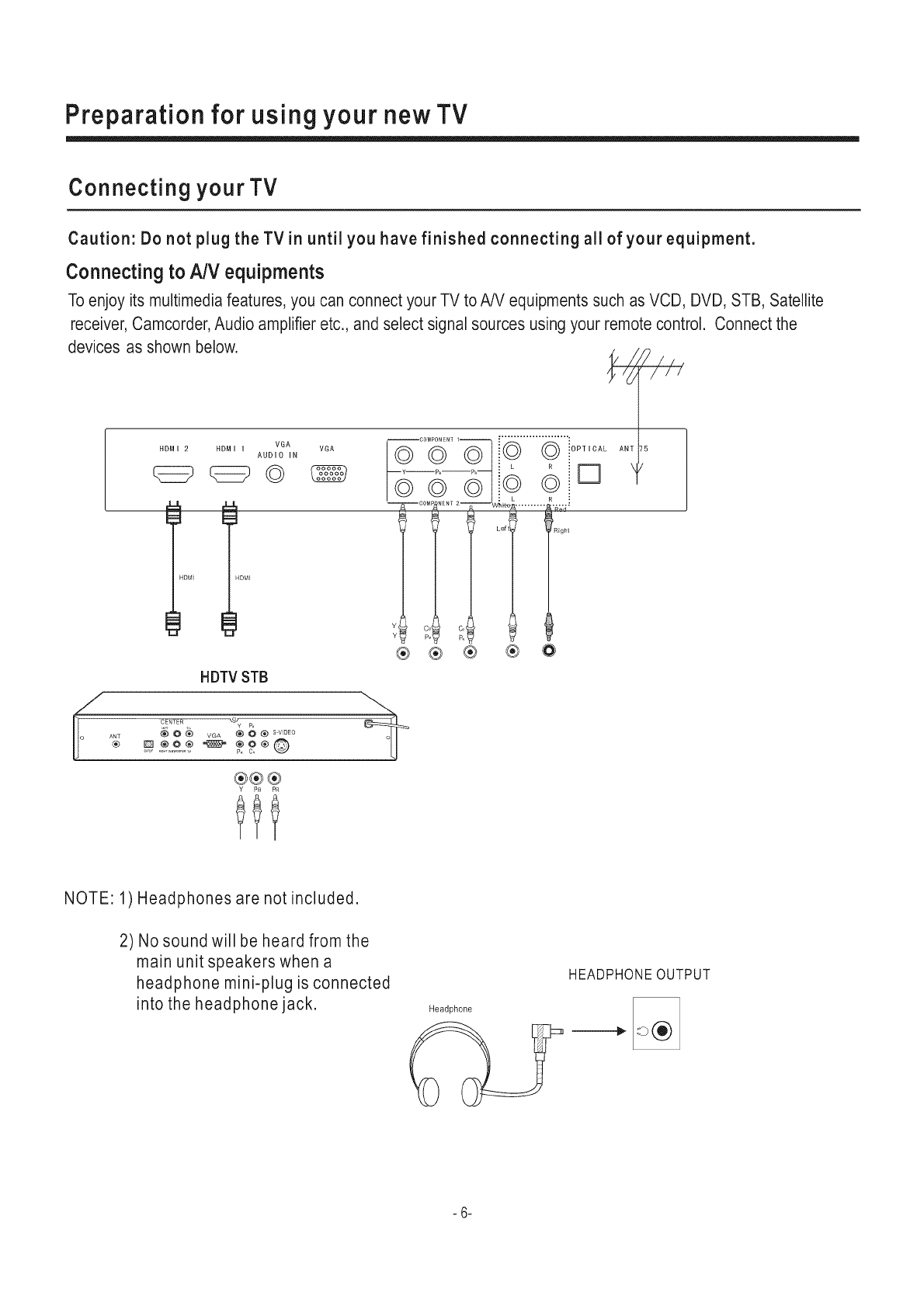

Connecting your TV

Caution: Do not plug the TV in until you have finished connecting all of your equipment.

Connecting to NV equipments

To enjoy its multimedia features, you can connect your TV to A/V equipmentssuch as VCD, DVD, STB, Satellite

receiver, Camcorder,Audio amplifier etc., and select signal sources using your remote control. Connect the

devices as shown below. _//9/t,

///

HDMI 2HDMI1 VGA VGA

AUDIO IN

--! i ! iefl TRighl--OOM_N NT 2 i Wkit, i" ......... _'R;'r';

® ® ® ® 0

HDTV STB

___

II ® [] ®o® _ ®o®_ ql

I1 ....................... U

®®®

YPB PR

NOTE: 1) Headphones are not included.

2) No sound will be heard from the

main unit speakers when a

headphone mini-plug is connected

into the headphone jack. Headphone

HEADPHONE OUTPUT

-6-

Preparation for using your new TV

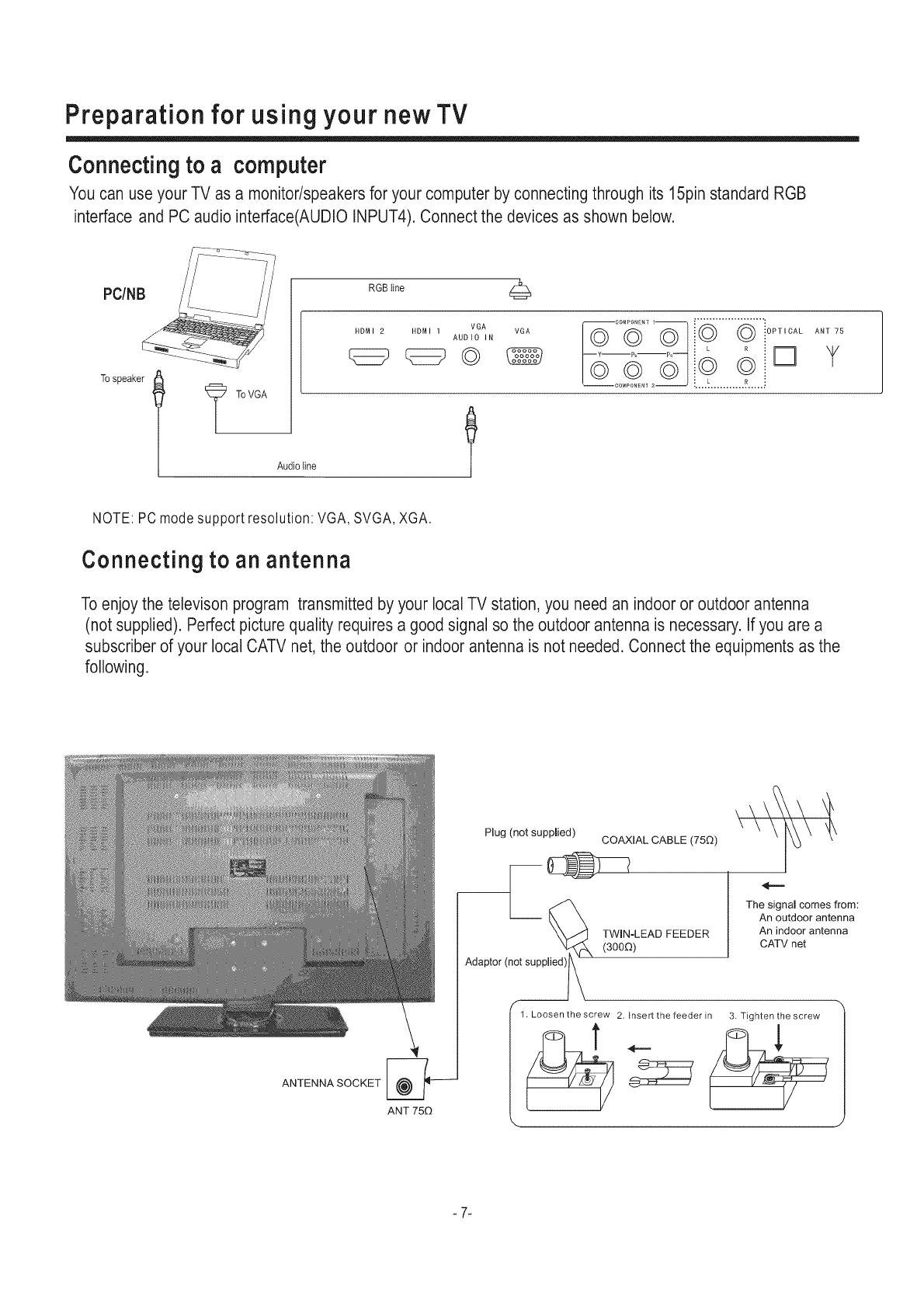

Connecting to a computer

You can use your TV as a monitor/speakersfor your computer by connecting through its 15pin standard RGB

interface and PC audio interface(AUDIO INPUT4).Connect the devices as shown below.

PC/NB _i

To speaker I ? ToVGA

Audioline

RGB line

HDMI 2 VGA

HDMI 1 VGA

AUDIO IN

_© _

--OOM POllEN T 1--

L R !

-'--_.--_-@@@ @@D

L R •

--COMPONENT 2,-- .. ..................... ;

ANT 75

NOTE: PC mode support resolution: VGA, SVGA, XGA.

Connecting to an antenna

Toenjoy the televison program transmitted by your localTV station, you need an indooror outdoor antenna

(not supplied).Perfect picture quality requires a good signal so the outdoor antenna is necessary.Ifyou are a

subscriber of your local CATV net, the outdoor or indoor antenna is not needed. Connect the equipments as the

following.

ANTENNA SOCKET

ANT 750

Plug (not supplied) COAXIAL CABLE (750)

[

Adaptor (not suppl_)_

TWIN-LEAD FEEDER

(300D)

The signal comes from:

An outdoor antenna

An indoor antenna

CATV net

,_1. Loosen the screw 2. Insert the feeder in 3. Tighten the screw

-7-

Preparation for Using your new TV

Connecting to a cable converter box

This television has an extended tuning range and can tune most cable channels without using a cable

Converter box. Some cable companies offer premium pay channels in which signal is scrambled.

Descrambling these signals for normal viewing requires the use of a descrambler device which is generally

Provided by the cable company.

For subscribers to Basic Cable TV Service

For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial

Cable directly to the Antenna Jack on the back of the television.

For subscribers to Scrambled Cable TV Service

If you subscribe to a cable service which requires the use of a Converter/Descrambler box, connect the

incoming cable to the Converter/Descrambler box and connect the output of the box to the Antenna Jack

on the back of the television. Follow the connections shown below. Set the television to the output of the

Converter/Descrambler box(usually channel 3 or 4)and use the Converter/Descrambler box to select

channels.

For Subscribers to Unscrambled Basic Cable with Scrambled Premium Channels

Ifyou subscribe to a cable service in which basic cable channels are unscrambled and premium channels

require the use of a Converter/Descrambled box, you may wish to use atwo-set signal splitter(sometimes

called(two set coupler) and an A/B Switch box from the cable installer or an electronics supply store.

Follow the connections shown below. With the switch in the B position, you can directly tune any

nonscrambled channels on your TV. With the switch in the A position, tune your TV to the output of the

Converter/Descrambler box(usually channel 3 or 4) and use the box to tune scrambled channels.

,_=====

ANT 75

m _ I Converter/Descrambler ]__

_ C0nverter/Descrambler

Splitter A/B Switch _=======

Note"

When you use a converter box with your TV, there may be features that you cannot

program using the remote control.

-8-

Using the remote control

Preparing the remote control for use

Installing the remote control batteries

1. Open the battery cover on the back of the remote control.

2. Install two AAA size(1.5V) batteries. Match the +

compartment.

3. Close the battery cover.

and - signs on the batteries to the signs on the battery

Note:

1.Dispose of your batteries in a designated disposal area. Do not throw batteries into fire.

2.Do not mix battery types or combine used batteries with new ones.

3.Remove dead batteries immediatelyto prevent battery acid from leaking into the battery compartment.

4.If you do not use the remote control for a long time, remove the batteries.

5.The effective range of remote control is suggested in the following.

15°

-9-

Using the remote control

Learning about the remote control

PowerON/OFF --

Mute:Mute the sound --

PICTURE:Select the picture --

mode

Select TV channels --

Select digital channels --

OSD menu Up arrow --

OSD menu Left arrow --

OSD menu Down arrow --

VOL+:Volume up --

VOL- :Volume down --

CCD:Closed caption function --

MTS/SAP:Multi-channel television --

sound selection

Power indicator

_--INPUT:Switch among TV,Video,

S-Video,Component,H DMI,VGA

Mode

the sound mode

ATSC tuners feature

EPGfunction

-- DISPLAY:Display current Status

information

-- EXIT:OSD menu exit

-- MENU:Call up the main menu

-- LAST:Return to previous channel

;onfirm selected function or

return to the previous menu

-- OSD menu Right arrow

:Channel up

down

playthe current time

SLEEP:Set the sleep timer

EPG( Electronic Program Guide) function:

after pressing " GUIDE" button in digital TV

channel, there will be the same 4 color

buttons and their explanations in the OSD,

do as what OSD shows.

-10-

Understanding the TV features

•Multimedia -TV receiver, Video monitor and PC display, all in one.

o Wider viewing angle, 16:9 and 4:3 display- over 160° viewing angle, 16:9 ergonomical display panel

• Digital display device - truthfully reproducing the images, without distortion or blurring, irrespective

of magnetic or geomagnetic effect.

e Closed caption decoder- You may view specially labelled (cc) TV programs, movies, news,

prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

• V-chip - Enables parents to prevent their children from watching inappropriate programs on TV.

• ATSC/NTSC

e Sleep timer

• Multi-language OSD

BasicOperations

1) Connect the TV to power outlet. If the power indicator is red, it means that

the TV is off. You need to press the Power buttonon the front control or on

the remote control to turn on the TV, and the power indicatorwill display blue.

Several seconds later,TV picture will display on the screen.

2) Pressthe Power button on the front control or on the remote control to turn

off the TV temporarily.

3) Always removethe AC power plug from the outlet when not using this TV for

a long periodof time.

Press the [INPUT] button to select TV, AV, S-Video,Component,VGA, HDMI inputs. There are two ways to

select the source, one is to press the [INPUT] button continuing, the other is to use the [arrow] and [enter]

button to confirm the source.

Please use [A/T] to select channels. [A] indicates channel number up; [,v] indicates channel number

down.

-11-

Basic Operations

Pressing [ Mute ] buttonyou will mute the sound, press again to resume sound.

Pressing [ PICTURE ] buttonyou will select the picture mode from Standard, Movie,

User to Vivid, you can adjust the picture mode as your demand.

Pressing [AUDIO ] buttonyou will select the sound mode from Standard, Speech, User

to Music.

Pressing [ ZOOM ] button you will select zoom modesfrom Normal, Wide, Cinema to Zoom.

Pressing [ GUIDE] button you can know the feature of ATSCprogram and EPG function.

Pressing [ DISPLAY] buttonyou can view current source information.

Pressing [ EXIT ] button you can exitthe OSD menu.

To select a channel •Press the channel numbersone by one to select channel directly.

Forexample, to select channel 120, Pressthe button 1,2,0 in series.

Pressing [ MENU ] buttonwill display TV OSD menu.

Pressing [LAST] button, return to the previous channel.

Pressing [ ENTER] button will select the particular item.

Press [,qort_]buttonto adjustthe volume.

-12-

Basic Operations

Press [AorT] to select the channels, but you can not choose the skipped channels, If you want

to choose the skipped channels, press the number directly.

Pressing [ CCD ] button will changethe CCD mode.

Pressing [ MTS/SAP ] buttonwill change the sound mode(Mono, Stereo, SAP).

Pressing [ SLEEP ] button you can set up the sleep time.

Pressing [ TIME ] button you can know the current time.

-13-

lVlenuoperation

Video mode adjustment

1.Press MENU. The OSD opens.

2.Press Aorv to highlight Video, then press !_

to enter the Video menu.

3.Press A orvhighlight an option, then press,q

or_to adjust the option. You can

adjust:

Picture Mode-Adjusts the Picture Mode.

You can select Standard, Movie, User or Vivid.

Brightness-Increases the brightness to add

more light to dark areas of the picture. Decrease the brightness to add more dark

to light areas of the picture.

Contrast-Increase the contrast to adjust the white areas of the picture.

Decreases the contrast to adjust the black areas of the picture.

Saturation-Adjust the intensity of the colours.

HUE-Adjust the overall colour of the picture.

Sharpness-Increases the sharpness level to show clearer and clearer images.

Decreases the level to show a smoother picture.

Color temperature-Changes the color temperature. You can select Cool, Standard,

or Warm.

Advanced Video-Accesses advanced video settings such as DNR, Black Level,

Extender, White Peak Limiter, Flesh Tone.

Audio mode adjustment

1.Press MENU. The OSD opens.

2.Press Aorv to highlightAudio, then pressl_

to enter the Audio menu.

3.Press A or_ highlight an option, then press4

orl_to adjust the option. You can

adjust:

•'Audio Mode-Adjusts theAudio Mode. You can

select Standard, Speech, User or Music.

_ Balance-Adjusts the volume of the left and

right speakers.

Bass-Adjust the bass(low-pitch sounds).

_Treble-Adjust the treble(high-pitch sounds).

_Sound Surround-Turns the surround sound effect on or off.

_SPDIF Type-Selects the SPDIF type. You can select PCM,Dolby Digital,

or Off.

_Auto Volume Control-Turns automatic volume control on or off. The option keeps

the audio in a preset range to eliminate large spikes in volume.

Note: Via SPDIF Type, you can choose the optical digital audio out type.

IfAudio Volume Control is On, that means audio out control is activated.

-14-

Setup

(1) OSD Language:

Use the arrow right or left button to choose the OSD

Language among English, Spanish and French.

(2) Screen Mode:

Use the arrow button to choose the screen aspect

ration from Normal, Wide, Cinema to Zoom.

(3)DPMS

This is a good function for monitor. When DPMS is on, the computerwill control the screen on or off.

For example, if the computer is in the sleep mode, the screen will be off. If the computer is activated, the

screen also is activated.

(4)Time Setup

You can set up the exact time by yourself. You can also set up the Sleeper Time and Auto Sleep

(5)Caption:

There are three items in it-Analog Closed Caption, Digital Closed Caption, Digital Caption Style.

Analog Closed Caption: CCl, CC2, CC3, CC4, TEXT1 ,TEXT2, TEXT3, TEXT4.

Digital Closed Caption: Service1, Service2, Service3, Service4, Service5, Service6.

Digital Caption Style: There are two Caption Styles. One is automatic function as broadcaster, the

other is custom style, that means you can adjust the font size, color, opacity, background color etc

according your need.

(6) Reset Default

Every TV has its original setting before leaving the factory. So this function help you restore these

settings.

Parental

When you first use this function, the default Password is

[0000]. Only you input this password, you can continue to

the next operation.

(1) Channel Block

These function can let you block any channel you want.

(2) Program Block

A. Rating Enable is on

B. U.S. TV Ratings, you can choose the TV ratings

according to the illustration on the screen.

C. The setting of U.S. Movie Rating, Canadian English

Ratings, Canadian French Ratings follow the step B.

If you want to block the unrated program, please turn on this function.

Following is the description of these rating.

-15-

About TV PG Rating:

The TV ratingsaredivided into two groups:age-based and content-based.

Age Defined as

TV-Y All children

TV-Y7 Directed to older children

TV-G General audience

TV-PG Parental Guidance suggested

TV-14 Parents Strongly cautioned

TV-MA Mature Audience only

Contents Defined as

FV Fantasy Violence

D Suggestive dialogue

L Strong language

S Sexual situations

V Violence

About iMIPAARating:

The Motion Picture Association of America(MPAA) uses a rating system to qualify motion picture content.

Television broadcasters employ a rating system to qualify the content of televison programs as well,

The MPAA and TV ratings work with the V-CHIP feature and allow you to block out programming above

the rating limits _oudetermine,

Rating Defined as

G General audience

PG Parental Guidance suggested

PG-13 Parents strongly cautioned

R Restricted

NC-17 No one 17and under admitted

X Adult audience only

About Canadian French

Raftng Description

G General

8ans+ 8+ General Not recommendedfor young children

Programming maynot besuitable for children under

13ans+ the age of 13

Programmingis notbesuitablefor childrenunder

16ans+ theageof16

18ans+ Programmingrestrictedto adults

About Canadian English

Rating Description

C Children

C8+ Children eight years and older

G GeneralProgramming,suitablefor all audiances

PG Parents Guidance

14+ Viewers 14years andolder

18+ Adult programming

NOTE:As you block rating,all rating higher than the ones you select are blocked as well .For example,if you

choose to block the MPAA rating R,the higher ratings,NC-17 and X,are automatically blocked too.

-16-

(3) Input Block:

You can block the input source by this function, for example, if you want to blockAV input, just highlight 2

[AV] and push the [ENTER] button, TheAV input will not be seen in the screen.

(4) Change Password:

At the first time, you can use the default password. If you want to change it. This function will be needed.

First enter the new password then enter the same password again. You will get the new password.

(5) CleanAII

This function will let you clean all the channels remembered in this TV.

Note: if you choose this function, all the program you preset will be lost.

TV Settings

1.Press MENU. The OSD opens.

2.Press Aorv to highlight TV, then press _,

to enter the TV menu.

3.Press Aorvhighlight an option, then press,q

orl_to adjust the option. You can

adjust:

Tuner Mode-Select the TV signal source. You can select Antenna or Cable.

Channel Scan-Scans for channels that have signals and stores the channels information

in memory. When you presswork, your TV skips any channels that do not have a signal.

Channel Skip- Deletes a channel stored in memory. Whenyou pressAorv, yourTVskips

the channel you deleted. You can still tune to the channel using the number buttons on the

remote control.

MTS-Selects the sound mode. You can select Mono, Stereo, or SAP(second audio

program) Audio Language-Selects the audio language for a program.

Appendix

Cleaning and Care

WARNING: Do not try to remove the cabinet back. Refer servicing to qualified service technicians.

To clean the TV screen:

1) Unplug the TV to avoid possible shock hazard.

2) Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm water

to clean the TV screen and trim. Do not use too much water as water spilled into the cabinet can cause

damage to the TV.

3) Wipe offany excess moisture with a clean dry cloth.

4) Polish the cabinet with a quality furniture polish to maintain the finish and appearance of the cabinet.

Caution: Never use strong solvents such as thinner, benzene, or other chemicals on or near the cabinet.

These chemicals can damage the finish of the cabinet.

-17-

Appendix

Troubleshooting

Before calling a service technician, please check the following table for a possible cause of the problem and

some solutions.

Symptoms

TV will notturn on

No picture, nosound

No sound, picture OK

Poor sound, picture OK

Poor picture, sound OK

Unable to select a certain channel

Poor colour or no colour

The remote control does not operate

Disorder display at power on

Possible Solutions

• Make sure the power cord is plugged in, then press [Power].

• The remote control batteries may be dead. Replace the batteries.

• Check if you have set the off timer.

• Checkthe antenna/cable connections.

• Press [Display] to see if you have select the right signal source.

•The sound may be muted. Press [VOL+ ] on the remote control or.

•The station may have broadcast difficulties. Try another channel.

o Checkthe speakers cable connections.

• The station may have broadcast difficulties. Try another channel

o Checkthe speakers cable connections,

• Checkthe antenna connections.

•The station may have broadcast difficulties. Try another channel.

• Adjust the picture from the menu.

• The channel may be skipped. Choose this channel by number bottons

directly.

• The station may have broadcast difficulties. Try another channel.

o Adjust Saturation in the Vedio settings menu,

•There may be an obstruction between the remote control and the

remote control sensor.

= The batteries may be installed with awrong polarity.

•The remote control batteries may be dead. Replace the batteries.

• This may be caused by too short interval between power off and on.

Unplug the power and restart.

Customer important notice: If the TV can not be operated,please unplug the power and restart.

-18-

Appendix

Specifications

Model

Diagonal display size

Television system

Audio multiplex

Channel coverage

PC mode

YPbPr/YCbCr mode

Resolution

Power source

Power consumption

Audio power

Conection interface

47LB45H

47 inches

American TV standard ATSC/NTSC system

BTSC system

VHF:2~13 UHF:14~69 CATV:l~125

Digital Terrestrial Broadcast (SVSB): 2~69

_.._Digitalcable .(64!256QAM_ 1~135

640 480/60Hz,800 600/60Hz,1024 768/60Hz

4801/60Hz, 480PI60 Hz,720PI60Hz,10801/60Hz

1920 1080

AC 120V,60 Hz

285W

10W+10W

RFinput:

VIDEO input:

VIDEO output:

GRAPHIC input:

AUDIO input:

AUDIO output:

Cable/Antenna 1

VIDEO 2

S-VIDEO 2

COMPONENT 2

HDMI 2

VIDEO 1

Analog RGB 15pin

AVAudio 2

ComponentAudio

PCAudio Input 1

AVAudio 1

Digital audio output

Length: 44.Sinches

Dimensions Width: 12.6inches

Height: 31.Sinches

Weight 71.5 Ibs

Remote control, AC cord, Batteries, User Manual, Warranty Card

Supplied accessories QSG

Design and specifications are subject to change without notice.

CUSTOMER NOTICE: Use carefully when operating to prevent damage to the screen.

-19-

Proscan 47LB45H User Manual LCD TELEVISION Manuals And Guides L0810095

PROSCAN LCD Television Manual L0810095 PROSCAN LCD Television Owner's Manual, PROSCAN LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
