Model:PLDV321300

CONTENTS

SAFETY

PRECAUTION

IMPORTANT

SAFETY

INSTRUCTION

ACCESSORIES

GETTING

STARTED

CONTROL

REFERENCE

GUIDE

WALL MOUNT

INSTALLATION

INITIAL SETUP

TV SETUP

CONNECTIONS

Remote Control

Front View

Back View

Side View

Antenna Connection

AV Connection

YPbPr Connection

HDMI Connection

VGA Connection

Headphone Connection

Power Cord Connection

Coax(SPDIF) Connection

Putting The Unit On A Proper Place

Turning The Unit On For The First Time

Source Selection

Picture Menu

Audio Menu

Time Menu

Setup Menu

LOCK(Parental) Menu

TV(CHANNEL) Menu

Zoom Function (For DVD)

English

CONTENTS

DISC

FORMATS

CD / DVD

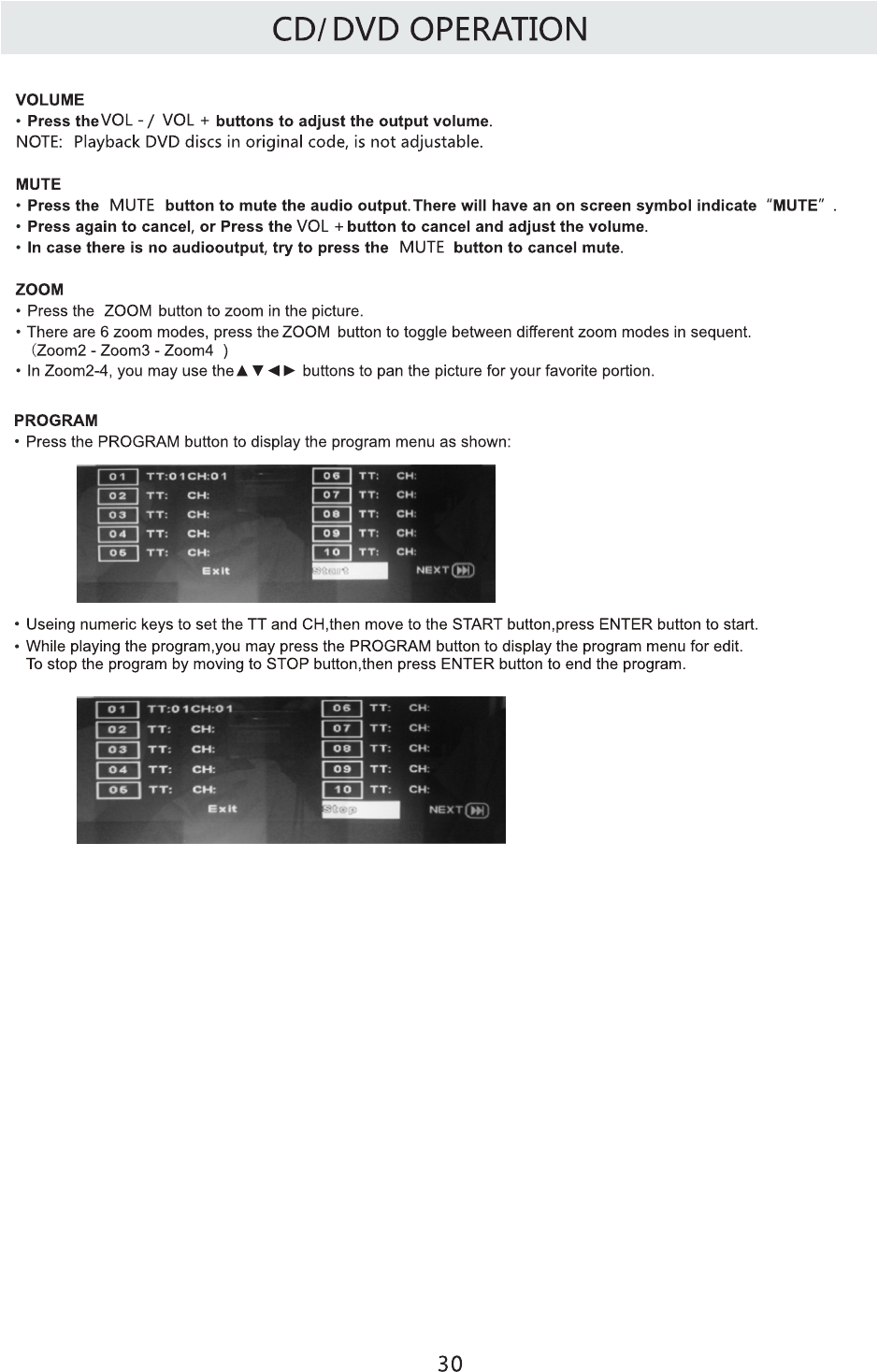

OPERATION

CUSTOMIZING

THE DVD

FUNCTION

SETTINGS

DISPLAY

MODE

SPECIFICATION

TROUBLE-

SHOOTING

GUIDE

Basic Operations

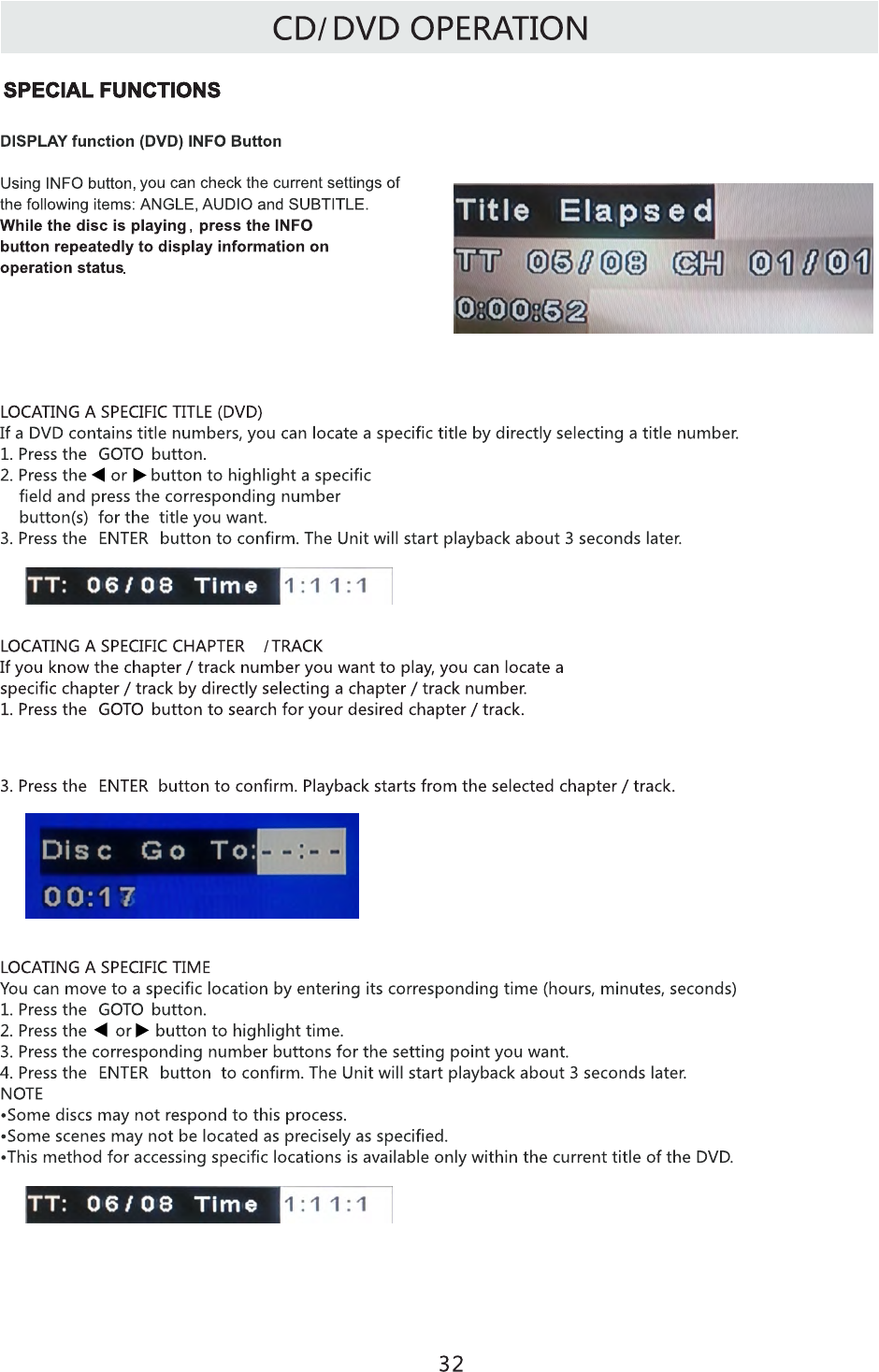

Special Functions

Mp3 / JPEG Playback

PC Formats

Video Formats

DVD Symptom

TV Symptom

SAFETY CLASS :This is an IEC safety class I product

and it must be grounded for safety.

DVD Menu

13 MAINTENANCE 37

SAFETY PRECAUTION

CAUTION

•

WARNING:

PLACEMENT INFORMATION

SAFETY INFORMATION

CONDENSATION INFORMATION

RATING PLATE LOCATION

FCC STATEMENTS

CLASS 1 LASER

PRODUCT

WARNING:

CAUTION MARKING WAS LOCATED AT THE REAR

OF THE APPARATUS.

WARNING:TO REDUCE THE RISK OF ELECTRIC

SHOCK，DO NOT REMOVE COVER（OR BACK）

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol,

within an equilateral triangle,is intended to

alert the user to the presence of uninsulated

“dangerous voltage”within the product's enclosure

that may beof sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral

Triangle is intended to alert the user to

The presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

CAUTION

INVISIBLE LASER RADIATION WHEN

OPEN AND INTERLOCKS DEFEATED

AVOID EXPOSURE TO BEAM

This product

Contains a low

power laser device.

DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED. REPLACE ONLY

WITH THE SAME OR EQUIVALENT TYPE.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

•

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

TO REVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO

NOT PLACE OBJECTS FILLED WITH LIQUIDS ON

OR NEAR THIS UNIT.

SHOULD ANY TROUBLE OCCUR, DISCONNECT

THE AC POWER CORD AND REFER SERVICING

TO A QUALIFIED TECHNICIAN.

Do not use this unit in places that are extremely

hot, cold, dusty or humid.

Do not restrict the airflow of this unit by placing it

somewhere with poor airflow, by covering it with

a cloth, by placing it on bedding or carpeting.

When connecting or disconnecting the AC power

cord, grip the plug and not the cord itself. Pulling

the cord may damage it and create a hazard.

When you are not going to use the unit for a long

period of time, disconnect the AC power cord.

When left in a heated room where it is warm and

damp, water droplets or condensation may form

inside the equipment. When there is condensation

inside the unit, the unit may not function normally.

Let the unit stand for 1-2 hours before turning the

power on or gradually heat the room and let the

unit dry before use.

The rating plate is located on the rear of the unit.

NOTE: This unit has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation.

This unit generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communication. However, there

is no guarantee that interference will not occur in a

particular installation. If this unit does cause harmful

interference to radio or television reception, which

can be determined by turning the unit off and on, the

user is encouraged to try to correct the interference

by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the unit and

receiver.

-Connect the unit into an outlet on a circuit different

from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV

technician for help.

Changes or modifications to this

unit not expressly approved by the party responsible

for compliance could void the user authority

to operate the unit.

•

IMPORTANT SAFETY INSTRUCTIONS

1)Read these instructions.

2)Keep these instructions.

3)Heed all warnings.

4)Follow all instructions.

5)Do not use this apparatus near water.

6)Clean only with a dry cloth.

7)Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

8)Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (Including amplifiers) that

produce heat.

9)Do not defect the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other.

A groundingtype plug has two blades

and a third grounding prong.

The wide blade or the third prong is

provided for your safety.

If the provided plug does not fit into your

wall outlet, consult an electrician for

replacement of the obsolete outlet.

10)Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit

from the apparatus.

11)Only use attachments / accessories specified

by the manufacturer.

12)Use only with the cart, stand,

tripod, bracket, or table

specified by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution when

moving the cart / apparatus combination to

avoid injury from tip-over.

13)Unplug this apparatus during lightning

Storms or when unused for long periods of

time.

14)Refer all servicing to qualified service

personnel. Servicing is required when the

apparatushas been damaged in any way,

such as the power cord or plug is damaged,

liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

15)To prevent electric shock, ensure the grounding

pin on the AC cord power plug is securely

connected.

ACCESSORIES

Please check and identify the supplied accessories.

............................................................................................................ .........

................................................................................................................

.................................................................................................................

GETTING STARTED

USING THE REMOTE CONTROL

TO INSTALL THE BATTERIES

BATTERY REPLACEMENT

CAUTION

1.Open the battery door. 2. Insert 2 "AA" batteries

: Danger of explosion if battery is incorrectly replaced.

NOTES

WARNING :

x 2

x 1

Remote control ..................................................................................................................

Remote control

Battery(AA)

Warranty Card

Instruction Manual

·Point the remote control at the remote sensor located on the unit.

·When there is a strong ambient light source, the performance of the infrared remote sensor

·may be degraded, causing unreliable operation.

·The recommended effective distance for remote operation is about 16 feet (5 meters).

When the batteries become weak, the operating distance of the remote control is greatly

reduced and you will need to replace the batteries.

·If the remote control is not going to be used for a long time, remove the batteries to avoid

damage caused by battery leakage corrosion.

·Do not mix old and new batteries.Do not mix ALKALINE, standard (CARBON-ZINC) or

rechargeable (NICKEL-CADMIUM) batteries.

·Always remove batteries as soon as they become weak.

·Weak batteries can leak and severely damage the remote control.

Do not dispose batteries in a fire. Batteries may explode or leak.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

................................................................................................. x 1

................................................................................................................... x 1

Base stand and 5 screws

Screw driver

CONTROL REFERENCE GUIDE

REMOTE CONTROL

1.STANDBY

To switch on the TV or make the TV into

standby mode.

2.EJECT

To eject a disc.

3.INFO

Show the information of the program you are watching.

4.SOURCE

Press this button to select an input source.

5.PMODE

Press this button to select a picture mode for different

picture qualities.

6.SMODE

Press this button to select sound setting for different

sound effects.

7.0-9

Allows you to change the channel of the TV.

Switches back and forth between the current and

previous channels.

9.SLEEP

To select the amount of time before your TV turns

Off automatically.

10.VOL+/VOL-

Increases/Decreases the Volume control.

11.CH+/CH-

Skips to the next/previous channel on TV mode.

12.UP/DOWN/LEFT/RIGHT

Moves the cursor upward/downward/to the left/to the right

when making a selection.

13.MENU

Displays the OSD Menu of the TV.

14.CC

Press the button to enter into the CC mode.

TITLE

To goto the title menu if the DVD disc has a title page.

15.MTS

To change among STEREO, MONO and SAP. If there is no

second language available for the signal received, LED

Display audio will output to mono.

D.MENU

To show the menu of the DVD disc.

FAVFAV

EPGEPG

Universal Remote Code: 1218

(Universal Remote Control is not included)

CONTROL REFERENCE GUIDE

REMOTE CONTROL

16.ENTER

Press to confirm selections on a menu screen.

17.D.SETUP

Press this button to show the DVD SETUP menu.

18.Play/Pause

Press this button to play or pause the DVD you’re watching.

19.Exit

Press this button to exit the on screen display.

Stop

Press this button to stop playing the DVD you’re watching.

20.MUTE

Press this button to mute or restore sound.

21.AUDIO

Press this button to change the audio language of the DVD.

22.

Fast reverse in DVD mode.

23.

Fast forward in DVD mode.

FAV

Press this button enter the favourite list.

24.ZOOM

To select a screen display size on your TV in DVD mode.

25.GOTO

Press this button to start playing the disc program from

the time you want.

26.

Previous chapter in DVD mode.

27.

Next chapter in DVD mode.

28.EPG

Press this button to select the electronic programme guide.

29.SUBTITLE

To show the subtitle for the program you're watching.

30.PRO

To edit the program list of your DVD disc in DVD mode.

31.ANGLE

To select different angles to which the picture suits your

preference.

32.REPEAT

Press this button for repeat the program.

33.AB

Press this button for repeat play point A and B.

FAVFAV

EPGEPG

Universal Remote Code: 1218

(Universal Remote Control is not included)

CONTROL REFERENCE GUIDE

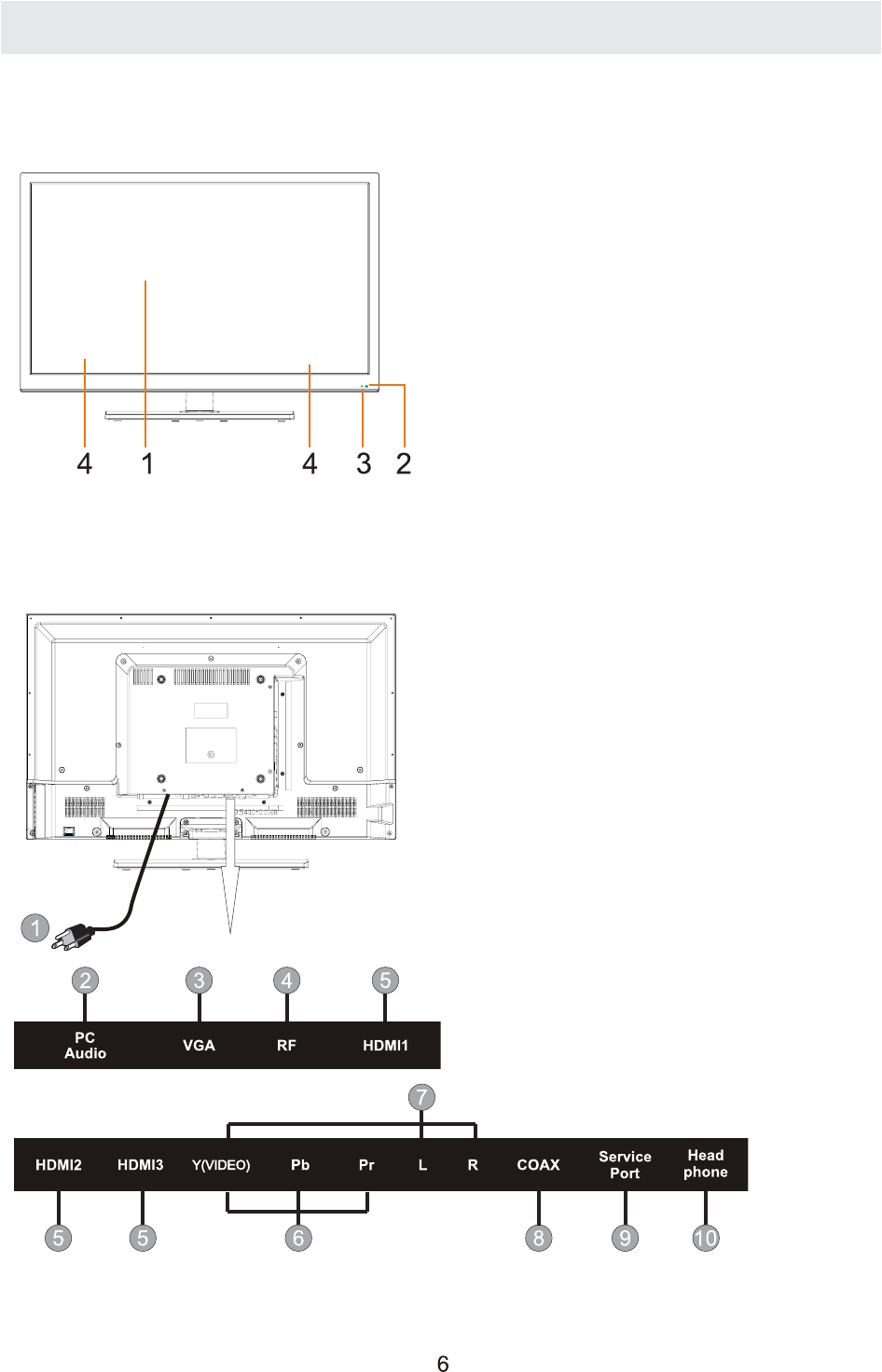

FRONT VIEW

1.Color Screen

2.Remote Sensor

Do not block this sensor or the

remote control will not work.

3.Standby Indicator

Indicates whether the unit is ON

or in STANDBY (OFF) mode.

Light in red: The unit is in STANDBY.

Light in blue:The unit is turned ON.

4.Speakers

BACK VIEW

1.Power Cord

2.PC ADUIO IN Jack

3.VGA IN Jack

4.TV ANTENNA Terminal

5.HDMI IN Jacks

6.COMPONENT IN Jack

7.AV IN Jack

8.Coax OUT Jack

9.Service Port

10.Headphone Jack

2. SOURCE

3. MENU

4. CH-

5. CH+

6. VOL-

7. VOL+

STANDBY Button

Button

Bu tt o n

Press to turn the unit on and off.

Press to select the input source of the TV.

Press to display the on-screen TV menu.

Press to change the TV channels and down

highlight selections on the menu screen.

Press to change the TV channels and up

highlight selections on the menu screen.

Press to adjust the volume down.

Press to adjust the volume up.

Press to eject a disc.

Press this start pause or resume playback of

a disc.

CONTROL REFERENCE GUIDE

9.Disc Slot

Insert discs to disc slot

SIDE VIEW

(Right direction:put the mirror side of

the disc facing yourself)

CONNECTIONS

CONNECTING A TV ANTENNA / CABLE / S A TELLITE

To view television channels correctly, a signal must

be received from one of the following sources:

- An indoor or outdoor aerial antenna

- A cable system

- A satellite system

For receiving over-the-air TV broadcasts, we

recommend that you use an external fixed antenna.

Should you require the use of a temporary antenna,

please ensure that you purchase an antenna with

sufficient ability to receive in weak signal areas.

Only when you are in close proximity to a transmitter

will a temporary antenna reproduce a signal as

strongly as a fixed antenna.

To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.

CONNECTING AN A/V DEVICE

NOTE

CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)

VIDEO OUTPUT

Connecting to a VCR / Video Game System / Camcorder

AUDIO VIDEO OUT

NOTE

To connect A/V devices such as a VCR, video game system or camcorder.

Connect the AUDIO / VIDEO cable (not included) as shown.

Make sure you connect the cable from the other equipment ( and ) to this unit

Please refer to the user manual

for the other equipment for

more information.

Satellite, cable or TV antenna

cable to TV ANTENNA

terminal (cable not included)

To AUDIO / VIDEO

IN jacks

To AUDIO / VIDEO

OUT jacks

(AV in)

Y(VIDEO)Y(VIDEO)

CONNECTIONS

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CONNECTION

NOTE

COMPONENT

High-Definition (HD) Devices with component video output must be connected to the Y input.

Connect the component video cable and audio cable (not included) as shown.

Make sure you connect the component video cable and audio cable from the other equipment

When connecting a DVD player to the television,

the picture resolution is solely dependent upon

the resolution supported by the DVD player attached.

DVD player resolutions vary from 480i to 1080i.

and this television can support DVD players up to

a maximum resolution of 1080i.

PbPr

* May require a subscription

for receiving HD channels,

check with your cable/satellite

service provider for details.

To COMPONENT

VIDEO OUT jacks

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection

for use with DVD players, DTV, set-top boxes and other digital AV devices. HDMI was developed to provide

the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface

(DVI) in one specification. HDCP is used to protect digital content transmitted and received by

DVI-compliant or HDMIcompliant displays.

HDMI has the capability to support standard, enhanced or high-definition video plus standard to

multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of

up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and

connectors), and communication between the AV source and AV devices such as DTVs.

To HDMI

IN jack To HDMI

jackOUT

To COMPONENT

VIDEO IN jacks

AUDIO IN jacks

To COMPONENT AUDIO

OUT jacks

Connect the HDMI cable (not included) as

shown:

Make sure you connect the cable from the

source equipment ( ) to this unit

( ).

HDMI OUT

HDMI IN

HDMI CABLE

(NOT INCLUDED)

（COMPONENT OUT and AUDIO OUT）to the unit COMPONENT IN.

COMPONENT IN

To COMPONENT

Y(VIDEO)Y(VIDEO)

CONNECTIONS

CONNECTING A

AUDIO - PC OUT

VGA AUDIO - PC IN

VGA

Connect the 15-pin D-SUB PC/VGA connector

from your computer to the 15-pin D-SUB PC/VGA

input on this unit using a monitor cable and an

audio cable (not included) as shown.

Make sure you connect the cable from the computer

(and ) to this unit

(and ).

TO PC Connector

TO AUDIO OUT jacks

NOTE

• Insert the power plug fully into the socket outlet

If the power plug is loose it could generate heat and

cause fire

Do not touch the power plug with a wet hand

This may cause electrical shock

Do not use any power cord other than that provided

with this TV This may cause fire or electrical shock

Do not damage the power cord

A damaged cord may cause fire or electrical shock

• Do not move the TV with the cord plugged in the

socket outlet.

• Do not place a heavy object on the cord or place

the cord near a high-temperature object.

• Do not twist the cord, bend it excessively, or stretch it.

• Do not pull on the cord. Hold onto the power plug body when disconnecting cord.

• Do not use a damaged power plug or socket outlet.

( ,

( .)

. ( .)

( ).

•

connected to prevent electrical shock.

Ensure that the power plug is easily accessible.

Ensure the earth pin on the power plug is securely

•

CONNECTIONS

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Select Return

Off

Picture Audio

Audio Language English

SPDIF Type PCM

Connection to a Home Theater Audio System

For BEST audio performance

Connecting to a Home Theater System

Dolby Digital can deliver optimal 2 channel

stereo or surround sound with five discrete

full range channels plus a sixth channel for

a subwoofer.

Enjoy optimal sound reproduction from your

system with a Dolby Digital amplifier that

incorporates a digital coaxial input. Connect

an optional digital cable directly to the

television’s Coax audio output to listen

through all inputs except VGA.

(The VGA does not support digital audio)

How To Setup Digital Output

Press the MENU button on the remote control

Press the right ► arrow button to select AUDIO

Press the down ▼ arrow button to highlight

SPDIF type right ► Raw or PCM

Coax

SPDIF OUT

WALL MOUNT INSTALLATION

INSTALLING REMOVING THE BASE STAND

WARNING

:The TV Display is very fragile and must be protected at all times when removing the base

Stand

Be sure that no hard or sharp object or anything that could scratch or damage the TV display comes into

contact with it Do NOT exert pressure on the front of the unit at any time because the screen could crack

1 Disconnect all cables or cords connected to the unit

2 Lay the unit down on a flat surface with the back side facing up Please make sure to place a soft

cushioned material such as a pillow or thick piece of foam beneath the screen

3 To remove the base stand loosen screws off the holes then pull downwards to release

the base stand

. .

. ,

MOUNTING ON THE WALL

NOTE

Remove the base stand before mounting the unit on the wall.

This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 8”x 8”

(200mm x 200mm) mounting kit designed for flat-panel TV's (not supplied). Mount this unit according to

the instructions included in the mounting kit.

Length of screw should not exceed 8 mm.

8”

INITIAL SETUP

When you turn on your television set for

the first time, be sure to place it on a solid

stable surface.

To avoid danger, do not expose the TV

to water, or a heat source

(e.g. lamp, candle, radiator).

Do not obstruct the ventilation grid

at the rear and be sure to leave sufficient

gaps around the unit.

PUTTING THE UNIT ON A PROPER PLACE

TURNING THE UNIT ON FOR THE FIRST TIME

After you have initially connected your TV

antenna or cable,

turn the television ON.

A screen will display asking you to run a

to search and receive

available local digital channels.

It is here where you will select antenna options

and run .

Channels will be stored in the TV tuner.

Press the button on the remote control.

Press the button to highlight AIR/CABLE.

Channel Auto Scan

Please run

Channel Auto Scan

Using the buttons, scroll to highlight channel mode.

1. Press the button on the remo te control.

and select any of them using the button or

the button.

ource

Note:

Before wa tching please ma ke sure all necessary

cables and devices are connected.

ENTER

Use or button to select the optionsthe

(The screen will change to your desired s).

INPUT SO URCE

(TV,YPbPr/AV, DVD,HDMI1,HDMI2,HDMI3, VGA)

YPbPr/AV

DVD

HDMI1

HDMI2

HDMI3

VGA

INITIAL SETUP

AIR.

Setup

Tim e

Picture Audio

Cable System Auto

Start to Scan

Move Next Return

Se tup

Move Next Return

ME NU

Pictu re Audio

miT

RF CH

Found

Air Mode: Select when connected to an

indoor/outdoor antenna.

AIR

Se tup LOCK

Tim e

Picture Audio

CHANNEL

Air /Cable

Auto Scan

FavoriteFavorite

Show HideShow Hide

Channel NoChannel No

Channel labelChannel label

DTV SignalDTV Signal

Air

Select ReturnMove MENU

KOCEKOCE LBLB

Move MENU

Se tup

Tim e

Picture Audio

Air /Cable

Auto Scan

FavoriteFavorite

Show HideShow Hide

Channel NoChannel No

Channel labelChannel label

DTV SignalDTV Signal

Cable

Select ReturnMove MENU

Move MENU

Cable Mode: Select if you subscribe to

a pay television service includ ing satellite.

CABLE

How to Navigate

Setup

Tim e

Picture Audio

Cable System Auto

Start to Scan

Move Next Return

Se tup

Move Next Return

ME NU

Pictu re Audio

miT

RF CH

Found

CHANNEL

CHANNELCHANNEL

CHANNEL

Press the button to highlight Using the ◄► button to highlight CABLE.

Press the ▼ button to select AUTO SCAN then

press the ► button to enter the submenu and

press the ► button to start Channel Auto Scan.

Press the ▼ button to select AUTOSCAN.

Press the ENTER button and the cursor will move

up and CABLE SYSTEM will be displayed next.

Press ► the button to select STD > IRC > HRC >

Auto (Auto is recommended).

Press the ▼ button to select Start to Scan

and press ENTER to start Channel Auto Scan.

Channel Auto Scan may take several minutes

to complete. Channel Auto Scan may take several minutes

to complete.

NOTE: For cable or satellite users with no TV antenna, there no need to run Channel Auto Scan.

Connect your cable or satellite set top box to one of the available inputs on the TV for viewing.

TV SETUP

Setup

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Adjust Return

Pict ure

PICTURE MENU

Setup

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Select Return

Setup Parental

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Adjust Return

The PICTURE menu offers options to enhance and refine the picture displayed on your TV

based on ambient room light and personal preferences.

Adjustment options include contrast, brightness, color, tint, sharpness and Color Temp.

How to Navigate:

Press the MENU button on the remote control. Navigate using the ◄► buttons to select PICTURE.

Press the ▼ button to highlight ,

then press the ► button to select your viewing

preference from 4 factory options:

STANDARD > DYNAMIC > MILD > USER.

The STANDARD setting is recommended for most

viewing environments.

Depending on the ambient light level in the room,

you may find one of the other options

more pleasing.

To make more critical picture adjustments based on your own preferences in USER:

Use the ▼ button to highlight Contrast.

Navigate using the ◄► buttons to

increase or decrease contrast intensity.

Use the ▼ button to highlight Brightness.

Navigate using the◄► buttons to

increase or decrease overall brightness.

TV SETUP

Pict ure

PICTURE MENU

Setup

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Adjust Return

Setup

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Adjust Return

Setup

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Adjust Return

Setup

Tim e

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Standard

Normal

Move Adjust Return

The PICTURE menu offers options to enhance and refine the picture displayed on your TV

based on ambient room light and personal preferences.

Adjustment options include contrast, brightness, color, tint, sharpness and color temp.

Press the MENU button on the remote control. Navigate using the ◄► buttons to select PICTURE.

Use the ▼ button to highlight Color.

Navigate using the ◄► buttons to

increase or decrease color intensity.

Use the ▼ button to highlight Tint.

Navigate using the ◄► buttons to adjust colors

toward green or reddish tint.

Use the ▼ button to highlight Sharpness.

Navigate using the ◄► buttons to soften or

view crisper edges in the picture.

Use the ▼ button to highlight Color Temp.

Navigate using the ◄► buttons to select COOL

(more bluish tone), NORMAL or WARM.

The default setting is NORMAL.

WARM mode will provide color that is calibrated

to D6500° Kelvin, the standard color that

broadcast stations and the Motion Picture

industry consider as the most accurate to

view programming.

Note:

When adjustments are completed, you may select another menu by pressing

the Menu button.

TV SETUP

AUDIO MENU

Audio

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Audio Language

Standard

English

Move Select Return

Off

Picture Audio

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Adjust Return

Off

Picture Audio

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Adjust Return

Off

Picture Audio

How to Navigate:

Press the MENU button on the remote control. Navigate using the ◄► buttons to select AUDIO.

The AUDIO menu offers options to make sound enhancements while listening through the built-in

speakers and personal preferences.

Adjustment options include bass, treble, balance, surround, SPDIF Type and audio language.

Press the ▼ button to highlight SoundMode,

then press the ► button to select your sound

preference from 4 factory options:

STANDARD > MUSIC > MOVIE > USER.

The STANDARD setting is recommended for most

sound environments.

Depending on the surroundings in the room,

you may find one of the other options

more pleasing.

To make more critical audio adjustments based on your own preferences in USER:

Use the ▼ button to highlight Bass.

Navigate using the ◄► buttons to

increase or decrease low frequency intensity.

Use the ▼ button to highlight Treble.

Navigate using the ◄► buttons to

increase or decrease high frequency intensity.

SPDIF Type PCM

Audio Language English

SPDIF Type PCM

Audio Language English

SPDIF Type PCM

TV SETUP

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Select Return

Off

Picture Audio

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Adjust Return

Off

Picture Audio

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Select Return

Off

Picture Audio

AUDIO MENU

Audio

How to Navigate:

Press the MENU button on the remote control. Navigate using the ◄► buttons to select AUDIO.

The AUDIO menu offers options to make sound enhancements while listening through the built-in

speakers and personal preferences.

Adjustment options include bass, treble, balance, surround ,SPDIF Type and audio language.

Note:

When adjustments are completed, you may select another menu by pressing

the Menu button.

Use the ▼ button to highlight Balance.

Navigate using the ◄► buttons to adjust sound

towards the right or left speaker.

Use the ▼ button to highlight Surround.

Navigate using the ► button to turn the

dimensional surround effect ON or OFF.

(for built-in speakers only).

Use the ▼ button to highlight Audio Language.

Navigate using the ◄► buttons to select to listen

to an alternative language broadcast

(if available) English > French > Spanish .

You may select an alternative language using

the remote control by pressing MTS)

Audio Language English

SPDIF Type PCM

Audio Language English

SPDIF Type PCM

Audio Language English

SPDIF Type PCM

Setup

Tim e

Sound Mode

Bass

Treble

Balance

Surround

Standard

Move Select Return

Off

Picture Audio

Audio Language English

SPDIF Type PCM

Use the ▼ button to highlight SPDIF Type.

Navigate using the ► button to adjust.

TV SETUP

TIME MENU

Tim e

Setup

Sleep Timer

Time Zone

Daylight Saving Time

Clock

Move Select Return


Off

Pacific

Off

2007 10 31 04 04 PM

Tim e

Audio

Setup

Sleep Timer

Time Zone

Daylight Saving Time

Clock

Move Select Return


Off

Pacific

Off

2007 10 31 04 04 PM

Tim e

Audio

Setup

Sleep Timer

Time Zone

Daylight Saving Time

Clock

Move Select Return


Off

Pacific

Off

2007 10 31 04 04 PM

Tim e

Audio

Setup

Sleep Timer

Time Zone

Daylight Saving Time

Clock

Move Select Return


Off

Pacific

Off

2007 10 31 04 04 PM

Tim e

Audio

Press the MENU button on the remote control. Navigate using the ◄► buttons to select TIME.

How to Navigate:

The TIME menu includes adjustment of settings for your local time zone and daylight savings time.

The clock will adjust automatically after the initial Channel Auto Scan of available broadcast

channels in your area.

Note:

When adjustments are completed, you may select another menu by pressing

the Menu button.

Use the ▼ button to highlight SleepTimer,

then press the ► button to select among:

5min, 10min, 15min, 30min, 45min, 60min,

90min, 120min, 180min, 240min and off.

Use the ▼ button to highlight TimeZone,

then press the ► button to select among:

EASTERN > CENTRAL > MOUNTAIN >

PACIFIC > ALASKA > HAWAII.

Use the ▼ button to highlight

Daylight Saving Time.

Navigate using the ◄► buttons to turn

this feature on or off.

Clock: Display the time at present.

TV SETUP

SETUP MENU

Setup

Lock

Time Channel

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

Lock

Time Channel

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

Lock

Time Channel

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

Lock

Time Channel

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

1212

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

1212

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Next Return


Off

Normal

Off

Setup

Audio

Are you sure ?

No Yes

Press the MENU button on the remote control. Navigate using the ◄► buttons to select SETUP.

How to Navigate:

In the SETUP menu you may change the initial set up of preferences that include settings for

language, menu display, computer monitoring, closed captions, enhancement of black detail

in the picture and resetting your TV back to its factory default status.

Use the▼ button to highlight Menu Language,

Press the ► button to select the language

you prefer among English, French and Spanish.

Use the ▼ button to highlight Noise Reduction.

Navigate using the ◄► buttons to reduce video

noise: Middle > Strong> Off > Weak

Default setting: Middle)

Use the ▼ button to highlight Transparency.

Navigate using the ◄► buttons to turn Off or On

the translucent effect of the OSD.

Use the ▼ button to highlight XVS.

Navigate using the ◄► buttons to select:

Off > On. XVS provides noticeable black detail

enhancement that may be preferred.

When

prompted,

Select "Yes"

to confirm.

Use the ▼ button to highlight Zoom Mode.

Navigate using the ◄► buttons to select the

viewing mode: Normal > Wide > Zoom > Cinema.

Use the ▼ button to highlight Restore Default.

Press the ► button to automatically set all

adjustments back to their original settings.

SETUP MENU

Setup

Time

CC Mode

Basic Selection

Advanced Selection

Option

Move MENU


CC1

Service 1

Setup

Audio

Select Return

Time

CC Mode

Basic Selection

Advanced Selection

Option

Move MENU


CC1

Service 1

Setup

Audio

Select Return

Time

CC Mode

Ba sic Sel ection

Advanced Selection

Option

Move

Pict ure

CC 1

Service 1

Setup

Audio

Select Return

Time

CC Mode

Basic Selection

Advanced Selection

Option

Move MENU


CC1

Service 1

Setup

Audio

Next Return

Time

Mode

Font Style

Font Size

Font Edge Style

Font Edge Color

FG Color

BG Color

FG Opacity

BG Opacity

Return


Setup

Audio

Custom

Default

Move Select

TV SETUP

Lock

Time Chan ne l

Menu Language

Transparency

Zoo m Mode

Noise Re duction

Advance

Close Ca ption

XVS

Restore De fault

English

Mo ve Select Exit

Pict ure

Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoo m Mode

Noise Re duction

Advance

Close Ca ption

XVS

Restore De fault

English

Mo ve Ne xt Return

Pict ure

Off

Normal

Off

Setup

Audio

The SETUP menu includes adjustments for activating the Closed Caption feature for display

on the television and customizing CC display types and font styles.

How to Navigate:

Press the MENU button on the remote control.

Navigate using the ◄► buttons to select SETUP.

Press the▼ button to highlight Closed Caption

then press the ► button to select from the

following options.

Use the ▼ button to highlight Advance Selection.

Navigate using the ◄► buttons to select

Service 1 - 6.

Use the ▼ button to highlight CC Mode.

Navigate using the ◄► buttons to select

Off > On > CC on Mute.

Use the ▼ button to highlight Option.

Press the ► button to enter a menu with options

to cus tomize text fonts, colors and opacities.

Use the ▼ button to highlight Basic Selection.

Navigate using the ◄► buttons to select

CC 1-4, Text 1-4.

Note:

When adjustments are completed, you may select another menu by pressing

the Menu button.

TV SETUP

SETUP MENU

Setup

Se tup

Tim e

Picture Audio

Clock

Phase

Auto

Move Adjust ME NU

H - pos

V - pos

Se tup

Tim e

Picture Audio

Clock

Phase

Auto

Move Adjust MENU

H - pos

V - pos

Se tup

Tim e

Picture Audio

Clock

Phase

Auto

Move Adjust ME NU

H - pos

V - pos

Se tup

Tim e

Picture Audio

Clock

Phase

Auto

Move Next MENU

H - pos

V - pos

Lock

Time Channel

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

Se tup

Tim e

Picture Audio

Clock

Phase

Auto

Move Adjust MENU

H - pos

V - pos

In the SETUP menu you may adjust the position of images displayed on screen once you connect

an input signal from your PC.

If your PC system uses a standard signal mode, the screen will adjust automatically.

Connect an optional 3.5mm audio cable for stereo sound.

How to Navigate:

After connecting to a PC, press the SOURCE button and highlight VGA, then press the ENTER

button.

Press the MENU button on the remote control

and navigate using the ◄► buttons to select

SETUP. Press the ▼ button to highlight

Advanced, then press the ►button to select

from the following options.

Use the ▼ button to highlight Clock.

Navigate using the ◄► buttons to control the

width of the image.

Use the ▼ button to highlight H-POS.

Navigate using the ◄► but tons to adjust the

position of images displayed from side to side.

Use the ▼ button to highlight Phase.

Navigate using the ◄► buttons to improve focus

and image stability.

Use the ▼ button to highlight V-POS.

Navigate using the ◄► buttons to adjust the

position of images displayed up and down.

Use the ▼ button to highlight AUTO.

Press the ► button to automatically adjust the

display to the best setting.

Return

Return Return

TV SETUP

Lo ck LOCK(PARENTAL) MENU

Setup

Tim e

Picture Audio

Enter Password

Return

0 9~

Setup

Tim e

Picture Audio

Change Password

System Lock

Canada

Reset RRT

RRT Setting

Select Return

Move

Setup

Tim e

Picture Audio

Change Password

System Lock

Canada

Reset RRT

RRT Setting

Next Return

Move

Setup

Tim e

Picture Audio

Enter New Password

Confirm Password

Return

0 9~

In the LOCK(PARENTAL) menu you may block television by inputting passwords.

To gain access and select your preferences within the LOCK(Parental) menu

make certain your input is set to TV.

Press the MENU button on the remote control. Navigate using the ◄► buttons to select Parental.

How to Navigate:

Press the ▼ button to highlight

Enter Password. Enter your 4 digit code

(factory default code is "0000")

unless previously changed.

Use the numeric buttons to input a new

4 digit code by two times.

To change the password, press the ► button

to display a screen to enter your new password,

then confirm again.

To make changes to PARENTAL controls,

Highlight SYSTEM LOCK then press

the ► button to ON.

NOTE:

RRT Setting and Reset RRT are not user's adjustable settings.

TV SETUP

Lo ck LOCK(PARENTAL) MENU

Setup

Tim e

Picture Audio

MPAA

Move MENU

N A

Select

Setup

Tim e

Picture Audio

MPAA

Move MENU

N A

Setup

Tim e

Picture Audio

Block Press ENTER to lock or unlock

TV RATING

TV Y

TV Y7

TV G

TV PG

TV 14

TV MA

ALL FV V S L D

Move

N/A

In the LOCK(PARENTAL) menu you may block television and movie programming based on

U.S TV and movie rating guidelines. To gain access and select your preferences

within the LOCK(Parental) menu make certain your input is set to TV.

How to Navigate:

Press the MENU button on the remote control. Navigate using the ◄► buttons to select LOCK

(Parental).

Press the ▼ button to highlight ENTER PASSWORD. Enter your 4 digit code

(factory default code is "0000") unless previously changed.

To set parental controls for television programming or DVD movies, press the ▲▼buttons to

highlight US. Navigate using the ◄► buttons to highlight TV/MPAA menu.

Highlight TV, then press the ► button to enter the TV Ratings menu to select your preference.

Highlight MPAA then press the ► button repeatedly to select your movie rating preference.

Return Return

Return

TV SETUP

Lo ck LOCK(PARENTAL) MENU

Se tup

Canada English

Canada French

Move Select

ME NU

Picture Audio

Tim e

Se tup

Canada English

Canada French

Move Select

ME NU

Picture Audio

Tim e

In the LOCK(PARENTAL) menu you may block television and movie programming based on

Canadian TV and movie rating guidelines. To gain access and select your preferences

within the LOCK(Parental) menu make certain your input is set to TV.

How to Navigate:

Press the MENU button on the remote control. Navigate using t he ◄► buttons to select Parental.

Press the button to highlight ENTER PASSWORD. Enter your 4 digit code

(factory default code is "0000") unless previously changed.

To set parental controls for television programming or DVD movies, press the ▲▼ buttons to

highlight Canada.Navigate using the◄► buttons to highlight Canada English/Canada French menu.

Navigate using the ▼ button to highlight CANADA ENGLISH, then press the ► button repeatedly

to select your ratings preference.

Navigate using the ▼ button to highlight CANADA FRENCH, then press the ► button repeatedly

to select your ratings preference.

NOTE:

When adjustments are completed, you may select another menu by pressing

the Menu button.

Return

TV SETUP

TV(CHANNEL) MENU

Ch annel

Se tup

Tim e

Picture Audio

Air /Cable

Auto Scan

Favorite

Channel No

Channel Lable

DTV Signal

Air

Move Nxet Return

50 3

KOCE LB

Good

Setup

Tim e

Pict ure Audio

Move Press ENTER Change Return

Channel Program Name Favorite

ATSC 1

ATSC 2

ATSC 3

KOCE HD

KOCE SD

KOCE LB

2 0

14 1

14 2

14 3

50 1

50 2

66 0

50 3

Prev Next

Se tup

Tim e

Picture Audio

Air /Cable

Auto Scan

Favorite

Channel No

Channel Lable

DTV Signal

Air

Move Next Return

50 3

KOCE LB

Good

Setup

Tim e

Pict ure Audio

Channel Program Name Add/Delete

Prev Next

66 0

ATSC 1

ATSC 2

ATSC 3

KOCE HD

KOCE SD

KOCE LB

2 0

14 1

14 2

14 3

50 1

50 2

50 3

Se tup

Tim e

Picture Audio

Air /Cable

Auto Scan

Favorite

Channel No

Channel Lable

DTV Signal

Air

Move Next Return

50 3

KOCE LB

Good

Setup

Tim e

Picture Audio

Move Next MENU

K B B C - D T

The TV(CHANNEL) menu provides for the setup of your television to receive TV channels, store

your favorites, add or skip channels and label them by their call letters.

How to Navigate:

Press the MENU button on the remote control. Navigate using the ◄► buttons to select TV.

Press the ▼ button to highlight your preferences.

Highlight FAVORITE to add channels to your Favorites List. Navigate using the ▲▼◄► buttons

to select channels to be added or deleted from your list. Press the ENTER button to add or delete

a channel. A checkmark indicates a channel has been added. You may also display your favourite

list from the remote control by pressing FAV.

Highlight to select Show/Hide or skip channels already in memory. Navigate using the ▲▼◄►

buttons to access the list of available channels. Press the ENTER button to change the channels

status. A checkmark indicates a channel has been added.

Highlight CHANNEL LABEL to name or rename a broadcast channel. Navigate using the ► button

to enter the screen menu to re-label a channel. Use the ▲▼ buttons to spell out each letter,

number or character. Use the ◄► buttons to advance to the next space.

Show/Hide

Move Press ENTER Change Return

Return

TV SETUP

ZOOM MODE

1 NORMAL.

2 WIDE.

3 ZOOM.

4 CINEMA.

Recommended for viewing native

widescreen content and

undistorted 4:3 images.

(With Black Bars)

Stretches certain 4:3 content and

may reduce the black bars.

Stretches the image both vertically

and horizontally to fill the screen

when viewing widescreen content.

The zoom effect will crop images

somewhat.

When viewing 4:3 content,

Cinema mode will fill the entire

screen eliminating the side black bars.

It may also eliminate or reduce black

bars on certain widescreen movies.

Lock

Time Channel

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Exit


Off

Normal

Off

Setup

Audio

Time

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advance

Close Caption

XVS

Restore Default

English

Move Select Return


Off

Normal

Off

Setup

Audio

Use the ▼ button to highlight Zoom Mode.

Navigate using the ◄► buttons to select the

viewing mode: Normal > Wide > Zoom > Cinema.

Press the MENU button on the remote control.

Navigate using the ◄► buttons to select SETUP.

DISC FORMATS

The unit can play:

REGION MANAGEMENT INFORMATION

Region Management Information: This unit is

designed and manufactured to respond to the

Region Management Information that is encoded

on DVDs. If the region number printed on the

DVD does not correspond to the region number

of this unit, this unit cannot play that disc.

The region number of this equipment is .

ICONS USED ON DVDs

Sample Icons

Language selections for audio

Language selections for subtitles

Screen aspect ratio

Multiple camera angles

Region code indicator

TITLES, CHAPTERS AND TRACKS

• DVDs are divided into "TITLES" and "CHAPTERS".

If the disc has more than one movie on it,

each mo vie wo uld be a separate "TITLE".

“CHAPTERS" are sections of titles.

• Audio CDs are divided into "TRACKS".

NOTE

Numbers identify each title, chapter and track

on a disc. Most discs have these numbers record

on them, but some do not.

NOTES ON UNAUTHORIZED DISCS

You may not be able to playback some DVDs

on this equipment if they were purchased from

outside your geographic area or made for

business purposes.

DVDs

[8cm/12cm disc]

Audio CDs

[8cm/12cm disc]

CD R CD RW- -

Compatible

A "TRACK" is usually one song on an Audio CD.

NOTES ON COPYRIGHT

It is forbidden by law to copy, broadcast, show,

broadcast on cable, play in public or rent

copyrighted material without permission.

Apparatus Claims of U.S. Patent Nos. 6,836,549;

6,381,747; 7,050,698; 6,516,132; and 5,583,936

licensed for limited viewing uses only.

DVDs are copy protected, and any recordings made

from these discs will be distorted. This product

incorporates copyright protection technology that is

protected by method claims of certain U.S. patents

and other intellectual property rights owned by

Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be

authorized by Macrovision Corporation, and is

intended for home and other limited viewing uses

only, unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly

is prohibited.

NOTE

When playing back a CD-G (Graphics) or

CD EXTRA disc, the audio portion will be played,

but the graphic images may not be shown.

DISC FUNCTION OR OPERATION

THAT IS NOT AVAILABLE

When the “ INVALID KEY ”

it indicates that the function or operation

attempted is not available at that time.

This occurs because the DVD manufacturer

determines the specific functions.

Certain functions may not be available on

some discs. Be sure to read the documentation

provided with the DVD.

symbol appears on the screen,

Insert the disc to the disc slot (mirror side of the disc has to face yourselef),the player

SKIP (PREVIOUS/NEXT)

2.You can directly press 0-9 number button to highlight a chapter/track.If you want the chapters / tracks

greater than 10,you can press the 10+ button and press the corresponding number button(s) for the

chapter/track you want.

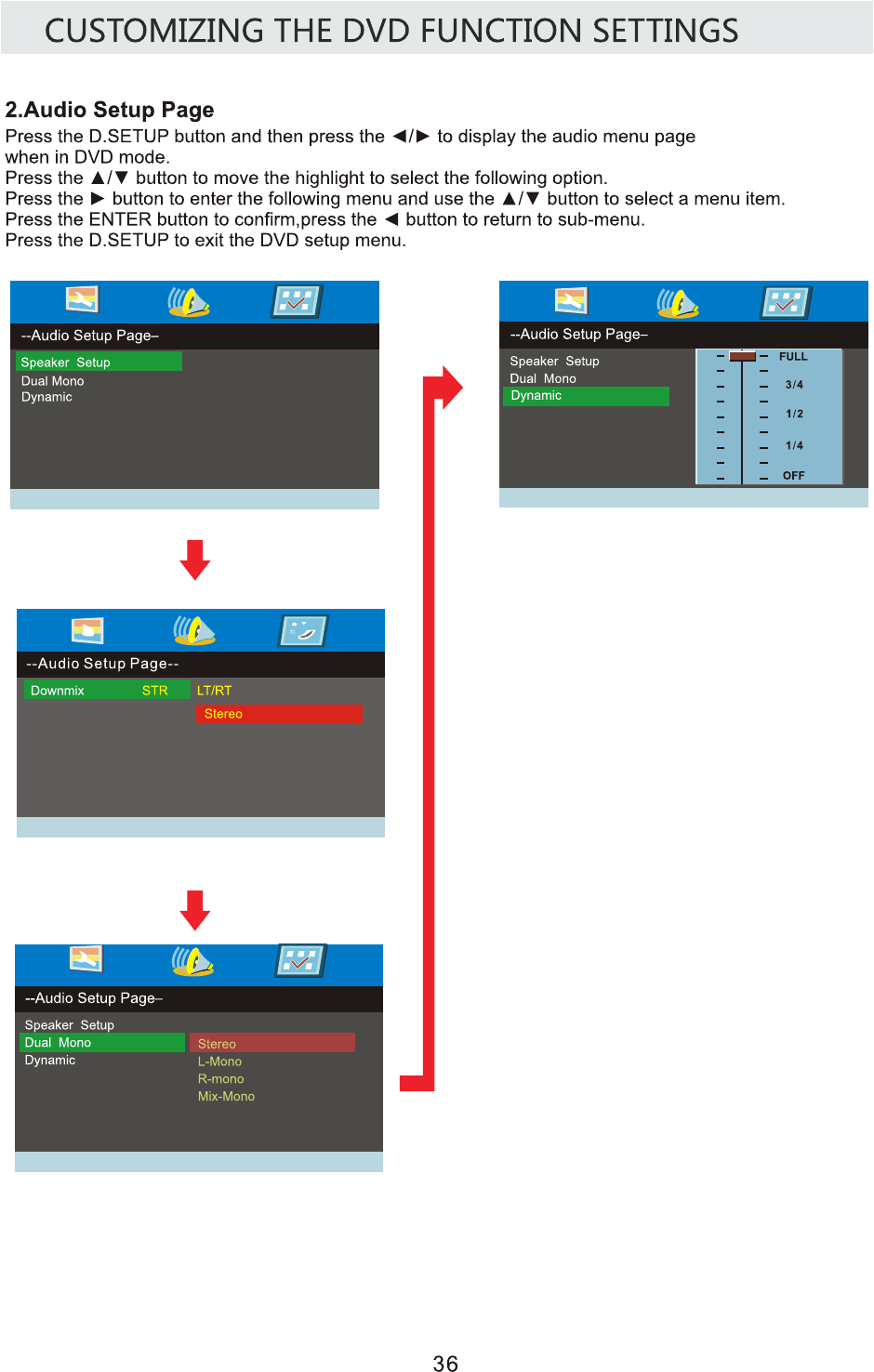

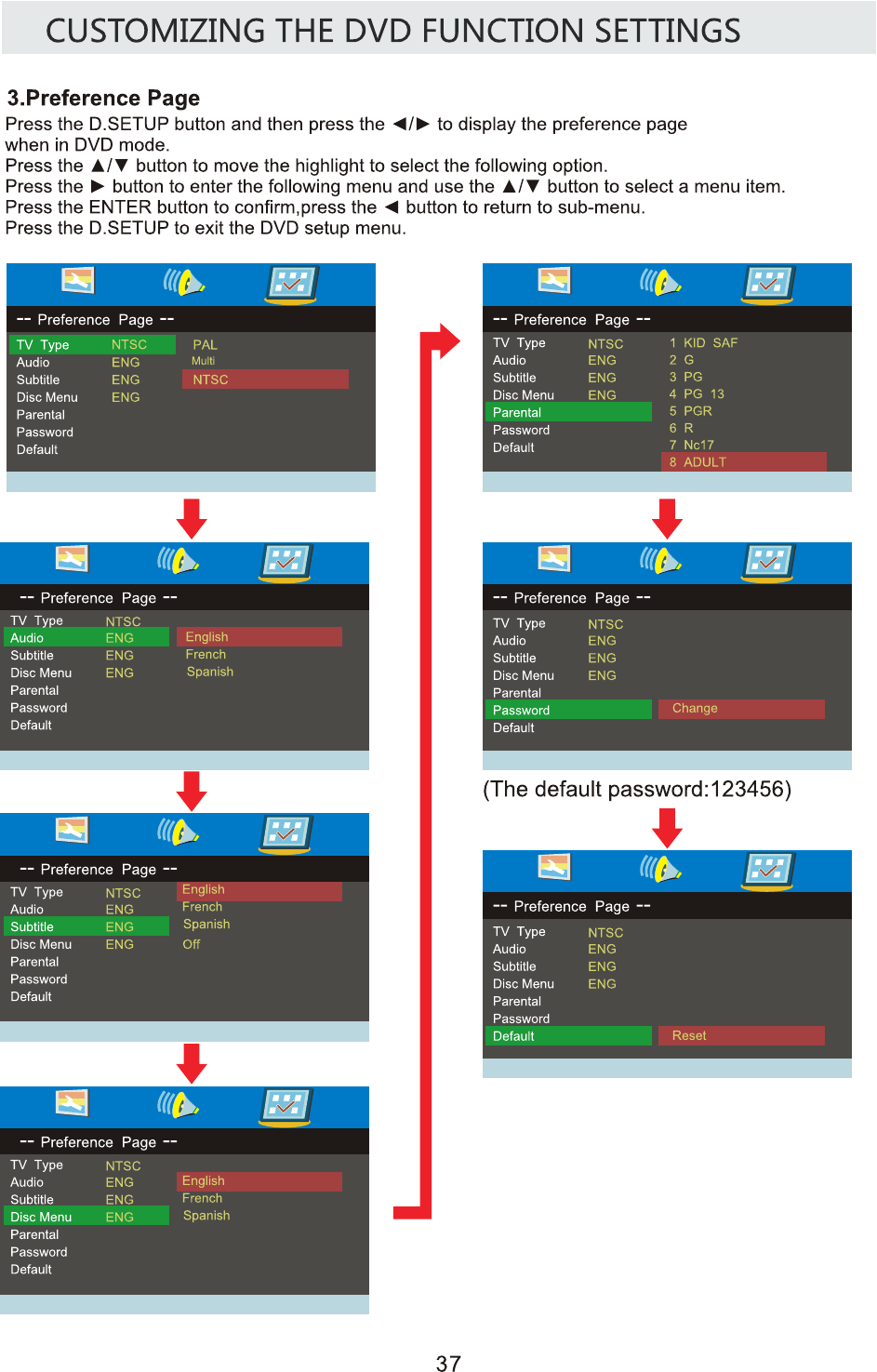

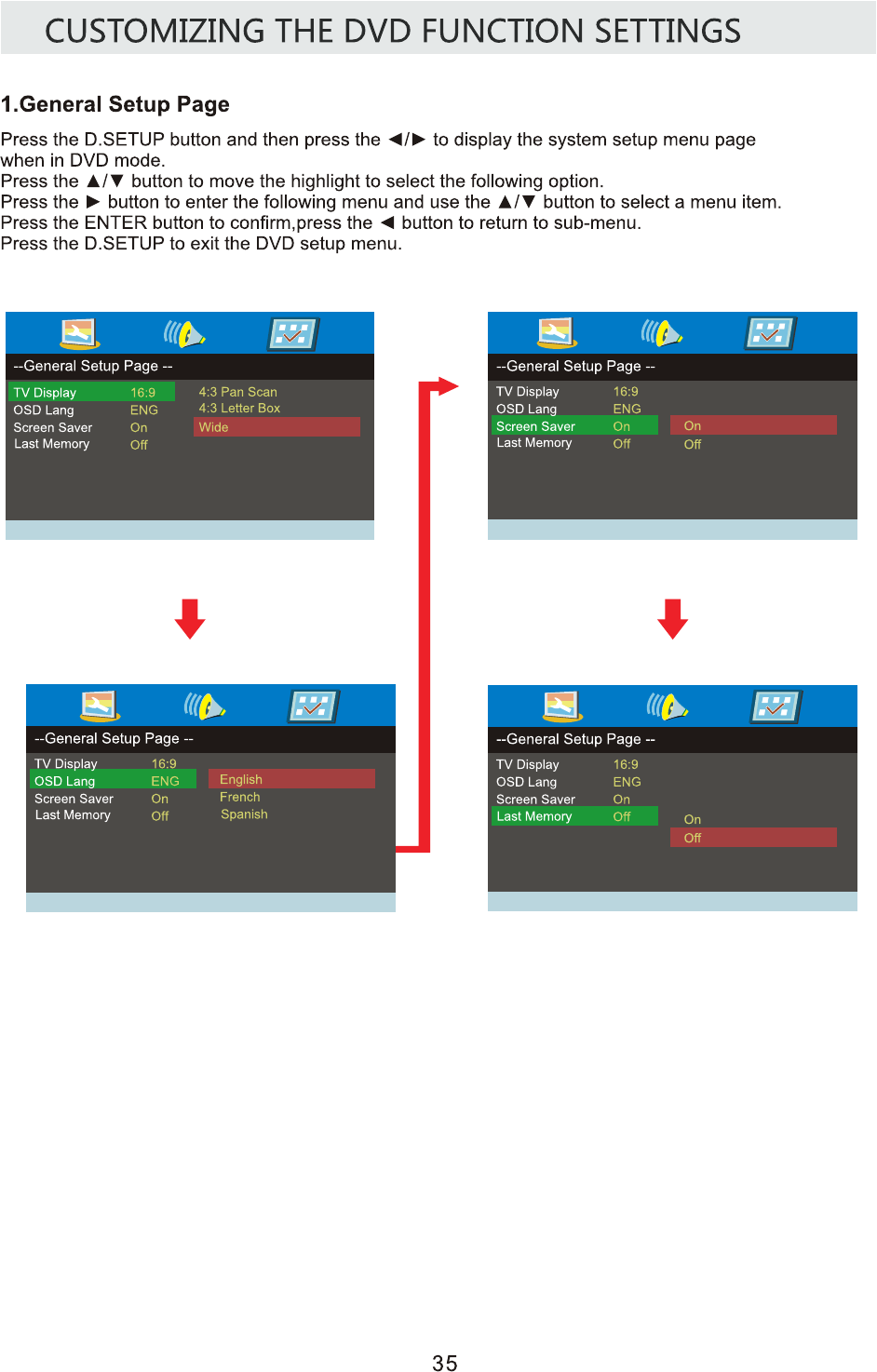

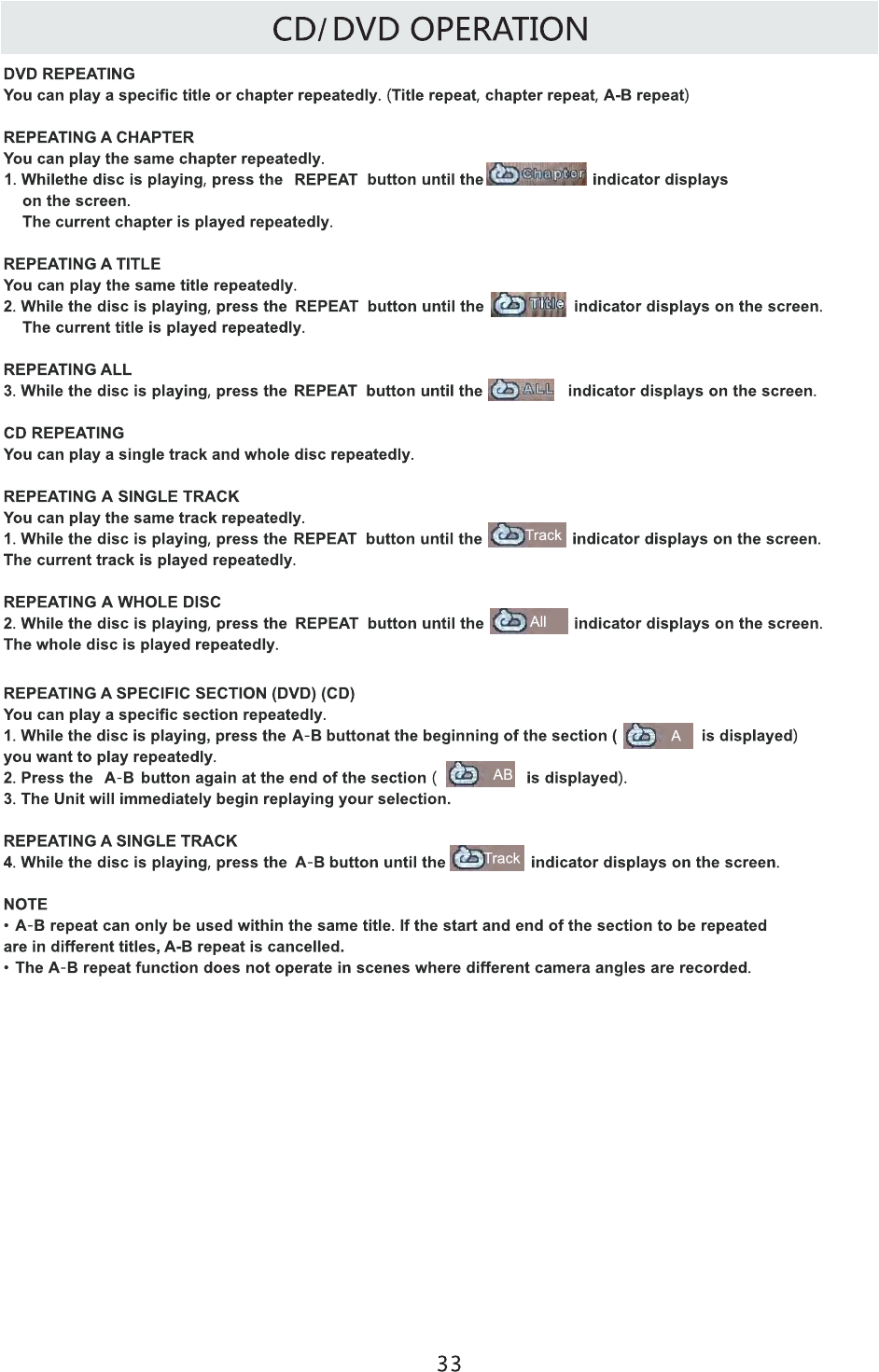

DISPLAY MODE

PC FORMATS

H i o aor z nt l

Sc ning F eq enan r u cy

Res l io

o ut n

(KHz)

Vert c l

i a

Sc n n e e

an i g Fr qu ncy

(Hz)

Format

640 480

00 600

00 6 08 0

024 681 7

1360 768

7.74

31.5

NOTE:

This product does not support the display mode not listed above.

In order to achieve the best display effect, please select the above-listed

5 display modes input signal.

Because of the difference of display drivers output signal

(especially non-standard signal output), the display image may appear little

disturbance which can be adjusted on the PC menu.

To prolong this unit's service life, please set your computer to power management mode.

DISPLAY MODE

VIDEO FORMATS

SUPPORTED COMPONENT / HDMI INPUT MODE

Horizontal

Scanning Frequency

Vertical

Scanning Frequency Format

(Hz)

720 480

1280 720

1920 1080

31.47

15.734

37.5

31.25

33.75

59.94

480 p

480 i

1080 i

720 p

1080 i

Res lu iono t

The above listed formats are also related to the AV devices you are about to connect.

Before you connect this unit with others please read all instructions carefully and

make sure all necessary cables are connected.

This unit may be incompatible with some other formats which are not meet the

above conditions.

NOTE:

1920 1080

1080 p

1920 1080

X1080 p

56.25

67.50

SPECIFICATION

32”LED TV /DVD COMBO

Panel Type LED Panel

32 inches

Diagonal Size

Screen Format 16 9:

Color System ATSC/QAM/NTSC

Model Description

Panel

Resolution 1366 x 768

View Angle

Response Time

Contrast

Brightness

Maximum Color

400cd/㎡

3000:1

16.7M colors

Sound Output

RF Input 75 ohm external terminal

HDMI Input Video 480i 480p 720p 1080i,1080p.: , , ,

Audio Two channel linear PCM 32 44 1 and 48kHz 16 20 and 24 bits: , . , ,

PC RGB Input-

D sub 15pin-

G 0 7Vp p 75ohms: . - ,

B 0 7Vp p 75ohms: . - ,

R 0 7Vp p 75ohms: . - ,

Power Requirement

Input /

Output

Jacks

Systems

Power

Sound System M

Audio System BTSC

L/R Speaker:10 W +

10 W

Composite Video Input

Component Y Pb Pr Input/

Sound Input

Region Code 1

DVD Disc Size 12cm disc

Compatible Disc Type DVD,DVD-R/+ R,DVD- RW / +RW, VCD, CD, CD- R, CD- RW

RCA

Y: 1.0 Vp-p, 75ohms, 0.3V negative sync

Pb: 0.7Vp-p, 75ohms

Pr : 0.7Vp-p, 75ohms

AC100-240V~ 50/60Hz

178(H)/178V)

80 W

This manual is only for your reference.

Specifications are subject to update without prior notice.

1.0 Vp-p, 75ohms RCA

PC AUDIO: For PC RGB Audio input

500mV rms, Impedance: 20k ohms

AV AUDIO: For CVBS

Component AUDIO: For Component Audio input

6.5 ms

Rated power consumption

• Make sure the power cord is connected.

• Turn on the unit.

• Remove any obstacles between the remote and the unit.

• Use the remote near the unit.

• Point the remote at the remote sensor on the unit.

• Replace the batteries in the remote with new ones.

No power.

The remote does not

function.

• Make sure that you’ve selected DVD mode.

• The system is in pause mode.Press the button to return to

normal play mode.

• Fast forward or fast reverse is performed.Press the button

to return to normal play mode.

• Make sure the AUDIO /VIDEO output and AV IN input

connections are correct.

• This unit is too hot. Power off the unit for 30 minutes to cool

down.

• The region number of the disc doesn’t match the region number

of this unit.

• Clean the disc.

• The disc is scratched

plugs and jacks are dirty.Wipe them with a cloth slightly

• Clean the disc

• There is no disc inside(“No Disc”appears on the screen).

• Insert the disc correctly with the label side facing yourself.

• Clean the disc.

• A non-NTSC disc has been inserted.The unit and disc region

number are incompatible.

• Condensation may have formed inside the unit due to a

sudden change in temperature.Wait about an hour for it to

clean and try again.

DVD

No sound or only a

very low-level sound is

heard.

No picture

The picture is not clear

Severe hum or noiseis

heard.

The disc does not play.

SYMPTOM CAUSE AND REMEDY( )

TROUBLESHOOTING GUIDE

• The

moistened with alcohol.

SYMPTOM CAUSE AND REMEDY( )

Bad Picture (snow,

multiple images

distortion,blurry)

No sound.

Black and White

picture.

No picture or sound.

Coloredpatches of

picture.

Panel function key does

not respond correctly.

• Check the location of the antenna and adjust it if necessary.

• Make sure the antenna cable is firmly connected.

• Make sure all input cables are firmly connected.

• Increase the volume.

• Check the PICTURE setting within the PICTURE menu.

• Make sure the unit is plugged in and turned on.

• Make sure that the ATV mode is selected.

• Try a new channel to check for possible station trouble.

• Make sure the antenna is connected properly.

• Increase the volume.

•

• Make sure all cables are firmly connected.

• Check for local interference.

• Make sure there are no unshielded electrical devices nearby

that are causing interference.

• Turn the TV off for 30 minutes, then try it again.

• Under the influence of electrostatic phenomenon, the product

may malfunction and require usertopowerreset.

• Unplug and re-plug the power cord.

TROUBLESHOOTING GUIDE

• Check to make sure the program you are watching is broadcast

in Color and not Black & White.

• Check whether the mute function has been activated on the

Remote Control.

The display monitor's

panel goes hot.

•LED TV takes inside lighten phosphor. It may increase the

temperature of the screen in some occasions. It's not a defect.

Unusual dots •Black dots and Bright points may appear on the LED screen.

This is a structural property of the LED panel and is not a defect.

Stripes on screen •Adjust the impulse phase may decrease stripes.RGB in（）

The top of the monitor •It may occur during long-time working. It's not a defect.

gets hot .

Make sure the antenna or audio/video source device is

working properly.

Unable to select a

certain channel.

The channel may be skipped. Choose this channel by

directly selecting the buttons from the remote control.

•

Disorder display

at power on.

•

This may be caused because of a very short interval

between STANDBY OFF and ON.

Unplug the power and restart.

Proscan Pldv321300 Users Manual T201303039 EN+FR

PLDV321300 to the manual 158b408b-17c2-474f-96a1-b673deff8383

Navigation menu

Versions of this User Manual:

Views

Navigation
