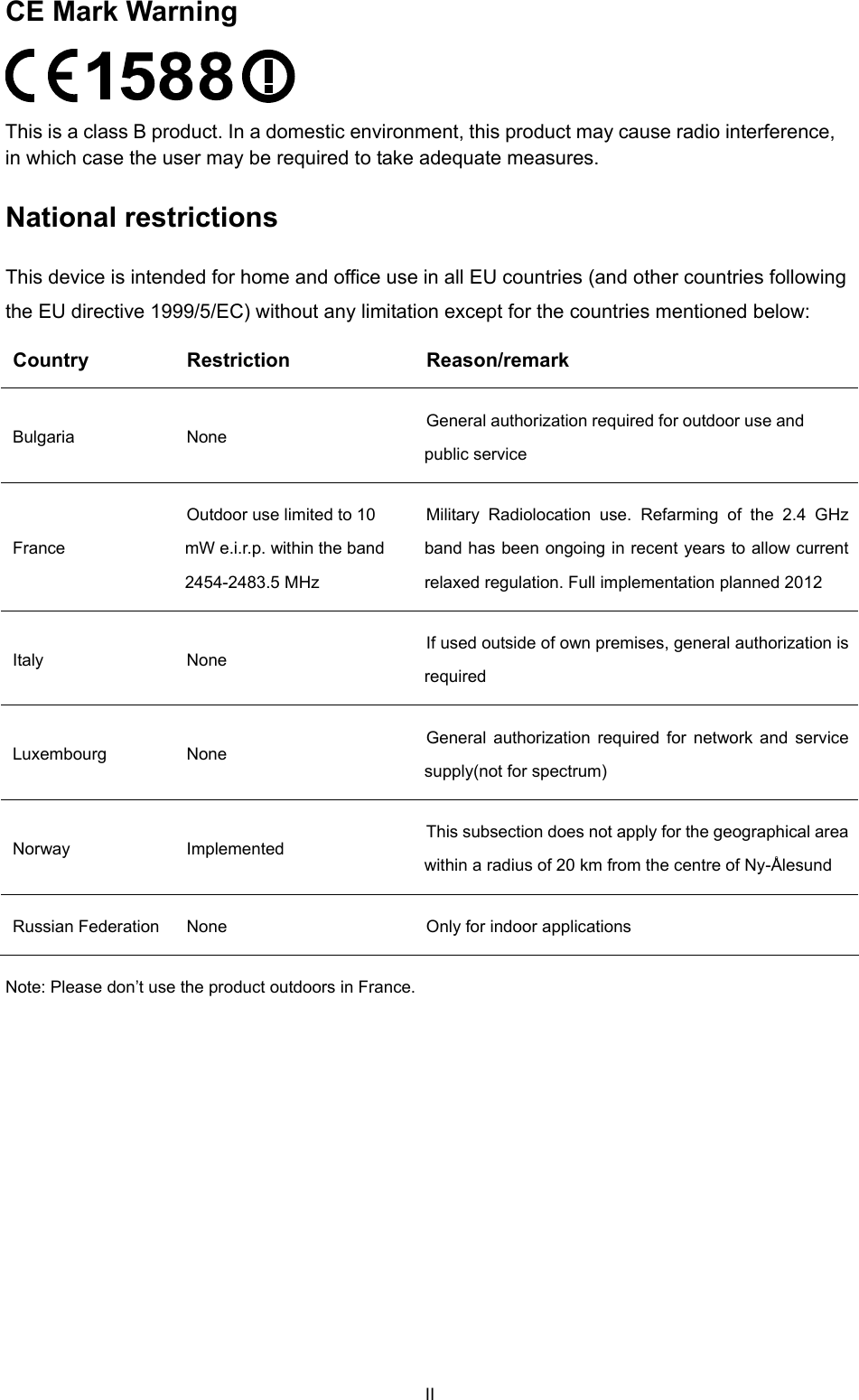

CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. II
CONTENTS Package Contents .......................................................................................................................... 1 Chapter 1. Introduction................................................................................................................. 2 1.1 Overview of the Router................................................................................................. 2 1.2 Conventions ................................................................................................................. 2 1.3 Main Features .............................................................................................................. 3 1.4 Panel Layout ................................................................................................................ 4 Chapter 2. Connecting the Router............................................................................................... 5 2.1 System Requirements .................................................................................................. 5 2.2 Installation Environment Requirements........................................................................ 5 2.3 Connecting the Router ................................................................................................. 5 Chapter 3. Quick Installation Guide............................................................................................. 9 3.1 3G/4G Router Mode ..................................................................................................... 9 3.1.1 PC configuration ............................................................................................... 9 3.1.2 Connect to Network .......................................................................................... 9 3.1.3 Router Configuration......................................................................................... 9 3.2 Wireless Router Mode................................................................................................ 14 3.2.1 PC configuration ............................................................................................. 14 3.2.2 Connect to Network ........................................................................................ 14 3.2.3 Router Configuration....................................................................................... 15 3.3 Standard AP Mode ..................................................................................................... 20 3.3.1 PC configuration ............................................................................................. 20 3.3.2 Connect to Network ........................................................................................ 21 3.3.3 Router Configuration....................................................................................... 21 Chapter 4. Router Configuration – 3G Router Mode ................................................................. 29 4.1 Login .......................................................................................................................... 29 4.2 Status ......................................................................................................................... 29 4.3 Quick Setup................................................................................................................ 30 4.4 Operation Mode.......................................................................................................... 31 4.5 WPS........................................................................................................................... 31 4.6 Network ...................................................................................................................... 36 4.6.1 Internet Access............................................................................................... 36 4.6.2 3G/4G............................................................................................................. 37 4.6.3 WAN ............................................................................................................... 41 4.6.4 MAC Clone ..................................................................................................... 51 I

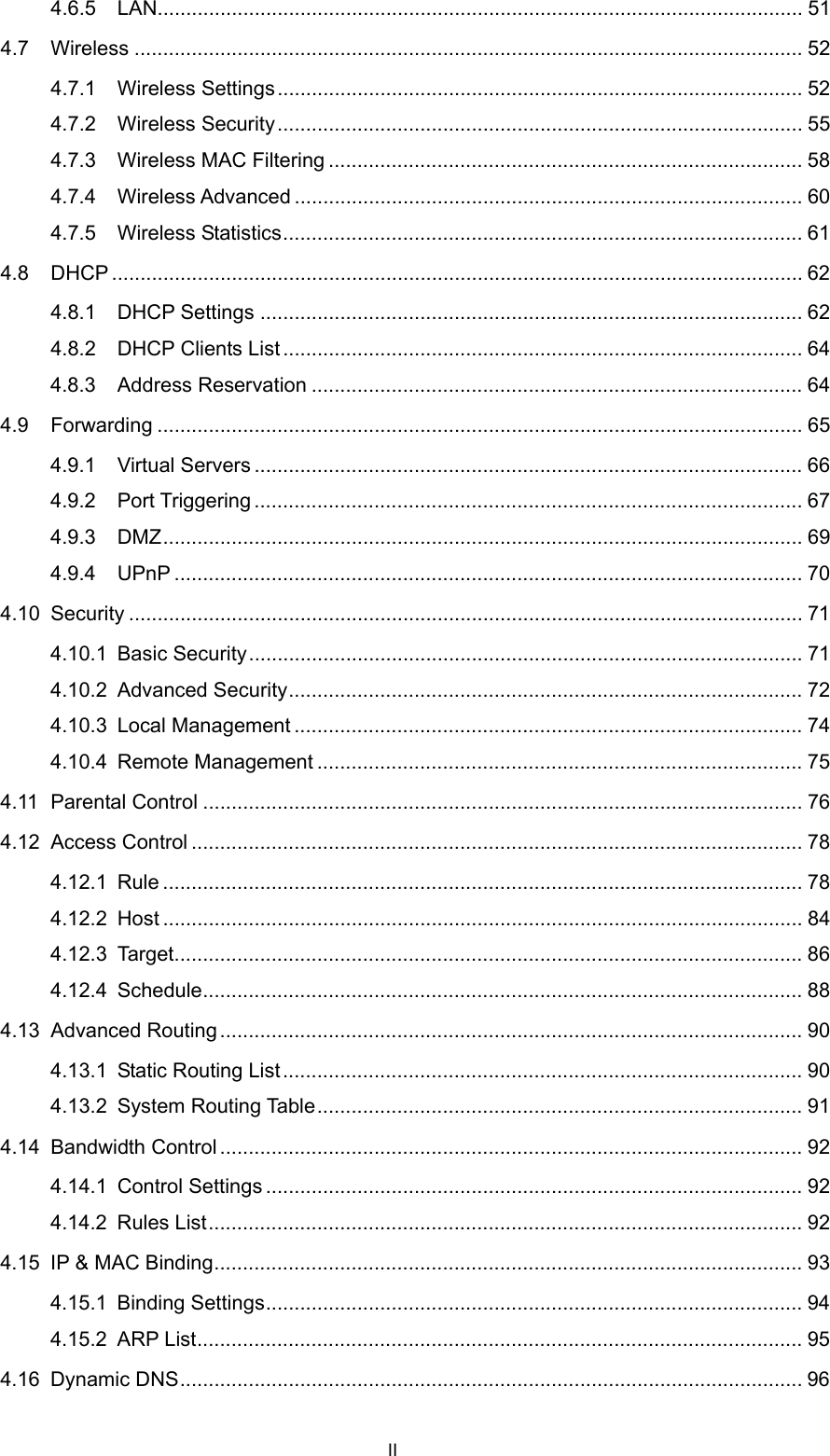

4.6.5 LAN................................................................................................................. 51 4.7 Wireless ..................................................................................................................... 52 4.7.1 Wireless Settings............................................................................................ 52 4.7.2 Wireless Security............................................................................................ 55 4.7.3 Wireless MAC Filtering ................................................................................... 58 4.7.4 Wireless Advanced ......................................................................................... 60 4.7.5 Wireless Statistics........................................................................................... 61 4.8 DHCP ......................................................................................................................... 62 4.8.1 DHCP Settings ............................................................................................... 62 4.8.2 DHCP Clients List........................................................................................... 64 4.8.3 Address Reservation ...................................................................................... 64 4.9 Forwarding ................................................................................................................. 65 4.9.1 Virtual Servers ................................................................................................ 66 4.9.2 Port Triggering ................................................................................................ 67 4.9.3 DMZ................................................................................................................ 69 4.9.4 UPnP .............................................................................................................. 70 4.10 Security ...................................................................................................................... 71 4.10.1 Basic Security................................................................................................. 71 4.10.2 Advanced Security.......................................................................................... 72 4.10.3 Local Management ......................................................................................... 74 4.10.4 Remote Management ..................................................................................... 75 4.11 Parental Control ......................................................................................................... 76 4.12 Access Control ........................................................................................................... 78 4.12.1 Rule ................................................................................................................ 78 4.12.2 Host ................................................................................................................ 84 4.12.3 Target.............................................................................................................. 86 4.12.4 Schedule......................................................................................................... 88 4.13 Advanced Routing...................................................................................................... 90 4.13.1 Static Routing List........................................................................................... 90 4.13.2 System Routing Table..................................................................................... 91 4.14 Bandwidth Control ...................................................................................................... 92 4.14.1 Control Settings .............................................................................................. 92 4.14.2 Rules List........................................................................................................ 92 4.15 IP & MAC Binding....................................................................................................... 93 4.15.1 Binding Settings.............................................................................................. 94 4.15.2 ARP List.......................................................................................................... 95 4.16 Dynamic DNS............................................................................................................. 96 II
4.16.1 Comexe.cn DDNS .......................................................................................... 96 4.16.2 Dyndns.org DDNS .......................................................................................... 97 4.16.3 No-ip.com DDNS ............................................................................................ 98 4.17 System Tools.............................................................................................................. 99 4.17.1 Time Settings................................................................................................ 100 4.17.2 Diagnostic..................................................................................................... 101 4.17.3 Firmware Upgrade........................................................................................ 103 4.17.4 Factory Defaults ........................................................................................... 104 4.17.5 Backup & Restore......................................................................................... 104 4.17.6 Reboot.......................................................................................................... 105 4.17.7 Password...................................................................................................... 106 4.17.8 System Log................................................................................................... 106 4.17.9 Statistics ....................................................................................................... 107 Chapter 5. Router Configuration – Wireless Router Mode ..................................................... 109 5.1 Login ........................................................................................................................ 109 5.2 Status ....................................................................................................................... 109 5.3 Quick Setup...............................................................................................................110 5.4 Operation Mode.........................................................................................................111 5.5 WPS..........................................................................................................................111 5.6 Network .....................................................................................................................116 5.6.1 WAN ..............................................................................................................116 5.6.2 MAC Clone ................................................................................................... 126 5.6.3 LAN............................................................................................................... 126 5.7 Wireless ................................................................................................................... 127 5.7.1 Wireless Settings.......................................................................................... 127 5.7.2 Wireless Security.......................................................................................... 130 5.7.3 Wireless MAC Filtering ................................................................................. 133 5.7.4 Wireless Advanced ....................................................................................... 135 5.7.5 Wireless Statistics......................................................................................... 136 5.8 DHCP ....................................................................................................................... 137 5.8.1 DHCP Settings ............................................................................................. 137 5.8.2 DHCP Clients List......................................................................................... 139 5.8.3 Address Reservation .................................................................................... 139 5.9 Forwarding ............................................................................................................... 140 5.9.1 Virtual Servers .............................................................................................. 141 5.9.2 Port Triggering .............................................................................................. 142 5.9.3 DMZ.............................................................................................................. 144 III

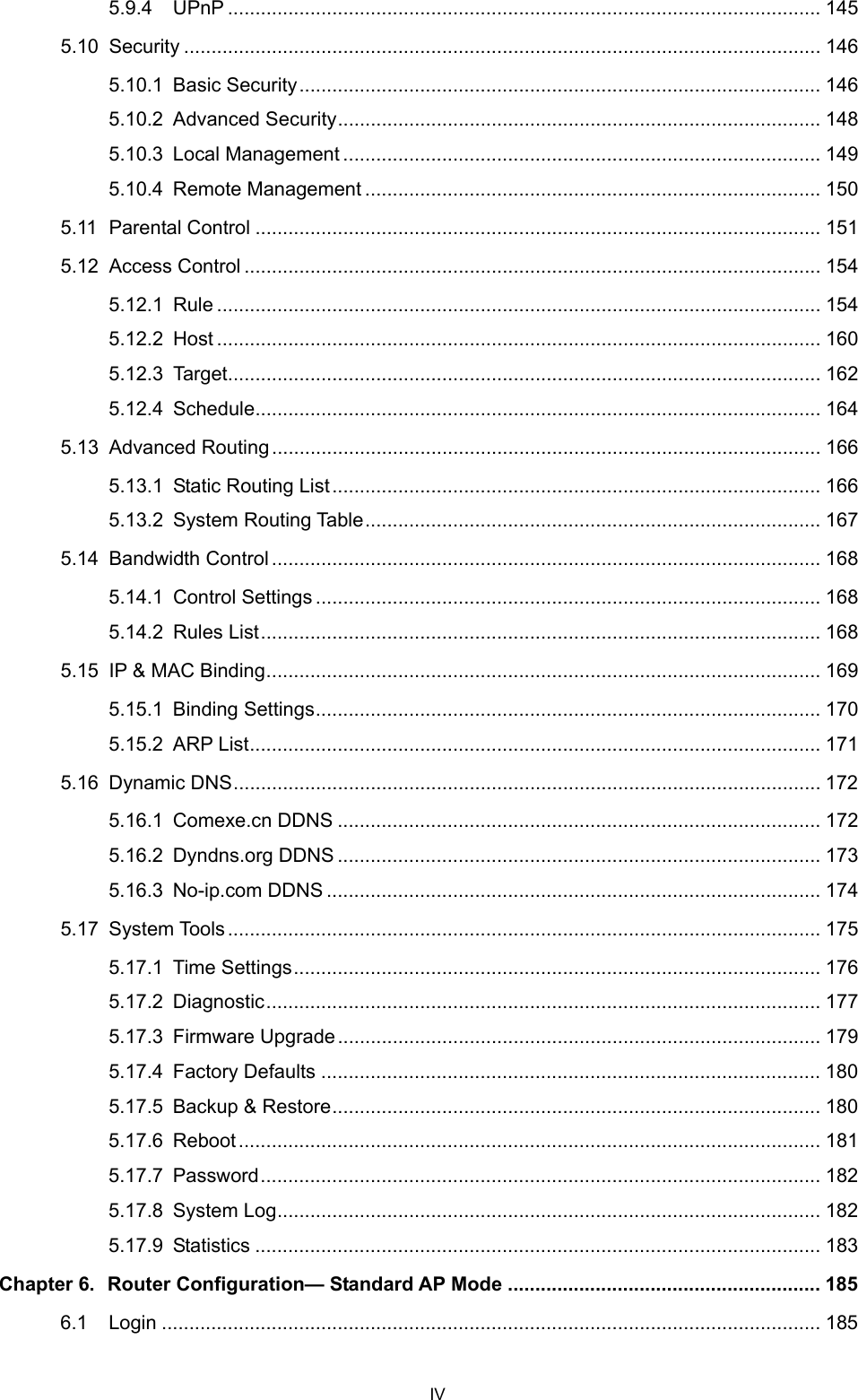

5.9.4 UPnP ............................................................................................................ 145 5.10 Security .................................................................................................................... 146 5.10.1 Basic Security............................................................................................... 146 5.10.2 Advanced Security........................................................................................ 148 5.10.3 Local Management ....................................................................................... 149 5.10.4 Remote Management ................................................................................... 150 5.11 Parental Control ....................................................................................................... 151 5.12 Access Control ......................................................................................................... 154 5.12.1 Rule .............................................................................................................. 154 5.12.2 Host .............................................................................................................. 160 5.12.3 Target............................................................................................................ 162 5.12.4 Schedule....................................................................................................... 164 5.13 Advanced Routing.................................................................................................... 166 5.13.1 Static Routing List......................................................................................... 166 5.13.2 System Routing Table................................................................................... 167 5.14 Bandwidth Control .................................................................................................... 168 5.14.1 Control Settings ............................................................................................ 168 5.14.2 Rules List...................................................................................................... 168 5.15 IP & MAC Binding..................................................................................................... 169 5.15.1 Binding Settings............................................................................................ 170 5.15.2 ARP List........................................................................................................ 171 5.16 Dynamic DNS........................................................................................................... 172 5.16.1 Comexe.cn DDNS ........................................................................................ 172 5.16.2 Dyndns.org DDNS ........................................................................................ 173 5.16.3 No-ip.com DDNS .......................................................................................... 174 5.17 System Tools............................................................................................................ 175 5.17.1 Time Settings................................................................................................ 176 5.17.2 Diagnostic..................................................................................................... 177 5.17.3 Firmware Upgrade........................................................................................ 179 5.17.4 Factory Defaults ........................................................................................... 180 5.17.5 Backup & Restore......................................................................................... 180 5.17.6 Reboot.......................................................................................................... 181 5.17.7 Password...................................................................................................... 182 5.17.8 System Log................................................................................................... 182 5.17.9 Statistics ....................................................................................................... 183 Chapter 6. Router Configuration— Standard AP Mode ......................................................... 185 6.1 Login ........................................................................................................................ 185 IV
6.2 Status ....................................................................................................................... 185 6.3 Quick Setup.............................................................................................................. 187 6.4 Operation Mode........................................................................................................ 187 6.5 WPS......................................................................................................................... 188 6.6 Network .................................................................................................................... 192 6.7 Wireless ................................................................................................................... 193 6.7.1 Wireless Settings.......................................................................................... 194 6.7.2 Wireless Security.......................................................................................... 201 6.7.3 Wireless MAC Filtering ................................................................................. 208 6.7.4 Wireless Advanced ........................................................................................211 6.7.5 Wireless Statistics......................................................................................... 212 6.8 DHCP ....................................................................................................................... 213 6.8.1 DHCP Settings ............................................................................................. 213 6.8.2 DHCP Clients List......................................................................................... 214 6.8.3 Address Reservation .................................................................................... 215 6.9 System Tools............................................................................................................ 216 6.9.1 Time Settings................................................................................................ 217 6.9.2 Diagnostic..................................................................................................... 218 6.9.3 Firmware Upgrade........................................................................................ 220 6.9.4 Factory Defaults ........................................................................................... 221 6.9.5 Backup & Restore......................................................................................... 221 6.9.6 Reboot.......................................................................................................... 222 6.9.7 Password...................................................................................................... 223 6.9.8 System Log................................................................................................... 223 6.9.9 Statistics ....................................................................................................... 224 Appendix A: FAQ........................................................................................................................ 226 Appendix B: Configuring the PCs............................................................................................. 231 Appendix C: Specifications....................................................................................................... 235 Appendix D: Glossary................................................................................................................ 236 Appendix E: Compatible 3G/4G USB Modem .......................................................................... 238 V

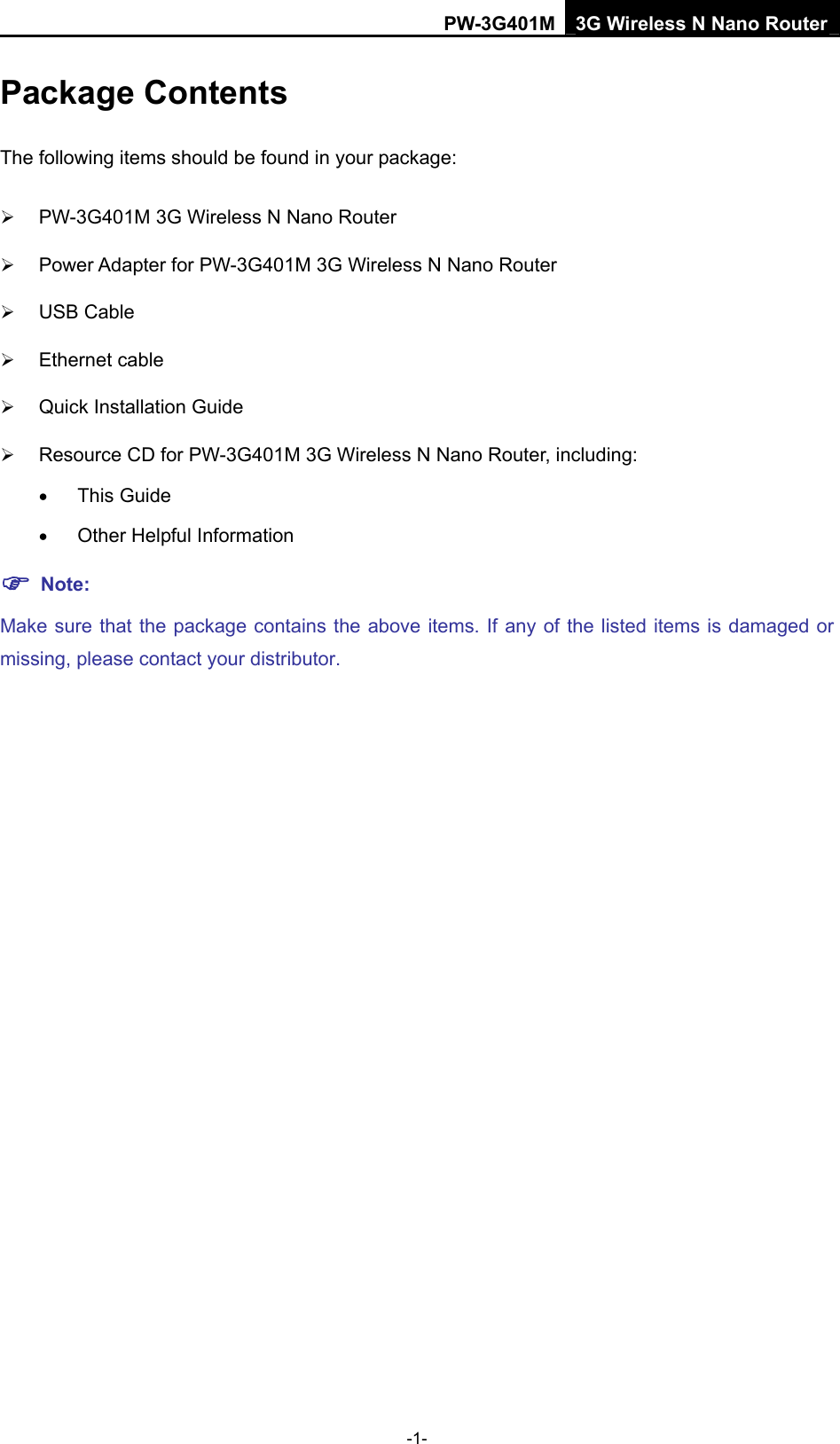

PW-3G401M 3G Wireless N Nano Router Package Contents The following items should be found in your package: ¾ PW-3G401M 3G Wireless N Nano Router ¾ Power Adapter for PW-3G401M 3G Wireless N Nano Router ¾ USB Cable ¾ Ethernet cable ¾ Quick Installation Guide ¾ Resource CD for PW-3G401M 3G Wireless N Nano Router, including: • This Guide • Other Helpful Information ) Note: Make sure that the package contains the above items. If any of the listed items is damaged or missing, please contact your distributor. -1-

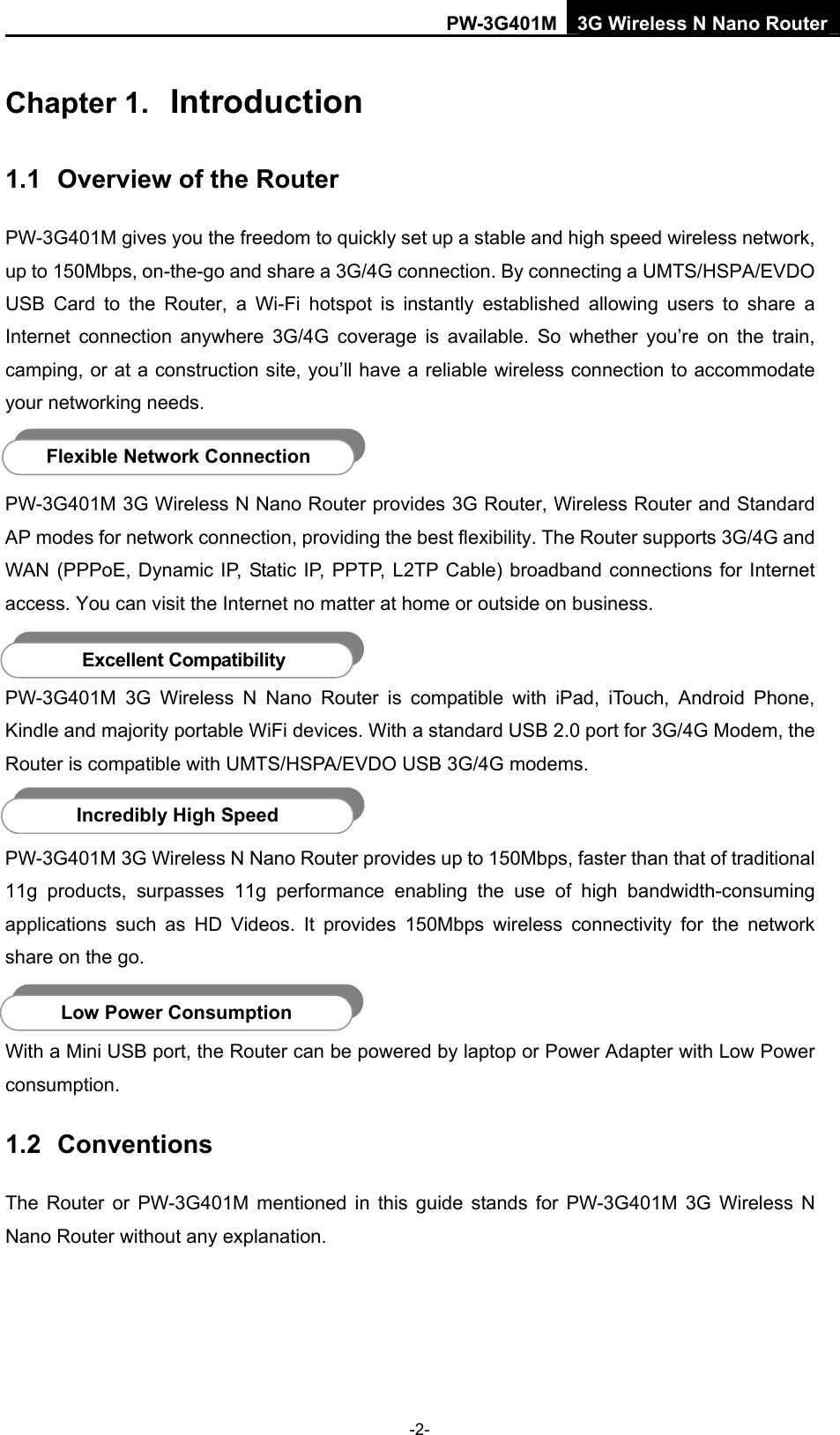

PW-3G401M 3G Wireless N Nano Router Chapter 1. Introduction 1.1 Overview of the Router PW-3G401M gives you the freedom to quickly set up a stable and high speed wireless network, up to 150Mbps, on-the-go and share a 3G/4G connection. By connecting a UMTS/HSPA/EVDO USB Card to the Router, a Wi-Fi hotspot is instantly established allowing users to share a Internet connection anywhere 3G/4G coverage is available. So whether you’re on the train, camping, or at a construction site, you’ll have a reliable wireless connection to accommodate your networking needs. Flexible Network Connection PW-3G401M 3G Wireless N Nano Router provides 3G Router, Wireless Router and Standard AP modes for network connection, providing the best flexibility. The Router supports 3G/4G and WAN (PPPoE, Dynamic IP, Static IP, PPTP, L2TP Cable) broadband connections for Internet access. You can visit the Internet no matter at home or outside on business. Excellent Compatibility PW-3G401M 3G Wireless N Nano Router is compatible with iPad, iTouch, Android Phone, Kindle and majority portable WiFi devices. With a standard USB 2.0 port for 3G/4G Modem, the Router is compatible with UMTS/HSPA/EVDO USB 3G/4G modems. Incredibly High Speed PW-3G401M 3G Wireless N Nano Router provides up to 150Mbps, faster than that of traditional 11g products, surpasses 11g performance enabling the use of high bandwidth-consuming applications such as HD Videos. It provides 150Mbps wireless connectivity for the network share on the go. Low Power Consumption With a Mini USB port, the Router can be powered by laptop or Power Adapter with Low Power consumption. 1.2 Conventions The Router or PW-3G401M mentioned in this guide stands for PW-3G401M 3G Wireless N Nano Router without any explanation. -2-

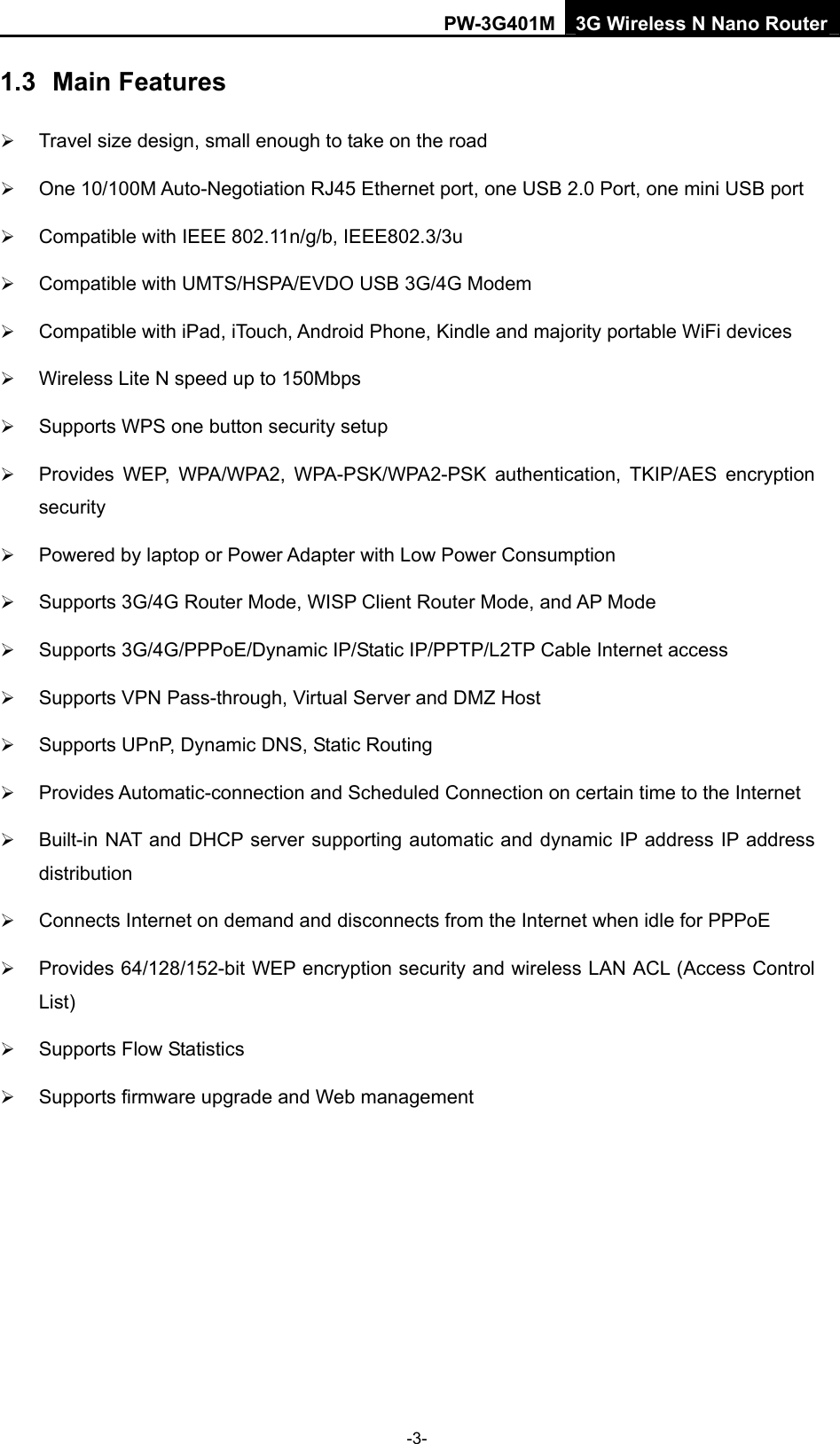

PW-3G401M 3G Wireless N Nano Router 1.3 Main Features ¾ Travel size design, small enough to take on the road ¾ One 10/100M Auto-Negotiation RJ45 Ethernet port, one USB 2.0 Port, one mini USB port ¾ Compatible with IEEE 802.11n/g/b, IEEE802.3/3u ¾ Compatible with UMTS/HSPA/EVDO USB 3G/4G Modem ¾ Compatible with iPad, iTouch, Android Phone, Kindle and majority portable WiFi devices ¾ Wireless Lite N speed up to 150Mbps ¾ Supports WPS one button security setup ¾ Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security ¾ Powered by laptop or Power Adapter with Low Power Consumption ¾ Supports 3G/4G Router Mode, WISP Client Router Mode, and AP Mode ¾ Supports 3G/4G/PPPoE/Dynamic IP/Static IP/PPTP/L2TP Cable Internet access ¾ Supports VPN Pass-through, Virtual Server and DMZ Host ¾ Supports UPnP, Dynamic DNS, Static Routing ¾ Provides Automatic-connection and Scheduled Connection on certain time to the Internet ¾ Built-in NAT and DHCP server supporting automatic and dynamic IP address IP address distribution ¾ Connects Internet on demand and disconnects from the Internet when idle for PPPoE ¾ Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control List) ¾ Supports Flow Statistics ¾ Supports firmware upgrade and Web management -3-

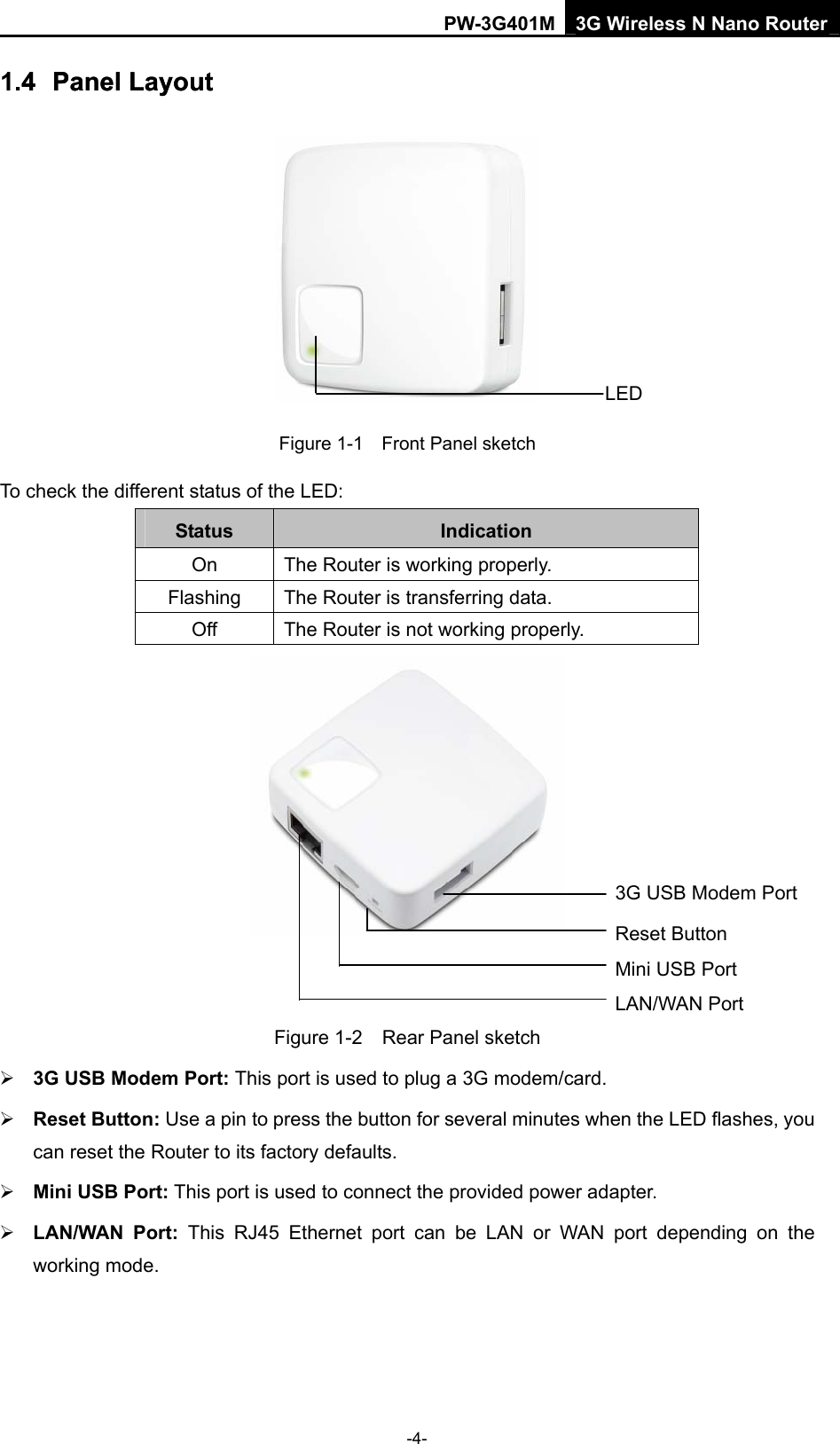

PW-3G401M 3G Wireless N Nano Router 1.4 Panel Layout .4 Panel Layout Figure 1-1 Front Panel sketch LEDTo check the different status of the LED: Status Indication On The Router is working properly. Flashing The Router is transferring data. Off The Router is not working properly. 3G USB Modem PortReset Button Mini USB Port LAN/WAN Port Figure 1-2 Rear Panel sketch ¾ 3G USB Modem Port: This port is used to plug a 3G modem/card. ¾ Reset Button: Use a pin to press the button for several minutes when the LED flashes, you can reset the Router to its factory defaults. ¾ Mini USB Port: This port is used to connect the provided power adapter. ¾ LAN/WAN Port: This RJ45 Ethernet port can be LAN or WAN port depending on the working mode. -4-

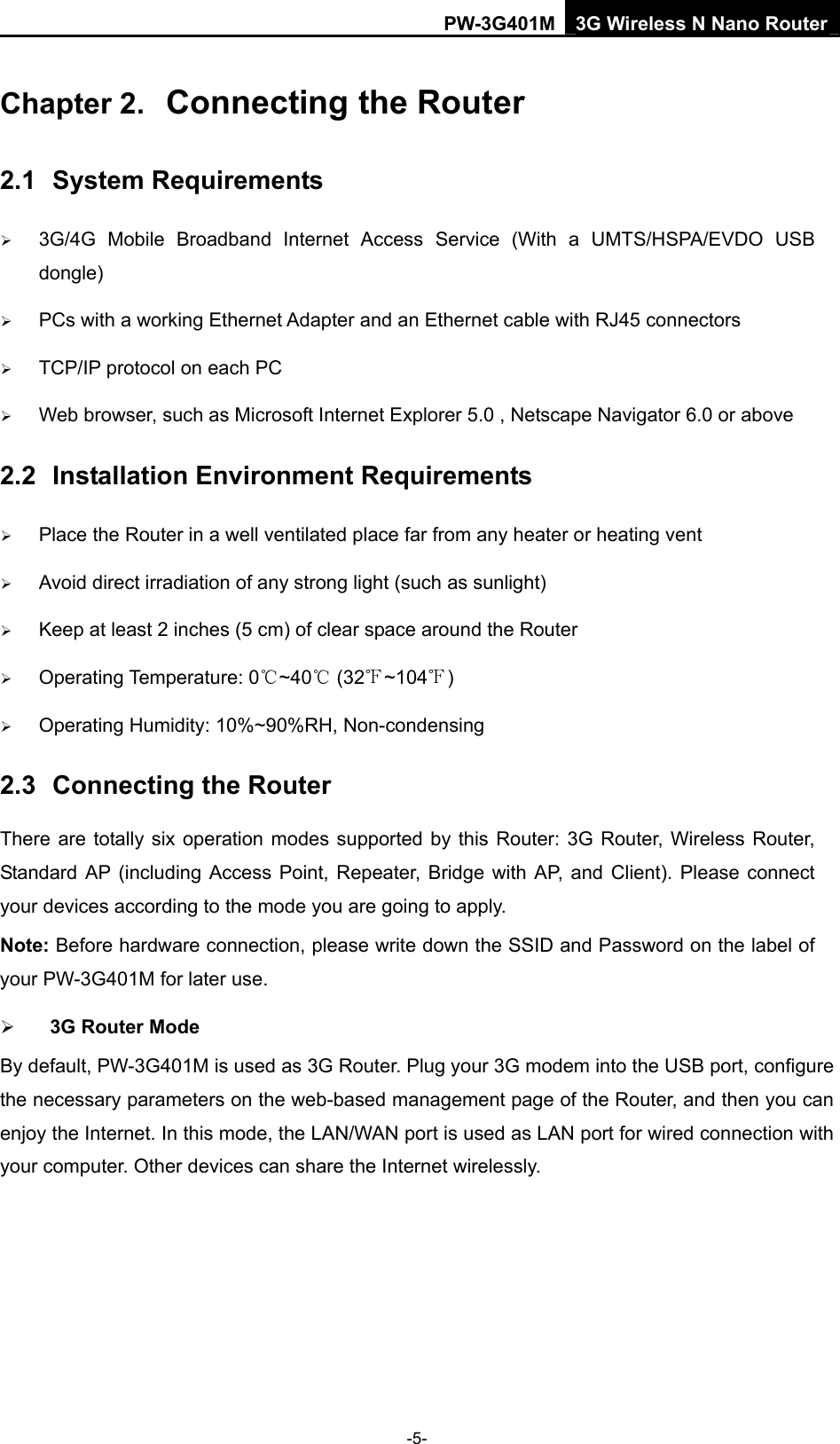

PW-3G401M 3G Wireless N Nano Router Chapter 2. Connecting the Router 2.1 System Requirements ¾ 3G/4G Mobile Broadband Internet Access Service (With a UMTS/HSPA/EVDO USB dongle) ¾ PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors ¾ TCP/IP protocol on each PC ¾ Web browser, such as Microsoft Internet Explorer 5.0 , Netscape Navigator 6.0 or above 2.2 Installation Environment Requirements ¾ Place the Router in a well ventilated place far from any heater or heating vent ¾ Avoid direct irradiation of any strong light (such as sunlight) ¾ Keep at least 2 inches (5 cm) of clear space around the Router ¾ Operating Temperature: 0 ~40 (32 ~104 )℃℃℉ ℉ ¾ Operating Humidity: 10%~90%RH, Non-condensing 2.3 Connecting the Router There are totally six operation modes supported by this Router: 3G Router, Wireless Router, Standard AP (including Access Point, Repeater, Bridge with AP, and Client). Please connect your devices according to the mode you are going to apply. Note: Before hardware connection, please write down the SSID and Password on the label of your PW-3G401M for later use. ¾ 3G Router Mode By default, PW-3G401M is used as 3G Router. Plug your 3G modem into the USB port, configure the necessary parameters on the web-based management page of the Router, and then you can enjoy the Internet. In this mode, the LAN/WAN port is used as LAN port for wired connection with your computer. Other devices can share the Internet wirelessly. -5-

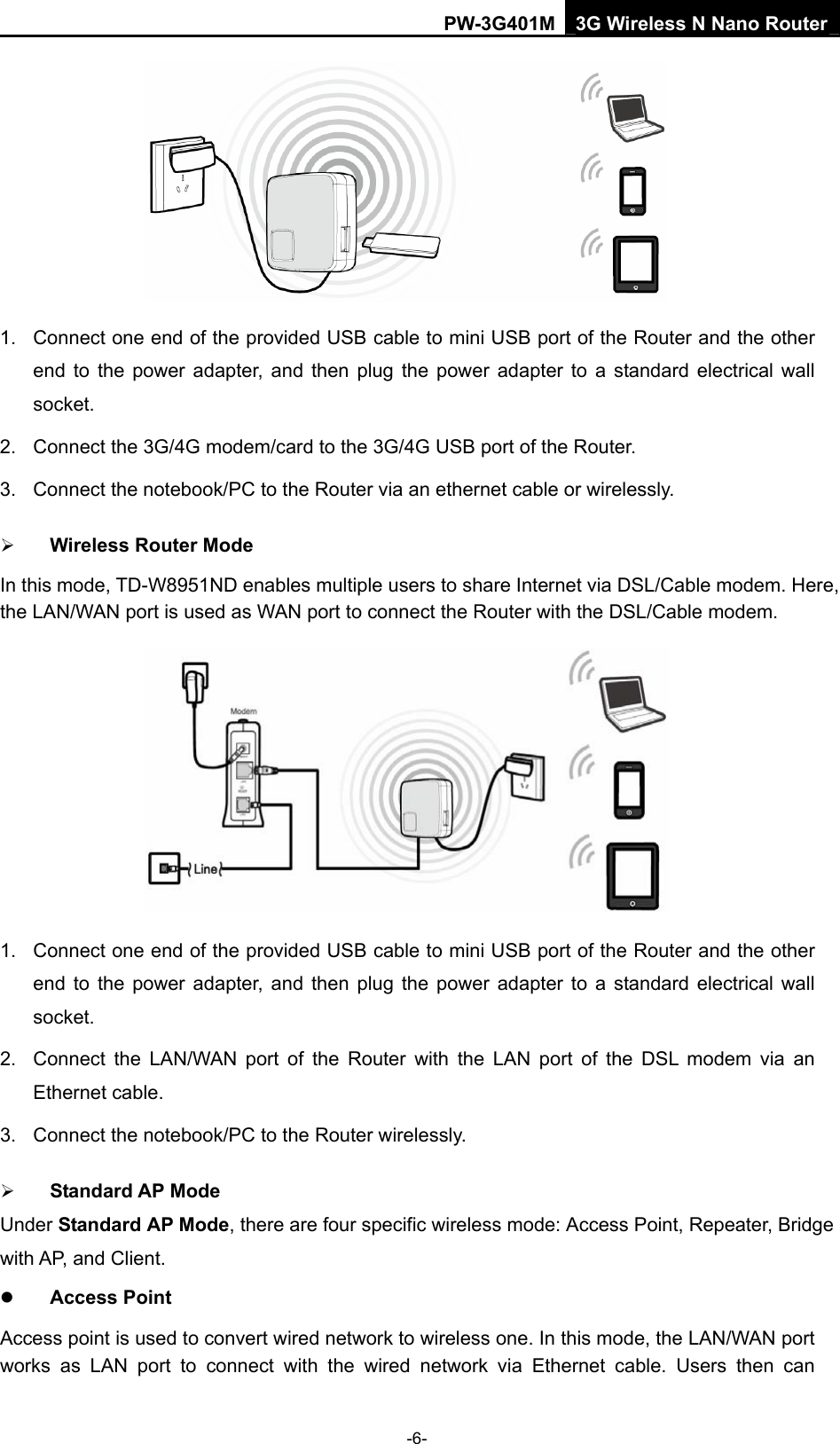

PW-3G401M 3G Wireless N Nano Router 1. Connect one end of the provided USB cable to mini USB port of the Router and the other end to the power adapter, and then plug the power adapter to a standard electrical wall socket. 2. Connect the 3G/4G modem/card to the 3G/4G USB port of the Router. 3. Connect the notebook/PC to the Router via an ethernet cable or wirelessly. ¾ Wireless Router Mode In this mode, TD-W8951ND enables multiple users to share Internet via DSL/Cable modem. Here, the LAN/WAN port is used as WAN port to connect the Router with the DSL/Cable modem. 1. Connect one end of the provided USB cable to mini USB port of the Router and the other end to the power adapter, and then plug the power adapter to a standard electrical wall socket. 2. Connect the LAN/WAN port of the Router with the LAN port of the DSL modem via an Ethernet cable. 3. Connect the notebook/PC to the Router wirelessly. ¾ Standard AP Mode Under Standard AP Mode, there are four specific wireless mode: Access Point, Repeater, Bridge with AP, and Client. z Access Point Access point is used to convert wired network to wireless one. In this mode, the LAN/WAN port works as LAN port to connect with the wired network via Ethernet cable. Users then can -6-

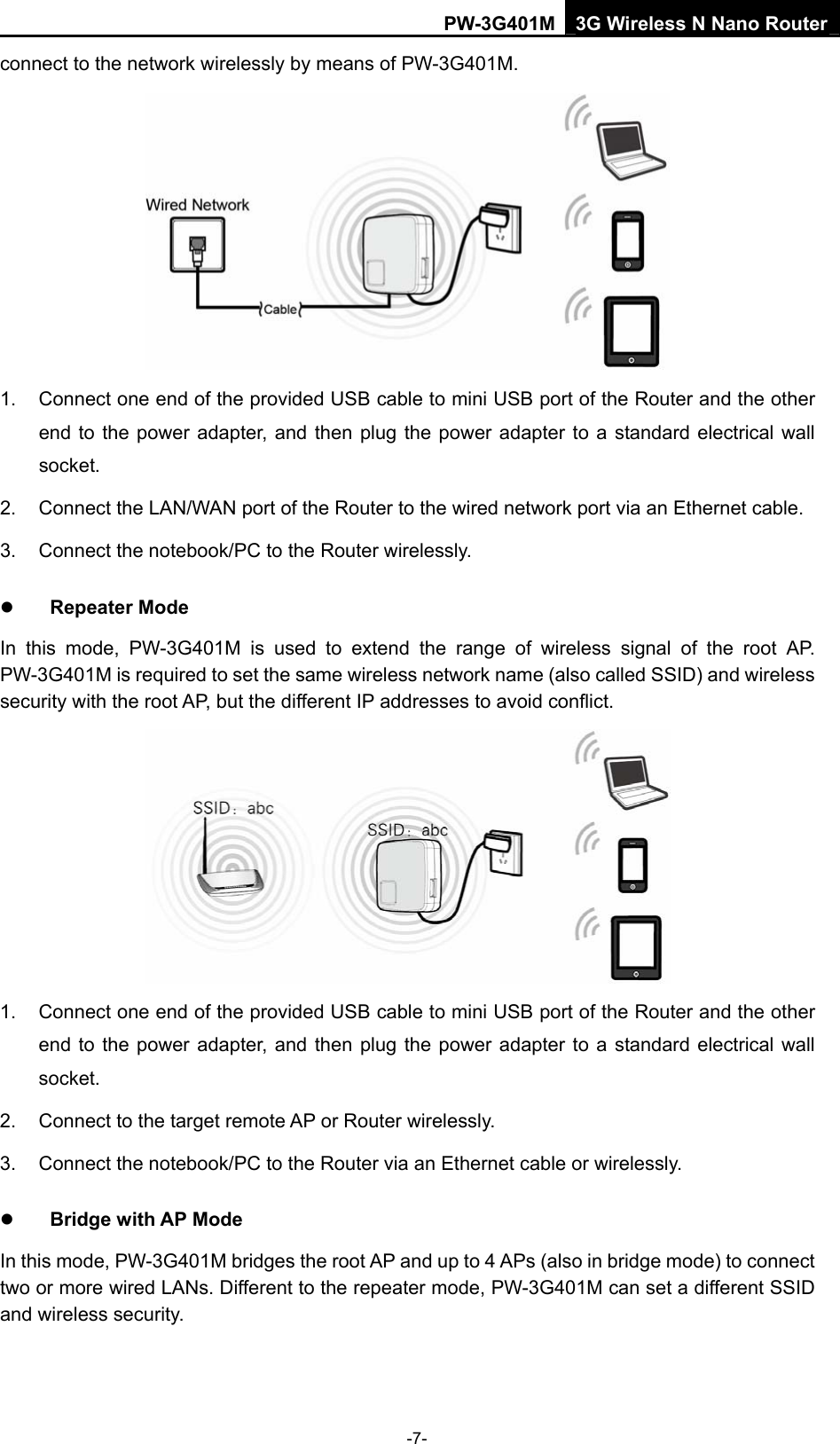

PW-3G401M 3G Wireless N Nano Router connect to the network wirelessly by means of PW-3G401M. 1. Connect one end of the provided USB cable to mini USB port of the Router and the other end to the power adapter, and then plug the power adapter to a standard electrical wall socket. 2. Connect the LAN/WAN port of the Router to the wired network port via an Ethernet cable. 3. Connect the notebook/PC to the Router wirelessly. z Repeater Mode In this mode, PW-3G401M is used to extend the range of wireless signal of the root AP. PW-3G401M is required to set the same wireless network name (also called SSID) and wireless security with the root AP, but the different IP addresses to avoid conflict. 1. Connect one end of the provided USB cable to mini USB port of the Router and the other end to the power adapter, and then plug the power adapter to a standard electrical wall socket. 2. Connect to the target remote AP or Router wirelessly. 3. Connect the notebook/PC to the Router via an Ethernet cable or wirelessly. z Bridge with AP Mode In this mode, PW-3G401M bridges the root AP and up to 4 APs (also in bridge mode) to connect two or more wired LANs. Different to the repeater mode, PW-3G401M can set a different SSID and wireless security. -7-

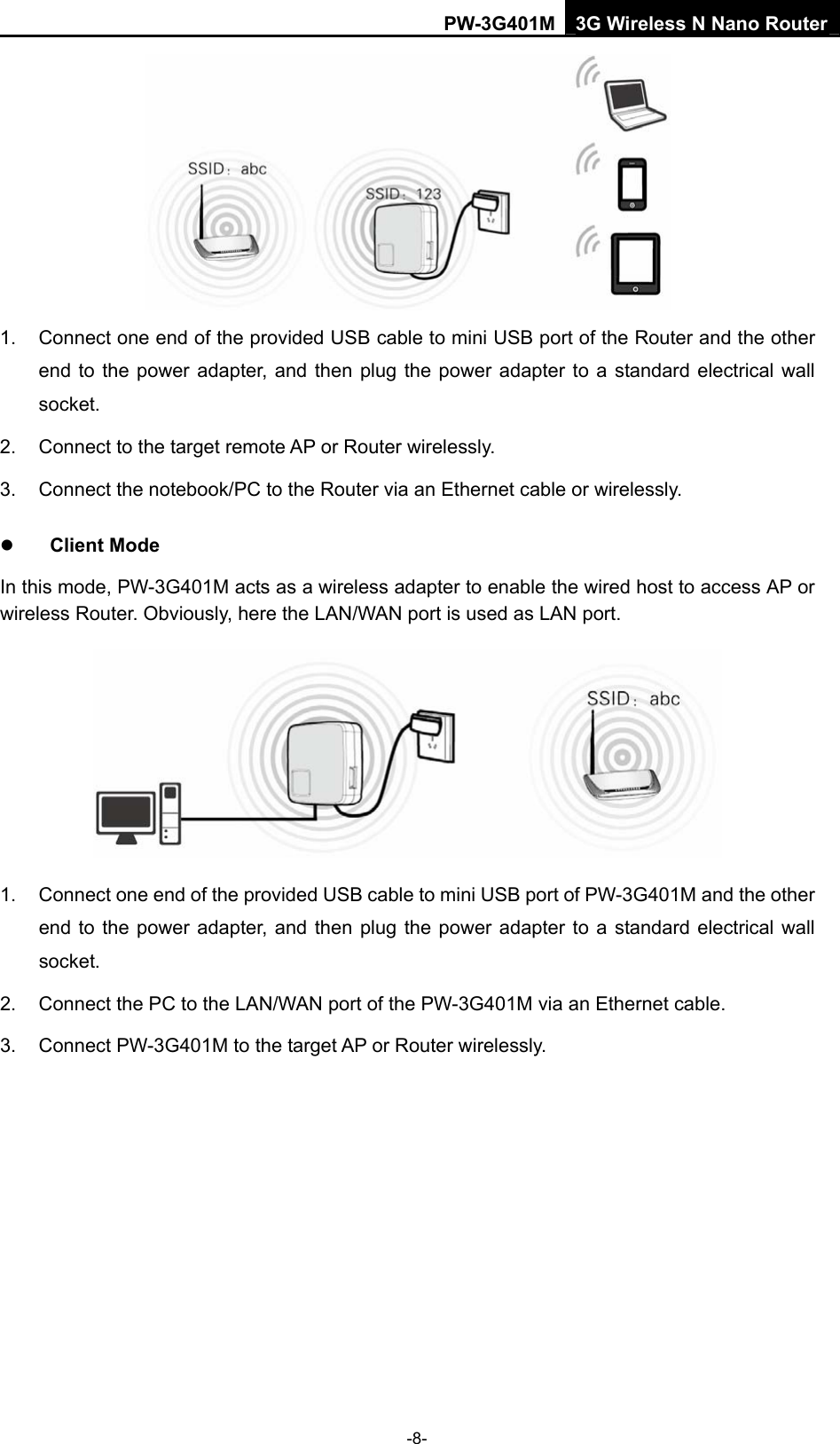

PW-3G401M 3G Wireless N Nano Router 1. Connect one end of the provided USB cable to mini USB port of the Router and the other end to the power adapter, and then plug the power adapter to a standard electrical wall socket. 2. Connect to the target remote AP or Router wirelessly. 3. Connect the notebook/PC to the Router via an Ethernet cable or wirelessly. z Client Mode In this mode, PW-3G401M acts as a wireless adapter to enable the wired host to access AP or wireless Router. Obviously, here the LAN/WAN port is used as LAN port. 1. Connect one end of the provided USB cable to mini USB port of PW-3G401M and the other end to the power adapter, and then plug the power adapter to a standard electrical wall socket. 2. Connect the PC to the LAN/WAN port of the PW-3G401M via an Ethernet cable. 3. Connect PW-3G401M to the target AP or Router wirelessly. -8-

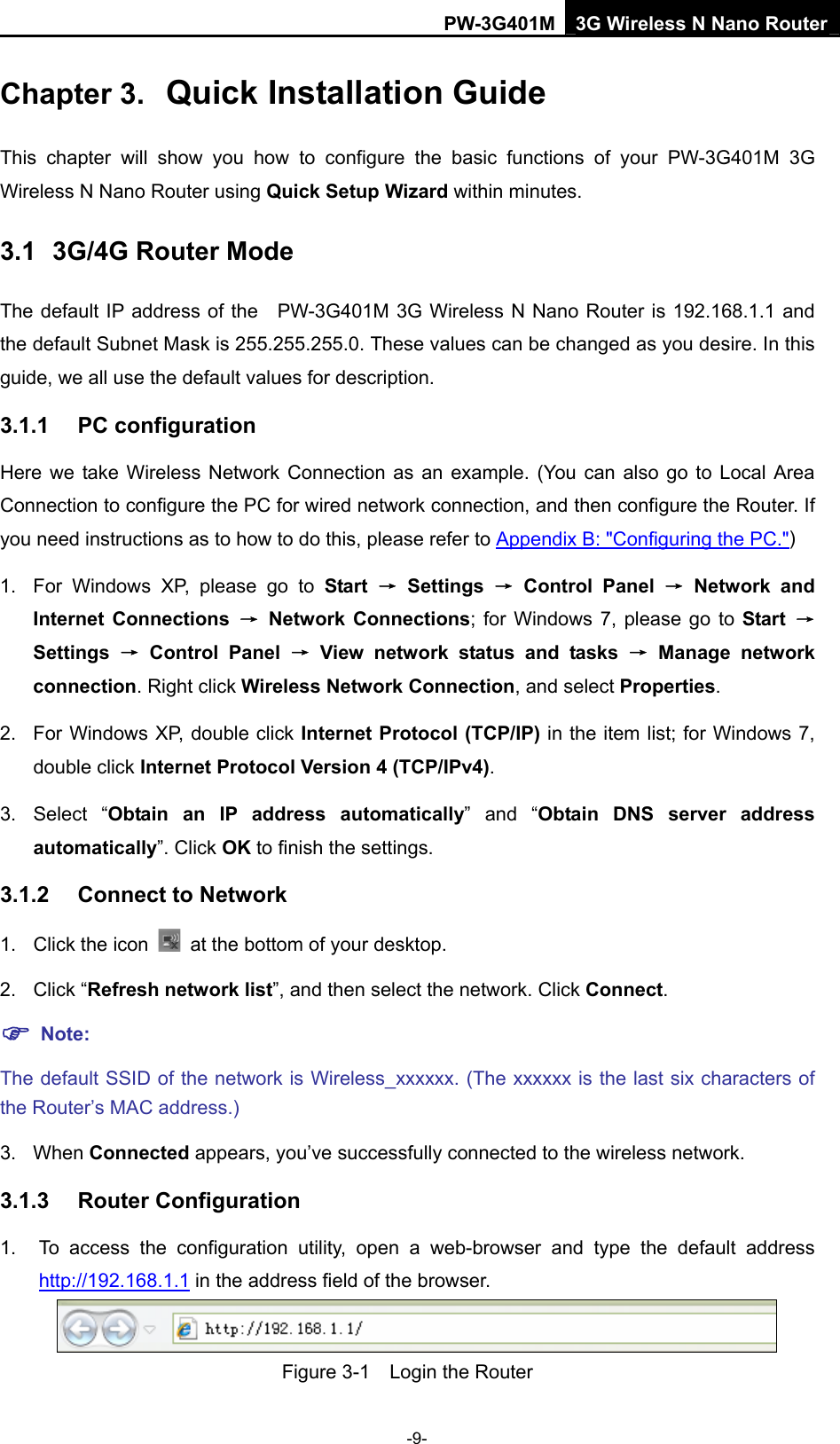

PW-3G401M 3G Wireless N Nano Router Chapter 3. Quick Installation Guide This chapter will show you how to configure the basic functions of your PW-3G401M 3G Wireless N Nano Router using Quick Setup Wizard within minutes. 3.1 3G/4G Router Mode The default IP address of the PW-3G401M 3G Wireless N Nano Router is 192.168.1.1 and the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we all use the default values for description. 3.1.1 PC configuration Here we take Wireless Network Connection as an example. (You can also go to Local Area Connection to configure the PC for wired network connection, and then configure the Router. If you need instructions as to how to do this, please refer to Appendix B: "Configuring the PC.") 1. For Windows XP, please go to Start → Settings → Control Panel → Network and Internet Connections → Network Connections; for Windows 7, please go to Start → Settings → Control Panel → View network status and tasks → Manage network connection. Right click Wireless Network Connection, and select Properties. 2. For Windows XP, double click Internet Protocol (TCP/IP) in the item list; for Windows 7, double click Internet Protocol Version 4 (TCP/IPv4). 3. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click OK to finish the settings. 3.1.2 Connect to Network 1. Click the icon at the bottom of your desktop. 2. Click “Refresh network list”, and then select the network. Click Connect. ) Note: The default SSID of the network is Wireless_xxxxxx. (The xxxxxx is the last six characters of the Router’s MAC address.) 3. When Connected appears, you’ve successfully connected to the wireless network. 3.1.3 Router Configuration 1. To access the configuration utility, open a web-browser and type the default address http://192.168.1.1 in the address field of the browser. Figure 3-1 Login the Router -9-

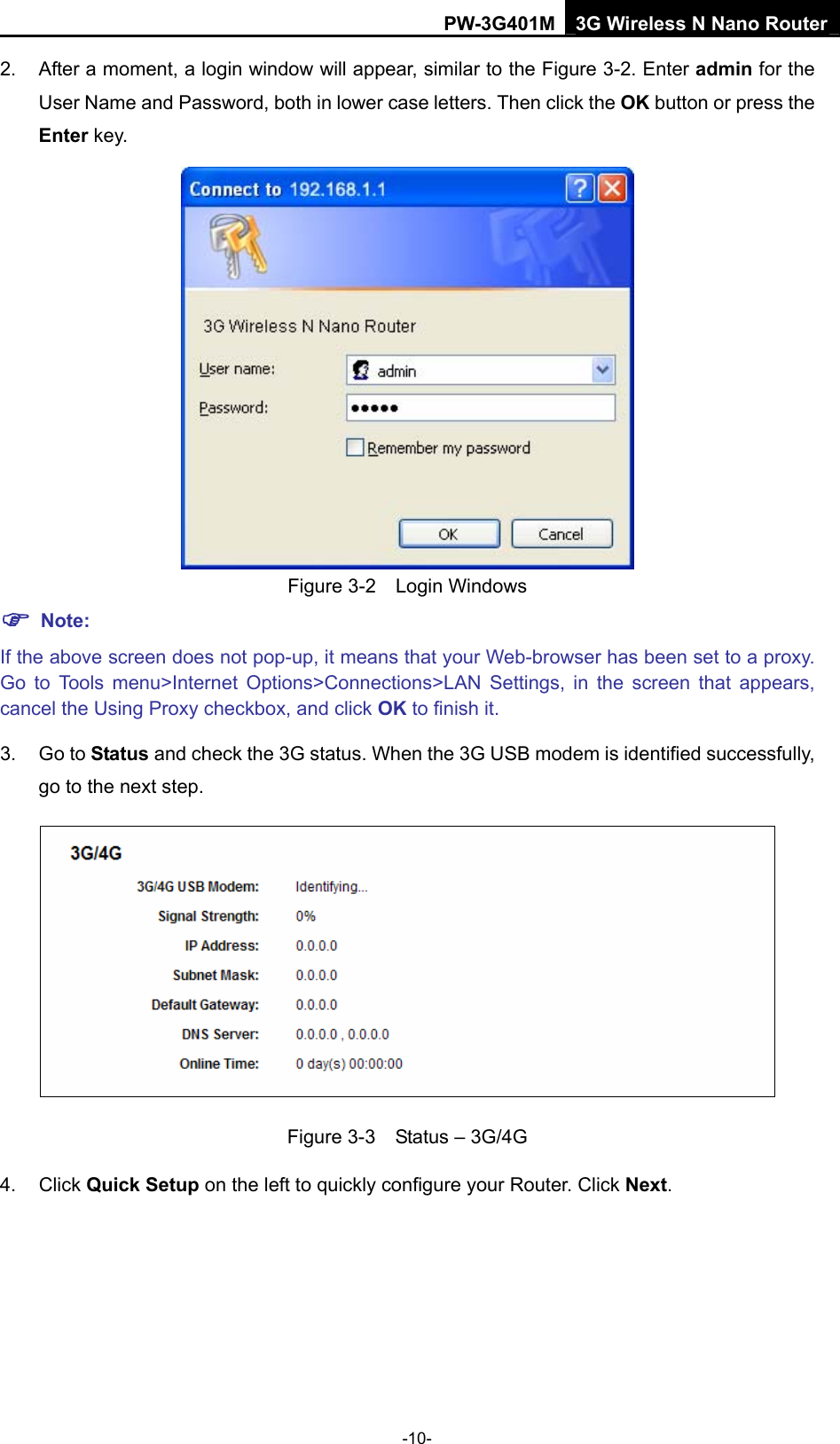

PW-3G401M 3G Wireless N Nano Router 2. After a moment, a login window will appear, similar to the Figure 3-2. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key. Figure 3-2 Login Windows ) Note: If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it. 3. Go to Status and check the 3G status. When the 3G USB modem is identified successfully, go to the next step. Figure 3-3 Status – 3G/4G 4. Click Quick Setup on the left to quickly configure your Router. Click Next. -10-

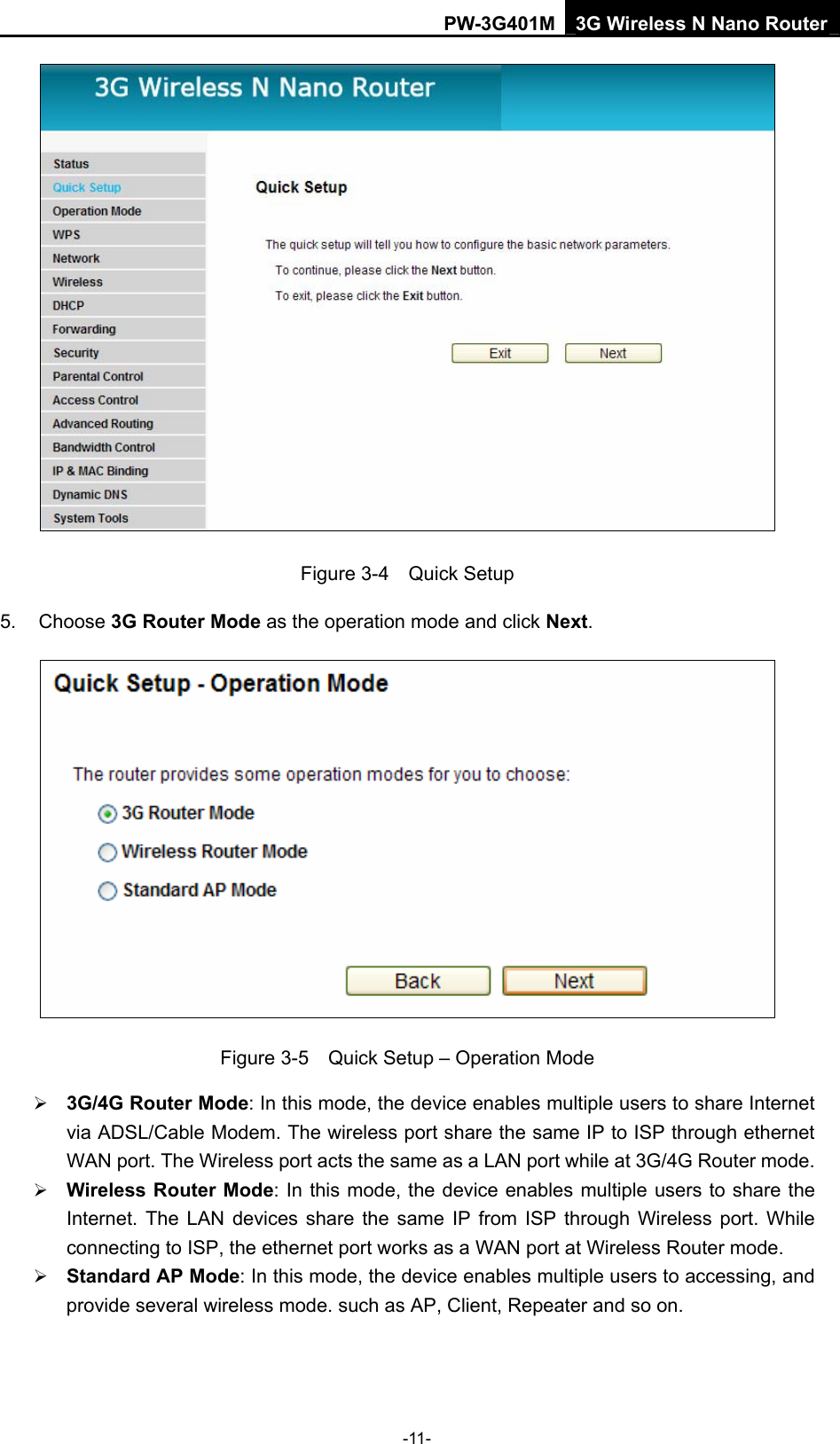

PW-3G401M 3G Wireless N Nano Router Figure 3-4 Quick Setup 5. Choose 3G Router Mode as the operation mode and click Next. Figure 3-5 Quick Setup – Operation Mode ¾ 3G/4G Router Mode: In this mode, the device enables multiple users to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through ethernet WAN port. The Wireless port acts the same as a LAN port while at 3G/4G Router mode. ¾ Wireless Router Mode: In this mode, the device enables multiple users to share the Internet. The LAN devices share the same IP from ISP through Wireless port. While connecting to ISP, the ethernet port works as a WAN port at Wireless Router mode. ¾ Standard AP Mode: In this mode, the device enables multiple users to accessing, and provide several wireless mode. such as AP, Client, Repeater and so on. -11-

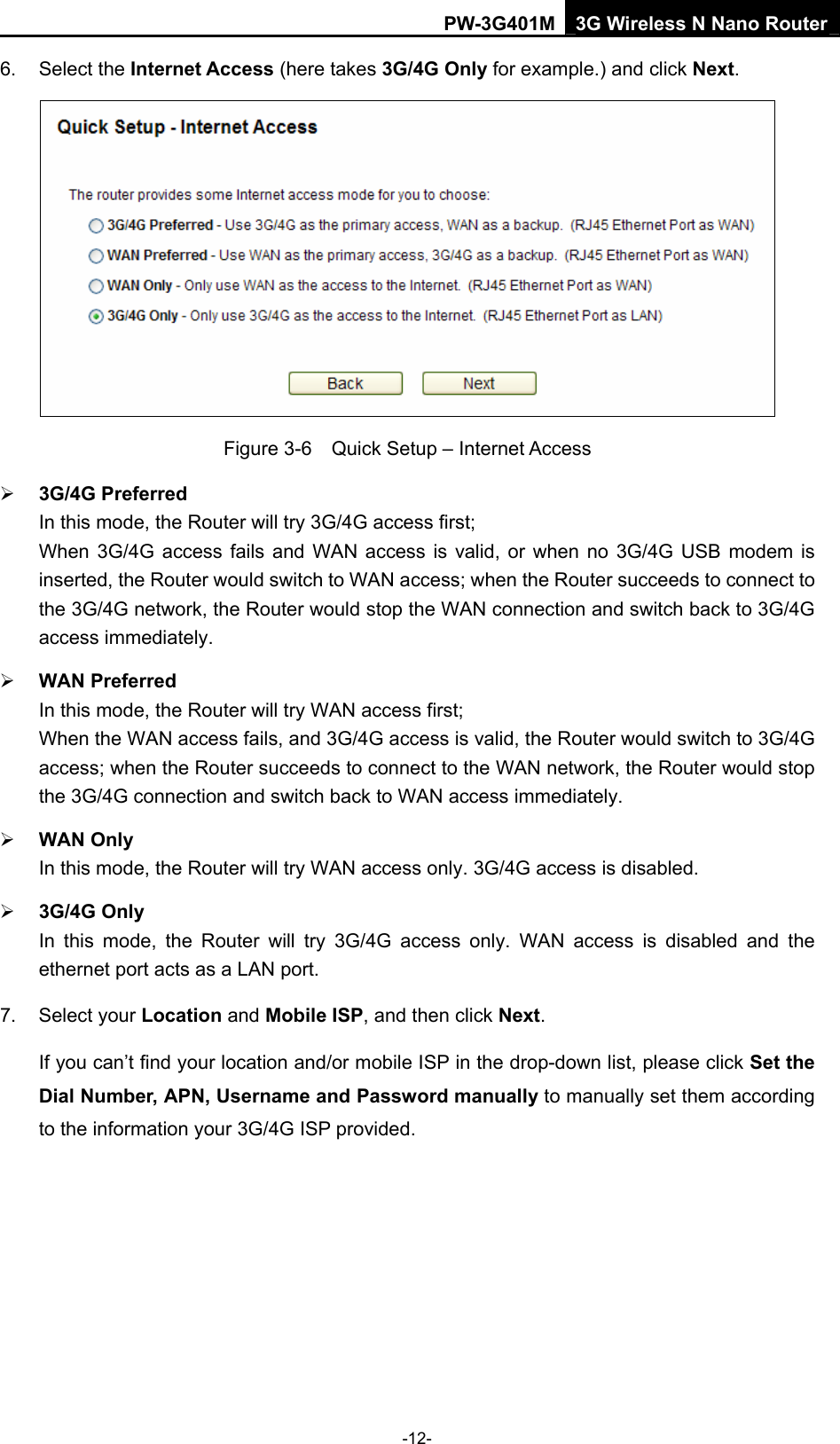

PW-3G401M 3G Wireless N Nano Router 6. Select the Internet Access (here takes 3G/4G Only for example.) and click Next. Figure 3-6 Quick Setup – Internet Access ¾ 3G/4G Preferred In this mode, the Router will try 3G/4G access first; When 3G/4G access fails and WAN access is valid, or when no 3G/4G USB modem is inserted, the Router would switch to WAN access; when the Router succeeds to connect to the 3G/4G network, the Router would stop the WAN connection and switch back to 3G/4G access immediately. ¾ WAN Preferred In this mode, the Router will try WAN access first; When the WAN access fails, and 3G/4G access is valid, the Router would switch to 3G/4G access; when the Router succeeds to connect to the WAN network, the Router would stop the 3G/4G connection and switch back to WAN access immediately. ¾ WAN Only In this mode, the Router will try WAN access only. 3G/4G access is disabled. ¾ 3G/4G Only In this mode, the Router will try 3G/4G access only. WAN access is disabled and the ethernet port acts as a LAN port. 7. Select your Location and Mobile ISP, and then click Next. If you can’t find your location and/or mobile ISP in the drop-down list, please click Set the Dial Number, APN, Username and Password manually to manually set them according to the information your 3G/4G ISP provided. -12-

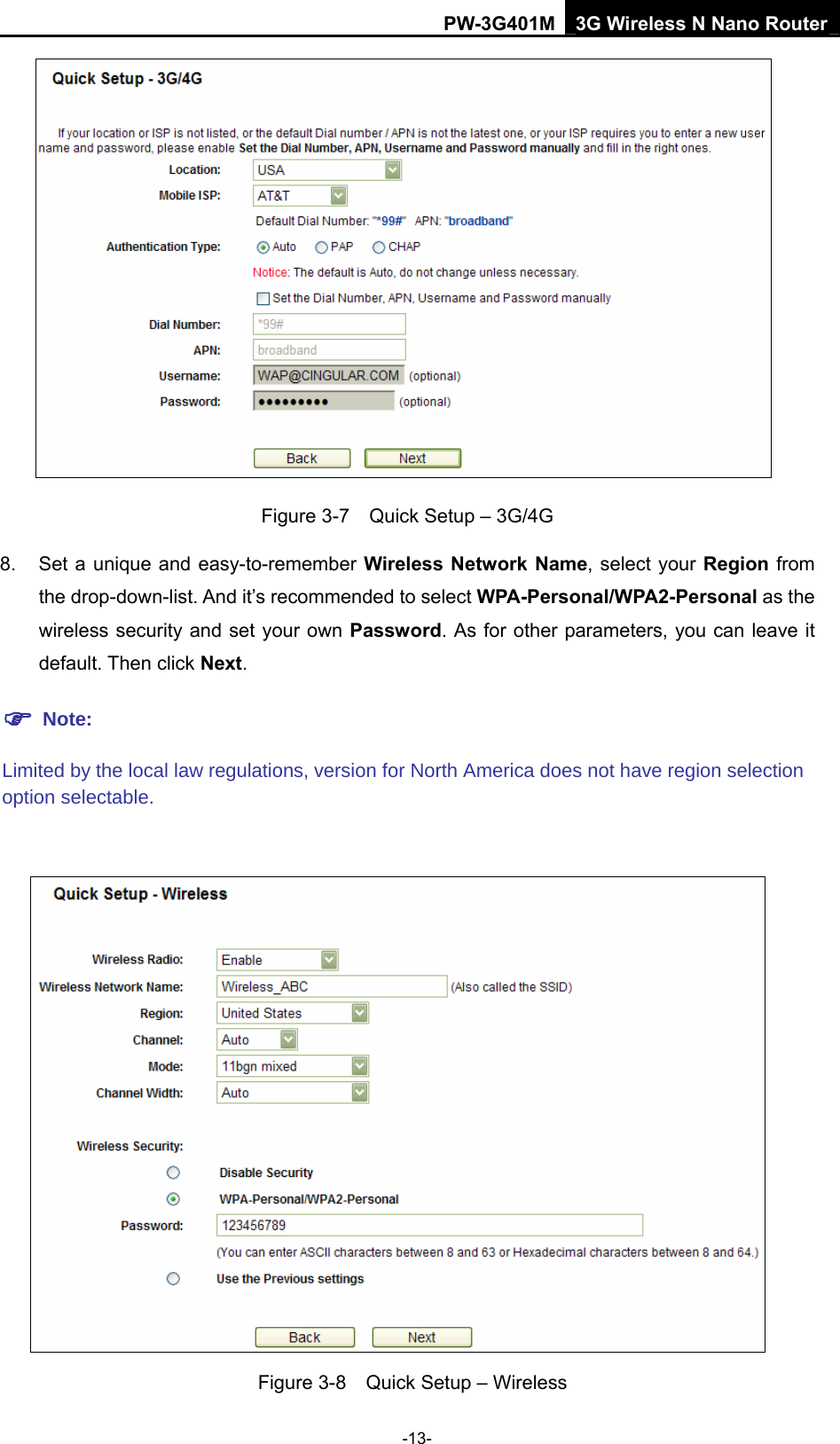

PW-3G401M 3G Wireless N Nano Router Figure 3-7 Quick Setup – 3G/4G 8. Set a unique and easy-to-remember Wireless Network Name, select your Region from the drop-down-list. And it’s recommended to select WPA-Personal/WPA2-Personal as the wireless security and set your own Password. As for other parameters, you can leave it default. Then click Next. Figure 3-8 Quick Setup – Wireless -13-  Note: Limited by the local law regulations, version for North America does not have region selection option selectable.

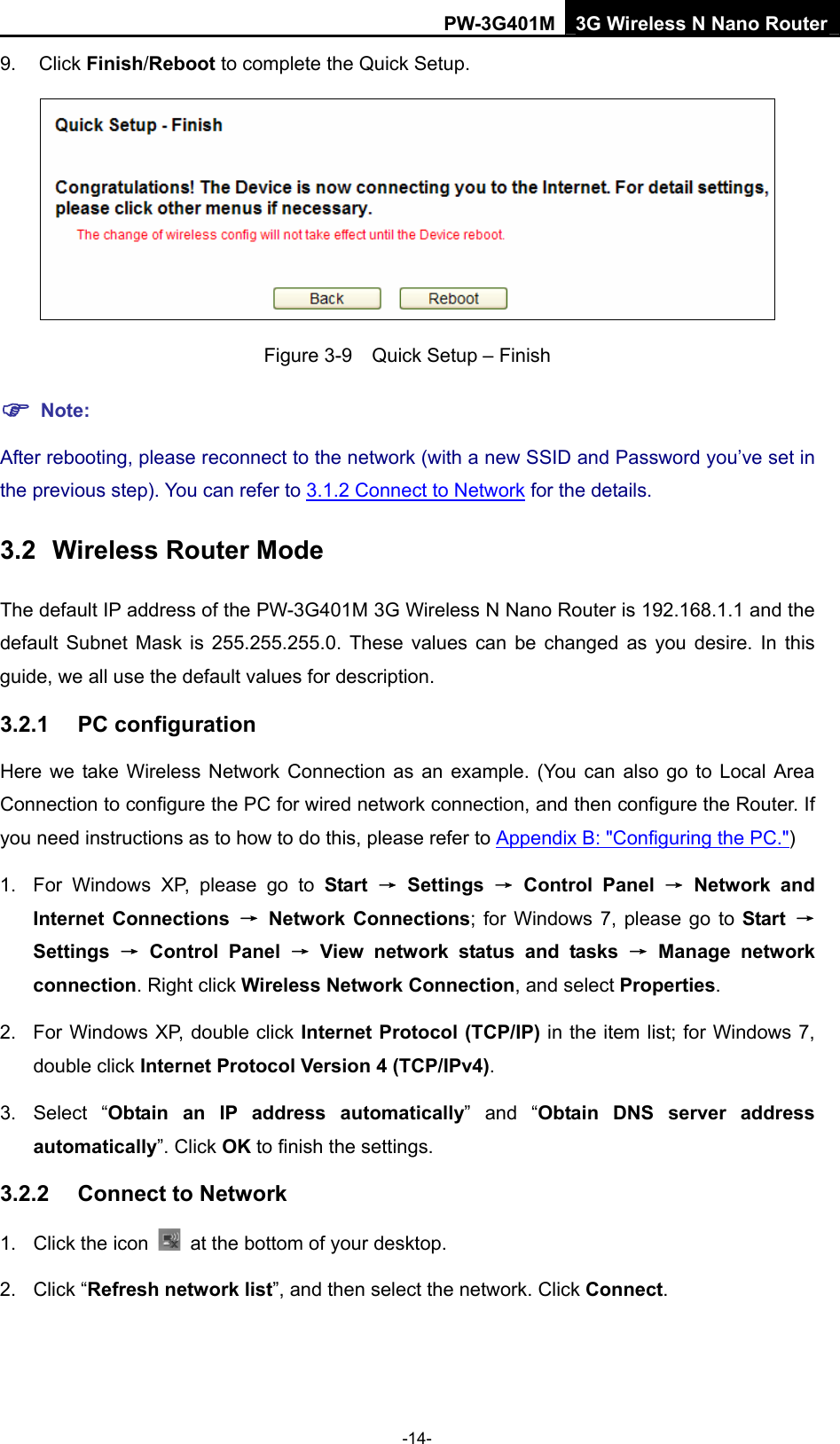

PW-3G401M 3G Wireless N Nano Router 9. Click Finish/Reboot to complete the Quick Setup. Figure 3-9 Quick Setup – Finish ) Note: After rebooting, please reconnect to the network (with a new SSID and Password you’ve set in the previous step). You can refer to 3.1.2 Connect to Network for the details. 3.2 Wireless Router Mode The default IP address of the PW-3G401M 3G Wireless N Nano Router is 192.168.1.1 and the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we all use the default values for description. 3.2.1 PC configuration Here we take Wireless Network Connection as an example. (You can also go to Local Area Connection to configure the PC for wired network connection, and then configure the Router. If you need instructions as to how to do this, please refer to Appendix B: "Configuring the PC.") 1. For Windows XP, please go to Start → Settings → Control Panel → Network and Internet Connections → Network Connections; for Windows 7, please go to Start → Settings → Control Panel → View network status and tasks → Manage network connection. Right click Wireless Network Connection, and select Properties. 2. For Windows XP, double click Internet Protocol (TCP/IP) in the item list; for Windows 7, double click Internet Protocol Version 4 (TCP/IPv4). 3. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click OK to finish the settings. 3.2.2 Connect to Network 1. Click the icon at the bottom of your desktop. 2. Click “Refresh network list”, and then select the network. Click Connect. -14-

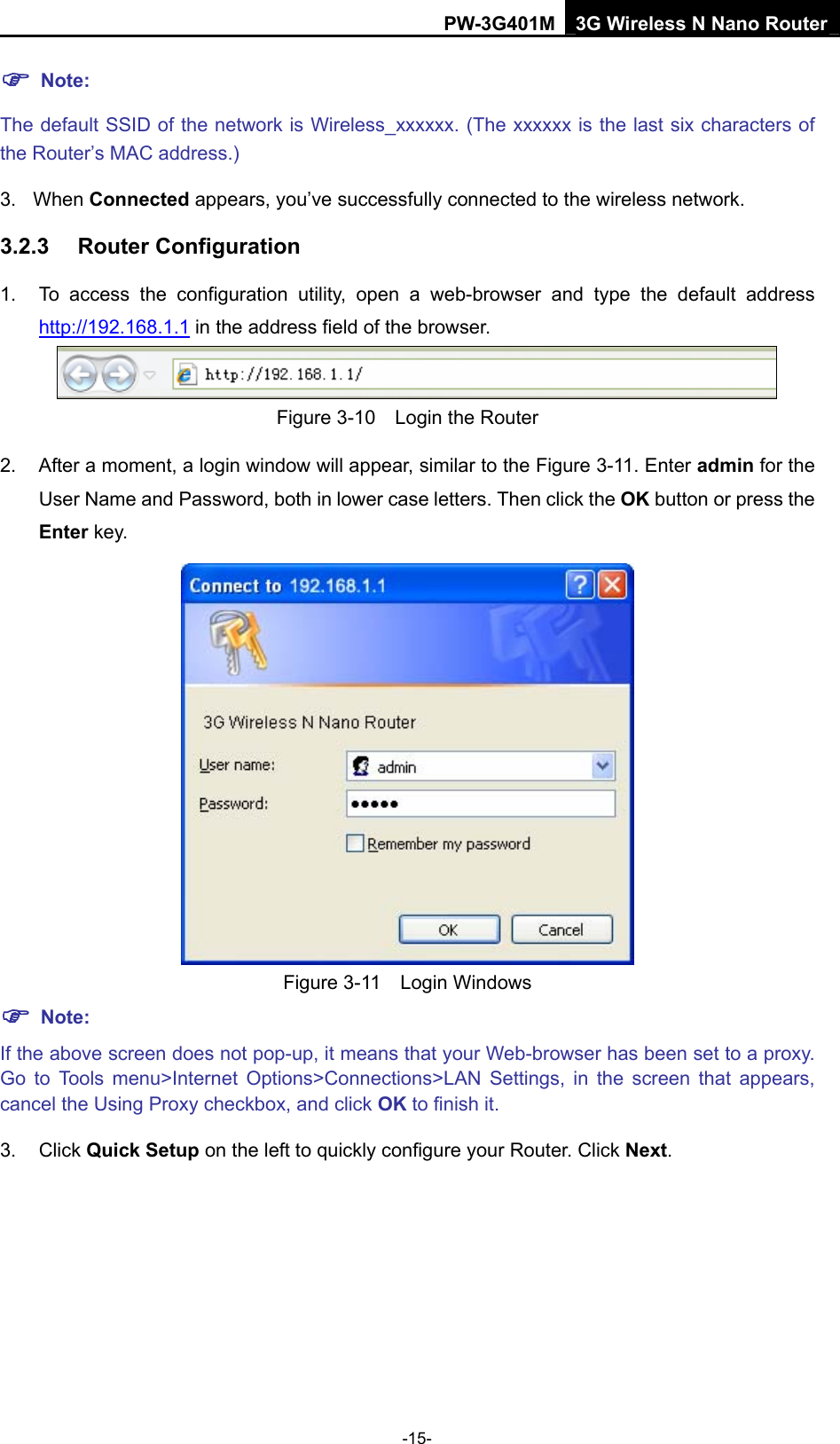

PW-3G401M 3G Wireless N Nano Router ) Note: The default SSID of the network is Wireless_xxxxxx. (The xxxxxx is the last six characters of the Router’s MAC address.) 3. When Connected appears, you’ve successfully connected to the wireless network. 3.2.3 Router Configuration 1. To access the configuration utility, open a web-browser and type the default address http://192.168.1.1 in the address field of the browser. Figure 3-10 Login the Router 2. After a moment, a login window will appear, similar to the Figure 3-11. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key. Figure 3-11 Login Windows ) Note: If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it. 3. Click Quick Setup on the left to quickly configure your Router. Click Next. -15-

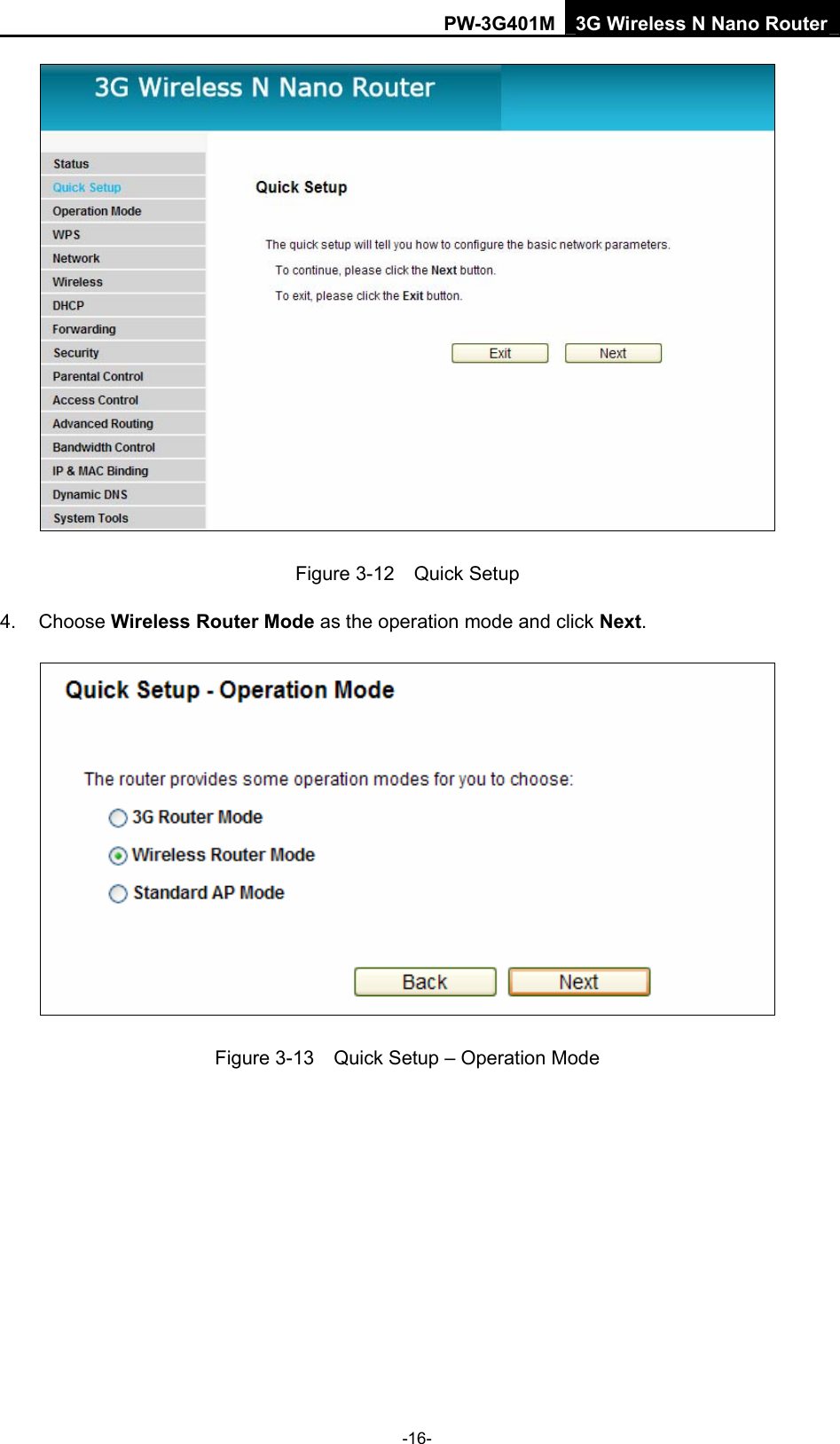

PW-3G401M 3G Wireless N Nano Router Figure 3-12 Quick Setup 4. Choose Wireless Router Mode as the operation mode and click Next. Figure 3-13 Quick Setup – Operation Mode -16-

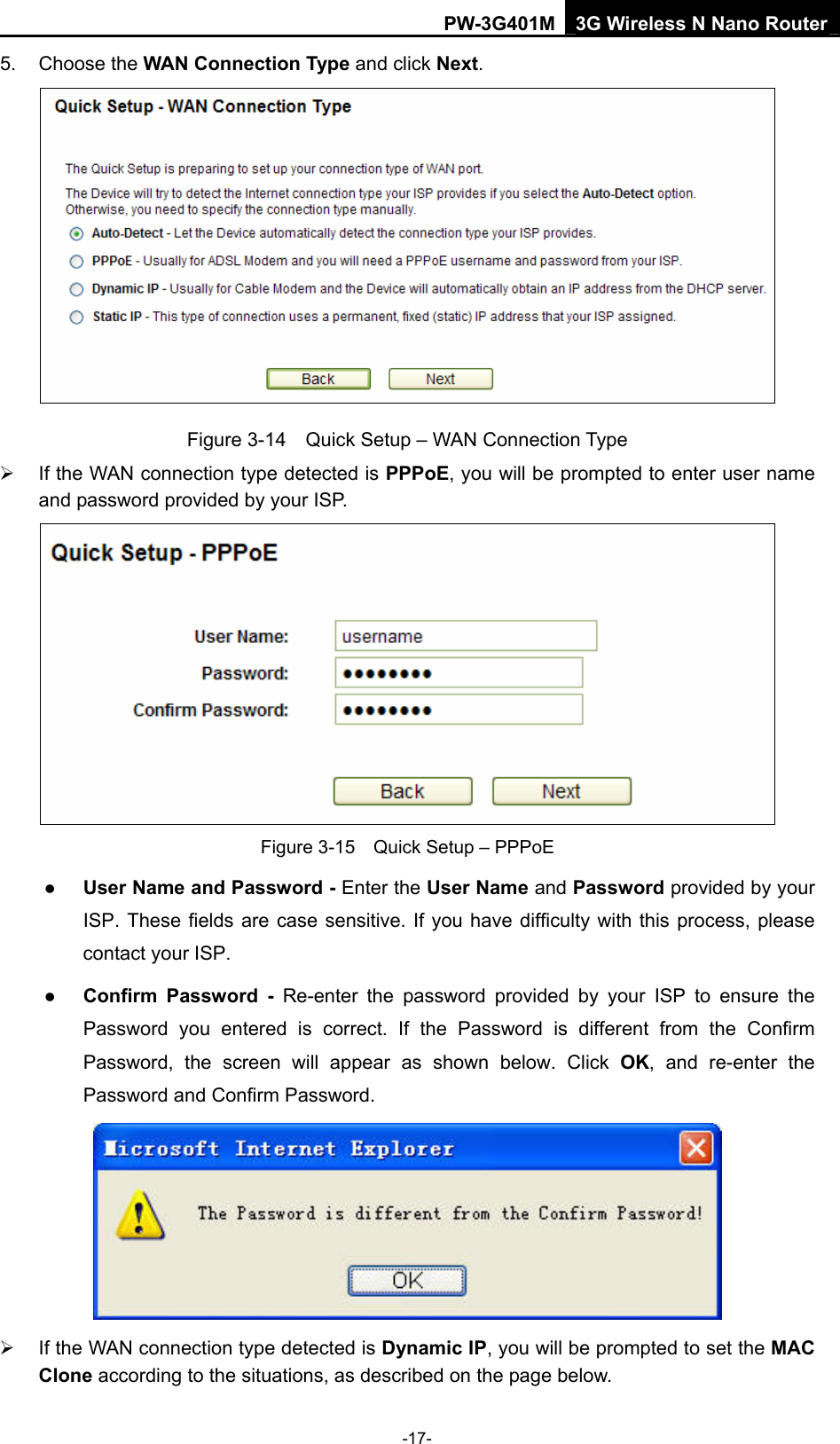

PW-3G401M 3G Wireless N Nano Router 5. Choose the WAN Connection Type and click Next. Figure 3-14 Quick Setup – WAN Connection Type ¾ If the WAN connection type detected is PPPoE, you will be prompted to enter user name and password provided by your ISP. Figure 3-15 Quick Setup – PPPoE z User Name and Password - Enter the User Name and Password provided by your ISP. These fields are case sensitive. If you have difficulty with this process, please contact your ISP. z Confirm Password - Re-enter the password provided by your ISP to ensure the Password you entered is correct. If the Password is different from the Confirm Password, the screen will appear as shown below. Click OK, and re-enter the Password and Confirm Password. ¾ If the WAN connection type detected is Dynamic IP, you will be prompted to set the MAC Clone according to the situations, as described on the page below. -17-

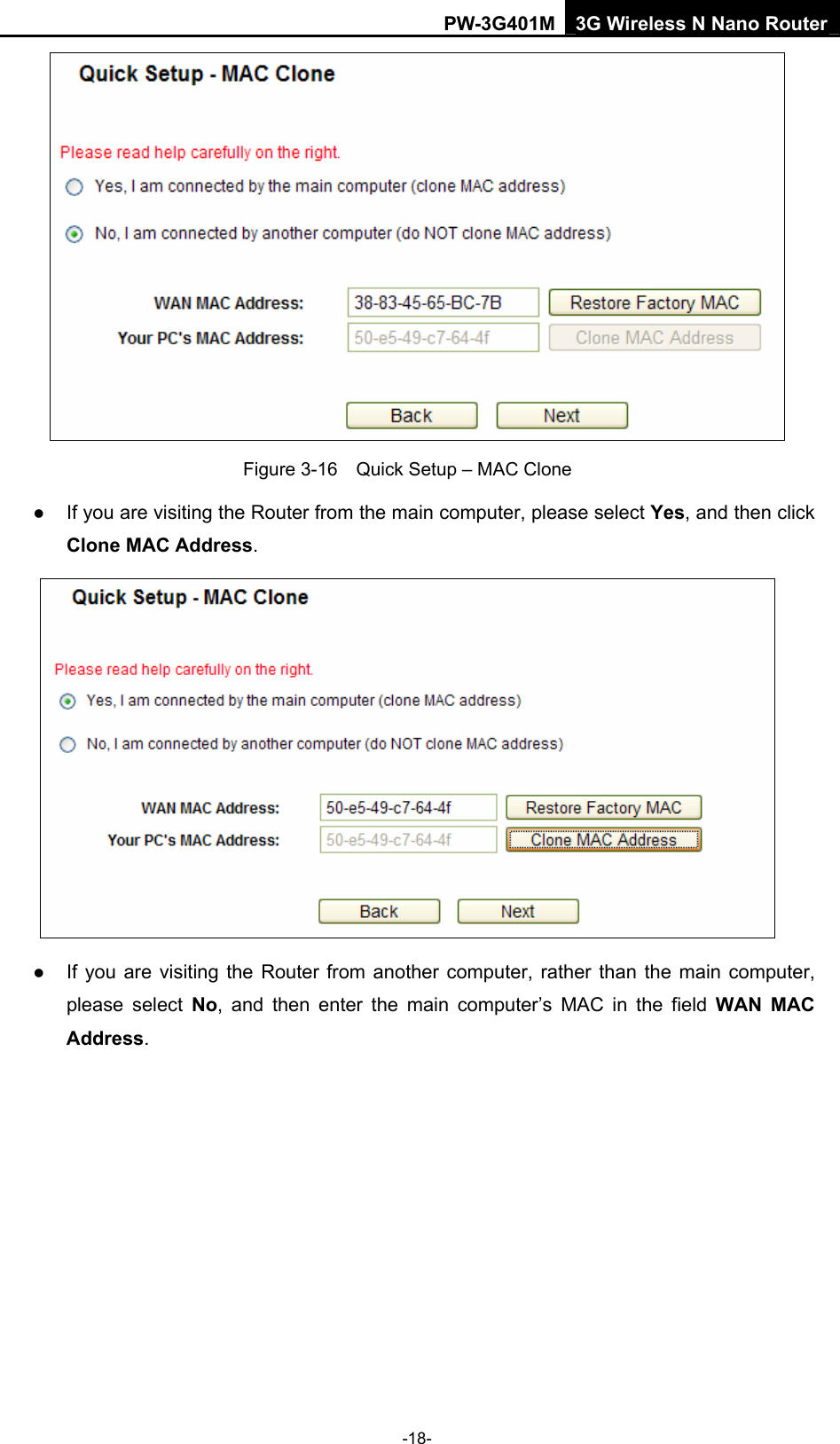

PW-3G401M 3G Wireless N Nano Router Figure 3-16 Quick Setup – MAC Clone z If you are visiting the Router from the main computer, please select Yes, and then click Clone MAC Address. z If you are visiting the Router from another computer, rather than the main computer, please select No, and then enter the main computer’s MAC in the field WAN MAC Address. -18-

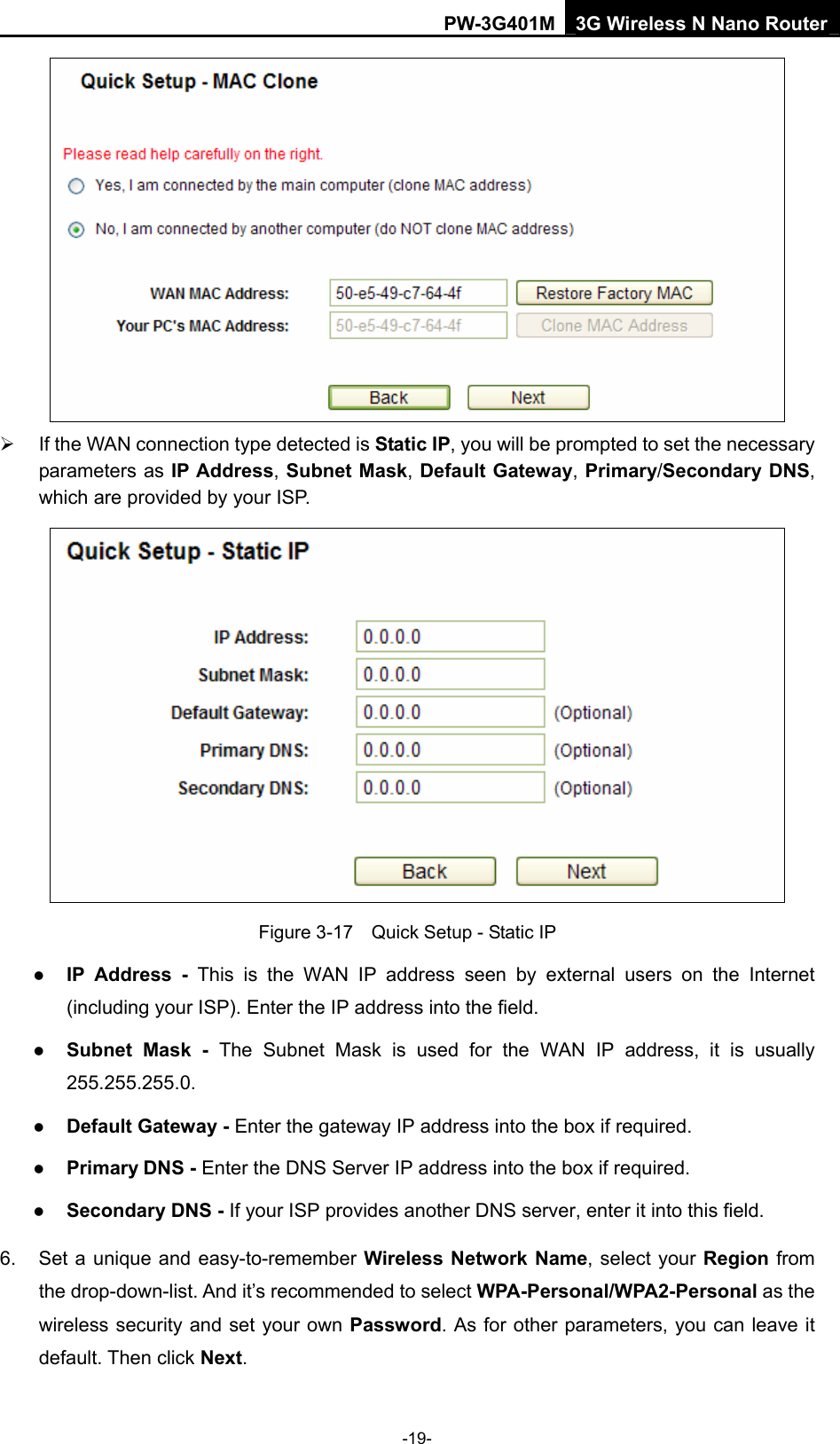

PW-3G401M 3G Wireless N Nano Router ¾ If the WAN connection type detected is Static IP, you will be prompted to set the necessary parameters as IP Address, Subnet Mask, Default Gateway, Primary/Secondary DNS, which are provided by your ISP. Figure 3-17 Quick Setup - Static IP z IP Address - This is the WAN IP address seen by external users on the Internet (including your ISP). Enter the IP address into the field. z Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually 255.255.255.0. z Default Gateway - Enter the gateway IP address into the box if required. z Primary DNS - Enter the DNS Server IP address into the box if required. z Secondary DNS - If your ISP provides another DNS server, enter it into this field. 6. Set a unique and easy-to-remember Wireless Network Name, select your Region from the drop-down-list. And it’s recommended to select WPA-Personal/WPA2-Personal as the wireless security and set your own Password. As for other parameters, you can leave it default. Then click Next. -19-

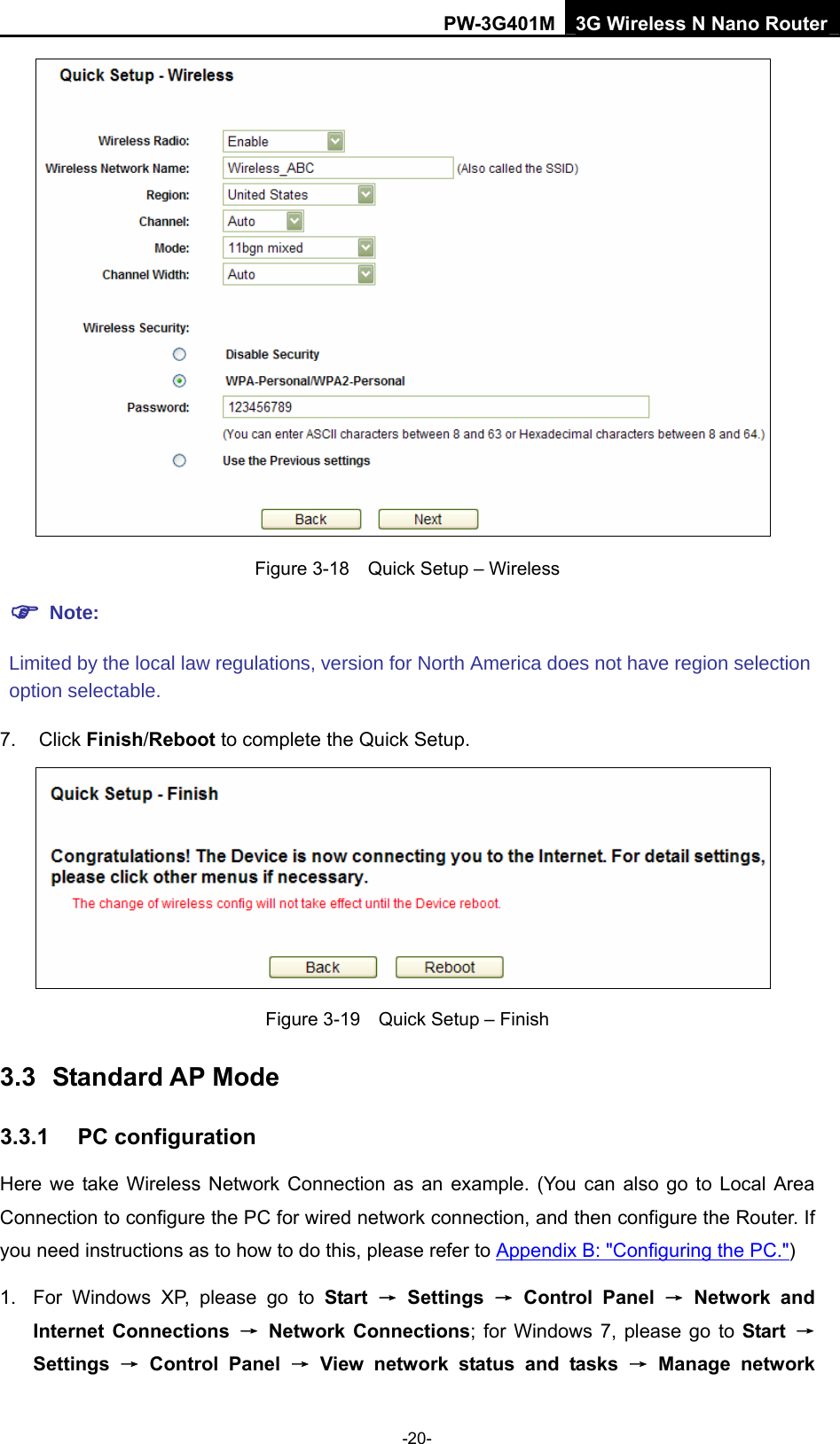

PW-3G401M 3G Wireless N Nano Router Figure 3-18 Quick Setup – Wireless 7. Click Finish/Reboot to complete the Quick Setup. Figure 3-19 Quick Setup – Finish 3.3 Standard AP Mode 3.3.1 PC configuration Here we take Wireless Network Connection as an example. (You can also go to Local Area Connection to configure the PC for wired network connection, and then configure the Router. If you need instructions as to how to do this, please refer to Appendix B: "Configuring the PC.") 1. For Windows XP, please go to Start → Settings → Control Panel → Network and Internet Connections → Network Connections; for Windows 7, please go to Start → Settings → Control Panel → View network status and tasks → Manage network -20-  Note: Limited by the local law regulations, version for North America does not have region selection option selectable.

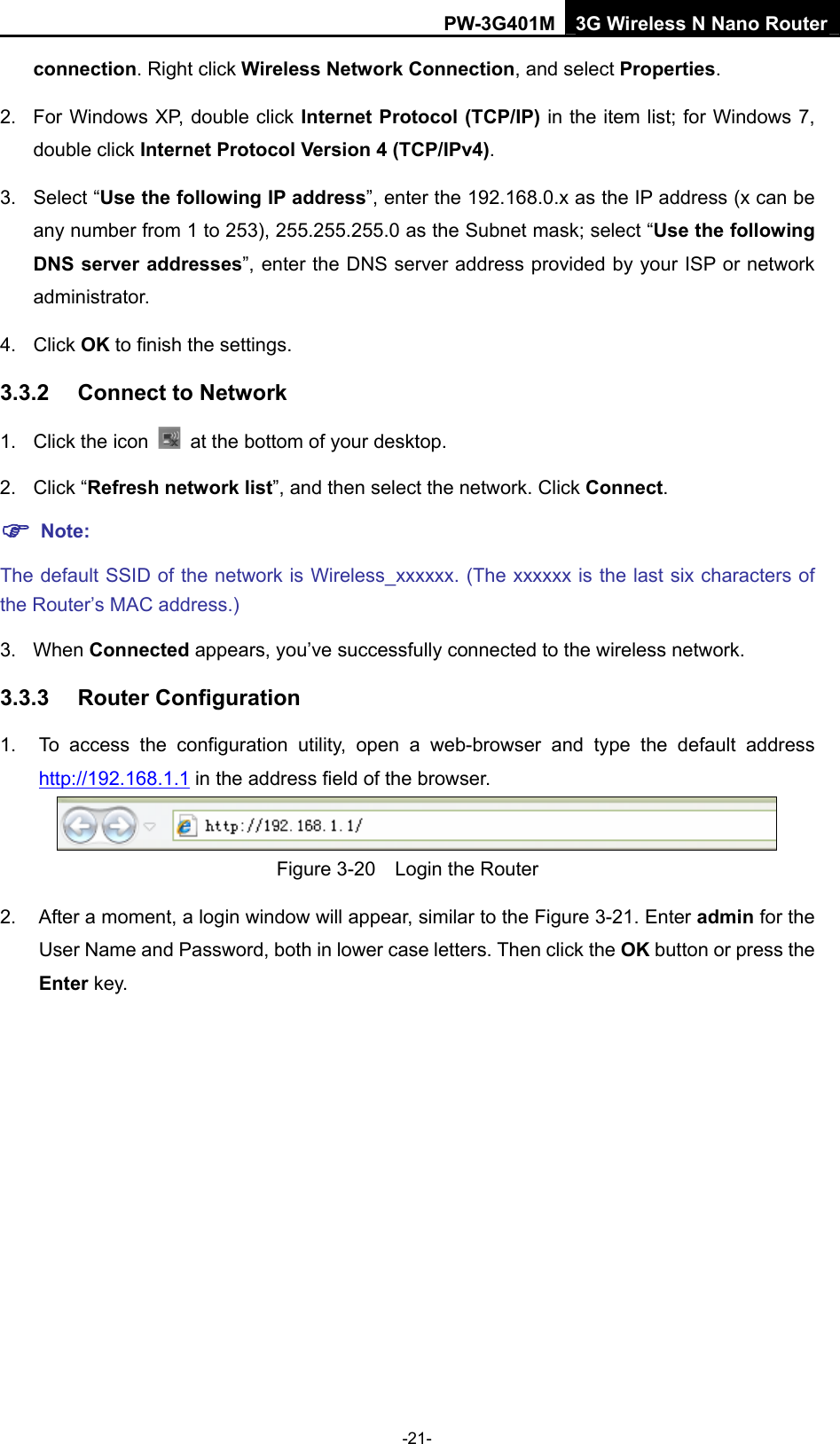

PW-3G401M 3G Wireless N Nano Router connection. Right click Wireless Network Connection, and select Properties. 2. For Windows XP, double click Internet Protocol (TCP/IP) in the item list; for Windows 7, double click Internet Protocol Version 4 (TCP/IPv4). 3. Select “Use the following IP address”, enter the 192.168.0.x as the IP address (x can be any number from 1 to 253), 255.255.255.0 as the Subnet mask; select “Use the following DNS server addresses”, enter the DNS server address provided by your ISP or network administrator. 4. Click OK to finish the settings. 3.3.2 Connect to Network 1. Click the icon at the bottom of your desktop. 2. Click “Refresh network list”, and then select the network. Click Connect. ) Note: The default SSID of the network is Wireless_xxxxxx. (The xxxxxx is the last six characters of the Router’s MAC address.) 3. When Connected appears, you’ve successfully connected to the wireless network. 3.3.3 Router Configuration 1. To access the configuration utility, open a web-browser and type the default address http://192.168.1.1 in the address field of the browser. Figure 3-20 Login the Router 2. After a moment, a login window will appear, similar to the Figure 3-21. Enter admin for the User Name and Password, both in lower case letters. Then click the OK button or press the Enter key. -21-

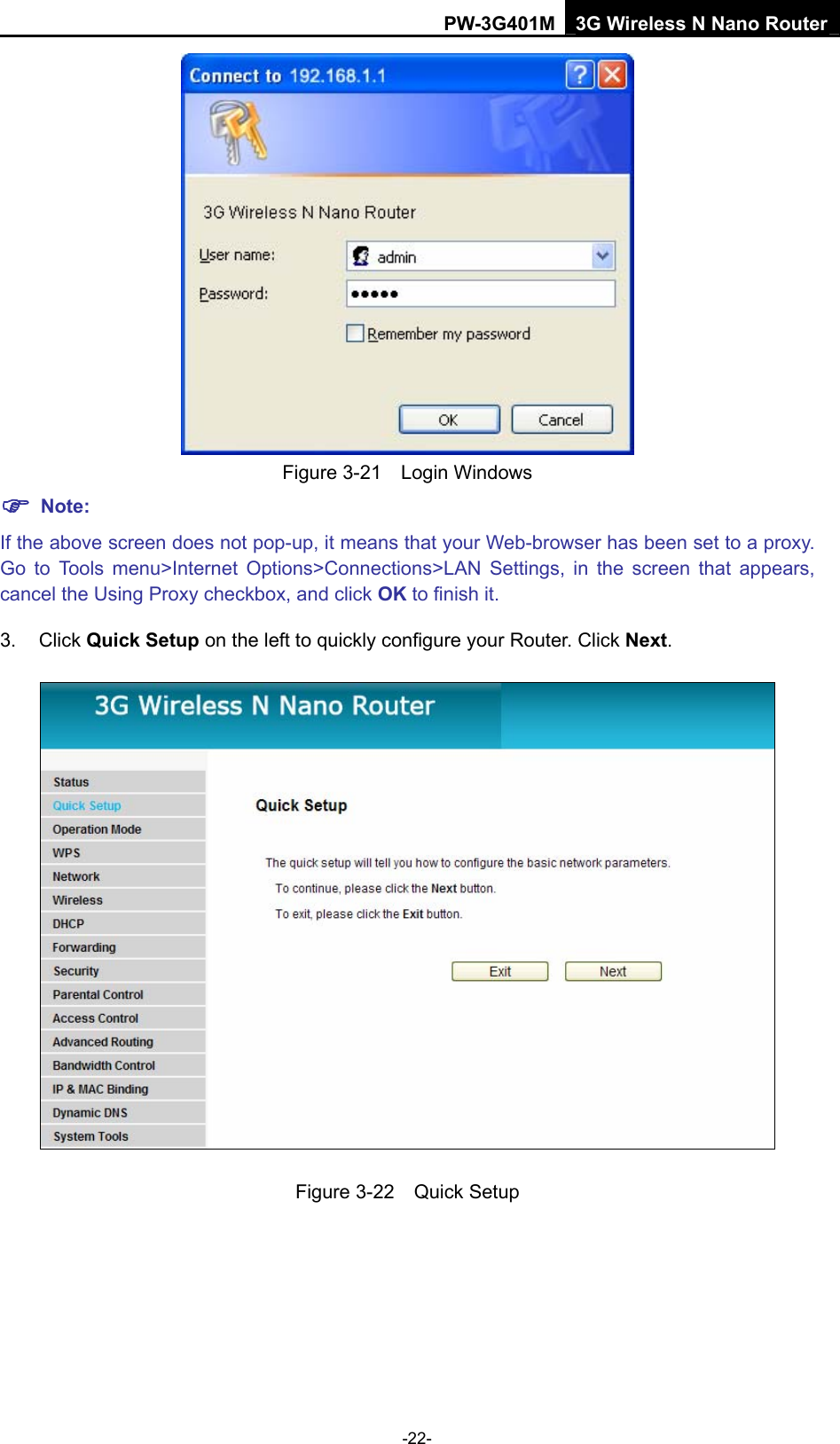

PW-3G401M 3G Wireless N Nano Router Figure 3-21 Login Windows ) Note: If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it. 3. Click Quick Setup on the left to quickly configure your Router. Click Next. Figure 3-22 Quick Setup -22-

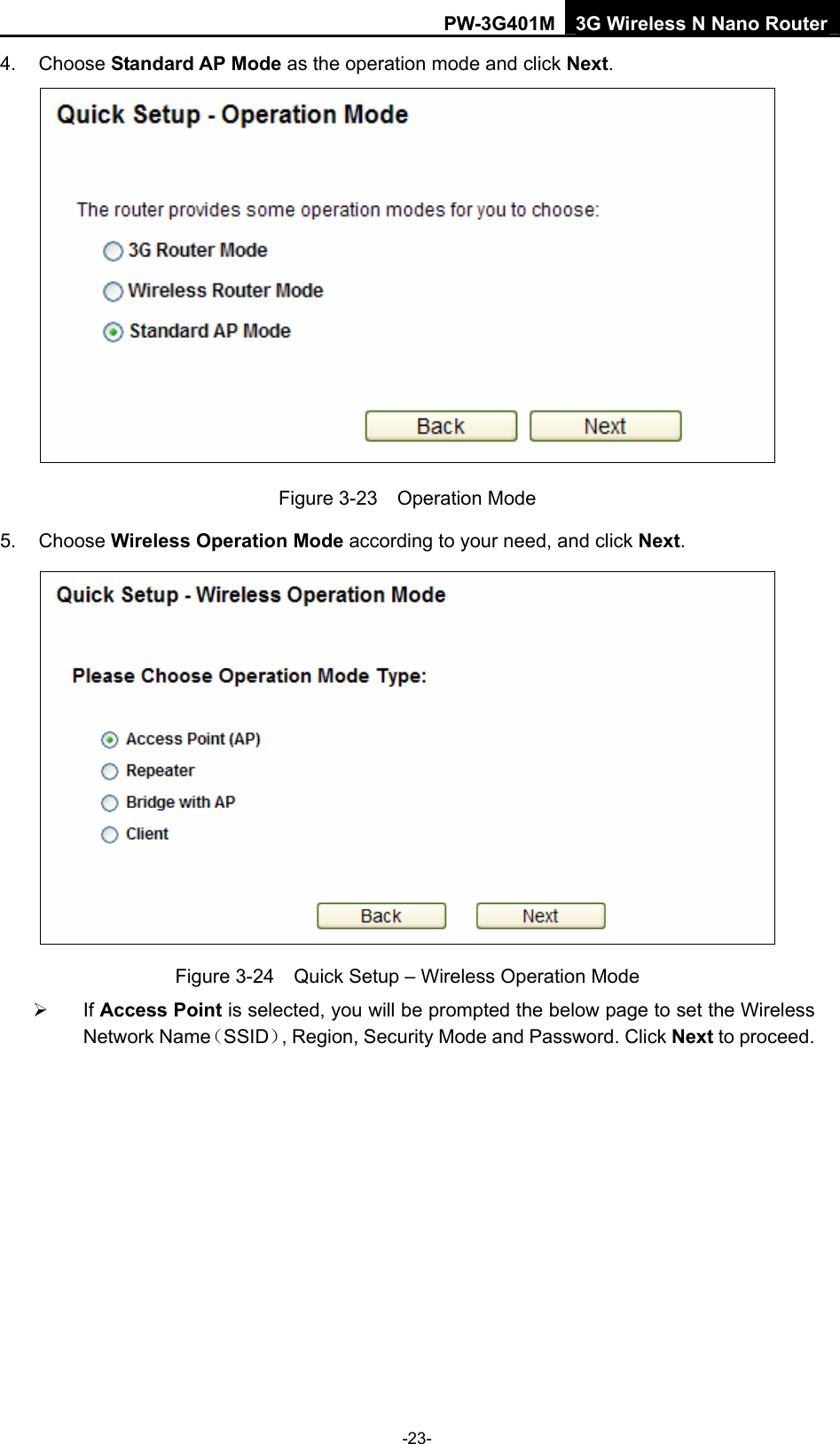

PW-3G401M 3G Wireless N Nano Router 4. Choose Standard AP Mode as the operation mode and click Next. Figure 3-23 Operation Mode 5. Choose Wireless Operation Mode according to your need, and click Next. Figure 3-24 Quick Setup – Wireless Operation Mode ¾ If Access Point is selected, you will be prompted the below page to set the Wireless Network Name（SSID）, Region, Security Mode and Password. Click Next to proceed. -23-

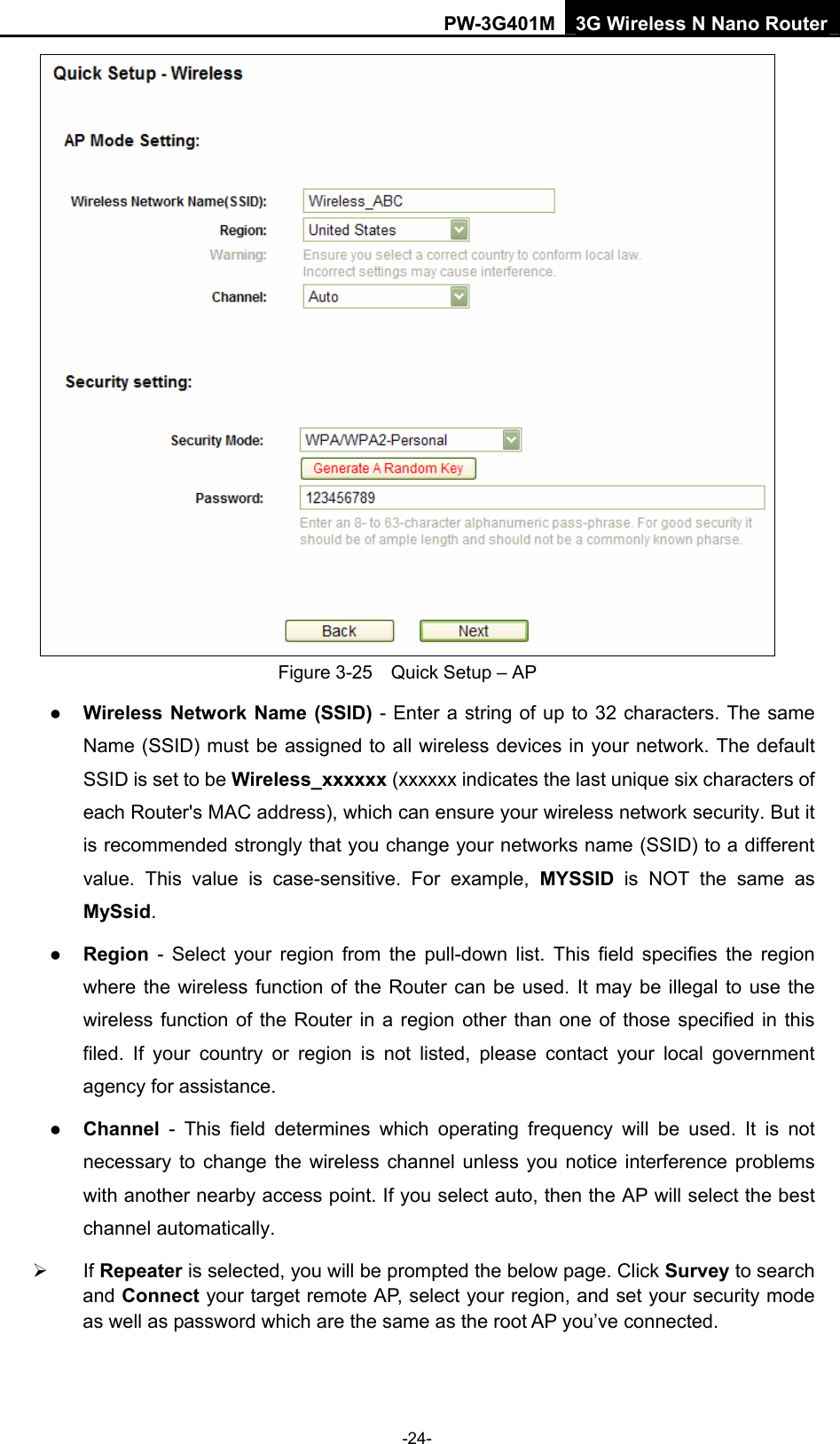

PW-3G401M 3G Wireless N Nano Router Figure 3-25 Quick Setup – AP z Wireless Network Name (SSID) - Enter a string of up to 32 characters. The same Name (SSID) must be assigned to all wireless devices in your network. The default SSID is set to be Wireless_xxxxxx (xxxxxx indicates the last unique six characters of each Router's MAC address), which can ensure your wireless network security. But it is recommended strongly that you change your networks name (SSID) to a different value. This value is case-sensitive. For example, MYSSID is NOT the same as MySsid. z Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this filed. If your country or region is not listed, please contact your local government agency for assistance. z Channel - This field determines which operating frequency will be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. If you select auto, then the AP will select the best channel automatically. ¾ If Repeater is selected, you will be prompted the below page. Click Survey to search and Connect your target remote AP, select your region, and set your security mode as well as password which are the same as the root AP you’ve connected. -24-

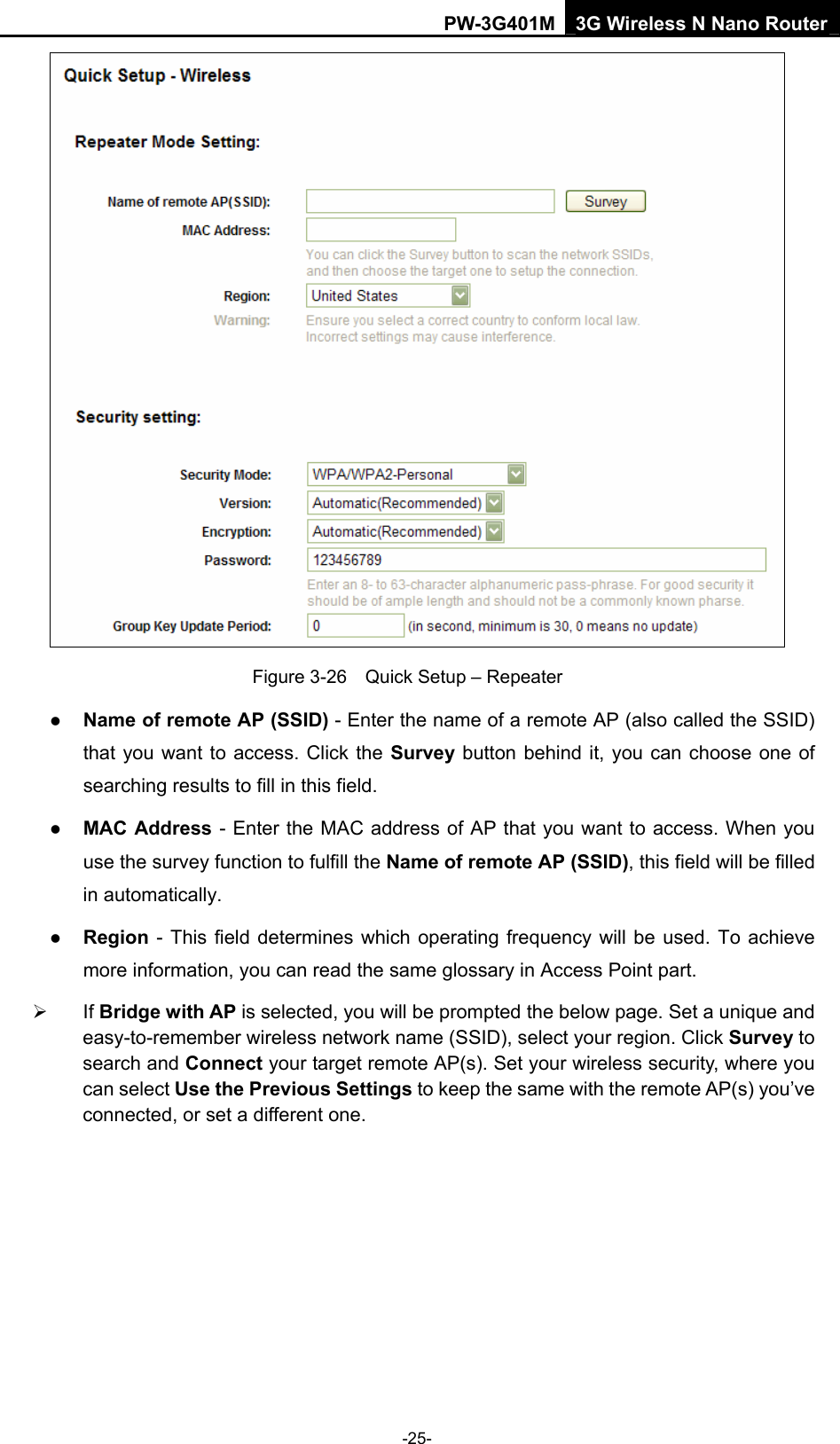

PW-3G401M 3G Wireless N Nano Router Figure 3-26 Quick Setup – Repeater z Name of remote AP (SSID) - Enter the name of a remote AP (also called the SSID) that you want to access. Click the Survey button behind it, you can choose one of searching results to fill in this field. z MAC Address - Enter the MAC address of AP that you want to access. When you use the survey function to fulfill the Name of remote AP (SSID), this field will be filled in automatically. z Region - This field determines which operating frequency will be used. To achieve more information, you can read the same glossary in Access Point part. ¾ If Bridge with AP is selected, you will be prompted the below page. Set a unique and easy-to-remember wireless network name (SSID), select your region. Click Survey to search and Connect your target remote AP(s). Set your wireless security, where you can select Use the Previous Settings to keep the same with the remote AP(s) you’ve connected, or set a different one. -25-

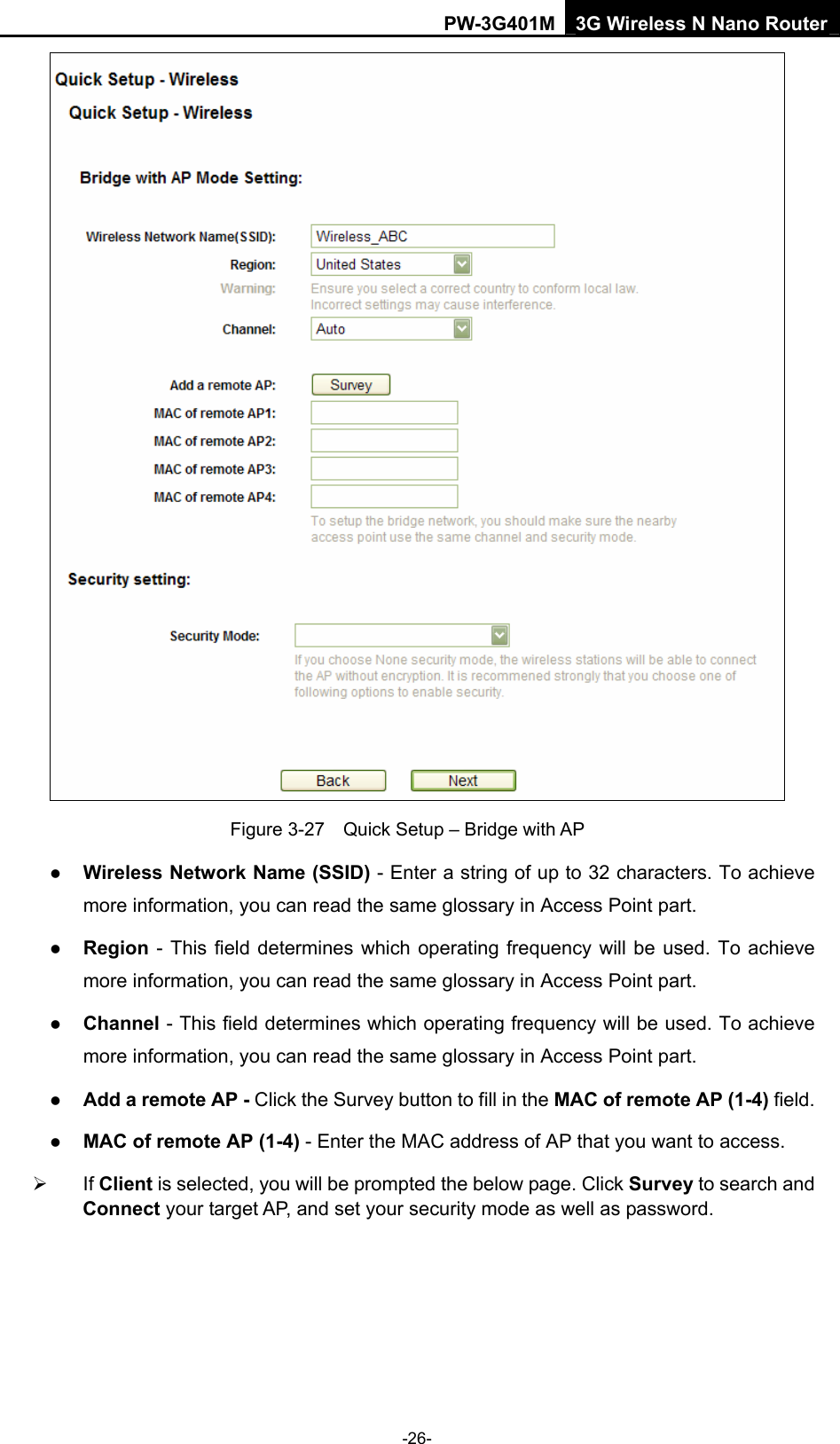

PW-3G401M 3G Wireless N Nano Router Figure 3-27 Quick Setup – Bridge with AP z Wireless Network Name (SSID) - Enter a string of up to 32 characters. To achieve more information, you can read the same glossary in Access Point part. z Region - This field determines which operating frequency will be used. To achieve more information, you can read the same glossary in Access Point part. z Channel - This field determines which operating frequency will be used. To achieve more information, you can read the same glossary in Access Point part. z Add a remote AP - Click the Survey button to fill in the MAC of remote AP (1-4) field. z MAC of remote AP (1-4) - Enter the MAC address of AP that you want to access. ¾ If Client is selected, you will be prompted the below page. Click Survey to search and Connect your target AP, and set your security mode as well as password. -26-

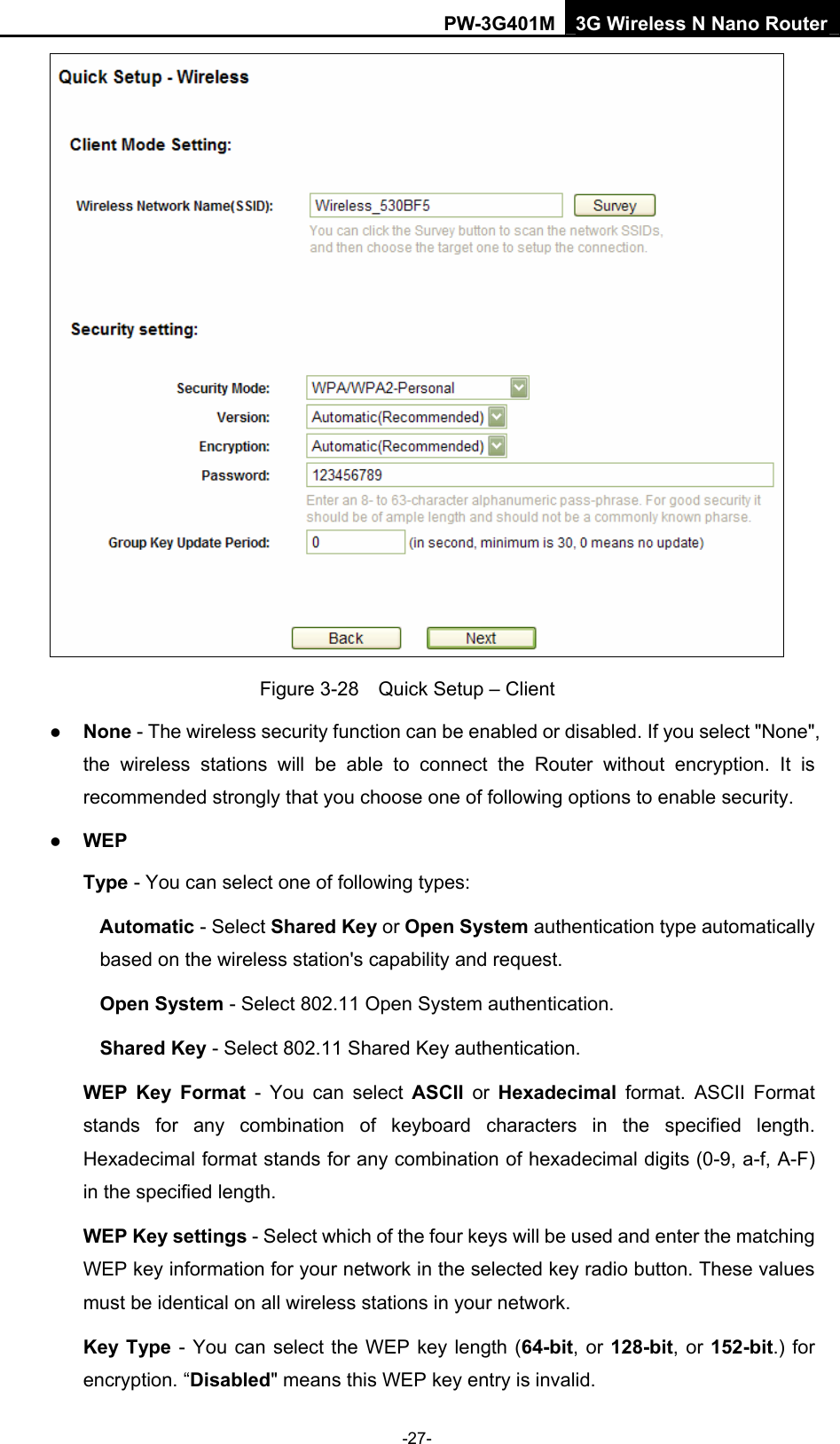

PW-3G401M 3G Wireless N Nano Router Figure 3-28 Quick Setup – Client z None - The wireless security function can be enabled or disabled. If you select "None", the wireless stations will be able to connect the Router without encryption. It is recommended strongly that you choose one of following options to enable security. z WEP Type - You can select one of following types: Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. Open System - Select 802.11 Open System authentication. Shared Key - Select 802.11 Shared Key authentication. WEP Key Format - You can select ASCII or Hexadecimal format. ASCII Format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. WEP Key settings - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. “Disabled" means this WEP key entry is invalid. -27-

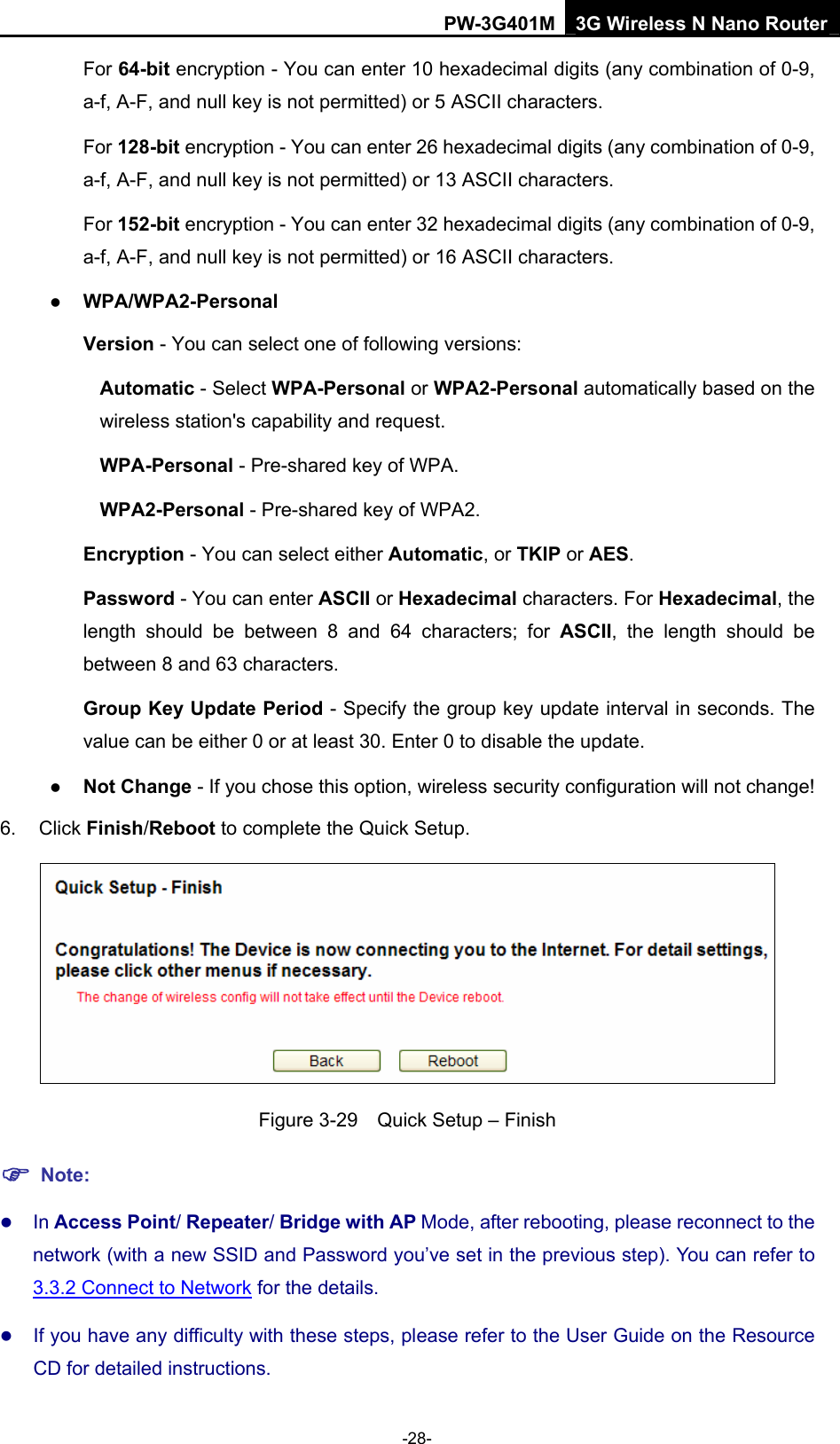

PW-3G401M 3G Wireless N Nano Router For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, and null key is not permitted) or 5 ASCII characters. For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, and null key is not permitted) or 13 ASCII characters. For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, and null key is not permitted) or 16 ASCII characters. z WPA/WPA2-Personal Version - You can select one of following versions: Automatic - Select WPA-Personal or WPA2-Personal automatically based on the wireless station's capability and request. WPA-Personal - Pre-shared key of WPA. WPA2-Personal - Pre-shared key of WPA2. Encryption - You can select either Automatic, or TKIP or AES. Password - You can enter ASCII or Hexadecimal characters. For Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length should be between 8 and 63 characters. Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. z Not Change - If you chose this option, wireless security configuration will not change! 6. Click Finish/Reboot to complete the Quick Setup. Figure 3-29 Quick Setup – Finish ) Note: z In Access Point/ Repeater/ Bridge with AP Mode, after rebooting, please reconnect to the network (with a new SSID and Password you’ve set in the previous step). You can refer to 3.3.2 Connect to Network for the details. z If you have any difficulty with these steps, please refer to the User Guide on the Resource CD for detailed instructions. -28-

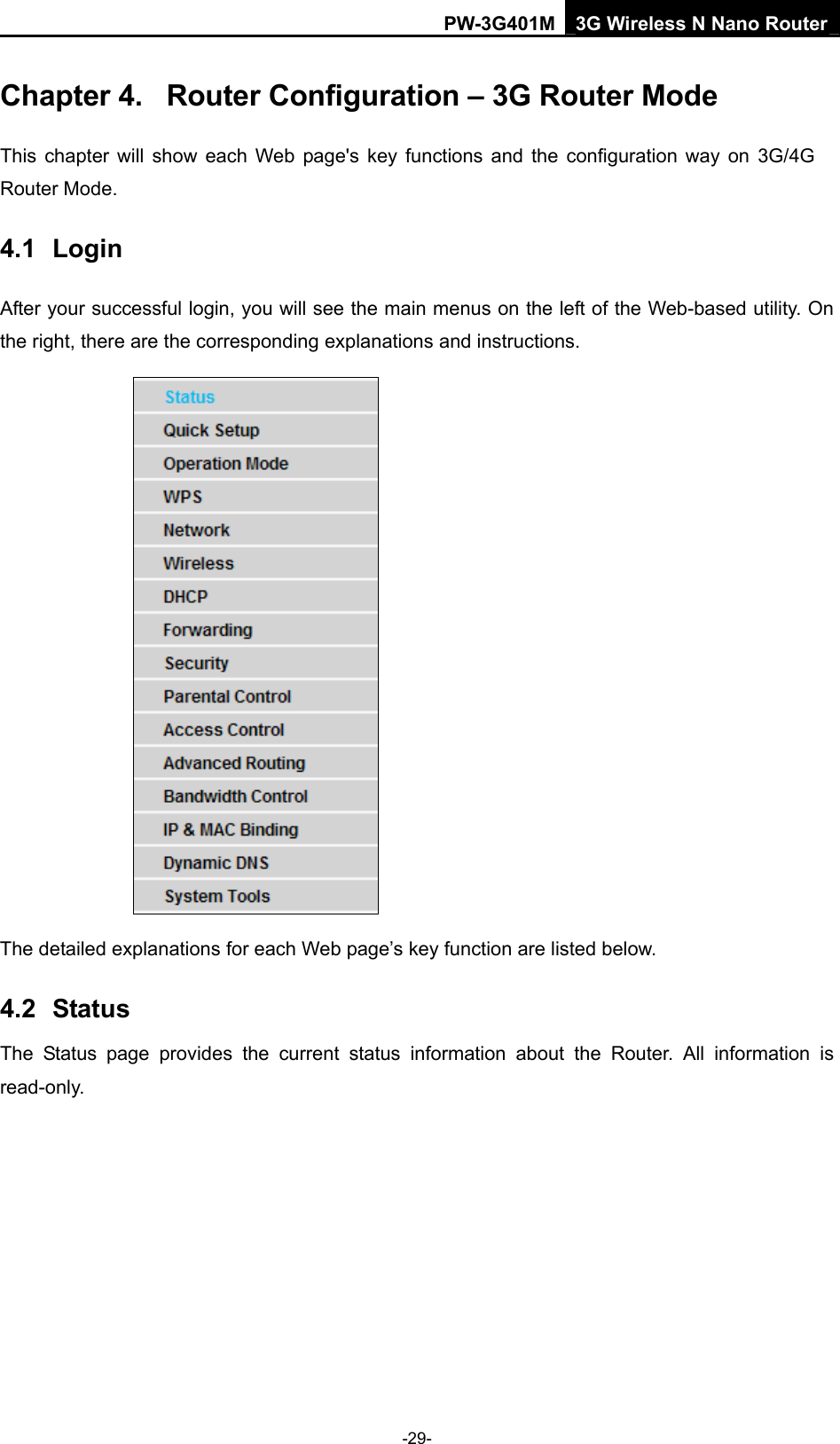

PW-3G401M 3G Wireless N Nano Router Chapter 4. Router Configuration – 3G Router Mode This chapter will show each Web page's key functions and the configuration way on 3G/4G Router Mode. 4.1 Login After your successful login, you will see the main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions. The detailed explanations for each Web page’s key function are listed below. 4.2 Status The Status page provides the current status information about the Router. All information is read-only. -29-
PW-3G401M 3G Wireless N Nano Router Figure 4-1 Router Status 4.3 Quick Setup Please refer to Chapter 3: "Quick Installation Guide." -30-

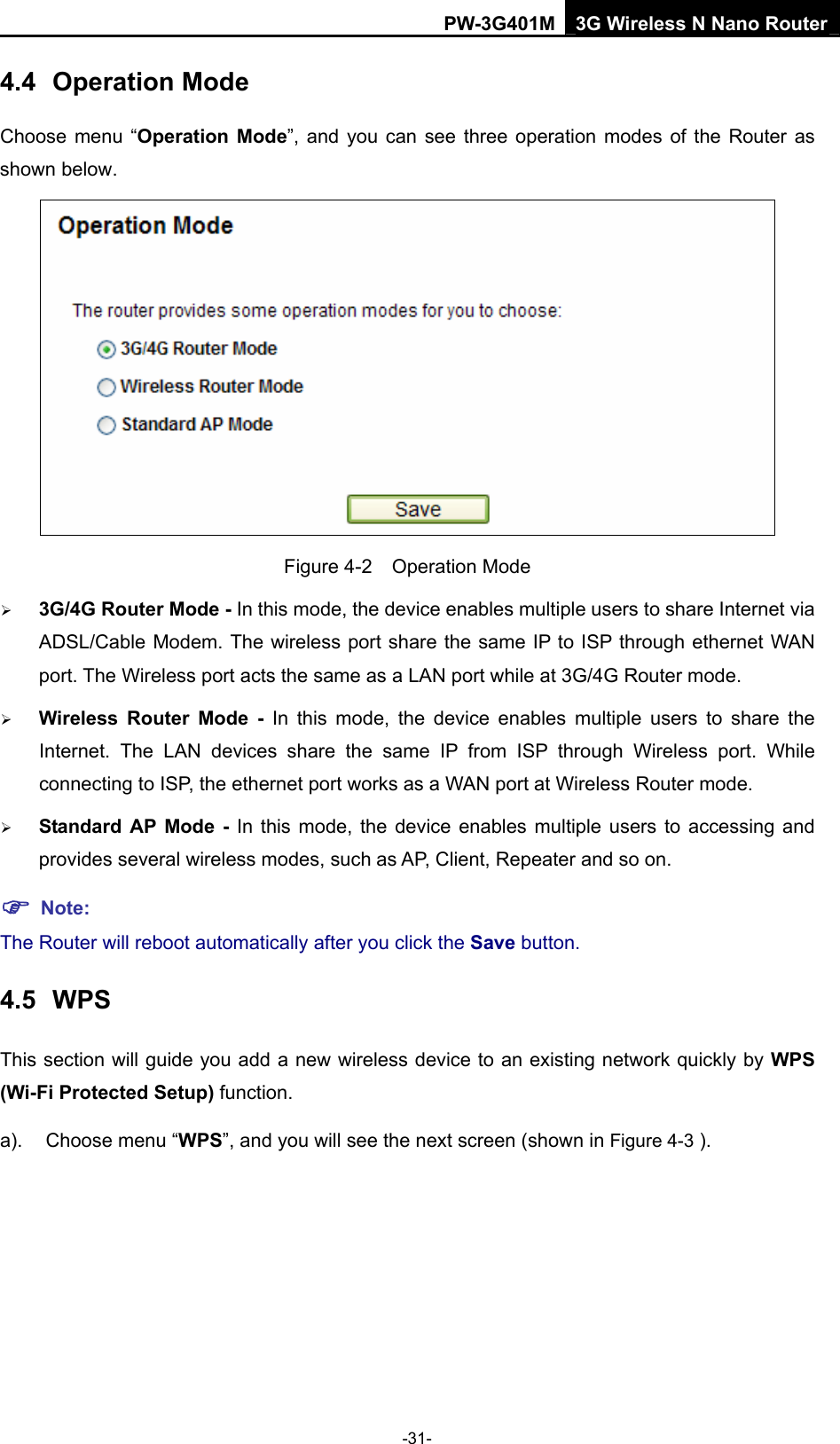

PW-3G401M 3G Wireless N Nano Router 4.4 Operation Mode Choose menu “Operation Mode”, and you can see three operation modes of the Router as shown below. Figure 4-2 Operation Mode ¾ 3G/4G Router Mode - In this mode, the device enables multiple users to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through ethernet WAN port. The Wireless port acts the same as a LAN port while at 3G/4G Router mode. ¾ Wireless Router Mode - In this mode, the device enables multiple users to share the Internet. The LAN devices share the same IP from ISP through Wireless port. While connecting to ISP, the ethernet port works as a WAN port at Wireless Router mode. ¾ Standard AP Mode - In this mode, the device enables multiple users to accessing and provides several wireless modes, such as AP, Client, Repeater and so on. ) Note: The Router will reboot automatically after you click the Save button. 4.5 WPS This section will guide you add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. a). Choose menu “WPS”, and you will see the next screen (shown in Figure 4-3 ). -31-
PW-3G401M 3G Wireless N Nano Router Figure 4-3 WPS ¾ WPS Status - Enable or disable the WPS function here. ¾ Current PIN - The current value of the Router's PIN displayed here. The default PIN of the Router can be found in the label or User Guide. ¾ Restore PIN - Restore the PIN of the Router to its default. ¾ Gen New PIN - Click this button, and then you can get a new random value for the Router's PIN. You can ensure the network security by generating a new PIN. ¾ Disable PIN of this Device - WPS external registrar of entering the device's PIN can be disabled or enabled manually. If the device receives multiple failed attempts to authenticate an external Registrar, this function will be disabled automatically. ¾ Add device - You can add the new device to the existing network manually by clicking this button. b). To add a new device: If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and Router using either Push Button Configuration (PBC) method or PIN method. ) Note: To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile. For the configuration of the new device, here takes the Wireless Adapter of our company for example. I. By PBC If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC) method, you can add it to the network by PBC with the following two methods. Method One: Step 1: Click the Enable WPS button to trigger the WPS function in Figure 4-3, and click the Add device button in Figure 4-3, then the following screen will appear. -32-

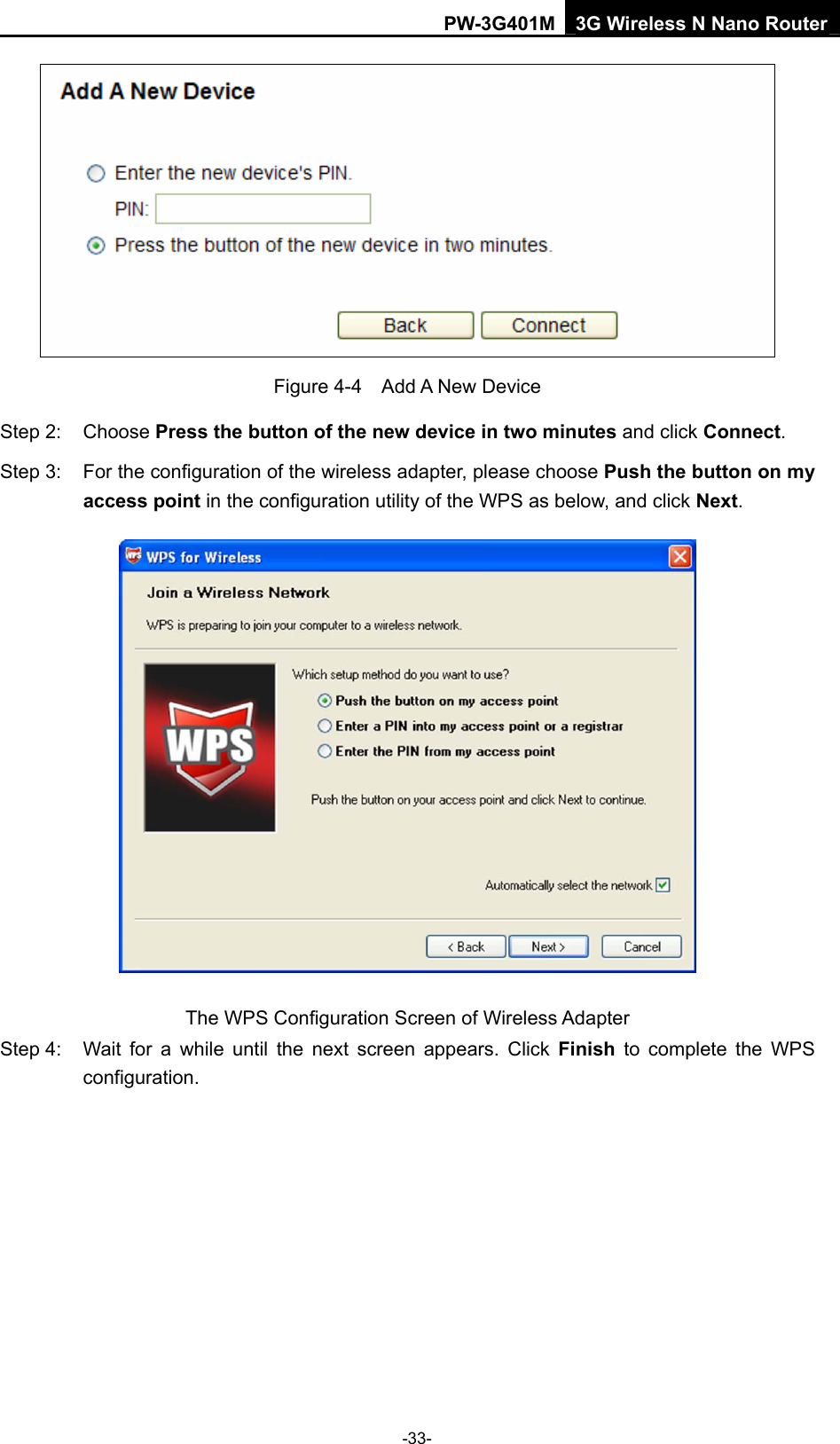

PW-3G401M 3G Wireless N Nano Router Figure 4-4 Add A New Device Step 2: Choose Press the button of the new device in two minutes and click Connect. Step 3: For the configuration of the wireless adapter, please choose Push the button on my access point in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of Wireless Adapter Step 4: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. -33-

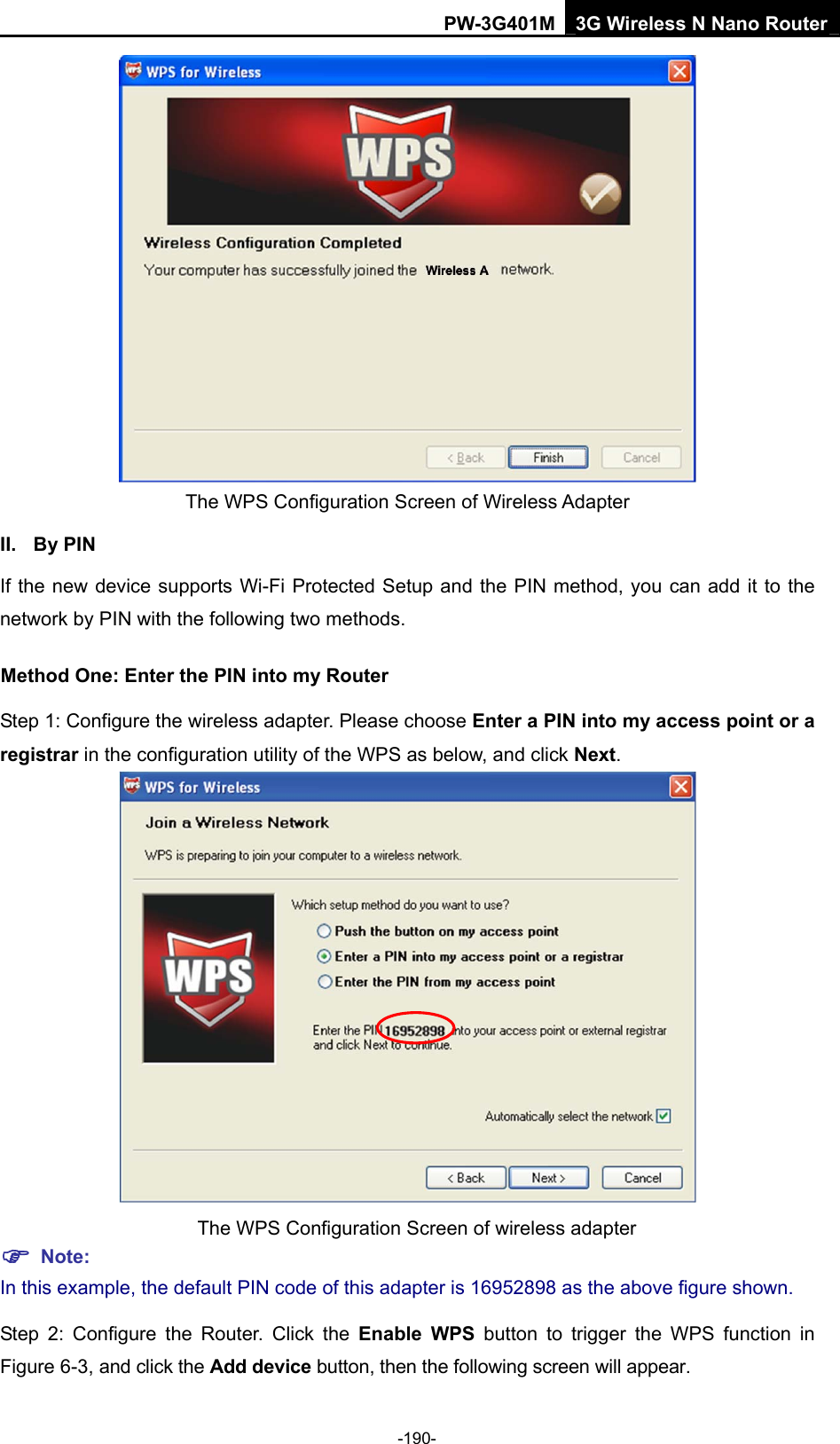

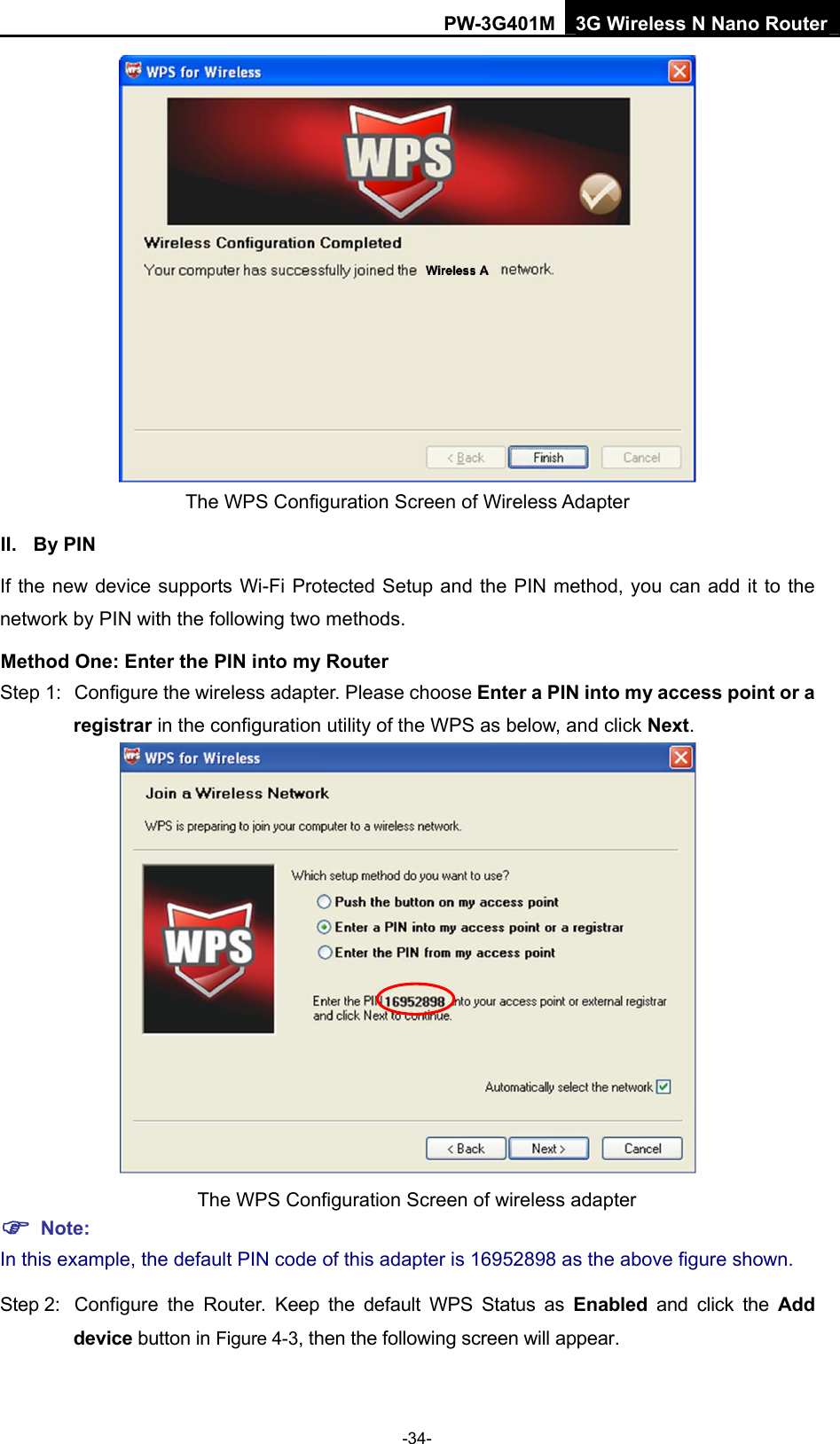

PW-3G401M 3G Wireless N Nano Router The WPS Configuration Screen of Wireless Adapter II. By PIN If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN into my Router Step 1: Configure the wireless adapter. Please choose Enter a PIN into my access point or a registrar in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of wireless adapter ) Note: In this example, the default PIN code of this adapter is 16952898 as the above figure shown. Step 2: Configure the Router. Keep the default WPS Status as Enabled and click the Add device button in Figure 4-3, then the following screen will appear. -34-

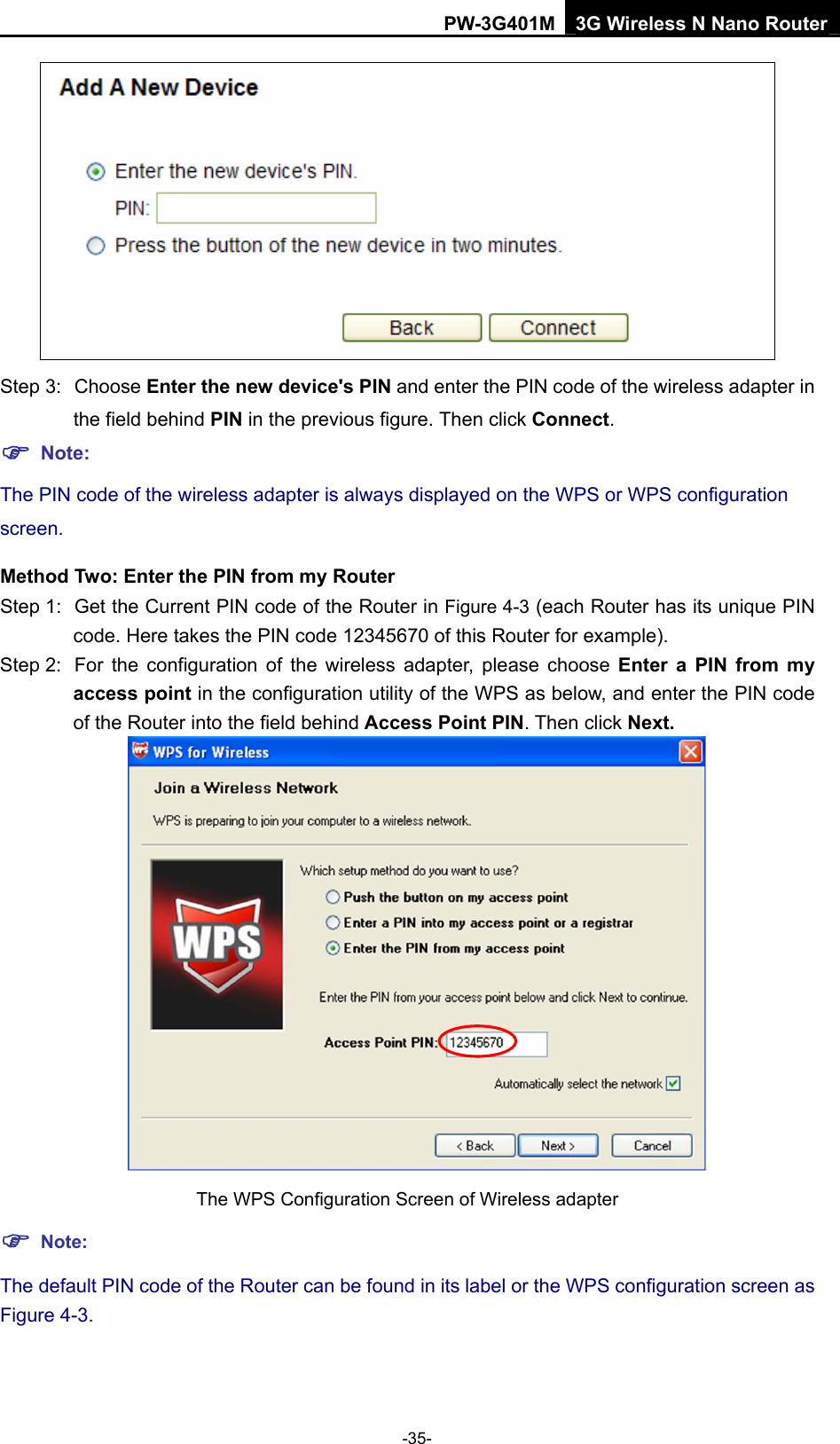

PW-3G401M 3G Wireless N Nano Router Step 3: Choose Enter the new device's PIN and enter the PIN code of the wireless adapter in the field behind PIN in the previous figure. Then click Connect. ) Note: The PIN code of the wireless adapter is always displayed on the WPS or WPS configuration screen. Method Two: Enter the PIN from my Router Step 1: Get the Current PIN code of the Router in Figure 4-3 (each Router has its unique PIN code. Here takes the PIN code 12345670 of this Router for example). Step 2: For the configuration of the wireless adapter, please choose Enter a PIN from my access point in the configuration utility of the WPS as below, and enter the PIN code of the Router into the field behind Access Point PIN. Then click Next. The WPS Configuration Screen of Wireless adapter ) Note: The default PIN code of the Router can be found in its label or the WPS configuration screen as Figure 4-3. -35-

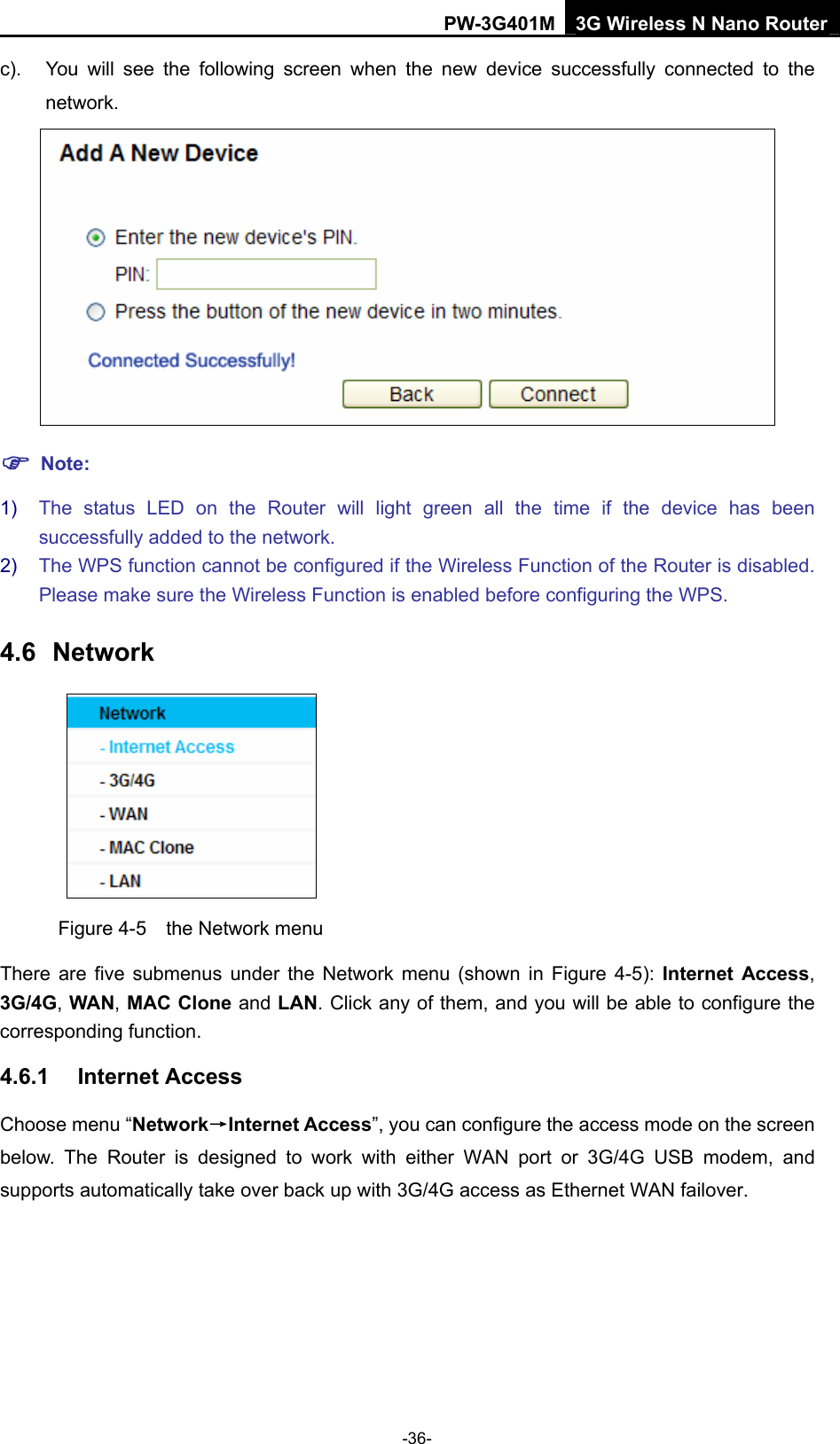

PW-3G401M 3G Wireless N Nano Router c). You will see the following screen when the new device successfully connected to the network. ) Note: 1) The status LED on the Router will light green all the time if the device has been successfully added to the network. 2) The WPS function cannot be configured if the Wireless Function of the Router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS. 4.6 Network Figure 4-5 the Network menu There are five submenus under the Network menu (shown in Figure 4-5): Internet Access, 3G/4G, WAN, MAC Clone and LAN. Click any of them, and you will be able to configure the corresponding function. 4.6.1 Internet Access Choose menu “Network→Internet Access”, you can configure the access mode on the screen below. The Router is designed to work with either WAN port or 3G/4G USB modem, and supports automatically take over back up with 3G/4G access as Ethernet WAN failover. -36-

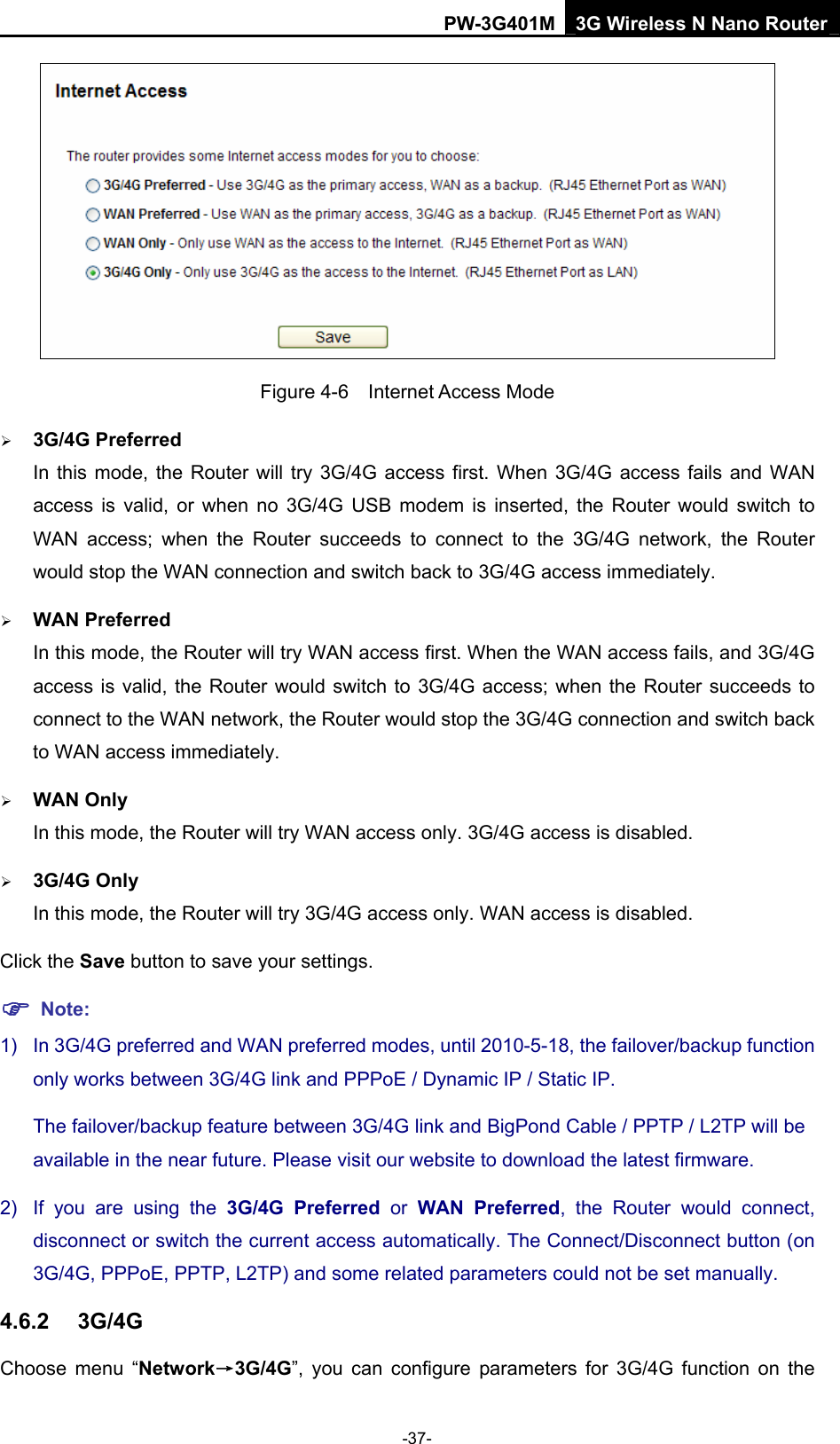

PW-3G401M 3G Wireless N Nano Router Figure 4-6 Internet Access Mode ¾ 3G/4G Preferred In this mode, the Router will try 3G/4G access first. When 3G/4G access fails and WAN access is valid, or when no 3G/4G USB modem is inserted, the Router would switch to WAN access; when the Router succeeds to connect to the 3G/4G network, the Router would stop the WAN connection and switch back to 3G/4G access immediately. ¾ WAN Preferred In this mode, the Router will try WAN access first. When the WAN access fails, and 3G/4G access is valid, the Router would switch to 3G/4G access; when the Router succeeds to connect to the WAN network, the Router would stop the 3G/4G connection and switch back to WAN access immediately. ¾ WAN Only In this mode, the Router will try WAN access only. 3G/4G access is disabled. ¾ 3G/4G Only In this mode, the Router will try 3G/4G access only. WAN access is disabled. Click the Save button to save your settings. ) Note: 1) In 3G/4G preferred and WAN preferred modes, until 2010-5-18, the failover/backup function only works between 3G/4G link and PPPoE / Dynamic IP / Static IP. The failover/backup feature between 3G/4G link and BigPond Cable / PPTP / L2TP will be available in the near future. Please visit our website to download the latest firmware. 2) If you are using the 3G/4G Preferred or WAN Preferred, the Router would connect, disconnect or switch the current access automatically. The Connect/Disconnect button (on 3G/4G, PPPoE, PPTP, L2TP) and some related parameters could not be set manually. 4.6.2 3G/4G Choose menu “Network→3G/4G”, you can configure parameters for 3G/4G function on the -37-

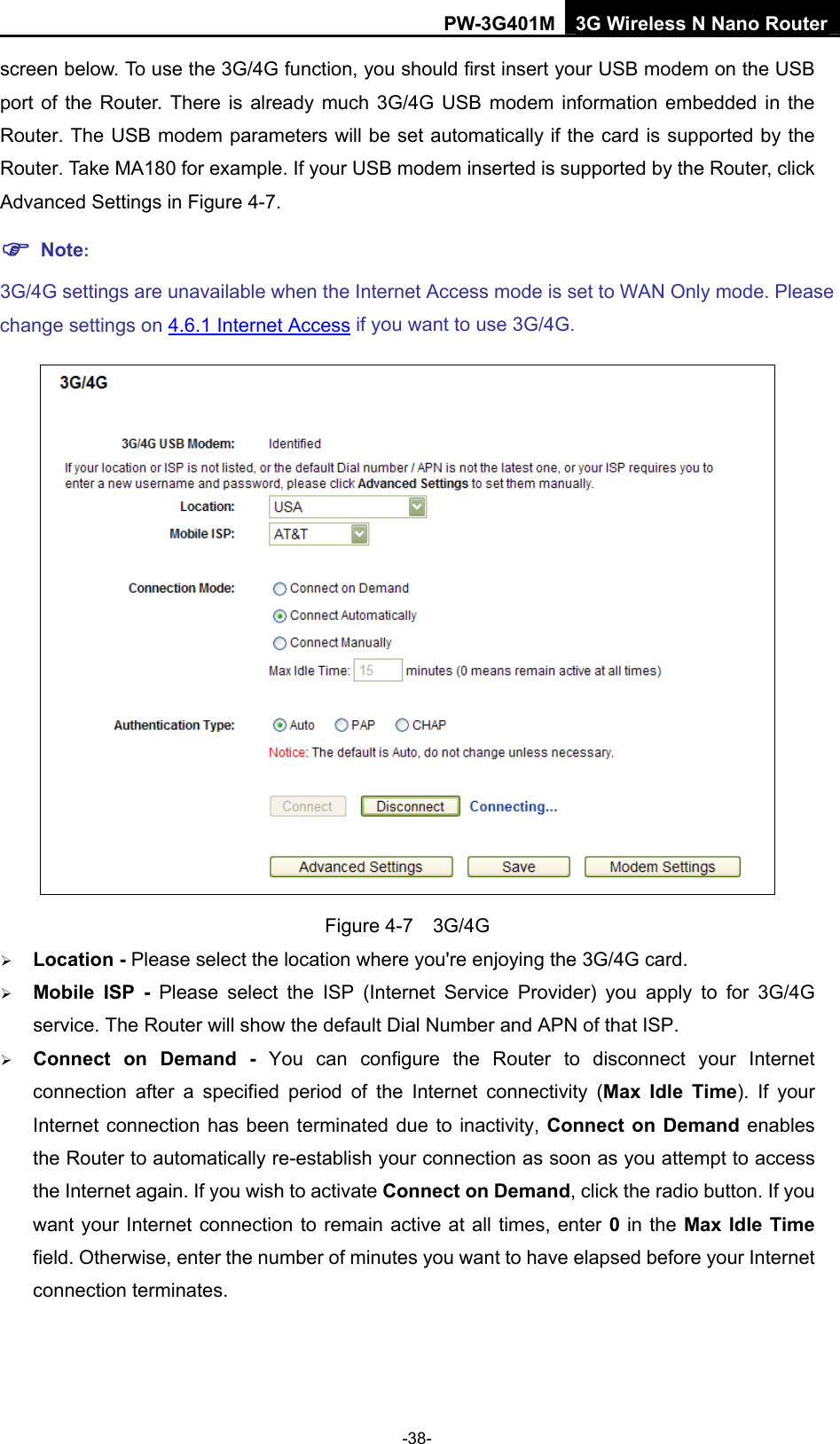

PW-3G401M 3G Wireless N Nano Router screen below. To use the 3G/4G function, you should first insert your USB modem on the USB port of the Router. There is already much 3G/4G USB modem information embedded in the Router. The USB modem parameters will be set automatically if the card is supported by the Router. Take MA180 for example. If your USB modem inserted is supported by the Router, click Advanced Settings in Figure 4-7. ) Note: 3G/4G settings are unavailable when the Internet Access mode is set to WAN Only mode. Please change settings on 4.6.1 Internet Access if you want to use 3G/4G. Figure 4-7 3G/4G ¾ Location - Please select the location where you're enjoying the 3G/4G card. ¾ Mobile ISP - Please select the ISP (Internet Service Provider) you apply to for 3G/4G service. The Router will show the default Dial Number and APN of that ISP. ¾ Connect on Demand - You can configure the Router to disconnect your Internet connection after a specified period of the Internet connectivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates. -38-

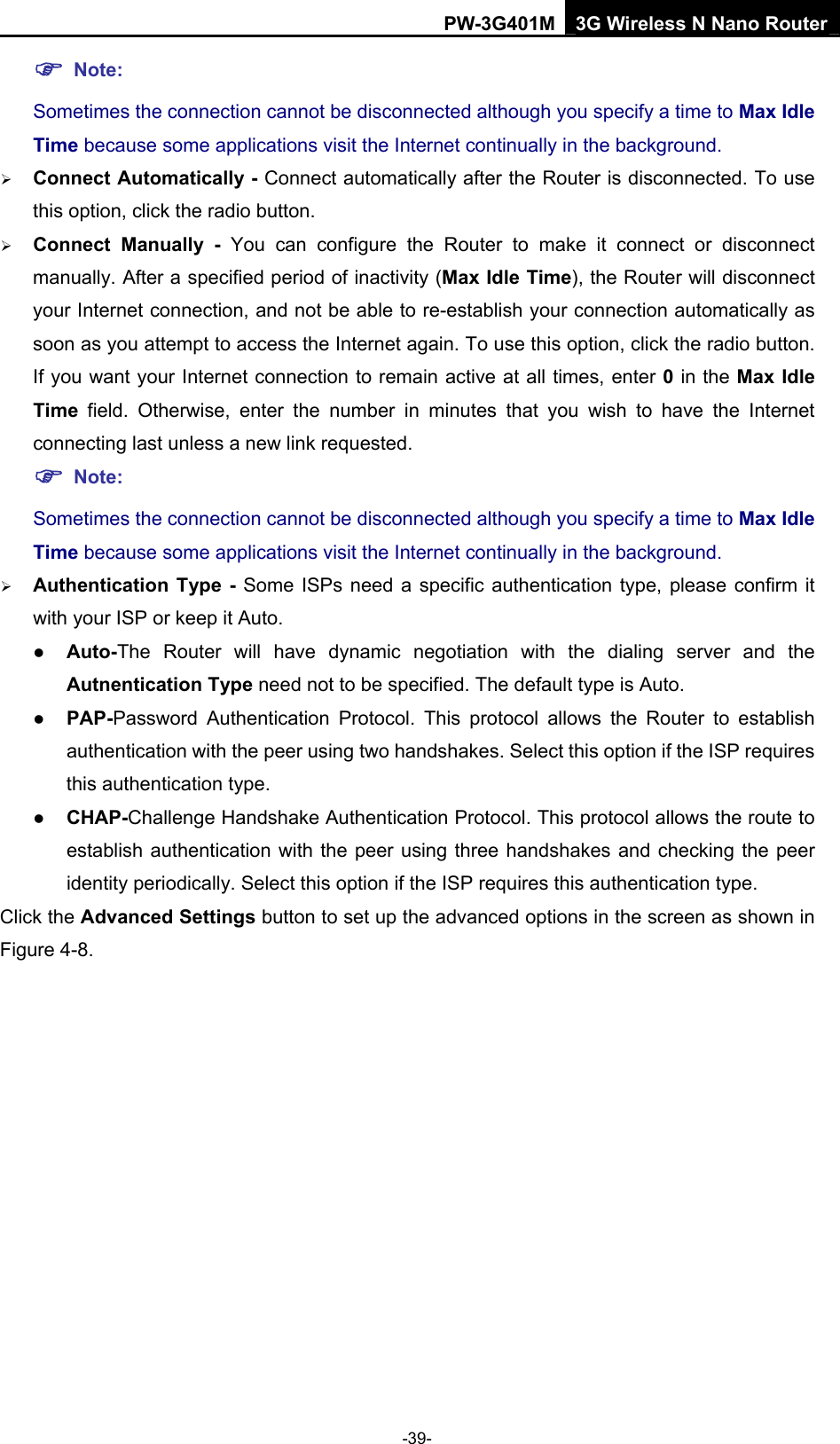

PW-3G401M 3G Wireless N Nano Router ) Note: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time because some applications visit the Internet continually in the background. ¾ Connect Automatically - Connect automatically after the Router is disconnected. To use this option, click the radio button. ¾ Connect Manually - You can configure the Router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect your Internet connection, and not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link requested. ) Note: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time because some applications visit the Internet continually in the background. ¾ Authentication Type - Some ISPs need a specific authentication type, please confirm it with your ISP or keep it Auto. z Auto-The Router will have dynamic negotiation with the dialing server and the Autnentication Type need not to be specified. The default type is Auto. z PAP-Password Authentication Protocol. This protocol allows the Router to establish authentication with the peer using two handshakes. Select this option if the ISP requires this authentication type. z CHAP-Challenge Handshake Authentication Protocol. This protocol allows the route to establish authentication with the peer using three handshakes and checking the peer identity periodically. Select this option if the ISP requires this authentication type. Click the Advanced Settings button to set up the advanced options in the screen as shown in Figure 4-8. -39-

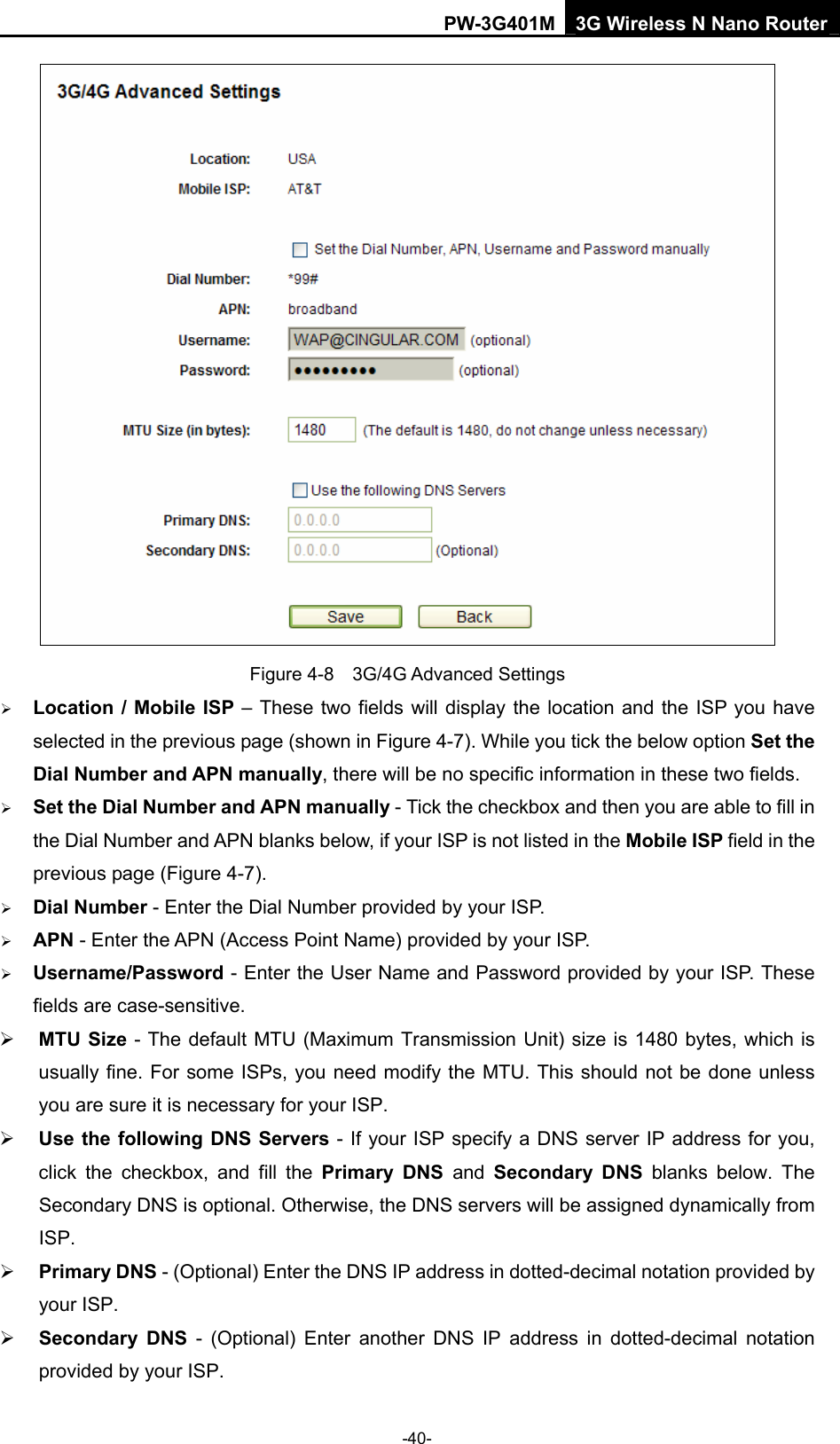

PW-3G401M 3G Wireless N Nano Router Figure 4-8 3G/4G Advanced Settings ¾ Location / Mobile ISP – These two fields will display the location and the ISP you have selected in the previous page (shown in Figure 4-7). While you tick the below option Set the Dial Number and APN manually, there will be no specific information in these two fields. ¾ Set the Dial Number and APN manually - Tick the checkbox and then you are able to fill in the Dial Number and APN blanks below, if your ISP is not listed in the Mobile ISP field in the previous page (Figure 4-7). ¾ Dial Number - Enter the Dial Number provided by your ISP. ¾ APN - Enter the APN (Access Point Name) provided by your ISP. ¾ Username/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ MTU Size - The default MTU (Maximum Transmission Unit) size is 1480 bytes, which is usually fine. For some ISPs, you need modify the MTU. This should not be done unless you are sure it is necessary for your ISP. ¾ Use the following DNS Servers - If your ISP specify a DNS server IP address for you, click the checkbox, and fill the Primary DNS and Secondary DNS blanks below. The Secondary DNS is optional. Otherwise, the DNS servers will be assigned dynamically from ISP. ¾ Primary DNS - (Optional) Enter the DNS IP address in dotted-decimal notation provided by your ISP. ¾ Secondary DNS - (Optional) Enter another DNS IP address in dotted-decimal notation provided by your ISP. -40-

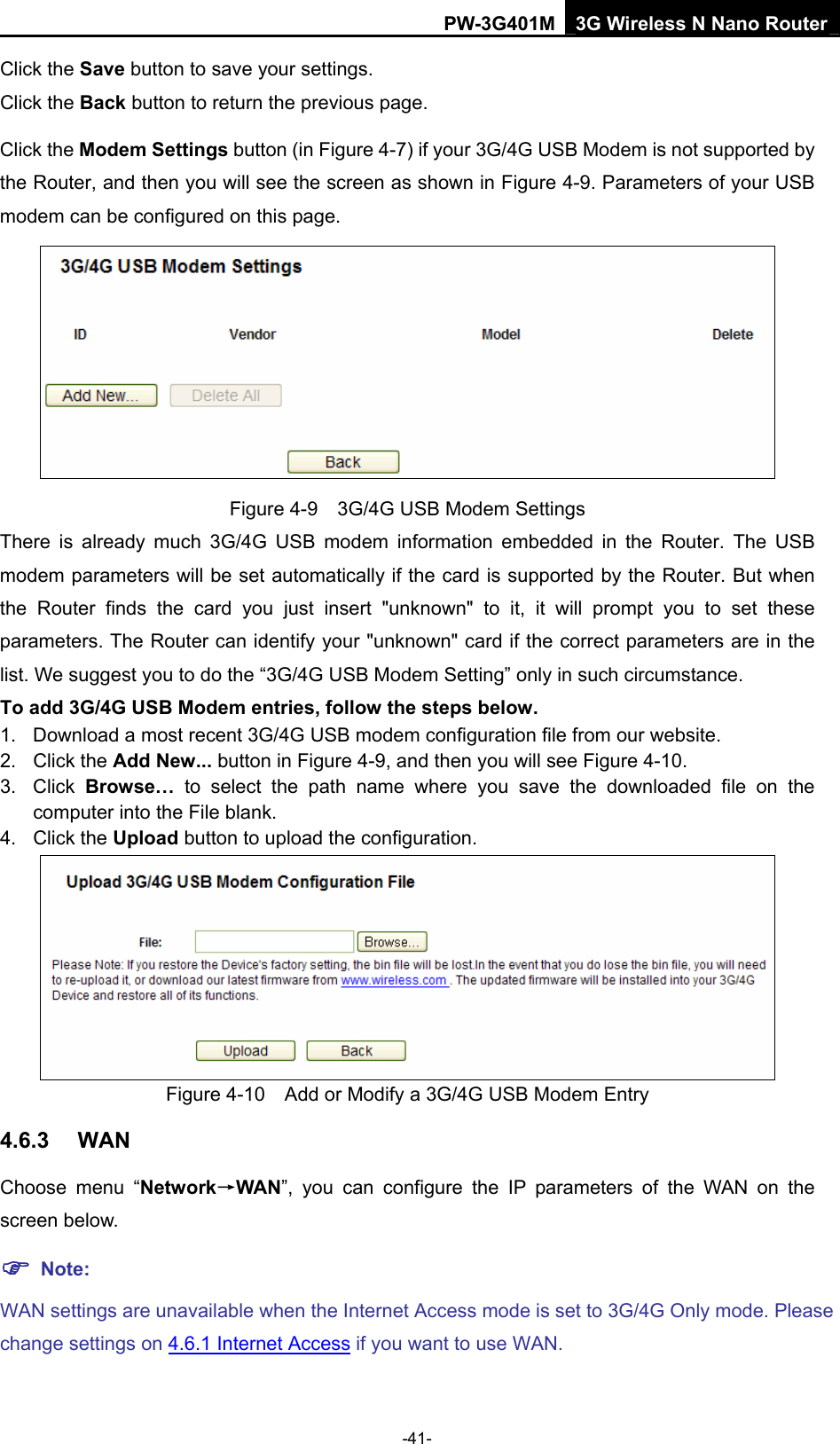

PW-3G401M 3G Wireless N Nano Router Click the Save button to save your settings. Click the Back button to return the previous page. Click the Modem Settings button (in Figure 4-7) if your 3G/4G USB Modem is not supported by the Router, and then you will see the screen as shown in Figure 4-9. Parameters of your USB modem can be configured on this page. Figure 4-9 3G/4G USB Modem Settings There is already much 3G/4G USB modem information embedded in the Router. The USB modem parameters will be set automatically if the card is supported by the Router. But when the Router finds the card you just insert "unknown" to it, it will prompt you to set these parameters. The Router can identify your "unknown" card if the correct parameters are in the list. We suggest you to do the “3G/4G USB Modem Setting” only in such circumstance. To add 3G/4G USB Modem entries, follow the steps below. 1. Download a most recent 3G/4G USB modem configuration file from our website. 2. Click the Add New... button in Figure 4-9, and then you will see Figure 4-10. 3. Click Browse… to select the path name where you save the downloaded file on the computer into the File blank. 4. Click the Upload button to upload the configuration. Figure 4-10 Add or Modify a 3G/4G USB Modem Entry 4.6.3 WAN Choose menu “Network→WAN”, you can configure the IP parameters of the WAN on the screen below. ) Note: WAN settings are unavailable when the Internet Access mode is set to 3G/4G Only mode. Please change settings on 4.6.1 Internet Access if you want to use WAN. -41-

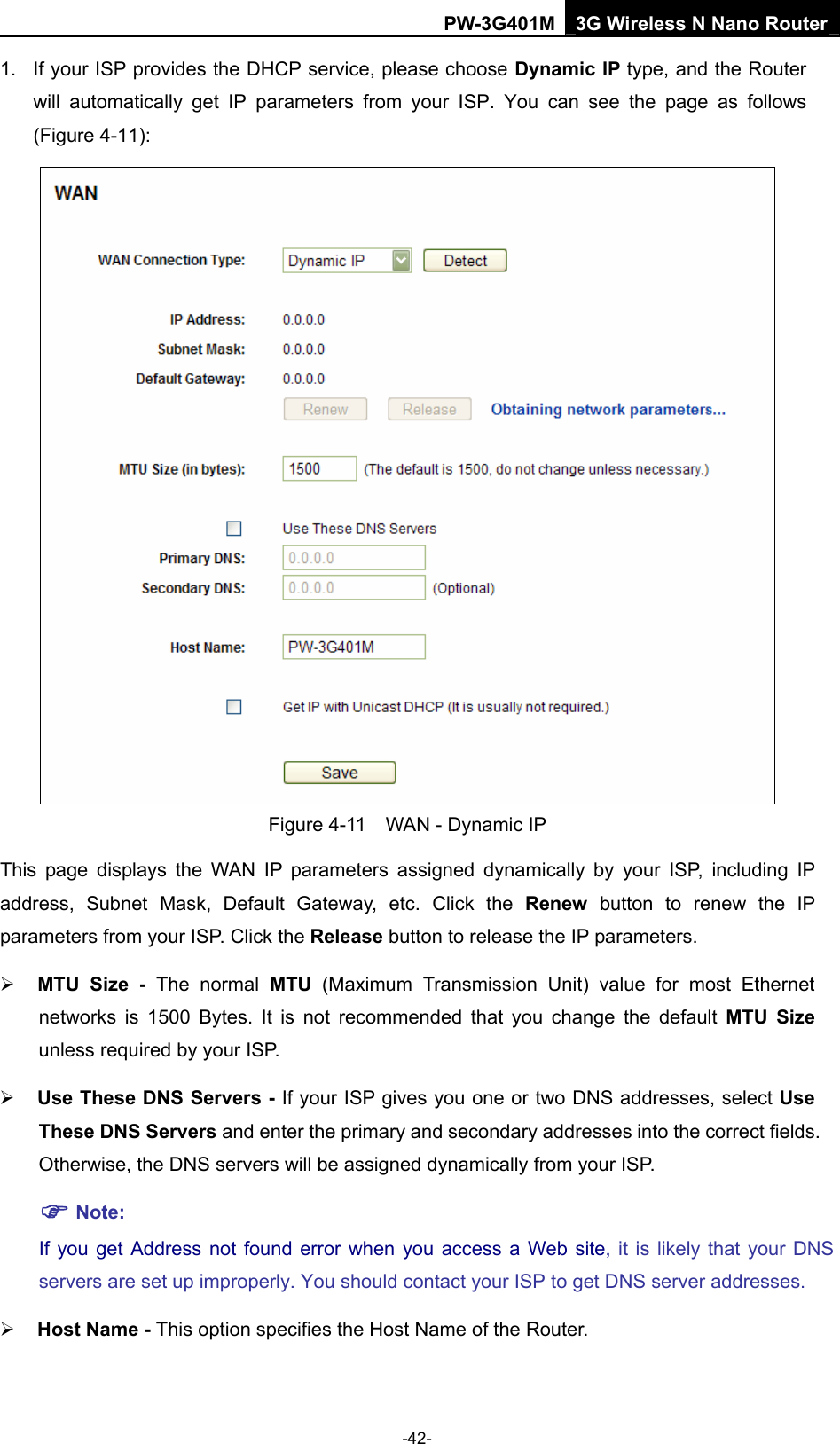

PW-3G401M 3G Wireless N Nano Router 1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will automatically get IP parameters from your ISP. You can see the page as follows (Figure 4-11): Figure 4-11 WAN - Dynamic IP This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters. ¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use These DNS Servers and enter the primary and secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP. ) Note: If you get Address not found error when you access a Web site, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses. ¾ Host Name - This option specifies the Host Name of the Router. -42-

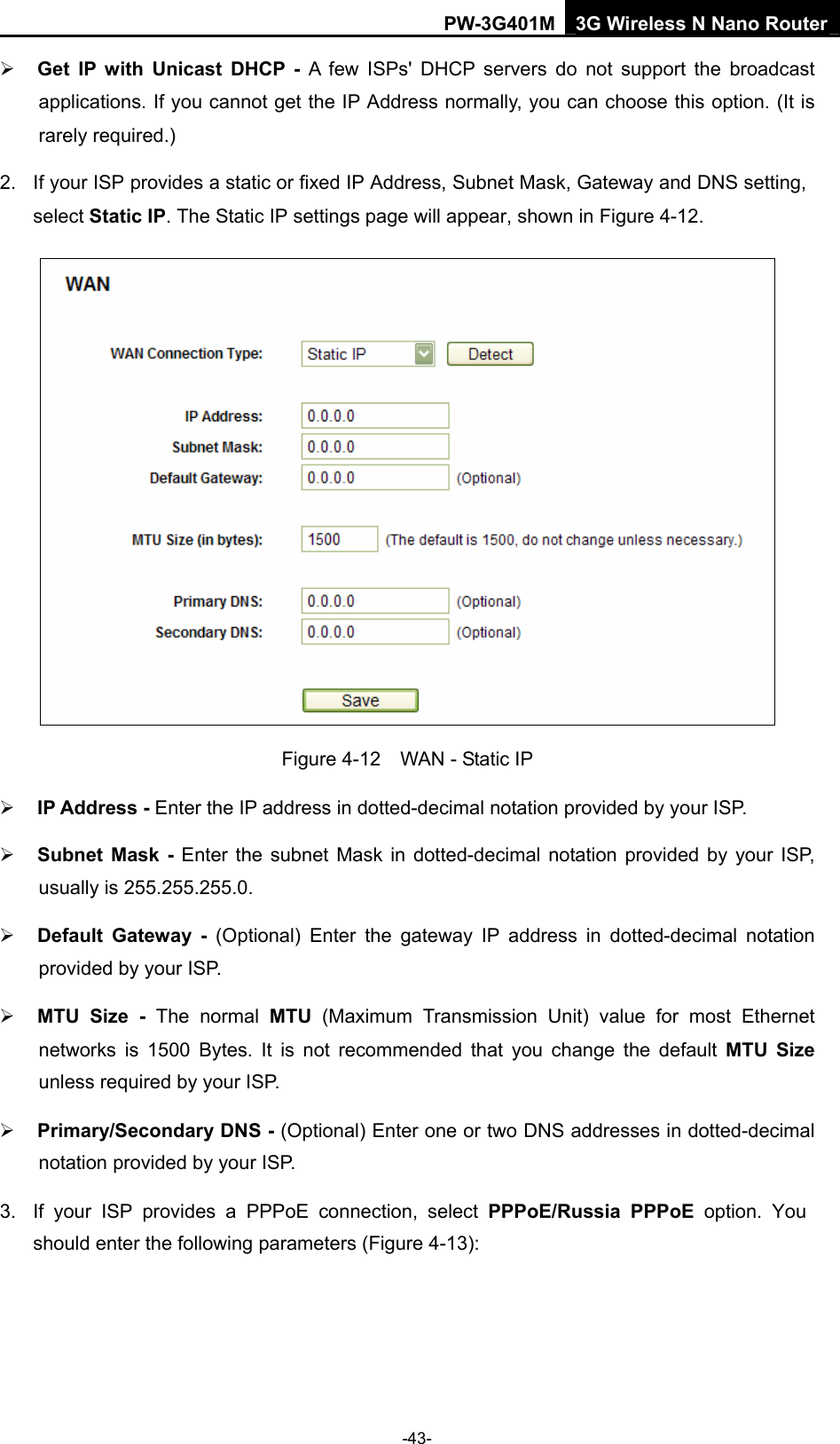

PW-3G401M 3G Wireless N Nano Router ¾ Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast applications. If you cannot get the IP Address normally, you can choose this option. (It is rarely required.) 2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static IP. The Static IP settings page will appear, shown in Figure 4-12. Figure 4-12 WAN - Static IP ¾ IP Address - Enter the IP address in dotted-decimal notation provided by your ISP. ¾ Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is 255.255.255.0. ¾ Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation provided by your ISP. ¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal notation provided by your ISP. 3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. You should enter the following parameters (Figure 4-13): -43-

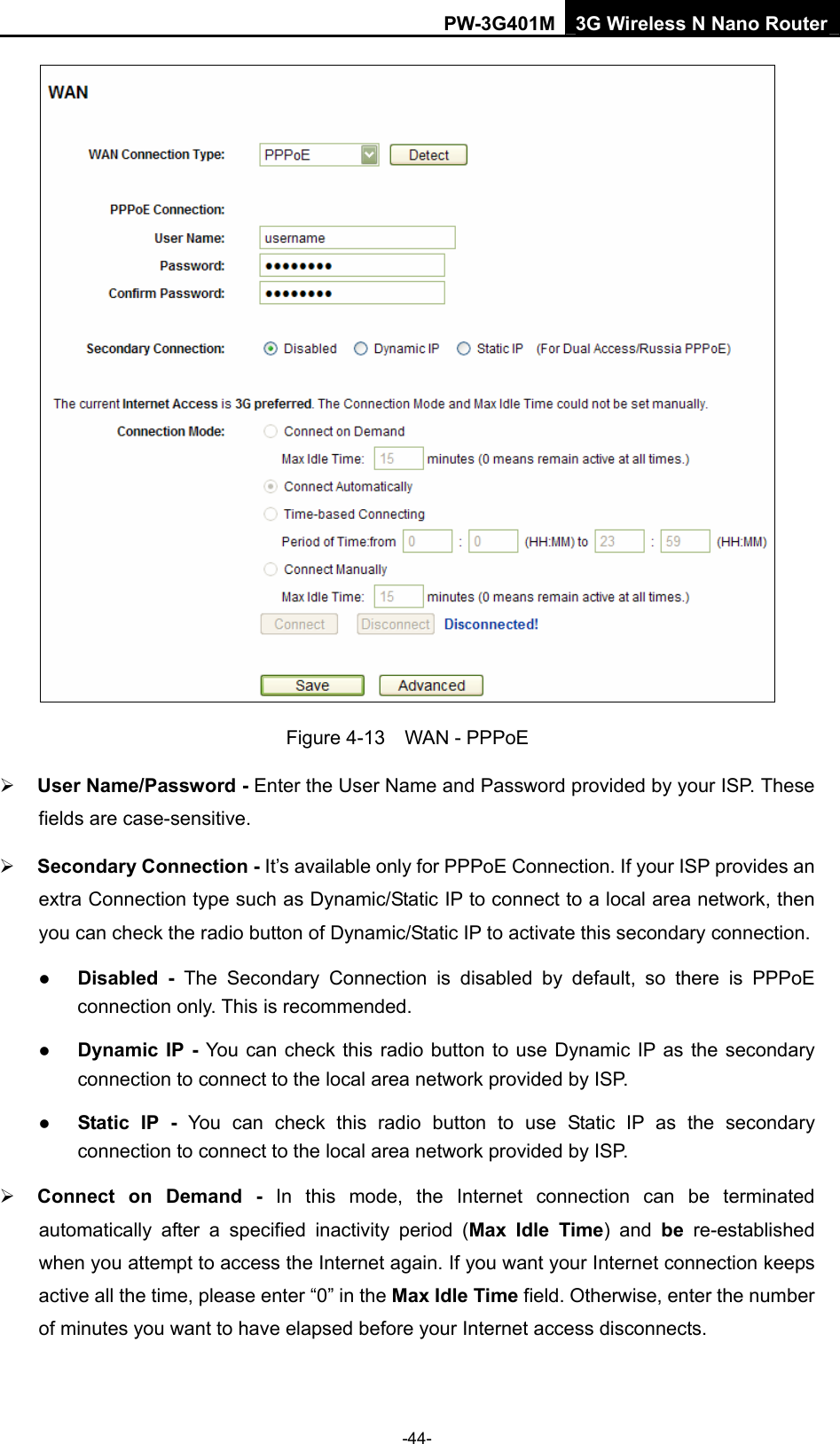

PW-3G401M 3G Wireless N Nano Router Figure 4-13 WAN - PPPoE ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides an extra Connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection. z Disabled - The Secondary Connection is disabled by default, so there is PPPoE connection only. This is recommended. z Dynamic IP - You can check this radio button to use Dynamic IP as the secondary connection to connect to the local area network provided by ISP. z Static IP - You can check this radio button to use Static IP as the secondary connection to connect to the local area network provided by ISP. ¾ Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects. -44-

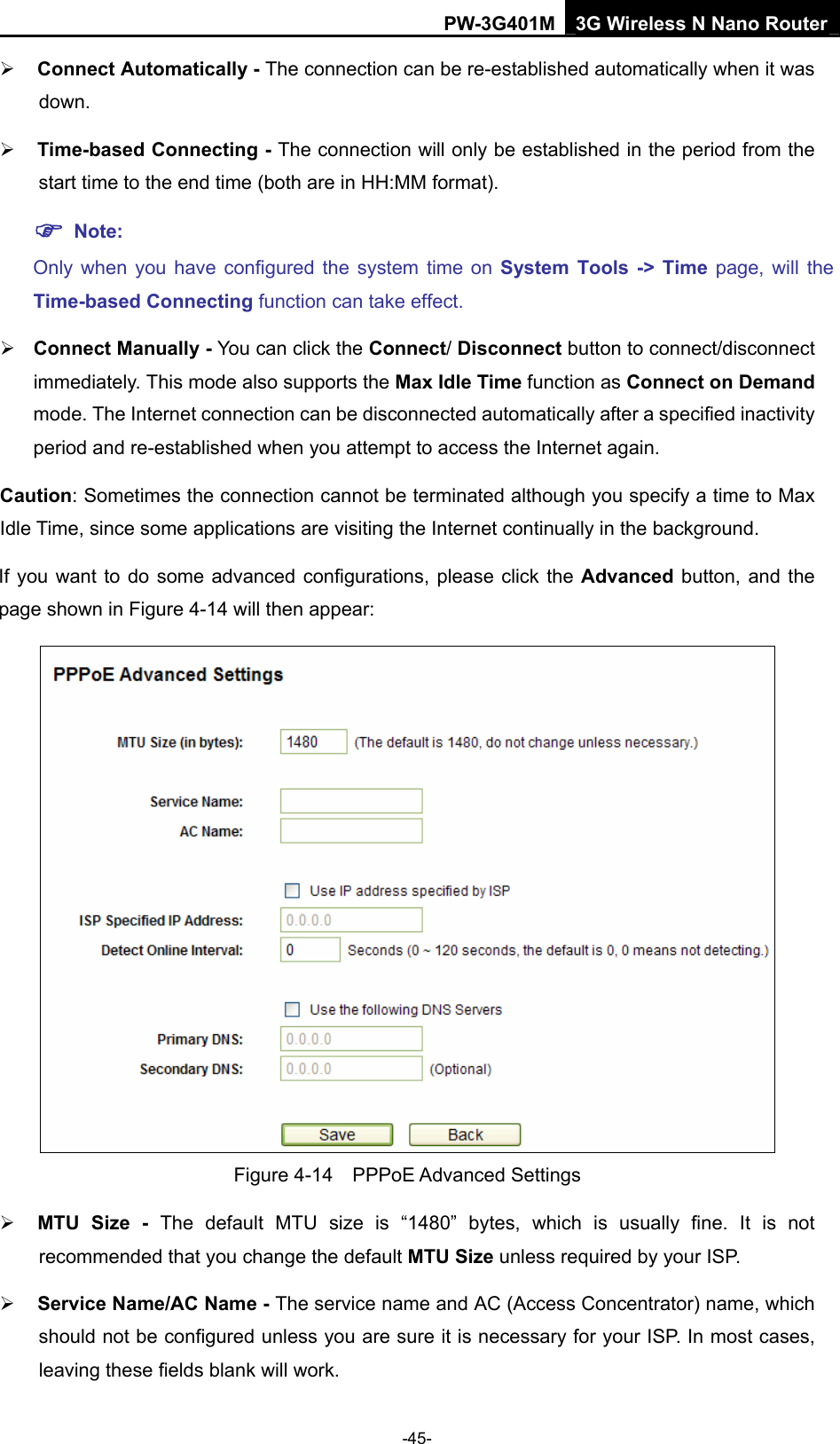

PW-3G401M 3G Wireless N Nano Router ¾ Connect Automatically - The connection can be re-established automatically when it was down. ¾ Time-based Connecting - The connection will only be established in the period from the start time to the end time (both are in HH:MM format). ) Note: Only when you have configured the system time on System Tools -> Time page, will the Time-based Connecting function can take effect. ¾ Connect Manually - You can click the Connect/ Disconnect button to connect/disconnect immediately. This mode also supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnected automatically after a specified inactivity period and re-established when you attempt to access the Internet again. Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background. If you want to do some advanced configurations, please click the Advanced button, and the page shown in Figure 4-14 will then appear: Figure 4-14 PPPoE Advanced Settings ¾ MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Service Name/AC Name - The service name and AC (Access Concentrator) name, which should not be configured unless you are sure it is necessary for your ISP. In most cases, leaving these fields blank will work. -45-

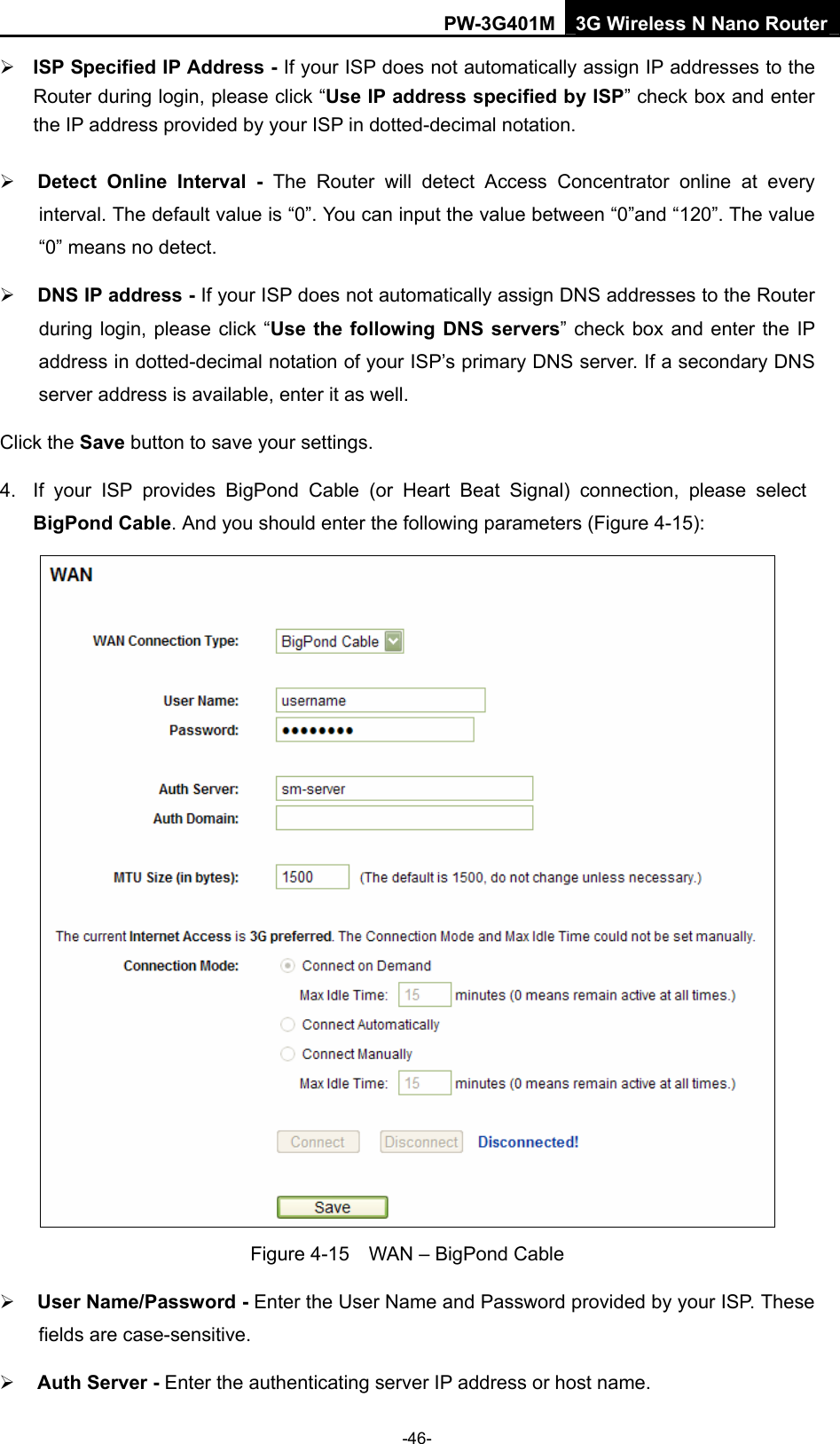

PW-3G401M 3G Wireless N Nano Router ¾ ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the Router during login, please click “Use IP address specified by ISP” check box and enter the IP address provided by your ISP in dotted-decimal notation. ¾ Detect Online Interval - The Router will detect Access Concentrator online at every interval. The default value is “0”. You can input the value between “0”and “120”. The value “0” means no detect. ¾ DNS IP address - If your ISP does not automatically assign DNS addresses to the Router during login, please click “Use the following DNS servers” check box and enter the IP address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as well. Click the Save button to save your settings. 4. If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond Cable. And you should enter the following parameters (Figure 4-15): Figure 4-15 WAN – BigPond Cable ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Auth Server - Enter the authenticating server IP address or host name. -46-

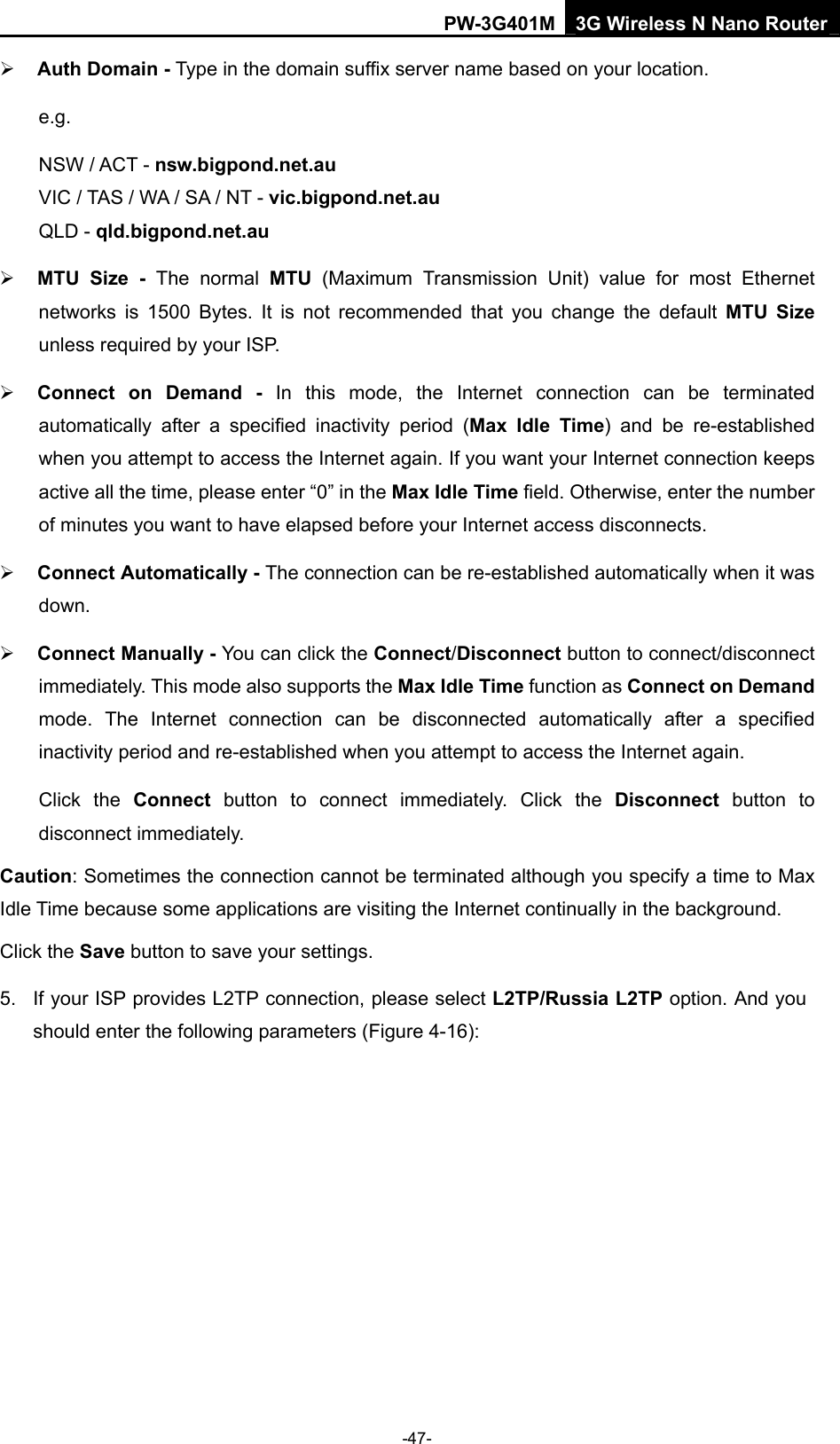

PW-3G401M 3G Wireless N Nano Router ¾ Auth Domain - Type in the domain suffix server name based on your location. e.g. NSW / ACT - nsw.bigpond.net.au VIC / TAS / WA / SA / NT - vic.bigpond.net.au QLD - qld.bigpond.net.au ¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects. ¾ Connect Automatically - The connection can be re-established automatically when it was down. ¾ Connect Manually - You can click the Connect/Disconnect button to connect/disconnect immediately. This mode also supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnected automatically after a specified inactivity period and re-established when you attempt to access the Internet again. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background. Click the Save button to save your settings. 5. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you should enter the following parameters (Figure 4-16): -47-
PW-3G401M 3G Wireless N Nano Router Figure 4-16 L2TP Settings ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. ¾ Connect on Demand - You can configure the Router to disconnect from your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates. ¾ Connect Automatically - Connect automatically after the Router is disconnected. To use this option, click the radio button. -48-
PW-3G401M 3G Wireless N Nano Router ¾ Connect Manually - You can configure the Router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested. Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background. 6. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you should enter the following parameters (Figure 4-17): Figure 4-17 PPTP Settings -49-

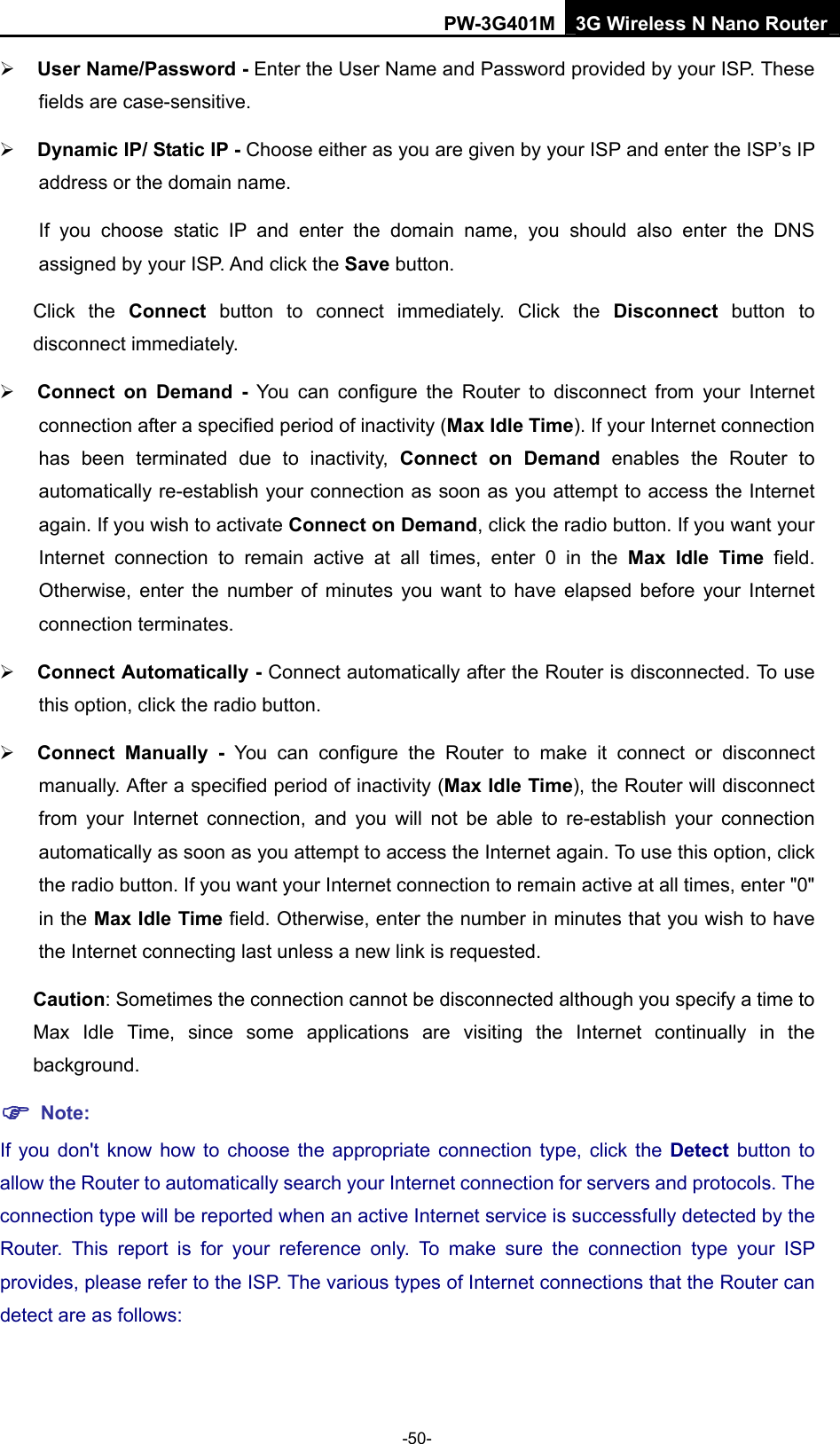

PW-3G401M 3G Wireless N Nano Router ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP address or the domain name. If you choose static IP and enter the domain name, you should also enter the DNS assigned by your ISP. And click the Save button. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. ¾ Connect on Demand - You can configure the Router to disconnect from your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates. ¾ Connect Automatically - Connect automatically after the Router is disconnected. To use this option, click the radio button. ¾ Connect Manually - You can configure the Router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested. Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background. ) Note: If you don't know how to choose the appropriate connection type, click the Detect button to allow the Router to automatically search your Internet connection for servers and protocols. The connection type will be reported when an active Internet service is successfully detected by the Router. This report is for your reference only. To make sure the connection type your ISP provides, please refer to the ISP. The various types of Internet connections that the Router can detect are as follows: -50-

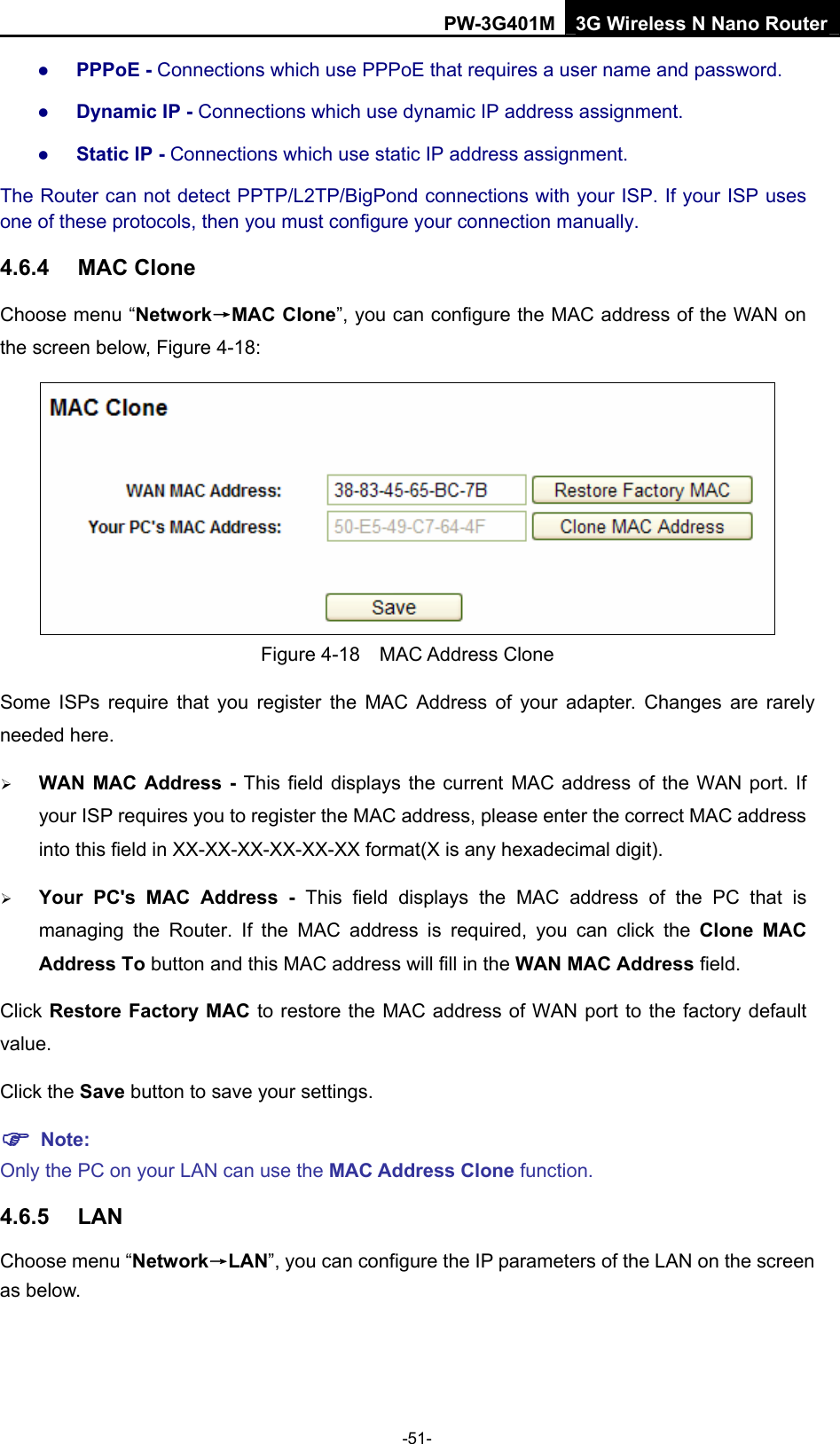

PW-3G401M 3G Wireless N Nano Router z PPPoE - Connections which use PPPoE that requires a user name and password. z Dynamic IP - Connections which use dynamic IP address assignment. z Static IP - Connections which use static IP address assignment. The Router can not detect PPTP/L2TP/BigPond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually. 4.6.4 MAC Clone Choose menu “Network→MAC Clone”, you can configure the MAC address of the WAN on the screen below, Figure 4-18: Figure 4-18 MAC Address Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here. ¾ WAN MAC Address - This field displays the current MAC address of the WAN port. If your ISP requires you to register the MAC address, please enter the correct MAC address into this field in XX-XX-XX-XX-XX-XX format(X is any hexadecimal digit). ¾ Your PC's MAC Address - This field displays the MAC address of the PC that is managing the Router. If the MAC address is required, you can click the Clone MAC Address To button and this MAC address will fill in the WAN MAC Address field. Click Restore Factory MAC to restore the MAC address of WAN port to the factory default value. Click the Save button to save your settings. ) Note: Only the PC on your LAN can use the MAC Address Clone function. 4.6.5 LAN Choose menu “Network→LAN”, you can configure the IP parameters of the LAN on the screen as below. -51-

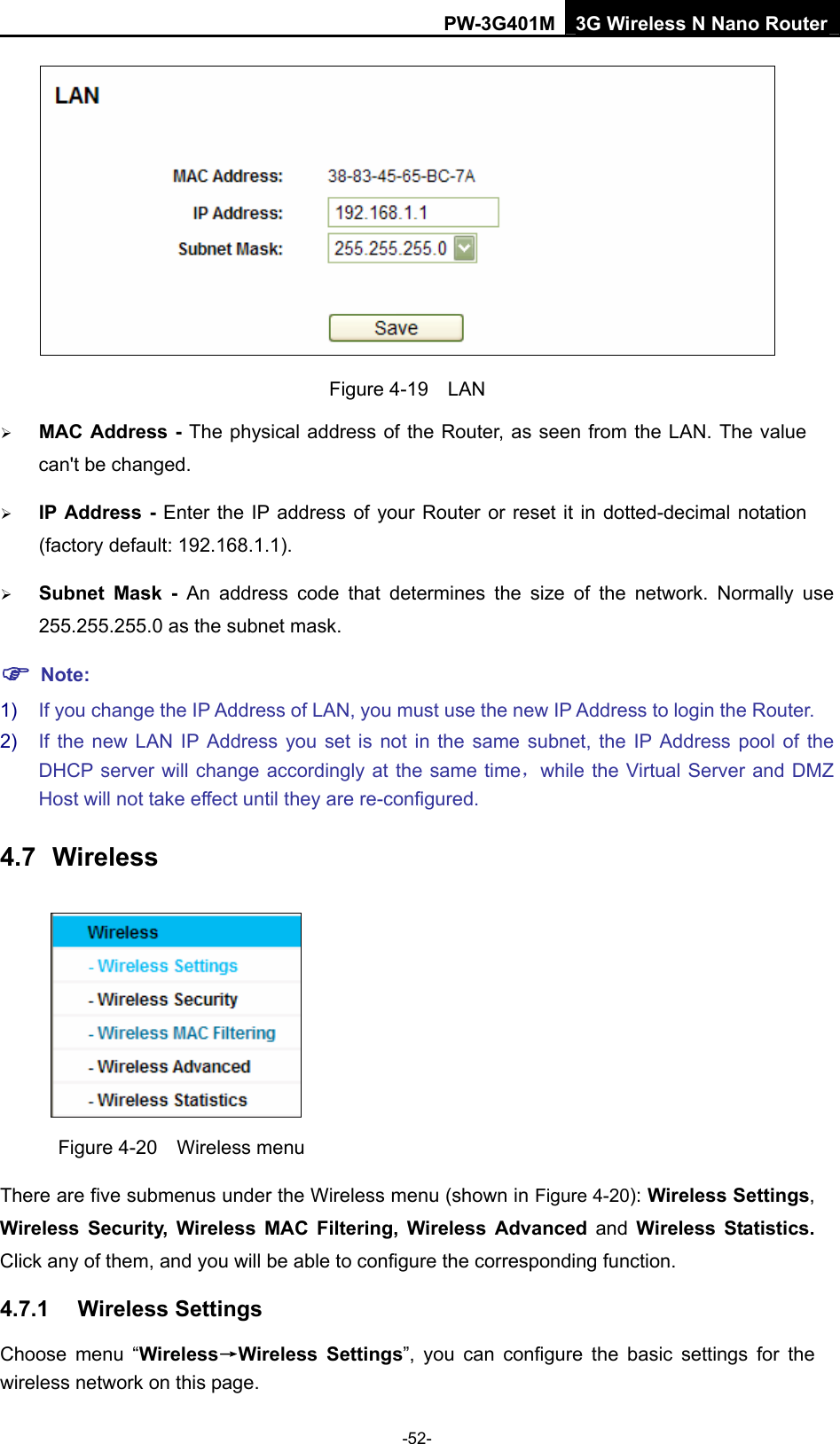

PW-3G401M 3G Wireless N Nano Router Figure 4-19 LAN ¾ MAC Address - The physical address of the Router, as seen from the LAN. The value can't be changed. ¾ IP Address - Enter the IP address of your Router or reset it in dotted-decimal notation (factory default: 192.168.1.1). ¾ Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. ) Note: 1) If you change the IP Address of LAN, you must use the new IP Address to login the Router. 2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time，while the Virtual Server and DMZ Host will not take effect until they are re-configured. 4.7 Wireless Figure 4-20 Wireless menu There are five submenus under the Wireless menu (shown in Figure 4-20): Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding function. 4.7.1 Wireless Settings Choose menu “Wireless→Wireless Settings”, you can configure the basic settings for the wireless network on this page. -52-

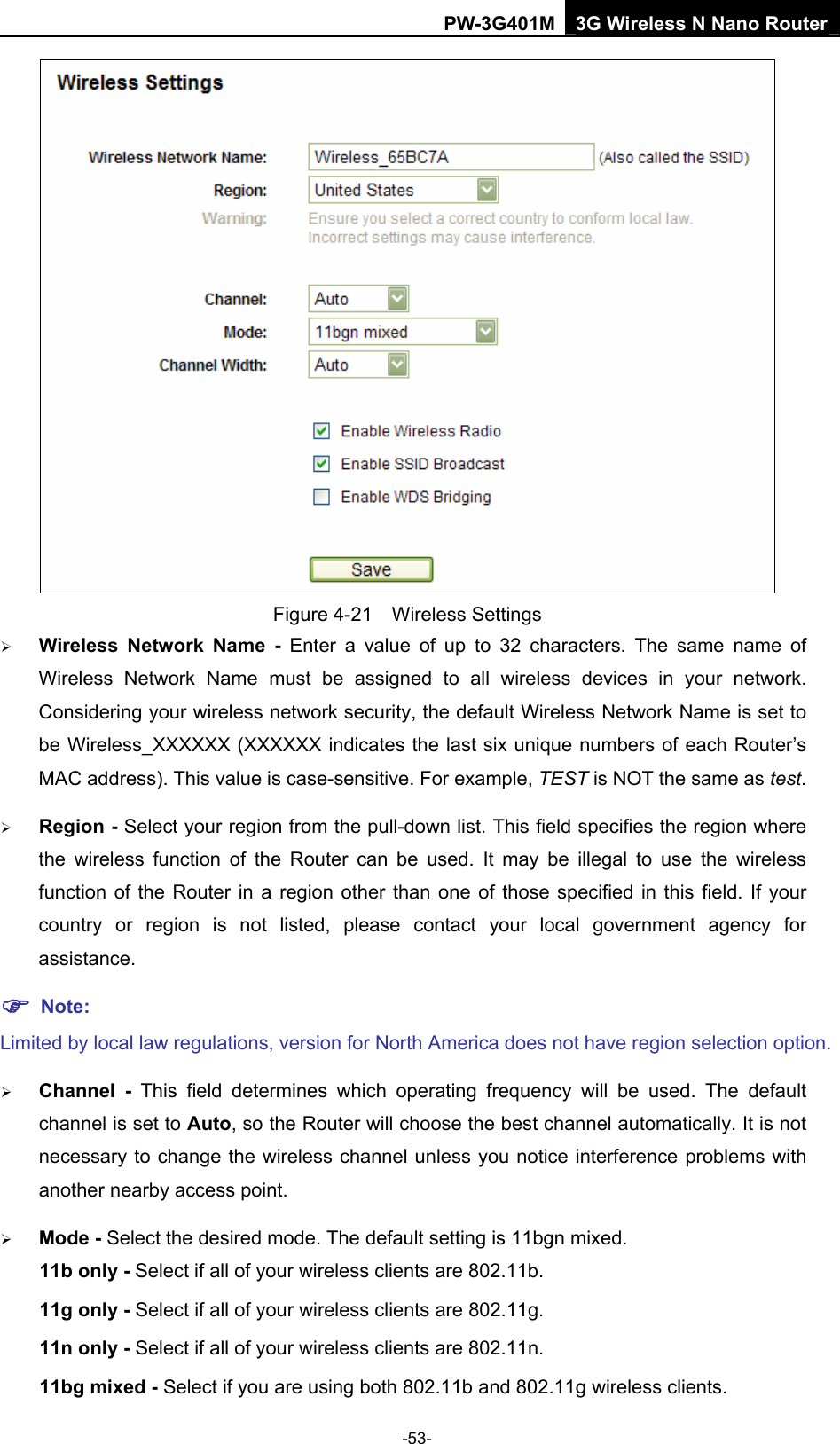

PW-3G401M 3G Wireless N Nano Router Figure 4-21 Wireless Settings ¾ Wireless Network Name - Enter a value of up to 32 characters. The same name of Wireless Network Name must be assigned to all wireless devices in your network. Considering your wireless network security, the default Wireless Network Name is set to be Wireless_XXXXXX (XXXXXX indicates the last six unique numbers of each Router’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test. ¾ Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. ) Note: Limited by local law regulations, version for North America does not have region selection option. ¾ Channel - This field determines which operating frequency will be used. The default channel is set to Auto, so the Router will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - Select the desired mode. The default setting is 11bgn mixed. 11b only - Select if all of your wireless clients are 802.11b. 11g only - Select if all of your wireless clients are 802.11g. 11n only - Select if all of your wireless clients are 802.11n. 11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients. -53-

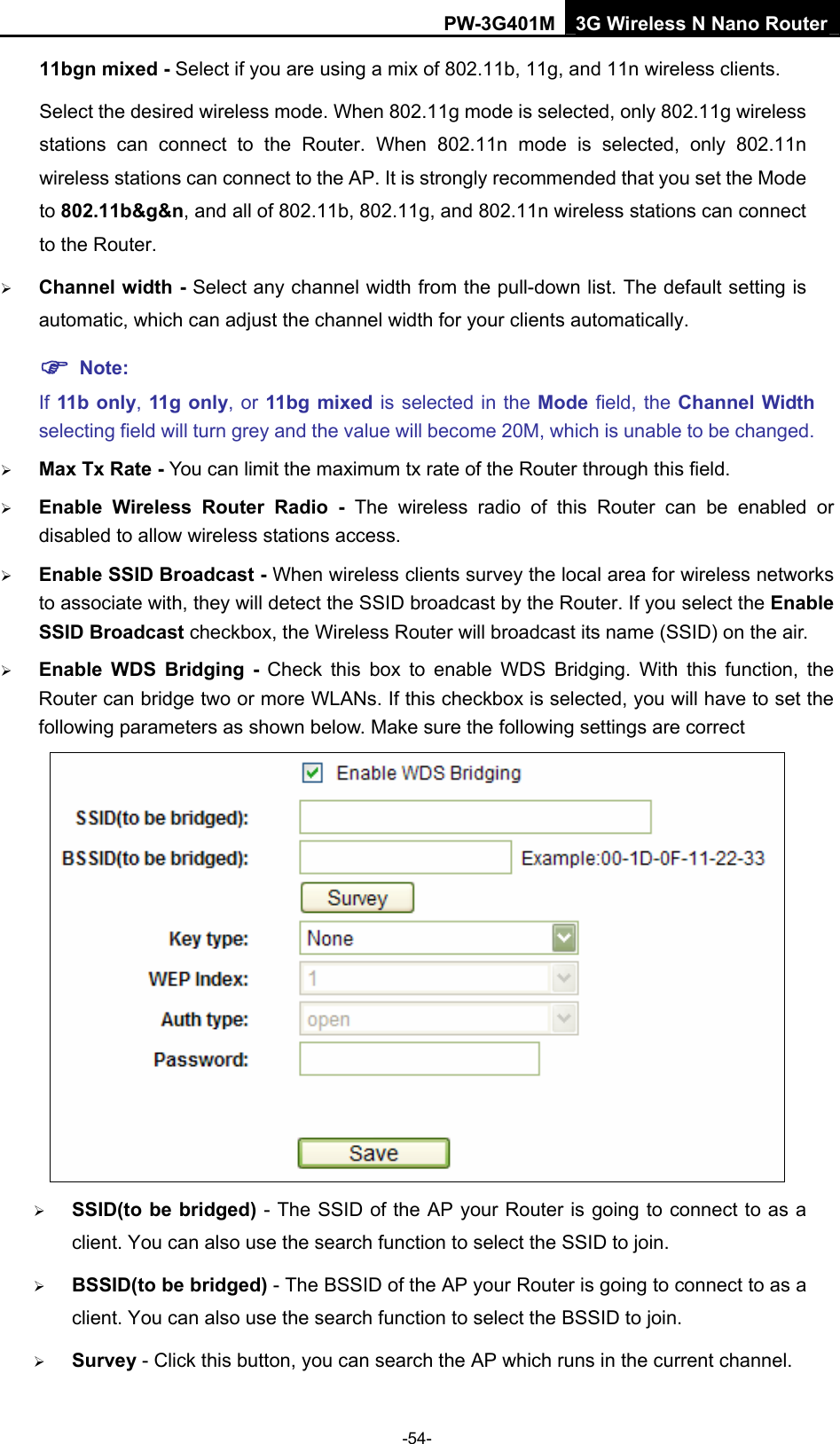

PW-3G401M 3G Wireless N Nano Router 11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless stations can connect to the AP. It is strongly recommended that you set the Mode to 802.11b&g&n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the Router. ¾ Channel width - Select any channel width from the pull-down list. The default setting is automatic, which can adjust the channel width for your clients automatically. ) Note: If 11b only, 11g only, or 11bg mixed is selected in the Mode field, the Channel Width selecting field will turn grey and the value will become 20M, which is unable to be changed. ¾ Max Tx Rate - You can limit the maximum tx rate of the Router through this field. ¾ Enable Wireless Router Radio - The wireless radio of this Router can be enabled or disabled to allow wireless stations access. ¾ Enable SSID Broadcast - When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. If you select the Enable SSID Broadcast checkbox, the Wireless Router will broadcast its name (SSID) on the air. ¾ Enable WDS Bridging - Check this box to enable WDS Bridging. With this function, the Router can bridge two or more WLANs. If this checkbox is selected, you will have to set the following parameters as shown below. Make sure the following settings are correct ¾ SSID(to be bridged) - The SSID of the AP your Router is going to connect to as a client. You can also use the search function to select the SSID to join. ¾ BSSID(to be bridged) - The BSSID of the AP your Router is going to connect to as a client. You can also use the search function to select the BSSID to join. ¾ Survey - Click this button, you can search the AP which runs in the current channel. -54-
PW-3G401M 3G Wireless N Nano Router ¾ Key type - This option should be chosen according to the AP's security configuration. It is recommended that the security type is the same as your AP's security type. ¾ WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It indicates the index of the WEP key. ¾ Auth Type - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It indicates the authorization type of the Root AP. ¾ Password - If the AP your Router is going to connect needs password, you need to fill the password in this blank. 4.7.2 Wireless Security Choose menu “Wireless→Wireless Security”, you can configure the security settings of your wireless network. There are five wireless security modes supported by the Router: WEP (Wired Equivalent Privacy), WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA2-PSK (Pre-Shared Key), WPA-PSK (Pre-Shared Key). Figure 4-22 -55-

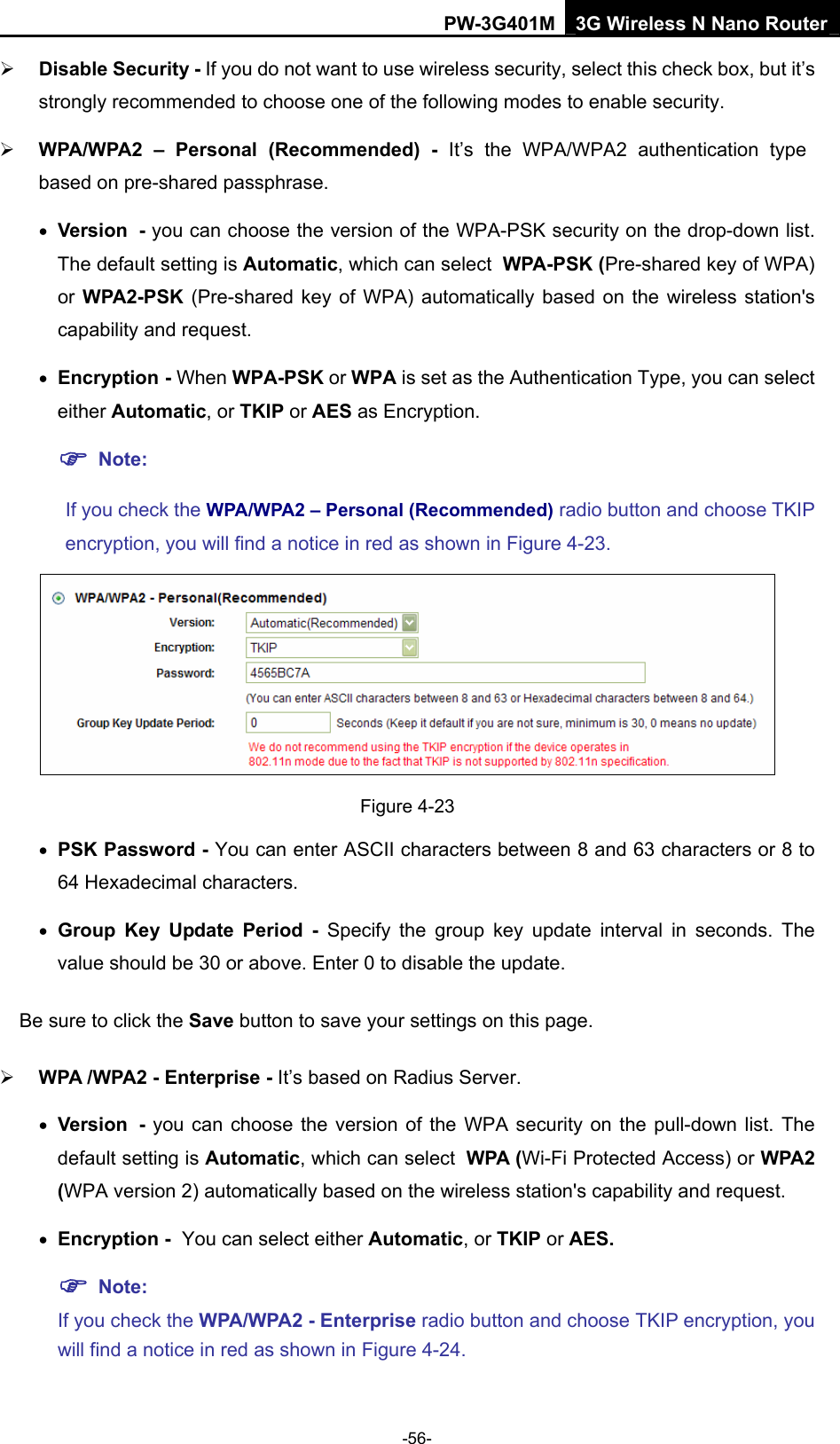

PW-3G401M 3G Wireless N Nano Router ¾ Disable Security - If you do not want to use wireless security, select this check box, but it’s strongly recommended to choose one of the following modes to enable security. ¾ WPA/WPA2 – Personal (Recommended) - It’s the WPA/WPA2 authentication type based on pre-shared passphrase. • Version - you can choose the version of the WPA-PSK security on the drop-down list. The default setting is Automatic, which can select WPA-PSK (Pre-shared key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's capability and request. • Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select either Automatic, or TKIP or AES as Encryption. ) Note: If you check the WPA/WPA2 – Personal (Recommended) radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-23. Figure 4-23 • PSK Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64 Hexadecimal characters. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ¾ WPA /WPA2 - Enterprise - It’s based on Radius Server. • Version - you can choose the version of the WPA security on the pull-down list. The default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2 (WPA version 2) automatically based on the wireless station's capability and request. • Encryption - You can select either Automatic, or TKIP or AES. ) Note: If you check the WPA/WPA2 - Enterprise radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-24. -56-

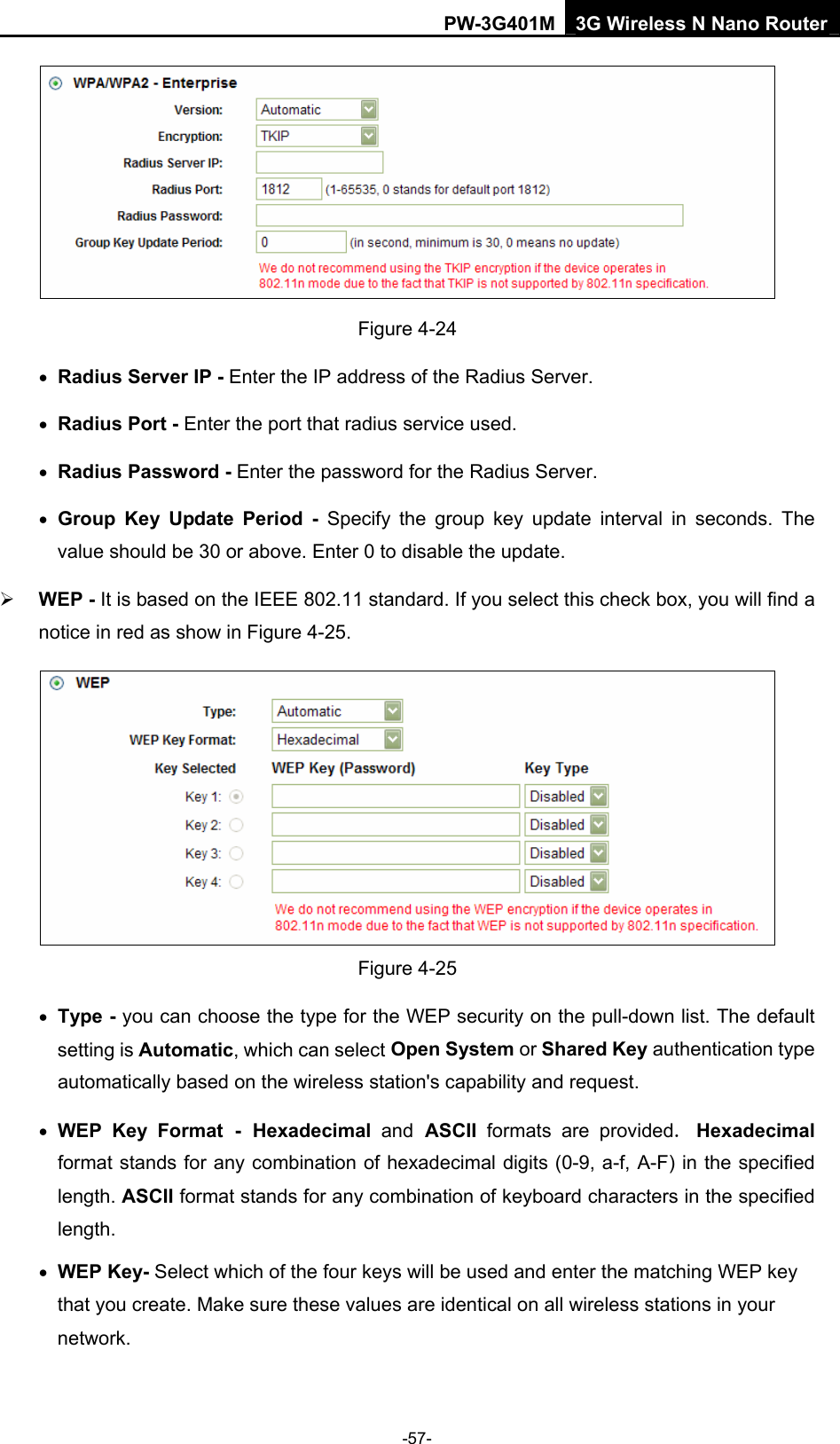

PW-3G401M 3G Wireless N Nano Router Figure 4-24 • Radius Server IP - Enter the IP address of the Radius Server. • Radius Port - Enter the port that radius service used. • Radius Password - Enter the password for the Radius Server. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update. ¾ WEP - It is based on the IEEE 802.11 standard. If you select this check box, you will find a notice in red as show in Figure 4-25. Figure 4-25 • Type - you can choose the type for the WEP security on the pull-down list. The default setting is Automatic, which can select Open System or Shared Key authentication type automatically based on the wireless station's capability and request. • WEP Key Format - Hexadecimal and ASCII formats are provided. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format stands for any combination of keyboard characters in the specified length. • WEP Key- Select which of the four keys will be used and enter the matching WEP key that you create. Make sure these values are identical on all wireless stations in your network. -57-

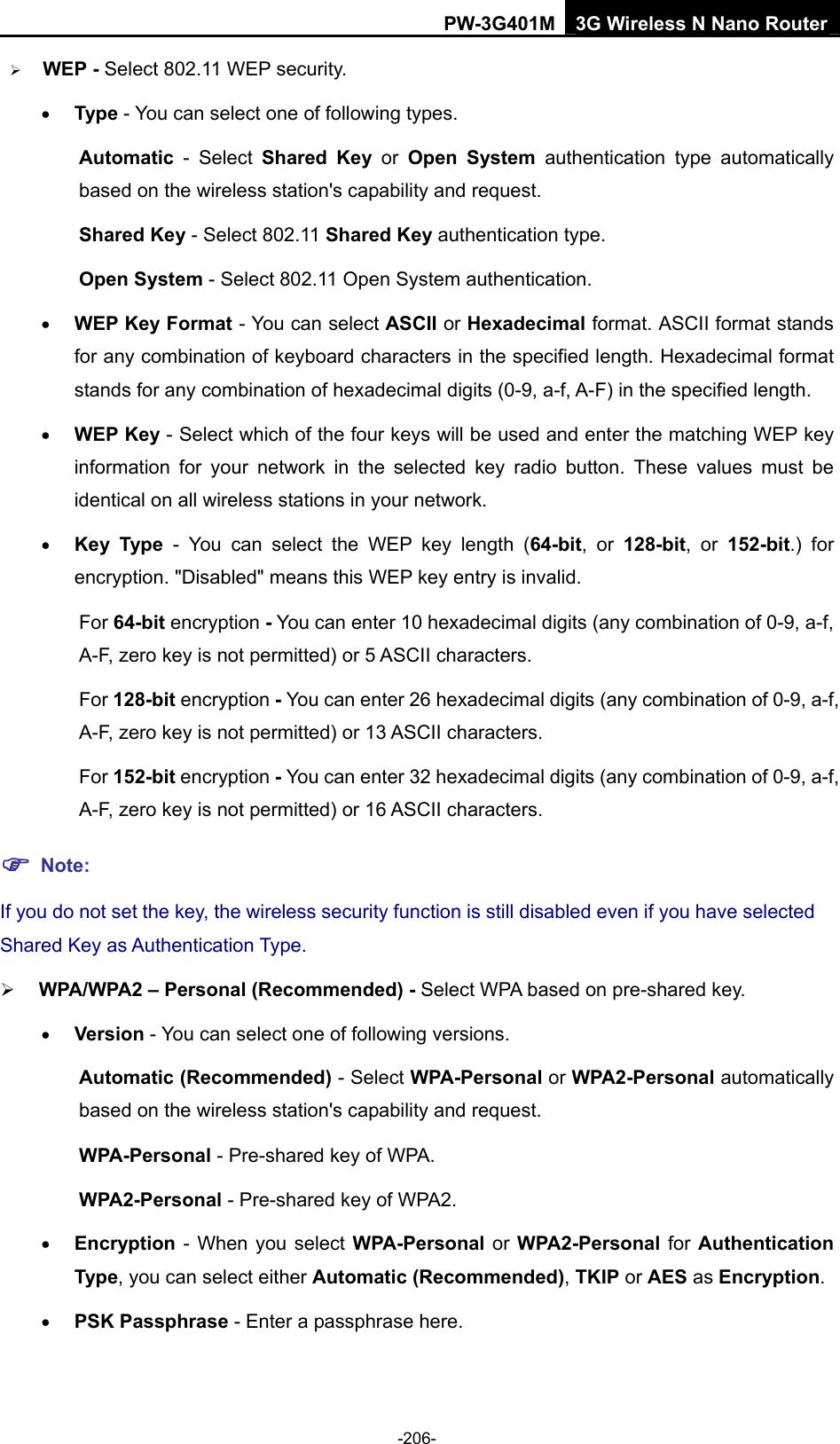

PW-3G401M 3G Wireless N Nano Router • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 5 ASCII characters. 128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters. 152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. 4.7.3 Wireless MAC Filtering Choose menu “Wireless → Wireless MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Address Filtering function, shown in Figure 4-26. Figure 4-26 Wireless MAC address Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disabled. ¾ MAC Address - The wireless station's MAC address that you want to filter. ¾ Status - The status of this entry either Enabled or Disabled. ¾ Description - A simple description of the wireless station. To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-27: -58-
PW-3G401M 3G Wireless N Nano Router Figure 4-27 Add or Modify Wireless MAC Address Filtering entry To add a MAC Address Filtering entry, follow these instructions: 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-00-07-8A. 2. Enter a simple description of the wireless station in the Description field. For example: Wireless station A. 3. Status - Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to save this entry. To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable All button to make all entries enabled Click the Disable All button to make all entries disabled. Click the Delete All button to delete all entries Click the Next button to go to the next page Click the Previous button to return to the previous page. For example: If you desire that the wireless station A with MAC address 00-0A-EB-00-07-8A and the wireless station B with MAC address 00-0A-EB-00-23-11 are able to access the Router, but all the other wireless stations cannot access the Router, you can configure the Wireless MAC Filtering list by following these steps: 1. Click the Enable button to enable this function. -59-

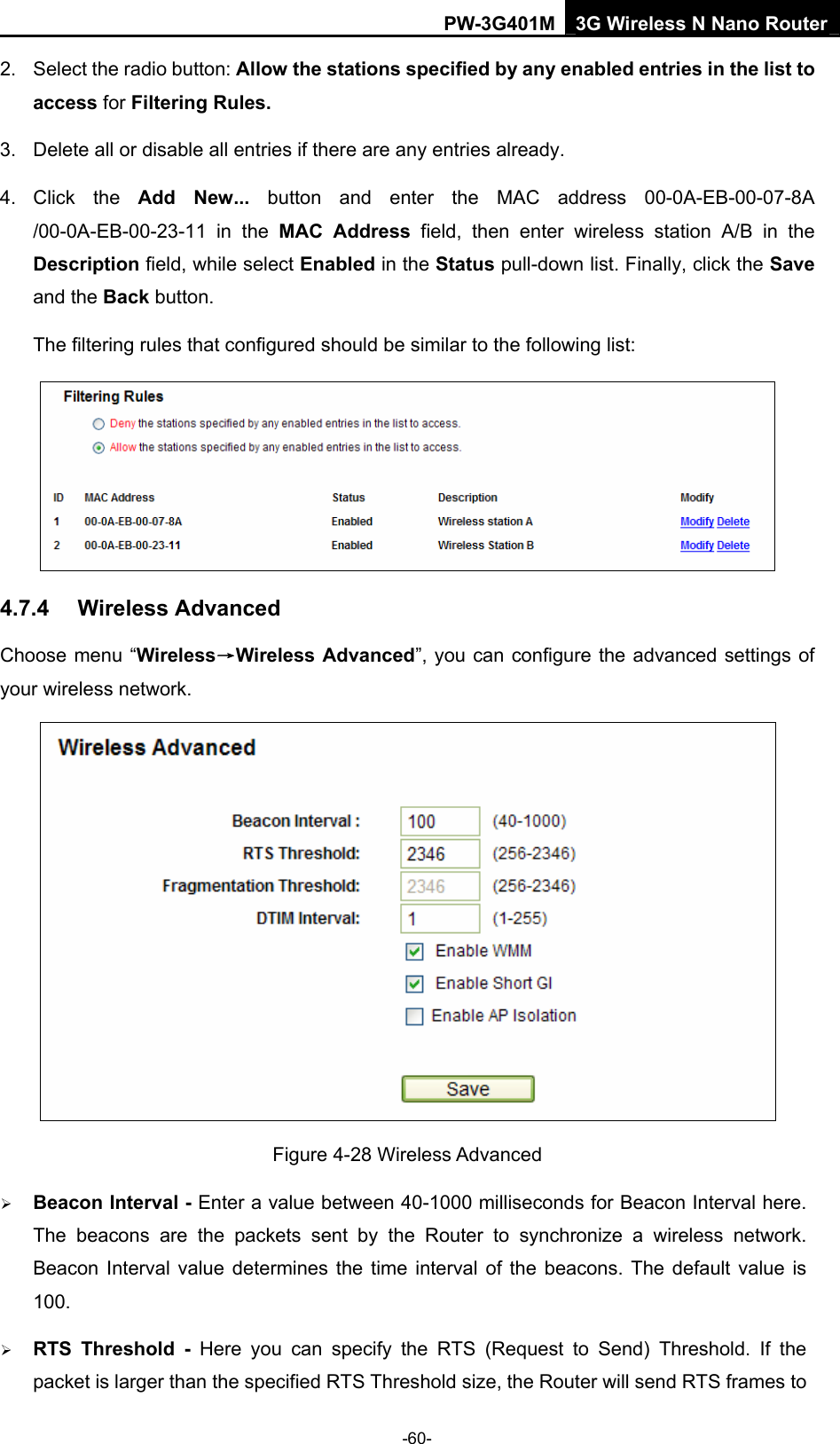

PW-3G401M 3G Wireless N Nano Router 2. Select the radio button: Allow the stations specified by any enabled entries in the list to access for Filtering Rules. 3. Delete all or disable all entries if there are any entries already. 4. Click the Add New... button and enter the MAC address 00-0A-EB-00-07-8A /00-0A-EB-00-23-11 in the MAC Address field, then enter wireless station A/B in the Description field, while select Enabled in the Status pull-down list. Finally, click the Save and the Back button. The filtering rules that configured should be similar to the following list: 4.7.4 Wireless Advanced Choose menu “Wireless→Wireless Advanced”, you can configure the advanced settings of your wireless network. Figure 4-28 Wireless Advanced ¾ Beacon Interval - Enter a value between 40-1000 milliseconds for Beacon Interval here. The beacons are the packets sent by the Router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100. ¾ RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the Router will send RTS frames to -60-
PW-3G401M 3G Wireless N Nano Router a particular receiving station and negotiate the sending of a data frame. The default value is 2346. ¾ Fragmentation Threshold - This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance since excessive packets. 2346 is the default setting and is recommended. ¾ DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval. ¾ Enable WMM - WMM function can guarantee the packets with high- priority messages being transmitted preferentially. It is strongly recommended enabled. ¾ Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time. ¾ Enabled AP Isolation - This function can isolate wireless stations on your network from each other. Wireless devices will be able to communicate with the Router but not with each other. To use this function, check this box. AP Isolation is disabled by default. ) Note: If you are not familiar with the setting items on this page, it's strongly recommended to keep the provided default values; otherwise it may result in lower wireless network performance. 4.7.5 Wireless Statistics Choose menu “Wireless→Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 4-29 The Router attached wireless stations ¾ MAC Address - The connected wireless station's MAC address ¾ Current Status - The connected wireless station's running status, one of STA-AUTH / -61-

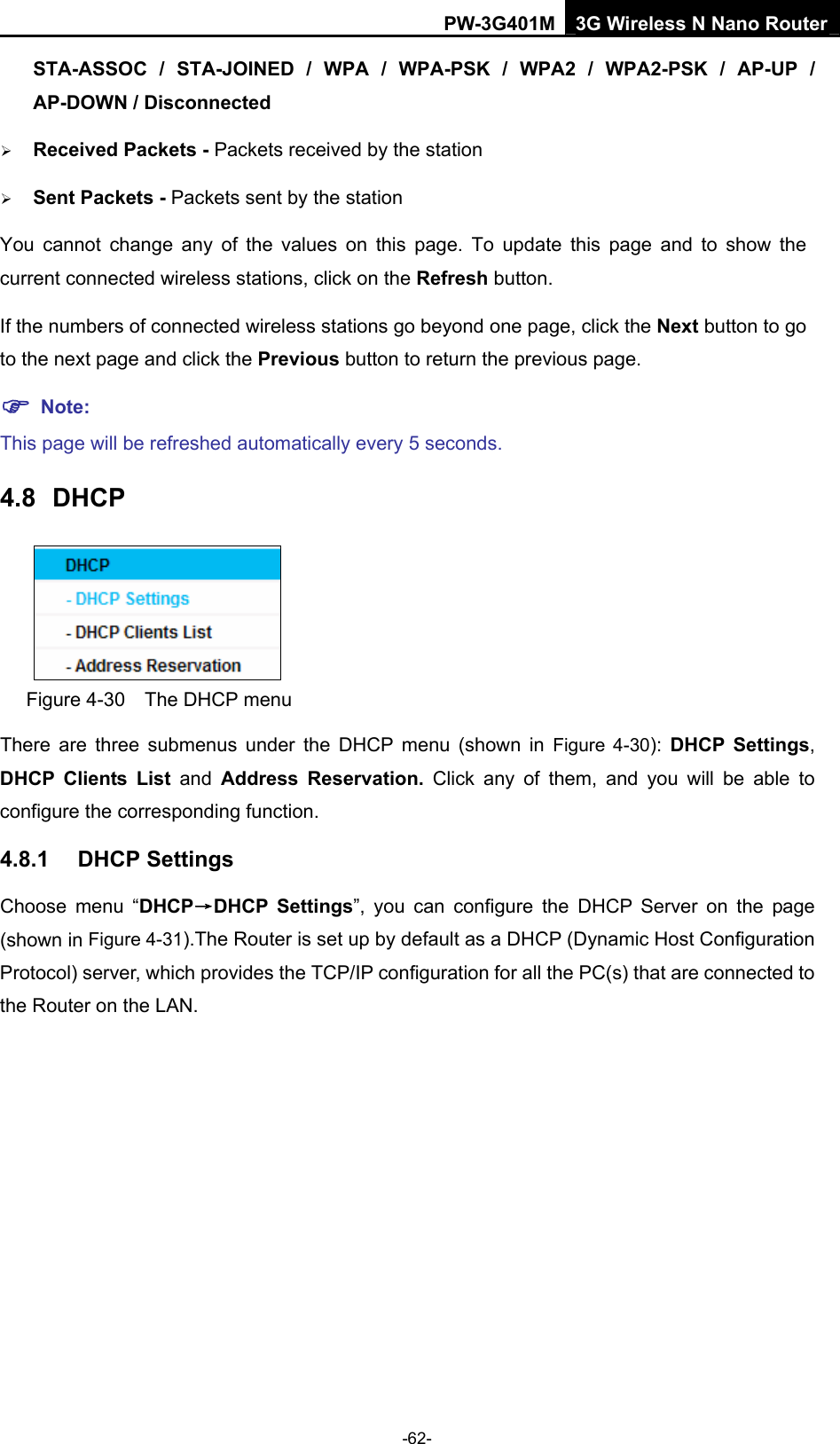

PW-3G401M 3G Wireless N Nano Router STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN / Disconnected ¾ Received Packets - Packets received by the station ¾ Sent Packets - Packets sent by the station You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page. ) Note: This page will be refreshed automatically every 5 seconds. 4.8 DHCP Figure 4-30 The DHCP menu There are three submenus under the DHCP menu (shown in Figure 4-30): DHCP Settings, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function. 4.8.1 DHCP Settings Choose menu “DHCP→DHCP Settings”, you can configure the DHCP Server on the page (shown in Figure 4-31).The Router is set up by default as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to the Router on the LAN. -62-

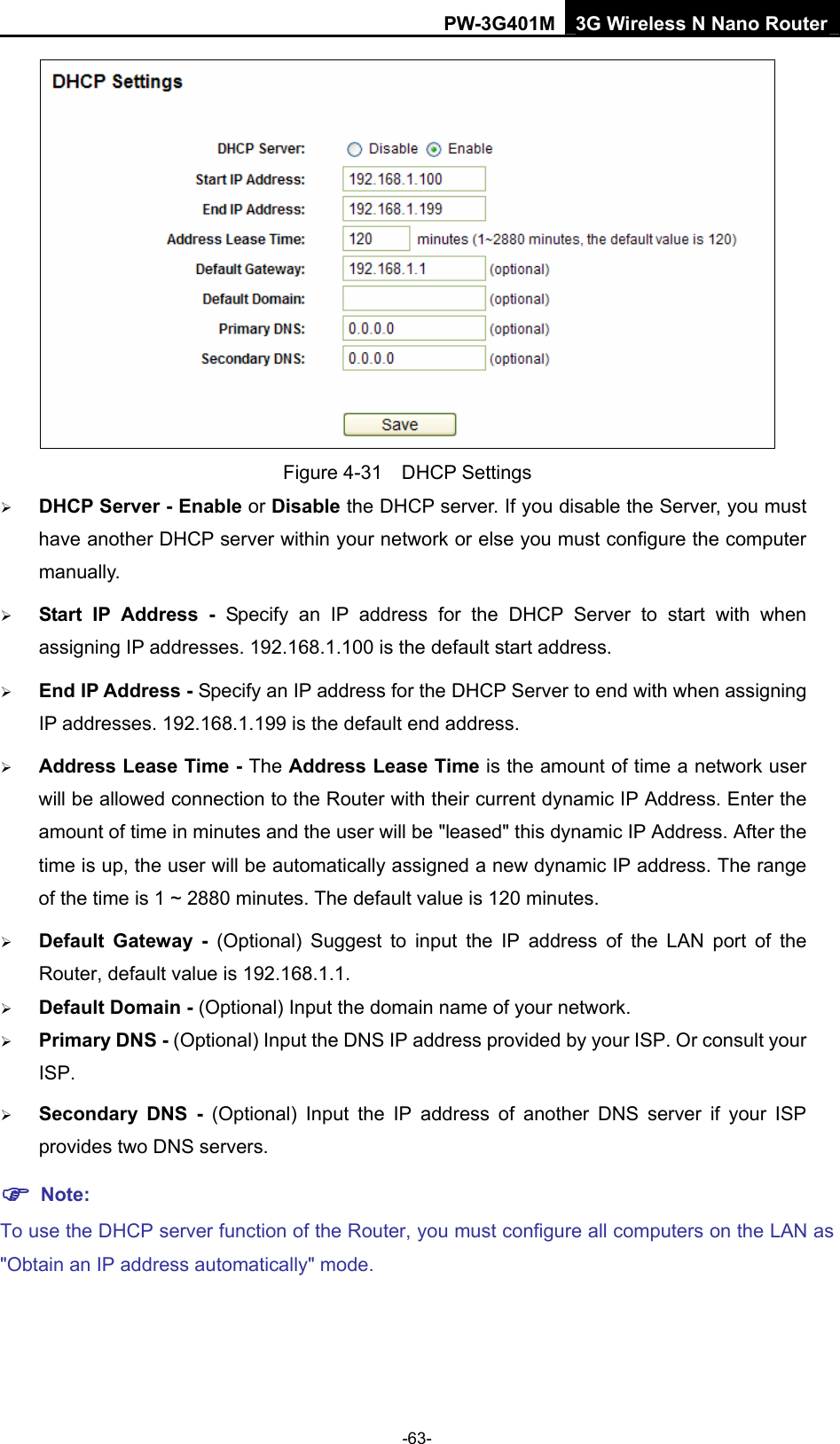

PW-3G401M 3G Wireless N Nano Router Figure 4-31 DHCP Settings ¾ DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must configure the computer manually. ¾ Start IP Address - Specify an IP address for the DHCP Server to start with when assigning IP addresses. 192.168.1.100 is the default start address. ¾ End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP addresses. 192.168.1.199 is the default end address. ¾ Address Lease Time - The Address Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP Address. Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up, the user will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes. ¾ Default Gateway - (Optional) Suggest to input the IP address of the LAN port of the Router, default value is 192.168.1.1. ¾ Default Domain - (Optional) Input the domain name of your network. ¾ Primary DNS - (Optional) Input the DNS IP address provided by your ISP. Or consult your ISP. ¾ Secondary DNS - (Optional) Input the IP address of another DNS server if your ISP provides two DNS servers. ) Note: To use the DHCP server function of the Router, you must configure all computers on the LAN as "Obtain an IP address automatically" mode. -63-

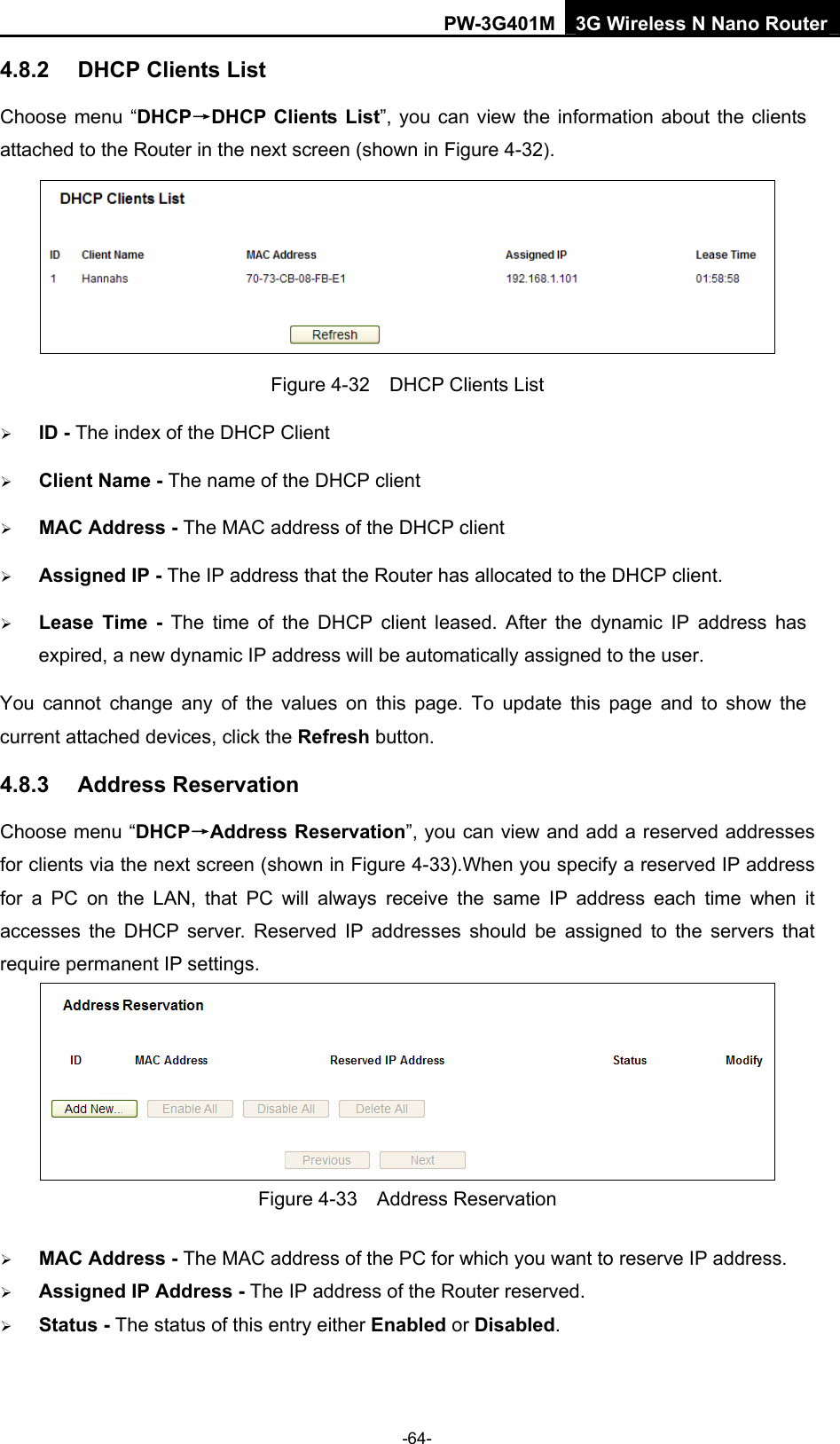

PW-3G401M 3G Wireless N Nano Router 4.8.2 DHCP Clients List Choose menu “DHCP→DHCP Clients List”, you can view the information about the clients attached to the Router in the next screen (shown in Figure 4-32). Figure 4-32 DHCP Clients List ¾ ID - The index of the DHCP Client ¾ Client Name - The name of the DHCP client ¾ MAC Address - The MAC address of the DHCP client ¾ Assigned IP - The IP address that the Router has allocated to the DHCP client. ¾ Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired, a new dynamic IP address will be automatically assigned to the user. You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Refresh button. 4.8.3 Address Reservation Choose menu “DHCP→Address Reservation”, you can view and add a reserved addresses for clients via the next screen (shown in Figure 4-33).When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to the servers that require permanent IP settings. Figure 4-33 Address Reservation ¾ MAC Address - The MAC address of the PC for which you want to reserve IP address. ¾ Assigned IP Address - The IP address of the Router reserved. ¾ Status - The status of this entry either Enabled or Disabled. -64-
PW-3G401M 3G Wireless N Nano Router To Reserve IP addresses: 1. Click the Add New … button. (Pop-up Figure 4-34) 2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in dotted-decimal notation of the computer you wish to add. 3. Click the Save button when finished. Figure 4-34 Add or Modify an Address Reservation Entry To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable/ Disabled All button to make all entries enabled/disabled Click the Delete All button to delete all entries Click the Next button to go to the next page and click the Previous button to return the previous page. 4.9 Forwarding Figure 4-35 The Forwarding menu There are four submenus under the Forwarding menu (shown in Figure 4-35): Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function. -65-

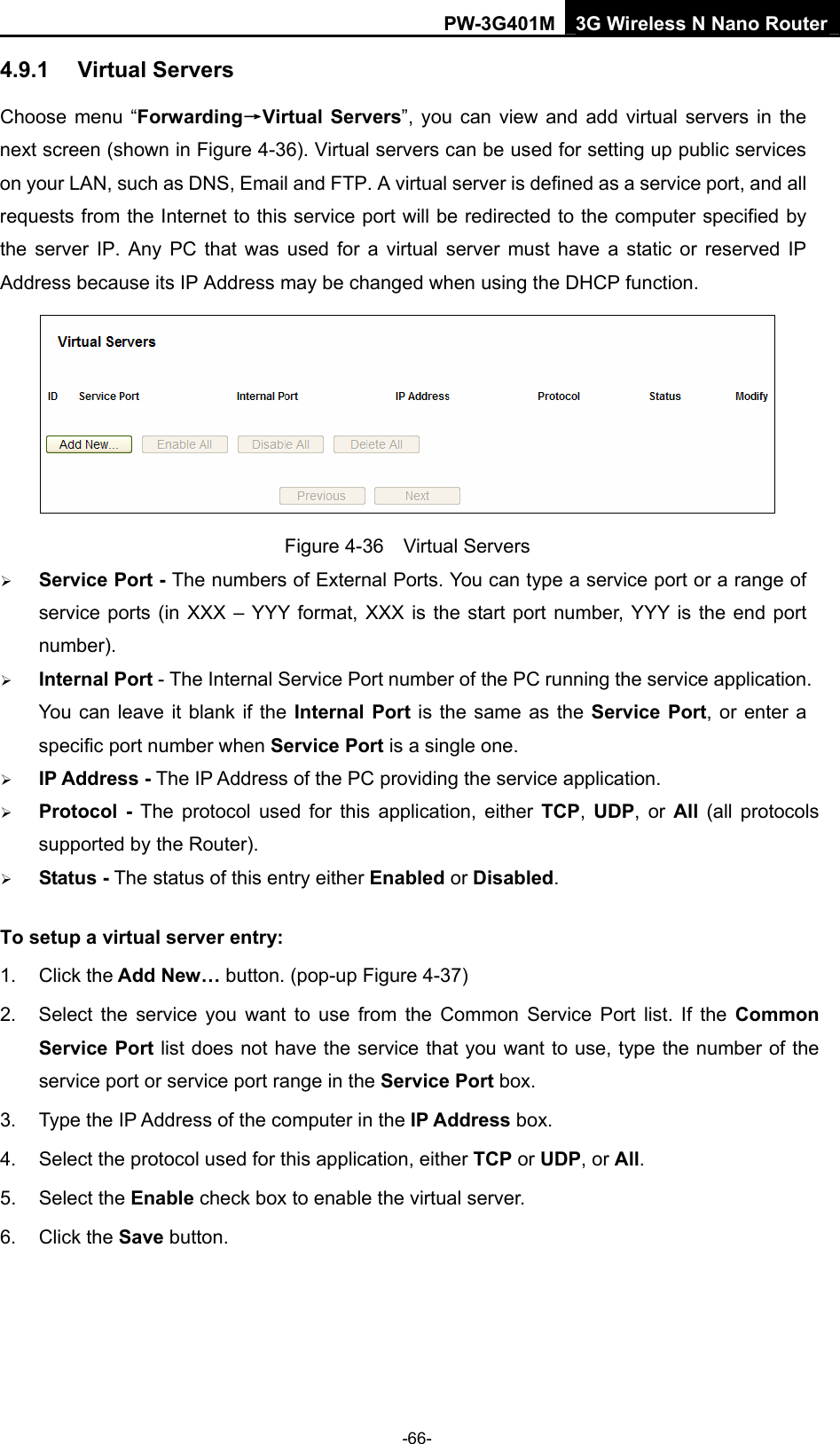

PW-3G401M 3G Wireless N Nano Router 4.9.1 Virtual Servers Choose menu “Forwarding→Virtual Servers”, you can view and add virtual servers in the next screen (shown in Figure 4-36). Virtual servers can be used for setting up public services on your LAN, such as DNS, Email and FTP. A virtual server is defined as a service port, and all requests from the Internet to this service port will be redirected to the computer specified by the server IP. Any PC that was used for a virtual server must have a static or reserved IP Address because its IP Address may be changed when using the DHCP function. Figure 4-36 Virtual Servers ¾ Service Port - The numbers of External Ports. You can type a service port or a range of service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port number). ¾ Internal Port - The Internal Service Port number of the PC running the service application. You can leave it blank if the Internal Port is the same as the Service Port, or enter a specific port number when Service Port is a single one. ¾ IP Address - The IP Address of the PC providing the service application. ¾ Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols supported by the Router). ¾ Status - The status of this entry either Enabled or Disabled. To setup a virtual server entry: 1. Click the Add New… button. (pop-up Figure 4-37) 2. Select the service you want to use from the Common Service Port list. If the Common Service Port list does not have the service that you want to use, type the number of the service port or service port range in the Service Port box. 3. Type the IP Address of the computer in the IP Address box. 4. Select the protocol used for this application, either TCP or UDP, or All. 5. Select the Enable check box to enable the virtual server. 6. Click the Save button. -66-

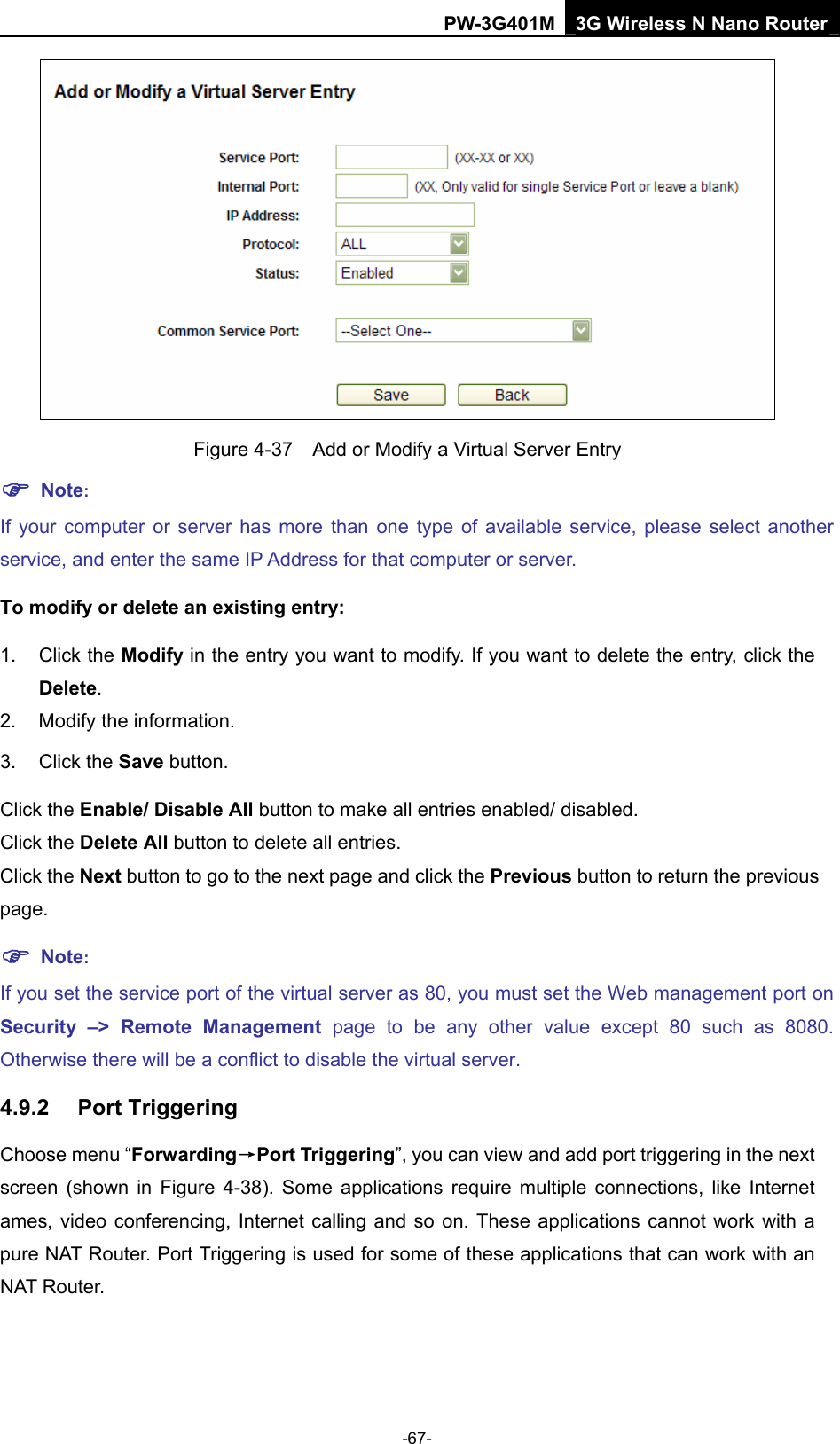

PW-3G401M 3G Wireless N Nano Router Figure 4-37 Add or Modify a Virtual Server Entry ) Note: If your computer or server has more than one type of available service, please select another service, and enter the same IP Address for that computer or server. To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable/ Disable All button to make all entries enabled/ disabled. Click the Delete All button to delete all entries. Click the Next button to go to the next page and click the Previous button to return the previous page. ) Note: If you set the service port of the virtual server as 80, you must set the Web management port on Security –> Remote Management page to be any other value except 80 such as 8080. Otherwise there will be a conflict to disable the virtual server. 4.9.2 Port Triggering Choose menu “Forwarding→Port Triggering”, you can view and add port triggering in the next screen (shown in Figure 4-38). Some applications require multiple connections, like Internet ames, video conferencing, Internet calling and so on. These applications cannot work with a pure NAT Router. Port Triggering is used for some of these applications that can work with an NAT Router. -67-

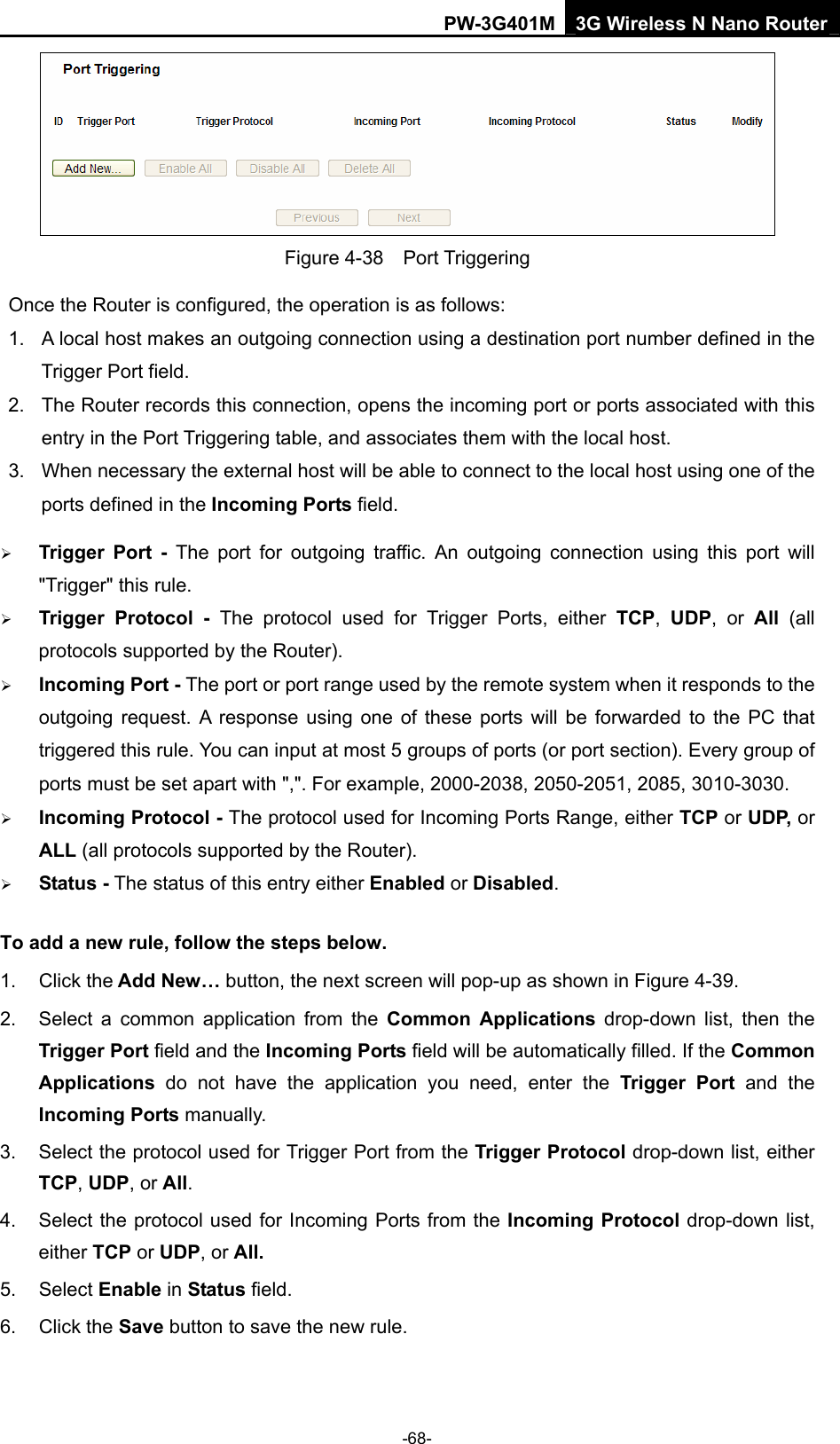

PW-3G401M 3G Wireless N Nano Router Figure 4-38 Port Triggering Once the Router is configured, the operation is as follows: 1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field. 2. The Router records this connection, opens the incoming port or ports associated with this entry in the Port Triggering table, and associates them with the local host. 3. When necessary the external host will be able to connect to the local host using one of the ports defined in the Incoming Ports field. ¾ Trigger Port - The port for outgoing traffic. An outgoing connection using this port will "Trigger" this rule. ¾ Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols supported by the Router). ¾ Incoming Port - The port or port range used by the remote system when it responds to the outgoing request. A response using one of these ports will be forwarded to the PC that triggered this rule. You can input at most 5 groups of ports (or port section). Every group of ports must be set apart with ",". For example, 2000-2038, 2050-2051, 2085, 3010-3030. ¾ Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or ALL (all protocols supported by the Router). ¾ Status - The status of this entry either Enabled or Disabled. To add a new rule, follow the steps below. 1. Click the Add New… button, the next screen will pop-up as shown in Figure 4-39. 2. Select a common application from the Common Applications drop-down list, then the Trigger Port field and the Incoming Ports field will be automatically filled. If the Common Applications do not have the application you need, enter the Trigger Port and the Incoming Ports manually. 3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either TCP, UDP, or All. 4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list, either TCP or UDP, or All. 5. Select Enable in Status field. 6. Click the Save button to save the new rule. -68-

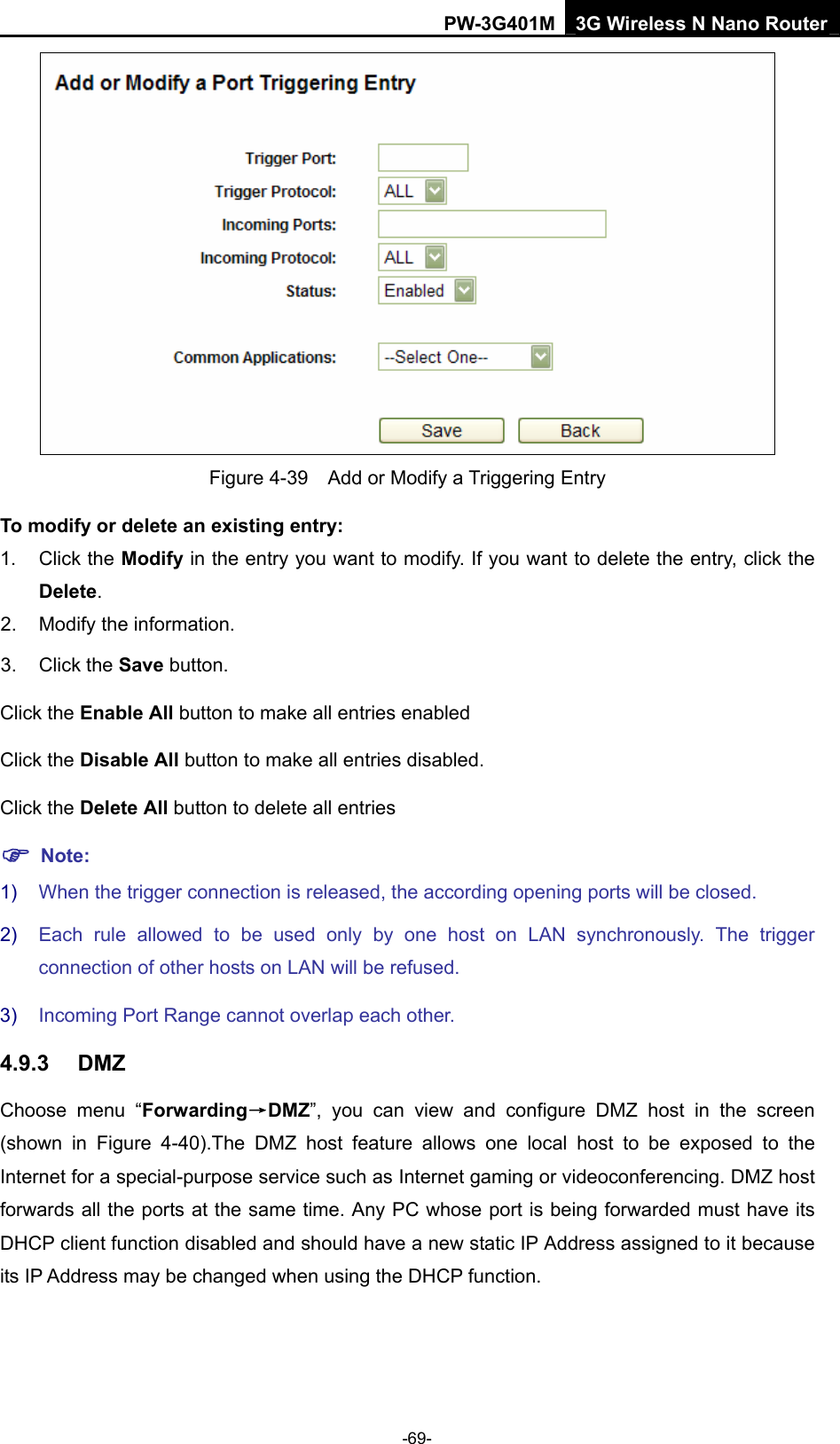

PW-3G401M 3G Wireless N Nano Router Figure 4-39 Add or Modify a Triggering Entry To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable All button to make all entries enabled Click the Disable All button to make all entries disabled. Click the Delete All button to delete all entries ) Note: 1) When the trigger connection is released, the according opening ports will be closed. 2) Each rule allowed to be used only by one host on LAN synchronously. The trigger connection of other hosts on LAN will be refused. 3) Incoming Port Range cannot overlap each other. 4.9.3 DMZ Choose menu “Forwarding→DMZ”, you can view and configure DMZ host in the screen (shown in Figure 4-40).The DMZ host feature allows one local host to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing. DMZ host forwards all the ports at the same time. Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it because its IP Address may be changed when using the DHCP function. -69-

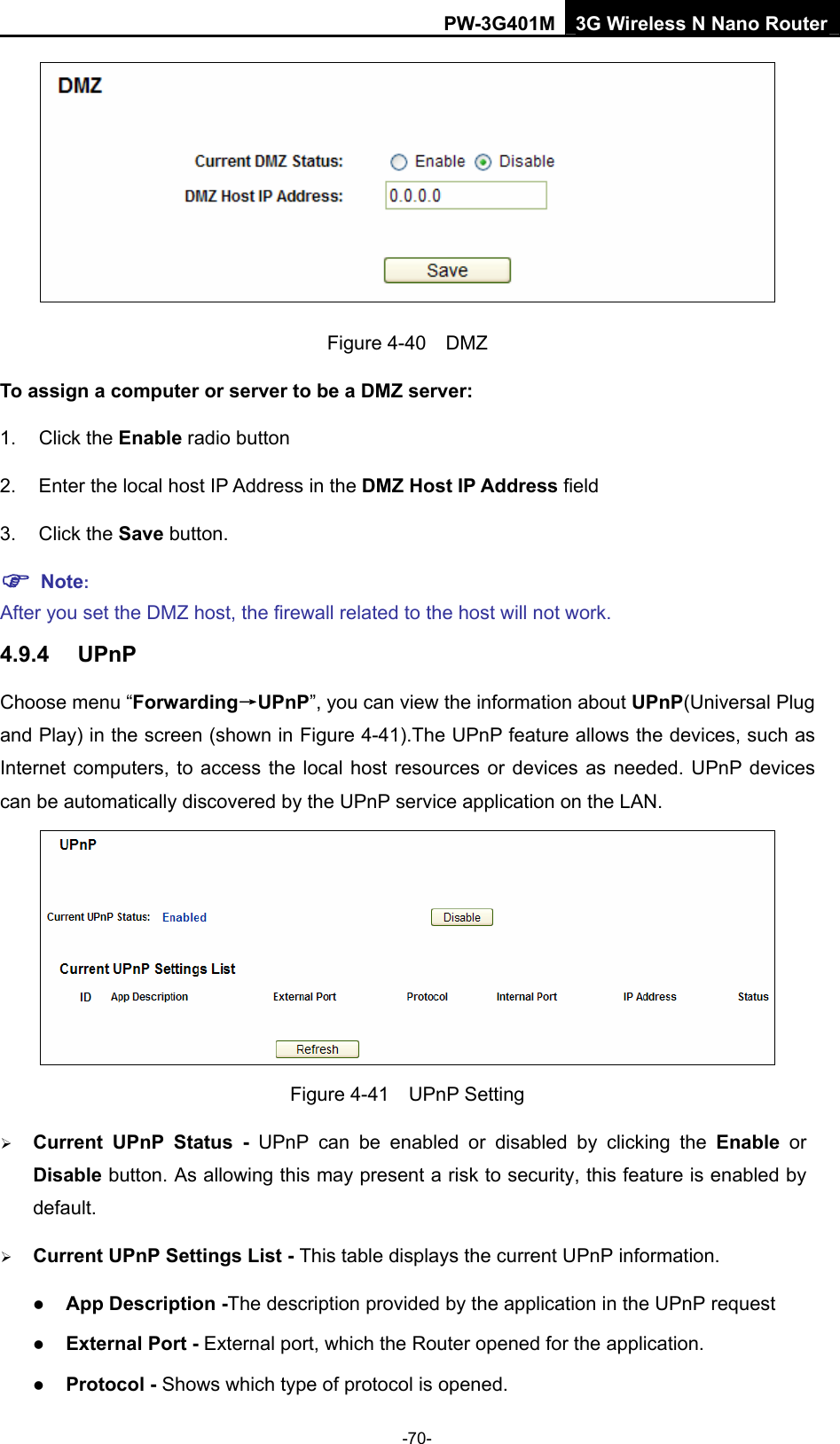

PW-3G401M 3G Wireless N Nano Router Figure 4-40 DMZ To assign a computer or server to be a DMZ server: 1. Click the Enable radio button 2. Enter the local host IP Address in the DMZ Host IP Address field 3. Click the Save button. ) Note: After you set the DMZ host, the firewall related to the host will not work. 4.9.4 UPnP Choose menu “Forwarding→UPnP”, you can view the information about UPnP(Universal Plug and Play) in the screen (shown in Figure 4-41).The UPnP feature allows the devices, such as Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN. Figure 4-41 UPnP Setting ¾ Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable button. As allowing this may present a risk to security, this feature is enabled by default. ¾ Current UPnP Settings List - This table displays the current UPnP information. z App Description -The description provided by the application in the UPnP request z External Port - External port, which the Router opened for the application. z Protocol - Shows which type of protocol is opened. -70-
PW-3G401M 3G Wireless N Nano Router z Internal Port - Internal port, which the Router opened for local host. z IP Address - The UPnP device that is currently accessing the Router. z Status - The port’s status displayed here. “Enabled” means that port is still active. Otherwise, the port is inactive. Click Refresh to update the Current UPnP Settings List. 4.10 Security Figure 4-42 The Security menu There are four submenus under the Security menu as shown in Figure 4-42: Basic Security, Advanced Security, Local Management and Remote Management. Click any of them, and you will be able to configure the corresponding function. 4.10.1 Basic Security Choose menu “Security → Basic Security”, you can configure the basic security in the screen as shown in Figure 4-43. Figure 4-43 Basic Security -71-

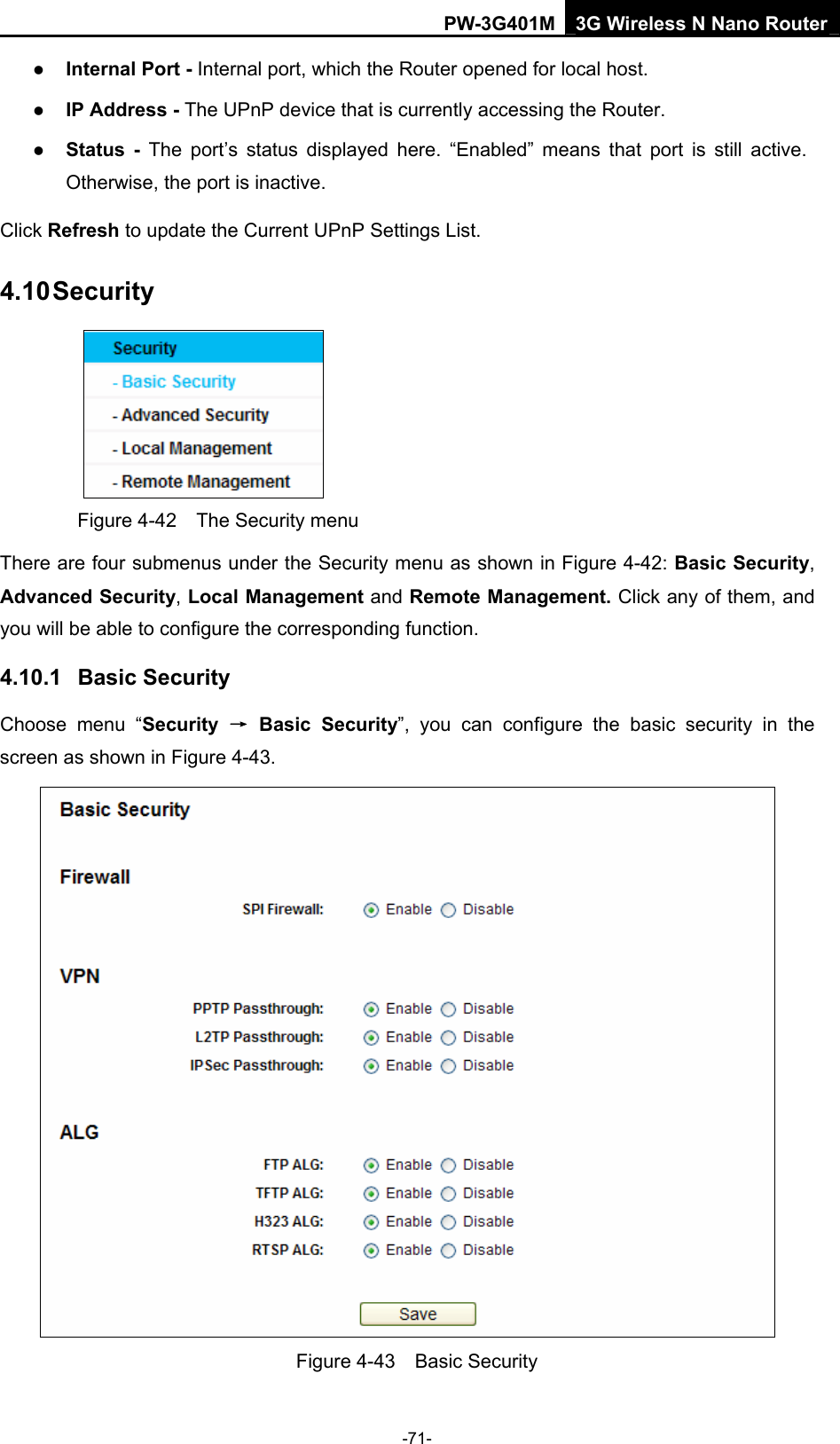

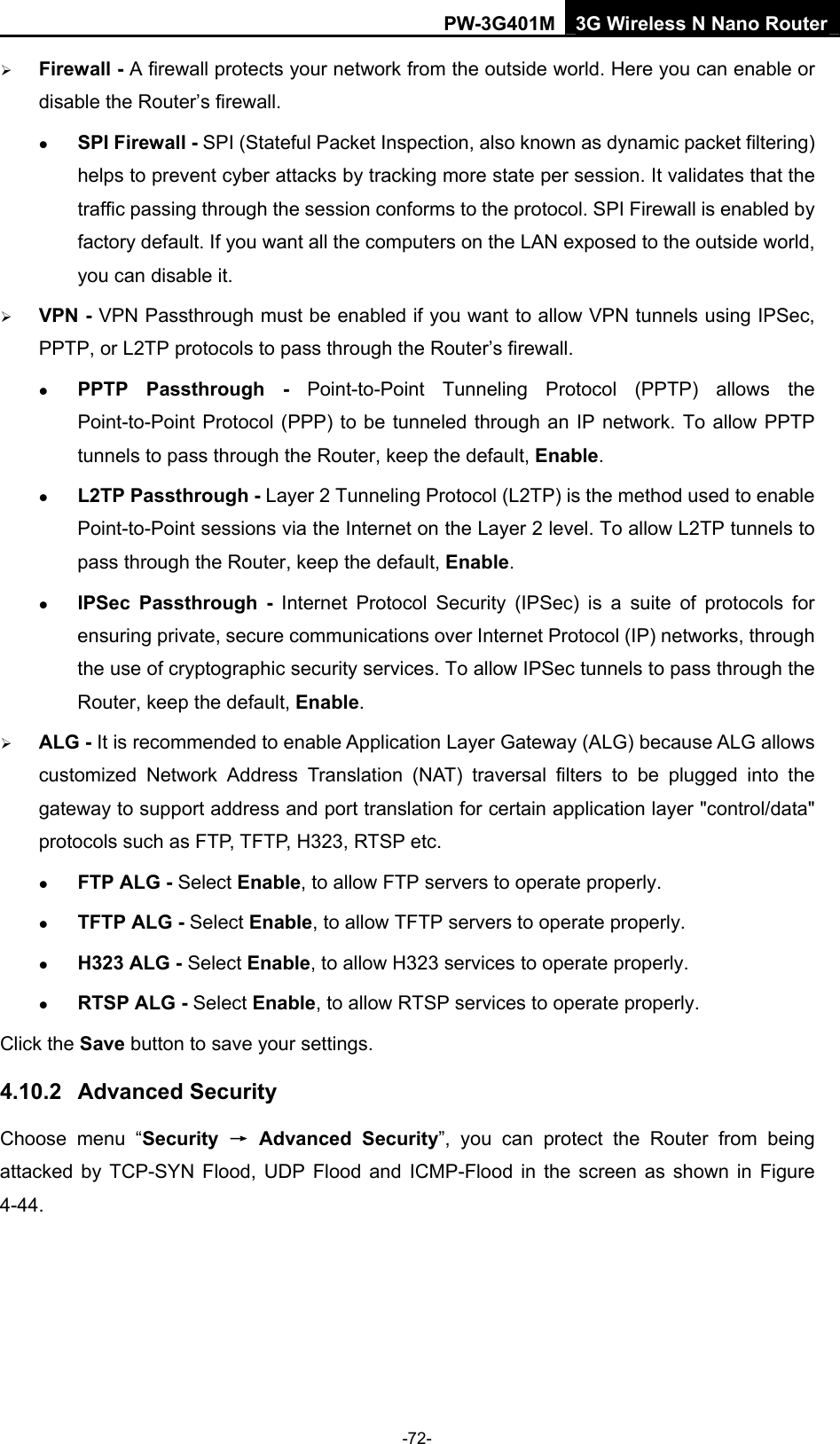

PW-3G401M 3G Wireless N Nano Router ¾ Firewall - A firewall protects your network from the outside world. Here you can enable or disable the Router’s firewall. z SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol. SPI Firewall is enabled by factory default. If you want all the computers on the LAN exposed to the outside world, you can disable it. ¾ VPN - VPN Passthrough must be enabled if you want to allow VPN tunnels using IPSec, PPTP, or L2TP protocols to pass through the Router’s firewall. z PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Router, keep the default, Enable. z L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, keep the default, Enable. z IPSec Passthrough - Internet Protocol Security (IPSec) is a suite of protocols for ensuring private, secure communications over Internet Protocol (IP) networks, through the use of cryptographic security services. To allow IPSec tunnels to pass through the Router, keep the default, Enable. ¾ ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG allows customized Network Address Translation (NAT) traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, TFTP, H323, RTSP etc. z FTP ALG - Select Enable, to allow FTP servers to operate properly. z TFTP ALG - Select Enable, to allow TFTP servers to operate properly. z H323 ALG - Select Enable, to allow H323 services to operate properly. z RTSP ALG - Select Enable, to allow RTSP services to operate properly. Click the Save button to save your settings. 4.10.2 Advanced Security Choose menu “Security → Advanced Security”, you can protect the Router from being attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in Figure 4-44. -72-

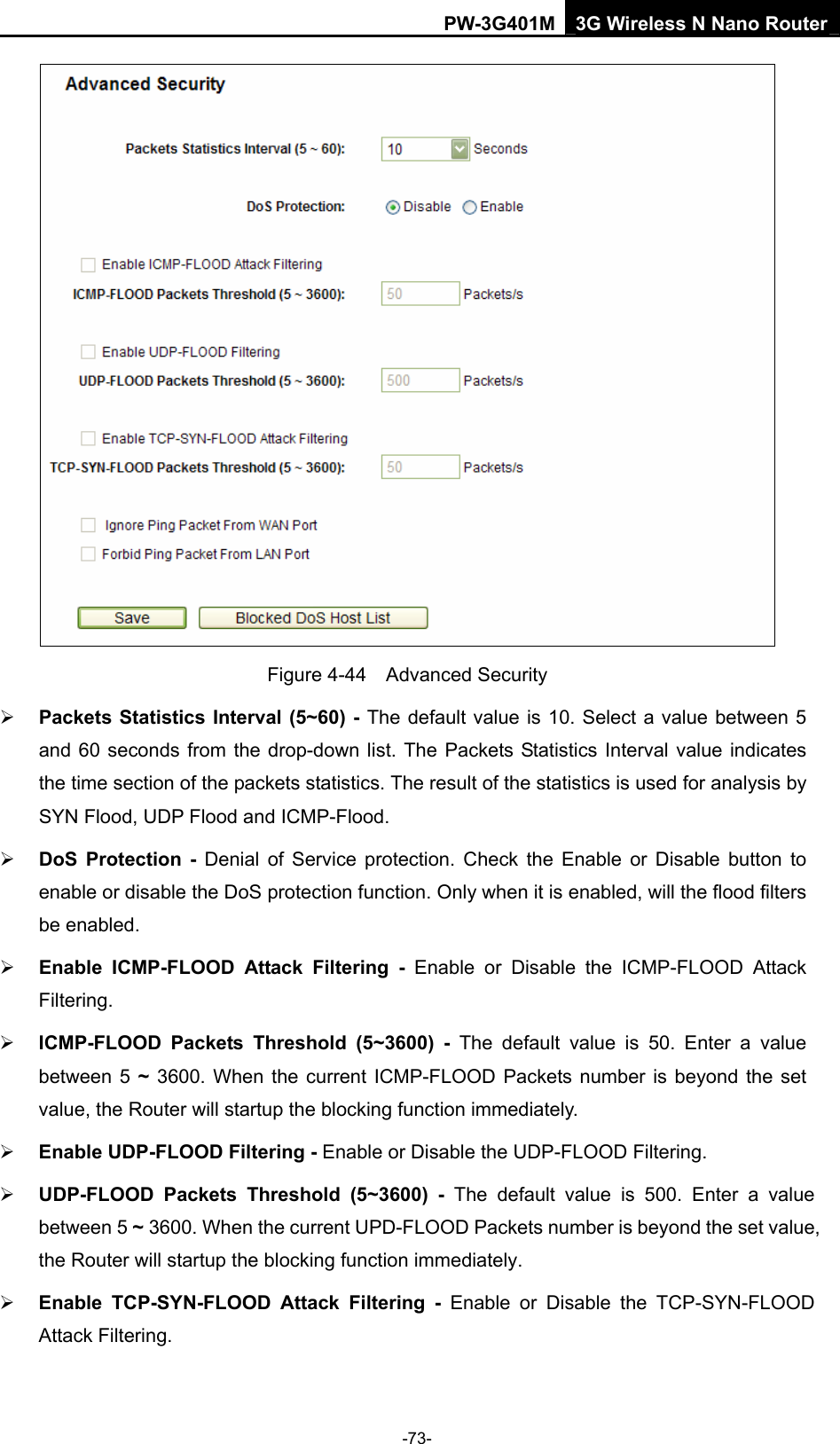

PW-3G401M 3G Wireless N Nano Router Figure 4-44 Advanced Security ¾ Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood. ¾ DoS Protection - Denial of Service protection. Check the Enable or Disable button to enable or disable the DoS protection function. Only when it is enabled, will the flood filters be enabled. ¾ Enable ICMP-FLOOD Attack Filtering - Enable or Disable the ICMP-FLOOD Attack Filtering. ¾ ICMP-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value between 5 ~ 3600. When the current ICMP-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately. ¾ Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering. ¾ UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value between 5 ~ 3600. When the current UPD-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately. ¾ Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN-FLOOD Attack Filtering. -73-

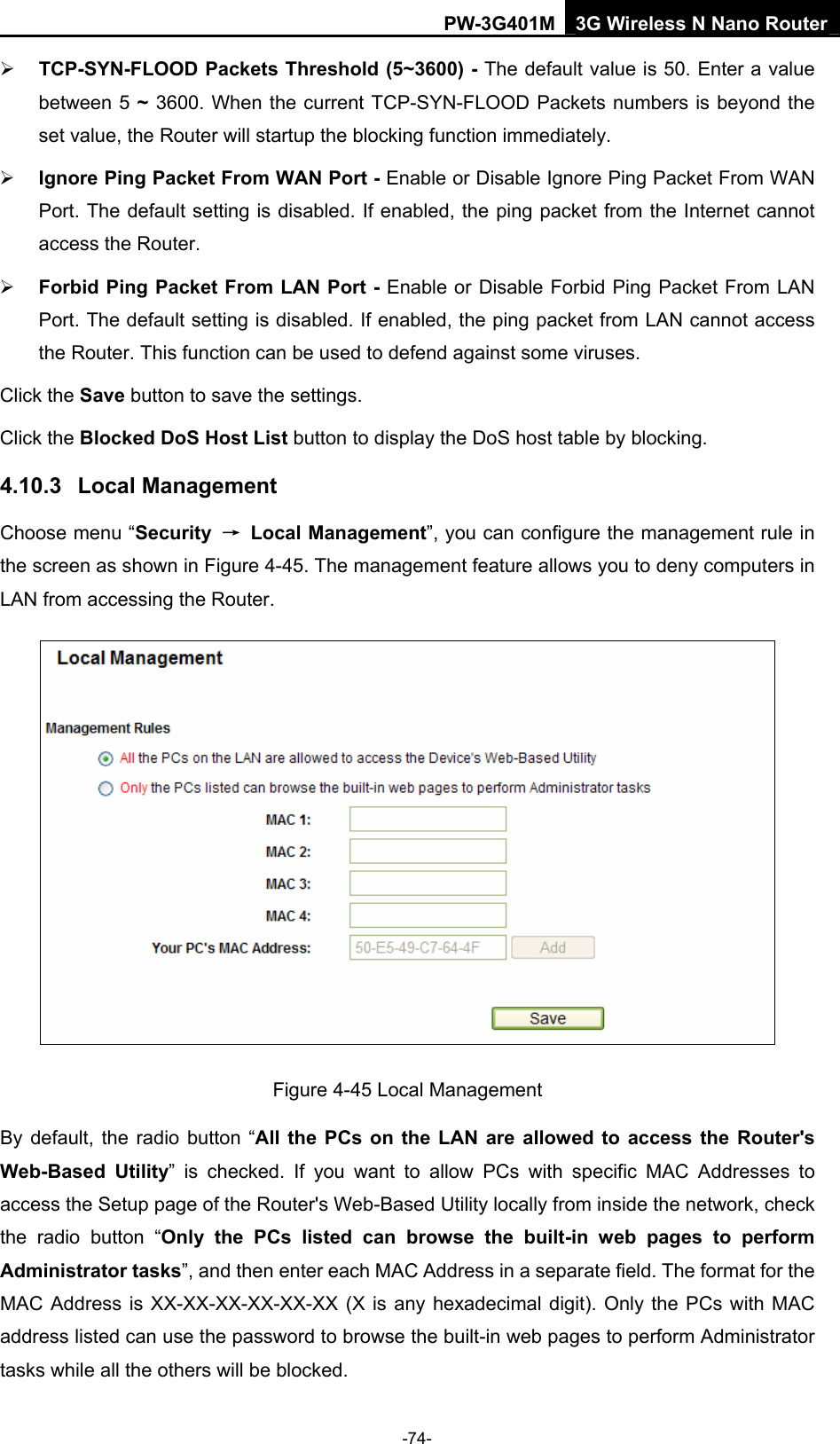

PW-3G401M 3G Wireless N Nano Router ¾ TCP-SYN-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value between 5 ~ 3600. When the current TCP-SYN-FLOOD Packets numbers is beyond the set value, the Router will startup the blocking function immediately. ¾ Ignore Ping Packet From WAN Port - Enable or Disable Ignore Ping Packet From WAN Port. The default setting is disabled. If enabled, the ping packet from the Internet cannot access the Router. ¾ Forbid Ping Packet From LAN Port - Enable or Disable Forbid Ping Packet From LAN Port. The default setting is disabled. If enabled, the ping packet from LAN cannot access the Router. This function can be used to defend against some viruses. Click the Save button to save the settings. Click the Blocked DoS Host List button to display the DoS host table by blocking. 4.10.3 Local Management Choose menu “Security → Local Management”, you can configure the management rule in the screen as shown in Figure 4-45. The management feature allows you to deny computers in LAN from accessing the Router. Figure 4-45 Local Management By default, the radio button “All the PCs on the LAN are allowed to access the Router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform Administrator tasks”, and then enter each MAC Address in a separate field. The format for the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC address listed can use the password to browse the built-in web pages to perform Administrator tasks while all the others will be blocked. -74-

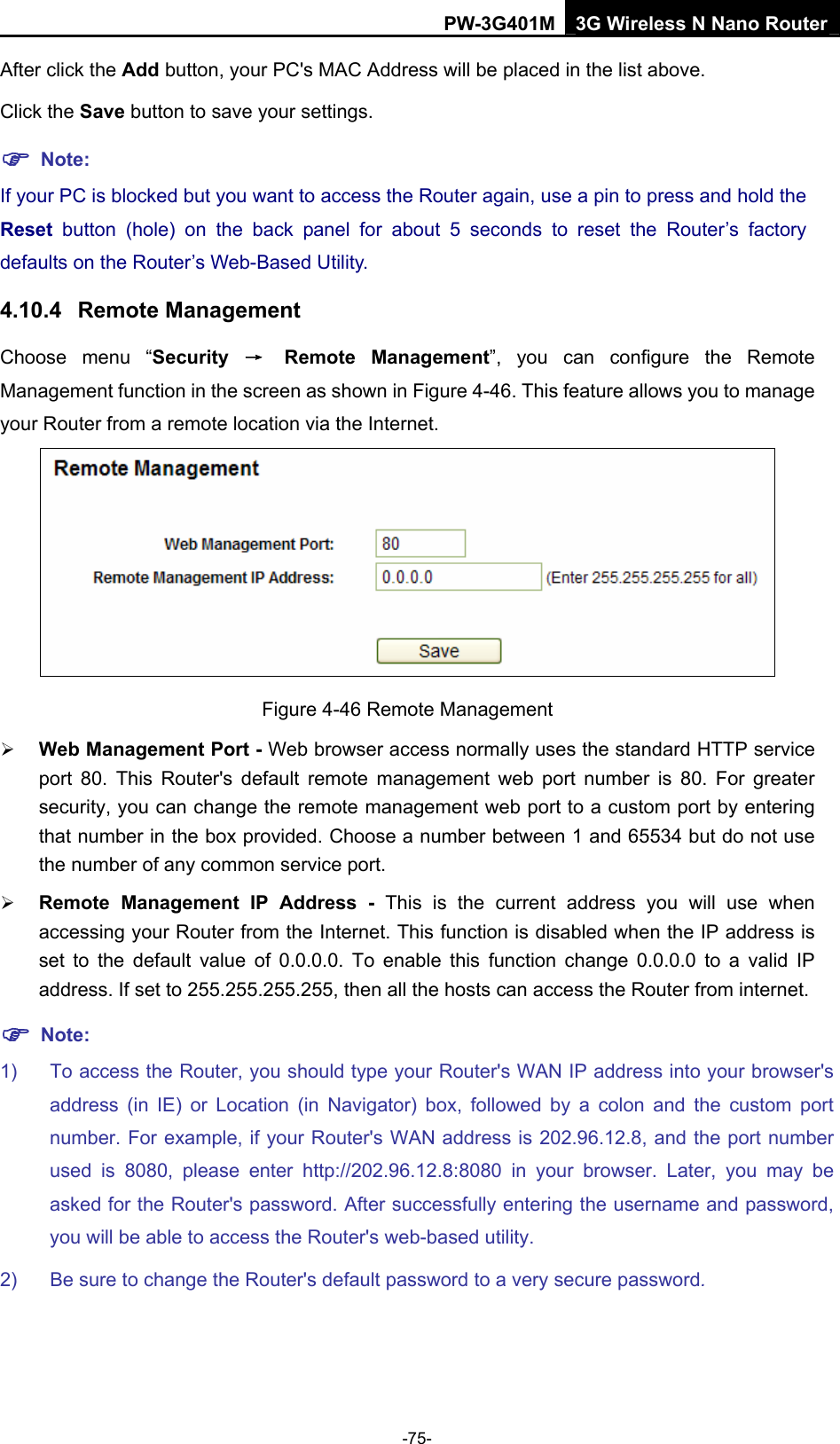

PW-3G401M 3G Wireless N Nano Router After click the Add button, your PC's MAC Address will be placed in the list above. Click the Save button to save your settings. ) Note: If your PC is blocked but you want to access the Router again, use a pin to press and hold the Reset button (hole) on the back panel for about 5 seconds to reset the Router’s factory defaults on the Router’s Web-Based Utility. 4.10.4 Remote Management Choose menu “Security → Remote Management”, you can configure the Remote Management function in the screen as shown in Figure 4-46. This feature allows you to manage your Router from a remote location via the Internet. Figure 4-46 Remote Management ¾ Web Management Port - Web browser access normally uses the standard HTTP service port 80. This Router's default remote management web port number is 80. For greater security, you can change the remote management web port to a custom port by entering that number in the box provided. Choose a number between 1 and 65534 but do not use the number of any common service port. ¾ Remote Management IP Address - This is the current address you will use when accessing your Router from the Internet. This function is disabled when the IP address is set to the default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to 255.255.255.255, then all the hosts can access the Router from internet. ) Note: 1) To access the Router, you should type your Router's WAN IP address into your browser's address (in IE) or Location (in Navigator) box, followed by a colon and the custom port number. For example, if your Router's WAN address is 202.96.12.8, and the port number used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be asked for the Router's password. After successfully entering the username and password, you will be able to access the Router's web-based utility. 2) Be sure to change the Router's default password to a very secure password. -75-

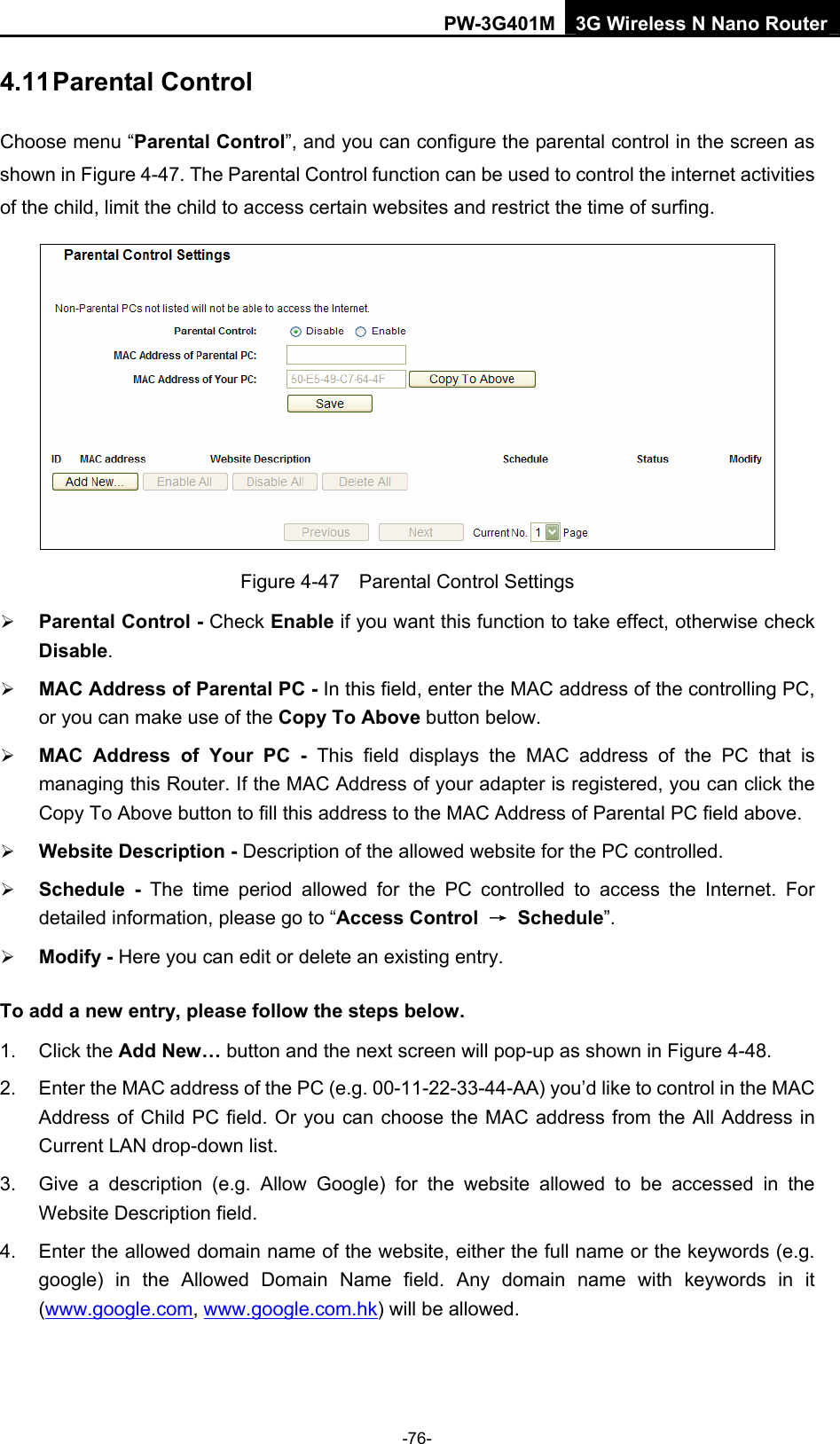

PW-3G401M 3G Wireless N Nano Router 4.11 Parental Control Choose menu “Parental Control”, and you can configure the parental control in the screen as shown in Figure 4-47. The Parental Control function can be used to control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing. Figure 4-47 Parental Control Settings ¾ Parental Control - Check Enable if you want this function to take effect, otherwise check Disable. ¾ MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or you can make use of the Copy To Above button below. ¾ MAC Address of Your PC - This field displays the MAC address of the PC that is managing this Router. If the MAC Address of your adapter is registered, you can click the Copy To Above button to fill this address to the MAC Address of Parental PC field above. ¾ Website Description - Description of the allowed website for the PC controlled. ¾ Schedule - The time period allowed for the PC controlled to access the Internet. For detailed information, please go to “Access Control → Schedule”. ¾ Modify - Here you can edit or delete an existing entry. To add a new entry, please follow the steps below. 1. Click the Add New… button and the next screen will pop-up as shown in Figure 4-48. 2. Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d like to control in the MAC Address of Child PC field. Or you can choose the MAC address from the All Address in Current LAN drop-down list. 3. Give a description (e.g. Allow Google) for the website allowed to be accessed in the Website Description field. 4. Enter the allowed domain name of the website, either the full name or the keywords (e.g. google) in the Allowed Domain Name field. Any domain name with keywords in it (www.google.com, www.google.com.hk) will be allowed. -76-

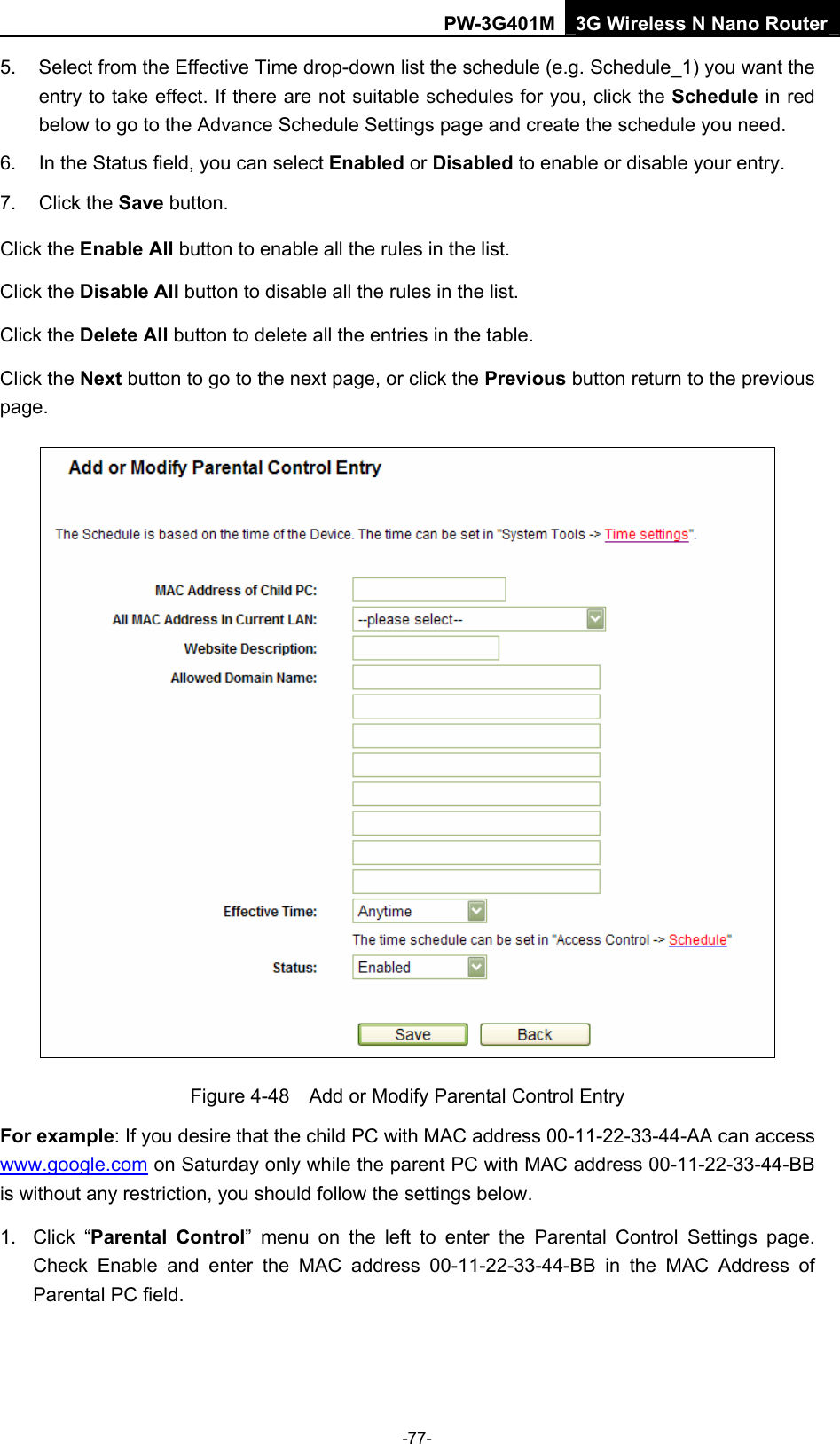

PW-3G401M 3G Wireless N Nano Router 5. Select from the Effective Time drop-down list the schedule (e.g. Schedule_1) you want the entry to take effect. If there are not suitable schedules for you, click the Schedule in red below to go to the Advance Schedule Settings page and create the schedule you need. 6. In the Status field, you can select Enabled or Disabled to enable or disable your entry. 7. Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable all the rules in the list. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 4-48 Add or Modify Parental Control Entry For example: If you desire that the child PC with MAC address 00-11-22-33-44-AA can access www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is without any restriction, you should follow the settings below. 1. Click “Parental Control” menu on the left to enter the Parental Control Settings page. Check Enable and enter the MAC address 00-11-22-33-44-BB in the MAC Address of Parental PC field. -77-

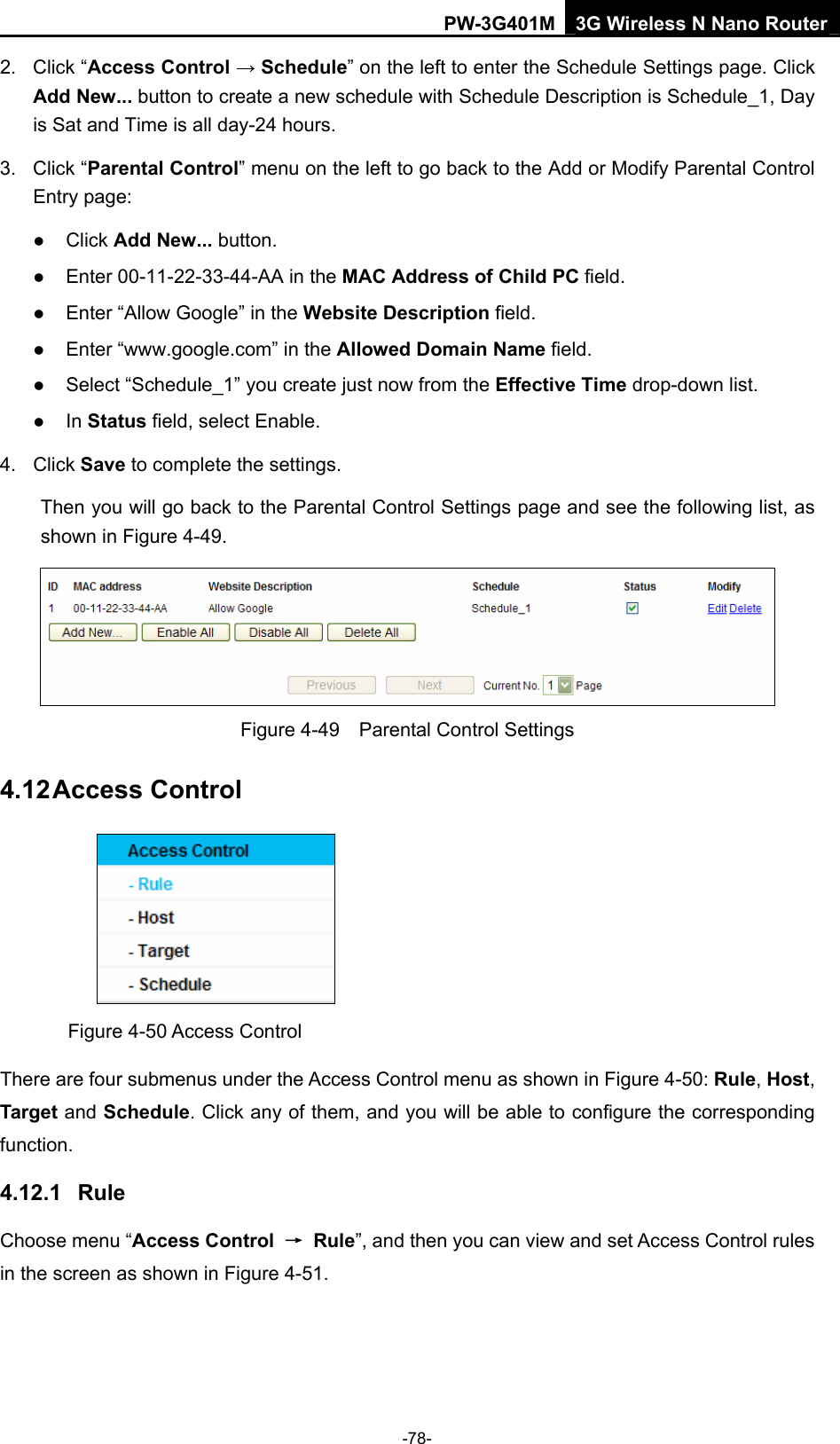

PW-3G401M 3G Wireless N Nano Router 2. Click “Access Control → Schedule” on the left to enter the Schedule Settings page. Click Add New... button to create a new schedule with Schedule Description is Schedule_1, Day is Sat and Time is all day-24 hours. 3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental Control Entry page: z Click Add New... button. z Enter 00-11-22-33-44-AA in the MAC Address of Child PC field. z Enter “Allow Google” in the Website Description field. z Enter “www.google.com” in the Allowed Domain Name field. z Select “Schedule_1” you create just now from the Effective Time drop-down list. z In Status field, select Enable. 4. Click Save to complete the settings. Then you will go back to the Parental Control Settings page and see the following list, as shown in Figure 4-49. Figure 4-49 Parental Control Settings 4.12 Access Control Figure 4-50 Access Control There are four submenus under the Access Control menu as shown in Figure 4-50: Rule, Host, Target and Schedule. Click any of them, and you will be able to configure the corresponding function. 4.12.1 Rule Choose menu “Access Control → Rule”, and then you can view and set Access Control rules in the screen as shown in Figure 4-51. -78-

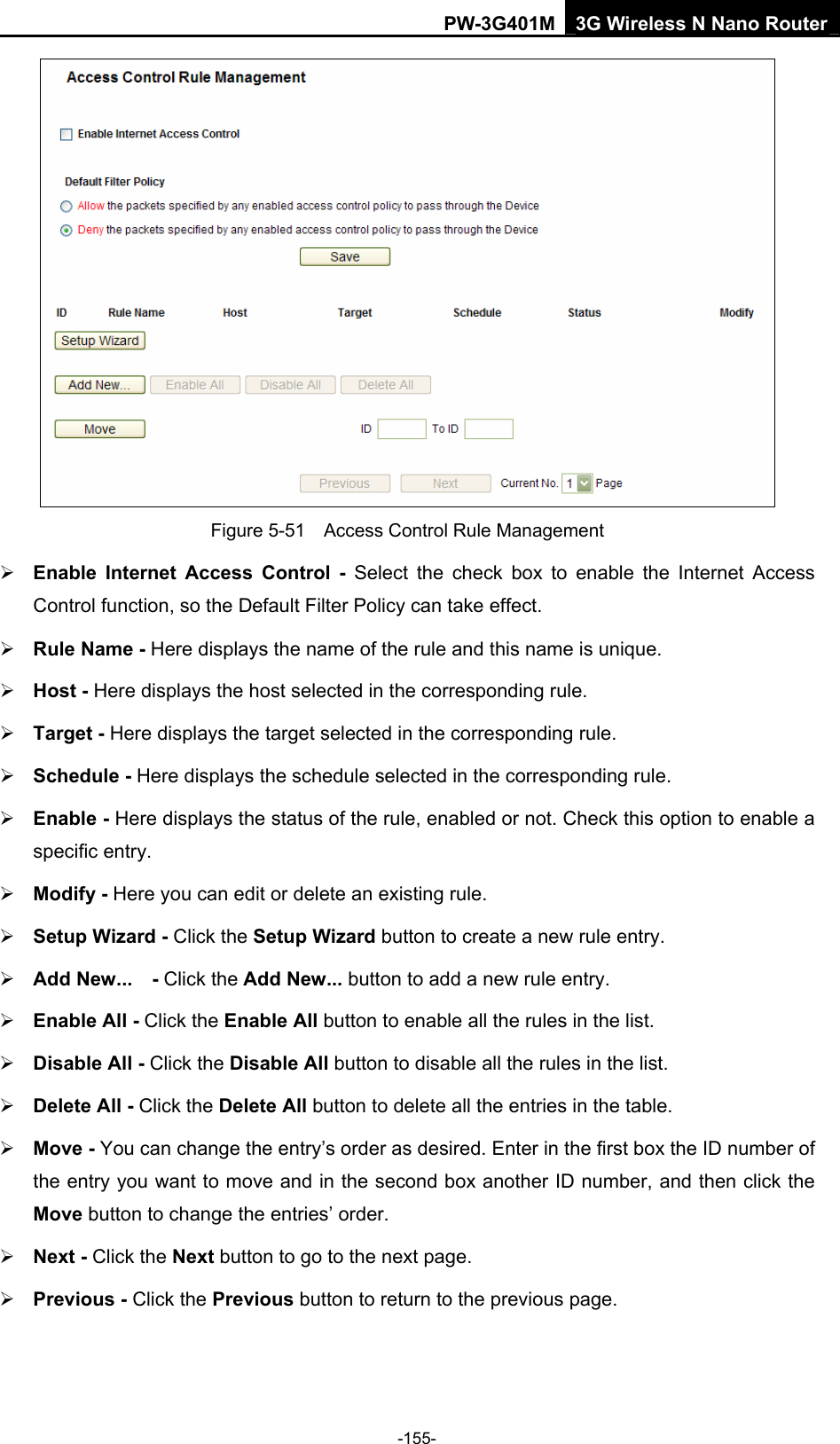

PW-3G401M 3G Wireless N Nano Router Figure 4-51 Access Control Rule Management ¾ Enable Internet Access Control - Select the check box to enable the Internet Access Control function, so the Default Filter Policy can take effect. ¾ Rule Name - Here displays the name of the rule and this name is unique. ¾ Host - Here displays the host selected in the corresponding rule. ¾ Target - Here displays the target selected in the corresponding rule. ¾ Schedule - Here displays the schedule selected in the corresponding rule. ¾ Enable - Here displays the status of the rule, enabled or not. Check this option to enable a specific entry. ¾ Modify - Here you can edit or delete an existing rule. ¾ Setup Wizard - Click the Setup Wizard button to create a new rule entry. ¾ Add New... - Click the Add New... button to add a new rule entry. ¾ Enable All - Click the Enable All button to enable all the rules in the list. ¾ Disable All - Click the Disable All button to disable all the rules in the list. ¾ Delete All - Click the Delete All button to delete all the entries in the table. ¾ Move - You can change the entry’s order as desired. Enter in the first box the ID number of the entry you want to move and in the second box another ID number, and then click the Move button to change the entries’ order. ¾ Next - Click the Next button to go to the next page. ¾ Previous - Click the Previous button to return to the previous page. -79-

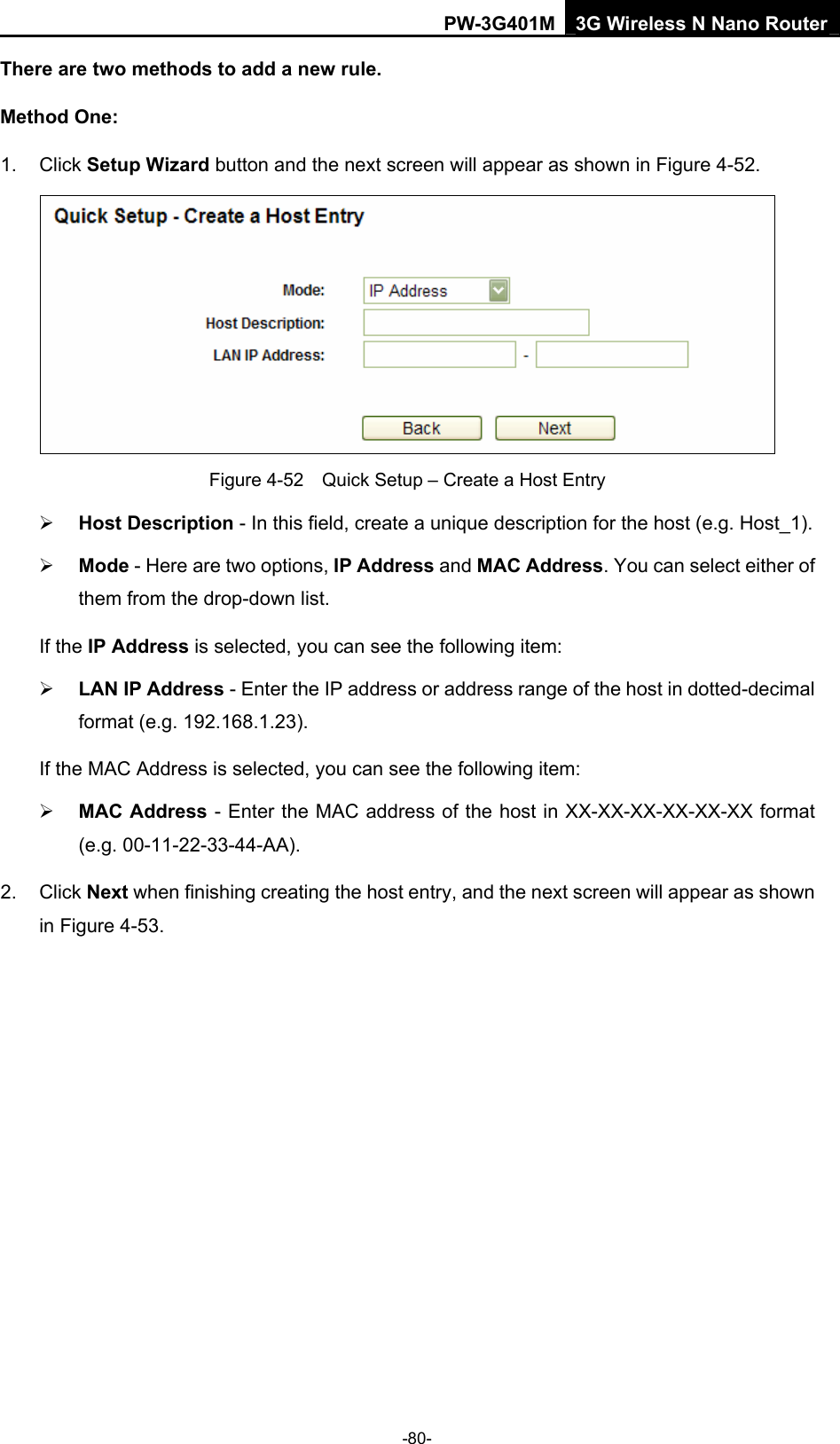

PW-3G401M 3G Wireless N Nano Router There are two methods to add a new rule. Method One: 1. Click Setup Wizard button and the next screen will appear as shown in Figure 4-52. Figure 4-52 Quick Setup – Create a Host Entry ¾ Host Description - In this field, create a unique description for the host (e.g. Host_1). ¾ Mode - Here are two options, IP Address and MAC Address. You can select either of them from the drop-down list. If the IP Address is selected, you can see the following item: ¾ LAN IP Address - Enter the IP address or address range of the host in dotted-decimal format (e.g. 192.168.1.23). If the MAC Address is selected, you can see the following item: ¾ MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g. 00-11-22-33-44-AA). 2. Click Next when finishing creating the host entry, and the next screen will appear as shown in Figure 4-53. -80-

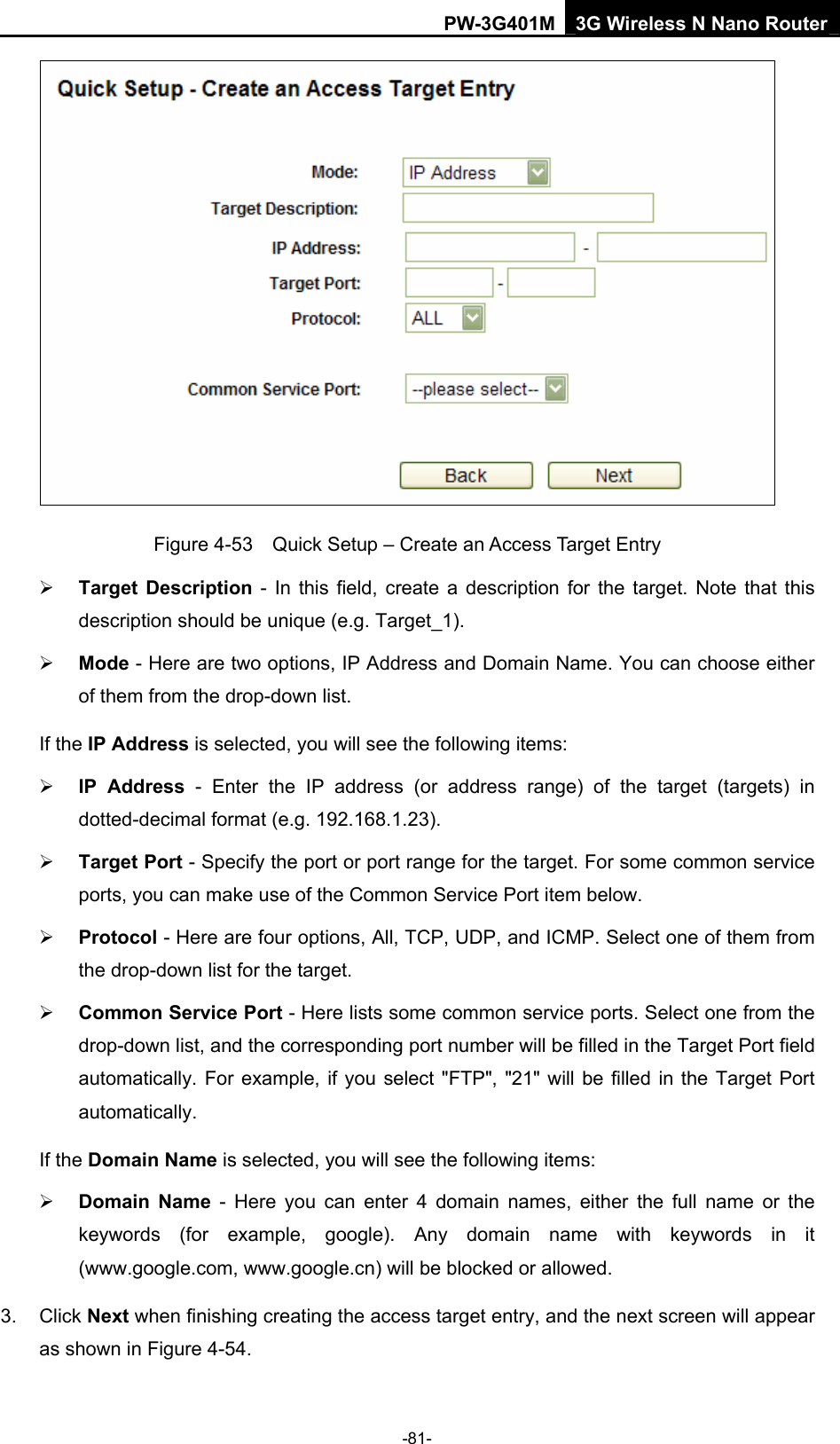

PW-3G401M 3G Wireless N Nano Router Figure 4-53 Quick Setup – Create an Access Target Entry ¾ Target Description - In this field, create a description for the target. Note that this description should be unique (e.g. Target_1). ¾ Mode - Here are two options, IP Address and Domain Name. You can choose either of them from the drop-down list. If the IP Address is selected, you will see the following items: ¾ IP Address - Enter the IP address (or address range) of the target (targets) in dotted-decimal format (e.g. 192.168.1.23). ¾ Target Port - Specify the port or port range for the target. For some common service ports, you can make use of the Common Service Port item below. ¾ Protocol - Here are four options, All, TCP, UDP, and ICMP. Select one of them from the drop-down list for the target. ¾ Common Service Port - Here lists some common service ports. Select one from the drop-down list, and the corresponding port number will be filled in the Target Port field automatically. For example, if you select "FTP", "21" will be filled in the Target Port automatically. If the Domain Name is selected, you will see the following items: ¾ Domain Name - Here you can enter 4 domain names, either the full name or the keywords (for example, google). Any domain name with keywords in it (www.google.com, www.google.cn) will be blocked or allowed. 3. Click Next when finishing creating the access target entry, and the next screen will appear as shown in Figure 4-54. -81-

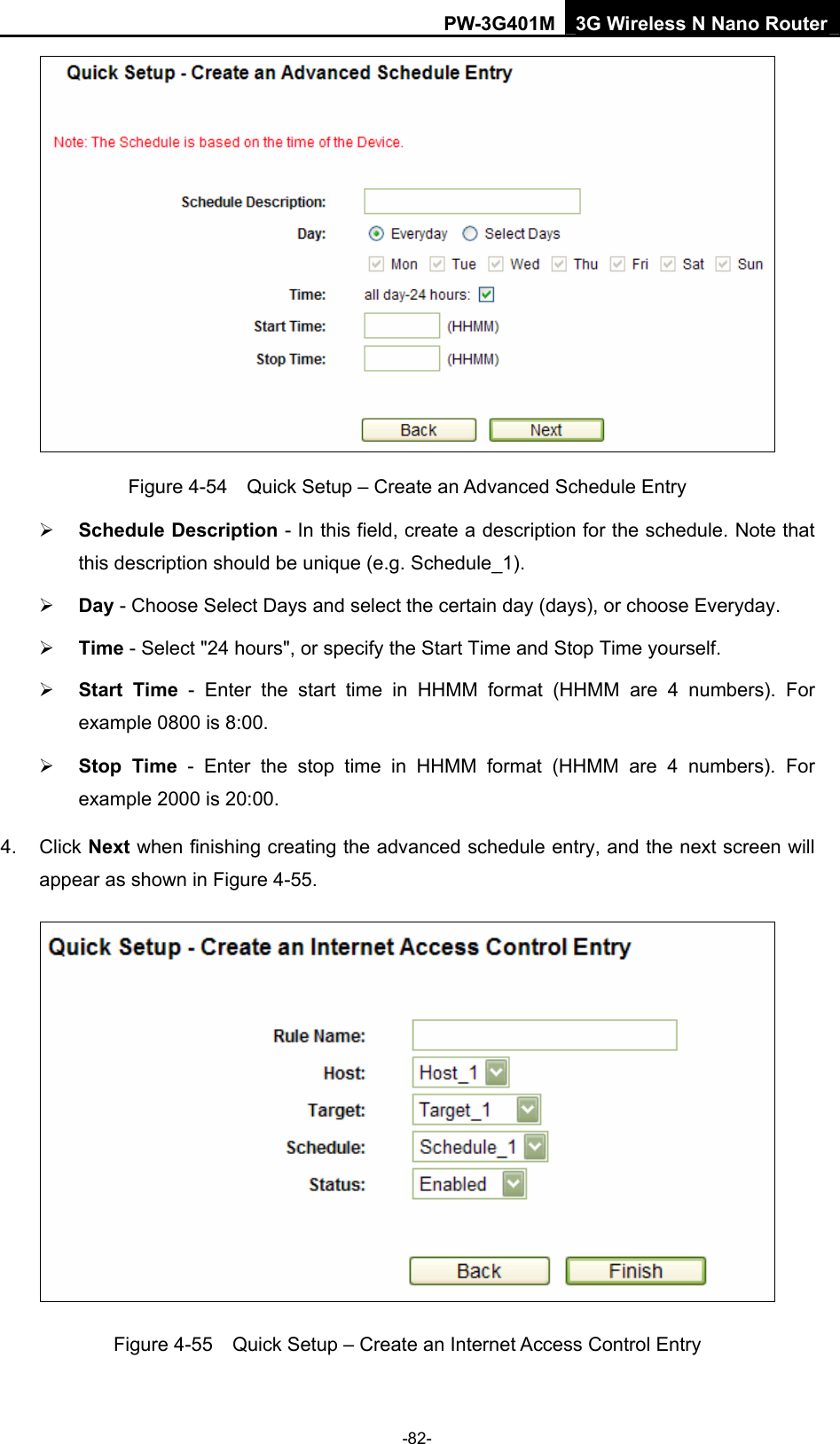

PW-3G401M 3G Wireless N Nano Router Figure 4-54 Quick Setup – Create an Advanced Schedule Entry ¾ Schedule Description - In this field, create a description for the schedule. Note that this description should be unique (e.g. Schedule_1). ¾ Day - Choose Select Days and select the certain day (days), or choose Everyday. ¾ Time - Select "24 hours", or specify the Start Time and Stop Time yourself. ¾ Start Time - Enter the start time in HHMM format (HHMM are 4 numbers). For example 0800 is 8:00. ¾ Stop Time - Enter the stop time in HHMM format (HHMM are 4 numbers). For example 2000 is 20:00. 4. Click Next when finishing creating the advanced schedule entry, and the next screen will appear as shown in Figure 4-55. Figure 4-55 Quick Setup – Create an Internet Access Control Entry -82-

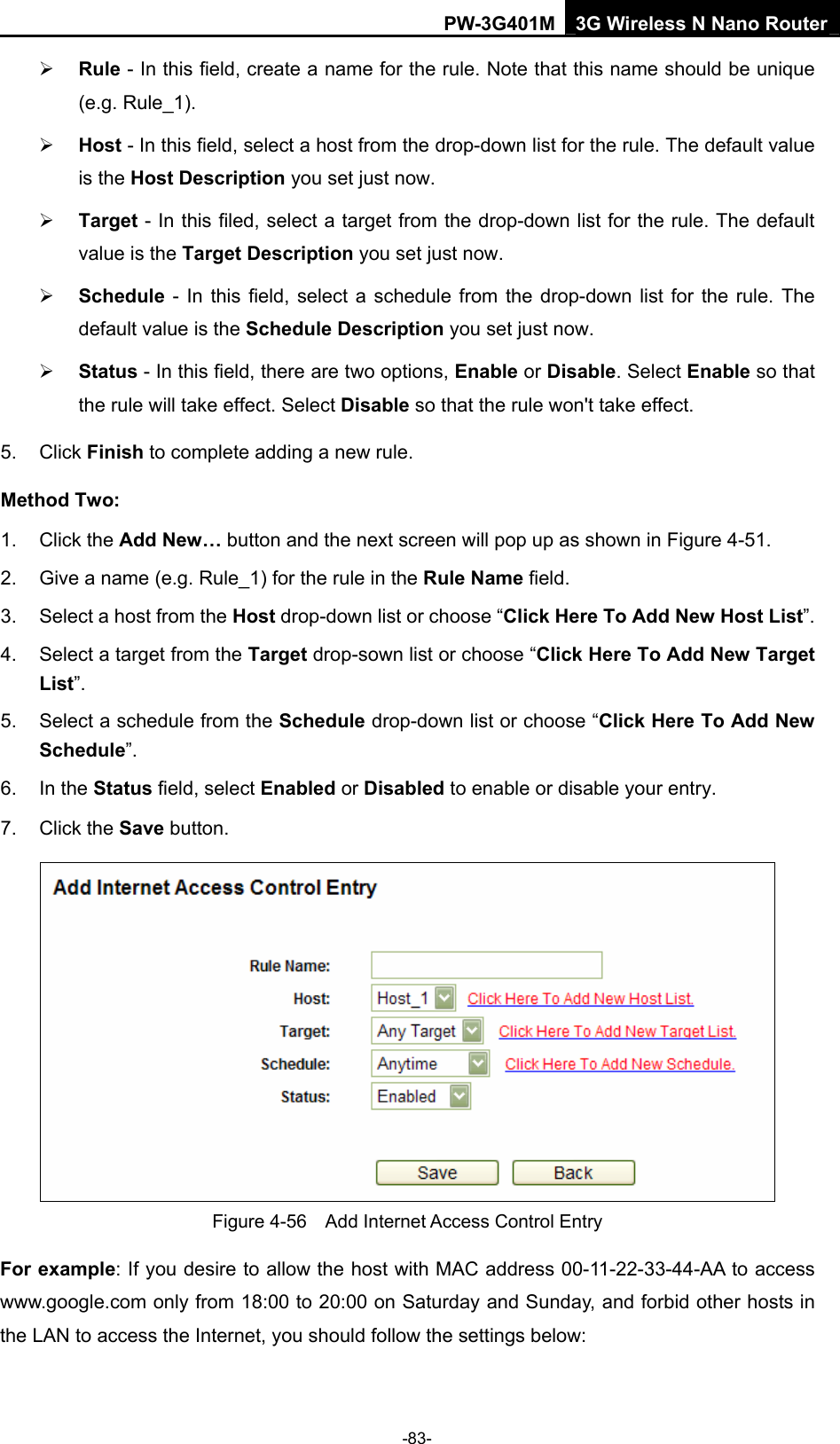

PW-3G401M 3G Wireless N Nano Router ¾ Rule - In this field, create a name for the rule. Note that this name should be unique (e.g. Rule_1). ¾ Host - In this field, select a host from the drop-down list for the rule. The default value is the Host Description you set just now. ¾ Target - In this filed, select a target from the drop-down list for the rule. The default value is the Target Description you set just now. ¾ Schedule - In this field, select a schedule from the drop-down list for the rule. The default value is the Schedule Description you set just now. ¾ Status - In this field, there are two options, Enable or Disable. Select Enable so that the rule will take effect. Select Disable so that the rule won't take effect. 5. Click Finish to complete adding a new rule. Method Two: 1. Click the Add New… button and the next screen will pop up as shown in Figure 4-51. 2. Give a name (e.g. Rule_1) for the rule in the Rule Name field. 3. Select a host from the Host drop-down list or choose “Click Here To Add New Host List”. 4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target List”. 5. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New Schedule”. 6. In the Status field, select Enabled or Disabled to enable or disable your entry. 7. Click the Save button. Figure 4-56 Add Internet Access Control Entry For example: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in the LAN to access the Internet, you should follow the settings below: -83-

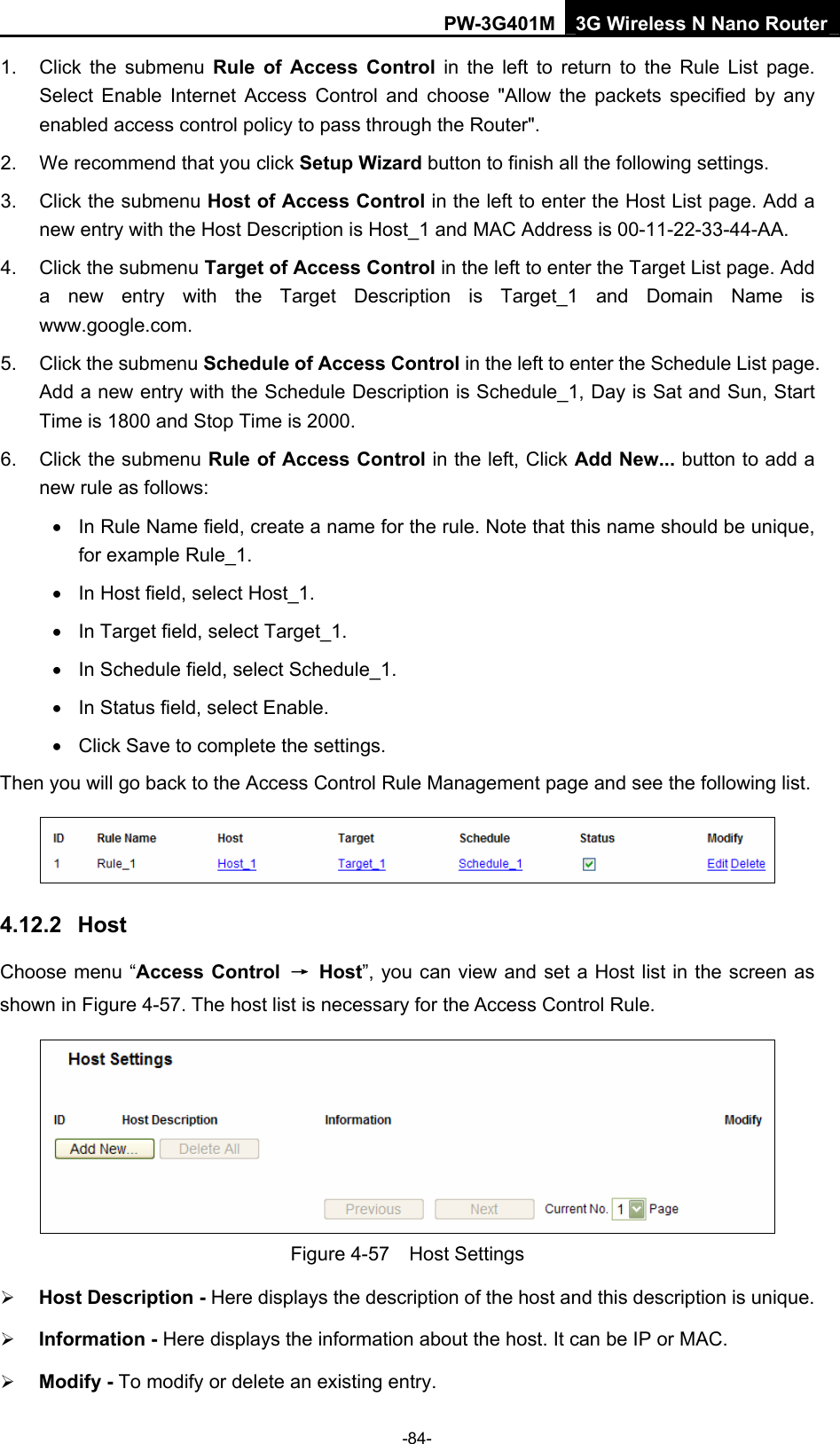

PW-3G401M 3G Wireless N Nano Router 1. Click the submenu Rule of Access Control in the left to return to the Rule List page. Select Enable Internet Access Control and choose "Allow the packets specified by any enabled access control policy to pass through the Router". 2. We recommend that you click Setup Wizard button to finish all the following settings. 3. Click the submenu Host of Access Control in the left to enter the Host List page. Add a new entry with the Host Description is Host_1 and MAC Address is 00-11-22-33-44-AA. 4. Click the submenu Target of Access Control in the left to enter the Target List page. Add a new entry with the Target Description is Target_1 and Domain Name is www.google.com. 5. Click the submenu Schedule of Access Control in the left to enter the Schedule List page. Add a new entry with the Schedule Description is Schedule_1, Day is Sat and Sun, Start Time is 1800 and Stop Time is 2000. 6. Click the submenu Rule of Access Control in the left, Click Add New... button to add a new rule as follows: • In Rule Name field, create a name for the rule. Note that this name should be unique, for example Rule_1. • In Host field, select Host_1. • In Target field, select Target_1. • In Schedule field, select Schedule_1. • In Status field, select Enable. • Click Save to complete the settings. Then you will go back to the Access Control Rule Management page and see the following list. 4.12.2 Host Choose menu “Access Control → Host”, you can view and set a Host list in the screen as shown in Figure 4-57. The host list is necessary for the Access Control Rule. Figure 4-57 Host Settings ¾ Host Description - Here displays the description of the host and this description is unique. ¾ Information - Here displays the information about the host. It can be IP or MAC. ¾ Modify - To modify or delete an existing entry. -84-

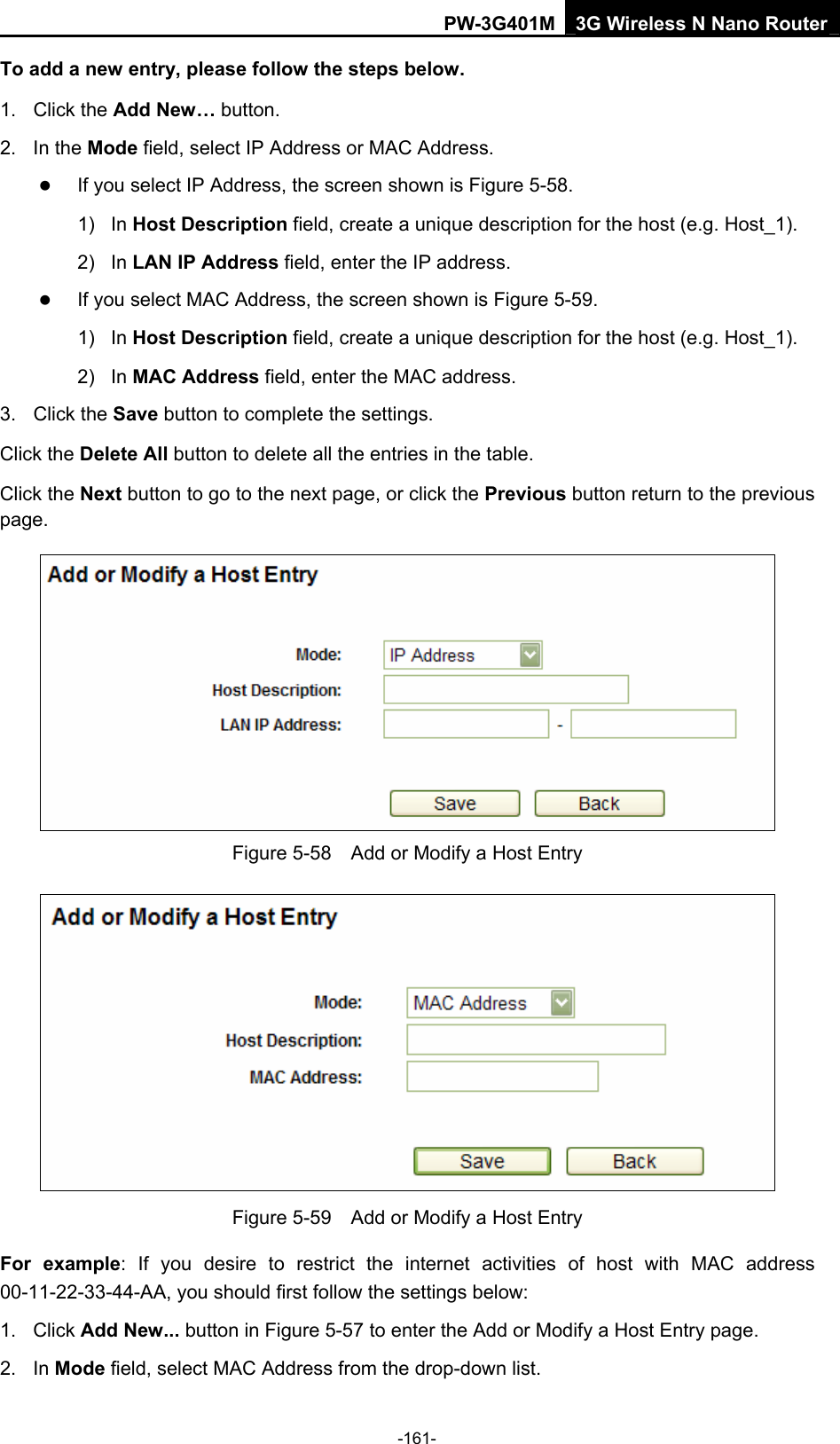

PW-3G401M 3G Wireless N Nano Router To add a new entry, please follow the steps below. 1. Click the Add New… button. 2. In the Mode field, select IP Address or MAC Address. z If you select IP Address, the screen shown is Figure 4-58. 1) In Host Description field, create a unique description for the host (e.g. Host_1). 2) In LAN IP Address field, enter the IP address. z If you select MAC Address, the screen shown is Figure 4-59. 1) In Host Description field, create a unique description for the host (e.g. Host_1). 2) In MAC Address field, enter the MAC address. 3. Click the Save button to complete the settings. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 4-58 Add or Modify a Host Entry Figure 4-59 Add or Modify a Host Entry For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA, you should first follow the settings below: 1. Click Add New... button in Figure 4-57 to enter the Add or Modify a Host Entry page. 2. In Mode field, select MAC Address from the drop-down list. -85-
PW-3G401M 3G Wireless N Nano Router 3. In Host Description field, create a unique description for the host (e.g. Host_1). 4. In MAC Address field, enter 00-11-22-33-44-AA. 5. Click Save to complete the settings. Then you will go back to the Host Settings page and see the following list. 4.12.3 Target Choose menu “Access Control → Target”, you can view and set a Target list in the screen as shown in Figure 4-60. The target list is necessary for the Access Control Rule. Figure 4-60 Target Settings ¾ Target Description - Here displays the description about the target and this description is unique. ¾ Information - The target can be IP address, port, or domain name. ¾ Modify - To modify or delete an existing entry. To add a new entry, please follow the steps below. 1. Click the Add New… button. 2. In Mode field, select IP Address or Domain Name. z If you select IP Address, the screen shown is Figure 4-61. 1) In Target Description field, create a unique description for the target (e.g. Target_1). 2) In IP Address field, enter the IP address of the target. 3) Select a common service from Common Service Port drop-down list, so that the Target Port will be automatically filled. If the Common Service Port drop-down list doesn’t have the service you want, specify the Target Port manually. 4) In Protocol field, select TCP, UDP, ICMP or ALL. z If you select Domain Name, the screen shown is Figure 4-62. 1) In Target Description field, create a unique description for the target (e.g. Target_1). -86-

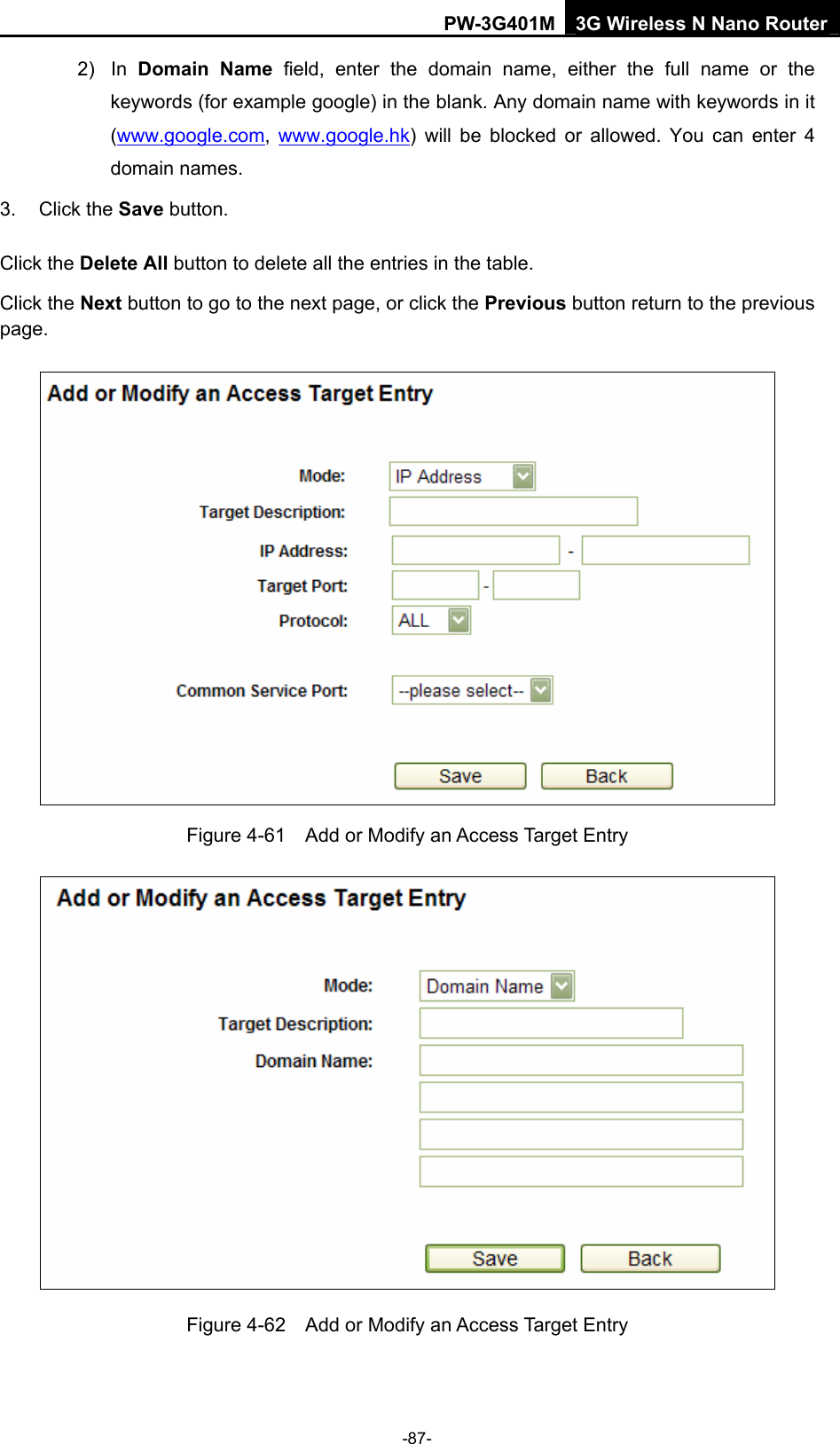

PW-3G401M 3G Wireless N Nano Router 2) In Domain Name field, enter the domain name, either the full name or the keywords (for example google) in the blank. Any domain name with keywords in it (www.google.com, www.google.hk) will be blocked or allowed. You can enter 4 domain names. 3. Click the Save button. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 4-61 Add or Modify an Access Target Entry Figure 4-62 Add or Modify an Access Target Entry -87-
PW-3G401M 3G Wireless N Nano Router For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: 1. Click Add New… button in Figure 4-60 to enter the Add or Modify an Access Target Entry page. 2. In Mode field, select Domain Name from the drop-down list. 3. In Target Description field, create a unique description for the target (e.g. Target_1). 4. In Domain Name field, enter www.google.com. 5. Click Save to complete the settings. Then you will go back to the Target Settings page and see the following list. 4.12.4 Schedule Choose menu “Access Control → Schedule”, you can view and set a Schedule list in the next screen as shown in Figure 4-63. The Schedule list is necessary for the Access Control Rule. Figure 4-63 Schedule Settings ¾ Schedule Description - Here displays the description of the schedule and this description is unique. ¾ Day - Here displays the day(s) in a week. ¾ Time - Here displays the time period in a day. ¾ Modify - Here you can edit or delete an existing schedule. To add a new schedule, follow the steps below. 1. Click Add New... button shown in Figure 4-63 and the next screen will pop-up as shown in Figure 4-64. 2. In Schedule Description field, create a unique description for the schedule (e.g. Schedule_1). 3. In Day field, select the day or days you need. -88-
PW-3G401M 3G Wireless N Nano Router 4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time in the corresponding field. 5. Click Save to complete the settings. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 4-64 Advanced Schedule Settings For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, you should first follow the settings below: 1. Click Add New... button shown in Figure 4-63 to enter the Advanced Schedule Settings page. 2. In Schedule Description field, create a unique description for the schedule (e.g. Schedule_1). 3. In Day field, check the Select Days radio button and then select Sat and Sun. 4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field. 5. Click Save to complete the settings. Then you will go back to the Schedule Settings page and see the following list. -89-

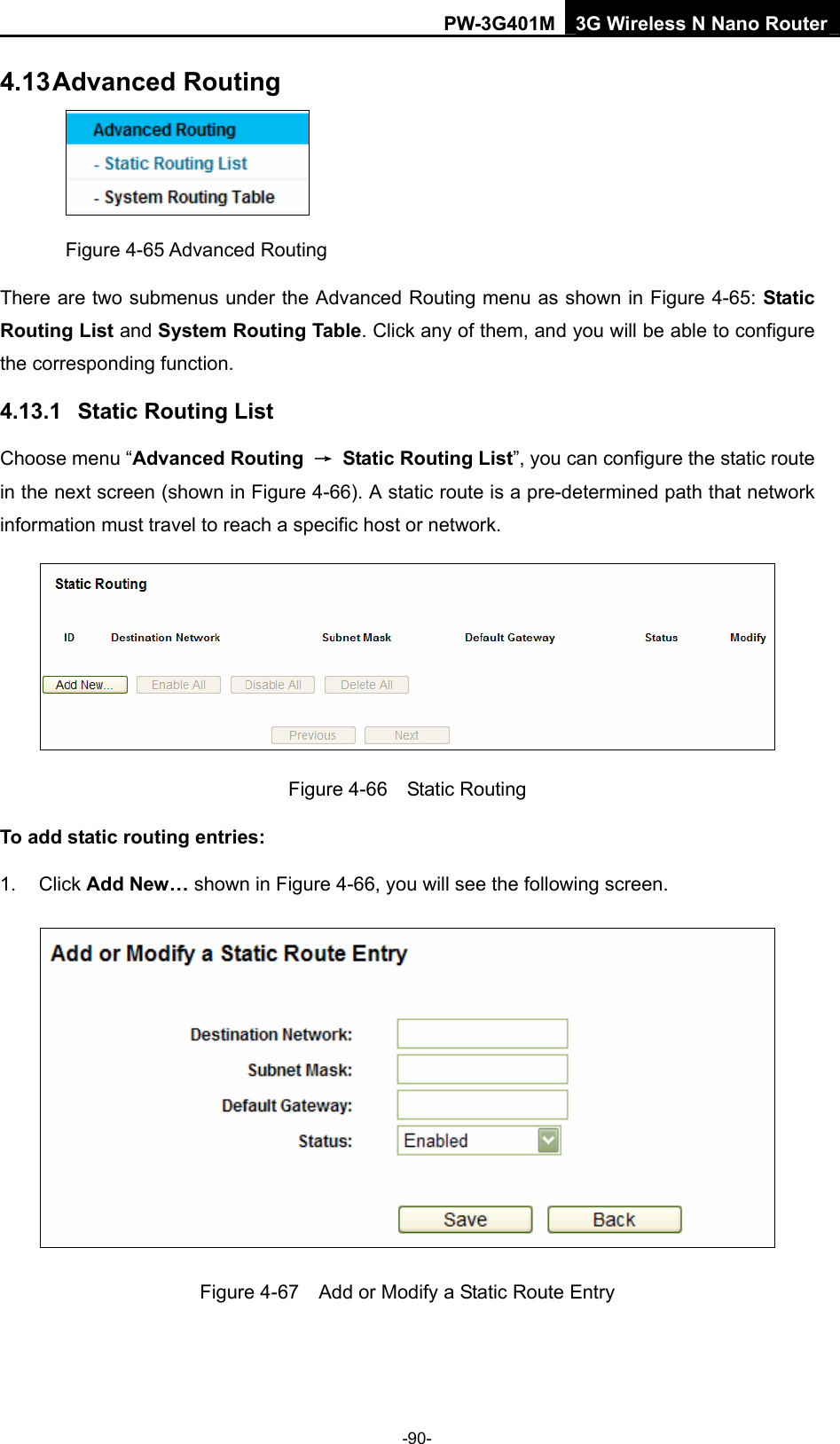

PW-3G401M 3G Wireless N Nano Router 4.13 Advanced Routing Figure 4-65 Advanced Routing There are two submenus under the Advanced Routing menu as shown in Figure 4-65: Static Routing List and System Routing Table. Click any of them, and you will be able to configure the corresponding function. 4.13.1 Static Routing List Choose menu “Advanced Routing → Static Routing List”, you can configure the static route in the next screen (shown in Figure 4-66). A static route is a pre-determined path that network information must travel to reach a specific host or network. Figure 4-66 Static Routing To add static routing entries: 1. Click Add New… shown in Figure 4-66, you will see the following screen. Figure 4-67 Add or Modify a Static Route Entry -90-

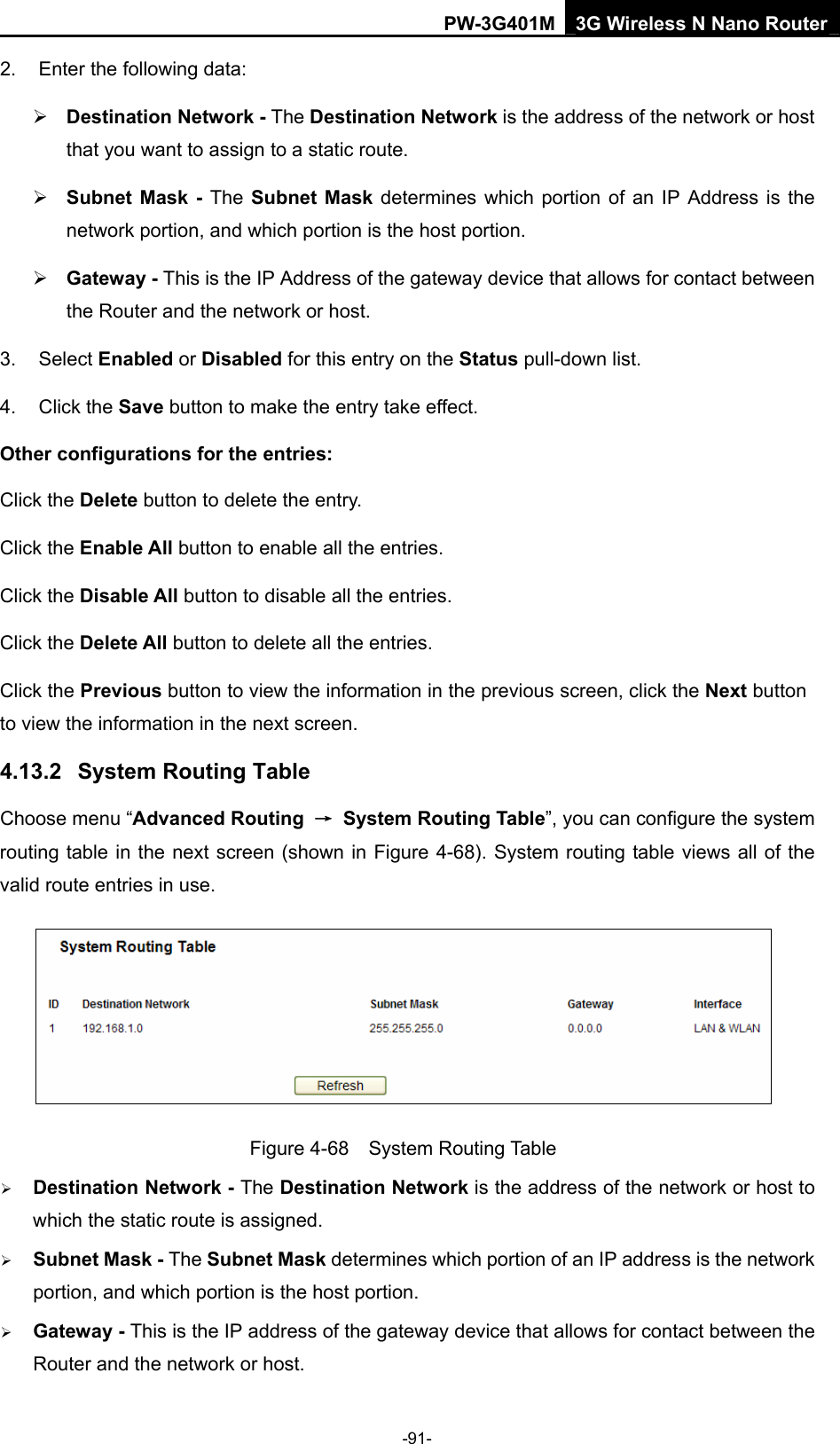

PW-3G401M 3G Wireless N Nano Router 2. Enter the following data: ¾ Destination Network - The Destination Network is the address of the network or host that you want to assign to a static route. ¾ Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is the host portion. ¾ Gateway - This is the IP Address of the gateway device that allows for contact between the Router and the network or host. 3. Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to make the entry take effect. Other configurations for the entries: Click the Delete button to delete the entry. Click the Enable All button to enable all the entries. Click the Disable All button to disable all the entries. Click the Delete All button to delete all the entries. Click the Previous button to view the information in the previous screen, click the Next button to view the information in the next screen. 4.13.2 System Routing Table Choose menu “Advanced Routing → System Routing Table”, you can configure the system routing table in the next screen (shown in Figure 4-68). System routing table views all of the valid route entries in use. Figure 4-68 System Routing Table ¾ Destination Network - The Destination Network is the address of the network or host to which the static route is assigned. ¾ Subnet Mask - The Subnet Mask determines which portion of an IP address is the network portion, and which portion is the host portion. ¾ Gateway - This is the IP address of the gateway device that allows for contact between the Router and the network or host. -91-

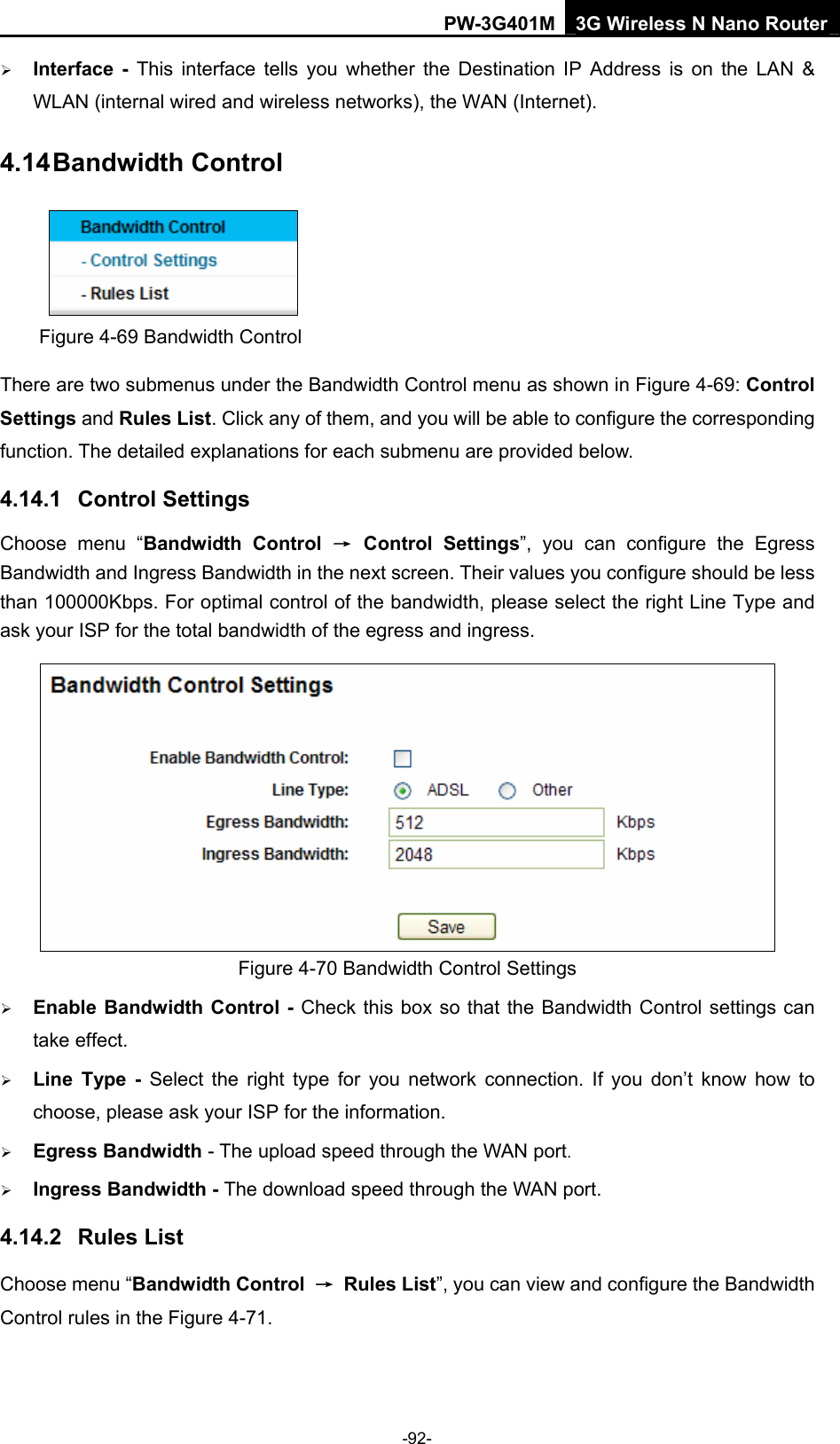

PW-3G401M 3G Wireless N Nano Router ¾ Interface - This interface tells you whether the Destination IP Address is on the LAN & WLAN (internal wired and wireless networks), the WAN (Internet). 4.14 Bandwidth Control Figure 4-69 Bandwidth Control There are two submenus under the Bandwidth Control menu as shown in Figure 4-69: Control Settings and Rules List. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 4.14.1 Control Settings Choose menu “Bandwidth Control → Control Settings”, you can configure the Egress Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should be less than 100000Kbps. For optimal control of the bandwidth, please select the right Line Type and ask your ISP for the total bandwidth of the egress and ingress. Figure 4-70 Bandwidth Control Settings ¾ Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take effect. ¾ Line Type - Select the right type for you network connection. If you don’t know how to choose, please ask your ISP for the information. ¾ Egress Bandwidth - The upload speed through the WAN port. ¾ Ingress Bandwidth - The download speed through the WAN port. 4.14.2 Rules List Choose menu “Bandwidth Control → Rules List”, you can view and configure the Bandwidth Control rules in the Figure 4-71. -92-

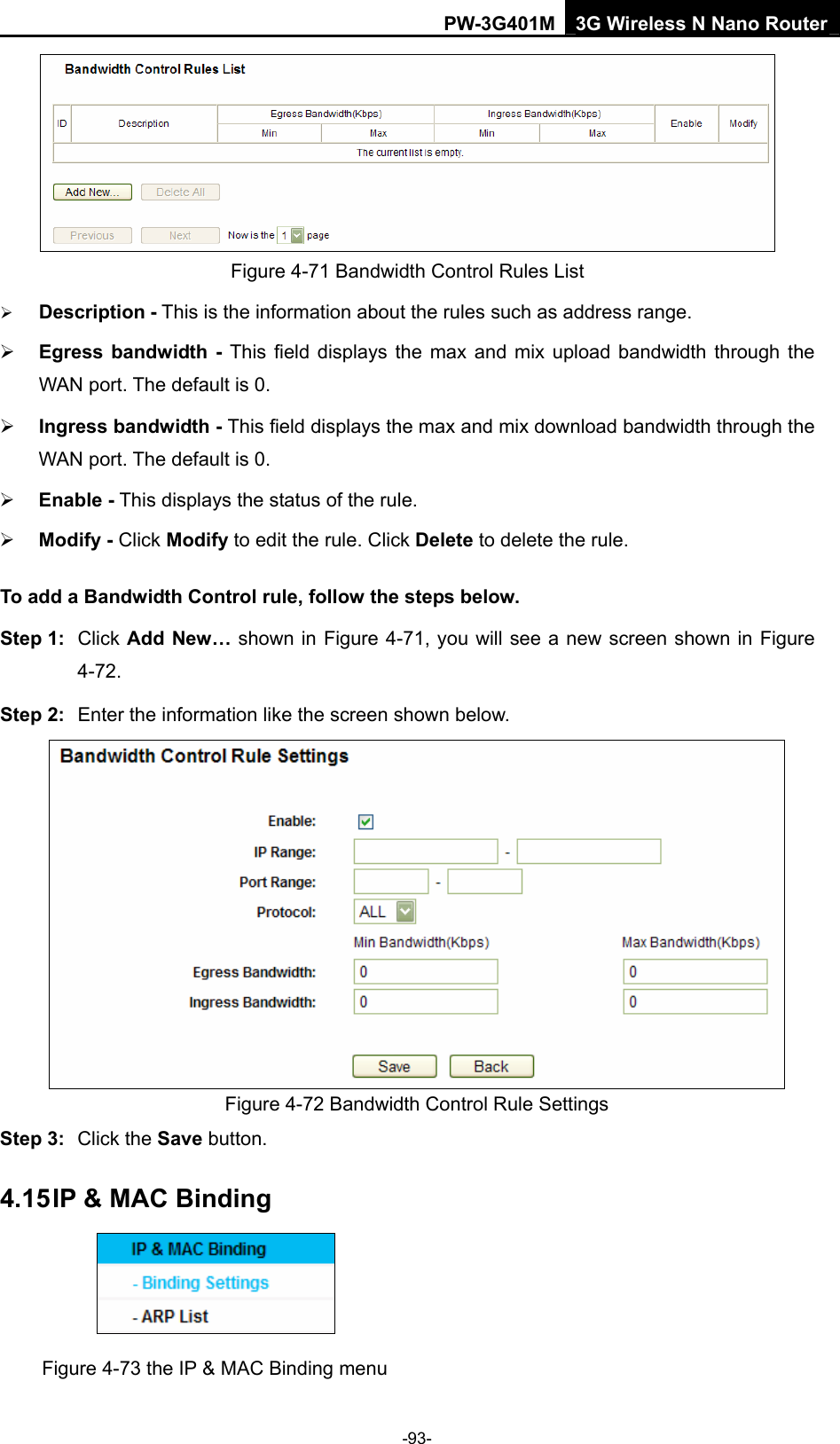

PW-3G401M 3G Wireless N Nano Router Figure 4-71 Bandwidth Control Rules List ¾ Description - This is the information about the rules such as address range. ¾ Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN port. The default is 0. ¾ Ingress bandwidth - This field displays the max and mix download bandwidth through the WAN port. The default is 0. ¾ Enable - This displays the status of the rule. ¾ Modify - Click Modify to edit the rule. Click Delete to delete the rule. To add a Bandwidth Control rule, follow the steps below. Step 1: Click Add New… shown in Figure 4-71, you will see a new screen shown in Figure 4-72. Step 2: Enter the information like the screen shown below. Figure 4-72 Bandwidth Control Rule Settings Step 3: Click the Save button. 4.15 IP & MAC Binding Figure 4-73 the IP & MAC Binding menu -93-

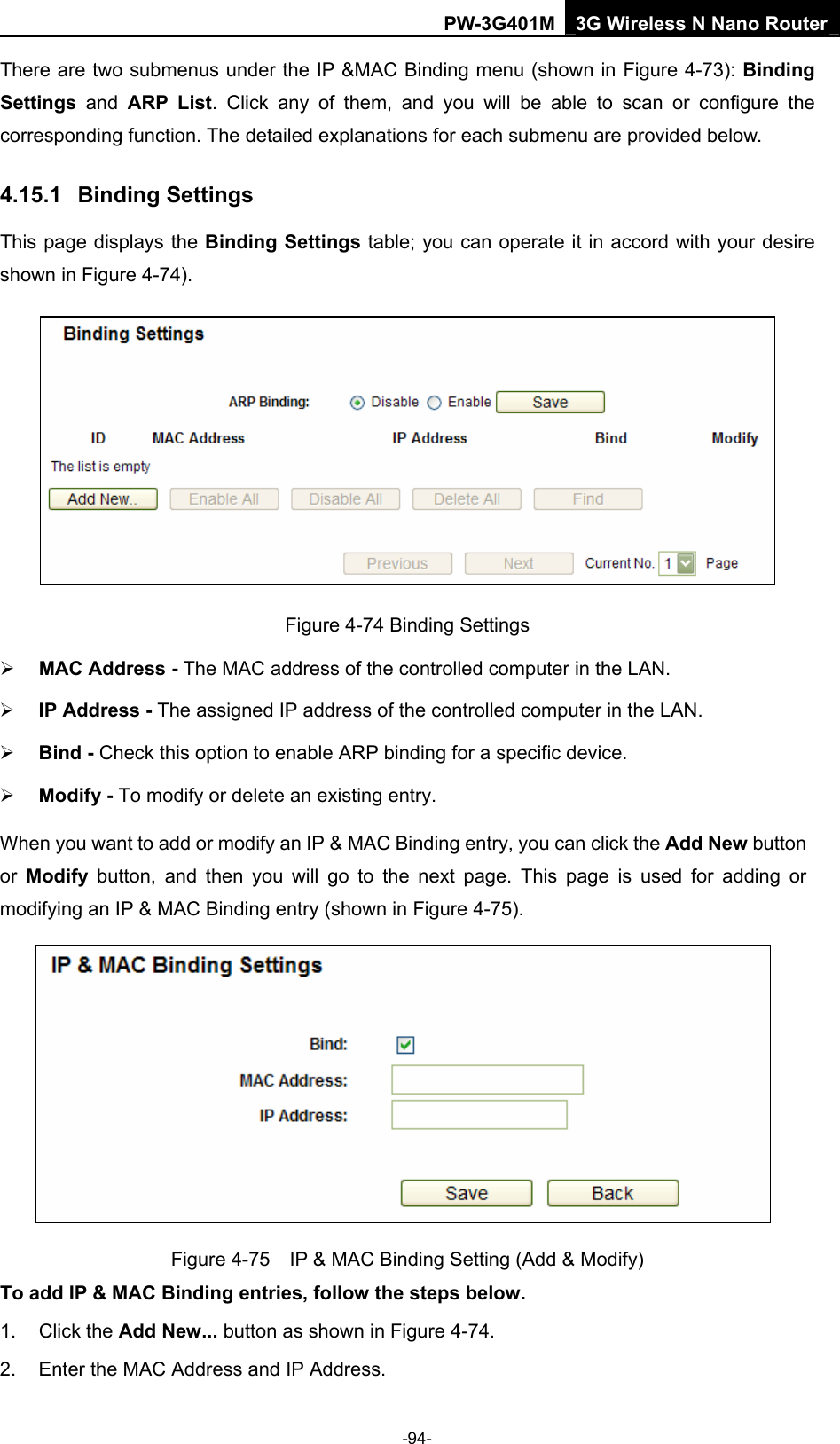

PW-3G401M 3G Wireless N Nano Router There are two submenus under the IP &MAC Binding menu (shown in Figure 4-73): Binding Settings and ARP List. Click any of them, and you will be able to scan or configure the corresponding function. The detailed explanations for each submenu are provided below. 4.15.1 Binding Settings This page displays the Binding Settings table; you can operate it in accord with your desire shown in Figure 4-74). Figure 4-74 Binding Settings ¾ MAC Address - The MAC address of the controlled computer in the LAN. ¾ IP Address - The assigned IP address of the controlled computer in the LAN. ¾ Bind - Check this option to enable ARP binding for a specific device. ¾ Modify - To modify or delete an existing entry. When you want to add or modify an IP & MAC Binding entry, you can click the Add New button or Modify button, and then you will go to the next page. This page is used for adding or modifying an IP & MAC Binding entry (shown in Figure 4-75). Figure 4-75 IP & MAC Binding Setting (Add & Modify) To add IP & MAC Binding entries, follow the steps below. 1. Click the Add New... button as shown in Figure 4-74. 2. Enter the MAC Address and IP Address. -94-

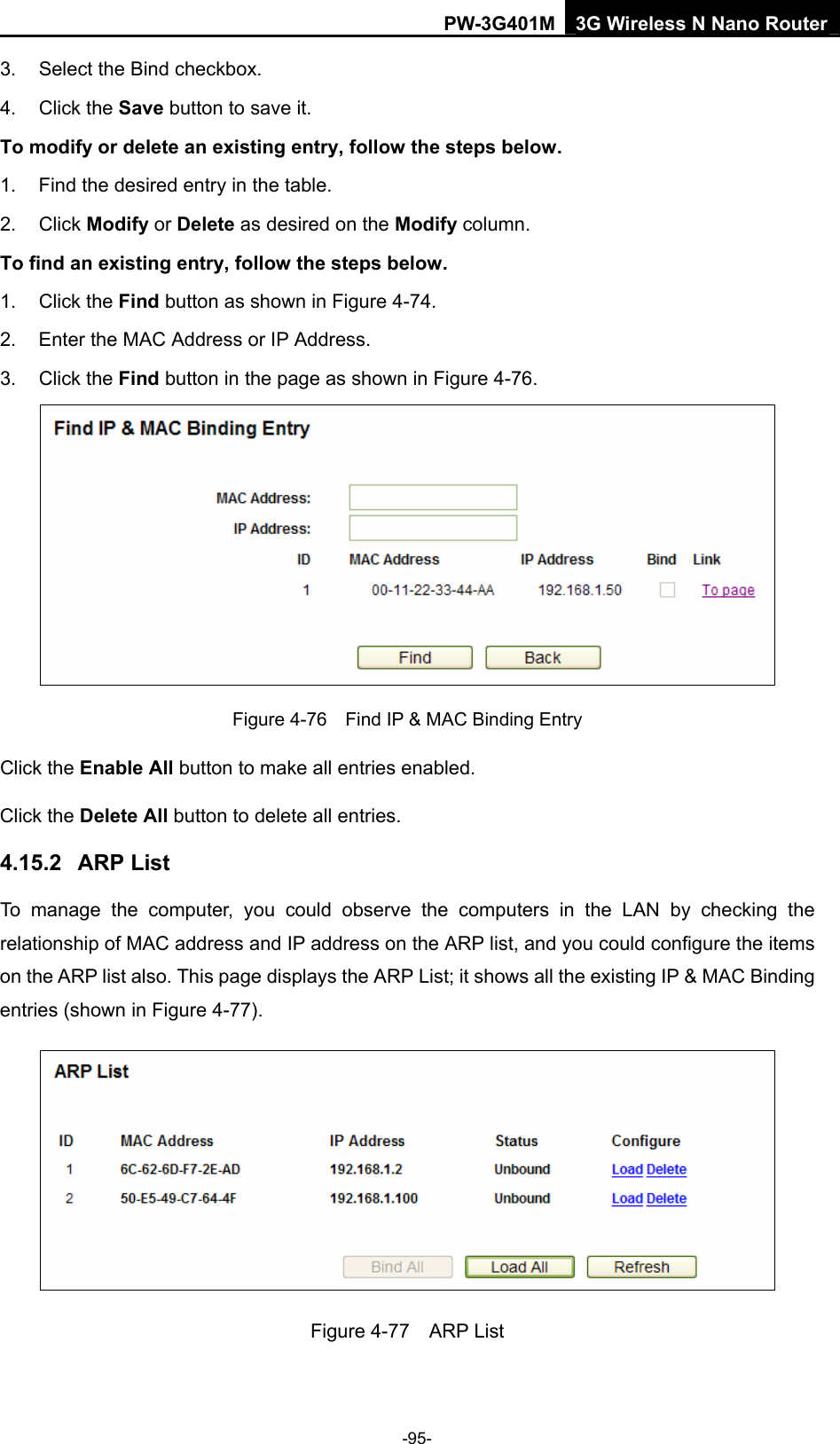

PW-3G401M 3G Wireless N Nano Router 3. Select the Bind checkbox. 4. Click the Save button to save it. To modify or delete an existing entry, follow the steps below. 1. Find the desired entry in the table. 2. Click Modify or Delete as desired on the Modify column. To find an existing entry, follow the steps below. 1. Click the Find button as shown in Figure 4-74. 2. Enter the MAC Address or IP Address. 3. Click the Find button in the page as shown in Figure 4-76. Figure 4-76 Find IP & MAC Binding Entry Click the Enable All button to make all entries enabled. Click the Delete All button to delete all entries. 4.15.2 ARP List To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding entries (shown in Figure 4-77). Figure 4-77 ARP List -95-

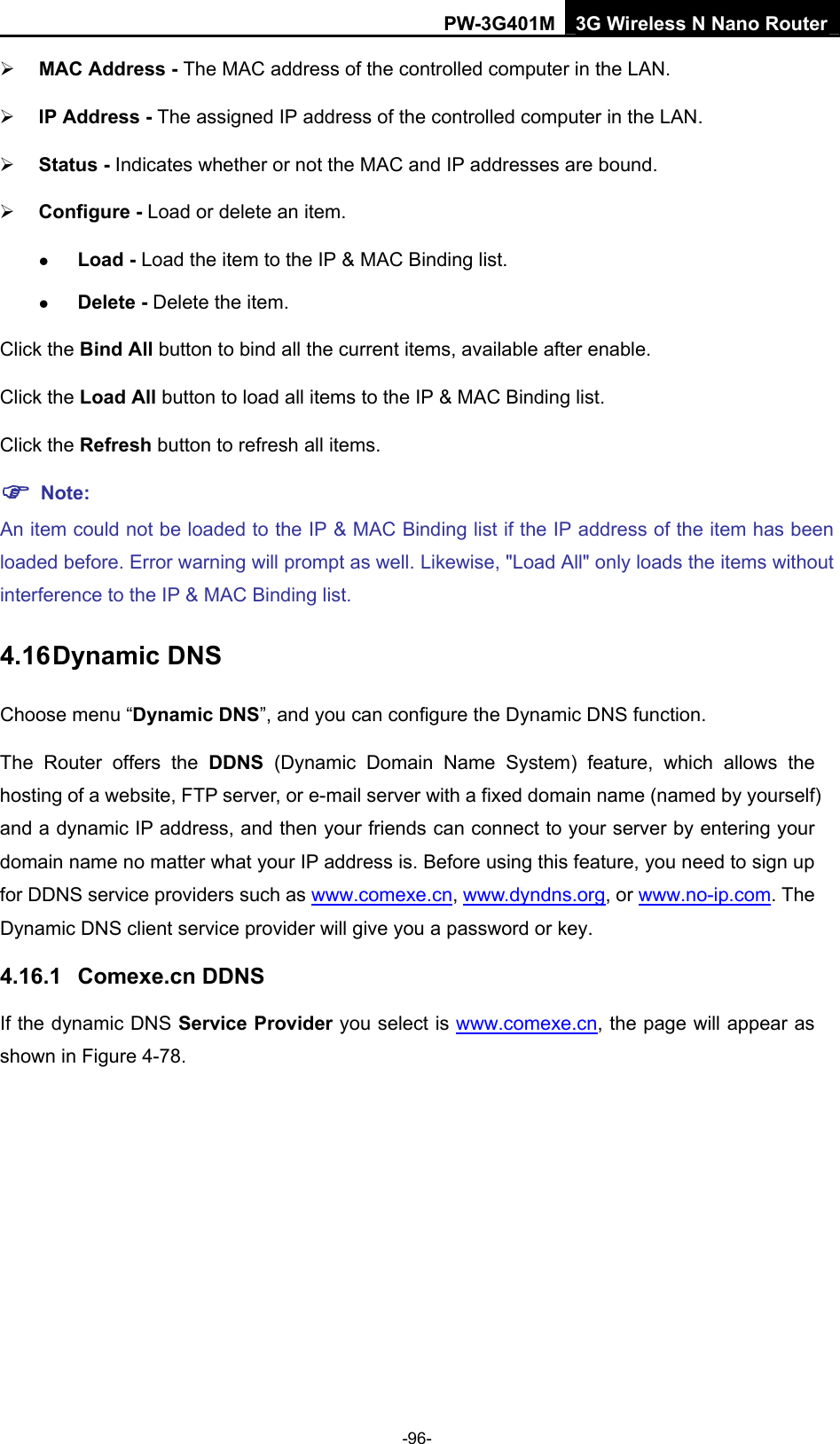

PW-3G401M 3G Wireless N Nano Router ¾ MAC Address - The MAC address of the controlled computer in the LAN. ¾ IP Address - The assigned IP address of the controlled computer in the LAN. ¾ Status - Indicates whether or not the MAC and IP addresses are bound. ¾ Configure - Load or delete an item. z Load - Load the item to the IP & MAC Binding list. z Delete - Delete the item. Click the Bind All button to bind all the current items, available after enable. Click the Load All button to load all items to the IP & MAC Binding list. Click the Refresh button to refresh all items. ) Note: An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without interference to the IP & MAC Binding list. 4.16 Dynamic DNS Choose menu “Dynamic DNS”, and you can configure the Dynamic DNS function. The Router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a dynamic IP address, and then your friends can connect to your server by entering your domain name no matter what your IP address is. Before using this feature, you need to sign up for DDNS service providers such as www.comexe.cn, www.dyndns.org, or www.no-ip.com. The Dynamic DNS client service provider will give you a password or key. 4.16.1 Comexe.cn DDNS If the dynamic DNS Service Provider you select is www.comexe.cn, the page will appear as shown in Figure 4-78. -96-

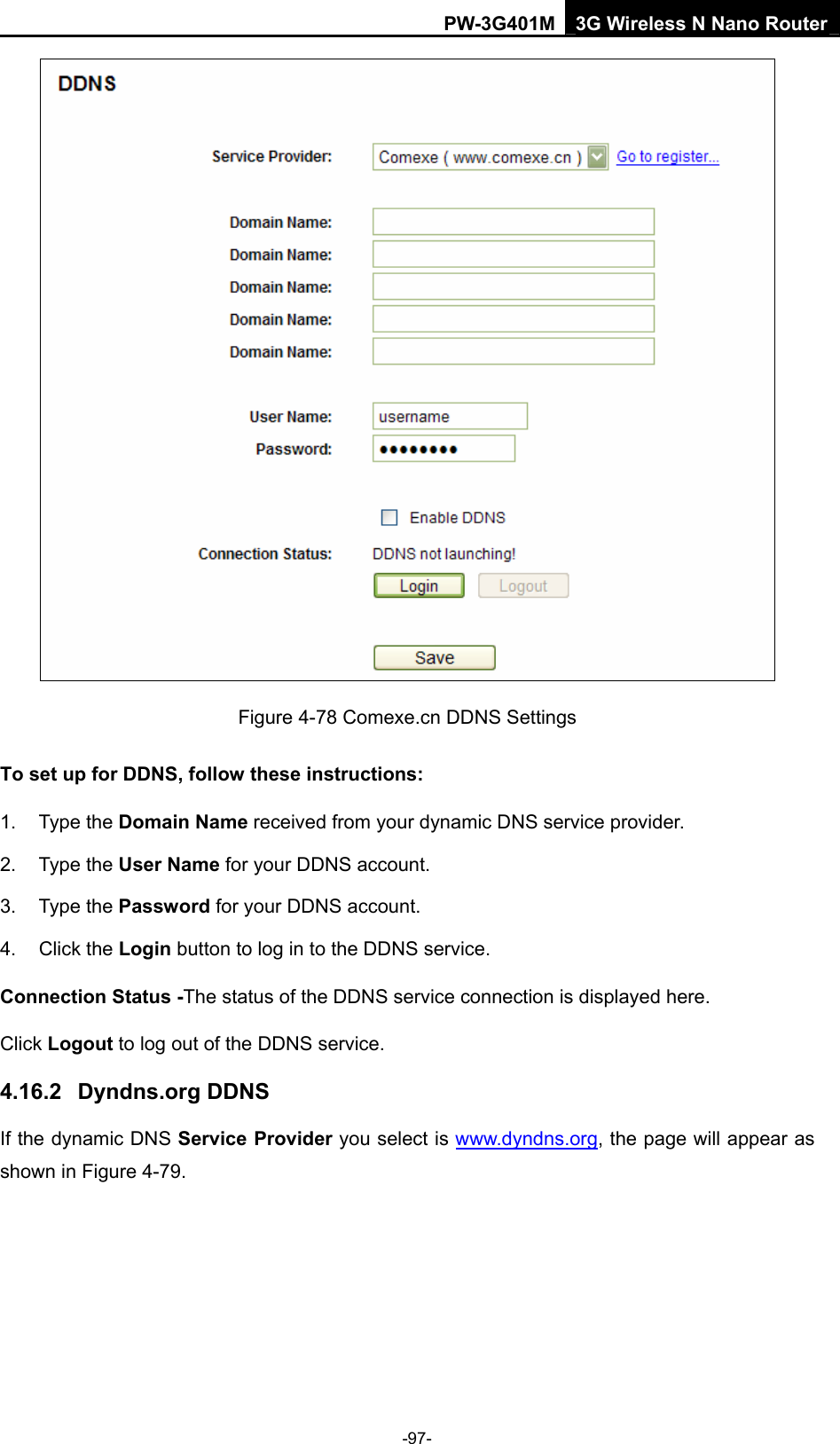

PW-3G401M 3G Wireless N Nano Router Figure 4-78 Comexe.cn DDNS Settings To set up for DDNS, follow these instructions: 1. Type the Domain Name received from your dynamic DNS service provider. 2. Type the User Name for your DDNS account. 3. Type the Password for your DDNS account. 4. Click the Login button to log in to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here. Click Logout to log out of the DDNS service. 4.16.2 Dyndns.org DDNS If the dynamic DNS Service Provider you select is www.dyndns.org, the page will appear as shown in Figure 4-79. -97-
PW-3G401M 3G Wireless N Nano Router Figure 4-79 Dyndns.org DDNS Settings To set up for DDNS, follow these instructions: 1. Type the User Name for your DDNS account. 2. Type the Password for your DDNS account. 3. Type the Domain Name you received from dynamic DNS service provider here. 4. Click the Login button to log in to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here. Click Logout to logout of the DDNS service. 4.16.3 No-ip.com DDNS If the dynamic DNS Service Provider you select is www.no-ip.com, the page will appear as shown in Figure 4-80. -98-

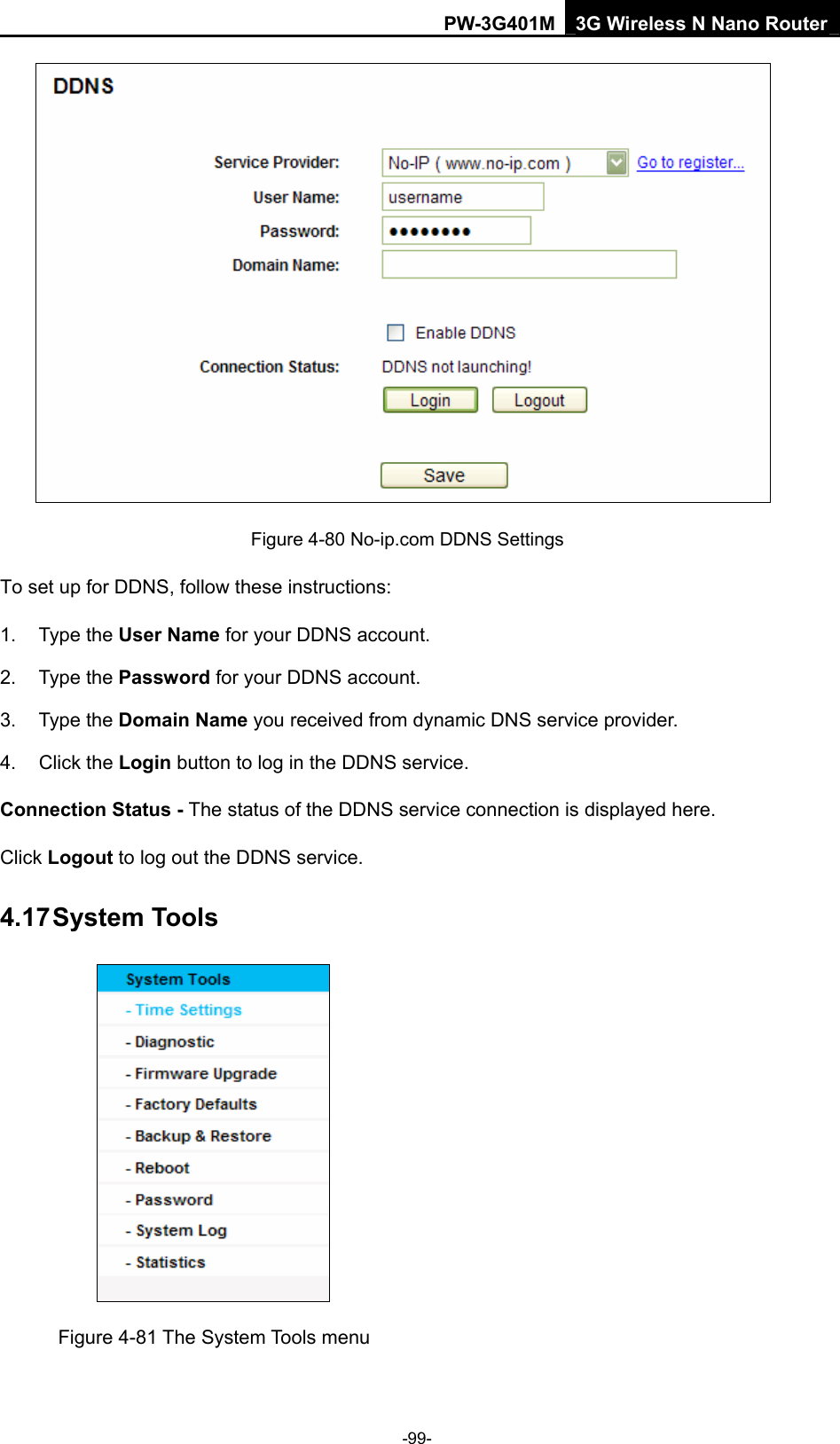

PW-3G401M 3G Wireless N Nano Router Figure 4-80 No-ip.com DDNS Settings To set up for DDNS, follow these instructions: 1. Type the User Name for your DDNS account. 2. Type the Password for your DDNS account. 3. Type the Domain Name you received from dynamic DNS service provider. 4. Click the Login button to log in the DDNS service. Connection Status - The status of the DDNS service connection is displayed here. Click Logout to log out the DDNS service. 4.17 System Tools Figure 4-81 The System Tools menu -99-
PW-3G401M 3G Wireless N Nano Router Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log and Statistics. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 4.17.1 Time Settings Choose menu “System Tools→Time Setting”, and then you can configure the time on the following screen. Figure 4-82 Time settings ¾ Time Zone - Select your local time zone from this pull down list. ¾ Date - Enter your local date in MM/DD/YY into the right blanks. ¾ Time - Enter your local time in HH/MM/SS into the right blanks. ¾ NTP Server I / NTP Server II - Enter the address or domain of the NTP Server I or NTP Server II, and then the Router will get the time from the NTP Server preferentially. In addition, the Router built-in some common NTP Servers, so it can get time automatically once it connects the Internet. ¾ Enable Daylight Saving - Check the box to enable the Daylight Saving function. ¾ Start - The time to start the Daylight Saving. Select the month in the first field, the week in the second field, the day in the third field and the time in the last field. ¾ End - The time to end the Daylight Saving. Select the month in the first field, the week in the second field, the day in the third field and the time in the last field. -100-

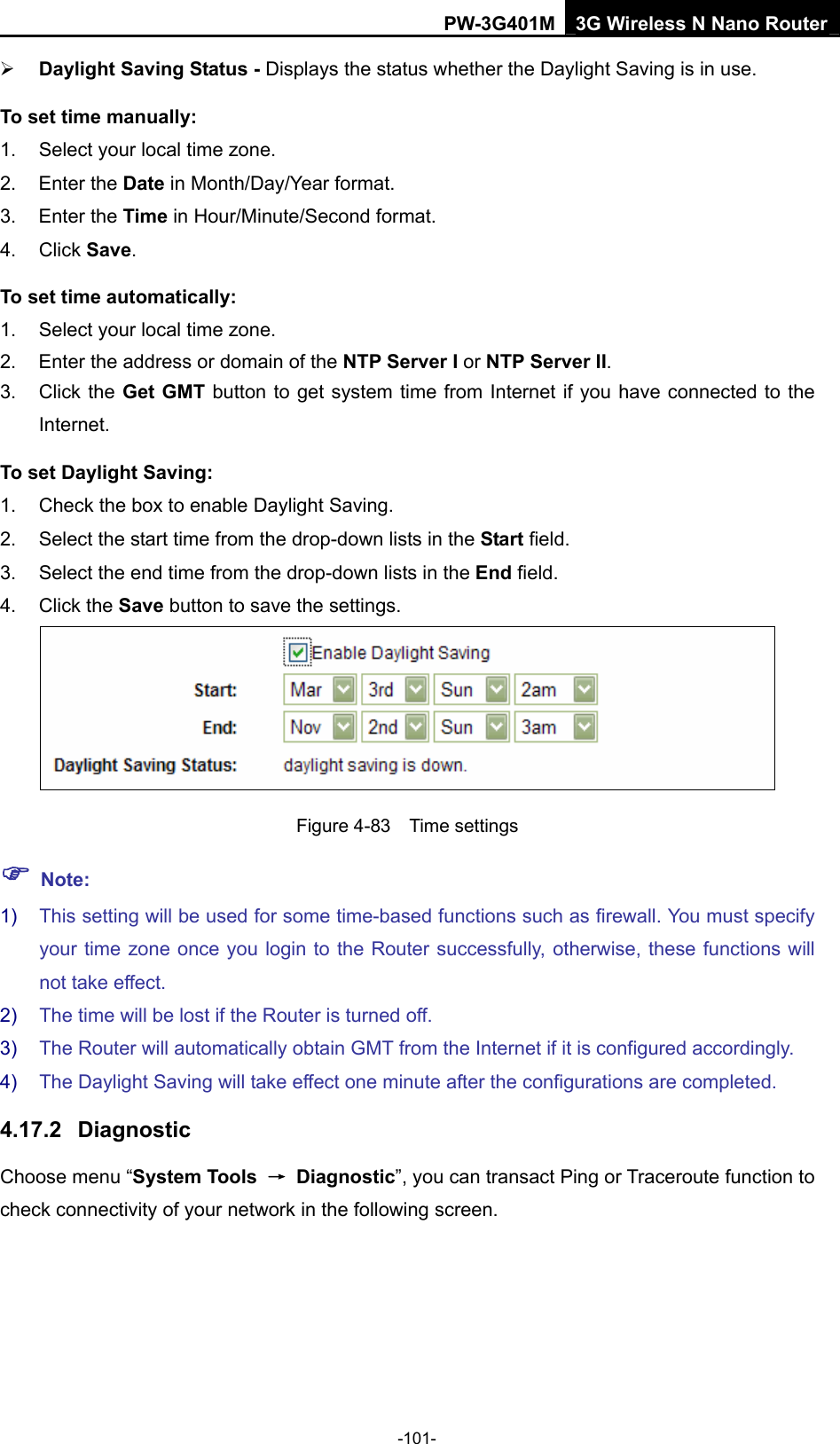

PW-3G401M 3G Wireless N Nano Router ¾ Daylight Saving Status - Displays the status whether the Daylight Saving is in use. To set time manually: 1. Select your local time zone. 2. Enter the Date in Month/Day/Year format. 3. Enter the Time in Hour/Minute/Second format. 4. Click Save. To set time automatically: 1. Select your local time zone. 2. Enter the address or domain of the NTP Server I or NTP Server II. 3. Click the Get GMT button to get system time from Internet if you have connected to the Internet. To set Daylight Saving: 1. Check the box to enable Daylight Saving. 2. Select the start time from the drop-down lists in the Start field. 3. Select the end time from the drop-down lists in the End field. 4. Click the Save button to save the settings. Figure 4-83 Time settings ) Note: 1) This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the Router successfully, otherwise, these functions will not take effect. 2) The time will be lost if the Router is turned off. 3) The Router will automatically obtain GMT from the Internet if it is configured accordingly. 4) The Daylight Saving will take effect one minute after the configurations are completed. 4.17.2 Diagnostic Choose menu “System Tools → Diagnostic”, you can transact Ping or Traceroute function to check connectivity of your network in the following screen. -101-
PW-3G401M 3G Wireless N Nano Router Figure 4-84 Diagnostic Tools ¾ Diagnostic Tool - Check the radio button to select one diagnostic too. z Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to a given host or gateway. z Traceroute - This diagnostic tool tests the performance of a connection. ) Note: You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem. In this case, ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries. IP Address/Domain Name - Type the destination IP address (such as 202.108.22.5) or Domain name. ¾ Pings Count - The number of Ping packets for a Ping connection. ¾ Ping Packet Size - The size of Ping packet. ¾ Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in the specified time, the connection is overtime. -102-

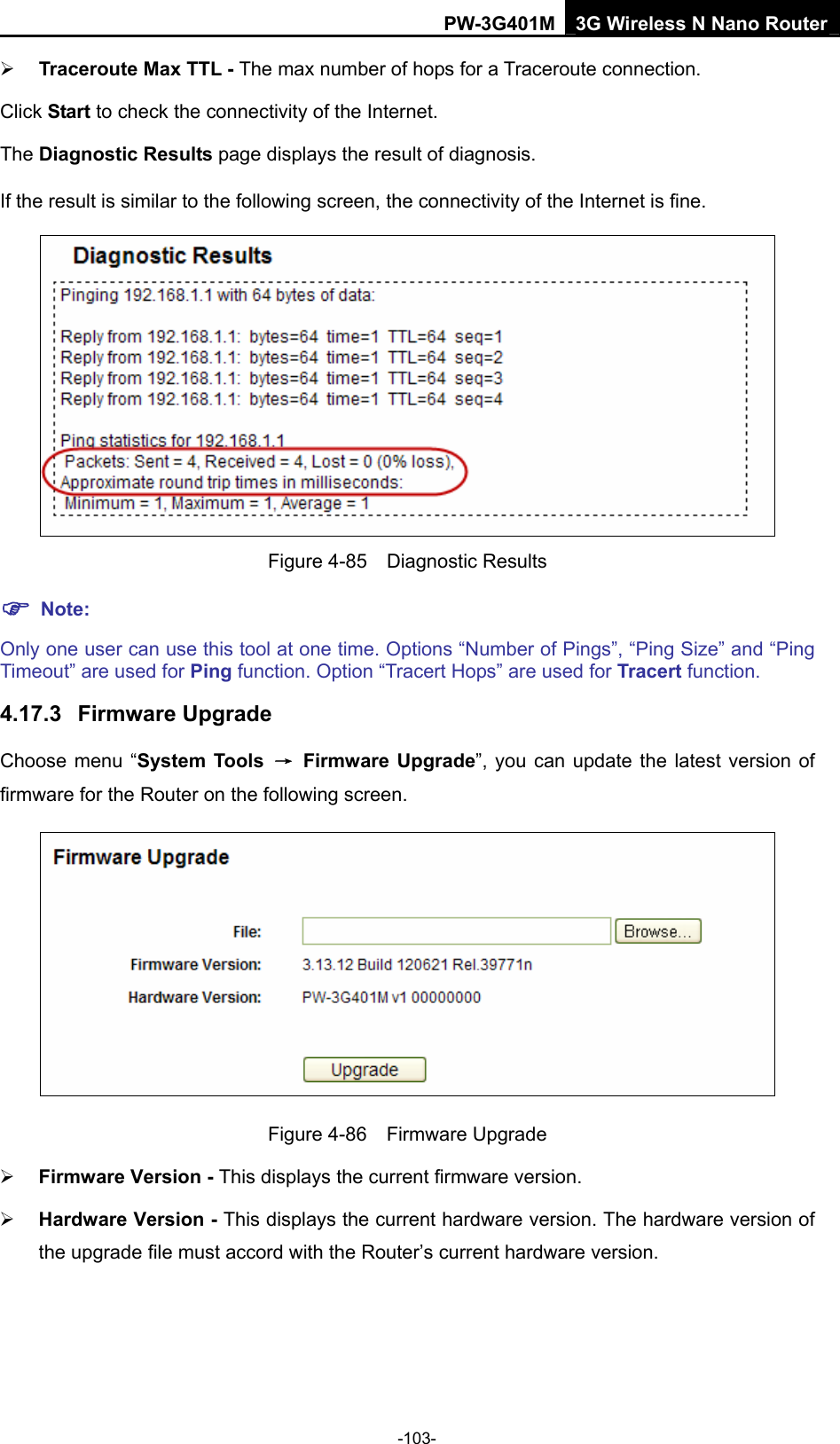

PW-3G401M 3G Wireless N Nano Router ¾ Traceroute Max TTL - The max number of hops for a Traceroute connection. Click Start to check the connectivity of the Internet. The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen, the connectivity of the Internet is fine. Figure 4-85 Diagnostic Results ) Note: Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function. 4.17.3 Firmware Upgrade Choose menu “System Tools → Firmware Upgrade”, you can update the latest version of firmware for the Router on the following screen. Figure 4-86 Firmware Upgrade ¾ Firmware Version - This displays the current firmware version. ¾ Hardware Version - This displays the current hardware version. The hardware version of the upgrade file must accord with the Router’s current hardware version. -103-

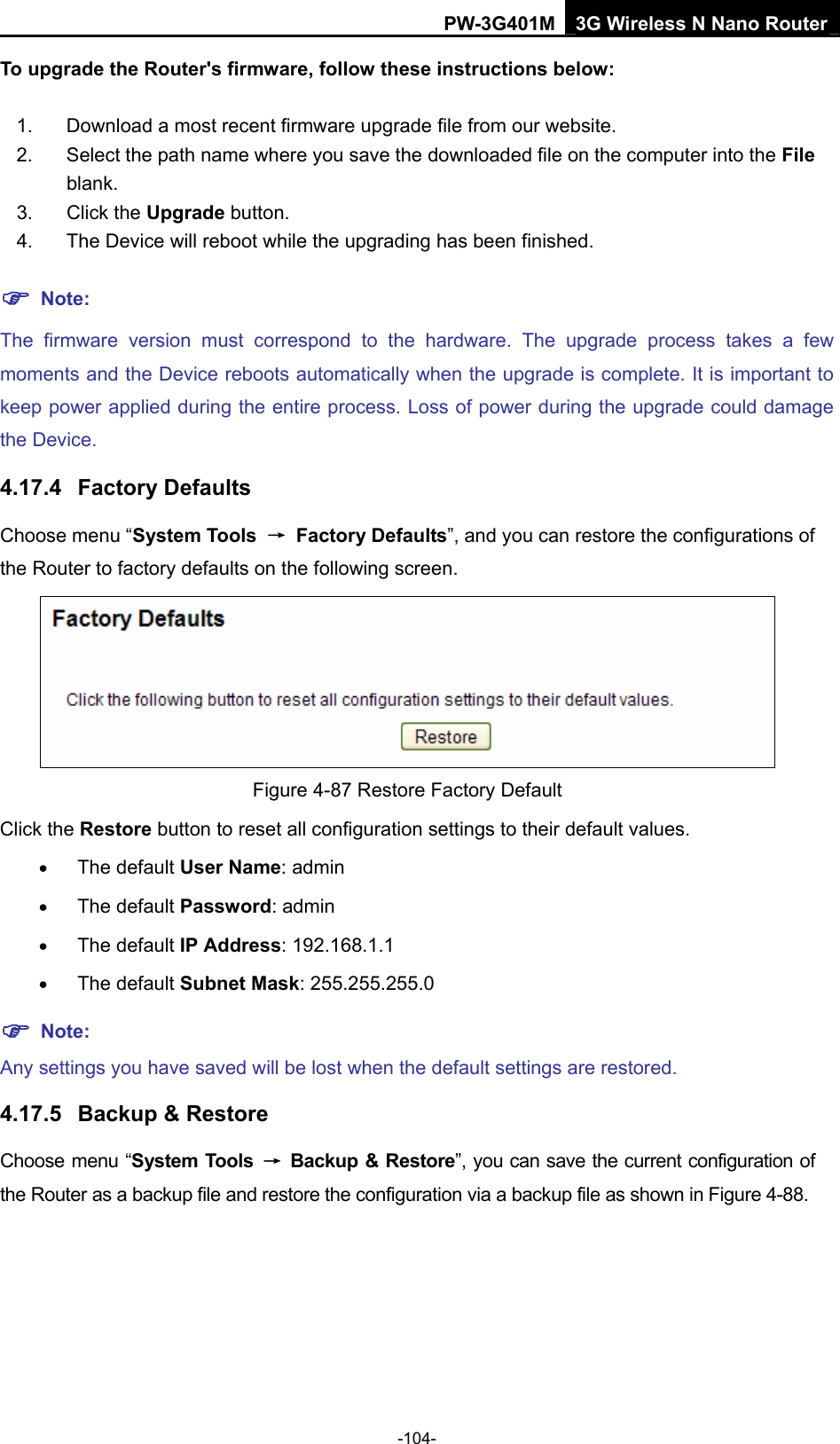

PW-3G401M 3G Wireless N Nano Router To upgrade the Router's firmware, follow these instructions below: 1. Download a most recent firmware upgrade file from our website. 2. Select the path name where you save the downloaded file on the computer into the File blank. 3. Click the Upgrade button. 4. The Device will reboot while the upgrading has been finished. ) Note: The firmware version must correspond to the hardware. The upgrade process takes a few moments and the Device reboots automatically when the upgrade is complete. It is important to keep power applied during the entire process. Loss of power during the upgrade could damage the Device. 4.17.4 Factory Defaults Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of the Router to factory defaults on the following screen. Figure 4-87 Restore Factory Default Click the Restore button to reset all configuration settings to their default values. • The default User Name: admin • The default Password: admin • The default IP Address: 192.168.1.1 • The default Subnet Mask: 255.255.255.0 ) Note: Any settings you have saved will be lost when the default settings are restored. 4.17.5 Backup & Restore Choose menu “System Tools → Backup & Restore”, you can save the current configuration of the Router as a backup file and restore the configuration via a backup file as shown in Figure 4-88. -104-

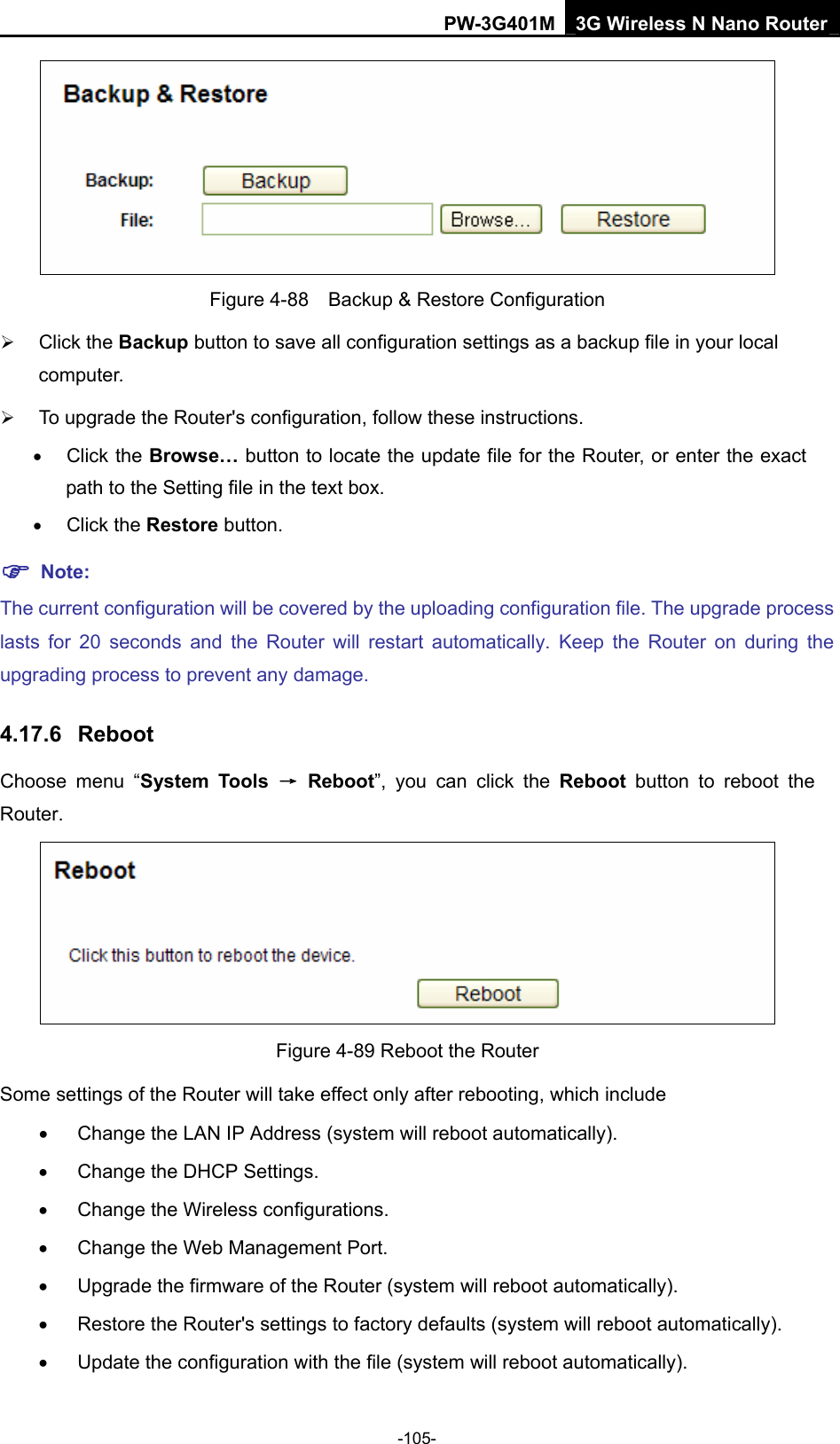

PW-3G401M 3G Wireless N Nano Router Figure 4-88 Backup & Restore Configuration ¾ Click the Backup button to save all configuration settings as a backup file in your local computer. ¾ To upgrade the Router's configuration, follow these instructions. • Click the Browse… button to locate the update file for the Router, or enter the exact path to the Setting file in the text box. • Click the Restore button. ) Note: The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the upgrading process to prevent any damage. 4.17.6 Reboot Choose menu “System Tools → Reboot”, you can click the Reboot button to reboot the Router. Figure 4-89 Reboot the Router Some settings of the Router will take effect only after rebooting, which include • Change the LAN IP Address (system will reboot automatically). • Change the DHCP Settings. • Change the Wireless configurations. • Change the Web Management Port. • Upgrade the firmware of the Router (system will reboot automatically). • Restore the Router's settings to factory defaults (system will reboot automatically). • Update the configuration with the file (system will reboot automatically). -105-

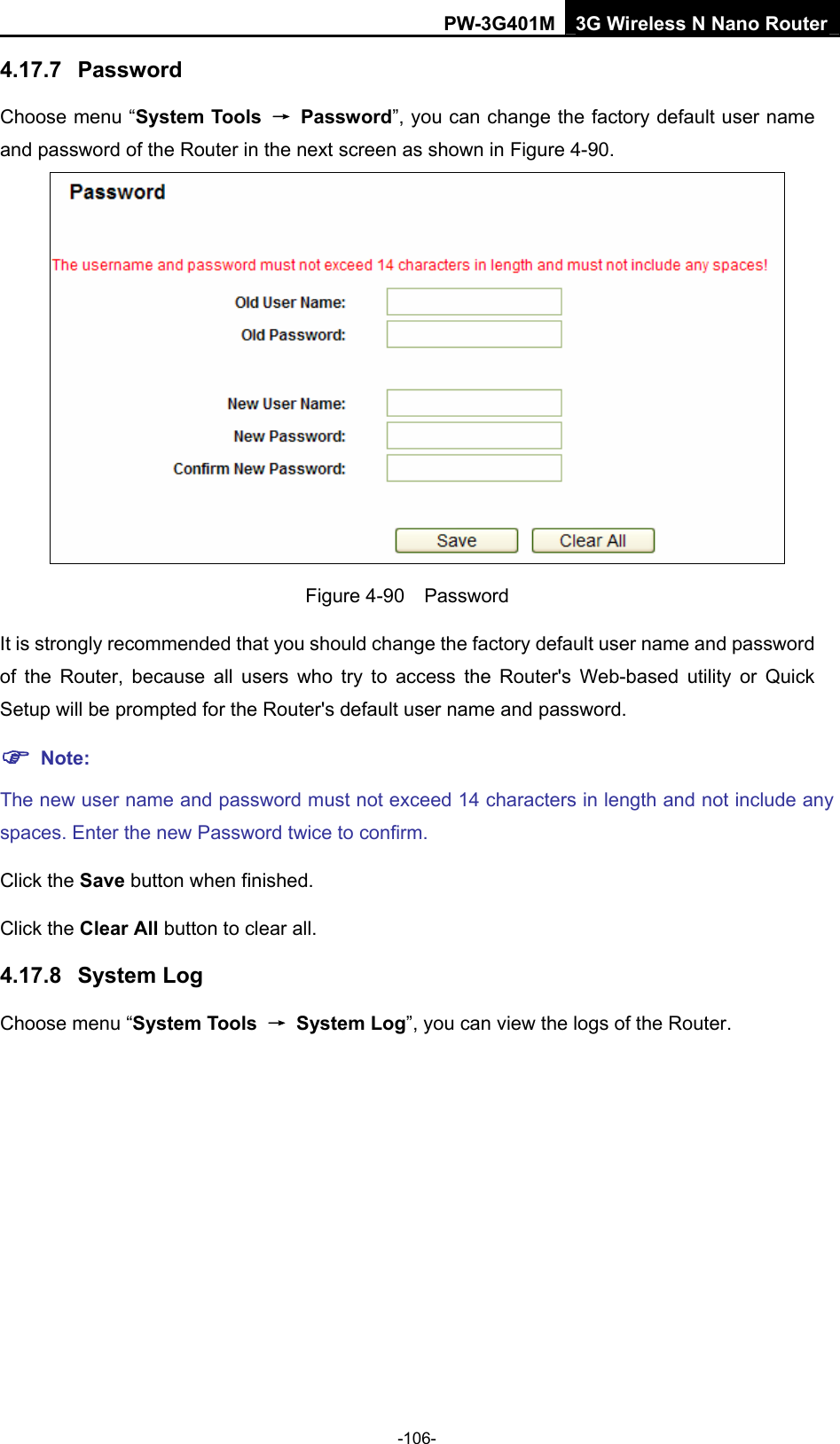

PW-3G401M 3G Wireless N Nano Router 4.17.7 Password Choose menu “System Tools → Password”, you can change the factory default user name and password of the Router in the next screen as shown in Figure 4-90. Figure 4-90 Password It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password. ) Note: The new user name and password must not exceed 14 characters in length and not include any spaces. Enter the new Password twice to confirm. Click the Save button when finished. Click the Clear All button to clear all. 4.17.8 System Log Choose menu “System Tools → System Log”, you can view the logs of the Router. -106-

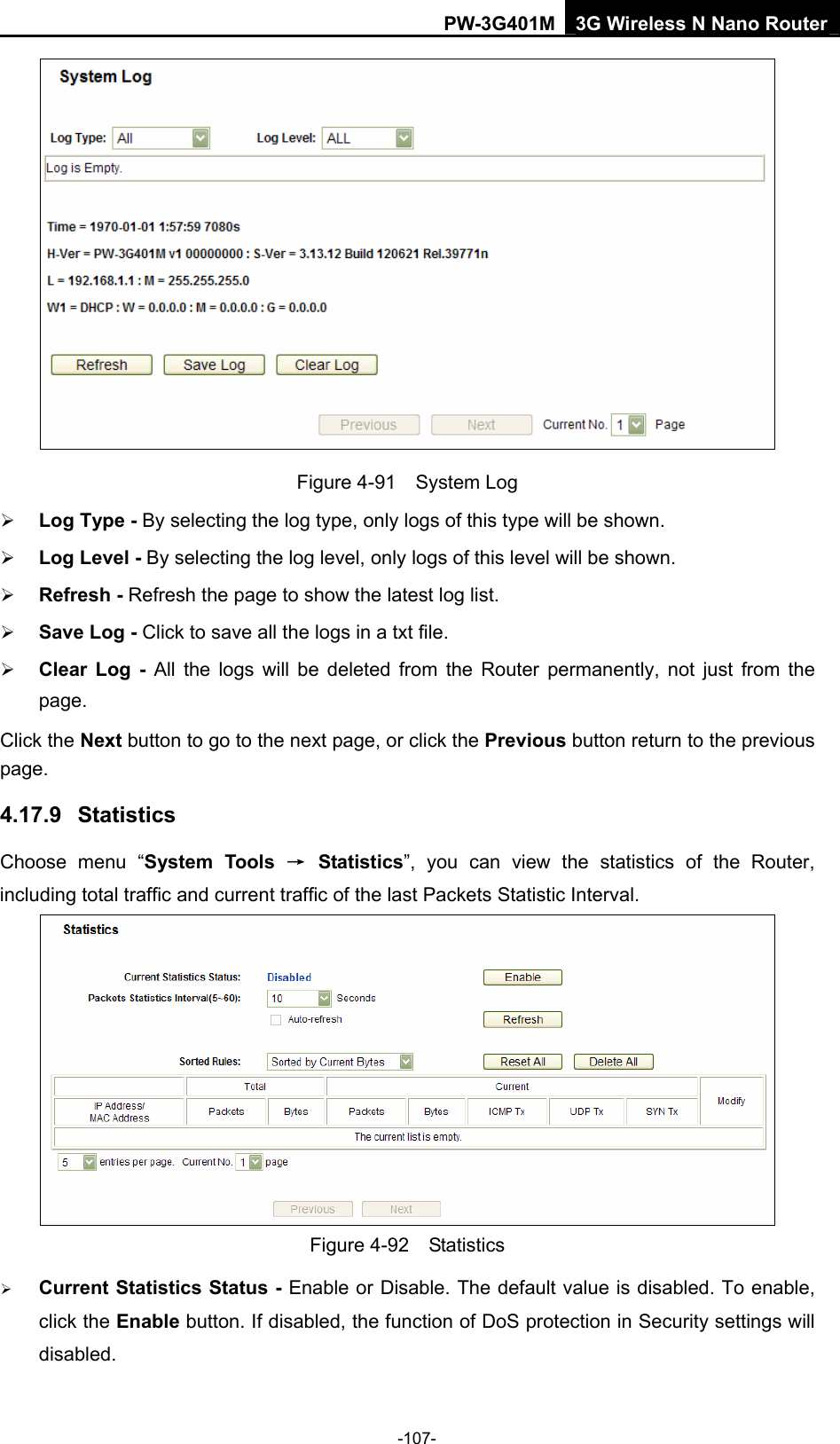

PW-3G401M 3G Wireless N Nano Router Figure 4-91 System Log ¾ Log Type - By selecting the log type, only logs of this type will be shown. ¾ Log Level - By selecting the log level, only logs of this level will be shown. ¾ Refresh - Refresh the page to show the latest log list. ¾ Save Log - Click to save all the logs in a txt file. ¾ Clear Log - All the logs will be deleted from the Router permanently, not just from the page. Click the Next button to go to the next page, or click the Previous button return to the previous page. 4.17.9 Statistics Choose menu “System Tools → Statistics”, you can view the statistics of the Router, including total traffic and current traffic of the last Packets Statistic Interval. Figure 4-92 Statistics ¾ Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click the Enable button. If disabled, the function of DoS protection in Security settings will disabled. -107-

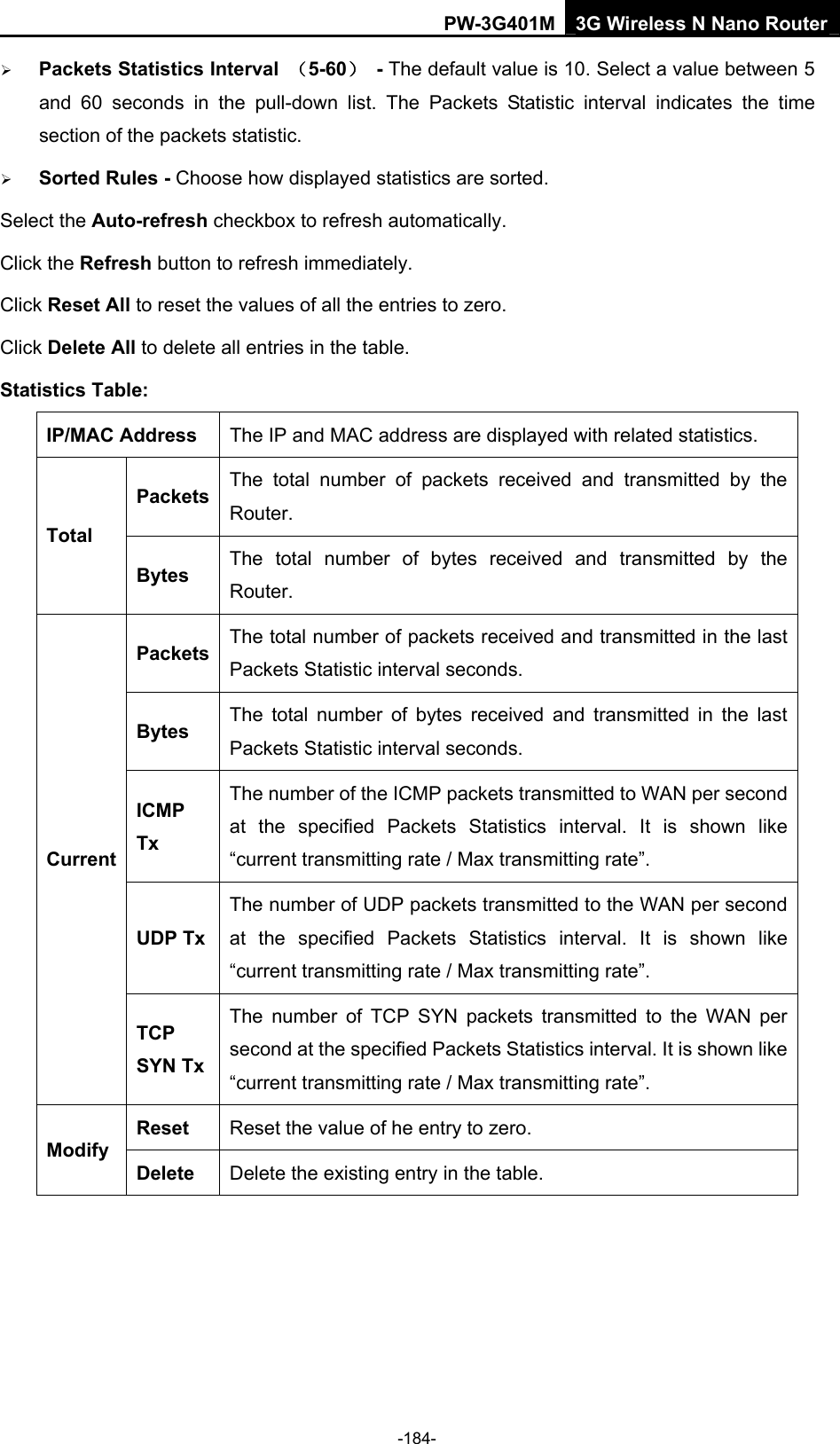

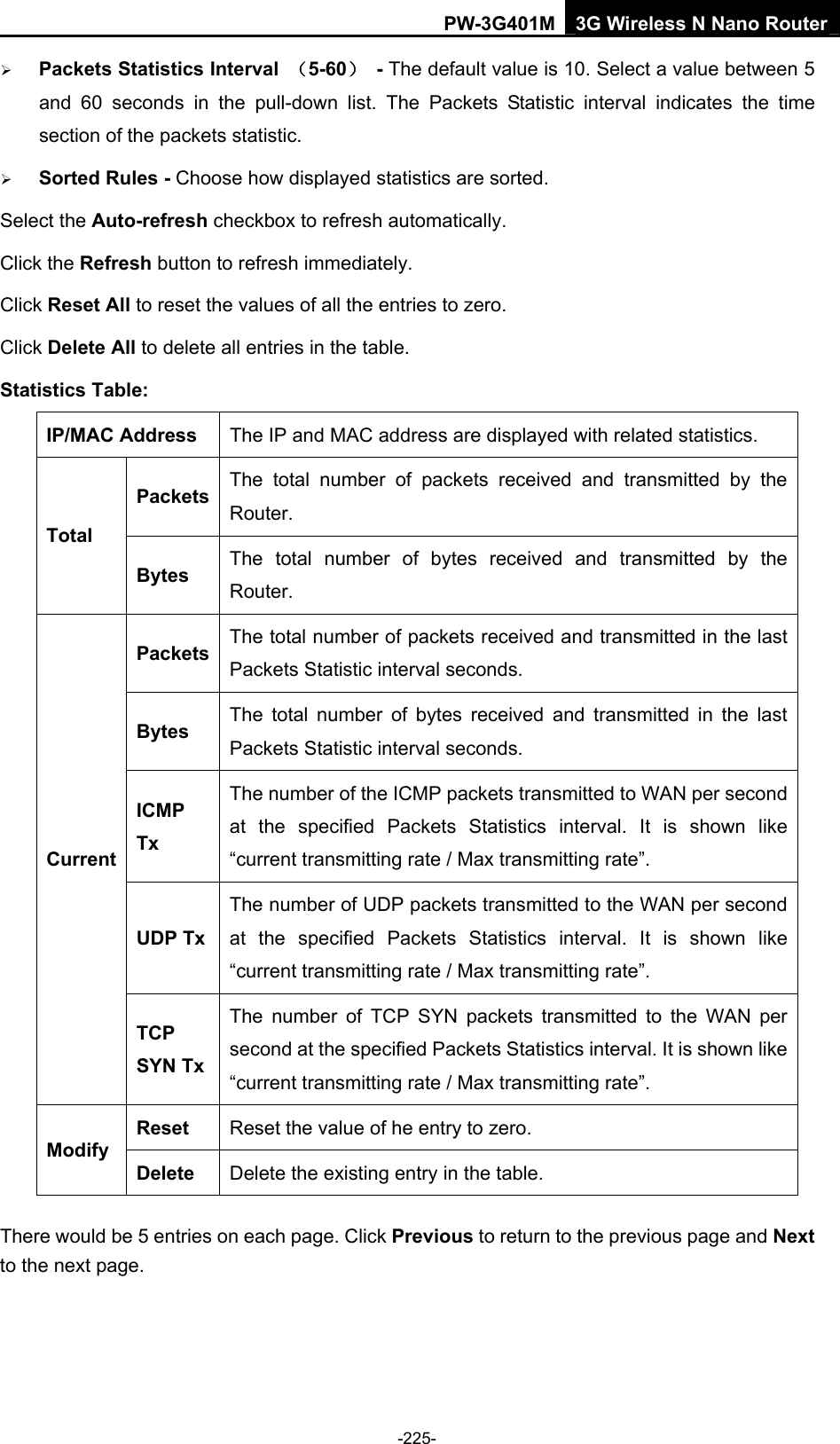

PW-3G401M 3G Wireless N Nano Router ¾ Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 and 60 seconds in the pull-down list. The Packets Statistic interval indicates the time section of the packets statistic. ¾ Sorted Rules - Choose how displayed statistics are sorted. Select the Auto-refresh checkbox to refresh automatically. Click the Refresh button to refresh immediately. Click Reset All to reset the values of all the entries to zero. Click Delete All to delete all entries in the table. Statistics Table: IP/MAC Address The IP and MAC address are displayed with related statistics. Packets The total number of packets received and transmitted by the Router. Total Bytes The total number of bytes received and transmitted by the Router. Packets The total number of packets received and transmitted in the last Packets Statistic interval seconds. Bytes The total number of bytes received and transmitted in the last Packets Statistic interval seconds. ICMP Tx The number of the ICMP packets transmitted to WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. UDP TxThe number of UDP packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. Current TCP SYN TxThe number of TCP SYN packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. Reset Reset the value of he entry to zero. Modify Delete Delete the existing entry in the table. -108-

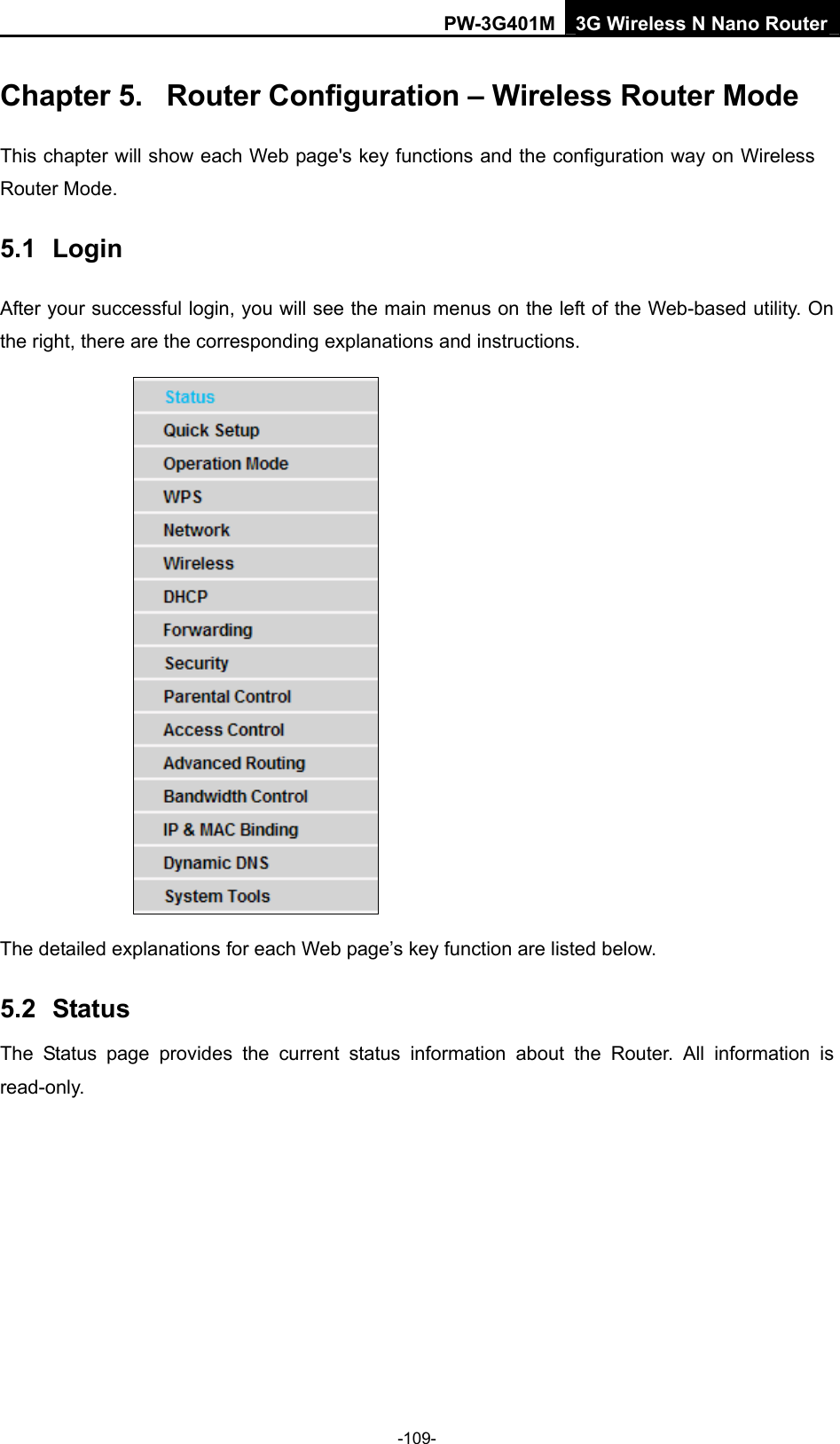

PW-3G401M 3G Wireless N Nano Router Chapter 5. Router Configuration – Wireless Router Mode This chapter will show each Web page's key functions and the configuration way on Wireless Router Mode. 5.1 Login After your successful login, you will see the main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions. The detailed explanations for each Web page’s key function are listed below. 5.2 Status The Status page provides the current status information about the Router. All information is read-only. -109-

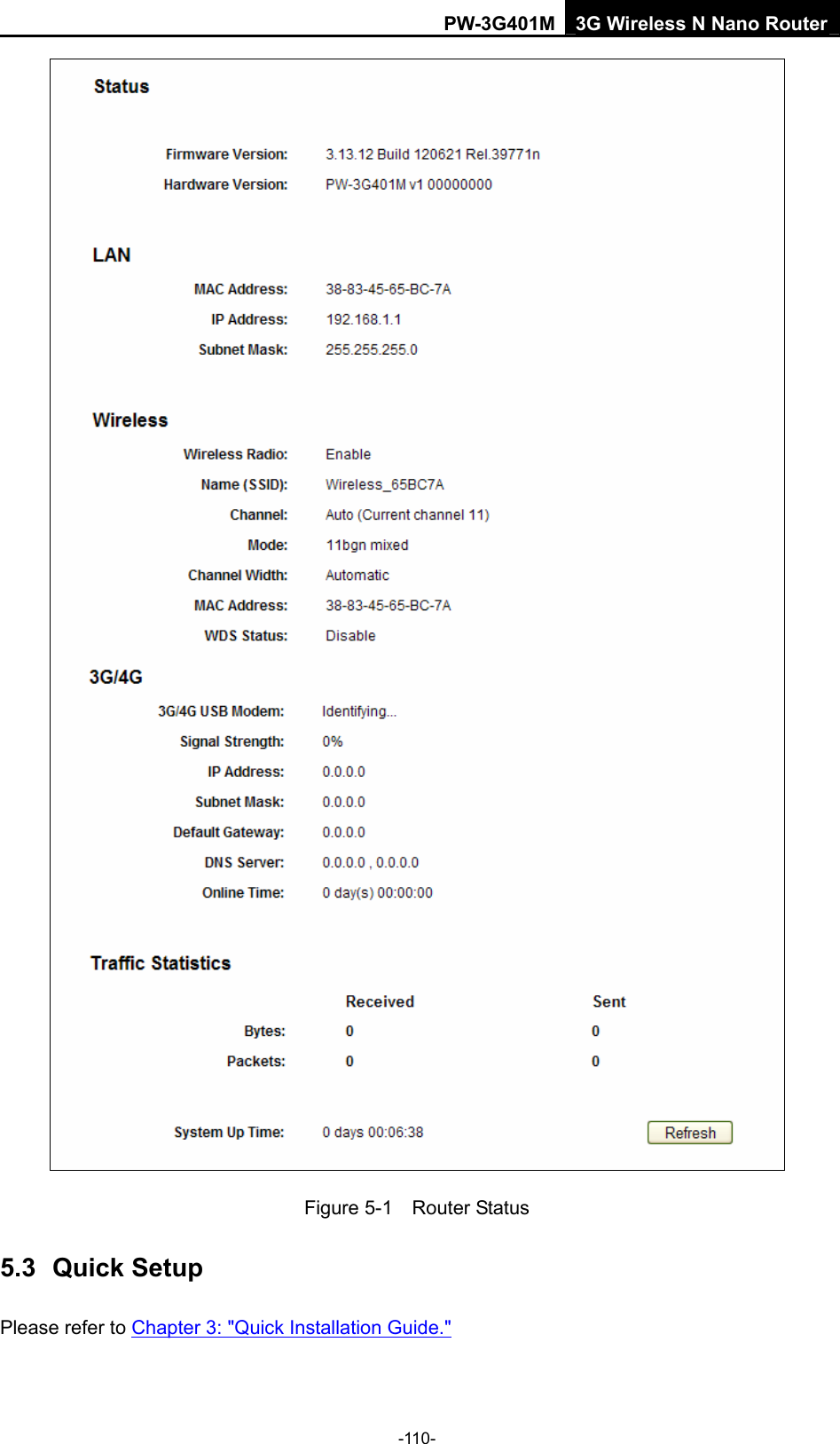

PW-3G401M 3G Wireless N Nano Router Figure 5-1 Router Status 5.3 Quick Setup Please refer to Chapter 3: "Quick Installation Guide." -110-

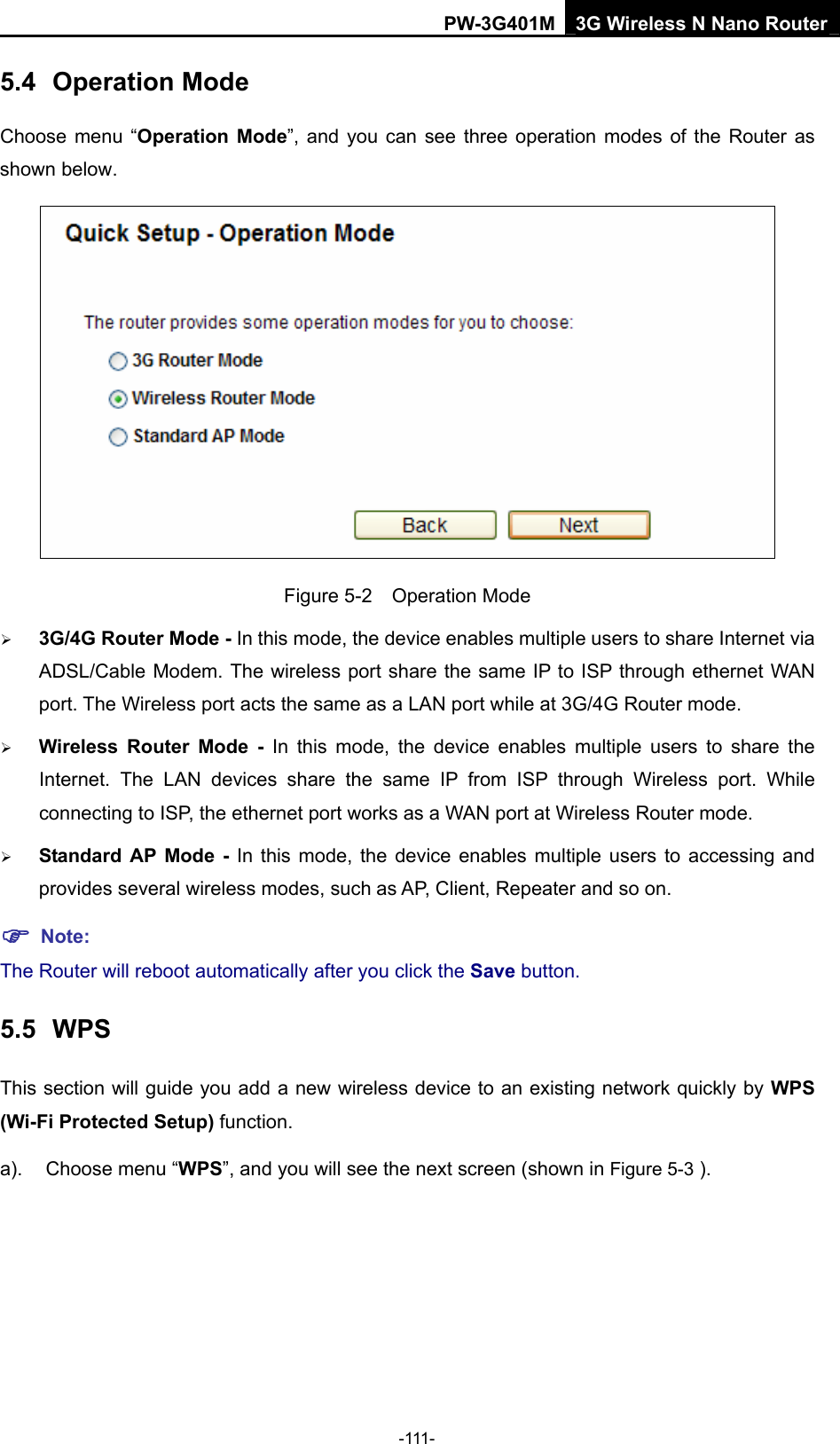

PW-3G401M 3G Wireless N Nano Router 5.4 Operation Mode Choose menu “Operation Mode”, and you can see three operation modes of the Router as shown below. Figure 5-2 Operation Mode ¾ 3G/4G Router Mode - In this mode, the device enables multiple users to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through ethernet WAN port. The Wireless port acts the same as a LAN port while at 3G/4G Router mode. ¾ Wireless Router Mode - In this mode, the device enables multiple users to share the Internet. The LAN devices share the same IP from ISP through Wireless port. While connecting to ISP, the ethernet port works as a WAN port at Wireless Router mode. ¾ Standard AP Mode - In this mode, the device enables multiple users to accessing and provides several wireless modes, such as AP, Client, Repeater and so on. ) Note: The Router will reboot automatically after you click the Save button. 5.5 WPS This section will guide you add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. a). Choose menu “WPS”, and you will see the next screen (shown in Figure 5-3 ). -111-

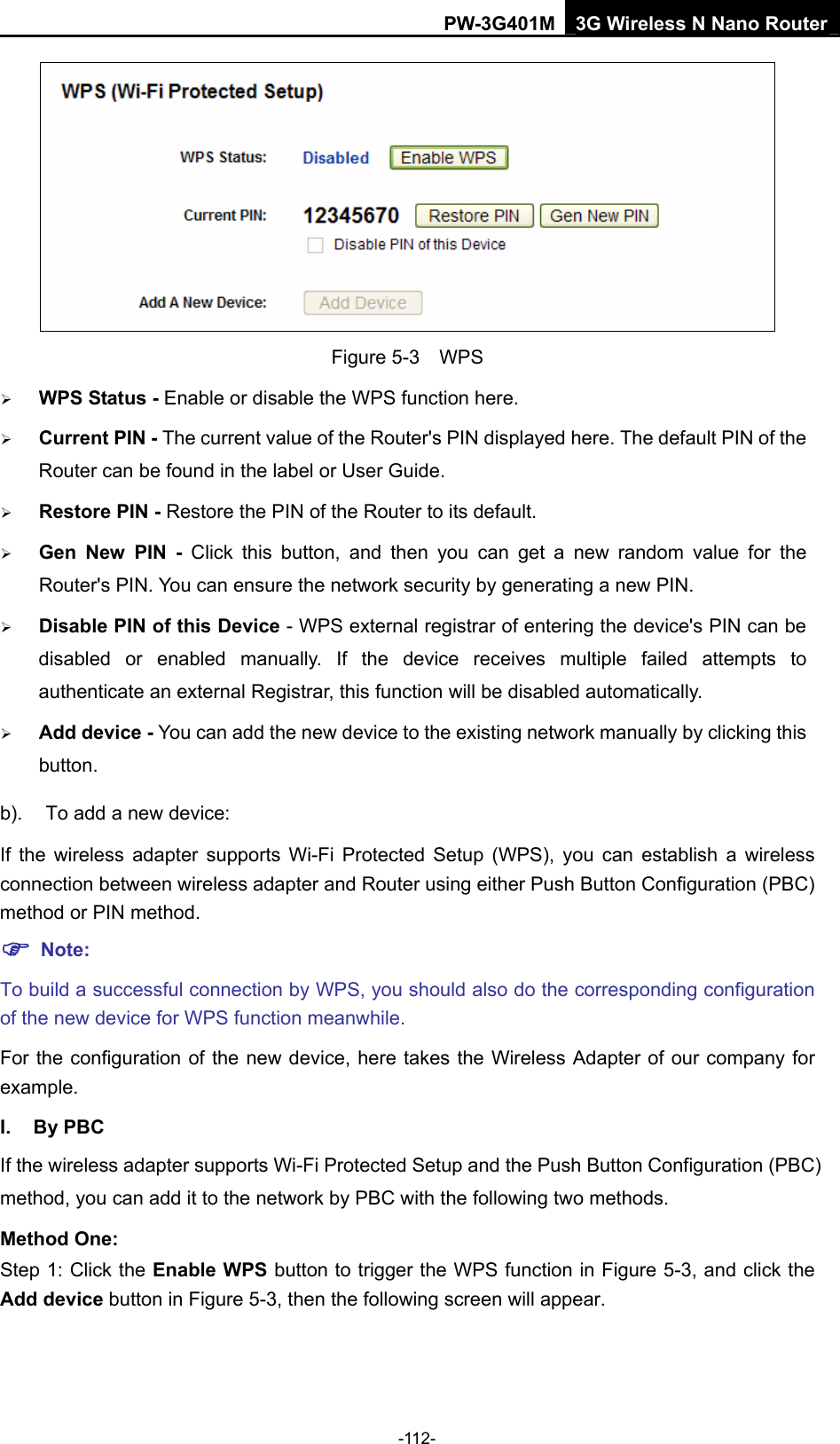

PW-3G401M 3G Wireless N Nano Router Figure 5-3 WPS ¾ WPS Status - Enable or disable the WPS function here. ¾ Current PIN - The current value of the Router's PIN displayed here. The default PIN of the Router can be found in the label or User Guide. ¾ Restore PIN - Restore the PIN of the Router to its default. ¾ Gen New PIN - Click this button, and then you can get a new random value for the Router's PIN. You can ensure the network security by generating a new PIN. ¾ Disable PIN of this Device - WPS external registrar of entering the device's PIN can be disabled or enabled manually. If the device receives multiple failed attempts to authenticate an external Registrar, this function will be disabled automatically. ¾ Add device - You can add the new device to the existing network manually by clicking this button. b). To add a new device: If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and Router using either Push Button Configuration (PBC) method or PIN method. ) Note: To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile. For the configuration of the new device, here takes the Wireless Adapter of our company for example. I. By PBC If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC) method, you can add it to the network by PBC with the following two methods. Method One: Step 1: Click the Enable WPS button to trigger the WPS function in Figure 5-3, and click the Add device button in Figure 5-3, then the following screen will appear. -112-

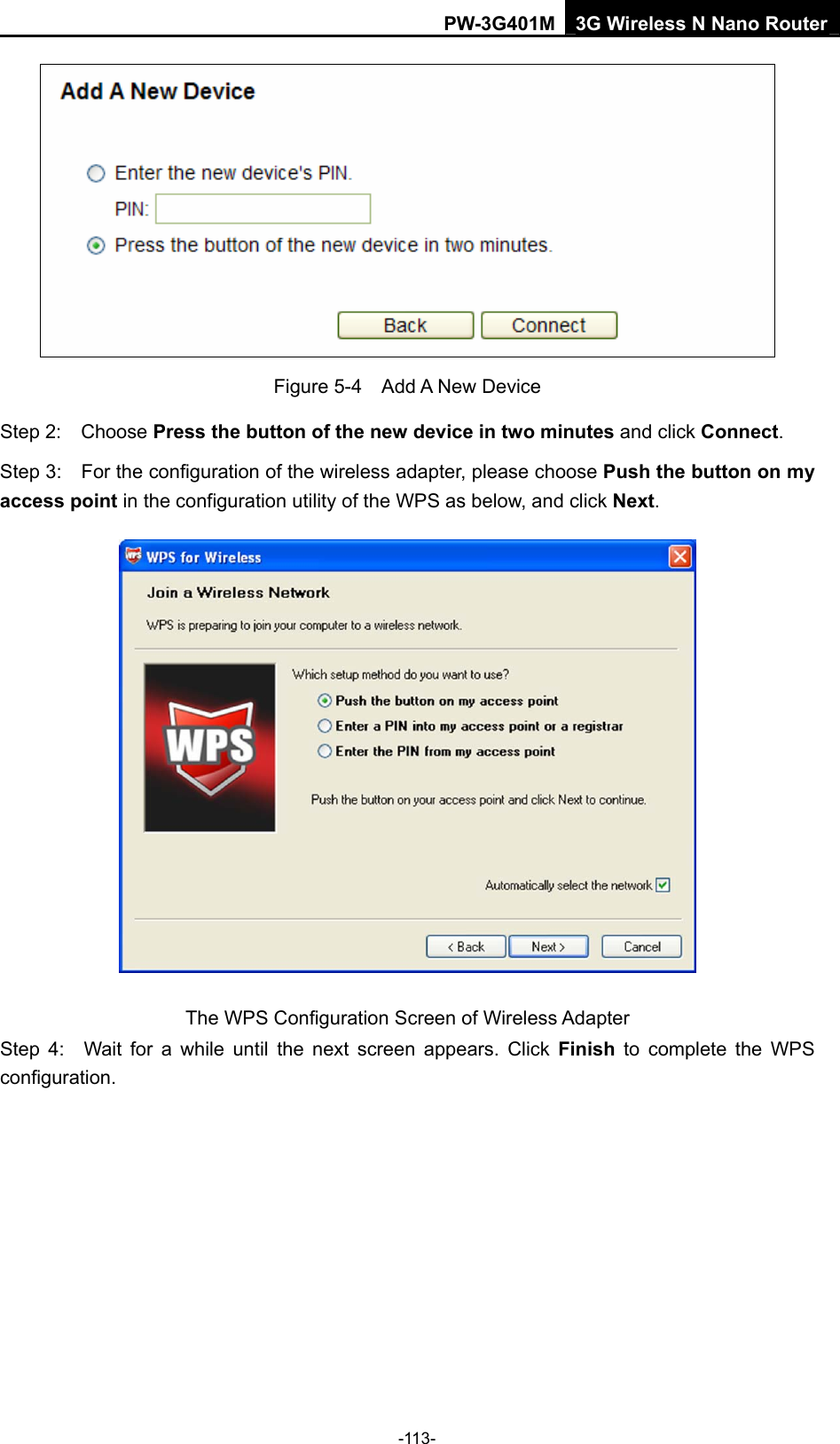

PW-3G401M 3G Wireless N Nano Router Figure 5-4 Add A New Device Step 2: Choose Press the button of the new device in two minutes and click Connect. Step 3: For the configuration of the wireless adapter, please choose Push the button on my access point in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of Wireless Adapter Step 4: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. -113-
PW-3G401M 3G Wireless N Nano Router The WPS Configuration Screen of Wireless Adapter II. By PIN If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN into my Router Step 1: Configure the wireless adapter. Please choose Enter a PIN into my access point or a registrar in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of wireless adapter ) Note: In this example, the default PIN code of this adapter is 16952898 as the above figure shown. Step 2: Configure the Router. Keep the default WPS Status as Enabled and click the Add device button in Figure 5-3, then the following screen will appear. -114-
PW-3G401M 3G Wireless N Nano Router Step 3: Choose Enter the new device's PIN and enter the PIN code of the wireless adapter in the field behind PIN in the previous figure. Then click Connect. ) Note: The PIN code of the wireless adapter is always displayed on the WPS or WPS configuration screen. Method Two: Enter the PIN from my Router Step 1: Get the Current PIN code of the Router in Figure 5-3 (each Router has its unique PIN code. Here takes the PIN code 12345670 of this Router for example). Step 2: For the configuration of the wireless adapter, please choose Enter a PIN from my access point in the configuration utility of the WPS as below, and enter the PIN code of the Router into the field behind Access Point PIN. Then click Next. The WPS Configuration Screen of Wireless adapter ) Note: The default PIN code of the Router can be found in its label or the WPS configuration screen as Figure 5-3. -115-

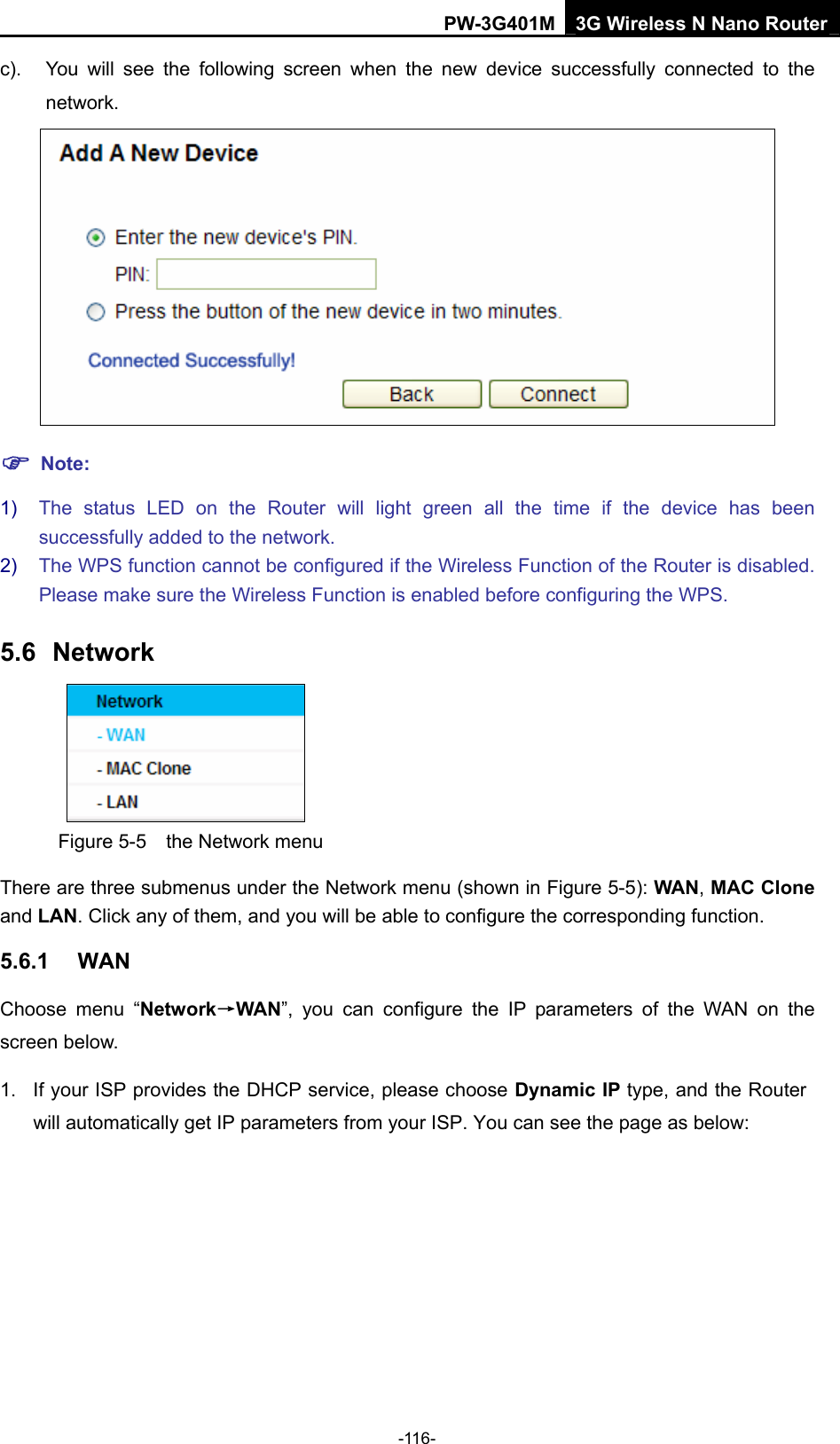

PW-3G401M 3G Wireless N Nano Router c). You will see the following screen when the new device successfully connected to the network. ) Note: 1) The status LED on the Router will light green all the time if the device has been successfully added to the network. 2) The WPS function cannot be configured if the Wireless Function of the Router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS. 5.6 Network Figure 5-5 the Network menu There are three submenus under the Network menu (shown in Figure 5-5): WAN, MAC Clone and LAN. Click any of them, and you will be able to configure the corresponding function. 5.6.1 WAN Choose menu “Network→WAN”, you can configure the IP parameters of the WAN on the screen below. 1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will automatically get IP parameters from your ISP. You can see the page as below: -116-

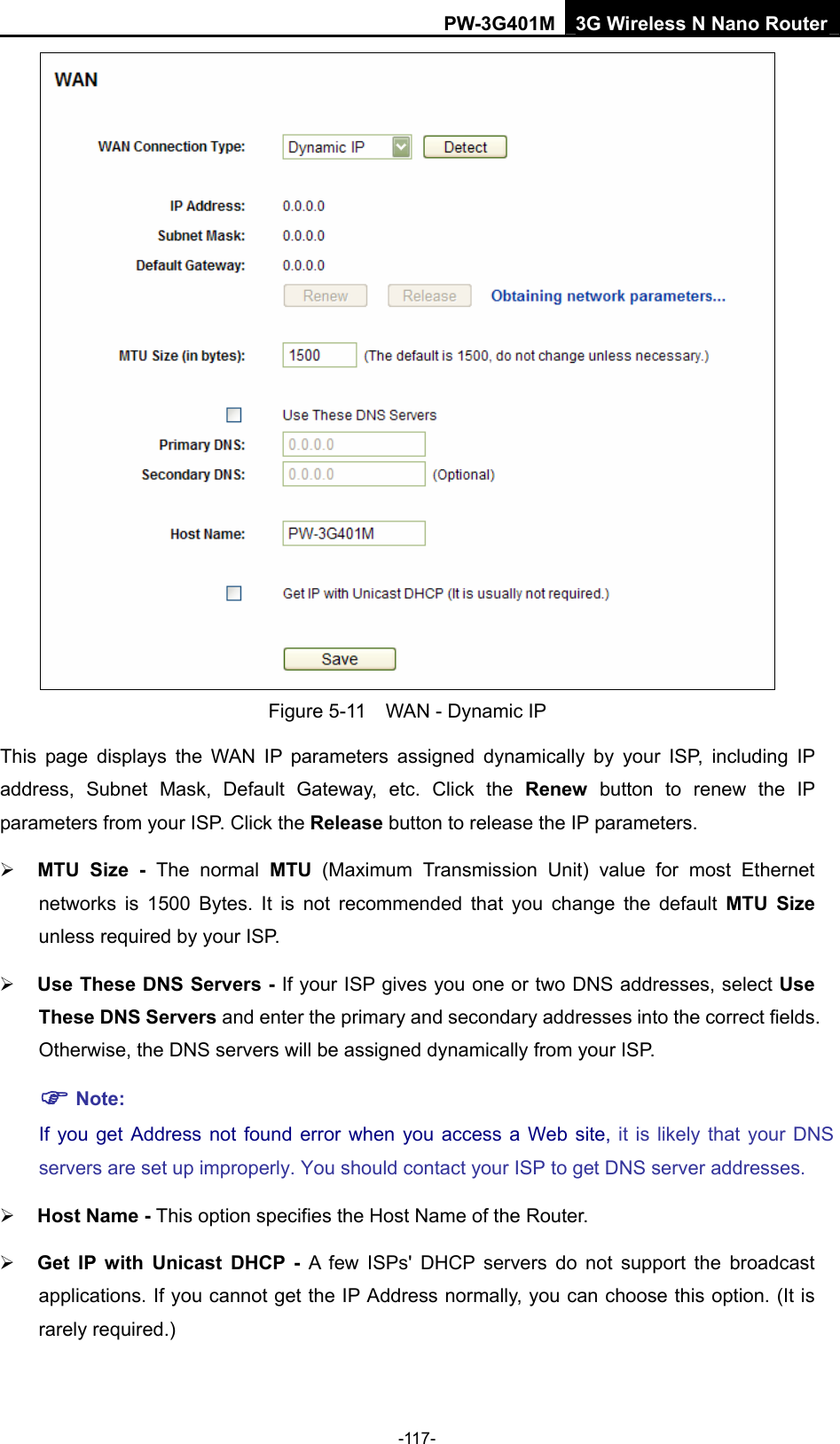

PW-3G401M 3G Wireless N Nano Router Figure 5-11 WAN - Dynamic IP This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters. ¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Use These DNS Servers - If your ISP gives you one or two DNS addresses, select Use These DNS Servers and enter the primary and secondary addresses into the correct fields. Otherwise, the DNS servers will be assigned dynamically from your ISP. ) Note: If you get Address not found error when you access a Web site, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses. ¾ Host Name - This option specifies the Host Name of the Router. ¾ Get IP with Unicast DHCP - A few ISPs' DHCP servers do not support the broadcast applications. If you cannot get the IP Address normally, you can choose this option. (It is rarely required.) -117-

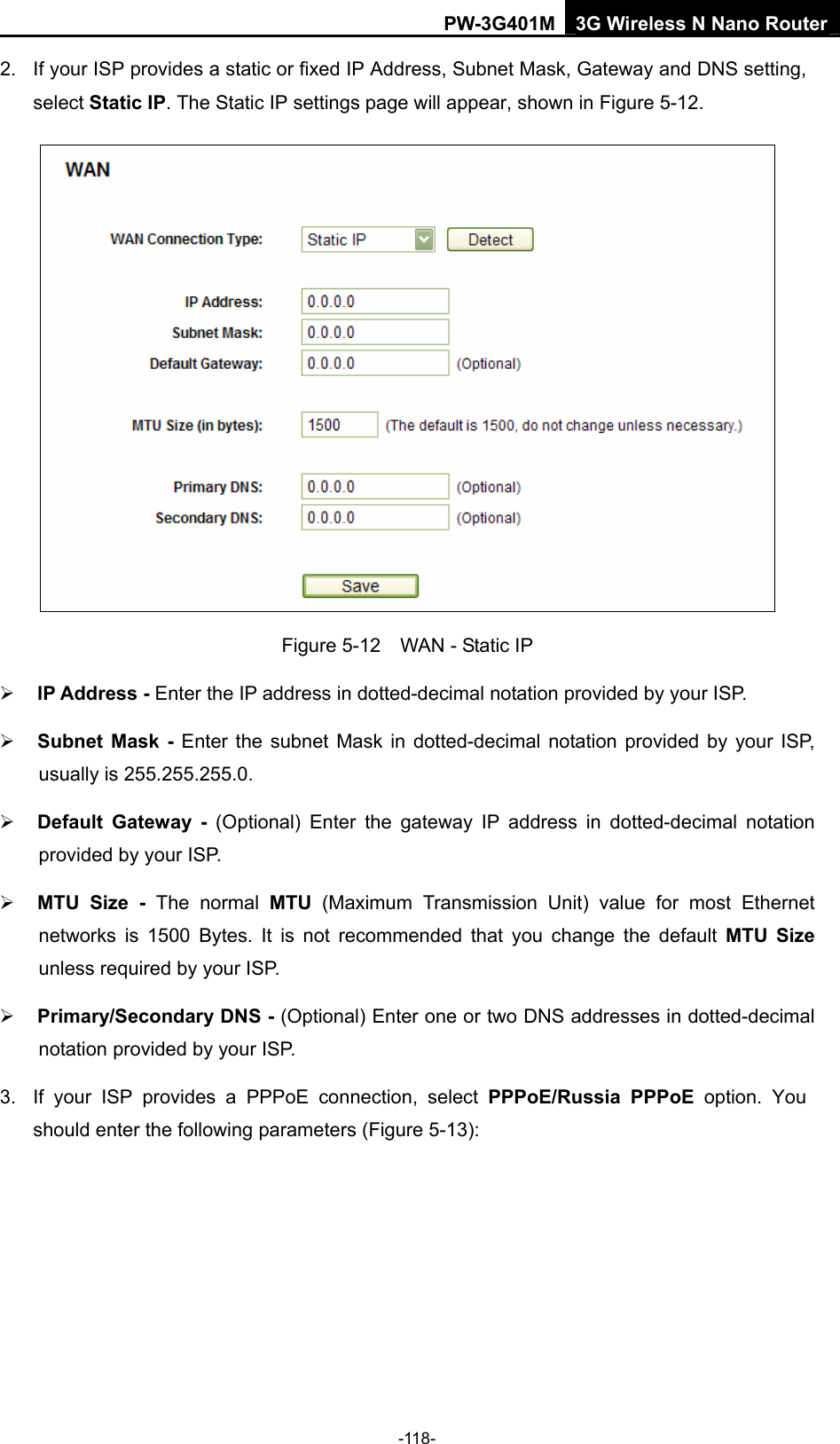

PW-3G401M 3G Wireless N Nano Router 2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static IP. The Static IP settings page will appear, shown in Figure 5-12. Figure 5-12 WAN - Static IP ¾ IP Address - Enter the IP address in dotted-decimal notation provided by your ISP. ¾ Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is 255.255.255.0. ¾ Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation provided by your ISP. ¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal notation provided by your ISP. 3. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. You should enter the following parameters (Figure 5-13): -118-
PW-3G401M 3G Wireless N Nano Router Figure 5-13 WAN - PPPoE ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Secondary Connection - It’s available only for PPPoE Connection. If your ISP provides an extra Connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection. z Disabled - The Secondary Connection is disabled by default, so there is PPPoE connection only. This is recommended. z Dynamic IP - You can check this radio button to use Dynamic IP as the secondary connection to connect to the local area network provided by ISP. z Static IP - You can check this radio button to use Static IP as the secondary connection to connect to the local area network provided by ISP. ¾ Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects. -119-
PW-3G401M 3G Wireless N Nano Router ¾ Connect Automatically - The connection can be re-established automatically when it was down. ¾ Time-based Connecting - The connection will only be established in the period from the start time to the end time (both are in HH:MM format). ) Note: Only when you have configured the system time on System Tools -> Time page, will the Time-based Connecting function can take effect. ¾ Connect Manually - You can click the Connect/ Disconnect button to connect/disconnect immediately. This mode also supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnected automatically after a specified inactivity period and re-established when you attempt to access the Internet again. Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background. If you want to do some advanced configurations, please click the Advanced button, and the page shown in Figure 5-14 will then appear: Figure 5-14 PPPoE Advanced Settings ¾ MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Service Name/AC Name - The service name and AC (Access Concentrator) name, which should not be configured unless you are sure it is necessary for your ISP. In most cases, leaving these fields blank will work. -120-
PW-3G401M 3G Wireless N Nano Router ¾ ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the Router during login, please click “Use IP address specified by ISP” check box and enter the IP address provided by your ISP in dotted-decimal notation. ¾ Detect Online Interval - The Router will detect Access Concentrator online at every interval. The default value is “0”. You can input the value between “0”and “120”. The value “0” means no detect. ¾ DNS IP address - If your ISP does not automatically assign DNS addresses to the Router during login, please click “Use the following DNS servers” check box and enter the IP address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as well. Click the Save button to save your settings. 4. If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond Cable. And you should enter the following parameters (Figure 5-15): Figure 5-15 WAN – BigPond Cable ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Auth Server - Enter the authenticating server IP address or host name. -121-

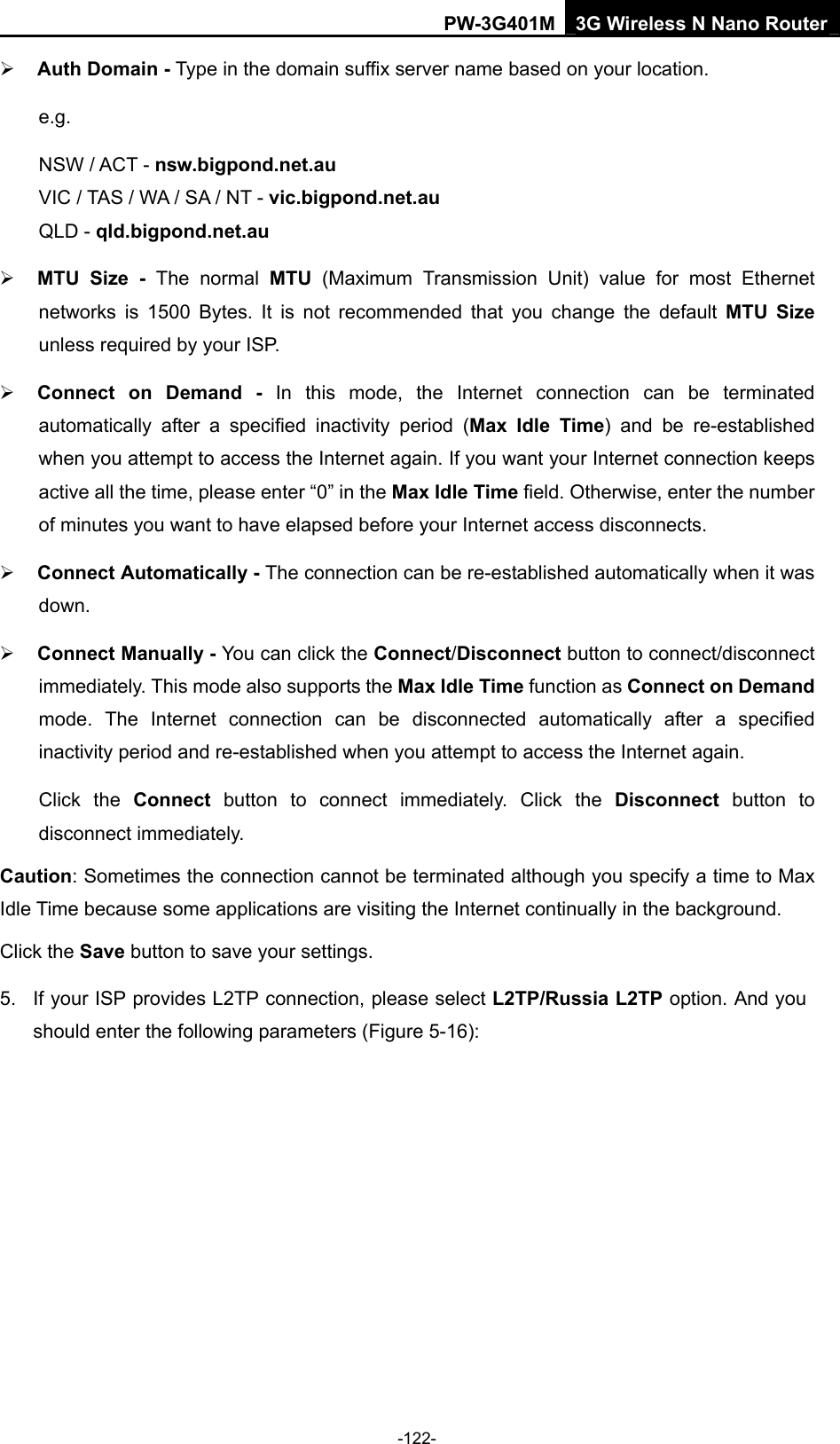

PW-3G401M 3G Wireless N Nano Router ¾ Auth Domain - Type in the domain suffix server name based on your location. e.g. NSW / ACT - nsw.bigpond.net.au VIC / TAS / WA / SA / NT - vic.bigpond.net.au QLD - qld.bigpond.net.au ¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU Size unless required by your ISP. ¾ Connect on Demand - In this mode, the Internet connection can be terminated automatically after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0” in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects. ¾ Connect Automatically - The connection can be re-established automatically when it was down. ¾ Connect Manually - You can click the Connect/Disconnect button to connect/disconnect immediately. This mode also supports the Max Idle Time function as Connect on Demand mode. The Internet connection can be disconnected automatically after a specified inactivity period and re-established when you attempt to access the Internet again. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. Caution: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background. Click the Save button to save your settings. 5. If your ISP provides L2TP connection, please select L2TP/Russia L2TP option. And you should enter the following parameters (Figure 5-16): -122-

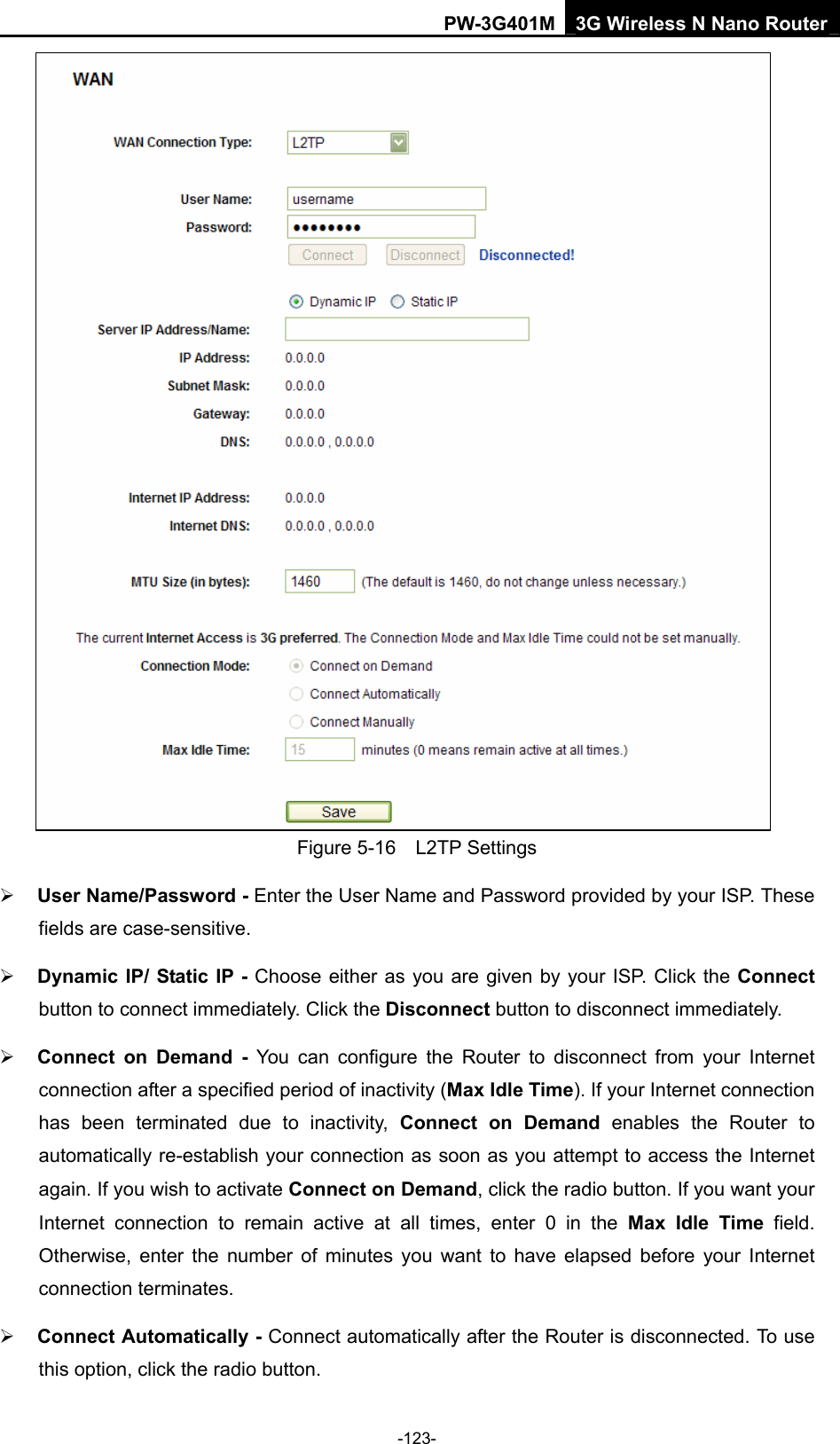

PW-3G401M 3G Wireless N Nano Router Figure 5-16 L2TP Settings ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. ¾ Connect on Demand - You can configure the Router to disconnect from your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates. ¾ Connect Automatically - Connect automatically after the Router is disconnected. To use this option, click the radio button. -123-

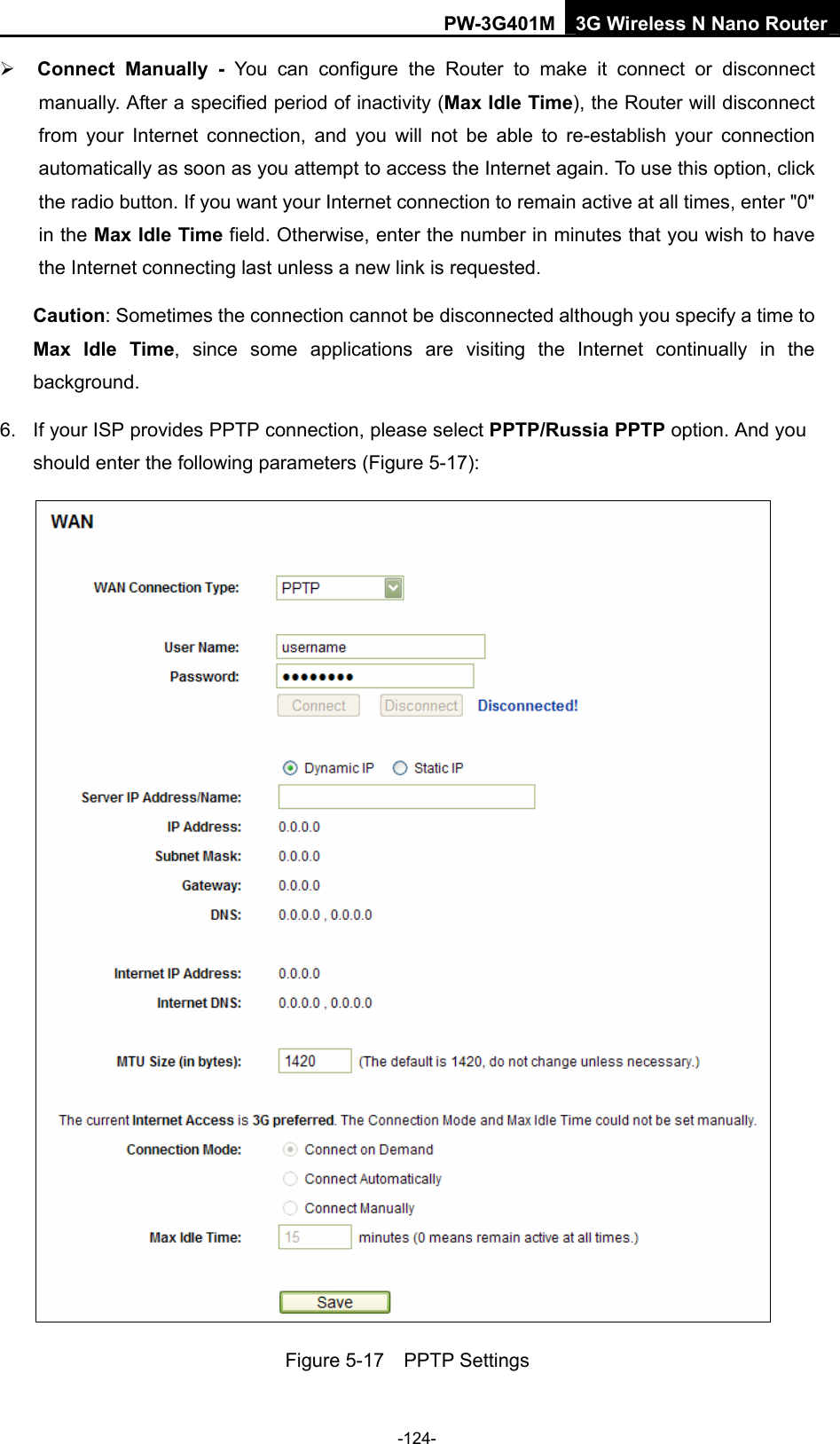

PW-3G401M 3G Wireless N Nano Router ¾ Connect Manually - You can configure the Router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested. Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background. 6. If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you should enter the following parameters (Figure 5-17): Figure 5-17 PPTP Settings -124-
PW-3G401M 3G Wireless N Nano Router ¾ User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. ¾ Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP address or the domain name. If you choose static IP and enter the domain name, you should also enter the DNS assigned by your ISP. And click the Save button. Click the Connect button to connect immediately. Click the Disconnect button to disconnect immediately. ¾ Connect on Demand - You can configure the Router to disconnect from your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates. ¾ Connect Automatically - Connect automatically after the Router is disconnected. To use this option, click the radio button. ¾ Connect Manually - You can configure the Router to make it connect or disconnect manually. After a specified period of inactivity (Max Idle Time), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Max Idle Time field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested. Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications are visiting the Internet continually in the background. ) Note: If you don't know how to choose the appropriate connection type, click the Detect button to allow the Router to automatically search your Internet connection for servers and protocols. The connection type will be reported when an active Internet service is successfully detected by the Router. This report is for your reference only. To make sure the connection type your ISP provides, please refer to the ISP. The various types of Internet connections that the Router can detect are as follows: -125-
PW-3G401M 3G Wireless N Nano Router z PPPoE - Connections which use PPPoE that requires a user name and password. z Dynamic IP - Connections which use dynamic IP address assignment. z Static IP - Connections which use static IP address assignment. The Router can not detect PPTP/L2TP/BigPond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually. 5.6.2 MAC Clone Choose menu “Network→MAC Clone”, you can configure the MAC address of the WAN on the screen below, Figure 5-18: Figure 5-18 MAC Address Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here. ¾ WAN MAC Address - This field displays the current MAC address of the WAN port. If your ISP requires you to register the MAC address, please enter the correct MAC address into this field in XX-XX-XX-XX-XX-XX format(X is any hexadecimal digit). ¾ Your PC's MAC Address - This field displays the MAC address of the PC that is managing the Router. If the MAC address is required, you can click the Clone MAC Address To button and this MAC address will fill in the WAN MAC Address field. Click Restore Factory MAC to restore the MAC address of WAN port to the factory default value. Click the Save button to save your settings. ) Note: Only the PC on your LAN can use the MAC Address Clone function. 5.6.3 LAN Choose menu “Network→LAN”, you can configure the IP parameters of the LAN on the screen as below. -126-
PW-3G401M 3G Wireless N Nano Router Figure 5-19 LAN ¾ MAC Address - The physical address of the Router, as seen from the LAN. The value can't be changed. ¾ IP Address - Enter the IP address of your Router or reset it in dotted-decimal notation (factory default: 192.168.1.1). ¾ Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. ) Note: 3) If you change the IP Address of LAN, you must use the new IP Address to login the Router. 4) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time，while the Virtual Server and DMZ Host will not take effect until they are re-configured. 5.7 Wireless Figure 5-20 Wireless menu There are five submenus under the Wireless menu (shown in Figure 5-20): Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding function. 5.7.1 Wireless Settings Choose menu “Wireless→Wireless Settings”, you can configure the basic settings for the wireless network on this page. -127-

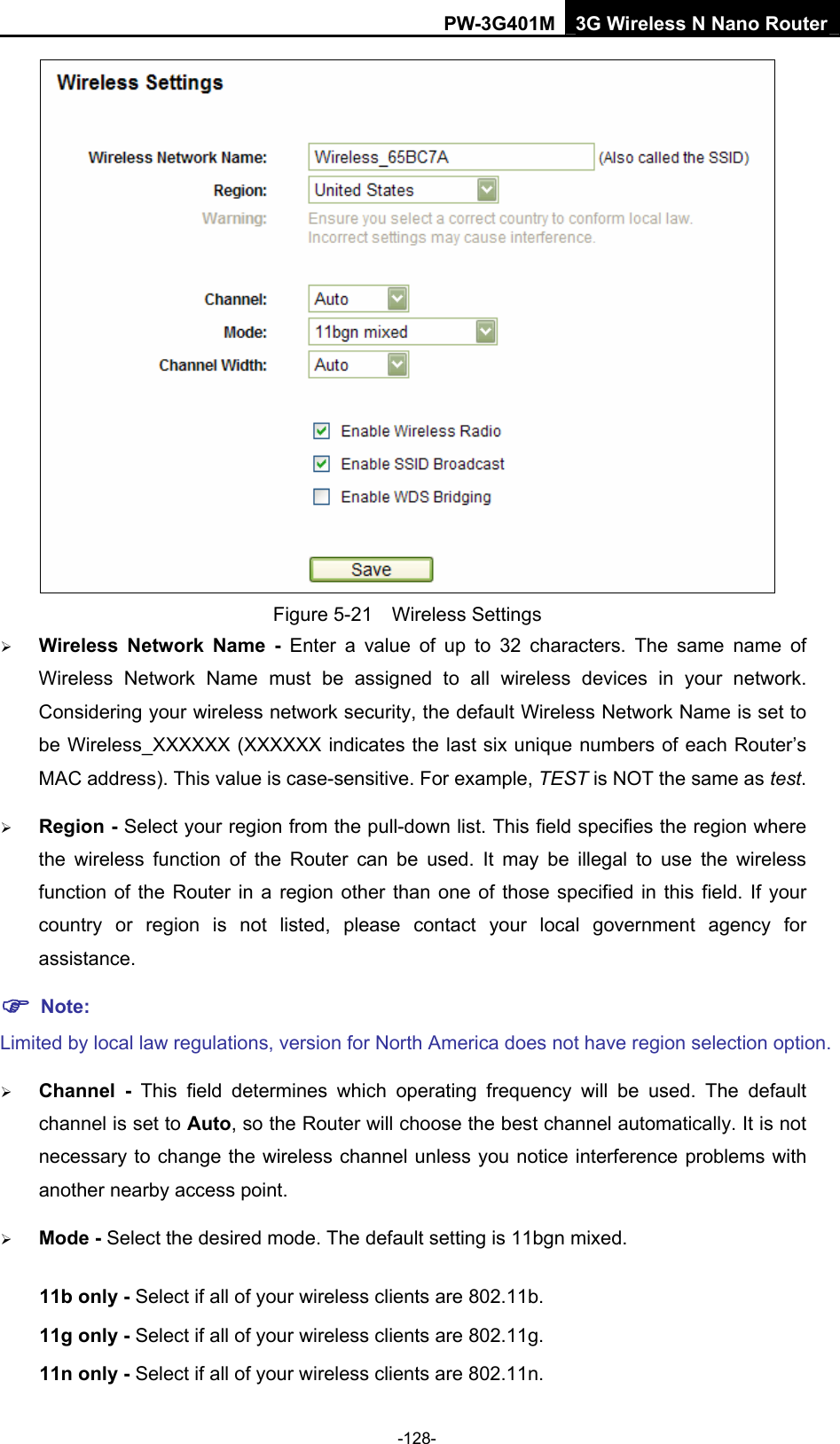

PW-3G401M 3G Wireless N Nano Router Figure 5-21 Wireless Settings ¾ Wireless Network Name - Enter a value of up to 32 characters. The same name of Wireless Network Name must be assigned to all wireless devices in your network. Considering your wireless network security, the default Wireless Network Name is set to be Wireless_XXXXXX (XXXXXX indicates the last six unique numbers of each Router’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test. ¾ Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. ) Note: Limited by local law regulations, version for North America does not have region selection option. ¾ Channel - This field determines which operating frequency will be used. The default channel is set to Auto, so the Router will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - Select the desired mode. The default setting is 11bgn mixed. 11b only - Select if all of your wireless clients are 802.11b. 11g only - Select if all of your wireless clients are 802.11g. 11n only - Select if all of your wireless clients are 802.11n. -128-

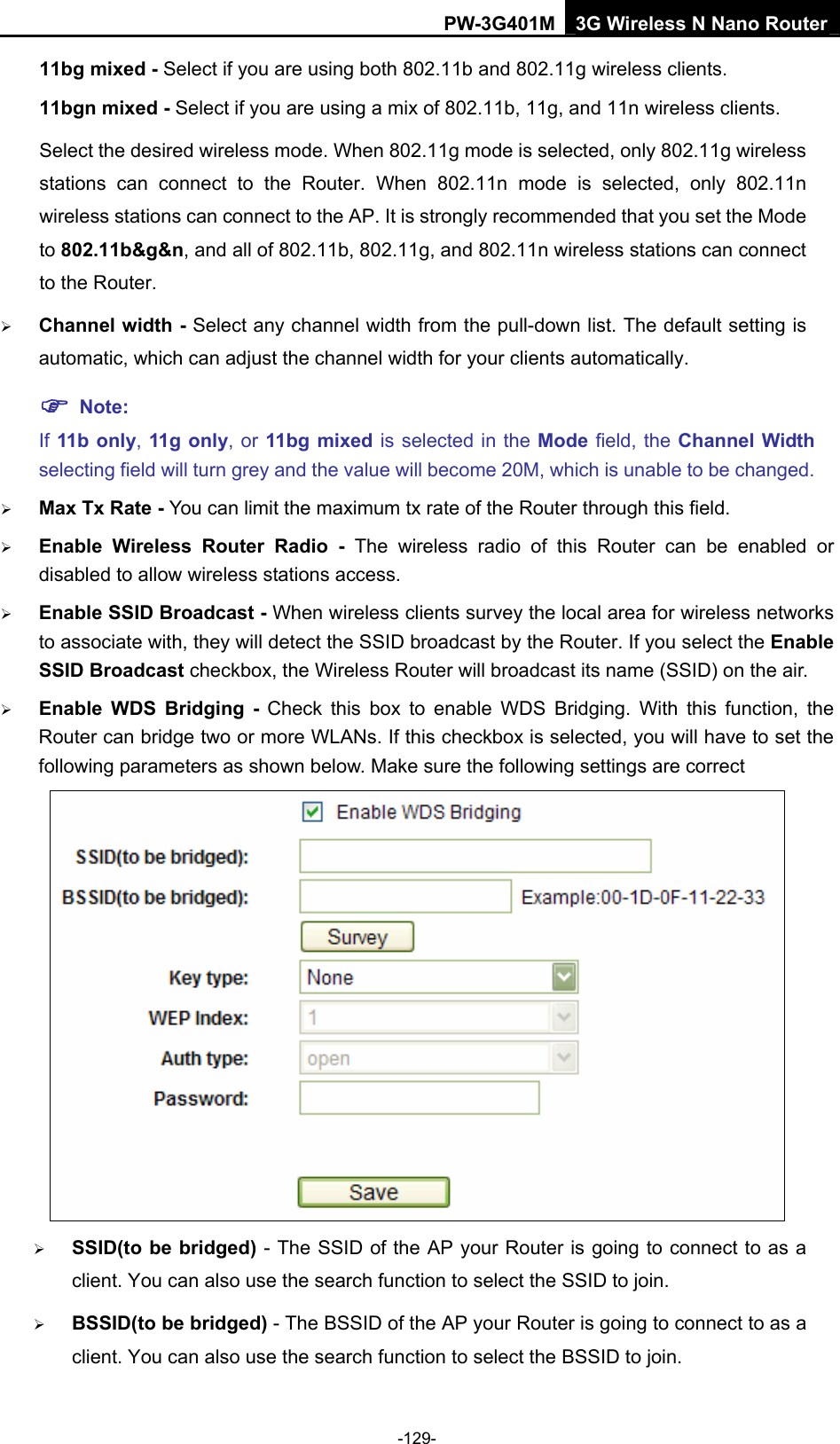

PW-3G401M 3G Wireless N Nano Router 11bg mixed - Select if you are using both 802.11b and 802.11g wireless clients. 11bgn mixed - Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless stations can connect to the Router. When 802.11n mode is selected, only 802.11n wireless stations can connect to the AP. It is strongly recommended that you set the Mode to 802.11b&g&n, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the Router. ¾ Channel width - Select any channel width from the pull-down list. The default setting is automatic, which can adjust the channel width for your clients automatically. ) Note: If 11b only, 11g only, or 11bg mixed is selected in the Mode field, the Channel Width selecting field will turn grey and the value will become 20M, which is unable to be changed. ¾ Max Tx Rate - You can limit the maximum tx rate of the Router through this field. ¾ Enable Wireless Router Radio - The wireless radio of this Router can be enabled or disabled to allow wireless stations access. ¾ Enable SSID Broadcast - When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. If you select the Enable SSID Broadcast checkbox, the Wireless Router will broadcast its name (SSID) on the air. ¾ Enable WDS Bridging - Check this box to enable WDS Bridging. With this function, the Router can bridge two or more WLANs. If this checkbox is selected, you will have to set the following parameters as shown below. Make sure the following settings are correct ¾ SSID(to be bridged) - The SSID of the AP your Router is going to connect to as a client. You can also use the search function to select the SSID to join. ¾ BSSID(to be bridged) - The BSSID of the AP your Router is going to connect to as a client. You can also use the search function to select the BSSID to join. -129-

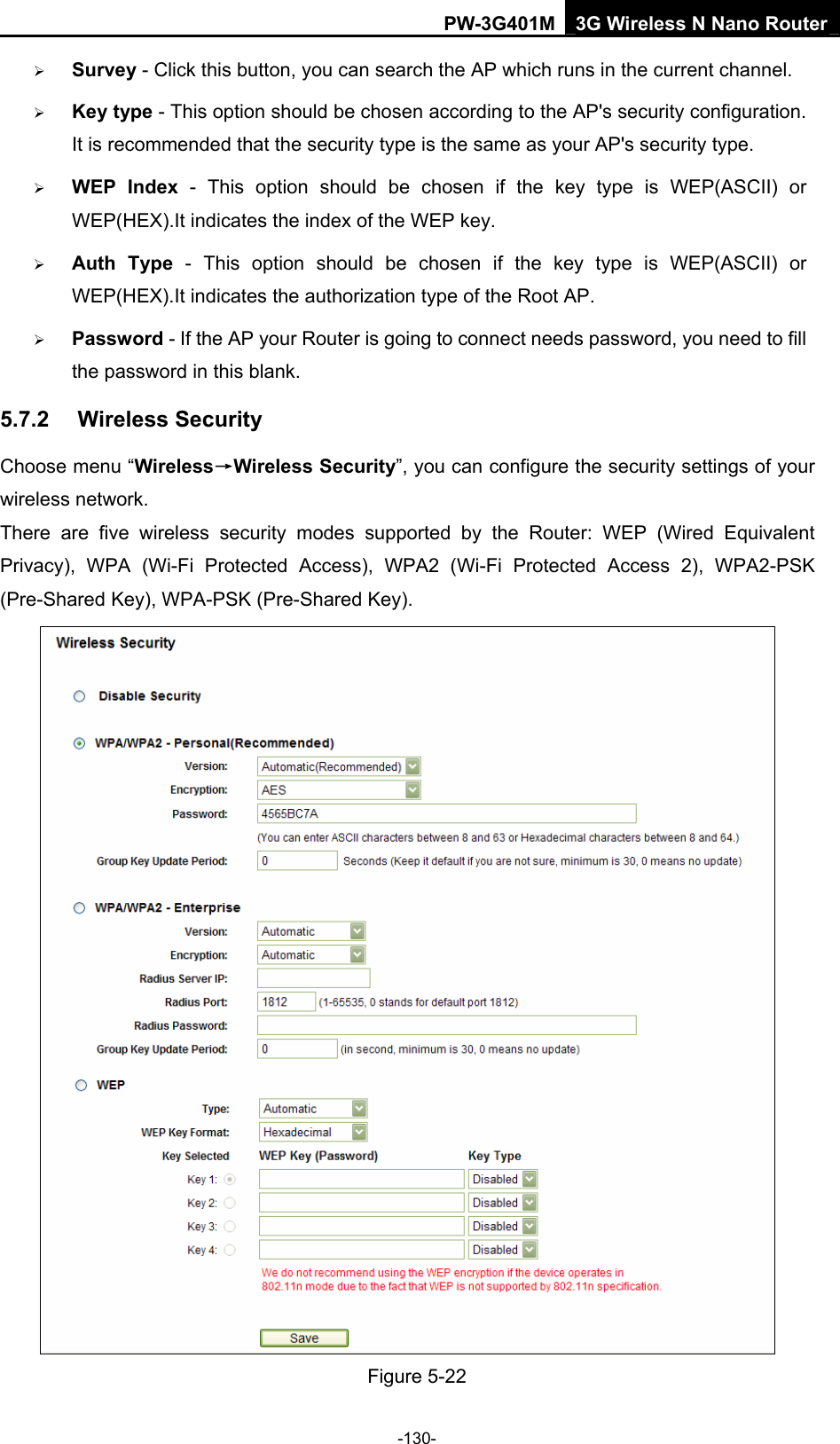

PW-3G401M 3G Wireless N Nano Router ¾ Survey - Click this button, you can search the AP which runs in the current channel. ¾ Key type - This option should be chosen according to the AP's security configuration. It is recommended that the security type is the same as your AP's security type. ¾ WEP Index - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It indicates the index of the WEP key. ¾ Auth Type - This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It indicates the authorization type of the Root AP. ¾ Password - If the AP your Router is going to connect needs password, you need to fill the password in this blank. 5.7.2 Wireless Security Choose menu “Wireless→Wireless Security”, you can configure the security settings of your wireless network. There are five wireless security modes supported by the Router: WEP (Wired Equivalent Privacy), WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA2-PSK (Pre-Shared Key), WPA-PSK (Pre-Shared Key). Figure 5-22 -130-

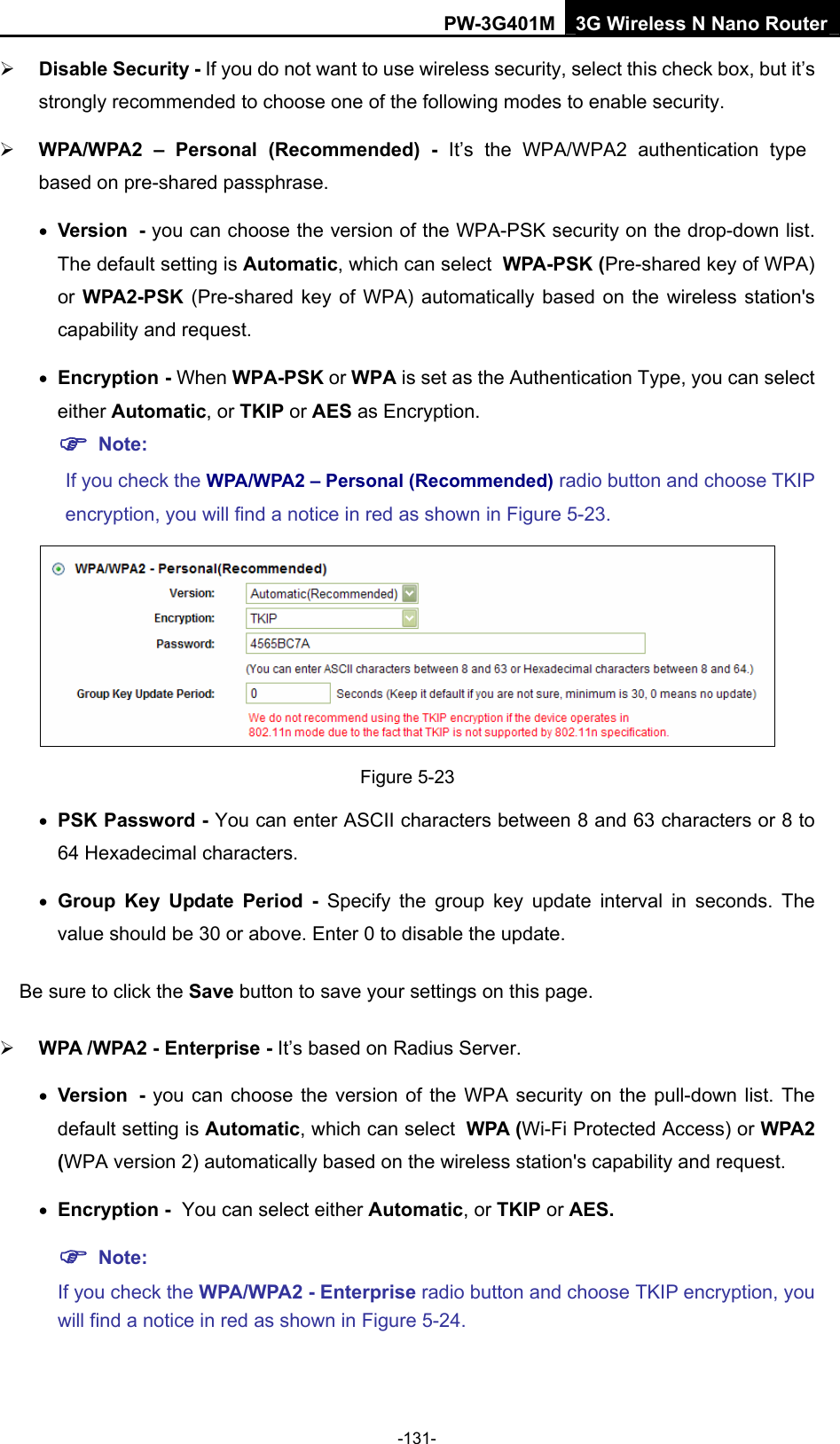

PW-3G401M 3G Wireless N Nano Router ¾ Disable Security - If you do not want to use wireless security, select this check box, but it’s strongly recommended to choose one of the following modes to enable security. ¾ WPA/WPA2 – Personal (Recommended) - It’s the WPA/WPA2 authentication type based on pre-shared passphrase. • Version - you can choose the version of the WPA-PSK security on the drop-down list. The default setting is Automatic, which can select WPA-PSK (Pre-shared key of WPA) or WPA2-PSK (Pre-shared key of WPA) automatically based on the wireless station's capability and request. • Encryption - When WPA-PSK or WPA is set as the Authentication Type, you can select either Automatic, or TKIP or AES as Encryption. ) Note: If you check the WPA/WPA2 – Personal (Recommended) radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 5-23. Figure 5-23 • PSK Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64 Hexadecimal characters. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ¾ WPA /WPA2 - Enterprise - It’s based on Radius Server. • Version - you can choose the version of the WPA security on the pull-down list. The default setting is Automatic, which can select WPA (Wi-Fi Protected Access) or WPA2 (WPA version 2) automatically based on the wireless station's capability and request. • Encryption - You can select either Automatic, or TKIP or AES. ) Note: If you check the WPA/WPA2 - Enterprise radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 5-24. -131-

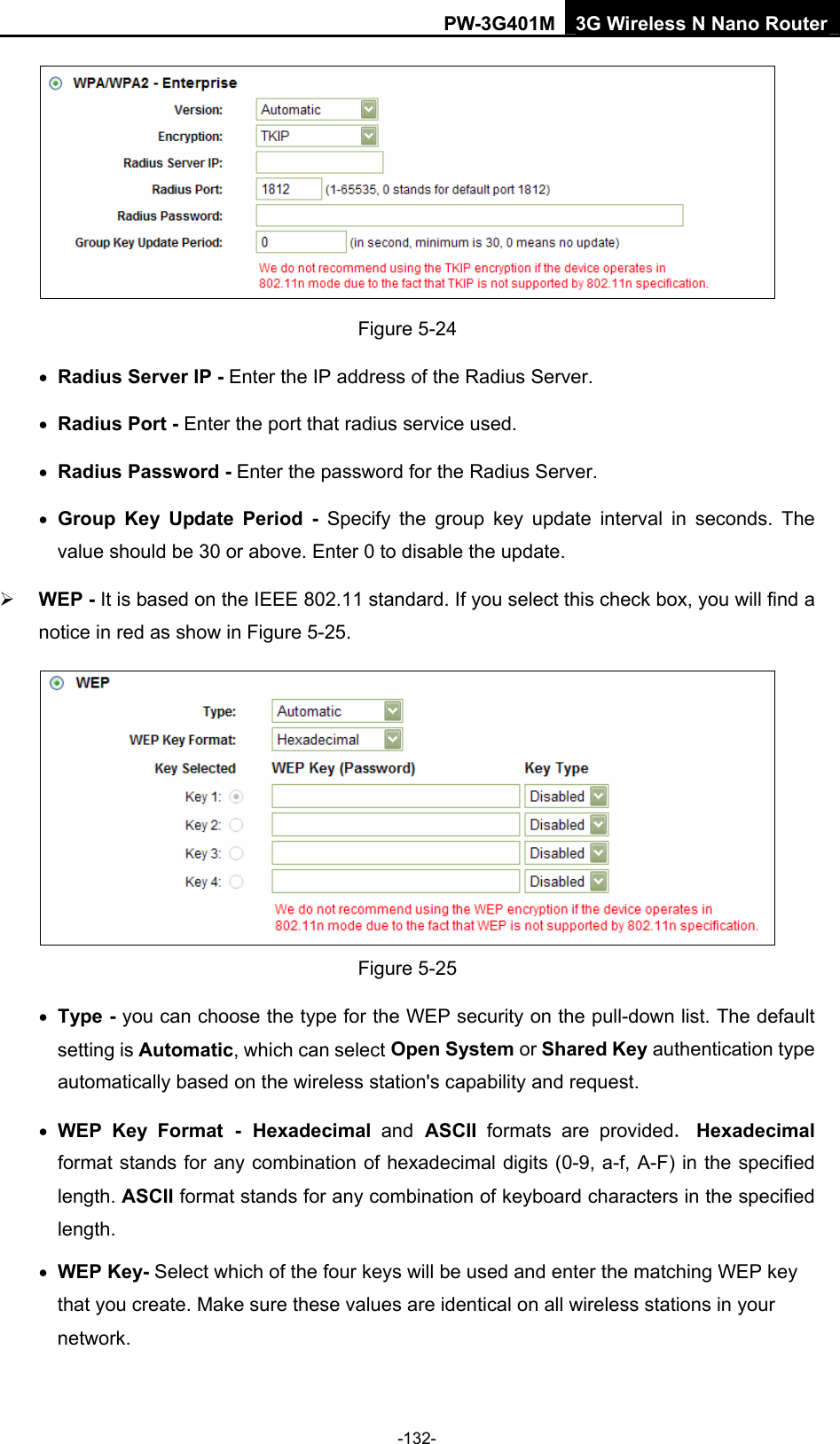

PW-3G401M 3G Wireless N Nano Router Figure 5-24 • Radius Server IP - Enter the IP address of the Radius Server. • Radius Port - Enter the port that radius service used. • Radius Password - Enter the password for the Radius Server. • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update. ¾ WEP - It is based on the IEEE 802.11 standard. If you select this check box, you will find a notice in red as show in Figure 5-25. Figure 5-25 • Type - you can choose the type for the WEP security on the pull-down list. The default setting is Automatic, which can select Open System or Shared Key authentication type automatically based on the wireless station's capability and request. • WEP Key Format - Hexadecimal and ASCII formats are provided. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. ASCII format stands for any combination of keyboard characters in the specified length. • WEP Key- Select which of the four keys will be used and enter the matching WEP key that you create. Make sure these values are identical on all wireless stations in your network. -132-

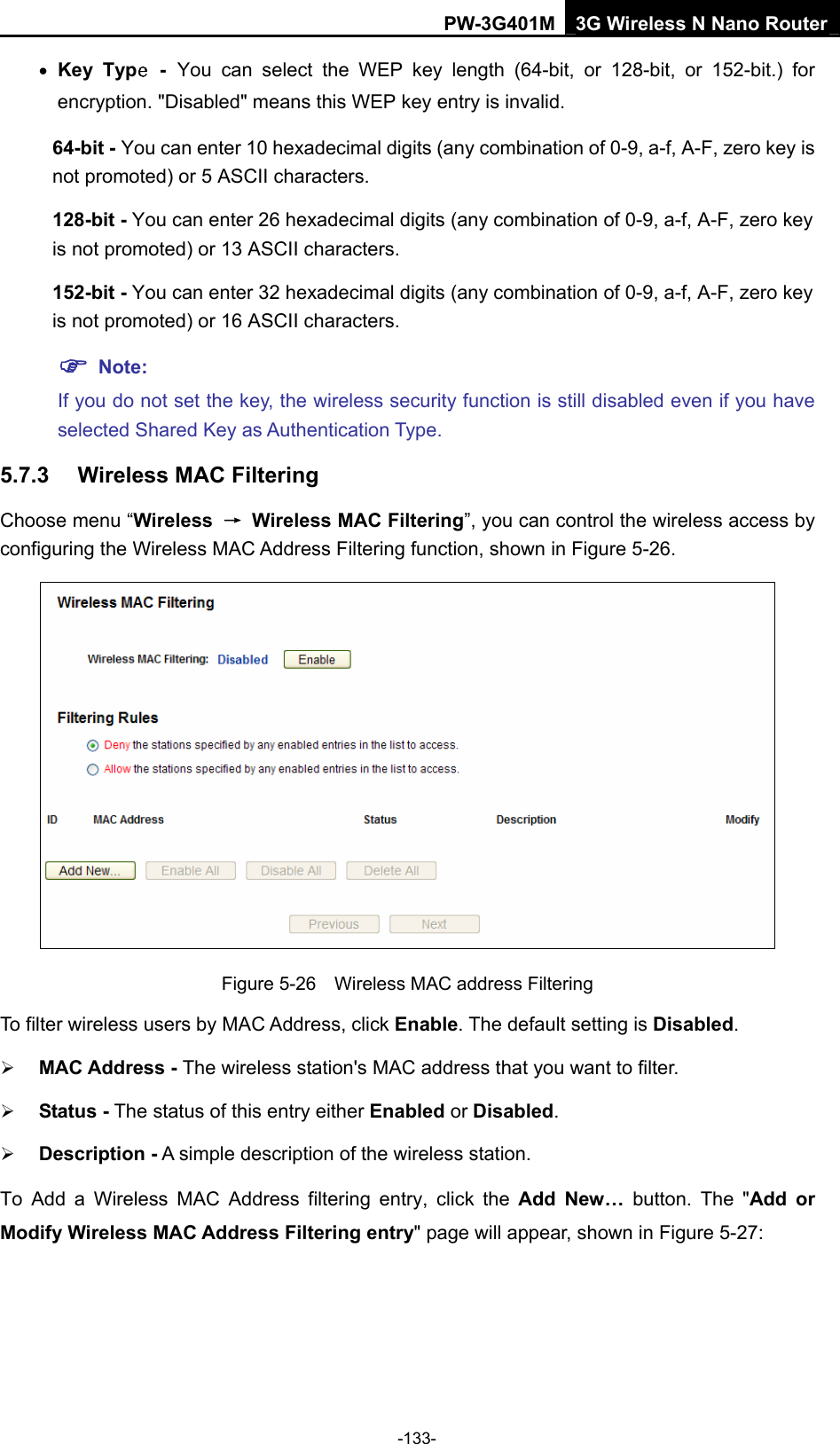

PW-3G401M 3G Wireless N Nano Router • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 64-bit - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 5 ASCII characters. 128-bit - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters. 152-bit - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. 5.7.3 Wireless MAC Filtering Choose menu “Wireless → Wireless MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Address Filtering function, shown in Figure 5-26. Figure 5-26 Wireless MAC address Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disabled. ¾ MAC Address - The wireless station's MAC address that you want to filter. ¾ Status - The status of this entry either Enabled or Disabled. ¾ Description - A simple description of the wireless station. To Add a Wireless MAC Address filtering entry, click the Add New… button. The "Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 5-27: -133-

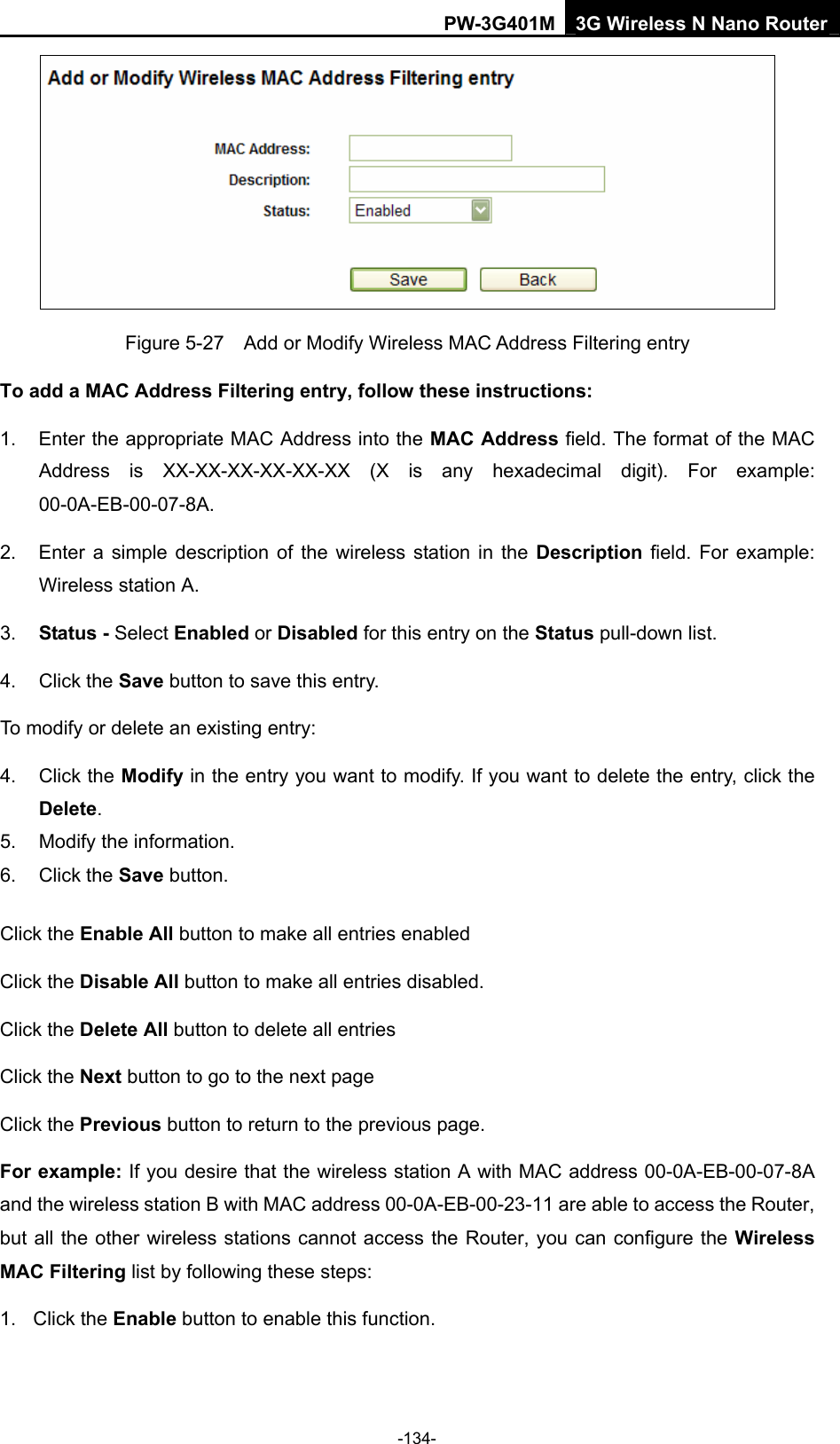

PW-3G401M 3G Wireless N Nano Router Figure 5-27 Add or Modify Wireless MAC Address Filtering entry To add a MAC Address Filtering entry, follow these instructions: 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-00-07-8A. 2. Enter a simple description of the wireless station in the Description field. For example: Wireless station A. 3. Status - Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to save this entry. To modify or delete an existing entry: 4. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 5. Modify the information. 6. Click the Save button. Click the Enable All button to make all entries enabled Click the Disable All button to make all entries disabled. Click the Delete All button to delete all entries Click the Next button to go to the next page Click the Previous button to return to the previous page. For example: If you desire that the wireless station A with MAC address 00-0A-EB-00-07-8A and the wireless station B with MAC address 00-0A-EB-00-23-11 are able to access the Router, but all the other wireless stations cannot access the Router, you can configure the Wireless MAC Filtering list by following these steps: 1. Click the Enable button to enable this function. -134-
PW-3G401M 3G Wireless N Nano Router 2. Select the radio button: Allow the stations specified by any enabled entries in the list to access for Filtering Rules. 3. Delete all or disable all entries if there are any entries already. 4. Click the Add New... button and enter the MAC address 00-0A-EB-00-07-8A /00-0A-EB-00-23-11 in the MAC Address field, then enter wireless station A/B in the Description field, while select Enabled in the Status pull-down list. Finally, click the Save and the Back button. The filtering rules that configured should be similar to the following list: 5.7.4 Wireless Advanced Choose menu “Wireless→Wireless Advanced”, you can configure the advanced settings of your wireless network. Figure 5-28 Wireless Advanced ¾ Beacon Interval - Enter a value between 40-1000 milliseconds for Beacon Interval here. The beacons are the packets sent by the Router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100. ¾ RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the Router will send RTS frames to -135-

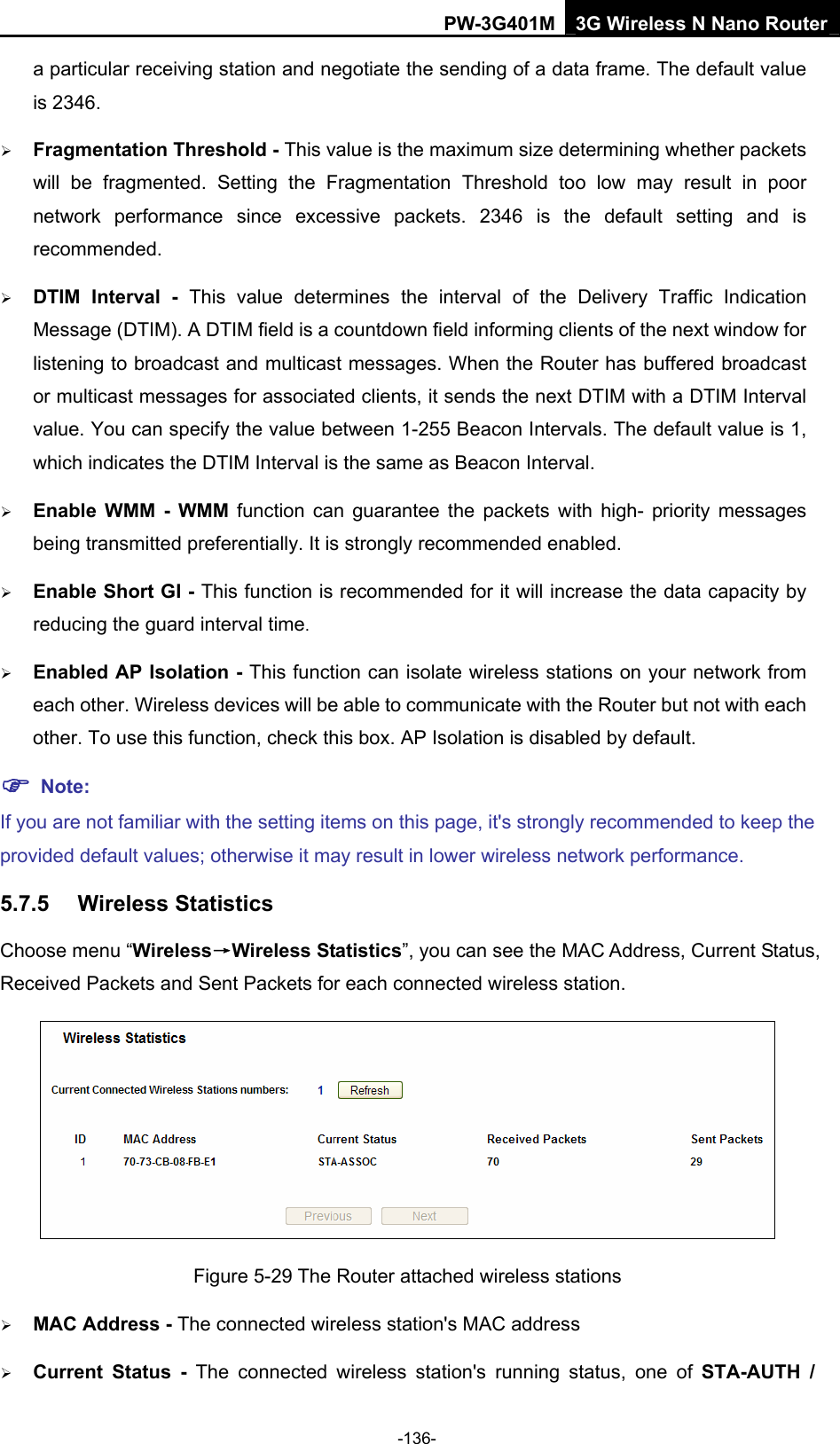

PW-3G401M 3G Wireless N Nano Router a particular receiving station and negotiate the sending of a data frame. The default value is 2346. ¾ Fragmentation Threshold - This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance since excessive packets. 2346 is the default setting and is recommended. ¾ DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval. ¾ Enable WMM - WMM function can guarantee the packets with high- priority messages being transmitted preferentially. It is strongly recommended enabled. ¾ Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time. ¾ Enabled AP Isolation - This function can isolate wireless stations on your network from each other. Wireless devices will be able to communicate with the Router but not with each other. To use this function, check this box. AP Isolation is disabled by default. ) Note: If you are not familiar with the setting items on this page, it's strongly recommended to keep the provided default values; otherwise it may result in lower wireless network performance. 5.7.5 Wireless Statistics Choose menu “Wireless→Wireless Statistics”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 5-29 The Router attached wireless stations ¾ MAC Address - The connected wireless station's MAC address ¾ Current Status - The connected wireless station's running status, one of STA-AUTH / -136-
PW-3G401M 3G Wireless N Nano Router STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN / Disconnected ¾ Received Packets - Packets received by the station ¾ Sent Packets - Packets sent by the station You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page. ) Note: This page will be refreshed automatically every 5 seconds. 5.8 DHCP Figure 5-30 The DHCP menu There are three submenus under the DHCP menu (shown in Figure 5-30): DHCP Settings, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function. 5.8.1 DHCP Settings Choose menu “DHCP→DHCP Settings”, you can configure the DHCP Server on the page (shown in Figure 5-31).The Router is set up by default as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to the Router on the LAN. -137-
PW-3G401M 3G Wireless N Nano Router Figure 5-31 DHCP Settings ¾ DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must configure the computer manually. ¾ Start IP Address - Specify an IP address for the DHCP Server to start with when assigning IP addresses. 192.168.1.100 is the default start address. ¾ End IP Address - Specify an IP address for the DHCP Server to end with when assigning IP addresses. 192.168.1.199 is the default end address. ¾ Address Lease Time - The Address Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP Address. Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up, the user will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes. ¾ Default Gateway - (Optional) Suggest to input the IP address of the LAN port of the Router, default value is 192.168.1.1. ¾ Default Domain - (Optional) Input the domain name of your network. ¾ Primary DNS - (Optional) Input the DNS IP address provided by your ISP. Or consult your ISP. ¾ Secondary DNS - (Optional) Input the IP address of another DNS server if your ISP provides two DNS servers. ) Note: To use the DHCP server function of the Router, you must configure all computers on the LAN as "Obtain an IP address automatically" mode. -138-
PW-3G401M 3G Wireless N Nano Router 5.8.2 DHCP Clients List Choose menu “DHCP→DHCP Clients List”, you can view the information about the clients attached to the Router in the next screen (shown in Figure 5-32). Figure 5-32 DHCP Clients List ¾ ID - The index of the DHCP Client ¾ Client Name - The name of the DHCP client ¾ MAC Address - The MAC address of the DHCP client ¾ Assigned IP - The IP address that the Router has allocated to the DHCP client. ¾ Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired, a new dynamic IP address will be automatically assigned to the user. You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Refresh button. 5.8.3 Address Reservation Choose menu “DHCP→Address Reservation”, you can view and add a reserved addresses for clients via the next screen (shown in Figure 5-33).When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to the servers that require permanent IP settings. Figure 5-33 Address Reservation ¾ MAC Address - The MAC address of the PC for which you want to reserve IP address. ¾ Assigned IP Address - The IP address of the Router reserved. ¾ Status - The status of this entry either Enabled or Disabled. -139-

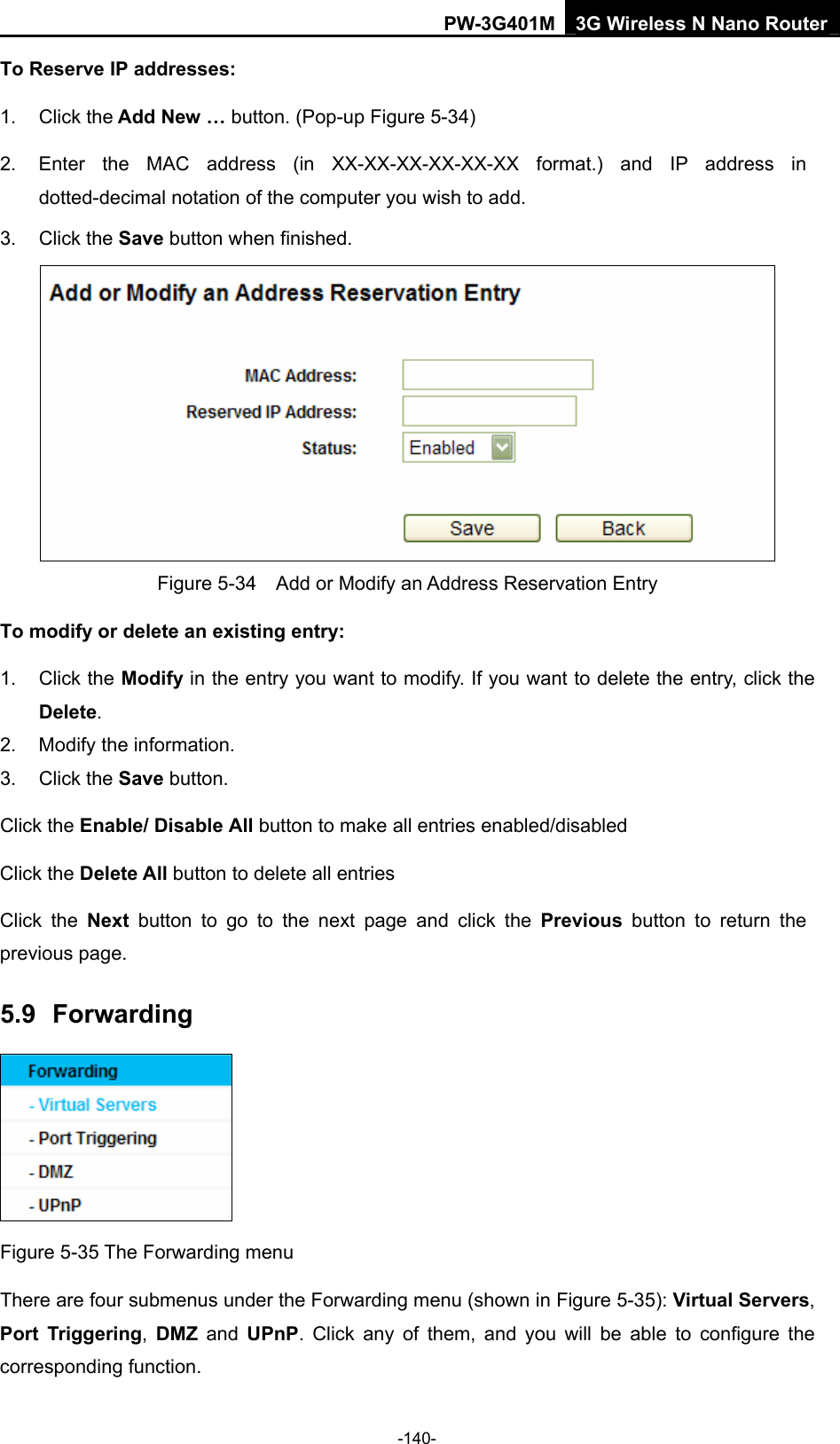

PW-3G401M 3G Wireless N Nano Router To Reserve IP addresses: 1. Click the Add New … button. (Pop-up Figure 5-34) 2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in dotted-decimal notation of the computer you wish to add. 3. Click the Save button when finished. Figure 5-34 Add or Modify an Address Reservation Entry To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable/ Disable All button to make all entries enabled/disabled Click the Delete All button to delete all entries Click the Next button to go to the next page and click the Previous button to return the previous page. 5.9 Forwarding Figure 5-35 The Forwarding menu There are four submenus under the Forwarding menu (shown in Figure 5-35): Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function. -140-
PW-3G401M 3G Wireless N Nano Router 5.9.1 Virtual Servers Choose menu “Forwarding→Virtual Servers”, you can view and add virtual servers in the next screen (shown in Figure 5-36). Virtual servers can be used for setting up public services on your LAN, such as DNS, Email and FTP. A virtual server is defined as a service port, and all requests from the Internet to this service port will be redirected to the computer specified by the server IP. Any PC that was used for a virtual server must have a static or reserved IP Address because its IP Address may be changed when using the DHCP function. Figure 5-36 Virtual Servers ¾ Service Port - The numbers of External Ports. You can type a service port or a range of service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port number). ¾ Internal Port - The Internal Service Port number of the PC running the service application. You can leave it blank if the Internal Port is the same as the Service Port, or enter a specific port number when Service Port is a single one. ¾ IP Address - The IP Address of the PC providing the service application. ¾ Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols supported by the Router). ¾ Status - The status of this entry either Enabled or Disabled. To setup a virtual server entry: 1. Click the Add New… button. (pop-up Figure 5-37) 2. Select the service you want to use from the Common Service Port list. If the Common Service Port list does not have the service that you want to use, type the number of the service port or service port range in the Service Port box. 3. Type the IP Address of the computer in the IP Address box. 4. Select the protocol used for this application, either TCP or UDP, or All. 5. Select the Enable check box to enable the virtual server. 6. Click the Save button. -141-

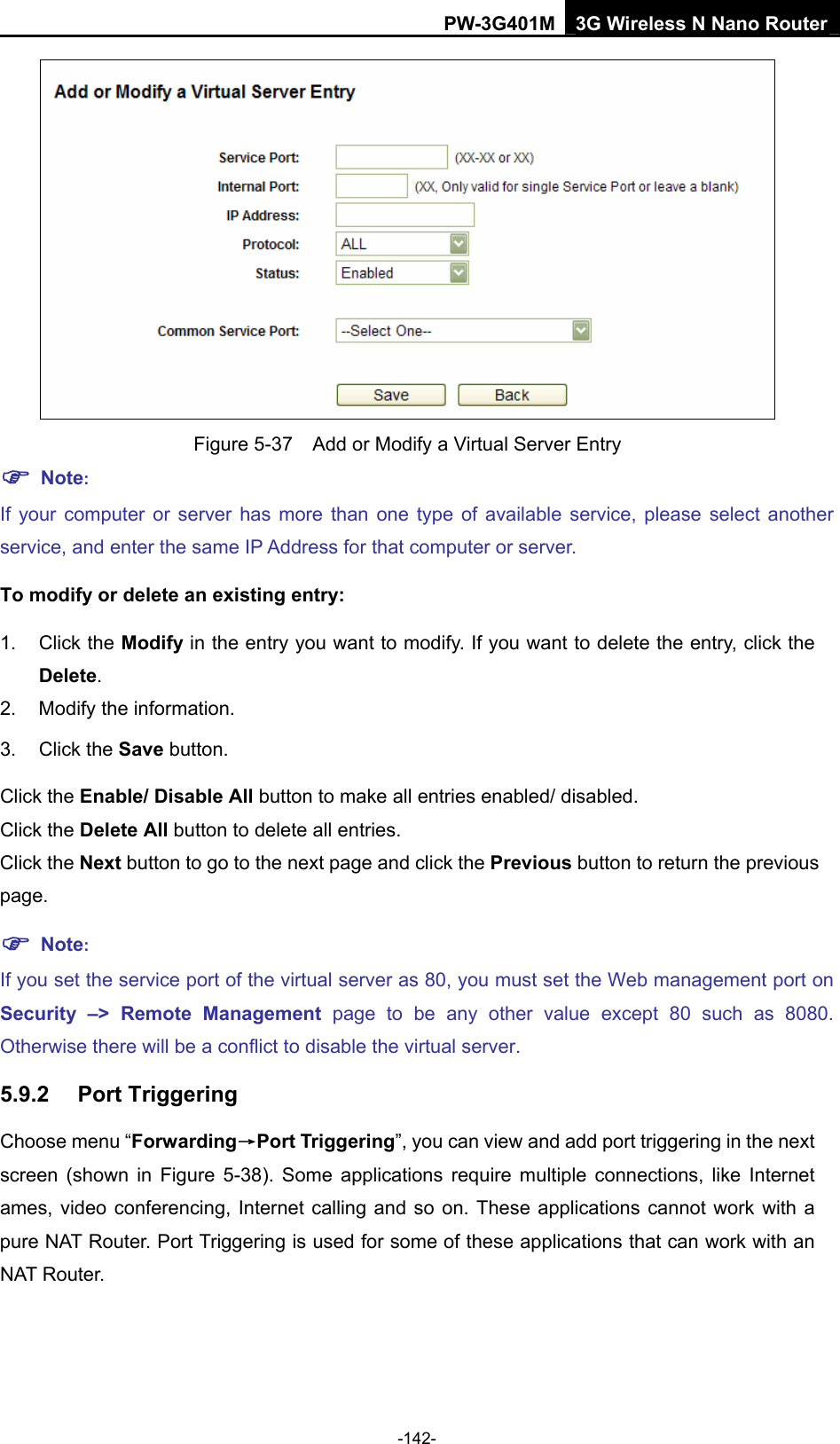

PW-3G401M 3G Wireless N Nano Router Figure 5-37 Add or Modify a Virtual Server Entry ) Note: If your computer or server has more than one type of available service, please select another service, and enter the same IP Address for that computer or server. To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable/ Disable All button to make all entries enabled/ disabled. Click the Delete All button to delete all entries. Click the Next button to go to the next page and click the Previous button to return the previous page. ) Note: If you set the service port of the virtual server as 80, you must set the Web management port on Security –> Remote Management page to be any other value except 80 such as 8080. Otherwise there will be a conflict to disable the virtual server. 5.9.2 Port Triggering Choose menu “Forwarding→Port Triggering”, you can view and add port triggering in the next screen (shown in Figure 5-38). Some applications require multiple connections, like Internet ames, video conferencing, Internet calling and so on. These applications cannot work with a pure NAT Router. Port Triggering is used for some of these applications that can work with an NAT Router. -142-
PW-3G401M 3G Wireless N Nano Router Figure 5-38 Port Triggering Once the Router is configured, the operation is as follows: 1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field. 2. The Router records this connection, opens the incoming port or ports associated with this entry in the Port Triggering table, and associates them with the local host. 3. When necessary the external host will be able to connect to the local host using one of the ports defined in the Incoming Ports field. ¾ Trigger Port - The port for outgoing traffic. An outgoing connection using this port will "Trigger" this rule. ¾ Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols supported by the Router). ¾ Incoming Port - The port or port range used by the remote system when it responds to the outgoing request. A response using one of these ports will be forwarded to the PC that triggered this rule. You can input at most 5 groups of ports (or port section). Every group of ports must be set apart with ",". For example, 2000-2038, 2050-2051, 2085, 3010-3030. ¾ Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or ALL (all protocols supported by the Router). ¾ Status - The status of this entry either Enabled or Disabled. To add a new rule, follow the steps below. 1. Click the Add New… button, the next screen will pop-up as shown in Figure 5-39. 2. Select a common application from the Common Applications drop-down list, then the Trigger Port field and the Incoming Ports field will be automatically filled. If the Common Applications do not have the application you need, enter the Trigger Port and the Incoming Ports manually. 3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either TCP, UDP, or All. 4. Select the protocol used for Incoming Ports from the Incoming Protocol drop-down list, either TCP or UDP, or All. 5. Select Enable in Status field. 6. Click the Save button to save the new rule. -143-
PW-3G401M 3G Wireless N Nano Router Figure 5-39 Add or Modify a Triggering Entry To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable All button to make all entries enabled Click the Disable All button to make all entries disabled. Click the Delete All button to delete all entries ) Note: 1) When the trigger connection is released, the according opening ports will be closed. 2) Each rule allowed to be used only by one host on LAN synchronously. The trigger connection of other hosts on LAN will be refused. 3) Incoming Port Range cannot overlap each other. 5.9.3 DMZ Choose menu “Forwarding→DMZ”, you can view and configure DMZ host in the screen (shown in Figure 5-40).The DMZ host feature allows one local host to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing. DMZ host forwards all the ports at the same time. Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it because its IP Address may be changed when using the DHCP function. -144-

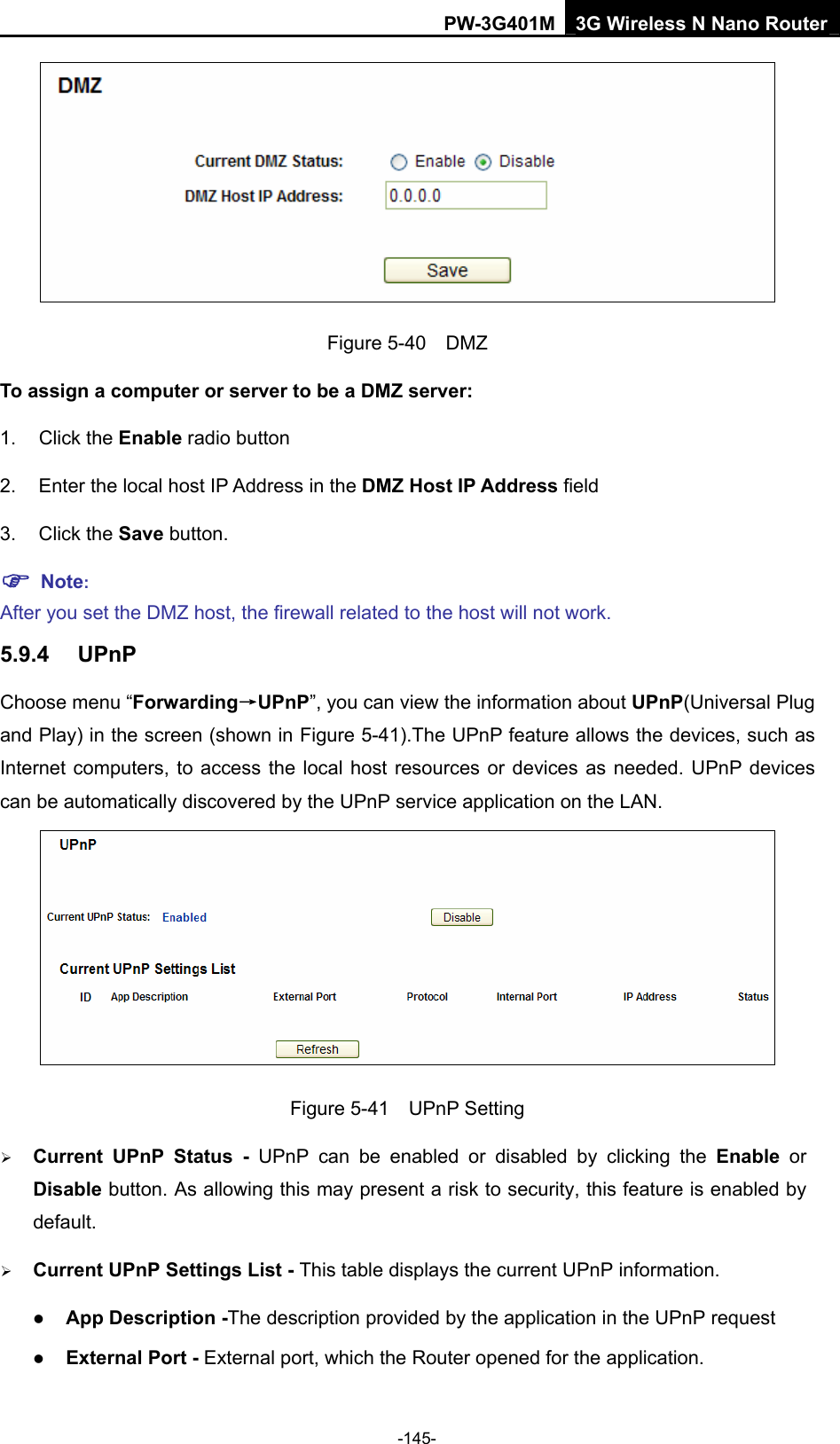

PW-3G401M 3G Wireless N Nano Router Figure 5-40 DMZ To assign a computer or server to be a DMZ server: 1. Click the Enable radio button 2. Enter the local host IP Address in the DMZ Host IP Address field 3. Click the Save button. ) Note: After you set the DMZ host, the firewall related to the host will not work. 5.9.4 UPnP Choose menu “Forwarding→UPnP”, you can view the information about UPnP(Universal Plug and Play) in the screen (shown in Figure 5-41).The UPnP feature allows the devices, such as Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN. Figure 5-41 UPnP Setting ¾ Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable button. As allowing this may present a risk to security, this feature is enabled by default. ¾ Current UPnP Settings List - This table displays the current UPnP information. z App Description -The description provided by the application in the UPnP request z External Port - External port, which the Router opened for the application. -145-

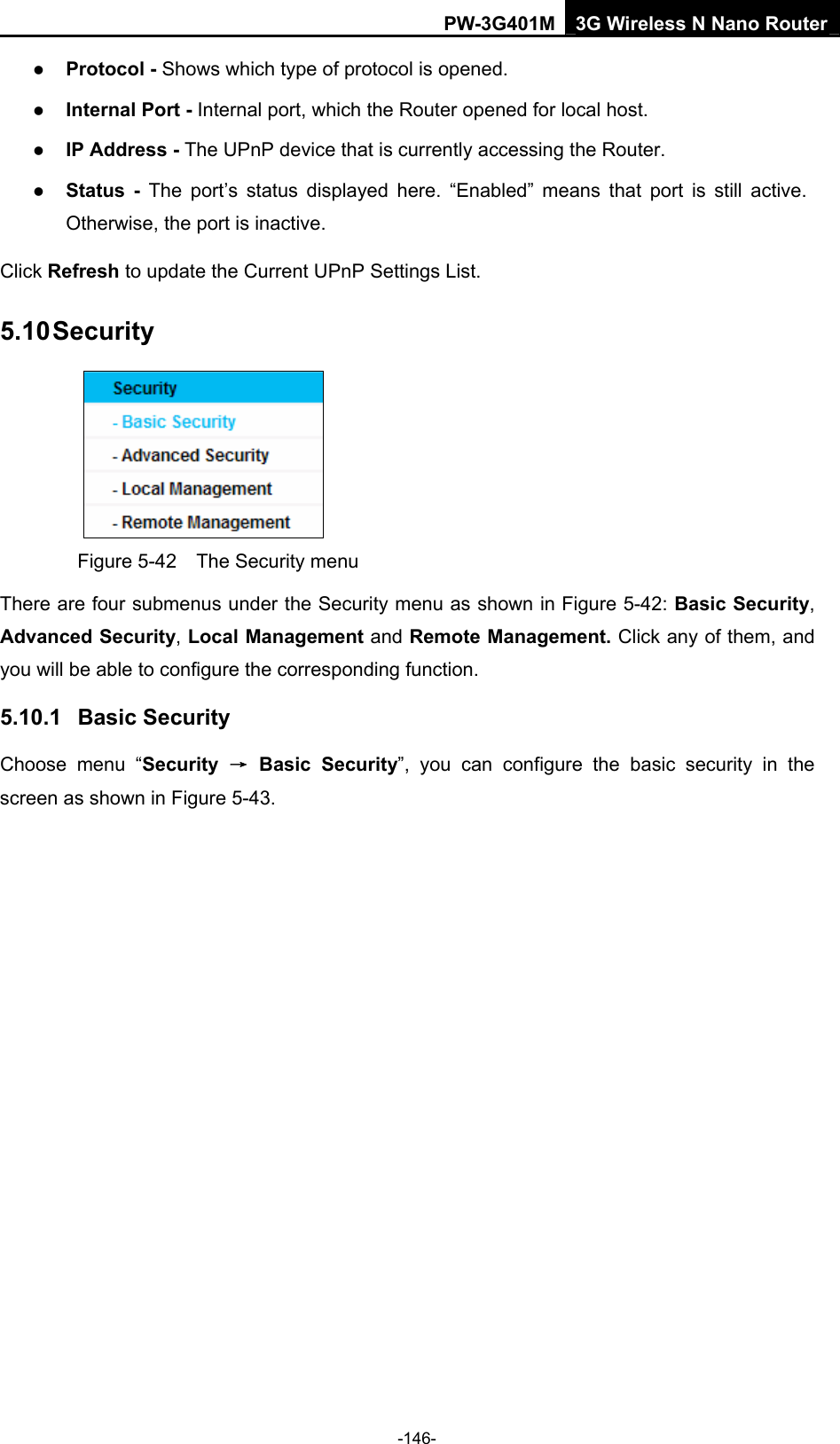

PW-3G401M 3G Wireless N Nano Router z Protocol - Shows which type of protocol is opened. z Internal Port - Internal port, which the Router opened for local host. z IP Address - The UPnP device that is currently accessing the Router. z Status - The port’s status displayed here. “Enabled” means that port is still active. Otherwise, the port is inactive. Click Refresh to update the Current UPnP Settings List. 5.10 Security Figure 5-42 The Security menu There are four submenus under the Security menu as shown in Figure 5-42: Basic Security, Advanced Security, Local Management and Remote Management. Click any of them, and you will be able to configure the corresponding function. 5.10.1 Basic Security Choose menu “Security → Basic Security”, you can configure the basic security in the screen as shown in Figure 5-43. -146-

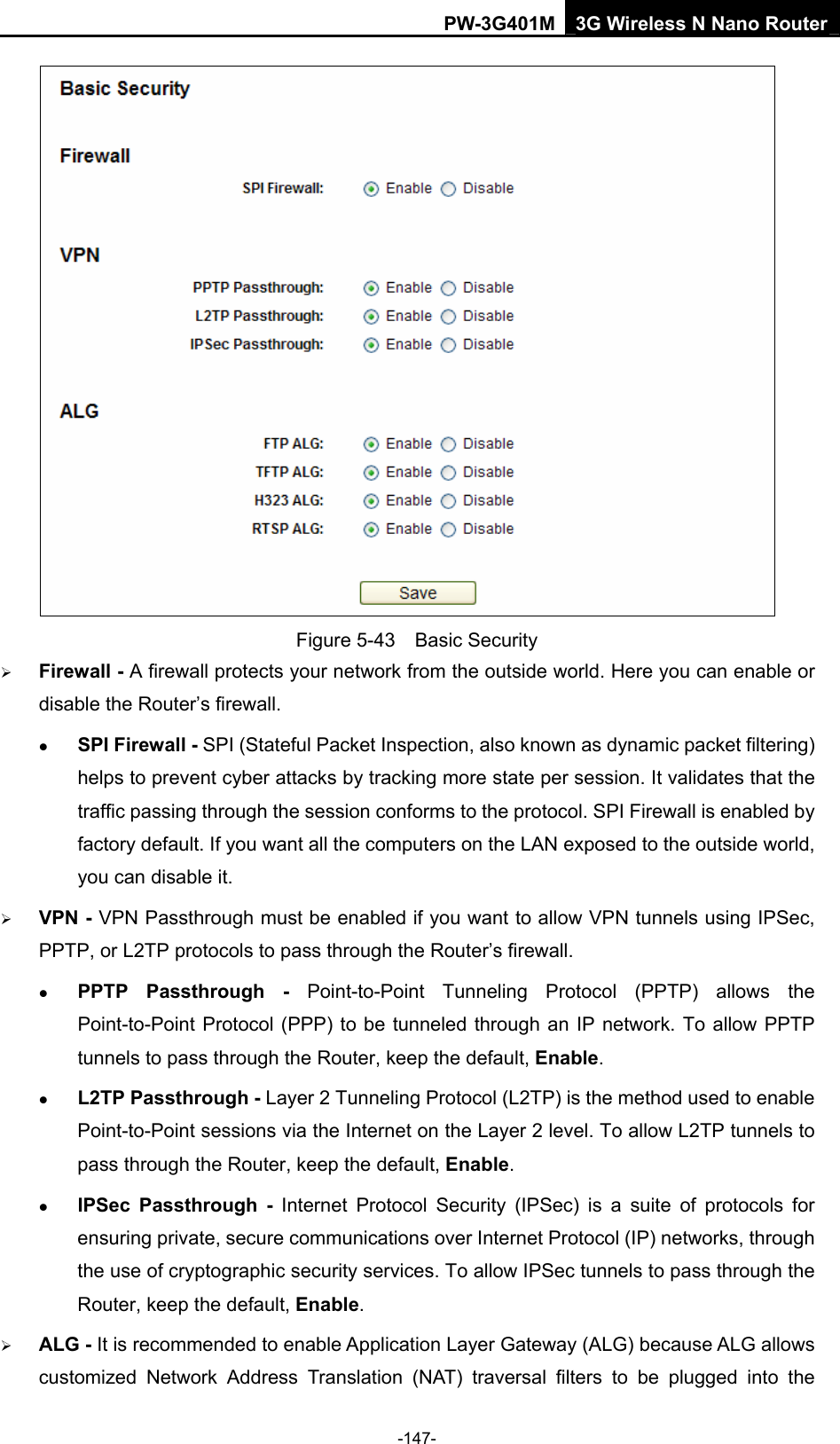

PW-3G401M 3G Wireless N Nano Router Figure 5-43 Basic Security ¾ Firewall - A firewall protects your network from the outside world. Here you can enable or disable the Router’s firewall. z SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol. SPI Firewall is enabled by factory default. If you want all the computers on the LAN exposed to the outside world, you can disable it. ¾ VPN - VPN Passthrough must be enabled if you want to allow VPN tunnels using IPSec, PPTP, or L2TP protocols to pass through the Router’s firewall. z PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Router, keep the default, Enable. z L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, keep the default, Enable. z IPSec Passthrough - Internet Protocol Security (IPSec) is a suite of protocols for ensuring private, secure communications over Internet Protocol (IP) networks, through the use of cryptographic security services. To allow IPSec tunnels to pass through the Router, keep the default, Enable. ¾ ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG allows customized Network Address Translation (NAT) traversal filters to be plugged into the -147-

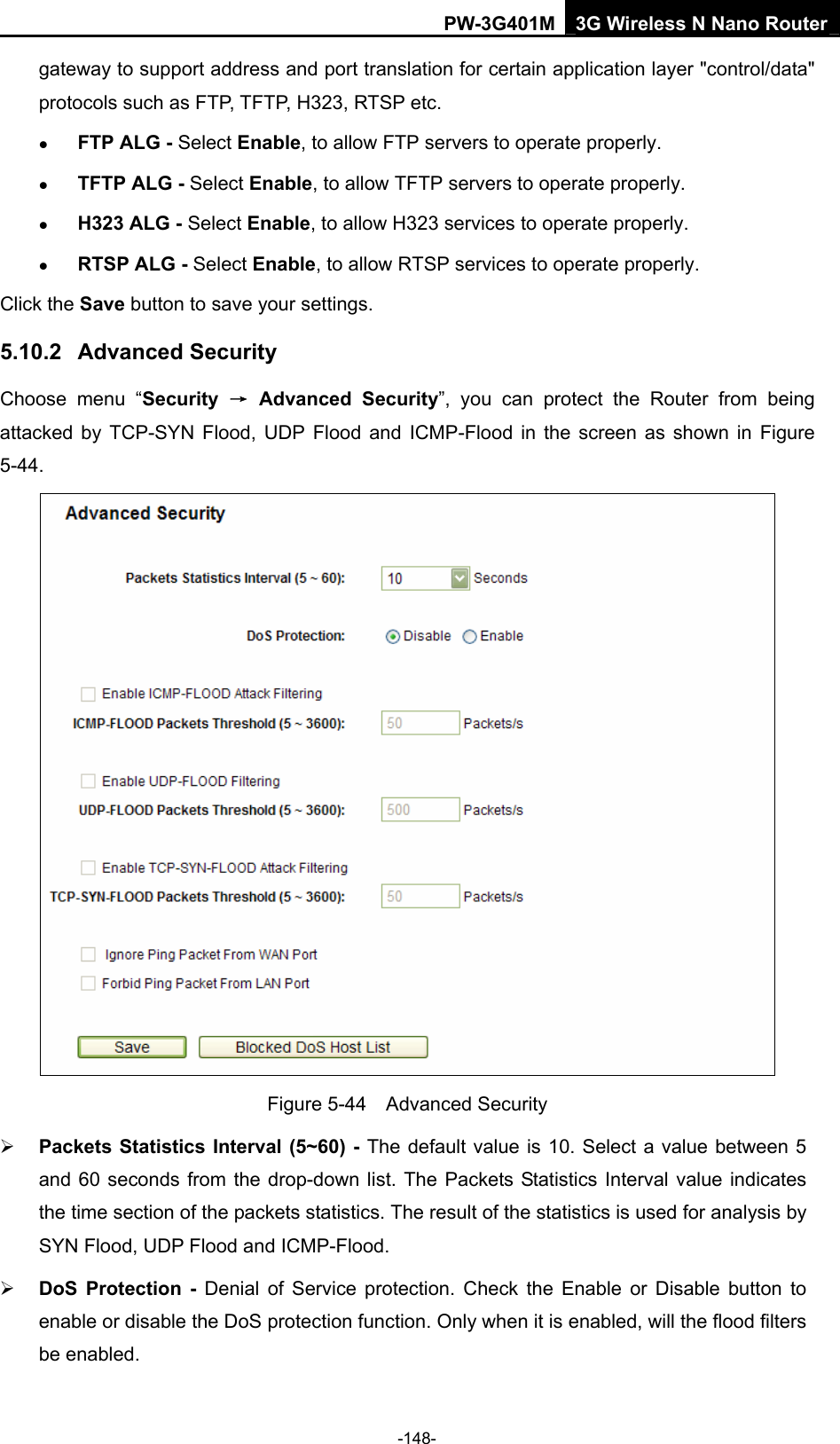

PW-3G401M 3G Wireless N Nano Router gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, TFTP, H323, RTSP etc. z FTP ALG - Select Enable, to allow FTP servers to operate properly. z TFTP ALG - Select Enable, to allow TFTP servers to operate properly. z H323 ALG - Select Enable, to allow H323 services to operate properly. z RTSP ALG - Select Enable, to allow RTSP services to operate properly. Click the Save button to save your settings. 5.10.2 Advanced Security Choose menu “Security → Advanced Security”, you can protect the Router from being attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in Figure 5-44. Figure 5-44 Advanced Security ¾ Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood. ¾ DoS Protection - Denial of Service protection. Check the Enable or Disable button to enable or disable the DoS protection function. Only when it is enabled, will the flood filters be enabled. -148-

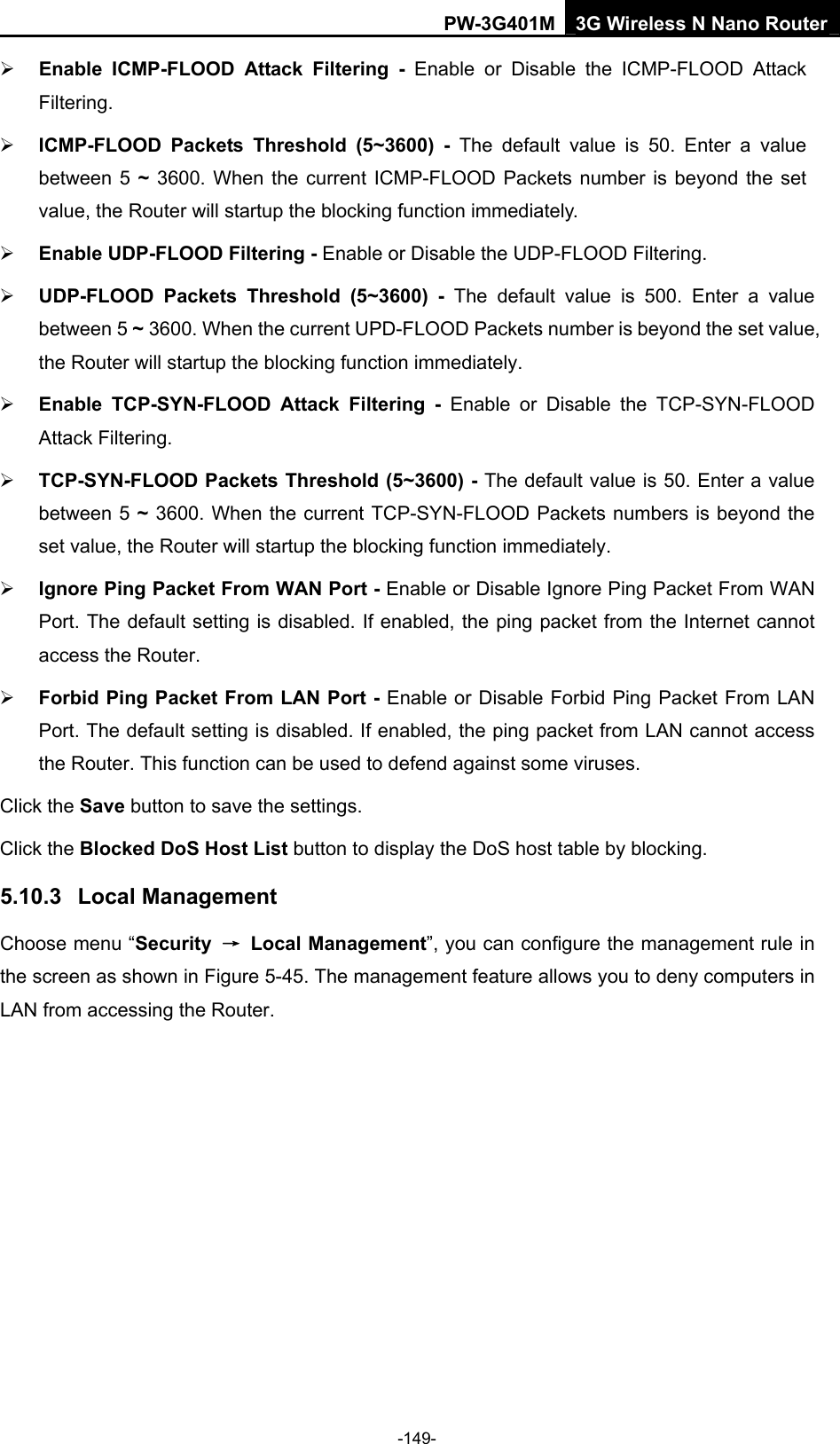

PW-3G401M 3G Wireless N Nano Router ¾ Enable ICMP-FLOOD Attack Filtering - Enable or Disable the ICMP-FLOOD Attack Filtering. ¾ ICMP-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value between 5 ~ 3600. When the current ICMP-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately. ¾ Enable UDP-FLOOD Filtering - Enable or Disable the UDP-FLOOD Filtering. ¾ UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value between 5 ~ 3600. When the current UPD-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately. ¾ Enable TCP-SYN-FLOOD Attack Filtering - Enable or Disable the TCP-SYN-FLOOD Attack Filtering. ¾ TCP-SYN-FLOOD Packets Threshold (5~3600) - The default value is 50. Enter a value between 5 ~ 3600. When the current TCP-SYN-FLOOD Packets numbers is beyond the set value, the Router will startup the blocking function immediately. ¾ Ignore Ping Packet From WAN Port - Enable or Disable Ignore Ping Packet From WAN Port. The default setting is disabled. If enabled, the ping packet from the Internet cannot access the Router. ¾ Forbid Ping Packet From LAN Port - Enable or Disable Forbid Ping Packet From LAN Port. The default setting is disabled. If enabled, the ping packet from LAN cannot access the Router. This function can be used to defend against some viruses. Click the Save button to save the settings. Click the Blocked DoS Host List button to display the DoS host table by blocking. 5.10.3 Local Management Choose menu “Security → Local Management”, you can configure the management rule in the screen as shown in Figure 5-45. The management feature allows you to deny computers in LAN from accessing the Router. -149-

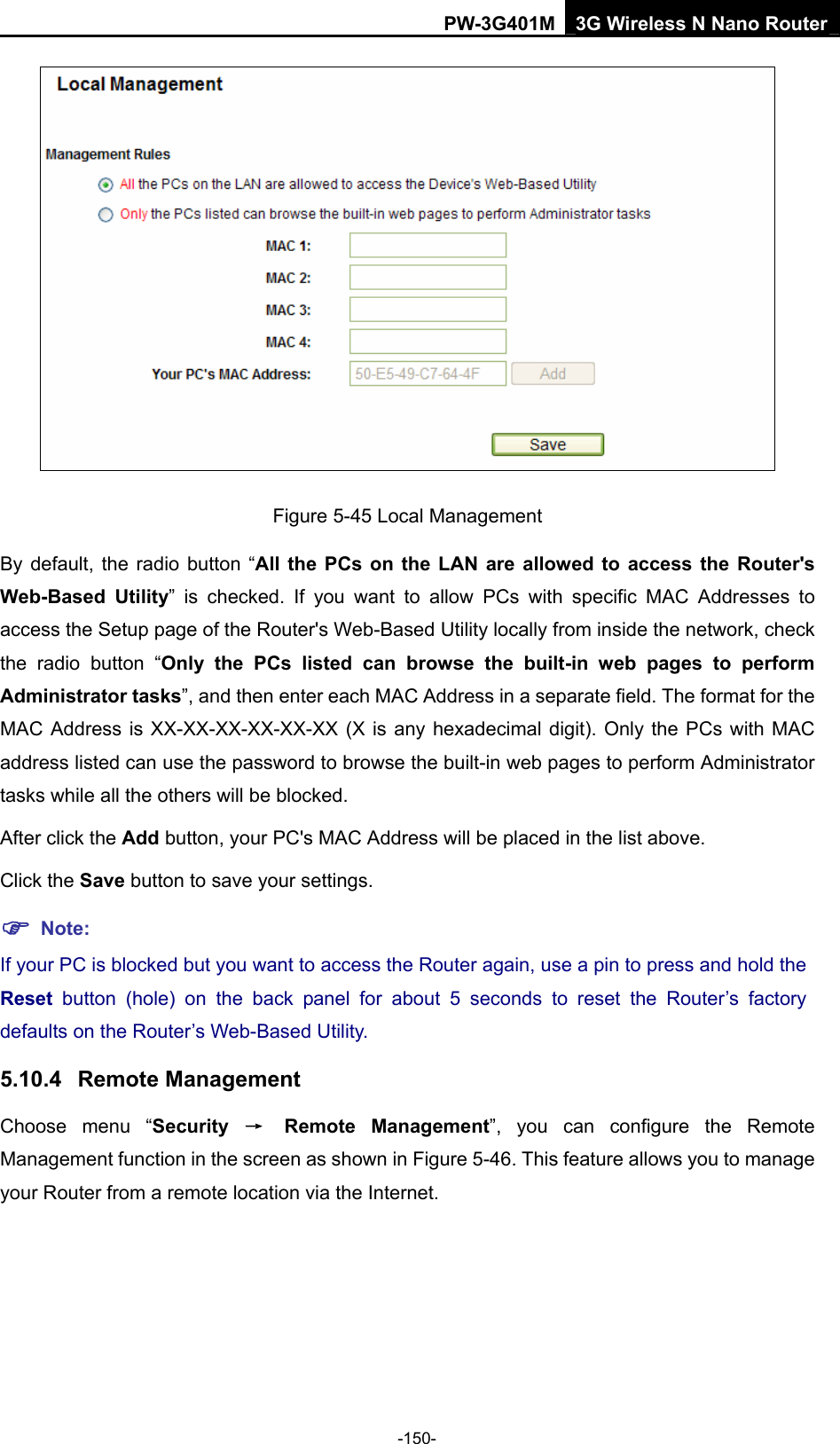

PW-3G401M 3G Wireless N Nano Router Figure 5-45 Local Management By default, the radio button “All the PCs on the LAN are allowed to access the Router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform Administrator tasks”, and then enter each MAC Address in a separate field. The format for the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC address listed can use the password to browse the built-in web pages to perform Administrator tasks while all the others will be blocked. After click the Add button, your PC's MAC Address will be placed in the list above. Click the Save button to save your settings. ) Note: If your PC is blocked but you want to access the Router again, use a pin to press and hold the Reset button (hole) on the back panel for about 5 seconds to reset the Router’s factory defaults on the Router’s Web-Based Utility. 5.10.4 Remote Management Choose menu “Security → Remote Management”, you can configure the Remote Management function in the screen as shown in Figure 5-46. This feature allows you to manage your Router from a remote location via the Internet. -150-

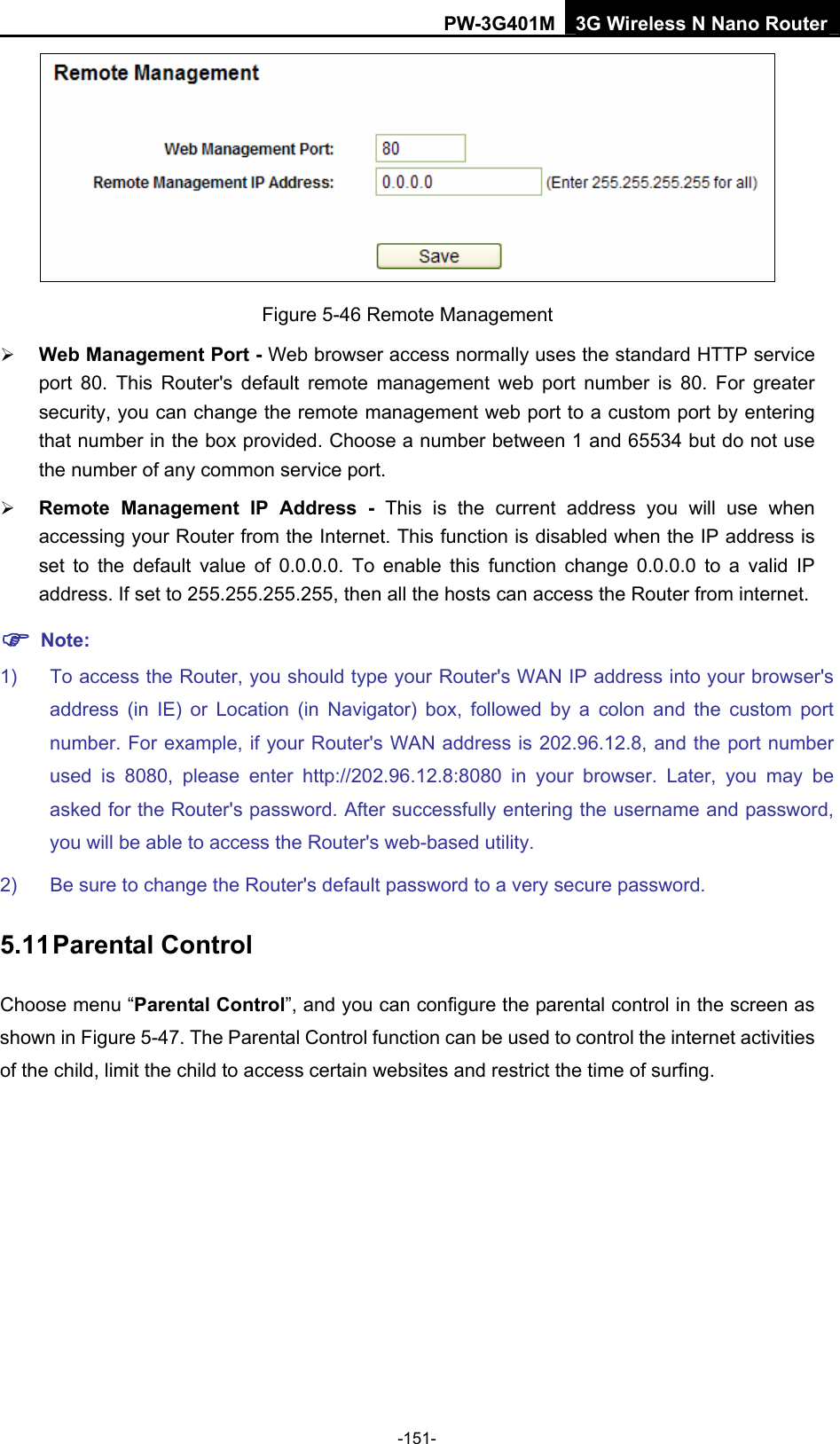

PW-3G401M 3G Wireless N Nano Router Figure 5-46 Remote Management ¾ Web Management Port - Web browser access normally uses the standard HTTP service port 80. This Router's default remote management web port number is 80. For greater security, you can change the remote management web port to a custom port by entering that number in the box provided. Choose a number between 1 and 65534 but do not use the number of any common service port. ¾ Remote Management IP Address - This is the current address you will use when accessing your Router from the Internet. This function is disabled when the IP address is set to the default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to 255.255.255.255, then all the hosts can access the Router from internet. ) Note: 1) To access the Router, you should type your Router's WAN IP address into your browser's address (in IE) or Location (in Navigator) box, followed by a colon and the custom port number. For example, if your Router's WAN address is 202.96.12.8, and the port number used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be asked for the Router's password. After successfully entering the username and password, you will be able to access the Router's web-based utility. 2) Be sure to change the Router's default password to a very secure password. 5.11 Parental Control Choose menu “Parental Control”, and you can configure the parental control in the screen as shown in Figure 5-47. The Parental Control function can be used to control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing. -151-

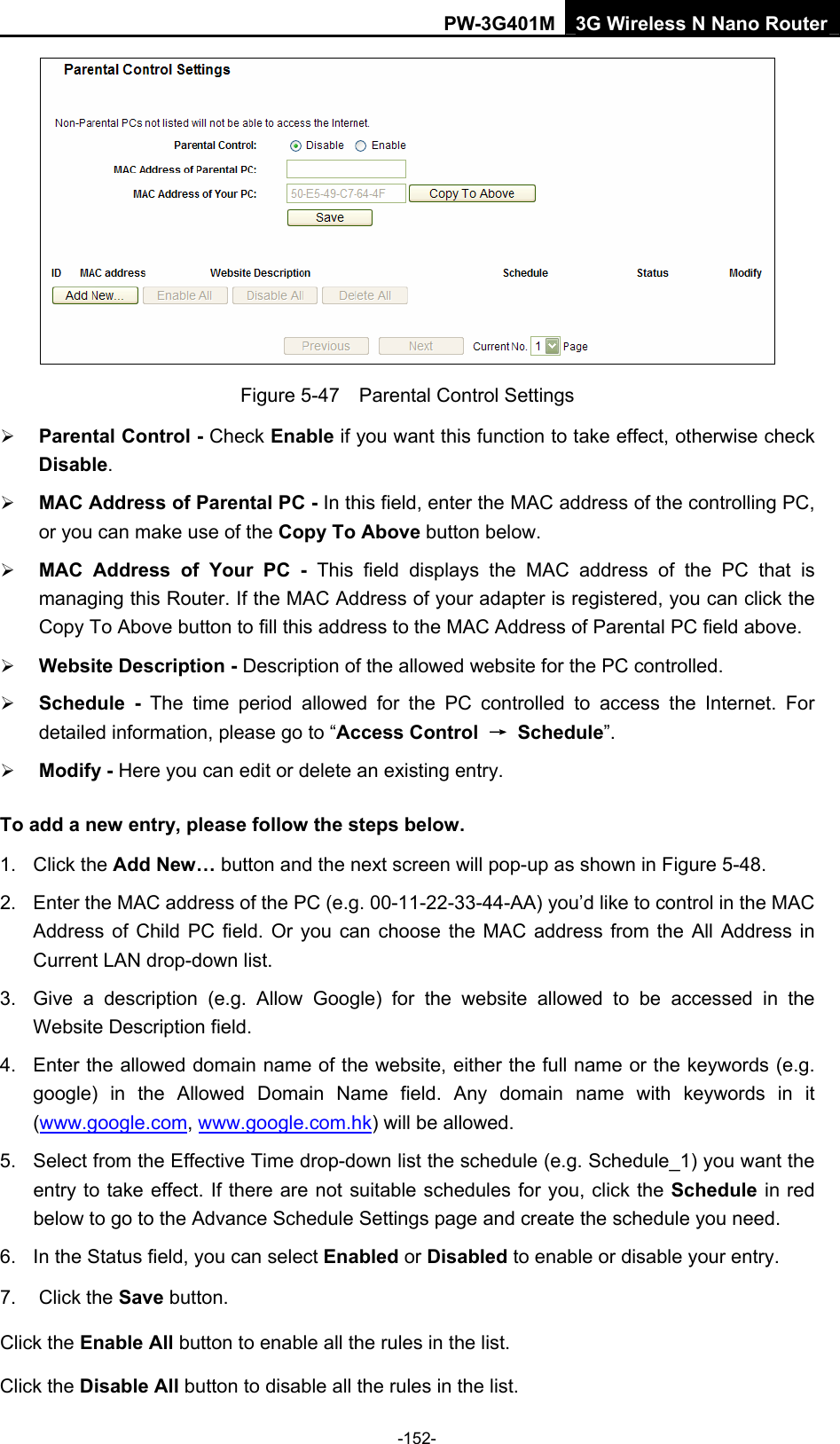

PW-3G401M 3G Wireless N Nano Router Figure 5-47 Parental Control Settings ¾ Parental Control - Check Enable if you want this function to take effect, otherwise check Disable. ¾ MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or you can make use of the Copy To Above button below. ¾ MAC Address of Your PC - This field displays the MAC address of the PC that is managing this Router. If the MAC Address of your adapter is registered, you can click the Copy To Above button to fill this address to the MAC Address of Parental PC field above. ¾ Website Description - Description of the allowed website for the PC controlled. ¾ Schedule - The time period allowed for the PC controlled to access the Internet. For detailed information, please go to “Access Control → Schedule”. ¾ Modify - Here you can edit or delete an existing entry. To add a new entry, please follow the steps below. 1. Click the Add New… button and the next screen will pop-up as shown in Figure 5-48. 2. Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d like to control in the MAC Address of Child PC field. Or you can choose the MAC address from the All Address in Current LAN drop-down list. 3. Give a description (e.g. Allow Google) for the website allowed to be accessed in the Website Description field. 4. Enter the allowed domain name of the website, either the full name or the keywords (e.g. google) in the Allowed Domain Name field. Any domain name with keywords in it (www.google.com, www.google.com.hk) will be allowed. 5. Select from the Effective Time drop-down list the schedule (e.g. Schedule_1) you want the entry to take effect. If there are not suitable schedules for you, click the Schedule in red below to go to the Advance Schedule Settings page and create the schedule you need. 6. In the Status field, you can select Enabled or Disabled to enable or disable your entry. 7. Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable all the rules in the list. -152-

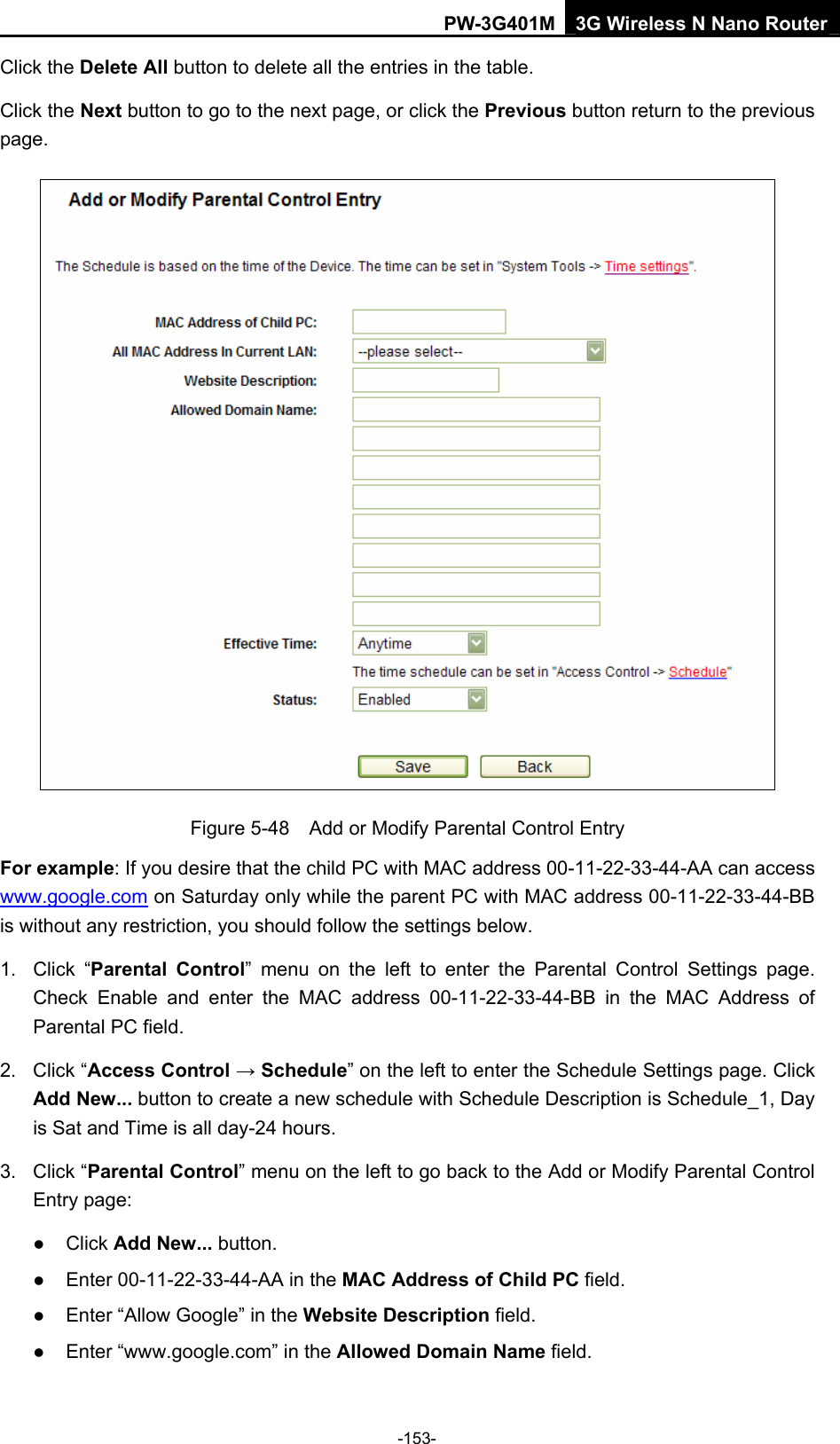

PW-3G401M 3G Wireless N Nano Router Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 5-48 Add or Modify Parental Control Entry For example: If you desire that the child PC with MAC address 00-11-22-33-44-AA can access www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is without any restriction, you should follow the settings below. 1. Click “Parental Control” menu on the left to enter the Parental Control Settings page. Check Enable and enter the MAC address 00-11-22-33-44-BB in the MAC Address of Parental PC field. 2. Click “Access Control → Schedule” on the left to enter the Schedule Settings page. Click Add New... button to create a new schedule with Schedule Description is Schedule_1, Day is Sat and Time is all day-24 hours. 3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental Control Entry page: z Click Add New... button. z Enter 00-11-22-33-44-AA in the MAC Address of Child PC field. z Enter “Allow Google” in the Website Description field. z Enter “www.google.com” in the Allowed Domain Name field. -153-

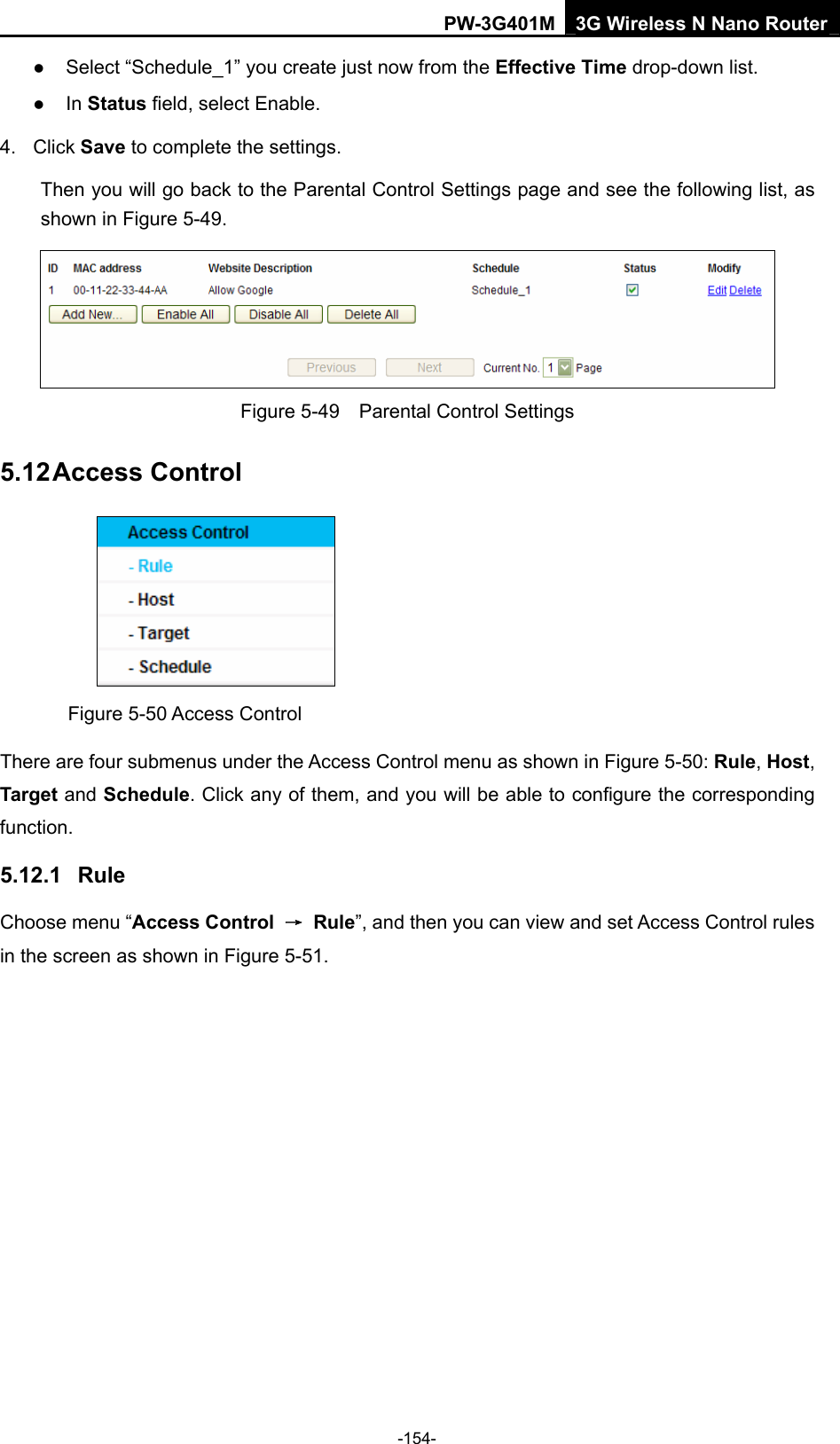

PW-3G401M 3G Wireless N Nano Router z Select “Schedule_1” you create just now from the Effective Time drop-down list. z In Status field, select Enable. 4. Click Save to complete the settings. Then you will go back to the Parental Control Settings page and see the following list, as shown in Figure 5-49. Figure 5-49 Parental Control Settings 5.12 Access Control Figure 5-50 Access Control There are four submenus under the Access Control menu as shown in Figure 5-50: Rule, Host, Target and Schedule. Click any of them, and you will be able to configure the corresponding function. 5.12.1 Rule Choose menu “Access Control → Rule”, and then you can view and set Access Control rules in the screen as shown in Figure 5-51. -154-
PW-3G401M 3G Wireless N Nano Router Figure 5-51 Access Control Rule Management ¾ Enable Internet Access Control - Select the check box to enable the Internet Access Control function, so the Default Filter Policy can take effect. ¾ Rule Name - Here displays the name of the rule and this name is unique. ¾ Host - Here displays the host selected in the corresponding rule. ¾ Target - Here displays the target selected in the corresponding rule. ¾ Schedule - Here displays the schedule selected in the corresponding rule. ¾ Enable - Here displays the status of the rule, enabled or not. Check this option to enable a specific entry. ¾ Modify - Here you can edit or delete an existing rule. ¾ Setup Wizard - Click the Setup Wizard button to create a new rule entry. ¾ Add New... - Click the Add New... button to add a new rule entry. ¾ Enable All - Click the Enable All button to enable all the rules in the list. ¾ Disable All - Click the Disable All button to disable all the rules in the list. ¾ Delete All - Click the Delete All button to delete all the entries in the table. ¾ Move - You can change the entry’s order as desired. Enter in the first box the ID number of the entry you want to move and in the second box another ID number, and then click the Move button to change the entries’ order. ¾ Next - Click the Next button to go to the next page. ¾ Previous - Click the Previous button to return to the previous page. -155-

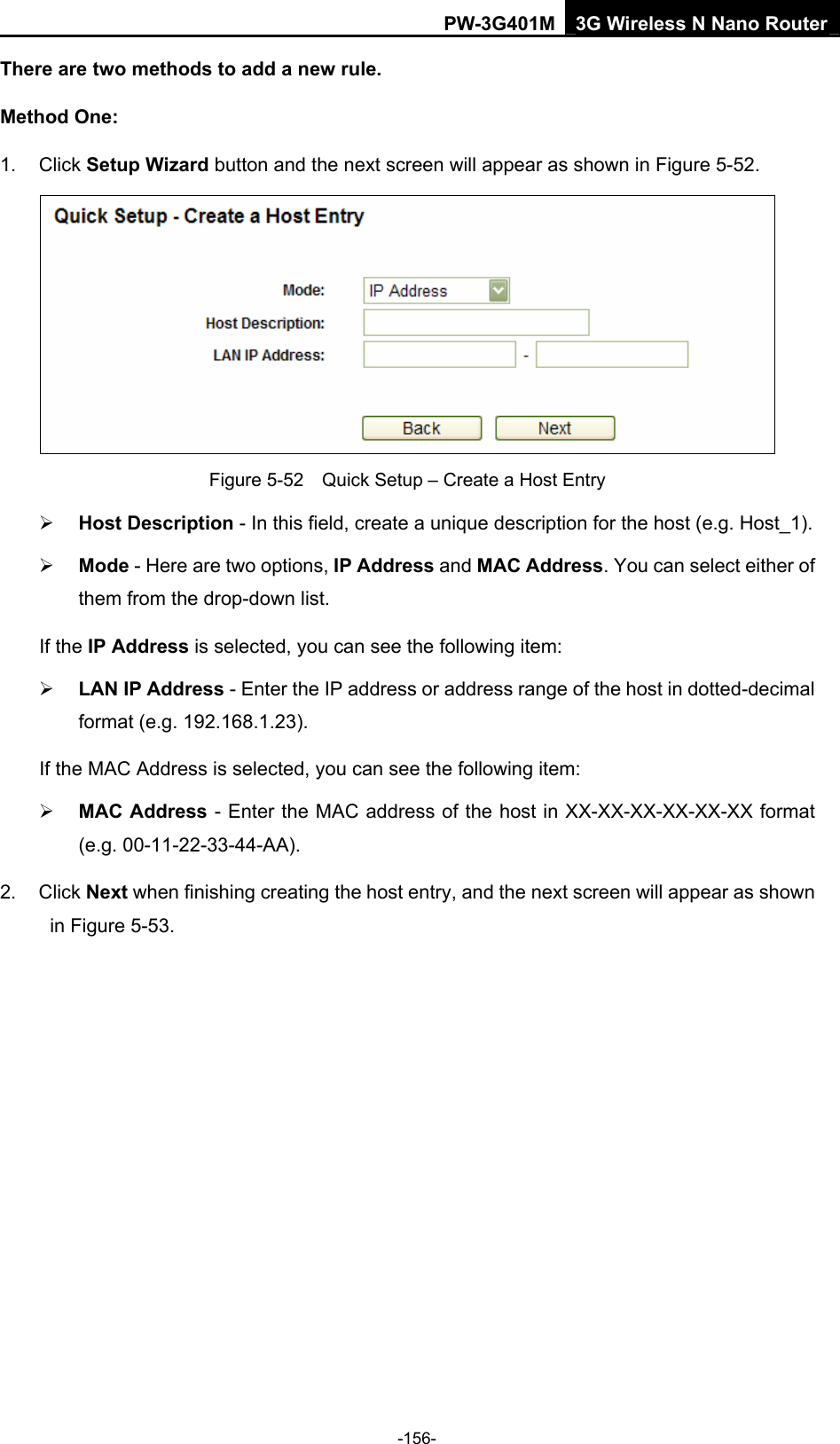

PW-3G401M 3G Wireless N Nano Router There are two methods to add a new rule. Method One: 1. Click Setup Wizard button and the next screen will appear as shown in Figure 5-52. Figure 5-52 Quick Setup – Create a Host Entry ¾ Host Description - In this field, create a unique description for the host (e.g. Host_1). ¾ Mode - Here are two options, IP Address and MAC Address. You can select either of them from the drop-down list. If the IP Address is selected, you can see the following item: ¾ LAN IP Address - Enter the IP address or address range of the host in dotted-decimal format (e.g. 192.168.1.23). If the MAC Address is selected, you can see the following item: ¾ MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g. 00-11-22-33-44-AA). 2. Click Next when finishing creating the host entry, and the next screen will appear as shown in Figure 5-53. -156-
PW-3G401M 3G Wireless N Nano Router Figure 5-53 Quick Setup – Create an Access Target Entry ¾ Target Description - In this field, create a description for the target. Note that this description should be unique (e.g. Target_1). ¾ Mode - Here are two options, IP Address and Domain Name. You can choose either of them from the drop-down list. If the IP Address is selected, you will see the following items: ¾ IP Address - Enter the IP address (or address range) of the target (targets) in dotted-decimal format (e.g. 192.168.1.23). ¾ Target Port - Specify the port or port range for the target. For some common service ports, you can make use of the Common Service Port item below. ¾ Protocol - Here are four options, All, TCP, UDP, and ICMP. Select one of them from the drop-down list for the target. ¾ Common Service Port - Here lists some common service ports. Select one from the drop-down list, and the corresponding port number will be filled in the Target Port field automatically. For example, if you select "FTP", "21" will be filled in the Target Port automatically. If the Domain Name is selected, you will see the following items: ¾ Domain Name - Here you can enter 4 domain names, either the full name or the keywords (for example, google). Any domain name with keywords in it (www.google.com, www.google.cn) will be blocked or allowed. 3. Click Next when finishing creating the access target entry, and the next screen will appear as shown in Figure 5-54. -157-

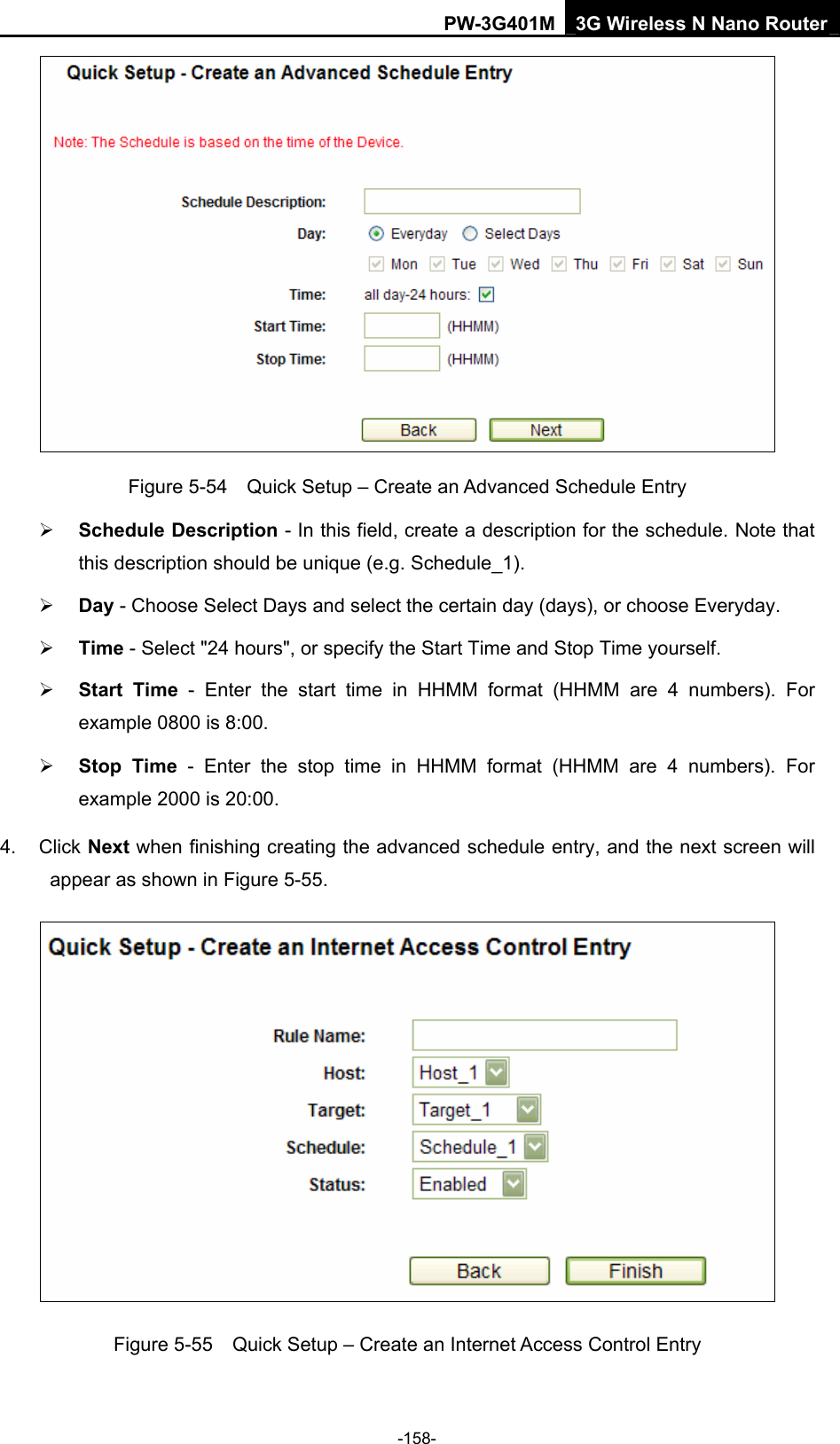

PW-3G401M 3G Wireless N Nano Router Figure 5-54 Quick Setup – Create an Advanced Schedule Entry ¾ Schedule Description - In this field, create a description for the schedule. Note that this description should be unique (e.g. Schedule_1). ¾ Day - Choose Select Days and select the certain day (days), or choose Everyday. ¾ Time - Select "24 hours", or specify the Start Time and Stop Time yourself. ¾ Start Time - Enter the start time in HHMM format (HHMM are 4 numbers). For example 0800 is 8:00. ¾ Stop Time - Enter the stop time in HHMM format (HHMM are 4 numbers). For example 2000 is 20:00. 4. Click Next when finishing creating the advanced schedule entry, and the next screen will appear as shown in Figure 5-55. Figure 5-55 Quick Setup – Create an Internet Access Control Entry -158-

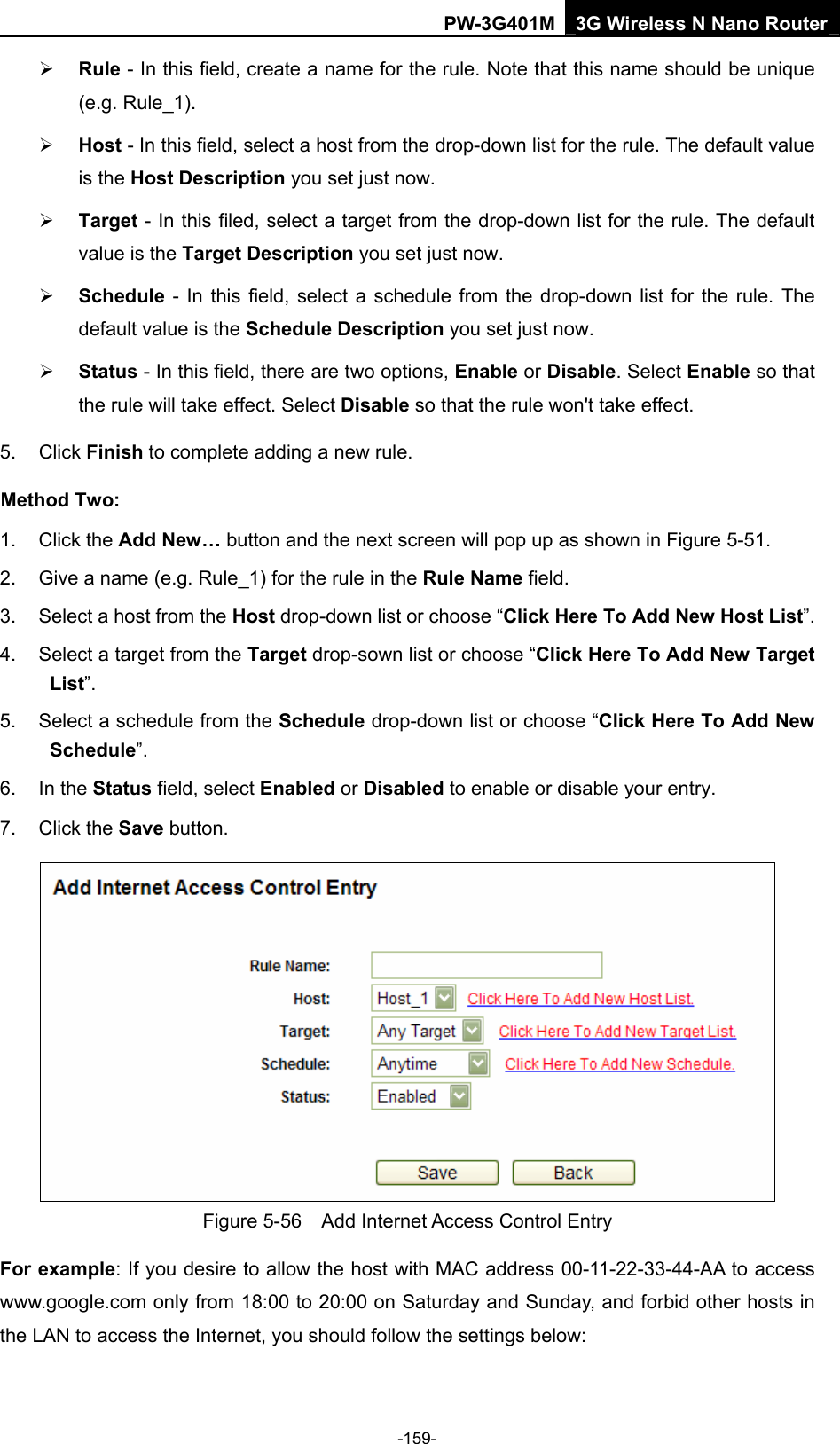

PW-3G401M 3G Wireless N Nano Router ¾ Rule - In this field, create a name for the rule. Note that this name should be unique (e.g. Rule_1). ¾ Host - In this field, select a host from the drop-down list for the rule. The default value is the Host Description you set just now. ¾ Target - In this filed, select a target from the drop-down list for the rule. The default value is the Target Description you set just now. ¾ Schedule - In this field, select a schedule from the drop-down list for the rule. The default value is the Schedule Description you set just now. ¾ Status - In this field, there are two options, Enable or Disable. Select Enable so that the rule will take effect. Select Disable so that the rule won't take effect. 5. Click Finish to complete adding a new rule. Method Two: 1. Click the Add New… button and the next screen will pop up as shown in Figure 5-51. 2. Give a name (e.g. Rule_1) for the rule in the Rule Name field. 3. Select a host from the Host drop-down list or choose “Click Here To Add New Host List”. 4. Select a target from the Target drop-sown list or choose “Click Here To Add New Target List”. 5. Select a schedule from the Schedule drop-down list or choose “Click Here To Add New Schedule”. 6. In the Status field, select Enabled or Disabled to enable or disable your entry. 7. Click the Save button. Figure 5-56 Add Internet Access Control Entry For example: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in the LAN to access the Internet, you should follow the settings below: -159-

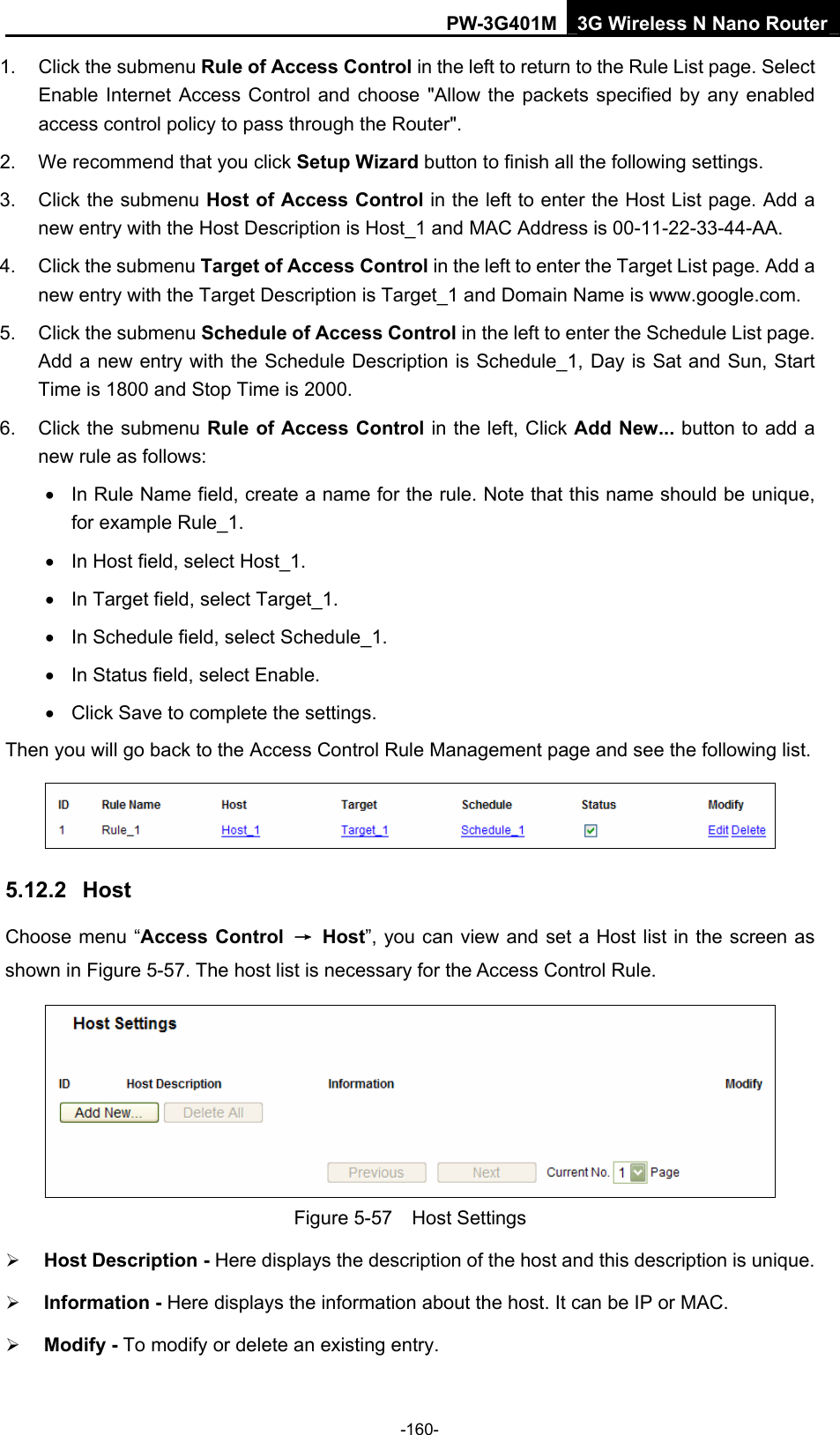

PW-3G401M 3G Wireless N Nano Router 1. Click the submenu Rule of Access Control in the left to return to the Rule List page. Select Enable Internet Access Control and choose "Allow the packets specified by any enabled access control policy to pass through the Router". 2. We recommend that you click Setup Wizard button to finish all the following settings. 3. Click the submenu Host of Access Control in the left to enter the Host List page. Add a new entry with the Host Description is Host_1 and MAC Address is 00-11-22-33-44-AA. 4. Click the submenu Target of Access Control in the left to enter the Target List page. Add a new entry with the Target Description is Target_1 and Domain Name is www.google.com. 5. Click the submenu Schedule of Access Control in the left to enter the Schedule List page. Add a new entry with the Schedule Description is Schedule_1, Day is Sat and Sun, Start Time is 1800 and Stop Time is 2000. 6. Click the submenu Rule of Access Control in the left, Click Add New... button to add a new rule as follows: • In Rule Name field, create a name for the rule. Note that this name should be unique, for example Rule_1. • In Host field, select Host_1. • In Target field, select Target_1. • In Schedule field, select Schedule_1. • In Status field, select Enable. • Click Save to complete the settings. Then you will go back to the Access Control Rule Management page and see the following list. 5.12.2 Host Choose menu “Access Control → Host”, you can view and set a Host list in the screen as shown in Figure 5-57. The host list is necessary for the Access Control Rule. Figure 5-57 Host Settings ¾ Host Description - Here displays the description of the host and this description is unique. ¾ Information - Here displays the information about the host. It can be IP or MAC. ¾ Modify - To modify or delete an existing entry. -160-
PW-3G401M 3G Wireless N Nano Router To add a new entry, please follow the steps below. 1. Click the Add New… button. 2. In the Mode field, select IP Address or MAC Address. z If you select IP Address, the screen shown is Figure 5-58. 1) In Host Description field, create a unique description for the host (e.g. Host_1). 2) In LAN IP Address field, enter the IP address. z If you select MAC Address, the screen shown is Figure 5-59. 1) In Host Description field, create a unique description for the host (e.g. Host_1). 2) In MAC Address field, enter the MAC address. 3. Click the Save button to complete the settings. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 5-58 Add or Modify a Host Entry Figure 5-59 Add or Modify a Host Entry For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA, you should first follow the settings below: 1. Click Add New... button in Figure 5-57 to enter the Add or Modify a Host Entry page. 2. In Mode field, select MAC Address from the drop-down list. -161-

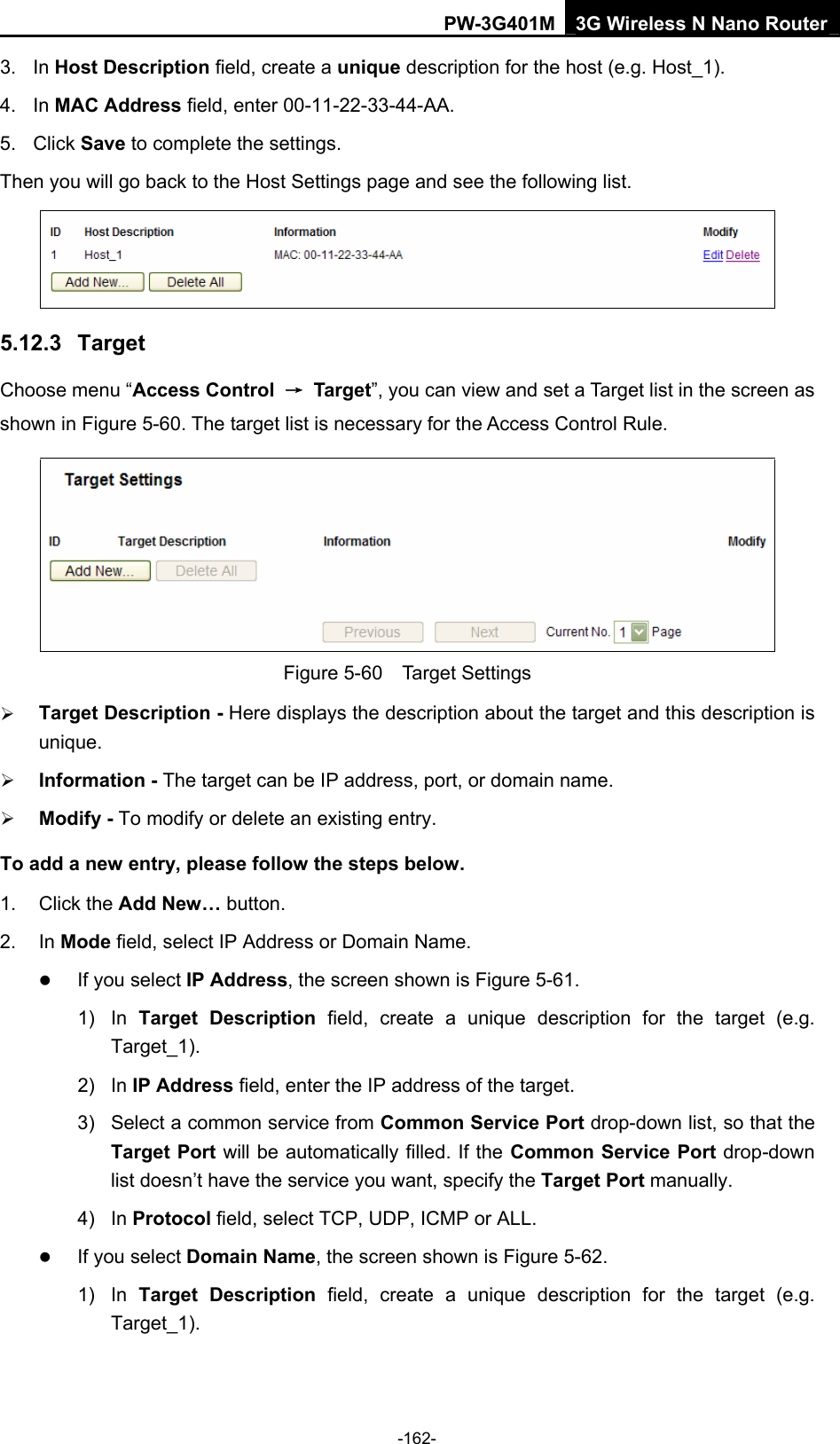

PW-3G401M 3G Wireless N Nano Router 3. In Host Description field, create a unique description for the host (e.g. Host_1). 4. In MAC Address field, enter 00-11-22-33-44-AA. 5. Click Save to complete the settings. Then you will go back to the Host Settings page and see the following list. 5.12.3 Target Choose menu “Access Control → Target”, you can view and set a Target list in the screen as shown in Figure 5-60. The target list is necessary for the Access Control Rule. Figure 5-60 Target Settings ¾ Target Description - Here displays the description about the target and this description is unique. ¾ Information - The target can be IP address, port, or domain name. ¾ Modify - To modify or delete an existing entry. To add a new entry, please follow the steps below. 1. Click the Add New… button. 2. In Mode field, select IP Address or Domain Name. z If you select IP Address, the screen shown is Figure 5-61. 1) In Target Description field, create a unique description for the target (e.g. Target_1). 2) In IP Address field, enter the IP address of the target. 3) Select a common service from Common Service Port drop-down list, so that the Target Port will be automatically filled. If the Common Service Port drop-down list doesn’t have the service you want, specify the Target Port manually. 4) In Protocol field, select TCP, UDP, ICMP or ALL. z If you select Domain Name, the screen shown is Figure 5-62. 1) In Target Description field, create a unique description for the target (e.g. Target_1). -162-
PW-3G401M 3G Wireless N Nano Router 2) In Domain Name field, enter the domain name, either the full name or the keywords (for example google) in the blank. Any domain name with keywords in it (www.google.com, www.google.hk) will be blocked or allowed. You can enter 4 domain names. 3. Click the Save button. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 5-61 Add or Modify an Access Target Entry Figure 5-62 Add or Modify an Access Target Entry -163-

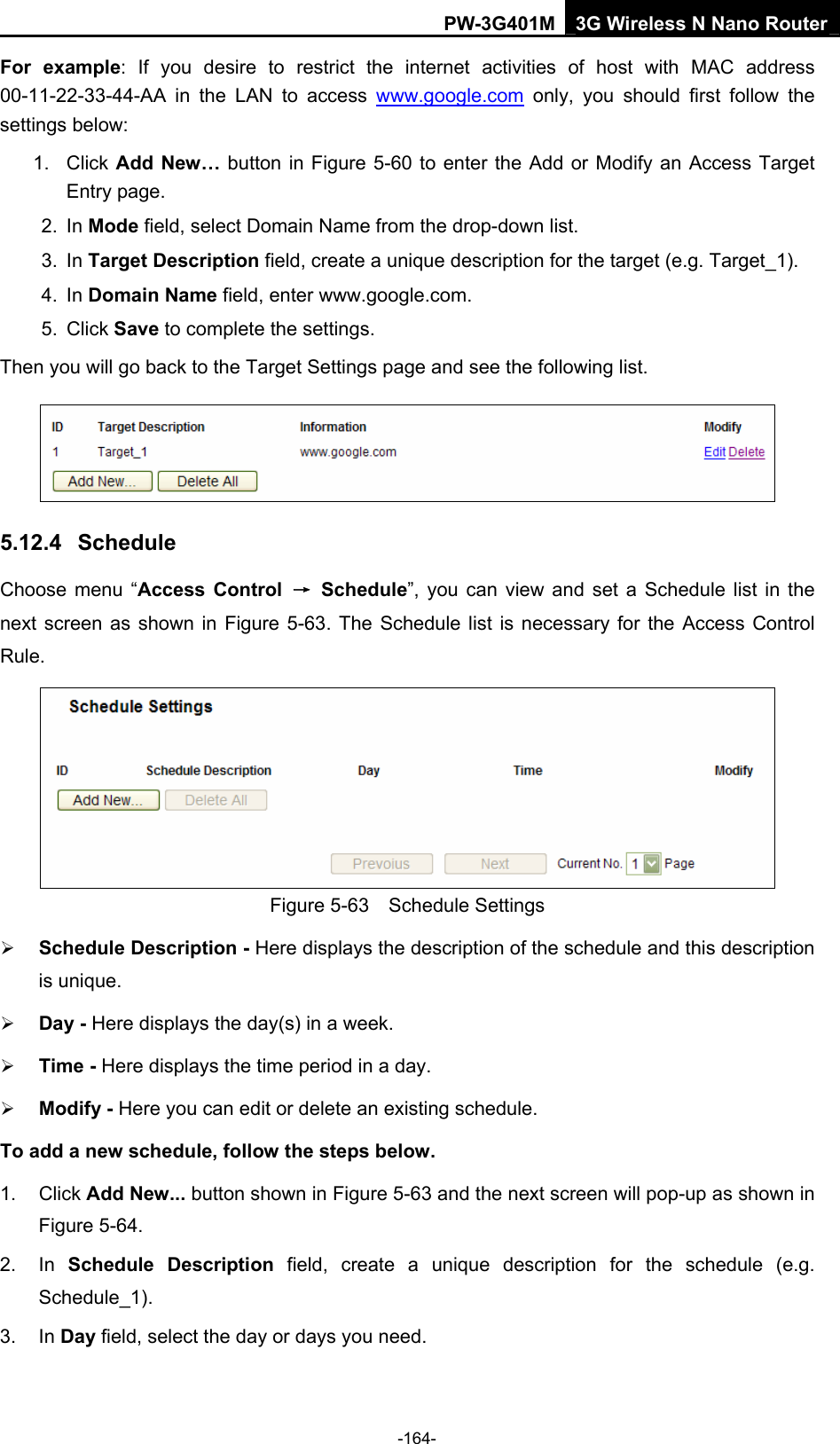

PW-3G401M 3G Wireless N Nano Router For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: 1. Click Add New… button in Figure 5-60 to enter the Add or Modify an Access Target Entry page. 2. In Mode field, select Domain Name from the drop-down list. 3. In Target Description field, create a unique description for the target (e.g. Target_1). 4. In Domain Name field, enter www.google.com. 5. Click Save to complete the settings. Then you will go back to the Target Settings page and see the following list. 5.12.4 Schedule Choose menu “Access Control → Schedule”, you can view and set a Schedule list in the next screen as shown in Figure 5-63. The Schedule list is necessary for the Access Control Rule. Figure 5-63 Schedule Settings ¾ Schedule Description - Here displays the description of the schedule and this description is unique. ¾ Day - Here displays the day(s) in a week. ¾ Time - Here displays the time period in a day. ¾ Modify - Here you can edit or delete an existing schedule. To add a new schedule, follow the steps below. 1. Click Add New... button shown in Figure 5-63 and the next screen will pop-up as shown in Figure 5-64. 2. In Schedule Description field, create a unique description for the schedule (e.g. Schedule_1). 3. In Day field, select the day or days you need. -164-

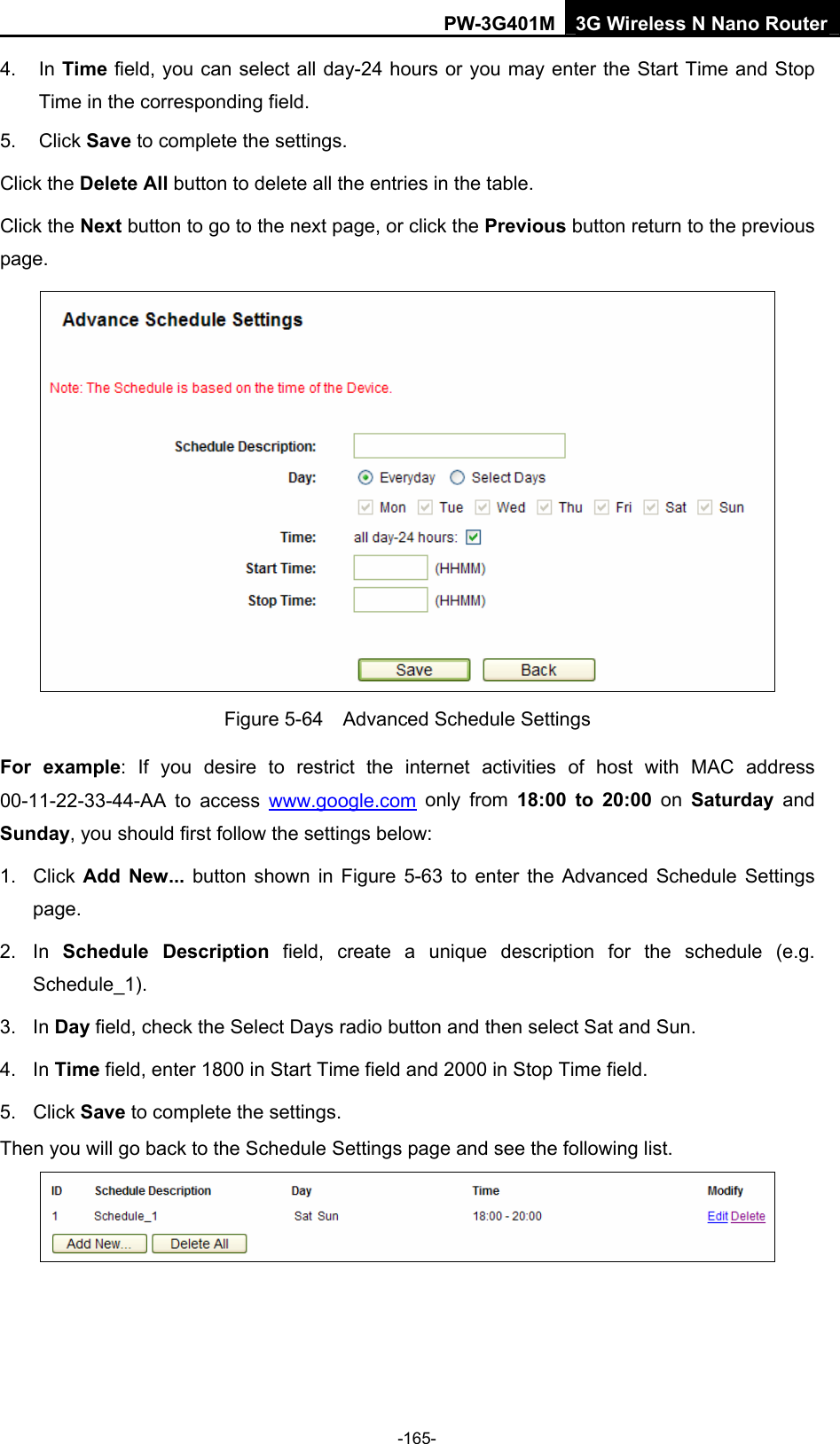

PW-3G401M 3G Wireless N Nano Router 4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time in the corresponding field. 5. Click Save to complete the settings. Click the Delete All button to delete all the entries in the table. Click the Next button to go to the next page, or click the Previous button return to the previous page. Figure 5-64 Advanced Schedule Settings For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, you should first follow the settings below: 1. Click Add New... button shown in Figure 5-63 to enter the Advanced Schedule Settings page. 2. In Schedule Description field, create a unique description for the schedule (e.g. Schedule_1). 3. In Day field, check the Select Days radio button and then select Sat and Sun. 4. In Time field, enter 1800 in Start Time field and 2000 in Stop Time field. 5. Click Save to complete the settings. Then you will go back to the Schedule Settings page and see the following list. -165-
PW-3G401M 3G Wireless N Nano Router 5.13 Advanced Routing Figure 5-65 Advanced Routing There are two submenus under the Advanced Routing menu as shown in Figure 5-65: Static Routing List and System Routing Table. Click any of them, and you will be able to configure the corresponding function. 5.13.1 Static Routing List Choose menu “Advanced Routing → Static Routing List”, you can configure the static route in the next screen (shown in Figure 5-66). A static route is a pre-determined path that network information must travel to reach a specific host or network. Figure 5-66 Static Routing To add static routing entries: 1. Click Add New… shown in Figure 5-66, you will see the following screen. Figure 5-67 Add or Modify a Static Route Entry -166-
PW-3G401M 3G Wireless N Nano Router 2. Enter the following data: ¾ Destination Network - The Destination Network is the address of the network or host that you want to assign to a static route. ¾ Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is the host portion. ¾ Gateway - This is the IP Address of the gateway device that allows for contact between the Router and the network or host. 3. Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to make the entry take effect. Other configurations for the entries: Click the Delete button to delete the entry. Click the Enable All button to enable all the entries. Click the Disable All button to disable all the entries. Click the Delete All button to delete all the entries. Click the Previous button to view the information in the previous screen, click the Next button to view the information in the next screen. 5.13.2 System Routing Table Choose menu “Advanced Routing → System Routing Table”, you can configure the system routing table in the next screen (shown in Figure 5-68). System routing table views all of the valid route entries in use. Figure 5-68 System Routing Table ¾ Destination Network - The Destination Network is the address of the network or host to which the static route is assigned. ¾ Subnet Mask - The Subnet Mask determines which portion of an IP address is the network portion, and which portion is the host portion. ¾ Gateway - This is the IP address of the gateway device that allows for contact between the Router and the network or host. -167-
PW-3G401M 3G Wireless N Nano Router ¾ Interface - This interface tells you whether the Destination IP Address is on the LAN & WLAN (internal wired and wireless networks), the WAN (Internet). 5.14 Bandwidth Control Figure 5-69 Bandwidth Control There are two submenus under the Bandwidth Control menu as shown in Figure 5-69: Control Settings and Rules List. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 5.14.1 Control Settings Choose menu “Bandwidth Control → Control Settings”, you can configure the Egress Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should be less than 100000Kbps. For optimal control of the bandwidth, please select the right Line Type and ask your ISP for the total bandwidth of the egress and ingress. Figure 5-70 Bandwidth Control Settings ¾ Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take effect. ¾ Line Type - Select the right type for you network connection. If you don’t know how to choose, please ask your ISP for the information. ¾ Egress Bandwidth - The upload speed through the WAN port. ¾ Ingress Bandwidth - The download speed through the WAN port. 5.14.2 Rules List Choose menu “Bandwidth Control → Rules List”, you can view and configure the Bandwidth Control rules in the Figure 5-71. -168-

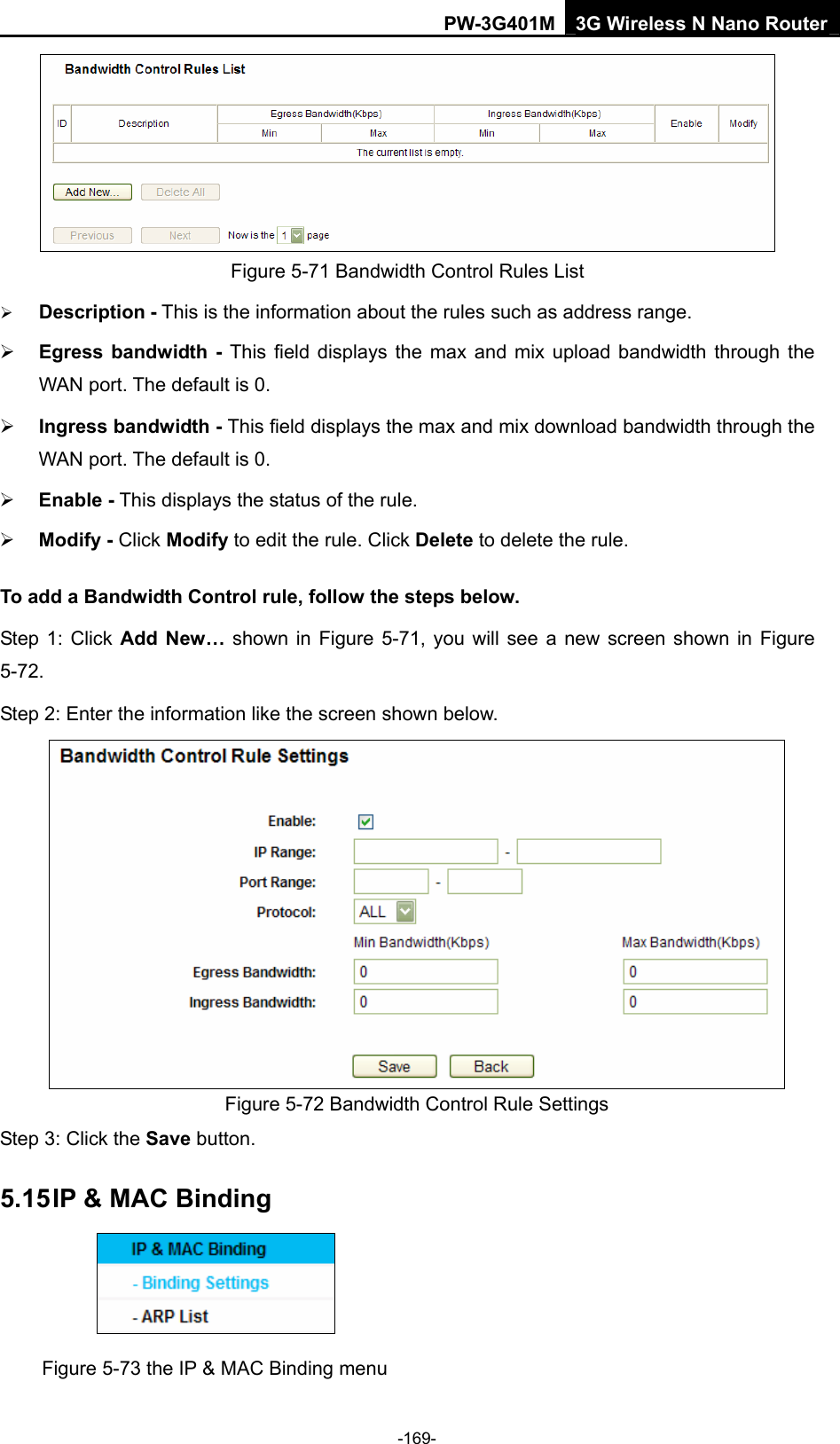

PW-3G401M 3G Wireless N Nano Router Figure 5-71 Bandwidth Control Rules List ¾ Description - This is the information about the rules such as address range. ¾ Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN port. The default is 0. ¾ Ingress bandwidth - This field displays the max and mix download bandwidth through the WAN port. The default is 0. ¾ Enable - This displays the status of the rule. ¾ Modify - Click Modify to edit the rule. Click Delete to delete the rule. To add a Bandwidth Control rule, follow the steps below. Step 1: Click Add New… shown in Figure 5-71, you will see a new screen shown in Figure 5-72. Step 2: Enter the information like the screen shown below. Figure 5-72 Bandwidth Control Rule Settings Step 3: Click the Save button. 5.15 IP & MAC Binding Figure 5-73 the IP & MAC Binding menu -169-
PW-3G401M 3G Wireless N Nano Router There are two submenus under the IP &MAC Binding menu (shown in Figure 5-73): Binding Settings and ARP List. Click any of them, and you will be able to scan or configure the corresponding function. The detailed explanations for each submenu are provided below. 5.15.1 Binding Settings This page displays the Binding Settings table; you can operate it in accord with your desire shown in Figure 5-74). Figure 5-74 Binding Settings ¾ MAC Address - The MAC address of the controlled computer in the LAN. ¾ IP Address - The assigned IP address of the controlled computer in the LAN. ¾ Bind - Check this option to enable ARP binding for a specific device. ¾ Modify - To modify or delete an existing entry. When you want to add or modify an IP & MAC Binding entry, you can click the Add New button or Modify button, and then you will go to the next page. This page is used for adding or modifying an IP & MAC Binding entry (shown in Figure 5-75). Figure 5-75 IP & MAC Binding Setting (Add & Modify) To add IP & MAC Binding entries, follow the steps below. 1. Click the Add New... button as shown in Figure 5-74. 2. Enter the MAC Address and IP Address. -170-
PW-3G401M 3G Wireless N Nano Router 3. Select the Bind checkbox. 4. Click the Save button to save it. To modify or delete an existing entry, follow the steps below. 1. Find the desired entry in the table. 2. Click Modify or Delete as desired on the Modify column. To find an existing entry, follow the steps below. 1. Click the Find button as shown in Figure 5-74. 2. Enter the MAC Address or IP Address. 3. Click the Find button in the page as shown in Figure 5-76. Figure 5-76 Find IP & MAC Binding Entry Click the Enable All button to make all entries enabled. Click the Delete All button to delete all entries. 5.15.2 ARP List To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding entries (shown in Figure 5-77). Figure 5-77 ARP List -171-
PW-3G401M 3G Wireless N Nano Router ¾ MAC Address - The MAC address of the controlled computer in the LAN. ¾ IP Address - The assigned IP address of the controlled computer in the LAN. ¾ Status - Indicates whether or not the MAC and IP addresses are bound. ¾ Configure - Load or delete an item. z Load - Load the item to the IP & MAC Binding list. z Delete - Delete the item. Click the Bind All button to bind all the current items, available after enable. Click the Load All button to load all items to the IP & MAC Binding list. Click the Refresh button to refresh all items. ) Note: An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without interference to the IP & MAC Binding list. 5.16 Dynamic DNS Choose menu “Dynamic DNS”, and you can configure the Dynamic DNS function. The Router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a dynamic IP address, and then your friends can connect to your server by entering your domain name no matter what your IP address is. Before using this feature, you need to sign up for DDNS service providers such as www.comexe.cn, www.dyndns.org, or www.no-ip.com. The Dynamic DNS client service provider will give you a password or key. 5.16.1 Comexe.cn DDNS If the dynamic DNS Service Provider you select is www.comexe.cn, the page will appear as shown in Figure 5-78. -172-
PW-3G401M 3G Wireless N Nano Router Figure 5-78 Comexe.cn DDNS Settings To set up for DDNS, follow these instructions: 1. Type the Domain Name received from your dynamic DNS service provider. 2. Type the User Name for your DDNS account. 3. Type the Password for your DDNS account. 4. Click the Login button to log in to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here. Click Logout to log out of the DDNS service. 5.16.2 Dyndns.org DDNS If the dynamic DNS Service Provider you select is www.dyndns.org, the page will appear as shown in Figure 5-79. -173-

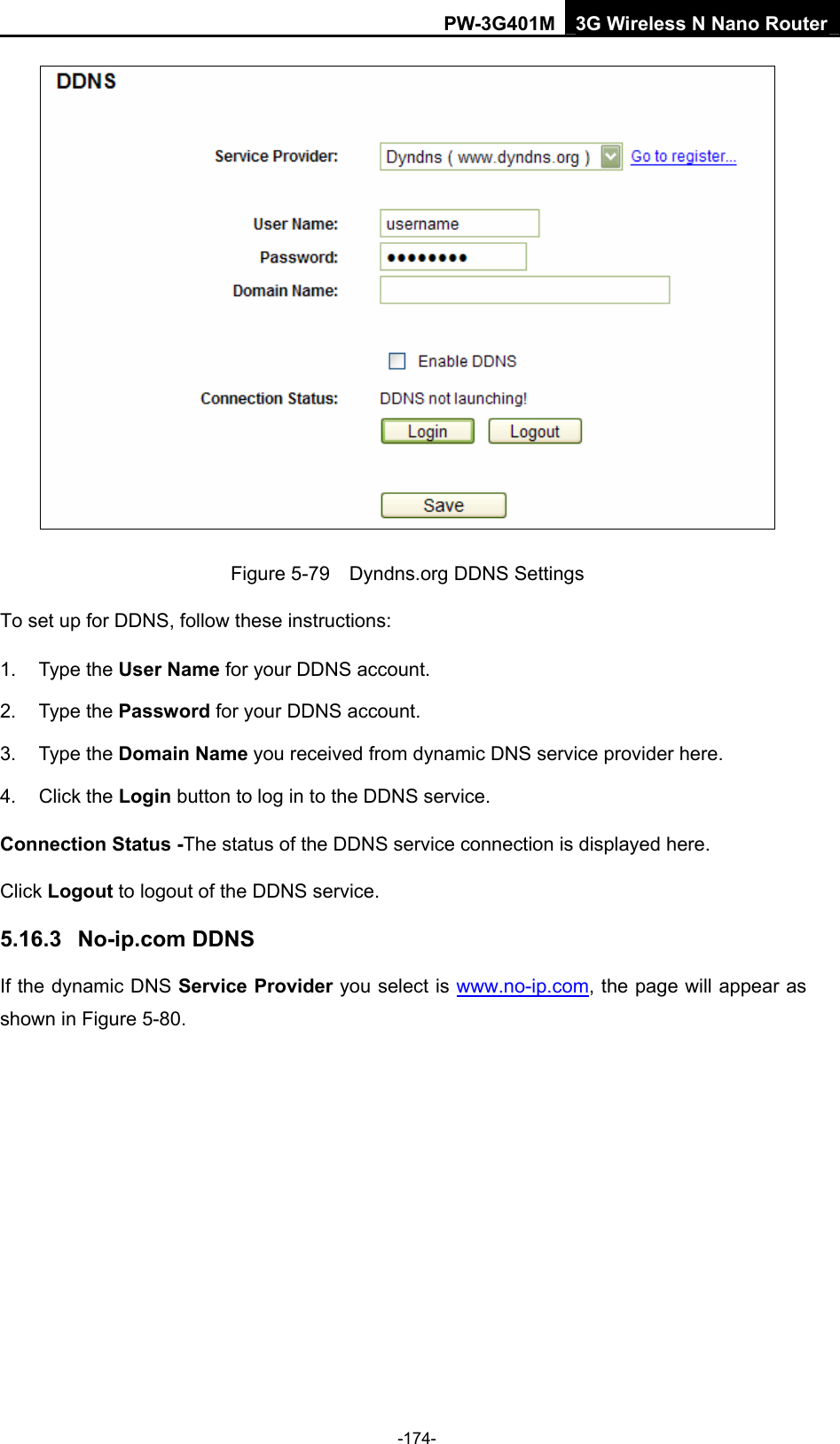

PW-3G401M 3G Wireless N Nano Router Figure 5-79 Dyndns.org DDNS Settings To set up for DDNS, follow these instructions: 1. Type the User Name for your DDNS account. 2. Type the Password for your DDNS account. 3. Type the Domain Name you received from dynamic DNS service provider here. 4. Click the Login button to log in to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here. Click Logout to logout of the DDNS service. 5.16.3 No-ip.com DDNS If the dynamic DNS Service Provider you select is www.no-ip.com, the page will appear as shown in Figure 5-80. -174-

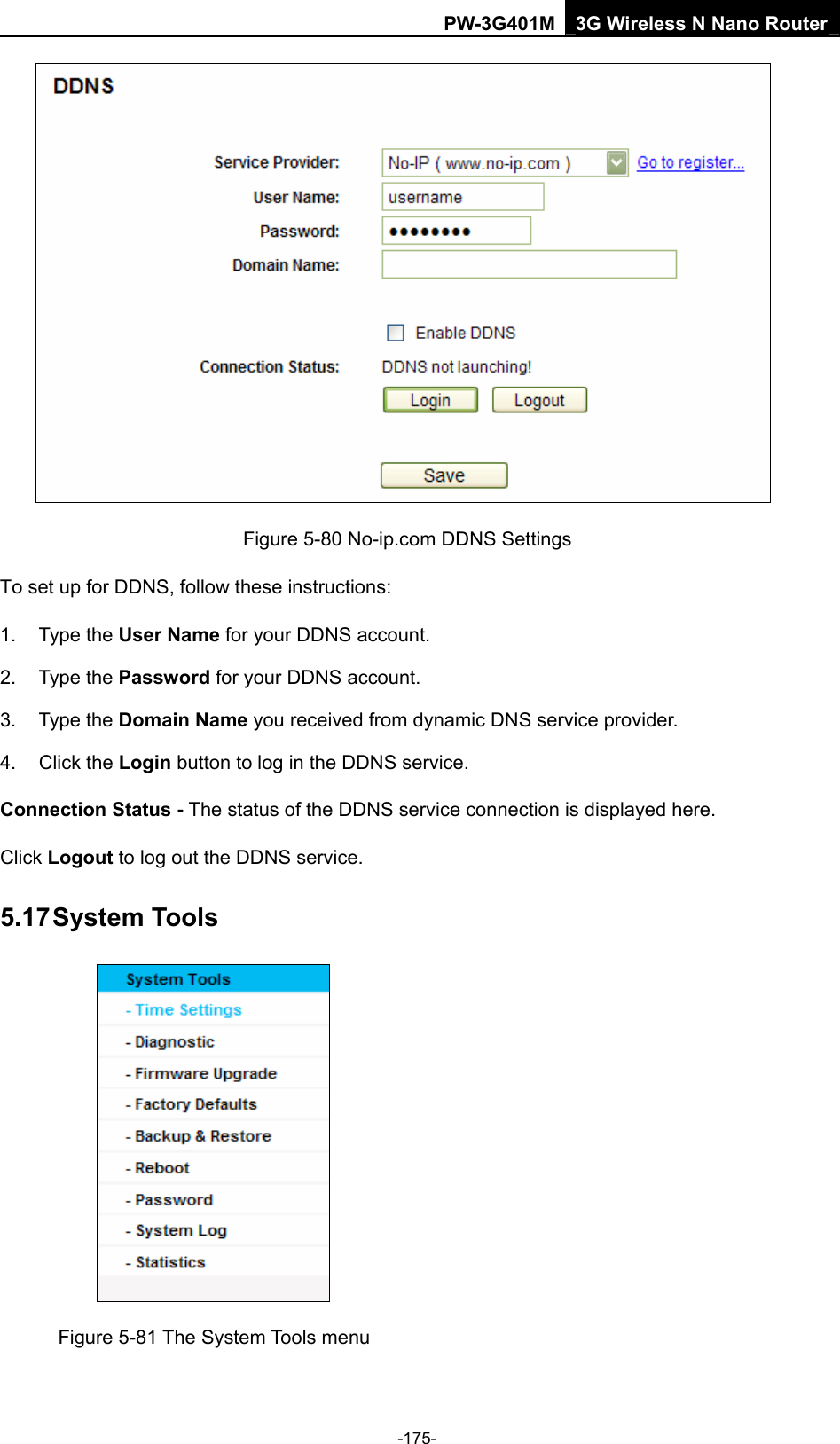

PW-3G401M 3G Wireless N Nano Router Figure 5-80 No-ip.com DDNS Settings To set up for DDNS, follow these instructions: 1. Type the User Name for your DDNS account. 2. Type the Password for your DDNS account. 3. Type the Domain Name you received from dynamic DNS service provider. 4. Click the Login button to log in the DDNS service. Connection Status - The status of the DDNS service connection is displayed here. Click Logout to log out the DDNS service. 5.17 System Tools Figure 5-81 The System Tools menu -175-

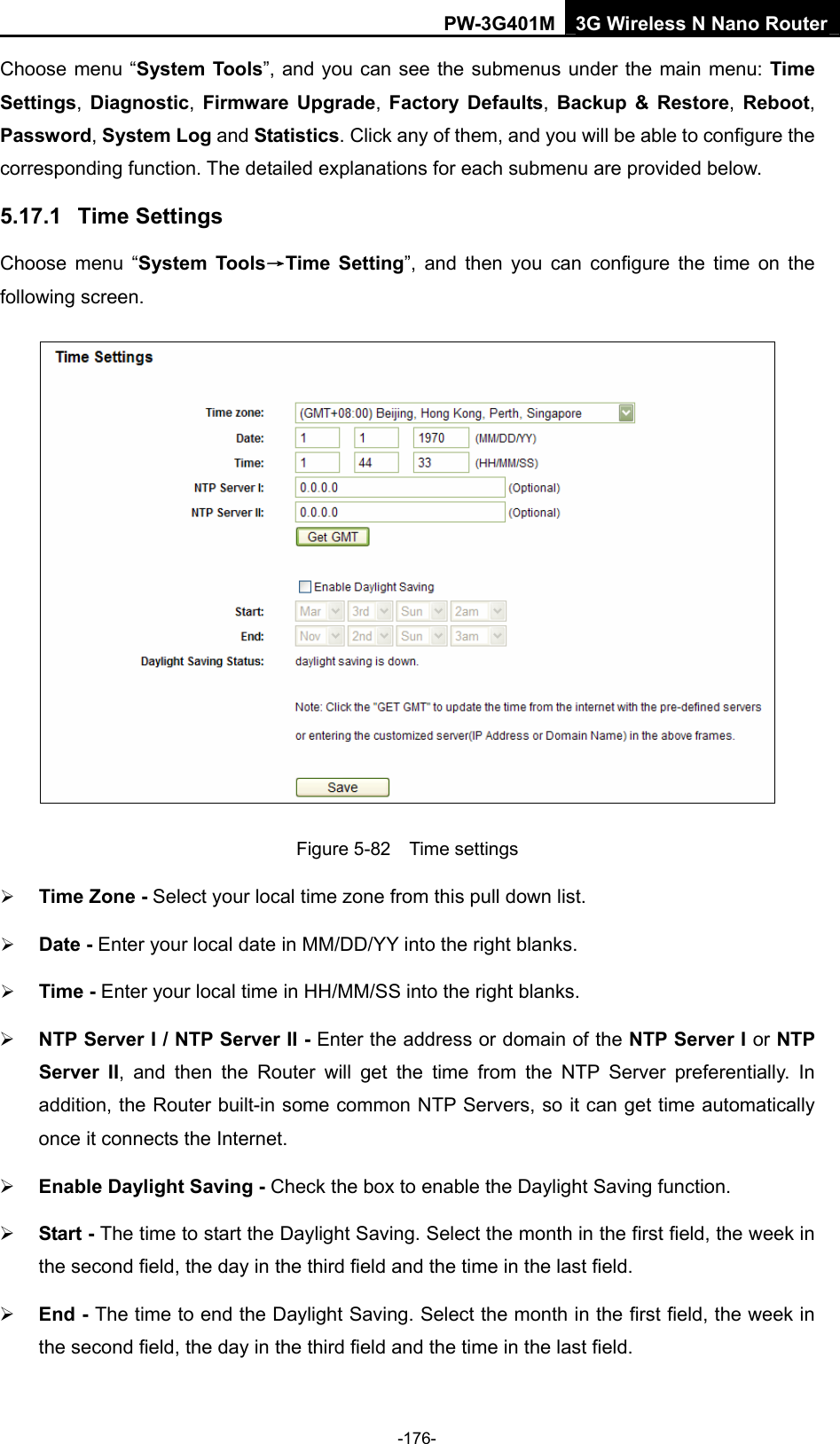

PW-3G401M 3G Wireless N Nano Router Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log and Statistics. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 5.17.1 Time Settings Choose menu “System Tools→Time Setting”, and then you can configure the time on the following screen. Figure 5-82 Time settings ¾ Time Zone - Select your local time zone from this pull down list. ¾ Date - Enter your local date in MM/DD/YY into the right blanks. ¾ Time - Enter your local time in HH/MM/SS into the right blanks. ¾ NTP Server I / NTP Server II - Enter the address or domain of the NTP Server I or NTP Server II, and then the Router will get the time from the NTP Server preferentially. In addition, the Router built-in some common NTP Servers, so it can get time automatically once it connects the Internet. ¾ Enable Daylight Saving - Check the box to enable the Daylight Saving function. ¾ Start - The time to start the Daylight Saving. Select the month in the first field, the week in the second field, the day in the third field and the time in the last field. ¾ End - The time to end the Daylight Saving. Select the month in the first field, the week in the second field, the day in the third field and the time in the last field. -176-
PW-3G401M 3G Wireless N Nano Router ¾ Daylight Saving Status - Displays the status whether the Daylight Saving is in use. To set time manually: 1. Select your local time zone. 2. Enter the Date in Month/Day/Year format. 3. Enter the Time in Hour/Minute/Second format. 4. Click Save. To set time automatically: 1. Select your local time zone. 2. Enter the address or domain of the NTP Server I or NTP Server II. 3. Click the Get GMT button to get system time from Internet if you have connected to the Internet. To set Daylight Saving: 1. Check the box to enable Daylight Saving. 2. Select the start time from the drop-down lists in the Start field. 3. Select the end time from the drop-down lists in the End field. 4. Click the Save button to save the settings. Figure 5-83 Time settings ) Note: 1) This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the Router successfully, otherwise, these functions will not take effect. 2) The time will be lost if the Router is turned off. 3) The Router will automatically obtain GMT from the Internet if it is configured accordingly. 4) The Daylight Saving will take effect one minute after the configurations are completed. 5.17.2 Diagnostic Choose menu “System Tools → Diagnostic”, you can transact Ping or Traceroute function to check connectivity of your network in the following screen. -177-

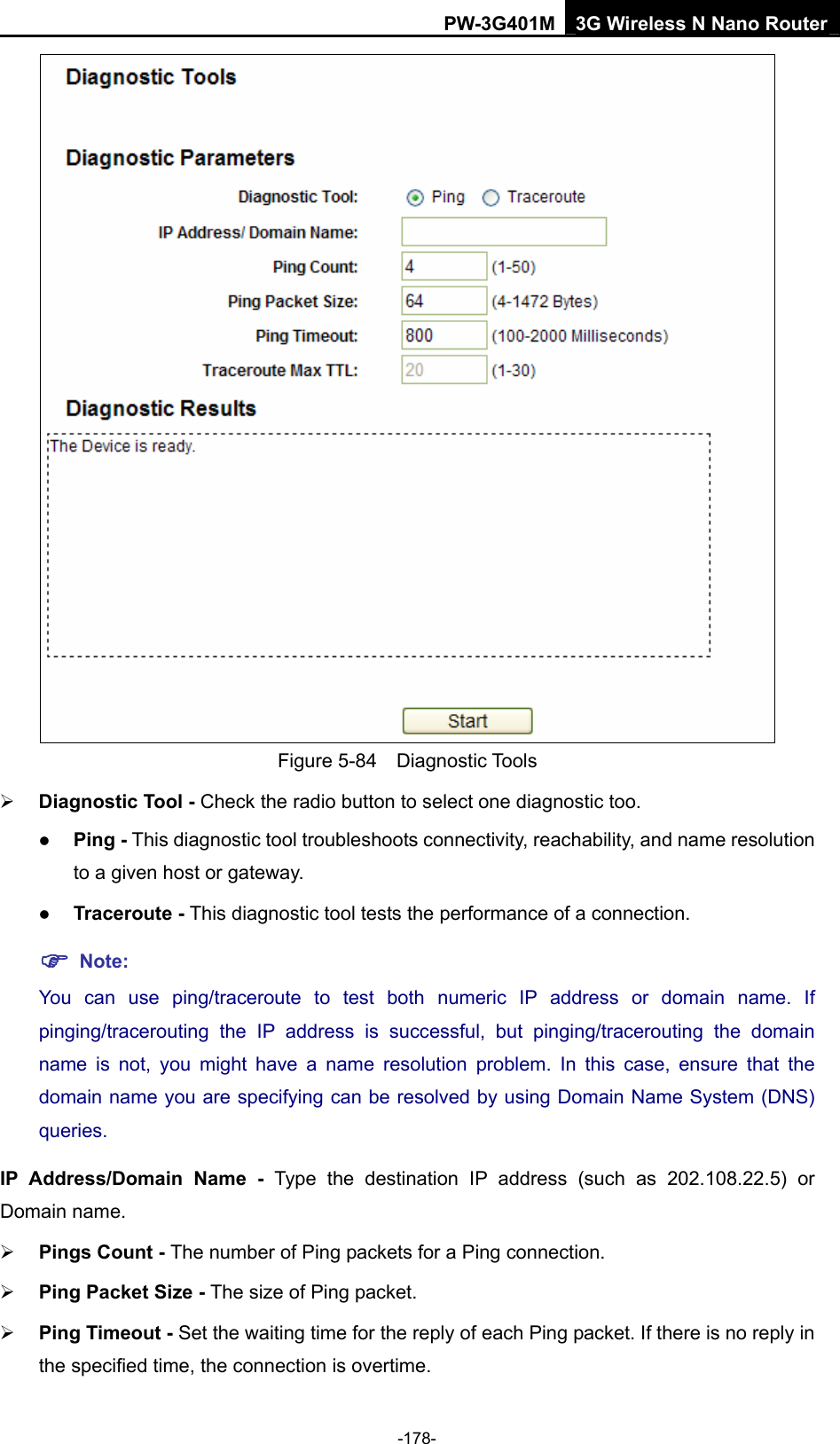

PW-3G401M 3G Wireless N Nano Router Figure 5-84 Diagnostic Tools ¾ Diagnostic Tool - Check the radio button to select one diagnostic too. z Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to a given host or gateway. z Traceroute - This diagnostic tool tests the performance of a connection. ) Note: You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem. In this case, ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries. IP Address/Domain Name - Type the destination IP address (such as 202.108.22.5) or Domain name. ¾ Pings Count - The number of Ping packets for a Ping connection. ¾ Ping Packet Size - The size of Ping packet. ¾ Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in the specified time, the connection is overtime. -178-
PW-3G401M 3G Wireless N Nano Router ¾ Traceroute Max TTL - The max number of hops for a Traceroute connection. Click Start to check the connectivity of the Internet. The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen, the connectivity of the Internet is fine. Figure 5-85 Diagnostic Results ) Note: Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function. 5.17.3 Firmware Upgrade Choose menu “System Tools → Firmware Upgrade”, you can update the latest version of firmware for the Router on the following screen. Figure 5-86 Firmware Upgrade ¾ Firmware Version - This displays the current firmware version. ¾ Hardware Version - This displays the current hardware version. The hardware version of the upgrade file must accord with the Router’s current hardware version. -179-
PW-3G401M 3G Wireless N Nano Router To upgrade the Router's firmware, follow these instructions below: 1. Download a most recent firmware upgrade file from our website. 2. Select the path name where you save the downloaded file on the computer into the File blank. 3. Click the Upgrade button. 4. The Device will reboot while the upgrading has been finished. ) Note: The firmware version must correspond to the hardware. The upgrade process takes a few moments and the Device reboots automatically when the upgrade is complete. It is important to keep power applied during the entire process. Loss of power during the upgrade could damage the Device. 5.17.4 Factory Defaults Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of the Router to factory defaults on the following screen. Figure 5-87 Restore Factory Default Click the Restore button to reset all configuration settings to their default values. • The default User Name: admin • The default Password: admin • The default IP Address: 192.168.1.1 • The default Subnet Mask: 255.255.255.0 ) Note: Any settings you have saved will be lost when the default settings are restored. 5.17.5 Backup & Restore Choose menu “System Tools → Backup & Restore”, you can save the current configuration of the Router as a backup file and restore the configuration via a backup file as shown in Figure 5-88. -180-

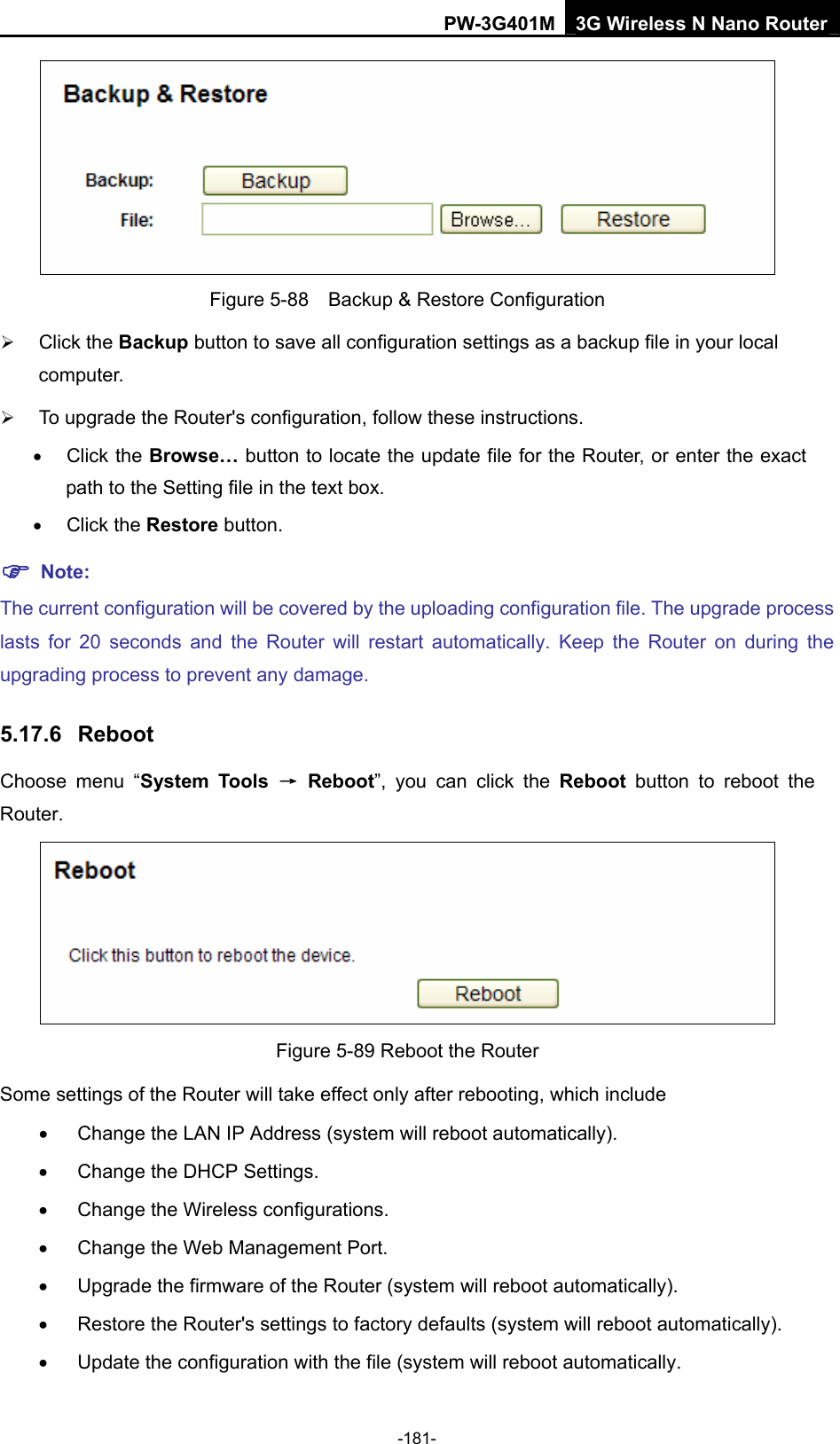

PW-3G401M 3G Wireless N Nano Router Figure 5-88 Backup & Restore Configuration ¾ Click the Backup button to save all configuration settings as a backup file in your local computer. ¾ To upgrade the Router's configuration, follow these instructions. • Click the Browse… button to locate the update file for the Router, or enter the exact path to the Setting file in the text box. • Click the Restore button. ) Note: The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the upgrading process to prevent any damage. 5.17.6 Reboot Choose menu “System Tools → Reboot”, you can click the Reboot button to reboot the Router. Figure 5-89 Reboot the Router Some settings of the Router will take effect only after rebooting, which include • Change the LAN IP Address (system will reboot automatically). • Change the DHCP Settings. • Change the Wireless configurations. • Change the Web Management Port. • Upgrade the firmware of the Router (system will reboot automatically). • Restore the Router's settings to factory defaults (system will reboot automatically). • Update the configuration with the file (system will reboot automatically. -181-
PW-3G401M 3G Wireless N Nano Router 5.17.7 Password Choose menu “System Tools → Password”, you can change the factory default user name and password of the Router in the next screen as shown in Figure 5-90. Figure 5-90 Password It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password. ) Note: The new user name and password must not exceed 14 characters in length and not include any spaces. Enter the new Password twice to confirm. Click the Save button when finished. Click the Clear All button to clear all. 5.17.8 System Log Choose menu “System Tools → System Log”, you can view the logs of the Router. -182-
PW-3G401M 3G Wireless N Nano Router Figure 5-91 System Log ¾ Log Type - By selecting the log type, only logs of this type will be shown. ¾ Log Level - By selecting the log level, only logs of this level will be shown. ¾ Refresh - Refresh the page to show the latest log list. ¾ Save Log - Click to save all the logs in a txt file. ¾ Clear Log - All the logs will be deleted from the Router permanently, not just from the page. Click the Next button to go to the next page, or click the Previous button return to the previous page. 5.17.9 Statistics Choose menu “System Tools → Statistics”, you can view the statistics of the Router, including total traffic and current traffic of the last Packets Statistic Interval. Figure 5-92 Statistics ¾ Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click the Enable button. If disabled, the function of DoS protection in Security settings will disabled. -183-
PW-3G401M 3G Wireless N Nano Router ¾ Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 and 60 seconds in the pull-down list. The Packets Statistic interval indicates the time section of the packets statistic. ¾ Sorted Rules - Choose how displayed statistics are sorted. Select the Auto-refresh checkbox to refresh automatically. Click the Refresh button to refresh immediately. Click Reset All to reset the values of all the entries to zero. Click Delete All to delete all entries in the table. Statistics Table: IP/MAC Address The IP and MAC address are displayed with related statistics. Packets The total number of packets received and transmitted by the Router. Total Bytes The total number of bytes received and transmitted by the Router. Packets The total number of packets received and transmitted in the last Packets Statistic interval seconds. Bytes The total number of bytes received and transmitted in the last Packets Statistic interval seconds. ICMP Tx The number of the ICMP packets transmitted to WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. UDP TxThe number of UDP packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. Current TCP SYN TxThe number of TCP SYN packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. Reset Reset the value of he entry to zero. Modify Delete Delete the existing entry in the table. -184-

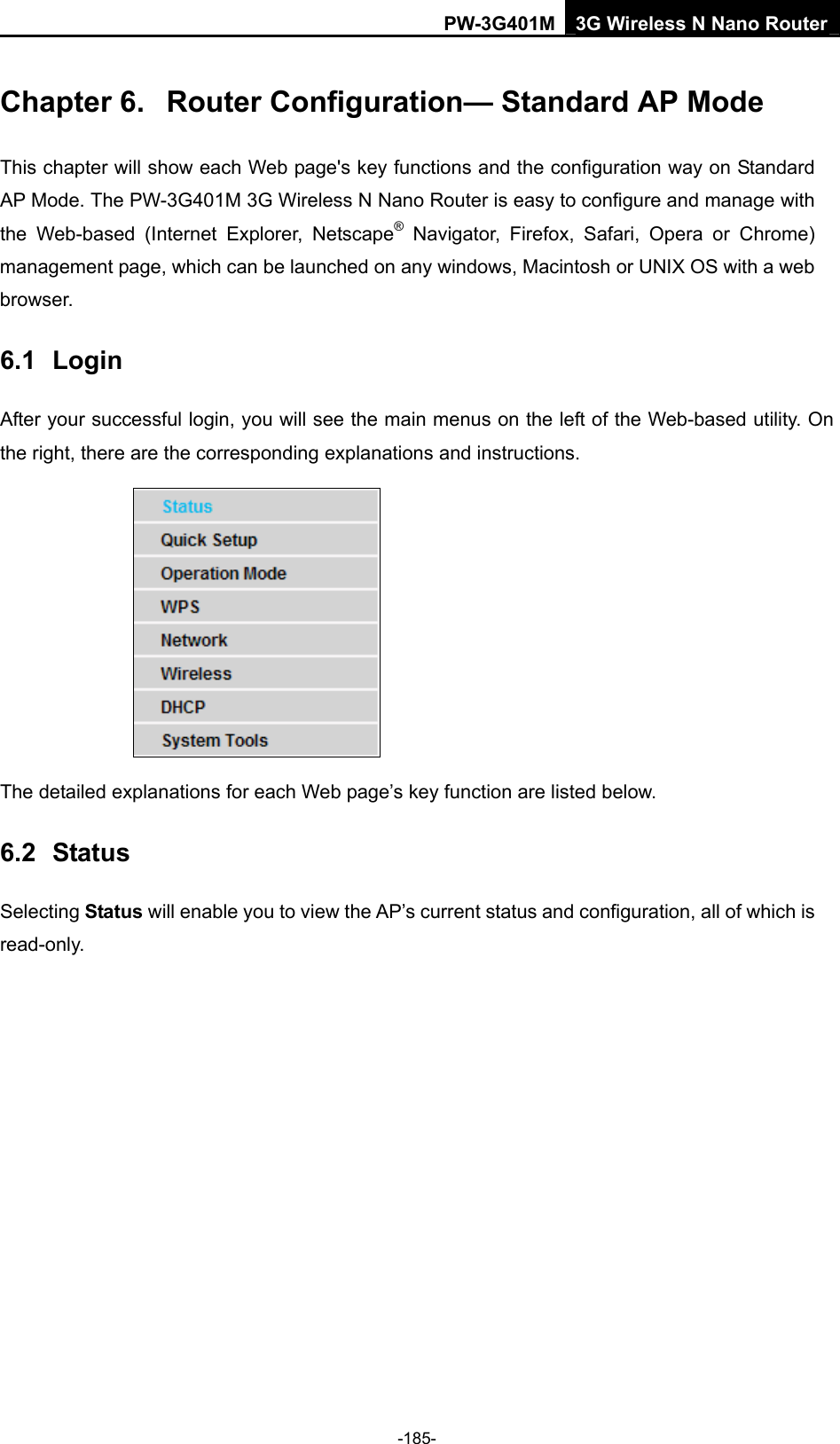

PW-3G401M 3G Wireless N Nano Router Chapter 6. Router Configuration— Standard AP Mode This chapter will show each Web page's key functions and the configuration way on Standard AP Mode. The PW-3G401M 3G Wireless N Nano Router is easy to configure and manage with the Web-based (Internet Explorer, Netscape® Navigator, Firefox, Safari, Opera or Chrome) management page, which can be launched on any windows, Macintosh or UNIX OS with a web browser. 6.1 Login After your successful login, you will see the main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions. The detailed explanations for each Web page’s key function are listed below. 6.2 Status Selecting Status will enable you to view the AP’s current status and configuration, all of which is read-only. -185-

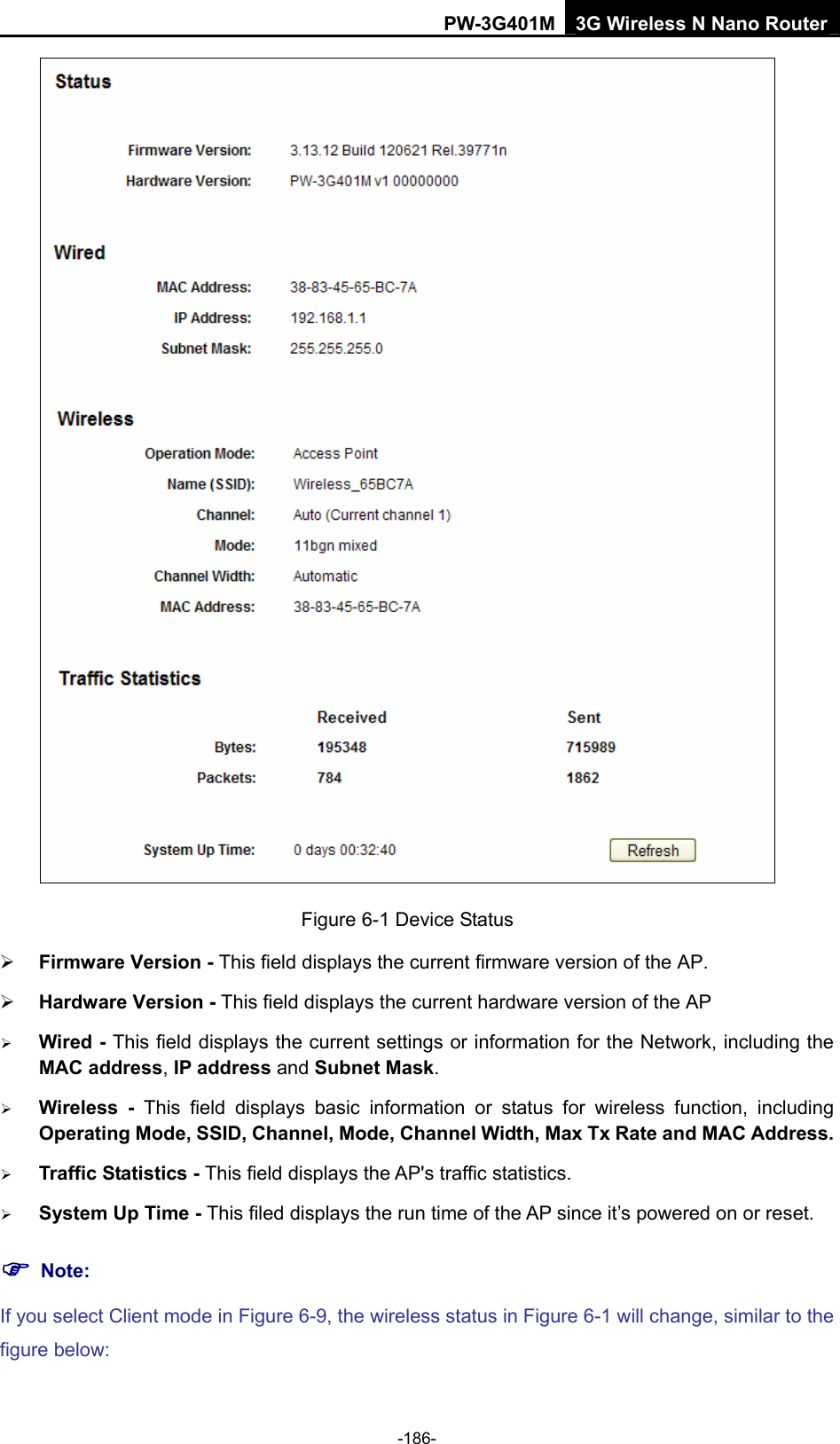

PW-3G401M 3G Wireless N Nano Router Figure 6-1 Device Status ¾ Firmware Version - This field displays the current firmware version of the AP. ¾ Hardware Version - This field displays the current hardware version of the AP ¾ Wired - This field displays the current settings or information for the Network, including the MAC address, IP address and Subnet Mask. ¾ Wireless - This field displays basic information or status for wireless function, including Operating Mode, SSID, Channel, Mode, Channel Width, Max Tx Rate and MAC Address. ¾ Traffic Statistics - This field displays the AP's traffic statistics. ¾ System Up Time - This filed displays the run time of the AP since it’s powered on or reset. ) Note: If you select Client mode in Figure 6-9, the wireless status in Figure 6-1 will change, similar to the figure below: -186-

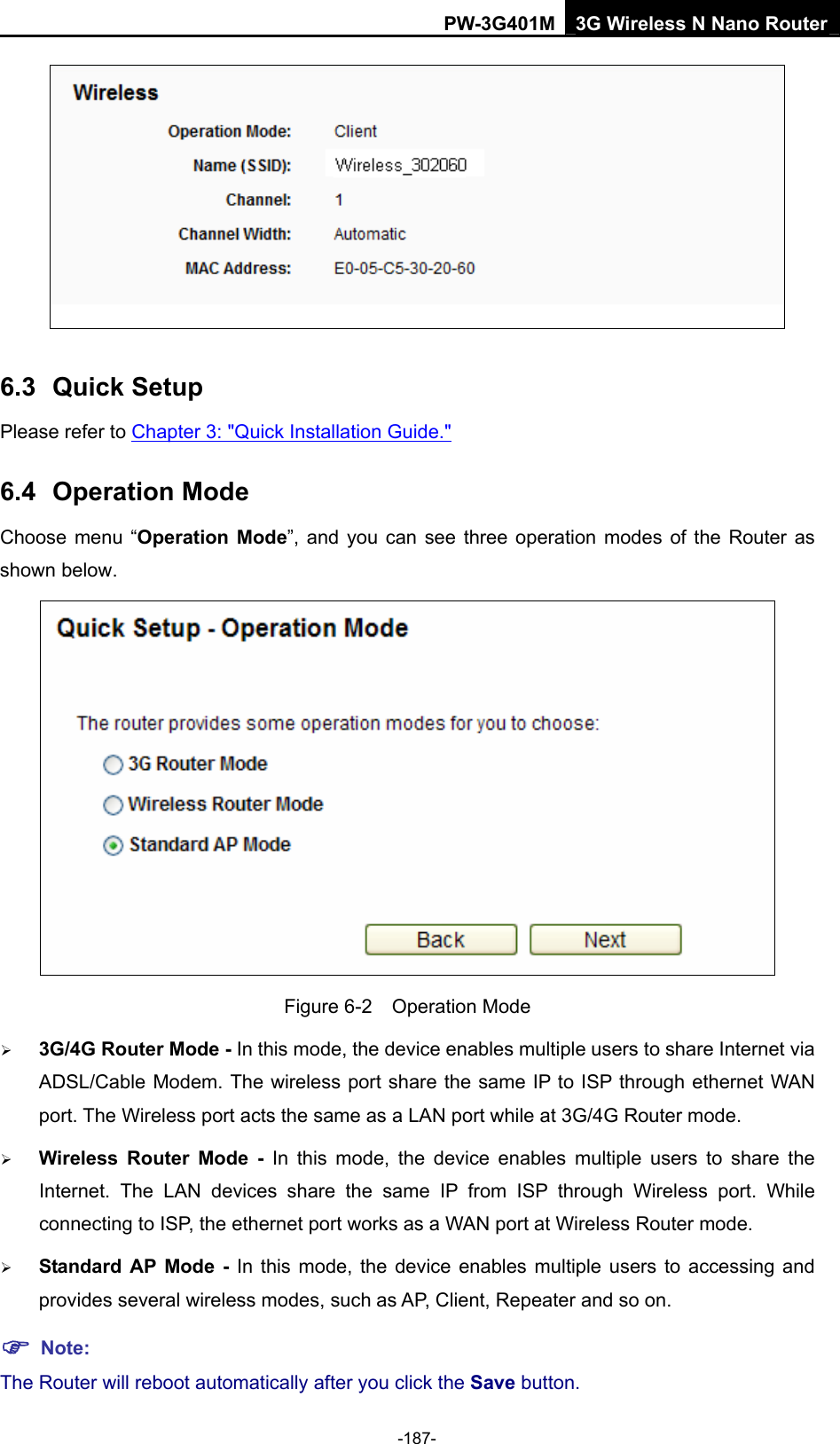

PW-3G401M 3G Wireless N Nano Router 6.3 Quick Setup Please refer to Chapter 3: "Quick Installation Guide." 6.4 Operation Mode Choose menu “Operation Mode”, and you can see three operation modes of the Router as shown below. Figure 6-2 Operation Mode ¾ 3G/4G Router Mode - In this mode, the device enables multiple users to share Internet via ADSL/Cable Modem. The wireless port share the same IP to ISP through ethernet WAN port. The Wireless port acts the same as a LAN port while at 3G/4G Router mode. ¾ Wireless Router Mode - In this mode, the device enables multiple users to share the Internet. The LAN devices share the same IP from ISP through Wireless port. While connecting to ISP, the ethernet port works as a WAN port at Wireless Router mode. ¾ Standard AP Mode - In this mode, the device enables multiple users to accessing and provides several wireless modes, such as AP, Client, Repeater and so on. ) Note: The Router will reboot automatically after you click the Save button. -187-

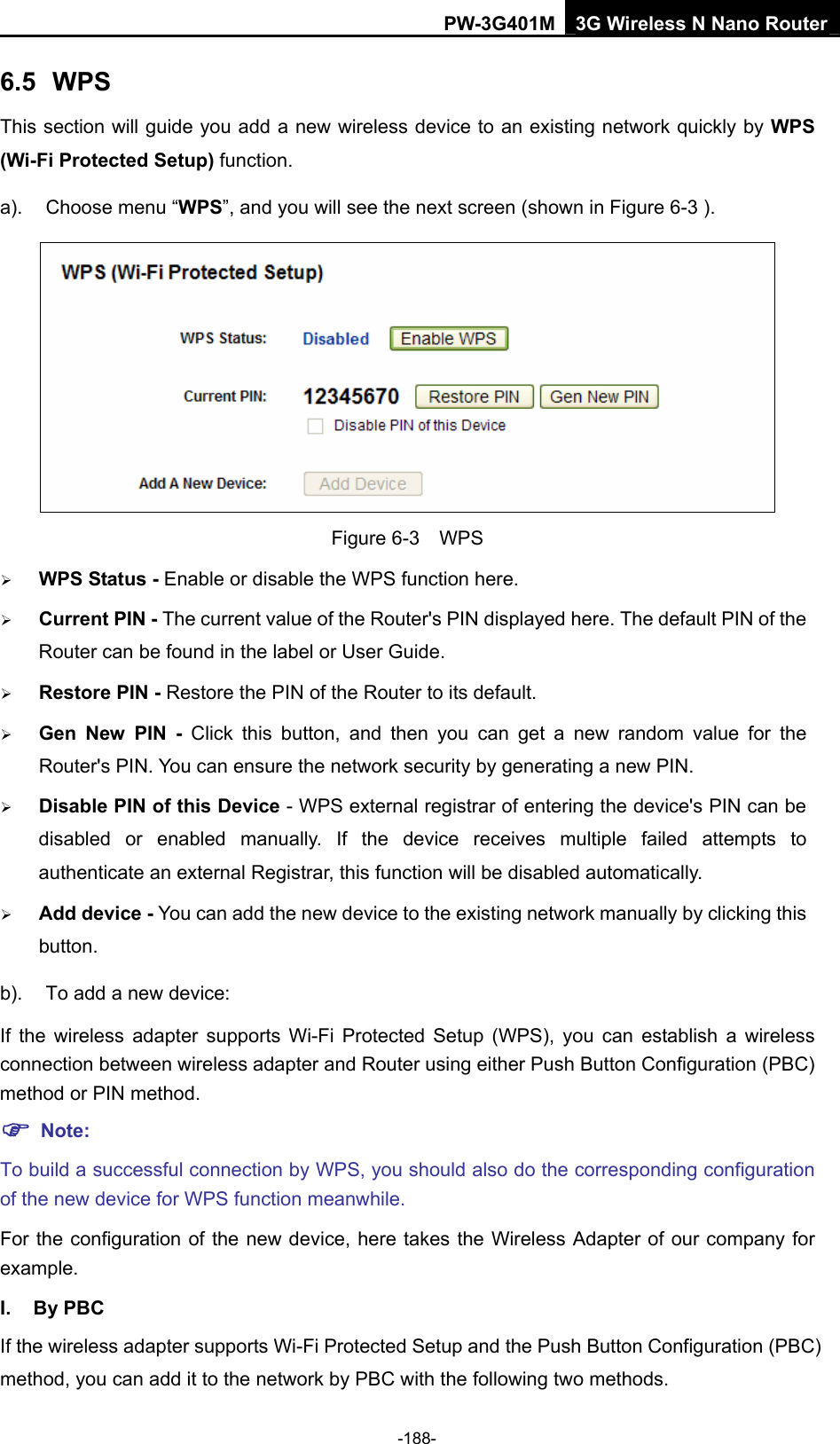

PW-3G401M 3G Wireless N Nano Router 6.5 WPS This section will guide you add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. a). Choose menu “WPS”, and you will see the next screen (shown in Figure 6-3 ). Figure 6-3 WPS ¾ WPS Status - Enable or disable the WPS function here. ¾ Current PIN - The current value of the Router's PIN displayed here. The default PIN of the Router can be found in the label or User Guide. ¾ Restore PIN - Restore the PIN of the Router to its default. ¾ Gen New PIN - Click this button, and then you can get a new random value for the Router's PIN. You can ensure the network security by generating a new PIN. ¾ Disable PIN of this Device - WPS external registrar of entering the device's PIN can be disabled or enabled manually. If the device receives multiple failed attempts to authenticate an external Registrar, this function will be disabled automatically. ¾ Add device - You can add the new device to the existing network manually by clicking this button. b). To add a new device: If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and Router using either Push Button Configuration (PBC) method or PIN method. ) Note: To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile. For the configuration of the new device, here takes the Wireless Adapter of our company for example. I. By PBC If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC) method, you can add it to the network by PBC with the following two methods. -188-

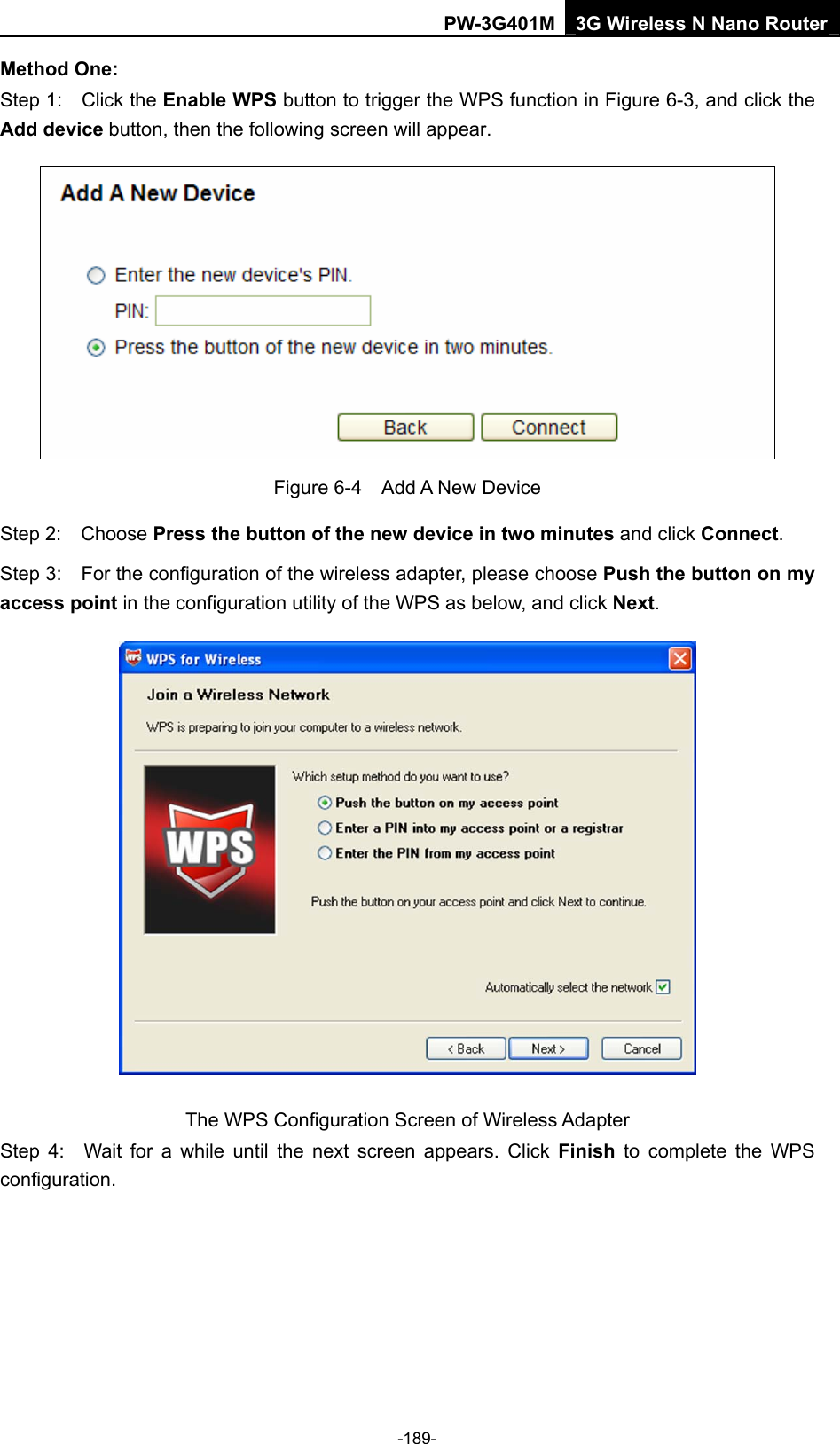

PW-3G401M 3G Wireless N Nano Router Method One: Step 1: Click the Enable WPS button to trigger the WPS function in Figure 6-3, and click the Add device button, then the following screen will appear. Figure 6-4 Add A New Device Step 2: Choose Press the button of the new device in two minutes and click Connect. Step 3: For the configuration of the wireless adapter, please choose Push the button on my access point in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of Wireless Adapter Step 4: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. -189-
PW-3G401M 3G Wireless N Nano Router The WPS Configuration Screen of Wireless Adapter II. By PIN If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN into my Router Step 1: Configure the wireless adapter. Please choose Enter a PIN into my access point or a registrar in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of wireless adapter ) Note: In this example, the default PIN code of this adapter is 16952898 as the above figure shown. Step 2: Configure the Router. Click the Enable WPS button to trigger the WPS function in Figure 6-3, and click the Add device button, then the following screen will appear. -190-

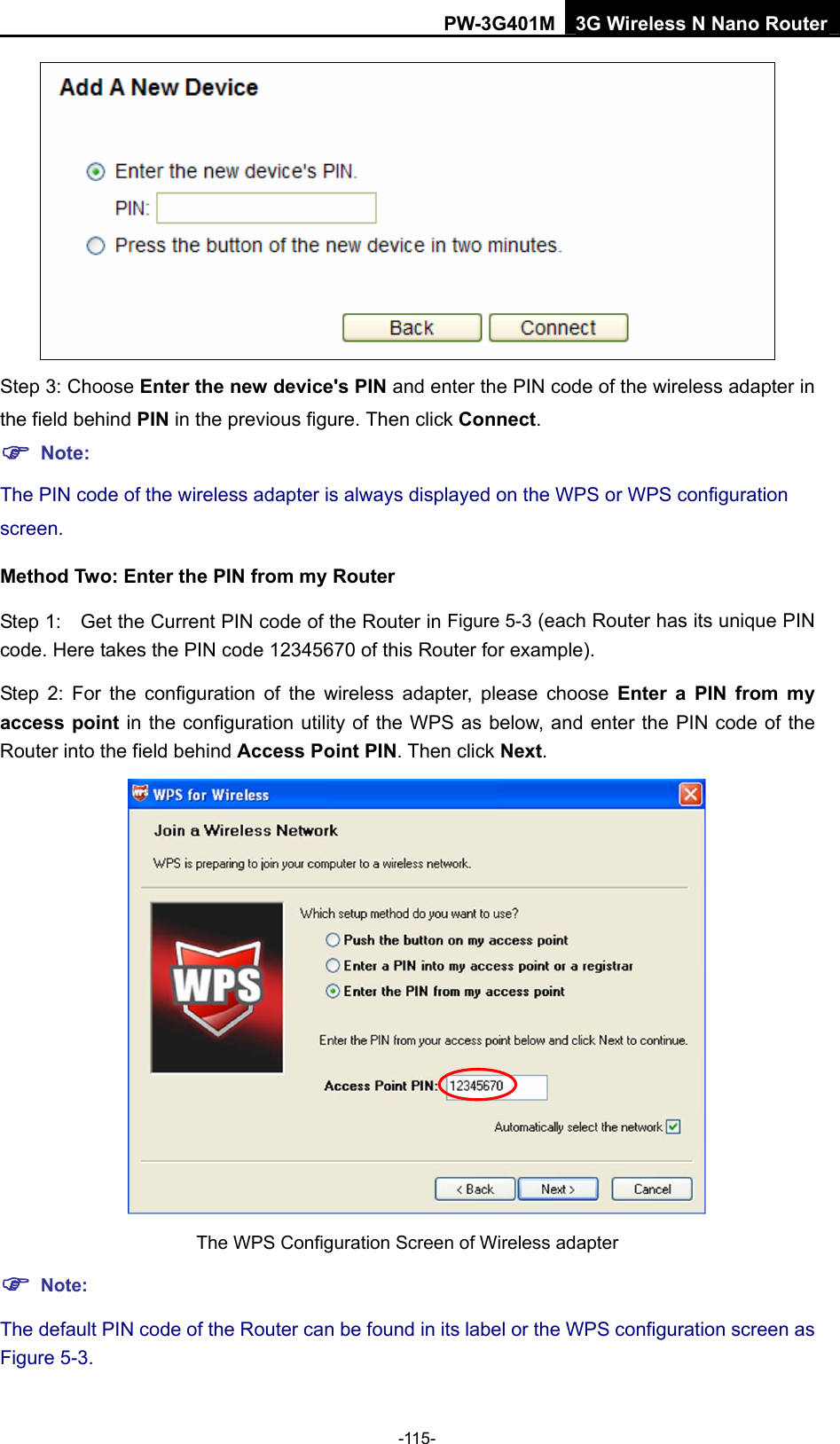

PW-3G401M 3G Wireless N Nano Router Step 3: Choose Enter the new device's PIN and enter the PIN code of the wireless adapter in the field behind PIN in the previous figure. Then click Connect. ) Note: The PIN code of the wireless adapter is always displayed on the WPS or WPS configuration screen. Method Two: Enter the PIN from my Router Step 1: Get the Current PIN code of the Router in Figure 6-3 (each Router has its unique PIN code. Here takes the PIN code 12345670 of this Router for example). Step 2: For the configuration of the wireless adapter, please choose Enter a PIN from my access point in the configuration utility of the WPS as below, and enter the PIN code of the Router into the field behind Access Point PIN. Then click Next. The WPS Configuration Screen of Wireless adapter ) Note: The default PIN code of the Router can be found in its label or the WPS configuration screen as Figure 6-3. -191-

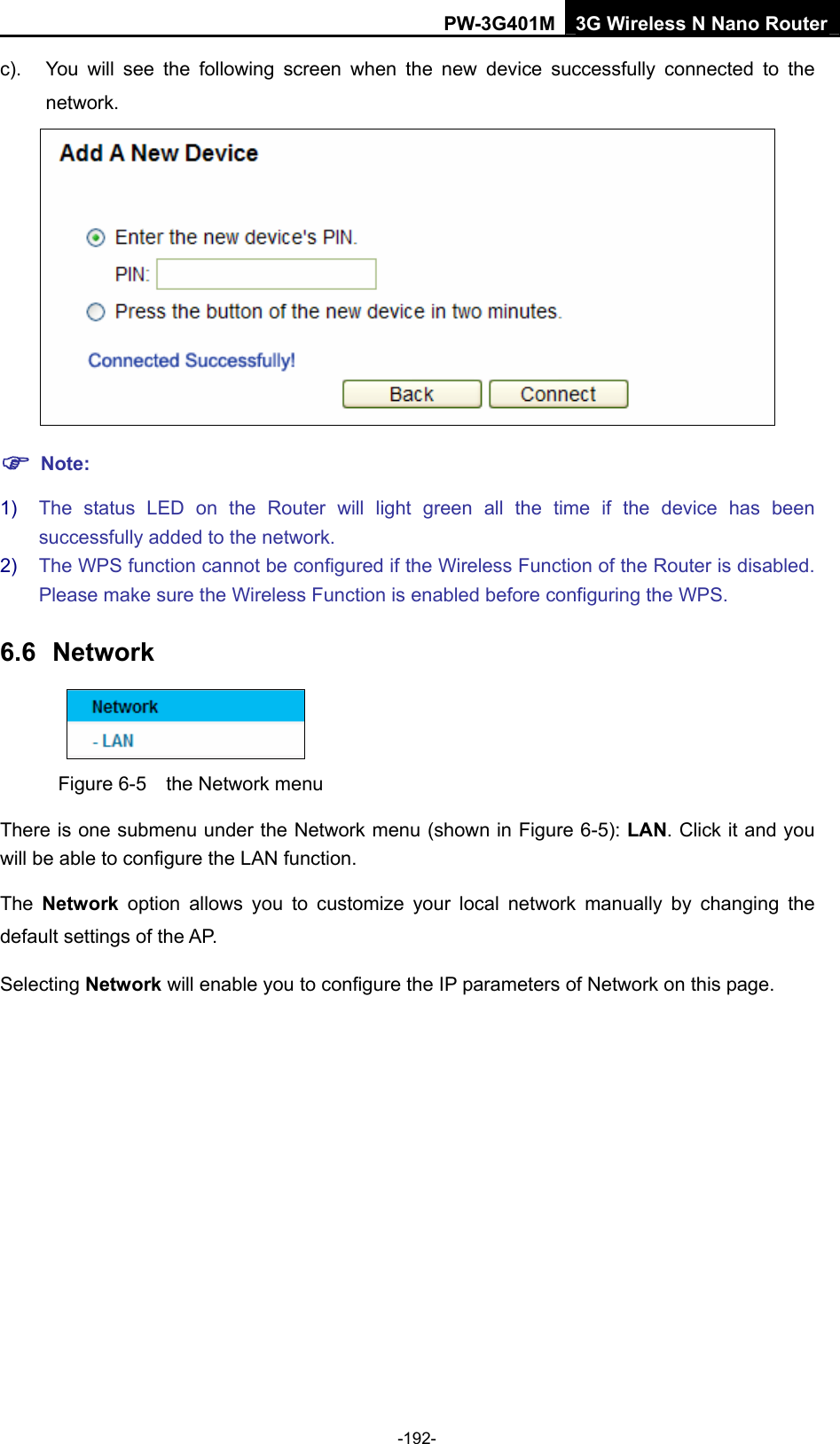

PW-3G401M 3G Wireless N Nano Router c). You will see the following screen when the new device successfully connected to the network. ) Note: 1) The status LED on the Router will light green all the time if the device has been successfully added to the network. 2) The WPS function cannot be configured if the Wireless Function of the Router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS. 6.6 Network Figure 6-5 the Network menu There is one submenu under the Network menu (shown in Figure 6-5): LAN. Click it and you will be able to configure the LAN function. The Network option allows you to customize your local network manually by changing the default settings of the AP. Selecting Network will enable you to configure the IP parameters of Network on this page. -192-

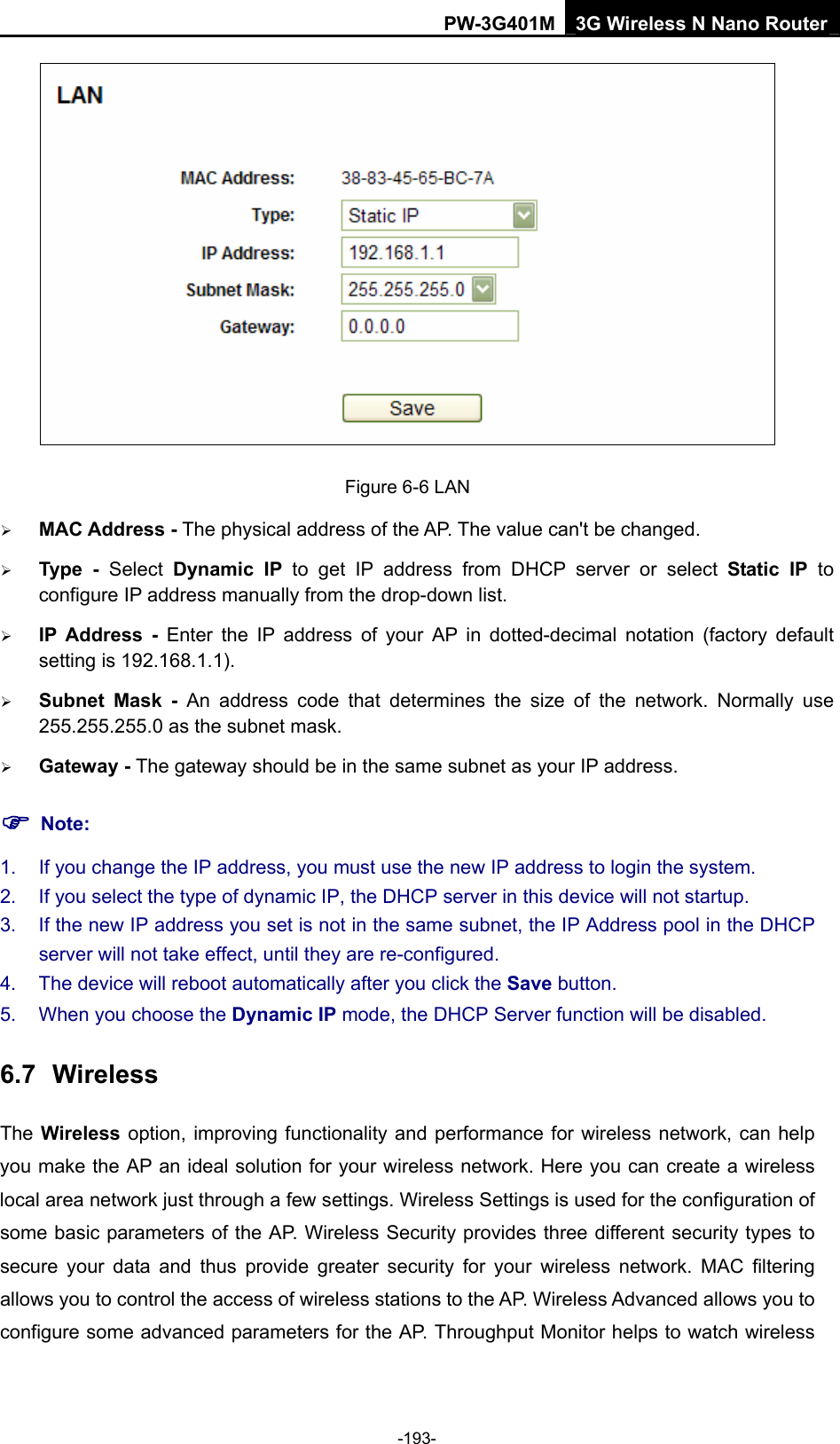

PW-3G401M 3G Wireless N Nano Router Figure 6-6 LAN ¾ MAC Address - The physical address of the AP. The value can't be changed. ¾ Type - Select Dynamic IP to get IP address from DHCP server or select Static IP to configure IP address manually from the drop-down list. ¾ IP Address - Enter the IP address of your AP in dotted-decimal notation (factory default setting is 192.168.1.1). ¾ Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. ¾ Gateway - The gateway should be in the same subnet as your IP address. ) Note: 1. If you change the IP address, you must use the new IP address to login the system. 2. If you select the type of dynamic IP, the DHCP server in this device will not startup. 3. If the new IP address you set is not in the same subnet, the IP Address pool in the DHCP server will not take effect, until they are re-configured. 4. The device will reboot automatically after you click the Save button. 5. When you choose the Dynamic IP mode, the DHCP Server function will be disabled. 6.7 Wireless The Wireless option, improving functionality and performance for wireless network, can help you make the AP an ideal solution for your wireless network. Here you can create a wireless local area network just through a few settings. Wireless Settings is used for the configuration of some basic parameters of the AP. Wireless Security provides three different security types to secure your data and thus provide greater security for your wireless network. MAC filtering allows you to control the access of wireless stations to the AP. Wireless Advanced allows you to configure some advanced parameters for the AP. Throughput Monitor helps to watch wireless -193-

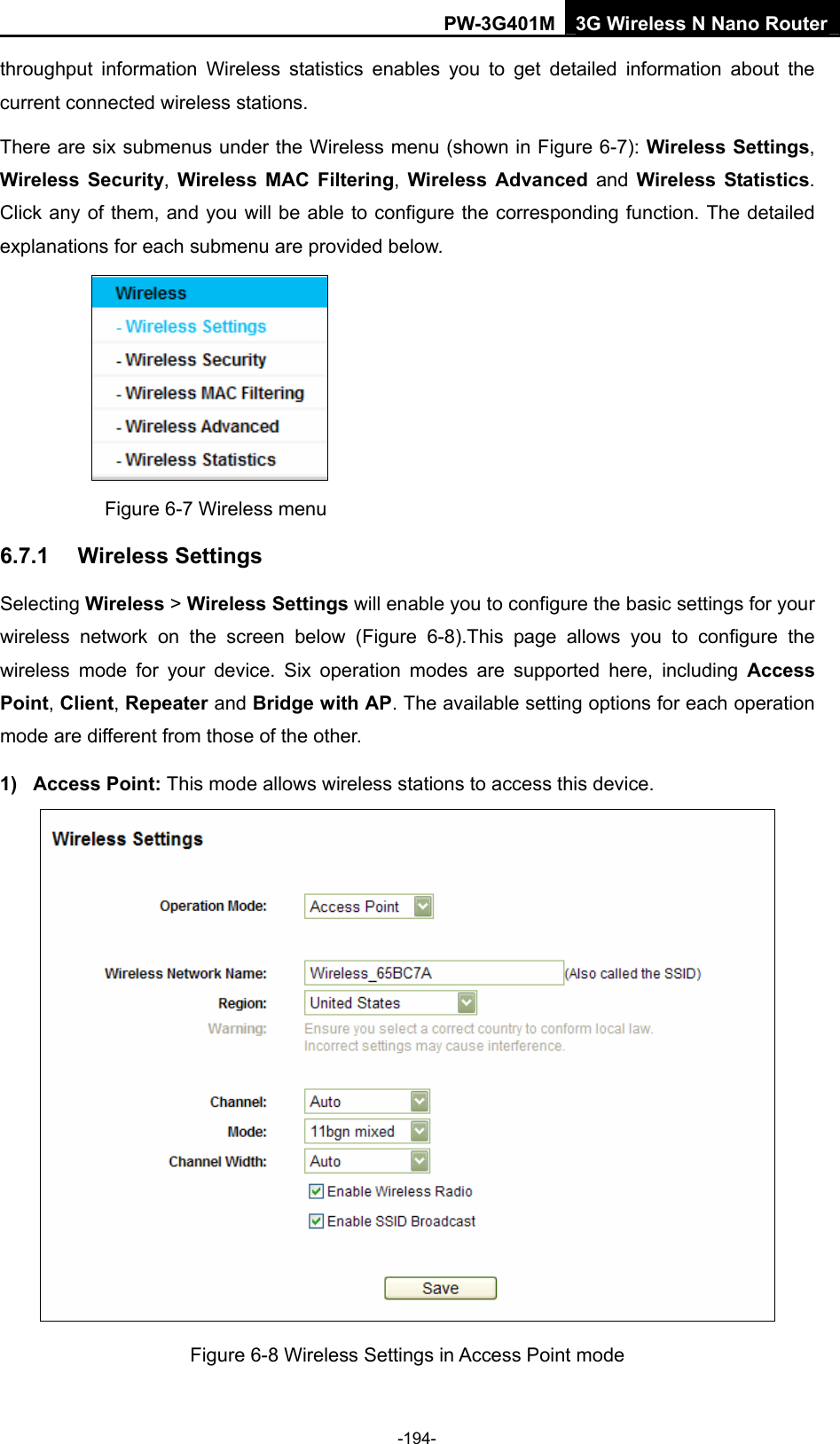

PW-3G401M 3G Wireless N Nano Router throughput information Wireless statistics enables you to get detailed information about the current connected wireless stations. There are six submenus under the Wireless menu (shown in Figure 6-7): Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced and Wireless Statistics. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. Figure 6-7 Wireless menu 6.7.1 Wireless Settings Selecting Wireless > Wireless Settings will enable you to configure the basic settings for your wireless network on the screen below (Figure 6-8).This page allows you to configure the wireless mode for your device. Six operation modes are supported here, including Access Point, Client, Repeater and Bridge with AP. The available setting options for each operation mode are different from those of the other. 1) Access Point: This mode allows wireless stations to access this device. Figure 6-8 Wireless Settings in Access Point mode -194-

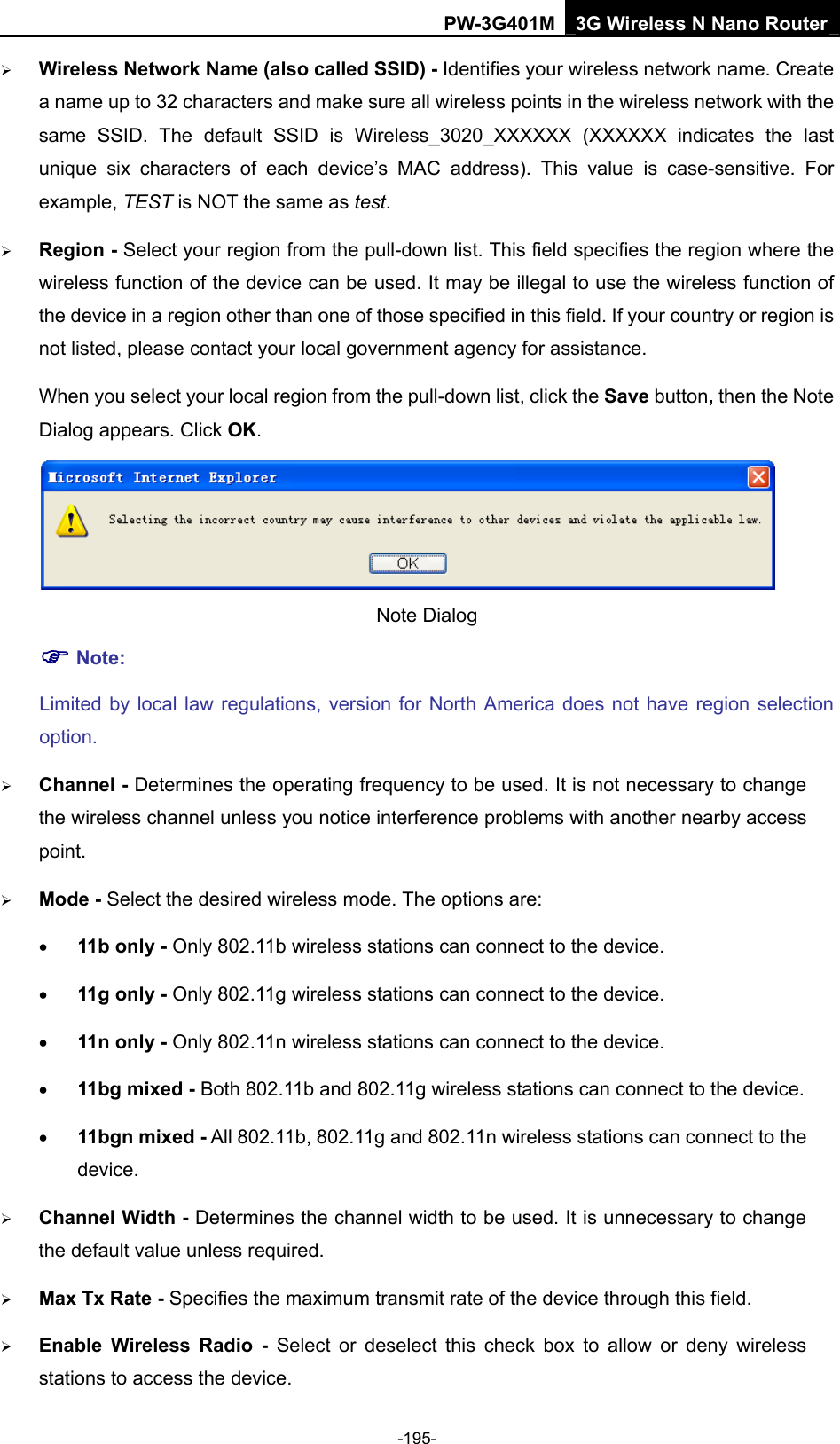

PW-3G401M 3G Wireless N Nano Router ¾ Wireless Network Name (also called SSID) - Identifies your wireless network name. Create a name up to 32 characters and make sure all wireless points in the wireless network with the same SSID. The default SSID is Wireless_3020_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test. ¾ Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the device can be used. It may be illegal to use the wireless function of the device in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the pull-down list, click the Save button, then the Note Dialog appears. Click OK. Note Dialog ) Note: Limited by local law regulations, version for North America does not have region selection option. ¾ Channel - Determines the operating frequency to be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - Select the desired wireless mode. The options are: • 11b only - Only 802.11b wireless stations can connect to the device. • 11g only - Only 802.11g wireless stations can connect to the device. • 11n only - Only 802.11n wireless stations can connect to the device. • 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device. • 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the device. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. -195-

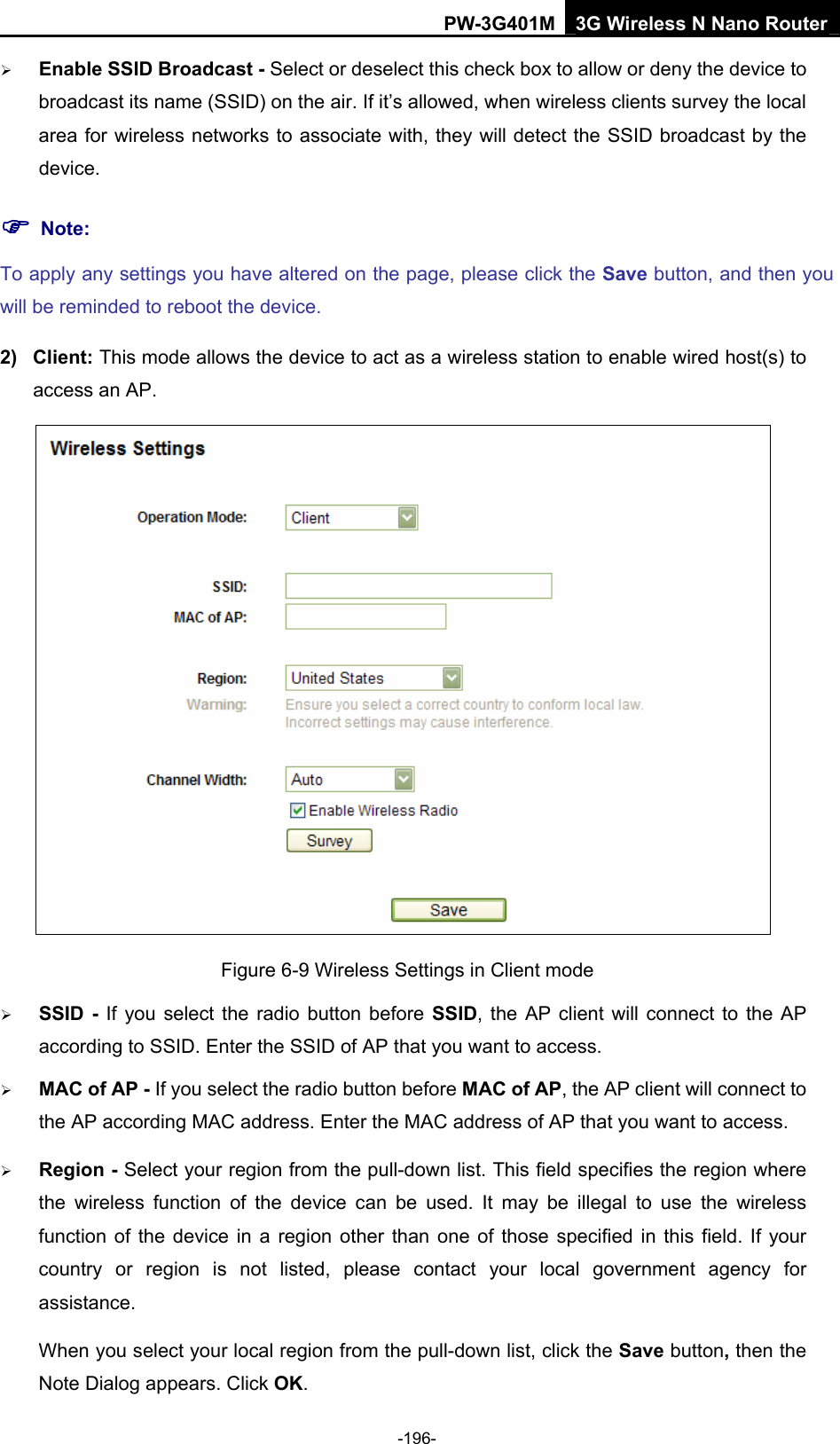

PW-3G401M 3G Wireless N Nano Router ¾ Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. 2) Client: This mode allows the device to act as a wireless station to enable wired host(s) to access an AP. Figure 6-9 Wireless Settings in Client mode ¾ SSID - If you select the radio button before SSID, the AP client will connect to the AP according to SSID. Enter the SSID of AP that you want to access. ¾ MAC of AP - If you select the radio button before MAC of AP, the AP client will connect to the AP according MAC address. Enter the MAC address of AP that you want to access. ¾ Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the device can be used. It may be illegal to use the wireless function of the device in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the pull-down list, click the Save button, then the Note Dialog appears. Click OK. -196-
PW-3G401M 3G Wireless N Nano Router Note Dialog ) Note: Limited by local law regulations, version for North America does not have region selection option. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Survey button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. 3) Repeater: This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS enabled. The wireless repeater relays signal between its stations and the root AP for greater wireless range. Figure 6-10 Wireless Settings in Repeater mode -197-

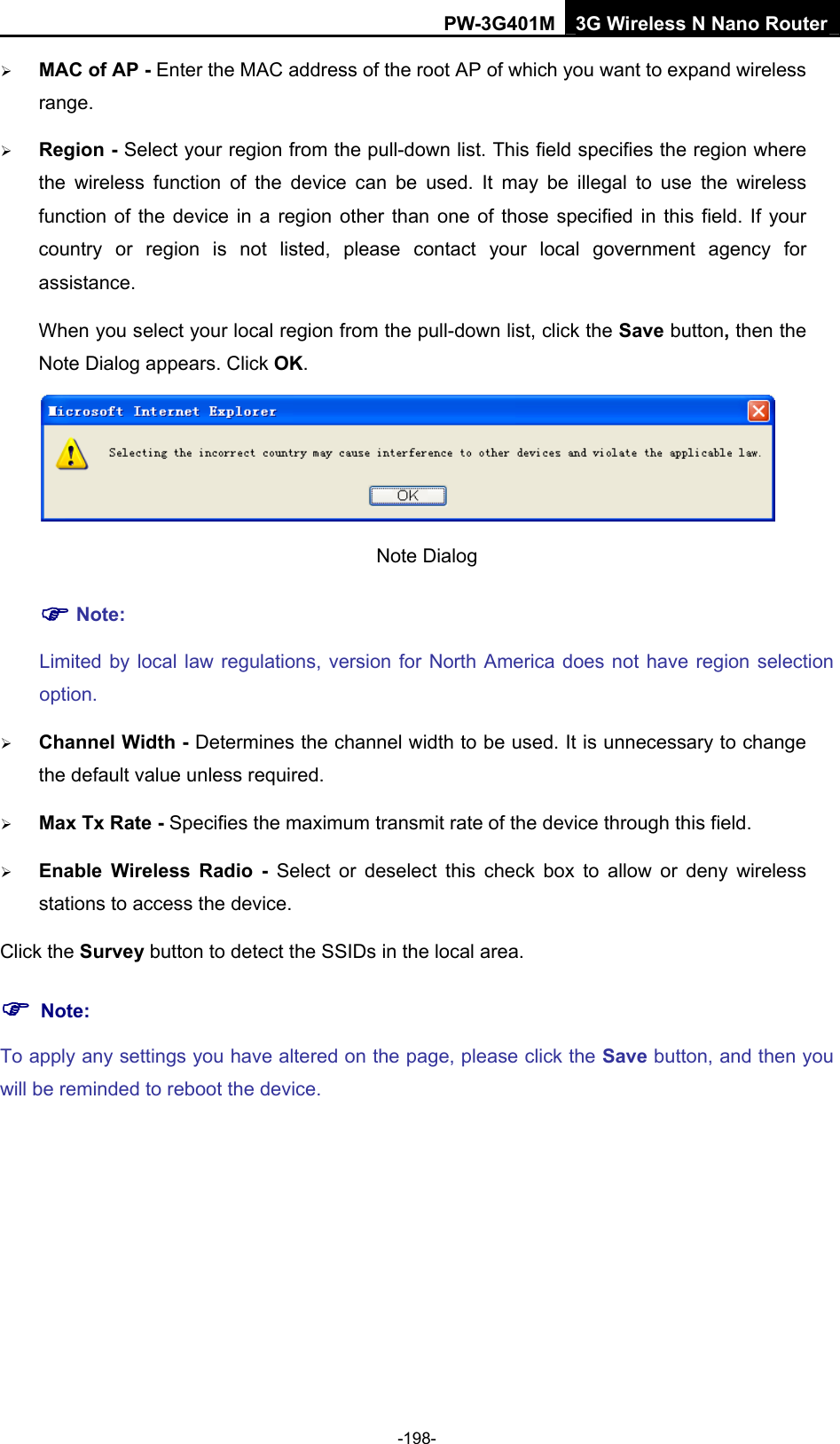

PW-3G401M 3G Wireless N Nano Router ¾ MAC of AP - Enter the MAC address of the root AP of which you want to expand wireless range. ¾ Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the device can be used. It may be illegal to use the wireless function of the device in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the pull-down list, click the Save button, then the Note Dialog appears. Click OK. Note Dialog ) Note: Limited by local law regulations, version for North America does not have region selection option. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Survey button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. -198-

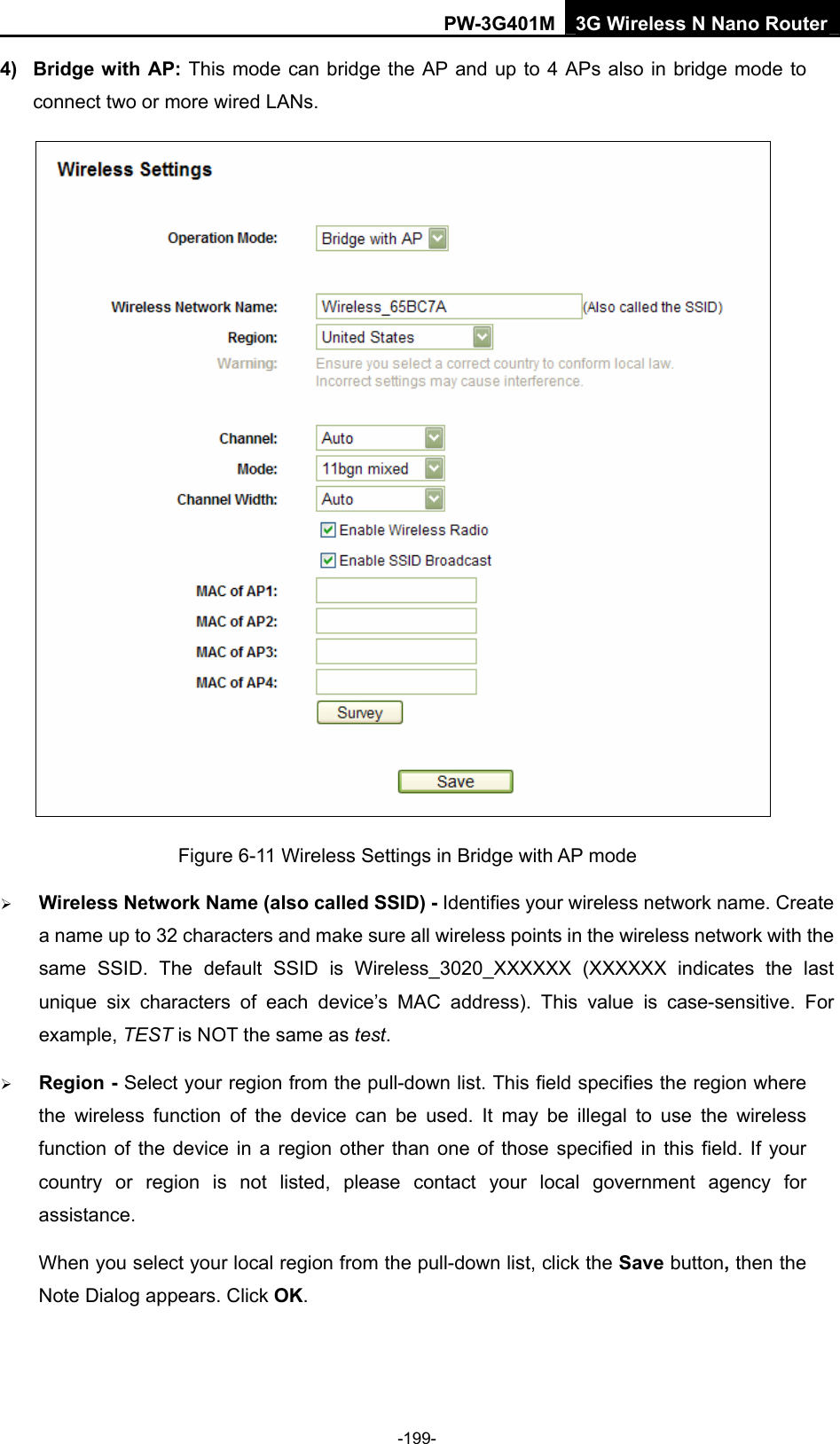

PW-3G401M 3G Wireless N Nano Router 4) Bridge with AP: This mode can bridge the AP and up to 4 APs also in bridge mode to connect two or more wired LANs. Figure 6-11 Wireless Settings in Bridge with AP mode ¾ Wireless Network Name (also called SSID) - Identifies your wireless network name. Create a name up to 32 characters and make sure all wireless points in the wireless network with the same SSID. The default SSID is Wireless_3020_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test. ¾ Region - Select your region from the pull-down list. This field specifies the region where the wireless function of the device can be used. It may be illegal to use the wireless function of the device in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance. When you select your local region from the pull-down list, click the Save button, then the Note Dialog appears. Click OK. -199-

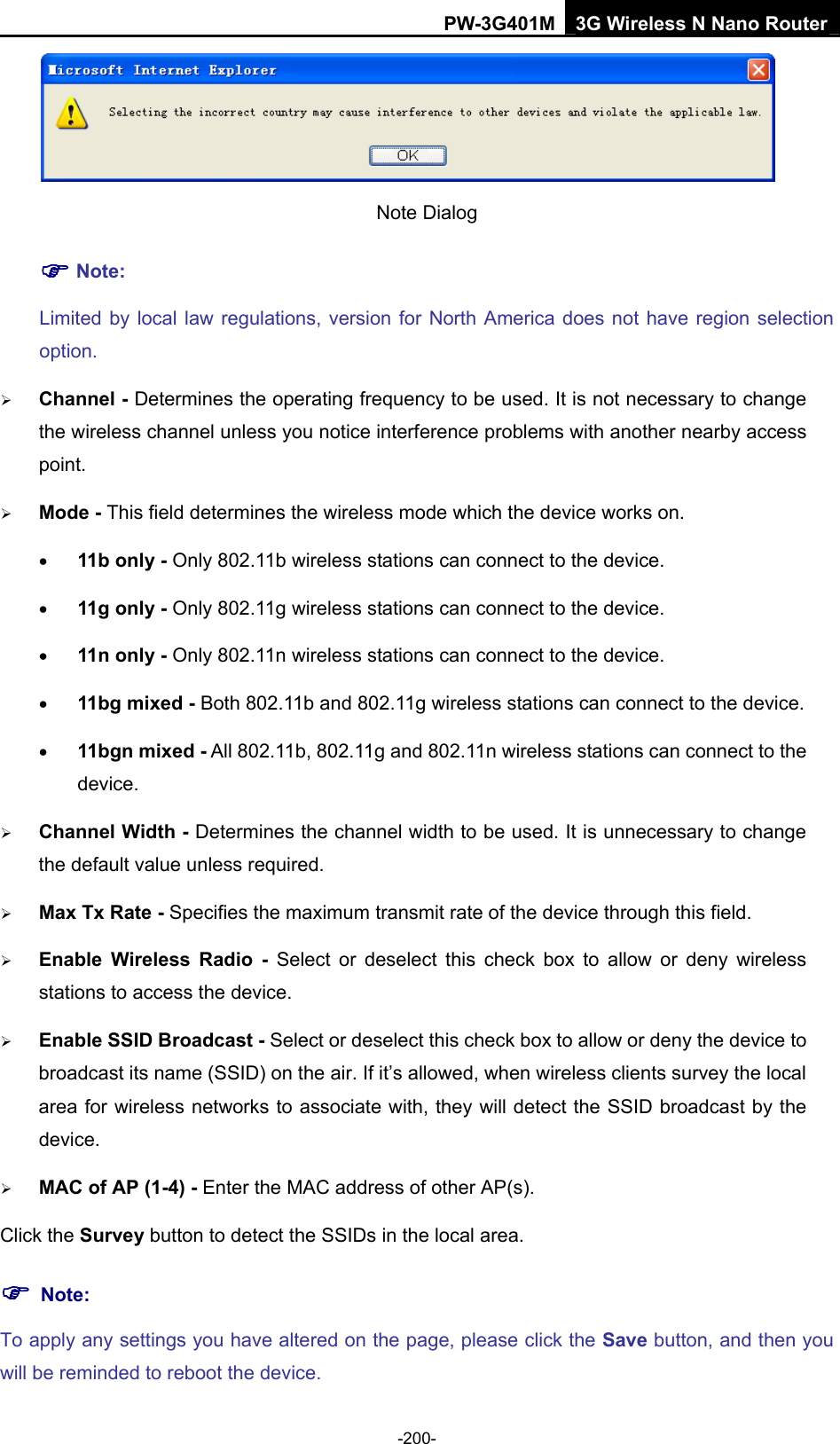

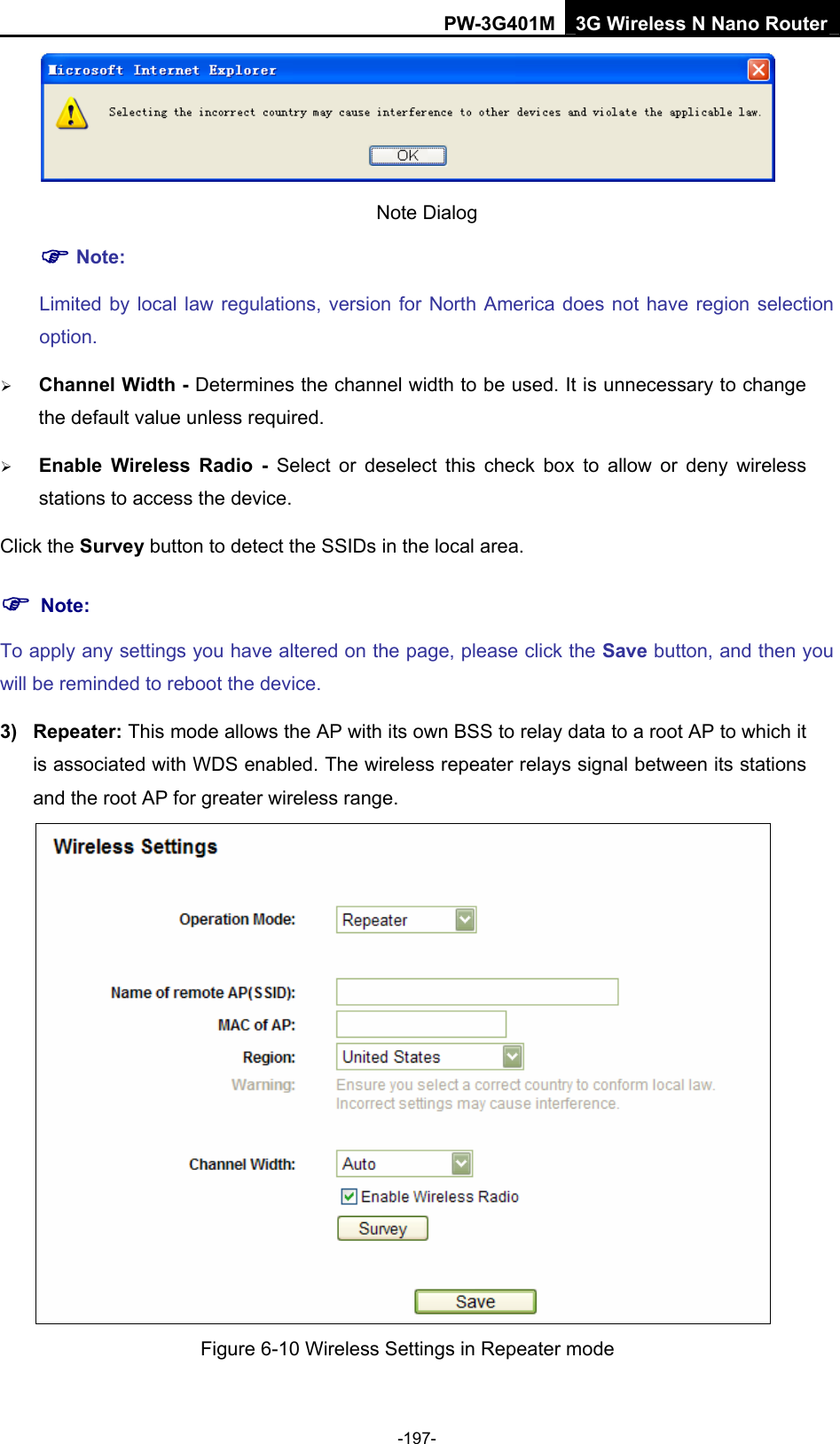

PW-3G401M 3G Wireless N Nano Router Note Dialog ) Note: Limited by local law regulations, version for North America does not have region selection option. ¾ Channel - Determines the operating frequency to be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - This field determines the wireless mode which the device works on. • 11b only - Only 802.11b wireless stations can connect to the device. • 11g only - Only 802.11g wireless stations can connect to the device. • 11n only - Only 802.11n wireless stations can connect to the device. • 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device. • 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the device. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. ¾ Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. ¾ MAC of AP (1-4) - Enter the MAC address of other AP(s). Click the Survey button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. -200-

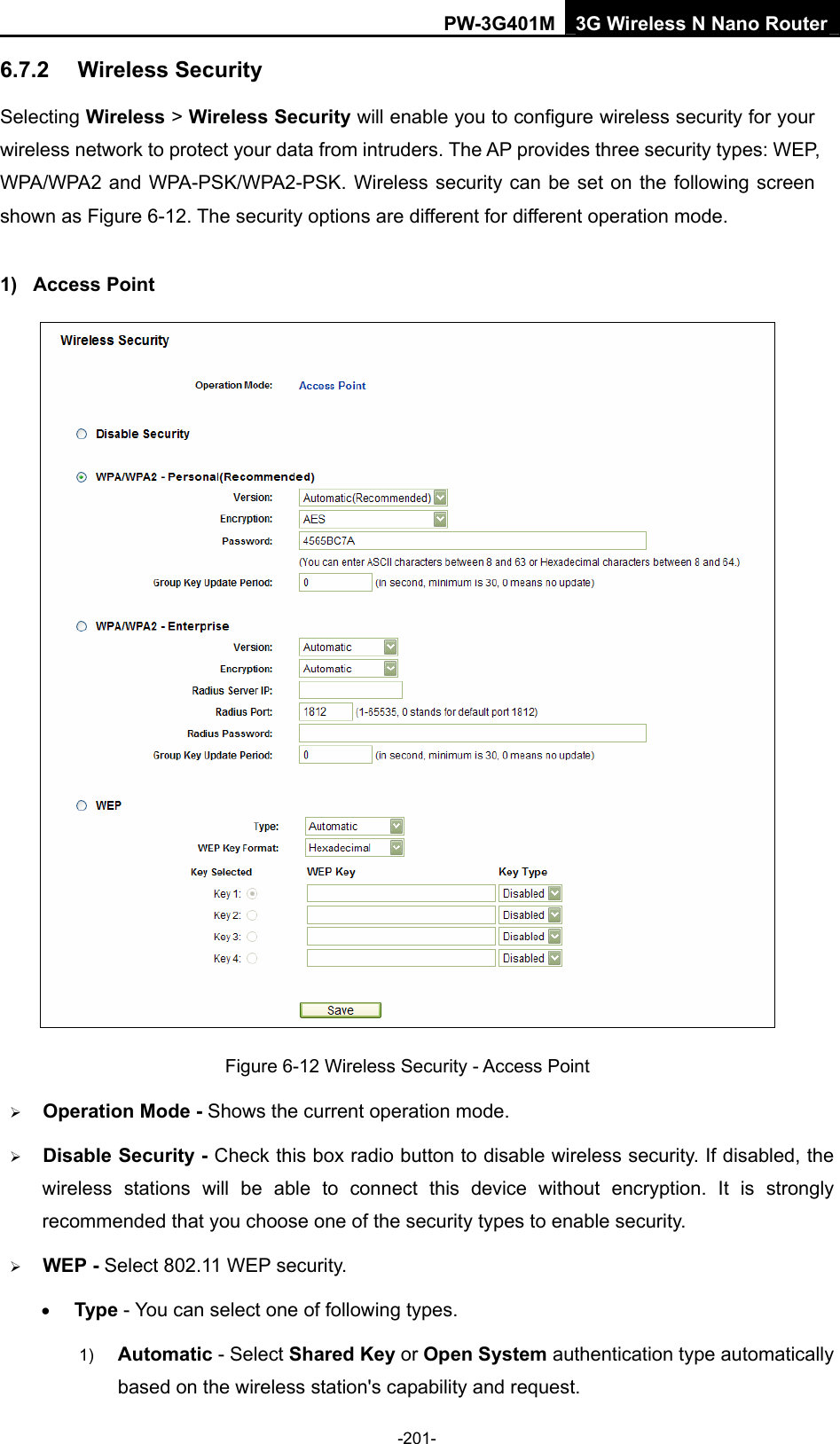

PW-3G401M 3G Wireless N Nano Router 6.7.2 Wireless Security Selecting Wireless > Wireless Security will enable you to configure wireless security for your wireless network to protect your data from intruders. The AP provides three security types: WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK. Wireless security can be set on the following screen shown as Figure 6-12. The security options are different for different operation mode. 1) Access Point Figure 6-12 Wireless Security - Access Point ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. -201-

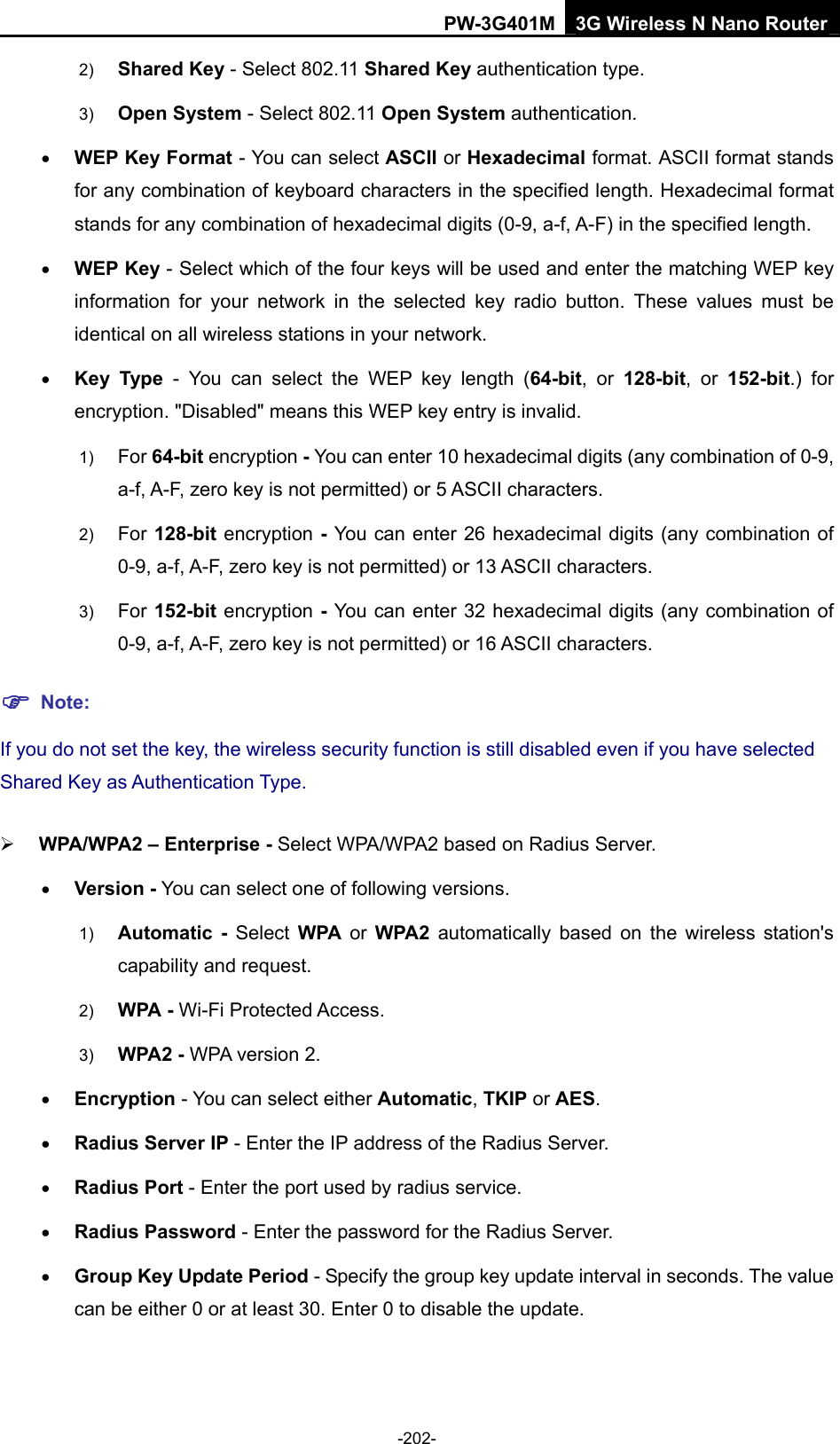

PW-3G401M 3G Wireless N Nano Router 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA/WPA2 – Enterprise - Select WPA/WPA2 based on Radius Server. • Version - You can select one of following versions. 1) Automatic - Select WPA or WPA2 automatically based on the wireless station's capability and request. 2) WPA - Wi-Fi Protected Access. 3) WPA2 - WPA version 2. • Encryption - You can select either Automatic, TKIP or AES. • Radius Server IP - Enter the IP address of the Radius Server. • Radius Port - Enter the port used by radius service. • Radius Password - Enter the password for the Radius Server. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. -202-

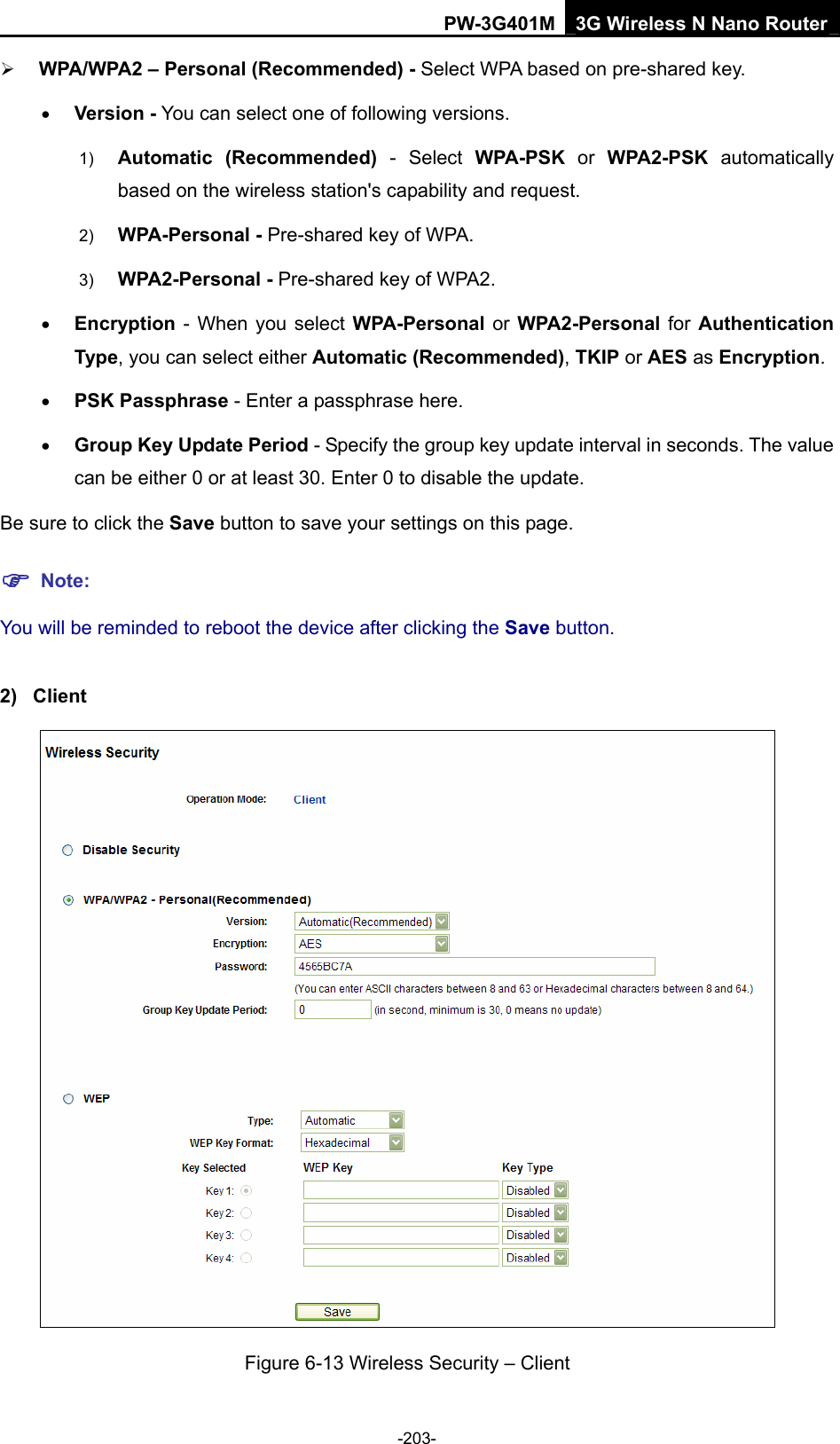

PW-3G401M 3G Wireless N Nano Router ¾ WPA/WPA2 – Personal (Recommended) - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic (Recommended) - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-Personal - Pre-shared key of WPA. 3) WPA2-Personal - Pre-shared key of WPA2. • Encryption - When you select WPA-Personal or WPA2-Personal for Authentication Type, you can select either Automatic (Recommended), TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button. 2) Client Figure 6-13 Wireless Security – Client -203-

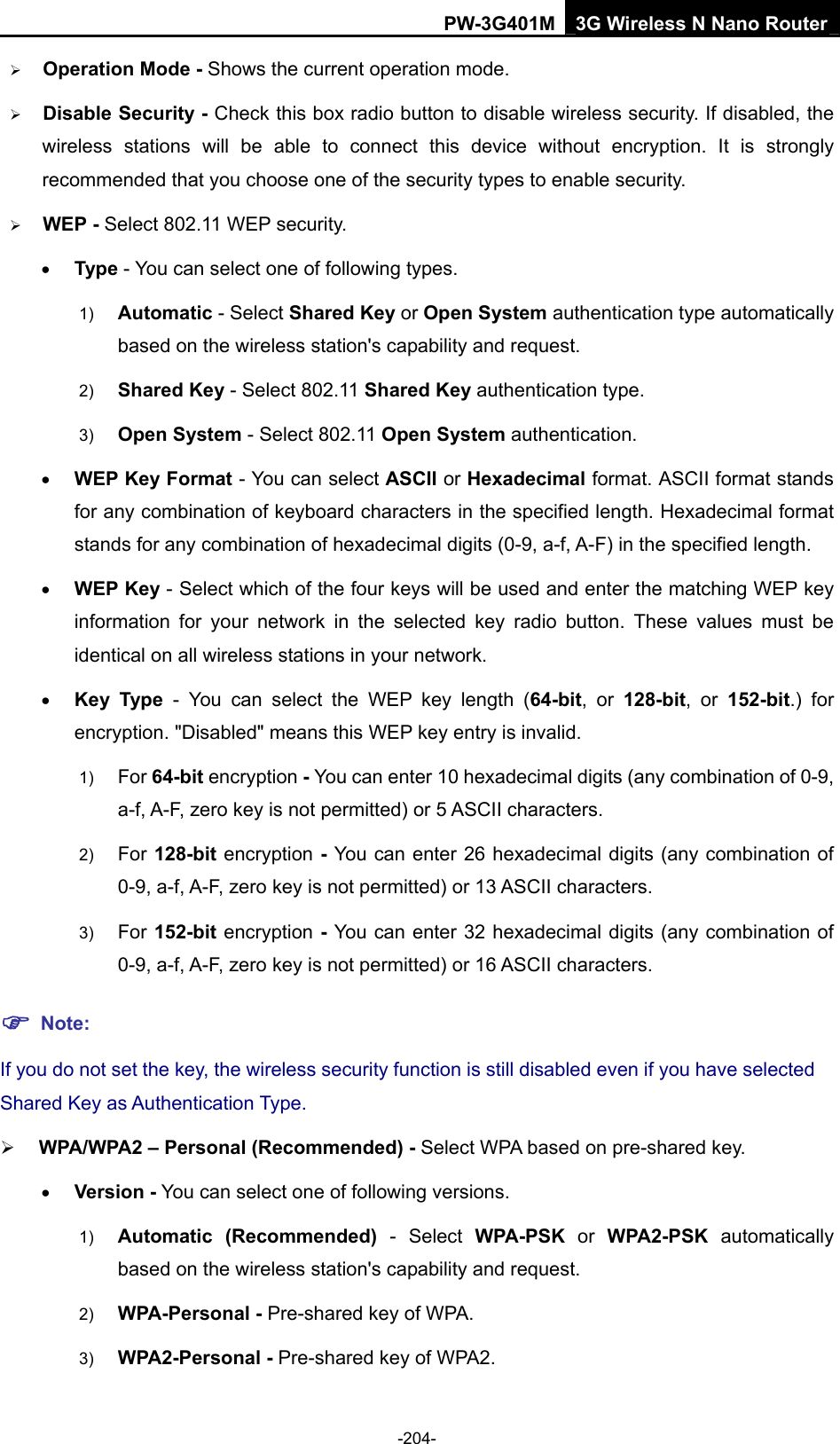

PW-3G401M 3G Wireless N Nano Router ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA/WPA2 – Personal (Recommended) - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic (Recommended) - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-Personal - Pre-shared key of WPA. 3) WPA2-Personal - Pre-shared key of WPA2. -204-

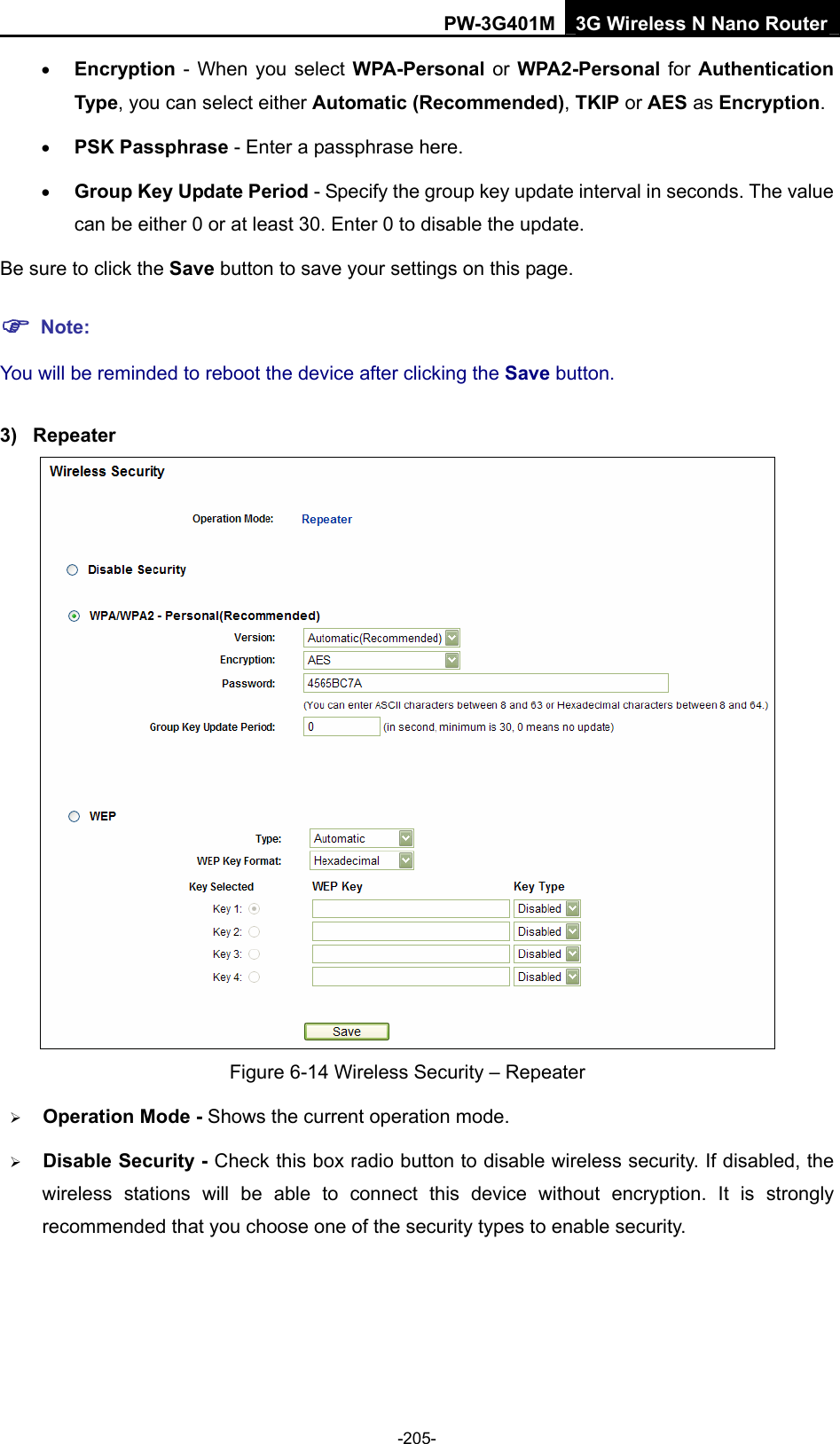

PW-3G401M 3G Wireless N Nano Router • Encryption - When you select WPA-Personal or WPA2-Personal for Authentication Type, you can select either Automatic (Recommended), TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button. 3) Repeater Figure 6-14 Wireless Security – Repeater ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. -205-
PW-3G401M 3G Wireless N Nano Router ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. Shared Key - Select 802.11 Shared Key authentication type. Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA/WPA2 – Personal (Recommended) - Select WPA based on pre-shared key. • Version - You can select one of following versions. Automatic (Recommended) - Select WPA-Personal or WPA2-Personal automatically based on the wireless station's capability and request. WPA-Personal - Pre-shared key of WPA. WPA2-Personal - Pre-shared key of WPA2. • Encryption - When you select WPA-Personal or WPA2-Personal for Authentication Type, you can select either Automatic (Recommended), TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. -206-

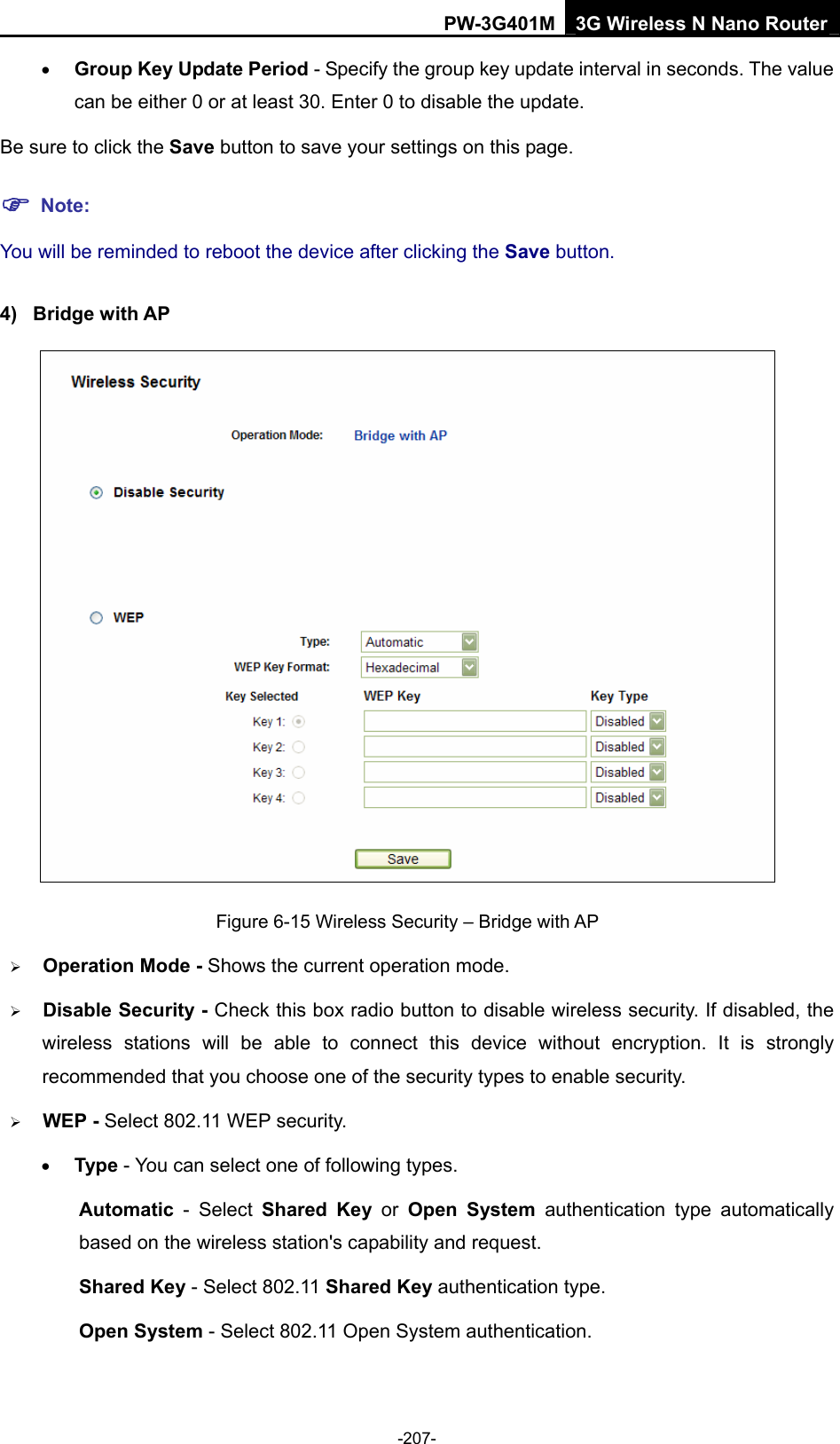

PW-3G401M 3G Wireless N Nano Router • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button. 4) Bridge with AP Figure 6-15 Wireless Security – Bridge with AP ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. Shared Key - Select 802.11 Shared Key authentication type. Open System - Select 802.11 Open System authentication. -207-

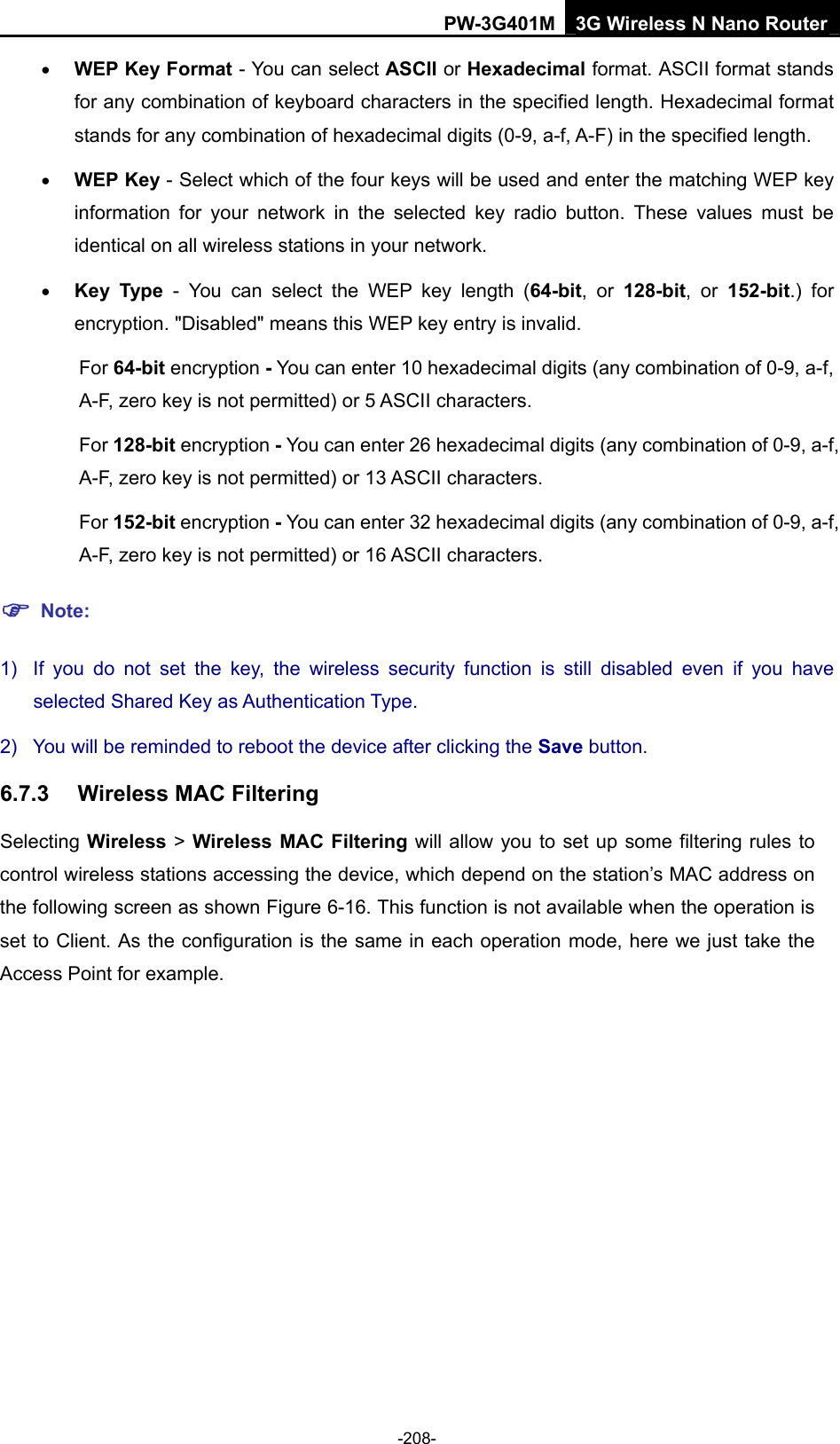

PW-3G401M 3G Wireless N Nano Router • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: 1) If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. 2) You will be reminded to reboot the device after clicking the Save button. 6.7.3 Wireless MAC Filtering Selecting Wireless > Wireless MAC Filtering will allow you to set up some filtering rules to control wireless stations accessing the device, which depend on the station’s MAC address on the following screen as shown Figure 6-16. This function is not available when the operation is set to Client. As the configuration is the same in each operation mode, here we just take the Access Point for example. -208-

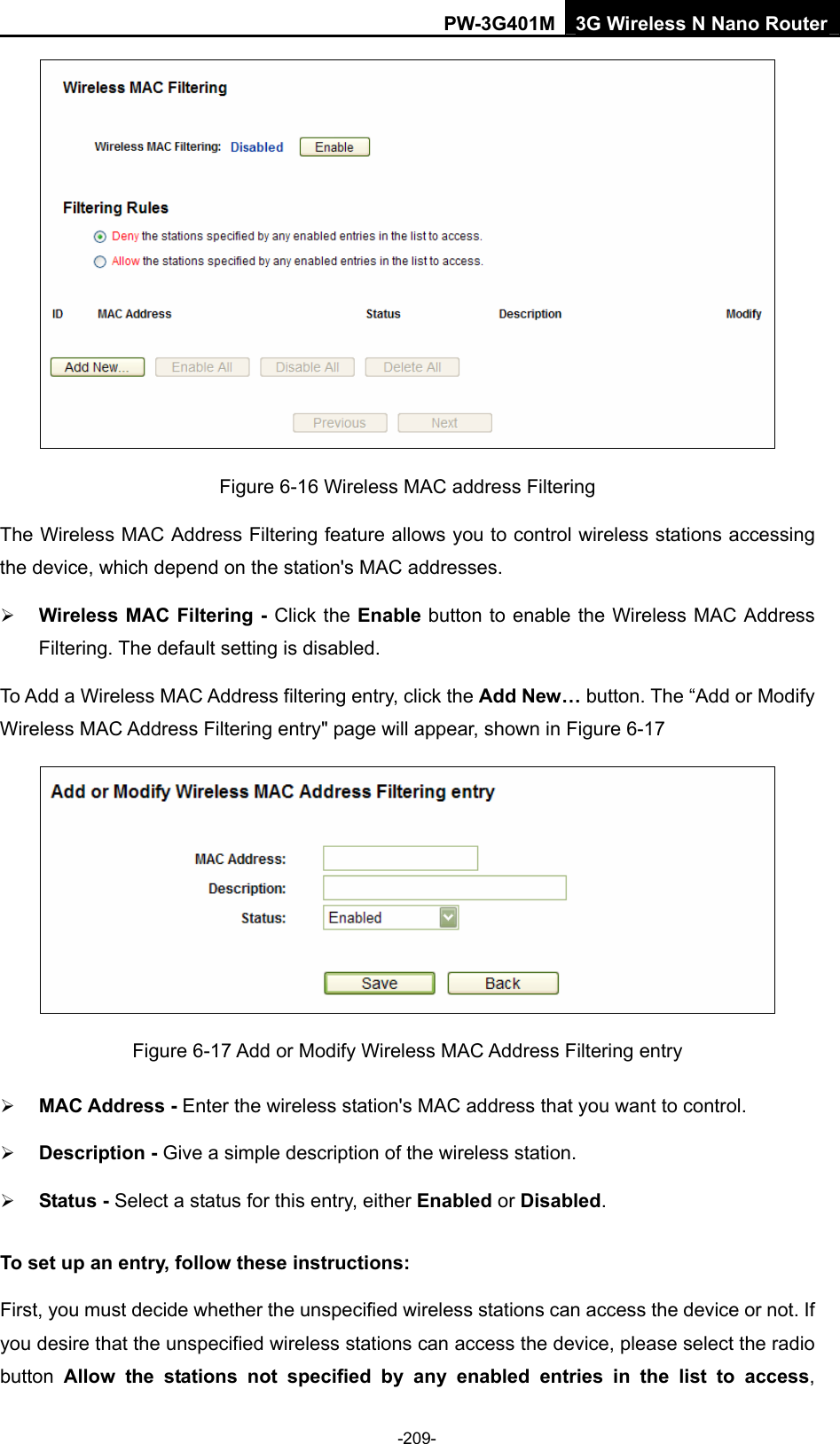

PW-3G401M 3G Wireless N Nano Router Figure 6-16 Wireless MAC address Filtering The Wireless MAC Address Filtering feature allows you to control wireless stations accessing the device, which depend on the station's MAC addresses. ¾ Wireless MAC Filtering - Click the Enable button to enable the Wireless MAC Address Filtering. The default setting is disabled. To Add a Wireless MAC Address filtering entry, click the Add New… button. The “Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 6-17 Figure 6-17 Add or Modify Wireless MAC Address Filtering entry ¾ MAC Address - Enter the wireless station's MAC address that you want to control. ¾ Description - Give a simple description of the wireless station. ¾ Status - Select a status for this entry, either Enabled or Disabled. To set up an entry, follow these instructions: First, you must decide whether the unspecified wireless stations can access the device or not. If you desire that the unspecified wireless stations can access the device, please select the radio button Allow the stations not specified by any enabled entries in the list to access, -209-

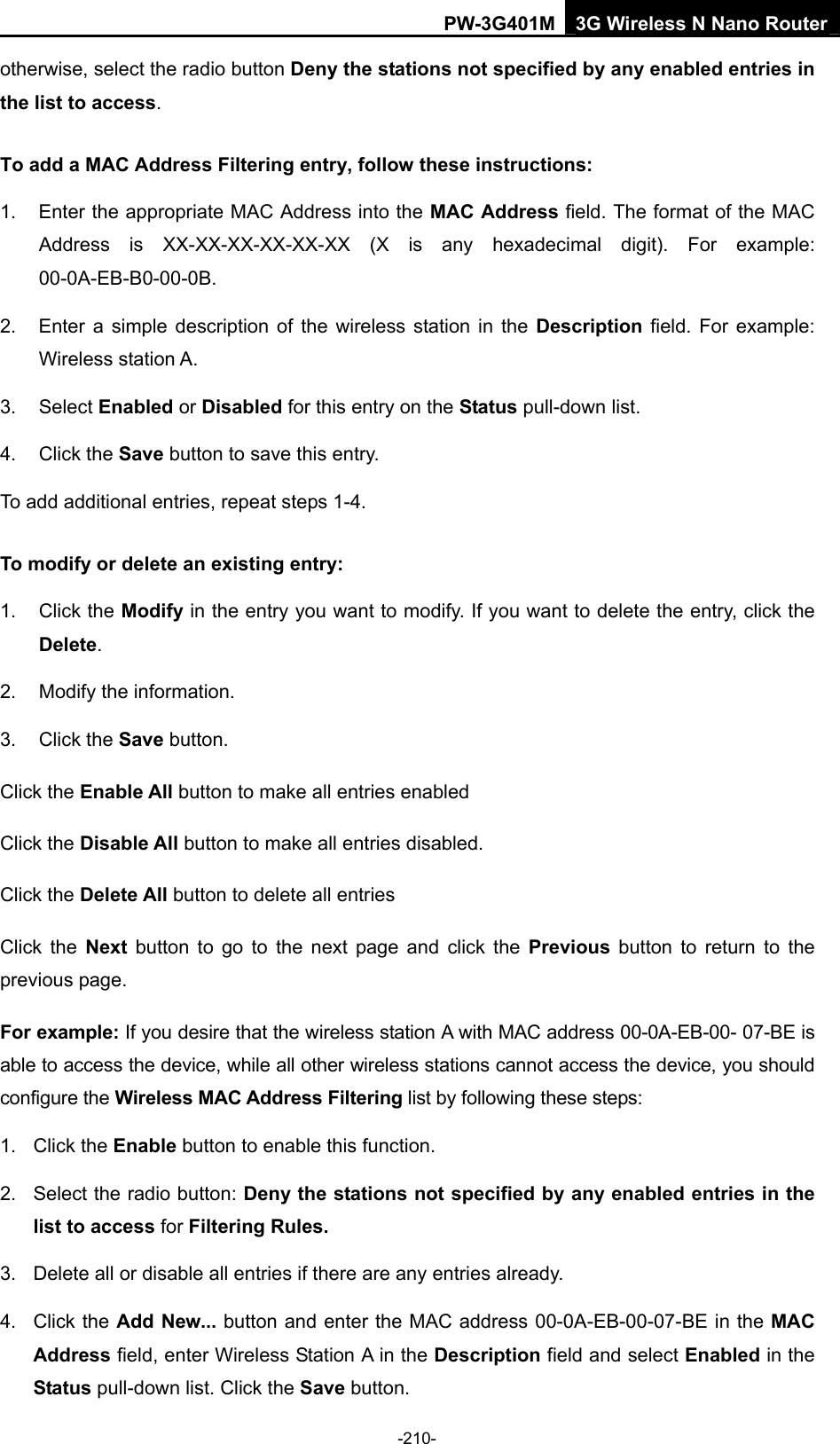

PW-3G401M 3G Wireless N Nano Router otherwise, select the radio button Deny the stations not specified by any enabled entries in the list to access. To add a MAC Address Filtering entry, follow these instructions: 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B. 2. Enter a simple description of the wireless station in the Description field. For example: Wireless station A. 3. Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to save this entry. To add additional entries, repeat steps 1-4. To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable All button to make all entries enabled Click the Disable All button to make all entries disabled. Click the Delete All button to delete all entries Click the Next button to go to the next page and click the Previous button to return to the previous page. For example: If you desire that the wireless station A with MAC address 00-0A-EB-00- 07-BE is able to access the device, while all other wireless stations cannot access the device, you should configure the Wireless MAC Address Filtering list by following these steps: 1. Click the Enable button to enable this function. 2. Select the radio button: Deny the stations not specified by any enabled entries in the list to access for Filtering Rules. 3. Delete all or disable all entries if there are any entries already. 4. Click the Add New... button and enter the MAC address 00-0A-EB-00-07-BE in the MAC Address field, enter Wireless Station A in the Description field and select Enabled in the Status pull-down list. Click the Save button. -210-

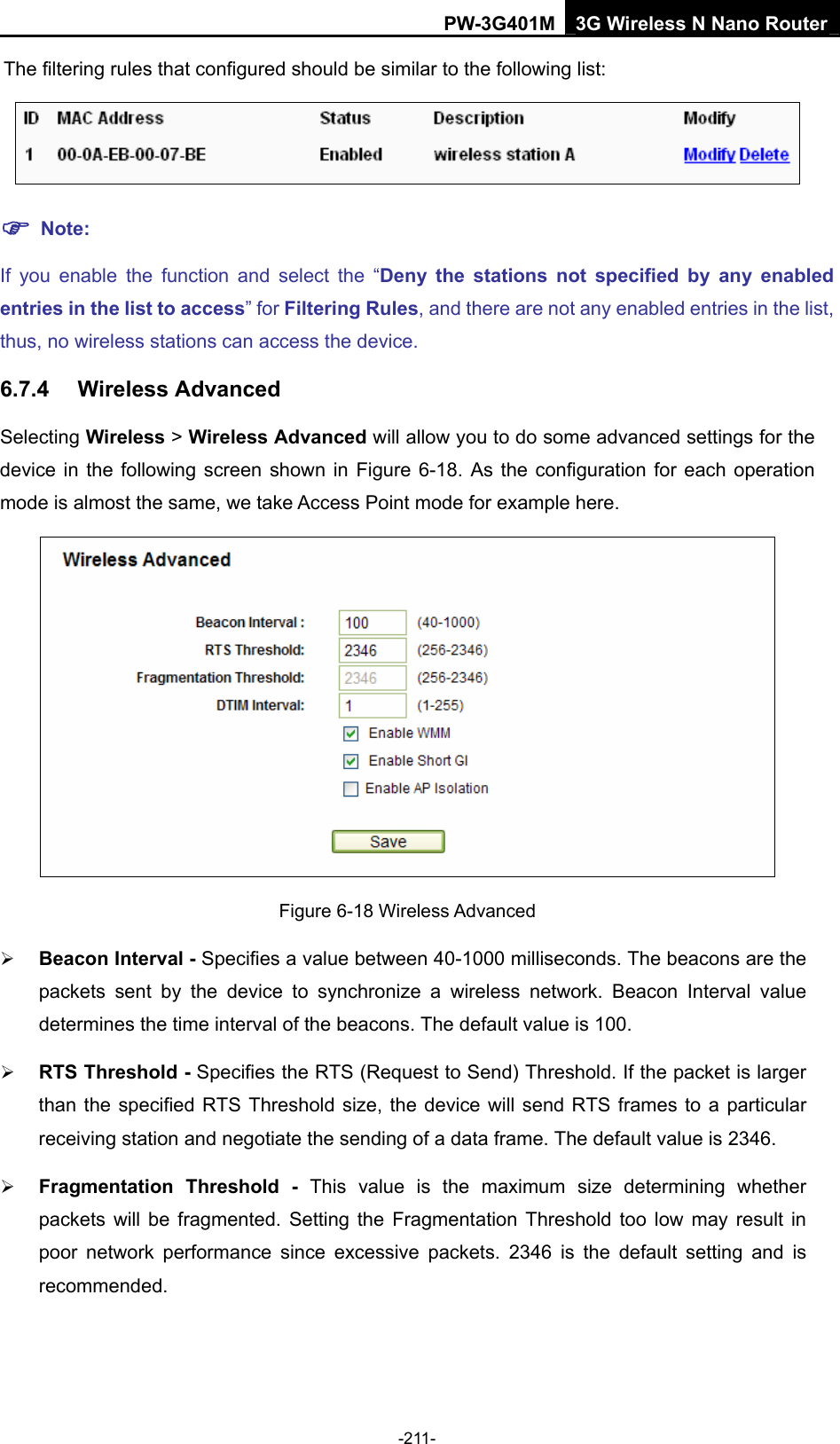

PW-3G401M 3G Wireless N Nano Router The filtering rules that configured should be similar to the following list: ) Note: If you enable the function and select the “Deny the stations not specified by any enabled entries in the list to access” for Filtering Rules, and there are not any enabled entries in the list, thus, no wireless stations can access the device. 6.7.4 Wireless Advanced Selecting Wireless > Wireless Advanced will allow you to do some advanced settings for the device in the following screen shown in Figure 6-18. As the configuration for each operation mode is almost the same, we take Access Point mode for example here. Figure 6-18 Wireless Advanced ¾ Beacon Interval - Specifies a value between 40-1000 milliseconds. The beacons are the packets sent by the device to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100. ¾ RTS Threshold - Specifies the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the device will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is 2346. ¾ Fragmentation Threshold - This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance since excessive packets. 2346 is the default setting and is recommended. -211-

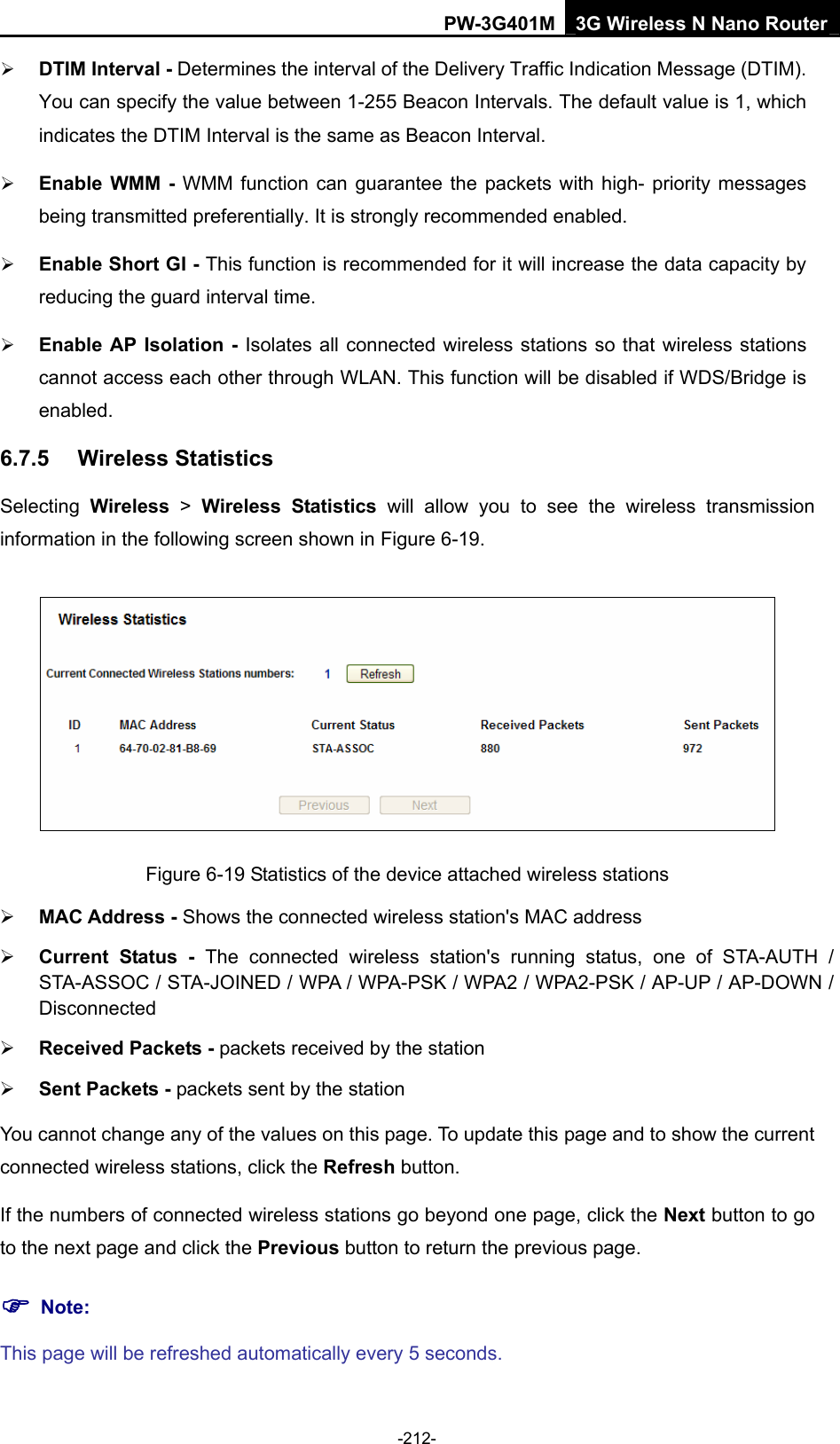

PW-3G401M 3G Wireless N Nano Router ¾ DTIM Interval - Determines the interval of the Delivery Traffic Indication Message (DTIM). You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval. ¾ Enable WMM - WMM function can guarantee the packets with high- priority messages being transmitted preferentially. It is strongly recommended enabled. ¾ Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time. ¾ Enable AP Isolation - Isolates all connected wireless stations so that wireless stations cannot access each other through WLAN. This function will be disabled if WDS/Bridge is enabled. 6.7.5 Wireless Statistics Selecting Wireless > Wireless Statistics will allow you to see the wireless transmission information in the following screen shown in Figure 6-19. Figure 6-19 Statistics of the device attached wireless stations ¾ MAC Address - Shows the connected wireless station's MAC address ¾ Current Status - The connected wireless station's running status, one of STA-AUTH / STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN / Disconnected ¾ Received Packets - packets received by the station ¾ Sent Packets - packets sent by the station You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page. ) Note: This page will be refreshed automatically every 5 seconds. -212-

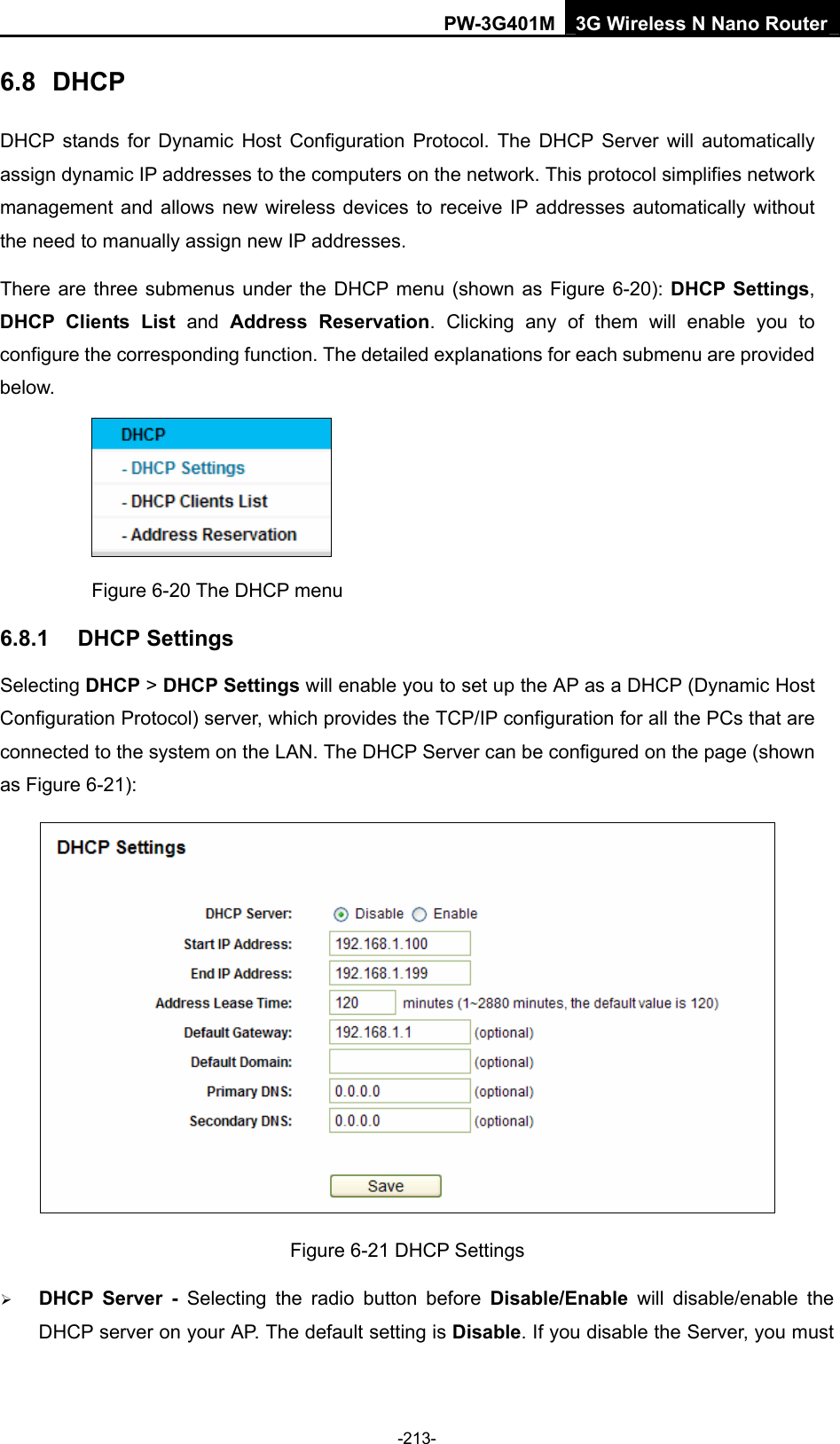

PW-3G401M 3G Wireless N Nano Router 6.8 DHCP DHCP stands for Dynamic Host Configuration Protocol. The DHCP Server will automatically assign dynamic IP addresses to the computers on the network. This protocol simplifies network management and allows new wireless devices to receive IP addresses automatically without the need to manually assign new IP addresses. There are three submenus under the DHCP menu (shown as Figure 6-20): DHCP Settings, DHCP Clients List and Address Reservation. Clicking any of them will enable you to configure the corresponding function. The detailed explanations for each submenu are provided below. Figure 6-20 The DHCP menu 6.8.1 DHCP Settings Selecting DHCP > DHCP Settings will enable you to set up the AP as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are connected to the system on the LAN. The DHCP Server can be configured on the page (shown as Figure 6-21): Figure 6-21 DHCP Settings ¾ DHCP Server - Selecting the radio button before Disable/Enable will disable/enable the DHCP server on your AP. The default setting is Disable. If you disable the Server, you must -213-

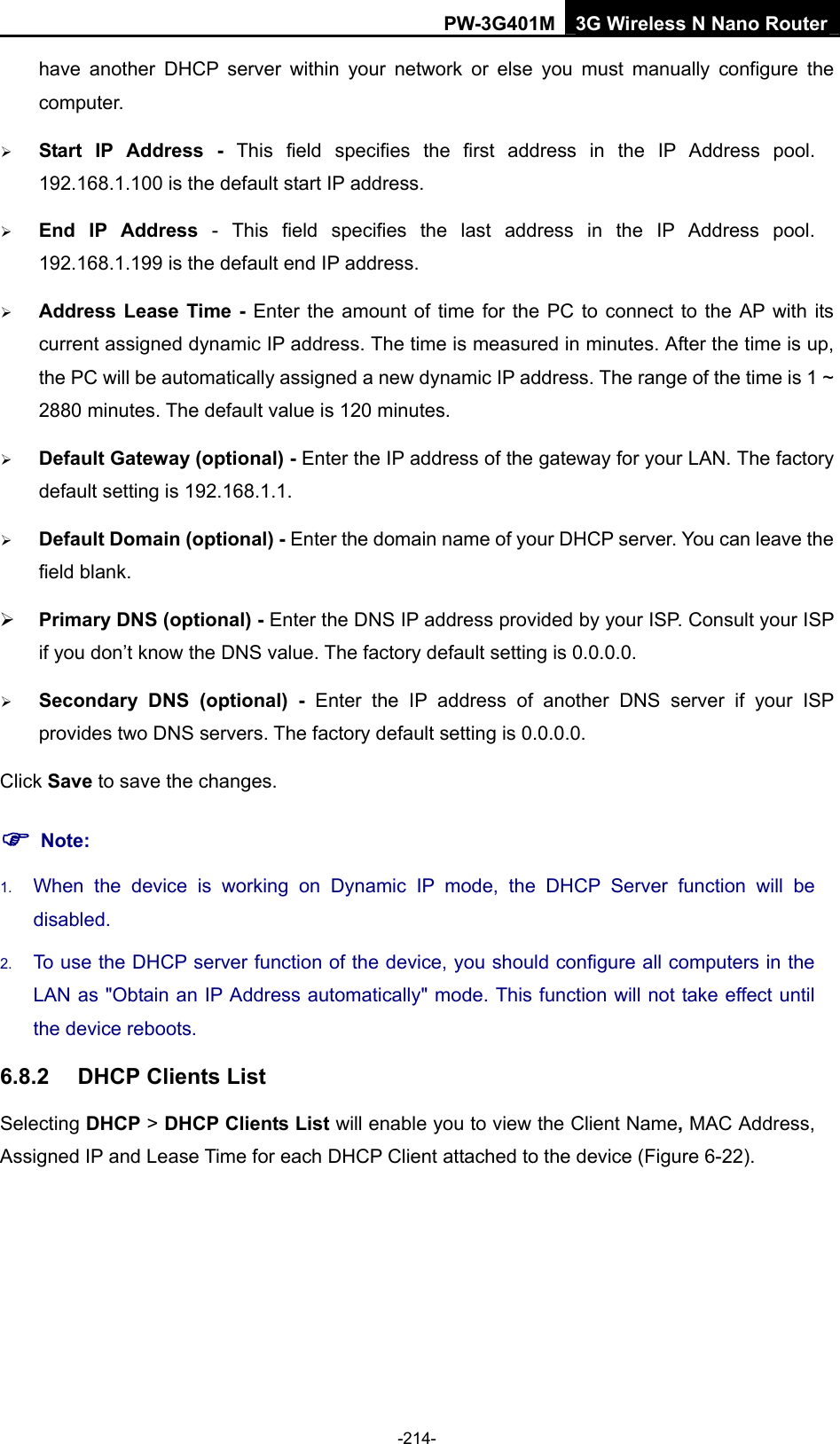

PW-3G401M 3G Wireless N Nano Router have another DHCP server within your network or else you must manually configure the computer. ¾ Start IP Address - This field specifies the first address in the IP Address pool. 192.168.1.100 is the default start IP address. ¾ End IP Address - This field specifies the last address in the IP Address pool. 192.168.1.199 is the default end IP address. ¾ Address Lease Time - Enter the amount of time for the PC to connect to the AP with its current assigned dynamic IP address. The time is measured in minutes. After the time is up, the PC will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes. ¾ Default Gateway (optional) - Enter the IP address of the gateway for your LAN. The factory default setting is 192.168.1.1. ¾ Default Domain (optional) - Enter the domain name of your DHCP server. You can leave the field blank. ¾ Primary DNS (optional) - Enter the DNS IP address provided by your ISP. Consult your ISP if you don’t know the DNS value. The factory default setting is 0.0.0.0. ¾ Secondary DNS (optional) - Enter the IP address of another DNS server if your ISP provides two DNS servers. The factory default setting is 0.0.0.0. Click Save to save the changes. ) Note: 1. When the device is working on Dynamic IP mode, the DHCP Server function will be disabled. 2. To use the DHCP server function of the device, you should configure all computers in the LAN as "Obtain an IP Address automatically" mode. This function will not take effect until the device reboots. 6.8.2 DHCP Clients List Selecting DHCP > DHCP Clients List will enable you to view the Client Name, MAC Address, Assigned IP and Lease Time for each DHCP Client attached to the device (Figure 6-22). -214-

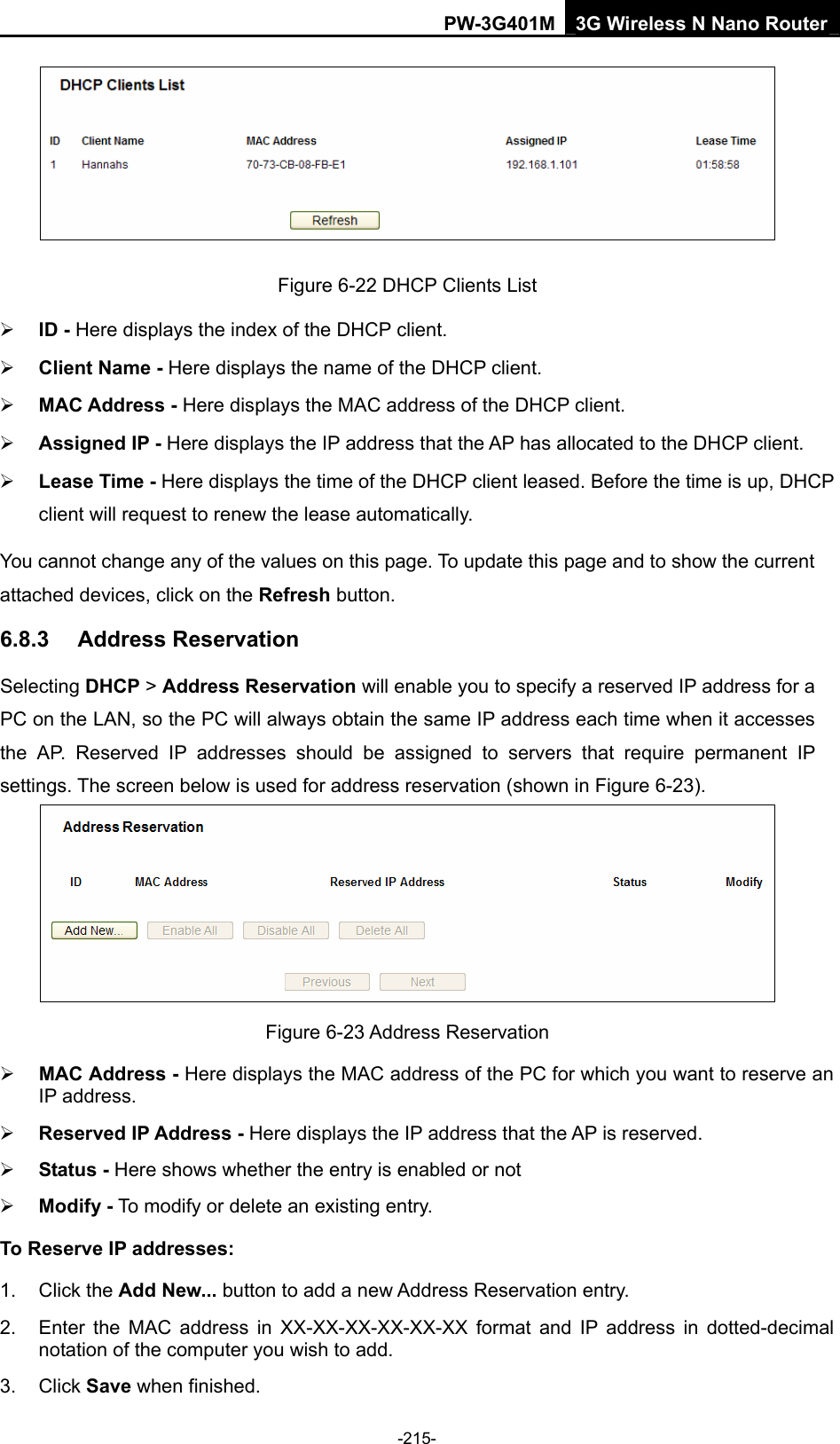

PW-3G401M 3G Wireless N Nano Router Figure 6-22 DHCP Clients List ¾ ID - Here displays the index of the DHCP client. ¾ Client Name - Here displays the name of the DHCP client. ¾ MAC Address - Here displays the MAC address of the DHCP client. ¾ Assigned IP - Here displays the IP address that the AP has allocated to the DHCP client. ¾ Lease Time - Here displays the time of the DHCP client leased. Before the time is up, DHCP client will request to renew the lease automatically. You cannot change any of the values on this page. To update this page and to show the current attached devices, click on the Refresh button. 6.8.3 Address Reservation Selecting DHCP > Address Reservation will enable you to specify a reserved IP address for a PC on the LAN, so the PC will always obtain the same IP address each time when it accesses the AP. Reserved IP addresses should be assigned to servers that require permanent IP settings. The screen below is used for address reservation (shown in Figure 6-23). Figure 6-23 Address Reservation ¾ MAC Address - Here displays the MAC address of the PC for which you want to reserve an IP address. ¾ Reserved IP Address - Here displays the IP address that the AP is reserved. ¾ Status - Here shows whether the entry is enabled or not ¾ Modify - To modify or delete an existing entry. To Reserve IP addresses: 1. Click the Add New... button to add a new Address Reservation entry. 2. Enter the MAC address in XX-XX-XX-XX-XX-XX format and IP address in dotted-decimal notation of the computer you wish to add. 3. Click Save when finished. -215-

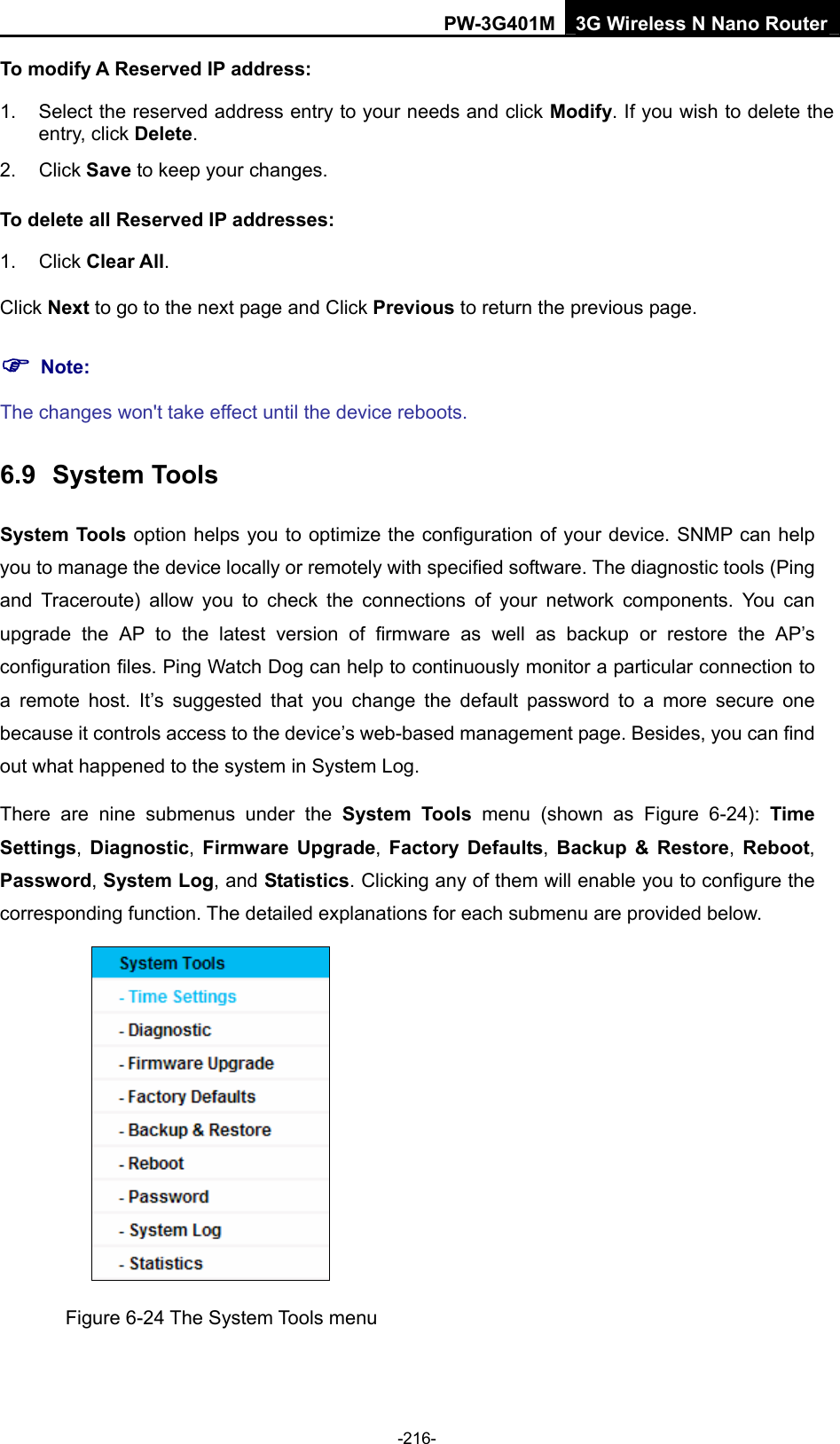

PW-3G401M 3G Wireless N Nano Router To modify A Reserved IP address: 1. Select the reserved address entry to your needs and click Modify. If you wish to delete the entry, click Delete. 2. Click Save to keep your changes. To delete all Reserved IP addresses: 1. Click Clear All. Click Next to go to the next page and Click Previous to return the previous page. ) Note: The changes won't take effect until the device reboots. 6.9 System Tools System Tools option helps you to optimize the configuration of your device. SNMP can help you to manage the device locally or remotely with specified software. The diagnostic tools (Ping and Traceroute) allow you to check the connections of your network components. You can upgrade the AP to the latest version of firmware as well as backup or restore the AP’s configuration files. Ping Watch Dog can help to continuously monitor a particular connection to a remote host. It’s suggested that you change the default password to a more secure one because it controls access to the device’s web-based management page. Besides, you can find out what happened to the system in System Log. There are nine submenus under the System Tools menu (shown as Figure 6-24): Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log, and Statistics. Clicking any of them will enable you to configure the corresponding function. The detailed explanations for each submenu are provided below. Figure 6-24 The System Tools menu -216-

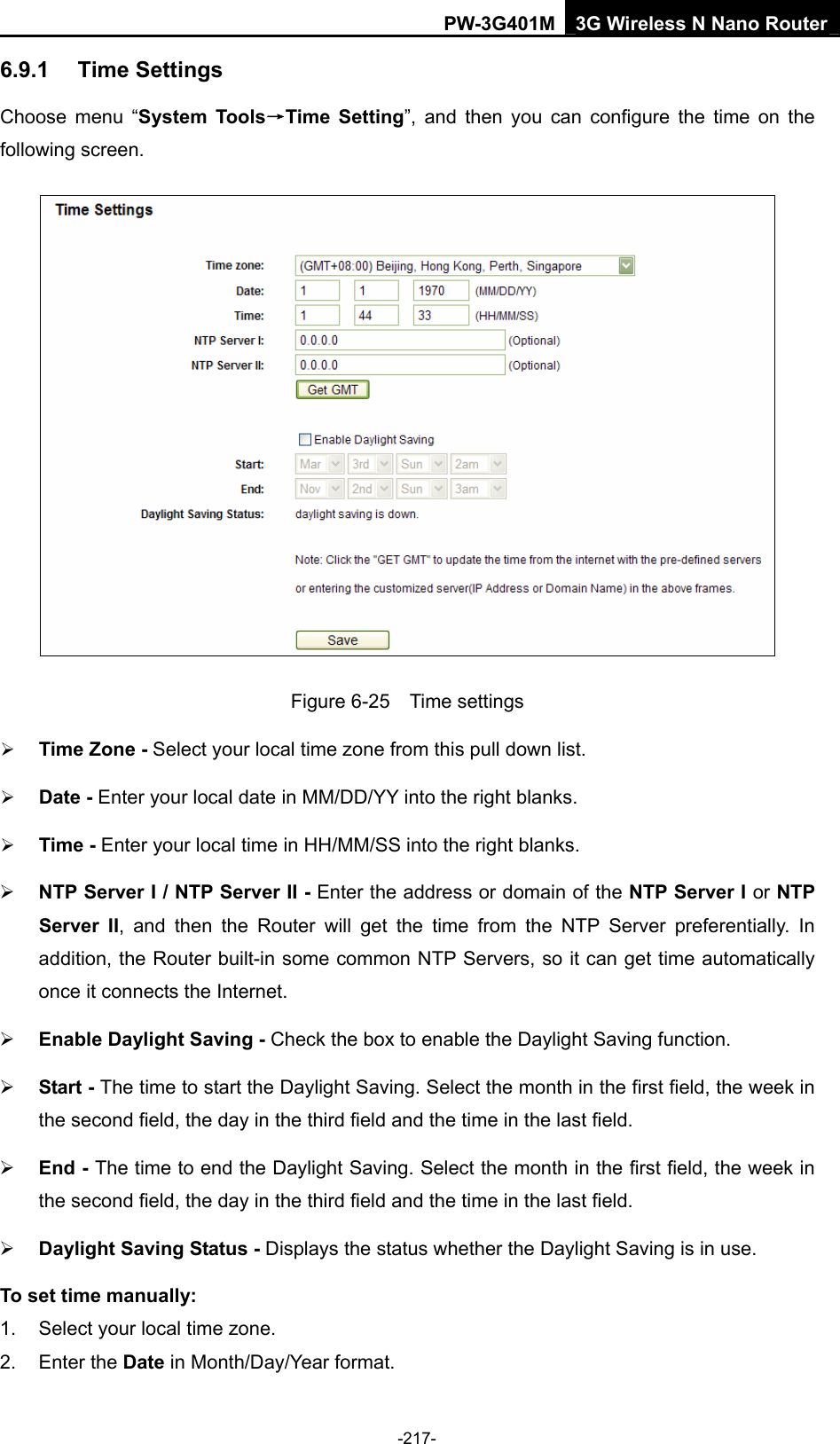

PW-3G401M 3G Wireless N Nano Router 6.9.1 Time Settings Choose menu “System Tools→Time Setting”, and then you can configure the time on the following screen. Figure 6-25 Time settings ¾ Time Zone - Select your local time zone from this pull down list. ¾ Date - Enter your local date in MM/DD/YY into the right blanks. ¾ Time - Enter your local time in HH/MM/SS into the right blanks. ¾ NTP Server I / NTP Server II - Enter the address or domain of the NTP Server I or NTP Server II, and then the Router will get the time from the NTP Server preferentially. In addition, the Router built-in some common NTP Servers, so it can get time automatically once it connects the Internet. ¾ Enable Daylight Saving - Check the box to enable the Daylight Saving function. ¾ Start - The time to start the Daylight Saving. Select the month in the first field, the week in the second field, the day in the third field and the time in the last field. ¾ End - The time to end the Daylight Saving. Select the month in the first field, the week in the second field, the day in the third field and the time in the last field. ¾ Daylight Saving Status - Displays the status whether the Daylight Saving is in use. To set time manually: 1. Select your local time zone. 2. Enter the Date in Month/Day/Year format. -217-

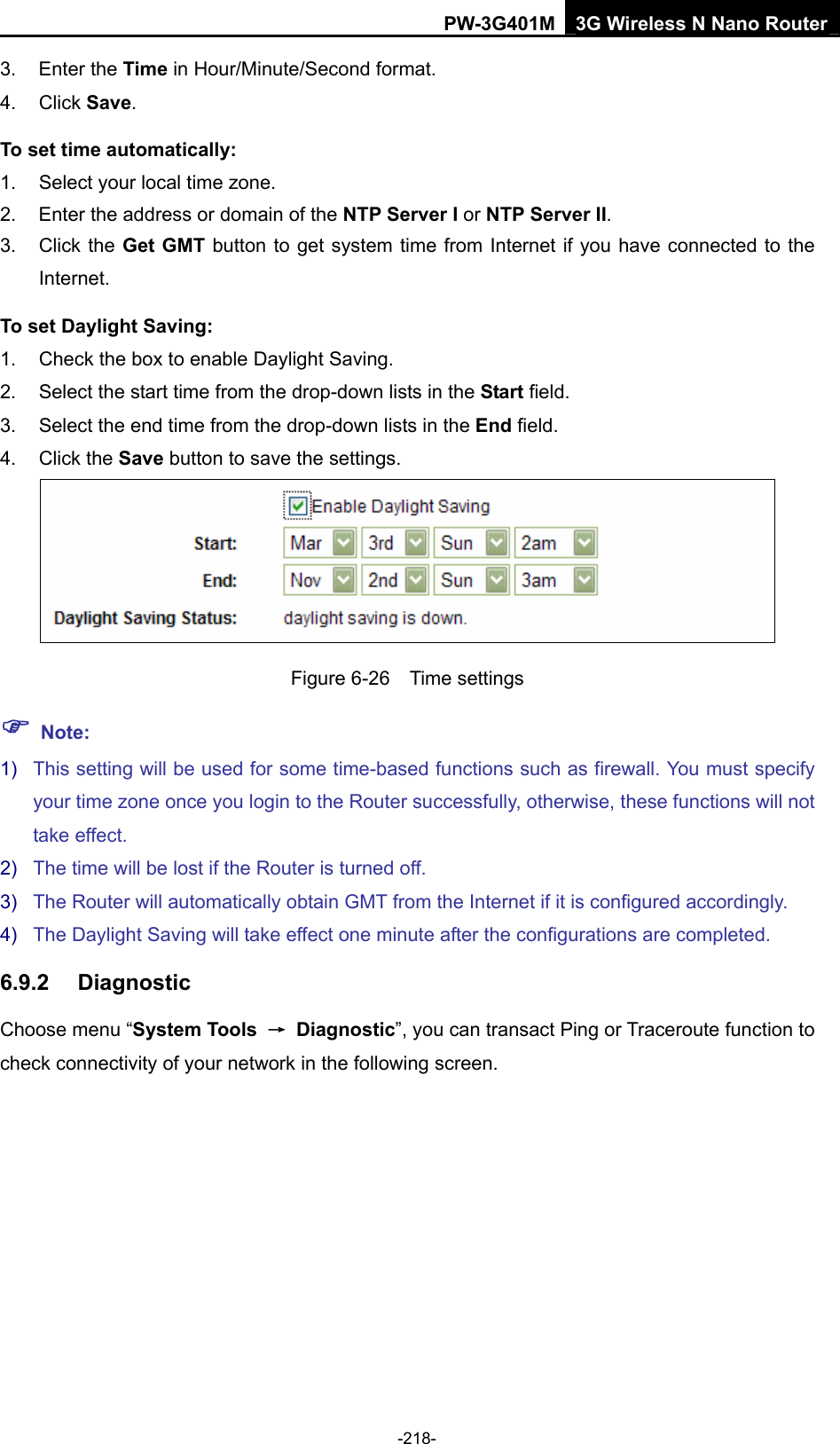

PW-3G401M 3G Wireless N Nano Router 3. Enter the Time in Hour/Minute/Second format. 4. Click Save. To set time automatically: 1. Select your local time zone. 2. Enter the address or domain of the NTP Server I or NTP Server II. 3. Click the Get GMT button to get system time from Internet if you have connected to the Internet. To set Daylight Saving: 1. Check the box to enable Daylight Saving. 2. Select the start time from the drop-down lists in the Start field. 3. Select the end time from the drop-down lists in the End field. 4. Click the Save button to save the settings. Figure 6-26 Time settings ) Note: 1) This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the Router successfully, otherwise, these functions will not take effect. 2) The time will be lost if the Router is turned off. 3) The Router will automatically obtain GMT from the Internet if it is configured accordingly. 4) The Daylight Saving will take effect one minute after the configurations are completed. 6.9.2 Diagnostic Choose menu “System Tools → Diagnostic”, you can transact Ping or Traceroute function to check connectivity of your network in the following screen. -218-
PW-3G401M 3G Wireless N Nano Router Figure 6-27 Diagnostic Tools ¾ Diagnostic Tool - Check the radio button to select one diagnostic too. z Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to a given host or gateway. z Traceroute - This diagnostic tool tests the performance of a connection. ) Note: You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem. In this case, ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries. IP Address/Domain Name - Type the destination IP address (such as 202.108.22.5) or Domain name. ¾ Pings Count - The number of Ping packets for a Ping connection. ¾ Ping Packet Size - The size of Ping packet. ¾ Ping Timeout - Set the waiting time for the reply of each Ping packet. If there is no reply in the specified time, the connection is overtime. -219-
PW-3G401M 3G Wireless N Nano Router ¾ Traceroute Max TTL - The max number of hops for a Traceroute connection. Click Start to check the connectivity of the Internet. The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen, the connectivity of the Internet is fine. Figure 6-28 Diagnostic Results ) Note: Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are used for Ping function. Option “Tracert Hops” are used for Tracert function. 6.9.3 Firmware Upgrade Choose menu “System Tools → Firmware Upgrade”, you can update the latest version of firmware for the Router on the following screen. Figure 6-29 Firmware Upgrade ¾ Firmware Version - This displays the current firmware version. ¾ Hardware Version - This displays the current hardware version. The hardware version of the upgrade file must accord with the Router’s current hardware version. -220-
PW-3G401M 3G Wireless N Nano Router To upgrade the Router's firmware, follow these instructions below: 1. Download a most recent firmware upgrade file from our website. 2. Select the path name where you save the downloaded file on the computer into the File blank. 3. Click the Upgrade button. 4. The Device will reboot while the upgrading has been finished. ) Note: The firmware version must correspond to the hardware. The upgrade process takes a few moments and the Device reboots automatically when the upgrade is complete. It is important to keep power applied during the entire process. Loss of power during the upgrade could damage the Device. 6.9.4 Factory Defaults Choose menu “System Tools → Factory Defaults”, and you can restore the configurations of the Router to factory defaults on the following screen. Figure 6-30 Restore Factory Default Click the Restore button to reset all configuration settings to their default values. • The default User Name: admin • The default Password: admin • The default IP Address: 192.168.1.1 • The default Subnet Mask: 255.255.255.0 ) Note: Any settings you have saved will be lost when the default settings are restored. 6.9.5 Backup & Restore Choose menu “System Tools → Backup & Restore”, you can save the current configuration of the Router as a backup file and restore the configuration via a backup file as shown in Figure 6-31. -221-
PW-3G401M 3G Wireless N Nano Router Figure 6-31 Backup & Restore Configuration ¾ Click the Backup button to save all configuration settings as a backup file in your local computer. ¾ To upgrade the Router's configuration, follow these instructions. • Click the Browse… button to locate the update file for the Router, or enter the exact path to the Setting file in the text box. • Click the Restore button. ) Note: The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the upgrading process to prevent any damage. 6.9.6 Reboot Choose menu “System Tools → Reboot”, you can click the Reboot button to reboot the Router. Figure 6-32 Reboot the Router Some settings of the Router will take effect only after rebooting, which include • Change the LAN IP Address (system will reboot automatically). • Change the DHCP Settings. • Change the Wireless configurations. • Change the Web Management Port. • Upgrade the firmware of the Router (system will reboot automatically). • Restore the Router's settings to factory defaults (system will reboot automatically). • Update the configuration with the file (system will reboot automatically. -222-
PW-3G401M 3G Wireless N Nano Router 6.9.7 Password Choose menu “System Tools → Password”, you can change the factory default user name and password of the Router in the next screen as shown in Figure 6-33. Figure 6-33 Password It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password. ) Note: The new user name and password must not exceed 14 characters in length and not include any spaces. Enter the new Password twice to confirm. Click the Save button when finished. Click the Clear All button to clear all. 6.9.8 System Log Choose menu “System Tools → System Log”, you can view the logs of the Router. -223-

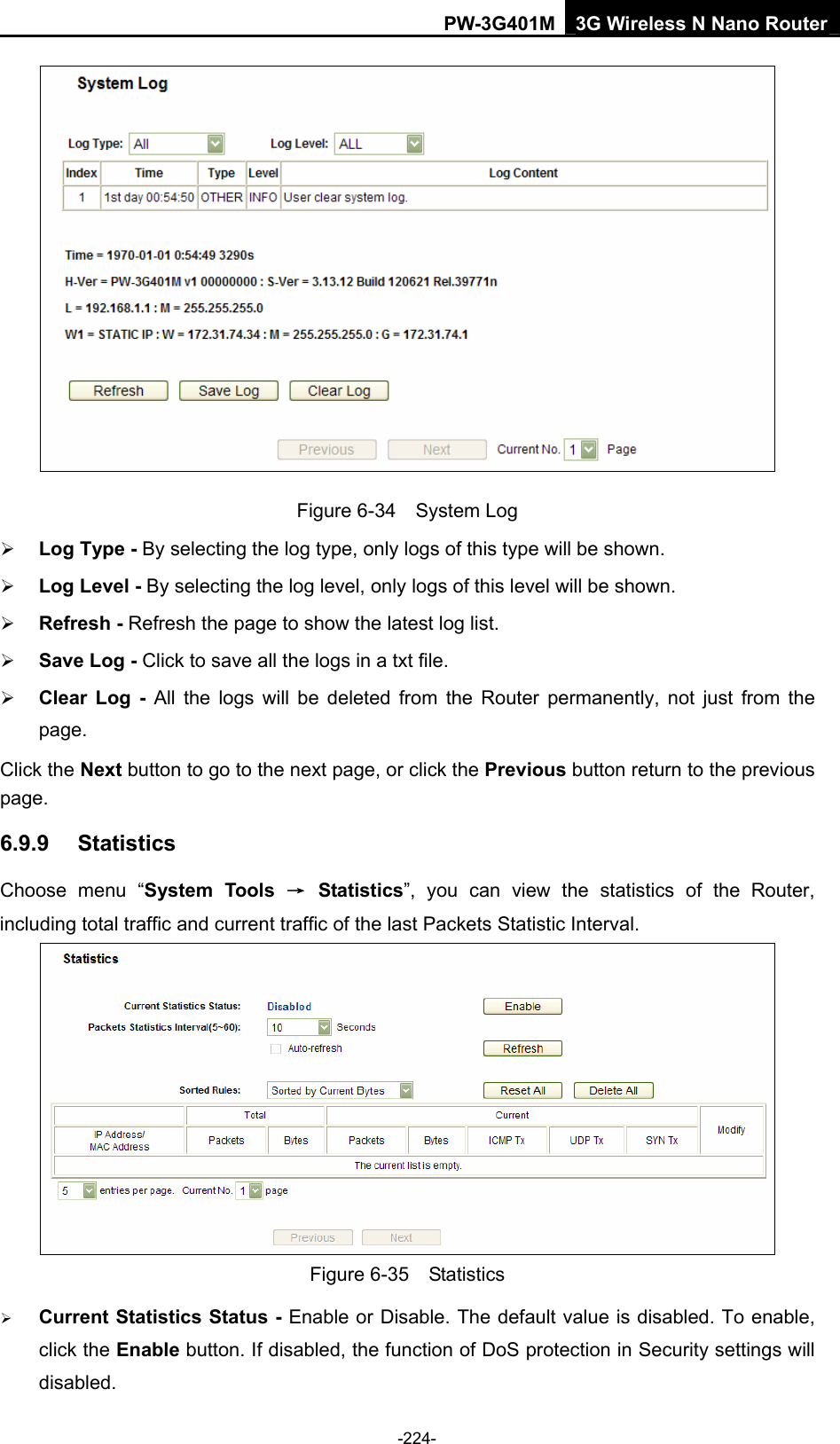

PW-3G401M 3G Wireless N Nano Router Figure 6-34 System Log ¾ Log Type - By selecting the log type, only logs of this type will be shown. ¾ Log Level - By selecting the log level, only logs of this level will be shown. ¾ Refresh - Refresh the page to show the latest log list. ¾ Save Log - Click to save all the logs in a txt file. ¾ Clear Log - All the logs will be deleted from the Router permanently, not just from the page. Click the Next button to go to the next page, or click the Previous button return to the previous page. 6.9.9 Statistics Choose menu “System Tools → Statistics”, you can view the statistics of the Router, including total traffic and current traffic of the last Packets Statistic Interval. Figure 6-35 Statistics ¾ Current Statistics Status - Enable or Disable. The default value is disabled. To enable, click the Enable button. If disabled, the function of DoS protection in Security settings will disabled. -224-
PW-3G401M 3G Wireless N Nano Router ¾ Packets Statistics Interval （5-60） - The default value is 10. Select a value between 5 and 60 seconds in the pull-down list. The Packets Statistic interval indicates the time section of the packets statistic. ¾ Sorted Rules - Choose how displayed statistics are sorted. Select the Auto-refresh checkbox to refresh automatically. Click the Refresh button to refresh immediately. Click Reset All to reset the values of all the entries to zero. Click Delete All to delete all entries in the table. Statistics Table: IP/MAC Address The IP and MAC address are displayed with related statistics. Packets The total number of packets received and transmitted by the Router. Total Bytes The total number of bytes received and transmitted by the Router. Packets The total number of packets received and transmitted in the last Packets Statistic interval seconds. Bytes The total number of bytes received and transmitted in the last Packets Statistic interval seconds. ICMP Tx The number of the ICMP packets transmitted to WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. UDP TxThe number of UDP packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. Current TCP SYN TxThe number of TCP SYN packets transmitted to the WAN per second at the specified Packets Statistics interval. It is shown like “current transmitting rate / Max transmitting rate”. Reset Reset the value of he entry to zero. Modify Delete Delete the existing entry in the table. There would be 5 entries on each page. Click Previous to return to the previous page and Next to the next page. -225-

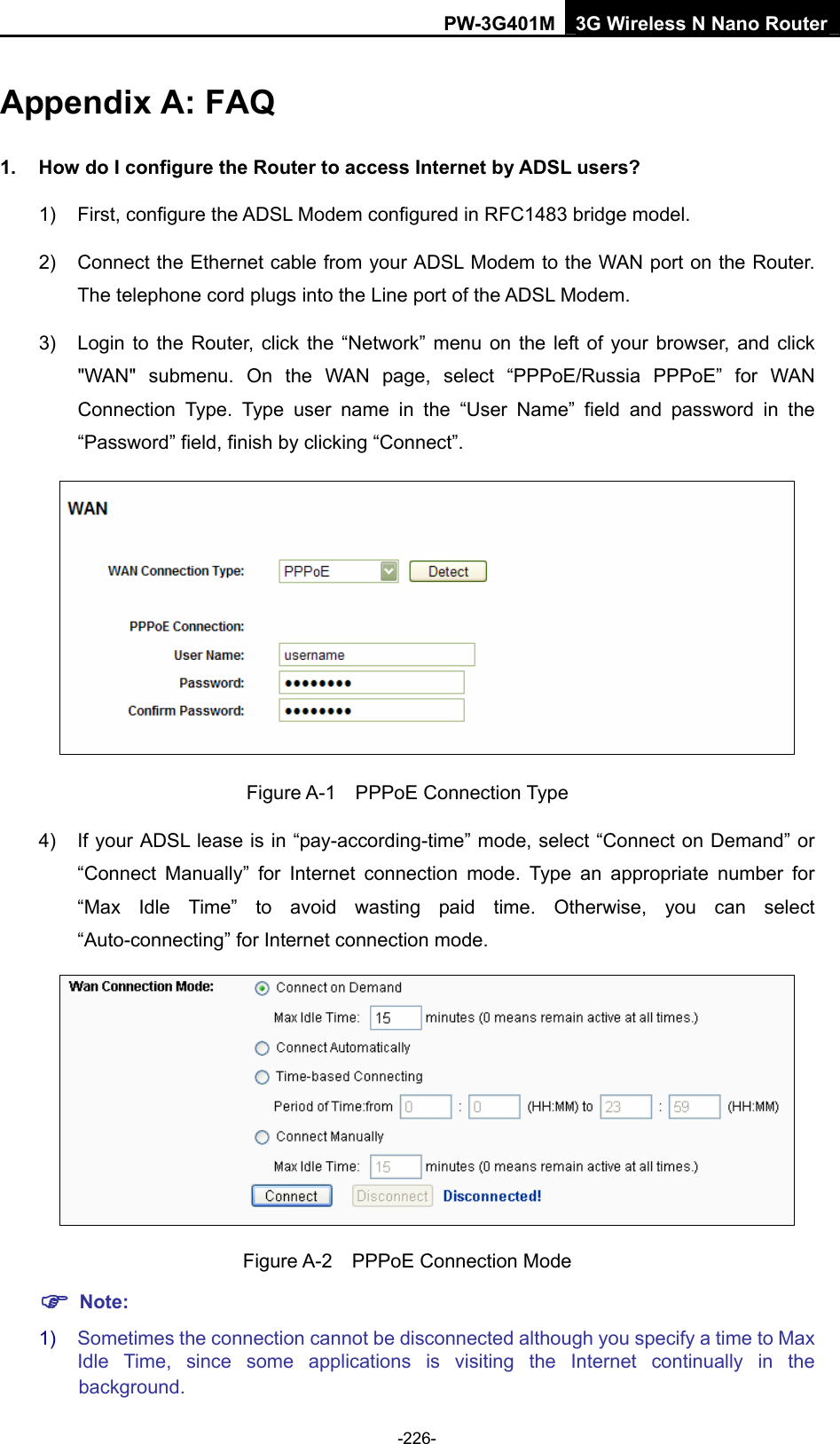

PW-3G401M 3G Wireless N Nano Router Appendix A: FAQ 1. How do I configure the Router to access Internet by ADSL users? 1) First, configure the ADSL Modem configured in RFC1483 bridge model. 2) Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The telephone cord plugs into the Line port of the ADSL Modem. 3) Login to the Router, click the “Network” menu on the left of your browser, and click "WAN" submenu. On the WAN page, select “PPPoE/Russia PPPoE” for WAN Connection Type. Type user name in the “User Name” field and password in the “Password” field, finish by clicking “Connect”. Figure A-1 PPPoE Connection Type 4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or “Connect Manually” for Internet connection mode. Type an appropriate number for “Max Idle Time” to avoid wasting paid time. Otherwise, you can select “Auto-connecting” for Internet connection mode. Figure A-2 PPPoE Connection Mode ) Note: 1) Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications is visiting the Internet continually in the -226- background.

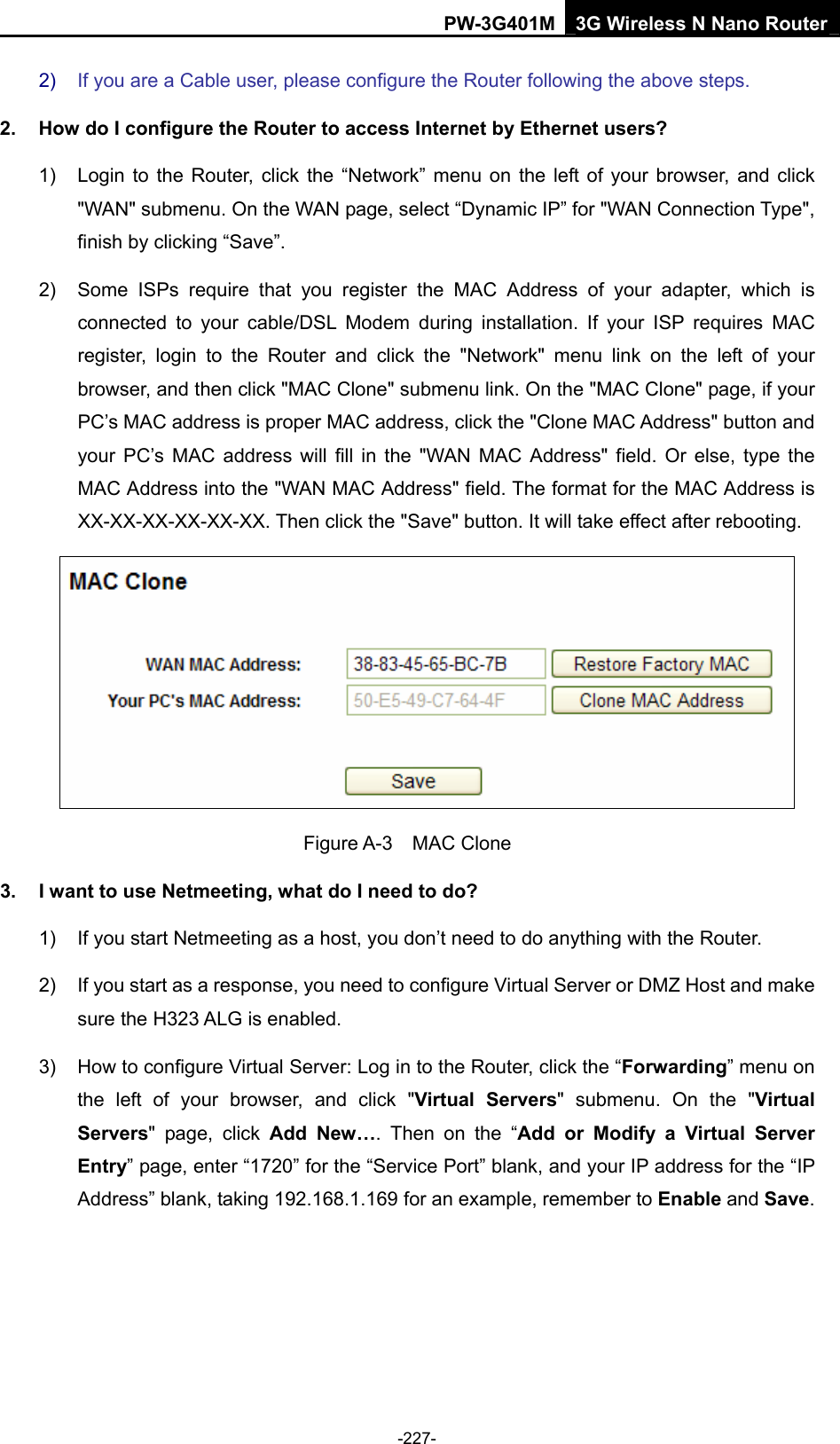

PW-3G401M 3G Wireless N Nano Router 2) If you are a Cable user, please configure the Router following the above steps. 2. How do I configure the Router to access Internet by Ethernet users? 1) Login to the Router, click the “Network” menu on the left of your browser, and click "WAN" submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type", finish by clicking “Save”. 2) Some ISPs require that you register the MAC Address of your adapter, which is connected to your cable/DSL Modem during installation. If your ISP requires MAC register, login to the Router and click the "Network" menu link on the left of your browser, and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC address is proper MAC address, click the "Clone MAC Address" button and your PC’s MAC address will fill in the "WAN MAC Address" field. Or else, type the MAC Address into the "WAN MAC Address" field. The format for the MAC Address is XX-XX-XX-XX-XX-XX. Then click the "Save" button. It will take effect after rebooting. Figure A-3 MAC Clone 3. I want to use Netmeeting, what do I need to do? 1) If you start Netmeeting as a host, you don’t need to do anything with the Router. 2) If you start as a response, you need to configure Virtual Server or DMZ Host and make sure the H323 ALG is enabled. 3) How to configure Virtual Server: Log in to the Router, click the “Forwarding” menu on the left of your browser, and click "Virtual Servers" submenu. On the "Virtual Servers" page, click Add New…. Then on the “Add or Modify a Virtual Server Entry” page, enter “1720” for the “Service Port” blank, and your IP address for the “IP Address” blank, taking 192.168.1.169 for an example, remember to Enable and Save. -227-

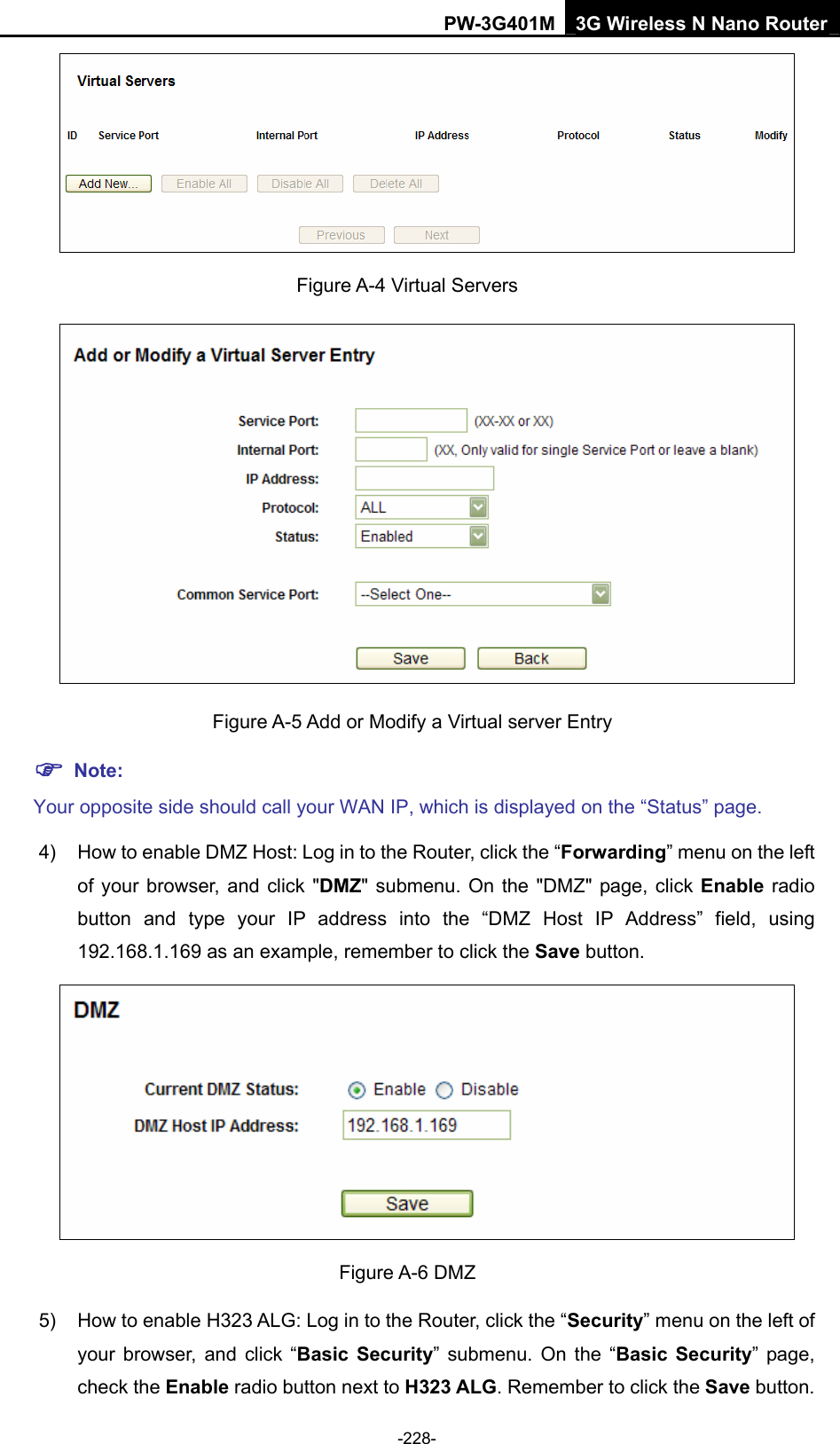

PW-3G401M 3G Wireless N Nano Router Figure A-4 Virtual Servers Figure A-5 Add or Modify a Virtual server Entry ) Note: Your opposite side should call your WAN IP, which is displayed on the “Status” page. 4) How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left of your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio button and type your IP address into the “DMZ Host IP Address” field, using 192.168.1.169 as an example, remember to click the Save button. Figure A-6 DMZ 5) How to enable H323 ALG: Log in to the Router, click the “Security” menu on the left of your browser, and click “Basic Security” submenu. On the “Basic Security” page, check the Enable radio button next to H323 ALG. Remember to click the Save button. -228-

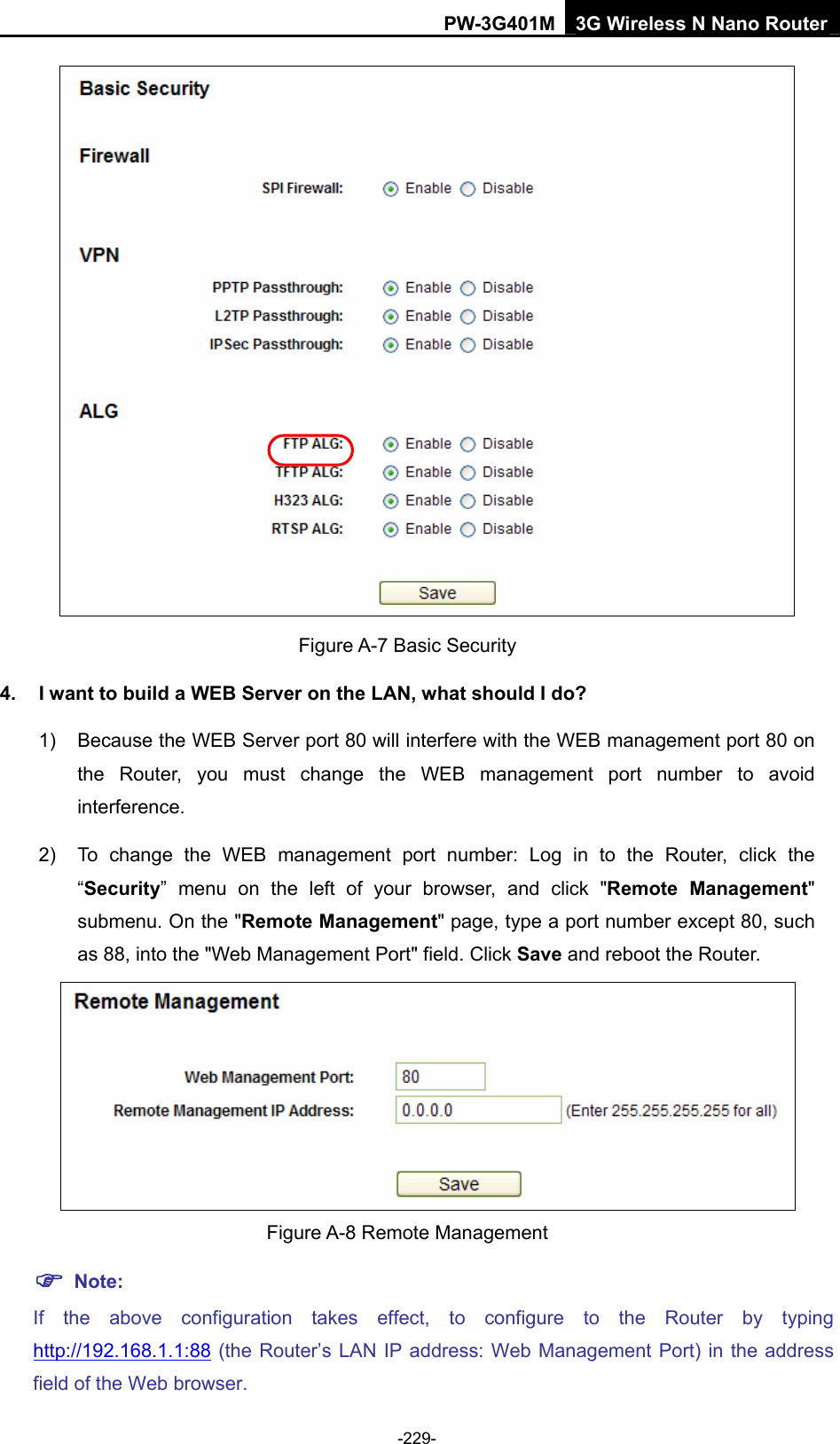

PW-3G401M 3G Wireless N Nano Router Figure A-7 Basic Security 4. I want to build a WEB Server on the LAN, what should I do? 1) Because the WEB Server port 80 will interfere with the WEB management port 80 on the Router, you must change the WEB management port number to avoid interference. 2) To change the WEB management port number: Log in to the Router, click the “Security” menu on the left of your browser, and click "Remote Management" submenu. On the "Remote Management" page, type a port number except 80, such as 88, into the "Web Management Port" field. Click Save and reboot the Router. Figure A-8 Remote Management ) Note: If the above configuration takes effect, to configure to the Router by typing http://192.168.1.1:88 (the Router’s LAN IP address: Web Management Port) in the address field of the Web browser. -229-

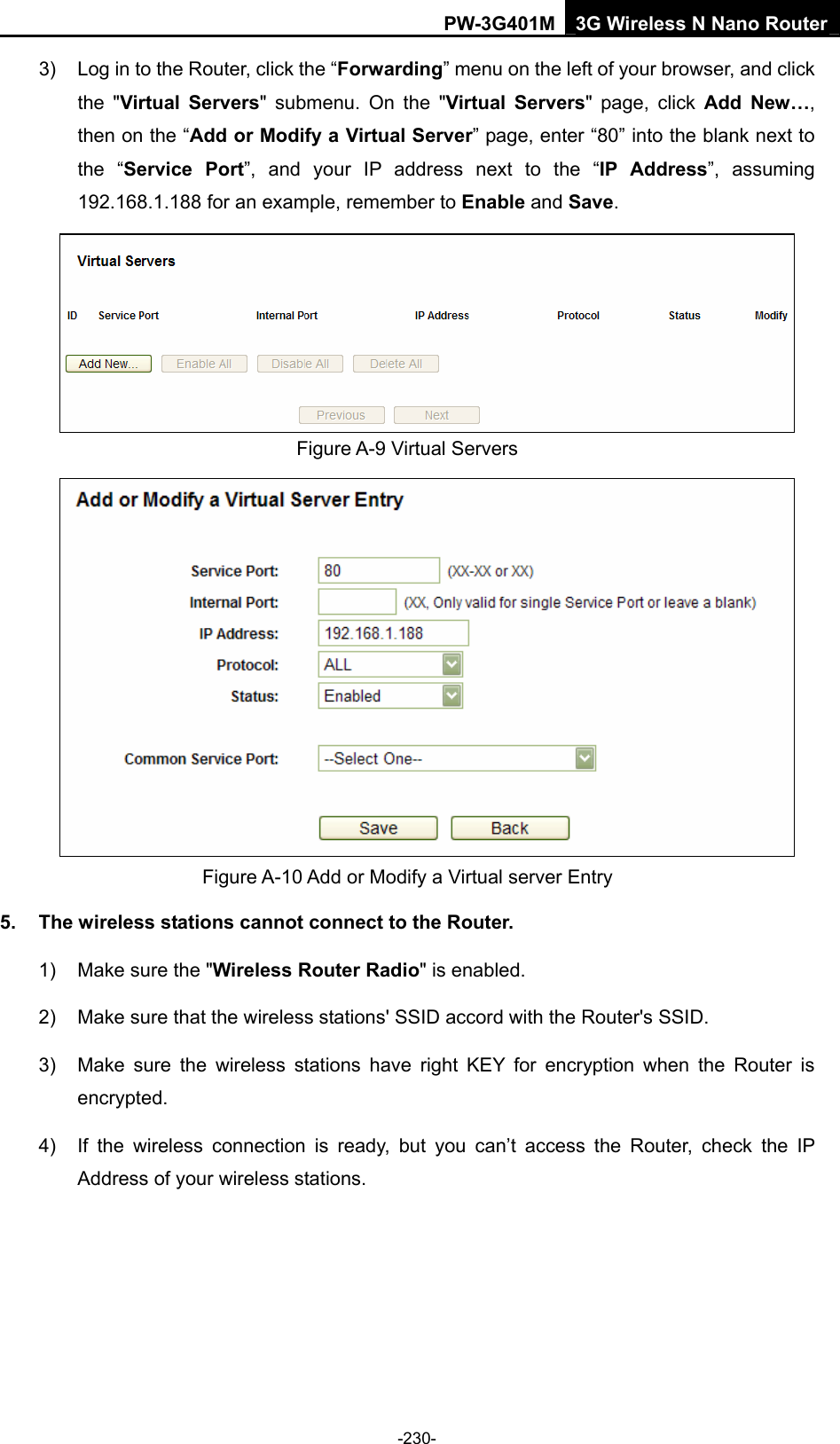

PW-3G401M 3G Wireless N Nano Router 3) Log in to the Router, click the “Forwarding” menu on the left of your browser, and click the "Virtual Servers" submenu. On the "Virtual Servers" page, click Add New…, then on the “Add or Modify a Virtual Server” page, enter “80” into the blank next to the “Service Port”, and your IP address next to the “IP Address”, assuming 192.168.1.188 for an example, remember to Enable and Save. Figure A-9 Virtual Servers Figure A-10 Add or Modify a Virtual server Entry 5. The wireless stations cannot connect to the Router. 1) Make sure the "Wireless Router Radio" is enabled. 2) Make sure that the wireless stations' SSID accord with the Router's SSID. 3) Make sure the wireless stations have right KEY for encryption when the Router is encrypted. 4) If the wireless connection is ready, but you can’t access the Router, check the IP Address of your wireless stations. -230-

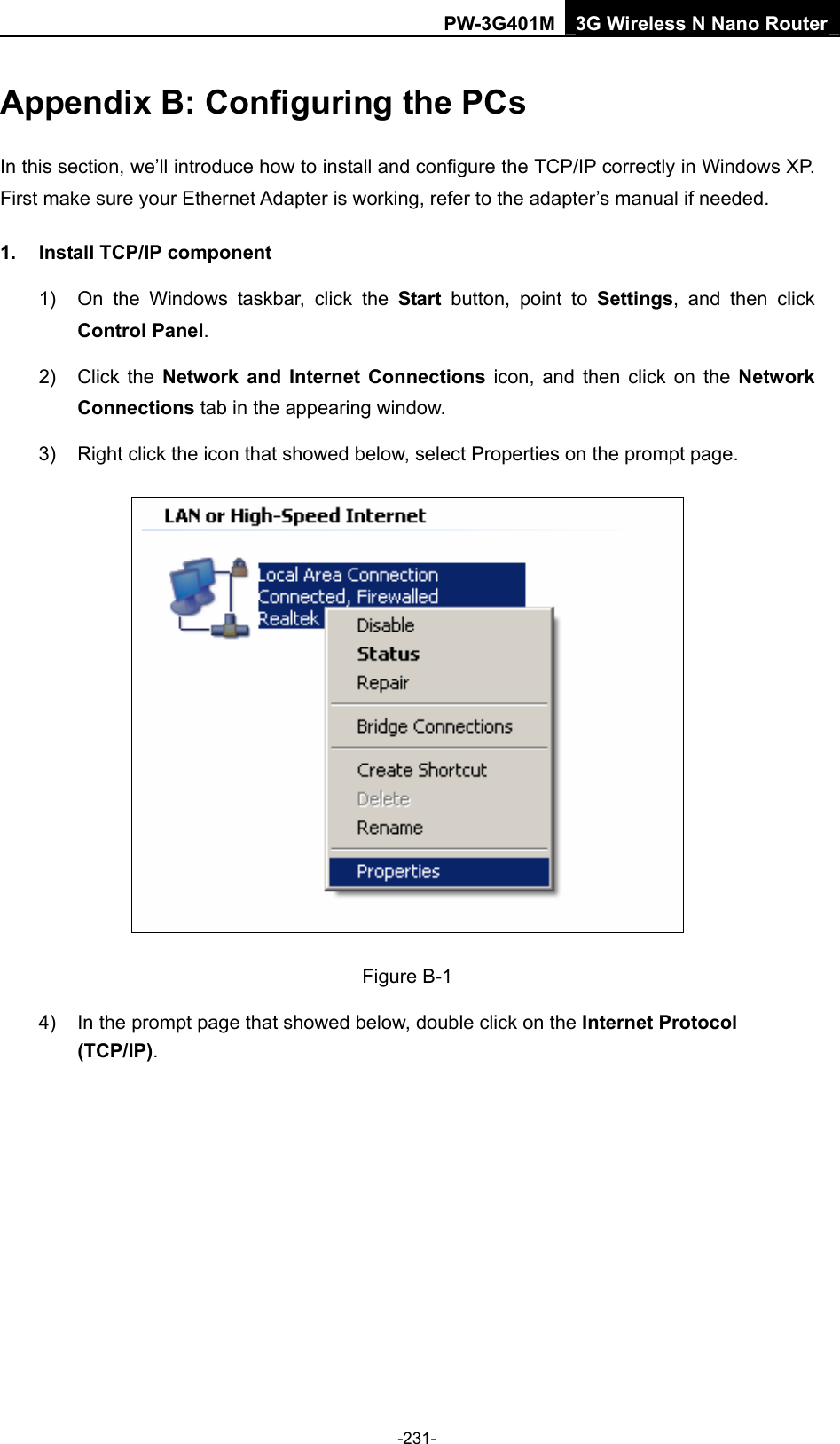

PW-3G401M 3G Wireless N Nano Router Appendix B: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed. 1. Install TCP/IP component 1) On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel. 2) Click the Network and Internet Connections icon, and then click on the Network Connections tab in the appearing window. 3) Right click the icon that showed below, select Properties on the prompt page. Figure B-1 4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP). -231-

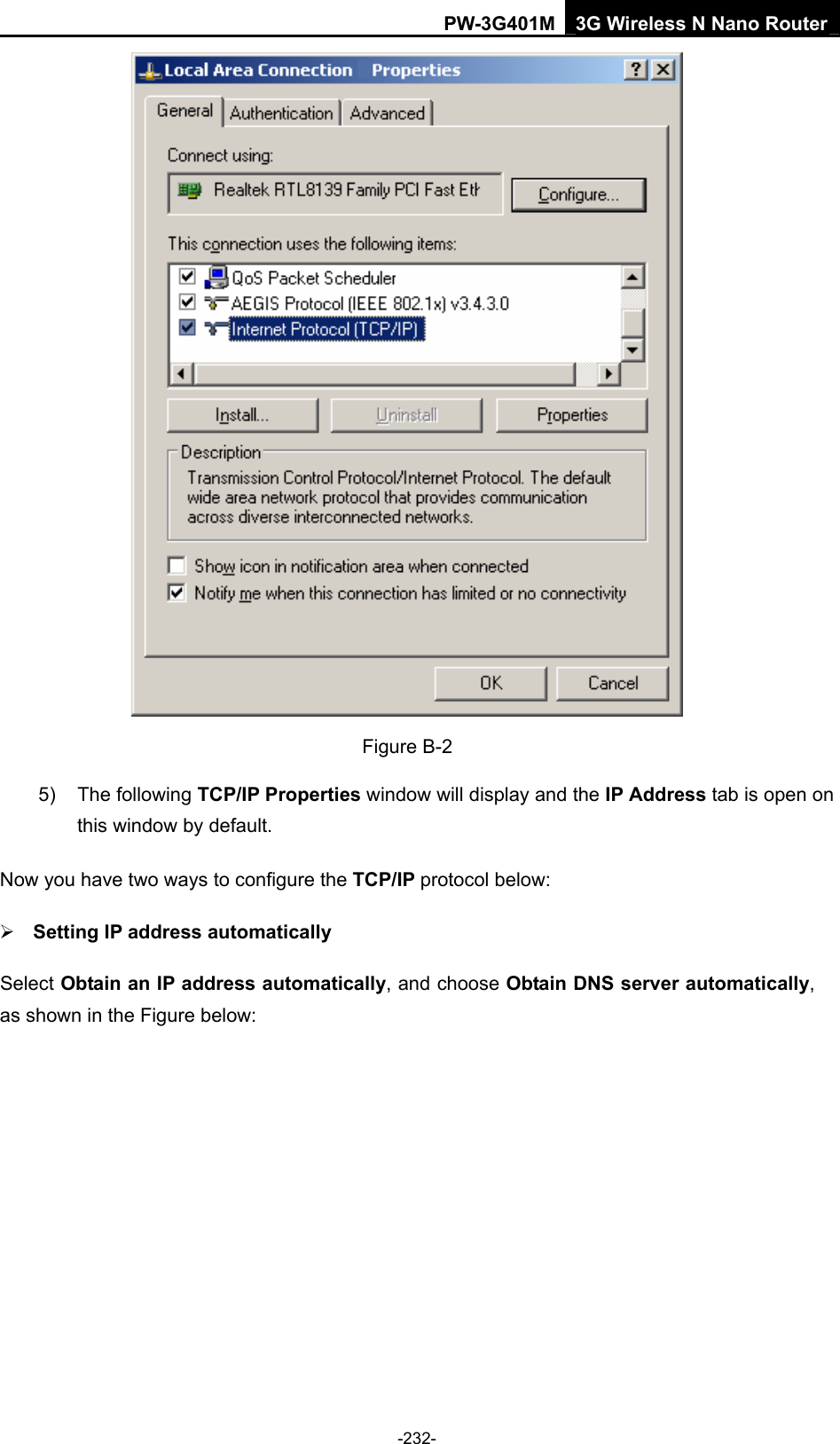

PW-3G401M 3G Wireless N Nano Router Figure B-2 5) The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below: ¾ Setting IP address automatically Select Obtain an IP address automatically, and choose Obtain DNS server automatically, as shown in the Figure below: -232-

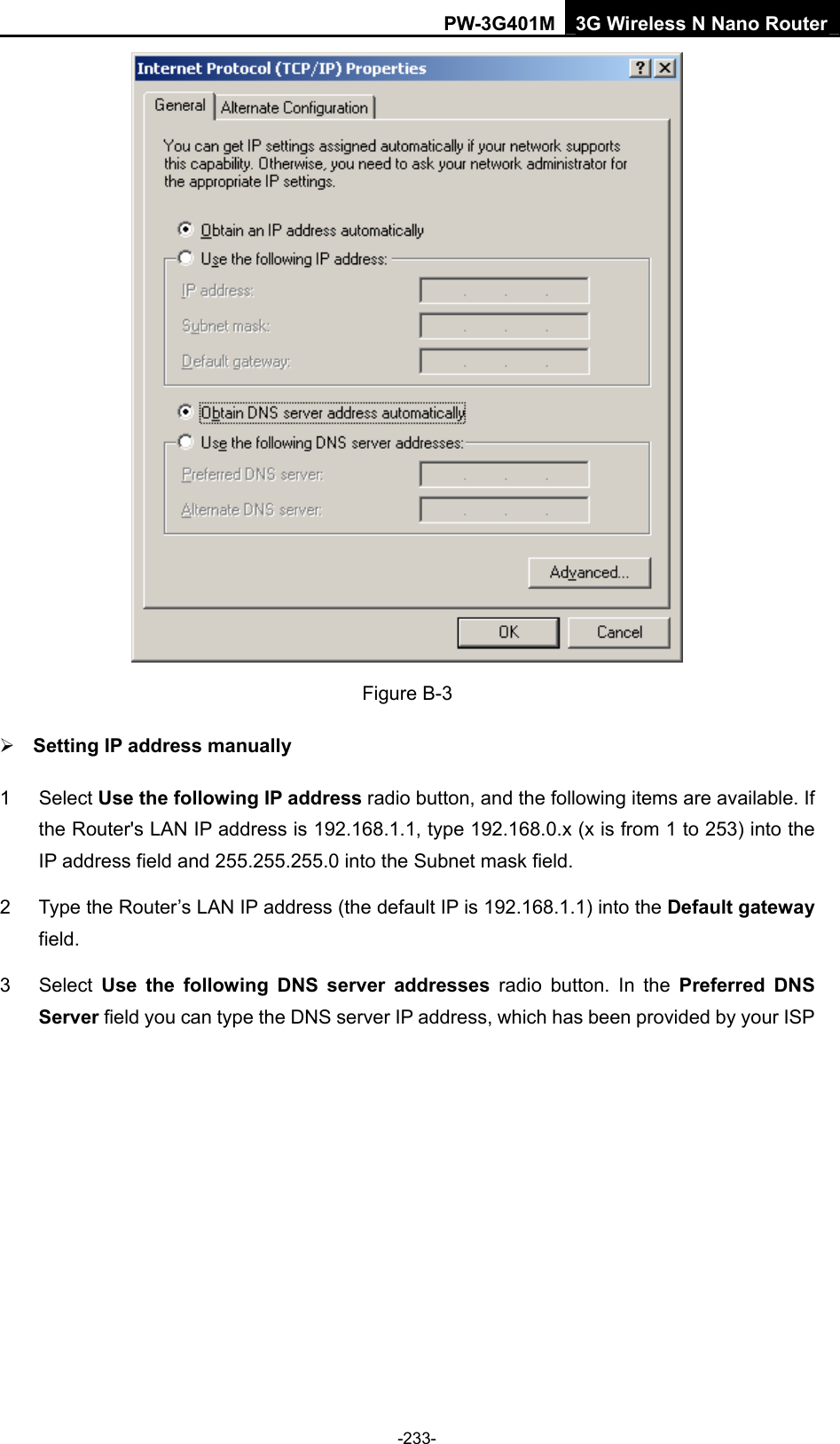

PW-3G401M 3G Wireless N Nano Router Figure B-3 ¾ Setting IP address manually 1 Select Use the following IP address radio button, and the following items are available. If the Router's LAN IP address is 192.168.1.1, type 192.168.0.x (x is from 1 to 253) into the IP address field and 255.255.255.0 into the Subnet mask field. 2 Type the Router’s LAN IP address (the default IP is 192.168.1.1) into the Default gateway field. 3 Select Use the following DNS server addresses radio button. In the Preferred DNS Server field you can type the DNS server IP address, which has been provided by your ISP -233-

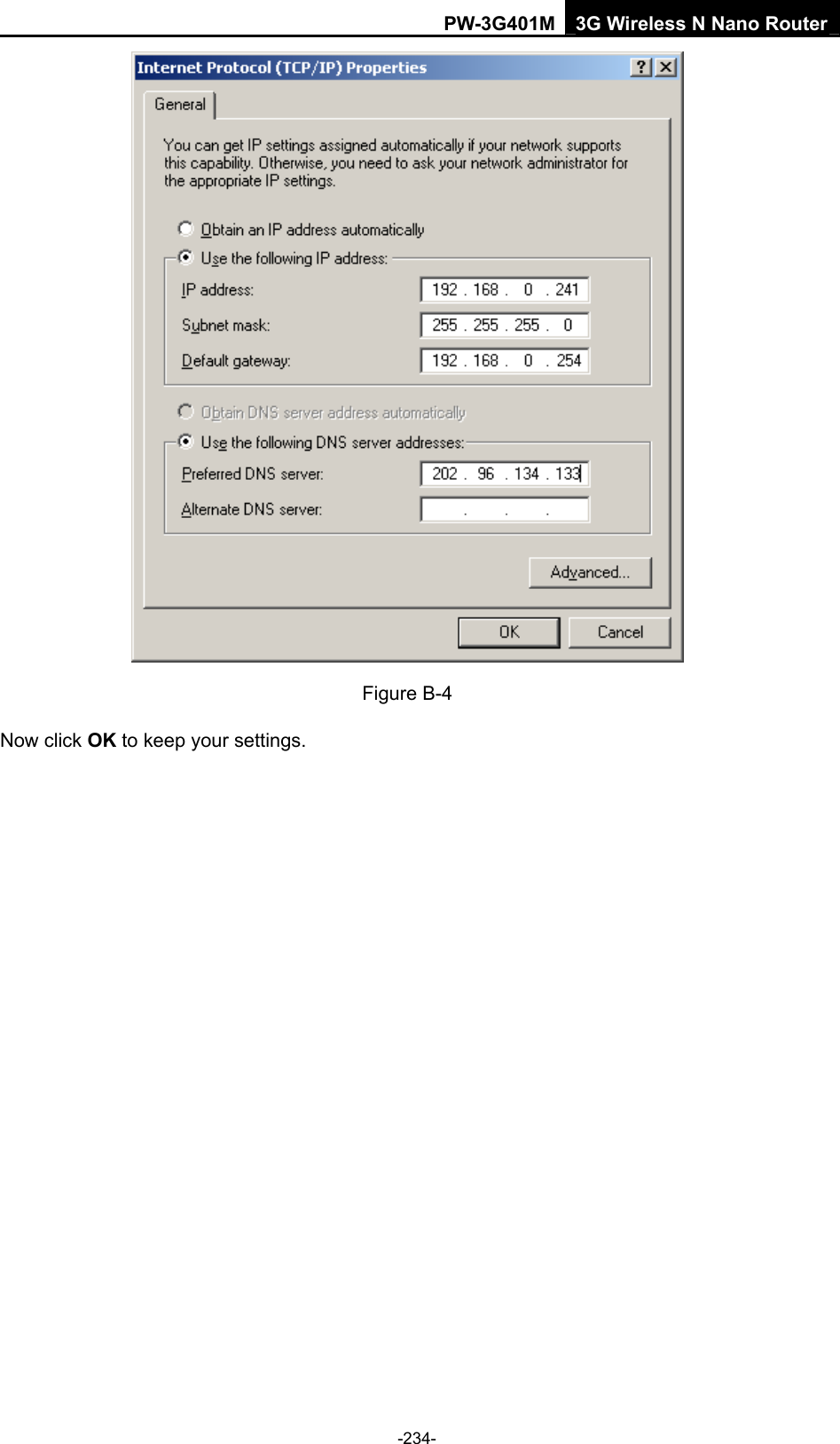

PW-3G401M 3G Wireless N Nano Router Figure B-4 Now click OK to keep your settings. -234-

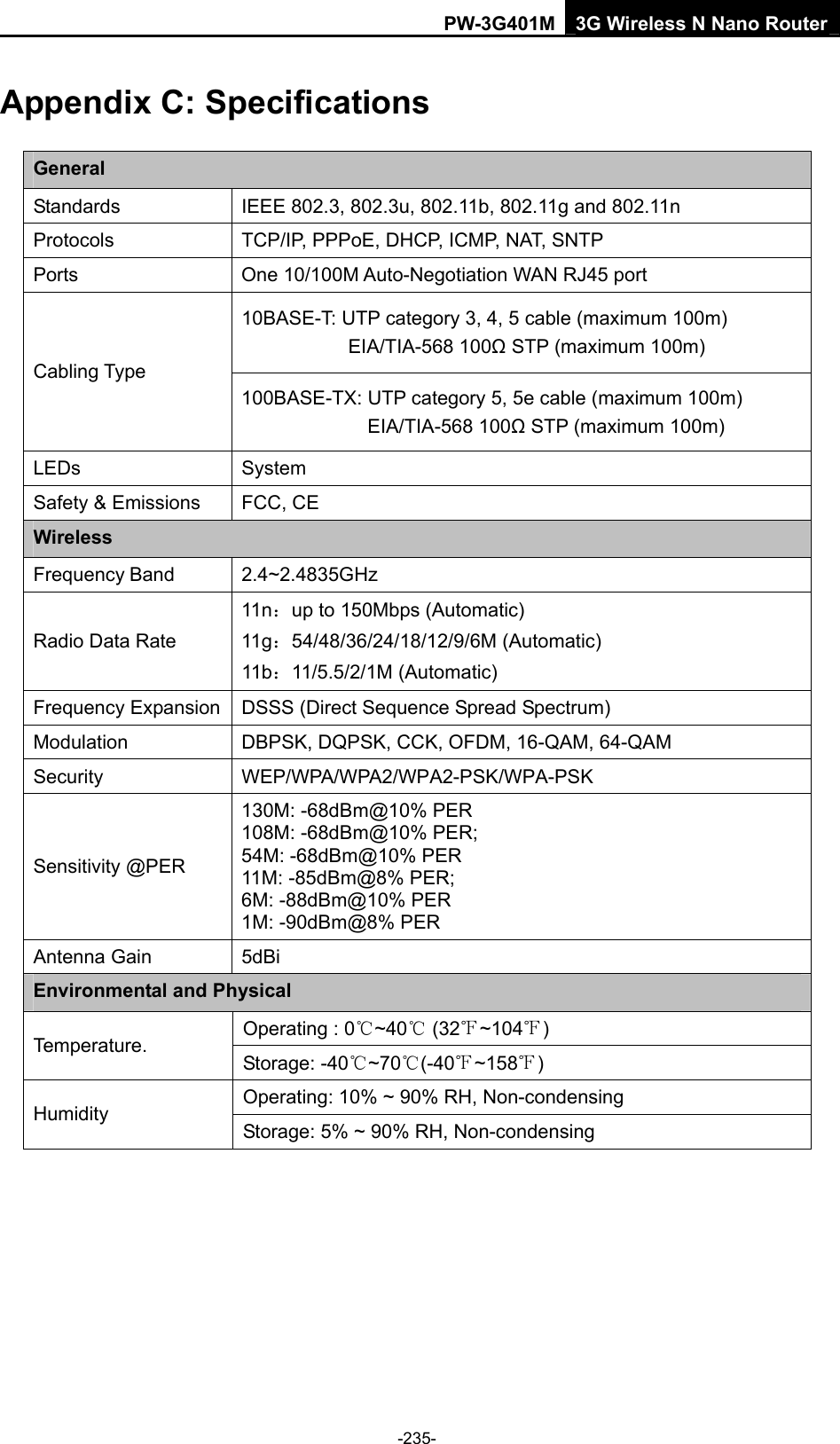

PW-3G401M 3G Wireless N Nano Router Appendix C: Specifications General Standards IEEE 802.3, 802.3u, 802.11b, 802.11g and 802.11n Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP Ports One 10/100M Auto-Negotiation WAN RJ45 port 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Cabling Type 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) LEDs System Safety & Emissions FCC, CE Wireless Frequency Band 2.4~2.4835GHz Radio Data Rate 11n：up to 150Mbps (Automatic) 11g：54/48/36/24/18/12/9/6M (Automatic) 11b：11/5.5/2/1M (Automatic) Frequency Expansion DSSS (Direct Sequence Spread Spectrum) Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM Security WEP/WPA/WPA2/WPA2-PSK/WPA-PSK Sensitivity @PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER; 54M: -68dBm@10% PER 11M: -85dBm@8% PER; 6M: -88dBm@10% PER 1M: -90dBm@8% PER Antenna Gain 5dBi Environmental and Physical Operating : 0℃~40℃ (32 ~104℉℉) Temperature. Storage: -40℃~70℃(-40℉~158℉) Operating: 10% ~ 90% RH, Non-condensing Humidity Storage: 5% ~ 90% RH, Non-condensing -235-

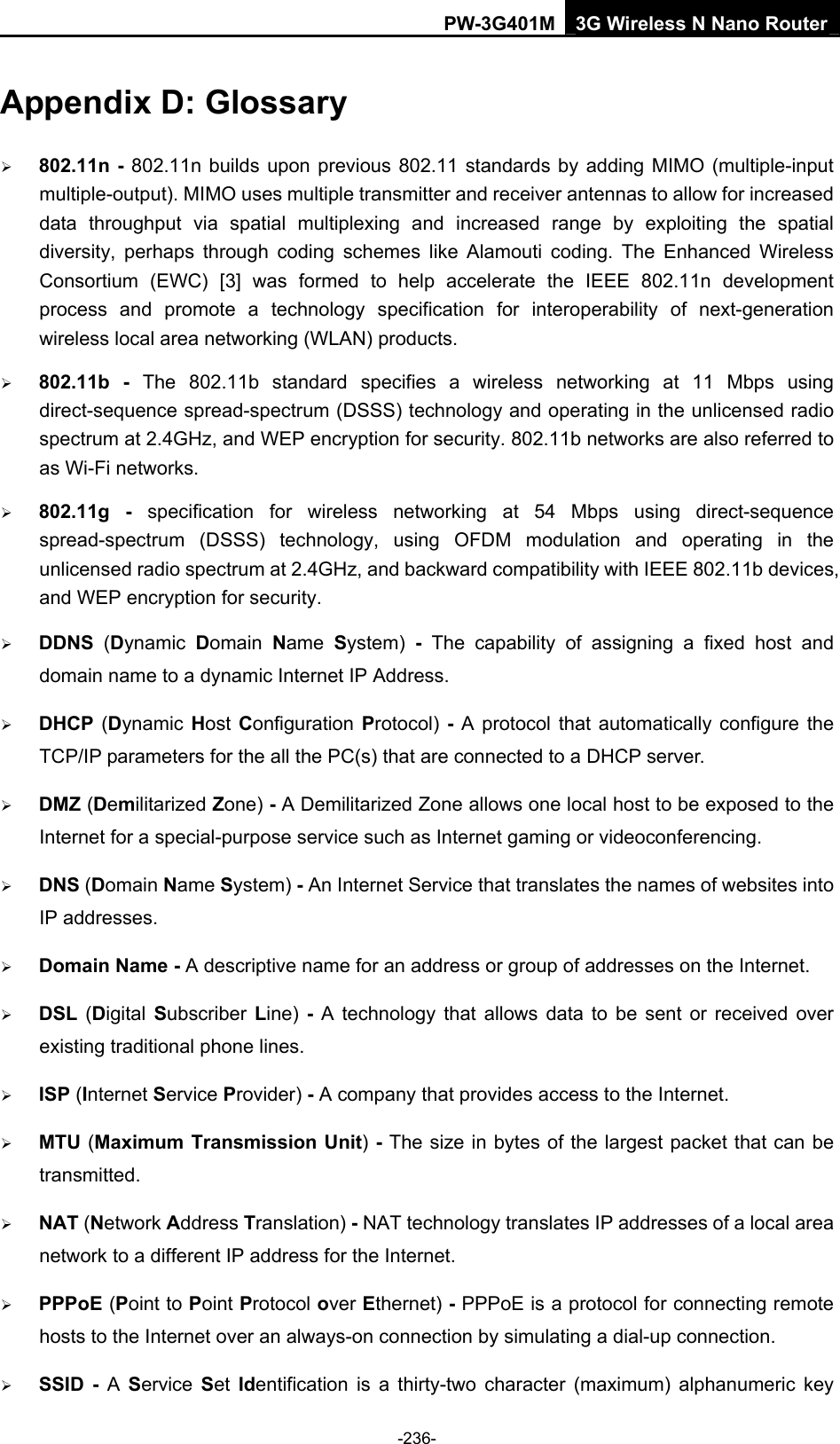

PW-3G401M 3G Wireless N Nano Router Appendix D: Glossary ¾ 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium (EWC) [3] was formed to help accelerate the IEEE 802.11n development process and promote a technology specification for interoperability of next-generation wireless local area networking (WLAN) products. ¾ 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. ¾ 802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security. ¾ DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and domain name to a dynamic Internet IP Address. ¾ DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the TCP/IP parameters for the all the PC(s) that are connected to a DHCP server. ¾ DMZ (Demilitarized Zone) - A Demilitarized Zone allows one local host to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing. ¾ DNS (Domain Name System) - An Internet Service that translates the names of websites into IP addresses. ¾ Domain Name - A descriptive name for an address or group of addresses on the Internet. ¾ DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over existing traditional phone lines. ¾ ISP (Internet Service Provider) - A company that provides access to the Internet. ¾ MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be transmitted. ¾ NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different IP address for the Internet. ¾ PPPoE (Point to Point Protocol over Ethernet) - PPPoE is a protocol for connecting remote hosts to the Internet over an always-on connection by simulating a dial-up connection. ¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key -236-

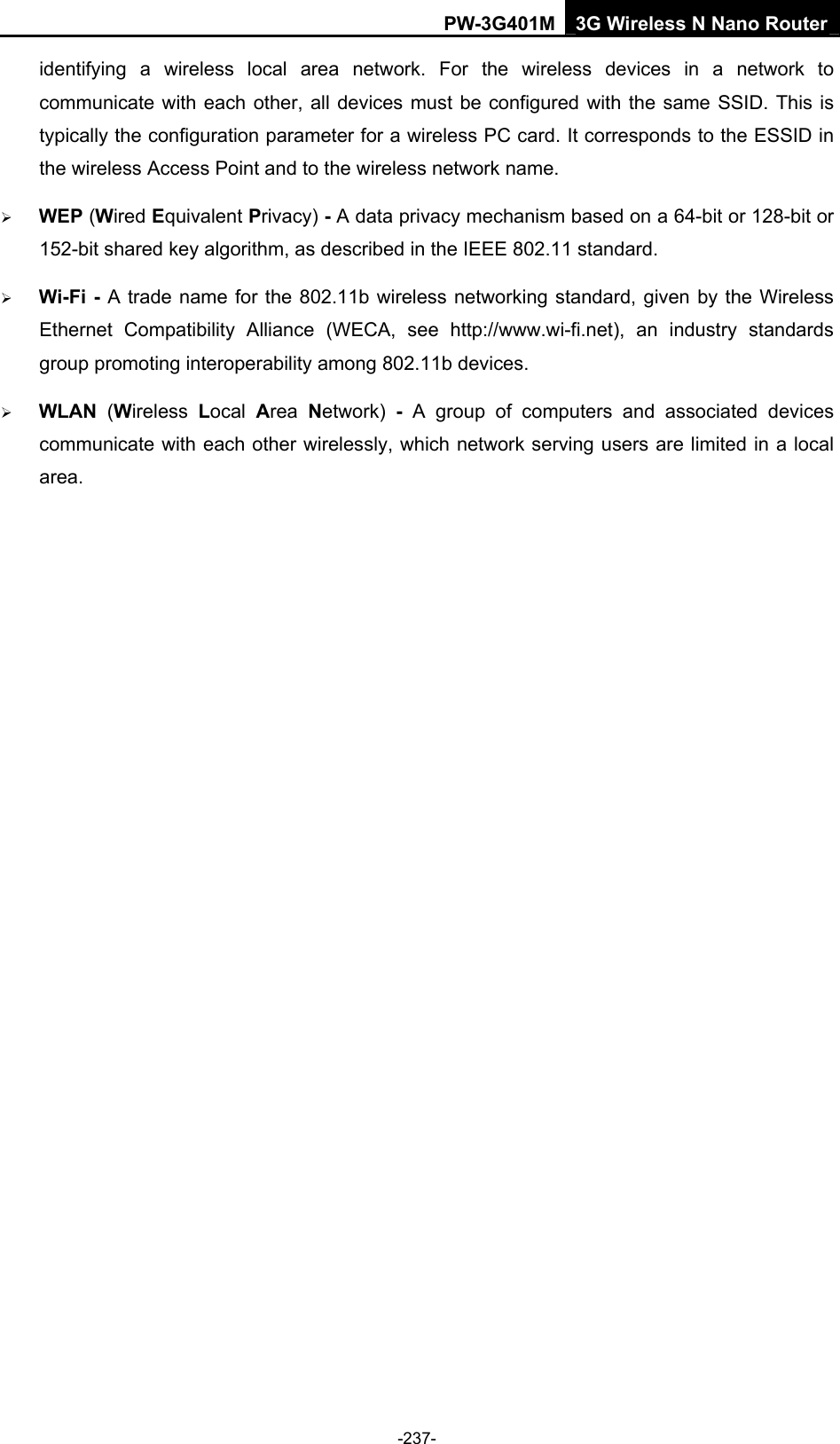

PW-3G401M 3G Wireless N Nano Router identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. ¾ WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. ¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices. ¾ WLAN (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area. -237-

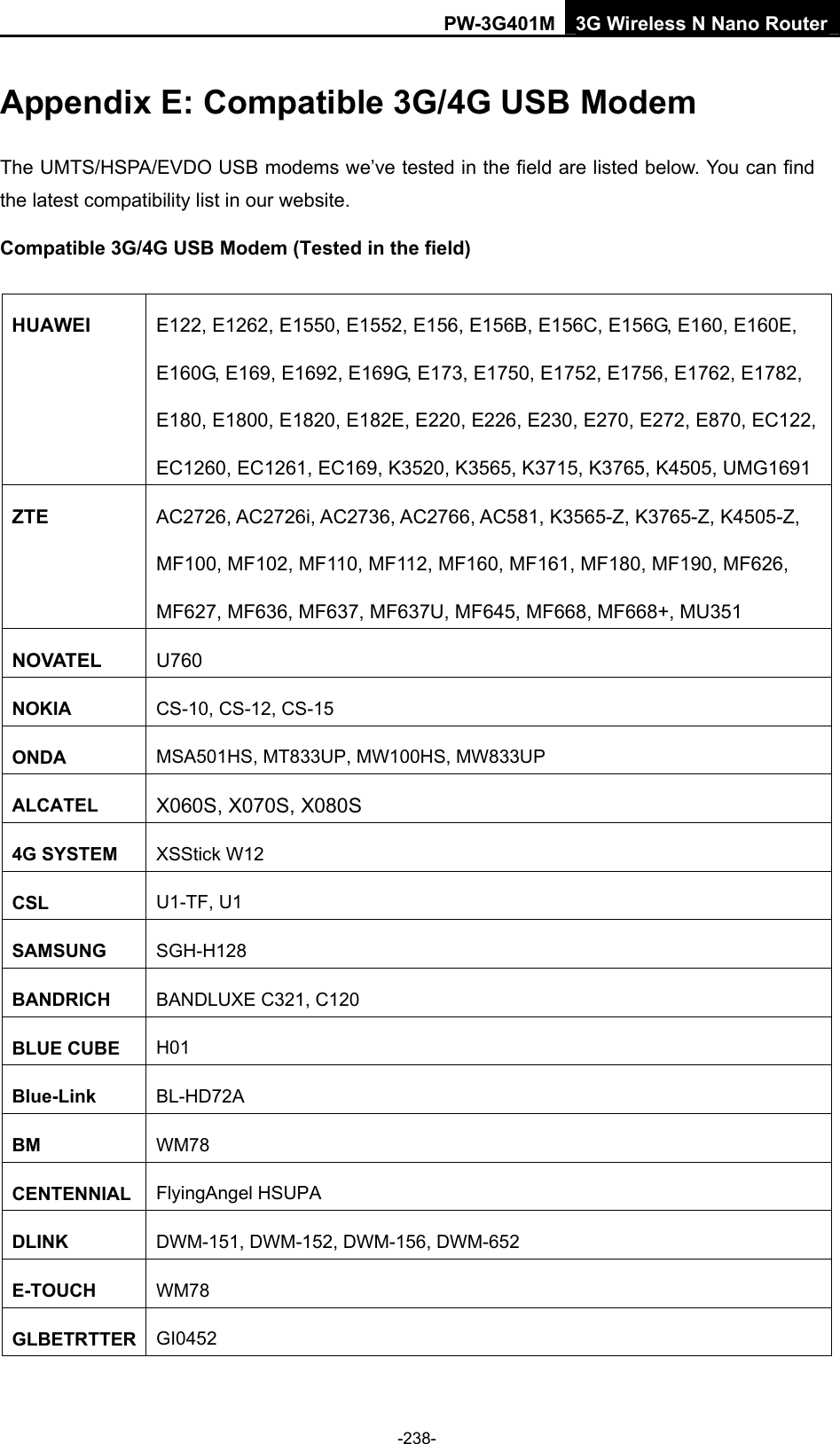

PW-3G401M 3G Wireless N Nano Router Appendix E: Compatible 3G/4G USB Modem The UMTS/HSPA/EVDO USB modems we’ve tested in the field are listed below. You can find the latest compatibility list in our website. Compatible 3G/4G USB Modem (Tested in the field) HUAWEI E122, E1262, E1550, E1552, E156, E156B, E156C, E156G, E160, E160E, E160G, E169, E1692, E169G, E173, E1750, E1752, E1756, E1762, E1782, E180, E1800, E1820, E182E, E220, E226, E230, E270, E272, E870, EC122,EC1260, EC1261, EC169, K3520, K3565, K3715, K3765, K4505, UMG1691 ZTE AC2726, AC2726i, AC2736, AC2766, AC581, K3565-Z, K3765-Z, K4505-Z, MF100, MF102, MF110, MF112, MF160, MF161, MF180, MF190, MF626, MF627, MF636, MF637, MF637U, MF645, MF668, MF668+, MU351 NOVATEL U760 NOKIA CS-10, CS-12, CS-15 ONDA MSA501HS, MT833UP, MW100HS, MW833UP ALCATEL X060S, X070S, X080S 4G SYSTEM XSStick W12 CSL U1-TF, U1 SAMSUNG SGH-H128 BANDRICH BANDLUXE C321, C120 BLUE CUBE H01 Blue-Link BL-HD72A BM WM78 CENTENNIAL FlyingAngel HSUPA DLINK DWM-151, DWM-152, DWM-156, DWM-652 E-TOUCH WM78 GLBETRTTER GI0452 -238-

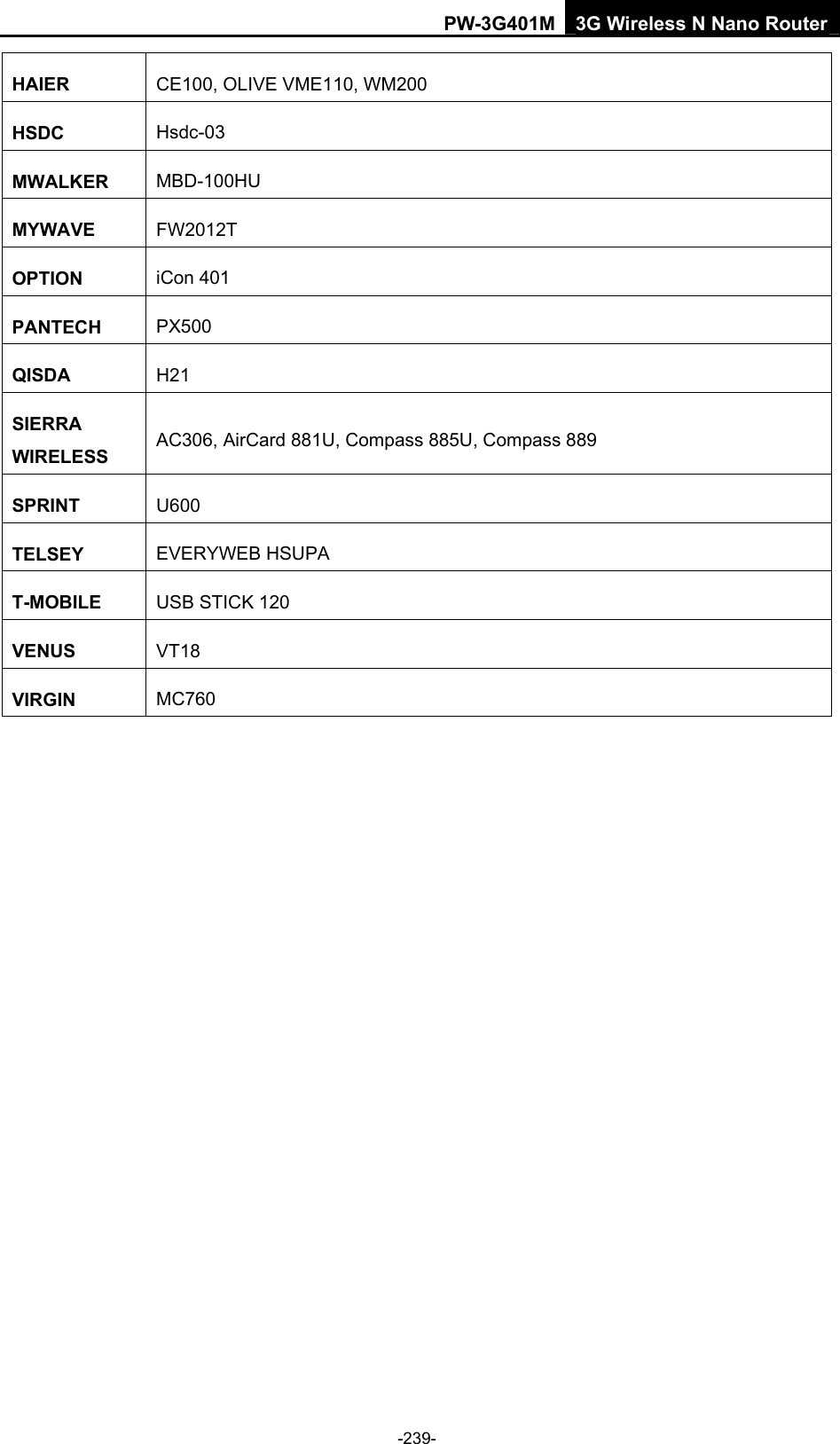

PW-3G401M 3G Wireless N Nano Router HAIER CE100, OLIVE VME110, WM200 HSDC Hsdc-03 MWALKER MBD-100HU MYWAVE FW2012T OPTION iCon 401 PANTECH PX500 QISDA H21 SIERRA WIRELESS AC306, AirCard 881U, Compass 885U, Compass 889 SPRINT U600 TELSEY EVERYWEB HSUPA T-MOBILE USB STICK 120 VENUS VT18 VIRGIN MC760 -239-

Navigation menu
