M-WA701ND 150Mbps Wireless Lite-N Access Point Rev: 1.0.0 1910020233

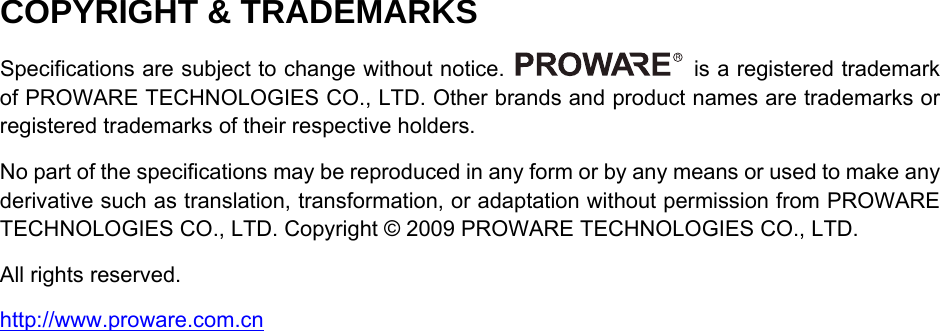

COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of PROWARE TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from PROWARE TECHNOLOGIES CO., LTD. Copyright © 2009 PROWARE TECHNOLOGIES CO., LTD. All rights reserved. http://www.proware.com.cn

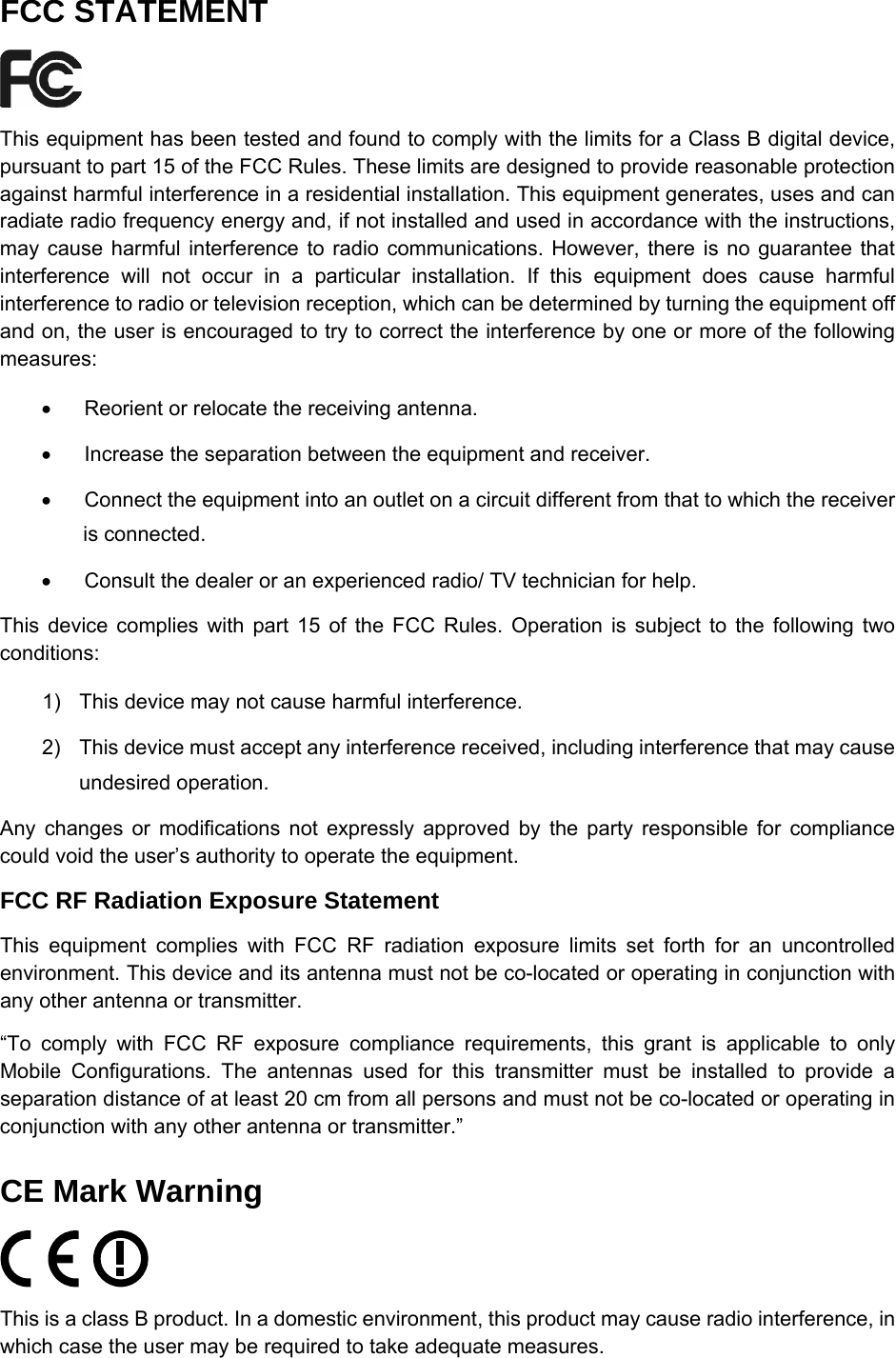

FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

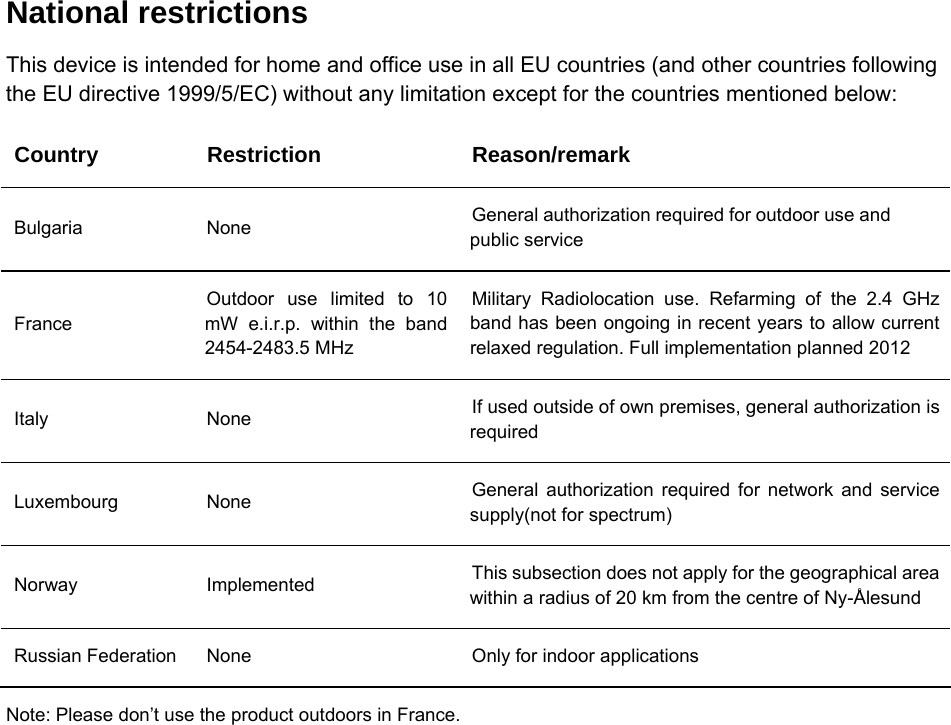

National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France.

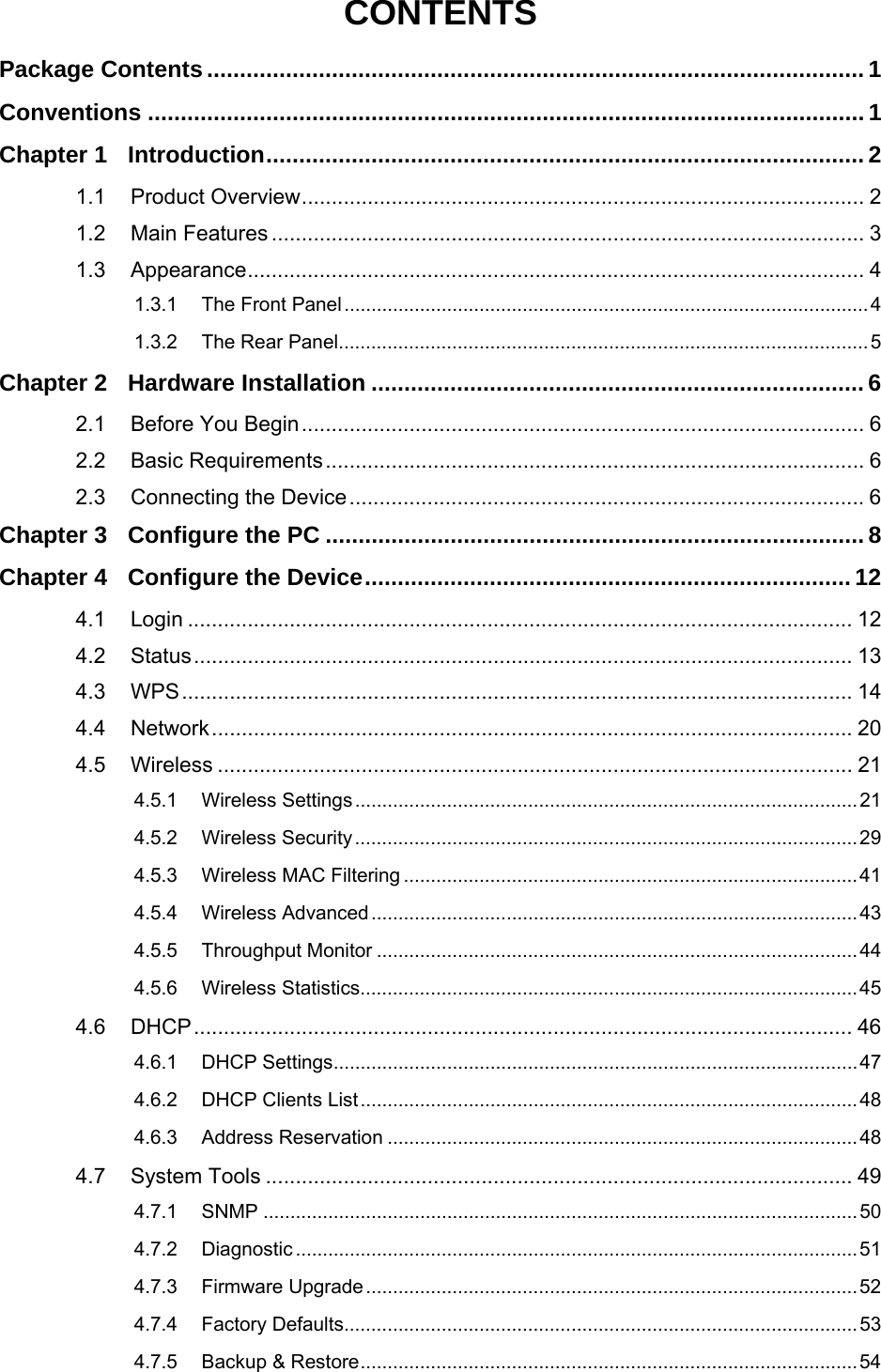

CONTENTS Package Contents .................................................................................................... 1 Conventions ............................................................................................................. 1 Chapter 1 Introduction........................................................................................... 2 1.1 Product Overview.............................................................................................. 2 1.2 Main Features ................................................................................................... 3 1.3 Appearance....................................................................................................... 4 1.3.1 The Front Panel.................................................................................................4 1.3.2 The Rear Panel..................................................................................................5 Chapter 2 Hardware Installation ........................................................................... 6 2.1 Before You Begin.............................................................................................. 6 2.2 Basic Requirements.......................................................................................... 6 2.3 Connecting the Device...................................................................................... 6 Chapter 3 Configure the PC .................................................................................. 8 Chapter 4 Configure the Device.......................................................................... 12 4.1 Login ............................................................................................................... 12 4.2 Status.............................................................................................................. 13 4.3 WPS................................................................................................................ 14 4.4 Network........................................................................................................... 20 4.5 Wireless .......................................................................................................... 21 4.5.1 Wireless Settings.............................................................................................21 4.5.2 Wireless Security.............................................................................................29 4.5.3 Wireless MAC Filtering ....................................................................................41 4.5.4 Wireless Advanced..........................................................................................43 4.5.5 Throughput Monitor .........................................................................................44 4.5.6 Wireless Statistics............................................................................................45 4.6 DHCP.............................................................................................................. 46 4.6.1 DHCP Settings.................................................................................................47 4.6.2 DHCP Clients List............................................................................................48 4.6.3 Address Reservation .......................................................................................48 4.7 System Tools .................................................................................................. 49 4.7.1 SNMP ..............................................................................................................50 4.7.2 Diagnostic ........................................................................................................51 4.7.3 Firmware Upgrade...........................................................................................52 4.7.4 Factory Defaults...............................................................................................53 4.7.5 Backup & Restore............................................................................................54

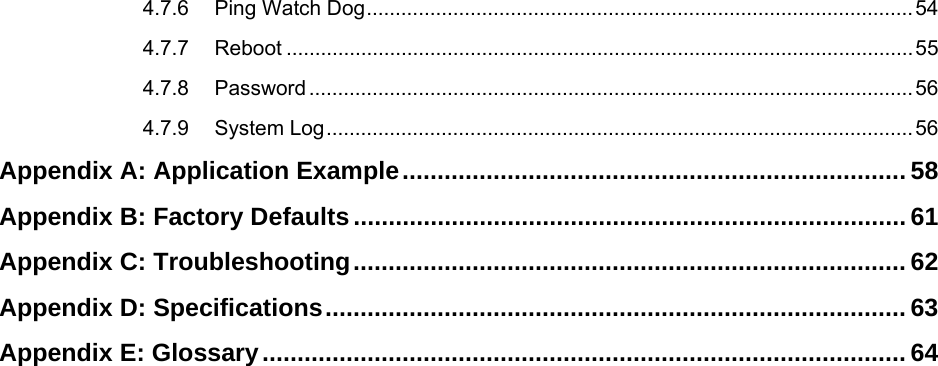

4.7.6 Ping Watch Dog...............................................................................................54 4.7.7 Reboot .............................................................................................................55 4.7.8 Password.........................................................................................................56 4.7.9 System Log......................................................................................................56 Appendix A: Application Example........................................................................ 58 Appendix B: Factory Defaults............................................................................... 61 Appendix C: Troubleshooting............................................................................... 62 Appendix D: Specifications................................................................................... 63 Appendix E: Glossary............................................................................................ 64

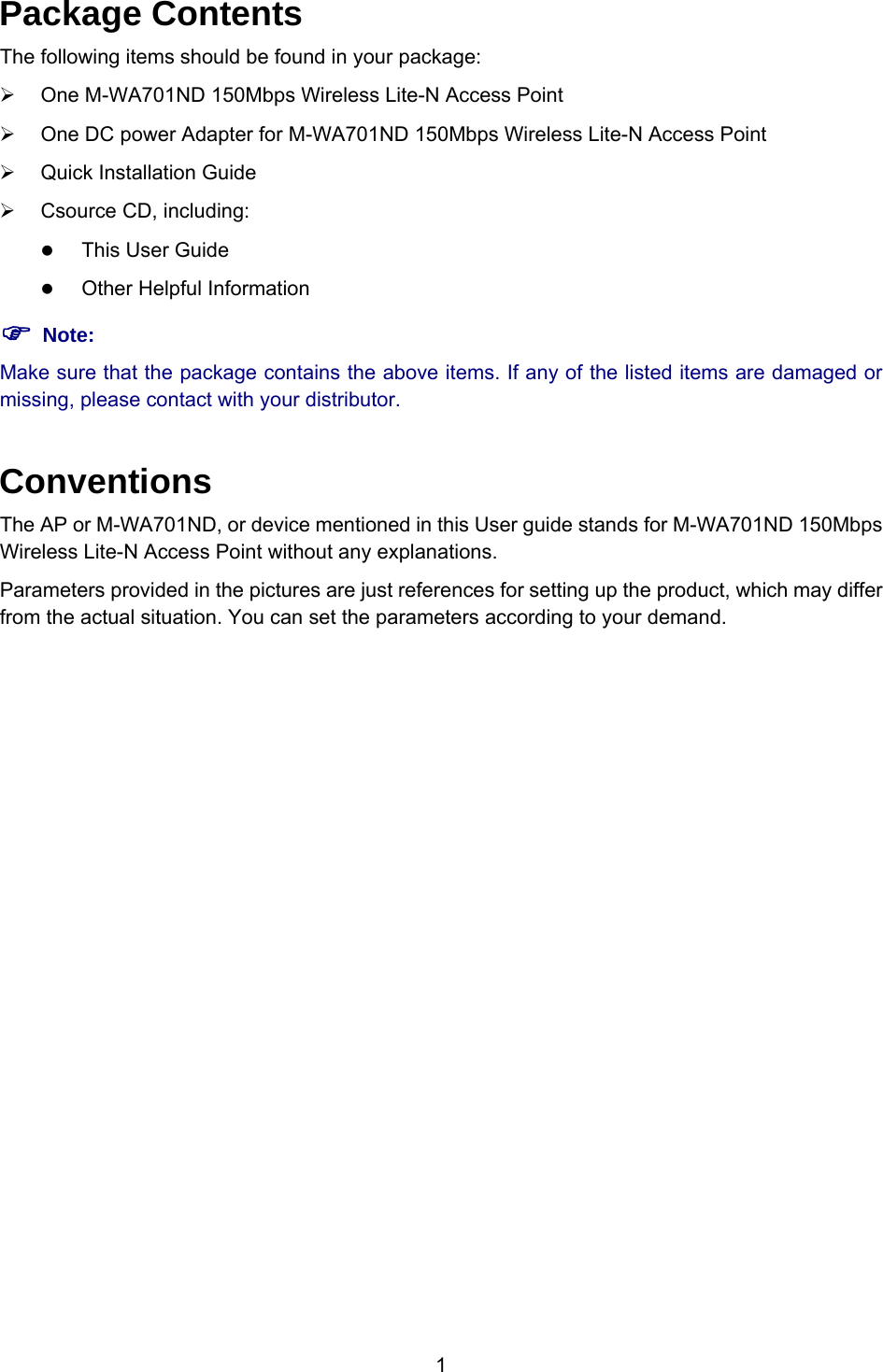

1 Package Contents The following items should be found in your package: ¾ One M-WA701ND 150Mbps Wireless Lite-N Access Point ¾ One DC power Adapter for M-WA701ND 150Mbps Wireless Lite-N Access Point ¾ Quick Installation Guide ¾ Csource CD, including: z This User Guide z Other Helpful Information ) Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. Conventions The AP or M-WA701ND, or device mentioned in this User guide stands for M-WA701ND 150Mbps Wireless Lite-N Access Point without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation. You can set the parameters according to your demand.

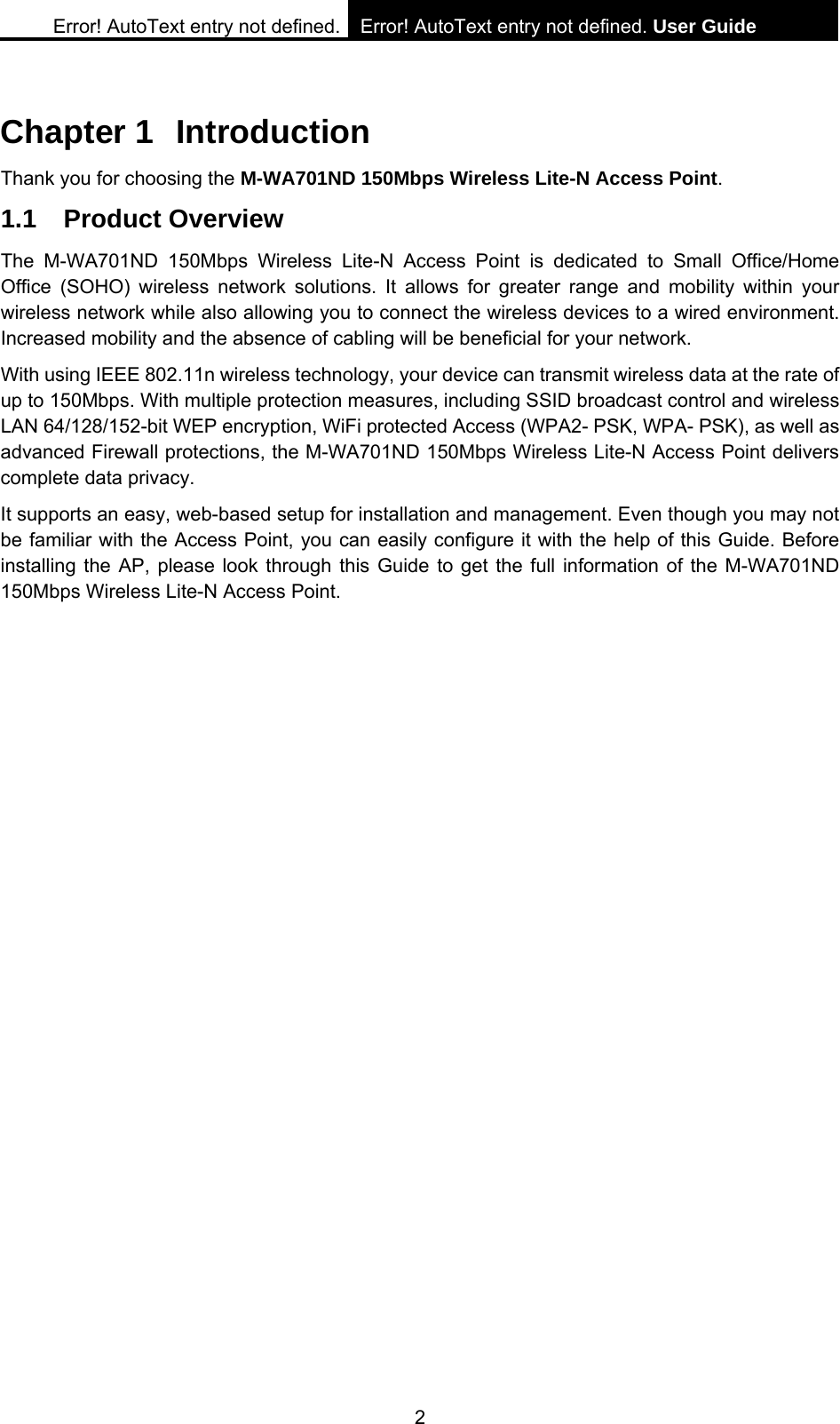

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 2 Chapter 1 Introduction Thank you for choosing the M-WA701ND 150Mbps Wireless Lite-N Access Point. 1.1 Product Overview The M-WA701ND 150Mbps Wireless Lite-N Access Point is dedicated to Small Office/Home Office (SOHO) wireless network solutions. It allows for greater range and mobility within your wireless network while also allowing you to connect the wireless devices to a wired environment. Increased mobility and the absence of cabling will be beneficial for your network. With using IEEE 802.11n wireless technology, your device can transmit wireless data at the rate of up to 150Mbps. With multiple protection measures, including SSID broadcast control and wireless LAN 64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK), as well as advanced Firewall protections, the M-WA701ND 150Mbps Wireless Lite-N Access Point delivers complete data privacy. It supports an easy, web-based setup for installation and management. Even though you may not be familiar with the Access Point, you can easily configure it with the help of this Guide. Before installing the AP, please look through this Guide to get the full information of the M-WA701ND 150Mbps Wireless Lite-N Access Point.

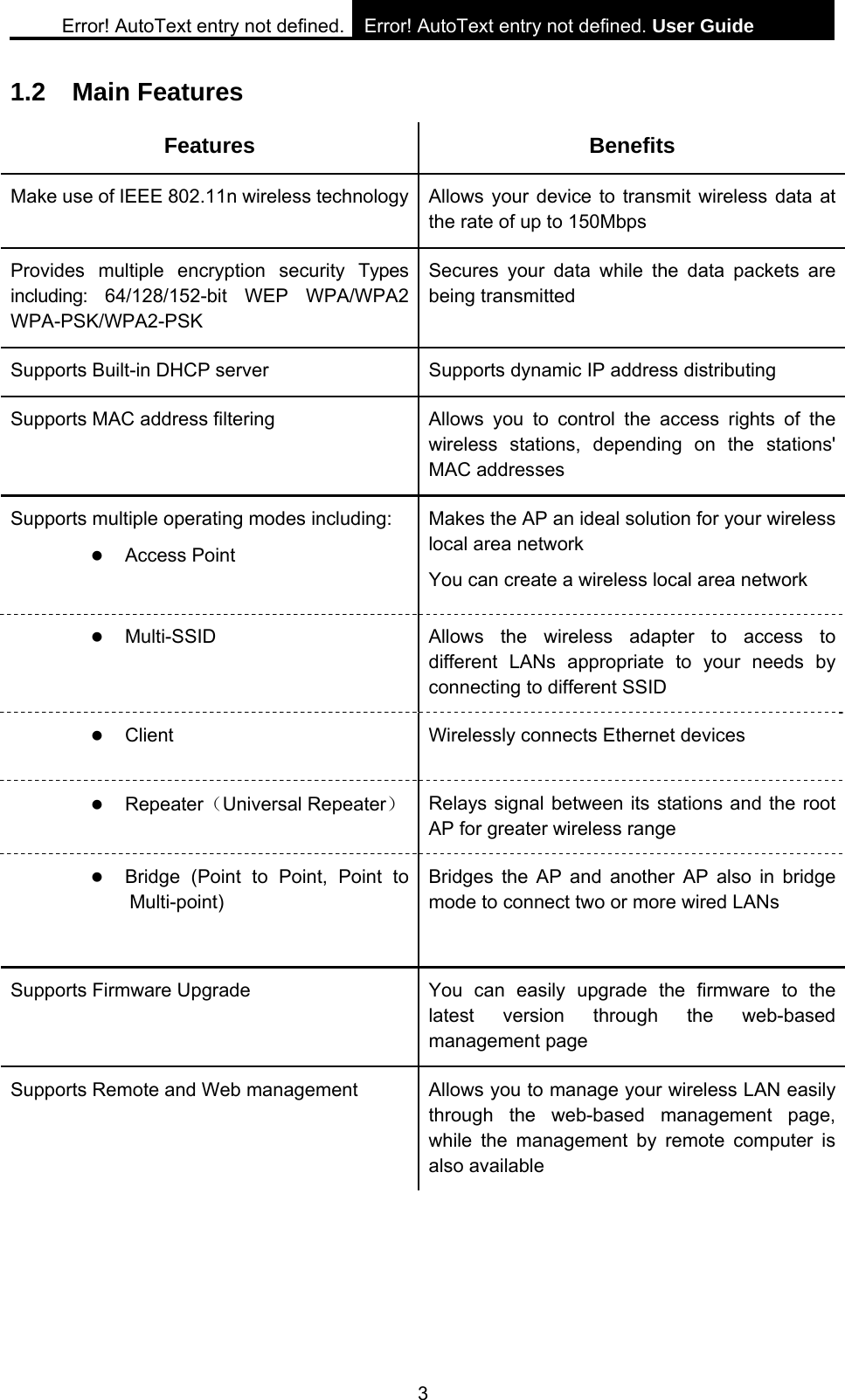

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 3 1.2 Main Features Features Benefits Make use of IEEE 802.11n wireless technology Allows your device to transmit wireless data at the rate of up to 150Mbps Provides multiple encryption security Types including: 64/128/152-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK Secures your data while the data packets are being transmitted Supports Built-in DHCP server Supports dynamic IP address distributing Supports MAC address filtering Allows you to control the access rights of the wireless stations, depending on the stations' MAC addresses Supports multiple operating modes including: z Access Point Makes the AP an ideal solution for your wireless local area network You can create a wireless local area network z Multi-SSID Allows the wireless adapter to access to different LANs appropriate to your needs by connecting to different SSID z Client Wirelessly connects Ethernet devices z Repeater（Universal Repeater）Relays signal between its stations and the root AP for greater wireless range z Bridge (Point to Point, Point to Multi-point) Bridges the AP and another AP also in bridge mode to connect two or more wired LANs Supports Firmware Upgrade You can easily upgrade the firmware to the latest version through the web-based management page Supports Remote and Web management Allows you to manage your wireless LAN easily through the web-based management page, while the management by remote computer is also available

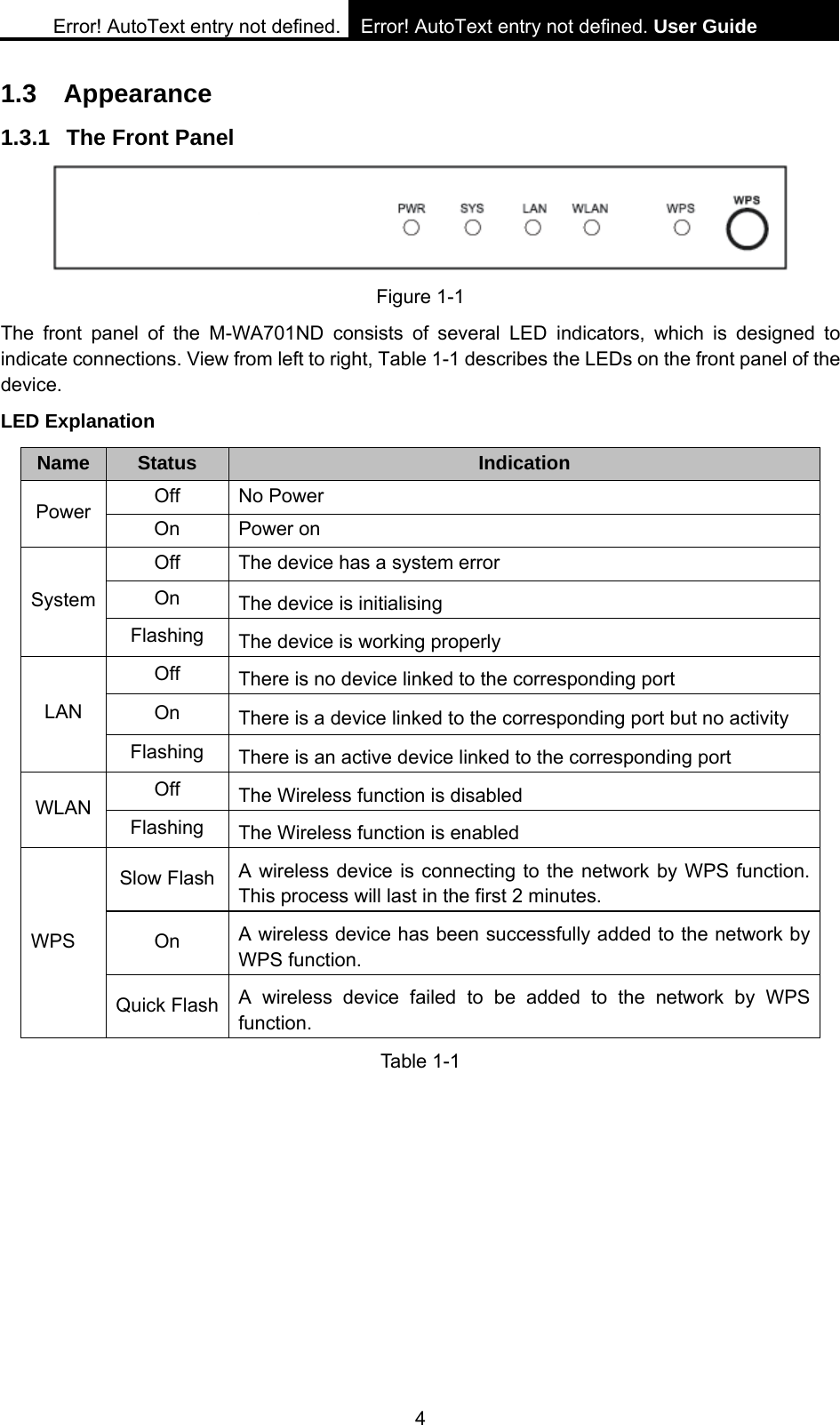

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 4 1.3 Appearance 1.3.1 The Front Panel Figure 1-1 The front panel of the M-WA701ND consists of several LED indicators, which is designed to indicate connections. View from left to right, Table 1-1 describes the LEDs on the front panel of the device. LED Explanation Name Status Indication Off No Power Power On Power on Off The device has a system error On The device is initialising System Flashing The device is working properly Off There is no device linked to the corresponding port On There is a device linked to the corresponding port but no activity LAN Flashing There is an active device linked to the corresponding port Off The Wireless function is disabled WLAN Flashing The Wireless function is enabled Slow Flash A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes. On A wireless device has been successfully added to the network by WPS function. WPS Quick Flash A wireless device failed to be added to the network by WPS function. Table 1-1

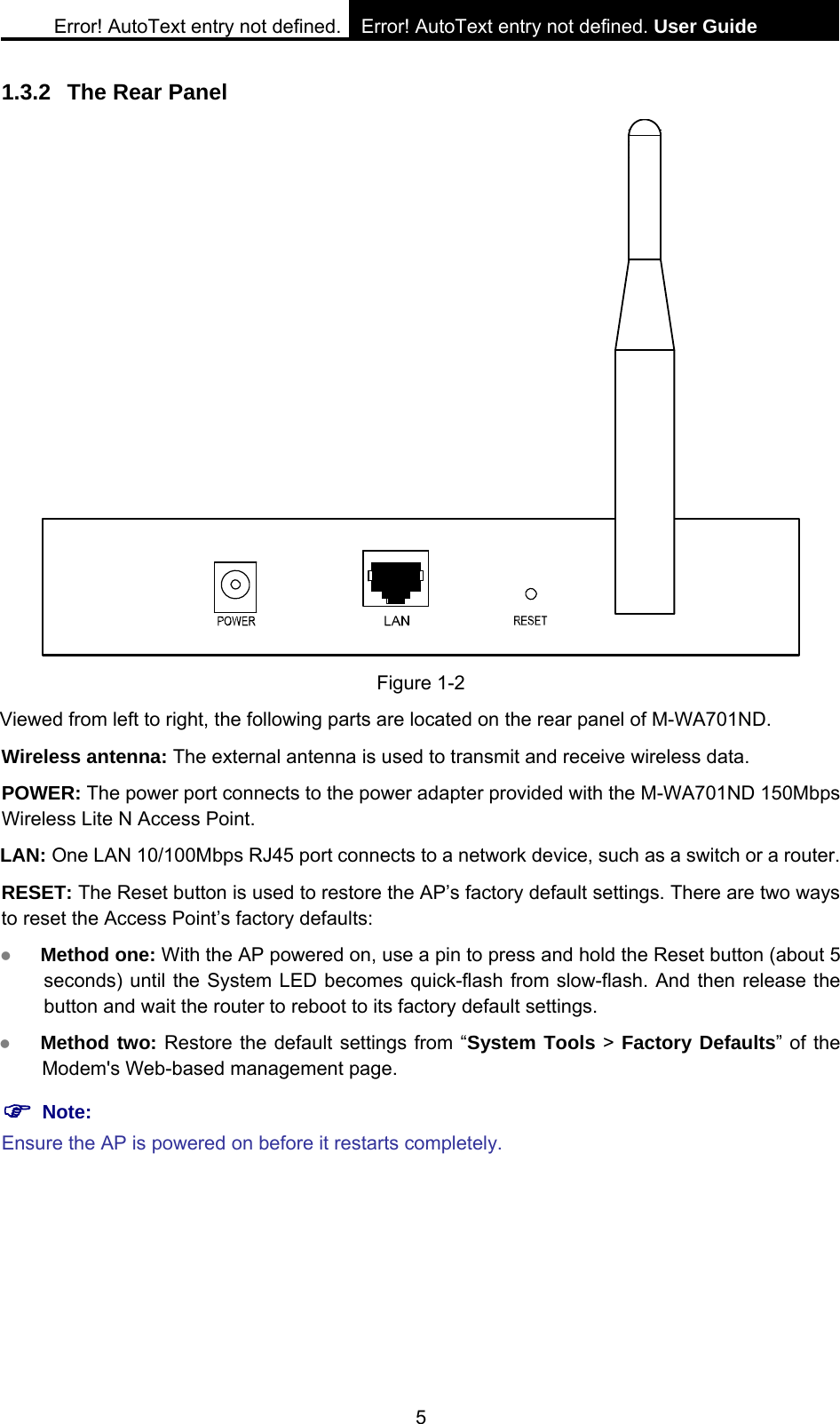

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 5 1.3.2 The Rear Panel Figure 1-2 Viewed from left to right, the following parts are located on the rear panel of M-WA701ND. Wireless antenna: The external antenna is used to transmit and receive wireless data. POWER: The power port connects to the power adapter provided with the M-WA701ND 150Mbps Wireless Lite N Access Point. LAN: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a router. RESET: The Reset button is used to restore the AP’s factory default settings. There are two ways to reset the Access Point’s factory defaults: z Method one: With the AP powered on, use a pin to press and hold the Reset button (about 5 seconds) until the System LED becomes quick-flash from slow-flash. And then release the button and wait the router to reboot to its factory default settings. z Method two: Restore the default settings from “System Tools > Factory Defaults” of the Modem's Web-based management page. ) Note: Ensure the AP is powered on before it restarts completely.

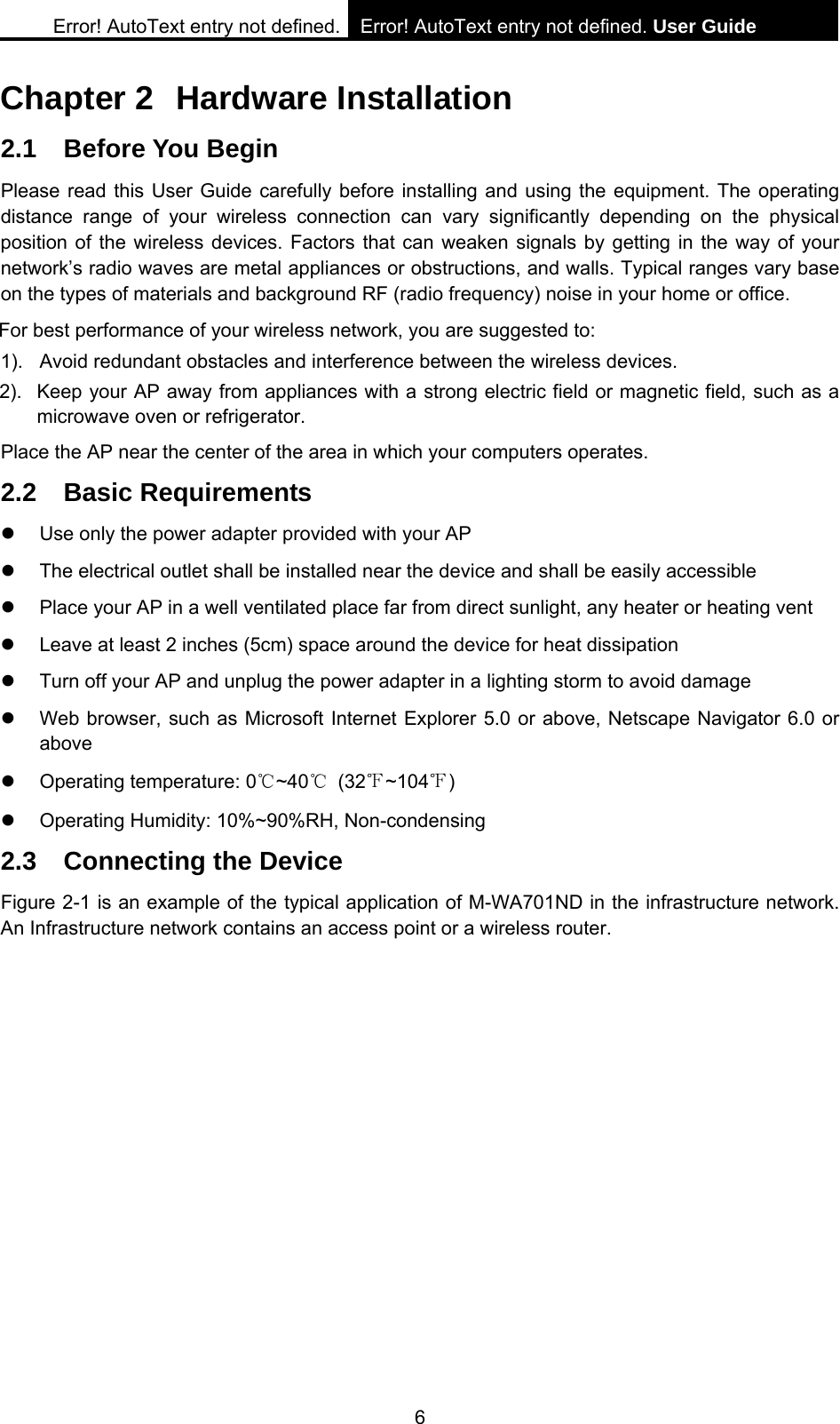

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 6 Chapter 2 Hardware Installation 2.1 Before You Begin Please read this User Guide carefully before installing and using the equipment. The operating distance range of your wireless connection can vary significantly depending on the physical position of the wireless devices. Factors that can weaken signals by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. Typical ranges vary base on the types of materials and background RF (radio frequency) noise in your home or office. For best performance of your wireless network, you are suggested to: 1). Avoid redundant obstacles and interference between the wireless devices. 2). Keep your AP away from appliances with a strong electric field or magnetic field, such as a microwave oven or refrigerator. Place the AP near the center of the area in which your computers operates. 2.2 Basic Requirements z Use only the power adapter provided with your AP z The electrical outlet shall be installed near the device and shall be easily accessible z Place your AP in a well ventilated place far from direct sunlight, any heater or heating vent z Leave at least 2 inches (5cm) space around the device for heat dissipation z Turn off your AP and unplug the power adapter in a lighting storm to avoid damage z Web browser, such as Microsoft Internet Explorer 5.0 or above, Netscape Navigator 6.0 or above z Operating temperature: 0℃~40℃ (32℉~104℉) z Operating Humidity: 10%~90%RH, Non-condensing 2.3 Connecting the Device Figure 2-1 is an example of the typical application of M-WA701ND in the infrastructure network. An Infrastructure network contains an access point or a wireless router.

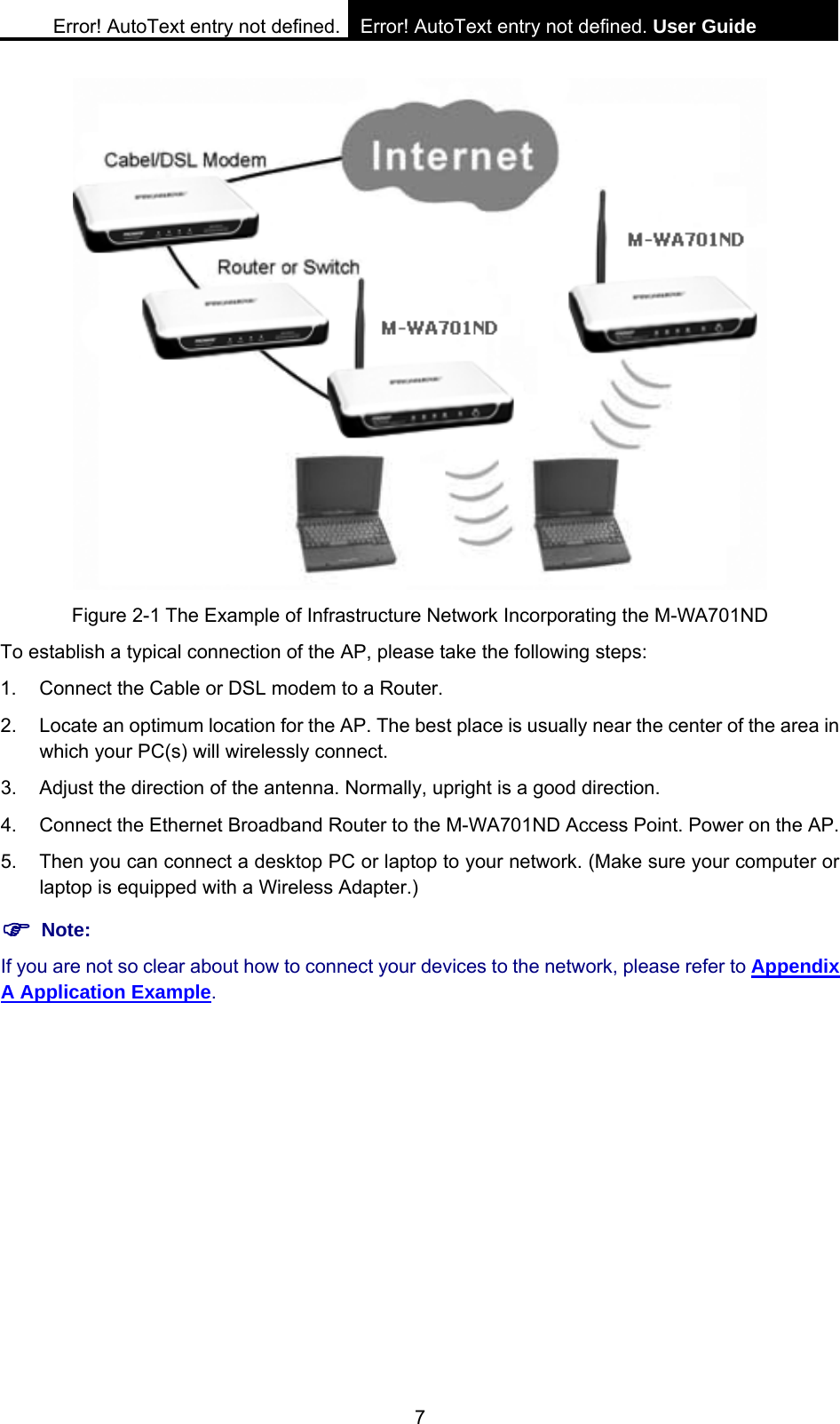

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 7 Figure 2-1 The Example of Infrastructure Network Incorporating the M-WA701ND To establish a typical connection of the AP, please take the following steps: 1. Connect the Cable or DSL modem to a Router. 2. Locate an optimum location for the AP. The best place is usually near the center of the area in which your PC(s) will wirelessly connect. 3. Adjust the direction of the antenna. Normally, upright is a good direction. 4. Connect the Ethernet Broadband Router to the M-WA701ND Access Point. Power on the AP. 5. Then you can connect a desktop PC or laptop to your network. (Make sure your computer or laptop is equipped with a Wireless Adapter.) ) Note: If you are not so clear about how to connect your devices to the network, please refer to Appendix A Application Example.

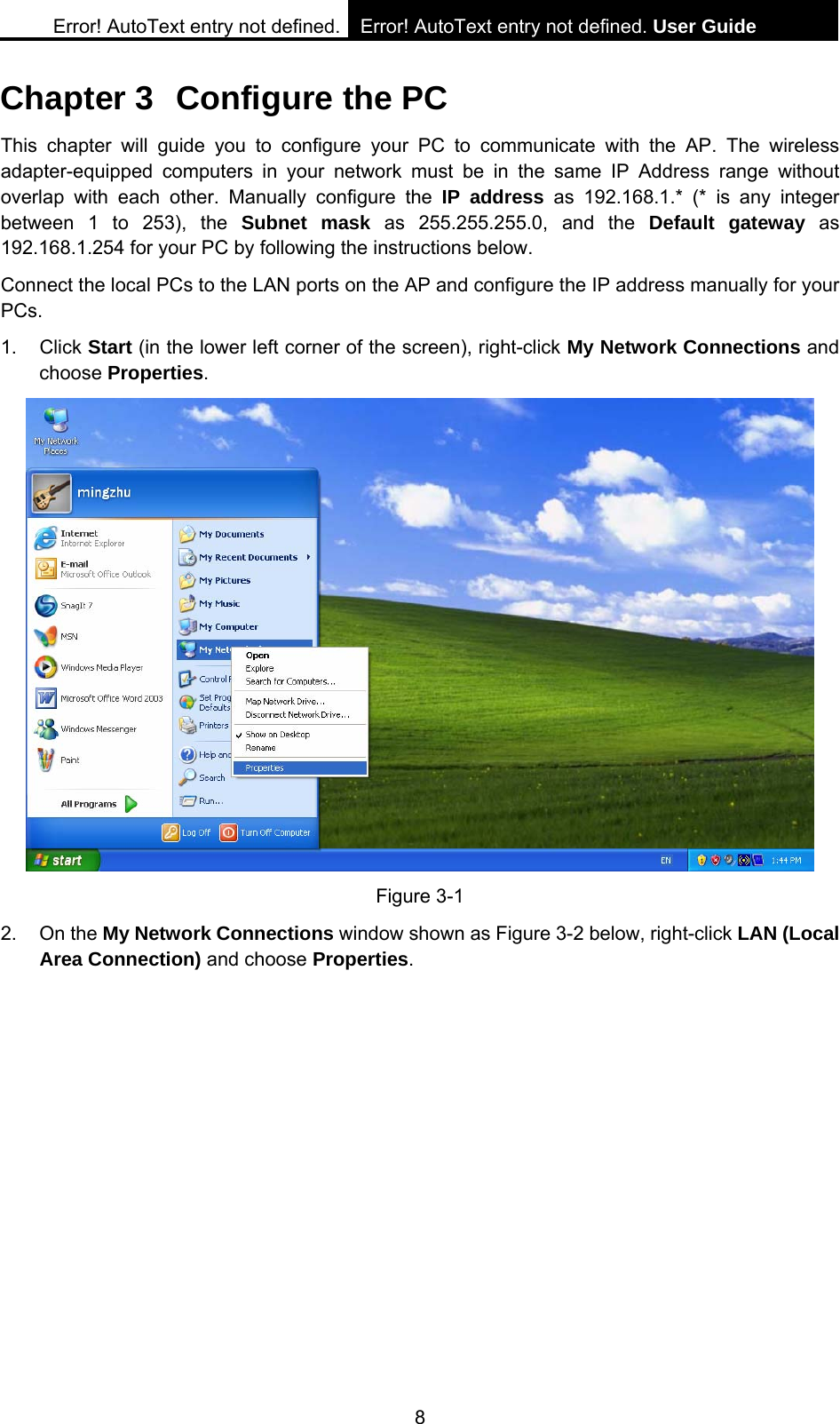

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 8 Chapter 3 Configure the PC This chapter will guide you to configure your PC to communicate with the AP. The wireless adapter-equipped computers in your network must be in the same IP Address range without overlap with each other. Manually configure the IP address as 192.168.1.* (* is any integer between 1 to 253), the Subnet mask as 255.255.255.0, and the Default gateway as 192.168.1.254 for your PC by following the instructions below. Connect the local PCs to the LAN ports on the AP and configure the IP address manually for your PCs. 1. Click Start (in the lower left corner of the screen), right-click My Network Connections and choose Properties. Figure 3-1 2. On the My Network Connections window shown as Figure 3-2 below, right-click LAN (Local Area Connection) and choose Properties.

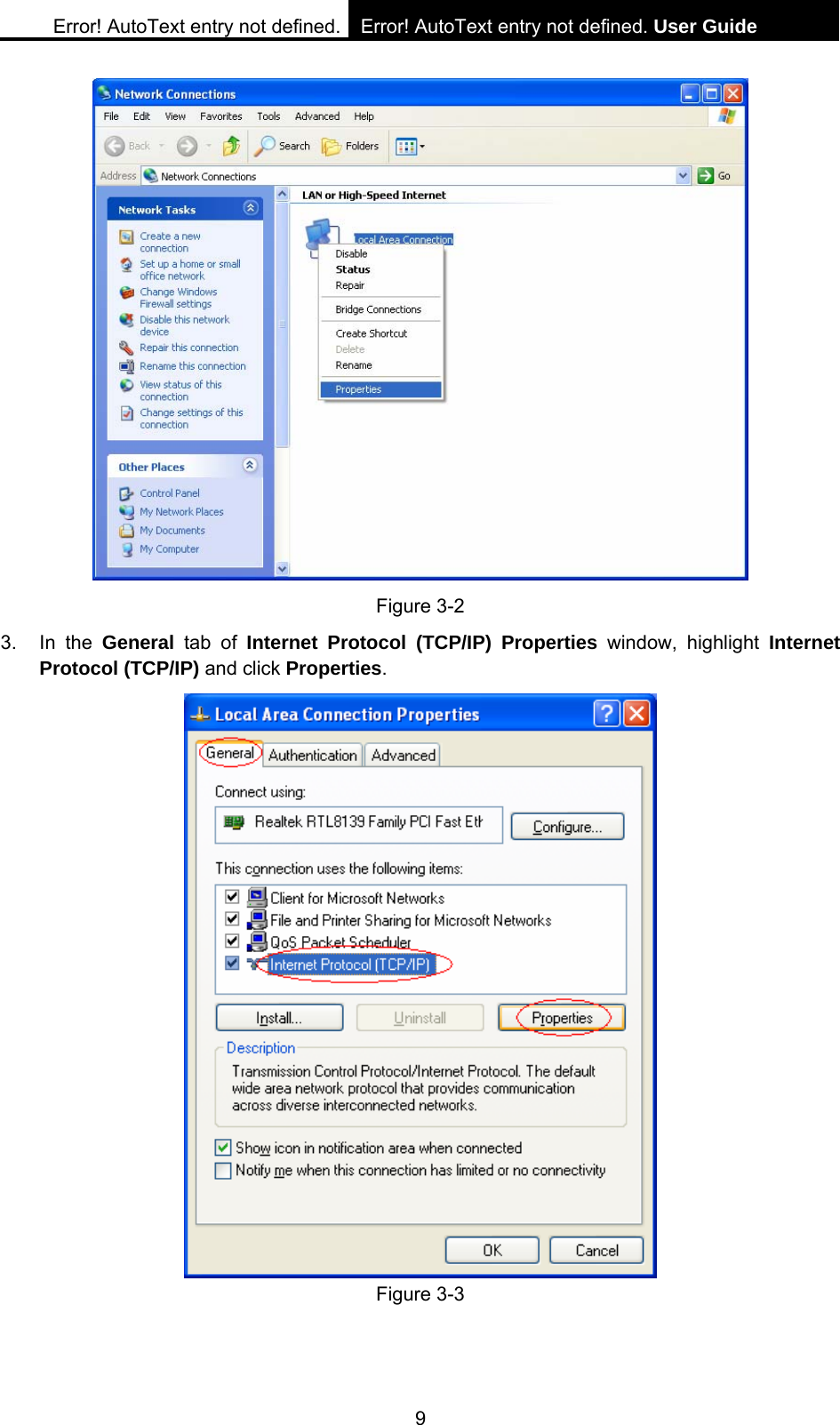

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 9 Figure 3-2 3. In the General tab of Internet Protocol (TCP/IP) Properties window, highlight Internet Protocol (TCP/IP) and click Properties. Figure 3-3

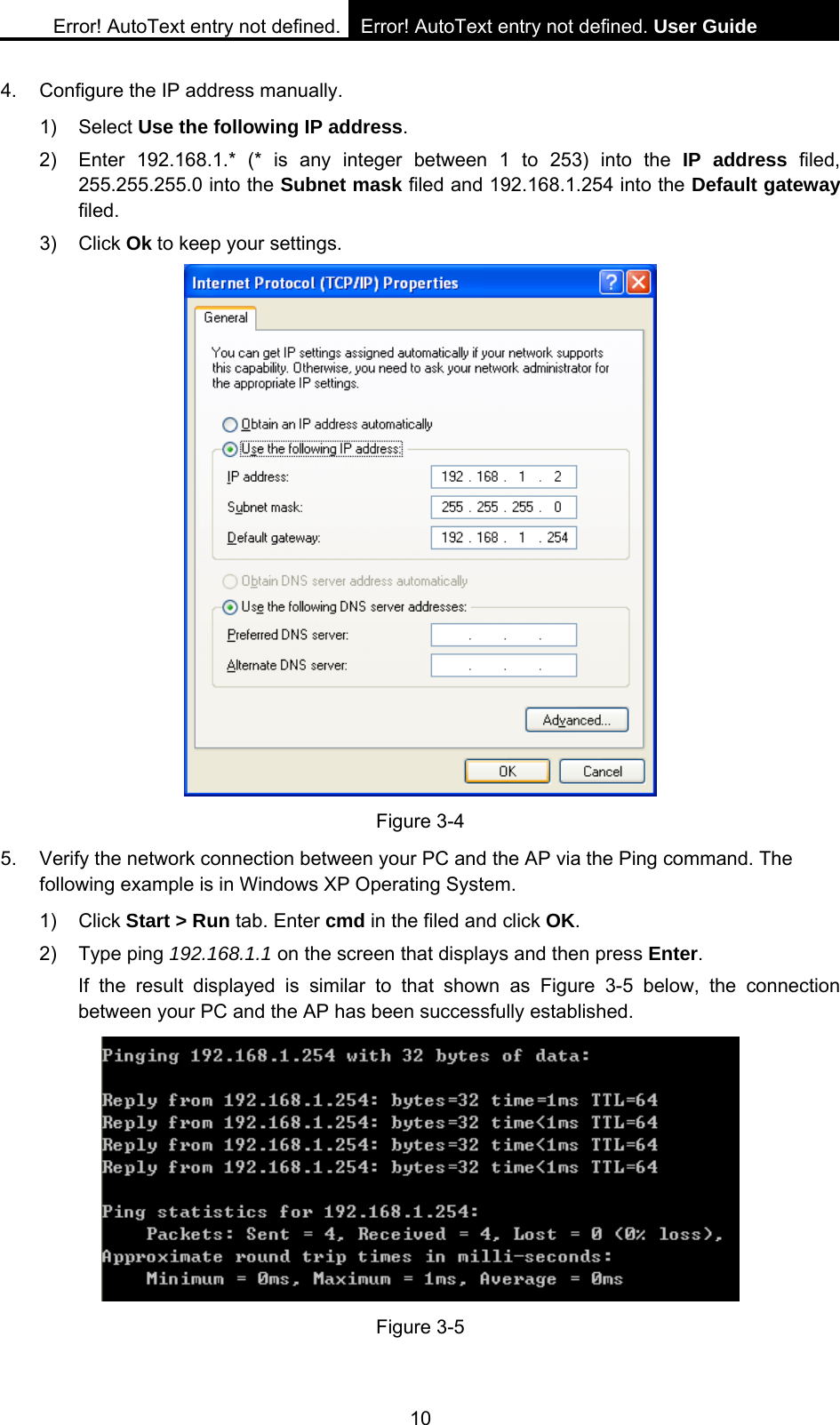

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 10 4. Configure the IP address manually. 1) Select Use the following IP address. 2) Enter 192.168.1.* (* is any integer between 1 to 253) into the IP address filed, 255.255.255.0 into the Subnet mask filed and 192.168.1.254 into the Default gateway filed. 3) Click Ok to keep your settings. Figure 3-4 5. Verify the network connection between your PC and the AP via the Ping command. The following example is in Windows XP Operating System. 1) Click Start > Run tab. Enter cmd in the filed and click OK. 2) Type ping 192.168.1.1 on the screen that displays and then press Enter. If the result displayed is similar to that shown as Figure 3-5 below, the connection between your PC and the AP has been successfully established. Figure 3-5

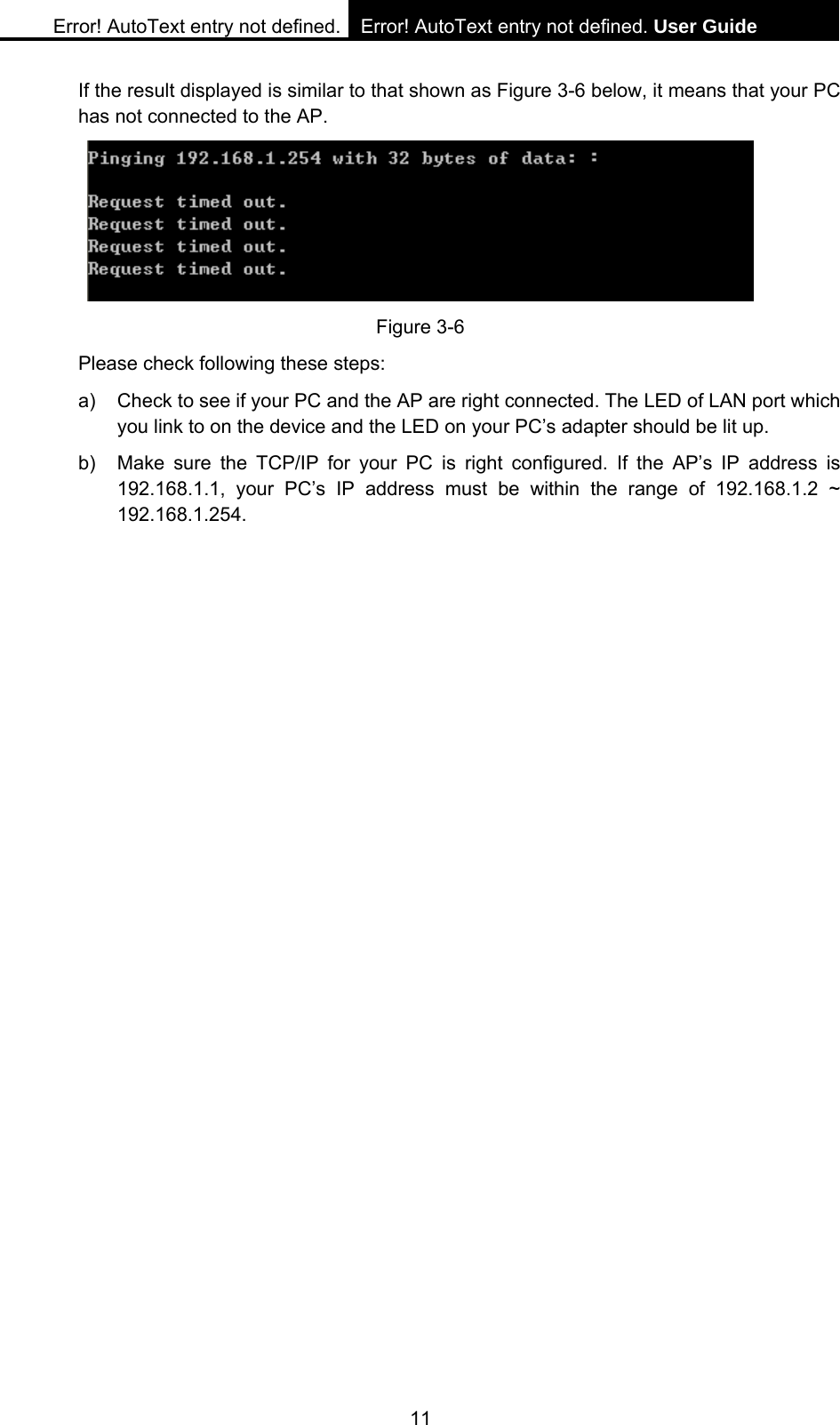

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 11 If the result displayed is similar to that shown as Figure 3-6 below, it means that your PC has not connected to the AP. Figure 3-6 Please check following these steps: a) Check to see if your PC and the AP are right connected. The LED of LAN port which you link to on the device and the LED on your PC’s adapter should be lit up. b) Make sure the TCP/IP for your PC is right configured. If the AP’s IP address is 192.168.1.1, your PC’s IP address must be within the range of 192.168.1.2 ~ 192.168.1.254.

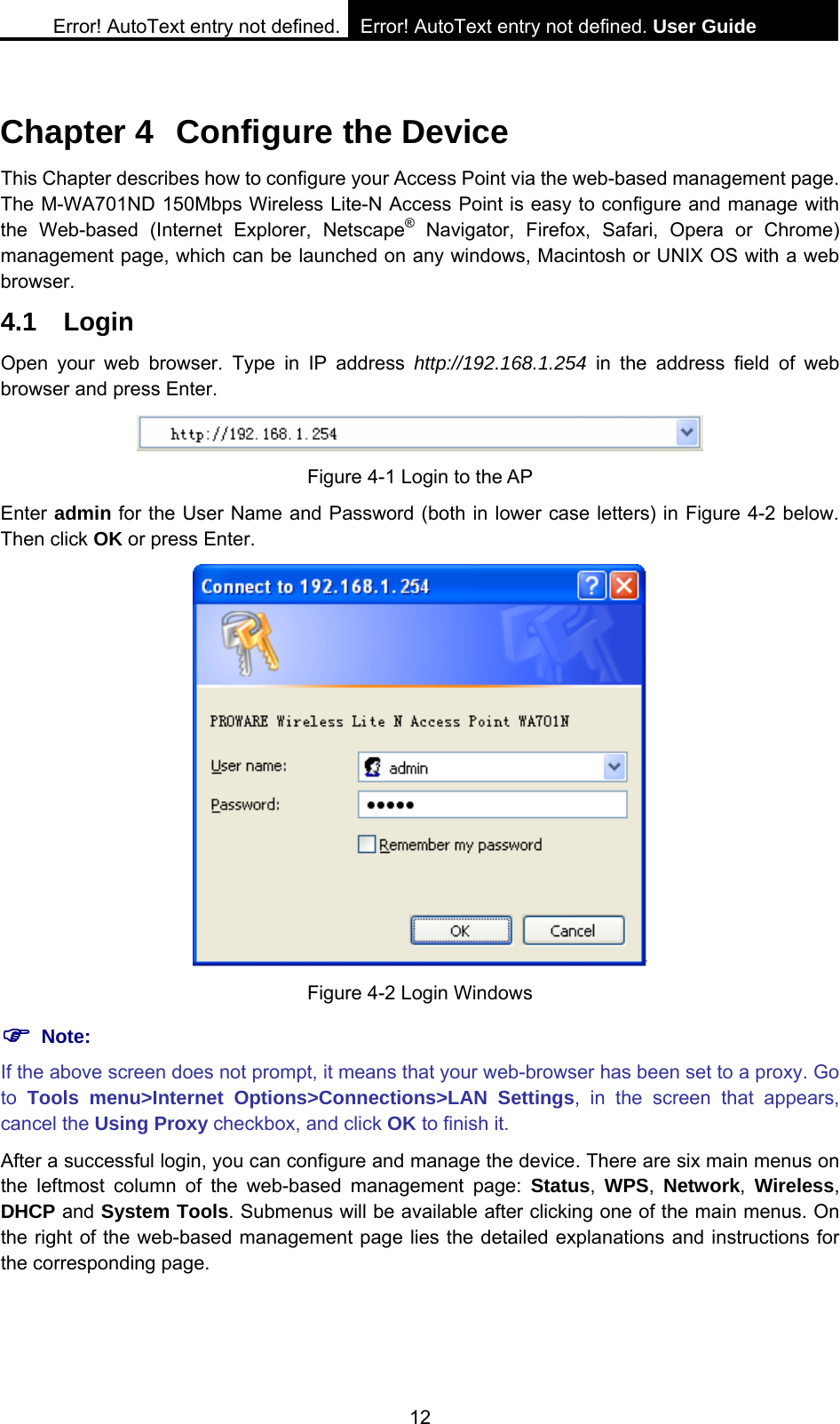

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 12 Chapter 4 Configure the Device This Chapter describes how to configure your Access Point via the web-based management page. The M-WA701ND 150Mbps Wireless Lite-N Access Point is easy to configure and manage with the Web-based (Internet Explorer, Netscape® Navigator, Firefox, Safari, Opera or Chrome) management page, which can be launched on any windows, Macintosh or UNIX OS with a web browser. 4.1 Login Open your web browser. Type in IP address http://192.168.1.254 in the address field of web browser and press Enter. Figure 4-1 Login to the AP Enter admin for the User Name and Password (both in lower case letters) in Figure 4-2 below. Then click OK or press Enter. Figure 4-2 Login Windows ) Note: If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it. After a successful login, you can configure and manage the device. There are six main menus on the leftmost column of the web-based management page: Status, WPS, Network, Wireless, DHCP and System Tools. Submenus will be available after clicking one of the main menus. On the right of the web-based management page lies the detailed explanations and instructions for the corresponding page.

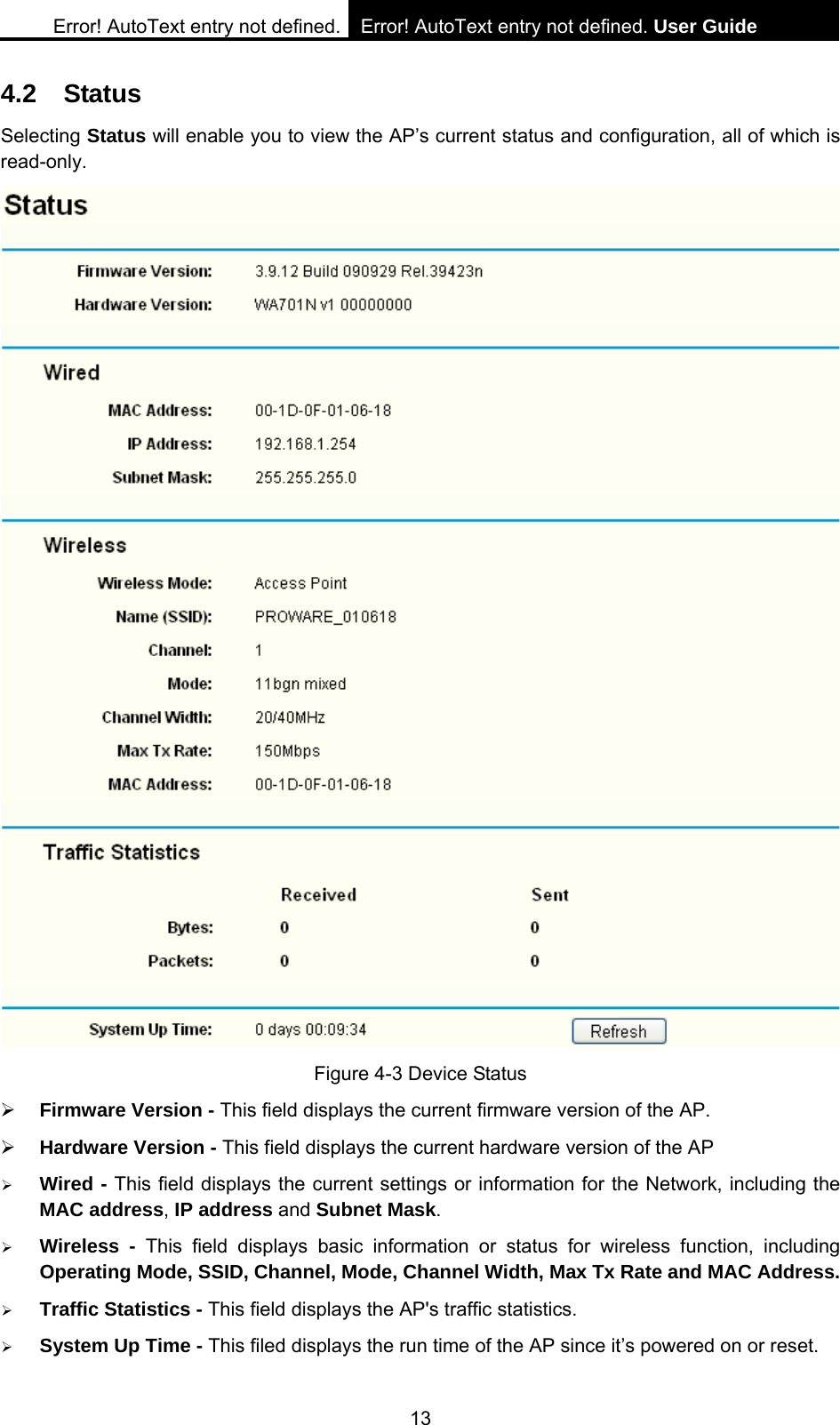

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 13 4.2 Status Selecting Status will enable you to view the AP’s current status and configuration, all of which is read-only. Figure 4-3 Device Status ¾ Firmware Version - This field displays the current firmware version of the AP. ¾ Hardware Version - This field displays the current hardware version of the AP ¾ Wired - This field displays the current settings or information for the Network, including the MAC address, IP address and Subnet Mask. ¾ Wireless - This field displays basic information or status for wireless function, including Operating Mode, SSID, Channel, Mode, Channel Width, Max Tx Rate and MAC Address. ¾ Traffic Statistics - This field displays the AP's traffic statistics. ¾ System Up Time - This filed displays the run time of the AP since it’s powered on or reset.

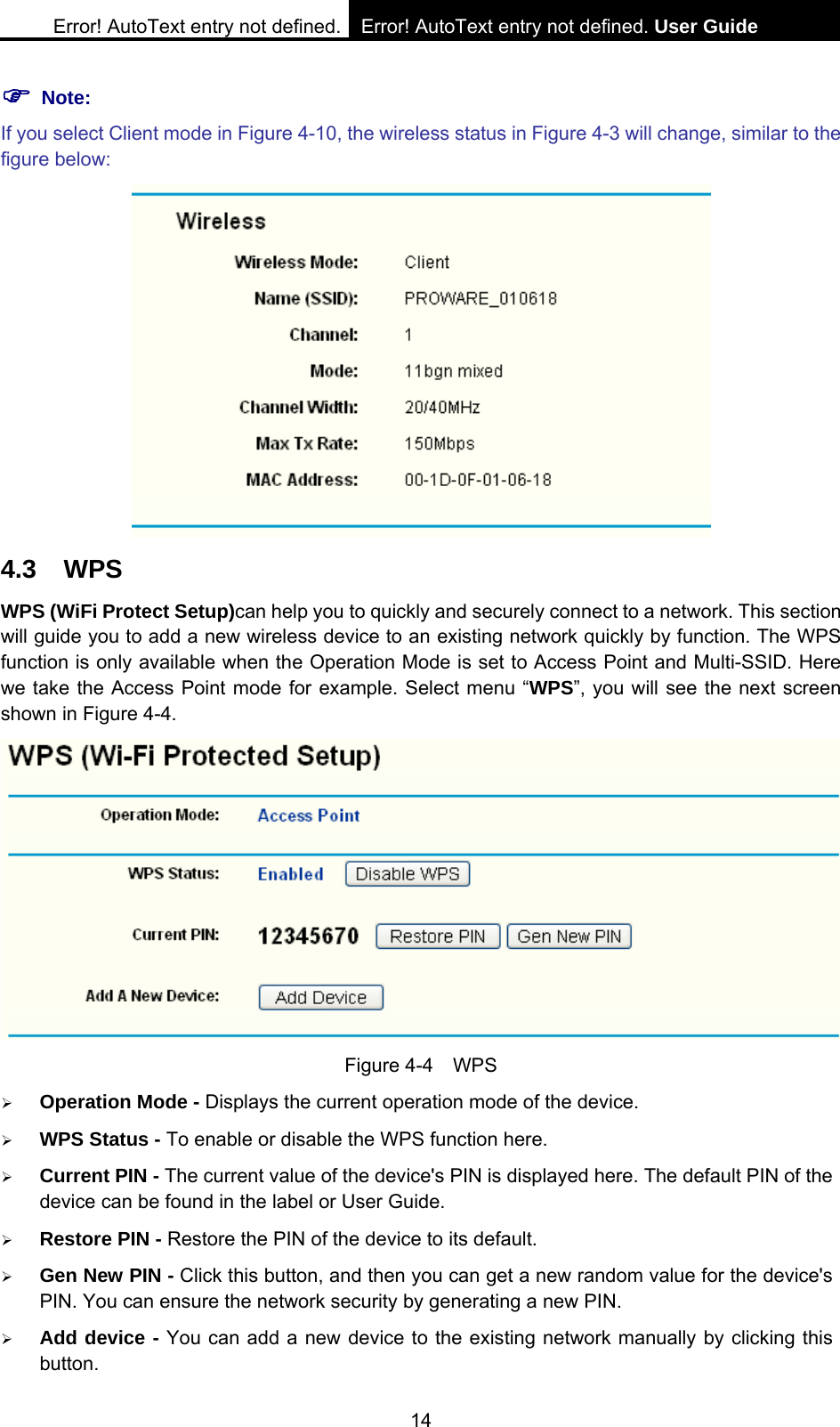

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 14 ) Note: If you select Client mode in Figure 4-10, the wireless status in Figure 4-3 will change, similar to the figure below: 4.3 WPS WPS (WiFi Protect Setup)can help you to quickly and securely connect to a network. This section will guide you to add a new wireless device to an existing network quickly by function. The WPS function is only available when the Operation Mode is set to Access Point and Multi-SSID. Here we take the Access Point mode for example. Select menu “WPS”, you will see the next screen shown in Figure 4-4. Figure 4-4 WPS ¾ Operation Mode - Displays the current operation mode of the device. ¾ WPS Status - To enable or disable the WPS function here. ¾ Current PIN - The current value of the device's PIN is displayed here. The default PIN of the device can be found in the label or User Guide. ¾ Restore PIN - Restore the PIN of the device to its default. ¾ Gen New PIN - Click this button, and then you can get a new random value for the device's PIN. You can ensure the network security by generating a new PIN. ¾ Add device - You can add a new device to the existing network manually by clicking this button.

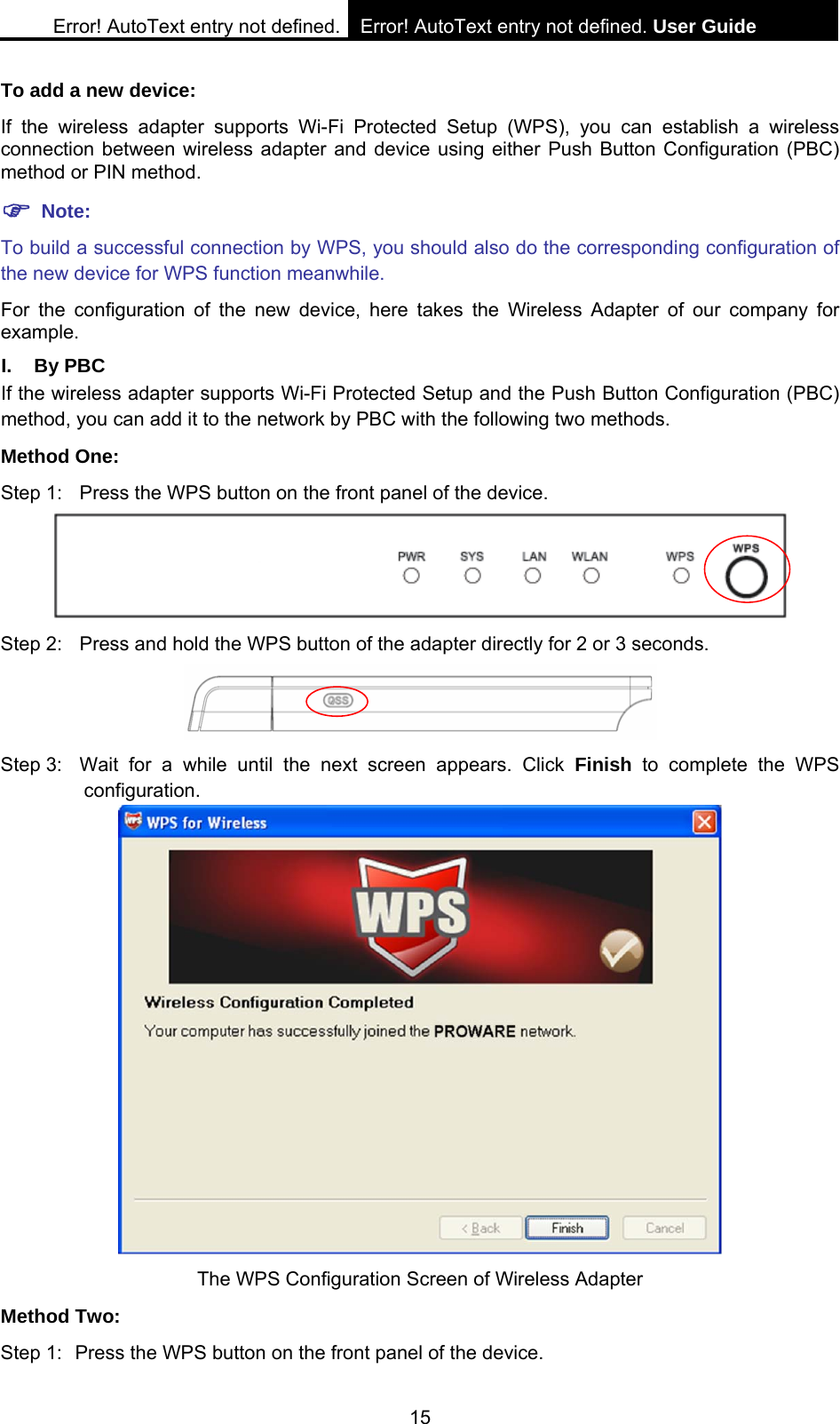

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 15 To add a new device: If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and device using either Push Button Configuration (PBC) method or PIN method. ) Note: To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile. For the configuration of the new device, here takes the Wireless Adapter of our company for example. I. By PBC If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC) method, you can add it to the network by PBC with the following two methods. Method One: Step 1: Press the WPS button on the front panel of the device. Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds. Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of Wireless Adapter Method Two: Step 1: Press the WPS button on the front panel of the device.

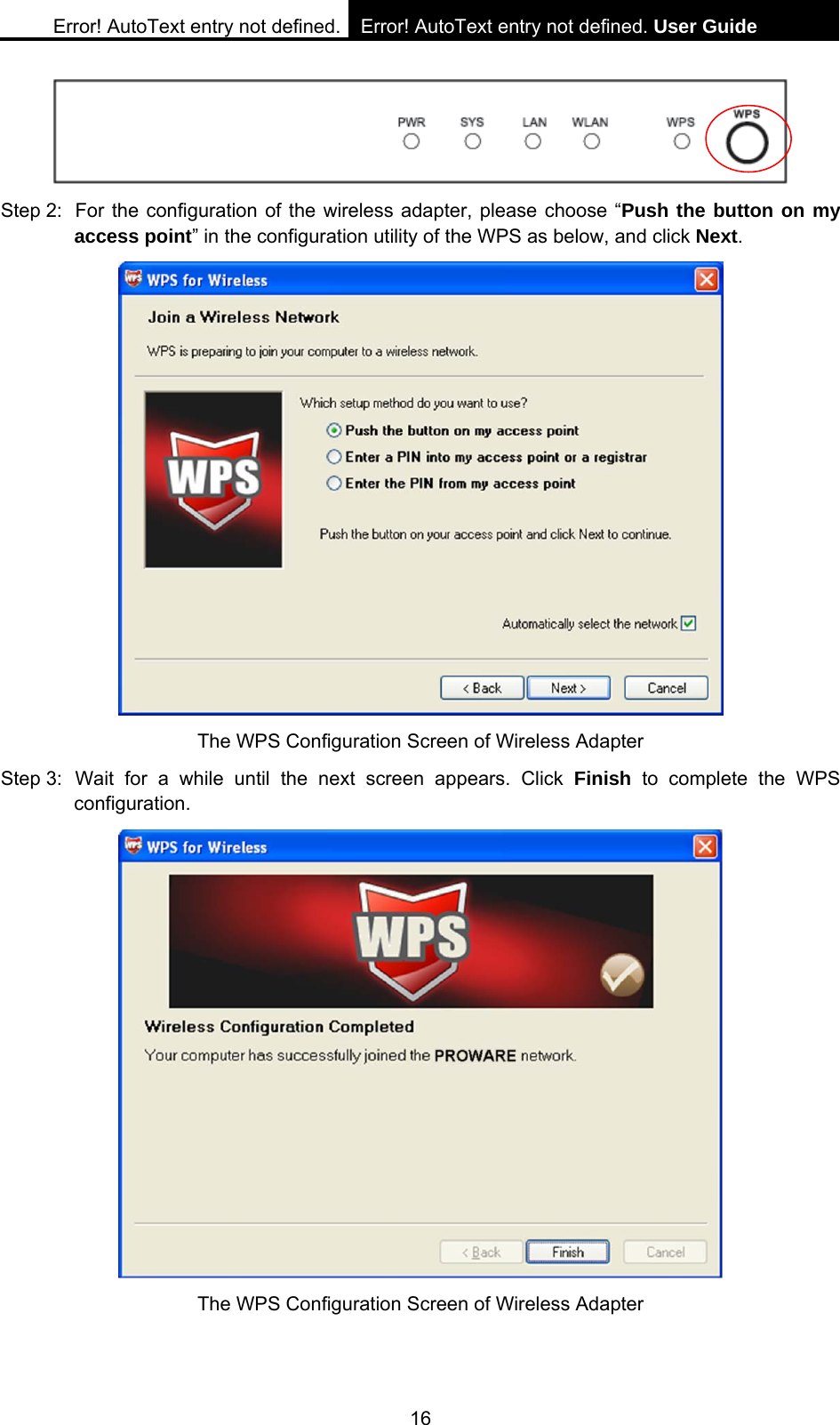

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 16 Step 2: For the configuration of the wireless adapter, please choose “Push the button on my access point” in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of Wireless Adapter Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of Wireless Adapter

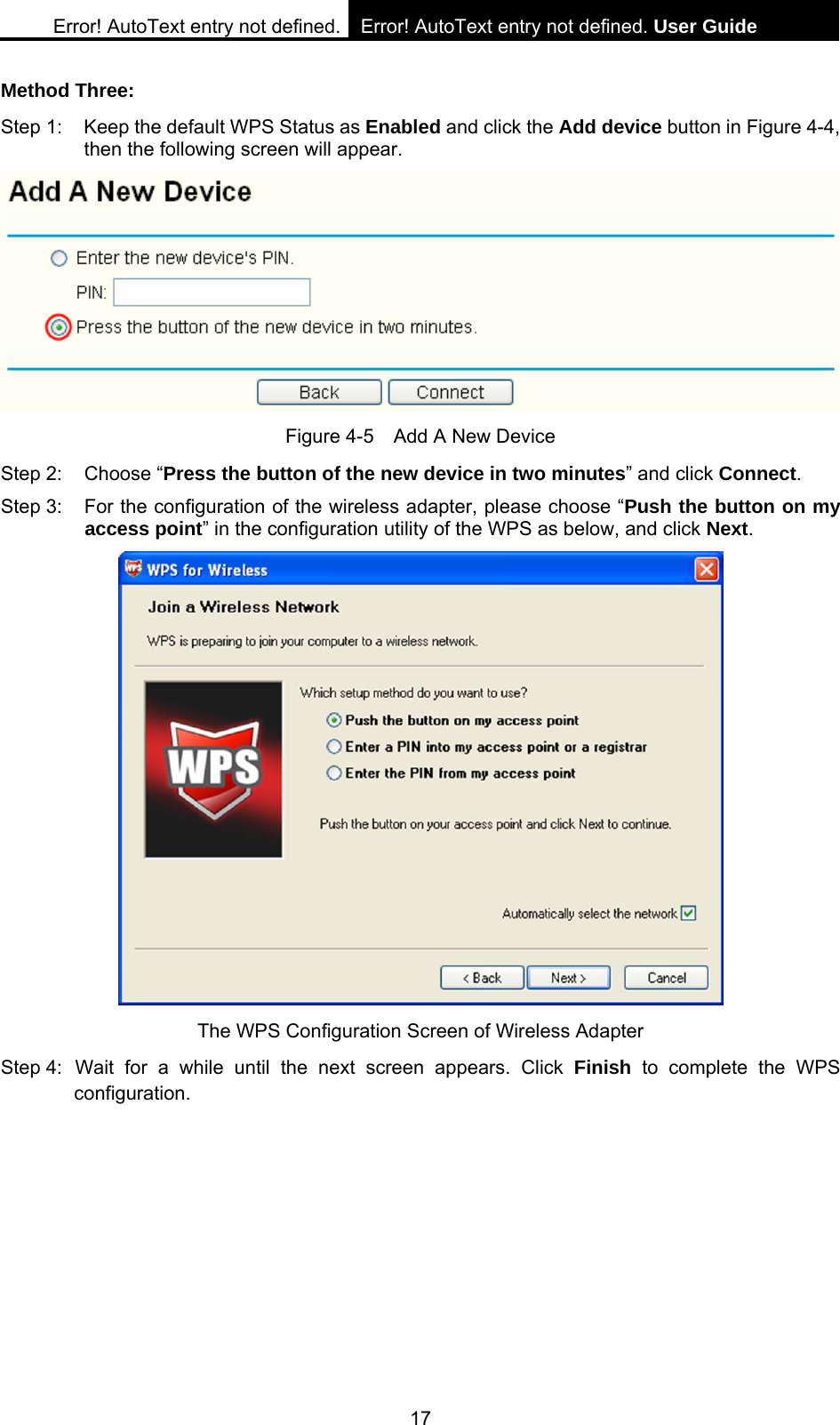

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 17 Method Three: Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 4-4, then the following screen will appear. Figure 4-5 Add A New Device Step 2: Choose “Press the button of the new device in two minutes” and click Connect. Step 3: For the configuration of the wireless adapter, please choose “Push the button on my access point” in the configuration utility of the WPS as below, and click Next. The WPS Configuration Screen of Wireless Adapter Step 4: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration.

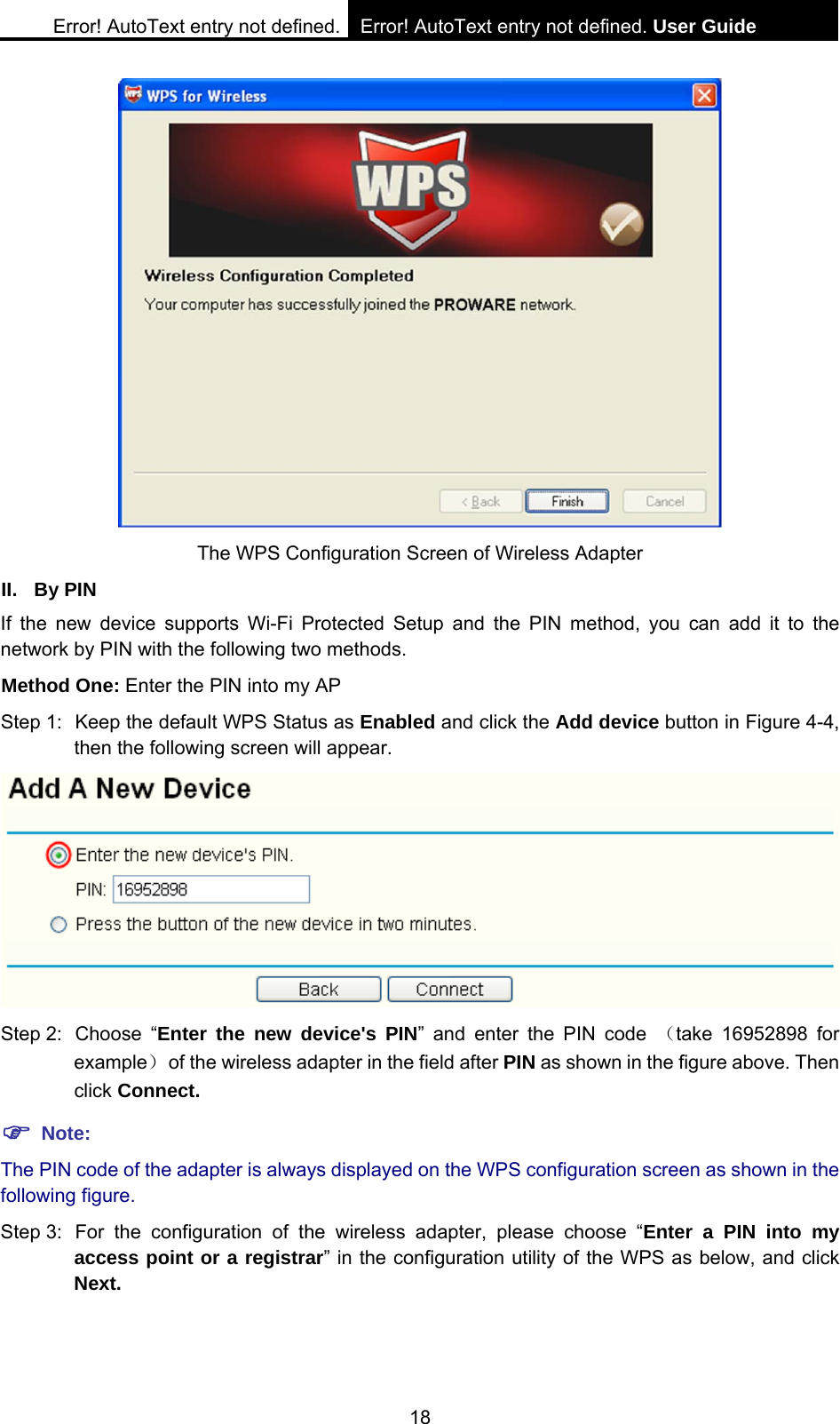

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 18 The WPS Configuration Screen of Wireless Adapter II. By PIN If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Method One: Enter the PIN into my AP Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 4-4, then the following screen will appear. Step 2: Choose “Enter the new device's PIN” and enter the PIN code （take 16952898 for example） of the wireless adapter in the field after PIN as shown in the figure above. Then click Connect. ) Note: The PIN code of the adapter is always displayed on the WPS configuration screen as shown in the following figure. Step 3: For the configuration of the wireless adapter, please choose “Enter a PIN into my access point or a registrar” in the configuration utility of the WPS as below, and click Next.

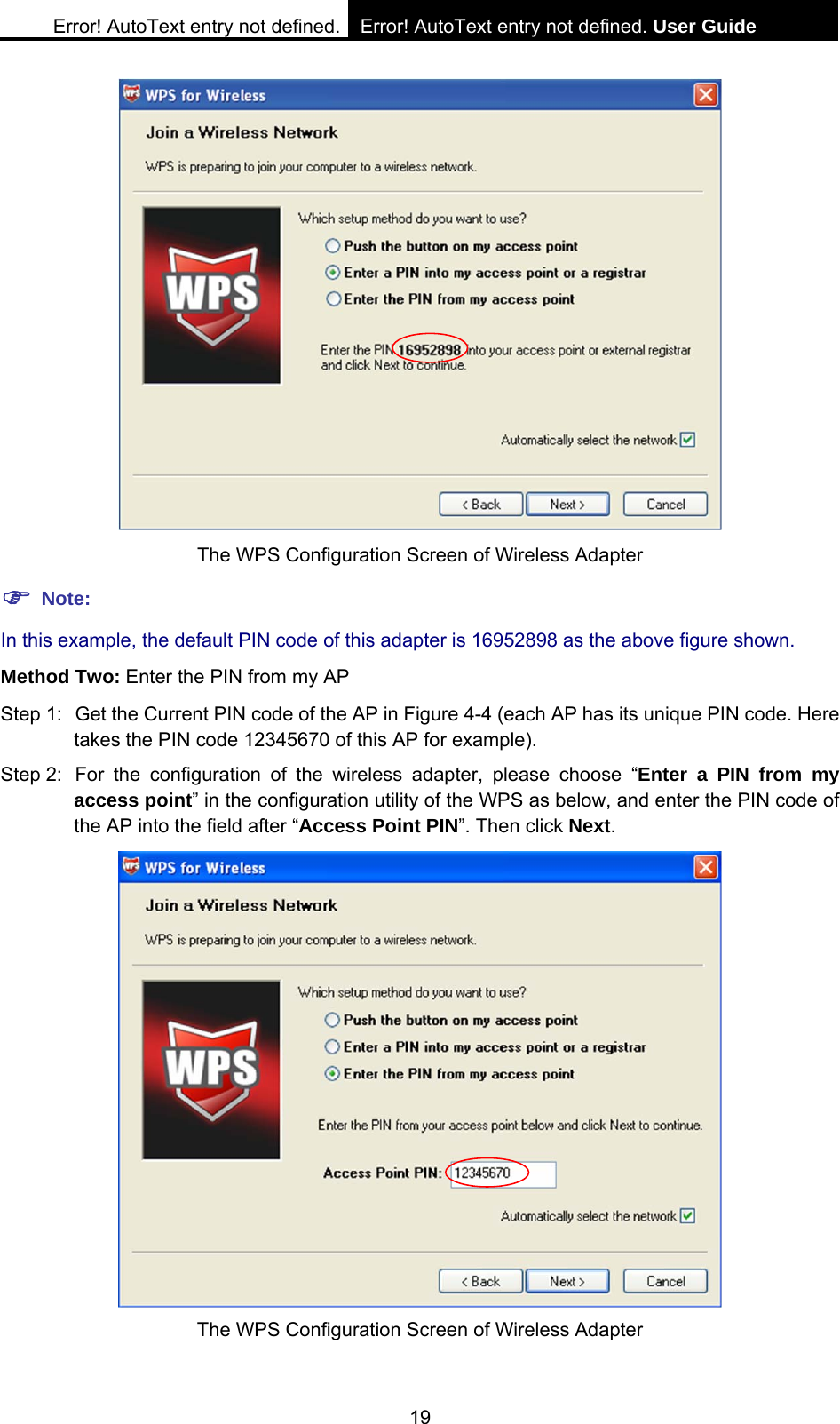

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 19 The WPS Configuration Screen of Wireless Adapter ) Note: In this example, the default PIN code of this adapter is 16952898 as the above figure shown. Method Two: Enter the PIN from my AP Step 1: Get the Current PIN code of the AP in Figure 4-4 (each AP has its unique PIN code. Here takes the PIN code 12345670 of this AP for example). Step 2: For the configuration of the wireless adapter, please choose “Enter a PIN from my access point” in the configuration utility of the WPS as below, and enter the PIN code of the AP into the field after “Access Point PIN”. Then click Next. The WPS Configuration Screen of Wireless Adapter

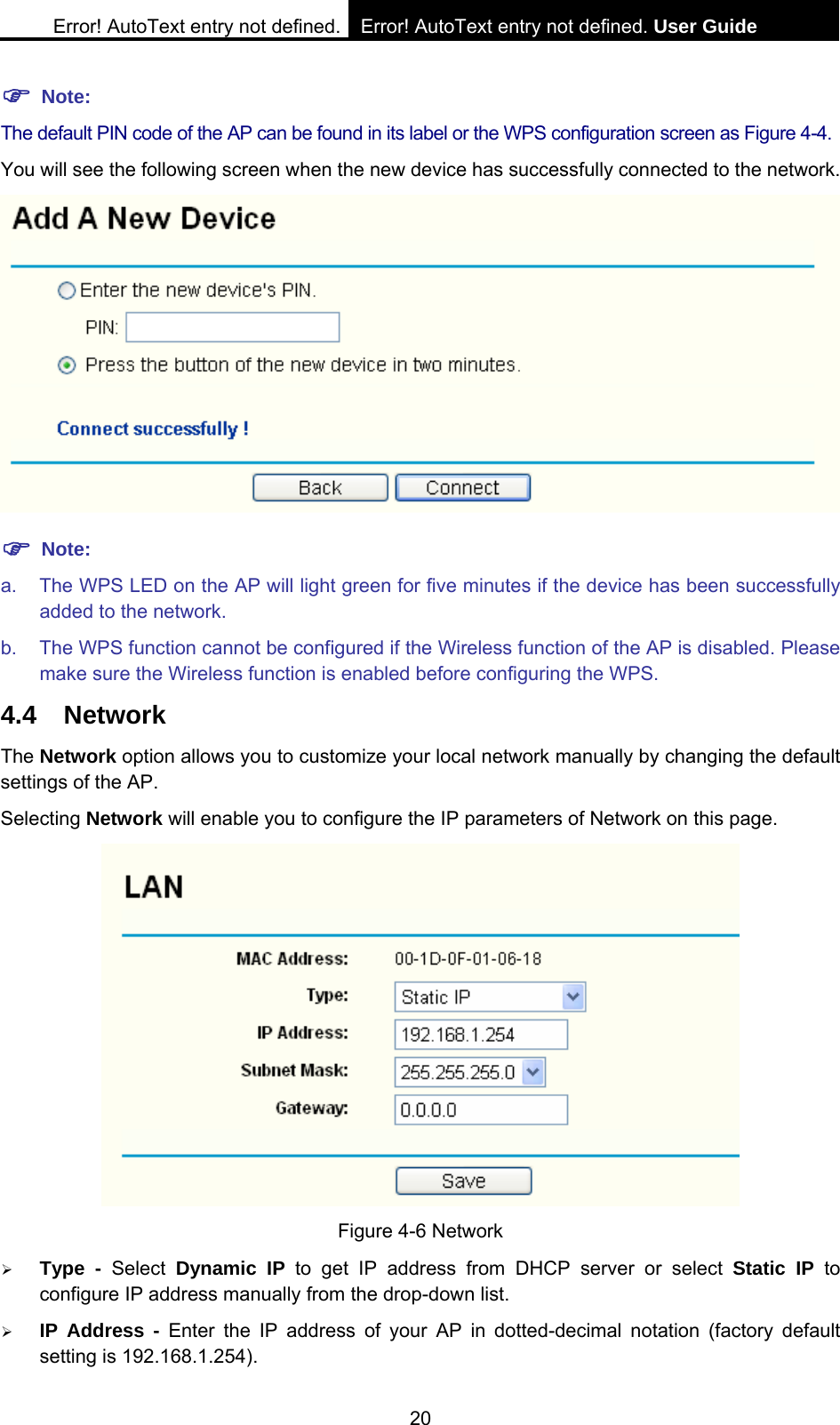

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 20 ) Note: The default PIN code of the AP can be found in its label or the WPS configuration screen as Figure 4-4. You will see the following screen when the new device has successfully connected to the network. ) Note: a. The WPS LED on the AP will light green for five minutes if the device has been successfully added to the network. b. The WPS function cannot be configured if the Wireless function of the AP is disabled. Please make sure the Wireless function is enabled before configuring the WPS. 4.4 Network The Network option allows you to customize your local network manually by changing the default settings of the AP. Selecting Network will enable you to configure the IP parameters of Network on this page. Figure 4-6 Network ¾ Type - Select Dynamic IP to get IP address from DHCP server or select Static IP to configure IP address manually from the drop-down list. ¾ IP Address - Enter the IP address of your AP in dotted-decimal notation (factory default setting is 192.168.1.254).

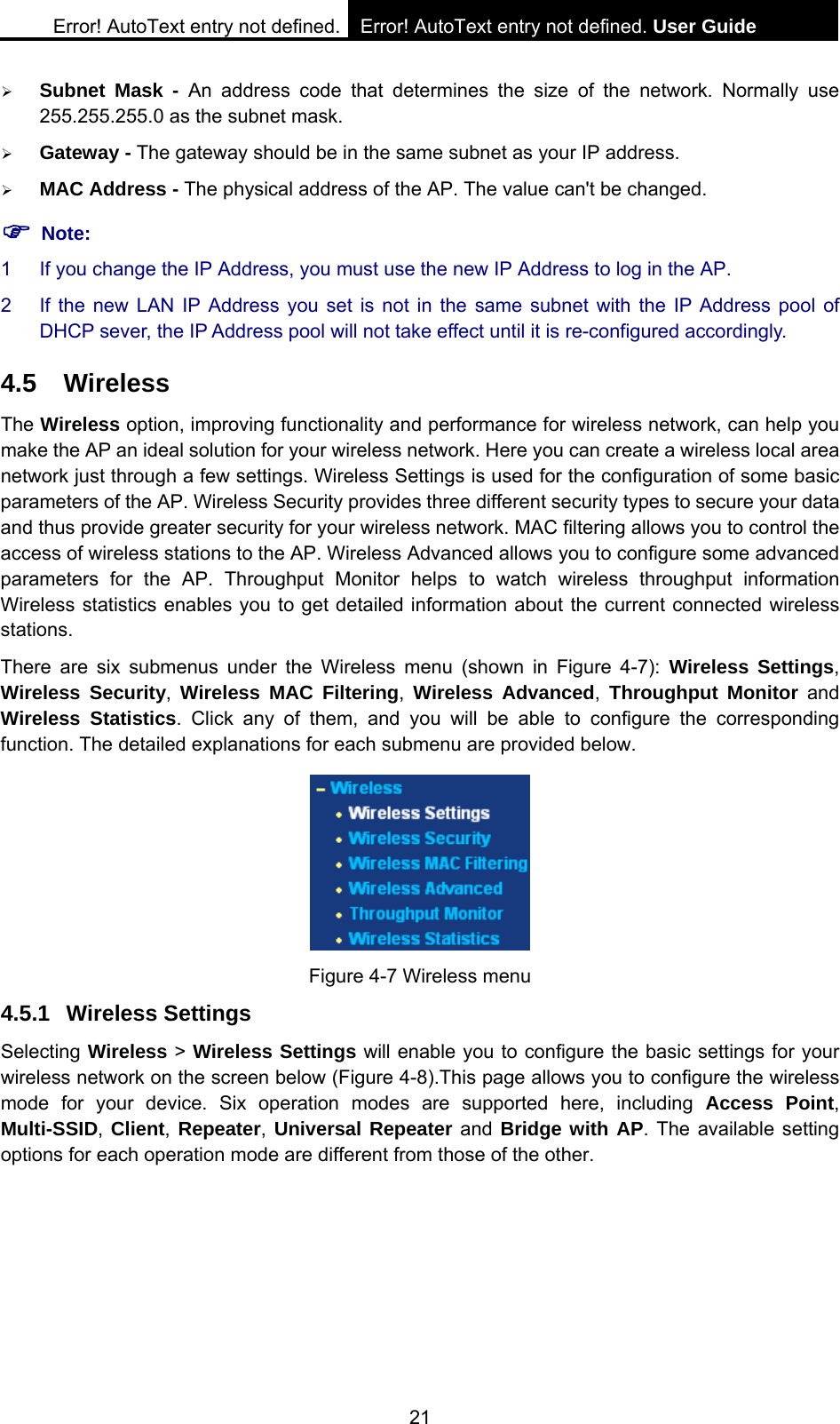

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 21 ¾ Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. ¾ Gateway - The gateway should be in the same subnet as your IP address. ¾ MAC Address - The physical address of the AP. The value can't be changed. ) Note: 1 If you change the IP Address, you must use the new IP Address to log in the AP. 2 If the new LAN IP Address you set is not in the same subnet with the IP Address pool of DHCP sever, the IP Address pool will not take effect until it is re-configured accordingly. 4.5 Wireless The Wireless option, improving functionality and performance for wireless network, can help you make the AP an ideal solution for your wireless network. Here you can create a wireless local area network just through a few settings. Wireless Settings is used for the configuration of some basic parameters of the AP. Wireless Security provides three different security types to secure your data and thus provide greater security for your wireless network. MAC filtering allows you to control the access of wireless stations to the AP. Wireless Advanced allows you to configure some advanced parameters for the AP. Throughput Monitor helps to watch wireless throughput information Wireless statistics enables you to get detailed information about the current connected wireless stations. There are six submenus under the Wireless menu (shown in Figure 4-7): Wireless Settings, Wireless Security, Wireless MAC Filtering, Wireless Advanced, Throughput Monitor and Wireless Statistics. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. Figure 4-7 Wireless menu 4.5.1 Wireless Settings Selecting Wireless > Wireless Settings will enable you to configure the basic settings for your wireless network on the screen below (Figure 4-8).This page allows you to configure the wireless mode for your device. Six operation modes are supported here, including Access Point, Multi-SSID, Client, Repeater, Universal Repeater and Bridge with AP. The available setting options for each operation mode are different from those of the other.

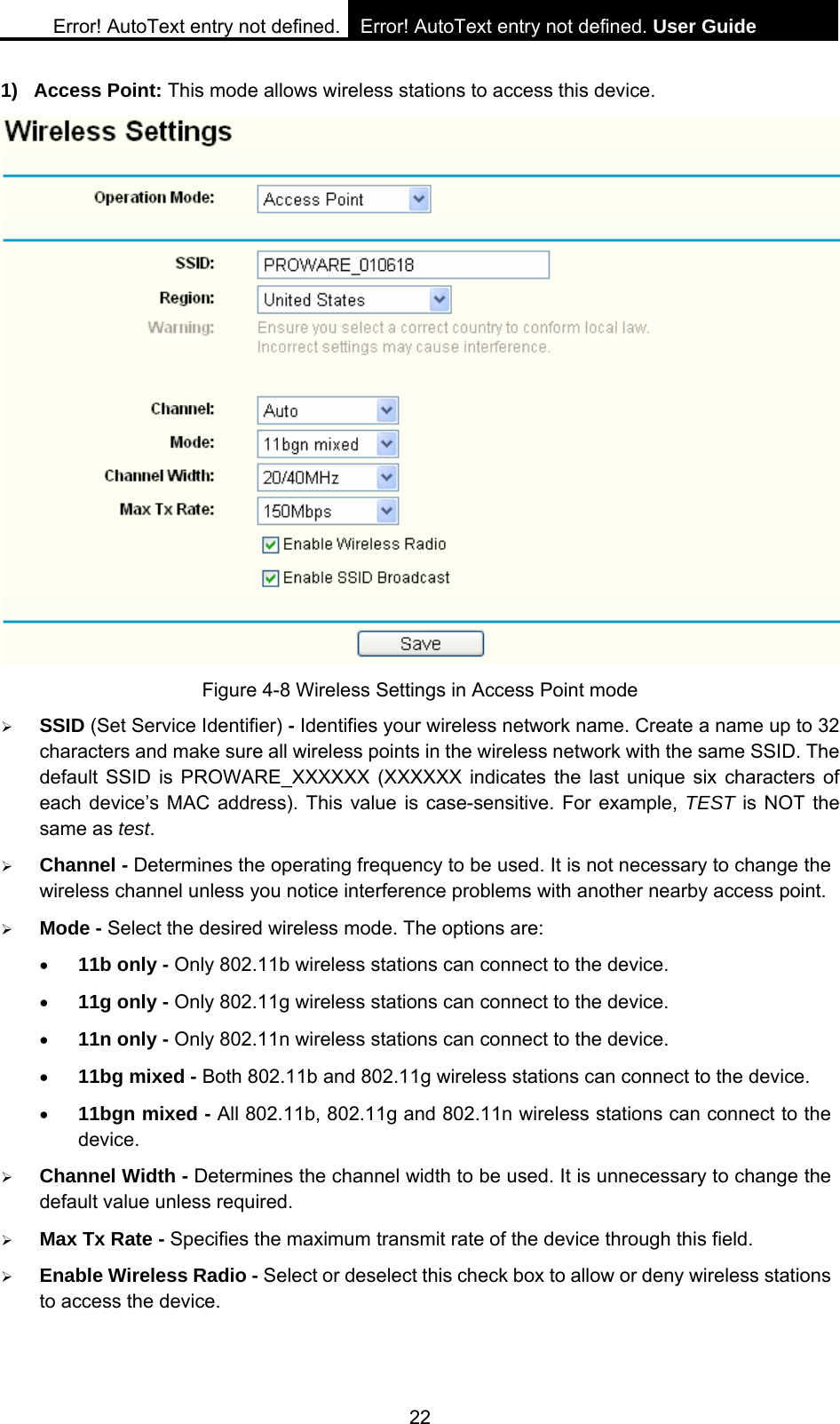

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 22 1) Access Point: This mode allows wireless stations to access this device. Figure 4-8 Wireless Settings in Access Point mode ¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32 characters and make sure all wireless points in the wireless network with the same SSID. The default SSID is PROWARE_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test. ¾ Channel - Determines the operating frequency to be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - Select the desired wireless mode. The options are: • 11b only - Only 802.11b wireless stations can connect to the device. • 11g only - Only 802.11g wireless stations can connect to the device. • 11n only - Only 802.11n wireless stations can connect to the device. • 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device. • 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the device. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device.

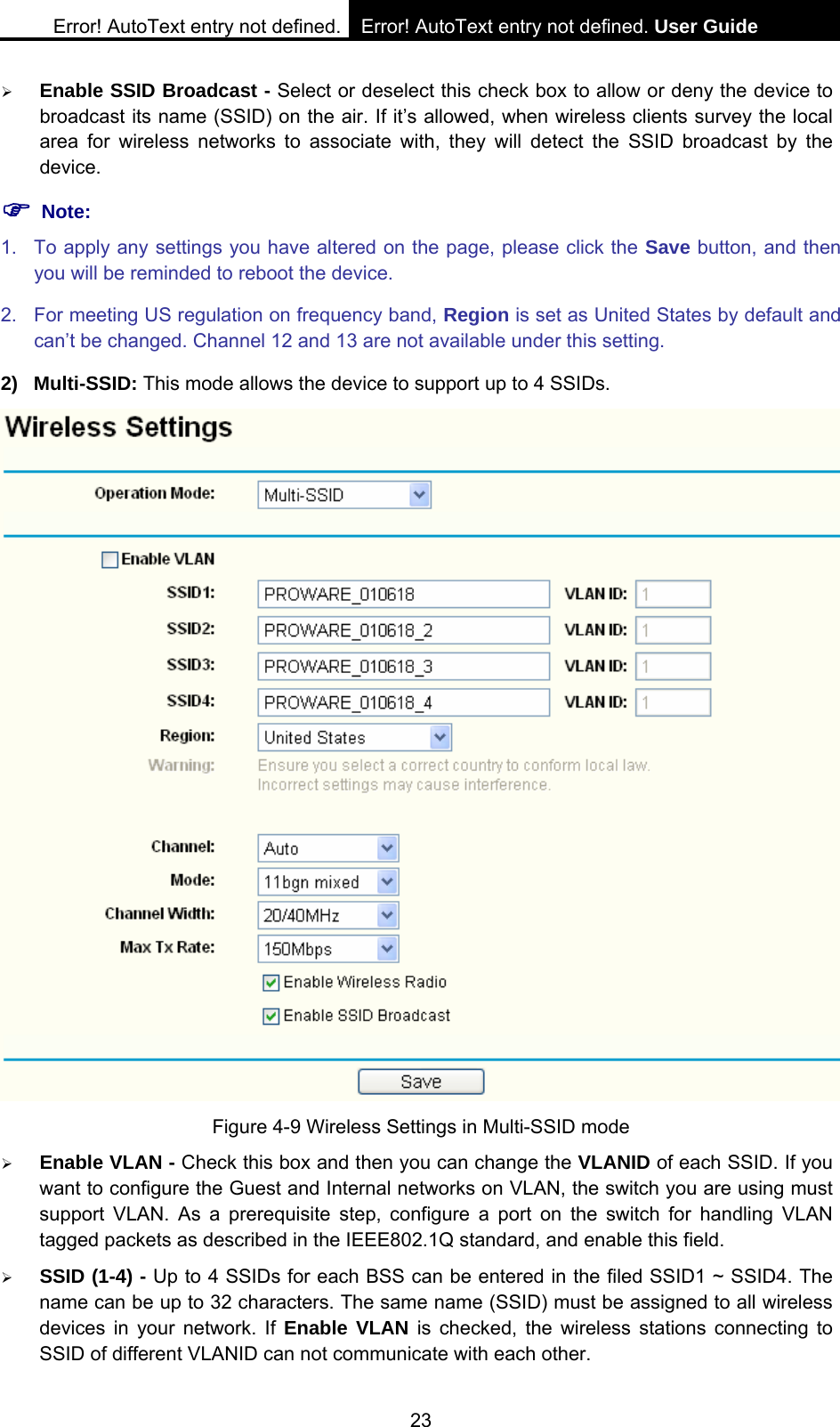

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 23 ¾ Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. ) Note: 1. To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. 2. For meeting US regulation on frequency band, Region is set as United States by default and can’t be changed. Channel 12 and 13 are not available under this setting. 2) Multi-SSID: This mode allows the device to support up to 4 SSIDs. Figure 4-9 Wireless Settings in Multi-SSID mode ¾ Enable VLAN - Check this box and then you can change the VLANID of each SSID. If you want to configure the Guest and Internal networks on VLAN, the switch you are using must support VLAN. As a prerequisite step, configure a port on the switch for handling VLAN tagged packets as described in the IEEE802.1Q standard, and enable this field. ¾ SSID (1-4) - Up to 4 SSIDs for each BSS can be entered in the filed SSID1 ~ SSID4. The name can be up to 32 characters. The same name (SSID) must be assigned to all wireless devices in your network. If Enable VLAN is checked, the wireless stations connecting to SSID of different VLANID can not communicate with each other.

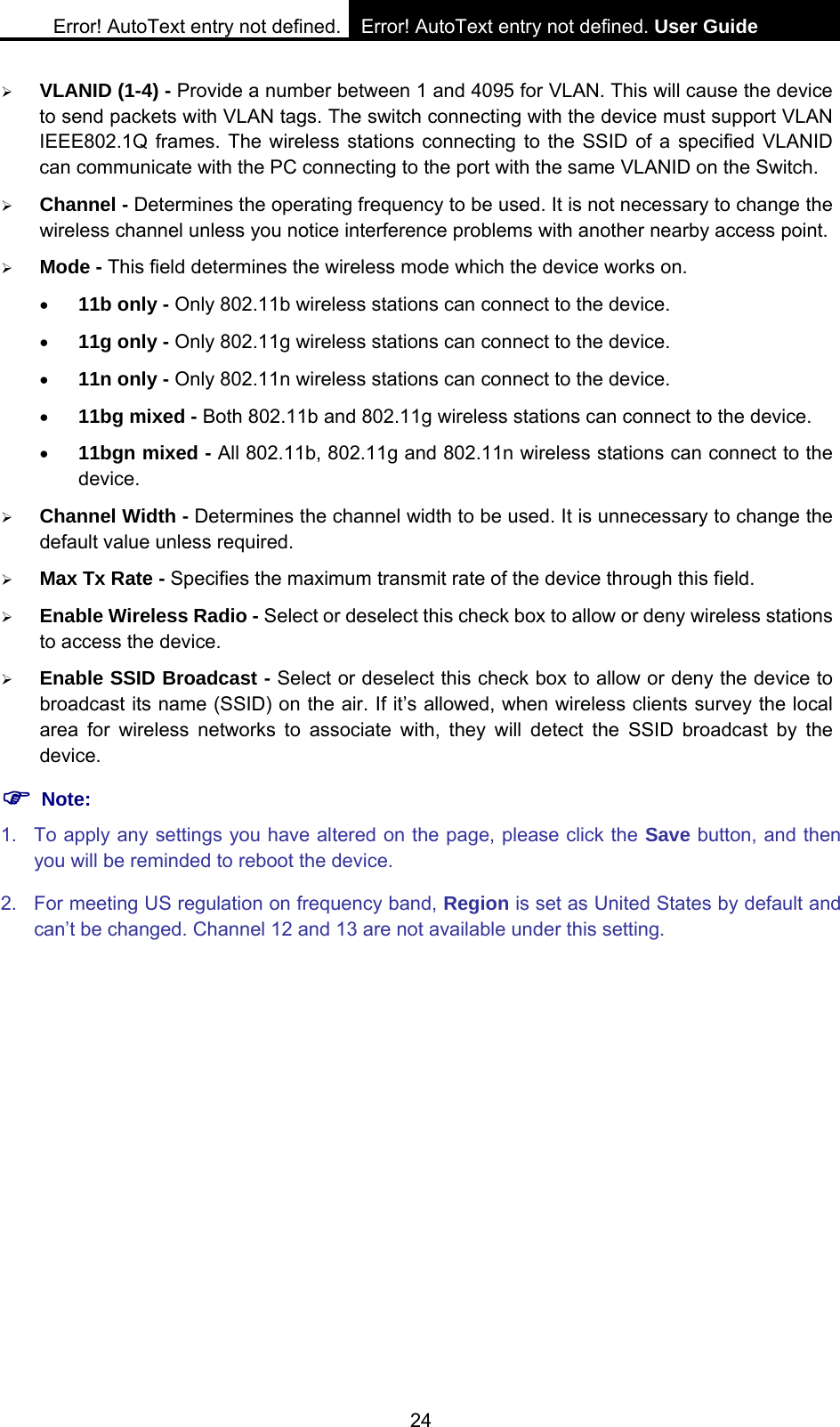

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 24 ¾ VLANID (1-4) - Provide a number between 1 and 4095 for VLAN. This will cause the device to send packets with VLAN tags. The switch connecting with the device must support VLAN IEEE802.1Q frames. The wireless stations connecting to the SSID of a specified VLANID can communicate with the PC connecting to the port with the same VLANID on the Switch. ¾ Channel - Determines the operating frequency to be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - This field determines the wireless mode which the device works on. • 11b only - Only 802.11b wireless stations can connect to the device. • 11g only - Only 802.11g wireless stations can connect to the device. • 11n only - Only 802.11n wireless stations can connect to the device. • 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device. • 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the device. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. ¾ Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. ) Note: 1. To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. 2. For meeting US regulation on frequency band, Region is set as United States by default and can’t be changed. Channel 12 and 13 are not available under this setting.

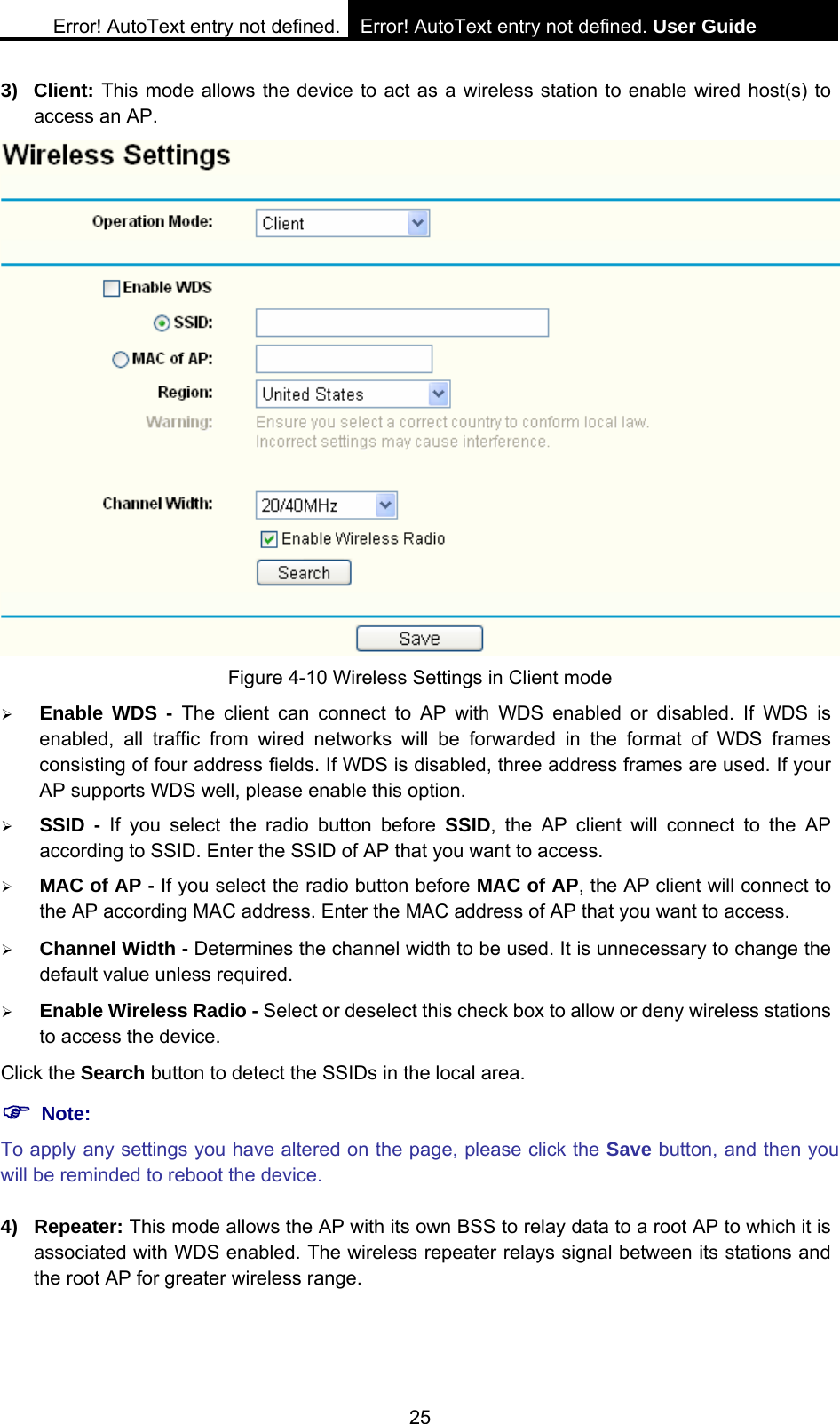

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 25 3) Client: This mode allows the device to act as a wireless station to enable wired host(s) to access an AP. Figure 4-10 Wireless Settings in Client mode ¾ Enable WDS - The client can connect to AP with WDS enabled or disabled. If WDS is enabled, all traffic from wired networks will be forwarded in the format of WDS frames consisting of four address fields. If WDS is disabled, three address frames are used. If your AP supports WDS well, please enable this option. ¾ SSID - If you select the radio button before SSID, the AP client will connect to the AP according to SSID. Enter the SSID of AP that you want to access. ¾ MAC of AP - If you select the radio button before MAC of AP, the AP client will connect to the AP according MAC address. Enter the MAC address of AP that you want to access. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Search button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. 4) Repeater: This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS enabled. The wireless repeater relays signal between its stations and the root AP for greater wireless range.

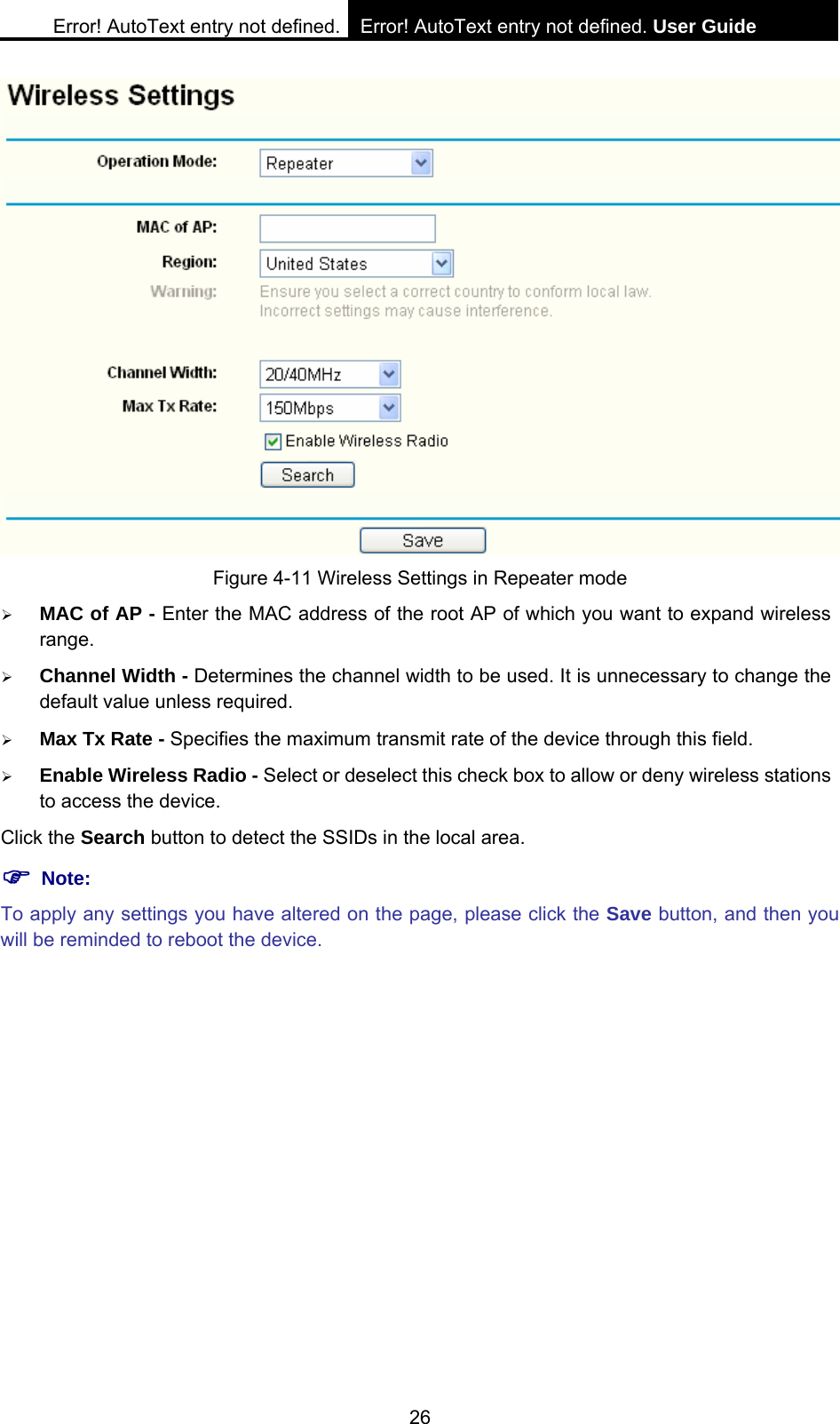

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 26 Figure 4-11 Wireless Settings in Repeater mode ¾ MAC of AP - Enter the MAC address of the root AP of which you want to expand wireless range. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Search button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device.

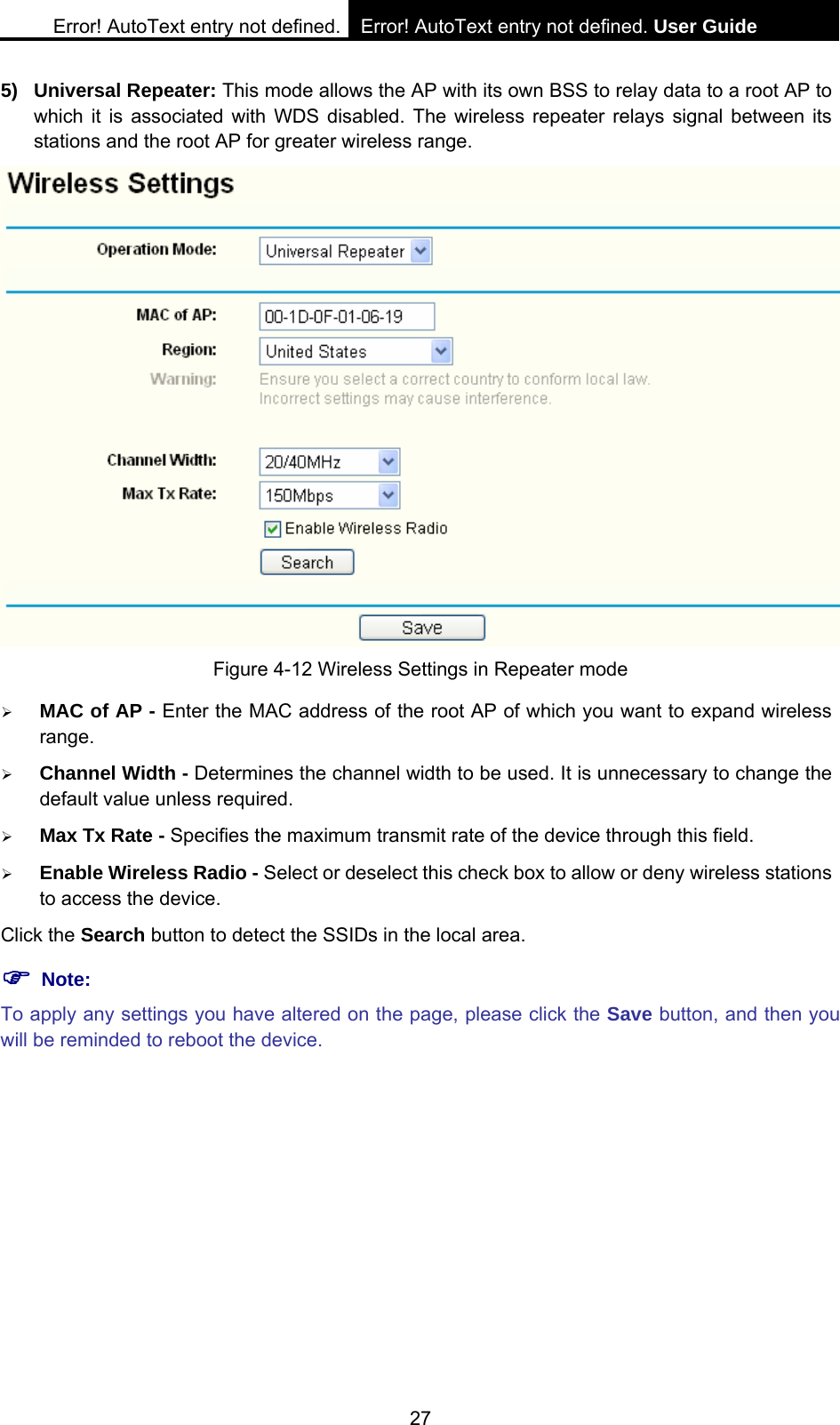

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 27 5) Universal Repeater: This mode allows the AP with its own BSS to relay data to a root AP to which it is associated with WDS disabled. The wireless repeater relays signal between its stations and the root AP for greater wireless range. Figure 4-12 Wireless Settings in Repeater mode ¾ MAC of AP - Enter the MAC address of the root AP of which you want to expand wireless range. ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. Click the Search button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device.

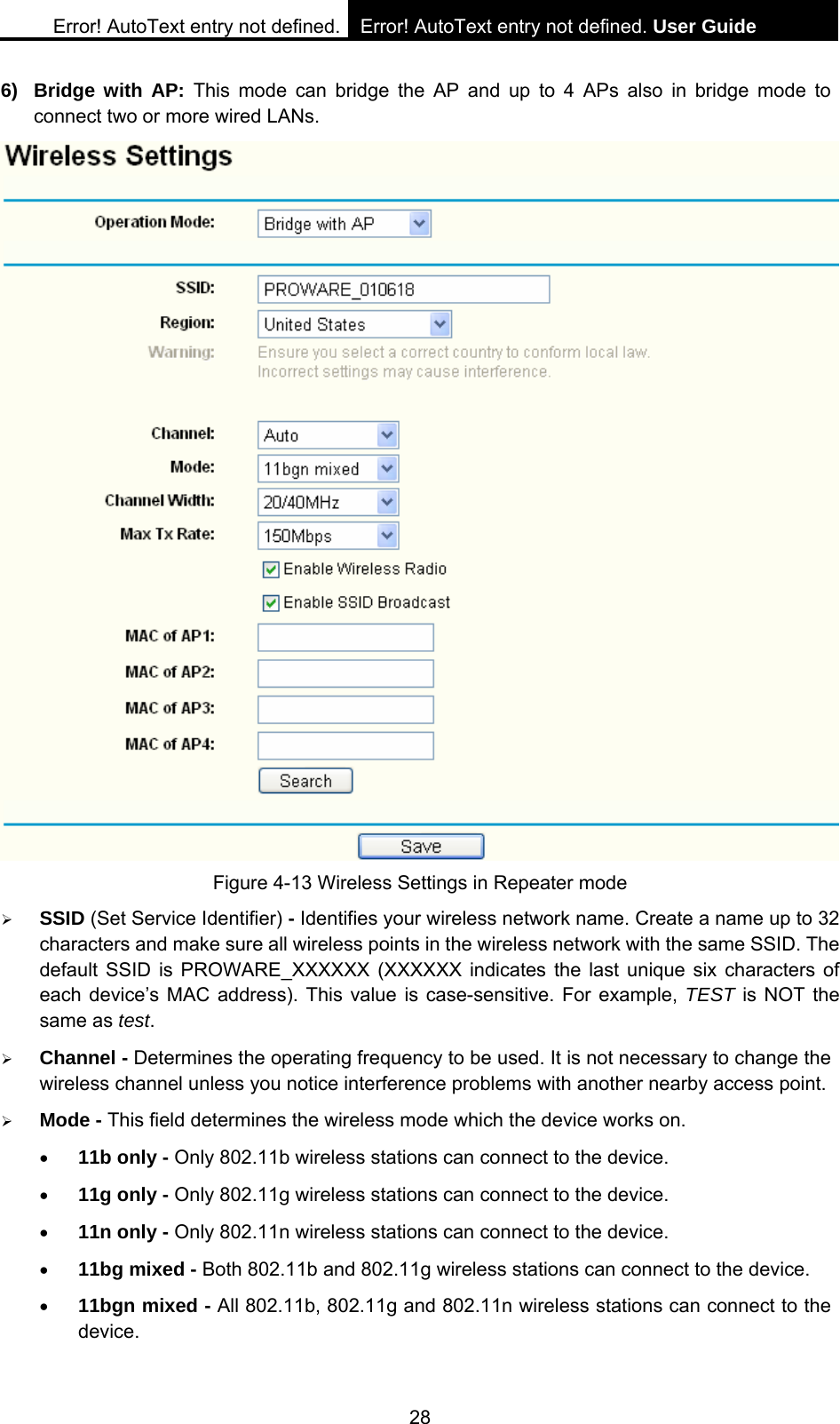

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 28 6) Bridge with AP: This mode can bridge the AP and up to 4 APs also in bridge mode to connect two or more wired LANs. Figure 4-13 Wireless Settings in Repeater mode ¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32 characters and make sure all wireless points in the wireless network with the same SSID. The default SSID is PROWARE_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test. ¾ Channel - Determines the operating frequency to be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point. ¾ Mode - This field determines the wireless mode which the device works on. • 11b only - Only 802.11b wireless stations can connect to the device. • 11g only - Only 802.11g wireless stations can connect to the device. • 11n only - Only 802.11n wireless stations can connect to the device. • 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device. • 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the device.

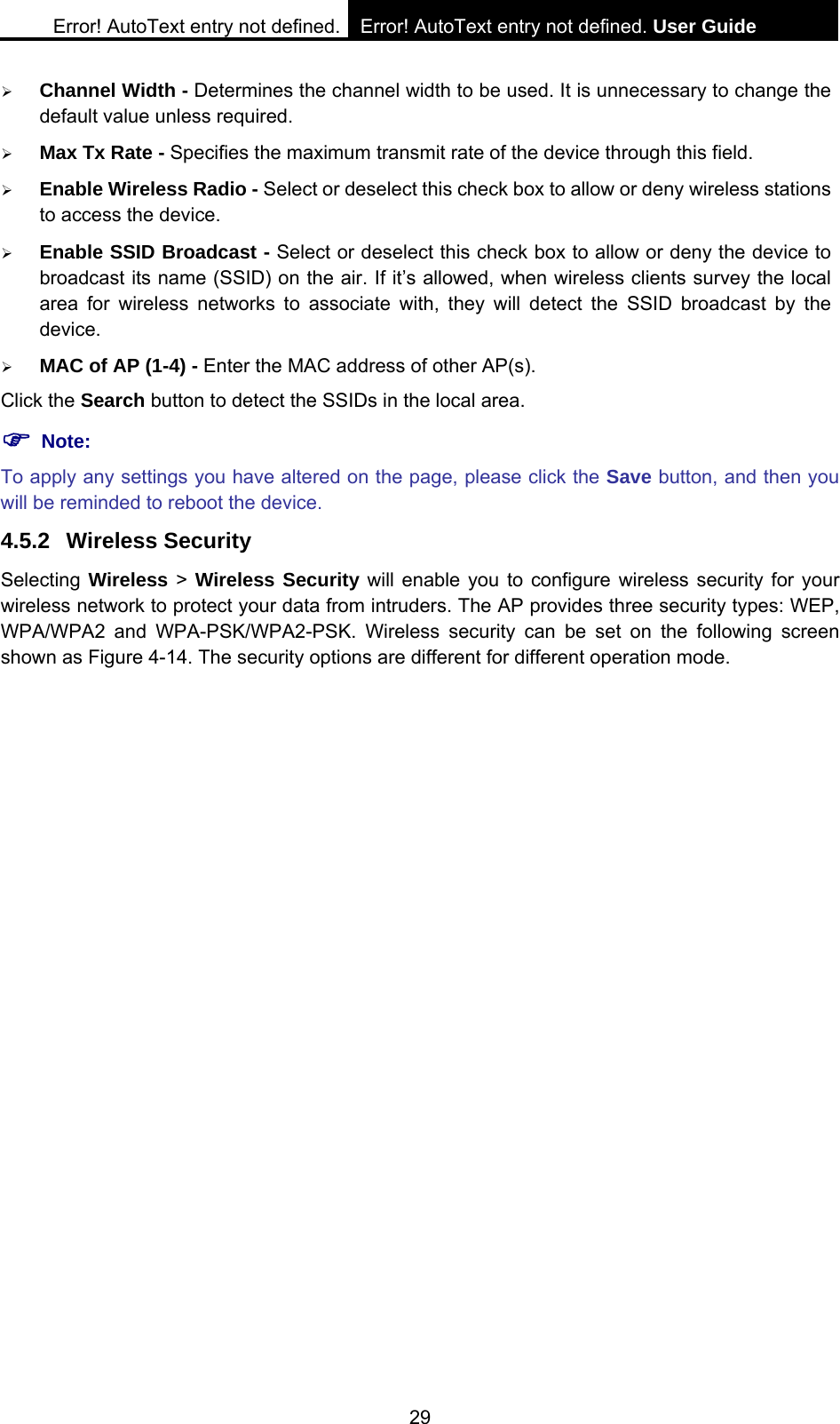

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 29 ¾ Channel Width - Determines the channel width to be used. It is unnecessary to change the default value unless required. ¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field. ¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations to access the device. ¾ Enable SSID Broadcast - Select or deselect this check box to allow or deny the device to broadcast its name (SSID) on the air. If it’s allowed, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the device. ¾ MAC of AP (1-4) - Enter the MAC address of other AP(s). Click the Search button to detect the SSIDs in the local area. ) Note: To apply any settings you have altered on the page, please click the Save button, and then you will be reminded to reboot the device. 4.5.2 Wireless Security Selecting Wireless > Wireless Security will enable you to configure wireless security for your wireless network to protect your data from intruders. The AP provides three security types: WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK. Wireless security can be set on the following screen shown as Figure 4-14. The security options are different for different operation mode.

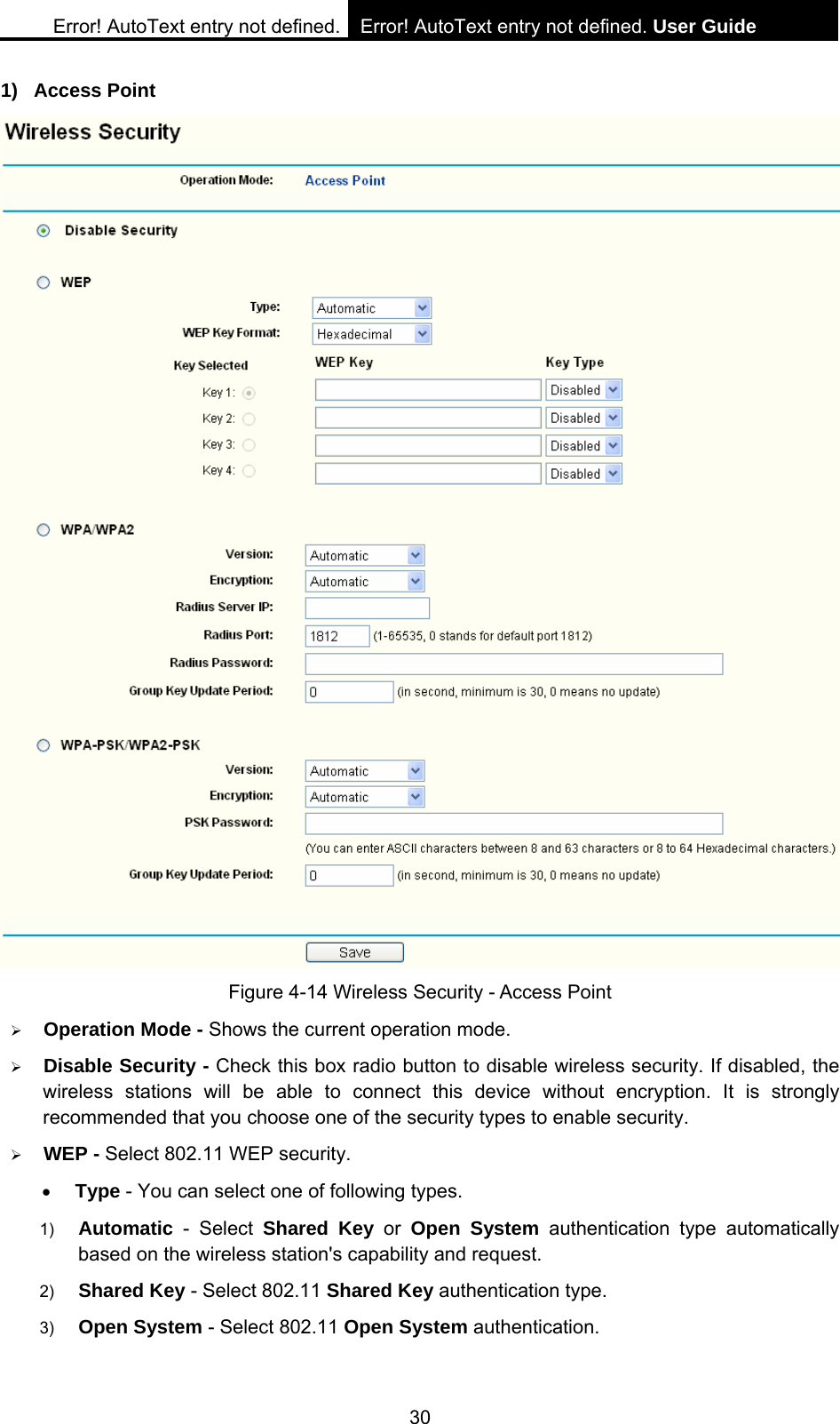

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 30 1) Access Point Figure 4-14 Wireless Security - Access Point ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication.

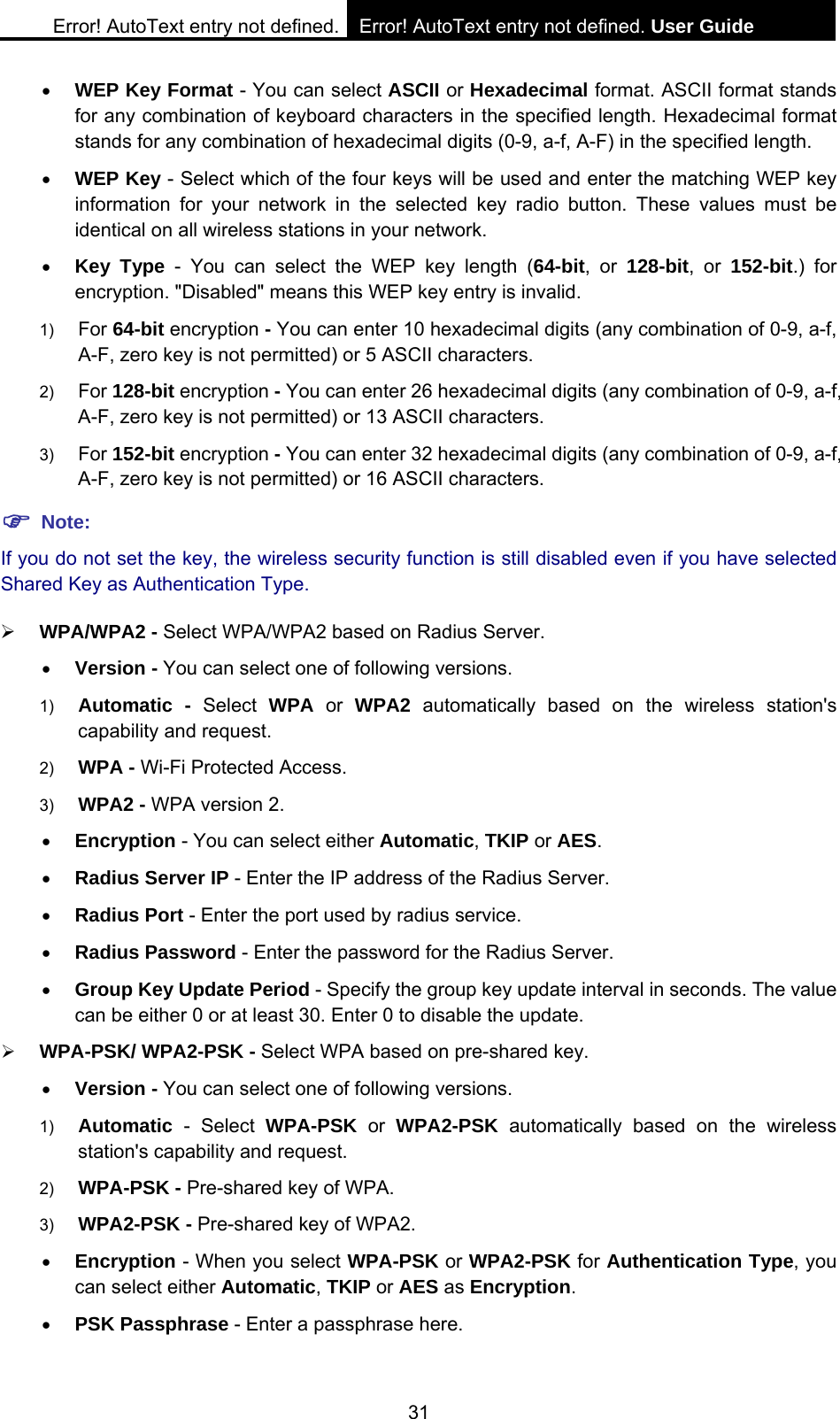

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 31 • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA/WPA2 - Select WPA/WPA2 based on Radius Server. • Version - You can select one of following versions. 1) Automatic - Select WPA or WPA2 automatically based on the wireless station's capability and request. 2) WPA - Wi-Fi Protected Access. 3) WPA2 - WPA version 2. • Encryption - You can select either Automatic, TKIP or AES. • Radius Server IP - Enter the IP address of the Radius Server. • Radius Port - Enter the port used by radius service. • Radius Password - Enter the password for the Radius Server. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. ¾ WPA-PSK/ WPA2-PSK - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-PSK - Pre-shared key of WPA. 3) WPA2-PSK - Pre-shared key of WPA2. • Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can select either Automatic, TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here.

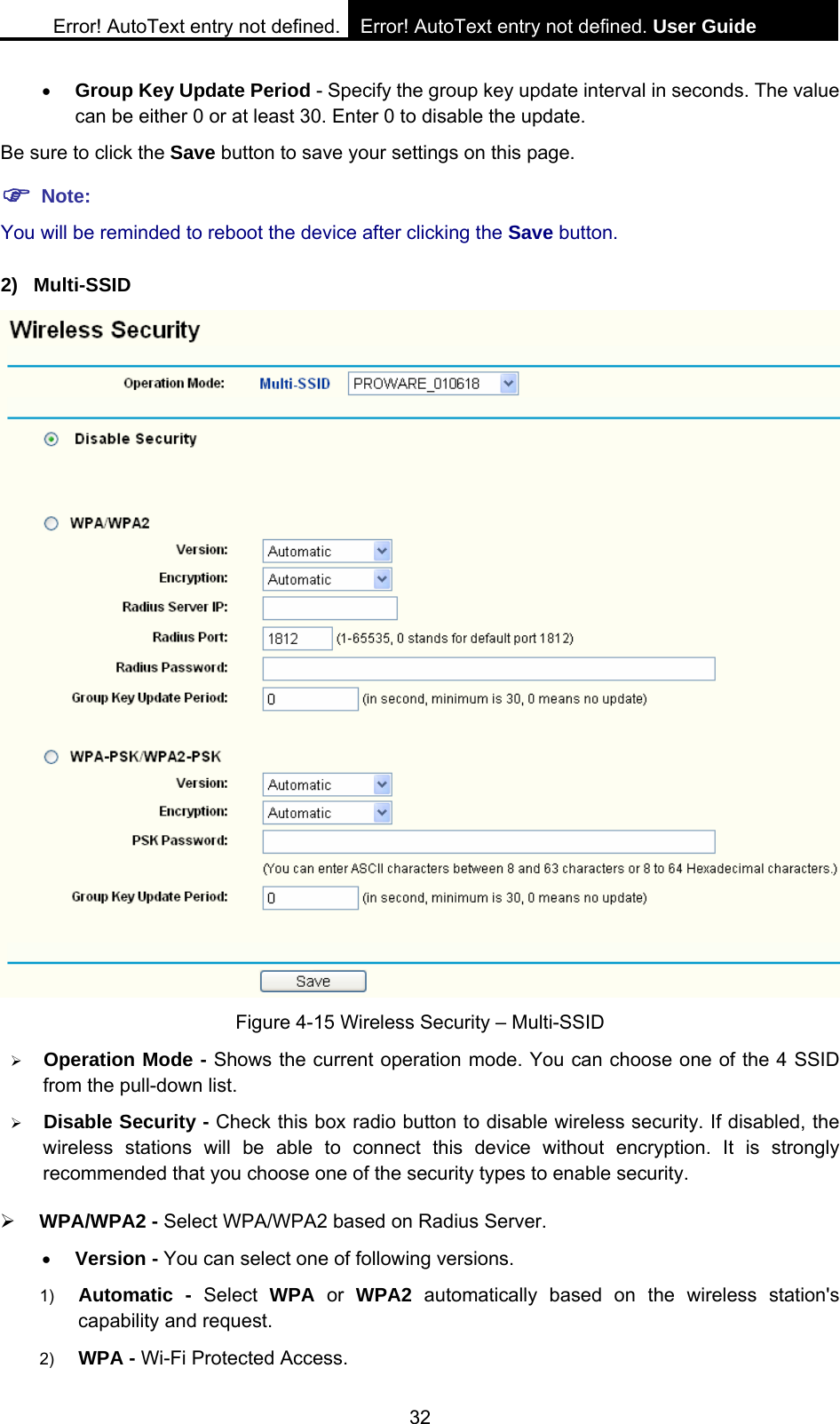

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 32 • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button. 2) Multi-SSID Figure 4-15 Wireless Security – Multi-SSID ¾ Operation Mode - Shows the current operation mode. You can choose one of the 4 SSID from the pull-down list. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WPA/WPA2 - Select WPA/WPA2 based on Radius Server. • Version - You can select one of following versions. 1) Automatic - Select WPA or WPA2 automatically based on the wireless station's capability and request. 2) WPA - Wi-Fi Protected Access.

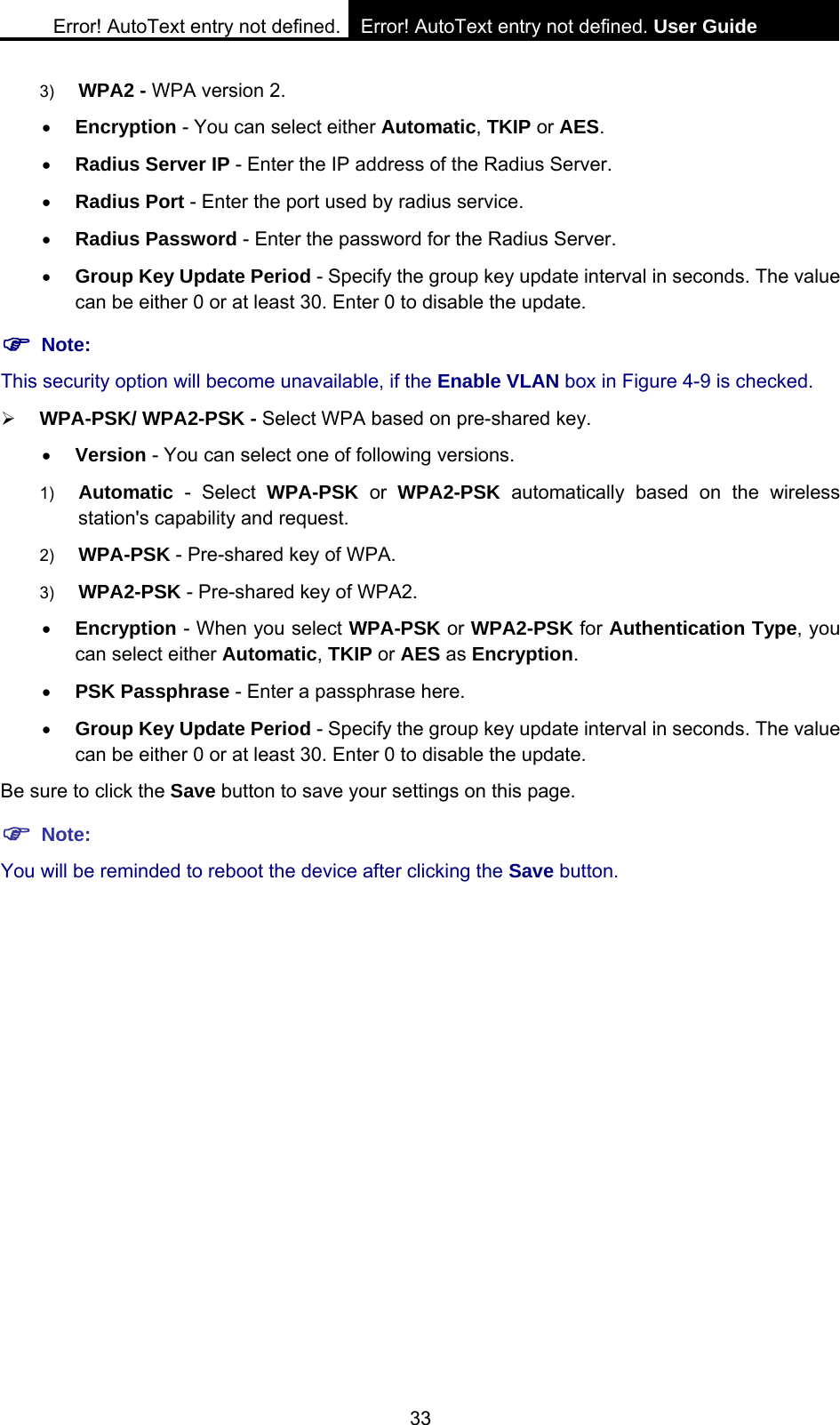

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 33 3) WPA2 - WPA version 2. • Encryption - You can select either Automatic, TKIP or AES. • Radius Server IP - Enter the IP address of the Radius Server. • Radius Port - Enter the port used by radius service. • Radius Password - Enter the password for the Radius Server. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. ) Note: This security option will become unavailable, if the Enable VLAN box in Figure 4-9 is checked. ¾ WPA-PSK/ WPA2-PSK - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-PSK - Pre-shared key of WPA. 3) WPA2-PSK - Pre-shared key of WPA2. • Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can select either Automatic, TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button.

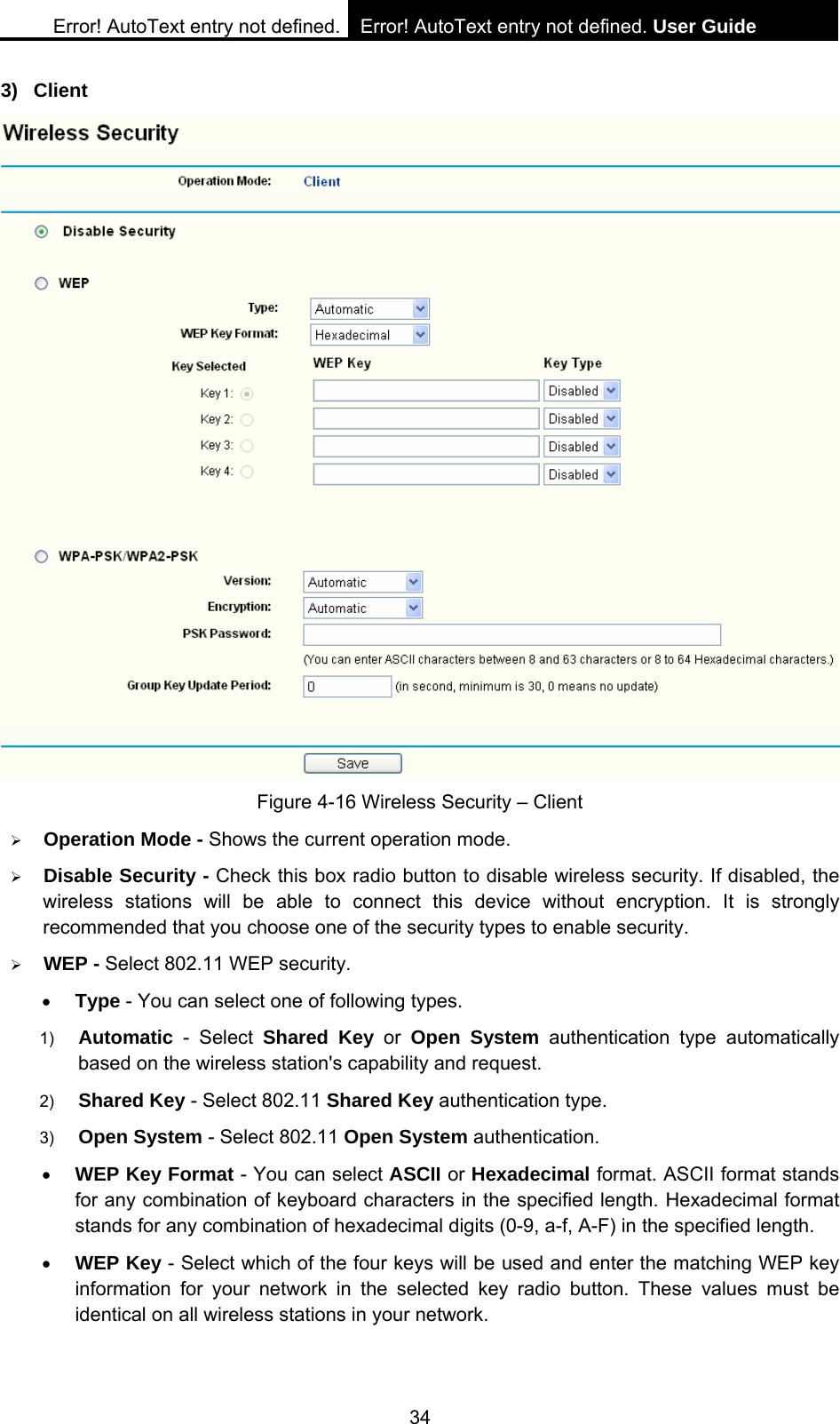

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 34 3) Client Figure 4-16 Wireless Security – Client ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network.

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 35 • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA-PSK/ WPA2-PSK - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-PSK - Pre-shared key of WPA. 3) WPA2-PSK - Pre-shared key of WPA2. • Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can select either Automatic, TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button.

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 36 4) Repeater Figure 4-17 Wireless Security – Repeater ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network.

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 37 • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA-PSK/ WPA2-PSK - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-PSK - Pre-shared key of WPA. 3) WPA2-PSK - Pre-shared key of WPA2. • Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can select either Automatic, TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button.

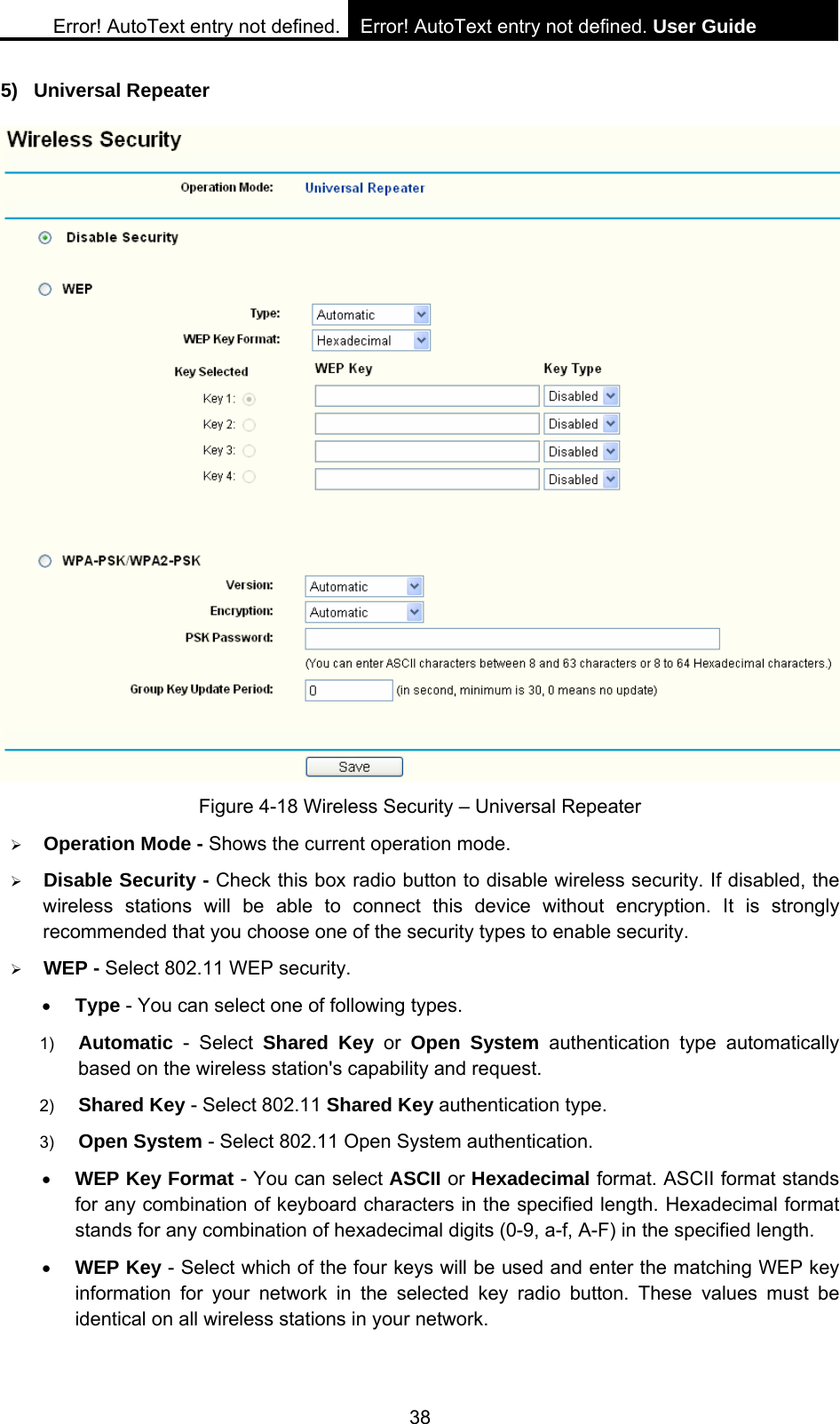

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 38 5) Universal Repeater Figure 4-18 Wireless Security – Universal Repeater ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network.

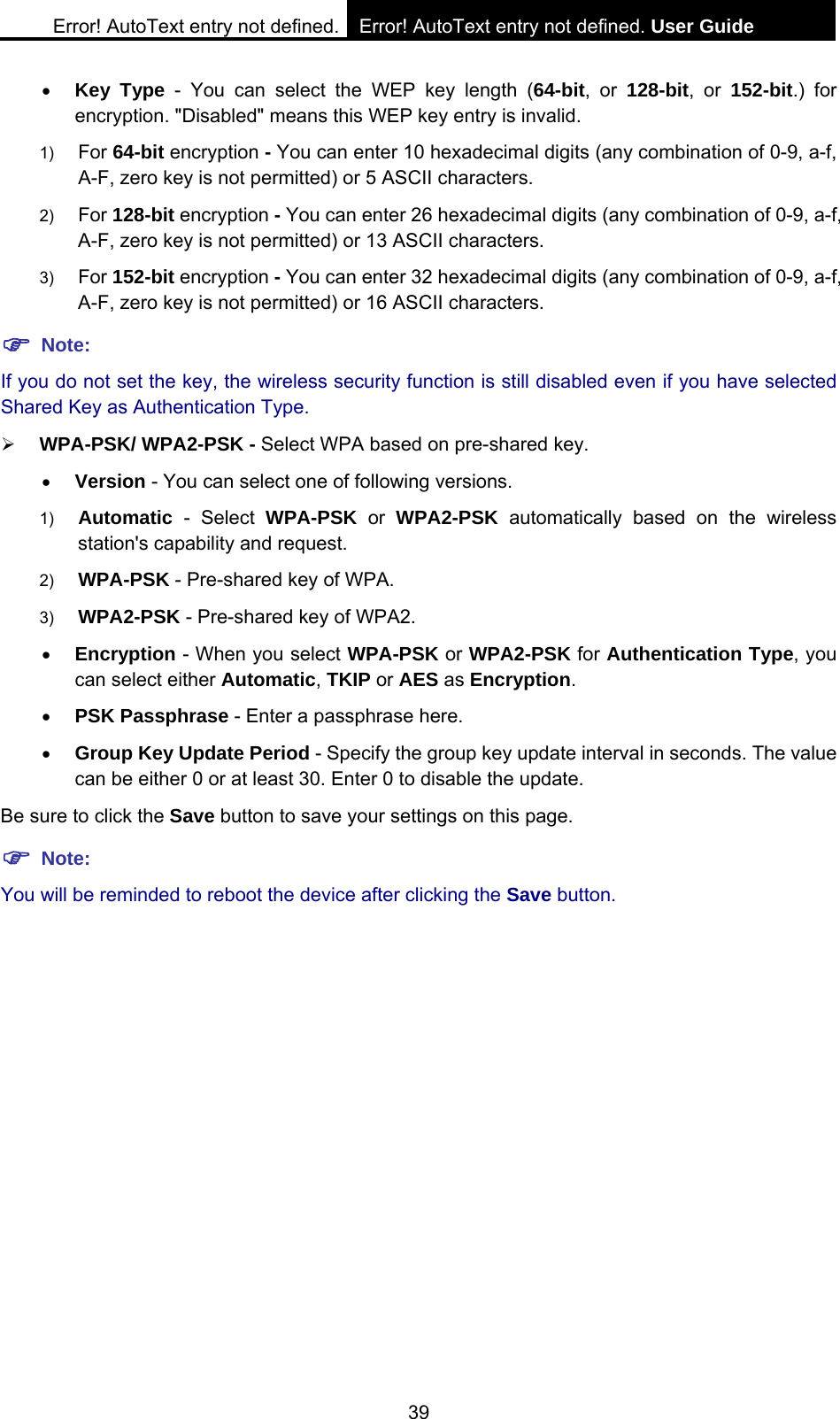

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 39 • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters. 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. ¾ WPA-PSK/ WPA2-PSK - Select WPA based on pre-shared key. • Version - You can select one of following versions. 1) Automatic - Select WPA-PSK or WPA2-PSK automatically based on the wireless station's capability and request. 2) WPA-PSK - Pre-shared key of WPA. 3) WPA2-PSK - Pre-shared key of WPA2. • Encryption - When you select WPA-PSK or WPA2-PSK for Authentication Type, you can select either Automatic, TKIP or AES as Encryption. • PSK Passphrase - Enter a passphrase here. • Group Key Update Period - Specify the group key update interval in seconds. The value can be either 0 or at least 30. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. ) Note: You will be reminded to reboot the device after clicking the Save button.

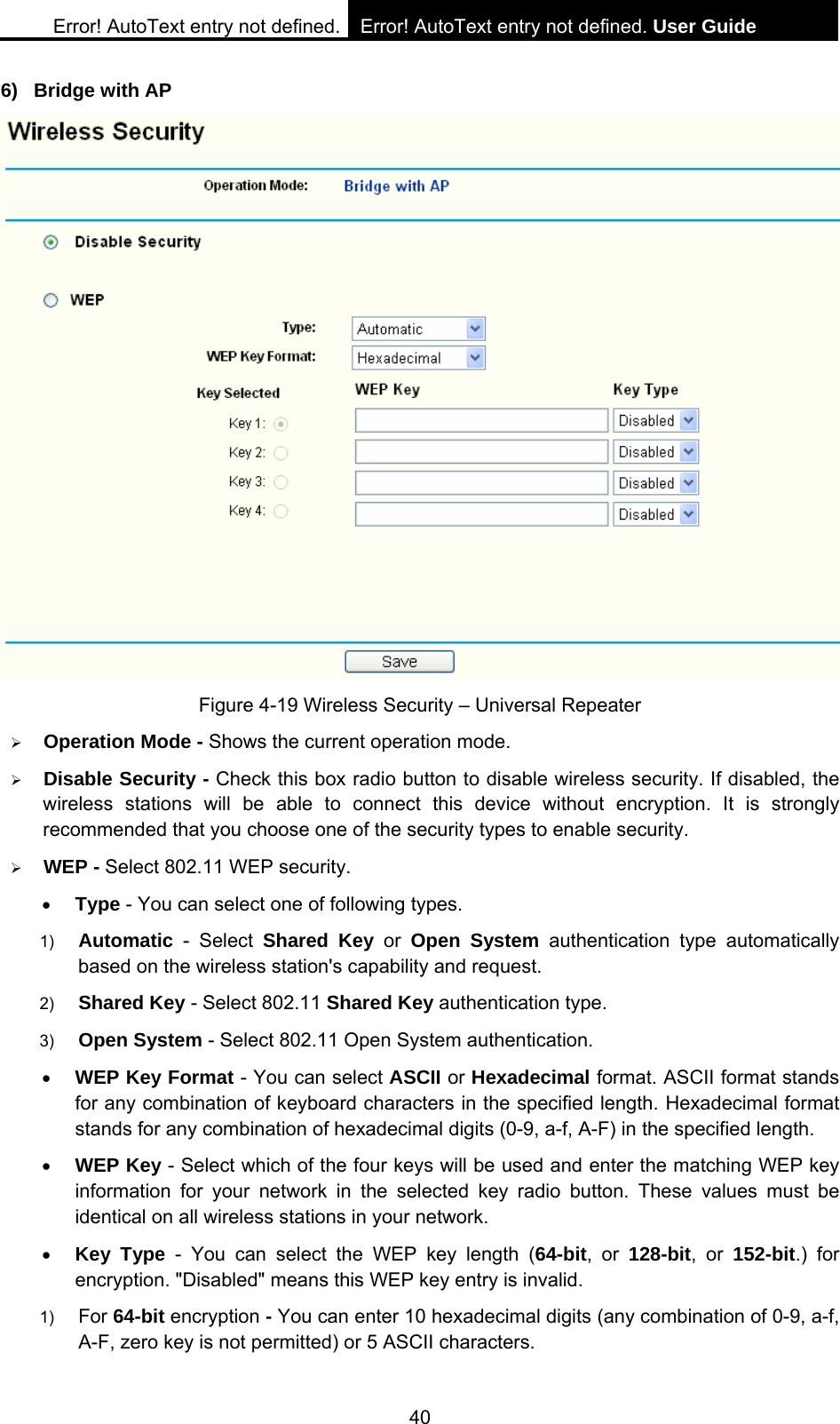

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 40 6) Bridge with AP Figure 4-19 Wireless Security – Universal Repeater ¾ Operation Mode - Shows the current operation mode. ¾ Disable Security - Check this box radio button to disable wireless security. If disabled, the wireless stations will be able to connect this device without encryption. It is strongly recommended that you choose one of the security types to enable security. ¾ WEP - Select 802.11 WEP security. • Type - You can select one of following types. 1) Automatic - Select Shared Key or Open System authentication type automatically based on the wireless station's capability and request. 2) Shared Key - Select 802.11 Shared Key authentication type. 3) Open System - Select 802.11 Open System authentication. • WEP Key Format - You can select ASCII or Hexadecimal format. ASCII format stands for any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. • WEP Key - Select which of the four keys will be used and enter the matching WEP key information for your network in the selected key radio button. These values must be identical on all wireless stations in your network. • Key Type - You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for encryption. "Disabled" means this WEP key entry is invalid. 1) For 64-bit encryption - You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 5 ASCII characters.

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 41 2) For 128-bit encryption - You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 13 ASCII characters. 3) For 152-bit encryption - You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not permitted) or 16 ASCII characters. ) Note: 1) If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type. 2) You will be reminded to reboot the device after clicking the Save button. 4.5.3 Wireless MAC Filtering Selecting Wireless > Wireless MAC Filtering will allow you to set up some filtering rules to control wireless stations accessing the device, which depend on the station’s MAC address on the following screen as shown Figure 4-20. This function is not available when the operation is set to Client. As the configuration is the same in each operation mode, here we just take the Access Point for example. Figure 4-20 Wireless MAC address Filtering The Wireless MAC Address Filtering feature allows you to control wireless stations accessing the device, which depend on the station's MAC addresses. ¾ Operation Mode - Shows the current operation mode. ¾ Wireless MAC Filtering - Click the Enable button to enable the Wireless MAC Address Filtering. The default setting is disabled. To Add a Wireless MAC Address filtering entry, click the Add New… button. The “Add or Modify Wireless MAC Address Filtering entry" page will appear, shown in Figure 4-21

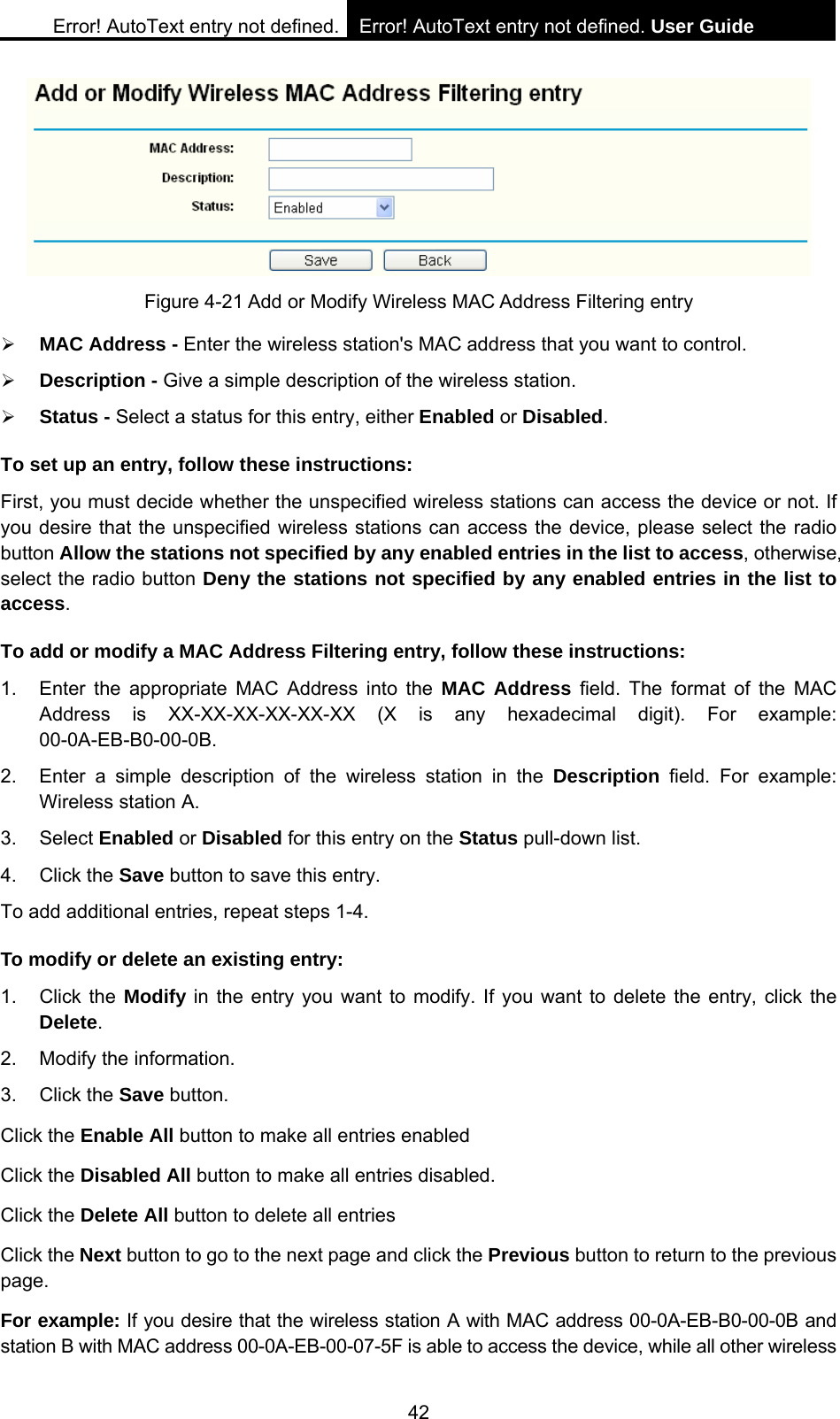

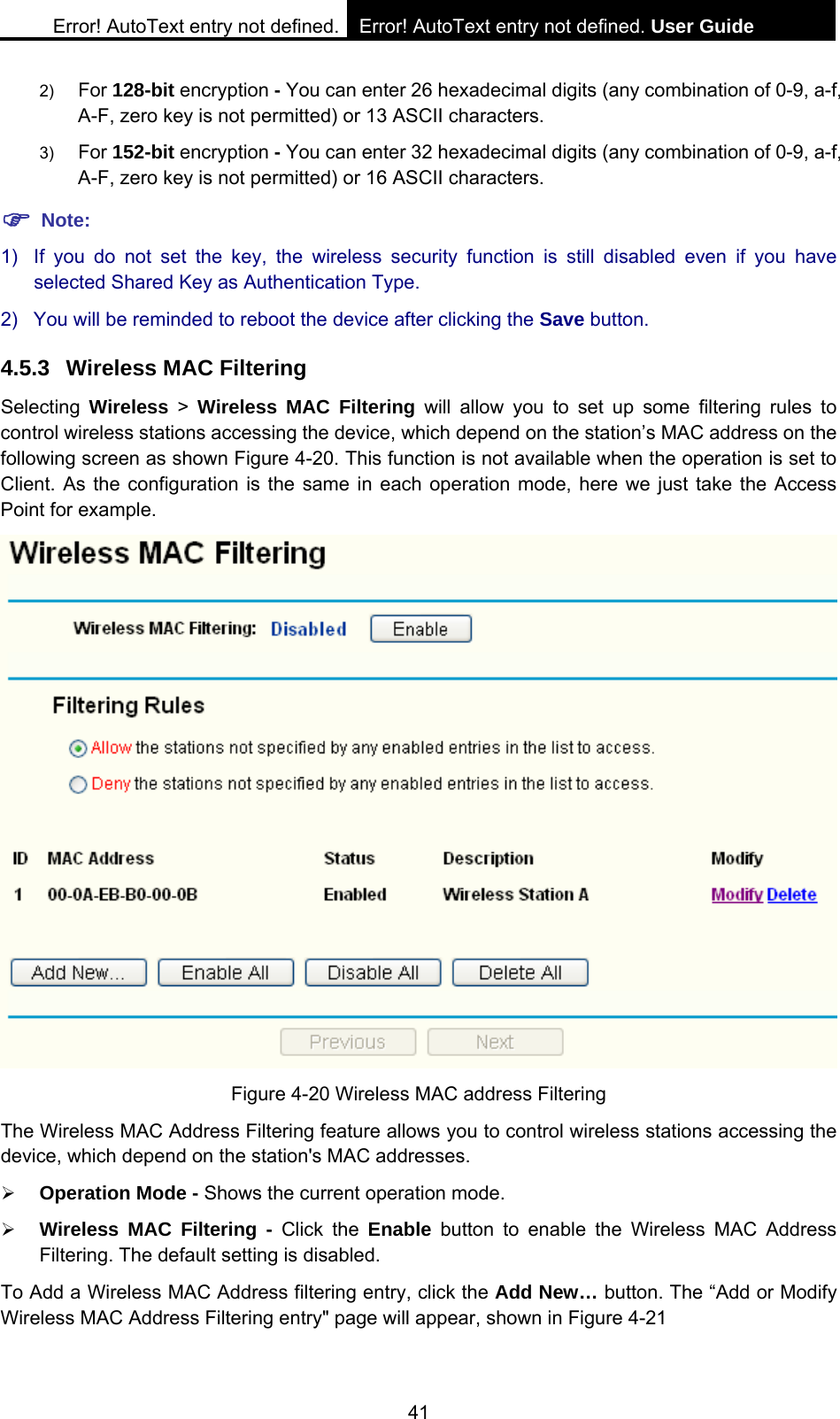

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 42 Figure 4-21 Add or Modify Wireless MAC Address Filtering entry ¾ MAC Address - Enter the wireless station's MAC address that you want to control. ¾ Description - Give a simple description of the wireless station. ¾ Status - Select a status for this entry, either Enabled or Disabled. To set up an entry, follow these instructions: First, you must decide whether the unspecified wireless stations can access the device or not. If you desire that the unspecified wireless stations can access the device, please select the radio button Allow the stations not specified by any enabled entries in the list to access, otherwise, select the radio button Deny the stations not specified by any enabled entries in the list to access. To add or modify a MAC Address Filtering entry, follow these instructions: 1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B. 2. Enter a simple description of the wireless station in the Description field. For example: Wireless station A. 3. Select Enabled or Disabled for this entry on the Status pull-down list. 4. Click the Save button to save this entry. To add additional entries, repeat steps 1-4. To modify or delete an existing entry: 1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete. 2. Modify the information. 3. Click the Save button. Click the Enable All button to make all entries enabled Click the Disabled All button to make all entries disabled. Click the Delete All button to delete all entries Click the Next button to go to the next page and click the Previous button to return to the previous page. For example: If you desire that the wireless station A with MAC address 00-0A-EB-B0-00-0B and station B with MAC address 00-0A-EB-00-07-5F is able to access the device, while all other wireless

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 43 stations cannot access the device, you should configure the Wireless MAC Address Filtering list by following these steps: 1. Click the Enable button to enable this function. 2. Select the radio button: Deny the stations not specified by any enabled entries in the list to access for Filtering Rules. 3. Delete all or disable all entries if there are any entries already. 4. Click the Add New... button and enter the MAC address 00-0A-EB-B0-00-0B in the MAC Address field, enter Wireless Station A in the Description field and select Enabled in the Status pull-down list. Click the Save button. 5. Repeat step 4 to add Wireless Station B. The filtering rules that configured should be similar to the following list: ) Note: If you enable the function and select the “Deny the stations not specified by any enabled entries in the list to access” for Filtering Rules, and there are not any enabled entries in the list, thus, no wireless stations can access the device. 4.5.4 Wireless Advanced Selecting Wireless > Wireless Advanced will allow you to do some advanced settings for the device in the following screen shown in Figure 4-22. As the configuration for each operation mode is almost the same, we take Access Point mode for example here. Figure 4-22 Wireless Advanced

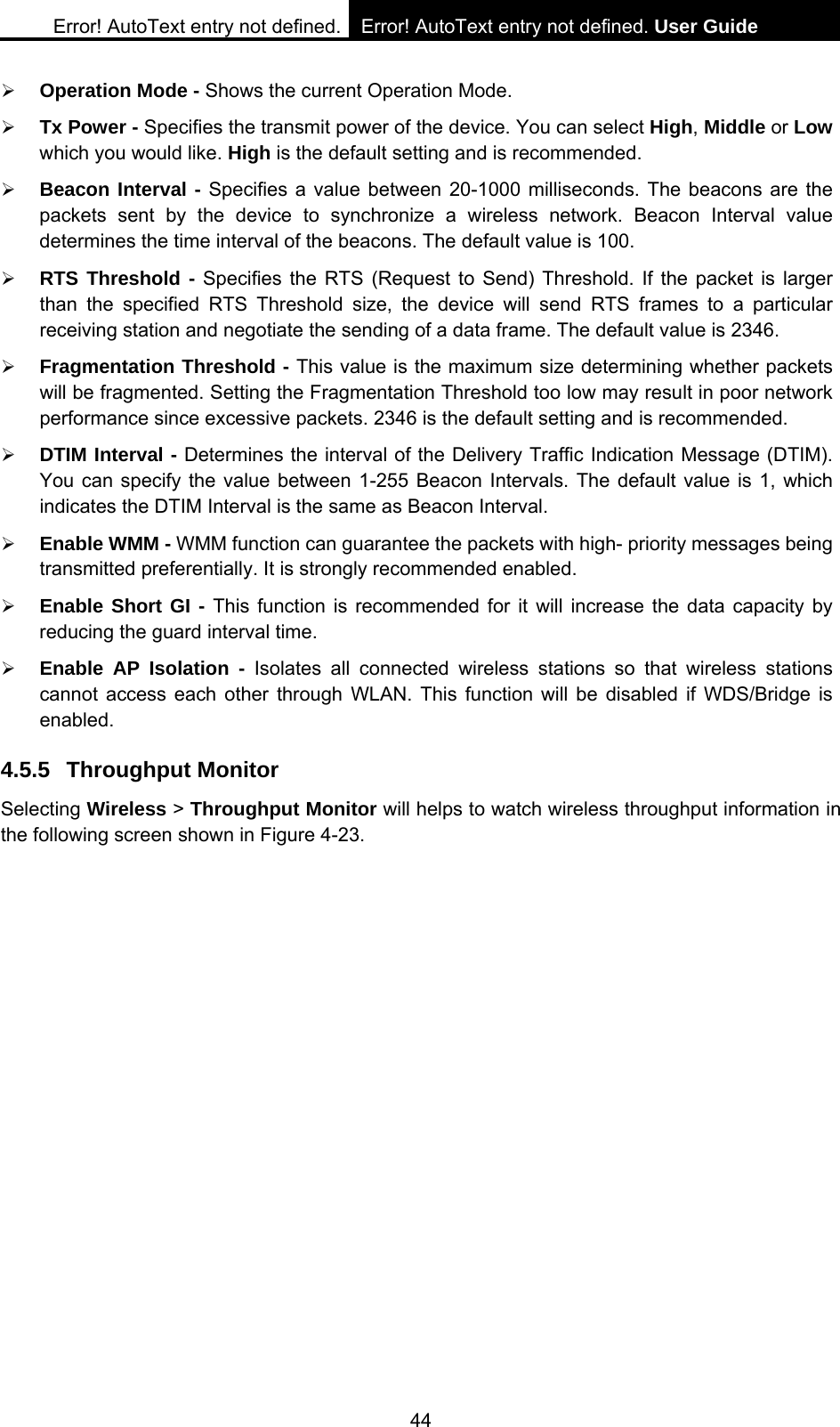

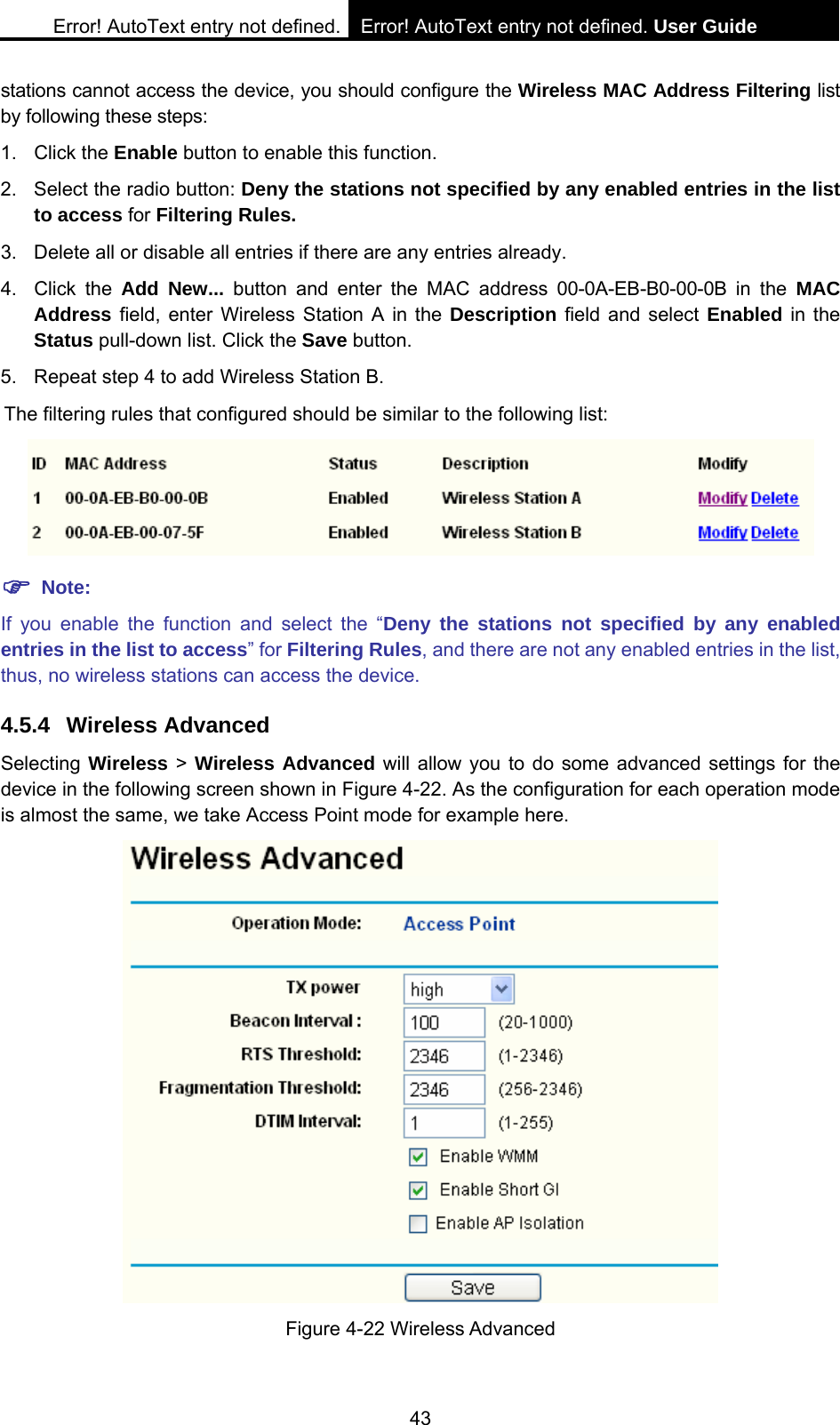

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 44 ¾ Operation Mode - Shows the current Operation Mode. ¾ Tx Power - Specifies the transmit power of the device. You can select High, Middle or Low which you would like. High is the default setting and is recommended. ¾ Beacon Interval - Specifies a value between 20-1000 milliseconds. The beacons are the packets sent by the device to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100. ¾ RTS Threshold - Specifies the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the device will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is 2346. ¾ Fragmentation Threshold - This value is the maximum size determining whether packets will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance since excessive packets. 2346 is the default setting and is recommended. ¾ DTIM Interval - Determines the interval of the Delivery Traffic Indication Message (DTIM). You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval. ¾ Enable WMM - WMM function can guarantee the packets with high- priority messages being transmitted preferentially. It is strongly recommended enabled. ¾ Enable Short GI - This function is recommended for it will increase the data capacity by reducing the guard interval time. ¾ Enable AP Isolation - Isolates all connected wireless stations so that wireless stations cannot access each other through WLAN. This function will be disabled if WDS/Bridge is enabled. 4.5.5 Throughput Monitor Selecting Wireless > Throughput Monitor will helps to watch wireless throughput information in the following screen shown in Figure 4-23.

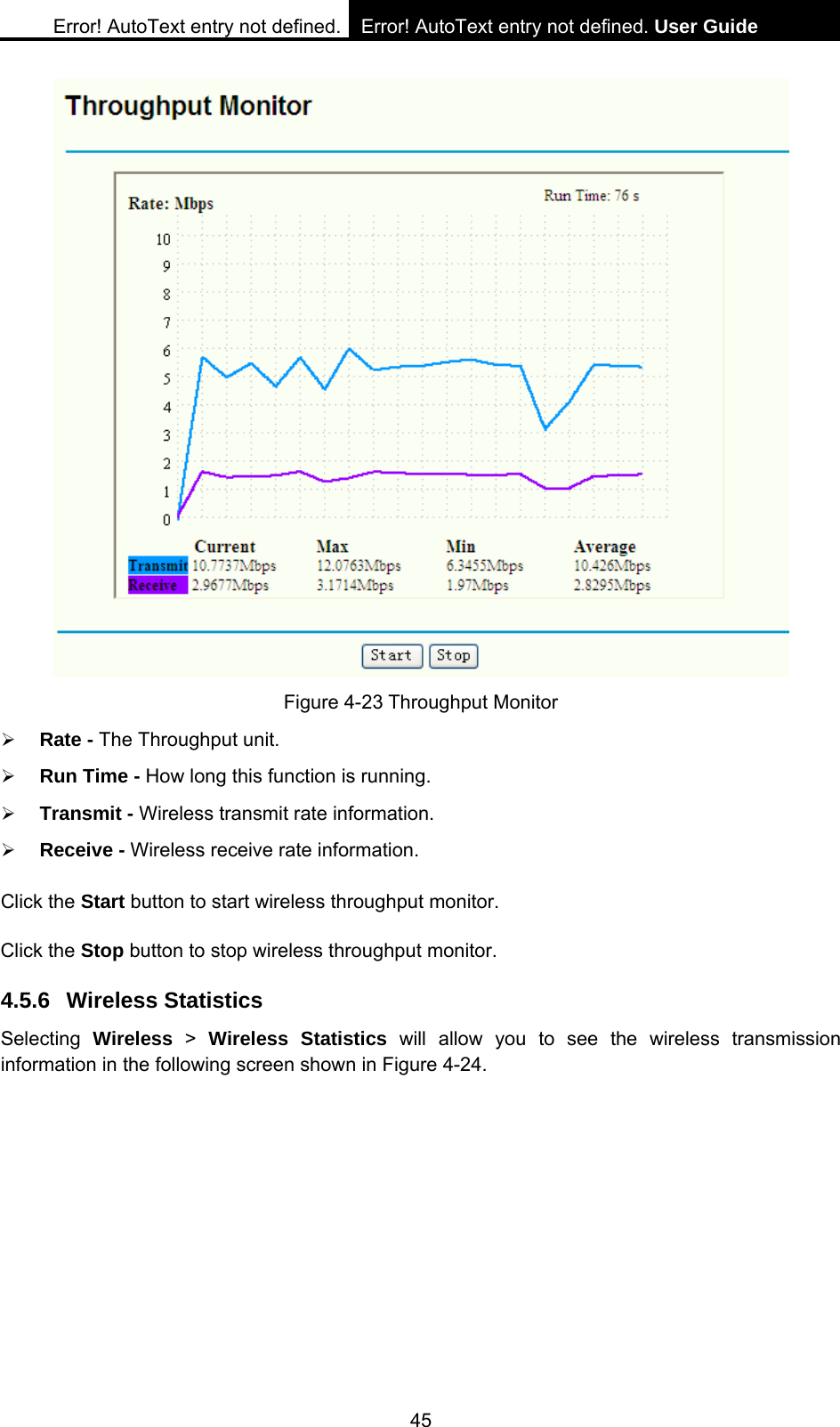

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 45 Figure 4-23 Throughput Monitor ¾ Rate - The Throughput unit. ¾ Run Time - How long this function is running. ¾ Transmit - Wireless transmit rate information. ¾ Receive - Wireless receive rate information. Click the Start button to start wireless throughput monitor. Click the Stop button to stop wireless throughput monitor. 4.5.6 Wireless Statistics Selecting Wireless > Wireless Statistics will allow you to see the wireless transmission information in the following screen shown in Figure 4-24.

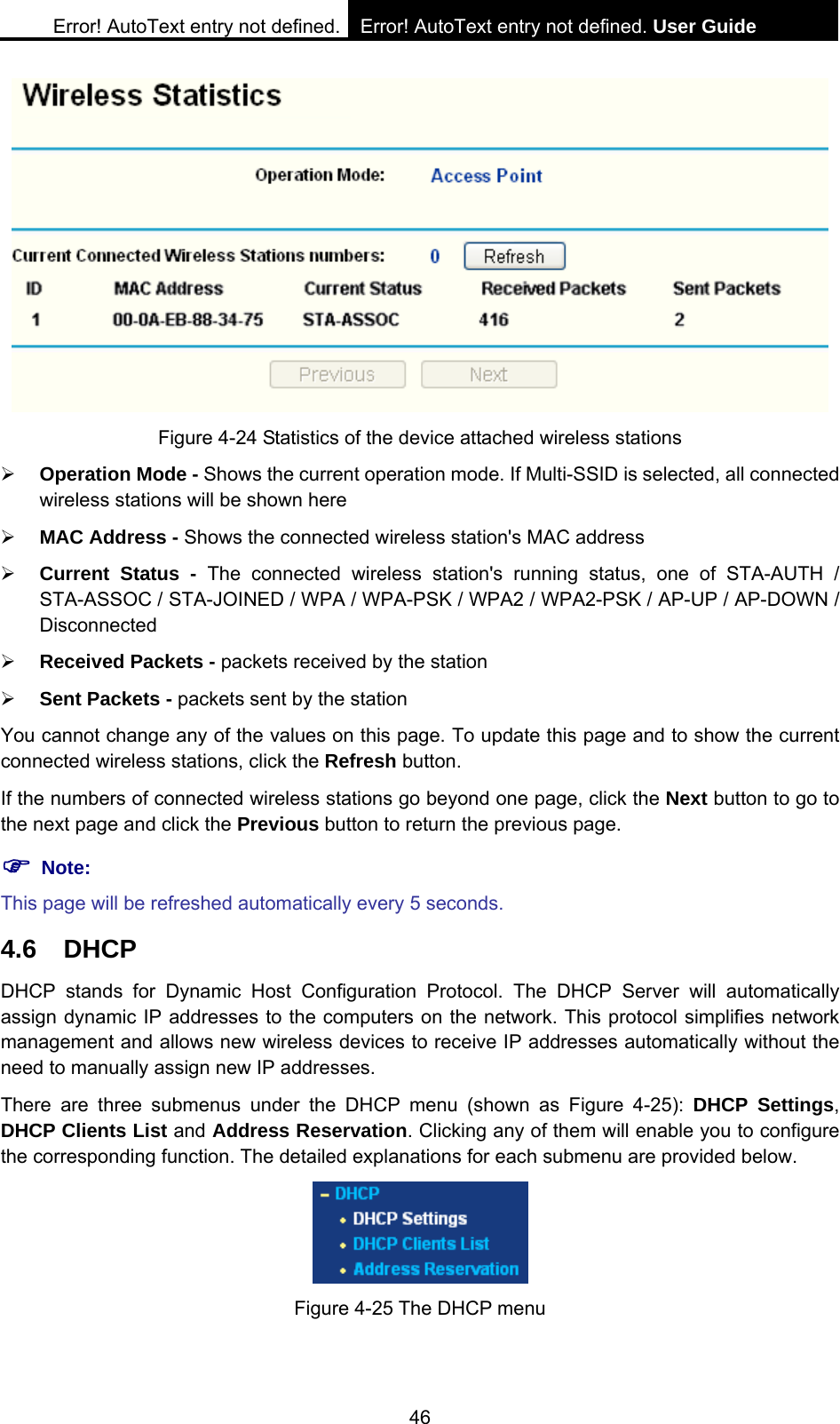

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 46 Figure 4-24 Statistics of the device attached wireless stations ¾ Operation Mode - Shows the current operation mode. If Multi-SSID is selected, all connected wireless stations will be shown here ¾ MAC Address - Shows the connected wireless station's MAC address ¾ Current Status - The connected wireless station's running status, one of STA-AUTH / STA-ASSOC / STA-JOINED / WPA / WPA-PSK / WPA2 / WPA2-PSK / AP-UP / AP-DOWN / Disconnected ¾ Received Packets - packets received by the station ¾ Sent Packets - packets sent by the station You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click the Refresh button. If the numbers of connected wireless stations go beyond one page, click the Next button to go to the next page and click the Previous button to return the previous page. ) Note: This page will be refreshed automatically every 5 seconds. 4.6 DHCP DHCP stands for Dynamic Host Configuration Protocol. The DHCP Server will automatically assign dynamic IP addresses to the computers on the network. This protocol simplifies network management and allows new wireless devices to receive IP addresses automatically without the need to manually assign new IP addresses. There are three submenus under the DHCP menu (shown as Figure 4-25): DHCP Settings, DHCP Clients List and Address Reservation. Clicking any of them will enable you to configure the corresponding function. The detailed explanations for each submenu are provided below. Figure 4-25 The DHCP menu

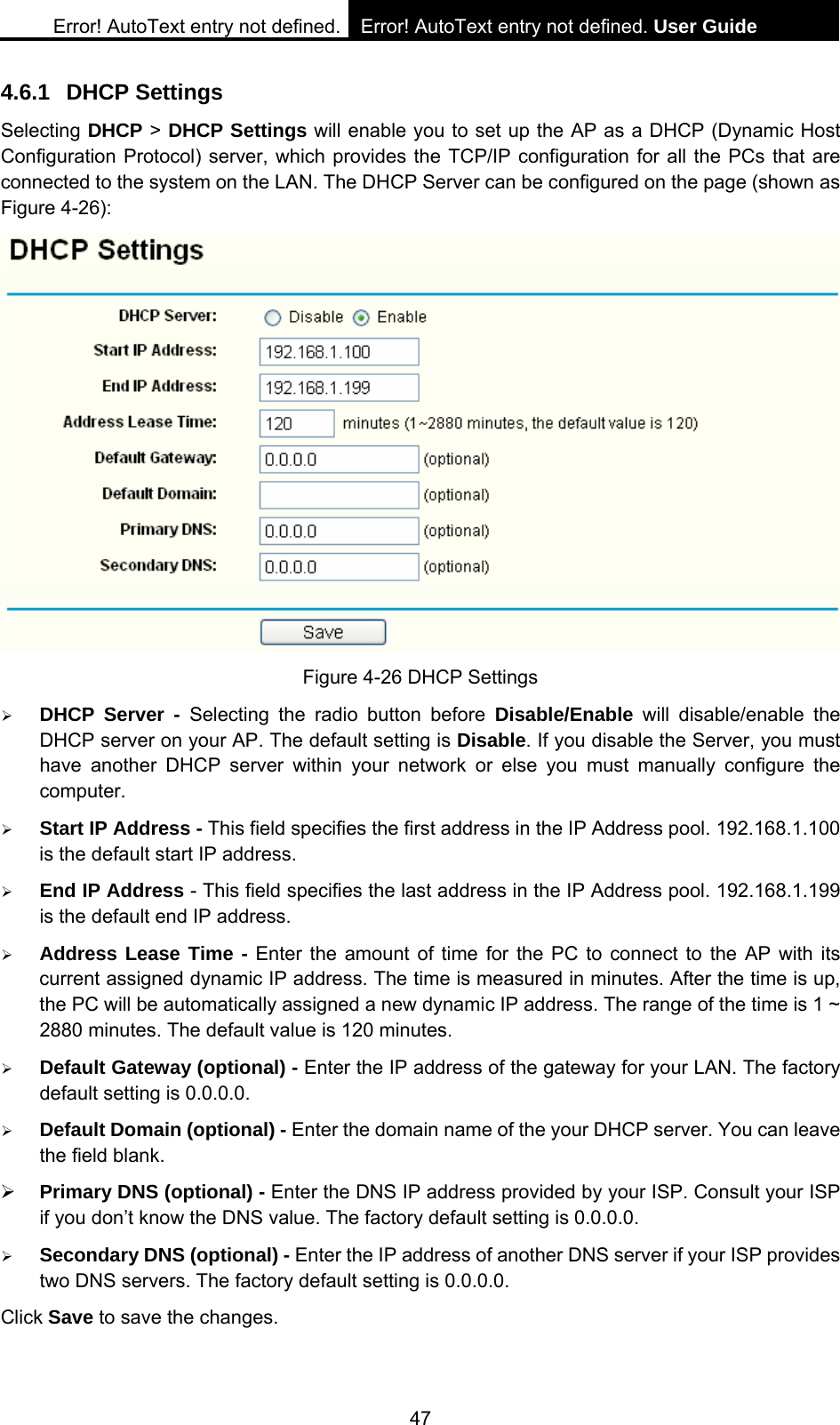

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 47 4.6.1 DHCP Settings Selecting DHCP > DHCP Settings will enable you to set up the AP as a DHCP (Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PCs that are connected to the system on the LAN. The DHCP Server can be configured on the page (shown as Figure 4-26): Figure 4-26 DHCP Settings ¾ DHCP Server - Selecting the radio button before Disable/Enable will disable/enable the DHCP server on your AP. The default setting is Disable. If you disable the Server, you must have another DHCP server within your network or else you must manually configure the computer. ¾ Start IP Address - This field specifies the first address in the IP Address pool. 192.168.1.100 is the default start IP address. ¾ End IP Address - This field specifies the last address in the IP Address pool. 192.168.1.199 is the default end IP address. ¾ Address Lease Time - Enter the amount of time for the PC to connect to the AP with its current assigned dynamic IP address. The time is measured in minutes. After the time is up, the PC will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes. ¾ Default Gateway (optional) - Enter the IP address of the gateway for your LAN. The factory default setting is 0.0.0.0. ¾ Default Domain (optional) - Enter the domain name of the your DHCP server. You can leave the field blank. ¾ Primary DNS (optional) - Enter the DNS IP address provided by your ISP. Consult your ISP if you don’t know the DNS value. The factory default setting is 0.0.0.0. ¾ Secondary DNS (optional) - Enter the IP address of another DNS server if your ISP provides two DNS servers. The factory default setting is 0.0.0.0. Click Save to save the changes.

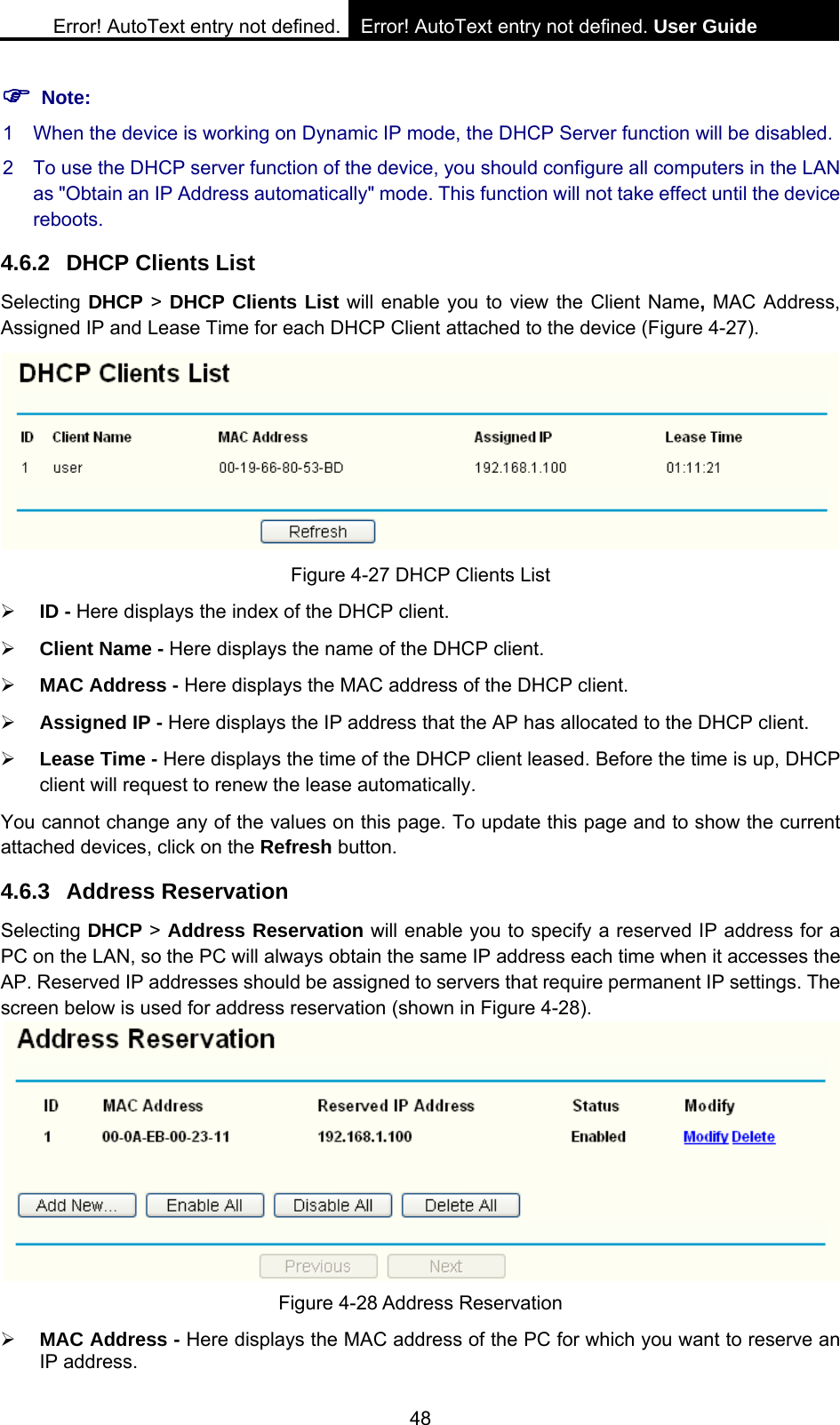

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 48 ) Note: 1 When the device is working on Dynamic IP mode, the DHCP Server function will be disabled. 2 To use the DHCP server function of the device, you should configure all computers in the LAN as "Obtain an IP Address automatically" mode. This function will not take effect until the device reboots. 4.6.2 DHCP Clients List Selecting DHCP > DHCP Clients List will enable you to view the Client Name, MAC Address, Assigned IP and Lease Time for each DHCP Client attached to the device (Figure 4-27). Figure 4-27 DHCP Clients List ¾ ID - Here displays the index of the DHCP client. ¾ Client Name - Here displays the name of the DHCP client. ¾ MAC Address - Here displays the MAC address of the DHCP client. ¾ Assigned IP - Here displays the IP address that the AP has allocated to the DHCP client. ¾ Lease Time - Here displays the time of the DHCP client leased. Before the time is up, DHCP client will request to renew the lease automatically. You cannot change any of the values on this page. To update this page and to show the current attached devices, click on the Refresh button. 4.6.3 Address Reservation Selecting DHCP > Address Reservation will enable you to specify a reserved IP address for a PC on the LAN, so the PC will always obtain the same IP address each time when it accesses the AP. Reserved IP addresses should be assigned to servers that require permanent IP settings. The screen below is used for address reservation (shown in Figure 4-28). Figure 4-28 Address Reservation ¾ MAC Address - Here displays the MAC address of the PC for which you want to reserve an IP address.

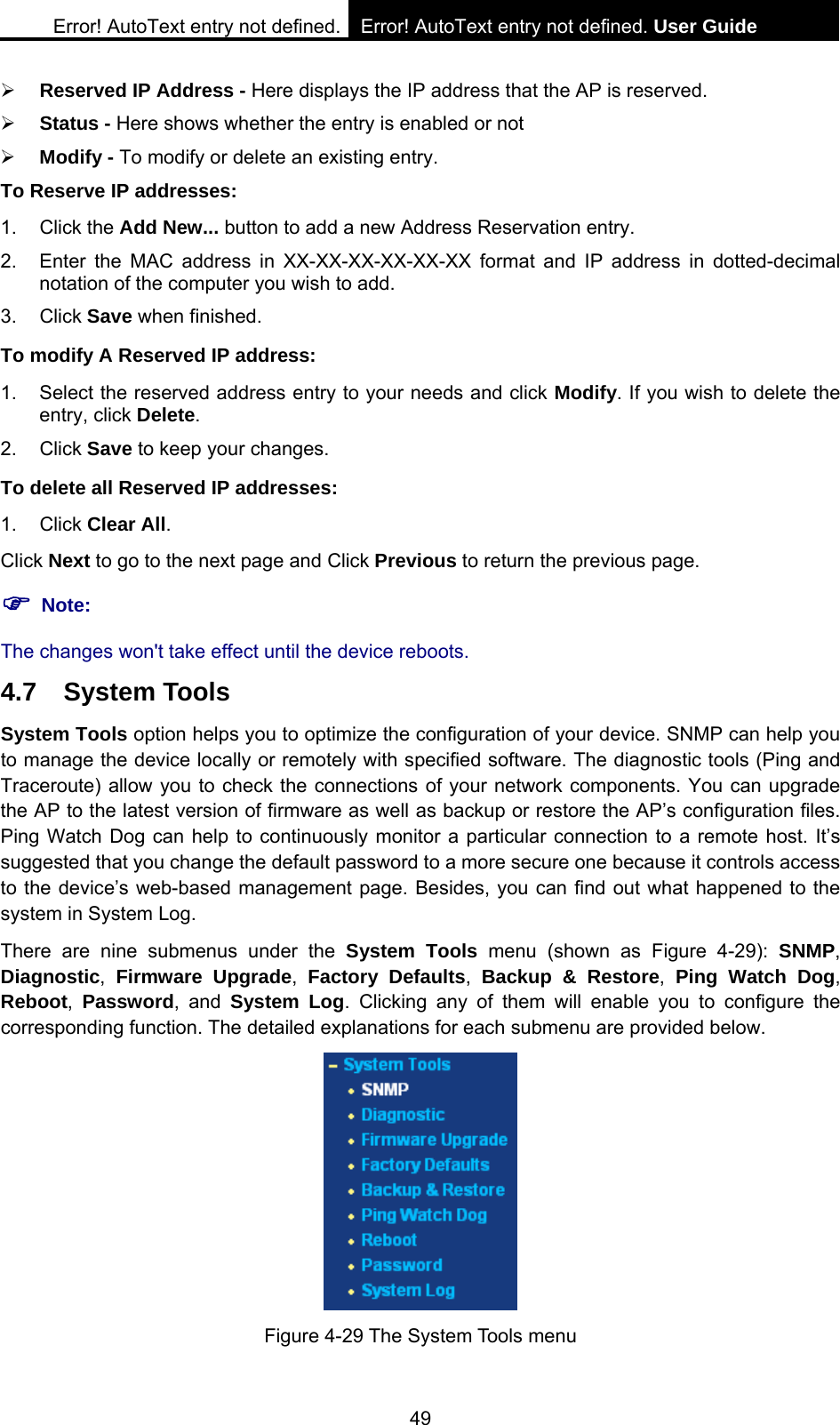

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 49 ¾ Reserved IP Address - Here displays the IP address that the AP is reserved. ¾ Status - Here shows whether the entry is enabled or not ¾ Modify - To modify or delete an existing entry. To Reserve IP addresses: 1. Click the Add New... button to add a new Address Reservation entry. 2. Enter the MAC address in XX-XX-XX-XX-XX-XX format and IP address in dotted-decimal notation of the computer you wish to add. 3. Click Save when finished. To modify A Reserved IP address: 1. Select the reserved address entry to your needs and click Modify. If you wish to delete the entry, click Delete. 2. Click Save to keep your changes. To delete all Reserved IP addresses: 1. Click Clear All. Click Next to go to the next page and Click Previous to return the previous page. ) Note: The changes won't take effect until the device reboots. 4.7 System Tools System Tools option helps you to optimize the configuration of your device. SNMP can help you to manage the device locally or remotely with specified software. The diagnostic tools (Ping and Traceroute) allow you to check the connections of your network components. You can upgrade the AP to the latest version of firmware as well as backup or restore the AP’s configuration files. Ping Watch Dog can help to continuously monitor a particular connection to a remote host. It’s suggested that you change the default password to a more secure one because it controls access to the device’s web-based management page. Besides, you can find out what happened to the system in System Log. There are nine submenus under the System Tools menu (shown as Figure 4-29): SNMP, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Ping Watch Dog, Reboot, Password, and System Log. Clicking any of them will enable you to configure the corresponding function. The detailed explanations for each submenu are provided below. Figure 4-29 The System Tools menu

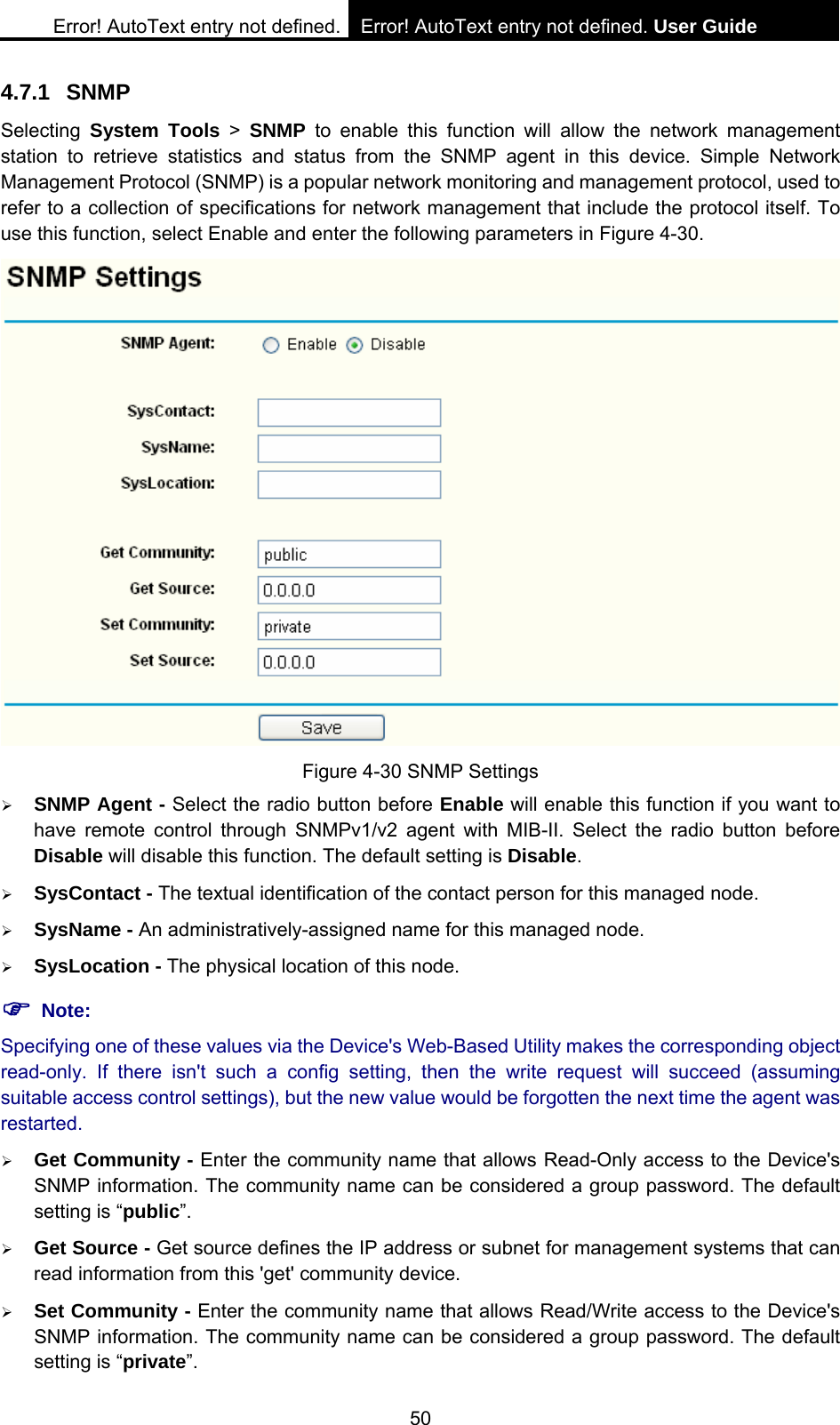

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 50 4.7.1 SNMP Selecting System Tools > SNMP to enable this function will allow the network management station to retrieve statistics and status from the SNMP agent in this device. Simple Network Management Protocol (SNMP) is a popular network monitoring and management protocol, used to refer to a collection of specifications for network management that include the protocol itself. To use this function, select Enable and enter the following parameters in Figure 4-30. Figure 4-30 SNMP Settings ¾ SNMP Agent - Select the radio button before Enable will enable this function if you want to have remote control through SNMPv1/v2 agent with MIB-II. Select the radio button before Disable will disable this function. The default setting is Disable. ¾ SysContact - The textual identification of the contact person for this managed node. ¾ SysName - An administratively-assigned name for this managed node. ¾ SysLocation - The physical location of this node. ) Note: Specifying one of these values via the Device's Web-Based Utility makes the corresponding object read-only. If there isn't such a config setting, then the write request will succeed (assuming suitable access control settings), but the new value would be forgotten the next time the agent was restarted. ¾ Get Community - Enter the community name that allows Read-Only access to the Device's SNMP information. The community name can be considered a group password. The default setting is “public”. ¾ Get Source - Get source defines the IP address or subnet for management systems that can read information from this 'get' community device. ¾ Set Community - Enter the community name that allows Read/Write access to the Device's SNMP information. The community name can be considered a group password. The default setting is “private”.

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 51 ¾ Set Source - Set source defines the IP address or subnet for management systems that can control this 'set' community device. ) Note: A restricted source can be a specific IP address (e.g. 10.10.10.1), or a subnet - represented as IP/BITS (e.g. 10.10.10.0/24). If an IP Address of 0.0.0.0 is specified, the agent will accept all requests under the corresponding community name. Click the Save button to save your settings. 4.7.2 Diagnostic Selecting System Tools > Diagnostic allow you to check the connections of your network components on the screen shown in Figure 4-31. Figure 4-31 Diagnostic Diagnostic Tools - Click the radio button to select one diagnostic tool • Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to a given host or gateway by using the Internet Control Message Protocol (ICMP) protocol's mandatory Echo Request datagram to elicit an ICMP Echo Response from a host or gateway. You can use ping to test both numeric IP address or domain name. If pinging the IP address is successful, but pinging the domain name is not, you might have a name resolution problem. In this case, ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries.

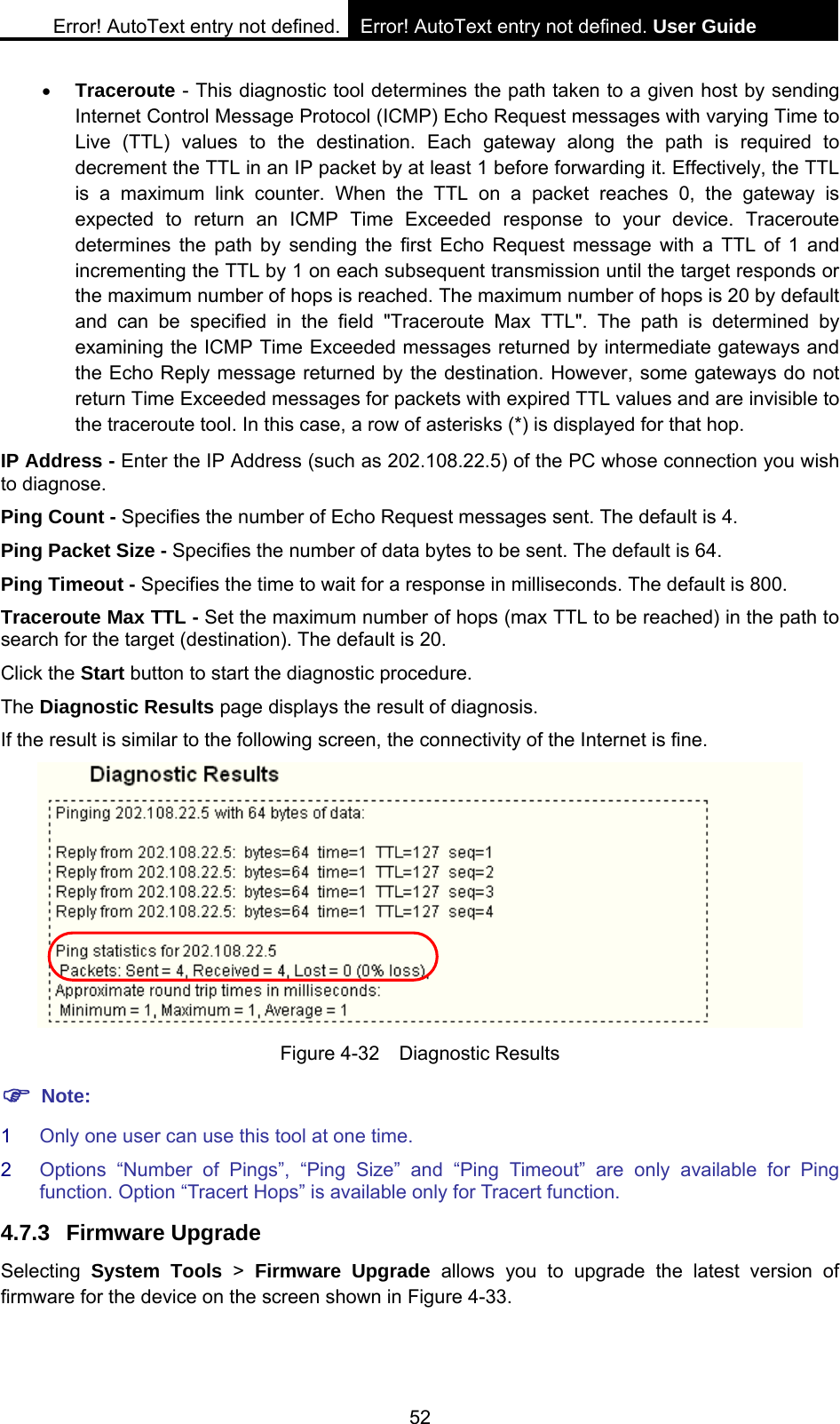

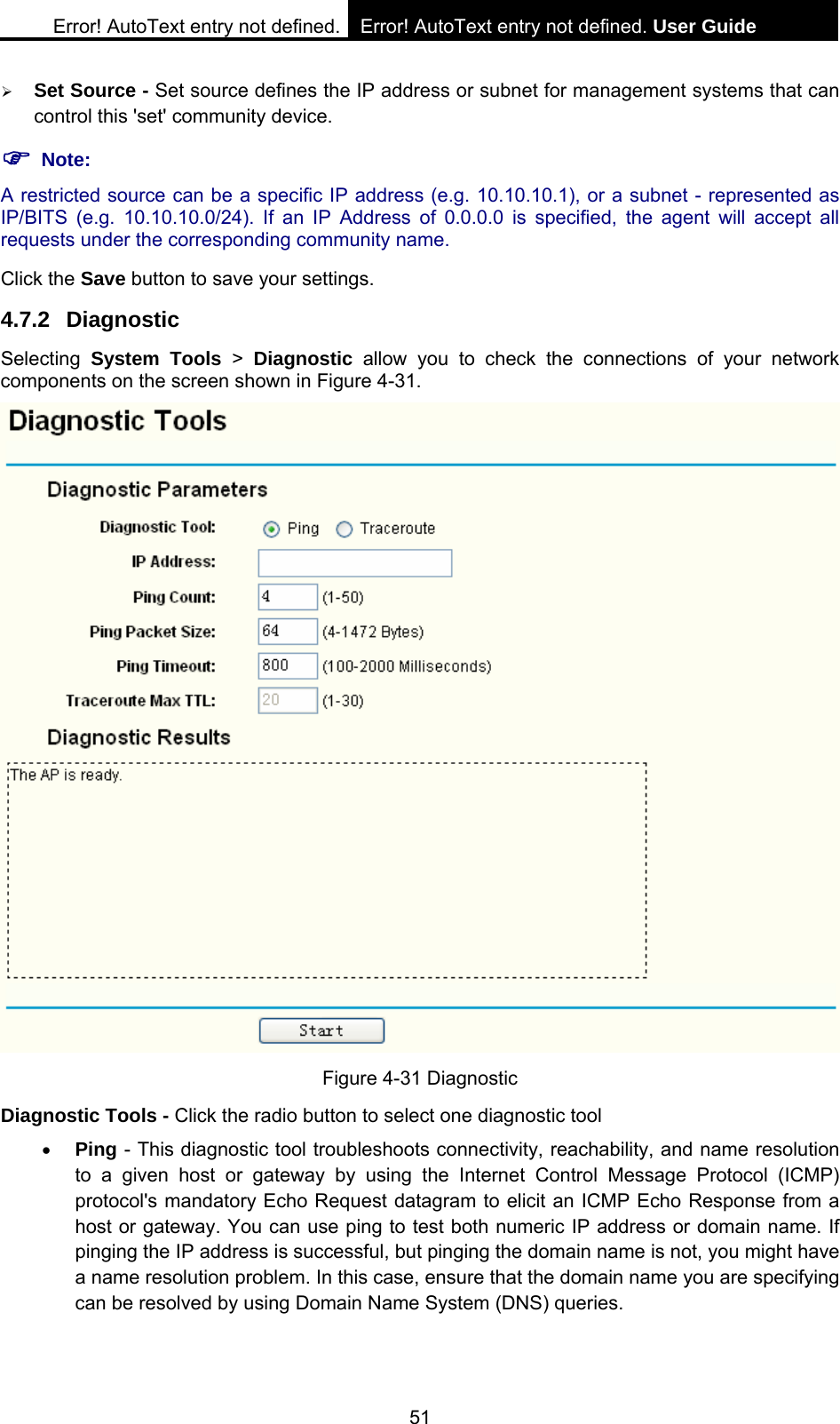

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 52 • Traceroute - This diagnostic tool determines the path taken to a given host by sending Internet Control Message Protocol (ICMP) Echo Request messages with varying Time to Live (TTL) values to the destination. Each gateway along the path is required to decrement the TTL in an IP packet by at least 1 before forwarding it. Effectively, the TTL is a maximum link counter. When the TTL on a packet reaches 0, the gateway is expected to return an ICMP Time Exceeded response to your device. Traceroute determines the path by sending the first Echo Request message with a TTL of 1 and incrementing the TTL by 1 on each subsequent transmission until the target responds or the maximum number of hops is reached. The maximum number of hops is 20 by default and can be specified in the field "Traceroute Max TTL". The path is determined by examining the ICMP Time Exceeded messages returned by intermediate gateways and the Echo Reply message returned by the destination. However, some gateways do not return Time Exceeded messages for packets with expired TTL values and are invisible to the traceroute tool. In this case, a row of asterisks (*) is displayed for that hop. IP Address - Enter the IP Address (such as 202.108.22.5) of the PC whose connection you wish to diagnose. Ping Count - Specifies the number of Echo Request messages sent. The default is 4. Ping Packet Size - Specifies the number of data bytes to be sent. The default is 64. Ping Timeout - Specifies the time to wait for a response in milliseconds. The default is 800. Traceroute Max TTL - Set the maximum number of hops (max TTL to be reached) in the path to search for the target (destination). The default is 20. Click the Start button to start the diagnostic procedure. The Diagnostic Results page displays the result of diagnosis. If the result is similar to the following screen, the connectivity of the Internet is fine. Figure 4-32 Diagnostic Results ) Note: 1 Only one user can use this tool at one time. 2 Options “Number of Pings”, “Ping Size” and “Ping Timeout” are only available for Ping function. Option “Tracert Hops” is available only for Tracert function. 4.7.3 Firmware Upgrade Selecting System Tools > Firmware Upgrade allows you to upgrade the latest version of firmware for the device on the screen shown in Figure 4-33.

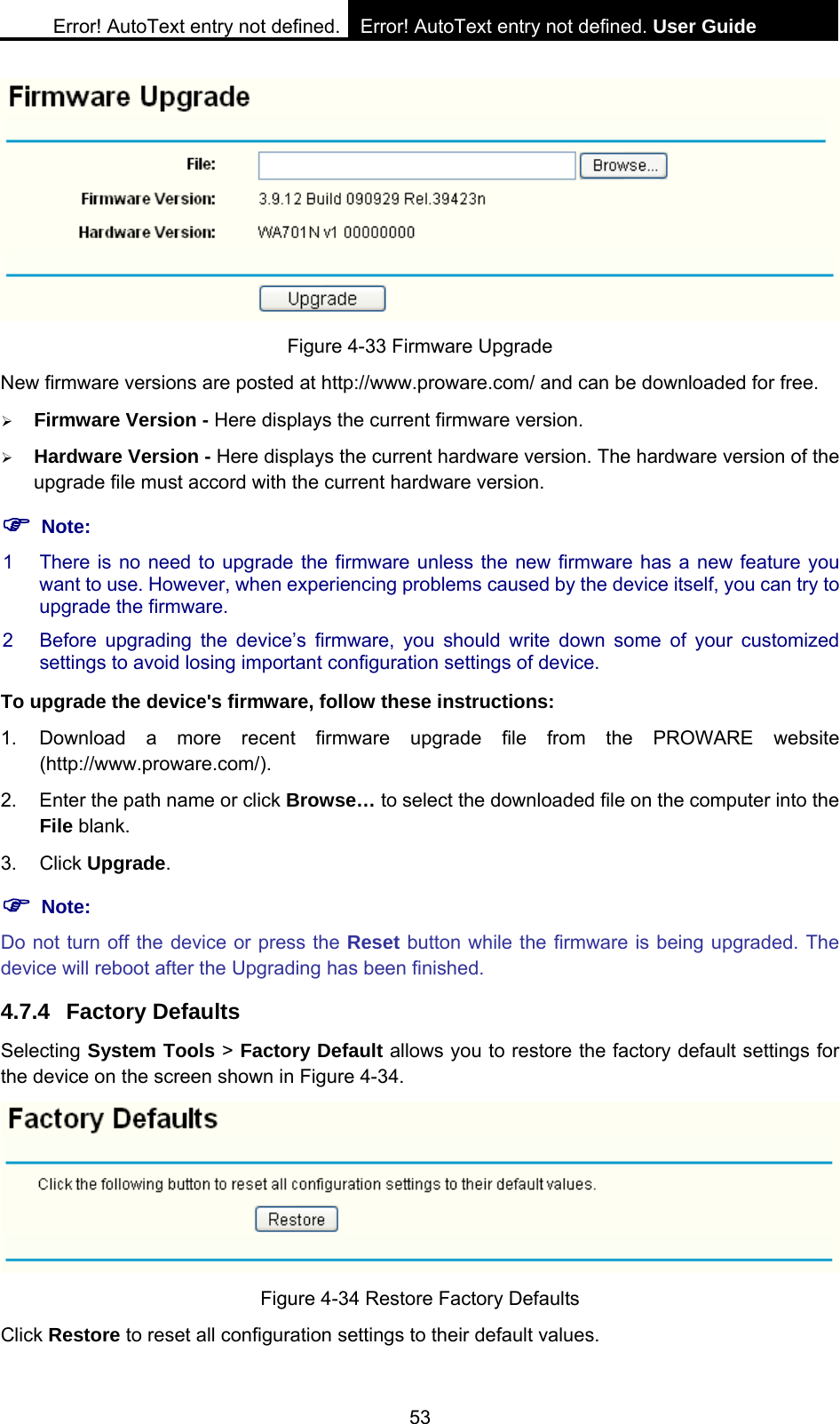

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 53 Figure 4-33 Firmware Upgrade New firmware versions are posted at http://www.proware.com/ and can be downloaded for free. ¾ Firmware Version - Here displays the current firmware version. ¾ Hardware Version - Here displays the current hardware version. The hardware version of the upgrade file must accord with the current hardware version. ) Note: 1 There is no need to upgrade the firmware unless the new firmware has a new feature you want to use. However, when experiencing problems caused by the device itself, you can try to upgrade the firmware. 2 Before upgrading the device’s firmware, you should write down some of your customized settings to avoid losing important configuration settings of device. To upgrade the device's firmware, follow these instructions: 1. Download a more recent firmware upgrade file from the PROWARE website (http://www.proware.com/). 2. Enter the path name or click Browse… to select the downloaded file on the computer into the File blank. 3. Click Upgrade. ) Note: Do not turn off the device or press the Reset button while the firmware is being upgraded. The device will reboot after the Upgrading has been finished. 4.7.4 Factory Defaults Selecting System Tools > Factory Default allows you to restore the factory default settings for the device on the screen shown in Figure 4-34. Figure 4-34 Restore Factory Defaults Click Restore to reset all configuration settings to their default values.

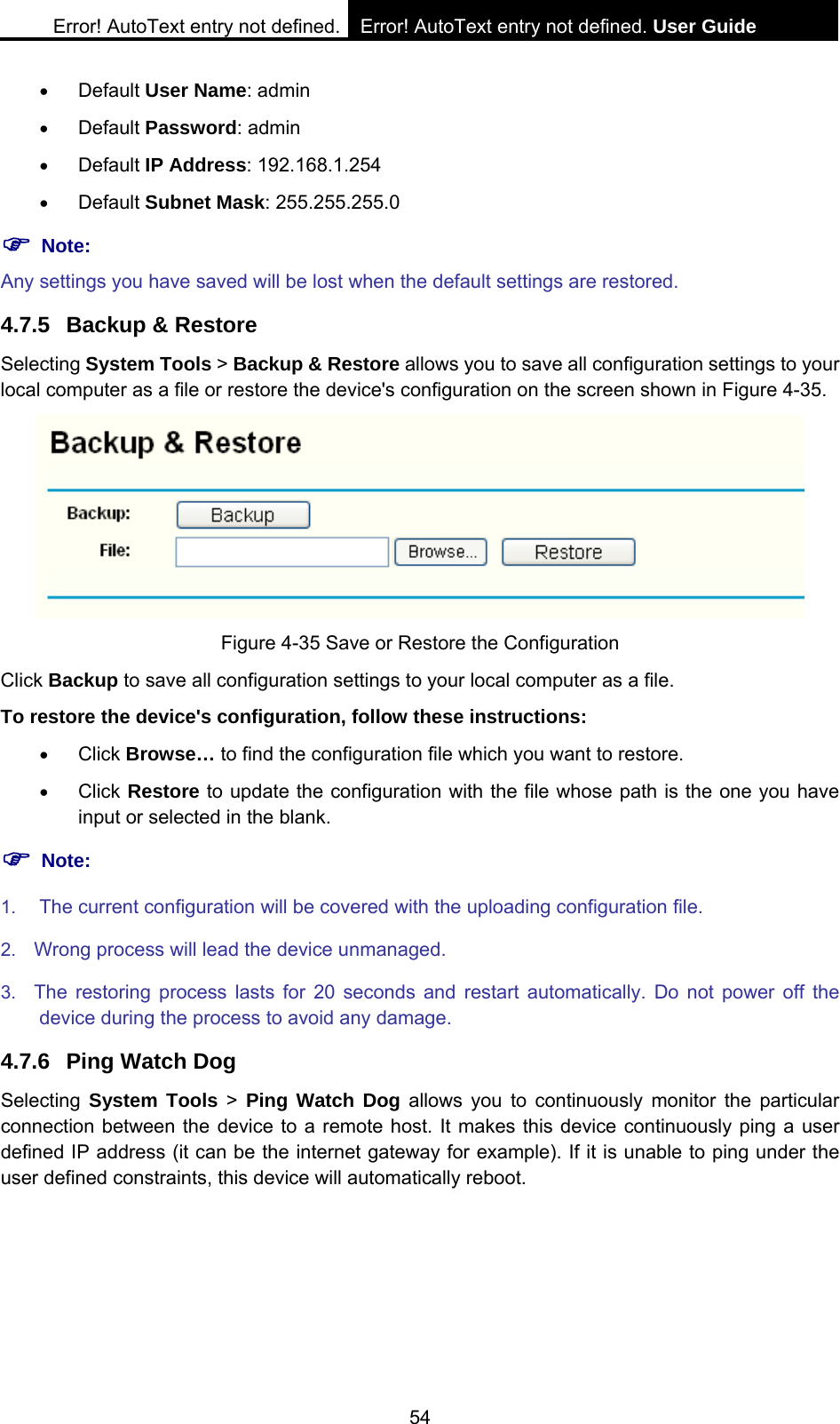

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 54 • Default User Name: admin • Default Password: admin • Default IP Address: 192.168.1.254 • Default Subnet Mask: 255.255.255.0 ) Note: Any settings you have saved will be lost when the default settings are restored. 4.7.5 Backup & Restore Selecting System Tools > Backup & Restore allows you to save all configuration settings to your local computer as a file or restore the device's configuration on the screen shown in Figure 4-35. Figure 4-35 Save or Restore the Configuration Click Backup to save all configuration settings to your local computer as a file. To restore the device's configuration, follow these instructions: • Click Browse… to find the configuration file which you want to restore. • Click Restore to update the configuration with the file whose path is the one you have input or selected in the blank. ) Note: 1. The current configuration will be covered with the uploading configuration file. 2. Wrong process will lead the device unmanaged. 3. The restoring process lasts for 20 seconds and restart automatically. Do not power off the device during the process to avoid any damage. 4.7.6 Ping Watch Dog Selecting System Tools > Ping Watch Dog allows you to continuously monitor the particular connection between the device to a remote host. It makes this device continuously ping a user defined IP address (it can be the internet gateway for example). If it is unable to ping under the user defined constraints, this device will automatically reboot.

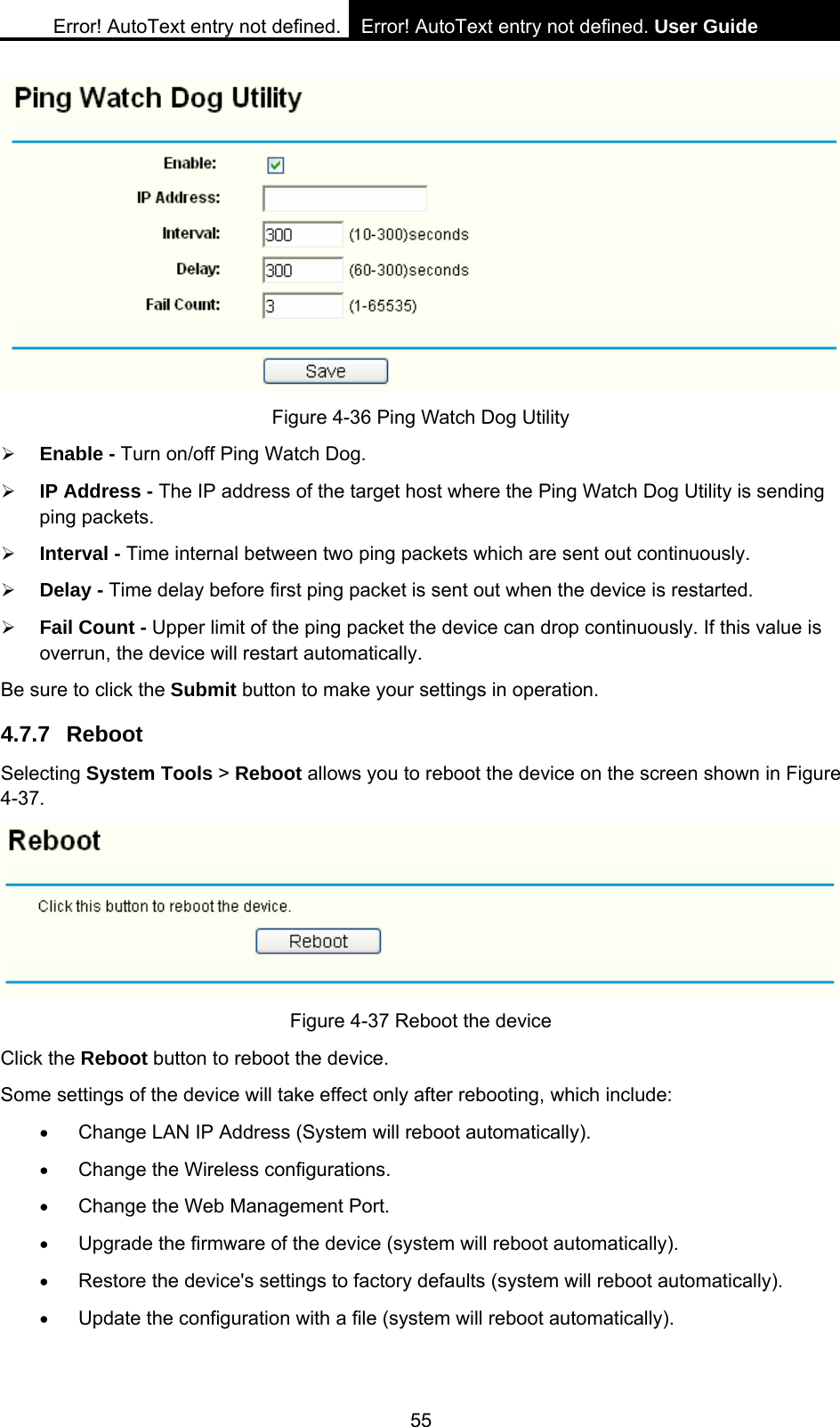

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 55 Figure 4-36 Ping Watch Dog Utility ¾ Enable - Turn on/off Ping Watch Dog. ¾ IP Address - The IP address of the target host where the Ping Watch Dog Utility is sending ping packets. ¾ Interval - Time internal between two ping packets which are sent out continuously. ¾ Delay - Time delay before first ping packet is sent out when the device is restarted. ¾ Fail Count - Upper limit of the ping packet the device can drop continuously. If this value is overrun, the device will restart automatically. Be sure to click the Submit button to make your settings in operation. 4.7.7 Reboot Selecting System Tools > Reboot allows you to reboot the device on the screen shown in Figure 4-37. Figure 4-37 Reboot the device Click the Reboot button to reboot the device. Some settings of the device will take effect only after rebooting, which include: • Change LAN IP Address (System will reboot automatically). • Change the Wireless configurations. • Change the Web Management Port. • Upgrade the firmware of the device (system will reboot automatically). • Restore the device's settings to factory defaults (system will reboot automatically). • Update the configuration with a file (system will reboot automatically).

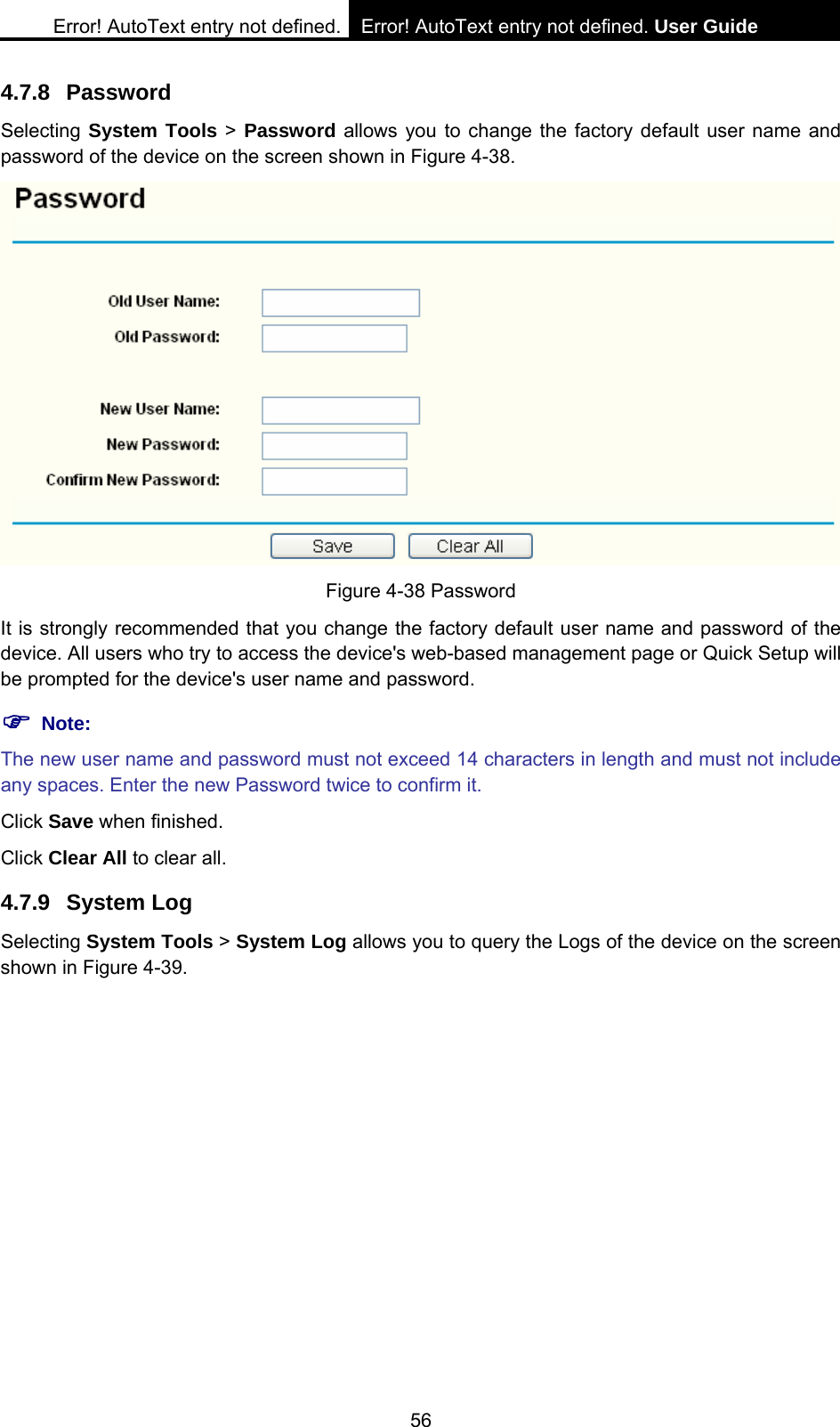

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 56 4.7.8 Password Selecting System Tools > Password allows you to change the factory default user name and password of the device on the screen shown in Figure 4-38. Figure 4-38 Password It is strongly recommended that you change the factory default user name and password of the device. All users who try to access the device's web-based management page or Quick Setup will be prompted for the device's user name and password. ) Note: The new user name and password must not exceed 14 characters in length and must not include any spaces. Enter the new Password twice to confirm it. Click Save when finished. Click Clear All to clear all. 4.7.9 System Log Selecting System Tools > System Log allows you to query the Logs of the device on the screen shown in Figure 4-39.

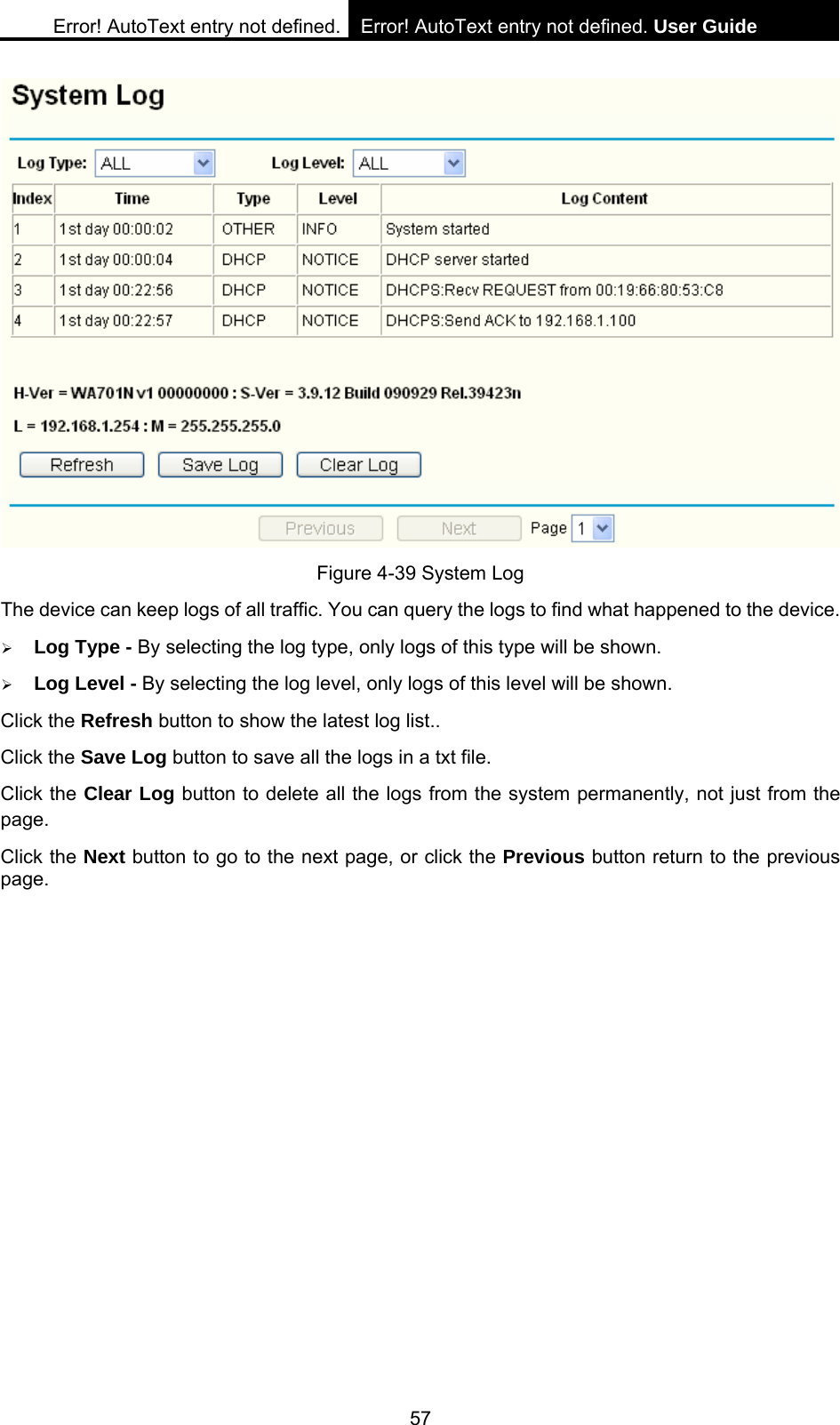

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 57 Figure 4-39 System Log The device can keep logs of all traffic. You can query the logs to find what happened to the device. ¾ Log Type - By selecting the log type, only logs of this type will be shown. ¾ Log Level - By selecting the log level, only logs of this level will be shown. Click the Refresh button to show the latest log list.. Click the Save Log button to save all the logs in a txt file. Click the Clear Log button to delete all the logs from the system permanently, not just from the page. Click the Next button to go to the next page, or click the Previous button return to the previous page.

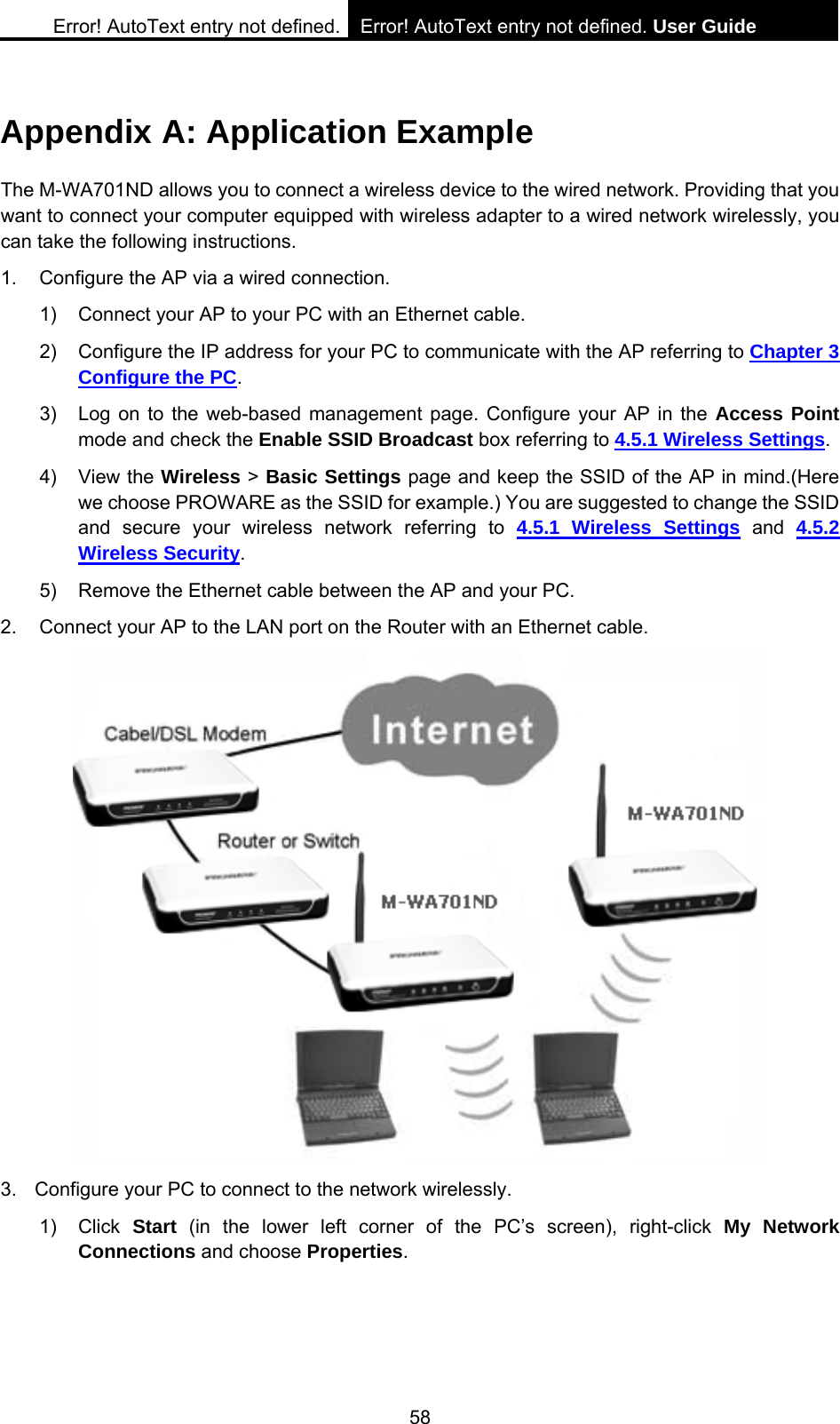

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 58 Appendix A: Application Example The M-WA701ND allows you to connect a wireless device to the wired network. Providing that you want to connect your computer equipped with wireless adapter to a wired network wirelessly, you can take the following instructions. 1. Configure the AP via a wired connection. 1) Connect your AP to your PC with an Ethernet cable. 2) Configure the IP address for your PC to communicate with the AP referring to Chapter 3 Configure the PC. 3) Log on to the web-based management page. Configure your AP in the Access Point mode and check the Enable SSID Broadcast box referring to 4.5.1 Wireless Settings. 4) View the Wireless > Basic Settings page and keep the SSID of the AP in mind.(Here we choose PROWARE as the SSID for example.) You are suggested to change the SSID and secure your wireless network referring to 4.5.1 Wireless Settings and 4.5.2 Wireless Security. 5) Remove the Ethernet cable between the AP and your PC. 2. Connect your AP to the LAN port on the Router with an Ethernet cable. 3. Configure your PC to connect to the network wirelessly. 1) Click Start (in the lower left corner of the PC’s screen), right-click My Network Connections and choose Properties.

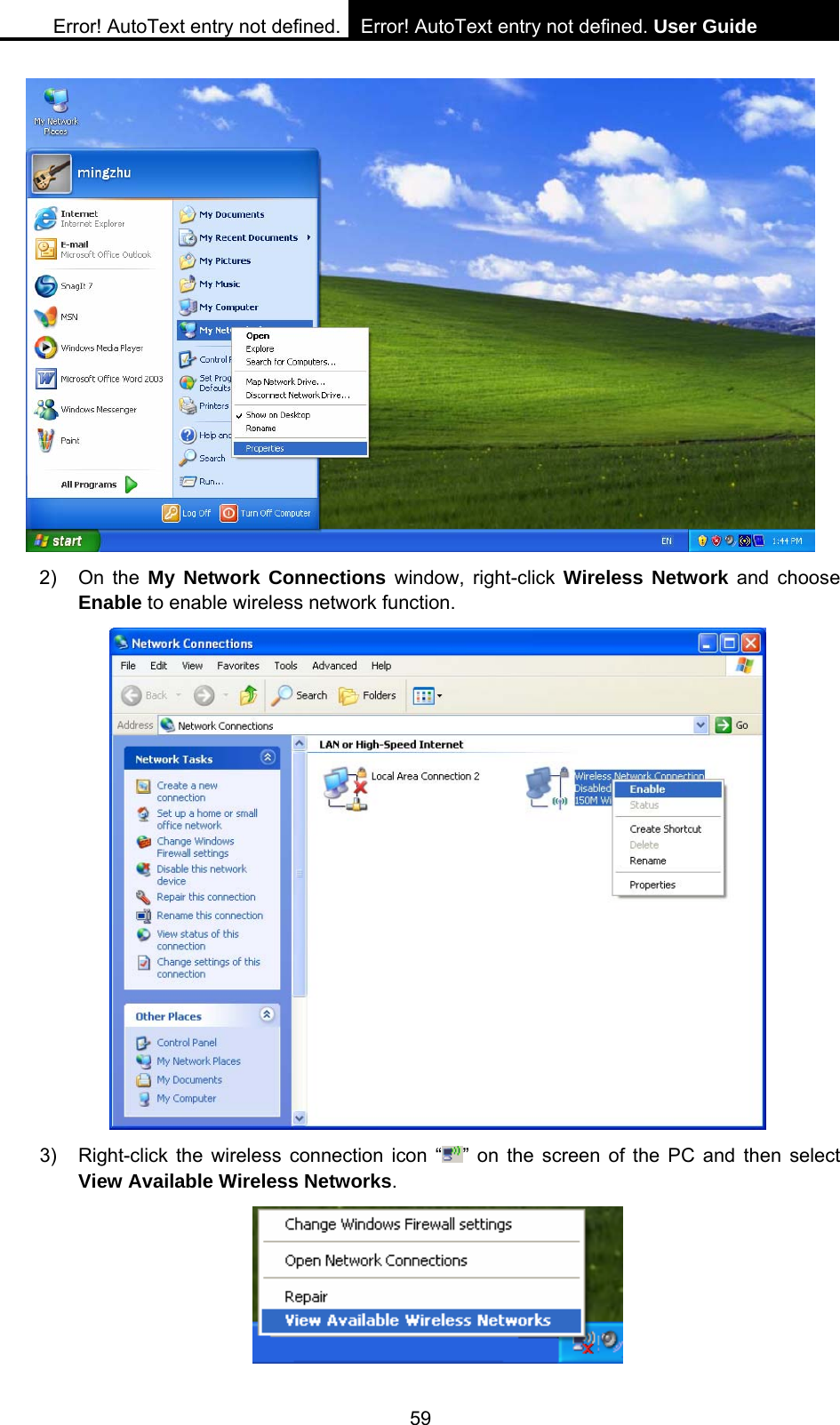

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 59 2) On the My Network Connections window, right-click Wireless Network and choose Enable to enable wireless network function. 3) Right-click the wireless connection icon “ ” on the screen of the PC and then select View Available Wireless Networks.

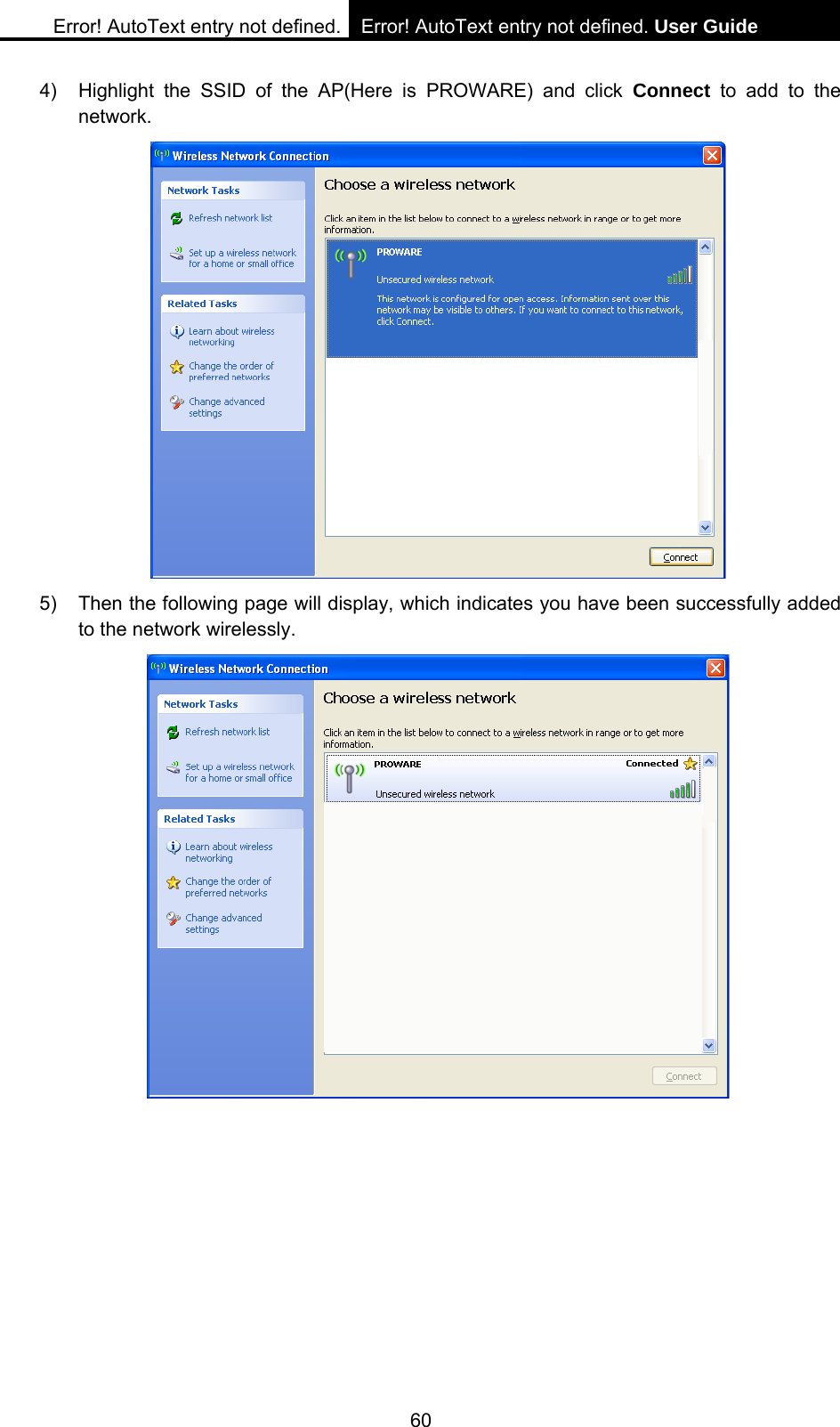

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 60 4) Highlight the SSID of the AP(Here is PROWARE) and click Connect to add to the network. 5) Then the following page will display, which indicates you have been successfully added to the network wirelessly.

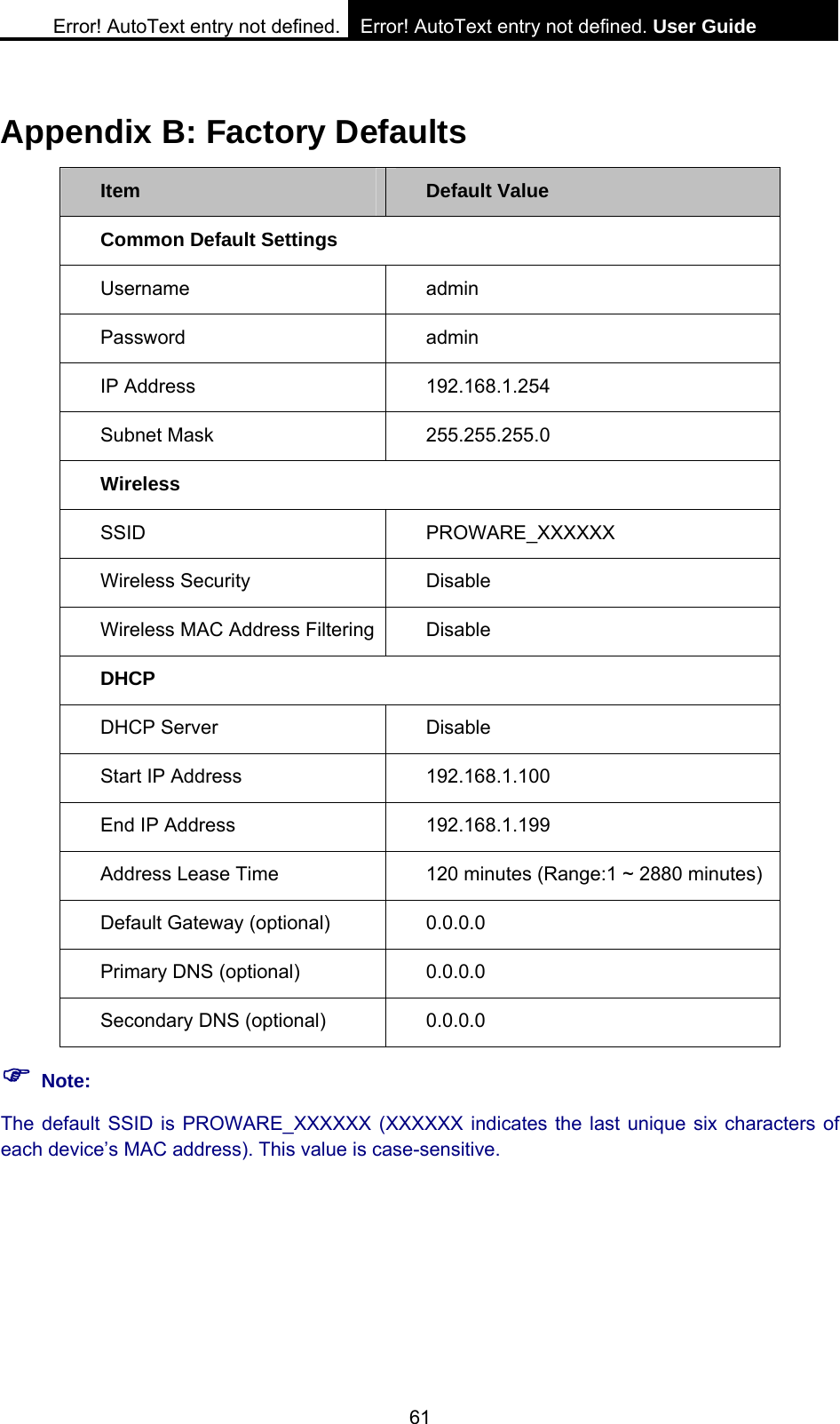

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 61 Appendix B: Factory Defaults Item Default Value Common Default Settings Username admin Password admin IP Address 192.168.1.254 Subnet Mask 255.255.255.0 Wireless SSID PROWARE_XXXXXX Wireless Security Disable Wireless MAC Address Filtering Disable DHCP DHCP Server Disable Start IP Address 192.168.1.100 End IP Address 192.168.1.199 Address Lease Time 120 minutes (Range:1 ~ 2880 minutes) Default Gateway (optional) 0.0.0.0 Primary DNS (optional) 0.0.0.0 Secondary DNS (optional) 0.0.0.0 ) Note: The default SSID is PROWARE_XXXXXX (XXXXXX indicates the last unique six characters of each device’s MAC address). This value is case-sensitive.

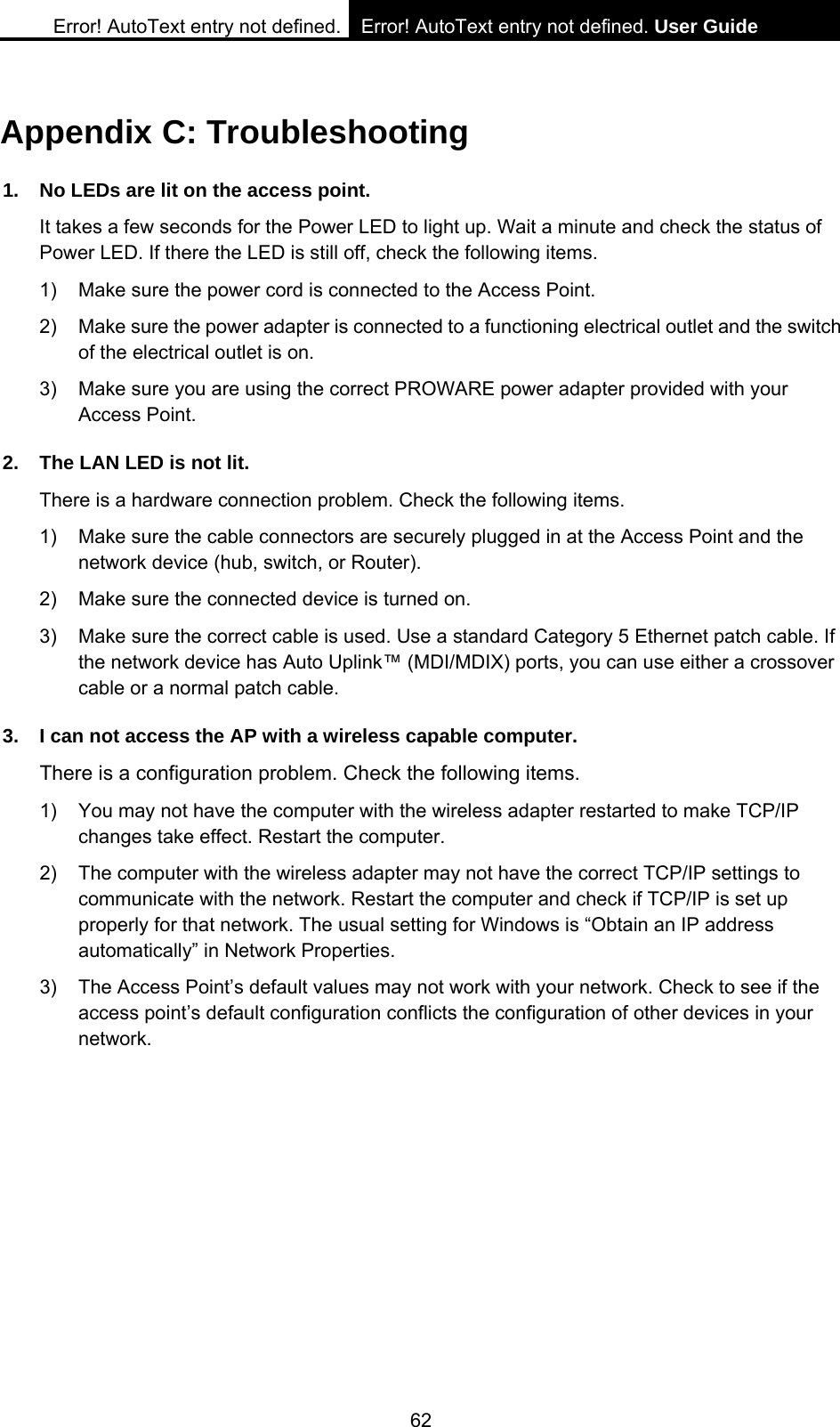

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 62 Appendix C: Troubleshooting 1. No LEDs are lit on the access point. It takes a few seconds for the Power LED to light up. Wait a minute and check the status of Power LED. If there the LED is still off, check the following items. 1) Make sure the power cord is connected to the Access Point. 2) Make sure the power adapter is connected to a functioning electrical outlet and the switch of the electrical outlet is on. 3) Make sure you are using the correct PROWARE power adapter provided with your Access Point. 2. The LAN LED is not lit. There is a hardware connection problem. Check the following items. 1) Make sure the cable connectors are securely plugged in at the Access Point and the network device (hub, switch, or Router). 2) Make sure the connected device is turned on. 3) Make sure the correct cable is used. Use a standard Category 5 Ethernet patch cable. If the network device has Auto Uplink™ (MDI/MDIX) ports, you can use either a crossover cable or a normal patch cable. 3. I can not access the AP with a wireless capable computer. There is a configuration problem. Check the following items. 1) You may not have the computer with the wireless adapter restarted to make TCP/IP changes take effect. Restart the computer. 2) The computer with the wireless adapter may not have the correct TCP/IP settings to communicate with the network. Restart the computer and check if TCP/IP is set up properly for that network. The usual setting for Windows is “Obtain an IP address automatically” in Network Properties. 3) The Access Point’s default values may not work with your network. Check to see if the access point’s default configuration conflicts the configuration of other devices in your network.

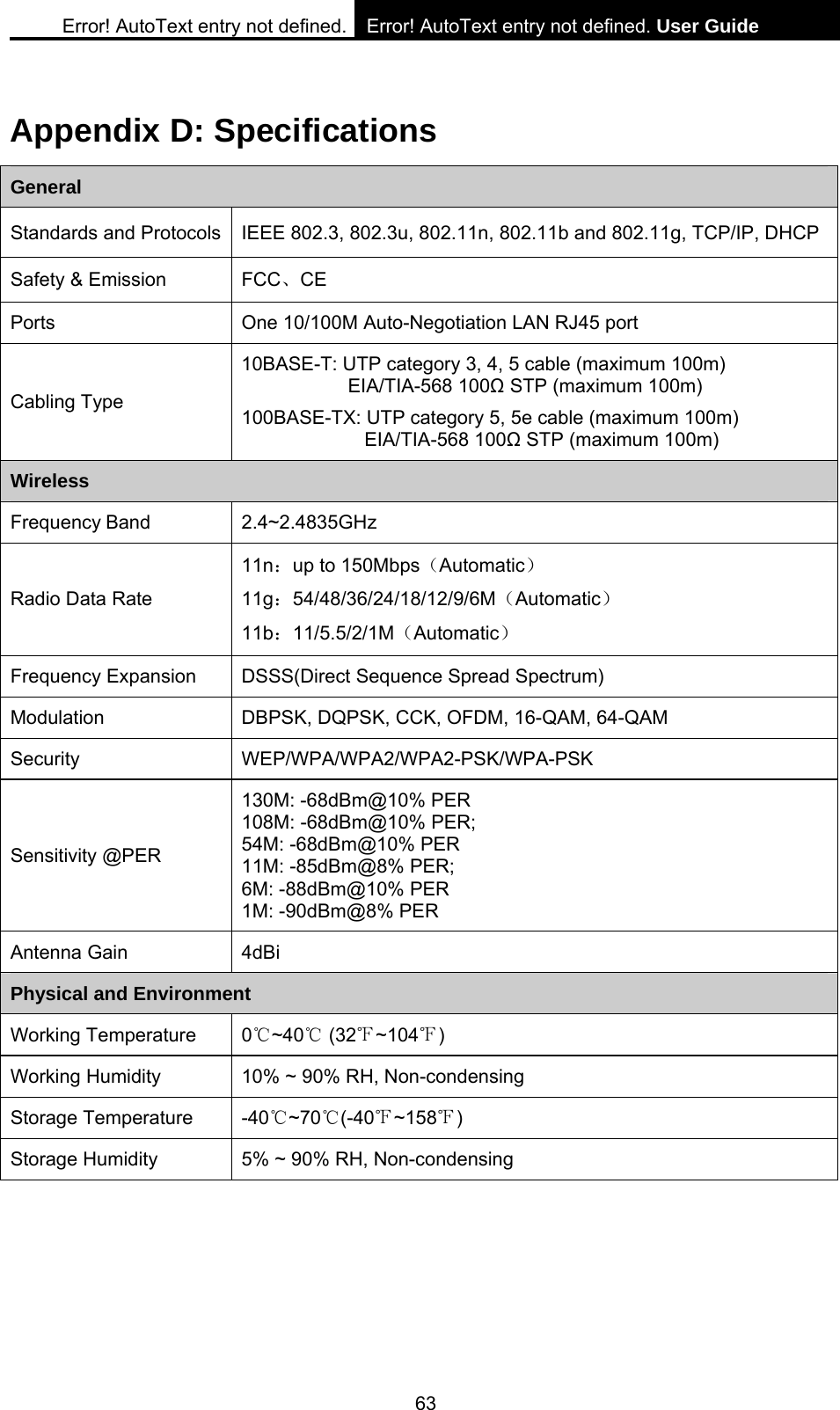

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 63 Appendix D: Specifications General Standards and Protocols IEEE 802.3, 802.3u, 802.11n, 802.11b and 802.11g, TCP/IP, DHCP Safety & Emission FCC、CE Ports One 10/100M Auto-Negotiation LAN RJ45 port Cabling Type 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Wireless Frequency Band 2.4~2.4835GHz Radio Data Rate 11n：up to 150Mbps（Automatic） 11g：54/48/36/24/18/12/9/6M（Automatic） 11b：11/5.5/2/1M（Automatic） Frequency Expansion DSSS(Direct Sequence Spread Spectrum) Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM Security WEP/WPA/WPA2/WPA2-PSK/WPA-PSK Sensitivity @PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER; 54M: -68dBm@10% PER 11M: -85dBm@8% PER; 6M: -88dBm@10% PER 1M: -90dBm@8% PER Antenna Gain 4dBi Physical and Environment Working Temperature 0℃~40 (32℃~1℉04℉) Working Humidity 10% ~ 90% RH, Non-condensing Storage Temperature -40 ~70 (℃℃-40 ~158℉)℉ Storage Humidity 5% ~ 90% RH, Non-condensing

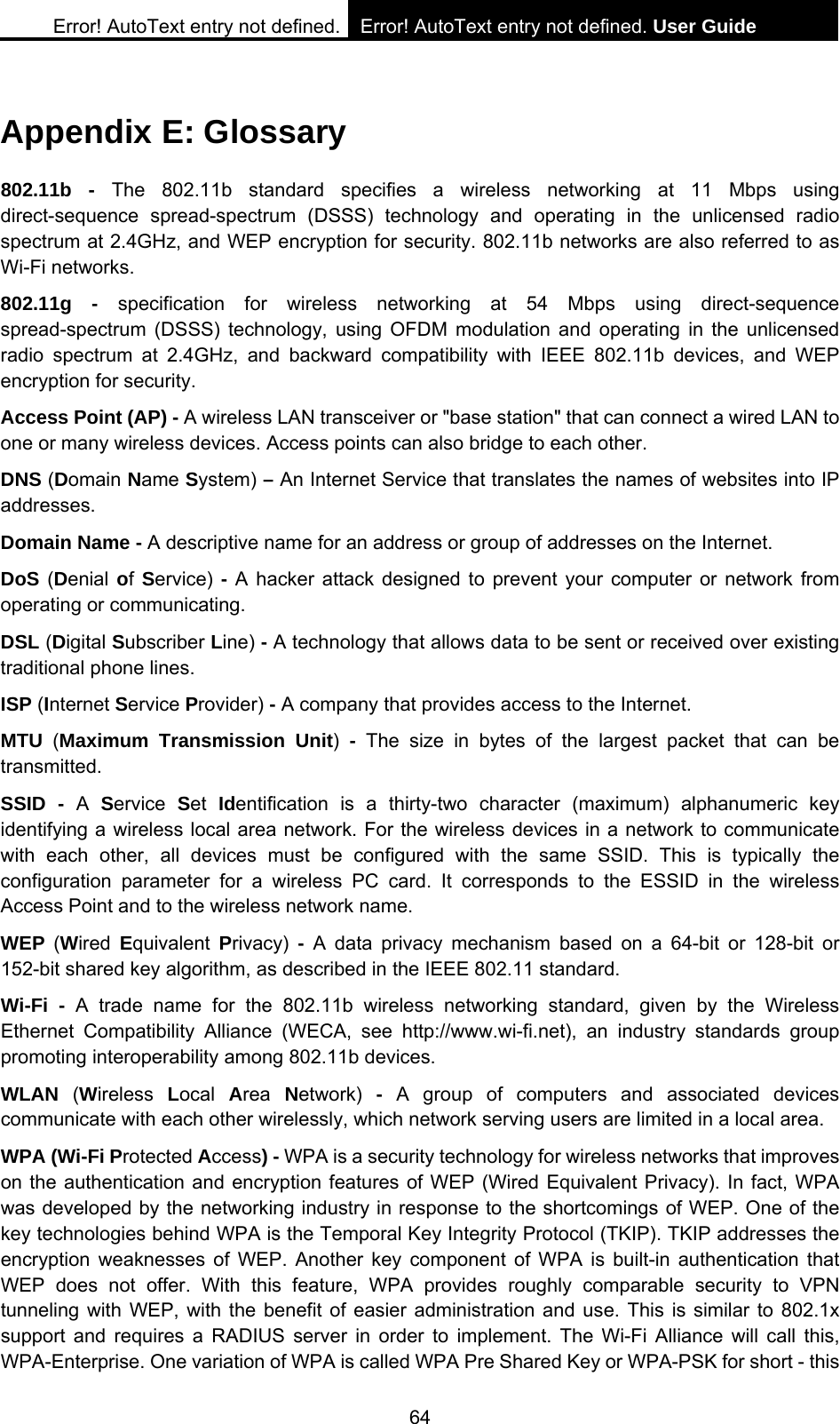

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 64 Appendix E: Glossary 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. 802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security. Access Point (AP) - A wireless LAN transceiver or "base station" that can connect a wired LAN to one or many wireless devices. Access points can also bridge to each other. DNS (Domain Name System) – An Internet Service that translates the names of websites into IP addresses. Domain Name - A descriptive name for an address or group of addresses on the Internet. DoS (Denial of Service) - A hacker attack designed to prevent your computer or network from operating or communicating. DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over existing traditional phone lines. ISP (Internet Service Provider) - A company that provides access to the Internet. MTU (Maximum Transmission Unit) - The size in bytes of the largest packet that can be transmitted. SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices. WLAN (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area. WPA (Wi-Fi Protected Access) - WPA is a security technology for wireless networks that improves on the authentication and encryption features of WEP (Wired Equivalent Privacy). In fact, WPA was developed by the networking industry in response to the shortcomings of WEP. One of the key technologies behind WPA is the Temporal Key Integrity Protocol (TKIP). TKIP addresses the encryption weaknesses of WEP. Another key component of WPA is built-in authentication that WEP does not offer. With this feature, WPA provides roughly comparable security to VPN tunneling with WEP, with the benefit of easier administration and use. This is similar to 802.1x support and requires a RADIUS server in order to implement. The Wi-Fi Alliance will call this, WPA-Enterprise. One variation of WPA is called WPA Pre Shared Key or WPA-PSK for short - this

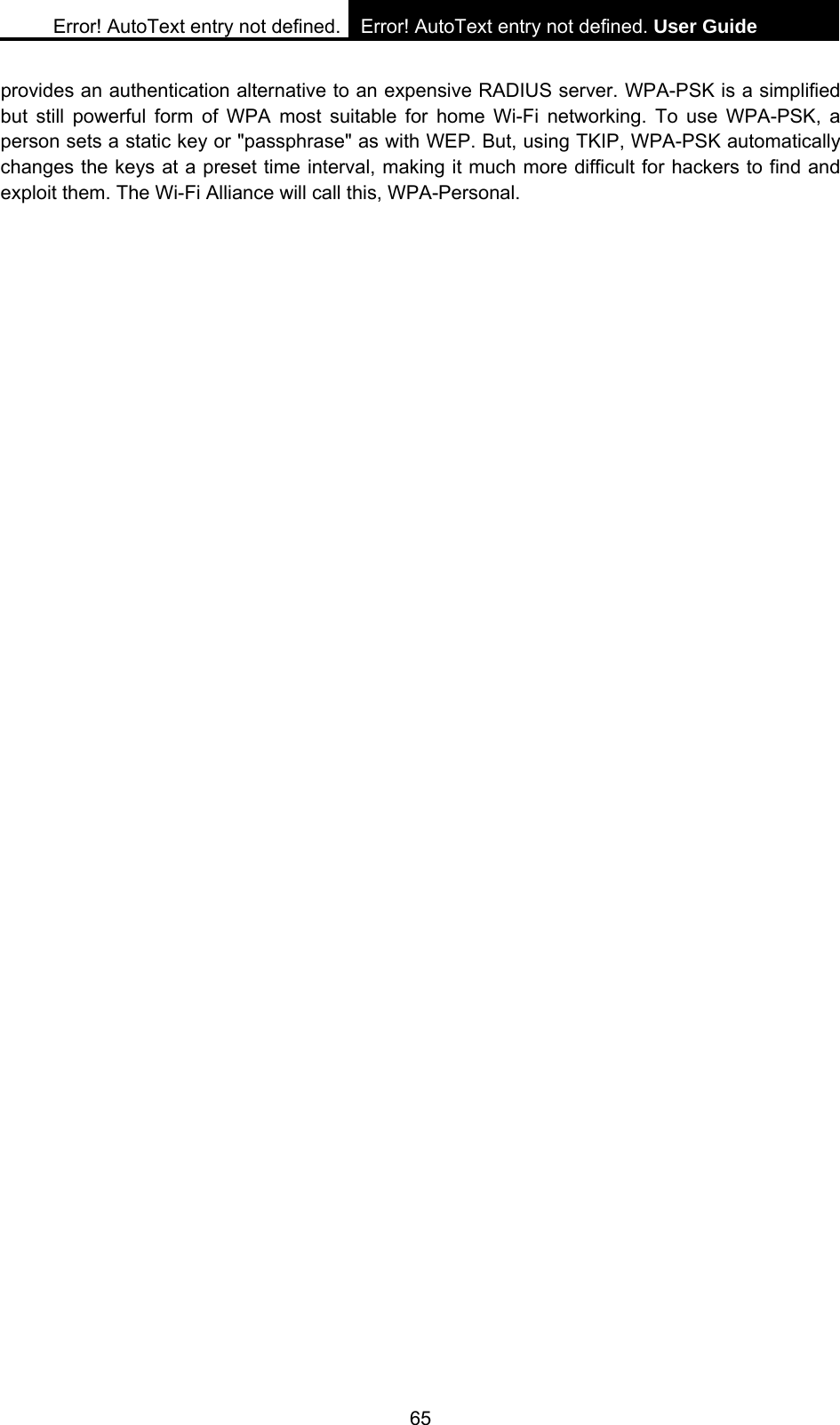

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide 65 provides an authentication alternative to an expensive RADIUS server. WPA-PSK is a simplified but still powerful form of WPA most suitable for home Wi-Fi networking. To use WPA-PSK, a person sets a static key or "passphrase" as with WEP. But, using TKIP, WPA-PSK automatically changes the keys at a preset time interval, making it much more difficult for hackers to find and exploit them. The Wi-Fi Alliance will call this, WPA-Personal.
