Proware Technologies Co WN321GM3V1 54M Wireless USB Module User Manual M WN321GM

Proware Technologies Co Ltd. 54M Wireless USB Module M WN321GM

Contents

WWMWN321GM3V1_User manual_rev2

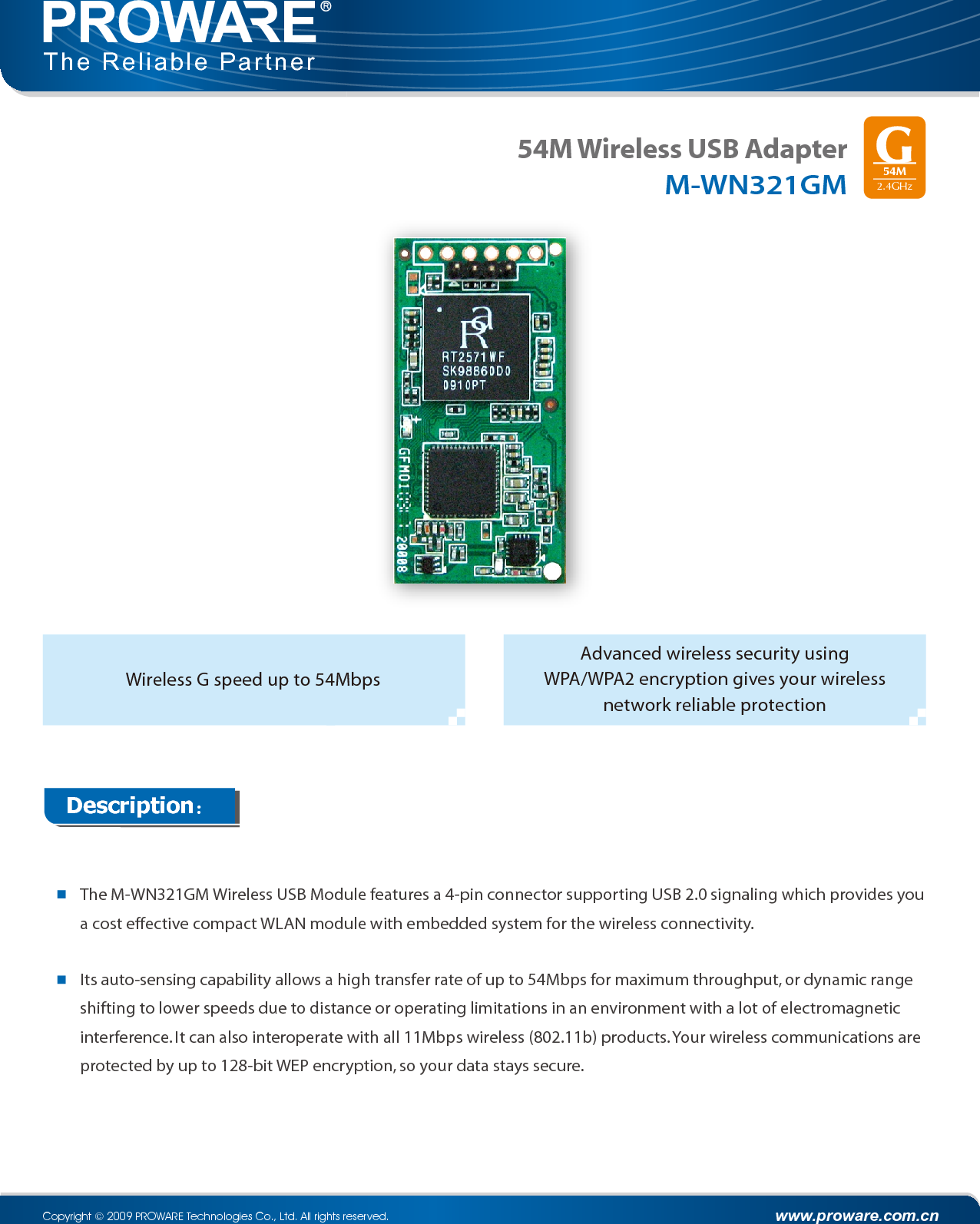

54M Wireless USB AdapterM-WN321GMDescription:The M-WN321GM Wireless USB Module features a 4-pin connector supporting USB 2.0 signaling which provides you a cost effective compact WLAN module with embedded system for the wireless connectivity.Its auto-sensing capability allows a high transfer rate of up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. It can also interoperate with all 11Mbps wireless (802.11b) products. Your wireless communications are protected by up to 128-bit WEP encryption, so your data stays secure.Advanced wireless security using WPA/WPA2 encryption gives your wireless network reliable protection www.proware.com.cnCopyright © 2009 PROWARE Technologies Co., Ltd. All rights reserved.The Reliable PartnerWireless G speed up to 54Mbps54M2.4GHz
www.proware.com.cnCopyright © 2009 PROWARE Technologies Co., Ltd. All rights reserved.Specifications are subject to change without notice. Proware is a registered trademark of PROWARE Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from PROWARE Technologies Co., Ltd. Features:Specifications:Package:Packing TypePackage Contents                              Honeycomb package                             54M Wireless USB Module M-WN321GM Ralink RT2571WF0.5KBSupports 54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps data transfer rates Supports 64/128bit WEP encryptionSupports WPA/WPA2 and PA-PSK/WPA2-PSK encryption mechanismsSupports wireless roaming between access modeChipsetEEPROMIndicatorsColorStatusGreen*1LEDSolutionPCB layersDimensions (W*D*H)440.5*20*1.0 mm PCB 4 PIN Connector  (6 PIN for optional)InterfaceAntenna Connector I-PEX or RP-SMA cableWorking Modes Ad-hocInfrastructureWindows 2000/XP/Vista, LinuxOperation SystemWireless Parameters Frequency BandData Transfer RatesChannelExtend FrequencyModulation TypeTransmission DistanceMaximum RF PowerReceive SensitivitWireless Security2.4~2.4835GHz11g: 54/48/36/24/12/9/6 Mbps (Auto Sensing)11b:11/5.5/2/1 Mbps (Auto Sensing)1~11 DSSSOFDMIndoors up to 100m, outdoors up to 300m.(Standard transmission distance, The actual value is up to environment.)19dBm54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)Others:Safty, Emission and others CE,  FCC,  Compliant with RoHSFCC ID:WWMWN321GM3V1(Input:3.3V)                  WWMWN321GM5V1(Input:5V)EnvironmentProtocols and Standards IEEE 802.11g,  802.11b USB 2.0, CSMA/CA with ACK Operating TemperatureStorage TemperatureOperating HumidityStorage HumidityCC CCF FFF0   ~40    (32   ~104   )-40   ~70    (-40   ~158   )   10%~90% non-condensing5%~90% non-condensingChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.PLEASE NOTE: This transmitter module is authorized only for use in Pocket-Sized Wireless Print Server series where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: WWMWN321GM3V1 (WWMWN321GM5V1)"
