Psion 7525SG1AC860 Transmit and Receive Data User Manual netpad Win CE Quick Start Guide
Psion Inc Transmit and Receive Data netpad Win CE Quick Start Guide
Psion >
User manual
WORKABOUT PRO
Hand-Held Computer
With Windows Mobile 2003 SE
Quick Reference Guide
August 29, 2006 PN 8000091.A
ISO 9001 Certified
Quality Management System
© Copyright 2006 by Psion Teklogix Inc., Mississauga, Ontario, Canada
This document and the information it contains is the property of Psion
Teklogix Inc., is issued in strict confidence, and is not to be reproduced or
copied, in whole or in part, except for the sole purpose of promoting the sale
of Psion Teklogix manufactured goods and services. Furthermore, this docu-
ment is not to be used as a basis for design, manufacture, or sub-contract, or
in any manner detrimental to the interests of Psion Teklogix Inc.
All trademarks are the property of their respective holders.
Return-To-Factory Warranty
Psion Teklogix provides a return to factory warranty on this product for a
period of twelve (12) months in accordance with the Statement of Limited
Warranty and Limitation of Liability provided at www.psionteklogix.com/
warranty. (If you are not already a member of Teknet and you attempt to view
this warranty, you will be asked to register. As a member of Teknet, you’ll
have access to helpful information about your Psion Teklogix products at no
charge to you.) In some regions, this warranty may exceed this period. Please
contact your local Psion Teklogix office for details. For a list of offices, refer
to “Support Services & Worldwide Offices” on page 36.
The warranty on Psion Teklogix manufactured equipment does not extend to
any product that has been tampered with, altered, or repaired by any person
other than an employee of an authorized Psion Teklogix service organization.
See Psion Teklogix terms and conditions of sale for full details.
Important: Psion Teklogix warranties begin at the date
of shipment.
Service
Psion Teklogix provides a complete range of product support services to its
customers. For detailed information, please refer to “Support Services &
Worldwide Offices” on page 36. This section also provides information about
accessing support services through the Psion Teklogix web site.
Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC
This Product, and its accessories, comply with the requirements of the Waste
Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC.
If your end-of-life Psion Teklogix product or accessory carries a label as
shown here, please contact your local country representative for details on
how to arrange recycling.
For a list of international subsidiaries, please go to:
www.psionteklogix.com/public.aspx?s=us&p=Contacts
Restriction On Hazardous Substances (RoHS) Directive 2002/95/EC
What is RoHS?
The European Union has mandated that high environmental standards be met
in the design and manufacture of electronic and electrical products sold in
Europe, to reduce hazardous substances from entering the environment. The
“Restriction on Hazardous Substances Directive (RoHS)” prescribes the
maximum trace levels of lead, cadmium, mercury, hexavalent chromium, and
flame retardants PBB and PBDE that may be contained in a product. Only
products meeting these high environmental standards may be “placed on the
market” in EU member states after July 1, 2006.
RoHS Logo
Although there is no legal requirement to mark RoHS-compliant products,
Psion Teklogix Inc. indicates its compliance with the directive as follows:
The RoHS logo located either on the back of the product or underneath the
battery in the battery compartment (or on a related accessory such as the
charger or docking station) signifies that the product is RoHS-compliant as
per the EU directive. Other than as noted below, a Psion Teklogix product
that does not have an accompanying RoHS logo signifies that it was placed
on the EU market prior to July 1, 2006, and is thereby exempt from the direc-
tive.
Note: Not all accessories or peripherals will have a RoHS logo
due to physical space limitations or as a result of their exempt status.
Disclaimer
Every effort has been made to make this material complete, accurate, and up-
to-date. In addition, changes are periodically added to the information herein;
these changes will be incorporated into new editions of the publication.
Psion Teklogix Inc. reserves the right to make improvements and/or changes
in the product(s) and/or the program(s) described in this document without
notice, and shall not be responsible for any damages, including but not lim-
ited to consequential damages, caused by reliance on the material presented,
including but not limited to typographical errors.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 1
Table Of Contents
Approvals & Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Basic Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 Charging The Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Installing The Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.3 Switching The Unit On. . . . . . . . . . . . . . . . . . . . . . . . . 12
1.4 Switching The Unit Off (Suspend). . . . . . . . . . . . . . . . 12
2. The WORKABOUT PRO. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

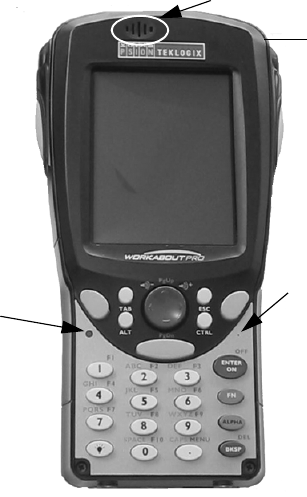

2.1 WORKABOUT PRO C Features . . . . . . . . . . . . . . . . . 13
2.2 WORKABOUT PRO S Features . . . . . . . . . . . . . . . . . 14
2.3 The Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3.1 Battery Swap And Runtime . . . . . . . . . . . . . . . . 17
2.4 The Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

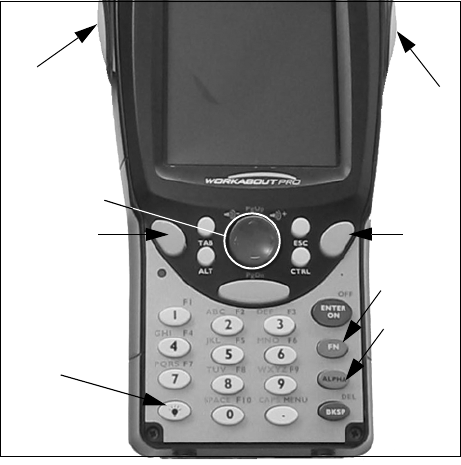

2.4.1 WORKABOUT PRO C Keyboard. . . . . . . . . . . 18

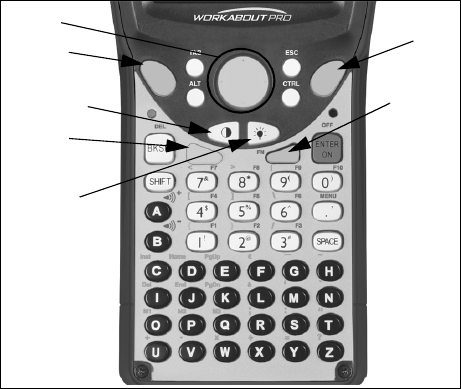

2.4.2 WORKABOUT PRO S Keyboard . . . . . . . . . . . 19
2.4.3 Modifier Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.4.4 The Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

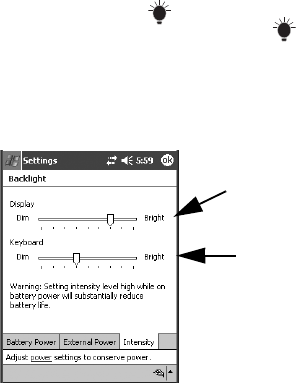

2.5 The Display & Keypad Backlight . . . . . . . . . . . . . . . . 22

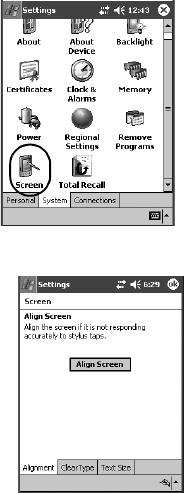

2.5.1 Aligning (Calibrating) The Touchscreen . . . . . . 22
2.6 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6.1 The LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.6.2 Audio Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 24
3. Navigating In Windows Mobile . . . . . . . . . . . . . . . . . . . . . . 25
3.1 Navigating A Touchscreen . . . . . . . . . . . . . . . . . . . . . . 25

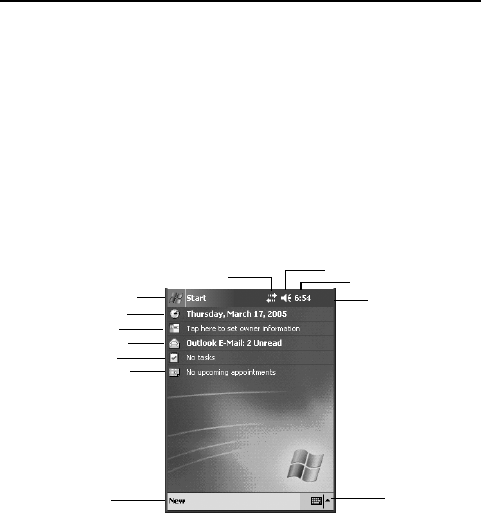

3.2 Navigating The Today Screen . . . . . . . . . . . . . . . . . . . 25
3.2.1 The Navigation Bar . . . . . . . . . . . . . . . . . . . . . . 26

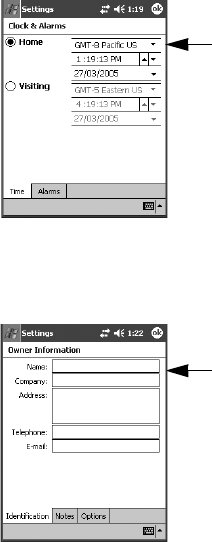

3.3 Today’s Date, Clock And Alarm . . . . . . . . . . . . . . . . . 27
3.4 Ownership. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
3.5 Email Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.6 Task Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

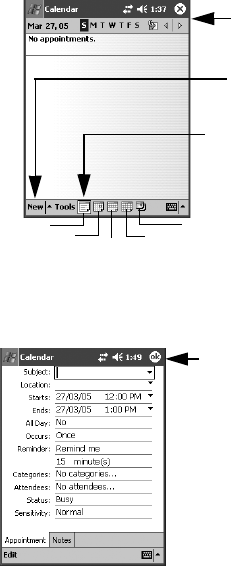

3.7 Using The Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

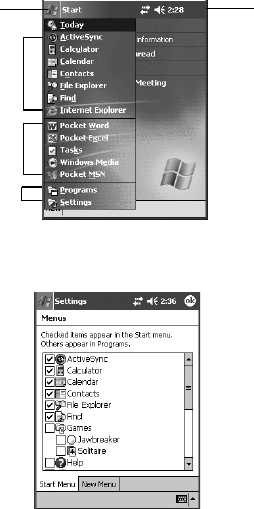

3.8 Start Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.8.1 Customizing The Start Menu . . . . . . . . . . . . . . . 30
3.9 Managing Files And Folders . . . . . . . . . . . . . . . . . . . . 31
3.9.1 Creating A New Folder. . . . . . . . . . . . . . . . . . . . 31
3.9.2 Renaming A File. . . . . . . . . . . . . . . . . . . . . . . . . 31
3.9.3 Copying A File . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.9.4 Deleting A File . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.10 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.10.1 Menu Bars. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.10.2 Pop-Up Menus . . . . . . . . . . . . . . . . . . . . . . . . . 32

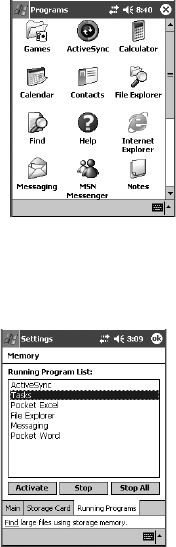

3.11 Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.11.1 Closing An Application . . . . . . . . . . . . . . . . . . 33
3.12 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.13 Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.14 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

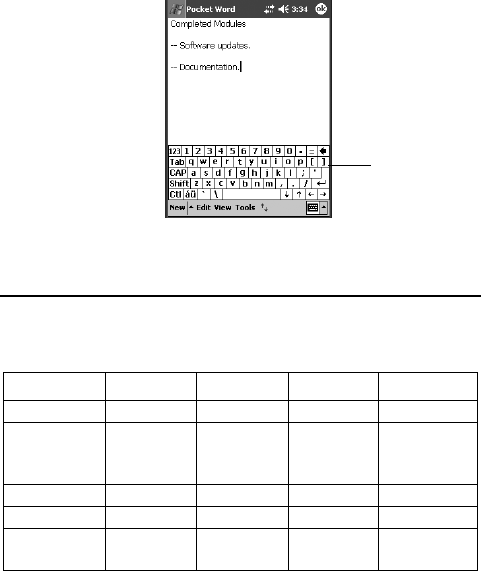

3.14.1 The Soft Keyboard . . . . . . . . . . . . . . . . . . . . . . 35
5. General Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.1 Caring For The Touchscreen . . . . . . . . . . . . . . . . . . . . 36
5.2 Cleaning The WORKABOUT PRO. . . . . . . . . . . . . . . 36
6. Support Services & Worldwide Offices . . . . . . . . . . . . . . . . 36
6.1 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.2 Product Repairs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.3 Worldwide Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
7. Program License Agreements . . . . . . . . . . . . . . . . . . . . . . . . 38
7.1 EULA TERMS (WINDOWS MOBILE) . . . . . . . . . . . 38
7.2 Psion Teklogix Inc. End User License Agreement. . . . 45
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 3
Approvals & Safety Summary
FCC DECLARATION OF CONFORMITY (DoC)
Applicant’s Name & Address: PSION TEKLOGIX Inc.
2100 Meadowvale Blvd.
Mississauga, Ontario
Canada L5N 7J9
Contact Person: Iain Roy
Telephone No.: (905) 813-9900
US Representative’s Name & Address: PSION TEKLOGIX Inc.
1810 Airport Exchange Blvd., Suite 500
Erlanger, KY, 41018, USA
Contact Person: Kyle Day
Telephone No.: (859) 372-4329
Equipment Type/Environment: Computing Devices
Trade Name / Model No.: The WORKABOUT PRO family: 7525C,
7525M-E and 7525S and their accessories.
Year of Manufacture: 2006
Standard(s) to which Conformity is Declared:
The above products, supplied by Psion Teklogix Inc., have been tested and found to
comply with FCC PART 15, SUBPART B - UNINTENTIONAL RADIATORS,
CLASS B COMPUTING DEVICES FOR HOME & OFFICE USE.
I, the undersigned, hereby declare that the equipment as tested is representative within
manufacturing tolerance to units.
Applicant Legal Representative in U.S.
Signature Signature
Mike Doyle Kyle Day
Full Name Full Name
V.P. of Engineering & Operations V.P. Channel Sales
Position Position
Mississauga, Ontario Erlanger, KY 41018, USA
Place Place
March 3, 2006 March 3, 2006
Date Date
4Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
CE Marking
When used in a residential, commercial or light industrial environment the
product and its approved UK and European peripherals
fulfil all requirements for CE marking.
R&TTE Directive 1999/5/EC
This equipment complies with the essential requirements of EU Directive
1999/5/EC (Declaration available: www.psionteklogix.com).
Cet équipement est conforme aux principales caractéristiques définies dans la
Directive européenne RTTE 1999/5/CE. (Déclaration disponible sur le site:
www.psionteklogix.com).
Die Geräte erfüllen die grundlegenden Anforderungen der RTTE-Richtlinie
(1999/5/EG). (Den Wortlaut der Richtlinie finden Sie unter: www.psiontek-
logix.com).
Questa apparecchiatura è conforme ai requisiti essenziali della Direttiva
Europea R&TTE 1999/5/CE. (Dichiarazione disponibile sul sito:
www.psionteklogix.com).
Este equipo cumple los requisitos principales de la Directiva 1995/5/CE de la
UE, “Equipos de Terminales de Radio y Telecomu-nicaciones”. (Declaración
disponible en: www.psionteklogix.com).
Este equipamento cumpre os requisitos essenciais da Directiva 1999/5/CE do
Parlamento Europeu e do Conselho (Directiva RTT). (Declaração disponível
no endereço: www.psionteklogix.com).
Ο εξοπλισμός αυτός πληροί τις βασικές απαιτήσεις της κοινοτικής οδηγίας
EU R&TTE 1999/5/EΚ. (Η δήλωση συμμόρφωσης διατίθεται στη
διεύθυνση: www.psionteklogix.com)
Deze apparatuur voldoet aan de noodzakelijke vereisten van EU-richtlijn
betreffende radioapparatuur en telecommunicatie-eindappa-ratuur 199/5/EG.
(verklaring beschikbaar: www.psionteklogix.com).
Dette udstyr opfylder de Væsentlige krav i EU's direktiv 1999/5/EC om
Radio- og teleterminaludstyr. (Erklæring findes på: www.psiontek-
logix.com).
Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet
(1999/5/EC) fra EU. (Erklæring finnes på: www.psionteklogix.com).
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 5
Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten tel-
eutrustning och ömsesidigt erkännande av utrustningens överensstämmelse
(R&TTE). (Förklaringen finns att läsa på: www.psionteklogix.com).
Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin
(EU R&TTE Directive 1999/5/EC) vaatimuksia. (Julkilausuma nähtävillä
osoitteessa: www.psionteklogix.com).
Use of the 802.11 WORKABOUT PRO C & S in France: Owing to
French Government restrictions, the 802.11 WORKABOUT PRO C & S are
limited to indoor use. They may be used outdoors, on private property, only
with prior authorization from the French Ministry of Defense.
FCC Information To Users
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
PSION TEKLOGIX tímto prohlašuje, že WORKABOUT PRO C
& S je ve shod
ě
se základními požadavky a dalšími příslušnými
ustanoveními sm
ě
rnice 1995/5/ES (NV č. 426/2000 Sb.) a
Prohlášení o shod
ě
je k dispozici na www.PsionTeklogix.com.
Toto zařízení lze provozovat v České republice na
základ
ě
generální licence č. GL - 12/R/2000.
PSION TEKLOGIX týmto vyhlasuje, že WORKABOUT PRO C
& S spĺ
ň
a základné požiadavky a všetky príslušné ustanovenia
Smernice 1995/5/ES (NV č. 443/2001 Z.z.) a Vyhlásenie o
zhode je k dispozícii na www.PsionTeklogix.com.
Toto zariadenie je možné prevádzkovať v Slovenskej republike
na základe Všeobecného povolenia č. VPR-01/2001.
L
6Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment under 47 CFR 2.1093 paragraph (d)(2), for use in a
PDA. End users must follow the specific operating instructions for satisfying
RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Some equipment in hospitals and aircraft are not shielded from radio fre-
quency energy. Do not use the WORKABOUT PRO M-E, C & S hand-held
onboard aircraft, or in hospitals, without first obtaining permission.
Do not use near pacemakers. The product may affect the operation of some
medically implanted devices such as pacemakers, causing them to malfunc-
tion. Avoid placing your product next to such devices. Keep a minimum dis-
tance of 20 cm between the device and the product to reduce the risk of
interference. If you have any reason to suspect that interference is taking
place, turn off the WORKABOUT PRO M-E, C & S hand-held and contact
your cardiologist for assistance.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 7
Note: To maintain compliance with the FCC RF exposure guidelines, if
you wear the WORKABOUT PRO M-E, C & S on your body, use the
Psion Teklogix approved carrying case.
Use of non-approved accessories may violate FCC RF exposure
guidelines.
Emissions Information For Canada
This Class B digital apparatus meets all requirements of the Canadian Inter-
ference-Causing Equipment Regulations. When using the 802.11 radio
option, to prevent radio interference, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment
(or its transmit antenna) that is installed outdoors is subject to licensing.
Cet appareil numérique de la classe B respecte toutes les exigences du Règle-
ment sur le matériel brouilleur du Canada. En cas d’utilisation du module
radio 802.11, afin d'éviter toute interférence radio avec le service autorisé,
l'appareil doit être utilisé à l'intérieur, tout en tant éloigné de toute fenêtre afin
de garantir le maximum de protection. Si cet équipement (ou son antenne
émettrice) est installé à l'extérieur, il est alors soumis à licence.
Warning for Australia
The user needs to switch off the device when exposed to areas with poten-
tially explosive atmospheres such as petrol stations, chemical storage depots
and blasting operations.
Warning to Users
This product is a Class I/Class II laser product according to CDRH 21 CFR
1040.10 and 1040.11 and Class1/Class 2 laser product according to IEC
60825-1:1993+A1:1997+A2:2001
The SE1200 ALR has a maximum radiated power less than 1.4 mW; accord-
ing to EN 60825-1: 2001 it is classified as a Class 3B laser product.
Laser Warnings
For your own safety, it is critical that you comply with the
following warnings:
8Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
Caution!
Do not look into the laser/LED beam or point the beam at people or animals.
Caution!
Using controls or adjustments, or performing procedures other than those
specified herein may result in hazardous radiation exposure.
Caution!
The use of optical instruments with this product will increase
eye hazard.
Do Not Operate In An Explosive Atmosphere
Operating Psion Teklogix equipment where explosive gas is present may
result in an explosion.
Do Not Remove Covers Or Open Enclosures
To avoid injury, the equipment covers and enclosures should only be
removed by qualified service personnel. Do not operate the equipment
without the covers and enclosures properly installed.
Caution!
Danger of explosion if a WORKABOUT PRO M-E, C & S battery is
incorrectly handled, charged, disposed of or replaced. Replace only with
the same or equivalent type recommended by Psion Teklogix – i.e., Mod-
els WA3000, WA3000-G1, WA3002 or WA3006. Dispose of used batter-
ies according to the instructions described in “The Battery” on page 16.
Carefully review all battery safety issues.

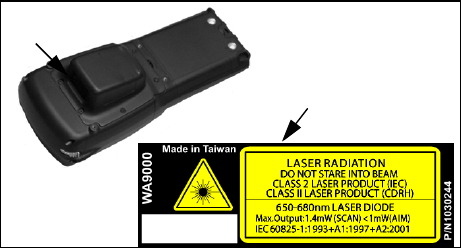

Aperture
This label is affixed below the aperture.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 9
Vorsicht!
Explosiongefahr bei unsachgemäßem Austausch der Batterie Ersatz nur
durch denselben oder einen vom Hersteller empfohlenen gleichwertigen
Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
Safety Instructions for the following:
• WORKABOUT PRO AC Wall Adaptor (WA3220-G1),
• Desktop Docking Stations (WA4002-1-G1, WA4102-1-G1), and
• Tether Cable (CA1050-G1)
For your own safety, it is critical that you comply with the
following warnings:
Caution!
Before use, read all safety instructions for the Docking Station, the
WORKABOUT PRO and the AC Wall Adaptor.
Caution!
To avoid the risk of fire or personal injury, use only the Psion Teklogix
recommended AC adaptor.
Caution!
Use of an attachment not recommended or sold by Psion Teklogix may
result in fire, electric shock, or personal injury.
Caution!
To reduce risk of damage to the electric plug and cord when unplugging
the charger, pull the plug rather than the cord.
Caution!
Make sure the cord is positioned so that it is not stepped on, tripped over,
or otherwise subjected to damage or stress.
Caution!
Do not operate with a damaged cord or plug. Replace immediately.
Caution!
Do not operate if the device has received a sharp blow, been dropped,
or otherwise damaged in any way; it should be inspected by qualified
service personnel.
Caution!
Do not disassemble; repairs must be carried out by Psion Teklogix quali-
fied service personnel. Incorrect reassembly may result in electric shock
or fire.
10 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
Caution!
To reduce risk of electric shock, unplug the AC adapter from the outlet
before attempting any cleaning.
Caution!
An extension cord should not be used unless absolutely necessary. Use of
an improper extension cord could result in fire or electric shock. If an
extension cord must be used, make sure the plug pins on the extension
cord are the same number, size, and shape as those on the adapter, the
extension cord is properly wired and in good electrical condition and that
the wire size is larger than 16 AWG.
Caution!
The AC adaptor is for indoor use only. Do not expose the AC adaptor to
rain or snow.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 11
1. Basic Preparation
Important: All approval and safety information is outlined in the
‘WORKABOUT PRO Hand-Held Computer With Windows
Mobile 2003 SE User Manual’ – part number 8000058.
This manual is available on our web site www.psiontek-
logix.com. It is important that you review all safety guide-
lines before charging a battery or operating a scanner.
This quick start guide provides basic information on the operation and fea-
tures of Psion Teklogix WORKABOUT PRO hand-held computers equipped
with the Windows Mobile 2003 SE operating system. For more detailed
information, refer to the WORKABOUT PRO Hand-Held Computer With
Windows Mobile 2003 SE User Manual (PN 8000058) or the documentation
supplied with the application you are using.
Typically, WORKABOUT PROs are configured at the factory and arrive
ready for use.
1.1 Charging The Battery
Batteries shipped from the factory are not charged. They must be fully
charged prior to use. Full capacity may not be reached until at least 5 full
charge/discharge cycles have been performed.
Important: The backup battery is trickle charged from the main bat-
tery. To maximize battery life, avoid excessive discharging
and recharging of the backup battery by keeping the main
battery fully charged.
IF YOU ARE POWERING UP A NEW UNIT, a warning
message may appear on the screen indicating that the
backup battery capacity is low. To recharge the backup
battery, you must fully charge the WORKABOUT PRO
with the main battery installed in the unit. An overnight
charge is recommended.

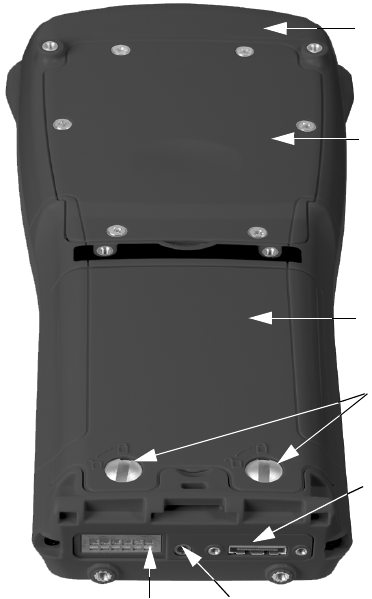

1.2 Installing The Battery
• Turn the fasteners at the base of the battery cover counter-clockwise
to unlock the cover and remove it.
12 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
• Insert the charged battery. Replace the battery cover, and turn the fas-
teners at the base of the battery cover clockwise to lock the battery in
place.
Note: If you are using a docking station, you can insert an uncharged bat-
tery, dock the unit and switch it on.
1.3 Switching The Unit On
• Press and hold down the [ENTER/ON] key for at least
one second to switch the unit on.
• When the LED flashes green, release [ENTER/ON].
The desktop ‘Today’ screen is displayed.
Note: If the unit was already in use – the unit may be off (suspend state) –
pressing [ENTER/ON] ‘wakes’ the unit from this state. The screen in
which you were working prior to the suspend state is displayed.
1.4 Switching The Unit Off (Suspend)
• Press the [BLUE] key, and then press [ENTER/ON] to switch off the
WORKABOUT PRO.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 13
2. The WORKABOUT PRO
2.1 WORKABOUT PRO C Features
Stylus
(pointing tool)
Sound Port
LED
(Light Emitting Diode)
Microphone
14 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
2.2 WORKABOUT PRO S Features
Sound Port
(pointing tool)
Stylus
LED
(Light Emitting Diode) Microphone
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 15
Battery Cover
Tether Port
Low Insertion
Battery Cover
Fasteners
Force
(
LIF
)
Port Audio Jack
End Cap
Back Cover – optional
scanner module fits
here
16 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
2.3 The Battery
The WORKABOUT PRO C operates with a Standard Capacity Lithium Ion
battery pack, a High Capacity Lithium-Ion battery pack or three AA alkaline
batteries. If you are using a Lithium Ion battery pack, the battery pack must
first be charged.
The WORKABOUT PRO S operates with either a Standard Capacity or a
High Capacity Lithium-Ion battery pack. It does not support AA alkaline bat-
teries.
Warning: Before charging or using the battery pack, it is critical that the
safety information in this section be reviewed and that all warn-
ings are strictly followed.
BATTERIES ARE CONSIDERED HAZARDOUS WASTE.
For proper disposal, forward all used batteries to one of:
Psion Teklogix Inc. Psion Teklogix Corp. Psion Teklogix S.A.
2100 Meadowvale Blvd. 1810 Airport Exchange Blvd. Parc Club Du Golf-Bat 1.
Mississauga, Ontario Suite 500 13856 Aix-En-Provence
Canada Erlanger, Kentucky Cedex 3
L5N 7J9 USA 41018 France
Warning: TO PREVENT the battery from leaking acid, generating heat
or exploding, adhere to precautions below.
• The battery incorporates built-in safety devices. To ensure
their proper function, do not disassemble or alter any parts
of the battery.
• Do not short-circuit the battery by directly connecting any of the
exposed terminals with metal objects such as wire. Do not transport
or store the battery together with metal objects such as necklaces,
hair pins, etc.
• Do not dispose of batteries in fire.
• Do not use or leave the battery near a heat source such as a fire or
heater.
• Do not immerse the battery in water.
• When charging, use the battery charger specifically designed for the
battery.
• Do not pierce, strike, throw or step on the battery.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 17
• Do not directly solder the battery.
• Do not connect the battery to an electrical outlet, vehicle
cigarette lighter, etc.
• Do not put battery into a microwave oven or pressurized
container.
• Do not use the battery in combination with primary batteries (such as
dry-cell batteries) or batteries of different capacities or brands.
• Immediately remove the battery from the device or battery charger
and stop use if the battery gives off an odour, generates heat,
becomes discoloured or deformed, or in any way appears abnormal
during use.
• Do not continue charging the battery if it does not recharge within the
specified charge time.
• The battery may burst or ignite if the battery leaks. Always ensure
that it is away from any exposed flames.
• If leaking electrolyte sprays into your eyes, rinse them with clean
running water, and immediately seek medical attention.
• Do not store the battery in extremely high temperatures
(e.g., a vehicle, strong direct sunlight, etc.). This may cause the bat-
tery to overheat or ignite, and it may also reduce the performance and
service life of the battery.
• Do not use in areas where static electricity is greater than what the
manufacturer guarantees.
• Keep batteries out of reach of children.
2.3.1 Battery Swap And Runtime
Under normal operating conditions, fully charged Standard Capacity batter-
ies hold a charge for up to 8 hours. High Capacity batteries can hold a charge
for up to 12 hours. Battery swap time is between 10 and 15 minutes—you
will not lose data if the battery is replaced within this time frame.
Keep in mind that user data are stored in a RAM-based folder by default—
data in these RAM folders is lost if the main and backup batteries are com-
pletely drained, or if the unit is cold reset. The safest place to store data is in
the \Storage (onboard FFS) folder or on an SD or MMC memory card. To
protect against data loss, the unit will automatically shut down with enough
reserve in the main battery to last up to 72 hours.
18 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
2.4 The Keyboard
Note: Any differences between the WORKABOUT PRO C and S keys are
clearly indicated.
2.4.1 WORKABOUT PRO C Keyboard
Arrow Keys
Scan Key
Contrast Key
Display
Backlight Key
Scan Key
Orange Key
Blue Key
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 19
2.4.2 WORKABOUT PRO S Keyboard
The keyboard is equipped with a set of standard keys along with an
[ORANGE] and a [BLUE] modifier key to provide access to additional keys
and system functions. These additional keys are
colour coded in orange and blue print above the standard keys.
2.4.3 Modifier Keys
The [SHIFT], [CTRL], [ALT], [ORANGE] and [BLUE] keys are modifier
keys. Pressing a modifier key changes the function of the next key pressed.
For example, on the WORKABOUT PRO C keyboard, a square bracket is
Arrow Keys
Display
Backlight Key
Scan Key
Scan Key
Scan Key
Scan Key
FN/Blue Key
ALPHA/Orange
Key
20 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
printed in orange print above the [4] key. Pressing the [ORANGE] key fol-
lowed by the [4] key displays a square bracket rather than the number 4.
The [SHIFT], [CTRL] and [ALT] keys operate much like a desktop keyboard
except that they are not chorded–two keys cannot be held down simultane-
ously. The modifier key must be pressed first followed by the key whose
function you want modified.
Activating Modifier Keys
When a modifier key is pressed once, a shift-state indicator icon replaces the
soft keyboard icon in the taskbar at the bottom of the screen. Once the next
key is pressed, the modifier key becomes inactive– the soft keyboard icon
replaces the shift-state indicator icon in the taskbar. Note that some modifier
keys are locked ‘on’ when pressed only once. Refer to ‘One Shots’ in
Chapter 6 of the WORKBOUT PRO Hand-Held Computer With Windows
Mobile 2003 SE User Manual for details.
Locking Modifier Keys
When a modifier key is pressed twice, it is ‘locked’ on. To help you identify
when a modifier key is ‘locked’, the key is represented in the shift-state indi-
cator icon with a black frame around it.
The locked modifier key will remain active until it is pressed a third time to
unlock or turn it off. Once a modifier key is unlocked, the soft keyboard icon
replaces the shift-state indicator icon in the taskbar.
2.4.4 The Keys
The [ALPHA] Key (WORKABOUT PRO S Only)
Used to access the alpha characters displayed in orange print above
numeric keys [1] through [9].
The [CAPS] Key (WORKABOUT PRO S Only)
Displays uppercase alpha characters. Press [ALPHA/ORANGE] [.] to
activate this key.
The [SHIFT] Key (WORKABOUT PRO C Only)
Used to display uppercase alpha characters and provide access to the
symbols above the numeric keys.
The Arrow Keys
Contained in the round disk-shaped key at the top of the keyboard. Moves
the cursor around the screen – up, down, left and right.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 21
The [BKSP/DEL] Key
Moves the cursor one character to the left, erasing the incorrectly entered
key stroke. [DEL] key ([BLUE] [BKSP]) erases the character at the cur-
sor position.
The [CTRL] And [ALT] Key
Modify the function of the next key pressed and are application dependent.
The [TAB] Key
Usually moves the cursor to the next field to the right or downward.
Pressing [ORANGE] [TAB] move the cursor backward.
The [ESC] Key
Generally used as a keyboard shortcut to close the current menu, dialog
box or activity and return to the previous one.
The [SPACE] Key
Inserts a blank space between characters. In a Windows dialog box, the
[SPACE] key enables or disables a checkbox. On the S model, press
[ALPHA/ORANGE] [0] to access this key.
The [SCAN] Keys
Activate the scanner beam while pressed. For units without internal scan-
ners, these keys are inoperable.
The Function Keys – [F1] to [F10]
Perform special, custom-defined functions. These keys are accessed by
pressing [BLUE] ([FN/BLUE] on S models) followed by numeric keys
[1] to [0]. They can be used with the Windows Mobile 2003 SE operating
system or another application.
22 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
The Macro Keys [M1] to [M3] (WORKABOUT PRO C Only)
Contain up to 20 programmable characters (“positions”) and executable
keys. These keys are accessed by pressing [ORANGE] followed by alpha
keys [O], [P] or [Q]. When pressed, a macro key executes a custom-
defined string of characters, including executable keys.
2.5 The Display & Keypad Backlight
Adjusting The Display Backlight From The Keyboard
• Press the Backlight key [ ] to cycle through from light to dark,
and then back to lightest. Press [ORANGE] [ ] to cycle backward
from darker to lighter.
Setting The Display & Keypad Intensity

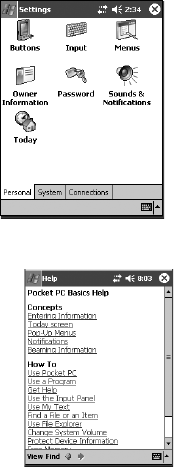

• Tap on Start>Settings. Tap on the System tab followed by the Back-
light icon.
• Tap on the Intensity tab.
2.5.1 Aligning (Calibrating) The Touchscreen
If the touchscreen has never been calibrated or if the stylus pointer is not
accurate when you tap on an item:
Slide this tab to adjust
display backlight intensity.
Slide this tab to adjust
keypad backlight
intensity.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 23
• Tap on Start>Settings. Tap on the System tab to display the Screen
icon.
• Tap on the Screen icon to display the Alignment tab.
• Tap on the Align Screen button and follow the directions.
2.6 Indicators
WORKABOUT PROs use an LED (Light Emitting Diode), onscreen mes-
sages and audio tones as indicators.
24 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
2.6.1 The LED
A single, two-coloured LED is located on the left side of the unit, just above
the [BKSP] key. When you press [ENTER/ON], the LED flashes green to
indicate that the unit has been powered up. The LED table below outlines the
behaviour of the LED while the unit is docked in a charger.
Keep in mind that the application running on the WORKABOUT PRO can
dictate how the LED operates.
Review the documentation provided with the application to determine LED
behaviour.
2.6.2 Audio Indicators
The audio speaker provides a variety of sounds and can be configured to emit
a sound under various conditions. Refer to ‘Sound And Notification’ in the
‘WORKABOUT PRO Hand-Held Computer With Windows Mobile 2003 SE
User Manual’ for details.
Adjusting The Speaker Volume
The volume keys are located above the [A] and [B] keys on WORKABOUT
PRO C models and above arrow keys on WORKABOUT PRO S models.
The increase volume key is labelled with a plus symbol and the
decrease volume key is labelled with a minus sign .
On WORKABOUT PRO C models:
• Lock the [BLUE] key ‘on’.
• Press the increase volume [A] key or the decrease volume [B] key
until the volume meets your needs.
• Press the [BLUE] key again to ‘unlock’ it.
On WORKABOUT PRO S models:
• Lock the [FN/BLUE] key ‘on’.
LED Behaviour Indication
Solid Green Charge complete.
Blinking Green Charge in progress.
Solid red Temperature outside charge range.
Blinking red Battery is not charging. Battery fault.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 25
• Press the increase volume [RIGHT] arrow key or the decrease vol-
ume [LEFT] arrow key until the volume meets your needs.
• Press the [FN/BLUE] key again to ‘unlock’ it.
On WORKABOUT PROs, the ‘point and click’ action of a PC mouse is
accomplished by tapping a stylus on the touchscreen.
3. Navigating In Windows Mobile
3.1 Navigating A Touchscreen
All WORKABOUT PROs are equipped with a touchscreen and a stylus. To
prevent damage to the touchscreen, use only the stylus provided – never use
a screw driver or other sharp objects.
To open an icon or a file, launch an applet or open a folder:
• Tap on the appropriate icon.
Note: If the touchscreen is not registering your screen taps accurately,
refer to “Aligning (Calibrating) The Touchscreen” on page 22.
3.2 Navigating The Today Screen
Start Button
Today’s Date
Owner Information
Calendar-Upcoming
Appointments
Connectivity Indicator Volume Control
Clock
Navigation Bar
Email Notification
Tasks To Complete
Taskbar Soft Keyboard
26 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
3.2.1 The Navigation Bar
Note: When a peripheral is attached to the tether or LIF port of the
WORKABOUT PRO, an associated icon is displayed briefly in the
navigation bar to indicate that the hand-held has recognized the
connection.
Tapping an icon in the navigation bar produces the following results:
Start Button
Displays the Start menu.
Connectivity Indicator
Provides a shortcut to the Connections tab in the Settings window. This
tab provides access to Bluetooth, network, network card and internet con-
nection setups.
Volume Control
Displays a sliding tab to adjust the speaker volume or turn the speaker on
and off.
Clock
Displays a bubble which indicates the current date and time. It also indi-
cates the connection – AC or battery. This icon also lists any upcoming
appointments.
Start Button
Connectivity Indicator
Volume Control Date & Time
Battery Capacity
Upcoming Appts
.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 27
3.3 Today’s Date, Clock And Alarm
Note: To warn you of an upcoming meeting or appointment, tap on the
Alarms tab, and tap in the checkbox to enable an alarm. Choose the
day & time of the alarm.
3.4 Ownership
Note: You can type information using the WORKABOUT keyboard, or you
can tap on the soft keyboard icon in the bottom-right corner of the
taskbar to display an onscreen keyboard.
In the Today screen, tap the stylus
on today’s date to display the
Clocks & Alarms screen.
Tap the stylus on the dropdown
menu arrows to adjust the GMT,
time and date displayed in the
Today screen.
In the Today screen, tap the stylus
on Owner: to display this screen.
Type your personal information in
the appropriate fields.
28 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
3.5 Email Notification
If you have any email, it will be indicated next to the email notification list-
ing in the Today screen.
Refer to ‘Messaging – The Inbox’ in the WORKABOUT PRO Hand-Held
Computer with Windows Mobile 2003 SE User Manual (PN 8000058) for
details about synchronizing your email.
3.6 Task Notification
Note: To edit a task, tap on the task in this screen to display the Task
Details screen. Tap on the Edit menu and make any changes or add
details about the task.
In the Today screen, tap the stylus on the
Task Notification icon to display this screen.
Tap here, and type a task description using
the soft keyboard or the hand-held keyboard.
Tap anywhere in the blank part of the screen,
or press [ENTER] to add the task to your
Today screen Active tasks list.
To mark the task as completed, tap on the
active task in the Today screen.
Tap in the checkbox next to the task. The
check mark indicates that the task has been
completed. It will no longer appear as an
Active task in the Today screen.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 29
3.7 Using The Calendar
Note: To synchronize the calendar with your PC, refer to ‘Active Sync
Options’ in the WORKABOUT PRO Hand-Held Computer With
Windows Mobile 2003 SE User Manual for details.
Adding An Appointment
In the Today screen, tap the stylus on the
Calendar icon to display this screen listing
Tap on one of these icons to change the format
of the calendar – Today icon to view today’s agenda,
Day icon to view today’s hourly schedule, Week icon
to view the entire week and Month or Year icons to
view long-term schedules.
Today Day Week Month Year
your appointments.
To create a new calendar entry, tap on the
New menu option in the taskbar.
When you tap on the New menu in the initial,
Calendar screen above, this screen –the Appointment
Detail screen – is displayed.
Use the soft keyboard or the hand-held keyboard to
type a description of your appointment in the
appropriate fields.
30 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
3.8 Start Menu
• Tap on the Start button in the upper-left corner of the navigation bar
to display the menu.
• Tap on the item with which you want to work.
3.8.1 Customizing The Start Menu
Note: Keep in mind that you are limited to a maximum of 7
program choices at one time.
Start
7 custom-chosen
programsprograms
5 most recently used
programs
command centre
Windows Mobile
Navigation Bar
Tap in the checkbox next
to the item(s) you want to
appear in the Start menu.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 31
3.9 Managing Files And Folders
• Tap on Start>File Explorer. If this option is not available in the
Start menu, tap on Start>Programs. Tap on the File Explorer icon.
3.9.1 Creating A New Folder
•Tap Start>File Explorer.
•Tap Edit in the menu bar.
•Tap New Folder.
• Use the WORKABOUT PRO keyboard or the soft keyboard to
assign a name to the folder.
3.9.2 Renaming A File
• Press and hold the stylus on the file you want to rename. A ring of
dots is displayed followed by a pop-up menu.
•Tap Rename. The file name is highlighted. Type a new name.
3.9.3 Copying A File
• Press and hold the stylus on the file you want to copy. A ring of dots
is displayed followed by a pop-up menu.
• Tap on Copy in the pop-up menu.
• Navigate to the location where you want to copy the file.
Documents are automatically
stored here.
Tap on a folder to open it
Menus contain application-
specific commands
Internal File Storage Storage Card Shared Network Files
32 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
• Press and hold the stylus in a blank area of the screen—away from
other icons—until a pop-up menu is displayed.
•Tap Paste to copy the file to the new location.
3.9.4 Deleting A File
• Press and hold the stylus on the file or folder you want to delete until
a pop-up menu is displayed.
•Tap Delete to remove the file.
3.10 Using Menus
Menus in Windows Mobile 2003 SE are available at the bottom of the appli-
cation screen.
3.10.1 Menu Bars
To execute a command available in the menu bar:
• Tap on a menu to display the commands associated with it.
• Tap on the command you want to execute.
3.10.2 Pop-Up Menus
Pop-up menus are available in many screens and programs, offering quick
access to a group of useful commands. To display a pop-up menu:
• Gently press and hold the stylus on the screen. A ring of dots is dis-
played on the screen followed by a pop-up menu.
• Tap on the command you want to execute.
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 33
3.11 Programs
3.11.1 Closing An Application
• Tap on Start>Settings. Tap on the System tab and then the Memory
icon–the Memory screen is opened.
•Tap on the Running Program tab to view a list of running applica-
tions.
Tap on Start, Programs to
display the programs installed
on your unit.
Tap on the icon representing the
program you want to launch.
To minimize a program screen,
tap on the X in the upper-
right corner. Keep in mind that
this will
minimize
rather than
close the program.
Tap on the application you
want to shut down, and tap
on the Stop button.
Tap on Stop All to shut down
all active applications.
Tap on Activate to enable
an application.
34 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
3.12 Settings
3.13 Help
3.14 Entering Text
You can enter text using the onscreen, soft keyboard or using the WORKA-
BOUT PRO keyboard.
Tap on Start, Settings to display
the options installed on your unit.
Tap on the icon representing the
setting you want to launch.
Tap on the tab containing the
setting icon you want to launch.
Tap on Start, Help to display
Help screen.
Tap on the topic about which you
want additional information.
Tap on Start, Help to display the
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 35
3.14.1 The Soft Keyboard
Note: To review additional text entry options, refer to ‘WORKABOUT
PRO Hand-Held Computer With Windows Mobile 2003 User
Manual’.
4. Scanner Specifications
4.1 SE 1223 HP, LR, ALR & SE 923HP
Scan Engine SE 1223HP SE 1223LR SE 1223ALR SE 923HP
Scan Angle 42º ± 2º 13º ± 2º 23º ± 2º 53º (typical)
Scan Rate 35 (± 5)
scans/sec 35 scans/sec 35 scans/sec
39 (± 3) scans/
sec (bi-direc-
tional)
Scan Pattern Linear Linear Linear Linear
Wavelength 650nm 650nm 650nm 650nm
Peak output
power 1.2mW 1.4mW 1.4mW 0.94mW
If the soft keyboard is not
displayed, tap on the arrow on
the right side of the taskbar.
Choose Keyboard from the pop-
up menu.
Tap on the letters in the soft
keyboard that you want to
appear in your document.
To switch to the numeric keypad,
tap on the ‘123’ key in the
upper-left corner of the soft
keyboard.
Tap on ‘123’ again to return
to the standard keypad.
Soft Keyboard
36 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
5. General Maintenance
5.1 Caring For The Touchscreen
The touchscreen can be permanently damaged by harsh chemicals and is sus-
ceptible to abrasions and scratches. Using sharp objects on the touchscreen
can scratch or cut the plastic or crack the internal conductive coating.
Protect the touchscreen from the following chemicals:
• mustard, ketchup,
• sodium hydroxide,
• concentrated caustic solutions,
• benzyl alcohol, and
• concentrated acids.
If touchscreens are used in harsh environments, apply disposable screen pro-
tectors to dramatically extend the life of the touchscreen.
5.2 Cleaning The WORKABOUT PRO
Important: Do not immerse the unit in water. Dampen a soft cloth with
mild detergent to wipe the unit clean.
•Use only mild detergent or soapy water to clean the unit.
• Avoid abrasive cleaners, solvents or strong chemicals. The plastic
case is susceptible to harsh chemicals. The plastic is partially soluble
in oils, mineral spirits and gasoline. The plastic slowly decomposes
in strong alkaline solutions.
• To clean ink marks from the keypad and touchscreen, use isopropyl
alcohol.
6. Support Services & Worldwide Offices
Psion Teklogix provides a complete range of product support services to its
customers worldwide. These services include technical support and product
repairs.
6.1 Technical Support
For technical support in North America:
Call Toll free:+1 800 387 8898Option 3 or
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 37
Direct Dial:+1 905 813 9900Ext. 1999Option 3
For technical support in EMEA (Europe, Middle East and Africa), please
contact the local office listed in the website below:
http://www.psionteklogix.com/EMEASupport
For technical support in Asia, please contact the local office listed in the
website below:
http://www.psionteklogix.com
Technical Support for Mobile Computing Products is provided via email
through the Psion Teklogix customer and partner extranets. To reach the web-
site, go to www.psionteklogix.com, and click on the appropriate Teknet link
on the home page. Then click on the “Login” button or the “Register” button,
depending on whether you have previously registered for Teknet. Once you
have logged in, search for the “Support Request Form”.
6.2 Product Repairs
For repair service in North America:
Call Toll free:+1 800 387 8898Option 2 or
Direct Dial:+1 905 813 9900Ext. 1999Option 2
For repair service in EMEA (Europe, Middle East and Africa), please
contact the local office listed in the website below:
http://www.psionteklogix.com/EMEASupport
For repair service in Asia, please contact the local office listed in the
website below:
http://www.psionteklogix.com
6.3 Worldwide Offices
COMPANY HEADQUARTERS
Psion Teklogix Inc.
2100 Meadowvale Boulevard
Mississauga
Ontario
Canada L5N 7J9
Tel: +1 905 813 9900
Fax: +1 905 812 6300
Email: salescdn@psion.com
38 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
CANADIAN SERVICE CENTRE
Psion Teklogix Inc.
7170 West Credit Ave., Unit #1
Mississauga, Ontario
Canada L5N 7J9
Tel: +1 800 387 8898Option 2 - or -
Direct: + 1 905 813 9900Ext. 1999 Option 2
Fax: + 1 905 812 6304
Web: www.psionteklogix.com
NORTH AMERICAN HEADQUARTERS AND U.S. SERVICE CENTRE
Psion Teklogix Corp.
1810 Airport Exchange Boulevard
Suite 500
Erlanger, Kentucky
USA 41018
Tel: +1 859 371 6006
Fax: +1 859 371 6422
Email: salesusa@psion.com
INTERNATIONAL SUBSIDIARIES (SEE ALSO WWW.PSIONTEKLOGIX.COM)
Psion Teklogix S.A.
La Duranne
135 Rue Rene Descartes
BP 421000
13591 Aix-En-Provence
Cedex 3; France
Tel: +33 4 42 90 88 09
Fax: +33 4 42 90 88 88
E-mail: tekeuro@psion.com
7 . P r o g r a m L i c e n s e A g r e e m e n t s
7.1 EULA TERMS (WINDOWS MOBILE)
You have acquired a device (“DEVICE”) that includes software licensed by
Psion Teklogix from an affiliate of Microsoft Corporation (“MS”). Those
installed software products of MS origin, as well as associated media, printed
materials, and “online” or electronic documentation (“SOFTWARE”) are
protected by international intellectual property laws and treaties. The SOFT-
Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide 39
WARE is licensed, not sold. All rights reserved.
• IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREE-
MENT (“EULA”), DO NOT USE THE DEVICE OR COPY THE
SOFTWARE. INSTEAD, PROMPTLY CONTACT Psion Teklogix
FOR INSTRUCTIONS ON RETURN OF THE UNUSED
DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE,
INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE,
WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS CONSENT).
• SOFTWARE includes software already installed on the DEVICE
(“DEVICE Software”) and MS software contained on the CD-ROM
disk (“Companion CD”).
GRANT OF SOFTWARE LICENSE. This EULA grants you the follow-
ing license:
DEVICE Software. You may use the DEVICE Software as installed on the
DEVICE.
Companion CD. A Companion CD is included with your DEVICE, and you
may install and use the Microsoft® ActiveSync® component on one (1) or
more personal computers to exchange information with one (1) or more com-
puting devices that contain a compatible version of the Microsoft® Pocket
PC Software 2003 operating system. For other software component(s) con-
tained on the Companion CD, you may install and use such components only
in accordance with the terms of the printed or online end user license agree-
ment(s) provided with such component(s). In the absence of an end user
license agreement for particular component(s) of the Companion CD, you
may install and use only one (1) copy of such component(s) on the DEVICE
or a single personal computer with which you use the DEVICE.
Phone Functionality. If the DEVICE SOFTWARE includes phone function-
ality, all or certain portions of the SOFTWARE may be inoperable if you do
not have and maintain a service account with an appropriate Mobile Opera-
tor, or if the Mobile Operator's network facilities are not operating or config-
ured to operate with the DEVICE.
Microsoft® Outlook® 2002. If Microsoft Outlook 2002 is included with
your Device, the following terms apply to your use of Microsoft Outlook
2002: (i) regardless of the information contained in the “Software Installation
and Use” section of the online EULA you may install one (1) copy of
Microsoft Outlook 2002 on one (1) personal computer to use, exchange data,
share data, access and interact with the DEVICE, and (ii) the EULA for
40 Psion Teklogix WORKABOUT PRO With Windows Mobile 2003 SE Quick Reference Guide
Microsoft Outlook 2002 is between Psion Teklogix and the end user - not
between the PC manufacturer and end user.
DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
•Speech/Handwriting Recognition. If the DEVICE Software includes
speech and/or handwriting recognition component(s), you should
understand that speech and handwriting recognition are inherently sta-
tistical processes and that errors can occur in the component's recogni-
tion of your handwriting, and the final conversion into text. Neither
Psion Teklogix nor its suppliers shall be liable for any damages arising
