Psion PX750BT8 Psion Teklogix Handheld Computer User Manual Ik n Rugged PDA Phone
Psion Inc Psion Teklogix Handheld Computer Ik n Rugged PDA Phone
Psion >

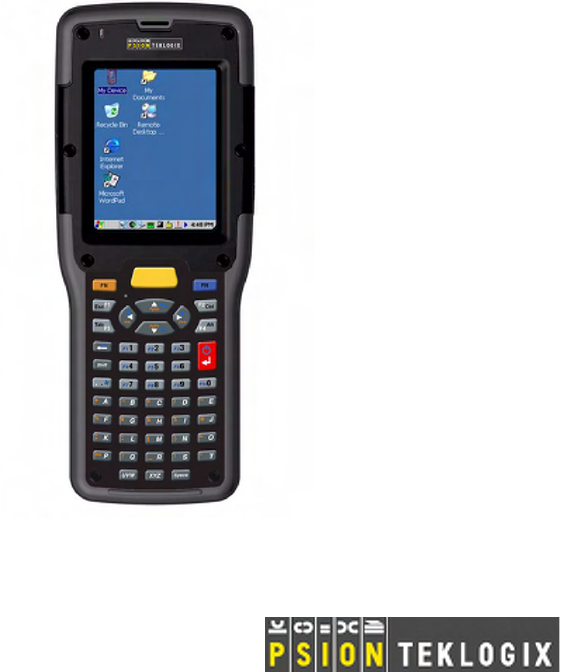

User Manual
ISO 9001 Certified
Quality Management System
Warrington Hand-Held
Computer
User Manual
May 15, 2008 Part No. 8100157.A
Preliminary Draft
This user manual supports Model Numbers:
- PX750BT
- PX750BT8
- FCC ID: GM3PX750BT and GM3PX750BT8
© Copyright 2008 by Psion Teklogix Inc., Mississauga, Ontario
2100 Meadowvale Boulevard, Mississauga, Ontario, Canada L5N 7J9
http:\\www.psionteklogix.com
This document and the information it contains is the property of Psion Teklogix Inc., is
issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except
for the sole purpose of promoting the sale of Psion Teklogix manufactured goods and ser-
vices. Furthermore, this document is not to be used as a basis for design, manufacture, or
sub-contract, or in any manner detrimental to the interests of Psion Teklogix Inc.
Windows® and the Windows Logo are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such trademarks by Psion Teklogix Inc. is under license.
All trademarks are the property of their respective holders.
Preliminary Draft
Return-To-Factory Warranty
Psion Teklogix Inc. provides a return to factory warranty on this product for a period of
twelve (12) months in accordance with the Statement of Limited Warranty and Limitation of
Liability provided at www.psionteklogix.com/warranty. (If you are not already a member of
Teknet and you attempt to view this warranty, you will be asked to register. As a member of
Teknet, you will have access to helpful information about your Psion Teklogix products at
no charge to you.) In some regions, this warranty may exceed this period. Please contact
your local Psion Teklogix office for details. The warranty on Psion Teklogix manufactured
equipment does not extend to any product that has been tampered with, altered, or repaired
by any person other than an employee of an authorized Psion Teklogix service organization.
See Psion Teklogix terms and conditions of sale for full details.
This Product, and its accessories, comply with the requirements of the Waste Electrical and
Electronic Equipment (WEEE) Directive 2002/96/EC. If your end-of-life Psion Teklogix
product or accessory carries a label as shown here, please contact your local country repre-
sentative for details on how to arrange recycling.
For a list of international subsidiaries, please go to:
www.psionteklogix.com/EnvironmentalCompliance
Warning: Psion Teklogix warranties take effect on the date of shipment.
Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
Preliminary Draft
Restriction On Hazardous Substances (RoHS) Directive 2002/95/EC
What is RoHS?
The European Union has mandated that high environmental standards be met in the design
and manufacture of electronic and electrical products sold in Europe, to reduce hazardous
substances from entering the environment. The “Restriction on Hazardous Substances Di-
rective (RoHS)” prescribes the maximum trace levels of lead, cadmium, mercury, hexava-
lent chromium, and flame retardants PBB and PBDE that may be contained in a product.
Only products meeting these high environmental standards may be “placed on the market”
in EU member states after July 1, 2006.
Although there is no legal requirement to mark RoHS-compliant products, Psion Teklogix
Inc. indicates its compliance with the directive as follows:
The RoHS logo located either on the back of the product or underneath the battery in the
battery compartment (or on a related accessory such as the charger or docking station) signi-
fies that the product is RoHS-compliant as per the EU directive. Other than as noted below,
a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it
was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
Disclaimer
Every effort has been made to make this material complete, accurate, and up-to-date. In ad-
dition, changes are periodically added to the information herein; these changes will be incor-
porated into new editions of the publication.
Psion Teklogix Inc. reserves the right to make improvements and/or changes in the prod-
uct(s) and/or the program(s) described in this document without notice, and shall not be re-
sponsible for any damages, including but not limited to consequential damages, caused by
reliance on the material presented, including but not limited to typographical errors.
RoHS Logo
Note: Not all accessories or peripherals will have a RoHS logo due to physical space
limitations or as a result of their exempt status.
Preliminary Draft
TABLE OF CONTENTS
Warrington Hand-Held Computer User Manual i
Chapter 1: Approvals & Safety Summary
1.1 Declaration Of Conformity ..............................................................3
1.2 Safety Summary.........................................................................3
Chapter 2: Introduction
2.1 About This Manual.....................................................................11
2.2 Text Conventions.......................................................................11
2.3 Warrington Hand-Held Computer Features..............................................12
Chapter 3: Basic Checkout
3.1 Preparing The Warrington Hand-Held For Operation....................................21
3.1.1 The Battery.....................................................................21
3.1.1.1 Charging The Main Battery..........................................21
3.1.2 The Super Capacitor............................................................21
3.2 Switching The Warrington On And Off.................................................22
3.2.1 Installing The Battery And Switching The Unit On.............................22
3.2.2 Switching The Unit Off (Suspend)..............................................22
3.3 Calibrating The Touchscreen............................................................22
3.4 Configuring The Murata 802.11b/g Radio...............................................23
3.4.1 Assigning An IP Address.......................................................28
3.4.2 Name Servers Tab..............................................................30
3.4.3 Advanced Features.............................................................30
3.4.3.1 Rearranging Preferred Networks.....................................31
3.4.3.2 Deleting A Preferred Network........................................31
3.4.3.3 Changing Network Properties........................................31
3.5 Checking The Scanner..................................................................32
3.6 Data Transfer Between The PC And The Hand-Held....................................32
3.6.1 Using Microsoft ActiveSync ...................................................32
3.6.2 Using Microsoft Vista..........................................................32
3.7 VoIP – Using Push-To-Talk.............................................................33
3.8 Resetting The Warrington...............................................................33
3.8.1 Performing A Warm Reset .....................................................33
3.8.2 Performing A Cold Reset.......................................................33
Preliminary Draft
Contents
ii Warrington Hand-Held Computer User Manual
Chapter 4: Working With Windows CE 5.0
4.1 Navigating In Windows CE 5.0 ........................................................37
4.1.1 Navigating Using A Touchscreen And Stylus...................................37
4.1.2 Navigating Using The Keyboard ...............................................37
4.2 Working With Files, Folders And Programs.............................................38
4.3 The Startup Desktop....................................................................39
4.3.1 The Desktop Icons .............................................................40
4.3.2 The Taskbar....................................................................41
4.3.2.1 Using The Taskbar...................................................41
4.3.2.2 Customizing The Taskbar............................................42
4.4 The Start Menu.........................................................................43
4.4.1 The Desktop....................................................................45
4.4.2 Security Settings ...............................................................45
4.4.3 Programs.......................................................................46
4.4.4 Shortcuts.......................................................................48
4.4.5 Settings ........................................................................50
4.4.6 Run ............................................................................50
4.4.7 Shutdown......................................................................51
4.5 Using A Dialog Box....................................................................52
Chapter 5: Getting To Know The Warrington
5.1 Features Of The Warrington Hand-Held Computer......................................57
5.2 The Battery.............................................................................58
5.2.1 Battery Safety..................................................................58
5.2.2 Removing The Battery Pack....................................................58
5.2.2.1 Battery Swap Time...................................................59
5.2.3 Charging The Battery ..........................................................59
5.2.3.1 Chargers And Docking Stations......................................59
5.3 Switching The Hand-Held On And Off .................................................60
5.4 The Keyboard ..........................................................................60
5.4.1 Modifier Keys..................................................................61
5.4.1.1 Activating Modifier Keys............................................61
5.4.1.2 Locking Modifier Keys ..............................................61
5.4.2 The Keys.......................................................................61
5.4.3 Function Keys And Macro Keys................................................62
5.4.3.1 Function Keys .......................................................62
5.4.3.2 The Macro Keys .....................................................63
5.4.4 26-Key Keyboard: Accessing Alpha Keys......................................63
5.4.5 The Keypad Backlight..........................................................64
Preliminary Draft
Contents
Warrington Hand-Held Computer User Manual iii
5.5 The Display.............................................................................65
5.5.1 Adjusting The Display Backlight...............................................65
5.5.2 Calibrating The Touchscreen...................................................65
5.6 Warrington Hand-Held Indicators.......................................................66
5.6.1 LEDs...........................................................................66
5.6.2 Audio Indicators................................................................67
5.6.2.1 Adjusting The Warrington Speaker Volume ..........................67
5.6.3 Onscreen Indicators ............................................................67
5.7 Monitoring The Battery And Maximizing Run Time....................................70
5.7.1 Storing Batteries................................................................70
5.8 Uploading Data In A Docking Station...................................................71
5.9 Bluetooth Radio ........................................................................71
5.9.1 Pairing A Bluetooth Headset Or Other Bluetooth Device........................72
5.10 The MicroSD Card .....................................................................72
5.10.1 Inserting The Card .............................................................72
5.11 General Maintenance...................................................................73
5.11.1 Caring For The Touchscreen ...................................................73
5.11.2 Cleaning The Warrington ......................................................73
Chapter 6: Configuration
6.1 Remote Connect .......................................................................79
6.2 The TekTerm Application...............................................................79
6.3 The Control Panel ......................................................................79
6.4 Control Panel Icons.....................................................................80
6.5 Basic Setup.............................................................................83
6.5.1 Display Properties..............................................................83
6.5.1.1 Display Backlight....................................................84
6.5.1.2 Display Appearance..................................................86
6.5.2 Keyboard Properties............................................................86
6.5.2.1 Key Repeat ..........................................................87
6.5.2.2 Sequence.............................................................88
6.5.2.3 Keyboard Backlight..................................................89
6.5.2.4 Keyboard One Shot Modes...........................................90
6.5.2.5 Keyboard Macro Keys...............................................91

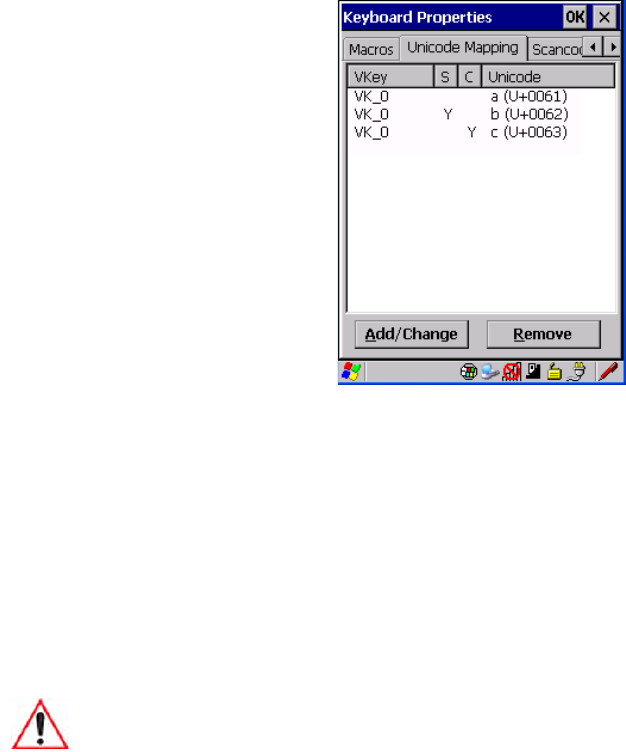

6.5.2.6 Unicode Mapping....................................................93

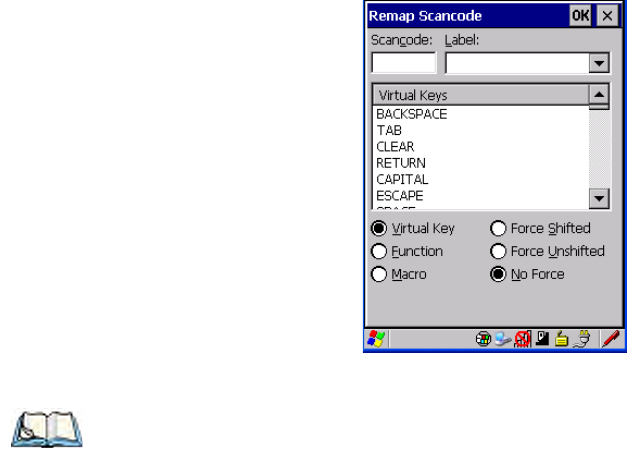

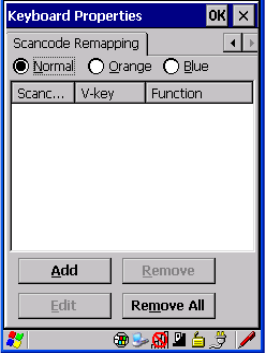

6.5.2.7 Scancode Remapping................................................94
6.5.2.8 Lock Sequence.......................................................97

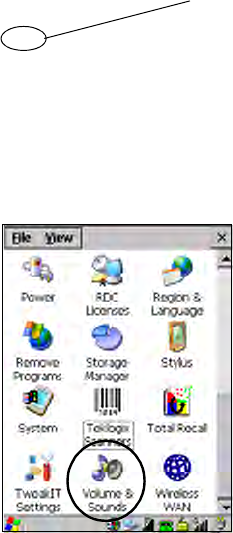

6.5.3 Volume And Sound Properties .................................................98
6.5.3.1 Volume Adjustments.................................................99
Preliminary Draft
Contents
iv Warrington Hand-Held Computer User Manual
6.5.3.2 Sound Adjustments ... ...............................................99

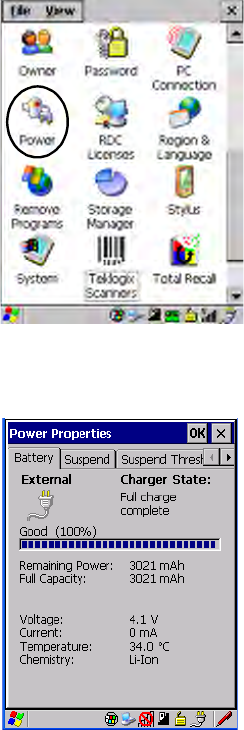

6.5.4 Power Management Properties ................................................100
6.5.4.1 Battery Capacity....................................................100

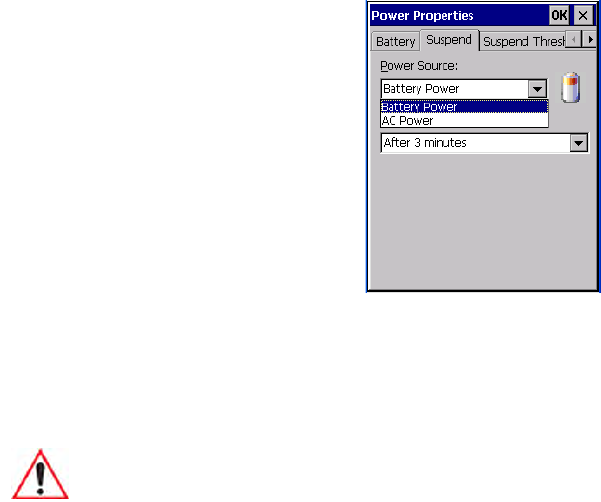

6.5.4.2 Power Saving Suspend..............................................101
6.5.4.3 Suspend Threshold..................................................102

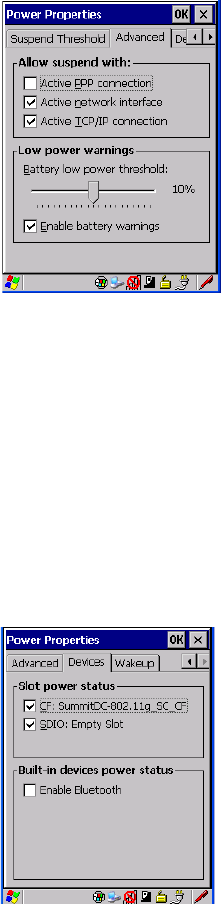

6.5.4.4 Advanced...........................................................103
6.5.4.5 Devices.............................................................103

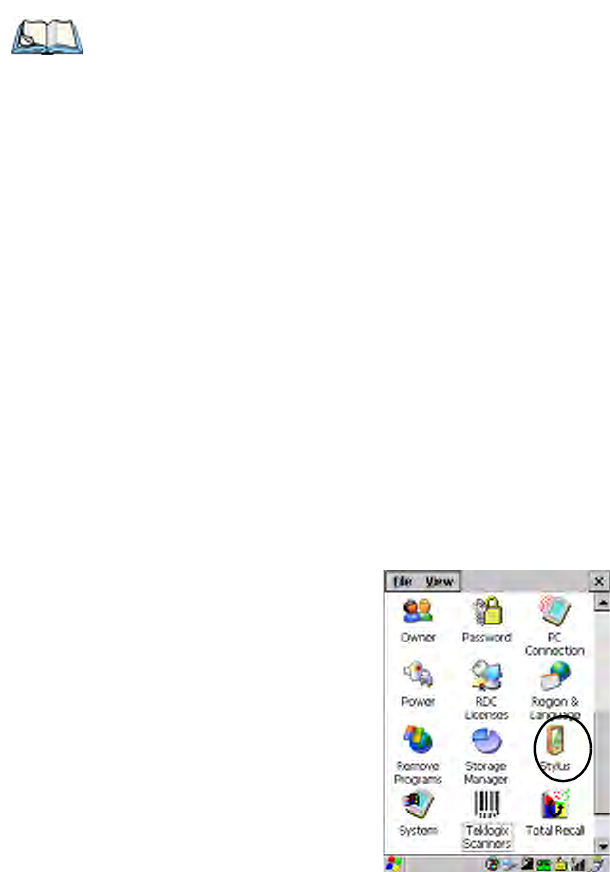

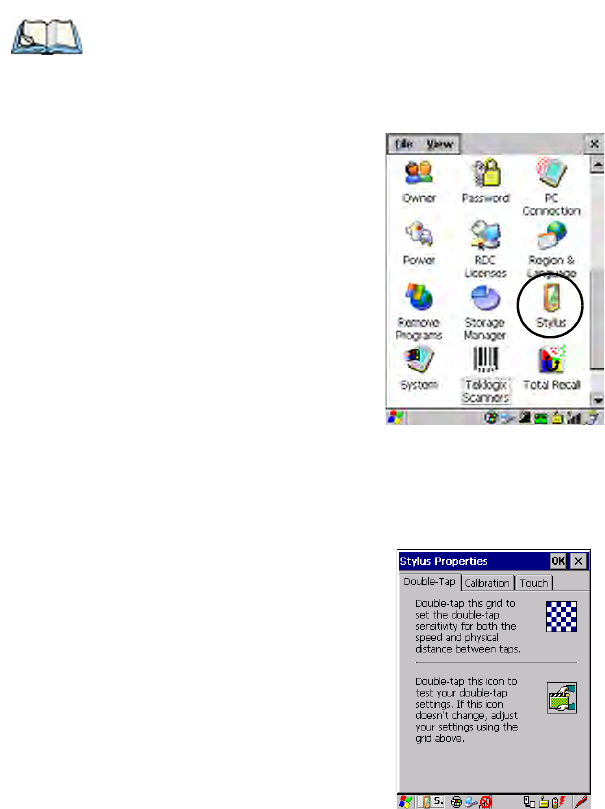

6.5.5 Stylus Properties ..............................................................104
6.5.5.1 Double-Tap .........................................................104

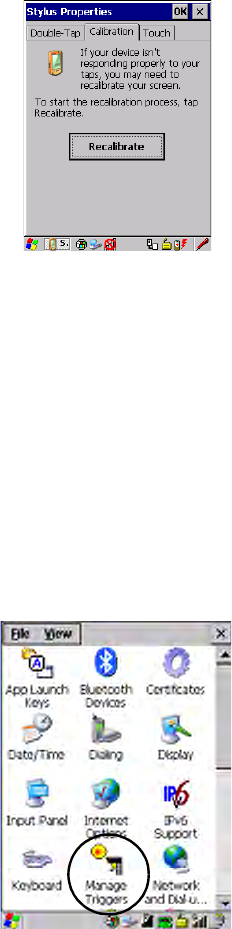

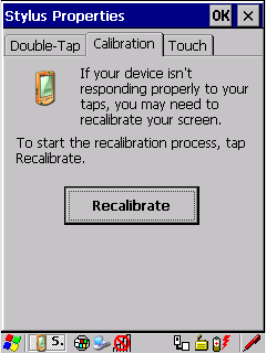

6.5.5.2 Calibration..........................................................104
6.5.5.3 Touch...............................................................105

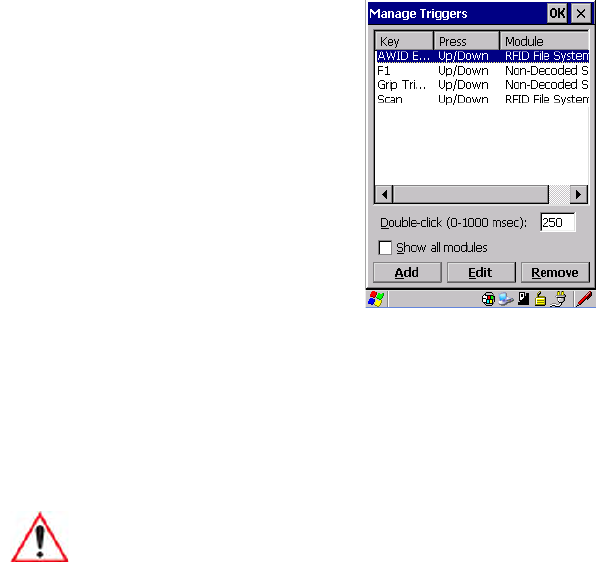

6.5.6 Manage Triggers..............................................................105
6.5.6.1 Trigger Mappings...................................................106

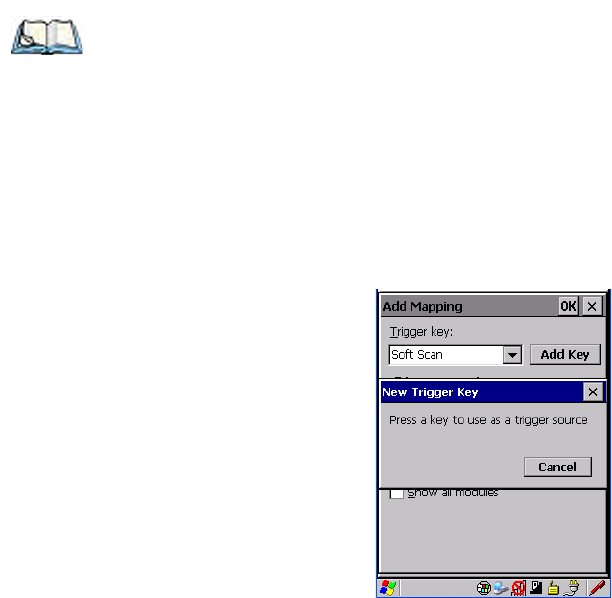

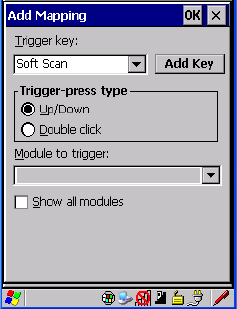

6.5.6.2 Add And Edit Trigger Mapping.....................................107

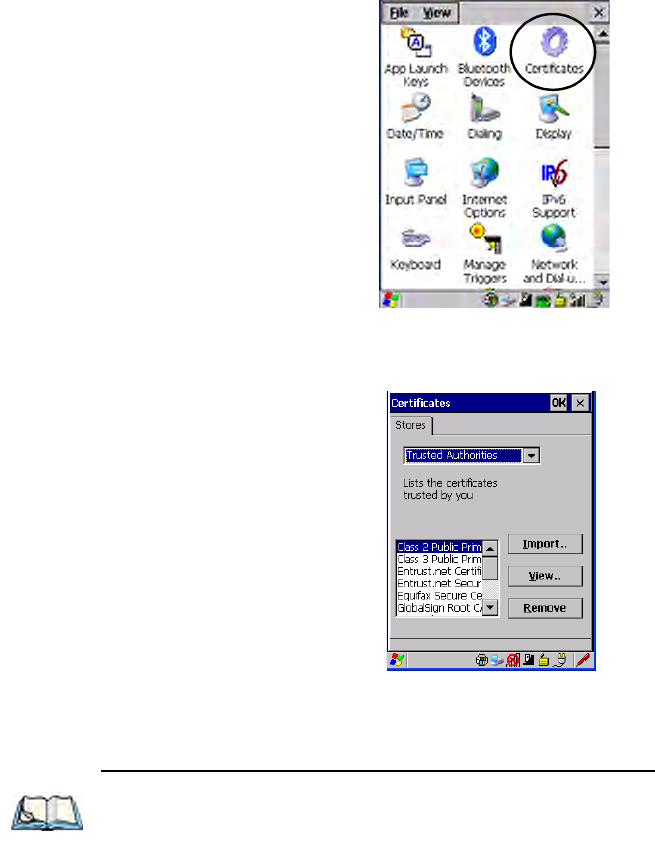

6.5.7 Certificate Assignment........................................................109

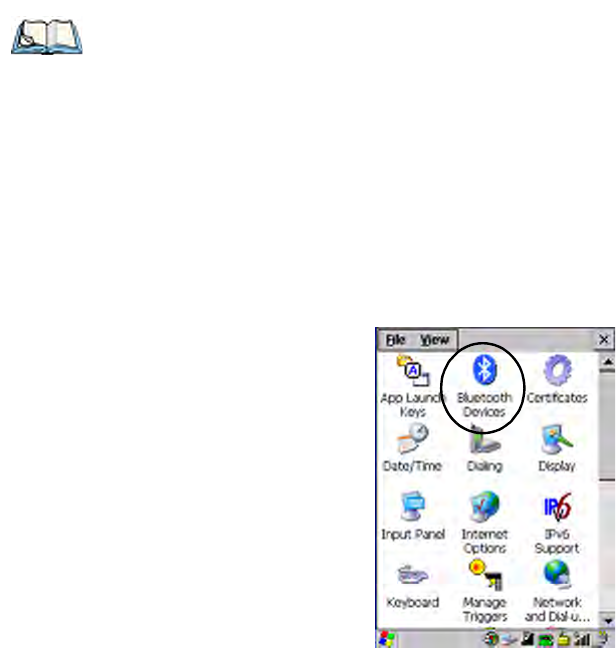

6.6 Bluetooth Setup........................................................................110
6.6.1 The Devices Tab..............................................................111
6.6.1.1 Pairing A Device....................................................111
6.6.2 The Servers Tab...............................................................114

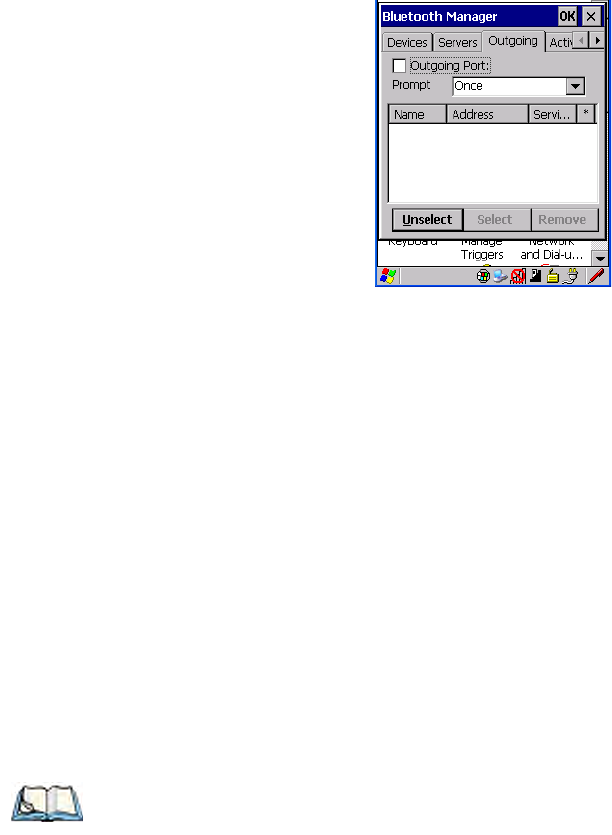

6.6.3 Outgoing Tab .................................................................115

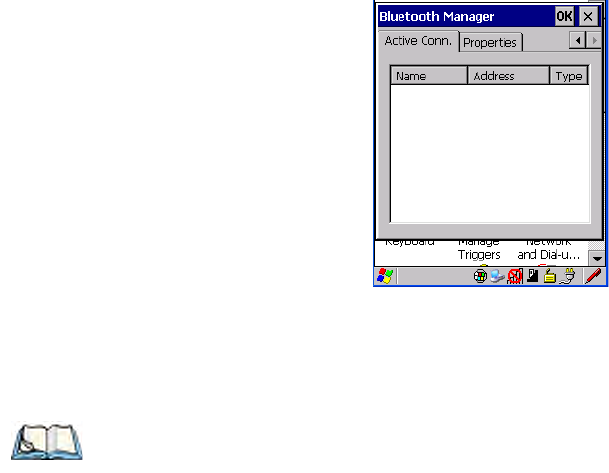

6.6.4 Active Conn. Tab .............................................................116

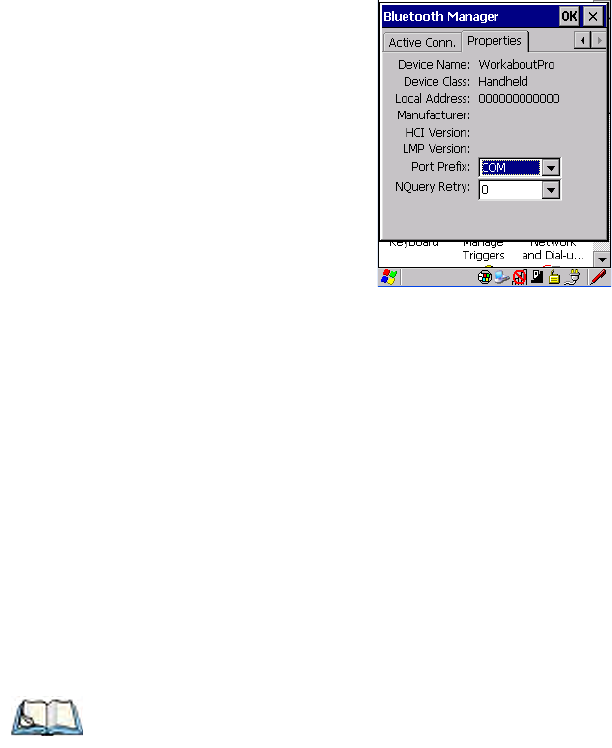

6.6.5 The Properties Tab............................................................117
6.6.6 The Search For Tab ...........................................................118

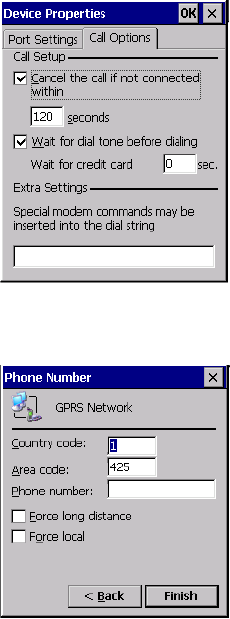

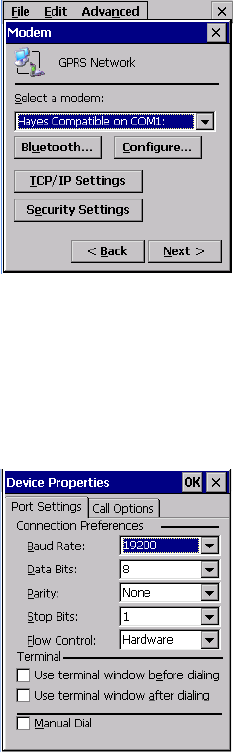

6.6.7 The Bluetooth GPRS WAN Connection.......................................118
6.7 Total Recall............................................................................123

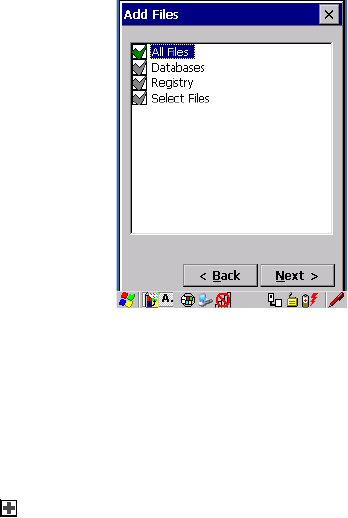

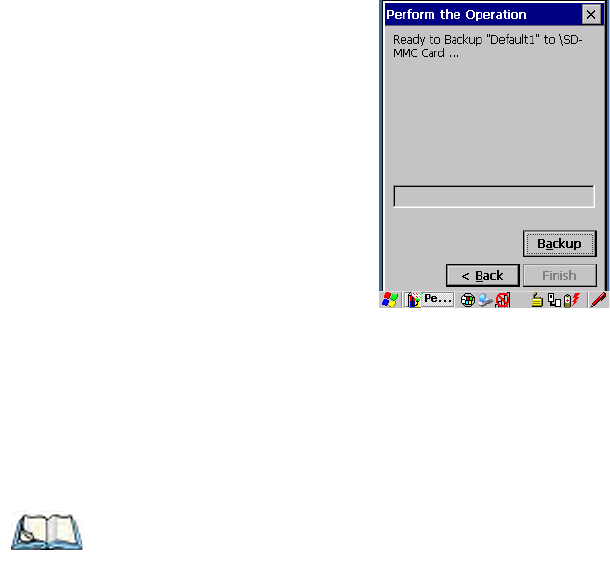

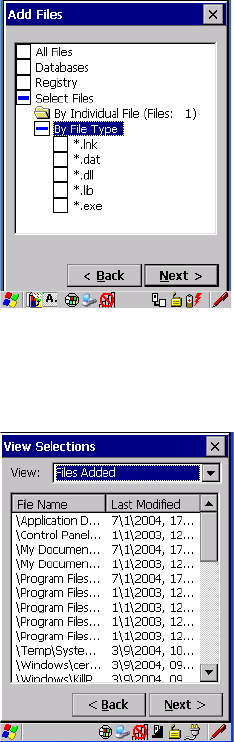

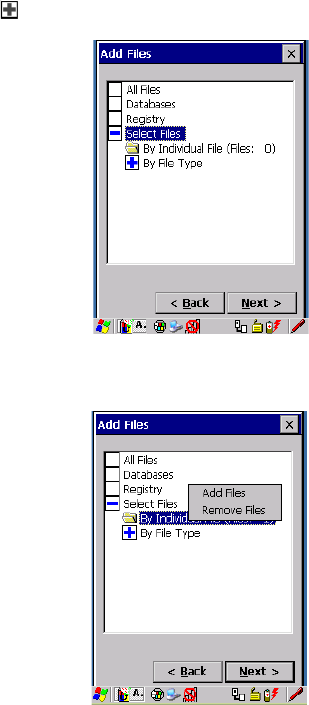

6.7.1 Creating A Backup Profile.....................................................124
6.7.2 Restoring A Profile............................................................128

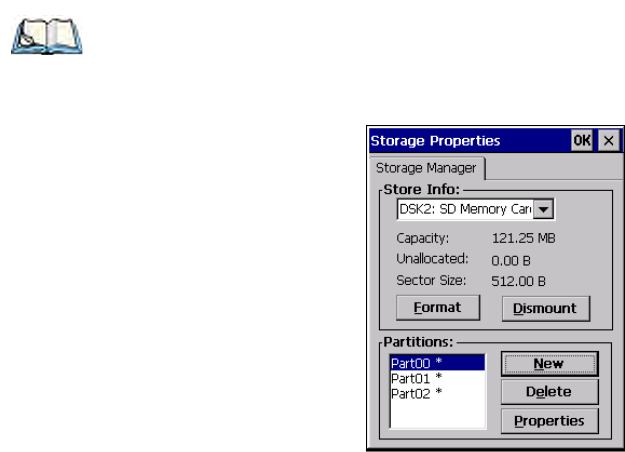

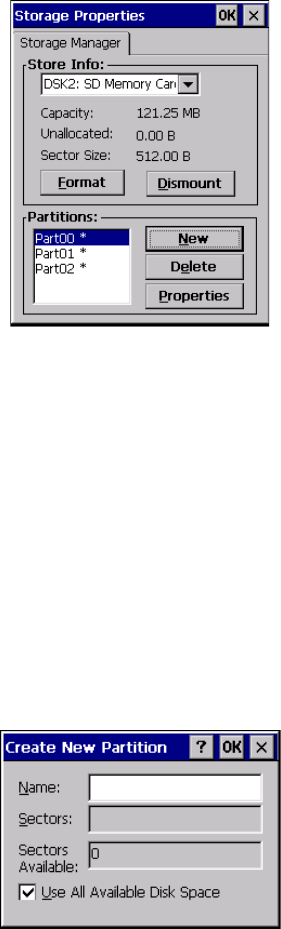

6.8 The Storage Manager..................................................................128

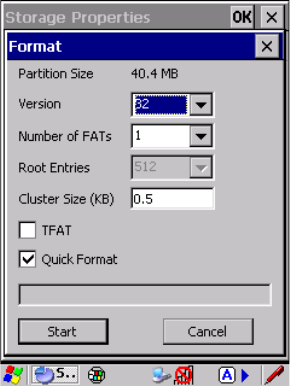

6.8.1 Formatting A Memory Card...................................................128
6.8.2 Creating Partitions.............................................................129

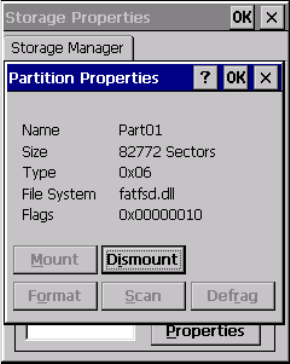

6.8.3 Partition Management.........................................................131
6.9 IPv6 Support...........................................................................133

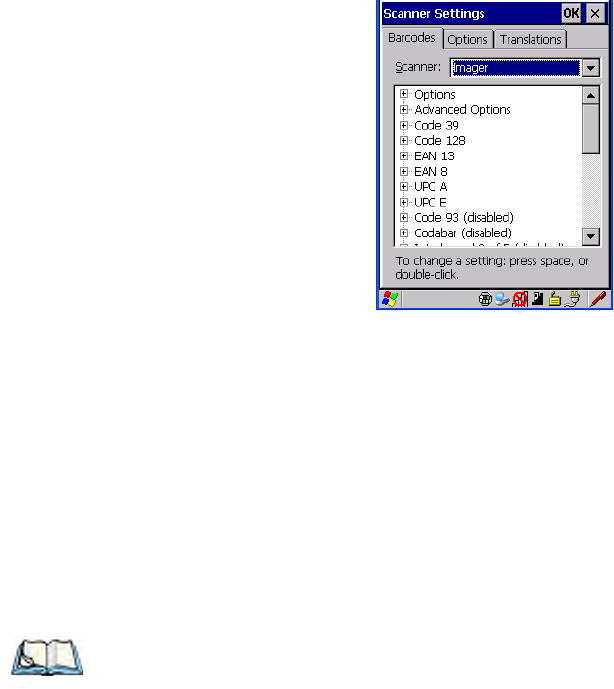

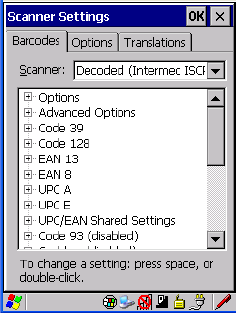

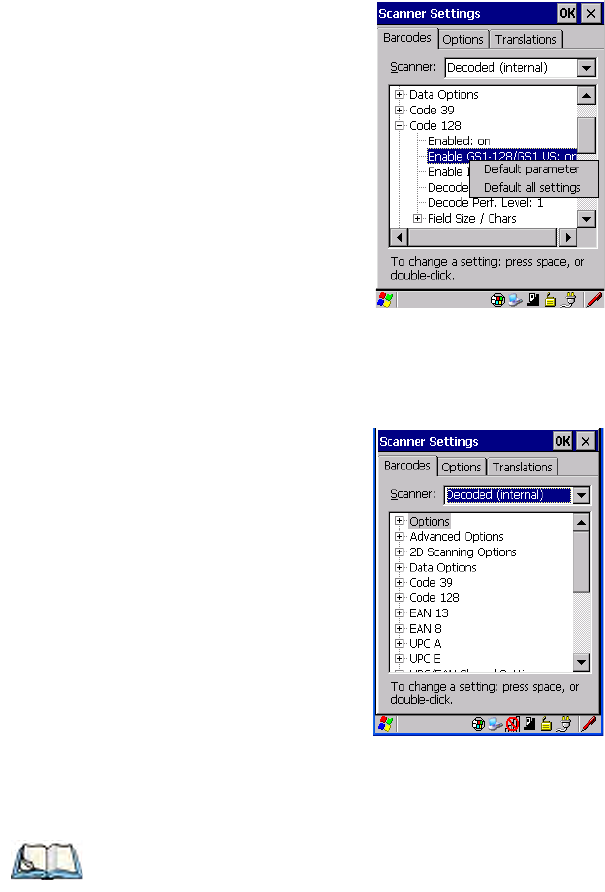

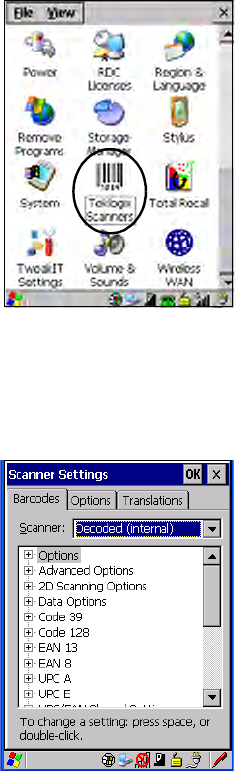

6.10 Scanner Settings.......................................................................134
6.10.1 Bar Codes.....................................................................134
6.10.1.1 Scanner.............................................................135
6.10.1.2 Restoring Default Settings ..........................................135
6.10.2 Decoded (Internal) Scanners...................................................136
6.10.2.1 Options.............................................................136
6.10.2.2 Decoded (Internal) – Advanced Options.............................137
Preliminary Draft
Contents
Warrington Hand-Held Computer User Manual v
6.10.2.3 Decoded (Internal) – 2D Scanning Options..........................139
6.10.2.4 Decoded (Internal) Data Options....................................139
6.10.2.5 Code 39.............................................................140
6.10.2.6 Code 128...........................................................143
6.10.2.7 EAN 13 ............................................................143
6.10.2.8 EAN 8..............................................................144
6.10.2.9 UPC A .............................................................144
6.10.2.10 UPC E..............................................................145
6.10.2.11 UPC/EAN Shared Settings .........................................146
6.10.2.12 Code 93............................................................147
6.10.2.13 Codabar............................................................147
6.10.2.14 MSI Plessey........................................................148
6.10.2.15 Interleaved 2 of 5...................................................149
6.10.2.16 Discrete 2 of 5......................................................150
6.10.2.17 RSS Code..........................................................150
6.10.2.18 Composite..........................................................151
6.10.2.19 PDF-417 ...........................................................151
6.10.2.20 Micro PDF-417.....................................................152
6.10.3 Decoded (ISCP)...............................................................153
6.10.3.1 Decoded (ISCP) – Options..........................................153
6.10.3.2 Decoded (ISCP) – Advanced Options...............................153
6.10.3.3 Code 39.............................................................154
6.10.3.4 Code 128............................................................155
6.10.3.5 EAN 13 Settings....................................................157
6.10.3.6 EAN 8..............................................................157
6.10.3.7 UPC A..............................................................158
6.10.3.8 UPC E..............................................................158
6.10.3.9 UPC/EAN Shared Settings..........................................159
6.10.3.10 Code 93............................................................160
6.10.3.11 Codabar............................................................160
6.10.3.12 MSI Plessey........................................................161
6.10.3.13 Code 11............................................................162
6.10.3.14 Interleaved 2 of 5...................................................162
6.10.3.15 Matrix 2 of 5 .......................................................163
6.10.3.16 Discrete 2 of 5......................................................163
6.10.3.17 Telepen.............................................................164
6.10.3.18 RSS Code (Reduced Space Symbology). ............................165
6.10.3.19 PDF-417............................................................165
6.10.3.20 Micro PDF-417.....................................................165
6.10.3.21 Codablock ..........................................................166
6.10.4 Imager ........................................................................167
6.10.4.1 Imager – Options....................................................167
Preliminary Draft
Contents
vi Warrington Hand-Held Computer User Manual
6.10.4.2 Imager – Advanced Options.........................................168
6.10.4.3 Code 39 Settings....................................................171
6.10.4.4 Code 128 Settings..................................................171
6.10.4.5 EAN 13............................................................171
6.10.4.6 EAN 8..............................................................172
6.10.4.7 UPC A.............................................................172
6.10.4.8 UPC E..............................................................172
6.10.4.9 Code 93............................................................172
6.10.4.10 Codabar............................................................173
6.10.4.11 Interleaved 2 of 5...................................................173
6.10.4.12 RSS Code (Reduced Space Symbology) ............................173
6.10.4.13 Composite..........................................................173
6.10.4.14 PDF-417 ...........................................................173
6.10.4.15 Micro PDF-417.....................................................174
6.10.4.16 2D Data Matrix.....................................................174
6.10.4.17 2D QR Code .......................................................174
6.10.4.18 2D Maxicode.......................................................174
6.10.4.19 2D Aztec...........................................................174
6.10.4.20 Postal: PlaNET.....................................................175
6.10.4.21 Postal: PostNET....................................................175
6.10.4.22 Postal: Australian...................................................175
6.10.4.23 Postal: Japanese....................................................175
6.10.4.24 Postal: Korean......................................................175
6.10.4.25 Postal: Royal.......................................................176

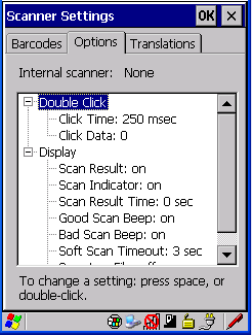

6.10.5 Options........................................................................176
6.10.5.1 Double Click Parameters............................................176
6.10.5.2 Display Parameters..................................................177

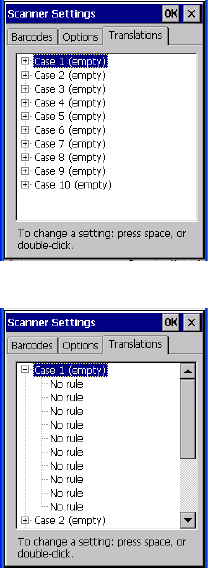

6.10.6 Translations Tab ..............................................................178

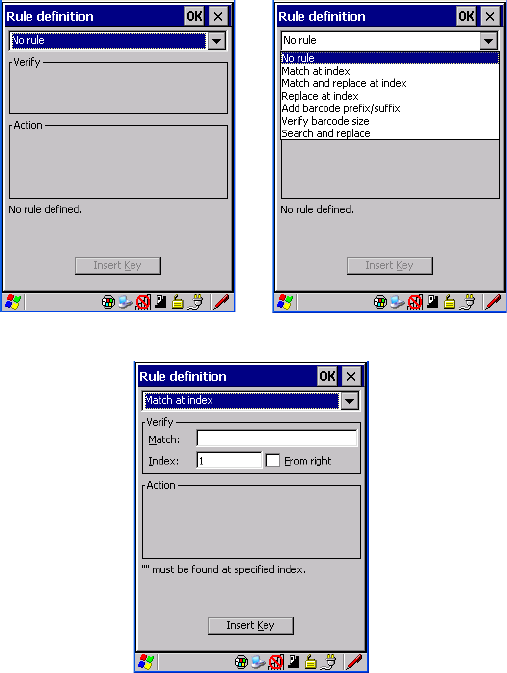

6.10.6.1 Case Rules..........................................................179
Chapter 7: Peripheral Devices & Accessories
7.1 Carrying Accessories ..................................................................182
7.1.1 Attaching The Hand Strap.....................................................183
7.1.2 Soft Shell Holster .............................................................183
7.2 The Battery............................................................................184

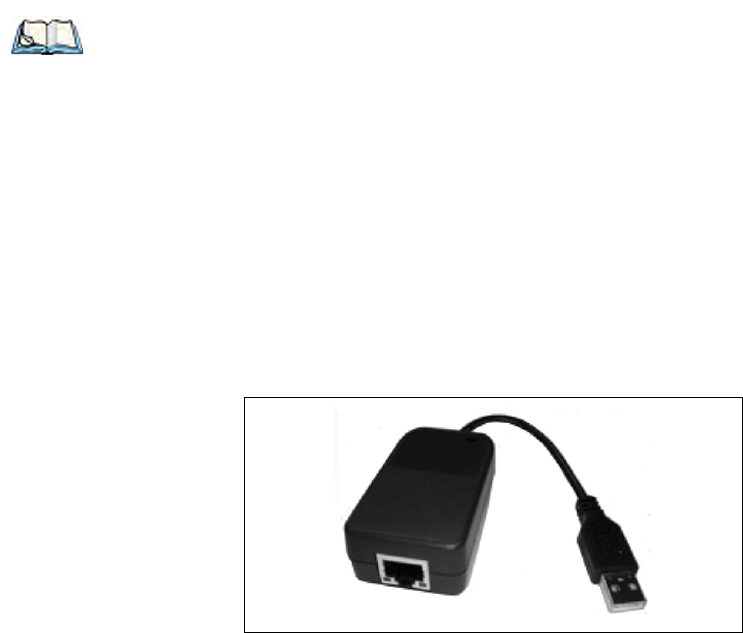

7.3 Adaptor Cable Options ................................................................184
7.4 Chargers And Docking Stations........................................................184
7.4.1 Installation – Chargers And Docking Stations .................................185
7.4.2 Power Consumption Considerations...........................................185
7.4.3 Operator Controls.............................................................185
Preliminary Draft
Contents
Warrington Hand-Held Computer User Manual vii
7.4.4 Important Charger Safety Instructions.........................................185
7.5 Desktop Docking Station ..............................................................186
7.5.1 Charging A Battery Installed In The Warrington...............................188
7.5.2 Charging A Spare Battery.....................................................189
7.5.3 Battery Charge Duration.......................................................189
7.5.4 Charger LED Indicators.......................................................189
7.5.5 Troubleshooting The Charging Operation Of The Dock .......................189
7.5.5.1 Excessive Charge Duration..........................................189
7.5.5.2 Indicator Flashing Red..............................................190
7.5.5.3 Power LED Does Not Light Up.....................................190
7.5.5.4 Indicator Does Not Light When Battery Installed....................190
7.5.6 Linking A Warrington To A PC...............................................190
7.5.7 Linking A Warrington To An Ethernet Network...............................191
7.5.7.1 Network Access.....................................................191
7.5.8 Troubleshooting The Docking Station Operations .. . ..........................192
7.6 AC Wall Adaptor– Model No. PX3010 ................................................192
7.7 Automotive Power Adaptor—Model #WA3113-G2....................................193

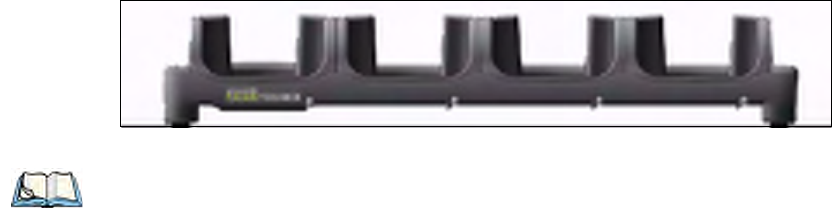

7.8 Quad Docking Station – PX3004.......................................................194
7.8.1 Quad Docking Station Setup...................................................194
7.8.2 Quad Indicators ...............................................................194
7.8.3 Inserting A Warrington In The Quad Docking Station.........................195
7.8.4 Network Access...............................................................195
7.8.4.1 Network Addressing ................................................195
7.8.5 Battery Charging – LED Behaviour ...........................................195
7.8.6 Troubleshooting...............................................................196
7.8.6.1 Network Link Unsuccessful.........................................196
7.8.6.2 Warrington LED Does Not Light When Docked.....................196
7.9 The Vehicle Cradle ....................................................................196
7.9.1 Vehicle Cradle Mounting Recommendations..................................197
7.9.1.1 Mounting Template .................................................197
7.9.2 Wiring Guidelines.............................................................197
7.9.3 Using The Vehicle Cradle.....................................................198
7.9.4 Maintaining The Vehicle Cradle...............................................198
7.9.5 Powered Cradle Installation In High Voltage Vehicles.........................198
7.9.6 Powered Vehicle Cradle Installation...........................................199
7.9.6.1 Wiring Vehicle Power To The Cradle................................199
7.9.7 The Port Replicator............................................................200
7.10 Scanners And Imagers.................................................................200
7.10.1 Scanning Techniques..........................................................200
Preliminary Draft
Contents
viii Warrington Hand-Held Computer User Manual
7.10.2 Troubleshooting...............................................................201
7.10.3 Operating One Dimensional (1D) Laser Scanners..............................201
7.11 Bluetooth Peripherals..................................................................202
Chapter 8: Specifications
8.1 Warrington Hand-Held Specifications..................................................205
8.1.1 Hardware......................................................................205
8.1.2 Software ......................................................................207
8.1.3 Wireless Communication......................................................208
8.1.4 Bar Code Applications ........................................................208
8.1.5 Accessories ...................................................................208
8.1.6 Approvals.....................................................................209
8.2 Warrington Radio Specifications.......................................................209
8.2.1 802.11b/g Radio ... ...........................................................209
8.2.2 Bluetooth Radio...............................................................210
8.3 Scanner/Imager Specifications.........................................................210
8.3.1 SE 955HP Specifications......................................................210
8.3.1.1 SE 955HP Decode Zone ............................................211
8.3.2 EV15 Imager Specifications...................................................211
8.3.2.1 EV15 Imager Decode Zone .........................................212
Appendix A: Port Pinouts 1
A.1 Tether Port Pinout .......................................................................1
A.2 Battery 3000 mAh – WA3006: Contact Pinout ...........................................2
Preliminary Draft
Preliminary Draft
Chapter 1: Approvals & Safety Summary
Declaration Of Conformity
Warrington Hand-Held Computer User Manual 3
1.1 Declaration Of Conformity
Declaration of Conformity documents are provided at:
www.psionteklogix.com/DoC
1.2 Safety Summary
When used in a residential, commercial or light industrial environment, the product and its
approved UK and European peripherals fulfil all requirements for CE marking.
R&TTE Directive 1999/5/EC
This equipment complies with the essential requirements of EU Directive 1999/5/EC (Dec-
laration available: www.psionteklogix.com/DoC).
Cet équipement est conforme aux principales caractéristiques définies dans la Directive eu-
ropéenne RTTE 1999/5/CE. (Déclaration disponible sur le site:
www.psionteklogix.com/DoC).
Die Geräte erfüllen die grundlegenden Anforderungen der RTTE-Richtlinie (1999/5/EG).
(Den Wortlaut der Richtlinie finden Sie unter: www.psionteklogix.com/DoC).
Questa apparecchiatura è conforme ai requisiti essenziali della Direttiva Europea R&TTE
1999/5/CE. (Dichiarazione disponibile sul sito: www.psionteklogix.com/DoC).
Este equipo cumple los requisitos principales de la Directiva 1995/5/CE de la UE, “Equipos
de Terminales de Radio y Telecomu-nicaciones”. (Declaración disponible en:
www.psionteklogix.com/DoC)
Este equipamento cumpre os requisitos essenciais da Directiva 1999/5/CE do Parlamento
Europeu e do Conselho (Directiva RTT). (Declaração disponível no endereço:
www.psionteklogix.com/DoC).
Ο εξοπλισμός αυτός πληροί τις βασικές απαιτήσεις της κοινοτικής οδηγίας EU R&TTE
1999/5/EΚ. (Η δήλωση συμμόρφωσης διατίθεται στη διεύθυνση:
www.psionteklogix.com)
Deze apparatuur voldoet aan de noodzakelijke vereisten van EU-richtlijn betreffende radio-
apparatuur en telecommunicatie-eindappa-ratuur 199/5/EG. (verklaring beschikbaar:
www.psionteklogix.com/DoC).
Dette udstyr opfylder de Væsentlige krav i EU's direktiv 1999/5/EC om Radio- og teletermi-
naludstyr. (Erklæring findes på: www.psionteklogix.com/DoC).
Preliminary Draft
Chapter 1: Approvals & Safety Summary
Safety Summary
4Warrington Hand-Held Computer User Manual
Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet (1999/5/EC)
fra EU. (Erklæring finnes på: www.psionteklogix.com/DoC).
Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten teleutrustning och
ömsesidigt erkännande av utrustningens överensstämmelse (R&TTE). (Förklaringen finns
att läsa på: www.psionteklogix.com/DoC).
Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin (EU R&TTE Directive 1999/5/EC)
vaatimuksia. (Julkilausuma nähtävillä osoitteessa: www.psionteklogix.com/DoC).
PSION TEKLOGIX tímto prohlašuje, že
tohle mobilní zařízení
je ve shod
ě
se
základními požadavky a dalšími příslušnými ustanoveními sm
ě
rnice 1995/5/ES
(NV č. 426/2000 Sb.) a Prohlášení o shod
ě
je k dispozici na
www.psionteklogix.com/DoC.
Toto zařízení lze provozovat v České republice na základ
ě
generální licence č. GL - 12/R/2000.
PSION TEKLOGIX týmto vyhlasuje, že
toto mobilné zariadenie
spĺ
ň
a základné
požiadavky a všetky príslušné ustanovenia Smernice 1995/5/ES (NV č. 443/2001 Z.z.)
a Vyhlásenie o zhode je k dispozícii na www.psionteklogix.com/DoC.
Toto zariadenie je možné prevádzkovať v Slovenskej republike na základe
Všeobecného povolenia č. VPR-01/2001
Настоящото устройство е в съответствие с основнит е изисквания на
европейската Директива 1999/5/EC
(Декларацията за съответствие може да бъде намерена
на адрес: www.psionteklogix.com/DoC)
Acest echipament satisface cerinţele esenţiale ale Directivei UE 1999/5/EC
(Declaraţia poate fi gasitã pe site-ul: www.psionteklogix.com/DoC)
Oprema je skladna z bistvenimi zahtevami EU direktive 1999/5/EC
(Deklaracija je na voljo: www.psionteklogix.com/DoC)
Käesolev seade vastab EU Direktiivile 1999/5/EC (selgitus saadaval:
www.psionteklogix.com/DoC)
Preliminary Draft
Chapter 1: Approvals & Safety Summary
Safety Summary
Warrington Hand-Held Computer User Manual 5
Use of the 802.11 device in France: Owing to French Government restrictions, the
802.11 device is limited to indoor use. It may be used outdoors, on private property, only
with prior authorization from the French Ministry of Defense.
FCC Information To Users
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
Reorient or relocate the receiving antenna.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Az eszköz megfelel az EU 1999/5/EC
fő direktíváinak (a nyilatkozat
megtalálható: www.psionteklogix.com/DoC)
Šī aparatūra nodrošina nepieciešamas ES Direktīvas prasības
(Deklarācija ir pieejama: www.psionteklogix.com/DoC)
Įranga atitinka pagrindinius EU direktyvos 1999/5/EC reikalavimus
(Deklaraciją galima rasti www.psionteklogix.com/DoC)
Dan l-apparat huwa konformi mal-kriterji tad-direttiva ta' l- EU 1999/5/EC.
(Din id-dikjarazzjoni tista ssiba fuq is sit www.psionteklogix.com/DoC)
To urządzenie spełnia wymagania zasadnicze dyrektywy Unii Europejskiej 1999/5/EC
(Deklarację zgodności można znaleźć pod adresem internetowym
www.psionteklogix.com/DoC)
Preliminary Draft
Chapter 1: Approvals & Safety Summary
Safety Summary
6Warrington Hand-Held Computer User Manual
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by Psion Teklogix Inc. may
void the FCC authorization to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment under 47 CFR 2.1093 paragraph (d)(2).
End users must follow the specific operating instructions for satisfying RF exposure
compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Some equipment in hospitals and aircraft are not shielded from radio frequency energy. Do
not use the hand-held onboard aircraft, or in hospitals, without first obtaining permission.
Do not use near pacemakers. The Warrington may affect the operation of some medically
implanted devices such as pacemakers, causing them to malfunction. Avoid placing your
Warrington next to such devices. Keep a minimum distance of 20 cm between the medical
device and the Warrington to reduce the risk of interference. If you have any reason to
suspect that interference is taking place, turn off the Warrington and contact your medical
specialist for assistance.
Emissions Information For Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations (ICES-003). When using the 802.11 radio option, to prevent radio interference,
this device is intended to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.
Note: To maintain compliance with the FCC RF exposure guidelines, if you wear the device
on your body, use the Psion Teklogix approved carrying case.
Use of non-approved accessories may violate FCC RF exposure guidelines.
Preliminary Draft
Chapter 1: Approvals & Safety Summary
Safety Summary
Warrington Hand-Held Computer User Manual 7
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le ma-
tériel brouilleur du Canada (ICES-003). En cas d’utilisation du module radio 802.11, afin d'éviter toute
interférence radio avec le service autorisé, l'appareil doit être utilisé à l'intérieur, tout en tant
éloigné de toute fenêtre afin de garantir le maximum de protection. Si cet équipement (ou
son antenne émettrice) est installé à l'extérieur, il est alors soumis à licence.
Preliminary Draft
Preliminary Draft
Preliminary Draft
Chapter 2: Introduction
About This Manual
Warrington Hand-Held Computer User Manual 11
2.1 About This Manual
This manual describes how to configure, operate and maintain the Warrington hand-held
computer.
Chapter 1: Approvals & Safety Summary
provides approval and safety information such as FCC radiation and Canadian
emission details, CE warnings, R&TTE directives, and so one.
Chapter 2: Introduction
provides a basic overview of the Warrington.
Chapter 3: Basic Checkout
describes the steps required to get the Warrington ready for operation, including
setting up the 802.11b/g radio.
Chapter 5: Getting To Know The Warrington
describes Warrington features and outlines how to charge and maintain the bat-
tery. This chapter also provides a description of the keyboards, how to navigate
in Microsoft Windows CE 5.0, and so on.
Chapter 4: Working With Windows CE 5.0
describes the Microsoft Windows CE 5.0 desktop and how to use it. This
chapter also outlines the basics of moving around a Windows CE 5.0 window,
selecting and opening icons, files, folders and working with a Windows
dialog box.
Chapter 6: Configuration
describes the Windows CE 5.0 Control Panel and how to use it to configure the
Warrington, along with the scanners attached to the hand-held, and so on.
Chapter 7: Peripheral Devices & Accessories
describes the peripherals and accessories available for your Warrington.
Chapter 8: Specifications
lists hand-held, radio, scanner, and battery specifications.
Appendix A: Port Pinouts
describes Warrington pinouts.
2.2 Text Conventions
Note: Notes highlight additional helpful information.
Preliminary Draft
Chapter 2: Introduction
Warrington Hand-Held Computer Features
12 Warrington Hand-Held Computer User Manual
2.3 Warrington Hand-Held Computer Features
The Warrington is a compact, ruggedized hand-held running the Microsoft Windows CE 5.0
operating system. It is intended for use in commercial and light industrial applications. The
Warrington can be ordered with or without a radio. Without a radio, it operates as a batch or
unconnected computer. With a radio installed, the Warrington operates as a connected com-
puter, delivering real time wireless data transactions. All possible bar code input
methodologies are supported by the scanner and imager available with this hand-held. Opti-
mization for specific operational environments is supported with a wide range of peripheral
options and carrying accessories.
The unique tilted screen design on this hand-held makes the display content readily visible.
It means that the operator can scan a bar code and view the results on the display in one
movement – no need to manually tilt the unit to view the results after each scan. In addition,
the tilted screen in conjunction with the protective rib at the base of the keyboard allows the
unit to be placed facedown safely with no danger of an accidental key press.
Important: These statements provide particularly important instructions or additional
information that is critical to the operation of the equipment.
Warning: These statements provide critical information that may prevent physical
injury, equipment damage or data loss.
Important: For all safety, regulatory and warranty information, refer Chapter 1:
“Approvals & Safety Summary”.
Note: For complete Warrington hand-held computer specifications, refer to “Specifica-
tions” on page 203.
Preliminary Draft
Chapter 2: Introduction
Warrington Hand-Held Computer Features
Warrington Hand-Held Computer User Manual 13

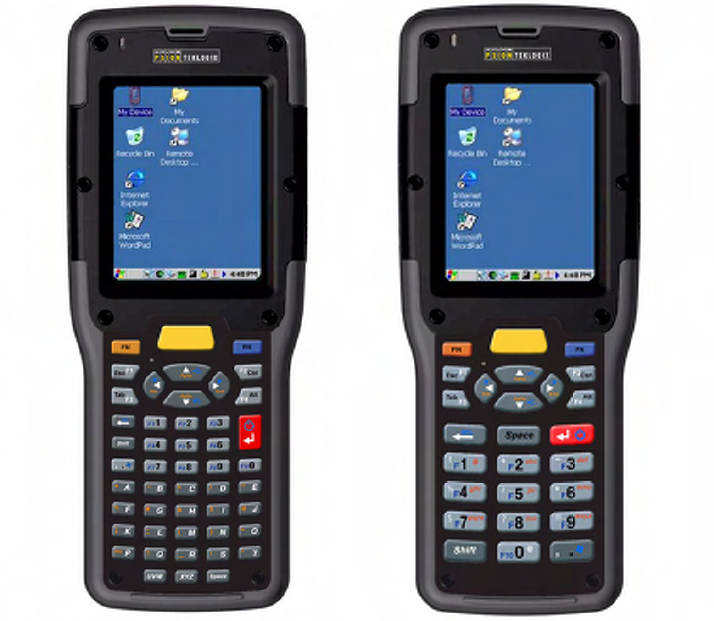

Figure 2.1 Warrington Hand-Held Computer - Numeric & Alpha-Numeric
Model Variants
Connected Warrington Standard Features:
• 2.7 inch colour touchscreen
• CE .Net Pro
• 64/128 MB Memory
•Micro SD slot
• 3000 mAh Battery
• VoIP (Push-To-Talk)
• WiFi/Bluetooth Radio
Preliminary Draft
Chapter 2: Introduction
Warrington Hand-Held Computer Features
14 Warrington Hand-Held Computer User Manual
Additional Options:
•1D Imager
• 1D Laser Scanner
• Keyboard Variants: 48-Key Alpha-Numeric or 26-Key Numeric
Batch Warrington Standard Features:
• 2.7 inch Colour Touchscreen
• Numeric Keypad
• CE .Net Core
• 64/128 MB Memory
• Micro SD Slot
• 3000 mAh Battery
Additional Options:
• Bluetooth Radio
• Bluetooth Radio and 1D Imager
• Bluetooth Radio and 1D Laser Scanner
Platform
•Processor: PXA270 Processor @ 312 Mhz
•Memory:
- On-board RAM: 128 MB SDRAM
- On-board ROM: 64 MB Flash
Operating System
• Microsoft® Windows® CE 5.0
Programming Environment
• HTML, XML
• Mobile Devices SDK
- CE.NET SDK:
- Java Visual C++
- Standard protocol APIs – Windows® sockets (WinCE)
Wireless Communications
• On-board IEEE 802.11b/g (CCX Certified)
Preliminary Draft
Chapter 2: Introduction
Warrington Hand-Held Computer Features
Warrington Hand-Held Computer User Manual 15
• On-board Bluetooth radio (10 meter range)
Application Software
• Internet Explorer® 6 for CE
• Wordpad
• ActiveSync
• Open TekTerm
• ANSI
• TESS terminal emulations
• IBM 3270, IBM 5250, HP 2392
•Wavelink
®
•MCL
•MCC
• PCX Connect (Push-To-Talk)
Bar Code Applications
• 1D Standard Laser Scanner Option – SE955
• 1D Standard Imager Option – EV15
User Interface
•Display:
- 1/4 VGA portrait mode
- Tilted screen for clear view of display content, even while scanning a bar code
- Sunlight readable with transmissive touchscreen
- Colour 240 x 320 graphic TFT
- Passive stylus or finger operation
- Multicolour LED for scanning
• Keypad:
- 48-key alpha-numeric (Not available for Unconnected batch model variants.)
- 26-key numeric
- LED backlit keypad
- Ergonomically enhanced for ambidextrous one-hand operation
• Audio
Preliminary Draft
Chapter 2: Introduction
Warrington Hand-Held Computer Features
16 Warrington Hand-Held Computer User Manual
- Built-in microphone and receiver on all ‘Connected’ variants
- 85 dB internal beeper
Bluetooth® Class II, Ver 2
• Working Range: 5 m to 10 m (16.4 ft.to 32.81 ft.)
• Supports Enhanced Data Rate (EDR) for up to 3 Mbps data rate
• Supports Advanced Frequency Hopping (AFH) for reduced interference with
802.11b/g radio
Expansion Ports
• RS232 Serial
• USB host
Power Management
• 3.7 V @ 3000 mAh Lithium-Ion rechargeable battery
• 8 hour battery operation
• Smart battery system level 3 compliant
• Built-in gas gauge and performance monitor
• System backup (u to 10 minutes) during battery swap
• 3 Day real time clock backup
• Adjustable battery allocation between system backup and runtime
User Environment
• Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Storage Temperature: -20 °C to 60 °C (13 °F to 140 °F)
• Relative Humidity: 5% to 95% RH non-condensing
• Rain and Dust Protection: IP54, IEC 529
• Drop: 1.2 meters (4 feet) – 26 drops to polished concrete
• Shock and Vibe: 5-400 Hz PSD (random) and 30 g (3 axis)
Note: Bluetooth radios are a standard in all units equipped with 802.11b/g radios. For
those units operating in batch mode (off-line data collection) Bluetooth installa-
tion is optional.
Note: 802.11b/g and Bluetooth are available simultaneously.
Preliminary Draft
Chapter 2: Introduction
Warrington Hand-Held Computer Features
Warrington Hand-Held Computer User Manual 17
• ESD: ±15 k Vdc air discharge, ± 8 k Vdc contacts
Physical Dimensions And Weight
• 168 mm x 64 mm x 34 mm
• Weight with battery: 270 g
Accessories
• Desktop charger
• Quad charger
• Additional miscellaneous adaptors and cables (a complete list of accessories is available
at www.psionteklogix.com
Preliminary Draft
Preliminary Draft
Warrington Hand-Held Computer User Manual 19
BASIC CHECKOUT 3
3.1 Preparing The Warrington Hand-Held For Operation.................21
3.1.1 The Battery..................................21
3.1.1.1 Charging The Main Battery.....................21
3.1.2 The Super Capacitor.............................21
3.2 Switching The Warrington On And Off........................22
3.2.1 Installing The Battery And Switching The Unit On.............22
3.2.2 Switching The Unit Off (Suspend)......................22
3.3 Calibrating The Touchscreen..............................22
3.4 Configuring The Murata 802.11b/g Radio .......................23

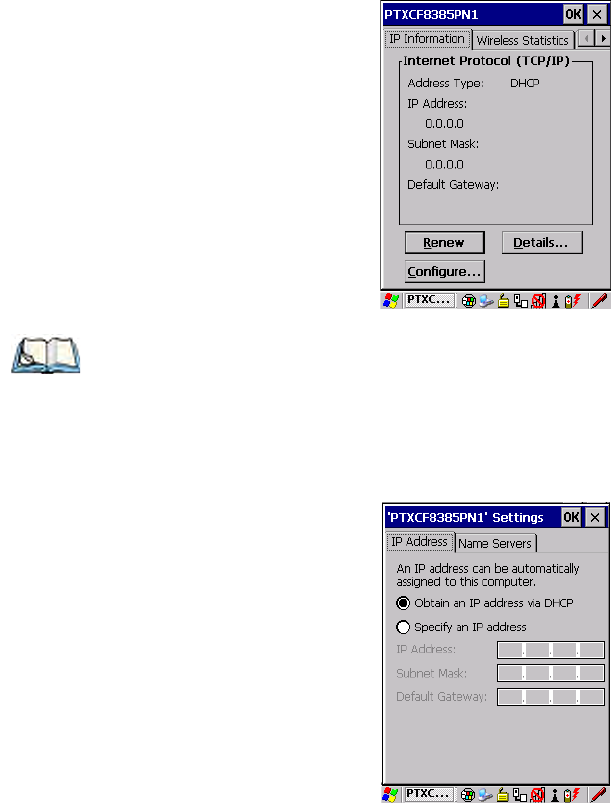

3.4.1 Assigning An IP Address...........................28

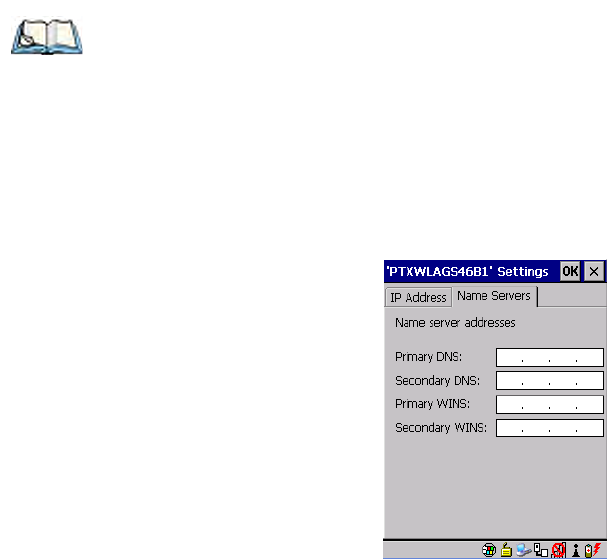

3.4.2 Name Servers Tab..............................30
3.4.3 Advanced Features..............................30
3.4.3.1 Rearranging Preferred Networks..................31
3.4.3.2 Deleting A Preferred Network...................31
3.4.3.3 Changing Network Properties....................31
3.5 Checking The Scanner.................................32
3.6 Data Transfer Between The PC And The Hand-Held.................32
3.6.1 Using Microsoft ActiveSync.........................32
3.6.2 Using Microsoft Vista............................32
3.7 VoIP – Using Push-To-Talk ..............................33
3.8 Resetting The Warrington...............................33
3.8.1 Performing A Warm Reset..........................33
3.8.2 Performing A Cold Reset...........................33
Preliminary Draft
Preliminary Draft
Chapter 3: Basic Checkout
Preparing The Warrington Hand-Held For Operation
Warrington Hand-Held Computer User Manual 21
3.1 Preparing The Warrington Hand-Held For Operation
3.1.1 The Battery
The Warrington is powered with a 3000 mAh Lithium Ion battery pack – Model No.
WA3006.
3.1.1.1 Charging The Main Battery
Battery packs shipped from the factory are charged to approximately 40% and must be fully
charged prior to use. Batteries can be charged using a variety of chargers and docking sta-
tions along with a Warrington internal charger. When using the internal charger, a suitable
power source is required. All chargers and docking stations are described in Chapter 7: “Pe-
ripheral Devices & Accessories” beginning on page 184.
3.1.2 The Super Capacitor
An onboard super capacitor provides up to 10 minutes of suspend mode backup power to the
Warrington to give you time to swap in a new battery; all unnecessary draws on power such
as the display and CPU are shut down to preserve power.
If the battery pack reaches its Suspend Threshold (refer to “Suspend Threshold” on
page 102) and the hand-held shuts down, the super capacitor will protect the data stored in
the unit until a charged battery pack is installed.
Warning: Before charging the battery, it is critical that you review the battery safety
guidelines in Chapter 1: “Approvals & Safety Summary”.
Important: Before opening the battery cover on your Warrington, press [FN/BLUE]
[ENTER] to turn off the hand-held. Removing the battery while the unit is
running may cause the hand-held to reboot.
Note: If you are powering up a new unit, a warning message may appear on the screen
indicating that the backup battery capacity is low. To recharge the internal battery,
you must fully charge the Warrington with the main battery installed in the unit.
Important: When you initially power up the hand-held, leave the battery in the unit for a
minimum of 2 minutes to allow the super capacitor to reach full capacity.
Preliminary Draft
Chapter 3: Basic Checkout
Switching The Warrington On And Off
22 Warrington Hand-Held Computer User Manual
3.2 Switching The Warrington On And Off
3.2.1 Installing The Battery And Switching The Unit On

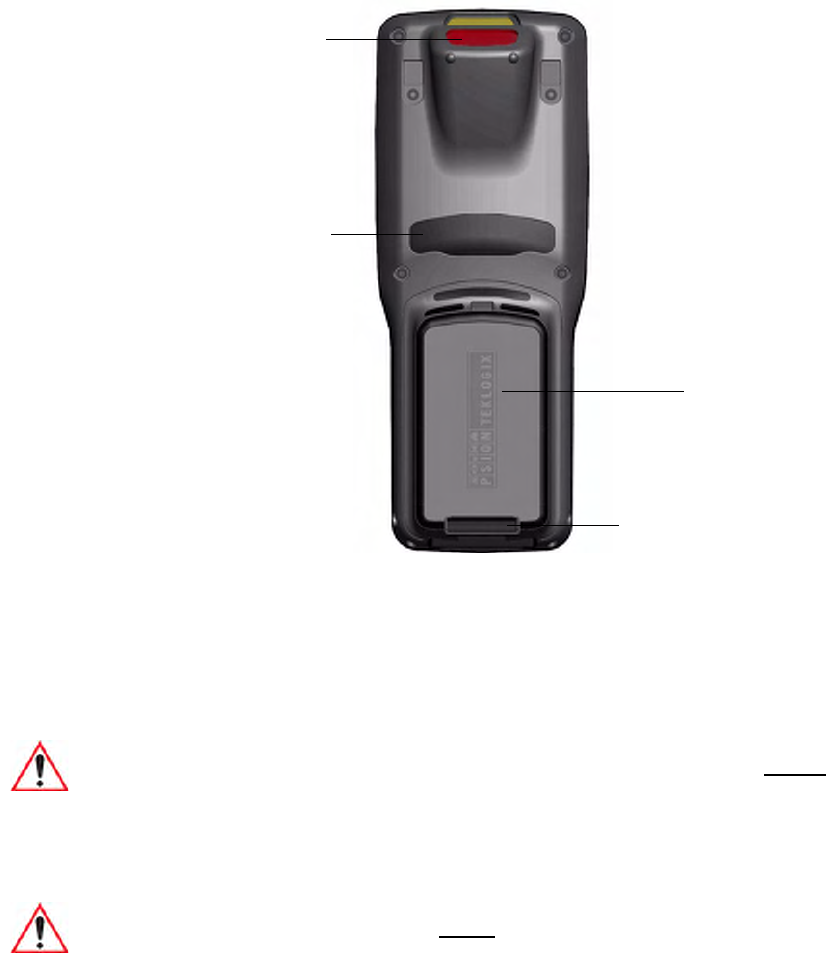

• Push the release button at the base of the battery cover to unlatch it. Remove the battery
cover.
•Insert a charged battery into the unit, making certain that the connectors on the battery
are aligned with those in the Warrington battery well.
• Replace the battery cover.
To switch the Warrington on:
• Press and hold down the [ENTER] key for at least one second.
• When the LED flashes green, release the [ENTER] button.

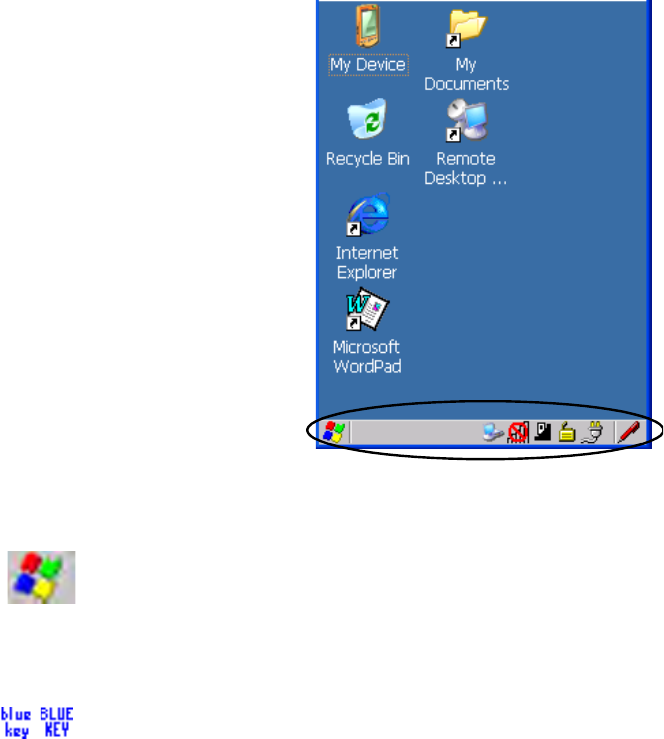

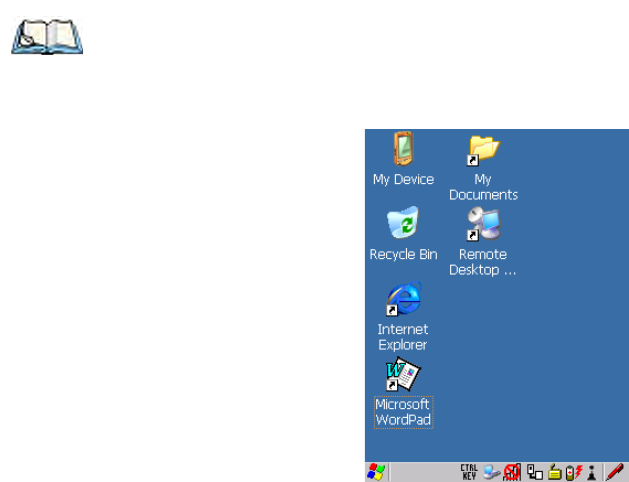

The desktop screen is displayed.
3.2.2 Switching The Unit Off (Suspend)
• Press the [FN/BLUE] key, and then press [ENTER].
3.3 Calibrating The Touchscreen
The Warrington touchscreen is factory-calibrated and ready-to-go; however, over time the
touchscreen operating parameters may change, and may need to be recalibrated for correct
operation. Refer to “Calibrating The Touchscreen” on page 65 for details.
Important: Press [FN/BLUE] [ENTER] to turn off the hand-held before removing
battery on your Warrington. If the battery is removed while the unit is still
powered on, the unit may reboot.
Note: If you are using a docking station or an external power supply, you can insert an
uncharged battery and switch it on.
Note: If the unit was already in use—the unit may be off (suspend state) – pressing
[ENTER] ‘wakes’ the unit from this state. The screen in which you were working
prior to the suspend state is displayed.
Note: Keep in mind that the touchscreen function can be turned off (see “Touch” on
page 105).
Preliminary Draft
Chapter 3: Basic Checkout
Configuring The Murata 802.11b/g Radio
Warrington Hand-Held Computer User Manual 23

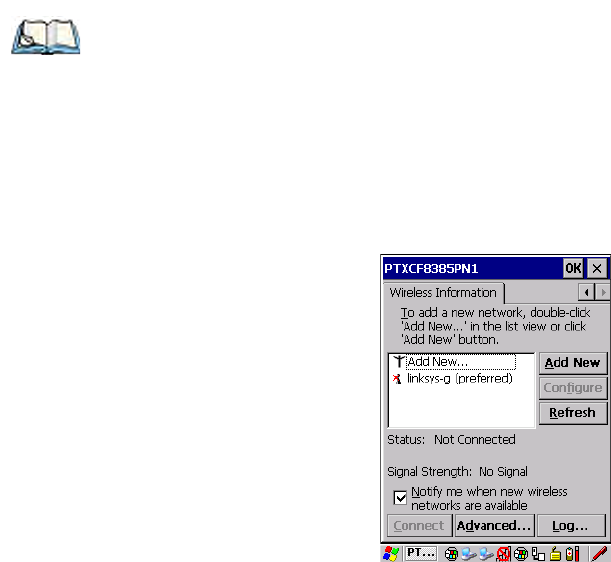

3.4 Configuring The Murata 802.11b/g Radio
The Warrington supports a Murata Direct Sequence Spread Spectrum 802.11b/g radio
module. The radio is mounted on the hand-held logic board.
The most common 802.11 settings are configured as defaults. However, there are some
fields that must be completed, including the SSID of your access point and the security
methods implemented in the network (including access keys).
To configure the 802.11 radio:

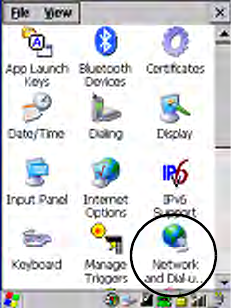

1. Tap on Start>Settings>Network and Dial-up Connections.
2. Choose the radio icon to open the 802.11 Wireless LAN Settings window.
Note: In most situations, the configuration of your 802.11 radio will require parameter set-
ting and access keys from a network administrator.
Network administrators should review the detailed security information in this sec-
tion in order to effectively configure the 802.11 wireless network.
Preliminary Draft
Chapter 3: Basic Checkout
Configuring The Murata 802.11b/g Radio
24 Warrington Hand-Held Computer User Manual
Figure 3.1 802.11 Wireless LAN Settings Window
3. Wireless Statistics Tab: When you choose the Wireless LAN icon, an 802.11
Wireless LAN Settings window is displayed. This tab lists your radio statistics.
Choosing the Zero button resets the statistics of the last four items – Packets IN,
Packets OUT, IN errors and OUT errors.

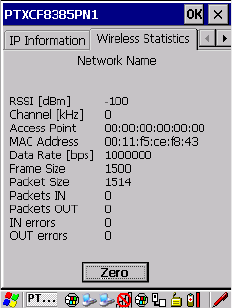

Figure 3.2 Wireless Statistics
• Tap on the arrow in the upper-right corner of the dialog box to display the next tab –
Wireless Information.
4. Wireless Information Tab: This tab displays existing networks to which you can
connect, and it allows you to add a new network or modify the settings for an exist-
ing network.
Preliminary Draft
Chapter 3: Basic Checkout
Configuring The Murata 802.11b/g Radio
Warrington Hand-Held Computer User Manual 25
Figure 3.3 Wireless Information Tab
This tab lists available networks – any access points that are broadcasting an SSID, and it
lists preferred networks – networks that you have configured. Since access points are gener-
ally secure, they will most likely not be listed here. By default, Warrington attempts to
connect to preferred networks. This behaviour can be changed by enabling Automatically
connect to non-preferred networks in the Advanced dialog box (see Figure 3.8 on page 31).
• To add a new configuration, tap on the Add New button. A blank Wireless Properties
dialog box is displayed.
5. Wireless Properties:
Note: Configure button – To change the settings in an existing network, highlight the net-
work you want to modify, and tap on the Configure button to display the Wireless
Properties dialog box.
Connect button – To force connection to a specific, existing network, highlight the
network to which you want your Warrington to connect, and tap on the Connect
button
Preliminary Draft
Chapter 3: Basic Checkout
Configuring The Murata 802.11b/g Radio
26 Warrington Hand-Held Computer User Manual

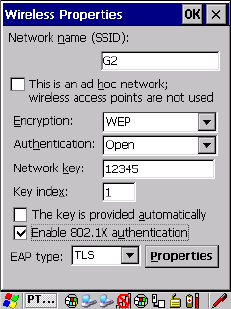

Figure 3.4 Wireless Properties Dialog Box
•Network name (SSID): Type the appropriate SSID (Service Set Identifier) in the
Network name (SSID) text box at the top of this dialog box. The Network name field
can contain a maximum of 32 characters. The name assigned here is listed as a pre-
ferred network.
•Ad Hoc And Infrastructure: If you are using an Infrastructure network – one in
which Warringtons must pass data through an access point – leave the checkbox next
to This is an ad hoc network blank.
If you are using an Ad Hoc network – a network in which Warringtons pass data di-
rectly to other Warringtons without an access point – add a checkmark in the checkbox
next to This is an ad hoc network to enable Ad Hoc.
Encryption:
WEP (Wired-Equivalent Privacy) encryption prevents others from accidentally ac-
cessing your network. If you are not using encryption, you can choose Disabled from
the dropdown encryption menu. Otherwise, leave this field as is.
TKIP (Temporal Key Integrity Protocol) is an encryption protocol included as part of
the IEEE 802.11 standard for wireless LANs. Designed to enhance WEP, TKIP uses
Important: Keep in mind that the Warrington will only communicate with access points
that are configured with the same SSID.
Note: WEP cannot be disabled if you are using WPA or WPA-PSK authentication.
Preliminary Draft
Chapter 3: Basic Checkout
Configuring The Murata 802.11b/g Radio
Warrington Hand-Held Computer User Manual 27
the original WEP encryption but ‘wraps’ additional code at the beginning and end to
encapsulate and modify it, encrypting each data packet with a unique encryption key.
•Authentication: 802.11 supports four subtypes of network authentication services:
Open, Shared, WPA, and WPA-PSK. Under Open authentication, any wireless station
can request authentication. The station that needs to authenticate with another wire-
less station sends an authentication management frame that contains the identity of
the sending station. The receiving station then sends back a frame that indicates
whether it recognizes the identity of the sending station.
Under Shared authentication, each wireless station is assumed to have received a se-
cret shared key over a secure channel that is independent from the 802.11 wireless
network communications channel.
Under WPA and WPA-PSK authentication, the use of 802.1x authentication is required.
For wireless networks without a Remote Authentication Dial-In User Service (RADI-
US) infrastructure, WPA supports the use of a preshared key. For wireless networks
with a RADIUS infrastructure, Extensible Authentication Protocol (EAP) and RADI-
US is supported.
•Network Key: This text box is used to specify a 5 or 13 ASCII character sequence or
an equivalent 10 or 26 Hexadecimal digit sequence that matches the active WEP key
on the access point.
• To assign a Network key, highlight The key is provided automatically, and uncheck
the checkbox to disable this option
Figure 3.5 Accessing Network Key and Key Index
•Key Index: This field is used to identify the WEP key.
Enter a value from 1 to 4.
Preliminary Draft
Chapter 3: Basic Checkout
Assigning An IP Address
28 Warrington Hand-Held Computer User Manual
•Enable 802.1x authentication: 802.1X is the IEEE standard that offers additional
security for local area networks. It provides authentication for user devices attached
to an Ethernet network, whether wired or wireless. A security protocol packet such as
TLS or MD5 encapsulated in an EAP is used in conjunction with the 802.1X standard
to authenticate users at the MAC layer. Available EAPs are listed in the dropdown
menu next to the EAP option.
To activate 802.1X, highlight 802.1x authentication, and check the checkbox.
•EAP Type (Extensible Authentication Protocol): This dropdown menu lists the
EAP types available on your system. The items in this dropdown menu will vary
depending on your network setup. Keep in mind also that some authentication proto-
cols require that you select a Certificate. By selecting the Properties button, you will
be able to select a Certificate. “Certificate Assignment” on page 109 provides a
website that outlines how to create certificates for your network.
6. Saving and exiting the radio setup.
Once you’ve completed the configuration, press [ENTER], or tap
on OK.
The connection you created will be listed in the Wireless Information tab as a preferred
network. The radio will search for the SSID and will compare the WEP and authentica-
tion information you specified. If there is a match between your hand-held settings and
the access point settings, the hand-held will communicate on the network through the
access point.
3.4.1 Assigning An IP Address
If your network is not using a DHCP server, you will need to assign an IP address.
• Tap on the IP Information tab.
Preliminary Draft
Chapter 3: Basic Checkout
Assigning An IP Address
Warrington Hand-Held Computer User Manual 29

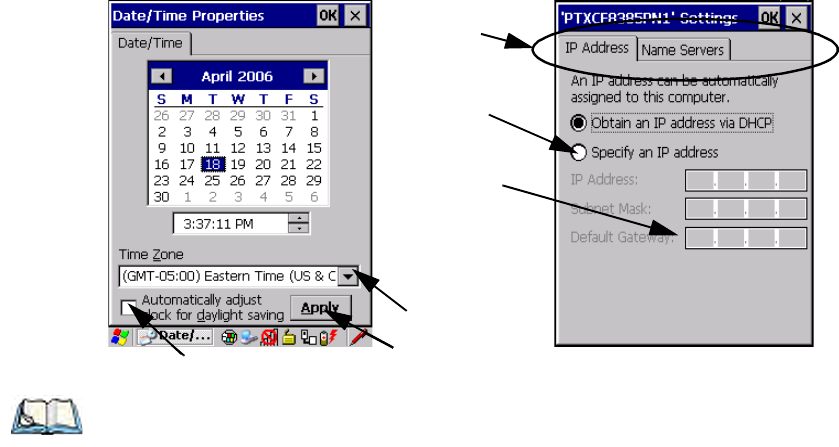

Figure 3.6 IP Information
To define a static IP address:
• Tap on the Configure button.
• Tap the stylus on the radio button next to Specify an IP address to select it.
• Type an IP, Subnet Mask and Default Gateway address in the appropriate fields. Press
[ENTER] to save your information.
Note: Tapping the Renew button forces the Warrington to renew or find a new IP address.
This is useful if, for example, you are out of communication range for a longer
period of time and your hand-held is dropped from the network.
Preliminary Draft
Chapter 3: Basic Checkout
Name Servers Tab
30 Warrington Hand-Held Computer User Manual
3.4.2 Name Servers Tab
•In the PTXCF8385P N1 Settings window, tap on the IP Information tab.
• Tap on the Configure button.
• Display the Name Servers tab
Figure 3.7 Name Servers Tab
•.
The DNS and WINS fields in the Name Servers tab allow you to specify additional WINS
and DNS resolvers. The format for these fields is ###.###.###.###.
3.4.3 Advanced Features
To display the Advanced Wireless Settings dialog box:
• Tap on the Advanced button in the Wireless Information tab. (Refer to Figure 3.3 on
page 25.)
This window lists the available preferred networks.
Note: If DHCP is enabled, name server addresses are assigned automatically.
Preliminary Draft
Chapter 3: Basic Checkout
Rearranging Preferred Networks
Warrington Hand-Held Computer User Manual 31
Figure 3.8 Advanced Settings
3.4.3.1 Rearranging Preferred Networks
The Warrington attempts to connect with the networks listed in this dialog box in sequence,
beginning at the top of the list. If you need to rearrange this list of networks – move net-
works up and down in the list:
• Tap in the Networks List, and highlight the network that you want to move up or down
in the list.
• To move the highlighted item in the list upward or downward, tap on the Up or Down
button.
3.4.3.2 Deleting A Preferred Network
To delete a network from this list:
•In the networks list, highlight the network that you want to remove.
• Tap on the Delete button.
3.4.3.3 Changing Network Properties
To change the properties of an existing preferred network:
• Highlight the network that you want to modify.
• Tap on the Properties button.
• Make any necessary changes in the Wireless Properties dialog box, and press [ENTER]
to save the changes.
Preliminary Draft
Chapter 3: Basic Checkout
Checking The Scanner
32 Warrington Hand-Held Computer User Manual
3.5 Checking The Scanner
If your Warrington is equipped with an internal scanner, you can test it to ensure that it is op-
erating properly. Point the scanner window at a bar code that your scanner was designed to
decode—for example, a 1D UPC bar code. Press the SCAN key or pistol trigger, and check
for a valid decode on the hand-held screen.

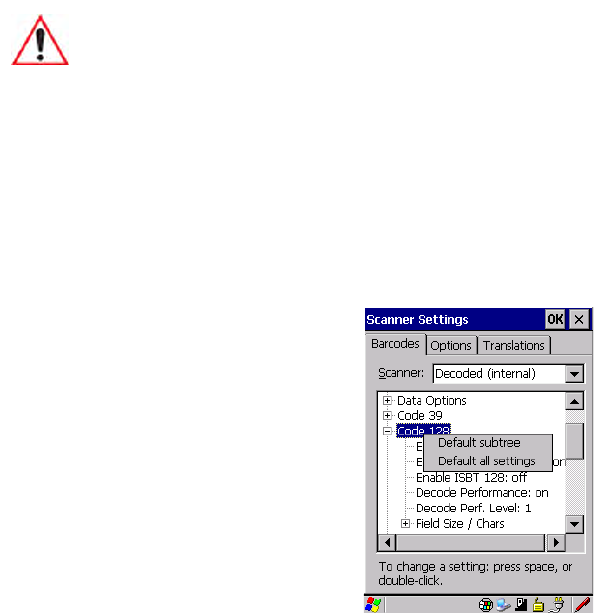

Performance is improved if you disable all unneeded bar codes in the Bar Codes screen.
Review “Scanner Settings” on page 134 or details about bar codes.
3.6 Data Transfer Between The PC And The Hand-Held
Data transfer options vary slightly depending on the type of operating system installed in
your PC. Microsoft® ActiveSync® is PC connectivity software that can be used to connect
your hand-held to PCs running this software. ActiveSync works only with the Windows XP
SP2 operating system or earlier.
If the Microsoft® Vista® operating system is installed in your PC, ActiveSync is not re-
quired to transfer data between your Warrington and your PC.
By connecting the Warrington to a PC with a cable, you can:
• View Warrington files from Windows Explorer.
• Drag and drop files between the Warrington and the PC in the same way that you would
between PC drives.
• Back up Warrington files to the PC, then restore them from the PC to the hand-held
again, if needed, and so on.
3.6.1 Using Microsoft ActiveSync
To install ActiveSync, follow the step-by-step instructions provided with the program’s
setup wizard. Refer to the following website for details:
http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx
3.6.2 Using Microsoft Vista
If you have Windows Vista, your Warrington data transfers do not require ActiveSync. To
transfer data between your PC and your hand-held:
• Tap on Start>Computer to display the drives. Your Warrington will be visible here.
• Open drives, files and folders as you would on your PC.
Preliminary Draft
Chapter 3: Basic Checkout
VoIP – Using Push-To-Talk
Warrington Hand-Held Computer User Manual 33
3.7 VoIP – Using Push-To-Talk
•
•
•

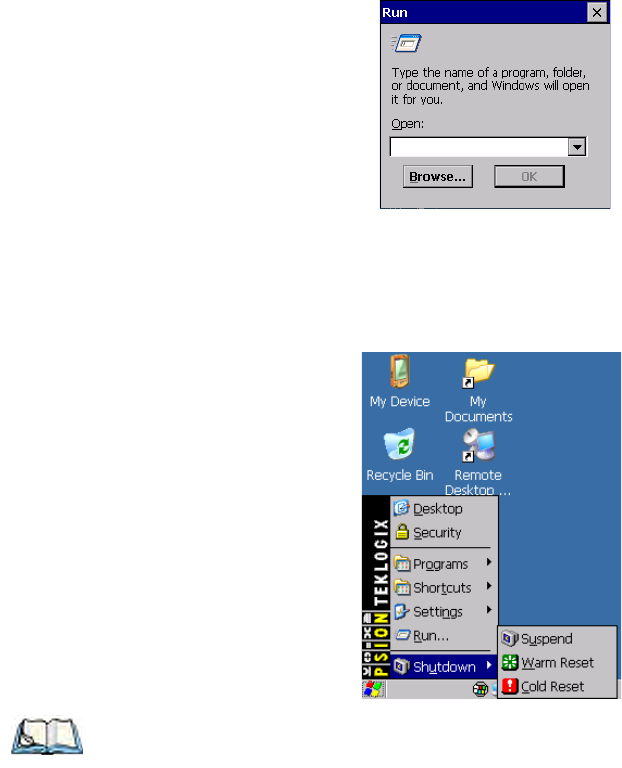

3.8 Resetting The Warrington
3.8.1 Performing A Warm Reset
To execute a warm reset:
• Press and hold down the [FN/BLUE] key and the [ENTER] key simultaneously for a
minimum of six seconds.
A warm reset closes open applications; any unsaved data are lost. Installed programs and
saved data are preserved.
3.8.2 Performing A Cold Reset
To perform a cold reset and launch the Windows 5.0 operating system (bypassing the BooSt
menu):
• Press and hold down the [FN/BLUE] [FN/ORANGE] and [ENTER] keys simultane-
ously for a minimum of six seconds.
Note: You do not need to reset your Warrington after configuring the radio.
Preliminary Draft
Preliminary Draft
Warrington Hand-Held Computer User Manual 35
WORKING WITH WINDOWS CE 5.0 4
4.1 Navigating In Windows CE 5.0............................37
4.1.1 Navigating Using A Touchscreen And Stylus................37
4.1.2 Navigating Using The Keyboard.......................37
4.2 Working With Files, Folders And Programs......................38
4.3 The Startup Desktop..................................39
4.3.1 The Desktop Icons..............................40
4.3.2 The Taskbar..................................41
4.3.2.1 Using The Taskbar .........................41
4.3.2.2 Customizing The Taskbar......................42
4.4 The Start Menu.....................................43
4.4.1 The Desktop.................................45
4.4.2 Security Settings...............................45
4.4.3 Programs...................................46
4.4.4 Shortcuts...................................48
4.4.5 Settings....................................50
4.4.6 Run......................................50
4.4.7 Shutdown...................................51
4.5 Using A Dialog Box..................................52
Preliminary Draft
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Navigating In Windows CE 5.0
Warrington Hand-Held Computer User Manual 37
4.1 Navigating In Windows CE 5.0
Graphic user interfaces like Windows CE 5.0 for portable devices and desktop Windows
(2000, XP, etc.) utilize ‘point and click’ navigation. An equivalent keyboard shortcut is also
available for every ‘point and click’ action.
Windows CE 5.0 supports the same ‘point and click’ user interface and keyboard shortcuts
as desktop Windows with one difference—the ‘point and click’ action is accomplished
using a touchscreen rather than a mouse. Actions can be performed using any combination
of keyboard shortcuts or touchscreen tapping.
4.1.1 Navigating Using A Touchscreen And Stylus
Each Warrington is equipped with a stylus—a pointing tool that looks like a pen—stored in
a slot at the top of the unit. The stylus is used to select objects on the touchscreen.
To choose an icon, open a file, launch an applet, or open a folder:
• Double-tap the stylus on the appropriate icon.
4.1.2 Navigating Using The Keyboard
If your Warrington touchscreen has been disabled, you can use the keyboard to choose
icons, navigate dialog boxes, display the desktop, and so on. If your unit has already been
fully configured and your application is launched at startup, you’ll have little need for key-
board navigation, but you can refer to Table 4.1 for a description of the navigation keys.
Note: In order to access many of the menus discussed in this chapter, the security level
must be set to ‘Supervisor’ (see “Security Settings” on page 45).
Note: If the touchscreen is not registering your screen taps accurately, the touchscreen
may need recalibration. Refer to “Calibrating The Touchscreen” on page 65.
Note: To prevent damage to the touchscreen, use only the stylus (pen) supplied with your
Warrington.
Table 4.1 Keyboard Navigation
Operation Key or Key Combination
Switch between active applications [ALT] [TAB]
Open task manager [ALT] [ESC]
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Working With Files, Folders And Programs
38 Warrington Hand-Held Computer User Manual
Keep in mind that unlike a desktop computer, the Warrington does not support key chording
(pressing two keys at the same time). You must press one key followed by the next in se-
quence. Refer to Section 4.2: “Working With Files, Folders And Programs” for additional
details about keyboard navigation.
4.2 Working With Files, Folders And Programs

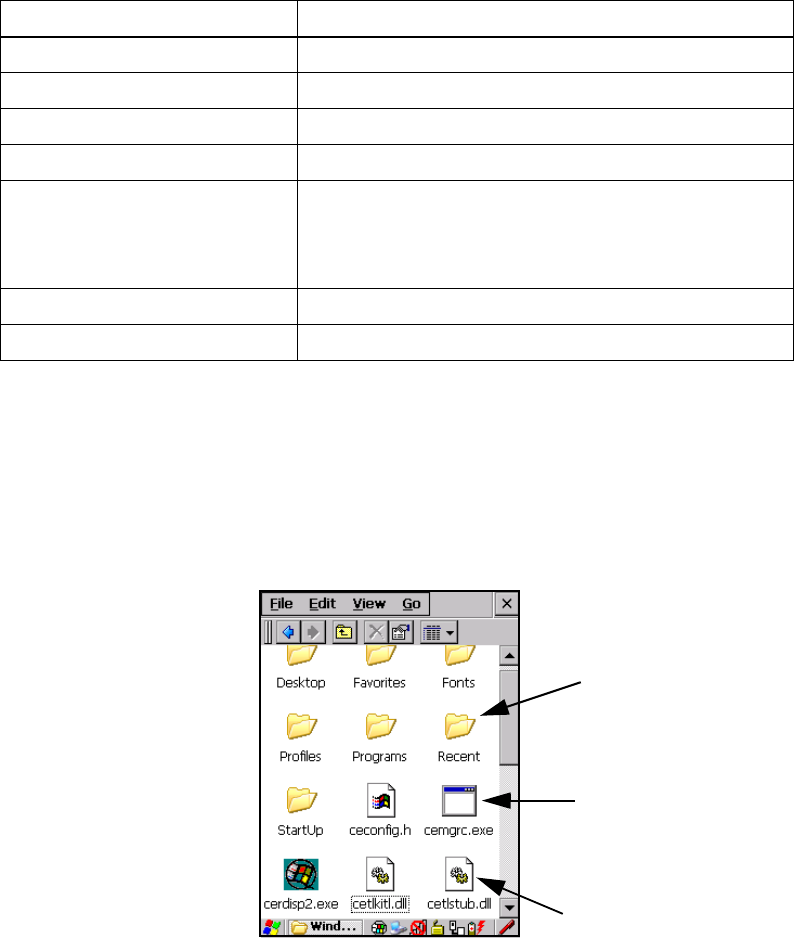

Figure 4.1 Working With Windows Icons
Move the cursor Arrow keys
Open file, folder or icon [ENTER]
Exit & Save [ENTER]
Close/Exit & Do Not Save [ESC]
Navigate Dialog Boxes [TAB]
To move cursor up: [SHIFT] [TAB]
To display the contents of the next ‘tab’ in a dialog box:
[CTRL] [TAB]
Select Radio Button/Press Button [SPACE]
Go to Start Menu [FN/BLUE][0]
Table 4.1 Keyboard Navigation
Operation Key or Key Combination
Folder
File
Program Icon
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
The Startup Desktop
Warrington Hand-Held Computer User Manual 39
• Double-tap on the appropriate icon—either a folder icon, a program icon or a file
icon—to open or launch your selection.
If you’re using the keyboard:
• Use the arrow keys to highlight the icon you want to open or launch.
• Press [ENTER].
4.3 The Startup Desktop
When the Warrington boots up, the startup desktop (shell) is displayed. Any applications
stored in the Startup folder start up immediately.

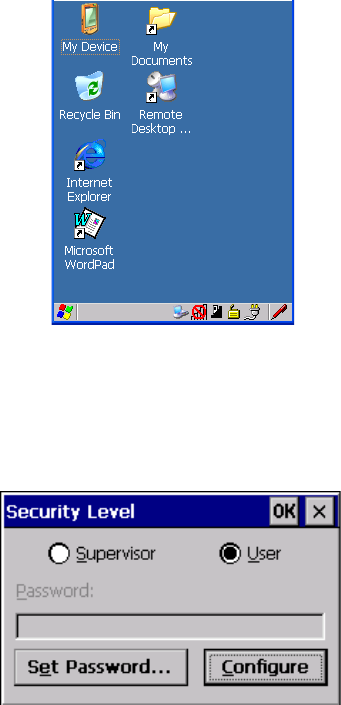

Figure 4.2 The Warrington Startup Desktop
To access desktop icons:
• Double-tap on the icon to open a window or, in the case of an application icon, launch
an application.
On the keyboard:
• Use the arrow keys to highlight the icon, and press [ENTER] to launch the
highlighted icon.
Note: The startup folder is located in \Windows\StartUp and \Flash Disk\StartUp.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
The Desktop Icons
40 Warrington Hand-Held Computer User Manual
4.3.1 The Desktop Icons
The icons displayed in the startup desktop operate in much the same way as those displayed
on any standard PC desktop that is running Windows.
My Device
Choosing this icon displays the contents of your Warrington computer. If you’re not sure
how to access the files, folders and programs displayed, refer to “Working With Files,
Folders And Programs” on page 38.
Recycle Bin
This option temporarily stores items that were deleted, allowing you to either permanently
delete or restore these items.
Internet Explorer
Choosing this icon launches Internet Explorer—a standard Windows CE 5.0 version. Keep
in mind that your supervisor will need to set up access using the Internet Options and the
Network and Dial-up Connections icons in the Control Panel.
Remote Desktop Connection
This option allows your Warrington to communicate with a remote desktop PC. “Remote
Connect” on page 79 provides a website with step-by-step instructions.
Note: If the arrow keys do not highlight the desktop icons, the desktop may not be selected.
Press [FN/BLUE] [.] (period) to display the Start Menu, and select Desktop. Now
the desktop will be “in focus” and the arrow keys will highlight the icons.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
The Taskbar
Warrington Hand-Held Computer User Manual 41

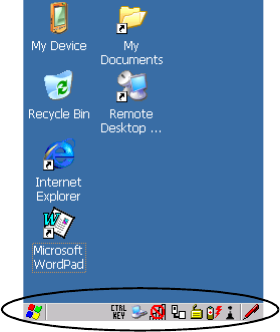

4.3.2 The Taskbar
The Warrington is equipped with a taskbar at the bottom of the screen. It displays icons
through which you can view the battery capacity and radio signal quality of your unit. If the
hand-held is attached to a charger, cradle, docking station or PDM, an associated icon is dis-
played. In addition, the taskbar displays the application(s) currently running on your unit
and the security level assigned to your Warrington.

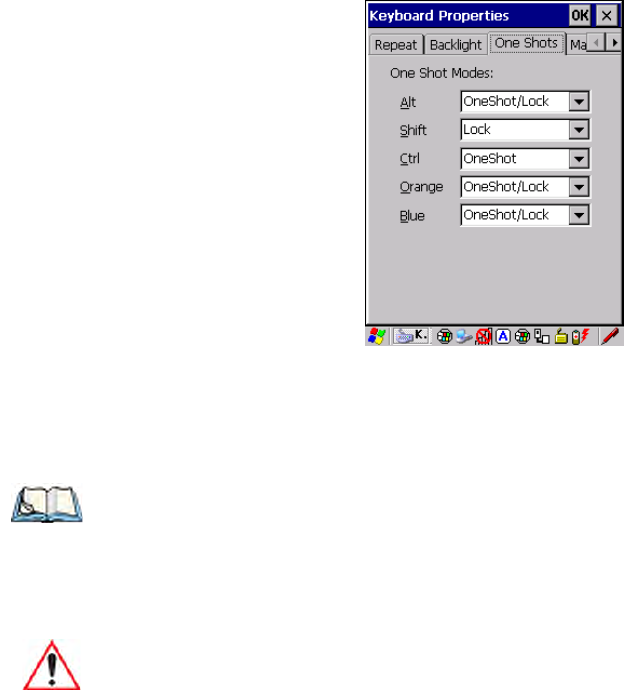

The taskbar also displays active modifier keys: [SHIFT], [ALT], [CTRL], [FN/BLUE] and
[FN/ORANGE]. Keys that have been locked “on” are displayed in uppercase letters. For ex-
ample, if you have set the [CTRL] key Lock to “on” in the Keyboard menu and you press
the key, it is displayed as CTRL KEY in the taskbar. (For detailed information on modifier
keys and keyboard options, see “The Keyboard” on page 60).
4.3.2.1 Using The Taskbar
A tooltip is displayed as each taskbar icon is highlighted. The tooltip provides the status of
each icon.
If you’re using the touchscreen:
• Tap and hold the stylus on an icon to display the icon's tooltip. Double-tap the icon to
open the Control Panel dialog box associated with the icon. For example, double-tap the
battery icon to display a dialog box listing the current battery capacity information.
On the keyboard:
• Press [FN/BLUE] [.] (period) to display the Start Menu.
• Choose Shortcuts from the Start Menu, and then press the [RIGHT] arrow key to
display the sub-menu.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Customizing The Taskbar
42 Warrington Hand-Held Computer User Manual
• Choose System Tray in the sub-menu.
• Use the arrow keys to highlight the icon in the taskbar about which you’d like more
information.
• Press [ENTER] to display the appropriate dialog box.
4.3.2.2 Customizing The Taskbar
To customize the taskbar so that it displays only those icons you require:
•In the Start Menu, choose Settings>Taskbar.
If you’re using the keyboard:
• Press [FN/BLUE] [.] to display the Start Menu.
• Highlight the Settings option, highlight Taskbar in the sub-menu, and press [ENTER].
The Taskbar and Start Menu dialog box is displayed.
Task bar G enera l Ta b
• Tap the stylus on the items you want to activate or deactivate. The check mark indicates
active items.
If you’re using the keyboard:
• Highlight the options you want to activate, and press the [SPACE] key to select them.
The check mark indicates active items.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
The Start Menu
Warrington Hand-Held Computer User Manual 43

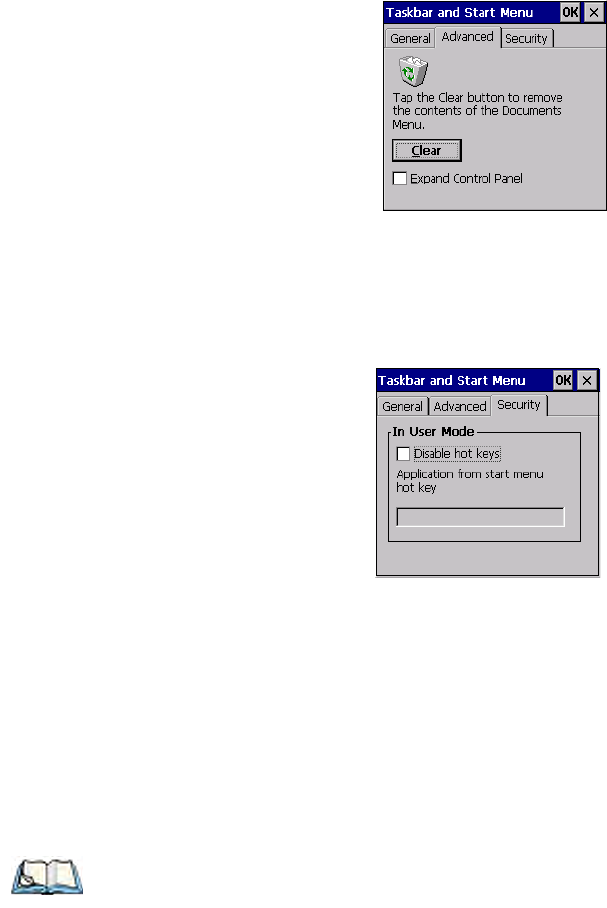

Task bar A dvan ced Ta b
• Tap on the Clear button to empty the Documents folder.
• To display Control Panel applets in menu form rather than in a window, tap in the
checkbox next to Expand Control Panel.
Taskbar Security Tab
If you check Disable hot keys, the Application from Start menu field becomes enabled. Use
this field to enter the name of the application you want to run when the user presses the
Menu hot key: [FN/BLUE] [0].
If you have disabled hot keys, hidden the Start Menu and have no application configured,
the Menu hot key brings up the Security dialog box to allow authorized users to access the
hand-held configuration. Keep in mind that this dialog box is also displayed if an invalid ap-
plication is entered in the Application from Start Menu field.

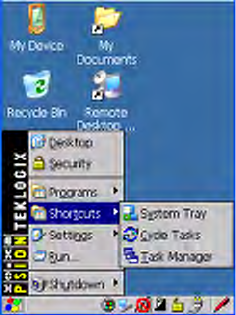

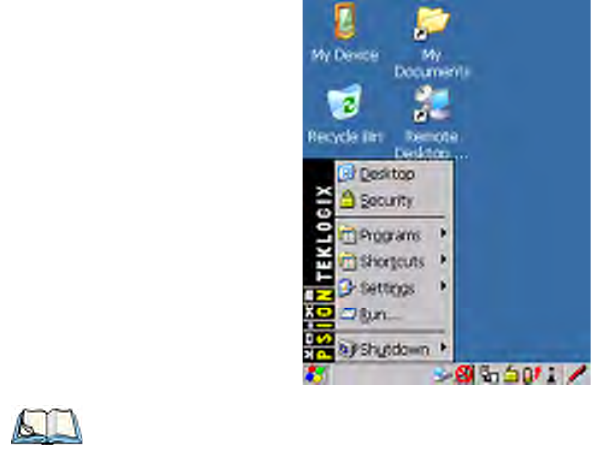

4.4 The Start Menu
Note: Some of the Start Menu items may be disabled based on the current Warrington
security settings.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
The Start Menu
44 Warrington Hand-Held Computer User Manual
The Start Menu lists the operations you can access and work with. It is available from the
startup desktop or from within any application.
To display the menu:
• Press [FN/BLUE] [.] (period).
If you’re using the keyboard:
• Use the arrow keys to highlight a menu item, and press [ENTER], or
If the menu item has an underlined character:
• Type the underlined alpha character. For example, to display the Security dialog box,
type the letter ‘s’.
Note: Tap on the item in the menu with which you want to work.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
The Desktop
Warrington Hand-Held Computer User Manual 45
4.4.1 The Desktop
Choosing Desktop in the Start Menu displays the Warrington desktop.
4.4.2 Security Settings
Choosing the Security option from the Start Menu displays a dialog box in which you can
define the access level for the Warrington: Supervisor or User.
Figure 4.3 Security Levels
Assigning The Supervisor Security Level
The security level is represented by an icon in the shape of a lock in the taskbar. The security
levels define the options accessible to the operator in the Start Menu and the taskbar.
By default, the security level is set to User, restricting access to only the most basic Start
Menu items.
To allow access to all the Start Menu and taskbar options:
•In the Security Level dialog box, tap on the radio button next to Supervisor.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Programs
46 Warrington Hand-Held Computer User Manual
•In the Password field, type the Supervisor level password. The default password is
123456.
• Tap on OK. You can now access all menu items in the Start Menu along with the icons
in the taskbar.
Changing A Password
To assign a password:
• Choose a security level, and enter the existing password in the Password field.
• Tap on the Set Password button.
A dialog box labelled Password Properties is displayed.
• Type the new password in the Password: text box (all keyboard characters are valid).
•In the Confirm Password: text box, retype the new password.

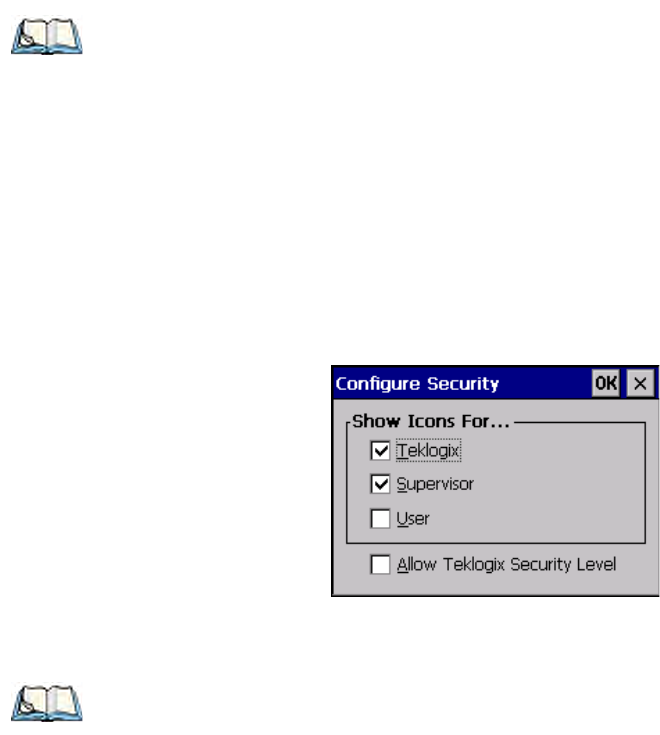

Configuring Security
Choosing the Configure button displays the Configure Security dialog box.
This dialog box allows you to determine which security levels will have an associated icon
displayed in the taskbar. By default, a security icon is not displayed for user-level security.
4.4.3 Programs
• Choose Programs to display a sub-menu of options.
Note: Keep in mind that this is the same password as that assigned through the Password
control panel applet. Refer to “Control Panel Icons” on page 80.
Note: It is recommended that you enable ‘Allow Teklogix Security Level’ so that autho-
rized Psion Teklogix service personnel can access your unit should it require
maintenance.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Programs
Warrington Hand-Held Computer User Manual 47
Figure 4.4 Programs Sub-Menu
ActiveSync®
This option allows you to connect to another device using ActiveSync.
Demo
This folder contains the Demo Scanner, Demo Signature and Demo Sound applications.
Demo Scanner can be used to test how the hand-held reads and writes RFID tags. Demo Sig-
nature allows you to capture a signature written on the screen with your stylus and save it to
a file. Demo Sound allows you to record and playback. The ‘Sample Rate’ and the ‘Bits Per
Sample’ are the rates at which the sound will be recorded. Sounds recorded at the higher
sample rate or bits per sample will be higher quality sound but will require more file storage
space. Lower sample rates and/or bits per sample produces a smaller file, but the sound
quality suffers. The record and play buttons operate in the same as on any recording device.
The X icon deletes the sound and the diskette icon allows you to save your sound.
Command Prompt
Command Prompt is used to access the DOS command prompt. At the prompt, you can type
DOS commands such as dir to display all the directories in the drive.
Internet Explorer
The Warrington is equipped with Microsoft Internet Explorer for Windows CE 5.0. You can
access the Internet Options icon through the Start Menu under Settings>Control Panel or by
double-tapping on the desktop Internet Explorer icon.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Shortcuts
48 Warrington Hand-Held Computer User Manual
Microsoft WordPad
The Microsoft WordPad is a basic word processor used to create, edit, view and print text
documents. You can access this option from the Start Menu under Programs> Microsoft
WordPad.
Remote Connect
Remote Connect is a Warrington application used to connect to a Windows Terminal Server
so that you can run a “session” on the Server machine using the Warrington (Windows CE
5.0 device). “Remote Connect” on page 79 provides a website with details about this option.
Windows Explorer
The Windows Explorer installed on your Warrington is consistent with all Windows CE 5.0
devices. You can access this option from the Start Menu under Programs>
Windows Explorer.
4.4.4 Shortcuts
System Tray
If your touchscreen is not enabled, you can use the System Tray option to access the icons in
the taskbar at the bottom of the screen. The taskbar displays indicators such as a radio signal
icon and the security level. These indicators are attached to dialog boxes that provide addi-
tional information.
• Choose Shortcuts>System Tray.
Using the icons in the taskbar, you can either display the Control Panel dialog box associ-
ated with an icon, or you can view a “tooltip”. A tooltip provides the status of each icon.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Shortcuts
Warrington Hand-Held Computer User Manual 49
• Tap and hold the stylus on an icon to display the icon’s tooltip. Double-tap on the icon to
open the Control Panel dialog box associated with the icon.
On the keyboard:
• Press [FN/BLUE] [.] to display the Start Menu.
• Choose Shortcuts from the Start Menu, and then press the [RIGHT] arrow key to
display the sub-menu.
• Choose System Tray in the sub-menu.
• Use the arrow keys to highlight the icon in the taskbar about which you’d like more
information. As each icon is highlighted, a tooltip is displayed.
• To display the associated Control Panel dialog box, press [ENTER].
Cycle Tasks
When Cycle Tasks is selected (and the Task Manager is not open), you can cycle through
active applications.
To cycle through your active applications:
• Choose Shortcuts>Cycle Tasks, or
Press [ALT] [TAB].
Task Mana g er
The Task Manager allows you to switch to another task or to end an active task. To display
the task manager window:
• Tap on Shortcuts>Task Manager, or
Press [ALT] [ESC].
Figure 4.5 Task Manager
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Settings
50 Warrington Hand-Held Computer User Manual
4.4.5 Settings
The Settings sub-menu includes the following settings: Control Panel, Network and Dial-up
Connections, and Taskbar and Start Menu.
Figure 4.6 Settings Sub-Menu

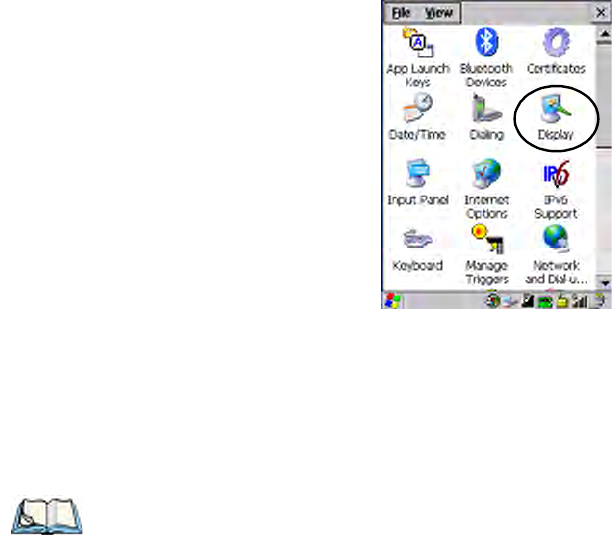

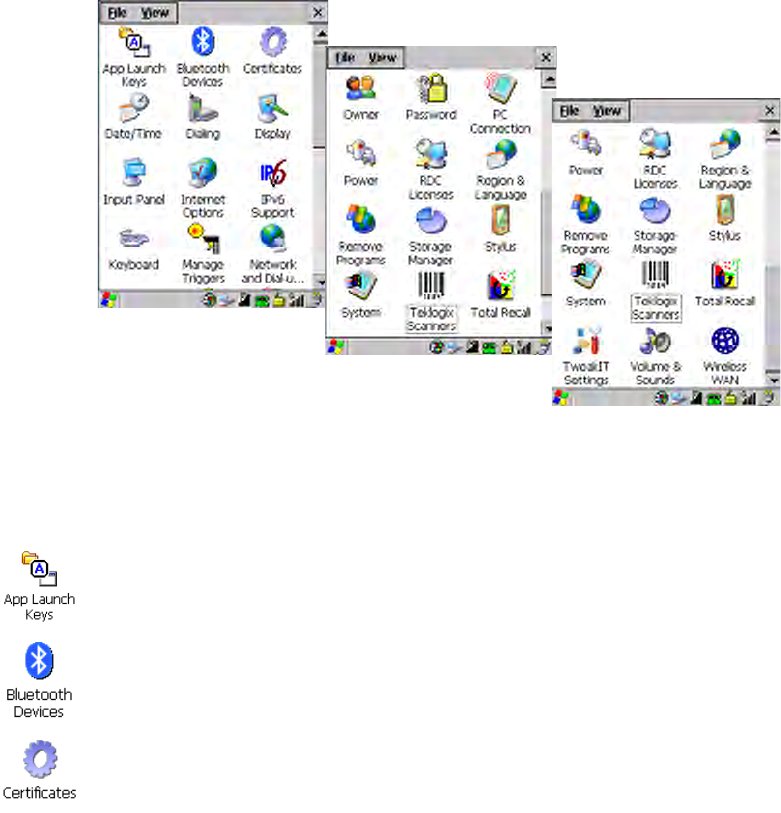

Control Panel
The Control Panel contains applets used to configure hardware, the operating system and
the shell. If your Warrington is running with the Psion Teklogix TekTerm application or
another application, additional configuration applets may appear in the Control Panel.

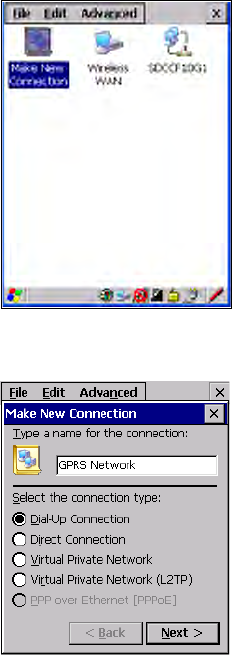

Network And Dial-Up Connections
The Network and Dial-up Connections window allows you to configure the Warrington
radio or execute an existing configuration. Refer to “Configuring The Murata 802.11b/g
Radio” on page 23 for radio setup details.
Task bar An d Sta rt Menu
The Taskbar and Start Menu option displays a dialog box in which you can customize the
taskbar, choosing which options will be displayed. Refer to “Customizing The Taskbar” on
page 42 for additional details about this option.
4.4.6 Run
Choosing the Run option from the Start Menu displays a dialog box in which you can enter
the name of the program, folder or document you want to open or launch.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Shutdown
Warrington Hand-Held Computer User Manual 51
Figure 4.7 Run Dialog Box
4.4.7 Shutdown
The Shutdown menu includes these options: Suspend and Warm Reset.
Figure 4.8 Shutdown Sub-Menu
Suspend
The Suspend option suspends the Warrington immediately. This is equivalent to turning the
hand-held off.
Note: This menu varies slightly depending on the security level chosen. When the War-
rington is set to User level, the Shutdown option is replaced by Suspend. A sub-
menu is not available.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Using A Dialog Box
52 Warrington Hand-Held Computer User Manual
Warm Reset
The Warm Reset option resets the Warrington, leaving all saved files and (registry) settings
intact. Any unsaved data is lost.
Cold Reset
The Cold Reset option resets the Warrington, clearing all files not stored in permanent
memory; however, the registry settings are saved.
4.5 Using A Dialog Box
A dialog box (like the samples in Figure 4.9 on page 52) appears when you need to make se-
lections and enter further information. You can move between dialog items by tapping on
them with your stylus, or by pressing the arrow keys and the [TAB] key ([SHIFT] [TAB]
moves the cursor backwards).
Figure 4.9 Dialog Boxes
Dialog boxes contain one or more of the following elements:
Tab: A tab separates different elements of a dialog box. Press the [TAB] key until a tab in
the dialog box is highlighted. To display adjoining tabs, press the [RIGHT] or [LEFT] arrow
Checkbox
Drop-down Menu
Button
Textbox
Radio
Button
Tabs
Note: You can use the stylus to tap on an element in a dialog box to select or deselect it,
display drop-down menus, save your selections, and so on.
Preliminary Draft
Chapter 4: Working With Windows CE 5.0
Using A Dialog Box
Warrington Hand-Held Computer User Manual 53
key. To display the information in the next tab from anywhere in the window, press
[CTRL] [TAB].
Textbox: A textbox requires that you type information. Press the [TAB] key to highlight the
textbox and then type the appropriate information.
Drop-down: This type of menu is identified by up and down arrows next to the drop-down
menu to indicate that additional options are available. Press the [TAB] key to highlight the
menu, and use the arrow keys on your keyboard to cycle through the options.
Checkbox: This box allows you to select or deselect an option. To select or deselect a
checkbox, press the [TAB] key to highlight the checkbox, and press the [SPACE] key to
select or deselect it.
Radio buttons: These buttons allow you to choose from a number of options. For example,
in the sample screen in Figure 4.9 on page 52 you can choose to Obtain an IP address via
DHCP or Specify an IP address. Press the [TAB] key to highlight a radio button option, and
then select a radio button by pressing the arrow keys to highlight the appropriate option.
Buttons: This type of button allows you to Save, Delete and so on the options you’ve chosen
in a dialog box. Use the [TAB] key to highlight the button you want to use. Press the
[ENTER] key to activate it.
Saving Your Choices: Once you’ve made all your changes, press the [ENTER] key to save
your changes and exit the window.
Note: A dialog box item that is displayed in grey text indicates that it is not
currently available.
Preliminary Draft
Preliminary Draft
Warrington Hand-Held Computer User Manual 55
GETTING TO KNOW THE WARRINGTON 5
5.1 Features Of The Warrington Hand-Held Computer..................57
5.2 The Battery.......................................58
5.2.1 Battery Safety ................................58
5.2.2 Removing The Battery Pack.........................58
5.2.2.1 Battery Swap Time.........................59
5.2.3 Charging The Battery.............................59
5.2.3.1 Chargers And Docking Stations...................59
5.3 Switching The Hand-Held On And Off........................60
5.4 The Keyboard......................................60
5.4.1 Modifier Keys................................61
5.4.1.1 Activating Modifier Keys......................61
5.4.1.2 Locking Modifier Keys.......................61
5.4.2 The Keys...................................61
5.4.3 Function Keys And Macro Keys.......................62
5.4.3.1 Function Keys............................62
5.4.3.2 The Macro Keys...........................63
5.4.4 26-Key Keyboard: Accessing Alpha Keys..................63
5.4.5 The Keypad Backlight............................64
5.5 The Display.......................................65
5.5.1 Adjusting The Display Backlight ......................65
5.5.2 Calibrating The Touchscreen.........................65
5.6 Warrington Hand-Held Indicators...........................66
5.6.1 LEDs.....................................66
5.6.2 Audio Indicators...............................67
5.6.2.1 Adjusting The Warrington Speaker Volume............67
5.6.3 Onscreen Indicators .............................67
5.7 Monitoring The Battery And Maximizing Run Time.................70
5.7.1 Storing Batteries...............................70
5.8 Uploading Data In A Docking Station.........................71
5.9 Bluetooth Radio....................................71
Preliminary Draft
56 Warrington Hand-Held Computer User Manual
5.9.1 Pairing A Bluetooth Headset Or Other Bluetooth Device..........72
5.10 The MicroSD Card...................................72
5.10.1 Inserting The Card..............................72
5.11 General Maintenance..................................73
5.11.1 Caring For The Touchscreen.........................73
5.11.2 Cleaning The Warrington..........................73
Preliminary Draft
5.1 Features Of The Warrington Hand-Held Computer
Figure 5.1 Front View
Keyboard Protector
Microphone
LED
(Light Emitting Diode) Receiver
Docking Port/USB On-The-Go
Preliminary Draft
Chapter 5: Getting To Know The Warrington
The Battery
58 Warrington Hand-Held Computer User Manual
Figure 5.2 Back View
5.2 The Battery
The hand-held operates with a Lithium Ion battery pack, Model No. WA3006. Preparing the
unit for operation requires that a battery pack be charged and installed in the Warrington.
5.2.1 Battery Safety
5.2.2 Removing The Battery Pack
Battery Latch
Scanner/Imager
Battery Cover &
microSD Card
Compartment
Expansion Connector
Important: Before attempting to install, use or charge the battery pack, it is critical that
you review and follow the important safety guidelines in Chapter 1:
“Approvals & Safety Summary”.
Important: Always switch the unit off before opening the battery cover to remove
the battery.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Battery Swap Time
Warrington Hand-Held Computer User Manual 59
For details about unlatching the battery cover, review “Installing The Battery And Switching
The Unit On” on page 22.
5.2.2.1 Battery Swap Time
Assuming the default power saving parameters and battery reserve level have not been al-
tered, battery swap time is a minimum of 10 minutes—you will not lose data if the battery is
replaced within this time frame.
The Suspend Threshold adjustment in the Power Properties tab allows you to determine the
battery capacity at which the hand-held will be shut down. If left at the default value,
Maximum Operating Time, the unit will run until the battery is completely empty; the RAM
is only backed up for a short period of time. If you choose Maximum Backup Time, the hand-
held shuts off with more energy left in the battery so RAM can be backed up for a longer
period of time.
Refer to “Suspend Threshold” on page 102 for details about reserving battery power for data
backup purposes.
5.2.3 Charging The Battery
Batteries shipped from the factory are charged to approximately 40% of capacity. They must
be fully charged prior to use.
5.2.3.1 Chargers And Docking Stations
Lithium Ion battery packs must be charged before use. These batteries can be charged with a
variety of chargers and docking stations. These include:
• AC wall adaptor (Model # PS1050-G1)—operates as an AC power source and when
plugged in, also charges the battery installed in the unit.
• Desktop Docking Station (Model # PX3001)—operates as both a charger and a docking
station. Operating as a charger, both the battery installed in the hand-held and a spare
battery can be charged simultaneously.

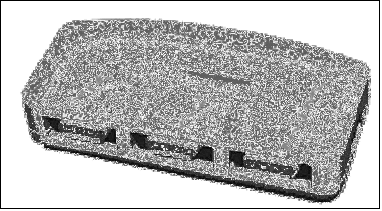

• Quad Docking Station—(Model # PX3001) can charge the battery of up to four War-
ringtons inserted in the docking station.
It can take up to 5 hours to charge a battery. The Warrington intelligent charging system pro-
tects the battery from over-charging by terminating the charge process when the battery is at
maximum capacity.
Important: FOR DETAILED INFORMATION about chargers and docking stations,
refer to Appendix 7: “Peripheral Devices & Accessories”.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Switching The Hand-Held On And Off
60 Warrington Hand-Held Computer User Manual
5.3 Switching The Hand-Held On And Off
• To switch the unit on, press and hold down the [ENTER] key for at least one second.
• When the LED flashes green, release the [ENTER] key.
The startup screen is displayed.
Switching Off The Warrington (Suspend)
• To switch the unit off, press [FN/BLUE] [ENTER].
5.4 The Keyboard
Two keyboard options are available:
• 48-key alpha-numeric keyboard. This keyboard is only available with connected hand-
helds – units equipped with 802.11b/g radios.
• 26-key numeric keyboard. This option is available for both variants of Warrington –
connected hand-helds (described above) and unconnected or batch hand-helds not
equipped with 802.11b/g radios.
Most of the keys on these keyboards operate much like a desktop computer. Where a key or
key function is not consistent with the PC keyboard, the differences are noted.
Note: Refer to “Monitoring The Battery And Maximizing Run Time” on page 70 for addi-
tional information about the battery.
Important: To avoid damaging the battery, chargers will not begin the charge process
until the battery temperature is between 0°C to 45°C (32°F to 113°F).
Note: If the Warrington is in suspend state, pressing [ENTER] ‘wakes’ the unit from this
state. The screen in which you were working before the computer entered suspend
state is displayed.
Important: Keep in mind that turning off the Warrington does not result in a complete
reboot; rather, the unit enters a power-saving, “suspend” state. When the
unit is turned on from suspend state, operation resumes within a
few seconds.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Modifier Keys
Warrington Hand-Held Computer User Manual 61
The [FN/BLUE] and [FN/ORANGE] modifier keys provide access to additional keys and
system functions. These functions are colour coded in orange and blue print above the
keyboard keys.
5.4.1 Modifier Keys
The [SHIFT], [CTRL], [ALT], [FN/BLUE] and [FN/ORANGE] keys are modifier keys.
Pressing a modifier key changes the function of the next key pressed.
The [SHIFT], [CTRL] and [ALT] keys operate much like a desktop keyboard except that
they are not chorded (two keys held down simultaneously). The modifier key must be
pressed first followed by the key whose function you want modified.
5.4.1.1 Activating Modifier Keys
When a modifier key is pressed once, it is displayed in lowercase letters in the taskbar at the
bottom of the hand-held screen. For example, if the [CTRL] key is pressed, ctrl key is dis-
played at the bottom of the unit screen. Once the next key is pressed, the modifier key
becomes inactive and disappears from the taskbar.
Keep in mind, however, that the ‘One Shot’ function allows you to determine how many key
presses will lock a modifier key ‘on’ – one press or two. Refer to “Keyboard One Shot
Modes” on page 90 for details.
5.4.1.2 Locking Modifier Keys
When a modifier key is pressed twice, it is ‘locked’ on. A ‘locked’ modifier key is displayed
in uppercase letters in the taskbar. For example, pressing the [CTRL] key twice locks it on –
it is displayed as CTRL KEY in the taskbar at the bottom of the computer screen.
The locked modifier key will remain active until it is pressed a third time to unlock or turn it
off. Once a modifier key is unlocked, the uppercase representation at the bottom of the
screen is no longer displayed.
5.4.2 The Keys
The [SHIFT] Key
The [SHIFT] key is used to display uppercase alpha characters and provide access to the
symbols above the numeric keys.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Function Keys And Macro Keys
62 Warrington Hand-Held Computer User Manual
The Arrow Keys
The Arrow keys move the cursor around the screen in the direction of the arrow: up, down,
left and right. The cursor is the flashing box or underline character that indicates where the
next character you type will appear.
The [SPACE] Key
Pressing this key inserts a blank space between characters. In a Windows dialog box, press-
ing the [SPACE] key enables or disables a checkbox.
The [BKSP/DEL] Key
The [BKSP] key (sometimes referred to as destructive backspace) moves the cursor one
character to the left, erasing the incorrectly entered key stroke.
The [DEL] key ([FN/BLUE] [BKSP]) erases the character at the cursor position.
The [CTRL] And [ALT] Key
The [CTRL] and [ALT] keys modify the function of the next key pressed and are applica-
tion-dependent.
The [TAB] Key
Typically, the [TAB] key moves the cursor to the next field to the right or downward.
The [ESC] Key
Generally, this key is used as a keyboard shortcut to close the current menu, dialog box or
activity and return to the previous one.
The [SCAN] Key
All units are equipped with a yellow [SCAN] key. For units that do not have internal scan-
ners, this key can be re-mapped to another function.
5.4.3 Function Keys And Macro Keys
In addition to the standard keyboard functions, the Warrington supports Function keys and
Macro keys. All Function and Macro keys can be custom defined for each application.
5.4.3.1 Function Keys
The Warrington keyboard is equipped with a total of 14 function keys. Function keys [F1] to
[F4] are located near the top of the keyboard on the [TAB], [ALT], [CTRL] and [ESC] keys
and are directly accessible—a key combination is not required. Ten additional function keys
Preliminary Draft
Chapter 5: Getting To Know The Warrington
The Macro Keys
Warrington Hand-Held Computer User Manual 63
are colour coded in blue print on the unit body; these keys are accessed by executing a key
combination, [FN/BLUE] followed by the appropriate numeric key.
For example, to access function key [F7]:
• Press the [FN/BLUE] key followed by the [7] key—the numeric key to which function
key [F7] is mapped.
• To access function key [F8], press [FN/BLUE] [8], and so on.

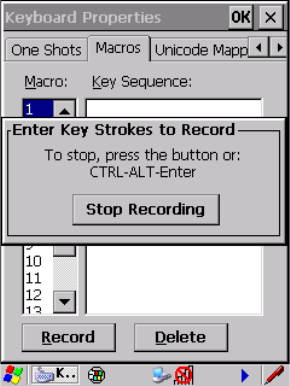

5.4.3.2 The Macro Keys
While macro keys are not physically stamped on the keyboard, up to 12 macro functions can
be added using the Scancode Remapping function. Refer to “Scancode Remapping” on
page 94 for details about mapping keys. Refer to “Keyboard Macro Keys” on page 91 for
details about programming characters in a Macro key.
5.4.4 26-Key Keyboard: Accessing Alpha Keys
On numeric 26-key keyboards, numeric keys are directly accessible, and all alpha characters
are printed on the unit plastic in orange characters above the numeric keys. An indicator in
the left corner of the taskbar displays the currently selected character. To access an alpha
character, first press the [FN/ORANGE] key and then press the numeric key above which
the alpha character you want to type is printed.
Choosing A Single Alpha Character
The examples below illustrate how to access, A, B, and C, all of which are printed in orange
characters above the numeric key [2].
To choose the letter a:
• Press the [FN/ORANGE] key, and press the numeric key [2].
To choose the second letter in the sequence—in this example, the letter b:
Important: The letters you choose appear in the taskbar, providing a visual indicator of
which letter will be displayed on the screen.
Note: To choose the second, third or fourth alpha character assigned to a numeric key,
you may want to lock the [FN/ORANGE] key ‘on’. By default, the [FN/ORANGE]
key is locked ‘on’ when pressed once. However, depending on how your unit is set
up in the ‘One Shots’ tab, you may find that you need to press the [FN/ORANGE]
key twice to lock it ‘on’. Refer to “Keyboard One Shot Modes” on page 90
for details.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
The Keypad Backlight
64 Warrington Hand-Held Computer User Manual
• Lock the [FN/ORANGE] key ‘on’. ‘ORG KEY is displayed in upper-case characters in
the taskbar to indicate that this key is locked ‘on’.
• Press numeric key [2] twice to display the letter b.
To choose the third letter in the sequence—in this example, the letter c:
• Lock the [FN/ORANGE] key ‘on’.
• Press numeric key [2] three times to display the letter c.
Creating Uppercase Letters
To display a capital letter:
• Press the [FN/ORANGE] key and then the [SHIFT] key before typing the
alpha character.
Choosing Multiple Alpha Characters
• Lock the [FN/ORANGE] key ‘on’.
Each time you press a numeric key from [2] through [9], an alpha character will be dis-
played on the screen. Remember that you can refer to the softkey bar for a visual indication
of which alpha key will be displayed on the screen.
5.4.5 The Keypad Backlight

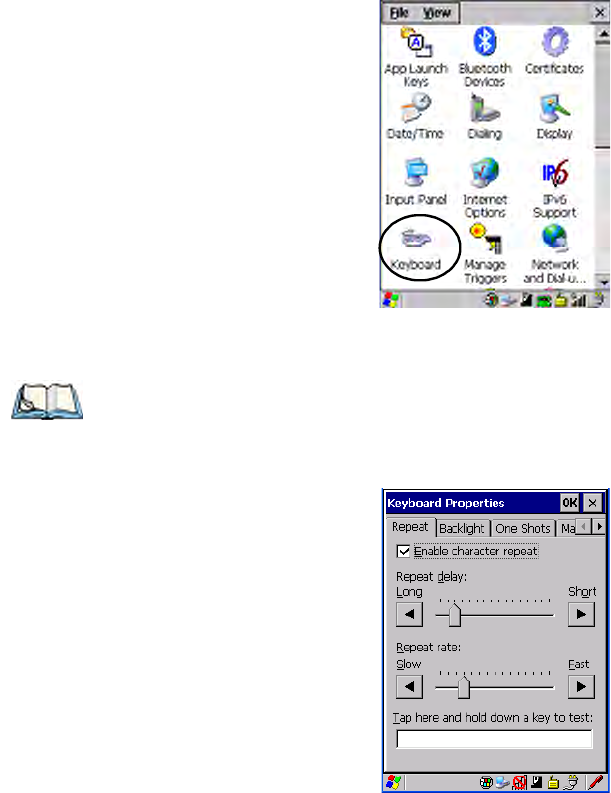

The intensity of the keypad backlight and the conditions under which this backlight is acti-
vated can be configured using the Keyboard icon in the Windows CE 5.0 Control Panel. The
behaviour of the keypad backlight is tailored in the Keyboard Properties dialog box. Refer
to “Keyboard Backlight” on page 89 for details about this option.
Note: Keep in mind that there is a timeout if you pause for one second between key presses
when selecting the second, third or fourth letters on a key. For example, suppose
you want to type the letter ‘c’ – you’d need to press the [2] key three times. With the
[FN/ORANGE] key locked ‘on’, if you press [2] twice and then pause between key
presses for 1 second, the letter ‘b’ will be selected automatically.
Note: If you want to use uppercase characters at all times, press [FN/BLUE] [SHIFT]. An
icon of an uppercase ‘A’ is displayed in the taskbar indicating that all letters will be
displayed as uppercase characters.
Important: Once you have finished typing alpha characters, remember to turn off or
unlock the [FN/ORANGE] key.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
The Display
Warrington Hand-Held Computer User Manual 65
5.5 The Display
Warrington hand-helds are equipped with display backlighting to improve character visibil-
ity in low light conditions. The backlight switches on when a key is pressed or the screen
is tapped.
5.5.1 Adjusting The Display Backlight

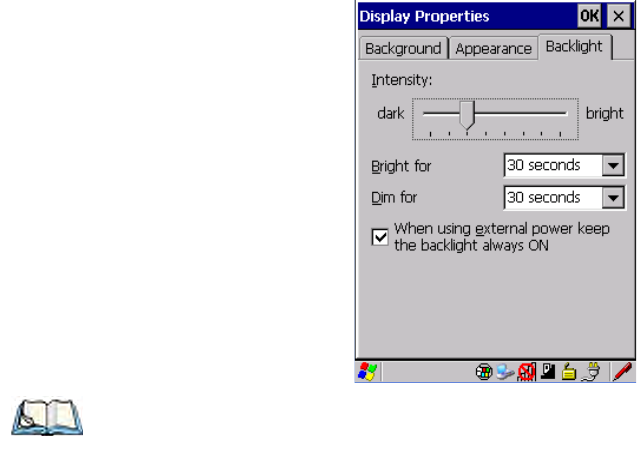

The Display Properties dialog box in the Control Panel allows you to determine the behav-
iour of the display backlight and its intensity. Refer to “Display Backlight” on page 84 for
details about the Display Properties dialog box.
5.5.2 Calibrating The Touchscreen
If your Warrington touchscreen has never been calibrated, or if you find that the stylus
pointer is not accurate when you tap on an item, use the Stylus Properties dialog box in the
Control Panel to recalibrate the screen.
•In the Control Panel, choose the Stylus icon to display the Stylus Properties window.
Figure 5.3 Stylus Icon
• Select the Calibration tab, and then choose the Recalibrate button.
Note: Keep in mind that this option may be restricted to supervisory use only.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Warrington Hand-Held Indicators
66 Warrington Hand-Held Computer User Manual
Figure 5.4 Calibration Screen
• Follow the directions on the calibration screen to calibrate the screen.
5.6 Warrington Hand-Held Indicators
The Warrington uses an LED (Light Emitting Diode), onscreen messages and audio tones to
indicate the various conditions of the hand-held, the batteries, the scans and so on.
5.6.1 LEDs
A tri-coloured LED is located on the upper-left side of the unit, above the screen. The green
LED is the battery charge indicator; the yellow LED indicates an application; the blue LED
indicates whether the radio is on or off. When you press [ENTER], the LED flashes green to
indicate that the unit has been powered up. The LED table following outlines the behaviour
of the LED while the unit is docked in a charger.
Keep in mind that the application running on the Warrington can dictate how the LED oper-
ates. Review the documentation provided with your application to determine
LED behaviour.
If the unit is attached to an external power supply, the hand-held’s LED reflects the battery
charge status.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Audio Indicators
Warrington Hand-Held Computer User Manual 67
5.6.2 Audio Indicators
The audio speaker provides a variety of sounds when a key is pressed, a keyboard character
is rejected, scan input is accepted or rejected, an operator’s entry does not match in a match
field or the battery is low. To specify how you want your Warrington to respond under
various conditions, refer to “Volume And Sound Properties” on page 98.
The volume keys are located above the [UP ARROW] and [DOWN ARROW] keys. The in-
crease volume key is labelled with a plus symbol and the decrease volume key is
labelled with a minus symbol .
5.6.2.1 Adjusting The Warrington Speaker Volume
• Lock the [FN/BLUE] key ‘on’ and then, press [UP ARROW] – the increase volume key
or [DOWN ARROW] – the decrease volume key until the volume meets your
requirements.
• Remember to press the [FN/BLUE] key again to turn it ‘off’.
5.6.3 Onscreen Indicators
The taskbar at the bottom of the screen displays a variety of system status indicators.
Table 5.1 Warrington LED Behaviour
LED Behaviour Charge Status
Solid Green Charge complete.
Fast Blinking Green Charge in progress. Battery charged to less than 80% capacity.
Slow Blinking Green Battery charged to greater than 80% of capacity.
Solid Red Temperature outside charge range (0°C to 50°C).
Blinking Red Battery is not charging. Battery fault.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Onscreen Indicators
68 Warrington Hand-Held Computer User Manual
Figure 5.5 Taskbar
The taskbar changes dynamically, and only those icons that are applicable are displayed. For
example, if a radio is not installed in your Warrington, the radio signal icon is not displayed
in the taskbar.
Windows® Start Button
If you are using the touchscreen, you can either tap the Windows icon at the bottom left of
the screen, or press [FN/BLUE] [.] (period) to display the Start Menu, and then tap on the
desired application.
Modifier Key Indicators
[SHIFT], [CTRL], [ALT], [FN/BLUE] and [FN/ORANGE] are modifier keys that when
pressed, are displayed in the taskbar to indicate that they are active. If a modifier key is
locked ‘on’, it is displayed in uppercase characters. For example, if the [FN/BLUE] key is
locked on, it is displayed as BLUE KEY in the taskbar. A locked modifier key remains
active until it is pressed again to unlock or turn it off.
If a modifier key has been pressed but is not locked on, it is displayed in the taskbar in low-
ercase characters – for example, blue key. It will remain active only until the next key is
pressed at which point, the modifier key is turned off.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Onscreen Indicators
Warrington Hand-Held Computer User Manual 69
Battery Gauge
The battery shaped icon displayed in the taskbar provides a visual indication of the remain-
ing battery power. The icon acts as a meter that is either full, at three-quarter level, half,
quarter level or empty.
When the battery level is low—approximately 15 minutes from empty—a warning window
pops up. When the battery power is completely depleted, a final warning window indicates
that the Warrington will be powered down.
If the Warrington is using external AC power, an AC icon is displayed in the taskbar.
Battery Charge
The battery charge icon is displayed in the taskbar when the hand-held battery is being
charged.
802.11 Radio Signal Quality
Increasing radio signal quality is represented by longer, filled bars within this icon.
Docking Device
When a hand-held is inserted in a docking station or charger, an associated icon appears in
the taskbar.
Bluetooth Radio
This icon displayed in the taskbar represents the installed Bluetooth radio.
Note: The locking function of the modifier keys can be set up so that pressing one of these
keys once will lock the key ‘on’. They can also be set up so that they must be pressed
twice to be locked ‘on’. Refer to “Keyboard One Shot Modes” on page 90
for details.
AC ConnectionFull 75% 50% 25% Empty
Good No Radio
Reception Weak
Reception Link
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Monitoring The Battery And Maximizing Run Time
70 Warrington Hand-Held Computer User Manual
Security Level
Security levels can be set to limit user access. In addition, applications can be restricted to
prevent inadvertent changes.
5.7 Monitoring The Battery And Maximizing Run Time
As Lithium Ion batteries age, their capacity decreases gradually, and they are generally con-
sidered depleted after approximately 2 years of use (less than 60% of original capacity
remaining). Keep in mind however that heavy usage or operating the unit at temperature ex-
tremes will shorten the battery life.
Lithium Ion batteries do not require conditioning cycles and the Warrington battery system
(including chargers) requires no user interaction to maintain peak performance.
To maximize the run time of your batteries, consider the following:
• The display backlight is the largest drain on the battery. Try to keep its brightness as low
as possible.
• The hand-held is ‘event’ driven—that is, when the unit is not in use, it reverts to sleep
mode (even when it appears to be running), saving battery power. Events include a key
press, touchscreen taps and scan triggers. Power consumption is reduced if you avoid
unnecessary events, and allow the unit to sleep as much as possible.
• The battery is a ‘smart battery’ with built-in intelligence.
Tapping on the Power icon in the Control Panel displays a dialog box that provides
detailed information about the battery status of the main battery installed in your unit.
• When the hand-held is switched off, it goes into a low-power, suspend state but contin-
ues to draw a small amount of power from the battery. This should not be an issue unless
the unit is left in suspend state for more than a week—for long-term storage, the battery
should be removed from the unit.
5.7.1 Storing Batteries
Long term battery storage is not recommended. If storage is necessary:
• Always try to use a ‘first-in first-out’ approach to minimize storage time.
Note: When the main battery is at 50% capacity, a ‘low battery’ warning is displayed.
When the battery is at approximately 10% capacity, a ‘very low main battery’ noti-
fication appears.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Uploading Data In A Docking Station
Warrington Hand-Held Computer User Manual 71
• Lithium Ion batteries age much faster at elevated temperatures. Store batteries at tem-
peratures between 0 °C and 20 °C (32 °F and 68 °F).
• Always charge batteries to at least 40 to 60% before storing them. Batteries can be
damaged by an over-discharge phenomenon that occurs when an empty battery is stored
for a long period of time such that the cell voltage drops below a lower limit.
• To minimize storage degradation, recharge stored batteries to 40 to 60% every 4 or 6
months to prevent over-discharge damage.
• A ‘never used’ Li-Ion battery that has been stored for 3 years may have limited or no
useful life remaining once put into service. Think of batteries as perishable goods.
5.8 Uploading Data In A Docking Station
The desktop docking station and quad docking station are typically used to upload transac-
tion data to a server computer when a radio link is not available.
The desktop docking station can complete batch uploads to a Client USB connected PC or
server. An optional 10/100baseT Ethernet module is also available.
Unlike the desktop docking station, the quad docking station supports only TCP/IP connec-
tions to a PC or server through a 10/100baseT Ethernet connection.
When a Warrington is properly inserted in a docking station, a dock icon is displayed in the
navigation bar at the top of the screen. The unit also detects the presence of the
Ethernet network.
5.9 Bluetooth Radio
The Bluetooth radio enables short range data communication between devices. In addition,
it provides the capability to use a Bluetooth-enabled cellular phone as a data modem, ex-
changing information with other Bluetooth devices and providing network access. You can
Important: Review the documentation provided with the user application installed in
your Warrington before performing data uploads.
Note: Refer to “Desktop Docking Station” on page 186 for more details.
Note: Integrated Bluetooth Class II radios are standard on ‘connected’ Warringtons –
that is, units equipped with 802.11 radios. On ‘unconnected’ or batch units, Blue-
tooth is an optional feature.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
Pairing A Bluetooth Headset Or Other Bluetooth Device
72 Warrington Hand-Held Computer User Manual
also pair your hand-set with a Bluetooth headset. Refer to “Bluetooth Setup” on page 110 for
setup details.
5.9.1 Pairing A Bluetooth Headset Or Other Bluetooth Device
To pair a headset:
• Follow the headset manufacturer’s instructions to place the headset you want to place in
pairing mode.
•In the Control Panel, tap on the Bluetooth icon choose the Devices tab and scan for
devices in your area. (Note that if you’re pairing the device for the first time, the device
scan occurs automatically—you do not need to tap on the Scan button to perform
a scan.)
When the scan is complete, a list of devices is listed.
• Double-click on the headset you want to pair with. If you prefer, you can highlight
headset and tap on the Services button.
A dialog box appears requesting that you enter a PIN number.
• Type your pin number and tap on OK.
A Services dialog box appears listing headset.
• Press and hold the stylus on headset. In the pop-up menu, choose Active.
Your headset is now paired. A COM/BSP port name will now appear beside the service for
this device. An asterisk will appear under the Active list in the Service screen.
5.10 The MicroSD Card
A microSD card slot is available in the battery compartment. MicroSD cards provide addi-
tional, non-volatile memory to your hand-held.
5.10.1 Inserting The Card
• Switch off the Warrington.
• Remove the battery cover and the battery.
• Gently slide the SD door down and then flip it forward.
• Fit the card into the slot, pushing it inward to secure it in place.
• Flip the SD door back into place, and slide it upward to lock it.
Note: If the Bluetooth radio is not already enabled, tap on the Power icon in the Control
Panel, tap on the Devices tab and enable the Bluetooth radio.
Preliminary Draft
Chapter 5: Getting To Know The Warrington
General Maintenance
Warrington Hand-Held Computer User Manual 73
5.11 General Maintenance
5.11.1 Caring For The Touchscreen
The top of the touchscreen is a thin, flexible polyester plastic sheet with a conductive
coating on the inside. The polyester can be permanently damaged by harsh chemicals and is
susceptible to abrasions and scratches. Using sharp objects on the touchscreen can scratch or
cut the plastic, or crack the internal conductive coating.
The chemicals listed below must not come into contact with the touchscreen:
• sodium hydroxide,
• concentrated caustic solutions,
• benzyl alcohol, and
• concentrated acids.
If the touchscreen is used in harsh environments, consider applying a disposable screen pro-
tector (WA6110???). These covers reduce the clarity of the display slightly but will
dramatically extend the useful life of the touchscreen. When they become scratched and
abraded, they are easily removed and replaced.
5.11.2 Cleaning The Warrington
•Use only mild detergent or soapy water to clean the hand-held unit.
• Avoid abrasive cleaners, solvents or strong chemicals for cleaning. The plastic case is
susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and
gasoline. The plastic slowly decomposes in strong alkaline solutions.
• To clean ink marks from the keypad and touchscreen, use isopropyl alcohol.
Important: Do not immerse the unit in water. Dampen a soft cloth with mild detergent
to wipe the unit clean.
Preliminary Draft
Preliminary Draft
Warrington Hand-Held Computer User Manual 75
CONFIGURATION 6
6.1 Remote Connect....................................79
6.2 The TekTerm Application...............................79
6.3 The Control Panel ...................................79
6.4 Control Panel Icons...................................80
6.5 Basic Setup.......................................83
6.5.1 Display Properties..............................83
6.5.1.1 Display Backlight..........................84
6.5.1.2 Display Appearance.........................86
6.5.2 Keyboard Properties .............................86
6.5.2.1 Key Repeat.............................87
6.5.2.3 Keyboard Backlight.........................89
6.5.2.4 Keyboard One Shot Modes.....................90
6.5.2.5 Keyboard Macro Keys.......................91
6.5.2.6 Unicode Mapping..........................93
6.5.2.7 Scancode Remapping........................94
6.5.3 Volume And Sound Properties ........................98
6.5.3.1 Volume Adjustments........................99
6.5.3.2 Sound Adjustments.........................99
6.5.4 Power Management Properties........................100
6.5.4.1 Battery Capacity...........................100
6.5.4.2 Power Saving Suspend.......................101
6.5.4.3 Suspend Threshold.........................102
6.5.4.4 Advanced..............................103
6.5.4.5 Devices...............................103
6.5.5 Stylus Properties...............................104
6.5.5.1 Double-Tap .............................104
6.5.5.2 Calibration..............................104
6.5.5.3 Touch................................105
6.5.6 Manage Triggers...............................105
6.5.6.1 Trigger Mappings..........................106
6.5.6.2 Add And Edit Trigger Mapping...................107
6.5.7 Certificate Assignment............................109
Preliminary Draft
76 Warrington Hand-Held Computer User Manual
6.6 Bluetooth Setup....................................110
6.6.1 The Devices Tab...............................111
6.6.1.1 Pairing A Device..........................111
6.6.2 The Servers Tab...............................114
6.6.3 Outgoing Tab................................115
6.6.4 Active Conn. Tab ..............................116
6.6.5 The Properties Tab .............................117
6.6.7 The Bluetooth GPRS WAN Connection ..................118
6.7 Total Recall......................................123
6.7.1 Creating A Backup Profile .........................124
6.7.2 Restoring A Profile.............................128
6.8 The Storage Manager.................................128
6.8.1 Formatting A Memory Card ........................128
6.8.2 Creating Partitions..............................129
6.8.3 Partition Management............................131
6.9 IPv6 Support......................................133
6.10 Scanner Settings...................................134
6.10.1 Bar Codes.................................134
6.10.1.1 Scanner..............................135
6.10.1.2 Restoring Default Settings....................135
6.10.2 Decoded (Internal) Scanners........................136
6.10.2.1 Options..............................136
6.10.2.2 Decoded (Internal) – Advanced Options.............137
6.10.2.3 Decoded (Internal) – 2D Scanning Options...........139
6.10.2.4 Decoded (Internal) Data Options.................139
6.10.2.5 Code 39..............................140
6.10.2.6 Code 128.............................143
6.10.2.7 EAN 13..............................143
6.10.2.8 EAN 8...............................144
6.10.2.9 UPC A ..............................144
6.10.2.10 UPC E..............................145
6.10.2.11 UPC/EAN Shared Settings...................146
6.10.2.12 Code 93.............................147
6.10.2.13 Codabar.............................147
6.10.2.14 MSI Plessey...........................148
6.10.2.15 Interleaved 2 of 5........................149
6.10.2.16 Discrete 2 of 5..........................150
6.10.2.17 RSS Code............................150
Preliminary Draft
Warrington Hand-Held Computer User Manual 77
6.10.2.18 Composite ............................151
6.10.2.19 PDF-417.............................151
6.10.2.20 Micro PDF-417..........................152
6.10.3 Decoded (ISCP)...............................153
6.10.3.1 Decoded (ISCP) – Options.....................153
6.10.3.2 Decoded (ISCP) – Advanced Options...............153
6.10.3.3 Code 39..............................154
6.10.3.4 Code 128..............................155
6.10.3.5 EAN 13 Settings..........................157
6.10.3.6 EAN 8...............................157
6.10.3.7 UPC A...............................158
6.10.3.8 UPC E...............................158
6.10.3.9 UPC/EAN Shared Settings ....................159
6.10.3.10 Code 93..............................160
6.10.3.11 Codabar..............................160
6.10.3.12 MSI Plessey............................161
6.10.3.13 Code 11..............................162
6.10.3.14 Interleaved 2 of 5.........................162
6.10.3.15 Matrix 2 of 5...........................163
6.10.3.16 Discrete 2 of 5..........................163
6.10.3.17 Telepen..............................164
6.10.3.18 RSS Code (Reduced Space Symbology). ............165
6.10.3.19 PDF-417.............................165
6.10.3.20 Micro PDF-417..........................165
6.10.3.21 Codablock ............................166
6.10.4 Imager....................................167
6.10.4.1 Imager – Options..........................167
6.10.4.2 Imager – Advanced Options....................168
6.10.4.3 Code 39 Settings..........................171
6.10.4.4 Code 128 Settings .........................171
6.10.4.5 EAN 13 ..............................171
6.10.4.6 EAN 8...............................172
6.10.4.7 UPC A...............................172
6.10.4.8 UPC E...............................172
6.10.4.9 Code 93..............................172
6.10.4.10 Codabar..............................173
6.10.4.11 Interleaved 2 of 5.........................173
6.10.4.12 RSS Code (Reduced Space Symbology). ............173
6.10.4.13 Composite ............................173
6.10.4.14 PDF-417.............................173
6.10.4.15 Micro PDF-417..........................174
Preliminary Draft
78 Warrington Hand-Held Computer User Manual
6.10.4.16 2D Data Matrix.........................174
6.10.4.17 2D QR Code...........................174
6.10.4.18 2D Maxicode..........................174
6.10.4.19 2D Aztec.............................174
6.10.4.20 Postal: PlaNET .........................175
6.10.4.21 Postal: PostNET.........................175
6.10.4.22 Postal: Australian........................175
6.10.4.23 Postal: Japanese.........................175
6.10.4.24 Postal: Korean..........................175
6.10.4.25 Postal: Royal...........................176
6.10.5 Options...................................176
6.10.5.1 Double Click Parameters . ....................176
6.10.5.2 Display Parameters........................177
6.10.6 Translations Tab..............................178
6.10.6.1 Case Rules............................179
Preliminary Draft
Chapter 6: Configuration
Remote Connect
Warrington Hand-Held Computer User Manual 79
6.1 Remote Connect
Remote Connect is a Warrington application used to connect to a Windows Terminal Server
so that you can run a “session” on the Server machine, using the Warrington (Windows CE
5.0 device).
Refer to the following website for step-by-step information about setting up this connection:
http://www.microsoft.com/WindowsXP/pro/using/howto/gomobile/remotedesktop/default.asp
or contact Psion Teklogix support services. (Locate the office closest to you at:
www.psionteklogix.com).
6.2 The TekTerm Application
TekTerm is a powerful emulation application ideally suited for real time data transaction ap-
plications associated with mainframes and servers. The Warrington includes unique features
that support TekTerm—a Psion Teklogix application that has the ability to maintain multiple
simultaneous sessions with a variety of host computers. For detailed information, please
refer to the TekTerm Software User Manual, PN 8000073.
6.3 The Control Panel
The Windows CE 5.0 Control Panel provides a group of icons through which you can set a
variety of system-wide properties, such as mouse sensitivity, network configuration and the
desktop color scheme.
When the Warrington boots up, the startup desktop (shell) is displayed, and any applications
stored in the Startup folder start up immediately.
To access the Control Panel:
• Tap on Start>Settings>Control Panel.
If you’re using the keyboard:
• Press [FN/BLUE] [.] to display the Start Menu.
• Highlight Settings in Start Menu, and press the [RIGHT] arrow key to highlight the
Control Panel.
• Press the [ENTER] key.
The Control Panel folder contains icons used in the setup of your Warrington.
Note: If you are uncertain how to move around a dialog box and make selections, review
“Using A Dialog Box” on page 52.
Preliminary Draft
Chapter 6: Configuration
Control Panel Icons
80 Warrington Hand-Held Computer User Manual

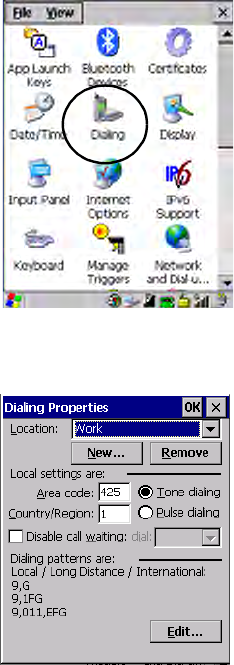

Figure 6.1 Control Panel
6.4 Control Panel Icons
The Control Panel provides a group of icons that allow you to customize and adjust settings
on your Warrington.
App Launch Keys
By mapping keys to applications using this program, you can then launch those applications
from a single key-press.
Bluetooth Devices
Provides the tools to manage device pairing and configuration.
Certificates
A public key is transmitted as part of a certificate. The certificate assigned through this icon
is used to ensure that the submitted public key is, in fact, the public key that belongs to the
submitter. The client checks that the certificate has been digitally signed by a certification
authority that the client explicitly trusts. “Certificate Assignment” on page 109 directs you
to the appropriate setup information.
Preliminary Draft
Chapter 6: Configuration
Control Panel Icons
Warrington Hand-Held Computer User Manual 81
Date/Time
Allows you to set the current Month, Date, Time and Time Zone on your unit.

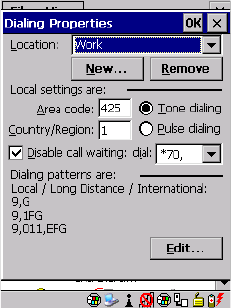

Dialing
Specifies dialing settings, including area code, country code, dial type and the code to
disable call waiting. You can store multiple patterns—for example, ‘Work’, ‘Home’, and so
on using this dialog box.
Display
Changes the appearance (window colour scheme) on the unit desktop.
Error Reporting
Error Reporting allows you to enable or disable Microsoft error reporting prompts.
Input Panel
Provides the framework for a Soft Input Panel (SIP) should you need to design your own
SIP, or change some soft keyboard options.
Internet Options
Provides options to configure your Internet browser. You can determine items such as the
default and search page that the browser applies when connecting to the Internet, the cache
size, the Internet connection options, and the security level that is applied when browsing.
IPv6 Support
Refers to a new Internet Protocol specification (version 6) that has been published to use
128-bit IP addresses (replacing version 4).
Keyboard
Toggles character repeat on and off and specifies delay and rate for repeated characters. This
applet also allows you to adjust the keyboard backlight threshold and intensity, define One-
Shot Mode, remap keys using Scancode Remap and program Macro Keys.
Manage Triggers
Allows multiple-scanner trigger management, including the ability to configure each of the
trigger buttons. You can configure the trigger ID for each trigger button for both single- and
double-click, and the double-click time.
Preliminary Draft
Chapter 6: Configuration
Control Panel Icons
82 Warrington Hand-Held Computer User Manual
Network And Dial-up Connections
Displays a network window from which the Warrington 802.11g radio can be configured
and an existing configuration can be executed. Refer to “Configuring The Murata 802.11b/g
Radio” on page 23 for details.
Owner
Provides fields in which you can specify owner information. A Notes tab allows additional
information to be entered and displayed when the unit is powered up. Network ID tab infor-
mation is used to access network resources. (This information should be provided by your
System Administrator.)
Password
Allows you to assign a password to restrict access to elements of the unit. Once assigned,
password access cannot be circumvented so it is important that you write down your pass-
word and keep it in a safe place. Refer to “Security Settings” on page 45 for details.
PC Connection
Enables direct connections to a desktop computer. Selecting the Change Connection button
allows you to change the type of direct connect to your PC.
Power
Displays battery pack power status. (Alternately, battery status can be accessed through the
taskbar.) Additional tabs allow you to determine suspend states, specify a suspend threshold
and, when seated in either the Combo Dock or Quad Dock, determine whether or not a
battery that requires it can be recalibrated. This dialog box also allows you to activate card
slots and built-in devices. (Refer to “Devices” on page 103 for details.)
RDC Licenses
The Terminal Services license server stores all license tokens that have been installed for a
group of terminal servers and tracks licenses issued. The Remote Desktop Licenses (RDC)
application displays license ‘tokens’ for devices that connect to a Terminal Server.
Region & Language
Allows you to specify the local language that is to be displayed on the hand-held screen
along with the format of numbers, currency, time and date for your region.
Remove Programs
Lists the programs that can be removed from your unit. To remove a program, select it and
then click on the Remove button.
Preliminary Draft
Chapter 6: Configuration
Basic Setup
Warrington Hand-Held Computer User Manual 83
Storage Manager
Allows the user to view information about the storage devices that are present, such as SD-
MMC flash cards. For details, see page 128.
Stylus
Adjusts how Windows CE 5.0 recognizes your double-tap (as slow or rapid successive taps).
In the Calibration tab, you can recalibrate your touchscreen by tapping on the Recalibrate
button and following the directions on the screen.
System
Displays system and memory properties. In the Memory tab, you can allocate memory
between storage memory and program memory.
Teklogix Error Handling Service
Teklogix Error Handling Service is an error diagnostic tool.
Tekl ogix S cann er s
Provides scanner parameters and the bar code symbologies that the Warrington scanner will
successfully read.
To t al R ec a l l
Provides access to a backup and restore utility to maintain applications and settings over
warm reboots.
TweakIT Settings
Allows you to change Advanced System Settings (interface, network, and servers), User
System Settings (display font size), and provides the Registry Editor.
Volume & Sounds
Allows you to adjust the volume of the sound emitted to indicate events like warnings, key
clicks and screen taps.
6.5 Basic Setup
6.5.1 Display Properties
•In the Control Panel, choose the Display icon.
Preliminary Draft
Chapter 6: Configuration
Display Backlight
84 Warrington Hand-Held Computer User Manual
Figure 6.2 Choosing The Display Icon
6.5.1.1 Display Backlight
The backlight is activated for a configurable amount of time when the Warrington is in use
(key press, scanner trigger, or data received from the host). The Display Properties dialog
box in the Control Panel allows you to specify the intensity of the backlight along with how
long the display will maintain the specified intensity.
Note: Keep in mind that this option may be restricted to supervisory use only.
Preliminary Draft
Chapter 6: Configuration
Display Backlight
Warrington Hand-Held Computer User Manual 85
•In the Display Properties dialog box, open the Backlight tab.
Intensity
This parameter is used to adjust the light intensity of the Warrington backlight. Sliding the
bar to the left lowers the light intensity, and sliding it to the right raises the intensity.
Bright For
The value chosen from this drop-down menu determines the duration of time that the back-
light stays on at the configured intensity after the last user action (keypress, scan trigger).
Dim For
The value chosen from this drop-down menu determines the duration of time that the back-
light stays on at half the configured intensity (dimmed backlight) after expiration of the
Bright For delay and as long as no user action takes place (such as a keypress or scan trig-
ger). At the expiration of the Dim For duration, the display backlight shuts off.
External Power Checkbox
When you select the checkbox next to When using external power keep the backlight always
ON, the backlight remains on at the configured intensity when the Warrington is operating
with external power (not battery power). If the Warrington is drawing power from its bat-
Note: Backlight changes take effect immediately. You do not need to reset the unit.
To maximize battery run time, keep the display backlight brightness and active
durations as low as possible.
Preliminary Draft
Chapter 6: Configuration
Display Appearance
86 Warrington Hand-Held Computer User Manual
tery, this option is ignored and the other parameters defined in Display Properties dialog box
are used.
6.5.1.2 Display Appearance
•In the Display Properties dialog box, open the Appearance tab.
This dialog box allows you to customize the display colour scheme.
6.5.2 Keyboard Properties
This icon displays the Keyboard Properties dialog box in which you can adjust the repeat
rate of the keys, the intensity of the keyboard backlight and the behaviour of the [FN/BLUE]
and [FN/ORANGE] modifier keys. This dialog box also allows you to define macro keys
and Unicode characters.
•In the Control Panel, choose the Keyboard icon.
Preliminary Draft
Chapter 6: Configuration
Key Repeat
Warrington Hand-Held Computer User Manual 87
Figure 6.3 Choosing The Keyboard Icon
6.5.2.1 Key Repeat
•In the Keyboard Properties dialog box, open the Repeat tab.
Repeat Delay
The value assigned for this parameter determines the delay in milliseconds between repeat
characters. Sliding the Repeat Delay bar to the left increases the delay between key repeats,
and sliding the bar to the right shortens the repeat delay time.
Note: These settings apply when a key is held down continuously.
Preliminary Draft
Chapter 6: Configuration
Sequence
88 Warrington Hand-Held Computer User Manual
Repeat Rate
The value assigned for the Repeat Rate parameter determines how quickly the key you press
repeats and is measured in characters per second (cps). Sliding the bar to the left slows the
repeat rate, and sliding the bar to the right increases the repeat rate.
6.5.2.2 Sequence
This tab determines the allowable pause between alpha key presses on a numeric keypad.
For example, suppose you want to type the letter ‘c’ – you would need to press the [2] key
three times. With the [ORANGE] key locked ‘on’, if you press [2] twice and then pause
between key presses for 1 second, the letter ‘b’ will be selected automatically. Moving the
Sequence slider to the right increases the pause time between alpha key presses.
Note: Use the field at the bottom of this dialog box to test the repeat delay and rate set-
tings you’ve chosen.
Preliminary Draft
Chapter 6: Configuration
Keyboard Backlight
Warrington Hand-Held Computer User Manual 89
6.5.2.3 Keyboard Backlight
•In the Keyboard Properties dialog box, open the Backlight tab.
Intensity
This parameter is used to adjust the light intensity of the Warrington keyboard backlight.
Sliding the bar to the left darkens the keyboard backlight intensity, and sliding it to the right
lightens the intensity.
ON For
The value chosen from this drop-down menu determines the duration of time that the key-
board backlight stays on when a unit is not in use.
Note: Tapping in the checkbox next to ‘When using external power, keep the backlight
always ON’ forces the keypad backlight to remain on when the unit is operating
with external power.
Preliminary Draft
Chapter 6: Configuration
Keyboard One Shot Modes
90 Warrington Hand-Held Computer User Manual
6.5.2.4 Keyboard One Shot Modes
•In the Keyboard Properties dialog box, open the One Shots tab.
The options in this tab allow you to determine how modifier keys on your Warrington
behave. For each modifier key—[ALT], [SHIFT], [CTRL], [FN/ORANGE] and
[FN/BLUE] – you have the following options in the drop-down menu: Lock, OneShot, and
OneShot/Lock.
Lock
If you choose Lock from the drop-down menu, pressing a modifier key once locks it ‘on’
until you press the modifier key a second time to unlock or turn it off.
OneShot
If you choose OneShot, the modifier key remains active only until the next key is pressed.
Note: Keep in mind that checking the taskbar lets you know whether or not these keys are
locked on. For example, if the [FN/ORANGE] key is locked ‘on’, the taskbar at the
bottom of the screen displays it in uppercase characters, ORANGE KEY. If this key
is displayed in lowercase characters in the taskbar, you’ll know that the orange key
is not locked. It will become inactive following a key press.
Important: Once you’ve assigned a One Shot mode to a modifier key, you need to tap
on the OK button at the top of the tab to activate your selection.
Preliminary Draft
Chapter 6: Configuration
Keyboard Macro Keys
Warrington Hand-Held Computer User Manual 91
OneShot/Lock
OneShot/Lock allows you to combine these functions. When you choose this option and you
press the modifier key once, it remains active only until the next key is pressed.
If you press the modifier key twice, it is locked ‘on’, remaining active until the modifier key
is pressed a third time to turn it ‘off’.
6.5.2.5 Keyboard Macro Keys
•In the Keyboard Properties dialog box, open the Macros tab.
A macro has 200 programmable characters (or “positions”). The macro keys can be pro-
grammed to replace frequently used keystrokes, along with the function of executable keys
including [ENTER], [BKSP] and [DEL] ([FN/BLUE]-[BKSP]), function keys and
arrow keys.
Recording And Saving A Macro
On the 36-key Warrington, you can program a maximum of 6 macro keys.
•In the Macro menu highlight a macro key number, for example macro 1, to assign a
macro to macro key [M1]. Choose the Record button.
Preliminary Draft
Chapter 6: Configuration
Keyboard Macro Keys
92 Warrington Hand-Held Computer User Manual
A message screen is displayed instructing you to Enter Key Strokes to Record
• Type the macro sequence you want to assign to the Macro key. You can type text and
numbers, and you can program the function of special keys into a macro.
• When you’ve finished recording your macro sequence, press the key sequence: [CTRL]
[ALT] [ENTER], or choose the Stop Recording button.
A new screen called ‘Verify Macro’ displays the macro sequence you created. The Save
button is highlighted.
• Press [ENTER] to save your macro, or highlight CANCEL and press [ENTER] to
discard it.
Executing A Macro
To execute a macro:
• Press the macro key to which you’ve assigned the macro. For example, if you created a
macro for macro key 1, press [M1] to execute the macro.
Deleting A Macro
To delete a macro:
•In the Macros tab, highlight the macro number you want to delete.
• Choose the Delete button.
Preliminary Draft
Chapter 6: Configuration
Unicode Mapping
Warrington Hand-Held Computer User Manual 93
6.5.2.6 Unicode Mapping
•In the Keyboard Properties dialog box, open the Unicode Mapping tab.
The Unicode Mapping tab is used to map combinations of virtual key values and [CTRL]
and [SHIFT] states to Unicode™ values. This tab shows the configured Unicode character
along with the Unicode value. For example, the sample screen above shows “a (U+0061)”
indicating that the character “a” is represented by the Unicode value “0061”, and so on.
Keep in mind that Unicode configurations are represented as hexadecimal rather than
decimal values.
All user-defined Unicode mappings are listed in the Unicode Mapping tab in order of virtual
key value, and then by order of the shift state. If a Unicode mapping is not listed, the
Unicode mapping is mapped to the default Unicode value.
Adding And Changing Unicode Values
• Choose the Add/Change button
Important: Changes to Unicode mappings are not saved until you exit the Keyboard
Properties dialog box.
Preliminary Draft
Chapter 6: Configuration
Scancode Remapping
94 Warrington Hand-Held Computer User Manual
Figure 6.4 Adding And Changing Unicode Values
• Highlight a value in the Unicode mapping list. In the sample screen above, a value will
be assigned to virtual key 0 (VK 0).
• Position the cursor in the Unicode Mapping field, and type a Unicode value for the
highlighted key.
Removing Unicode Values
•In the Unicode Mapping tab, highlight the item you want to delete, and choose the
Remove button.
6.5.2.7 Scancode Remapping
A scancode is a number that is associated with a physical key on a keyboard. Every key has
a unique scancode that is mapped to a virtual key, a function or a macro. Scancode Remap-
ping allows you to change the functionality of any key on the keyboard. A key can be
remapped to send a virtual key (e.g. VK_F represents the ‘F’ key; VK_RETURN represents
the [ENTER] key, etc.), perform a function (e.g. turn the scanner on, change volume/con-
trast, etc.) or run a macro.
There are three different tables of scancode mappings: the Normal table, the Blue table and
the Orange table. The Normal table defines unmodified key presses; the Blue table defines
Note: To add a shifted state, [SHIFT] and/or [CTRL], press [TAB] to position the cursor
in the checkbox next to ‘SHIFT Pressed’ and/or ‘CTRL Pressed’. Press [SPACE] to
select the shift state you want to assign.
Preliminary Draft
Chapter 6: Configuration
Scancode Remapping
Warrington Hand-Held Computer User Manual 95
key presses that occur when the [FN/BLUE] modifier is on; the Orange table defines key
presses that occur when the [FN/ORANGE] modifier is on. The default mappings of these
scancodes can be overwritten for each of these three tables using the Scancode Remapping
tab accessed from the Keyboard Properties dialog box.
The first column in the Scancode Remapping tab displays the scancodes in hexadecimal. If
the scancode is remapped to a virtual key, that virtual key is displayed in the next column la-
belled ‘V-Key’. A virtual key that is ‘Shifted’ or ‘Unshifted’ is displayed in the third column
labelled ‘Function’.
If the scancode is remapped to a function or a macro, the first and second columns remain
blank while the third column contains the function name or macro key number
(e.g., Macro 2).
Adding A Remap
To add a new remapping:
• Choose the Add button at the bottom of the dialog box.
Preliminary Draft
Chapter 6: Configuration
Scancode Remapping
96 Warrington Hand-Held Computer User Manual
The Remap Scancode dialog box is displayed.
• Type the scan code in hexadecimal in the field labelled Scancode
Virtual Key, Function And Macro
The radio buttons at the bottom of the dialog box allow you to define to what the scan code
will be remapped: Virtual Key, Function or Macro.
When Virtual Key is selected, you can choose to force [SHIFT] to be on or off when the
virtual key is sent. If No Force is selected, the shift state is dependent on whether the shift
state is on or off at the time the virtual key is sent.
When Function is selected, a list of valid functions appears in the dialog box.
When Macro is selected, the macro keys available on your unit are listed in the dialog box.
• Choose Virtual Key, Function or Macro.
• Choose a function from the Function list in the dialog box, and tap on OK.
Editing A Scancode Remap
To edit a scancode:
•In the Scancode Remapping tab, tap the stylus on the remap you want to edit.
• Tap on the Edit button, and make the appropriate changes.
• Tap on OK to save your changes.
Note: The Label field displays the default function of the scancode you are remapping.
Preliminary Draft
Chapter 6: Configuration
Lock Sequence
Warrington Hand-Held Computer User Manual 97
Removing A Remap
To delete a remap:
•In the Scancode Remapping tab, highlight the scancode you want to delete, and tap on
the Remove button.
• Tap on OK.
6.5.2.8 Lock Sequence
The Lock Sequence tab allows you to lock the Warrington keyboard to prevent keys from
being pressed accidentally when, for example, the unit is inserted in a holster.
• To lock the keyboard, tap in the checkbox next to Enable key lock sequence.
• Tap in the checkbox next to Keyboard locked at startup.
•In the Key sequence dropdown menu, choose the key sequence you will need to type to
unlock the keyboard.
Note: It is useful to leave the ‘Show popup message’ enabled (default) so that anyone
attempting to use the Warrington keyboard will see the key sequence they will need to
enter to unlock the keyboard displayed on the screen.
Preliminary Draft
Chapter 6: Configuration
Volume And Sound Properties
98 Warrington Hand-Held Computer User Manual
A locked keyboard icon is displayed in the softkey bar when the keyboard is locked.
• Type the key sequence to unlock the keyboard.
6.5.3 Volume And Sound Properties
•In the Control Panel, choose the Volume & Sounds icon.
Figure 6.5 Choosing The Volume Icon
Locked Keyboard
Icon
Preliminary Draft
Chapter 6: Configuration
Volume Adjustments
Warrington Hand-Held Computer User Manual 99
6.5.3.1 Volume Adjustments
• Slide the volume button to the left to lower the beeper volume or to the right to increase
the beeper volume.
• Under the heading Enable sounds for, enable the conditions under which you want the
Warrington to emit a beep.
6.5.3.2 Sound Adjustments
This dialogue box allows you to assign sounds to identify a particular actions. For example,
you can choose the sound your hand-held will emit when you close a program and choose
another sound for a failed scan, etc.
Preliminary Draft
Chapter 6: Configuration
Power Management Properties
100 Warrington Hand-Held Computer User Manual
6.5.4 Power Management Properties
This icon displays a Power Properties dialog box that indicates the unit’s battery capacity
and allows you to manage battery use.
•In the Control Panel, choose the Power icon.
6.5.4.1 Battery Capacity
•In the Power Properties dialog box, open the Battery tab to view battery details.
Preliminary Draft
Chapter 6: Configuration
Power Saving Suspend
Warrington Hand-Held Computer User Manual 101
6.5.4.2 Power Saving Suspend
•In the Power Properties dialog box, open the Suspend tab.
Power Source
This dialog box allows you to specify the suspend time for either AC Power or
Battery Power.
Suspend Timeout
When the Warrington is idle – not receiving any user input (a key touch, a scan, and so on)
or system activity (serial data, an activity initiated by an application, and so on) – the hand-
held uses the value assigned in the Suspend Timeout field to determine when the unit will go
to sleep (appear to be off).
When the time in the Suspend Timeout field elapses without any activity, the unit enters
suspend state. In suspend state, the Warrington CPU enters a sleep state, and the radio is shut
off. The state of the device (RAM contents) is preserved. Pressing [ENTER] wakes the
system from suspend state. When the Warrington is in suspend state, the network connection
will not be broken immediately. If the connection is dropped, you must re-establish the
network connection.
Important: Psion Teklogix recommends setting the Suspend value to 10 minutes. To
further reduce power consumption, carefully consider the duration of time
that the display backlight is ‘on’ (see “Display Backlight” on page 84).
Preliminary Draft
Chapter 6: Configuration
Suspend Threshold
102 Warrington Hand-Held Computer User Manual
6.5.4.3 Suspend Threshold
The Suspend Threshold lets you to determine when the Warrington will shut down. If the
slider is left at the default value, Maximum Operating Time, the hand-held will run until the
battery is completely empty; the RAM is only backed up for a short period of time. If you
choose Maximum Backup Time, the hand-held will shut off with more energy left in the
battery so RAM can be backed up for a longer period of time.
Important: Selecting Maximum backup time will reserve approximately 20% of the
battery capacity for memory backup. Once the battery is drained, the system
RAM memory is lost and the unit must boot.
In most real-time transaction environments this is not a problem (it only
takes a few seconds to boot). Batch transaction environments, where data is
not saved to a non-volatile memory (such as an SD FLASH card), may
need to pay particular attention to this parameter. Psion Teklogix does not
recommend the storage of any valuable data in system RAM.
The Warrington Windows CE 5.0 environment does not store any critical
data in RAM (such as the registry or file system).
If the user's application does not save data to RAM, Psion Teklogix recom-
mends keeping the Suspend Threshold setting as low as possible to
maximize battery run time.
Preliminary Draft
Chapter 6: Configuration
Advanced
Warrington Hand-Held Computer User Manual 103
6.5.4.4 Advanced
Allow Suspend With:
This tab allows you to specify whether or not your unit will enter Suspend state while it is
operating with an active PPP connection, network interface or active TCP/IP connection.
Low Power Warnings
The sliding scale at the bottom of this tab allows you to specify the remaining battery capac-
ity at which a warning message is displayed on the Warrington screen, from 0% to 20%.
6.5.4.5 Devices
This tab controls power to individual CF and SDIO slots, and built-in devices. Enable or
disable the checkboxes as needed, then tap on OK to save your changes.
Preliminary Draft
Chapter 6: Configuration
Stylus Properties
104 Warrington Hand-Held Computer User Manual
6.5.5 Stylus Properties
•In the Control Panel, choose the Stylus icon.
6.5.5.1 Double-Tap
•In the Double-Tap tab, follow the directions to tailor the sensitivity of the stylus when
you tap on the touchscreen.
6.5.5.2 Calibration
Touchscreens rarely require recalibration. However, if your touchscreen has never been cal-
ibrated or if you find that the stylus pointer is not accurate when you tap on an item, follow
the directions below.
Note: Touchscreen calibration may not be enabled on your unit. If your screen appears to
require recalibration, contact your supervisor.
Preliminary Draft
Chapter 6: Configuration
Touc h
Warrington Hand-Held Computer User Manual 105
• Choose the Calibration tab, and then tap on the Recalibrate button.
• Follow the directions in the Calibration tab to recalibrate the screen.
6.5.5.3 Touch
This tab allows you to disable the touchscreen.
• Choose the Touch tab. Tap the checkbox next to Disable the touch panel.
6.5.6 Manage Triggers
This option allows you to configure how bar code scanners and other devices such as RFID
readers are triggered. You can configure the trigger ID for each trigger button for both
single- and double-click, and the double-click time.
•In the Control Panel, choose the Manage Triggers icon.
Figure 6.6 Manage Triggers Icon
Preliminary Draft
Chapter 6: Configuration
Trigger Mappings
106 Warrington Hand-Held Computer User Manual
•In the Manage Triggers screen you’ll see a list of trigger mappings.
6.5.6.1 Trigger Mappings
A trigger mapping is an association between a particular key on the keyboard and a driver or
application, the module(s) – sometimes referred to as “trigger consumer(s)” – of the trigger
source. Along with keyboard keys, trigger sources can also be grip triggers, external hard-
ware triggers or software-based. When the specified key is pressed, the trigger consumer
(for example, a decoded scanner) is sent a message.
Double-Click
When a key is pressed and released, then pressed again within the configured time (between
0 to 1000 milliseconds), a double-click occurs. See also “Trigger-Press Type” on page 108.
Show All Modules
By default, the trigger mapping list only shows active mappings. Mappings for drivers or
applications that are not currently active are not normally displayed. By checking this
checkbox, all mappings, both active and inactive, are displayed.
Important: It is not possible to have two or more identical mappings—for example [F1]
cannot be mapped to the Non-Decoded Scanner twice—even if the trigger
type is different.
A keyboard key that is used as a trigger source will no longer generate key
data or perform its normal function. For example, if the space button is
used as a trigger source, it will not be able to send space characters to
applications.
Preliminary Draft
Chapter 6: Configuration
Add And Edit Trigger Mapping
Warrington Hand-Held Computer User Manual 107
Add
Tapping this button brings up the Add Mapping dialog (see “Add And Edit Trigger Map-
ping” on page 107), so that you can add new trigger mappings.
Edit
Tapping this button brings up the Edit Mapping dialog (see “Add And Edit Trigger Map-
ping” on page 107), so that you can edit existing trigger mappings.
Remove
Tapping this button removes an existing mapping.
OK
The OK button in the top right of the Manage Triggers screen saves all changes made. If the
cancel button X is tapped instead, or the [ESC] key is pressed, all changes made will
be discarded.
6.5.6.2 Add And Edit Trigger Mapping
These dialogs allow the user to add and edit trigger mappings.
Trigg er Key
This drop-down list allows you to specify the source of the trigger events, such as the Grip
Trigger, Left Scan, etc., for the trigger module selected.
Preliminary Draft
Chapter 6: Configuration
Add And Edit Trigger Mapping
108 Warrington Hand-Held Computer User Manual
Add Key
Only existing trigger sources are shown in the Source combo-box. To add a new source to
this list, tap on the Add Key button. A dialog will pop up and allow you to select the key-
board key to use as a trigger source.
Trigger-Press Type
You can enable either an Up/Down or Double Click response to a trigger press. Normally,
when a trigger (keyboard key, etc.) is pressed and released, a “trigger down” event is sent to
the “owner”– that is, the application receiving the trigger press information—followed by a
“trigger up”. If Double Click is chosen in this menu, when the trigger is pressed, released,
and then pressed again, a “double-click” event will have occurred. If a mapping with the
type Up/Down has also been configured for the same source, it will only receive the first set
of trigger events.
Module Trigger
This identifies the driver or application receiving the trigger presses.
Show All Modules
By default, inactive owners are not shown. By checking this checkbox, all owners, both
active and inactive, are displayed.
Note: It is possible to map the same source to different modules (trigger consumers) – for
example, to both the Imager and Non-Decoded Scanner. If so, both devices/opera-
tions will occur simultaneously. This is not recommended in most cases, especially
with devices such as Imagers or RFID Readers.
It is also possible to map different sources to the same module (trigger consumer).
Preliminary Draft
Chapter 6: Configuration
Certificate Assignment
Warrington Hand-Held Computer User Manual 109
6.5.7 Certificate Assignment
•In the Control Panel, choose the Certificate icon.
Figure 6.7 Certificates Icon
This option is used in conjunction with 802.1x authentication to enhance Warrington
security.
For a detailed description about Certificate setup for both the server and client-side devices
(Warrington hand-helds), refer to the following website:
http://www.microsoft.com/windowsserver2003/techinfo/overview/security.mspx
Note: When importing certificates, the Warrington only recognizes .cer files.
Preliminary Draft
Chapter 6: Configuration
Bluetooth Setup
110 Warrington Hand-Held Computer User Manual
6.6 Bluetooth Setup
Bluetooth is a global standard for wireless connectivity for digital devices and is intended
for Personal Area Networks (PAN). The technology is based on a short-range radio link that
operates in the ISM band at 2.4 GHz. When two Bluetooth-equipped devices come within a
10 meter range of each other, they can establish a connection. Because Bluetooth utilizes a
radio-based link, it does not require a line-of-sight connection in order to communicate.
The Bluetooth radio is disabled by default. Before you begin the setup process:
•In the Control Panel, tap on the Power icon.
• Tap on the Devices tab, and tap in the checkbox next to Enable Bluetooth. Tap on OK.
When the radio is enabled, a Bluetooth icon appears the taskbar at the bottom of the screen.
It is ready for setup.
•In the Control Panel, choose the Bluetooth icon.
Figure 6.8 Bluetooth Icon
The Bluetooth Manager dialog box displays the other Bluetooth devices with which you
can communicate.
Note: The Bluetooth radio uses an internal antenna.
Preliminary Draft
Chapter 6: Configuration
The Devices Tab
Warrington Hand-Held Computer User Manual 111
6.6.1 The Devices Tab
If you intend to pair devices (a headset, for example), power on and bring the devices within
5 m (16.4 ft.) of the hand-held before proceeding with the discovery process described
below.
6.6.1.1 Pairing A Device
To pair devices:
• Follow the manufacturer’s instructions to place the device you want to pair in
pairing mode
• Choose the Devices tab and Scan for devices in your area.
• When the scan is complete, highlight the device you want to pair with and either double-
click or press the Services button.
• If a PIN dialog box appears, type your PIN and tap on OK.
After entering the device PIN number, the Services dialog appears with a list of services
available on that device.
• To select a service, double-click on the service you want, or highlight the service and
press the space bar.
• In the drop-down list of options available, choose Active to pair the device.
A COM/BSP port name will appear next to the service for this device. Your device is
now paired.
Scan
• Click on the Scan button to list available devices.
Preliminary Draft
Chapter 6: Configuration
Pairing A Device
112 Warrington Hand-Held Computer User Manual
Figure 6.9 Available Bluetooth Devices
Wait for the Warrington to complete its scan (approximately 20 seconds). When scanning
starts, the Scan button will change to Stop—if necessary, you can tap on this button to stop
the process. Once scanning is complete, all discovered devices will be displayed in the list
box, with Name, Address, Active status, and PIN information.
The Active column indicates whether any service is activated for that device. When a service
is activated, the device is displayed in the list even when it is not detected during the scan.
The PIN column indicates whether you have a PIN (password) set for the device.
At this point you can either query for services or set the PIN for each device. Once you high-
light a device in the list box, both the Services and Set PIN buttons become available.
Services
A discovered device may display several service profiles that it can use to communicate, and
you will want to activate the type you need. Supported profiles that can be activated include:
DUN (Dial-Up Networking service), Printer (serial service), Headset service and LANPPP
(LANAccessUsingPPP service). ASync (ActiveSync) is another available profile.
• To start the service scan, highlight a device in the Devices tab list, and then click on the
Services button or double-click on the device entry.
Note: During the scanning process, addresses are located first, followed by names. Only
the names of devices that are within the Bluetooth radio coverage range will
be retrieved.
Note: If the remote device is out of reach or turned off, it can take a considerable amount
of time for the Services dialog box to appear—it may appear to be frozen.
Preliminary Draft
Chapter 6: Configuration
Pairing A Device
Warrington Hand-Held Computer User Manual 113
Once the device’s service profiles are displayed in the Services list box:
• Highlight the service to be activated.
• Press [SPACE] or right-click to display the Activation menu.
The Activation menu contains four options: Activate, Authenticate, Outgoing, and Encrypt.
Once the service is successfully activated, the assigned port (if applicable) will appear in the
Port column of the Services list box. You can choose to use BSP or COM as the port name.
BSP is the latest Microsoft Bluetooth stack standard, but older applications assume serial
ports are COM. When using COM as the port name, the Bluetooth manager will try to find
and use a free port between COM7 and COM9. When using BSP as the port name, BSP2 to
BSP9 are available for use. The port is available as soon as it is activated.
To add a service to the Outgoing port, an active service must first be deactivated. Then you
can choose the Outgoing option from the Activation menu (highlight a service, right-click
or press the [SPACE] bar to display the Activation menu).
The Authentication and Encryption options can be changed only before activation. To
change these after activation, deactivate the service first, then change the options.
Once a service is activated, all the information regarding the service, including the
RFCOMM channel number, is saved in the registry. (Some remote devices may change their
RFCOMM channel numbers when they reboot, so your saved setting may not work when
the remote device is rebooted. In that case, you must deactivate the service and reactivate it
to detect the current RFCOMM channel.)
Set PIN
PINs can be set for each device by pressing the Set PIN button in the Devices tab, or you
can skip this step and try to connect to the device first.
• Highlight a device, click on the Set Pin button, and type the PIN.
You will receive a message, either that the PIN has been successfully validated or that it has
been rejected.
Note: The CH column shows the RFCOMM channel of the service if the service is
RFCOMM-based. This information is not generally needed except for
debugging purposes.
Important: The remote device must have authentication enabled, otherwise the PIN
authentication will fail.
Preliminary Draft
Chapter 6: Configuration
The Servers Tab
114 Warrington Hand-Held Computer User Manual
If the PIN has been validated, an asterisk (*) appears in the PIN column in the Devices list
box, indicating that this device has a PIN set. Once a PIN is entered, it is saved in
the registry.
To remove the PIN:
• Choose Set PIN, and press [ENTER].
If the Warrington attempts to connect to a remote device that has Authentication enabled and
does not have a required PIN set, an Authentication Request dialog box appears.
• Enter the PIN, and tap on OK to connect the devices.
6.6.2 The Servers Tab
The Bluetooth connection is initiated from your Warrington to the remote device. Therefore
the Warrington is called the ‘client’ and the remote is called the ‘server’. The Servers tab
displays the server profiles that can be activated in your hand-held. There is currently one
server profile available: Serial.
• Tap on the checkbox to activate the server, and it will display the associated port name
beside the server name.
Once you activate a server profile, it is recommended that the Warrington be rebooted
before you try to bond from a server.
Note: You do not need to reboot if you are deactivating a server.
Preliminary Draft
Chapter 6: Configuration
Outgoing Tab
Warrington Hand-Held Computer User Manual 115
6.6.3 Outgoing Tab
Outgoing Port acts as a serial port that can be used to connect to a list of Bluetooth devices
(one at a time), but you have the freedom to switch on-the-fly.
The Outgoing Port checkbox allows you to create the Outgoing port. When the port is cre-
ated, the Outgoing tab lists the port name.
The Outgoing list dialog box displays a list of services marked as ‘Outgoing’. The * column
indicates the currently selected service. You can tap on Unselect to reset the current selec-
tion, or you can tap on Select to make a selection. The Remove button deletes the service
from the outgoing list.
The Prompt menu determines the behaviour of the pop-up Selection menu. Choosing
Everytime causes the Selection menu to be displayed each time an outgoing port is created.
If you choose Once, the menu is displayed only when a partner service is not selected.
To display the Selection menu at any time:
• Press [CTRL] [ALT] [F1], and switch the partner Bluetooth device.
If a connection to a partner device already exists, the connection is dropped and another con-
nection to the newly selected device is created instantly without disrupting the application
that has opened the outgoing port.
Note: To add a service to the Outgoing port, an active service must first be deactivated.
Then you can choose the ‘Outgoing’ option from the Activation menu (highlight a
service, right-click or press the [SPACE] bar to display the Activation menu).
Preliminary Draft
Chapter 6: Configuration
Active Conn. Tab
116 Warrington Hand-Held Computer User Manual
6.6.4 Active Conn. Tab
The Active Conn. tab lists the Name, Address, and Type of the currently active connections.
The table is periodically updated, but it can take a few seconds before it reflects the actual
list of connections. The Type column of the table shows ‘ACL’ or ‘SCO’. The Connection
list table shows the connections for scanning as well as the service connections.
Note: You can change the device-name and description of your radio by clicking on the
System icon in Control Panel, which will open the System Properties dialog box.
Click on the Device Name tab to access the menu and change your settings. Then
click on OK.
Although the name will have changed in the Properties menu in Bluetooth Controls,
the radio only reads it on boot-up. For the changes to take effect, you must reset the
Warrington (for reset instructions, see “Resetting The Warrington” on page 33).
Preliminary Draft
Chapter 6: Configuration
The Properties Tab
Warrington Hand-Held Computer User Manual 117
6.6.5 The Properties Tab
The Properties tab displays information about your Warrington, and provides some
port options.
The Device Name field shows the device name of your Warrington. This name can be
changed (see the Note on the previous page for details).
Device Class shows the Class of Device (e.g. desktop, hand-held), which is always set
to Handheld.
Local Bluetooth Address shows the address of your Warrington radio.
Port Prefix is used to set the port name to either BSP or COM. When the name is set to BSP,
BSP2 to BSP9 are available for activated services (including the server). When COM is
chosen, COM7 to COM9 are available.
NQuery Retry (Name Query Retry) governs the number of times the hand-held will attempt
to query the names of other Bluetooth devices if the first attempt fails. (When the War-
rington scans for other devices, it sometimes fails to scan names.)
Note: Keep in mind that setting this parameter to a higher value will lengthen the
scan time.
Preliminary Draft
Chapter 6: Configuration
The Search For Tab
118 Warrington Hand-Held Computer User Manual
6.6.6 The Search For Tab
The Search For tab allows you to specify the services for which the Bluetooth radio will
scan.
6.6.7 The Bluetooth GPRS WAN Connection
The following steps describe how to set up an internet data connection using a GSM cellular
telephone with Bluetooth. The Warrington communicates via Bluetooth to the cell phone,
which then accesses a WAN (Wide Area Network) and transfers data using GPRS.
1. To set up the internet parameters, choose the Network And Dial-up Connections icon
from the Control Panel
Preliminary Draft
Chapter 6: Configuration
The Bluetooth GPRS WAN Connection
Warrington Hand-Held Computer User Manual 119
2. Choose the Make New Connection icon.
3. In the Make New Connection dialog box, choose Dial-Up Connection. Enter a
name for your GPRS network connection.
Preliminary Draft
Chapter 6: Configuration
The Bluetooth GPRS WAN Connection
120 Warrington Hand-Held Computer User Manual
4. Choose the Next button to display the Modem dialog box.
5. In the drop-down menu labelled Select a modem, choose the name of the modem
with which you want to connect, and then choose the Configure button to display
the Device Properties dialog box.
The Warrington communicates via Bluetooth to your Bluetooth-equipped cellular tele-
phone and retrieves the parameters for the Device Properties dialog box. The
Warrington then disconnects.
Preliminary Draft
Chapter 6: Configuration
The Bluetooth GPRS WAN Connection
Warrington Hand-Held Computer User Manual 121
6. Under the Call Options tab, turn off Cancel the call if not connected within, and
press [ENTER] to save your changes.
7. In the Modem dialog box, choose the Next button to display the Phone Number
dialog box.
The phone number you enter is network carrier dependent. Once you’ve specified all the
necessary information, choose the Finish button.
Preliminary Draft
Chapter 6: Configuration
The Bluetooth GPRS WAN Connection
122 Warrington Hand-Held Computer User Manual
8. In the Control Panel, choose the Dialing icon.
9. The values in the Dialing Properties dialog box need to be edited according to your
network carrier specifications.
Once you’ve edited this dialog box to reflect your network carrier requirements, press
[ENTER] to save your changes.
10. At this point, you’ll need to return to the Control Panel, and choose the Network
and Dial-up Connections icon.
Preliminary Draft
Chapter 6: Configuration
Total Recall
Warrington Hand-Held Computer User Manual 123
11. In the network connection window, the new network configuration, in this case
GPRS Network is displayed. Tap on the new icon.
When you tap on your new connection, an onscreen message indicates the status of your
connection: connected, disconnected, error messages, and so on.
6.7 Total Recall
Total Recall is a Psion Teklogix utility developed to maintain applications and settings
during a cold boot. This utility is based on a backup and restore concept.
•In the Control Panel, choose the Total Recall icon
Preliminary Draft
Chapter 6: Configuration
Creating A Backup Profile
124 Warrington Hand-Held Computer User Manual
6.7.1 Creating A Backup Profile
In the drop-down menu, you can choose from four options: Create Backup Profile, View Se-
lected Profile, Restore Selected Profile and Delete Selected Profile. Keep in mind however
that until a profile is created, the only available option is Create Backup Profile.
• Choose the Next button to begin the process.
Profile Information
This dialog box lists the possible storage destinations for the profile file.
1. To begin, type a name for the profile in the field labelled Profile Name.
2. Choose the Profile Type you want to create:
For this device only—creates a backup that is manually restored by the operator.
Preliminary Draft
Chapter 6: Configuration
Creating A Backup Profile
Warrington Hand-Held Computer User Manual 125
AutoRestore for this device only—creates a profile that automatically restores itself fol-
lowing a restart.
AutoRestore for this and other devices—creates a profile that automatically restores
after resuming from a restart, but it will not contain the touchscreen calibration coordi-
nates or the Wireless radio settings.
3. Finally, choose a Profile Location —The location for the profile is either \Flash
Disk or \SD-MMC Card.
4. Tap on the Next button to display the next dialog box Add Files.
Add Files
By default, All Files is selected so that all installed or copied files, database entries, and the
Registry will be saved. You can, however, limit the backup to databases, and/or the registry
only. By tapping the checkbox next to these items, you can add or remove a check mark to
enable or disable the option.
The Select Files option allows you to select predefined file types.
• Remove the check mark next to All Files. You’ll notice the checkbox next to Select
Files changes , indicating that additional options are available.
Preliminary Draft
Chapter 6: Configuration
Creating A Backup Profile
126 Warrington Hand-Held Computer User Manual
• Choose this icon next to Select Files to view your options.
Choosing By Individual File displays a pop-up menu where you can tailor the list of files
you want to back up.
To add a file to your backup list:
• Choose Add Files. Browse to and choose the files you want to add to your list.
To remove a file from your backup list:
• Choose Remove Files—a dialog box is displayed listing the files that will be backed up.
• Highlight the item you want to remove from the list, and tap on the Remove button.
Preliminary Draft
Chapter 6: Configuration
Creating A Backup Profile
Warrington Hand-Held Computer User Manual 127
Choosing By File Type allows you to select the file types that you want backed up.
View Selections
Depending on what you have selected for inclusion in your profile, you can view a list of the
selected files, databases and/or registry.
• Choose the Next button to perform the operation.
Preliminary Draft
Chapter 6: Configuration
Restoring A Profile
128 Warrington Hand-Held Computer User Manual
Perform The Operation
• Choose the Backup button to start the process, and create a profile.
6.7.2 Restoring A Profile
To manually restore a profile:
• Choose Restore Selected Profile from the drop-down menu, and choose the Profile
Name displayed in the drop-down menu.
6.8 The Storage Manager
The Storage Manager allows the user to view information about the microSD card present
in the Warrington.
6.8.1 Formatting A Memory Card
Formatting a memory card bulk-erases it. Once a card is erased, partitions may be created in
it, similarly to those on a hard drive. Memory-card devices are normally ‘mounted’ (made
available to the system) automatically when they are inserted. They must be dismounted
before they can be formatted.
To format an entire memory card:
1. Choose Start> Settings>Control Panel.
Note: You can also manually restore an auto restore profile located in flash or a
storage device.
Preliminary Draft
Chapter 6: Configuration
Creating Partitions
Warrington Hand-Held Computer User Manual 129
2. In Control Panel, double-click on the Storage Manager icon. The Storage
Manager menu opens:
3. Choose the memory card from the drop-down list.
4. Press the Dismount button to dismount the memory card. All partitions on the card
will be dismounted.
5. Press the Format button to format the memory card.
All partitions and information on the card will be erased during the formatting process.
6.8.2 Creating Partitions
Once the card is formatted, new partitions can be created in it. The default is to create one
partition that occupies the whole card, but a card can be divided into more than one partition
if desired. Each partition appears as a separate folder in Windows Explorer.
To create new partitions:
1. Tap the New button next to the Partitions list box. The Create New Partition dialog
box appears:
Preliminary Draft
Chapter 6: Configuration
Creating Partitions
130 Warrington Hand-Held Computer User Manual
2. Type a name for the partition.
3. If more than one partition is desired, uncheck the Use All Available Disk Space
checkbox, then specify the desired number of sectors to be used by the partition:
4. Tap OK. The new partition appears in the Partitions list:
The new partition is automatically mounted. This is indicated by an asterisk (*) next to its
name in the partition list. Any unallocated space on the card is indicated at the left, and addi-
tional partitions can be created in it.
Note: The sector size of the card is given on the left-hand side of the Storage
Properties dialog.
Preliminary Draft
Chapter 6: Configuration
Partition Management
Warrington Hand-Held Computer User Manual 131
6.8.3 Partition Management
Partitions can be individually dismounted, mounted, deleted, or formatted as well. These
and additional tasks are available from the Partition Properties dialog:
To dismount a partition:
• Choose the desired partition.
• Tap the Properties button. The Partition Properties dialog appears.
• Tap the Dismount button. The partition is dismounted. The asterisk disappears next to
its name in the partitions list.
To delete a partition:
• Select the desired partition.
• Tap the Delete button. A warning dialog appears.
• Tap the OK button. The partition is deleted.
To format a partition:
1. Choose the desired partition.
2. Tap the Properties button. The Partition Properties dialog appears.
3. Tap the Dismount button. The partition is dismounted. The asterisk disappears next
to its name in the partitions list.
Preliminary Draft
Chapter 6: Configuration
Partition Management
132 Warrington Hand-Held Computer User Manual
4. Tap the Format button. The Format dialog appears:
5. Choose your format options. These options include:
• Version of file system (FAT-16, for devices holding up to 4 GB; or FAT-32, for
devices containing up to 32 GB).
• Number of FATs (File-Allocation Tables).
• Number of entries allowed in the root directory.
• Cluster size (.5 KB to 64 KB).
There are also two checkboxes, which govern:
• Whether to use the transaction-safe FAT file system (TFAT). This file system keeps
multiple copies of the file-allocation table, changing one while maintaining another
as a backup.
• Whether to perform a quick format. Quick formatting removes all reference to data in
the partition without erasing the actual partition. The partition will be treated as
empty, and new data will overwrite it.
6. Tap Start. The partition is formatted.
To mount a partition:
• Choose the desired partition.
• Tap the Properties button. The Partition Properties dialog appears.
• Tap the Mount button. The partition is mounted. The asterisk appears next to its name
in the partitions list.
Preliminary Draft
Chapter 6: Configuration
IPv6 Support
Warrington Hand-Held Computer User Manual 133
The Partition Properties dialog has buttons for additional functions. Partitions can be defrag-
mented, and their file structure can be scanned.
6.9 IPv6 Support
The IPv6 Support icon in the Control Panel allows you to activate IPv6 network support on
your unit if your network setup requires this. This internet protocol specification (version 6)
supports 128-bit IP addresses, replacing version 4.
Figure 6.10 IPv6 Support Icon
• Choose the IPv6 Support icon to display the associated dialog box.
• Choose the checkbox next to Enable IPv6 Network Support to enable this
internet protocol.
Preliminary Draft
134 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
Scanner Settings
6.10 Scanner Settings
The Teklogix Scanners icon in the Control Panel provides dialog boxes in which you can
tailor bar code options and choose the bar codes your scanner will recognize. The parame-
ters are preset with the default settings of the decoded scanner installed in the unit.
Figure 6.11 Teklogix Scanners Icon
For a listing of available scanners and their specifications, please refer to Chapter 8:
“Specifications”.
6.10.1 Bar Codes
Preliminary Draft
Warrington Hand-Held Computer User Manual 135
Chapter 6: Configuration
Scanner
6.10.1.1 Scanner
The drop-down menu to the right of the Scanner option allows you to choose from one of
the following scanner types used with your hand-held: Decoded (internal), Decoded (HHP),
Decoded (ISCP), and Imager.
The symbologies listed change to reflect the scanner you choose and the bar codes
it supports.
Keep in mind that some bar code types are only available when an internal imaging scanner
is installed. All internal scanners can be configured using the Barcode dialog boxes.
6.10.1.2 Restoring Default Settings
If you want to restore the factory defaults after making changes, the defaults can be applied
to a selected parameter, sub-tree of parameters or all scanner parameters.
• Press and hold the stylus on a symbology (e.g., Code 128) to display a pop up a menu.
• Choose Default subtree to reset only the parameters in the symbology you selected, or
choose Default all settings to reset all scanner parameters to default settings.
To reset a single parameter to its default setting:
Important: To improve the decode speed and performance, enable only those codes that
are required by the application.
Preliminary Draft
136 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
Decoded (Internal) Scanners
• Press and hold the stylus on the parameter you want to reset.
• Choose Default parameter to reset the parameter to the default setting.
6.10.2 Decoded (Internal) Scanners
• Tap on the Scanner drop-down menu, and choose Decoded (internal).
6.10.2.1 Options
Note: Some options are available only for specific scanners. Refer to the option names in
this section for scanner model identification.
Preliminary Draft
Warrington Hand-Held Computer User Manual 137
Chapter 6: Configuration
Decoded (Internal) – Advanced Options
Dot Time (msec)
The value selected for “Dot Time (msec)” determines (in milliseconds) how long the target-
ing dot remains on before the scanner switches to a normal scan sweep. When you double-
tap on this parameter, a dialog box is displayed in which you can enter a value of 0 msec,
200 msec or 400 msec. A value of 0 (zero) disables the target dot.
Aim Duration
This parameter determines the total time the aiming pattern appears before the scanner laser
begins sweeping. When you double-tap on this parameter, a dialog box is displayed in which
you can enter a value from 0 to 30 (0 to 3 sec.). A value of 0 (zero) disables the aiming-dot.
Laser On Time
The value assigned to this parameter determines how long the laser will remain on when the
scan button or trigger is pressed. Double-tapping on this parameter displays a dialog box in
which you can enter a value between 5 and 99, each number representing 0.1 seconds.
6.10.2.2 Decoded (Internal) – Advanced Options
Continuous Scan Mode
Setting this parameter to on keeps the laser on and continuously decoding as long as the
scanner button is pressed and held down.
Minimum Cancel Time
The value assigned to this parameter determines the time delay before the scanner is turned
off, once the scanner trigger or button is released. This gives the scanner a minimum amount
of time to complete its current decode before the scan is cancelled when the user quickly
triggers on/off.
Low Power Timeout
To extend laser life, you can select the time the scanner remains active following a success-
ful decode. The scanner wakes from low power mode when a bar code is scanned—a
successful decode restores normal blinking.
This is only used if the unit’s Trigger Mode has been changed to Continuous On. If the unit
is used in a fixed mount this parameter might be used, but not if the unit is used as a hand-
held.
When you double-tap on this parameter, a dialog box is displayed in which you can choose a
value of 30 sec., 1 min., 2 min., or 3 min.
Preliminary Draft
Chapter 6: Configuration
Decoded (Internal) – Advanced Options
138 Warrington Hand-Held Computer User Manual
Parameter Scanning
Setting this parameter to on enables decoding of parameter bar codes.
Linear Security Level
This parameter allows you to select the security level appropriate for your bar code quality.
There are four levels of decode security for linear code types (e.g., Code 39, Interleaved 2 of
5). Higher security levels should be selected for decreasing levels of bar code quality. As se-
curity levels increase, the scanner’s decode speed decreases.
Double-tapping on this parameter displays a dialog box in which you can enter a value from
1 to 4.
Linear security level 1 specifies that the following code types must be successfully read
twice before being decoded:
Linear security level 2 specifies that all types of codes must be successfully read twice
before being decoded.
Linear security level 3 specifies that code types other than the following must be success-
fully read twice before being decoded. The following codes must be read three times:
Linear security level 4 requires that all code types be successfully read three times before
being decoded.
Bi-Direction Redundancy
Code Type Length
Codabar All
MSI Plessey 4 or less
D 5 of 5 8 or less
I 2 of 5 8 or less
Code Type Length
MSI Plessey 4 or less
D 2 of 5 8 or less
I 2 of 5 8 or less
Note: This parameter is only valid if a” Linear Security Level” is enabled.
Preliminary Draft
Warrington Hand-Held Computer User Manual 139
Chapter 6: Configuration
Decoded (Internal) – 2D Scanning Options
When this parameter is enabled, a bar code must be successfully scanned in both directions
(forward and reverse) before being decoded.
6.10.2.3 Decoded (Internal) – 2D Scanning Options
Scanning Mode
When you double-tap on this parameter, a dialog box is displayed in which you can choose
one of the following scanning modes: Smart Raster, Always Raster, Programmable Raster,
Slab Pattern, Cyclone Pattern, or Semi-Omni Pattern.
Raster Height And Raster Expand Rate
These parameters determine the laser pattern’s height and rate of expansion.
Double-tapping on this parameter displays a dialog box in which you can enter a value from
1 to 15.
6.10.2.4 Decoded (Internal) Data Options
Transmit Code ID Char
A code ID character identifies the scanned bar code type. In addition to any single character
prefix already selected, the code ID character is inserted between the prefix and the
decoded symbol.
When you double-tap on this parameter, a dialog box is displayed in which you can choose a
transmit code: None, AIM, or Symbol.
Scan Data Format
This parameter allows you to change the scan data transmission format. Double-tapping on
Scan Data Format displays the following options from which you can choose a data
format: data (as-is), data [S1], data [S2], data [S1][S2], [P] data, [P] data [S1],
[P] data [S2], and [P] data [S1][S2].
Prefix [P], Suffix [S1] And Suffix [S2]
A prefix and/or one or two suffixes may be appended to scan data for use in data editing.
When you double-tap on these parameters, a dialog box is displayed in which you can enter
a value from 0 to 255.
Note: These parameters are only used when either Programmable Raster or
Always Raster is assigned to the “2D Scanning Mode” parameter. “2D Raster
Height” and “2D Raster Expand Rate” are intended for very specific applications
and are usually not required for normal scanning purposes.
Preliminary Draft
140 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
Code 39
Delete Char Set ECIs
Setting this parameter to on enables the scanner to delete any escape sequences representing
Character Set ECIs—Extended Channel Interpretations (also known as GLIs) – from its
buffer before transmission.
When this parameter is enabled, the scanner transmits data from PDF417 and MicroPDF417
bar codes containing Character Set ECIs, even when the ECI Protocol is disabled.
ECI Decoder
Setting this parameter to on enables the scanner to interpret any Extended Channel Interpre-
tations (ECIs) supported by the scanner. This parameter has no effect on symbols that were
not encoded using ECIs.
If this parameter is set to OFF and a symbol that was encoded using an ECI escape is
scanned, the scanner transmits the ECI escape followed by the data that was not interpreted.
6.10.2.5 Code 39
Enabled
Setting this parameter to on enables “Code 39”.
Enable Trioptic Code 39
Trioptic Code 39 symbols always contain six characters. Setting this parameter to on allows
this type of symbology to be recognized.
Convert To Code 32
Setting this parameter to on allows the scanner to convert the bar code from “Code 39” to
“Code 32”.
Code 32 Prefix
Note: “Trioptic Code 39” and “Full ASCII” should not be enabled simultaneously. The
scanner does not automatically discriminate between these two symbologies.
Note: “Code 39” must be enabled in order for this parameter to function.
Note: “Convert to Code 32” must be enabled in order for this parameter to function.
Preliminary Draft
Chapter 6: Configuration
Code 39
Warrington Hand-Held Computer User Manual 141
When this parameter is enabled, the prefix character “A” is added to all “Code 32”
bar codes.
Set Length L1 And Set Length L2
Lengths for “Code 39” can be set for Any length, Length within a range, One discrete length
or Two discrete lengths. The length of a code refers to the number of characters (i.e., human
readable characters), including check digit(s).

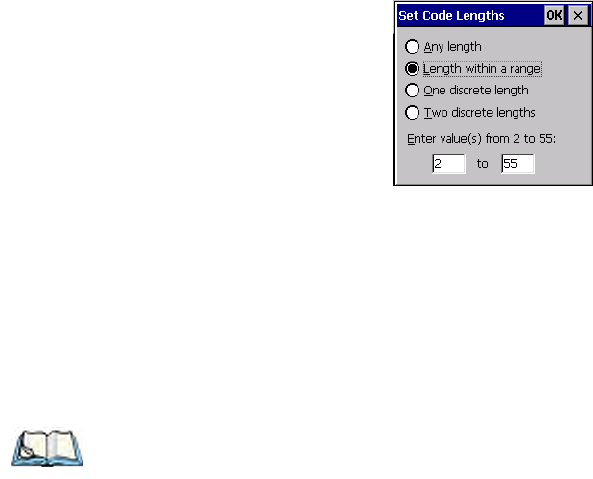

Double-tapping on this parameter displays a dialog box labelled Set Code Lengths where
you can define the code length that will be decoded by your scanner
Choosing One discrete length allows you to decode only those codes containing a selected
length. Choosing Two discrete lengths allows you to decode only those codes containing two
selected lengths. Length within a range allows you to decode a code type within a specified
range from 1 to 55.
Check Digit Verification
When this parameter is enabled, the integrity of a “Code 39” symbol is checked to ensure
that it complies with specified algorithms.
Transmit Check Digit
If the check digit is to be transmitted with the data, this parameter must to enabled.
Full ASCII
If this parameter is enabled, the characters +, %, and / are used as escape characters. The
combination of an escape character and the next character is converted to an equivalent
ASCII character.
Note: Only those “Code 39” symbols that include a Mod 43 check digit are decoded when
this parameter is enabled.
Preliminary Draft
Chapter 6: Configuration
Code 39
142 Warrington Hand-Held Computer User Manual
Decode Performance
If this parameter is enabled, one of three decode levels can be chosen in the Decode Perfor-
mance Level parameter.
Decode Perf. Level
This parameter provides three levels of decode performance or “aggressiveness” for Code
39 symbols. Increasing the performance level reduces the amount of required bar code ori-
entation—this is useful when scanning very long and/or truncated bar codes. Keep in mind
that increased levels reduce decode security.
When you double-tap on this parameter, a dialog box is displayed in which you can enter a
decode performance level of between 1 and 3.
Field Size/Chars
Field Size
The field size is the length of the field after the first character is stripped and the prefix and
suffix characters are added. If the field size is non-zero, only bar codes of that length are
passed through.
Prefix Char
This character, if non-zero, is added before a successfully decoded bar code. Press the key
you want to insert in the dialog box attached to this parameter. The ASCII/Unicode key
value of the keypress is displayed.
Suffix Char
This character, if non-zero, is added after a successfully decoded bar code. Press the key you
want to insert in the dialog box attached to this parameter. The ASCII/Unicode key value of
the keypress is displayed.
Strip Leading
This parameter determines the number of characters that will be removed from the begin-
ning of the bar code before the prefix character is added.
Strip Trailing
The value entered in this parameter determines the number of characters that will be
removed from the end of the bar code before the suffix character is added.
Note: For Code 39 bar codes, the “AIAG Strip” is performed before the “Strip Leading”.
Preliminary Draft
Warrington Hand-Held Computer User Manual 143
Chapter 6: Configuration
Code 128
6.10.2.6 Code 128
Enabled
Set this parameter to on to enable “Code 128”.
Enable GS1-128/GS1 US
Previously UPC/EAN and UCC, these types of bar codes include group separators and
start codes.
Enable ISBT 128
To successfully scan this variation, “Enable ISBT 128” must be set to on.
Decode Performance
If this parameter is set to on, one of three decode levels assigned to the Decode Performance
Level parameter can be selected.
Decode Perf. Level
This parameter provides three levels of decode performance or “aggressiveness” for Code
128 symbols. Increasing the performance level reduces the amount of required bar code ori-
entation—this is useful when scanning very long and/or truncated bar codes. Keep in mind
that increased levels reduce decode security.
When you double-tap on this parameter, a dialog box is displayed in which you can enter a
decode performance level of between 1 and 3.
Field Size/Chars
Refer to page 142 for details.
6.10.2.7 EAN 13
Enabled
Set this parameter to on to enable “EAN 13”.
Prefix/Suffix
Prefix Char
This character, if non-zero, is added before a successfully decoded bar code. Press the key
you want to insert in the dialog box attached to this parameter. The ASCII/Unicode key
value of the keypress is displayed.
Preliminary Draft
144 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
EAN 8
Suffix Char
This character, if non-zero, is added after a successfully decoded bar code. Press the key you
want to insert in the dialog box attached to this parameter. The ASCII/Unicode key value of
the keypress is displayed.
Strip Leading
This parameter determines the number of characters that will be removed from the begin-
ning of the bar code before the prefix character is added.
Strip Trailing
The value entered in this parameter determines the number of characters that will be
removed from the end of the bar code before the suffix character is added.
6.10.2.8 EAN 8
Enabled
Set this parameter to on to enable “EAN 8”.
EAN-8 Zero Extend
When this parameter is enabled, five leading zeros are added to decoded EAN-8 symbols,
making them compatible in format to EAN-13 symbols. Disabling this parameter returns
EAN-8 symbols to their normal format.
Prefix/Suffix
See “Prefix/Suffix” on page 143.
6.10.2.9 UPC A
Enabled
Set this parameter to on to enable “UPC A”.
UPC-A, Check Digit
If you enable this parameter, the check digit is included with the decoded bar code data.
UPC-A, Preamble
When you double-tap on this parameter, a dialog box is displayed where you can choose one
of three options for lead-in characters for UPC-A symbols transmitted to the host device:
Note: The appended character is treated as any other keyboard character. For example, if
[BKSP] is pressed, the usual action for that key is performed.
Preliminary Draft
Warrington Hand-Held Computer User Manual 145
Chapter 6: Configuration
UPC E
System Char—system character transmitted with the data,
Country Code and System Char—both the country code (“0” for USA) and system
character are transmitted with the data, or
None—no preamble is transmitted. The lead-in characters are considered part of
the symbol.
Prefix/Suffix
See “Prefix/Suffix” on page 143.
6.10.2.10 UPC E
Enabled UPC-E
Set this parameter to on to allow “UPC E” bar code scans.
Enabled UPC-E1
Set this parameter to on to allow “UPC-E1” (zero suppressed) bar code scans.
UPC-E And UPC-E1 Check Digit
If you enable one or both of these parameters, a check digit is included with the decoded bar
code data.
UPC-E And UPC-E1 Preamble
When you double-tap on one of these parameters, a dialog box is displayed where you can
choose one of three options for lead-in characters for UPC-E and UPC-E1 symbols transmit-
ted to the host device:
System Char—system character transmitted with the data,
Country code and System Char—both the country code (“0” for USA) and system char-
acter are transmitted with the data, or
None—no preamble is transmitted. The lead-in characters are considered part of
the symbol.
Conv. UPC-E To UPC-A
This parameter converts UPC-E (zero suppressed) decoded data to UPC-A format before
transmission. After conversion, data follows UPC-A format and is affected by UPC-A pro-
gramming selections (e.g., Preamble, Check Digit).
Preliminary Draft
146 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
UPC/EAN Shared Settings
Conv. UPC-E1 To UPC-A
This parameter converts UPC-E1 (zero suppressed) decoded data to UPC-A format before
transmission. After conversion, data follows UPC-A format and is affected by UPC-A pro-
gramming selections (e.g., Preamble, Check Digit).
Prefix/Suffix
Refer to “Prefix/Suffix” on page 143.
6.10.2.11 UPC/EAN Shared Settings
The parameters you set here are a shared across all available UPC and EAN bar codes.
Enable Bookland EAN
Setting this parameter to on allows your scanner to recognize Bookland EAN bar codes.
Supplementals
Supplementals are additionally appended characters (2 or 5).
Double-tapping this parameter displays a list of options. If Ignore is chosen, UPC/EAN is
decoded and the supplemental characters are ignored. If Decode is chosen, UPC/EAN
symbols are decoded with supplementals. Autodiscriminate works in conjunction with the
Supp. Redundancy parameter.
Supp. Redundancy
With “Autodiscriminate” selected in the Supplementals parameter, Supp. Redundancy
adjusts the number of times a symbol without supplementals is decoded before transmission.
When you double-tap on this parameter, a dialog is displayed in which you can enter a value
between 2 and 20. A value of 5 or above is recommended when Autodiscriminate is selected
and you are decoding a mix of UPC/EAN symbols with and without supplementals.
Security Level
This parameter controls the tolerance for decoding edge-to-edge UPC/EAN bar codes.
Double-tapping on this parameter displays a dialog box in which you can choose a level
from 0 to 3. Lower values have a lower tolerance for misreads, but they also increase the
time it takes to decode the bar code.
Linear Decode
Linear Decode applies to code types containing two adjacent blocks (e.g., UPC-A, EAN-8,
EAN-13). When enabled, a bar code is transmitted only when both the left and right blocks
Preliminary Draft
Warrington Hand-Held Computer User Manual 147
Chapter 6: Configuration
Code 93
are successfully decoded within one laser scan. This option should be enabled when bar
codes are in proximity to each other.
2D UPC Half Block Stitching
Setting this parameter to on enables “UPC Half Block Stitching” for the omnidirectional
scanner engine only.
6.10.2.12 Code 93
Enabled
Set this parameter to on to enable “Code 93”, or OFF to disable it.
Set Length L1 And Set Length L2
Lengths for “Code 93” can be set for Any length, Length within a range, One discrete length
or Two discrete lengths. The length of a code refers to the number of characters (i.e., human
readable characters), including check digit(s).
Double-tapping on this parameter displays a dialog box labelled Set Code Lengths where
you can define the code length that will be recognized by your scanner.
Choosing One discrete length allows you to decode only those codes containing a selected
length. Choosing Two discrete lengths allows you to decode only those codes containing two
selected lengths. Length within a range allows you to decode a code type within a specified
range from 4 to 55.
Field Size/Chars
Refer to page 142 for details.
6.10.2.13 Codabar
Enabled
Set this parameter to on to enable “Codabar”.
Set Length L1 And Set Length L2
Lengths for “Codabar” can be set for Any length, Length within a range, One discrete
length, or Two discrete lengths. The length of a code refers to the number of characters
(i.e., human readable characters), including check digit(s).
Double-tapping on this parameter displays a dialog box labelled Set Code Lengths where
you can define the code length that will be recognized by your scanner.
Preliminary Draft
148 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
MSI Plessey
Choosing One discrete length allows you to decode only those codes containing a selected
length. Choosing Two discrete lengths allows you to decode only those codes containing two
selected lengths. Length within a range allows you to decode a code type within a specified
range from 5 to 55.
CLSI Editing
When enabled, this parameter strips the start and stop characters and inserts a space after the
first, fifth, and tenth characters of a 14-character Codabar symbol.
NOTIS Editing
When enabled, this parameter strips the start and stop characters from decoded
Codabar symbol.
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
6.10.2.14 MSI Plessey
Enabled
Set this parameter to on to enable “MSI Plessey”.
Set Length L1 And Set Length L2
Lengths for “MSI Plessey” can be set for Any length, Length within a range, One discrete
length or Two discrete lengths. The length of a code refers to the number of characters (i.e.,
human readable characters), including check digit(s).
Double-tapping on this parameter displays a dialog box labelled Set Code Lengths where
you can define the code length that will be recognized by your scanner.
Choosing One discrete length allows you to decode only those codes containing a selected
length. Choosing Two discrete lengths allows you to decode only those codes containing two
selected lengths. Length within a range allows you to decode a code type within a specified
range from 6 to 55.
Check Digits
Double-tapping on this parameter displays a dialog box in which you can choose One or
Two check digit(s).
Note: Symbol length does not include start and stop characters.
Preliminary Draft
Warrington Hand-Held Computer User Manual 149
Chapter 6: Configuration
Interleaved 2 of 5
If this parameter is set to One, it is assumed that the last digit is a check digit. If “Check
Digits” is set to Two, it is assumed that the last two digits are check digits.
Transmit Check Digit
If this parameter is enabled, the check digit is included with the bar code data.
Check Digit Algorithm
When the Two MSI Plessey check digits option is selected, an additional verification is re-
quired to ensure integrity. Double-tapping on this parameter displays a dialog box n which
you can choose the algorithm to be used: MOD 10/MOD 11 or MOD 10/MOD 10.
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
6.10.2.15 Interleaved 2 of 5
Enabled
Set this parameter to on to enable “Interleaved 2 of 5”.
Set Length L1 And Set Length L2
Lengths for “Interleaved 2 of 5” can be set for Any length, Length within a range, One dis-
crete length or Two discrete lengths. The length of a code refers to the number of characters
(i.e., human readable characters), including check digit(s).
Double-tapping on this parameter displays a dialog box labelled Set Code Lengths where
you can define the code length that will be recognized by your scanner.
Choosing One discrete length allows you to decode only those codes containing a selected
length. Choosing Two discrete lengths allows you to decode only those codes containing two
selected lengths. Length within a range allows you to decode a code type within a specified
range from 4 to 14.
Check Digit Verification
When enabled, this parameter checks the integrity of an I 2 of 5 symbol to ensure it complies
with a specified algorithm—either USS (Uniform Symbology Specification) or
OPCC (Optical Product Code Council).
Note: If Two check digits is selected, an MSI Plessey “Check Digit Algorithm: must also
be selected. See below for details.
Preliminary Draft
150 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
Discrete 2 of 5
Transmit Check Digit
If this parameter is enabled, the check digit is included with the bar code data.
Convert To EAN 13
If this parameter is enabled, the I 2 of 5 bar code is converted to EAN 13.
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
6.10.2.16 Discrete 2 of 5
Enabled
Set this parameter to on to enable “Discrete 2 of 5”.
Set Length L1 And Set Length L2
Lengths for “Discrete 2 of 5” can be set for Any length, Length within a range, One discrete
length or Two discrete lengths. The length of a code refers to the number of characters (i.e.,
human readable characters), including check digit(s).
Double-tapping on this parameter displays a dialog box labelled Set Code Lengths where
you can define the code length that will be recognized by your scanner.
Choosing One discrete length allows you to decode only those codes containing a selected
length. Choosing Two discrete lengths allows you to decode only those codes containing two
selected lengths. Length within a range allows you to decode a code type within a specified
range from 1 to 12.
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
6.10.2.17 RSS Code
Enable
Setting this parameter to on enables “2D RSS Code” scanning capability.
Enable RSS-14 (Reduced Space Symbology)
RSS-14 code can be either purely linear or split in half with one half stacked on top of the
other half. Stacking the code reduces the bar code length, and providing the nominal height
of the code is maintained, it can be omni-directionally scanned.
Preliminary Draft
Warrington Hand-Held Computer User Manual 151
Chapter 6: Configuration
Composite
Enable RSS Limited
“RSS-Limited” is restricted, in that it can only encode 14 digit GTINs (global trade item
number) that begin with either a 0 or a 1. It is not stackable and is not designed to be read
omni-directionally.
Enable RSS Expanded
“RSS Expanded” uses the same application identifiers as UCC/EAN-128 codes but it can be
split into sections and stacked several rows high, reducing the length of the symbol, while
increasing the capacity of data that can be stored. “RSS Expanded” code can be omni-
directionally scanned.
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
6.10.2.18 Composite
A composite symbol includes multi-row 2D components making it compatible with linear
and area CCD scanners along with linear and rastering laser scanners.
The options available for this parameter represent multi-level components of a
composite symbol.
Enable CC-C And Enable CC-AB
To activate these components, set these parameters to on.
Enable TLC-39
This composite component integrates MicroPDF417 with the linear code. Setting this pa-
rameter to on enables this parameter.
6.10.2.19 PDF-417
Enable
Setting this parameter to on enables PDF-417 two dimensional (2D) coding.
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
Important: To successfully read this type of bar code, the two types of symbologies
included in a composite bar code must be enabled. In addition, “Center Bar
Code Only” must be disabled.
Preliminary Draft
152 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
Micro PDF-417
6.10.2.20 Micro PDF-417
Enable
Setting this parameter to on enables “Micro PDF-417” bar code scanning. Micro PDF-417
is a multi-row symbology that is useful for applications requiring greater area efficiency but
lower data capacity than PDF-417.
Code 128 Emulation
When this parameter is enabled, the scanner transmits data from certain Micro PDF-417
symbols as if it was encoded in Code 128 symbols.
If Code 128 Emulation is enabled, the following Micro PDF-417 symbols are transmitted
with one of the following prefixes:
]C1 if the first codeword is 903-907, 912, 914, 915
]C2 if the first codeword is 908 or 909
]C0 if the first codeword is 910 or 911
If Code 128 Emulation is set to off, the Micro PDF-417 symbols are transmitted with one of
the following prefixes:
]L3 if the first codeword is 903-907, 912, 914, 915
]L4 if the first codeword is 908 or 909
]L5 if the first codeword is 910 or 911
Field Size/Chars
Refer to “Field Size/Chars” on page 142 for details.
Preliminary Draft
Warrington Hand-Held Computer User Manual 153
Chapter 6: Configuration
Decoded (ISCP)
6.10.3 Decoded (ISCP)
• Tap on the Scanner drop-down menu, and choose Decoded (ISCP).
6.10.3.1 Decoded (ISCP) – Options
Laser On Time
The value assigned to this parameter determines how long the laser will remain on when the
scan button or trigger is pressed.
Double-tapping on this parameter displays a dialog box in which you can enter a value
between 1 and 10 seconds.
6.10.3.2 Decoded (ISCP) – Advanced Options
Continuous Scan Mode
Setting this parameter to on keeps the laser on and continuously decoding as long as the
scanner button is pressed and held down.
Minimum Cancel Time
The value assigned to this parameter determines the time delay before the scanner is turned
off, once the scanner trigger or button is released. This gives the scanner a minimum amount
of time to complete its current decode before the scan is cancelled when the user quickly
triggers on/off.
Preliminary Draft
154 Warrington Hand-Held Computer User Manual
Chapter 6: Configuration
Code 39
Low Power Timeout
To extend laser life, you can select the length of time the scanner remains active following a
successful decode. The scanner wakes from low power mode when a bar code is scanned—a
successful decode restores normal blinking.
When you double-tap on this parameter, a dialog box is displayed in which you can choose a
value of 30 sec, 1 min, 2 min, or 3 min.
Parameter Scanning
Setting this parameter to Enabled allows decoding of parameter bar codes.
Same Read Validate
The data is only transmitted after repeated reads give the same result. The value assigned at
this parameter determines the number of reads required, from 0 to 10 times.
Same Read Timeout
Prevents the same bar code from being read more than once. The value assigned determines
after what time period the scanner will timeout, from 0 to 2550 msec.
Diff Read Timeout
Prevents unwanted reading of other bar codes on the same label. The value assigned deter-
mines after what time period the scanner will timeout, from 0 to 2550 msec.
6.10.3.3 Code 39
Enable
Setting this parameter to on enables “Code 39”.
Full ASCII
If this parameter is enabled, the characters +, %, and / are used as escape characters. The
combination of an escape character and the next character is converted to an equivalent
ASCII character.
Reading Range
Determines the reading distance from which a bar code can be successfully scanned. The
default setting, Extended, allows for increased reading distance.
Note: This parameter is only used if the Trigger Mode has been set to Continuous On and
the hand-held is mounted in a fixed position; otherwise, ‘Low Power Timeout’ is
not used.
Preliminary Draft
Warrington Hand-Held Computer User Manual 155
Chapter 6: Configuration
Code 128
Start/Stop Transmit
Setting this parameter to on enables the transmission of start and stop characters, which are
usually not transmitted. Code 39 can start and end with either a * or a $ character (see also
the next parameter).
Accepted Start Char
This parameter allows the user the option of using one of the two start/stop characters or
both ($ char, * char, $ and * char).
Check Digit Verification
Uses the specified algorithm of the option you've chosen to ensure the integrity of the
symbol data before transmitting. If the data does not contain that algorithm, the data is not
transmitted. The available options are: Disabled, MOD 43 Check, French CIP, or
Italian CIP.
Transmit Check Digit
