Pukeda Technology HT1002 Tablet PC User Manual koral 10 x manual
Shenzhen Pukeda Technology Co., Ltd. Tablet PC koral 10 x manual
user manual
10" Android Tablet,
Quad Core, 1280x800 IPS, 1GB/16GB.
Thank you for choosing the HYUNDAI® This device is designed to
provide distinct and different experiences for both study and entertainment.
This manual will introduce the main function, operation method and other
information. Please read this manual carefully before using the device.
This user
guide describes features that are common to most models.
Welcome
ENGLISH
Preventive maintainance
-Please always keep the MID dry. To avoid the device short trouble,
corrosion fault and electric short, please prevent the device, battery and
charger from water and moisture, and don’t operate the device or charger
by wet hand.
-To avoid failure of device, battery and charger, please prevent the device,
battery, charger from violent shock or shake.
-To avoid failure of device, battery and charger, please prevent the device,
battery, charger of all over heating(above 35 ºC) or too cold(below 5 ºC)
circumstance
-Never shock, throw, prod the MID, or drop, extrude, bend the MID.
-Never disassemble the device and accessories arbitrarily, otherwise the
device and accessories are not in our company warranty scope.
Safety Instruction
Before the operation of the MID, please read this chapter and teach your
kids about these information. For further details, please refer to the safety
instructions and announcement.
-To avoid the wireless signal to interrupt the plane- controlled signal, please
shut down the MID or using airplane mode when you are boarding a flight,
-To avoid electronic equipment failure, please shut down the MID in the
vicinage of high-accuracy electronic equipments.
-Please keep the MID far away from magnetic equipments, the radiation of
MID may erase the data stored in the magnetic equipments.
-Never use the MID in the vicinage of high temperature, inflammable gas
( gas station).
-Protect the MID and accessories from kids reach scope, and avoid the kids
to use the MID without parents’ supervision.
-Never use the MID in bathroom or other humid environment, and please
protect the MID from liquid wash or wet.
ENGLISH
Speaker
Front Appearance
Front
Camera
USB Port
Headset Jack
Volumen
Key+
Volumen
Key-
Power
Key
Reset
Sensor
ENGLISH
ENGLISH

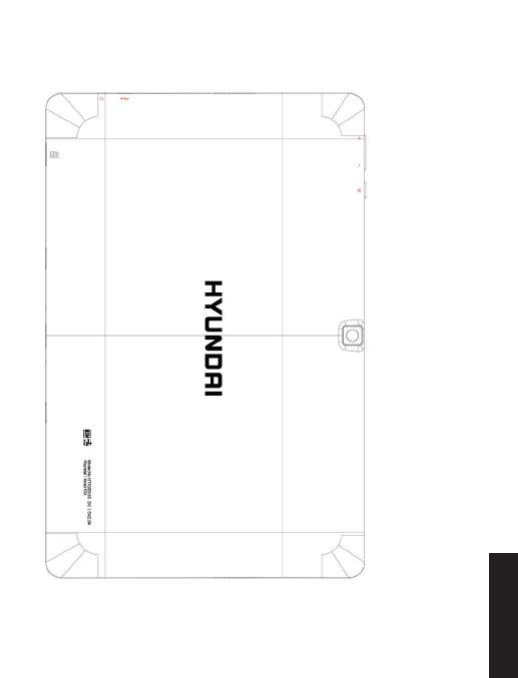

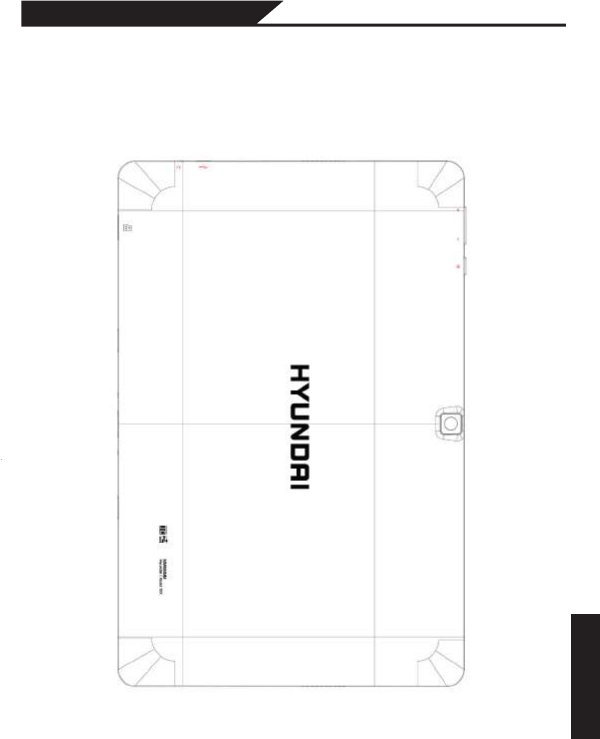

Rear Appearance
ENGLISH

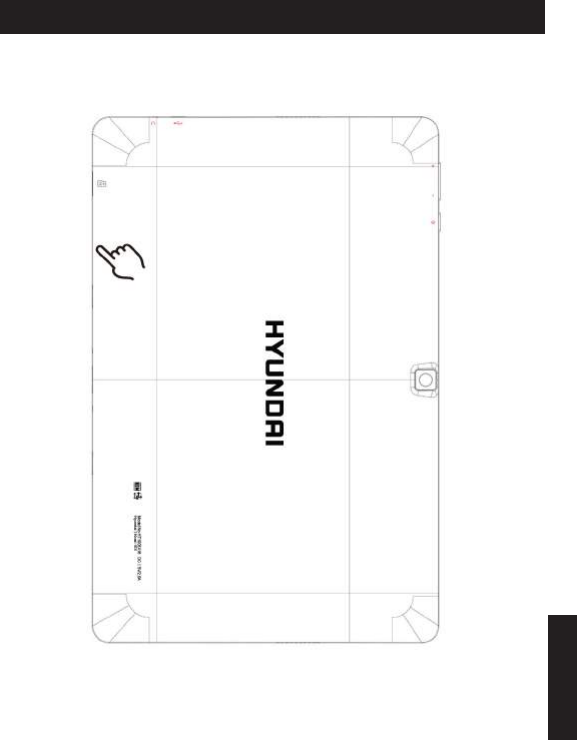

Open cover by slot as picture shows.
ENGLISH
Micro SD Card
Insert TF card, SIM card1 and SIM card2
ENGLISH
Headphone interface charging interface
ENGLISH
MID Operation and Preparation
MID Status and Reminder
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
1.Apply the power adptor to charge for MID.
Reminder icons
When some remind message appears in your reminder window, please click column and
slip the screen to open the reminder list. Choose the menu you need, and confirm the
information. Then you can close the reminder window through clicking the column to slide
up. Please refer to below status icons:
New email Airplane Mode on
USB connected USB debugging
connected
Return button Downloading
Display recently-used
application Home button
Current electric
volume.
WIFI connected internet
is available
ENGLISH
Quick Start Guide
Keys Function Description：
Power button Short press to sleep/wake up,
long press to startup and shutdown.
Increase the volume
Decrease the volume
Click it in any interface will return to
main interface..
Click it in any interface will return to
previous menu
This button will display in menu
interface.
Display recently browsed history
Volume +（up）
Volume -（down）
HOME button(home)
Back button（back）
Menu button
Setting button
ENGLISH
Startup and Shutdown
Open and Close of the Screen
Startup
Long press POWER key for three seconds, you can enter into startup picture. The system
enters into screen lock status, please unlock it.
Shutdown
1. Long press POWER, it will popoup shutdown window.
2. Shutdowm window contains mute mode, airplane mode,reboot mode and shutdown
four options.
3. Click Shutdown is the last step.
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save battery
power
2. When screen is open, press POWER key, the screen will be closed immediately.
Open the screen when it is closed.
If the screen is closed, short press POWER to open the screen. The screen will be locked
open it, it will show the picture as below picture, left slide to unlock and enter into
camera, right slide the unlock icon to unlock the screen.
Picture 3.1 Picture 3.2
ENGLISH
Home Page
Visit Application Procedures
Main interface as below picture 3.2, long press the blank and it will popup
windows to set wallpaper, folder, widgets, and shortcut.
Picture 3.3
Click in right top of Picture 3.2, enter into main interface as Picture-
choose the application procedure you want to visit.
ENGLISH
USB Connection
Picture 3.4
MID storage configuration
Before transmitting documents, you have to conduct storage configuration for
your MID:
1. Connect the MID and computer by USB cable, the reminder column will
show the remind information.
2. Open the reminder board; please view the MID status and reminder to learn
how to open the board.
3. In the reminder board, click the “USB Connected”, it will as below Picture
3.4, then click “open USB storage configuration”.
4. Now the USB is connected successfully.
ENGLISH
Typing words
Copy the document into memory card
1. Connect the MID to computer with USB cable.
2. As MID storage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable
disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to
uninstall.
Notice: When the MID is connected with USB cable, and you open the USB
storage configuration, you can’t view the memory card through the MID. Only
after you detach the USB cable, you can view the memory card in the MID.
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will
show the screen keyboard. The keyboard contains below typing options:
1. Android keyboard
2. Google Pinyin
Choose the typing method you want
1. Click Setting pocedure application.
2. Click Language and Keyboard.
3. In the text setting area will reveal all the installed words-typing methods in
your MID.
4. Tick the typing method you want.
ENGLISH
Use and switch of input method
Picture 3.5
Keys Function Description：
Switch the capital and small lettes.
Switch the mode of words input.
Click to insert the space.
Click input to execute.
Delete the character in the left of cursor,
click and hold to delete all the characters in
the left og the cursor.
ENGLISH
Basic Setting
SIM Management
Voice call

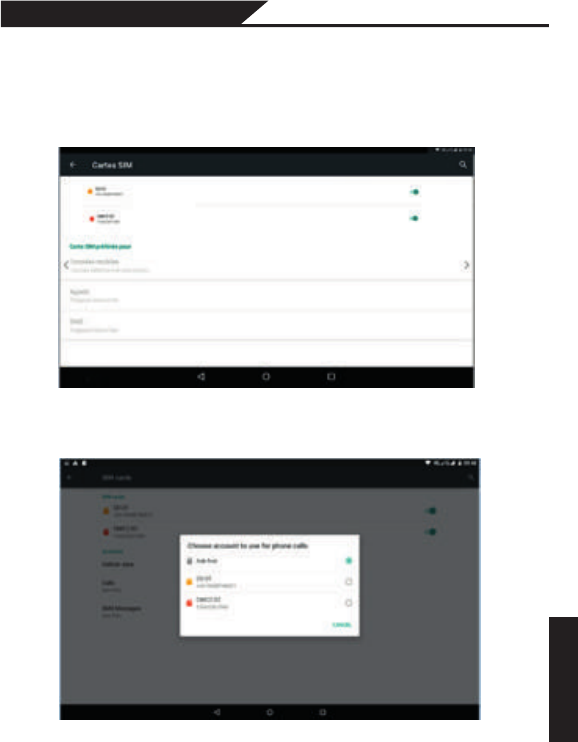

Click settings in main menu, choose SIM Management, as Picture 4.1
Picture 4.1
Picture 4.1
Click voice call, choose defaulted SIM card, as Picture 4.2
ENGLISH
Wireless and Internet

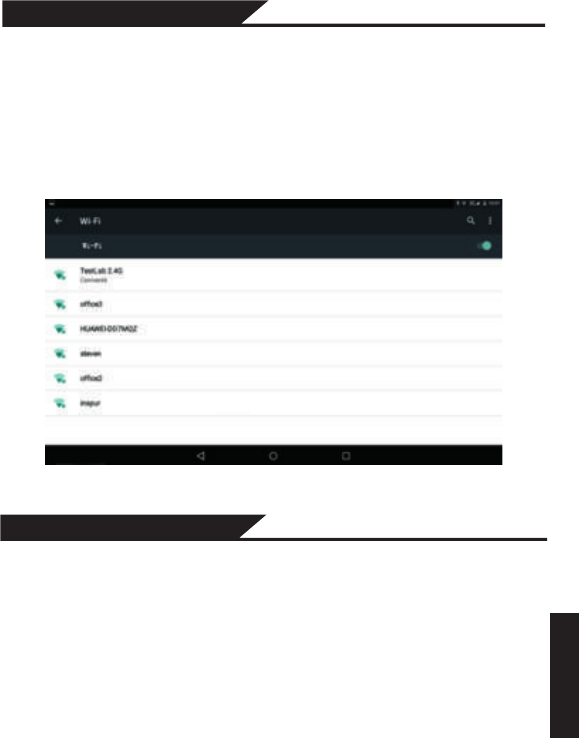

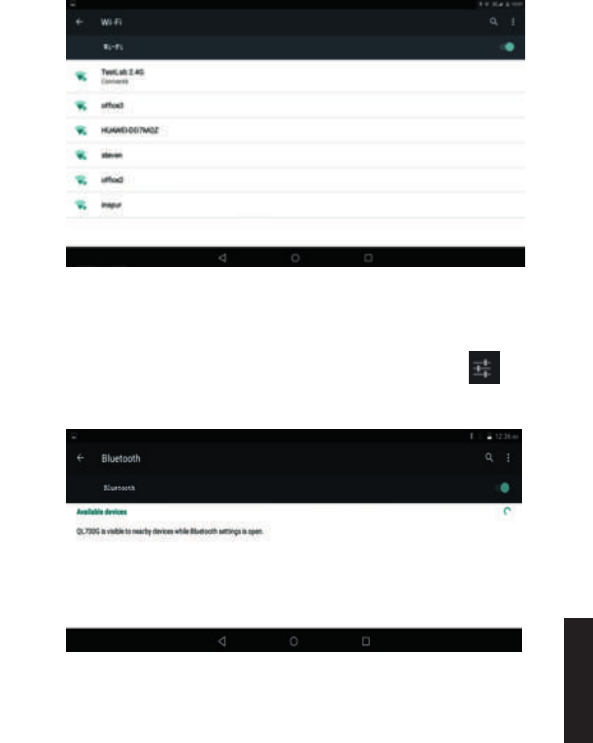

1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
2) Click WLAN, open wifi, MID will automatically search the available Wifi
wireless internet. As Picture 4.3
3) Choose the Wi-Fi internet you want to connect, if it has password, it will
popup the password window, enter password, click connect.
Bluetooth
Bluetooth function operation
1. Click setting application in main menu interface
2. Click bluetooth and open it.
3. If somebody open bluetooth in your surroudings, click search device in
right above, then MID will automatically search the bluetooth device nearby.
As picture
Picture 4.3
ENGLISH
4. Click the available Bluetooth device, it will popup request window, enter
into related password, and match the device to connect.
5. After match successfully, choose the operation you want to, click to
enter into Picture 4.5
Picture 4.4
Picture 4.5
ENGLISH
Picture 4.6
Rename tablet
Click icon in right top of Picture 4.5 as Picture 4.6 select rename
tablet, you can rename it as you want.
Bluetooth setting
Display
Adjust the screen brightness
1. Click Setting application procedure.
2. Click display, choose brightness,
3. Drag the portlito to adjust the brightness volume
4. Click OK after brightness is adjusted.
Wallpapers
1. Click setting application.
2. Click display, click wallpaper.
3. You can choose different wallpapers as you like--live wallpapers--gal-
lery(user defined)--wallpapers (system defect)--video wallpaper
ENGLISH
Storage
Sleep
1. Click setting appliation.
2. Click display.
3. Click sleep.
4. Set the sleep time as you want.
Font size
Click font size to adjust the font size
Open setting function, click memory, click preferred install location, you can
choose isntall new application to choose preferred install location.
Check SD card and MID storage space.
1. Enter into setting application.
2. Click storage, check storage space.
Picture 4.7
ENGLISH
Safely remove SD card
1. Click setting application.
2. Click memory.
3. Click uninstall SD card.
4. Now you can remove SD card safely.
Note: Removing SD card safely can protect SD card and increase its lifetime.

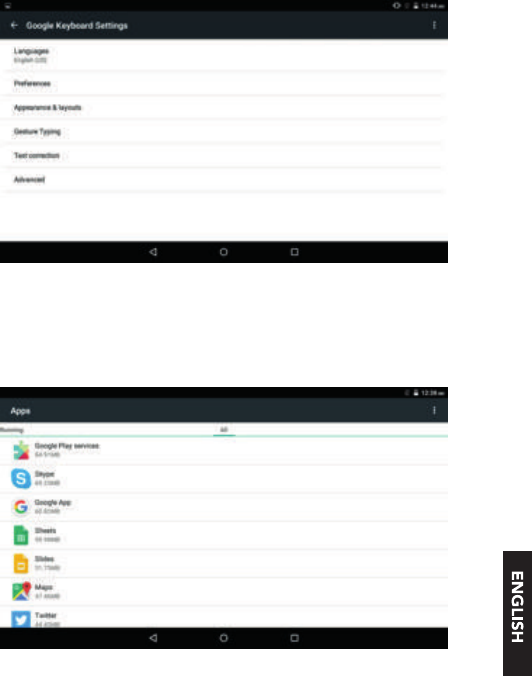

1. Click setting application in Apps.
2. Select application, after enter, you can manage and delete installed
application and check system used storage space and left space.
(As Picture 4.8)
Application program
Account and Sync
1. Select setting application
2. Open account and sync, as Picture 4.9
Picture 4.8
ENGLISH

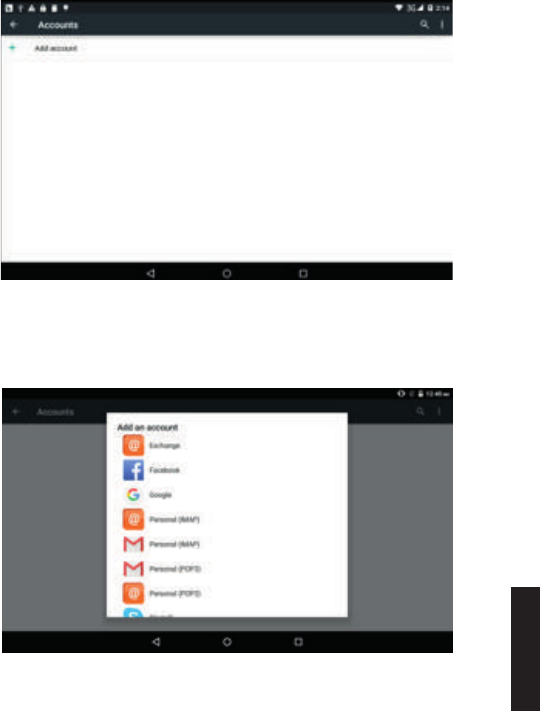

Picture 4.9
Picture 4.10
3. Click add an account, as Picture 4.10

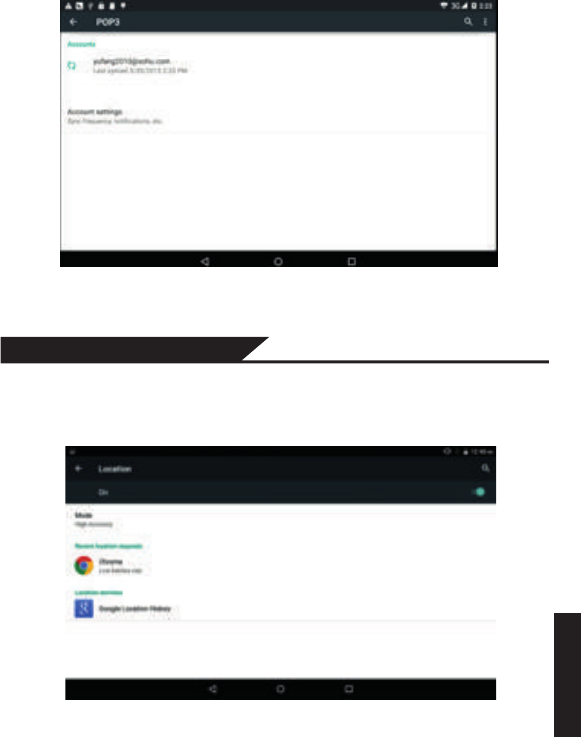

4. After successfully load, it will open the sync function, as Picture 4.11
ENGLISH
Location service
Picture 4.11
Picture 4.12
Click setting, select Mode, as Picture 4.12

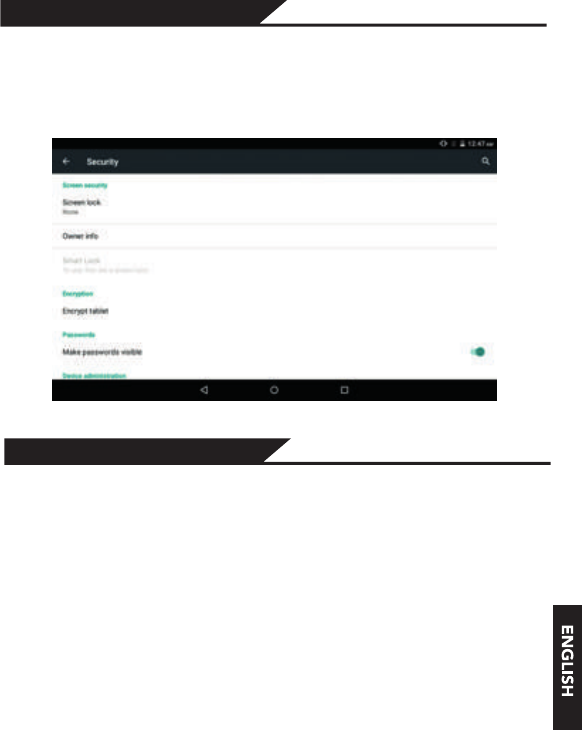

Safety setting
Set locked screen
Lock the touch screen by unlock icon or password to protect your MID.
Note: After setting screen locked, you should enter the passcode each time
when you startup or screen is locked.
Set unlocked picture
1. Click setting application in main interface.
2. Click safe.
3. Click locked the screen.
4. Choose picture in text setting area.
5. Click next following the remind message.
6. The unlocked pattern board pop up, there are nine touch spots, connect 4
points from vertical, horizontal or diagonal direction. As Picture 4.10, move
your finger from the screen when finish. The system will record yous new
unlock pattern.
7. Click continue.
8. When you see the reminder, enter the unlock pattern, then click confirm.
Picture 4.13
Language and Input Method
Set unlock PIN code
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Choose PIN in text setting area.
5. Enter new PIN code(numbers) and click continue.
6. Ener new PIN code again and click confirm.
Set unlock password
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Set password in text seting area.
5. Set new password(letters and numbers) and then click continue.
6. Enter the password again and the click confirm.

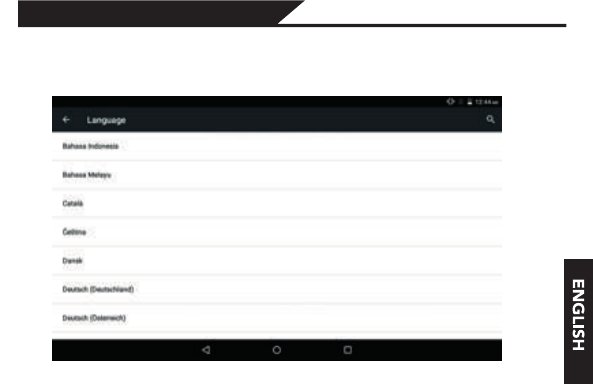

Click setting, select language and input method, choose language to switch
language, as picture 4.14.
Picture 4.14
Click setting, choose language and input, choose Android keyboard
setting, click input language, as Picture 4.15
Choose the language you want to change in the language list, as Picture
4.16
Picture 4.15
Picture 4.16
Backup and Reset
Connect WIFI and login your google account, choose backup my data,
system will backup your data into google server.
If you need to recovery factory reset, please click reset, as Picture 4.17, if you
need to formulate NAND, please click reset tablet.
Date and Time
According to the preset, system will voluntorily apply the date, zone, and
time provided by internet.
Manual set date, time and zone
1. Click Setting application procedure.
2. Slide down the screen, then click date and time.
3. Turn off “auto setting of date and time”.
4. Turn off “auto setting zone’.
5. Click Zone Selecting, then choose the zone lists. Slide down the list to
view more zones.
6. Click Date setting, then click upper or down buton to adjust date, month,
and year, click setting when you finish selection.
Picture 4.17
Fixed-time Startup and Shutdown
7. Click Time setting, then click upper or down button to adjust hour and
minute, click AM or PM to change morning or afternoon ( there is no such
selection when you se 24-hour format). Click Setting to finish.
8. Click 24-hour format, switch between 12-hour or 24-hour formay, the time
format you choose will be used on the alarm clock.
9. Click date format setting, then choose the time format you want to show
on MID.
Picture 4.18
Note: If you use the time internet provided, you will not able to set the
date, time and time zone.
1. Click Setting application procedure
2. Click fixed-tine startup and shutdown.
3. Operate as below Picture 4.19
Picture 4.19
Picture 4.20
Assisstance Function
Large size
Click it to make system font large size.
Click power button to end calls
When Click call, press “power” button, call will end but not hold.
Touch and hold delay
Click touch and hold delay to increae time, as Picture 4.20
Engineer Selection
Install webpage script
It will allow you install webpage scrip when you open system,, but it will
increase the risk when you are browsing webpage.
USB adjustment
After opening USB adjustment, you can use some software to read MID
software, but when USB adjustment is turned on, USB storage needs to
manual adjust.
Keep awaken state
If you open keep awaken state, it wll never auto sleep when your MID is
charging.
Pointer Location
If you open pointer location, it will display touch vertical and horizontal
direction.
Show touches
If you open display touch screen operation, it will display touch opeation
on the screen. It is suggested to use with same direction as pointer
location.
Show screen update
If you open screen refresh, it will display related area when the area is
refreshing.
Show CPU usage
After open CUP usage, in the right top of MID will show CPU usage
Picture 4.21
About Tablet
Check MID state
1.Check Setting application.
2.Click about tablet, check state message, model, Android version, version
No and so on.
3.Click state message, check battery state, battery volumne, SIM state, IMEI
number, IP address.
Multi-Media
Music
Enter into music player: in menu or desktop click music icon to enter
into music player, click the music you want to play, as Picture 5.1
Picture 4.22
Picture 4.23
Multi-Media
Music
Enter into music player: in menu or desktop click music icon to
enter into music player, click the music you want to play, as Picture 5.1
Drag the progress bar to adjust play progress.
Operation of music player button as Picture 5.2
ENGLISH
Photo Gallery
Photo gallery application can auto search photos and video files in SD card,
and photo gallery will classify these photos and videos in folder. You can
apply photo gallery to view and edit photos, set the photos as wallpaper
and watch the video.
View pictures
1. Click gallery application in main interface.
2. Enter into gallery, click the folder you want to view.
3. Click the picture you want to view, the system will play it in full screen
mode automatically.
4. The pictures can be zoom in and zoom out, put two fingers on the screen,
the separete the fingers(gather up the fingers, the picture will be zoom in)
or double click the screen.
Note: when you browse the pictures, slide left or right to view more pictures.
Edit and set pictures
When check the pictures in full screen mode, click menu key to display
menu selection, you can choose the selection you need to edit and setting
pictures.
Slide Show
1. Open a picture, use virtual key to click menu key, display menu selection.
2.Click slide show, it will auto loop play(or choose button in picture
folder).
Crop
1. Click menu key to display menu selection.
2. Then click crop, click and drag related area to adjust the cropper.
3. Click cropper and drag it inside and outside to adjust the image.
4. After adjust the size you want, click crop.
ENGLISH
Edit
1. Click menu key, display the menu selection.
2. Click edit.
3. Adjust teh brightness, style, color, antialias setting in selection.
4. Click save.
5. If you want to give up edit, click return key, click not to return to picture
browse.
In the main interface or desktop, click camera application procedure ,
enter into camera
Operation of camera ,Switch camera: choose Menu key, click switch
front/back camera, as Picture 5.3
Camera
Picture 5.3
ENGLISH
ENGLISH
Click in the main interface or desktop to enter into FM radio interface:
Radio button operation instruction as Picture 5.4:
Save channels: Click button in the main interface to save the channel,
and the channel will be saved in channels list.
Note: You need to insert earphone as antenna when using FM radio, If no
antenna, your MID can’t search any frequency band.
FM Radio
Picture 5.4
Phone
1. Click Phone application procedure
2. Operate as Picture 6.1
Communication Function
ENGLISH
Picture 6.1
Picture 6.2
Text Message
1. Enter into main menu, choose application procedure.
2. Click “Edit new message”
ENGLISH
Picture 6.3
Browser
In case of Wi-Fi or mobile internet is connected well (Please refer to Chapter
4.1 for wireless and internet setting), click IE browser in the main menu
or desktop to enter the IE interface, as Picture 7.1
Internet
Contact List
Click Contact list in the main interface, enter into the contact listas
Picture 6.3
Search contact: click button, enter into search function.
Add contact: click button, enter into add contact interface.
ENGLISH
Picture 7.1
Picture 7.12
Click address bar to input the website, click start, enter into related
webpage, then you can browse the website information, as Picture 7.12 and
you can click the menu you can refresh ,save to bookmarks,,share page,-
bookmarks,,history and setting the webpage.
ENGLISH
Picture 7.2
Browser
Email application procedure contains email setting guide, you can add the
external POP3 OR IMAP email account of normal web email service provider
(For instance, Yahoo, Gmail, Hotmail and 163),as Picture 7.2.
a. Email Setting
1. After you click the sending email icon , you can see the email setting
guide, which can help you to set.
2. Input your email address and password.
3. Click “Next step” button, choose your email type is POP3 or IMAP.
4. Click “Next Step” button to check whether the email box servicer can
receive or send emails
5. Input the email account and display the email subiject, and click finish.
6. If the email box is available, you will enter into your mail box automatical-
ly.
Email
ENGLISH
Picture 7.3
b. Delete the email account
You can delete setted POP3 or IMAP email account from your MID.
Click .
1. Enter into your mail box.
2. Press Menu key.
3. Click Account
4. Press the account you want to delete.
5. Click confirm to remove.
c. Send E-mail
1. Click to display your mail box.
2. Click the inbox, it will refresh the new emails automatically; click it to read
new email.
3. Press Menu key. Menus will popup.
4. Click Edit to enter into new email editing interface.
5. Input the receiver’s email address.
6. Input the subject and email content.
7. If you want to add attachment, click menu key, the menu popup.
8. Click “Attach file” (photo,music, video,contacts).
9. Click “send” to send the email out.
ENGLISH
Other Application Procedures
Picture 8.1
Clock
Click Clock procedure, enter into below interface as Picture 8.1.
There are clock, picture, music and homepage buttons.
Calculator
1. Click.
2. Enter into the basic board of calculator.
3. Soft touch the numbers or operator in calulator to calculate.
ENGLISH
File Manager
Picture 8.2
File manager will copy, cut, delete, rename the documents or the folder in
the TF card, it also will share the files, install apk etc.
In the main menu or desktop, click the document manager icon to
enter into documents manager.
ENGLISH
A. Copy, cut, delete, rename the files and folder: choose the file or folder,
long pressthe file or folder to enter into the interface as Picture 8.4, you can
operate the file or folder.
Picture 8.3
Picture 8.4
ENGLISH
Picture 8.5
B. Paste the copy or cut file: choose the file you want to paste, choose right
top icon to enter into Picture 8.5, choose right top icon to enter into
Picture 8.5
In the main interface or desktop, click recorder icon to enter into
record interface, click record key to start record. Click Stop key to
stop recording. Click Play key to play the recorded sound. The system
will auto remind you to use or abandon this record, please choose it
manually.
Play the record: choose the video player to play the recorded sound, choose
the recorded sound in the source manager, and click it to play.
Recorder
ENGLISH
Picture 8.6
Installation
Install the third party application procedure
1. Click “file manager” application procedure; choose the application
procedure you need to install.
2. Hold the application procedure you need to install.
3. It popup install, click install apk.
4. Finish the installation as guide, it will operate.
Note: The third party procedure searched from internet to use on the
system are all suffixed with .apk.
Installation of Procedures
ENGLISH
Uninstall
Uninstall application procedure
1. Click setting icon in main interface.
2. Click manage application procedure, list all the application procedures
insralled in the system.
3. Click the APK you want to uninstall, click uninstall.
4. Click confirm to finish uninstallation.
Skill: The procedure manager installed by system has many convinent
methods to uninstal after opening procedure manager, click uninstall, it will
list all the application procedures installed by system.
1．The first startup of MID is slow
After the MID system upgraded, the first startup need to install the pre-in-
stalled application softwares, the lead time is around 2-3 minutes, the
startup afterwards will be much quicker.
2. MID can’t connect Wi-Fi
Make sure the wireless router of internet service can work in normal.
Ensure the MID and wireless router in certain distance, and no wall or other
barrier between them.
Ensure the user name and password both correct.
3. MID feels hot
When many application procedures are used in meanwhile, or the bright-
ness of screen open to the lightest or under charging, MID may feel fever. It
is normal.
4. Email can’t be set or Registeration of application procedure.
Ensure your internet is well connected.
Make sure your email setting way is correct.
Keep your system time and local time consitent.
5. The system is abnormal and can’t work.
When you install some third party application procedure, it may cause
abnormal work, you can press Reset key(next to power port) to reset the
system.
6. The webpage can’t be opened
Please keep the distance between from route to MID in effective range.
Please restart WIFI and try again.
7. MID works terribly slow sometimes
It is normal phenomenon. Please turn off some application you don’t need
in advanced task management, or uninstall some third party application to
release more system resource.
Troubles Shooting
HYUNDAI®
All Rights Reserved
Android, Google, Google Play, Google Play Logo and other marks are trademarks of Google Inc.
The information contained herein is subject to change without notice. The only warranties for Hyundai
and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. Hyundai shall not be
liable for technical or editorial errors or omissions contained here in.
First Edition: May 2016
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible
que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o disposi-
tivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no
deseada.
Advertencia Nota para uso en Mexico
Contact Us
Contact Us
Visit us at http://www.hyundaitechnology.com/
For sales inquiry (US & Worldwide)
Email: sales@hyundaitechnology.com
For technical support, please contact HYUNDAI®
U.S. and Worldwide
Toll Free Number: 1-855-280-3895
Monday - Friday 8:00 am - 5:00 pm PST
Email: support@hyundaitechnology.com
Mexico (Spanish)
Toll Free Number: 1-800-639-5535
Monday - Friday 8:00 am - 5:00 pm PST
Email: soporte@hyundaitechnology.com
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz)
band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Do not use the device with the environment which below minimum -10 ℃ or maximum
over 50℃ .
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
