User Manual
Tablet PC
Model: Pluri B7
1
Content
Content .............................................................................................................................................. 1
1 Introduction .................................................................................................................................... 2
1.1 Acknowledgement ............................................................................................................... 2
1.2 Announcements ................................................................................................................... 3
1.3 Safety Instruction ................................................................................................................ 3
1.4 Abbreviation/Terminology .................................................................................................. 4
2 MID Introduction ........................................................................................................................... 5
2.1 MID Operation and Preparation .......................................................................................... 5
2.2 MID Status and Reminder ............................................................................................. 5
3 Quick Start Guide ........................................................................................................................... 7
3.1 Keys Function ..................................................................................................................... 7
3.2 Startup and Shutdown ......................................................................................................... 7
3.3 Open and Close of the Screen ............................................................................................. 7
3.4 Usage of Touch Screen ........................................................................................................ 8
3.5 Home Page .......................................................................................................................... 9
3.6 Visit Application Procedures ............................................................................................. 12
3.7 USB Connection ............................................................................................................... 12
3.8 Typing words ..................................................................................................................... 13
3.9 Operation Technique ......................................................................................................... 15
4 Basic Setting ................................................................................................................................ 16

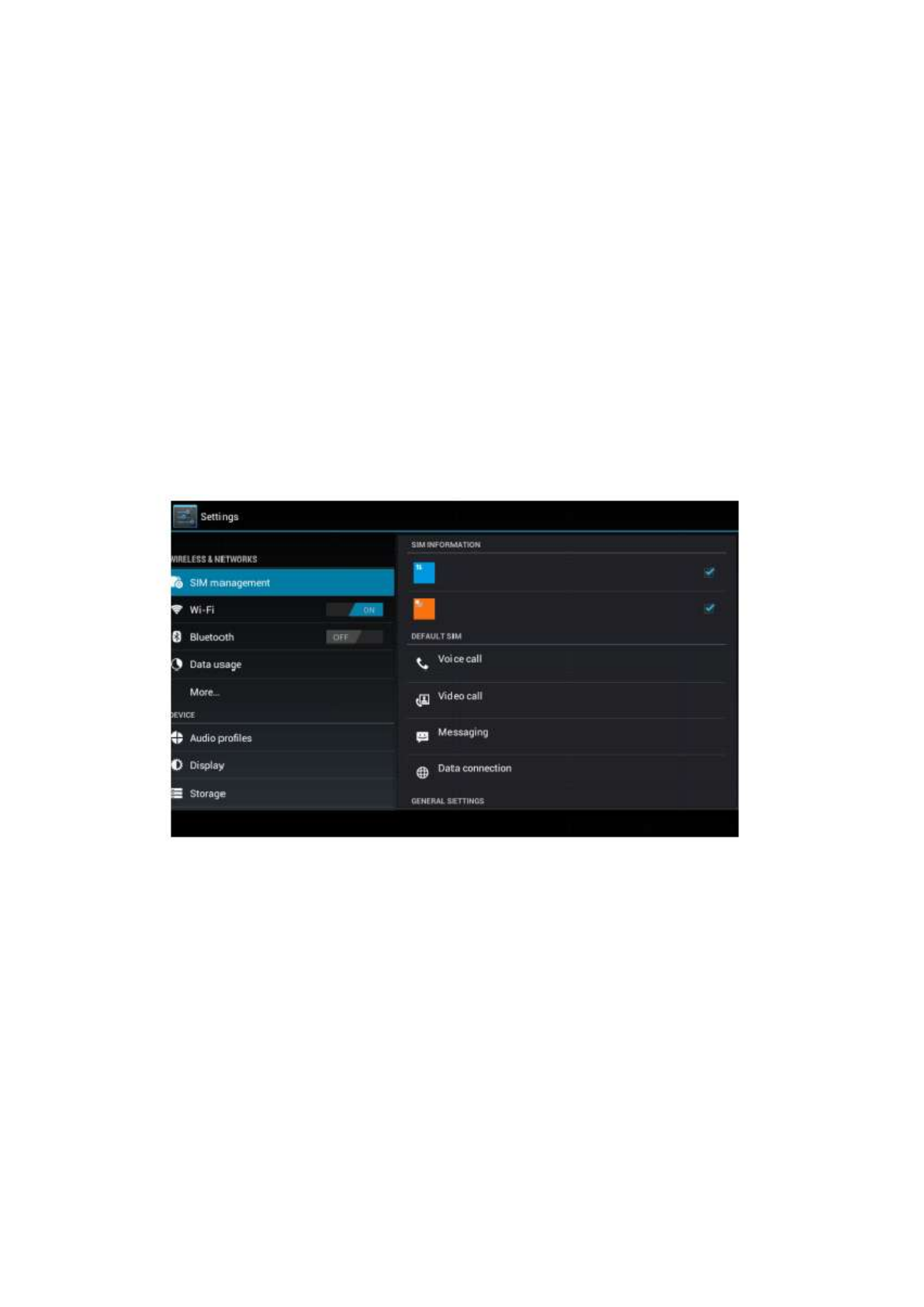

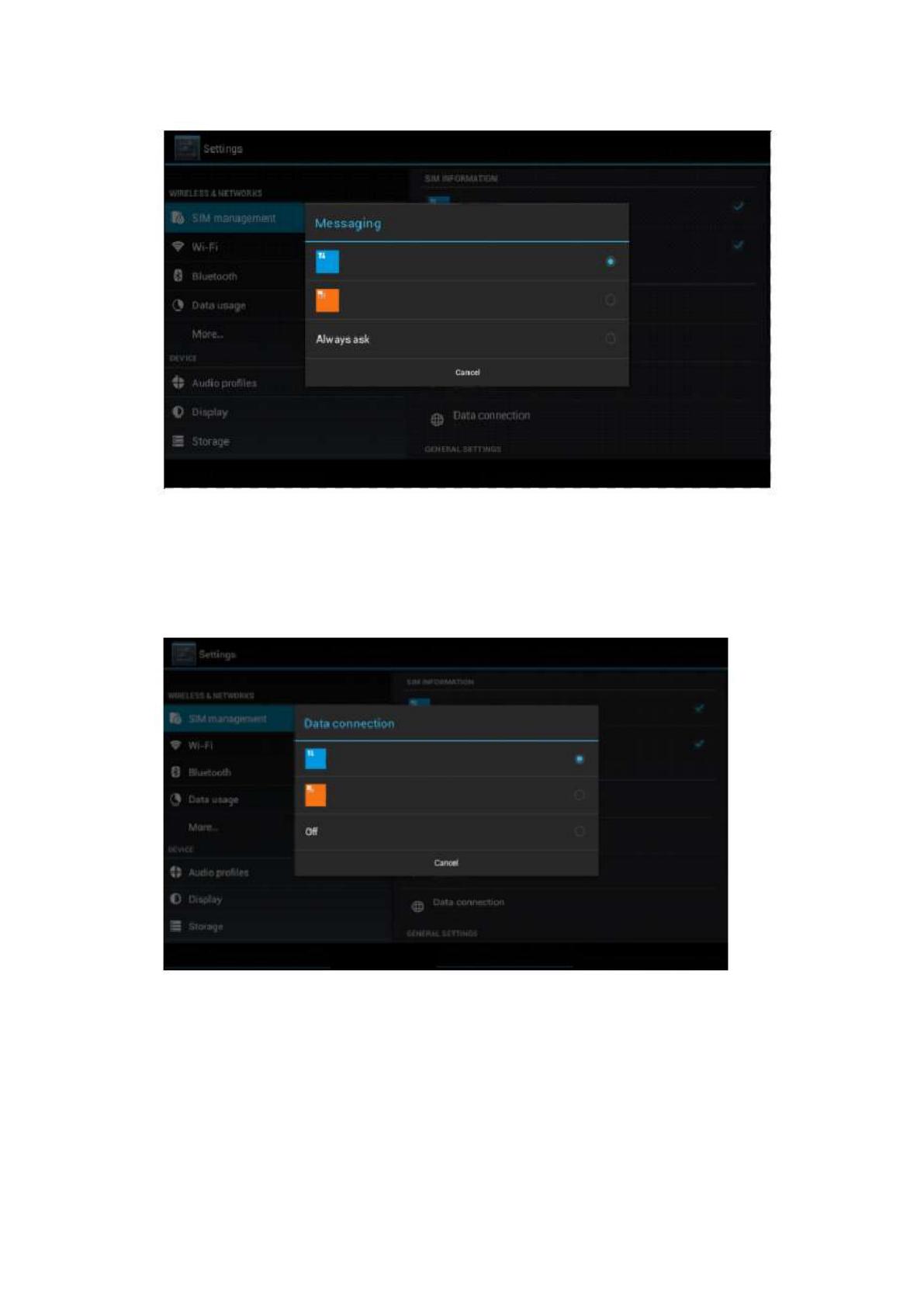

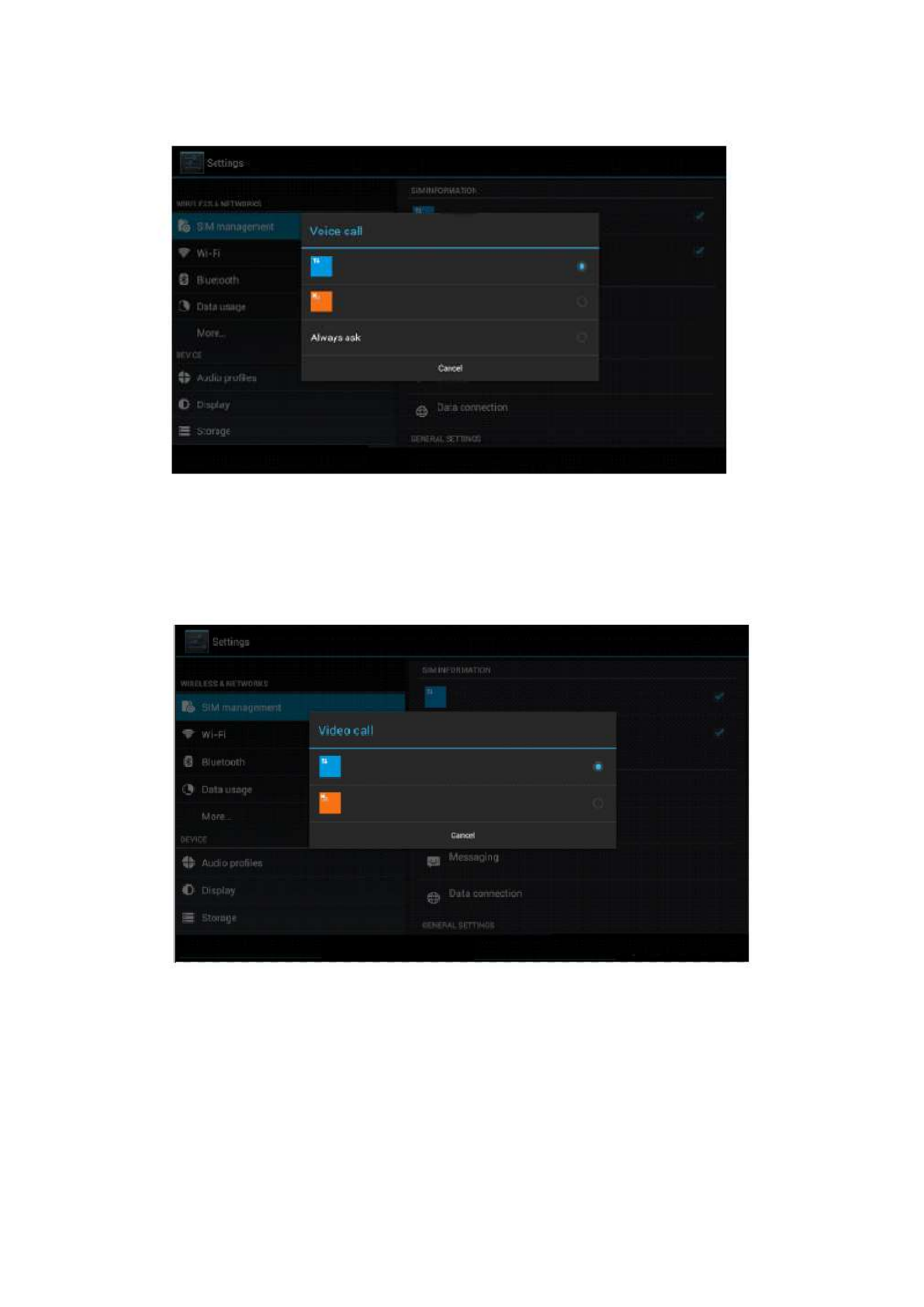

4.1 SIM Management .............................................................................................................. 16

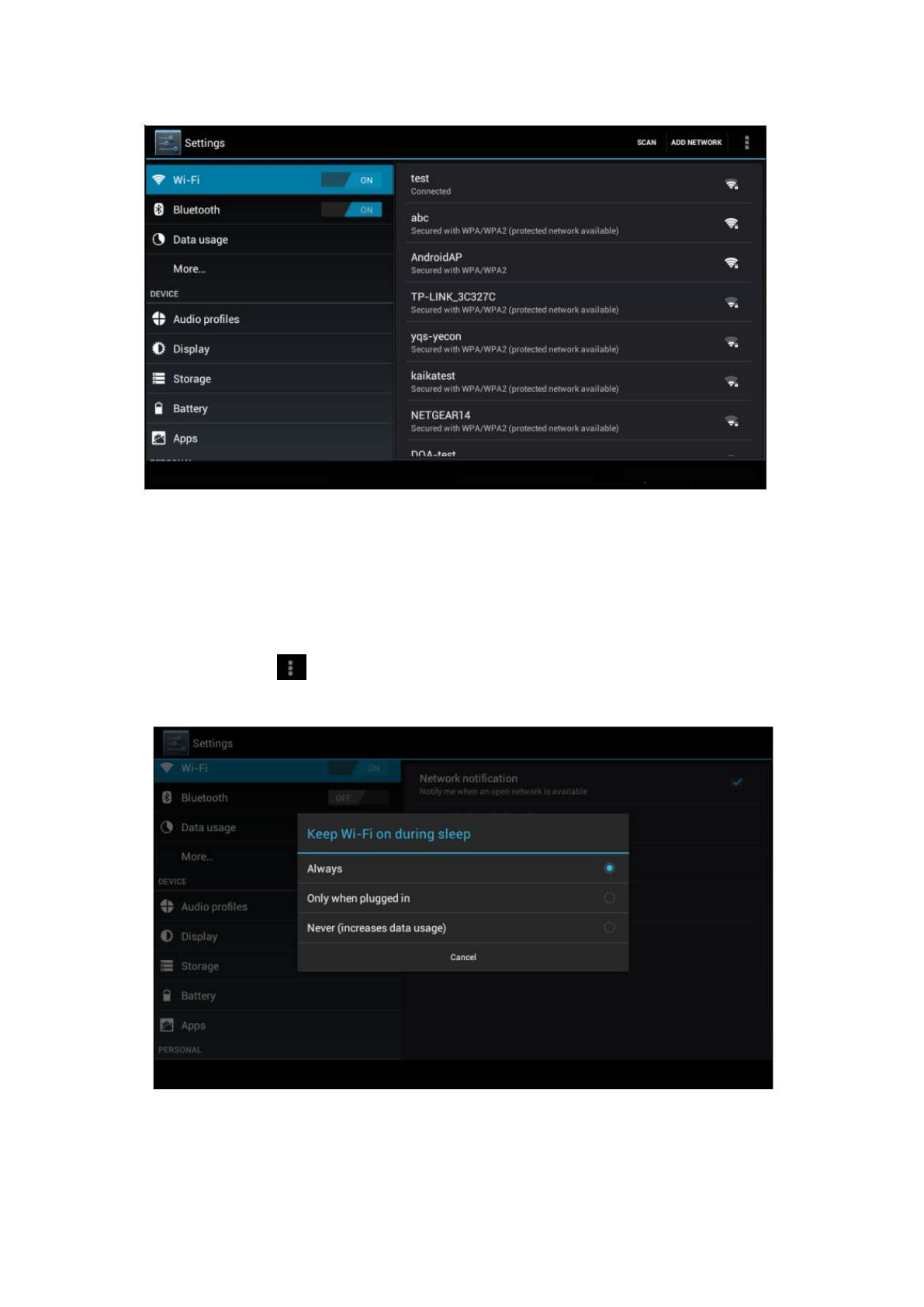

4.2 Wireless and Internet ......................................................................................................... 18

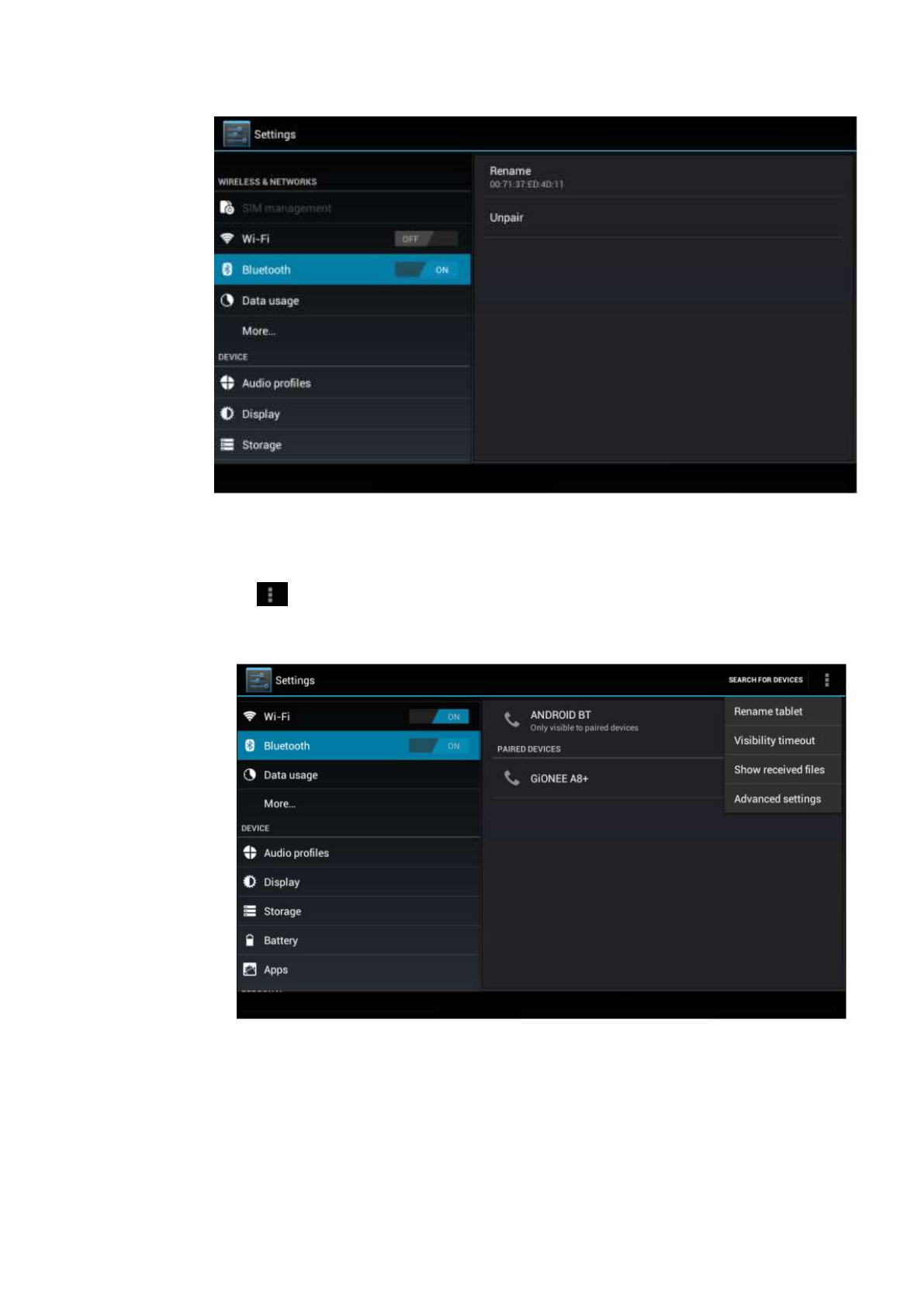

4.3 Bluetooth ..................................................................................................................... 21

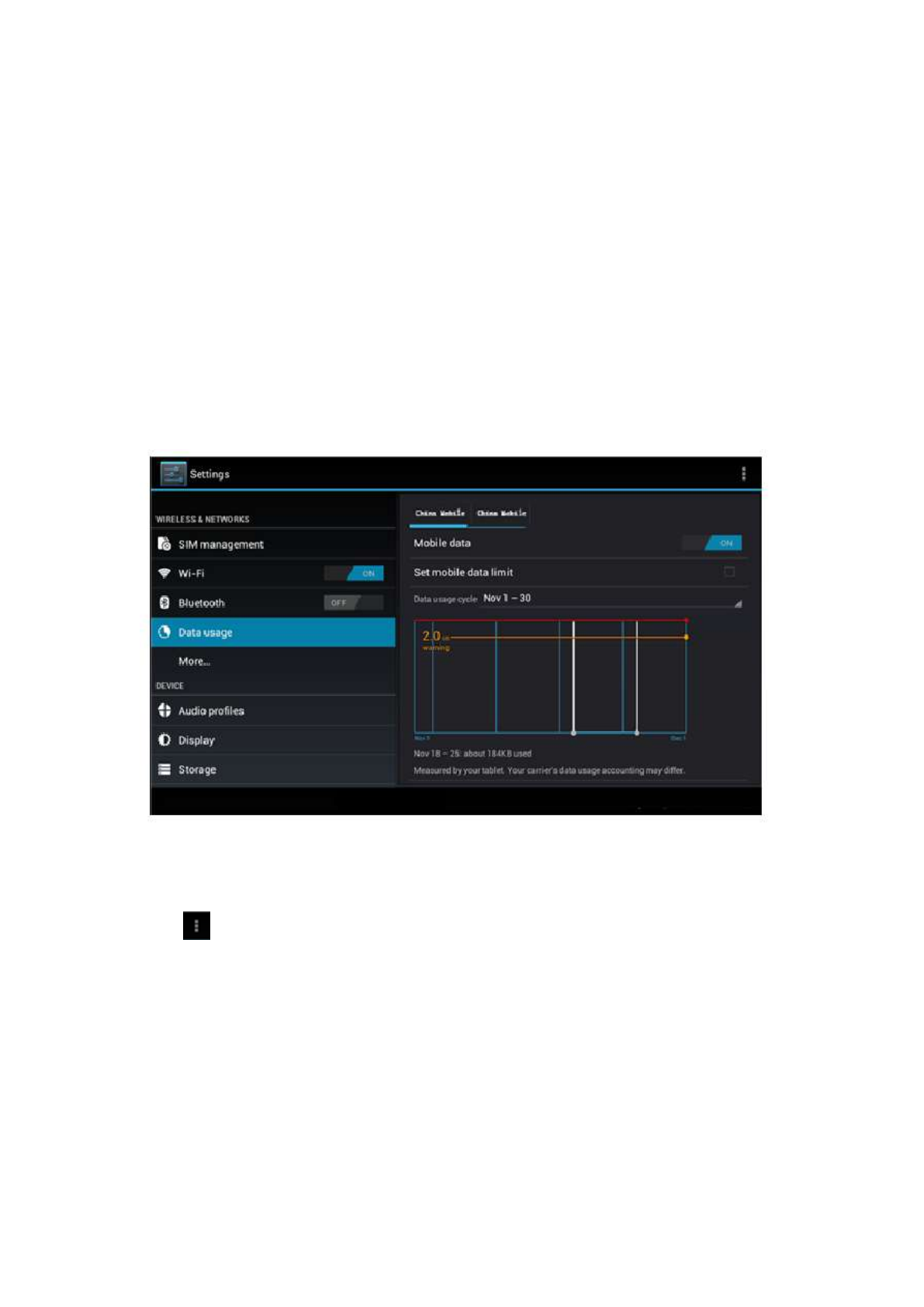

4.4 Data Usage ........................................................................................................................ 24

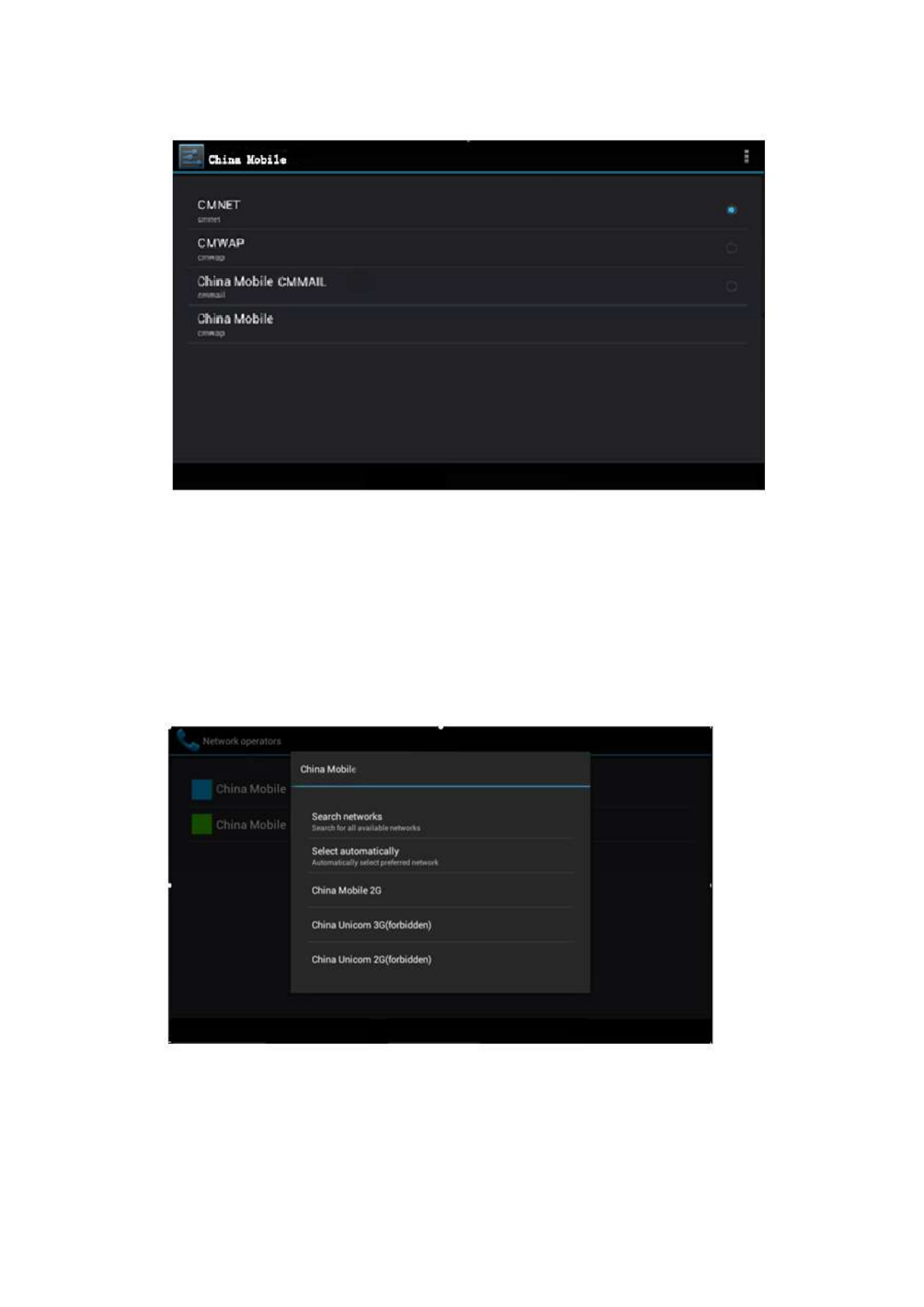

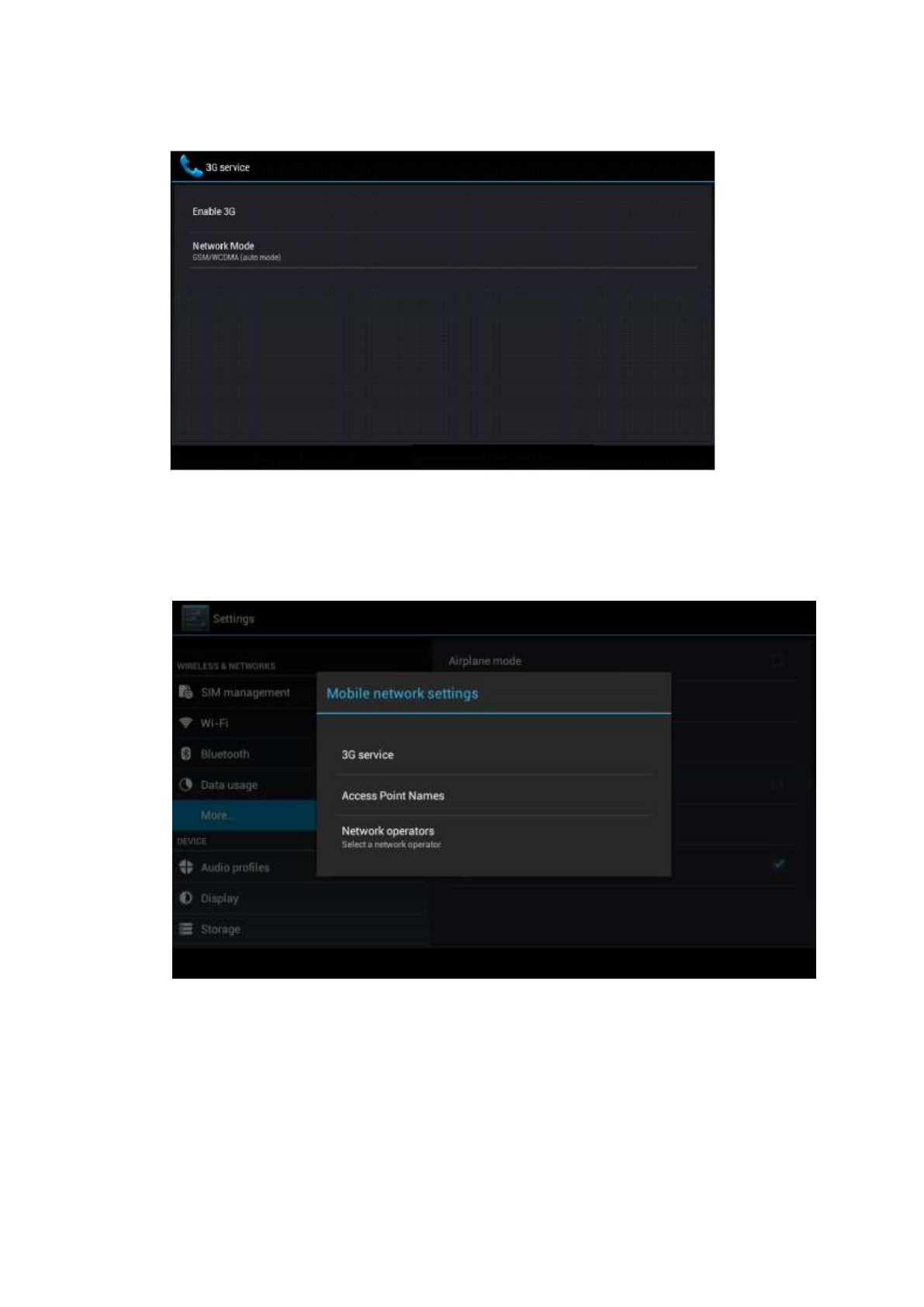

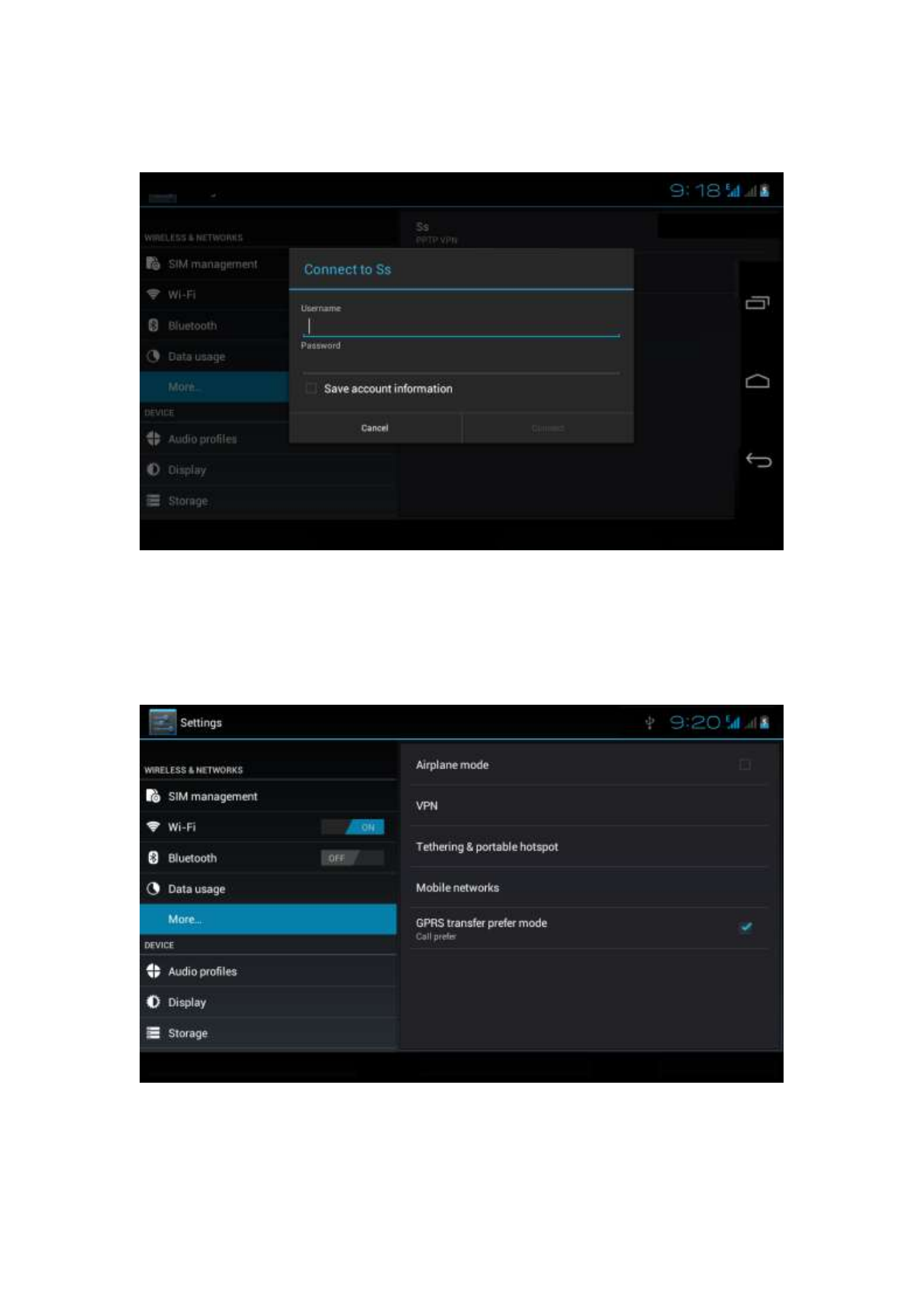

4.5 More .................................................................................................................................. 25

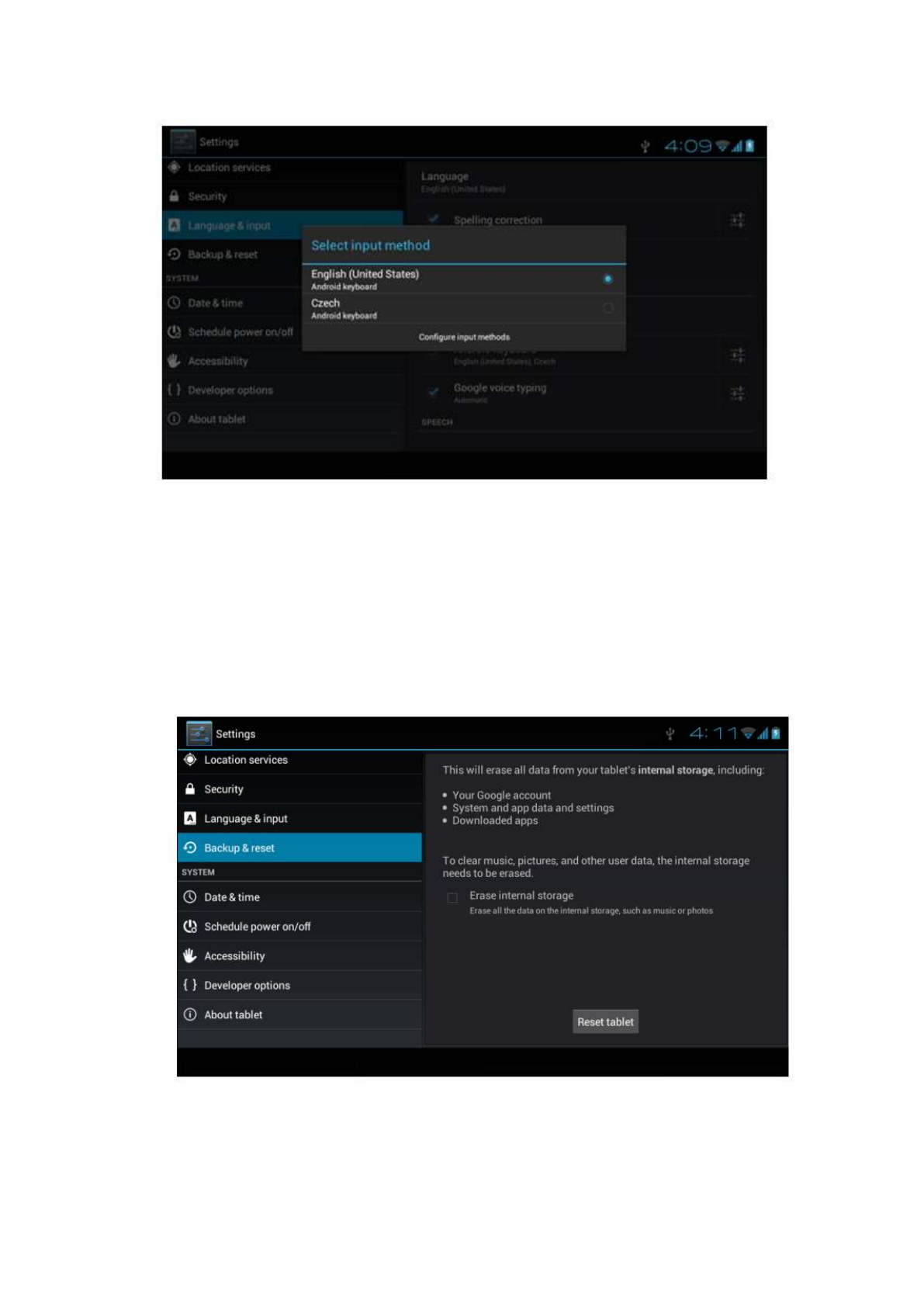

4.14 Language and Input Method ....................................................................................... 47

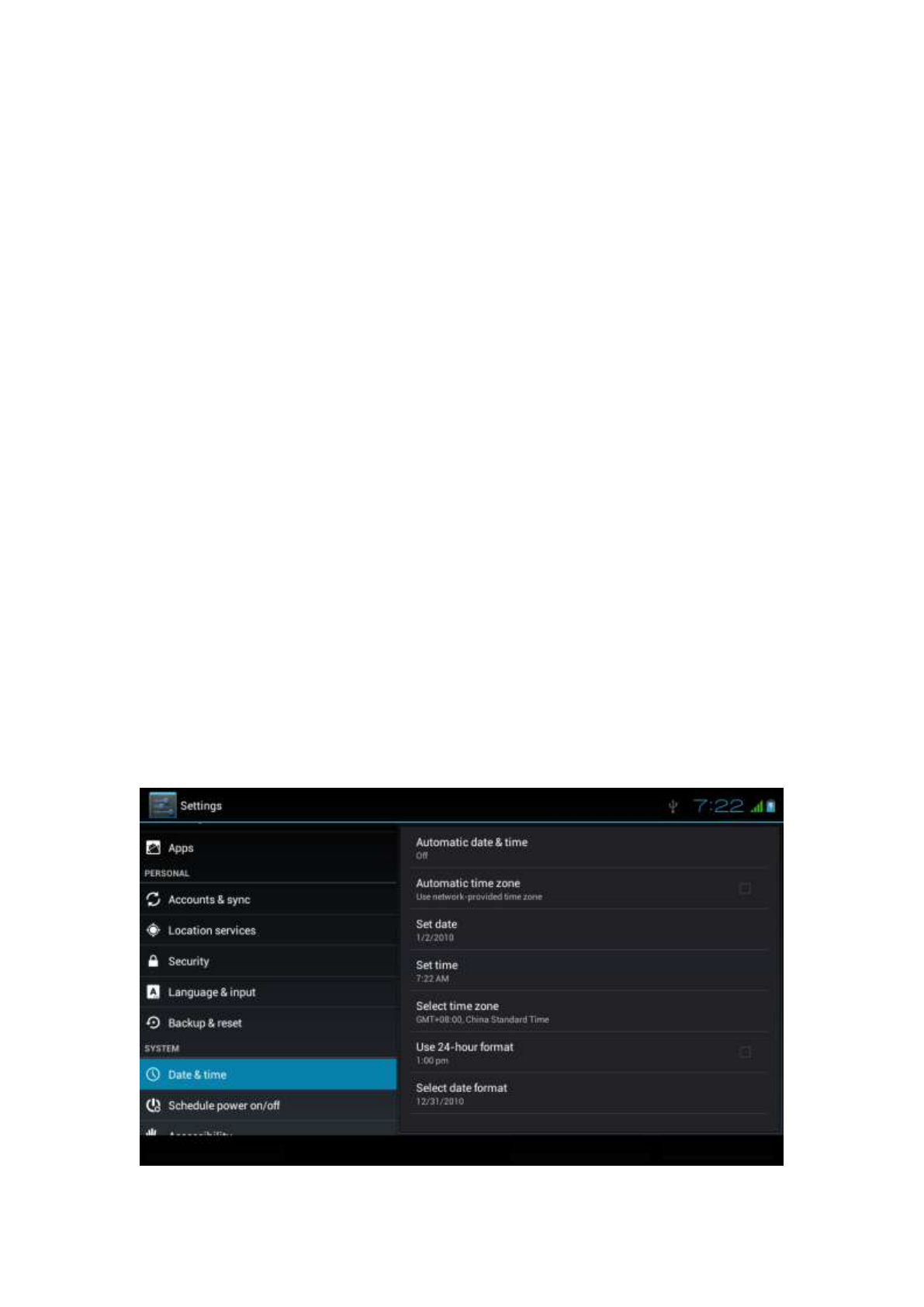

4.16 Date and Time ................................................................................................................. 50
5 Multi-Media ................................................................................................................................. 54
5.1 Music ................................................................................................................................. 54
5.2 Video ................................................................................................................................. 55
5.3 Photo Gallery .................................................................................................................... 55
5.4 Camera .............................................................................................................................. 56
5.5 FM Radio .......................................................................................................................... 57
6 Communication Function ............................................................................................................. 58
6.1 Phone ................................................................................................................................. 58
6.2 Text Message ..................................................................................................................... 59
6.3 Contact List ....................................................................................................................... 60
7 Internet ......................................................................................................................................... 61
7.1 Browser ............................................................................................................................. 61
7.2 Email ................................................................................................................................. 63
2
8 Other Application Procedures ...................................................................................................... 66
8.1 Clock ................................................................................................................................. 66
8.2 Calculator .......................................................................................................................... 66
8.3 File Manager ..................................................................................................................... 67
8.4 Recorder ............................................................................................................................ 70
9 Installation of Procedures ............................................................................................................. 71
9.1 Installation ......................................................................................................................... 71
9.2 Uninstall ............................................................................................................................ 71
10 Troubles Shooting ...................................................................................................................... 72
4
1 Introduction
1.1 Acknowledgement
Thanks for your purchase of our product. Pluri B7 is high definition tablet PC.
The product is designed with various functions, including WCDMA, WIFI, BT, GPS,FM,
voice call and so on. It is easy to achieve wireless communication and internet, you have access to
surf the internet anytime and anywhere; it is also built with high accuracy GPS module, so that it
can be used for navigating through installing map software. There are many sensors which offer
you brand-new operation and entertainment; besides, it has camera shooting, which leads
electronic consumption to enter into a fresh palm internet entertainment time.
The manual systemically introduces the functions, use techniques and announcements, please
3
read this manual carefully before your operation.
1.2 Announcements
Preventive maintainance
Please always keep the MID dry. To avoid the device short trouble, corrosion fault and
electric short, please prevent the device, battery and charger from water and moisture,
and don’t operate the device or charger by wet hand.
To avoid failure of device, battery and charger, please prevent the device, battery,
charger from violent shock or shake.
To avoid failure of device, battery and charger, please prevent the device, battery,
charger of all over heating or too cold circumstance
Never shock, throw, prod the MID, or drop, extrude, bend the MID.
Never disassemble the device and accessories arbitrarily, otherwise the device and
accessories are not in our company warranty scope.
1.3 Safety Instruction
Before the operation of the MID, please read this chapter and teach your kids about these
information. For further details, please refer to the safety instructions and announcement.
Never use the MID when driving car, in order to ensure safe driving.
In the medical area, please abide by related rules and regulations. Please shut
down the MID when it is near to the medical area.
To avoid the wireless signal to interrupt the plane- controlled signal, please shut
down the MID or using airplane mode when you are boarding a flight,
To avoid electronic equipment failure, please shut down the MID in the vicinage
of high-accuracy electronic equipments.
Please don’t disassemble the MID and accessories. Only authorized agent has
access to service the MID.
Please keep the MID far away from magnetic equipments, the radiation of MID
may erase the data stored in the magnetic equipments.
Never use the MID in the vicinage of high temperature, inflammable gas ( gas
station).
4
Protect the MID and accessories from kids reach scope, and avoid the kids to use
the MID without parents’ supervision.
Please comply with related rules and regulations, and respect others’ privacy and
legal rights while using the MID.
Please strictly adhere to related instructions in the manual when using USB cable
to ensure the safety of the MID or PC.
Never use the MID in bathroom or other humid environment, and please protect
the MID from liquid wash or wet.
1.4 Abbreviation/Terminology
Abbreviation/Terminology Full Name Description
MID Mobile Internet Device Mobile Internet Terminal
WIFI Wireless Fidelity Base on IEEE 802.11bJQstandard
wireless LAN
T F TransFlash Alternative name Micro SD,super
miniature memory card
5
2 MID Introduction
2.1 MID Operation and Preparation
Battery Charging
If this navigator is first used, please use AV adaptor to fully charge it.
1. Apply the power adptor to charge for MID.
2.2 MID Status and Reminder
Reminder icons
When some remind message appears in your reminder window, please click column and slip
the screen to open the reminder list. Choose the menu you need, and confirm the information.
Then you can close the reminder window through clicking the column to slide up. Please refer to
below status icons:
New email
Airplane Mode on
USB connected
USB debugging connected
Return button
Downloading
Display recently-used
application
Home button
Current electric
volume.
WIFI connected, internet is
available
6
Reminder board
Reminder icons will work while receiving emails, WIFI is open, you can open the reminder
board to view the detailed information.
Open the reminder board
When the reminder column shows new reminder icon, please hold the column and slip down
your finger, then the reminder board is opened.
7
3 Quick Start Guide
3.1 Keys Function
Keys Funcction Description：
Power button
Volume +（up）
Volume -（down）
HOME button （home）
Back button（back）
Menu button
Setting button
3.2 Startup and Shutdown
Startup
Long press POWER key for three seconds, you can enter into startup picture. The system
enters into screen lock status, please unlock it.
Shutdown
1． Long press POWER, it will popoup shutdown window.
2． Shutdowm window contains mute mode, airplane mode,reboot mode and shutdown
four options.
3． Click Shutdown is the last step.
3.3 Open and Close of the Screen
Screen will be closed on its own when no operation happens.
1. Screen will be closed on its own if no operation happens for some time to save battery
8
power
2. When screen is open, press POWER key, the screen will be closed immediately.
Open the screen when it is closed.
If the screen is closed, short press POWER to open the screen. The screen will be locked
open it, it will show the picture as below picture, left slide to unlock and enter into camera, right
slide the unlock icon to unlock the screen.
Picture 3.1
3.4 Usage of Touch Screen
MID operating methods
There are below methods to view the main screen, menu and application procedure in your MID.
Click
When you want to use the screen keyboard typing or choose application in the main interface, you
only need to touch it by your finger.
Press on
If you want to open some item( textbox or the link in the webpage), or shortcut and main
procedure move, you can press on this item.
Quickly slide or slide
Quickly slide or slide indicates make quick vertical or horizoncial movement by finger.
9
Pull
Before you pull, you need to hold the it with strenghth until you pull it into the position you want.
Rotate
For most pictures, you only need to retate the MID sidewise to change the screen direction from
horizoncial to vertical. For instance, when you are typing wods, and watching movies.
3.5 Home Page
Main interface as below picture 3.2, long press the blank and it will popup windows to set
wallpaper, folder, widgets, and shortcut.
Picture 3.2
The extended home page
The home page can be extended beyond the wideness of screen to provide more space,
which you can put new-added shortcuts and widgets. Click the blank space in home page
then slide right or left to extend to the right or left of the screen. In the home page, there are
two extended pictures, as Picture 3.3.
search
display
recently
browsed
history
Home
return
time
Batty volume
Notice
column
10
Picture 3.3
The shortcut icons management in desktop application.
Create folder icon in desktop
1. Drag the icons need to be put together on one icon(can also overlay several
icons)as Picture 3.4.
2. Then click the overlayed icons, the applications can be folded, as Picture 3.5.
Click the unnamed folder in the black box, it will popup the hidden keyboard, the folder name
can be renamed (this is similiar with Apple IOS system), the icons position can be changed
through long press.
11
Picture 3.4
Picture 3.5
Remove the icons in desktop
1. Long press the icons need to be remove, then on the right above of the screen, it
will appear icons.
2. Drag the icon to the above of the remove icon, till the icon become red, then move
your finger to delete the icon.
Change the wallpaper of desktop
1． In home page, long press any blank space in main screen, it will popup a window
to change the wallpaper.
2． Click the gallery or wallpaper gallery to select the wallpaper.
12
3.6 Visit Application Procedures
Click in right top of Picture 3.2, enter into main interface as Picture 3.6,
choose the application procedure you want to visit.
Picture 3.6

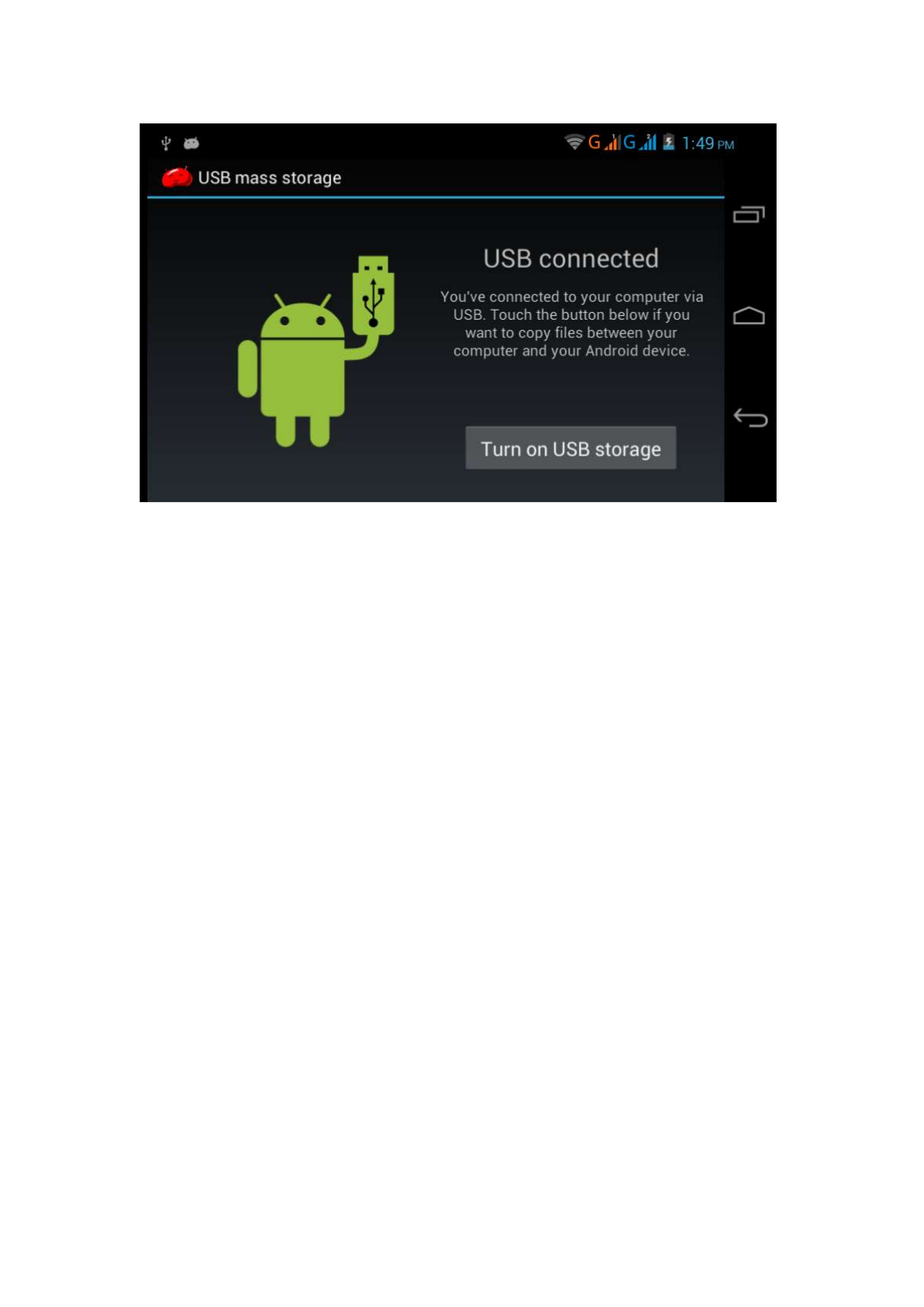

3.7 USB Connection
MID storage configuration
Before transmitting documents, you have to conduct storage configuration for your MID:
1. Connect the MID and computer by USB cable, the reminder column will show the
remind information.
2. Open the reminder board; please view the MID status and reminder to learn how to
open the board.
3. In the reminder board, click the “USB Connected”, it will as below Picture 3.4, then
click “open USB storage configuration”.
4. Now the USB is connected successfully.
Return to
home page
13
Picture 3.7
Copy the document into memory card
1. Connect the MID to computer with USB cable.
2. As MID storage configuration, it is connected with computer successfully.
3. Open the “My computer” in your computer, check the items in “removable disc”.
4. Copy the documents you need into “removable disc”.
5. After copying finishes, click “shutdown the USB storage configuration” to uninstall.
Notice: When the MID is connected with USB cable, and you open the USB storage
configuration, you can’t view the memory card through the MID. Only after you detach the
USB cable, you can view the memory card in the MID.
3.8 Typing words
Use the screen keyboard
When you start the procedure or choose the words or numbers edition, it will show the screen
keyboard. The keyboard contains below typing options:
1. Android keyboard
2. Google Pinyin
Choose the typing method you want
1. Click Setting pocedure application.
14
2. Click Language and Keyboard.
3. In the text setting area will reveal all the installed words-typing methods in your MID.
4. Tick the typing method you want.
Use and switch of input method
Picture 3.8
1
switch the capital and small letter
2
switch the mode of words input
3
click to insert the space
4
click input to execute
5
delete the character in the left of cursor, click and hold to delete all the
characters in the left og the cursor.
①
②
③
3
⑤
④
15
3.9 Operation Technique
Enter widgets interface
In the application interface,click widgets on the above of screen, or slide the screen, it
will swtich into widgets interface. Long press any widget to create its shortcut, then
you can enter into the application through the shortcut icon.
Create application shortcut icons in the desktop
In the application interface or widgets interface, long press any icon to switch into
desktop automatically, drag and hold the icon, you can move to any position in the
desktop.
Remind: If the target position has no space, the widget won’t be add in the main
screen.
16
4 Basic Setting
4.1 SIM Management
4.1-1 Voice call
Click settings in main menu, choose SIM Management, as Picture 4.1
Picture 4.1
Click voice call, choose defaulted SIM card, as Picture 4.2
17
Picture 4.2
4.1-2 Video Call
Click settings in main menu, choose SIM Management, and click video call, choose defaulted
SIM card when makes video call, as Picture 4.3
Picture 4.3
4.1-3 Message
Click settings in main menu, choose SIM Management, click message, choose the defaulted SIM
card when sends message, as Picture 4.4
18
Picture 4.4
4.1-4 Data Connection
Click setting application in main menu, choose SIM management, click data connection, choose
the defaulted SIM card, as Picture 4.5
Picture 4.5
4.2 Wireless and Internet
1. Connect Wi-Fi
1) In the main menu or interface, choose setting application procedure.
19
2) Click WLAN, open wifi, MID will automatically search the available Wifi
wireless internet. As Picture 4.6
3) Choose the Wi-Fi internet you want to connect, if it has password, it will popup the
password window, enter password, click connect.
Picture 4.6
2. Add Network
1) Click icon in right top, as Picture 4.7
Picture 4.7
2) Input network SSID, the wireless network name, click save.
3) Click user name already saved, click connect to use network, as Picture 4.8
20
Picture 4.8
3. Network Notice
If you open Network Notice, when WIFI signal appears, the right bottom will
remind you available WLAN network, as Picture 4.6
4. Keep WI-FI on during sleep..
1. Click icon in right top of Picture 4.8, select advanced.
2. Click Keep WI-FI on during sleep, as Picture 4.9
Picture 4.9
21
4.3 Bluetooth
Bluetooth function operation
1. Click setting application in main menu interface
2. Click bluetooth and open it.
3. If somebody open bluetooth in your surroudings, click search device in right above,
then MID will automatically search the bluetooth device nearby. As picture 4.10
Picture 4.10
4. Click the available Bluetooth device, it will popup request window, enter into related
password, and match the device to connect.
5. After match successfully, choose the operation you want to, click to enter into
Picture 4.11.
22
Picture 4.11
Bluetooth setting
1. Rename tablet
Click icon in right top of Picture 4.10, as Picture 4.12, select rename tablet, you
can rename it as you want
Picture 4.12
2. Check visibility timeout
Select visibility timeout setting in Picture 4.12, choose the time you want to
set, as Picture 4.13(Note: check overtime setting is the time setting when
Bluetooth is checked)
23
Picture 4.13
3 Display the file you received
Choose display the file you received in Picture 4.12, you can view download
and upload files.
4. Bluetooth advanced setting
Choose Bluetooth advanced setting in Picture 4.12, enter into Picture 4.14
Picture 4.14
1. File transmission,
24
Open file transmission service, Connect Bluetooth FTP and customer device to visit and operate
the file.
2. Bluetooth distance induction device
Open Bluetooth distance induction device, when two Bluetooth devices distance is quite
far or connection is cut off, the Bluetooth will remind you with sound.
4.4 Data Usage
Check SIM card data usage, as Picture 4.15
Picture 4.15
Check WIFI data usage
Click icon in right top of Picture 4.15, click Data Usage, as Picture 4.16
25
Picture 4.16
4.5 More
4.5-1 Airplane Mode
Airplane Mode can turn off WIFI and GSM card function quickly, when airplane mode is
turned on, WIFI and GSM can’t get any signal, then airplane mode is turned off, WIFI and GSM
module will recover to previous state.
4.5-2 VPN
Open VPN, click add VPN network, as Picture 4.17. Input name and server address, then save.
Picture 4.17
26
Click VPN, as Picture 4.18, input VPN user name and password, click connect.
Picture 4.18
4.5-3 Network sharing and portable hotspots
Portable WI-FI hotspots
1. Click setting application in main menu.
2. Click more when wifi is well connected, open network share and portable hotspot
Picture 4.19
27
Picture 4.20
3. Click keep WI-FI hotspots on, choose open time.
4. Return to previous menu, open portable WLAN hotspots, click configure WI-FI
hotspots.
Picture 4.21
5. Set passwords you want to, password should be more than 8 numbers.
4.5-4 Mobile Networks
1. 3G service
Click 3G service, as Picture 4.22, choose available defaulted SIM card, GSM is 2G network,
WCDMA is 3G network.
28
Picture 4.22
2. Access Point Name( APN)
Click mobile network, as Picture 4.23
Picture 4.23
Choose access points name (APN), choose SIM card you need to connect,
Choose connect type, as Picture 4.24
29
Picture 4.24
Remark: (CMWAP transmitters data through GPRS, the webpage it visit belongs to wap webpage,
and CMNET support www browse mobile phone network, it can also log in webpage in computer.
And the charges are also different.)
3. Network Operator
Click network operator, choose SIM card you need to connect, system will search available GSM
and WCDMA network, as Picture 4.25
Picture 4.25
4.5-5 GPRS data prior mode
After Open GPRS data prior mode, systems will priority chooses your network.
30
4.6 Contextual Model
1. Open settings, click contextual model, as Picture 4.26,
Picture 4.26
2. Click standard to enter into Picture 4.27
Picture 4.27
1. Vibrate
In picture 4.27, click vibrate, MID will vibrate when someone calls you.
2. Volume
31
In picture 4.27, click volume, you can set ringtone, notice, and alarm volume, as Picture 4.28
Picture 4.28
3. Voice call Ringtone
In picture 4.27, click voice call ringtone to choose voice call ringtone, as Picture
4.29
Picture 4.29
4. Video call ringtone
In Picture 4.27, click video call ringtone to choose video call ringtone, as Picture 4.30
32
Picture 4.30
(Note: Except standard, silent, meet, outdoor are only for selection, they can’t be set.)
4.7 Display
4.7-1 Adjust the screen brightness
1 . Click Setting application procedure.
2. Click display, choose brightness,
3. Drag the portlito to adjust the brightness volume.As Picture 4.31
Picture 4.31
33
4. Click OK after brightness is adjusted.
4.7-2 Wallpapers
1. Click setting application.
2. Click display, click wallpaper.
3. You can choose different wallpapers as you like—live wallpapers---gallery(user
defined)---wallpapers (system defect)---video wallpaper, as Picture 4.32
Picture 4.32
4.7-3 Auto rotation
System is defaulted as open auto rotation, when it is turned off, system won’t rotate MID
screen by G-sensor.
4.7-4 Sleep
1. Click setting appliation.
2. Click display.
3. Click sleep.
4. Set the sleep time as you want, as Picture 4.33
34
Picture 4.33
4.7-5 Font size
Click font size to adjust the font size, as Picture 4.34
Picture 4.34
4.7-6 HDMI setting
1. Use HDMI connector, in the right bottom of MID, it will remind HDMI connector is
connected.
2. Click HDMI setting, as Picture 4.35
35
Picture 4.35
(1) Audio
Open audio to realize HDMI audio output.
(2) Never
Click never, MID will never sleep.
(3) Video Resolution
Click video resolution to adjust reslution, as Picture 4.36
Picture 4.36
36
(4) OSD postion setting
Click OSD position setting, MID will adjust OSD position setting, as Picture 4.37
Picture 4.37
4.8 Storage
Open setting function, click memory, click preferred install location, you can
choose isntall new application to choose preferred install location.
Check SD card and MID storage space.
1. Enter into setting application.
2. Click storage, check storage space.
1. Internal storage
(1) System storage
System storage is the spcae MID leave for system file, as
Picture 4.38. it can’t be viewed.
37
Picture 4.38
(2)Internal storage
Internal storage is MID local NAND storage, as Picture 4.39, if you need to check the storage
content, you can check it in main menu.
Picture 4.39
2. SD card
You can check storage space, SD card available space, unmount SD card and erease
SD card, as Picture 4.40
38
Picture 4.40
Safely remove SD card
1. Click setting application.
2. Click memory.
3. Click uninstall SD card.
4. Now you can remove SD card safely.
Note: Removing SD card safely can protect SD card and increase its lifetime.
4.9 Battery
Click setting function, select battery, you can view the battery situation, as Picture 4.41
39
Picture 4.41
4.10 Application program
1. Click setting application in Apps.
2. Select application, after enter, you can manage and delete installed application and
check system used storage space and left space. (As Picture 4.42)
Picture 4.42
3. View internal storage used space and left space, as Picture 4.43
40
Picture 4.43
4. View the working device, used space and available space, as Picture 4.44
Picture 4.44
4.11 Account and Sync
1. Select setting application
2. Open account and sync, as Picture 4.45
41
Picture 4.45
3. Click add an account, as Picture 4.46
Picture 4.46
4. After successfully load, it will open the sync function, as Picture 4.47
42
Picture 4.47
4.12 Location service
Click setting, select location service, as Picture 4.48
Picture 4.48
1. Google’s location service
Open Google location service, you can use WIFI to positioning MID.
2. GPS satellites
43
Open GPS satellite, you can use GPS to positioning MID.
3. GPS Assistance
Open GPS Assistance, it can insrease the speed of GPS positioning, but you need to
insert SIM card and use data transimission.
4. EPO setting
Click EPO setting, enter into Picture 4.46, then check if EPO positioning information
and EPO has turned on auto download.
Picture 4.49
5. A-GPS
After opening A-GPS, you can inscease positioning speed through network.
6. A-GPS settings
Click A-GPS setting, enter into Picture 4.50
44
Picture 4.50
1. Disable after reboot
Click disable after reboot, when you reboot your MID, A-GPS will auto turn off.
2. Network Request
Click network request, MID can get your location through network.
3. Network used
Open network used, you can choose network type, as Picture 4.51
Picture 4.51
45
4. Server
Click server, it can switch location service, as Picture 4.52
Picture 4.52
5. Location and Google search
Open location and allow google search, you can use your location information to
improve search result and other services.
4.13 Safety setting
Set locked screen
Lock the touch screen by unlock icon or password to protect your MID.
Note: After setting screen locked, you should enter the passcode each time when you
startup or screen is locked
Set unlocked picture
1. Click setting application in main interface.
2. Click safe.
3. Click locked the screen.
4. Choose picture in text setting area.
5. Click next following the remind message.
6. The unlocked pattern board pop up, there are nine touch spots, connect 4
points from vertical, horizontal or diagonal direction. As Picture 4.10, move
46
your finger from the screen when finish. The system will record yous new
unlock pattern.
7. Click continue.
8. When you see the reminder, enter the unlock pattern, then click confirm.
Picture 4.53
Set unlock PIN code
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Choose PIN in text setting area.
5. Enter new PIN code(numbers) and click continue.
6. Ener new PIN code again and click confirm.
Set unlock password
1. Click setting application in main interface.
2. Click safe.
3. Click screen locked.
4. Set password in text seting area.
5. Set new password(letters and numbers) and then click continue.
6. Enter the password again and the click confirm.
Unknown source
1. In main interface, click setting.
2. Click safety.
47
3. Click unknown source,as Picture 4.54
Picture 4.54
Note: Manual installing APK files needs to turn on unknown source.
4.14 Language and Input Method
Click setting, select language and input method, choose language to switch language, as
Picture 4.55
Click setting, choose language and input, choose Android keyboard setting, click input
language, as Picture 4.56
48
Picture 4.56
Choose the language you want to change in the language list, as Picture 4.57
Picture 4.57
Return to langauge and input method, click default, as Picture 4.58, select input method you
want to use
49
Picture 4.58
4.15 Backup and Reset
Connect WIFI and login your google account, choose backup my data, system will backup
your data into google server.
If you need to recovery factory reset, please click reset, as Picture 4.59, if you need to
formulate NAND, please click reset tablet.
Picture 4.59
50
4.16 Date and Time
According to the preset, system will voluntorily apply the date, zone, and time provided by
internet.
Manual set date, time and zone
1． Click Setting application procedure.
2． Slide down the screen, then click date and time.
3． Turn off “auto setting of date and time”.
4． Turn off “auto setting zone’.
5． Click Zone Selecting, then choose the zone lists. Slide down the list to view more
zones.
6． Click Date setting, then click upper or down buton to adjust date, month, and year,
click setting when you finish selection.
7． Click Time setting, then click upper or down button to adjust hour and minute, click
AM or PM to change morning or afternoon ( there is no such selection when you se
24-hour format). Click Setting to finish.
8． Click 24-hour format, switch between 12-hour or 24-hour formay, the time format you
choose will be used on the alarm clock.
9． Click date format setting, then choose the time format you want to show on MID.
51
Picture 4.60
Note: If you use the time internet provided, you will not able to set the date, time and time zone.
4.17 Fixed-time Startup and Shutdown
1. Click Setting application procedure
2. Click fixed-tine startup and shutdown.
3. Operate as below Picture 4.61
Picture 4.61
4.18 Assisstance Function
4.18-1. Large size
Click it to make system font large size
4.18-2. Click power button to end calls
When Click call, press “power” button, call will end but not hold.
4.18-3. Touch and hold delay
Click touch and hold delay to increae time, as Picture 4.62
Click it into
fixed-time
startup
setting
Click it into
fixed-time
shutdown
setting
Turn on/off
fixed-time
startup
Turn
on/off
fixed-time
shutdown
52
Picture 4.62
4.18-4 Install webpage script
It will allow you install webpage scrip when you open system,, but it will increase the risk
when you are browsing webpage.
4.19 Engineer Selection
4.19-1 USB adjustment
After opening USB adjustment, you can use some software to read MID software, but when
USB adjustment is turned on, USB storage needs to manual adjust.
4.19-2 Keep awaken state
If you open keep awaken state, it wll never auto sleep when your MID is charging.
4.19-3 Pointer Location
If you open pointer location, it will display touch vertical and horizontal direction.
4.19-4 Show touches
If you open display touch screen operation, it will display touch opeation on the screen. It is
suggested to use with same direction as pointer location.
4.19-5 Show screen update
If you open screen refresh, it will display related area when the area is refreshing.
4.19-6 Show CPU usage
After open CUP usage, in the right top of MID will show CPU usage situation.as Picture 4.63
53
Picture 4.63
4.20 About Tablet
Check MID state
1. Check Setting application.
2. Click about tablet, check state message, model, Android version, version
No and so on.
3. Click state message, check battery state, battery volumne, SIM state,
IMEI number, IP address.
54
5 Multi-Media
5.1 Music
Enter into music player: in menu or desktop click music icon to enter into music player,
click the music you want to play, as Picture 5.1:
Picture 5.1
Album
Pause/play
Next song
Previous song
Artist
Album
Song name
Random play
55
Picture 5.2
Drag the progress bar to adjust play progress.
Operation of music player button as Picture 5.2
5.2 Video
Enter video player: choose application in main menu, choose the video you want
to play.
Operation of video player button as Picture 5.3
Picture 5.3
5.3 Photo Gallery
Photo gallery application can auto search photos and video files in SD card, and photo
gallery will classify these photos and videos in folder. You can apply photo gallery to
view and edit photos, set the photos as wallpaper and watch the video.
View pictures
1. Click gallery application in main interface.
2. Enter into gallery, click the folder you want to view.
3. Click the picture you want to view, the system will play it in full screen mode
automatically.
4. The pictures can be zoom in and zoom out, put two fingers on the screen, the
Choose
the
screen
mode
Adjust
play
progress
Play/pause
56
separete the fingers(gather up the fingers, the picture will be zoom in) or
double click the screen.
Note: when you browse the pictures, slide left or right to view more pictures.
Edit and set pictures
When check the pictures in full screen mode, click menu key to display menu
selection, you can choose the selection you need to edit and setting pictures.
Slide Show
1. Open a picture, use virtual key to click menu key, display menu selection.
2. Click slide show, it will auto loop play(or choose button in
picture folder)
Crop
1. Click menu key to display menu selection.
2. Then click crop, click and drag related area to adjust the cropper.
3. Click cropper and drag it inside and outside to adjust the image.
4. After adjust the size you want, click crop.
5. If you wish to give up to crop, click cancel to return to picture browse.
Edit
1. Click menu key, display the menu selection.
2. Click edit.
3. Adjust teh brightness, style, color, antialias setting in selection.
4. Click save.
5. If you want to give up edit, click return key, click not to return to picture
browse.
5.4 Camera
In the main interface or desktop, click camera application procedure , enter into camera
Operation of camera ,Switch camera: choose Menu key, click switch front/back
camera, as Picture 5.4
57
Picture 5.4
5.5 FM Radio
Click in the main interface or desktop to enter into FM radio interface:
Radio button operation instruction as Picture 5.5:
Picture 5.5
Click search to search FM band, as Picture 5.6
Enter into
channel list
Save
button
Previous
channel
Next channel
Current
frequency
View the
pictures and
videos
Switch front/back
camera
Sub menu
camera shooting
mode
Camera mode
58
Picture 5.6
Save channels: Click button in the main interface to save the
channel, and the channel will be saved in channels list.
Note: You need to insert earphone as antenna when using FM radio, If no
antenna, your MID can’t search any frequency band.
6 Communication Function
6.1 Phone
1 Click Phone application procedure
2 Operate as Picture 6.1
59
Picture 6.1
6.2 Text Message
1 Enter into main menu, choose application procedure.
2 Click “Edit new message”
Display
phone
numbers
Dial phone
numbers
The area of
dial phone
numbers
Call history
contact
录
Hide keypad
Function
key
60
Picture 6.2
6.3 Contact List
Click Contact list in the main interface, en
ter into the contact list as Picture 6.3
Directly input
phone number
Add receiver
Send
message
Attach
some files
Menu(discard,insert
text and settings)
61
Picture 6.3
Search contact: click button, enter into search function
Add contact: click button, enter into add contact interface.
7 Internet
7.1 Browser
In case of Wi-Fi or mobile internet is connected well (Please refer to Chapter 4.1 for wireless and
internet setting), click IE browser in the main menu or desktop to enter the IE interface, as
Picture 7.1
62
Picture 7.1
Click address bar to input the website, click start, enter into related webpage, then you can browse
the website information, as Picture 7.1.2 and you can click the menu you can refresh ,save to
Address
column
menu
Save bookmark
63
bookmarks,,share page,bookmarks,,history and setting the webpage.
Picture7.1.2
7.2 Email
Email application procedure contains email setting guide, you can add the external POP3 OR
IMAP email account of normal web email service provider (For instance, Yahoo, Gmail, Hotmail
and 163),as Picture 7.2
Picture 7.2
a. Email Setting
1． After you click the sending email icon , you can see the email setting guide,
64
which can help you to set.
2． Input your email address and password.
3． Click “Next step” button, choose your email type is POP3 or IMAP.
4． Click “Next Step” button to check whether the email box servicer can receive or
send emails
5． Input the email account and display the email subiject, and click finish.
6． If the email box is available, you will enter into your mail box automatically.
b. Delete the email account
You can delete setted POP3 or IMAP email account from your MID.
Click 。
1. Enter into your mail box.
2. Press Menu key.
3. Click Account
4. Press the account you want to delete.
5. Click confirm to remove.
c. Send E-mail
1． Click to display your mail box.
2． Click the inbox, it will refresh the new emails automatically; click it to read new
email.
3． Press Menu key. Menus will popup.
4． Click Edit to enter into new email editing interface.
5． Input the receiver’s email address.
6． Input the subject and email content.
7． If you want to add attachment, click menu key, the menu popup.
8． Click “Attach file” (photo,music, video,contacts).
9． Click “send” to send the email out.
65
Picture 7.3
Click it and
Add
attachment
66
8 Other Application Procedures
8.1 Clock
Click Clock procedure, enter into below interface as Picture 9.1.
There are clock, picture, music and homepage buttons.
Picture 9.1
8.2 Calculator
1. Click .
2. Enter into the basic board of calculator.
3. Soft touch the numbers or operator in calulator to calculate.
Set alarm
67
Pictuer 9.2
8.3 File Manager
File manager will copy, cut, delete, rename the documents or the folder in the TF card, it also will
share the files, install apk etc.
In the main menu or desktop, click the document manager icon to enter into documents
manager.
Picture 9.3
a、Copy, cut, delete, rename the files and folder: choose the file or folder, long pressthe file or
RAM
External
SD card
68
folder to enter into the interface as Picture 9.4, you can operate the file or folder.
Picture 9.4
b、Paste the copy or cut file: choose the file you want to paste, choose right top icon to
enter into Picture 9.5, choose right top icon to enter into Picture 9.6
Picture 9.5
69
Picture 9.6
C. Share file:choose any file, long press it, it will popup “share”, choose the share way you want
in the list
Picture 9.7
d、Install apk file：Choose the file suffixed .apk in the file manager, you can install the third part
software as reminder.
70
e、Build new folder: Choose the menu you want to build the file, click icon in right top,
choose new folder, you can build new folder as reminder.
8.4 Recorder
In the main interface or desktop, click recorder icon to enter into record interface, click
record key to start record. Click Stop key to stop recording. Click Play key
to play the recorded sound. The system will auto remind you to use or abandon this record, please
choose it manually.
Play the record: choose the video player to play the recorded sound, choose the recorded sound in
the source manager, and click it to play.
Picture 9.8
71
9 Installation of Procedures
9.1 Installation
Install the third party application procedure
1. Click “file manager” application procedure; choose the application procedure
you need to install.
2. Hold the application procedure you need to install.
3. It popup install, click install apk.
4. Finish the installation as guide, it will operate.
Note: The third party procedure searched from internet to use on the system are all suffixed
with .apk.
9.2 Uninstall
Uninstall application procedure
1. Click setting icon in main interface.
2. Click manage application procedure, list all the application procedures
insralled in the system.
3. Click the APK you want to uninstall, click uninstall.
4. Click confirm to finish uninstallation.
Skill: The procedure manager installed by system has many convinent methods to uninstal
after opening procedure manager, click uninstall, it will list all the application procedures
installed by system.
72
10 Troubles Shooting
1. The first startup of MID is slow
After the MID system upgraded, the first startup need to install the pre-installed
application softwares, the lead time is around 2-3 minutes, the startup afterwards
will be much quicker.
2. MID can’t connect Wi-Fi
Make sure the wireless router of internet service can work in normal.
Ensure the MID and wireless router in certain distance, and no wall or other
barrier between them.
Ensure the user name and password both correct.
3. MID feels hot
When many application procedures are used in meanwhile, or the brightness of
screen open to the lightest or under charging, MID may feel fever. It is normal.
4. Email can’t be set or Registeration of application procedure.
Ensure your internet is well connected.
Make sure your email setting way is correct.
Keep your system time and local time consitent.
5. The system is abnormal and can’t work.
When you install some third party application procedure, it may cause abnormal
work, you can press Reset key(next to power port) to reset the system.
6. The webpage can’t be opened
Please keep the distance between from route to MID in effective range.
Please restart WIFI and try again.
7. MID works terribly slow sometimes
It is normal phenomenon. Please turn off some application you don’t need
in advanced task management, or uninstall some third party application to release more system
resour
FCC RF EXPOSURE INFORMATION:
WARNING!! Read this information before using your Tablet PC
In August 1986 the Federal Communications Commission (FCC) of the United States with its action
in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio
frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are
consistent with the safety standard previously set by both U.S. and international standards bodies.
The design of this Tablet PC complies with the FCC guidelines and these international standards.
Use only the supplied or an approved antenna. Unauthorized antennas modifications, or attachments
could impair call quality, damage the Tablet PC, or result in violation of FCC regulations. Do not use
the Tablet PC with a damaged antenna. If a damaged antenna comes into contact with the skin, a
minor burn may result. Please contact your local dealer for replacement antenna.
BODY-WORN OPERATION:
This device was tested for typical body-worn operations with the back/front of the Tablet PC kept 0cm
from the body. To comply with FCC RF exposure requirements, a minimum separation distance of
0cm must be maintained between the user's body and the back/front of the Tablet PC, including the
antenna. Third-party belt-clips, holsters and similar accessories containing metallic components shall
not be used. Body-worn accessories
that cannot maintain 0cm separation distance between the user’s body and the back/front of the
Tablet PC, and have not been tested for typical body-worn operations may not comply with FCC RF
exposure limits and should be avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.gov
Your wireless handheld portable teleTablet PC is a low power radio transmitter and receiver. When it
is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal
Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-
held wireless Tablet PCs. Those guidelines are consistent with the safety standards previously set by
both U.S. and international standards bodies:
<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICNIRP> (1999)
Those standards were based on comprehensive and periodic evaluations of the relevant scientific
literature. For example, over 120 scientists, engineers, and physicians from universities, government
health agencies, and industry reviewed the available body of research to develop the ANSI Standard
(C95.1). Nevertheless, we recommend that you use a hands-free kit with your Tablet PC (such as an
earpiece or headset) to avoid potential exposure to RF energy. The design of your Tablet PC
complies with the FCC guidelines (and those standards).
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications,
or attachments could damage the Tablet PC and may violate FCC regulations.
NORMAL POSITION:
Hold the Tablet PC as you would any other teleTablet PC with the antenna pointed up and over your
shoulder.
RF Exposure Information:
This product is compliance to FCC RF Exposure requirements and refers to FCC website
https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AL2SPLURIB7
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
Do not use the device with the environment which below minimum -10℃ or over maximum 50℃,
the device may not work.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Ad Hoc function is supported but not able to operate on non-US frequencies.

Navigation menu
