Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-75
Data subject to change without notice. Data subject to change without notice.
TRU-METRIC™ FRAME
TEFC
EPACT CC# CC029A
PUMP MOTORS
PUMP MOTORS
JET PUMP MOTORS – NEMA 56 MOTORS
SINGLE-PHAS
Threaded – With Base – ODP . . . . . . . . . . . . . . . . .A-71
Threaded – Less Base – ODP . . . . . . . . . . . . . . . . . A-72
Keyed – C-Face Less Base – ODP. . . . . . . . . . . . . . .A-72
Threaded – with base – TEFC. . . . . . . . . . . . . . . . .A-72
Threaded – Less Base – TEFC . . . . . . . . . . . . . . . .A-73
Keyed – C-Face With Base – TEFC . . . . . . . . . . . . . .A-73
Keyed – C-Face Less Base – TEFC . . . . . . . . . . . . . .A-73
THREE-PHASE
Threaded – With Base – ODP . . . . . . . . . . . . . . . . .A-74
Threaded – Less Base – ODP . . . . . . . . . . . . . . . . . A-75
Keyed – C-Face Less Base – ODP. . . . . . . . . . . . . . .A-75
Threaded – With Base – TEFC. . . . . . . . . . . . . . . . . A-75
Threaded – Less Base – TEFC . . . . . . . . . . . . . . . .A-76
Keyed – C-Face Less Base – TEFC . . . . . . . . . . . . . .A-76
CLOSE COUPLE PUMP – INTEGRALS
MOTORS – SINGLE-PHASE
“JM” Type – TEFC – Standard Efficiency . . . . . . . . . . .A-78
“JP” Type – TEFC – Standard Efficiency . . . . . . . . . . . A-78
THREE-PHASE – ODP –
STANDARD EFFICIENCY
“JM” Type – ODP – Standard Efficiency. . . . . . . . . . . A-80
“JP” Type – ODP – Standard Efficiency . . . . . . . . . . . A-81
“JM” Type – ODP – Standard Efficiency – Vertical Motors . . A-82
“JP” Type – ODP – Standard Efficiency – Vertical Motors . . .A-82
THREE-PHASE – ODP – HIGH – EFFICIENCY
“JM” Type – ODP – High Efficiency . . . . . . . . . . . . . .A-84
“JP” Type – ODP – High Efficiency . . . . . . . . . . . . . A-85
“JM” Type – ODP – High Efficiency – Vertical Motors . . . . A-86
“JP” Type – ODP – High Efficiency – .Vertical Motors . . . . .A-86
CLOSE COUPLE PUMP – INTEGRALS
MOTORS – THREE-PHASE MOTORS – TEFC – STANDARD
EFFICIENCY
“JM” Type – TEFC – Standard Efficiency . . . . . . . . . . .A-88
“JP” Type – TEFC – Standard Efficiency . . . . . . . A-89–A-90
THREE-PHASE MOTORS – TEFC –HIGH EFFICIENCY
“JM” Type – TEFC – High Efficiency . . . . . . . . . . . . .A-92
“JP” Type – TEFC – High Efficiency . . . . . . . . . . . . A-93

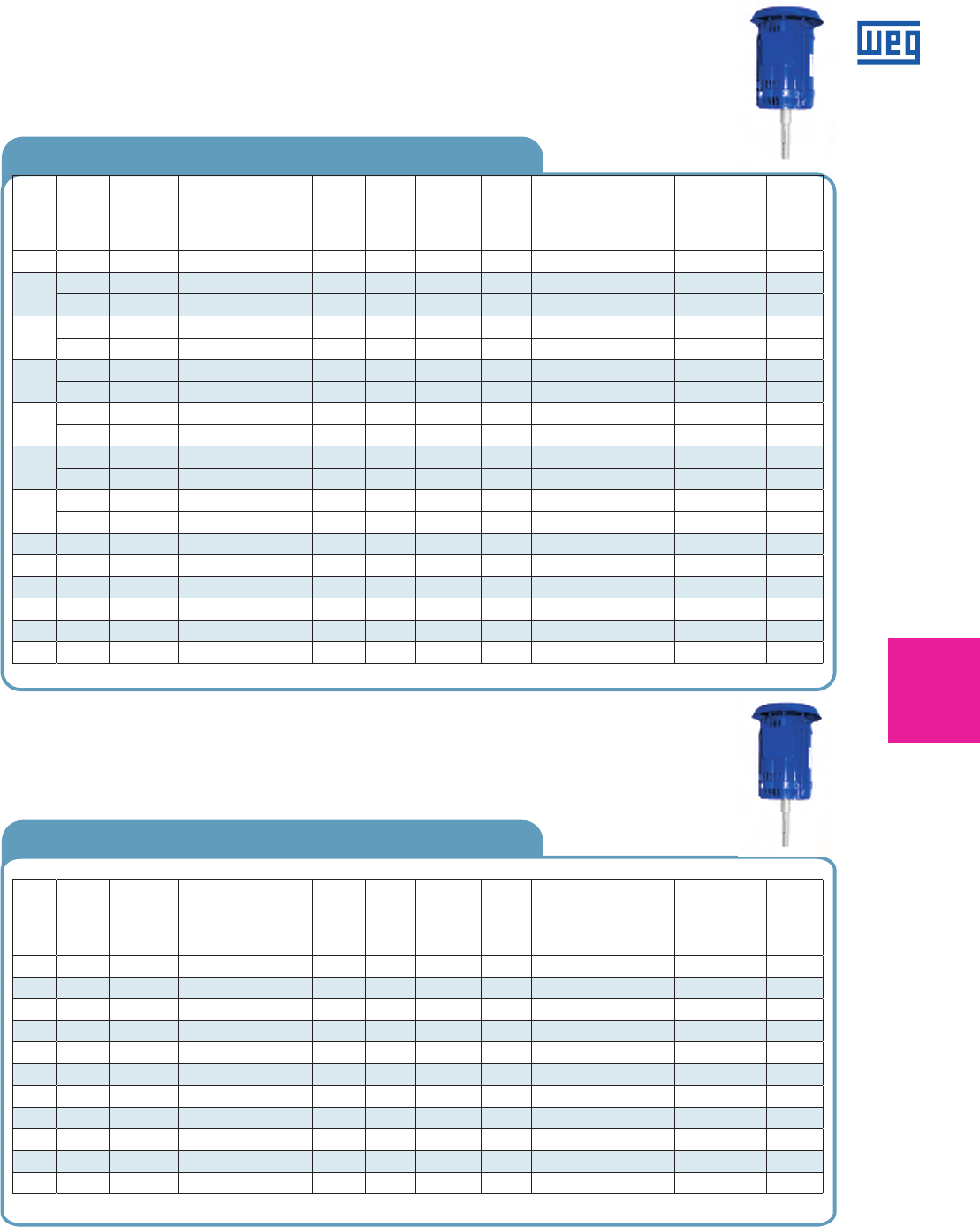

VERTICAL HOLLOW SHAFT – WPI – THREE-PHASE
“TP” Type – High Efficiency. . . . . . . . . . . . . . . . . .A-94
P-BASE MOTORS – TEFC – THREE-PHASE
Standard Efficiency . . . . . . . . . . . . . . . . . . A-96–A-97
High Efficiency . . . . . . . . . . . . . . . . . . . . A-97–A-98
OIL WELL PUMPING – ODP & TEFC – THREE-PHASE
High Slip – NEMA Design ‘D’ – ODP. . . . . . . . . . . . . A-100
High Slip – NEMA Design ‘D’ – TEFC . . . . . . . . . . . . A-100
High Slip – NEMA Design ‘D’ – Triple Rated – TEFC . . . . A-101
POOL & SPA MOTORS – ODP – SINGLE-PHASE
C-Face – ODP – Start Capacitor. . . . . . . . . . . . . . . A-103
Square Flange – ODP – Start Capacitor . . . . . . . . . . . A-103

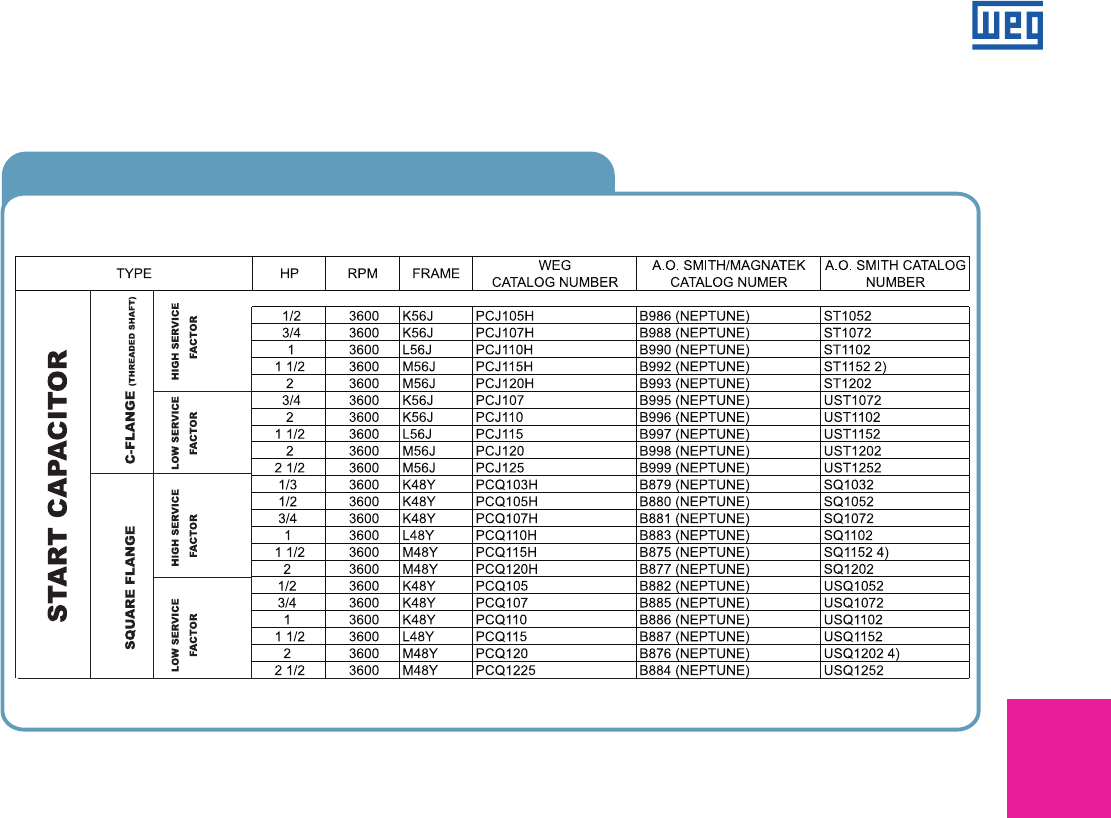

Cross Reference . . . . . . . . . . . . . . . . . . . . . . A-104
0309catalogA.indd 75 8/12/09 11:28 AM
www.weg.net
A-76 Data subject to change without notice.
Data subject to change without notice.
PUMP
MOTORS
All motors are tested according to IEEE 12 Std. – Method ‘B’ or C390 CSA.
THREADED – WITH BASE – ODP
SINGLE-PHASE
• ELECTRICAL FEATURES ON PAGE B-29.
• MECHANICAL FEATURES ON PAGE B-84.
• Commercial and Industrial pumps
• Residential pumps
(Jacuzzis, pools, hot tubs)
• Jet Pump motor system
• Hydraulic pumps
• Single-phase, 2 pole, 60Hz
• Voltage: 115/208-230V
• Squirrel cage rotor
• Start capacitor
• Sealed ball bearings (drive end)
• Fan cooled (internally)
• Service factor according to NEMA standard MG
1-18.329
• Insulation class ‘B’ (130ºC)
• Automatic Thermal Overload (ATO)
• Continuous duty (S1), 40ºC ambient
• Standard: NEMA-MG 1-18.326
• Stainless steel shaft end
• Color: Munsell N1 (Black)
• Counter Clock-wise, viewed from shaft end
• 4 pole
• Class “F” insulation
• Special voltages
• Drip cover
• Rotation: CW (viewed from
shaft end)
• Other mounting congurations
SINGLE PHASE
These versatile motors have the torque
and durability for the toughest commercial
applications, yet are also economical
choices for residential applications. The
motors are available with or without base
and in Form J or C configurations.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODP
Pump Motors
Jet Pump
HIGHLIGHTS
• Single and two-speed
available
• Space Heaters
• Muliple endbell drains
• External and Internal
Epoxy Paint
• External Slinger
(Umbrella Seal)
APPROVED BY
LR 38324
= Automatic Thermal Overload

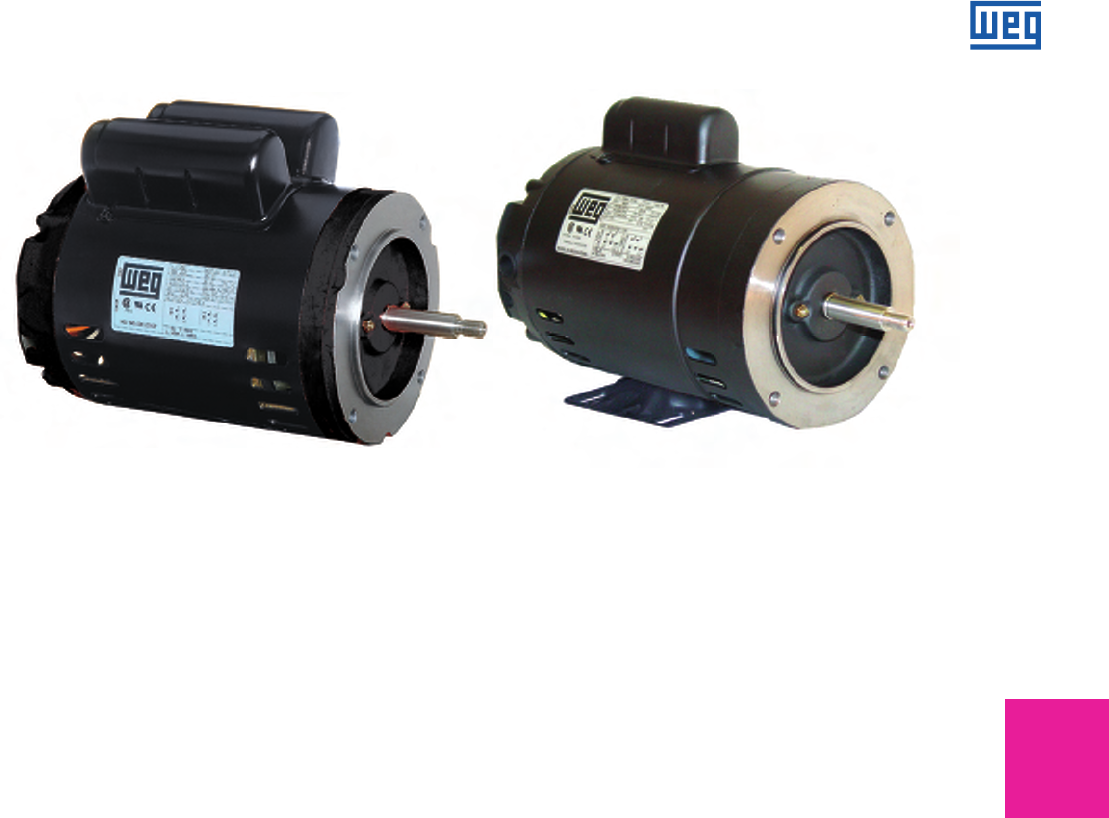

JET PUMP MOTORS

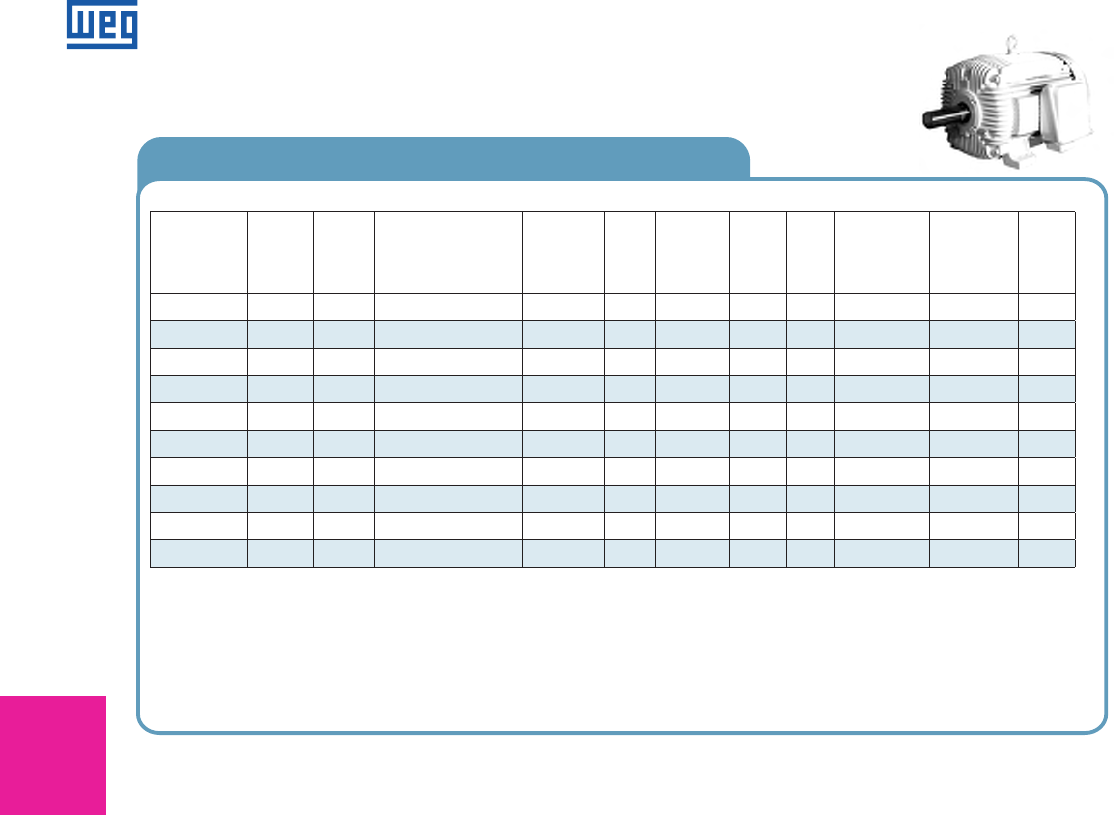

HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336OS1BJPR56J 254 P1B 21 1.75 3.50 10.732 115/208-230V §
1/2 3600 56J .5036OS1BJPR56J 258 P1B 24 1.60 4.70 11.126 115/208-230V §
3/4 3600 56J .7536OS1BJPR56J 296 P1B 32 1.50 5.70 11.913 115/208-230V §
1 3600 56J 00136OS1BJPR56J 334 P1B 36 1.40 6.10 12.031 115/208-230V §
1 1/2 3600 56J 00156OS1BJPR56J 382 P1B 40 1.30 8.50 13.212 115/208-230V §
2 3600 56HJ 00236OS1BJPR56J 438 P1B 48 1.20 10.8 14.000 115/208-230V §
3 3600 56HJ 00336OS1DJPR56J 499 P1B 53 1.15 13.8 14.787 230V §
E 104590
APPROVED BY
0309catalogA.indd 76 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-77
Data subject to change without notice. Data subject to change without notice.

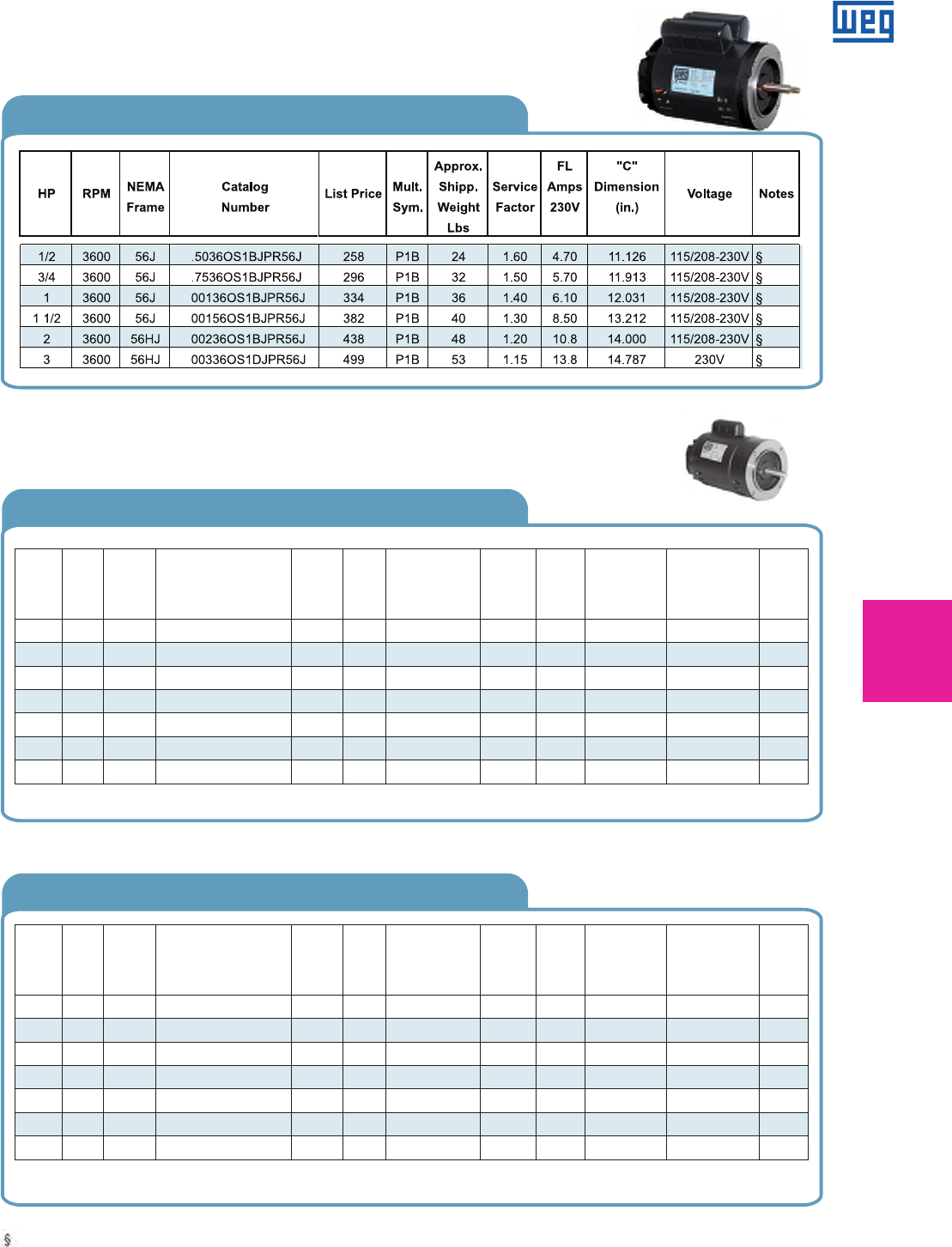

THREADED – LESS BASE – ODP
SINGLE-PHASE
KEYED – ‘C’ FACE LESS BASE – ODP
SINGLE-PHASE
THREADED – WITH BASE – TEFC
SINGLE-PHASE
JET PUMP MOTORS
= Automatic Thermal Overload
• ELECTRICAL FEATURES ON PAGE B-29. • MECHANICAL FEATURES ON PAGE B-84.
• ELECTRICAL FEATURES ON PAGE B-30. • MECHANICAL FEATURES ON PAGE B-86.
• ELECTRICAL FEATURES ON PAGE B-29. • MECHANICAL FEATURES ON PAGE B-84.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336OS1BJPR56C 237 P1A 21 1.75 3.50 10.232 115/208-230V §
1/2 3600 56C .5036OS1BJPR56C 255 P1A 24 1.60 4.70 10.826 115/208-230V §
3/4 3600 56C .7536OS1BJPR56C 297 P1A 32 1.50 5.70 11.413 115/208-230V §
1 3600 56C 00136OS1BJPR56C 317 P1A 36 1.40 6.10 11.531 115/208-230V §
1 1/2 3600 56C 00156OS1BJPR56C 338 P1A 40 1.30 8.50 12.712 115/208-230V §
2 3600 56HC 00236OS1BJPR56C 424 P1A 48 1.20 10.8 13.500 115/208-230V §
3 3600 56HC 00336OS1DJPR56C 482 P1A 53 1.15 13.8 14.287 230V §
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336ES1BJP56J 282 P1B 36 1.15 2.80 11.996 115/208-230V §
1/2 3600 56J .5036ES1BJP56J 300 P1B 40 1.15 3.80 11.996 115/208-230V §
3/4 3600 56J .7536ES1BJP56J 330 P1B 41 1.15 5.30 11.996 115/208-230V §
1 3600 56J 00136ES1BJP56J 374 P1B 46 1.15 6.30 13.150 115/208-230V §
1 1/2 3600 56J 00156ES1BJP56J 425 P1B 56 1.15 8.50 13.150 115/208-230V §
2 3600 56HJ 00236ES1BJP56J 486 P1B 65 1.15 10.5 14.330 115/208-230V §
3 3600 56HJ 00336ES1DJP56J 557 P1B 78 1.00 13.5 14.724 230V §
0309catalogA.indd 77 8/12/09 11:29 AM
www.weg.net
A-78 Data subject to change without notice.
Data subject to change without notice.
THREADED – LESS BASE – TEFC
SINGLE-PHASE
KEYED – ‘C’ FACE WITH BASE – TEFC
SINGLE-PHASE
KEYED – ‘C’ FACE LESS BASE – TEFC
SINGLE-PHASE
JET PUMP MOTORS
= Automatic Thermal Overload
• ELECTRICAL FEATURES ON PAGE B-30. • MECHANICAL FEATURES ON PAGE B-86.
• ELECTRICAL FEATURES ON PAGE B-30. • MECHANICAL FEATURES ON PAGE B-86.
• ELECTRICAL FEATURES ON PAGE B-30. • MECHANICAL FEATURES ON PAGE B-86.
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336ES1BJPR56J 296 P1B 36 1.15 2.80 11.996 115/208-230V §
1/2 3600 56J .5036ES1BJPR56J 305 P1B 40 1.15 3.80 11.996 115/208-230V §
3/4 3600 56J .7536ES1BJPR56J 336 P1B 41 1.15 5.30 11.996 115/208-230V §
1 3600 56J 00136ES1BJPR56J 386 P1B 46 1.15 6.30 13.150 115/208-230V §
1 1/2 3600 56J 00156ES1BJPR56J 438 P1B 56 1.15 8.50 13.150 115/208-230V §
2 3600 56HJ 00236ES1BJPR56J 498 P1B 65 1.15 10.5 14.330 115/208-230V §
3 3600 56HJ 00336ES1DJPR56J 573 P1B 78 1.00 13.5 14.724 230V §
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336ES1BJP56C 263 P1A 36 1.15 2.80 11.496 115/208-230V §
1/2 3600 56C .5036ES1BJP56C 284 P1A 40 1.15 3.80 11.496 115/208-230V §
3/4 3600 56C .7536ES1BJP56C 320 P1A 41 1.15 5.30 11.496 115/208-230V §
1 3600 56C 00136ES1BJP56C 344 P1A 46 1.15 6.30 12.677 115/208-230V §
1 1/2 3600 56C 00156ES1BJP56C 412 P1A 56 1.15 8.50 12.677 115/208-230V §
2 3600 56HC 00236ES1BJP56C 487 P1A 65 1.15 10.5 13.858 115/208-230V §
3 3600 56HC 00336ES1DJP56C* 548 P1A 78 1.00 13.5 14.252 230V §
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336ES1BJPR56C 282 P1A 36 1.15 2.80 11.496 115/208-230V §
1/2 3600 56C .5036ES1BJPR56C 299 P1A 40 1.15 3.80 11.496 115/208-230V §
3/4 3600 56C .7536ES1BJPR56C 341 P1A 41 1.15 5.30 11.496 115/208-230V §
1 3600 56C 00136ES1BJPR56C 357 P1A 46 1.15 6.30 12.677 115/208-230V §
1 1/2 3600 56C 00156ES1BJPR56C 432 P1A 56 1.15 8.50 12.677 115/208-230V §
2 3600 56HC 00236ES1BJPR56C 494 P1A 65 1.15 10.5 13.858 115/208-230V §
3 3600 56HC 00336ES1DJPR56C* 555 P1A 78 1.00 13.5 14.252 230V §
0309catalogA.indd 78 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-79
Data subject to change without notice. Data subject to change without notice.
JET PUMP MOTORS
THREADED – WITH BASE – ODP
THREE PHASE
All motors are tested according to IEEE 112 std. - method “B” or C390 CSA.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-85.
APPROVED BY
LR 38324
• Commercial and Industrial pumps
• Residential pumps
(Jacuzzis, pools, hot tubs)
• Jet pump motor system
• Hydraulic pumps
• Three-phase, 2 pole, 60Hz
• Voltage: 208-230/460V
• Squirrel cage rotor
• Ball bearings
• Fan cooled (internally)
• Service factor according to NEMA standard MG
1-18.329
• Insulation Class ‘B’ – ODP
• Insulation Class ‘F’ – TEFC
• Standard: NEMA-MG 1-18.326
• Rotation: Reversible
• Stainless steel shaft end
• Threaded center hole
• Color: Munsell N1 (Black)
• 4 Pole
• Class ‘F’ insulation
• Special voltages
• Drip cover
• Automatic Overload Protection
• Other mounting congurations
THREE PHASE
These versatile motors have the torque and durability
for the toughest commercial applications, yet are
also economical choices for residential applications.
The motors are available with or without base and in
Form J or C configurations.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODP TEFC
Pump Motors
Jet Pump
HIGHLIGHTS
• Specially dimensioned
shaft
• Second shaft end
• Stainless steel shaft
• Footless
• Other mounting
configuration
• Manual or Automatic
thermal overload
protection
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336ES1BJPR56J 296 P1B 36 1.15 2.80 11.996 115/208-230V §
1/2 3600 56J .5036ES1BJPR56J 305 P1B 40 1.15 3.80 11.996 115/208-230V §
3/4 3600 56J .7536ES1BJPR56J 336 P1B 41 1.15 5.30 11.996 115/208-230V §
1 3600 56J 00136ES1BJPR56J 386 P1B 46 1.15 6.30 13.150 115/208-230V §
1 1/2 3600 56J 00156ES1BJPR56J 438 P1B 56 1.15 8.50 13.150 115/208-230V §
2 3600 56HJ 00236ES1BJPR56J 498 P1B 65 1.15 10.5 14.330 115/208-230V §
3 3600 56HJ 00336ES1DJPR56J 573 P1B 78 1.00 13.5 14.724 230V §
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336ES1BJP56C 263 P1A 36 1.15 2.80 11.496 115/208-230V §
1/2 3600 56C .5036ES1BJP56C 284 P1A 40 1.15 3.80 11.496 115/208-230V §
3/4 3600 56C .7536ES1BJP56C 320 P1A 41 1.15 5.30 11.496 115/208-230V §
1 3600 56C 00136ES1BJP56C 344 P1A 46 1.15 6.30 12.677 115/208-230V §
1 1/2 3600 56C 00156ES1BJP56C 412 P1A 56 1.15 8.50 12.677 115/208-230V §
2 3600 56HC 00236ES1BJP56C 487 P1A 65 1.15 10.5 13.858 115/208-230V §
3 3600 56HC 00336ES1DJP56C* 548 P1A 78 1.00 13.5 14.252 230V §
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336ES1BJPR56C 282 P1A 36 1.15 2.80 11.496 115/208-230V §
1/2 3600 56C .5036ES1BJPR56C 299 P1A 40 1.15 3.80 11.496 115/208-230V §
3/4 3600 56C .7536ES1BJPR56C 341 P1A 41 1.15 5.30 11.496 115/208-230V §
1 3600 56C 00136ES1BJPR56C 357 P1A 46 1.15 6.30 12.677 115/208-230V §
1 1/2 3600 56C 00156ES1BJPR56C 432 P1A 56 1.15 8.50 12.677 115/208-230V §
2 3600 56HC 00236ES1BJPR56C 494 P1A 65 1.15 10.5 13.858 115/208-230V §
3 3600 56HC 00336ES1DJPR56C* 555 P1A 78 1.00 13.5 14.252 230V §
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336OS3EJP56J 224 P1B 23 1.75 0.75 59.0 10.985 208-230/460V
1/2 3600 56J .5036OS3EJP56J 236 P1B 24 1.60 1.05 61.0 10.985 208-230/460V
3/4 3600 56J .7536OS3EJP56J 271 P1B 26 1.50 1.35 66.0 11.733 208-230/460V
1 3600 56J 00136OS3EJP56J 286 P1B 29 1.40 1.65 69.0 11.733 208-230/460V
1 1/2 3600 56J 00156OS3EJP56J 296 P1B 34 1.30 2.37 71.2 12.993 208-230/460V
2 3600 56J 00236OS3EJP56J 316 P1B 39 1.20 2.85 75.0 12.993 208-230/460V
3 3600 56HJ 00336OS3EJP56J 339 P1B 45 1.15 4.05 77.0 14.174 208-230/460V
E 104590
APPROVED BY
0309catalogA.indd 79 8/12/09 11:29 AM
www.weg.net
A-80 Data subject to change without notice.
Data subject to change without notice.
JET PUMP MOTORS
THREADED – LESS BASE – ODP
THREE PHASE
KEYED – C-FACE LESS BASE – ODP
THREE PHASE
THREADED – WITH BASE – TEFC
THREE PHASE
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-85.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-85.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-86.
JET PUMP MOTORS
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336OS3EJPR56J 229 P1B 23 1.75 0.75 59.0 10.985 208-230/460V
1/2 3600 56J .5036OS3EJPR56J 241 P1B 24 1.60 1.05 61.0 10.985 208-230/460V
3/4 3600 56J .7536OS3EJPR56J 278 P1B 26 1.50 1.35 66.0 11.733 208-230/460V
1 3600 56J 00136OS3EJPR56J 287 P1B 29 1.40 1.65 69.0 11.733 208-230/460V
1 1/2 3600 56J 00156OS3EJPR56J 305 P1B 34 1.30 2.37 71.2 12.993 208-230/460V
2 3600 56J 00236OS3EJPR56J 321 P1B 39 1.20 2.85 75.0 12.993 208-230/460V
3 3600 56HJ 00336OS3EJPR56J 350 P1B 45 1.15 4.05 77.0 14.174 208-230/460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336OS3EJPR56C 220 P1A 23 1.75 0.75 59.0 10.315 208-230/460V
1/2 3600 56C .5036OS3EJPR56C 224 P1A 24 1.60 1.05 61.0 10.315 208-230/460V
3/4 3600 56C .7536OS3EJPR56C 257 P1A 26 1.50 1.35 66.0 11.103 208-230/460V
1 3600 56C 00136OS3EJPR56C 274 P1A 29 1.40 1.65 69.0 11.103 208-230/460V
1 1/2 3600 56C 00156OS3EJPR56C 290 P1A 34 1.30 2.37 71.2 12.284 208-230/460V
2 3600 56C 00236OS3EJPR56C 311 P1A 39 1.20 2.85 75.0 12.284 208-230/460V
3 3600 56HC 00336OS3EJPR56C 332 P1A 45 1.15 4.05 77.0 13.645 208-230/460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336ES3EJP56J 259 P1B 33 1.15 0.62 59.0 11.996 208-230/460V
1/2 3600 56J .5036ES3EJP56J 267 P1B 36 1.15 0.81 61.0 11.996 208-230/460V
3/4 3600 56J .7536ES3EJP56J 301 P1B 40 1.15 1.09 66.0 11.996 208-230/460V
1 3600 56J 00136ES3EJP56J 344 P1B 44 1.15 1.44 69.0 11.996 208-230/460V
1 1/2 3600 56J 00156ES3EJP56J 374 P1B 48 1.15 1.97 71.2 11.996 208-230/460V
2 3600 56J 00236ES3EJP56J 421 P1B 58 1.15 2.67 75.0 13.150 208-230/460V
3 3600 56HJ 00336ES3EJP56J 489 P1B 67 1.00 3.80 77.0 14.330 208-230/460V
0309catalogA.indd 80 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-81
Data subject to change without notice. Data subject to change without notice.
JET PUMP MOTORS JET PUMP MOTORS
THREADED – LESS BASE – TEFC
THREE PHASE
KEYED – ‘C’ FACE LESS BASE – TEFC
THREE PHASE
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-86.
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-86.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56J .3336ES3EJPR56J 268 P1B 33 1.15 0.62 59.0 11.996 208-230/460V
1/2 3600 56J .5036ES3EJPR56J 282 P1B 36 1.15 0.81 61.0 11.996 208-230/460V
3/4 3600 56J .7536ES3EJPR56J 319 P1B 40 1.15 1.09 66.0 11.996 208-230/460V
1 3600 56J 00136ES3EJPR56J 346 P1B 44 1.15 1.44 69.0 11.996 208-230/460V
1 1/2 3600 56J 00156ES3EJPR56J 378 P1B 48 1.15 1.97 71.2 11.996 208-230/460V
2 3600 56J 00236ES3EJPR56J 430 P1B 58 1.15 2.67 75.0 13.150 208-230/460V
3 3600 56HJ 00336ES3EJPR56J 503 P1B 67 1.00 3.80 77.0 14.330 208-230/460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 56C .3336ES3EJPR56C 257 P1A 33 1.15 0.62 59.0 11.496 208-230/460V
1/2 3600 56C .5036ES3EJPR56C 270 P1A 36 1.15 0.81 61.0 11.496 208-230/460V
3/4 3600 56C .7536ES3EJPR56C 293 P1A 40 1.15 1.09 66.0 11.496 208-230/460V
1 1/2 3600 56C 00156ES3EJPR56C 371 P1A 48 1.15 1.97 71.2 11.496 208-230/460V
2 3600 56C 00236ES3EJPR56C 401 P1A 58 1.15 2.67 75.0 12.677 208-230/460V
3 3600 56HC 00336ES3EJPR56C 480 P1A 67 1.00 3.80 77.0 13.858 208-230/460V
0309catalogA.indd 81 8/12/09 11:29 AM
www.weg.net
A-82 Data subject to change without notice.
Data subject to change without notice.
• Pumps
• Single-phase, 2 and 4 pole 60Hz
• Voltage: 208-230/460V
• Cast iron frame
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled
- TEFC (IP55)
• Ball bearings
• NEMA dimensions
• Class ‘F’ insulation
• Service Factor: 1.15
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 (Dark Gray)
• NPT threaded terminal box
• Automatic drain plugs
• Special voltages
• Specially designed shaft
• Second shaft end
• Thermistors or thermostats
• Drip cover (canopy) for shaft
down applications
• Stainless steel shaft
• Flange mount
All motors are tested according to IEEE 112 Std. – Method ‘B’ or C390 CSA.
APPROVED BY
LR 50.962-9/13/14
TEFC – SINGLE PHASE
WEG single-phase totally enclosed motors
are specifically designed for operating
in environments of dirt, dust and excess
moisture. Starting capacitors, all cast iron
frames, rigid bases, reversible shaft rotation
and oversized ball bearings are all standard
features. NEMA-T, NEMA 48 & 56 AND IEC
METRIC FRAMES ARE ALSO AVAILABLE. JPJM
Pump Motors
Close Coupled
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
CLOSE COUPLED PUMP MOTORS
HIGHLIGHTS
• Single and two-speed
available
• Space Heaters
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 82 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-83
Data subject to change without notice. Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
“JM” TYPE – TEFC – SINGLE PHASE
“JP” TYPE – TEFC – SINGLE PHASE
• ELECTRICAL FEATURES ON PAGE B-33.
• ELECTRICAL FEATURES ON PAGE B-33.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
0.5 3600 143JM .5036ES1E143JM 668 P1 26 1.70 71.3 15.458 208-230/460V
13600 143JM 00136ES1E143JM 682 P1 33 2.90 74.5 15.458 208-230/460V
1800 143JM 00118ES1E143JM 687 P1 37 2.85 69.8 15.458 208-230/460V
1.5 3600 143JM 00156ES1E143JM 729 P1 37 3.60 81.3 15.458 208-230/460V
1800 145JM 00158ES1E145JM 754 P1 49 3.50 76.8 16.458 208-230/460V
23600 145JM 00236ES1E145JM 770 P1 45 4.45 86.2 16.458 208-230/460V
1800 145JM 00218ES1E145JM 814 P1 54 4.50 79.6 16.458 208-230/460V
3
3600 145JM 00336ES1E145JM 1,076 P1 52 6.50 80.0 16.458 208-230/460V
3600 145JM 00336ES1C145JM 1,076 P1 52 6.50 80.0 16.458 208-230V
1800 184JM 00318ES1E184JM 1,182 P1 131 7.25 77.2 17.368 208-230/460V
5
3600 184JM 00536ES1E184JM 1,457 P1 115 10.5 83.0 17.368 208-230/460V
3600 184JM 00536ES1C184JM 1,457 P1 115 10.5 83.0 17.368 208-230V
1800 184JM 00518ES1E184JM 1,430 P1 153 10.5 79.4 17.368 208-230/460V
7.5
3600 213JM 00736ES1E213JM 1,641 P1 139 16.0 84.0 18.904 208-230/460V
3600 213JM 00736ES1C213JM 1,641 P1 139 16.0 84.0 18.904 208-230V
1800 215JM 00718ES1E215JM 1,762 P1 168 17.0 82.0 20.400 208-230/460V
10
3600 215JM 01036ES1E215JM 2,172 P1 172 19.5 86.3 20.400 208-230/460V
3600 215JM 01036ES1C215JM 2,172 P1 172 19.5 86.3 20.400 208-230V
1800 215JM 01018ES1E215JM 2,057 P1 179 20.0 83.0 20.400 208-230/460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
0.5 3600 143JP .5036ES1E143JP 668 P1 26 1.70 71.3 18.519 208-230/460V
1 1800 143JP 00118ES1E143JP 687 P1 37 2.85 69.8 18.519 208-230/460V
1.5 3600 143JP 00156ES1E143JP 729 P1 37 3.60 81.3 18.519 208-230/460V
1800 145JP 00158ES1E145JP 754 P1 49 3.50 76.8 19.519 208-230/460V
23600 145JP 00236ES1E145JP 770 P1 45 4.45 86.2 19.519 208-230/460V
1800 145JP 00218ES1E145JP 814 P1 54 4.50 79.6 19.519 208-230/460V
33600 145JP 00336ES1E145JP 1,076 P1 52 6.50 80.0 19.519 208-230/460V
1800 184JP 00318ES1E184JP 1,182 P1 131 7.25 77.2 20.429 208-230/460V
53600 184JP 00536ES1E184JP 1,457 P1 115 10.5 83.0 20.429 208-230/460V
1800 184JP 00518ES1E184JP 1,430 P1 153 10.5 79.4 20.429 208-230/460V
7.5 3600 213JP 00736ES1E213JP 1,641 P1 139 16.0 84.0 22.776 208-230/460V
1800 215JP 00718ES1E215JP 1,762 P1 168 17.0 82.0 24.272 208-230/460V
10 3600 215JP 01036ES1E215JP 2,172 P1 172 19.5 86.3 24.272 208-230/460V
1800 215JP 01018ES1E215JP 2,057 P1 179 20.0 83.0 24.272 208-230/460V
0309catalogA.indd 83 8/12/09 11:29 AM
www.weg.net
A-84 Data subject to change without notice.
Data subject to change without notice.
ALL MOTORS ARE TESTED ACCORDING TO IEEE 112 STD. - METHOD ‘B’ OR C390 CSA
FRAME – SPECIFIC FEATURES
FOR FRAME 143/5JM/JP, ONLY
• Welded steel plate frames
(welded feet)
• Cast iron endsheilds xed with through
bolt construction
• ‘ZZ’ bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 182JM up to 215JM
• Welded steel plate frames
(welded feet)
• Aluminum endshields and Terminal box
• Cooling system with nned rotor
• Cast iron endshields xed with through bolt
construction
• “ZZ” bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 254JM UP TO 445JM
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings positive pressure
lubrication system (frame 254T and up)
• Degree of protection: IP23
LR 38324
Specially developed line for industrial
and commercial pumping applications.
• Water pumping
• Process
• Transfer and circulating pumps
• Single-phase, 2, 4 or 6 pole, 60Hz
• Voltage: 115/208-230V
• Squirrel cage rotor
• Start capacitor
• NEMA dimensions
• Class ‘B’ insulation (130ºC)
• High starting torque
• Ball Bearings
• Open drip proof (ODP - IP21)
• Totally enclosed fan cooled (TEFC - IP55)
• Color: RAL 7022 (Dark Gray)
• Continuous Duty (S1), 40ºC ambient
• V-ring slingers on both endshields
(for TEFC only)
• Designed to operate in any position
(for TEFC only)
• Cable glands
• Special Voltages
• Cast iron NEMA C-ange or
D-flange (D-flange only for
frames 254T and up)
• Special designed shaft
• Second shaft end
• Thermistors, Thermostats or
RTD’s (PT100)
• Roller bearing on drive end
• IEC metric frames (on request)
for frame 254T up to 445T
• Stainless steel shaft
• Class H insulation
• Design C
• 575V
ODP – THREE PHASE
WEG offers both JM and JP standardized
types of ODP close coupled pump line of
motors. Remember that ODP are suitable
where dirt and moisture are at a minimum.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
JPJM
Pump Motors
Close Coupled - Standard Efficiency
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
HIGHLIGHTS
• Single and two-speed
available
• Space Heaters
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 84 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-85
Data subject to change without notice. Data subject to change without notice.

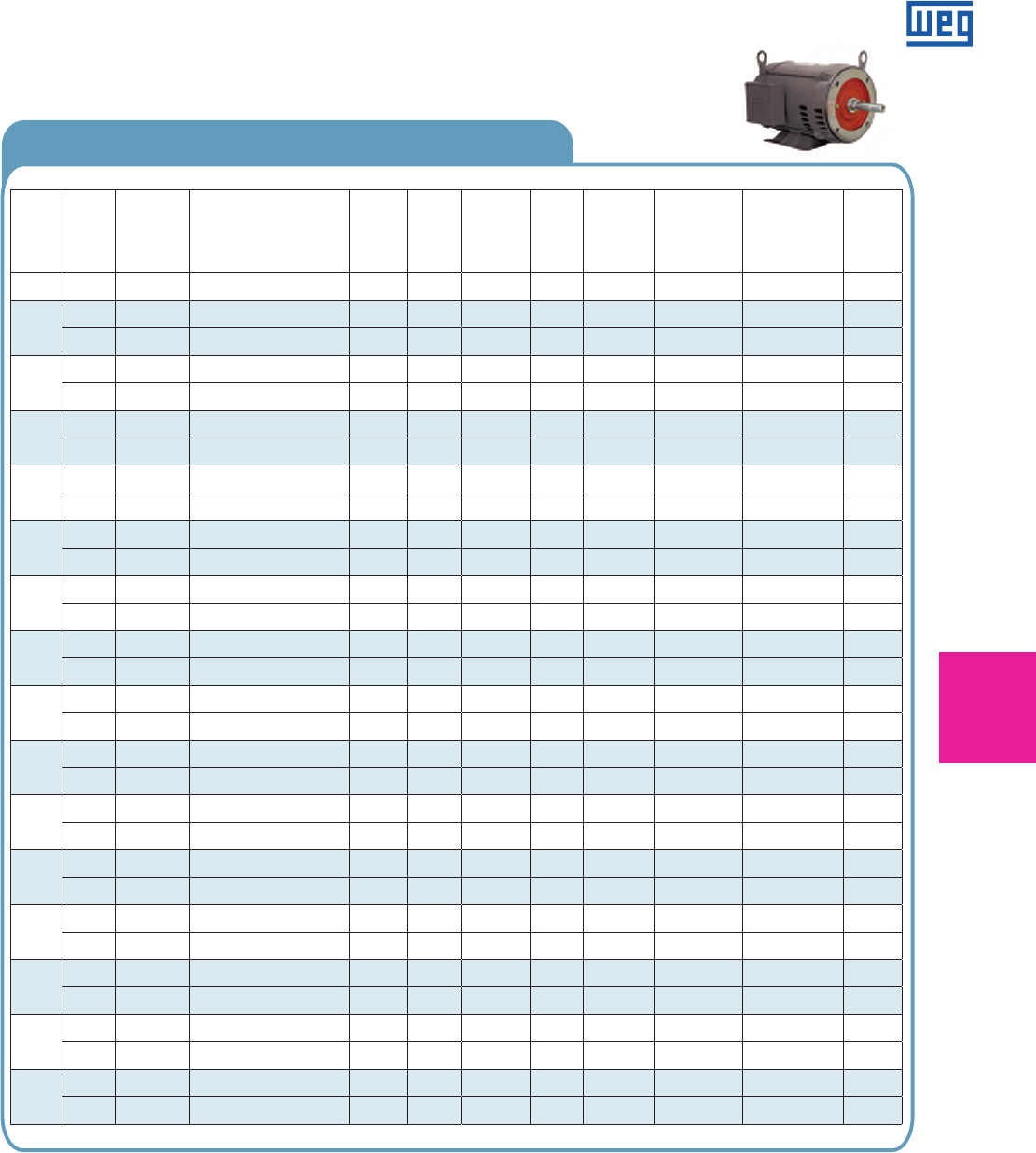

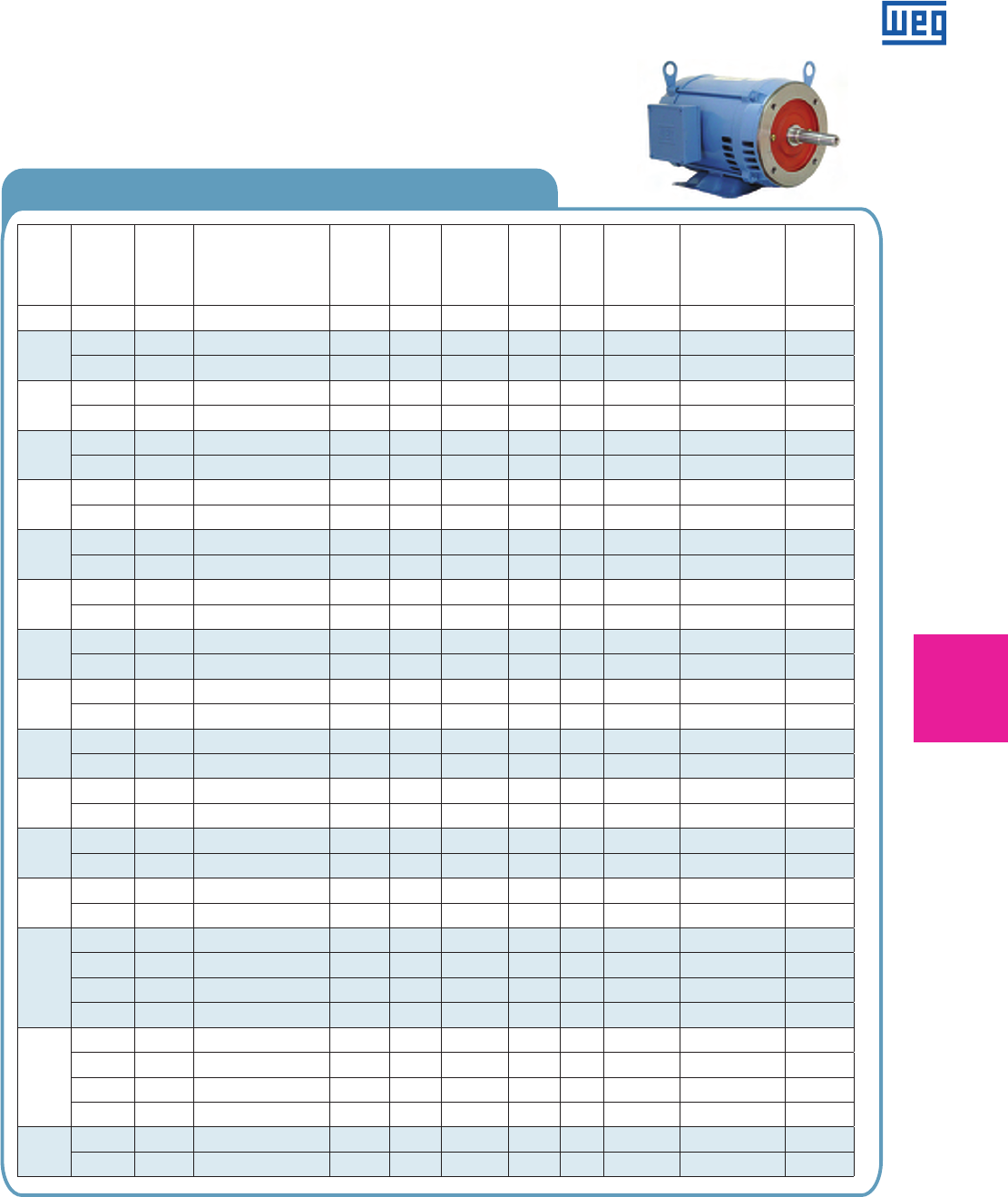

“JM” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-34.
• MECHANICAL FEATURES ON PAGE B-88.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JM 00118OS3E143JM 379 P1C 36 1.52 78.5 14.055 208-230/460V
1.5 3600 143JM 00156OS3E143JM 400 P1C 32 2.07 78.5 14.055 208-230/460V
1800 145JM 00158OS3E145JM 414 P1C 41 2.19 77.0 14.055 208-230/460V
23600 145JM 00236OS3E145JM 432 P1C 43 2.71 80.0 14.055 208-230/460V
1800 145JM 00218OS3E145JM 433 P1C 43 2.72 82.5 14.055 208-230/460V
33600 145JM 00336OS3E145JM 482 P1C 49 3.92 80.0 14.055 208-230/460V
1800 182JM 00318OS3E182JM 507 P1C 56 3.94 82.5 14.527 208-230/460V
53600 182JM 00536OS3E182JM 628 P1C 57 6.15 85.5 14.527 208-230/460V
1800 184JM 00518OS3E184JM 652 P1C 69 6.50 84.0 15.315 208-230/460V
7.5 3600 184JM 00736OS3E184JM 785 P1C 69 8.85 86.5 15.315 208-230/460V
1800 213JM 00718OS3E213JM 886 P1C 85 9.75 87.5 17.323 208-230/460V
10 3600 213JM 01036OS3E213JM 1,007 P1C 108 12.1 87.5 17.323 208-230/460V
1800 215JM 01018OS3E215JM 1,078 P1C 109 12.5 86.5 17.323 208-230/460V
15 3600 215JM 01536OS3E215JM 1,264 P1C 139 18.0 85.5 17.323 208-230/460V
1800 254JM 01518OS3E254JM 1,513 P1C 194 20.0 87.5 22.169 208-230/460V
20 3600 254JM 02036OS3E254JM 1,571 P1C 213 25.5 86.8 22.169 208-230/460V
1800 256JM 02018OS3E256JM 1,825 P1C 258 26.3 88.5 23.902 208-230/460V
25 3600 256JM 02536OS3E256JM 1,941 P1C 262 30.2 88.5 23.902 208-230/460V
1800 284JM 02518OS3E284JM 2,209 P1C 300 30.3 90.2 24.261 208-230/460V
30 3600 284JM 03036OS3E284JM 2,365 P1C 300 37.2 89.5 24.261 208-230/460V
1800 286JM 03018OS3E286JM 2,549 P1C 346 36.3 89.5 25.754 208-230/460V
40 3600 286JM 04036OS3E286JM 2,822 P1C 388 47.5 90.2 25.754 208-230/460V
1800 324JM 04018OS3E324JM 2,824 P1C 424 52.0 90.2 26.431 208-230/460V
50 3600 324JM 05036OS3E324JM 3,610 P1C 471 57.0 92.4 26.431 208-230/460V
1800 326JM 05018OS3E326JM 3,553 P1C 515 64.0 91.0 27.927 208-230/460V
60 3600 326JM 06036OS3E326JM 4,208 P1C 552 69.5 92.4 27.927 208-230/460V
1800 364JM 06018OS3E364JM 4,549 P1C 705 73.4 91.6 29.139 208-230/460V
75 3600 364JM 07536OS3E364JM 5,390 P1C 681 84.0 93.0 29.139 208-230/460V
1800 365JM 07518OS3E365JM 5,185 P1C 749 88.6 91.7 29.139 208-230/460V
100 3600 365JM 10036OS3E365JM 6,368 P1C 727 112 93.0 29.139 208-230/460V
3600 365JM 10036OS3G365JM 6,368 P1C 727 112 93.0 29.139 460V
0309catalogA.indd 85 8/12/09 11:29 AM
www.weg.net
A-86 Data subject to change without notice.
Data subject to change without notice.

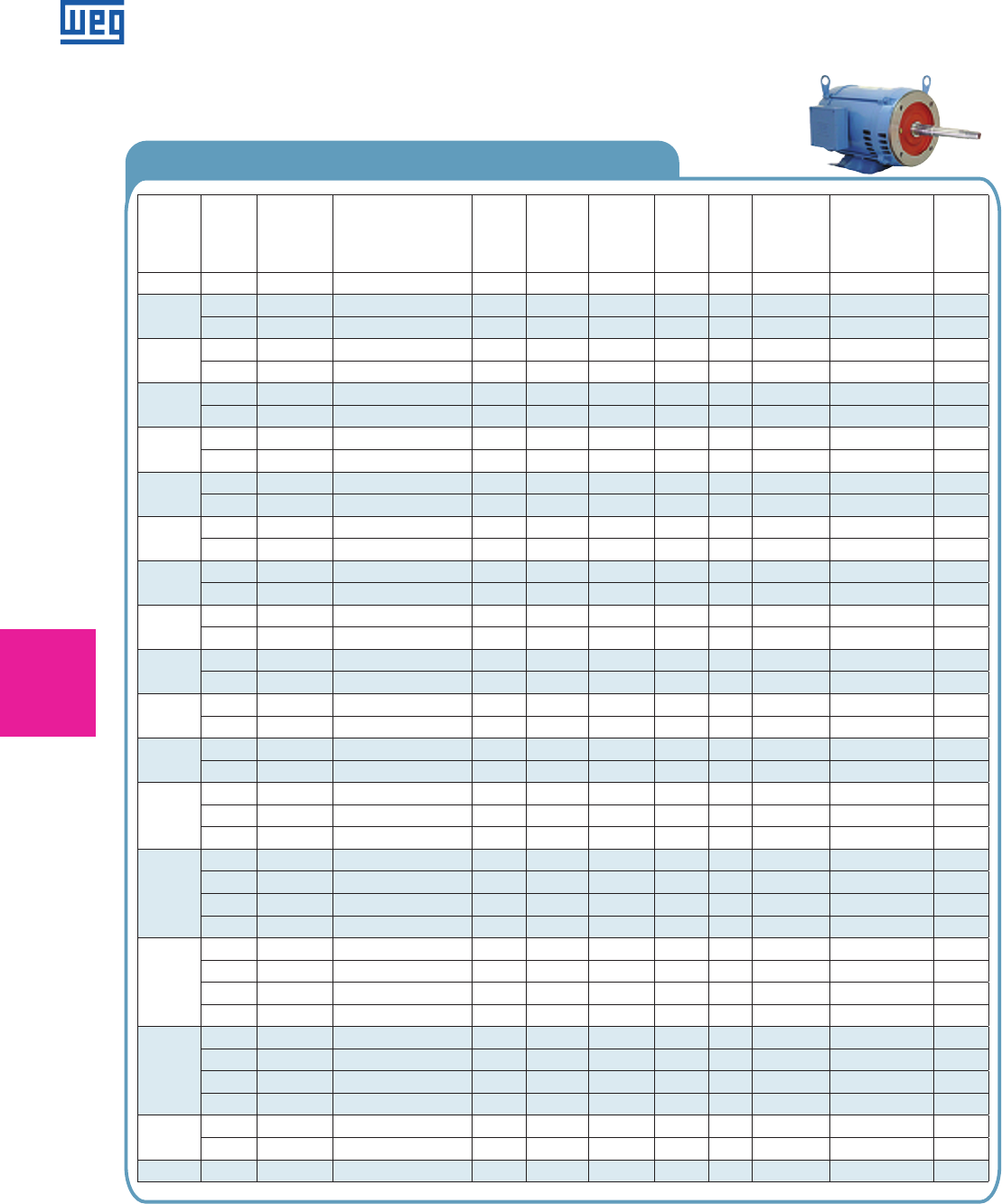

“JP” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-35.
• MECHANICAL FEATURES ON PAGE B-88.
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JP 00118OS3E143JP 379 P1C 36 1.52 78.5 17.126 208-230/460V
1.5 3600 143JP 00156OS3E143JP 400 P1C 32 2.07 78.5 17.126 208-230/460V
1800 145JP 00158OS3E145JP 414 P1C 41 2.19 77.0 17.126 208-230/460V
23600 145JP 00236OS3E145JP 432 P1C 43 2.71 80.0 17.126 208-230/460V
1800 145JP 00218OS3E145JP 433 P1C 43 2.72 82.5 17.126 208-230/460V
33600 145JP 00336OS3E145JP 482 P1C 49 3.92 80.0 17.126 208-230/460V
1800 182JP 00318OS3E182JP 507 P1C 56 3.94 82.5 20.236 208-230/460V
53600 182JP 00536OS3E182JP 628 P1C 57 6.15 85.5 20.236 208-230/460V
1800 184JP 00518OS3E184JP 652 P1C 69 6.5 84.0 21.023 208-230/460V
7.5 3600 184JP 00736OS3E184JP 785 P1C 69 8.85 86.5 21.023 208-230/460V
1800 213JP 00718OS3E213JP 886 P1C 85 9.75 87.5 21.240 208-230/460V
10 3600 213JP 01036OS3E213JP 1,007 P1C 108 12.1 87.5 21.240 208-230/460V
1800 215JP 01018OS3E215JP 1,078 P1C 109 12.5 86.5 21.240 208-230/460V
15 3600 215JP 01536OS3E215JP 1,264 P1C 139 18.0 85.5 21.240 208-230/460V
1800 254JP 01518OS3E254JP 1,513 P1C 194 20.0 87.5 25.049 208-230/460V
20 3600 254JP 02036OS3E254JP 1,571 P1C 213 25.5 86.8 25.049 208-230/460V
1800 256JP 02018OS3E256JP 1,825 P1C 258 26.3 88.5 26.782 208-230/460V
25 3600 256JP 02536OS3E256JP 1,941 P1C 262 30.2 88.5 26.782 208-230/460V
1800 284JP 02518OS3E284JP 2,209 P1C 300 30.3 90.2 27.141 208-230/460V
30 3600 284JP 03036OS3E284JP 2,365 P1C 300 37.2 89.5 27.141 208-230/460V
1800 286JP 03018OS3E286JP 2,549 P1C 346 36.3 89.5 28.634 208-230/460V
40 3600 286JP 04036OS3E286JP 2,822 P1C 388 47.5 90.2 28.634 208-230/460V
1800 324JP 04018OS3E324JP 2,810 P1C 424 52.0 90.2 29.311 208-230/460V
50 3600 324JP 05036OS3E324JP 3,610 P1C 471 57.0 92.4 29.311 208-230/460V
1800 326JP 05018OS3E326JP 3,553 P1C 515 64.0 91.0 30.807 208-230/460V
60 3600 326JP 06036OS3E326JP 4,208 P1C 552 69.5 92.4 30.807 208-230/460V
1800 364JP 06018OS3E364JP 4,549 P1C 705 73.4 91.6 32.019 208-230/460V
75
3600 364JP 07536OS3E364JP 5,390 P1C 681 84.0 93.0 32.019 208-230/460V
1800 365JP 07518OS3E365JP 5,185 P1C 749 88.6 91.7 32.019 208-230/460V
3600 365JP 10036OS3E365JP 6,368 P1C 727 112 93.0 32.019 208-230/460V
100
3600 365JP 10036OS3G365JP 6,368 P1C 727 112 93.0 32.019 460V
1800 404JP 10018OS3E404JP 6,468 P1C 828 121 92.4 35.263 208-230/460V
1800 404JP 10018OS3G404JP 6,468 P1C 828 121 92.4 35.263 460V
125 3600 404JP 12536OS3G404JP 8,791 P1C 1070 135 92.4 35.263 460V
1800 405JP 12518OS3G405JP 8,156 P1C 883 146 92.4 35.263 460V
150 3600 405JP 15036OS3G405JP 11,585 P1C 1125 163 92.4 35.263 460V
0309catalogA.indd 86 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-87
Data subject to change without notice. Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY

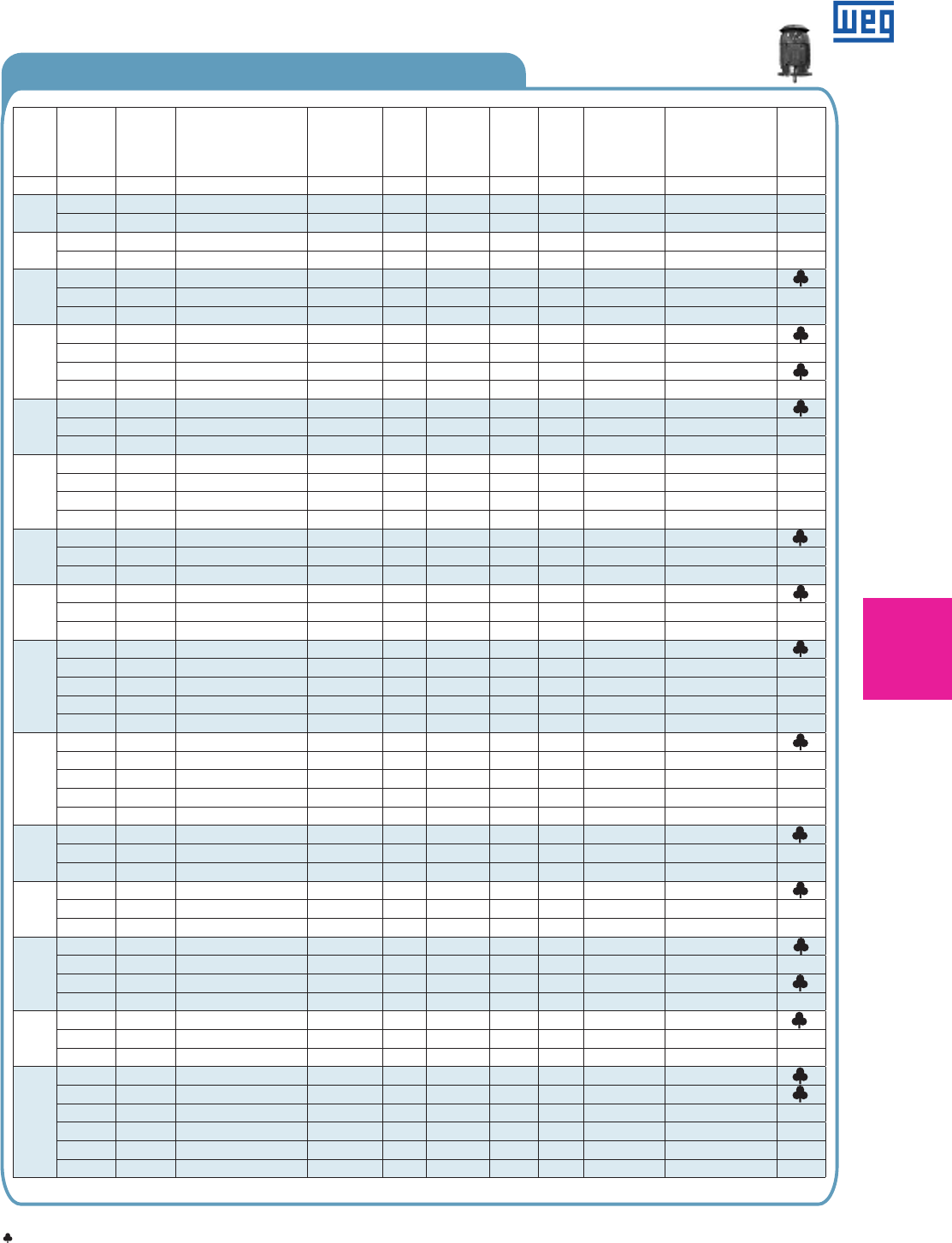

“JM” TYPE – ODP – VERTICAL MOTORS
“JP” TYPE – ODP – VERTICAL MOTORS
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-34.
• MECHANICAL FEATURES ON PAGE B-88.
• ELECTRICAL FEATURES ON PAGE B-35.
• MECHANICAL FEATURES ON PAGE B-88.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JMV 00118OS3E143JMV 454 P1 36 1.52 78.5 15.196 208-230/460V
1.5 1800 145JMV 00158OS3E145JMV 486 P1 41 2.19 77.0 15.196 208-230/460V
2 1800 145JMV 00218OS3E145JMV 505 P1 43 2.72 82.5 15.196 208-230/460V
3 1800 182JMV 00318OS3E182JMV 637 P1 56 3.94 82.5 15.904 208-230/460V
53600 182JMV 00536OS3E182JMV 758 P1 57 6.15 85.5 15.904 208-230/460V
1800 184JMV 00518OS3E184JMV 783 P1 69 6.50 84.0 16.692 208-230/460V
7.5 3600 184JMV 00736OS3E184JMV 915 P1 69 8.85 86.5 16.692 208-230/460V
1800 213JMV 00718OS3E213JMV 1,051 P1 85 9.75 87.5 18.700 208-230/460V
10 3600 213JMV 01036OS3E213JMV 1,172 P1 108 12.1 87.5 18.700 208-230/460V
1800 215JMV 01018OS3E215JMV 1,243 P1 109 12.5 86.5 18.700 208-230/460V
15 3600 215JMV 01536OS3E215JMV 1,428 P1 139 18.0 85.5 18.700 208-230/460V
20 3600 254JMV 02036OS3E254JMV 1,835 P1 213 25.5 86.8 23.507 208-230/460V
25 3600 256JMV 02536OS3E256JMV 2,205 P1 262 30.2 88.5 23.902 208-230/460V
30 3600 284JMV 03036OS3E284JMV 2,699 P1 300 37.2 89.5 24.261 208-230/460V
40 3600 286JMV 04036OS3E286JMV 3,156 P1 388 47.5 90.2 27.368 208-230/460V
50 3600 324JMV 05036OS3E324JMV 4,032 P1 471 57.0 92.4 29.147 208-230/460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1.5 3600 143JPV 00156OS3E143JPV 486 P1 32 2.07 78.5 17.126 208-230/460V
2 3600 145JPV 00236OS3E145JPV 518 P1 43 2.71 80.0 17.126 208-230/460V
3 3600 145JPV 00336OS3E145JPV 613 P1 49 3.92 80.0 17.126 208-230/460V
5 3600 182JPV 00536OS3E182JPV 783 P1 57 6.15 85.5 20.236 208-230/460V
7.5 3600 184JPV 00736OS3E184JPV 915 P1 69 8.85 86.5 22.400 208-230/460V
10 3600 213JPV 01036OS3E213JPV 1,172 P1 108 12.1 87.5 22.617 208-230/460V
15 3600 215JPV 01536OS3E215JPV 1,428 P1 139 18.0 85.5 22.617 208-230/460V
20 3600 254JPV 02036OS3E254JPV 1,835 P1 213 25.5 86.8 26.387 208-230/460V
25 3600 256JPV 02536OS3E256JPV 2,205 P1 262 30.2 88.5 26.782 208-230/460V
30 3600 284JPV 03036OS3E284JPV 2,699 P1 300 37.2 89.5 28.755 208-230/460V
40 3600 286JPV 04036OS3E286JPV 3,156 P1 388 47.5 90.2 30.248 208-230/460V
50 3600 324JPV 05036OS3E324JPV 4,032 P1 471 57.0 92.4 29.311 208-230/460V
0309catalogA.indd 87 8/12/09 11:29 AM
www.weg.net
A-88 Data subject to change without notice.
Data subject to change without notice.
HIGHLIGHTS
FRAME – SPECIFIC FEATURES
FOR FRAME 143/5JM/JP, ONLY
• Welded steel plate frames
(welded feet)
• Cast iron endsheilds xed with through
bolt construction
• ‘ZZ’ bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 182JM up to 215JM
• Welded steel plate frames (welded feet)
• Aluminum endshields and Terminal box
• Cooling system with nned rotor
• Cast iron endshields xed with through
bolt construction
• “ZZ” bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 254JM UP TO 445JM
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings system
(frame 254JM and up)
• Degree of protection: IP23
LR 38324
Specially developed line for industrial
and commercial pumping applications.
• Water pumping
• Process
• Transfer and circulating pumps
• 3 phase, 2, 4 and 6 pole, 60Hz
• Votage: 208-230/460V, 460V
• Squirrel cage rotor / Aluminum die cast
• Open drip proof design
• NEMA dimensions
• Service factor: 1.15
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• 1045 carbon steel shaft
• F1 mount (with cast iron ‘C’ Flange)
• Paint: Enamel alkyd resin base
• Color: RAL 5007 (Blue)
• NPT threaded holes in T-Box
• Stainless steel nameplate
• Cable glands
• Special Voltages
• Cast iron NEMA C-ange or
D-flange (D-flange only for
frames 254T and up)
• Special designed shaft
• Second shaft end
• Thermistors, Thermostats or
RTD’s (PT100)
• Roller bearing on drive end
• IEC metric frames (on request)
for frame 254T up to 445T
• Stainless steel shaft
• Class H insulation
• Design C
• 575V
ODP – THREE PHASE
WEG offers both JM and JP standardized
types of ODP close coupled pump line of
motors. Remember that ODP are suitable
where dirt and moisture are at a minimum.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
JPJM
• Single and two-speed
available
• Space Heaters
Pump Motors
Close Coupled - High Efficiency
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
ALL MOTORS ARE TESTED ACCORDING TO
IEEE 112 STD. - METHOD ‘B’ OR C390 CSA
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 88 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-89
Data subject to change without notice. Data subject to change without notice.
“JM” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-36.
• MECHANICAL FEATURES ON PAGE B-88.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimen-
sion
(in.)
Voltage NOTES
1 1800 143JM 00118OP3E143JM 437 P1C 36 1.41 82.5 14.055 208-230/460V
1.5 3600 143JM 00156OP3E143JM 453 P1C 32 1.95 82.5 14.055 208-230/460V
1800 145JM 00158OP3E145JM 478 P1C 40 1.98 84.0 14.055 208-230/460V
23600 145JM 00236OP3E145JM 498 P1C 43 2.52 84.0 14.055 208-230/460V
1800 145JM 00218OP3E145JM 524 P1C 43 2.87 84.0 14.055 208-230/460V
33600 145JM 00336OP3E145JM 565 P1C 49 3.65 84.0 14.055 208-230/460V
1800 182JM 00318OP3E182JM 557 P1C 56 3.94 86.5 14.527 208-230/460V
53600 182JM 00536OP3E182JM 669 P1C 57 6.17 86.5 14.527 208-230/460V
1800 184JM 00518OP3E184JM 740 P1C 69 6.39 87.5 15.315 208-230/460V
7.5 3600 184JM 00736OP3E184JM 862 P1C 69 8.97 87.5 15.315 208-230/460V
1800 213JM 00718OP3E213JM 945 P1C 85 9.40 88.5 17.323 208-230/460V
10 3600 213JM 01036OP3E213JM 1,109 P1C 108 11.8 88.5 17.323 208-230/460V
1800 215JM 01018OP3E215JM 1,161 P1C 109 12.7 89.5 17.323 208-230/460V
15 3600 215JM 01536OP3E215JM 1,447 P1C 139 17.1 89.5 17.323 208-230/460V
1800 254JM 01518OP3E254JM 1,749 P1C 247 18.7 91.0 22.169 208-230/460V
20 3600 254JM 02036OP3E254JM 1,816 P1C 205 24.6 90.2 22.169 208-230/460V
1800 256JM 02018OP3E256JM 2,107 P1C 277 25.2 91.0 23.902 208-230/460V
25 3600 256JM 02536OP3E256JM 2,242 P1C 251 29.3 91.0 23.902 208-230/460V
1800 284JM 02518OP3E284JM 2,551 P1C 311 30.1 91.7 24.261 208-230/460V
30 3600 284JM 03036OP3E284JM 2,731 P1C 373 34.0 92.4 24.261 208-230/460V
1800 286JM 03018OP3E286JM 2,946 P1C 397 35.6 92.4 25.754 208-230/460V
40 3600 286JM 04036OP3E286JM 3,260 P1C 457 44.8 92.4 25.754 208-230/460V
1800 324JM 04018OP3E324JM 3,354 P1C 495 48.2 93.0 26.431 208-230/460V
50 3600 324JM 05036OP3E324JM 3,971 P1C 523 56.4 93.6 26.431 208-230/460V
1800 326JM 05018OP3E326JM 4,104 P1C 583 60.2 93.0 27.927 208-230/460V
60
3600 326JM 06036OP3E326JM 4,859 P1C 609 70.6 93.0 27.927 208-230/460V
3600 326JM 06036OP3G326JM 4,859 P1C 609 70.6 93.0 27.927 460V
1800 364JM 06018OP3E364JM 5,254 P1C 743 70.2 93.6 29.139 208-230/460V
1800 364JM 06018OP3G364JM 5,254 P1C 743 70.2 93.6 29.139 460V
75
3600 364JM 07536OP3E364JM 6,226 P1C 805 80.6 94.1 29.139 208-230/460V
3600 364JM 07536OP3G364JM 6,226 P1C 805 80.6 94.1 29.139 460V
1800 365JM 07518OP3E365JM 5,989 P1C 935 85.3 94.1 29.139 208-230/460V
1800 365JM 07518OP3G365JM 5,989 P1C 935 85.3 94.1 29.139 460V
100 3600 365JM 10036OP3E365JM 7,005 P1C 935 110 94.1 29.139 208-230/460V
3600 365JM 10036OP3G365JM 7,005 P1C 935 110 94.1 29.139 460V
0309catalogA.indd 89 8/12/09 11:29 AM
www.weg.net
A-90 Data subject to change without notice.
Data subject to change without notice.
“JP” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
ODP – HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-37.
• MECHANICAL FEATURES ON PAGE B-88.
CLOSE COUPLED PUMP MOTORS
ODP – HIGH EFFICIENCY
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JP 00118OP3E143JP 437 P1C 36 1.41 82.5 17.126 208-230/460V
1.5 3600 143JP 00156OP3E143JP 453 P1C 32 1.95 82.5 17.126 208-230/460V
1800 145JP 00158OP3E145JP 478 P1C 40 1.98 84.0 17.126 208-230/460V
23600 145JP 00236OP3E145JP 498 P1C 43 2.52 84.0 17.126 208-230/460V
1800 145JP 00218OP3E145JP 524 P1C 43 2.87 84.0 17.126 208-230/460V
33600 145JP 00336OP3E145JP 565 P1C 49 3.65 84.0 17.126 208-230/460V
1800 182JP 00318OP3E182JP 557 P1C 56 3.94 86.5 20.236 208-230/460V
53600 182JP 00536OP3E182JP 669 P1C 57 6.17 86.5 20.236 208-230/460V
1800 184JP 00518OP3E184JP 739 P1C 69 6.39 87.5 21.023 208-230/460V
7.5 3600 184JP 00736OP3E184JP 862 P1C 69 8.97 87.5 21.023 208-230/460V
1800 213JP 00718OP3E213JP 946 P1C 85 9.40 88.5 21.240 208-230/460V
10 3600 213JP 01036OP3E213JP 1,109 P1C 108 11.8 88.5 21.240 208-230/460V
1800 215JP 01018OP3E215JP 1,163 P1C 109 12.7 89.5 21.240 208-230/460V
15 3600 215JP 01536OP3E215JP 1,447 P1C 139 17.1 89.5 21.240 208-230/460V
1800 254JP 01518OP3E254JP 1,749 P1C 247 18.7 91.0 25.049 208-230/460V
20 3600 254JP 02036OP3E254JP 1,815 P1C 205 24.6 90.2 25.049 208-230/460V
1800 256JP 02018OP3E256JP 2,107 P1C 277 25.2 91.0 26.782 208-230/460V
25 3600 256JP 02536OP3E256JP 2,243 P1C 251 29.3 91.0 26.782 208-230/460V
1800 284JP 02518OP3E284JP 2,550 P1C 311 30.1 91.7 27.141 208-230/460V
30 3600 284JP 03036OP3E284JP 2,731 P1C 373 34.0 92.4 27.141 208-230/460V
1800 286JP 03018OP3E286JP 2,945 P1C 397 35.6 92.4 28.634 208-230/460V
40 3600 286JP 04036OP3E286JP 3,260 P1C 457 44.8 92.4 28.634 208-230/460V
1800 324JP 04018OP3E324JP 3,354 P1C 495 48.2 93.0 29.311 208-230/460V
50
3600 324JP 05036OP3E324JP 3,971 P1C 523 56.4 93.6 29.311 208-230/460V
3600 324JP 05036OP3G324JP 3,971 P1C 523 56.4 93.6 29.311 460V
1800 326JP 05018OP3E326JP 4,105 P1C 583 60.2 93.0 30.807 208-230/460V
60
3600 326JP 06036OP3E326JP 4,859 P1C 609 70.6 93.0 30.807 208-230/460V
3600 326JP 06036OP3G326JP 4,859 P1C 609 70.6 93.0 30.807 460V
1800 364JP 06018OP3E364JP 5,254 P1C 743 70.2 93.6 32.019 208-230/460V
1800 364JP 06018OP3G364JP 5,254 P1C 743 70.2 93.6 32.019 460V
75
3600 364JP 07536OP3E364JP 6,226 P1C 805 80.6 94.1 32.019 208-230/460V
3600 364JP 07536OP3G364JP 6,226 P1C 805 80.6 94.1 32.019 460V
1800 365JP 07518OP3E365JP 5,989 P1C 935 85.3 94.1 32.019 208-230/460V
1800 365JP 07518OP3G365JP 5,989 P1C 935 85.3 94.1 32.019 460V
100
3600 365JP 10036OP3E365JP 7,005 P1C 935 110.0 94.1 32.019 208-230/460V
3600 365JP 10036OP3G365JP 7,005 P1C 935 110 94.1 32.019 460V
1800 404JP 10018OP3E404JP 7,469 P1C 1037 115 94.1 35.263 208-230/460V
1800 404JP 10018OP3G404JP 7,469 P1C 1037 115 94.1 35.263 460V
125 3600 404JP 12536OP3G404JP 9,185 P1C 1086 132 94.1 35.263 460V
1800 405JP 12518OP3G405JP 8,971 P1C 1207 137 94.5 35.263 460V
150 3600 405JP 15036OP3G405JP 12,106 P1C 1401 159 94.5 35.263 460V
0309catalogA.indd 90 8/12/09 11:29 AM
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-91
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
CLOSE COUPLED PUMP MOTORS
ODP – HIGH EFFICIENCY

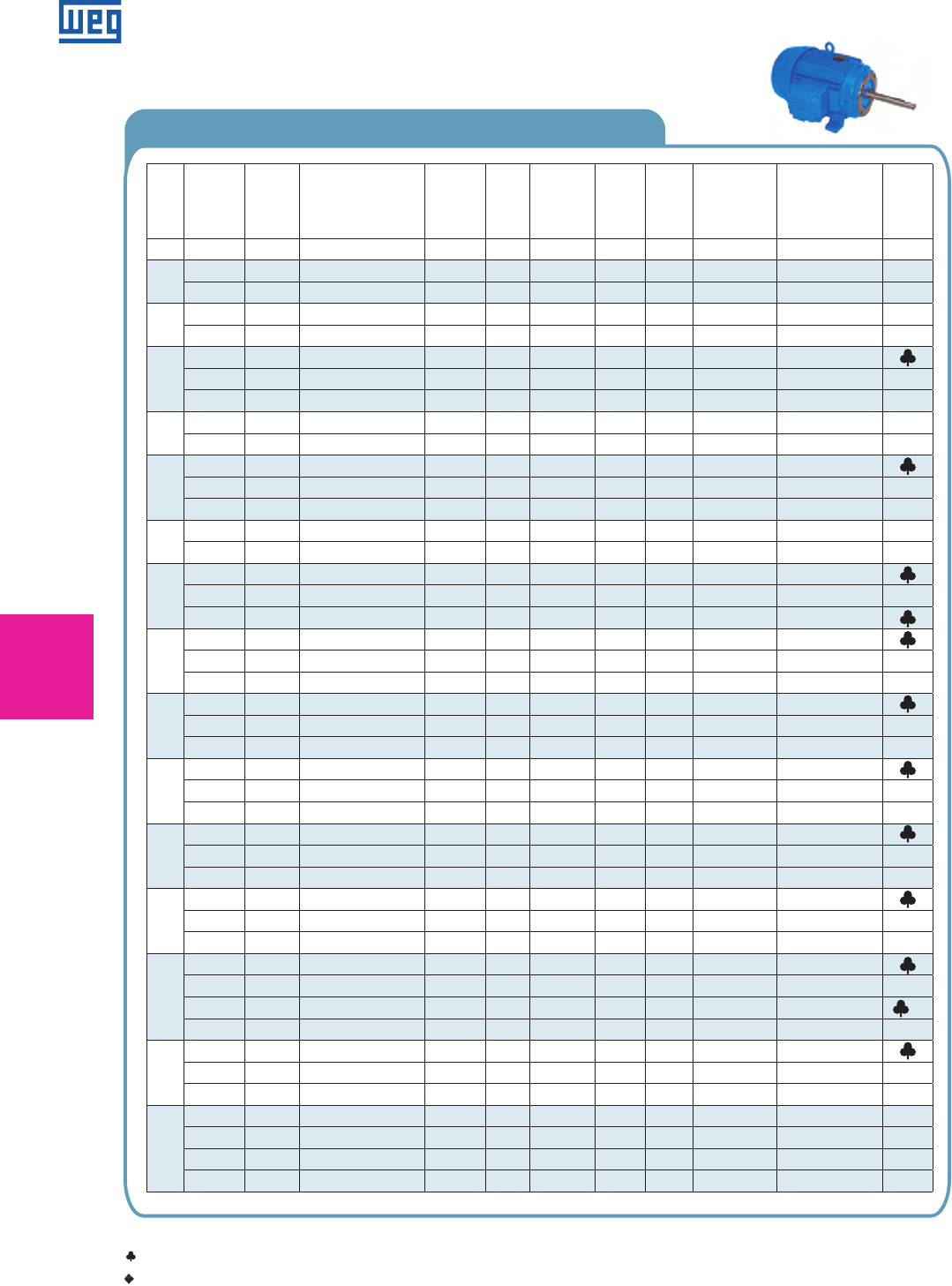

“JM” TYPE – ODP – VERTICAL MOTORS
CLOSE COUPLED PUMP MOTORS
ODP – HIGH EFFICIENCY
“JP” TYPE – ODP – VERTICAL MOTORS
• ELECTRICAL FEATURES ON PAGE B-36.
• MECHANICAL FEATURES ON PAGE B-88.
• ELECTRICAL FEATURES ON PAGE B-37.
• MECHANICAL FEATURES ON PAGE B-88.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JP 00118OP3E143JP 437 P1C 36 1.41 82.5 17.126 208-230/460V
1.5 3600 143JP 00156OP3E143JP 453 P1C 32 1.95 82.5 17.126 208-230/460V
1800 145JP 00158OP3E145JP 478 P1C 40 1.98 84.0 17.126 208-230/460V
23600 145JP 00236OP3E145JP 498 P1C 43 2.52 84.0 17.126 208-230/460V
1800 145JP 00218OP3E145JP 524 P1C 43 2.87 84.0 17.126 208-230/460V
33600 145JP 00336OP3E145JP 565 P1C 49 3.65 84.0 17.126 208-230/460V
1800 182JP 00318OP3E182JP 557 P1C 56 3.94 86.5 20.236 208-230/460V
53600 182JP 00536OP3E182JP 669 P1C 57 6.17 86.5 20.236 208-230/460V
1800 184JP 00518OP3E184JP 739 P1C 69 6.39 87.5 21.023 208-230/460V
7.5 3600 184JP 00736OP3E184JP 862 P1C 69 8.97 87.5 21.023 208-230/460V
1800 213JP 00718OP3E213JP 946 P1C 85 9.40 88.5 21.240 208-230/460V
10 3600 213JP 01036OP3E213JP 1,109 P1C 108 11.8 88.5 21.240 208-230/460V
1800 215JP 01018OP3E215JP 1,163 P1C 109 12.7 89.5 21.240 208-230/460V
15 3600 215JP 01536OP3E215JP 1,447 P1C 139 17.1 89.5 21.240 208-230/460V
1800 254JP 01518OP3E254JP 1,749 P1C 247 18.7 91.0 25.049 208-230/460V
20 3600 254JP 02036OP3E254JP 1,815 P1C 205 24.6 90.2 25.049 208-230/460V
1800 256JP 02018OP3E256JP 2,107 P1C 277 25.2 91.0 26.782 208-230/460V
25 3600 256JP 02536OP3E256JP 2,243 P1C 251 29.3 91.0 26.782 208-230/460V
1800 284JP 02518OP3E284JP 2,550 P1C 311 30.1 91.7 27.141 208-230/460V
30 3600 284JP 03036OP3E284JP 2,731 P1C 373 34.0 92.4 27.141 208-230/460V
1800 286JP 03018OP3E286JP 2,945 P1C 397 35.6 92.4 28.634 208-230/460V
40 3600 286JP 04036OP3E286JP 3,260 P1C 457 44.8 92.4 28.634 208-230/460V
1800 324JP 04018OP3E324JP 3,354 P1C 495 48.2 93.0 29.311 208-230/460V
50
3600 324JP 05036OP3E324JP 3,971 P1C 523 56.4 93.6 29.311 208-230/460V
3600 324JP 05036OP3G324JP 3,971 P1C 523 56.4 93.6 29.311 460V
1800 326JP 05018OP3E326JP 4,105 P1C 583 60.2 93.0 30.807 208-230/460V
60
3600 326JP 06036OP3E326JP 4,859 P1C 609 70.6 93.0 30.807 208-230/460V
3600 326JP 06036OP3G326JP 4,859 P1C 609 70.6 93.0 30.807 460V
1800 364JP 06018OP3E364JP 5,254 P1C 743 70.2 93.6 32.019 208-230/460V
1800 364JP 06018OP3G364JP 5,254 P1C 743 70.2 93.6 32.019 460V
75
3600 364JP 07536OP3E364JP 6,226 P1C 805 80.6 94.1 32.019 208-230/460V
3600 364JP 07536OP3G364JP 6,226 P1C 805 80.6 94.1 32.019 460V
1800 365JP 07518OP3E365JP 5,989 P1C 935 85.3 94.1 32.019 208-230/460V
1800 365JP 07518OP3G365JP 5,989 P1C 935 85.3 94.1 32.019 460V
100
3600 365JP 10036OP3E365JP 7,005 P1C 935 110.0 94.1 32.019 208-230/460V
3600 365JP 10036OP3G365JP 7,005 P1C 935 110 94.1 32.019 460V
1800 404JP 10018OP3E404JP 7,469 P1C 1037 115 94.1 35.263 208-230/460V
1800 404JP 10018OP3G404JP 7,469 P1C 1037 115 94.1 35.263 460V
125 3600 404JP 12536OP3G404JP 9,185 P1C 1086 132 94.1 35.263 460V
1800 405JP 12518OP3G405JP 8,971 P1C 1207 137 94.5 35.263 460V
150 3600 405JP 15036OP3G405JP 12,106 P1C 1401 159 94.5 35.263 460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JMV 00118OP3E143JMV 513 P1C 36 1.41 82.5 14.756 208-230/460V
1.5 3600 143JMV 00156OP3E143JMV 542 P1C 32 1.95 82.5 14.756 208-230/460V
1800 145JMV 00158OP3E145JMV 554 P1C 40 1.98 84.0 14.756 208-230/460V
23600 145JMV 00236OP3E145JMV 573 P1C 43 2.52 84.0 14.756 208-230/460V
1800 145JMV 00218OP3E145JMV 603 P1C 43 2.87 84.0 14.756 208-230/460V
33600 145JMV 00336OP3E145JMV 657 P1C 49 3.65 84.0 14.756 208-230/460V
1800 182JMV 00318OP3E182JMV 687 P1C 56 3.94 86.5 15.314 208-230/460V
53600 182JMV 00536OP3E182JMV 797 P1C 57 6.17 86.5 15.314 208-230/460V
1800 184JMV 00518OP3E184JMV 875 P1C 69 6.39 87.5 15.314 208-230/460V
7.5 3600 184JMV 00736OP3E184JMV 993 P1C 69 8.97 87.5 15.314 208-230/460V
1800 213JMV 00718OP3E213JMV 1,106 P1C 85 9.40 88.5 18.700 208-230/460V
10 3600 213JMV 01036OP3E213JMV 1,201 P1C 108 11.8 88.5 18.700 208-230/460V
1800 215JMV 01018OP3E215JMV 1,323 P1C 109 12.7 89.5 18.700 208-230/460V
15 3600 215JMV 01536OP3E215JMV 1,617 P1C 139 17.1 89.5 18.700 208-230/460V
20 3600 254JMV 02036OP3E254JMV 2,092 P1C 205 24.6 90.2 22.169 208-230/460V
25 3600 256JMV 02536OP3E256JMV 2,518 P1C 251 29.3 91.0 23.902 208-230/460V
30 3600 284JMV 03036OP3E284JMV 3,082 P1C 373 34.0 92.4 24.261 208-230/460V
40 3600 286JMV 04036OP3E286JMV 3,611 P1C 457 44.8 92.4 25.754 208-230/460V
50 3600 324JMV 05036OP3E324JMV 4,394 P1C 523 56.4 93.6 26.431 208-230/460V
Note: Prices with Drip Cover Included
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1.5 3600 143JPV 00156OP3E143JPV 513 P1C 32 1.95 82.5 17.827 208-230/460V
2 3600 145JPV 00236OP3E145JPV 559 P1C 43 2.52 84.0 17.827 208-230/460V
3 3600 145JPV 00336OP3E145JPV 629 P1C 49 3.65 84.0 17.827 208-230/460V
5 3600 182JPV 00536OP3E182JPV 729 P1C 57 6.17 86.5 22.400 208-230/460V
7.5 3600 184JPV 00736OP3E184JPV 993 P1C 69 9.0 87.5 22.400 208-230/460V
10 3600 213JPV 01036OP3E213JPV 1,273 P1C 108 11.8 88.5 22.617 208-230/460V
15 3600 215JPV 01536OP3E215JPV 1,617 P1C 139 17.1 89.5 22.617 208-230/460V
20 3600 254JPV 02036OP3E254JPV 2,092 P1C 205 24.6 90.2 26.387 208-230/460V
25 3600 256JPV 02536OP3E256JPV 2,518 P1C 251 29.3 91.0 26.782 208-230/460V
30 3600 284JPV 03036OP3E284JPV 3,082 P1C 373 34 92.4 28.755 208-230/460V
40 3600 286JPV 04036OP3E286JPV 3,611 P1C 457 44.8 92.4 30.248 208-230/460V
Note: Prices with Drip Cover Included
0309catalogA.indd 91 8/12/09 11:29 AM
www.weg.net
A-92 Data subject to change without notice.
Data subject to change without notice.
APPLICATIONS
Specially developed line for
industrial and commercial pumping
applications.
• Water pumping
• Process
• Transfer and circulating pumps
STANDARD FEATURES
• 3 phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460, 460V
• 2:1 Constant torque
10:1 Variable torque
• Cast iron frames
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled
- TEFC (IP55)
• V-ring slingers on both endshields
• Ball bearings
• Service Factor: 1.15
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 (Dark Gray)
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system (frames
254JM/JP frames and up)
• Cable glands
• Special voltages
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistor, Thermostats or RTD’s (PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
WEG also can provide IEC metric frame, cast iron, TEFC.
Please ask for specific catalog.
All motors are tested according to IEEE 112 std. - method
‘B’ or C390 CSA.
APPROVED BY
LR 50.962-9/13/14
TEFC – THREE PHASE
WEG offers both JM and JP standardized
types of close-coupled pump line of
motors. Totally enclosed enclosures permit
these motors to operate in moist or dusty
atmospheres. JP
JM
OPTIONAL FEATURES
Pump Motors
Close Coupled - Standard Efficiency
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 92 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-93
Data subject to change without notice. Data subject to change without notice.
= Reduced Frame = Product may not be available from stock
“JM” TYPE – TEFC– THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-38. • MECHANICAL FEATURES ON PAGE B-89.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JM 00118ES3E143JM 411 P1 40 1.51 78.0 14.304 208-230/460V
1.5 3600 143JM 00156ES3E143JM 434 P1 40 2.04 78.0 14.304 208-230/460V
1800 145JM 00158ES3E145JM 449 P1 40 2.19 79.0 15.304 208-230/460V
23600 145JM 00236ES3E145JM 467 P1 44 2.73 78.5 15.304 208-230/460V
1800 145JM 00218ES3E145JM 470 P1 52 2.93 82.5 15.304 208-230/460V
3
3600 145JM 00336ES3E145JM 533 P1 49 4.04 81.5 15.304 208-230/460V
3600 W182JM 00336ES3E182JM 578 P1 88 4.04 81.5 15.996 208-230/460V
1800 W182JM 00318ES3E182JM 583 P1 73 4.13 81.5 15.996 208-230/460V
5
3600 182JM 00536ES3E182JM 681 P1 93 6.15 84.5 15.996 208-230/460V
3600 W184JM 00536ES3E184JM 810 P1 97 6.15 84.5 17.020 208-230/460V
1800 182JM 00518ES3E182JM 694 P1 106 6.50 85.0 15.996 208-230/460V
1800 W184JM 00518ES3E184JM 756 P1 106 6.50 85.0 17.020 208-230/460V
7.5
3600 184JM 00736ES3E184JM 851 P1 99 9.15 86.7 17.020 208-230/460V
3600 213JM 00736ES3E213JM 935 P1 145 8.95 86.5 18.678 208-230/460V
1800 213JM 00718ES3E213JM 959 P1 152 9.70 87.0 18.678 208-230/460V
10
3600 213JM 01036ES3E213JM 1,093 P1 154 12.2 87.6 18.678 208-230/460V
3600 215JM 01036ES3E215JM 1,114 P1 156 12.2 87.6 20.174 208-230/460V
1800 213JM 01018ES3E213JM 1,094 P1 150 12.8 89.0 18.678 208-230/460V
1800 215JM 01018ES3E215JM 1,170 P1 150 12.8 89.0 20.174 208-230/460V
15
3600 215JM 01536ES3E215JM 1,372 P1 172 17.7 87.8 20.174 208-230/460V
3600 254JM 01536ES3E254JM 1,570 P1 260 18.2 87.5 24.370 208-230/460V
1800 254JM 01518ES3E254JM 1,642 P1 233 18.8 88.5 24.370 208-230/460V
20
3600 254JM 02036ES3E254JM 1,705 P1 255 24.1 89.0 24.370 208-230/460V
3600 256JM 02036ES3E256JM 1,926 P1 269 24.1 89.0 26.102 208-230/460V
1800 256JM 02018ES3E256JM 1,980 P1 277 25.2 90.2 26.102 208-230/460V
25
3600 256JM 02536ES3E256JM 2,105 P1 271 29.5 89.5 26.102 208-230/460V
3600 284JM 02536ES3E284JM 2,378 P1 346 29.7 89.0 27.165 208-230/460V
1800 284JM 02518ES3E284JM 2,456 P1 371 30.2 90.5 27.165 208-230/460V
30
3600 284JM 03036ES3E284JM 2,565 P1 395 35.1 89.5 27.165 208-230/460V
3600 286JM 03036ES3E286JM 2,730 P1 399 35.1 89.5 28.700 208-230/460V
1800 286JM 03018ES3E286JM 2,765 P1 393 36.1 91.0 28.700 208-230/460V
40
3600 286JM 04036ES3E286JM 3,061 P1 404 48.6 90.2 28.700 208-230/460V
3600 324JM 04036ES3E324JM 3,734 P1 515 47.4 90.4 28.149 208-230/460V
1800 324JM 04018ES3E324JM 3,342 P1 506 48.3 91.7 28.149 208-230/460V
50
3600 324JM 05036ES3E324JM 3,917 P1 563 57.0 92.2 28.149 208-230/460V
3600 326JM 05036ES3E326JM 4,348 P1 574 57.0 92.2 29.645 208-230/460V
1800 326JM 05018ES3E326JM 3,878 P1 557 58.5 92.4 29.645 208-230/460V
60
3600 326JM 06036ES3E326JM 4,565 P1 640 70.5 92.0 29.645 208-230/460V
3600 364JM 06036ES3E364JM 5,461 P1 948 68.5 91.7 33.031 208-230/460V
1800 326JM 06018ES3E326JM 4,943 P1 640 72.0 92.5 29.645 208-230/460V
1800 364JM 06018ES3E364JM 6,695 P1 948 70.0 93.0 33.031 208-230/460V
75
3600 364JM 07536ES3E364JM 6,960 P1 1058 83.0 92.4 33.031 208-230/460V
3600 365JM 07536ES3E365JM 8,318 P1 1058 83.0 92.4 33.031 208-230/460V
1800 365JM 07518ES3E365JM 7,076 P1 1025 84.5 93.0 33.031 208-230/460V
0309catalogA.indd 93 8/12/09 11:29 AM
www.weg.net
A-94 Data subject to change without notice.
Data subject to change without notice.
“JP” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
= Reduced Frame = Product may not be available from stock
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-39. • MECHANICAL FEATURES ON PAGE B-89.
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JP 00118ES3E143JP 411 P1 40 1.51 78.0 17.365 208-230/460V
1.5
3600 143JP 00156ES3E143JP 434 P1 40 2.04 78.0 17.365 208-230/460V
3600 143JP 00156ES3V143JP 434 P1 40 2.04 78.0 17.365 200/400V
1800 145JP 00158ES3E145JP 449 P1 40 2.19 79.0 18.365 208-230/460V
2
3600 145JP 00236ES3E145JP 467 P1 44 2.73 78.5 18.365 208-230/460V
3600 145JP 00236ES3V145JP 467 P1 44 2.73 78.5 18.365 200/400V
1800 145JP 00218ES3E145JP 470 P1 52 2.93 82.5 18.365 208-230/460V
3
3600 145JP 00336ES3E145JP 522 P1 49 4.04 81.5 18.365 208-230/460V ß
3600 W182JP 00336ES3E182JP 663 P1 88 4.04 81.5 19.057 208-230/460V
3600 182JP 00336ES3V182JP 663 P1 88 4.04 81.5 19.057 200/400V
1800 W182JP 00318ES3E182JP 594 P1 73 4.13 81.5 19.057 208-230/460V
5
3600 182JP 00536ES3E182JP 681 P1 93 6.15 84.5 19.057 208-230/460V ß
3600 W184JP 00536ES3E184JP 810 P1 97 6.15 84.5 20.395 208-230/460V
3600 184JP 00536ES3V184JP 810 P1 97 6.15 84.5 20.395 200/400V
1800 182JP 00518ES3E182JP 708 P1 106 6.50 85.0 19.057 208-230/460V ß
1800 W184JP 00518ES3E184JP 770 P1 106 6.50 85.0 20.395 208-230/460V
7.5
3600 184JP 00736ES3E184JP 851 P1 99 9.15 86.7 20.395 208-230/460V ß
3600 213JP 00736ES3E213JP 1,038 P1 145 8.95 86.5 22.550 208-230/460V
3600 213JP 00736ES3V213JP 1,038 P1 145 8.95 86.5 22.550 200/400V
1800 213JP 00718ES3E213JP 977 P1 152 9.70 87.0 22.550 208-230/460V
10
3600 213JP 01036ES3E213JP 1,093 P1 154 12.2 87.6 22.550 208-230/460V ß
3600 215JP 01036ES3E215JP 1,114 P1 156 12.2 87.6 24.046 208-230/460V
3600 215JP 01036ES3V215JP 1,114 P1 156 12.2 87.6 24.046 200/400V
1800 213JP 01018ES3E213JP 1,043 P1 150 12.8 89.0 22.550 208-230/460V ß
1800 215JP 01018ES3E215JP 1,124 P1 150 12.8 89.0 24.046 208-230/460V
15
3600 215JP 01536ES3E215JP 1,372 P1 172 17.7 87.8 24.046 208-230/460V ß
3600 254JP 01536ES3E254JP 1,598 P1 260 18.2 87.5 26.964 208-230/460V
3600 254JP 01536ES3V254JP 1,598 P1 260 18.2 87.5 26.964 200/400V
1800 254JP 01518ES3E254JP 1,642 P1 233 18.8 88.5 26.964 208-230/460V
20
3600 254JP 02036ES3E254JP 1,705 P1 255 24.1 89.0 26.964 208-230/460V ß
3600 256JP 02036ES3E256JP 1,781 P1 269 24.1 89.0 28.736 208-230/460V
3600 256JP 02036ES3V256JP 1,781 P1 269 24.1 89.0 28.736 200/400V
1800 256JP 02018ES3E256JP 1,980 P1 277 25.2 90.2 28.736 208-230/460V
25
3600 256JP 02536ES3E256JP 2,105 P1 271 29.5 89.5 28.736 208-230/460V ß
3600 284JP 02536ES3E284JP 2,443 P1 346 29.7 89.0 30.079 208-230/460V
3600 284JP 02536ES3V284JP 2,443 P1 346 29.7 89.0 30.079 200/400V
1800 284JP 02518ES3E284JP 2,505 P1 371 30.2 90.5 30.079 208-230/460V
30
3600 284JP 03036ES3E284JP 2,573 P1 395 35.1 89.5 30.079 208-230/460V ß
3600 286JP 03036ES3E286JP 2,716 P1 399 35.1 89.5 31.575 208-230/460V
3600 286JP 03036ES3V286JP 2,716 P1 399 35.1 89.5 31.575 200/400V
1800 286JP 03018ES3E286JP 2,765 P1 393 36.1 91.0 31.575 208-230/460V
40
3600 286JP 04036ES3E286JP 3,243 P1 404 48.6 90.2 31.575 208-230/460V ß
3600 324JP 04036ES3E324JP 3,513 P1 515 47.4 90.4 32.525 208-230/460V
3600 324JP 04036ES3V324JP 3,513 P1 515 47.4 90.4 32.525 200/400V
1800 324JP 04018ES3E324JP 3,513 P1 506 48.3 91.7 32.525 208-230/460V
0309catalogA.indd 94 8/12/09 11:29 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-95
Data subject to change without notice. Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
“JP” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
= Reduced Frame
• ELECTRICAL FEATURES ON PAGE B-39.
• MECHANICAL FEATURES ON PAGE B-89.
• ELECTRICAL FEATURES ON PAGE B-39. • MECHANICAL FEATURES ON PAGE B-89.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
50
3600 324JP 05036ES3E324JP 3,917 P1 563 57.0 92.2 32.525 208-230/460V ß
3600 326JP 05036ES3E326JP 4,229 P1 574 57.0 92.2 34.021 208-230/460V
3600 326JP 05036ES3V326JP 4,229 P1 574 57.0 92.2 34.021 200/400V
1800 326JP 05018ES3E326JP 4,095 P1 557 58.5 92.4 34.021 208-230/460V
60
3600 326JP 06036ES3E326JP 5,334 P1 640 70.5 92.0 34.021 208-230/460V ß
3600 364JP 06036ES3E364JP 6,025 P1 948 68.5 91.7 35.916 208-230/460V
3600 364JP 06036ES3V364JP 6,025 P1 948 68.5 91.7 35.916 200/400V
1800 326JP 06018ES3E326JP 5,621 P1 640 72.0 92.5 34.021 208-230/460V ß
1800 364JP 06018ES3E364JP 6,829 P1 948 70.0 93.0 35.916 208-230/460V
75
3600 364JP 07536ES3E364JP 7,191 P1 1058 83.0 92.4 35.916 208-230/460V ß
3600 365JP 07536ES3E365JP 8,483 P1 1058 83.0 92.4 35.916 208-230/460V
3600 365JP 07536ES3V365JP 8,483 P1 1058 83.0 92.4 35.916 200/400V
1800 365JP 07518ES3E365JP 7,218 P1 1025 84.5 93.0 35.916 208-230/460V
100
3600 404JP 10036ES3E404JP 8,588 P1 1180 111 93.0 38.911 208-230/460V ß
3600 404JP 10036ES3G404JP 8,588 P1 1180 111 93.0 38.911 460V ß
1800 405JP 10018ES3E405JP 8,589 P1 1302 116 93.2 38.911 208-230/460V
1800 405JP 10018ES3G405JP 8,589 P1 1302 116 93.2 38.911 460V
0309catalogA.indd 95 8/12/09 11:29 AM
www.weg.net
A-96 Data subject to change without notice.
Data subject to change without notice.
Specially developed line for
industrial and commercial pumping
applications.
• Water pumping
• Process
• Transfer and circulating pumps
• 3 phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460, 460V
• 12:1 Constant torque
100:1 Variable torque
• Cast iron frames
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled - TEFC
• V-ring slingers on both endshields
• Ball bearings
• Service Factor: 1.25
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 5007 – Blue
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system (frames
254JM/JP frames and up)
• Cable glands
• Special voltages
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistor, Thermostats or RTD’s
(PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
APPROVED BY
LR 50.962-9/13/14
TEFC – THREE PHASE
WEG offers both JM and JP standardized
types of close-coupled pump line of
motors. Totally enclosed enclosures permit
these motors to operate in moist or dusty
atmospheres. JMJP
APPLICATIONS STANDARD FEATURES OPTIONAL FEATURES
Pump Motors
Close Coupled - High Efficiency
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
* Design B torque rating on nameplate can be re-plated for Design C for 15-200Hp 1800
and 1200 rpm.
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 96 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-97
Data subject to change without notice. Data subject to change without notice.
“JM” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
= Reduced Frame
• ELECTRICAL FEATURES ON PAGE B-40.
• MECHANICAL FEATURES ON PAGE B-89.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JM 00118EP3E143JM 497 P1 47 1.49 82.5 14.304 208-230/460V
1.5 3600 143JM 00156EP3E143JM 527 P1 45 1.99 82.5 14.304 208-230/460V
1800 145JM 00158EP3E145JM 509 P1 54 2.05 84.0 15.304 208-230/460V
23600 145JM 00236EP3E145JM 583 P1 47 2.60 84.0 15.304 208-230/460V
1800 145JM 00218EP3E145JM 560 P1 56 2.70 84.0 15.304 208-230/460V
3
3600 145JM 00336EP3E145JM 647 P1 54 3.71 85.5 15.304 208-230/460V ß
3600 182JM 00336EP3E182JM 744 P1 106 3.59 85.5 15.996 208-230/460V
1800 182JM 00318EP3E182JM 886 P1 97 3.90 87.5 15.996 208-230/460V
53600 184JM 00536EP3E184JM 922 P1 114 5.90 87.5 17.020 208-230/460V
1800 184JM 00518EP3E184JM 993 P1 102 6.48 87.5 17.020 208-230/460V
7.5
3600 184JM 00736EP3E184JM 1,125 P1 128 8.76 88.5 17.020 208-230/460V ß
3600 213JM 00736EP3E213JM 1,277 P1 150 8.66 88.5 18.678 208-230/460V
1800 213JM 00718EP3E213JM 1,256 P1 150 9.53 89.5 18.678 208-230/460V
10 3600 215JM 01036EP3E215JM 1,581 P1 150 11.7 89.5 20.174 208-230/460V
1800 215JM 01018EP3E215JM 1,502 P1 165 12.8 90.2 20.174 208-230/460V
15
3600 215JM 01536EP3E215JM 1,803 P1 174 17.3 90.2 20.174 208-230/460V ß
3600 254JM 01536EP3E254JM 2,029 P1 280 17.0 90.2 24.370 208-230/460V
1800 254JM 01518EP3E254JM 2,256 P1 266 17.9 91.0 24.370 208-230/460V
20
3600 254JM 02036EP3E254JM 2,368 P1 304 23.3 90.2 24.370 208-230/460V ß
3600 256JM 02036EP3E256JM 2,568 P1 313 23.3 90.2 26.102 208-230/460V
1800 256JM 02018EP3E256JM 2,490 P1 313 24.4 91.0 26.102 208-230/460V
25
3600 256JM 02536EP3E256JM 2,803 P1 313 28.4 91.0 26.102 208-230/460V ß
3600 284JM 02536EP3E284JM 2,989 P1 353 29.0 91.0 27.165 208-230/460V
1800 284JM 02518EP3E284JM 3,186 P1 437 29.6 92.4 27.165 208-230/460V u
30
3600 284JM 03036EP3E284JM 3,545 P1 399 33.8 91.0 27.165 208-230/460V ß
3600 286JM 03036EP3E286JM 3,797 P1 404 33.8 91.0 28.700 208-230/460V
1800 286JM 03018EP3E286JM 3,559 P1 481 34.4 92.4 28.700 208-230/460V u
40
3600* 286JM 04036EP3E286JM 4,353 P1 448 46.6 91.7 28.700 208-230/460V ß
3600 324JM 04036EP3E324JM 4,746 P1 561 46.1 91.7 28.149 208-230/460V
1800 324JM 04018EP3E324JM 4,803 P1 587 47.6 93.0 28.149 208-230/460V u
50
3600 324JM 05036EP3E324JM 5,070 P1 565 56.5 92.4 28.149 208-230/460V ß
3600 326JM 05036EP3E326JM 5,502 P1 594 56.5 92.4 29.645 208-230/460V
1800 326JM 05018EP3E326JM 5,500 P1 640 57.8 93.6 29.645 208-230/460V u
60
3600 326JM 06036EP3E326JM 6,598 P1 594 69.0 93.0 29.645 208-230/460V ß
3600 364JM 06036EP3E364JM 7,137 P1 917 69.0 93.0 33.031 208-230/460V
1800 326JM 06018EP3E326JM 7,349 P1 687 72.7 93.6 29.645 208-230/460V uß
1800 364JM 06018EP3E364JM 7,805 P1 963 67.0 93.6 33.031 208-230/460V u
75
3600 364JM 07536EP3E364JM 8,995 P1 1025 82.5 93.0 33.031 208-230/460V ß
3600 365JM 07536EP3E365JM 9,848 P1 1025 82.5 93.0 33.031 208-230/460V
1800 365JM 07518EP3E365JM 8,860 P1 1010 82.4 94.1 33.031 208-230/460V u
0309catalogA.indd 97 8/12/09 11:30 AM
www.weg.net
A-98 Data subject to change without notice.
Data subject to change without notice.
“JP” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
= Reduced Frame
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-41. • MECHANICAL FEATURES ON PAGE B-89.
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143JP 00118EP3E143JP 508 P1 47 1.49 82.5 17.365 208-230/460V
1.5 3600 143JP 00156EP3E143JP 537 P1 45 1.99 82.5 17.365 208-230/460V
1800 145JP 00158EP3E145JP 519 P1 54 2.05 84.0 18.365 208-230/460V
23600 145JP 00236EP3E145JP 594 P1 47 2.60 84.0 18.365 208-230/460V
1800 145JP 00218EP3E145JP 571 P1 56 2.70 84.0 18.365 208-230/460V
3
3600 145JP 00336EP3E145JP 632 P1 54 3.71 85.5 18.365 208-230/460V ß
3600 182JP 00336EP3E182JP 759 P1 106 3.59 85.5 19.057 208-230/460V
1800 182JP 00318EP3E182JP 905 P1 97 3.90 87.5 19.057 208-230/460V
53600 184JP 00536EP3E184JP 941 P1 114 5.90 87.5 20.395 208-230/460V
1800 184JP 00518EP3E184JP 1,013 P1 102 6.48 87.5 20.395 208-230/460V
7.5
3600 184JP 00736EP3E184JP 1,146 P1 128 8.76 88.5 20.395 208-230/460V ß
3600 213JP 00736EP3E213JP 1,303 P1 150 8.66 88.5 22.550 208-230/460V
1800 213JP 00718EP3E213JP 1,280 P1 150 9.53 89.5 22.550 208-230/460V
10 3600 215JP 01036EP3E215JP 1,613 P1 150 11.7 89.5 24.046 208-230/460V
1800 215JP 01018EP3E215JP 1,533 P1 165 12.8 90.2 24.046 208-230/460V
15
3600 215JP 01536EP3E215JP 1,791 P1 174 17.3 90.2 24.046 208-230/460V ß
3600 254JP 01536EP3E254JP 2,069 P1 280 17.0 90.2 26.964 208-230/460V
1800 254JP 01518EP3E254JP 2,300 P1 266 17.9 91.0 26.964 208-230/460V u
20
3600 254JP 02036EP3E254JP 2,451 P1 304 23.3 90.2 26.964 208-230/460V ß
3600 256JP 02036EP3E256JP 2,621 P1 313 23.3 90.2 28.736 208-230/460V
1800 256JP 02018EP3E256JP 2,541 P1 313 24.4 91.0 28.736 208-230/460V u
25
3600 256JP 02536EP3E256JP 2,790 P1 313 28.4 91.0 28.736 208-230/460V ß
3600 284JP 02536EP3E284JP 3,049 P1 353 29.0 91.0 30.079 208-230/460V
1800 284JP 02518EP3E284JP 3,249 P1 437 29.6 92.4 30.079 208-230/460V u
30
3600 284JP 03036EP3E284JP 3,519 P1 399 33.8 91.0 30.079 208-230/460V ß
3600 286JP 03036EP3E286JP 3,872 P1 404 33.8 91.0 31.575 208-230/460V
1800 286JP 03018EP3E286JP 3,630 P1 481 34.4 92.4 31.575 208-230/460V u
40
3600 286JP 04036EP3E286JP 4,545 P1 448 46.6 91.7 31.575 208-230/460V ß
3600 324JP 04036EP3E324JP 4,840 P1 561 46.1 91.7 32.525 208-230/460V
1800 324JP 04018EP3E324JP 4,900 P1 587 47.6 93.0 32.525 208-230/460V u
50
3600 324JP 05036EP3E324JP 4,954 P1 565 56.5 92.4 32.525 208-230/460V ß
3600 326JP 05036EP3E326JP 5,613 P1 594 56.5 92.4 34.021 208-230/460V
1800 326JP 05018EP3E326JP 5,611 P1 640 57.8 93.6 34.021 208-230/460V u
60
3600 326JP 06036EP3E326JP 7,954 P1 594 69.0 93.0 34.021 208-230/460V ß
3600 364JP 06036EP3E364JP 8,412 P1 917 69.0 93.0 35.916 208-230/460V
1800 326JP 06018EP3E326JP 7,176 P1 687 72.7 93.6 34.021 208-230/460V ßu
1800 364JP 06018EP3E364JP 7,960 P1 963 67.0 93.6 35.916 208-230/460V u
75
3600 364JP 07536EP3E364JP 9,623 P1 1025 82.5 93.0 35.916 208-230/460V ß
3600 365JP 07536EP3E365JP 10,045 P1 1025 82.5 93.0 35.916 208-230/460V
1800 365JP 07518EP3E365JP 9,038 P1 1010 82.4 94.1 35.916 208-230/460V u
100
3600 405JP 10036EP3E405JP 11,449 P1 1361 113 93.6 38.911 208-230/460V
3600 405JP 10036EP3G405JP 11,449 P1 1361 113 93.6 38.911 460V
1800 405JP 10018EP3E405JP 10,269 P1 1273 115 94.5 38.911 208-230/460V u
1800 405JP 10018EP3G405JP 10,269 P1 1273 115 94.5 38.911 460V u
0309catalogA.indd 98 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-99
Data subject to change without notice. Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
“TP” TYPE – STANDARD EFFICIENCY
THREE PHASE
• ELECTRICAL FEATURES ON PAGE B-42.
• MECHANICAL FEATURES ON PAGE B-91.
• Liquid Pumping
• T hree-phase, 4 pole, 60Hz
• Voltage:
• 230/460V (up to 100HP)
• 460V (60HP and up)
• Enclosure: Open weather-protected machine
Type 1 to NEMA MG 1-1993 (WP-I)
• Cast iron construction
• Frames: 215TP up to 444TP
• Hi-Thrust Design
• Precision Balancing
• 104ºF (40ºC) ambient temperature
• Class ‘F’ insulation
• Class ‘B’ Temperature Rise @ 1.15
THREE PHASE
Vertical Hollow Shaft Motors are designed primarily for deep well turbine pump application. The coupling
is equipped with a non-reverse ratchet, which prevents motor rotation from backspin at shutdown.
These motors are built to NEMA standards and have special bearing arrangements to carry heavy thrust
loads.
APPLICATIONS
STANDARD FEATURES
Vertical Hollow
Shaft Motors
HIGHLIGHTS
• Upper bearing
oil lubricated
• Oversized angular contact bearing and
ball bearing
• Large oil reservoir
• Hi-Torque
• VPI treatment
• Non-reverse coupling (ball type) included
• 230/460 suitable for PWS on 230V
• 460V suitable for PWS
• Thermal protected
• Space heater
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage High
Thrust
(Lb.) NOTES
10 1800 215TP 01018OS3EHS215TP 2,486 P2 408 12.8 85.7 21.250 230/460V 2500
15 1800 254TP 01518OS3EHS254TP 2,735 P2 474 18.6 87.3 26.750 230/460V 3200
20 1800 256TP 02018OS3EHS256TP 3,148 P2 474 25.0 88.8 26.750 230/460V 3200
25 1800 284TP 02518OS3EHS284TP 4,002 P2 650 30.1 89.2 28.130 230/460V 3200
30 1800 286TP 03018OS3EHS286TP 4,318 P2 662 35.5 90.2 28.130 230/460V 3200
40 1800 324TP 04018OS3EHS324TP 5,282 P2 838 49.6 91.2 33.000 230/460V 5500
50 1800 326TP 05018OS3EHS326TP 5,953 P2 882 58.2 91.3 33.000 230/460V 5500
60 1800 364TP 06018OS3EHS364TP 6,588 P2 1136 71.3 92.3 36.000 230/460V 5600
1800 364TP 06018OS3GHS364TP 6,588 P2 1136 71.3 92.3 36.000 460V 5600
75 1800 365TP 07518OS3EHS365TP 8,205 P2 1180 87.7 92.3 36.000 230/460V 5600
1800 365TP 07518OS3GHS365TP 8,205 P2 1180 87.7 92.3 36.000 460V 5600
100 1800 404TP 10018OS3EHS404TP 9,827 P2 1521 115 92.3 42.500 230/460V 6700
1800 404TP 10018OS3GHS404TP 9,827 P2 1521 115.0 92.3 42.500 460V 6700
125 1800 405TP 12518OS3GHS405TP 10,247 P2 1588 146 93.2 42.500 460V 6700
150 1800 444TP 15018OS3GHS444TP 12,263 P2 2139 170 93.3 47.700 460V 8000
200 1800 445TP 20018OS3GHS445TP 18,956 P2 2249 226 93.8 47.700 460V 8000
250 1800 445TP 25018OS3GHS445TP 22,089 P2 2359 278 93.8 47.700 460V 8000
0309catalogA.indd 99 8/12/09 11:30 AM
www.weg.net
A-100 Data subject to change without notice.
Data subject to change without notice.
NOTE: Motors are tested according to IEEE 112 std. - method ‘B’ or C390 CSA .
High Efficiency motors are suitable for Inverter Duty.
APPROVED BY
LR 50.962-9/13/14
Normal thrust in-line pump
applications
• Waste water treatment plants
• Petro chemical industries
• Pulp and paper mills
• Agricultural irrigation
• Three-phase, 2, 4 pole, 60Hz
• Voltage: 208-230/460, 460
• HP type: from frames 143HP up to 445HP
• HPH type: frames 284/6HPH and 404/5HPH
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled- TEFC (IP55)
• V-ring slingers on both endshields
• Cast iron frame
• Ball bearings
• Class ‘F’ insulation for all frames
• Service factor for High Efciency:
1.25 up to 100HP
1.15 from 125HP and up
• Service Factor for Standard Efciency: 1.15
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• 1045 carbon steel shaft
• Usual mounting: V1 - footless
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 - Dark Gray
(Standard Efficiency)
• Color: RAL 5007 - Blue (High Efciency)
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system
(frames 254HP and up)
• Drip cover (canopy)
• Class I, Div 2. Groups B, C, D & T3C
• Cable glands
• Special voltages
• Space heaters
• Thermistor, Thermostats
or RTD’s (PT100)
• Additional terminal box
• Stainless steel shaft
• Design C for High Efciency
and NEMA Premium
Efficiency
• Insulation class “H”
• 575V
• 6 & 8 pole, 60Hz
THREE PHASE
HP and HPH types are available. These
motors are suitable for dusty or moist
environments and provide high starting
torque, with efficient performance.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
High EfficiencyStandard Efficiency
Pump Motors
P-Base
HIGHLIGHTS
• Ideal for
applications with
heavy white
thrust loads
P-BASE MOTORS
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 100 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-101
Data subject to change without notice. Data subject to change without notice.
P-BASE MOTORS
HP & HPH TYPE – TEFC STANDARD EFFICIENCY
= Reduced Frame
• ELECTRICAL FEATURES ON PAGE B-43. • MECHANICAL FEATURES ON PAGE B-92.
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143HP 00118ES3E143HP 375 P1F 40 1.51 78.0 13.421 208-230/460V
1.5 3600 143HP 00156ES3E143HP 390 P1F 40 2.04 78.0 13.421 208-230/460V
1800 145HP 00158ES3E145HP 396 P1F 40 2.19 79.0 14.397 208-230/460V
23600 145HP 00236ES3E145HP 405 P1F 44 2.73 78.5 14.397 208-230/460V
1800 145HP 00218ES3E145HP 436 P1F 52 2.93 82.5 14.397 208-230/460V
3
3600 145HP 00336ES3E145HP 548 P1F 49 4.04 81.5 14.397 208-230/460V ß
3600 182HP 00336ES3E182HP 602 P1F 88 4.04 81.5 15.504 208-230/460V
1800 182HP 00318ES3E182HP 606 P1F 73 4.13 81.5 15.504 208-230/460V
5
3600 182HP 00536ES3E182HP 604 P1F 93 6.15 84.5 15.504 208-230/460V ß
3600 184HP 00536ES3E184HP 721 P1F 97 6.15 84.5 16.504 208-230/460V
1800 182HP 00518ES3E182HP 723 P1F 106 6.50 85.0 15.504 208-230/460V ß
1800 184HP 00518ES3E184HP 786 P1F 106 6.50 85.0 16.504 208-230/460V
7.5
3600 184HP 00736ES3E184HP 908 P1F 99 9.15 86.7 16.504 208-230/460V ß
3600 213HP 00736ES3E213HP 972 P1F 145 8.95 86.5 18.630 208-230/460V
1800 213HP 00718ES3E213HP 998 P1F 152 9.70 87.0 18.630 208-230/460V
10
3600 213HP 01036ES3E213HP 1,032 P1F 154 12.2 87.6 18.630 208-230/460V
3600 215HP 01036ES3E215HP 1,044 P1F 156 12.2 87.6 20.126 208-230/460V
1800 213HP 01018ES3E213HP 1,062 P1F 150 12.8 89.0 18.630 208-230/460V
1800 215HP 01018ES3E215HP 1,148 P1F 150 12.8 89.0 20.126 208-230/460V
15
3600 215HP 01536ES3E215HP 1,311 P1F 172 17.7 87.8 20.126 208-230/460V ß
3600 254HP 01536ES3E254HP 1,509 P1F 260 18.2 87.5 23.723 208-230/460V
1800 254HP 01518ES3E254HP 1,669 P1F 233 18.8 88.5 23.723 208-230/460V
20
3600 254HP 02036ES3E254HP 1,643 P1F 255 24.1 89.0 23.723 208-230/460V ß
3600 256HP 02036ES3E256HP 1,796 P1F 269 24.1 89.0 25.455 208-230/460V
1800 256HP 02018ES3E256HP 1,824 P1F 277 25.2 90.2 25.455 208-230/460V
25
3600 256HP 02536ES3E256HP 2,133 P1F 271 29.5 89.5 25.455 208-230/460V ß
3600 284HP 02536ES3E284HP 2,474 P1F 346 29.7 89.0 26.350 208-230/460V
3600 284HPH 02536ES3E284HPH 2,474 P1F 346 29.7 89.0 25.100 208-230/460V
1800 284HP 02518ES3E284HP 2,556 P1F 371 30.2 90.5 26.350 208-230/460V
1800 284HPH 02518ES3E284HPH 2,556 P1F 371 30.2 90.5 28.100 208-230/460V
30
3600 284HP 03036ES3E284HP 2,695 P1F 395 35.1 89.5 26.350 208-230/460V ß
3600 286HP 03036ES3E286HP 2,772 P1F 399 35.1 89.5 27.845 208-230/460V
3600 286HPH 03036ES3E286HPH 2,772 P1F 399 35.1 89.5 29.595 208-230/460V
1800 286HP 03018ES3E286HP 2,730 P1F 393 36.1 91.0 27.845 208-230/460V
1800 286HPH 03018ES3E286HPH 2,730 P1F 393 36.1 91.0 29.595 208-230/460V
40
3600* 286HP 04036ES3E286HP 3,329 P1F 404 48.6 90.2 27.845 208-230/460V ß
3600 324HP 04036ES3E324HP 3,584 P1F 515 47.4 90.4 30.403 208-230/460V
1800 324HP 04018ES3E324HP 3,476 P1F 506 48.3 91.7 30.403 208-230/460V
50
3600 324HP 05036ES3E324HP 3,899 P1F 563 57.0 92.2 30.403 208-230/460V ß
3600 326HP 05036ES3E326HP 4,178 P1F 574 57.0 92.2 31.897 208-230/460V
1800 326HP 05018ES3E326HP 4,035 P1F 557 58.5 92.4 31.897 208-230/460V
60
3600 326HP 06036ES3E326HP 5,533 P1F 640 70.5 92.0 31.897 208-230/460V ß
3600 364HP 06036ES3E364HP 6,147 P1F 948 68.5 91.7 33.684 208-230/460V
1800 326HP 06018ES3E326HP 6,074 P1F 640 72.0 92.5 31.897 208-230/460V ß
1800 364HP 06018ES3E364HP 6,966 P1F 948 70.0 93.0 33.684 208-230/460V
75
3600 364HP 07536ES3E364HP 8,343 P1F 1058 83.0 92.4 33.684 208-230/460V ß
3600 365HP 07536ES3E365HP 8,654 P1F 1058 83.0 92.4 33.684 208-230/460V
1800 365HP 07518ES3E365HP 7,362 P1F 1025 84.5 93.0 33.684 208-230/460V
100
3600 404HP 10036ES3E404HP 8,819 P1F 1180 111 93.0 36.674 208-230/460V ß
3600 404HP 10036ES3G404HP 8,819 P1F 1180 111 93.0 36.674 460V ß
1800 405HP 10018ES3E405HP 8,762 P1F 1302 116 93.2 36.674 208-230/460V
1800 405HP 10018ES3G405HP 8,762 P1F 1302 116 93.2 36.674 460V
1800 405HPH 10018ES3E405HPH 8,762 P1F 1302 116 93.2 36.674 208-230/460V
1800 405HPH 10018ES3G405HPH 8,762 P1F 1302 116 93.2 36.674 460V
0309catalogA.indd 101 8/12/09 11:30 AM
www.weg.net
A-102 Data subject to change without notice.
Data subject to change without notice.
P-BASE MOTORS
HP & HPH TYPE – TEFC – STANDARD EFFICIENCY
HP & HPH TYPE – TEFC – HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-44.
• MECHANICAL FEATURES ON PAGE B-92.
• ELECTRICAL FEATURES ON PAGE B-43.
• MECHANICAL FEATURES ON PAGE B-92.
= Reduced Frame
P-BASE MOTORS
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
125 3600 444HP 12536ES3G444HP 14,261 P1F 1797 138 93.0 40.012 460V
1800 444HP 12518ES3G444HP 12,450 P1F 1742 141 93.2 40.012 460V
150 3600 445HP 15036ES3G445HP 16,283 P1F 1797 165 93.3 40.012 460V
1800 445HP 15018ES3G445HP 14,162 P1F 1940 170 93.5 40.012 460V
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1 1800 143HP 00118EP3E143HP 503 P1F 47 1.49 82.5 13.421 208-230/460V
1.5 3600 143HP 00156EP3E143HP 546 P1F 45 1.99 82.5 13.421 208-230/460V
1800 145HP 00158EP3E145HP 529 P1F 54 2.05 84.0 14.397 208-230/460V
23600 145HP 00236EP3E145HP 553 P1F 47 2.60 84.0 14.397 208-230/460V
1800 145HP 00218EP3E145HP 583 P1F 56 2.70 84.0 14.397 208-230/460V
3
3600 145HP# 00336EP3E145HP 822 P1F 54 3.71 85.5 14.397 208-230/460V
3600 182HP 00336EP3E182HP 881 P1F 106 3.59 85.5 15.504 208-230/460V
1800 182HP 00318EP3E182HP 879 P1F 97 3.90 87.5 15.504 208-230/460V
53600 184HP 00536EP3E184HP 1,032 P1F 114 5.90 87.5 16.504 208-230/460V
1800 184HP 00518EP3E184HP 995 P1F 102 6.48 87.5 16.504 208-230/460V
7.5
3600 184HP# 00736EP3E184HP 1,268 P1F 128 8.76 88.5 16.504 208-230/460V
3600 213HP 00736EP3E213HP 1,371 P1F 150 8.66 88.5 18.630 208-230/460V
1800 213HP 00718EP3E213HP 1,306 P1F 150 9.53 89.5 18.630 208-230/460V
10 3600 215HP 01036EP3E215HP 1,645 P1F 150 11.7 89.5 20.126 208-230/460V
1800 215HP 01018EP3E215HP 1,563 P1F 165 12.8 90.2 20.126 208-230/460V
15
3600 215HP# 01536EP3E215HP 2,133 P1F 174 17.3 90.2 20.126 208-230/460V
3600 254HP 01536EP3E254HP 2,345 P1F 280 17.0 90.2 23.723 208-230/460V
1800 254HP 01518EP3E254HP 2,346 P1F 266 17.9 91.0 23.723 208-230/460V
20
3600 254HP# 02036EP3E254HP 2,608 P1F 304 23.3 90.2 23.723 208-230/460V
3600 256HP 02036EP3E256HP 2,814 P1F 313 23.3 90.2 25.455 208-230/460V
1800 256HP 02018EP3E256HP 2,591 P1F 313 24.4 91.0 25.455 208-230/460V
25
3600 256HP# 02536EP3E256HP 3,177 P1F 313 28.4 91.0 25.455 208-230/460V
3600 284HP 02536EP3E284HP 3,454 P1F 353 29.0 91.0 26.350 208-230/460V
3600 284HPH 02536EP3E284HPH 3,454 P1F 353 29.0 91.0 28.100 208-230/460V
1800 284HP 02518EP3E284HP 3,451 P1F 437 29.6 92.4 26.350 208-230/460V
1800 284HPH 02518EP3E284HPH 3,451 P1F 437 29.6 92.4 28.100 208-230/460V
0309catalogA.indd 102 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-103
Data subject to change without notice. Data subject to change without notice.
P-BASE MOTORS P-BASE MOTORS
HP & HPH TYPE – TEFC
HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-44.
• MECHANICAL FEATURES ON PAGE B-92.
= Reduced Frame
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
30
3600 284HP# 03036EP3E284HP 3,848 P1F 399 33.8 91.0 26.350 208-230/460V
3600 286HP 03036EP3E286HP 4,157 P1F 404 33.8 91.0 27.845 208-230/460V
3600 286HPH 03036EP3E286HPH 4,157 P1F 404 33.8 91.0 29.595 208-230/460V
1800 286HP 03018EP3E286HP 3,778 P1F 481 34.4 92.4 27.845 208-230/460V
1800 286HPH 03018EP3E286HPH 3,778 P1F 481 34.4 92.4 29.595 208-230/460V
40
3600 286HP# 04036EP3E286HP 4,914 P1F 448 46.6 91.7 27.845 208-230/460V
3600 324HP 04036EP3E324HP 5,197 P1F 561 46.1 91.7 30.403 208-230/460V
1800 324HP 04018EP3E324HP 4,997 P1F 587 47.6 93.0 30.403 208-230/460V
50
3600* 324HP# 05036EP3E324HP 6,153 P1F 565 56.5 92.4 30.403 208-230/460V
3600 326HP 05036EP3E326HP 6,363 P1F 594 56.5 92.4 31.897 208-230/460V
1800 326HP 05018EP3E326HP 5,723 P1F 640 57.8 93.6 31.897 208-230/460V
60
3600 326HP# 06036EP3E326HP 8,221 P1F 594 69.0 93.0 31.897 208-230/460V
3600 364HP 06036EP3E364HP 9,032 P1F 917 69.0 93.0 33.684 208-230/460V
1800 326HP# 06018EP3E326HP 7,641 P1F 640 71.0 93.6 31.897 208-230/460V
1800 364HP 06018EP3E364HP 8,119 P1F 963 67.0 93.6 33.684 208-230/460V
75 3600 365HP 07536EP3E365HP 10,454 P1F 1025 82.5 93.0 33.684 208-230/460V
1800 365HP 07518EP3E365HP 8,907 P1F 1010 82.4 94.1 33.684 208-230/460V
100
3600 405HP 10036EP3E405HP 12,293 P1F 1361 113 93.6 36.674 208-230/460V
3600 405HP 10036EP3G405HP 12,293 P1F 1361 113 93.6 36.674 460V
3600 405HPH 10036EP3E405HPH 12,293 P1F 1361 113 93.6 36.674 208-230/460V
3600 405HPH 10036EP3G405HPH 12,293 P1F 1361 113 93.6 36.674 460V
1800 405HP 10018EP3E405HP 10,688 P1F 1273 115 94.5 36.674 208-230/460V
1800 405HP 10018EP3G405HP 10,688 P1F 1273 115 94.5 36.674 460V
1800 405HPH 10018EP3E405HPH 10,688 P1F 1273 115 94.5 36.674 208-230/460V
1800 405HPH 10018EP3G405HPH 10,688 P1F 1273 115 94.5 36.674 460V
125 3600 444HP 12536EP3G444HP 17,113 P1F 1801 131 94.5 40.012 460V
1800 444HP 12518EP3G444HP 14,940 P1F 1647 138 94.5 40.012 460V
150 3600 445HP 15036EP3G445HP 19,540 P1F 1865 160 94.5 40.012 460V
1800 445HP 15018EP3G445HP 16,995 P1F 1841 168 95.0 40.012 460V
0309catalogA.indd 103 8/12/09 11:30 AM
www.weg.net
A-104 Data subject to change without notice.
Data subject to change without notice.
FRAME – SPECIFIC
FEATURES (ODP ONLY)
For Frames 184T and 213/5T only (ODP only)
• Welded steel plate frames (welded feet)
• Aluminum endshields and terminal box
• Cooling system with nned rotor
• ZZ bearing (double shielded)
• Degree of protection: IP21
• Service factor: 1.0
For Frames 254/6T and up (ODP only)
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings positive pressure
lubrification system (frame 254T and up)
• Degree of protection: IP23
• Rodent screen
• Service factor: 1.0
ONLY FOR TEFC
(IP55 MOTORS)
• V-ring slingers onboth endshields
• Service factor: 1.15
• Beam Pumps
• Sucker Rod Pumps
• Other applications requiring high starting
torque or high slip
HIGH STARTING and BREAKDOWN TORQUE -
NEMA DESIGN ‘D’ (5 - 8% SLIP)
• Single and triple rated available
• Three-phase, 60Hz
• Voltage: 208-230/460
• 184T up to 445T cast iron frames
• 6 and 8 pole
• Squirrel cage rotor / Aluminum die cast
• Ball bearings are supplied as standard
(100 HP & above Roller Bearings)
• 1045 Carbon Steel Shaft for frames up to 365T.
4140 steel shaft for motors 404T and above.
• Enclosure: Open Drip Proof (ODP) and Totally
Enclosed Fan Cooled (TEFC)
• Dimensions according to NEMA standard
• Class ‘F’ insulation (‘B’ temperature rise)
• Continuous duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• F2 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• NPT threaded terminal box
• Plastic drain plugs
• Regreasable bearings system
(frames 254T and up)
• Shaft slingers (V-ring)(TEFC only)
• Rodent screens (ODP only)
• Service factor: 1.00 (ODP only)
• Service factor: 1.15 (TEFC only)
• Color: RAL 9010 (White)
• Roller bearings on frame 404T and up
• Special voltages
• Other mountings
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistors, Thermostats or RTD’s (PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
THREE PHASE
These special motors have the high slip
and high torque that oil well beam pumping
units demand. WEG oil well pumping motors
are requested on specifications for most
major oil companies around the world as a
result of their long lasting performance, low
purchase and maintenance cost.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODPTEFC
Pump Motors
Oil Well Pumping
HIGHLIGHTS
• High
slip and
torque
OIL WELL PUMPING MOTORS
PUMP
MOTORS
E 104590
APPROVED BY
0309catalogA.indd 104 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-105
Data subject to change without notice. Data subject to change without notice.
OIL WELL PUMPING MOTORS
HIGH SLIP – NEMA DESIGN ‘D’
ODP WITH SCREENS
HIGH SLIP – NEMA DESIGN ‘D’ – TEFC
• ELECTRICAL FEATURES ON PAGE B-44.
• MECHANICAL FEATURES ON PAGE B-93, B-94.
• ELECTRICAL FEATURES ON PAGE B-45.
• MECHANICAL FEATURES ON PAGE B-95.
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1.5 1200 184T 00152OS2EOW184T 776 P1E 68 2.70 71.0 14.291 208-230/460V
2 1200 184T 00212OS3EOW184T 793 P1E 79 3.20 81.3 14.291 208-230/460V
3 1200 213T 00312OS3EOW213T 866 P1E 101 4.70 80.7 17.165 208-230/460V
5 1200 215T 00512OS3EOW215T 989 P1E 128 7.10 86.5 17.165 208-230/460V
7.5 1200 254T 00712OS3EOW254T 1,434 P1E 280 10.2 79.0 20.669 208-230/460V
10 1200 256T 01012OS3EOW256T 1,796 P1E 416 13.7 80.0 22.401 208-230/460V
15 1200 284T 01512OS3EOW284T 2,441 P1E 438 18.2 86.5 23.386 208-230/460V
20 1200 286T 02012OS3EOW286T 2,603 P1E 600 24.5 86.5 24.882 208-230/460V
25 1200 324T 02512OS3EOW324T 3,247 P1E 613 33.2 87.5 26.181 208-230/460V
30 1200 326T 03012OS3EOW326T 3,848 P1E 745 39.1 87.8 27.667 208-230/460V
40 1200 365T 04012OS3EOW365T 5,277 P1E 970 50.0 89.5 29.764 208-230/460V
50 1200 405T 05012OS3EOW405T 6,834 P1E 1200 61.3 90.2 34.133 208-230/460V
60 1200 405T 06012OS3EOW405T 7,495 P1E 1355 75.0 88.5 34.133 208-230/460V
75 1200 445T 07512OS3EOW445T 12,308 P1E 1476 95.7 90.2 39.803 208-230/460V
100 1200 445T 10012OS3EOW445T 13,078 P1E 2161 127 90.2 39.803 208-230/460V
HP RPM NEMA
Frame Catalog
Number List
Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
3 1200 215T 00312ES3EOW215T 1,027 P1E 128 5.00 75.7 19.517 208-230/460V
51200 215T 00512ES3EOW215T 1,170 P1E 183 7.40 77.5 19.517 208-230/460V
900 256T 00509ES3EOW256T 2,242 P1E 284 7.25 77.0 24.945 208-230/460V
7.5 1200 254T 00712ES3EOW254T 1,688 P1E 280 9.25 85.6 23.213 208-230/460V
10 1200 256T 01012ES3EOW256T 2,070 P1E 326 12.5 85.6 24.945 208-230/460V
900 286T 01009ES3EOW286T 3,437 P1E 382 13.9 82.5 27.929 208-230/460V
15 1200 284T 01512ES3EOW284T 2,679 P1E 455 18.0 87.1 26.433 208-230/460V
900 324T 01509ES3EOW324T 4,293 P1E 548 19.5 85.5 29.620 208-230/460V
20 1200 286T 02012ES3EOW286T 3,162 P1E 488 24.5 87.3 27.929 208-230/460V
900 326T 02009ES3EOW326T 4,872 P1E 656 26.2 85.5 31.116 208-230/460V
25 1200 324T 02512ES3EOW324T 3,887 P1E 607 30.0 88.9 29.620 208-230/460V
30 1200 326T 03012ES3EOW326T 4,515 P1E 656 35.5 89.4 31.116 208-230/460V
40 1200 365T 04012ES3EOW365T 6,290 P1E 950 52.5 87.5 33.709 208-230/460V
50 1200 404T 05012ES3EOW404T 8,172 P1E 1189 62.0 88.1 38.077 208-230/460V
60 1200 405T 06012ES3EOW405T 9,414 P1E 1500 78.5 89.0 38.077 208-230/460V
75 1200 444T 07512ES3EOW444T 14,976 P1E 1720 90.0 87.0 43.776 208-230/460V
100 1200 445T 10012ES3EOW445T 18,074 P1E 2039 115 88.0 43.776 208-230/460V
0309catalogA.indd 105 8/12/09 11:30 AM
www.weg.net
A-106 Data subject to change without notice.
Data subject to change without notice.
OIL WELL PUMPING MOTORS
HIGH SLIP - NEMA DESIGN ‘D’ - TEFC
TRIPLED RATED
• ELECTRICAL FEATURES ON PAGE B-45.
• MECHANICAL FEATURES ON PAGE B-95.
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
10/7.5/5 1200 256T 01012ES3QOT256T 2,174 P1E 326 12.5 85.6 24.945 460V
15/10/7.5 1200 284T 01512ES3QOT284T 2,814 P1E 455 18.0 87.1 26.433 460V
20/15/10 1200 286T 02012ES3QOT286T 3,321 P1E 488 24.5 87.3 27.929 460V
25/20/15 1200 324T 02512ES3QOT324T 4,081 P1E 607 30.0 88.9 29.620 460V
30/25/20 1200 326T 03012ES3QOT326T 4,742 P1E 656 35.5 89.4 31.116 460V
40/30/25 1200 365T 04012ES3QOT365T 6,920 P1E 950 52.5 87.5 33.709 460V
50/40/30 1200 404T 05012ES3QOT404T 8,990 P1E 1,189 62.0 88.1 38.077 460V
60/50/40 1200 444T 06012ES3QOT444T 10,355 P1E 1,345 78.5 89.0 38.077 460V
75/60/50 1200 444T 07512ES3QOT444T 16,473 P1E 1,544 90.0 87.0 43.776 460V
100/75/60 1200 444T 10012ES3QOT444T 19,881 P1E 2,039 115 88.0 43.776 460V
0309catalogA.indd 106 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-107
Data subject to change without notice. Data subject to change without notice.
OIL WELL PUMPING MOTORS
WEG MOTOR ITEM CODIFICATION FOR POOL AND SPA
(MODEL NUMBERS)
THE WEG MODEL NUMBERS ARE DISTRIBUTED AS FOLLOWS:
X X X XXX X
(Product Line) (Capacitor) (Flange) (HP) (Service Factor)
Blank=Low / H=High
P C Q 105 H
P C J 115
Pool and Spa Pump Motors
Start Capacitor
Square Flange
1/2 HP1High Service Factor
Pool and Spa Pump Motors
Start Capacitor
C-Flange Threaded
Shaft (Type J)
1 1/2 HP1
HP1 – 1/3HP (103) 1/2HP (105) 3/4HP (107) 1HP (110) 1 1/2HP (115) 2HP (120) 2 1/2HP (125) 3HP (130)
APPROVED BY
LR 50.962-9/13/14
• Pool and Spa • Single-phase, 2 pole, 60Hz
• Voltage: 115/230V or 230V
• Cast Iron C-face or Aluminum
Square Flange
• Open Drip Proof (ODP) IP21
• Dual Compartment up to 2 1/2HP
• 50ºC Ambient
• Class ‘B’ insulation
• CCW (Pump end) - non reversible
• AISI 316 Stainless Steel Shaft
• Automatic overload protection
• Threaded Shaft
• Internal and external grounding
• Terminal box threaded NPT 1/2”
• D.E. sealed ball bearings
• D.E. Endshield sealing - V-ring
• Epoxy Coating
• ‘1081’ Design
SINGLE PHASE
These motors are specially designed for Pool Duty.
Available in High Service Factor and Low Service
Factor with C-Face or Square Flange.
APPLICATIONS STANDARD FEATURES
C-Face Square-Flange
Pump Motors
Pool and Spa Standard Efficiency
E 104590
APPROVED BY
0309catalogA.indd 107 8/12/09 11:30 AM
www.weg.net
A-108 Data subject to change without notice.
Data subject to change without notice.
POOL AND SPA MOTORS
C-FACE – ODP – START CAPACITOR
SQUARE FLANGE – ODP – START CAPACITOR
= Energy Efficiency
• ELECTRICAL FEATURES ON PAGE B-46. • MECHANICAL FEATURES ON PAGE B-96.
POOL AND SPA MOTORS
PUMP
MOTORS
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/2 3600 K56J PCJ105H 236 P1D 20 1.6 4.50 62.0 14.035 115/230V
3/4 3600 K56J PCJ107H 263 P1D 24 1.5 5.50 69.0 14.035 115/230V
1 3600 L56J PCJ110H 300 P1D 27 1.4 7.20 70.0 14.626 115/230V
1 1/2 3600 M56J PCJ115H 400 P1D 30 1.3 7.20 75.0 15.216 230V ©
2 3600 M56J PCJ120H 486 P1D 32 1.2 8.60 80.0 15.216 230V ©
High Service Factor - Full Rate
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
3/4 3600 K56J PCJ107 236 P1D 20 1.3 5.20 67.0 14.035 115/230V
1 3600 K56J PCJ110 263 P1D 24 1.25 6.30 72.0 14.035 115/230V
1 1/2 3600 L56J PCJ115 300 P1D 27 1.1 8.90 72.0 14.626 115/230V
2 3600 M56J PCJ120 400 P1D 30 1.1 9.20 77.0 15.216 230V ©
2 1/2 3600 M56J PCJ125 486 P1D 32 1.04 10.6 80.0 15.216 230V ©
Low Service Factor - Up Rate
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/3 3600 K48Y PCQ103H 231 P1D 18 1.95 3.40 54.0 13.032 115/230V
1/2 3600 K48Y PCQ105H 241 P1D 20 1.9 4.50 62.0 13.032 115/230V
3/4 3600 K48Y PCQ107H 275 P1D 24 1.65 5.50 69.0 13.032 115/230V
1 3600 L48Y PCQ110H 320 P1D 27 1.65 7.20 70.0 13.622 115/230V
1 1/2 3600 M48Y PCQ115H 411 P1D 30 1.5 7.20 75.0 14.213 230V ©
2 3600 M48Y PCQ120H 500 P1D 32 1.3 8.60 80.0 14.213 230V ©
High Service Factor - Full Rate
HP RPM NEMA
Frame Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.) Voltage NOTES
1/2 3600 K48Y PCQ105 231 P1D 18 1.3 3.80 63.0 13.032 115/230V
3/4 3600 K48Y PCQ107 241 P1D 20 1.3 5.20 67.0 13.032 115/230V
1 3600 K48Y PCQ110 275 P1D 24 1.25 6.30 72.0 13.032 115/230V
1 1/2 3600 L48Y PCQ115 320 P1D 27 1.1 8.90 72.0 13.622 115/230V
2 3600 M48Y PCQ120 411 P1D 30 1.1 9.20 77.0 14.213 230V ©
2 1/2 3600 M48Y PCQ125 500 P1D 32 1.04 10.6 80.0 14.213 230V ©
0309catalogA.indd 108 8/12/09 11:30 AM
Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-109
Data subject to change without notice. Data subject to change without notice.
POOL AND SPA MOTORS
CROSS REFERENCE
POOL AND SPA MOTORS
0309catalogA.indd 109 8/12/09 11:30 AM

Navigation menu
