Add-On™ Modifications
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
WEG IN HOUSE MODIFICATION PRICING (Includes Parts and Labor)
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80
/ 90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
REPLATE
ADD CUSTOMER PART NUMBER
AND / OR OTHER CHANGES
SUCH AS VOLTAGE, HZ, ETC.
LIST LIST LIST LIST LIST LIST LIST LIST LIST LIST
MOD. NUMBER NAMEPLATE
N-10 Main Nameplate Change -
Stainless Steel NET 25 25 25 25 25 25 25 25 25 25
N-20 Additional Nameplate -
Stainless Steel NET 25 25 25 25 25 25 25 25 25 25
N-25 Additional Rating/Service -
Adhesive Mylar only NET 20 20 20 20 20 20 20 20 20 20
ELECTRICAL
ADD-ON’S INSTALLATION OF SPACE HEATERS, THERMISTORS , THERMOSTATS & ExTENDING MOTOR LEADS
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
E-30 120V Space Heater LIST 235 235 285 285 292 303 360 371 371 436
E-40 240V Space Heater
(Operating on 240V) LIST 235 235 285 285 292 303 360 371 371 436
E-50 240V Space Heater
(Operating on 120V) LIST 470 470 470 470 583 606 720 742 742 871
E-60 Winding RTD’s 100 Ohm Platinum
(One Per phase - 3 lead PT100’s) LIST 754 754 754 754 754 811 811 811 811 924
E-70 Thermistors
(One per phase @155ºC) LIST 364 364 364 364 364 420 420 420 420 534
E-80 Thermostats
(One per phase @155ºC) LIST 250 250 300 300 300 375 375 375 425 425
E-90
Extend Leads - Connections
behind Terminal Box - Price based
on 4’ Leads
LIST 500 500 600 758 758 758 758 n/a n/a n/a
E-100
Installation of Encoder -
(Only valid for NEMA Premium
280T & above) Dynapar HSD38
1024PPR & 5/8” stub shfaft
LIST *% *% *% 1828 1828 1828 1885 1885 1915 1942
C-FLANGE KIT INSTALLATION OF C-FLANGE KITS
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
C-90 (TEFC - GEN PRP.)
Installation of C-FLANGE LIST 259 264 309 404 554 745 790 1057 1427 1991
C-110 (XP) Installation of C-FLANGE LIST 315 328 405 631 777 1162 1380 1735 X X
C-120 (ODP) Installation of C-FLANGE LIST 259 264 309 404 554 745 790 1057 n/a n/a
D-FLANGE KIT INSTALLATION OF D-FLANGE KITS
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
D-130 (TEFC) Installation of D-Flange LIST 285 298 334 432 579 790 935 1159 1577 2471
D-140 (XP) Installation of D-Flange LIST 324 405 648 751 909 1311 1508 2105 X X
D-150 (ODP) Installation of D-Flange LIST n/a n/a 334 432 579 790 935 1159 n/a n/a
www.weg.net
A-186 Data subject to change without notice.
Add-On™ Modifications
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
WEG IN HOUSE MODIFICATION PRICING (Includes Parts and Labor)
DRIP COVERS INSTALLATION OF DRIP COVER (RAIN CAP)
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
DC-160 Drip Cover (TEFC / XP) LIST 208 216 223 250 265 447 447 557 557 644
DC-170 Drip Cover (ODP) LIST 250 254 288 322 489 595 595 720 n/a n/a
COOLING ALUMINUM FAN MATERIAL CHANGE OUT AND
INSTALLATION OF BLOWER KIT (FORCED VENTILATION)
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
F-180 Fan Material (ALUMINUM) LIST 178 178 212 227 239 246 261 299 299 356
F-190 Forced Ventilation: Blower Cooling LIST 1373 1566 1617 1678 1803 2106 2106 2534 3140 3140
F-200 Cast Iron Fan Cover List 183 200 206 Stan-
dard
Stan-
dard
Stan-
dard
Stan-
dard Standard Standard Standard
BEARINGS BEARING CHANGE OUTS & SHAFT GROUNDING MODIFICATION
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
B-200 Ball to Roller Bearing Conversion LIST ^# ^# ^# ^# ^# 1201 1201 1788 1788 3011
B-210 Roller to Ball conversion LIST ^# ^# ^# ^# ^# 992 1191 1549 1919 2105
B-220 Convert to Insulated Bearing -
NDE ONLY LIST 545 553 958 985 992 1360 1360 1705 2330 2330
B-230 Install Aegis shaft Grounding Ring
- DE ONLY LIST 212 233 275 333 350 560 715 760 890 1075
B-240 Spring Loaded Grounding Brush
- DE Only LIST 408 408 408 408 522 522 522 636 636 636
B-250
Installation of Helwig Grounding
Brush (Includes Brush and Brush
Holder - DE only)
LIST n/a 1577 1577 1577 1691 1691 1691 1691 1805 1805
B-260 Insulated ODE End Bell conversion
(TEFC 320 frames and above) LIST n/a n/a n/a 1271 2264 2377 2819 2819 3712 3712
B-270
Low Temp Bearing Grease change
out (SHELL Aeroshell #7 / -55°C
to 50°C)
LIST 250 250 300 300 300 375 375 375 425 425
B-280
High Temp Bearing Grease
change out (Dow Corning 44 High
Temp Grease / -20°C to 90°C)
LIST 250 250 300 300 300 375 375 375 425 425
MOUNTING TERMINAL BOx
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80 /
90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
M-280 F1 to F2 Mounting Conversion
(Cast Iron 3 phase motors only) LIST 227 227 284 284 284 341 341 341 398 398
M-290 Convert Footed Motor to Round
Body (Cast Iron Only) LIST 455 455 455 455 455 568 568 568 682 682
M-300 Auxiliary ternminal box (Not valid
for 48 & 56 frames) LIST 363 363 399 399 512 611 725 725 725 725
M-310
2x Auxiliary Terminal Boxes
(Seperating Temp. Sensors and
Space heaters if specified)
LIST n/a n/a n/a n/a n/a 951 951 951 951 951
M-320 Install terminal block in terminal
box (Cast Iron 3 Phase only) LIST 112 112 146 146 241 370 653 653 653 1152
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-187
Data subject to change without notice.
Add-On™ Modifications
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
WEG IN HOUSE MODIFICATION PRICING (Includes Parts and Labor)
ENVIROMENTAL ENVIROMENTAL CONDITIONS
NEMA FRAME 48 / 56 /
140T / 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580T
IEC FRAME 63 / 71 / 80
/ 90 / 112 132S/M 160M/L 180M/L 200M/L 225S/M 250S/M 280S/M 315S/M 355M/L
EV-300 Stainless Steel Breather Drains LIST 227 227 227 227 341 341 341 341 455 455
EV-310
Stainless Steel Hardware (Only
external bolts - End bell , Terminal
box cover & Fan cover
LIST 227 227 227 227 341 341 341 341 455 455
EV-320 Grounding Provisions on Frame
(TEFC cast iron only) LIST 227 227 227 227 341 341 341 Standard Standard Standard
EV-330 Tropicalization/Anti-Fungal
Protection LIST 189 189 189 246 246 311 345 345 386 386
EV-340 IP56 Conversion(IEEE 460V/575V) LIST 265 265 265 265 379 379 379 492 492 492
EV-350 Sealant on Joints LIST 265 265 265 265 379 379 379 492 492 492
EV-360 External Epoxy Paint (RAL 5009
Blue) LIST 470 470 470 470 614 614 928 928 1155 1155
EV-370 Internal Epoxy Paint LIST 508 508 508 508 663 663 1002 1002 1247 1247
EV-380 Top Coat Paint Color Change
*SEE AVAIL COLORS BELOW LIST 470 470 470 470 614 614 928 928 1155 1155
* AVAILABLE COLORS
RAL - 5009 BLUE
MUNSELL N1 ( BLACK)
RAL - 6002 GREEN
RAL 7022 - DARK GRAY
RAL -9010 - WHITE
RAL - 3002 - RED
Notes *%= CONSIDER TENV VECTOR DUTY MOTOR (If rating is available)
X = NOT AVAILABLE AS MODIFICATION
^# = CONTACT T.A.S. FOR QUOTE WITH LOAD DATA FOR EVALUATION
LARRY MCGRUDER
TECHNICAL APPLICATION SPECIALIST
7/18/2011
www.weg.net
A-188 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Factory Built Modifications (List Price Adders)
BEARINGS
NEMA FRAME SERIES 48 56 - 140T 180T 210T 250T 280T 320T 360T 400T 440T L440/500 580
IEC Frame Series - - 63 UP
80 90 100/112 132 160 180 200 225 250 280 315 355
Ball to Roller (IV, VI, VIII P.)
D.E.: n/a n/a n/a n/a n/a 566 645 772 863 974 no
cost
no
cost no cost no
cost
ZZ Bearings (Double shielded):
Added when manufacturing std std std std std std 96 321 632 n/a n/a n/a n/a n/a
2 RS Bearing (D.E. and N.D.E.)
Added when manufacturing 38 38 38 38 61 67 207 293 973 1364 n/a n/a n/a n/a
Insulated (Hybrid) NDE Bear-
ing n/a n/a n/a 417 671 700 2163 2318 2755 n/a n/a n/a n/a n/a
Insulated Bearing Housing
NDE Endshield n/a n/a n/a n/a n/a n/a n/a n/a n/a 1064 1239 1539 1539 2265
COOLING
NEMA FRAME SERIES 48 56 - 140T 180T 210T 250T 280T 320T 360T 400T 440T L440/500 580
IEC FRAME SERIES 63 UP
80 90 100/112 132 160 180 200 225 250 280 315 355
Fan Material : - Aluminum
Added when manufacturing n/a n/a n/a 64 110 118 132 151 175 218 255 298 348 n/a
Fan Material : - Cast Iron
Added when manufacturing n/a n/a 34 50 61 79 107 112 185 185 216 300 527
Fan Material : - Bronze
Added when manufacturing n/a n/a n/a 238 532 865 1068 1,493 1,508 2,627 2,627 2,627 2,627 2,971
Forced Ventilation (TEBC) : n/a n/a n/a 1,406 1,513 1,575 1,965 2,286 2,448 2,921 3,139 4,275 5,773 7,383
TEAO
Added when manufacturing 54 54 54 54 81 94 97 176 176 370 370 380 439 520
Drip Cover
Added when manufacturing 21 21 55 55 58 82 98 141 166 191 191 234 234 330
Textile Fan Cover
Added when manufacturing n/a n/a n/a 61 63 90 108 156 183 220 220 n/a n/a n/a
DEGREE OF PROTECTION
NEMA FRAME SERIES 48 56 - 140T 180T 210T 250T 280T 320T 360T 400T 440T L440/500 580
IEC FRAME SERIES - - 63 UP
80 90 100/112 132 160 180 200 225 250 280 315 355
TEFC IP55 with Lip Seal 33 33 33 33 58 76 95 113 132 151 175 213 249 502
TEFC IP55 with Oil Seal n/a n/a 55 55 85 104 112 133 143 171 200 231 268 -
TEFC IP55 with Labyrinth seal
or Nilos Ring n/a n/a 196 196 220 220 299 315 354 463 511 511 579 1380
TEFC IP56 w/ Oil Seals n/a n/a n/a 75 118 176 267 383 498 441 655 1724 2041 -
TEFC IP56 w/ W3Seals
(labyrinth) n/a n/a n/a 230 277 401 501 643 861 825 1023 2143 2674 3815
TEFC IP65 w/ Oil Seals n/a n/a n/a 75 118 176 267 383 498 441 655 1724 2041 -
TEFC IP65 w/ Taconite
(labyrinth) Seals n/a n/a n/a 167 205 303 398 528 709 659 857 1954 2394 3366
TEFC IP65 w/ W3seals
(labyrinth) n/a n/a n/a 230 277 401 501 643 861 825 1023 2143 2674 3815
TEFC IP66 w/ W3seals
(labyrinth) n/a n/a n/a 273 344 496 662 853 1112 1185 1515 3310 4009 5687
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-189
Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Factory Built Modifications (List Price Adders)
ELECTRICAL SPECIAL FEATURES
NEMA FRAME SERIES 48 56 - 140T 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580
IEC FRAME SERIES - - 63 UP
80 90 100/112 132 160 180 200 225 250 280 315 355
Thermistors (1 / phase) PTC:
Added when manufacturing n/a n/a 142 142 142 142 142 142 142 142 142 142 142 142
Thermostats (1 / phase) NC: Added
when manufacturing n/a n/a 142 142 142 142 142 142 142 142 142 142 142 142
Winding RTD’s PT100 (1 / phase):
Added when manufacturing n/a n/a 1215 1215 1215 1215 1215 1215 1215 1215 1215 1215 1215 1215
Bearing RTD’s PT100 (1/bearing)
Added when manufacturing n/a n/a 1052 1052 1052 1052 1052 1052 1052 1052 1052 1052 1052 1052
Space Heater
Added when manufacturing n/a n/a 37 37 37 37 54 54 54 109 109 109 109 217
Class of Insulation : -”F”
Added when manufacturing Add 5% to motor list price Add 3% to motor list price
Class of Insulation : -”H”
Added when manufacturing Add 10% to motor price
Epoxy varnish impregnation
Added when manufacturing Add 5% to motor price
Above 600 V (1000 Max.)
Added when manufacturing Add 10% to motor price
FLANGES
NEMA FRAME SERIES 48 56 140T 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580
IEC FRAMES SERIES
63
UP
80
90 100/112 132 160 180 200 225 250 280 315 355
FLANGE TYPE Enclosure List Price
“C” Flange
TEFC 28 28 28 28 38 51 68 99 121 442 491 606 716 1,623
ODP 28 28 - 34 38 51 68 85 100 394 446 560 - -
Explosion Proof - - 61 61 70 76 103 147 182 665 736 1,384 1,384 -
“D” Flange
TEFC - - 50 59 70 79 117 136 192 637 762 915 1,051 1,863
ODP - - - - - - 107 126 170 537 685 855 - -
Explosion Proof - - - 89 89 103 130 189 246 736 1,067 1,311 1,577 2,364
PAINTING PLANS Factory Build Adder
NEMA FRAME SERIES 140T 180T 210T 250T 280T 320T 360T 400T 440T L440/
500 580
IEC FRAMES SERIES 63 UP
80 90 100/
112 132 160 180 200 225 250 280 315 355
Painting Plan List Price
202 45 58 94 120 196 228 246 308 335 402 447 745
203 58 85 138 188 290 344 384 509 553 696 808 1,269
211 106 114 133 228 467 547 597 775 828 1,003 1,075 1,113
212 122 133 171 277 585 692 779 1,026 1,121 1,410 1,577 1,661
Internal Epoxy Painting 45 58 94 120 196 228 246 308 335 402 447 745
www.weg.net
A-190 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Factory Built Modifications (List Price Adders)
PAINTING PLAN DESCRIPTION
Painting
Plan Recommended Uses
Surface
Preparation
Grade
PRIMER INTERMEDIATE FINISH COAT
ADHERENCE
GRADE
ASTM
Paint
Film
Thickness
(mm)
Paint
Film
Thickness
(mm)
Paint
Film
Thickness
(mm)
D-3359
201A
Non aggressive environments;
Not recommended for direct exposure to
solvents, alkalis and acid vapors
Sa 2 ½ Synthetic
alkyd 20 – 55 - - Synthetic alkyd
enamel 40 – 60 3B to 5B
202E
Aggressive sheltered industrial environ-
ments; Chemical, pulps and paper indus-
tries, resistant to acid steams, alkalis and
solvents vapors
Sa 2 ½
Synthetic
alkyd 20 - 55 Epoxy Isocya-
nate 20 - 30 Epoxy polyamide
enamel 100 – 140 3A to 5A
202P
Aggressive sheltered or non-sheltered
industrial environments; Chemical, min-
ing, pulps and paper industries, resistant
to acid steams, alkalis and solvents
vapors; Indicated to food processing
motors – USA and Europe
Sa 2 ½
Synthetic
alkyd 20 - 55 Epoxy Isocya-
nate 20 - 30
1 coats Aliphatic
polyurethane
enamel
60 - 100 3A to 5A
203A
EnvironEnvironments low aggressive-
ness; Not recommended for direct
exposure to solvents, alkalis and acid
vapors
Sa 2 ½
Synthetic
alkyd 20 – 55
Synthetic
powdered
alkyd
30 a 45 Synthetic alkyd
enamel 30 – 45 3B to 5B
211E
Painting of equipments, structures in
general subject to moderate and high
aggressive level such as: pulp and paper
plants, steel and iron and chemical
industries
Sa 2 ½
Polyamide
Epoxy 90 - 130 - - Polyamide
Epoxy 90 - 130 3A to 5A
211P
Painting of equipments, structures in
general subject to moderate and high
aggressive level such as: pulp and paper
plants, steel and iron and chemical
industries
Sa 2 ½
Polyamide
Epoxy 90 - 130 - -
Aliphatic
polyurethane
enamel
65 – 90 3A to 5A
212E
Non sheltered marine environment;
Resistant to acid, alkalis and solvent
spills
Sa 2 ½
Zinc ethyl
silicate 70 - 90 Epoxy poly-
amide 90 – 130 Polyamide
Epoxy 90 – 130 3A to 5A
212P
Non sheltered marine environment;
Resistant to acid, alkalis and solvent
spills
Sa 2 ½
Zinc ethyl
silicate 70 - 90 Epoxy poly-
amide 90 – 130
Aliphatic
polyurethane
enamel
65 – 90 3A to 5A
Special Shaft
NEMA FRAME SERIES 48 56 140T 180T 210T 250T 280T 320T 360T 400T 440T
IEC FRAMES SERIES 63 UP
80 90 100/112 132 160 180 200 225 250 280
Second Shaft End (standard
dimension) n/a n/a 60 72 87 101 104 189 189 392 396 407
Threaded center hole in the
shaft end: n/a n/a 33 33 41 51 85 136 155 std std std
Stainless steel shaft Add 10% to motor list price
Special Shaft:
Special Shaft Diameter (Type
“A” mod) n/a n/a 58 58 87 130 151 189 209 392 396 407
Special Shaft Length (Type
“B” mod) n/a n/a 63 63 96 113 120 208 216 446 450 473
Special Shaft Diameter &
Length (Type “C” mod) n/a n/a 72 72 125 141 158 249 262 574 579 628
Special Shaft Diameter,
Length & Tapered (Type “D”
mod)
n/a n/a 79 79 130 156 174 271 288 646 654 716
Balance - Reduced n/a n/a n/a 33 79 91 100 125 134 156 167 188
Balance - Special n/a n/a n/a 58 87 133 159 180 217 250 283 317
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-191
Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Factory Built Modifications (List Price Adders)
TerminalBox
NEMA FRAME SERIES 48 56 140T 180T 210T 250T 280T 320T 360T 400T 440T
IEC FRAMES SERIES 63 UP
80 90 100/112 132 160 180 200 225 250 280
Cable Gland - Plastic: n/a n/a 10 10 14 14 22 22 22
Cable Gland - Brass: n/a n/a 33 33 50 50 182 182 182 567 567 567
Threaded Plug : n/a n/a 6 6 9 9 18 18 18 22 22 22
Terminal Block (6 pin): n/a n/a 9 9 14 23 23 41 41 197 197 380
Additional terminal box : n/a n/a n/a 30 30 41 41 41 41 59 59 59
Without Terminal Box: n/a n/a 18 18 22 22 33 33 33 45 45 47
Testing:
NEMA FRAME SERIES 48 56 140T 180T 210T 250T 280T 320T 360T 400T 440T
IEC FRAMES SERIES 63 UP
80 90 100/112 132 160 180 200 225 250 280
Routine Test - Unwitnessed 381 381 381 513 513 513 513 622 622 718
Routine Test - Witnessed 1215 1215 1215 1427 1427 1427 1427 1683 1683 1903
Type Test - Unwitnessed 586 586 586 769 769 769 769 952 952 1208
Type Test - Witnessed 1419 1419 1419 1632 1632 1632 1632 1939 1939 2195
Vibration Test 183 183 183 205 205 205 205 285 285 403
Noise Level Test 213 213 213 242 242 242 242 322 322 462
www.weg.net
A-192 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Flanges
C/C-DIN FLANGES FOR TOTALLY ENCLOSED MOTORS
NEMA Frames - CAST IRON - TEFC
Frame Flange Size Bearing Size RPM C-Flange Kit
W21 W22 List Price
143/5 FC-149 205 any FLC-E140-UBC FLC-E140-UBC 85
W182/4 FC-184 206 any FLC-EW180-UBC - 145
182/4 FC-184 207 any - FLC-E180-UBC-W22 145
FC-184 307 any FLC-E180-UBC - 145
W213/5 FC-184 308 any FLC-EW210-UBC - 150
213/5 FC-184 308 any FLC-E210-UBC FLC-E210-UBC 150
W254/6 FC-184 309 any FLC-EW250 - 195
254/6 FC-184 309 any FLC-E250 FLC-E250-W22 195
284/6 FC-228 311 any FLC-E280 FLC-E280 290
324/5 FC-279 312 any FLC-E320 FLC-E320 440
364/5 FC-279 314 any FLC-E360-314 FLC-E360-314-W22 575
404/5 FC-279 314 3600 FLC-E400-314 FLC-E400-314 620
FC-279 316 1800 and lower FLC-E400-316 FLC-E400-316 620
444/5 445/7
447/9
FC-355 314 3600 FLC-E440-314 FLC-E440-314 830
FC-355 319 1800 and lower FLC-E440-319 FLC-E440-319 830
FC-355 322 1800 and lower FLC-E440-322 FLC-E440-322 830
L447/9 FC-355 314 3600 - FLC-EL440-314-W22 1200
FC-355 322 1800 and lower - FLC-EL440-322-W22 1200
504/5
FC-368 314 3600 - FLC-E500-314-W22 1200
FC-368 319 1800 and lower - FLC-E500-319-W22 1200
FC-368 322 1800 and lower - FLC-E500-322-W22 1200
586/7
FC-368 314 3600 FLC-E580-314 FLC-E580-314 1650
FC-368 322 1800 and lower FLC-E580-322 FLC-E580-322 1650
FC-368 324 1800 and lower FLC-E580-324 FLC-E580-324 1650
NEMA Frames - IEEE 841
Frame Flange Size Bearing Size RPM C-Flange Kit
W21 W22 List Price
143/5 FC-149 205 any FLC-IE140 FLC-IE140 250
182/4 FC-184 207 any - FLC-IE180-W22 285
FC-184 307 any FLC-IE180 - 285
213/5 FC-184 308 any FLC-IE210 FLC-IE210 300
254/6 FC-184 309 any FLC-IE250 FLC-IE250-W22 325
284/6 FC-228 311 any FLC-IE280 FLC-IE280 365
324/5 FC-279 312 any FLC-IE320 FLC-IE320 550
364/5 FC-279 314 any FLC-E360-314 FLC-E360-314-W22 575
404/5 FC-279 314 3600 FLC-E400-314 FLC-E400-314 620
FC-279 316 1800 and lower FLC-E400-316 FLC-E400-316 620
444/5 445/7
447/9
FC-355 314 3600 FLC-E440-314 FLC-E440-314 830
FC-355 319 1800 and lower FLC-E440-319 FLC-E440-319 830
FC-355 322 1800 and lower FLC-E440-322 FLC-E440-322 830
L447/9 FC-355 314 3600 - FLC-EL440-314-W22 1200
FC-355 322 1800 and lower - FLC-EL440-322-W22 1200
504/5
FC-368 314 3600 - FLC-E500-314-W22 1200
FC-368 319 1800 and lower - FLC-E500-319-W22 1200
FC-368 322 1800 and lower - FLC-E500-322-W22 1200
586/7
FC-368 314 3600 FLC-E580-314 FLC-E580-314 1650
FC-368 322 1800 and lower FLC-E580-322 FLC-E580-322 1650
FC-368 324 1800 and lower FLC-E580-324 FLC-E580-324 1650
NEMA Frames - ROLLED STEEL MOTORS (RS) - TEFC
Frame Bearing Size RPM C-Flange Kit
Model List Price
143/5 205 any FLC-ERS140-UBC 85
182/4 206 any FLC-ERS180-UBC 145
W182/4 206 any FLC-ERSW180-UBC 145
213/5 208 any FLC-ERS210-UBC 150
254/6 309 any FLC-RS250 195
W254/6 309 any FLC-RSW250 195
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-193
Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Flanges
Fractional Motors - TEFC
Frame Flange Size Bearing Size RPM
C-Flange Kit
Model List Price
A56 B56 D56 E56 F56
G56 F143/5 G143/5
FC-149 203 any FLC-E56-203-FC149 85
FC-149 204 any FLC-E56-204-FC149 85
FC-149 205 any FLC-ERS140-UBC 85
Metric (IEC) Frames - Cast Iron - General Purpose - TEFC
Frame Flange Size Bearing Size RPM NEMA C-Flange Kit
W21 W22 List Price
160 FC-184 309 any FLC-IM160NEMA FLC-IM160-W22 195
180 FC-228 311 any FLC-IM180 FLC-IM180 290
200 FC-228 312 any FLC-IM200 FLC-IM200 440
225 FC-279 314 any FLC-IM225 FLC-E360-314-W22 575
250 FC-279 314 any FLC-IM250 FLC-E440-314 620
280 FC-355 314 3600 - FLC-E440-314 830
FC-355 316 1800 and lower FLC-IM280-316 FLC-E440-316 830
315 FC-368 314 3600 - FLC-E500-314-W22 1030
FC-368 319 1800 and lower - FLC-E500-319-W22 1030
355 FC-368 316 3600 - FLC-E580-316 1650
FC-368 322 1800 and lower - FLC-E580-322 1650
NEMA Frames - Explosion Proof Motors
Frame Flange Size Bearing Size RPM C-Flange Kit
Model List Price
143/5 FC-149 205 any FLC-X140 120
182/4 FC-184 307 any FLC-X180 201
213/5 FC-184 308 any FLC-X210 214
254/6 FC-184 309 any FLC-X250 291
284/6 FC-228 311 any FLC-X280 517
324/5 FC-279 312 any FLC-X320 663
364/5 FC-279 314 any FLC-X360-314 992
404/5 FC-279 314 3600 FLC-X360-314 992
FC-279 217 1800 and lower FLC-X400-217 1210
444/5 445/7 447/9
FC-355 314 3600 FLC-X440-314 1508
FC-355 219 1800 and lower FLC-X440-219 1508
FC-355 319 1800 and lower FLC-X440-319 1508
Metric (IEC) Frames - General Purpose - TEFC
Frame Flange Size Bearing Size RPM C-DIN Flange Kit
W21 W22 Aluminum Frame List Price
63 C-90 201 any FLC-IM63DIN FLC-IM63DIN FLC-IM63DIN-AL 39
71 C-105 202 any - FLC-IM71DIN-BC-W22 43
C-105 203 any FLC-IM71DIN - FLC-IM71DIN-AL-BC 43
80 C-120 204 any FLC-IM80DIN FLC-IM80DIN-BC FLC-IM80DIN-AL-BC 45
90 C-140 205 any FLC-IM90DIN FLC-IM90DIN-UBC FLC-IM90DIN-AL-UBC 85
100 C-160 206 any FLC-IM100DIN FLC-IM100DIN-UBC FLC-IM100DIN-AL-UBC 128
112 C-160 207 any - FLC-IM112DIN-UBC-W22 - 145
C-160 307 any FLC-IM112DIN - FLC-IM112DIN-AL-UBC 145
132 C-200 308 any FLC-IM132DIN FLC-IM132DIN-UBC FLC-IM132DIN-AL-UBC 150
160 C-250 309 any FLC-IM160DIN FLC-IM160DIN-W22 - 195
C FLANGES FOR OPEN MOTORS
NEMA Integral Frames - ODP
Frame Flange Size Bearing Size RPM C-Flange Kit
Model List Price
143/5 FC-149 205 any FLC-O140-UBC 85
182/4 FC-184 206 any FLC-O180-UBC 145
213/5 FC-184 208 any FLC-O210-UBC 150
254/6 FC-184 309 any FLC-O250 195
284/6 FC-228 311 any FLC-O280 290
324/6 FC-279 312 any FLC-O320 440
364/5 FC-279 314 any FLC-O360-314 575
404/5 FC-279 314 3600 FLC-O360-314 620
FC-279 316 1800 and lower FLC-O400-316 620
444/5 FC-355 314 3600 FLC-O440-314 830
FC-355 319 1800 and lower FLC-O440-319 830
www.weg.net
A-194 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Flanges
D/F FLANGE KITS
NEMA Frames - CAST IRON - TEFC
Frame Flange Size Bearing Size RPM D-Flange Kit
W21 W22 List Price
143/5 FD-254 205 any FLD-E140-UBC FLD-E140-UBC 98
W182/4 FD-254 206 any FLD-EW180-UBC - 171
182/4 FD-254 207 any - FLD-E180-W22 171
FD-254 307 any FLD-E180-UBC - 171
W213/5 FD-254 308 any FLD-EW210 - 184
213/5 FD-254 308 any FLD-E210-UBC FLD-E210-UBC 184
W254/6 FD-317 309 any FLD-EW250 - 220
254/6 FD-317 309 any FLD-E250 FLD-E250-W22 220
284/6 FD-317 311 any FLD-E280 FLD-E280 318
324/5 FD-406 312 any FLD-E320 FLD-E320 465
364/5 FD-406 314 any FLD-E360-314 FLD-E360-314-W22 620
404/5
FD-508 314 3600 FLD-E400-314 FLD-E400-314 765
FD-508 316 1800 and
lower FLD-E400-316 FLD-E400-316 765
444/5 445/7
447/9
FD-508 314 3600 FLD-E440-314 FLD-E440-314 932
FD-508 319 1800 and
lower FLD-E440-319 FLD-E440-319 932
FD-508 322 1800 and
lower FLD-E440-322 FLD-E440-322 932
L447/9
FD-508 314 3600 - FLD-EL440-314-W22 1350
FD-508 322 1800 and
lower - FLD-EL440-322-W22 1350
504/5
FD-558 314 3600 - FLD-E500-314-W22 1350
FD-558 319 1800 and
lower - FLD-E500-319-W22 1350
FD-558 322 1800 and
lower - FLD-E500-322-W22 1350
586/7
FD-762 314 3600 - FLD-E580-314 2130
FD-762 322 1800 and
lower FLD-E580-322 FLD-E580-322 2130
FD-762 324 1800 and
lower FLD-E580-324 FLD-E580-324 2130
NEMA Frames - Explosion Proof Motors
Frame Flange Size Bearing Size RPM D-Flange Kit
Model List Price
143/5 FD-254 205 any FLD-X140 154
182/4 FD-254 307 any FLD-X180 210
213/5 FD-254 308 any FLD-X210 291
254/6 FD-317 309 any FLD-X250 534
284/6 FD-317 311 any FLD-X280 637
324/5 FD-406 312 any FLD-X320 795
364/5 FD-406 314 any FLD-X360-314 1141
404/5 FD-508 314 3600 FLD-X400-314 1338
FD-508 217 1800 and lower FLD-X400-217 1338
444/5 445/7
447/9
FD-508 314 3600 FLD-X440-314 1878
FD-508 219 1800 and lower FLD-X440-219 1878
FD-508 319 1800 and lower FLD-X440-319 1878
C FLANGES FOR OPEN MOTORS
NEMA Fractional 48 & 56 Frames - ODP
Frame Flange Size Bearing Size RPM C-Flange Kit
Model List Price
48 56 C56 FC-95 203 any FLC-O48-203-FC95 85
FC-149 203 any FLC-O48-203-FC149 85
A56 B56 D56
E56 F56 G56 FC-149 204 any FLC-O56-204-FC149 85
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-195
Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Flanges
NEMA Frames - IEEE 841
Frame Flange Size Bearing Size RPM D-Flange Kit
W21 W22 List Price
143/5 FD-254 205 any - - -
182/4 FD-254 207 any - - -
FD-254 307 any - - -
213/5 FD-254 308 any FLD-IE210 FLD-IE210 350
254/6 FD--317 309 any - FLD-IE250-W22 425
284/6 FD-317 311 any FLD-IE280 FLD-IE280 490
324/5 FD-406 312 any FLD-IE320 FLD-IE320 785
364/5 FD-406 314 any FLD-E360-314 FLD-E360-314-W22 620
404/5 FD-508 314 3600 FLD-E400-314 FLD-E400-314 765
FD-508 316 1800 and lower FLD-E400-316 FLD-E400-316 765
444/5 445/7
447/9
FD-508 314 3600 FLD-E440-314 FLD-E440-314 932
FD-508 319 1800 and lower FLD-E440-319 FLD-E440-319 932
FD-508 322 1800 and lower FLD-E440-322 FLD-E440-322 932
L447/9 FD-508 314 3600 - FLD-EL440-314-W22 1030
FD-508 322 1800 and lower - FLD-EL440-322-W22 1030
504/5
FD-558 314 3600 - FLD-E500-314-W22 1030
FD-558 319 1800 and lower - FLD-E500-319-W22 1030
FD-558 322 1800 and lower - FLD-E500-322-W22 1030
586/7
FD-762 314 3600 - FLD-E580-314 2604
FD-762 322 1800 and lower FLD-E580-322 FLD-E580-322 2604
FD-762 324 1800 and lower FLD-E580-324 FLD-E580-324 2604
Metric (IEC) Frames - Cast Iron - TEFC
Frame Flange Size Bearing Size RPM FF-Flange Kit
W21 W22 Aluminum Frame
63 FF-115 201 any FLF-IM63 FLF-IM63 FLF-IM63-AL
71 FF-130 202 any - FLF-IM71-BC-W22 -
FF-130 203 any FLF-IM71 - FLF-IM71-AL-BC
80 FF-16 5 204 any FLF-IM80 FLF-IM80-BC FLF-IM80-AL-BC
90 FF-165 205 any FLF-IM90 FLF-IM90-UBC FLF-IM90-AL-UBC
100 FF-215 206 any FLF-IM100 FLF-IM100-UBC FLF-IM100-AL-UBC
112 FF-215 207 any - FLF-IM112-UBC-W22 -
FF-215 307 any FLF-IM112 - FLF-IM112-AL-UBC
132 FF-265 308 any FLF-IM132 FLF-IM132-UBC FLF-IM132-AL-UBC
160 FF-300 309 any FLF-IM160 FLF-IM160-W22 -
180 FF-300 311 any FLF-IM180 FLF-IM180 -
200 FF-350 312 any FLF-IM200 FLF-IM200 -
225 FF-400 314 any FLF-IM225 FLF-IM225-W22 -
250 FF-500 314 any FLF-IM250 FLF-IM250 -
280 FF-500 314 3600 FLF-IM280-314 FLF-IM280-314 -
FF-500 316 1800 and lower FLF-IM280-316 FLF-IM280-316 -
315 FF-600 314 3600 FLF-IM315-314 FLF-IM315-314-W22 -
FF-600 319 1800 and lower FLF-IM315-319 FLF-IM315-319-W22 -
D FLANGES FOR OPEN MOTORS
NEMA Integral Frames - ODP
Frame Flange Size Bearing Size RPM C-Flange Kit
Model List Price
143/5 FD-254 205 any - -
182/4 FD-254 206 any - -
213/5 FD-254 208 any - -
254/6 FD-317 309 any FLD-O250 220
284/6 FD-317 311 any FLD-O280 318
324/6 FD-406 312 any FLD-O320 465
364/5 FD-406 314 any FLD-O360-314 620
404/5 FD-508 314 3600 FLD-O400-314 765
FD-508 316 1800 and lower FLD-O400-316 765
444/5 FD-508 314 3600 FLD-O440-314 932
FD-508 319 1800 and lower FLD-O440-319 932
www.weg.net
A-196 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Drip Covers Kits
Drip Cover Kits
Frame
Drip Cover Kits for TEFC Motors
W21 W22 Rolled Steel List Price
NEMA
A56 B56
D56 E56
F56 G56
F143/5 G143/5
- - DRCV-E56 53
140T DRCV-E140 DRCV-E140 - 89
- - DRCV-E56 53
180T DRCV-E180 DRCV-E180 DRCV-E180 95
210T DRCV-E210 DRCV-E210 DRCV-E210 131
250T DRCV-E250 DRCV-E250-W22 not available 152
280T DRCV-E280 DRCV-E280-W22 - 220
320T DRCV-E320 DRCV-E320-W22 - 344
360T DRCV-E360/400 DRCV-E360-W22 - 393
400T DRCV-E360/400 - - 393
- DRCV-E400-W22 - 479
440T DRCV-E440/500 DRCV-E440-W22 - 819
500 DRCV-E440/500 - - 819
DRCV-EL440-W22 - 952
L440T - DRCV-EL440-W22 - 952
580 DRCV-E580 DRCV-E580-W22 - 1145
METRIC
90 DRCV-E140 DRCV-E140 - 89
100 DRCV-E100 DRCV-E100 - 89
112 DRCV-E180 DRCV-E180 - 95
132 DRCV-E210 DRCV-E210 - 131
160 DRCV-E250 DRCV-E250-W22 - 152
180 DRCV-E280 DRCV-E280-W22 - 220
200 DRCV-E320 DRCV-E320-W22 - 344
225 DRCV-E360/400 DRCV-E360-W22 - 393
250 DRCV-E360/400 - - 393
- DRCV-E400-W22 - 479
280 DRCV-E440/500 DRCV-E440-W22 - 819
315 DRCV-E440/500 - - 819
- DRCV-EL440-W22 - 952
355 DRCV-E580 DRCV-E580-W22 - 1145
Frame
Drip Cover Kits for ODP Motors
Model List Price
48 56
C56 W56
DRCV-OS48/56 23
A56 B56
D56 E56
F56 G56
140T DRCV-ODP140 105
180T DRCV-ODP180 120
210T DRCV-ODP210 131
250T DRCV-ODP250 152
280T DRCV-ODP280 220
320T DRCV-ODP320 366
360T DRCV-ODP360/400 410
400T DRCV-ODP360/400 410
440T DRCV-ODP440 613
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-197
Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Others
Auxiliary Terminal Boxes
For W22 only

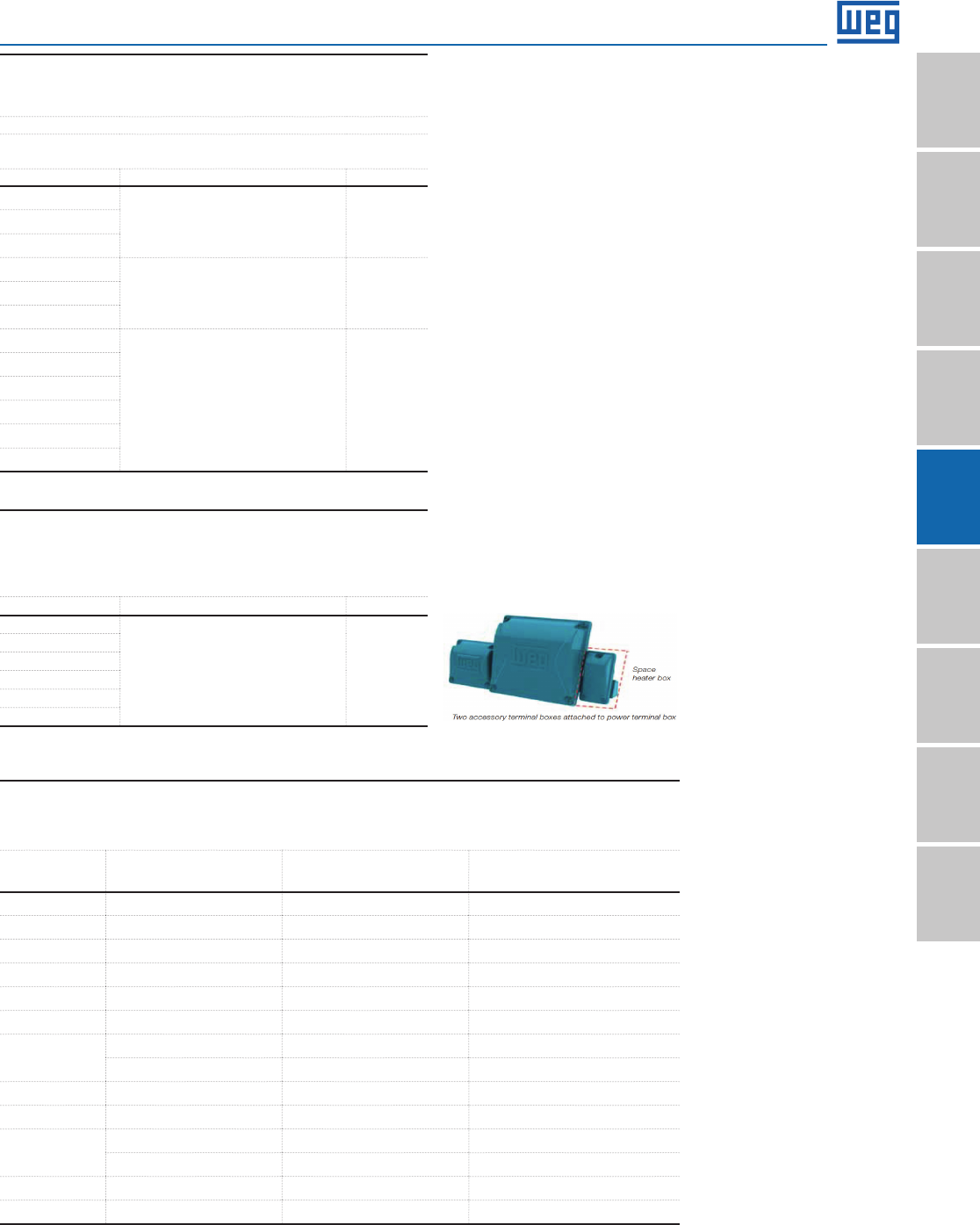

Auxiliary Terminal Boxes are designed to be installed in the left side of the Main
Terminal Box.
Frame Auxiliary T-Box Model List Price
140T
AUXTBOXF1W22-A 135
180T
210T
250T
AUXTBOXF1W22-B 171
280T
320T
360T
AUXTBOXF1W22-C 270
400T
440T
L440T
500
580
If separated Auxiliary Terminal boxes are required for Thermal Sensors and
Space Heaters, frames 360T and above offers a second Auxilary Terminal Box
just for the Space Heater
The Second Auxiliary Terminal Box for Space Heater is designed to be installed in
the right side of the Main Terminal Box
Frame 2nd Auxiliary T-Box Model List Price
360T
AUXTBOXF1W22-D 270
400T
440T
L440T
500
580
BLOWER KITS FOR TEFC-TO-TEBC MOTOR CONVERSION
Frame (NEMA/
IEC) W21 Blower Kit W22 Blower Kit List Price
140T/90 BLK-E140 BLK-E140 1,149
180T/112 BLK-E180 BLK-E180 1,260
210T/132 BLK-E210 BLK-E210 1,452
250T/160 BLK-E250 BLK-E250-W22 1,573
280T/180 BLK-E280 BLK-E280 1,658
320T/200 BLK-E320 BLK-E320 1,821
360T/225 BLK-E360/400 2,159
BLK-E360-W22 2,038
400T/250 BLK-E360/400 BLK-E400-W22 2,159
440T/280 BLK-E440/500 BLK-E440-W22 2,561
500/315 BLK-E440/500 2,561
BLK-EL449/500-W22 3,025
L440T/315L - BLK-EL449/500-W22 3,025
580/355 BLK-E586/7 BLK-E580-W22 3,632
www.weg.net
A-198 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Others
ENCODER CABLES
WEC Model Description List Price
ENCCBLMS-10 10 FT. ENCODER CABLE WITH 10 PIN MS CONNECTOR 232
ENCCBLMS-20 20 FT. ENCODER CABLE WITH 10 PIN MS CONNECTOR 413
ENCCBLMS-30 30 FT. ENCODER CABLE WITH 10 PIN MS CONNECTOR 454
ENCCBLMS-50 50 FT. ENCODER CABLE WITH 10 PIN MS CONNECTOR 672
Encoders:
- Motor requires Stub-shaft for installation of the encoder (exception to the TENV Vector Duty motors)
WEG Model MFG Model MFG Specification List Price
ECHSD38-D HSD38102484370 Dynapar
PPR:1024/ Bore size: 5/8”/ Format: Differential Bi-Directional A/Anot,B/Bnot,Z/
Znot/ Output: 5-26Vin, 5-26V differential line driver out (7272 chip set)/ Termina-
tion:10 pin MS connector/ Housing: aluminum, slotted tether with cover kit
(basket). Optical
1418
ECHS25A-A HS25AY1CCE0DA000 Avtron
PPR:1024/ Bore size: 5/8”/ Format: Differential Bi-Directional A/Anot,B/Bnot,Z/
Znot/ Output: 5-28Vin, 5-28V differential line driver out (7272 chipset)/ Termina-
tion:10 pin MS connector/ Housing: aluminum, slotted tether. Optical
1423
ECHS35A-A HS35AY1CCU0DA000 Avtron
PPR:1024/ Bore size: 5/8”/ Format: Differential Bi-Directional A/Anot,B/Bnot,Z/
Znot/ Output: 5-28Vin, 5-28V differential line driver out (7272 chipset)/ Termina-
tion:10 pin MS connector/ Housing: aluminum, slotted tether. Optical
1590
ECHS35M-A HS35MYX6CCU0DA00 Avtron
PPR:1024/ Bore size: 5/8”/ Format: Differential Bi-Directional A/Anot,B/Bnot,Z/
Znot/ Output: 5-24Vin, 5-24V differential line driver out (7272 chipset)/ Termina-
tion:10 pin connector/ Housing: aluminum, slotted tether. Magnetic
2150
Different encoders may be available upon inquiry
STUB SHAFTS FOR TEFC W22 MOTORS
WEC Model List Price Applicable to
W22*: Description
STUBSHAFT-A-TEFC 220 140T M8X1.25 THREAD for use with 5/8” bore encoder
STUBSHAFT-B-TEFC 240
180T
210T
250T
280T
320T
M12X1.75 Thread for use with 5/8” bore encoder
STUBSHAFT-C-TEFC 240
360T
400T
440T
580 M20X2.5 Thread for use with 5/8” bore encoder
STUBSHAFT-D-TEFC 270 L440T
500
IMPORTANT: These stub shafts might not be compatible with W21 motors
* General Purpose NEMA Premium W22 frames 284T have NDE shaft drilled and tapped to receive stub shaft. Any other will require the NDE shaft to be drilled and tapped
ENCODERS FOR TEBC Motors
WEG Model MFG Model MFG Specification List Price
ECKTEBC-140-180 HS35N10249WBV0 Dynapar PPR:1024/ Bore size: 15mm/ Format: Differential Bi-Directional A/Anot,B/Bnot,Z/
Znot/ Output: 5-30Vin, 5-30V HTL/ Termination:10 pin MS connector/ Optical
2780
ECKTEBC-210-580 HS35N10249WBWW 2997
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-199
Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBORHYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Others
Shaft Grounding Devices
Model Description List Price
SGB-HEL1 HELWIG CARBON SHAFT GROUNDING BRUSH HOLDER 800
SGB-HEL1B HELWIG CARBON SHAFT GROUNDING BRUSH FOR USE WITH HOLDER PART# SGB-HEL1 550
SGB-WEG WEG SHAFT GROUNDING BRUSH/BRUSH HOLDER 181
WEG also offers AEGISTM Shaft Grounding Rings through our Mod Shop
Insulated Bearings
Model Size Type List Price
BRG6206ZZC3INS-HYBR 6206 Double Shielded C3 Clearance Hybrid 555
BRG6207ZZC3INS-HYBR 6207 Double Shielded C3 Clearance Hybrid 560
BRG6209ZZC3INS-HYBR 6209 Double Shielded C3 Clearance Hybrid 1253
BRG6211ZZC3INS-HYBR 6211 Double Shielded C3 Clearance Hybrid 1270
BRG6212ZZC3INS-HYBR 6212 Double Shielded C3 Clearance Hybrid 1291
BRG6311C3-INSOCOAT 6311 C3 Clearance Ceramic Coated 1356
BRG6312C3-INSOCOAT 6312 C3 Clearance Ceramic Coated 1676
BRG6314C3-INSOCOAT 6314 C3 Clearance Ceramic Coated 2014
BRG6316C3-INSOCOAT 6316 C3 Clearance Ceramic Coated 2339
BRG6319C3-INSOCOAT 6319 C3 Clearance Ceramic Coated 3416
Insulated Bearing Housing Endshields
Model Frame Series Bearing Size List Price
NDE-E360T-314-I-W22 360T 6314 2150
NDE-E400T-314-I-W22 400T 6314 2150
NDE-E440T-314-I-W22 440T 6314 2592
NDE-E440T-316-I-W22 440T 6316 2592
NDE-E440T-319-I-W22 440T 6319 2592
NDE-EL440T-314-I-W22 L440 6314 3220
NDE-EL440T-319-I-W22 L440 6319 3220
NDE-E580-314-I-W22 580 6314 3371
NDE-E580-319-I-W22 580 6319 3371
www.weg.net
A-200 Data subject to change without notice.
PARTS AND
MODIFICATIONS
SAW ARBOR HYDRAULIC
PUMP
ATEx
MOTORS
IE2 IEC
TRU-METRIC
ELECTRICAL
DATA
MECHANICAL
DATA
CATALOG
INDEx
MEDIUM VOLTAGE
MOTOR
Parts - Others
Terminal Block Kits
IEC Frames NEMA Frames* Model Bolt Thread List Price
63 -
TERMBLCK-W22-63-100 M4 35
71 -
80 -
90 140T
100 -
112 180T TERMBLCK-W22-112/132 M5 52
132 210T
160 250T TERMBLCK-W22-160/180 M6 86
180 280T
200 320T TERMBLCK-W22-200 M8 151
225 360T TERMBLCK-W22-225/250 M10 280
250 400T
280 440T TERMBLCK-W22-280 M12 533
315 500 TERMBLCK-W22-315S/M M12 533
315L L440T TERMBLCK-W22-355M/L M16 1032
355 580
* NEMA Frames should require an adapter plate for the terminal block installation

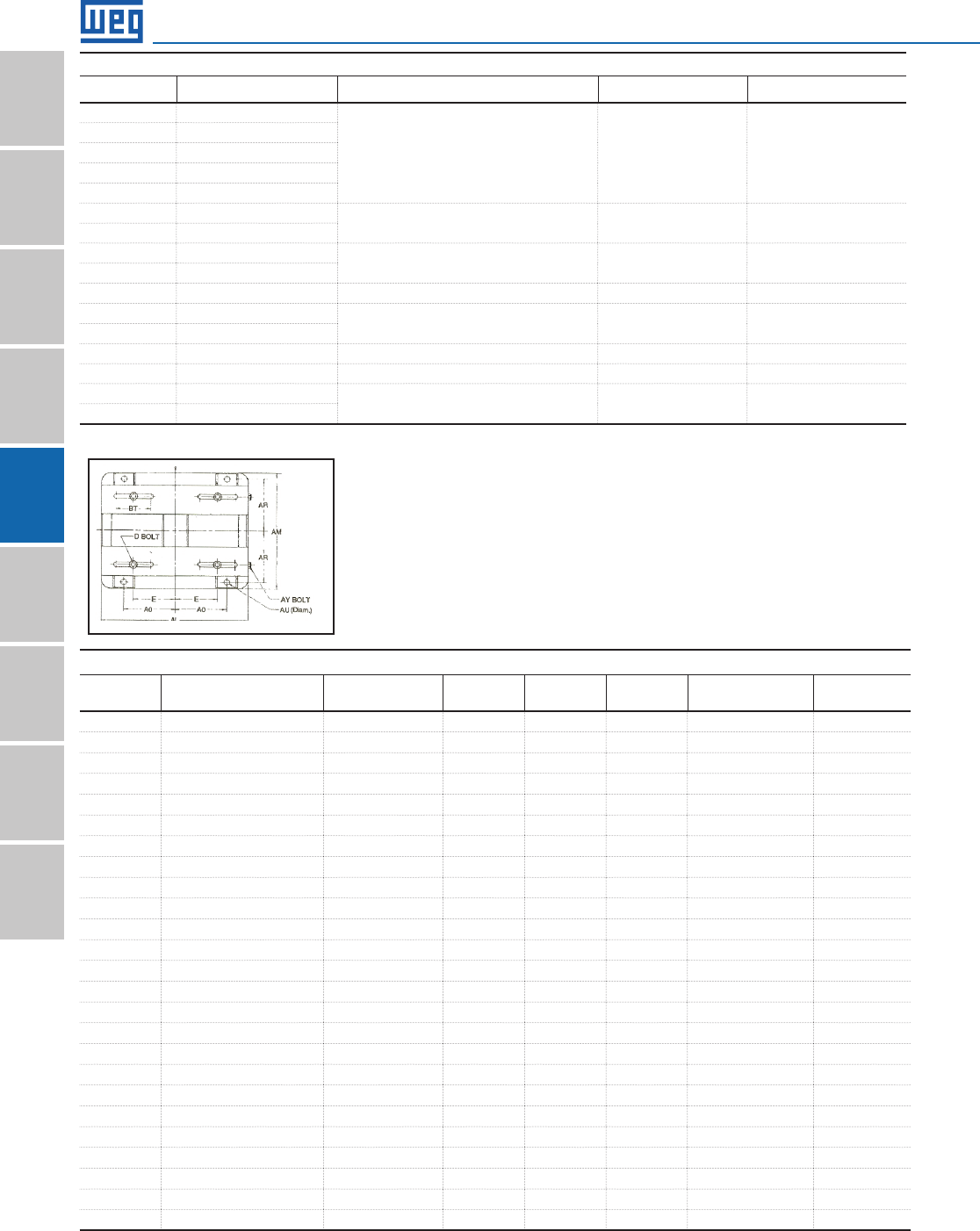

Motor Sliding Bases
Frame Base Model Style AR AU BT Shipping Weight
(approx) List Price
143T SMB-143T A 3 3/8 3/8 3 5 $73
145T SMB-145T A 3 7/8 3/8 3 6 $73
182T SMB-182T A 4 1/4 1/2 3 9 $87
182T SMB-182TA2 A2 4 1/4 1/2 3 9 $120
184T SMB-184T A 4 3/4 1/2 3 10 $87
184T SMB-184TA2 A2 4 3/4 1/2 3 10 $120
213T SMB-213T A 4 3/4 1/2 3 1/2 14 $118
215T SMB-215T A 5 1/2 1/2 3 1/2 15 $118
254T SMB-254T B2 6 5/8 5/8 4 17 $220
256T SMB-256T B2 7 1/2 5/8 4 18 $220
284T SMB-284T B2 7 1/2 5/8 4 1/2 21 $240
286T SMB-286T B2 8 1/4 5/8 4 1/2 22 $240
324T SMB-324T B2 8 1/2 3/4 5 1/4 31 $321
326T SMB-326T B2 9 1/4 3/4 5 1/4 32 $321
364T SMB-364T B2 9 1/8 3/4 6 44 $410
365T SMB-365T B2 9 5/8 3/4 6 45 $410
404T SMB-404T B2 9 7/8 7/8 7 55 $600
405T SMB-405T B2 105/8 7/8 7 61 $600
444T SMB-444T B2 11 7/8 7 1/2 76 $746
445T SMB-445T B2 12 7/8 7 1/2 78 $746
447T SMB-447T B2 13 3/4 7/8 7 1/2 89 $1,023
449T SMB-449T B2 16 1/4 7/8 7 1/2 95 $1,023
504T SMB-504 C 12 1/2 1 108 $1,422
505T SMB-505 C 13 1/2 1 135 $1,422
586T SMB-580 Pair of Slide Rails 13 4 3/8 183 $3,504
