©Taco Catalog #100-1.6 Effective Date: 06/01/11
Supersedes: 06/15/09 Printed in USA

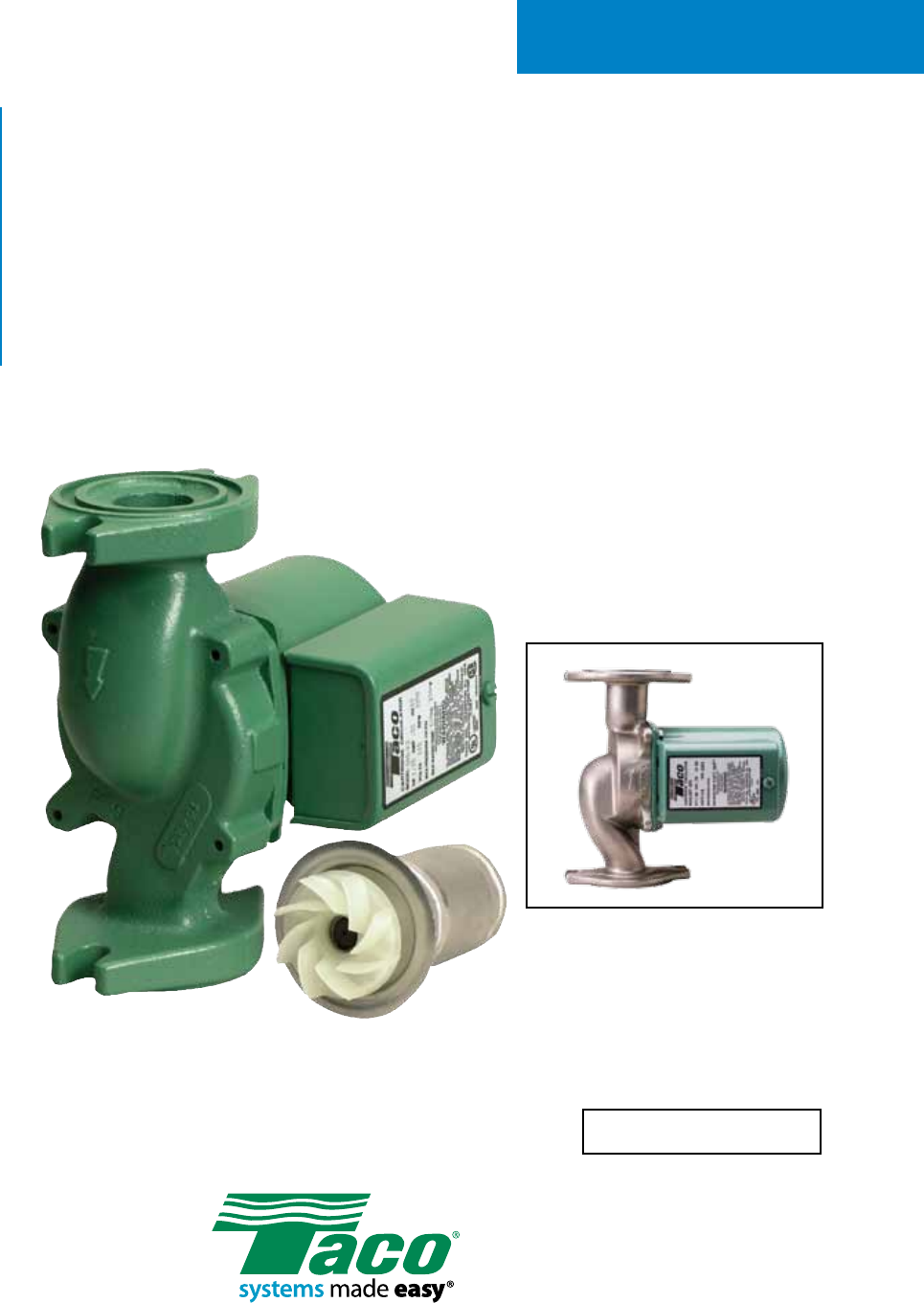

The compact Taco 005 Cartridge Circulator is designed for quiet, efficient operation in
hydronic heating, chilled water, and domestic water systems. Its unique field-serviceable
cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no
mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability.
Flow characteristics for the 005 make it the ideal circulator for a wide range of applica-
tions. Available in Cast Iron or Stainless Steel construction.
Model 005 Cartridge Circulator
Water Circulation
Pumps & Circulators
NSF® ≤ .25% Lead
Stainless Steel Model
Meets California AB 1953
and Vermont Act 193
Stainless Steel Model
Taco Inc., 1160 Cranston Street. Cranston, RI 02920 / (401) 942-8000 / Fax (401) 942-2360
Taco (Canada) Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8 / (905) 564-9422 / Fax (905) 564-9436
www.taco-hvac.com
Features
• Standard High Capacity Output-Compact Design
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Unique Replaceable Cartridge Design-Field
Serviceable
• Self Lubricating
• No Mechanical Seal
• Unmatched Reliability-Maintenance Free
• Universal Flange to Flange Dimensions
•
Cast Iron or Stainless Steel Construction
Materials of Construction
Casing (Volute): Cast Iron or Stainless
Steel
Stator Housing: Steel
Cartridge: Stainless Steel
Impeller: Non-Metallic
Shaft: Ceramic
Bearings: Carbon
O-Ring & Gaskets: EPDM
Model Nomenclature
F – Cast Iron, Flanged
SF – Stainless Steel, Flanged
Variations:
Z – Zoning Circulator
VR – Variable Speed Outdoor Reset
VS – Variable Speed Set Point
VV – Variable Speed Variable Voltage
J – Bronze Cartridge with Cast Iron Casing
Performance Data
Flow Range: 0 – 19 GPM
Head Range: 0 – 9 Feet
Min. Fluid Temperature: 40°F (4°C)
Max. Fluid Temperature, Cast Iron:230°F (110°C)
Max. Fluid Temperature, Stainless Steel :220°F (104°C)
Max. Working Pressure: 125 psi
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
FOR INDOOR USE ONLY
Application
• Hydronic Heating/Cooling
• Radiant
• Indirect Water Heaters
• Hydro-Air Fan Coils
• Domestic Water Recirculation
• Solar Thermal
The Taco 005 is designed for a wide range of residential and light commercial water circulating
applications. It’s unique replaceable cartridge contains all of the moving parts and allows for easy
service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption
design is ideal for high efficiency jobs.

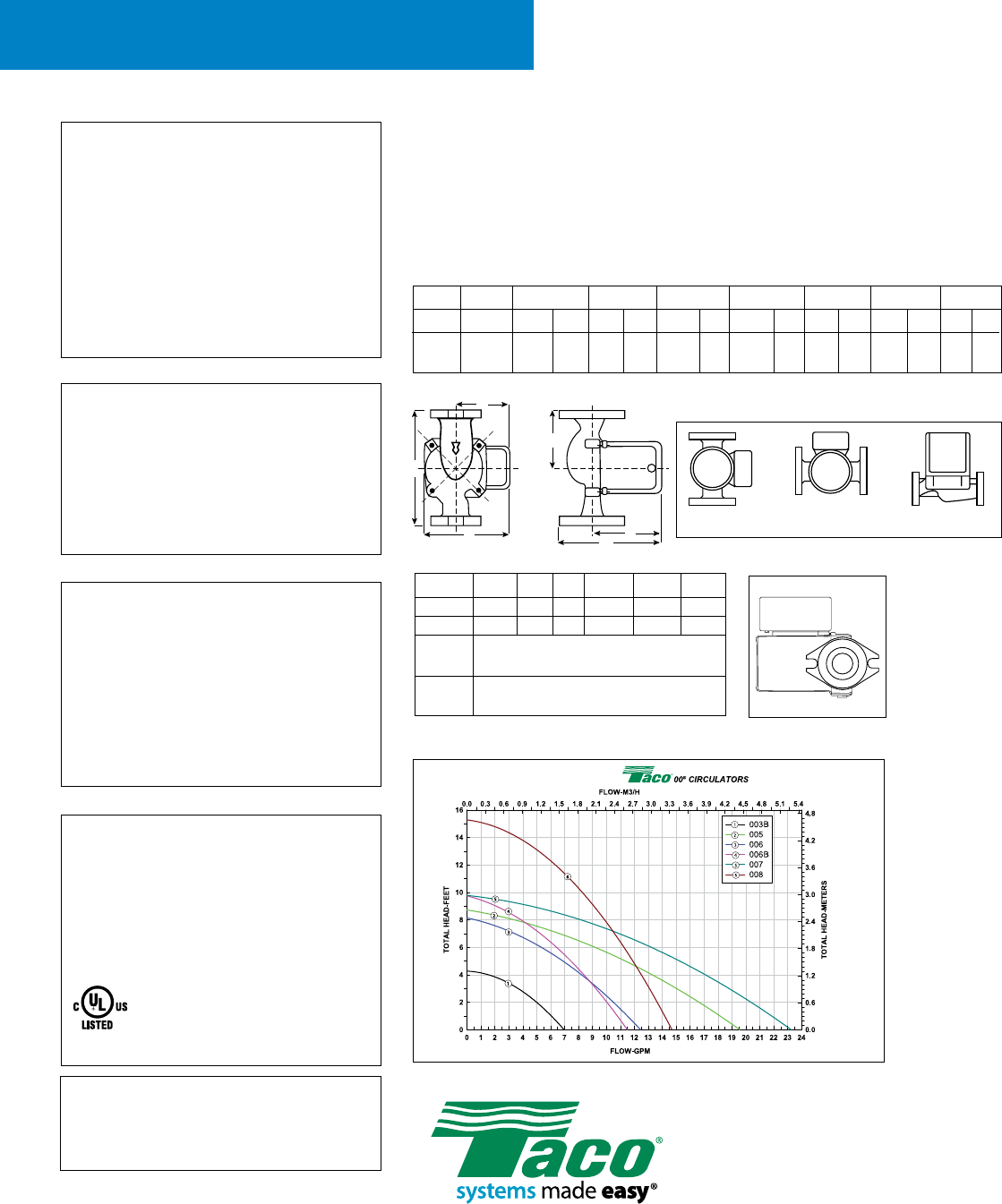

Performance Field - 60Hz
AB
F
D
G
C
AB C D F G Ship Wt.
Model Casing in. mm in. mm in. mm in. mm in. mm in. mm lbs. Kg
005-F2 Cast Iron 5-5/8 143 4 102 3-3/16 81 2-15/16 75 4-3/4 121 6-3/8 162 8.0 3.6
005-SF2 St. Steel 5-5/8 143 4 102 3-3/16 81 2-15/16 75 4-3/4 121 6-3/8 162 7.0 3.2
Pump Dimensions & Weights
Model Volts Hz Ph Amps RPM HP
005-F2 115 60 1 .52 3250 1/35
Motor Permanent Split Capacitor
Type Impedance Protected
Motor
Options
220/50/1, 220/60/1, 230/60/1, 100/110/50/60/1
Electrical Data
Mounting Positions
Standard Optional OK if over
20 psi
Flange Orientation
1/353250.5460115005-SF 1
Submittal Data # 101-030 Effective: 06/01/11
Supersedes: 06/15/09
Submittal Data Information
Model 005 Cartridge Circulator
NSF® ≤ .25% Lead
Complies with California Health and Safety
Code Section 116875 / AB1953
and Vermont Act 193
