The compact Taco 006-IFC
®
with an Integral Flow Check is designed for circulating hot and chilled fresh water
in open and closed loop applications. With its patented location at the impeller inlet, the IFC eliminates the
added installation costs of a separate in-line flow check, simplifies piping, and improves system performance.
The unique, replaceable cartridge contains all moving parts and is easy to service instead of replacing the entire
unit. It's self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability.

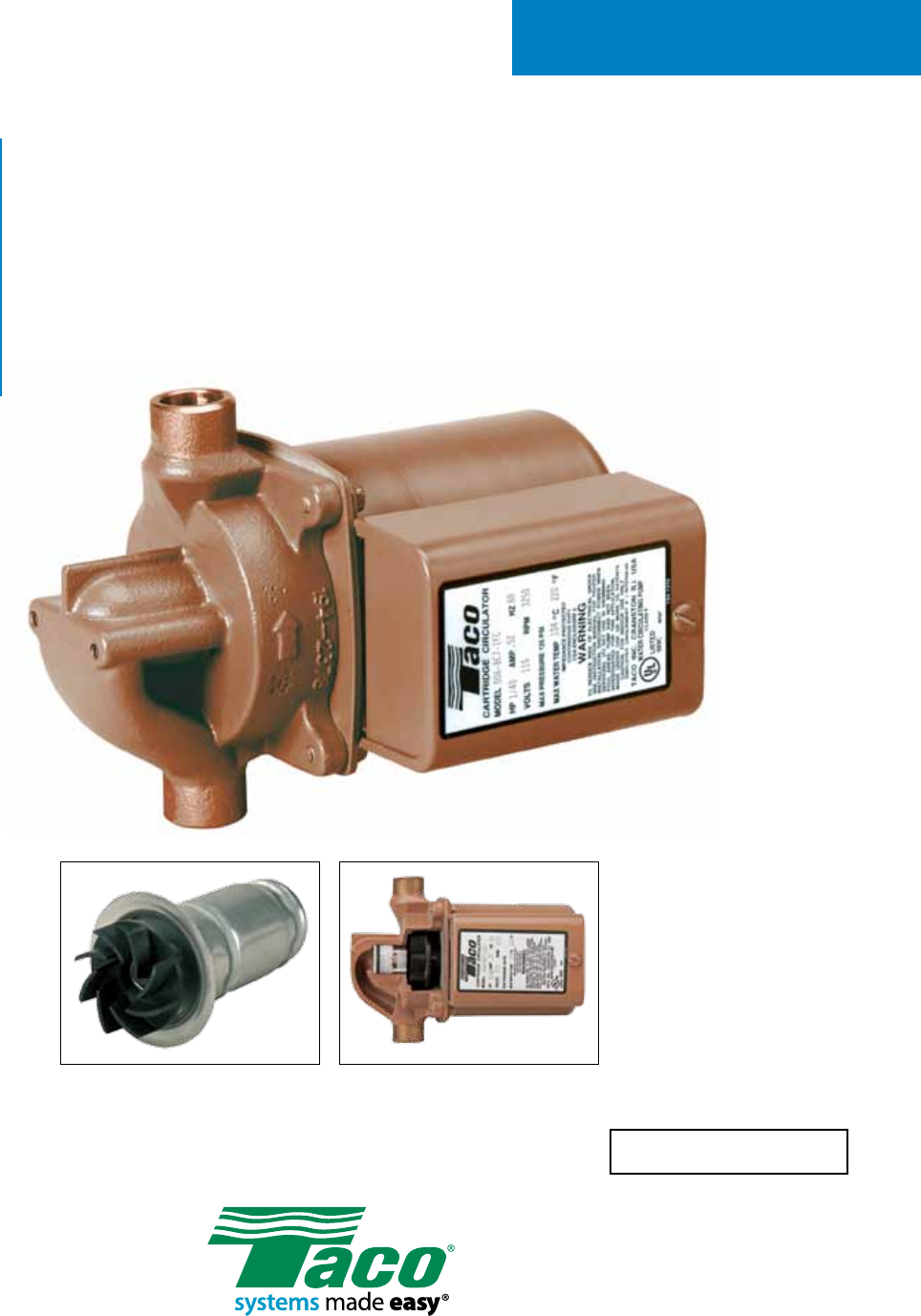

Model 006-IFC® Cartridge Circulator
Water Circulation
Pumps & Circulators
©Taco Catalog #100-6.7
Supersedes: 04/15/05
Effective Date: 06/01/11
Printed in USA
NSF® ≤ .25% Lead
Meets California AB 1953
and Vermont Act 193
A B C D E F Ship Wt.
Model Conn in. mm in. mm in. mm in. mm in. mm in. mm lbs. Kg
006-BC7-1IFC 1/2" Swt 6 152 4-7/8 124 2-3/16 56 2-15/16 75 3-5/16 84 4-3/8 111 6.0 2.7
006-BC7-IFC 3/4" Swt 6 152 4-7/8 124 2-3/16 56 2-15/16 75 3-5/16 84 4-3/8 111 6.0 2.7
006-SC7-IFC Union 6 152 4-7/8 124 2-31/32 76 2-15/16 75 3-5/16 84 5-15/16 151 6.0 2.7
FLOW-GPM
0123456789101112131415161718
TOTAL HEAD-FEET
0
2
4
6
8
10
12
14
16
FLOW-M3/H
0.00.2 0.40.6 0.81.0 1.21.4 1.61.8 2.02.2 2.42.6 2.83.0 3.23.4 3.63.8 4.0
TOTAL HEAD-METERS
0.0
0.6
1.2
1.8
2.4
3.0
3.6
4.2
4.8
003B-IFC
005-IFC
006-IFC
006B-IFC
007-IFC
008-IFC
008B-IFC
INTEGRAL FLOWCHECK (IFC®) MODELS
Performance Field - 60 Hz
Application
• Domestic Hot Water Recirculation • Water Source Heat Pumps
• Hydro-Air Fan Coils • Potable Water Systems
• Heat Recovery Units
The 006-IFC with an Integral Flow Check (IFC
®
) is designed for the circulation of hot or chilled
fresh water in open or closed loop applications. The IFC feature simplifies piping, eliminates
separate in-line flow check, reduces installation costs and improves system performance. With its
patented location at the impeller inlet, the IFC is easy to service without removing the entire unit
from system piping. The unique, replaceable cartridge contains all of the moving parts and allows
for easy service instead of replacing the entire circulator.
Pump Dimensions & Weights
Mounting Positions
Standard Optional OK if over
20 psi
Model Volts Hz Ph Amps RPM HP
006 All Models 115 60 1 .52 3250 1/40
Motor Type
Permanent Split Capacitor, Impedance Protected
Motor Options
220/50/1, 220/60/1, 230/60/1, 100/110/50/60/1
Electrical Data

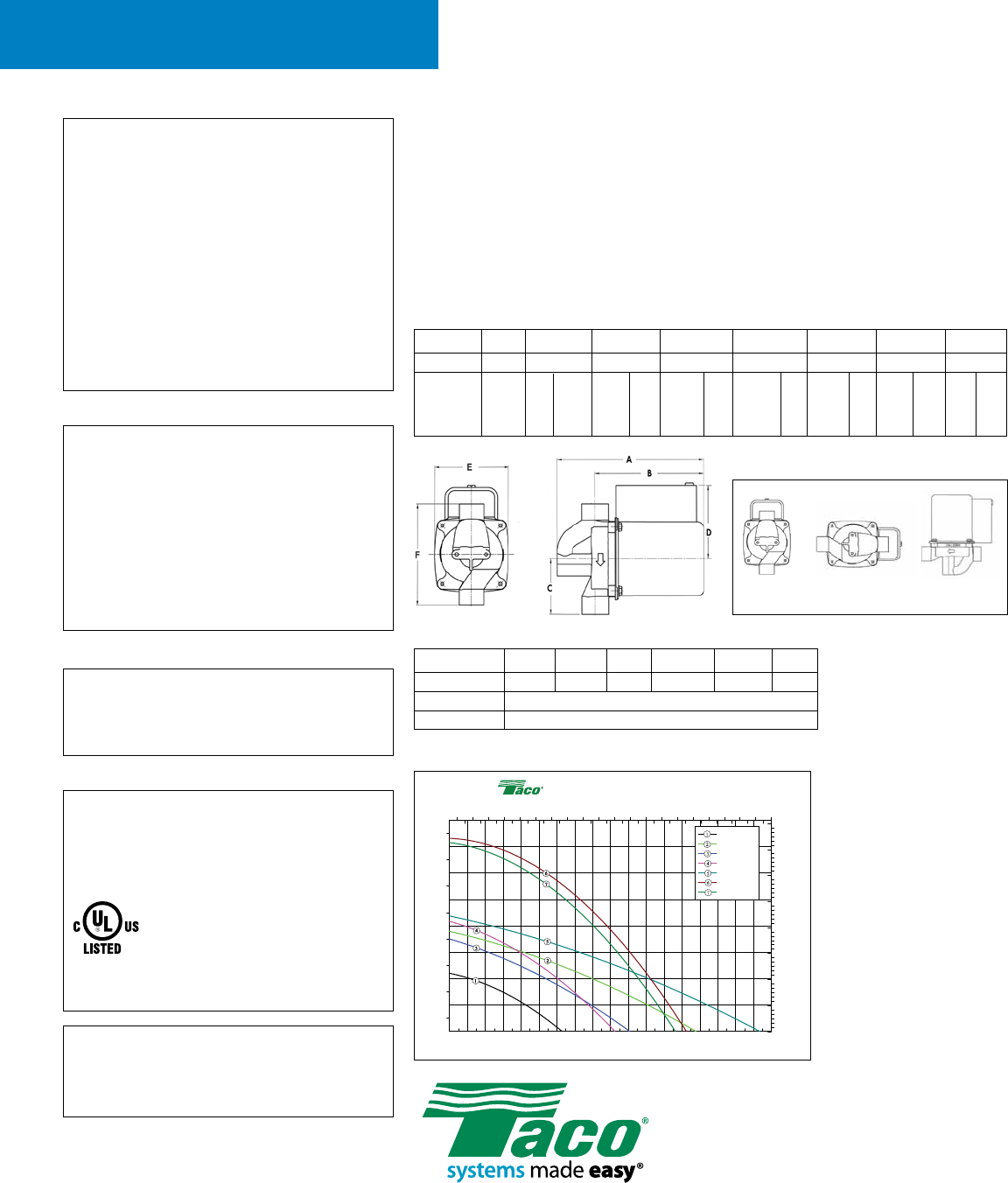

Submittal Data Information
Model 006-IFC
®
Cartridge Circulator
Submittal Data # 101-067
Supersedes: 04/15/06
Effective: 06/01/11
Taco Inc., 1160 Cranston Street. Cranston, RI 02920 / (401) 942-8000 / Fax (401) 942-2360
Taco (Canada) Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8 / (905) 564-9422 / Fax (905) 564-9436
www.taco-hvac.com
Features
• Integral Flow Check (IFC
®
) Patent# 5,664,939
Prevents gravity flow / reverse flow
Eliminates separate in-line flow check
Reduces installed cost
Improves system performance
Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-Maintenance free
• Quiet, efficient operation
• Self lubricating, No mechanical seal
• Wide Range of applications
• Bronze Construction with 1/2" & 3/4" Sweat
Connections or Stainless Steel Union Connections
Materials of Construction
Casing (Volute): Bronze or Stainless Steel
Integral Flow Check: Body, Plunger
.....
Acetal
O-ring Seals
.......
EPDM
Spring
............................
Stainless Steel
Stator Housing: Steel
Cartridge: Stainless Steel
Impeller: Non-Metallic
Shaft: Ceramic
Bearings: Carbon
O-Ring & Gaskets: EPDM - Chlorine Resistant
Model Nomenclature
BC - Bronze Sweat Connections, Panel Mount Tappings
SC - Stainless Steel, Union Connection,
Panel Mount Tappings
IFC - Integral Flow Check
Performance Data
Flow Range: 0 – 9 GPM
Head Range: 0 – 9 Feet
Minimum Fluid Temperature: 40˚F (4˚C)
Maximum Fluid Temperature: 220˚F (104˚C)
Maximum Working Pressure: 125 psi
FOR INDOOR USE ONLY
NSF® ≤ .25% Lead
Complies with California Health and Safety
Code Section 116875 / AB1953
and Vermont Act 193
