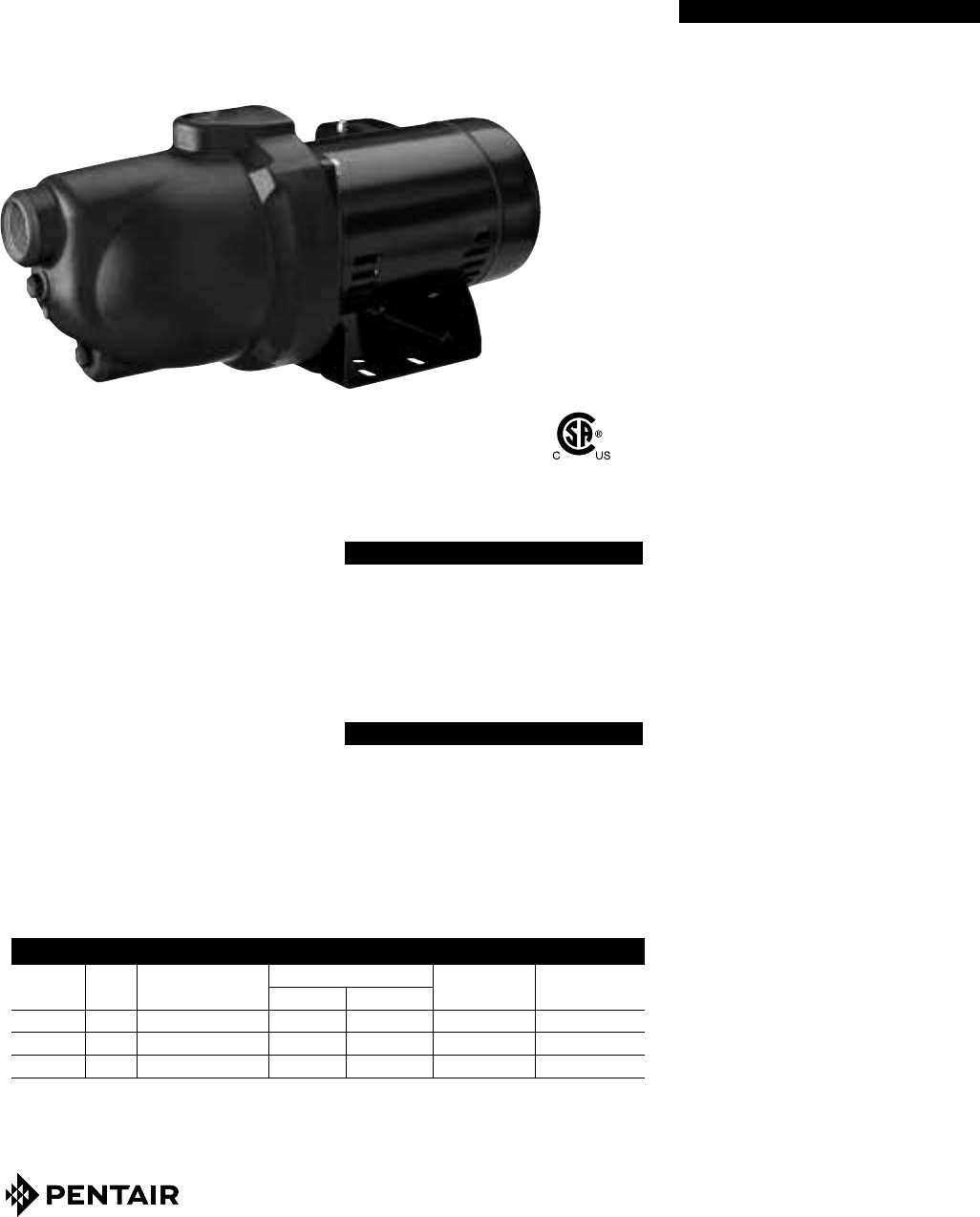

STA-RITE® PN Series
Corrosion-resistant self-priming shallow well jet pumps
PN Series Shallow Well Jet Pumps are
corrosion- and abrasion-resistant and
are ideal for wells with pumping levels
of 25' or less.
Self-priming after the pump housing is
initially filled with water.
Capacities to 18 GPM. Available in 1/2,
3/4 and 1 HP models.
Supplied with the industry standard
30-50 pressure switch setting.
APPLICATIONS
Water Systems
Booster Pump
Marine Use
Mist Sprayers – Poultry
Fountains and Water Features
SPECIFICATIONS
Body and Seal Plate:
Fiberglass-
reinforced thermoplastic
Impeller:
Engineered polymer
Base:
12-gauge steel
Nozzle, Venturi, Diffuser:
Polypropylene
UL778/CSA108
FEATURES
Quality Construction:
Fiberglass-
reinforced thermoplastic body provides total
corrosion resistance and high resistance
to abrasion.
Built-in Jet:
Shallow-well jet has
corrosion-resistant polypropylene nozzle
and venturi.
Impeller:
Precision-molded for perfect
balance…ultra-smooth for highest
performance and efficiency.
Precision-Molded Diffuser:
Polypropylene diffuser allows pump to
prime faster,
handle more air.
Heavy-Duty Motor:
Stainless steel shaft
and dual heavy-duty ball bearings.
Heavy-Duty Ball Bearings:
Shielded,
permanently lubricated bearings,
extensively tested to ensure extended
life and smooth, quiet operation.
Dual Voltage Capability:
Dual voltage motors are shipped at the
230-volt setting.
Professional Quality, Pre-set 30-50 PSI:
Allows for cut-in pressure adjustments.
New Nozzle Cleanout:
Easy plug removal
and access for ease of service.
New Drain Plug:
Bottom-mounted for easy
draining and winterization.
ORDERING INFORMATION
CATALOG
NUMBER HP DESCRIPTION
PIPE TAPPIPNG SIZES MOTOR
VOLTAGE
APPROX. WT.
LBS./KGSUCTION DISCHARGE
PNC 1/2 Shallow Well Jet 1-1/4" 1" 115/230 21/9.5
PND 3/4 Shallow Well Jet 1-1/4" 1" 115/230 24/11
PNE 1 Shallow Well Jet 1-1/4" 1" 115/230 26/12
S4507WS
STA-RITE® PN Series
Corrosion-resistant self-priming shallow well jet pumps
PUMP PERFORMANCE: 10 GPM
[143.0]
ø5.63
[104.8] 4.13
[62.0]
2.44
[34.9]
1.38
[22.4]
.88
[10.2]
.40
[142.7]
5.62
[50.8]
2.00
[12.7]
ø.50
[69.9]
2.75
[124.0]
4.88
[185.9]
7.32
[247.9]
9.76
[227.6]
8.96
1/4” NPT
PLUG
[167.6]
6.60
1” NPT
“ L”
“A”
1/4”
NPT
[254.0]
10.00
[214.0]
8.43
[98.4]
3.87
[44.5]
1.75
60.6
2.38
[50.7]
2.00
[38.1]
1.50
OUTLINE DIMENSIONS
Pumps will operate at all depths shown, with pressure switch set at 30-50 PSI. Tested
and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps
installed with a conventional tank require a 75 PSI relief valve. Relief valve
must be capable of relieving entire flow of pump at relief pressure.
200
175
150
125
100
75
50
25
60
50
40
30
20
10
0
TOTAL HEAD IN FEET
CAPACITY LITERS PER MINUTE
TOTAL HEAD IN METERS
10 90807060504020030
0510 15 2520
CAPACITY GALLONS PER MINUTE
5'
15'
25'
5'
15'
5'
15'
25'
25'
PND
PNC
PNE
CATALOG
NUMBER L (IN./CM) A (IN./CM)
PNC 19.4/49.3 17.9/45.5
PND 20.1/51.2 18.7/47.4
PNE 20.6/52.4 19.2/48.7
PUMP PERFORMANCE (Capacity in gallons/liters per minute)
CATALOG
NUMBER HP
TOTAL
SUCTION LIFT
FT./M
DISCHARGE PRESSURE
PSI/BAR SHUTOFF
PSI/BAR30/2.1 40/2.8 50/3.5
PNC 1/2
5/1.5 8.5/32.2 7.4/28.0 5.2/19.7
77/5.30
10/3.0 7.1/26.9 6.4/24.2 5.1/19.3
15/4.6 6.5/24.6 6.1/23.1 4.5/17.0
20/6.1 5.4/20.4 5.1/19.3 4.1/15.5
25/7.6 4.1/15.5 4.0/15.1 3.4/12.9
PND 3/4
5/1.5 12.1/45.8 10.7/40.5 8.5/32.2
78/5.37
10/3.0 10.7/40.5 10.2/38.6 8.4/31.8
15/4.6 9.0/34.1 8.5/32.2 8.1/30.7
20/6.1 7.6/28.8 7.3/27.6 7.1/26.9
25/7.6 5.3/20.1 5.7/21.6 5.1/19.3
PNE 1
5/1.5 18.0/68.1 16.8/63.6 13.5/51.1
67/4.62
10/3.0 17.1/64.7 16.1/60.9 13.4/50.7
15/4.6 14.9/56.4 14.4/54.5 13.0/49.2
20/6.1 12.6/47.7 12.2/46.2 12.0/45.4
25/7.6 8.8/33.3 8.5/32.2 8.1/30.7
Dimensions (in inches) are for estimating purposes only.
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STARITE.COM PH: 8887827483 ORDERS FAX: 8004269446
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
S4507WS (05/20/13)
