Job:
Engineer:
Contractor:
Representative:
Order no.: Date:
Submitted by: Date:
Approved by: Date:
File No: 10.56
Date: july 25, 2012
Supersedes: 10.56
Date: march 29, 2011
GOLD SERIES
PUMP LESS VOLUTE KITS
|
SUBMITTAL
materials of construction
model data
ma ximum pump operating conditions
application
125 psig at 225°f (863 kPa at 107°c)
Armstrong Gold Series – Pump Less Volute kits enable
service contractors and building maintenance technicians to
replace circulators faster, reduce cost, and avoid waste. You
get a complete unit, compatible with Armstrong circula-
tors and those manufactured by others, that is already ‘Less
Volute’. Gold Series models are suitable for both cast iron
(hydronic) and bronze (domestic water) applications.
Pump body: Gold painted steel, radially split for servicing ease
Motor: Maintenance-free, permanently lubricated
Sealed bearing assembly: Armstrong sba with universal
bearing module
• Stainless steel face plate
• Alloy steel shaft (heat treated for
long life)
• Copper sleeve
• Circular oil wick
Coupler: 4-spring or flexible coupler
Shaft: Alloy steel (heat treated for long life), copper sleeve
Mechanical seal: Carbon/SiC, stainless steel trim, Viton seal
Impeller: Noryl (registered trade mark of ge plastics)
plv motor impeller
inch (mm)
quantity
required
project
identification
item # model hp voltage
110116–200 S25 LV A⁄ab
115 Vac, 1 phase
2.75 (70)
110116–201 H32 LV T3.38 (86)
110116–202 H41 LV T4.25 (108)
110116–203 S45 LV N4.25 (108)
110116–204 S46 LV L4.25 (108)
110116–300 H51 LV N5.25 (135)
110116–301 H52 LV L5.25 (135)
110116–302 H53 LV K115/230 Vac, 1
phase
5.25 (135)
110116–304 H54 LV O5.25(135)
110116–306 S55 LV K5.25 (135)
110116–303 H53–3 LV K208-230/460
Vac, 3 phase
5.25 (135)
110116–305 H54–3 LV O5.25 (135)
110116–307 S55–3 LV K5.25 (135)
110108–675 Raypak 1 L 115 Vac, 1 phase 4.38 (112)
110108–677 Raypak 2 K 115/230 Vac, 1
phase
4.50 (115)
110108–717 Raypak 3 O 4.50 (115)
110108–680 Raypak 4 K No impeller
submittal Gold series
pump less volute kits
birmingham
buffalo
toronto
manchester
bangalore
shanghai armstrongintegrated.com
+91 (0) 80 4906 3555
+44 (0) 8444 145 145
+44 (0) 8444 145 145
+1 716 693 8813
+1 416 755 2291
+86 21 3756 6696
armstrong integrated
established 1934
2

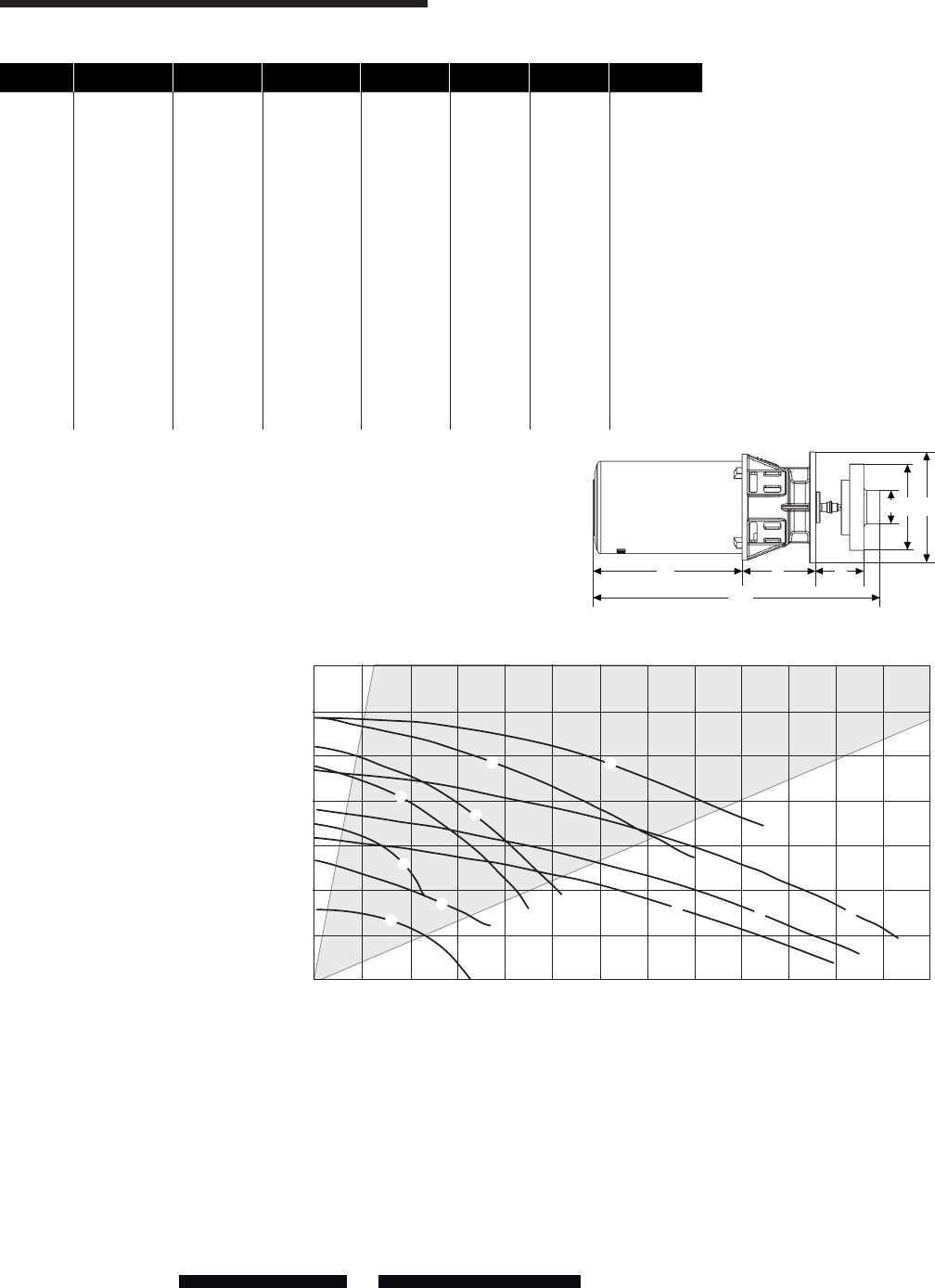

performance curve
8
7
6
3
2
1
9
4510
flow - USgpm(L/s)
total head - feet (m)
(0.0) 00
(0.0)
20
(1.26)
40
(2.52)
60
(3.78)
80
(5.05)
100
(6.31)
120
(7.57)
130
(8.20)
(3.0) 10
(6.1) 20
(9.1) 30
plv kit a b c d e f g
S25 LV 6.12 (155) 2.75 (70) 12.62 (321) 3.88 (98) 1.25 (31) 1.25 (33) 3.38 (86)
H32 LV 7.50 (190) 3.38 (86) 13.88 (354) 3.38 (84) 1.38 (36) 1.75 (44) 4.25 (107)
H41 LV 7.50 (190) 4.25 (108) 14.12 (358) 3.38 (84) 1.25 (32) 1.75 (44) 5.38 (135)
S45 LV 7.50 (190) 4.25 (108) 14.25 (360) 3.38 (84) 2.00 (50) 1.75 (45) 5.38 (135)
S46 LV 7.50 (190) 5.25 (135) 14.25 (360) 3.38 (84) 2.00 (50) 1.75 (45) 5.38 (135)
H51 LV 7.50 (190) 5.25 (135) 15.62 (396) 4.62 (117) 2.12 (53) 1.75 (43) 6.88 (173)
H52 LV 7.50 (190) 5.25 (135) 15.62 (396) 4.62 (117) 2.12 (53) 1.75 (43) 6.88 (173)
H53 LV 5.12 (130) 5.25 (135) 13.12 (333) 4.62 (117) 2.12 (53) 1.75 (43) 6.88 (173)
H54 LV 10.38 (235) 5.25 (135) 17.75 (452) 4.62 (117) 2.12 (53) 2.12 (54) 6.88 (173)
S55 LV 8.25 (210) 5.25 (135) 16.75 (426) 4.62 (117) 2.12 (53) 2.12 (54) 6.88 (173)
Raypak 17.50 (190) 4.38 (112) 14.75 (375) 4.62 (117) 2.12 (53) 2.12 (54) 6.88 (173)
Raypak 29.88 (251) 4.50 (115) 17.25 (439) 4.62 (117) 2.12 (53) 2.12 (54) 6.88 (173)
Raypak 310.38 (235) 4.50 (115) 17.75 (452) 4.62 (117) 2.12 (53) 2.12 (54) 6.88 (173)
Raypak 49.25 (235) n/a n/a 4.62 (117) n/a n/a n/a
d f
ebg
a
c
Dimensions shown are for reference only.
*All single phase motors are equipped with built-in thermal overload protection.
Three phase motors require external overload protection.
1 S25 2 H32 3 H41 4 S45 5 S46
6 H51 7 H52 8 H53 9 H54 10 S55
