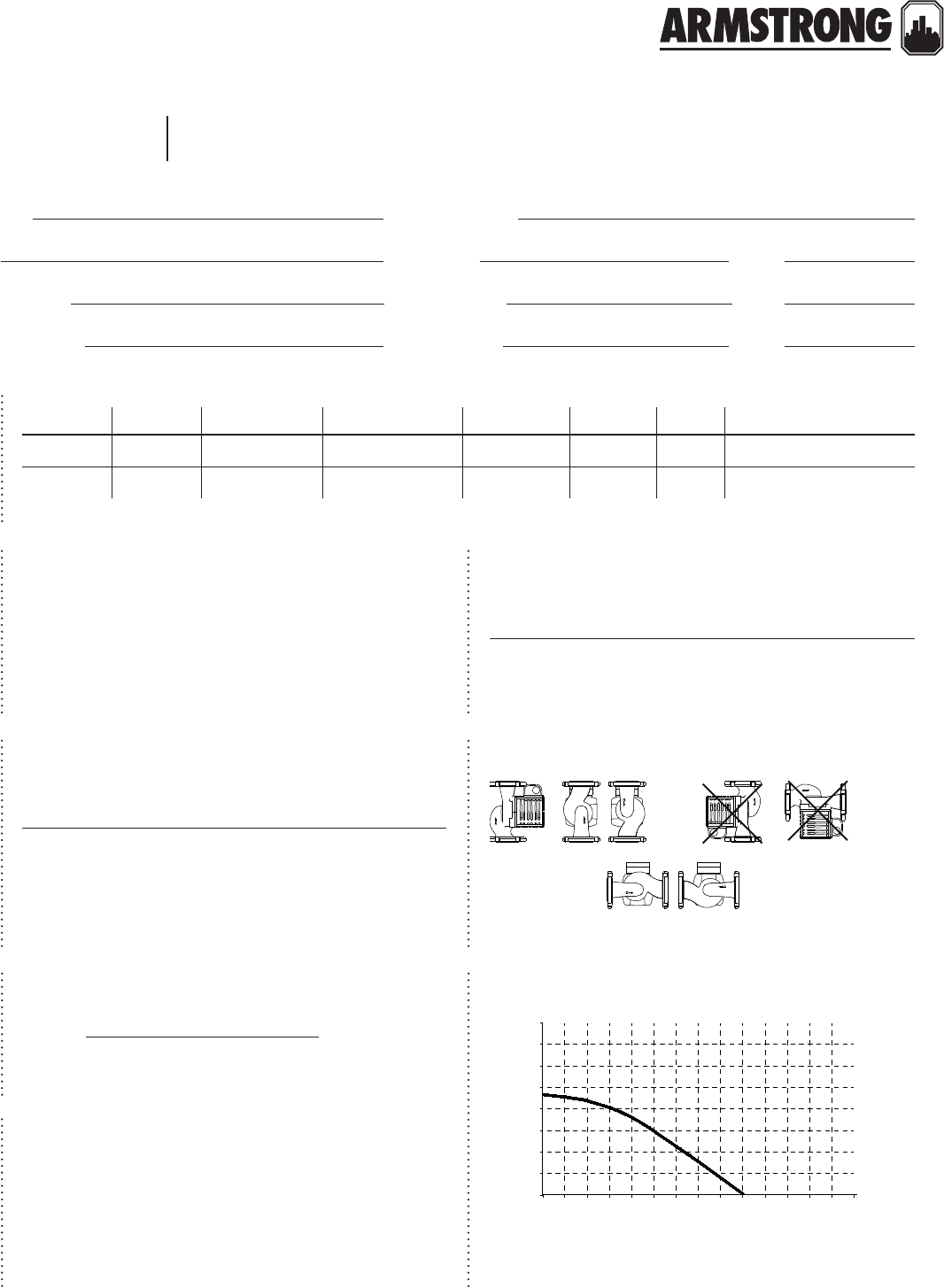

quantity tag no. part number flow (USgpm) head (feet) voltage phase comments
materials of construction
Pump body: Cast iron (closed sytems)
Bronze (lead free for open systems)
Face plate: Stainless steel Shaft: Stainless steel
Impeller: 30% Glass-fi lled noryl Volute gasket: epdm
Bearings: Permanently lubricated stainless steel
Seal: Silicon carbide enviroseal c/w viton elastomer
Performance curves are for reference only. Confi rm current performance
data with Armstrong ace online selection software.
mounting orientation for indoor use only
technical data motor data
part number performance curve
File No: 10.607
Date: june 25, 2012
Supersedes: 10.607
Date: march 15, 2012
0
(0)
(0.0) 0
(1.5) 5
(3.0) 10
(4.6) 15
(6.1) 20
(7.6) 25
(9.1) 30
(10.7) 35
(12.1) 40
20
(1.26)
40
(2.52)
60
(3.78)
80
(5.05)
100
(6.31)
120
(7.57) 140
(8.83)
flow - USgpm (L/s)
total head - feet (m)
recommended
optional
not recommended
Flow range: 0 to 90.0 USgpm (0 to 5.7 L/s)
Head range: 0 to 23.0 feet (0 to 7.0 m)
Max/Min fl uid temp: 230°f/40°f (110°c/4°c)
Max. working pressure: 150 psi (1034 kPa)
Voltage 120v 208v 240v 277v
Full load amp draw 3.4a 1.8a 1.8a 1.8a
Nominal power: Q hp (300w) Frequency: 60 Hz
Motor type: Two pole, Single phase odp Speed: 3450 rpm
e19.2/e19.2b accessories
120v 240v
e19.2 182212–649 182212–608
e19.2b 182212–650 182212–609
• 1" Flange kits
• 1¼" Flange kits
• 1½" Flange kits
• Timer
• Aquastat
• Spool pieces
E.2 SERIES CIRCULATORS
E19.2/E19.2B SUBMITTAL
submittal E.2 Series Circulators
a
d
c
f
e
b
birmingham
buffalo
toronto
manchester
bangalore
shanghai armstrongintegrated.com
+91 (0) 80 4906 3555
+44 (0) 8444 145 145
+44 (0) 8444 145 145
+716 693 8813
+416 755 2291
+86 21 3756 6696
armstrong integrated
established 1934
e19.2/e19.2b
2

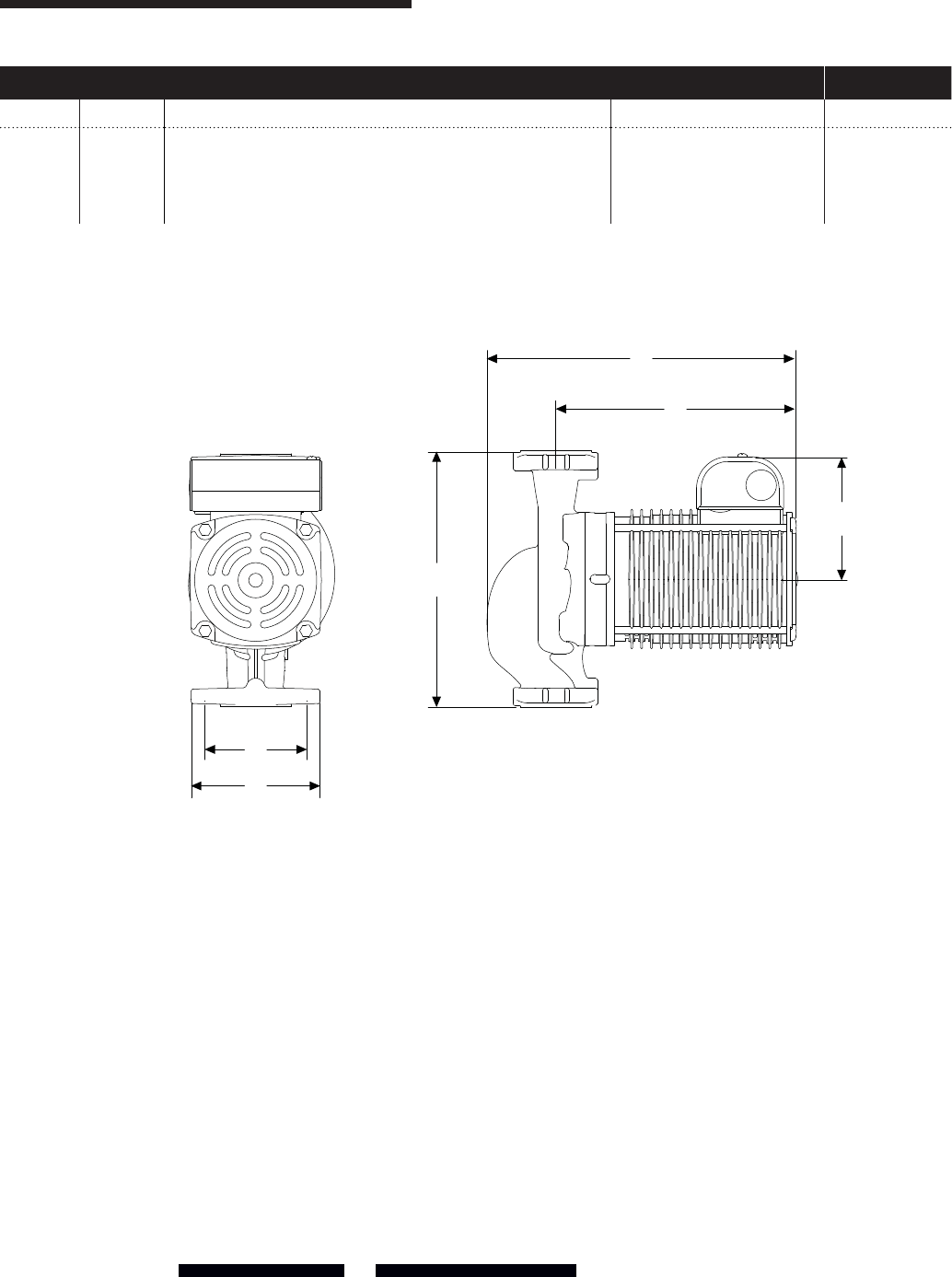

dimensions inches (mm) ship. weight
model body a b c d e f connection type & size lbs (kgs)
e19.2 Cast iron 10.30
(261)
8.50
(215)
8.00
(202)
4.00
(101)
3.40
(81)
4.20
(107)
1.5" diameter 2–bolt fl anges 20.7 (9.39)
e19.2b Bronze 10.30
(261)
8.50
(215)
8.00
(202)
4.00
(101)
3.40
(81)
4.20
(107)
1.5" diameter 2–bolt fl anges 20.9 (9.48)
