Series 4030
base mounted
pumps
Centerline discharge
S designation
Parts list
Y" impeller bore
1¼" mechanical seal
File No: 6040.120
Date: july 07, 2014
Supersedes: 6040.120
Date: june 05, 2014
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
2
nema frame assignments
Open & tefc (tefc frames in grey box where dierent than open)
3600 rpm 1800 rpm 1200 rpm 900 rpm
nema
frame
program
hp
t frames
1964
u frames
1952
original
nema
frames
t frames 1964 u frames
1952
original
nema
frames
t
frames
1964
u
frames
1952
original
nema
frames
t
frames
1964
u
frames
1952
original
nema
frames
– – – 143T182 203 145T184 204 182T213 225
1K143T182 203 145T184 204 182T184 224 184T213 254
2145T184 204 145T184 224 184T213 225 213T215 254
3145T182T184 224 182T213 225 213T215 254 215T254U284
5182T184T213 225 184 215 254 215T254U284 254T256U324
7K184T213T215 254 213T254U284 254T256U324 256T284U326
10 213T215T254U284 215T256U324 256T284 326 284T286U364
15 215T254T256U324 254T284T326 284T234T364 286T326U365
20 254T256T284U286U326 256T286U364 286T326U365 324T364U404
25 256T284TS 286U324U364S365S284T324U364 365 324T364U404 326T365U405
30 284TS 286TS 324S326S364S404S286T326U365 404 326T365U405 364T404U444
40 286TS 324TS 326S364US 365S405S324T364U404 405 364T404U444 365T405U445
50 324TS 326TS 364US 404S444S326T365US 405S444S365T405U445 404T444U504U
60 326TS 364TS 365US 405US 405S445S364TS 404US 405US 444S445S404T444U504U405T445U505
75 364TS 365TS 404US 444US 444S504S365TS 405US 444US 445S504S405T445U505 444T– –
100 365TS 405TS 405US 445US 445S505S404TS 405TS 444US 445US 504S505S444T– – 445T– –
125 404TS 444TS 444US 504US 405TS 444TS 445US 505S445T–– –––
150 405TS 445TS 445US 505S444TS 445TS – – – – – – – –
200 444TS – – 445TS – – – – – – – –
250 445TS – – – – – – – – – – –
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
3
4030 bearing frames utilization chart (60 Hz)
note: *When replacing old m oil – lubricated bearing frames, update with new design mhd bearing frame with double row bearings.
motor hp
1150 rpm 0.5 0.75 1 1.5 2 3 5 7.5 10 15 20 25 30 40 50 60 75 100 125
1750 rpm 0.75 1 1.5& 2 3 5 7.5 10 15 20 25 30 40 50 60 75 60 75 100 125 100 125 150 200 150 200 250 250
3500 rpm 1.5 2 & 3 5 7.5 10 15 20 25 30 40 50 60 75 100 125 150 200 250
pump size
odp
motor
frame
no.
56
143T
145T
182T
184T
213T
215T
254T
256T
284TS
286TS
284T
286T
324TS
326TS
324T
326T
364TS
365TS
364T
365T
404TS
405TS
404T
405T
444TS
445TS
444T
445T
447TS
447T
449TS
449T
1.5 × 1 × 6 s s s s s s s
3 × 1.5 × 6 s s s s s s s s
3 × 2 × 6 s s s s s s s s
3 × 2.5 × 6 s s s s s s s s
4 × 3 × 6 s s s s s s s m m m m
6 × 6 × 6s s s s s s s
1.5 × 1 × 8s s s s s s s s s
3 × 1.5 × 8s s s s s s s s s m m
3 × 2 × 8s s s s s s s s s m m
3 × 2.5 × 8s s s s s s s m m m m m m
4 × 3 × 8 s s s s s s s m m mhd+mhd+mhd+mhd+
5 × 4 × 8w s s s s s s m m mhd+mhd+mhd+mhd+mhd+mhd+
6 × 4 × 8w s s s s s s m m mhd+mhd+mhd+mhd+mhd+mhd+
6 × 5 × 8s s s m m
8 × 8 × 8 s s s s m m m m
2 × 1 × 10 s s s s s s s m m m m m m
2 × 1.5 × 10 s s s s s s s m m m m m m
3 × 1.5 × 10 s s s s s s m m m m m m
3 × 2 × 10 s s s s s s m m m m m m m m
3 × 2.5 × 10 s s s s s s m m m m m m m m m m
4 × 3 × 10 s s s s s s mhd+mhd+mhd+mhd+mhd+mhd+mhd+mhd+
5 × 4 × 10 s s s s s m mhd+mhd+ m m mhd+mhd+mhd+mhd+mhd+mhd+
6 × 4 × 10 s s s s s m mhd+mhd+ m m mhd+mhd+mhd+mhd+mhd+mhd+
6 × 5 × 10 s s s s s m m m m m
8 × 6 × 10w m m m m m m m m
4 × 3 × 11.5 s s s s s s m m
5 × 4 × 11.5 s s s s m m
6 × 5 × 11.5 s s m m m m m m
8 × 6 × 11.5 m m m m m m m m m m
3 × 1.5 × 13 m m m m mhd+mhd+mhd+mhd+mhd+mhd+mhd+mhd+
3 × 2 × 13 m m m m m m mhd+mhd+mhd+mhd+mhd+mhd+
4 × 3 × 13 m m m m m m m m
4 × 3 × 13l m m m m m m m m
6 × 4 × 13 m m m m m m m m
6 × 4 × 13h m m m m m m m m
6 × 5 × 13 m m m m m m m m m m m m
6 × 5 × 13h m m m m m m m m m m m m
8 × 6 × 13 m m m m m m m m m m
10 × 8 × 13 l* l* l* l* l* l* l* l* l* l*
8 × 6 × 15 l* l* l l l* l* l* l* l* l* l* l*
10 × 8 × 15 l* l* l* l* l* l* l* l* l* l* l* l*
legend description impeller bore mechanical seal size lubrication lube options
sSmall bearing frame Y" (0.875") 1¼" (1.25") Permanently greased Regrease, oil
mMedium bearing frame 1¼" (1.25") 1X" (1.625") Permanently greased Regrease, oil
mhd Medium heavy-duty bearing frame 1¼" (1.25") 1X" (1.625") Re-greasable Oil
lLarge bearing frame 1X" (1.625") 2V" (2.125") Oil -
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
4
item description page
8o Impeller 10
83 Impeller washer 18
86 Impeller capscrew 18
1oo Casing 7
1o1 Casing gasket 16
1o4 Casing bolts 12
106 Casing support foot 24
108 Casing support foot capscrew 26
11o Bearing housing support foot 24
112 Support foot capscrew (upper) 25
122 Casing capscrew 27
124 Support foot capscrew (lower) 25
140 Coupler 28
item description page
Bearing frame assembly 18
20 Bearing housing 18
21 Shaft assembly 18
22 Ball bearing (inboard) 18
23 Ball bearing (outboard) 18
24 Snap ring 18
29 Bearing cover 18
32 Bearing cover capscrew 18
36 Impeller/coupler key 18
39 Water slinger 18
4o Adapter 13
44 Adapter capscrew 17
62k Mechanical seal assembly 18
Series 4030
Centerline discharge, base mounted pump
s designation
Y" impeller bore – 1N" mechanical seal

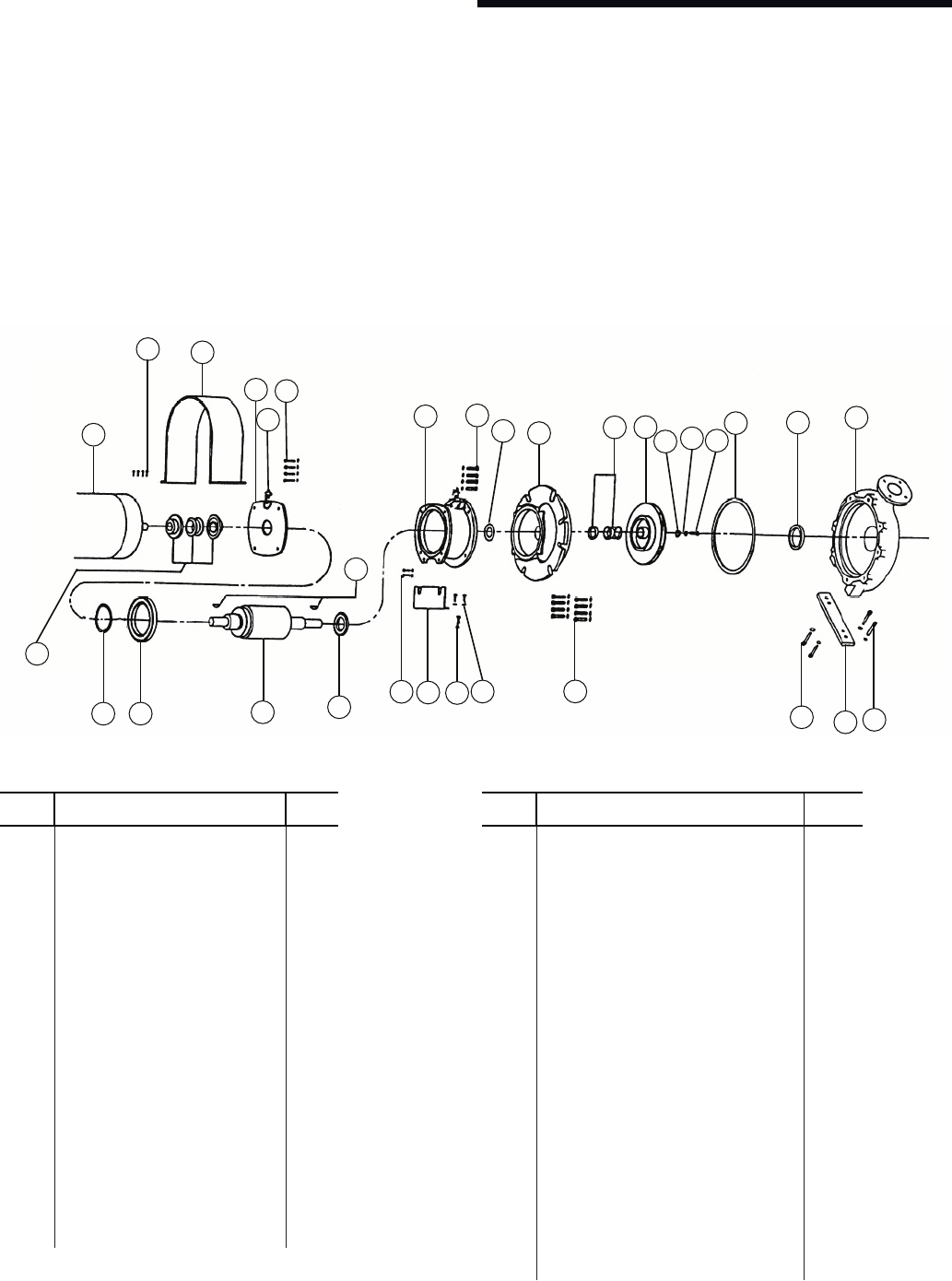

Exploded view - permanent grease lubrication
151 150
29 32
36
26 44
39 40 62k80 83 84 86
101 90 100
122
106
108
104
124
114
110
112
22
21
23
24
140
10
index
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
5
Series 4030
Centerline discharge, base mounted pump
s designation
Y" impeller bore – 1N" mechanical seal

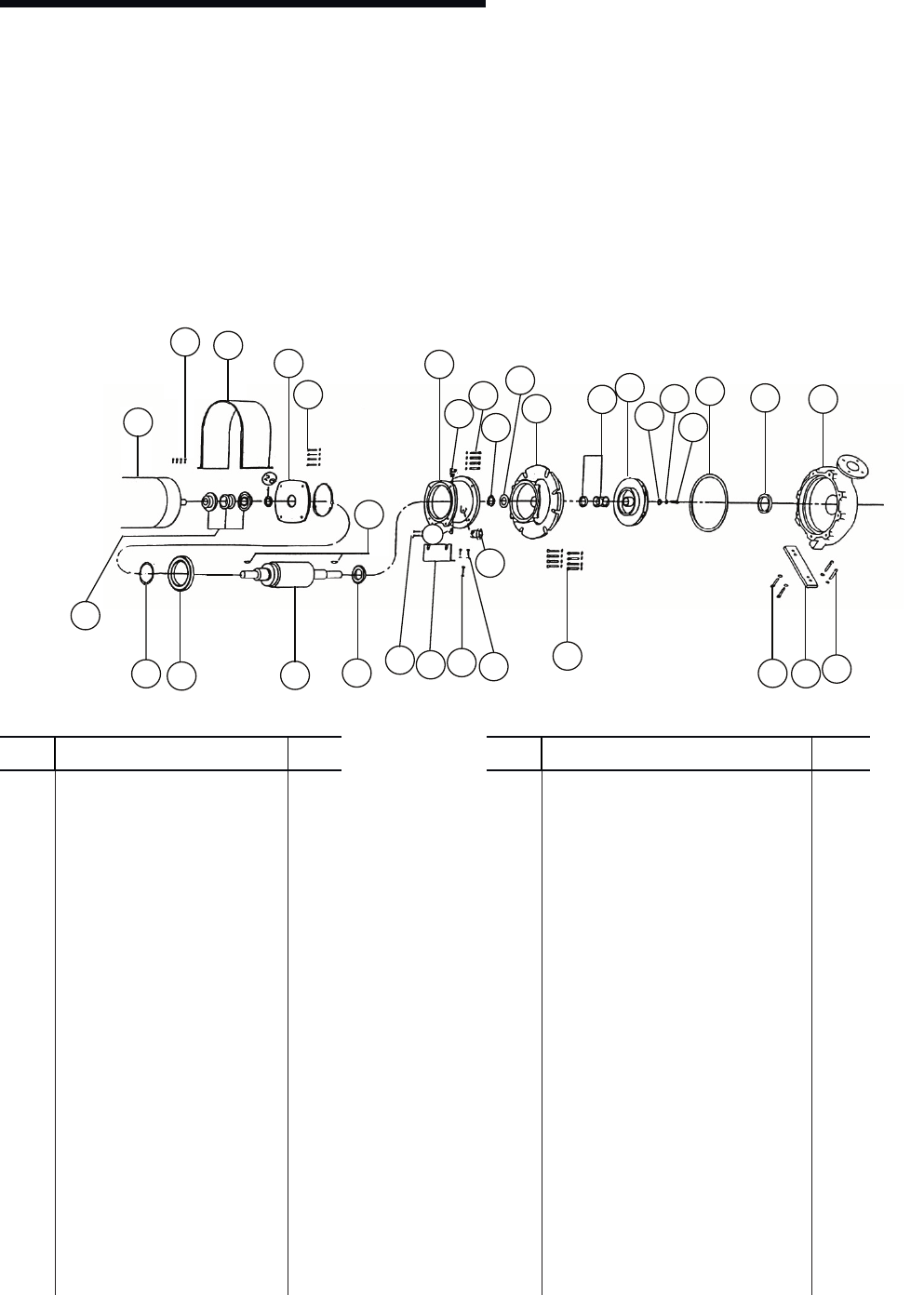

Exploded view - regreaseable bearings
122
106
108
151 150
29 32
37 26 44
39 40 62k80
83 84 86
101 90 100
104
124
114
110
112
22
21
23
24
140
10
36
index
item description page
62k Mechanical seal assembly 20
8o Impeller 10
83 Impeller washer 20
86 Impeller capscrew 20
1oo Casing 7
1o1 Casing gasket 16
1o4 Casing bolts 12
106 Casing support foot 24
108 Casing support foot capscrew 26
11o Bearing housing support foot 24
112 Support foot capscrew (upper) 25
122 Casing capscrew 27
124 Support foot capscrew (lower) 25
140 Coupler 28
item description page
Bearing frame assembly 20
20 Bearing housing 20
21 Shaft assembly 20
22 Ball bearing (inboard) 20
23 Ball bearing (outboard) 20
24 Snap ring 20
29 Bearing cover 20
32 Bearing cover capscrew 20
36 Impeller/coupler key 20
37 Grease fitting 20
39 Water slinger 20
4o Adapter 13
44 Adapter capscrew 17
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
6
Series 4030
Centerline discharge, base mounted pump
s designation
Y" impeller bore – 1N" mechanical seal
Exploded view - oil lubrication
151
26
39
30
29
150
32 44
34
35
33
40 100
122
106
108
104
114 124
110
112
23 21
24
140
62k80 101 90
84
86
83
10
36
22
36
33
35
item description page
4o Adapter 13
44 Adapter capscrew 17
62k Mechanical seal assembly 22
8o Impeller 10
83 Impeller washer 22
86 Impeller capscrew 22
1oo Casing 7
1o1 Casing gasket 16
1o4 Casing bolts 12
106 Casing support foot 24
108 Casing support foot capscrew 26
11o Bearing housing support foot 24
112 Support foot capscrew (upper) 25
122 Casing capscrew 27
124 Support foot capscrew (lower) 25
140 Coupler 28
item description page
Bearing frame assembly 22
20 Bearing housing 22
21 Shaft assembly 22
22 Ball bearing (inboard) 22
23 Ball bearing (outboard) 22
24 Snap ring 22
28 Oil seal (outboard) 22
29 Bearing cover 22
30 Oil seal (inboard) 22
31 O – ring 22
32 Bearing cover capscrew 22
33 Oil view gauge 22
34 Vent gauge 22
35 Pipe plug 22
36 Impeller/coupler key 22
39 Water slinger 22
index
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
7
pump size pressure rating (lb) construction part number bar code
1.5 × 1 × 6
125 Cast iron 426101-011
250 Ductile iron 426102-031
125 All bronze 426101-041
3 × 1.5 × 6
125 Cast iron 426597-011
250 Ductile iron 426598-031
125 All bronze 426597-041
3 × 2 × 6
125 Cast iron 426109-011
250 Ductile iron 426110-031
125 All bronze 426109-041
3 × 2.5 × 6
125 Cast iron 427107-011
250 Ductile iron 427108-031
125 All bronze 427107-041
4 × 3 × 6
125 Cast iron 427292-011
250 Ductile iron 427292-031
125 All bronze 427292-041
6 × 6 × 6
125 Cast iron 427907-041
250 Ductile iron 427908-031
125 All bronze 427907-041
1.5 × 1 × 8
125 Cast iron 426188-011
250 Ductile iron 426189-031
125 All bronze 426188-041
3 × 1.5 × 8
125 Cast iron 426599-011
250 Ductile iron 426600-031
125 All bronze 426599-041
3 × 2 × 8
125 Cast iron 426125-011
250 Ductile iron 426126-031
125 All bronze 426125-041
item 100: casing
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
8
pump size pressure rating (lb) construction part number bar code
3 × 2.5 × 8
125 Cast iron 427236-011
250 Ductile iron 427237-031
125 All bronze 427236-041
4 × 3 × 8
125 Cast iron 426129-011
250 Ductile iron 426130-031
125 All bronze 426129-041
5 × 4 × 8
125 Cast iron 426107-011
250 Ductile iron 426108-031
125 All bronze 426107-041
6 × 4 × 8w
125 Cast iron 426624-011
250 Ductile iron 426625-031
125 All bronze 426624-041
8 × 8 × 8
125 Cast iron 427913-011
250 Ductile iron 427913-031
125 All bronze 427913-041
2 × 1 × 10
125 Cast iron 426137-011
250 Ductile iron 426138-031
125 All bronze 426137-041
2 × 1.5 × 10
125 Cast iron 426259-011
250 Ductile iron 426260-031
125 All bronze 426259-041
3 × 1.5 × 10
125 Cast iron 426139-011
250 Ductile iron 426140-031
125 All bronze 426139-041
item 100: casing (continued)
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
9
item 100: casing (continued)
pump size pressure rating (lb) construction part number bar code
3 × 2 × 10
125 Cast iron 426143-011
250 Ductile iron 426144-031
125 All bronze 426143-041
3 × 2.5 × 10
125 Cast iron 427290-011
250 Ductile iron 427291-031
125 All bronze 427290-041
4 × 3 × 10
125 Cast iron 426149-011
250 Ductile iron 426150-031
125 All bronze 426149-041
5 × 4 × 10
125 Cast iron 426111-011
250 Ductile iron 426112-031
125 All bronze 426111-041
6 × 4 × 10
125 Cast iron 426153-011
250 Ductile iron 426154-011
125 All bronze 426153-041
6 × 5 × 10
125 Cast iron 427238-011
250 Ductile iron 427239-041
125 All bronze 427238-041
4 × 3 × 11.5
125 Cast iron 426147-011
250 Ductile iron 426148-031
125 All bronze 426147-041
5 × 4 × 11.5
125 Cast iron 426151-011
250 Ductile iron 426152-031
125 All bronze 426152-041
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
10
item 80: impeller*
pump size construction** part number bar code
1.5 × 1 × 6 Bronze fitted & all bronze 427101-041
Ductile iron & all iron 427101-011
3 × 1.5 × 6 Bronze fitted & all bronze 427109-041
Ductile iron & all iron 427109-011
3 × 2 × 6 Bronze fitted & all bronze 427111-041
Ductile iron & all iron 427111-011
3 × 2.5 × 6 Bronze fitted & all bronze 427103-041
Ductile iron & all iron 427103-011
4 × 3 × 6 Bronze fitted & all bronze 427117-041
Ductile iron & all iron 427117-011
6 × 6 × 6 Bronze fitted & all bronze 427909-041
Ductile iron & all iron 427909-011
1.5 × 1 × 8 Bronze fitted & all bronze 426228-041
Ductile iron & all iron 426228-011
3 × 1.5 × 8 Bronze fitted & all bronze 427121-041
Ductile iron & all iron 427121-011
3 × 2 × 8 Bronze fitted & all bronze 427125-041
Ductile iron & all iron 427125-011
3 × 2.5 × 8 Bronze fitted & all bronze 427127-041
Ductile iron & all iron 427127-011
4 × 3 × 8 Bronze fitted & all bronze 427129-041
Ductile iron & all iron 427129-011
5 × 4 × 8 Bronze fitted & all bronze 427137-041
Ductile iron & all iron 427137-011
6 × 4 × 8wBronze fitted & all bronze 427137-041
Ductile iron & all iron 427137-011
8 × 8 × 8 Bronze fitted & all bronze 427917-041
Ductile iron & all iron 427917-041
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
11
item 80: impeller* (continued)
pump size construction** part number bar code
2 × 1 × 10 Bronze fitted & all bronze 427151-041
Ductile iron & all iron 427151-011
2 × 1.5 × 10 Bronze fitted & all bronze 426255-041
Ductile iron & all iron 426255-011
3 × 1.5 × 10 Bronze fitted & all bronze 427151-041
Ductile iron & all iron 427151-011
3 × 2 × 10 Bronze fitted & all bronze 427163-041
Ductile iron & all iron 427163-011
3 × 2.5 × 10 Bronze fitted & all bronze 427123-041
Ductile iron & all iron 427123-011
4 × 3 × 10 Bronze fitted & all bronze 427149-041
Ductile iron & all iron 427149-011
5 × 4 × 10 Bronze fitted & all bronze 427153-041
Ductile iron & all iron 427153-011
6 × 4 × 10 Bronze fitted & all bronze 427153-041
Ductile iron & all iron 427153-011
6 × 5 × 10 Bronze fitted & all bronze 427159-041
Ductile iron & all iron 427159-011
4 × 3 × 11.5 Bronze fitted & all bronze 426281-041
Ductile iron & all iron 426281-011
5 × 4 × 11.5 Bronze fitted & all bronze 426283-041
Ductile iron & all iron 426283-011
note:
*Impeller part numbers are for unbalanced, full diameter impellers. Always specify the Pump serial number. If possible, measure the
diameter of the impeller being replaced.
**All Bronze construction: Parts in contact with the pumped liquid are bronze, copper or stainless steel.
Bronze Fitted construction: Parts in contact with the pumped liquid are bronze or copper, except casing and adapter.
All Iron construction: Parts in contact with the pumped liquid are cast iron or steel, except shaft sleeve & mechanical seal.
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
12
pump size amount required size part number bar code
1.5 × 1 × 6
8capscrew
K" - 13nc × 1¼" lg. 911125-1103 × 1.5 × 6
3 × 2 × 6
3 × 2.5 × 6
8washer
K" - sae flat 927117-1004 × 3 × 6
6 × 6 × 6
1.5 × 1 × 8 8hx. hd. capscrew
X" - 11nc × 1K" lg.
911129-112
3 × 1.5 × 8 8 washer
X" - sae flat
927121-100
3 × 2 × 8
8hx. hd. capscrew
X" - 11nc × 1K" lg.
911129-112
3 × 2.5 × 8
4 × 3 × 8
5 × 4 × 8
8
washer
X" - sae flat 927121-100
6 × 4 × 8
8 × 8 × 8
2 × 1 × 10
12 hx. hd. capscrew
X" - 11nc × 1K" lg. 911129-112
2 × 1.5 × 10
3 × 1.5 × 10
3 × 2 × 10
3 × 2.5 × 10
4 × 3 × 10
12 washer
X" - sae flat 927121-100
5 × 4 × 10
6 × 4 × 10
6 × 5 × 10
4 × 3 × 11.5 16 hx. hd. capscrew
X" - 11nc × 1K" lg. 911125-112
5 × 4 × 11.5 16 washer
K" - sae flat 927117-100
item 104: casing capscrew & washer
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
13
item 40: adapter
125 lb - bronze fitted and all iron construction
pump size frame 56
143 - 184t
frames
213 - 215t
frames
254 - 256t
bar code
1.5 × 1 × 6 426746-011 426746-011
3 × 1.5 × 6 426746-011 426746-011
3 × 2 × 6 426746-011 426746-011
3 × 2.5 × 6 426746-011 426746-011
4 × 3 × 6 426746-011 426746-011
6 × 6 × 6 426746-011 426746-011
1.5 × 1 × 8 426749-011 426749-011
3 × 1.5 × 8 426749-011 426749-011 426749-011
3 × 2 × 8 426749-011 426749-011 426749-011
3 × 2.5 × 8 426749-011 426749-011 426749-011
4 × 3 × 8 426749-011 426749-011
5 × 4 × 8 426749-011 426749-011
6 × 4 × 8w426749-011 426749-011
8 × 8 × 8 426749-011
2 × 1 × 10 426753-011 426753-011
2 × 1.5 × 10 426753-011 426753-011
3 × 1.5 × 10 426753-011 426753-011
3 × 2 × 10 426753-011 426753-011
3 × 2.5 × 10 426753-011 426753-011
4 × 3 × 10 426753-011 426753-011 426753-011
5 × 4 × 10 426753-011 426753-011 426753-011
6 × 4 × 10 426753-011 426753-011 426753-011
6 × 5 × 10 426753-011 426753-011 426753-011
4 × 3 × 11.5 426741-011 426741-011
5 × 4 × 11.5 426741-011 426741-011
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
14
item 40: adapter (continued)
125 lb - all bronze construction
pump size frame 56
143 - 184t
frames
213 - 215t
frames
254 - 256t
bar code
1.5 × 1 × 6 426746-041 426746-041
3 × 1.5 × 6 426746-041 426746-041
3 × 2 × 6 426746-041 426746-041
3 × 2.5 × 6 426746-041 426746-041
4 × 3 × 6 426746-041 426746-041
6 × 6 × 6 426746-041 426746-041
1.5 × 1 × 8 426749-041 426749-041
3 × 1.5 × 8 426749-041 426749-041 426749-041
3 × 2 × 8 426749-041 426749-041 426749-041
3 × 2.5 × 8 426749-041 426749-041 426749-041
4 × 3 × 8 426749-041 426749-041
5 × 4 × 8 426749-041 426749-041
6 × 4 × 8w426749-041 426749-041
8 × 8 × 8 426749-041
2 × 1 × 10 426753-041 426753-041
2 × 1.5 × 10 426753-041 426753-041
3 × 1.5 × 10 426753-041 426753-041
3 × 2 × 10 426753-041 426753-041
3 × 2.5 × 10 426753-041 426753-041
4 × 3 × 10 426753-041 426753-041 426753-041
5 × 4 × 10 426753-041 426753-041 426753-041
6 × 4 × 10 426753-041 426753-041 426753-041
6 × 5 × 10 426753-041 426753-041 426753-041
4 × 3 × 11.5 426741-041 426741-041
5 × 4 × 11.5 426741-041 426741-041
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
15
item 40: adapter (continued)
150 lb - ductile iron construction
pump size frame 56
143 - 184t
frames
213 - 215t
frames
254 - 256t
bar code
1.5 × 1 × 6 426746-031 426746-031
3 × 1.5 × 6 426746-031 426746-031
3 × 2 × 6 426746-031 426746-031
3 × 2.5 × 6 426746-031 426746-031
4 × 3 × 6 426746-031 426746-031
6 × 6 × 6 426746-031 426746-031
1.5 × 1 × 8 426749-031 426749-031
3 × 1.5 × 8 426749-031 426749-031 426749-031
3 × 2 × 8 426749-031 426749-031 426749-031
3 × 2.5 × 8 426749-031 426749-031 426749-031
4 × 3 × 8 426749-031 426749-031
5 × 4 × 8 426749-031 426749-031
6 × 4 × 8w426749-031 426749-031
8 × 8 × 8 426749-031
2 × 1 × 10 426753-031 426753-031
2 × 1.5 × 10 426753-031 426753-031
3 × 1.5 × 10 426753-031 426753-031
3 × 2 × 10 426753-031 426753-031
3 × 2.5 × 10 426753-031 426753-031
4 × 3 × 10 426753-031 426753-031 426753-031
5 × 4 × 10 426753-031 426753-031 426753-031
6 × 4 × 10 426753-031 426753-031 426753-031
6 × 5 × 10 426753-031 426753-031 426753-031
4 × 3 × 11.5 426741-031 426741-031
5 × 4 × 11.5 426741-031 426741-031
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
16
pump size dimensions
o.d × i.d. × thickness
part number bar code
1.5 × 1 × 6
7 A/af" × 8 N" × A/af" 426401-002
3 × 1.5 × 6
3 × 2 × 6
3 × 2.5 × 6
4 × 3 × 6
6 × 6 × 6
1.5 × 1 × 8
9" × 8 N" × A/af" 426401-003
3 × 1.5 × 8
3 × 2 × 8
3 × 2.5 × 8
4 × 3 × 8
5 × 4 × 8
6 × 4 × 8w
8 × 8 × 8
2 × 1 × 10
10E/af" × 10C/af" × A/af" 426401-004
2 × 1.5 × 10
3 × 1.5 × 10
3 × 2 × 10
3 × 2.5 × 10
4 × 3 × 10
5 × 4 × 10
6 × 4 × 10
6 × 5 × 10
4 × 3 × 11.5 12E/af" × 11I/af" × A/af" 426401-006
5 × 4 × 11.5
item 101: casing gasket
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
17
pump size amount required size part number bar code
1.5 × 1 × 6
4capscrew
W" - 16nc × 1½" lg. 911121-112
3 × 1.5 × 6
3 × 2 × 6
3 × 2.5 × 6
4 × 3 × 6
6 × 6 × 6
1.5 × 1 × 8
4capscrew
W" - 16nc × 1½" lg. 911121-112
3 × 1.5 × 8
3 × 2 × 8
3 × 2.5 × 8
4 × 3 × 8
5 × 4 × 8
4
washer
W" - flat 927114-100
6 × 4 × 8w
8 × 8 × 8
2 × 1 × 10
4
washer
W" - flat 927114-100
2 × 1.5 × 10
3 × 1.5 × 10
3 × 2 × 10
3 × 2.5 × 10
4 × 3 × 10
4nut
W" - nc hex. std. 913121-100
5 × 4 × 10
6 × 4 × 10
6 × 5 × 10
4 × 3 × 11.5 4nut
W" - nc hex. std. 913121-100
5 × 4 × 11.5
item 44: bearing housing capscrew, washer & nut
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
18
item number description part number bar code
Bearing frame assembly 1826768-000
20 Bearing housing 426764-011
21 Shaft & sleeve assembly 426760-001
22 Inboard bearing 971101-364
23 Outboard bearing 971101-684
24 Snap ring 923109-008
29 Bearing cap 426766-011
32 Bearing capscrews
W-16 × 1 lg ( 4 req'd ) 911121-108
36 Impeller key 428160-708
36 Coupler key 428160-712
39 Water slinger 406622-000
item number description part number bf, ab & ai bar code
62kMechanical seal assembly 975000-982**
83 Impeller washer 425742-001
86 S/S impeller capscrew 911900-114
bearing frame assembly
PERMANENT GREASE LUBRICATION - STANDARD SHAFT
common parts
note :
1 Items 20 to 39 inclusive are included in the bearing frame assembly.
** For liquids above 200°f/93°c use 9975001-813 (-613 if potable drinking water above 200°f/93°c)
For glycols above 30% by weight use 9975001-817 (-818 if above 200°f/93°c)
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
19
PERMANENT GREASE LUBRICATION - STAINLESS STEEL SHAFT
item number description part number bar code
Bearing frame assembly 1426768-071
20 Bearing housing 426764-011
21 Shaft & sleeve assembly 426760-071
22 Inboard bearing 971101-364
23 Outboard bearing 971101-684
24 Snap ring 923109-008
29 Bearing cap 426766-011
32 bearing capscrews
W-16 × 1 lg ( 4 req'd ) 911121-108
36 Impeller key 428160-708
36 Coupler key 428160-712
39 Water slinger 406622-000
item number description part number bf, ab & ai bar code
62kMechanical seal assembly 975000-982**
83 Impeller washer 425742-001
86 S/S impeller capscrew 911900-119
bearing frame assembly
common parts
note :
1 Items 20 to 39 inclusive are included in the bearing frame assembly.
** For liquids above 200°f/93°c use 9975001-813 (-613 if potable drinking water above 200°f/93°c)
For glycols above 30% by weight use 9975001-817 (-818 if above 200°f/93°c)
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
20
Series 4030
Centerline discharge
S size Y" impeller bore – Y" shaft diameter at coupler
N" mechanical seal
Regreaseable bearings - standard shaft
item number description part number bar code
Bearing frame assembly 1426769-000
20 Bearing housing 426764-012
21 Shaft & sleeve assembly 426760-001
22 Inboard bearing 971101-363
23 Outboard bearing 971101-683
24 Snap ring 923109-008
29 Bearing cap 426766-012
32 Bearing capscrews
W-16 × 1 lg ( 4 req'd ) 911121-108
36 Impeller key 428160-708
36 Coupler key 428160-712
37 Grease fitting 425030-011
39 Water slinger 406622-000
item number description part number bf, ab & ai bar code
62kmechanical seal assembly 975000-982**
83 impeller washer 425742-001
86 S/S impeller capscrew 911900-119
bearing frame assembly
common parts
note :
1 Items 20 to 39 inclusive are included in the bearing frame assembly.
** For liquids above 200°f/93°c use 9975001-813 (-613 if potable drinking water above 200°f/93°c)
For glycols above 30% by weight use 9975001-817 (-818 if above 200°f/93°c)
REGREASEABLE BEARINGS - STANDARD SHAFT
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
21
item number description part number bar code
Bearing frame assembly 1426769-071
20 Bearing housing 426764-012
21 Shaft & sleeve assembly 426760-071
22 Inboard bearing 971101-363
23 Outboard bearing 971101-683
24 Snap ring 923109-008
29 Bearing cap 426766-012
32 Bearing capscrews
W-16 × 1 lg ( 4 req'd ) 911121-108
36 Impeller key 428160-708
36 Coupler key 428160-712
37 Grease fitting ( 2 req'd ) 425030-011
39 Water slinger 406622-000
item number description part number bf, ab & ai bar code
62kMechanical seal assembly 975000-982**
83 Impeller washer 425742-001
86 S/S impeller capscrew 911900-119
bearing frame assembly
common parts
note :
1 Items 20 to 39 inclusive are included in the bearing frame assembly.
** For liquids above 200°f/93°c use 9975001-813 (-613 if potable drinking water above 200°f/93°c)
For glycols above 30% by weight use 9975001-817 (-818 if above 200°f/93°c)
REGREASEABLE BEARINGS - STAINLESS STEEL SHAFT
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
22
item number description part number bar code
Bearing frame assembly 1426770-000
20 Bearing housing 426764-013
21 Shaft & sleeve assembly 426760-001
22 Inboard bearing 971101-915
23 Outboard bearing 971101-916
24 Snap ring 923109-008
28 Oil seal 965001-065
29 Bearing cap 426766-013
31 O–ring 961131-152
32 Bearing capscrews
W-16 × 1 lg ( 4 req'd ) 911121-108
33 Oil view gauge 116904-000
34 Air vent 407444-000
35 Pipe plug 937105-200
36 Impeller key 428160-708
36 Coupler key 428160-712
39 Water slinger 406622-000
item number description part number bf, ab & ai bar code
62kMechanical seal assembly 975000-982**
83 Impeller washer 425742-001
86 S/S impeller capscrew 911900-119
bearing frame assembly
common parts
note :
1 Items 20 to 39 inclusive are included in the bearing frame assembly.
** For liquids above 200°f/93°c use 9975001-813 (-613 if potable drinking water above 200°f/93°c)
For glycols above 30% by weight use 9975001-817 (-818 if above 200°f/93°c)
OIL LUBRICATION - STANDARD SHAFT
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
23
item number description part number bar code
Bearing frame assembly 1426770-071
20 Bearing housing 426764-013
21 Shaft & sleeve assembly 426760-071
22 Inboard bearing 971101-915
23 Outboard bearing 971101-916
24 Snap ring 923109-008
28 Oil seal 965001-065
29 Bearing cap 426766-013
31 O–ring 961131-152
32 Bearing capscrews
W-16 × 1 lg ( 4 req'd ) 911121-108
33 Oil view gauge 116904-000
34 Air vent 407444-000
35 Pipe plug 937105-200
36 Impeller key 428160-708
36 Coupler key 428160-712
39 Water slinger 406622-000
item number description part number bf, ab & ai bar code
62kMechanical seal assembly 975000-982**
83 Impeller washer 425742-001
86 S/S impeller capscrew 911900-119
bearing frame assembly
common parts
note :
1 Items 20 to 39 inclusive are included in the bearing frame assembly.
** For liquids above 200°f/93°c use 9975001-813 (-613 if potable drinking water above 200°f/93°c)
For glycols above 30% by weight use 9975001-817 (-818 if above 200°f/93°c)
OIL LUBRICATION - STAINLESS STEEL SHAFT
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
24
item 110: bearing housing support foot item 106: casing support foot
pump size part number bar code
1.5 × 1 × 6 426999-001
3 × 1.5 × 6 426999-001
3 × 2 × 6 426999-002
3 × 2.5 × 6 426999-002
4 × 3 × 6 426999-002
6 × 6 × 6 426999-002
1.5 × 1 × 8 426999-001
3 × 1.5 × 8 426999-002
3 × 2 × 8 426999-003
3 × 2.5 × 8 426999-003
4 × 3 × 8 426999-003
5 × 4 × 8 426999-004
8 × 8 × 8 426999-006
6 × 4 × 8w426999-004
2 × 1 × 10 426999-003
2 × 1.5 × 10 426999-003
3 × 1.5 × 10 426999-004
3 × 2 × 10 426999-004
3 × 2.5 × 10 426999-004
4 × 3 × 10 426999-004
5 × 4 × 10 426999-005
6 × 4 × 10 426999-005
6 × 5 × 10 426999-005
4 × 3 × 11.5 426999-004
5 × 4 × 11.5 426999-005
pump size part number bar code
1.5 × 1 × 6 426551-000
3 × 1.5 × 6 426552-000
3 × 2 × 6 426554-000
3 × 2.5 × 6 426554-000
4 × 3 × 6 Not required
6 × 6 × 6 426554-000
1.5 × 1 × 8 426670-004
3 × 1.5 × 8 426554-000
3 × 2 × 8 426554-000
3 × 2.5 × 8 426554-000
4 × 3 × 8 426554-000
5 × 4 × 8 426554-000
6 × 4 × 8w426554-000
8 × 8 × 8 Not required
2 × 1 × 10 426554-000
2 × 1.5 × 10 426554-000
3 ×1.5 × 10 Not required
3 × 2 × 10 Not required
3 × 2.5 × 10 Not required
4 × 3 × 10 Not required
5 × 4 × 10 Not required
6 × 4 × 10 Not required
6 × 5 × 10 Not required
4 × 3 × 11.5 Not required
5 × 4 × 11.5 Not required
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
25
pump size amount required size part number bar code
all sizes 1 K" - 13nc × 1"lg 911125-108
pump size amount required size part number bar code
all sizes 1 G/af" - 14nc × 1"lg 911123-216
pump size amount required size part number bar code
all sizes 1 K" flat 927117-100
pump size amount required size part number bar code
all sizes 1 G/af" flat 927116-100
item 112: bearing support foot capscrew (upper)
item 124: bearing support foot capscrew (lower)
item 112: bearing support foot capscrew washer (upper)
item 124: bearing support foot capscrew washer (lower)
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
26
item 108: casing support foot capscrew (to casing)
pump size amount required size part number bar code
1.5 × 1 × 6 1 E/af" - 16nc × 1"lg 911119-108
3 × 1.5 × 6
3 × 2 × 6
2 K" - 13nc × 1"lg 911125-108
3 × 2.5 × 6
4 × 3 × 6
6 × 6 × 6
1.5 × 1 × 8
2 K" - 13nc × 1"lg 911125-108
3 × 1.5 × 8
3 × 2 × 8
3 × 2.5 × 8
4 × 3 × 8
5 × 4 × 8
6 × 4 × 8w
8 × 8 × 8
2 × 1 × 10
2 K" - 13nc × 1"lg 911125-108
2 × 1.5 × 10
3 × 1.5 × 10
3 × 2 × 10
3 × 2.5 × 10
Not required
4 × 3 × 10
5 × 4 × 10
6 × 4 × 10
6 × 5 × 10
4 × 3 × 11.5 Not required
5 × 4 × 11.5
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
27
item 122: casing support foot capscrew & washer (1)
pump size amount required size part number bar code
1.5 × 1 × 6
2 G/af" - 11nc × 1N"lg 911123-216
3 × 1.5 × 6
3 × 2 × 6
3 × 2.5 × 6
4 × 3 × 6
6 × 6 × 6
*1.5 × 1 × 8
2 G/af" - 11nc × 1N"lg 911123-216
3 × 1.5 × 8
3 × 2 × 8
3 × 2.5 × 8
4 × 3 × 8
5 × 4 × 8
6 × 4 × 8w
8 × 8 × 8
2 × 1 × 10
2 G/af" - 11nc × 1N"lg 911123-2162 × 1.5 × 10
3 × 1.5 × 10
3 × 2 × 10
2washer G/af" flat 927116-100
3 × 2.5 × 10
4 × 3 × 10
5 × 4 × 10
6 × 4 × 10
6 × 5 × 10
4 × 3 × 11.5 2washer G/af" flat 927116-100
5 × 4 × 11.5
note:
*For pumps 1 ½ x 1 x 8, frames 56t, 143-145t & 182 - 184t, use 2 capscrews (G/af" - 11 nc x 2" lg.) - part number: 911123-116 and 2 washers (7/16" Flat) part
number: 927116-100
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
28
coupler selection table (woods type)
coupler flange part numbers
pump shaft size motor frame size motor shaft size coupler part number woods size bar code
Y" 56 X" 827010-000 4j
Y" 143t - 145t Y" 827011-000 4j
Y" 182t - 184t 1V" 827012-000 5j
Y" 213t - 215t 1W" 827013-000 6j
Y" 254t - 256t 1X" 827014-000 7j
coupler part number motor frame size flange bore flange part number woods size bar code
827010-000 56
X" 975000-822 4j
Y" 975000-823 4j
827011-000 143t - 145t
Y" 975000-823 4j
Y" 975000-823 4j
827012-000 182t - 184t
1V" 975000-829 5j
Y" 975000-827 5j
827013-000 213t - 215t
1W" 975000-836 6j
Y" 975000-832 6j
827014-000 254t - 256t
1X" 975000-842 7j
Y" 975000-838 7j
replacement parts list
Series 4030 base mounted pumps
Centerline discharge S designation
29
coupler insert selection table (woods type)
coupler insert size insert number part number bar code
4j 4je 875000-801
5j 5je 875000-802
6j 6je 875000-803
7j 7je 875000-804
buffalo
toronto
manchester
bangalore
shanghai
armstrongfluidtechnology.com
#59, first floor, 3rd main
margosa road, malleswaram
bangalore, india
560 003
+91 (0) 80 4906 3555
wolverton street
manchester
united kingdom
m11 2et
+44 (0) 8444 145 145
93 east avenue
north tonawanda, new york
u.s.a.
14120-6594
+1 716 693 8813
23 bertrand avenue
toronto, ontario
canada
m1l 2p3
+1 416 755 2291
no. 1619 hu hang road, xi du township
feng xian district, shanghai
p.r.c.
201401
+86 21 3756 6696
armstrong fluid technology
established 1934
birmingham
heywood wharf, mucklow hill
halesowen, west midlands
united kingdom
b62 8dj
+44 (0) 8444 145 145
tm

Navigation menu
