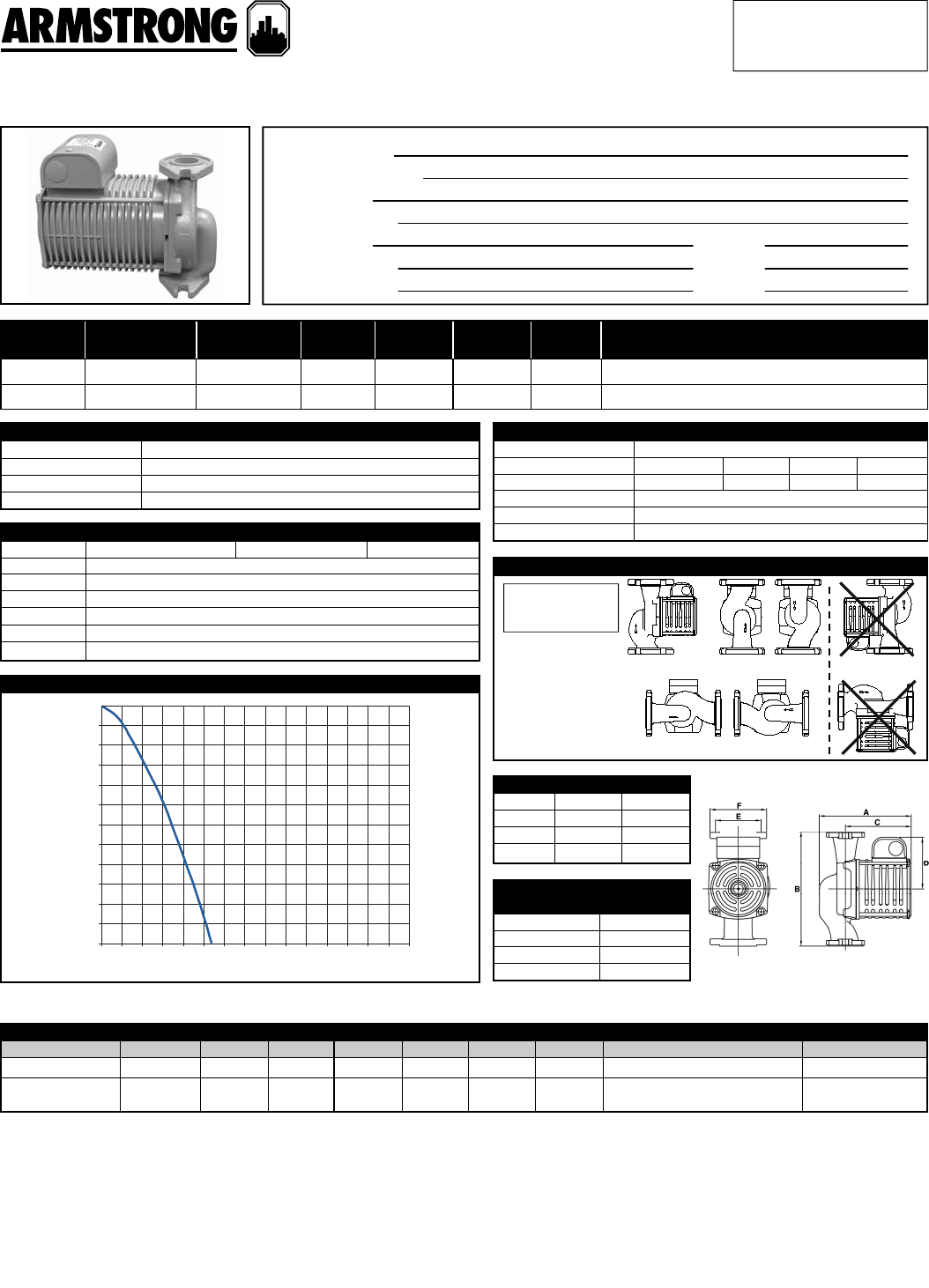

SUBMITTAL
JOB/PROJECT:
ENGINEER:
CONTRACTOR:
REPRESENTATIVE:
ORDER NO:
SUBMITTED BY:
APPROVED BY:
DATE:
DATE:
DATE:
PERFORMANCE CURVE
MOUNTING ORIENTATION
FOR INDOOR
USE ONLY
MATERIALS OF CONSTRUCTION
Pump Body Cast Iron (closed systems) Bronze (open systems) Lead Free Bronze*
Face Plate Stainless Steel
Impeller 30% Glass-filled Noryl
Shaft Stainless Steel
Bearings Permanently lubricated Stainless Steel
Volute Gasket EPDM
Seal Silicon Carbide EnviroSeal c/w viton elastomer
Quantity TAG No. Part No. Flow
(USgpm) Head
(feet) Voltage Phase Comments
Page 1 of 2
Recommended
Optional
Not Recommended
PART NUMBER
120 V 240 V
E14-TE 180210-643 180210-602
E14B-TE 180210-644 180210-603
E14B-TE 180210LF-644 180210LF-603
TECHNICAL DATA
Flow Range
Head Range
Max. Fluid Temperature
Max. Working Pressure
0 to 52.0 USgpm (0 to 3.3 L/s)
0 to 61.0 feet (0 to 18.6 m)
150°F (65°C)
150 psi (1034 kPa)
MOTOR DATA
Nominal Power 2/5 hp (300 W)
Voltage 120 V 208 V 240 V 277 V
Full Load Amp Draw 4.8 A 2.4 A 2.4 A 2.4 A
Frequency 60 Hz
Motor Type 2 pole, Single Phase, TENV
Speed 3300 rpm
DIMENSIONS AND WEIGHTS
Model Body A B C D E F Connection Type & Size Shipping Weight
ARMflo E14-TE Cast Iron 8.6 (218) 6.4 (164) 7.1 (180) 4.0 (101) 3.2 (81) 4.2 (107) 1.25" diameter 2-bolt flanges 17.1 (7.8)
ARMflo E14B-TE Bronze
/LF Bronze* 8.6 (218) 6.4 (164) 7.1 (180) 4.0 (101) 3.2 (81) 4.2 (107) 1.25" diameter 2-bolt flanges 17.9 (8.1)
Note: All dimensions are in inches (mm) and weights in lbs (kg)
*Contains less than 0.25% lead, weighted average.
Total Head - Feet (m)
(0.0) 0
(1.5) 5
(3.0) 10
(4.6) 15
(6.1) 20
(7.6) 25
(9.1) 30
(10.7) 35
(12.1) 40
(13.7) 45
(15.2) 50
(16.8) 55
(18.2) 60
0
(0)
Flow - USgpm (L/s)
10
(0.63)
20
(1.26)
30
(1.89)
40
(2.52)
50
(3.15)
60
(3.78)
70
(4.41)
80
(5.05)
90
(5.68)
100
(6.31)
110
(6.94)
120
(7.57)
130
(8.20)
140
(8.83)
¾" Flange kits Timer
1" Flange kits Aquastat
1¼" Flange kits Spool Pieces
1½" Flange kits
E14-TE/E14B-TE
ACCESSORIES
FILE NO: 10.598
DATE: June 14, 2011
SUPERSEDES: 10.598
DATE: May 14, 2010
ARMflo E Series Circulators - Models E14-TE/E14B-TE
ARMflo E Series Circulators

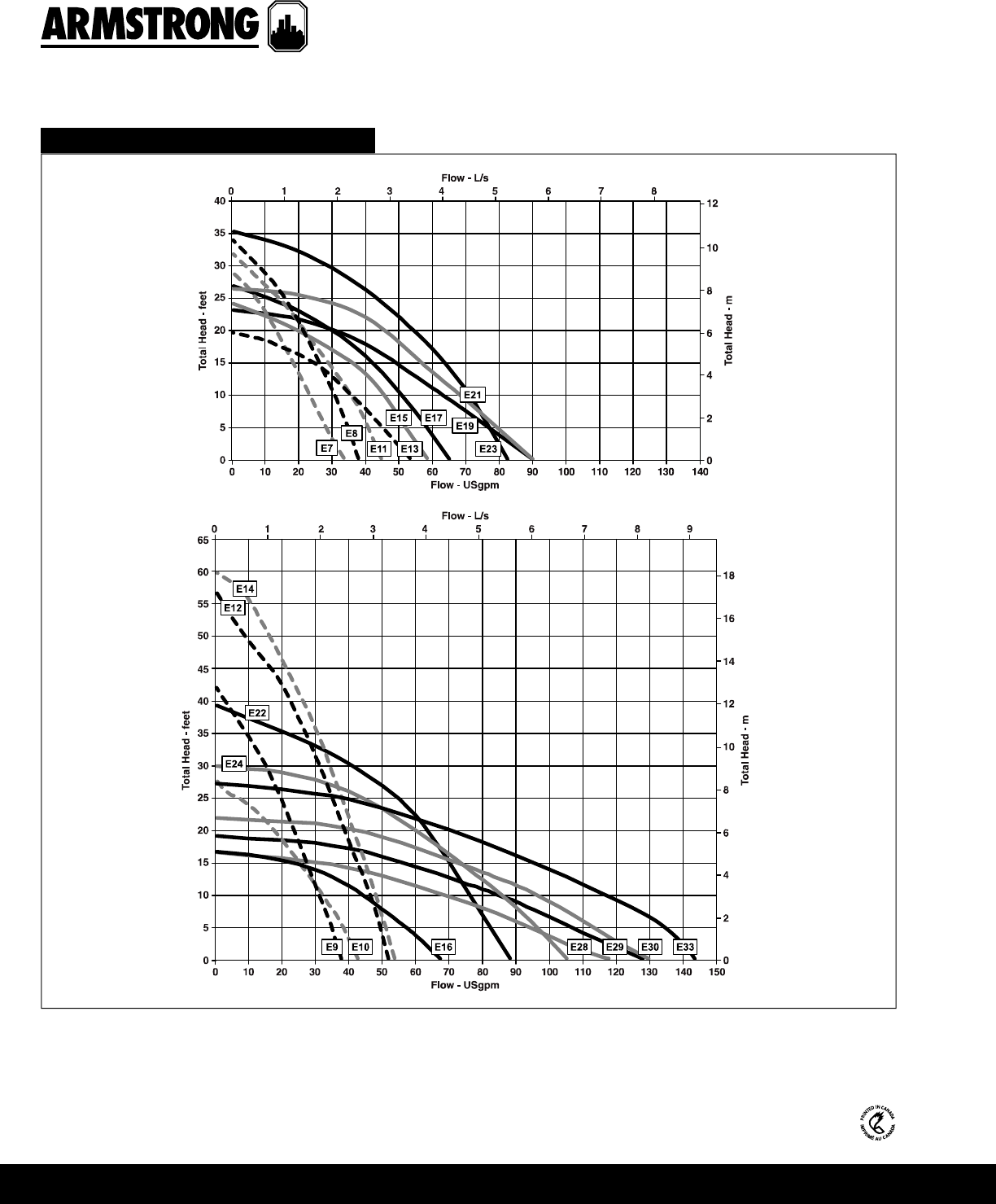

COMPOSITE PERFORMANCE CURVES
S. A. Armstrong Limited
23 Bertrand Avenue
Toronto, Ontario
Canada, M1L 2P3
T: 416-755-2291
F: 416-759-9101
Armstrong Pumps Inc.
93 East Avenue
North Tonawanda, New York
U.S.A. 14120-6594
T: 716-693-8813
F: 716-693-8970
Armstrong Integrated Limited
Wenlock Way
Manchester
United Kingdom, M12 5JL
T: +44 (0) 8444 145 145
F: +44 (0) 8444 145 146 © S.A. Armstrong Limited 2011
