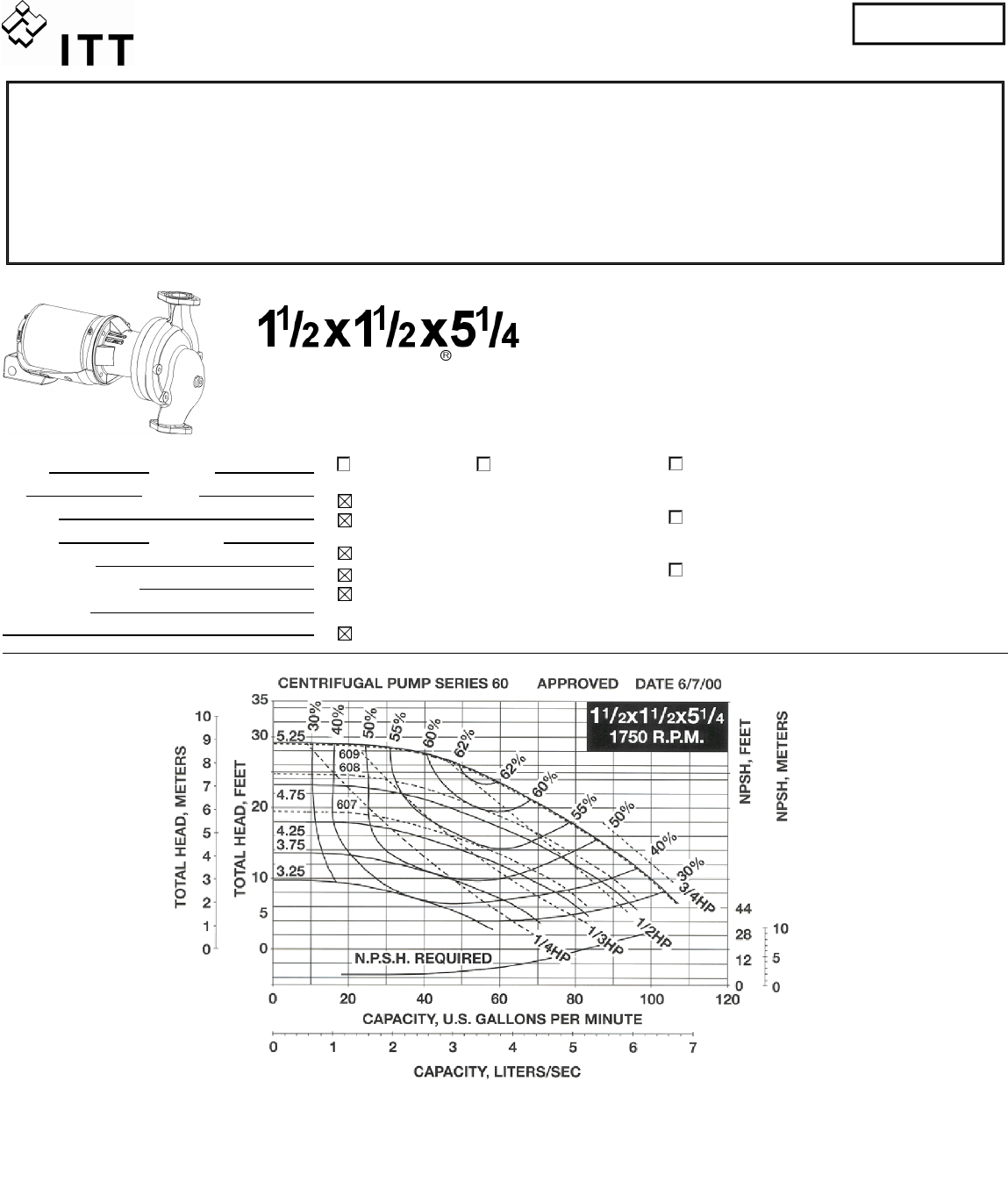

SUBMITTAL
B-131.3E
JOB: REPRESENTATIVE:
UNIT TAG:
ORDER NO.
DATE:
ENGINEER:
SUBMITTED BY:
DATE:
CONTRACTOR:
APPROVED BY: DATE:
Series 60
Maintenance Free In-Line Mounted Pump
SPECIFICATIONS
FLOW HEAD
HP RPM
VOLTS
CYCLE PHASE
ENCLOSURE
APPROX. WEIGHT
SPECIALS
MATERIALS OF CONSTRUCTION
BRONZE FITTED ALL BRONZE
FEATURES
MAINTENANCE FREE PUMP
INTERNALLY SELF-FLUSHING MECHANICAL
SEAL
XLII® LUBRICATION SYSTEM
THREE YEAR WARRANTY
FACTORY TEST
WORKING PRESSURE
175 psi (12 bar) W.P.
TYPE OF SEAL
BUNA/CARBON-CERAMIC (STANDARD)
(-20 °F TO 225 °F)
TYPE OF SEAL
EPT/TUNGSTEN-CARBIDE
(-20 °F TO 250 °F)
TYPE OF SEAL
VITON/CARBON-CERAMIC
(0 °F TO 225 °F)
© COPYRIGHT 2008 ITT Corporation Bell & Gossett

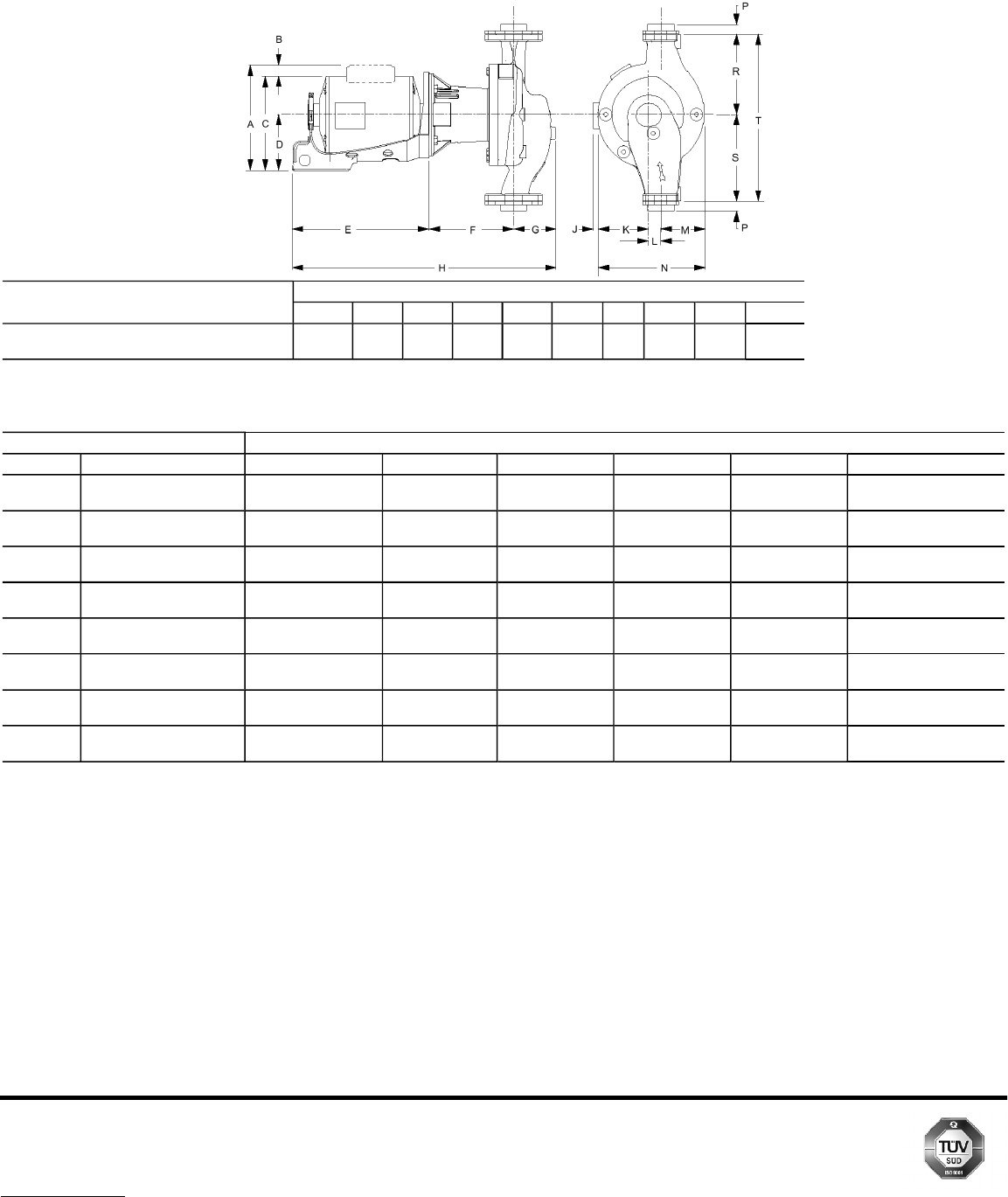

Series 60 1-1/2x1-1/2x5-1/4 Centrifugal Pump Submittal B-131.3E
SUCTION AND DISCHARGE SIZE
INCHES NPT
PUMP DIMENSIONS IN INCHES (MM)
F G K L M N P R S T
1-1/2 6-9/16
(167) 3-5/8
(92) 3-3/4
(95) 1-3/8
(35) 2-3/4
(70) 7-7/8
(200) 3/4
(19) 5
(127) 6-1/2
(165) 11-1/2
(292)
MAXIMUM WORKING PRESSURE 175PSI (12 BAR)
ALL MOTORS 1750 RPM
DIMENSIONS − Inches (mm)
MOTOR HP MOTOR DIMENSIONS - INCHES (MM)
HP PHASE A B C D E H
1/4 1 10-1/8
(257) 2-1/4
(57) 7-7/8
(200) 4-3/8
(111) 10
(254) 20-3/16
(513)
1/4 3 7-7/8
(200) −7-7/8
(200) 4-3/8
(111) 10
(254) 20-3/16
(513)
1/3 1 10-1/8
(257) 2-1/4
(57) 7-7/8
(200) 4-3/8
(111) 10
(254) 20-7/16
(519)
1/3 3 7-7/8
(200) −7-7/8
(200) 4-3/8
(111) 10
(254) 20-7/16
(519)
1/2 1 10-1/8
(257) 2-1/4
(57) 7-7/8
(200) 4-3/8
(111) 11
(279) 21-7/16
(545)
1/2 3 7-7/8
(200) −7-7/8
(200) 4-3/8
(111) 11
(279) 21-7/16
(545)
3/4 1 10-1/8
(257) 2-1/4
(57) 7-7/8
(200) 4-3/8
(111) 11
(279) 21-7/16
(545)
3/4 3 7-7/8
(200) −7-7/8
(200) 4-3/8
(111) 11
(279) 21-7/16
(545)
Dimensions are subject to change. Not to be used for construction purposes unless certified.
Includes Companion Flanges.
ITT
8200 N. Austin Avenue
Morton Grove, IL 60053
Phone (847)966-3700
Facsimile (847)966-9052
www.bellgossett.com
