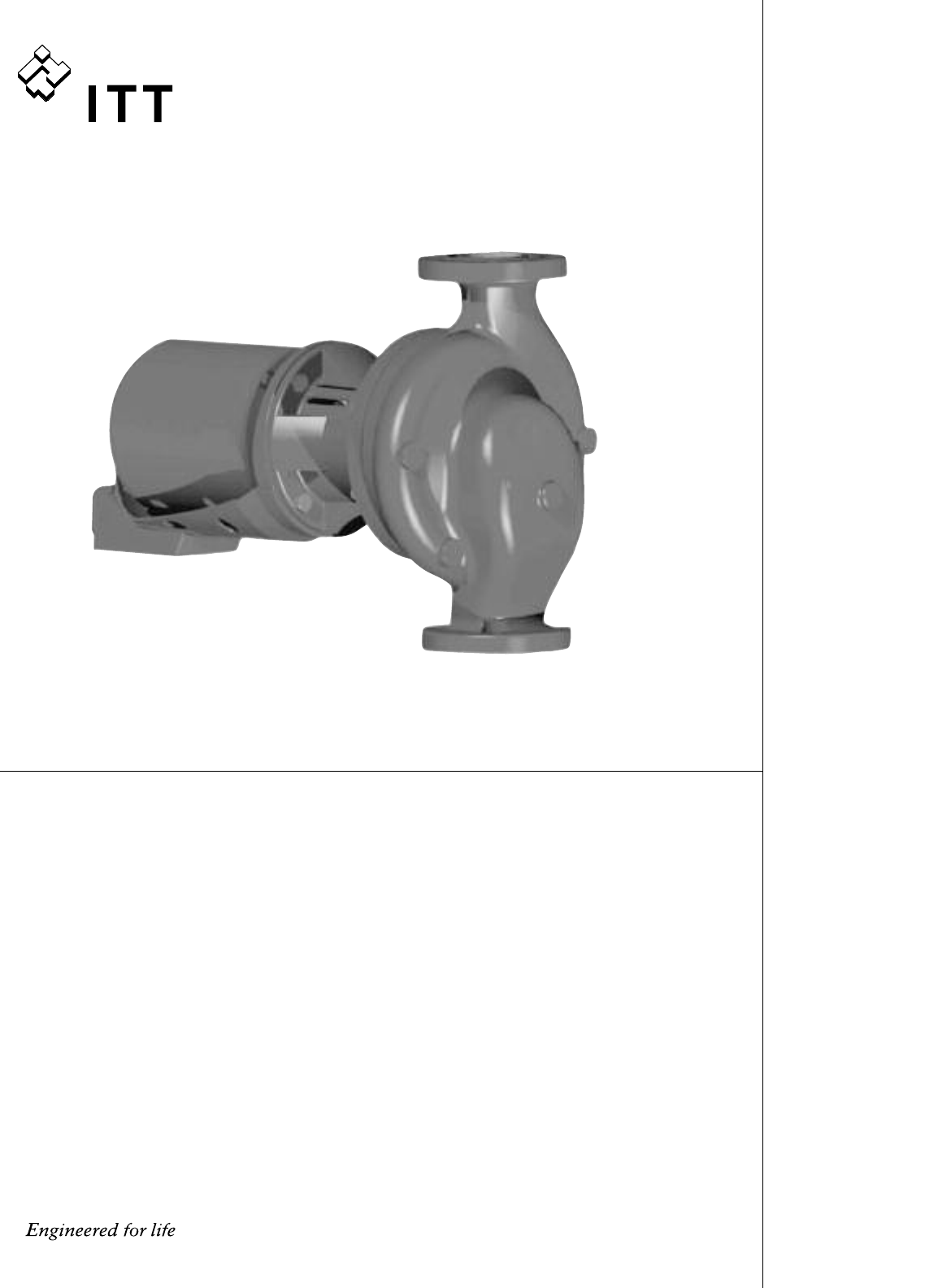

Replacement Parts for
Series 60
Maintenance Free
In-Line Mounted
Centrifugal Pumps
SERIES 60
Bell & Gossett®
Parts List CP-106F-PL
2
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
Index
How to Use This Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Exploded View – Series 60 Maintenance Free Pump . . . . . . . . . . . . . . . 4
Standard Size Pump Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Series 60 1x1x51/4Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Series 60 11/4x11/4x51/4Replacement Parts . . . . . . . . . . . . . . . . . . . . . . 7
Series 60 11/2x11/2x51/4Replacement Parts . . . . . . . . . . . . . . . . . . . . . . 8
Series 60 11/2x11/2x61/4 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . 9
Series 60 11/2x11/2x7 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . 10
Series 60 2x2x51/4Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Series 60 2x2x61/4Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Series 60 2x2x7 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Series 60 3x3x51/4 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Coupler Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
How to use this
PARTS LIST
The pump nameplate identifies the pump by model number, pump construction and
impeller diameter as shown below.
The BTO nameplate above identifies the pump as a Series 60, size 11/4x51/4in bronze
fitted (BF) construction. The impeller diameter is 41/4" and is capable of pumping 30
GPM at 15 FT. The motor horsepower is 1/4, the RPM is 1750. The serial number specifi-
cally identifies the unit for future reference. DO NOT REMOVE THE NAMEPLATE. It is
important when ordering replacement parts to furnish complete nameplate data.
The following procedure will result in proper parts selection.
1. Determine from the nameplate the model number, pump construction and impeller
diameter.
2. Refer to the index for the page number of the parts breakdown for the specific
model pump.
3. Find the proper column in the parts breakdown for the pump construction involved.
4. Select part numbers using the numbered drawings on page 4 for identification.
BELL & GOSSETT PUMP
SIZE
PUMP
CAP.
MOTOR
CAP.
SERIAL
NO.
60
11/4x51/4 BF 41/4
30 GPM 15 FT
1/4HP 1750RPM
1598200 K99
CSA
ENCL
2
Pump Size
Capacity &
Head
Motor
Horsepower
Pump Construction Pump Series
Impeller
Diameter
Serial Number Date Manufactured
(October, 1999)
Pump Size
®
BELL & GOSSETT PUMP
SIZE
PUMP
CAP.
MOTOR
CAP.
SERIAL
NO.
60
604S
172707 CSA
ENCL
2
Pump Model
Number
Part Number
Date Manufactured
(October, 1999)
®
11/4x51/4 K99
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
3
NAMEPLATE FOR
BUILT-TO-ORDER PUMPS
NAMEPLATE FOR
STOCK PUMPS
4
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
POWER PACK COUPLER
햲
햳
햶
햽
햷
햵BEARING
ASSEMBLY
(SMALL)
VOLUTE
CAPSCREW (8)
햸
VOLUTE
GASKET
SEAL
IMPELLER
WASHER
햹
햴
IMPELLER
IMPELLER
NUT
햺
햿
헀ADAPTER RING
CAPSCREW (8)
(Sizes 11/2x11/2x61/4
and 2x2x61/4 only)
ADAPTER RING
(Sizes 11/2x11/2x61/4
and 2x2x61/4 only)
VOLUTE
햻
헁
VOLUTE
DRAIN PLUG (5)
ADAPTER RING
GASKET
(Size 11/2x11/2x61/4
and 2x2x61/4 only)
햳VOLUTE
GASKET
IMPELLER
WASHER
햴
IMPELLER
NUT
햺
햵BEARING
ASSEMBLY
(LARGE)
햽SEAL
COVER
PLATE
햾
COUPLER
COVER
헂

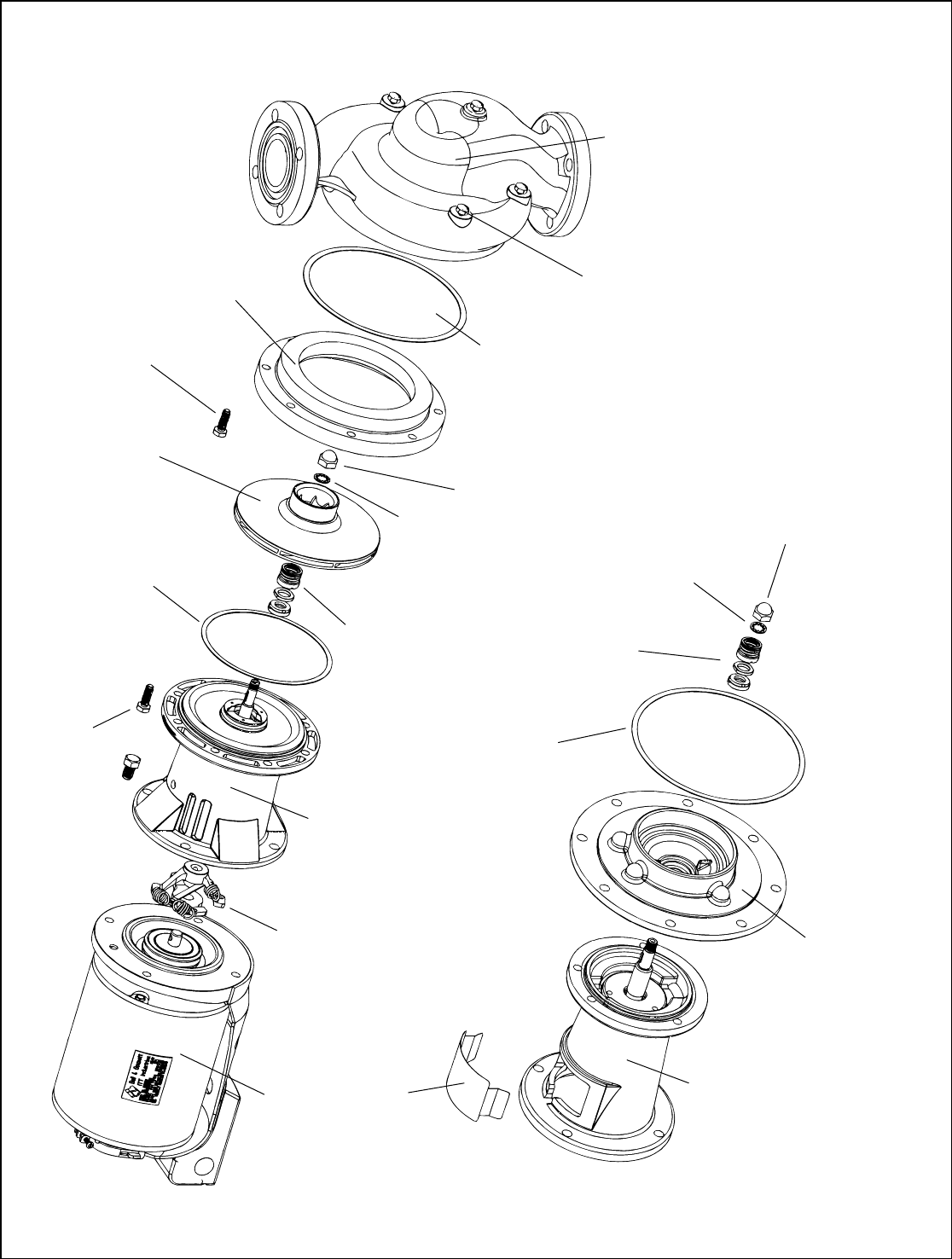

Series 60
Maintenance
Free Pump
Exploded View
5
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
STANDARD SIZE DESIGNATIONS
*Adapter ring gasket P58542 must also be ordered when bearing assembly is replaced on all 61⁄4" pumps.
†Buna/Carbon/Ceramic.
– Factory recommended spare parts.
(6) MOTOR (5) (4) (8)
EQUIVALENT 1 PHASE 3 PHASE BEARING†IMPELLER
PUMP SIZE SIZE HP 115/208-230 208-230/460 COUPLER ASSEMBLY DIAMETER IMPELLER
601S & 601T 1x1x51/41/4169224 169225 118473 185332LF 43/8" P82878
B601S & B601T 1x1x51/41/4169224 169225 118473 185332LF 43/8" P82878
602S & 602T 1x1x51/41/3169226 169227 118473 185332LF 427/32" P82877
B602 & B602T 1x1x51/41/3169226 169227 118473 185332LF 427/32" P82877
603S & 603T 1x1x51/41/2169228 169229 118473 185332LF 51/4" P58541
B603S & B603T 1x1x51/41/2169228 169229 118473 185332LF 51/4" P58541
604S & 604T 11/4x11/4x51/41/4169224 169225 118473 185332LF 43/8" P82878
B604S & B604T 11/4x11/4x51/41/4169224 169225 118473 185332LF 43/8" P82878
605S & 605T 11/4x11/4x51/41/3169226 169227 118473 185332LF 427/32" P82877
B605S & B605T 11/4x11/4x51/41/3169226 169227 118473 185332LF 427/32" P82877
606S & 606T 11/4x11/4x51/41/2169228 169229 118473 185332LF 51/4" P58541
B606S & B606T 11/4x11/4x51/41/2169228 169229 118473 185332LF 51/4" P58541
607S & 607T 11/2x11/2x51/41/3169226 169227 118473 185332LF 43/8" P82881
B607S & B607T 11/2x11/2x51/41/3169226 169227 118473 185332LF 43/8" P82881
608S & 608T 11/2x11/2x51/41/2169228 169229 118473 185332LF 415/16" P82880
B608S & B608T 11/2x11/2x51/41/2169228 169229 118473 185332LF 415/16" P82880
609S & 609T 11/2x11/2x51/43/4169230 169231 118473 185332LF 51/4" P58538
B609S & B609T 11/2x11/2x51/43/4169230 169231 118473 185332LF 51/4" P58538
610S & 610T 2x2x51/41/2169228 169229 185329 185332LF 41/8" P82883
B610S & B610T 2x2x51/41/2169228 169229 185329 185332LF 41/8" P82883
611S & 611T 2x2x51/43/4169230 169231 118473 185332LF 43/4" P82882
B611S & B611T 2x2x51/43/4169230 169231 118473 185332LF 43/4" P82882
612S & 612T 2x2x51/41 169232 169233 185329 185332LF 51/4" P58536
B612S & B612T 2x2x51/41 169232 169233 185329 185332LF 51/4" P58536
613S & 613T 11/2x11/2x61/43/4169230 169231 185329 185332LF* 53/4" P82884
614S & 614T 11/2x11/2x61/41 169232 169233 185329 185332LF* 61/4" P58564
B614S & B614T 11/2x11/2x61/41 169232 169233 185329 185332LF* 61/4" P58564
615S & 615T 2x2x61/43/4169230 169231 185329 185332LF* 55/8" P82885
B615S & B615T 2x2x61/43/4169230 169231 185329 185332LF* 55/8" P82885
616S & 616T 2x2x61/41 169232 169233 185329 185332LF* 67/32" P58562
617S & 617T 11/2x11/2x7 11/2169236 169237 186003 185333LF 61/2" P57460
618T 11/2x11/2x7 2 NONE 169238 186003 185333LF 7" P57440
619T 2x2x7 2 NONE 169238 186003 185333LF 61/2" P82137
620T 2x2x7 3 NONE 169234 185331 185333LF 7" P57580
621S & 621T 11/2x11/2x61/41/2169228 169229 118473 185332LF* 47/8" P58661
B621S & B621T 11/2x11/2x61/41/2169228 169229 118473 185332LF* 47/8" P58661
622S & 622T 11/2x11/2x7 3/4169230 169231 186410 185333LF 51/2" P58662
623S & 623T 11/2x11/2x7 1 169232 169233 185330 185333LF 6" P58663
624S & 624T 2x2x7 1 169232 169233 185330 185333LF 511/16" P58664
625S & 625T 2x2x7 11/2169236 169237 186003 185333LF 61/8" P58665
626S & 626T 3x3x51/43/4169230 169231 185329 185333LF 43/8" P83023
B626S & B626T 3x3x51/43/4169230 169231 185329 185333LF 43/8" P83023
627S & 627T 3x3x51/411/2169236 169237 P75421 185333LF 51/4" P58636
B627S & B627T 3x3x51/411/2169236 169237 P75421 185333LF 51/4" P58636
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/4169224 169225 118228
1/3169226 169227 118228
1/2169228 169229 118228
3/4169230 169231 118228
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186386 186931LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P10620
2 Volute Gasket P57410 P57410
8 Impeller (State Diameter) P58541 P58541
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) P01510 P00794
Fastener Package P64910 P64910
Flange Gasket Set 118368 118368
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
6
– Factory recommended spare parts.
ITEM NO. 5 COUPLERS
ITEM NO. 6 POWER PACKS
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
VOLUTES, IMPELLERS & FLANGES
MODEL 1x1x51/4
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF 185355LF 185356LF N/A 185357LF 185358LF 185359LF N/A
11 Seal Kit No. 118681LF 185230LF 186875 185381 118681LF 185230LF 186875 185381
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
See chart, p.15
ITEM NO. 5 COUPLERS
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF 185355LF 185356LF N/A 185357LF 185358LF 185359LF N/A
11 Seal Kit No. 118681LF 185230LF 186875 185381 118681LF 185230LF 186875 185381
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
See chart, p.15
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/4169224 169225 118228
1/3169226 169227 118228
1/2169228 169229 118228
3/4169230 169231 118228
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186386 186931LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P10620
2 Volute Gasket P57410 P57410
8 Impeller (State Diameter) P58541 P58541
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) P03250 P03251
Fastener Package P64910 P64910
Flange Gasket Set 118368 118368
7
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
VOLUTES, IMPELLERS & FLANGES
MODEL 11/4x11/4x51/4
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/4169224 169225 118228
1/3169226 169227 118228
1/2169228 169229 118228
3/4169230 169231 118228
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186389 186932LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P10620
2 Volute Gasket P57410 P57410
8 Impeller (State Diameter) P58538 P58538
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) P03410 P2000090
Fastener Package P64940 P64930
Flange Gasket Set 118373 118373
8
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
VOLUTES, IMPELLERS & FLANGES
MODEL 11/2x11/2x51/4
ITEM NO. 5 COUPLERS
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF 185355LF 185356LF N/A 185357LF 185358LF 185359LF N/A
11 Seal Kit No. 118681LF 185230LF 186875 185381 118681LF 185230LF 186875 185381
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
See chart, p.15
9
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
VOLUTES, IMPELLERS & FLANGES
MODEL 11/2x11/2x61/4
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186935 186671LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P01850
2 Volute Gasket P57410 P57410
13 Adapter Ring P58576 P58578
14 Adapter Ring Capscrew (8 Req’d) DJ0034 P01850
15 Adapter Ring Gasket P58542 P58542
8 Impeller (State Diameter) P58564 P58564
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) P03410 P2000090
Fastener Package P64940 P64930
Flange Gasket Set 118373 118373
Motor Ring Adapter P76944 P76944
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/2169228 169229 118228
3/4169230 169231 118228
1 169232 169233 118848
11/2169236 169237 NONE
ITEM NO. 5 COUPLERS
See chart, p.15
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
**Adapter Ring Gasket P58542 must also be ordered when bearing assembly is replaced on all 61⁄4" pumps.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF**185355LF** 185356LF** N/A 185357LF** 185358LF** 185359LF** N/A
11 Seal Kit No. 118681LF 185230LF 186875 185381 118681LF 185230LF 186875 185381
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
FOR BRONZE FITTED (BF) PUMPS
4 Bearing Assy. –
Includes the Following: 185333LF 185360LF 185361LF N/A 185362LF 185363LF 185364LF N/A
11 Seal Kit No. 186499LF 185223LF CF 186945 186499LF 185223LF CF 186945
Seal Type
Std.1
Opt.2Opt.3Opt.4
Std.1
Opt.2Opt.3Opt.4
XL-11™Lrg. Bearing
Frame Repair Kit* 185337LF 185337LF 185337LF N/A 185338 185338 185338 N/A
2 Volute Gasket P57700 P57700 P57700 N/A P57700 P57700 P57700 N/A
12 Cover Plate P57246 P57246 P57246 N/A P57246 P57246 P57246 N/A
16 Coupler Cover P03982 P03982 P03982 N/A P03982 P03982 P03982 N/A
FOR ALL BRONZE (AB) PUMPS
4 Bearing Assy. –
Includes the Following: 185334LF 185365LF 185366LF N/A 185367LF 185368LF 185369LF N/A
11 Seal Kit No. 186499LF 185223LF CF 186945 186499LF 185223LF CF 186945
Seal Type
Std.1
Opt.2Opt.3Opt.4
Std.1
Opt.2Opt.3Opt.4
XL-11™Lrg. Bearing
Frame Repair Kit* 185337LF 185337LF 185337LF N/A 185338 185338 185338 N/A
2 Volute Gasket P57700 P57700 P57700 N/A P57700 P57700 P57700 N/A
12 Cover Plate P2000095 P2000095 P2000095 N/A P2000095 P2000095 P2000095 N/A
16 Coupler Cover P03982 P03982 P03982 N/A P03982 P03982 P03982 N/A
10
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled shaft, sleeve and bearings. Wave spring and volute gasket are also supplied.
CF – Contact Factory
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
MODEL 11/2x11/2x7
VOLUTES, IMPELLERS & FLANGES
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186390 186934LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P40020 P52310
2 Volute Gasket P57700 P57700
8 Impeller (State Diameter) P57440 P57440
Impeller Key P49358 P49358
9 Impeller Nut P2000220 P2000220
3 Impeller Washer P11220 P11220
Flange (2 Req’d) P03410 P2000090
Fastener Package P64940 P64930
Flange Gasket Set 118373 118373
ITEM NO. 6 POWER PACKS
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
3/4169230 169231 118228
1 169232 169233 118848
11/2169236 169237 NONE
2 NONE 169238 NONE
ITEM NO. 5 COUPLERS
See chart, p.15
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186392 186933LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P10620
2 Volute Gasket P57410 P57410
8 Impeller (State Diameter) P58536 P58536
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) F14200 P2000078
Fastener Package (2 Req’d) P65031 P65030
Flange Gasket Set 118378 118378
Motor Ring Adapter P76944 P76944
11
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
VOLUTES, IMPELLERS & FLANGES
MODEL 2x2x51/4
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/3169226 169227 118228
1/2169228 169229 118228
3/4169230 169231 118228
1 169232 169233 118848
11/2169236 169237 NONE
ITEM NO. 5 COUPLERS
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF 185355LF 185356LF N/A 185357LF 185358LF 185359LF N/A
11 Seal Kit No. 118681LF 185230LF 186875 186945 118681LF 185230LF 186875 186945
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
See chart, p.15
SERIES 60 MAINTENANCE FREE PUMPS
12
PARTS LIST CP-106F-PL (CONTINUED)
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
VOLUTES, IMPELLERS & FLANGES
MODEL 2x2x61/4
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186936 186672LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P10620
2 Volute Gasket P57410 P57410
13 Adapter Ring P58576 P58578
14 Adapter Ring Capscrew (8 Req’d) DJ0034 P10620
15 Adapter Ring Gasket P58542 P58542
8 Impeller (State Diameter) P58562 P58562
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) F14200 P2000078
Fastener Package (2 Req’d) P65031 P65030
Flange Gasket Set 118378 118378
Motor Ring Adapter P76944 P76944
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/2169228 169229 118228
3/4169230 169231 118228
1 169232 169233 118848
11/2169236 169237 NONE
ITEM NO. 5 COUPLERS
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
**Adapter Ring Gasket P58542 must also be ordered when bearing assembly is replaced on all 61⁄4" pumps.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF**185355LF** 185356LF** N/A 185357LF** 185358LF** 185359LF** N/A
11 Seal Kit No. 118681LF 185230LF 186875 186945 118681LF 185230LF 186875 186945
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
See chart, p.15
13
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
MODEL 2x2x7
VOLUTES, IMPELLERS & FLANGES
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 186937 186938LF
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P40020 P52310
2Volute Gasket P57700 P57700
8 Impeller (State Diameter) P57580 P57580
Impeller Key P49358 P49358
9 Impeller Nut P2000220 P2000220
3 Impeller Washer P11220 P11220
Flange (2 Req’d) F14200 P2000078
Fastener Package (2 Req’d) P65031 P64930
Flange Gasket Set 118378 118378
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
3/4169230 169231 118228
1 169232 169233 118848
11/2169236 169237 NONE
2 NONE 169238 NONE
3 NONE 169234 NONE
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
FOR BRONZE FITTED (BF) PUMPS
4 Bearing Assy. –
Includes the Following: 185333LF 185360LF 185361LF N/A 185362LF 185363LF 185364LF N/A
11 Seal Kit No. 186499LF 185223LF CF 186945 186499LF 185223LF CF 186945
Seal Type
Std.1
Opt.2Opt.3Opt.4
Std.1
Opt.2Opt.3Opt.4
XL-11™Lrg. Bearing
Frame Repair Kit* 185337LF 185337LF 185337LF N/A 185338 185338 185338 N/A
2 Volute Gasket P57700 P57700 P57700 N/A P57700 P57700 P57700 N/A
12 Cover Plate P57246 P57246 P57246 N/A P57246 P57246 P57246 N/A
16 Coupler Cover P03982 P03982 P03982 N/A P03982 P03982 P03982 N/A
FOR ALL BRONZE (AB) PUMPS
4 Bearing Assy. –
Includes the Following: 185334LF 185365LF 185366LF N/A 185367LF 185368LF 185369LF N/A
11 Seal Kit No. 186499LF 185223LF CF 186945 186499LF 185223LF CF 186945
Seal Type
Std.1
Opt.2Opt.3Opt.4
Std.1
Opt.2Opt.3Opt.4
XL-11™Lrg. Bearing
Frame Repair Kit* 185337LF 185337LF 185337LF N/A 185338 185338 185338 N/A
2 Volute Gasket P57700 P57700 P57700 N/A P57700 P57700 P57700 N/A
12 Cover Plate P2000095 P2000095 P2000095 N/A P2000095 P2000095 P2000095 N/A
16 Coupler Cover P03982 P03982 P03982 N/A P03982 P03982 P03982 N/A
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled shaft, sleeve and bearings. Wave spring and volute gasket are also supplied.
CF – Contact Factory
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM NO. 5 COUPLERS
See chart, p.15
14
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
– Factory recommended spare parts.
ITEM NO. 6 POWER PACKS
VOLUTES, IMPELLERS & FLANGES
MODEL 3x3x51/4
ITEM BRONZE ALL
NO. DESCRIPTION FITTED BRONZE
1 Volute 118449 P09290
10 Volute Drain Plug (5 Req’d) P39020 P39470
7 Volute Capscrew (8 Req’d) P10620 P01850
2 Volute Gasket P57410 P57410
8Impeller (State Diameter) P58536 P58536
Impeller Key P04940 P04940
9 Impeller Nut P2000236 P2000236
3 Impeller Washer P04660 P04660
Flange (2 Req’d) F74000 P2000081
Fastener Package P65130 P65130
Flange Gasket Set 118129 118129
Motor Ring Adapter P76944 P76944
1 PHASE 3 PHASE RING
HP 115/208-230 208-230/460 MOUNTS
1/3169226 169227 118228
1/2169228 169229 118228
3/4169230 169231 118228
1 169232 169233 118848
11/2169236 169237 NONE
ITEM NO. 5 COUPLERS
1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic 4EPR/SiC/SiC
*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.
XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)
ITEM MODELS WITH COPPER MODELS WITH STAINLESS
NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE
4 Bearing Assy. –
Includes the Following: 185332LF 185355LF 185356LF N/A 185357LF 185358LF 185359LF N/A
11 Seal Kit No. 118681LF 185230LF 186875 185381 118681LF 185230LF 186875 185381
Seal Type Std.1Opt.2Opt.3Opt.4Std.1Opt.2Opt.3Opt.4
XL-11™Small Bearing
Frame Repair Kit* 185335LF 185335LF 185335LF N/A 185336 185336 185336 N/A
2 Volute Gasket P57410 P57410 P57410 N/A P57410 P57410 P57410 N/A
See chart, p.15
15
PARTS LIST CP-106F-PL (CONTINUED) SERIES 60 MAINTENANCE FREE PUMPS
ITEM NO. 5 COUPLERS
PUMP MOTOR MOTOR MOTOR ELASTOMERIC
PUMP SHAFT HP FRAME SHAFT STANDARD COUPLER
MODEL SIZE (60 hz) SIZE SIZE COUPLER OPTION
1x1x51⁄41⁄4–1⁄2B&G POWER 1⁄2"118473 185329
11⁄4x11⁄4x51⁄43⁄4–1 PACK 185329 185329
11⁄2x11⁄2x51⁄41⁄2"1⁄4–1
1⁄256 5⁄8" 185330 185330
11⁄2x11⁄2x61⁄411⁄256C 5⁄8"P75421 P75421
2x2x51⁄411⁄2143TC 7⁄8" P75422 P75422
2x2x61⁄41 –1
1⁄2143 / 145 7⁄8" P58598 P58598
3x3x51⁄4
3⁄4B&G POWER 1⁄2"186410 185330
1 PACK 185330 185330
11⁄2x11⁄2x7 3⁄4"3⁄4–1 56 5⁄8" 186004 186004
2x2x7 11⁄2–3 56 5⁄8" 186003 186003
11⁄2–3 143 / 145 7⁄8" 185331 185331
3 182 / 184 11⁄8" P77281 P77281
– Factory recommended spare parts.
FOR MORE INFORMATION, CONSULT YOUR LOCAL
ITT BELL & GOSSETT REPRESENTATIVE
ITT
8200 N. Austin Avenue
Morton Grove, IL 60053
Phone: (847) 966-3700
Fax: (847) 966-9052
www.bellgossett.com
© Copyright 2010 ITT Corporation
Printed in U.S.A. 7-10
THE ITT ENGINEERED BLOCKS SYMBOL AND
ENGINEERED FOR LIFE ARE REGISTERED
TRADEMARKS OF ITT MANUFACTURING
ENTERPRISES, INC.
