GRUNDFOS PRODUCT GUIDE
UP Series
Circulation Pumps
60 Hz
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 1
CONTENTS GRUNDFOS SERIES UP
Mission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
General data
TACO CROSS REFERENCE . . . . . . . . . . . . . . . . . . . page 4
B&G CROSS REFERENCE . . . . . . . . . . . . . . . . . . . page 5
ARMSTRONG CROSS REFERENCE. . . . . . . . . . . . page 6
LAING CROSS REFERENCE . . . . . . . . . . . . . . . . . . page 6
UP10-16 CROSS REFERENCE . . . . . . . . . . . . . . . . page 7

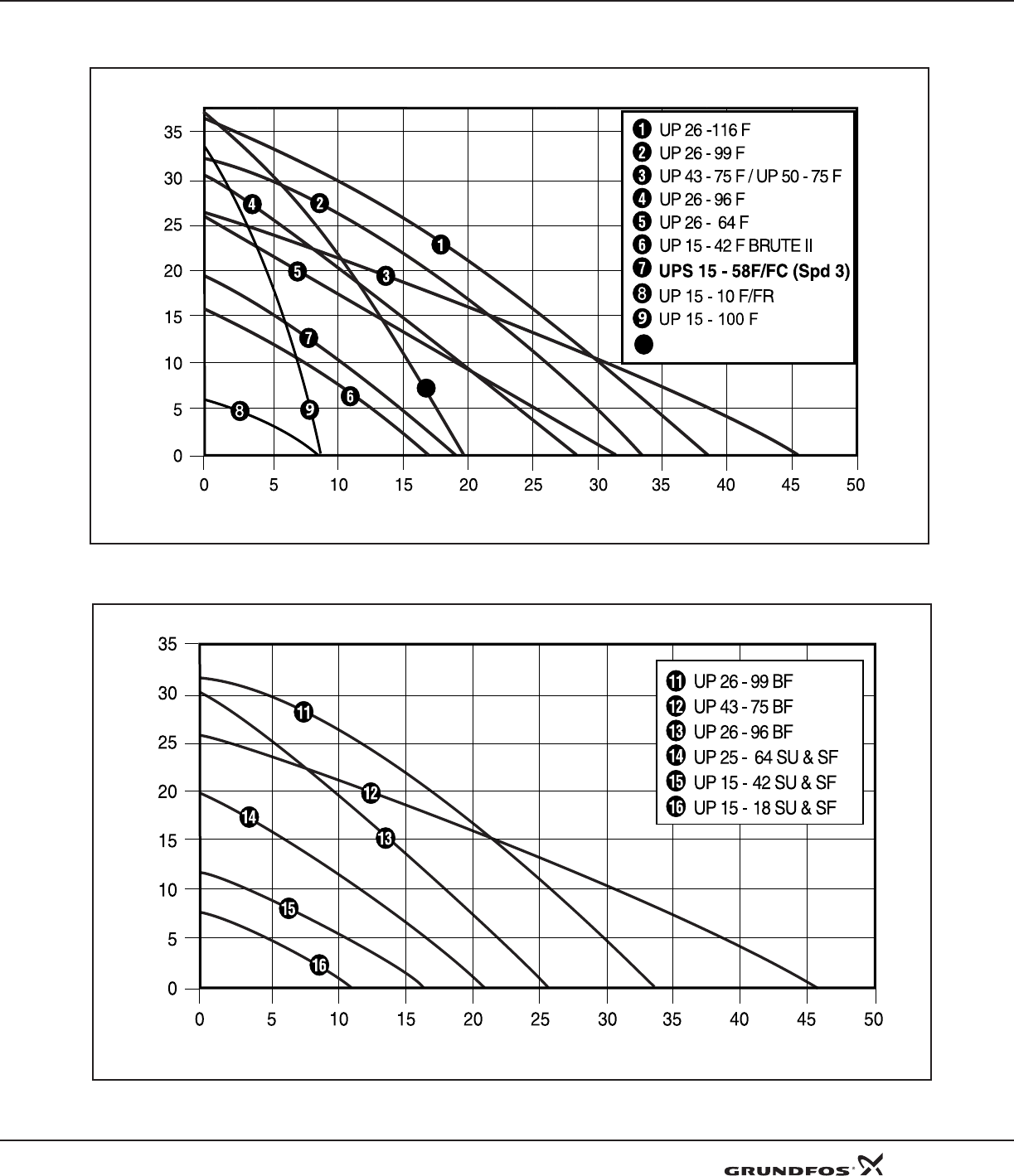

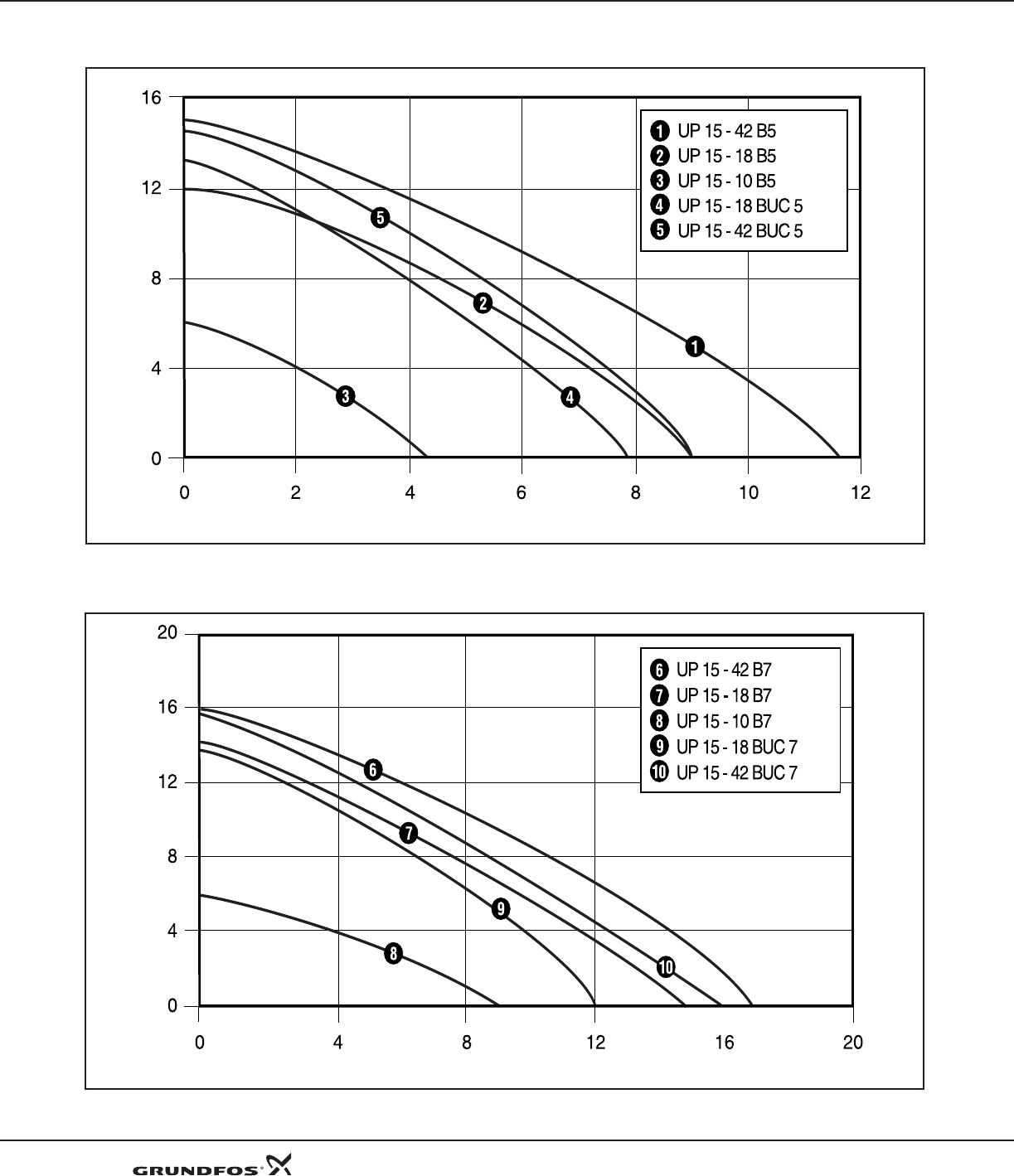

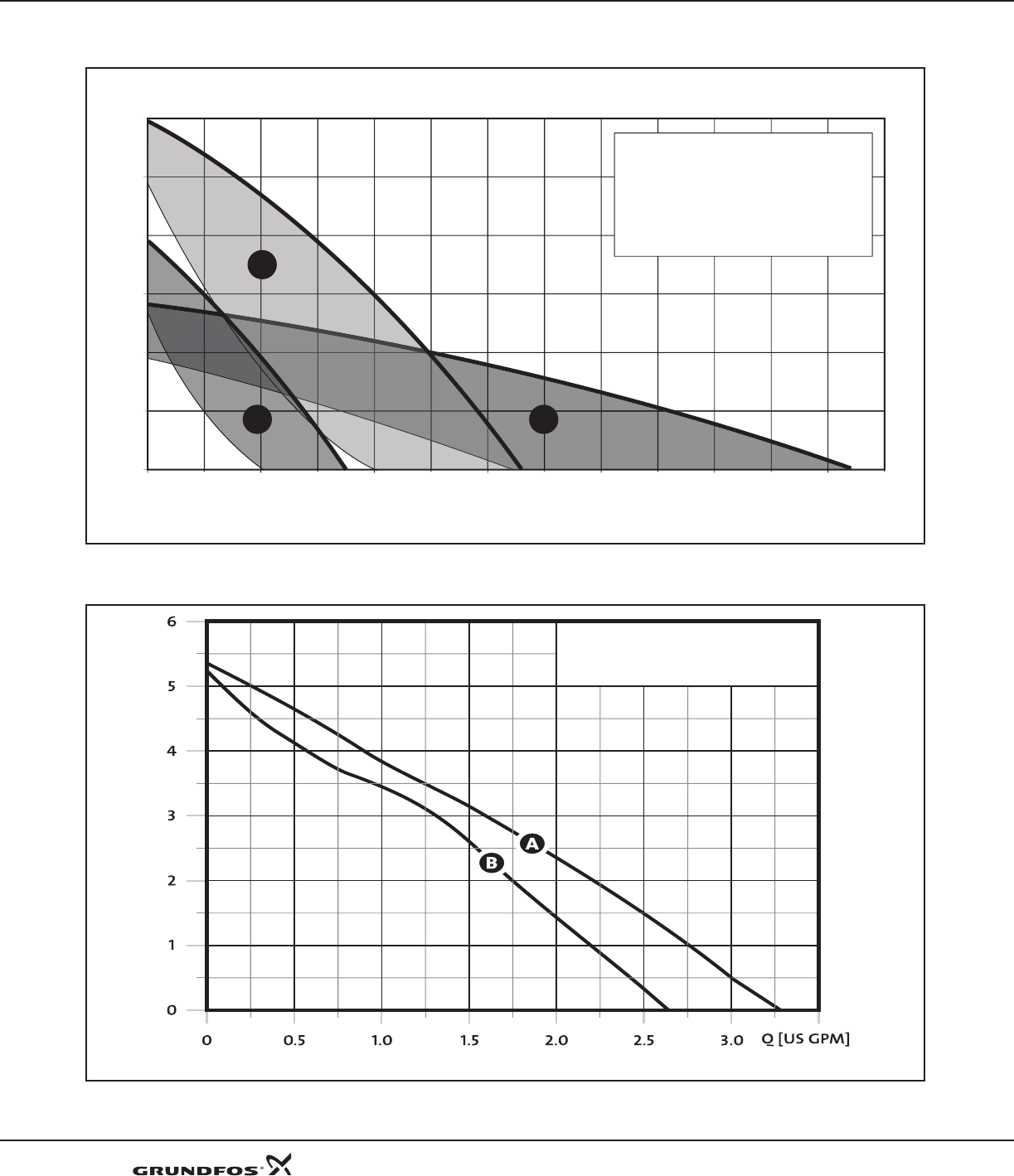

Performance Ranges . . . . . . . . . . . . . . . . . . pages 8-10
Quick Reference (Bronze and Stainless Open Systems) . . page 11
Quick Reference (Cast Iron Closed Systems) . . . . . . . . page 12
Type keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Applications, Heating systems. . . . . . . . . . . . . page 13
Domestic Hot Water Systems. . . . . . . . . . . . . . page 13
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13

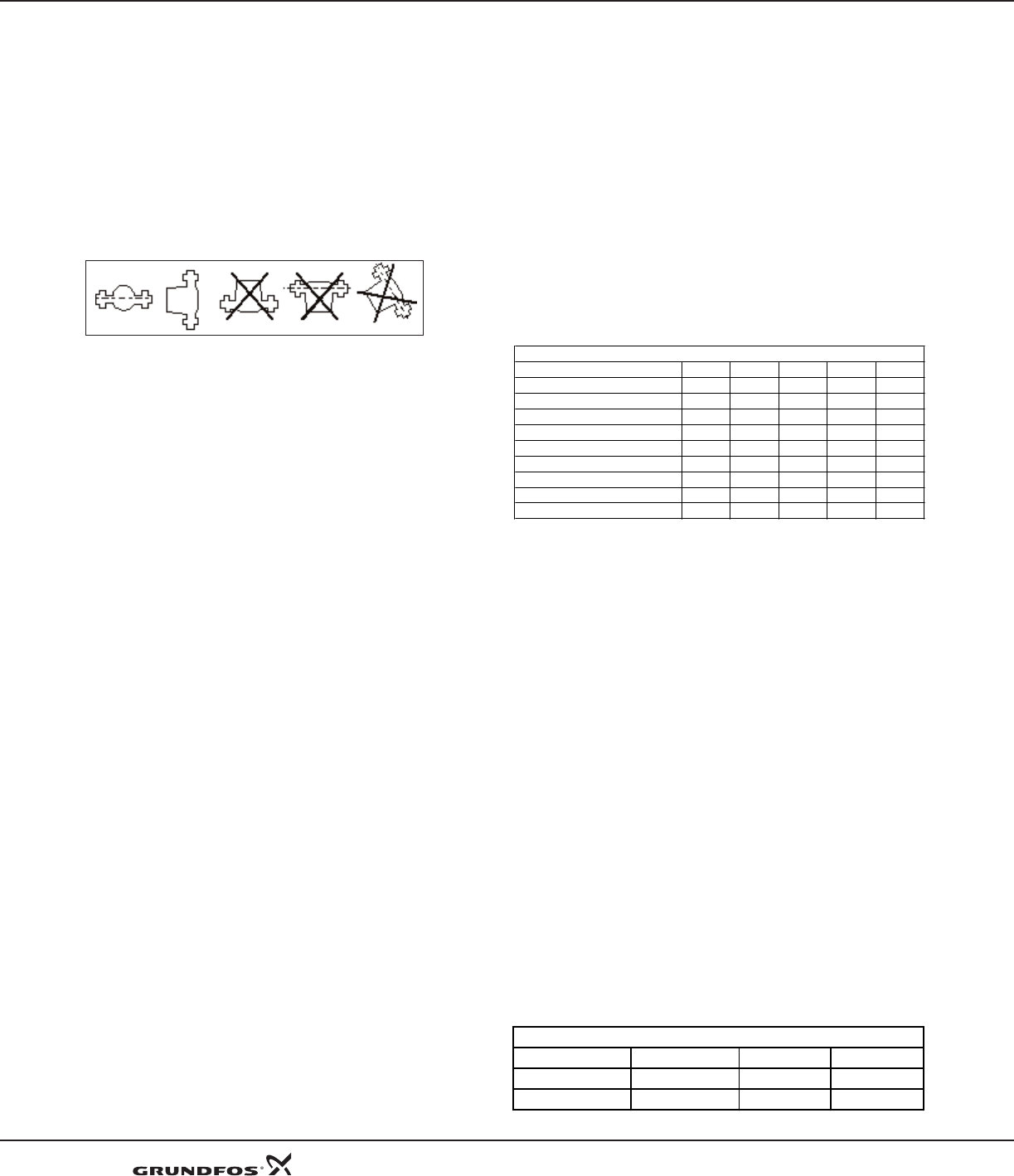

Installation, Motor, Pumped liquids . . . . . . . . page 14
Ambient and liquid temperatures. . . . . . . . . . page 14
Maximum system pressure . . . . . . . . . . . . . . . page 14
Inlet pressure requirements. . . . . . . . . . . . . . . page 14
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Miximizer - Mixing Reset pump. . . . . . . . . . . . page 15
Variable Speed pump. . . . . . . . . . . . . . . . . . . . . page 15
UP10-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Technical data

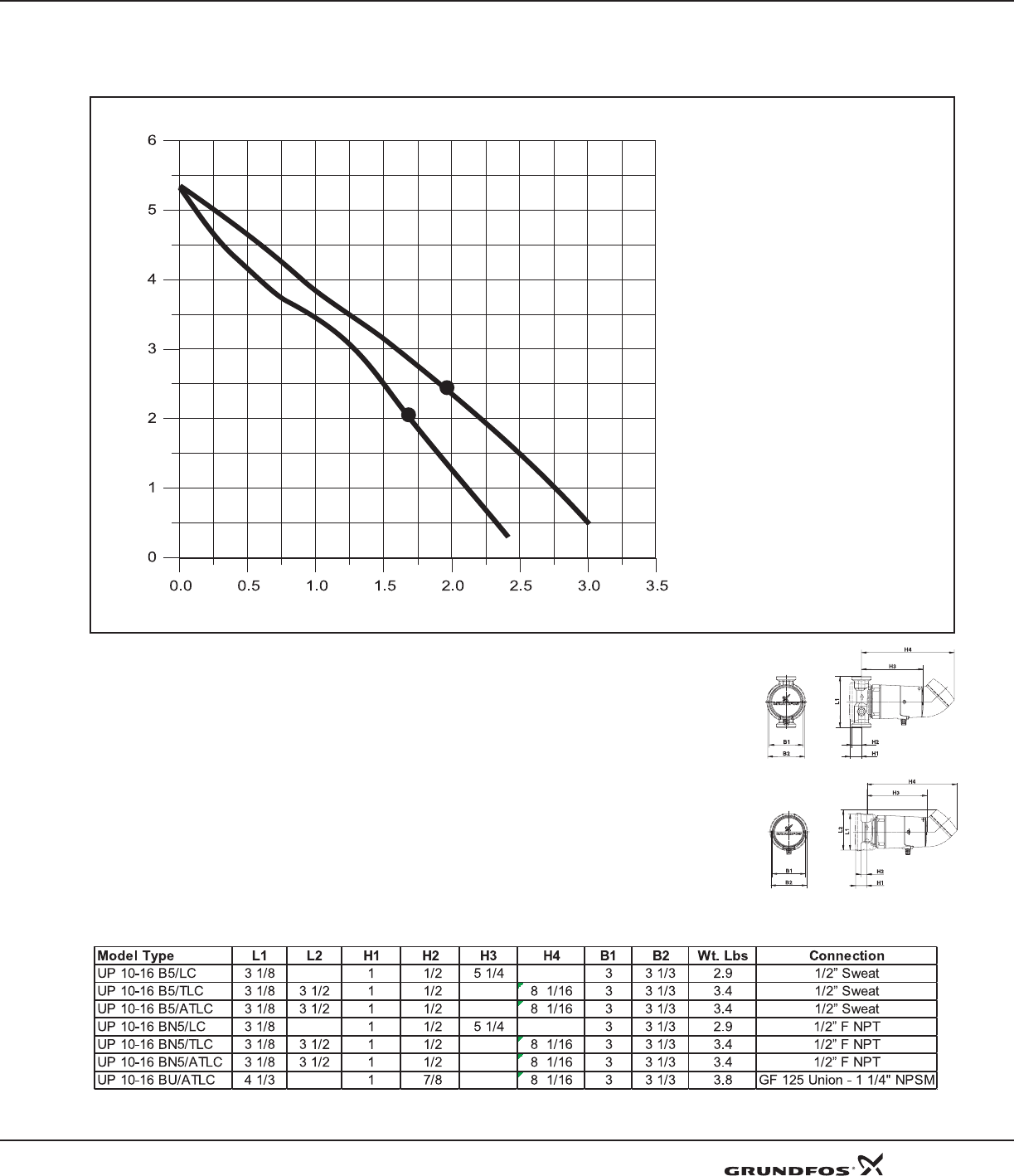

UP 10-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17
UP 15-10B5/B7. . . . . . . . . . . . . . . . . . . . . . . . . . . page 18

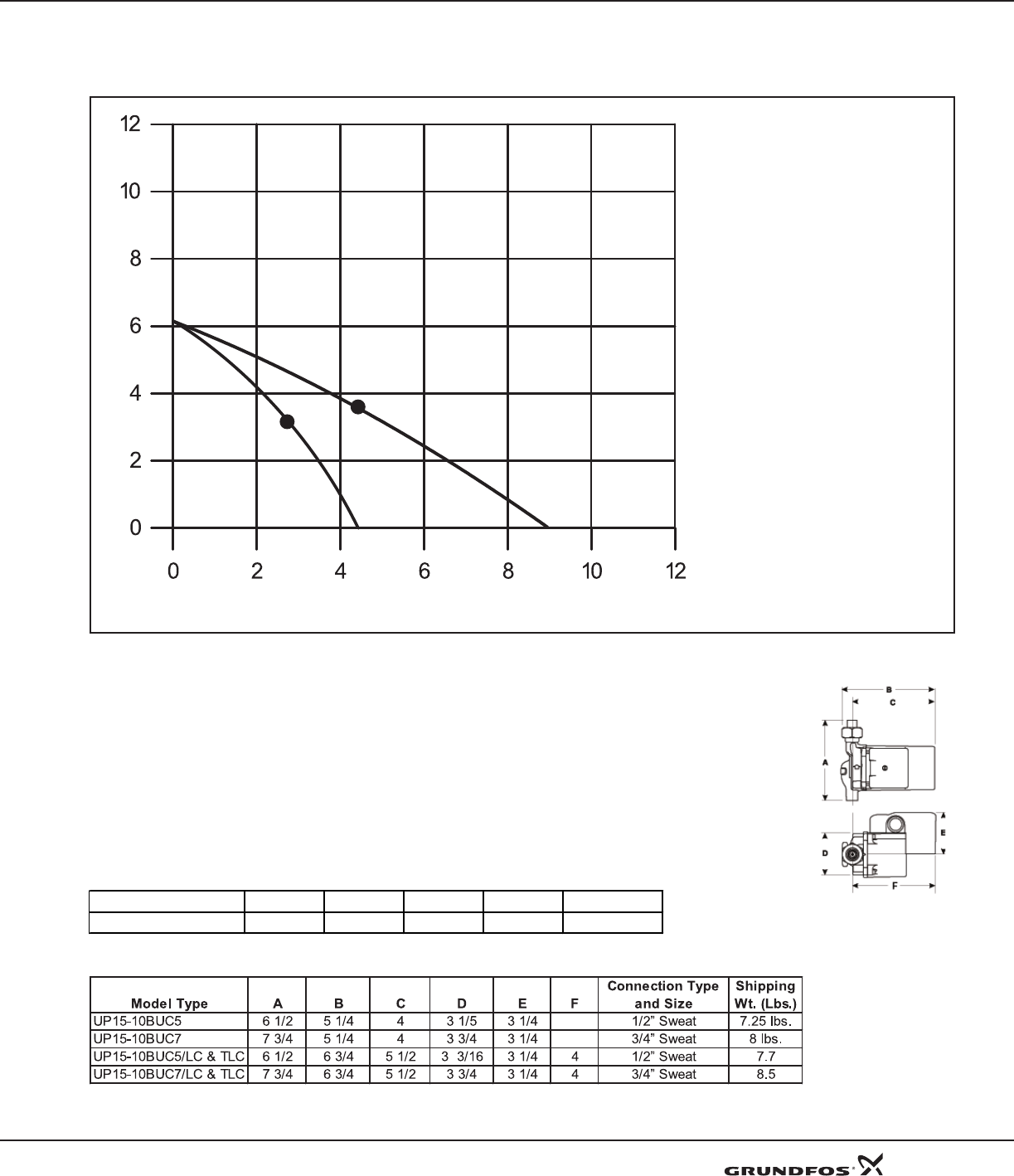

UP 15-10BUC5/7 . . . . . . . . . . . . . . . . . . . . . . . . . page 19
UP 15-10F/FR . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

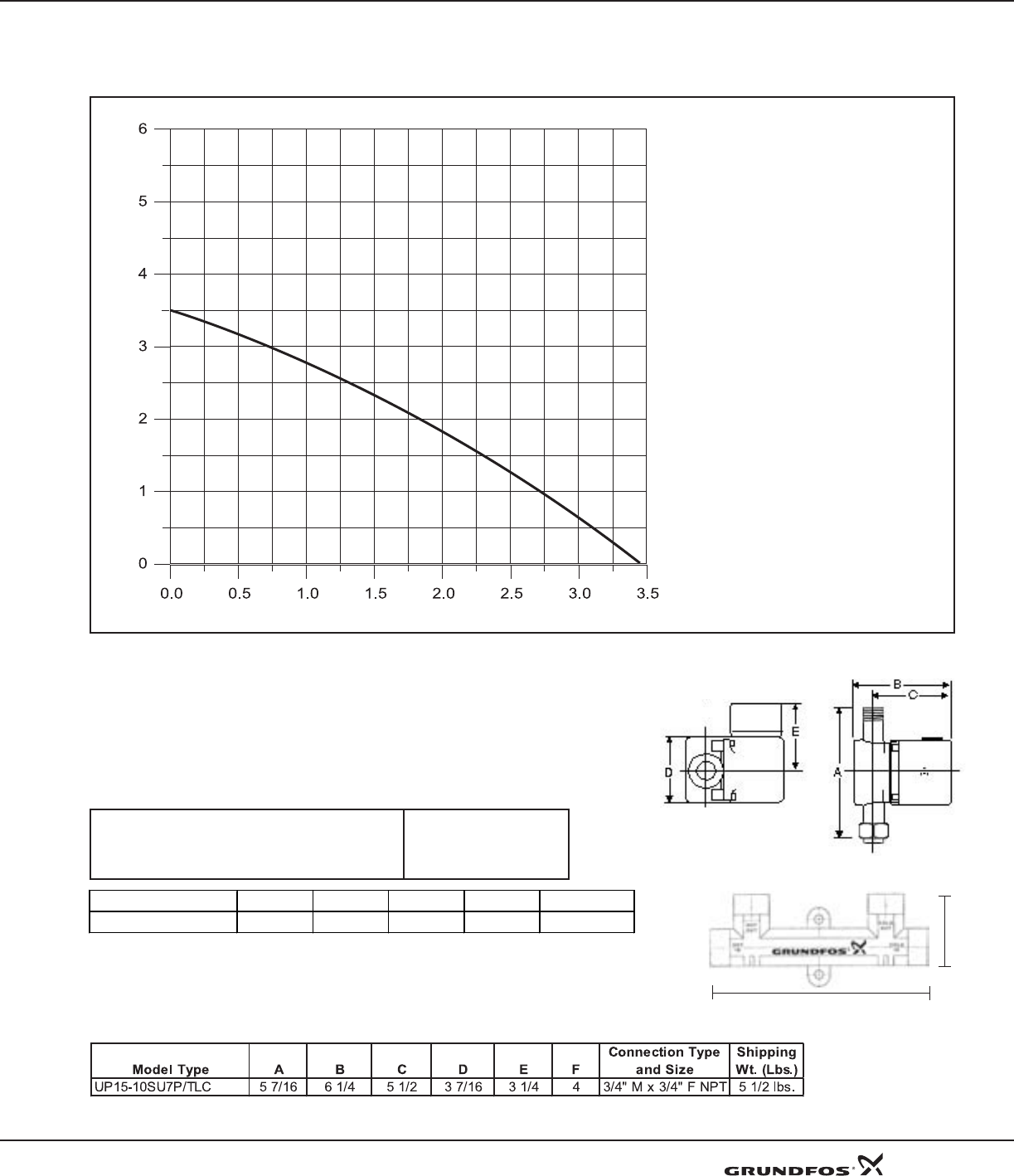

UP 15-10SU7P/TLC (COMFORT SYSTEM) . . . . . page 21
UP 15-18B5/B7 . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22
UP 15-18BUC5/BUC7. . . . . . . . . . . . . . . . . . . . . . page 23

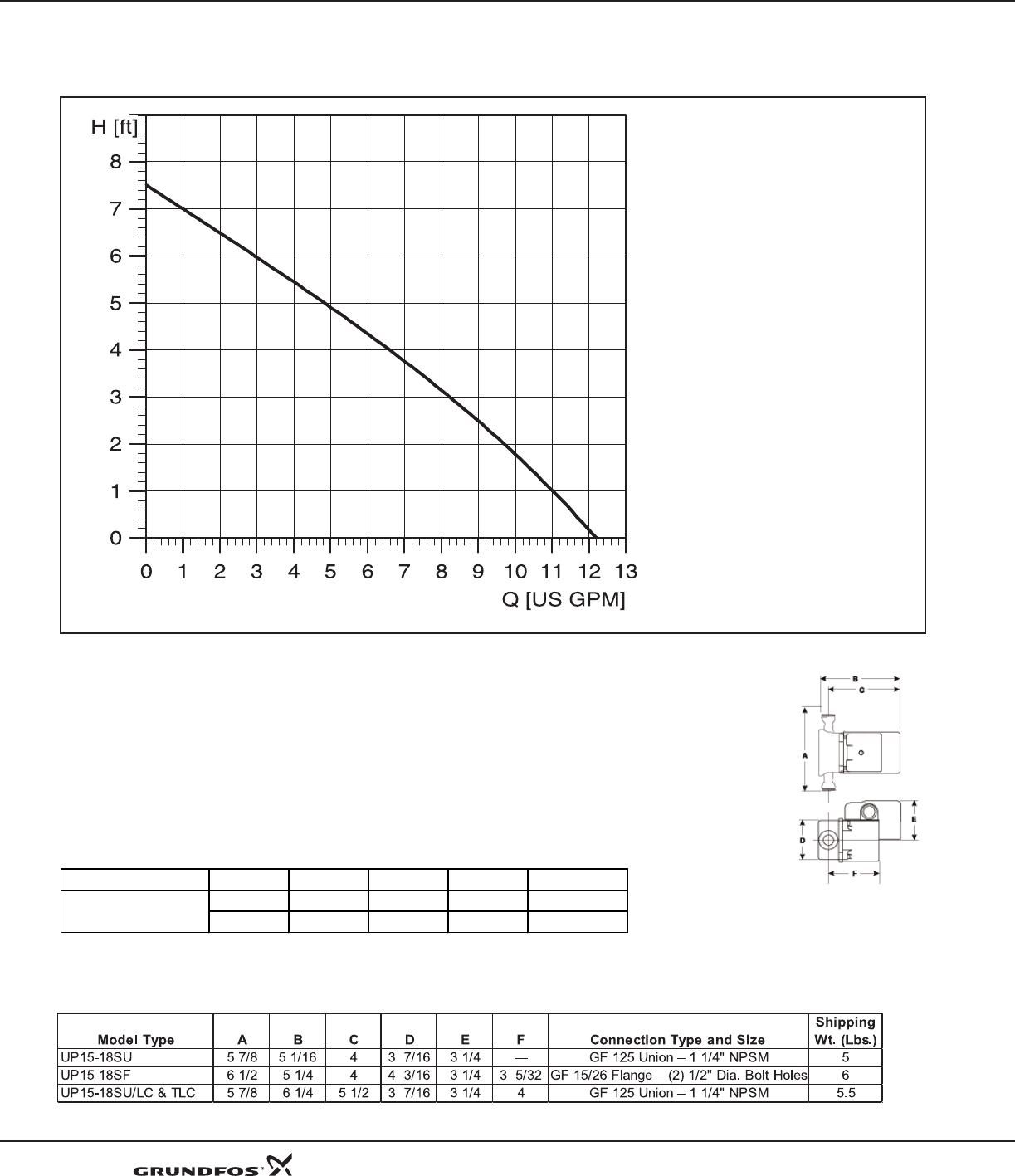

UP 15-18SU/SF. . . . . . . . . . . . . . . . . . . . . . . . . . . page 24

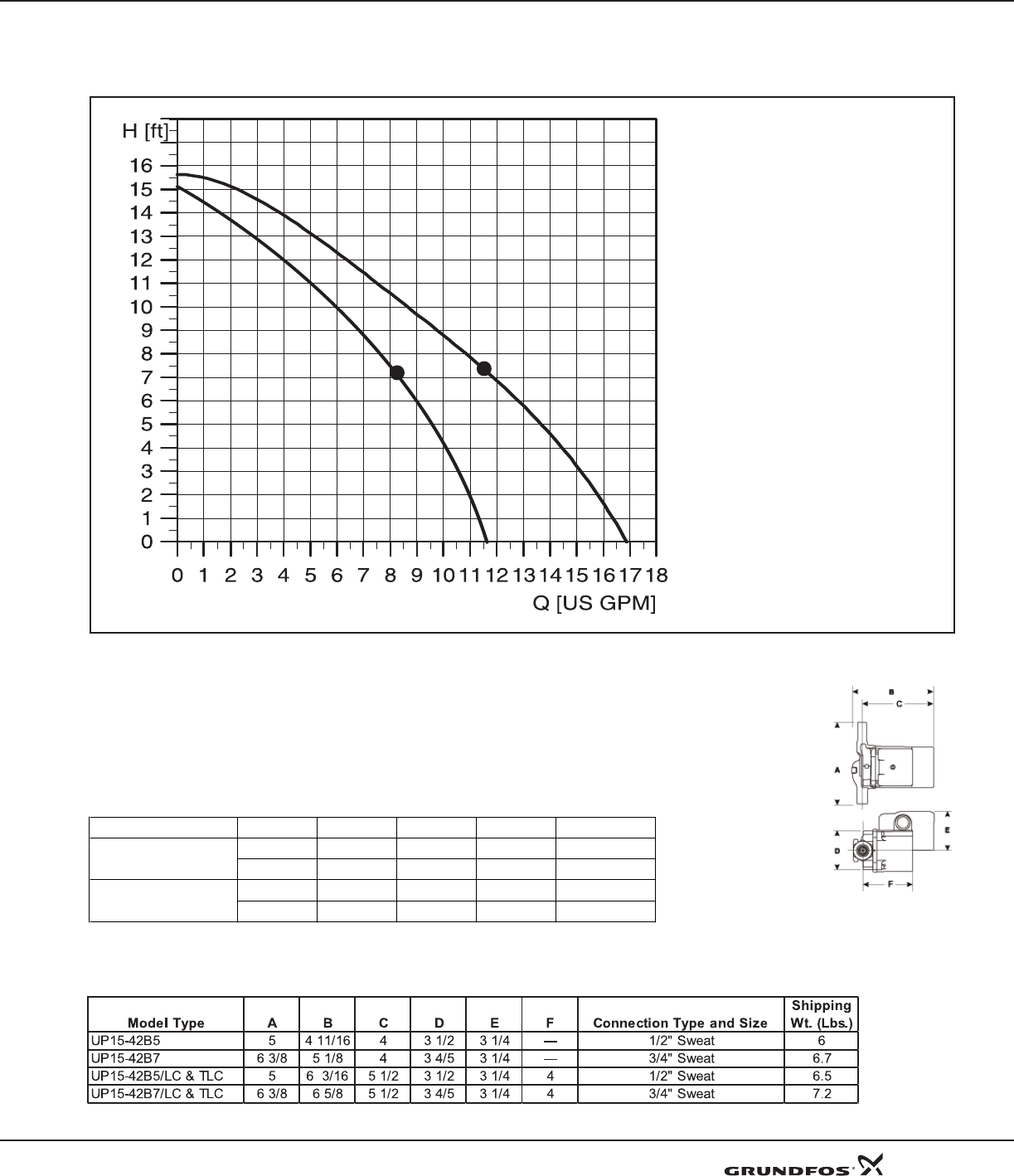

UP 15-42B5/B7. . . . . . . . . . . . . . . . . . . . . . . . . . . page 25
UP 15-42BUC5/BUC7 . . . . . . . . . . . . . . . . . . . . . page 26
UP 15-42BUCX/MR (MIXIMIZER) . . . . . . . . . . . page 27
UP 15-42FC/MR (MIXIMIZER) . . . . . . . . . . . . . . page 28

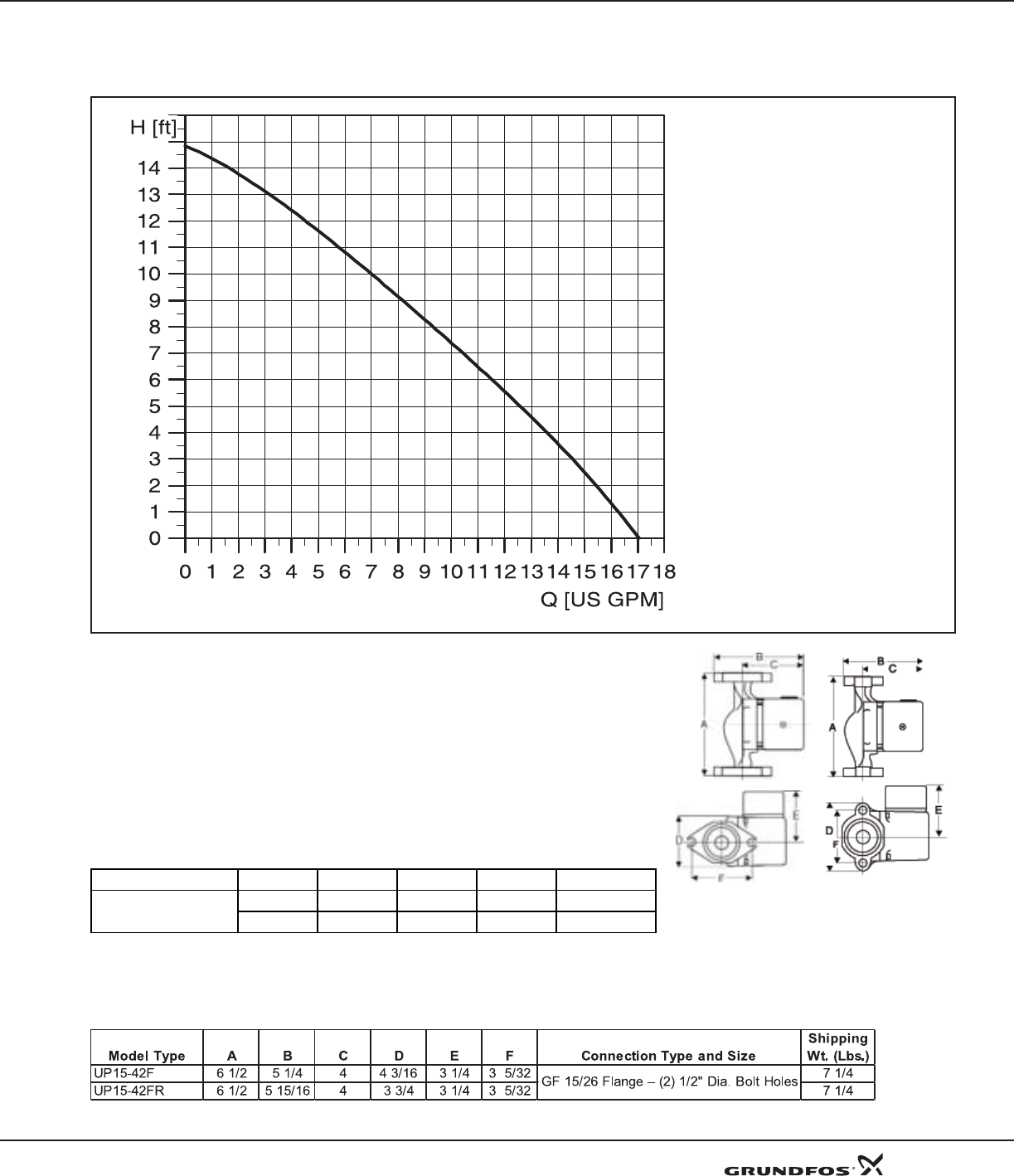

UP 15-42F/FR. . . . . . . . . . . . . . . . . . . . . . . . . . . . page 29
UP 15-42F/VS. . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

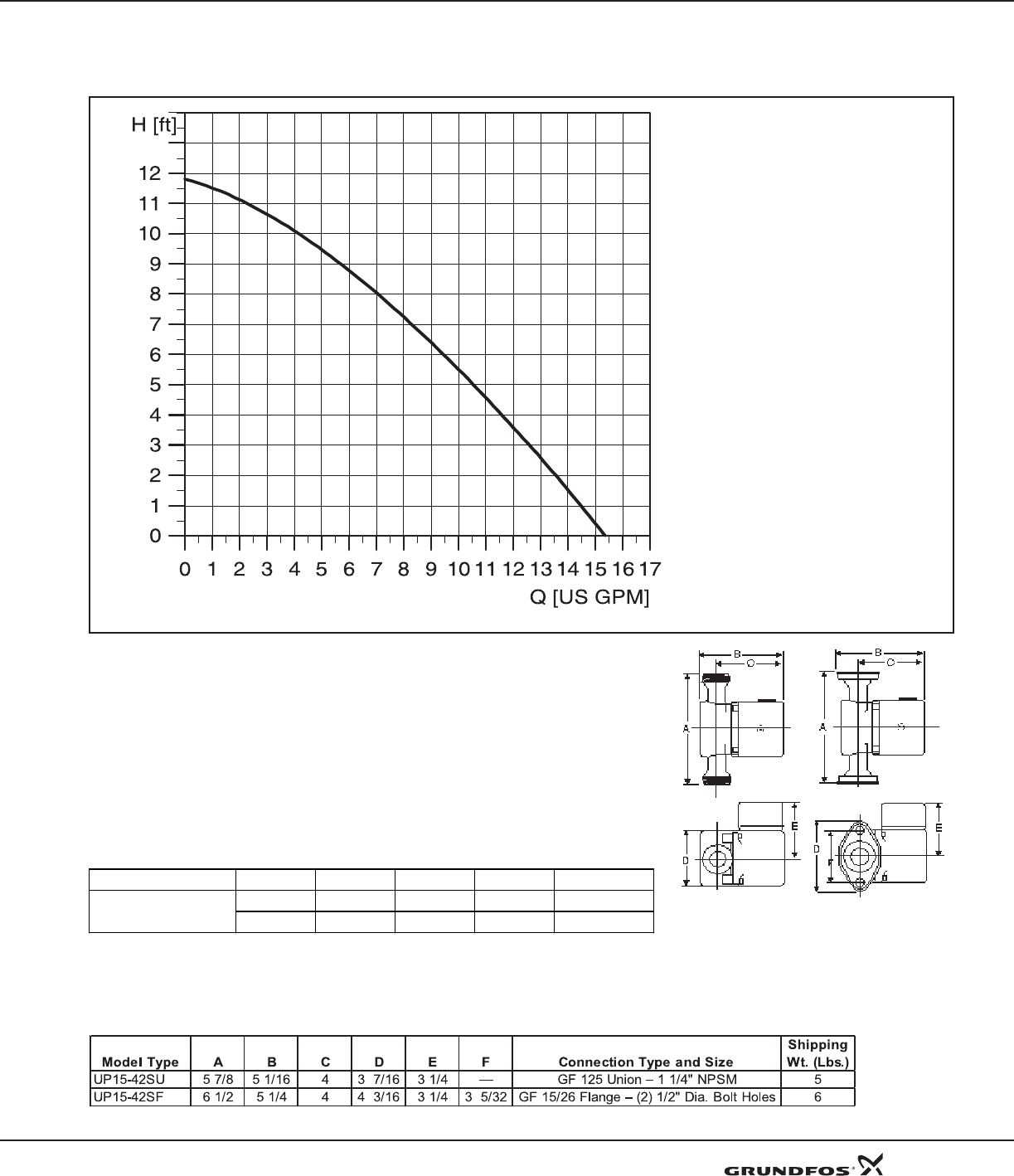

UP 15-42SU/SF. . . . . . . . . . . . . . . . . . . . . . . . . . . page 31

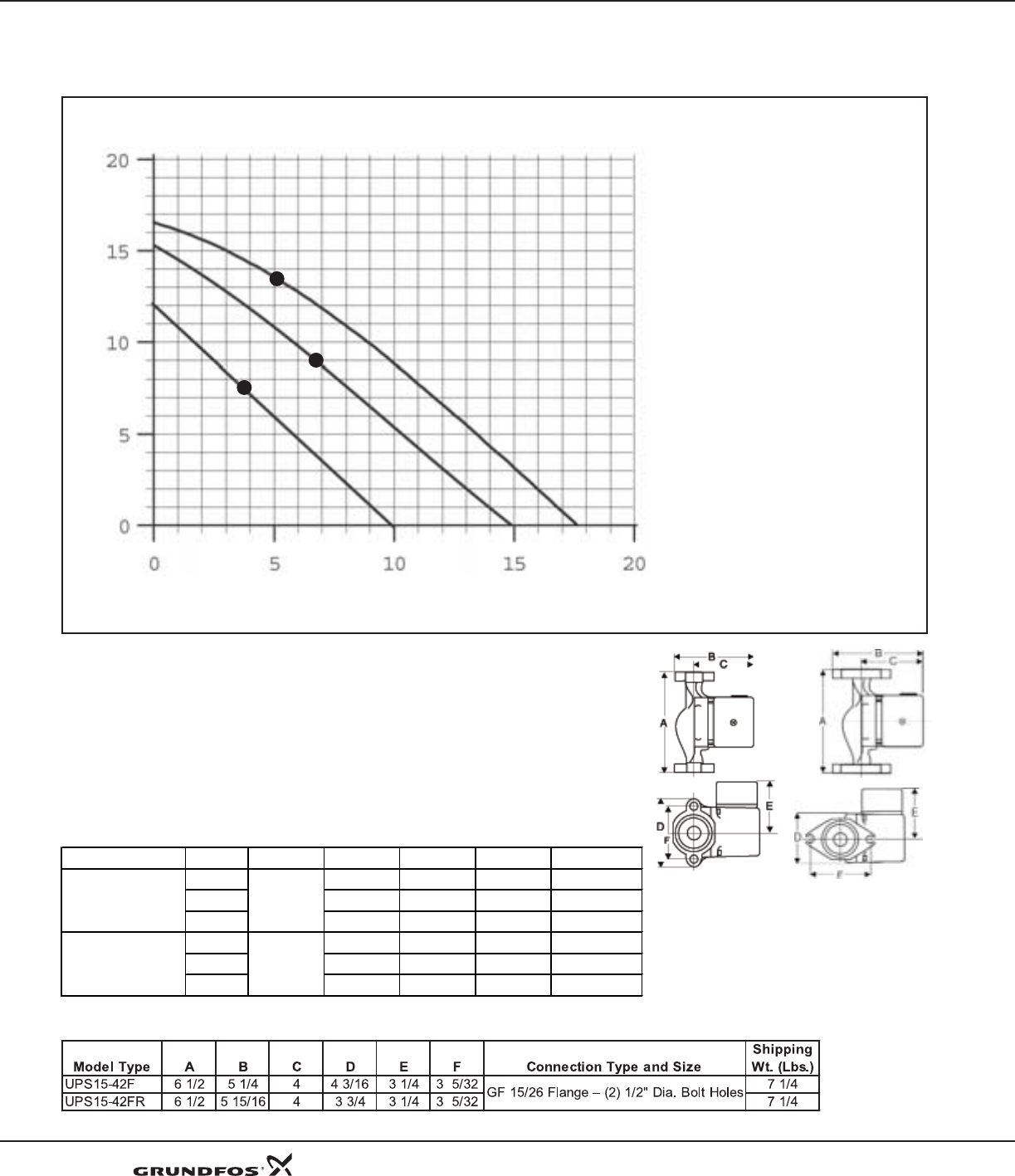

UPS 15-42F/FR . . . . . . . . . . . . . . . . . . . . . . . . . . . page 32

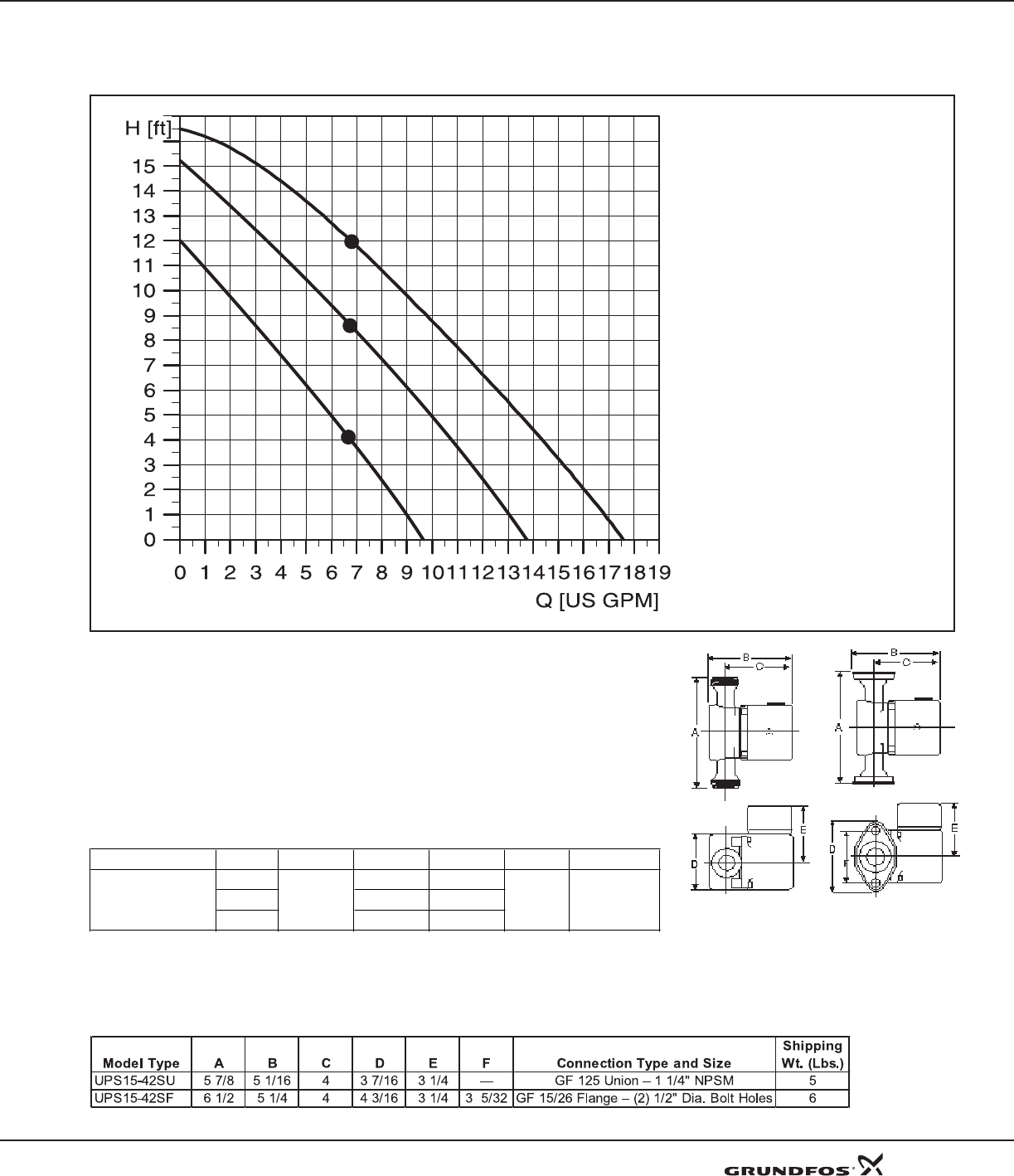

UPS 15-42SU,SF . . . . . . . . . . . . . . . . . . . . . . . . . . page 33

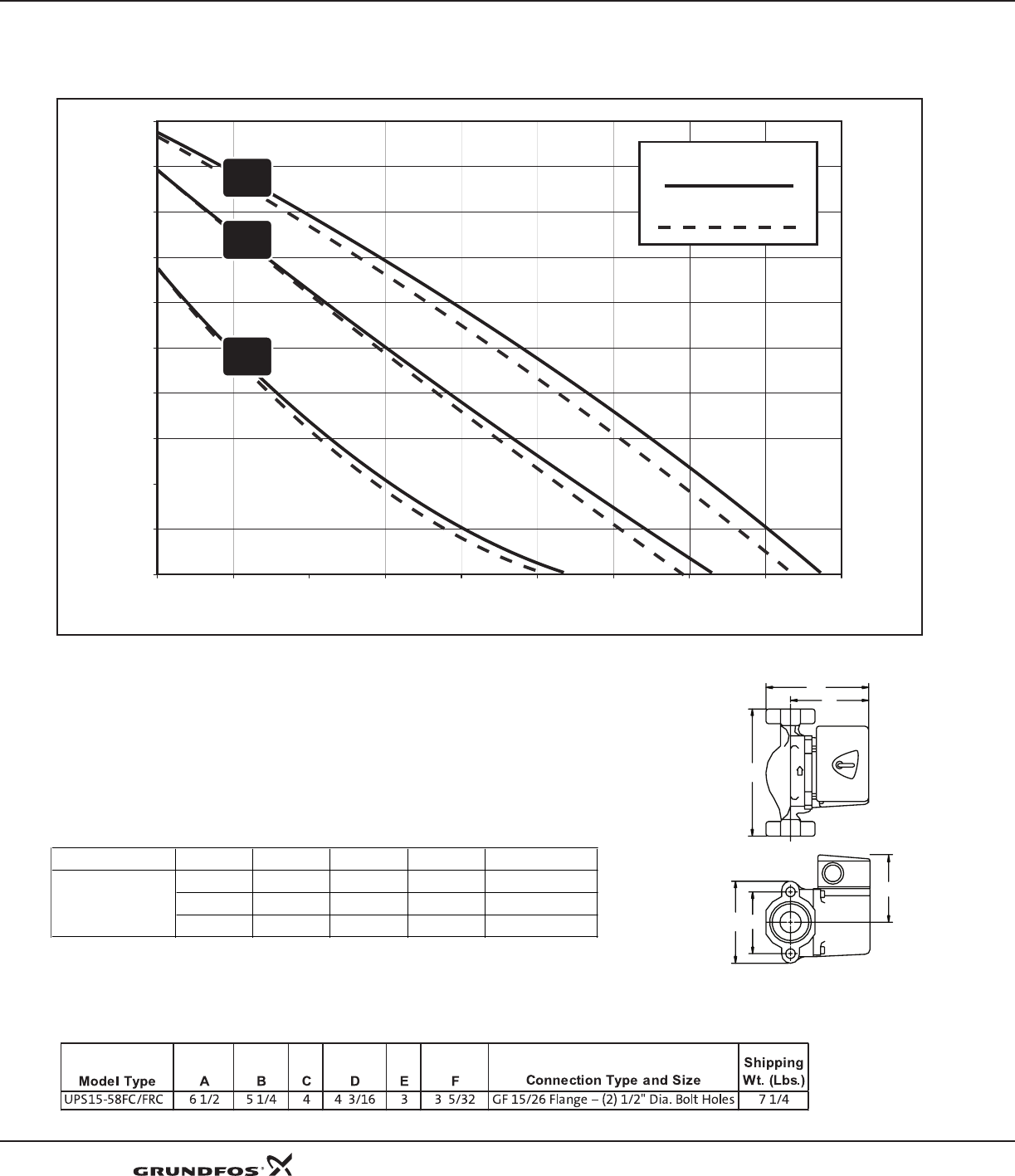

UPS 15-58FC/FRC (SUPERBRUTE) . . . . . . . . . . . page 34

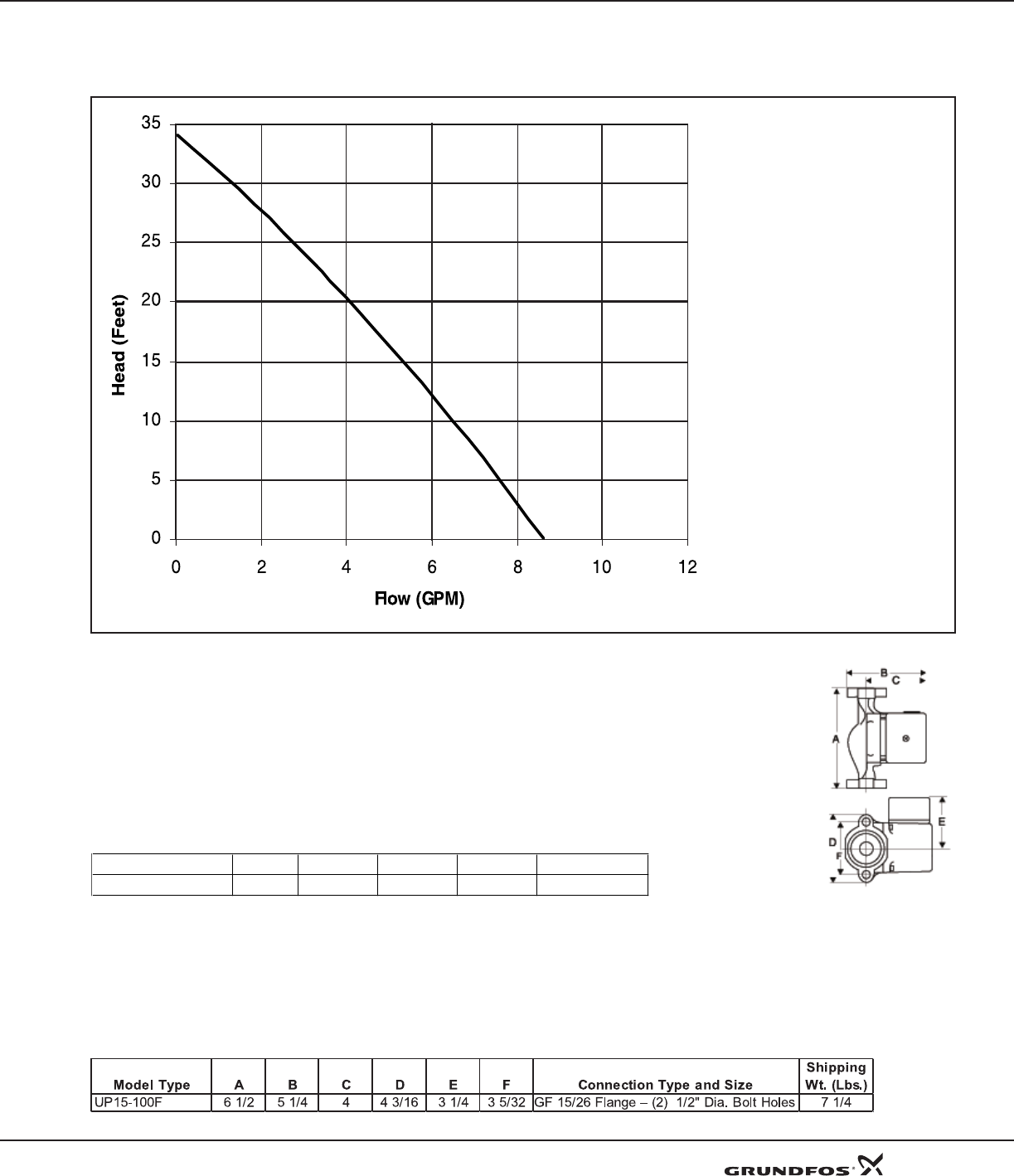

UP 15-100F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 35

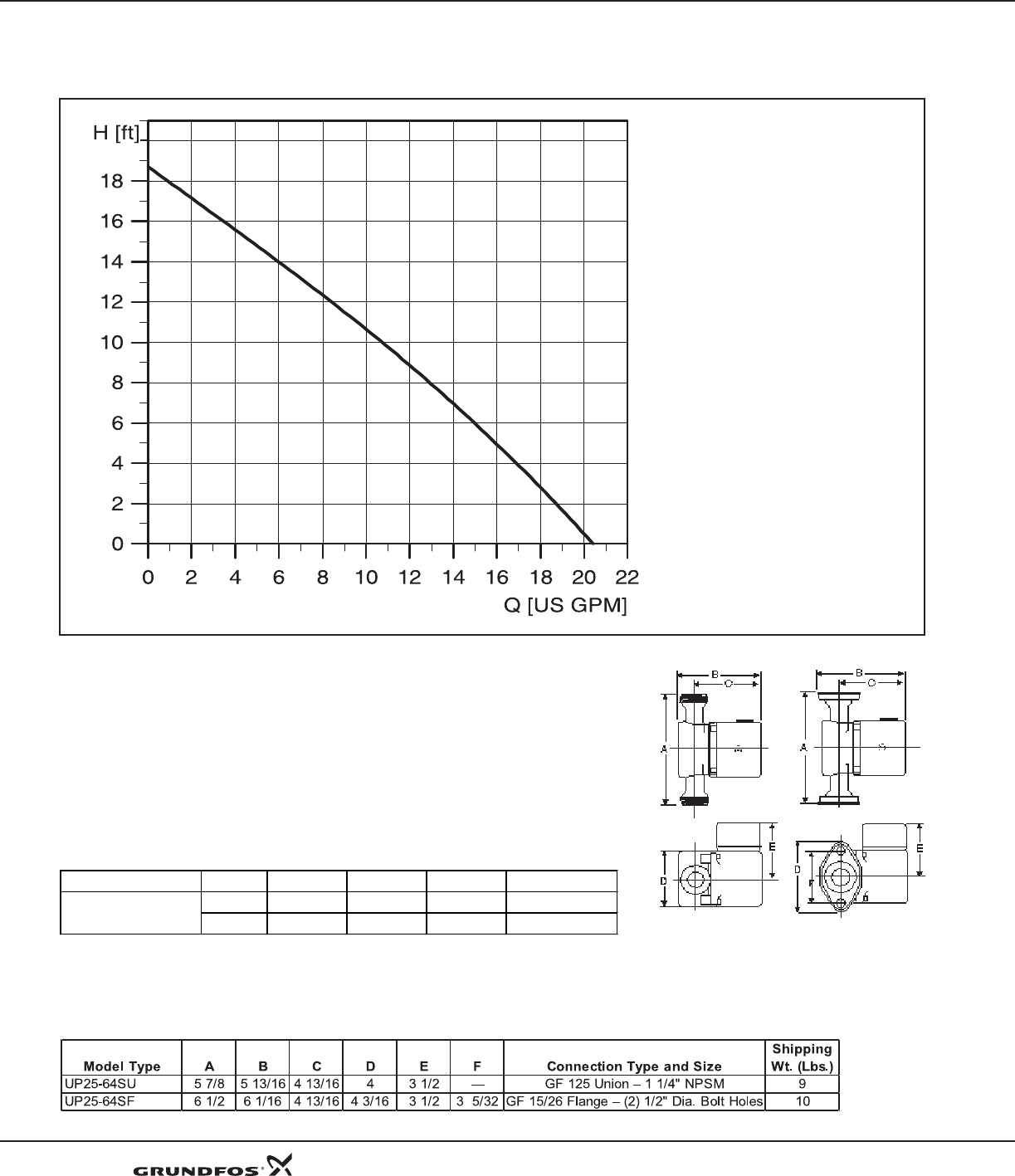

UP 25-64SU/SF . . . . . . . . . . . . . . . . . . . . . . . . . . page 36
UP 26-64F. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 37

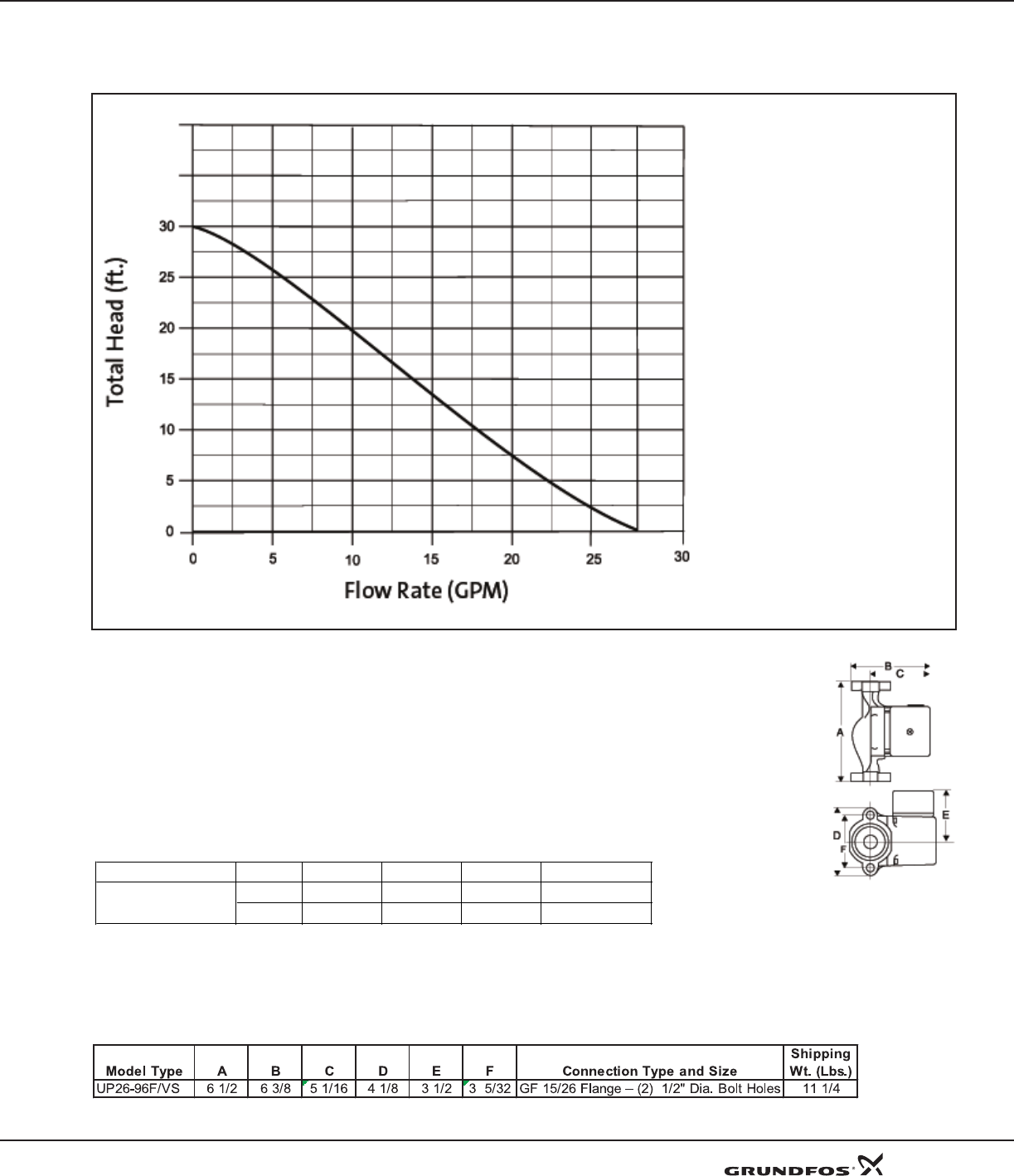

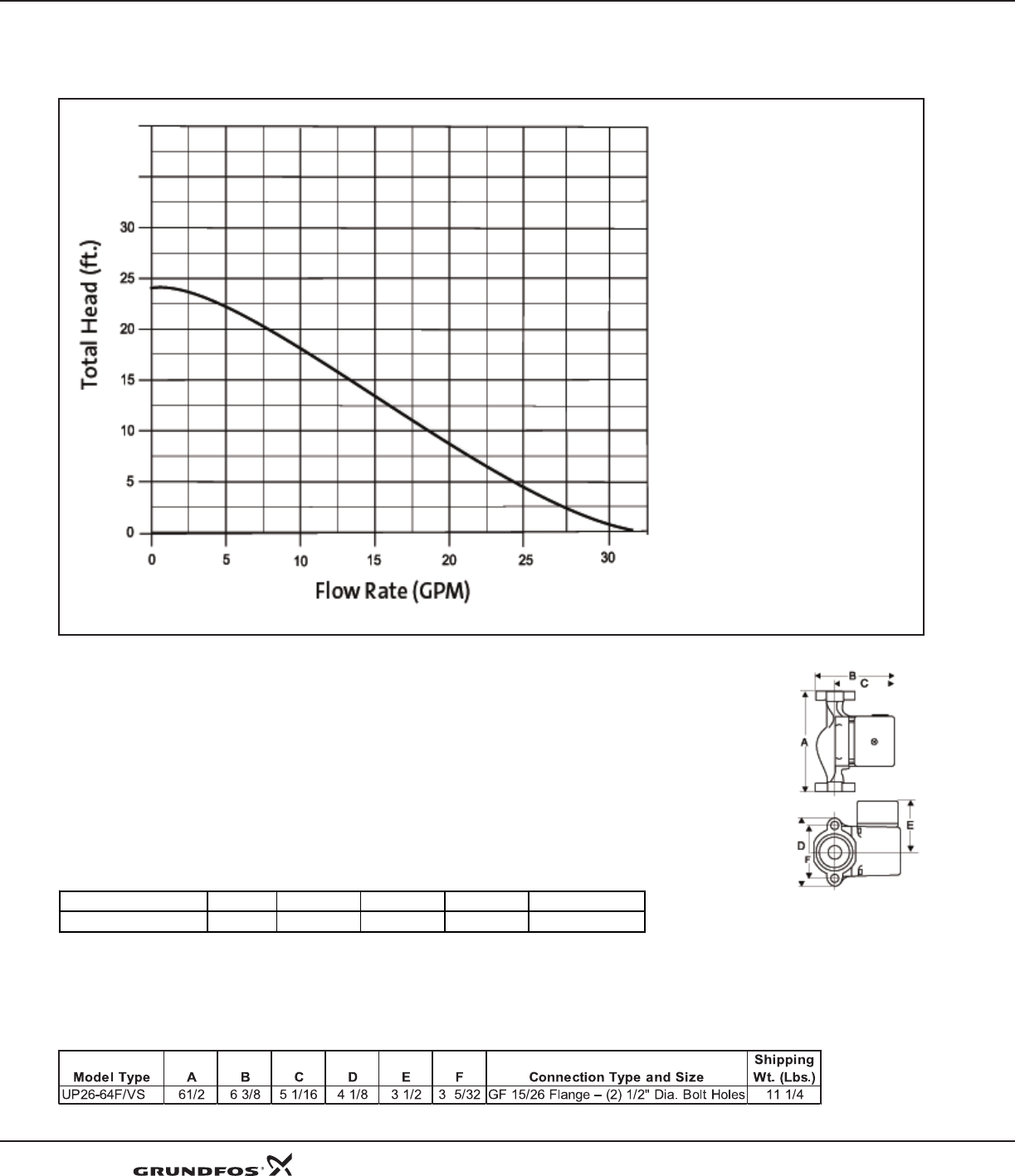

UP 26-64F/VS . . . . . . . . . . . . . . . . . . . . . . . . . . . page 38

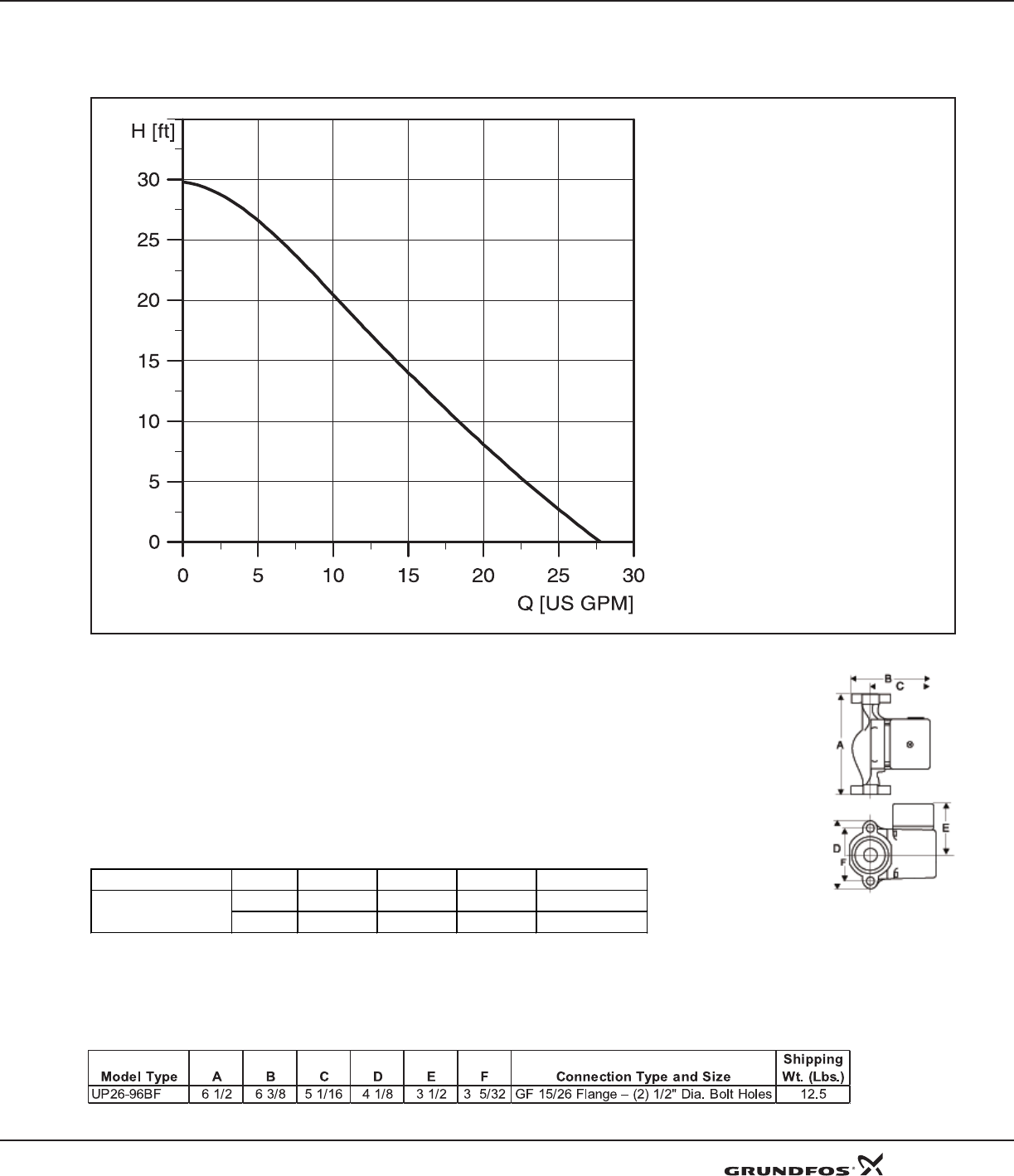

UP 26-96BF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 39

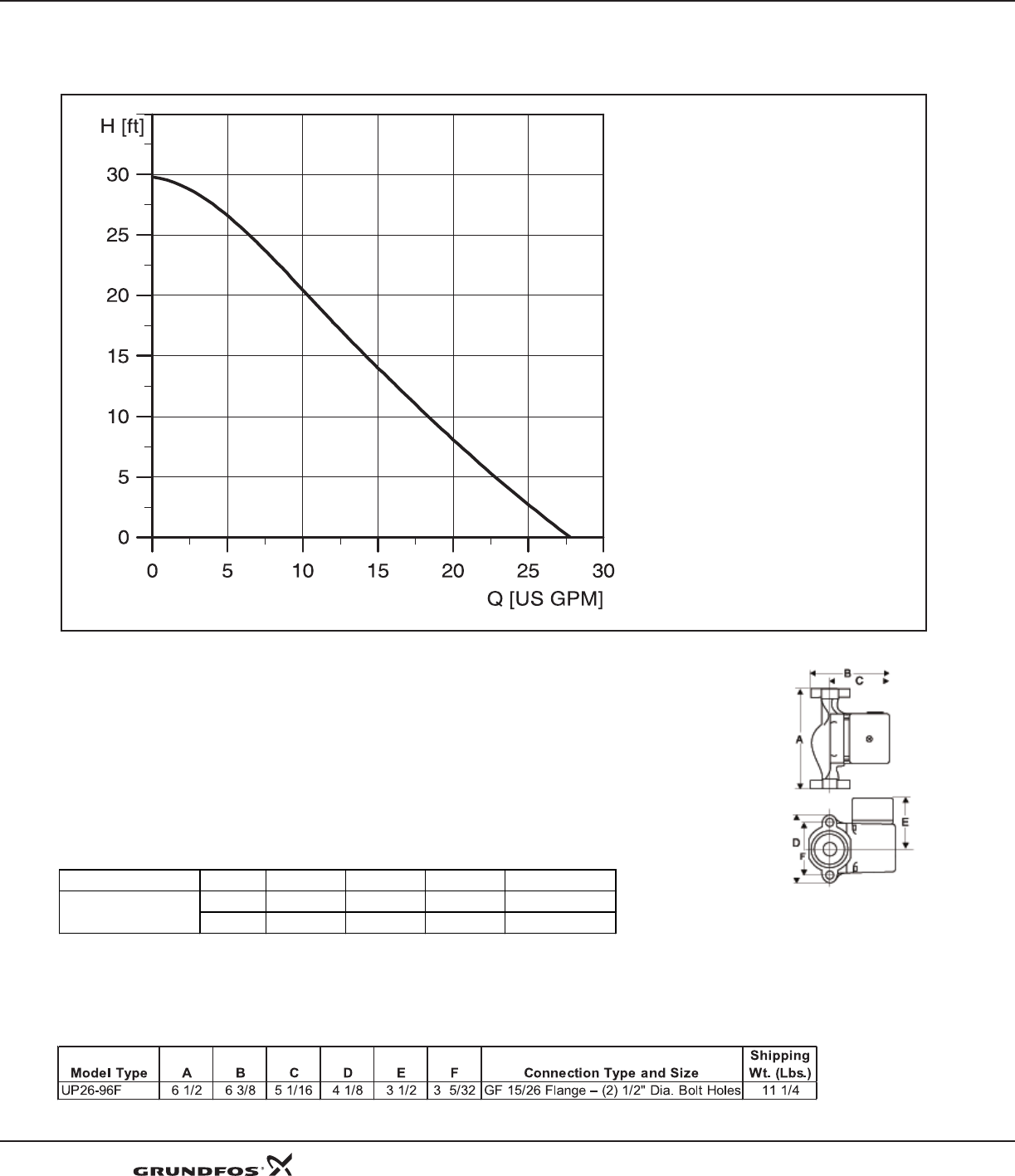

UP 26-96F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 40
UP 26-96F/VS . . . . . . . . . . . . . . . . . . . . . . . . . . . page 41
UP 26-99BF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 42

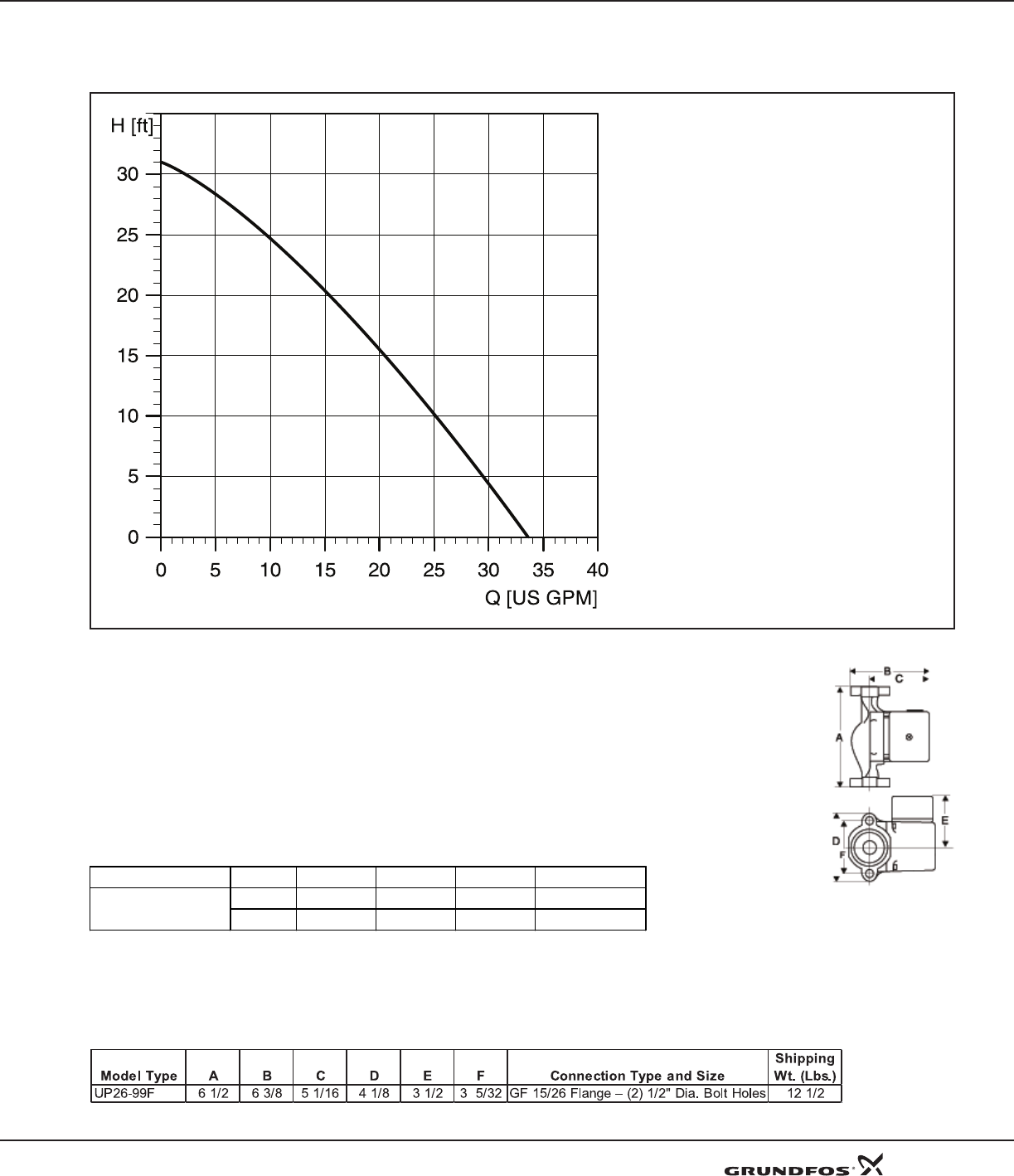

UP 26-99F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 43
UPS 26-99 FC/BFC (SUPER BRUTE). . . . . . . . . . page 44

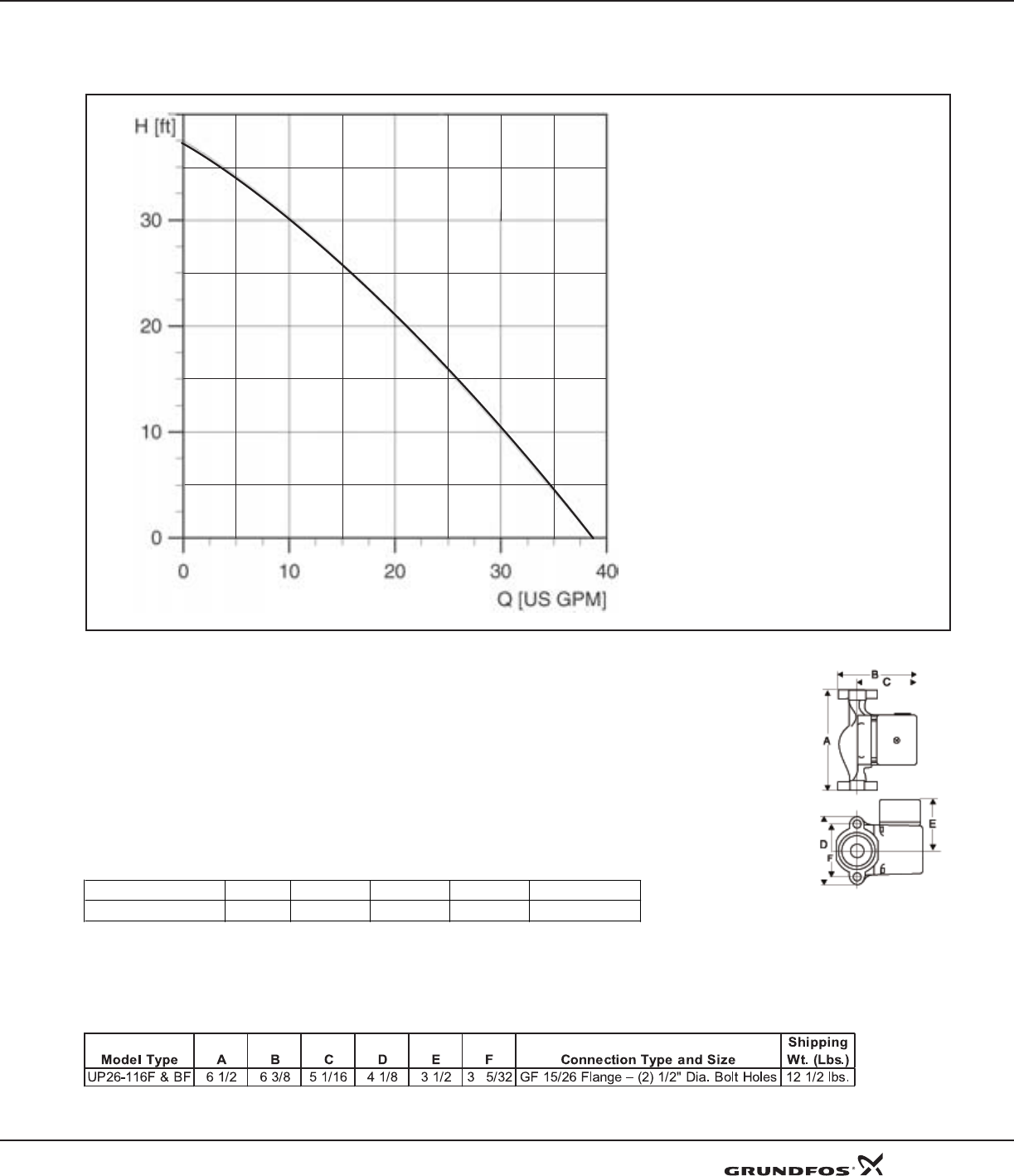

UP 26-116F & BF . . . . . . . . . . . . . . . . . . . . . . . . . page 45

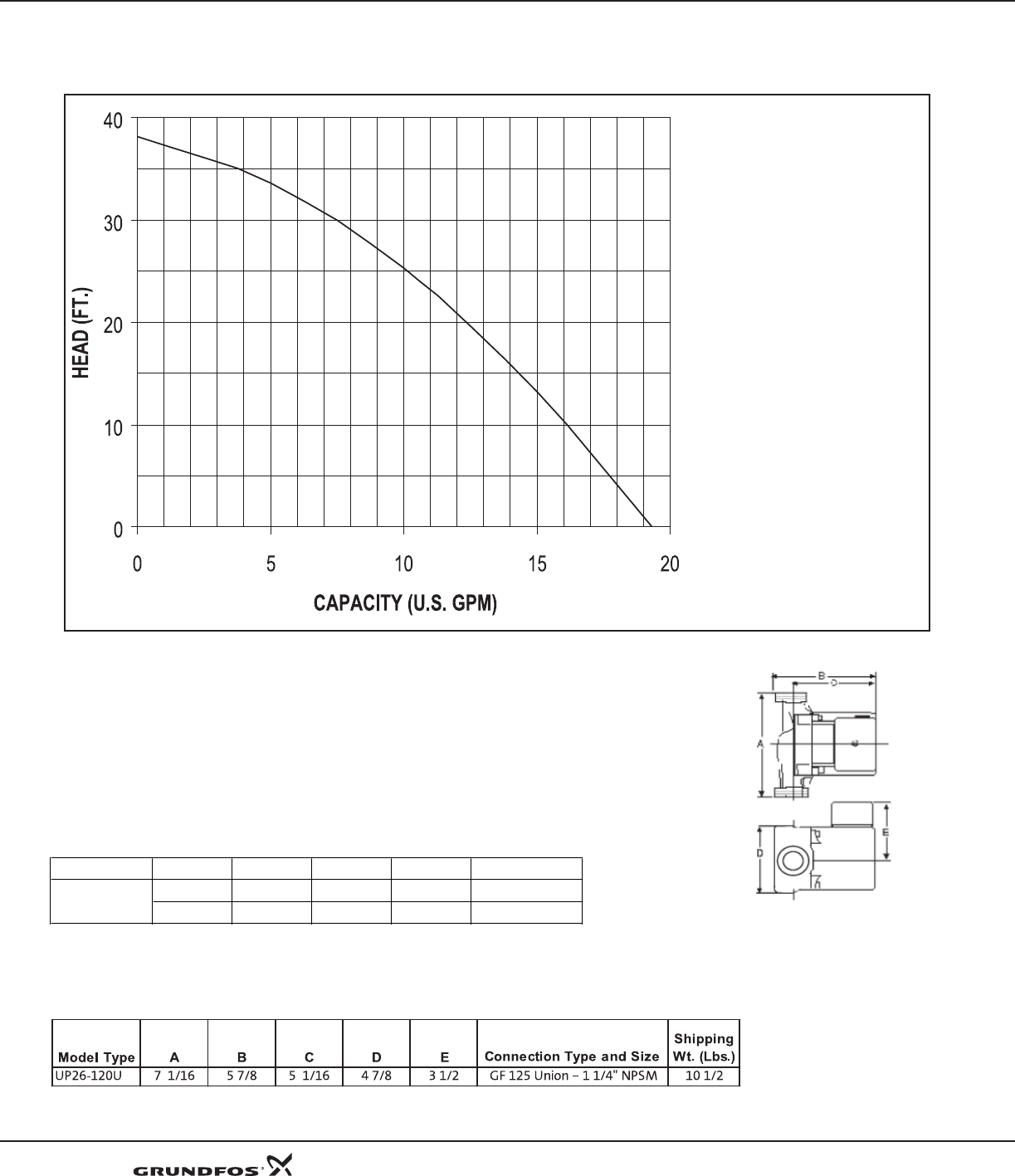

UP 26-120U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 46

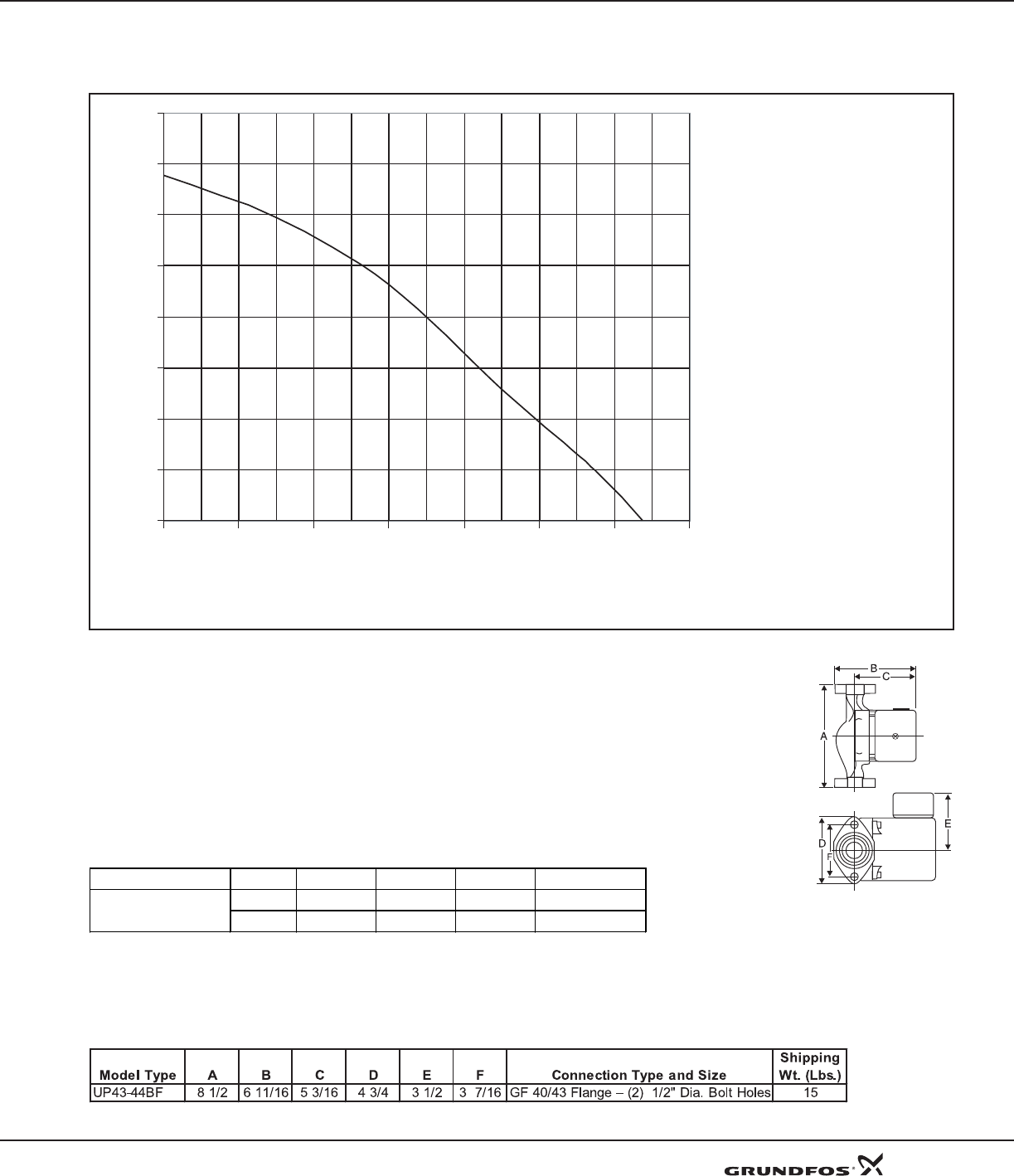

UP 43-44BF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 47

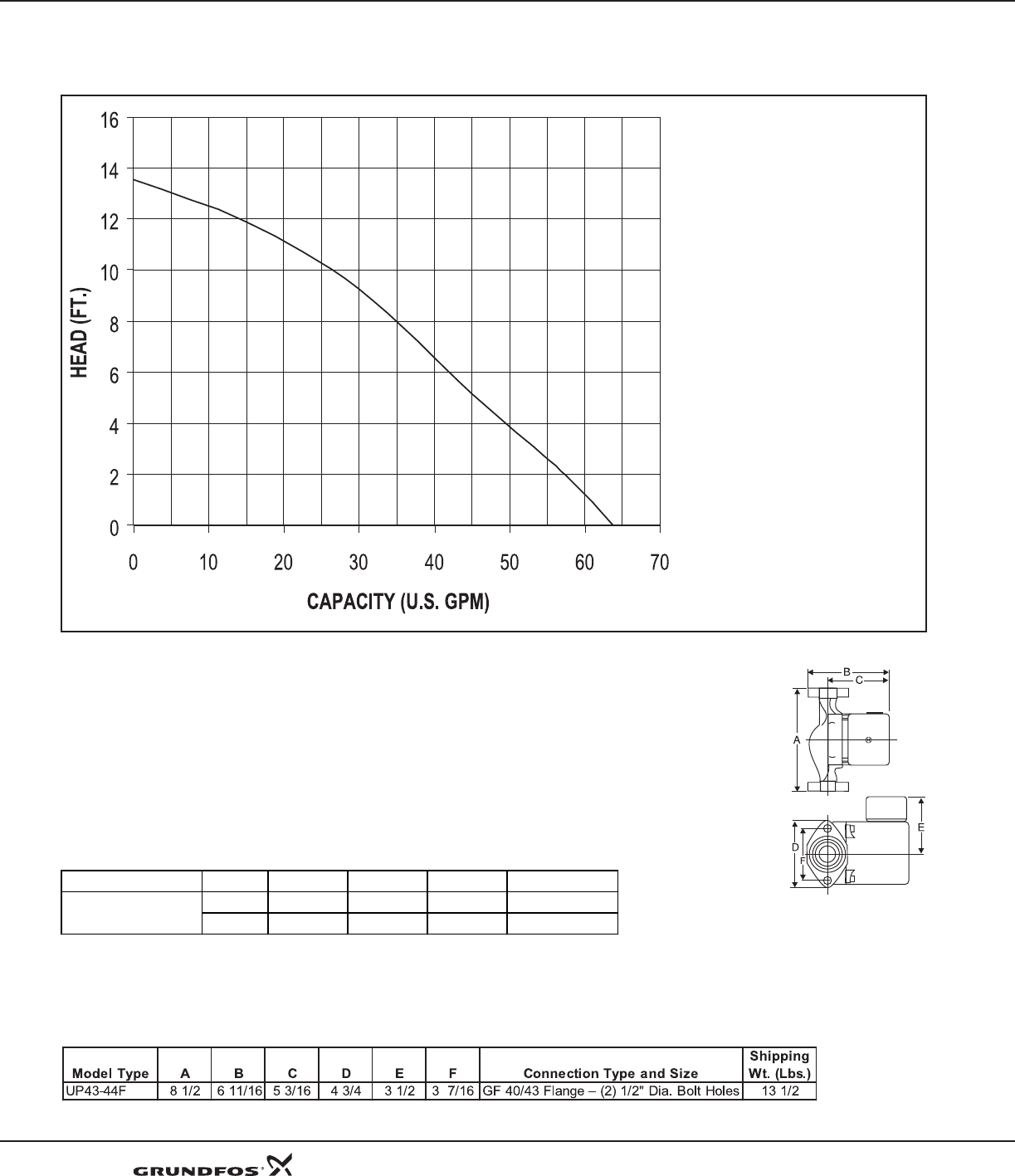

UP 43-44F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 48
UPS 43-44 FC/BFC (SUPER BRUTE) . . . . . . . . . . page 49

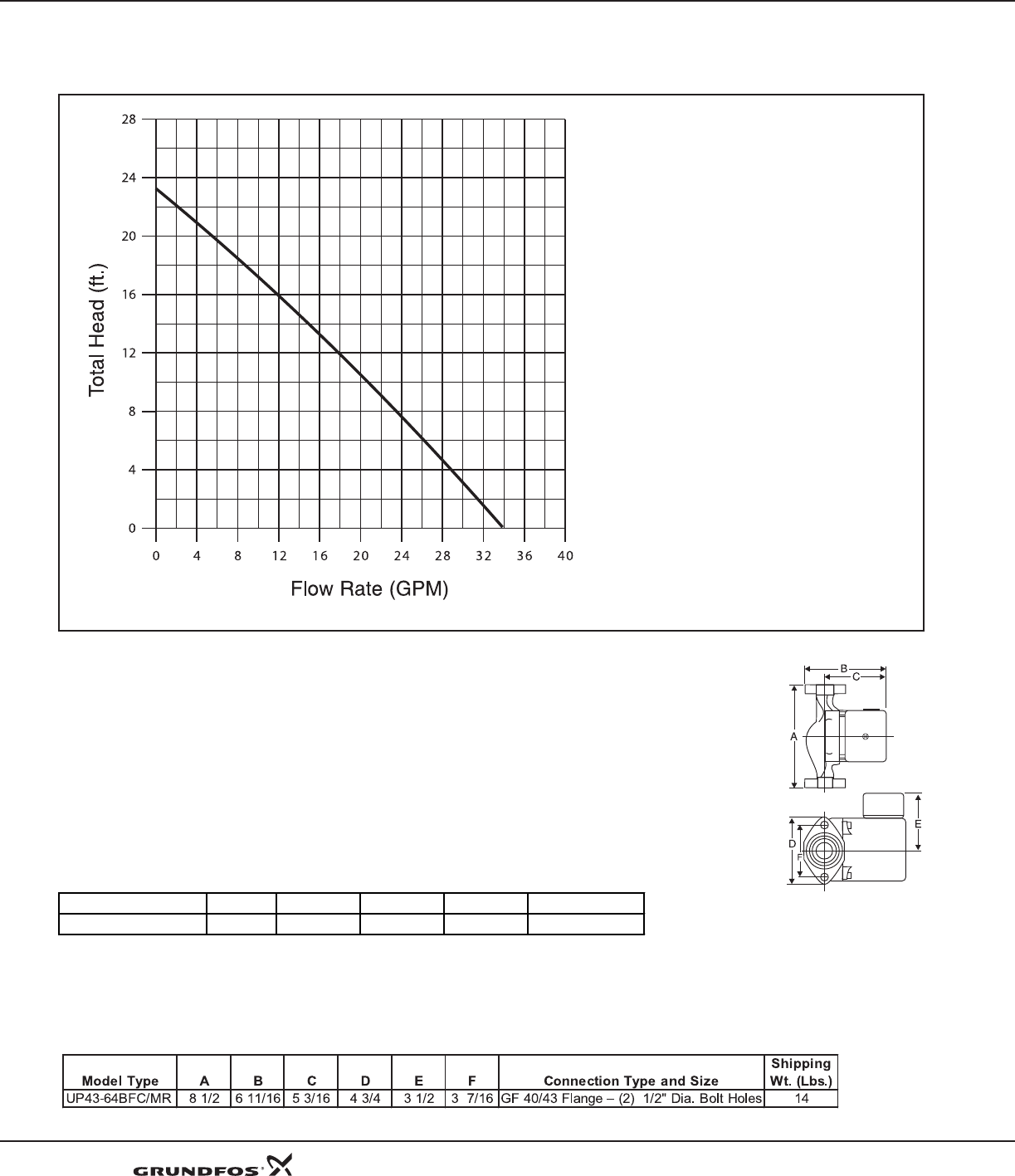

UP 43-64BFC/MR (MIXIMIZER) . . . . . . . . . . . . page 50
UP 43-64FC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 51

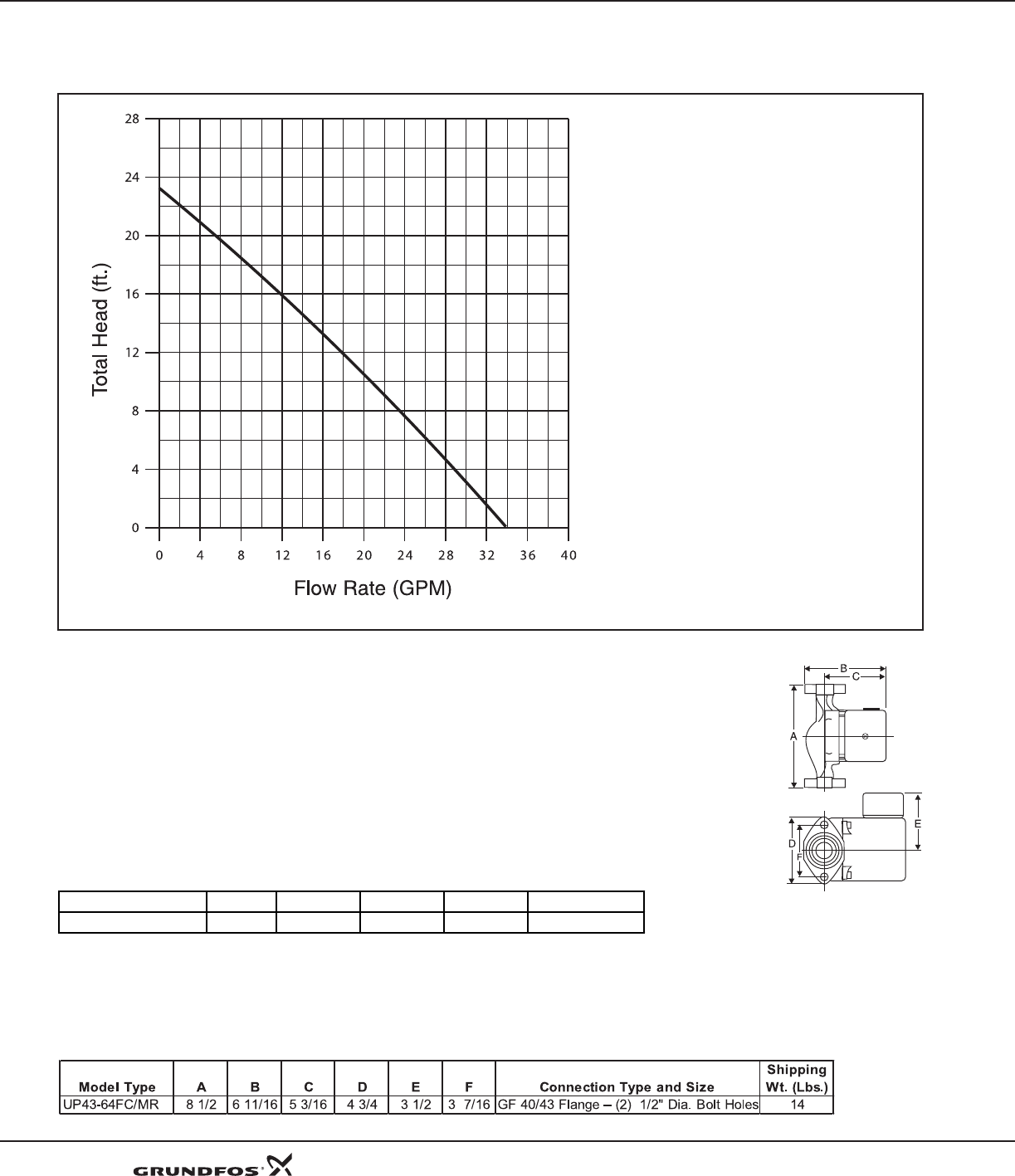

UP 43-64FC/MR (MIXIMIZER) . . . . . . . . . . . . . . page 52
UP 43-70F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 53

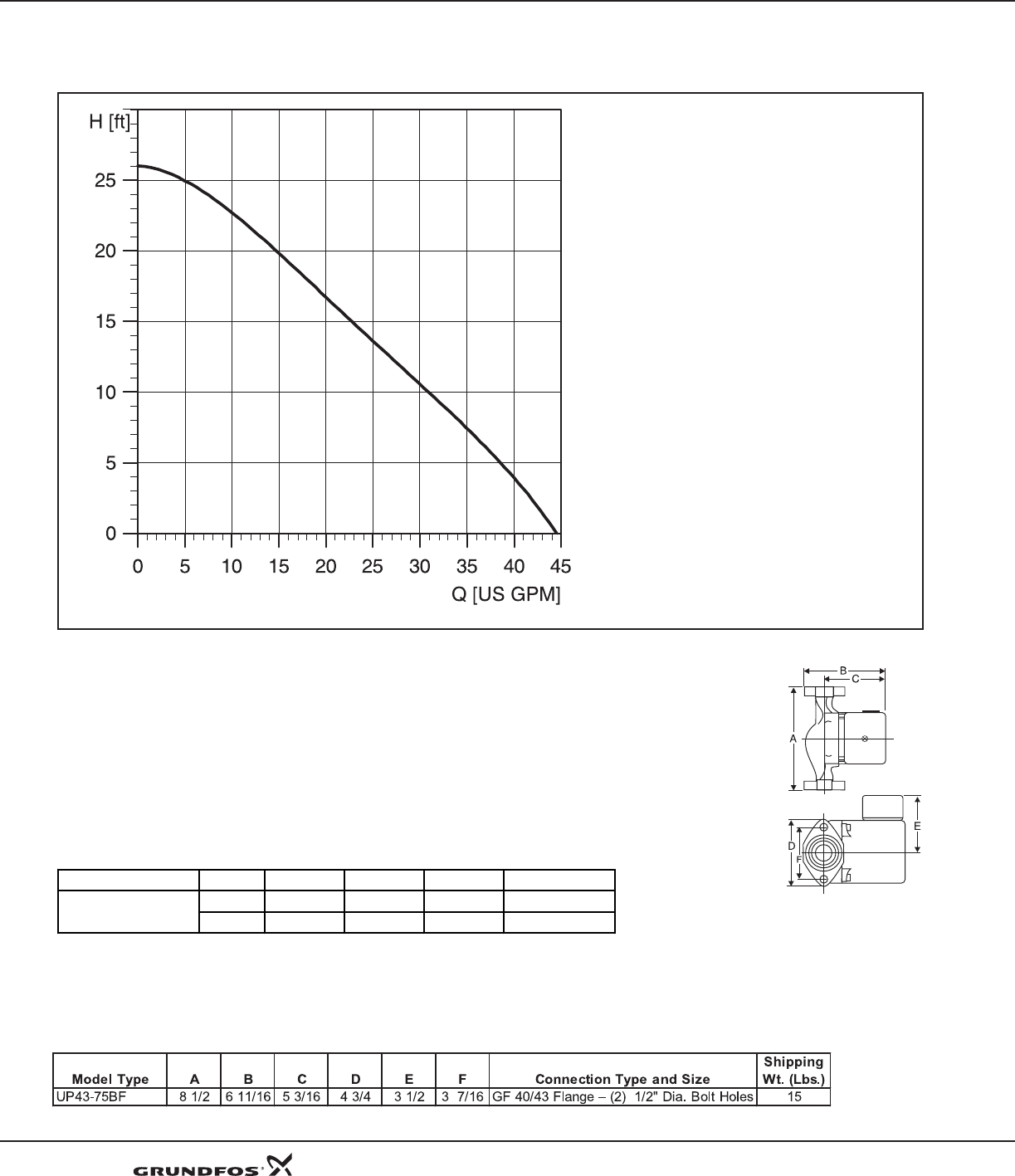

UP 43-75BF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 54

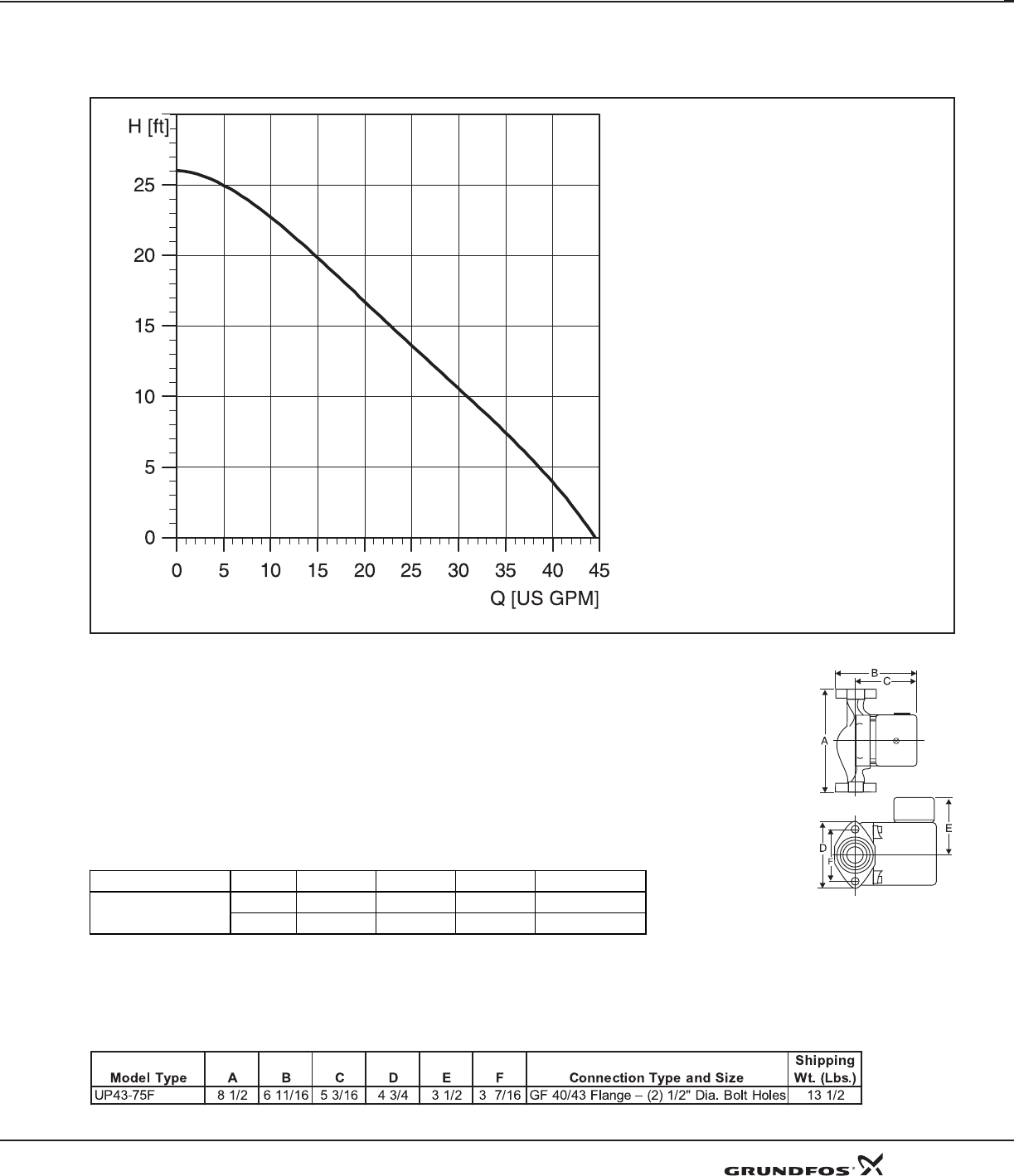

UP 43-75F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 55

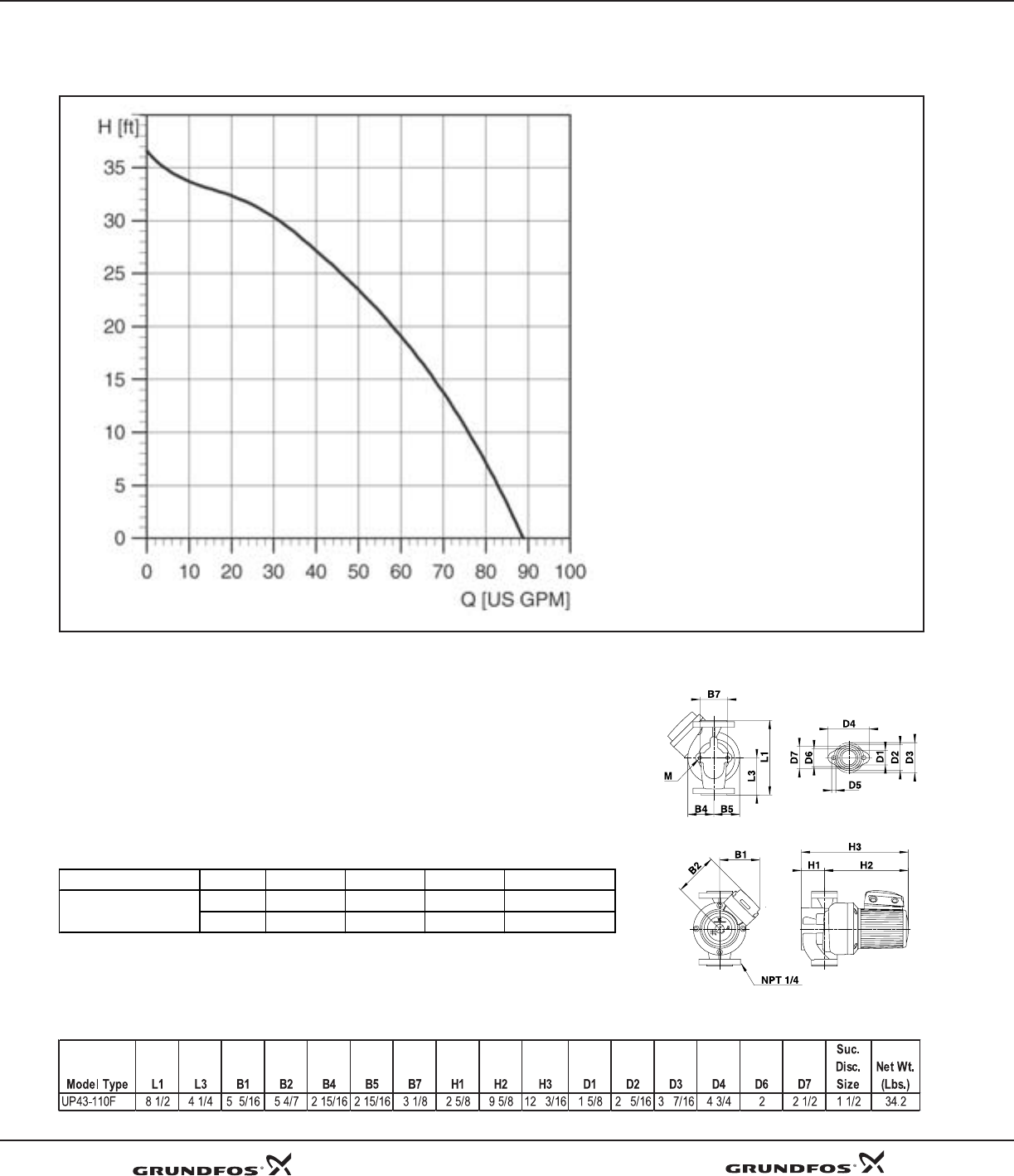

UP 43-110F. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 56

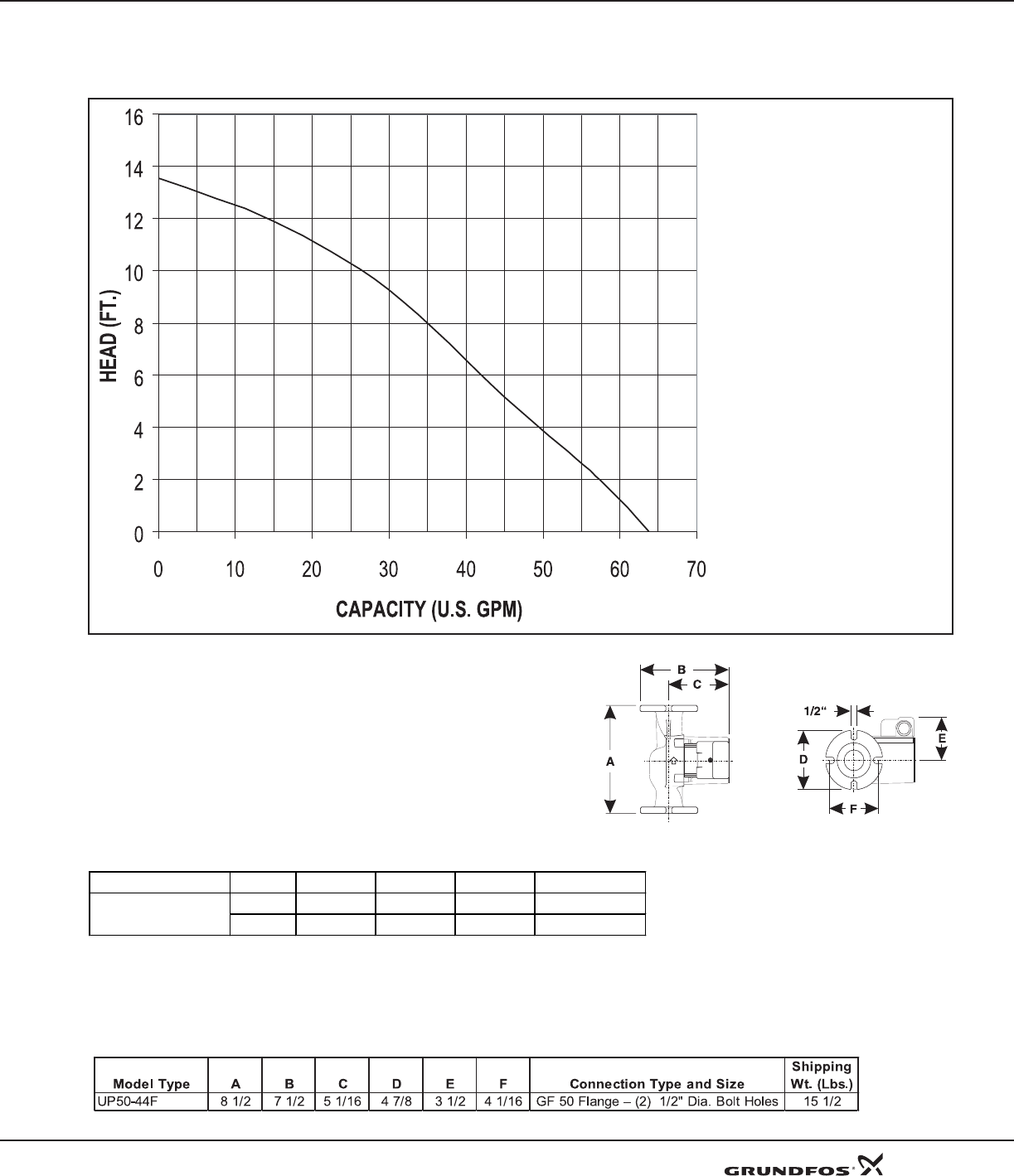

UP 50-44F. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 57

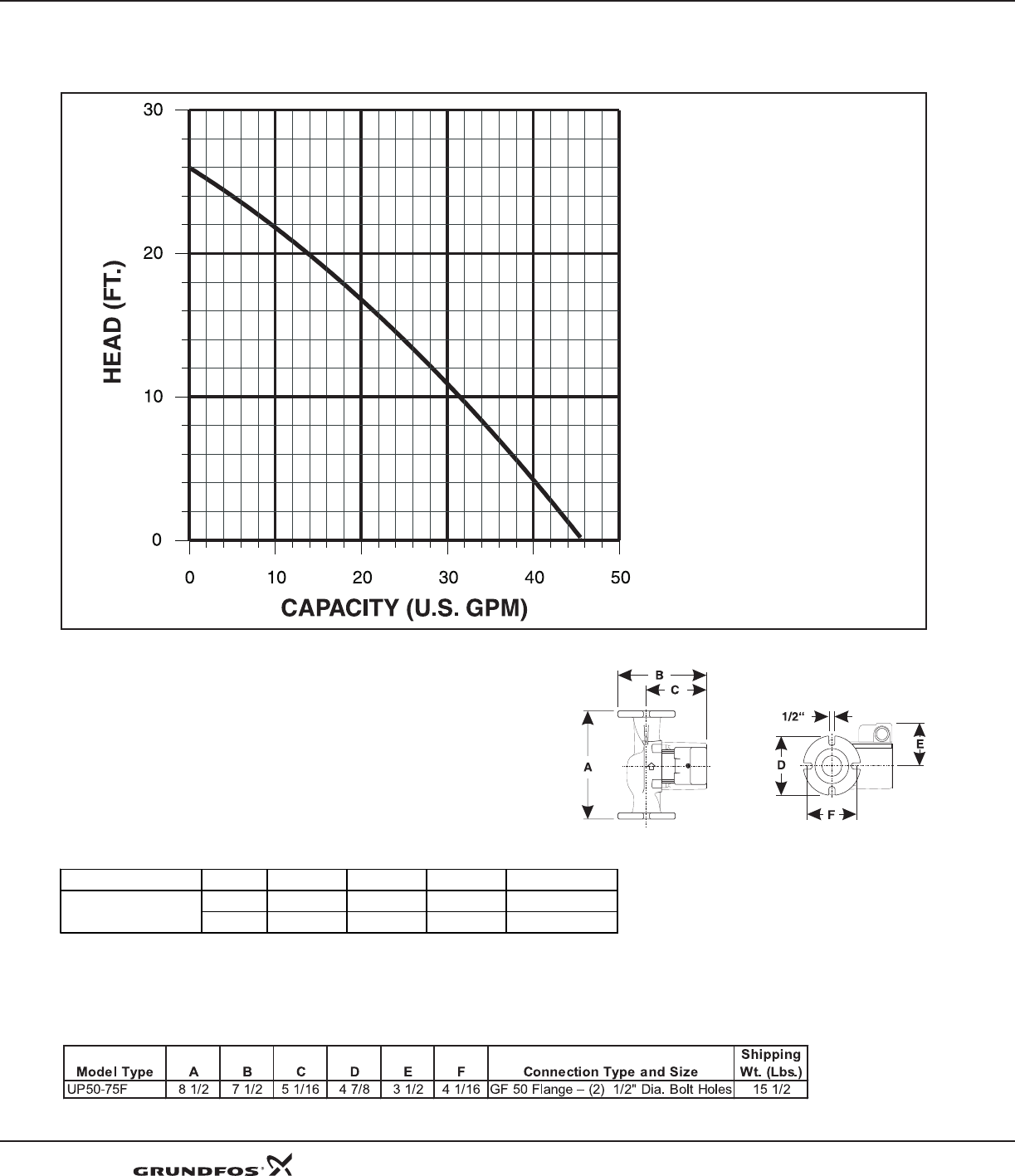

UP 50-75F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 58
Accessories

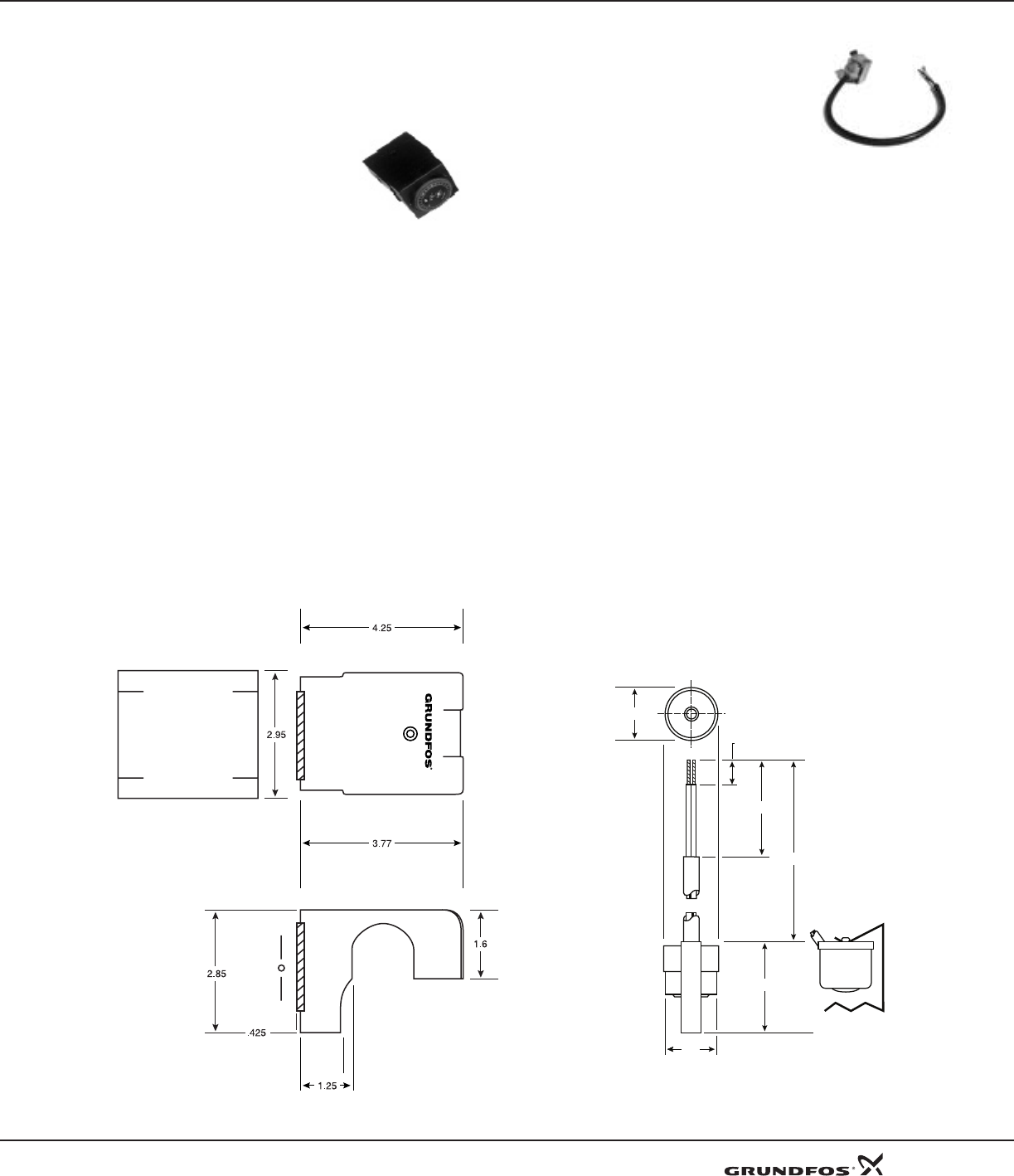

UP Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 59
AquaStat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 59
Domestic Circ Accessories . . . . . . . . . . . . . . . . page 60

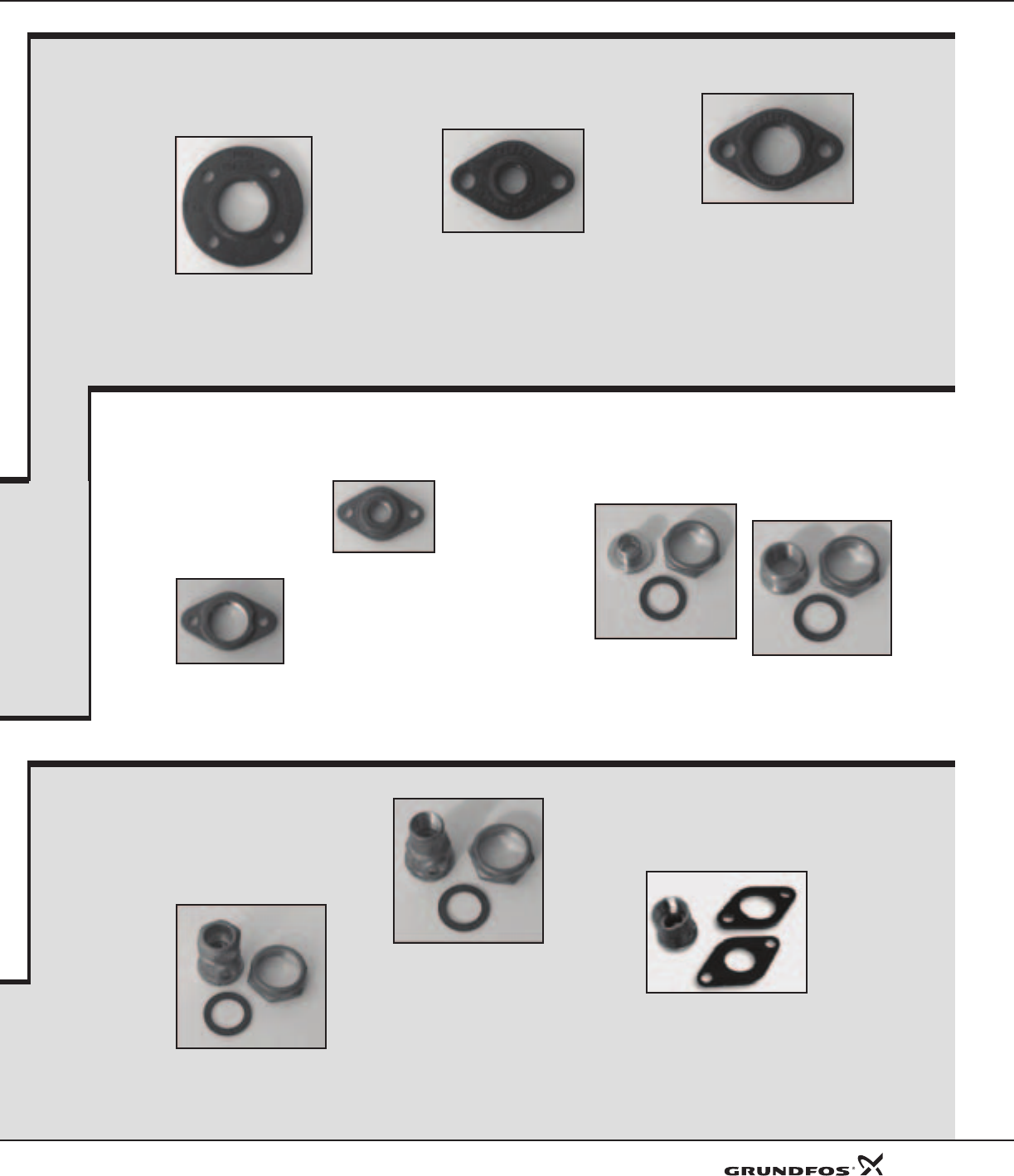

Packaged Fitting Sets . . . . . . . . . . . . . . . . . . . . page 60
Flange Options . . . . . . . . . . . . . . . . . . . . . . . . . . page 61
Submittal data sheet

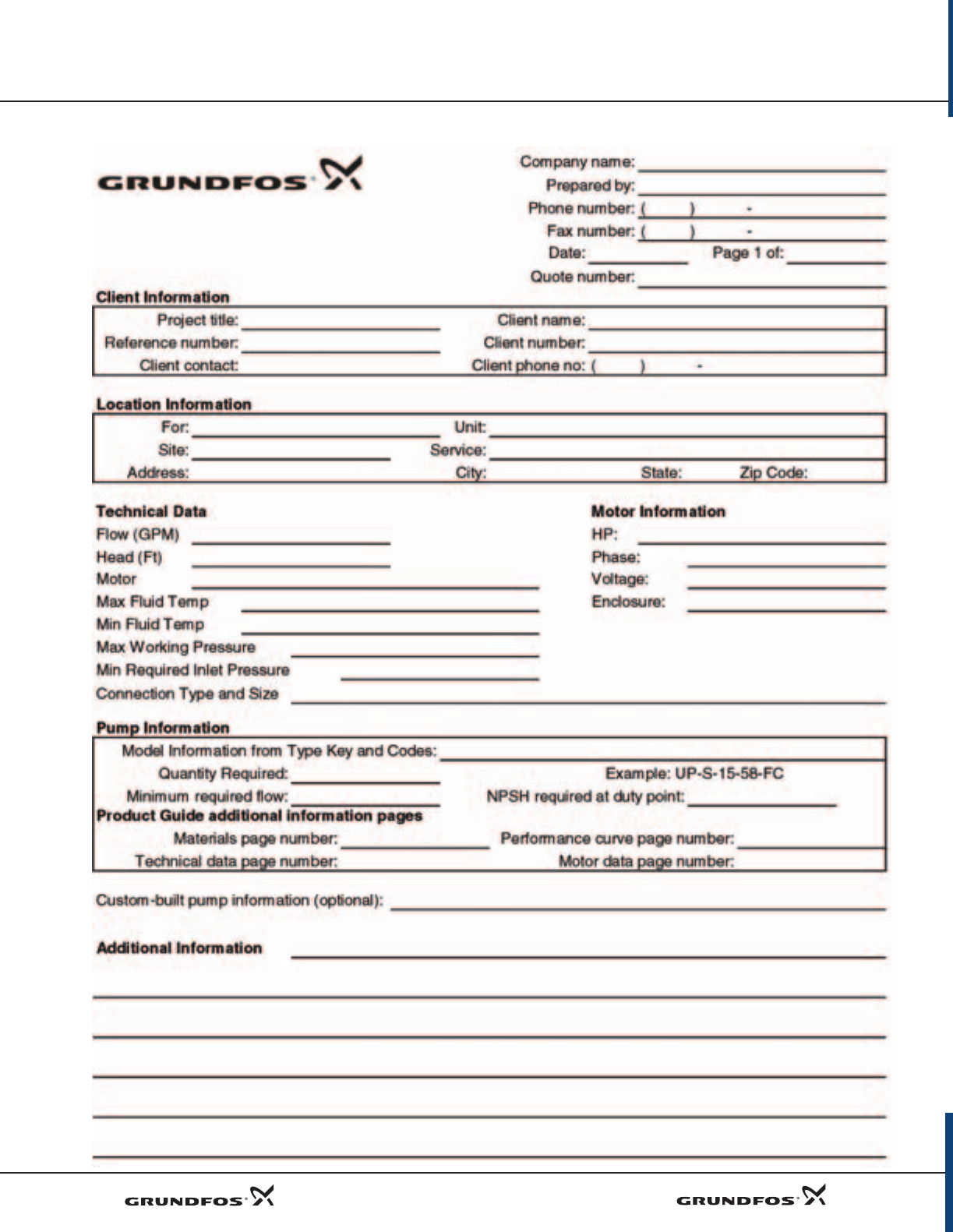

Submittal data . . . . . . . . . . . . . . . . . . . . . . . . . . page 62
2
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 2
3

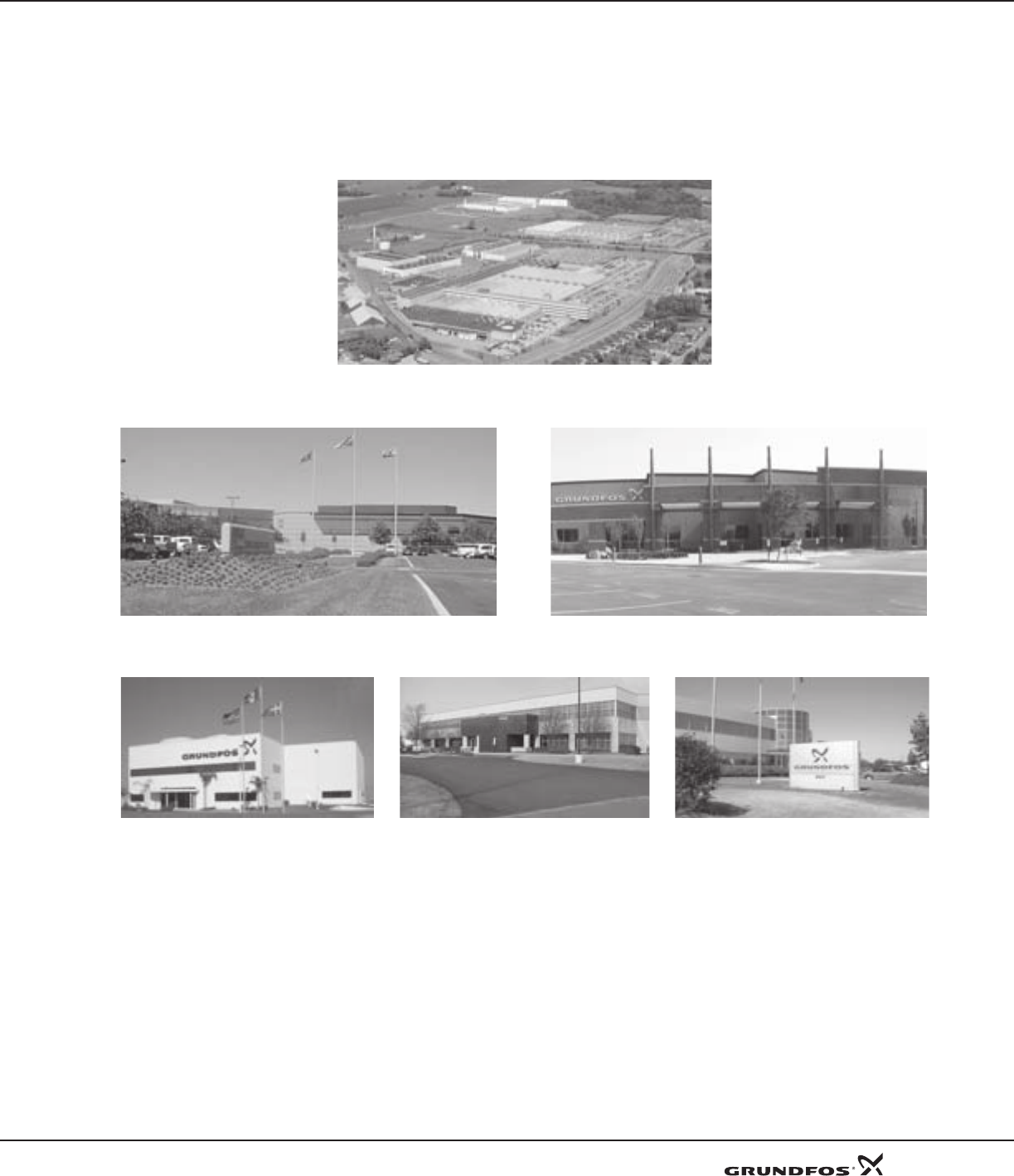

MISSION GRUNDFOS SERIES UP
Bjerringbro, Denmark
sasnaK ,ehtalOainrofilaC ,onserF
oiratnO ,ellivkaOainavlysnneP ,nwotnellAocixeM ,yerretnoM
- to successfully develop, produce, and sell high quality
pumps and pumping systems worldwide, contributing to a
better quality of life and healthier environment
• One of the 3 largest pump companies in the world with over 14,000 employees worldwide
• World headquarters in Denmark
• North American headquarters in Kansas City - Manufacturing in Fresno, California
• 60 companies in 41 countries
• More than 10 million pumps produced annually worldwide
• North American companies operating in USA, Canada and Mexico
• Continuous reinvestment in growth and development enables the company to
BE responsible, THINK ahead, and INNOVATE
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 3
GENERAL DATA GRUNDFOS SERIES UP
4
Model
Conn.
Type
Pump
Length
Primary Model(s)
Conn.
Type
Pump
Length
Secondary
Model(s)
Conn.
Type
Pump
Length
003-BC 1/2"Swt 4-13/32 UP15-10B5 1/2"Swt 5
003-B 3/4"Swt 4-1/4 UP15-10B7 3/4"Swt 6 3/8
003-BC-1 1" U 6 UPS15-42SU SPD1 1 1/4"U 5 7/8
005-BF2 Flng-R 6-3/8 UP15-42SF Flange 6 1/2
006-BC4 1/2"Swt 4-1/4 UP15-18B5 1/2"Swt 5
006-B4 3/4"Swt 4-13/32 UP15-18B7 3/4"Swt 6 3/8
006-BC4-1 1" U 5-15/16 UP15-18SU 1 1/4"U 5 7/8
007-BF5 Flng-R 6-3/8 UP25-64SF Flange 6 1/2
UP15-42SF
(1-8 GPM)
Flange 6 1/2
007-BF5 opt Flange 6-3/8 UP25-64SF Flange 6 1/2
UP15-42SF
(1-8 GPM)
Flange 6 1/2
008-BC6 3/4"Swt 6-3/8 UP15-42B7 3/4"Swt 6 3/8
008-BF6 Flng-R 6-3/8 UP25-64SF Flange 6 1/2
009-BF5 Flange 6-3/8 UP26-96BF Flange 6 1/2
0011-BF4 Flange 6-1/2 UP26-99BF Flange 6 1/2
0012-BF4 Flng-R 8-1/2 UP43-44BF Flange 8 1/2
0013-BF3 Flange 6-1/2 UP26-116BF (230v) Flange 6 1/2
0014-BF1 Flng-R 6-1/2 UP43-75BF Flange 8 1/2
006-BC7-1IFC 1/2"Swt 4-3/8 UP15-18BUC5 1/2"Swt 6 1/2
006-BC7-IFC 3/4"Swt 4-3/8 UP15-18BUC7 3/4"Swt 7 3/4
UPS15-58FR SPD2 Flng-R 6 1/2
UPS15-42FR SPD2 Flng-R 6 1/2
UPS15-58FR Flng-R 6 1/2 UPS15-58F Flange 6 1/2
UPS15-42FR Flng-R 6 1/2 UPS15-42F Flange 6 1/2
UP15-42FR Flng-R 6 1/2 UP15-42F Flange 6 1/2
UPS15-58F Flange 6 1/2 UPS15-58FR Flng-R 6 1/2
UPS15-42F Flange 6 1/2 UPS15-42FR Flng-R 6 1/2
UP15-42F Flange 6 1/2 UP15-42FR Flng-R 6 1/2
UPS15-58FR Flng-R 6 1/2 UPS15-58F Flange 6 1/2
UPS15-42FR Flng-R 6 1/2 UPS15-42F Flange 6 1/2
UP15-42FR Flng-R 6 1/2 UP15-42F Flange 6 1/2
009-F5 Flange 6-3/8 UP15-100F Flange 6 1/2
0011-F4 Flange 6-1/2 UP26-99F Flange 6 1/2
0012-F4 Flng-R 8-1/2 UP43-44F Flange 8 1/2
0012-F4-1 2"Flng-R 8-1/2 UP50-44F 2"Flng 8 1/2 UP50-75F 2"Flng 8 1/2
0013-F3 Flange 6-1/2 UP26-116F (230v) Flange 6 1/2
0014-F1 Flng-R 6-1/2 UP26-64F Flange 6 1/2 UP26-96F Flange 6 1/2
007-F5-IFC Flng-R 6-3/8 UPS15-58FRC SPD2 Flng-R 6 1/2
Bronze Body Pumps with Integrated Check Valve
Closed Systems: Cast Iron Body Pumps
Cast Iron Body Pumps with Integrated Check
Taco Pumps*
Comparable Grundfos Replacement Options
Flng-R
6-3/8
Flng-R
6-3/8
Open Systems: Stainless Steel and Bronze Body Pumps
COMPETITOR CROSS REFERENCE
008-F6
Flng-R
6-3/8
007-F5 opt
Flange
6-3/8
007-F5
005-F2
TACO CROSS REFERENCE
005-IFC
007-IFC
008-IFC
0010-IFC
* Taco pump information taken from literature on Taco website August 2002. Grundfos provides no guarantee
as to the accuracy of competitor information listed herein.
Flng-R
Flng-R
Flng-R
Flng-R
6-3/8
6-3/8
6-3/8
6-3/8
UPS15-58FRC SPD1
UPS15-58FRC SPD2
UPS15-58FRC SPD3
UPS15-58FRC SPD3
Flng-R
Flng-R
Flng-R
Flng-R
6 1/2
6 1/2
6 1/2
6 1/2
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 4
5
GENERAL DATA GRUNDFOS SERIES UP
B&G CROSS REFERENCE
Comparable Grundfos Replacement Options
Model
Conn.
Type
Pump
Length
Primary Model(s)
Conn.
Type
Pump
Length
Secondary
Model(s)
Conn.
Type
Pump
Length
NBF-8S\LW 1/2"Swt 5 UP15-10B5 1/2"Swt 5
NBF-9U\LW 1 1/4"U 6-1/8 UP15-18SU 1 1/4"U 5 7/8
NBF-10S\LW 1/2"Swt 5 UP15-18B5 1/2"Swt 5
NBF-12U\LW 1 1/4"U 6-1/8 UP15-42SU 1 1/4"U 5 7/8
NBF-12F\LW Flng-R 6-3/8 UP15-42SF Flange 6 1/2
NBF-18S 1/2"Swt 5 UP15-42B5 1/2"Swt 5
NBF-22U 1 1/4"U 6-1/8 UP25-64SU 1 1/4"U 5 7/8
UP15-42SU
(1-8) GPM
1 1/4"U 5 7/8
NBF-22 Flng-R 6-3/8 UP25-64SF Flange 6 1/2
UP15-42SF
(1-8) GPM
Flange 6 1/2
LR-15B Flange 6-3/8 UP25-64SF Flange 6 1/2
UP15-42SF
(1-8) GPM
Flange 6 1/2
Series HV B Flng-R 8-1/2 UP43-44BF Flange 8 1/2
Series PR B Flng-R 8-1/2 UP26-96BF Flange 6 1/2
PL30B Flange 6-3/8 UP26-96BF Flange 6 1/2
PL36B Flange 6-1/2 UP26-116BF (230v) Flange 6 1/2
UP15-10FR Flng-R 6 1/2 UP15-10F Flange 6 1/2
UPS15-58FR SPD1 Flng-R 6 1/2 UPS15-58F SPD1 Flange 6 1/2
UPS15-42FR SPD1 Flng-R 6 1/2 UPS15-42F SPD1 Flange 6 1/2
UPS15-58FR Flng-R 6 1/2 UPS15-58F Flange 6 1/2
UP15-42FR Flng-R 6 1/2 UP15-42F Flange 6 1/2
UPS15-42FR Flng-R 6 1/2 UPS15-42F Flange 6 1/2
UPS15-58F Flange 6 1/2 UPS15-58FR Flng-R 6 1/2
UP15-42F Flange 6 1/2 UP15-42FR Flng-R 6 1/2
UPS15-42F Flange 6 1/2 UPS15-42FR Flng-R 6 1/2
Series HV Flng-R 8-1/2 UP43-44F Flange 8 1/2
Series PR Flng-R 8-1/2 UP26-64F Flange 6 1/2 UP26-96F Flange 6 1/2
2" 2"Flng-R 8-1/2 UP50-44F 2"Flng 8 1/2
PL30 Flange 6-3/8 UP26-64F Flange 6 1/2 UP26-96F Flange 6 1/2
PL36 Flange 6-3/8 UP26-116F (230v) Flange 6 1/2
PL75 2"Flng 8 1/2 UP50-44F 2"Flng 8 1/2
* B&G pump information taken from literature on B&G website August 2002.
Grundfos provides no guarantee as to the accuracy of competitor information listed herein.
NRF-9F\LW
Flng-R
6-3/8
COMPETITOR CROSS REFERENCE
Open Systems: Stainless Steel and Bronze Body Pumps
B&G Pumps*
Closed Systems: Cast Iron Body Pumps
NRF-22
Flng-R
6-3/8
LR-20BF
Flange
6-3/8
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 5
GENERAL DATA GRUNDFOS SERIES UP
6
COMPETITOR CROSS REFERENCE
Open Systems: Stainless Steel and Bronze Body Pumps
Armstrong Pumps* Comparable Grundfos Replacement Options
Model
Conn.
Type
Pump
Length
Primary Model(s)
Conn.
Type
Pump
Length
Secondary
Model(s)
Conn.
Type
Pump
Length
Astro20B1/2S 1/2"Swt 5 UP15-10B5 1/2"Swt 5
Astro20B3/4S 3/4"Swt 5 UP15-10B7 3/4"Swt 6 3/8
Astro20BU 1 1/4"U 6 UP15-18SU 1 1/4"U 5 7/8
Astro25B1/2S 1/2"Swt 5 UP15-18B5 1/2"Swt 5
Astro25B3/4S 3/4"Swt 5 UP15-18B7 3/4"Swt 6 3/8
Astro25BU 1 1/4"U 6 UP15-42SU 1 1/4"U 5 7/8
Astro30B Flng-R 6-3/8 UP25-64SF Flange 6 1/2
UP15-42SF
(1-8) GPM
Flange 6 1/2
Astro50B Flng-R 6-3/8 UP25-64SF Flange 6 1/2
H32B Flng-R 8-9/16 UP43-44BF Flange 8 1/2
Closed Systems: Cast Iron Body Pumps
UPS15-58FR Flng-R 6 1/2 UPS15-58F Flange 6 1/2
UP15-42FR Flng-R 6 1/2 UP15-42F Flange 6 1/2
UPS15-42FR Flng-R 6 1/2 UPS15-42F Flange 6 1/2
Astro50 Flng-R 6-3/8 UP26-64F Flange 6 1/2 UP26-96F Flange 6 1/2
H32 Flng-R 8-9/16 UP43-44F Flange 8 1/2
S35 2"Flng-R 8-1/2 UP50-44F 2"Flng 8 1/2
* Armstrong pump information taken from literature on Armstrong website August 2002. Grundfos provides
no guarantee as to the accuracy of competitor information listed herein.
Astro30
Flng-R
6-3/8
COMPETITOR CROSS REFERENCE
Open Systems: Stainless Steel and Bronze Body Pumps
Laing Pumps* Comparable Grundfos Replacement Options
Model
Conn. Type
Pump
Length
Model
Conn. Type
Pump
Length
SM-909-BS 1/2-14 1/2"Swt 6 UP15-18B5 1/2"Swt 5
SM-909-BS 3/4-14 3/4"Swt 6 UP15-18B7 3/4"Swt 6 3/8
UP15-42SF Flange 6 1/2
UPS15-42SF Flange 6 1/2
SM-909-BS 1/2 1/2"Swt 6 UP15-42B5 1/2"Swt 5
SM-909-BS 3/4 3/4"Swt 6 UP15-18B7 3/4"Swt 6 3/8
UP15-42SF Flange 6 1/2
UPS15-42SF Flange 6 1/2
SM-909-BF-26 Flange 6-1/2 UP25-64SF Flange 6 1/2
SM-1212-BF-26 Flange 6-1/2 UP26-96BF Flange 6 1/2
* Laing pump information taken from literature on Laing website August 2002. Grundfos provides
no guarantee as to the accuracy of competitor information listed herein.
SM-909-BF
Flange
6-1/2
SM-909-BF 14
Flange
6-1/2
ARMSTRONG CROSS REFERENCE
LAING CROSS REFERENCE
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 6
7
GENERAL DATA GRUNDFOS SERIES UP
COMPETITOR CROSS REFERENCE
Laing Pumps* Comparable Grundfos Replacement Options
Model Description Model Description
SM303BS 1/2 sweat UP10-16B5/LC 1/2 sweat/cord
SM303BT 1/2 thread UP10-16BN5/LC 1/2 thread/cord
SM303BSW 1/2 sweat/cord UP10-16B5/LC 1/2 sweat/cord
SM303BTW 1/2 thread/cord UP10-16BN5/LC 1/2 thread/cord
SM303BSC 1/2 sweat/stat UP10-16B5/ATLC 1/2 sweat/stat/cord/timer
SM303BTC 1/2 thread/stat UP10-16BN5/ATLC 1/2 thread/stat/cord/timer
SM303BSCW 1/2 sweat/stat/cord UP10-16B5/ATLC 1/2 sweat/stat/cord/timer
SM303BTCW 1/2 thread/stat/cord UP10-16BN5/ATLC 1/2 thread/stat/cord/timer
SMT303BS 1/2 sweat/timer UP10-16B5/TLC 1/2 sweat/cord/timer
SMT303BT 1/2 thread/timer UP10-16BN5/TLC 1/2 thread/cord/timer
SMT303BSW 1/2 sweat/cord/timer UP10-16B5/TLC 1/2 sweat/cord/timer
SMT303BTW 1/2 thread/cord/timer UP10-16BN5/TLC 1/2 thread/cord/timer
SMT303BSC 1/2 sweat/stat/timer UP10-16B5/ATLC 1/2 sweat/stat/cord/timer
SMT303BTC 1/2 thread/stat/timer UP10-16BN5/ATLC 1/2 thread/stat/cord/timer
SMT303BSCW 1/2 sweat/stat/cord/timer UP10-16B5/ATLC 1/2 sweat/stat/cord/timer
SMT303BTCW 1/2 thread/stat/cord/timer UP10-16BN5/ATLC 1/2 thread/stat/cord/timer
* Laing pump information taken from literature on Laing website August 2002. Grundfos provides
no guarantee as to the accuracy of competitor information listed herein.
UP10-16 CROSS REFERENCE
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 7
8
GENERAL DATA GRUNDFOS SERIES UP
Head (ft)Head (ft)
Flow (gpm)
*Also available in bronze
Flow (gpm)

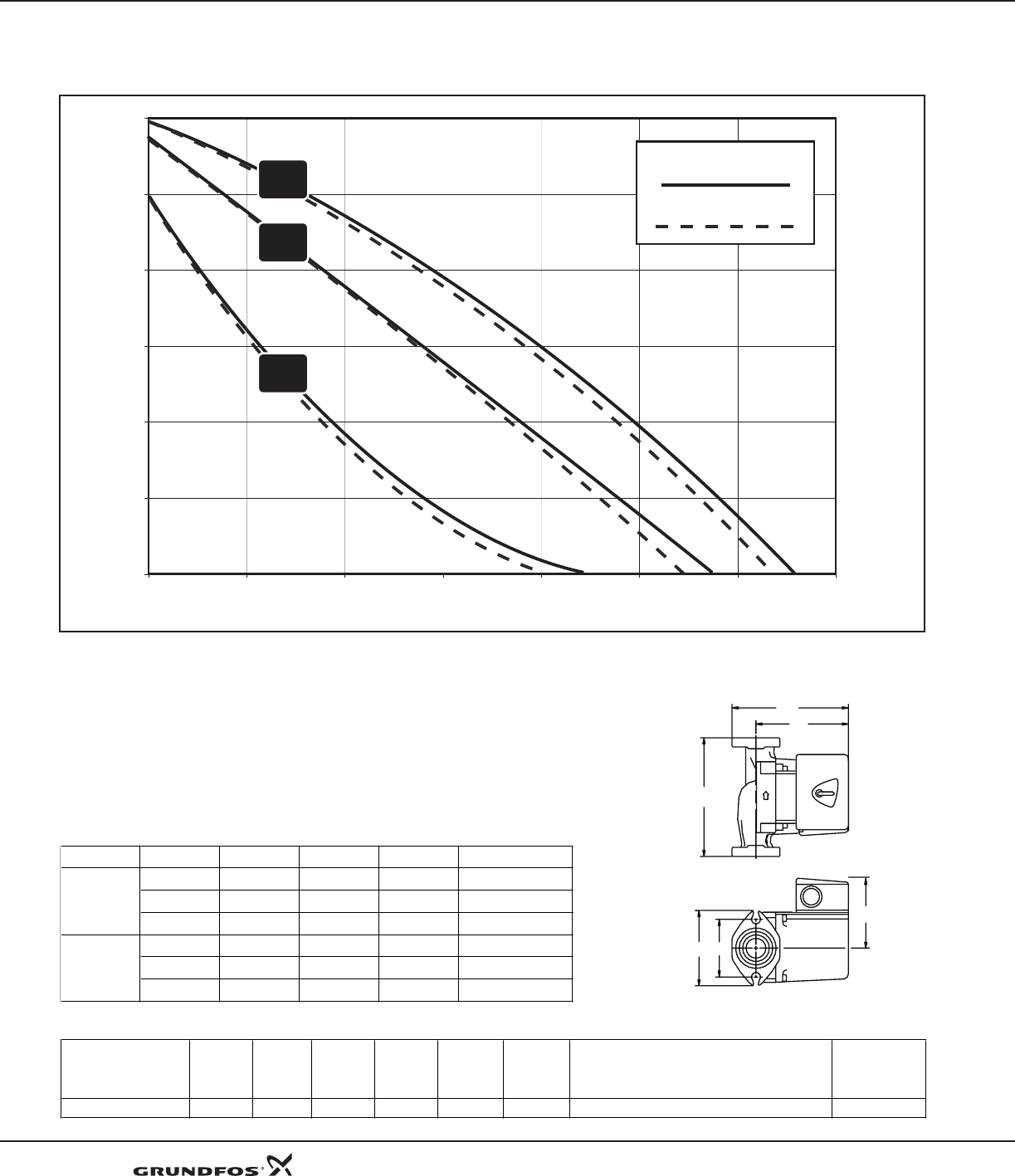

SuperBrute Team, 60HZ
UP10-16, OPEN SYSTEM 60HZ
A. UP10-16BN5/B5
B. UP10-16BU
0
0 102030405060
5
10
15
20
25
30
A

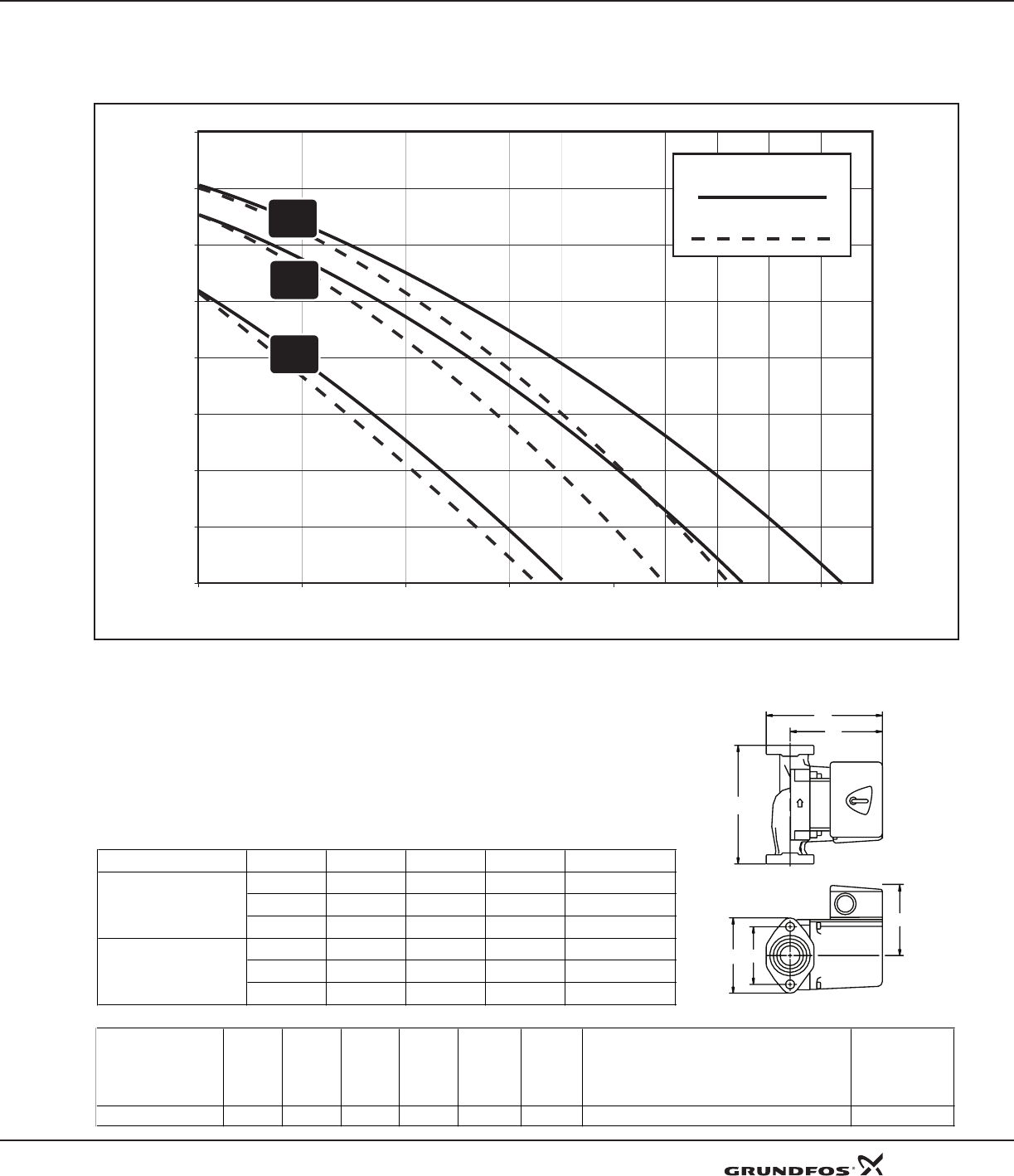

A. UPS15-58FC/FRC
B. UPS26-99FC/BFC*
C. UPS43-44FC/BFC*
C
B
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 8
9
GENERAL DATA GRUNDFOS SERIES UP
10
10
UP 26 - 120 U
Head (ft)Head (ft)
Flow (gpm)
Flow (gpm)
CLOSED SYSTEMS 60HZ
OPEN SYSTEMS 60HZ
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 9
10
GENERAL DATA GRUNDFOS SERIES UP
Head (ft)Head (ft)
Flow (gpm)
Flow (gpm)
OPEN SYSTEMS 1/2” 60HZ
OPEN SYSTEMS 3/4” 60HZ
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 10
11
*Note: VS - Variable Speed, MR - MixiMizer, SU7P - Comfort System with 3/4” MXF NPT
Stainless Open
Systems
Flow Head Flanged Union NPT Sweat
Check
Valve
Page #
UP 15-10SU7P/TLC* 595916 - 0-3.4 gpm 0-3.5 ft YES YES 21
UP 15-18SU 59896127 59896130 0-12 gpm 0-7.5 ft YES YES 24
UP 15-18SU/LC 59896231 - 0-12 gpm 0-7.5 ft YES YES 24
UP 15-18SU/TLC 59896232 - 0-12 gpm 0-7.5 ft YES YES 24
UP 15-18SF 59896125 59896126 0-12 gpm 0-7.5 ft YES YES 24
UP 15-42SU 59896174 59896172 0-15.5 gpm 0-12 ft YES YES 31
UP 15-42SF 59896171 59896170 0-15.5 gpm 0-12 ft YES YES 31
UP 25-64SU 52722324 52722323 0-20.5 gpm 0-19 ft YES YES 36
UP 25-64SF 52722322 52722320 0-20.5 gpm 0-19 ft YES YES 36
Material #
GENERAL DATA GRUNDFOS SERIES UP
Bronze Open Systems Material # Flow Head Flanged Union NPT Sweat Check Valve Page #
UP 10-16B5/LC 96433894 - 0-3 gpm 0-5.4 ft YES 17
UP 10-16B5/TLC 96433895 - 0-3 gpm 0-5.4 ft YES 17
UP 10-16B5/ATLC 96433896 - 0-3 gpm 0-5.4 ft YES 17
UP 10-16BN5/LC 96433897 - 0-3 gpm 0-5.4 ft YES 17
UP 10-16BN5/TLC 96433898 - 0-3 gpm 0-5.4 ft YES 17
UP 10-16BN5/ATLC 96433899 - 0-3 gpm 0-5.4 ft YES 17
UP 10-16BU/ATLC 96433902 - 0-3 gpm 0-5.4 ft YES YES 17
UP 15-10B5 59896213 - 0-9 gpm 0-6 ft YES 18
UP 15-10B5/LC 59896214 - 0-9 gpm 0-6 ft YES 18
UP 15-10B5/TLC 59896215 - 0-9 gpm 0-6 ft YES 18
UP 15-10B7 59896226 - 0-9 gpm 0-6 ft YES 18
UP 15-10B7/LC 59896209 - 0-9 gpm 0-6 ft YES 18
UP 15-10B7/TLC 59896210 - 0-9 gpm 0-6 ft YES 18
UP 15-10BUC5 59896225 - 0-9 gpm 0-6 ft YES YES 19
UP 15-10BUC5/LC 59896237 - 0-9 gpm 0-6 ft YES YES 19
UP 15-10BUC5/TLC 59896238 - 0-9 gpm 0-6 ft YES YES 19
UP 15-10BUC7 59896241 - 0-9 gpm 0-6 ft YES YES 19
UP 15-10BUC7/LC 59896239 - 0-9 gpm 0-6 ft YES YES 19
UP 15-10BUC7/TLC 59896240 - 0-9 gpm 0-6 ft YES YES 19

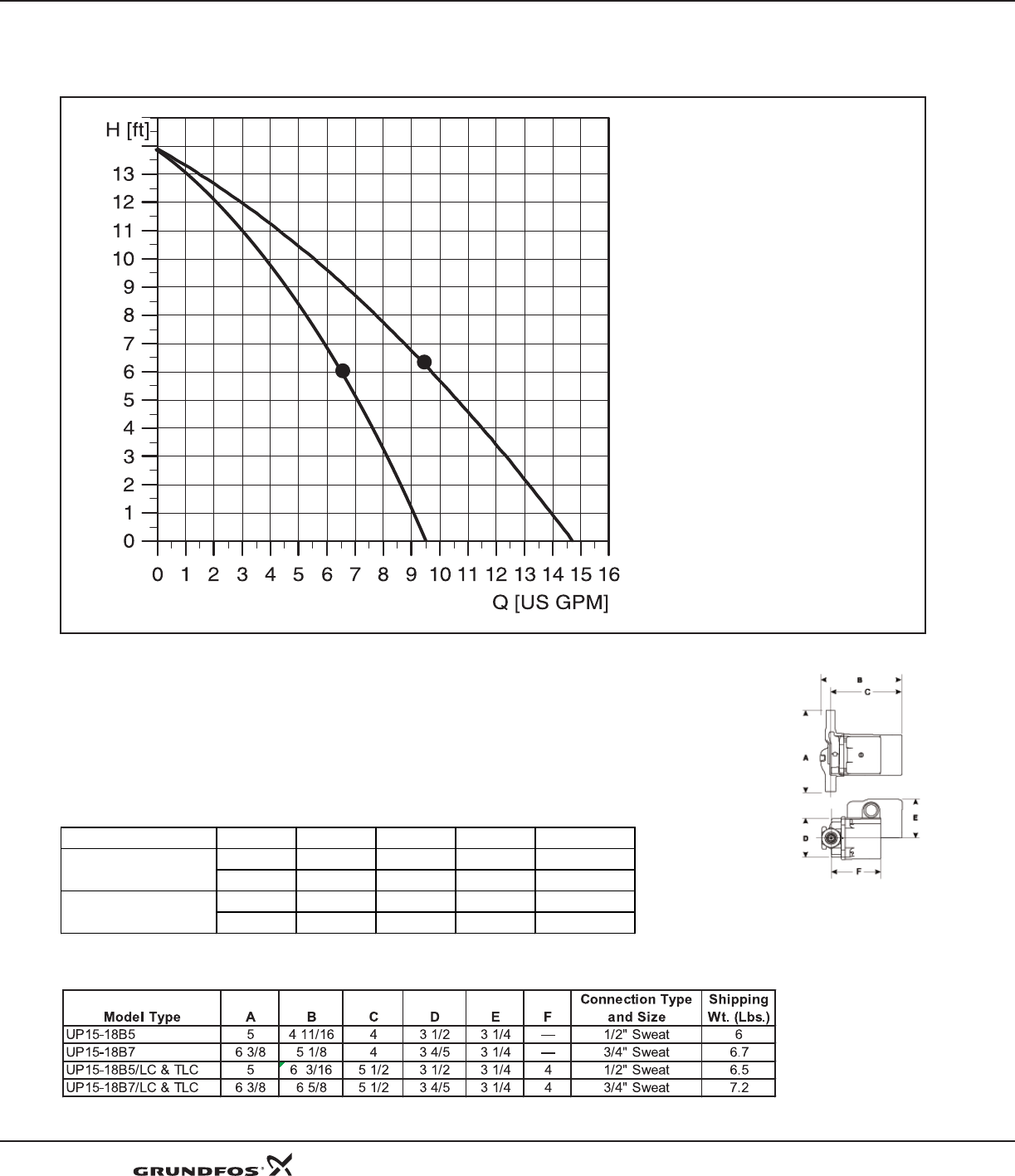

UP 15-18B5 59896114 59896118 0-15 gpm 0-14 ft YES 22
UP 15-18B5/LC 59896211 - 0-15 gpm 0-14 ft YES 22
UP 15-18B5/TLC 59896212 - 0-15 gpm 0-14 ft YES 22
UP 15-18B7 59896121 59896119 0-15 gpm 0-14 ft YES 22
UP 15-18B7/LC 59896229 - 0-15 gpm 0-14 ft YES 22
UP 15-18B7/TLC 59896230 - 0-15 gpm 0-14 ft YES 22
UP 15-18BUC5 59896123 - 0-12 gpm 0-16 ft YES YES 23
UP 15-18BUC7 59896124 - 0-12 gpm 0-16 ft YES YES 23
UP 15-42B5 59896145 59896142 0-17 gpm 0-15.5 ft YES 25
UP 15-42B5/LC 59896233 - 0-17 gpm 0-15.5 ft YES 25
UP 15-42B5/TLC 59896234 - 0-17 gpm 0-15.5 ft YES 25
UP 15-42B7 59896146 59896149 0-17 gpm 0-15.5 ft YES 25
UP 15-42B7/LC 59896235 - 0-17 gpm 0-15.5 ft YES 25
UP 15-42B7/TLC 59896236 - 0-17 gpm 0-15.5 ft YES 25
UP 15-42BUC5 59896150 - 0-16.5 gpm 0-15 ft YES YES 26
UP 15-42BUC7 59896151 - 0-16.5 gpm 0-15 ft YES YES 26

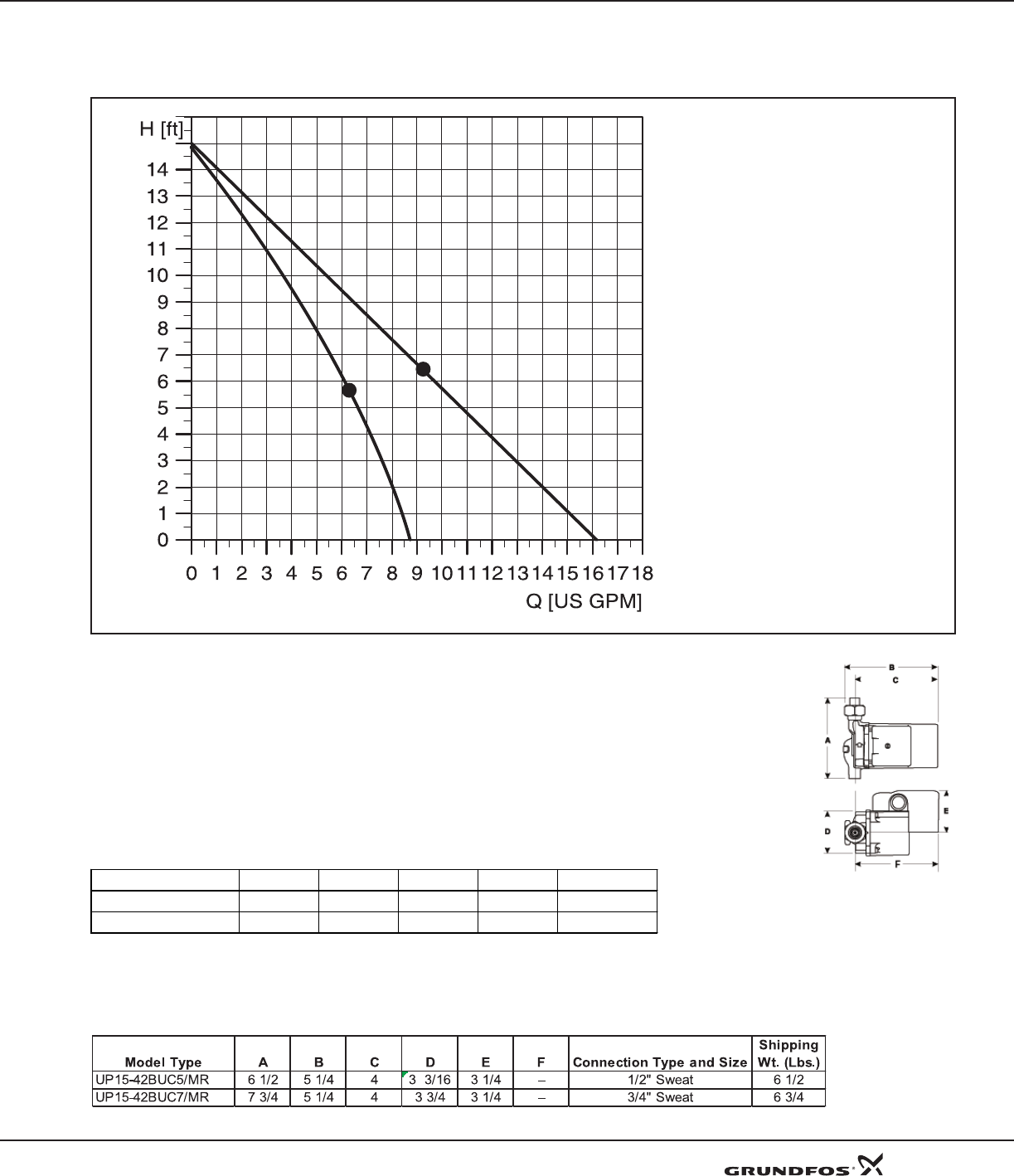

UP 15-42BUC5/MR* 59896285 - 0-16.5 gpm 0-15 ft YES YES 27
UP 15-42BUC7/MR* 59896286 - 0-16.5 gpm 0-15 ft YES YES 27
UP 26-96BF 52722336 52722334 0-27.5 gpm 0-30 ft YES 39
UP 26-99BF 52722347 52722346 0-32 gpm 0-32 ft YES 42
UPS 26-99 BF SUPERBRUTE 52722518 52722519 0-30 gpm 0-32 ft YES YES 44
UP 26-116BF - 52722393 0-38.5 gpm 0-37.5 ft YES 44
UP 43-44BF 52722439 52722440 0-64 gpm 0-13.5 ft YES 46
UPS 43-44 BF SUPERBRUTE 52722520 52722521 0-64 gpm 0-14 ft YES YES 49
UP 43-64BFC/MR* 52722401 - 0-34 gpm 0-23 ft YES YES 50
UP 43-75BF 52722370 52722369 0-45 gpm 0-26 ft YES 54
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 11
GENERAL DATA GRUNDFOS SERIES UP
12
Type Keys (Example) UP S 15 -58 ( ) F C
Circulator pump
S: 3 Speed
10: Comfort Series
15: Small Stator UP
25, 26, 43, 50: Large Stator UP
Maximum head [dm]
Pump Housing
= Cast Iron (no letter = cast iron)
S = Stainless Steel
B = Bronze
Special Features
/T = Timer
/LC = Line Cord
/VS = Variable Speed Control
/MR = Mixing Reset Control
A = Thermostat (Aquastat)
C = Check Valve
(Integrated into discharge)
Pipe Connection
F = Flange
FR = Flange Rotated 90°
U = Union Connection
5 = 1/2” Internal Sweat
7 = 3/4” Internal Sweat
N = NPT Female Thread Fitting
7P = 3/4” Male X Female Connection
*Note: VS - Variable Speed, MR - MixiMizer, SU7P - Comfort System with 3/4” MXF NPT
Cast Iron Closed Systems Flow Head Flanged Union NPT Sweat Check Valve Page #
115 Volt 230 Volt

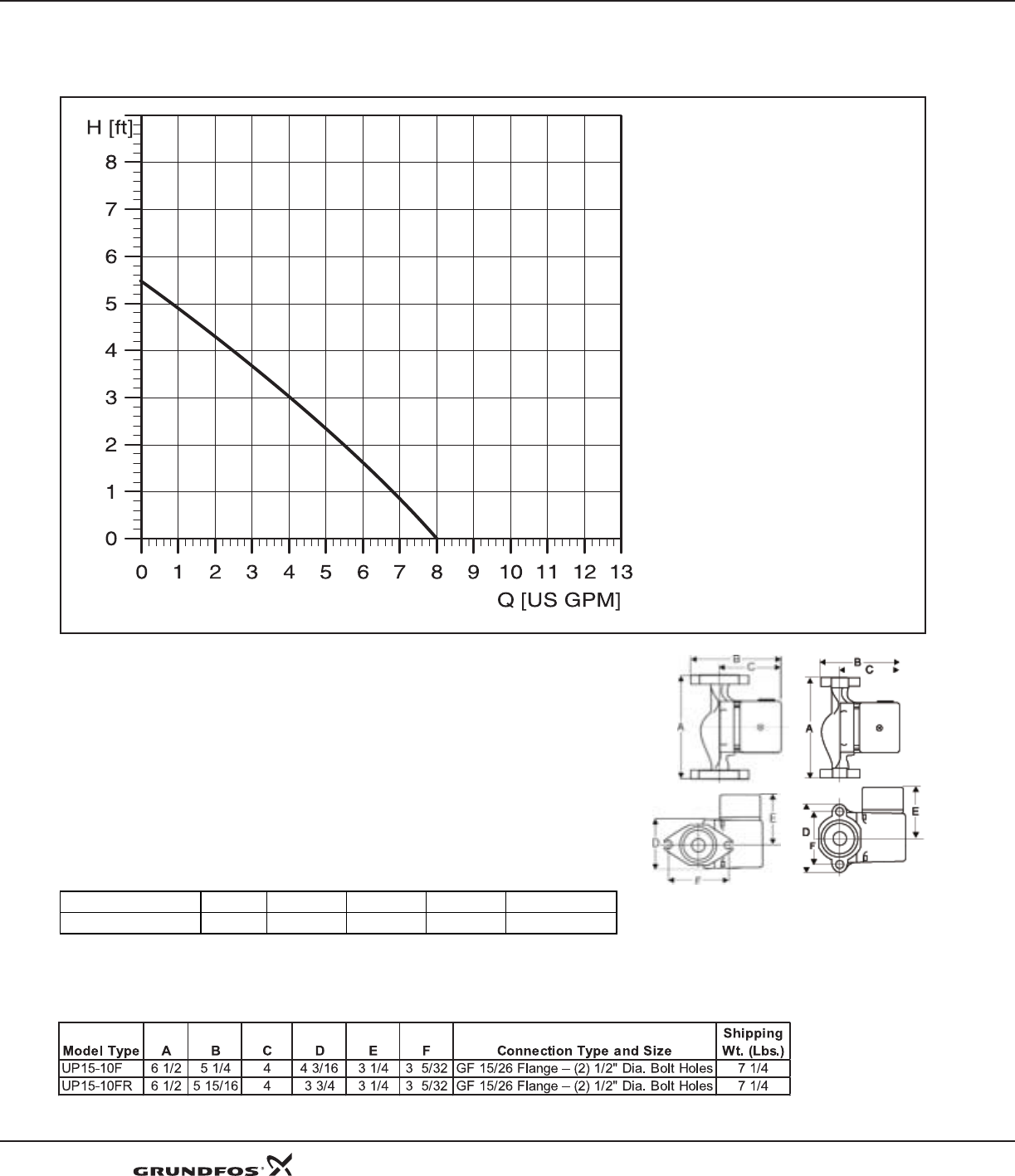

UP 15-10F 59896248 - 0-8 gpm 0-5.5 ft YES 20
UP 15-10FR 59896249 - 0-8 gpm 0-5.5 ft YES 20
UP 15-42FC/MR* 59896277 - 0-9 gpm 0-14 ft YES YES 28
UP 15-42F 59896155 59896173 0-17 gpm 0-15 ft YES 29
UP 15-42FR 59896167 59896274 0-17 gpm 0-15 ft YES 29
UP 15-42F/VS* 59896280 - 0-9 gpm 0-14 ft YES 30
UPS 15-42F 59896178 59896180 0-17.5 gpm 0-17 ft YES 32
UPS 15-42FR 59896250 - 0-17.5 gpm 0-17 ft YES 32
UPS 15-58FC SUPERBRUTE 59896341 - 0-17.5 gpm 0-19 ft YES YES 34
UPS 15-58FRC SUPERBRUTE 59896343 - 0-17.5 gpm 0-19 ft YES YES 34
UP 15-100F 59896300 - 0-8.5 gpm 0-33.5 ft YES 35
UP 26-64F 52722330 52722327 0-34 gpm 0-24 ft YES 37
UP 26-64F/VS* 52722405 - 0-31 gpm 0-24 ft YES 38
UP 26-96F 52722341 52722338 0-27.5 gpm 0-30 ft YES 40
UP 26-96F/VS* 52722399 - 0-27.5 gpm 0-30 ft YES 41
UPS 26-99 F SUPERBRUTE 52722512 52722513 0-30 gpm 0-32 ft YES YES 44
UP 26-116F - 52722377 0-38.5 gpm 0-37.5 ft YES 44
UP 26-120U 52722435 52722436 0-19 gpm 0-38 ft YES 45
UP 43-44F 52722437 52722438 0-64 gpm 0-13.5 ft YES 46
UPS 43-44 F SUPERBRUTE 52722514 52722515 0-64 gpm 0-14 ft YES YES 49
UP 43-64FC 52722430 - 0-34 gpm 0-23 ft YES YES 51
UP 43-64FC/MR* 52722398 - 0-34 gpm 0-23 ft YES YES 52
UP 43-70F 96439644 - 15-85 gpm 1-24.5 ft YES 53
UP 43-75F 52722373 52722372 0-45 gpm 0-26 ft YES 55
UP 43-110F 96439643 - 15-90 gpm 1-37 ft YES 56
UP 50-44F 52722441 52722442 0-64 gpm 0-13.5 ft YES 57
UP 50-75F 52722352 52722353 0-45 gpm 0-27 ft YES 58
Material #
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 12
13
GENERAL DATA GRUNDFOS SERIES UP
Applications
The Grundfos circulator pumps, Series UP, are
specifically designed for heating systems. The
pumps are also suitable for circulation of hot
domestic water and for circulation of liquid in
cooling and air-conditioning systems.
Heating systems
Common Uses:
Boiler/ Hydronic Heating
Ground Source Heat Pumps
Radiant Floor Heating
Hydronic & Fan Coil Heating
Solar Heating
Heat Recovery / Heat Pumps
Pump types with cast iron housing are generally
used for these applications, considered to be
closed systems pumping water or water/glycol
mixtures. However, when water conditions exist that
are not compatible with cast iron, bronze, brass, or
stainless steel is recommended.
Optional variable speed and mixing reset controls
are available to customize heat output vs heat
demand for increased comfort.
Domestic Hot Water Systems
Common Uses:
Solar Water Heating
Hot Water Recirculation
Domestic Hot Water Heating
Pump types with bronze, brass or SS housing are
used for these applications, considered to be open
systems pumping potable water.
Optional timer and thermostat controls are
available to limit pump operation to periods when
hot water is required and to save energy.
Cooling Systems
Common Uses:
Chilled Water Pumping
Pump types UP25, 26, 43, 50 and pump housings
compatible with the pumped fluids are
recommended for chilled water due to their motor
construction, which is suitable for 32°F (0°C) water.
Construction
The UP pumps are of the canned rotor type, i.e. pump
and motor form an integral unit without shaft seal and
with only two gaskets for sealing. The bearings are
lubricated by the pumped liquid.
The pumps are characterized by:
• Ceramic shaft and radial bearings.
• Carbon thrust bearing.
• Stainless steel rotor can and bearing plate.
• Impeller in corrosion-resistant material.
• Pump housing in cast iron, bronze or stainless steel.
Materials of Construction
Description
(UP Closed Systems)
Material
Inlet Cone, Bearing Plate, Bearing
Retainers, Rotor Can, Rotor Cladding,
Shaft Retainer
304 Stainless Steel
Stator Housing Aluminum
Shaft, Upper and Lower Radial Bearings Aluminum Oxide Ceramic
Thrust Bearing Metal Impregnated Carbon
Check Valve
ACETAL with 302 Stainless Steel Spring
and Nitrile Rubber Seats
Pump Housing (Volute) Cast Iron
O’Ring & Gaskets EP (Ethylene Propylene Rubber)
Impeller
PES Composite (30% Glass Filled), PP
(Polypropylene) 30% Glass filled on
models UP15-100F & UP26-120U only
Terminal Box Noryl®
Description
(UP Open Systems)
Material
Inlet Cone, Bearing Plate, Bearing
Retainers, Rotor Can, Rotor Cladding,
Shaft Retainer
304 Stainless Steel
Volute Retainer (SU & SF Models) &
Stator Housing
Aluminum
Shaft, Upper and Lower Radial Bearings Aluminum Oxide Ceramic
Thrust Bearing Metal Impregnated Carbon
Pump Housing (Volute) Silicon Bronze C875 or Stainless Steel
O’Ring & Gaskets EP (Ethylene Propylene Rubber)
Impeller PES Composite (30% Glass Filled)
Terminal Box Noryl®
Description
(BUC5 & BUC7)
Material
Inlet Cone, Bearing Plate, Bearing
Retainers, Rotor Can, Rotor Cladding,
Shaft Retainer, Check Valve Spring
Stainless Steel
Stator Housing Aluminum
Shaft, Upper and Lower Radial Bearings Aluminum Oxide Ceramic
Thrust Bearing Lead Free Bronze (Alloy C875)
Pump Housing (Volute) Silicon Bronze
Tail Piece and Union Nut Brass (UNS C36000)
O’Ring & Gaskets EP (Ethylene Propylene Rubber)
Impeller PES Composite (30% Glass Filled)
Terminal Box Noryl®
Check Valve Housing, Valve & Torpedo POM (polyoxymethylene)
Union Gasket Non Asbestos Fiber
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 13
GENERAL DATA GRUNDFOS SERIES UP
14
Installation
The pump must always be installed with horizontal
motor shaft.
Proper installation of the pump will have the
terminal box located to one side of the pump or the
other, with the conduit entry down.
UP can be installed in both vertical and horizontal
lines.
UP pumps are intended for indoor use only.
Motor
UP pumps
The motor is a 2 pole asynchronous squirrel-cage
PSC (permanent split capacitor) motor with UL,
CUL, and CSA approvals.
UP pumps are available in Single-phase 115V &
230V versions with one, or three speeds.
The terminal box is easily accessible and has
functional cable connecting leads or terminals.
Insulation class: F.
The motor incorporates thermal overload or
impedance protection. Therefore, no external motor
protection is required.
UPS model pumps are multi speed and the speed
can be changed by a speed selector switch located
on the front of the terminal box.
UP models are single speed.
UP models with VS or MR suffixes are variable
speed with integrated control.
Motor Horsepowers range from 1/25 thru 1/6 and
power consumption from 25 to 385 watts.
Pumped liquids
Depending on type, Grundfos circulator pumps are
designed for the following liquids:
• Potable Water
• Non-Potable Water
• Water/Glycol Mixtures.
• Chilled water.
• Domestic Hot Water
• Softened Water
If the circulator pump is used for a glycol mixture
with a higher viscosity than water, the hydraulic
performance of the pump will be reduced.
Example: 50% glycol at 68°F (20°C) means a
viscosity of approx. 10 cSt and a reduction of pump
performance by approx. 15%.
When selecting a pump, the viscosity of the
pumped liquid must be taken into consideration.
Ambient and liquid temperatures
The maximum allowable water temperature is
determined by the ambient or surrounding air
temperature as shown in Table 2A.
The above table refers to all standard product without
timer/control options and or other special features.
The ambient temperature for standard pumps with a
permissible liquid temperature from +2°C to +110°C
should always be lower than the liquid temperature,
as otherwise condensation may form in the stator
housing.
Temperature requirements for pumps with
timer/control and or other special features may be
found on their technical data page.
For all Domestic Hot water systems it is
recommended to keep the operating temp. as low as
possible (e.g. 140°F (60°C)) to avoid calcium
precipitation.
Maximum system pressure
ALL UP PUMPS: 145 PSI (10bar)
Inlet pressure requirements
The amount of pressure required at the inlet of a
pump is a function of the temperature of the water
as shown in Table 2B:
Ambient (°F) 104 120 140 160 175
Water all cast iron* (°F) 230 220 210 190 175
Water all brz and ss 230 210 190 175
*exceptions below
UP/UPS15-FC
& UP43-FC (°F) 230 190 180 170 -
UP15BUC5&BUC7 (°F) 230 190 180 170 -
UP15-100F (°F) 205 195 185 175 -
UP26-120U (°F) 205 195 185 175 -
UP26-116 (°F) 150 140 - - -
Table 2A - Maximum Water Temperature
Fluid Temp 230° (110°C) 190° (88°C) 140° (60°C)
Feet of Water 36 ft. (1.10m) 9 ft (2.8m) 3 ft (0.9m)
Inlet Pressure 15.6 psi 4.0 psi 1.3 psi
Table 2B - Minimum Required Inlet Pressure
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 14
GENERAL DATA GRUNDFOS SERIES UP
15
Performance
Flow Range 0-64 U.S. GPM,
Head Range 0-38 Feet
In a pressure system, the required inlet pressure is
the allowable system pressure.
In a system open to the atmosphere, the required
inlet pressure is the minimum distance the pump
must be located below the lowest possible water
level of the water source (tank, pool, etc.).
Miximizer - Mixing Reset pump
The Grundfos MixiMizer, a fully integrated injection
pump and indoor/outdoor controller, is the only
pump and controller system of its kind.
Equipped with a weather responsive control, also
known as indoor/outdoor control or reset control,
the MixiMizer automatically calculates and controls
mixed water temperatures according to outdoor
temperatures in primary/secondary piping systems.
The control also provides pump exercising for 10
seconds every 3 days and a 20 second post purge
when the heat demand is removed.
For maximum design flexibility, the MixiMizer can
be integrated into a thermostat or zoning control
system through the user selectable ‘external call for
heat/demand input’.
A fully serviceable check valve integrated into the
pump housing eliminates ghost flows in
primary/secondary injection systems and zone
applications.
LEDs located on the terminal box are designed to
indicate performance and diagnose faults without
tools.
Other standard user selectable features include
boiler protection, system/slab ‘over temperature’
control and a 5 degree F parallel shift of the heating
curve
Variable Speed pump
The Grundfos Variable Speed pump is another
product with fully integrated control. The variable
speed controller requires a control signal from a 0-
10/2-10 DC voltage sources or 0-20/4-20 mA
current sources and is user selectable.
If desired the manual-% dial allows the speed of the
pump to be manually adjusted and set by the user.
The speed of the pump may be manually adjusted
anywhere from min to 100%, but once set remains
fixed at that speed.
In addition pump speed may be set as 0-100% or
15-100% by user.
The control also provides pump exercising for 10
seconds every 3 days and a power up reset, which
runs the pump for 3 seconds at full speed, for all
modes of operation.
Terminal box mounted LEDs provide operation
(power is applied) and performance (flashes slower
or faster) indication.
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 15
GENERAL DATA GRUNDFOS SERIES UP
16

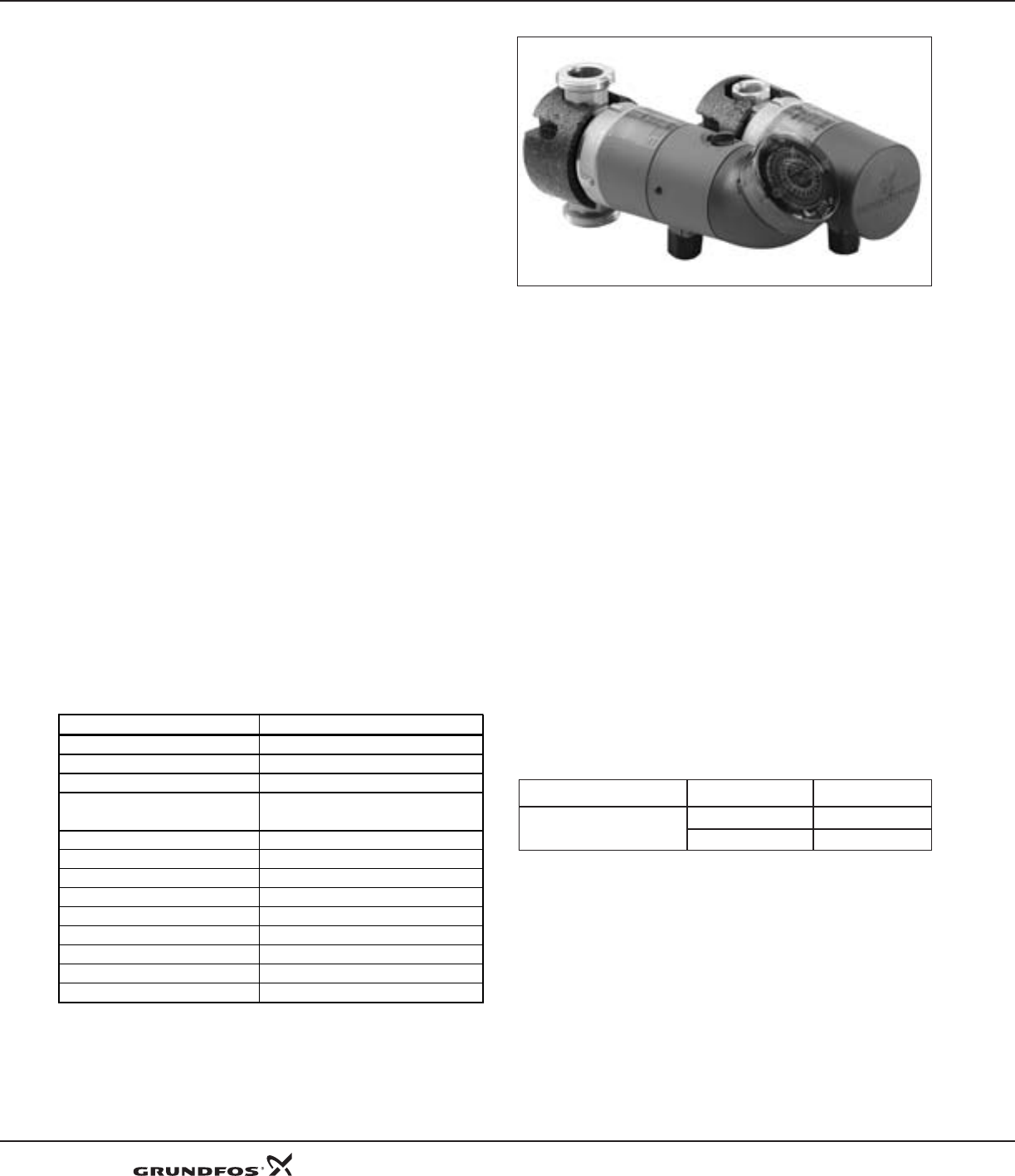

UP10-16
The water-conduction part of the pump is
hermetically separated from the stator with a
stainless steel spherical separator. The motor can
be separated from the pump housing, enabling
easy maintenance and replacement.
UP10-16 is supplied with insulating shells.
Applications
• Domestic hot water recirculation systems in
single and two-family houses
• Small heating systems
Pumped liquids
• Domestic hot water
• Non-potable water
• Softened water
Motor
• Insulation class: F
• Power consumption: 25W
• Voltage: 115V
• Phase: 1
Description Material
Stator Housing Aluminum
Spherical Seperator Stainless Steel
Rotor Can Complete Stainless Steel/Tungsten Carbide
Rotor, Impeller
Stainless Steel, EPDM, PPO, PFTE,
Graphite
Pump Housing Brass MS 58
Isolation Valve PPO
Screw Stainless Steel
Terminal Box Cover, Motor Cover PA66/6
Light Lexan
Cable, Cable Relief PVC
Insulating Cover EPP 55
Orings EPDM
Check Valve POM
Ambient and liquid temperatures
Liquid temperature: 36°F +(2°C) to 203°F +(95°C)
It is recommended to keep the operating
temperature as low as possible (e.g. 140F°(60°C))
to avoid calcium precipitation.
The ambient temperature should always be lower
than the liquid temperature, as otherwise
condensation may form in the stator housing.
Maximum system pressure
All Models: 145 PSI.
Inlet pressure
To avoid cavitation noise and damage to the pump
bearing, at high temperatures the following
minimum pressures are required at the pump
suction port.
Liquid temperature 203F° (95°C) 185°F (85°C)
Inlet pressure 9 ft. (2.8m) 1.6 ft. (0.5m)
4.0 psi 0.7 psi
Performance
Flow Range: 0-3 U.S. GPM
Head Range: 0-5.4 Feet
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 16
TECHNICAL DATA GRUNDFOS SERIES UP
17
UP 10-16B5/BN5
a. UP 10-16B5/BN5
b. UP 10-16BU
Open Systems, 60 Hz
b
a
Flow range: 0 - 3 U.S. GPM
Head range: 0 - 5.5 FEET
Motors: Single Phase, 115V
Maximum fluid temperature: 203°F (95°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
Electrical Connection: The pump is fitted with 5 foot cord & 115V plug
Motor Protection: Impedance-protected. No external motor protection
required.
UP10-16BU
UP10-16B5/BN5
Q (US GPM)
H (ft)
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 17
TECHNICAL DATA GRUNDFOS SERIES UP
18
UP 15-10B5/B7
a. UP 15-10B5
b. UP 15-10B7
Open Systems, 60 Hz
Flow range: 0 - 9 U.S. GPM
Head range: 0 - 6 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 220°F (104°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-10B5 & B7 115 0.22 25 1/25 2mF/400V
b
a
UP Series Product Guide 5-06.qxd 5/11/2006 1:18 PM Page 18
TECHNICAL DATA GRUNDFOS SERIES UP
19
UP 15-10BUC5/7
a. UP 15-10BUC5
b. UP 15-10BUC7
Open Systems, 60 Hz
Flow range: 0 - 9 U.S. GPM
Head range: 0 - 6 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-10BUC5/BUC7 115 0.22 25 1/25 2mF/400V
b
a
Q (US GPM)
H (ft)
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 19
TECHNICAL DATA GRUNDFOS SERIES UP
20
UP 15-10F/FR
UP 15-10F/FR
Closed Systems, 60 Hz
Flow range: 0 - 8 U.S. GPM
Head range: 0 - 5.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 200°F (93°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-10F/FR 115 0.23 25 1/25 2mF/400V
UP 15-10FR UP 15-10F
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 20
TECHNICAL DATA GRUNDFOS SERIES UP
21
COMFORT SYSTEM
UP 15-10SU7P/TLC
COMFORT SYSTEM
Open Systems, 60 Hz
Flow range: 0 - 3.4 U.S. GPM
Head range: 0 - 3.5 FEET
Motors: Single Phase
Maximum fluid temperature: 150°F (66°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-10SU7P/TLC 115 0.23 25 1/25 2mF/400V
4 5/16”
1/2”
1/2”
1/2”
1 3/8”
Comfort Valve
Q (US GPM)
H (ft)
Comfort Series Model CS-1
Kit Includes:
1 pump & 1 valve - part # 595916
ANSI/NSF61 and IAPMO listed
Comfort Valve
part # 595926
Box of 15
Valve Connection 1/2” M NPS (1/2” Faucet)
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 21
TECHNICAL DATA GRUNDFOS SERIES UP
22
UP 15-18B5/B7
a. UP 15-18B5
b. UP 15-18B7
Open Systems, 60 Hz
Flow range: 0 - 15 U.S. GPM
Head range: 0 - 14 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 0.74 85 1/25 10mF/180V
230 0.4 90 1/25 2mF/400V
115 0.74 85 1/25 10mF/180V
230 0.4 96 1/25 2mF/400V
UP15-18B5
UP15-18B7
b
a
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 22
TECHNICAL DATA GRUNDFOS SERIES UP
23
UP 15-18BUC5/BUC7
a. UP 15-18BUC5
b. UP 15-18BUC7
Open Systems, 60 Hz
Flow range: 0 - 12 U.S. GPM
Head range: 0 - 14.6 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-18BUC5 115 0.55 60 1/25 8µF/180V
UP15-18BUC7 115 0.55 60 1/25 8µF/180V
ab
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 23
TECHNICAL DATA GRUNDFOS SERIES UP
24
UP 15-18SU/SF
UP 15-18SU/SF
Open Systems, 60 Hz
Flow range: 0 - 12 U.S. GPM
Head range: 0 - 7.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 0.74 85 1/25 10mF/180V
230 0.4 90 1/25 2mF/400V
UP15-18SU, SF
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 24
TECHNICAL DATA GRUNDFOS SERIES UP
25
UP 15-42B5/B7
a. UP 15-42B5
b. UP 15-42B7
Open Systems, 60 Hz
Flow range: 0 - 17 U.S. GPM
Head range: 0 - 15.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 0.74 85 1/25 10mF/180V
230 0.41 95 1/25 2mF/400V
115 0.74 85 1/25 10mF/180V
230 0.41 95 1/25 2mF/400V
UP15-42B7
UP15-42B5
b
a
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 25
TECHNICAL DATA GRUNDFOS SERIES UP
26
UP 15-42BUC5/BUC7
a. UP 15-42BUC5
b. UP 15-42BUC7
Open Systems, 60 Hz
Flow range: 0 - 16.5 U.S. GPM
Head range: 0 - 15 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 205°F (96°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-42BUC5 115 0.74 85 1/25 10mF/180V
UP15-42BUC7 115 0.74 85 1/25 10mF/180V
b
a
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 26
TECHNICAL DATA GRUNDFOS SERIES UP
27
UP 15-42BUCX/MR
a. UP 15-42BUC5/MR
b. UP 15-42BUC7/MR
Open Systems, 60 Hz
Flow range: 0 - 16.5 U.S. GPM
Head range: 0 - 15 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 205°F (96°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-42BUC5/MR 115 0.74 85 1/25 10mF/180V
UP15-42BUC7/MR 115 0.74 85 1/25 10mF/180V
b
a
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 27
TECHNICAL DATA GRUNDFOS SERIES UP
28
UP 15-42FC/MR
UP 15-42FC/MR
Closed Systems, 60 Hz
Flow range: 0 - 9 U.S. GPM
Head range: 0 - 14 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 205°F (96°C)
Maximum working pressure: 145 PSI
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 28
TECHNICAL DATA GRUNDFOS SERIES UP
29
UP 15-42F/FR
UP 15-42F/FR
Closed Systems, 60 Hz
UP 15-42FR UP 15-42F
Flow range: 0 - 17 U.S. GPM
Head range: 0 - 15 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 0.74 85 1/25 10mF/180V
230 0.43 95 1/25 2mF/400V
UP15-42F/FR
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 29
TECHNICAL DATA GRUNDFOS SERIES UP
30
UP 15-42F/VS
UP 15-42F/VS
Closed Systems, 60 Hz
Flow range: 0 - 9 U.S. GPM
Head range: 0 - 14 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 205°F (96°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-42F/VS 115 0.74 85 1/25 10mF/180V
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 30
TECHNICAL DATA GRUNDFOS SERIES UP
31
UP 15-42SU/SF
UP 15-42SU & SF
Open Systems, 60 Hz
UP 15-42SU UP 15-42SF
Flow range: 0 - 15.5 U.S. GPM
Head range: 0 - 12 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 0.74 85 1/25 10mF/180V
230 0.41 95 1/25 2mF/400V
UP15-42SU, SF
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 31
TECHNICAL DATA GRUNDFOS SERIES UP
32
UPS 15-42F/FR
UPS 15-42F/FR
3 speeds
Closed Systems, 60 Hz
UP 15-42FRUP 15-42F
Flow range: 0 - 17.5 U.S. GPM
Head range: 0 - 17 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL Spd. VOLTS AMPS WATTS HP
CAPACITOR
3 0.74 85 1/25 10mF/180V
2 0.57 65 --- ---
1 0.4 45 --- ---
3 0.41 92 1/25 2mF/400V
2 0.19 40 --- ---
1 0.14 30 --- ---
115
230
UPS15-42F/FR
UPS15-42F/FR
1
2
3
Q (US GPM)
H (ft)
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 32
TECHNICAL DATA GRUNDFOS SERIES UP
33
UPS 15-42SU,SF
UPS 15-42SU, SF
3 speeds
Open Systems, 60 Hz
UPS 15-42SU UPS 15-42SF
Flow range: 0 - 17.5 U.S. GPM
Head range: 0 - 16.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL Spd. VOLTS AMPS WATTS HP
CAPACITOR
30.7485
20.5765
10.445
1/25
10mF/180V
115
UPS15-42SU, SF
3
2
1
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 33
TECHNICAL DATA GRUNDFOS SERIES UP
34
UPS 15-58FC/FRC SUPERBRUTE
Flow range: 0 - 17.5 U.S. GPM
Head range: 0 - 19 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
0
2
4
6
8
10
12
14
16
18
20
024681012141618
Flow (GPM)
Head (ft.)
HI
MED
LOW
Without Check Valve
With Check Valve
UPS15-58FC/FRC AMPS WATTS HP CAPACITOR
Spd. 3 0.75 87 1/25 10mF/180V
Spd. 2 0.66 80 1/25 10mF/180V
Spd. 1 0.55 60 1/25 10mF/180V
115V
A
DF
E
B
C
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 34
TECHNICAL DATA GRUNDFOS SERIES UP
35
UP 15-100F
UP 15-100F
Closed Systems, 60 Hz
Flow range: 0 - 8.5 U.S. GPM
Head range: 0 - 33.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 205°F (96°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP15-100F 115 1.1 135 1/25 12mF/180V
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 35
TECHNICAL DATA GRUNDFOS SERIES UP
36
UP 25-64SU/SF
UP 25-64SU/SF
Open Systems, 60 Hz
UPS 25-64SU UPS 25-64SF
Flow range: 0 - 20.5 U.S. GPM
Head range: 0 - 19 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 1.7 180 1/12 8mF/180V
230 0.8 175 1/12 2.5mF/380V
UP25-64SU & SF
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 36
37
TECHNICAL DATA GRUNDFOS SERIES UP
UP 26-64F
UP 26-64F
Closed Systems, 60 Hz
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 24 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 1.7 185 1/12 8mF/180V
230 0.8 175 1/12 2.5mF/380V
UP26-64F
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 37
38
TECHNICAL DATA GRUNDFOS SERIES UP
UP 26-64F/VS
UP 26-64F/VS
Closed Systems, 60 Hz
Flow range: 0 - 32 U.S. GPM
Head range: 0 - 24 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 195°F (91°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP26-64F/VS 115 1.7 185 1/12 8mF/180V
UP Series Product Guide 5-06.qxd 5/11/2006 1:19 PM Page 38
39
TECHNICAL DATA GRUNDFOS SERIES UP
UP 26-96BF
UP 26-96BF
Open Systems, 60 Hz
Flow range: 0 - 27.5 U.S. GPM
Head range: 0 - 30 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 1.7 205 1/12 10mF/180V
230 0.8 205 1/12 2.5mF/380V
UP26-96BF
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 39
40
TECHNICAL DATA GRUNDFOS SERIES UP
UP 26-96F
UP 26-96F
Closed Systems, 60 Hz
Flow range: 0 - 27.5 U.S. GPM
Head range: 0 - 30 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 1.7 205 1/12 10mF/180V
230 0.8 205 1/12 2.5mF/380V
UP26-96F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 40
41
TECHNICAL DATA GRUNDFOS SERIES UP
UP 26-96F/VS
UP 26-96F/VS
Closed Systems, 60 Hz
Flow range: 0 - 27.5 U.S. GPM
Head range: 0 - 30 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 195°F (91°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 1.7 205 1/12 10mF/180V
230 0.8 205 1/12 2.5mF/380V
UP26-96F/VS
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 41
42
TECHNICAL DATA GRUNDFOS SERIES UP
UP 26-99BF
UP 26-99BF
Open Systems, 60 Hz
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 32 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 245 1/6 10mF/180V
230 1.07 245 1/6 2.5mF/380V
UP26-99BF
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 42
GENERAL DATA GRUNDFOS SERIES UP
43
UP 26-99F
UP 26-99F
Closed Systems, 60 Hz
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 32 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 245 1/6 10mF/180V
230 1.07 245 1/6 2.5mF/380V
UP26-99F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 43
GENERAL DATA GRUNDFOS SERIES UP
44
UPS 26-99FC/BFC SUPERBRUTE
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 30 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
0
5
10
15
20
25
30
0 5 10 15 20 25 30 35
Flow (GPM)
Head (ft.)
HI
MED
LOW
Without Check Valve
With Check Valve
MODEL VOLTS AMPS WATTS HP CAPACITOR
Spd. 3 1.8 197 1/6 20mF/180V
Spd. 2 1.5 179 1/6 20mF/180V
Spd. 1 1.3 150 1/6 20mF/180V
Spd. 3 0.9 196 1/6 5mF/400V
Spd. 2 0.8 179 1/6 5mF/400V
Spd. 1 0.7 150 1/6 5mF/400V
115V
230V
Model Type A B C D E F
Connection Type and Size
Approximate
Shipping Wt.
(lbs)
UPS26-99FC/BFC 6 1/2 6 4 7/8 3 1/2 3 7/16 3 5/32 GF 15/26 Flange - (2) 1/2" Dia. Bolt Holes 10.3
A
B
C
DF
E
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 44
GENERAL DATA GRUNDFOS SERIES UP
45
UP 26-116F & BF
UP 26-116F & BF
Open Systems, 60 Hz
Flow range: 0 - 38.5 U.S. GPM
Head range: 0 - 37.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 150°F (65°C)
Min. fluid temperature: 32°F (0°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP26-116F & BF 230 1.8 385 1/6 2.5mF/380V
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 45
GENERAL DATA GRUNDFOS SERIES UP
46
UP 26-120U
UP 26-120U
Closed Systems, 60 Hz
Flow range: 0 - 19 U.S. GPM
Head range: 0 - 38 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 203°F (95°C)
Min. fluid temperature for UP : 32°F (0°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF/180V
230 1.07 220 1/6 2.5mF/380V
UP26-120U
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 46
GENERAL DATA GRUNDFOS SERIES UP
47
UP 43-44BF
UP 43-44BF
Open Systems, 60 Hz
Flow range: 0 - 64 U.S. GPM
Head range: 0 - 13.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 32°F (0°C)
Maximum working pressure: 145 PSI
0
2
4
6
8
10
12
14
16
0 10203040506070
CAPACITY (U.S. GPM)
HEAD (FT.)
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF/180V
230 1.07 220 1/6 2.5mF/380V
UP43-44BF
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 47
UP 43-44F
UP 43-44F
Closed Systems, 60 Hz
Flow range: 0 - 64 U.S. GPM
Head range: 0 - 13.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 32°F (0°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF/180V
230 1.07 220 1/6 2.5mF/380V
UP43-44F
GENERAL DATA GRUNDFOS SERIES UP
48
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 48
GENERAL DATA GRUNDFOS SERIES UP
49
UPS 43-44FC/BFC SUPERBRUTE
Flow range: 0 - 64 U.S. GPM
Head range: 0 - 14 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 32°F (0°C)
Maximum working pressure: 145 PSI
0
2
4
6
8
10
12
14
16
0 102030405060
Flow (GPM)
Head (ft.)
HI
MED
LOW
Without Check Valve
With Check Valve
A
B
C
DF
E
UPS43-44BFC/BFC AMPS WATTS HP CAPACITOR
Spd. 3 1.8 203 1/6 20mF/180V
Spd. 2 1.7 189 1/6 20mF/180V
Spd. 1 1.4 157 1/6 20mF/180V
Spd. 3 0.9 203 1/6 5mF/400V
Spd. 2 0.8 190 1/6 5mF/400V
Spd. 1 0.7 157 1/6 5mF/400V
115V
230V
Model Type A B C D E F Connection Type and Size
Approximate
Shipping Wt.
(lbs)
UPS43-44FC/BFC 8 1/2 6 11/16 5 1/8 4 3/4 3 3/16 3 7/16 GF 40/43 Flange - (2) 1/2" Dia. Bolt Holes 13.6
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 49
GENERAL DATA GRUNDFOS SERIES UP
50
UP 43-64BFC/MR
UP 43-64BFC/MR
Open Systems, 60 Hz
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 23 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 195°F (91°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP43-64BFC/MR 115 1.7 180 3 7/16 8mF/180V
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 50
GENERAL DATA GRUNDFOS SERIES UP
51
UP 43-64FC
UP 43-64FC
Closed Systems, 60 Hz
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 23 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP43-64FC 115 1.7 180 1/12 8mF/180V
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 51
GENERAL DATA GRUNDFOS SERIES UP
52
UP 43-64FC/MR
UP 43-64FC/MR
Closed Systems, 60 Hz
Flow range: 0 - 34 U.S. GPM
Head range: 0 - 23 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 195°F (91°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
UP43-64FC/MR 115 1.7 180 1/12 8mF/180V
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 52
GENERAL DATA GRUNDFOS SERIES UP
53
UP 43-70F
UP 43-70F
Closed Systems, 60 Hz
Flow range: 85 U.S. GPM
Head range: 24.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature 230°F (110°C)
Min. fluid temperature: 14°F (-10°C)
Maximum working pressure: 145 PSI
Flanges: GF 40/43 Flange 1 1/2”, 2 bolt with (2) 1/2” Diameter holes
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 3.4 400 1/2 30mF
230 1.8 400 1/2 30mF
UP43-70F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 53
GENERAL DATA GRUNDFOS SERIES UP
54
UP 43-75BF
UP 43-75BF
Open Systems, 60 Hz
Flow range: 0 - 45 U.S. GPM
Head range: 0 - 26 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF/180V
230 1.07 220 1/6 2.5mF/380V
UP43-75BF
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 54
GENERAL DATA GRUNDFOS SERIES UP
55
UP 43-75F
UP 43-75F
Closed Systems, 60 Hz
Flow range: 0 - 45 U.S. GPM
Head range: 0 - 26 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 36°F (2°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF/180V
230 1.07 220 1/6 2.5mF/380V
UP43-75F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 55
GENERAL DATA GRUNDFOS SERIES UP
56
UP 43-110F
UP 43-110F
Closed Systems, 60 Hz
Flow range: 0-90 U.S. GPM
Head range: 1 - 37 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature 230°F (110°C)
Min. fluid temperature: 14°F (-10°C)
Maximum working pressure: 145 PSI
Flanges: GF 40/43 Flange 1 1/2”, 2 bolt with (2) 1/2” Diameter holes
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 5.1 590 3/4 60mF
230 2.7 590 3/4 60mF
UP43-110F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 56
GENERAL DATA GRUNDFOS SERIES UP
57
UP 50-44F
UP 50-44F
Closed Systems, 60 Hz
Flow range: 0 - 64 U.S. GPM
Head range: 0 - 13.5 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 32°F (0°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF
230 1.07 220 1/6 2.5mF/400V
UP50-44F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 57
GENERAL DATA GRUNDFOS SERIES UP
58
UP 50-75F
UP 50-75F
Closed Systems, 60 Hz
Flow range: 0 - 45 U.S. GPM
Head range: 0 - 27 FEET
Motors: 2 Pole, Single Phase
Maximum fluid temperature: 230°F (110°C)
Min. fluid temperature: 32°F (0°C)
Maximum working pressure: 145 PSI
MODEL VOLTS AMPS WATTS HP CAPACITOR
115 2.15 215 1/6 10mF/180V
230 1.07 220 1/6 2.5mF/380V
UP50-75F
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 58
GENERAL DATA GRUNDFOS SERIES UP
59
UP Timer
Specifications
Type: 24 hr. 3 position on/timer/off 15 minute interval
Size: 3.77 X 2.85 X 1.25”
Supply Voltage: 120 VAC
Power Consumption: 1VA
Switch Rating: SPDT
Resistive: 21A
Tungsten: 1350W
Inductive: 1HP @ 120VAC; 2HP @ 240VAC
Wiring Connections: 1/4” quick-connects
Installation: Indoor, wired and mounted on UP Circulator
Terminal Box
Part Number: 505474
Features
• Compact and contemporary design
• Captive trippers are easy to set, can’t be lost
• Quartz drive provides 7 day carry-over
• Synchronous drive for greatest accuracy, lowest cost
• UL recognized, CSA listed
AquaStat
Specifications
Description: Thermostatic Switch
Type: Bi-metallic Disc, Snap acting
Enclosure: Environmentally Sealed
Mounting:
Clip on mount for 1/2” I.D. copper tube (5/8” O.D.)
Clip on mount for 3/4” I.D. copper tube (7/8” O.D.)
Contact Rating:
10 amp @ 120 VAC 60 Hz resistive
5 amp @ 240 VAC 60 Hz resistive
Temperature Rating:
Low Temp Model
105+5°F (40+2°C) Pump switches off
85+6°F (29+3°C) Pump switches on
High Temp Model
115+5°F (46+2°C) Pump switches off
105+5°F (40+2°C) Pump switches on
Leads:
2 leads, AWG 18, 14”
12”, black insulation, silicon or epoxy overmold
1/2” STRIP LENGTH
Application: Clip-on thermostatic control for the UP Circulators
*Temperatures indicated are at pipe surface.
1.31
DIA.
0.50
2.0
1.082 DIA.
±0.045
±0.250
14.0
±0.37
1.02
CONDUIT:
See drawing below
18-2 SJT PVC Jacketed Cable
(60° C) PVC Insulation
CORD LENGTH:
14.0”
NOTE: All dimensions are in inches.
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 59
ACCESSORIES GRUNDFOS SERIES UP
60
NPT SOLDER COMPRESSION
3/4" 519601
1" 519602
1-1/4" 519603
1-1/2" 519604
GF 40/43 Flange 1-1/2" 539605
GF 50 Flange 2" 96409354
GF 65 Flange 2-1/2" 559601
GF 80 Flange 3" 569601
GF 100 Flange 4" 579801
3/4" 519651
1" 519652
1-1/4" 96409356
GF 40/43 Flange 1-1/2" 539615
GF 50 Flange 2" 96409355
GF 80 Flange 3" 569611
GF 100 Flange 4" 96409357
3/4" 529912
1/2" 529913
3/4" 529911
3/4" 519755
1" 519756
1-1/4" 519757
1/2" 519850
3/4" 519852
3/4" 519851
GF 15/26 Flange
CAST IRON
GF 15/26 Flange
PUMP
ISOLATION VALVES
PIPE CONNECTION TYPE & SIZE (IN.)
PUMP CONNECTION
MATERIAL
NUMBER
GF 125 Union
BRONZE
PUMP CONNECTION ADAPTERS
FLANGE/UNION SETS
GF 15/26 Flange
GF 125 Union
BRONZE
Packaged Fitting Sets
UP Series Product Guide 5-06.qxd 5/11/2006 1:20 PM Page 60
61
ACCESSORIES GRUNDFOS SERIES UP
Flange Adapters
1/2” = Part # 519850
3/4” = Part # 519852
3/4” Compression = Part # 519852
3/4” = Part # 519755
1” = Part # 519756
1 1/4” = Part # 539757
1 1/2” NPT = Part # 539615
2” NPT = Part # 525268
3/4” NPT = Part # 519601
1” NPT = Part # 519602
1 1/4” NPT = Part # 519603
1 1/2” NPT = Part # 519604
Cast Iron
Flange & Union Adapters
Isolation Valves
Bronze
Bronze
GF 15/26 Flange x
GF 40/43 Flange x
GF 40/43 Flange x
GF 15/26 Flange x
GF 125 Union x
3/4” NPT = Part # 529912
1/2” Solder = Part # 529913
1 1/2” Solder = Part # 529911
GF 125 Union x
GF 125 Union x
GF 15/26 Flange x
1 1/2” NPT = Part # 539605
GF 50 Flange x
3/4” = Part # 519651
1” = Part # 519652
1 1/4” = Part # 96409356
UP Series Product Guide 5-06.qxd 5/11/2006 1:21 PM Page 61
GENERAL DATA GRUNDFOS SERIES UP
62
62
UP Series Product Guide 5-06.qxd 5/11/2006 1:21 PM Page 62
Being responsible is our foundation
Thinking ahead makes it possible
Innovation is the essence
Mexico
Bombas Grundfos de Mexico, S.A. de C.V.
Boulevard TLC#15
Parque Industrial Stiva Aeropuerto
C.P. 66600 Apodaca, N.L. Mexico
Phone: 011-52-81-8144-4000
Fax: 011-52-81-8144-4010
Canada
Grundfos Canada, Inc.
2941 Brighton Road
Oakville, Ontario, Canada
L6H 6C9
Phone: (905) 829-9533
Telefax: 905 829-9512
U.S.A.
Grundfos Pumps Corporation
17100 W. 118th Terrace
Olathe, KS 66061
Phone: (913) 227-3400
Telefax: (913) 227-3500
www.grundfos.com
L-UP-PG-001 5/06
PRINTED IN USA
UP Series Product Guide 5-06.qxd 5/11/2006 1:21 PM Page 63
