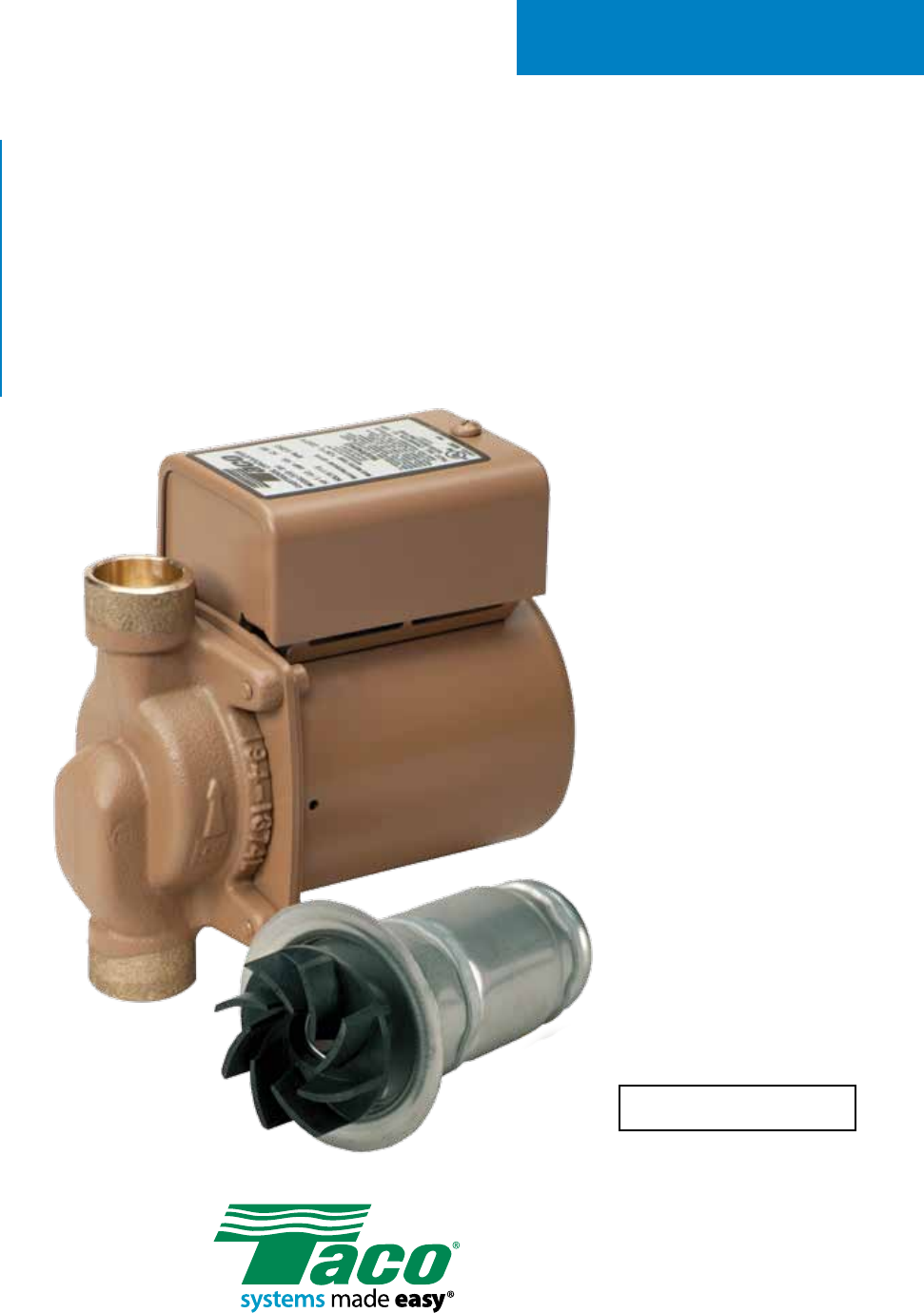

The compact Taco 006 Cartridge Circulator is designed for circulating hot and chilled fresh

water in a wide range of open and closed loop applications. Its unique, field-serviceable

cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With

no mechanical seal, the self-lubricating, maintenance free design provides quiet, efficient

operation and unmatched reliability. Available in Bronze or Stainless Steel construction

with sweat, threaded or union connections.

Model 006 Cartridge Circulator

©Taco Catalog # 100-1.7

Supersedes: 09/21/09

Effective Date: 06/01/11

Printed in USA

Water Circulation

Pumps & Circulators

NSF® ≤ .25% Lead

Meets California AB 1953

and Vermont Act 193

Application

The Taco 006 is designed for circulating hot or chilled fresh water in open or closed loop

applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-

air heating/cooling, heat recovery units, water source heat pumps, drain down open loop

Solar systems and potable water applications. The unique, replaceable cartridge contains

all of the moving parts and allows for easy service instead of replacing the entire circulator.

The compact, low power consumption design is ideal for high efficiency jobs.

Performance Field - 60Hz

Features

 •StandardHighCapacityOutput-

Compact Design

 •Quiet,EfficientOperation

 •DirectDrive-LowPowerConsumption

 •UniqueReplaceableCartridge

Design-Field Serviceable

 •SelfLubricating

 •NoMechanicalSeal

 •UnmatchedReliability-MaintenanceFree

 •BronzeorStainlessSteelConstructionwith

Sweat,ThreadedorUnionConnections

Materials of Construction

Casing (Volute): Bronze or Stainless Steel

 StatorHousing: Steel

Cartridge: Stainless Steel

 Impeller: Non-Metallic

Shaft: Ceramic

Bearings: Carbon

 O-Ring&Gaskets:EPDM-ChlorineResistant

Model Nomenclature

B - Bronze, 3/4" Sweat

 BC-Bronze,1/2"Sweat,PanelMountTappings

 ST -StainlessSteel,3/4"NPT

 SC -StainlessSteel,Union,PanelMountTappings

Variations:

Z - Zoning Circulator

VS-VariableSpeed,SetPoint

 VR -VariableSpeed,OutdoorReset

VV - Variable Speed, Variable Voltage

Performance Data

 FlowRange:0–10GPM

 HeadRange:0–9Feet

 MinimumFluidTemperature:40°F(4°C)

 MaximumFluidTemperature:220°F(104°C)

 MaximumWorkingPressure:125psi

Connection Sizes:

1/2"Swt,3/4"Swt,3/4"NPTorUnion

FOR INDOOR USE ONLY

F

  A B C D F G ShipWt.

Model Conn. in. mm in. mm in. mm in. mm in. mm in. mm lbs. Kg

006-B4 3/4"Swt 5-1/8 130 4-1/8 105 2-3/16 56 3-1/16 78 3-5/16844-13/32112 6.0 2.7

006-BC4 1/2"Swt 5-1/8 130 4-1/8 105 2-1/8 54 3-1/16 78 3-5/16 84 4-1/4 108 6.0 2.7

006-ST4 3/4"NPT5-5/8 143 4-7/8 124 2 51 3-1/16 78 3-5/16 84 4 102 6.0 2.7

006-SC4-1Union 5-5/32 131 4-11/32 110 2-31/32 76 3-1/16 78 3-5/16 84 5-15/16 151 6.0 2.7

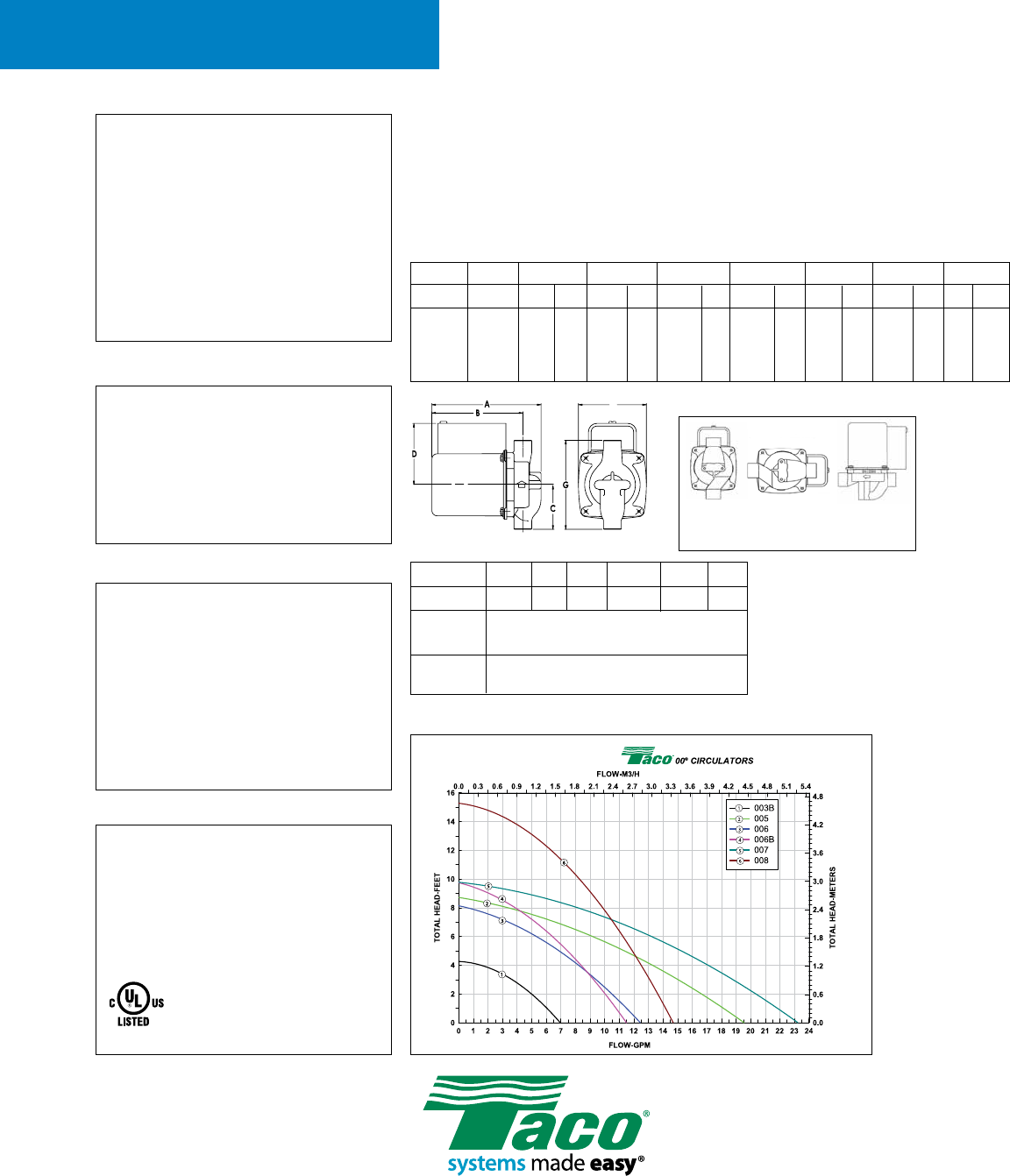

Pump Dimensions & Weights

Mounting Positions

Standard Optional OKifover

20 psi

ModelVoltsHzPhAmpsRPMHP

 006AllModels115601.5232501/40

MotorPermanentSplitCapacitor

TypeImpedanceProtected

Motor

Options220/50/1,220/60/1,230/60/1,100/110/50/60/1

Electrical Data

Submittal Data Information

Model 006 Cartridge Circulator

SubmittalData#101-028

Supersedes:09/21/09

Effective:06/01/11

Taco Inc., 1160 Cranston Street. Cranston, RI 02920 / (401) 942-8000 / Fax (401) 942-2360

Taco (Canada) Ltd., 8450 Lawson Road, Unit #3, Milton, Ontario L9T 0J8 / (905) 564-9422 / Fax (905) 564-9436

www.taco-hvac.com
